Mobile Appliance CONN Connectivity Module User Manual
Mobile Appliance, Inc. Connectivity Module Users Manual
User Manual
Copyright ⓒ 2018. Lab-T, Inc.
User Manual
Connectivity
Operation Manual
General information
An operation manual is supplied with this unit.
This includes key instructions on safety, use and disposal.
Real all operating and safety instructions before using the machine.
Use the unit only within the specified range of use as described.
When you deliver your device to a third party, please bring all documents together.
BMW recommends that you only use parts and accessories inspected and approved
by BMW for safety, functionality and durability.
Safety instructions
Do not operate while driving.
For your safety, observe all other safety instructions. Legal regulations must always be observed.
In principle, videos with Connectivity marks should not be made public on the Internet or other sources.
AS
If the Connectivity fails, contact an authorized BMW dealer.
Wash
Only clean the Connectivity with a damp cloth.
Be careful not to get any water on the connector.
Disposal of electrical equipment
If you can no longer use the appliance, do not dispose of it as household waste for environmental protection,
but dispose it at a professional waste disposal company.
In accordance with the European Regulations for the disposal of electrical and electronic equipment, 2012/19 /EC
and applicable national laws, old electrical equipment must be collected separately and disposed of in an
environmentally friendly manner for recycling.
For disposal of old equipment, please contact your local government office.

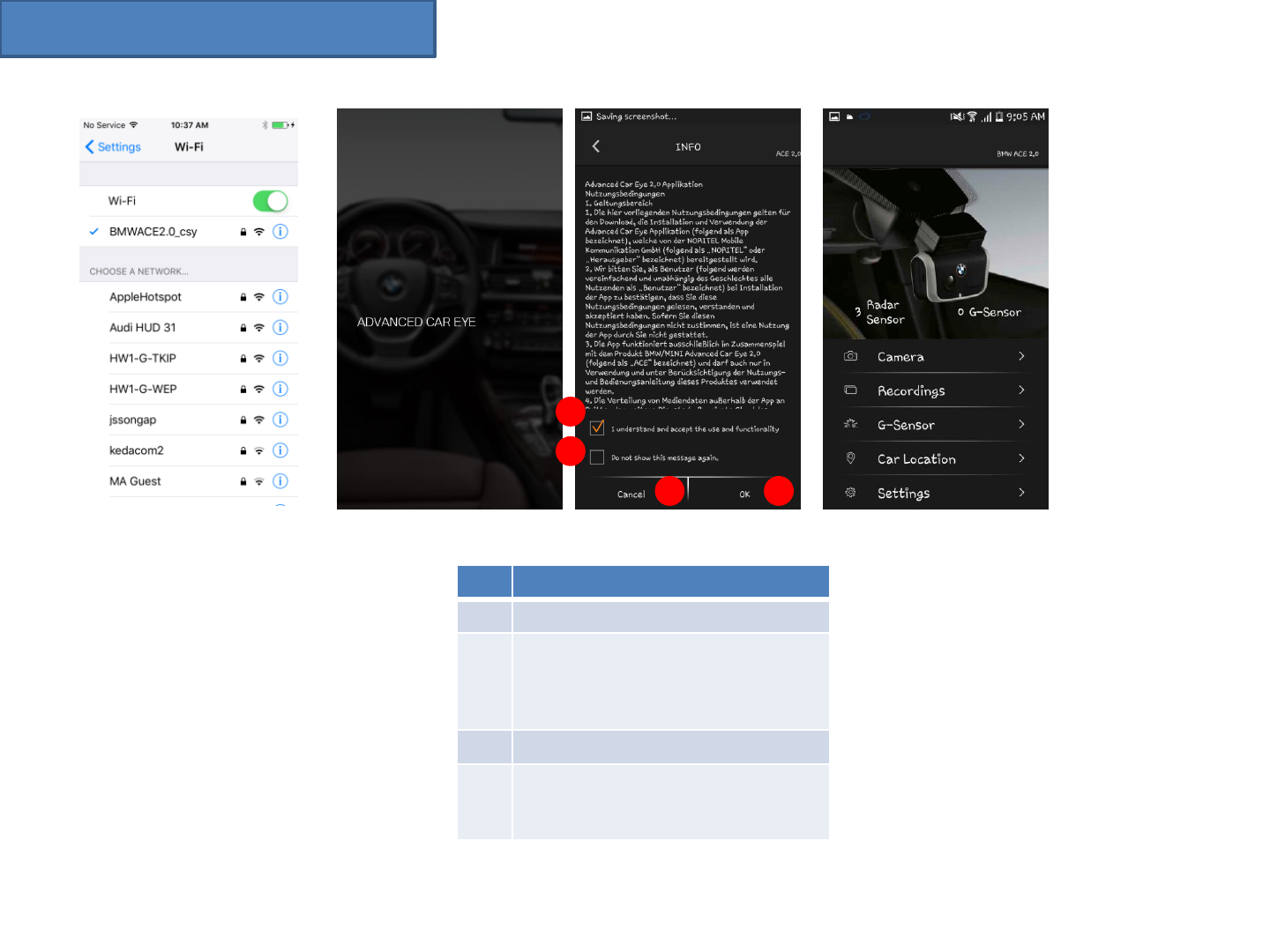

Intro & Main
3 4
No. Content
1 Check if user want to run App
2Check : don’t show this page at
next time
Don’t check : show this page at
next time too.
3 Stop phone App
4 If (1) is checked, try to connect to
ACE 2.0
If (1) isn’t checked, stop phone app
1
2

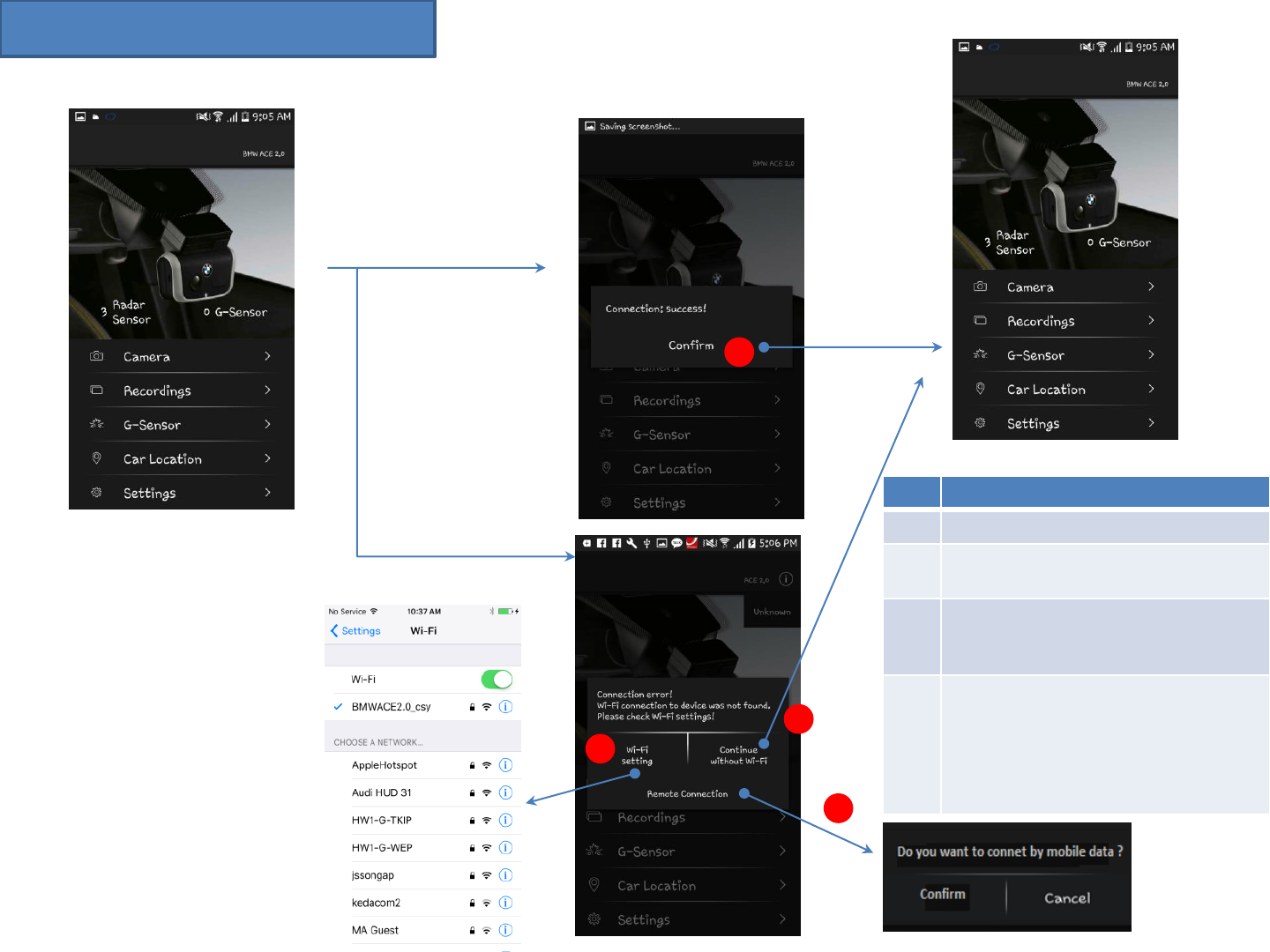

Intro & Main
- When the Wi-Fi(ACE)
connection succeeds,
- When the Wi-Fi(ACE)
connection fails,
1
2
3
4
No. Content
1 User can use ACE 2.0 via Wi-Fi
2 When the connection fails, user can
select ACE’s Wi-Fi SSID
3 User can see ‘Car Location’ and the
setting value. But user can’t user
other funtion.
4 Phone App tries to connect ACE
through mobile or
Router(supporting internet) at
remote site. To use this, Phone
should be registered to the server in
advance.
How to prepare connectivity function
Step
1. Turn “BLE” on at the “system settings”
2. Get VPN key
3. Modify account information such as phone number to make ACE send SMS for G-shock events
4. Register cloud information to upload G-shock event file at parking mode

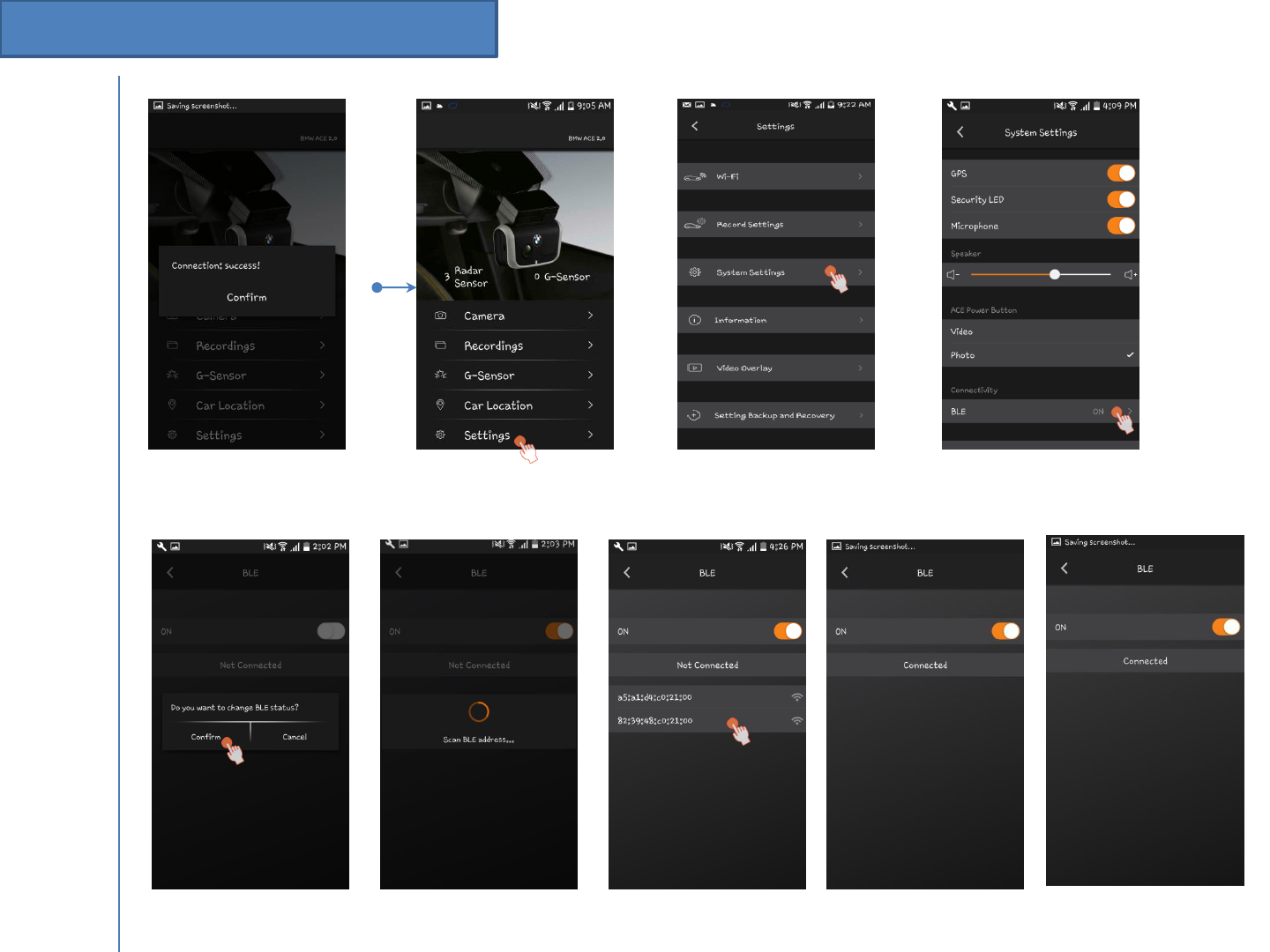

How to prepare connectivity function

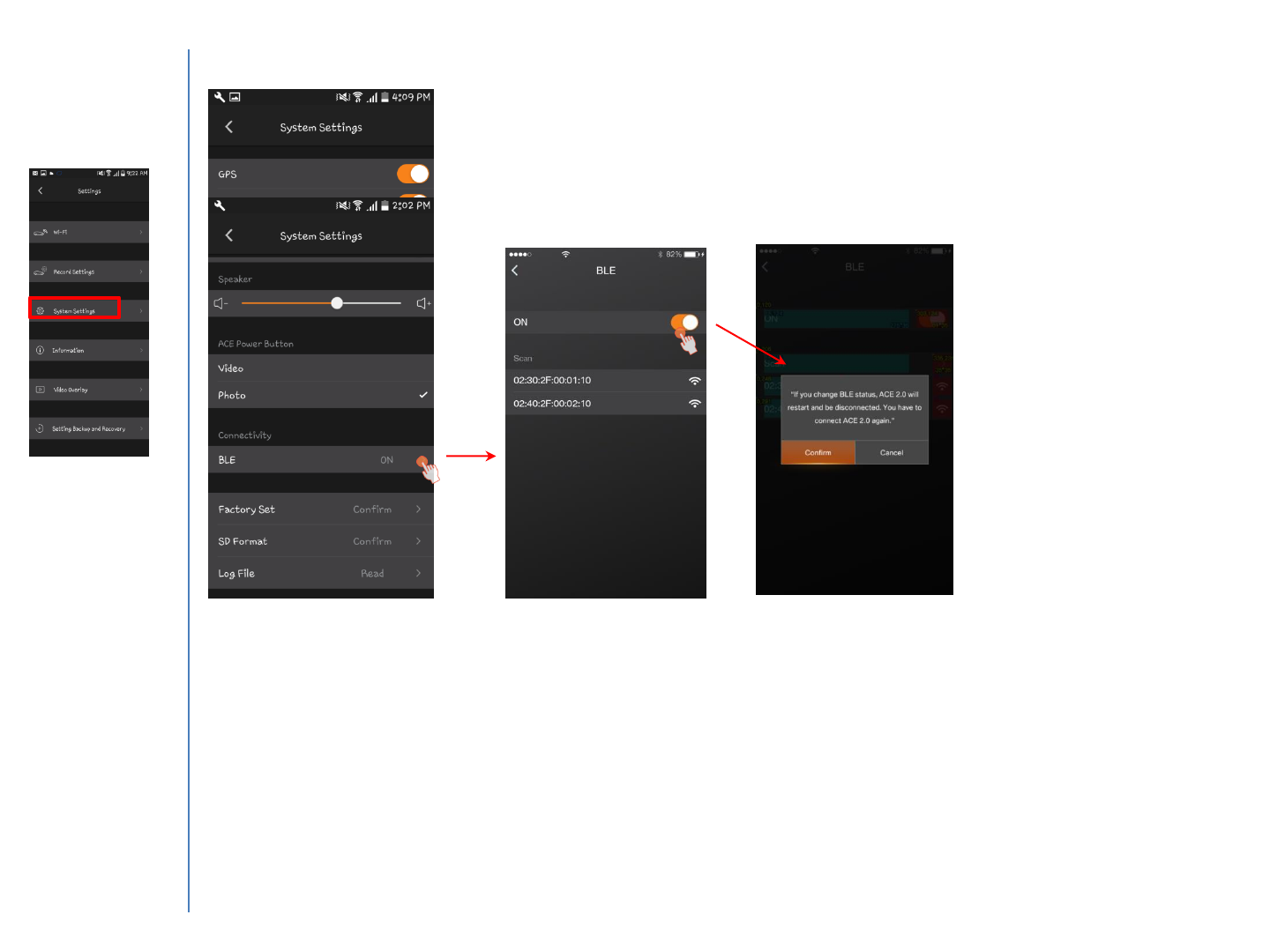

Step 1.
Turn “BLE”
on at the
“system
settings”
** This is
required
only one
time
4)Turn BLE ON
6) Select your BLE
address
5) Confirm 7) Success! Go to main
window
Statue : Phone is connected with ACE 2.0 Wi-Fi SSID
1)Connect to the ACE 2.0 2) Settings 3) System settings
8) Press back(“<“) button

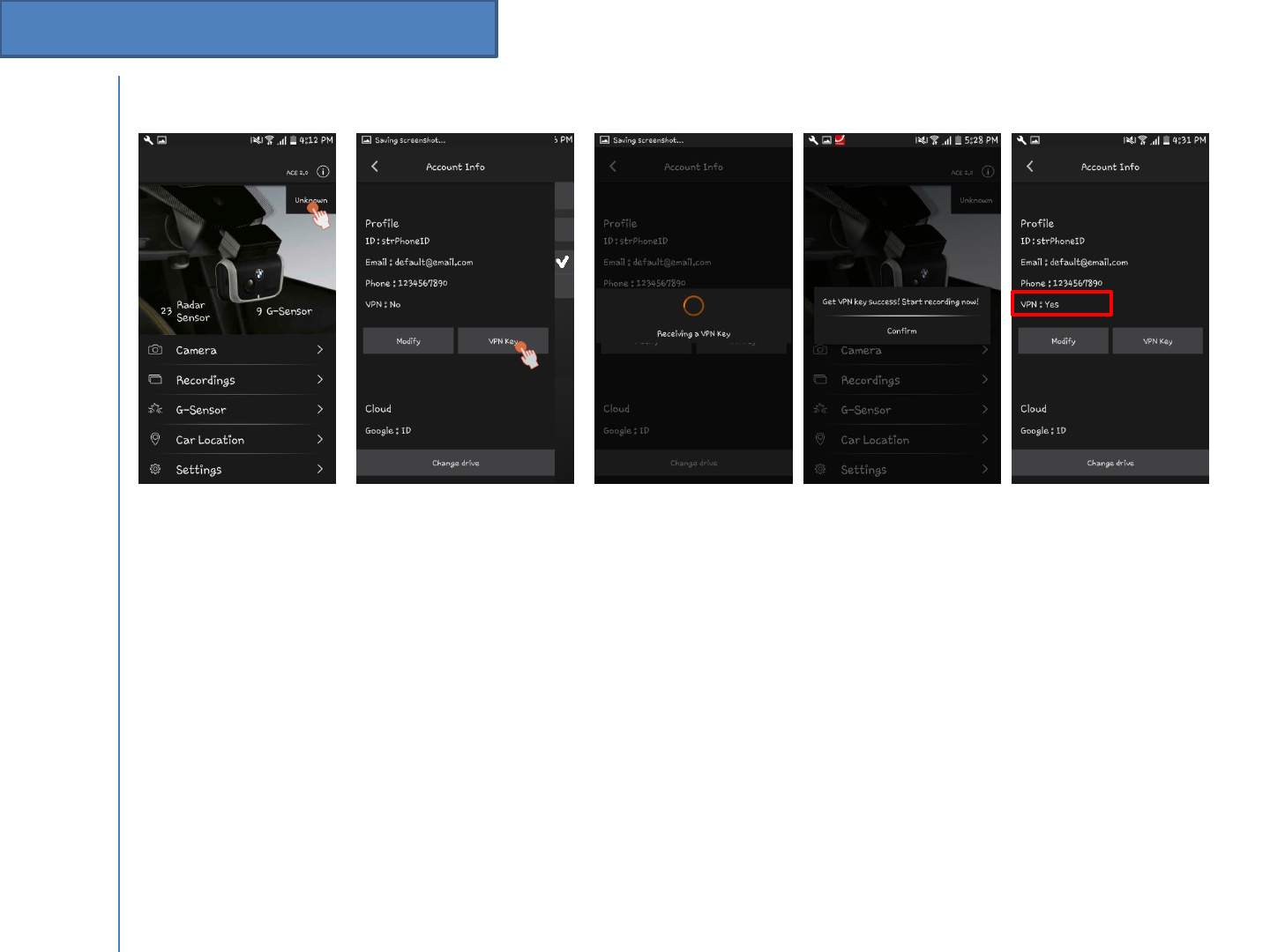

How to prepare connectivity function
Step 2.
Get VPN
key
** This is
required
only one
time
1) Press “Unkonw/USER”
button
2) Press “VPN key”
button
3) Confirm 4) Check “VPN : Yes” and
then go to Main Window by
pressing back”<“ button
Statue : Phone is connected with ACE 2.0 Wi-Fi SSID

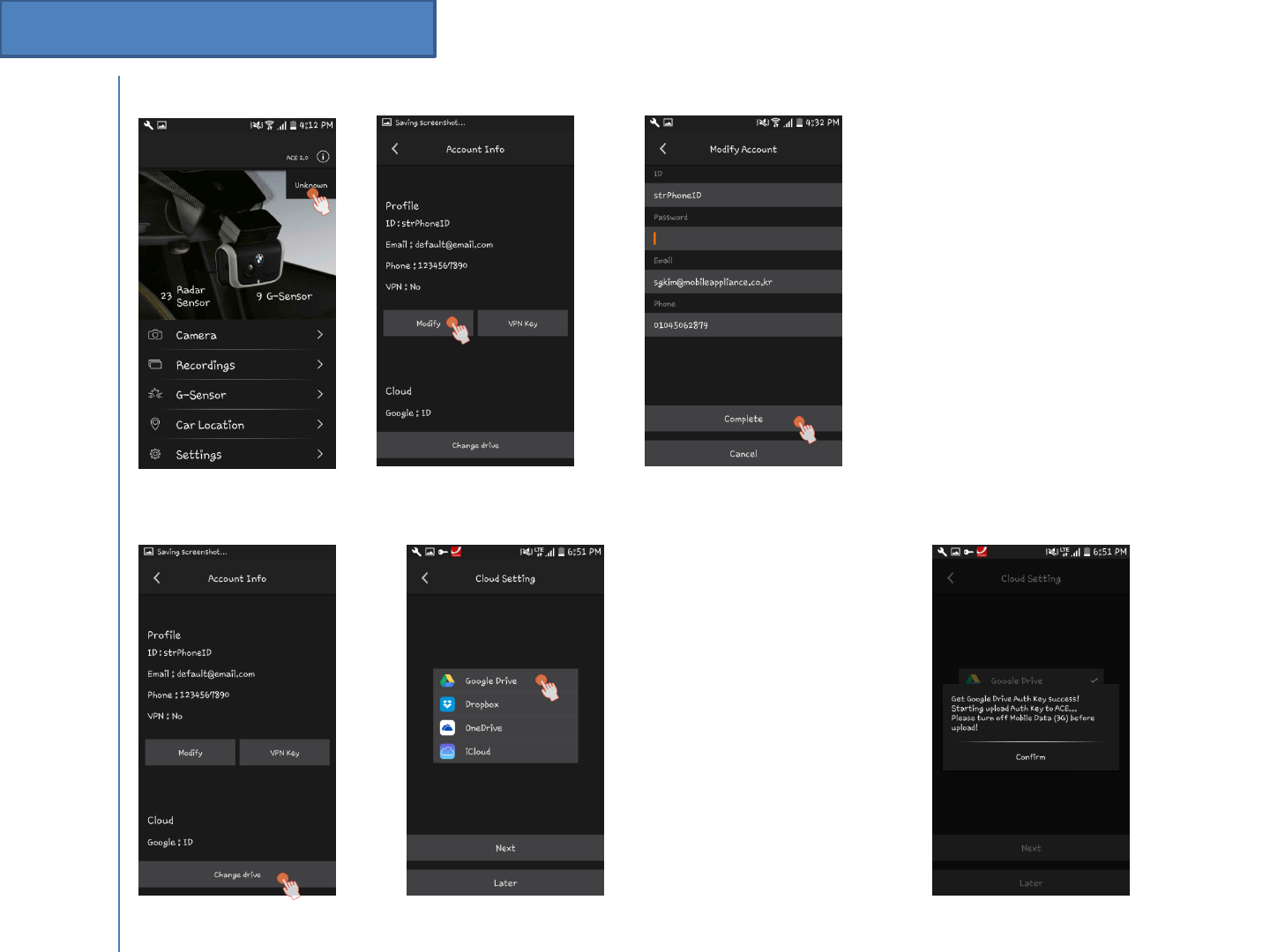

To use SMS and Cloud upload
Step 3. Modify account information( when Wi-Fi is connected )
1) Press ”Modify” button
2) Change information
- ID,password : this is required to change
account infromation.
- E-mail : this is required when you forget your
id, pw
- Phone : when high g-shock occurs, SMS will be
sent to this
And then press “Complete” button
Statue : Phone is connected with ACE 2.0 Wi-Fi SSID
Step 4.
1) Press ”Modify”
button
3) And then press “Complete” button
2) Register personal cloud on which
video data will be uploaded
3) Confirm and go to main window
Register cloud infromation
This requires internet
connection. So,
- disconnect to ACE2 on
Wifi
- register the new account
to get the authkey of it (if
it takes a little while App
can show popup for
loading)
-if it’s successful,
reconnect to ACE2 on Wifi

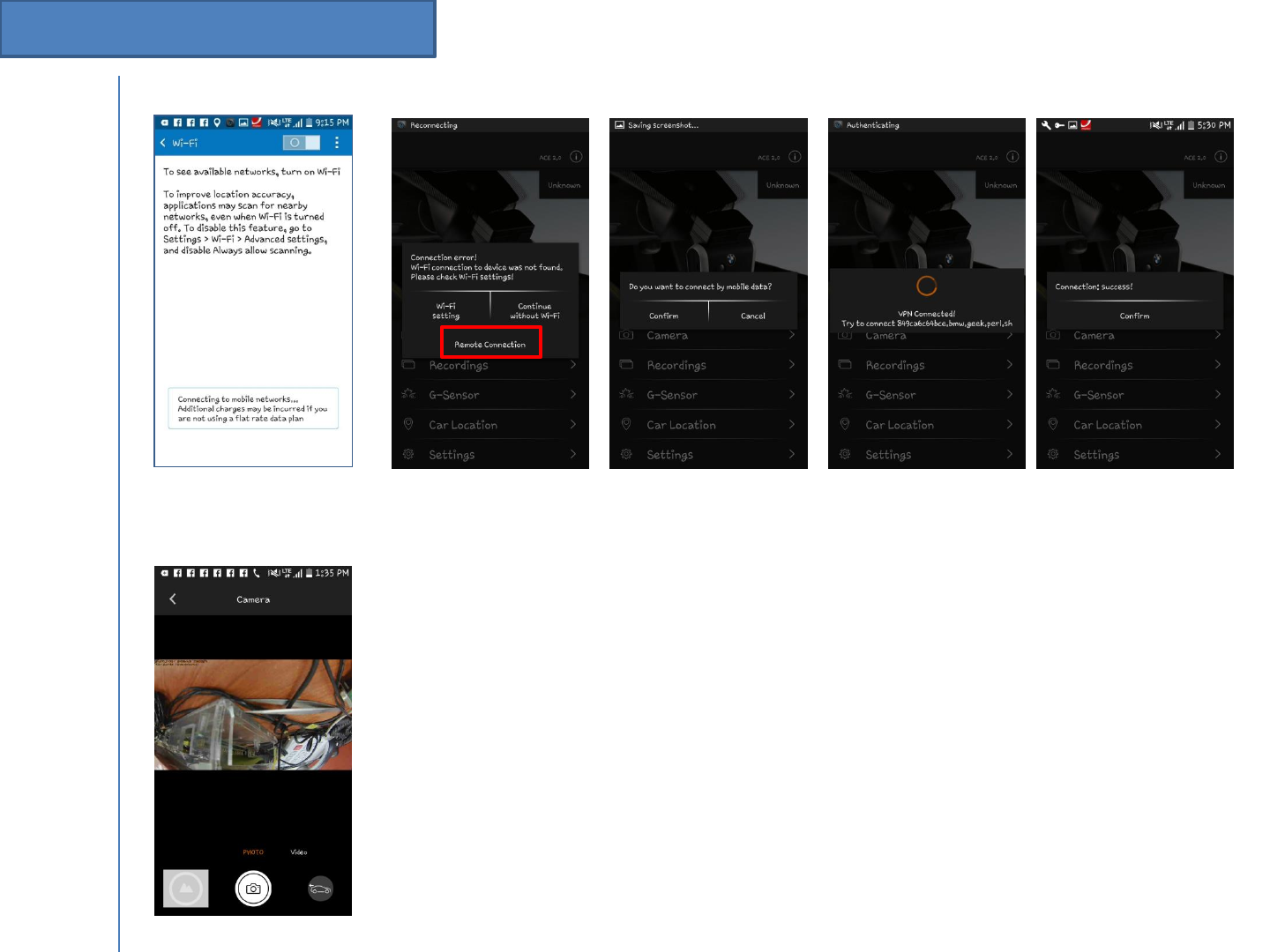

How to use connectivity function
Step 5. Remote connection to the ACE 2.0 ( when Wi-Fi is disconnected and 3G/LTE mode on the phone )
2) Select “Remote
Connection” button
It’ll try to connect ACE
2.0 via internet.
4) Remote connection :
success
3) Confirm. User can
see when App have
to use mobile data
5) User can use all the functions
Status : Phone is LTE/3G mode
1) Disconnect Wi-Fi or
select SSID which
support internet.
Step 6. use
all the
function
such as
“Camera”.
Common GUI for
Wi-Fi / 3G mobile connection

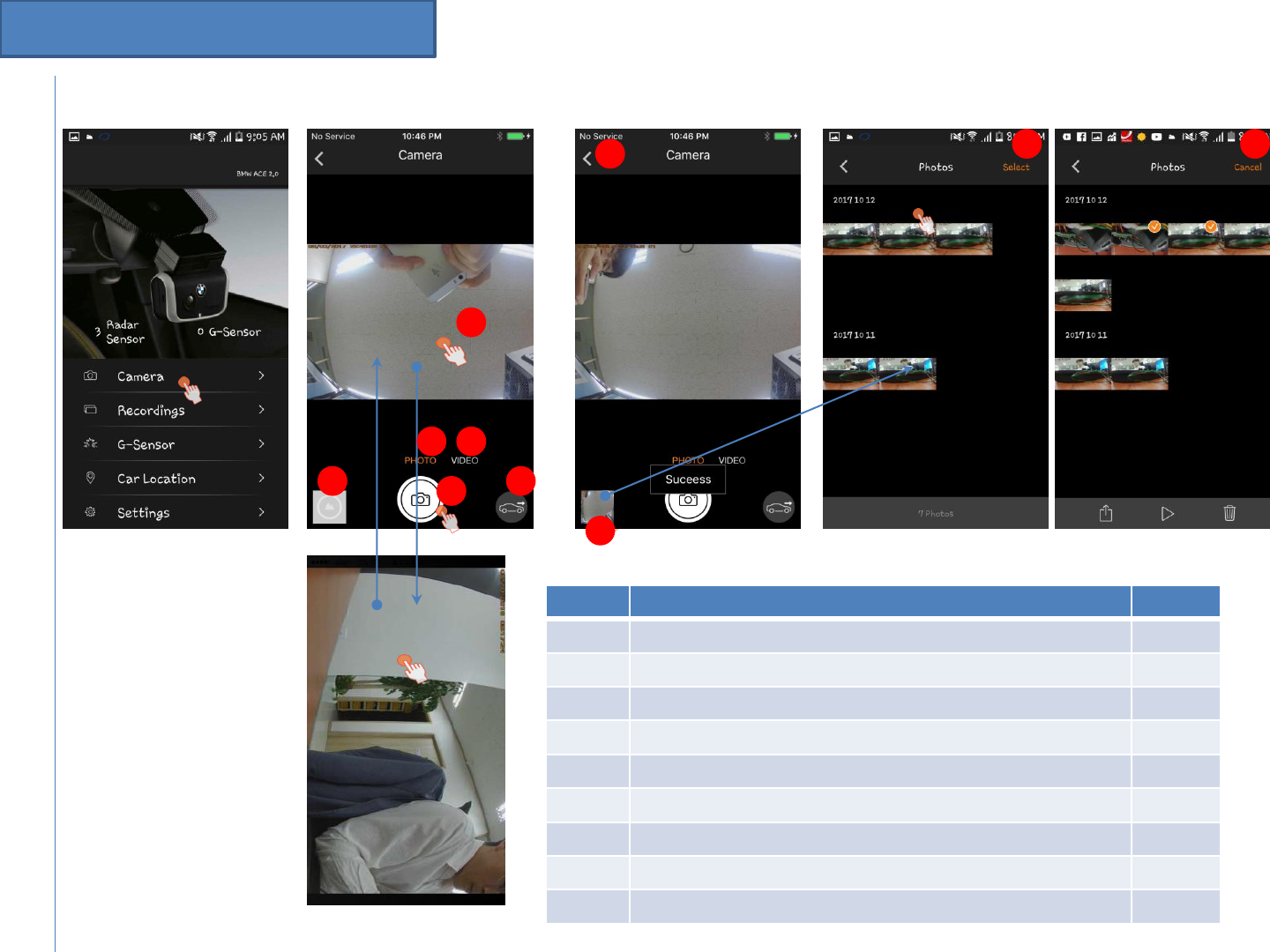

Camera / Photo - 1
Double click
Double click
No. Content Note
1 Change to the Photo mode
2 Change to the Video mode
3 List image/Video list
4 Capture image
5 Toggle between front and rear camera image
6 Double click : toggle between full and small screen mode
7 Go to previous screen
8 List thumbnail of photo files
9 Select / Cancel -- play one or multiple files
1 2
345
6
7
8
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
9 9

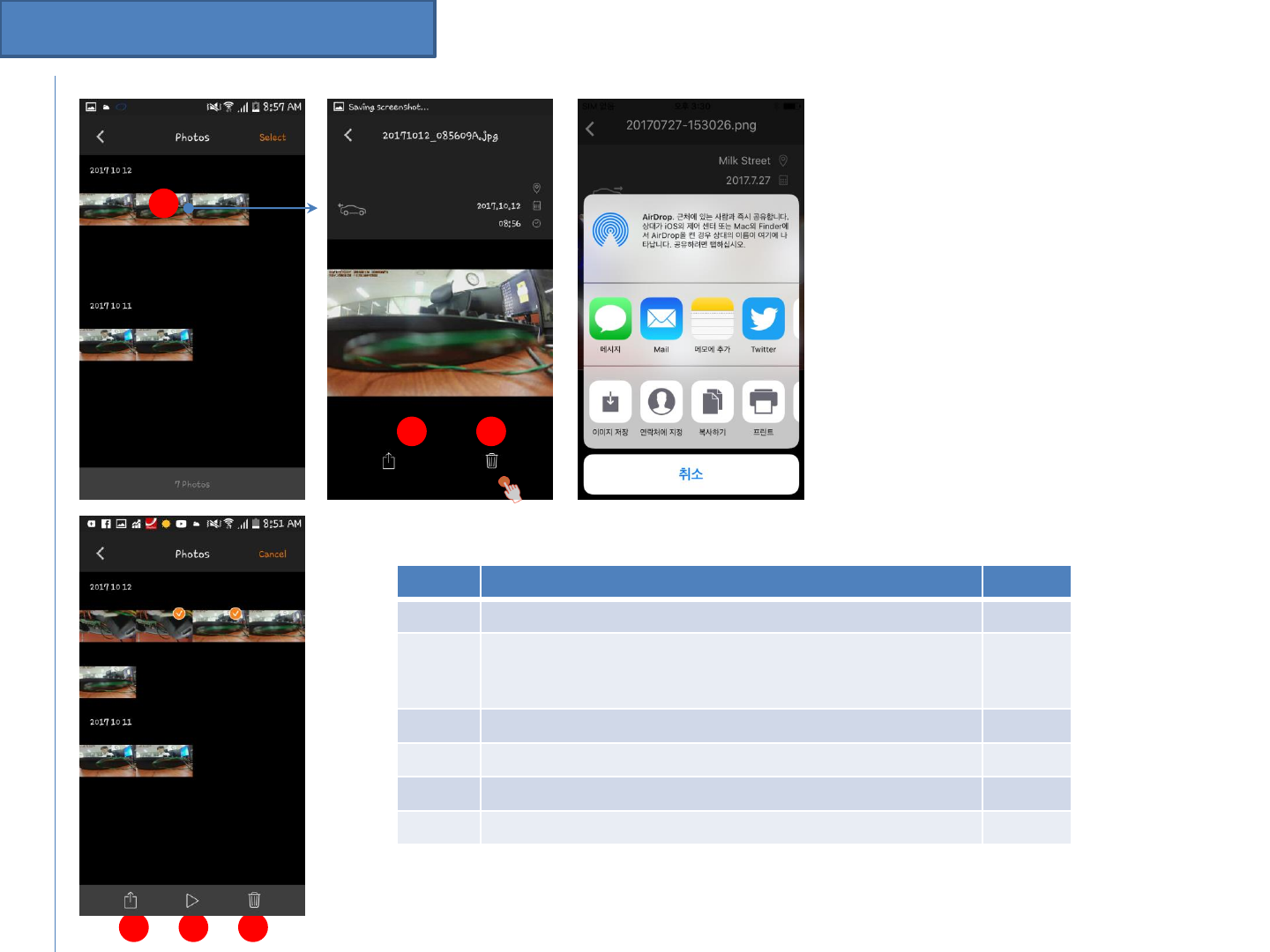

Camera / Photo -2
2 3
No. Content Note
1 Show the selected image, address
2 Upload to the cloud/e-mail/SNS
Case 1) Wi-Fi : from phone to SNS
Case 2) Mobile : from Linux board to SNS
3 Remove the selected file
4 Upload to the cloud
5 Play or slide show
6 Remove files on phone
1
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
4 5 6

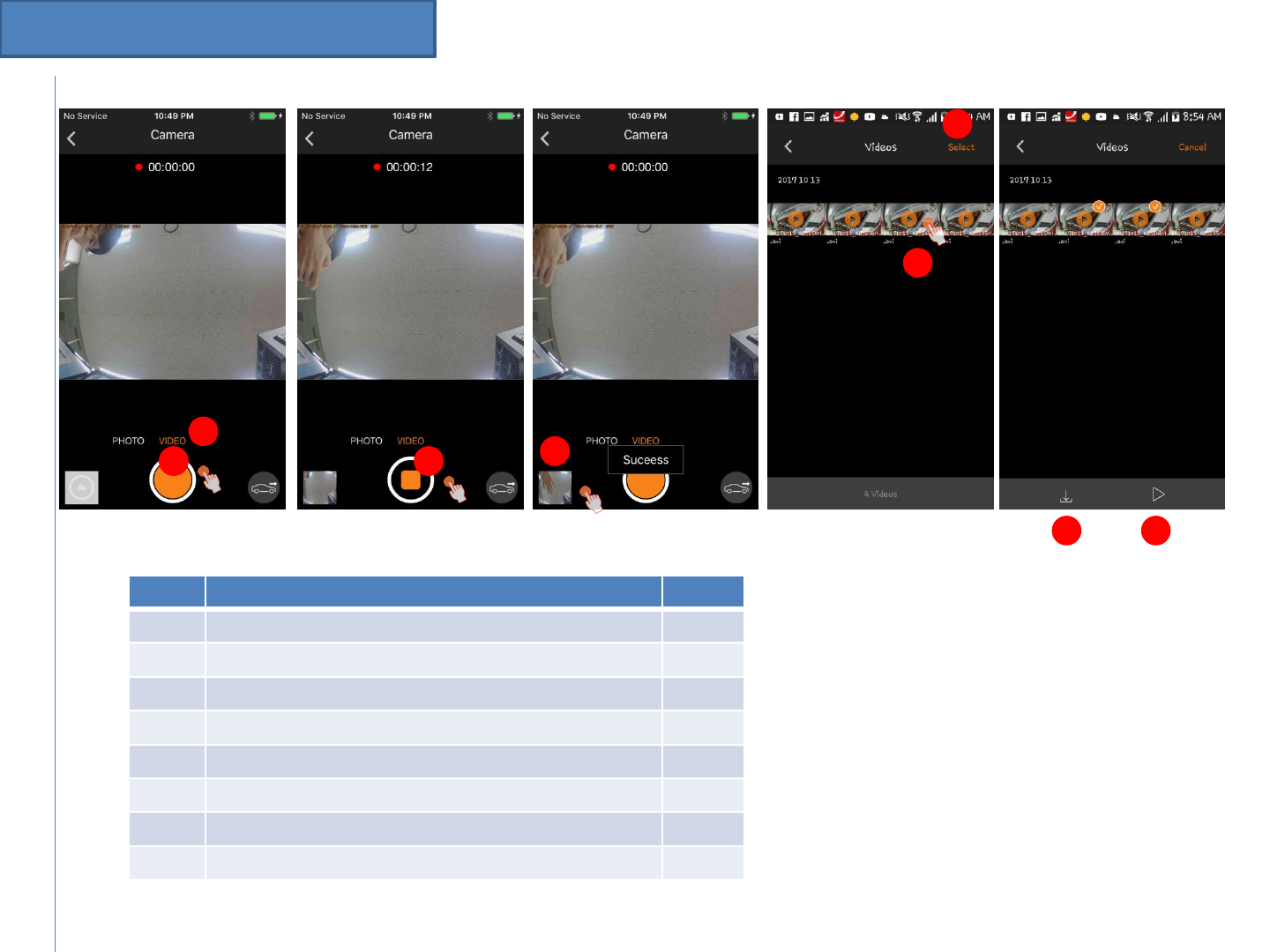

Camera / Video
2 3
No. Content Note
1 Change to video mode
2 Start to record
3 Stop record
4 Show video file list
5 Play the selected video file
6 Play one or multiple files
7 Download to the phone
8 Play
5
14
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
7 8
6
Camera / Video
No. Content Not
e
1 Toggle between front and rear camera
2 Previous file
3 Play/Plause
4 Next file
5 Download from ACE 2.0 to Phone
6 Make popup disappear
2 3
1
4 5
6
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet

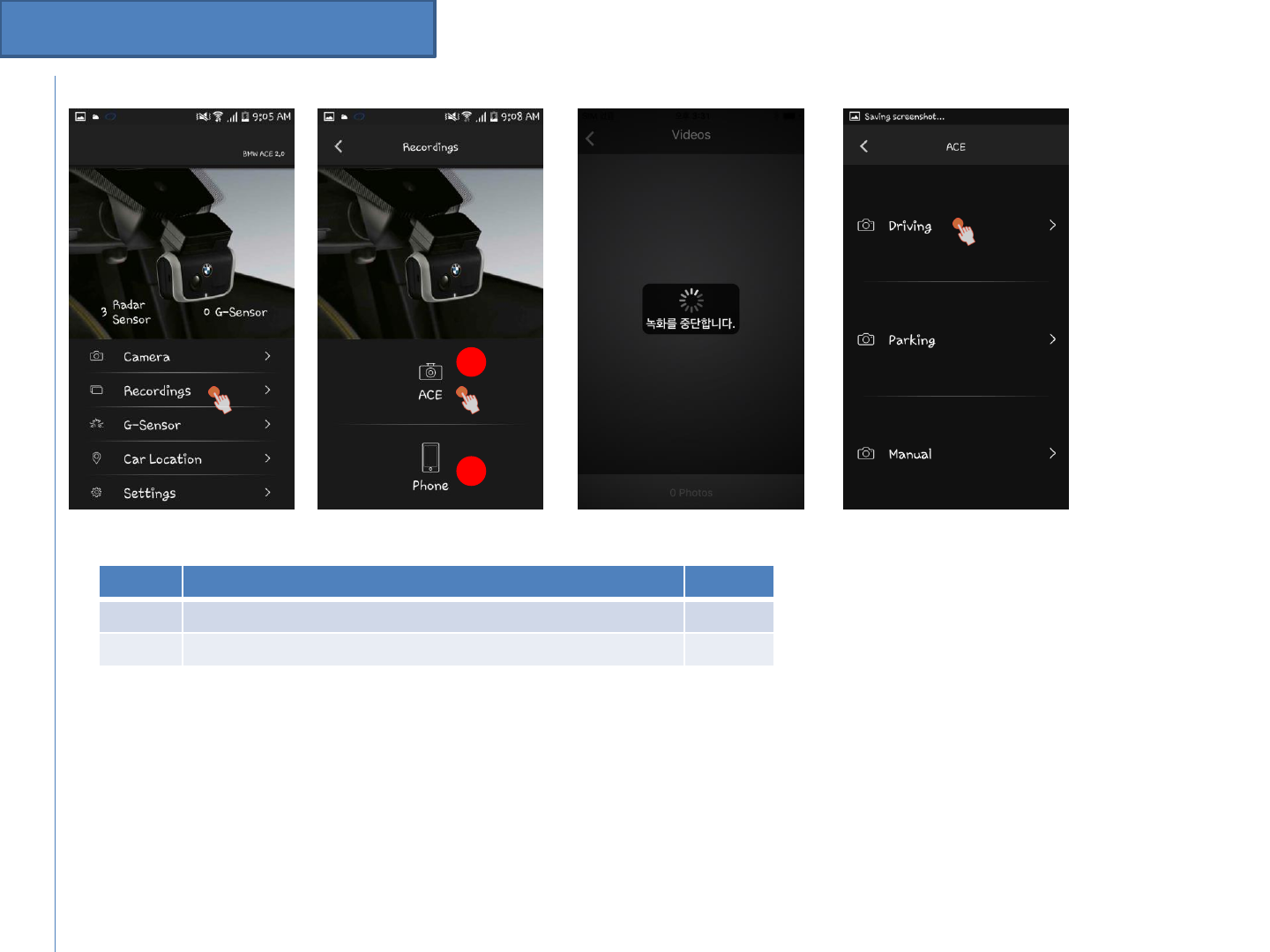

Record
No. Content Note
1 Show media file list on ACE
2 Show media file list on Phone itself
2
1
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet

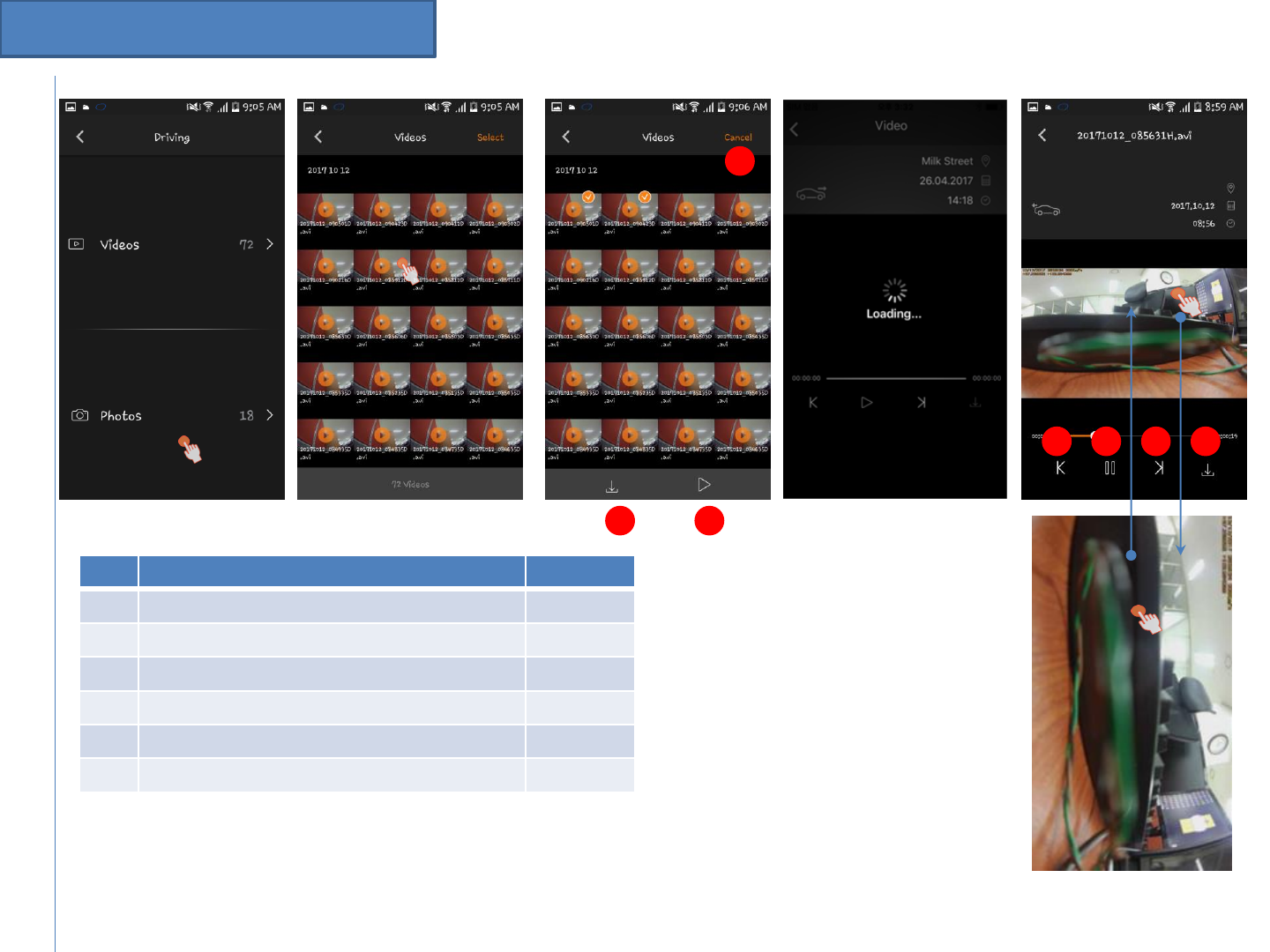

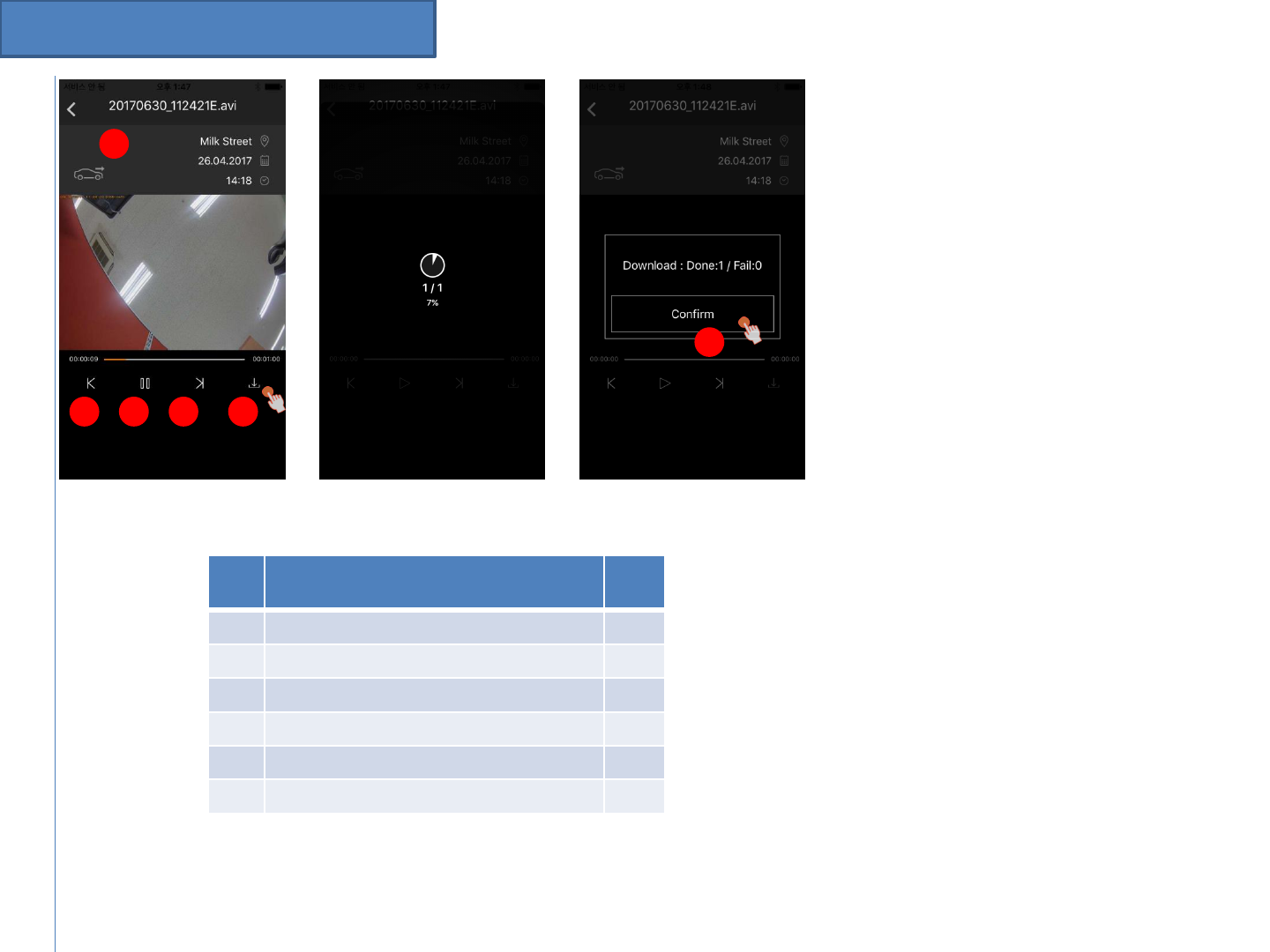

Record/ACE/Driving/Video
No Function
1Prev file
2 Play/Pause
3 Next file
4 Download file from ACE to Phone
5 Play selected files
6 Select / Cancel -- play one or multiple files
1 2 3 4
Double click
Double click
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
4 5
6
Record/ACE/Video/Download Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
Record/ACE/Driving/Photo
N
o
Content Note
1 Select / Cancel -- play one or
multiple files
2 Download files from ACE to Phone
3 Play file
“It’ll use mobile data. Do you agree?
<Yes>, <No> ”
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
2 3
2
1
Files on ACE :
- download (o)
- upload(x)
- delete(x)

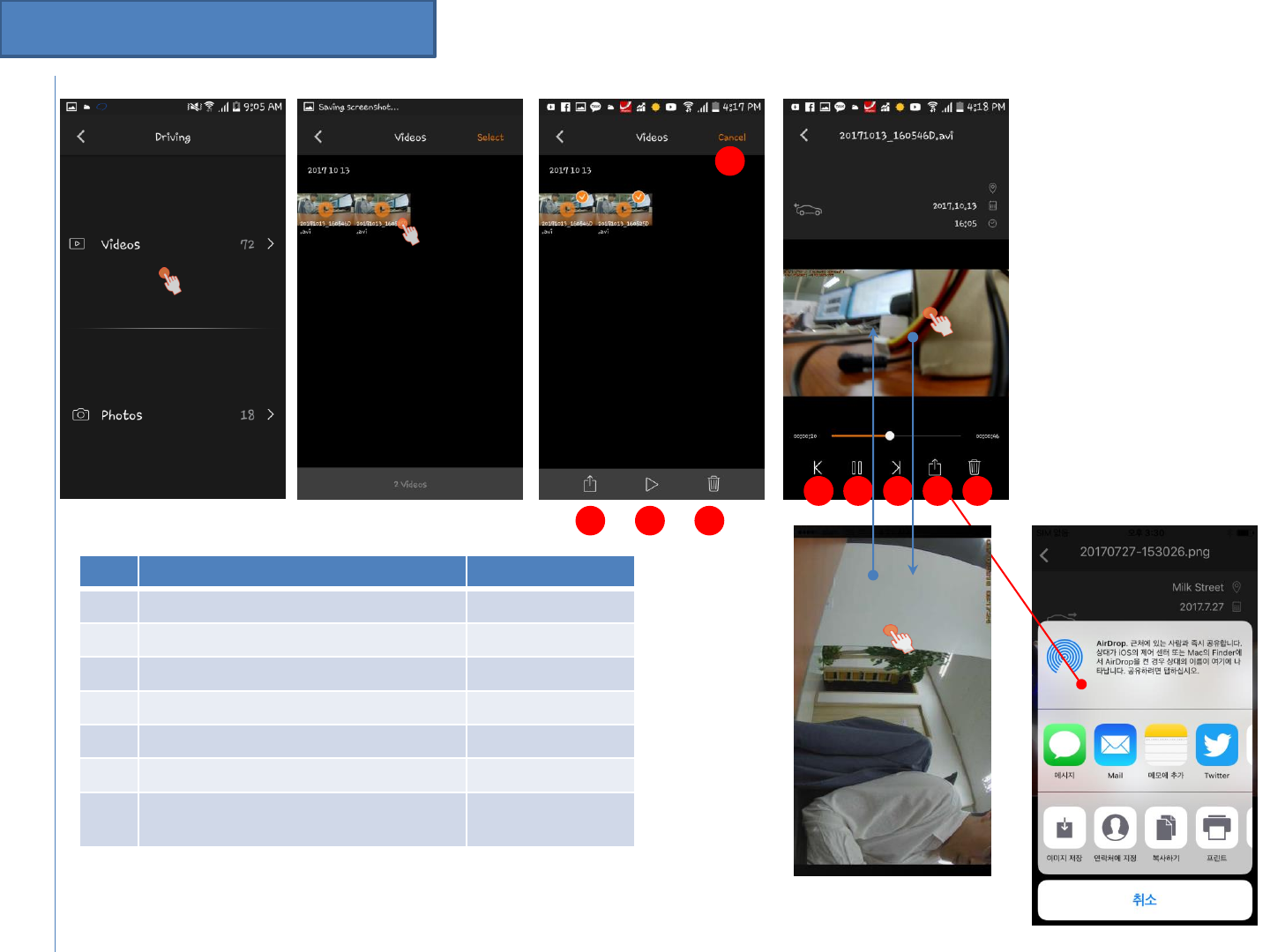

Record/Phone/Driving/Videos
No Content Note
1Prev file
2 Play/Pause
3 Next file
4Upload
5Delete file on phone
6 Play files
7 Select / Cancel -- play one or
multiple files
1 2 3 4 5
Double click
Double click
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
4 6 5
Files on Phone :
- upload(o)
- delete(o)
7

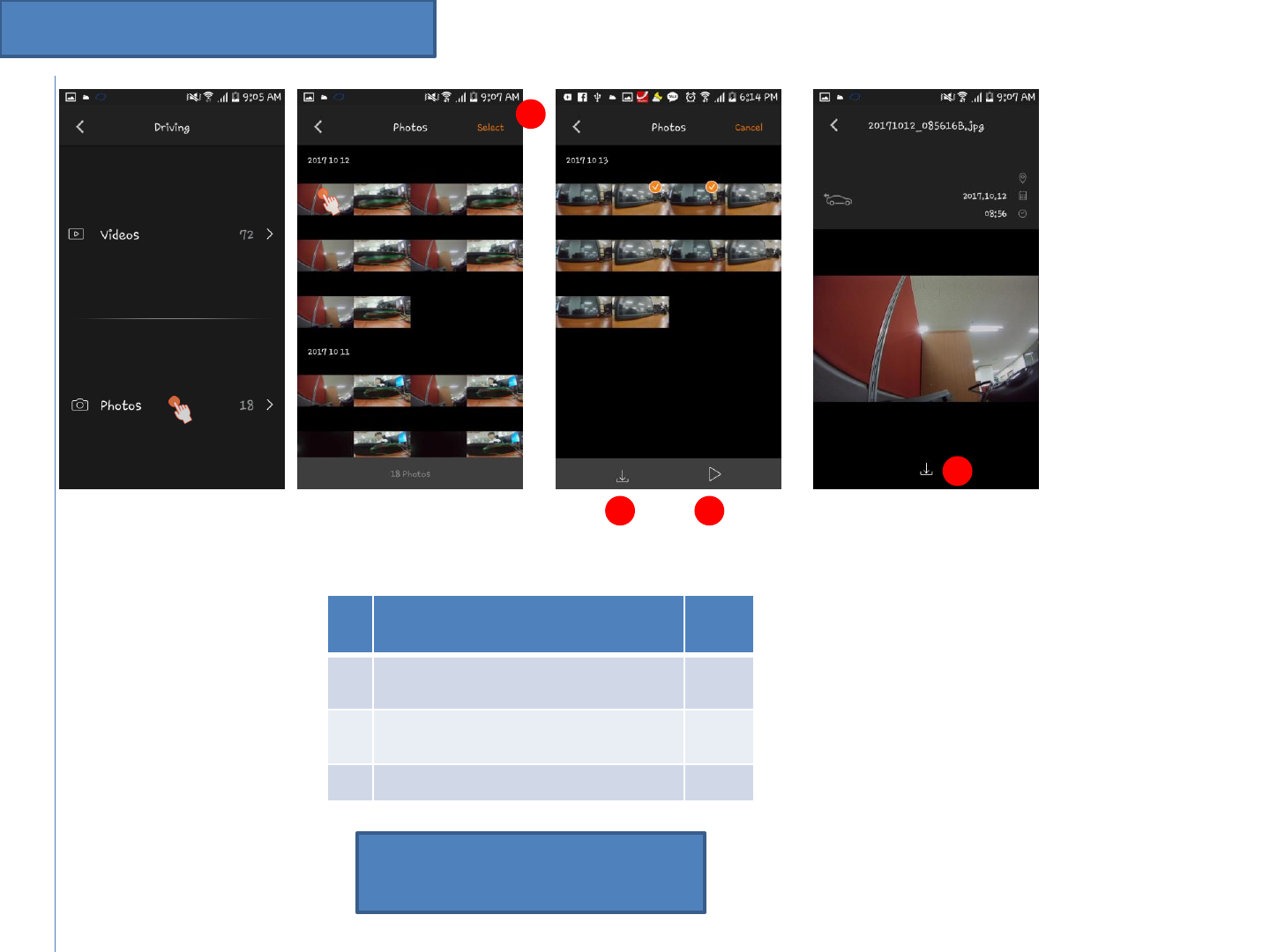

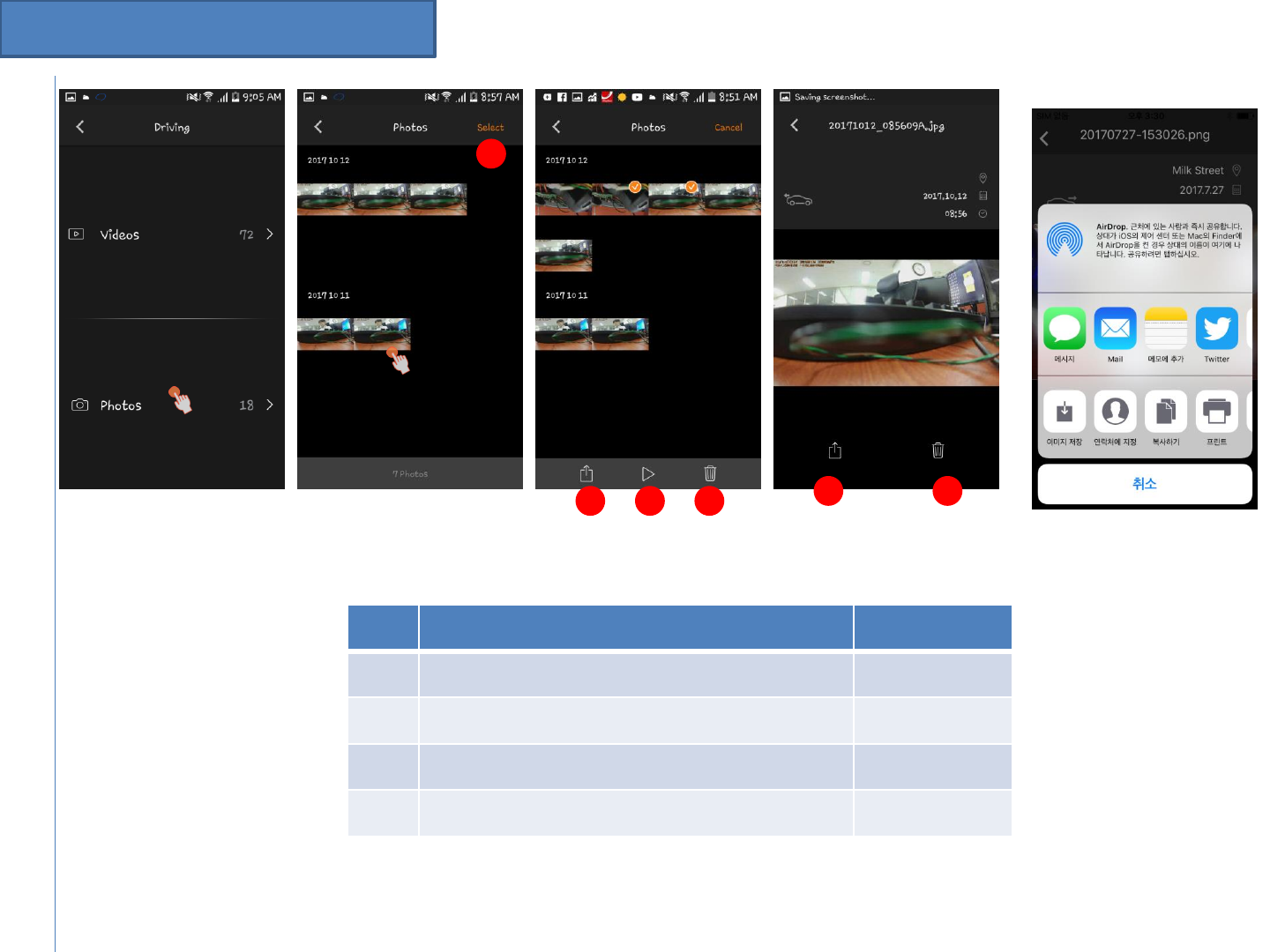

Record/Phone /Driving/Photos
No Content Note
1 Select / Cancel -- play one or multiple files
2 Upload file
3 Play file
4 Delete file
2 3
Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
1
42 4

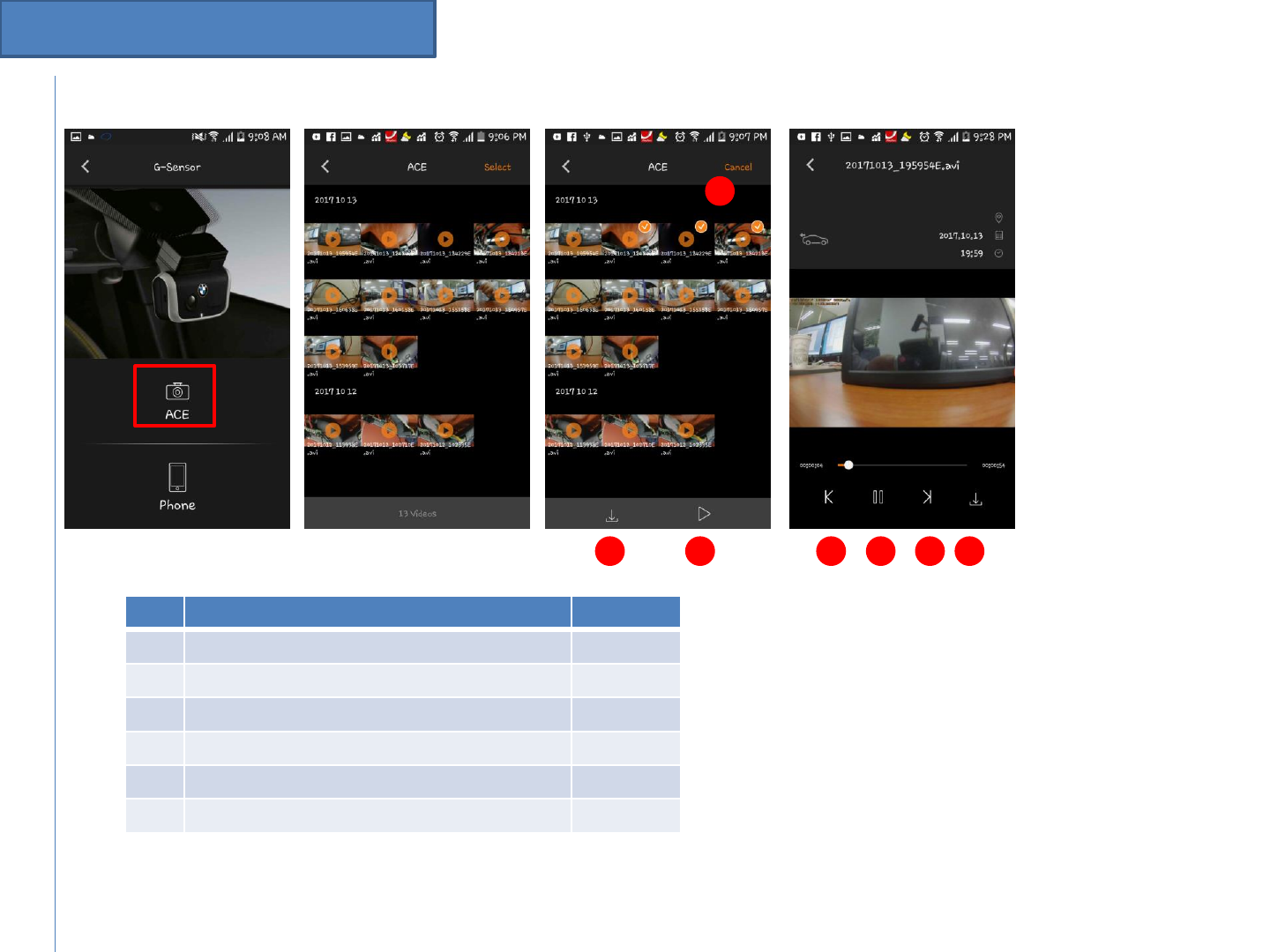

G-sensor / ACE Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
Files on ACE :
- download (o)
- upload(x)
- delete(x)
4 5 1 2 3 4
6
No Function
1Prev file
2 Play/Pause
3 Next file
4 Download file from ACE to Phone
5 Play selected files
6 Select / Cancel -- play one or multiple files

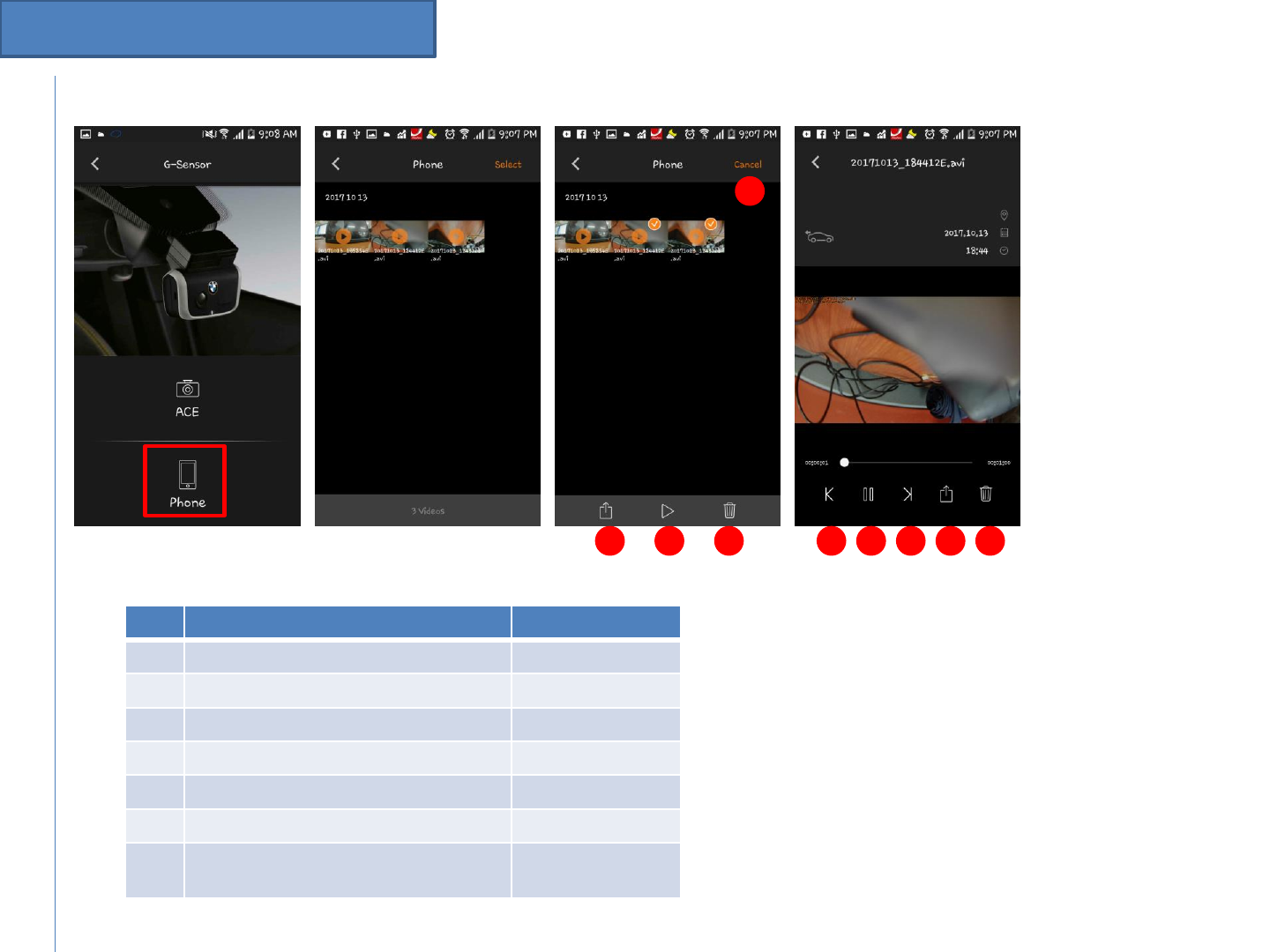

G-sensor / Phone Case 1 : Wi-Fi
Case 2 : 3G mobile or Internet
Files on Phone :
- upload(o)
- delete(o)
No Content Note
1Prev file
2 Play/Pause
3 Next file
4Upload
5Delete file on phone
6 Play files
7 Select / Cancel -- play one or
multiple files
1 2 3 4 54 6 5
7

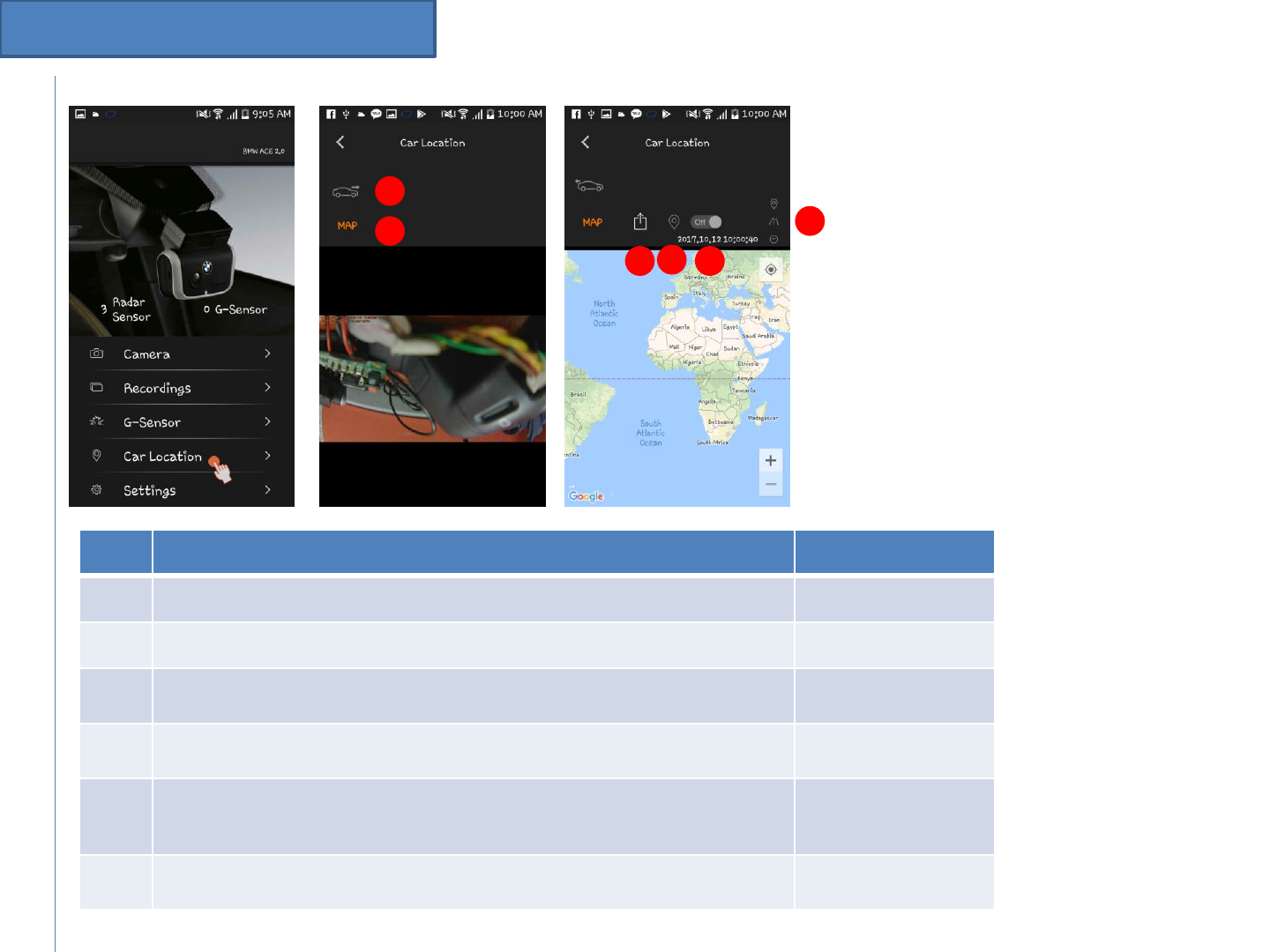

Check “Car Location” data
No Content Note
1 Front /Rear
2 MAP
3 Upload
GPS position data as string which is used to show position on MAP
App
Option for only 3G
4 Button which is used to request current position, front- and rear-capture
image to firmware
Option for only 3G
5 Toggle button which is used to request current position to firmware.
Start to send current position :
Stop to send current postion :
Option for only 3G
6 Address
Distance
2
1
345
6
Wi-Fi

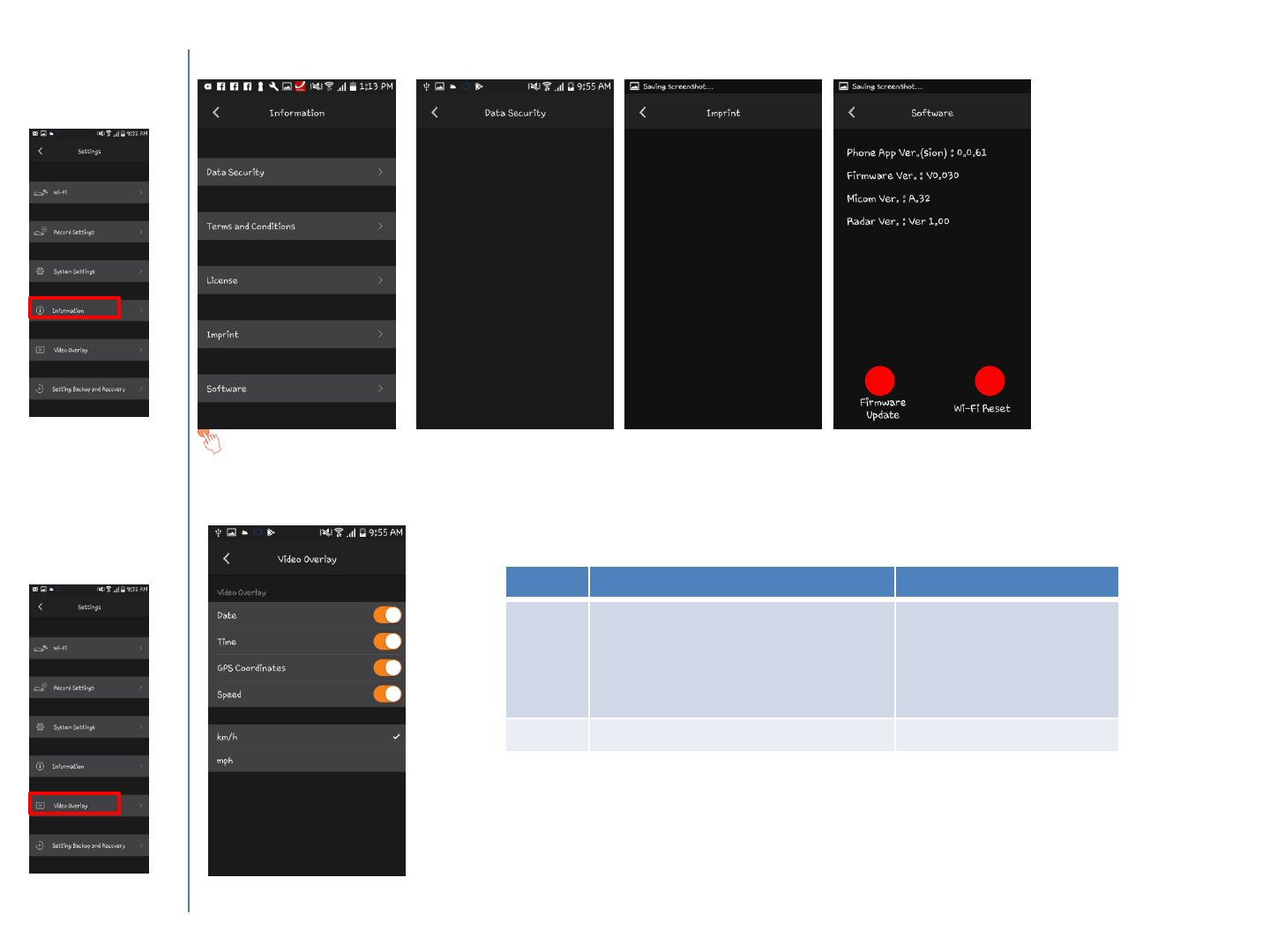

Record Settings
Settings
Settings/
System Settings
Settings/
Information
Settings/
Video Overlay No. Content Note
1 Update firmware
- ACE 2.0 f/w
- ACE 2.0 uCom f/w
- Linux b/d f/w
- Linux b/d uCom f/w
2 Reset SSID and Password
21

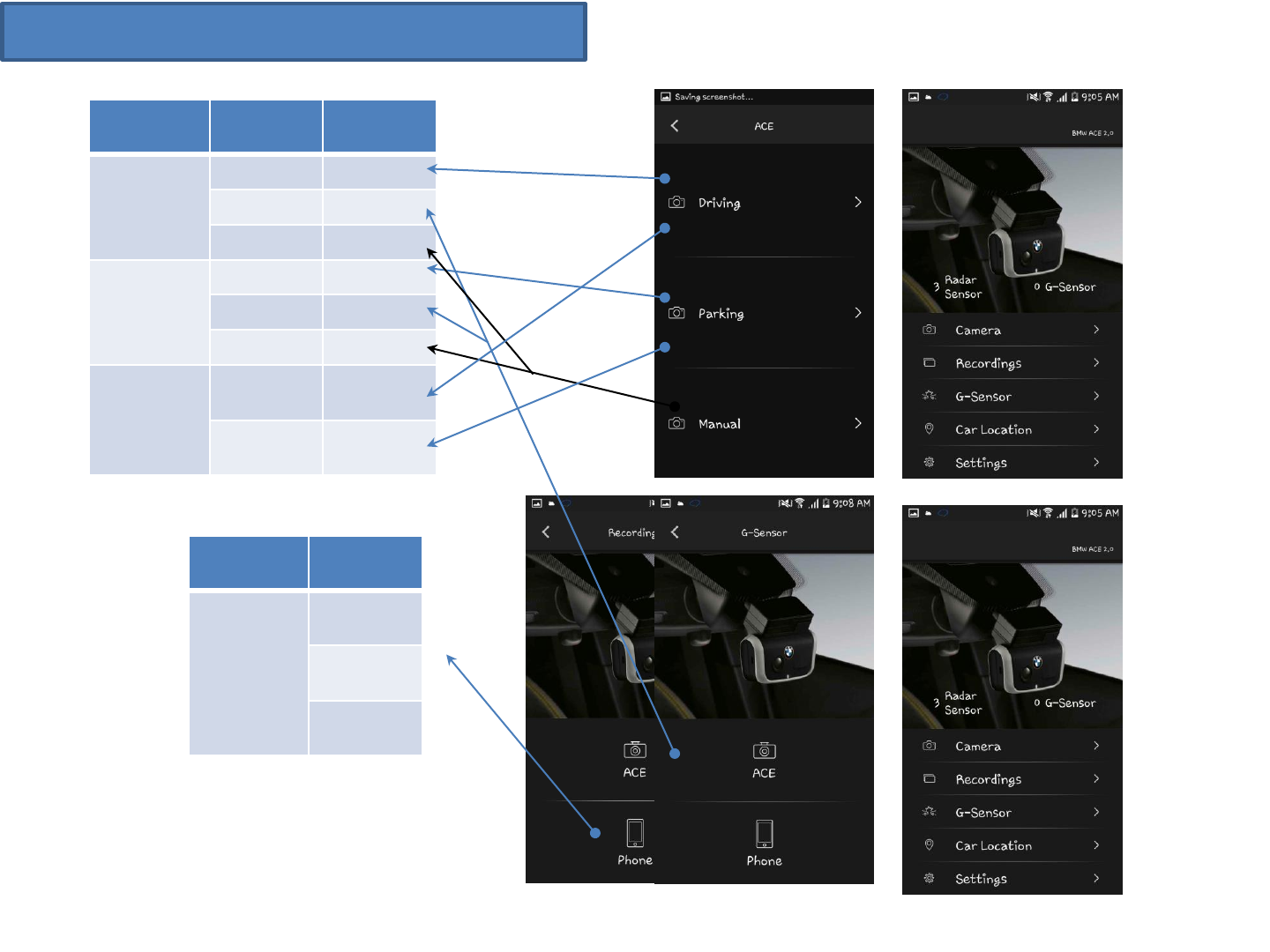

File Storage : GUI & SD card folder
29
Folder
Name
Contents File Name
DRIVING Permanent _D.avi
G-shock _E.avi
Manual _H.avi
PARKING Radar _M.avi
G-shock _E.avi
Manual _H.avi
IMAGE At driving _A.jpg,
At parking _C.jpg,
Folder
Name
Contents
Phone Video
(download)
(download)
(captured)
Descirption
- Connectivity Module
- Cable
- Operating manual

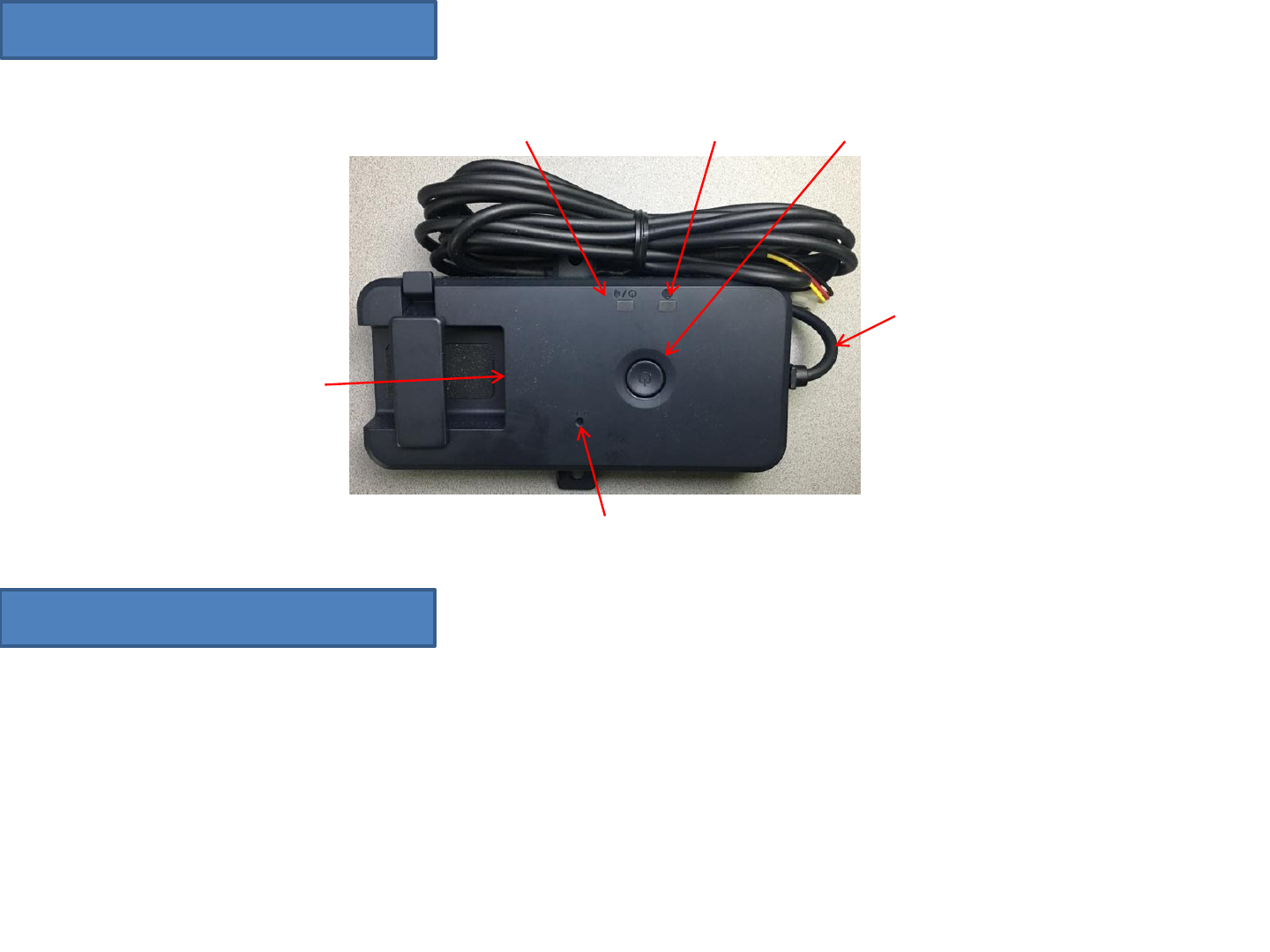

Package
Communication LED Power LED Power Button
Cable to Power
Reset Button
USB Port
Technical data
CPU 800 MHz
Memory 512 MB DDR3
USB 2.0 Port Type A
Wi-Fi & BLE 2.4 GHz
Operating voltage 12V
Operating -20 °C to + 50 °C
temperature
Storage -30 °C to + 80 °C
temperature
WiFi
Supported Protocol and Standard : IEEE 802.11b, IEEE 802.11g,
IEEE 802.11n
Frequency Range : 2412 MHz ~ 2472MHz
Amount of Working channel : 1-11 (America)
1-13 (Korea, China, Europe)
Channel Bandwidth : 20MHz, 40MHz
Modulation : DSSS / CCK / OFDM
Output Power : 10mW / MHz 이하 (Korea)
10 dBm±1 dB (General)
Bluetooth Low Energy
Supported Protocol and Standard : Bluetooth v4.2 Low Energy
Frequency Range : 2402 MHz ~ 2480 MHz
Channel Bandwidth : 2 MHz
Amount of Working channel : 40 (General)
Modulation : GFSK
Output Power : 0.1mW 이하 (Korea)
3 dBm ±0.5 dB (US)
Less than EIRP 20dBm (Europe,China)
General
Power Supply : DC 12V
Temperature Range : -20℃ ~ 50℃
RF Specification
INFORMATION OF REGULATIONS
INFORMATION OF REGULATIONS
■EUROPE
“Direct sunshine or any strong light may cause the loss of recognition of writing.”
This equipment may be operated in AT, BE, CY, CZ, DK, EE, FI, FR, DE, GR,
KU, IE, IT, LV, LT, LU, GB, NO, CH, BG, TO ,TR
■United States
FCC ID: WHBCONN
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
※This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or
transmitter.
A minimum separation distance of 20 ㎝must be maintained between the antenna and the person for this appliance
to satisfy the RF exposure requirements.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correc the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
INFORMATION OF REGULATIONS
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
■South Korea
KC ID : R-CMM-MAI-CONN
기자재의 명칭: 특정소출력무선기기(무선데이터통신시스템용 무선기기)
모 델명: Connectivity Module
식별부호: R-CMM-MAI-CONN
상호: 모바일 어플라이언스 주식회사
제조자/제조국: 모바일 어플라이언스 주식회사 / 한 국
제조년월: 2018.
※ 사용자 안내문
제작자 및 설치자는 당해 무선설비가 전파혼신 가능성이 있으므로
인명안전 과 관련된 서비스는 할 수 없습니다.
■RUSSIA
12VDC 0.5A
Manufactured by : Mobile Appliance, Inc. /
Gwanyand-dong-1701~1706, Daerung Techno #15,
401 Simin Daero, Dongan- Gu, Anyang-Si, Gyeonggi-Do Korea
Manufacture Date : 2017.
Country of Origin : South Korea
