Mobile Technologies 185-2462 13.56MHz RFID User Manual
Merchandising Technologies Inc. 13.56MHz RFID
User Manual
ENTERPRISE TABLET INSTALLATION GUIDE
1
MTI 1050 NW 229th Avenue Hillsboro, OR 97124 T:800.426.6844 www.mobiletechinc.com MTI P/N 063-1407-00 rev D ©2014 MTI All Rights Reserved
OVERVIEW

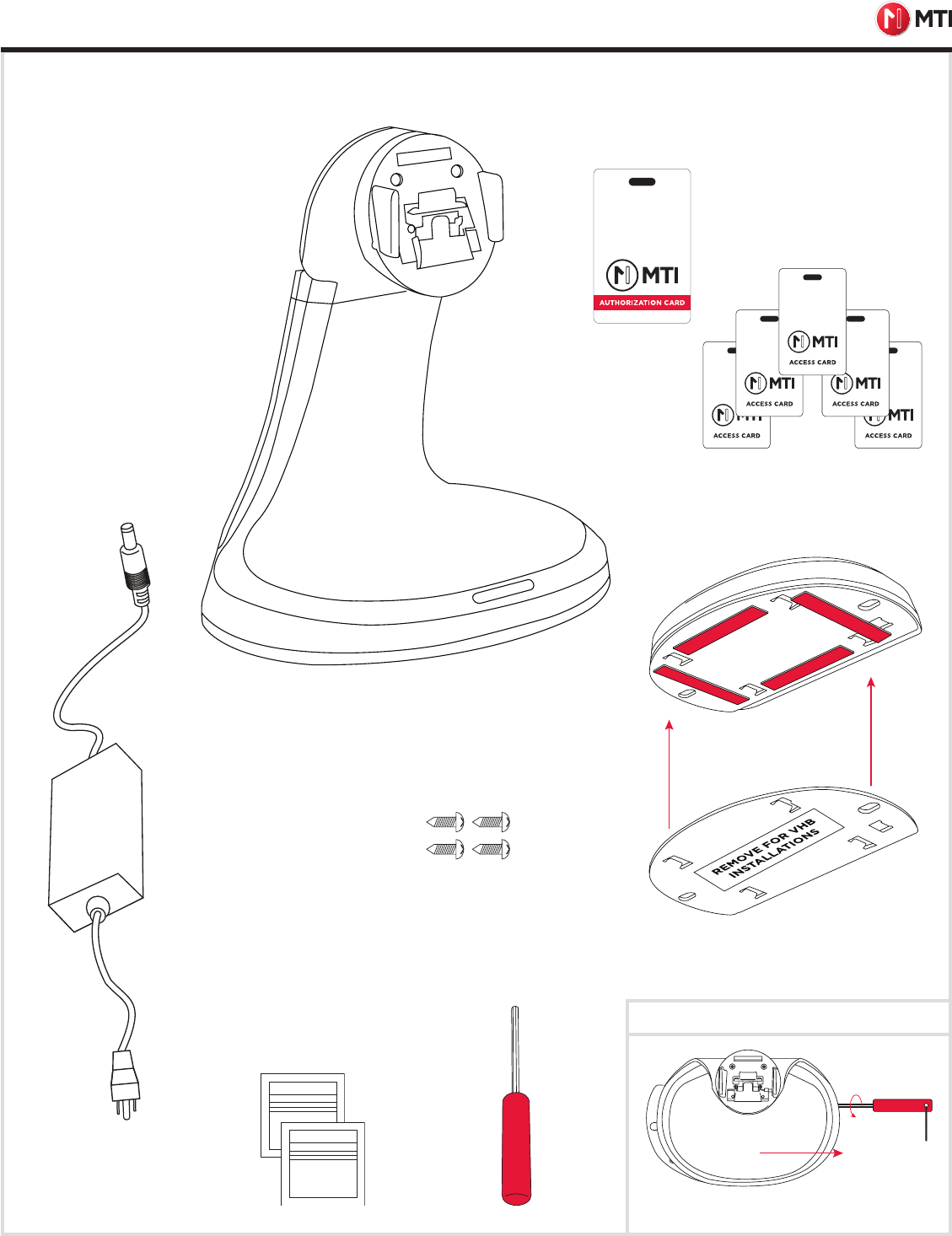

Materials in Box:
4 VHB Strips
(Preinstalled)
Base Plate Removal
Mounting Plate
Enterprise Tablet Pro Base
Power Supply
Alcohol Wipes
(x10)
Screws
(x4)
Hex Wrench
Authorization Card
Access Card (x5)
NOTE: The unit will slide to the right as the
Security Wrench is turned.
INSTALLATION GUIDE ENTERPRISE TABLET INSTALLATION GUIDE
1 2 3

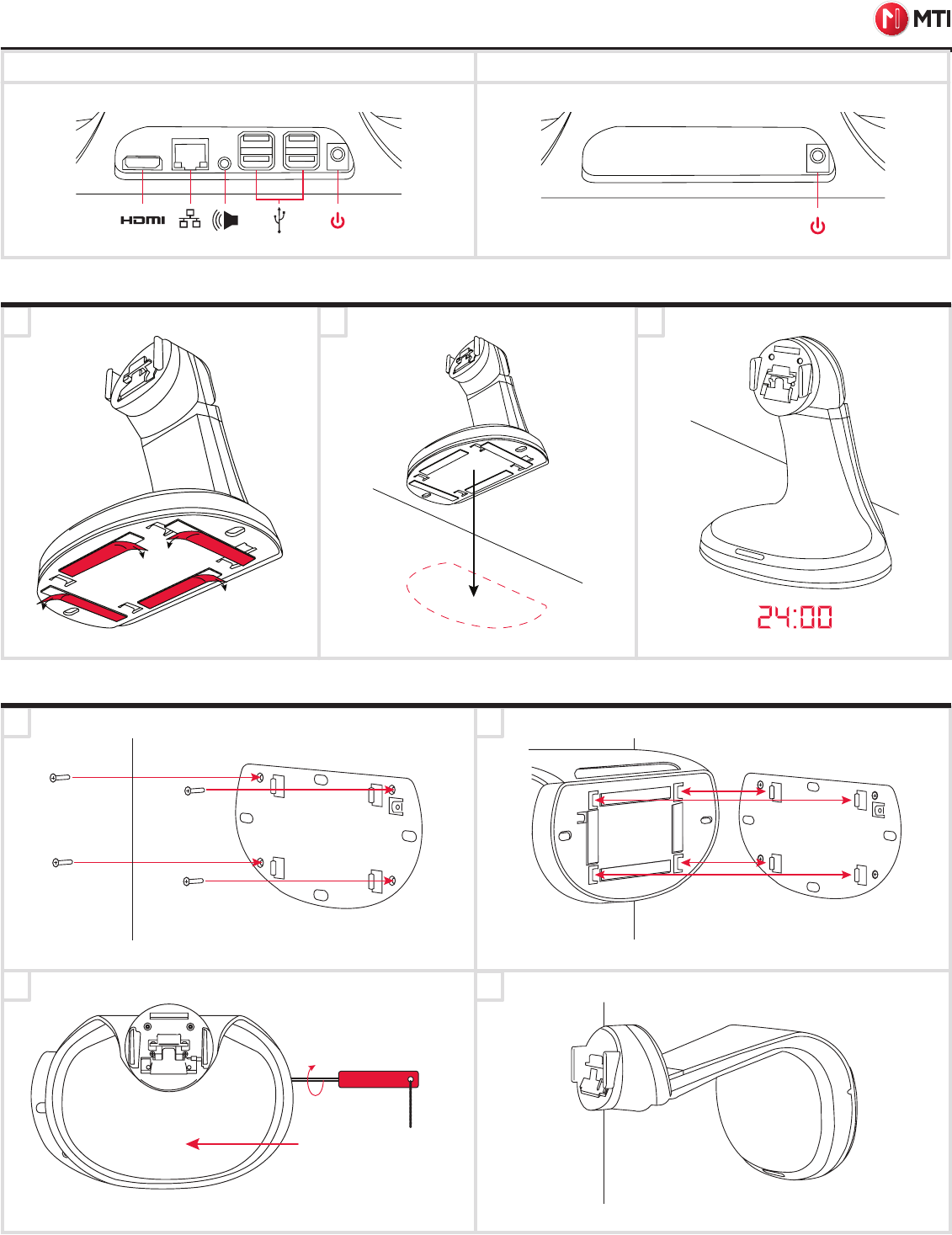

Configuration A: Top Mounted
1
3
2
4
Configuration B: Wall Mounted
2
MTI P/N 063-1407-00 rev D ©2014 MTI All Rights Reserved
MTI 1050 NW 229th Avenue Hillsboro, OR 97124 T:800.426.6844 www.mobiletechinc.com
NOTE: The unit will slide
to the left as the Security
Wrench is turned.
Enterprise Tablet LiteEnterprise Tablet Pro
1
3

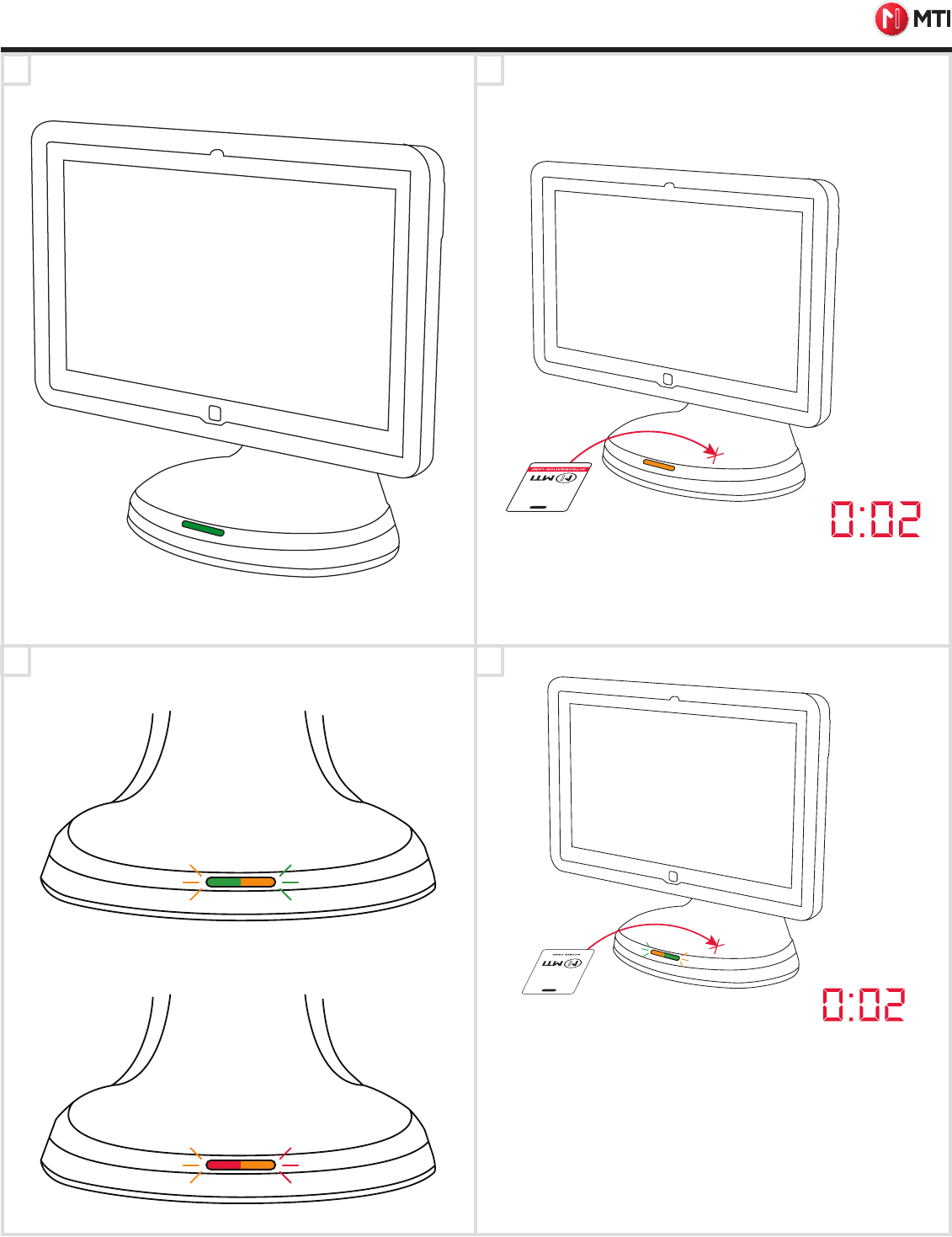

Case Docked Case Ready For Removal
Case Removed Detecting Card
2
4
Remove Case from Base

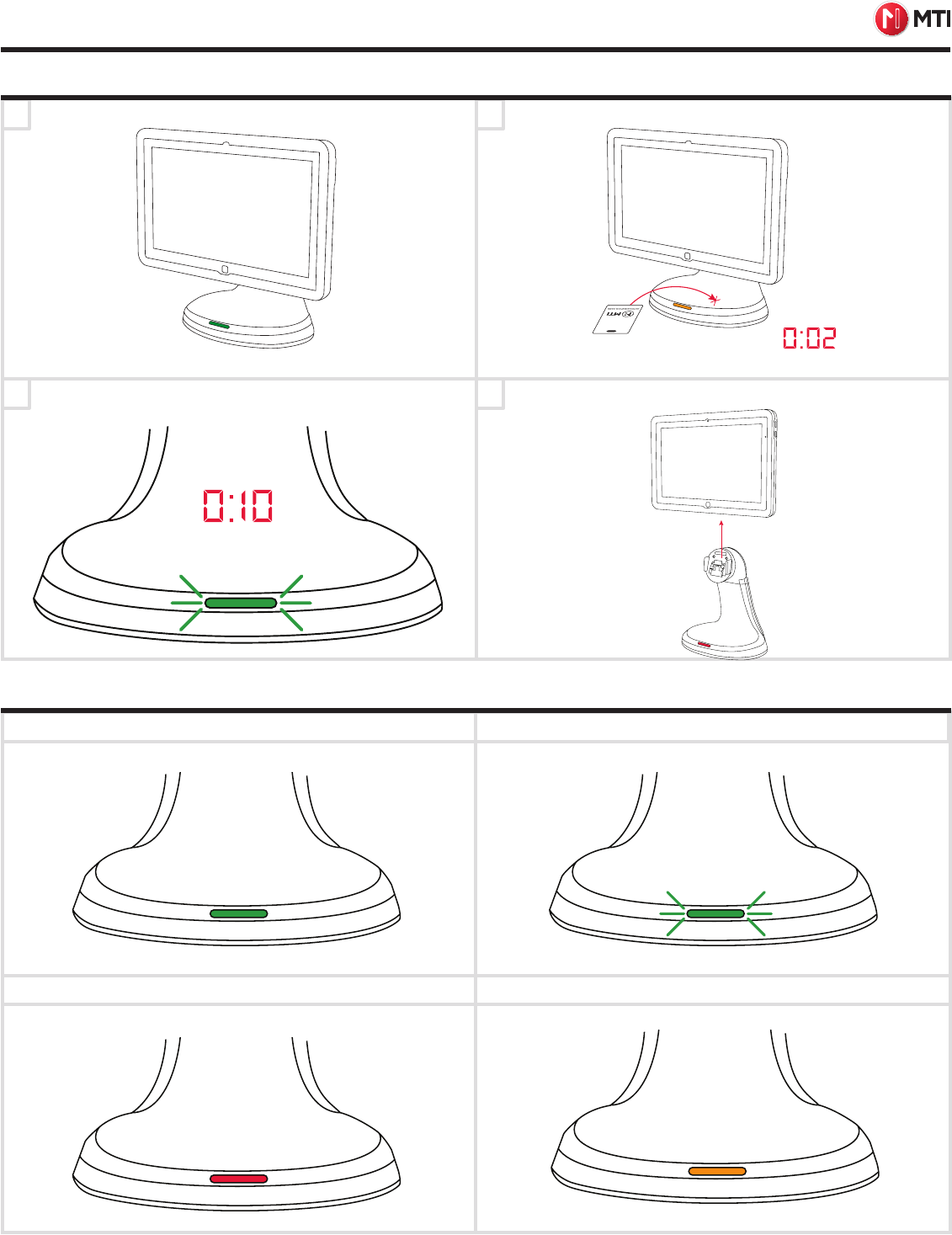

LED Indicators
CASE REMOVAL AND LED GUIDE ENTERPRISE TABLET INSTALLATION GUIDE
3
MTI 1050 NW 229th Avenue Hillsboro, OR 97124 T:800.426.6844 www.mobiletechinc.com MTI P/N 063-1407-00 rev D ©2014 MTI All Rights Reserved
ENTERPRISE TABLET INSTALLATION GUIDE
1 2
43
ACCESS CARD REGISTRATION
4
MTI 1050 NW 229th Avenue Hillsboro, OR 97124 T:800.426.6844 www.mobiletechinc.com MTI P/N 063-1407-00 rev D ©2014 MTI All Rights Reserved
Authorization
Card
Access Card
If no Access Card is detected, the Base will return to normal condition
waiting for registered Access Card to unlock the Base.
The Base can register a maximum of 5 Access cards. The process will
need to be repeated for each card. If a sixth card is registered, the
first registered card will be deregistered.
IF AUTHORIZATION CARD IS LOST OR STOLEN,
CONTACT CUSTOMER SERVICE FOR REPLACEMENT.
If the case is removed:
If the case is docked:
ENTERPRISE TABLET INSTALLATION GUIDE
1
5
2
6
43
5
MTI 1050 NW 229th Avenue Hillsboro, OR 97124 T:800.426.6844 www.mobiletechinc.com
ACCESS CARD REGISTRATION
MTI P/N 063-1407-00 rev D ©2014 MTI All Rights Reserved
The base can register a maximum of 5 Access cards.
Example:
NOTE: The above grid is a conceptual visual representation of
the Electronic Register.
Example:
Example:
If a card is lost or stolen:
Then re-register the remaining cards plus the new one
ordered through Customer Service.
If a sixth card is registered, the first registered card will be
deregistered.
Example:
Example:
Take any of the remaining access cards and register it 5
consecutive times:
ACCESS005
ACCESS004
ACCESS003
ACCESS002
ACCESS001
ACCESS005
ACCESS004
ACCESS003
ACCESS002
ACCESS001
ACCESS006
ACCESS005
ACCESS004
ACCESS002
ACCESS001
ACCESS006
ACCESS005
ACCESS004
ACCESS003
ACCESS002
ACCESS001
ACCESS001
ACCESS001
ACCESS001
ACCESS001
IF AUTHORIZATION CARD IS LOST OR STOLEN,
CONTACT CUSTOMER SERVICE FOR REPLACEMENT.
ENTERPRISE TABLET INSTALLATION GUIDE
6
MTI 1050 NW 229th Avenue Hillsboro, OR 97124 T:800.426.6844 www.mobiletechinc.com MTI P/N 063-1407-00 rev D ©2014 MTI All Rights Reserved
