Mobiletron Electronics R16T22 TPMS User Manual

Mobiletron Electronics Co., Ltd. TPMS Users Manual

Users Manual

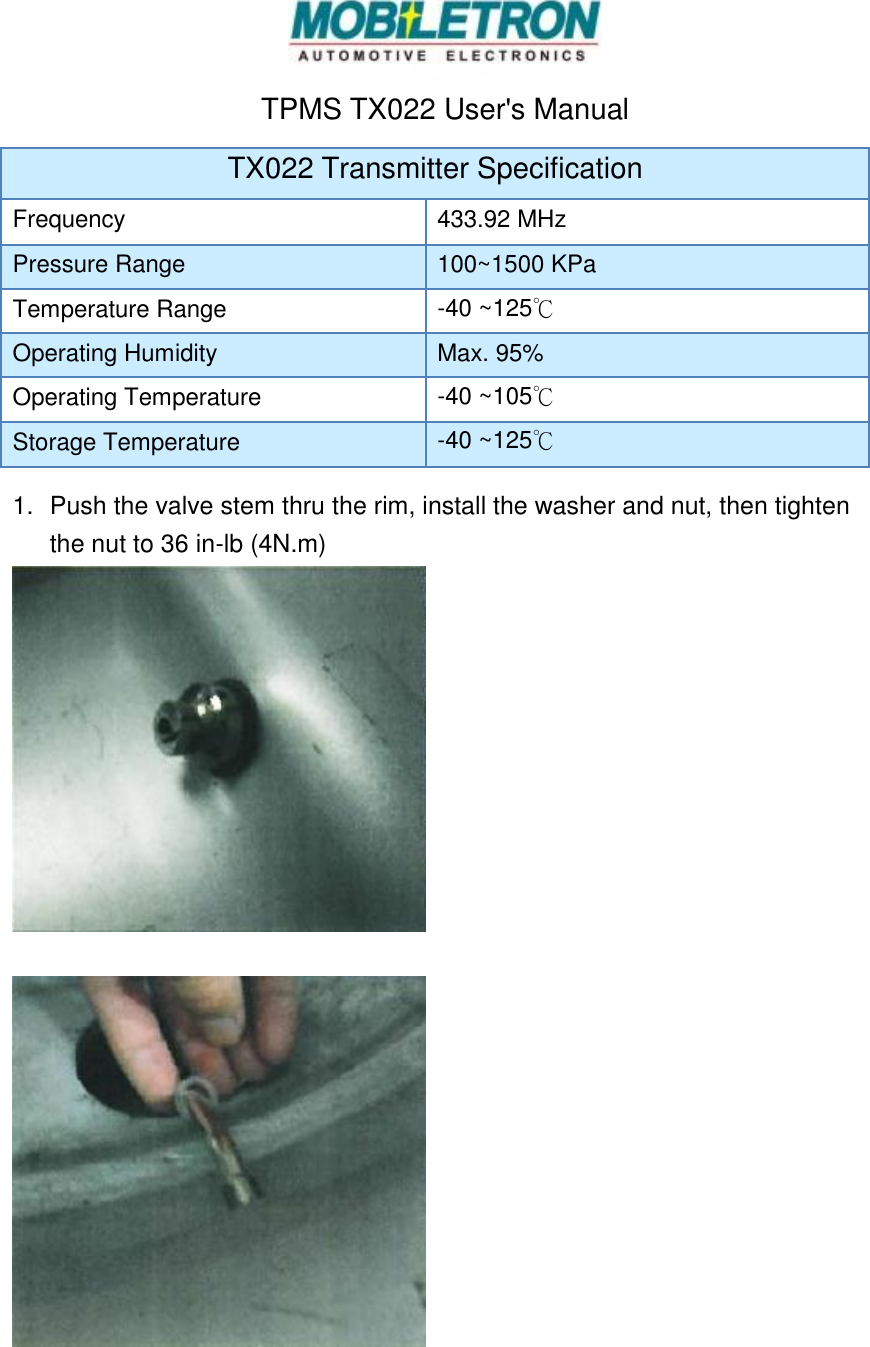

TPMS TX022 User's Manual TX022 Transmitter Specification Frequency 433.92 MHz Pressure Range 100~1500 KPa Temperature Range -40 ~125℃ Operating Humidity Max. 95% Operating Temperature -40 ~105℃ Storage Temperature -40 ~125℃ 1. Push the valve stem thru the rim, install the washer and nut, then tighten the nut to 36 in-lb (4N.m)

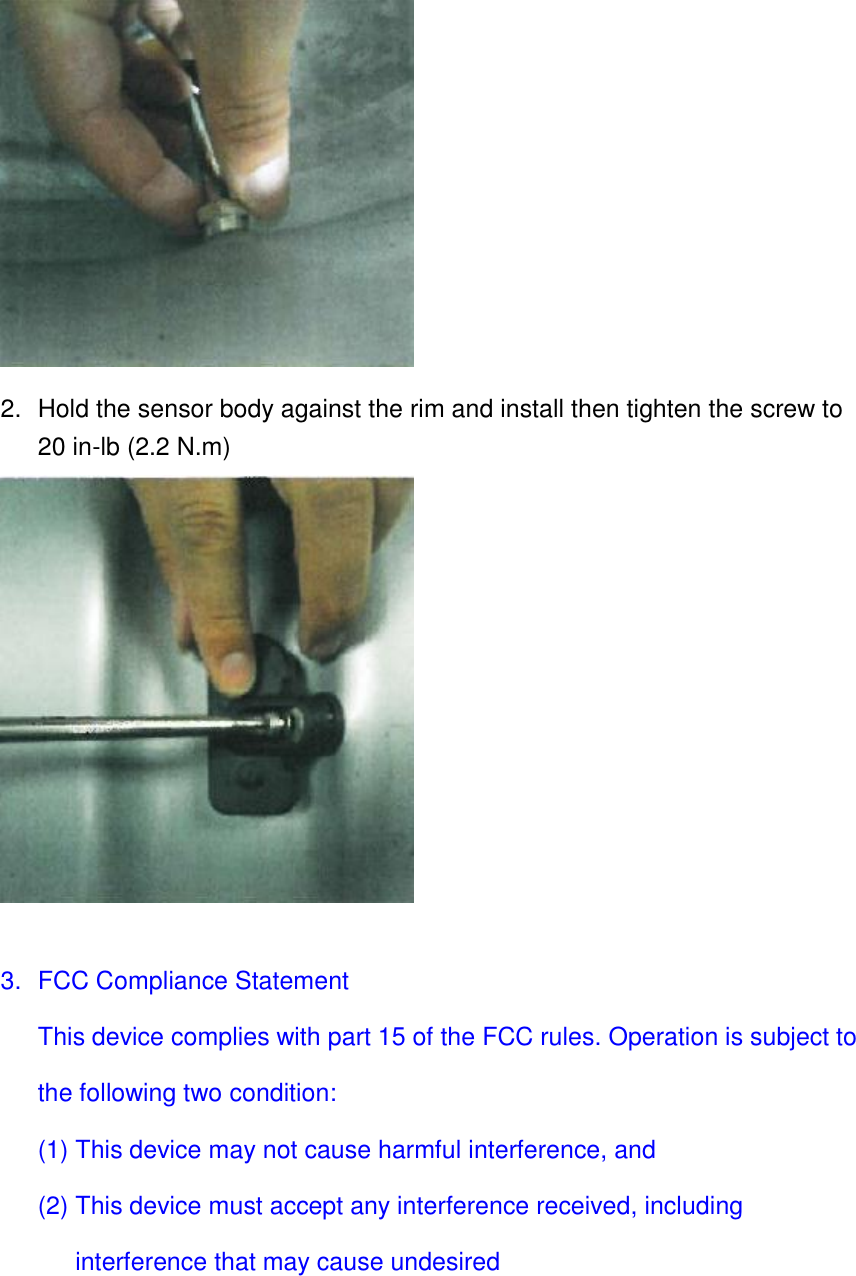

2. Hold the sensor body against the rim and install then tighten the screw to 20 in-lb (2.2 N.m) 3. FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two condition: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired
