Mobiletron Electronics R16T22 TPMS User Manual
Mobiletron Electronics Co., Ltd. TPMS Users Manual
Users Manual
TPMS TX022 User's Manual
TX022 Transmitter Specification
Frequency
433.92 MHz
Pressure Range
100~1500 KPa
Temperature Range
-40 ~125℃
Operating Humidity
Max. 95%
Operating Temperature
-40 ~105℃
Storage Temperature
-40 ~125℃
1. Push the valve stem thru the rim, install the washer and nut, then tighten
the nut to 36 in-lb (4N.m)

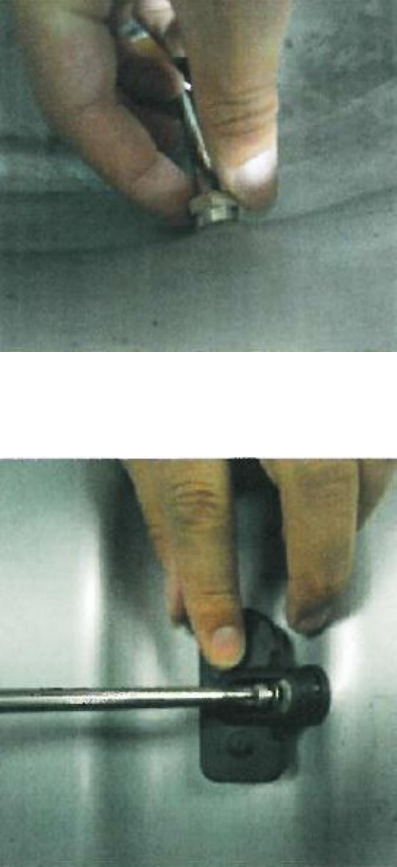

2. Hold the sensor body against the rim and install then tighten the screw to
20 in-lb (2.2 N.m)
3. FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to
the following two condition:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired
