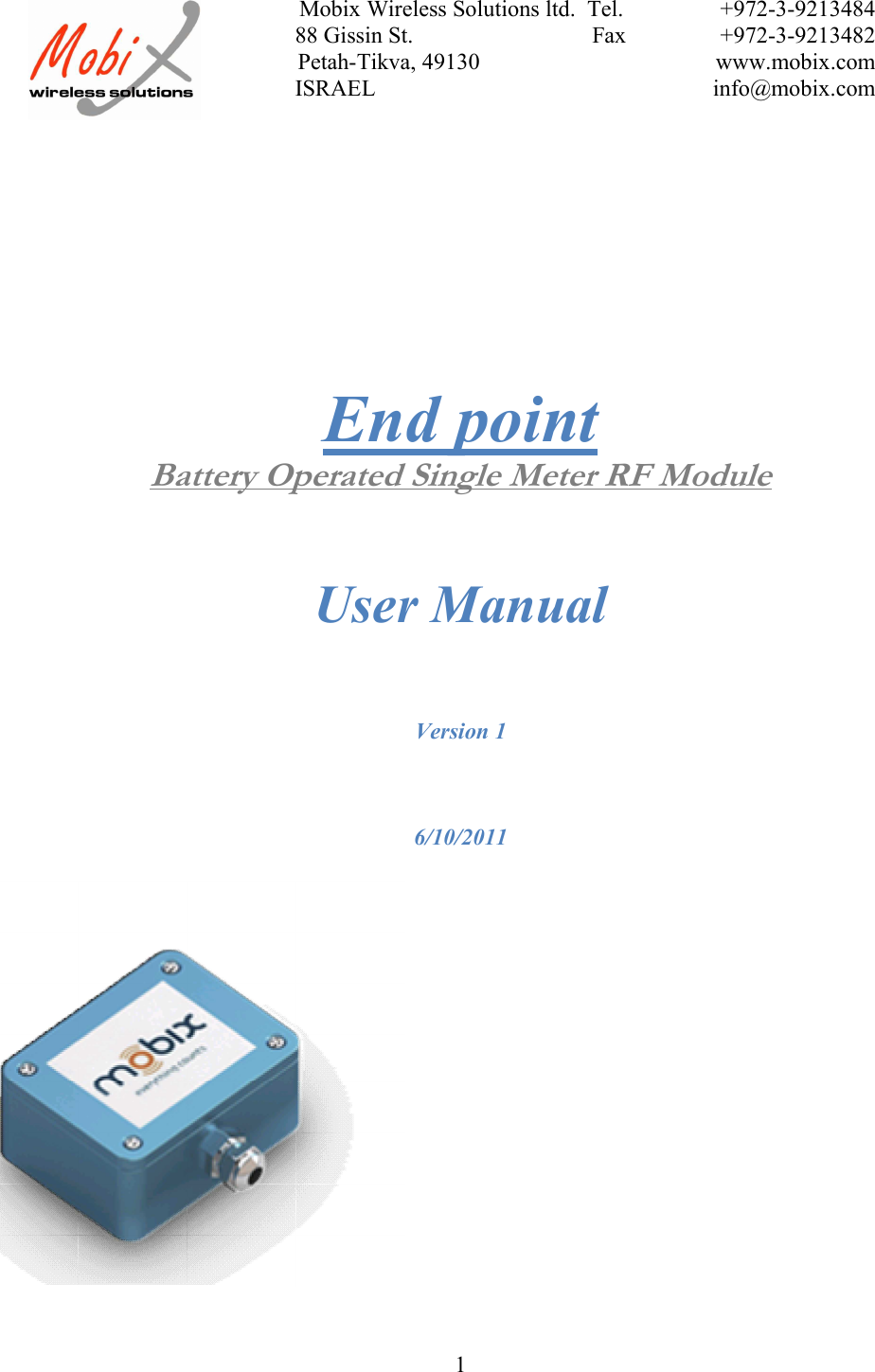

Mobix Wireless Solutions ltd.  Tel. +972-3-921348488 Gissin St.                               Fax +972-3-9213482 Petah-Tikva, 49130 www.mobix.com ISRAEL info@mobix.com1End pointBattery Operated Single Meter RF ModuleUser ManualVersion 16/10/2011

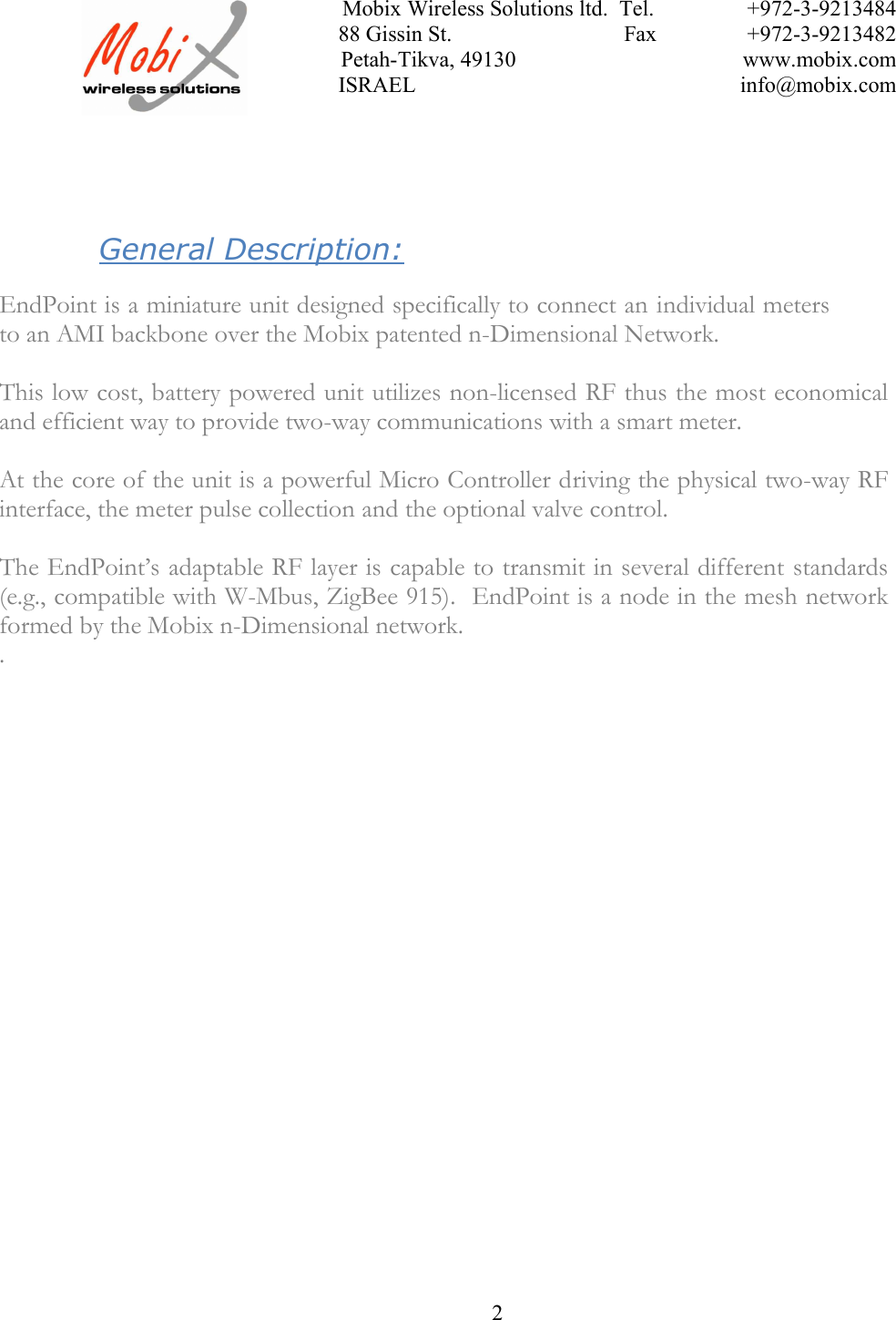

Mobix Wireless Solutions ltd.  Tel. +972-3-921348488 Gissin St.                               Fax +972-3-9213482 Petah-Tikva, 49130 www.mobix.com ISRAEL info@mobix.com2General Description:EndPoint is a miniature unit designed specifically to connect an individual metersto an AMI backbone over the Mobix patented n-Dimensional Network.This low cost, battery powered unit utilizes non-licensed RF thus the most economicaland efficient way to provide two-way communications with a smart meter.At the core of the unit is a powerful Micro Controller driving the physical two-way RFinterface, the meter pulse collection and the optional valve control.The EndPoint’s adaptable RF layer is capable to transmit in several different standards(e.g., compatible with W-Mbus, ZigBee 915). EndPoint is a node in the mesh networkformed by the Mobix n-Dimensional network..

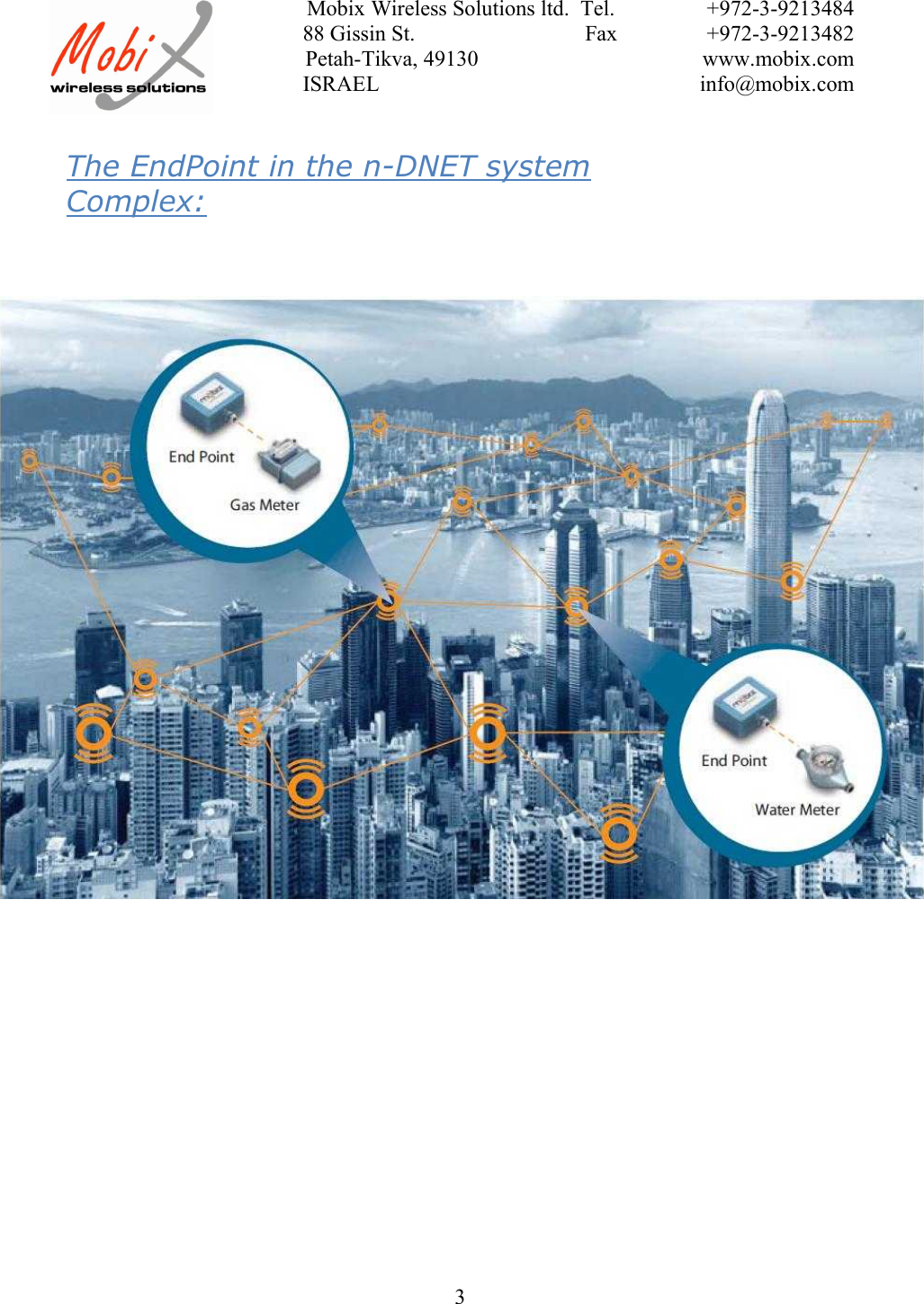

Mobix Wireless Solutions ltd.  Tel. +972-3-921348488 Gissin St.                               Fax +972-3-9213482 Petah-Tikva, 49130 www.mobix.com ISRAEL info@mobix.com3The EndPoint in the n-DNET systemComplex:

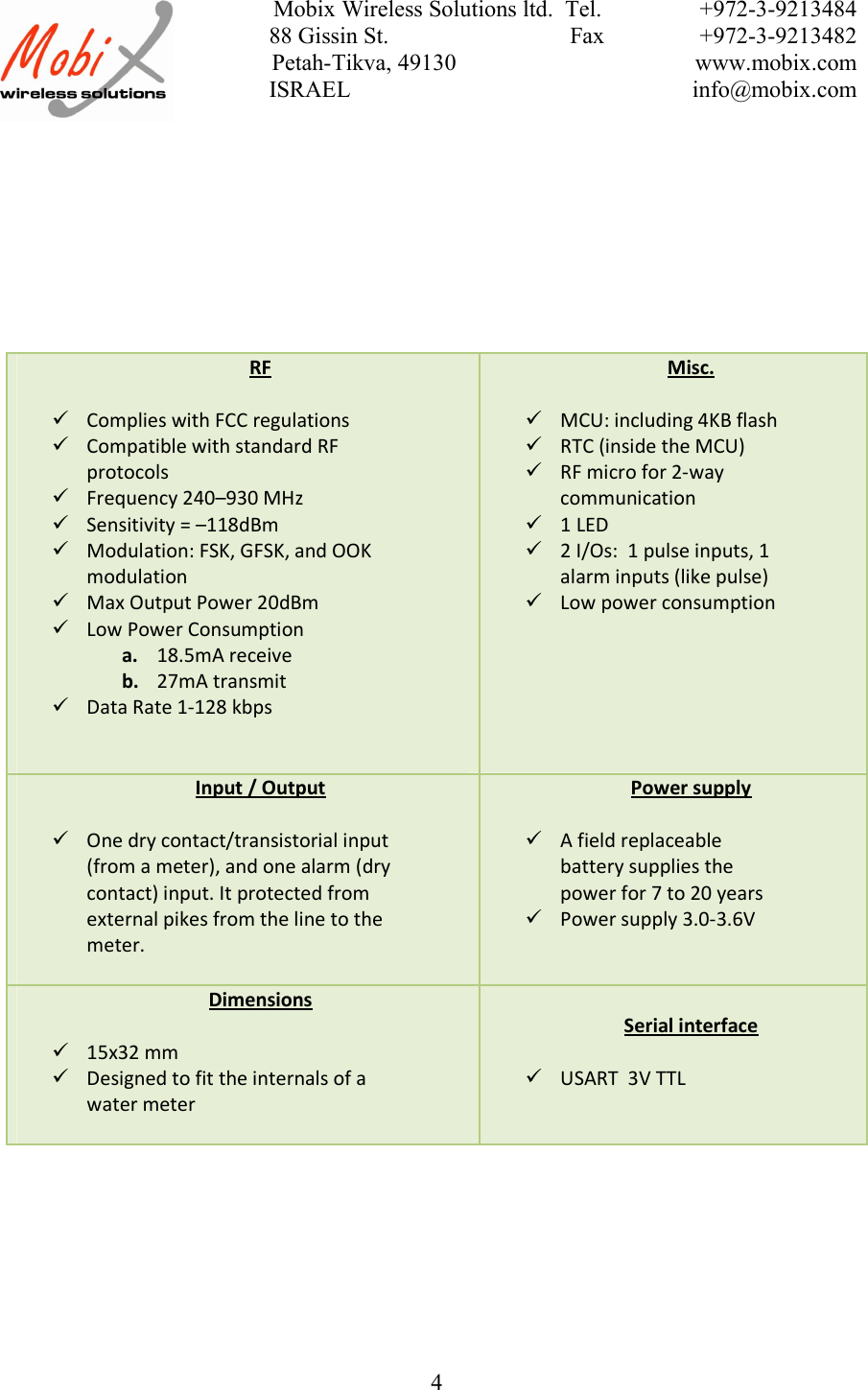

Mobix Wireless Solutions ltd.  Tel. +972-3-921348488 Gissin St.                               Fax +972-3-9213482 Petah-Tikva, 49130 www.mobix.com ISRAEL info@mobix.com4RFComplies with FCC regulationsCompatible with standard RFprotocolsFrequency 240–930 MHzSensitivity = –118dBmModulation: FSK, GFSK, and OOKmodulationMax Output Power 20dBmLow Power Consumptiona. 18.5mA receiveb. 27mA transmitData Rate 1-128 kbpsMisc.MCU: including 4KB flashRTC (inside the MCU)RF micro for 2-waycommunication1 LED2 I/Os:  1 pulse inputs, 1alarm inputs (like pulse)Low power consumptionInput / OutputOne dry contact/transistorial input(from a meter), and one alarm (drycontact) input. It protected fromexternal pikes from the line to themeter.Power supplyA field replaceablebattery supplies thepower for 7 to 20 yearsPower supply 3.0-3.6VDimensions15x32 mmDesigned to fit the internals of awater meterSerial interfaceUSART  3V TTL

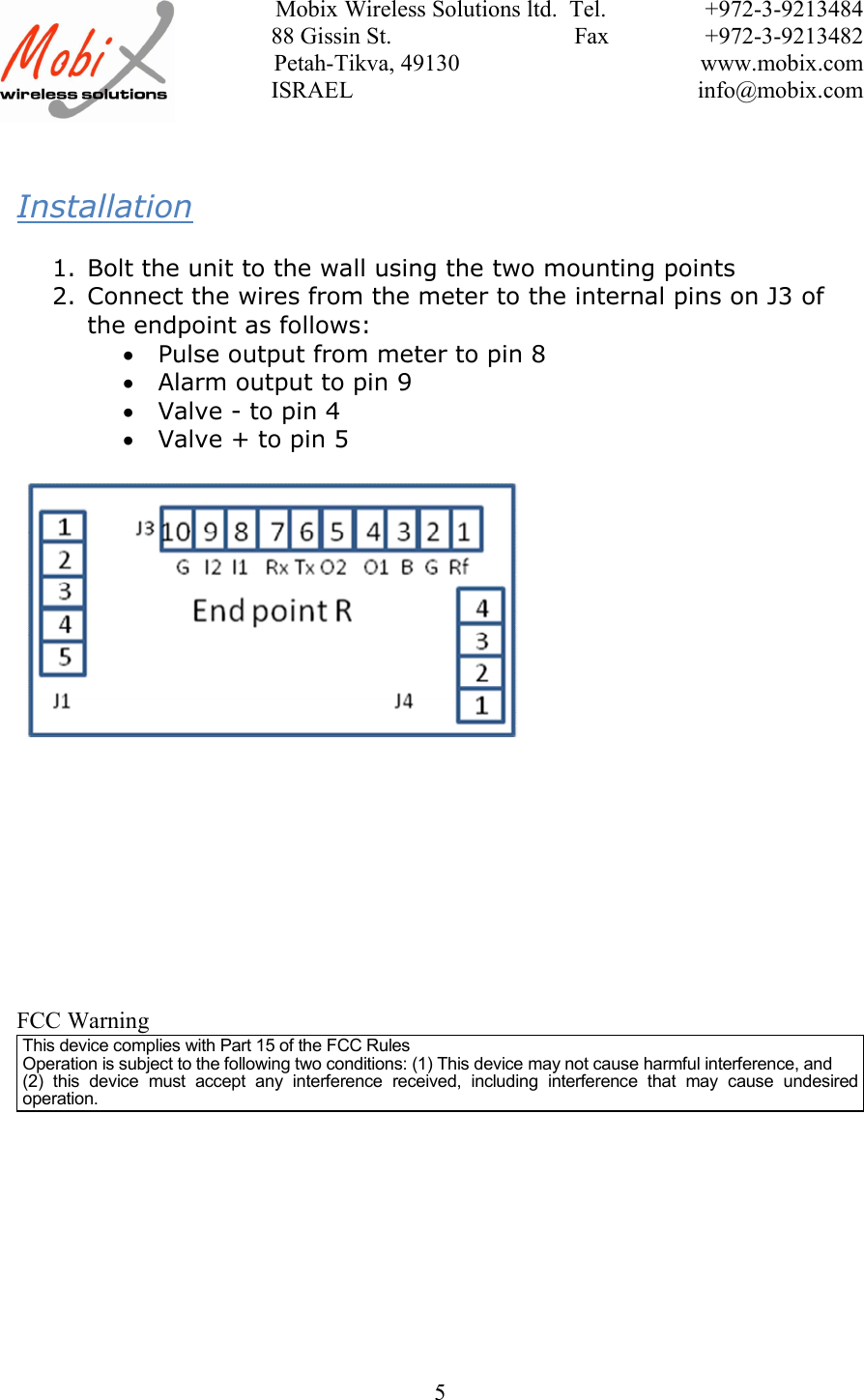

Mobix Wireless Solutions ltd.  Tel. +972-3-921348488 Gissin St.                               Fax +972-3-9213482 Petah-Tikva, 49130 www.mobix.com ISRAEL info@mobix.com5Installation1. Bolt the unit to the wall using the two mounting points2. Connect the wires from the meter to the internal pins on J3 ofthe endpoint as follows:Pulse output from meter to pin 8Alarm output to pin 9Valve - to pin 4Valve + to pin 5FCC WarningThis device complies with Part 15 of the FCC RulesOperation is subject to the following two conditions: (1) This device may not cause harmful interference, and(2)  this  device  must  accept  any  interference  received,  including  interference  that  may  cause  undesiredoperation.

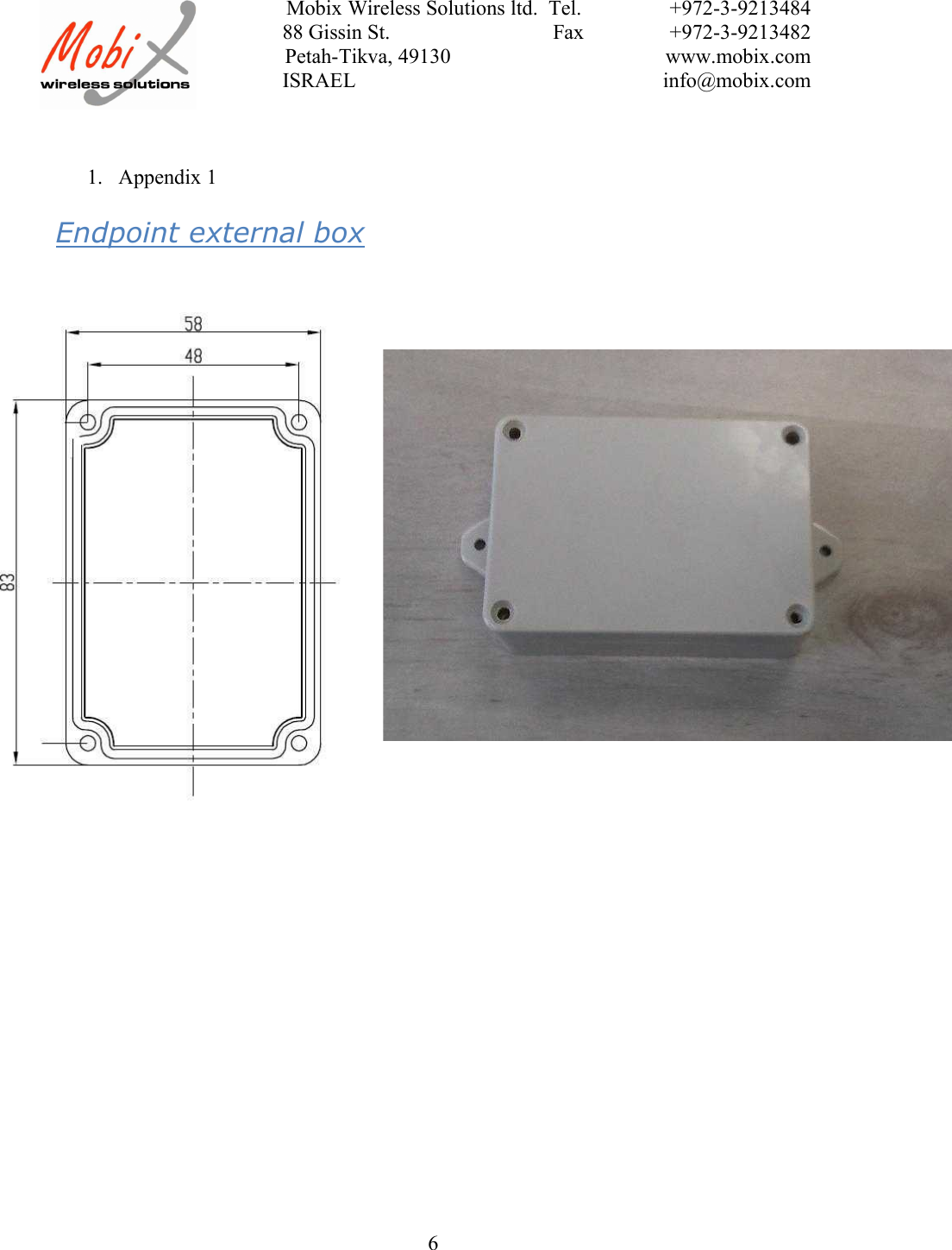

Mobix Wireless Solutions ltd.  Tel. +972-3-921348488 Gissin St.                               Fax +972-3-9213482 Petah-Tikva, 49130 www.mobix.com ISRAEL info@mobix.com61. Appendix 1Endpoint external box

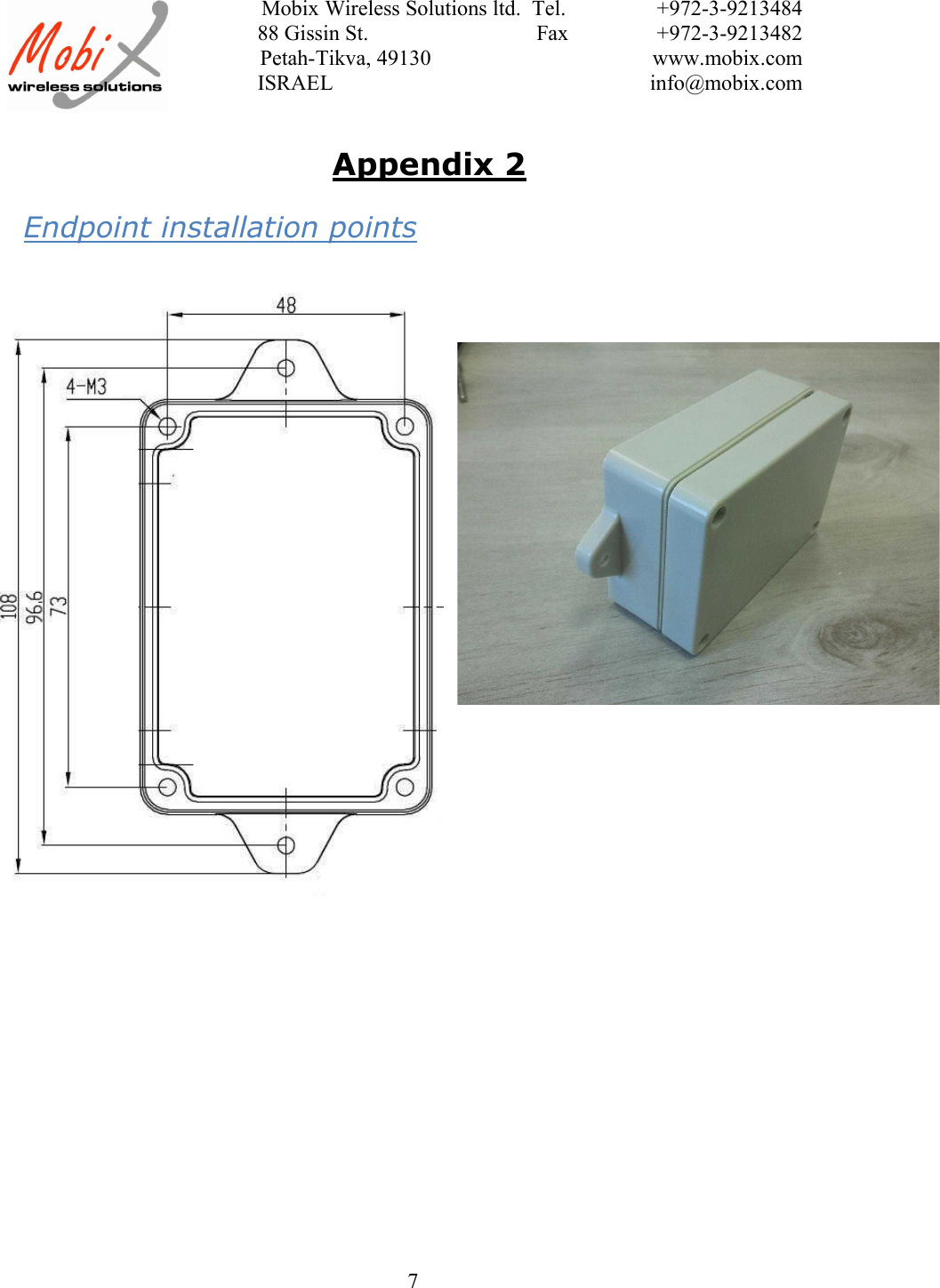

Mobix Wireless Solutions ltd.  Tel. +972-3-921348488 Gissin St.                               Fax +972-3-9213482 Petah-Tikva, 49130 www.mobix.com ISRAEL info@mobix.com7Appendix 2Endpoint installation points
