General Description:
EndPoint is a miniature unit designed specifically to connect an individual meters
to an AMI backbone over the Mobix patented n-Dimensional Network.
This low cost, battery powered unit utilizes non-licensed RF thus the most economical
and efficient way to provide two-way communications with a smart meter.
At the core of the unit is a powerful Micro Controller driving the physical two-way RF
interface, the meter pulse collection and the optional valve control.
The EndPoint’s adaptable RF layer is capable to transmit in several different standards
(e.g., compatible with W-Mbus, ZigBee 915). EndPoint is a node in the mesh network
formed by the Mobix n-Dimensional network.
.

Mobix Wireless Solutions ltd. Tel. +972-3-9213484
88 Gissin St. Fax +972-3-9213482
Petah-Tikva, 49130 www.mobix.com
ISRAEL info@mobix.com
3

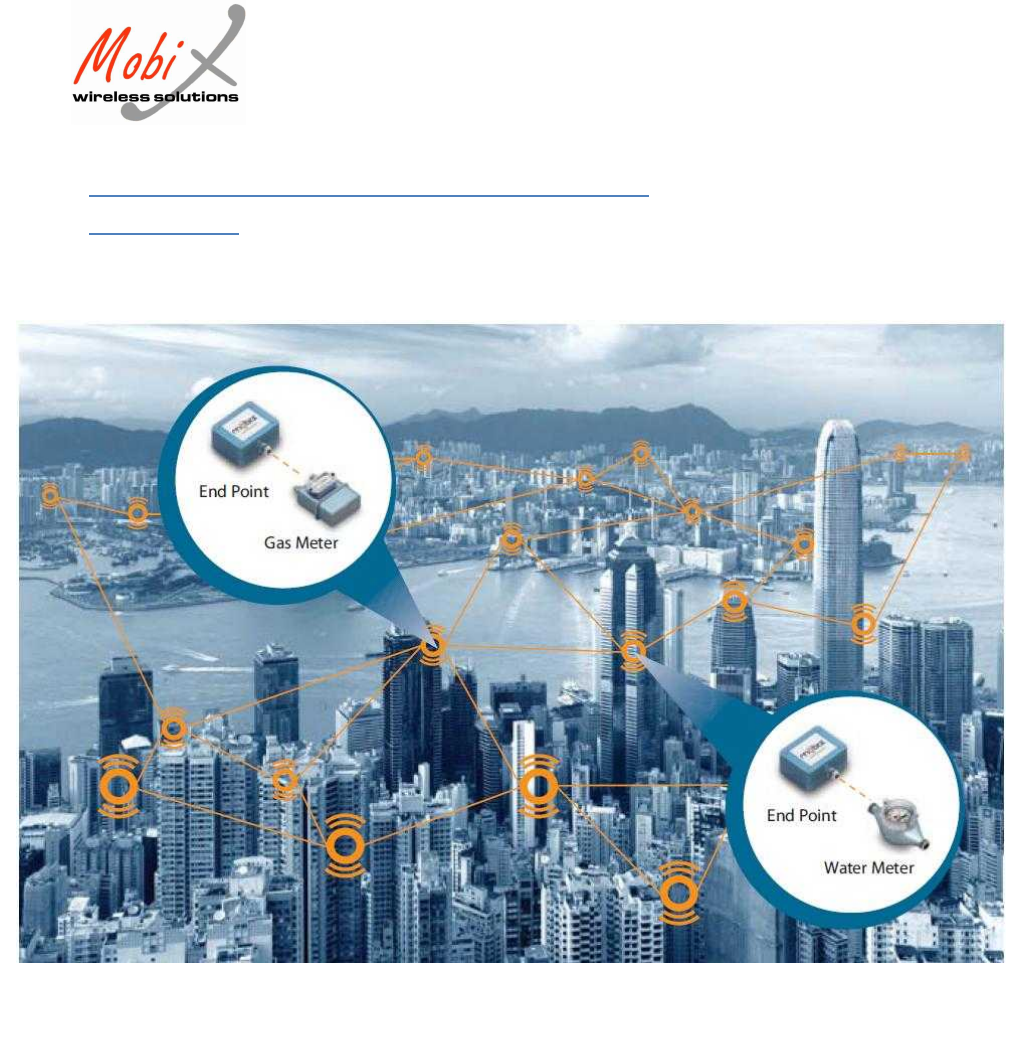

The EndPoint in the n-DNET system
Complex:

Mobix Wireless Solutions ltd. Tel. +972-3-9213484
88 Gissin St. Fax +972-3-9213482
Petah-Tikva, 49130 www.mobix.com
ISRAEL info@mobix.com
4
RF
Complies with FCC regulations
Compatible with standard RF
protocols
Frequency 240–930 MHz
Sensitivity = –118dBm
Modulation: FSK, GFSK, and OOK
modulation
Max Output Power 20dBm
Low Power Consumption
a. 18.5mA receive
b. 27mA transmit
Data Rate 1-128 kbps
Misc.
MCU: including 4KB flash
RTC (inside the MCU)
RF micro for 2-way
communication
1 LED
2 I/Os: 1 pulse inputs, 1
alarm inputs (like pulse)
Low power consumption
Input / Output
One dry contact/transistorial input
(from a meter), and one alarm (dry
contact) input. It protected from
external pikes from the line to the
meter.
Power supply
A field replaceable
battery supplies the
power for 7 to 20 years
Power supply 3.0-3.6V
Dimensions
15x32 mm
Designed to fit the internals of a
water meter
Serial interface
USART 3V TTL

Mobix Wireless Solutions ltd. Tel. +972-3-9213484
88 Gissin St. Fax +972-3-9213482
Petah-Tikva, 49130 www.mobix.com
ISRAEL info@mobix.com
5
Installation
1. Bolt the unit to the wall using the two mounting points

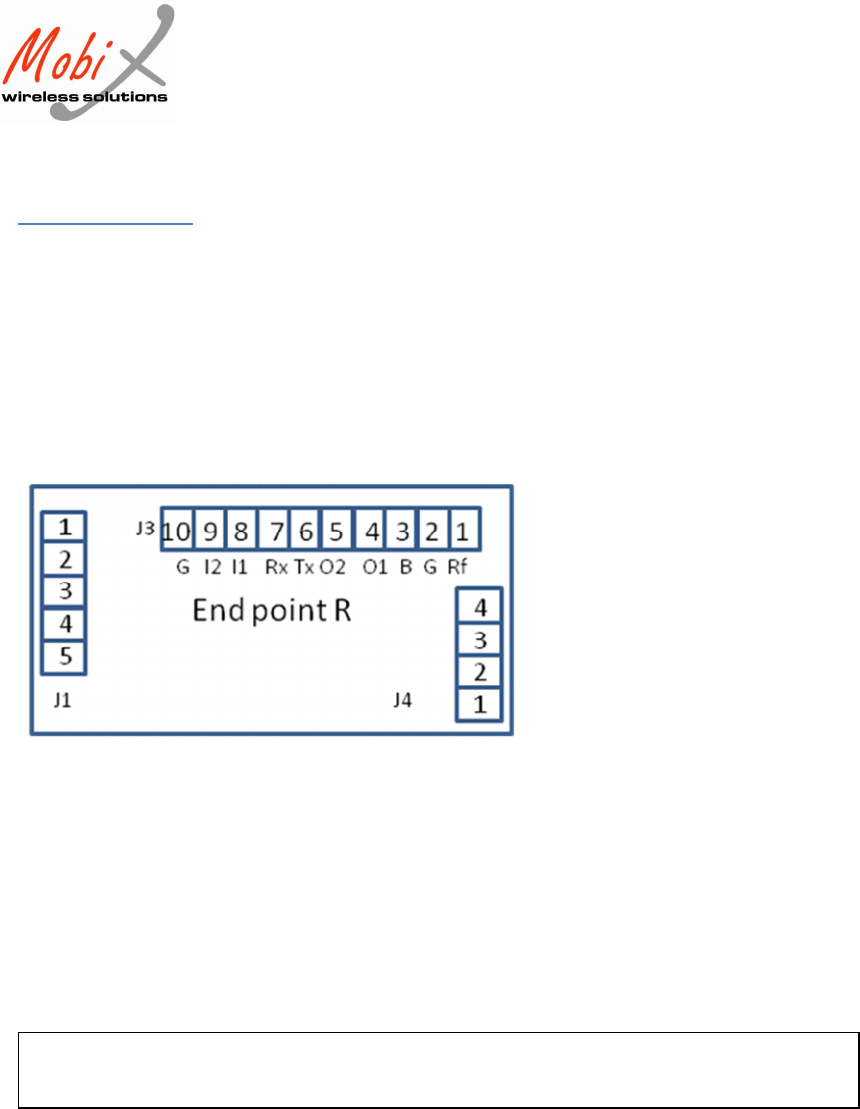

2. Connect the wires from the meter to the internal pins on J3 of
the endpoint as follows:
Pulse output from meter to pin 8
Alarm output to pin 9
Valve - to pin 4
Valve + to pin 5
FCC Warning
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.

Mobix Wireless Solutions ltd. Tel. +972-3-9213484
88 Gissin St. Fax +972-3-9213482
Petah-Tikva, 49130 www.mobix.com
ISRAEL info@mobix.com
6
1. Appendix 1

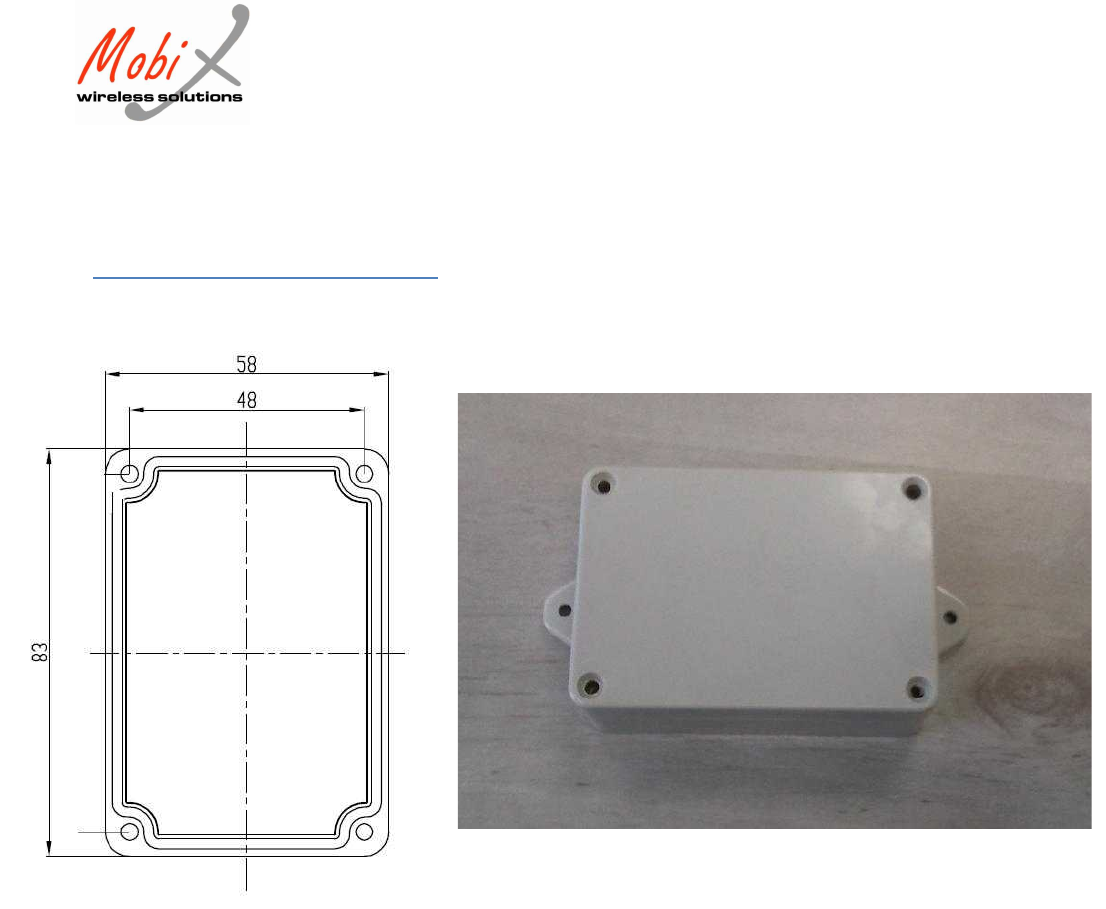

Endpoint external box

Mobix Wireless Solutions ltd. Tel. +972-3-9213484
88 Gissin St. Fax +972-3-9213482
Petah-Tikva, 49130 www.mobix.com
ISRAEL info@mobix.com
7
Appendix 2

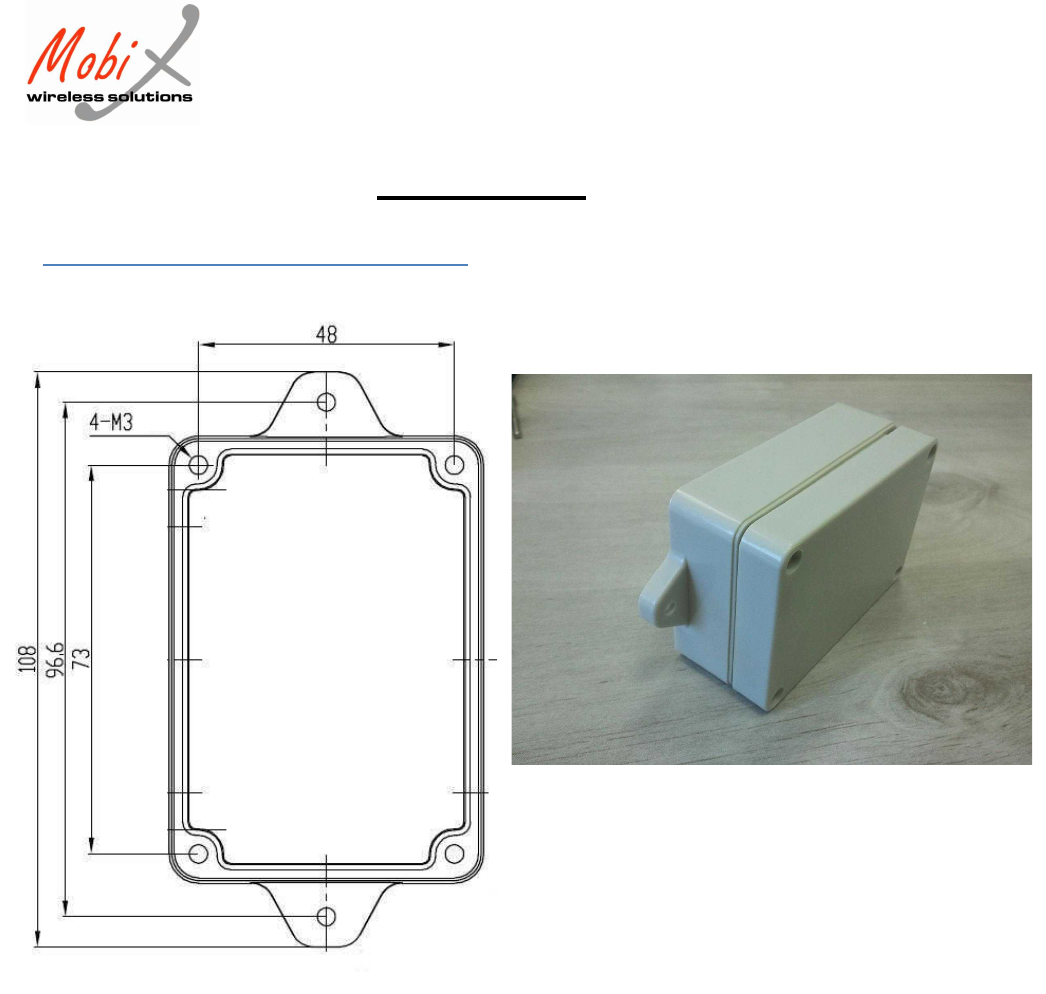

Endpoint installation points
