Molex CVS Bochum NHFP-1 TheTalkyOne User Manual Manual

Novero GmbH TheTalkyOne Manual

Manual

welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
welcome
Congratulations on your new speakerphone!
We hope you will enjoy TheTalkyOne by novero.
This user guide will help you get started and will
present you with all the outstanding features and
accessories that provide for the ultimate,
customized user experience.
TheTalkyOne
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

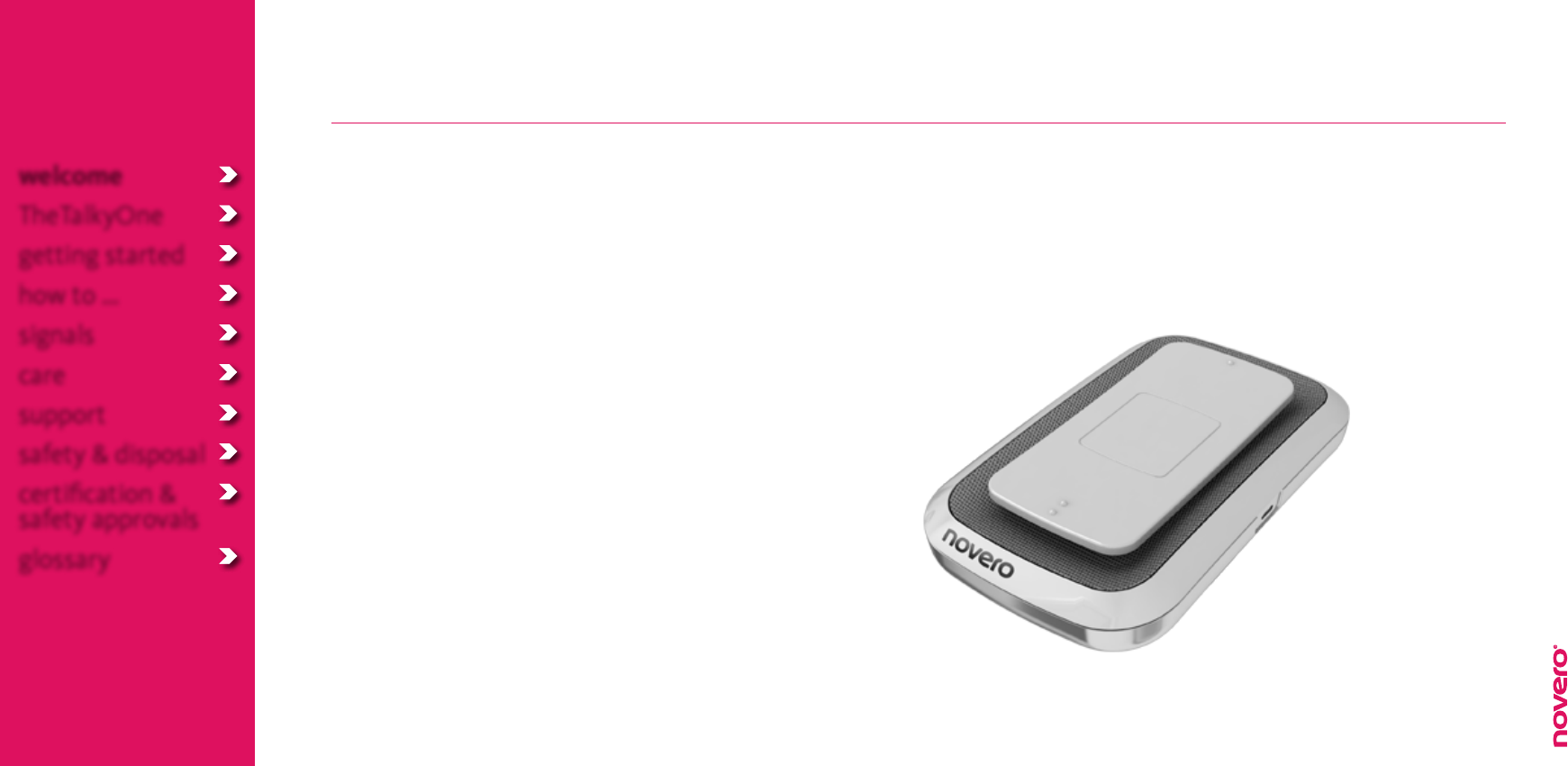

TheTalkyOne is ready to use and designed perfectly
for your car and your oce.
It talks in many dierent languages and it fits perfectly
into your car. You can make handsfree calls and stream
music while in your car. You can clip it onto the sun visor,
place it in the dashboard car holder, and use it as a
speakerphone in the oce.
accessories
_read more
install
_read more
box contents
_read more
technical specifications
_read more
Multi-function
button
Volume up
Microphone
(Front)
Volume down
USB connection
(Back)
box contents
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
Velcro® / glue padsSun visor clip
Car charger (DC) USB cable Box
User guide on mini CD
TheTalkyOne Dashboard car holder

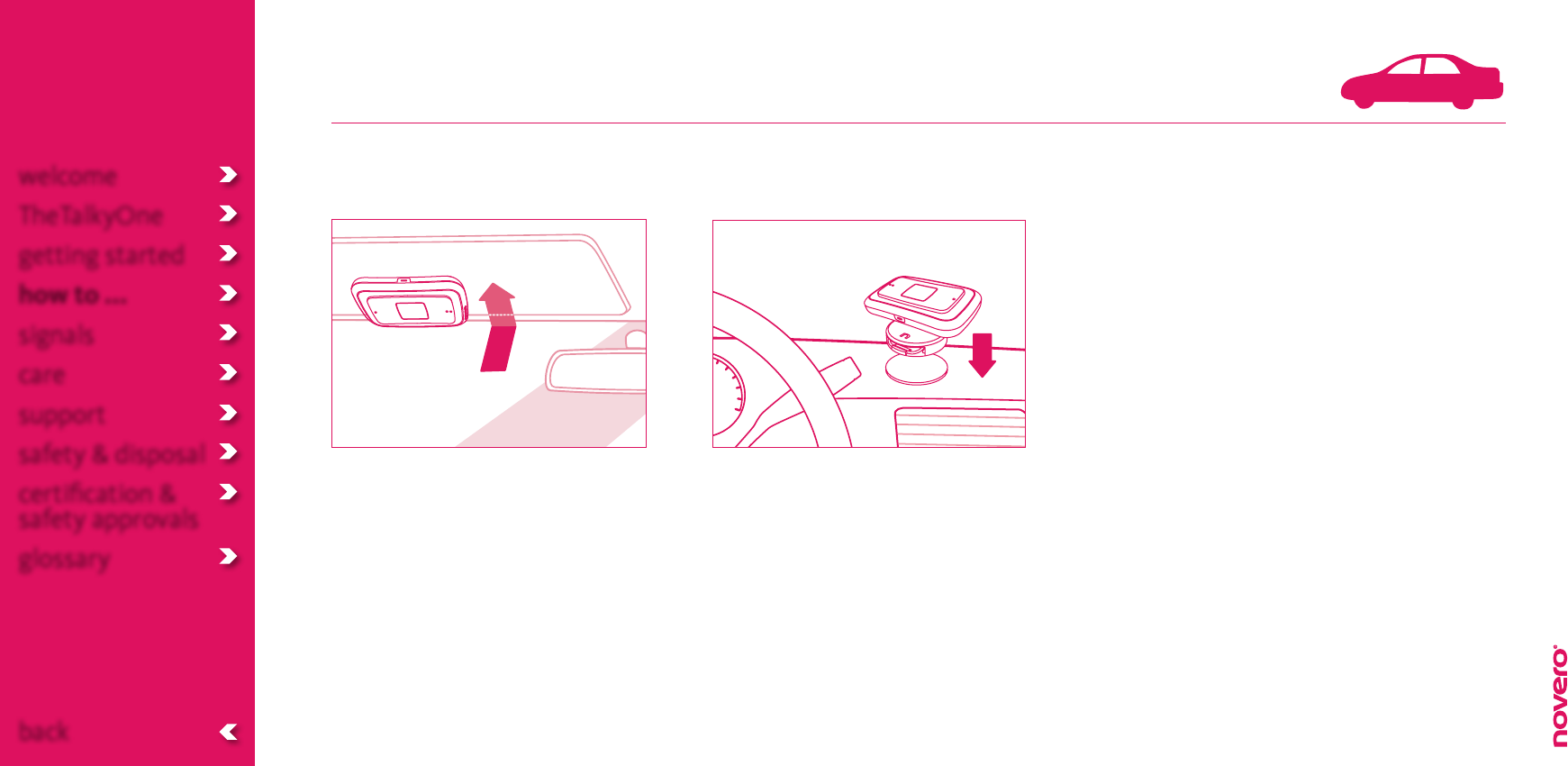

accessories
To complete the concept of style, elegance and
convenience, TheTalkyOne comes with a sun visor
clip, a dashboard car holder and 3 Velcro® pads – one
on the holder and 2 spares.
Both the sun visor clip and dashboard car holder place
your speakerphone in arm’s reach.

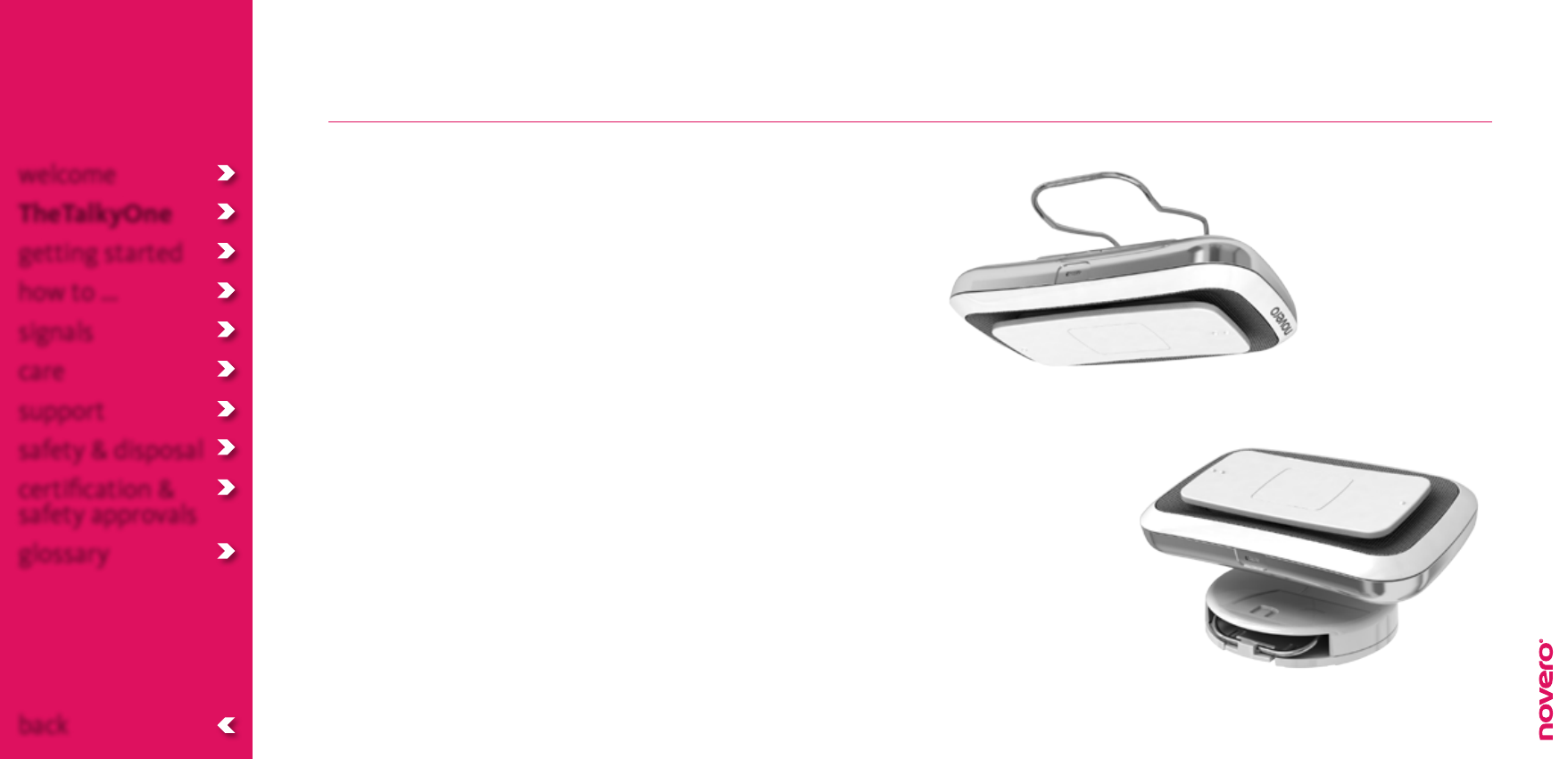

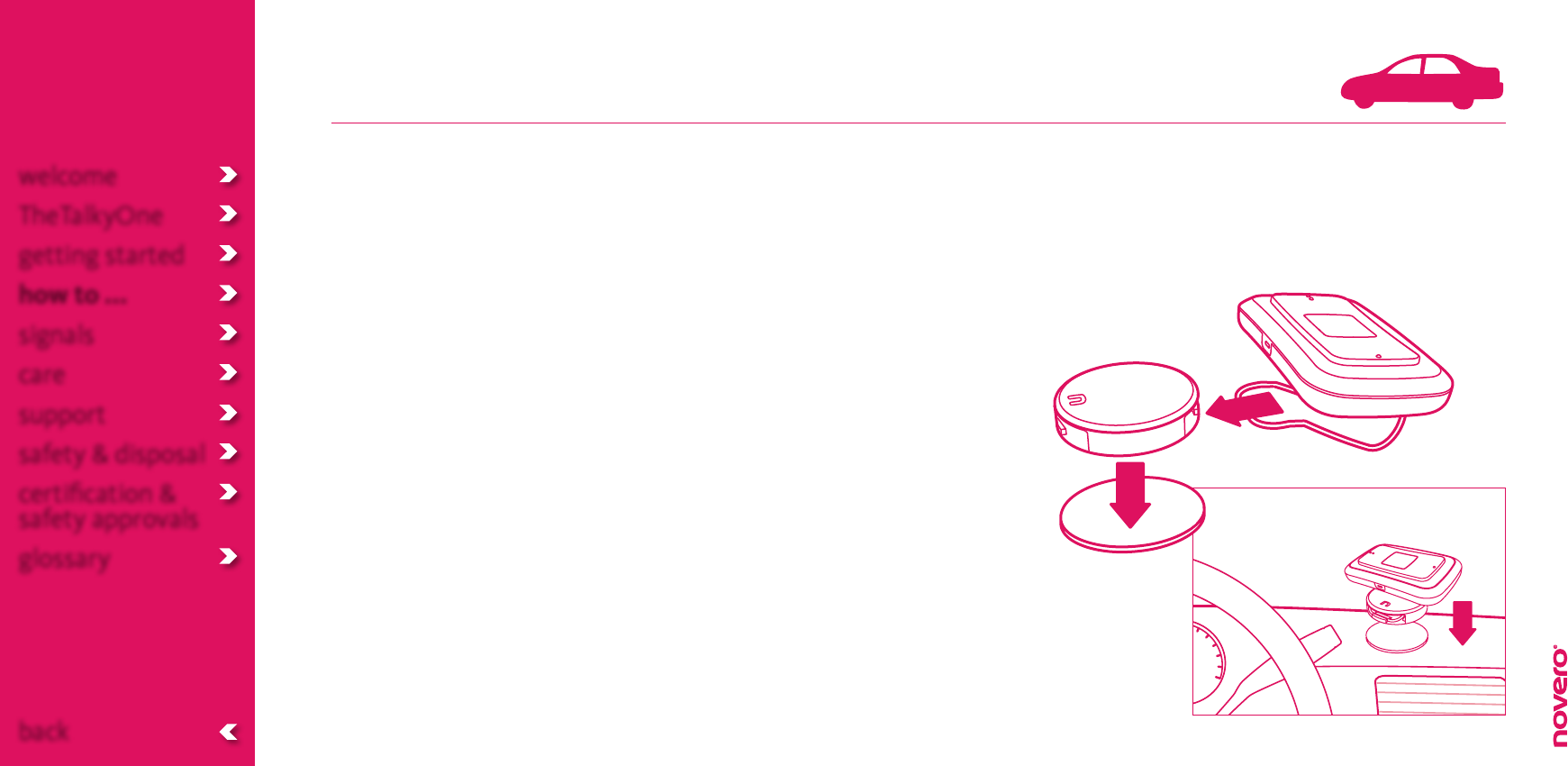

dashboard car holder
_read more
sun visor clip
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

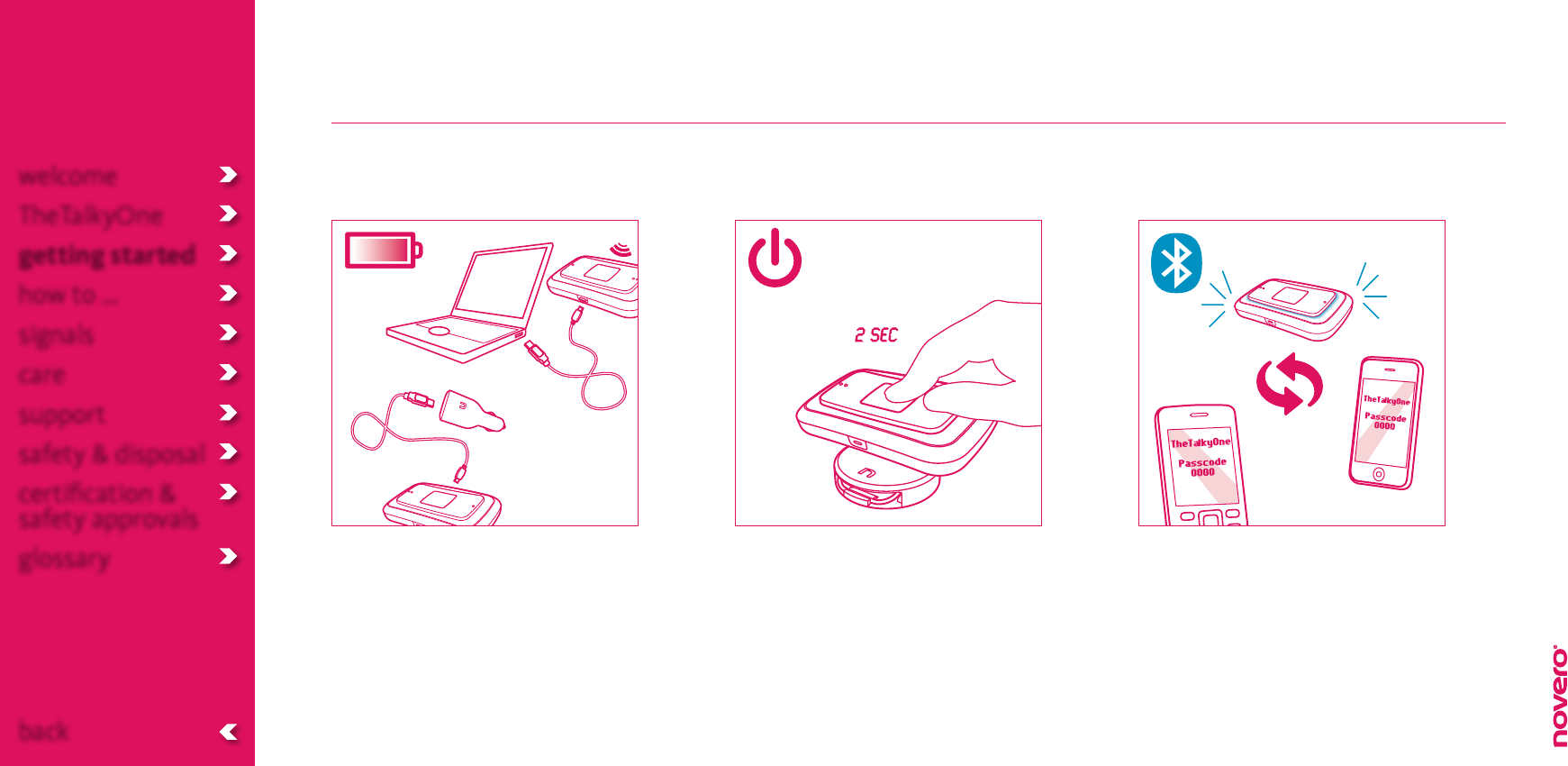

getting started
charging
_read more
pairing
_read more
turning on
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

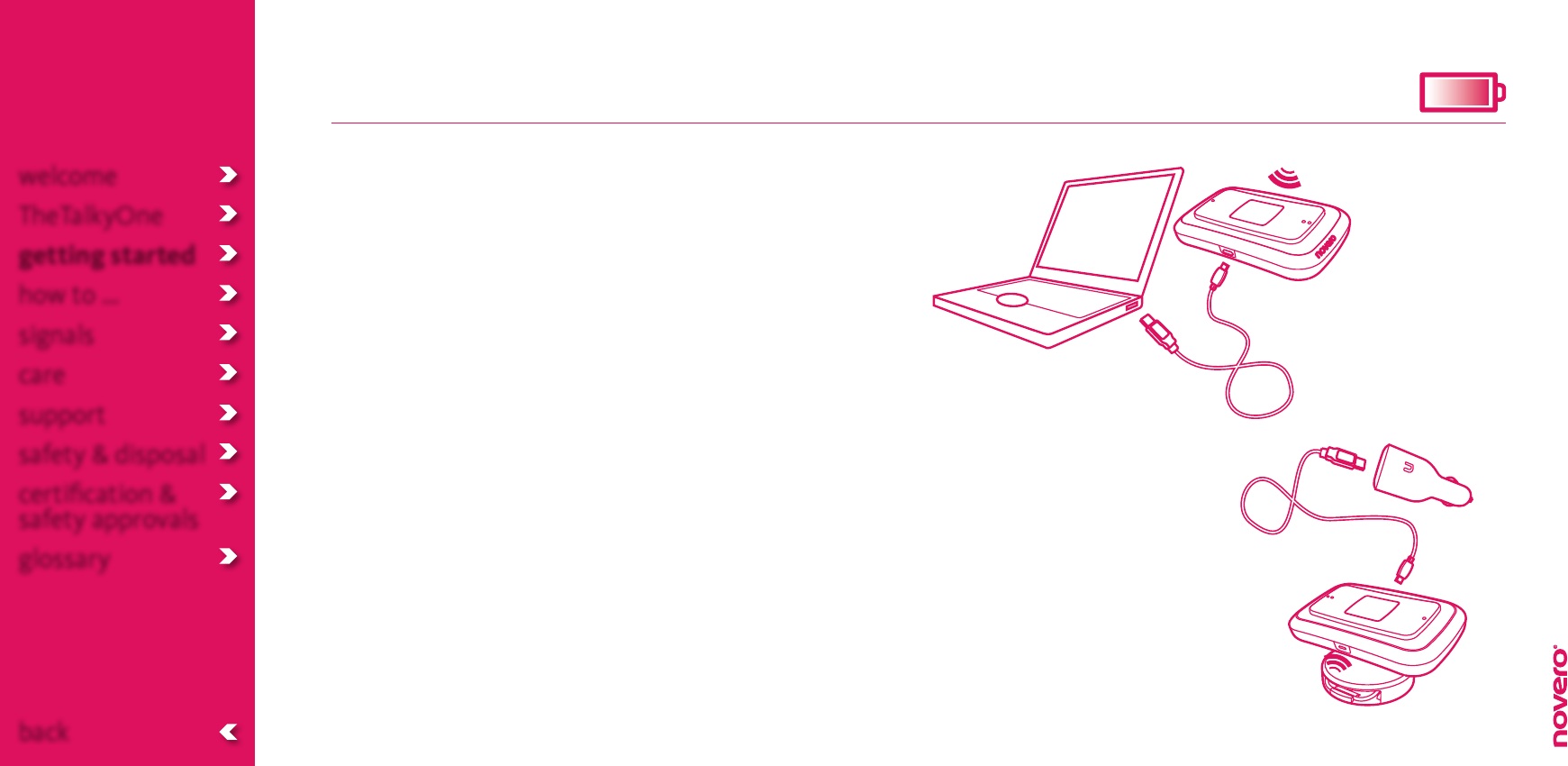

charging TheTalkyOne
Before you can use TheTalkyOne, you must charge it.
Please use only original novero charging devices. The
following charging options are possible:
• Car charger (DC): Connect the car charger to the
USB cable and to the DC outlet in your car. Connect
the USB cable to the speakerphone.
• PC via USB cable: Connect your PC and the
speakerphone with the USB cable.
charging signals
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

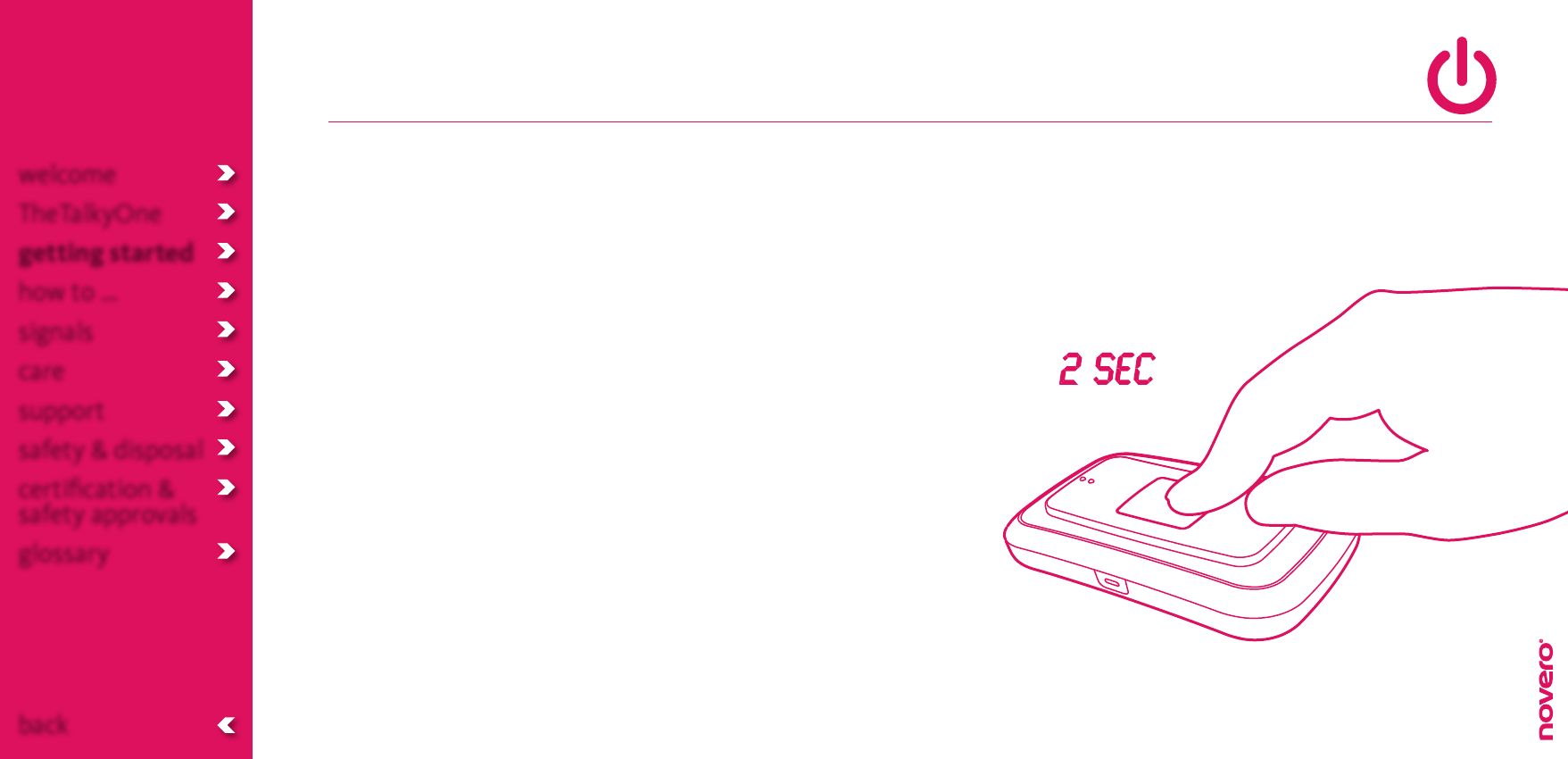

turning TheTalkyOne on/o

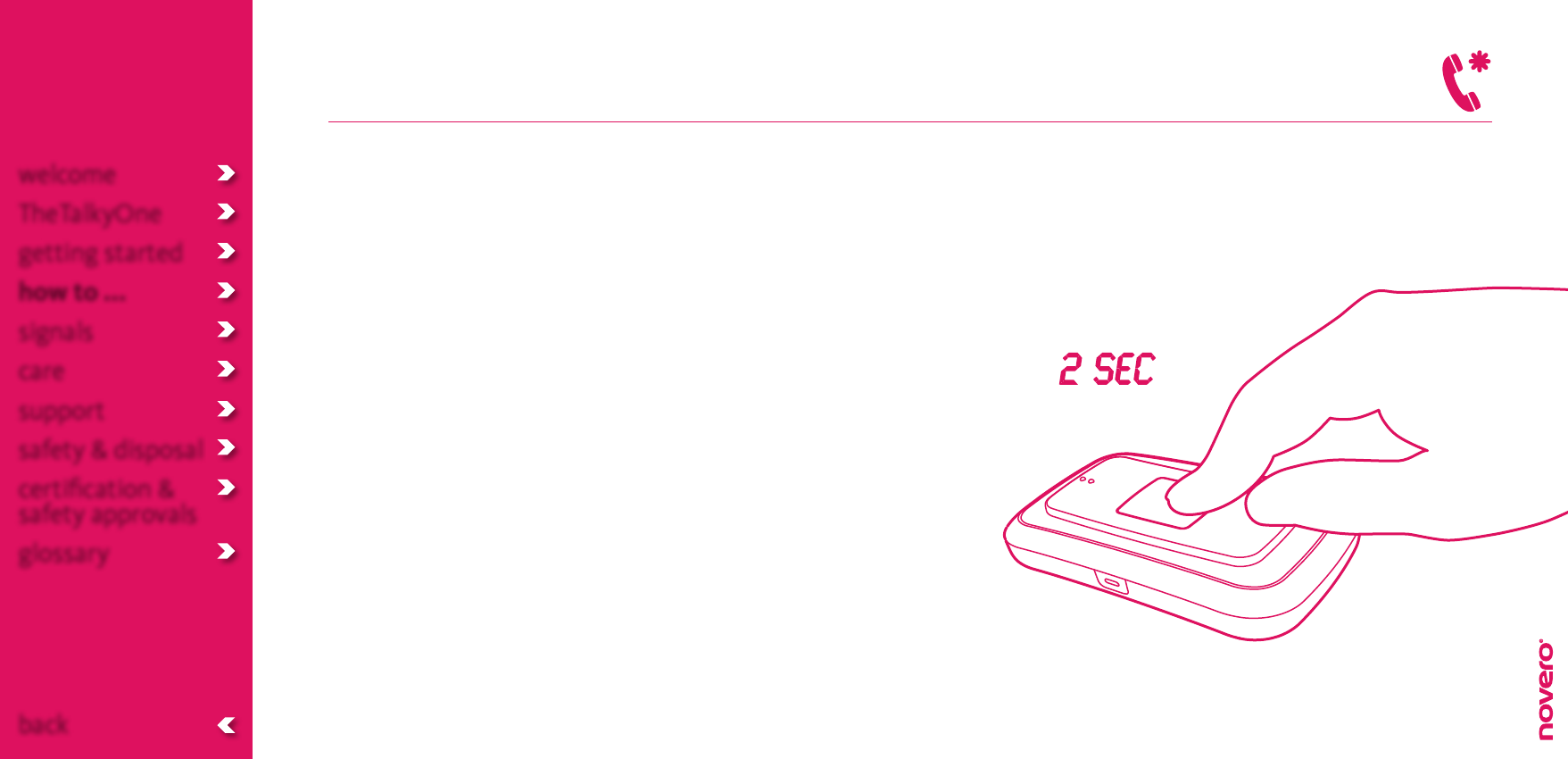

• To turn the speakerphone on, press and hold
(2 sec) the multi-function button.
• To turn the speakerphone o, press and hold
(2 sec) the multi-function button.
If your speakerphone is already paired with a device,
it will automatically attempt to connect with this
device when turned on.
power signals
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

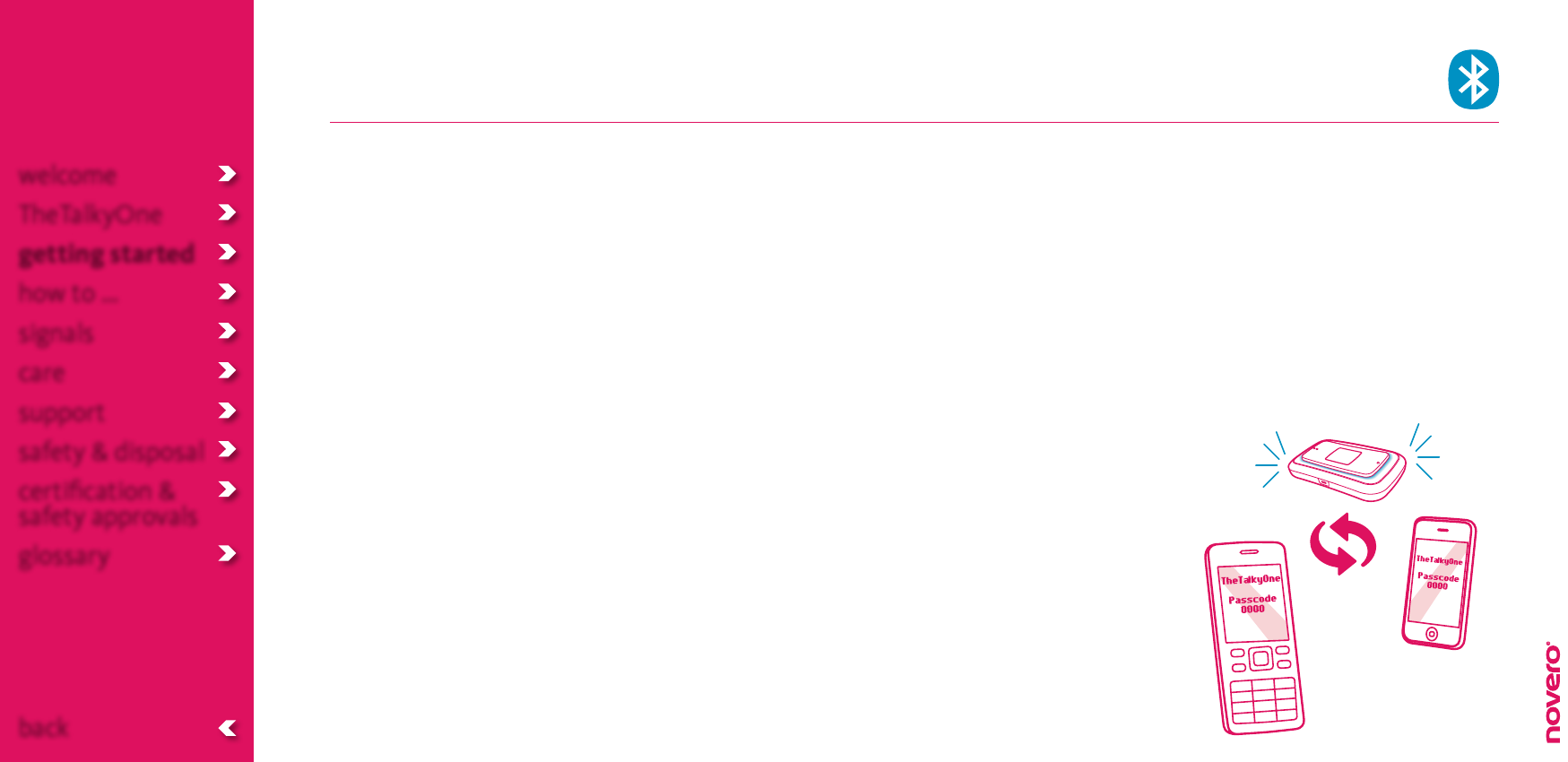

If TheTalkyOne is not already paired with a Bluetooth
device, it will automatically enter pairing mode when
you turn it on.
• To pair the speakerphone with your mobile device,
activate the Bluetooth feature of your mobile device
and search for TheTalkyOne. See the user guide of
your mobile device for instructions.
When your mobile device finds TheTalkyOne, select
it and confirm your choice with the pass code or
PIN=0000. Your device will confirm when pairing is
complete.
Enable an automatic connection to prevent having
to repeat this procedure every time. This device will
now function as your primary device.
Pairing mode will time out after 10 minutes and
TheTalkyOne will automatically turn o. If pairing has
not been completed by then, simply turn the
speakerphone back on to re-enter pairing mode.
• To pair the speakerphone with a second mobile
device, simply repeat the pairing instructions with the
second device. This device will function as your
secondary device.
multipoint
_read more
pairing signals
_read more
software update
_read more
pairing TheTalkyOne
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

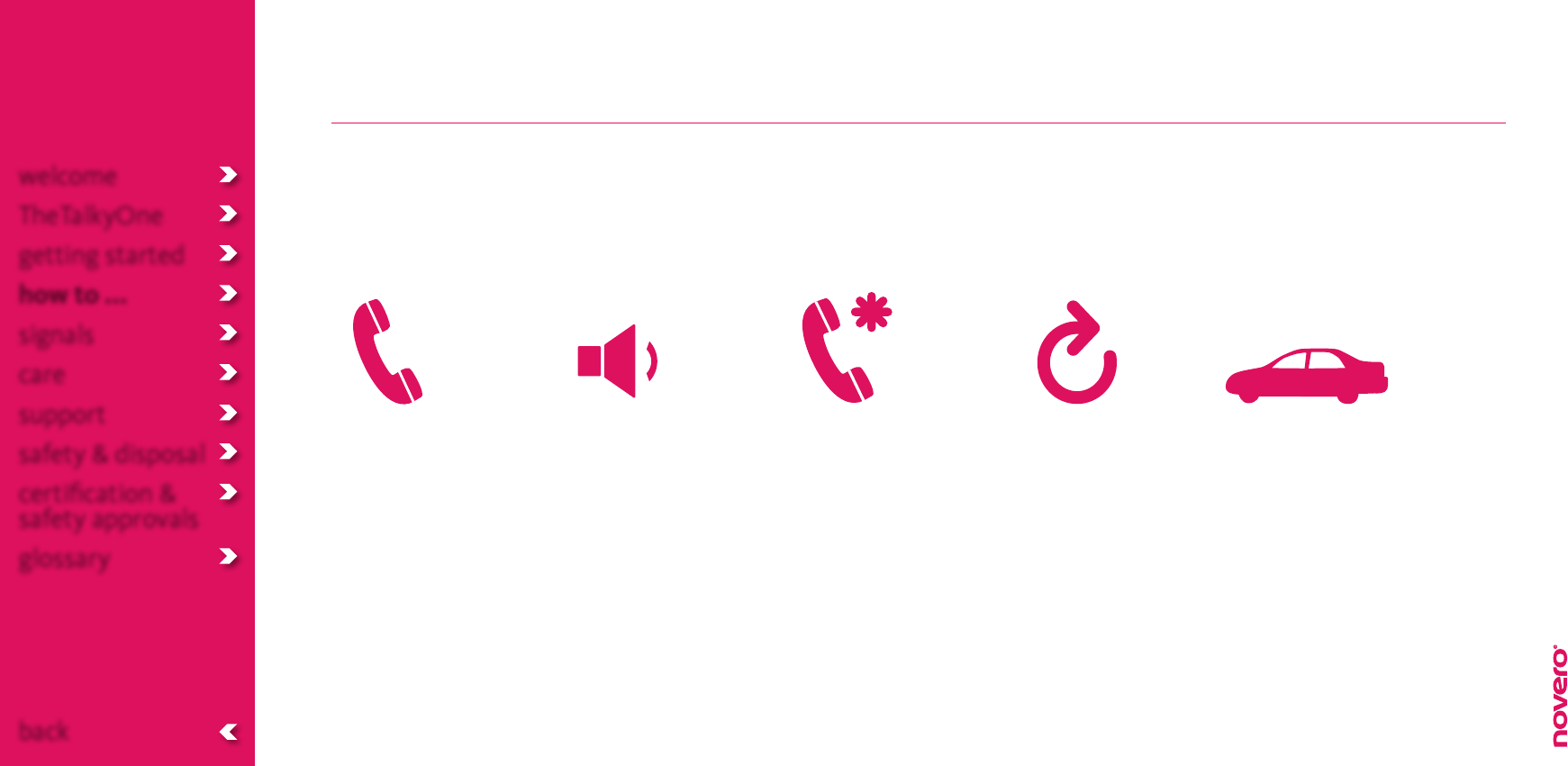

how to ...
make calls
_read more
make advanced calls
_read more
adjust the volume
_read more
update software
_read more

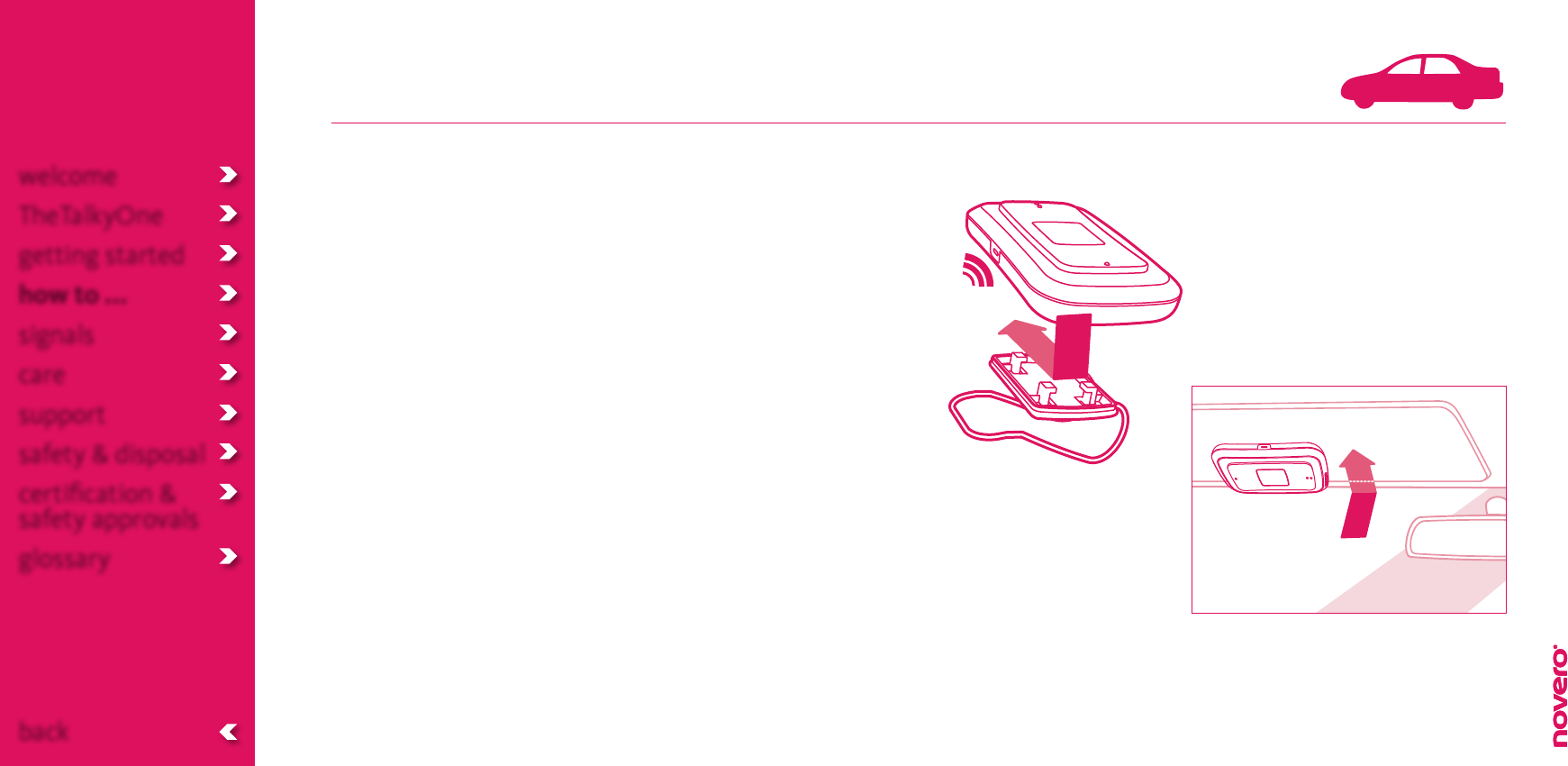

install
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

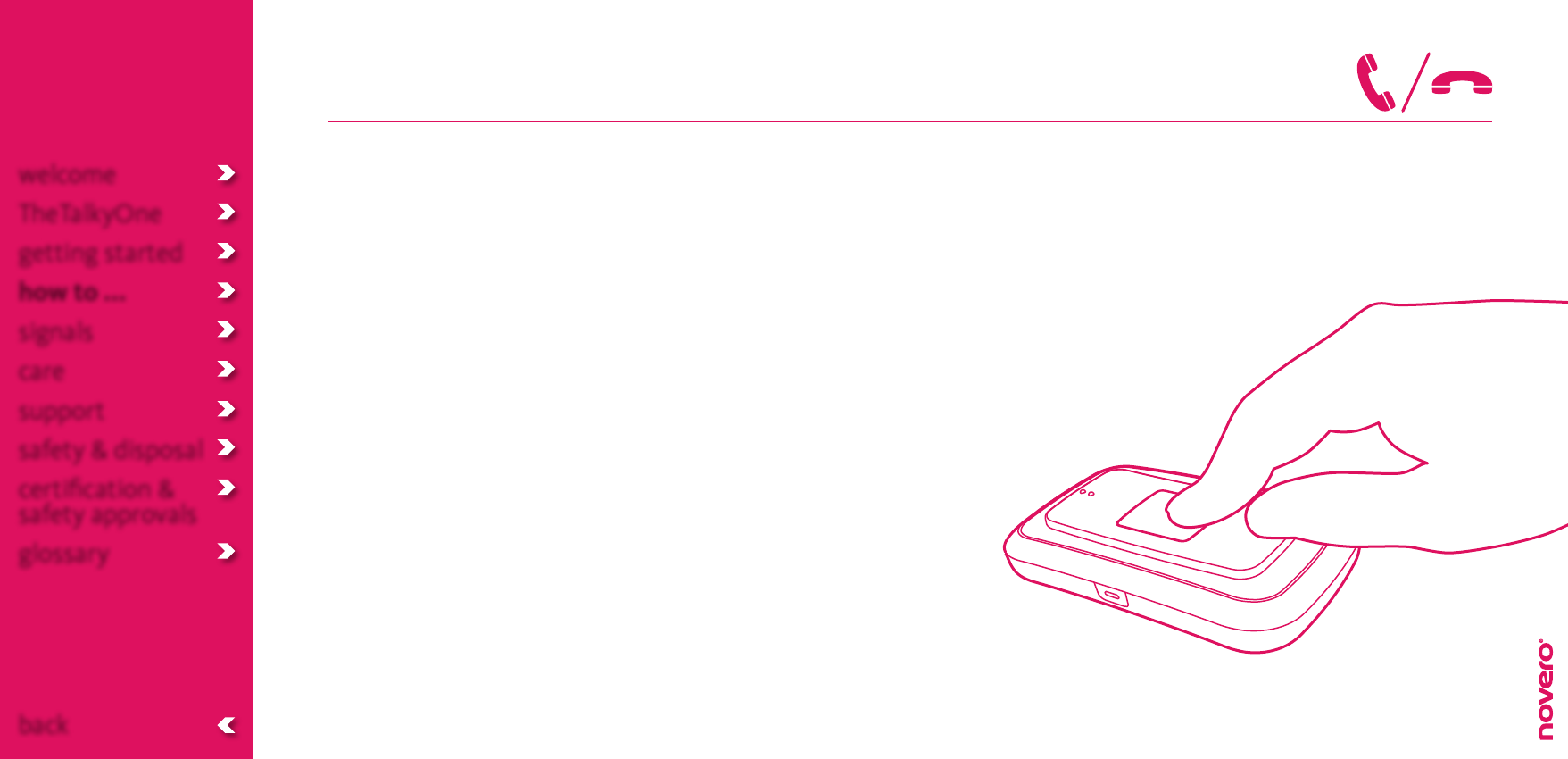

make calls
• To make a call, simply use your mobile device, and
the call will automatically transfer to your
speakerphone (subject to device settings).
• To make a call, you can also use voice dial by
pressing the multi-function button.
• To answer a call, press the multi-function button.
• To end a call, press the multi-function button.
• To redial the last number called, double-press the
multi-function button (applies to primary device only).
• To reject an incoming call, double-press the
multi-function button. – Depending on your mobile
device settings, the call will either be directed to
your voice mail or the caller will hear a busy signal.
call signals
_read more
voice dial
_read more

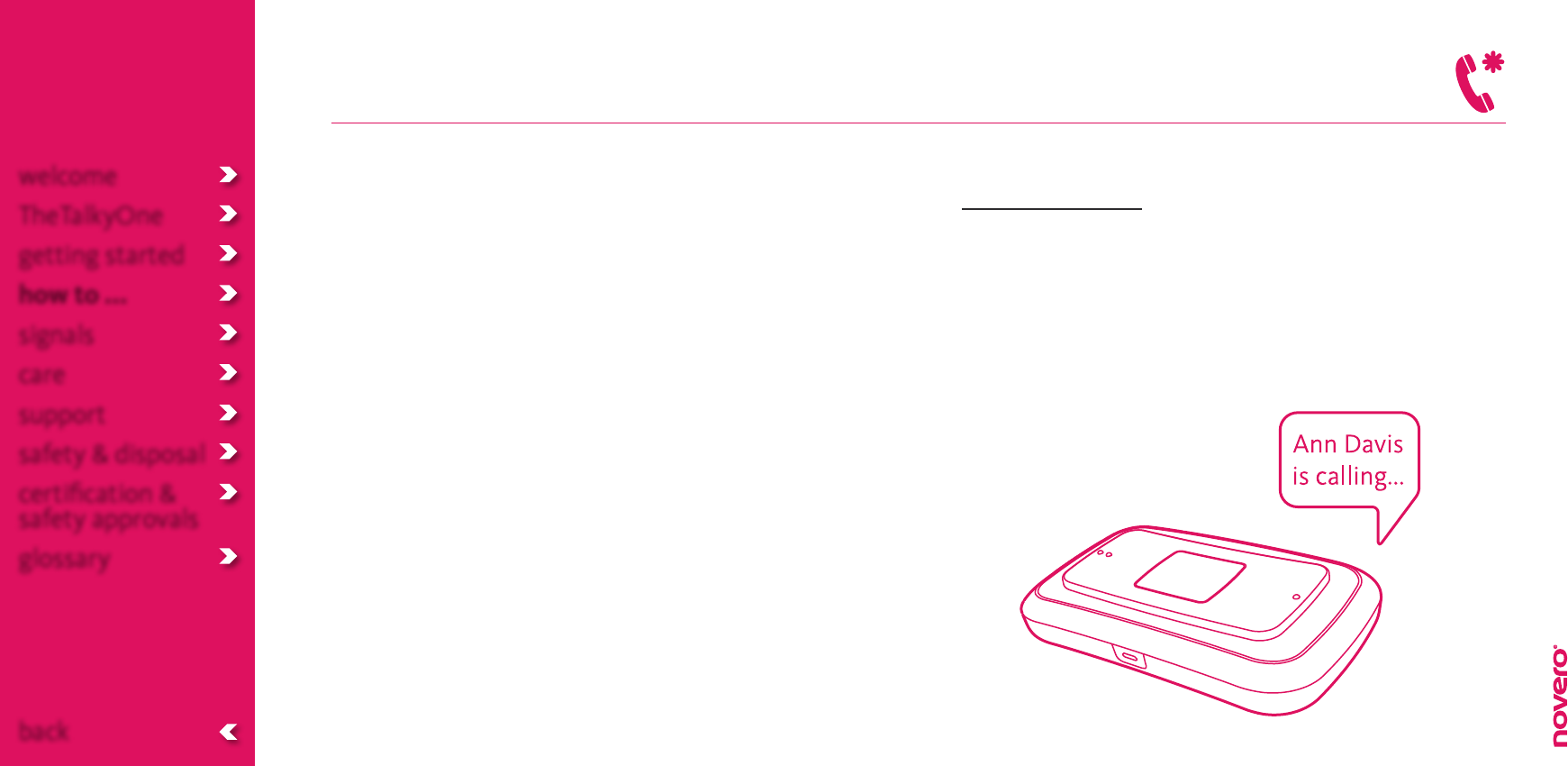

text-to-speech
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back

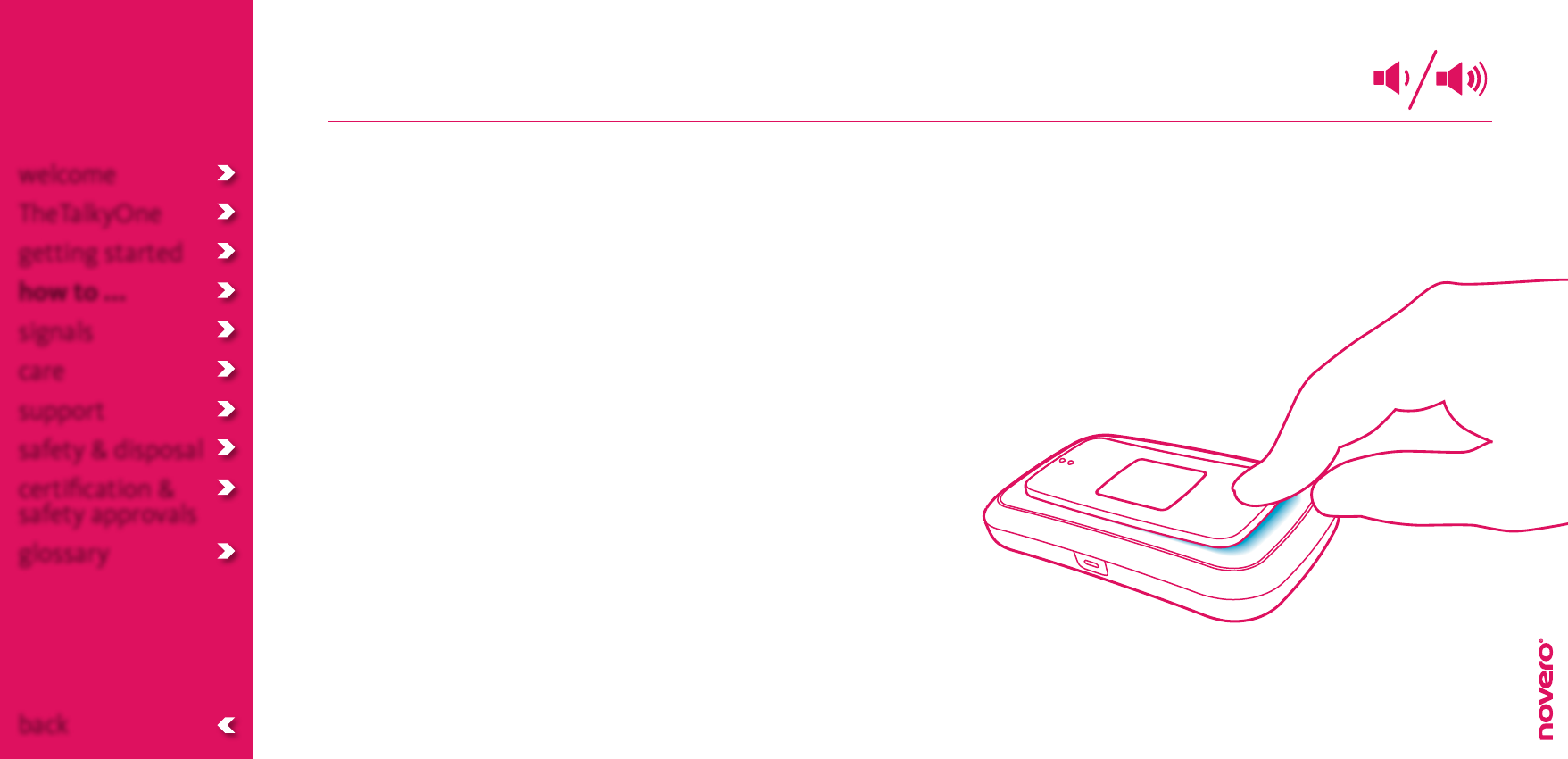

adjust the volume
• To adjust the volume,pressvolumeup(••)or
volumedown(•).
• To mute the microphone, press and hold (2 sec)
volumeup(••).
• To unmute the microphone, press and hold (2 sec)
volumeup(••)again.
volume signals
_read more
Listening to loud music while driving can be dangerous. Please adjust the volume so that it does not interfere with your driving or prevent you
from hearing trac.
!
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
make advanced calls
voice dial
_read more
multipoint
_read more
transfer call
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
text-to-speech
_read more

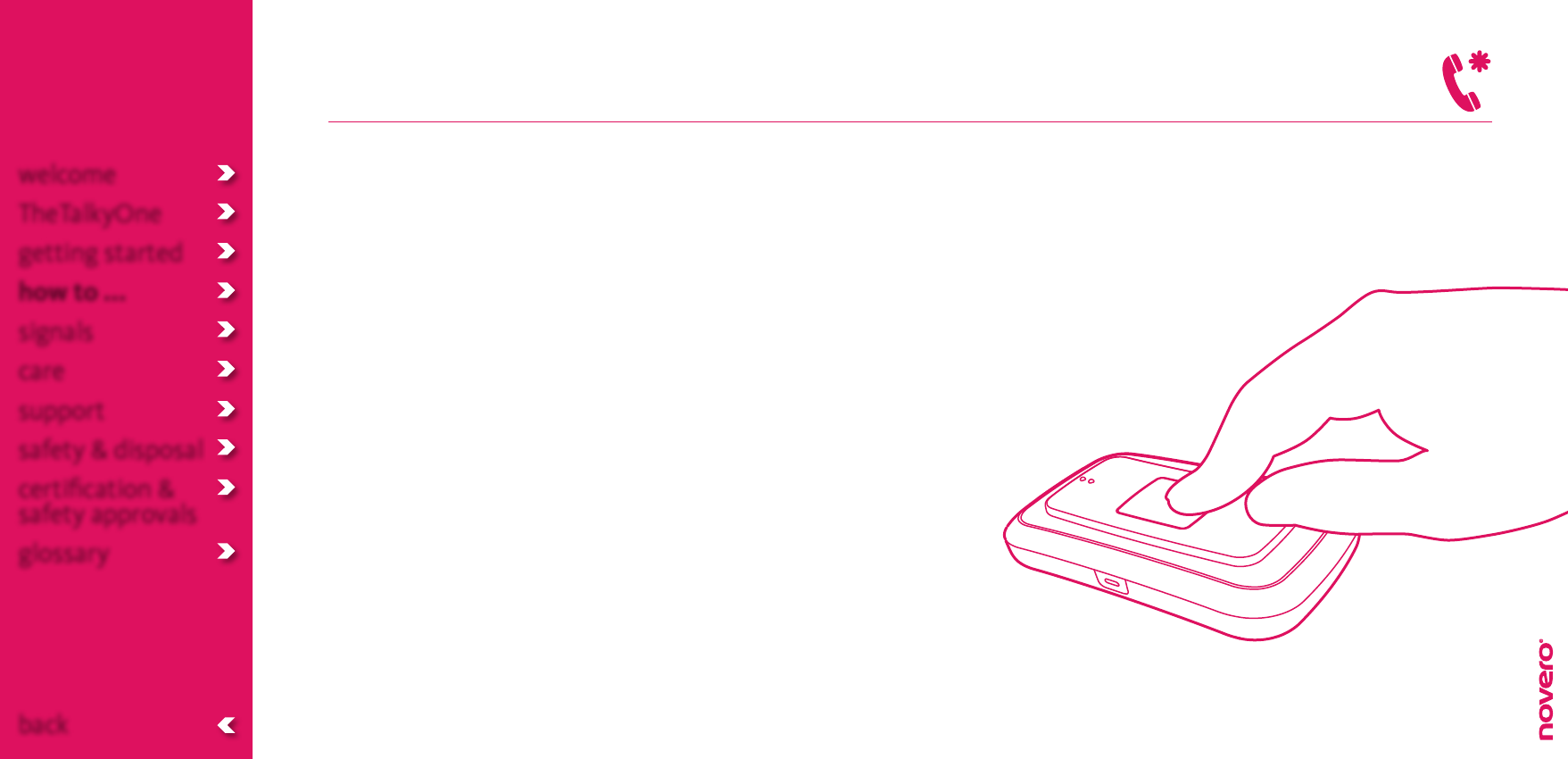

voice dial
TheTalkyOne supports and gives you easy access to the
voice recognition features on your mobile phone – from
voice dialing to more advanced features such as voice-
controlled SMS or e-mail.
• To activate voice dialing (if supported by the primary
device), press the multi-function button.
• To activate advanced voice features (if supported
by the primary device), press the multi-function
button – depending on the mobile phone, you will
hear a recognition tone.
The number of voice recognition features depends on
your mobile phone – please check the user guide for
your mobile phone for more information about voice
dialing and advanced voice features.
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
transfer call
• To transfer an active call from your speakerphone
to your mobile device, press and hold (2 sec) the
multi-function button until the speakerphone
switches o.
• To transfer an active call from your mobile phone
to your speakerphone, press the multi-function
button and turn the speakerphone on.
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
multipoint
With multipoint (multiple connections), you can connect
TheTalkyOne with two mobile devices at the same time.
With the primary device, you can access all advanced
functions, and with the secondary device you can access
the basic call functions.
• To assign the primary status to a specific device,
connect this device to your speakerphone first. The next
device will automatically be assigned secondary status.
• During an active call, only one phone can be
connected to TheTalkyOne. When an active call is
connected to your speakerphone, and the second
connected phone receives a call, your current call will
not be interrupted. After you have ended your call,
TheTalkyOne will reconnect to the second phone so
that they both are reachable again.
• If you make an outgoing call from the secondary
device, it will become the primary device for the
duration of the call.
•  To change the priority of the primary and secondary
device, you must reset the pairing list. To do so, press
and hold (4 sec) the multi-function button and volume
up(••)atthesametime.Thenre-connectthedevices
to your speakerphone, starting with the one you want
as your primary device.
pairing
_read more
support
_read more
make advanced calls
_read more
When the speakerphone is turned on for the first time,
it will automatically set the language to English. After
you have paired your mobile device with your
speakerphone, it will automatically check the language
of your mobile device. If the language is available, the
speakerphone will automatically switch to this language.
• To change the language of the speakerphone,
press the multi-function button and volume down
(•)oncetohearthecurrentlanguagereadaloud.
Press the combination again for the next language.
Repeat until you hear the language you wish to
select. – Then simply stop to activate the next
language.
• To turn text-to-speech o, press the multi-function
buttonandvolumedown(•)atthesametime.
• To change the installed languages, please visit
www.novero.com and check the service section. The
novero software update tool allows software
updates with dierent languages.
You can also change the text-to-speech language with
the novero software update tool.
software update
_read more
text-to-speech
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
update software
TheTalkyOne supports software updates which
ensure that you always have the latest software and
can enjoy the latest features. The novero software
update tool is available on www.novero.com
• To update the software of TheTalkyOne, go to
www.novero.com and install the novero software
update tool. Please install it onto your PC, and then
connect TheTalkyOne with the USB cable to the PC.
For more information on updating the software, go to
www.novero.com and check the service section.
support
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
install
sun visor clip
_read more
dashboard car holder
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
sun visor clip
• To attach TheTalkyOne to the sun visor, simply
clip it on. When attaching the clip to the sun visor,
make sure that the microphone points towards
your mouth and the clip fits tightly. If it does not,
please use the dashboard holder instead.
dashboard holder
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
Attaching TheTalkyOne can make small imprints on your sun visor, which usually disappear after detaching it. To avoid these imprints you can use the
dashboard car holder instead.
Please check that you can still use the sun visor after installing TheTalkyOne. If not, please use the dashboard car holder instead.
!
TheTalkyOne comes with a dashboard car holder,
which allows you to charge it via your car charger.
• To install the dashboard car holder in the right
place, first check that the microphone points
towards you. If you want to charge while driving,
you should also connect the car charger to the DC
outlet in your car. Then fasten the dashboard car
holder to the dashboard in a place where:
1) The dashboard car holder is not close to an airbag
or area where it could harm you in case of a
collision.
2) It will hold your speakerphone in arm’s reach from
the driver’s seat, and the microphone points
towards you.
3) You can easily detach the speakerphone
when leaving the car.
You can use the spare Velcro® pads to change the
positioning in the car.
sun visor clip
_read more
dashboard car holder
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
signals
TheTalkyOne has various signals to indicate the status
of your actions or inform you of dierent situations.
charging signals
_read more
power signals
_read more
pairing signals
_read more
call signals
_read more
volume signals
_read more
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
The battery life will be significantly reduced if your speakerphone is left uncharged for a long period of time. It is therefore recommended that you
recharge your speakerphone at least once a month.
Situation:
Battery low
Battery charging
Battery charged
LED lights:
Red flash every five minutes
Solid red
One blue flash
Sound:
One beep every five minutes
Two beeps
charging signals
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back !
Situation:
Turning on
Turning o
LED lights:
Blue fading in
Red fading out
Sound:
One beep
Two beeps
power signals
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
LED lights:
Blue flashes
Solid blue
Solid blue
Solid blue
Situation:
Pairing mode
Pairing successful
Standby
Idle (not paired)
Bluetooth
connection lost
Sound:
Two short beeps
pairing signals
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
call signals
Situation:
Incoming call
Active call
Reject call
End call
Sound:
Ring tone or caller ID read aloud (TTS)
One beep
One beep
LED lights:
Solid blue
Solid blue
One red flash
One red flash
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
Situation:
Volume up
Volume down
Mic. muted
Unmute mic.
LED lights:
Blue flashes
onvolumeup(••)side
Blue flashes
onvolumedown(•)side
Red flash every two seconds
Sound:
Volume goes up
Volume goes down
One short beep
One beep
volume signals
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
care
• StoreTheTalkyOne with the power o and safely
protected when not in use. To avoid the risk of theft,
do not leave your speakerphone or sun visor clip
visible in the car.
• Storethespeakerphoneoutofdirectsunlightand
extreme temperatures (above 40°c/113°f or below -
10°c/14°f), as this may shorten the battery life, aect
the operation or reduce the performance of your
speakerphone. Do not leave your speakerphone in
your glove box, as the temperature could be too
high.
• Storethespeakerphoneawayfrommagneticstrips
(e.g. on credit cards) and electronic medical devices.
• Handleyourspeakerphonewithcare.–Donotdrop,
knock or shake it, or expose it to heavy dust, dirt,
moisture, rain or other liquids.
• Disposeofallproductpartsinaccordancewithlocal
standards and regulations to protect the
environment and promote sustainability.
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
support
Please check the following suggestions if you experience any
problems with TheTalkyOne.
• If there is no sound in your speakerphone:
– Check that the volume is adjusted correctly.
– Check that your speakerphone is paired with your device.
– Check that your speakerphone and device are turned on.
You should then hear a sound from your speakerphone.
– Check that your speakerphone and device are charged.
• If you cannot pair your speakerphone:
– Check that the speakerphone is not already paired with
your device. If not, then repeat the pairing procedure, or
reset the list of paired devices, by pressing and holding (4
sec)themulti-functionbuttonandvolumeup(••)atthe
same time.
• If you hear static or noise in your speakerphone:
– Check that the speakerphone is close to your mobile device
and that the microphone is pointing towards you. If not,
move the speakerphone closer to the device.
• If you cannot redial, voice dial, or reject a call with your
speakerphone:
– Check that these features are supported by the connected
mobile device.
• If the speakerphone is not functioning properly,
– You may need to reset the hardware. To reset the
speakerphone hardware, press and hold (10 sec) the
multi-functionbuttonandvolumeup(••)atthesametime.
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
print user guide
_read more
technical specifications
_read more
software update
_read more
technical specifications
• Speakerphone weight: 3.3 ounces
• Operating range: Up to approx. 33 feet
• Battery: Built-in, non-replaceable, rechargeable
battery
• Battery power supply: Car charger (DC) or PC via
USB cable
• Talk-time (with fully charged battery): Up to 15 hours
• Standby time (with fully charged battery): Approx.
180 hours
• Bluetooth: Multi-compatible with devices that
support Bluetooth Specification 2.1 with EDR,
HandsfreeProle1.5,multipointfeature,A2DP
(Advanced Audio Distribution Profile) and PBAP
(Phonebook Access Profile)
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
print user guide
• To print the user guide for TheTalkyOne, press
escape (esc) to exit full screen mode. Then go to
the File menu and select Page Setup to adjust your
preferred settings, e.g. A4 landscape format for
normal copy size. Then select OK.
Now select Print and adjust the print settings, e.g.
black and white, and then select OK.
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
safety & disposal
1. Preparing TheTalkyOne
• Makesurethat,ifinstalled,thedashboardcarholderisfastenedtothedashboardinaplacewhere
1) The USB cable can reach from the car charger to the dashboard car holder
2) The dashboard car holder is not close to an airbag or area where it could harm you in case
of a collision
3) It will hold your speakerphone in arm’s reach from the driver’s seat.
2. Using TheTalkyOne
• Becautiousaboutusingyourspeakerphonewhileengaginginanyactivitythatrequiresyour
full attention. The lights on TheTalkyOne can be bright and may disturb you while driving.
Please turn o your speakerphone to keep you from being distracted and avoid accidents.
• Donotplaymusicatthemaximumlevel,asthismaydisturbyouwhiledriving.Pleaseadjust
the volume to an to an appropriate level so that it does not prevent you from hearing trac,
or interfere with your driving in any way.
• DonotleaveTheTalkyOne visible in your car to avoid the risk of theft or exposure to
excessive heat, which may shorten the battery life.
• Usingyourspeakerphonewhileoperatingamotorvehicle,motorcycle,watercraftorbicycle
may be dangerous and is illegal in some jurisdictions. Please respect local laws.
• Ifyouuseapacemaker,hearingaidorotherelectronicmedicaldevice,pleaseconsultyour
physician before using the speakerphone.
• Nevertrytodismantletheproductyourself.Noneoftheinternalcomponentscanbe
replaced or repaired by users. – Only authorized dealers or service centers may open the
product. If any parts of your product require replacement for any reason, including normal
wear and tear or breakage, contact your dealer.
• DonotchargeTheTalkyOne while it is attached to the sun visor.
3. Keep out of reach of children
• The speakerphone and packaging contain small parts and are not toys for children. They may
cause choking if ingested.
4. ACA TS028 – ignition of flammable atmospheres
• Donotuseyourspeakerphoneinenvironmentswithriskofignitionofammablegases.
5. Disposing of TheTalkyOne
• Donotattempttoreplacethebuilt-inbatteryinyourspeakerphone.
• Disposeofallproductpartsinaccordancewithlocalregulations.Ifindoubt,pleaseconsult
your local authorities.
• Thecrossed-outwheeledbinmeansthatwithintheEuropeanUniontheproductmustbe
taken to a separate collection facility at the product’s end-of-life. Do not dispose of these
products as unsorted municipal waste.
6. Warranty
• noverooersalimitedmanufacturer’swarrantyof12monthsfromthedateofpurchase.In
some cases/countries the warranty time can be extended to 24 months. Please visit
www.novero.com to find more details on warranty extension and warranty return options.
The reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of novero is prohibited. novero® is a registered
trademark. Other product and company names mentioned herein may be trademarks or trade
names of their respective owners.
noveroproductsaretrademarksorregisteredtrademarksofnoveroGmbH.
©2009 novero
all rights reserved
For recycling companies only: To remove the battery, please remove the silicone from the bottom
and unscrew the four screws in the corners. Now you can use the screwdriver to remove the
battery.
For more information, please go to www.novero.com
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
certification & safety approvals
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
Declaration of Conformity
Hereby,noveroGmbH,declaresthatthisNHFP-1isincompliancewiththeessential
requirements and other relevant provisions of Directive 1999/5/EC.
The product is in conformity with the limits defined in Directive 2004/104/EC (amending
Directives 72/245/EC), Annex I, paragraph 6.5, 6.6, 6.8 and 6.9.
A copy of the Declaration of Conformity can be found at
www.novero.com/declaration_of_conformity
FCC/Industry Canada notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including interference that may cause
undesired operation.
FCCID:WJLNHFP-1
IC:7847A-NHFP1
NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
NOTE: Changes or modifications not expressly approved by novero could void the user’s
authority to operate the equipment.
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
Velcro® is a registered trademark of Velcro Industries B.V.
TheBluetoothspeakerphonesupportsBluetoothSpecication2.1withEDR,HandsfreeProle
1.5 and Multipoint
DCcharger=NDCH-1
USB cable = NCAB-1
The availability of particular products may vary by region. Please check with the novero dealer
nearest you. Unauthorized changes or modifications to this device may void the user’s authority
to operate the equipment.
Export controls: This device may contain commodities, technology or software subject to export
laws and regulations from the US and other countries. Diversion contrary to law is prohibited.
welcome
TheTalkyOne
getting started
how to ...
signals
care
support
safety & disposal
certification &
safety approvals
glossary
back
glossary
A2DP is a Bluetooth profile that allows you to stream music in stereo quality from your mobile
phone to your speakerphone.
Bluetooth is a radio technology that connects devices, such as mobile phones and
speakerphones, without wires or cables over a short distance (approx. 33 feet).
Bluetooth is safe to use and secure, too. Once two Bluetooth devices have been paired, no one
can listen in and no other Bluetooth devices can interfere.
Get more information at www.bluetooth.com
Idle (not paired) is the mode where your speakerphone is turned on but not paired to a
Bluetooth-enabled mobile phone.
LED is short for light-emitting diode and refers to the light indicator of your speakerphone that
sends dierent red or blue signals depending on specific actions, events or modes.
Multipont allows two mobile phones to be connected to your speakerphone. The first
connected user is the main user, who can use all features. The second user can only use the
basic functions, such as receiving calls.
Pairing creates a unique and encrypted connection between two Bluetooth devices. Bluetooth
devices will not work together if they have not been paired.
Pass code or PIN is the code required to pair a Bluetooth device (e.g. a mobile phone) with your
speakerphone.
Standby is the mode where your speakerphone is turned on, paired and ready for outgoing or
incoming calls. When a call is ended, the speakerphone automatically returns to standby mode.
Software update allows you to change the software of your speakerphone. This should only
be done if there are compatibility issues with your mobile device. Please check for more
information on www.novero.com under services.
Text-to-speech means that the speakerphone reads information aloud, such as the caller ID
and important status. Text-to-speech is available in dierent languages.
Voice dial means that you can dial a number by saying a name out loud, instead of entering
a number manually or choosing it from the phone book. With speaker-independent voice
recognition, no recording is required. The name can be spoken by anyone, and the phone will
automatically match the spoken name with the closest name entered in the phone book.

Navigation menu
