Monoprice SOUNDSTAGE3 Bluetooth Speaker System User Manual
Monoprice, Inc. Bluetooth Speaker System
User Manual
User’s Manual
P/N 33393/33394
Soundstage 3 Bluetooth® Speaker
2
CONTENTS
SAFETY WARNINGS AND GUIDELINES .................................................. 3
FEATURES ........................................................................................................................ 5
CUSTOMER SERVICE .............................................................................................. 6
PACKAGE CONTENTS ........................................................................................... 6
PRODUCT OVERVIEW ............................................................................................ 7
Rear Panel ................................................................................................................ 7
Top Panel ................................................................................................................ 8
OPERATION .................................................................................................................... 9
Pairing ......................................................................................................................... 9
Linking ..................................................................................................................... 10
Clearing Memory .............................................................................................. 11
SPECIFICATIONS ...................................................................................................... 12
TECHNICAL SUPPORT .......................................................................................... 13
REGULATORY COMPLIANCE ......................................................................... 13
Notice for FCC ................................................................................................... 13
Radio Notice for FCC ................................................................................... 15
3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device,
paying extra attention to these safety warnings and
guidelines. Please keep this manual in a safe place for
future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of
any kind. Do not place drinks or other containers with
moisture on or near the device. If moisture does get
in or on the device, immediately unplug it from the
power outlet and allow it to fully dry before
reapplying power.
Do not touch the device, the power cord, or any
other connected cables with wet hands.
If operating this speaker in a humid environment,
ensure that no condensation occurs. Condensation
could cause damage to the speaker cones and could
cause a short in the amplifiers, which in turn could
cause fire or severe electric shock.
Do not subject the product to extreme force, shock,
or fluctuations in temperature or humidity.
4
Do not expose this device to excessively high
temperatures. Do not place it in, on, or near heat
sources, such as a fireplace, stove, radiator, etc. Do
not leave it in direct sunlight.
Prior to operation, check the unit and power cord for
physical damage. Do not use if physical damage has
occurred.
Before plugging the unit into a power outlet, ensure
that the outlet provides the same type and level of
power required by the device.
Unplug this device from the power source when not
in use.
Take care to prevent damage to the power cord. Do
not allow it to become crimped, pinched, walked on,
or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord.
Always grasp the connector head or adapter body.
Clean using a soft, dry cloth only. Do not use chemical
cleaners, solvents, or detergents. For stubborn
deposits, moisten the cloth with warm water.
6
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated
to ensuring that your ordering, purchasing, and delivery
experience is second to none. If you have any problem
with your order, please give us an opportunity to make it
right. You can contact a Monoprice Customer Service
representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-
Fri: 5am-7pm PT, Sat-Sun: 9am-6pm PT) or via email at
support@monoprice.com
PACKAGE CONTENTS
Please take an inventory of the package contents to
ensure you have all the items listed below. If anything is
missing or damaged, please contact Monoprice Customer
Service for a replacement.
1x Soundstage 3 speaker system
1x IR remote control
1x AC power cable (IEC 60320 C7 to NEMA 1-15)
1x 3.5mm audio cable
1x User's manual
7
PRODUCT OVERVIEW

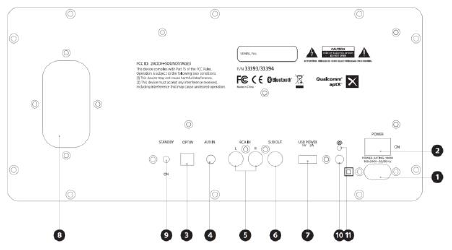

Rear Panel
a
1. AC INPUT: Input for the AC power cord. The system
can accept 100 ~240 VAC, 50/60 Hz input power.
2. POWER: Switch turns power on or off.
3. OPT IN: Digital optical S/PDIF audio input.
4. AUX IN: 3.5mm jack for connecting a stereo analog
audio source using the included audio cable.
5. RCA IN: Two RCA jacks for connecting a stereo
analog audio source.
8
6. SUB OUT: RCA jack for connecting an external
powered subwoofer.
7. USB POWER: USB port for charging or powering a
USB powered device. It has 5 VDC, 2A of charging
power.
8. PORT: Bass reflex port.
9. STANDBY/ON: Switch for controlling whether the
system will automatically go into standby when no
audio input is detected or whether it will remain
always on.
10. TWS: True wireless stereo linking button.
11. TWS LED: TWS connection indicator.
Top Panel
12. ON/STANDBY: Press to turn the system on or to put
it into standby mode.
9
13. PAIR: Bluetooth® pairing button.
14. VOLUME -: Press to decrease the volume level.
15. VOLUME +: Press to increase the volume level.
16. SOURCE: Press to cycle through the inputs in the
order AUX IN > RCA IN > BLUETOOTH® > OPT IN. The
LEDs indicate the selected audio source.
OPERATION
Pairing
Perform the following steps to pair your mobile device
with the speaker system. Note that two systems can be
linked, with one service as the Master and the other as the
Slave. Whichever system is paired to your device is the
Master and the other is the Slave. See the
Linking
section
below for instructions on linking two systems.
1. Ensure that the POWER and the STANDBY/ON
switches are in the ON position.
2. Press and release the PAIR button. The BT source
LED will begin flashing, indicating that it is in pairing
mode.
10
3. Search for nearby Bluetooth® devices on your
mobile device. Select the Soundstage 3 entry. Once
pairing is complete, the BT source LED will cease
flashing and will remain steadily illuminated.
The system will remember its pairing and linking status,
even after power cycling. To reconnect your mobile
device, open the Bluetooth® settings and select Connect
to re-establish the connection.
Linking
Two systems can be linked so that one system is the
Master and the other the Slave. When two systems are
linked, the stereo audio signal will be split so that the
Master system plays left channel audio, while the Slave
system handles right channel audio. Perform the following
steps to link two systems.
1. Ensure that you have paired your mobile device to
one of the systems. If audio is playing from your
Bluetooth® device, stop it and wait 5 seconds.
2. Press and release the TWS button on the rear panel
of each speaker. The TWS LEDs will begin flashing on
11
each speaker and a tone sequence will play while
the two systems search for each other.
3. Once the two systems are linked the TWS LEDs will
cease flashing and will illuminate steadily. You will
also hear a confirmation tone from both speakers.
If the connection is lost between the two speakers or
between the Master speaker and the source device, and
they do not reconnect automatically, power cycle both
speakers and allow them to reconnect.
Note that the PAIR button on the Slave speaker will be
disabled. If you press the PAIR button on the Slave
speaker, you will hear three rapid beeps, indicating that
the system cannot be paired.
Clearing Memory
To erase all previous pairings and linking settings, press
and hold either the PAIR or the TWS button for 3 seconds.
You will hear a long tone to confirm that the pairing and
linking settings have been erased. The LEDs will also turn
off. You can now establish a new pairing or link the
speakers again.
12
SPECIFICATIONS
Model
33393 (black), 33394 (white)
Amplifier Type
Digital class D
Amplifier Power
1x 80-watt and 2x 20-watt
Low Frequency Driver
1x 5.25" aluminum concave
cone woofer
High Frequency Driver
2x 1" silk dome tweeters
Frequency Response
42 Hz ~ 22 kHz
Crossover Frequency
3.0 kHz
Inputs
3.5mm stereo, RCA stereo,
digital optical S/PDIF,
Bluetooth®/TWS
Output
RCA subwoofer output
Bluetooth Version
4.0
Audio Codec
Qualcomm® aptX™
Input Power
100 ~ 240 VAC, 50/60 Hz
USB Charging Power
5 VDC, 2A
Dimensions
13.6" x 6.9" x 7.3"
(345 x 176 x 185 mm)
13
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical
support to assist you with any questions you may have
about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your
new product, please come online to talk to one of our
friendly and knowledgeable Tech Support Associates.
Technical support is available through the online chat
button on our website www.monoprice.com during
regular business hours, 7 days a week. You can also get
assistance through email by sending a message to
tech@monoprice.com
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
14
including interference that may cause undesired
operation.
Modifying the equipment without Monoprice’s
authorization may result in the equipment no longer
complying with FCC requirements for Class B digital
devices. In that event, your right to use the equipment
may be limited by FCC regulations, and you may be
required to correct any interference to radio or television
communications at your own expense.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
15
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
Radio Notice for FCC
Caution
This FCC Part 15 radio device operates on a non-
interference basis with other devices operating at this
frequency. Any changes or modification to said product
not expressly approved by Monoprice, including the use
of non-approved antennas, could void the user’s authority
to operate this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
16
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
The Bluetooth® word mark and logos are registered
trademarks of Bluetooth SIG, Inc.
Qualcomm® is a trademark of Qualcomm Incorporated,
registered in the United States and other countries. aptX™
is a trademark of Qualcomm Technologies International,
Ltd., registered in the United States and other countries.
Qualcomm® aptX™ is a product of Qualcomm
Technologies International, Ltd.
