Monterey 46AK3010 Keyboard User Manual

Monterey International Corporation Keyboard

MANUAL

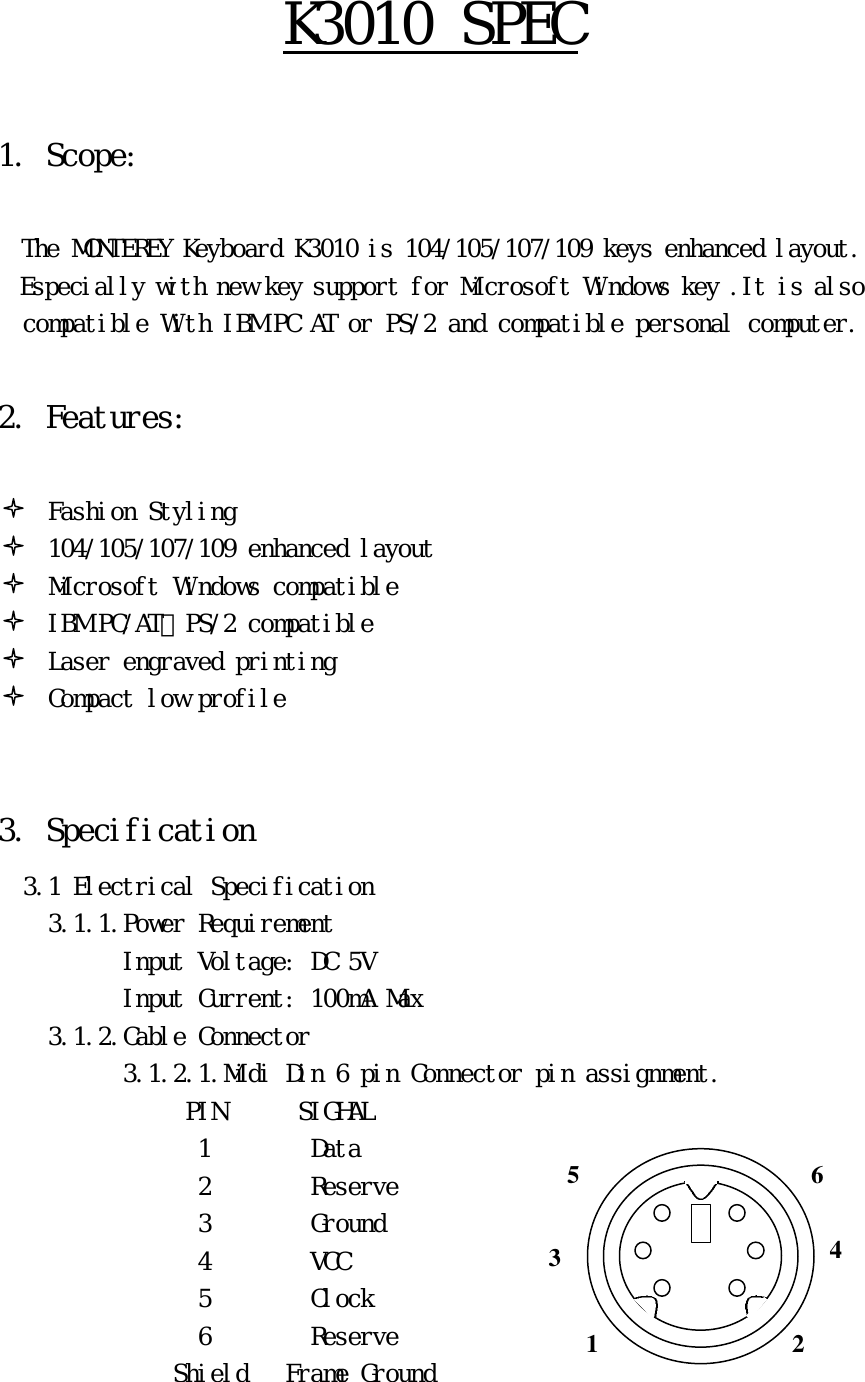

Ｋ３０１０　ＳＰＥＣ　　１．　Ｓｃｏｐｅ：　　　　Ｔｈｅ　ＭＯＮＴＥＲＥＹ　Ｋｅｙｂｏａｒｄ　Ｋ３０１０　ｉｓ　１０４／１０５／１０７／１０９　ｋｅｙｓ　ｅｎｈａｎｃｅｄ　ｌａｙｏｕｔ．　　　Ｅｓｐｅｃｉａｌｌｙ　ｗｉｔｈ　ｎｅｗ　ｋｅｙ　ｓｕｐｐｏｒｔ　ｆｏｒ　Ｍｉｃｒｏｓｏｆｔ　Ｗｉｎｄｏｗｓ　ｋｅｙ　．Ｉｔ　ｉｓ　ａｌｓｏ　ｃｏｍｐａｔｉｂｌｅ　Ｗｉｔｈ　ＩＢＭ　ＰＣ　ＡＴ　ｏｒ　ＰＳ／２　ａｎｄ　ｃｏｍｐａｔｉｂｌｅ　ｐｅｒｓｏｎａｌ　ｃｏｍｐｕｔｅｒ．　　２．　Ｆｅａｔｕｒｅｓ：　　　　Ｆａｓｈｉｏｎ　Ｓｔｙｌｉｎｇ　１０４／１０５／１０７／１０９　ｅｎｈａｎｃｅｄ　ｌａｙｏｕｔ　　　　　Ｍｉｃｒｏｓｏｆｔ　Ｗｉｎｄｏｗｓ　ｃｏｍｐａｔｉｂｌｅ　　　　　ＩＢＭ　ＰＣ／ＡＴ、ＰＳ／２　ｃｏｍｐａｔｉｂｌｅ　　　　　Ｌａｓｅｒ　ｅｎｇｒａｖｅｄ　ｐｒｉｎｔｉｎｇ　　　　　Ｃｏｍｐａｃｔ　ｌｏｗ　ｐｒｏｆｉｌｅ　　　３．　Ｓｐｅｃｉｆｉｃａｔｉｏｎ　　　３．１　Ｅｌｅｃｔｒｉｃａｌ　Ｓｐｅｃｉｆｉｃａｔｉｏｎ　　　　　３．１．１．Ｐｏｗｅｒ　Ｒｅｑｕｉｒｅｍｅｎｔ　　　　　　　　　　　Ｉｎｐｕｔ　Ｖｏｌｔａｇｅ：　ＤＣ　５Ｖ　　　　　　　　　　　　Ｉｎｐｕｔ　Ｃｕｒｒｅｎｔ：　１００ｍＡ　Ｍａｘ　　　　　３．１．２．Ｃａｂｌｅ　Ｃｏｎｎｅｃｔｏｒ　　　　　　　　　　　３．１．２．１．Ｍｉｄｉ　Ｄｉｎ　６　ｐｉｎ　Ｃｏｎｎｅｃｔｏｒ　ｐｉｎ　ａｓｓｉｇｎｍｅｎｔ．　　　　　　　　ＰＩＮ　　　　　　ＳＩＧＨＡＬ　１　　　　　　　　Ｄａｔａ　　　　　　　　　　　　　　　　　２　　　　　　　　Ｒｅｓｅｒｖｅ　　　　　　　　　　　　　　　　　３　　　　　　　　Ｇｒｏｕｎｄ　　　　　　　　　　　　　　　　　４　　　　　　　　ＶＣＣ　　　　　　　　　　　　　　　　　　５　　　　　　　　Ｃｌｏｃｋ　　　　　　　　　　　　　　　　　６　　　　　　　　Ｒｅｓｅｒｖｅ　　　　　　　　　　　　　　　Ｓｈｉｅｌｄ　　　Ｆｒａｍｅ　Ｇｒｏｕｎｄ　3 1 2 4 6 5

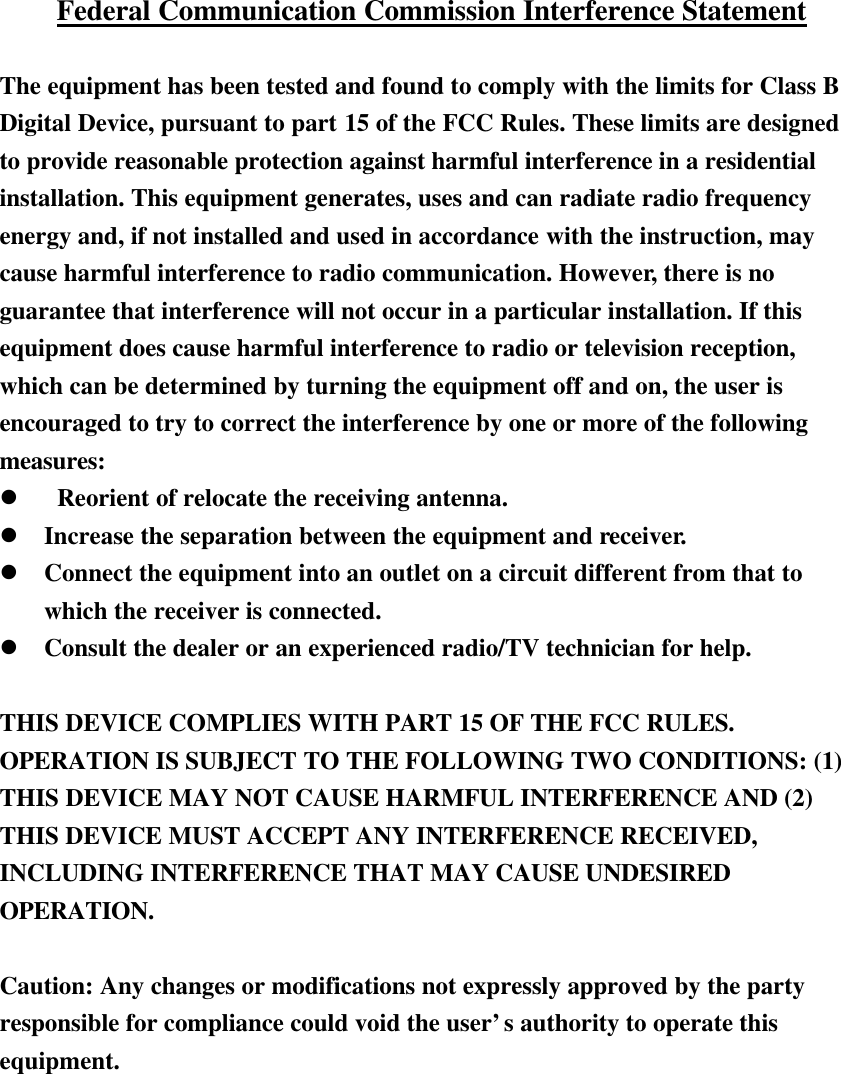

Federal Communication Commission Interference Statement The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient of relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. 　
