USERS MANUAL

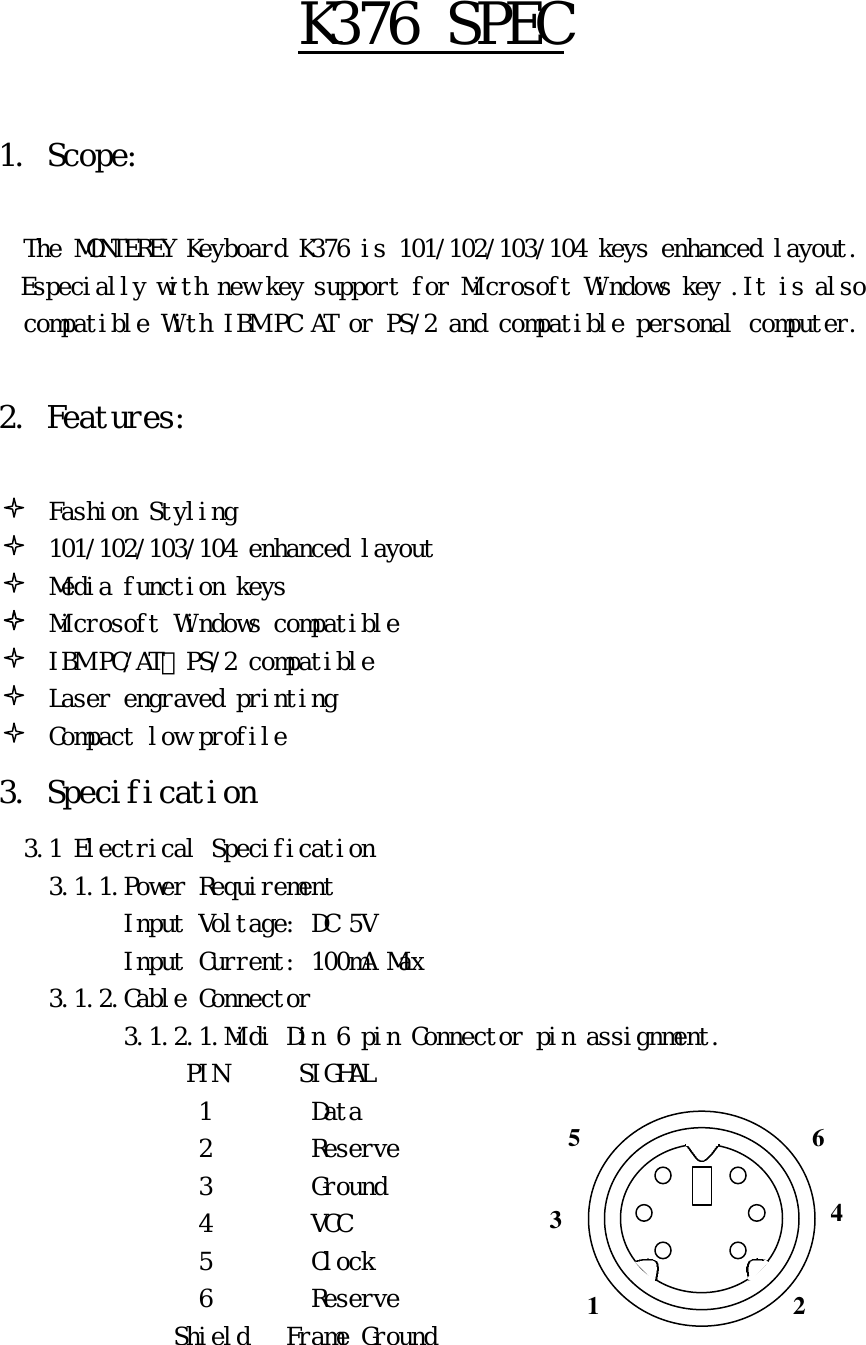

K376 SPEC  1. Scope:    The MONTEREY Keyboard K376 is 101/102/103/104 keys enhanced layout.   Especially with new key support for Microsoft Windows key .It is also compatible With IBM PC AT or PS/2 and compatible personal computer.  2. Features:    Fashion Styling 101/102/103/104 enhanced layout     Media function keys     Microsoft Windows compatible     IBM PC/AT、PS/2 compatible     Laser engraved printing     Compact low profile 3. Specification   3.1 Electrical Specification     3.1.1.Power Requirement           Input Voltage: DC 5V            Input Current: 100mA Max     3.1.2.Cable Connector           3.1.2.1.Midi Din 6 pin Connector pin assignment.        PIN      SIGHAL 1        Data                 2        Reserve                 3        Ground                 4        VCC                  5        Clock                 6        Reserve               Shield   Frame Ground  3 1 2 4 6 5

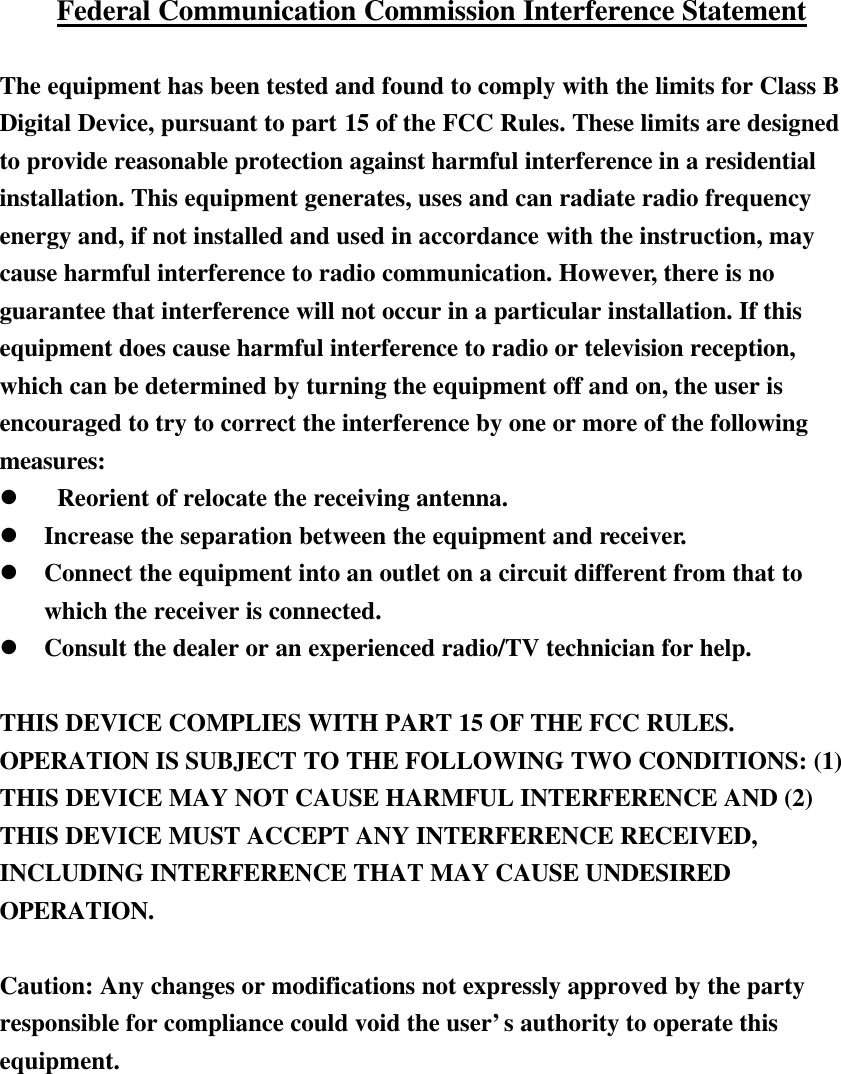

Federal Communication Commission Interference Statement  The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l  Reorient of relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the dealer or an experienced radio/TV technician for help.  THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.  Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
