Monterey 46AK622 KEYPAD User Manual Manual

Monterey International Corporation KEYPAD Manual

Manual

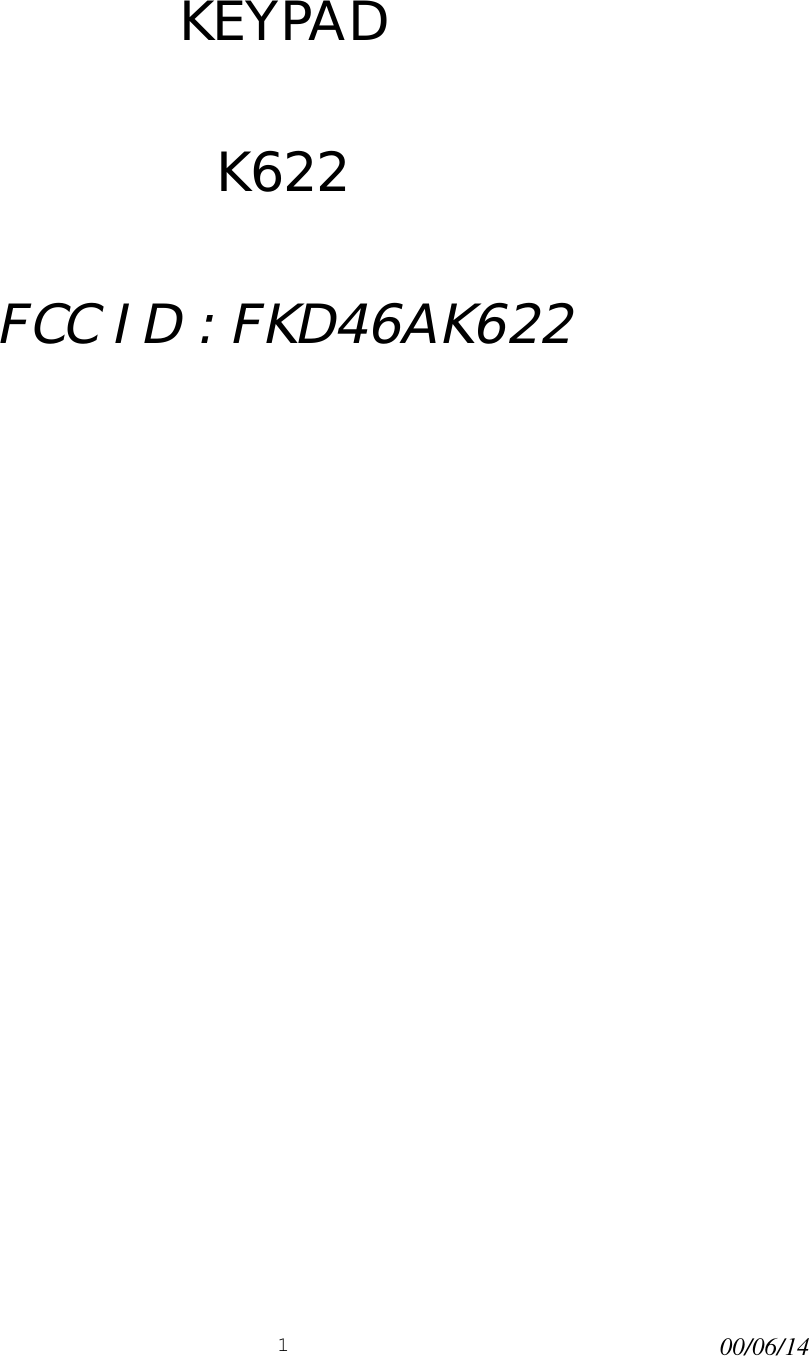

100/06/14KEYPADK622FCC ID : FKD46AK622

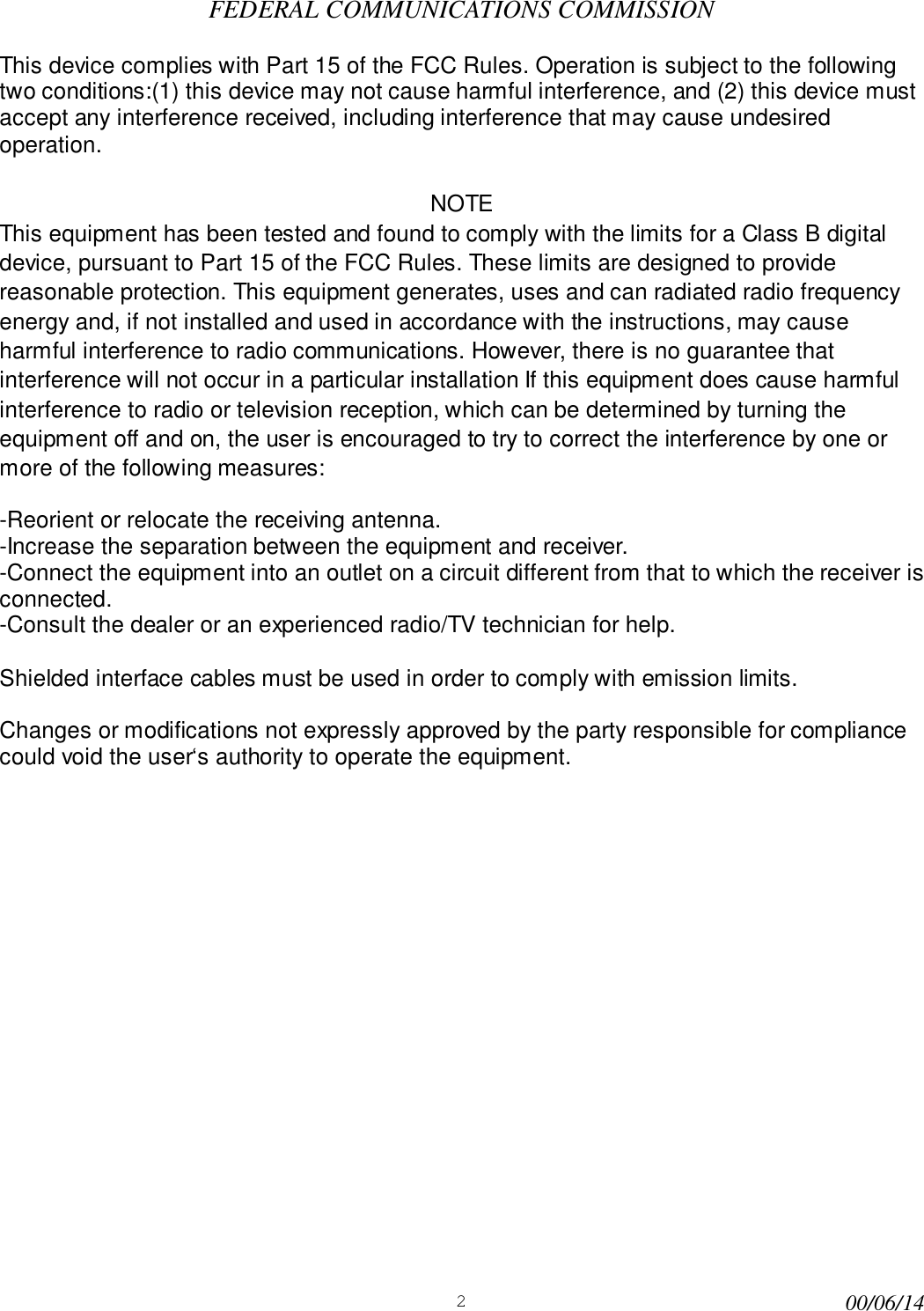

200/06/14FEDERAL COMMUNICATIONS COMMISSIONThis device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:(1) this device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesiredoperation.NOTEThis equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection. This equipment generates, uses and can radiated radio frequencyenergy and, if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.-Consult the dealer or an experienced radio/TV technician for help.Shielded interface cables must be used in order to comply with emission limits.Changes or modifications not expressly approved by the party responsible for compliancecould void the user‘s authority to operate the equipment.

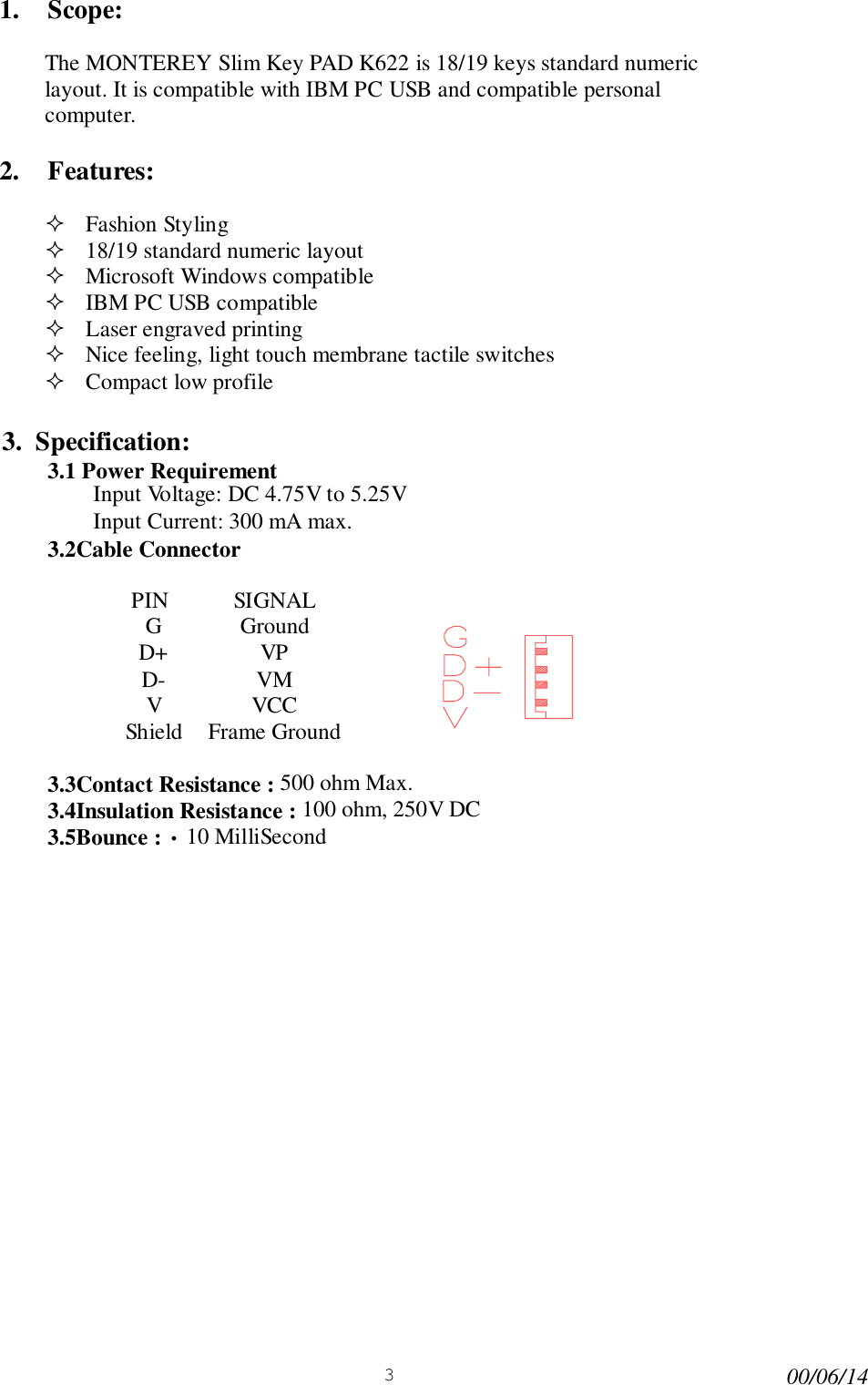

300/06/141. Scope:The MONTEREY Slim Key PAD K622 is 18/19 keys standard numericlayout. It is compatible with IBM PC USB and compatible personalcomputer.2. Features:! Fashion Styling! 18/19 standard numeric layout! Microsoft Windows compatible! IBM PC USB compatible! Laser engraved printing! Nice feeling, light touch membrane tactile switches! Compact low profile3. Specification:3.1 Power RequirementInput Voltage: DC 4.75V to 5.25VInput Current: 300 mA max.3.2Cable ConnectorPIN SIGNALG GroundD+ VPD- VMVVCCShield Frame Ground3.3Contact Resistance : 500 ohm Max.3.4Insulation Resistance : 100 ohm, 250V DC3.5Bounce : • 10 MilliSecond
