Motic China Group MOTICAMT2 Moticam T2 Smart Camera User Manual

Motic China Group Co.,Ltd Moticam T2 Smart Camera

Contents

User Manual

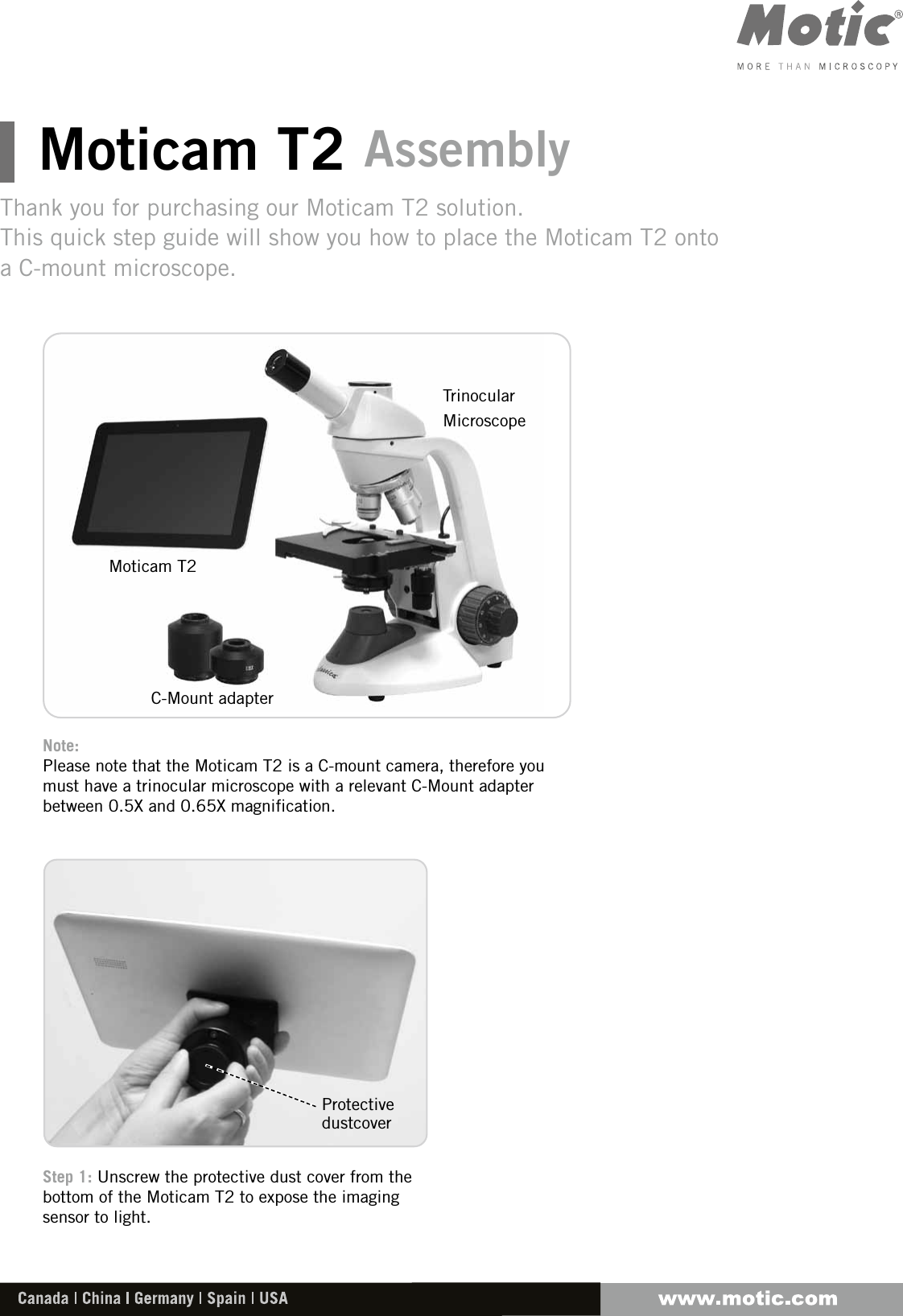

Moticam T2 AssemblyThank you for purchasing our Moticam T2 solution.This quick step guide will show you how to place the Moticam T2 onto a C-mount microscope.Note: Please note that the Moticam T2 is a C-mount camera, therefore you must have a trinocular microscope with a relevant C-Mount adapter between 0.5X and 0.65X magnification.Step 1: Unscrew the protective dust cover from the bottom of the Moticam T2 to expose the imaging sensor to light.Moticam T2C-Mount adapterTrinocularMicroscopeProtective dustcover

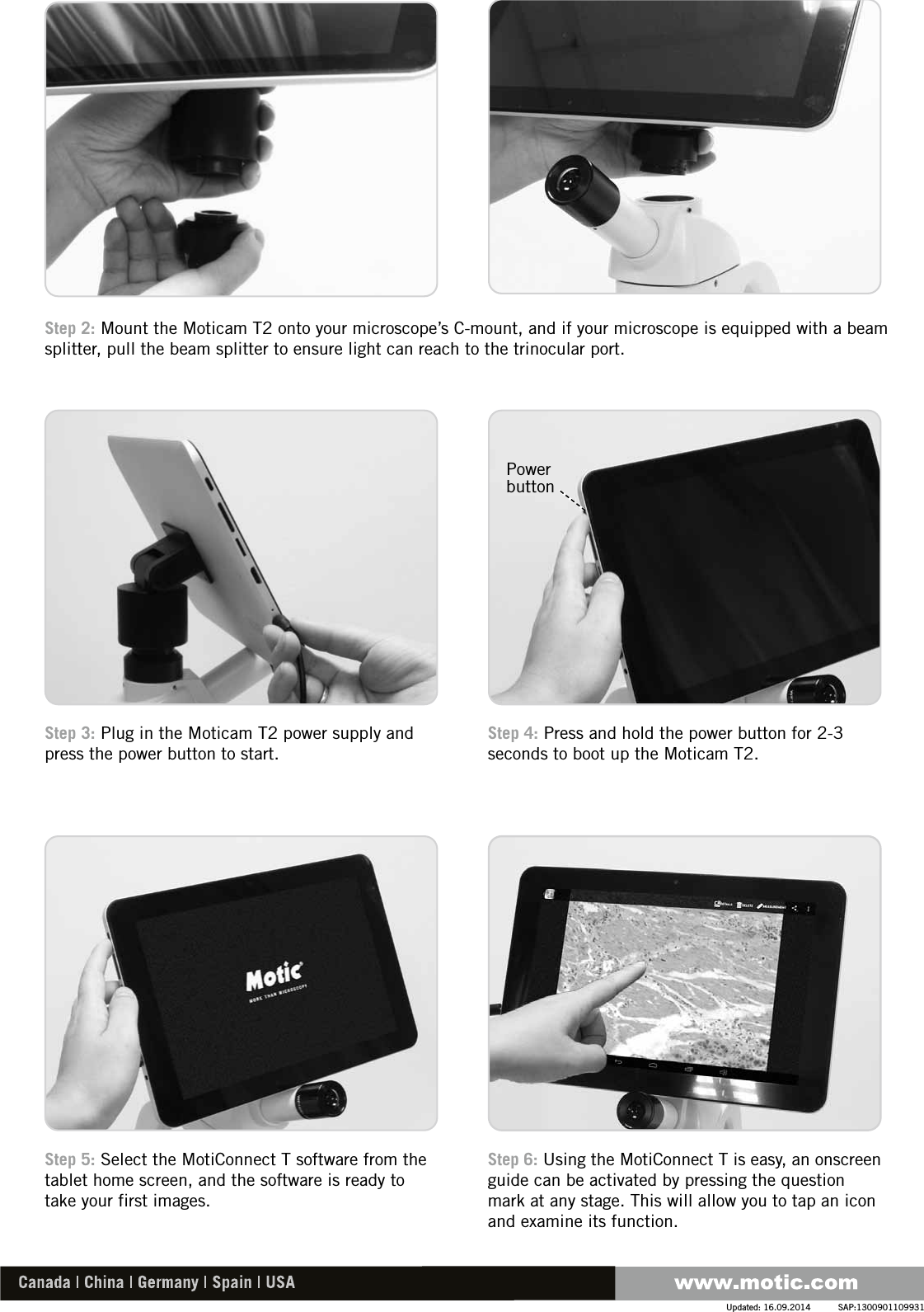

Step 4: Press and hold the power button for 2-3 seconds to boot up the Moticam T2.Step 3: Plug in the Moticam T2 power supply and press the power button to start.Step 6: Using the MotiConnect T is easy, an onscreen guide can be activated by pressing the question mark at any stage. This will allow you to tap an icon and examine its function.Step 5: Select the MotiConnect T software from the tablet home screen, and the software is ready to take your first images.Step 2: Mount the Moticam T2 onto your microscope’s C-mount, and if your microscope is equipped with a beam splitter, pull the beam splitter to ensure light can reach to the trinocular port.SAP:1300901109931Updated: 16.09.2014Power button

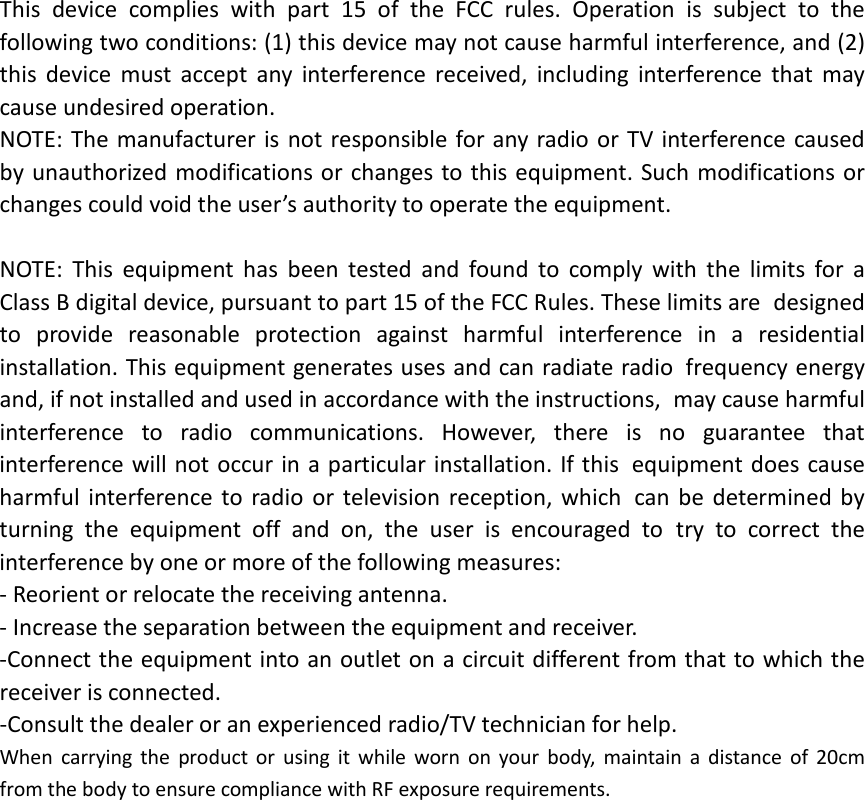

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. When carrying the product or using it while worn on your body, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.
