Exhibit 8 Revised Users Manual RESPONSE TO CRN34712
INSTRUCTION MANUAL
A preliminary draft of the User’s Manual follows this page.
The text on the following three pages will be added to the user manual.
APPLICANT: MOTOROLA,INC.
FCC ID: IHDP56HH2
EXHIBIT 8
SAR Data
Specific Absorption Rate Data
SAR Da ta
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 0.98 W/kg, and when worn on the body, as described in
this user guide, is 0.49 W/kg.2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
SAR Data
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
User’s Guide
MOTO Z6w
C
M
Y
CM
MY
CY
CMY
K
v463387.A6.UG.Front.eps 9/11/2007 8:53:48 AM
1
HELLOMOTO
Feel It, See It, Hear It!
Your MOTO Z6w phone is made to be held, and made to be seen!
•
Make and receive calls over the Internet (instead of a cellular network) through a WiFi CERTIFIED®
wireless connection.
•
Transfer your favorite
music
quickly and easily to your phone with Microsoft® Windows® Media Player 11.
•
Snap pictures automatically with your 2-megapixel multi-shot
camera
(page 53).
•
Capture key moments in high-definition
video
, then upload to your blog (page 57).
•
Access any
Web
site just like you do on your computer, with your phone’s full HTML browser (page 52).
•
Check your personal
email
accounts (like Hotmail®, Gmail
TM
webmail service, or Yahoo!®) on the Web
(see your Quick Start Guide). Or read and sync your corporate email (Microsoft Outlook) with MOTOSYNC
(page 66).
•
Yo u r
phone
can recite text messages, incoming caller ID information, and menu items (page 29).
For more information:
To read feature instructions on your phone, press the center key
s
to open the main
menu, then select
V
Help
. To learn more about your phone and accessories, go to
www.hellomoto.com
.
2
Introducing your new MOTO Z6w GSM wireless phone. Here’s a quick anatomy lesson.
Center Select Key
Open main menu & select
menu items.
Power/End Key
Turn on/off, hang up, exit menus.
Right Soft Key
Left Soft Key
Play music or go online.
Push Bar
Push down to close slider.
Send Key
Make & answer calls.
Navigation Key
Scroll up, down, left, or right.
Clear/Back Key
3
Camera Lens
(on back of phone)
I
Voice Key
Use voice commands to
make calls & perform basic
phone functions.
Volume Keys
Smart Key
Mini-USB Port
Insert battery charger
& phone accessories.
I
Push Bar
Push to open slider.
Camera Key
4
Note:
This is the standard home screen and main menu layout.
Your phone’s home screen and main menu may
be different.
To change your home screen shortcuts and main menu appearance, see your Quick Start Guide.
Home Screen Main Menu
Press the Navigation Key
up, down, left, or right
(
S
) to highlight a menu
feature.
3
Press the
Center Key (
s
)
to
select it.
4
Press and hold the
Power Key
O
for a few
seconds, or until the
display lights up, to turn
on your phone.
1
Press the
Center Key (
s
) to open
the
Main Menu
.
2
Service Provider
10/15/2008
10
:
10
Options Main Menu
Options Back
Contacts
6
5
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider’s network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user’s guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. The Bluetooth trademarks are owned
by their proprietor and used by Motorola, Inc. under license. Java
and all other Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other
countries. Microsoft and Windows are registered trademarks of
Microsoft Corporation; and Windows XP and Windows Media are
trademarks of Microsoft Corporation. Hotmail is a registered
trademark of Microsoft Corporation. Macintosh and iTunes are
registered trademarks of Apple Computer, Inc. Yahoo! and the
Yahoo! logo are trademarks and/or registered trademarks of
Yahoo! Inc. Gmail is a trademark of GOOGLE Inc. All other product
or service names are the property of their respective owners.
© Motorola, Inc., 2007.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: 68XXXXXxxx-O
6
contents
contents
menu map . . . . . . . . . . . . . . . . 8
Safety Information . . . . . . . . 10
FCC Notice . . . . . . . . . . . . . . . 14
Use and Care . . . . . . . . . . . . . 15
Recycling Information . . . . . . 16
essentials . . . . . . . . . . . . . . . . 17
about this guide . . . . . . . . . 17
battery. . . . . . . . . . . . . . . . . 18
basics . . . . . . . . . . . . . . . . . . . 21
display. . . . . . . . . . . . . . . . . 21
text entry . . . . . . . . . . . . . . 23
adjust volume . . . . . . . . . . . 26
handsfree speaker . . . . . . . 26
voice commands. . . . . . . . . 27
talking phone . . . . . . . . . . . 29
codes & passwords . . . . . . 29
lock & unlock external
keys. . . . . . . . . . . . . . . . . . . 30
lock & unlock phone . . . . . . 30
customize . . . . . . . . . . . . . . . . 31
profiles . . . . . . . . . . . . . . . . 31
display appearance . . . . . . . 33
themes . . . . . . . . . . . . . . . . 34
time & date . . . . . . . . . . . . . 36
answer options . . . . . . . . . . 37
calls. . . . . . . . . . . . . . . . . . . . . 38
calls over a WiFi Internet
connection. . . . . . . . . . . . . . 38
turn off a call alert . . . . . . . . 41
recent calls . . . . . . . . . . . . . 41
redial . . . . . . . . . . . . . . . . . . 42
return a call . . . . . . . . . . . . . 42
caller ID . . . . . . . . . . . . . . . . 42
emergency calls . . . . . . . . . 43
voicemail . . . . . . . . . . . . . . . 44
entertainment. . . . . . . . . . . . . 45
music player . . . . . . . . . . . . 45
browser . . . . . . . . . . . . . . . . 52
camera. . . . . . . . . . . . . . . . . 53
videos . . . . . . . . . . . . . . . . . 57
messages . . . . . . . . . . . . . . . . 61
text messaging . . . . . . . . . . 61
connections . . . . . . . . . . . . . . 66
MOTOSYNC. . . . . . . . . . . . . 66
file manager. . . . . . . . . . . . . 67
cable connections . . . . . . . . 69
Bluetooth wireless
connections . . . . . . . . . . . . . 70
phone updates. . . . . . . . . . . 75
contents
7
other features. . . . . . . . . . . . . 76
advanced calling . . . . . . . . . 76
contacts. . . . . . . . . . . . . . . . 79
personalize . . . . . . . . . . . . . 84
call times & costs . . . . . . . . 85
handsfree . . . . . . . . . . . . . . 86
network . . . . . . . . . . . . . . . . 87
personal organizer . . . . . . . . 88
security . . . . . . . . . . . . . . . . 91
fun & games . . . . . . . . . . . . 91
service & repairs . . . . . . . . . . 93
SAR Data . . . . . . . . . . . . . . . . 94
EU Conformance . . . . . . . . . . 95
WHO Information. . . . . . . . . . 96
Privacy and Data Security . . . 96
OSS Information . . . . . . . . . . 97
Driving Safety. . . . . . . . . . . . . 98
index . . . . . . . . . . . . . . . . . . . 100
8
menu map
menu map
main menu
q
Recent Calls
L
Contacts
m
Office Tools
• Calendar
•MOTOSYNC
• Download Manager
• File Manager
• Memory Card
• My Blog*
• Music and Sounds
•Pictures
• Videos
•VoiceNote
• Application Downloads
• Unrecognizable Files
• My Documents
•Alarm Clock
• World Clock
•Calculator
• Dialing Services
• Task List
• Notes
•Help
1
Web Access
•Browser
• My Bookmarks
• My Web Pages
•History
•Go to URL
•Browser Setup
g
Messages
• Create Message
• Inbox
• My Folders
• Templates
•Drafts
• Outbox
•Email
• Call Voicemail
j
Multimedia
• Media Finder
•Games
•Camera
• Video Camera
• Voice Recorder
6
WiFi
• Current Connection
• Available Networks
• Saved Networks
• Quick Connect
• Set Up WiFi
V
Help
u
Settings
• (see next page)
This is the standard main menu layout.
Your phone’s menu may be different.
To change your home screen shortcuts
and your main menu appearance, see
your
Quick Start Guide
.
Tip:
Press
D
to exit the current
menu, or press
O
to exit all menus.
* optional features
menu map
9
settings menu
•Profiles
•Themes
• Home Screen
• Navigation Keys
• Change Wallpaper
•ClockStyle
•Date
• Screen3*
• Connections
• Bluetooth®
• USB Setting
• Media Synchronization
• Memory Card
• Modem
•USBPrinting
• Tools
• Voice Networks
• Voice Over IP
• Network Settings
• Data Connections
• Add a Connection
• Edit a Connection
• Remove a Connection
• Call Settings
• Speed Dial
•CallForward
•In-CallSetup
• My Caller ID
• In-Call Timer
• Answer Options
• In-Call Message Alert
•RoamAlert
• Call Waiting
• Auto-Redial
• Call Drop Tone
• Dialing Setup
• My Caller ID
•DTMF
• Dialing Prefix
• Call Barring*
• Fixed Dialing
• My SIM Number
• Active Line *
• Phone Settings
• Display Settings
• Display Timeout
• Screensaver
• Brightness
• Airplane Mode
• Battery Meter
•Time&Date
• Slide Closed
•
(continued next column)
• Phone Settings (continued)
• Language
• Talking Phone
•TextEntry
•Reset
• Reset All Settings
• Delete All Data
• Delete Memory Cards
• View Memory
• Properties
• Legal Notices
• Java™ System
• OTA Updates
• Headset Settings
• Auto-Answer
• Voice Dial
• TTY Settings
•Security
• Phone Lock
• Keypad Lock
• Application Lock
•SIMLock
• Change Passwords
• Certificates
•Network
• Current Network
• Scan Avail. Networks
• Search for New Network
• My Network List
•Search Setup
• Service Tone
* optional features
10
Safety Information
Safety and General Information
Safet y In formati on
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola,keep the mobile
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2007.
Safety Information
11
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from the implantable medical
device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your health care provider.
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
12
Safety Information
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue use if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
•
Do not place a mobile device in the airbag deployment
area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section in this user’s guide and/or at the Motorola
Web site:
www.motorola.com/callsmart
.
Note:
The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities
for more information.
Do not throw your battery or mobile device
in the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
032374o
032376o
032375o
032378o
Li Ion BATT
Safety Information
13
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use & Battery Safety”
section in this user’s guide.
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
Listening at full volume to music or voice
through a headset may damage your
hearing.
Symbol Definition
14
FCC Notice
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
Use and Care
15
Use and Care
Use and Ca re
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. If
it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
16
Recycling Information
Caring for the Environment by Recycling
Recycli ng Infor mation
This symbol on a Motorola product means the product
should not be disposed of with household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
17
essentials
essentials
about this guide
This guide shows how to locate a menu feature as
follows:
Find it:
s
>
u
Settings
>
Profiles
This means that, from the home screen:
1
Press the center key
s
to open the menu.
2
Press the navigation key
S
to scroll to
u
Settings
, and press the center key
s
to select
it.
3
Press the navigation key
S
to scroll to
Profiles
,
and press the center key
s
to select it.
Note:
You can’t press the center key
s
to open the
menu if you have Screen3 headlines running in the
home screen. When Screen3 headlines are active,
press the
Main Menu
soft key to open the menu.
This guide uses the following symbols:
symbols
This means a feature is network, SIM card,
or subscription dependent and may not be
available in all areas. Contact your service
provider for more information.
This means a feature requires an optional
accessory.
18
essentials
battery
battery charging
Tip:
Motorola batteries have circuitry that protects the
battery from damage from overcharging.

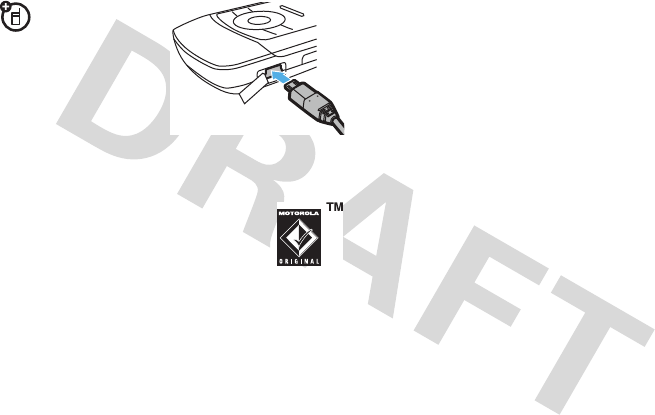

Note:
You can charge your battery by
connecting a cable from your phone’s
mini-USB port to a USB port on a
computer. Both your phone and the
computer must be turned on, and your computer must
have the correct software drivers installed. A
Motorola Original USB cable and supporting software
may be included with your phone. These tools are also
sold separately.
Battery Use & Battery Safety
• Motorola recommends you always use
Motorola-branded batteries and chargers.
The warranty does not cover damage caused
by non-Motorola batteries and/or chargers.
Caution:
Use of an unqualified battery or
charger may present a risk of fire, explosion,
leakage, or other hazard. Improper battery
use, or use of a damaged battery, may result
in a fire, explosion, or other hazard.
•
Battery usage by children should be
supervised.
• Important:
Motorola mobile devices are
designed to work best with qualified batteries.
If you see a message on your display such as
Invalid Battery
or
UnabletoCharge
, take the following
steps:
•
Remove the battery and inspect it to
confirm that it bears a Motorola “Original
Equipment” hologram;
•
If there is no hologram, the battery is not
a qualified battery;
19
essentials
•
If there is a hologram, replace the battery
and retry charging it;
•
If the message remains, contact a
Motorola Authorized Service Center.
•
New batteries or batteries stored for a long
time may take more time to charge.
• Charging precautions:
When charging your
battery, keep it near room temperature. Never
expose batteries to temperatures below 0°C
(32°F) or above 45°C (113°F) when charging.
Always take your mobile device with you
when you leave your vehicle.
•
When storing your battery, keep it in a cool,
dry place.
•
It is normal over time for battery life to
decrease, and for the battery to exhibit shorter
runtime between charges or require more
frequent or longer charging times.
• Avoid damage to battery and mobile
device.
Do not disassemble, open, crush,
bend, deform, puncture, shred, or submerge
the battery or mobile device. Avoid dropping
the battery or mobile device, especially on a
hard surface. If your battery or mobile device
has been subjected to such damage, take it to
a Motorola Authorized Service Center before
using. Do
not
attempt to dry it with an
appliance or heat source, such as a hair dryer
or microwave oven.
• Use care when handling a charged
battery
—particularly when placing it inside a
pocket, purse, or other container with metal
objects. Contact with metal objects (such as
jewelry, keys, beaded chains) could complete
an electrical circuit (short circuit), causing the
battery to become very hot, which could
cause damage or injury.
20
essentials
Promptly dispose of used batteries in
accordance with local regulations. Contact your
local recycling center for proper battery disposal.
Warning:
Never dispose of batteries in a fire because
they may explode.
21
basics
basics
display
The home screen appears when you turn on the
phone.
Note:
Your home screen may look different,
depending on your service provider.
To dial a number from the home screen, press number
keys and
N
.
Press the center key
s
or the
Main Menu
soft key to
open the main menu. (Note that you can’t press the
center key
s
to open the menu if you have Screen3
headlines running in the home screen.)
Press
Options
in the home screen to change the alert
profile, change the phone theme, send or read a
message, take a picture, record a video, or find a
Bluetooth® device.
Press the navigation key
S
up, down, left, or right in
the home screen to open basic features. To show,
hide, or change feature icons in the home screen, see
your Quick Start Guide.
Tip:
Want some help? Press the center key
s
to
open the main menu, select
m
Office Tools
, the select
Date
Clock
Left Soft
Key Label
Right Soft
Key Label
Service Provider
10/15/2008
10:10
Options Main Menu
Feature
Icons
22
basics
Help
. Select a
Help
topic to find information about phone
features.
Status indicators appear at the top of the home
screen:
1 Signal Strength Indicator –
Show the strength
of the wireless network connection.
2 EDGE/GPRS Indicator –
Shows when your
phone is using a high-speed Enhanced Data
for GSM Evolution (EDGE) network connection
Z
, or General Packet Radio Service (GPRS)
network connection
g
.
3 Bluetooth Indicator –
Shows Bluetooth status:
4Roam Indicator –
Shows when you are not
using your home calling network.
5 Message Indicator –
Indicates you have a
new text or voice message. Other
indicators can include:
6 Profile Indicator –
Shows the alert profile setting:
7 Active Line Indicator –
Shows
B
to
indicate an active call, or
E
to indicate
when call forwarding is on.
&
(solid blue) = Bluetooth powered on
&
(solid green) = Bluetooth connected
W
6
A
2813 7
6
45
EN
&
(flashing blue) = Bluetooth discoverable mode
U
= email message
(
= voicemail
message
N
= ring only
K
= ring and vibrate
H
= vibrate only
I
= vibrate then ring
J
= silent
23
basics
8 Battery Level Indicator –
Vertical bars show the
battery charge level. Recharge the battery when
your phone shows
Low Battery
.
text entry
Some features let you enter text.
To change text entry mode
:
1
From a text entry screen, press
Options
, then select
Text Entry
.
2
Select
Change Text Modes #
.
3
Select one of the following entry modes:
Shortcut:
From a text entry screen, press
#
to
cycle quickly through text entry modes.
To change the input language
:
1
From a text entry screen, press
Options
, then select
Text Entry
.
2
Select
Change Language
.
3
Select a language.
Character
Counter
Press
#
to
select a
text entry
mode.
Flashing cursor
indicates
insertion point.
Press
Options
to change
text entry
options.
Create Message
SMS:0
ÊË
Options Send To
text entry modes
Ê
“word” mode (see page 24)
É
“abc” mode (see page 25)
È
numeric mode (see page 26)
Ã
symbol mode (see page 26)
24
basics
Shortcut:
From a text entry screen, press and
hold
#
, then select a language.
To change text case
, press
0
from a text entry
screen to change to all capital letters (
Ä
), next letter
capitalized (
Í
), or next letter lowercase (no symbol).
Your phone can learn the words you enter, which
improves text prediction and completion.
To s e t wo r d
learning
:
1
From a text entry screen, press
Options
, then select
Text Entry
.
2
Select
SetTextPrediction
, then select
Learn My Words
.
Your phone shows
Ç
when word learning is
active.
You can set your phone to complete words based on
the characters you enter.
To set text completion
:
1
Press
Options
. then select
Text Entry.
2
Select
SetTextPrediction
, then select
Offer Completions
.
Your phone shows
Æ
when text completion is
active.
To enter punctuation while entering text
, press
1
repeatedly to enter a punctuation mark or other
character.
To edit or delete text while entering text
, press
S
to move the cursor to the right of text you want to
edit. Press the clear/back key
D
to delete the
character left of the cursor. Hold
D
to delete the
entire work.
word mode
Press
#
in a text entry screen to switch to “word”
predictive text entry mode. Your phone shows
Ê
in
the display.
Word mode lets you enter words using one keypress
per letter. The phone predicts each word as you enter
it.
25
basics
For example, if you press
7764
, your
display might show:
abc mode
Press
#
in a text entry screen to switch to “abc”
text entry mode.Your phone shows
É
in the display.
To enter text, press a keypad key repeatedly to cycle
through the letters and number on the key. Repeat this
step to enter each letter.
For example, if you press
7
one time, your display
might show:
When text completion is activated, your phone tries to
guess the rest of the word:
•
Press the center key
s
to select the
suggested word.
•
Press
S
right to enter the suggested word
and a space.
Turn text
completion
on (
Æ
) or
off (
Ç
).
Press
D
to
delete character
to left of cursor.
Press
*
to
enter
Prog
& a space.
Press
S
up/down
to see
other words.
Press
s
to select
a word.
Prog ram
Create Message
Options Send To
SMS:4
ÊÆ
P rog
Create Message
Options Send To
SMS:1
ÉÆ
Character
displays at
insertion
point.
After two seconds, the character is
accepted and the cursor moves to
the next position.
26
basics
•
If you want a different word, press keypad
keys to enter the remaining letters.
numeric mode
Press
#
in a text entry screen until you see
È
.
Press the number keys to enter the numbers you
want.
Tip:
Just need one number? To enter a number
quickly, press and hold a number key until the number
appears.
symbol mode
Press
#
in a text entry screen until you see
Ã
. The
display shows the symbol associated with each
keypad key. Press
S
up/down repeatedly to see
different symbols. To insert a symbol, press its key, or
scroll to it and press the center key
s
.
adjust volume
Press the volume keys to:
•
turn off an incoming call alert
•
change the earpiece volume during calls with
the slider open
•
change the ringer volume from the main
screen (with slider open)
Tip:
Sometimes silence really is golden. That’s
why you can quickly set your ringer to
Ring Only
,
Vibrate Only
,
Silent
,
Ring and Vibrate
, or
Vibrate then Ring
, by
holding the down volume key while in the
main screen.
handsfree speaker
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
27
basics
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
To turn on the handsfree speaker
:
•
After you dial a number and press the Send
key
N
,
but before the call connects
, press
Speaker
.
• During an active call
, press
Options
and select
Speaker On
.
While the handsfree speaker is on, your display shows
the speakerphone indicator.
To turn off the handsfree speaker
, do any of the
following:
•
End the call.
• If the slider is open
, press
Speaker
.
• If the slider is closed
, press
Options
and select
Speaker Off
.
voice commands
You can use voice commands to tell your phone what
to do.
Note:
Not all languages support voice commands.
voice dial
You can dial a contact list entry by speaking its name,
or dial any phone number by speaking its digits.
1
Press the external voice command key on the
side of your phone. The phone loads the voice
recognition software, then prompts you to say a
command or name.
2
Wait for the beep, then say the name of an entry
as it appears in your contact list. Your phone
confirms the name and makes the call.
or
28
basics
Say “Dial Number.” Your phone prompts you to
speak the digits in the phone number. Speak the
digits. Your phone confirms the number and
makes the call.
Tips:
•
You can say a contact’s name and number
type together. For example, say “John Smith
mobile” to call the mobile number stored for
John Smith.
•
For voice command help, press the
voice command key on the side of your
phone, then press
Help
.
voice activate phone functions
You can use voice commands to open applications and
perform many basic phone functions.
1
Press the external voice command key on the
side of your phone. The phone prompts you to
say a command.
2
Wait for the beep, then say a command from the
list:
voice commands
“contact name”
“
Dial Number
”
“
Send Message to
contact name”
“
Check Calendar
”
“
Check New Message
”
“
Check New Email
”
“
Add New Contact
”
“
Talking Phone
”
“
Check Battery
”
“
Check Signal
”
“
Check Time
”
“
Check Date
”
“
Open Setup
”
“
Open Recent Calls
”
“
Open Theme
”
“
Open Camera
”
29
basics
Tip:
Press and release the voice command key on the
side of your phone to see the list of voice commands.
talking phone
You can set your phone to speak incoming caller ID
information, names of menu features or contact list
entries, numbers (digits) you press, or messages you
receive.
Find it:
s
>
u
Settings
>
Phone Settings
>
Talking Phone
Shortcut:
Press and hold the external voice command
key on the side of your phone. When the phone
prompts you to say a command, say “Talking Phone.”
codes & passwords
Your phone’s four-digit
unlock code
is originally set to
1234
. The six-digit
security code
is originally set to
000000
. If your service provider didn’t change these
codes, you should change them:
Find it:
s
>
u
Settings
>
Security
>
Change Passwords
You can also change your
SIM PIN
codes or call
barring password.
If you forget your unlock code:
At the
Please verify the Unlock Code
prompt, try entering 1234 or the
last four digits of your phone number. If that doesn’t
work, press
#
to enter your six-digit security code
instead.
“
Open Web Access
”
“
Set Normal
”
“
Set Vibrate
”
“
Set Silent
”
“
Set Ring
”
“
Set Airplane
”
“
Set Airplane Off
”
voice commands
30
basics
If you forget other codes:
If you forget your security
code, SIM PIN code, PIN2 code, or call barring
password, contact your service provider.
lock & unlock external
keys
You can lock the external phone keys
when the slider
is closed
to prevent accidental key presses while
playing music or carrying the phone in a purse or
pocket.
To automatically lock the external keys
when the
phone is idle and the slider is closed:
Find it:
s
>
u
Settings
>
Security
>
KeypadLock
>
Timer
Set the time delay for locking the external keys
(
2seconds
,
4 seconds
, or
8 seconds
. The keys lock when you
close the slider. The keys unlock when you open the
slider. To turn off the automatic lock, select
Off
.
To unlock the external keys
when the slider is
closed, press
Unlock
, then press
OK
.
Find it:
s
>
u
Settings
>
Security
>
Phone Lock
>
Lock at Power On
>
On
lock & unlock phone
You can lock your phone to keep others from using it.
To lock or unlock your phone, you need the four-digit
unlock code.
To manually lock your phone
:
Find it:
s
>
u
Settings
>
Security
>
Phone Lock
>
Lock Now
To automatically lock your phone whenever you
turn it off
:
Find it:
s
>
u
Settings
>
Security
>
Phone Lock
>
Lock at Power On
>
On
31
customize
customize
profiles
You can quickly change your phone’s alert style or
profile to match your activity or environment. Each
profile uses a different set of ringtones or vibrations
for incoming calls and other events. The alert profile
indicator shows at the top of the home screen (see
indicators on page 22).
To change your profile:
From the home screen, press
the external volume keys on the side of your phone.
Alternatively, from the home screen press
Options
and
select
Change Alert Style
or
Change Profile
.
The
Silent
profile silences your phone until you set
another profile.
Shortcut:
From the home screen, press and hold
#
to quickly set the profile to
Vibrate Only
.
change alert style settings
You can change the ringtones that a standard alert
style uses to notify you of incoming calls and other
events. Additionally, you can change the alert style’s
ring volume, keypad tone volume, and media playback
volume settings. For dual-line-enabled SIM cards, you
can set different ringtones to identify incoming calls
on line 1 or line 2.
Note:
You can’t set a ringtone for the
Silent
alert style,
or change some settings for some alert styles.
N
Ring Only
K
Ring and Vibrate
H
Vibrate Only
I
Vibrate then Ring
J
Silent
32
customize
Find it:
s
>
u
Settings
>
Profiles
>
Alert Style
>alert style
1
Press
S
left/right to select the
alerts
tab
[
,
volume
tab
i
,
messages
tab
]
, or
settings
tab
#
.
2
Press
S
up/down to scroll to the alert or volume
setting you want to change, then press the center
key
s
.
3
Select the setting value you want.
4
Press
Back
to exit and save your changes.
To reset the default settings for an alert style
:
Find it:
s
>
u
Settings
>
Profiles
>
Alert Style
>alert style
Press
Options
and select
Reset
.
create new profile
To create a new profile
with the ringtones and
volume settings you specify:
Find it:
s
>
u
Settings
>
Profiles
>
Alert Style
>alert style
1
Change alert style settings as described in the
previous section.
2
Press
Options
and select
Save asProfile
.
3
Enter a name for the profile, then press
Save
to
save it.
Note:
Profile alert settings also can be set by the
theme
. When you apply a new theme, you can
choose to apply the theme’s alert settings to the
current profile. Selecting this option
changes
the
current profile to use the theme alert settings.
33
customize
edit or delete profiles
To edit a profile
:
Find it:
s
>
u
Settings
>
Profiles
1
Scroll to the profile.
2
Press
Options
and select
Edit
.
Note:
You can’t edit the
Silent
profile, or change some
settings for some profiles.
To delete a user-defined profile
:
Find it:
s
>
u
Settings
>
Profiles
1
Scroll to the profile.
2
Press
Options
and select
Delete
.
restore alert style settings
To delete all user-defined profiles and restore your
phone’s original alert style settings:
Find it:
s
>
u
Settings
>
Profiles
Press
Options
and select
Restore Sound Settings
.
display appearance
To set the brightness of your display
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Display Settings
>
Brightness
To save battery life, the display can turn off when
you’re not using your phone.
To set the display
timeout delay interval
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Display Settings
>
Display Timeout
To turn the display screensaver on or off
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Display Settings
>
Screensaver
>
On
or
Off
Tip:
To extend battery life, turn off the screensaver.
34
customize
To show a 12-hour or 24-hour digital clock in the
home screen
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Time & Date
>
Time Format
>
12Hour Clock
or
24 Hour Clock
To set the date format in the home screen
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Time & Date
>
Date Format
themes
Use a phone theme to personalize and manage
the overall look and sound of your phone. Most
themes include the following:
To apply a theme
:
Find it:
s
>
u
Settings
>
Themes
> theme
To download a theme
, see page 52.
sounds settings
[
images settings
$
Ringtone
—notifies you of
incoming call
Wallpaper
—background
image in home screen
Message Alert
—indicates
new text or multimedia
message received
Wallpaper Layout
—
wallpaper position (
Tile
,
Center
,
Fit-to-Screen
)
Email Alert
—indicates new
Email received
Screen Saver
—appears in
display after specified
period of inactivity
Voicemail Alert
—indicates
new voicemail message
received
Power On Screen
—appears
as phone powers on
Slide Tone
—plays when
you open or close slider
Power Off Screen
—appears
as phone powers off
Calendar Alarm
—reminds
you of calendar event
Skins
—overall look and
feel of phone’s display
sounds settings
[
images settings
$
35
customize
To d e l e te a t h e m e
:
Find it:
s
>
u
Settings
>
Themes
1
Scroll to the theme.
2
Press
Options
and select
Manage
.
3
Select
Delete
.
Note:
You can delete only downloaded themes or
custom themes you create.
modify theme
Find it:
s
>
u
Settings
>
Themes
1
Scroll to the theme.
2
Press
Options
and select
Edit
.
3
Press
S
left/right to select the
sounds
tab
[
or
images
tab
$
.
4
Press
S
up/down to scroll to the setting you
want to change, then press the center key .
s
.
5
If changing
Ringtone
,
Message Alert
,
Email Alert
,
Voicemail
Alert
, or
Calendar Alarm
, scroll to
Music
(to select a saved
song),
New Voice Note
(to record and apply a new
voice note),
Voice Notes
(to select a saved voice
note), or
Ringtones
(to select or download a ringtone)
and press
Select
.
If changing an image setting, you may first need
to select a location where image files are stored,
or you may have the option to take a new photo
to use as an image.
6
Scroll to the image file, sound file, or setting you
want, then select it.
7
Press
Save
to save your theme changes.
To reset the standard settings for a modified
theme
:
Find it:
s
>
u
Settings
>
Themes
> theme
1
Press
Options
and select
Manage
.
2
Select
Reset
.
36
customize
To restore the default theme on your phone
:
Find it:
s
>
u
Settings
>
Themes
1
Press
Options
and select
Manage
.
2
Select
Restore to Default
.
create new theme
Find it:
s
>
u
Settings
>
Themes
, press
Options
>
Create Theme
or
Create aCopy
time & date
Your phone can automatically update the time and
date. It uses the time and date for the
Calendar
.
To synchronize time and date with the
network
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Time & Date
>
Auto-Update Time
>
On
To manually set the time and date
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Time & Date
>
Auto-Update Time
1
Scroll to
Off
and press
Select
.
2
Scroll to
Time
and press the center key
s
.
3
To adjust the time, press
S
left/right to scroll to
a setting, then press
S
up/down to change it.
Press
Set
to save your settings.
4
Scroll to
Date
and press the center key
s
.
5
To adjust the date, press
S
left/right to scroll to
a setting, then press
S
up/down to change it.
Press
Set
to save your settings.
To set your time zone
:
Find it:
s
>
u
Settings
>
Phone Settings
>
Time & Date
>
Time Zone
Select a city in your time zone.
37
customize
Shortcut:
Press keypad keys to enter the first letters
of the city you want.
answer options
You can use different ways to answer an incoming call.
To turn on or turn off an answer option:
Find it:
s
>
u
Settings
>
Call Settings
>
In-Call Setup
>
Answer Options
Note:
You always can press
N
to answer a call.
options
Any Key Answer
Answer by pressing any key.
Open to Answer
Answer by opening the phone
slider.
38
calls
calls
calls over a WiFi
Internet connection
You can use your phone to make and receive calls over
an Internet connection (instead of a cellular network
connection). To use an Internet connection, you must
connect to your service provider through a
WiFi CERTIFIED® wireless connection to a network
access point.
Note:
Your phone's WiFi features are not allowed
for outdoor operation in France. To avoid unlawful
interference with radio signals, do not use the WiFi
features in France unless you are indoors.
WiFi setup wizard
When you power on your phone, the
WiFi Setup Wizard
application automatically launches to help you connect
your phone to your home access point. Follow the
on-screen prompts to set up a WiFi connection to the
access point.
available networks list
To see a list of available access points within range of
your phone:
Find it:
s
>
6
>
WiFi
>
Available Networks
39
calls
Your phone lists available access points. The orange
WiFi signal strength indicator
À
shows the strength
of each WiFi connection. Other indicators can include:
Scroll to the network access point you want to use,
then press the
Options
key >
Connect
.
create secure network connection
To create and save a secure connection with a
network access point:
Find it:
s
>
6
>
WiFi
>
Available Networks
1
If necessary, read the on-screen instructions and
press
Next
to begin scanning for an access point.
2
If necessary, scroll to the network you want to
secure, then press the center key
s
.
3
If prompted, enter a passcode.
4
On your phone, press
Continue
.
Your phone creates a secure connection with the
network, and saves the network profile in the
Saved Networks
list.
Note:
Your phone automatically connects to a network
in the
Saved Networks
list when the phone is within range
of the network access point.
quick connect
To have your phone automatically locate and connect
to an open (non-secure) network access point:
Find it:
s
>
6
>
WiFi
>
Quick Connect
Your phone connects to the network access point with
the best signal strength within range of your phone. If
the first connection fails, the phone connects to the
next available network.
Á
= saved network
Ä
= secure access
point
Ã
= active network
connection
Â
= active saved
network connection
40
calls
Tip:
From the home screen, press
Options
and select
Quick Connect
to connect to an open access point.
saved networks list
To see the network connection profiles you’ve saved
on your phone:
Find it:
s
>
6
>
WiFi
>
Saved Networks
Note:
Your phone automatically connects to a network
in the
Saved Networks
list when the phone is within range
of the network access point.
add network to list
To manually set up a network access point and add it
to the list:
Find it:
s
>
6
WiFi
>
Saved Networks
>
Add New Network
You must enter the following configuration settings:
view or edit network profile
Find it:
s
>
6
>
WiFi
>
Saved Networks
1
Scroll to the network and press
Options
.
2
Select
View Details
or
Edit Profile
.
send network profile
To send a network profile to another phone or PC in an
SMS text message:
Find it:
s
>
6
>
WiFi
>
Saved Networks
1
Scroll to the network and press
Options
.
options
SSID
Enter the broadcast name that
identifies the wireless access point.
Profile Name
Enter the name you want to use to
identify the access point in the
Saved Networks
list.
Security Type
Set to
None
,
WEP
,
WPA-PSK
, or
WPA2-PSK
.
Non Broadcast
SSID
Select if the Access Point (AP) is a
non-broadcasting AP.
41
calls
2
Select
Send To
.
receive network profile
Your phone notifies you when you receive a network
profile message from another phone or PC.
Press
Options
, then press
Save
to save the network
profile to your
Saved Networks
list.
Tip:
Press
Options
, then press
View
to see network
details before you save the network profile to your
phone.
turn WiFi power on or off
Find it:
s
>
6
>
WiFi
>
Set Up WiFi
>
WiFi Power
Select
On
or
Off
.
Note:
To extend battery life, use this procedure to turn
off WiFi power when not in use.
turn off a call alert
Press the external volume keys on the side of your
phone to turn off the ringer before answering a call.
recent calls
Your phone keeps lists of incoming and outgoing calls,
even for calls that didn’t connect. The most recent
calls are listed first. The oldest calls are deleted as
new calls are added.
Shortcut:
Press
N
in the home screen to see the
Dialed Calls
list.
Find it:
s
>
q
Recent Calls
1
Press
S
left/right to select a call list:
All Calls
,
Dialed Calls
,
Answered Calls
,
Missed Calls
, or
Frequent Calls
.
2
Press
S
up/down to scroll to a phone number.
42
calls
Icons indicate if the call was incoming
-
,
outgoing
+
, or missed
=
. A check mark next to the
icon indicates a connected call.
•
To call the number, press
N
.
•
To see call details (like time and date), press
the center key
s
.
•
Press
Options
to perform other operations on the
number (send a message, save to contacts,
delete), or to set recent call options.
redial
1
Press
N
from the home screen to see the
Dialed Calls
list.
2
Scroll to the number you want to call and
press
N
.
If you hear a
busy signal
and see
Call Failed
,
press
N
or
Retry
to redial the number. When
the call goes through, your phone shows
Connected
and
connects the call.
return a call
Your phone keeps a record of calls you did not answer
and shows them on a
Notifications
list.
When you see the list, scroll to the call you want to
return and press
N
.
caller ID
Calling line identification (caller ID) shows the
phone number for an incoming call in your
phone’s display.
Your phone shows the caller’s name and picture when
they’re stored in your contact list, or
Incoming Call
when
caller ID information isn’t available.
43
calls
Note:
Picture IDs aren’t available for contacts stored
on the SIM card.
Tip:
Want to know who’s calling without even looking
at your phone? To give one of your contacts a special
ringtone, see page 80.
To show or hide your phone number
:
Find it:
s
>
u
Settings
>
Call Settings
>
In-Call Setup
>
My Caller ID
1
Select
All Calls
or
Next Call Only
.
2
Select
Show ID
or
Hide ID
.
Shortcut:
To show or hide your phone number for the
next call only, enter the number and (before you press
the Send key
N
) press
Options
, then select
Show ID
or
Hide ID
.
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911 or 112, that
you can call at any time, even when your phone is
locked or the SIM card is not inserted.
Note:
Check with your service provider, as emergency
numbers vary by country. Your phone may not work in
all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or
interference issues. Do not solely rely on your
wireless phone for essential communications such as
medical emergencies.
To make an emergency call:
Turn your phone on, exit
any open application such as games, dial the
emergency number, then press the send key
N
to
call the emergency number.
44
calls
voicemail
Your network stores the voicemail messages
you receive. To listen to your messages, call
your voicemail number.
Note:
Your service provider may include additional
information about using this feature.
When you
receive
a voicemail message, your phone
display shows
New Voicemail
and the new message
indicator
(
.
To
check
voicemail messages:
Find it:
s
>
g
Messages
>
Call Voicemail
Shortcut:
Your service provider may store your
voicemail phone number in speed dial location #1. If
so, you can press and hold
1
in the home screen to
listen to your voicemail message(s).
45
entertainment
entertainment
music player
For basic music player instructions, see your
Quick Start Guide.
Note:
The unauthorized copying of copyrighted
materials is contrary to the provisions of the Copyright
Laws of the United States and other countries. This
device is intended solely for copying non-copyrighted
materials, materials in which you own the copyright, or
materials which you are authorized or legally permitted
to copy. If you are uncertain about your right to copy
any material, please contact your legal advisor.
set default song format & bit rate
on computer
Microsoft® Windows® Media Player 11 lets you
adjust format and bit rate settings to optimize sound
quality or increase the number of song files you can
store on your phone.
Windows Media Audio
format offers the optimal
balance between file size and sound quality. Song files
in this format tend to require more storage space than
files that use Windows Media Audio Pro format.
Windows Media Audio Pro
format is designed for
use in portable devices with limited storage capacity.
The format provides improved sound quality at lower
bit rates.
46
entertainment
To set the default file format and bit rate:
1
Insert the music CD in your computer’s CD drive.
2
Launch Windows Media Player 11.
3
Select the “Rip” tab in Windows Media Player 11.
4
Click the “Rip “tab down arrow, select “Format,”
then select “Windows Media Audio” or
“Windows Media Audio Pro.”
5
Click the “Rip “tab down arrow again, select “Bit
Rate,” then select the bit rate you want.
convert iTunes® AAC files to MP3
files on computer
Use the iTunes desktop application to convert
standard iTunes AAC files to MP3 files that are
compatible with Windows Media Player 11.
Note:
The iTunes desktop application can only convert
AAC files ripped from a music CD. It can’t convert
music files purchased from the iTunes store.
1
Open the iTunes desktop application on your
computer.
2
Select “Edit” and then “Preferences.”
3
Click the “Advanced” tab and select “Importing.”
4
Open the “Import Using” pop-up menu, then
select the “MP3 Encoder” option. Click “OK” to
save your settings.
5
Select one or more songs in your iTunes music
library, then select “Advanced” and then
“Convert Selection to MP3.”
The converted MP3 file copies appear in your
computer’s music library alongside the original AAC
files.
When you load a song, information about the
album, artist, genre (type of music), and composer
is loaded into the Albums, Artists, Genres, and
Composers folders in your music player. If this
information is not available for a song, this
47
entertainment
information loads into those folders as
“Unknown.”
manually transfer music to phone
or memory card
Without using Windows Media Player 11, you can
manually copy or sync music files from the computer
to phone memory, or to an optional microSD memory
card in the phone. (To insert a memory card, your
Quick Start Guide).
Before you copy files to your phone, make sure the
files are in a format that the phone recognizes. Your
phone’s music player can play the following types of
audio files: AAC, AAC+, MP3, WAV, WMA, Real Audio
G2/8/10.
on your phone
Find it:
s
>
u
Settings
>
Connections
>
USB Setting
>
Memory Card
Attach the Motorola Original USB cable to
the mini-USB port on your phone and to
an available USB port on your computer. A
Motorola Original USB cable and
supporting software may be included with your phone.
These tools are also sold separately.
on your computer
Your phone and memory card appear as removable
disks on your computer.
1
Find where your phone and memory card appear
as “Removable Disk” icons (the “My Computer”
window on a Windows PC, the desktop on a
Macintosh® computer).
2
Double-click the “Removable Disk” icon for your
phone or memory card.
3
To copy the desired files onto the phone or
memory card, drag and drop them onto the
appropriate removable disk icon.
48
entertainment
4
When you finish, remove the phone safely from
your computer:
• If you are using a PC
, right-click the “Safely
Remove Hardware” icon in the system tray at
the bottom of your computer screen, then
select “USB Mass Storage Device.”
• If you are using a Mac
, select and drag the
“Removable Disk” icon to the Trash.
play music
To play music on your phone:
Find it:
s
>
j
Multimedia
>
MediaFinder
>
Music Library
Your phone displays the
My Music
menu:
The
My Music
menu includes:
option
Recently Played
View & play songs you played
recently.
Shuffle Songs
Play all songs in random order.
Music Library
Options Back
Recently Played
Shuffle Songs
All Songs
Playlists
Artists
Albums
Genres
49
entertainment
Tip: Play it now!
Press and hold the smart key (on the
left side of the phone). The music player will begin
playing the last song played.
Note: If you receive a call during a song
, the music
player pauses the song until the call is over.
Control song playback with the navigation key
S
:
All Songs
Find & play a song.
Note:
All songs are listed here.
Some songs do not have
Artist
,
Album
,
Genre
, or
Composer
information
(see page 46), so that information
is not included.
Playlists
Create or play a playlist.
Artists
Find & play music by an artist.
Albums
Find & play music from a specific
album.
Genres
Find & play music from a specific
genre (type of music) such as
rock or jazz.
Composers
Find & play music by a composer.
option
music player controls
pause/play
Press
S
up
.
fast forward
Press &
hold
S
right
(for at
least two seconds).
skip to next
song
Press &
release
S
right
.
rewind
Press &
hold
S
left
(for at least
two seconds).
skip back to
previous song
Within first two seconds of song,
press &
release
S
left
.
50
entertainment
While a song is playing, press
Options
to select music
player options:
return to song
beginning
After first two seconds of song,
press &
release
S
left
.
stop playback
Press
S
down
.
turn off music
player
Press
Back
repeatedly until you
return to the home screen.
or
Press
O
.
options
Hide
Hide the music player while music
plays. To see the music player again,
go to the home screen, then
press
S
up.
music player controls
Manage
Show song
Properties
, such as file name,
type, and size.
Delete
Delete the song file.
Send to
Send the song in a message or email,
or send it to another device over a
Bluetooth® connection.
Apply to
Add the song to a playlist or make it a
ringtone.
options
51
entertainment
During a song, the music player shows the song title,
artist, album, and artwork, if available. To see a larger
image of the
artwork
, press the center key
s
(press
the center key
s
again to return to the music player).
customize music player
Find it:
s
>
j
Multimedia
>
MediaFinder
>
Music Library
Press
Options
and select
Setup
. Then select one of the
following options:
Use Bluetooth
/
Use Handset
To send the audio to a Bluetooth
headset, turn on Bluetooth power,
then select
Use Bluetooth
to connect to a
recognized Bluetooth headset or
search for a new headset.
When a Bluetooth audio connection is
active, select
Use Handset
to drop the
Bluetooth connection and switch the
audio back to the phone.
Note:
This option appears only when
Bluetooth power is turned on.
Setup
Customize settings.
options
options
Shuffle
Play songs in a random order.
Equalizer
Customize music playback by turning
on
Bass Boost
,
Rock
,
Treble Boost
,
Vocal Boost
, or
Vocal Reducer
.
Auto- Repeat
Replay the song or playlist when the
last file finishes playing.
Stereo Effects
Set
Spatial Audio
and
Bass Boost
to
customize sound.
Internet
Connection
Set your Internet connection
preferences.
52
entertainment
When you scroll to a song in a list and press
Options
, you
may see additional options for the song and list, such
as
Delete
,
Send to
, and
Apply to
.
browser
Use your phone’s full HTML browser to surf to your
favorite Web sites, upload videos to a video blog, and
download files and applications to your phone. Log on
to your Internet-based email account to check your
email on the go.
To launch the browser
:
Find it:
s
>
1
Web Access
>
Browser
Press
S
up/down/left/right to scroll through Web
pages. Scroll to a link and press
s
to select it.
Press
Back
at any time to return to the previous screen.
Some Web pages may contain a text entry window for
exchanging information with a Web site. Scroll to the
window, select it, and enter text as usual (for more
information about text entry, see page 23).
To
bookmark
the current Web page, press
Options
and
select
Active Page
, then select
Add Bookmark
.
To
upload
a video to a video blog site, see page 58.
To
download
a media file, theme, or Java™ game or
application to your phone, go to the page that links to
the file, scroll to the link, and select it.
To
exit
the browser, press
Options
and select
Exit
.
To access all Web Access menu options
:
Find it:
s
>
1
Web Access
Select one of the following options:
options
Browser
Launch the browser.
My Bookmarks
Launch the browser and go to the
bookmarked Web page you select.
53
entertainment
camera
The 2-megapixel digital camera on your phone can
take photos at up to 1200 x 1600 pixels resolution.
Just aim and shoot to take a photo, then press
Send
to
share it with your friends.
take photo
Find it:
s
>
j
Multimedia
>
Camera
Shortcut:
From the home screen, press the camera
key on the lower right side of the phone (see page 3).
My Web Pages
????
History
View your browsing history.
Go to URL
Go to a Web address that you
enter.
Browser Setup
Create and manage browser profiles
and modify other browser settings.
options
370
Zoom
x1
Options Back
Storage
(Phone
or Memory
Card)
Camera
Mode
(Photo or
Video)
Remaining
Shots
Return to
previous screen.
Resolution
Timer
Select & adjust
camera options.
Press
S
up/
down to
see camera
settings,
left/right to
change.
54
entertainment
To take the photo in the viewfinder, press the center
key
s
.
•
To store the photo, press the center key
s
.
•
To send the photo in a message, press
Send
(see page 61).
•
To discard the photo, press
D
.
•
To select other photo options, press
Options
. You
can choose to
Save Only
,
Discard
,
Send to
(message,
email, or Bluetooth connection),
Apply to
(wallpaper, screensaver, new or existing
contact),
Edit
, or
Print via
(Bluetooth connection,
USB connection, or memory card).
When the camera viewfinder is active, press
Options
to
set camera options:
options
Capture
Take a photo.
Go To My
Media
See, edit, and delete stored pictures
and photos.
Video Mode
Switch to the video camera.
Auto-Timer
Set a timer for the camera to take a
photo.
Multi-Shot
Set the camera to take multiple
photos in sequence.
options
55
entertainment
view photo
To view a stored photo that you’ve taken:
Find it:
s
>
j
Multimedia
>
MediaFinder
>
Pictures
>
Captured Pictures
> photo
auto-send
You can set up your phone to automatically send the
photos you take to a list of contacts you specify.
First, activate the auto-save feature
:
Find it:
s
>
j
Multimedia
>
Camera
1
Press
Options
and select
CameraSettings
.
2
Select
Auto-Save
.
3
Select
Enable
.
Next, set the storage location for auto-saved
photos
:
Find it:
s
>
j
Multimedia
>
Camera
Camera
Settings
Customize camera settings:
•
Review Time
•
Tag
•
Default Name
•
Storage Location
•
Auto-Save
•
Auto-Send
•
Message Recipients
•
Picture Settings
•
Resolution
•
Shutter Tone
•
Quality
•
Video Settings
•
Resolution
•
Video Capture Tone
•
Quality
•
Video Length
options
56
entertainment
1
Press
Options
and select
CameraSettings
.
2
Select
Storage Location
.
3
Select
Phone
or
Memory Card
.
Then, activate auto-send
:
Find it:
s
>
j
Multimedia
>
Camera
1
Press
Options
and select
CameraSettings
.
2
Select
Auto-Send
.
3
Select
Enable
.
To specify message recipients for the photos you
take
:
Find it:
s
>
j
Multimedia
>
Camera
1
Press
Options
and select
CameraSettings
.
2
Select
Message Recipients
.
Tip:
To send your photo in an MMS text message, the
picture resolution must be set to
X-Small
,
Small
, or
Medium
.
To set resolution: Press the center key
s
to open
the main menu, select
j
Multimedia
, then select
Camera
.
Press
Options
and select
CameraSettings
, then select
Picture Settings
, then
Resolution
.
57
entertainment
videos
record video
Find it:
s
>
j
Multimedia
>
Video Camera
1
To begin video recording, press the center
key
s
.
2
Press
Stop
to stop video recording.
•
To store the video, press the center key
s
.
•
To send the video in a message, press
Send
.
•
To discard the video, press
D
.
•
To select other video options, press
Options
. You
can choose to
Save Only
,
Discard
,
Send to
(message,
email, or Bluetooth connection), or
Preview
the
video.
Tip:
To send your video in an MMS text message, the
video length must be set to
MMS Short
or
MMS Long
.
To s e t
video length
: From the video camera viewfinder,
press
Options
and select
CameraSettings
, then select
Video Settings
, then
Video Length
.
1:48:00
Zoom
x1
Options Back
Storage
(Phone
or Memory
Card)
Remaining
Minutes
Resolution
Audio
(On or Off)
Camera
Mode
(Photo or
Video)
Return to
previous screen.
Select & adjust
video camera
options.
Press
S
up/
down to
see camera
settings,
left/right to
change.
58
entertainment
When the video camera viewfinder is active, press
Options
to set video recording options:
upload video to blog
Upload a video you’ve recorded to your video blog
site:
1
Launch your phone’s browser (press the center
key
s
to open the menu, select
1
Web Access
,
then select
Browser
).
2
Go to a video blogging service Web site.
3
Log in to your account.
4
Scroll to
UploadVideos
and press the center key
s
.
5
Follow the browser prompts to scroll to the video
you want to upload, then press the center
key
s
.
6
Scroll to
Upload
and press the center key
s
.
Your phone uploads the video to the blog.
play video
Your phone can play the following types of video files:
MPEG4 + AAC, H.263 + AAC, and Real Video + Audio.
options
Capture
Begin video recording.
Go To My
Media
See, edit, and delete stored videos.
Picture Mode
Switch to the photo camera.
Audio On/Off
Turn audio recording on/off.
Camera
Settings
Customize camera settings (see page
55).
59
entertainment
Find it:
s
>
j
Multimedia
>
MediaFinder
>
Videos
1
Select Captured Videos, Downloaded Videos,
All
Videos
, or
By Date
.
2
Scroll to a video and press the center key
s
.
When a video is playing, press
Options
to select video
options.
Note:
Your phone’s options may vary. Most options
apply only to user-recorded videos, and are not
available for pre-installed videos.
video name
00:06 00:12
10/15/2008-78KB
Timer
Shows %
Played
Return to
previous screen.
Select & adjust video
camera options.
Options Back
Press
S
to
pause/play,
stop, or skip
to previous/
next video.
Press
s
to
switch between
actual size &
full screen view.
options
Play Fullscreen
Show the video in full screen. (Press
the center key
s
to return to actual
size.)
Manage
Show video
Properties
, such as file
name, type, and size.
Delete
Delete the video.
Zoom
Show the video at actual size, or scale
the video to fit the viewing area.
Send To
Send the video in a message or email,
or send it to another device over a
Bluetooth connection.
60
entertainment
Use Bluetooth
/
Use Handset
To send the audio soundtrack to a
Bluetooth headset, turn on Bluetooth
power, then select
Use Bluetooth
to
connect to a recognized Bluetooth
headset or search for a new headset.
When a Bluetooth audio connection is
active, select
Use Handset
to drop the
Bluetooth connection and switch the
audio back to the phone.
Note:
This option appears only when
Bluetooth power is turned on.
Setup
Adjust video settings.
options
61
messages
messages
text messaging
send message
A message can contain text and pictures,
sounds, or other media objects. You can add
multiple pages to a message and put text and media
objects on each page. You can send a message to
other compatible phones or to email addresses.
Find it:
s
>
g
Messages
>
Create Message
1
Press keypad keys to enter text on the page (for
more information about text entry, see page 23).
To insert a
picture, sound, or other media
object
on the page, press
Options
and select
Insert
.
Select the file type and the file. (
Note:
File size
restrictions may apply to pictures and videos sent
in a message.)
To insert
another page
, press
Options
and select
Insert
, then select
Page
. You can enter more text and
objects on the new page.
2
When you finish the message, press
Options
and
select
Sending Options
to set message options (such
as
Subject
and
Priority
).
3
When you finish setting message options, press
Done
.
4
Press
Send To
to select message recipients. You
can:
62
messages
•
Select one or more entries from your contact
list (press
S
to scroll to an entry, and press
the center key
s
to select it).
•
Enter a new number or email address (press
Options
and select
Enter Number
or
Enter Email
).
5
Press
Send
to send the message.
Your phone might tell you that this is a multimedia
message, if it contains multiple pages or media
objects. Some phones or networks don’t support
multimedia messages. Press
Yes
to send the
message.
To save or cancel the message, press
Options
and
select
Save to Drafts
or
Cancel Message
.
receive message
When you receive a message, your phone plays
an alert, and the internal display shows
New Message
with the new message indicator
U
.
To
read
the message, press
View
. If the message
contains media objects:
•
Pictures and animations show as you read the
message.
•
Sound files play as you read the message.
Press the external volume keys on the side of
your phone to change the sound volume.
•
Attached files are added to the end of the
message. To open an attachment, select the
file indicator or file name.
To
answer
the message, press
Options
and select
Reply
.
63
messages
advanced message & email
features
features
send a prewritten text template
s
>
g
Messages
>
Templates
>
Text Templates
>text template
Press
Options
and select
Send
.
set up email accounts
You can set up and use multiple email
accounts on your phone:
s
>
g
Messages
>
Email
>
Add Account
Note:
Your display shows a separate folder for each
email account.
send email
s
>
g
Messages
>
Email
use a multimedia template
Open a multimedia template with
pre-installed media:
s
>
g
Messages
>
Templates
>
MM Templates
read new message or email
When your display shows
New Message
, press
Read
.
read old messages
s
>
g
Messages
>
Inbox
An icon beside each message shows if it is
read
>
,
unread
]
,
urgent
<
, or has an
attachment
*
.
Press
Options
to perform more actions on a message.
read old email
s
>
g
Messages
>
Email
Press
Options
to perform more actions on a message.
features
64
messages
store message objects
Go to a multimedia message page, then press
Options
and select
Save/Use Content
.
create folder
Create a personal folder to store your
messages.
s
>
g
Messages
>
My Folders
Press
Options
and select
Create Folder
.
features
browser messages
To read messages received by your
browser
:
When your display shows
New Message
, press
View
.
To activate browser messages and adjust
browser message settings
:
s
>
g
Messages
Press
Options
and select
Settings
, then select
Browser Messages
.
features
65
messages
info services
To read subscription-based information
services messages
:
When your display shows
New Message
, press
View
.
To activate information services and adjust info
services settings
:
s
>
g
Messages
Press
Options
and select
Settings
, then select
Info Services
.
features
66
connections
connections
MOTOSYNC
You can use several different over-the-air
connection methods to synchronize information
between your phone and a remote server.
MOTOSYNC with Exchange
ActiveSync
Use the Internet to synchronize your phone’s
contact list, calendar entries, and email with an
email account on a Microsoft® Exchange 2003 server.
set up Exchange ActiveSync
Confirm that the
Mobility
option is enabled on the
email account, and that
data service
is activated with
your phone service provider (additional fees may apply
for this service).
To set up an ActiveSync partner
:
Find it:
s
>
m
Office Tools
>
MOTOSYNC
>
Exchange ActiveSync
Enter your email account and server information,
including
Server Address
,
Domain
,
Username
,
Password
, and
DataConnection
details. If necessary, contact your system
administrator to obtain the information you need, or to
help you connect your phone to the server.
use Exchange ActiveSync
To schedule your phone to automatically
synchronize data with an Exchange ActiveSync
partner
:
Find it:
s
>
m
Office Tools
>
MOTOSYNC
>
Exchange ActiveSync
67
connections
1
Press
Options
, then select
Auto Sync
.
2
Select
On
.
3
Press
OK
to enter the time and days you want to
synchronize.
To manually synchronize your contacts, calendar,
and email
:
Find it:
s
>
m
Office Tools
>
MOTOSYNC
>
Exchange ActiveSync
>
Synchronize Now
The first synchronization may take several minutes,
depending on the amount of data in your contacts list,
calendar, and email on the Exchange 2003 server.
MOTOSYNC with SyncML
Call a SyncML Internet server and synchronize
your phone’s contact list and calendar entries
with the server.
To synchronize files with a partner you set up
:
Find it:
s
>
m
Office Tools
>
MOTOSYNC
>
SyncML
If no SyncML profile is stored on your phone, the
phone prompts you to create a profile. Contact your IT
system administrator to obtain the information you
need to set up a profile.
Note:
If your phone can’t connect to the server, verify
that your phone’s network service provider has data
service activated on your phone (additional fees may
apply for this service).
file manager
Manage music and sound files, photos, videos, and
other files stored on your phone, and on an optional
removable microSD memory card.
Find it:
s
>
m
Office Tools
>
File Manager
Next, select a folder or
Memory Card
to see its contents.
68
connections
To play a sound file or voice note, or view a photo
or video
, just scroll to the file and select it.
To copy, move, or rename a file
, scroll to the file and
press
Options
, then select
Manage
. Other options let you
delete, send, or apply the file. You can’t perform some
operations on some copyrighted or pre-installed files.
To copy files between your phone and a computer, you
can use a cable connection (see page 69) or a
Bluetooth® connection (see page 72).
format memory card
To format the memory card or see memory card
properties (such as name and available memory)
:
Find it:
s
>
m
Office Tools
>
File Manager
1
Scroll to the memory card.
2
Press
Options
, then select
Memory Card
.
3
Select
Format
or
Properties
.
move or copy files between phone
and memory card
Caution:
When you
move
a file to a new location, the
file is
deleted
from its original location.
Find it:
s
>
m
Office Tools
>
File Manager
1
If necessary, select the folder with the file you
want to move or copy.
2
Scroll to the file you want to move or copy.
3
Press
Options
, then select
Manage
.
4
Select
Move
or
Copy
.
Note:
The
Move
and
Copy
options do not appear if
the file is copyright-protected.
5
Scroll to the destination location, then press
Place
.
69
connections
cable connections
To transfer data
between your
phone and a computer,
insert the mini-USB port
connector plug from a
USB cable into your
phone’s mini-USB port.
Connect the other end of the cable to the computer.
Note:
A Motorola Original USB cable and
supporting software may be included with
your phone. These tools are also sold
separately. Check your computer to
determine the type of cable you need.
To use your phone as a modem
:
Find it:
s
>
u
Settings
>
Connections
>
USB Setting
>
Modem
Next, connect your phone to the computer.
To transfer contact lists and calendar entries
between your phone and computer
:
Run the optional Motorola Phone Tools accessory
application on your computer. The Phone Tools
software automatically switches your phone to the
proper connection setting required to sync your
phone. See the Phone Tools user’s guide for more
information.
To make data calls through a computer
:
Find it:
s
>
u
Settings
>
Connections
>
USB Setting
>
Modem
Next, connect your phone to the computer and use
the computer application to place or answer the call.
To create a new data connection on your phone
:
Find it:
s
>
u
Settings
>
Connections
>
DataConnections
>
Add aConnection
70
connections
To transfer files between your phone and a
computer
:
See the instructions for manually transferring music
files to the phone on page 47.
To print an image over a USB PictBridge
connection
:
Find it:
s
>
u
Settings
>
Connections
>
USB Setting
>
USB Printing
1
Connect your phone to a PictBridge-compatible
printer.
2
Select the image(s) you want to print, then press
Options
.
3
Select
Print via
, then select
USB
.
Bluetooth® wireless
connections
Your phone supports Bluetooth wireless
connections. You can connect your phone with
an optional Bluetooth headset or Bluetooth car kit to
make handsfree calls, or with a set of Bluetooth
stereo headphones to listen to music stored on your
phone. Connect your phone with a device that
supports Bluetooth connections to exchange files,
connect with a printer that supports Bluetooth
connections to print images, or use your phone as a
Bluetooth wireless modem to connect to the Internet.
For maximum Bluetooth security
, you should
always connect Bluetooth devices in a safe, private
environment.
turn Bluetooth power on or off
Your phone automatically turns Bluetooth power on
when you use a Bluetooth feature.
71
connections
To turn Bluetooth power on or off at any time
:
Find it:
s
>
u
Settings
>
Connections
>
Bluetooth
1
Press
Options
, then select
Setup Bluetooth
.
2
Select
Bluetooth Power
, then select
On
,
Note:
To extend battery life and maximize Bluetooth
security, use this procedure to set Bluetooth power to
Off
when not in use. Your phone will not connect to
another device until you use a Bluetooth feature again,
or set Bluetooth power back to
On
.
place phone in discoverable mode
Allow an unknown Bluetooth device to discover your
phone:
Find it:
s
>
w
Settings
>
Connections
>
Bluetooth
>
Options
>
Discoverable: On 3 Minutes
The Bluetooth indicator
&
in the home screen flashes
when your phone is in discoverable mode.
pair with other device
Note: If you want to use your Motorola Bluetooth
headset with both an audio device and your
phone, use your phone’s Bluetooth menus to
connect the phone with the headset.
If you
establish the connection by pressing a button on the
headset, or if you allow the headset to connect
automatically by turning it on, you may experience
unexpected results.
Before you try to connect your phone to a
handsfree device for the first time
, make sure the
device is
on
and
ready
in pairing or bonding mode
(see the device user’s guide). You can connect your
phone with only one device at a time.
Find it:
s
>
u
Settings
>
Connections
>
Bluetooth
1
Press
Options
and select
Search For Device
.
2
Select the device type:
All
,
Headset
.
Computer
,
Phone
,
PDA
,
Printer
.
72
connections
Your phone lists the Bluetooth devices it finds
within range.
3
Scroll to a device in the list.
4
Press the center key
s
to connect with the
highlighted device.
5
If necessary, enter a mutually agreed upon
passkey (such as
0000
) on your phone and the
device, then press
OK
to connect to the device.
copy files to another device
You can copy a media file, contact, calendar event, or
bookmark to another phone or computer that supports
Bluetooth connections.
Note:
You can’t copy some copyrighted objects.
Before you try to copy a file to another device
,
make sure the receiving device is
on
and
ready
in
discoverable mode. Also, make sure the device is not
busy with another Bluetooth connection.
1
Pair with the other device (see page 71).
2
On your phone, scroll to the object that you want
to copy to the other device.
3
Press
Options
, then:
•
For an image or sound file, select
Send To
, then
select
Bluetooth
.
•
For a contact, select
Share
, select the contact,
then select
Bluetooth
.
•
For a calendar event or bookmark, select
Share Via
, then select
Bluetooth
.
4
Select a recognized device name.
or
Select
[Search For Devices]
to search for new devices,
then select the device where you want to copy
the object.
5
Press
Options
, then select
Send
.
73
connections
6
If necessary, enter a mutually agreed upon
passkey (such as
0000
) on your phone and the
device, then press
OK
to connect to the device.
receive files from another device
Before you try to receive a file from another device
,
make sure your phone’s Bluetooth power is
on
(see
page 70).
1
Place your phone within range (approximately
10 meters/30 feet) of the other Bluetooth device,
and send the file from the device. (If necessary,
refer to the user manual for the device for
additional instructions.)
If your phone and the sending device were not
previously paired,
place your phone in
discoverable mode so the sending device can
locate it
:
2
When prompted to accept the sent object, scroll
to
Yes
or
Grant
and press the center key
s
.
Your phone notifies you when file transfer is complete,
and saves the file.
send photo to printer
You can send a photo to a printer that supports
Bluetooth connections.
Note:
You can print A4, US Letter, and 4x6 size pages.
To print another size, copy the image to a linked
computer and print it from there.
1
On your phone, take a new photo or scroll to a
stored image that you want to print.
2
Press
Options
and select
Print via
, then select
Bluetooth
.
Note:
If you see
Service Not Supported
when you try to
print, select instead
Send To
, then
Bluetooth
. (The
Send To
option does not print the image name or
date stamp.)
74
connections
3
Select a recognized printer name, or press
Options
and select
Search For Printers
to search for another
printer where you want to send the image.
4
If available, modify print options.
advanced Bluetooth features
Note:
A device is recognized after you connect to it
once (see page 71).
features
drop connection with device
Scroll to the connected device name and
press the center key
s
to disconnect.
remove device from device list
Scroll to the device name and press
Options
.
Select
Manage
, then select
Remove Device
.
Note:
You can’t remove a device from the list while
your phone is connected to the device.
switch audio to Bluetooth headset or
Bluetooth car kit during call
Press
Options
and select
Use Bluetooth
.
To switch audio back to the phone, press
Options
and
select
Use Handset
.
edit properties of recognized device
Scroll to the device name, press
Options
and
select
Manage
, then select
Edit Device
.
set Bluetooth options
s
>
u
Settings
>
Connections
>
Bluetooth
Press
Options
and select
Manage
, then select
Setup Bluetooth
.
features
75
connections
phone updates
Sometimes, we think of ways to make your phone’s
software faster or more efficient after you’ve
purchased your phone. You can find out if your phone
can be updated at:
www.hellomoto.com/update
Note:
Software updates do not affect your contact list
or other personal entries or files. If you receive a
software update but choose to install it later, see
page 87.
76
other features—advanced calling
other features
advanced calling
To use voice commands for calling, see page 27.
features
hold a call
Press
Options
and select
Hold
to put all active calls on
hold.
mute a call
Press
Option
and select
Mute
to place all active calls on
mute.
call waiting
When you’re on a call, you’ll hear an alert if
you receive a second call. Press
N
to answer the
new call.
•
To switch between calls, press
Switch
.
•
To connect the two calls, press
Link
.
•
To end the call on hold, press
Options
and
select
End Call On Hold
.
To turn call waiting on or off
:
s
>
u
Settings
>
Call Settings
>
In-Call Setup
>
Call Waiting
>
On
or
Off
features
other features—advanced calling
77
make another call during a call
During a call:
Press
Options
and select
New Call
. Enter a number to
call or press
Options
and select
Browse Contacts
.
conference call
During a call:
Press
Options
and select
New Call
. Dial the next number
and press
N
, then press
Options
and select
Link Calls
.
transfer a call
During a call:
Press
Options
and select
Transfer Call
. Dial the transfer
number and press
N
.
call forwarding
Set up or cancel call forwarding:
s
>
u
Settings
>
Call Settings
>
Call Forward
features
call barring
Restrict outgoing or incoming calls:
s
>
u
Settings
>
Call Settings
>
Call Barring
speed dial
Your phone can store nine phone numbers that you
can call with a single key press.
To store a speed
dial number
:
s
>
L
Contacts
Press
Options
and select
Setup
. Select
Speed DialList
, then
a speed dial location. To assign the speed dial
number to contact, select
Assign Contact
. To assign the
speed dial number to a number you enter, select
Enter Number
.
To
call
a speed dial number, press and hold the
single-digit speed dial number for one second.
features
78
other features—advanced calling
international calls
If your phone service includes international
dialing, press and hold
0
to insert your local
international access code (indicated by
+
). Then,
press number keys to dial the country code and
phone number.
TTY calls
Set up your phone for use with an optional
TTY device:
s
>
u
Settings
>
Phone Settings
>
TTY Settings
features
fixed dial
When you turn on fixed dialing, you can call
only numbers stored in the fixed dial list.
Note:
You must enter your SIM PIN2 code to turn
fixed dialing on or off. If you forget your PIN2 code,
contact your service provider.
Turn fixed dialing on or off
:
s
>
u
Settings
>
Call Settings
>
Fixed Dialing
>
On
or
Off
Use the fixed dial list
:
s
>
m
Office Tools
>
Dialing Services
>
Fixed Dial
DTMF tones
Activate DTMF tones
:
s
>
u
Settings
>
Call Settings
>
Dialing Setup
>
DTMF
Send DTMF tones during a call
:
Press number keys
features
other features—contacts
79
contacts
For basic contact list features, see your Quick Start
Guide.
features
add new contact
s
>
L
Contacts
>
Create Contact
Press
S
left/right to select the
details
tab
w
,
address
tab
u
,
ID
tab
<
, or
notes
tab
x
.
Press
S
up/down to scroll to information you
want to enter or change, then press the center
key
s
to select it.
call contact
s
>
L
Contacts
Scroll to the contact and press
N
.
Note:
If a contact has multiple phone numbers or
email addresses, press
S
left/right to select the
number or email address you want.
send message to contact
s
>
L
Contacts
Scroll to the contact and press
Options
, then select
Send Message
.
features
80
other features—contacts
add additional phone number or email address
to contact
s
>
L
Contacts
Scroll to the contact and press
Options
, then select
Edit
. Select the
details
tab
w
, then scroll up/down
to an empty
Number
or
Email
field and press the center
key
s
to select it.
set picture ID for contact
Assign a photo or picture to show in the display
when you receive a call from a contact:
s
>
L
Contacts
Scroll to the contact and press
Options
, then select
Edit
. Select the
ID
tab
<
, then scroll up/down to
Picture ID
and press the center key
s
to select it
features
set ring ID for contact
Assign a distinctive call alert (ring ID) for a contact:
s
>
L
Contacts
Scroll to the contact and press
Options
, then select
Edit
. Select the
ID
tab
<
, then scroll up/down to
Ring ID
and press the center key
s
to select it.
assign contact to category
s
>
L
Contacts
Scroll to the contact and press
Options
, then select
Edit
. Select the
details
tab
w
, then scroll up/down
to
Category
and press the center key
s
to select it.
features
other features—contacts
81
set category view
s
>
L
Contacts
Press
Options
and select
Filter By
.
You can display contacts by predefined category
(
Email
,
Family
,
Friends
,
Work
), or contacts in a category
that you create (select
Create Category
).
create group mailing list
Assign contacts to a group message list or email
list:
s
>
L
Contacts
Press
Options
and select
Create List
, then select
Message
or
Email
.
features
show contact photos
Show contacts with picture ID photos, or as a text
list:
s
>
L
Contacts
Press
Options
and select
Setup
, then select
Default View
.
Next, select
Thumbnail
or
List
.
set contact list sort order
s
>
L
Contacts
Press
Options
and select
Setup
, then select
Default Sort Order
. Next, select
First Name
or
Last Name
.
features
82
other features—contacts
create and use private contacts
Identify one or more contacts as private contacts.
You must enter your six-digit security code to
access the private contacts on your contact list.
s
>
L
Contacts
Press
Options
and select
Setup
, then select
Private Contacts
.
import contacts to phone memory
Import all contacts to phone memory, from the SIM
card or from another location:
s
>
L
Contacts
Press
Options
and select
Import Contacts
, then select
SIM Card
or
File Manager
.
features
manage SIM card contacts
s
>
L
Contacts
Press
Options
and select
Setup
, then select
SIM Card Manager
.
Delete contacts stored on your SIM card, or import
contact to the SIM card from phone memory, or
from another location.
features
other features—contacts
83
send contact(s) to another device
Send one or more contacts to another phone,
computer, or device:
s
>
L
Contacts
Scroll to the contact and press
Options
, then select
Share
. Press the center key
s
to select the current
contact. Press
S
up/down to scroll to
Bluetooth
,
Messaging
, or
Email
transfer method, then press
Select
to
select it.
To send multiple contacts, press
Options
and select
Share
, then select
Multiple Contacts
(instead of the current
contact).
features
delete contact(s)
Delete one or more contacts from your contact list:
s
>
L
Contacts
Scroll to the contact and press
Options
, then select
Delete
. Press the center key
s
to select the current
contact, then press
Yes
to confirm deletion.
To delete multiple contacts, press
Options
and select
Delete
, then select
Multiple Contacts
(instead of the
current contact).
features
84
other features—personalize
personalize
features
language
Set menu language:
s
>
u
Settings
>
Phone Settings
>
Language
reminders
Set the reminder alert for event notifications:
s
>
u
Settings
>
Profiles
, press
S
left/right to
select the
settings
tab
#
, >
Reminder Alert
reset settings
Reset default settings for all options
except
the
unlock code, security code, and lifetime timer:
s
>
u
Settings
>
Phone Settings
>
Reset
>
Reset All Settings
Note:
This option requires you to enter your six-digit
security code (see page 29).
delete data
Caution:
This option
erases all information you
have entered
(including contacts and calendar
entries)
and content you have downloaded
(including photos and sounds) stored in your
phone’s memory. After you erase the information,
you can’t recover it.
This option does
not
delete SIM card information:
s
>
u
Settings
>
Phone Settings
>
Reset
>
Delete All Data
Note:
This option requires you to enter your six-digit
security code (see page 29).
features
other features—call times & costs
85
call times & costs
Network connection time
is the elapsed time from
the moment you connect to your service provider's
network to the moment you end the call by
pressing
O
. This time includes busy signals and
ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
service provider. For billing information, contact
your service provider.
delete memory card information
Caution:
This option
erases all information you
have entered
(including contacts and calendar
entries)
and content you have downloaded
(including photos and sounds) stored On your
memory card and/or SIM card. After you erase the
information, you can’t recover it.
s
>
u
Settings
>
Phone Settings
>
Reset
>
Delete Memory Cards
Note:
This option requires you to enter your six-digit
security code (see page 29).
features
features
call times
See call timers:
s
>
q
Recent Calls
Press
Options
and select
Call Times
.
86
other features—handsfree
handsfree
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
in-call timer
Show call time information during a call:
s
>
u
Settings
>
Call Settings
>
In-Call Setup
>
In-Call Timer
Select
Display
to view call
Time
,
Cost
,
Total Cost
, or
Credit
Available
.
Select
Beep
to set your phone to play an audible tone
every sixty seconds during a call, or at intervals you
specify.
call cost
See call cost trackers and credit information:
s
>
q
Recent Calls
Press
Options
and select
Call Costs
.
features
data volumes
See data volume meters:
s
>
q
Recent Calls
Press
Options
and select
DataVolumes
.
features
other features—network
87
network
features
auto answer
(headset)
Automatically answer calls when connected
to a car kit or headset:
s
>
u
Settings
>
Phone Settings
>
Headset Settings
>
Auto-Answer
voice dial
(headset)
Enable voice dial with headset send/end key:
s
>
u
Settings
>
Phone Settings
>
Headset Settings
>
Voice Dial
features
network settings
See network information and adjust network
settings:
s
>
u
Settings
>
Network
software update
Your service provider can send updated
phone software over-the-air to your phone. When
your phone receives a software update, you can
install it immediately, or defer installation until later.
To install a deferred software update:
s
>
u
Settings
>
Phone Settings
>
OTA Updates
>
Update Software
88
other features—personal organizer
personal organizer
features
set alarm
s
>
m
Office Tools
>
Alarm Clock
Shortcut:
From the home screen, press
Options
and
select
Set Alarm
.
turn off alarm
When the display shows an alarm:
To turn off the alarm, press
Dismiss
or
O
.
To set an eight-minute delay, press
Snooze
.
set calendar default view
s
>
m
Office Tools
>
Calendar
, press
Options
>
Switch View
add new calendar event
s
>
m
Office Tools
>
Calendar
Scroll to and select the day, then the start time.
Scroll left/right to select different tabs, and enter the
appropriate information for each. When finished,
press
Save
.
You can set a music or sound file, voice note, or
video as a calendar event reminder. When creating
a calendar event, select
Alarm Style
, then alarm type.
Scroll to the file (or create a new file) and press
Insert
.
see calendar event
s
>
m
Office Tools
>
Calendar
> event
To edit event details, press
Options
and select
Edit
.
features
other features—personal organizer
89
calendar event reminder
When the display shows and sounds an event
reminder:
To see reminder details, select
Open Event
.
To close the reminder, press
Dismiss
.
send calendar event to another device
Send a calendar event to another phone, computer,
or device:
s
>
m
Office Tools
>
Calendar
> event
Press
Options
and select
Share via
, then select
Bluetooth
or
Message
.
features
manage downloaded files
Manage files and applications that you’ve
downloaded onto your phone from the browser or
over a Bluetooth® connection:
s
>
m
Office Tools
>
DownloadManager
world clock
Show time and date information for multiple cities
around the world:
s
>
m
Office Tools
>
World Clock
task list
Create a checklist of tasks you need to perform, and
set your phone to notify you when task deadlines
arrive:
s
>
m
Office Tools
>
Task List
features
90
other features—personal organizer
notes
Write and store notes on your phone:
s
>
m
Office Tools
>
Notes
record voice note
s
>
j
Multimedia
>
Voice Recorder
Press the center key
s
to start recording. Press
Stop
to stop recording. To save the voice note, press
Save
.
To perform various actions on the voice note, press
Options
.
Note:
Recording of phone calls is subject to varying
State and Federal laws regarding privacy and
recording of phone conversations. Always obey the
laws and regulations on the use of this feature.
features
play voice note
Play back a voice note you’ve recorded:
s
>
j
Multimedia
>
MediaFinder
>
Voice Notes
>voice note
calculator
s
>
m
Office Tools
>
Calculator
currency converter
s
>
m
Office Tools
>
Calculator
Press
Options
and select
Set Exchange Rate
. Enter
exchange rate and press
Set
. Enter the amount to be
converted and press
Options
, then select
Convert Currency
.
features
other features—security
91
security
fun & games
features
SIM PIN
Caution:
If you enter an incorrect PIN code three
times before the correct code, your SIM card is
disabled, and your display shows
SIM Blocked
.
Lock or unlock the SIM card:
s
>
u
Settings
>
Security
>
SIM Lock
When prompted, enter your SIM PIN code.
lock application
s
>
u
Settings
>
Security
>
Application Lock
When prompted, enter your unlock code (see
page 29).
manage certificates
Enable or disable Internet access certificates
stored on your phone:
s
>
u
Settings
>
Security
>
Certificates
Certificates are used to verify the identity and
security of Web sites when you download files or
share information.
features
start a game or application
Start a Java™ game or application:
s
>
j
Multimedia
>
Games
> game or application
features
92
other features—fun & games
airplane mode
Turn off your phone’s calling features in locations
where wireless phone use is prohibited. This lets
you use the music player and other non-network
features while you are on an airplane, without
interfering with airplane communications.
s
>
u
Settings
>
Phone Settings
>
Airplane Mode
>
On
To reactivate your phone’s calling features, turn off
airplane mode.
features
93
service & repairs
service & repairs
If you have questions or need assistance, we're here
to help.
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options.
You can also contact the Motorola Customer Support
Center at 1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for hearing
impaired), or 1-800-461-4575 (Canada).
94
SAR Data
Specific Absorption Rate Data
SAR Data
This model meets international guidelines for
exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were
developed by the independent scientific organization ICNIRP and
include safety margins designed to assure the protection of all
persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The ICNIRP SAR limit for mobile devices
used by the general public is 2 W/kg and the highest SAR value for
this device when tested at the ear is ___ W/kg.
1
As mobile
devices offer a range of functions, they can be used in other
positions, such as on the body as described in this user’s guide.
2
In
this case, the highest tested SAR value is ___ W/kg.
1
As SAR is measured utilizing the device’s highest transmitting
power, the actual SAR of this device while operating is typically
below that indicated above. This is due to automatic changes to
the power level of the device to ensure it only uses the minimum
level required to reach the network.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
The World Health Organization has stated that present scientific
information does not indicate the need for any special precautions
for the use of mobile devices. They note that if you want to reduce
your exposure then you can do so by limiting the length of calls or
using a “handsfree” device to keep the mobile phone away from
the head and body.
Additional Information can be found on the websites of the World
Health Organization (
http://www.who.int/emf
) or Motorola, Inc.
(
http://www.motorola.com/rfhealth
).
1. The tests are carried out in accordance with international guidelines for
testing. The limit incorporates a substantial margin for safety to give
additional protection for the public and to account for any variations in
measurements. Additional related information includes the Motorola
testing protocol, assessment procedure, and measurement uncertainty
range for this product.
2. Please see the Safety and General Information section about body worn
operation.
EU Conformance
95
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on
the Web site.
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
[France Only]
0168
Product
Approval
Number
96
Privacy and Data Security
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a
software/application vendor releases a patch or software
fix for your mobile device which updates the device’s
security, install it as soon as possible.
• Erase before recycling
—Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For step-by-step instructions on
how to delete all personal information from your device,
see the section entitled “master clear” or “delete data” in
this user’s guide.
Note:
For information on backing up your mobile device
data before erasing it, go to
www.motorola.com
and then
navigate to the “downloads” section of the consumer Web
page for “Motorola Backup” or “Motorola Phone Tools.”
• Understanding AGPS
—In order to comply with
emergency caller location requirements of the FCC, certain
Motorola mobile devices incorporate Assisted Global
Positioning System (AGPS) technology. AGPS technology
also can be used in non-emergency applications to track
and monitor a user’s location—for example, to provide
driving directions. Users who prefer not to permit such
tracking and monitoring should avoid using such
applications.
If you have further questions regarding how use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
OSS Information
97
OPEN SOURCE SOFTWARE INFORMATION
OSS Information
For instructions on how to obtain a copy of any source code being
made publicly available by Motorola related to software used in
this Motorola mobile device you may send your request in writing
to:
The Motorola website
opensource.motorola.com
also contains
information regarding Motorola’s use of open source.
Motorola has created the
opensource.motorola.com
to serve as a
portal for interaction with the software community-at-large.
To view additional information regarding licenses,
acknowledgments and required copyright notices for open source
packages used in this Motorola mobile device, please select
“Legal Notices” from Phone Settings.
MOTOROLA, INC.
OSS Management
600 North US Hwy 45
Libertyville, IL 60048
USA
98
Driving Safety
Smart Practices While Driving
Driving Safety
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart
for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile
device with one of the many
Motorola Original handsfree accessories
available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
Driving Safety
99
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
100
index
index
A
abc mode 25
access point connection 38
accessories 17, 70, 86
active line indicator 22
airplane mode 29, 92
alarm clock 88
alert
set 26, 31, 34
turn off 26, 41
alert profile 31
alert style profiles 22
answer a call 37
audio file formats 47
audio player 45
B
battery 18
battery charge indicator light 18
battery indicator 23
battery life, extend 18, 33, 41, 71
blog 58
Bluetooth connections
make phone discoverable 71
Bluetooth indicator 22
Bluetooth wireless 70
bonding. See Bluetooth wireless
brightness 33
browser 52, 64, 89
browser messages 64
C
cables, using 69
calculator 90
calendar
add event 88
send event 89
set view 88
synchronize 66, 67
call
answer 37
waiting 76
call alert 80
call barring 29, 77
call forward indicator 22
call forwarding 77
call timers 85, 86
caller ID 42, 80
camera 53, 57
car kit 86
index
101
center key 17
certificate management 91
clear/back key 2, 24
clock 36
codes 29, 30
conference call 77
contact list
add entry 79
filter 81
picture ID 43
send contact 83
synchronize 66, 67
view 81
costs, track 86
customer support 93
D
data call 86
date 36
delete data 84
delete text 24
dial a phone number 78
dialed calls 41
digital audio 45
display 4, 21, 33
download files 52
download manager 89
download media objects 64
drafts folder 62
DTMF tones 78
E
earpiece volume 26
EDGE indicator 22
email
create folder 64
read 63
send 63
setup 63
synchronize 66
email address 79
emergency number 43
Enter Unlock Code message 29
F
file manager 67
filter contacts 81
fixed dial 78
forward calls 77
G
GPRS indicator 22
group mailing list 81
H
handsfree speaker 26
headset 86
hold a call 76
home screen 4, 21
I
in-call indicator 22
Incoming Call message 43
102
index
information services 65
international access code 78
Internet connection 38
K
keypad 37
keypad volume, adjust 31, 32
L
language 84
linking. See Bluetooth wireless
location indicator 22
lock
application 91
external keys 30
phone 30
SIM card 91
Low Battery message 23
M
media playback 31, 32
media volume, adjust 31, 32
memory card 68
menu 4, 21
menu icons 21
menu key 17
message
read 62, 63
send 61
message indicator 22, 62
message reminders 84
mini-USB port 3, 18, 69
Missed Calls message 42
MOTOSYNC 66, 67
MP3 sound files 45
multimedia message 61, 63
music player 45
albums 49
artists 49
composers 49
genres 49
My Music menu 48
playlists 49
recently played 48
shuffle songs 48
songs 49
mute a call 76
N
navigation key 2, 17
network settings 87
notes 90
numeric entry mode 26
O
open to answer 37
optional accessory 17
optional feature 17
P
pairing. See Bluetooth wireless
passwords. See codes
index
103
personalize 84
phone number
store 79
photo 53
picture ID 43, 80
PIN code 29, 91
PIN2 code 29, 78
power/end key 2
predictive text entry 24
printing 70, 73
profile indicator 22
profiles 22, 31
push bar 2, 3
R
received calls 41
recent calls 41
redial 42
reminders 84
repairs 93
reset settings 84
resolution 55
return a call 42
ring ID 80
ring style, setting 26
ringer ID 43
ringer volume 26
ringer volume, adjust 31, 32
ringtone 31, 34, 50
S
safety information 10
safety tips 98
saved networks 39
Screen3 17, 21
screensaver 33, 34
security code 29
send key 2
signal strength indicator 22
silent profile 31
SIM Blocked message 91
SIM card 29, 78, 91
SIM card, delete information 85
skin 34
slider 37
smart key 3
soft key
left 2
right 2
soft keys 21
software update 75, 87
speakerphone 86
speakerphone key 3
speed dial 77
store phone numbers 79
support 93
symbol entry mode 26
synchronize 66, 67
T
task list 89
technical support 93
text edit 24
104
index
text entry 23
text entry mode 25
text message 61
text messaging 61
text templates 63
theme 34
time 36
timers 85, 86
transfer a call 77
TTY device 78
U
unlock
application 91
external keys 30
phone 29, 30
SIM card 91
unlock code 29, 30
USB cables 69
V
vibrate profile 31
video 57
video blog 58
video file formats 58
voice command key 27
voice commands 27
voice dial 27, 87
voice key 3
voice note 90
voicemail 44
voicemail message indicator 44
volume 26, 31, 32
volume keys 3
W
wallpaper 34
Web pages 52
WHO information 96
WiFi 38
WiFi signal strength indicator 39
word text entry mode 24
world clock 89
U.S. patent Re. 34,976
www.motorola.com
C
M
Y
CM
MY
CY
CMY
K
v467108.A6.UG.Back.eps 9/11/2007 8:56:39 AM
