Exhibit 8 Users Manual 2
BROADBAND SMARTPHONE con CAMERA
User’s Guide
WORLDPHONE
Guía del Usuario
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
PANTONE
1795 C
0/94/100/0
PANTONE
COOL GRAY
10 C
0/2/0/60
A4500
MOTO
9c
MOTO
1
HELLOMOTO
Thanks for purchasing the
MOTO
™ A4500 wireless phone! It's a global phone with a distinct edge—
e-mail, personalization, music, and videos—streamlined in an intelligent, must-have device.
Work Globally, Work Remotely
– Tired of being connected to your desk? With Microsoft® Windows® Mobile,
you can keep on top of work e-mail and edit Microsoft Office® documents from wherever you are in the world.
Freedom from Wires
– Your life just got a little less wired. With Bluetooth® wireless technology, streaming video
and wireless stereo sound is now a reality.
My Phone, My Way
– Customize your home screen with personal pictures, change wallpapers, use your favorite
song as your ringtone, and add additional programs only you want to use. It’s your phone, make it that way.
Anytime Entertainment
– Can't live without your favorite movies and music? Transfer video and music files from
your computer to your phone for an instant media library.
Help
– On-phone help is available anytime. Just press
Start
>
All Programs
>
Personalize My Device
>
Getting Started
. For even
more information, go to
www.motorola.com/consumer/support
.
2
Here’s a quick anatomy lesson.
DEL
Fn
DEL
Fn
Directional Key
Center Select Key
Messaging Key
Side Navigation/
Volume Keys
Side Back Key
Delete Key
Right Soft Key
Speakerphone/
Voice Recognition
Key
Multimedia
Key
Send Key
Left Soft Key
Home Key
Function Key
Microphone
Power/End Key
Back Key
CAPS
Fn
Fn
Enter Key
Symbol/Caps Key

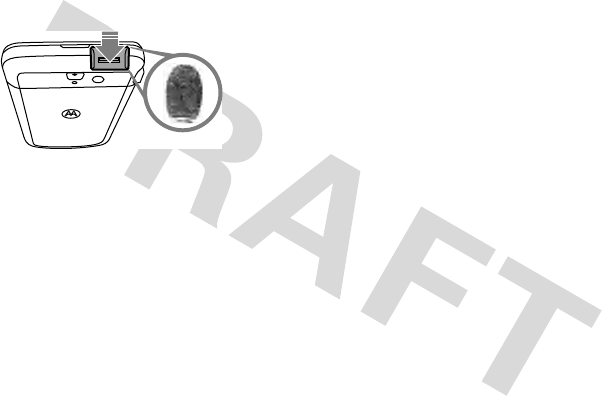

Biometric Fingerprint
Manager
(on back of phone)
3
To change your home screen and Start menu appearance, see pages 31 and 33.
For help while using your phone, press
Start
>
All Programs
>
Personalize My Device
>
Getting Started
. Also see the Motorola
Support Web site at
www.motorola.com/consumer/support
.
Start
Verizon Wireless
No Appointments
Wi-Fi: Available 12/31/2008
Contacts
/
12:00 PM
C0
E0
X
w0:0
Home Screen Menu Screen

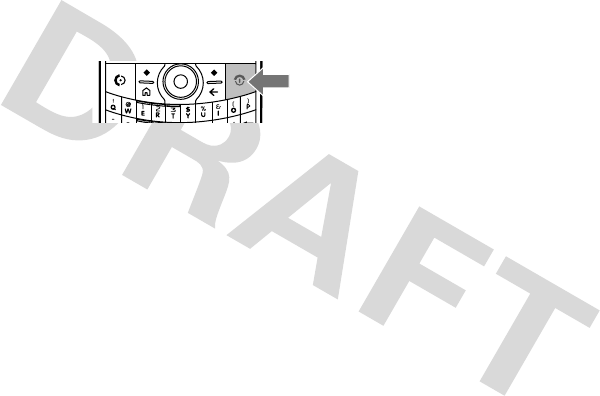

Press and release
the
Power/End Key
(
O
) to turn on your
phone.
1
Press the
Start
key
(left soft key) to open
the main menu.
2
Press
up, down, left,
or right
on the
Directional Key (
S
)
to highlight a menu
feature.
3
Press the
Center Select Key
(
s
) to select the
highlighted feature.
4
Internet
Explorer
Get
Applications
Wireless Sync Personalize
My Q
g © x z
Messaging
& %
(
)
Calendar Contacts Settings
4
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Note:
Do not ship your phone to the above address. If you need to
return your phone for repairs, replacement, or warranty service,
please contact the Motorola Customer Support Center at:
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities and
settings of your service provider’s network. Additionally, certain features
may not be activated by your service provider, and/or the provider’s
network settings may limit the feature’s functionality. Always contact your
service provider about feature availability and functionality. All features,
functionality, and other product specifications, as well as the information
contained in this user’s guide are based upon the latest available
information and are believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. All other product or service names are the property of their
respective owners. The Bluetooth trademarks are owned by their proprietor and
used by Motorola, Inc. under license. America Online, AOL, the America Online
& Design logo, the AOL & Design logo, and the Triangle Logo, are registered
trademarks of America Online, Inc. in the United States and/or other countries.
Instant Messenger and Buddy List are trademarks of America Online, Inc.
Microsoft, Windows and Windows Me are registered trademarks of Microsoft
Corporation; and Windows XP is a trademark of Microsoft Corporation. is
a Certification Mark of the Wireless Fidelity Alliance, Inc. All other product or
service names are the property of their respective owners.
© 2008 Motorola, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not expressly
approved by Motorola, will void the user’s authority to operate the
equipment.
Software Copyright Notice
The Motorola products described in this manual may include copyrighted
Motorola and third-party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for
Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of the Motorola products shall
not be deemed to grant either directly or by implication, estoppel, or
otherwise, any license under the copyrights, patents, or patent applications
of Motorola or any third-party software provider, except for the normal,
non-exclusive, royalty-free license to use that arises by operation of law in
the sale of a product.
Manual Number: 68000201660-A
contents
5
contents
start menu . . . . . . . . . . . . . . . . 7
Use and Care . . . . . . . . . . . . . . 8
essentials . . . . . . . . . . . . . . . . . 9
about this guide. . . . . . . . . . . 9

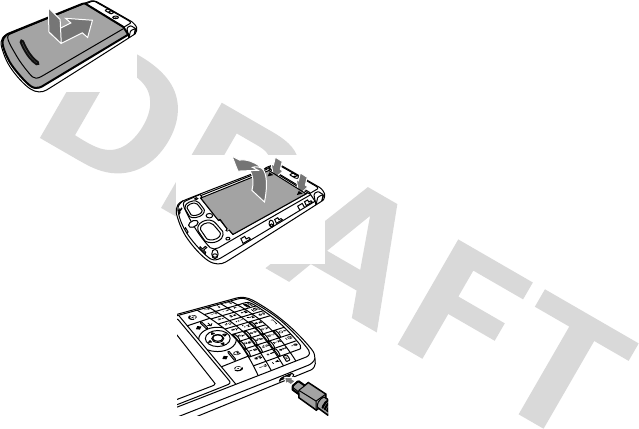

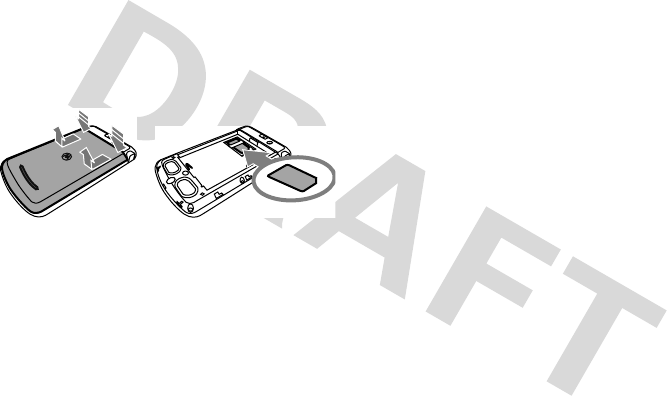

insert your SIM card . . . . . . . 9

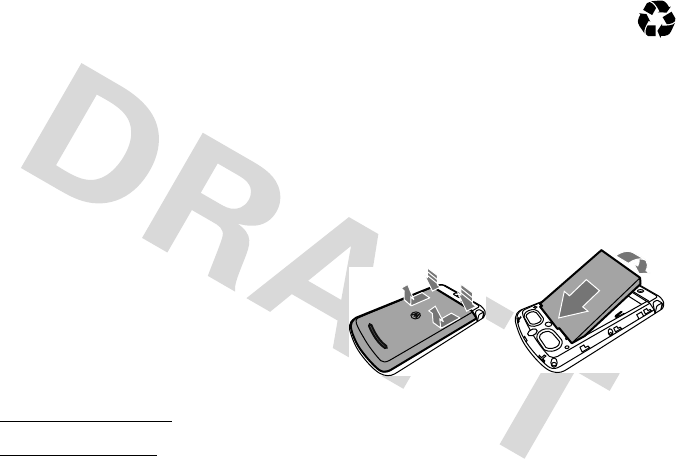

battery . . . . . . . . . . . . . . . . . 10

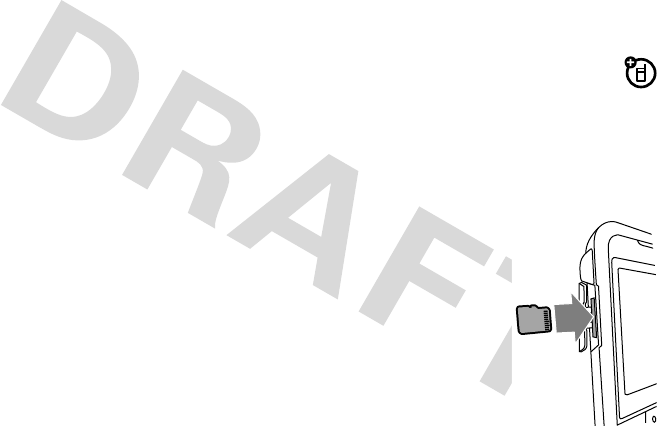

insert memory card . . . . . . . 14
turn it on & off . . . . . . . . . . . 15
make a call . . . . . . . . . . . . . 15
answer a call . . . . . . . . . . . . 15
store a phone number. . . . . 16
call a stored number . . . . . . 16
see your phone number . . . 16
choose your network. . . . . . 17
send a text message. . . . . . 18
getting started tips . . . . . . . 18
tips & tricks. . . . . . . . . . . . . . . 19
get started . . . . . . . . . . . . . . . 20
display . . . . . . . . . . . . . . . . . 20
volume. . . . . . . . . . . . . . . . . 23
handsfree speaker . . . . . . . . 24
lock & unlock phone. . . . . . . 24
flight mode . . . . . . . . . . . . . 26
file manager. . . . . . . . . . . . . 27
task manager . . . . . . . . . . . . 27
personalize . . . . . . . . . . . . . . . 29
profiles. . . . . . . . . . . . . . . . . 29
home screen . . . . . . . . . . . . 31
home screen shortcuts . . . . 32
start menu . . . . . . . . . . . . . . 33
quick launch keys . . . . . . . . . 34
time & date . . . . . . . . . . . . . 35
backlight. . . . . . . . . . . . . . . . 36
answer options . . . . . . . . . 36
third-party applications. . . . 36
more personalizing. . . . . . . 37
calls . . . . . . . . . . . . . . . . . . . . 41
turn off a call alert . . . . . . . 41
recent calls. . . . . . . . . . . . . 41
redial . . . . . . . . . . . . . . . . . 42
view missed calls. . . . . . . . 43
caller ID . . . . . . . . . . . . . . . 43
emergency calls. . . . . . . . . 43
international calls . . . . . . . . 44
speed dial. . . . . . . . . . . . . . 44
voicemail . . . . . . . . . . . . . . 46
three-way calling . . . . . . . . 46
advanced calling. . . . . . . . . 46
call times . . . . . . . . . . . . . . 47
6
contents
enter text . . . . . . . . . . . . . . . . 49
text prediction. . . . . . . . . . . 50
e-mail & messages . . . . . . . . 51
set up Microsoft® Exchange
server e-mail . . . . . . . . . . . . 51
set up personal e-mail. . . . . 53
receive & read e-mail
messages . . . . . . . . . . . . . . 56
send a message . . . . . . . . . 58
global address lookup . . . . . 59
messaging shortcuts . . . . . 60
messaging reference . . . . . 60
entertainment . . . . . . . . . . . . 69
access multimedia . . . . . . . 69
play songs & videos . . . . . . 69
download & copy files. . . . . 71
take & send a photo . . . . . . 72
record & play videos . . . . . . 74
browse the Web . . . . . . . . . 77
fun & games . . . . . . . . . . . . 79
connections . . . . . . . . . . . . . . 82
synchronize . . . . . . . . . . . . . 82
Bluetooth® wireless . . . . . . 87
cable connections . . . . . . . . 95
modem link . . . . . . . . . . . . . 96
Wi-Fi . . . . . . . . . . . . . . . . . . 98
network connections. . . . . . 99
tools . . . . . . . . . . . . . . . . . . . 101
Documents To Go . . . . . . . 101
TV Out . . . . . . . . . . . . . . . . 101
call manager . . . . . . . . . . . 101
contacts . . . . . . . . . . . . . . 102
personal organizer . . . . . . . 104
security . . . . . . . . . . . . . . . 107
phone information . . . . . . . 108
service & repairs . . . . . . . . . 109
SAR Data . . . . . . . . . . . . . . . 110
EU Conformance . . . . . . . . . 112
Microsoft License. . . . . . . . . 112
Safety Information. . . . . . . . 120
Industry Canada Notice. . . . 124
FCC Notice . . . . . . . . . . . . . . 124
Warranty . . . . . . . . . . . . . . . . 125
Hearing Aids . . . . . . . . . . . . . 129
WHO Information . . . . . . . . . 130
Registration . . . . . . . . . . . . . 130
Export Law . . . . . . . . . . . . . . 131
Recycling Information . . . . . 131
Perchlorate Label . . . . . . . . . 132
Privacy and Data Security . . 132
Driving Safety. . . . . . . . . . . . 133
index . . . . . . . . . . . . . . . . . . . 135
start menu
7
start menu
To open the menu from the home screen,
press
Start
(left soft key). Then press
All
Programs
(Left Soft key).
To select menu items, scroll to the icon and
press the Center Select key (
s
).
&
Messaging
• Text Messages
• MMS
• Setup E-mail
%
Calendar
(
Contacts
)
Settings
• Phone
• Sounds
• Profiles
• Home Screen
•Clock & Alarm
• Connections
• Security
• LED Notification
• Remove Programs
• Power Management
• Power Saver
•TV Out
• Phone Settings
• TTY Settings
)
Settings (continued)
• Audio Enhancement
• Accessibility
• Regional Settings
• Owner Information
• Text Input Settings
• About
•Device Name
• Customer Feedback
• Windows Update
• Setup E-mail
g
Internet Explorer
©
Get Applications
i
Wireless Sync
z
Personalize My Device
]
Bluetooth®
c
Windows Media
8
Keypad Lock
>
Documents To Go
\
Voice Recognition
/
File Manager
A
ActiveSync
Å
Call History
Û
Call Manager
å
Clock & Alarm
â
Getting Started
|
Monitor
W
Messenger
[
MOTO Media Player
3
Speed Dial
$
Ta s k s
Ä
Voice Notes
÷
WiFi
y
Accessories
Ã
Camera and Album
T
Games
9
System Tools
8
Use and Care
Use and Care
Use and Ca re
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. If
it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
9
essentials
essentials
about this guide
insert your SIM card
Your worldphone can use the Verizon CDMA network,
or you can insert a Vodafone SIM card to use the
Vodafone network, where available. For details about
switching networks, see page 17.
Your Subscriber Identity Module (SIM) card contains
your phone number and contacts entries. It can also
contain your voicemail, text message, and Internet
access settings. If you put your SIM card in another
phone, that phone uses your phone number.
symbols
This means a feature is network or
subscription dependent and may not be
available in all areas. Contact your service
provider for more information.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
This means a feature requires an optional
accessory.
symbols
10
essentials
Caution:
Don’t bend or scratch your SIM card. Keep it
away from static electricity, water, and dirt.
To insert and use a memory card, see page 14.
Turn off your smartphone and remove the battery
before you install or remove a SIM card.
battery
battery use & safety
IMPORTANT: HANDLE AND STORE BATTERIES
PROPERLY TO AVOID INJURY OR DAMAGE.
Most
battery issues arise from improper handling of
batteries, and particularly from the continued use of
damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred,
or otherwise attempt to change the form of
your battery.
• Don’t let the phone or battery come in
contact with water.
Water can get into the
phone’s circuits, leading to corrosion. If the
phone and/or battery get wet, have them
checked by your carrier or contact Motorola,
even if they appear to be working properly.
• Don’t allow the battery to touch metal
objects.
If metal objects, such as jewelry, stay
in prolonged contact with the battery contact
points, the battery could become very hot.
• Don’t place your battery near a heat
source.
Excessive heat can damage the
12
11
essentials
phone or the battery. High temperatures can
cause the battery to swell, leak, or
malfunction. Therefore:
•
Do
not
dry a wet or damp battery with an
appliance or heat source, such as a hair
dryer or microwave oven.
•
Avoid leaving your phone in your car in
high temperatures.
DOs
• Do avoid dropping the battery or phone.
Dropping these items, especially on a hard
surface, can potentially cause damage.
• Do contact your service provider or
Motorola if your phone or battery has been
damaged from dropping or high
temperatures.
IMPORTANT: USE MOTOROLA ORIGINAL
PRODUCTS FOR QUALITY ASSURANCE AND
SAFEGUARDS.
To aid consumers in identifying
authentic Motorola batteries from non-original or
counterfeit batteries (that may not have adequate
safety protection), Motorola provides holograms on its
batteries. Consumers should confirm that any battery
they purchase has a “Motorola Original” hologram.
Motorola recommends you always use
Motorola-branded batteries and chargers.
Motorola
mobile devices are designed to work with Motorola
batteries. If you see a message on your display such
as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm
that it has a “Motorola Original” hologram;
•
If there is no hologram, the battery is not a
Motorola battery;
•
If there is a hologram, replace the battery and
retry charging it;
12
essentials
•
If the message remains, contact a Motorola
Authorized Service Center.
Important:
Motorola’s warranty does not cover
damage to the phone caused by non-Motorola
batteries and/or chargers.
Warning:
Use of a non-Motorola battery or charger
may present a risk of fire, explosion, leakage, or other
hazard.
PROPER AND SAFE BATTERY DISPOSAL AND
RECYCLING
Proper battery disposal is not only important for
safety, it benefits the environment. Consumers may
recycle their used batteries in many retail or service
provider locations. Additional information on proper
disposal and recycling may be found on the Web:
•
www.motorola.com/recycling
•
www.rbrc.org/call2recycle/
(in English only)
Disposal:
Promptly dispose of used batteries
in accordance with local regulations. Contact
your local recycling center or national
recycling organizations for more information on how to
dispose of batteries.
Warning:
Never dispose of batteries in a fire because
they may explode.
battery installation
12
13
essentials
To remove the battery
,
use the white arrow guides
on the battery to loosen
and pull out the battery.
battery charging
Plug the battery charger into
your phone and an electrical
outlet. It might take several
seconds to start charging.
When finished, your phone
displays a full battery
icon
^
.
If your battery has some charge left, you can charge it
by using a micro
USB cable
plugged into a computer.
If your battery is completely drained, you cannot use a
USB cable plugged into a computer to charge your
battery. You must use a wall charger or car charger.
Note that some USB ports charge faster than others.
Notes for charging your phone’s battery:
•
When charging your battery, keep it near room
temperature. Never expose batteries to
temperatures below 0°C (32°F) or above 45°C
(113°F) when charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long
time may take more time to charge.
•
Motorola batteries and charging systems have
circuitry that protects the battery from
damage from overcharging.
3
14
essentials
conserve battery charge
Using certain features can quickly deplete your
battery’s charge.
These features can include
downloading music, using the camera, using the
flashlight, replaying video clips, and using
Bluetooth® wireless connections.
You can conserve your battery’s charge:
•
Reduce the backlight timeout (see page 36).
When the backlight is off, the display is visible
but dim.
•
Close unused programs using the task
manager (see page 27).
•
Extend the interval between automatically
sending and receiving e-mail (see page 66).
•
If you have more than one e-mail account set
up, choose only one account to automatically
send and receive messages.
•
Turn off Bluetooth and Wi-Fi power when you
are not using them (see pages 87 and 99).
insert memory card
You can use a removable microSD memory
card with your phone to store content, such as
music, pictures, videos, applications, and files.
1
Open the memory card slot by gently lifting it
away from the phone. (The cover stays attached
to the phone.)
2
Insert the memory card
with the metal contacts
facing up. Press the card
until it clicks into place.
3
Push the memory slot
cover back in place.
Note:
Your phone supports
microSD cards up to 32 GB.
15
essentials
To save memory on your phone, move media files
(pictures, videos, music) to a memory card.
turn it on & off
To turn on your
phone
, press and
release the Power/
End key (
O
).
Tip:
If your phone does not turn on, take your battery
out, put it back in, and try again.
To turn off your phone
, press and hold the Power/
End key (
O
) for a few seconds, then release it.
Tip:
You can’t turn your phone off when it’s locked.
make a call
From the home screen, enter a phone number and
press the Send key (
N
) to make a call.
Note:
To voice dial,
press and hold
the speaker key
(
h
). When prompted, say “Call,” followed by a
number or contact name. See page 46.
answer a call
When your phone rings and/or vibrates, press the
Send key (
N
) to answer.
To hang up, press the Power/End key (
O
).
•
If you are busy when a call comes in, press
the Right Soft key (
+
) (
Ignore
) to send the call
to voicemail.
•
To put a call on hold, press the Send key (
N
).
To return to the call, press the Send key (
N
)
again.
DEL
16
essentials
store a phone number
To store a phone number in
Contacts
:
1
From the home screen, press the Right Soft key
(
+
) (
Contacts
) to open Contacts.
2
Press the Left Soft key (
-
) (
New
).
3
Enter a name and other details for the phone
number and press the Left Soft key (
-
) (
Done
) to
store the contact.
Tip:
While entering the number, you can tell your
phone to pause and then dial more digits (for example,
for a voicemail password or PIN). Press the Right Soft
key (
+
) (
Menu
) and scroll to
Insert Pause
to insert a
2-second pause (shows as a
p
) or scroll to
Insert Wait
to
tell your phone to prompt you before dialing the
remaining digits (shows as a
w
).
Tip:
If you get a call from someone who isn't in your
contacts, you can add them to your contacts from
Call History
by pressing the Left Soft key (
-
) (
Save
).
call a stored number
1
From the home screen, press the Right Soft key
(
+
) (
Contacts
) to open Contacts.
2
Use the Directional key (
S
) to scroll to the
number and press the Center Select key (
s
).
3
Press the Send key (
N
) to call the entry.
Tip:
If you stored more than one number for a contact,
select the contact to see all numbers. To dial a
number, scroll to it and press the Send key (
N
).
see your phone number
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
).
3
Select
Phone
by pressing the Center Select
key (
s
).
17
essentials
4
Scroll to
Call Options
and press the Center Select
key (
s
).
5
Scroll to
Phone number
to view your phone number.
choose your network
You can use your worldphone on these networks:
If you have set your phone to allow roaming, it roams
in either mode.
To force your phone to switch to CDMA or GSM:
1
On your phone, press the Left Soft key (
-
)
(
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Select
Phone
by pressing the Center
Select key (
s
).
4
Select
Networks
by pressing the Center
Select key (
s
).
5
Scroll to
Mode of Operation
and use the Directional
key (
S
) to select the network mode
Global
,
GSM Only
, or
CDMA Only
.
6
Press the Left Soft key (
-
) (
Done
).
CDMA
Verizon
This is the default network.
GSM
Vodafone
With GSM, you can select
Automatic
or
Manual
to find your network.
Global
mode
In global mode, when you turn on
your phone, it automatically tries to
use the CDMA network or the last
network you used.
18
essentials
send a text message
1
From the home screen, use the keypad to enter
the phone number of the person you want to
send a text message to.
Note:
You can send a message to a contact by
pressing the Right Soft key (
+
) (
Contacts
). Use
the Directional key (
S
) to scroll the contact and
press the Center Select key (
s
). Then, scroll to
Send text message
and press the Center Select
key (
s
).
2
Press the Right Soft key (
+
) (
Menu
).
3
Use the Directional key (
S
) to scroll to
Send Text
Message
and press the Center Select key (
s
).
4
Use the keypad to enter your message.
5
When finished, press the Left Soft key (
-
)
(
Send
).
getting started tips
Your phone has built-in tips to help you get started,
from setting up your device, to personalizing it with a
custom home screen background or ringtones, to
connecting to a network.
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Personalize
My Device
and press the Center Select key (
s
) to
select it.
3
Scroll to
Getting Started
and press the Center
Select key (
s
) to select it.
4
Choose a topic and press the Center
Select key (
s
) to select it.
19
tips & tricks
tips & tricks
From the home screen
(page 20), you can use these
shortcuts.
To... Do this...
lock
keypad
Know your password, then press the
Home key (
X
) and the space bar
(
f
). For more tips, see page 26.
open
messages
Press the Messaging key ( ). In a
message, press and hold
0
for
shortcuts.
play games
or music
on an
airplane
To play games and music on a flight,
turn off your network, Bluetooth, and
Wi-Fi services. Press and hold the
Home key (
X
). Use the Directional
key (
S
) to select
Wireless Manager
,
then
All
.
access
multi-
media
Press the Multimedia key ( ) for
the media player, camera, and more.
open quick
list
Press and hold the Home key (
X
).
use
speaker-
phone
During a call, press the
Speakerphone key (
a
) to turn the
speakerphone on and off.
personal-
ize your
device
Press the Left Soft key (
-
) (
Start
).
Scroll to
Personalize My Device
to set
sounds, home screen, and more.
use quick
launch
keys
Press and hold any of the quick
launch keys to access features that
you specify. See page 34 for details.
To... Do this...
20
get started
get started
See page 2 for a basic phone diagram.
display
The home screen appears when you turn on the
phone. This is the standard home screen:
Use the Directional key (
S
) to navigate this screen.
To select an icon, use the Directional key (
S
) to
highlight it and then press the Center Select key (
s
)
to select it.
navigation
Press the Directional key (
S
) up, down, left, or right
to scroll to basic menu items or text in the home
screen.
Press the Home key (
X
) to return to the home
screen.
For key locations, see pages 2 and 3.
Start
Verizon Wireless
No Appointments
Wi-Fi: Available 12/31/2008
Contacts
/
12:00 PM
C0
E
0
X
w
0
:0
21
get started
status indicators
Status indicators can appear at the top of the home
screen:
E
Missed Call Indicator –
Shows
when you have missed a call.
:
Text Message Indicator –
Shows
when you have new text message.
,
Voicemail Indicator –
Shows
when you have new voicemail.
C
Message Indicator –
Shows when
you receive new e-mail messages.
^
Battery Level Indicator –
Vertical bars
show the battery charge level. Recharge
the battery when your phone shows one
or two bars.
Ù
Charging Indicator –
Shows
when the USB charger is
connected to the phone and charging.
0
Signal Strength Indicator –
Vertical bars show the strength of
the network connection. You can’t make
or receive calls when no vertical
bars appear.
G
/
J
f
Roam Indicator –
Shows when
your phone is seeking or using a
network outside your home network.
EVDO indicator shows when phone is in
EVDO coverage area. 1X indicator shows
when phone is in 1x-RTT coverage area.
GSM GPRS shows when phone is in a
coverage area when your SIM card is
inserted.
22
get started
÷
Wi-Fi Indicator –
Shows when Wi-Fi is on
and connected to a network.
Q
<
%
Profile Indicator –
Shows when your ring
style is set to
Silent
(
Q
) or
Vibrate
(
<
). No
indicator appears when the ring style
profile is
Normal
,
Outdoor
, or
Automatic
.
Note:
A
%
icon appears when the
speakerphone is on.
E
Bluetooth® Indicator –
Shows when
Bluetooth power is on.
Ó
Bluetooth Pairing Indicator –
Shows
when your phone is paired with another
Bluetooth device, such as a keyboard.
Ô
Bluetooth Handsfree Indicator –
Shows when your phone is
connected to a Bluetooth handsfree
device.
Õ
Stereo Bluetooth Headset
Indicator –
Shows when your
phone is connected to a stereo Bluetooth
headset.
D
Call Forward Indicator –
Shows when
call forwarding is on.
H
I
Active Line Indicator –
Indicates
whether line
H
or
I
is active.
Ò
Headset Indicator –
Shows when
you have a 2.5mm headset
connected.
Ö
Memory Card Indicator –
Shows
when you have a removable
memory card inserted.
Ú
TTY Indicator –
Shows when TTY mode
is on (see page 46).
23
get started
volume
Your phone has a system, media player, and call
volume controls.
system volume (master)
System volume controls the earpiece, headset, or
speakerphone volume.
System volume overrides other
volume controls. If system volume
is at 0%, adjusting media player or
call volume won’t effect the
volume.
Note:
If your phone is connected to
a Bluetooth® audio device, speakerphone won’t work.
To change system volume
, press
and hold the Side Select Key to
open the Volume display. Then use
the Side Navigation/Volume Keys
to adjust the volume.
media player volume
To change media player volume
for videos and
music, use the Side Navigation/Volume Keys.
Tip:
Before you adjust the media player volume, first
adjust the system volume. If the system volume is off,
you won’t have any media player sound.
call volume
To change call volume
while on a call, use the Side
Navigation/Volume Keys. Adjusting the volume on that
screen changes only the call volume (not the system
volume).
+
_
24
get started
Tip:
You can eliminate the ringer volume instantly
when an incoming call comes in—just use the Side
Navigation/Volume Keys.
handsfree speaker
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
To use your phone’s handsfree speaker
, press the
speakerphone key (
a
). For key location, see page 2.
Note:
The handsfree speaker won’t work when your
phone is connected to a car kit or headset. With a
Bluetooth headset press the Right Soft key (
+
)
(
Menu
), scroll to
Handsfree Off
. Press the Right Soft key
(
+
) (
Menu
) and scroll to
Speakerphone On.
lock & unlock phone
You can manually lock your phone to prevent
accidental key presses.
lock your phone
Press the Home key (
X
) and then the space bar
(
f
). The left soft key shows
Unlock
.
Note:
You can make emergency calls on a locked
phone. A locked phone still rings or vibrates for
incoming calls or messages,
and you do not need to
unlock it to answer
. You cannot turn off the phone
when it’s locked. Unlock it, then turn off the power.
25
get started
unlock your phone
To use the biometric fingerprint manager
, drag your
finger slowly and firmly across the fingerprint scanner.
Note:
You have three tries to scan your fingerprint. If
you’re not successful, your phone asks you to enter
your password.
To use the keypad
, press the Left Soft key
(
-
)(
Unlock
). Then, enter your password and
press
Unlock
again. If you have not set a password,
press the Left Soft key (
-
)(
Unlock
) and then
*
.
set the fingerprint scanner
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Security
and press the Center
Select key (
s
).
4
Scroll to
Fingerprint Manager
and press the Center
Select key (
s
).
5
When prompted to use the Device Lock, press
the Left Soft key (
-
)(
Yes
).
6
Choose either a simple (4-digit number) or strong
password (a mixture of at least 7 uppercase and
lowercase letters, numbers, and punctuation).
7
Enter and confirm your password.
8
Press the Left Soft key (
-
) (
Done
).
26
get started
9
On the Fingerprint Manger screen, scroll to
Add
fingerprint
and press the Center Select key (
s
).
10
Read the tutorial and follow the prompts to enter
your fingerprint.
change your password
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Security
and press the Center
Select key (
s
).
4
Scroll to
Device Lock
and press the Center
Select key (
s
).
5
Select
Prompt if device unused for
, and select the time
you want the phone to be inactive before
automatically locking.
6
Choose either a simple (4-digit number) or strong
password (a mixture of at least 7 uppercase and
lowercase letters, numbers, and punctuation).
7
Enter and confirm your password.
8
Press the Left Soft key (
-
) (
Done
).
Caution: Make your password something you
remember!
Without your password, you can reset
your phone, but you will lose your personalized
settings and all content stored in phone memory. To
perform a hard reset, hold down the Center
Select key (
s
) for 5 seconds while turning the phone
on. Use the Side Directional keys to scroll to
Continue
Rebooting
and press the Center Select key (
s
).
flight mode
In flight mode, you
turn off your phone’s network,
Bluetooth, and WiFi (if applicable) services
to safely
access your address book, games, camera, and music
27
get started
in areas where cellular network access is prohibited
(such as during flights, when allowed, and
in hospitals).
1
Press and hold the Home key (
X
) until the
Quick List appears.
2
Use the Directional key (
S
) to scroll to
Wireless Manager
and press the Center
Select key (
s
) to select it.
3
Scroll to
All
and press the Center Select key (
s
).
4
Press the Left Soft key (
-
) (
Done
).
Use the same steps to turn Bluetooth and phone
mode on. After a pause, Bluetooth changes to
On
, and
then Phone changes to
On
.
file manager
You can use the File Manager to sort, view, copy, and
move files, such as text, pictures, music, and video
files, on your phone or memory card.
To find the File Manager:
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
File Manager
and press the Center Select key (
s
) to select it.
task manager
Applications may run on your phone until you use the
Task Manager to end or stop them.
To f i n d t h e Ta s k M a n a g e r :
1
Press and hold the Home key (
X
) until the
Quick List appears.
28
get started
2
Use the Directional key (
S
) to scroll to
Task
Manager
and press the Center Select key (
s
) to
select it.
Tip:
Need to kill a running program? In
Task Manager
,
select the program and press the Right Soft key (
+
)
(
Menu
), scroll to
Kill
and press the Center
Select key (
s
).
Note:
To completely remove a program from your
phone, from the home screen, press the Left Soft key
(
-
) (
Start
), then scroll to and select
Settings
, and then
scroll to
Remove Programs
. Select the program and press
the Right Soft key (
+
) (
Menu
) and then select
Remove
and press the Center Select key (
s
).
29
personalize
personalize
It’s your phone, make it that way!
Tip:
For the quickest way to customize your phone,
open the Start menu by pressing the Left Soft key
(
-
) (
Start
). Then, use the Directional key (
S
) to
scroll to
Personalize My Device
and press the Center
Select key (
s
) to see more personalizing options.
profiles
Each profile uses a different set of sounds, ring styles,
earpiece volume settings, or vibrations for incoming
calls and other events. For example, the
Outdoor
profile
volume is much louder than the
Normal
profile.
You can choose from these profiles:
To choose a profile:
1
From the home screen, press and hold the Home
key (
X
) to open the Quick List.
2
Use the Directional key (
S
) to scroll to a profile
and press the Center Select key (
s
) to select it.
Indicators can appear at the top of your home screen
for the
Silent
(
Q
) and
Vibrate
(
<
) profiles. The indicator
%
means the speakerphone is on (see page 21).
Note:
The
Automatic
profile is the same as
Normal
, except
that it automatically switches to
Vibrate
during any event
stored in your Calendar.
Normal Vibrate Automatic
Silent Outdoor
30
personalize
change ring tones in profile
You can change the ring tones, including video ring
tones, for incoming calls and other events. Your
changes are saved in the current ring style profile.
Note:
Changes made to the alert settings have no
effect when using the
Silent
profile.
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Sounds
and press the Center
Select key (
s
).
4
Scroll to the sound you want to change, press left
or right on the Directional key (
S
) to change it,
and then press the Left Soft key (
-
) (
Done
).
Note:
Downloading a sound file for a ring tone does
not automatically save it in the Sounds location.
To move your sound file:
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
File Manager
and press the Center Select key (
s
) to select it.
3
Scroll to
My Documents
and press the Center
Select key (
s
).
If the sound file is not located in the My
Documents folder, go to the folder where the
sound file is stored and copy it to the Sounds
folder.
4
Highlight the sound file you want to copy to the
Sounds location and press the Right Soft key
(
+
(
Menu
).
5
Scroll to
File
and press the Center Select key (
s
).
6
Scroll to
Copy to
and press the Center
Select key (
s
).
31
personalize
7
Scroll to
Application Data
and press the Center
Select key (
s
).
8
Select
Sounds
and press the Left Soft key (
-
)
(
Done
).
Tip:
You can also access the Sounds Settings screen
by pressing the Left Soft key (
-
) (
Start
),
select
Personalize My Device
, and select
Sounds Settings.
home screen
You can customize the home screen by setting a
photo, picture, or animation as a wallpaper
(background) image or changing your layout and color
scheme.
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
PersonalizeMyDevice
and press the Center
Select key (
s
) to select it.
3
Scroll to
Home Screen Settings
and press the Center
Select key (
s
).
You can change the following settings:
options
Home screen
layout
Select a layout for the home screen
from various predefined schemes
that you can customize further.
Color scheme
Select a color scheme for
the display. Color schemes change
the coordinating colors of the menu
bars and background image,
depending on the home screen
layout you use.
Background image
Select a picture for your wallpaper
image, or
None
for no wallpaper.
Time out
Select the time interval before the
display will go inactive or
Never
.
32
personalize
4
When you are done, press the Left Soft key (
-
)
(
Done
).
change background image
Want to copy an image from your computer to your
phone to use as a background image?
Note:
The image file format must be GIF, JPG, or BMP.
1
Copy the image file you want from your computer
to your phone:
•
To use Bluetooth®, see page 82.
•
To use Microsoft ActiveSync® or Windows®
Mobile Device Center, see page 82.
2
On your phone, press the Left Soft key (
-
)
(
Start
).
3
Use the Directional key (
S
) to scroll to
Pictures &
Videos
and press the Center Select key (
s
) to
select it.
4
Highlight the picture you want and press the
Center Select key (
s
).
5
With the picture open, press
the Right Soft key (+)
(Menu)
, scroll to
Use as Home Screen
, and press the
Center Select key (
s
).
For some pictures you can crop the area and
adjust the transparency.
6
Press the Right Soft key (
+
) (
Finish
) to set the
picture as the home screen background image.
home screen shortcuts
You can use the
shortcut icons across the top
of the home screen
or, depending on the
layout, customize them. The Flash and Sliding Panel
layouts don’t have these shortcuts.
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
33
personalize
2
Use the Directional key (
S
) to scroll to
PersonalizeMyDevice
and press the Center
Select key (
s
) to select it.
3
Scroll to
Home Screen Shortcuts
and press the Center
Select key (
s
).
4
Scroll to
Show User Defined Shortcuts
and press the
Center Select key (
s
) to select it if it is not
already selected.
5
Scroll to
Define Shortcuts
and press the Center
Select key (
s
).
6
Use the Directional key (
S
) to select shortcuts,
and then press the Left Soft key (
-
) (
Done
).
To customize the Right Soft key as a shortcut to
your favorite feature
(for soft key location, see
page 2):
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Personalize My Device
and press the Center
Select key (
s
) to select it.
3
Scroll to
Home Screen Right Soft Key
and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
) to select a
feature and enter a label for your new Right Soft
key function and then press the Left Soft key
(
-
) (
Done
).
Note:
This option might be restricted or unavailable if
your home screen shows scrolling headlines from
your service provider.
start menu
You can customize your start menu.
Tip:
If you don’t see the program you’re looking for on
the Start menu, press the Left Soft key (
-
)
(
All Programs
).
34
personalize
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Personalize My Device
and press the Center
Select key (
s
) to select it.
3
Scroll to
Start Menu View
and press the Center
Select key (
s
) to choose from these options:
4
When you are done, press the Left Soft key (
-
)
(
Done
).
quick launch keys
Your phone has three programmable quick launch keys
(one dot, two dots, and three dots) on the keypad. You
can set which features open when you press and hold
these keys.
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
options
Menu
Select the menu you want to
customize, then select which icons to
appear when you open the start
menu.
View
Select category, list, grid, small
circular, or large circular view.
Background
Select a picture for your start menu
background image.
Quick Launch Keys
35
personalize
2
Use the Directional key (
S
) to scroll to
PersonalizeMyDevice
and press the Center
Select key (
s
) to select it.
3
Scroll to
Quick Launch Keys
and press the Center
Select key (
s
).
4
Scroll to the application you want each key to
open.
5
When you are done, press the Left Soft key (
-
)
(
Done
).
time & date
Your service provider usually sets the time and date on
your phone. However, if you change time zones while
your phone is roaming, you might need to change your
clock manually. To change it manually:
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Clock & Alarm
and press the Center
Select key (
s
).
4
Select
Date and Time
and press the Center
Select key (
s
).
5
Use the Directional key (
S
) to scroll to
Time Zone
,
Date, and Time to edit them.
6
Press the Left Soft key (
-
) (
Done
) to save the
time and date settings.
You can specify the date and time style by changing
the regional settings. To find Regional Settings,
select
Regional Settings
from the Settings screen.
36
personalize
backlight
To save battery life, your
backlight
turns off when
you’re not using your phone. The backlight turns back
on when you press a key.
To set how long your phone waits before the
backlight turns off:
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Power Management
and press the Center
Select key (
s
).
4
Edit the backlight setting fields and press the Left
Soft key (
-
) (
Done
) to save the settings.
answer options
You can choose to use
any key
to answer a call.
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Select
Phone
and press the Center Select key (
s
).
4
Scroll to
Call Options
and press the Center
Select key (
s
).
5
Check
Any key answer
and press the Left Soft key
(
-
) (
Done
).
third-party applications
Third-party applications, or add-on programs, can
include games, entertainment, and productivity
software. These products can typically be downloaded
and installed immediately. Compatible commercial and
free applications are available on the Internet.
37
personalize
For more information, see the downloads catalog on
the Motorola Support Web site at:
www.motorola.com/
consumer/support
, or see your service provider’s Web
site.
Note:
Applications written for previously released
devices or older versions of Windows Mobile® may
not function reliably on this phone. Contact the
application provider to check compatibility before
installing the application on this phone.
more personalizing
language
To set the language for menus:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Regional Settings
and press the Center
Select key (
s
).
4
Scroll to
Language
and press the Center
Select key (
s
).
5
Press left or right on the Directional key (
S
) to
select a language, and then press the Left Soft
key (
-
) (
Done
).
Note:
You must turn your phone off and on again for
the changes to take effect.
accessibility
To set system font size, multipress timeout,
confirmation timeout, and in-call alerts:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Accessibility
and press the Center
Select key (
s
).
38
personalize
4
Use the Directional key (
S
) to modify the
settings and then press the Left Soft key (
-
)
(
Done
).
ring volume
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Profiles
and press the Center
Select key (
s
).
4
Highlight the desired profile, then press the Right
Soft key (
+
) (
Menu
).
5
Select
Edit
by pressing the Center Select key (
s
).
6
Under
Ring Volume
, press the Directional key (
S
)
left or right to adjust the volume for that profile,
and then press the Left Soft key (
-
) (
Done
).
Tip:
You can eliminate the ringer volume instantly
when an incoming call comes in—just use the Side
Navigation/Volume Keys to turn the ringer off.
Note:
The system volume overrides the media player
and call volume controls.
sounds
To change the default sounds for ring tone, reminders,
new messages (e-mail, text messages, and
voicemail), alarm clock, or keypad controls:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Sounds
and press the Center
Select key (
s
).
4
Use the Directional key (
S
) to modify the sound
settings and then press the Left Soft key (
-
)
(
Done
).
39
personalize
alarm
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Clock & Alarm
and press the Center
Select key (
s
).
4
Scroll to
Alarm
and press the Center
Select key (
s
).
5
Press number keys to adjust the time. Use any
number key to switch from am to pm.
6
When you are done, press the Left Soft key (
-
)
(
Done
).
owner information
It’s a good idea to enter and check your owner
information. It lets someone return the phone to you if
you lose it:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Owner Information
and press the Center
Select key (
s
).
4
Modify the owner information and then press the
Left Soft key (
-
) (
Done
).
master reset
To return your phone to original settings:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
System Tools
and press the Center Select key (
s
) to select it.
3
Scroll to
Master Reset
and press the Center
Select key (
s
).
40
personalize
Note:
The default master reset code is
000000
(6 zeroes). Master reset does not reset the
unlock code, security code, and lifetime timer.
41
calls
calls
To make and answer calls, see page 15.
Note:
Your phone has a system volume control that
overrides call volume. Be sure to turn up your system
volume or you won’t have any sound for calls. For
details, see page 23.
turn off a call alert
You press the Side Navigation/Volume key down to
turn off the ringer.
recent calls
Your phone keeps a list of incoming and outgoing
calls, even for calls that didn’t connect. The most
recent calls are listed first. The oldest calls are deleted
as new calls are added.
To see recent calls:
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Call History
and press the Center Select key (
s
) to select it.
You can select a call and then:
•
To call the number, press the Send key (
N
).
•
To see call details (like time and date), press
the Center Select key (
s
).
•
To see options, press the Right Soft key (
+
)
(
Menu
):
options
Find Contact
Find this phone number in your
Contacts
.
42
calls
redial
1
Press the Send key (
N
) from the home screen
to see the dialed calls list.
2
Use the Directional key (
S
) to scroll to the entry
you want to call, then press the Send key (
N
).
If you hear a
busy signal
and see
Call Failed,
Number Busy
, press the Send key (
N
) or the Left
Soft key (
-
) (
Retry
) to redial the number.
Send Text
Message
Send a text message to this phone
number.
E-mail
Send an e-mail message to this
contact (if you already have the
contact’s e--mail address).
View Timers
View the call times for this call and all
calls.
Delete/ Delete
List
Delete a call from the Call History.
Select
Delete List
to delete all calls from
the call history.
Save to
Contacts
Save this number to a contact.
options
Filter
Filter all calls in the Call History list.
Filtering calls allows you to group calls
in a specific way. For example, if you
filter the list for all Missed Calls, all
the incoming phone calls that you did
not answer are listed first.
options
43
calls
When the call goes through, your phone rings or
vibrates one time, shows
Redial Successful
, and connects
the call.
view missed calls
Your phone keeps a record of your unanswered calls.
To view your missed calls:
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Call History
and press the Center Select key (
s
) to select it.
3
Press the Right Soft key (
+
) (
Menu
).
4
Scroll to
Filter
and press the Center
Select key (
s
).
5
Scroll to
Missed Calls
and press the Center
Select key (
s
).
caller ID
Calling line identification (caller ID) shows the
phone number for an incoming call on your
home screen.
Your phone shows the caller’s name and picture if you
have stored a picture in your contacts, or
Incoming Call
when caller ID information isn’t available.
Tip:
You can set your phone to play a special ring tone
for each of your friends and coworkers (see page 102).
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911, that you can
call under any circumstances, even when your phone
and keypad are locked.
Note:
Emergency numbers vary by country. Your
phone’s preprogrammed emergency number(s) may
44
calls
not work in all locations, and sometimes an
emergency call cannot be placed due to network,
environmental, or interference issues.
1
Press the keypad keys to dial the emergency
number.
2
Press the Send key (
N
) to call the emergency
number.
international calls
If your phone service includes international
dialing, press and hold
0
to insert your local
international access code (indicated by
+
). Then, press
the keypad keys to dial the country code and
phone number.
speed dial
You can use speed dialing in two ways: quick access
for up to 98 phone numbers and shortcuts to features
found in the Start menu including e-mail, calendar, and
Bluetooth Manager.
To call a speed dial number or use a shortcut to a
feature that you’ve set, press and hold the single-digit
speed dial number. If the speed dial is two digits,
press the first digit, then press and hold the second
digit. The phone dials or opens the assigned
application.
speed dial phone numbers
You can set the speed dial to call the entries in your
phone’s contact list.
1
From the home screen, press the Right Soft key
(
+
) (
Contacts
).
2
Use the Directional key (
S
) to scroll to the
desired contact and press the Center
Select key (
s
) to select it.
3
Select the phone number or e-mail address you
want to add to speed dial.
45
calls
4
Press the Right Soft key (
+
) (
Menu
).
5
Scroll to
Add to Speed Dial.
and press the Center
Select key (
s
).
6
In the
Keypad Assignment
, select the speed dial
number to use and press the Left Soft key (
-
)
(
Done
).
Note:
Speed dial 1 is reserved for calling your
voicemail.
To
delete
a speed dial entry, press the Left Soft key
(
-
) (
Start
) and select
Speed dial
. Scroll to the entry,
press the Right Soft key (
+
) (
Menu
), and select
Delete
.
speed dial feature shortcuts
When your phone's Start menu is in grid or list format,
you can set a speed dial shortcut to open an
application on your phone.
Note:
You can't set shortcuts if you change to the
circular view, but you can still use shortcuts if you
have already set them.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to the icon
of the application you want a shortcut for and
press Right Soft key (
+
) (
Menu
).
3
Scroll to
Add to Speed Dial
and press the Center
Select key (
s
).
4
In the
Keypad Assignment
, select the speed dial
number to use and press the Left Soft key (
-
)
(
Done
).
Note:
Speed dial 1 is reserved for calling your
voicemail.
To delete a shortcut, press the Left Soft key (
-
)
(
Start
) and select
Speed dial
. Scroll to the entry, press the
Right Soft key (
+
) (
Menu
), and select
Delete
. Your
46
calls
service provider might add a
Voicemail
shortcut you
cannot delete.
voicemail
When you
receive
a voicemail message, your
phone shows the voicemail message indicator
,
and
New Voicemail
.
To check voicemail messages
, press and hold
1
.
three-way calling
While connected to a call:
1
Place your current call on hold by pressing
the Send key (
N
).
2
Dial the number of the other person you want to
connect to a three-way call and press the Send
key (
N
).
3
After you are connected to the other call, press
the Send key (
N
) to combine the calls.
advanced calling
voice dial
1
To voice dial,
press and hold
the speaker
key (
A
).
2
When prompted, say “Call,” followed by a number
or contact name.
TTY calls
Set up your phone for use with an optional TTY
device:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
47
calls
3
Scroll to
More
and press the Center
Select key (
s
) twice until you see
TTY Settings
.
4
Scroll to
TTY Settings
and press the Center
Select key (
s
).
5
Press left or right on the Directional key (
S
) to
change the settings, and then press the Left Soft
key (
-
) (
Done
).
call a phone number in a
message
E-mail or text messages can contain phone numbers
that have an underline. To dial one of these numbers,
highlight it and press the Send key (
N
).
call times
Network connection time
is the elapsed time from
the moment you connect to your service provider's
network to the moment you end the call by pressing
the Power/End key (
O
). This time includes busy
signals and ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
service provider. For billing information, contact
your service provider.
see call timers
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Call History
and press the Center Select key (
s
) to select it.
3
Press the Right Soft key (
+
) (
Menu
), scroll to
View Timers, and press the Center
Select key (
s
).
reset call timers
To reset all call timers to zero (0), except for the
Lifetime
calls
timer:
48
calls
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Call History
and press the Center Select key (
s
) to select it.
3
Press the Right Soft key (
+
) (
Menu
), scroll to
View
Timers
, and press the Center Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
Reset
Timers,
and press the Center Select key (
s
).
49
enter text
enter text
You can enter text and numbers using the keypad.
When you select a field that requires text or numbers,
the phone automatically selects the appropriate entry
mode.
Press the function
key (
H
) in a text
entry screen to
select an entry
mode:
Flashing
cursor
shows
where
you are
typing.
Press the function key to
switch the entry mode.
Send
Text Messages
To:
0/160
Menu
Abc
entry modes
Â
Enter the first letter of a sentence in
uppercase. This is the default mode.
i
Enter the letter on a key (such as
q
).
Ã
Press the function key (
H
) once to enter
the upper symbol or number on the next key
pressed (such as
!
), then return to the
previous entry mode.
DEL
Fn
50
enter text
Use these text entry keys:
text prediction
As you enter letters, your phone might try to
predict
the word. For instance, when you enter “prog,” it
might predict “program.”
To select a prediction, press down on the Directional
key (
S
) to highlight your selection and then press
the Center Select key (
s
). To enter a space, press
the space bar (
f
).
To turn off text prediction:
1
From the home screen, press the Left Soft key
(
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Text Input Settings
and press the Center
Select key (
s
).
4
Uncheck
Suggest words when typing
, and press the Left
Soft key (
-
) (
Done
).
Ä
Press the function key (
H
) twice to enter
the upper symbols and numbers on the keys
until you move to a new field.
text entry
delete
Press the back key (
À
).
start a
new line
Press the enter key (
j
).
enter capital
letters
Press the shift key (
k
). Press it
once for just the next letter or
twice for all letters.
enter
symbols, etc.
Press the function key (
H
) and
then the shift key (
k
).
entry modes
51
e-mail & messages
e-mail & messages
If you have problems setting up e-mail or
synchronizing
, visit
www.motorola.com/support
or call
the Motorola Customer Support Center at
1-800-331-6456 (United States), 1-888-390-6456 (TTY/
TDD United States for hearing impaired), or
1-800-461-4575 (Canada).
Note:
Proxy must be set up before you set up your
e-mail. If you have the information to set it up, press
the Left Soft key (
-
) (
Start
). Select
Settings
,
then
Connections
. Otherwise, contact your service
provider.
set up Microsoft®
Exchange server
e-mail
Note:
Before you begin, contact your corporate IT
department to find out if your company’s Exchange
server is configured for wireless synchronization. If it
is, you need to request: your user name and
password, the server domain name, and the server
address. You also need to know whether an encrypted
(SSL) connection is required and if you need an SSL
certificate, if an SSL connection is required.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
ActiveSync
and press the Center Select key (
s
) to select it.
52
e-mail & messages
3
Press the Right Soft key (
+
) (
Menu
),
select
Add Server Source
, and press the Center
Select key (
s
).
4
Enter the following information when prompted,
and press the Right Soft key (
+
) (
Next
):
•
Enter your e-mail address, select
Attempt to detect
the Exchange Server settings automatically
, and press the
Right Soft key (
+
) (
Next
).
•
If you did not choose to let ActiveSync detect
the exchange server settings automatically, at
Server Address
, enter the exchange server
address. If appropriate, select
This server requires an
encrypted (SSL) connection
. (To obtain the SSL
certificate, contact your company’s IT
department.) Press the Right Soft key (
+
)
(
Next
).
•
In
User Name
, enter your user name for the e-mail
account.
•
In
Password
, enter the password for the account.
•
In
Domain
, enter the server's domain name (if
necessary).
Tip:
If you don’t want to enter your password
each time you synchronize, check
Save Password
.
5
Choose the things you want to synchronize, such
as
Contacts
,
Calendar
,
Email
, and
Tasks
.
6
Press the Left Soft key (
-
) (
Finish
).
7
Press the Left Soft key (
-
) (
Sync
) to synchronize
your phone with the Exchange server.
8
Press the Right Soft key (
+
) (
Menu
).
9
Use the Directional key (
S
) to scroll to
Schedule
and press the Center Select key (
s
) to select it.
10
Choose your synchronization schedule. When
finished choosing your synchronization schedule,
press Left Soft key (
-
) (
Done
).
53
e-mail & messages
Note:
Synchronizing frequently uses more battery
power than synchronizing less frequently.
access your Exchange account
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
or
Press the Messaging key ( ).
more about synchronizing
change your sync options
If you are out of network coverage, and your phone
tries to sync 3 times without finding a network, your
synchronization settings automatically revert to
manual synchronization.
To set your synchronization schedule back to the
desired frequency, you need to reset the
Schedule
option
in the ActiveSync settings on your phone. To find
these settings, press the Left Soft key (
-
) (
Start
),
select
ActiveSync
, and then press the Right Soft key
(
+
) (
Menu
). Then select
Schedule
.
sync manually
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
ActiveSync
and press the Center Select key (
s
) to select it.
3
Press the Left Soft key (
-
) (
Sync
).
set up personal e-mail
set up personal e-mail with
automatic settings
Some e-mail providers have automatic settings for
setting up your e-mail on your device (such as Yahoo!,
Gmail, and AOL).
54
e-mail & messages
After you know your e-mail address:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
or
Press the Messaging key ( ).
3
Scroll to
Setup E-Mail
and press the Center
Select key (
s
).
4
Enter your e-mail address and password, and
press the Right Soft key (
+
) (
Next
).
Note:
If your phone finds your account settings, it
automatically fills in the following screens. Enter
your name, password and press the Right Soft
key (
+
) (
Next
) for each screen. If your phone
cannot find your settings, ask your e-mail provider
for your settings.
5
Press Right Soft key (
+
) (
Next
) to download
e-mail now.
set up personal e-mail manually
If your POP3 or IMAP4 e-mail provider does not have
automatic settings for setting up your e-mail on your
device, you must enter these settings manually using
this information:
•
Account type (POP3 or IMAP4)
•
The incoming server address and whether the
incoming server requires an SSL connection
•
The outgoing server address and whether the
outgoing server requires authentication
•
For a small number of POP3 and IMAP4 e-mail
providers, a domain name
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
55
e-mail & messages
or
Press the Messaging key ( ).
3
Scroll to
Setup E-Mail
and press the Center
Select key (
s
).
4
Enter your e-mail user name and password, and
press the Right Soft key (
+
) (
Next
).
5
Ensure that the
Try to get e-mail settings from the Internet
check box is not selected, and press the Right
Soft key (
+
) (
Next
).
6
Select
Internet e-mail
,
Exchange server
, or
Custom domain
depending on your type of e-mail account and
press the Right Soft key (
+
) (
Next
).
7
Enter your name as you want it to appear in your
e-mail messages. You can also change the
account name as it will appear on your device.
Press the Right Soft key (
+
) (
Next
).
8
Enter your
Incoming mail server
, and select your
Account
type
(POP3 or IMAP4). Press the Right Soft key
(
+
) (
Next
).
9
Enter your e-mail user name and password (if it is
not already filled in). You also have the option to
select or deselect the
Save
password check box.
Then press the Right Soft key (
+
) (
Next
).
10
Enter your outgoing server information. Select
the
Outgoing server requires authentication
and
Use the same name
and password
for sending e-mail check boxes if
required by your e-mail provider. Then press the
Right Soft key (
+
) (
Next
).
11
Select how often you want your device to check
for messages automatically, or if you want to
check manually, and then press the Right Soft key
(
+
) (
Finish
) to complete the setup and check your
e-mail.
56
e-mail & messages
12
To download mail now, press the Left Soft key
(
-
) (
Yes
) or press the Right Soft key (
+
) (
No
)
to download later.
access & sync your personal
account
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
or
Press the Messaging key ( ).
3
Select the account you want to access.
4
Press the Right Soft key (
+
) (
Menu
), scroll to
Send/Receive
and press the Center Select key (
s
).
receive & read e-mail
messages
When you receive a message, your phone
plays an alert and shows
New Message
with a
message indicator, such as
C
.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to the e-mail account name and press the
Center Select key (
s
).
If you do not see a list of messages
, press the Right
Soft key (
+
) (
Menu
), scroll to
Folders
, and select
Inbox
.
To return to the folder list, press the Right Soft key
(
+
) (
Menu
), and select
Folders
.
To read a message
, press the Directional key (
S
) to
scroll to the message and press the Center
Select key
s
to open it.
57
e-mail & messages
When you have a message open, you can press the
Directional key (
S
) right to open the next message
or left to open the previous message.
Tip:
Want to switch e-mail account inboxes quickly?
Press left or right on the Directional key (
S
) to jump
from one inbox to another. (Your phone can support up
to six different e-mail accounts in addition to text and
multimedia messaging.)
message attachments
You can send, read, and receive PDF, ZIP,
Microsoft® Word, Excel, and PowerPoint files
attached to e-mail. You can edit all Microsoft files on
your phone, but you can only open (and not edit) other
files such as PDF and ZIP.
To see a ZIP file’s contents
, select the file.
Note:
You can view files only if they are in a format
your phone supports.
To access the document editing application and
edit documents on your phone
, press the Left Soft
key (
-
) (
Start
), use the Directional key (
S
) to scroll
to
Documents To Go
, and press the Center Select key (
s
)
to select it.
To transfer attachments to your computer for
editing
, use Microsoft® ActiveSync or Windows®
Mobile Device Center.
message options
Use these steps from the inbox with a message
selected or when viewing a message:
message options
Delete
Press the Left Soft key (
-
) (
Delete
).
When viewing a message, press the
Right Soft key (
+
) (
Menu
), scroll to
Delete
, and press the Center Select
key (
s
).
58
e-mail & messages
send a message
You can send text messages, MMS
(multimedia messages), or e-mail messages.
Tip:
For a shorter way to send a text message, see
“send a text message” on page 18.
To open messaging:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to
Text Messages
,
MMS
, or e-mail account and
press the Center Select key (
s
).
To send a message:
1
Open text messaging, MMS, or your e-mail
account, and press the Right Soft key (
+
)
(
Menu
).
2
Use the Directional key (
S
) to scroll to
New
and
press the Center Select key (
s
) to select it.
3
For e-mail, in
To
,
Cc
, and/or
Bcc
, enter e-mail
addresses. For text messages, enter the contact
telephone number or e-mail address. Insert a
semicolon (;) between multiple numbers or
addresses.
Reply
Press the Left Soft key (
-
) (
Reply
).
Enter your message and press the
Left Soft key (
-
) (
Send
).
Forward
Press the Right Soft key (
+
) (
Menu
).
Scroll to
Forward
and press the Center
Select key (
s
). Enter your message
and press the Left Soft key (
-
)
(
Send
).
Create
contact
card
Press the Right Soft key (
+
) (
Menu
).
Scroll to
Save to Contacts
and press the
Center Select key (
s
).
message options
59
e-mail & messages
Tip:
You can quickly enter phone numbers or
e-mail addresses from your contacts. In
To
, press
the Center Select key (
s
) to see your contact
list.
4
Use the keypad to compose a message.
5
Press the Left Soft key (
-
) (
Send
).
Tip:
You can insert a picture, voice note or file in
an e-mail or MMS message. When you are in a
message, press the Right Soft key (
+
) (
Menu
),
scroll to
Insert
, select
,
Voice Note
, or
File
.
To set the priority
for an e-mail message, press the
Right Soft key (
+
) (
Menu
) and scroll to
Message Options
.
Use the Directional key (
S
) to set the priority, and
then press the Left Soft key (
-
) (
Done
).
To cancel a message
, press the Right Soft key (
+
)
(
Menu
) and scroll to
Cancel Message
.
global address
lookup
From your phone, you can search the global address
list (GAL) stored on your company's Exchange Server.
This means that you can find a contact’s phone
number or e-mail without having to store the
information directly to your phone.
Note:
GAL information can only be viewed during a
data transfer session; the entire GAL cannot be stored
for viewing offline.
To search for a contact:
1
Press the Right Soft key (
+
) (
Contacts
).
2
Press the Right Soft key (
+
) (
Menu
).
3
Use the Directional key (
S
) to scroll to
Company
Directory
and press the Center Select key (
s
).
4
Enter a name and press
Search
.
60
e-mail & messages
5
Scroll through the list of entries that appears.
When you locate your contact, press the Send
key (
N
) to make a call.
Note:
Although the entire GAL cannot be stored
on your phone, after you find the contact, you can
add the single contact to your contact list.
Tip:
To send a message or e-mail to a contact found
using GAL, open the company directory, scroll to the
contact name, and press the Center Select key (
s
).
The e-mail information is populated into the
To:
field.
messaging shortcuts
You can use these shortcuts when you have an inbox
or a message open:
messaging reference
Note:
Some features might not work if you set
up your e-mail account manually (without the
e-mail setup wizard). Also, some menu items might
not be available depending on your e-mail
configuration and e-mail server.
key function
0
(
H
) list shortcuts
1
(
A
)reply all
2
(
R
)reply
3
(
K
) mark read or unread
5
(
M
)move
6
(
O
)forward
7
(
D
) delete
8
(
L
) download message
9
(
S
) send/receive
key function
61
e-mail & messages
send a text message
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to
Text Messages
and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
New
,
and press the Center Select key (
s
).
5
Enter a recipient and enter your message.
6
When finished, press the Left Soft key (
-
)
(
Send
).
get text message delivery report
While composing a text message:
1
Press the Right Soft key (
+
(
Menu
).
2
Use the Directional key (
S
) to scroll to
Message Options
and press the Center
Select key (
s
) to select it.
3
Check
Request message delivery notification
and press the
Left Soft key (
-
) (
Done
).
create & send e-mail
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
New
and press the Center Select key (
s
).
Note:
To set up your e-mail account, see page 51.
To add a picture, voice note, or file to an e-mail
message, open the message area and press the Right
62
e-mail & messages
Soft key (
+
) (
Menu
), scroll to
Insert
, and then select
to
,
Voice Note
,or
File
to choose a file.
Tip:
You can save a draft of a message that you are
composing to finish and send later. Press the Right
Soft key (
+
) (
Menu
) and select
Save to Drafts
. A draft of
the message is stored in the Drafts folder of the
account you are in.
create & add an e-mail signature
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
Tools and press the Center Select key (
s
).
5
Scroll to
Options
and press the Center
Select key (
s
).
6
Scroll to
Signatures
and press the Center
Select key (
s
).
7
Scroll to the account for which you are creating
the signature and check
Use signature with this account
.
8
Scroll the
Signature
box, enter your signature, and
press the Left Soft key
(-) (Done)
.
Tip:
To insert a signature in every message you
send, select
Include when replying and forwarding
.
Otherwise, a signature is inserted only in new
messages.
read new messages
To quickly view new messages, scroll to the
message notification area on the home screen and
press the Center Select key (
s
).
view attachment
While viewing a message, use the Center
Select key (
s
) to select the attachment.
63
e-mail & messages
Note:
You can view attachments only for file types
that are supported by the phone.
read old messages
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
Icons next to each message show if it is read,
unread, urgent, or has an attachment (read or
unread).
4
Scroll to a message and press the Center
Select key (
s
) to open it.
reply, reply all, or forward
messages
1
From your inbox or an open message, press the
Right Soft key (
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll to
Reply
and
press the Center Select key (
s
) to select it.
3
Select
Reply
,
Reply All
, or
Forward
and press the Center
Select key (
s
).
4
Compose your message and the Left Soft key
(
-
) (
Send
).
Tip:
If you are replying to an e-mail message, you will
send less data if you do not edit the original message.
This may reduce data transfer costs, depending on
your rate plan.
download message objects
If an e-mail message includes an attachment,
the name of the attachment is highlighted when you
64
e-mail & messages
open the message. To download the attachment,
press the Center Select key (
s
) to select the
highlighted attachment name. Your phone tries to
connect and download the attachment immediately. If
your phone cannot connect or download the
attachment, it tries again the next time you
synchronize or connect to your e-mail server.
Note:
If there are multiple attachments in the
message, all attachments are downloaded.
insert a media object in an e-mail
To add a picture, voice note, or file in an e-mail
message:
1
In the composing message area of the message,
press the Right Soft key (
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll to
Insert
and
press the Center Select key (
s
) to select it.
3
Scroll to
,
Voice Note
, or
File
and press the
Center Select key (
s
).
4
Scroll to
or
File
and press the Center
Select key (
s
), or follow the on-screen prompts
to record a voice note.
download complete e-mail
messages
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Scroll to the message and press the Right Soft
key (
+
) (
Menu
).
5
Scroll to
Download Message
and press the Center
Select key (
s
).
Your phone tries to connect and download the
message immediately. If it cannot connect or
download the message, it retrieves the complete
65
e-mail & messages
message the next time you synchronize or connect to
your e-mail server.
mark a folder for
synchronization
When you synchronize your e-mail account with your
computer, the same inbox folders that are in Outlook
on your computer are created on your phone.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
Folders and press the Center Select key (
s
).
5
Press the Right Soft key (
+
) (
Menu
), scroll to
Manage Folders
and press the Center Select key (
s
).
6
Highlight each folder you want to synchronize and
press the Right Soft key (
+
) (
Sync
).
Note:
Be sure to mark your e-mail sent folder for
synchronization, or you won’t be able to view sent
message status.
view status of sent e-mail
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
Folders
and press the Center Select key (
s
).
5
Scroll to
Outbox
and press the Center
Select key (
s
).
66
e-mail & messages
Messages in the outbox have not been sent. To send a
message, scroll to it and press the Right Soft key
(
+
) (
Menu
) and select
Send/Receive
.
receive e-mail
If your phone is set up to automatically check
for new messages, your phone shows
e
when a
new message arrives.
Scroll to the message and press the Center
Select key (
s
) to read it.
delete e-mail
From the inbox, press the Left Soft key (
-
) (
Delete
).
From an open message, press the Right Soft key
(
+
) (
Menu
), scroll to
Delete
, and press the Center
Select key (
s
).
extend interval for
automatically sending &
receiving e-mail
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account to highlight it, press
the Right Soft key (
+
) (
Menu
), scroll to
Settings
,
and press the Center Select key (
s
).
4
Scroll to
Edit Account Setup
and press the Right Soft
key (
+
) (
Next
).
or
Scroll to
Send/Receive Schedule
and press the Right Soft
key (
+
) (
Next
).
5
Press the Right Soft key (
+
) (
Next
) until you see
the option for
Automatic Send/Receive
.
67
e-mail & messages
6
Scroll to the setting under
Automatic Send/Receive
and
press right on the Directional key (
S
) to select a
larger interval.
7
Press the Right Soft key (
+
) (
Next
) and then
press the Right Soft key (
+
) (
Finish
) to save your
changes.
manually send & receive
e-mail
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
Send/Receive
and press the Center Select key (
s
).
call a phone number in e-mail
Highlight a phone number in a message and
press the Send key (
N
).
move e-mail to personal folder
1
After you’ve read the message, press the Right
Soft key (
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll
Move
and
press the Center Select key (
s
) to select it.
3
Scroll to the folder you want to move the
message to and press the Center
Select key (
s
).
delete an e-mail account
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
68
e-mail & messages
3
Scroll to your e-mail account and press the Right
Soft key (
+
) (
Menu
).
4
Scroll to
Delete
and press the Center
Select key (
s
).
empty deleted items folder
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Menu
), scroll to
Folders, and press the Center Select key (
s
).
5
Scroll to
Deleted Items
and press the Center
Select key (
s
).
6
Press the Right Soft key (
+
) (
Menu
), scroll to
Tools and press the Center Select key (
s
).
7
Scroll to
Empty Deleted
Items and press the Center
Select key (
s
).
69
entertainment
entertainment
Have fun with your phone!
access multimedia
Press the Multimedia key ( ) to access the media
player, camera, video camera, and pictures & videos.
Note:
Your phone has a system volume control that
overrides the media player volume control. For details,
see page 23.
play songs & videos
Your phone has can play Windows Media Audio
(WMA), Windows Media Video (WMV), MP3, AAC,
and WAV files.
1
To start the media player, press the multimedia
key ( ), use the Directional key (
S
) to scroll to
MOTO Media Player
, and press the Center
Select key (
s
).
Tip:
You can also activate the media player by
pressing the Left Soft key (
-
) (
Start
). Scroll to
Done
Multimedia
Video
MOTO Media Player
[9
H
Camera
Album
r
70
entertainment
MOTO Media Player
and press the Center
Select key (
s
).
2
Use the Directional key (
S
) to select
Music
,
Video
,
Steaming
,
Playlist
, or
and press the Center
Select key (
s
).
3
Select a category and press the Center
Select key (
s
).
4
Scroll to your file and press the Center
Select key (
s
) to play it.
media player controls
play/
pause
To play or pause a music or video file,
press the enter key (
j
).
next/
previous
To go to the next or back to the
previous file, press the Directional
key (
S
) right or left.
volume
To change the volume, press the
Directional key (
S
) up or down.
Note:
Your phone has a system
volume control that overrides the
media player volume control. For
details, see page 23.
switch to
full screen
To switch to full screen video
playback, press
0
. To switch back,
press
0
again.
fast
forward/
rewind
To fast forward or rewind, press and
hold the Directional key (
S
) left or
right.
mute/
unmute
To quickly turn the sound on or off,
press the space bar (
f
).
media player controls
71
entertainment
download & copy files
You can copy or download media files from your
computer or the Internet onto your phone.
transfer files from your
computer
You can transfer files from a computer to your phone
with a USB cable connection. You can import songs
from your CD collection.
Note:
You need Windows Media Player 10 or later on
your computer to transfer music. You can use
Windows Media Player 11 to transfer
music, picture,
and video files
. You can use Windows Media Player
10 to transfer music files, but will need Microsoft®
ActiveSync or Windows® Mobile Device Center to
transfer video and picture files. See “synchronize
music & videos” on page 86 for steps.
computer system requirements
To transfer files from a computer to your phone, you
need the Windows® XP™ operating system,
Windows Media Player, and an active internet
connection.
If you have the Windows XP operating system and an
internet connection, you can download Windows
Media Player. From your computer’s Web browser, go
to
www.microsoft.com
.
import songs from an audio CD
1 On your computer
, launch Windows Media
Player.
2
Insert an audio CD into your computer’s CD ROM
drive.
3
Click on the “Rip” tab in the Windows Media
Player window.
4
Highlight the songs you want to import and click
on the “Rip Music” icon.
72
entertainment
The songs are imported to the Windows Media
Player Library.
transfer files to your phone
To sync your computer with your phone using
Windows Media Player and a USB cable, see
“synchronize” on page 82.
take & send a photo
1
To start the camera, press the Multimedia key
( ), use the Directional key (
S
) to scroll to
Camera
, and press the Center Select key (
s
).
Tip:
You can also activate the camera by pressing
the Left Soft key (
-
) (
Start
). Scroll to
Camera
and
press the Center Select key (
s
).
The camera opens. If the camera goes to full screen
mode, press the Left Soft key (
-
) to see the regular
viewfinder:
Tip:
In either full screen or regular view, press the
Right Soft key (
+
) (
Menu
) to adjust picture
settings, such as
Shooting Mode
,
Flash
,
Zoom
,
Brightness
,
White Balances
,
Resolution
,
Effects
, and more options or
switch to the video camera.
2
Aim the camera lens at your subject.
View Photo Menu
877 1.0x
73
entertainment
3
To take a picture, press the Center
Select key (
s
). Your phone saves the picture
and briefly shows it in the viewfinder. Press the
Left Soft key (
-
) (
View Photo
) to view your photo
again.
You can also see your stored pictures by pressing the
Multimedia key ( ), and selecting
Album
.
picture options
When viewing picture thumbnails or video previews in
the Pictures & Videos gallery, to see picture options,
press the Right Soft key (
+
)(
Menu
):
option
Thumbnail
View
View your pictures in a small gallery of
thumbnails-sized pictures.
Play Slideshow
Play a slide show of all of your photos.
Manage
Set the photo as wallpaper or a
contact picture; delete, copy, rename,
or move it.
Share
Send a photo to PIX Place, with MMS,
e-mail, or Bluetooth.
Edit
Edit a picture.
Options
Browse folders for other pictures.
Options
Select from these options:
General
—Determine default picture
sizes for e-mail and rotating picture
settings.
Slide Show
—Select default slide show
settings.
Edit
—Set whether to keep a copy of
the original photo when you edit it.
Properties
View photo properties.
option
74
entertainment
self portrait
1
With the camera active, press the Right Soft key
(
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll to
Shooting Mode
and press the Center Select key (
s
)
to select it.
3
Scroll to
Timer
and press the Center
Select key (
s
).
4
Press the Center Select key (
s
) to start the 5
second delay.
5
Aim the camera lens (on the back of the phone) at
yourself.
6
When you hear the camera shutter sound, your
phone takes the photo and shows it in the
viewfinder.
record & play videos
1
To start the video camera, press the Multimedia
key ( ), scroll to
Video
, and press the Center
Select key (
s
).
Exit
Exit back from the Pictures & Video
gallery to the home screen.
option
View Video Menu
877 1.0x
75
entertainment
Tip:
In the video viewfinder, press the Right Soft
key (
+
) (
Menu
) to adjust video settings, such as
Video Mode
,
Flash
,
Zoom
,
Brightness
,
White Balances
,
Resolution
,
Effects
, and more options or switch to the
still camera.
2
Point the camera lens at your subject.
3
Press the Center Select key (
s
) to begin
recording a video. The viewfinder shows what
you are recording.
4
Press the Left Soft key (
-
) (
Stop
) to end
recording the video altogether, or press the Right
Soft key (
+
) (
Pause
) to pause recording and the
Right Soft key (
+
) (
Resume
) to
continue recording.
Note:
Videos are automatically stored in your
phone. Press the Left Soft key (
-
) (
View Video
) to
view your video. Select the video to view and
press
Play
or the Center Select key
s
.
You can also see your stored videos by pressing the
Multimedia key ( ), and selecting
Album
.
video options
In the video viewfinder, press the Right Soft key (
+
)
(
Menu
) and scroll to
Options
to open the video options
menu:
play a video clip
1
Press the Multimedia key ( ).
option
General
Select default save locations and
shutter sound.
Camera
Select default image compression,
timer, and burst modes.
Video
Determine video file type, audio file
type, and file prefixes.
76
entertainment
2
Use the Directional key (
S
) to scroll to
Album
and
press the Center Select key (
s
) to select it.
3
Select the video clip and press the Center
Select key (
s
).
Note:
For more video playback and Windows Media
Player features, see page 76.
The video clip plays in the
Windows Media Player
.
If a call comes in while watching a video, the video
pauses and a call alert appears. You can choose to
answer the call or ignore it. To continue watching the
movie, press the Left Soft key (
-
) (
Play
).
video playback options
In the video playback window press the Right Soft key
(
+
) (
Menu
) and scroll to
Options
to choose from the
following options:
videofilename 00:04
Library Menu
option
Repeat
Replay the current clip.
Repeat One
Replay the current clip one time.
Shuffle
Shuffle and play your clips.
Options
Set the clip as a ringtone, go to the
Bluetooth Manager to send the clip,
or enhance the audio.
Properties
View clip properties.
Exit
Exit the video player.
77
entertainment
browse the Web
You can browse the Web with Internet Explorer®
Mobile.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Internet
Explorer
and press the Center Select key (
s
) to
select it.
Note:
Not all Web file formats are supported.
go to Web page
1
With the browser open, press the Right
Soft key (
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll to
Address Bar
and press the Center Select key (
s
) to select it.
3
Clear the default URL in the address bar by
pressing and holding the back key (
À
).
4
Enter the Web address (URL) and press the Left
Soft key (
-
) (
Go
).
go to link on Web page
While viewing a Web page, highlight a link and
press the Center Select key (
s
).
change Web connection
1
With the browser open, press the Right Soft key
(
+
) (
Menu
).
Favorites
solutions.vzwshop.com/vzstart
Menu
VZStart
News & Info
Sports
Weather
Email
Get Applications
VZW FAQs & Support
wireless
78
entertainment
2
Use the Directional key (
S
) to scroll to
Tools
, and
press the Center Select key (
s
) to select it.
3
Scroll to
Options
and press the Center
Select key (
s
).
4
Scroll to
Connections
and press the Center
Select key (
s
).
5
Adjust the settings and press the Left Soft key
(
-
) (
Done
).
show/hide pictures
1
With the browser open, press the Right Soft key
(
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll to
View
, and
press the Center Select key (
s
) to select it.
3
Scroll to
Show Pictures
and press the Center
Select key (
s
) to select or unselect it.
add a favorite
1
While viewing a Web page, press the
Right Soft key (
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll to
Add to
Favorites
, and press the Center Select key (
s
) to
select it.
browser shortcuts
Use shortcut keys for browsing the Web:
key function
U
page up
D
page down
T
go to the top of the page
B
go to the bottom of the page
F
switch to full screen or normal view
79
entertainment
fun & games
manage pictures & videos
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Camera and Album
and press the Center
Select key (
s
) to select it.
3
Scroll to
Album
and press the Center
Select key (
s
) to select it.
4
Scroll to
My Pictures
or
My Videos
and press the Center
Select key (
s
) to select it.
5
Highlight a picture or video and press the Right
Soft key (
+
) (
Menu
) to manage pictures and
videos, such as edit or send them to other
devices.
For more details, see “picture options” on
page 73 or “video options” on page 75.
record a sound or voice note
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Voice Notes
and press the Center Select key (
s
) to select it.
3
Press the Left Soft key (
-
) (
Record
) to begin
recording.
4
To stop recording, press the Left Soft key (
-
)
(
Stop
).
You can rename your sound recording by pressing
the Right Soft key (
+
) (
Menu
) and scrolling to
Rename
.
manage sounds
To manage ring tones and music that you have
downloaded or composed:
1
Press the Left Soft key (
-
) (
Start
).
80
entertainment
2
Use the Directional key (
S
) to scroll to
Windows
Media
and press the Center Select key (
s
) to
select it.
From the Library view, you can create a playlist of
your music, or listen to music by artist, album, or
genre.
Note:
If you don’t see your sound or music files in the
Library, press the Right Soft key (
+
) (
Menu
) and scroll
to
Update Library
.
For more information about Windows Media Player,
see page 69.
start Web browser
1
Press
the Left Soft key (-) (Start)
.
2
Use the Directional key (
S
) to scroll to
Internet
Explorer
and press the Center Select key (
s
) to
select it.
For more information about Internet Explorer Mobile,
see page 77.
download objects from Web
page
1
On a Web page, highlight the file you want to
download and press the Left Soft key (
-
)
(
Select
).
2
Use the Directional key (
S
) to scroll to
Select
and
press the Center Select key (
s
) to select it.
To download a picture or other object from a Web
page, highlight the item, press the Right Soft key
(
+
) (
Menu
), and choose an option such as
Save image
.
play games on your phone
1
Press the Left Soft key (
-
) (
Start
).
81
entertainment
2
Use the Directional key (
S
) to scroll to
Games
and
press the Center Select key (
s
) to select it.
Warning:
Downloading and installing numerous
third-party applications can negatively affect memory
usage and the performance of the phone. Proceed
with moderation.
Note:
Your phone does not support Java applications
or games.
82
connections
connections
synchronize
To synchronize files between your phone and
computer, you can use Microsoft® Windows Mobile
Device Center or Microsoft ActiveSync®.
set up Mobile® Device Center on
Windows Vista™
Microsoft Windows Mobile Device Center is the
replacement for Microsoft ActiveSync on Windows
Vista.
Note:
Some versions of Windows Vista come with
Windows Mobile Device Center already installed. If
Windows Mobile Device Center is not available on
your Windows Vista, you can install it from the Getting
Started Disc that came with your phone.
To set up synchronization in Windows Mobile
Device Center:
1
Connect your phone to your computer. Windows
Mobile Device Center configures itself and then
opens.
2
On the license agreement screen, click “Accept.”
3
On the Windows Mobile Device Center's Home
screen, click “Set up your device.”
Note:
Choose “Connect without setting up your
device” if you only want to transfer media files,
check for updates, and explore your phone but not
sync Outlook information.
4
Select the items that you want to synchronize
then click “Next.”
83
connections
5
Enter a device name for your phone and click “Set
Up.”
When you finish the wizard, Windows Mobile Device
Center synchronizes your phone automatically.
Outlook e-mail messages and other information
appear on your phone after synchronization.
set up ActiveSync® on
Windows XP
The Getting Started Disc that comes with your phone
contains Microsoft ActiveSync 4.5 or later.
Note:
You can also download ActiveSync 4.5 or later
from the Web:
www.microsoft.com/windowsmobile/
activesync/activesync45.mspx
. This Web site also lists
the system requirements.
To install ActiveSync:
1
Insert the Getting Started Disc into the disc drive
on your computer.
2
Click “Setup and Installation.”
3
Select the ActiveSync and click “Install.”
4
Read the license terms and click “Accept.”
5
When installation is complete, click “Done.”
6
On the Getting Started with Windows Mobile
screen, click “Close.”
To set up synchronization in ActiveSync:
1
Connect your phone to your computer. The
Synchronization Setup Wizard automatically starts
and guides you to create a synchronization
relationship. Click “Next” to proceed.
2
To synchronize your phone with your computer,
clear the
Synchronize directly with a server
running Microsoft Exchange Server
check box
then click “Next.”
3
Select the items that you want to synchronize and
then click “Next.”
84
connections
4
Select or clear the
Allow wireless data
connections
check box according to your
preference.
5
Click “Finish.”
When you finish the wizard, ActiveSync synchronizes
your phone automatically. Notice that Outlook e-mail
messages and other information appear on your
phone after synchronization.
change which files to synchronize
You can change which files or types of information you
want to synchronize.
1
Before changing synchronization settings on your
phone, disconnect your phone from your
computer.
2
On your phone, press the Left Soft key (
-
)
(
Start
), use the Directional key (
S
) to scroll to
ActiveSync
, and press the Center Select key (
s
) to
select it.
3
Press the Right Soft key (
+
) (
Menu
), scroll to
Options
and press the Center Select key (
s
).
4
Select or clear the items you want to synchronize
or not synchronize. If you cannot select a check
box, you might have to clear the check box for the
same information type elsewhere in the list.
Note:
A computer can have partnerships with many
different devices, but a device can have sync
partnerships with two computers at the most. To
ensure that your phone synchronizes properly, set up
the second computer using the same synchronization
settings as the first computer.
troubleshoot sync connections
Sometimes when a computer is connected to the
Internet or a local network, the computer may
disconnect the ActiveSync connection with your
phone in favor of the Internet or network connection.
85
connections
1
On your phone, press the Left Soft key (
-
)
(
Start
), use the Directional key (
S
) to scroll to
Settings
, and press the Center Select key (
s
) to
select it.
2
Scroll to
Connections
and press the Center
Select key (
s
).
3
Scroll to
USB to PC
and press the Center
Select key (
s
).
4
Clear the
Enable advanced network functionality
check box
(to force ActiveSync to use a serial USB
connection with your phone).
synchronize via Bluetooth
After you install Microsoft ActiveSync or
Windows Mobile Device Center on your computer,
you can connect it to your phone and sync with a
Bluetooth connection.
Note:
To use this feature, your computer must be
equipped with Bluetooth wireless or a
Bluetooth PC adaptor accessory.
1
Follow the instructions in ActiveSync Help for
configuring Bluetooth connections on your
computer to support ActiveSync.
2
Turn on the phone and verify that
Bluetooth wireless is turned on (see page 87).
3
Press the Left Soft key (
-
) (
Start
), use the
Directional key (
S
) to scroll to
ActiveSync
, and
press the Center Select key (
s
) to select it.
4
Select the Right Soft key (
+
) (
Menu
), scroll to
Connect via Bluetooth
, and press the Center
Select key (
s
).
Ensure that the phone and computer are near
each other. If this is the first time you have
connected to this computer using Bluetooth
wireless, you must complete the
86
connections
Bluetooth wizard on the phone and set up a
Bluetooth partnership with the computer before
synchronizing.
5
Select the Left Soft key (
-
) (
Sync
).
6
When finished, select the Right Soft key (
+
)
(
Menu
), scroll to
Disconnect Bluetooth
, and press the
Center Select key (
s
).
Note:
To conserve battery power on your phone, turn
off Bluetooth power (see page 87).
synchronize music & videos
If you want to carry your music or other digital media
along with you while you travel, set up Microsoft
Windows Media Player on your computer to
synchronize music and video with your phone.
Select the Media information type in ActiveSync to
synchronize. Set all media synchronization settings in
Windows Media Player.
Before media can be synchronized, you must:
•
Install Windows Media Player 11 on the
computer. (Windows Media Player 11 works
only in Windows XP or later versions).
•
Connect your phone to the computer with a
USB cable.
•
Set up a sync partnership between the phone
and your computer's Windows Media Player.
1 On your computer
, launch Windows Media
Player.
2 On your computer
, drag the desired file(s) from
the Library to the Sync list in the Windows Media
Player window.
3
Connect the USB cable to your phone and to an
available USB port on your computer.
If this is the first time you have connected the
phone to a computer with a USB cable, additional
software drivers may be required and installed.
87
connections
(For more details about using a USB cable
connection, see page 95.)
4
Resync your phone and computer (see page 82).
5
Disconnect the cable from the phone and the
computer.
Note:
Use Windows Media Player 11 to properly
transfer digitally protected music files from your
computer to your phone. If you do not use Windows
Media Player 11 to synchronize the files, you will not
be able to play them on your phone.
Bluetooth® wireless
Your phone supports Bluetooth wireless pairing (also
called linking or bonding). You can pair your phone
with a Bluetooth headset or car kit, or pair your phone
with a computer to exchange and synchronize files.
Note: Your phone's Bluetooth features and
Bluetooth Class 1 power levels are not allowed for
outdoor operation in France. To avoid unlawful
interference with radio signals, do not use the
Bluetooth features in France unless you are
indoors.
turn Bluetooth power on or off
If Bluetooth power is on, your phone can automatically
pair with the handsfree device you have used before.
Just turn on the device and move it near the phone.
To turn Bluetooth on:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
3
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
The Bluetooth indicator
O
appears in the home
screen.
88
connections
Note:
To extend battery life, disable Bluetooth when
not in use. Your phone will not connect with devices
until you turn Bluetooth back on.
pair with a headset or handsfree
device
You can pair your phone with multiple devices,
including more than one headset device at a time.
1
Put the device you want to pair with in
discoverable mode.
2
On your phone, press the Left Soft key (
-
)
(
Start
).
3
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
4
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
5
On the My Devices screen, press the Left Soft
key (
-
) (
Add
).
6
Select
Audio Devices
and press the Left Soft key
(
-
) (
Continue
). Your phone lists the devices it
finds within range.
7
Scroll to the device name and press the Left Soft
key (
-
) (
Select
). The phone prompts you to verify
your device is ready.
8
If prompted, enter or confirm the device passkey
(such as 0000) and press the Left Soft key (
-
)
(
OK
).
9
If prompted, select the connection type (such as
Bluetooth Networking
for computers) and press the Left
Soft key (
-
) (
OK
). (The most common options
are checked by default.)
When the devices are paired, the device name
appears in the My Devices list.
89
connections
Tip:
For specific information about the
Bluetooth device you are using with your phone, refer
to the instructions that came with it.
send objects to another device
You can use Bluetooth pairing to send e-mail,
contacts, tasks, calendar items, audio, ring
tones, pictures, video, and voice notes from your
phone to a computer or other device.
1
On your phone, press the Left Soft key (
-
)
(
Start
).
2
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
3
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
4
Scroll left or right to open the
Accessories
screen.
5
Scroll to
BT Send Object
and press the Center
Select key (
s
).
6
Press left or right on the Directional key (
S
) to
select the object type and then scroll down to
select the object you want to send.
7
To select an item, press the Center
Select key (
s
).
8
Press the Left Soft key (
-
) (
Send
).
9
Select the name of the device to send the file and
press the Center Select key (
s
).
Tip:
To cancel sending an item, press the Right Soft
key (
+
) (
Menu
) and scroll to
Cancel
.
use your phone as a webcam
You can use Bluetooth wireless and your phone
as a Web camera.
1 On your computer
, turn Bluetooth power on and
enable streaming video.
90
connections
2 On your phone
, press the Left Soft key (
-
)
(
Start
).
3
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
4
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
5
On the My Devices screen, press the Left Soft
key (
-
) (
Add
).
6
Select
Computers
and press the Left Soft key (
-
)
(
Continue
). Your phone lists the devices it finds
within range.
7
Scroll to the computer name and press the Left
Soft key (
-
) (
Select
). The phone prompts you to
verify your device is ready.
8
If prompted, enter or confirm the device passkey
(such as 0000) and press the Left Soft key (
-
)
(
OK
).
9
For the connection type, scroll to
Bluetooth Video
and
press the Center Select key (
s
).
10
On the My Devices screen, select the computer
name, and press the Left Soft key (
-
) (
Connect
).
11 On your computer
, right-click the
Bluetooth indicator
O
in the system tray in the
lower right corner of your display and select
Bluetooth Setup Wizard
.
Note:
Your computer might be a little different.
12
In the wizard, indicate that you know the service
you want to use, and you want to find a
Bluetooth device that provides the service. Click
“Next.”
13
In the next window, choose Human Interface
Device and click “Next.”
14
In the next window, make sure that
“Show all devices” selected. Your computer
91
connections
should find your “SmartPhone.” Select your
phone, and click “Next.”
15
If prompted, enter the device passkey (such as
0000) and click “Accept.”
use your phone as a computer
remote
You can use Bluetooth wireless and your phone
as a remote control for your computer. For
example, want to watch a video on your computer and
use your phone as a remote control? Use
PC Remote
to
control when the video plays, stops, or pauses.
1 On your computer
, turn Bluetooth power on.
2 On your phone
, press the Left Soft key (
-
)
(
Start
).
3
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
4
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
5
Scroll left or right to
Accessories
.
6
Scroll to
PC Remote Control
and press the Center
Select key (
s
).
7
Press the Left Soft key (
-
) (
Add
).
8 On your computer
, right-click the
Bluetooth indicator
O
in the system tray in the
lower right corner of your display and select
Bluetooth Setup Wizard
.
Note:
Your computer might be a little different.
9
In the wizard, indicate that you know the service
you want to use, and you want to find a
Bluetooth device that provides the service. Click
“Next.”
10
In the next window, choose Human Interface
Device and click “Next.”
92
connections
11
In the next window, make sure that
“Show all devices” selected. Your computer
should find your “SmartPhone.” Select your
phone, and click “Next.”
12
If prompted, enter the device passkey (such as
0000) and click “Accept.”
When PC Remote is connected, your phone display
shows a key map that tells you what your keys control
on the computer. To determine which program on your
computer to control, on your phone, press the Right
Soft key (
+
) (
Menu
) and select a program.
print images on a Bluetooth
printer
You can print image and Web pages, such as a
Google map, on a Bluetooth printer.
To print a Web page:
1
Turn the Bluetooth printer on.
2 On your phone
, press the Left Soft key (
-
)
(
Start
).
3
Use the Directional key (
S
) to scroll to
Internet
Explorer
and press the Center Select key (
s
) to
select it.
4
Go to the Web page you want to print and press
the Right Soft key (
+
) (
Menu
).
5
Scroll to
Copy/Paste
and press the Center
Select key (
s
).
6
Scroll to
Print via Bluetooth
and press the Center
Select key (
s
).
7
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
8
Search for the Bluetooth printer and select the
size of the printed image. Press the Left Soft key
(
-
) (
Print
).
93
connections
To print an image:
1
Turn the Bluetooth printer on.
2 On your phone
, press the Left Soft key (
-
)
(
Start
).
3
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
4
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
5
Scroll left or right to
Accessories
.
6
Scroll to
Print Images
and press the Center
Select key (
s
).
7
Select the image you want to print and press the
Left Soft key (
-
) (
Next
).
8
Search for the Bluetooth printer and select the
size of the printed image. Press the Left Soft key
(
-
) (
Print
).
make phone visible to other
devices
Allow a Bluetooth device to discover your phone:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
3
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
4
Scroll left or right to
Settings
.
5
Scroll down to
Not Discoverable
and press the Center
Select key (
s
).
6
To allow other devices to find your phone, select
Always Visible
or
Visible for 2 minutes
and press the Left
Soft key (
-
) (
Done
).
94
connections
send, receive, or exchange
business cards
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
3
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
4
Scroll left or right to
Accessories
.
5
Scroll down to
Business Card Exchange
and press the
Center Select key (
s
).
6
Scroll to
Request Business Card
,
Send Business Card
, or
Exchange
Business Cards
and press the Center Select key (
s
).
If you haven’t created your own business card yet,
you’re prompted to browse your contacts or
create a new contact with your information that
will be your business card.
7
Select the Bluetooth device to send your request
to.
drop pairing with device
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
3
In the list of My Devices, scroll to the device
name that you want to drop pairing with and
press the Right Soft key (
+
) (
Menu
).
4
Select
Delete
and press the Center
Select key (
s
).
edit device properties &
change your device name
Edit the properties of a recognized device:
1
Press the Left Soft key (
-
) (
Start
).
95
connections
2
Use the Directional key (
S
) to scroll to
Bluetooth
and press the Center Select key (
s
) to select it.
3
If Bluetooth power is off, your phone asks if you
want to turn Bluetooth power on. Press the Left
Soft key (
-
) (
Yes
).
4
In the My Devices list, select the device name
and press the Left Soft key (
-
) (
Properties
).
5
At
Nickname
, enter a nickname for the device and
press the Left Soft key (
-
) (
Done
).
Tip:
To change the Bluetooth name of your phone, go
to the
Settings
display, scroll to
Moto A4500
and press the
Center Select key (
s
). Uncheck
Use Windows Mobile
name, enter a new name in the field, and press the
Right Soft key (
+
) (
Done
).
cable connections
If you cannot sync your
phone over the air, you
can use a USB cable
connection. First, install
Microsoft ActiveSync or
Windows Mobile Device
Center on your computer.
Connect your phone to your computer using a USB
cable.
Note:
For more detailed information, see “Connecting
a mobile device to a PC” in ActiveSync Help on your
computer, the Microsoft Web Site for ActiveSync or
the Support Web site at
www.motorola.com/consumer/
support
.
96
connections
modem link
With BroadbandAccess Connect, you can use your
phone as a modem for your computer when you
connect using a USB cable. Visit
http://b2b.vzw.com/
productsservices/wirelessinternet/
broadbandaccessconnect.html
for details.
You can use your phone as a modem to dial in to a
network. You can do this using Bluetooth or using a
USB cable. When your phone is a modem, e-mail,
web browsing, ActiveSync, and text messaging
services are suspended until the modem link is
deactivated. Any data calls interrupt the modem link.
Note:
Your phone has Multiple Network Access
Identifier (MNAI) software. The MNAI service must be
enabled in your account for dial up networking
functionality to work on your phone. Call your phone
service provider for more information regarding
account services.
using Bluetooth
To use Bluetooth to link to a network:
Note:
You must have a computer that has Bluetooth
capabilities for modem link.
1
On your phone, make sure Bluetooth is turned on.
2
On your computer, launch the Bluetooth devices
applet from the task bar.
Note:
Not all computers have the same
procedure to locate the Bluetooth window and
set up dial-up networking.
3
On your computer, in the Bluetooth window
menu bar, select the “Connections” menu,
“Dial-up Networking” and then “Find devices.”
4
The computer finds your phone and displays the
dial up networking window.
97
connections
using a cable
To use a USB cable with your phone to connect with
modem link to a network, first install networking
drivers onto your computer:
1
Place the provided Companion CD into the CD
Drive on your computer. The Companion CD
Installation wizard window automatically displays.
2
On your computer, click “Applications” and then
“Dial-Up Networking Software.”
3
Follow the prompts as directed to install the
drivers onto your computer.
Next, enable modem link on your phone and install
phone drivers:
1
On your phone, press the Left Soft key (
-
)
(
Start
).
2
Use the Directional key (
S
) to scroll to
Accessories
and press the Center Select key (
s
) to select it.
3
Scroll to
Modem Link
and press the Center
Select key (
s
).
4
Press the Right Soft key (
+
) (
Activate
).
5
Using the USB data cable, connect the phone to
your PC.
6
When a window displays prompting for the
device driver, select “Install the software
automatically” and press “Next.”
The driver is installed on your computer and ready for
setting up a network connection.
Note:
If you do not have the Companion CD, or want
the latest version of the device and computer drivers,
go to
www.motorola.com/consumer/support
.
To establish a new network connection, on your
computer:
Note:
Not all computers have the same procedure to
setup of dial-up networking. Please refer to your
computer operating help system for more information.
98
connections
1
Click “Start” and then “Control Panel.”
2
Double-click “Network Connections” and then
“New Network Connection Wizard.”
3
Follow the prompts to connect to the Internet
using a modem:
•
Network Connection Type:
Connect to the Internet
•
Getting Ready:
Set up My Connection
•
Internet Connection:
Manually connect using a dial-up
modem
•
Select a Device:
Smartphone wireless USB Modem
•
Connection Name: Type a connection name.
•
Number to Dial:
#777
•
Connection Availability:
Anyone's Use
•
User Name: your mobile phone
number
@vzw3g.com
(for example:
1235551212@vzw3g.com)
•
Password:
vzw
Note:
Be aware of these items:
•
If you do not plan to use your phone as the
default Internet connection, then do
not
check
Make this the default Internet connection
.
•
If Microsoft Windows firewall is not enabled,
do
not
check
Turn on Internet connection firewall for this
connection
.
•
You can use dial-up networking with Windows
2000, but you must have VZ Access Manager,
which you can download from
www.vzam.net
.
Wi-Fi
Note: Wi-Fi features are not allowed for outdoor
operation in France. To avoid unlawful interference
with radio signals, do not use Wi-Fi features in
France unless you are indoors.
99
connections
turn Wi-Fi on or off
Tip:
To turn on Wi-Fi quickly, select the Wi-Fi icon on
the home screen.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Wi-Fi
and
press the Center Select key (
s
) to select it.
3
Scroll to
Turn On Wi-Fi
and press the Center
Select key (
s
) to select it.
Note:
To extend battery life, set Wi-Fi to
OFF
when not
in use.
view or renew connection
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Connection
Status
and press the Center Select key (
s
) to
select it.
3
To refresh your connection, press the Right Soft
key (
+
) (
Renew IP
).
search for networks
After you turn on Wi-Fi, you can connect to a wireless
network.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Wi-Fi
and
press the Center Select key (
s
) to select it.
3
Scroll to
Search for Networks
and press the Center
Select key (
s
) to select it.
network connections
create proxy or dial-up
network
1
Press the Left Soft key (
-
) (
Start
).
100
connections
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Connections
and press the Center
Select key (
s
).
4
Select a connection type and press the Center
Select key (
s
).
5
Select a policy to open a connection, or enter a
new policy definition and press the Left Soft key
(
-
) (
Done
).
Note:
To close the secure connection, press the Left
Soft key (
-
) (
Logoff
).
101
tools
tools
Documents To Go
To use Documents To Go by DataViz, Inc., press the
Left Soft key (
-
) (
Start
). Then select
Documents To Go
.
PDF To Go
—View Adobe PDF files.
Sheet To Go
—View, edit, and create Microsoft Excel
files.
Slideshow To Go
—View, edit, and create Microsoft
PowerPoint files.
Word To Go
—View, edit, and create Microsoft Word
files.
Zip To Go
—Open zipped archive files.
TV Out
If you have a file on your phone you want to show
other people, you can connect to a TV for a
presentation. Just connect your phone to the TV using
a USB cable.
call manager
Use the call manager as your personal assistant to
remind yourself which calls you need to make.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Call Manager
and press the Center Select key (
s
) to select it.
102
tools
3
Enter a name and phone number or choose one
of your contacts.
4
Optionally, enter any reminder notes to yourself.
5
To set a reminder alert, scroll to
Show Advanced Options
and press the Center Select key (
s
) to select it.
contacts
To store and call contacts, see page 16.
search for contact
From the home screen, enter the first few letters of
the contact's first or last name. The phone searches
through the contact list and shows the name.
edit contact
1
Press the Right Soft key (
+
) (
Contacts
).
2
Use the Directional key (
S
) to scroll to a contact
and press the Right Soft key (
+
) (
Menu
).
3
Scroll to
Edit
and press the Center
Select key (
s
).
4
Edit the contact information and then press the
Left Soft key (
-
) (
Done
).
set ring tone for a contact
To easily identify who is calling you by the ring tone,
you can assign a custom ring tone to each contact.
1
Press the Right Soft key (
+
) (
Contacts
).
2
Use the Directional key (
S
) to scroll to a contact
and press the Right Soft key (
+
) (
Menu
).
3
Scroll to
Edit
and press the Center
Select key (
s
).
4
Scroll to
Custom ring tone
, press left or right on the
Directional key (
S
), and then press the Left Soft
key (
-
) (
Done
).
103
tools
set picture for contact
Assign a photo or picture to appear when you receive
a call from an entry:
1
Press the Right Soft key (
+
) (
Contacts
).
2
Use the Directional key (
S
) to scroll to a contact
and press the Right Soft key (
+
) (
Menu
).
3
Scroll to
Edit
and press the Center
Select key (
s
).
4
Scroll to
and press the Center
Select key (
s
).
5
Select a picture, or select the Left Soft key (
-
)
(
Camera
) to take a new picture for the contact, and
then press the Left Soft key (
-
) (
Done
).
Tip:
Want to remove a picture? Press the Right Soft
key (
+
) (
Contacts
) and scroll to a contact. Press the
Right Soft key (
+
) (
Menu
) and scroll to
Edit
. Scroll to
Picture, press the Right Soft key (
+
) (
Menu
), and
select
Remove Picture.
set category for contact
1
Press the Right Soft key (
+
) (
Contacts
).
2
Use the Directional key (
S
) to scroll to a contact
and press the Right Soft key (
+
) (
Menu
).
3
Scroll to
Edit
and press the Center
Select key (
s
).
4
Scroll to
Categories
and press the Center
Select key (
s
).
5
Press left or right on the Directional key (
S
) to
select a category, and then press the Left Soft key
(
-
) (
Done
).
set category view
1
Press the Right Soft key (
+
) (
Contacts
).
2
Use the Directional key (
S
) to scroll to a contact
and press the Right Soft key (
+
) (
Menu
).
104
tools
3
Scroll to
Filter
and press the Center
Select key (
s
).
4
Scroll to
All Contacts
,
Recent
, or
No Categories
and press
the Center Select key (
s
).
personal organizer
add new calendar event
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Calendar
and press the Center Select key (
s
) to select it.
3
Press the Right Soft key (
+
) (
Menu
), scroll to
New Appointment
, and press the Center
Select key (
s
).
4
Enter appointment information and press the Left
Soft key (
-
) (
Done
).
Note:
To schedule an all-day event, select the
All day event
check box under
End time
. All-day events do
not occupy blocks of time in the calendar; instead,
they appear in banners at the top of the calendar.
view calendar event
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Calendar
and press the Center Select key (
s
) to select it.
•
To see days before or after today, press left or
right on the Directional key (
S
).
•
To quickly see a specific date, press the Right
Soft key (
+
) (
Menu
) and scroll to
Go to Date
.
•
To see your whole week’s events, press the
Right Soft key (
+
) (
Week
).
Shortcut:
In the home screen, today’s events appear
on your home screen. To see event details, scroll to it
and press the select key (
s
).
105
tools
calendar event reminder
The default reminder time for tasks and calendar
items is 15 minutes.
To change the default:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Calendar
and press the Center Select key (
s
) to select it.
3
Press the Right Soft key (
+
) (
Menu
), scroll to
Tools, and press the Center Select key (
s
).
4
Scroll to
Options
and press the Center
Select key (
s
).
5
Scroll to
Set Reminders
and press the Left Soft key
(
-
) (
Done
).
send calendar event to another
device
To use a Bluetooth connection to send a calendar
event to another phone, computer, or device:
1
From the calendar item, press the Right Soft key
(
+
) (
Menu
).
2
Use the Directional key (
S
) to scroll to
Send via Bluetooth
and press the Center
Select key (
s
) to select it.
Note:
Your phone prompts you to turn on
Bluetooth if it is not already on.
3
Select the device to which you want to send the
item and press the Left Soft key (
-
) (
Send
).
For more information about Bluetooth connections,
see page 87.
106
tools
respond to a meeting request
You can receive and respond to meeting requests on
your phone just like you do in Outlook on your
computer.
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Messaging
and press the Center Select key (
s
) to select it.
3
Scroll to your e-mail account and press the Center
Select key (
s
).
4
Scroll to the meeting request and press the
Center Select key (
s
).
5
Press the Left Soft key
(-) (Accept)
; or press the
Right Soft key (
+
) (
Menu
), scroll to
Decline
or
Tentative
, and press the Center Select key (
s
).
calculator
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Accessories
and press the Center Select key (
s
) to select it.
3
Scroll to
Calculator
and press the Center
Select key (
s
).
Use the keypad to enter numbers and use the
Directional key (
S
) for math functions. For more
operators, press the Right Soft key (
+
) (
Menu
).
To enter a decimal, press
*
. To change positive
or negative, press
#
.
converter
To quickly convert currency, time, temperature, or
other units of measurement:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Accessories
and press the Center Select key (
s
) to select it.
3
Scroll to
Converter
and press the Center
Select key (
s
).
107
tools
4
Select a unit of measurement to convert and
press the Center Select key (
s
).
5
Enter numbers to convert and press the Left Soft
key (
-
) (
Done
).
memo pad
To jot quick notes to yourself:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Accessories
and press the Center Select key (
s
) to select it.
3
Scroll to
Memopad
and press the Center
Select key (
s
).
4
To create a new note, press
the Left Soft key (-)
(New)
, enter your note, and press the Left Soft key
(
-
) (
Done
).
Note:
The memo pad lists your notes with the
most recently written note at the top of the page.
To sort the notes alphabetically, press the Right
Soft key (
+
) (
Menu
), scroll to Sort, and select
Name.
security
manage certificates
To enable or disable Internet access
certificates stored on your phone:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Security
and press the Center
Select key (
s
).
4
Scroll to
Certificates
and press the Center
Select key (
s
).
5
Select the type of certificate and press the Center
Select key (
s
).
108
tools
6
Scroll to a certificate, view or delete it, and press
the Left Soft key (
-
) (
Done
).
Certificates are used to verify the identity and security
of Web sites when you download files or share
information.
phone information
software version
To view your phone software version:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
Settings
and press the Center Select key (
s
) to select it.
3
Scroll to
Phone Settings
and press the Center
Select key (
s
).
4
Scroll to
Phone Information
and press the Center
Select key (
s
).
5
View your phone information and then press the
Left Soft key (
-
) (
Done
).
memory & storage
To see the total, used, and available memory on your
phone and memory card:
1
Press the Left Soft key (
-
) (
Start
).
2
Use the Directional key (
S
) to scroll to
System Tools
and press the Center Select key (
s
) to select it.
3
Select
Memory Manager
by pressing the Center
Select key (
s
).
4
View the memory information and then press the
Right Soft key (
+
) (
Exit
).
109
service & repairs
service & repairs
Motorola Software Update is an easy way to update
your phone. Make sure you have the latest available
software updates at
www.hellomoto.com/support/update
.
If you have questions or need assistance, we're here
to help.
Motorola Support:
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options.
You can also contact the Customer Support Center at
1-800-657-7576 (United States and Canada) or
1-888-390-6456 (TTY/TDD United States for hearing
impaired).
Microsoft® Windows® Mobile, ActiveSync, and
Windows Mobile Device Center Support:
Windows Smartphone:
www.microsoft.com/windowsmobile
110
SAR Data
Specific Absorption Rate Data
SAR Data
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 1.30 W/kg, and when worn on the body, as described in
this user guide, is 1.54 W/kg. The SAR value for this product in its
data transmission mode (body-worn use) is 0.70 W/kg.
(Body-worn measurements differ among phone models, depending
upon available accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
SAR Data
111
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
112
EU Conformance
European Union Directives Conformance Statement
EU Conformanc e
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/
rtte
. To find your DoC, enter the Product Approval Number from
your product’s label in the “Search” bar on the Web site.
Microsoft End User License Agreement
Microsoft License
You have acquired a device (“DEVICE”) that includes software
licensed by Motorola, Inc. (“Motorola”) from Microsoft Licensing
Inc. or its affiliates (“Microsoft”), for use in connection with
wireless network services provided under separate agreement
between you and a wireless telecommunications provider
(“Mobile Operator”). Those installed software products of
[France Only]
0168
Product
Approval
Number
Microsoft License
113
Microsoft origin, as well as associated media, printed materials,
and “online” or electronic documentation (“SOFTWARE”) are
protected by international intellectual property laws and treaties.
SOFTWARE includes software already installed on the DEVICE
(“DEVICE Software”) and Microsoft software contained on any
CD-ROM disk accompanying the DEVICE (“Desktop Software”).
The SOFTWARE is licensed, not sold. All rights reserved.
IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT
(“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE.
INSTEAD, PROMPTLY CONTACT MOTOROLA FOR INSTRUCTIONS
ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE
OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON
THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA
(OR RATIFICATION OF ANY PREVIOUS CONSENT).
1. GRANT OF SOFTWARE LICENSE. This EULA grants you the
following license:
1.1. DEVICE Software. You may use the DEVICE Software as
installed on the DEVICE (including as installed on removable media
installed in the DEVICE). All or certain portions of the DEVICE
Software may be inoperable if a proper account is not established
or maintained with an appropriate Mobile Operator, or if the
Mobile Operator’s network facilities are not operating or
configured to operate with the DEVICE software.
1.2. Desktop Software. Desktop Software is included with your
DEVICE, and you may install and use the Microsoft ActiveSync®
3.7.1 component on one (1) or more computers to exchange
information with one (1) or more computing devices that contain a
compatible version of the Microsoft Windows® for Smartphone
2003 Software. For other software component(s) contained in the
Desktop Software, you may install and use such components only
in accordance with the terms of the printed or online end user
license agreement(s) provided with such component(s). In the
absence of an end user license agreement for particular
component(s) of the Desktop Software, you may install and use
only one (1) copy of such component(s) on the DEVICE or a single
computer with which you use the DEVICE.
1.3. Back-up Copy. If Motorola has not included a back-up copy of
the DEVICE Software with the DEVICE, you may make a single
back-up copy of the DEVICE Software. You may use the back-up
copy solely for archival purposes.
1.4. Microsoft Windows® 2003. If Microsoft Outlook® 2002 is
included with your Device, the following terms apply to your use of
Microsoft Outlook® 2002: (i) regardless of the information
contained in “Software Installation and Use” section of the online
EULA you may install one (1) copy of Microsoft Outlook® 2002 on
one (1) computer to use, exchange data, share data, access and
interact with the DEVICE, and (ii) the EULA for Microsoft Outlook®
2002 is between Motorola and the end user - not between the PC
manufacturer and end user.
2. Speech/Handwriting Recognition. If the Software includes
speech and or handwriting recognition component(s), you should
understand that speech and handwriting recognition are inherently
statistical processes; that recognition errors are inherent in the
processes; that it is your responsibility to provide for handling such
errors and to monitor the recognition processes and correct any
114
Microsoft License
errors. Neither Motorola nor its suppliers shall be liable for any
damages arising out of errors in the speech and handwriting
recognition processes.
3. Limitations on Reverse Engineering, Decompilation and
Disassembly. You may not reverse engineer, decompile, or
disassemble the SOFTWARE, except and only to the extent that
such activity is expressly permitted by applicable law
notwithstanding this limitation.
4. Single DEVICE. The Device Software is licensed with the DEVICE
as a single integrated product. The DEVICE Software may only be
used as part of the DEVICE, notwithstanding any installation of the
DEVICE Software on removable media.
5. Single EULA. The package for the DEVICE may contain multiple
versions of this EULA, such as multiple translations and/or
multiple media versions (e.g., in the user documentation and in the
software). Even if you receive multiple versions of the EULA, you
are licensed to use only one (1) copy of the DEVICE Software.
6. Rental. You may not rent or lease the SOFTWARE.
7. Software Transfer. You may not permanently transfer any of your
rights under this EULA with regard to the DEVICE Software or
Desktop Software, except as permitted by the applicable Mobile
Operator. In the event that the Mobile Operator permits such
transfer, you may permanently transfer all of your rights under this
EULA only as part of a sale or transfer of the DEVICE, provided you
retain no copies, you transfer all of the SOFTWARE (including all
component parts, the media and printed materials, any upgrades
or backup copies, this EULA and, if applicable, the Certificate(s) of
Authenticity), and the recipient agrees to the terms of this EULA. If
the Software is an upgrade, any transfer must include all prior
versions of the SOFTWARE.
8. Termination. Without prejudice to any other rights, Motorola or
Microsoft may terminate this EULA if you fail to comply with the
terms and conditions of this EULA. In such event, you must destroy
all copies of the SOFTWARE and all of its component parts.
9. Security Updates. The SOFTWARE may include digital rights
management technology. If SOFTWARE does contain digital rights
management technology, content providers are using the digital
rights management technology (“Microsoft DRM”) contained in
the SOFTWARE to protect the integrity of their content (“Secure
Content”) so that their intellectual property, including copyright, in
such content is not misappropriated. Owners of such Secure
Content (“Secure Content Owners”) may, from time to time,
request Microsoft, Microsoft Corporation or their subsidiaries to
provide security related updates to the Microsoft DRM
components of the SOFTWARE (“Security Updates”) that may
affect your ability to copy, display and/or play Secure Content
through Microsoft software or third party applications that utilize
Microsoft DRM. You therefore agree that, if you elect to download
a license from the Internet which enables your use of Secure
Content, Microsoft Corporation or their subsidiaries may, in
conjunction with such license, also download onto your DEVICE
such Security Updates that a Secure Content Owner has requested
that Microsoft, Microsoft Corporation or their subsidiaries
distribute. Microsoft, Microsoft Corporation or their subsidiaries
will not retrieve any personally identifiable information, or any
Microsoft License
115
other information, from your DEVICE by downloading such Security
Updates.
10. Consent to Use of Data. You agree that Microsoft, Microsoft
Corporation and their affiliates may collect and use technical
information gathered in any manner as part of product support
services related to the SOFTWARE. Microsoft, Microsoft
Corporation and their affiliates may use this information solely to
improve their products or to provide customized services or
technologies to you. Microsoft, Microsoft Corporation and their
affiliates may disclose this information to others, but not in a form
that personally identifies you.
11. Internet Gaming/Update Features. If the SOFTWARE provides,
and you choose to utilize, the Internet gaming or update features
within the SOFTWARE, it is necessary to use certain computer
system, hardware, and software information to implement the
features. By using these features, you explicitly authorize
Microsoft, Microsoft Corporation and/or their designated agent to
use this information solely to improve their products or to provide
customized services or technologies to you. Microsoft or Microsoft
Corporation may disclose this information to others, but not in a
form that personally identifies you.
12. Internet-Based Services Components. The SOFTWARE may
contain components that enable and facilitate the use of certain
Internet-based services. You acknowledge and agree that
Microsoft Corporation or their affiliates may automatically check
the version of the SOFTWARE and/or its components that you are
utilizing and my provide upgrades or supplements to the
SOFTWARE that may be automatically downloaded to your Device.
13. Links to Third Party Sites. The SOFTWARE may provide you
with the ability to link to third party sites through the use of the
SOFTWARE. The third party sites are NOT under the control of
Motorola, Microsoft, Microsoft Corporation or their affiliates.
Neither Motorola, Microsoft nor Microsoft Corporation nor their
affiliates are responsible for (i) the contents of any third party
sites, any links contained in third sites, or any changes or updates
to third party sites, or (ii) webcasting or any other form of
transmission received from any third party sites. If the SOFTWARE
provides links to third party sites, those links are provided to you
only as a convenience, and the inclusion of any link does not imply
an endorsement of the third party site by Motorola, Microsoft,
Microsoft Corporation or their affiliates.
14. Additional Software/Services. The SOFTWARE may permit
Motorola, Microsoft, Microsoft Corporation or their affiliates to
provide or make available to you SOFTWARE updates,
supplements, add-on components, or Internet-based services
components of the SOFTWARE after the date you obtain your initial
copy of the SOFTWARE (“Supplemental Components”).
14.1. If Motorola provides or makes available to you Supplemental
Components and no other EULA terms are provided along with the
Supplemental Components, then the terms of this EULA shall
apply.
14.2.If Microsoft, Microsoft Corporation or their affiliates make
available Supplemental Components, and no other EULA terms are
provided, then the terms of this EULA shall apply, except that the
Microsoft, Microsoft Corporation or affiliate entity providing the
116
Microsoft License
Supplemental Component(s) shall be the licensor of the
Supplemental Component(s).
14.3. Motorola, Microsoft, Microsoft Corporation and their
affiliates reserve the right to discontinue any Internet-based
services provided to you or made available to you through the use
of the SOFTWARE.
15. UPGRADES AND RECOVERY MEDIA.
15.1. DEVICE Software. If the DEVICE Software is provided by
Motorola separate from the DEVICE on media such as a ROM chip,
CD ROM disk(s) or via web download or other means, and is
labeled “For Upgrade Purposes Only” or “For Recovery Purposes
Only”, you may install one copy of such DEVICE Software on the
DEVICE as a replacement copy for the existing DEVICE Software
and use it in accordance with the Grant of Software License
section of this EULA.
15.2. Desktop Software. If any Desktop Software component(s) is
provided by Motorola separate from the DEVICE on CD ROM disk(s)
or via web download or other means, and labeled “For Upgrade
Purposes Only” or “For Recovery Purposes Only”, you may (i) install
and use one copy of such component(s) on the computer(s) you use
to exchange data with the DEVICE as a replacement copy for the
existing Desktop Software component(s).
16. COPYRIGHT. All title and intellectual property rights in and to
the SOFTWARE (including but not limited to any images,
photographs, animations, video, audio, music, text and “applets”,
incorporated into the SOFTWARE), the accompanying printed
materials, and any copies of the SOFTWARE, are owned by
Microsoft or its suppliers (including Microsoft Corporation). You
may not copy the printed materials accompanying the SOFTWARE.
All title and intellectual property rights in and to the content which
may be accessed through use of the SOFTWARE is the property of
the respective content owner and may be protected by applicable
copyright or other intellectual property laws and treaties. This
EULA grants you no rights to use such content. All rights not
specifically granted under this EULA are reserved by Microsoft and
its suppliers (including Microsoft Corporation).
17. EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is
subject to U.S. export jurisdiction. You agree to comply with all
applicable international and national laws that apply to the
SOFTWARE, including the U.S. Export Administration Regulations,
as well as end-user, end-use and destination restrictions issued by
U.S. and other governments. For additional information, see
http://
www.microsoft.com/exporting/
.
18. PRODUCT SUPPORT. Product support for the SOFTWARE is NOT
provided by Microsoft, its parent corporation, Microsoft
Corporation, or their affiliates or subsidiaries.
19. NO LIABILITY FOR CERTAIN DAMAGES. EXCEPT AS
PROHIBITED BY LAW, MICROSOFT SHALL HAVE NO LIABILTIY FOR
ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE
OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL
APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE.
20. FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL
PROVISIONS PERTAINING TO YOUR PARTICULAR JURISDICTION,
Microsoft License
117
PLEASE REFER TO YOUR WARRANTY BOOKLET INCLUDED WITH
THIS PACKAGE OR PROVIDED WITH THE SOFTWARE PRINTED
MATERIALS.
118
Microsoft License
119
Important Safety and
Legal Information
120
Safety Information
Safety and General Information
Safety Information
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance, and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola, keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Safety Information
121
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from the implantable medical
device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your healthcare provider.
Driving Precautions
The use of wireless phones while driving may cause distraction.
Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Responsible driving practices can be found in the “Smart Practices
While Driving” section in this guide (or separate guide).
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not
always, posted and can include fueling areas, such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
122
Safety Information
Symbol Key
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Batteries & Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “battery use & safety” section in
the user’s guide.
Keep Your Mobile Device and Its
Accessories Away From Small
Children
These products are not toys and may be hazardous to children. For
example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing
hearing injury.
•
Improperly handled batteries could overheat and cause a
burn.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a
fire.
Your battery or mobile device may require recycling
in accordance with local laws. Contact your local
regulatory authorities for more information.
Do not throw your battery or mobile device in the
trash.
Do not let your battery, charger, or mobile device
get wet.
Listening at full volume to music or voice through a
headset may damage your hearing.
032374o
032376o
032375o
Safety Information
123
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are tired.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for
extended periods of time may affect your hearing.
The louder the volume sound level, the less time is
required before your hearing could be affected. To
protect your hearing:
•
Limit the amount of time you use headsets or headphones
at high volume.
•
Avoid turning up the volume to block out noisy
surroundings.
•
Turn the volume down if you can’t hear people speaking
near you.
If you experience hearing discomfort, including the sensation of
pressure or fullness in your ears, ringing in your ears, or muffled
speech, you should stop listening to the device through your
headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
www.motorola.com/hearingsafety
(in English only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
[Mar0108]
124
Industry Canada Notice
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must accept
any interference, including interference that may cause undesired
operation of the device. See RSS-GEN 7.1.5.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
Warranty
125
•
Consult the dealer or an experienced radio/TV technician
for help.
Motorola Limited Warranty for the United States and
Canada
Warr an ty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants
its telephones, pagers, messaging devices, and consumer and
professional two-way radios (excluding commercial, government
or industrial radios) that operate via Family Radio Service or
General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer
usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
Motorola Products, Accessories and Software purchased by
consumers in the United States or Canada, which are accompanied
by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as
defined above, unless
otherwise provided for
below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
126
Warranty
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded
from coverage.
Batteries.
Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by
this limited warranty.
Abuse & Misuse.
Defects or damage that result from:
(a) improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to the
surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d) other acts which
are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or
damage that result from the use of non-Motorola branded or
certified Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by someone
other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication
service or signal you may subscribe to or use with the Products
Accessories or Software is excluded from coverage.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and
Accessories that are
Repaired or
Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Products Covered Length of Coverage
Warranty
127
Software
Exclusions
Software Embodied in Physical Media.
No warranty is made
that the software will meet your requirements or will work in
combination with any hardware or software applications provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is
not embodied in physical media (e.g. software that is downloaded
from the internet), is provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is
not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund
the purchase price of any Products, Accessories or Software that
does not conform to this warranty. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to
your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To
avoid losing such data, software and applications please create a
back up prior to requesting service.
How to Obtain Warranty Service or
Other Information
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies
the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
USA Phones:
1-800-331-6456
Pagers:
1-800-548-9954
Two-Way Radios and Messaging
Devices:
1-800-353-2729
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone
number designated above for the product with which they are
used.
128
Warranty
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of
your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your
address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or
limitation on the length of an implied warranty, so the
above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one
jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute
copies of the Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the Products
associated with such Motorola software. No other use, including
without limitation disassembly of such Motorola software or
exercise of the exclusive rights reserved for Motorola, is
permitted.
Hearing A ids
129
Hearing Aid Compatibility with Mobile Phones
Hear ing Aids
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T- Ra ti ngs :
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
This phone has been tested and rated for use with hearing
aids for some of the wireless technologies that it uses.
However, there may be some newer wireless technologies
used in this phone that have not been tested yet for use with
hearing aids. It is important to try the different features of
this phone thoroughly and in different locations, using your
hearing aid or cochlear implant, to determine if you hear any
interfering noise. Consult your service provider about its
return and exchange policies and for information on hearing
aid compatibility.
130
WHO Information
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new
Motorola product. Registering permits us to contact you for
product or software updates and allows you to subscribe to
updates on new products or special promotions. Registration is not
required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law
131
Export Law Assurances
Export Law
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the product
should not be disposed of with household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
132
Perchlorate Label
California Perchlorate Label
Perchlorate Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
“Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
.”
There is no special handling required by consumers.
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a software/
application vendor releases a patch or software fix for
your mobile device that updates the device’s security,
install it as soon as possible.
• Erase before recycling
—Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For step-by-step instructions on
how to delete all personal information from your device,
see the section entitled “master clear” or “delete data” in
the user’s guide.
Note:
For information on backing up your mobile device
data before erasing it, go to
www.motorola.com
and
navigate to the “downloads” section of the consumer Web
page for “Motorola Backup” or “Motorola Phone Tools.”
• Understanding AGPS
—To provide location information
for emergency calls, certain Motorola mobile devices
incorporate Assisted Global Positioning System (AGPS)
technology. AGPS technology also can be used in
non-emergency applications to track and monitor a user’s
location—for example, to provide driving directions. Users
Driving Safety
133
who prefer not to permit such tracking and monitoring
should avoid using such applications.
If you have further questions regarding how the use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
Smart Practices While Driving
Driving Safety
Drive Safe, Call Smart
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas -- for example,
handsfree use only. Go to
www.motorola.com/callsmart
(in
English only) for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile device
with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voicemail answer it
for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
134
Driving Safety
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
index
135
index
A
access corporate e-mail 53, 56
accessibility 37
alarms 39
alerts
set 29, 30
turning off 41
answer a call 15, 36
attachments 62
auto-lock, phone 26
automatic e-mail setup 54
B
background 31
backlight 36
battery 12, 13
conserve 14
extend battery life 36, 88, 99
indicator 21
biometric fingerprint manager 25
Bluetooth
connection 105
device name 94
drop pairing 94
indicator 22
nicknames 94
print images 92
remote 91
visible to others 93
webcam 89
wireless 87
bonding (See Bluetooth)
BroadbandAccess Connect 96
browser 77
shortcut keys 78
business card 94
C
calculator 106
calendar 104, 105
call manager 101
call timers 47
call waiting 46
caller ID 43, 103
calls 41
answer 15, 36
end 15
make 15
camera 72, 74
camera key 2
cancel message 59
136
index
CDMA 17
certificate management 107, 108
charging indicator 21
codes 24
computer remote 91
conference calls 46
conserve battery 14
contacts 44, 102
converter 106
copy files 71, 89
currency 106
D
date, set 35
delete programs 28
dial phone numbers 15
dialed calls 41
Directional key 2
disconnect Bluetooth 94
display 20, 36
Documents To Go 101
download
e-mail messages 64
files 71
message objects 63
E
e-mail 51, 60, 61, 62
attachments 62
setup 51, 53, 54
signature 62
emergency number 43
end a call 15
end key 2, 15
enter
text 49
enter text 49
EVDO 21
exchange server 51
F
file manager 27
filter 42
fingerprint scanner 25
flight mode 26
forward calls 63
G
games 80
get started 18
global access look up 59
global phone 17
GSM 17
H
handsfree indicator 22
handsfree speaker 24
headset indicator 22
headset jack 2
help 18
home key 20
home screen 20, 31, 32
hyperlink phone number 47
index
137
I
Incoming Call message 43
indicators, status 21
international access code 44
ISP 60
L
language, setting 37
linking (See Bluetooth)
lock phone 24
Low Battery message 21
M
make calls 15, 47
master reset 39
media player 38, 69, 79
memo pad 107
memory card 14
memory card indicator 22
menu key 2
menus
icons 20
shortcuts 45
message indicator 21
messages 51, 60, 61, 62, 63
delivery 61
e-mail 51
text 62
miniSD card 14
missed call indicator 21
missed calls 43
Missed Calls message 43
mode flight 26
modem 95, 96
multimedia messages 51, 62, 63
music 79
music player 69
N
navigation 20
netowrking 96
network 95
network settings 99
note pad 107
number. See phone number
numbers, entering 49
O
object exchange 89
operator hosted e-mail 54
owner information 39
P
pairing (See Bluetooth)
pairing indicator 22
pause button 70
PC Remote 91
personalize phone 29, 37
phone numbers 16
photos 72, 79
picture ID 43, 103
pictures 79
138
index
play
games 80
music 70
videos 70
power key 2, 15
print
images 92
maps 92
priority 59
profiles 29, 30
programmable keys 34
Q
quick launch keys 34
quick notes 107
R
receive business card 94
received calls 41
recent calls 41
redial 42
reminders 39
remote control 91
remove programs 28
reply 63
return a call 43
ring styles
indicators 22
settings 29
ring tones 79
ringer ID 43, 102
ringer volume 38
roam indicator 21
S
scan fingerprint 25
security, lock 26
see your number 16
select key 2
send & receive messages 56
send business card 94
send key 2, 15
set up e-mail 53, 54
set up personal e-mail 53
setup 18
shortcuts 19, 45
signal strength indicator 21
signature 62
SIM 17
SIM card 9
soft keys 2, 32
sounds 38, 79
speed dial 44
start menu, customize 33
status indicators 21
stereo Bluetooth indicator 22
switch networks 17
synchronize 53
Bluetooth 85
cable 95
T
task manager 27
index
139
telephone number. See phone
number
temperature 106
text 49
entry 49
messages 18, 61, 62, 63
messages, delivery 61
text message indicator 21
third party applications 36
three way calling 46
thumb wheel 2
time zones 106
time, setting 35
timers 42, 47
tips & tricks 19
transfer music from computer 71
TTY calls 46
turn device on/off 15
U
unlock code 24
unlock phone 24, 26
USB port 2
V
vCard 94
video
clip 74
manage 79
record/play 74
Vodafone 17
voice key 2
voicemail 46
voicemail message indicator 46
volume 23, 38
volume keys 2
W
wallpaper 31
Web
browser 77, 80
page 80
phone number 47
shortcut keys 78
webcam 89
weights & measurements 106
Wi-Fi
indicator 22
turn on/off 98
wizard 18
Y
your phone number 16
U.S. patent Re. 34,976
140
index
