Exhibit 8 Users Manual
APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP2
EXHIBIT 8
INSTRUCTION MANUAL
A preliminary draft copy of the Users Manual follows:
User Manual
1
HELLOMOTO
Introducing your new Motorola SLVR
L7
GSM wireless
phone. Here’s a quick anatomy lesson.
Left Soft Key
Navigate menus.
Select menu
items.
Volume Keys
Smart Key
Voice Dialing
Right Soft Key
Turn on & off,
hang up, exit
menus.

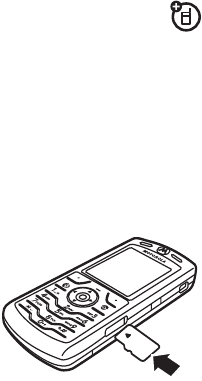

Insert memory
card.
Make & answer
calls.
Open menus.
Camera
Volume Keys
Charge up and
connect phone
accessories
2
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
Certain mobile phone features are dependent on the capabilities and
settings of your service provider's network. Additionally, certain features
may not be activated by your service provider, and/or the provider's
network settings may limit the feature's functionality. Always contact your
service provider about feature availability and functionality. All features,
functionality, and other product specifications, as well as the information
contained in this user's guide are based upon the latest available
information and are believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. The Bluetooth trademarks are owned by their proprietor
and used by Motorola, Inc. under license. The iTunes Trademark is owned
by Apple Computer and any use of such marks by Motorola, Inc. is under
license. Java and all other Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All
other product or service names are the property of their respective owners.
© Motorola, Inc., 2005.
Caution:
Changes or modifications made in the radio phone, not expressly
approved by Motorola, will void the user’s authority to operate the
equipment.
Manual Number: 6809499A20-O
3
contents
contents
menu map . . . . . . . . . . . . 5
essentials . . . . . . . . . . . . 7
about this guide . . . . . . 7
SIM card . . . . . . . . . . . . 7
battery. . . . . . . . . . . . . . 8
turn it on & off. . . . . . . 11
make a call . . . . . . . . . 11
answer a call . . . . . . . . 11
your phone number . . 12
main attractions . . . . . . 13
use iTunes
®
. . . . . . . . 13
take & send a photo . . . 21
record video . . . . . . . . 22
sounds . . . . . . . . . . . . 24
cable connections. . . . 25
memory card . . . . . . . 26
Bluetooth
®
wireless. . . 28
basics. . . . . . . . . . . . . . . 33
display. . . . . . . . . . . . . 33
menus. . . . . . . . . . . . . 36
create SMS. . . . . . . . . 38
volume . . . . . . . . . . . . 42
navigation key . . . . . . . 42
handsfree speaker . . . 43
codes & passwords . . . 43
lock & unlock phone . . . 43
customize . . . . . . . . . . . 45
audio profile . . . . . . . . 45
time & date. . . . . . . . . 46
wallpaper . . . . . . . . . . 46
screen saver . . . . . . . . 47
display appearance . . . 47
answer options. . . . . . 48
calls . . . . . . . . . . . . . . . . 49
turn off a call alert . . . . 49
recent calls . . . . . . . . . 49
redial. . . . . . . . . . . . . . 50
return a call . . . . . . . . . 51
notepad. . . . . . . . . . . . 51
hold or mute a call . . . 52
call waiting . . . . . . . . . 52
caller ID. . . . . . . . . . . . 52
emergency calls . . . . . 53
international calls . . . . 53
1-touch dial . . . . . . . . . 53
voicemail. . . . . . . . . . . 54
4
contents
other features . . . . . . . 55
advanced calling . . . . 55
address book. . . . . . . 57
messages . . . . . . . . . 62
instant messaging. . . 64
personalizing . . . . . . . 65
call times. . . . . . . . . . 67
handsfree . . . . . . . . . 68
data & fax calls . . . . . 69
network. . . . . . . . . . . 70
personal organizer . . . 70
security . . . . . . . . . . . 72
fun & games . . . . . . . 72
service and repairs . . . 75
SAR Data . . . . . . . . . . . 76
index . . . . . . . . . . . . . . 78
5
menu map
menu map
main menu
Q
Games & Apps
e
Messaging
• Create Message
• Message Inbox
•Voicemail
•Browser Msgs
•Email Msgs
•Quick Notes
•Outbox
•Drafts
• Multimedia Templates
s
Recent Calls
• Received Calls
• Dialed Calls
• Notepad
• Call Times *
•Data Times*
•Data Volumes*
V
MEdia Net
$
Cingular Mall
i
iTunes
h
My Stuff
•Camera
• Video Camera
• Sounds
•Pictures
• Videos
n
address book
w
Settings
• (see next page)
* optional features
This is the standard main
menu layout. Your phone’s
menu may be a little
different.
6
menu map
settings menu
É
Tools
•IM
• SIM Applications *
• Calculator
• Datebook
•Shortcuts
•Alarm Clock
• Dialing Services
• Fixed Dial
• Service Dial *
l
Personalize
• Home Screen
• Main Menu
•Skin
• Greeting
• Wallpaper
• Screen Saver
t
Audio
L
Connection
• Bluetooth Link
•Sync
• USB Settings
H
Call Forward *
• Voice Calls
•Fax Calls
• Data Calls
• Cancel All
• Forward Status
U
In-Call Setup
• In-Call Timer
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
Z
Initial Setup
• Time and Date
• 1-Touch Dial
• Display Timeout
• Backlight
•TTYSetup*
•Scroll
• Language
• Brightness
•DTMF
• Master Reset
• Master Clear
m
Phone Status
•My Tel. Numbers
•Battery Meter
• Storage Devices
• Software Update
• Other Information
S
Headset
• Auto Answer
•Voice Dial
J
Car Settings
%
Airplane Mode
• Airplane Mode
• Prompt at Startup
j
Network
•Network Setup
• Service Tone
•Network Jingle*
•Call Drop Tone
u
Security
• Phone Lock
• Lock Keypad *
• Lock Application
• Fixed Dial
• Restrict Calls
• SIM PIN
•New Passwords
• Certificate Mgmt *
c
Java Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
• App Backlight
á
Web Access
•MEdia Net
• Web Shortcuts
• Stored Pages
•History
•Go To URL
•Browser Setup
•Web Sessions*
* optional features
7
essentials
essentials
about this guide
This guide shows how to locate a menu feature as follows:
Find it:
Press
-
>
Recent Calls
>
Dialed Calls
This example shows that, from the home screen, you press
-
to open the menu, highlight and select
sRecent Calls
, then
highlight and select
Dialed Calls
.
Press
S
to scroll to and highlight a menu feature. Press the
center key
s
to select the highlighted menu feature.
SIM card
Yo u r Subscriber Identity Module (SIM) card contains personal
information like your phone number and address book
entries.
To insert and use a memory card, see page 26.
Caution:
Don’t bend or scratch your SIM card. Keep it away
from static electricity, water, and dirt.
symbols
This means a feature is network/subscription
dependent and may not be available in all areas.
Contact your service provider for more information.
This means a feature requires an optional accessory.
8
essentials
battery
battery installation
12
34
5
12
9
essentials
battery charging
New batteries are not fully
charged. Plug the travel charger
into your phone and an
electrical outlet. Your phone
display shows
Charge Complete
when finished.
Tip:
Relax, you can’t overcharge your phone battery. It will
perform best after you fully charge and discharge it a few
times.
You can charge your phone battery by connecting a
cable from your phone's mini-USB port to a USB
port on a computer. Both your phone and the
computer must be turned on, and your computer
must have the correct software drivers installed. Cables and
software drivers are available in Motorola Original data kits,
sold separately.
If your phone battery is completely drained, a PC USB
charger will not charge it. Use the travel charger.
34
10
essentials
battery tips
Battery life depends on the network, signal strength,
temperature, features, and accessories you use.
•
Always use Motorola Original batteries and
chargers. The warranty does not cover
damage caused by non-Motorola batteries
and/or chargers.
•
New batteries or batteries stored for a long time may
take more time to charge.
•
When charging your battery, keep it near room
temperature.
•
When storing your battery, keep it uncharged in a cool,
dark, dry place.
•
Never expose batteries to temperatures below -10°C
(14°F) or above 45°C (113°F). Always take your phone
with you when you leave your vehicle.
•
It is normal for batteries to gradually wear down and
require longer charging times. If you notice a change in
your battery life, it is probably time to purchase a new
battery.
Contact your local recycling center for proper battery
disposal.
Warning:
Never dispose batteries in a fire because they may
explode.
Before using your phone, read the battery safety information
in the “Safety and General Information” section included in
this guide.
032375o
11
essentials
turn it on & off
To turn on your phone, press and hold
P
for a few seconds or until the display turns
on. If prompted, enter your 4-digit unlock
code.
Caution:
If you enter an incorrect PIN
code 3 times in a row, your SIM card is disabled and your
display shows
SIM Blocked
. Contact your service provider.
To turn off your phone, press and hold
P
for 2 seconds.
make a call
Enter a phone number and press
N
to make a call.
To “hang up,” press
P
.

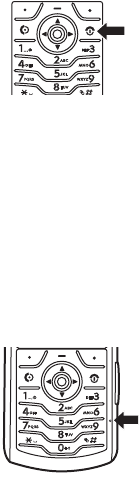

To maintain high audio quality during calls,
please note the location of the phone's
microphone (as indicated by the arrow)
and keep this area free of obstruction
while in use.
answer a call
When your phone rings and/or vibrates, just press
N
to
answer.
To “hang up,” press
P
.
12
essentials
your phone number
From the home screen, press
-#
to see your number.
Tip:
Want to see your phone number while you’re on a call?
Press
-
>
My Tel. Numbers
.
You can edit the name and phone number stored on
your SIM card. From the home screen, press
-#
,
select an entry, press
View
(the right soft key) and then the
Edit
key. If you don’t know your phone number, contact your
service provider.
13
main attractions
main attractions
You can do much more with your phone than make and
receive calls!
use iTunes®
You can use iTunes desktop to buy and download music to
your computer from the Internet, listen to CDs and digital
music, and create playlists of your favorite songs. You can
then transfer music to your phone that you’ve bought online
or from CDs and play them through iTunes on your phone.
Note:
iTunes supports MIDI, MP3, AAC and WAV song
formats.
Tip:
iTunes requires Windows 2000 or MAC OS X 10.3.6
or later.
installing iTunes on your computer
Before you can download songs to your phone, you must
install iTunes on your computer. To install iTunes on your
computer:
1
Place the iTunes CD-ROM (provided in the box with your
phone) into your computer’s CD-ROM drive or visit
www.itunes.com on your computer to download the
latest iTunes desktop software.
2
Follow the prompts to install the software.
14
main attractions
3
When the installation finishes, you will receive an
Installation Successful notice, click Finish, double-click
the iTunes icon
i
on your desktop to open iTunes.
For more information about the iTunes desktop software see
www.itunes.com.
using the iTunes Music Store
Using iTunes, you can hear, buy, and download your favorite
songs from the iTunes Music Store (available only in some
countries). There are over a million songs available in most
stores for purchase. You can use an Apple account to
purchase songs from the music store.
To browse for and buy music:
1
Open iTunes and click Music Store in the Source List.
2
Click the Sign In button and follow the on screen
instructions to set up an account or enter your existing
Apple account information.
3
When logged into your account, browse and buy music.
Tip:
When you buy a song the name displays in the
Purchased Music playlist. You can drag and drop these
songs into playlists you create or directly onto your phone
(see transferring music below).
For more information about the iTunes Music Store, open
iTunes and select Help > iTunes and Music Store Help.
15
main attractions
transferring music
To transfer music from the iTunes computer software to your
phone:
1
First, set up the phone to use the memory card as the
default USB connection.
On your phone: Press
- > Settings
>
Connection > USB Settings
> Memory Card
.
2
On your computer, open iTunes.
3
Using the USB cable, connect your phone to your
computer.
Note:
It may take up to one minute for your phone to
appear in the source list.
4
When the phone displays as an icon in the iTunes
software, drag and drop music files onto your phone.
Note:
Each song might may take 45 seconds or longer to
transfer from your computer to your phone.
Note:
When iTunes is finished transferring music to your
phone, the phone screen displays
OK to Disconnect
. Then you can
remove the USB cable. To do this, press the large button on
the cable and disconnect it from your phone. If your phone
does not display the
OK to Disconnect
message, you must Eject
the device (using a Mac) or Remove the USB device (on
aPC).
Tip:
Your phone does not support music transfer via
Bluetooth, nor can you use a downloaded/transferred song
from iTunes as a ringtone.
16
main attractions
opening iTunes
Tip:
You must have a memory card installed (see page 26)
in the phone and the iTunes software installed on your
computer (see page 13) before you can transfer songs to
your phone’s memory card and songs will appear in the
iTunes playlist on the phone.
Press
iTunes
to see the iTunes display
Note:
It may take a few seconds for iTunes to appear on your
display.
playing songs
Tip:
You must have a memory card installed in your phone
(see page 26), and have installed the iTunes Desktop
software on your computer to purchase,transfer, and then
play songs on your phone (see page 13).
To play a
song
, press
S
down to scroll to
Songs
> song name
and press the
PLAY
key.
To play
all the songs in a list
, press
S
down to scroll to
Albums
,
Artists
, or
Playlist
. Then press
S
right to select
All
and
press the
PLAY
key.
iTunes
EXIT PLAY
Playlist
Artists
Albums
Songs
Shuffle Songs
>
>
>
>
17
main attractions
Tip:
Don’t forget to disconnect your phone from your
computer to play songs. But don’t disconnect while you
transfer music.
Note:
You cannot listen to music through most Bluetooth
headsets.
iTunes controls
features
turn iTunes on & off
To turn iTunes on, press
iTunes
. To turn iTunes off, press the
P
key.
select a menu item
Press
S
to scroll to menu items, and select by pressing
right.
To return to a previous item, press
S
left.
Tip:
You can use the left and right soft keys to
PLAY
songs
or
EXIT
menus.
pause a song
From the iTunes idle display, press the
PAUSE
key.
adjust volume
Use the
Volume
keys on the side of the phone or from the
iTunes idle display, press
S
up or down to increase or
decrease volume.
start a song over
Press
S
left to
Rewind
and start over or press
S
right and
it will go to the next song.
18
main attractions
create a playlist
You create playlists on your computer and transfer them to
your phone. To create a playlist, on your computer:
1
Open iTunes.
2
When it’s open, click the
Add
(
+
) button.
3
Type a name for the playlist.
4
In the iTunes software, drag songs from your music
library to your playlist.
5
Using the USB cable, connect your phone to your
computer.
6
When the phone displays as a source, drag and drop
music files onto your phone.
play the previous song
Press
S
left twice.
rewind
Press
S
left.
shuffle songs
Press
iTunes
to display the iTunes menu. Press
S
down to
scroll to
Shuffle Songs
, and then press
PLAY
.
hide iTunes
To hide the iTunes while playing music:
Press
-
and select
HIDE
.
features
19
main attractions
Tip:
Your phone must be disconnected from your computer
to play songs through the phone. Don’t disconnect your
phone while music is being transferred. If you want to listen
to music during the transfer, you can play music through the
iTunes desktop software.
add artwork to your songs
Want to view or add album cover art or pictures to your
iTunes songs? First make sure you can see if any artwork
exits:
1
If you don’t see artwork in the lower left of the iTunes
desktop on your computer click the View Artwork icon
(lower left fourth icon). A artwork window is displayed.
2
If you want to add or change artwork, drag a picture file to
the artwork window.
upgrading iTunes desktop software
For more information about being able to store more music in
iTunes on your phone, go to http://www.itunes.com or visit:
http://www.hellomoto.com.
re-installing your music
If you ever reset your phone to its initial settings or send it for
service, you will need to take out your memory card which
stores your iTunes music. To re-inistall your music you will
need to:
20
main attractions
1
First, re-install the memory card into its internal
compartment (see page 26).
On your phone: Press
- > Settings
>
Connection > USB Settings
> Memory Card
.
2
Reconnect your phone to the computer with your USB
cable.
Note:
It may take up to one minute for your phone to
appear in the source list.
3
On your computer, open the iTunes software. When the
phone displays as an icon in the iTunes software source
list,your phone and computer will automatically
re-synchronize and you should see your saved music.
Note:
Each song might may take 45 seconds or longer to
transfer from your computer to your phone. Also, the first
time you re-synchronize it may take longer than normal.
Note:
If your music does not display properly after the
intial re-synchronization, re-synchronize the phone and
computer software again.
21
main attractions
take & send a photo
Press the
-
>
My Stuff
>
Camera
to see the camera viewfinder:
1
Point the camera lens at the photo subject.
You can press
-
to open the
Pictures Menu
. See the table
after this procedure.
2
Press the center key
s
or
Capture
key to take a photo.
•
To delete the photo and return to the active viewfinder,
press the
Discard
key.
•
To store or send the photo, press the
Store
key.
When the viewfinder is active, press
-
to open the
Pictures Menu
:
22
main attractions
record video
Press
-
>
My Stuff
>
Video Camera
to see the video viewfinder.
If you want to send your video in an MMS message, the
video length must be set to MMS. To set length, open Videos
Menu by pressing
-
>
Videos Setup
>
Video Length
.
options
Go To Pictures
See stored pictures and photos.
Switch Storage Device
Choose to store and see pictures on your
phone or memory card.
Auto-Timed Capture
Set a timer for the camera to take a
photo.
Pictures Setup
Open the setup menu to adjust photo
settings.
View Free Space
See how much memory remains.
23
main attractions
Point the camera lens at the video subject, then:
1
Press the center key
s
or
Capture
key to start the video.
2
Press the
Stop
key to stop the video.
3
Press
Store
to store the video. In the Store Options menu
you can choose
Send In Message
to send the video in a
Multimedia Message or
Store Only
to store the video on
your phone or memory card.
or
Press the
Discard
key to delete the video and return to the
active viewfinder.
Press
-
to open the
Videos Menu
when the viewfinder is
active. The menu can include the following options:
options
Go To Videos
Watch videos stored on your phone.
Switch Storage
Devices
Choose to store and see videos on your
phone or memory card.
Videos Setup
Open the setup menu to adjust video
settings.
Note:
Set
Video Length
to
MMS
if you want to
send your video in an MMS message.
Set
Video Length
to
Maximum
to record longer
clips you can store on your phone.
24
main attractions
sounds
Find it:
Press
-
>
My Stuff
>
Sounds
Note:
You can only listen to ringtones, alerts, and alarm s
that reside on your phone or memory card.
Press
S
up or down to highlight a sound and then press
Play
.
sound options
In the Sounds menu, Press
-
to view sound options. Press
S
up or down to highlight an option:
View Free Space
See how much memory remains.
Note:
Your phone stores any content
that you add, like ring tones or games, in
user memory. Your service provider may
store some content in user memory
before you receive the phone.
options
Switch Storage
Devices
Choose to store and see videos on your
phone or memory card.
New Categories
Create a new sound category.
Shop Ringtones
Connect to your web browser and shop
for new ringtones and alerts.
Sounds Setup
Set your phone to play sounds on auto
repeat.
options
25
main attractions
To download songs to your phone, see page 73. To copy files
between your phone and a computer, see page 27.
Note:
Your phone cannot play MP3 files that have a bit rate
higher than 192 kbps. If you try to download or play one of
these files, your phone might show you an error or ask you to
delete the file.
cable connections
Note:
Motorola Original USB data cable and
supporting software may be sold together with the
phone or separately. Check your computer or
hand-held device to determine the type of cable
you need. To
transfer data
between your phone and
computer, you must install the software included with the
Motorola Original data kit. See the data kit user’s guide for
more information. To make
data and fax calls
through a
connected computer, see page 69.
Your phone has a
mini-USB port so you can
connect it to a computer to
transfer data.
View Free
View space information for your phone or
memory card.
options
26
main attractions
memory card
You can use a removable memory card with your phone
to store and retrieve multimedia objects (such as
photos and sounds).
Note:
If you download a copyrighted file and store it on your
memory card, you can use the file only while your memory
card is inserted in your phone. You cannot send, copy, or
change copyrighted files.
install a memory card
Push the card in until it clicks
into place.
Do not remove your memory
card while your phone is using it
or writing files on it.
see and change
memory card information
Find it:
Press
-
>
Settings
>
Phone Status
>
Storage Devices
1
Press
S
to highlight the memory card.
2
Press the
Details
key to see the memory card information
or
Press
-
to see the
Storage Device
menu, which lets you
Format
or
Rename
the memory card.
27
main attractions
To see memory card files
, open a file list (such as
Pictures
or
Sounds
) and press
-
>
Memory Card
. To see files stored on your
phone again, press
-
>
Phone Memory
.
reformatting your memory card
You can reformat your memory card to erase files.
Note:
When you reformat your memory card, all files stored
on the card (music, pictures, videos) will be permanently
deleted.
1
Press
-
>
Settings
>
Phone Status
>
Storage Devices
.
2
Highlight the memory card.
3
Press
-
>
Format.
connect the memory card to a computer
You can access your phone’s memory card with a PC.
Note:
When your phone is connected to a computer, you can
only access the memory card through the computer.
On your phone:
Press
-
>
Settings
>
Connection
>
USB Settings
>
Memory Card
.
This directs the USB connection to your memory
card. Attach the Motorola Original USB cable to the
accessory port on your phone and to an available
USB port on your computer. Then follow these
steps:
28
main attractions
On your computer:
1
Open your "My Computer" window, where your phone’s
memory card shows as a “Removable Disk” icon.
2
Click on the “Removable Disk” icon to access the files on
your phone’s memory card.
3
To store the desired files onto the memory card, drag and
drop them as follows:
MP3 files:
> mobile > audio
screen savers:
>mobile>picture
wallpapers:
> mobile > picture
video clips:
> mobile > video
4
When you finish, remove the device by selecting the
“Safely Remove Hardware” icon in the system tray at the
bottom of your computer screen. Then select “USB Mass
Storage Devices” and “Stop”.
5
Select “USB Mass Storage Device” then “OK”.
On your phone:
To return to
Data Fax
as your USB default connection, press
-
>
Settings
>
Connection
>
USB Settings
>
Data/Fax Connection
.
Bluetooth® wireless
Your phone supports Bluetooth wireless pairing (also called
linking or bonding). You can pair your phone with a Bluetooth
headset or car kit, or pair your phone with a computer to
exchange and synchronize files.
29
main attractions
Note:
The use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the
laws and regulations on the use of these products.
turn Bluetooth power on or off
Find it:
Press
-
>
Settings
>
Conntection > Bluetooth Link
>
Setup
>
Power
>
On
If Bluetooth
Power
is
On
, your phone can automatically pair with
the handsfree device you have used before. Just turn on the
device or move it near the phone.
Note:
To extend battery life, use the above procedure and set
Bluetooth
Power
to
Off
when not in use. Your phone will not pair
with devices until you set Bluetooth
Power
back to
On
and pair
your phone with the devices again.
pair with a headset or handsfree device
Before you try to pair your phone with a device
, make
sure your phone’s Bluetooth power is
on
and the device is
on
and
ready
in pairing or bonding mode (see the user’s guide
for the device). You can pair your phone with only one device
at a time.
Find it:
Press
-
>
Settings
>
Connection
>
Bluetooth Link
>
Handsfree
>
[Look For Devices]
Your phone lists the devices it finds within range.
1
Highlight a device in the list and press the
Select
key.
2
If necessary, enter the device passkey (such as 0000) and
press the
Ok
key.
30
main attractions
When your phone is paired, the Bluetooth indicator
à
shows
in the home screen.
Tip:
For information about your headset or handsfree device,
refer to the instructions that came with it.
copy objects to another device
You can use Bluetooth pairing to copy a media object,
address book entry, datebook event, or bookmark from
your phone to a computer or other device.
Note:
Preloaded multimedia objects cannot be copied.
1
Highlight the object on your phone that you want to copy
to the other device.
2
Press
-
>
Mark
(or press
0
to mark objects) and then
press
-
>
Copy Marked Files
(for media objects),
Send
(for
datebook events), or
Share Phonebook Entry
(for address book
entries).
3
Select a recognized device name, or
[Look For Devices]
to
search for the device where you want to copy the object.
advanced Bluetooth features
features
make phone
visible to other
device
Allow a Bluetooth device to
discover your phone:
-
>
Settings
>
Connection
>
Bluetooth Link
>
Setup
>
Find Me
31
main attractions
pair with
recognized
device
Pair your phone with a recognized
handsfree device:
-
>
Settings
>
Connection
>
Bluetooth Link
>
Handsfree
>
Look for Devices
drop pairing
with device
Highlight the device name and
press the
Drop
key.
switch to
device during
call
Switch to a headset or car kit
during a call:
-
>
Use Bluetooth
move
multimedia
object to
device
Move a multimedia object to
another device:
Note:
Preloaded multimedia objects
cannot be moved.
Highlight the object, press
-
>
Move
,
select the device name.
Caution:
Moving an object
deletes
the
original object from your phone.
copy media
objects,
datebook
events, and
address book
entries
Highlight the object you want to copy to
another location.
Press
-
>
Mark
(or press
0
to mark
objects) and then press
-
>
Copy Marked
Files
(for media objects), or press
Send
(for
datebook events and address book
entries).
features
32
main attractions
print media
objects,
datebook
events, and
address book
entries
Highlight the object you want to print to
a printer.
Press
-
>
Mark
(or press
0
to mark
objects) and then press
-
>
Print Marked
Files
(for media objects), or press
Print
(for
datebook events and address book
entries).
select print
templates
You can select desired print templates in
the
Print Options
screen. After you have
selected
Print Marked Files
or
Print
select
Template
>
Change
>
View
(press navigation
key up or down to view different
templates) >
Select
>
[Print]
Note:
For Border Free picture printing,
select
Copy Marked Files
instead of
Print Marked
Files
. Preloaded pictures cannot be
printed.
edit device
properties
Edit the properties of a recognized
device:
Highlight the device name, press the
Edit
key.
set Bluetooth
options
Highlight the device name, press
-
>
Settings
>
Connection
>
Bluetooth Link
>
Setup
features
33
basics
basics
See page 1 for a basic phone diagram.
display
The home screen shows when you turn on the phone. To dial
a number from the home screen, press number keys and
N
.
Note:
Your home screen may look different from the one
below, depending on your service provider.
The Menu Indicator
À
shows that you can press
-
to open
the menu. Soft Key Labels show the current soft key
functions. For soft key locations, see page 1.
Clock
Press
S
right to see
more news,
if available.
Right Soft
Key Label
Menu Indicator
Left Soft
Key Label
Service Provider
12:00
MEdia Net
o
34
basics
Status indicators may be shown at the top of the home
screen:
1 Signal Strength Indicator –
Vertical bars show the
strength of the network connection. You can’t make or
receive calls when
!
or
)
shows.
2 GPRS Indicator –
Shows when your phone is using
General Packet Radio Service (GPRS) network
connection. Indicators can include:
3 Bluetooth Indicator –
Shows when a Bluetooth
®
connection is active (
à
).
*
= GPRS PDP context active
+
= GPRS packet data available
E
+
040079b
5. Message
6. Audio
7. Battery
Level
4. Roam
2. GPRS
1. Signal
Strength
Service Provider
12:00
MEdia Net
3. Bluetooth
o
35
basics
4 Roam Indicator –
Shows when your phone is
seeking or using a network outside your home
network. Indicators can include:
5 Message Indicator –
Shows when you receive a
new message. Indicators can include:
6 Audio Style Indicator –
Shows the ring style setting.
7 Battery Level Indicator –
Vertical bars show the battery
charge level. Recharge the battery when your phone
shows
Low Battery
.
:
= 2G home
;
= 2G roam
8
= 2.5G home
9
= 2.5G roam
r
= text message
t
= voice message
y
= loud ring
}
= vibrate then ring
z
= soft ring
Ò
= silent
|
= vibrate
36
basics
menus
From the home screen, press
-
to enter the main menu.
The following menu icons may be available, depending on
your service provider and service subscription options.
menu features
QGames & Apps iiTunes
eMessaging hMy Stuff
sRecent Calls nAddress book
áMEdia Net wSettings
$Cingular Mall
Exit Select
Messaging
Scroll up, down,
left, or right.
Press center to
select
highlighted
menu feature.
Exit the main
menu.
Name of
Highlighted
Menu Feature
Icon
Select
highlighted menu
feature.
Exit menu without
making changes.
37
basics
Some features require you to select an option from a list:
•
Scroll up or down to highlight the option you want.
•
In a numbered list, press a number key to highlight an
option.
•
In an alphabetized list, press a key repeatedly to cycle
through its letters and highlight the closest matching
list option.
•
When an option has a list of possible settings, scroll
left or right to select the setting.
•
When an option has a list of possible numeric values,
press a number key to set the value.
Highlighted
Option
Press Back key
to go back to
previous
screen.
Press
S
to scroll down
to other
options.
Dialed Calls
10) John Smith
9) Lisa Owens
8) Adda Thomas
7) Jack Bradshaw
6) Mary Smith
5) Carlos Emrys
4) Dave Thompson
3) Lisa Owens
Back View
Press View key
to view details
of highlighted
option.
Press
-
to
open sub-menu
38
basics
create SMS
To create a new message, enter text.
Press
#
in a text entry view to select an entry mode:
To set your primary and secondary text entry modes, press
-
>
Entry Setup
in a text entry view and select
Primary Setup
or
Secondary Setup
.
entry modes
j
or
g
Yo u r
Primary
text entry mode can be set to any
iTAP
®
j
or tap
g
mode.
p
or
m
Yo u r
Secondary
text entry mode can be set to any
iTAP
p
or tap
m
mode, or set to
None
if you don’t
want a secondary entry mode.
WNumeric
mode enters numbers only.
[Symbol
mode enters symbols only.
Msg 450
Vh
For indicator
descriptions,
see following
section.
Flashing
cursor
indicates
insertion point.
After you enter
text, press the
Send To key to
enter
recipients.
Press - to
open sub-
menu.
Press the Cancel
key to
exit
without making changes.
Cancel Send To
39
basics
Tip:
WANT TO BE LOUD IN YOUR MESSAGE? Press
0
in a
text entry view to change text case to all capital letters (
T
),
next letter capital (
V
), or no capitals (
U
).
iTAP
®
mode
Press
#
in a text entry view to switch to iTAP mode. If you
don’t see
j
or
p
, press
-
>
Entry Setup
to set iTAP mode as
your primary or secondary text entry mode.
iTAP mode lets you enter words using one key press per
letter. The iTAP software combines your key presses into
common words, and predicts each word as you enter it.
For example, if you press
7764
, your display shows:
•
If you want a different word (such as
Progress
), continue
pressing keypad keys to enter the remaining letters.
Msg 443
Vj
Select
Prog ram
ProgProhSpoiProi
Delete
Press Delete key
to delete last
letter.
Press
S
up to accept
Program.
Press
S
right
to highlight
another
combination.
Press * to
enter Prog and
a space.
Press Select key to lock
highlighted combination.
40
basics
•
To enter numbers quickly, press and hold a number key
to temporarily switch to numeric mode. Press the
number keys to enter the numbers you want. Enter a
space to change back to iTAP mode.
•
Press
1
to enter punctuation or other characters.
tap mode
Press
#
in a text entry view to switch to tap mode. If you
don’t see
Vg
or
Vm
, press
-
>
Entry Setup
to set tap mode
as your primary or secondary text entry mode.
To enter text in tap mode, press a keypad key repeatedly to
cycle through the letters and number on the key. Repeat this
step to enter each letter.
For example, if you press
8
one time, your display shows:
Msg 449
Ug
Character
displays at
insertion point.
After you enter
text, press the
Send To key to
enter
recipients.
Press the Delete
key to
delete
character to left of insertion
point.
After
2 seconds,
character is
accepted and
cursor moves
to next
position.
Delete Send To
T
41
basics
When you enter three or more characters in a row, your
phone may guess the rest of the word. For example, if you
enter
prog
your display might show:
•
The first character of every sentence is capitalized. If
necessary, press
S
down to change the character to
lowercase before the cursor moves to the next
position.
•
Press
S
to move the flashing cursor to enter or edit
message text.
•
If you don’t want to save your text or text edits, press
P
to exit without saving.
•
Tap extended mode cycles through additional special
characters and symbols as you repeatedly press a
keypad key.
numeric mode
Press
#
in a text entry view until you see
W
. Press the
number keys to enter the numbers you want.
Msg 443
U1
Character
displays at
insertion point.
Press
S
right to accept
Program, or
press *
to reject it and
enter a space
after Prog.
Send To
Prog ram
Delete
42
basics
symbol mode
Press
#
in a text entry view until you see
[
. Press a keypad
key to show its symbols at the bottom of the display.
Highlight the symbol you want, then press the
Select
key.
volume
Press the volume keys to:
•
turn off an incoming call alert
(press the down volume key)
•
change the earpiece volume
during calls
•
change the ringer volume
from the home screen
Tip:
Sometimes silence really is golden. That’s why you can
quickly set your ringer to
Vibrate
by pressing and holding down
the
#
key. To set your audio style back to
Loud
, just press and
hold the
#
key again.
navigation key
Press the navigation key
S
up, down,
left, or right to scroll and highlight items in
the display. When you highlight
something, press the center key
s
to
select it. The center key usually performs
the same function as the right soft key.
Volume
Keys
43
basics
handsfree speaker
You can use your phone’s handsfree speaker to make calls
without holding the phone to your ear.
During a call, press the
Speaker
key to turn the handsfree
speaker on. Your display shows
Spkrphone On
until you turn it off
or end the call.
Note:
The handsfree speaker won’t work when your phone is
connected to a handsfree car kit or headset.
codes & passwords
Your phone’s 4-digit
unlock code
is originally set to
1234
.
The 6-digit
security code
is originally set to
000000
. If your
service provider didn’t change these codes, you should
change them:
Find it:
Press
-
>
Settings
>
Security
>
New Passwords
If you forget your unlock code:
At the
Enter Unlock Code
prompt,
try entering 1234 or the last four digits of your phone
number. If that doesn’t work, press
-
and enter your 6-digit
security code instead.
If you forget other codes:
If you forget your security code,
SIM PIN code, or PIN2 code contact your service provider.
lock & unlock phone
You can lock your phone to keep others from using it. To lock
or unlock your phone, you need the 4-digit unlock code.
44
basics
To
manually lock
your phone: Press
-
>
Settings
>
Security
>
Phone Lock
>
Lock Now
.
To
automatically lock
your phone whenever you turn it off:
Press
-
>
Settings
>
Security
>
Phone Lock
>
Automatic Lock
>
On
.
Note:
You can make emergency calls on a locked phone (see
page 53). A locked phone still rings or vibrates for incoming
calls or messages,
but you need to unlock it to answer
.
lock & unlock keypad
You can lock your keypad to prevent accidental key presses.
Press
-*
to lock or unlock the keypad.
airplane mode
You can put your phone in airplane mode to safely access
your address book, games, camera, and music in areas
where cellular network access is prohibited (i.e. during airline
flights and in hospitals). You can lock your keypad to prevent
accidental key presses.
To turn airplane mode on or off: Press
-
>
Settings
>
Airplane
Mode
>
Airplane Mode
>
On
or
Off
.
45
customize
customize
audio profile
Each audio profile uses a different set of sounds or vibrations
for incoming calls and other events. Here are the profiles you
can choose:
The audio profile’s indicator shows at the top of your home
screen. To choose your profile:
Find it:
Press
-
>
Settings
>
Audio
>
Style:
style name
change audio alerts
You can change the alerts for incoming calls and other
events. Your changes are saved in the current audio profile.
Find it:
Press
-
>
Settings
>
Audio
> Style
Detail
Note:
Style represents the current auido style. You can’t set
an alert for the
Silent
audio style setting.
1
Highlight
Calls
and then press the
Change
key to change it.
2
Highlight the alert you want, then press the
Select
key.
3
Press the
Back
key to save the alert setting.
yLoud |Vibrate ÒSilent
zSoft }Vibe Then Ring
46
customize
time & date
Your phone needs the time and date for the datebook.
To synchronize the time and date with the network:
Press
-
>
Settings
>
Initial Setup
>
Time and Date
>
Autoupdate
>
On
To set the time and date: Press
-
>
Settings
>
Initial Setup
>
Time and Date
> time or date.
Note:
To manually set the date and time you must turn
Autoupdate off.
To choose an
analog or digital
clock for your home screen,
press
-
>
Settings
>
Personalize
>
Home Screen
>
Clock
>
Analog
or
Digital
.
wallpaper
Set a photo, picture, or animation as a wallpaper (background)
image in your home screen.
Find it:
Press
-
>
Settings
>
Personalize
>
Wallpaper
options
Select an image for your wallpaper, or
None
for no
wallpaper.
Layout
Select
Center
to center the image in the display,
Tile
to repeat the image across the display, or
Fit-to-screen
to stretch the image across the display.
47
customize
screen saver
Set a photo, picture, or animation as a screen saver. The
screen saver shows when no activity is detected for a
specified time.
Tip:
This feature helps save your screen, but not your battery.
To extend battery life, turn off the screen saver.
Find it:
Press
-
>
Settings
>
Personalize
>
Screen Saver
display appearance
To choose a phone
skin
that sets the look and feel of your
phone’s display: Press
-
>
Settings
>
Personalize
>
Skin
.
To set your display
brightness
: Press
-
>
Settings
>
Initial Setup
>
Brightness
.
To save battery life, your
backlight
turns off when you’re not
using your phone. The backlight turns back on when you
press a key. To set how long your phone waits before the
backlight turns off:
Press
-
>
Settings
>
Initial Setup
>
Backlight
.
To save battery life, the
display
can turn off when you’re not
using your phone. The display turns back on when you press
options
Select an image for your screen saver, or
None
for
no screen saver.
Delay
Select the length of inactivity before the screen
saver shows.
48
customize
a key. To set how long your phone waits before the display
turns off:
Press
-
>
Settings
>
Initial Setup
>
Display Timeout
.
answer options
You can use additional, alternative methods to answer an
incoming call. To activate or deactivate an answer option:
Find it:
Press
-
>
Settings
>
In-Call Setup
>
Answer Options
>
Multi-key
>
On
or
Off
49
calls
calls
To make and answer calls, see page 11.
turn off a call alert
You can press the volume keys to turn off a call alert before
answering the call.
recent calls
Your phone keeps lists of incoming and outgoing calls, even
for calls that didn’t connect. The most recent calls are listed
first. The oldest calls are deleted as new calls are added.
Shortcut:
Press
N
from the home screen to see the dialed
calls list.
Find it:
Press
-
>
Recent Calls
1
Highlight
Received Calls
or
Dialed Calls
, then press the
Select
key.
2
Highlight a call. A
%
next to a call means the call
connected.
•
To call the number, press
N
.
•
To see call details (like time and date), press the
View
key.
•
To see the
Last Calls Menu
, press
-
. This menu can
include:
50
calls
redial
1
Press
N
from the home screen to see the dialed
calls list.
2
Highlight the entry you want to call, then press
N
.
options
Store
Create a address book entry with the
number in the
No.
field.
Store
does not
appear if the number is already stored.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Hide ID/Show ID
Hide or show your caller ID for the next
call.
Send Message
Open a new text message with the
number in the
To
field.
Add Digits
Add digits after the number.
Attach Number
Attach a number from the address book
or recent calls lists.
Send Tones
Send the number to the network as
DTMF tones.
While on a call press
-
>
Address Book
>
Entry or enter the phone number > press
-
>
Send Tones
.
Talk then Fax
Talk and then send a fax in the
same call (see page 69).
51
calls
If you hear a
busy signal
and you see
Call Failed, Number Busy
, you can press
N
or the
Retry
key to
redial the number. When the call goes through, your phone
rings or vibrates one time, shows
Redial Successful
, and connects
the call.
return a call
Your phone keeps a record of your unanswered calls, and
shows
X Missed Calls
, where
X
is the number of missed calls.
1
Press the
View
key to see the received calls list.
2
Highlight the call you want to return, then press
N
.
notepad
The last set of digits entered on the keypad are stored in
notepad memory. This can be the last phone number you
called, or a number that you “jot down” during a call for later
use. To see the number stored in the notepad:
Find it:
Press
-
>
Recent Calls
>
Notepad
•
To call the number, press
N
.
•
To create a address book entry with the number in the
No.
field, press the
Store
key.
•
To open the
Dialing Menu
to attach a number or insert a
special character, press
-
.
52
calls
hold or mute a call
Press
-
>
Hold
to put all active calls on hold.
Press the
Mute
key to put all active calls on mute.
call waiting
When you’re on a call, you’ll hear an alert if you receive
a second call.
Press
N
to answer the new call.
•
To switch between calls, press the
Switch
key.
•
To connect the two calls, press the
Link
key.
•
To end the call on hold, press
-
>
End Call On Hold
.
To turn the call waiting feature on or off:
Find it:
Press
-
>
Settings
>
In-Call Setup
>
Call Waiting
caller ID
Calling line identification (caller ID) shows the phone
number for an incoming call in your display.
Your phone shows the caller’s name and picture when
they’re stored in your address book, or
Incoming Call
when
caller ID information isn’t available.
You can set your phone to play a different ringer ID for an
entry stored in your address book (see page 59).
53
calls
To show or hide
your phone number
from the next person
you call, enter the phone number and press
-
>
Hide ID/Show ID
.
emergency calls
Your service provider programs one or more emergency
phone numbers, such as 911 or 112, that you can call under
any circumstances, even when your phone is locked or the
SIM card is not inserted.
Note:
Emergency numbers vary by country. Your phone’s
preprogrammed emergency number(s) may not work in all
locations, and sometimes an emergency call cannot be
placed due to network, environmental, or interference
issues.
1
Press the keypad keys to dial the emergency number.
2
Press
N
to call the emergency number.
international calls
If your phone service includes international dialing,
press and hold
0
to insert your local international
access code (indicated by
+
). Then, press the keypad keys to
dial the country code and phone number.
1-touch dial
To call address book entries 1 through 9, press and hold the
single-digit speed dial number for one second.
54
calls
You can set 1-touch dial to call the entries in your phone’s
memory address book, your SIM card’s address book, or
your Fixed Dial list:
Find it:
Press
-
>
Settings
>
Initial Setup
>
1TouchDial
>
Phone
,
SIM
,or
Fixed Dial
To add a new address book entry, see page 57. To edit the
Speed No.
for a address book entry, press
-
>
address book
,
highlight the entry, and press
-
>
Edit
.
voicemail
Your network stores the voicemail messages you
receive. To listen to your messages, call your voicemail
number.
Note:
Your service provider may include additional
information about using this feature.
When you
receive
a voicemail message, your phone
shows the voicemail message indicator
t
and
New Voicemail
. Press the
CALL
key to listen to the message.
To
check
voicemail messages:
Find it:
Press
-
>
Messaging
>
Voicemail
Your phone may prompt you to store your voicemail phone
number. If you don’t know your voicemail number, contact
your service provider.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number)
character in this number. If you want to store a voicemail
number with these characters, create a address book entry
for it. Then, you can use the entry to call your voicemail.
55
other features
other features
advanced calling
features
conference call
During a call:
Dial next number, press
N
, press
the
Link
key.
attach a phone
number
Dial an area code or prefix for a
address book number, then:
-
>
Attach Number
speed dial
Speed dial a address book entry:
Enter the speed dial number, press
#
, then press
N
.
To add a address book entry, see
page 57.
Tip:
If you forget Aunt Mildred’s speed
dial number, press
-
>
address book
,
highlight her entry, and press the
View
key.
call forwarding
Set up or cancel call forwarding:
-
>
Settings
>
Call Forward
restrict calls
Restrict outgoing or incoming calls:
-
>
Settings
>
Security
>
Restrict Calls
56
other features
TTY calls
Set up your phone for use with an
optional TTY device:
-
>
Settings
>
Initial Setup
>
TTY Setup
fixed dial
When you turn on fixed dialing, you
can call only numbers stored in the
fixed dial list.
Turn fixed dialing on or off:
-
>
Settings
>
Security
>
Fixed Dial
Use the fixed dial list:
-
>
Settings
>
Tools
>
Dialing Services
>
Fixed Dial
DTMF tones
Activate DTMF tones:
-
>
Settings
>
Initial Setup
>
DTMF
To send DTMF tones during a call, just
press number keys or highlight a number
in the address book or recent calls lists
and press
-
>
Send Tones
.
features
57
other features
address book
features
add new entry
-
>
address book
-
>
New
>
Phone Number
or
Email Address
Shortcut:
Enter a phone number in the
home screen, then press the
Store
key to
create an entry for that number.
Tip:
One phone isn’t enough for some
people. When creating a address book
entry, select
MORE
to store another
number for the same
Name
.
dial number
Call a number stored in the address
book:
-
>
address book
, highlight the address
book entry, press
N
Shortcut:
In the address book, press
keypad keys to enter the first letters of
an entry name, then press the
Search
key
to jump to the entry.
58
other features
record a
voice name
When creating a address book entry,
highlight
Voice Name
and press the
Record
key. Press and release the voice
key and say the entry’s name (within
2 seconds). When prompted, press and
release the voice key and repeat the
name.
Note:
The
Voice Name
option isn’t available
in entries stored on the SIM card.
voice dial
number
Voice dial a number stored in the address
book:
-
>
Settings
>
Headset
>
Voice Dial
set search
methods
Set a specified search methods to
navigate the address book.
There are two search methods
Jump to
and
Find
. You use the
Jump to
method when in
the address book and you want to press
a key and automatically jump to the
corresponding letter location in the
address book. In Find, when you press a
key, a window appears to type all or part
of a name and search the address book
for existing matches.
To set the search method:
-
>
Address Book
>
-
>
Setup
>
Search Method
>
Jump to
or
Find
features
59
other features
set ringer ID
for entry
Assign a ring alert (ringer ID) to an entry:
-
>
address book
> entry
-
>
Edit
>
Ringer ID
> ringer name
Note:
The
Ringer ID
option isn’t available in
entries stored on the SIM card.
Activate ringer IDs:
-
>
Settings
>
Audio
> style
Detail
>
Ringer IDs
set picture ID
for entry
Assign a photo or picture to show when
you receive a call from an entry:
-
>
address book
> entry
-
>
Edit
>
Note:
The
option isn’t available in
entries stored on the SIM card.
set picture ID
view
Show entries as a text list, or with
picture caller ID photos:
-
>
address book
-
>
Setup
>
View by
>Picture
set category
for entry
-
>
address book
> entry
-
>
Edit
>
Category
> category name
Note:
The
Category
option isn’t available in
entries stored on the SIM card.
features
60
other features
set category
view
-
>
address book
-
>
Categories
>category view
You can show
All
entries, entries in a
predefined category (
Business
,
Personal
,
General
,
VIPs
), or entries in a category you
create.
set primary
number or
address
Set the primary number for an entry with
multiple numbers:
-
>
address book
, highlight the entry, press
-
>
Set Primary
> number or address
Note:
The
Set Primary
option isn’t available
in entries stored on the SIM card.
Tip:
In
Primary
number view mode, you
can still peek at other numbers stored for
the same name. Highlight the name and
press
S
left or right to see the other
numbers.
create group
mailing list
You can put several address book entries
in a group mailing list, then send a
multimedia message to the list. To
create a list:
-
>
address book
-
>
New
>
Mailing List
You can select the list name as an
address for multimedia messages.
Note:
A
Mailing List
cannot include entries
stored on the SIM card.
features
61
other features
sort address
book list
Set the order in which entries are listed:
-
>
address book
-
>
Setup
>
Sort by
>sort order
You can sort the address book list by
Name
,
Speed No.
,
Voice Name
, or
Email
. When
sorting by name, you can see
All
numbers or just the
Primary
number for
each name.
copy address
book entry
Copy an entry from the phone to the
SIM card, or from the SIM card to the
phone:
-
>
address book
, highlight the entry, press
-
>
Copy
>
Entries
>
To
send address
book entry in a
text message
Send a address book entry in a text or
email message:
-
>
Insert
>
Contact Info
>
address book
(highlight address book entries), press
Add
>
Done
send address
book entry in a
multimedia
message
Send a address book entry in a
multimedia message:
-
>
Address book
, highlight the entry,
press
-
>
Share Phonebook Entry
>
Multimedia Msg
features
62
other features
messages
send address
book entry
over
Bluetooth
®
connection
Send a address book entry to another
phone, computer, or device:
-
>
Address book
, highlight the entry,
press
-
>
Share Phonebook Entry
>
Bluetooth
>
Bluetooth On
>
Look for Devices
features
send text
message
-
>
Messaging
>
Create Message
>
New
Text Message
> enter text >
Send To
>
scroll and press center key
s
to select
recipient >
Send
send
multimedia
message
-
>
Messaging
>
Create Message
>
New Multimedia Msg
send email
-
>
Messaging
>
Create Message
>
New Email
use a
multimedia
template
Open a multimedia message with
preloaded animations:
-
>
Messaging
>
Create Message
>
Multimedia Templates
features
63
other features
read messages
-
>
Messaging
>
Message Inbox
Icons next to each message
indicate if it is read
>
or unread
<
.
Icons can also indicate if the message is
locked
9
, urgent
!
, low priority
↓
, or has
an attachment
=
.
To see message options like
Lock
or
Delete
,
highlight a message and press
-
.
read old email
-
>
Messaging
>
Email Msgs
Press
-
to perform various
operations on a message.
store message
objects
Go to a multimedia message press:
-
>
Store
store text
messages on
your SIM card
To store incoming text messages
on your SIM card, press:
-
>
Messaging
>
Message Inbox
> scroll to
message >
-
>
Setup
>
Text Msg Setup
>
Store To:
>
SIM
browser
messages
Read messages received by your
micro-browser:
-
>
Messaging
>
Browser Msgs
features
64
other features
instant messaging
set up more
email
accounts
You can set up, edit, and use more
than one email account on your
phone. Each account stores protocol,
host, port, and other information.
-
>
Messaging
>
Email Msgs
>
Setup
>
Account Settings
>
[New Entry]
To create a new account, select
Create New
.
Note:
Your display shows a folder for
each email account under
-
>
Messaging
>
Email Msgs
change
message
service center
number
You can change the message
service center number.
-
>
Messaging
>
-
>
Inbox Setup
>
Text Msg
Setup
>
[Srvce Center No.]
feature
log in
-
>
Settings
>
Tools
>
IM
find others
online
After you log in:
Select
Contact List
to see a list of other
users.
start
conversation
From your
Contact List
, highlight a
name in
Online Contacts
, press the
Send IM
key.
features
65
other features
personalizing
open active
conversation
From your
Contact List
, highlight a
name in
Conversations
, press the
View
key.
end
conversation
From the conversation display:
M
>
End Conversation
log out
Select
Log Out
from the
IM Online
menu.
create or
change IM
accounts
-
>
Settings
>
Tools
>
IM
>[
New Account]
Select an IM account, or select
New
to
create a new IM account.
features
language
Set menu language:
-
>
Settings
>
Initial Setup
>
Language
scroll
Set the highlight bar to stop or wrap
around in menu lists:
-
>
Settings
>
Initial Setup
>
Scroll
activate ringer
IDs
Activate ringer IDs assigned to address
book entries and categories:
-
>
Settings
>
Audio
> style
Detail
>
Ringer IDs
ring volume
-
>
Settings
>
Audio
> style
Detail
>
Ring Volume
feature
66
other features
keypad
volume
-
>
Settings
>
Audio
> style
Detail
>
Key Volume
reminders
Set reminder alerts for messages that
you receive:
-
>
Settings
>
Audio
> style
Detail
>
Reminders
menu view
Show the main menu as graphic icons or
as a text-based list:
-
>
Settings
>
Personalize
>
Main Menu
>
View
main menu
Reorder your phone’s main menu:
-
>
Settings
>
Personalize
>
Main Menu
>
Reorder
show/hide
menu icons
Show or hide menu feature icons in the
home screen:
-
>
Settings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
shortcuts
Create a shortcut to a menu item:
Highlight the menu item, then press and
hold
-
.
Use a shortcut:
Press
-
, then press the shortcut
number.
master reset
Reset the phone to the default settings:
-
>
Settings
>
Initial Setup
>
Master Reset
This phone will be reset to default
settings.
features
67
other features
call times
Network connection time
is the elapsed time from the
moment you connect to your service provider's network to
the moment you end the call by pressing
P
. This time
includes busy signals and ringing.
The amount of network connection time you track on
your resettable timer may not equal the amount of time
for which you are billed by your service provider. For
billing information, contact your service provider.
master clear
Erase all downloaded files and clear all
settings and entries you made
except
SIM card information, unlock code,
security code, and lifetime timer:
-
>
Settings
>
Initial Setup
>
Master Clear
Caution:
Master clear
erases all
information you have entered
(including address book and datebook
entries)
and content you have
downloaded
(including photos and
sounds) stored in your phone’s memory.
After you erase the information, you
can’t recover it.
features
call times
Show call timers:
-
>
Recent Calls
>
Call Times
features
68
other features
handsfree
Note:
The use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the
laws and regulations on the use of these products.
in-call timer
Show time information during a
call:
-
>
Settings
>
In-Call Setup
>
In-Call Timer
features
speakerphone
Activate the speakerphone during a call:
Press the
Speaker
key (if available, or
-
>
Spkrphone On
).
auto answer
(car kit or
headset)
Automatically answer calls when
connected to a car kit or headset:
-
>
Settings
>
Car Settings
or
Headset
>
Auto Answer
voice dial
(headset)
Enable voice dial with headset
send/end key:
-
>
Settings
>
Headset
>
Voice Dial
auto handsfree
(car kit)
Automatically route calls to a car kit
when connected:
-
>
Settings
>
Car Settings
>
Auto Handsfree
features
69
other features
data & fax calls
To connect your phone with a USB cable, see page 25.
power-off
delay
(car kit)
Set the phone to stay on for a
specified time after the ignition is
switched off:
-
>
Settings
>
Car Settings
>
Power-Off Delay
charger time
(car kit)
Charge the phone for a specified
time after the ignition is switched
off:
-
>
Settings
>
Car Settings
>
Charger Time
features
send data or
fax
Connect your phone to the device,
then place the call through the
device application.
receive data or
fax
Connect your phone to the device,
then answer the call through the
device application.
talk then fax
Connect your phone to the device,
enter fax number, press
-
>
Talk then Fax
, then press
N
to make
the call.
features
70
other features
network
personal organizer
using sync
You can call an Internet server and
synchronize your address book and
datebook entries with the server.
To
set up
an Internet sync partner, press
-
>
Settings
>
Connection
>
Sync
>
[New Entry]
.
Enter the server details, including
Server
URL
(you can omit
http://
) and
Data Path
(the
folder below the URL where your data is
stored).
To
synchronize files
with a partner you
set up, select the partner from the list in
-
>
Settings
>
Connection
>
Sync
.
features
network
settings
See network information and
adjust network settings:
-
>
Settings
>
Network
features
set alarm
-
>
Settings
>
Tools
>
Alarm Clock
features
71
other features
turn off alarm
When an alarm happens:
To turn off the alarm, press the
Disable
key
or
P
. To set an 8 minute delay, press
the
Snooze
key.
add new
datebook
event
-
>
Settings
>
Tools
>
Datebook
, highlight the
day, press
s
, press
-
>
New
see datebook
event
See or edit event details:
-
>
Settings
>
Tools
>
Datebook
, highlight the
day, press
s
, press the
View
key
event
reminder
When an event reminder happens:
To see reminder details, press the
View
key. To close the reminder, press the
Exit
key.
send datebook
event to
another device
Send a datebook event to another
phone, computer, or device:
-
>
Settings
>
Tools
>
Datebook
, highlight the
day, press
s
, highlight the event, press
-
>
Send
calculator
-
>
Settings
>
Tools
>
Calculator
currency
converter
-
>
Settings
>
Tools
>
Calculator
-
>
Exchange Rate
Enter exchange rate, press the
Ok
key,
enter amount, and press
-
>
Convert Currency
.
features
72
other features
security
fun & games
For basic information on the camera, see page 21.
features
SIM PIN
Lock or unlock the SIM card:
-
>
Settings
>
Security
>
SIM PIN
Caution:
If you enter an incorrect PIN
code 3 times in a row, your SIM card is
disabled and your display shows
SIM Blocked
.
lock feature
-
>
Settings
>
Security
>
Lock Application
manage
certificates
Enable or disable Internet access
certificates stored on your phone:
-
>
Settings
>
Security
>
Certificate Mgmt
Certificates are used to verify the
identity and security of Web sites when
you download files or share information.
features
manage
pictures
Manage photos, pictures, and
animations:
-
>
My Stuff
>
Pictures
manage video
clips
-
>
My Stuff
>
Videos
73
other features
manage
sounds
Manage ring tones and music that you
have downloaded or composed:
-
>
My Stuff
>
Sounds
create ring
tones
Create ring tones that you can use with
your phone:
-
>
My Stuff
>
Sounds
>
[New iMelody]
Note:
If a memory card is installed in the
phone, change to
Phone Memory
to
create ring tones with
New iMelody
.
Press
-
>
My Stuff
>
Sounds
>
-
>
Switch
Storage Device
>
Phone
>
[New iMelody]
.
start
micro-browser
-
>
MEdia Net
download
objects from
Web page
Download a picture, sound, or
other object from a Web page:
-
>
MEdia Net
, go to the page that links to
the file, highlight the link, and select it.
Note:
Normal airtime and/or carrier
usage charges apply.
Web sessions
Select or create a Web session:
-
>
Settings
>
Web Access
>
Web Sessions
features
74
other features
download
game or
application
You can download a Java™ game
or application the same way you
download pictures or other objects:
-
>
MEdia Net
, go to the page that links to
the file, highlight the link, and select it.
Note:
Normal airtime and/or carrier
usage charges apply.
start game or
application
Start a Java™ game or application:
-
>
Games & Apps
, highlight the
game or application, press the
Select
key
Note:
To install and run games stored on
your memory card, press
-
>
Games & Apps
>
[Install New]
.
features
75
service and repairs
service and repairs
If you have questions or need assistance, we're here to help.
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options. You can
also contact the Motorola Customer Support Center at
1-800-657-5778 or 1-888-390-6456 (TTY/TDD for hearing
impaired).
76
SAR Data
Specific Absorption Rate Data
SAR Data
The model wireless phone meets the government’s
requirements for exposure to radio waves.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission (FCC) of the U.S.
Government and by the Canadian regulatory authorities. These limits are
part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards
that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the safety of all
persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC and by the Canadian regulatory authorities is
1.6 W/kg.
1
Tests for SAR are conducted using standard operating positions
accepted by the FCC and by Industry Canada with the phone transmitting at
its highest certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the maximum value.
This is because the phone is designed to operate at multiple power levels
so as to use only the power required to reach the network. In general, the
closer you are to a wireless base station, the lower the power output..
Before a phone model is available for sale to the public in the U.S. and
Canada, it must be tested and certified to the FCC and Industry Canada that
it does not exceed the limit established by each government for safe
exposure. The tests are performed in positions and locations (e.g., at the
ear and worn on the body) reported to the FCC and available for review by
Industry Canada. The highest SAR value for this model phone when tested
77
SAR Data
for use at the ear is 1.58 W/kg, and when worn on the body, as described
in this user guide, is 0.76 W/kg. The SAR value for this product in its data
transmission mode (body-worn use) is 0.61 W/kg. (Body-worn
measurements differ among phone models, depending upon available
accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various phones
and at various positions, they all meet the governmental requirements for
safe exposure. Please note that improvements to this product model could
cause differences in the SAR value for later products; in all cases, products
are designed to be within the guidelines.
Additional information on Specific Absorption Rates (SAR) can be found on
the Cellular Telecommunications & Internet Association (CTIA) Web site:
http://www.phonefacts.net.
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca.
1. In the United States and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give additional protection for the
public and to account for any variations in measurements.
2. The SAR information includes the Motorola testing protocol, assessment
procedure, and measurement uncertainty range for this product.
78
index
index
A
accessories 7, 68
accessory connector port 1
airplane mode 44
alarm clock 70, 71
alert
set 42, 45
turn off 42, 49
animation 72
answer a call 11, 48
attach a number 50, 55
auto repeat 24
B
backlight 47
battery 8, 9
battery indicator 35
battery life, extending 10,
29, 47
bluetooth
indicator 34
Bluetooth connection 28,
30, 62, 71
brightness 47
browser messages 63
browser. See micro-browser
C
cables 25
calculator 71
call
answer 11, 48
end 11
make 11, 57
call forwarding 55
call timers 67, 68
call waiting 52
caller ID 50, 52, 59
camera 21
car kit 68
center key 1, 42
certificate management 72
clock 46
codes 43
conference call 55
copy files 30
D
data call 69
date, setting 46
datebook 71
desktop software
iTunes 13
79
index
dial a phone number 11, 56,
57
dialed calls 49
display 33, 47
download media objects
63, 73
DTMF tones 50, 56
E
earpiece volume 42
email 62, 63, 64
email address 57
emergency number 53
end a call 11
end key 1, 11
Enter Unlock Code
message 43
F
fax call 50, 69
find 58
fixed dial 56
format 27
forward calls 55
G
games 74
GPRS indicator 34
group mailing list 60
H
handsfree speaker 43
headset 68
headset jack 1
hold a call 52
home screen 33, 66
I
IM 64
Incoming Call message 52
instant messaging. See IM
international access code
53
iTAP text entry mode 39
iTunes 13
artwork 19
computer software 13
controls 17
memory card 19
open
phone 16
phone 16
play songs 16
playlist 18
re-installing 19
transfer music 15
upgrade software 19
80
index
J
Java applications 74
jump to 58
K
keypad 44, 66
L
language 65
linking. See Bluetooth
connection
lock
application 72
keypad 44
phone 43
SIM card 72
Low Battery message 35
M
make a call 11, 57
master clear 67
master reset 66
memory card 26
format 27
menu 36, 65, 66
menu icons 36, 66
menu indicator 33
menu key 1, 7
message 62, 63
message indicator 35
message reminders 66
micro-browser 63, 73, 74
Missed Calls message 51
MP3 sound files 25
multimedia message 62, 63
music 13, 73
transfer via iTunes 15
mute a call 52
N
navigation key 1, 7, 42
network settings 70
notepad 51
number. See phone number
numeric entry mode 41
O
object exchange 30
1-touch dial 53
optional accessory 7
optional feature 7
P
pairing. See Bluetooth
connection
passwords. See codes
personalize 65
phone number 12, 57
phonebook 50, 53, 55, 57
photo 21, 72
81
index
picture 72
picture ID 52, 59
PIN code 11, 72
play
songs
iTunes 16
playlist 18
power key 1, 11
R
received calls 49
recent calls 49
redial 50
reminders 66
restrict calls 55
return a call 51
ring style indicator 35
ring style, setting 42
ring tone 73
ringer ID 52, 59, 65
ringer volume 42, 65
roam indicator 35
S
screen saver 47
search method 58
security code 43
send key 1, 11
shortcuts 66
signal strength indicator 34
SIM 63
SIM Blocked message 11,
72
SIM card 7, 11, 72
skin 47
soft keys 1, 33
song
auto repeat 24
sound
auto repeat 24
sound options 24
speakerphone 68
speed dial 55
store your number 12
symbol entry mode 42
synchronizing 70
T
tap text entry mode 40
telephone number. See
phone number
text entry 38
text message 62, 63
time, setting 46
timers 67, 68
TTY device 56
turn on/off 11
82
index
U
unlock
application 72
keypad 44
phone 11, 43
SIM card 72
unlock code 43
USB cables 25
V
video clip 72
videos 22
voice dial 58, 68
voice name, recording 58
voicemail 54
voicemail message indicator
35, 54
volume 42, 65, 66
W
wallpaper 46
Web pages 73
Web sessions 73
wireless connection. See
Bluetooth connection
Y
your phone number 12
U.S. patent Re. 34,976
IMPORTANT SAFETY AND
LEGAL INFORMATION >
A-2
Software Copyright Notice
The Motorola products described in this manual may include copyrighted
Motorola and third-party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for
Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of the Motorola products shall
not be deemed to grant either directly or by implication, estoppel, or
otherwise, any license under the copyrights, patents, or patent applications
of Motorola or any third-party software provider, except for the normal,
non-exclusive, royalty-free license to use that arises by operation of law in
the sale of a product.
Manual Number: 6809497A47-O
A-3
Contents
Contents
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Exposure To Radio Frequency (RF) Energy. . . . . . . . . . . . . . . . . . . . . . . . 4
Operational Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RF Energy Interference/Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Driving Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operational Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Choking Hazards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Seizures/Blackouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repetitive Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
What Does this Warranty Cover? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Who Is Covered? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
What Will Motorola Do? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to Obtain Warranty Service or Other Information. . . . . . . . . . . . . 14
What Other Limitations Are There?. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Hearing Aid Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
WHO Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Product Registration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Smart Practices While Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
A-4
Safety Information
Safety and General Information
Safety Information
This section contains important information on the safe and
efficient operation of your mobile device. Read this information
before using your mobile device.
*
Exposure To Radio Frequency (RF) Energy
Your mobile device contains a transmitter and receiver. When it is ON, it
receives and transmits RF energy. When you communicate with your
mobile device, the system handling your call controls the power level at
which your mobile device transmits.
Your Motorola mobile device is designed to comply with local regulatory
requirements in your country concerning exposure of human beings to RF
energy.
Operational Precautions
For optimal mobile device performance and to be sure that human exposure
to RF energy does not exceed the guidelines set forth in the relevant
standards, always follow these instructions and precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of unauthorized
antennas, modifications, or attachments could damage the mobile device
and/or may result in your device not complying with local regulatory
requirements in your country.
* The information provided in this document supersedes the general safety
information in user’s guides published prior to September 1, 2005.
A-5
Safety Information
DO NOT hold the external antenna when the mobile device is IN USE.
Holding the external antenna affects call quality and may cause the mobile
device to operate at a higher power level than needed.
Product Operation
When placing or receiving a phone call, hold your mobile device just like
you would a landline phone.
If you wear the mobile device on your body, always place the mobile device
in a Motorola-supplied or approved clip, holder, holster, case, or body
harness. If you do not use a body-worn accessory supplied or approved by
Motorola, keep the mobile device and its antenna at least 2.5 centimeters
(1 inch) from your body when transmitting.
When using any data feature of the mobile device, with or without an
accessory cable, position the mobile device and its antenna at least
2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may cause your
mobile device to exceed RF energy exposure guidelines. For a list of
Motorola-supplied or approved accessories, visit our website at
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from
external sources if inadequately shielded, designed, or otherwise
configured for RF energy compatibility. In some circumstances your mobile
device may cause interference with other devices.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
A-6
Safety Information
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct
you to do so. These locations include hospitals or health care facilities that
may be using equipment that is sensitive to external RF energy.
In an aircraft, turn off your mobile device whenever instructed to do so by
airline staff. If your mobile device offers an airplane mode or similar
feature, consult airline staff about using it in flight.
Pacemakers
If you have a pacemaker, consult your physician before using this device.
Persons with pacemakers should observe the following precautions:
•
ALWAYS keep the mobile device more than 20 centimeters
(8 inches) from your pacemaker when the mobile device is turned
ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the pacemaker to minimize the potential for
interference.
•
Turn OFF the mobile device immediately if you have any reason to
suspect that interference is taking place.
Hearing Aids
Some digital mobile devices may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing aid
manufacturer or physician to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult your physician or the
manufacturer of your device to determine if it is adequately shielded from
RF energy.
A-7
Safety Information
Driving Precautions
Check the laws and regulations on the use of mobile devices in the area
where you drive. Always obey them.
When using your mobile device while driving, please:
•
Give full attention to driving and to the road. Using a mobile device
may be distracting. Discontinue a call if you can’t concentrate on
driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a call if
driving conditions so require.
Responsible driving practices can be found in the “Smart Practices While
Driving” section at the end of this guide and/or at the Motorola website:
www.motorola.com/callsmart
.
Operational Warnings
Obey all posted signs when using mobile devices in public areas, such as
health care facilities or blasting areas.
Automobile Air Bags
Do not place a mobile device in the air bag deployment area.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not always
posted, and can include fueling areas such as below decks on boats, fuel or
chemical transfer or storage facilities, or areas where the air contains
chemicals or particles, such as grain, dust, or metal powders.
When you are in such an area, turn off your mobile device, and do not
remove, install, or charge batteries. In such areas, sparks can occur and
cause an explosion or fire.
A-8
Safety Information
Damaged Products
If your mobile device or battery has been submerged in water, punctured, or
subjected to a severe fall, do not use it until you take it to a Motorola
Authorized Service Center. Do not attempt to dry it with an external heat
source, such as a microwave oven.
Batteries and Chargers
If jewelry, keys, beaded chains, or other conductive materials touch
exposed battery terminals, this could complete an electrical circuit (short
circuit), become very hot, and could cause damage or injury. Be careful
when handling a charged battery, particularly when placing it inside a
pocket, purse, or other container with metal objects.
Use only
Motorola Original ™ batteries and chargers.
Caution:
To avoid risk of personal injury, do not dispose of your battery in a
fire.
Your battery, charger, or mobile device may contain symbols, defined as
follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Your battery or mobile device may require recycling in
accordance with local laws. Contact your local
regulatory authorities for more information.
Do not throw your battery or mobile device in the trash.
Your mobile device contains an internal lithium ion
battery.
032374o
032376o
032375o
032377o
032378o
Li Ion BATT
A-9
Safety Information
Choking Hazards
Your mobile device or its accessories may include detachable parts, which
may present a choking hazard to small children. Keep your mobile device
and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass could
break if the product is dropped on a hard surface or receives a substantial
impact. If glass breaks, do not touch or attempt to remove. Stop using your
mobile device until the glass is replaced by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when
exposed to flashing lights, such as when playing video games. These may
occur even if a person has never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family
history of such occurrences, please consult with your physician before
playing video games or enabling a flashing-lights feature (if available) on
your mobile device.
Discontinue use and consult a physician if any of the following symptoms
occur: convulsion, eye or muscle twitching, loss of awareness, involuntary
movements, or disorientation. It is always a good idea to hold the screen
away from your eyes, leave the lights on in the room, take a 15-minute
break every hour, and stop use if you are very tired.
Repetitive Motion
When you repetitively perform actions such as pressing keys or entering
finger-written characters, you may experience occasional discomfort in
your hands, arms, shoulders, neck, or other parts of your body. If you
A-10
Safety Information
continue to have discomfort during or after such use, stop use and see a
physician.
A-11
Warranty
Motorola Limited Warranty for
the United States and Canada
Warranty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its
telephones, pagers, messaging devices, and consumer and professional
two-way radios (excluding commercial, government or industrial radios)
that operate via Family Radio Service or General Mobile Radio Service,
Motorola-branded or certified accessories sold for use with these Products
(“Accessories”) and Motorola software contained on CD-ROMs or other
tangible media and sold for use with these Products (“Software”) to be free
from defects in materials and workmanship under normal consumer usage
for the period(s) outlined below. This limited warranty is a consumer's
exclusive remedy, and applies as follows to new Motorola Products,
Accessories and Software purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as defined
above, unless otherwise
provided for below.
One (1) year
from the date of purchase
by the first consumer purchaser of the
product unless otherwise provided for
below.
Decorative Accessories
and Cases.
Decorative
covers, bezels,
PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
A-12
Warranty
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and replacement of
parts due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of
their rated capacity and batteries that leak are covered by this limited
warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper
operation, storage, misuse or abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of the product resulting from
misuse; (b) contact with liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the
Products or Accessories for commercial purposes or subjecting the Product
or Accessory to abnormal usage or conditions; or (d) other acts which are
not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage
that result from the use of Non-Motorola branded or certified Products,
Accessories, Software or other peripheral equipment are excluded from
coverage.
Monaural Headsets.
Ear
buds and boom headsets
that transmit mono sound
through a wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Consumer and
Professional Two-Way
Radio Accessories.
Ninety (90) days
from the date of
purchase by the first consumer purchaser
of the product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original warranty
or for ninety (90) days
from the date
returned to the consumer, whichever is
longer.
Products Covered Length of Coverage
A-13
Warranty
Unauthorized Service or Modification.
Defects or damages resulting
from service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than Motorola, or its authorized
service centers, are excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date
tags that have been removed, altered or obliterated; (b) broken seals or
that show evidence of tampering; (c) mismatched board serial numbers; or
(d) nonconforming or non-Motorola housings, or parts, are excluded from
coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you
may subscribe to or use with the Products Accessories or Software is
excluded from coverage.
Software
Exclusions
Software Embodied in Physical Media.
No warranty is made that the
software will meet your requirements or will work in combination with any
hardware or software applications provided by third parties, that the
operation of the software products will be uninterrupted or error free, or
that all defects in the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not
embodied in physical media (e.g. software that is downloaded from the
internet), is provided “as is” and without warranty.
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies the
copy of the software (e.g. CD-ROM, or
floppy disk).
Ninety (90) days
from the
date of purchase.
A-14
Warranty
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the
purchase price of any Products, Accessories or Software that does not
conform to this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products, Accessories or
parts. No data, software or applications added to your Product, Accessory
or Software, including but not limited to personal contacts, games and
ringer tones, will be reinstalled. To avoid losing such data, software and
applications please create a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number
designated above for the product with which they are used.
A-15
Warranty
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To
obtain service, you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the
problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most importantly;
(e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO
THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or limitation on
the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights that vary from state
to state or from one jurisdiction to another.
A-16
Warranty
Laws in the United States and other countries preserve for Motorola
certain exclusive rights for copyrighted Motorola software such as the
exclusive rights to reproduce and distribute copies of the Motorola
software. Motorola software may only be copied into, used in, and
redistributed with, the Products associated with such Motorola software.
No other use, including without limitation disassembly of such Motorola
software or exercise of the exclusive rights reserved for Motorola, is
permitted.
A-17
Hearing Aid Compatibility
Hearing Aid Compatibility with
Mobile Phones
Hearing Aid Compatibility
Some Motorola phones are measured for compatibility with hearing aids. If
the box for your particular model has “Rated for Hearing Aids” printed on it,
the following explanation applies.
When some mobile phones are used near some hearing devices (hearing
aids and cochlear implants), users may detect a buzzing, humming, or
whining noise. Some hearing devices are more immune than others to this
interference noise, and phones also vary in the amount of interference they
generate.
The wireless telephone industry has developed ratings for some of their
mobile phones, to assist hearing device users in finding phones that may
be compatible with their hearing devices. Not all phones have been rated.
Phones that are rated have the rating on their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the user’s
hearing device and hearing loss. If your hearing device happens to be
vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way
to evaluate it for your personal needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and are likely
to generate less interference to hearing devices than phones that are not
labeled. M4 is the better/higher of the two ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are likely to
be more usable with a hearing device’s telecoil (“T Switch” or “Telephone
Switch”) than unrated phones. T4 is the better/higher of the two ratings.
(Note that not all hearing devices have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
A-18
Hearing Aid Compatibility
professional may help you find results for your hearing device. The more
immune your hearing aid is, the less likely you are to experience
interference noise from mobile phones.
A-19
WHO Information
Information from the World
Health Organization
WHO I nformat ion
Present scientific information does not indicate the need for any special
precautions for the use of mobile phones. If you are concerned, you may
want to limit your own or your children’s RF exposure by limiting the length
of calls or by using handsfree devices to keep mobile phones away from
your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Product Registration
Online Product Registration:
http://www.motorola.com/warranty
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service, and
permits us to contact you should your product require an update or other
service. Registration is for U.S. residents only and is not required for
warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications Product you
will need to provide a copy of your dated sales receipt to confirm warranty
status.
Thank you for choosing a Motorola product.
A-20
Export Law Assurances
Export Law Assurances
Export Law Assurances
This product is controlled under the export regulations of the United States
of America and Canada. The Governments of the United States of America
and Canada may restrict the exportation or re-exportation of this product to
certain destinations. For further information contact the U.S. Department of
Commerce or the Canadian Department of Foreign Affairs and International
Trade.
Wireless: The New
Recyclable
Wirel ess: The New Recyc lable
Your wireless phone can be recycled. Recycling your wireless phone
reduces the amount of waste disposed in landfills and allows recycled
materials to be incorporated into new products.
The Cellular Telecommunications Industry Association (CTIA) and its
members encourage consumers to recycle their phones and have taken
steps to promote the collection and environmentally sound recycling of
end-of-life wireless devices.
As a wireless phone user, you have an important role in ensuring that this
phone is recycled properly. When it comes time to give this phone up or
trade it in for a new one, please remember that the phone, the charger, and
many of its accessories can be recycled. It's easy. To learn more about
CTIA's Recycling Program for Used Wireless Devices, please visit us at
http://promo.motorola.com/recycle/phones/
whyrecycle.html
A-21
Smart Practices While Driving
Smart Practices While Driving
Smart P ractice s While Driv ing
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile devices and
their accessories in the areas where you drive. Always obey them.
The use of these devices may be prohibited or restricted in certain
areas. Contact www.motorola.com/callsmart for more information.
Your mobile device lets you communicate by voice and data—almost
anywhere, anytime, wherever wireless service is available and safe
conditions allow. When driving a car, driving is your first responsibility. If
you choose to use your mobile device while driving, remember the
following tips:
• Get to know your Motorola mobile device and its features
such as speed dial and redial.
If available, these features help
you to place your call without taking your attention off the road.
• When available, use a handsfree device.
If possible, add an
additional layer of convenience to your mobile device with one of
the many Motorola Original
™
handsfree accessories available
today.
• Position your mobile device within easy reach.
Be able to
access your mobile device without removing your eyes from the
road. If you receive an incoming call at an inconvenient time, if
possible, let your voice mail answer it for you.
• Let the person you are speaking with know you are driving;
if necessary, suspend the call in heavy traffic or hazardous
weather conditions.
Rain, sleet, snow, ice, and even heavy
traffic can be hazardous.
• Do not take notes or look up phone numbers while driving.
Jotting down a “to do” list or going through your address book
A-22
Smart Practices While Driving
takes attention away from your primary responsibility—driving
safely.
• Dial sensibly and assess the traffic; if possible, place calls
when your car is not moving or before pulling into traffic.
If
you must make a call while moving, dial only a few numbers, check
the road and your mirrors, then continue.
• Do not engage in stressful or emotional conversations that
may be distracting.
Make people you are talking with aware you
are driving and suspend conversations that can divert your
attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local
emergency number in the case of fire, traffic accident, or medical
emergencies.*
• Use your mobile device to help others in emergencies.
If you
see an auto accident, crime in progress, or other serious emergency
where lives are in danger, call 911 or other local emergency
number, as you would want others to do for you.*
• Call roadside assistance or a special non-emergency
wireless assistance number when necessary.
If you see a
broken-down vehicle posing no serious hazard, a broken traffic
signal, a minor traffic accident where no one appears injured, or a
vehicle you know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
