Exhibit 8 Users Manual
APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FQ1
EXHIBIT 8
INSTRUCTION MANUAL
A preliminary draft copy of the Users Manual follows:
105 × 148mm
PMS 032
BLACK
CDMA
1
HELLOMOTO
Introducing your new Motorola Q CDMA wireless phone! You can
check and write e-mail
, use
the
QWERTY Keyboard
for texting capabilities, and use it with
Bluetooth Enabled
headsets.
Here’s a quick anatomy lesson.
Left Soft Key
Navigate menus.
Center Key
Selects menu
items.
Make & answer
calls.
Camera Key
Thumb Wheel
Home Key
Turn on & off,
hang up, exit
menus.
Right Soft Key
Undo/Back
Key
Microphone
ALT Key
Enter Key
Space Key
Caps Key
Back Key
Power/End Key
Call/Answer Key
Navigation Key
Message/Display
Off Ke
y
Speakerphone/Voice
Recognition Key
3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Certain mobile phone features are dependent on the
capabilities and settings of your service provider’s
network. Additionally, certain features may not be
activated by your service provider, and/or the
provider’s network settings may limit the feature’s
functionality. Always contact your service provider
about feature availability and functionality. All
features, functionality, and other product
specifications, as well as the information contained
in this user’s guide are based upon the latest
available information and are believed to be accurate
at the time of printing. Motorola reserves the right to
change or modify any information or specifications
without notice or obligation.
MOTOROLA and the Stylized M Logo are registered
in the US Patent & Trademark Office. The Bluetooth
trademarks are owned by their proprietor and used by
Motorola, Inc. under license. Microsoft, Windows,
ActiveSync, Windows Media, Outlook, Pocket
Outlook, Excel, and Word and MSN are registered
trademarks of Microsoft Corporation; and Windows
XP, Windows Mobile and Microsoft.net are
trademarks of Microsoft Corporation. All other
product or service names are the property of their
respective owners.
© Motorola, Inc., 2006.
Caution:
Changes or modifications made in the radio
phone, not expressly approved by Motorola, will void
the user’s authority to operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may
include copyrighted Motorola and third-party
software stored in semiconductor memories or other
media. Laws in the United States and other countries
preserve for Motorola and third-party software
providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or
4
reproduce the copyrighted software. Accordingly, any
copyrighted software contained in the Motorola
products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the
extent allowed by law. Furthermore, the purchase of
the Motorola products shall not be deemed to grant
either directly or by implication, estoppel, or
otherwise, any license under the copyrights, patents,
or patent applications of Motorola or any third-party
software provider, except for the normal,
non-exclusive, royalty-free license to use that arises
by operation of law in the sale of a product.
Manual Number: 6809500A11-O
contents
5
contents
start menu . . . . . . . . . . . 7
use and care . . . . . . . . . . 8
essentials . . . . . . . . . . . . 9
about this guide . . . . . . 9
battery . . . . . . . . . . . . 10
turn it on & off . . . . . . 13
make a call . . . . . . . . . 13
answer a call. . . . . . . . 13
open a program . . . . . 13
your phone number . . 14

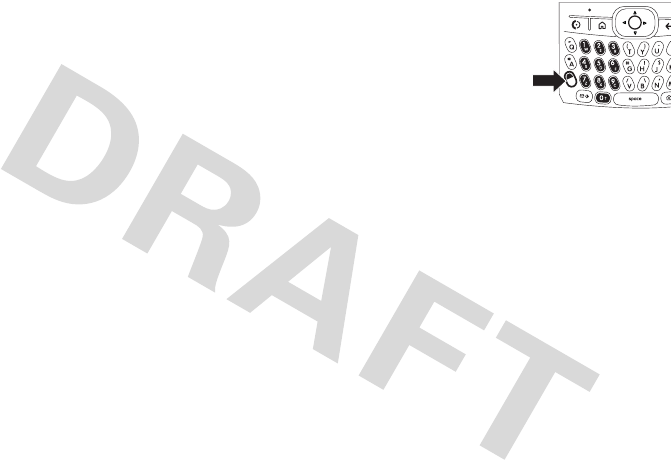

change between
uppercase, lowercase, and
caps lock. . . . . . . . . . . 14
entering text and
numbers . . . . . . . . . . . 14
undo/back key. . . . . . . 15
thumb wheel . . . . . . . 15
infrared port . . . . . . . . 15
memory card . . . . . . . 15
lock & unlock phone . . 16
lock & unlock keypad . 17
main attractions . . . . . . 18
synchronize. . . . . . . . . 18
e-mail & messages. . . 21
take & send a photo . . 31
record & play video clip 33
download and copy
media files . . . . . . . . . 36
Bluetooth® wireless. . 37
basics. . . . . . . . . . . . . . . 40
display . . . . . . . . . . . . 40
thumb wheel . . . . . . . 42
menus . . . . . . . . . . . . 43
text entry . . . . . . . . . . 45
iTAP® mode . . . . . . . . 46
numeric mode . . . . . . 47
symbol mode . . . . . . . 47
volume . . . . . . . . . . . . 47
handsfree speaker . . . 48
voice commands . . . . 48
flight mode . . . . . . . . . 50
media player . . . . . . . . 50
audio enhancement . . 51
web browser . . . . . . . 51
file manager . . . . . . . . 52
task manager . . . . . . . 52
customize . . . . . . . . . . . 54
profiles . . . . . . . . . . . . 54
time & date. . . . . . . . . 55
home screen . . . . . . . 55
backlight . . . . . . . . . . . 57
6
contents
brightness . . . . . . . . . . 57
answer options . . . . . . 57
calls. . . . . . . . . . . . . . . . . 59
turn off a call alert . . . . 59
recent calls . . . . . . . . . 59
redial . . . . . . . . . . . . . . 60
view missed call . . . . . 60
caller ID . . . . . . . . . . . . 61
emergency calls . . . . . 61
international calls. . . . . 62
speed dial . . . . . . . . . . 62
voicemail . . . . . . . . . . . 62
other features . . . . . . . . 64
advanced calling . . . . . 64
contacts. . . . . . . . . . . . 65
personalizing . . . . . . . . 68
call times & costs . . . . 70
handsfree . . . . . . . . . . 71
network connections. . 72
calendar . . . . . . . . . . . . 72
security . . . . . . . . . . . . 74
phone information . . . . 74
fun & games . . . . . . . . 75
additional information . 77
service & repair . . . . . . . 78
SAR Data . . . . . . . . . . . . 79
Microsoft License . . . . . 81
Safety Information . . . . 91
Warranty. . . . . . . . . . . . . 97
Hearing Aid
Compatibility . . . . . . . . 103
WHO Information . . . . 105
Product Registration . . 105
Export Law
Assurances. . . . . . . . . . 106
Wireless: The New
Recyclable . . . . . . . . . . 106
Smart Practices While
Driving . . . . . . . . . . . . . 108
index. . . . . . . . . . . . . . . 110
start menu
7
start menu
From the home screen, press
the
Start
Left Soft Key
.
main menu
g
Internet Explorer
v
Wireless Sync
c
Windows Media
G
Calendar
A
Active Sync
I
Call History
0
Bluetooth
K
Contacts
s
File Manager
This is the standard menu
layout.
Your phone’s menu
may be a little different.
U
Messaging
• Text Messages
• Outlook E-mail
• MMS
M
Settings
• Call Options
• Sounds
• Profiles
• Home Screen
•Clock & Alarm
• Connections
• Security
• Remove Programs
• Power Management
• Accessibility
• Regional Settings
• Owner Information
• About
• Error Reporting
• Phone Settings
• TTY Settings
• Unread Message Alert
• Text Input Settings
O
Games
e
Pocket MSN
a
Pictures & Videos
t
Voice Recognition
1
Help and QuickStart
r
Media Center
i
Speed Dial
m
Ta s k s
Y
Voice N o tes
S
Accessories
S
System Tools
* If desired menu item does
not appear on your screen,
use the navigation key, thumb
wheel, or press the
More
Left
Soft Key
.
8
start menu
use and care
use and c are
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water,
rain, extreme humidity, sweat, or
other moisture.
Don’t expose your phone to dust, dirt,
sand, food, or other inappropriate
materials.
extreme heat or cold cleaning solutions
Avoid temperatures below
-10°C/14°F or above 45°C/113°F.
To clean your phone, use only a dry
soft cloth. Don’t use alcohol or other
cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.
9
essentials
essentials
about this guide
This guide shows how to locate a menu
feature. Press the
Left
and
Right Soft Keys
to
select screen menus and options. Use the
Navigation
key (
S
) to scroll and highlight menu
features. Press the
Center Select
key (
s
) to
select items.
Find it:
Press
Start
>
Call History
>
[Incoming Call]
This example shows that, from the main or
Home Screen of the phone, you press the
Left
Soft Key
to open the
Start
menu and then use the
thumb wheel to scroll to
ICall History
then
highlight and select an incoming (
D
)call.
CAUTION:
Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
Navigation
and Center
Select Key
Left Soft Key Right Soft Key
Undo/Back
Key
Home Key
Power Key
Call/Answer Key
10
essentials
need more help?
If you need help while using your phone,
press
Start
>
Help and QuickStart
(
1
).
For more support, see Additional Information
on page 77.
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
•
Always use
Motorola Original batteries
and chargers. The warranty
does not cover damage
caused by non-Motorola batteries
and/or chargers.
•
New batteries or batteries stored for a
long time may take more time to
charge.
•
When charging your battery, keep it
near room temperature.
symbols
This means a feature is
network/subscription dependent
and may not be available in all areas.
Contact your service provider for
more information.
This means a feature requires an
optional accessory.
11
essentials
•
When storing your battery, keep it
uncharged in a cool, dark, dry place,
such as a refrigerator.
•
Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
•
It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in the
gray-edged pages at the back of this guide.

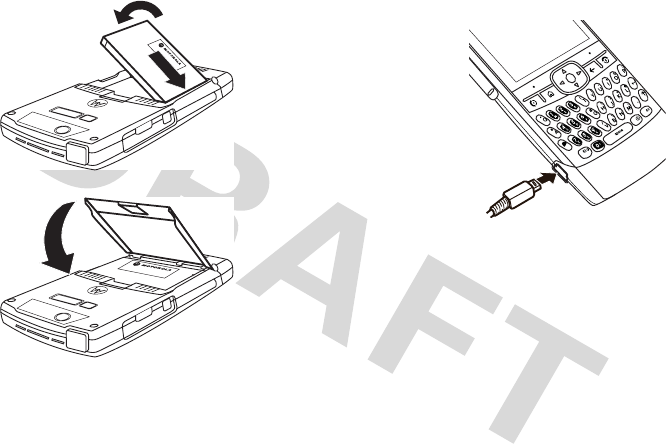

battery installation
032375o
1.
2.
12
essentials
battery charging
New batteries are
not fully charged.
You can charge
your battery by
connecting the
power supply to
your phone's
mini-USB port and
plug into a wall
outlet. Your phone
displays a full battery icon or
Charge Complete
when finished.
Tip:
Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
Note:
If your battery has been completely
drained, it cannot be charged via the USB
cable plugged into the computer (this
connection will only maintain current battery
3. a.
b.
4.
13
essentials
life). Use a wall charger or car charger to
recharge the battery. Some computer USB
ports provide a higher current than others,
and will provide more rapid charging.
turn it on & off
To turn on your
phone, press
and hold the
Power/End
key
(
O
) until the
display turns
on.
To turn off your phone, press and hold the
Power/End
key (
O
) for 3 seconds.
make a call
From the Home Screen, enter a phone
number and press the
Call /Answer
key (
N
) to
make a call. To learn how to use voice dialing,
see page 67.
answer a call
When your phone rings and/or vibrates, press
the
Call/Answer
key (
N
)
or the
Accept Left Soft Key
to answer. To “hang up,” press the
Power/End
key (
O
).
open a program
On the Home Screen and press
Start
to access
the list of programs. Use the thumb wheel or
navigation key (
S
) to scroll to a program.
Then press the center select key (
s
) or
thumb wheel to open the program.
14
essentials
your phone number
To view your phone number, press
Start
>
Settings
>
Phone Settings
>
My Telephone Number
to see
your number.
change between
uppercase, lowercase,
and caps lock
Your phone has
a QWERTY
Keypad, much
like your
computer
keyboard. You
can use it to
type e-mail and text messages, as well as
enter contact information. Here are some
basics: Press the
Caps
key (
Â
) to change
between uppercase, lowercase, and caps lock
within a text input mode. For more details
regarding text input modes see page 45.
entering text and
numbers
You enter text and
numbers using the
phone keypad.
When you select a
field that requires
text or numbers, the
phone automatically
selects the appropriate input mode. However,
if you need to switch between modes, press
the
ALT
key ( ). See the indicator at the top of
the Home Screen to identify the current text
mode setting. For details about the different
text modes, see page 45.
15
essentials
undo/back key
To return to the
previous screen or
menu, press the
Undo/Back
key (see
graphic) or use the
Back
key (
À
) on the keypad.
thumb wheel
To display a list of
options on the Home
Screen, use the thumb
wheel to scroll through
the menu.
infrared port
Use the infrared port to
sync and exchange files
with a PC or other
infrared capable device.
Tip:
Want to use
Bluetooth or USB Cable to transfer data? For
Bluetooth transfer information see page 37.
For data transfer using USB cable and
ActiveSync, see page 18.
memory card
You can use a removable memory card
with your phone to store and retrieve
multimedia objects (such as photos and
sounds).
Caution:
Do not remove your memory card
while your phone is using or writing files on it.
16
essentials
To insert a memory card:
1
Open memory slot
cover. Place fingernail
on bottom ridge of
infrared port and lift
rubber cover from the
memory slot.
2
Insert memory card,
with the contacts
facing down, into the
exposed memory
slot.
3
Place memory card
cover back in place
and push to close.
Caution:
Don’t bend or scratch your memory
card. Keep it away from static electricity,
water, and dirt.
Note:
Move media files (pictures, videos,
music) to a memory card as often as possible
to save storage space on your phone.
lock & unlock phone
You can manually lock your phone to keep
others from using it.
1
Press and hold the home key (
Y
). The
Quick List displays.
2
Highlight and select
Device Lock
.
3
In
Lock phone after
, select the amount of time
for the phone to be inactive before
automatically locking.
4
Enter and confirm your password.
5
Press
Done
.
17
essentials
To unlock the phone, press
Unlock
. When the
unlock screen displays, enter your password
and press
Unlock
.
Note:
To quickly lock the phone, press and
hold the home key (
Y
). When the Quick List
displays, select
Device lock
.
Note:
You can make emergency calls on a
locked phone (see page 61). A locked phone
still rings or vibrates for incoming calls or
messages,
but you DO NOT need to unlock
it to answer
a call.
security auto phone lock
To enable an automatic phone lock, where
your phone automatically locks after a
specified time, use auto phone lock.
Find it:
On the Home Screen, press
Start
>
Settings
>
Security
>
Enable Phone Lock
lock & unlock keypad
Press and hold the home key (
Y
). When the
Quick List displays, highlight and select
Key
Lock
. Once the keypad is locked, the
Left Soft Key
label changes to
Unlock
.
Tip:
To quickly lock the keypad press the
home key (
Y
) and then the space bar.
To unlock the phone, press
Unlock
. When the
unlock screen displays, press the
*
key.
18
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
synchronize
You can synchronize the information on your
phone in two ways, over the air (OTA) or using
a cable and your computer.
sync over the air
To sync your phone over the air (OTA) you
must sync it directly with your company’s
Microsoft Information Server or Microsoft
Exchange Server 2003. For more information
about this set-up see Additional Information
on page 77 and the Motorola Q Support
website at:
http://www.motorola.com/support/Q.
Note:
You can also contact your system
administrator to set up this synchronization.
sync with a computer
Note:
For information about connections
(Bluetooth®, VPN, and web browser) see
page 72.
You can use Microsoft® ActiveSync® version
4.1 or above to synchronize information
between your phone and desktop computer.
ActiveSync compares your phone’s contact
information, calendar appointments, e-mail
messages, and media files to those on your
19
main attractions
computer and then updates to the most
recent information.
installing and setting up ActiveSync
To synchronize information on your phone
with a PC, you must install Microsoft
ActiveSync software on your computer.
Caution:
Verify the minimum requirements
for your computer and the operating system
on the CD-ROM sleeve or Microsoft Mobile
Phone website
(http://www.microsoft.com/windowsmobile)
before installing the software.
Note:
If you do not have a CD-ROM, you can
download the latest ActiveSync software from
the Microsoft Windows Mobile website
(http://www.microsoft.com/windowsmobile).
1
Install ActiveSync on your PC.
2
After setup completes, connect your
phone to the PC. The phone drivers install
on your computer and then the Sync
Setup Wizard automatically starts.
3
Follow the instructions on the screen to
complete the wizard.
Note:
You can configure an Exchange Server
connection to synchronize directly with
Exchange Server. and Outlook e-mail clients.
The Sync Setup Wizard will prompt you for
the name of the Exchange Server, your user
name, password, and domain name. If you
don’t have this information available, you can
contact your company’s system administrator
to setup your phone or see Additional
Information on page 77 and the Motorola Q
Support website at:
http://www.motorola.com/support/Q .
When you finish the wizard, ActiveSync starts
to synchronize automatically with your phone.
20
main attractions
Once synchronization completes, you can
disconnect your phone from your PC.
synchronizing via a cable connection
Once ActiveSync
is installed on
your PC, you can
connect it to your
phone and sync.
1
Turn on the
phone.
2
Connect your phone to your PC
using a USB cable.
Note:
For more detailed information, see
“Connecting a mobile device to a PC” in
ActiveSync Help on your PC or the Microsoft
Web Site for ActiveSync.
synchronizing via Bluetooth
Once ActiveSync is installed on your PC, you
can connect it to your phone and sync via
Bluetooth.
Note:
In order to use this feature, your PC
must be equipped with Bluetooth or a
Bluetooth PC adaptor accessory.
1
Follow the instructions in ActiveSync Help
for configuring Bluetooth on your PC to
support ActiveSync.
2
Turn on the phone.
3
On your phone, verify that Bluetooth is
turned on (Press
Start
>
Bluetooth
>
Bluetooth
Manager
>
Settings
. Toggle
Status
to
Bluetooth On
).
4
Press
Start
>
ActiveSync
.
5
Select
Menu
>
Connect via Bluetooth
. Ensure
that the phone and PC are within close
range.
21
main attractions
6
If this is the first time you have connected
to this PC via Bluetooth, you must
complete the Bluetooth wizard on the
phone and set up a Bluetooth partnership
with the PC before synchronizing.
7
Select
Sync
.
8
When finished, select
Menu
>
Disconnect
Bluetooth
.
9
To preserve battery power on your phone,
turn off Bluetooth (see page 37).
synchronizing via infrared
Once ActiveSync is
installed on your PC, you
can connect it to your
phone and sync via
infrared.
Note:
To use this feature,
your PC must be
equipped with infrared capability.
1
Follow the instructions in ActiveSync Help
on the PC for setting up your PC to
receive infrared signals.
2
Turn on the phone.
3
On your phone, verify that IR is turned on
(Press
Start
>
Settings
>
Connections
>
Beam
and
select
Receive incoming beams
).
4
Line up the infrared (IR) port on your
phone and PC so that they are
unobstructed and within close range.
5
Press
Start
>
ActiveSync
.
6
Select
Menu
>
Connect via IR
.
7
Select
Sync
.
e-mail & messages
Note:
You can set up e-mail with your
company's Microsoft Exchange Server 2003.
22
main attractions
Contact your system administrator for the
required e-mail set-up information or see
Additional Information on page 77 and the
Motorola Q Support website at:
http://www.motorola.com/support/Q .
setting up e-mail
You can set up an e-mail on your phone
to check and send messages. There are
two ways to set up e-mail:
automatically or manually. If you have a
Hotmail or Pocket MSN account, see Hotmail
E-mail Setup on page 23.
automatic e-mail set up
Some e-mail providers allow for
automatic e-mail set up. Have your e-mail
address, username, and password ready and:
1
Press
Start
>
Messaging
>
Outlook E-mail
.
2
Select
Menu
>
Options
>
New Account
.
3
In
Your name
, enter your display name for
e-mail messages.
4
In
E-mail address
, enter the e-mail address for
this account.
5
Select
Attempt to obtain e-mail settings from the
Internet and select Next
.
Note:
If the account sets up successfully, you
will be prompted to send and receive e-mail.
If not, you must click
Next
and see the next
section.
manual e-mail accounts settings
If you tried to automatically set up your
account and were prompted for detailed
e-mail settings, call your e-mail (internet)
service provider for additional information.
Note:
You will need the following information
from your e-mail provider: Domain, Server
type (POP3 or IMAP4), Account name,
Incoming mail server (POP3 or IMAP4),
23
main attractions
Secure Sockets Layer (SSL) connection
requirements, and Outgoing mail server
(SMTP) to complete the set up.
1
Press
Start
>
Messaging
>
Outlook E-mail
.
2
Select
Menu
>
Options
>
New Account
.
3
In
Your name
, enter your display name for
e-mail messages.
4
In
E-mail address
, enter the e-mail address for
this account.
5
Select
Next
.
6
Enter the information from the e-mail
(Internet) service provider as appropriate
until setup is complete, and click
Finish
.
Caution:
If you save your password and then
lose your phone, someone finding your phone
may gain access to your e-mail.
Hotmail e-mail setup
If you use the Hotmail or MSN email
services, have your e-mail address, and
password ready and:
1
Press
Start
>
Pocket MSN
.
2
Select
MSN Hotmail
.
3
In
E-mail address
, enter the e-mail address for
your account.
4
In
Password
, enter the password for the
account.
5
Select
Next
.
6
Press
Menu
>
Send and Receive.
If the Hotmail account completes set up
correctly, your e-mail files and account folders
will be synchronized with your phone.
Tip:
Once you set up your Hotmail e-mail
account, you won’t need to do it again.
24
main attractions
operator hosted e-mail
If you have Operator Hosted Email, please
contact your operator, or access their web
site in order to get information about their
hosted email solution, and its compatibility
with Windows Mobile® 5.0 enabled devices.
receive & read messages
When you receive a message your
phone plays an alert and displays
New Message
with a message indicator
such as
C
.
Find it:
On the Home Screen, press
Start
>
Messaging
>E-mail account
Tip:
If you do not see a list of messages,
press
Menu
>
Folders
>
Inbox
. To return to the
Folder list, press the
Back
key (
À
).
To read a message:
To open the next message in the list from
within an open message, press the navigation
key
S
to the right; to open the previous
message in the list, press the navigation key
S
to the left.
message options
To delete, save, reply, or forward the
messages, use these quick steps from the
Inbox with a message selected or when
viewing a message:
•
To delete, press
Menu
>
Delete
.
•
To reply, press
Menu
>
Reply
or
Reply All
.
Enter the message and press
Send
.
•
To forward, press
Menu
>
Forward
. Enter
the message and press
Send
.
•
To create a contact card for the sender,
press
Menu
>
Save to Contacts
.
25
main attractions
Tip:
Need to check your e-mail right now?
Press
Start
>
Messaging
. Select the account to
send and receive messages and press
Menu
>
Send/Receive
. The phone connects to your
Internet e-mail server and sends and receives
your messages.To stop this process, press
Menu
>
Stop Send/Receive
.
send a message
You can send SMS text messages,
MMS multimedia messages to other
capable mobile phones. MMS
messages and e-mail messages can contain
pictures, animations, sounds, videos, PDFs,
compressed files, word processing and
spreadsheet files.
Find it:
Press
Start
>
Messaging
>
Text Messages
or
E-mail Account
To send a text message:
1
Press
New
.
2
For e-mail, in
To
,
Cc
, and/or
Bcc
, enter e-mail
addresses. Insert a semicolon (;) between
multiple numbers or addresses.
For text messages, enter contact
telephone number.
Tip:
You can quickly enter phone numbers
or e-mail addresses from your contact
cards. In
To
, press
Enter
(
Á
) and select a
recipient from the list. Then select the
recipient's phone number or e-mail
address.
3
Use the keypad to compose a message.
4
Press
Send
.
Tip:
In an e-mail you can insert a
picture,
voice note or file
in the message, on the
26
main attractions
message area press
Menu
>
Insert
>
or
Voice Note
or
File
.
Note:
If you select to insert a voice note
into the message, you will also need to
record it. Press
Record
and start speaking
into the phone's microphone. When
finished speaking, press
Stop
and then
Done
.
To set the priority for an e-mail message,
press
Menu
>
Message Options
.
To cancel a message, press
Menu
>
Cancel Message
.
messaging quick reference
Note:
Make sure you have an e-mail
provider and the following account
information: ISP settings, protocols,
user id, password, and sending and receiving
host information. Otherwise, you might not
get these features to work.
features
send text message
Press
Start
>
Messaging
>
Text Messages
>
New
create and send e-mail
Press
Start
>
Messaging
>
Outlook E-mail
>
E-mail Account >
New
Tip:
Remember you must have your e-mail
set up to send an e-mail (see page 21).
To add a picture, voice note, or file in an
e-mail message, in the message area press
Menu
>
Insert
>
or
Voice Note
or
File
Tip:
You can save a draft of a message that
you are composing to finish and send later.
Press
Menu
>
Save to Drafts
. A draft of the
message is stored in the Drafts folder of the
account you are in.
27
main attractions
create and add e-mail signature
Press
Start
>
Messaging
>
Outlook E-mail
> E-mail
Account
Press
Menu
>
Options > Signatures
Scroll to the account for which you are
creating the signature. Select
Use signature with
this account
.
Select the Signature box, enter your
signature, and press
Done
.
Tip:
To insert a signature in every message
you send, select I
nclude when replying and
forwarding
. Otherwise, a signature is inserted
only in new messages.
read new messages
To quickly view new messages, click
the message notification area on the Home
Screen.
features
view attachment
While viewing the message, use the
center select key (
s
) to select the
attachment.
Note:
You can view attachments only for file
types that are supported by the phone.
read old messages
Press
Start
>
Messaging
>
Outlook
E-mail
>E-mail Account
Icons next to each message show if it is
unread
J
,
read
H
,
urgent
K
,
locked
V
, or has an
attachment
R
.
features
28
main attractions
reply, reply all or forward messages
From your Inbox or an open message,
press
Menu
>
Reply or Reply All
or
Forward
Tip:
If you are replying to an e-mail in the
Outlook E-mail account, you will send less
data if you do not edit the original message.
This may reduce data transfer costs based
on your rate plan.
features
download message objects
If an e-mail message includes an
attachment, when you open the
message, the name of the
attachment will appear highlighted. To
download the attachment, click the
highlighted attachment name. The
attachment is downloaded the next time
you synchronize or connect to your e-mail
server.
Note:
If there are multiple attachments in
the message, all attachments are
downloaded.
insert a media object in an e-mail
To add a picture, voice note, or file in an
e-mail message, in the composing message
area press
Menu
>
Insert
>
or
Voice Note
or
File.
features
29
main attractions
download complete e-mail messages
Press
Start
>
Messaging
>
Outlook
E-mail
>E-mail Account > Message
Press
Menu
>
Download Message
.
The complete message is retrieved the next
time you synchronize or connect to your
e-mail server and send and receive e-mail.
features
mark a folder for synchronization
When you synchronize your Outlook
E-mail account with your PC, the same
Inbox folders that are in Outlook on your PC
are created on your phone.
Press
Start
>
Messaging
>
Outlook E-mail
Press
Menu
>
Folders > Menu > Show all Folders
Press
Menu
>
Manage Folders
> Folder >
Sync
Note:
Make sure to mark your e-mail sent
folder for synchronization, or you won’t be
able to view sent message status.
features
30
main attractions
view status of sent e-mail
Press
Start
>
Messaging
>
Outlook E-mail
>E-mail
Account
Messages are sorted from newest to
oldest. If you see a
e
, your message was
successfully sent. If a
>
is displayed, your
message could not be sent. Try again, the
e-mail provider network could be busy.
receive e-mail
If your phone is set up to
automatically check for new messages,
your phone will display the message
waiting (
e
) indicator when a new message
arrives.
Press the
Read
key to open the message.
features
delete e-mail
From the Inbox or an open e-mail message:
Press
Menu
>
Delete
manually send and receive e-mail
Press
Start
>
Messaging
>
Outlook E-mail
>
E-mail Account
Press
Menu
>
Send/Receive
.
call a phone number in e-mail
Highlight a phone number in a
message and press
N
.
create personal folders
Press
Start
>
Messaging
>
Outlook
E-mail
>E-mail Account > Message
Press
Menu
>
Manage Folders
features
31
main attractions
take & send a photo
Press and hold the
Camera
(
Í
) key for 2
seconds to see the camera viewfinder:
Tip:
To adjust picture settings (
mode
,
brightness
,
resolution
,
zoom
,
white
balance
, and
flash
) in the camera viewfinder
press
Menu
.
1
Point the camera lens at the photo
subject.
move e-mail to personal folder
After you’re done reading the e-mail:
Press
Menu
>
Move >
Folder
delete a mail account
Press
Start
>
Messaging
> E-mail Account
Press
Menu
>
Options > Account Options >
E-mail
Account
Press
Menu
>
Delete
Note:
You cannot delete your Text
Messages or Outlook E-mail accounts.
empty deleted items folder
Press
Start
>
Messaging
> E-mail Account
Press
Menu
>
Folders > Deleted items
Press
Menu
>
Empty Folder
features
32
main attractions
2
Press the
Camera
(
Í
) key again or the
center select key (
s
) to take a photo.
The picture is automatically saved and
displays in the view finder.
3
Press
Menu
to see the camera options.
•
To delete the photo and return to the
active viewfinder, select
Delete
.
•
To send the photo, select
Send
.
Your send options are
Text Messages
,
Outlook E-mail
, or
MMS
(Multimedia
Message).
•
To sent the picture via Bluetooth,
select
Bluetooth
.
•
To beam the picture via the Infrared
port, select
Beam
.
•
To use the picture as the Home Screen,
select
Use as Home Screen
.
•
To edit the picture, select
Edit
.
•
To view image properties, like the
filename, select
Properties
.
•
To view picture option, select
Options
.
Note:
Pictures are automatically stored in
your phone. To view them: Press
Start
>
Pictures
& Videos
. Select the picture to view and press
View
.
Tip:
To view pictures located in a folder other
than the default pictures folder, including a
storage card, press
Start
>
Pictures & Videos
>
Menu
>
Folde
r, and select the folder that contains
stored pictures.
self portrait
1
Press the
Camera
(
Í
) key to activate the
camera.
2
Press
Menu
>
Mode > Timer
.
33
main attractions
3
Press the
Camera (Í) key
to start the 5
second delay.
4
Aim the camera lens at yourself.
5
When you hear the camera shutter sound,
the photo is taken, and your photo
displays.
picture options
In the picture viewfinder press
Menu
>
Options
to
open the
Picture Options Menu
. This menu can
include the following options:
record & play video clip
record a video clip
Find it:
Press the
Camera
(
Í
) >
Menu
>
Video
option
General
Determine default picture sizes
for e-mail and rotating picture
settings.
Slide Show
Select default slide show
settings.
Camera
Select default locations to store
pictures, filename prefixes, and
image compression.
Video
Determine audio settings and
time limits for video files.
option
01:33
Remaining
recording
time
Current
recording
length
34
main attractions
Tip:
To adjust video settings (
still
,
brightness
,
quality
, and
white balance
) in
the video viewfinder, press
Menu
.
1
Point the camera lens at the photo
subject.
2
Press the
Camera
(
Í
) key or the center
select key (
s
) to begin recording a video.
The video displays in the viewfinder.
3
Press
Stop
to end recording the video
altogether, or press
Pause
to pause
recording and
Resume
to continue
recording.
Note:
Videos are automatically stored in
your phone. To view them: Press
Start
>
Pictures & Videos
. Select the video to view
and press
Play
or r the center select key
(
s
).
Tip:
To view videos located in a folder other
than the default video folder, including a
storage card, press
Start
>
Pictures & Videos
>
Menu
>
Folder
, and then select the folder that
contains the stored videos.
video options
In the video viewfinder press
Menu
>
Options
to
open the Options Menu. This menu can
include the following options:
Note:
General
and
Slideshow
options are also
available in this menu, however these settings
are specific to picture files only.
option
Camera
Select default save locations,
video filename prefixes, and
image compression.
Video
Determine audio and time limit
settings for video files.
35
main attractions
play a video clip
For more video playback and Windows Media
features, see page 50.
Find it:
Press
Start
>
Pictures & Videos
> video clip
>
Play
The video clip displays in the Windows Media
screen.
Tip:
To play video in full screen, press
Menu
>
Full Screen
. Not all videos play in full screen
mode. Only those videos that were captures
in the correct resolution.
If a call comes in while watching a video, the
video pauses and a call alert appears. You can
choose to answer the call or ignore it. To
continue watching the movie, select the
Play
button.
video playback options
In the video playback window press
Menu
>
Options
to open the
Video Playback Menu
. This menu
can include the following options:
option
Playback
Determines how the time
counter is displayed, whether to
pause playback while using
another program, and whether
to resume playback after a
phone call.
36
main attractions
download and copy
media files
You can copy or download media files from
your computer or the Internet onto your
phone.
copy files from your computer
To copy files from your computer to your
phone:
Note:
You must have ActiveSync on your PC
installed as described on page 18.
1
Connect the phone to your PC.
2
In ActiveSync on your PC, click
Explore
and
double-click
My Windows Mobile
device.
3
On your computer, find the files you
would like to copy to your device and
paste the files into the
My Windows Mobile
folder.
4
Resync your phone and computer and
then view the picture or video on your
phone from
Start
>
Pictures & Videos
.
Video
Options for displaying in full
screen and when to scale to fit
window.
Network
Selects default network settings
for streaming media.
Library
Determines if the player starts
on the Library screen.
Skins
Determine Windows Media
Player skin theme.
Buttons
Set playback button mapping.
option
37
main attractions
Bluetooth® wireless
Your phone supports Bluetooth wireless
pairing (also called linking or bonding). You can
pair your phone with a Bluetooth headset or
car kit, or pair your phone with a computer to
exchange and synchronize files.
Note:
The use of wireless devices and their
accessories may be prohibited or restricted in
certain areas. Always obey the laws and
regulations on the use of these products.
turn Bluetooth power on or off
If Bluetooth
Power
is
On
, your phone can
automatically pair with the handsfree device
you have used before. Just turn on the device
or move it near the phone.
To turn Bluetooth on: Press
Start
>
Bluetooth
>
Bluetooth Manager
>
Settings
then toggle
Status
to
Bluetooth On
.
The Bluetooth indicator
à
displays in the
Home Screen.
Note:
To extend battery life, use the previous
procedure to set Bluetooth
Power
to
Off
when
not in use. Your phone will not pair with
devices until you set Bluetooth
Power
back to
On
and pair your phone with the devices again.
pair with a headset or
handsfree device
Before you try to pair your phone with a
device
, make sure your phone’s Bluetooth
power is
on
and the device is
on
and
ready
in
pairing or bonding mode (see the device
user’s guide). You can pair your phone with
multiple devices, but only use it with one
headset device at a time.
Your phone lists the devices it finds within
range.
38
main attractions
1
Press
Start
>
Bluetooth Manager
>
Hands-free
.
2
Put the device (handsfree headset,
stereo headset, keyboard, etc.) in pairing
mode.
3
Press
Add
. The phone prompts you to
verify your device is ready. Press
Search
.
4
Select the device from the list.
5
When prompted press
Yes
to pair with the
device.
6
If necessary, enter the device passkey
(such as 0000) and press the
Accept
key.
When the devices are paired, an icon appears
on the Home Screen in the Bluetooth Task
Tr a y.
Tip:
For specific information about the
Bluetooth device you are using with your
phone, refer to the instructions that came
with it.
send objects to another device
You can use Bluetooth pairing to send
text messages, contacts, tasks,
calendar items, audio, ring tones, pictures,
video, and voice notes from your phone to a
computer or other device.
1
Press Start
>
Bluetooth
>
BT Send Object
.
2
Select the object type and object you
want to send.
Tip:
To select an item, press the center
select key (
s
).
3
Press
Send
.
4
Select the name of the device to send the
file.
5
To cancel sending an item, press
Menu
>
Cancel
.
39
main attractions
advanced Bluetooth features
features
make phone visible to other device
Allow a Bluetooth device to discover
your phone:
Press
Start
>
Bluetooth
>
Bluetooth Manager
>
Settings
> Allow other Bluetooth devices to see this phone
connect to recognized device
Connect to a recognized handsfree
device:
Press
Start
>
Bluetooth
>
Bluetooth Manager
>
Hands-free
> device name
drop pairing with device
Press
Start
>
Bluetooth
>
Bluetooth Manager
>
Hands-free
> device name >
Menu
>
Delete
send object to device
Send an object to another device:
Press Start
>
Bluetooth
>
BT Send Object
edit device properties / change
device name
Edit the properties of a recognized device:
Press
Start
>
Bluetooth
>
Bluetooth Manager
>
Hands-free
> device name >
Menu
>
Properties >
Nickname
Tip:
To change the Bluetooth name of your
phone, press
Start
>
Bluetooth
>
Bluetooth Manager
>
Settings
and enter the name in
My Bluetooth
name
.
features
40
basics
basics
See page 1 for a basic phone diagram.
display
The Home Screen displays when you turn on
the phone. To dial a number from the Home
Screen, press number keys and
N
.
Note:
Your Home Screen may look different,
than this one, depending on your service
provider.
Soft Key Labels show the current soft key
functions. For soft key locations, see page 1.
Press the navigation key
S
up, down, left, or
right or use the thumb wheel to navigate
basic menu items or text in the Home Screen.
Press the home key (
Y
) to return to the
Home Screen.
Navigation
and Center
Select Key
Left Soft Key Right Soft Key
ALT Key
Caps Key
Enter Key
Undo/Back
Key
Home Key
Space
Key
Messages
Key
Camera
Key
Voice
Recognition
Key
41
basics
Status indicators can display at the top of the
Home Screen:
1Roam Indicator –
The roam
indicator
ã
shows when your
phone is seeking or using a network
outside your home network. Other
indicators can include:
2 Bluetooth Indicator –
Shows connection
status. Indicators can include:
3 Message Indicators –
Shows
when you receive new messages.
Indicators can include:
4 Signal Strength Indicator –
Vertical bars show the strength of
the network connection. You can’t
make or receive calls when no vertical
bars are displayed.
5 Battery Level Indicator –
Vertical bars
show the battery charge level. Recharge
the battery when your phone shows one
or two bars. Arrow indicators above the
battery indicator, signifies data transfer to
the phone.
)
= 2G home
+
= roaming
unavailable
Q
C
6.
Battery
Level
7.
Profile
2.
Bluetooth
8.
Location
5.
Signal
Strength
1.
Roam
3
.
Message
E
= Bluetooth ® wireless connection
C
= new e-mail or
text message
B
= voicemail
message
42
basics
6Profile Indicator –
Shows the profile (ring
style) setting. When the profile is normal,
outdoor, or automatic no indicator is
displayed.
Note:
You cannot change to
speakerphone mode from the Profiles
menu.
7 Location Indicator –
Shows when
your phone can send location
information
#
or not
$
.
thumb wheel
You can use the thumb
wheel to scroll through
menu items and lists.
Press the thumb
wheel to select the
highlighted item in a
list or menu.
Tip:
Use the
Back
button (the button below the
thumb wheel) to undo the current action or
return to the previous screen.
<
= meeting (no icon) = headset
(no icon) = car (no icon) = normal
Q
= silent (no icon) = outdoor
%
=
speakerphone
(no icon) = automatic
43
basics
menus
From the Home Screen, press
Start
to open the
main menu.
Use the navigation key
S
up, down, left, or
right or thumb wheel to see more menu
items.
The following menu icons may be available in
the main menu.
The Phone Company
11:36 PM
Partner Meeting - Discuss project schedule
10:30 AM Room 100
Profile: Normal
11/10/2005
Contacts
C #QJ0
a
Scroll up, down,
left, or right.
Press center to
select
highlighted
menu feature.
Access
the main
menu.
Name of
Highlighted
Menu Feature
Icon
Exit menu without
making changes.
Return to
previous menu.
menu features
gInternet Explorer vWireless Sync
cWindows Media G Calendar
AActiveSync I
Call History
44
basics
Some features require you to select an option
from a list:
•
Scroll up or down to highlight the
option you want.
•
In a numbered list, press a number key
to highlight an option.
•
In an alphabetized list, use the
keyboard and press the first letter of
the desired item and the phone will
highlight the closest matching list
option.
0Bluetooth KContacts
s
File Manager UMessaging
MSettings OGames
ePocket MSN aPictures & Videos
tVoice Recognition 1Help and QuickStart
rMedia Center iSpeed Dial
m Tasks Y Voice Notes
SAccessories SSystem Tools
menu features
45
basics
•
When an option has a list of possible
settings, noted by an arrow displayed
next to the option, scroll left or right to
select the setting.
•
When an option has a list of possible
numeric values, press a number key to
set the value.
•
Press
Menu
for additional items for
option.
text entry
You can enter text and numbers using the
keypad. When you select a field that requires
text or numbers, the phone automatically
selects the appropriate entry mode. The
status indicator at the top right of the display
screen shows the entry mode you are
currently using.
Press the
ALT
key ( ) in a text entry
screen to select an entry mode:
input modes
i
primary key entry
Press
Menu
to
open sub-menu.
Flashing
cursor
indicates
insertion
point.
Press the
Complete
when finished.
For indicator descriptions,
see following section.
46
basics
•
To backspace and delete a single
character in any input mode, press the
Back
key (
À
).
To backspace and delete an entire text
or numeric field in any input mode,
press and hold the
Back
key (
À
).
•
To enter a symbol, press the
ALT
key
( ) and then the
Caps
key (
Â
). The
Symbol page displays. Press the center
select key (
s
) or thumb wheel to
select the symbol you want.
•
To enter numbers quickly, press
Alt
key
( ), to switch to
ALT
mode.
Tip:
If a field permits a numeric entry
only, like a phone number, the input
mode automatically defaults to
secondary key entry mode.
•
To start a new line, press
Enter
(
Á
).
iTAP® mode
iTAP mode lets you enter words using one
keypress per letter. The iTAP software
combines your keypresses into common
words, and predicts each word as you enter it.
Ã
Secondary key entry. In this
mode the next key pressed will
be the secondary character. After
next key is pressed, the device
will return to primary key entry
mode.
Ä
Secondary key lock. In this
mode all subsequent
keypresses will be
secondary keys until the
ALT
key
( ) is pressed again.
input modes
47
basics
If you want a different word (such as
Progress
),
continue pressing keypad keys to enter the
remaining characters.
numeric mode
Press
Alt
key to activate the secondary key
mode (top keypad symbols) and enter the
numbers you want.
symbol mode
Press the
Alt
key and then the
Caps
key (
Â
). The
Symbol page displays. Select the symbol you
want and click
Done
.
volume
Press and hold the
thumb wheel to
adjust earphone,
speaker, or headset
volume.
•
Need to
change
profiles on the
fly? On the Home Screen, scroll to and
select
Profile
. Choose from
Normal
,
Silent
,
Meeting
and others.
•
Want to turn off a sound? Press
Start
>
Settings
>
Sounds
. Highlight the desired
item and select the sound you want to
associate with that item.
Tip:
You can eliminate the ringer volume
instantly when an incoming call comes in--just
use the thumb wheel to turn the ringer off.
48
basics
handsfree speaker
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
You can use your
phone’s handsfree
speaker on calls
without holding the
phone to your ear.
During a call, press
the
Voice
key (see
graphic) or press
Menu
>
Speakerphone On
.
Your phone displays
Spkrphone On
until you turn it
off or end the call.
Note:
The handsfree speaker won’t work
when your phone is connected to a car kit or
headset.
voice commands
You can use voice commands to make calls,
and to open and use some phone
applications.
Note:
Not all phone languages support voice
recognition and voice commands.
open applications
To open a call a contact, send a text message,
look up contact information or open a
program:
49
basics
1
Press and hold the voice key for 2
seconds.
Your phone prompts you to say a
command.
2
Say one of the following commands:
“Call <contact name or phone number>,”
“Send text <contact name>,” “Look up
<contact name>,” or “Open <program
name>.”
Your phone will respond to the request by
making a call, opening a text message
screen, open the contact information for
requested contact, or open the program.
Tip:
Speak numbers at a normal speed and
volume, pronouncing each digit distinctly.
Avoid pausing between digits.
Notes:
•
Your phone may prompt you to repeat a
name or number. If the name/number
isn’t valid, the phone doesn’t make the
call.
•
If the phone does not recognize the
name or number, the display shows a
list of names/numbers, asks, “Did you
say ...,” and highlights the first item in
the list. Say “Yes” to call the
highlighted number, or “No” to go to
the next list item.
To select the name or number
manually, scroll to the name/number
on the list and press the
Select
key.
50
basics
flight mode
You can put your phone in flight mode to
safely access your address book, games,
camera, and music in areas where cellular
network access is prohibited (i.e. during
airline flights and in hospitals).
To turn flight mode on or off: Press and hold
the home key (
Y
). The Quick List displays.
Highlight and select
Flight Mode
.
Tip:
To turn off flight mode, press and hold
the home key (
Y
), when the Quick List
displays, highlight and select
Flight Mode
Off
.
media player
You can use Windows Media Player 10.1
Mobile for Smartphone to play digital audio
and video files that are stored on your phone
or on the Web.
By default, Windows Media Player Mobile can
play the following types of files: Windows
Media Audio (WMA), Windows Media Video
(WMV), and Motion Picture Experts Group-2
Audio Layer-3 (MP3).
Find it:
Press
Start
>
Windows Media
•
To play or pause a music or video file,
press
Enter
(
Á
).
51
basics
•
To skip to the previous or next file,
press the navigation key (
S
) left or
right.
•
To increase or decrease the volume,
press the navigation key (
S
) up or
down.
Tip:
If you need to turn the sound off,
press
#
.
•
To switch to full screen video playback,
press
0
.
•
To fast forward or rewind, press and
hold the navigation key (
S
) left or
right.
Tip:
Do you want to play a song or
video on the Internet or network? Use
the Open URL command. From the
Library screen press
Menu
>
Open URL
(if
you need to get to the Library screen,
in Windows Media, press
Menu
>
Library
).
For more information about
downloading or copying video files see
page 36.
audio enhancement
Your phone allows you to adjust surround
sound, bass, and clarity levels for the phone
speakers as well as your headset.
Find it:
From the Home Screen, press
Start
>
Accessories
>
Audio Enhancement
Note:
If you are adjusting headset audio,
make sure you wear your headset when
adjusting audio levels. You can also set the
speaker size for your particular headset.
web browser
You can use Internet Explorer Mobile to
search and view the web.
52
basics
Find it:
Press
Start
>
Internet Explorer
•
To go to a web page, press
Menu
>
Address Bar
. Enter the address and press
Go
.
•
To go to a link in a web page, use the
navigation key to highlight the link and
then press the center select key (
s
).
•
Change connection options, press
Menu
>
Tools
>
Options
>
Connections
.
•
To show/hide pictures, press
Menu
>
View
>
Show Pictures
.
•
To add web address to your Favorites,
open the web page and press
Menu
>
Add to Favorites
.
file manager
You can use File Manager to sort, view, copy,
and move files on your phone. Files you might
want to use in file manager include text,
pictures, music, and video files.
Find it:
On the Home Screen, press
Start
>
File
Manager
task manager
Want to see what programs are running
(active) on your phone? Use the Task Manager
53
basics
to see the programs, or stop a specific
program from running.
Find it:
On the Home Screen, press
Start
>
System Tools
> T
ask Manager
Tip:
Need to stop running program? In T
ask
Manager
, select the program and press
Menu
>
Kill
.
Note:
If you want to completely remove a
program from your phone, from the Home
Screen, press
Start
>
Settings
>
Remove Programs
.
54
customize
customize
profiles
Each profile uses a different set of sounds,
ring styles, earpiece volume settings, or
vibrations for incoming calls and other events.
For example, the Outdoor profile volume is
much louder than the Normal profile.
Here are the profiles you can choose:
The ring style profile’s indicator displays at the
top of your Home Screen.
Note:
The ring style profile indicators do not
display in all Home Screen settings and will
not display if the Home Screen is set to
Windows simple or Large Font.
To choose your profile:
Find it:
On the Home Screen, scroll and
select
Profile:
> profile style name
change sounds in profile
You can change the alerts for incoming calls
and other events. Your changes are saved in
the current ring style profile.
Find it:
Press
Start
>
Settings
>
Sounds
Note:
Changes made to the alert settings will
have no effect when using the
Silent
profile.
Normal Silent
Meeting Outdoor
Automatic Headset
Car Speakerphone
55
customize
1
Scroll and highlight the sound you want to
change, then press the navigation key
(
S
) right or left to change it.
2
Press the
Done
key to save the sound
setting.
time & date
Your service provider usually sets the time
and date on your phone. But, if you decide to
change it manually:
Find it:
Press
Start
>
Settings
>
Clock & Alarm
>
Date
and Time
1
In
Time Zone
, use the navigation key (
S
) to
select your time zone.
2
In
Date
, edit the month, day, or year.
Tip:
The change the
month, day, and year,
press the
Alt
key (see
graphic) repeatedly.
3
In
Time
, edit the hour,
minute, and second.
Tip:
The change the hour, minute, and
second press the
Alt
key repeatedly.
4
Press
Done
to save the clock and date
settings.
You can specify the date and time style by
changing the regional settings. Press
Start
>
Settings
>
Regional Settings
home screen
Set a photo, picture, or animation as a
wallpaper (background) image or change your
56
customize
layout and color scheme on your Home
Screen.
Find it:
Press
Start
>
Settings
>
Home Screen
copy image to background
Want to copy an image from your PC to your
phone to use as a background image?
Note:
You must have ActiveSync on your PC
installed as described on page 18.
1
Connect the phone to your PC.
2
On your PC, copy the image file you want.
The file format must be .gif, .jpg, or .bmp.
3
In ActiveSync on your PC, click Explore
and double-click My Windows Mobile
device.
4
Double-click Application Data, double-click
Home, and paste the image into that
folder.
Note:
For best results, use images with the
same screen resolution as your phone's
screen resolution, either 240 x 320 pixels, or
176 x 200 pixels, depending on the phone.
options
Home
Screen
Layout
Select a layout for the Home
Screen.
Color
Scheme
Select a color scheme for the
display.
Background
Select a picture for your
wallpaper image, or
None
for no
wallpaper.
Time out
Select the time interval before
the display will go inactive or
Never
.
57
customize
5
Resync your phone and computer and
then set the background to the image you
copied to the phone.
backlight
To save battery life, your
backlight
turns off
when you’re not using your phone. The
backlight turns back on when you press a key.
To set how long your phone waits before the
backlight turns off:
Press
Start
>
Settings
>
Power Management
>
Backlight
time out on battery
and
Backlight time out on AC
To save battery life, the
display
can turn off
when you’re not using your phone. The
display turns back on when press a key. To set
how long your phone waits before the display
turns off:
Press
Start
>
Settings
>
Power Management
>
Display Time out
brightness
Use a long press on the
the messaging /
brightness key (see
graphic) to increase the
backlight brightness to
medium. To increase the
backlight brightness to
high, press the messaging/brightness key
again.
answer options
You can use additional, alternative methods to
answer an incoming call. To activate or
deactivate an answer option:
Find it:
Press
Start
>
Settings
>
Call Options
>
Any key answer
58
customize
When selected, you can put the first call on
hold and answer the second call by pressing
Answer
. To switch between calls, press
Swap
.
To postpone answering the call, press
Ignore
.
The call is placed in voicemail.
59
calls
calls
To make and answer calls, see page 13.
turn off a call alert
You can use the thumb wheel to turn off the
ringer before answering the call.
recent calls
Your phone keeps a list of incoming and
outgoing calls, even for calls that didn’t
connect. The most recent calls are listed first.
The oldest calls are deleted as new calls are
added.
Find it:
Press
Start
>
Call History
1
Highlight a call.
•
To call the number, press
N
.
•
To see call details (like time and date),
press the center select key
s
.
•
To s e e
Menu Options
, press
Menu
from the
Call History screen. This menu
includes:
options
Find Contact
Find this phone number in your
Contacts.
Send Text
Message
Send a text message to this
phone number.
E-mail
Send an e-mail message to this
Contact.
View Timers
View the call times for this call
and all calls.
60
calls
redial
1
Press
N
from the Home Screen to see
the dialed calls list.
2
Highlight the entry you want to call, then
press
N
.
If you hear a
busy signal
and you see
Call Failed, Number Busy
, press
N
or the
RETRY
key to redial the number. When
the call goes through, your phone rings or
vibrates one time, displays
Redial Successful
, and
connects the call.
view missed call
Your phone keeps a record of your
unanswered calls.
1
Press
Start
>
Call History
.
2
Press
Menu
>
Filter
>
Missed Calls
.
Delete/
Delete List
Delete this call from the Call
History.
Save to
Contacts
Save this number to a Contact.
Filter
Filter all calls in the Call History
list. Filtering calls allows you to
group calls in a specific matter.
For example, if you filter the list
for all Missed Calls, all the
incoming phone calls that you
did not answer will be listed
first.
options
61
calls
caller ID
Calling line identification (caller ID)
shows the phone number for an
incoming call on your Home Screen.
Your phone shows the caller’s name and
picture when they’re stored in your
phonebook, or
Incoming Call
when caller ID
information isn’t available.
You can set your phone to play a distinctive
ringer ID for specific entries stored in your
phonebook (see page 66).
To show or hide
your phone number
for the
next outgoing call:
Find it:
Press
Start
>
Settings
>
Phone
>
Caller ID
>
Callers
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911 or
112, that you can call under any
circumstances, even when your phone and
keypad are locked.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
1
Press the keypad keys to dial the
emergency number.
2
Press
N
to call the emergency number.
62
calls
international calls
If your phone service includes
international dialing, press and hold
0
to insert your local international access
code (indicated by
+
). Then, press the keypad
keys to dial the country code and phone
number.
speed dial
To call speed dial entries, press and hold the
single-digit speed dial number for one second.
If the speed dial is two digits, press the first
digit, and press and hold the second digit. The
phone dials the phone number, opens a new
e-mail message, or goes to the Web page.
You can set the speed dial to call the entries in
your phone’s contact list:
1
Press
Start
>
Contacts
.
2
Scroll to the desired contact and press
Select
key.
3
Select the phone number, e-mail address,
or web address for which to create the
speed dial.
4
Press
Menu
>
Add to Speed Dial.
5
In the
Keypad Assignment
, select the speed
dial number to use.
6
Press
Done
.
Note:
Speed dial 1 is reserved for calling
your voicemail.
voicemail
Your network stores the voicemail
messages you receive. To listen to your
messages, call your voicemail number.
63
calls
Note:
Your service provider may include
additional information about using this
feature.
When you
receive
a voicemail message, your
phone displays the voicemail message
indicator
t
and
New Voicemail
.
To
check
voicemail messages:
Press and hold the
1
key.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number) character in your voicemail number.
If you want to store a voicemail number with
these characters, create a contact and when
entering the voicemail number press
Menu
to
insert these special characters.Then, you can
use the entry to call your voicemail.
64
other features—advanced calling
other features
advanced calling
features
speed dial
Speed dial a contact, e-mail address
or web address:
Press and hold the speed dial number.
If the speed dial is two digits, press the first
digit, and press and hold the second digit.
To store phone book entries on your phone,
see page 62.
Tip:
If you forget Aunt Mildred’s speed dial
number, press
Start
>
Contacts
, and find her
entry.
TTY calls
Set up your phone for use with an
optional TTY device:
Press
Start
>
Settings
>
TTY Settings
make call from hyperlink phone
number
You can quickly dial a phone number from
an e-mail or text message that contains a
hyperlink phone number. A hyperlink phone
number is underlined in the same manner
as a Web site address.
From a message containing a hyperlink
phone number, select the phone number
and press
N
.
features
other features—contacts
65
contacts
make call from the contact list
You can quickly dial a phone number
from the contact list.
Press
Start
>
Contacts
. Select the contact and
press
N
.
Tip:
If you have a long list of contacts, you
can use a shortcut to find the contact you
want. Enter the first few letters of the
contact's name. The phone searches
through the contact list and displays the
name.
features
features
add new entry
Press
Start
>
Contacts
>
New
Enter information for the new contact.
Tip:
If someone who isn't in your list of
contacts calls you or sends you a message,
you can create a contact from Call History,
or from the message by clicking
Menu
>
Save
to Contacts
edit contact
Press
Start
>
Contacts
> Contact Name
Press
Menu
>
Edit
66
other features—contacts
dial number
Call a number stored in the phonebook:
Press
Start
>
Contacts
>Contact Name >
N
The contact’s default number is dialed.
Tip:
To call a phone number other than the
default, click the contact, scroll to the
number you want to dial, and press
N
.
search for contact
Enter the first few letters of the contact's
name. The phone searches through the
contact list and displays the name.
features
set ringer ID for a contact
To easily identify who is calling you by the
ring tone, you can assign a custom ring
tone to each contact.
Press
Start
>
Contacts
> Contact Name
Press
Menu
>
Edit
>
Custom Ring Tone
features
other features—contacts
67
set picture ID for contact
Assign a photo or picture to display when
you receive a call from an entry:
Press
Start
>
Contacts
> Contact Name
Press
Menu
>
Edit
>
Tip:
If you want to instantly take a picture
with the camera for this contact, press the
Camera
(
Í
) key and take a picture.
Tip:
Want to remove a picture ID? Press
Start
>
Contacts
> Contact Name
> Menu
>
Edit
>
Remove Picture
voice dial
To user voice dialing:
Press
Start
>
Voice Recognition
features
set category for contact
Press
Start
>
Contacts
> Contact Name
Press
Menu
>
Edit
>
Categories
Tip:
Categories are shared between your
appointments, contacts, and tasks. A
category will remain in the list of shared
categories as long as it is assigned to at
least one appointment, contact, or task.
set category view
Press
Start
>
Contacts
Press
Menu
>
Filter
features
68
other features—personalizing
personalizing
send contact to another device
Use a Bluetooth® connection or Infrared
connection to send a contact to another
phone, computer, or device:
Press
Start
>
Contacts
> Contact Name
Press
Menu
>
Beam Contact
Status information displays, indicating the
name of the device to which the phone is
beaming, and whether the beaming
process is pending, finished, or was
unsuccessful.
For more about Bluetooth connections, see
page 37.
Tip:
Remember you can only do this if you
have an active Bluetooth connection.
features
features
language
Set menu language:
Press
Start
>
Settings
>
Regional Settings
Note:
You must turn your phone off and on
again for the changes to take effect.
Tip:
If you want to specify a language for
reading e-mail, while reading a message
press
Menu
>
Languages
.
ring volume
Use the thumb wheel to adjust ring volume
from the Home Screen.
Tip:
You can eliminate the ringer volume
instantly when an incoming call comes
in--just use the thumb wheel to turn the
ringer off.
other features—personalizing
69
accessibility
You can set system font size, multipress
timeout, confirmation timeout, and in-call
alerts:
Press
Start
>
Settings
>
Accessibility
calendar events
The default reminder time for tasks and
calendar items is 15 minutes. To change
this default:
Press
Start
>
Calendar
> event >
Reminder
features
sounds
To change the default sounds for ring tone,
reminders, new messages, alarm clock, or
keypad controls:
Press
Start
>
Settings > Sounds
Note:
Changes made to the alert settings
will have no effect when using the
Silent
profile.
alarm
Press
Start
>
Settings > Clock & Alarm
Tip:
Need to change or set the alarm alert
style? Press
Start
>
Settings
>
Sounds
>
Alarm
Clock
features
70
other features—call times & costs
call times & costs
Network connection time
is the elapsed
time from the moment you connect to your
service provider's network to the moment
you end the call by pressing
O
. This time
includes busy signals and ringing.
The amount of network connection time
you track on your resettable timer may not
equal the amount of time for which you
are billed by your service provider. For
billing information, contact your service
provider.
owner information
Entering and displaying owner information
are best practices; they allow someone to
return the phone to you in case it is lost:
Press
Start
>
Settings > Owner Information
master reset
Reset all options except
unlock
code,
security code, and lifetime timer:
Press
Start
>
System Tools > Master Reset
features
features
call times
The default reminder time for tasks
and calendar items is 15 minutes. To
change this default:
Press
Start
>
Call History
Press
Menu
>
View Timers
other features—handsfree
71
handsfree
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
reset call timers
To reset all call timers to zero (0), except for
the Lifetime calls timer:
Press
Start
>
Call History
Press
Menu
>
View Timers
Press
Menu
>
Reset Timers
features features
speakerphone
Activate a connected external
speakerphone during a call:
Press the
Voice
key or press
Menu
>
Speakerphone On
.
Note:
With a Bluetooth headset press
Menu
>
Handsfree Off
and then press
Menu
>
Speakerphone On.
auto answer
(car kit or headset)
Change to the headset profile to
automatically answer calls when connected
to a car kit or headset:
Press
Start
>
Settings
>
Profiles
>
Headset
72
other features—network connections
network connections calendar
features
create proxy, Virtual Private Network
(VPN), or dial-up network
Every network connection is
different. You should gather all of the
relevant information or network
settings you need before starting this
process:
Press
Start
>
Settings
>
Connections
Note:
For additional documentation and
information about this feature, see page 77.
beam
To allow your phone to receive data
beamed from other devices (via Bluetooth®
or Infrared):
Press
Start
>
Settings
>
Connections
>
Beam
features
add new calendar event
Press
Start
>
Calendar
Press
Menu
>
New Appointment
Note:
To schedule an all-day event, under
End time
, select
All day event
.
All-day events do not occupy blocks of time
in Calendar; instead, they appear in banners
at the top of the calendar.
view calendar event
To quickly view today's agenda, on the
Home Screen, scroll and press the center
select key (
s
) on an upcoming
appointment (if one is present).
To view previous or approaching dates,
scroll left or right, or click
Menu
>
Go to Date
.
other features—calendar
73
calendar event reminder
The default reminder time for tasks and
calendar items is 15 minutes. To change
this default:
Press
Start
>
Calendar
Press
Menu
>
Options
>
Set Reminders
features
send calendar event to another device
Use a Bluetooth® connection to send a
calendar event to another phone, computer,
or device:
From the calendar item, press
Menu
>
Beam
.
If using Bluetooth, select the device to
which you want to send the item.
If using infrared, align the infrared (IR) ports
at close range until the target device name
appears, and then select the device to
which you want to send the item.
For more about Bluetooth connections, see
page 37.
calculator
Press
Start
>
Accessories
>
Calculator
features
74
other features—security
security
phone information
respond to a meeting request
You can receive and respond to Outlook
meeting requests on your phone in a similar
manner as you do in Outlook on your PC.
Press
Start
>
Messaging
>
Outlook E-mail
>E-mail
Account > Meeting Request
Press
Menu
>
Accept, Decline, or Tentative
features
features
manage certificates
Enable or disable Internet access
certificates stored on your phone:
Press
Start
>
Settings
>
Security
>
Certificate
Certificates are used to verify the identity
and security of Web sites when you
download files or share information.
features
software version
To view your phone software version:
Press
Start
>
Settings
>
About
other features—fun & games
75
fun & games
memory & storage
To view your available and total memory
capabilities of your phone and memory card
use Memory Manager.
Press
Start
>
System Tools
>
Memory Manager
features
manage pictures
Manage pictures:
Press
Start
>
Pictures & Videos
features
manage sounds
Manage ring tones and music that you have
downloaded or composed:
Press
Start
>
Windows Media
For more information about Windows
Media, see page 50.
manage video clips
Manage video clips:
Press
Start
>
Pictures & Videos
For more information about Windows
Media, see page 50.
start web-browser
Press
Start
>
Internet Explorer
For more information about Internet
Explorer Mobile, see page 51.
features
76
other features—fun & games
download objects from web page
Download a picture, sound, or phone
theme from a Web page:
Highlight the file, press the
Select
key, press
the
Store
key.
Note:
Normal airtime and/or carrier usage
charges apply.
disconnect web sessions
Press the
End Session
key.
features
77
additional information
additional information
Need additional assistance or more
documentation? See the following websites:
Motorola Q Support Website:
www.motorola.com/support/Q
Microsoft Windows Mobile Websites:
Windows Smartphone Support
http://www.microsoft.com/windowsmobi
le/smartphone/default.mspx
Virtual Private Network and ActiveSync
http://download.microsoft.com/downlo
ad/1/c/5/1c541c3d-c8c7-4899-81fd-1b8
e9bac09ed/readme.doc
.
78
service & repair
service & repair
If you have questions or need assistance,
we're here to help.
Go to
www.motorola.com/support/Q
,
where you can select from a number of
customer care options. You can also contact
the Motorola Customer Support Center at
1-800-657-7576 (United States),
1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575
(Canada).
SAR Data
79
Specific Absorption Rate Data
SAR Data
This model meets international
guidelines for exposure to radio
waves.
Your mobile device is a radio transmitter and
receiver. It is designed not to exceed the limits for
exposure to radio waves recommended by
international guidelines. These guidelines were
developed by the independent scientific organization
ICNIRP and include safety margins designed to
assure the protection of all persons, regardless of
age and health.
The guidelines use a unit of measurement known as
the Specific Absorption Rate, or SAR. The ICNIRP
SAR limit for mobiles devices used by the general
public is 2 W/kg and the highest SAR value for this
device when tested at the ear was ___ W/kg.
1
As
mobile devices offer a range of functions, they can be
used in other positions, such as on the body as
described in this user guide.
2
In this case, the highest
tested SAR value is ___ W/kg.
1
As SAR is measured utilizing the device’s highest
transmitting power, the actual SAR of this device
while operating is typically below that indicated
above. This is due to automatic changes to the power
level of the device to ensure it only uses the
minimum level required to reach the network.
While there may be differences between the SAR
levels of various phones and at various positions,
they all meet the governmental requirements for safe
exposure. Please note that improvements to this
product model could cause differences in the SAR
value for later products; in all cases, products are
designed to be within the guidelines.
Specific Absorption Rate Data
SAR Data 79
14SAR Data
THIS MODEL MEETS INTERNATIONAL GUIDELINES FOR
EXPOSURE TO RADIO WAVES
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure
to radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the general population.
The guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg1
Tests for SAR are conducted using standard operating positions accepted
by the FCC and by Industry Canada with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the
phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as
to use only the power required to reach the network. In general, the closer
you are to a wireless base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S. and
Canada, it must be tested and certified to the FCC and Industry Canada
that it does not exceed the limit established by each government for safe
exposure. The tests are performed in positions and locations
(e.g., at the ear and worn on the body) reported to the FCC and available
for review by Industry Canada. The highest SAR value for this model phone
when tested for use at the ear is 1.11 W/kg, and when worn on the body, as
described in this user guide, is 1.47 W/kg. (Body-worn measurements differ
among phone models, depending upon available accessories and
regulatory requirements).2
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
governmental requirements for safe exposure. Please note
that improvements to this product model could cause
differences in the SAR value for later products; in all cases,
products are designed to be within the guidelines.
The World Health Organisation has stated that present
scientific information does not indicate the need for any
special precautions for the use of mobile devices. They note
that if you want to reduce your exposure then you can do so
by limiting the length of calls or using a 'hands-free' device
to keep the mobile phone away from the head and body.
Additional Information can be found on the websites of the
World Health Organisation (http://www.who.int/emf) or
Motorola, Inc. (http://www.motorola.com/rfhealth).
_______________________________________________________________________________________________
* The tests are carried out in accordance with international
guidelines for testing. The limit incorporates a substantial
margin for safety to give additional protection for the public
and to account for any variations in measurements.
Additional related information includes the Motorola testing
protocol, assessment procedure, and measurement
uncertainty range for this product.
** Please see the Safety and General Information section about
body worn operation.
14.Specific Absorption Rate Data
80
SAR Data
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the
need for any special precautions for the use of
mobile phones. If you are concerned, you may want
to limit your own or your children’s RF exposure by
limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head
and body.
Source: WHO Fact Sheet 193
Further information: http://www.who.int./peh-emf
80
SAR Data
The World Health Organization has stated that
present scientific information does not indicate the
need for any special precautions for the use of
mobile devices. They note that if you want to reduce
your exposure then you can do so by limiting the
length of calls or using a “hands-free” device to keep
the mobile phone away from the head and body.
Additional Information can be found on the websites
of the World Health Organization
(
http://www.who.int/emf
) or Motorola, Inc.
(
http://www.motorola.com/rfhealth
).
1. The tests are carried out in accordance with
international guidelines for testing. The limit
incorporates a substantial margin for safety to give
additional protection for the public and to account for
any variations in measurements. Additional related
information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty
range for this product.
2. Please see the Safety and General Information section
about body worn operation.
Microsoft License
81
Microsoft End User License Agreement
Micros oft License
You have acquired a device ("DEVICE") that includes
software licensed by Motorola, Inc. ("Motorola") from
one or more third-party licensors ("Licensor"), for use
in connection with wireless network services
provided under separate agreement between you and
a wireless telecommunications provider ("Mobile
Operator"). Those installed software products
provided by Licensor, as well as associated media,
printed materials, and "online" or electronic
documentation ("SOFTWARE") are protected by
international intellectual property laws and treaties.
SOFTWARE includes software already installed on
the DEVICE ("DEVICE Software") and Licensor
software contained on any CD-ROM disk
accompanying the DEVICE ("Desktop Software").
The SOFTWARE is licensed, not sold. All rights
reserved.
IF YOU DO NOT AGREE TO THIS END USER LICENSE
AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR
COPY THE SOFTWARE. INSTEAD, PROMPTLY
CONTACT MOTOROLA FOR INSTRUCTIONS ON
RETURN OF THE UNUSED DEVICE(S) FOR A REFUND.
ANY USE OF THE SOFTWARE, INCLUDING BUT NOT
LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE
YOUR AGREEMENT TO THIS EULA (OR RATIFICATION
OF ANY PREVIOUS CONSENT).
1. GRANT OF SOFTWARE LICENSE. This EULA grants
you the following license:
1.1. DEVICE Software. You may use the DEVICE
Software as installed on the DEVICE (including as
installed on removable media installed in the
DEVICE). All or certain portions of the DEVICE
Software may be inoperable if a proper account is
not established or maintained with an appropriate
Mobile Operator, or if the Mobile Operator's network
82
Microsoft License
facilities are not operating or configured to operate
with the DEVICE software.
1.2. Desktop Software. If Desktop Software is
included with your DEVICE, you may install and use
the Desktop Software on one (1) or more computers
to exchange information with one (1) or more
computing devices that contain a compatible version
of the DEVICE Software. For other software
component(s) contained in the Desktop Software, you
may install and use such components only in
accordance with the terms of the printed or online
end user license agreement(s) provided with such
component(s). In the absence of an end user license
agreement for particular component(s) of the Desktop
Software, you may install and use only one (1) copy
of such component(s) on the DEVICE or a single
computer with which you use the DEVICE.
1.3. Back-up Copy. If Motorola has not included a
back-up copy of the DEVICE Software with the
DEVICE, you may make a single back-up copy of the
DEVICE Software. You may use the back-up copy
solely for archival purposes.
1.4. Microsoft Windows® 2003. If Microsoft
Outlook® 2002 is included with your Device, the
following terms apply to your use of Microsoft
Outlook® 2002: (i) regardless of the information
contained in "Software Installation and Use" section
of the online EULA you may install one (1) copy of
Microsoft Outlook® 2002 on one (1) computer to use,
exchange data, share data, access and interact with
the DEVICE, and (ii) the EULA for Microsoft Outlook®
2002 is between Motorola and the end user - not
between the PC manufacturer and end user.
2. Speech/Handwriting Recognition. If the Software
includes speech and or handwriting recognition
component(s), you should understand that speech
and handwriting recognition are inherently statistical
processes; that recognition errors are inherent in the
processes; that it is your responsibility to provide for
handling such errors and to monitor the recognition
processes and correct any errors. Motorola, its
Microsoft License
83
affiliates, subsidiaries, or suppliers shall not be liable
for any damages arising out of errors in the speech
and handwriting recognition processes.
3. Limitations on Reverse Engineering, Decompilation
and Disassembly. You may not reverse engineer,
decompile, or disassemble the SOFTWARE, except
and only to the extent that such activity is expressly
permitted by applicable law notwithstanding this
limitation.
4. Single DEVICE. The Device Software is licensed
with the DEVICE as a single integrated product. The
DEVICE Software may only be used as part of the
DEVICE, notwithstanding any installation of the
DEVICE Software on removable media.
5. Single EULA. The package for the DEVICE may
contain multiple versions of this EULA, such as
multiple translations and/or multiple media versions
(e.g., in the user documentation and in the software).
Even if you receive multiple versions of the EULA, you
are licensed to use only one (1) copy of the DEVICE
Software.
6. Rental. You may not rent or lease the SOFTWARE.
7. Software Transfer. You may not permanently
transfer any of your rights under this EULA with
regard to the DEVICE Software or Desktop Software,
except as permitted by the applicable Mobile
Operator. In the event that the Mobile Operator
permits such transfer, you may permanently transfer
all of your rights under this EULA only as part of a
sale or transfer of the DEVICE, provided you retain no
copies, you transfer all of the SOFTWARE (including
all component parts, the media and printed materials,
any upgrades or backup copies, this EULA and, if
applicable, the Certificate(s) of Authenticity), and the
recipient agrees to the terms of this EULA. If the
Software is an upgrade, any transfer must include all
prior versions of the SOFTWARE.
8. Termination. Without prejudice to any other rights,
Motorola, Licensor and their affiliates and
subsidiaries may terminate this EULA if you fail to
comply with the terms and conditions of this EULA. In
84
Microsoft License
such event, you must destroy all copies of the
SOFTWARE and all of its component parts.
9. Security Updates. The SOFTWARE may include
digital rights management technology. If SOFTWARE
does contain digital rights management technology,
content providers are using the digital rights
management technology ("Licensor DRM") contained
in the SOFTWARE to protect the integrity of their
content ("Secure Content") so that their intellectual
property, including copyright, in such content is not
misappropriated. Owners of such Secure Content
("Secure Content Owners") may, from time to time,
request Licensor, or its subsidiaries or affiliates to
provide security related updates to the Licensor DRM
components of the SOFTWARE ("Security Updates")
that may affect your ability to copy, display and/or
play Secure Content through Licensor software or
third party applications that utilize Licesnor DRM.
You therefore agree that, if you elect to download a
license from the Internet which enables your use of
Secure Content, Licensor, its subsidiaries or affiliates
may, in conjunction with such license, also download
onto your DEVICE such Security Updates that a
Secure Content Owner has requested that Licensor,
its subsidiaries or affiliates, to distribute. Licensor,
its subsidiaries or affiliates will not retrieve any
personally identifiable information, or any other
information, from your DEVICE by downloading such
Security Updates.
10. Consent to Use of Data. You agree that Licensor,
its subsidiaries and affiliates may collect and use
technical information gathered in any manner as part
of product support services related to the
SOFTWARE.. Licensor, its subsidiaries and affiliates
may use this information solely to improve their
products or to provide customized services or
technologies to you. Licensor, its affiliates and
subsidiaries may disclose this information to others,
but not in a form that personally identifies you.
11. Internet Gaming/Update Features. If the
SOFTWARE provides, and you choose to utilize, the
Internet gaming or update features within the
SOFTWARE, it is necessary to use certain computer
Microsoft License
85
system, hardware, and software information to
implement the features. By using these features, you
explicitly authorize Licensor, its subsidiaries and
affiliates, and/or their designated agent to use this
information solely to improve their products or to
provide customized services or technologies to you.
Licensor, its subsidiaries and affiliates may disclose
this information to others, but not in a form that
personally identifies you.
12. Internet-Based Services Components. The
SOFTWARE may contain components that enable and
facilitate the use of certain Internet-based services.
You acknowledge and agree that Licensor, its
affiliates and subsidiaries may automatically check
the version of the SOFTWARE and/or its components
that you are utilizing and my provide upgrades or
supplements to the SOFTWARE that may be
automatically downloaded to your Device.
13. Links to Third Party Sites. The SOFTWARE may
provide you with the ability to link to third party sites
through the use of the SOFTWARE. The third party
sites are NOT under the control of Motorola,
Licensor, or their affiliates or subsidiaries. Neither
Motorola, Licensor, nor their affiliates or subsidiaries
are responsible for (i) the contents of any third party
sites, any links contained in third sites, or any
changes or updates to third party sites, or (ii)
webcasting or any other form of transmission
received from any third party sites. If the SOFTWARE
provides links to third party sites, those links are
provided to you only as a convenience, and the
inclusion of any link does not imply an endorsement
of the third party site by Motorola, Licensor, or their
affiliates or subsidiaries.
14. Additional Software/Services. The SOFTWARE
may permit Motorola, Licensor, their affiliates or
subsidiaries to provide or make available to you
SOFTWARE updates, supplements, add-on
components, or Internet-based services components
of the SOFTWARE after the date you obtain your
initial copy of the SOFTWARE ("Supplemental
Components").
86
Microsoft License
14.1. If Motorola, or its subsidiaries or affiliates,
provides or makes available to you Supplemental
Components and no other EULA terms are provided
along with the Supplemental Components, then the
terms of this EULA shall apply.
14.2. If Licensor, or its affiliates or subsidiaries, make
available Supplemental Components, and no other
EULA terms are provided, then the terms of this EULA
shall apply, except that the Licensor, or its affiliates
or subsidiaries providing the Supplemental
Component(s) shall be the licensor of the
Supplemental Component(s).
14.3. Motorola, Licensor, and their affiliates and
subsidiaries reserve the right to discontinue any
Internet-based services provided to you or made
available to you through the use of the SOFTWARE.
15. UPGRADES AND RECOVERY MEDIA.
15.1. DEVICE Software. If the DEVICE Software is
provided by Motorola, its subsidiaries or affiliates,
separate from the DEVICE on media such as a ROM
chip, CD ROM disk(s) or via web download or other
means, and is labeled "For Upgrade Purposes Only" or
"For Recovery Purposes Only", you may install one
copy of such DEVICE Software on the DEVICE as a
replacement copy for the existing DEVICE Software
and use it in accordance with the Grant of Software
License section of this EULA.
15.2. Desktop Software. If any Desktop Software
component(s) is provided by Motorola, its
subsidiaries or affiliates, separate from the DEVICE
on CD ROM disk(s) or via web download or other
means, and labeled "For Upgrade Purposes Only" or
"For Recovery Purposes Only", you may (i) install and
use one copy of such component(s) on the
computer(s) you use to exchange data with the
DEVICE as a replacement copy for the existing
Desktop Software component(s).
16. COPYRIGHT. All title and intellectual property
rights in and to the SOFTWARE (including but not
limited to any images, photographs, animations,
video, audio, music, text and "applets", incorporated
into the SOFTWARE), the accompanying printed
Microsoft License
87
materials, and any copies of the SOFTWARE, are
owned by Motorola, Licensor, and/or their affiliates,
subsidiaries, or suppliers. You may not copy the
printed materials accompanying the SOFTWARE. All
title and intellectual property rights in and to the
content which may be accessed through use of the
SOFTWARE is the property of the respective content
owner and may be protected by applicable copyright
or other intellectual property laws and treaties. This
EULA grants you no rights to use such content. All
rights not specifically granted under this EULA are
reserved by Motorola, Licensor, their affiliates,
subsidiaries, and suppliers.
17. EXPORT RESTRICTIONS. You acknowledge that
SOFTWARE is subject to U.S. export jurisdiction. You
agree to comply with all applicable international and
national laws that apply to the SOFTWARE, including
the U.S. Export Administration Regulations, as well
as end-user, end-use and destination restrictions
issued by U.S. and other governments.
18. PRODUCT SUPPORT. Product support for the
SOFTWARE is NOT provided by Licensor, its parent
corporation, or their affiliates or subsidiaries.
19. NO LIABILITY FOR CERTAIN DAMAGES. EXCEPT
AS PROHIBITED BY LAW, MOTOROLA, LICENSOR,
AND THEIR AFFILIATES AND SUBSIDIARIES, SHALL
HAVE NO LIABILITY FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES
ARISING FROM OR IN CONNECTION WITH THE USE
OR PERFORMANCE OF THE SOFTWARE. THIS
LIMITATION SHALL APPLY EVEN IF ANY REMEDY
FAILS OF ITS ESSENTIAL PURPOSE.
20. FOR APPLICABLE LIMITED WARRANTIES AND
SPECIAL PROVISIONS PERTAINING TO YOUR
PARTICULAR JURISDICTION, PLEASE REFER TO
YOUR WARRANTY BOOKLET INCLUDED WITH THIS
PACKAGE OR PROVIDED WITH THE SOFTWARE
PRINTED MATERIALS.
88
Microsoft License
89
Important Safety and Legal Information
90
Software Copyright Notice
The Motorola products described in this manual may
include copyrighted Motorola and third-party
software stored in semiconductor memories or other
media. Laws in the United States and other countries
preserve for Motorola and third-party software
providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any
copyrighted software contained in the Motorola
products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the
extent allowed by law. Furthermore, the purchase of
the Motorola products shall not be deemed to grant
either directly or by implication, estoppel, or
otherwise, any license under the copyrights, patents,
or patent applications of Motorola or any third-party
software provider, except for the normal,
non-exclusive, royalty-free license to use that arises
by operation of law in the sale of a product.
Manual Number: 6809497A59-O
Safety Information
91
Safety and General Information
Safety Information
This section contains important information on
the safe and efficient operation of your mobile
device. Read this information before using your
mobile device.
*
Exposure To Radio Frequency
(RF) Energy
Your mobile device contains a transmitter and
receiver. When it is ON, it receives and transmits RF
energy. When you communicate with your mobile
device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply
with local regulatory requirements in your country
concerning exposure of human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be
sure that human exposure to RF energy does not
exceed the guidelines set forth in the relevant
standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use
only a Motorola-supplied or approved replacement
antenna. Use of unauthorized antennas,
modifications, or attachments could damage the
mobile device and/or may result in your device not
* The information provided in this document supersedes
the general safety information in user’s guides
published prior to September 1, 2005.
92
Safety Information
complying with local regulatory requirements in your
country.
DO NOT hold the external antenna when the mobile
device is IN USE. Holding the external antenna
affects call quality and may cause the mobile device
to operate at a higher power level than needed.
Product Operation
When placing or receiving a phone call, hold your
mobile device just like you would a landline phone.
If you wear the mobile device on your body, always
place the mobile device in a Motorola-supplied or
approved clip, holder, holster, case, or body harness.
If you do not use a body-worn accessory supplied or
approved by Motorola, keep the mobile device and its
antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
When using any data feature of the mobile device,
with or without an accessory cable, position the
mobile device and its antenna at least
2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by
Motorola may cause your mobile device to exceed RF
energy exposure guidelines. For a list of
Motorola-supplied or approved accessories, visit our
website at
www.motorola.com
.
RF Energy
Interference/Compatibility
Nearly every electronic device is subject to RF energy
interference from external sources if inadequately
shielded, designed, or otherwise configured for RF
energy compatibility. In some circumstances your
mobile device may cause interference with other
devices.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Safety Information
93
Follow Instructions to Avoid
Interference Problems
Turn off your mobile device in any location where
posted notices instruct you to do so. These locations
include hospitals or health care facilities that may be
using equipment that is sensitive to external RF
energy.
In an aircraft, turn off your mobile device whenever
instructed to do so by airline staff. If your mobile
device offers an airplane mode or similar feature,
consult airline staff about using it in flight.
Pacemakers
If you have a pacemaker, consult your physician
before using this device.
Persons with pacemakers should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from your
pacemaker when the mobile device is turned
ON.
•
DO NOT carry the mobile device in the breast
pocket.
•
Use the ear opposite the pacemaker to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if
you have any reason to suspect that
interference is taking place.
Hearing Aids
Some digital mobile devices may interfere with some
hearing aids. In the event of such interference, you
may want to consult your hearing aid manufacturer or
physician to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult
your physician or the manufacturer of your device to
determine if it is adequately shielded from RF energy.
94
Safety Information
Driving Precautions
Check the laws and regulations on the use of mobile
devices in the area where you drive. Always obey
them.
When using your mobile device while driving, please:
•
Give full attention to driving and to the road.
Using a mobile device may be distracting.
Discontinue a call if you can’t concentrate on
driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or
answering a call if driving conditions so
require.
Responsible driving practices can be found in the
“Smart Practices While Driving” section at the end of
this guide and/or at the Motorola website:
www.motorola.com/callsmart
.
Operational Warnings
Obey all posted signs when using mobile devices in
public areas, such as health care facilities or blasting
areas.
Automobile Air Bags
Do not place a mobile device in the air bag
deployment area.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are
often but not always posted, and can include fueling
areas such as below decks on boats, fuel or chemical
transfer or storage facilities, or areas where the air
contains chemicals or particles, such as grain, dust,
or metal powders.
When you are in such an area, turn off your mobile
device, and do not remove, install, or charge
batteries. In such areas, sparks can occur and cause
an explosion or fire.
Safety Information
95
Damaged Products
If your mobile device or battery has been submerged
in water, punctured, or subjected to a severe fall, do
not use it until you take it to a Motorola Authorized
Service Center. Do not attempt to dry it with an
external heat source, such as a microwave oven.
Batteries and Chargers
If jewelry, keys, beaded chains, or other conductive
materials touch exposed battery terminals, this could
complete an electrical circuit (short circuit), become
very hot, and could cause damage or injury. Be
careful when handling a charged battery, particularly
when placing it inside a pocket, purse, or other
container with metal objects.
Use only
Motorola Original ™ batteries and chargers.
Caution:
To avoid risk of personal injury, do not
dispose of your battery in a fire.
Your battery, charger, or mobile device may contain
symbols, defined as follows:
Choking Hazards
Your mobile device or its accessories may include
detachable parts, which may present a choking
Symbol Definition
Important safety information
follows.
Do not dispose of your battery or
mobile device in a fire.
Your battery or mobile device may
require recycling in accordance
with local laws. Contact your local
regulatory authorities for more
information.
Do not throw your battery or
mobile device in the trash.
Your mobile device contains an
internal lithium ion battery.
032374o
032376o
032375o
032377o
032378o
Li Ion BATT
96
Safety Information
hazard to small children. Keep your mobile device
and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of
glass. This glass could break if the product is dropped
on a hard surface or receives a substantial impact. If
glass breaks, do not touch or attempt to remove. Stop
using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures
or blackouts when exposed to flashing lights, such as
when playing video games. These may occur even if
a person has never had a previous seizure or
blackout.
If you have experienced seizures or blackouts, or if
you have a family history of such occurrences, please
consult with your physician before playing video
games or enabling a flashing-lights feature (if
available) on your mobile device.
Discontinue use and consult a physician if any of the
following symptoms occur: convulsion, eye or muscle
twitching, loss of awareness, involuntary
movements, or disorientation. It is always a good
idea to hold the screen away from your eyes, leave
the lights on in the room, take a 15-minute break
every hour, and stop use if you are very tired.
Repetitive Motion
When you repetitively perform actions such as
pressing keys or entering finger-written characters,
you may experience occasional discomfort in your
hands, arms, shoulders, neck, or other parts of your
body. If you continue to have discomfort during or
after such use, stop use and see a physician.
Warranty
97
Motorola Limited Warranty for the United States
and Canada
War ra nt y
What Does this Warranty
Cover?
Subject to the exclusions contained below, Motorola,
Inc. warrants its telephones, pagers, messaging
devices, and consumer and professional two-way
radios (excluding commercial, government or
industrial radios) that operate via Family Radio
Service or General Mobile Radio Service,
Motorola-branded or certified accessories sold for
use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other
tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and
workmanship under normal consumer usage for the
period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows
to new Motorola Products, Accessories and Software
purchased by consumers in the United States or
Canada, which are accompanied by this written
warranty:
98
Warranty
Products and Accessories
Products
Covered
Length of Coverage
Products and
Accessories
as
defined above,
unless otherwise
provided for below.
One (1) year
from the date
of purchase by the first
consumer purchaser of the
product unless otherwise
provided for below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™
covers and cases.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Monaural
Headsets.
Ear
buds and boom
headsets that
transmit mono
sound through a
wired connection.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the
date of purchase by the first
consumer purchaser of the
product.
Products and
Accessories that
are Repaired or
Replaced.
The balance of the
original warranty or for
ninety (90) days
from the
date returned to the
consumer, whichever is
longer.
Products
Covered
Length of Coverage
Warranty
99
Exclusions
Normal Wear and Tear.
Periodic maintenance,
repair and replacement of parts due to normal wear
and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged
capacity falls below 80% of their rated capacity and
batteries that leak are covered by this limited
warranty.
Abuse & Misuse.
Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical damage
(cracks, scratches, etc.) to the surface of the product
resulting from misuse; (b) contact with liquid, water,
rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the
Products or Accessories for commercial purposes or
subjecting the Product or Accessory to abnormal
usage or conditions; or (d) other acts which are not
the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and
Accessories.
Defects or damage that result from
the use of Non-Motorola branded or certified
Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration, or
modification in any way by someone other than
Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals or
that show evidence of tampering; (c) mismatched
board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from
coverage.
Communication Services.
Defects, damages, or
the failure of Products, Accessories or Software due
to any communication service or signal you may
subscribe to or use with the Products Accessories or
Software is excluded from coverage.
100
Warranty
Software
Exclusions
Software Embodied in Physical Media.
No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by third
parties, that the operation of the software products
will be uninterrupted or error free, or that all defects
in the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media (e.g.
software that is downloaded from the internet), is
provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer
purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair,
replace or refund the purchase price of any Products,
Accessories or Software that does not conform to
this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or
applications added to your Product, Accessory or
Software, including but not limited to personal
contacts, games and ringer tones, will be reinstalled.
To avoid losing such data, software and applications
please create a back up prior to requesting service.
Products Covered Length of
Coverage
Software.
Applies only to
physical defects in the
media that embodies the
copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from the date of
purchase.
Warranty
101
How to Obtain Warranty
Service or Other Information
You will receive instructions on how to ship the
Products, Accessories or Software, at your expense,
to a Motorola Authorized Repair Center. To obtain
service, you must include: (a) a copy of your receipt,
bill of sale or other comparable proof of purchase;
(b) a written description of the problem; (c) the name
of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable)
and, most importantly; (e) your address and
telephone number.
What Other Limitations Are
There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY,
OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging
Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the
telephone number designated above for the
product with which they are used.
102
Warranty
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS,
LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING
OUT OF OR IN CONNECTION WITH THE ABILITY OR
INABILITY TO USE THE PRODUCTS, ACCESSORIES
OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the
limitation or exclusion of incidental or
consequential damages, or limitation on the
length of an implied warranty, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights,
and you may also have other rights that vary
from state to state or from one jurisdiction to
another.
Laws in the United States and other countries
preserve for Motorola certain exclusive rights for
copyrighted Motorola software such as the exclusive
rights to reproduce and distribute copies of the
Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the
Products associated with such Motorola software.
No other use, including without limitation
disassembly of such Motorola software or exercise of
the exclusive rights reserved for Motorola, is
permitted.
Hearing Aid Compatibility
103
Hearing Aid Compatibility with Mobile Phones
Hearing Aid Compatibility
Some Motorola phones are measured for
compatibility with hearing aids. If the box for your
particular model has “Rated for Hearing Aids” printed
on it, the following explanation applies.
When some mobile phones are used near some
hearing devices (hearing aids and cochlear implants),
users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than
others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed
ratings for some of their mobile phones, to assist
hearing device users in finding phones that may be
compatible with their hearing devices. Not all phones
have been rated. Phones that are rated have the
rating on their box or a label on the box.
The ratings are not guarantees. Results will vary
depending on the user’s hearing device and hearing
loss. If your hearing device happens to be vulnerable
to interference, you may not be able to use a rated
phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your
personal needs.
M-Ratings:
Phones rated M3 or M4 meet FCC
requirements and are likely to generate less
interference to hearing devices than phones that are
not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC
requirements and are likely to be more usable with a
hearing device’s telecoil (“T Switch” or “Telephone
Switch”) than unrated phones. T4 is the better/higher
of the two ratings. (Note that not all hearing devices
have telecoils in them.)
104
Hearing Aid Compatibility
Hearing devices may also be measured for immunity
to this type of interference. Your hearing device
manufacturer or hearing health professional may
help you find results for your hearing device. The
more immune your hearing aid is, the less likely you
are to experience interference noise from mobile
phones.
WHO Information
105
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the
need for any special precautions for the use of
mobile phones. If you are concerned, you may want
to limit your own or your children’s RF exposure by
limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head
and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Product Registrati on
Online Product Registration:
http://www.motorola.com/warranty
Product registration is an important step toward
enjoying your new Motorola product. Registering
helps us facilitate warranty service, and permits us to
contact you should your product require an update or
other service. Registration is for U.S. residents only
and is not required for warranty coverage.
Please retain your original dated sales receipt for
your records. For warranty service of your Motorola
Personal Communications Product you will need to
provide a copy of your dated sales receipt to confirm
warranty status.
106
Export Law Assurances
Thank you for choosing a Motorola product.
Export Law Assurances
Export Law Assurances
This product is controlled under the export
regulations of the United States of America and
Canada. The Governments of the United States of
America and Canada may restrict the exportation or
re-exportation of this product to certain destinations.
For further information contact the U.S. Department
of Commerce or the Canadian Department of Foreign
Affairs and International Trade.
Wireless: The New Recyclable
Wireless: The New Recyclable
Your wireless phone can be recycled. Recycling your
wireless phone reduces the amount of waste
disposed in landfills and allows recycled materials to
be incorporated into new products.
The Cellular Telecommunications Industry
Association (CTIA) and its members encourage
consumers to recycle their phones and have taken
steps to promote the collection and environmentally
sound recycling of end-of-life wireless devices.
As a wireless phone user, you have an important role
in ensuring that this phone is recycled properly.
When it comes time to give this phone up or trade it
Wireless: The New Recyclable
107
in for a new one, please remember that the phone,
the charger, and many of its accessories can be
recycled. It's easy. To learn more about CTIA's
Recycling Program for Used Wireless Devices, please
visit us at
http://promo.motorola.com/
recycle/phones/whyrecycle.html
108
Smart Practices While Driving
Smart Practices While Driving
Smart Practices While Driving
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of
mobile devices and their accessories in the
areas where you drive. Always obey them. The
use of these devices may be prohibited or
restricted in certain areas. Contact
www.motorola.com/callsmart for more
information.
Your mobile device lets you communicate by voice
and data—almost anywhere, anytime, wherever
wireless service is available and safe conditions
allow. When driving a car, driving is your first
responsibility. If you choose to use your mobile
device while driving, remember the following tips:
• Get to know your Motorola mobile
device and its features such as speed
dial and redial.
If available, these features
help you to place your call without taking
your attention off the road.
• When available, use a handsfree device.
If possible, add an additional layer of
convenience to your mobile device with one
of the many Motorola Original
™
handsfree
accessories available today.
• Position your mobile device within easy
reach.
Be able to access your mobile device
without removing your eyes from the road. If
you receive an incoming call at an
inconvenient time, if possible, let your
voicemail answer it for you.
• Let the person you are speaking with
know you are driving; if necessary,
suspend the call in heavy traffic or
hazardous weather conditions.
Rain,
Smart Practices While Driving
109
sleet, snow, ice, and even heavy traffic can
be hazardous.
• Do not take notes or look up phone
numbers while driving.
Jotting down a “to
do” list or going through your address book
takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if
possible, place calls when your car is
not moving or before pulling into traffic.
If you must make a call while moving, dial
only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people you are talking with aware you
are driving and suspend conversations that
can divert your attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local emergency number in
the case of fire, traffic accident, or medical
emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident,
crime in progress, or other serious emergency
where lives are in danger, call 911 or other
local emergency number, as you would want
others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance
number when necessary.
If you see a
broken-down vehicle posing no serious
hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a
vehicle you know to be stolen, call roadside
assistance or other special non-emergency
wireless number.*
* Wherever wireless phone service is available.
110
index
index
A
accessibility 69
accessories 10, 71
accessory connector port 1,
2
ActiveSync 19
alarm 69
alert
set 54
turn off 47, 50, 52, 59
animation 75
answer a call 13, 57
attachments 27
audio enhancement 51
auto-lock
phone 17
automatic email setup 22
B
background 55
backlight 57
battery 11, 12
battery indicator 41
battery life, extending 10, 37,
57
Bluetooth connection 68, 73
Bluetooth wireless 37
bonding. See Bluetooth wire-
less
brightness 57
browser 76
disconnect 76
C
calculator 73
calendar 72
call
answer 13, 57
end 13
make 13, 66
call timers 70, 71
caller ID 61, 67
camera 31, 33
camera key 1, 2
cancel message 26
car kit 71
center key 1, 2
certificate management 74,
75
index
111
codes 16
contacts 62, 65
copy files 36, 38
D
data indicator 41
date, 55
datebook 72, 73
delete program 53
dial a phone number 13, 66
dialed calls 59
digit dial (voice) 48
display 40, 57
download email messages
29
download files 36
download message objects
28
E
email 21, 26, 27
attachment 27
signature 27
email address 65
emergency number 61
end a call 13
end key 1, 2, 13
enter
numbers 14
text 14
export regulations 106
F
file manager 52
filter 60
flight mode 50
forward 28
H
handsfree 71
handsfree speaker 48
headset 71
headset jack 1, 2
hearing aid compatibility 103
home screen 40, 55
hyperlink
phone number 64
I
Incoming Call message 61
international access code 62
ISP 26
iTAP text entry mode 46
L
language 68
linking. See Bluetooth wire-
less
112
index
location indicator 42
lock
phone 16
Low Battery message 41
lowercase 14
M
make a call 13, 66
make call 64
manual email setup 22
master reset 70
media player 69, 75
memory 16
memory card 16
menu 43
menu icons 40, 43
menu indicator 40
menu key 1, 2
message 26, 27, 28
message indicator 41
message reminders 69
messages 21, 26
email 21
text 21
missed call 60
Missed Calls message 60
MMS 16
MMS, defined 22, 25
mode
flight 50
multimedia message 21, 27,
28
music 75
N
name dial 48
navigation key 1, 2, 9
network settings 72
number. See phone number
numbers 14
numeric entry mode 47
O
object exchange 38
open
program 13
open program 13
operator hosted e-mail 22
optional accessory 10
optional feature 10
over the air (OTA) 18
owner information 70
P
pairing. See Bluetooth wire-
less
personalize 68
phone 17
phone number 14, 65
phonebook 64
index
113
photo 31, 75
picture 75
picture ID 61, 67
power key 1, 2, 13
priority 26
product registration 105
profile 54
program
open 13
R
received calls 59
recent calls 59
recycling 106
redial 60
reminders 69
remove program 53
reply 28
return a call 60
ring style indicator 42
ring style, setting 54
ring tone 75
ringer ID 61, 66
ringer volume 68
roam indicator 41
S
safety information 91
safety tips 108
SD 16
security
lock 17
send and receive messages
24
send key 1, 2, 13
signal strength indicator 41
signature 27
smart key 1, 2, 15
soft keys 1, 2, 40
sounds 69, 75
speakerphone 71
speed dial 62, 64, 65
Start menu 9
store your number 14
symbol entry mode 47
sync (cable) 20
sync (infrared) 21
synch (Bluetooth) 20
synchronize 18
synchronizing with computer
18
T
task manager 52
telephone number. See
phone number
text 14
text entry 45
text message 26, 27, 28
thumb wheel 42
114
index
time, setting 55
timers 59, 70, 71
TTY calls 64
turn on/off 13
U
unlock
phone 16, 17
unlock code 16
uppercase 14
V
video 75
video clip 33
voice commands 48
voice key 1, 2
voice recognition 48
voicemail 62
voicemail message indicator
41, 63
volume 47, 68
volume keys 1, 2
W
wallpaper 55
warranty 97
web 76
phone number 64
web browser 75, 76
disconnet 76
web page 75
WHO information 105
Y
your phone number 14
U.S. patent Re. 34,976
