Exhibit 8 Users Manual

INSTRUCTION MANUAL

A preliminary draft of the User’s Manual follows this page.

APPLICANT: MOTOROLA,INC.

FCC ID: IHDT56GG1

EXHIBIT 8

SAR Data

Specific Absorption Rate Data

SAR Da ta

This model wireless phone meets the

government’s requirements for exposure to radio

waves.

Your wireless phone is a radio transmitter and receiver. It is

designed and manufactured not to exceed limits for exposure to

radio frequency (RF) energy set by the Federal Communications

Commission (FCC) of the U.S. Government and by the Canadian

regulatory authorities. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the

general population. The guidelines are based on standards that

were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The

standards include a substantial safety margin designed to assure

the safety of all persons, regardless of age or health.

The exposure standard for wireless mobile phones employs a unit

of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit set by the FCC and by the Canadian regulatory

authorities is 1.6 W/kg.

Tests for SAR are conducted using

standard operating positions accepted by the FCC and by Industry

Canada with the phone transmitting at its highest certified power

level in all tested frequency bands. Although the SAR is

determined at the highest certified power level, the actual SAR

level of the phone while operating can be well below the

maximum value. This is because the phone is designed to operate

at multiple power levels so as to use only the power required to

reach the network. In general, the closer you are to a wireless

base station, the lower the power output.

Before a phone model is available for sale to the public in the U.S.

and Canada, it must be tested and certified to the FCC and Industry

Canada that it does not exceed the limit established by each

government for safe exposure. The tests are performed in

positions and locations (e.g., at the ear and worn on the body)

reported to the FCC and available for review by Industry Canada.

The highest SAR value for this model phone when tested for use at

the ear is 1.57W/kg, and when worn on the body, as described in

this user guide, is 0.50 W/kg. The SAR value for this product in its

data transmission mode (body-worn use) is 0.25 W/kg. (Body-worn

measurements differ among phone models, depending upon

available accessories and regulatory requirements).

While there may be differences between the SAR levels of various

phones and at various positions, they all meet the governmental

requirements for safe exposure. Please note that improvements to

this product model could cause differences in the SAR value for

later products; in all cases, products are designed to be within the

guidelines.

SAR Data

Additional information on Specific Absorption Rates (SAR) can be

found on the Cellular Telecommunications & Internet Association

(CTIA) Web site:

http://www.phonefacts.net

or the Canadian Wireless Telecommunications Association (CWTA)

Web site:

http://www.cwta.ca

1. In the United States and Canada, the SAR limit for mobile phones used

by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.

The standard incorporates a substantial margin of safety to give

additional protection for the public and to account for any variations in

measurements.

2. The SAR information includes the Motorola testing protocol,

assessment procedure, and measurement uncertainty range for this

product.

MOTOMANUAL

MOTORIZR™

www.motorola.com

HELLOMOTO

Introducing your new

MOTO

RIZR™ Z6 GSM wireless phone.

Navigation Key

Scroll up/down/left/right,

control song playback in the music player.

Right Soft Key

Clear/Back Key

Power/End Key

Turn on/off, hang up, exit menus.

Bluetooth Indicator Light

Music Library Key

Left Soft Key

Send Key

Make & answer calls.

Center Key

Open main menu & select menu items.

Push Bar

Push down to close slider.

Charge Indicator Light

Handsfree Speaker

(on back of phone)

Volume Keys

Set ring volume when

slider is closed.

Smart Key

Select menu items,

launch browser.

Push Bar

Push up to open slider.

Camera Lens & High-Intensity

LED Camera Light

(on back of phone)

Camera Key

Activate camera & take photos.

Mini-USB Port

Insert battery charger

& phone accessories.

Voice Command Key

Use voice commands to make

calls & perform basic phone

functions.

Service Provider

10/15/2008

10:10AM

Options Main Menu

Main Menu

Options Back

Games Web Access Settings

Recent Calls Contacts Office Tools

Web Access Messages Multimedia

Home Screen Main Menu

Press & hold the

power key

until

the display lights up,

to turn on your

phone.

Note:

This is the standard home screen and main menu layout.

Your phone’s home screen and main menu may be different.

Press the

center key

to select it.

Press the

navigation key

up/down/left/right to

scroll to a menu

feature.

Press the center key

to open

the

Main Menu

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

www.hellomoto.com

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Certain mobile phone features are dependent on the capabilities

and settings of your service provider’s network. Additionally,

certain features may not be activated by your service provider,

and/or the provider’s network settings may limit the feature’s

functionality. Always contact your service provider about feature

availability and functionality. All features, functionality, and other

product specifications, as well as the information contained in this

user’s guide are based upon the latest available information and

are believed to be accurate at the time of printing. Motorola

reserves the right to change or modify any information or

specifications without notice or obligation.

MOTOROLA and the Stylized M Logo are registered in the US

Patent & Trademark Office. All other product or service names are

the property of their respective owners. The Bluetooth trademarks

are owned by their proprietor and used by Motorola, Inc. under

license. Java and all other Java-based marks are trademarks or

registered trademarks of Sun Microsystems, Inc. in the U.S. and

other countries. Microsoft and Windows are registered trademarks

of Microsoft Corporation; and Windows XP is a trademark of

Microsoft Corporation. Macintosh is a registered trademark of

Apple Computer, Inc.

Caution:

Changes or modifications made in the radio phone, not

expressly approved by Motorola, will void the user’s authority to

operate the equipment.

Software Copyright Notice

The Motorola products described in this manual may include

copyrighted Motorola and third-party software stored in

semiconductor memories or other media. Laws in the United

States and other countries preserve for Motorola and third-party

software providers certain exclusive rights for copyrighted

software, such as the exclusive rights to distribute or reproduce

the copyrighted software. Accordingly, any copyrighted software

contained in the Motorola products may not be modified,

reverse-engineered, distributed, or reproduced in any manner to

the extent allowed by law. Furthermore, the purchase of the

Motorola products shall not be deemed to grant either directly or

by implication, estoppel, or otherwise, any license under the

copyrights, patents, or patent applications of Motorola or any

third-party software provider, except for the normal, non-exclusive,

royalty-free license to use that arises by operation of law in the

sale of a product.

Manual Number: 68XXXXX160-O

contents

menu map. . . . . . . . . . . . 7

Safety Information . . . . . 9

FCC Notice . . . . . . . . . . 14

Use and Care . . . . . . . . 15

EU Conformance . . . . . 16

Recycling Information . 17

essentials . . . . . . . . . . . 18

about this guide . . . . . 18

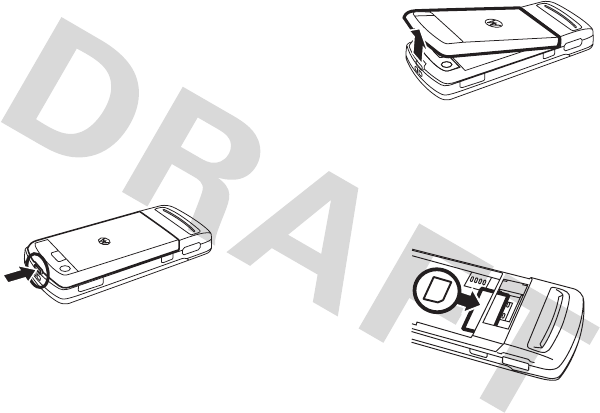

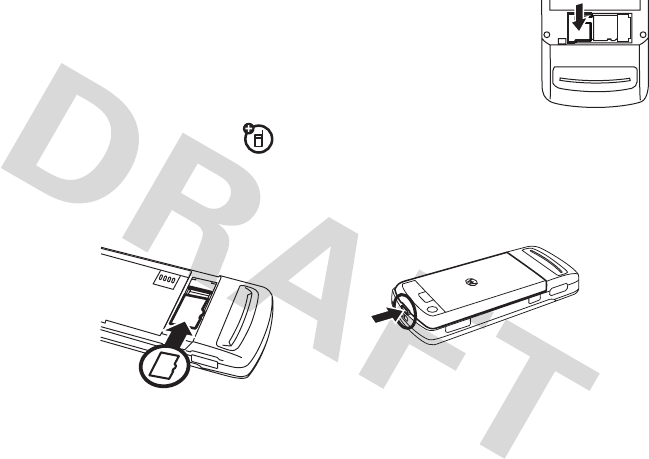

SIM card . . . . . . . . . . . 19

memory card . . . . . . . 20

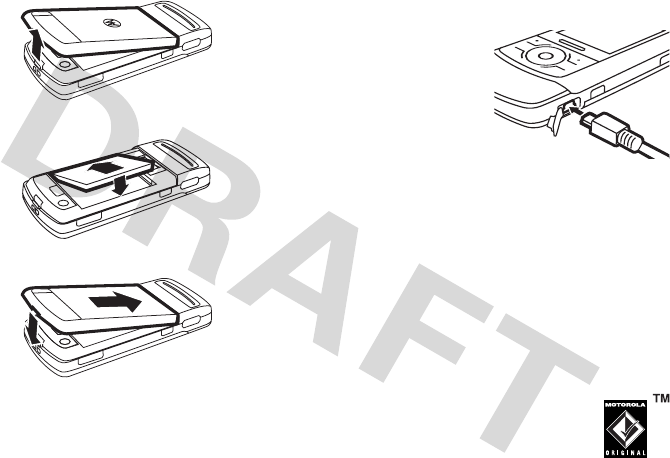

battery . . . . . . . . . . . . 20

turn phone on & off . . 23

make a call . . . . . . . . . 23

answer a call. . . . . . . . 24

store a phone

number. . . . . . . . . . . . 24

call a stored

phone number . . . . . . 25

your phone number . . 25

main attractions . . . . . . 26

music player . . . . . . . . 26

photos . . . . . . . . . . . . 31

videos . . . . . . . . . . . . . 34

slider features. . . . . . . 38

file manager . . . . . . . . 40

cable connections. . . . 42

Bluetooth™ wireless . 45

text messaging. . . . . . 49

phone updates . . . . . . 51

basics. . . . . . . . . . . . . . . 52

display. . . . . . . . . . . . . 52

text entry . . . . . . . . . . 55

volume . . . . . . . . . . . . 59

navigation key. . . . . . . 59

smart key . . . . . . . . . . 59

voice commands . . . . 60

talking phone . . . . . . . 62

handsfree speaker . . . 62

codes & passwords . . 63

lock & unlock phone . . 63

customize . . . . . . . . . . . 65

profiles . . . . . . . . . . . . 65

time & date. . . . . . . . . 66

themes . . . . . . . . . . . . 67

display appearance . . . 69

answer options. . . . . . 70

contents

calls. . . . . . . . . . . . . . . . . 71

turn off a call alert . . . . 71

recent calls . . . . . . . . . 71

redial . . . . . . . . . . . . . . 72

return a call . . . . . . . . . 72

caller ID . . . . . . . . . . . . 73

emergency calls . . . . . 73

voicemail . . . . . . . . . . . 74

other features . . . . . . . . 75

advanced calling . . . . . 75

contacts. . . . . . . . . . . . 78

messages . . . . . . . . . . 84

instant messaging . . . . 86

personalize . . . . . . . . . 87

call times & costs . . . . 90

handsfree . . . . . . . . . . 91

data & fax calls . . . . . . 92

network . . . . . . . . . . . . 95

personal organizer . . . . 95

security . . . . . . . . . . . . 98

fun & games . . . . . . . . 99

service and repairs . . . 102

SAR Data . . . . . . . . . . . 103

WHO Information . . . . 104

index. . . . . . . . . . . . . . . 105

menu map

main menu

Recent Calls

Contacts

Office Tools

• Calendar

•Email

•MOTOSYNC

• Download Manager

•AlarmClock

• World Clock

•Calculator

• Dialing Services

•FixedDial

• Service Dial *

• Task List

• Notes

Web Access

•Browser

• My Bookmarks

• My Web Pages

•History

• Go To Page

•Browser Setup

Messages

• Create Message

• Inbox

• Call Voicemail

• My Folders

• Outbox

• Templates

•Drafts

•Email

Tip:

Press

to change the main

menu to a list view and back.

Tip:

Press

to exit the current

menu, or press

to exit all menus.

Multimedia

• Music Library

• File Manager

•Games

•Camera

• Video Camera

• Voice Recorder

Games

Help

Settings

• (see next page)

This is the standard main menu layout.

Your phone’s menu may be different.

* optional features

menu map

settings menu

•Profiles

•Themes

• Connections

• Bluetooth™

• USB Setting

• Media Synchronization

• Memory Card

• Modem

•USBPrinting

• Data Connections

• Add a Connection

• Edit a Connection

• Remove a Connection

• Call Settings

• Speed Dial

•CallForward

•In-CallSetup

• My Caller ID

• Call Waiting

• In-Call Message Alert

• In-Call Timer

• Active Line *

• Answer Options

• Auto-Redial

•RoamAlert

•DTMF

• Hyphenation

• Call Barring *

• Fixed Dialing

• Call Drop Tone

• My SIM Number

• Phone Settings

• Display Settings

• Backlight Timeout

• Display Timeout

• Screensaver Timeout

• Brightness

•BatteryMeter

•BatterySave

•Time&Date

• Slide Closed

• Language

• (continued next column)

• Talking Phone

•TextEntry

• Reset

• Reset All Settings

• Delete All Data

• Delete Memory Cards

• Properties

• Java™ System

• Software Update

• Headset Settings

• Auto-Answer

•VoiceDial

• TTY Settings

•Security

• Phone Lock

• Keypad Lock

• Application Lock

•SIMLock

• Change Passwords

• Certificates

•Network

• Current Network

• Scan Avail. Networks

•FindNewNetwork

• My Network List

• Search Setup

• Service Tone

* optional features

Safety Information

Safety and General Information

Safet y Informa tion

This section contains important information on the safe and

efficient operation of your mobile device. Read this

information before using your mobile device.

Exposure to Radio Frequency (RF)

Energy

Your mobile device contains a transmitter and receiver. When it is

ON, it receives and transmits RF energy. When you communicate

with your mobile device, the system handling your call controls the

power level at which your mobile device transmits.

Your Motorola mobile device is designed to comply with local

regulatory requirements in your country concerning exposure of

human beings to RF energy.

Operational Precautions

For optimal mobile device performance and to be sure that human

exposure to RF energy does not exceed the guidelines set forth in

the relevant standards, always follow these instructions and

precautions.

External Antenna Care

If your mobile device has an external antenna, use only a

Motorola-supplied or approved replacement antenna. Use of

unauthorized antennas, modifications, or attachments could

damage the mobile device and/or may result in your device not

complying with local regulatory requirements in your country.

DO NOT hold the external antenna when the mobile device is IN

USE. Holding the external antenna affects call quality and may

cause the mobile device to operate at a higher power level than

needed.

Product Operation

When placing or receiving a phone call, hold your mobile device

just like you would a landline phone.

If you wear the mobile device on your body, always place the

mobile device in a Motorola-supplied or approved clip, holder,

* The information provided in this document supersedes the general

safety information in user’s guides published prior to May 1, 2006.

Safety Information

holster, case, or body harness. If you do not use a body-worn

accessory supplied or approved by Motorola, keep the mobile

device and its antenna at least 2.5 centimeters (1 inch) from your

body when transmitting.

When using any data feature of the mobile device, with or without

an accessory cable, position the mobile device and its antenna at

least 2.5 centimeters (1 inch) from your body.

Using accessories not supplied or approved by Motorola may

cause your mobile device to exceed RF energy exposure

guidelines. For a list of Motorola-supplied or approved

accessories, visit our Web site at:

www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference

from external sources if inadequately shielded, designed, or

otherwise configured for RF energy compatibility. In some

circumstances your mobile device may cause interference with

other devices.

Follow Instructions to Avoid Interference

Problems

Turn off your mobile device in any location where posted notices

instruct you to do so. These locations include hospitals or health

care facilities that may be using equipment that is sensitive to

external RF energy.

In an aircraft, turn off your mobile device whenever instructed to

do so by airline staff. If your mobile device offers an airplane mode

or similar feature, consult airline staff about using it in flight.

Pacemakers

If you have a pacemaker, consult your physician before using this

device.

Persons with pacemakers should observe the following

precautions:

•

ALWAYS keep the mobile device more than

20 centimeters (8 inches) from your pacemaker when the

mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the pacemaker to minimize the

potential for interference.

•

Turn OFF the mobile device immediately if you have any

reason to suspect that interference is taking place.

Hearing Aids

Some mobile devices may interfere with some hearing aids. In the

event of such interference, you may want to consult your hearing

aid manufacturer or physician to discuss alternatives.

Safety Information

Other Medical Devices

If you use any other personal medical device, consult your

physician or the manufacturer of your device to determine if it is

adequately shielded from RF energy.

Driving Precautions

Check the laws and regulations on the use of mobile devices in the

area where you drive. Always obey them.

When using your mobile device while driving, please:

•

Give full attention to driving and to the road. Using a

mobile device may be distracting. Discontinue a call if you

can’t concentrate on driving.

•

Use handsfree operation, if available.

•

Pull off the road and park before making or answering a

call if driving conditions so require.

Responsible driving practices can be found in the “Smart Practices

While Driving” section at the end of this guide and/or at the

Motorola Web site:

www.motorola.com/callsmart

Operational Warnings

Obey all posted signs when using mobile devices in public areas,

such as health care facilities or blasting areas.

Automobile Air Bags

Do not place a mobile device in the air bag deployment area.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often but not

always posted, and can include fueling areas such as below decks

on boats, fuel or chemical transfer or storage facilities, or areas

where the air contains chemicals or particles, such as grain, dust,

or metal powders.

When you are in such an area, turn off your mobile device, and do

not remove, install, or charge batteries. In such areas, sparks can

occur and cause an explosion or fire.

Damaged Products

If your mobile device or battery has been submerged in water,

punctured, or subjected to a severe fall, do not use it until you take

it to a Motorola Authorized Service Center. Do not attempt to dry it

with an external heat source, such as a microwave oven.

Safety Information

Batteries and Chargers

If jewelry, keys, beaded chains, or other conductive

materials touch exposed battery terminals, this

could complete an electrical circuit (short circuit),

become very hot, and could cause damage or

injury. Be careful when handling a charged battery,

particularly when placing it inside a pocket, purse, or other

container with metal objects.

Use only Motorola Original

batteries and chargers.

Caution:

To avoid risk of personal injury, do not dispose of your

battery in a fire.

Your battery, charger, or mobile device may contain symbols,

defined as follows:

Choking Hazards

Your mobile device or its accessories may include detachable

parts, which may present a choking hazard to small children. Keep

your mobile device and its accessories away from small children.

Glass Parts

Some parts of your mobile device may be made of glass. This glass

could break if the product is dropped on a hard surface or receives

a substantial impact. If glass breaks, do not touch or attempt to

remove. Stop using your mobile device until the glass is replaced

by a qualified service center.

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile

device in a fire.

Your battery or mobile device may require

recycling in accordance with local laws.

Contact your local regulatory authorities

for more information.

032374o

032376o

032375o

Do not throw your battery or mobile device

in the trash.

Your mobile device contains an internal

lithium ion battery.

Do not let your battery, charger, or mobile

device get wet.

Listening at full volume to music or voice

through a headset may damage your

hearing.

Symbol Definition

032378o

Li Ion BATT

Safety Information

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts

when exposed to flashing lights, such as when playing video

games. These may occur even if a person has never had a previous

seizure or blackout.

If you have experienced seizures or blackouts, or if you have a

family history of such occurrences, please consult with your

physician before playing video games or enabling a flashing-lights

feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following

symptoms occur: convulsion, eye or muscle twitching, loss of

awareness, involuntary movements, or disorientation. It is always

a good idea to hold the screen away from your eyes, leave the

lights on in the room, take a 15-minute break every hour, and stop

use if you are very tired.

Caution About High Volume Usage

Listening at full volume to music or voice through a

headset may damage your hearing.

Repetitive Motion

When you repetitively perform actions such as pressing keys or

entering finger-written characters, you may experience occasional

discomfort in your hands, arms, shoulders, neck, or other parts of

your body. If you continue to have discomfort during or after such

use, stop use and see a physician.

FCC Notice

FCC Notice To Users

FCC Notice

Motorola has not approved any changes or modifications to this

device by the user. Any changes or modifications could void the

user’s authority to operate the equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation. See 47 CFR Sec. 15.19(3).

If your mobile device or accessory has a USB connector, or is

otherwise considered a computer peripheral device whereby it can

be connected to a computer for purposes of transferring data, then

it is considered a Class B device and the following statement

applies:

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the

receiver.

•

Connect the equipment to an outlet on a circuit different

from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician

for help.

Use and Care

To care for your Motorola phone, please keep it away from:

liquids of any kind dust and dirt

Don’t expose your phone to water, rain,

extreme humidity, sweat, or other moisture.

Don’t expose your phone to dust, dirt, sand,

food, or other inappropriate materials.

extreme heat or cold cleaning solutions

Avoid temperatures below -10°C/14°F or

above 45°C/113°F.

To clean your phone, use only a dry soft cloth.

Don’t use alcohol or other cleaning solutions.

microwaves the ground

Don’t try to dry your phone in a microwave

oven.

Don’t drop your phone.

EU Conformance

European Union Directives Conformance Statement

EU Conformance

Hereby, Motorola declares that this product is in

compliance with:

•

The essential requirements and other relevant provisions

of Directive 1999/5/EC

•

All other relevant EU Directives

The above gives an example of a typical Product Approval Number.

You can view your product’s Declaration of Conformity (DoC) to

Directive 1999/5/EC (to R&TTE Directive) at

www.motorola.com/rtte

. To find your DoC, enter the

product Approval Number from your product’s label in the “Search”

bar on the Web site.

0168

Product

Approval

Number

Recycling Information

Caring for the Environment by Recycling

When you see this symbol on a Motorola product, do not

dispose the product with household waste.

Recycling Mobile Phones and Accessories

Do not dispose of mobile phones or electrical accessories, such as

chargers or headsets, with your household waste. In some

countries or regions, collection systems are set up to handle

electrical and electronic waste items. Contact your regional

authorities for more details. If collection systems aren’t available,

return unwanted mobile phones or electrical accessories to any

Motorola Approved Service Centre in your region.

essentials

about this guide

This guide shows how to locate a menu

feature as follows:

Find it:

eMessages

Create Message

This means that, from the home screen:

Press the center key

to open the

menu.

Press the navigation key

to scroll to

eMessages

, and press the center key

to select it.

Press the navigation key

to scroll to

Create Message

, and press the center key

to select it.

symbols

This means a feature is network,

SIM card, or subscription

dependent and may not be available

in all areas. Contact your service

provider for more information.

This means a feature requires an

optional accessory.

essentials

SIM card

Caution:

Don’t bend or scratch your SIM card.

Keep it away from static electricity, water, and

dirt.

Yo u r Subscriber Identity Module (SIM) card

contains personal information like your phone

number and contact list entries.

Press in the battery door release latch.

Lift up and remove the battery door.

Hold the SIM card with the notch in the

lower right corner and the gold plate

facing down. Slide the SIM card into the

card slot as shown.

essentials

memory card

Caution:

Don’t bend or scratch your memory

card. Keep it away from static electricity,

water, and dirt..

You can store photos, music, and other

multimedia files on an optional

removable MicroSD memory card. Your

phone can use a memory card with up to 2

GB capacity.

insert

the

memory card, hold

the memory card

with the metal

contacts facing

down, and slide the

memory card under

the metal band as shown.

remove

the memory

card, push down on the

retainer tab and slide the

memory card out of the

slot.

battery

battery installation

essentials

battery charging

New batteries are

not fully charged.

Plug the battery

charger into the

mini-USB port on

your phone, and

plug the other end

into an electrical outlet. Your phone might

take several seconds to start charging the

battery. The battery charge indicator light

shows when the battery is charging. The

display shows

Charge Complete

when finished.

Tip:

Relax, you can’t overcharge your battery.

It will perform best after you fully charge and

discharge it a few times.

Note:

You can charge your battery

by connecting a cable from your

phone’s mini-USB port to a USB

port on a computer. Both your

essentials

phone and the computer must be turned on,

and your computer must have the correct

software drivers installed. Cables and

software drivers are available in

Motorola Original data kits, sold separately.

battery tips

Battery life depends on the network, signal

strength, temperature, features, and

accessories you use.

•

Always use

Motorola Original batteries

and chargers. The warranty

does not cover damage

caused by non-Motorola batteries

and/or chargers.

•

New batteries or batteries stored for a

long time may take more time to

charge.

•

When charging your battery, keep it

near room temperature.

•

When storing your battery, keep it

uncharged in a cool, dark, dry place.

•

Never expose batteries to

temperatures below -10°C (14°F) or

above 45°C (113°F). Always take your

phone with you when you leave your

vehicle.

•

It is normal for batteries to gradually

wear down and require longer charging

times. If you notice a change in your

battery life, it is probably time to

purchase a new battery.

Contact your local recycling center for

proper battery disposal.

Warning:

Never dispose of batteries in a fire

because they may explode.

essentials

Before using your phone, read the battery

safety information in the “Safety and General

Information” section included in this guide.

turn phone on & off

Caution:

The phone may ask for your

SIM card PIN code when you turn it on. If you

enter an incorrect PIN code three times

before the correct code, your SIM card is

disabled, and your display shows

SIM Blocked

Contact your service provider.

To turn on your phone,

press and hold the

power/end key

until

the keypad or display

lights up. If prompted,

enter your eight-digit

SIM card PIN code and/or four-digit unlock

code.

To turn off your phone, press and hold

for

a few seconds.

make a call

Open the slider, then enter a phone number

and press the send key

to make a call.

voice dial

a call, see page 60.

To “hang up,” press the power/end key

. If

the slide closed feature is set to end tasks,

you can close the slider to end the call (see

page 38).

Tip:

You can make a call with the slider

closed. Select a phone number stored in your

contact list, then press

to call the number.

(To store a phone number in your contact list,

see page 24.)

essentials

answer a call

When your phone rings and/or vibrates, just

open the slider or press the send key

answer.

To “hang up,” press the power/end key

. If

the slide closed feature is set to end tasks,

you can close the slider to end the call (see

page 38).

Tip:

If you prefer not to answer the call, you

can press

Ignore

to divert the incoming call to

your voicemail inbox.

store a phone number

You can store a phone number in your list of

Contacts

Note:

You can store a contact in

phone memory

or on your

SIM card

Contacts on the SIM card only have a

Name

and

Number

Enter a phone number in the home

screen.

Press

Save

Enter a name for the phone number, and

specify the number type (for example,

Home

Work

) if necessary.

Press

Save

to store the contact.

To edit or store additional information about

the contact, see page 80.

essentials

call a stored phone

number

Find it:

nContacts

Scroll to the contact.

Shortcut:

In the contact list, press keypad

keys to enter the first letters of the

contact you want. Press the center

key

to go to the contact.

Press

to call the contact.

voice dial

an entry in your contact list, see

page 60.

your phone number

To see your phone number from the home

screen:

Find it:

wSettings

Call Settings

My SIM Number

To see your phone number while you’re on a

call, press

Options

My Tel. Numbers

To store or edit your name and phone number

on your SIM card, select the field you want to

edit. If you don’t know your phone number,

contact your service provider.

main attractions

You can do much more with your phone than

make and receive calls!

music player

Your phone can play music and audio

files in a variety of formats (for a list of

formats, see page 44). You can use a

removable MicroSD memory card with your

phone to store more songs (see page 40).

load music files on your

computer

To load music on your phone, you need to

have a digital music library on your computer.

You can purchase music files from

Microsoft® Windows™ media

Digital Rights Management (DRM) or

Microsoft Janus supported on-line music

stores (such as Yahoo, Napster, or Urge).

You also can copy song files from a music CD

onto your computer:

Insert a music CD in your computer’s CD

drive.

Launch your computer’s media player

program (such as Windows™ Media

Player).

Copy the music CD to the media player

library (also called ripping the CD).

main attractions

If your computer is connected to the Internet

when you insert the music CD, the media

player may retrieve information about the

album, such as song titles, album name, artist

name, and album artwork. You also can enter

or edit song information manually using the

computer's media player program. This

information will display in your phone’s music

player.

load music files on your phone

To transfer music from your computer’s digital

music library to your phone and its MicroSD

memory card, see page 42. To download

songs from the Web, see page 100. For a list

of the file formats your phone can play, see

page 44.

play music files

To play music on your phone:

Find it:

[

> folder name

Select a song or playlist from the following

folders:

folders

All

Show and play individual songs.

Note:

All of your phone’s songs

appear in this list. Some songs

may not have any

Artist

Album

, or

Genre

information stored, so they

don’t appear in those lists.

Recently

Played

See songs you recently played.

Playlists

Create or play a playlist of songs

(see page 29).

main attractions

Tip:

When you press

[

to open the

Music Library

, your phone prompts you to

Refresh Media

. Press

Yes

to update the list of

media files stored on the current installed

memory card. You should refresh the media

list whenever you install or switch memory

cards.

Use the navigation key

to control song

playback.

If you receive a call during a song

, the song

pauses until the call is over.

Artists

Select an artist to show or play

their songs.

Albums

Select an album to show or play

its songs.

Genres

Select a type of music to show

or play songs.

Composers

Select a composer to show or

play their songs.

Enter a keyword to search for a

song or playlist.

folders

album

artwork

Select & adjust

music file options.

10/10/2008--910 Kb

song.name

Press

to pause/play,

press down to

stop. Timer Shows

% Played

Return to

screen.

Press

left/right to

skip to

previous/

next song file.

00:45 01:40

Options Back

Song Title

Artist

Album rog

main attractions

When a song is playing, press

Options

to select

music player options:

During a song, the music player shows the

song title, artist, album, and artwork, if

available. To see a larger image of the

artwork

, press the center key

(press it

again to return to the music player).

Note:

Your phone can’t receive data

over an EDGE network when playing

videos or some sound files. The EDGE status

indicator

appears at the top of the display

when you can receive data over an EDGE

network.

add music files to a playlist

Find it:

[

> folder name

Scroll to a song you want to add to the

playlist.

Tip:

To select multiple songs for the list,

press

Options

Select Multiple

. Your phone

shows a song list where you can scroll to

options

Hide

Hide the music player while

music plays. To see the music

player again, press

up. To

stop the hidden music player,

press

Manage

Show song

Properties

, such as file

name, type, and size.

Send to

Send the song in a message or

email, or send it to another

device over a Bluetooth™

connection.

Apply to

Add the song to a playlist or

make it a ringtone.

Setup

Customize settings (see

page 30).

main attractions

songs you want to add and press the

center key

to select them.

Press

Options

Apply to

Playlist

. Your phone

shows a list of playlists.

Scroll to an existing playlist.

To create a new playlist, press

Options

New Playlist

. Enter a name for the

playlist and press

Press

Apply

Repeat the procedure to add more songs,

or press

Back

to return to the

My Media

menu.

hear

a playlist:

Find it:

[

Playlists

, scroll to the playlist,

press

Options

Play

customize music player

Find it:

[

, press

Options

Setup

You can select the following options:

options

Shuffle

Play songs in a random order.

Auto-

Repeat

Replay the song or playlist when

the last file finishes playing.

End Call

If you receive a call during a

song, the song pauses. When

the call is done, the song

resumes playing (

Auto-Play

) or

stays paused (

Pause

Stereo

Effects

Set

SpatialAudio

and

Bass Boost

customize sound.

Internet

Connection

Set your Internet connection

preference for downloading

songs from the Web.

main attractions

If you scroll to a song in a list and press

Options

you may also see options for the song and list,

such as

Delete

Rename

Send to

Apply to

, and

Sort by

photos

Your phone has a 2-megapixel digital camera

that can take photos at up to 1200 x 1600

pixels resolution. The phone is designed to be

used in camera mode when the slider is

closed (but you also can take photos with the

slider open). Just aim and shoot to take a

photo, then press

Send

to share it with your

friends.

take a photo

Press the camera key

to see the camera

viewfinder.

Slider closed:

Your phone takes photos in

standard landscape format when the slider is

closed.

370

Select & adjust

camera options.

Press

up/down to

see camera settings,

press left/right to change.

Return to

screen.

Camera

Mode

(Photo or

Video)

Options

Back

Zoom

Timer

Camera

Light

ResolutionRemaining

Shots

Storage

(Phone or

Memory

Card)

main attractions

Slider open:

Your phone takes photos in

portrait format when the slider is open.

Tip:

To take photos in low-light settings, press

Options

Flash

> flash option to use the built-in

flash.

Press the camera key

to take the photo in

the viewfinder.

•

To store the photo, press

Options

Save Only

Shortcut:

Press the center key

quickly store the photo. (This shortcut

only works when the auto-save feature

is turned off. To turn off auto-save,

press

, press

Options

CameraSettings

Auto-Save

Disable

•

To send the photo in a message,

press

Send

(see page 49).

•

To discard the photo, press the

clear/back key

370

Select & adjust

camera options.

Camera Mode

(Photo or

Video)

Timer

Camera

Light

Resolution

Press

up/down to

see camera

settings, press

left/right to

change.

Remaining

Shots

Storage

(Phone or

Memory Card)

Return to

screen.

Zoom

Options Back

main attractions

auto-send

You can set up your phone to automatically

send the photos you take to a list of contacts

you specify.

To use auto-send, you must first activate the

auto-save feature:

Find it:

, press

Options

CameraSettings

Auto-Save

Enable

Then activate auto-send:

Find it:

, press

Options

CameraSettings

Auto-Send

Enable

To specify the message recipients for the

photos you take:

Find it:

, press

Options

CameraSettings

Message Recipients

Tip:

To send your photo in an MMS text

message, the picture resolution must be set

X-Small

Small

, or

Medium

. To set resolution,

press

, press

Options

CameraSettings

Picture Settings

Resolution

camera settings

When the viewfinder is active, press

Options

select camera options:

options

Capture

Take a photo.

Go To My

Media

See, edit, and delete stored

pictures and photos.

Video Mode

Switch to the video camera.

Flash

Activate a flash option to take

photos in low-light settings.

Auto-Timer

Set a timer for the camera to

take a photo.

Multi-Shot

Set the camera to take multiple

photos in sequence.

main attractions

videos

record a video

Find it:

hMultimedia

Video Camera

Camera

Settings

Customize camera settings:

•

Review Time

•

Shutter Tone

•

Default Name

•

StorageLocation

•

Phone

•

Memory Card

•

Auto-Save

•

Auto-Send

•

Picture Settings

•

Resolution

•

Quality

•

Video Settings

•

Resolution

•

Quality

•

Video Length

options

1:48:00

Select & adjust

video camera

options.

Press

up/down to

see video camera

settings, press left/right

to change.

Return to

screen.

Camera

Mode

(Photo or

Video)

Options

Back

Zoom

Audio

(On or Off)

Camera

Light

Remaining

Video Minutes

Storage

(Phone or

Memory

Card)

Resolution

main attractions

Tip:

To send your video in an MMS text

message, the video length must be set to

MMS Short

MMS Long

. To set length, press

press

Options

CameraSettings

Video Settings

Video Length

Press the camera key

to begin video

recording.

Press

Stop

to stop video recording.

•

To preview, store, or discard the video,

press

Options

Shortcut:

Press the center key

quickly store the video. (This shortcut

only works when the auto-save feature

is turned off. To turn off auto-save,

press

, press

Options

CameraSettings

Auto-Save

Disable

•

To send the video in a message,

press

Send

(see page 49).

•

To discard the video, press the

clear/back key

When the video camera viewfinder is active,

press

Options

to select video options:

options

Capture

Begin video recording.

Go To My

Media

See, edit, and delete stored

videos.


Mode

Switch to the photo camera.

Audio

On/Off

Turn audio recording on/off.

Flash

Activate a flash option to record

videos in low-light settings.

Camera

Settings

Customize camera settings (see

page 34).

main attractions

play a video

For a video stored on the

phone

Find it:

hMultimedia

File Manager

Videos

>video

For a video stored on the

memory card

Find it:

hMultimedia

File Manager

Memory Card

> video

video name

00:06 00:12

10/15/2008-78KB

Press

to pause/play,

press down to

stop. Timer Shows

% Played

Press

left/right to

skip to

previous/

next video.

Select & adjust video

camera options.

Press

to show video

actual size or full screen.

Return to

screen.

Options Back

main attractions

When a video is playing, press

Options

to select

video options.

Note:

Your phone’s options may vary. Most

options apply only to user-recorded videos,

and are not available for pre-installed videos.

Note:

Your phone can’t receive data

over an EDGE network when playing

videos or some sound files. The EDGE status

indicator

appears at the top of the display

when you can receive data over an EDGE

network.

options

Slideshow

Show a preview of each video in

sequence.

Manage

Show song

Properties

, such as file

name, type, and size.

Delete

Delete the video.

Zoom

Show the video at actual size, or

expand the video image to fill

the screen.

Send To

Send the video in a message or

email, or send it to another

device over a Bluetooth™

connection.

Setup

Adjust video settings.

options

main attractions

slider features

slide tone

Set a

slide tone

to play when you open or

close the slider:

Find it:

wSettings

Profiles

, press

right to select the

settings

icon

Slide Tone

Select Slide Tone

Tip:

Slide tone volume is linked to the keypad

volume setting. You won’t hear the slide tone

when keypad volume is turned off.

Let the

theme

set the slide tone:

Find it:

wSettings

Profiles

, press

right to select the

settings

icon

Slide Tone

Set By Theme

turn off

the slide tone:

Find it:

wSettings

Profiles

, press

right to select the

settings

icon

Slide Tone

Remove Slide Tone

slide closed feature

Set your phone to continue running active

applications or close active applications when

you close the slider.

Find it:

wSettings

Phone Settings

Slide Closed

Continue Task

End Task

The

Slide Closed

setting determines what

happens when you close the slider under the

following conditions:

End Task Continue Task

On call End call Continue call

main attractions

full-screen viewfinder

Your phone’s camera shows a full-screen

viewfinder and takes photos in the standard

landscape format when the slider is closed.

For instructions on how to use the camera,

see page 31.

The video camera shows a full-screen

viewfinder when the slider is closed. For

instructions on how to use the video camera,

see page 34.

lock & unlock keypad

You can lock the phone keypad and side keys

to prevent accidental keypresses (for

example, when carrying your phone in a purse

or pocket).

manually lock

the keypad and side keys:

Press and hold

in the home screen. The

Camera

or Video

Camera

End Switch from

portrait to

landscape mode,

show full-screen

viewfinder

Music

Player

Continue

play, hide

music player,

return to

home screen

Continue play

Video

Player

End play Continue play

Java™

Game

End game Continue game

End Task Continue Task

main attractions

keys remain locked until you close and

re-open the slider.

automatically lock

the keypad and side

keys when the phone is idle and the slider is

closed:

Find it:

wSettings

Security

KeypadLock

Timer

You can set the time delay for locking the keys

(

2seconds

4 seconds

, or

8 seconds

). The keys lock

when you close the slider, and unlock when

you open the slider.

turn off

the automatic lock feature:

Find it:

wSettings

Security

KeypadLock

Timer

Off

unlock

the keypad and side keys: Press a

key, then follow the on-screen instructions.

Note:

Incoming calls unlock the keypad.

file manager

Use the file manager application to

access and manage music, photos, and

other multimedia files stored on your phone,

and on an optional removable MicroSD

memory card. (To insert a memory card in

your phone, see page 20.)

Find it:

hMultimedia

File Manager

Select a phone folder or

Memory Card

to see its

contents.

view

a photo or video, or

play

a sound file,

just scroll to the file and select it.

edit

a file, scroll to the file and press

Options

to delete, rename, copy, move, send, or apply

it. You can’t perform some operations on

some copyrighted or pre-installed files.

main attractions

see memory card contents

see files

stored on the memory card:

Find it:

hMultimedia

File Manager

Memory Card

Note:

The memory card may have a different

user-assigned name.

Tip:

Is your phone not seeing your memory

card? Try turning the phone off, then on again.

Then return to the

File Manager

list.

copy files

between your memory card and

a computer, you can use a cable connection

(see page 42) or a Bluetooth connection (see

page 46).

format

the memory card or see memory

card

properties

(such as name and available

memory):

Find it:

hMultimedia

File Manager

Press

to scroll to the memory card.

Press

Options

Memory Card

Format

Properties

move or copy files between the

phone and memory card

You can move or copy files (such as song files,

photos, and videos) from your phone to the

memory card or from the memory card to

your phone.

Caution:

When you

move

a file to a new

location, the file is

deleted

from its original

location.

Find it:

hMultimedia

File Manager

Select a phone folder or

Memory Card

to see its

contents.

main attractions

Scroll to the file you want to move or

copy.

Press

Options

Manage

Move

Copy

Note:

The

Move

and

Copy

options do not

appear if the file is copyright-protected.

Scroll to the destination location, then

press

Place

Tip:

Did your phone not find the memory card

you installed? Try turning the phone off, then

on again. Then, try to copy the file again.

cable connections

Your phone

has a

mini-USB port so

you can connect it to

a computer to

transfer data.

Note:

Motorola Original USB data

cables and supporting software are

sold separately. Check your

computer or hand-held device to

determine the type of cable you need. To

transfer data

between your phone and

computer, you must install the software

included with the Motorola Original data kit.

See the data kit user’s guide for more

information. To make

data calls

through a

connected computer, see page 92.

connect your memory card to a

computer

You can connect your phone to a computer to

transfer files to and from the memory card.

(To insert a memory card in your phone, see

page 20.)

main attractions

Note:

When your phone is connected to a

computer, you can only access the memory

card through the computer.

on your phone

Press

wSettings

Connections

USB Setting

Memory Card

This directs the USB connection to

your memory card. Attach the

Motorola Original USB cable to the

mini-USB port on your phone and

to an available USB port on your computer.

Then follow these steps:

on your computer

Find where your phone’s memory card

displays as a Removable Disk icon. On a

PC this is the My Computer window. On a

Macintosh™ computer, it’s on the

desktop.

Double-click the Removable Disk icon to

access the files on your phone’s memory

card.

To store the desired files onto the

memory card, drag and drop them onto

the removable disk drive icon.

When you finish, remove the phone with

memory card safely from your computer:

If you are using a PC

, right-click the

Safely Remove Hardware icon in the

system tray at the bottom of your

computer screen. Then select USB Mass

Storage Device.

If you are using a Mac

, select and drag

the Removable Disk icon to the Trash.

main attractions

file formats that work on your phone

Before you copy files to your phone, make

sure the files are in a format that your phone

recognizes:

audio

AAC (up to 192 Kbps), AAC+ (16

to 128 Kbps), MP3 (up to 320

Kbps, WAV (no limit), WMA v9

L2, v3, v7, v8 (up to 160 Kbps),

Real Audio G2, 8 (up to 96

Kbps), Real Audio 10 (up to 192

Kbps)


.jpg (up to 640 x 480), .png,

.bmp, .gif, .wbmp, .ems (up to

320 x 240)

video

MPEG4 + AAC: video up to 296

Kbps, 320 x 240, 15 fps., 44

kHz, stereo audio in .mp4, 3gp,

.pvs, .pvp, .pvx file formats.

H.263 + AAC: video up to 296

Kbps, 320 x 240, 15 fps., 44

kHz, stereo audio in .mp4, 3gp,

.pvs, .pvp, .pvx file formats. Real

Audio + video: video up to 296

Kbps, 320 x 240, 15 fps., 44

kHz, stereo audio in .rm, .rmvb

file formats.

main attractions

Bluetooth™ wireless

Your phone supports Bluetooth wireless

connections. You can connect your

phone with a Bluetooth headset or car kit to

make handsfree calls. You can connect your

phone with a device that supports Bluetooth

connections to exchange files.

Note:

The use of wireless phones while

driving may cause distraction. Discontinue a

call if you can’t concentrate on driving.

Additionally, the use of wireless devices and

their accessories may be prohibited or

restricted in certain areas. Always obey the

laws and regulations on the use of these

products.

For maximum Bluetooth security

, you

should always connect Bluetooth devices in a

safe, private environment.

turn Bluetooth power on or off

Find it:

wSettings

Connections

Bluetooth

press

Options

Manage

Setup Bluetooth

Bluetooth Power

Note:

To extend battery life, use this

procedure to set Bluetooth power to

Off

when

not in use. Your phone will not connect to

another device until you set Bluetooth power

back to

and connect your phone to the

device again.

use a headset or handsfree car

kit

Before you try to connect your phone to a

handsfree device

, make sure the device is

and

ready

in pairing or bonding mode (see

the user’s guide for the device). You can

connect your phone with only one device at a

time.

main attractions

Find it:

wSettings

Connections

Bluetooth

press

Options

Search For Device

Headset

Your phone lists the devices it finds within

range.

Scroll to a device in the list.

Press

Options

Manage

Bond With Device

connect to the device.

Your phone automatically uses

0000

as the

passkey to bond with the device. If

0000

doesn’t work, your phone prompts you to

enter the device’s passkey.

When your phone is connected, the Bluetooth

indicator

shows in the home screen, and

the Bluetooth indicator light on your phone

flashes.

Shortcut:

When Bluetooth power is on, your

phone can automatically connect to a

handsfree device you have used before. Just

turn on the device and move it near the

phone.

copy files to another device

You can copy a media file, contact, calendar

event, or bookmark to another phone or

computer that supports Bluetooth

connections.

Note:

You can’t copy some copyrighted

objects.

Before you try to copy a file to another

device

, make sure the receiving device is

and

ready

in discoverable mode. Also, make

sure the device is not busy with another

Bluetooth connection.

On your phone, scroll to the object that

you want to copy to the other device.

main attractions

Press

Options

, then select:

•

Send To

Bluetooth

for a photo, picture,

video, or sound file.

•

Send Contact Via

Bluetooth

for a contact.

•

Share Event Via

Bluetooth

for a calendar

event.

•

Share PageVia

Bluetooth

for a bookmark.

Select a recognized device name.

Select

[Search For All Devices]

to search for

new devices, then select the device

where you want to copy the object.

Press

Options

Send

If necessary, enter the device passkey

(such as

0000

), and press

to connect to

the device.

Note:

Once you connect your phone to a

Bluetooth device, that device can start a

similar Bluetooth connection with your phone.

Your display shows the Bluetooth indicator

when there is a Bluetooth connection.

receive files from another

device

Before you try to receive a file from

another device

, make sure your phone’s

Bluetooth power is

(see page 45). For a list

of file formats that work on your phone, see

page 44.

Place your phone near the device, and

send the file from the device.

If your phone and the sending device

don’t recognize each other, place your

phone in discoverable mode so the

sending device can locate it. Press

main attractions

wSettings

Connections

Bluetooth

, press

Options

Find My Device On

Press

on your phone to accept the

file from the other device.

Your phone notifies you when file transfer is

complete, and saves the file.

send photo to printer

You can send a photo to a printer that

supports Bluetooth connections.

Note:

You can print A4 or US Letter size

pages. To print another size, copy the object

to a linked computer and print it from there.

On your phone, take a new photo or scroll

to a stored photo that you want to print,

then press

Options

Print via

Bluetooth

Note:

If you see

Service Not Supported

when

you try to print, select

Send To

Bluetooth

instead. Always use this option to print

4x6 photos.

Select a recognized printer name, or

[Search For Printers]

to search for an

unrecognized printer where you want to

send the object.

If available, modify print options.

advanced Bluetooth features

Note:

A device is recognized after you

connect to it once (see page 45).

features

pair with recognized device

Press

wSettings

Connections

Bluetooth

, press

left/right to select the

My Devices

list, > device name.

main attractions

text messaging

For more messaging features, see page 84.

send a text message

A text message can contain text and

pictures, sounds, or other media

objects. You can add multiple pages to a

message, and put text and media objects on

each page. You can send a message to other

compatible phones, or to email addresses.

Find it:

eMessages

Create Message

Press keypad keys to enter text on the

page (for more information about text

entry, see page 55).

To insert a

picture, sound, or other

media object

on the page, press

Options

Insert

. Select the file type and the file.

(

Note:

File size restrictions may apply to

drop connection with device

Scroll to the device name and press

Options

Manage

Remove Device

switch to headset or car kit during

call

Press

Options

Use Bluetooth

edit properties of recognized

device

Scroll to the device name, press

Options

Manage

Edit Device

set Bluetooth options

Press

wSettings

Connections

Bluetooth

, press

Options

Manage

Setup Bluetooth

features

main attractions

pictures and videos sent in a text

message.)

To i n s e r t

another page

, press

Options

Insert

Page

. You can enter more text and

objects on the new page.

When you finish the message, press

Options

SendingOptions

to set message

options (such as

Subject

and

Priority

When you finish setting message options,

press

Done

Press

Send To

to select message recipients.

You can:

•

Select one or more entries from your

contact list (press

to scroll to an

entry, and press the center key

select it).

•

Enter a new number or email address

(press

Options

Enter Number

Enter Email

Press

Send

to send the message.

Your phone might tell you that this is a

multimedia message, if it contains

multiple pages or media objects. Some

phones or networks don’t support

multimedia messages. Press

Yes

to send

the message.

To save or cancel the message, press

Options

Save to Drafts

Cancel Message

receive a text message

When you receive a message, your

phone plays an alert, and the display

shows

New Message

with a message indicator

(such as

]

Press

Read

to open the message. If the

message contains media objects:

•

Pictures and animations show as you

read the message.

main attractions

•

Sound files play as you read the

message. Use the volume keys to

adjust the sound volume.

•

Attached files are added to the end of

the message. To open an attachment,

select the file indicator/filename.

phone updates

Sometimes, we think of ways to make your

phone’s software faster or more efficient after

you’ve purchased your phone. You can find

out if your phone can be updated at:

www.hellomoto.com/update

Note:

Software updates do not affect your

contact list or other personal entries or files. If

you receive a software update but choose to

install it later, see page 95.

basics

See page 1 for a basic phone diagram.

display

The home screen appears when you turn on

the phone.

Note:

Your home screen may look

different, depending on your service

provider.

To dial a number from the home screen, press

number keys and

Press the center key

or the

Main Menu

soft key to open the main menu. Soft key

labels show the current soft key functions. For

soft key locations, see page 1.

Press

Options

in the home screen to lock your

phone’s keypad and side keys, take a picture

or create a message, change the alert profile,

enable/disable airplane mode, customize the

home screen, or set an alarm.

Press the navigation key

up, down, left, or

right in the home screen to open basic

Date

Clock

Left Soft Key

Label

Right Soft Key

Label

Service Provider

10/15/2008

10:10AM

Options Main Menu

Feature Icons

basics

features. You can show or hide icons for these

features in the home screen, and change the

icons that are shown. For more information

about showing or changing feature icons in

the home screen, see page 88.

Status indicators can show at the top of the

home screen:

1 Signal Strength Indicator –

Vertical bars

show the strength of the wireless

network connection. You can’t make or

receive calls when

shows. The

roam indicator

shows when your phone

is seeking or using a network outside your

home network.

2 EDGE/GPRS Indicator –

Shows

when your phone is using a

high-speed Enhanced Data for GSM

Evolution (EDGE) or General Packet Radio

Service (GPRS) network connection.

Indicators can include:

3 Bluetooth™ Indicator –

Shows when

your phone is connected with another

Bluetooth device.

210613 9

45 7

= EDGE

connection

= GPRS

connection

= EDGE data

transfer

= GPRS data

transfer

= EDGE secure

data transfer

= GPRS secure

data transfer

= EDGE

unsecure data

transfer

= GPRS

unsecure data

transfer

basics

4Messaging Presence Indicator –

Shows your instant messaging (IM)

status. Indicators can include:

5 IM Indicator –

Shows when you

receive a new IM message.

6 Message Indicator –

Shows when

you receive a new message.

Indicators can include:

7 Location Indicator –

Shows your

phone’s location information status.

Indicators can include:

8 Profile Indicator –

Shows the alert profile

setting.

= online

= offline

= busy

= discrete

= invisible to IM

]

= text or voice

message

[

= email

message

= location on

= location off

= acquiring

location

= location fixed

= location

unknown

)

= ring only

= ring and

vibrate

= vibrate only

(

= vibrate then

ring

= silent

basics

9 Active Line Indicator –

Shows

to indicate an active call, or

indicate when call forwarding is on.

Indicators for dual-line-enabled SIM cards

can include:

10 Battery Level Indicator –

Vertical bars

show the battery charge level. Recharge

the battery when your phone shows

Low Battery

text entry

Some features let you enter text. You can use

several different text entry modes.

= line 1 active

= line 2 active

= line 1 call

forward on

= line 2 call

forward on

Create Message

Flashing

cursor

indicates

insertion

point.

Character

Counter

Press

select a

text entry

mode.

SMS:0

Press

Options

to change

text entry options.

Options Send To

basics

change

your text entry mode options and

languages:

Find it:

wSettings

Phone Settings

Text Entry

Change text case:

Press

in a text entry

screen to change text case to all capital letters

(

), next letter capitalized (

), or next letter

lowercase (no symbol). Your phone capitalizes

the first letter of each sentence unless you

press

to choose next letter lowercase.

Set text prediction:

Your phone can learn the

words you enter, to improve text prediction

and completion. Enter a word and press

Options

Text Entry

Set Text Prediction

Learn My Words

Your phone shows

when the feature is

active.

Set text completion:

Set your phone to

guess the rest of the word when you enter

three or more characters in a row. Enter a

word and press

Options

Text Entry

Set Text Prediction

Offer Completions

. Your phone

shows

when text completion is active.

Enter punctuation:

Press

to enter

punctuation or other characters.

Edit or delete text:

Press

to position the

cursor to the right of text you want to edit.

Press the clear/back key

to delete the

character to the left of the cursor. Hold

delete the word to the left of the cursor.

text entry modes

“word” mode (see page 57)

“abc” mode (see page 57)

numeric mode (see page 58)

symbol mode (see page 58)

basics

word mode

Press

in a text entry screen to switch to

“word” predictive text entry mode. Your

phone shows

in the display.

Word mode lets you enter words using one

keypress per letter. The phone combines your

keypresses into common words and predicts

each word as you enter it.

For example, if you press

7764

your display might show:

abc mode

Press

in a text entry screen to switch to

“abc” text entry mode.Your phone shows

in the display.

Prog ram

You can

turn text

completion

on (

) or

off (

Press

delete

character to

left of cursor.

Press

enter

Prog

& a

space.

Press

up/down to

see other

words. Press

to select a

word.

Create Message

SMS:4

Options Send To

basics

To enter text, press a keypad key repeatedly

to cycle through the letters and number on

the key. Repeat this step to enter each letter.

For example, if you press

one time, your

display shows:

When text completion is activated, your

phone attempts to guess the rest of the word:

•

Press

to select the suggested

word.

•

Press

right to enter the suggested

word and a space.

•

If you want a different word, press

keypad keys to enter the remaining

letters.

To activate text completion, see page 56.

numeric mode

Press

in a text entry screen until you see

. Press the number keys to enter the

numbers you want.

Tip:

Just need one number? To enter a

number quickly, press and hold a number key

until the number appears.

symbol mode

Press

in a text entry screen until you see

. The display shows the symbol associated

with each keypad key. Press

up/down

P rog

After two

seconds,

character is

accepted

and cursor

moves to next

position.

Character

displays at

insertion

point.

Create Message

SMS:1

Options Send To

basics

repeatedly to see different symbols. To insert

a symbol, press its key, or scroll to it and

press the center key

volume

Press the volume keys

to:

•

turn off an

incoming call

alert

•

change earpiece or speakerphone

volume during a call

•

change speaker volume when playing a

song or video

Tip:

To set your phone’s alert profile in the

home screen, press the side up/down keys to

scroll to a profile, then press the center

key

or smart key to select it. For more

information about using alert profiles, see

page 65.

navigation key

Press the

navigation key

up,

down, left, or right to

scroll to menu items.

When you scroll to

something, press the

center key

to select it.

smart key

The smart key gives

you another way to do

things. For example,

when you scroll to a

menu item, you can

press the smart key to

basics

select it (instead of pressing the center

key

Tip:

Press the smart key in the home screen

to launch the browser application.

voice commands

You can use voice commands to tell your

phone what to do.

Note:

Not all languages support voice

commands.

voice dial a call

You can dial an entry in your contact list by

speaking the entry’s name, or dial any phone

number by speaking its digits.

Press and release the voice command

key

on the right side of your phone.

The phone prompts you to say a

command or name.

Wait for the beep, then say the name of

an entry as it appears in your contact list.

Your phone confirms the name and makes

the call.

Say “Dial Number.” Your phone prompts

you to speak the digits in the phone

number. Speak the digits. Your phone

confirms the number and makes the call.

Tips:

•

You can say a contact’s name and

number type together. For example,

say “John Smith mobile” to call the

mobile number stored for John Smith.

•

Speak numbers at a normal speed and

volume, pronouncing each digit

distinctly. Don’t pause between digits.

basics

•

For voice command help, press the

voice command key

, then press

Help

voice activate phone functions

You can use voice commands to open

applications and perform many basic phone

functions.

Press and release the voice command

key

on the right side of your phone.

The phone prompts you to say a

command.

Wait for the beep, then say a command

from the list.

voice commands

“contact name”

“

Dial Number

”

“

Send Message To

contact name”

“

Check Calendar

”

“

Check New Message

”

“

Check New Email

”

“

Add New Contact

”

“

Talking Phone

”

“

Check Battery

”

“

Check Signal

”

“

Check Time

”

“

Check Date

”

“

Open Setup

”

“

Open Recent Calls

”

“

Open Theme

”

“

Open Camera

”

“

Open Web Access

”

“

Set Ring Only

”

“

Set Vibrate Only

”

voice commands

basics

Tip:

Press and release the voice command

key

to see the complete list of voice

commands.

talking phone

You can set your phone to recite incoming

caller ID information, read the names of menu

features or entries on your contact list, read

messages you receive, and provide audio

feedback for other phone functions.

Find it:

wSettings

Phone Settings

TalkingPhone

Shortcut:

Press and release the

voice command key

on the right side of

your phone, then say “Talking Phone.”

handsfree speaker

You can use your phone’s handsfree speaker

to make calls without holding the phone to

your ear.

During a call, press

Options

Speaker On

to turn

the handsfree speaker on. Your display shows

the speakerphone indicator until you turn it off

(press

Options

Speaker Off

) or end the call.

Note:

The use of wireless phones while

driving may cause distraction. Discontinue a

call if you can’t concentrate on driving.

Additionally, the use of wireless devices and

their accessories may be prohibited or

restricted in certain areas. Always obey the

“

Set Silent

”

“

Set Ring and Vibrate

”

“

Set Vibrate then Ring

”

“

Set Airplane

”

voice commands

basics

laws and regulations on the use of these

products.

codes & passwords

Your phone’s four-digit

unlock code

originally set to

1234

. The six-digit

security

code

is originally set to

000000

. If your

service provider didn’t change these codes,

you should change them:

Find it:

wSettings

Security

ChangePasswords

You can also change your

SIM PIN

codes or

call barring password.

If you forget your unlock code:

At the

Please verify the Unlock Code

prompt, try entering

1234 or the last four digits of your phone

number. If that doesn’t work, press

and

enter your six-digit security code instead.

If you forget other codes:

If you forget your

security code, SIM PIN code, PIN2 code, or

call barring password, contact your service

provider.

lock & unlock phone

You can lock your phone to keep others from

using it. To lock or unlock your phone, you

need the four-digit unlock code.

Tip:

To lock or unlock your phone’s keypad,

see page 39.

manually lock

your phone:

Find it:

wSettings

Security

Phone Lock

Lock Now

automatically lock

your phone whenever

you turn it off:

Find it:

wSettings

Security

Phone Lock

Lock at Power On

basics

Note:

You can make emergency calls on a

locked phone (see page 73). You also can

receive and answer incoming calls when the

phone is locked.

customize

profiles

You can quickly change your phone’s alert

profile to match your activity, environment, or

personal requirements. Each profile uses a

different set of ringtones or vibrations for

incoming calls and other events. The alert

profile indicator shows at the top of the home

screen:

To change your profile

, press the side

up/down keys in the home screen.

Alternatively, from the home screen press

Options

Change Alert Style

The

Silent

profile silences your phone until you

set another profile.

edit an alert profile

You can change the ringtones that an alert

profile uses to notify you of incoming calls

and other events. Additionally, you can change

the alert volume, keypad volume, and media

playback volume settings for the profile. For

dual-line-enabled SIM cards, you can set

different ringtones to identify incoming calls

on line 1 or line 2.

)Ring Only NRing and Vibrate

SVibrate Only (Vibrate then Ring

OSilent

customize

Note:

You can’t set a ringtone for the

Silent

profile, or change some settings for some

profiles.

Find it:

wSettings

Profiles

Alert Style

>profile

Press

left/right to select the

alerts

icon

volume

icon

messages

icon

]

, or

settings

icon

Press

up/down to scroll to the alert or

volume setting you want to change, then

press the center key

Select the setting value you want.

When you’re finished changing profile

settings, press

Back

to exit and save your

changes.

save

the modified profile as a new alert

profile:

Find it:

wSettings

Profiles

Alert Style

>profile, press

Options

Save as Profile

reset

the default settings for an alert

profile:

Find it:

wSettings

Profiles

Alert Style

>profile, press

Options

Reset

time & date

Your phone can automatically update the time

and date. It uses the time and date for the

Calendar

synchronize

time and date with the

network:

Find it:

wSettings

Phone Settings

Time & Date

Auto-Update Time

customize

manually

set the time and date:

Find it:

wSettings

Phone Settings

Time & Date

Auto-Update Time

Off

, then

Time

and

Date

To adjust time and date, press

left/right to

scroll to a setting, then press

up/down to

change it. Press

Set

to save your settings.

To show a

12-hour or 24-hour

digital clock in

the home screen:

Find it:

wSettings

Phone Settings

Time & Date

Time Format

12Hour Clock

24HourClock

To set the

date format

in the home screen:

Find it:

wSettings

Phone Settings

Time & Date

Date Format

To set your

time zone

Find it:

wSettings

Phone Settings

Time & Date

Time Zone

, then select a city in

your time zone

themes

You can use a phone theme to

personalize the look and sound of your

phone. Most themes include a wallpaper

image, screensaver image, and ringtones.

apply

a theme:

Find it:

wSettings

Themes

> theme

Alternatively, from the home screen, press

Options

Customize Home

ChangeTheme

download

a theme, see page 100.

customize

delete

a theme:

Find it:

wSettings

Themes

, scroll to the

theme, then press

Options

Manage

Delete

Note:

You can delete only downloaded

themes or custom themes you create.

modify a theme

You can change the images and sounds that a

theme applies to your phone.

Find it:

wSettings

Themes

> theme,

press

Options

Edit

Press

left/right to select the

images

icon

sounds

icon

Press

up/down to scroll to the setting

you want to change, then press the center

key

Scroll to the image or sound file you want,

then select it.

Press

Save

to save your theme changes.

The

Wallpaper

appears as a background image

in your home screen.

The

Screen Saver

appears in the display when no

activity is detected for a specified time. To set

the delay interval, see the following section.

Skins

set the look and feel of your phone’s

display.

reset

the standard settings for a modified

theme:

Find it:

wSettings

Themes

> theme,

press

Options

Manage

Reset

restore

the default theme on your phone:

Find it:

wSettings

Themes

, press

Options

Manage

RestoretoDefault

customize

create a new theme

You can create a new theme that uses the

images and sounds you specify.

Find it:

wSettings

Themes

, press

Options

Create New

Create aCopy

display appearance

To set your display

brightness

Find it:

wSettings

Phone Settings

Display Settings

Brightness

To save battery life, the keypad

backlight

can

turn off when you’re not using your phone.

The backlight turns back on when you

open/close the slider or press any key. To set

how long your phone waits before the

backlight turns off:

Find it:

wSettings

Phone Settings

Display Settings

Backlight Timeout

To save battery life, the

display

can turn off

when you’re not using your phone. The

display turns back on when you open/close

the slider or press any key. To set how long

your phone waits before the display turns off:

Find it:

wSettings

Phone Settings

Display Settings

Display Timeout

To select the delay interval (period of

inactivity) before the

screensaver

shows in

the display:

Find it:

wSettings

Phone Settings

Display Settings

Screensaver Timeout

Tip:

To extend battery life, turn off the

screensaver.

customize

answer options

You can use different ways to answer an

incoming call. To activate or deactivate an

answer option:

Find it:

wSettings

Call Settings

In-Call Setup

Answer Options

options

Any Key

Answer

Answer by pressing any key.

Open to

Answer

Answer by opening the slider.

calls

To make and answer calls, see page 23.

turn off a call alert

Press the volume keys to turn off the ringer

before answering a call.

recent calls

Your phone keeps lists of incoming and

outgoing calls, even for calls that didn’t

connect. The most recent calls are listed first.

The oldest calls are deleted as new calls are

added.

Shortcut:

Press

from the home screen to

see the

Dialed Calls

list.

Find it:

sRecent Calls

, press

select the

Dialed Calls

Missed Calls

Answered Calls

, or

Recent Calls

list

Scroll to a call. Icons indicate if the call was

incoming

or outgoing

, and if it

connected

•

To call the number, press

•

To see call details (like time and date),

press the center key

•

Press

Options

to select recent calls

options:

options

Filter By

Select a call list.

Call

Call the number.

calls

To select call times and costs, see page 90.

redial

Press

from the home screen to see

the

Dialed Calls

list.

Scroll to the number you want to call, then

press

If you hear a

busy signal

and see

Call Failed

, press

Retry

to redial the

number. When the call goes through, your

phone shows

Connected

and connects the call.

return a call

Your phone keeps a record of your

unanswered calls, and shows

XMissedCalls

where

is the number of missed calls.

When you see the

XMissedCalls

message,

press the center key

to see the

Missed Calls

list.

Scroll to the call you want to return, then

press

Send

Message

Open a new message with the

number in the

field.

Save To

Contacts

Create a new contact for the

number, or update the number

for an existing contact.

Delete

Delete the number from the call

list.

Select

Multiple

Select multiple numbers to

delete or send a message.

Hide ID

Show ID

Hide or show your caller ID for

the next call.

options

calls

caller ID

Calling line identification (caller ID)

shows the phone number for an

incoming call in your phone’s display.

Your phone shows the caller’s name and

picture when they’re stored in your contact

list, or

IncomingCall

when caller ID information

isn’t available.

Tip:

Want to know who’s calling without even

looking at your phone? To give one of your

contacts a special ringtone, see page 81.

To show or hide your phone number for the

next outgoing call, enter digits in the display,

then press

Options

Show ID

Hide ID

To show or hide

your phone number

for all

calls:

Find it:

wSettings

Call Settings

In-Call Setup

My Caller ID

All Calls

Show ID

Hide ID

emergency calls

Your service provider programs one or more

emergency phone numbers, such as 911 or

112, that you can call under any

circumstances, even when your phone is

locked or the SIM card is not inserted.

Note:

Emergency numbers vary by country.

Your phone’s preprogrammed emergency

number(s) may not work in all locations, and

sometimes an emergency call cannot be

placed due to network, environmental, or

interference issues.

calls

Press the keypad keys to dial the

emergency number.

Press

to call the emergency number.

voicemail

Your network stores the voicemail

messages you receive. To listen to your

messages, call your voicemail number.

Note:

Your service provider may include

additional information about using this

feature.

When you

receive

a voicemail message, your

phone shows the new message indicator

and

New Voicemail

. Press

Call

to listen to the

message.

check

voicemail messages:

Find it:

Messages

Call Voicemail

Your phone may prompt you to store your

voicemail phone number. If you don’t know

your voicemail number, contact your service

provider.

other features—advanced calling

other features

advanced calling

To use voice commands for calling, see

page 60.

features

speed dial

Your phone can store nine phone numbers

that you can call with a single keypress. To

store

a speed dial phone number:

wSettings

Call Settings

Speed Dial

>speed dial location

call

a speed dial number, press and hold

the single-digit speed dial number for one

second.

international calls

If your phone service includes

international dialing, press and hold

insert your local international access code

(indicated by

). Then, press number keys

to dial the country code and phone number.

hold a call

Press

Options

Hold

to put all active calls on

hold.

mute a call

Press

Options

Mute

to put all active calls on

mute.

features

other features—advanced calling

call waiting

When you’re on a call, you’ll hear an

alert if you receive a second call.

Press

to answer the new call.

•

To switch between calls, press

Switch

•

To connect the two calls, press

Link

•

To end the call on hold, press

Options

End Call On Hold

To turn the call waiting feature on or off:

wSettings

Call Settings

In-Call Setup

Call Waiting

Off

conference call

During a call:

Dial next number, press

, press

Options

Link Calls

features

transfer a call

During a call:

Options

Transfer Call

, dial transfer number,

press

call forwarding

Set up or cancel call forwarding:

wSettings

Call Settings

Call Forward

call barring

Restrict outgoing or incoming calls:

wSettings

Call Settings

Call Barring

TTY calls

Set up your phone for use with an

optional TTY device:

wSettings

Phone Settings

TTY Settings

features

other features—advanced calling

change phone line

If you have a dual-line-enabled SIM

card, you can change your line to make and

receive calls from your other phone

number:

wSettings

Call Settings

In-Call Setup

Active Line

The active line indicator shows the active

phone line (see illustration on page 55).

features

fixed dial

When you turn on fixed dialing, you

can call only numbers stored in the fixed

dial list.

Note:

You must enter your SIM PIN2 code

to turn fixed dialing on or off. If you forget

your PIN2 code, contact your service

provider.

Turn fixed dialing on or off:

wSettings

Call Settings

Fixed Dialing

Off

Use the fixed dial list:

?Office Tools

DialingServices

Fixed Dial

features

other features—contacts

contacts

For basic contact list features, see page 24.

service dial

Dial service phone numbers stored by

your service provider:

?Office Tools

DialingServices

Service Dial

DTMF tones

Activate DTMF tones:

wSettings

Call Settings

In-Call Setup

DTMF

Send DTMF tones during a call:

Press number keys

hyphenation

Set your phone to add hyphens to phone

numbers you enter:

wSettings

Call Settings

In-Call Setup

Hyphenation

features

add new contact

nContacts

, press

Options

Create New

Phone Contact

SIM Card Contact

For a

Phone Contact

: Press

left/right to

select the

contact details

icon

address

icon

picture ID

icon

alerts

icon

notes

icon

. Press

up/down to

scroll to information you want to change,

then press the center key

to select it.

Shortcut:

Enter a phone number in the

home display and press

Save

. This saves the

phone number in your standard storage

location (see

set contact storage location

after this feature).

other features—contacts

set contact storage location

Note:

You can store contacts in phone

memory, SIM card memory, or both.

Contacts stored on the SIM card can

contain only a name and phone number. To

set your standard storage location:

nContacts

, press

Options

ManageContacts

Contacts Settings

Default Save Location

set contact list view

Show contacts stored in phone memory,

SIM card memory, or both:

nContacts

, press

Options

View By

Phone & SIM

SIM Card

, or

Phone Contacts

features

call contact

nContacts

, scroll to the contact,

press

to call

Note:

If a contact has multiple phone

numbers or email addresses, press

left/right to select the number or email

address you want.

send message to contact

nContacts

, scroll to the contact, press

Options

Send Message

features

other features—contacts

add additional phone number or email

address to contact

nContacts

, scroll to the contact, press

Options

Edit Contact

, press

left/right to

select the

details

Press

up/down to scroll to an empty

Number

field, then press the center

key

to select it.

Note:

This option isn’t available for contacts

stored on the SIM card.

features

set picture ID for contact

Assign a photo or picture to show in the

display when you receive a call from a

contact:

nContacts

> entry, press

Options

Edit Contact

, press

left/right to select the

picture ID

icon

, > picture

Note:

This option isn’t available for contacts

stored on the SIM card.

features

other features—contacts

set alert(s) for contact

Assign a distinctive call alert (ringer ID) or

message alert for a contact:

nContacts

, scroll to the contact, press

Options

Edit Contact

, press

left/right to

select the

alerts

icon

, >

Call Alert

Message Alert

Note:

This option isn’t available for contacts

stored on the SIM card.

assign contact to category

nContacts

, scroll to the contact, press

Options

Edit Contact

, press

left/right to

select the

details

icon

, >

Category

Note:

This option isn’t available for contacts

stored on the SIM card.

features

set category view

nContacts

, press

Options

Filter By

You can show contacts in a predefined

category (

Family

Friends

Work

), or contacts in a

category that you create (select

Create Category

set alert(s) or picture ID for category

Assign a distinctive call alert (ringer ID),

message alert, or picture ID for contacts in

a specified category:

nContacts

, press

Options

ManageContacts

Edit Categories

> category

features

other features—contacts

create group mailing list

Assign contacts to a group message list or

email list:

nContacts

, press

Options

Create New

MessageList

Email List

Note:

This option isn’t available for contacts

stored on the SIM card.

show contact photos

Show contacts with picture ID photos, or as

a text list:

nContacts

, press

Options

Manage Contacts

Contacts Settings

Default View

Thumbnail

List

set contact list sort order

nContacts

, press

Options

Manage Contacts

Contacts Settings

Default Sort Order

First Name

Last Name

features

copy all contacts to SIM card

Copy all contacts from phone memory to

the SIM card:

nContacts

, press

Options

Manage Contacts

Copy All to SIM Card

synchronize contacts

Synchronize your contact list

over-the-air direct to a corporate

Microsoft® Exchange 2003

server using MOTOSYNC:

nContacts

, press

Options

Manage Contacts

Synchronize

For more information, see page 94.

features

other features—contacts

send contact to another device

Send a contact to another phone, computer,

or device:

nContacts

, scroll to the contact, press

Options

Send Contact via

Bluetooth

Message

delete contact

nContacts

, scroll to the contact, press

Options

Delete Contact

delete multiple contacts

nContacts

, press

Options

Select Multiple

select contacts to delete, press

Options

Delete

delete all contacts

nContacts

, press

Options

ManageContacts

Delete All Contacts

features

import vCard

Import contact information from a vCard file

stored on your phone.

nContacts

, press

Options

ManageContacts

Import vCard

store owner’s information

Store information about yourself on your

phone.

nContacts

, press

Options

ManageContacts

Owner’s Information

features

other features—messages

messages

For basic text messaging features, see

page 49. For instructions on entering text, see

page 55.

features

send text message

eMessages

Create Message

Your phone sends an SMS text message by

default, unless you insert multimedia

content or perform a function reserved for

MMS multimedia messages.

send quick note

Send a pre-written quick note:

eMessages

Templates

Text Templates

>quick note, press

Options

Send

send postcard

eMessages

Create Postcard

set up email accounts

You can set up and use multiple email

accounts on your phone:

eMessages

Add Account

Note:

Your display shows a separate folder

for each email account.

send email

eMessages

use a multimedia template

Open a multimedia template with

pre-installed media:

eMessages

Templates

MultimediaTemplates

read new message or email

When your display shows

New Message

press

Read

features

other features—messages

read old messages

eMessages

Inbox

Icons next to each message show if it is

unread

read

urgent

locked

, or has an

attachment

Press

Options

to perform various operations

on a message.

read old email

eMessages

Press

Options

to perform various operations

on a message.

store message objects

Go to a multimedia message page,

then press

Options

Store

features

create folder

Created a personal folder to store

your messages.

eMessages

My Folders

, press

Options

Create Folder

browser messages

Read messages received by your

browser:

When your display shows

New Message

, press

Read

To activate browser messages and adjust

browser message settings:

eMessages

, press

Options

Settings

Browser Messages

features

other features—instant messaging

instant messaging

info services

Read subscription-based information

services messages:

When your display shows

New Message

, press

Read

To activate information services and adjust

info services settings:

eMessages

, press

Options

Settings

Info Services

features

ãIM

, scroll to an account,

press

If you don’t have an IM account, select

[New Account]

to create one.

find others online

After you log in:

Select

Contact List

to see a list of other users.

start conversation

From your

Contact List

, scroll to a name

Online Contacts

, press

Send IM

open active conversation

From your

Contact List

, scroll to a name

Conversations

, press

View

other features—personalize

personalize

end conversation

From the conversation display:

Press

Options

End Conversation

log out

From the

IM Online

menu, select

LogOut

create or edit IM accounts

Create an account:

ãIM

[New Account]

Edit an account:

?Office Tools

, scroll to an

account, press

Options

Edit Account

features

language

Set menu language:

wSettings

Phone Settings

Language

ring volume

wSettings

Profiles

, press

left/right

to select the

volume

icon

, >

Alert Volume

keypad tones volume

wSettings

Profiles

, press

left/right

to select the

volume

icon

, >

KeypadVolume

media playback volume

wSettings

Profiles

, press

left/right

to select the

volume

icon

Playback Volume

other features—personalize

reminders

Set the reminder alert for event

notifications:

wSettings

Profiles

, press

left/right

to select the

settings

icon

, >

Reminder Alert

clock view

Show an analog or digital clock in the home

screen, or turn off the clock:

From the home screen, press

Options

Customize Home

Clock Style

date view

Show or turn off the date in the home

screen:

From the home screen, press

Options

Customize Home

Date

features

menu view

Show the main menu as a grid of graphic

icons or as a text-based list:

From the main menu, press

Options

View By

Grid

List

main menu

Reorder your phone’s main menu:

From the main menu, press

Options

Reorder

show/hide feature icons

Show or hide feature icons in the home

screen:

From the home screen, press

Options

Customize Home

Shortcut Keys

Show Icons

Note:

You can press

up, down, left, or

right to select the features in the home

screen even when the icons are hidden.

features

other features—personalize

change feature icons

Change feature icons in the home screen:

From the home screen, press

Options

Customize Home

Shortcut Keys

>feature icon location.

reset settings

Reset all default settings

except

unlock

code, security code, and lifetime timer:

wSettings

Phone Settings

Reset

Reset All Settings

features

delete data

Caution:

This option

erases all

information you have entered

(including

contacts and calendar entries)

and content

you have downloaded

(including photos

and sounds) stored in your phone’s

memory. After you erase the information,

you can’t recover it.

This option does

not

delete SIM card

information:

Settings

Phone Settings

Reset

Delete All Data

features

other features—call times & costs

call times & costs

Network connection time

is the elapsed

time from the moment you connect to your

service provider's network to the moment

you end the call by pressing

. This time

includes busy signals and ringing.

The amount of network connection time

you track on your resettable timer may not

equal the amount of time for which you

are billed by your service provider. For

billing information, contact your service

provider.

delete memory cards

Caution:

This option

erases all

information you have entered

(including

contacts and calendar entries)

and content

you have downloaded

(including photos

and sounds) stored in your memory card

and/or SIM card. After you erase the

information, you can’t recover it.

Settings

Phone Settings

Reset

Delete Memory Cards

features

call times

See call timers:

sRecent Calls

, press

Options

Call Times

in-call timer

Show call time information during a

call:

wSettings

Call Settings

In-Call Setup

In-Call Timer

other features—handsfree

handsfree

Note:

The use of wireless phones while

driving may cause distraction. Discontinue a

call if you can’t concentrate on driving.

Additionally, the use of wireless devices and

their accessories may be prohibited or

restricted in certain areas. Always obey the

laws and regulations on the use of these

products.

call cost

See call cost trackers and credit

information:

sRecent Calls

, press

Options

Call Costs

call cost setup

Set a credit limit:

sRecent Calls

, press

Options

Call Costs

Call Cost Setup

data times

See data call timers:

sRecent Calls

, press

Options

DataTimes

data volumes

See data volume meters:

sRecent Calls

, press

Options

DataVolumes

features

speakerphone

Activate a connected external

speakerphone during a call:

Press

Speaker

(if available), or press

Options

Speaker On

other features—data & fax calls

data & fax calls

To connect your phone with a USB cable, see

page 42.

auto answer

(headset)

Automatically answer calls when

connected to a car kit or headset:

wSettings

Phone Settings

Headset Settings

Auto-Answer

voice dial

(headset)

Enable voice dial with headset

send/end key:

wSettings

Phone Settings

Headset Settings

Voice Dial

features

use phone as modem

Connect your phone to a PC through

a USB cable connection:

wSettings

Connections

USB Setting

Modem & Tools

send data or fax

Connect your phone to the device,

then place the call through the device

application.

receive data or fax

Connect your phone to the device,

then answer the call through the device

application.

other features—data & fax calls

create new data connection

wSettings

Connections

DataConnections

Add aConnection

edit data connection

wSettings

Connections

DataConnections

Edit aConnection

delete data connection

wSettings

Connections

DataConnections

Remove aConnection

features

use SyncML

You can call a SyncML Internet server

and synchronize your phone’s

contact list, calendar entries, and tasks with

the server.

synchronize files

with a partner you set

up, press

?Office Tools

MOTOSYNC

SyncML

If no SyncML profile is stored on your

phone, the phone prompts you to create a

profile. Contact your IT system

administrator to obtain the information you

need to set up a profile.

Note:

If your phone can’t connect to the

server, verify that your phone’s network

service provider has data service activated

on your phone (additional fees may apply for

this service).

features

other features—data & fax calls

set up Exchange ActiveSync

Use the Internet to synchronize your

phone’s contact list, calendar entries,

and email with an email account on a

Microsoft® Exchange 2003 server.

Confirm that the

Mobility

option is enabled

on the email account, and that

data service

is activated with your phone service

provider.

set up

an ActiveSync partner:

?Office Tools

MOTOSYNC

Exchange ActiveSync

Enter your email account and server

information, including

User Name

Password

Domain Name

Server Name

, and the

DataConnection

to use.

features

use Exchange ActiveSync

Schedule your phone to automatically

synchronize data with an Exchange

ActiveSync partner:

?Office Tools

MOTOSYNC

Exchange ActiveSync

, press

Options

Auto Sync

, press

to enter the time and days

you want your phone to synchronize

features

other features—network

network personal organizer

features

network settings

See network information and adjust

network settings:

wSettings

Network

software update

Your service provider can send

updated phone software over the air to your

phone. When your phone receives a

software update, you can install it

immediately, or defer installation until later.

To install a deferred software update:

wSettings

Phone Settings

Software Update

Install Now

features

set alarm

?Office Tools

Alarm Clock

turn off alarm

When the display shows an alarm:

To turn off the alarm, press

Dismiss

To set an eight-minute delay, press

Snooze

set calendar default view

?Office Tools

Calendar

, press

Options

CalendarSetup

Default View

add new calendar event

?Office Tools

Calendar

, select the day

and the start time, press

, enter event

details

other features—personal organizer

see calendar event

?Office Tools

Calendar

> event

To edit event details, press

Options

Edit

calendar event reminder

When the display shows an event reminder:

To see reminder details, select

Open Event

To close the reminder, press

Dismiss

send calendar event to another device

Send a calendar event to another phone,

computer, or device:

?Office Tools

Calendar

> event, press

Options

Share Event via

Bluetooth

Message

features

manage downloaded files

Manage files and applications that you’ve

downloaded onto your phone from the

browser or over a Bluetooth™ connection:

?Office Tools

DownloadManager

manage files

Access and manage multimedia files stored

on your phone and on your removable

memory card:

hMultimedia

File Manager

world clock

Show time and date information for multiple

cities around the world:

?Office Tools

World Clock

features

other features—personal organizer

task list

Create a checklist of tasks you need to

perform, and set your phone to notify you

when task deadlines arrive:

?Office Tools

Task List

notes

Write and store notes on your phone:

?Office Tools

Notes

features

create voice record

hMultimedia

Voice Recorder

, press the

center key

to start recording, press

Stop

to stop recording

To save the voice record, press

Save

To perform various operations on the voice

record, press

Options

Note:

Recording of phone calls is subject to

varying State and Federal laws regarding

privacy and recording of phone

conversations. Always obey the laws and

regulations on the use of this feature.

play voice record

Play back a voice record:

hMultimedia

File Manager

Voice Records

>voice record

features

other features—security

security

calculator

?Office Tools

Calculator

currency converter

?Office Tools

Calculator

, press

Options

Set ExchangeRate

, enter exchange rate, press

Set

, enter amount, press

Options

Convert Currency

features

SIM PIN

Caution:

If you enter an incorrect PIN code

three times before the correct code, your

SIM card is disabled, and your display

shows

SIM Blocked

Lock or unlock the SIM card:

wSettings

Security

SIM Lock

lock application

wSettings

Security

Application Lock

other features—fun & games

fun & games

manage certificates

Enable or disable Internet access

certificates stored on your phone:

wSettings

Security

Certificates

Certificates are used to verify the identity

and security of Web sites when you

download files or share information.

features

manage music and sounds

Manage music and ringtones that you

have downloaded:

Press

[

Scroll to a sound file, then press

Options

delete, rename, copy, move, send, or apply

it. You can’t perform some operations on

some copyrighted or pre-installed files.

play a music or sound file

Press

[

> sound file

100

other features—fun & games

manage pictures

hMultimedia

File Manager

Pictures

Scroll to a picture file, then press

Options

delete, rename, copy, move, send, or apply

it. You can’t perform some operations on

some copyrighted or pre-installed files.

edit a picture

hMultimedia

File Manager

Pictures

>picture, press

Options

Edit

You can’t edit some copyrighted or

pre-installed files.

manage videos

hMultimedia

File Manager

Videos

Scroll to a picture file, then press

Options

delete, rename, copy, move, or send the

video. You can’t perform some operations

on some copyrighted or pre-installed files.

features

launch the browser

áWeb Access

Browser

download files from Web page

Download a sound file, picture, or

other file from a Web page:

download game or application

You can download a Java™ game or

application the same way you download

pictures or other objects:

start game or application

Start a Java™ game or application:

hMultimedia

Games

> game or

application

features

other features—fun & games

101

airplane mode

Turn off your phone’s calling features in

locations where wireless phone use is

prohibited. This lets you use the music

player and other non-calling features while

you are on an airplane, without interfering

with airplane communications.

From the home screen, press

Options

Enable Airplane Mode

Yes

To turn off airplane mode and reactivate

your phone’s calling features.

From the home screen, press

Options

Disable Airplane Mode

Yes

features

102

service and repairs

If you have questions or need assistance,

we're here to help.

Go to

www.motorola.com/consumer/support

where you can select from a number of

customer care options. You can also contact

the Motorola Customer Support Center at

1-800-331-6456 (United States),

1-888-390-6456 (TTY/TDD United States for

hearing impaired), or 1-800-461-4575

(Canada).

SAR Data

103

Specific Absorption Rate Data

SAR Da ta

This model meets international guidelines for

exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is

designed not to exceed the limits for exposure to radio waves

recommended by international guidelines. These guidelines were

developed by the independent scientific organization ICNIRP and

include safety margins designed to assure the protection of all

persons, regardless of age and health.

The guidelines use a unit of measurement known as the Specific

Absorption Rate, or SAR. The ICNIRP SAR limit for mobiles devices

used by the general public is 2 W/kg and the highest SAR value for

this device when tested at the ear was ___ W/kg.

As mobile

devices offer a range of functions, they can be used in other

positions, such as on the body as described in this user guide.

this case, the highest tested SAR value is ___ W/kg.

As SAR is measured utilizing the device’s highest transmitting

power, the actual SAR of this device while operating is typically

below that indicated above. This is due to automatic changes to

the power level of the device to ensure it only uses the minimum

level required to reach the network.

While there may be differences between the SAR levels of various

phones and at various positions, they all meet the governmental

requirements for safe exposure. Please note that improvements to

this product model could cause differences in the SAR value for

later products; in all cases, products are designed to be within the

guidelines.

The World Health Organization has stated that present scientific

information does not indicate the need for any special precautions

for the use of mobile devices. They note that if you want to reduce

your exposure then you can do so by limiting the length of calls or

using a “hands-free” device to keep the mobile phone away from

the head and body.

Additional Information can be found on the websites of the World

Health Organization (

http://www.who.int/emf

) or

Motorola, Inc.

(

http://www.motorola.com/rfhealth

1. The tests are carried out in accordance with international guidelines for

testing. The limit incorporates a substantial margin for safety to give

additional protection for the public and to account for any variations in

measurements. Additional related information includes the Motorola

testing protocol, assessment procedure, and measurement uncertainty

range for this product.

2. Please see the Safety and General Information section about body worn

operation.

104

WHO Information

Information from the World Health Organization

WHO Info rmation

Present scientific information does not indicate the need for any

special precautions for the use of mobile phones. If you are

concerned, you may want to limit your own or your children’s RF

exposure by limiting the length of calls or by using handsfree

devices to keep mobile phones away from your head and body.

Source: WHO Fact Sheet 193

Further information:

http://www.who.int./peh-emf

index

105

index

abc mode 57

accessories 18, 45, 91

active line indicator 55

active line, change 77

airplane mode 52, 101

alarm clock 95

alert

set 59, 65, 67

turn off 59, 71

alert profile 65

alert style profiles 54, 59

animation 100

answer a call 24, 70

audio file formats 44

audio player 26

backlight 69

battery 20, 21

battery charge indicator light

1, 21

battery indicator 55

battery life, extend 22, 45,

Bluetooth indicator 53

Bluetooth indicator light 1,

Bluetooth wireless 45

bonding. See Bluetooth

wireless

brightness 69

browser 85, 96, 100

browser messages 85

cables, using 42

calculator 98

calendar

add event 95

send event 96

set view 95

synchronize 93

call

answer 24, 70

end 23, 24

make 23, 25

waiting 76

call alert 81

call barring 63, 76

call forward indicator 55

call forwarding 76

106

index

call timers 90, 91

caller ID 72, 73, 80

camera 2, 31, 34

camera key 2

car kit 91

center key 1, 18, 59

certificate management 99

clear/back key 1, 56

clock 66, 88

codes 63

conference call 76

contact list

add entry 24, 78

dial entry 25

filter 81

picture ID 73

search 25

send contact 83

synchronize 82, 93

costs, track 91

customer support 102

data call 91, 92

data connection 93

date 66, 88

delete data 89

delete memory cards 90

delete text 56

dial a phone number 23, 25,

77, 78

dialed calls 71

digital audio 26

display 3, 52, 69, 88

download manager 96

download media objects 85,

100

drafts folder 50

DTMF tones 78

earpiece volume 59

EDGE indicator 53

email 84, 85

email address 24, 78

emergency number 73

end a call 23, 24

end key 1, 23, 24

Enter Unlock Code message

fax call 92

feature icons 88, 89

file formats 44

file manager 40, 96

filter contacts 81

fixed dial 77

flip 70

formats, file 44

index

107

forward calls 76

full-screen viewfinder 39

GPRS indicator 53

group mailing list 82

handsfree speaker 2, 52, 62

headset 91

hold a call 75

home screen 3, 52, 88, 89

hyphenation 78

IM 86

IM indicators 54

in-call indicator 55

Incoming Call message 73

information services 86

instant messaging. See IM

international access code 75

keypad 70

keypad volume, adjust 65,

language 87

light alert 81

linking. See Bluetooth

wireless

location indicator 54

lock

application 98

keypad 39

phone 63

side keys 39

SIM card 98

Low Battery message 55

make a call 23, 25

media finder 97

media playback 65, 87

media volume, adjust 65, 87

memory card 20, 40, 42

menu 3, 52, 88

menu icons 52, 88, 89

menu key 18

message

reading 50, 84, 85

sending 49, 84

message alert 81

message indicator 50, 54

message reminders 88

messaging. See IM

mini-USB port 2, 21, 42

Missed Calls message 72

modem 92

MOTOSYNC 93

MP3 sound files 26

108

index

multimedia message 49, 84

music 99

music library key 1

music player 26

mute a call 75

navigation key 1, 18, 59

network settings 95

notes 97

numeric entry mode 58

open to answer 70

optional accessory 18

optional feature 18

pairing. See Bluetooth

wireless

passwords. See codes

personalize 87

phone number

storing 24, 78

your number 25, 77

photo 31, 100

photo file formats 44

picture 100

picture ID 73, 80

PIN code 23, 63, 98

PIN2 code 63, 77

postcard 84

power key 1, 23

predictive text entry 57

printing 48

profile indicator 54

profiles 54, 59, 65

push bar 1, 2

quick note 84

received calls 71

recent calls 71

redial 72

reminders 88

repairs 102

reset settings 89

resolution 34

return a call 72

ringer ID 73, 81

ringer volume, adjust 65, 87

ringtone 29, 65, 67, 99

safety information 9

screensaver 67, 69

security code 63

index

109

send key 1, 23, 24

service dial 78

side select key 89

signal strength indicator 53

silent profile 65

SIM Blocked message 23,

SIM card 19, 23, 63, 77, 78,

skin 67

slide closed 38

slide tone 38

slider 23, 24

smart key 2, 59

soft keys 1, 52, 89

software update 51, 95

speakerphone 91

speed dial 75

store phone numbers 24, 78

store your phone number 25

support 102

symbol entry mode 58

sync 93

synchronizing 94

task list 97

technical support 102

text edit 56

text entry 55

text entry mode 57

text message 49

text messaging 49, 84

text templates 84

theme 67

time 66

timers 90, 91

transfer a call 76

TTY device 76

turn on/off 23

unlock

application 98

keypad 39

phone 23, 63

side keys 39

SIM card 98

unlock code 63

USB cables 42

vibrate profile 65

video 34, 100

video file formats 44

voice command key 2, 60

voice commands 60

voice dial 60, 92

voice record 97

voicemail 24, 74

voicemail message indicator

110

index

volume 59, 65, 87

volume keys 2, 59

wallpaper 67

WHO information 104

word text entry mode 57

world clock 96

your phone number 25

U.S. patent Re. 34,976

Cover.Print.Front.V3i.UG.fm Page 2 Monday, August 29, 2005 10:58 AM

Motorola Mobility T56GG1 Portable PCS/ Cellular GSM/ EDGE Transceiver w/ BT User Manual Exhibit 8 Users Manual

Motorola Mobility LLC Portable PCS/ Cellular GSM/ EDGE Transceiver w/ BT Exhibit 8 Users Manual

Exhibit 8 Users Manual

Navigation menu

Namespaces

Views

Navigation
