Contents
Exhibit 8F Users Manual
279
Appendix/Using External Devices/Troubleshooting
Menu List ...................................................................................................................280
Default Settings.........................................................................................................288
Dial Key Assignments to Characters ......................................................................290

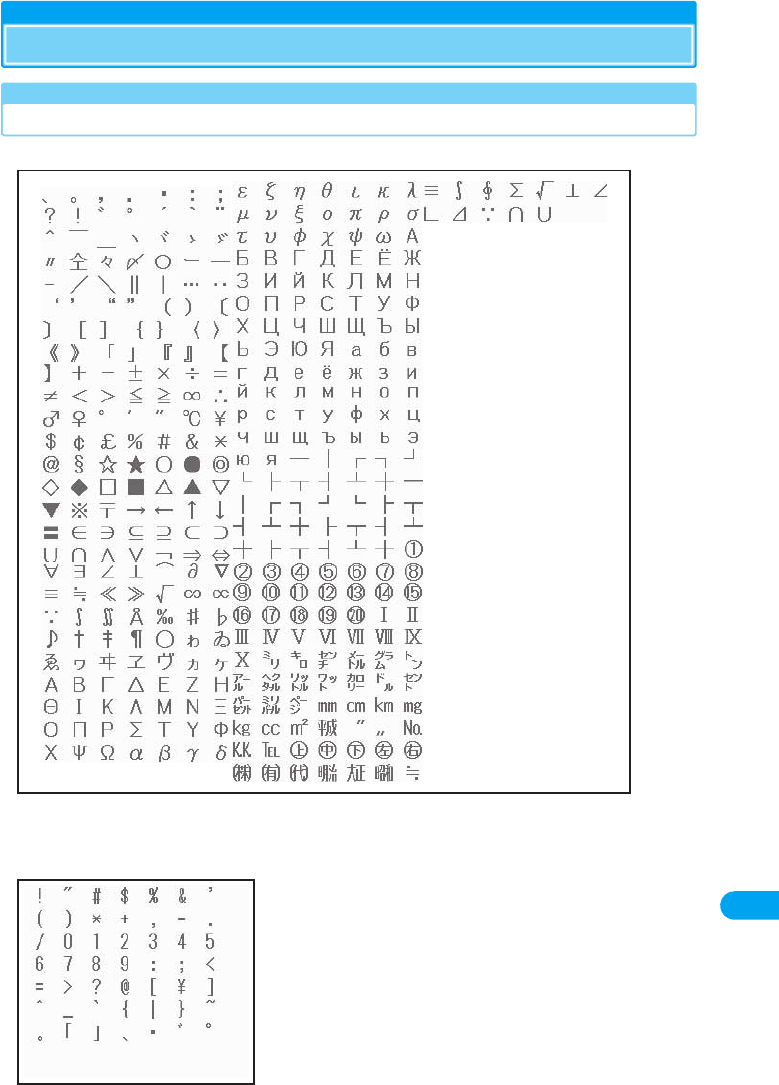

List of Symbols and Special Characters ................................................................291

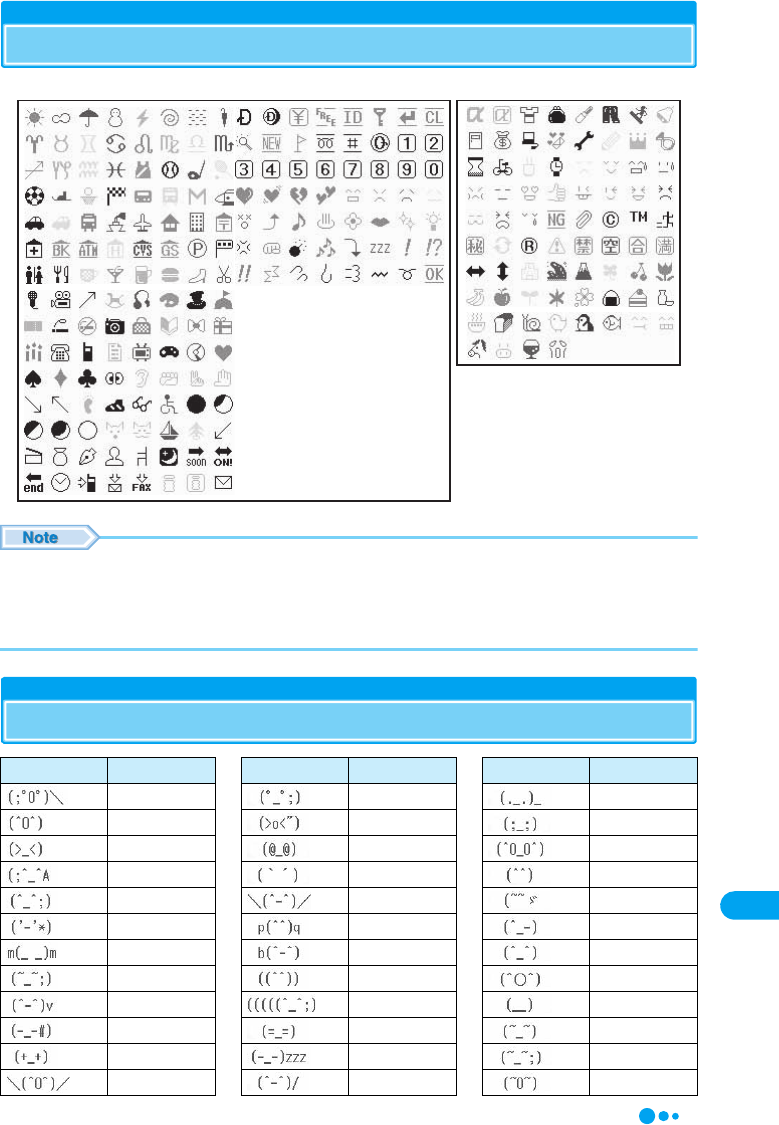

Pictograph List..........................................................................................................293
Smiley List .................................................................................................................293
List of Common Phrases..........................................................................................294

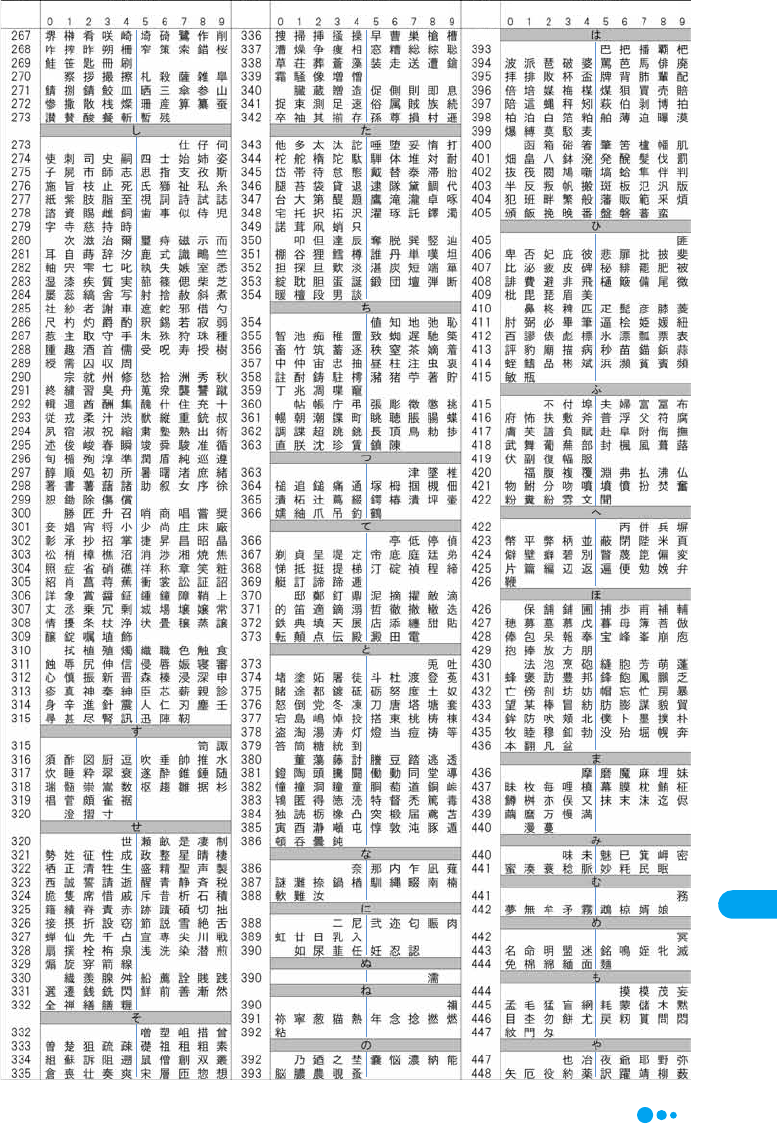

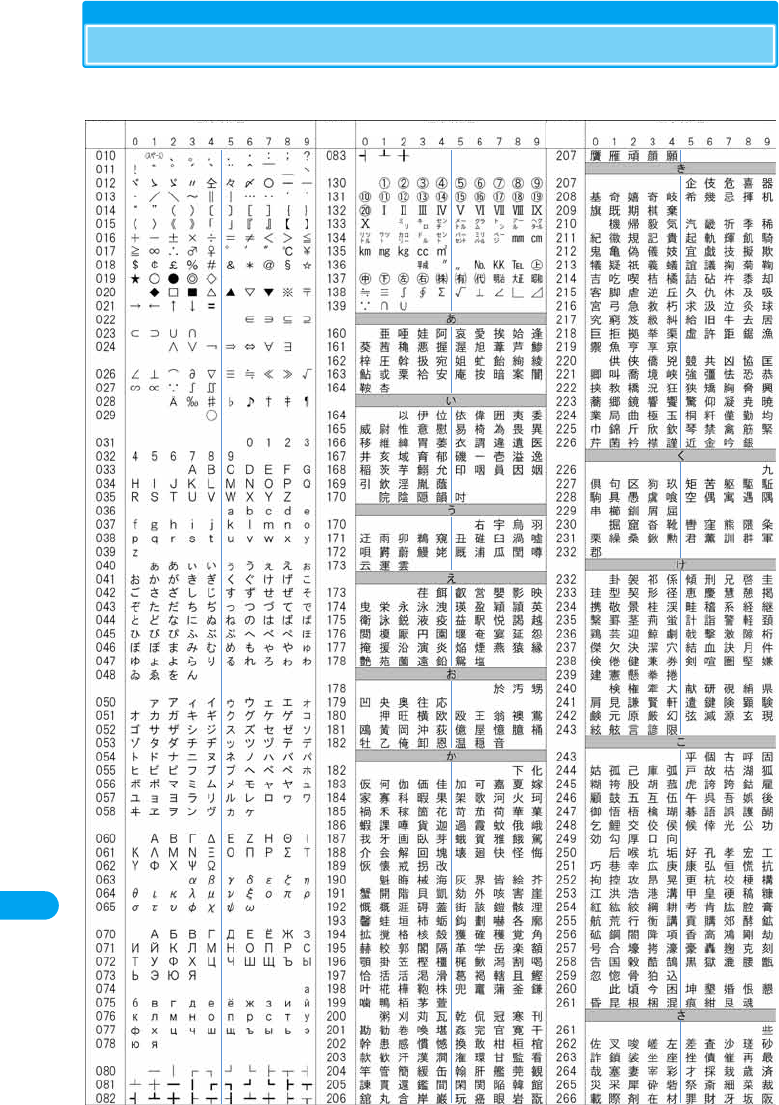

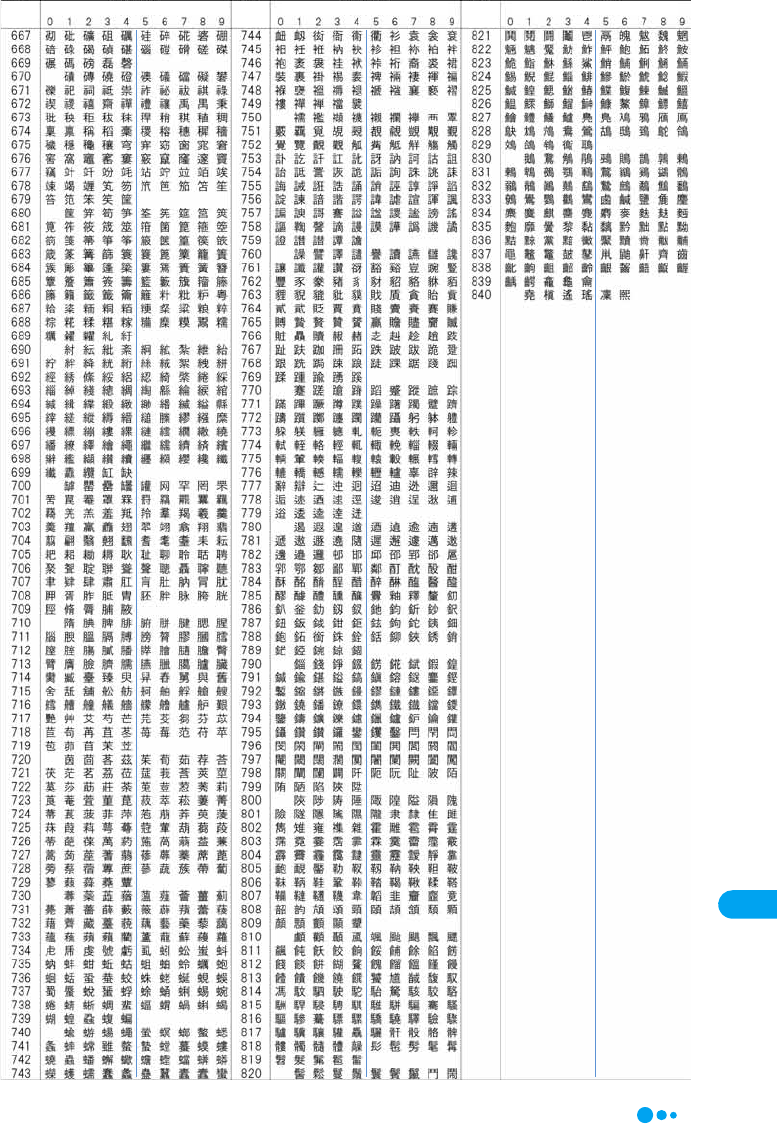

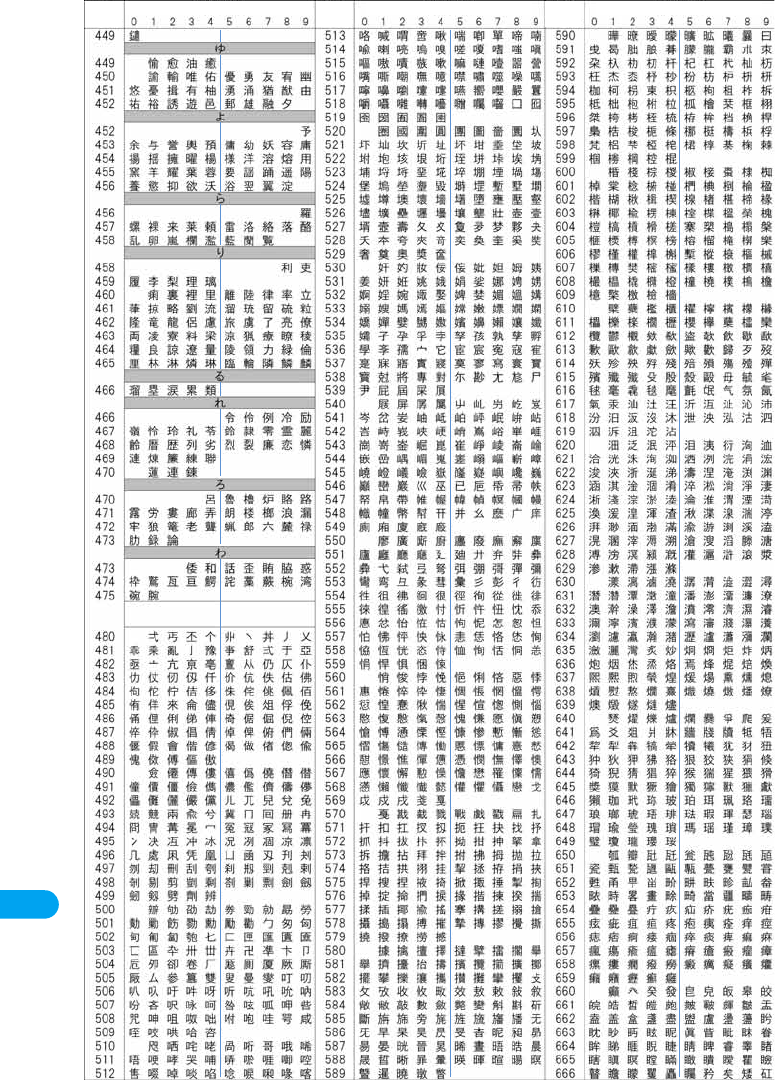

Kuten Code List ........................................................................................................296
Combination of Multiaccess Functions ..................................................................300
Combination of Multitask Functions.......................................................................300
Services Available from FOMA Handset.................................................................301
Function and Related Devices.................................................................................302
Interfacing to External Devices
Data Link Software ...........................................................................................302
Video Play Software .........................................................................................303
Using FOMA Handset for Playing i-motion (Including Music Data) Created
with PC...............................................................................................................303
Troubleshooting
Troubleshooting................................................................................................303
Error Messages .................................................................................................305
Warranty and After-sales Service....................................................................317
Updating Software<Software Update> ...........................................................318
Protecting Mobile Phone from Dangerous Data<Scanning Function>........323
Major Specifications.........................................................................................325
Specific Absorption Rate (SAR) of Mobile Phone .........................................326
Export Administration of This Product and Its Accessories........................328
280
Appendix/Using External Devices/Troubleshooting XXXXX
Menu List
Functions with indicated in "Default settings:" field are those initialized to default
settings by "Master Reset".
Function names Default settings: Page
$★$
i-mode
i Menu P148
Bookmark
Main Folder Unregistered P151
User created folder No settings
Go to location URL entry history No history P150
Screen memo
P153Main Folder Unregistered
User-created folder None
Last URL P150
Message R No message P160
Message F No message
Check new message −P159
i-mode Setting
Font Size Standard P157
Scroll 1 line P157
Image Display Display P157
Message Auto Display MessageR preferred P159
Message Attached
Melody
Auto play P159
i-motion Auto Play Auto play P164
Use Registered Data Use P158
Sound effects Play P158
Check New Message All checkmarked
(Cheking the
specifications)
P184
Connection Timeout 60 seconds P158
Host Setting i-mode P158
Certif. Center Host DoCoMo P158
Certificate All valid P158
Client Certificate −P158
Check i mode Setting −P158
Reset i mode −P158
Select Application −P148
$★$
i-appli
Only pre-installed i-appli P193
281
Appendix/Using External Devices/Troubleshooting XXXXX
Function names Default settings: Page
$★$
Mail
Inbox
P178
Main folder No message
User created folder None
Folder for i-appli mail None
Outbox
P179
Main folder No message
User-created folder None
Folder for i-appli mail None
Unsentbox Main folder No message P179
Compose message −P172
Compose SMS
message −P187
Chat Mail P186
Deco-mail template Only pre-installed data P175
Select Application −P172
Check new message −P172
Check SMS −P189
Receive option −P176
Mail setting
Check new message All checkmarked
(Checking the
specifications)
P184
Receive attachment Image and Melody P184
Receive option OFF P184
Melody auto play Auto Playback P184
Receive preference Prefer receive notice P184
Signature OFF P184
Edit quotation mark −P184
Font size Standard P184
Scroll 1 Line P184
Reg. sending group Unregistered P184
SMS report request OFF P184
SMS message validity For 3 days P184
SMS center DoCoMo P184
Mail status request P185
Reset mail status P185
$★$
Phonebook
View (Checking the
specifications) P99
Setup View by: List
Default Storage: Phone P102
Continued on the next page
282
Appendix/Using External Devices/Troubleshooting XXXXX
Function names Default settings: Page
$★$
Databox
My Pictures
Pictures (All) None
P204
Camera None
i-mode/Other None
Pre-installed Only pre-installed data
Picture Albums Most Viewed folder
No user-created folder P211
i-motion
i-motion (All) None
P208
Camera None
i-mode/Other None
Pre-installed Only pre-installed data
i-motion Albums Most Viewed folder
User-created album:
None
P211
Melody
Melody (All) None
P214
i-mode/Other None
Pre-installed Only pre-installed data
Playlists Most Played list
User-created list: None P216
Artist User-created list: None
P214
Album
Genre
Composer
Chara-den
Chara-den (All) None
P213
i-mode/Other None
Pre-installed Only pre-installed data
Animations
Animations (All) None
P204
i-mode/Other None
Pre-installed Only pre-installed data
Voice Notes
Voice Notes (All) None P218
My Notes Unregistered
283
Appendix/Using External Devices/Troubleshooting XXXXX
Function names Default settings: Page
$★$
Accessories
Alarm Clock −P227
Datebook Setup Default View: Month
View
Daily Begin: 7:00am
Reminder Time-Out:
OFF
Default Past Items: 1
week
Power On Events: On
P228
Record Message Record Message: Off
Response Time: 8Sec
Response Greeting:
Japanese
Response Image:
Japanese
P75
Calculator Currency Setup From: Dollar $
To: Yen ¥
Exchange Rate:
110.000000
P236
World Clock City set "Time and Date",
Chicago, Beijing from
the top
P236
Barcode Reader −P139
Electronic Dictionary −P237
Scanning Function P323
Recent Calls Settings Enable
Received Calls −P67
Dialed Calls −P57
Notepad −P57
Call Times −P233
Call Cost −P233
Camera −P135
$★$
Connection
Infrared Link −P223
Bluetooth Link Setup Power: Off
Name: Motorola Phone
(Checking the
specifications)
P238
USB Set −P222
$★$
Network
Services
Voicemail −P246
Call Waiting −P247
Call Forwarding −P248
Nuisance Call Barring −P249
Caller ID Notification −P249
Caller ID Display
Request −P51
Incoming Call
Management −P251
In-call Arrival Act Answer Call P251
Continued on the next page
284
Appendix/Using External Devices/Troubleshooting XXXXX
Function names Default settings: Page
$★$
Network
Services
Additional Msg −P253
Additional Services −P252
Remote Control −P251
Guidance Language −P250
Dual Network −P250
Multi Number −P251
Call Barring - Roaming −P276
Roaming Guidance −P276
Service Dial −P250
$★$
Settings
Sound Profiles
Style Loud P106
Detail Ring Volume: 7
Calls: (Checking the
specifications)
Messages: (Checking
the specifications)
Voicemail: (Checking
the specifications)
Calendar Alarms:
(Checking the
specifications)
Data Calls: (Checking
the specifications)
Ringer IDs: On
Key Volume: 2
Reminders: Beep
P107
Ring Lights None P114
Event Lights On P115
Personalize
Home Screen Clock: Digital
Date: On
Layout: Centered
P115
Main Menu View: Icons P113
Skin Moto P113
Greeting −P114
Wallpaper Picture: (Checking the
specifications)
Layout: Fit-to screen
Calendar: Off
P112
Screen Saver Picture: (Checking the
specifications)
Delay: 1 minute
P114
Manner Mode Silent P110
285
Appendix/Using External Devices/Troubleshooting XXXXX
Function names Default settings: Page
$★$
Settings
General Settings
Time and Date hh:mm: 24 hr
Time Zone: Tokyo
(GMT+9:0)
Date Format: 12/31/99
Auto Update: ON (Time
& Time Zone)
P50
Speed Dial Phone Memory P103
Auto Redial Off P58
Display Timeout 2 minutes P116
Backlight 10 seconds P116
Scroll Wrap Around P116
Text Marquee Slow P117
Language Automatic P49
Text Entry −P261
Power Setting On P69
Brightness 3 P117
DTMF Long P109
Master Reset −P242
Master Clear −P242
Software Update −P318
Security
Phone Lock Automatic Lock: Off P123
Sidekey Lock Off P126
Sidekey Shortcut −P126
Lock Application Off P124
Lock Application Setup All uncheckmarked P125
Secret Data Hide P126
Dialing Restriction Off P125
UIM PIN Off P122
New Passwords Unlock Code: 0000
Security Code: 000000 P121
In-Call Setup
Date and Time Show Date: On
Show Time: On P115
In-Call Timer Display: Off
Beep: Off P64
Call Cost Setup Credit Limit: Off
Currency Setup
Currency: Off
Cost Per Unit: 0.000
P234,
P234
Videocall Settings Off Image: (Checking
the specifications))
Handsfree: Speaker
P86, P88
Continued on the next page
286
Appendix/Using External Devices/Troubleshooting XXXXX
Function names Default settings: Page
$★$
Settings
Answer Function Answer key: On
Open To Answer: On P67, P67
Call Hold Answer Hold
Answer Hold Tone:
Japanese
Answer Hold Image:
(Checking the
specifications)
Response Hold Tone:
Japanese
Videocall Hold
Videocall Hold Tone:
Japanese
Videocall Hold Image:
(Checking the
specifications)
P70, P71,
P87
Call Rejection Public Phones: Accept
Private ID: Accept
Unknown ID: Accept
Not in Phonebook:
Accept
P127
International Dial Settings Intl Access Code
Auto Assist: Off
Access Code
:World Call
Country Code
Auto Assist: Off
Country Code: Japan
P62, P272
Sub Address
(Checking the specifications)
P63
Ring Delay Ring Delay: 0 seconds
Show in Call Logs: Yes P127
Network
New Network −P275
Network Setup Band: Automatic
Type: Automatic
Speed: Medium
P274
Available Networks −P275
My Network List −P275
Service Tone ON P276
Headset
Auto Answer OFF P238
Ringer Function Headset & Speaker P110
Self Mode
Self Mode OFF P124
Prompt At Power Up OFF P124
i-appli Settings
Sort by Name P197
App Auto Start Off (Checking the
specifications) P195
Softw. Info display Off P197
287
Appendix/Using External Devices/Troubleshooting XXXXX
■The other settings
Function names Default settings: Page
$★$
Settings
Light Phone Settings
(Checking the
specifications)
P197
Vibrate Phone Settings
(Checking the
specifications)
P197
Start failure history −P197
Abnormal exit history −P197
Security error history −P197
Trace Output −P197
Phone Status
My Personal Info −P232
Battery Meter −P48
User Accounts −P242
Storage Devices −P242
Other Information −P242
Function Default settings Page
Video Call Swap View Main window: Other party's image
Sub window: Your image P86
Setup Lighting Conditions: (Checking the
specifications) P87
Brightness (Checking the specifications) P87
Original Manner Detail Ring Volume: 0
Calls: (Checking the specifications)
ChatMail: (Checking the specifications)
Messages: (Checking the specifications)
Ans Mach: (Checking the specifications)
Calendar Alarm: (Checking the
specifications)
Data Calls: (Checking the specifications)
Ringer IDs: Off
Key Volume: 0
Reminders: Beep
Low Battery Alert: Off
Mic Sensitivity: On
P111
Entry Setup Japanese Prediction Japanese matching: On
Japanese next word: On P263
English Settings Auto Space: On
Auto Cap: On
English matching: On
English next word: On
P263
Cursor timeout Hiragana/Katakana: Off
Alphabet: Off P263
Pitch mode Half pitch P263
Default Alphabet P263
288
Appendix/Using External Devices/Troubleshooting XXXXX
Default Settings
Stand-by Display
Screen Saver
i-motion
Deco-mail Templates
Deco-mail Pictures
$★$
Batwing
$★$
Hellomoto
$★$
Abstract
$★$
Bamboo
$★$
Beats
$★$
Blue
$★$
Blue Tile
$★$
Catching Air
$★$
Desert
$★$
Fight Night
$★$
Flare
$★$
Flowers
$★$
Grooving
$★$
Higher Plane
$★$
Landmark
$★$
Liquid
$★$
Spiral
$★$
Moto
$★$
Blue Bliss
$★$
Essence
$★$
Grooving
$★$
Hip Hop
$★$
Metal
$★$
Rose
$★$
Shout Out
$★$
Velvet
$★$
Wild
$★$
Hellomoto
$★$
Media Street
Scene
$★$
Tech Move On Up
$★$
Chic
$★$
Cyber
$★$
Future
$★$
Global
$★$
Nature
$★$
ブンブン1
(Bunbun1)
$★$
ブンブン2
(Bunbun2)
$★$
ブンブン3
(Bunbun3)
$★$
Sorry
$★$
Thanks
$★$
In a fume
$★$
Whimper
$★$
Cobweb
$★$
Flare up
$★$
Intoxicating
$★$
Love
$★$
Hate
$★$
Hello
$★$
Bye-bye
$★$
Come on!
$★$
Good night
$★$
Congratulations
$★$
勉強
$★$
Eating
$★$
Bathing
$★$
Good night
$★$
Dinner
$★$
Party
$★$
Driving
$★$
Amazing
$★$
Discouraging
$★$
Lonely
$★$
Hot
289
Appendix/Using External Devices/Troubleshooting XXXXX
Frame
Stamp
$★$
Cold
$★$
SORRY...
$★$
THANK YOU !!
$★$
Dislike
$★$
What?
$★$
Phew
$★$
HELLO
$★$
BYE
$★$
Happy
$★$
Fight!
$★$
Happy Birthday
$★$
Line 1
$★$
Line 2
$★$
Line 3
$★$
Line 4
$★$
おどろき
(Surprised)
$★$
ラブラブ
(Love Love)
$★$
ごめんなさい
(Sorry)
$★$
ねむる
$★$
悲しい
(Sad)
$★$
あっかんべー
(Put out tongue)
$★$
YO!
$★$
ムンクの叫び
(Munch’s scream)
$★$
いただきます！
(Let’s eat)
$★$
にっこり
(Smile)
$★$
Aurora
$★$
Beach
$★$
Calypso
$★$
Clover
$★$
Elite
$★$
Equinox
$★$
Flash
$★$
Gizmo
$★$
Glow
$★$
Moon Lighting
$★$
Pumped
$★$
Rave
$★$
Release
$★$
Swoosh
$★$
Virtual
$★$
Star
$★$
Star2
$★$
UFO1
$★$
UFO2
$★$
Milk
$★$
Round and round
$★$
Annoyed
$★$
Grr!
$★$
Spider
$★$
Blue devil
$★$
Red devil
$★$
Tiara
$★$
Sunglasses
$★$
Hat
$★$
Skateboard
$★$
Fang
$★$
SUN
$★$
Beard
$★$
Cap
$★$
Glasses
$★$
Lip
$★$
Face
$★$
Wound
$★$
Dragon
$★$
Flower
$★$
Square
$★$
Light
$★$
V
$★$
Butterfly
290
Appendix/Using External Devices/Troubleshooting XXXXX
Dial Key Assignments to Characters
*1: Available only in upper-case.
*2: Available only in lower-case.
*3: Available only in half-pitch.
Entry Modes
Hiragana Katakana Alphabetic characters Digits
Keys
1あ い う え お
ぁ ぃ ぅ ぇ ぉ １
ア イ ウ エ オ
ァ ィ ゥ ェ ォ １
. @ - _ / ~ : 1 1
2か き く け こ ２ カ キ ク ケ コ ２ *1
*2
2
3さ し す せ そ ３ サ シ ス セ ソ ３ *1
*2
3
4た ち つ て と
っ ４
タ チ ツ テ ト
ッ ４
*1
*2
4
5な に ぬ ね の ５ ナ ニ ヌ ネ ノ ５ *1
*2
5
6は ひ ふ へ ほ ６ ハ ヒ フ ヘ ホ ６ *1
*2
6
7ま み む め も ７ マ ミ ム メ モ ７ *1
*2
7
8や ゆ よ
ゃ ゅ ょ ８
ヤ ユ ヨ
ャ ュ ョ ８
*1
*2
8
9ら り る れ ろ ９ ラ リ ル レ ロ ９ *1
*2
9
0わ を ん ０ ワ ヲ ン ０ 00
*゛ ゜ ゛ ゜
*3
＊
#ー 、 。 ! ? （
） & ｰ ､ ｡ ! ?（
） & ! ? ( ) & , ; : " ' #
A B C 2
a b c 2
D E F 3
d e f 3
G H I 4
g h i 4
J K L 5
j k l 5
M N O 6
ｍ n o 6
P Q R S 7
p q r s 7
T U V 8
t u v 8
W X Y Z 9
w x y z 9
.ne.jp .co.jp .com .ac.jp
@docomo.ne.jp WWW.
http:// https://
291
Appendix/Using External Devices/Troubleshooting XXXXX
List of Symbols and Special Characters
Symbol List
■Ful-pitch symbols
■Half-pitch symbols
292
Appendix/Using External Devices/Troubleshooting XXXXX
Symbol Conversion List
On the character entry screen, enter "きごう" to convert to bring up symbol candidates.
And, you can enter characters listed below to convert into respective symbols.
Entry Symbol Entry Symbol
あっと、あっとまーく だい、だいひょう
あるふぁ たす、ぷらす
あんだーばー でるた
あんど てん
いこーる でんわ、てる
いち どしー、ど
うえ どる
えん とん
おす なな、しち
おんぷ なんばー
おんぷ、ふらっと いげた
かける、ばつ に
かぶ、かぶしきがいしゃ ぱーせんと
がんま ぱい
きゅー、く、きゅう はいふん
きろ ひく、まいなす
きろぐらむ はち
きろめーとる ひだり
ぐらむ へいほうめーとる
ご べーた
こめ、こめじるし ほし
さん まる
さんかく みぎ
しーしー みり、みりめーとる
しかく めーとる
ひしがた めす
しぐま やじるし
した ゆう、ゆうげんがいしゃ
しめ ゆうびん、ゆうびんばん
ごう
しゃーぷ、なんばー よん、し
じゅう りっとる
すらっしゅ ろく
せんち、せんちめーとる わる
せんと
293
Appendix/Using External Devices/Troubleshooting XXXXX
Pictograph List
■Pictograph 1 ■Pictograph 2
• Pictographs are not displayed correctly if they are sent to mobile phones that do not support i-mode or to PCs. And, the
pictographs may not be displayed correctly even if they are sent to i-mode phones that support those pictographs depending
on the recipients' phone types.
• If an email containing E-moji2 is sent to an i-mode handset that does not support E-moji2, pictographs may not be displayed
correctly.
Smiley List
Smiley Reading Smiley Reading Smiley Reading
あ、かお
おどろき、かお
かお
あーん、かお かお かお
あいた、かお かお かお
あせ、かお かお かお
あせ、かお かお かお
あら、かお がんば、かお かお
ごめんね、かお
ぐー、かお かお
あれー、かお かお かお
いえーい、かお
かお かお
いらいら、かお
てつやあけ、かお
かお
うーん、かお ねる、かお かお
わーい、かお はい、かお かお
Continued on the next page
294
Appendix/Using External Devices/Troubleshooting XXXXX
• In a character entry screen, when you enter "Reading" listed above in the reading area, you can select the smiley from the
conversion candidates.
List of Common Phrases
うっとり、かお
ぴんぽーん、かお
かお
なく、かお わおー、かお かお
えがお、かお かお かお
えがお、かお かお かお
えがお、かお かお かお
かお かお かお
おー、かお かお
おどろき、かお
かお
Folders Template
Greeting ありがとう
ごめんね
おはよう
おやすみ
よろしく
元気？
お疲れ様
おめでとう！
Reply 今電車の中
すぐ行きます
もう少し待って
了解
OK
ダメ
おまかせします
楽しみにしています
Waiting 少し遅れます
もうすぐ着く
今移動中
先に行ってて
もう着いたよ
今どこにいる？
いつもの所
今日行けなくなりました
Smiley Reading Smiley Reading Smiley Reading
295
Appendix/Using External Devices/Troubleshooting XXXXX
Invitation TELして
今日、ヒマ？
飲みに行かない？
遊びに行こうよ
週末空いてる？
今何してるの？
都合の良い日は？
今日はダメです
Business 遅れます。
会議中です。
連絡下さい。
電話下さい。
後程ご連絡いたします。
お世話になっております。
ご連絡ありがとうございました。
よろしくお願いします。
English Thank you.
I am not available right now.
I'm late.
Call me back!
Where are you now?
How are you?
See you soon.
Congratulation!
User Folder 1 (Up to 8 templates can be registered)
User Folder 2 (Up to 8 templates can be registered)
Folders Template
296
Appendix/Using External Devices/Troubleshooting XXXXX
Kuten Code List
To enter a Kuten Code, enter the 3 digit number described in the "Kuten digit 1 - 3" and
then enter the number in "Kuten digit 4" in succession.
Kuten digit 4 Kuten digit 4
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit 4
297
Appendix/Using External Devices/Troubleshooting XXXXX
Kuten digit 4 Kuten digit 4
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit 4
Continued on the next page
298
Appendix/Using External Devices/Troubleshooting XXXXX
Kuten digit 4 Kuten digit 4
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit 4
299
Appendix/Using External Devices/Troubleshooting XXXXX
Kuten digit 4 Kuten digit 4
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit
1 to 3
Kuten digit 4
Continued on the next page
300
Appendix/Using External Devices/Troubleshooting XXXXX
• The characters listed on the Kuten Code list may appear differently from the characters displayed on the your handset.
Combination of Multiaccess Functions
○: Available
×: Not available
*1: If you subscribe to the Call Waiting service, you can place the active call on hold to make/answer the call. If
you subscribe to the Voicemail service or Call Forwarding service, the incoming call can be treated in accord
with the service.
*2: If you subscribe to the Voicemail service, Call Waiting service or Call Forwarding service, you can answer the
incoming call after terminating the active call.
*3: To be dialed after the i-mode connection is terminated.
*4: i-appli communication is not available.
Combination of Multitask Functions
Multitasking is available by selecting/pressing "Select App" of the Function menu or a
softkey from a specific screen. →P226(Checking the specifications)
New Communication
Voice Call Video Call i-mode i-mode Mail
Current Status
Outgoing Incoming Outgoing Incoming
Connecting
Sending
Receiving
Voice Call ○*1 ○*1 ××*2 ○○○
Video Call ××*2 ××*2 ×××
i-mode ○○
○*3 ××○○
Packet Communication
(Data Communication)
○○×××××
64K Data Communication ××*2 ××*2 ×××
New Communication
SMS i-appli
Packet
Communication (Data
Communication)
64K Data
Communication
Current Status
Outgoing Incoming Outgoing
Sending
Receiving
Sending
Receiving
Voice Call ○○×○○×
×*2
Video Call ×○××××
×*2
i-mode ○○×××××
Packet Communication
(Data Communication)
○○
○*4 ××××
64K Data Communication ○○××××
×*2
301
Appendix/Using External Devices/Troubleshooting XXXXX
○: Available concurrently
×: Not available concurrently
−: An item to be switched in "SWAP" while multitasking is displayed.
Services Available from FOMA Handset
• If you use collect call service (106), the receiver of a call is charged for the call cost and commission of \90 (\94.5 with tax
included) per call (as of ● 2006).
• When you use directory assitance service (104), you are charged for a call cost and service charge of \100 (\105 with tax
included). This service is provided free of charge for those visually impaired or physically disabled in the upper body. For
details, contact at 116 (NTT sales contact) from a general phone (as of ● 2006).
• For a call to 110, 119 or 118 from FOMA handset, the originating location cannot be identified. Because the police or fire
department may try to contact you, inform them that you are calling using a mobile phone and give your phone number and
detailed information of the place you are. Do not move while you are talking over a call to prevent it from terminated
unexpectedly. Do not turn the power OFF immediately after the call is over; keep FOMA handset ready to receive a call for
approximately 10 minutes.
• Depending on the area you are calling from, you may not be connected to the local police or fire department. In such a case,
use a public phone or general phone nearby.
• When you use "Call Forwarding" of general phone and have specified a mobile phone as its forwarding destination, the caller
may hear a ring tone even when the mobile phone is busy, out of the service area or power OFF depending on the settings of
the general phones and mobile phones.
• Services such as call to 116 (NTT sales center), Dial Q2, Message Service and credit card calls are unavailable. (Credit card
calls can be made from a general phone or public phone to FOMA handset.)
Services Phone number
Collect call (Calls charged to the receiver) (No prefix) 106
Directory assistance of general phones and DoCoMo mobile phones
(charged)
(No assistance provided for subscribers not listed)
(No prefix) 104
Telegraph (charges apply: telegram fee) 8:00 a.m. to 10:00 p.m. (No prefix) 115
Time check (charges apply) (No prefix) 117
Weather forecast (charges apply) Area code＋177
Police emergency (No prefix) 110
Fire and ambulance (No prefix) 119
Marine emergency call and accident reports (No prefix) 118
Message Dial for disaster (charges apply) (No prefix) 171
New
Application
Active
Application
Voice
Call
Video
Call
Phonebook
i-channel
i-mode Mail
Schedule/
Calendar
Answering
Machine
Notes
Databox/
Multi
Media
Voice Call −○○○○○○×○
Video Call ○−○××○○×○
Mail ○○○×○−○○○
i-mode ○○○×−○○○○
302
Appendix/Using External Devices/Troubleshooting XXXXX
Function and Related Devices
Using FOMA handset with various optional devices makes it applicable to diversified
fields covering personal to business usages. Some of the products listed below may be
unavailable in some areas.
For details, contact DoCoMo shop. For details of optional devices, see the related
operation manuals.
• Battery pack M02 • FOMA USB cable
• Rear cover M02 • FOMA miniUSB Conversion Adapter M01
• FOMA AC adapter 01 • miniUSB stereo headset M01
• FOMA AC adapter 01 available both in Japan and overseas
• FOMA DC adapter 01 • Bluetooth headset F01*2
• In-car handsfree kit 01*1• Bluetooth headset AC adapter F01
• FOMA in-car handsfree cable 01 • In-car Holder 01
• FOMA Dry Cell Battery Adapter 01
*1: FOMA in-car handsfree cable 01 is necessary.
*2: Bluetooth headset AC adapter F01 is necessary.
Data Link Software
You can transfer data such as Contacts, Schedule events/Tasks, mail, images or i-motion
movies between the FOMA handset and a PC connected to the FOMA handset with a
FOMA USB cable (optional) using the "FOMA M702iG Data Link Software".
You can download the "FOMA M702iG Data Link Software" from Motorola's Web page.
■URL for Downloading
http://motorola.jp/hellomoto/●●●●●.htm
■Supported Operation System
Japanese version of Windows XP and Windows 2000
■Exclusion of Liability
• Motorola Inc.(hereafter "we") does not bear any legal liability for defects including failure of this software
to operate properly. Also, we do not guarantee the functionality of this software and its fitness for any
particular purposes of the customer.
• You are responsible for solving any problems caused by this software or related materials at your own
expense. We are not responsible.
• You need a PC connected to the Internet to download the software. Separate communication charges may apply for the
download.
For details about download, transferable data, operating environments, operations, or limitations, visit the
above web site.
Inquiry about "FOMA M702iG Data Link Software"
Motorola Inc. Customer Hot Line
0120-227-217
The above number is also available from a mobile phone or PHS.
Office Hours: 9:00 am - 6:00 pm on weekdays (excluding Saturdays, Sundays and Holidays)
303
Appendix/Using External Devices/Troubleshooting XXXXX
Video Play Software
You need Apple Computer Inc.'s QuickTime Player (free of charge) Version 6.4 or higher
(or Version 6.3 + 3GPP) to play videos (in MP4 file format) captured with the FOMA
handset on a PC.
You can download the QuickTime Player from the following web site:
http://www.apple.com/jp/quicktime/download/
• You need a PC connected to the Internet to download the software. Separate communication charges may apply for the
download.
• For details about operating environment, download or operations, visit the above web site.
Using FOMA Handset for Playing i-motion (Including
Music Data) Created with PC
(Checking the specification)
Troubleshooting
Symptom Check
The FOMA handset cannot be
powered on (the FOMA
handset cannot be used)
• Is the battery pack inserted correctly? →P43
• Is the battery pack charged? →P47
• If mova is enabled under the Dual Network service, some FOMA services are
not available. Check whether FOMA is enabled. For details, refer to the
"Network Service Operation Guide". →P250
A call cannot be made even
when dial keys are pressed
• Are Dialing Restrictions set? →P125
• Is Phone Lock set? →P123
• Is Self Mode set? →P124
After a call is dialed, a busy
tone sounds and the call
cannot be connected
• Did you enter the city code? →P54
• Is the phone out of the service area? →P49
$★$ appears and "Emergency
Call Only" or "Out of Service
Area" is displayed
• Are you out of the service area, or in the location with weak signal reception?
→P49
$★$ is displayed and the
Unlock code entry screen is
open
• Is Phone Lock set? →P123
Pressing the side key while the
FOMA handset is folded does
nothing
• Is Sidekey Lock set? →P126
The low battery alarm is
sounding
• The battery level is low. Charge the battery pack. →P47
Continued on the next page
304
Appendix/Using External Devices/Troubleshooting XXXXX
■When Overseas
Charging is not available (the
Charging Lamp does not light)
• Is the battery pack inserted correctly? →P43
• Is the adapter power plug correctly connected to the electric outlet?
• Is the miniUSB conversion adapter M01(included) correctly connected to the
FOMA handset?
• Is the adapter correctly connected to the miniUSB conversion adapter M01?
→P46
The display turns dark and
nothing is displayed
• Is the Display Timeout set? →P116
• Is Power Setting set? →P69
A different ringtone sounds for
incoming mail
• Is the sender saved in the Phonebook with a different ringtone? →P92
• Is the sender saved in the Phonebook under a category with a different
ringtone assigned? →P95
• Has the Style changed? →P106
A different incoming call lamp
flashes for incoming call or mail
• Is the sender saved in the Phonebook under a category with a different Light
ID assigned? →P95
• Has the Style changed? →P106
Images or melodies set for
function do not work and
default settings are used
• Is the same UIM installed that was inserted when images or melodies were
obtained? →P42
The accumulated call charges
do not increase
• Have you exceeded the call charge maximum (about 16,770,000 yen)? Reset
the accumulated call charge to restart counting. →P234
Symptom Check
The icon indicating the network
status remains as out of
service, and the international
roaming service is not available
• Are you out of the international roaming service area, or in a location with
weak signal reception?
• Check whether you are in an available service area and whether you are
using a carrier listed with the "International Service Guide" or DoCoMo’s
International Service Web site.
• Switch to an available network. →P275
Video calls, i-mode mail, SMS,
and packet communication are
not available
• Check whether you are in an available service area and whether you are
using a carrier listed with the "International Service Guide" or DoCoMo's
International Service Web site.
• Switch to an available network. →P275
Calls or mail cannot be
received
• Is Call Barring Roaming activated? →P276
After returning to Japan, the
network status icon still shows
out of service area
• Is "Communication Method" set to "GSM 900/1800" or "GSM1900"? →P274
Symptom Check
305
Appendix/Using External Devices/Troubleshooting XXXXX
Error Messages
Not enough room provided.
No more software can be saved
due to a shortage of software
storage space. Delete
unnecessary software. →P196
Enter the access number
The international call detail
settings cannot be saved because
an international access code has
not been entered. Enter the
international access code.
Please input address.
An address for mail or SMS ($★$)
has not been entered. Enter the
address then send. →P172, P187
Alarm Clock Full
No new alarm can be set because
five alarms have already been
saved. Delete unnecessary alarms
then save. →P228
Incorrect Passcode
UIM PIN2 login attempts
remaining: X*
*: The remaining number for
entry is displayed.
An incorrect UIM PIN2 has been
entered. Enter the correct UIM
PIN2.
Incorrect Passcode
UIM PIN login attempts
remaining: X*
*: The remaining number for
entry is displayed.
An incorrect UIM PIN has been
entered. Enter the correct UIM
PIN.
Incorrect Passcode
PUK1 login attempts remaining:
X*
*: The remaining number for
entry is displayed.
An incorrect PUK code has been
entered. Enter the correct PUK
code.
Invalid security code.
An incorrect security code has
been entered. Enter the correct
security code.
No match found
The electronic dictionary does not
have a headword that matches
with the entered word.
Full
The maximum number of
Schedule events/tasks has been
saved. Delete unnecessary
Schedule events/tasks. →P229
Failed
The communication has been
interrupted due to a time out -- too
much time before completion of a
communication. Try to operate
again.
Failed Connection interrupted
The connected Bluetooth device
terminated the communication. Try
to operate again.
Error
Secret Code must be 4 digits
0001 - 9999.
An incorrect Secret Code has
been entered. Enter a 4-digit
number between 0001 and 9999.
Application Failed: Validation
Error
The software update failed, and
the downloaded software cannot
be installed.
Application Failed: Out of
Service Area
The software cannot be updated
due to being out of the service
area. Move to a place with
stronger signal reception and try
again.
Application Failed: Software
Version Too Old
The software cannot be updated
because the software version on
the FOMA handset is too old.
Contact a DoCoMo shop.
Application Failed: Server Is
Busy
• The software cannot be updated
because the server is busy. Try
again later.
• The software update cannot be
reserved because the server is
busy. Press h [Reserve] to
reserve again.
Application Failed: Cannot
Delete All messages are
protected
The selected message cannot be
deleted because it is protected.
Unprotect the message and try
again.
Application Failed: Battery is
Too Low
The software cannot be updated
because the battery level is low.
Charge the battery pack fully and
try again.
Application Failed: Set Date and
Time
The software cannot be updated
because Date and Time have not
been set. Set the Date and Time
and try again. →P50
Application Failed: Other
Functions Are Running
The software cannot be updated
because other functions are
running. End the running functions
and try again.
Remotely Controllable Services
Denied
You attempted to activate the
Voicemail service or Call
Forwarding service using remote
control without subscribing to
these services.(Checking the
specifications)
Continued on the next page
306
Appendix/Using External Devices/Troubleshooting XXXXX
Remote Control Already Active
You attempted to activate Remote
Control when it was already
activated.
Remote Control Inactive
You attempted to deactivate
Remote Control when it was
already deactivated.
No response.
(Checking the specifications)
No response.
Connection cannot be established
because the site does not
respond. Try to connect again.
Card error
(Checking the specifications)
Receiving message F is
disabled overseas. Reset
message F setting from Enquiry
set.
Some actions may not be allowed
without a valid UIM card
The UIM has not been inserted.
Insert a UIM.
MessageF cannot be received
overseas. Cancel the MessageF
setting from Check New
Message of the phone (568)
MessageF cannot be checked
overseas. Take out "MessageF"
from items under "Check New
Message". →P184
No mail message found
No mail matches with the selected
search keys.
Rewriting is complete. Retry
Software Update Later
After the software download to
update the software, the
notification to the server failed. Try
again later.
Software Update Failed
Failed to update the software. Or
the battery level became low
during the software update.
Contact a DoCoMo shop.
Error in image. Does not work
correctly.
The image does not function
correctly due to shortage of space
or error.(Checking the
specifications)
Not enough space. Overwrite?
The maximum number of screen
memos has been saved. Press
$★$ [Yes] to overwrite.(Checking
the specifications)
100 Screen Memo already
registered. Overwrite?
The maximum number of screen
memos has been saved. Press
$★$ [Yes] to overwrite.
The Clock cannot be changed to
analog when the Calendar
Wallpaper is turned on
"Clock" setting cannot be changed
when "Calendar" for "Wallpaper" is
set to "On".
No Devices Found
Try again Later
Bluetooth device search failed. Try
to operate again.
Unable to view file. Access to
URL is limited. (491)
Cannot display because the
available number of access has
been exceeded.(Checking the
specifications)
Reservation not available for the
chosen time-slot
The software update cannot be
reserved because the reservation
time is full. Try to change the
reservation to another date and
time.
Call Waiting Denied
You attempted to activate the Call
Waiting service without being a
subscriber to the service.
Number Required
The country code cannot be saved
because it has not been entered.
Enter a country code. →P272
Clipboard Full
Not all text can be copied/cut
because the maximum number of
characters which can be copied or
cut has been exceeded.
Clipboard Full: Cut Now?
Characters in the selected range
cannot be cut because the
maximum number of characters
which can be cut has been
exceeded. Press h [Yes] to
reduce the number of characters
to be cut.
Clipboard Full: Copy Now?
Characters in the selected range
cannot be copied because the
maximum number of characters
which can be copied has been
exceeded. Press h [Yes] to
reduce the number of characters
to be copied.
Maximum Exceeded
Maximum categories allowed:
10
A new category cannot be saved
because ten categories have been
already saved. Delete
unnecessary categories and try
again. →P96
Your terminal ID and FOMA card
ID is requested. Send?
This message is displayed when
the information provider needs to
identify you with the "Serial
Number of Mobile Phone/UIM".
The "Serial Number of Mobile
Phone/UIM" is sent via the Internet
and it may be seen by a third party.
This operation does not send your
mobile phone number, postal
address, age, or sex to the
information provider. Select "Yes"
to send the serial number.
307
Appendix/Using External Devices/Troubleshooting XXXXX
Send your terminal and UIM ID?
This message is displayed when
the information provider needs to
identify you with the "Serial
Number of Mobile Phone/UIM".
The "Serial Number of Mobile
Phone/UIM" is sent via the Internet
and it may be seen by a third party.
This operation does not send your
mobile phone number, postal
address, age, or sex to the
information provider. Select h
[Send] to establish a connection.
Out of Service area
The Scanning Function cannot
start because the handset is out of
the service area. Move to a place
with stronger signal reception and
try again.
• Signals are not received. Try
again at a location with stronger
signal reception.
Network Not Available
Network search failed when "Type"
of "Network Setup" is set to "Auto".
Press h [Search] to try again.
Voicemail Inactive
You attempted to deactivate
Voicemail when it was already
deactivated.
Call Forwarding Already Active
You attempted to activate Call
Forwarding when it was already
activated.
Caller ID Request Already
Active
You attempted to activate Caller ID
Display Request when it was
already activated.
Dual Network Active
You attempted to switch to the
FOMA network when the Dual
Network service was already
switched to FOMA.
Voicemail Already Active
You attempted to activate
Voicemail when it was already
activated.
No recent entry found.
The electronic dictionary does not
have a search log entry.
Exceeded limit. Delete oldest
entry and Register last caller?
Thirty phone numbers have been
already registered. Press h
[Yes] to delete the oldest entry and
register the latest phone number
to reject.
No Subject
This event needs a Subject in
order to be stored.
The Schedule event cannot be
saved due to having no subject.
Enter a subject.
Unable to Update Pattern
Definitions.
The pattern definitions cannot be
updated. Try again later.
Personal User Information Not
Available
The personal user information
cannot be displayed because a
UIM has not been inserted or the
wrong type of UIM has been
inserted. Insert the correct UIM.
Invalid UIM
Unable to start Software
installed with different UIM
An i-appli with UIM Restrictions
cannot start because a different
UIM is inserted from when the
i-appli was installed. Insert the
original UIM and try again.
Invalid UIM
Requested file cannot be played
The file with UIM Restrictions
cannot be played because a
different UIM is inserted from
when the file was saved. Insert the
original UIM and try again.
Invalid UIM, requested service
not available.
Operation cannot be executed due
to UIM Restrictions. Insert the
original UIM and try again.
Already downloaded by
different UIM. Overwrite?
The same i-appli downloaded with
a different UIM is saved. Press
"Yes" to overwrite.
This UIM cannot be recognized
Connection (communication)
cannot be established to the site
due to UIM Restrictions.(Checking
the specifications)
This function cannot be set
now.
"i-mode setting" cannot be
configured during communication.
After the communication ends, try
to configure again.(Checking the
specifications)
Certificate is rejected.
(tampered)
The connection cannot be
established because an altered
SSL certificate is received.
This site is not certified. Do you
connect?
• The SSL certificate has expired.
Press $★$ [Yes] to connect.
• The certificate saved on the
FOMA handset does not match
with the one sent from the
server.(Checking the
specifications)
• Invalid SSL certificate is
received. Press $★$ [Yes] to
connect.
Use folder for this software?
(Checking the specifications)
The application will use terminal
and UIM ID. Download?
This message is displayed when
the information provider needs to
identify you with the "Serial
Number of Mobile Phone/UIM".
The "Serial Number of Mobile
Phone/UIM" is sent via the Internet
and it may be seen by a third party.
This operation does not send your
mobile phone number, postal
address, age, or sex to the
information provider. Press $★$
[Download] to connect.
Continued on the next page
308
Appendix/Using External Devices/Troubleshooting XXXXX
The application will use saved
data, terminal ID, and UIM ID.
Download?
This message is displayed when
the information provider needs to
identify you with the "Serial
Number of Mobile Phone/UIM".
The "Serial Number of Mobile
Phone/UIM" is sent via the Internet
and it may be seen by a third party.
This operation does not send your
mobile phone number, postal
address, age, or sex to the
information provider. Press $★$
[Download] to connect.
The application may use saved?
The downloaded application will
use data saved on your
phone(Contacts, Bookmarks, or
Schedule events, etc.). Select
"Download" to download.
This i-motion type is not
supported
This i-motion movie is not
supported by the FOMA handset
and cannot be played. →P208
Unable to save due to this data
being incompletely downloaded
The i-motion data is not
completely obtained and cannot
be saved.
Set time to download data.
The data cannot be obtained
because the clock has not been
set. Set the clock then obtain the
data. →P50
This i-motion cannot be saved.
View next page?
The i-motion movie cannot be
saved because it has been played
the available number of times for
playback. Press $★$ [Yes] to use
Web To. (Checking the
specifications)
Busy. Try Again Later.
The Schedule cannot start
because the FOMA handset is
processing data at power up. Try
again later.
Unable to register any more
No more mail addresses can be
saved because the maximum
number has already been
saved.(Checking the
specifications)
Unable to protect any more
messages.
No more items can be protected
because the maximum number
has already been protected.
Unprotect some items and try
again. →P154, P160, P181, P182,
P183
Service is not registered.
i-mode service is not available
because you have not subscribed
to i-mode. A separate subscription
is required to use i-mode. If you
subscribe to i-mode while using
the FOMA handset, turn the power
off then back on.
Unable to download data due to
play restriction data error
The data cannot be obtained
because of invalid i-motion movie
playback restriction data.
Unable to download. Data
exceeds maximum size.
Because the data exceeds the
maximum size, it cannot be
received.
Maximum already entered!
A new item such as a word cannot
be saved because XX items have
been already saved. Delete
unnecessary words, etc. and try
again.
URL address changed.
URL has been changed because
the site moved. If you have saved
the URL in a Bookmark, save it
again. →P153
Connection failed.
A connection cannot be made to
the site. Try to connect again.
Please Try Again
An incorrect Unlock Code has
been entered. Enter the correct
Unlock Code.
Cannot Delete
Number set Auto-Inserted Intl
Access Code
• The number cannot be deleted
because it is an international
access code that is set to be
automatically added.
• The number cannot be deleted
because it is a country code that
is set to be automatically added.
Cannot Create
Phone memory and UIM card
are full.
The Contact cannot be saved
because the memory space on the
FOMA handset and UIM are full.
Delete unnecessary Contacts and
try again. →P101
Cannot start dictionary
The electronic dictionary cannot
start due to an error. Try to operate
again.
Page is not found.
The site does not exist, or the
wrong URL may have been used.
Verify the URL and try to connect
again.
No content is available.
The connected site does not have
data for display.
No Requested Software
This i-appli is not supported by the
FOMA handset and cannot launch.
Requested software unavailable
An error occurred in the i-appli. It
cannot start.
Unable to retrieve the requested
URL.
Connection cannot be established
because the server does not
respond. Try to connect again.
No Requested File.
The selected file does not exist on
the FOMA handset.
309
Appendix/Using External Devices/Troubleshooting XXXXX
Turn Auto Update Off?
Cannot complete action while
Auto Update is On (Time & Time
Zone)
"Time", "Time Zone" and "Date"
cannot be changed because "Auto
Update" is set to "Time & Time
Zone". Press h [Yes], set "Auto
Update" to "Off" and try again.
Turn Auto Update Off?
Cannot complete action while
Auto Update is ON (Time Only)
"Time", "Time Zone" and "Date"
cannot be changed because "Auto
Update" is set to "Time Only".
Press h [Yes], set "Auto
Update" to "Off" and try again.
Turn Auto Update Off?
Cannot change city name and
time zone while Auto Update is
On
The World Clock cities cannot be
changed because "Auto Update"
of "Date and Time" is set to "Time
& Time Zone" or "Time Only".
Press h [Yes], set "Auto
Update" to "Off" and try again.
Please wait.
Outgoing restrictions. Try to
connect to i-mode later.
End Before Start
An event cannot end before it
begins.
The Schedule event/task cannot
be saved because the End Time is
set earlier than the Start Time.
Change the Start or End Time.
Inbox is full.
The maximum number of mail has
been saved in the Inbox. No more
mail can be received. Delete
unnecessary mail.(Checking the
specifications) → P178, P179
Types Full
Five phone number types have
been already saved on the UIM
Phonebook. No new entry can be
saved. Delete unnecessary types
then save.
Attached Signature is disabled.
The signature cannot be added
because with the signature, the
number of characters in the
message will exceed the maximum
allowed. Delete some of the
message text.
UIM Disabled
Only Emergency Calls are
allowed. Contact your carrier.
The UIM is locked. Contact a
DoCoMo shop.
!Recording a new track will
erase existing audio in this
movie. Record new track?
Performing "Record New Track"
deletes the existing audio of the
i-motion movie being edited. Press
h [Yes] to perform "Record
New Track".
Scanning Function not Available
Failed to start Scanning Function.
Try to operate again.
An event cannot end before it
begins
The Schedule event cannot be
saved because the End Time is set
earlier than the Start Time.
Change the Start or End Time.
Already set 5 files!
Five downloaded dictionaries have
been already enabled. The
selected downloaded dictionary
cannot be enabled. Disable
unnecessary downloaded
dictionaries and try again. →P266
No Duplicate Alarm Time
Allowed
An alarm has been already set for
the same time. Change the time.
Failed to download all data
Because an error occurred while
i-motion movie was obtained, the
movie is incomplete.(Checking the
specifications)
No data was entered.
(Checking the specifications)
All protected. Unable to delete.
All files cannot be deleted because
they are protected. Unprotect files
before deleting them. →P154,
P160, P181, P182, P183
All protected mail messages or
SMS in UIM selected. Unable to
delete.
"Delete All Messages" cannot be
performed because all mails in
Inbox/Outbox are either SMS on
the UIM or protected
SMS.(Checking the specifications)
All SMS messages in UIM
selected. Unable to delete.
"Delete All Messages" cannot be
performed because all mails in
Inbox/Outbox are SMS on the
UIM.(Checking the specifications)
Invalid data Connection cannot
be established.
An error occurred at the
destination and the connection
cannot be established
successfully.
Infrared Aborted
The Infrared communication was
canceled due to the low battery
level of the FOMA handset.
Charge the FOMA handset. →P45
Some folder has security
setting. Make this folder to be
under delete all?
Some folders have security
settings. Press h [Yes] to
perform "Delete All Messages".
(Checking the specifications)
Security is now set
The folder has security set. It
cannot be renamed or
deleted.(Checking the
specifications)
Connection interrupted.
The connection was terminated
because of a busy line or
communication error. Try to
connect again later.
Continued on the next page
310
Appendix/Using External Devices/Troubleshooting XXXXX
Connection failed.
• The destination address
specified in "Host Setting" is
wrong. Verify the setting and try
to connect again. →P158
• Connection cannot be
established due to weak signal
reception. Try again at a location
with stronger signal reception.
Connection failed
Connection could not be
established due to a network
problem. Try to connect again
later.
Unable to Connect
XXXXX*
*: A Bluetooth device name is
displayed.
The connection cannot be
established due to a time out. Try
to operate again.
Unable to Connect
Service not Supported
The found Bluetooth device does
not support the service and cannot
connect.
Unlock Code Incorrect. Try
Again
An incorrect Unlock Code has
been entered. Enter the correct
Unlock Code.
Time out.
Connection could not be
established within the time set in
"Connection Timeout". Change the
setting or try to connect again.
→P158
System Time Error
This data cannot be replayed
The copyright protected file with
expiration date cannot be played
because the network does not
provide time or the time
information cannot be enabled. Try
again later.(Checking the
specifications)
Time is too close to another
Auto-start
Auto start time is set too close to
another auto start time. Check the
auto start time set to an i-appli and
change the time if time is set too
close.
Unable to Set Configuration
Cannot enable because the
Scanning Function could not be
enabled. Try to operate again.
Not Available
Enter the date between XXXXX*
and XXXXX*
*:(Checking the specifications)
An invalid date was entered when
saving/copying a Schedule event
or task. Enter the date again.
Self Mode is On
Action Not Allowed
The operation cannot be
performed when Self Mode is set.
Cancel Self Mode and try again.
→P124
Self Mode is On
Unable To Send Message.
Saved to Outbox
Mail cannot be sent when Self
Mode is set. Cancel Self Mode and
try to send the mail again. →P124
Please close all applications
before starting Self Mode
Self Mode cannot be set because
communication is in progress.
Terminate the communication and
try again.
Self mode is set
Voice calls or video calls cannot be
used when Self Mode is set.
Cancel Self Mode and try again.
→P124
All contacts will be deleted
Continue?
Receiving all Data via Infrared
deletes Contacts saved on the
FOMA handset. Press h [Yes]
to continue receiving all data via
Infrared.
Service Unavailable
Network services are not available
due to an error. Try to operate
again.
Error
Network service cannot be
activated because of a wrong
service code or phone number.
Cannot perform operation
(Checking the specifications)
Address is not valid.
The mail was not sent normally.
Verify the address and try to send
again. →P172
Server is full.
The mail could not be sent
because the destination is full.
Transmission failed.
The mail was not sent normally.
XXX represents 3-digit number.
Outbox is full.
The maximum number of mail
messages has been saved in the
Outbox. No more mail can be
saved. Delete unnecessary mail or
cancel the protection. →P181,
P183, P184
Software Updated
(Checking the specifications)
Exceeds maximum number of
allowed suites.
(Checking the specifications)
Software size (<X>K) exceeds
available space.
Delete some applications?
Not enough free space. Delete
some applications. →P196
This software contains an error.
Unable to download.
(Checking the specifications)
Invalid name!
The entered title for the
downloaded dictionary is invalid.
311
Appendix/Using External Devices/Troubleshooting XXXXX
Download size exceeded limit
The data cannot be obtained
because it exceeds the maximum
size.
Download failed.
• An error occurred during the
download of update software.
Try again later.
• Download failed because
another application is running or
an error occurred.
Unable to download
Please set the clock to obtain
data
A file with an expiration date
cannot be downloaded because
Date and Time have not been set.
Set Date and Time, then download
again. →P50
Connection is limited right now.
Please use after a while.
• Packet communication such as
i-mode mail, i-mode connection
is not available because the
usage of the FOMA handset is
restricted. Try again later.
• If you use Pake Hodai,
connection may not be
established for a certain period
after vast communication within
a certain time. Try to connect
again later.
i-mode mail service is busy.
Please try again
The line is very busy. Try again
later.
Illegal Character
c is pressed without entering
any characters on the word entry
screen. The word cannot be
registered to the user dictionary.
Enter a word.
Security Code Incorrect(6). Try
Again
An incorrect security code has
been entered. Enter the correct
security code. →P120
Security Code Incorrect(6). Try
Again
An incorrect security code has
been entered. Enter the correct
security code.
Receiving Data of i-Channel is
failed.
i-channel information could not be
obtained. Try again at a location
with stronger signal
reception.(Checking the
specifications)
Already connected. Unable to
receive.
The i-mode service is not available
during communication. Terminate
the communication and try again.
Already connected. Unable to
send.
Cannot send during
communication. Terminate the
communication and try again.
Connection Failed
The software cannot be updated
because the server is not
connected. Try again later.
Mails could not be sent to
following address (561)
Mail could not be sent normally to
the displayed addresses.
Data protected unable to delete
Found data in Warning level 3 or
level 4 cannot be deleted.
Dual Network Service Denied
You attempted to activate the Dual
Network service without
subscribing to the service.
Reservation activation was not
possible because power was off
The FOMA handset was not
turned on at the reserved date and
time. The software could not be
updated. Press h [Update] and
enter the security code to update
the software.
Call Forwarding Inactive
You attempted to deactivate Call
Forwarding when it was already
deactivated.
Call Forwarding Denied
You attempted to activate Call
Forwarding without subscribing to
the service.
Register the Forwarding
Number
The forwarding number cannot be
changed because of the different
service code or phone number.
Cannot execute because of Low
Battery
The Scanning Function cannot
start because the battery level is
low. Charge the battery pack fully
and try again.
File size or number of files
exceeds limit. Unable to attach.
Files cannot be attached because
the available number of
attachments or maximum file size
is exceeded per i-mode mail.
Check the available number of
attachments or maximum file size.
Unable to save as template.
(Checking the specifications)
Device List Empty
No stored Bluetooth devices
There is no Bluetooth device
saved in the device list.
Registration is in progress.
The operation is not available
because the user is being
registered. Try again later.
Registration Failed!
Because the phone number is
unknown, the incoming number
cannot be registered to the reject
list.
Not Saved
Bluetooth device list full
A new device cannot be saved
because the device list is full.
Delete unnecessary devices from
the list and try again. →P241
Not Saved
Bluetooth device list full
A new device cannot be saved
because the device list is full.
Delete unnecessary devices from
the list and try again. →P241
Continued on the next page
312
Appendix/Using External Devices/Troubleshooting XXXXX
Volume Label Invalid.
The name for "Storage Devices"
cannot be changed because an
invalid character is used. Use
alphanumeric characters and
symbols(/
￥
* < > : " ? ).
Duplicate Name
A Category with this name
already exists. Please enter a
different name
The entered Category name has
already been saved. Enter a
different name.
Name Required
• The international call detail
settings cannot be saved
because a name has not been
entered. Enter a name.
• The country code cannot be
saved because a name has not
been entered. Enter a name.
Entry data or URL is too long
There are too many characters
entered for a URL and it cannot be
connected. Enter a URL within 256
half-pitch characters.(Checking the
specifications)
Input error
There is a problem with the data
entered. Check the entry and try
again.
Unrecognized or unsupported
field(s) will not be displayed.
A file that cannot be recognized
with the FOMA handset is included
in the data to be received via
Infrared.(Checking the
specifications)
Authentication failed
An incorrect security code was
entered when attempting to send
all Contacts. Enter the correct
security code.
Authentication type is not
supported.
A connection cannot be
established because of an
unsupported authentication type.
Authentication failed
An incorrect session key has been
entered. Enter the correct session
key.(Checking the specifications)
Enter Correct Network Security
Code
An incorrect network security code
was entered. Enter correct
network security code.
Network Clock Not Set
Time-protected content not
available until network sets
clock
A copyright protected file with an
expiration time cannot be played
because the network time is not
available. Try again later.(Checking
the specifications)
Networks Not Available
Network search or registration
failed when "Type" of "Network
Setup" is set to "Manual". Press
h [Search] to try again.
Network List Full
• Network search failed when
"Available Networks" was
selected. Try to operate again.
• Registration of the found
network to My Network List/
Available Networks failed. Try to
operate again.
Could not start the barcode
reader
An incorrect password has been
entered. Enter the correct
password.
Unable to Display Version
Information
Pattern data version failed to be
displayed. Try to operate again.
Incorrect passkey
Enter 16-digit passkey
The entered passkey cannot be
validated. Enter the correct
passkey.
Password is not correct.
An incorrect password has been
entered. Enter the correct
password.
Pattern data is broken. Update
pattern data.
(Checking the specifications)
Failed to get pattern info.
(Checking the specifications)
Pattern Definitions are Up-to-
Date
The pattern definition is the latest
and does not require update.
Caller ID Request Inactive
You attempted to deactivate the
Caller ID Display Request service
when it was already deactivated.
Incapable of Updating as Data is
not Set
The scanning function cannot start
because date and time have not
been set. Set the date and time
and try again. →P50
File is too large to mail. Save
anyway?
(Checking the specifications)
Invalid File.
The obtained file is corrupted and
cannot be opened.
Destroyed Dictionary!
The downloaded dictionary has
corrupt or invalid data and cannot
be enabled/disabled. Delete the
downloaded dictionary. →P262
Update package is corrupt:
Software Update Not Performed
The software update was canceled
because the file is corrupted. Try
again later.
File restricted image deleted.
A file with copyright protection was
deleted. An image cannot be
integrated into a template.
Filename already exists!
You attempted to save a file with
an existing file name. Rename the
file to save.
313
Appendix/Using External Devices/Troubleshooting XXXXX
Filename already exists!
You attempted to save a file with
an existing file name. Rename the
file to save.
Additional Number 2 Denied
You attempted to register an
Additional Number 2 without
subscribing to an Additional
Number 2.
Cannot execute because of
other tasks.
The Scanning Function cannot
start because other functions are
running. End the running functions
and try again.
Protected screen memo is
included in folder. Unable to
delete folder
The folder cannot be deleted
because it contains protected
screen memos. Unprotect screen
memos before deleting the folder.
→P154
Protected. Unable to select.
Items cannot be deleted because
they are protected. Unprotect
before deleting them. →P154,
P160, P181, P182, P183
Protected. Unable to delete
Protected messages and Screen
Memos cannot be deleted.
Unprotect before deleting them.
→P154, P160, P181, P182, P183
Protected mail in folder. Unable
to delete.
(Checking the specifications)
Protected mail included in
folder. Unable to delete.
The folder cannot be deleted
because protected mail is in the
folder. Unprotect before deleting
the folder. →P181, P183, P184
Savable period has already
expired. Unable to download
data.
Data cannot be downloaded
because it has expired.(Checking
the specifications)
Cannot Store:
An application is required for
[i-appli] Auto Start
Schedule events cannot be saved
because "Type" is set to "[Java]
Auto Start" but an "Application"
has not been specified. Specify an
i-appli in "Application".
Unable to Save
Data cannot be saved.
The attachment cannot be saved
because it has expired or the
available number of times for
playback has been exhausted.
Cannot Save:
A number or at least one type of
address is required.
A Contact cannot be saved on the
FOMA handset (phone) because
there is no entry of a phone
number, mail address, URL or
postal address. Enter any of a
phone number, mail address, URL
or postal address.
Cannot Save:
A number or email address is
required
A Contact cannot be saved on the
UIM because there is no entry of a
phone number or mail address.
Enter either of a phone number or
mail address.
Cannot Save:
The last piece of information
stored for a contact cannot be
deleted.
At least one phone number, mail
address, URL or postal address is
required to save a Contact so the
selected item cannot be deleted.
Cannot Save:
Name Required
• The Category cannot be saved
because a name has not been
entered. Enter the name.
• The Contact cannot be saved
because a name has not been
entered. Enter a name.
Too many SMS messages in
Phone.
The maximum number of SMS has
been saved on the FOMA handset.
Delete unnecessary SMS then
move or copy. →P178, P179,
P180, P181
No memory space in Phone or
UIM.
To receive SMS messages,
delete messages no longer
required
No more mail can be received
because of the shortage of
memory space on the phone or
UIM. Delete unnecessary
messages. →P181, P181, P183,
P184
Phone memory is full.
The Contact cannot be saved
because the memory space on the
FOMA handset is full. Delete
unnecessary Contacts and try
again. →P100
Message entry size exceeds
limit. Delete message.
The maximum number of
characters which can be entered
in the message text has been
exceeded. Delete some of the
message text.
Stand-by error Clear from
stand-by?
(Checking the specifications)
Security error Stand-by
(Checking the specifications)
In manner mode. Do you output
voice?
Manner Mode is set for the FOMA
handset. Press h [Yes] to play
a video or melody with audio.
Multi Number Denied
You attempted to activate Multi
Number without subscribing to
Multi Number.
Continued on the next page
314
Appendix/Using External Devices/Troubleshooting XXXXX
Field(s) Not Supported
Unrecognized or unsupported
field(s) will not be displayed.
A part of data received via
Bluetooth is not displayed because
the data contains an unrecognized
or unsupported part.
Not Found
• Adding a network from My
Network List to Priority Network
ID failed. Try to operate again.
• Network search failed when
available networks for the priority
network ID screen were
searched. Try to operate again.
• The number entered is not a
service dial option.
Message not entered. Unable to
save
Mail without $★$(Address),
$★$(Subject) or $★$(Message)
entered, or attachment cannot be
saved.
Disabled
Invalid Email @ Required
"@" has not been entered in the
mail address. Enter "@".
Disabled
Invalid Email
An incorrect mail address has
been entered. Verify the entry
such as the domain.
Invalid data is contained
The data scanned with the
barcode reader contains data not
supported by the FOMA handset.
It cannot be recognized.
Data not applicable.
The site cannot be displayed
because downloaded data
contains an error.
Invalid File
This file cannot be sent to
another device
The file cannot be sent via
Bluetooth or copied to the memory
card because the file is
invalid.(Checking the
specifications)
Nuisance Call Barring Service
Denied
You attempted to activate
Nuisance Call Barring without
subscribing to the service.
Mail in active
(Checking the specifications)
Receive option set to ON.
Unable to start.
Chat Mail is not available when
"Download Selected Mail" is set to
"On". Set "Download Selected
Mail" to "Off". →P184
Number of mail folders is full.
Unable to download.
(Checking the specifications)
All folders are full.
The maximum number of incoming
mail and messages has been
saved. No more mail can be
received. Delete unnecessary mail
or messages.(Checking the
specifications) → P160, P161,
P181, P183, P184, P186
Folder is full.
The maximum number of
messages has been saved. No
more messages can be received.
Delete unnecessary
messages.(Checking the
specifications) →P181, P183,
P184, P186
Memory Full:
Contacts cannot be copied to
UIM Card.
The Contact cannot be copied
because the memory space on the
UIM is full. Delete unnecessary
Contacts and try again. →P101
Memory Full:
Contacts cannot be copied to
Phone.
The Contact cannot be copied
because the memory space on the
FOMA handset is full. Delete
unnecessary Contacts and try
again. →P101
Memory Full:
The Contact cannot be copied
because the memory space on the
UIM is full. Delete unnecessary
Contacts and try again. →P101
Chat mail member cannot
register fully.
Five members have been already
saved as chat members. No more
members can be registered.
Delete some chat members to
register others. →P187
Set member
Chat mail cannot be sent to a party
not registered as a chat member.
Register as a chat
member.(Checking the
specifications) →P187
Pasting To Editor Limit
Not all text can be pasted because
the size limit will be exceeded.
Text entry size exceeds limit
Delete message
No more characters can be
entered into the message text
because the size limit has been
reached. Delete some of the
message text.
You have no certificate
Do you connect?
The user certification has not been
downloaded. Press $★$ [Yes] to
continue. However, at some sites,
continuation may not be possible.
Your certificate has expired.
Do you want to connect?
The user certificate required by the
site has expired. Press $★$ [Yes]
to continue. However, at some
sites, continuation may not be
possible. It is recommended that
you download a new user
certificate.
Your certificate is requested.
Send your certificate?
Ok/Cancel
The user certificate required by the
site has expired.(Checking the
specifications)
Insufficient memory. Delete
existing file(s) to save new
i-motion?
The edited i-motion movie cannot
be saved due to a shortage of free
space. Delete unnecessary files.
→P209, P210
315
Appendix/Using External Devices/Troubleshooting XXXXX
Could Not Scan. Try Again
Scanning could not complete
because 30 seconds elapsed. Try
again.
Illegal Character
c is pressed without entering
any characters on the reading
entry screen. The word cannot be
registered to the user dictionary.
Enter a reading.
Reservation Not Available
The software update cannot be
reserved because the reservation
time is full. Try to change the
reservation to another date and
time.
The reminder must be set to a
future date/time.
The Schedule event/task cannot
be saved because the Reminder is
set earlier than the current date
and time. Change the Reminder
time.(Checking the specifications)
Some editing operations are not
available.
"Image Border", "Crop", "Add
Graphic" and "Add Text" are not
available for an image of "XX x XX"
or smaller.(Checking the
specifications)
Not Available
You pressed o/t/J with
empty Received Calls/Dialed
Calls.
Not Available
This UIM cannot be recognized.
The proper UIM has not been
inserted. Insert the proper UIM.
Unable to Open
This data can no longer be
replayed. Delete?
The file cannot be displayed/
played because the available
number of times for playback has
been exhausted. Press h [Yes]
to delete the file.
Unable to Open
Replay period has expired.
Delete?
The file cannot be displayed/
played because the playback
period has expired. Press h
[Yes] to delete the file.
Unable to Open
Replay period has not yet
started.
You attempted to play a file with
before its playback start date. Play
the file after the playback start
date.
Unable to Open
Requested file cannot be
played.
The file cannot be played because
the file expired or the available
number of times for playback has
been exhausted.
Voicemail or Call Forwarding
Denied
You attempted to enable Set
Arrival Act without subscribing to
the Voicemail or Call Forwarding
service.
Voicemail Denied
• You attempted to activate
Voicemail without subscribing to
the service.
• You attempted to activate
Forwarding Party Busy Setting
without subscribing to the
service.
Roaming Guidance Activated
You attempted to activate Roaming
Guidance when it was already
activated.
Roaming Guidance Deactivated
You attempted to deactivate
Roaming Guidance when it was
already deactivated.
International Roaming Service
Denied
You attempted to activate the
Roaming Guidance without
subscribing to the
service.(Checking the
specifications)
Unable in Roaming Mode
The software cannot be updated
during roaming. Try to update
within the FOMA network.
Bluetooth Power Failed
Try Again Later
Bluetooth failed to start. Try to
operate again.
Bluetooth Not Available
Bluetooth Failed: Power Cycle
Phone and Try again
Bluetooth cannot start due to an
error. Turn the FOMA handset off
and on, then try again.
Bookmark has already
registered. Overwrite?
Bookmark with the same URL has
already been saved. Press $★$
[Yes] to overwrite.
100 bookmarks already
registered. Overwrite?
The maximum number of
Bookmarks has been saved. Press
$★$ [Yes] to overwrite.
UIM Card is full.
The Contact cannot be saved
because the memory space on the
UIM is full. Delete unnecessary
Contacts and try again. →P101
Invalid UIM, requested service
not available.
Operation cannot be executed due
to UIM Restrictions.(Checking the
specifications)
Unable to start. Software
installed with different UIM.
The i-appli cannot start due to UIM
Restrictions. Insert the original
UIM and try again.
UIM not inserted. Requested
service not available.
The UIM has not been inserted.
Insert the UIM and try again.
Too many SMS messages in
UIM.
The maximum number of SMS has
been saved on the UIM. Delete
unnecessary SMS then move or
copy. →P181, P183, P184, P186
Continued on the next page
316
Appendix/Using External Devices/Troubleshooting XXXXX
Insert UIM
The UIM has not been inserted.
Insert the UIM and try again.
i-appliDX may use saved data
and terminal and UIM ID.
Download?
This message is displayed when
the information provider needs to
identify you with the "Serial
Number of Mobile Phone/UIM".
The "Serial Number of Mobile
Phone/UIM" is sent via the Internet
and it may be seen by a third party.
This operation does not send your
mobile phone number, postal
address, age, or sex to the
information provider. Select
"Download" to connect.
i-appliDX may use saved data.
Download?
The downloaded application will
use data saved on your phone
(Contacts, Bookmarks, or
Schedule events, etc.). Select
"Download" to download.
Content length exceeds replay
able size for i-motion.
The data cannot be obtained
because it exceeds the maximum
size.
Receiving data exceeds replay
able size for i-motion
The data could not be obtained
because it exceeded the maximum
size.
Out of i-mode service area.
Signals are not received. Try again
at a location with stronger signal
reception.
Check New message all invalid.
No items for "Check New
Message" are checked.
Checkmark the items to check and
try again. →P184
i-mode mail service is busy.
Please try again later.
The line is very busy. Try again
later.
PIM is locked. Unable to
upgrade.
Pin Lock is set.(Checking the
specifications)
Incorrect PIN
Please Try Again
An incorrect UIM PIN has been
entered. Enter the correct UIM
PIN.
PUK is blocked
If an incorrect PUK code has been
entered ten times, the PUK code is
locked. Contact a DoCoMo shop.
→ See the back of the manual
PUK is blocked, requested
service not available.
If an incorrect PUK code has been
entered eleven times, the PUK
code is locked. Contact a DoCoMo
shop.
Login Attempts Exceeded
Your UIM has been blocked.
Contact your carrier.
Because an incorrect UIM PIN or
UIM PIN2 has been entered three
times in a row, UIM PIN/UIM PIN2
has been locked. Press h
[Unblock] and enter the PUK code.
SSL session cannot be
established.
The connection cannot be
established because a modified
SSL certificate was received or an
SSL error occurred.
SSL session failed.
The connection cannot be
established because of a server
authentication error.
Root certificate is not valid.
The SSL certificate of the server is
disabled under "Certificate".
Enable the certificate and try to
connect again. →P161
Completed Data Earlier than
Start Date
The task cannot be saved because
the End Time and Date is set
earlier than the Start Time and
Date. Change the Start or End
Time and Date.
No task list name
Task name required to save the
task
The task cannot be saved because
a title has not been entered. Enter
a title.
Enter address for To
To ($ ★$) has not been entered.
Enter the address then send.
URL is too long to register.
The URL has too many characters
to save as a bookmark or screen
memo. Enter the URL within 256
half-pitch characters.
Copy failed, due to too long
URL.
The URL has too many characters
to copy. Enter a URL within 256
half-pitch characters.
URL was too long, so it could
not be saved.
The URL has too many characters
to copy. Enter a URL within 256
half-pitch characters.
XXXXX*:Not Found
*: The number of the pressed
dial key and "Not Found" is
displayed.(Checking the
specifications)
There is no entry in Received
Calls/Dialed Calls that
corresponds to the pressed dial
key.
317
Appendix/Using External Devices/Troubleshooting XXXXX
Warranty and After-sales Service
Warranty
• Be sure to receive a warranty attached to FOMA handset you purchase. Read contents of the warranty and
confirm items such as the shop name and the date of purchase and keep it in a safe place. If necessary items
are not described, immediately contact the shop you purchased. The warranty for free repair is valid for one
year from the date of purchase.
• This product and its accessories are subject to change, in part or whole, for improvement without prior notice.
• Saved contents of phonebook and other functions may be altered or lost by failure, repair or other handling
of FOMA handset. You are recommended to note down the contents of phonebook and other functions as a
precaution. Using dedicated data link software (P302) and FOMA USB cable (optional), you can transfer and
store contents of phonebook and other functions to PC (Windows XP or Windows 2000), if available. In repair,
etc. of FOMA handset, information downloaded with i-mode or i-appli is not transferred to new FOMA
handset, with some exceptions, because of the Copyright Law.
After-sales Service
Malfunctioning
Before requesting for repair, check by yourself referring to "Troubleshooting" in this
manual. If the problem still persists, contact "Customer Assistance" at the back cover of
this manual.
When Repair Is Assumed Necessary by Contacting
Take your FOMA handset to a service center designated by DoCoMo. Be sure to check the
opening hours of the service center. Note that you must bring the warranty.
■In Warranty period
• The FOMA handset will be repaired at no charge subject to the conditions of the warranty.
• The warranty must be presented when requesting for repair. Even in the warranty period, you will be
charged for repair if the warranty is not presented or the trouble or damage is caused by your
inappropriate handling.
• The subscriber is charged even during the warranty period for repair of failures caused by the use of
devices or consumables items that are not DoCoMo-specified.
■Repair may not be possible in the following cases:
• Repair may not be possible when there is reaction of moisture seal, corrosion due to moisture, dew
condensation, sweat, etc. is detected by test or the internal board is damaged or deformed. In the above
cases, you will be charged for repair, if possible.
■After expiration of the warranty
• All repairs that are requested are charged.
■Replacement parts
• Replacement parts (parts required to maintain production function) will be kept in stock for at least six
years in principle after termination of production. However, repair may still not be possible due to a lack of
replacement parts depending on the failure. Even after the parts holding period, some failures may be
repairable. Contact "Customer Assistance" at the back cover of this manual.
318
Appendix/Using External Devices/Troubleshooting XXXXX
Notes
• Do not modify FOMA handset or its accessories.
- Fire, injury or damage may result.
- In order to prevent interference of radio waves or network troubles, technical standards are defined for
FOMA handset and UIM by law. FOMA handset or UIM that do not meet these technical standards may not
be used.
- If the FOMA handset modified (in a way such as parts replacement, remodeling or painting) will be repaired
only after the handset has been restored to the original conditions (containing DoCoMo genuine parts only).
Note that, depending on the details of modification, repair may be refused.
- Repair of failure or damage caused by modification is charged even in the warranty period.
• Do not remove rating stickers put on FOMA handset. Rating stickers function to certify that the FOMA handset
meets the technical standards. If the stickers are removed intentionally or replaced disabling to confirm their
contents, repair may be refused because compliance to the technical standards cannot be confirmed.
• Various function settings and information including total call time may be cleared (reset) by failure, repair or
other handling of FOMA handset. In such a case, you have to make function settings again.
• FOMA handset contains magnetic components given below. Keep cash cards and other objects vulnerable
to magnetism off such components or they may become unusable.
Magnetic components: Speaker and earpiece
• When FOMA handset has got wet or moistened, immediately turn the power OFF, remove the battery pack
and bring FOMA handset to repair shop. Note that, depending on the conditions of FOMA handset, it may not
be reparable.
Phonebook and Downloaded Data
• Note down and keep separately the data you registered in your FOMA handset. DoCoMo will not accept any
liability whatsoever for changes of information or loss of information.
• The Data you created or imported or downloaded from external sources may be altered or lost as a result of
changing the handset model or repairing the handset. DoCoMo is not responsible for data alteration or loss
under these circumstances. Also, at DoCoMo's convenience, your handset may be replaced with a substitute
product instead of repaired. In this case, only a part of the data on the product can be transferred to the
substitute.
For this FOMA handset, images and melody downloaded from i-mode official site are
transferred at repair. (Some contents may not be transferable. Moreover, depending on
severity of the failure, transfer of contents may be disabled.)
Software Update
Updating Software
This function checks whether FOMA handset software requires update and, if required,
updates the software by downloading a part of it using packet communication. When
software update is necessary, you will be informed of it with DoCoMo web site and "お知
らせ＆ヘルプ (News & Help)" of i Menu.
• You are not charged for packet communication for software update.
• There are 2 ways available for software update:
Update Now : You update immediately when you want.
Scheduled Update : When you set a schedule to update, software is automatically updated on the
scheduled day.
319
Appendix/Using External Devices/Troubleshooting XXXXX
• Never remove the battery pack during software update. Doing so may cause update to fail.
• Software update can be carried out with data such as phonebook, camera images, downloaded data maintained. Note that,
however, such data may not be protected depending on the conditions of FOMA handset (failure, damage, wetting, etc.). You
are recommended to back up important data. Note that some data including downloaded data cannot be backed up.
• When software update has failed, "Rewriting Failed (Checking the specifications)" appears, disabling any kind of operations.
In that case, you have to bring FOMA handset to repair center specified by DoCoMo.
Checking If Software Update Is Required
ac y $★$ (Settings) y "Software Update" y Enter the security
code
bCheck the notes y h [OK]
• Software update is available even when you have changed connection destination from i-mode.
• Fully charge the battery pack before updating software.
• Software update is disabled in the following cases:
- Power is OFF - UIM not installed
- Low battery level - Out of the service area
- Clock not set - Other functions are active
- During a call - Airplane Mode
- Phone Lock - Lock Application
- Connected to external device such as PC - UIM PIN being entered
- UIM Locked
• Software update (downloading and rewriting) may take a long time.
• When software update is carried out with PIN Code set to "ON", UIM PIN entry screen appears at
automatic restarting after software rewriting. Unless correct UIM PIN is entered, communication functions
including making and receiving calls are disabled.
• During software update, other functions are disabled. Though, you can receive voice calls during
downloading.
• During software update, FOMA handset makes SSL communications with the server(software update
server managed by DoCoMo).
Validate SSL Certificate by "User Certificate Operation". →P161
• You are recommended to carry out software update without moving under conditions with strong wave
signal and 5 antenna icons displayed.
* If signal conditions go worse during software download or download is suspended, retry software update
under good wave conditions.
• If you check software update after software update, message "No Update Required: You may continue
using your current version." appears.
• After software update, an icon indicating the i-mode center storage status disappears. When mail is
delivered during software update with "Receive Option" set to "ON", screen indicating that there is mail may
not appear after software update. →P176
• During software update, information (handset model, serial No., etc.) specific to your mobile phone is
automatically sent to the server (software update server managed by DoCoMo). DoCoMo does not use the
sent information for other purposes than software update.
Screen to be
inserted
Screen to be
inserted
Continued on the next page
320
Appendix/Using External Devices/Troubleshooting XXXXX
ch [OK] y h [OK]
■If update is required
A message notifying that update is required will be displayed on the Confirmation Result screen. You
can update immediately (P320) or by reserving the date and time to update (P321).
■If no update is required
The following screen is displayed.
Update Now
Immediately Updating Software
aConfirmation Result screen (P320) y "Update Now" y When
"Download will start." is displayed, h [OK]
Download starts, and when the download is completed, the confirmation screen for
software rewriting is displayed.
Result Confirmation
Screen
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
321
Appendix/Using External Devices/Troubleshooting XXXXX
bh [OK]
The rewriting status is displayed in "%" (Step 1/2), and when rewriting is completed, the
rewriting completion screen (Step 2/2) is displayed. The FOMA handset is automatically
restarted and connected to the server to carry out update completion checking. If the
update is successfully completed, the update completion notification screen is displayed.
• It may take some time before rewriting is started.
• All the operations will be disabled during rewriting.
ch [OK]
Reserve
Updating Software on Scheduled Date
Updating the software by reserving the date and time
If it takes time to download or the server is congested, you can set to automatically
update the software by reserving the date and time to update the software.
aConfirmation Result display (P320) y"Reserve"
Communicated with the server, and available dates and times for
reservation will be displayed.
■If the desired date and time are not displayed
You can specify a desired date, etc. to redisplay available dates and times for
reservation on the server. →P322
bSelect the reserved date and time y c y h [Yes]
• If the reserved date/time for software update comes while starting a schedule alarm, while receiving mail and a message, while
using other functions or during international roaming, software update may not be started. (Checking the specifications)
• If "Master Clear" is complete, the software update does not start at the reserved date/time. (Checking the specifications)
• The server time is displayed on the desired date and time selection screen.
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
Date and Time
Selection screen
Screen to be
inserted
Screen to be
inserted
Screen to be
inserted
322
Appendix/Using External Devices/Troubleshooting XXXXX
Checking If a Reservation Can Be Made by Specifying the Date and Time
You can redisplay the available dates and times on the server by specifying a date and a
period of time you want to reserve.
aDesired date and time selection screen (P321) y h [Others]
The desired date selection screen is displayed.
• Availability for reservation is displayed as follows; (Checking the specifications)
○：Available
△：Limited dates available
bSelect a date by a y h [Select]
The time zone screen is displayed.
•h [Details]: You can check the meanings of the symbols. The symbols denote as follows;
○：Available
△：Limited periods of time available
×：Not available
c"am"/"pm"
The desired date and time selection screen returns.
■When the reserved date/time comes
The screen shown on the right is displayed, and software update automatically starts.
• Before the reserved date/time, fully charge the battery pack, move to a place where radio waves
are strong and the icon of 5 antennas is displayed and keep the stand-by display displayed.
Checking the Reservation
If you start software update again after setting up a reservation, you can check the
reservation. You can also cancel the reservation.
ac y $★$ (Settings) y "Software Update" y Enter
the Security Code
The reserved date/time is displayed.
■To cancel the reservation
Press i [Cancel], and then press h [Yes].
Screen to be
inserted
Reservation
Confirmation screen
Screen to be
inserted
323
Appendix/Using External Devices/Troubleshooting XXXXX
Function Menu of the Reservation Confirmation Screen
aReservation Confirmation screen (P322) y h [Function] y
Perform the following operations
Confirm
The setting menu returns.
Change
Change the reservation date and time. Go to Step 3 in "Checking If Software Update is Required" (P320).
Scanning Function
Protecting Mobile Phone from Dangerous Data
As for data and programs downloaded to FOMA handset from site or via i-mode mail, etc.,
you can detect and delete data or disable applications that may cause troubles.
• Pattern data is used for checking. Update pattern data, which is upgraded as needed when new problems
are detected. →P324
• Scanning Function provides a means to protect FOMA handset from data that may invade when viewing web
site or receiving mail, etc., causing troubles of FOMA handset. Note that this function cannot avoid
occurrence of troubles unless pattern data specific to individual troubles has not been downloaded to FOMA
handset or such pattern data does not exist.
• Pattern data has different contents depending on mobile phone models. Note that, therefore, DoCoMo may
stop distributing pattern data for models that have been on the marker for 3 years or more.
Setting Scanning Function
When Scanning Function is "Enable", data and programs to be executed are
automatically checked. When data that may cause troubles is detected, it is alerted in 5
levels. →P324
ac y $★$ (Accessories) y "Scanning Function"
b"Settings" y "Scan" y "Enable"/"Disable"
First, update the pattern data to the latest one.
Default Enable
Scanning Function
screen
324
Appendix/Using External Devices/Troubleshooting XXXXX
Updating Pattern Data
aScanning Function screen (P323) y "Update" y h [Yes] y
h [Yes]
Updating starts. Upon completion of update, Scanning Function screen is redisplayed.
• When the pattern data is the latest one, a message to that effect appears.
• During pattern data update, information (handset model, serial No., etc.) specific to your mobile phone is automatically sent
to the server (software update server managed by DoCoMo). DoCoMo does not use the sent information for other purposes
than Scanning Function.
• Correctly set the clock of FOMA handset in advance.
• Pattern data update is disabled in the following cases:
- Clock not set - Low battery level
- UIM not inserted - Out of the service area
- During a call - Other functions are active
- Self Mode - Phone Lock
- Lock Application - Connected to external device such as PC
Scan Result Display
■Display of problem elements scanned
Alert screen appears when problem elements are detected. Press h [Next] to
display up to 5 problem elements on a screen. When 6 or more problem elements
have been detected, the sixth and subsequent elements are not displayed. (Checking
the specifications)
■Scan result display
Confirming Pattern Data Version
aScanning Function screen (P323) y "Version"
Alert level 0 Alert level 1 Alert level 2 Alert level 3 Alert level 4
【Screen】【Screen】【Screen】【Screen】【Screen】
h [OK]: Continue
operation.
h [Yes]: Stop
operation and return
to stand-by display.
h [No]: Continue
operation.
h [OK]: Stop
operation and return
to stand-by display.
h [Yes]: Delete
data and return to
stand-by display.
h [No]: Stop
operation and return
to stand-by display.
h [OK]: Delete
data and return to
stand-by display.
Screen to be
inserted
325
Appendix/Using External Devices/Troubleshooting XXXXX
Major Specifications
*1: All devices equipped with Bluetooth function including FOMA handset have been confirmed to comply with
Bluetooth standard defined by Bluetooth SIG and thereby certified. Note that, depending on the
characteristics and/or specifications of devices connected, operations may be different or data may not be
exchanged even after connection has been established.
*2: This varies depending on obstacles, if any, between communicating devices and/or wave conditions.
*3: Specification conforming to usage of Bluetooth compatible devices and is a part of Bluetooth standard.
Model name FOMA M702iG
Dimensions (H×W×D) Approximately ●●●×●●×●●● mm
Weight Approximately ●●●g (with battery pack installed)
Memory ROM ●●MB (Flash memory)
RAM ●●MB (SRAM)
Continuous standby time FOMA/3G Stationary: Approximately ●●● hours
Moving: Approximately ●●● hours
GSM Approximately ●●● hours
Continuous call time FOMA/3G Voice Call: Approximately ●●● minutes
Video Call: Approximately ●●● minutes
GSM 900MHz: Approximately ●●● minutes
1800/1900MHz: Approximately ●●● minutes
Battery pack type Lithium-ion battery
Battery capacity ●●● mAh
Charging time with FOMA AC adapter 01 (optional) Approximately ●●● minutes
Charging time with FOMA AC adapter available both
in Japan and overseas 01 (optional)
Approximately ●●● minutes
Charging time with FOMA DC adapter 01 (optional) Approximately ●●● minutes
Number of camera pixels Internal camera: Approximately 100,000 effective
pixels (100,000 pixels)
External camera: Approximately 1,920,000 effective
pixels (1,920,000 pixels)
Digital zooming External camera: Maximum of 8 times
Bluetooth Applicable Bluetooth
version
Compliance with Bluetooth standard Ver.●.●*1
Output Bluetooth standard Power Class2
Line-of-sight distance*2Approximately 10m or less
Applicable Bluetooth
Profiles*3
Generic Access Profile
Generic Object Exchange Profile
Object Push Profile
Serial Port Profile
Dial-Up Networking Profile
Headset Profile
Service Discovery Application Profile
Hands-free Profile
Basic Imaging Profile
File Transfer Profile
Advanced Audio Distribution Profile
Audio/Video Remote Control Profile
Frequency Band to use 2400MHz frequency band used (2400MHz to
2483.5MHz)
Continued on the next page
326
Appendix/Using External Devices/Troubleshooting XXXXX
• The continuous call time is an estimate of time available for calls under conditions allowing normal radio wave
transmission and reception.
• The continuous standby time is an estimate of time available for moving under conditions allowing normal
radio wave reception. The continuous standby time may reduced by half depending on the battery level,
function settings, operating conditions such as temperature and signal wave conditions (unreachable or weak
signal wave) in the place of use. Performing i-mode communication will reduce the call (communication) and
standby times. Even when you do not make calls or i-mode communication, creating i-mode mail, activating
downloaded i-appli or i-appli standby display, performing data communication or multiaccess function, using
camera or playing video and/or melody may cause the call (communication) and standby times to be
shortened.
• The continuous standby time in stationary state is a mean time available to normally receive signal waves
with FOMA handset folded in stationary state.
• The continuous standby time in moving state is a mean time available to normally receive signal waves with
FOMA handset folded in combination of stationary, moving and out-of-the-service-area states.
• The charging time an estimate for charging an empty battery pack with FOMA handset turned OFF. Charging
with FOMA handset turned ON will require longer time.
Specific Absorption Rate (SAR) of Mobile Phone
Mobile phone FOMA M702iG meets the technical regulation defined by the government for
absorption of radio waved to human body. This technical regulation has been established
based on scientific studies so that radio waves emitted from radio devices such as mobile
phones used near a human head give no bad influence to the human health. It defines that
Specific Absorption Rate (SAR), representing the average amount of energy of radio
waves absorbed to a temporal part of human body, should not exceed a permissible value
of 2W/kg*. This permissible value includes a substantial safety margin designed to assure
the safety of users, regardless of the age, body size and other conditions of individuals
and is equal to the international guideline recommended by International Commission of
Non-Ionizing Radiation Protection (ICNIRP) which has cooperative relationships with
World Health Organization (WHO).
All mobile phones should be confirmed to comply with the governmental regulation
according to Radio Law before they are released. The SAR value of FOMA M702iG is
●.●●● W/kg. This value has been acquired by Telecom Engineering Center (TELEC)
and is the maximum value of those measured under the maximum transmission power of
the mobile phone in the procedure defined by the government. Though there may be
some differences in SAR value among individual products, they all meet the technical
regulation. In addition, mobile phones are designed to have the lowest transmission
power required for communication with base stations; therefore, the SAR value during
actual phone operation becomes smaller. SAR value of this mobile phone meets the
regulations of individual countries it is available.
For further information about SAR, see the following web sites:
*: The technical regulation is defined in Article 1-2 of the Ministry Ordinance Regulating Radio Equipment.
Radio Frequency (RF) Signals
THIS MODEL PHONE MEETS THE U.S. GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone contains a radio transmitter and receiver. Your phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on standards that were developed by independent scientific organizations through periodic
Ministry of Internal Affairs and Communications http://www.tele.soumu.go.jp/j/ele/index.htm
Association of Radio Industries Businesses http://www.arib-emf.org/index.html
DoCoMo http://www.nttdocomo.co.jp/product/
Motorola, Inc. http://www.motorola.com/rfhealth
327
Appendix/Using External Devices/Troubleshooting XXXXX
and thorough evaluation of scientific studies.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate
(SAR). The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by
the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum
value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower the output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit
established by the U.S. government-adopted requirement for safe exposure. The tests are performed on position and locations
(for example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this model phone
as reported to the FCC when tested for use at the ear is 0.47 ●.●W/kg, and when worn on the body, is 0.61●.●●W/kg. (Body-worn
measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be
differences between the SAR levels of various phones and at various positions, they all meet the U.S. government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the
Display Grant section at http://www.fcc.gov/oet/fccid after search on FCC ID IHDT56GX1●●●●●●●●.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory
designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of
1.5 cm from the body.
Declaration of Conformity
This mobile phone complies with the EU requirements for exposure to radio waves.
Your mobile phone is a radio transceiver, designed and manufactured not to exceed the SAR* limits** for exposure to radio-
frequency (RF) energy, which SAR* value, when tested for compliance against the standard was ●.●●W/kg. While there may
be differences between the SAR* levels of various phones and at various positions, they all meet*** the EU requirements for RF
exposure.
Important Safety Information
AIRCRAFT
Switch off your wireless device when boarding an aircraft or whenever you are instructed to do so by airline staff. If your device
offers a 'flight mode' or similar feature consult airline staff as to whether it can be used on board.
DRIVING
Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while
driving must be observed.
HOSPITALS
Mobile phones should be switched off wherever you are requested to do so in hospitals, clinics or health care facilities. These
requests are designed to prevent possible interference with sensitive medical equipment.
PETROL STATIONS
Obey all posted signs with respect to the use of wireless devices or other radio equipment in locations with flammable material
and chemicals. Switch off your wireless device whenever you are instructed to do so by authorized staff.
INTERFERENCE
Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 15cm be maintained between a mobile phone and a
pacemaker to avoid potential interference with the pacemaker. To achieve this use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult
your hearing aid manufacturer to discuss alternatives.
＊In the United States, the SAR limit for wireless mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one
gram of tissue. SAR values may vary depending upon national reporting requirements and the network band.
The product "FOMA M702iG" is declared to conform with the essential requirements of European Union Directive 1999/5/EC
Radio and Telecommunications Terminal Equipment Directive 3.1(a),3.1(b) and 3.2. The Declaration of Conformity can be
found on www.motorola.com
＊The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate, or
SAR.
＊＊ The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue,
recommended by The Council of the European Union. The limit incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in measurements.
＊＊＊ Tests for SAR have been conducted using standard operating positions with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level,
the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone
is designed to operate at multiple power levels so as to use only the power required to reach the network. In general,
the closer you are to a base station antenna, the lower the power output.
Continued on the next page
328
Appendix/Using External Devices/Troubleshooting XXXXX
For other Medical Devices:
Please consult your physician and the device manufacturer to determine if operation of your phone may interfere with the
operation of your medical device.
Export Administration of This Product and Its
Accessories
This product and its accessories are under coverage of the export administration
regulations of Japan ("Foreign Exchange and Foreign Trade Control Laws" and the
related laws and regulations) and the U.S.A. (Export Administration Regulations). When
exporting or reexporting this product and its accessories, take necessary procedures on
your responsibility and expense. For details, contact Ministry of Economy, Trade and
Industry or U.S. Department of Commerce.
329
Index/Quick Manual
Index...........................................................................................................................330
Using the Quick Manual ...........................................................................................332
Quick Manual....................................................................................End of the Manual
330
Index/Quick Manual XXXXX
Index
Index will be created by the 2nd draft.
331
Index/Quick Manual XXXXX
332
Index/Quick Manual XXXXX
Using the Quick Manual
Detach the Quick Manual from this manual.
• You can find a quick manual for "Overseas Use" that is convenient for overseas trips after the regular quick
manual.
• If using scissors, be careful not to hurt yourself.
aDetach the Quick Manual by cutting along the cutoff line
bFold lengthwise
cFold crosswise twice
Cover
Cover Cover
Cutoff line
Quick Manual
If you have any questions regarding the
Operation Manual, contact the following:
DoCoMo Information Center
If you encounter a problem with the handset,
contact the following:
Customer Assistance
• Verify the number before making a call.
Saving Contacts
Saving Contacts on the FOMA handset (Phone)
1dy "[New]" y "Store to" y "Phone"
2"Name" y Enter a name
3"フリガナ (Reading)" y Enter a reading
4 "Nickname" y Enter a nickname
5"Number" y Enter a phone number y
i [OK] y "Type" y Select a type
yh [Select] y "Video Number" y
"Yes"/"No"
6"Email" y Enter the email address y
"Type" y Select a type yh [Select]
7 "URL" y Enter the URL
8 "Postal Address" y Enter "Zip Code"/
"State"/"City"/"Street 1"/"Street 2"/
"Country" y "Type" y Select a type
yh [Select]
9 "Category"y Select a category yh
[Select]
10 "Picture ID" y "Take Picture"/"Select
Picture" y Capture/select an image
11 "Ringer ID" y Select a ringtone/melody
12 "Chara-den" y Select Chara-den
13 "Birthday" y Use j to enter the date
yh [OK]
14 "Secret" y "Yes"/"No"
15 "Reject" y "Yes"/"No"
16 "Notes" y Enter a note
17 i [Complete]
From a DoCoMo handset or PHS:
151
(no area code) (toll free)
* The above number is not available from
a fixed line phone.
From a fixed line phone:
0120-005-250
(toll free) (in English)
* The above number is also
available from a DoCoMo
handset or PHS.
From a DoCoMo handset or PHS:
113
(no area code) (toll free)
* The above number is not available from
a fixed line phone.
From a fixed line phone:
0120-800-000
* The above number is also
available from a DoCoMo
handset or PHS.
To be replaced
Saving Contacts on the UIM
1dy "[New]" y "Store to" y "UIM"
2"Name" y Enter a name
3"フリガナ (Reading)" y Enter a reading
4 "Primary Number" y Enter a phone
number yi [OK] (Checking the
specifications)
5 "Number" y Enter a phone number
yi [OK]
6"Type" y Select a type yh [Select]
(Checking the specifications)
7 "Email" y Enter the mail address
8"Category"y Select a category yh
[Select]
9"Secret" y "Yes"/"No"
10 i [Complete]
Saving Contacts from Dialed Calls/Received Calls
1cy $ ★$ (Accessories) y "Recent
Calls" y "Received Calls"/"Dialed Calls"
y Select Dialed Calls/Received Calls
yh [Function] y "Save"
2 Select a saving method
• "Create New Contact": Go to Step 5
• "Add to Contact"/"Replace Number": Go
to Step 3
3 Select a Contact to save yc
• Go to Step 5 if you select "Add to
Contact"
4 Select a phone number to overwrite
yh [Select]
5 Save/Edit the Contact yh [Complete]
Editing Contacts
dy Select Phonebook yh [Function] y
"Edit Contact" y Save/Edit Contact yi
[Complete]
Entering Characters
Main Operations on the Character Entry Screen
■Switching Entry Modes
h [Function] y "Entry Mode" y Select an
entry mode yh [Select]
■Switching Full-/Half-pitch Entry Mode
t (for 1+ seconds)
■Switching Upper-/Lower-case Entry Mode
Enter a character yt
To be replaced
Entry Mode
Full-/Half-pitch
Entry Mode
Number of Characters/
Bytes that can be Entered
Cursor
Conversion
Options
123
7654
Cutoff line
■Entering Voiced/Semivoiced Sound
Symbol
Enter a character y*
■Entering Punctuation
# (Press more than once)
■Entering Line Feed
o
■Entering Full-/Half-pitch Space
o (for 1+ seconds)
■Entering E-moji/Emoticon/Symbol
m (Press more than once) y Select
Pictograph/Emoticon/Symbol yh
[Confirm]
Example of Character Entry
■Entering " ドコモ (DoCoMo)"
1Enter "どこも (DoCoMo)"
"ど(Do)": Press 4 five times y*
once
"こ(Co)": Press 2 five times
"も(Mo)": Press 7 once
2Press d to move the cursor to
conversion options y Use a to select "
ドコモ (DoCoMo)" yh [Confirm]
Using the Camera
Capturing Still Images
1cy $ ★$ (Accessories) y "Camera"
2 Frame the shot then c/J
3c/J
Capturing Videos
1cy $ ★$ (Databox) y "i-motion"
2 Frame the shot then c/J
3c/J
Playing an Image/Video/Melody
Displaying Images
1cy $ ★$ (Databox) y "My Pictures"
2 Select a folder ycy Select a file yc
■Operations on the Image Display Screen
•s:Display the previous/next file
•*/#:View Full-screen
•J:Display a slide show of files in the folder
■Operations on the Flash Image Display
Screen
•s:Display the previous/next file
•N/H:Adjust the volume
Playing Videos
1cy $ ★$ (Databox) y "i-motion"
2 Select a folder ycy Select a file yc
■Operations on the i-motion Playback
Screen
•c:Pause/Play
•s:Fast Forward/Rewind
Playing Melodys
1cy $ ★$ (Databox) y "Melody"
2 Select a folder ycy Select a file yc
■Operations on the Melody Playback
Screen
•c:Pause/Play
•s:Play the previous/next file
•N/H:Adjust the volume
Making/Receiving a Video Call
Making Video Calls
1 Enter a phone number yty Start
talking when the other party answers
2p to terminate the call
Receiving Video Calls
1 A video call arrives
2 Answer a video call
•t/o:Send camera image
•i [Alternate Image]:Send alternate
image/Chara-den
3p to terminate the call
Main Operations during Video Calls
■Placing a Call on Hold/Canceling Hold
Use s to select $ ★$ (Hold) yi [Hold]/
i [Resume]
■Setting/Canceling Handsfree Call
Use s to select $ ★$ (Speaker) yi
[Speaker On]/i [Speaker Off]
■Switching between Camera Image/
Alternate Image
Use s to select $ ★$ (Image) yi
[Alternate Image]/i [Camera Image]
■Switching between In/Out View
Use s to select $ ★$ (Camera) yi [In
View]/i [Out View]
i-mode Mail
Creating/Sending i-mode Mail
■Opening the Compose message Screen
my "Compose message"
■Entering Receiver
Select $ ★$ (To) ycy Enter the receiver
yc
■Entering Subject
Select $ ★$ (Subject) ycy Enter the
subject yc
■Entering Message Text
Select $ ★$ (Message) ycy Enter the
message text yc
■Sending i-mode Mail
i [Send]
Attaching Files
■Attaching an Image
On the Compose message screen (PXX),
select $ ★$ (Attachment) field ycy
"Attach image" ySelect a folder ycy
Select an image yc
■Attaching an i-motion Movie
On the Compose message screen (PXX),
select $ ★$ (Attachment) field ycy
"Attach i-motion" y Select a folder ycy
Select a video yc
■Attaching a Melody
On the Compose message screen (PXX),
select $ ★$ (Attachment) field ycy
"Attach melody" y Select a folder ycy
Select a melody yc
Compose message
screen
Receiver
Subject
Message
15141312
111098
Cutoff line
■Capturing and Attaching a Still Image/
Video
On the Compose message screen (PXX),
select $★$ (Attachment) field ycy "Snap
photo"/"Shoot movie" y Capture a still
image/video y "Apply"
Receiving i-mode Mails
1 i-mode mail arrives y "Mail" y Select an
i-mode mail yc
Checking new messages
1my "Check new message"
Other Mail Functions
■Replying to Mail
Select or display the mail to be replied to
yh [Function] y "Reply"/"Reply with
quotation" y Enter message text
ycyi [Send]
■Forwarding Mail
Select or display the mail to forward yh
[Function] y "Forward" y Enter the address
ycyi [Send]
Menu List
Icon Function Name
$★$
i-mode
iMenu
Bookmark
Go to location
Screen Memo
Last URL
Message R
Message F
Check new message
i-mode setting
SWAP
$★$
i-appli
$★$
Mail
Inbox
Message Outbox
Unsentbox
Compose message
Compose SMS message
Chat Mail
Deco-mail template
SWAP
Check new message
Check SMS
Receive option
$★$
Mail
Mail setting
$★$
Phonebook
$★
Databox
My Pictures
i-motion
Melody
Chara-den
Animations
Voice Notes
$★$
Accessories
Alarm Clock
Datebook
Record Message
Calculator
World Clock
Barcode Reader
Electronic Dictionary
Scanning Function
Recent Calls
Received Calls
Dialed Calls
Notepad
Call Times
Call Cost
Camera
Icon Function Name
Manner Mode
# (for 1+ seconds) on the Standby screen
Drive Mode
* (for 1+ seconds) on the Standby screen
$★$
Connection
Infrared Link
Bluetooth Link
USB Mode Setting
$★$
Network Services
Voicemail
Call Waiting
Call Forwarding
Nuisance Call Barring
Caller ID Notification
Caller ID Display Request
Incoming Call Setting
In-call Arrival Act
Additional Message
Additional Service
Remote Control
Guidance Language
Dual Network
Multi Number
Call Barring - Roaming
Roaming Guidance
Service Dial
$★$
Settings
Sound Profiles
Style
Detail
Ring Lights
Event Lights
Icon Function Name
$★$
Settings
Personalize
Home Screen
Main Menu
Skin
Greeting
Wallpaper
Screen Saver
Manner Mode
General Settings
Time and Date
Speed Dial
Auto Redial
Display Timeout
Backlight
Scroll
Text Marquee
Language
Text Entry
Power Setting
Brightness
DTMF
Master Reset
Master Clear
Software Update
Icon Function Name
$★$
Settings
Security
Phone Lock
Sidekey Lock
Sidekey Shortcut
Lock Application
Lock Application Setup
Secret Data
Dialing Restriction
UIM PIN
New Passwords
In-Call Setup
Date and Time
In-Call Timer
Call Cost Setup
Video Call Settings
Answer Options
Call Hold
Call Rejection
International Dial Settings
Sub Address
Ring Delay
Network
New Network
Network Setup
Available Networks
My Network List
Icon Function Name
$★$
Settings
Network
Service Tone
Headset
Auto Answer
Ringer Options
Self Mode
i-appli Settings
Phone Status
My Personal Info
Battery Meter
User Accounts
Storage Devices
Other Information
Icon Function Name
23222120
19181716
Cutoff line
Network Services
Voicemail
Playing Messages
cy $★$ (Network Services) y "Voicemail" y
"Play Messages" yh [Yes] y Follow the
instructions of the voice prompt
Activating Voicemail
cy $★$ (Network Services) y "Voicemail" y
"Activate" yh [Yes] yh [Yes] y Use j
to enter Ringing Time yh [OK]
Deactivating Voicemail
cy $★$(Network Services) y "Voicemail" y
"Deactivate" yh [Yes]
Call Waiting
Activating Call Waiting
cy $★$ (Network Services) y "Call Waiting"
y "Activate" yh [Yes]
Deactivating Call Waiting
cy $★$ (Network Services) y "Call Waiting"
y "Deactivate" yh [Yes]
Call Forwarding
Activating Call Forwarding
cy $ ★$ (Network Services) y "Call
Forwarding" y "Activate" y "Phone Number" y
Enter the forwarding number yi [OK] y
"Ringing Time" y Use j to enter the ringing
time yh [OK] yh [Start] yh [Yes]
Deactivating Call Forwarding
cy $ ★$ (Network Services) y "Call
Forwarding" y "Deactivate" yh [Yes]
Services Available from the FOMA Handset
Main Icons
Service Phone Number
Collect Call (No prefix) 106
Directory assistance for fixed line
phones and DoCoMo
handsets(charges apply)
(Unlisted phone numbers cannot be
given.)
(No prefix) 104
Telegraph(charges apply)
8:00 am to 10:00 pm
(No prefix) 115
Time(charges apply) (No prefix) 117
Weather report(charges apply) Area code + 177
Police emergencies (No prefix) 110
Fire and ambulance emergencies (No prefix) 119
Marine emergencies (No prefix) 118
Message Dial in a disaster(charges
apply)
(No prefix) 171
a$★$ Signal strength level
$★$ Out of the service area or
where no signals are received
$★$ Self Mode is set
b$★$ Packet communication in
progress
$★$ Drive Mode is set
c$★$ Infrared communication in
progress
$★$ Bluetooth communication in
progress
d$★$ During i-mode
a b c ed f h jg i
If you have any questions regarding the Operation
Manual, contact the following:
DoCoMo Information Center
If you encounter a problem with the handset, contact the
following:
Customer Assistance
• Verify the number before making a call.
$★$ i-mode communication in
progress
$★$ Connected to a FOMA network
e$★$ During a Voice Call
$★$ During a Video Call
$★$ Schedule event or task for the
day exists
$★$ There is a set alarm
$★$ Dialing restrictions are set
$★$ Lock Application is set
f$★$ Secret Data is set to Hide
$★$ There is a message
$★$(Blue) Answering Machine is activated
$★$(Blue) There is a new message
g$★$(Yellow)There is an unread i-mode mail
$★$(Yellow)There is an i-mode mail at the
i-mode center
$★$(Yellow)There is an unread SMS
$★$(Yellow)There is an unread Message R
$★$(Yellow)There is a Message R at the
i-mode center
$★$(Yellow)There is an unread Message F
$★$(Yellow)There is a Message F at the
i-mode center
h$★$ An i-appli is running
i$★$ Manner Mode is set
$★$ Silent is set
$★$ Vibrate is set
j$★$ Battery level
From a DoCoMo handset or
PHS:
151
(no area code) (toll free)
* The above number is not available
from a fixed line phone.
From a fixed line phone:
0120-005-250
(toll free) (in English)
* The above number is also
available from a DoCoMo
handset or PHS.
From a fixed line phone:
0120-800-000
* The above number is
also available from a
DoCoMo handset or
PHS.
From a DoCoMo handset or
PHS:
113
(no area code) (toll free)
* The above number is not available
from a fixed line phone.
31302928
27262524
Cutoff line
Quick Manual "Overseas Use"
DoCoMo Information Center (For loss or theft of the
handset or charges while overseas) (24 hours)
Handset Failure while Overseas
(Network Technical Operation Center) (Open 24 hours)
Icons
You can verify the network communication
system currently connected using the icon.
Switching Networks
The handset is set to automatically find and
switch to an available network in the country of
stay as a default.
Setting the Network Manually
1cy $ ★$ (Settings) y "Network" y
"Network Setup"
2"Band" y "3G"/"GSM 900/1800"/"GSM
1900"
3 "Type" y "Manual"
4h [Complete]
●Universal
Number
●If the universal
number on the left is
not available:
International Phone Code for a
Universal Number (Table 1)
-800-0120-0151
* Domestic phone call charges
for the country of usage may
apply.
Major Access Code for the
Country of Usage (Table 2)
-81-3-5366-3114*
* International phone call
charges to Japan apply.
* From the M702iG handset, dial + 81-3-5366-3144 (to enter "+",
press [0] for 1+ seconds).
* For the International Phone Code for a Universal Number (Table 1)/
International Access Code for Major Countries (Table 2), see Page
12 and 13 of the Quick Manual.
International Phone Code for a
Universal Number(Table 1)
-800-5931-8600
International Access Codes of
Major Countries(Table 2)
-81-3-6718-1414*
* Codes in Table 1 or Table 2
are subject to change.
* Domestic phone call charges
for the country of usage may
apply.
* International phone call
charges to Japan apply.
●Universal Number ●If the universal
number on the left is
not available:
* From the M702iG handset, dial A{ 81-3-6718-1414(to enter "+",
press 0 for 1+ seconds).
* For International Phone Code for a Universal Number(Table 1) and
International Access Codes of Major Countries(Table 2), see PXX
and PXX in Quick Manual "Overseas Use" respectively.
Icon Description
$★$Connected to a 3G network
$★$Connected to a GSM network
$★$Connected to a GPRS network
Communication System and Available Services
Making a Call
Making a Call to Japan or Countries Other than the Country of Usage
10 (1+ seconds) y Enter "Country
Code - City Code - Phone Number"
• Exclude the leading "0" (zero) from the
city code or from a phone number of
Japanese mobile phone of PHS (in
some countries or regions such as Italy,
the leading "0" may be required).
• Country Codes →PXX
2Call
•o/c:Make a voice call
•t:Make a video
3p to terminate the call
Making a Call within the Country of Usage
1 Enter the phone number in the same way
as in Japan
2Call
•o/c:Make a voice call
•t:Make a video call
3p to terminate the call
Receiving Calls
1 A call arrives
2 Answer the call
•o/i [Answer]:Answer a voice call
•t/o:Answer a video call(with
Camera image)
•i [Alternate Image]:Answer a video
call (with the alternate image or Chara-
den)
3p to terminate the call
Service 3G GSM GPRS
$★$ $ ★$ $ ★$
Voice Call ○○○
Video Call ○×*×*
i-mode ○×○
i-mode Mail ○×○
SMS ○○○
Data Communications
○ab
○: Available
×: Not available
a: Separate settings are required for data communications using
dial-up connection.
b: Available only for data communication using packets.
* : No arrival call acts are performed for incoming calls. When a
number is dialed, a confirmation to reconnect is displayed.
Selecting "Reconnect as Voice Call" makes a voice
call.(Checking the specifications)
123
7654
Cutoff line
Setting Preferred Networks
1cy $★$ (Settings) y "Network" y "My
Network List"
Networks with higher priority appear at
the top of the list.
2 "[Add Network]" y Enter the network
code yi [OK]
Network Services
Remote Control
• Setting must be done while in Japan.
cy $ ★$ (Network Services) y "Remote
Control" y "Activate"/"Deactivate"
Roaming Guidance
• Setting must be done while in Japan.
cy $ ★$ (Network Services) y "Roaming
Guidance" y "Activate"/"Deactivate"
Call Barring - Roaming
• Setting must be done while in Japan.
cy $★$ (Network Services) y "Call Barring -
Roaming" y "Activate - All Calls"/"Activate -
Data Only"/"Deactivate" yh [Yes] y Enter
the network security code
Voicemail (Overseas)
cy $★$ (Network Services) y "Voicemail" y
"Voicemail International" y "Play Messages"/
"Activate"/"Deactivate" y Follow the
instructions of the voice prompt
Call Forwarding (Overseas)
cy $ ★$ (Network Services) y "Call
Forwarding" y "Call Forwarding International"
y "Activate"/"Deactivate" y Follow the
instructions of the voice prompt
Roaming Guidance (Overseas)
cy $ ★$ (Network Services) y "Roaming
Guidance" y "Roaming Guidance International"
y Follow the instructions of the voice prompt
After Coming Back to Japan
After coming back to Japan, the FOMA network
will be connected automatically and $ ★$ will
appear.
• If the FOMA network is not connected,
verify that "Band" is set to "Automatic" and
"Type" is set to "Automatic" in "Network
Setup".
Country Codes of Major Countries
International Phone Codes for Universal Numbers (Table 1)
International Access Codes of Major Countries (Table 2)
Contact Information
For loss or theft of the handset, settlement of
charges, or handset failure while overseas,
contact the DoCoMo Information Center on the
front page of "Overseas Use" or the Network
Technical Operation Center on Page 1.
• The contact numbers must be prefixed with
the code assigned to the country of stay as
shown in the "International Phone Code for
a Universal Numbers (Table 1)" or
"International Access Codes of Major
Countries (Table 2)".
Area
Number
Area
Number
U.S.A. 1 Germany 49
U.K. 44 Turkey 90
Italy 39 Japan 81
India 91 New Caledonia 687
Indonesia 62 New Zealand 64
Egypt 20 Norway 47
Australia 61 Hungary 36
Austria 43 Fiji 679
Netherlands 31 Philippines 63
Canada 1 Finland 358
South Korea 82 France 33
Greece 30 Brazil 55
Singapore 65 Vietnam 84
Switzerland 41 Peru 51
Sweden 46 Belgium 32
Spain 34 Hong Kong 852
Thailand 66 Macao 853
Taiwan 886 Malaysia 60
Tahiti 689 Maldives 960
Czech 420 Russia 7
China 86
Area
Number
Area
Number
Ireland 00 Thailand 001
U.S.A. 011 Taiwan 00
Argentina 00 China 00
U.K. 00 Denmark 00
Israel 014 Germany 00
Italy 00 New Zealand 00
Australia 0011 Norway 00
Austria 00 Philippines 00
Netherlands 00 Finland 990
Canada 011 France 00
South Korea 001 Brazil 0021
Colombia 009 Belgium 00
Singapore 001 Hong Kong 001
Switzerland 00 Malaysia 00
Sweden 00 Luxemburg 00
Spain 00
Area
Number
Area
Number
Ireland 00 Turkey 00
U.S.A. 011 New Zealand 00
U.A.E. 00 Norway 00
U.K. 00 Hungary 00
Italy 00 Philippines 00
India 00 Finland 00
Indonesia 001 990
Australia 0011 France 00
Netherlands 00 Brazil 0041
Canada 011 0021
South Korea 001 0023
Greece 00 Vietnam 00
Singapore 001 Belgium 00
Switzerland 00 Poland 00
Sweden 00 Portugal 00
Spain 00 Hong Kong 001
Thailand 001 Macao 00
Taiwan 002 Malaysia 00
Czech 00 Monaco 00
China 00 Luxemburg 00
Denmark 00 Russia 810
Germany 00
15141312
111098
Don't forget your FOMA handset … or your manners!
When using the FOMA handset, be considerate and do not disturb people around you.
Always turn OFF your FOMA handset in the following situations:
■Where use is prohibited
Be sure to turn off your FOMA handset in airplanes and in hospitals.
* Persons with electronic medical equipment are in places other than the actual wards.
Make sure you have the power switched off even if you are in a lobby or waiting room.
■When in crowded places such as packed trains, where you could be near a person with an
implanted cardiac pacemaker or implanted defibrillator.
The implanted cardiac pacemaker or implanted defibrillator operation can be affected by radio
emissions from the FOMA handset.
In the following cases, be certain to set Public Mode.
■While driving
Using the FOMA handset interferes with safe driving and could cause danger.
* Park the car in a safe place before using the FOMA handset, or switch to Public Mode.
■When in theaters, movie theaters, museums, and similar venues
If you use your FOMA handset where you are supposed to be quiet, you will disturb those
around you.
Pay attention to your surroundings
and the loudness of your voice and ringer.
■Do not raise your voice when using the FOMA handset in quiet places such as in restaurants
or hotel lobbies.
■Use the handset so as not to disturb pedestrian traffic.
Consider privacy
Give consideration to privacy before capturing or sending images with a mobile phone
with a built-in camera.
This manual was produced in such a way as to allow easy recycling. Please recycle this manual
when it is no longer needed.
These functions help you keep your manners in public
Handy functions are available such as for setting the response to incoming calls and setting
the tones to silent.
●Public Mode (Drive Mode/Power Off)
The guidance is played announcing that you are in such a place as train, bus or movie
theater where you have to turn off the handset, and the call is disconnected. →P72, P73
●Record Message
Callers can record a message when you cannot come to the phone. →P75
●Incoming Vibrator
When the vibrator is set, it vibrates for incoming calls. →P108
●Manner Mode/Original Manner Mode
In Manner Mode, the keypad sound, ring tone or every other sound generated by the
FOMA handset are silenced. →P110
You can change the operation of the FOMA handset in Manner Mode (Original Manner
Mode). →P110
