Motorola Mobility T56JJ1 Portable Cellular/ PCS CDMA Transceiver with BT User Manual
Motorola Mobility LLC Portable Cellular/ PCS CDMA Transceiver with BT
Exhibit 8 Users Manual
V750
C
M
Y
CM
MY
CY
CMY
K
v525689.eps 1/31/2008 3:22:33 PMv525689.eps 1/31/2008 3:22:33 PM
1
HELLOMOTO
Introducing your new Motorola 750 wireless phone! It’s rugged and full of high performance features:
Quick Communication
– With Verizon Wireless® Push to Talk, you can connect instantly with one or more people
with the push of a button.
Anywhere Entertainment
– Download and play V CAST music and videos. Use the music player to set your
playlist for your morning commute. Optimize your music listening experience with Bluetooth® stereo headphones
(sold separately).
Connect on Many Levels
– Whether it’s with work or friends, connect in a variety of ways—voice, messaging,
downloads, or swapping an optional memory card—you’ll be on top of all the latest news and views to share!
My Phone, My Way
– It’s your phone—make it that way. Customize your home screen with personal pictures,
change wallpapers, and use your favorite song as your ringtone.
2
Here’s a quick anatomy lesson.
Camera/
Camcorder Key
Send Key
Make & answer calls.
Clear Key
Right Soft Key
Perform function in
lower right display.
Power/End Key
Turn phone on/off,
end calls, exit
menus.
Microphone
Left Soft Key
Perform function in
lower left display.
4-Way Navigation Key
with Center Select
Press center key to open
main menu.
Camera Lens
Music Player
Controls:
Play/Pause
Skip Back/Rewind
Skip Forward/
Fast Forward
External Display
See incoming
call information,
use as camera
viewfinder
when flip
is closed.
3
Raise & lower volume.
Connect headphones.
Smart/-
Speakerphone Key
Turn handsfree
speaker on/off.
Voice Command Key
Create voice records,
activate speech dialing
& voice commands.

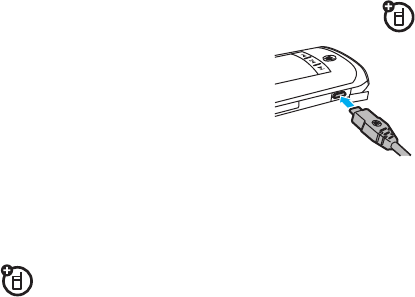

Micro-USB Port
Insert charger &
phone accessories.
Push to Talk Key
4
N
N
b CONTACTS c
1. New Contact
2. Contact List
3. Groups
4. Speed Dials
5. In Case of Emergency
B
G
H
A
J
Message
Contacts
Tue, Oct 23 12:45pm
MENU
OK
1
❙❙❙
ò
1X
EV
EV
1
❙❙❙
ò
1X
EV
EV
Main Screen Contacts Menu
Press & hold
Power/End Key
(
P
)
until display lights up
to turn on your
phone.
1
Press
Center Select
Key
(
s)
to select it.
4
Press
Navigation
Key
(
S)
up/down/
left/right to highlight
a menu option.
3
Press
Center
Select Key
(
s)
to open
Contacts Menu
.
2
5
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider’s network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user’s guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft and Windows are registered trademarks
of Microsoft Corporation; and Windows XP is a trademark of
Microsoft Corporation. Verizon Wireless® is a registered
trademark of Verizon Trademark Services, LLC.BREW is a
trademark of QUALCOMM Incorporated.
© Motorola, Inc., 2008.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: -A
6
contents
contents
menu map . . . . . . . . . . . . . . . . 8
Use and Care . . . . . . . . . . . . . 10
essentials . . . . . . . . . . . . . . . . 11
about this guide . . . . . . . . . 11
battery. . . . . . . . . . . . . . . . . 11
charge the battery. . . . . . . . 14
turn it on & off. . . . . . . . . . . 15
make a call . . . . . . . . . . . . . 16
answer a call . . . . . . . . . . . . 16
end a call. . . . . . . . . . . . . . . 16
store a phone number . . . . 17
call a stored phone
number . . . . . . . . . . . . . . . . 17
basics . . . . . . . . . . . . . . . . . . . 18
main screen . . . . . . . . . . . . 18
adjust volume . . . . . . . . . . . 21
change sound settings . . . . 22
handsfree . . . . . . . . . . . . . . 22
standalone mode . . . . . . . . 23
change lock code. . . . . . . . . 24
lock & unlock phone . . . . . . 25
manage memory. . . . . . . . . 26
TTY operation . . . . . . . . . . . 29
voice privacy . . . . . . . . . . . . 31
tips & tricks . . . . . . . . . . . . . . 32
personalize . . . . . . . . . . . . . . . 33
sounds. . . . . . . . . . . . . . . . . 33
get ringtones . . . . . . . . . . . . 35
talking phone. . . . . . . . . . . . 36
answer options . . . . . . . . . . 36
wallpaper. . . . . . . . . . . . . . . 37
display themes . . . . . . . . . . 38
backlight . . . . . . . . . . . . . . . 38
brightness . . . . . . . . . . . . . . 39
AGPS & your location . . . . . 39
AGPS limitations & tips . . . . 40
more personalizing
features . . . . . . . . . . . . . . . . 41
calls . . . . . . . . . . . . . . . . . . . . . 45
redial a number . . . . . . . . . . 45
automatic redial . . . . . . . . . . 45
recent calls . . . . . . . . . . . . . 46
return missed calls . . . . . . . 47
speed dial . . . . . . . . . . . . . . 48
emergency calls . . . . . . . . . 48
emergency call alert . . . . . . 49
AGPS during an
emergency call . . . . . . . . . . 49
international call prefix. . . . . 50
voicemail . . . . . . . . . . . . . . . 51
in-call options. . . . . . . . . . . . 52
contents
7
call times & data volumes . . 52
more calling features. . . . . . 54
text entry . . . . . . . . . . . . . . . . 57
select entry mode . . . . . . . . 58
tap mode. . . . . . . . . . . . . . . 59
iTAP® mode . . . . . . . . . . . . 59
numeric mode . . . . . . . . . . . 60
symbol mode . . . . . . . . . . . 61
text entry tips . . . . . . . . . . . 61
push to talk . . . . . . . . . . . . . . 62
PTT calls . . . . . . . . . . . . . . . 62
PTT contacts & groups . . . . 64
PTT indicators & tones . . . . 66
messages . . . . . . . . . . . . . . . . 68
send a multimedia
message . . . . . . . . . . . . . . . 68
receive a multimedia
(picture/video) message . . . 70
send a text message. . . . . . 71
e-mail. . . . . . . . . . . . . . . . . . 72
mobile IM . . . . . . . . . . . . . . 72
chat . . . . . . . . . . . . . . . . . . . 73
view sent messages . . . . . . 73
read received message . . . . 73
view drafts . . . . . . . . . . . . . . 74
erase messages . . . . . . . . . 74
entertainment. . . . . . . . . . . . . 75
get & play music . . . . . . . . . 75
record & play voice
records. . . . . . . . . . . . . . . . . 90
record & play video clips . . . 91
take photos . . . . . . . . . . . . . 93
change camera orientation . 96
download pictures . . . . . . . . 96
tools. . . . . . . . . . . . . . . . . . . . . 97
contacts. . . . . . . . . . . . . . . . 97
personal organizer . . . . . . . 102
fun & games . . . . . . . . . . . 105
connections . . . . . . . . . . . . . 108
Bluetooth® connections . . 108
cable connections . . . . . . . 115
network . . . . . . . . . . . . . . . 116
service & repairs. . . . . . . . . . 118
SAR Data . . . . . . . . . . . . . . . . 119
EU Conformance. . . . . . . . . 121
Safety Information . . . . . . . 124
Industry Canada Notice . . . 128
FCC Notice . . . . . . . . . . . . . 128
Warranty . . . . . . . . . . . . . . . 129
Hearing Aids . . . . . . . . . . . . 133
WHO Information . . . . . . . . 134
Registration . . . . . . . . . . . . 134
Export Law . . . . . . . . . . . . . 135
Recycling Information . . . . 135
Perchlorate Label . . . . . . . . 136
Privacy and Data Security . 136
Driving Safety . . . . . . . . . . . 137
index . . . . . . . . . . . . . . . . . . 139
8
menu map
menu map
main menu
B
GET IT NOW*
• Music & Tones
• Picture & Video
•Games
•News & Info
• Tools on the Go
• Extras
G
MESSAGING
• New Message
• Inbox
• Sent
•Drafts
•Voicemail
• Mobile IM*
• E-mail*
•Chat*
E
CONTACTS
• New Contact
• Contact List
• Groups
• New PTT Contact
• PTT Contact Lit
• PTT Groups
• Speed Dials
• In Case of Emergency
A
RECENT CALLS
•Missed
• Received
• Dialed
•All
•View Timers
D
SETTINGS & TOOLS
• (see next page)
* optional services
menu map
9
settings menu
My Account*
Tools
• Voice Commands
•Calculator
• Calendar
•Alarm Clock
• World Clock
• Notepad
Bluetooth Menu
• Add New Device
Sound Settings
• Call Sounds
• Alert Sounds
• Keypad Volume
• Service Alerts
•Power On/Off
• Voice Readout
* requires Mobile Web service
Display Settings
• Banner
• Backlight
• Brightness
• Wallpaper
• Display Themes
• Dial Fonts
•Clock Format
• Speed Dial Display
Phone Settings
• Standalone Mode
• Set Shortcut Keys
• Language
•Location
• Security
• System Select
•NAM Select
• Text Input
Call Settings
• Answer Options
• Auto Retry
• TTY Mode
• One Touch Dial
•Voice Privacy
• DTMF Tones
• Hearing Aid
Memory
• Save Options**
• Phone Memory
• Card Memory**
Phone Info
• My Number
•SW Version
• Icon Glossary
• Software Update
** available only when optional memory
card installed
10
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. If
it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
11
essentials
essentials
about this guide
battery
conserve battery charge
Using certain features can quickly deplete your
battery’s charge.
These features can include
downloading music, replaying video clips, and
using Bluetooth® wireless connections.
symbols
This means a feature is
network/subscription dependent and may
not be available in all areas. Contact your
service provider for more information.
CAUTION:
Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
This means a feature requires an optional
accessory.
symbols
12
essentials
You can conserve your battery’s charge by doing the
following:
•
Turn Bluetooth power off when not in use (see
page 109).
•
Turn off wallpaper (see page 37).
•
Reduce backlight (see page 38).
Battery Use & Battery Safety
• Motorola recommends you always use
Motorola-branded batteries and chargers.
The warranty does not cover damage caused
by non-Motorola batteries and/or chargers.
Caution:
Use of an unqualified battery or
charger may present a risk of fire, explosion,
leakage, or other hazard. Improper battery
use, or use of a damaged battery, may result
in a fire, explosion, or other hazard.
•
Battery usage by children should be
supervised.
• Important:
Motorola mobile devices are
designed to work best with qualified batteries.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following
steps:
•
Remove the battery and inspect it to
confirm that it bears a Motorola “Original
Equipment” hologram;
•
If there is no hologram, the battery is not
a qualified battery;
•
If there is a hologram, replace the battery
and retry charging it;
•
If the message remains, contact a
Motorola Authorized Service Center.
•
New batteries or batteries stored for a long
time may take more time to charge.
• Charging precautions:
When charging your
battery, keep it near room temperature. Never
13
essentials
expose batteries to temperatures below 0°C
(32°F) or above 45°C (113°F) when charging.
Always take your mobile device with you
when you leave your vehicle
•
When storing your battery, keep it in a cool,
dry place.
•
It is normal over time for battery life to
decrease, and for the battery to exhibit shorter
runtime between charges or require more
frequent or longer charging times.
• Avoid damage to battery and mobile
device.
Do not disassemble, open, crush,
bend, deform, puncture, shred, or submerge
the battery or mobile device. Avoid dropping
the battery or mobile device, especially on a
hard surface. If your battery or mobile device
has been subjected to such damage, take it to
a Motorola Authorized Service Center before
using. Do
not
attempt to dry it with an
appliance or heat source, such as a hair dryer
or microwave oven.
• Use care when handling a charged
battery
—particularly when placing it inside a
pocket, purse, or other container with metal
objects. Contact with metal objects (such as
jewelry, keys, beaded chains) could complete
an electrical circuit (short circuit), causing the
battery to become very hot, which could
cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations. Contact
your local recycling center for proper battery
disposal.
Warning:
Never dispose of batteries in a fire because
they may explode.
14
essentials
install the battery
charge the battery
New batteries are not fully charged. Before you can
use your phone, you need to install and charge the
battery. Some batteries perform best after several full
charge/discharge cycles.
To charge using the charger:
1
Insert the charger into
the micro-USB connector
on your phone as shown.
2
Plug the other end of the
charger into the
appropriate electrical outlet.
3
When your phone displays
Charge Complete
, remove
the charger.
Tip:
Motorola batteries have circuitry that protects the
battery from damage from overcharging.
When you charge the battery, the battery level
indicator at the upper right of the screen shows
charging progress. At least one segment of the
indicator must be visible to ensure full phone
functionality while charging.
12
34
15
essentials
To charge from your computer:
You can also charge your phone’s battery by
connecting a cable from your phone’s micro-USB port
to a high-power USB connector on a computer (not a
low-power one, such as the USB connector on your
keyboard or bus-powered USB hub). Typically, USB
high-power connectors are located directly on your
computer.
Both your phone and your computer must be turned
on, and you must have correct software drivers
installed on your computer. Cables and software
drivers are available in Motorola Original
TM
data kits,
sold separately.
turn it on & off
To turn on your phone
, press
and hold the Power/End
key (
O
) until the display
turns on.
The phone may require several seconds to turn on. If
prompted, use the keypad to enter your four-digit
unlock code (which, by default, is the last four digits of
your phone number) and press the center select
key (
s
)(
OK
) to unlock the phone.
To turn off your phone
, press and hold the
Power/End key (
O
).
16
essentials
make a call
Enter a phone number and press the Send key (
N
)
to make a call.
To make a call outside the U.S.A.
, press and
hold
*
until you see
+
. Then, press number keys to
dial the
country code
and
phone number
, and press
the Send key (
N
).
answer a call
When your phone rings and/or vibrates, press the
Send key (
N
) to answer.
Tip:
You can set the phone to answer calls when you
open the flip (see page 36).
end a call
To “hang up,” press the Power/End key (
O
).
You can also end a call by closing the flip,
if you are
not connected to a headset or a handsfree car kit
.
Closing the flip does not end the following:
•
a data connection using a USB cable to
connect the phone to a computer
•
Push to Talk
•
wallpapers, screen savers, banners, and other
similar applications
•
active BREW® download sessions, such as
downloading music or ringtones
17
essentials
store a phone number
To store a phone number in
Contacts
:
1
Use the keypad to enter a phone number in the
main screen and press the left soft
key (
-
)(
Save
).
2
Select
Add New Contact
by pressing the center select
key (
s
)(
OK
).
3
Use the navigation key (
S
) to scroll to an entry
type and press the center select key (
s
)(
OK
).
4
Use the keypad to enter a name and other details
for the phone number and press the center select
key (
s
)(
Save
) to store the number.
To edit or delete a
Contacts
entry, see page 98.
Tip:
You can set your phone to display a picture or play
a special ringtone for a caller (see page 100).
call a stored phone
number
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
2
Scroll to the
Contacts
entry.
If the entry has more than one phone number,
press the navigation key (
S
) right or left to
toggle between the numbers.
3
Press the Send key (
N
) to call the entry.
18
basics
basics
See page 2 for a basic phone diagram.
main screen
The main screen appears when you turn on the phone.
To dial a number from the main screen, press number
keys and the Send key (
N
).
Press the center select key (
s
) to open the main
menu. Soft key labels show current soft key functions.
(For soft key locations, see page 2.)
Tip:
You can quickly select a menu option by pressing
the number for that option. For example, from the
SETTINGS & TOOLS
menu, press
5
to select
Display Settings
.
Press up, down, left, or right on the navigation
key (
S
) to open these shortcuts:
N
1
❙❙❙❙
ò
1X
EV
Right Soft Key
Label
Date & Time
Left Soft Key
Label
Message
Contacts
Tue, Aug 5 12:45pm
MENU
default navigation key direction & menu
up
Mobile Web
down
Calendar
left
Music & Tones
right
GET IT NOW
19
basics
Note:
These are the default main screen shortcuts. To
customize these shortcuts, see page 43.
You can set your phone to display or hide these menu
icons on the main screen (see page 43).
Your phone displays system status indicators:
N
1
❙❙❙❙
ò
1X
EV
System Status
Indicators
Message
Contacts
Tue, Aug 5 12:45pm
MENU
alert/indicator
0
EV 1X Signal Strength
EVDO indicator shows when phone is in EVDO
coverage area (necessary for V CAST services). 1X
indicator shows when phone is in 1x-RTT coverage
area. Number of bars show strength of each signal.
2
Roaming
Indicates phone is roaming off your home network.
5
SSL
Indicates application verification is via SSL during a
download session.
6
Voice Privacy
Indicates
Voice Privacy
is
On
(see page 31.
20
basics
L
Data Call, Tethered, or Embedded
WAP/BREW Application
Shows during data call, tethered mode, or
WAP/BREW application.
M
Dormant
Indicates phone is dormant and PPP session is
active.
9
No Service
Phone is in area with no service coverage.
8
TTY
Phone is in TTY mode.
t
Voi c e C a ll
Shows during an active voice call.
alert/indicator
P
E911
Indicates
E911
is
On
.
O
Location On
Indicates
Location
is set to
On
.
N
Battery Level
Shows battery strength. The more bars, the greater
the charge.
n
All Sounds Off
Indicates
Master Volume
is set to
Off
.
o
Alarm Only
Indicates
Master Volume
is set to
Alarm Only
.
r
Vibrate On
Indicates
Master Volume
is set to
Vibrate On
.
alert/indicator
21
basics
adjust volume
Press the volume keys to:
•
turn off an incoming call alert
•
change the earpiece volume during calls
•
change the ringer volume from the main
screen (see page 22)
q
Speakerphone
Indicates handsfree speaker is on.
s
Missed Call
Indicates a call was missed.
g
Message
Shows when you receive a new message.
xCalendar Event
Shows number of calendar appointments.
y
New Voicemail
Shows when a voicemail message is received.
l
Alarm On
Shows when an alarm has been set.
alert/indicator
I
Bluetooth Connection Active
Indicates your phone is paired to another Bluetooth
device.
%OFF K
Standalone Mode
Shows when your phone is in standalone mode.
alert/indicator
22
basics
change sound settings
Press the down volume key to
switch to lower call sounds
volume, then cycle through
Vibrate Only
,
Alarm Only
, and,
All
Sounds Off
. Press the up volume
key to cycle back from
All Sounds Off
to
Alarm Only
, then
Vibrate Only
, and then to the lowest call volume setting.
handsfree
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
handsfree speaker
You can use your phone’s handsfree speaker to make
calls without holding the phone to your ear.
To activate the handsfree
speaker during a call
, press
and hold the
smart/speakerphone key (on
the right side of the
phone—see page 2).
You will hear an audio alert and see the speakerphone
indicator
q
.
The handsfree speaker stays on until you press and
hold the speaker key again or turn off the phone.
To turn off the handsfree speaker
, press and hold
the smart/speakerphone key.
To end the call
, press the Power/End key (
O
). You
will hear an audio alert.
23
basics
Note:
The handsfree speaker won’t work when your
phone is connected to a handsfree car kit or headset.
accessory volume settings
(car kit or headset)
To adjust volume of headsets or car kit accessories
that are enable for Bluetooth wireless connections,
press your phone’s up or down volume key during an
active call.
standalone mode
Note:
Consult airline staff about the use of
Standalone
Mode
in flight. Turn off your phone whenever instructed
to do so by airline staff.
Use standalone mode to turn off your phone’s calling
features in locations where wireless phone use is
prohibited.
You cannot make or receive calls or use
Bluetooth in standalone mode
, but you can use your
phone’s other non-calling features.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Press center select key (
s
) to select
Standalone Mode
.
5
Select
On
and press the center select
key (
s
)(
OK
).
24
basics
When
Standalone Mode
is set to
On
, your phone displays
indicators and a message on the main screen:
change lock code
Your phone’s four-digit
lock code
is originally set to the
last four digits of your phone number. To change the
lock code:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Security
and press the center select
key (
s
)(
OK
).
5
When prompted, enter the lock code and press
the center select key (
s
)(
OK
).
6
Scroll to
Edit Codes
and press the center select
key (
s
)(
OK
).
7
Scroll to
Phone Only
and press the center select
key (
s
)(
OK
).
8
Enter the new four-digit lock code in the
Enter New
Code
entry area, then press down on the navigation
key (
S
) to move the cursor into the
Re-Enter New
Code
entry area. Re-enter the new four-digit lock
code.
9
Press the center select key (
s
) (
OK
).
%OFF K
N
Standalone Mode
OK
25
basics
lock & unlock phone
You can lock your phone to keep others from using it.
To lock or unlock your phone, you need the four-digit
lock code (which is originally set to the last four digits
of your phone number).
Note:
You can make emergency calls on a locked
phone (see page 48). A locked phone still rings or
vibrates for incoming calls or messages.
To
manually lock
your phone:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Security
and press the center select
key (
s
)(
OK
).
5
When prompted, enter the lock code and press
the center select key (
s
)(
OK
).
6
Scroll to
Lock Phone Now
and press the center select
key (
s
)(
OK
).
To
automatically lock
your phone whenever you turn
it off:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Security
and press the center select
key (
s
)(
OK
).
5
When prompted, enter the lock code and press
the center select key (
s
)(
OK
).
26
basics
6
Scroll to
Phone Lock
and press the center select
key (
s
)(
OK
).
7
Scroll to
On Power Up
and press the center select
key (
s
)(
OK
).
8
Press the Power/End key (
O
) to return to the
main screen.
To unlock the phone
, enter the four-digit lock code in
the
Enter Lock Code
entry area and press the center select
key (
s
)(
OK
).
manage memory
You can store multimedia content such as songs and
photos on your phone’s internal memory or on a
removable microSD memory card.
Note:
If you download a copyrighted file to your phone
and store it on your memory card, you can use the file
only when your memory card is inserted in your
phone. You cannot send, copy, or change copyrighted
files.
install memory card
1
Remove the battery door from your phone (see
page 14).
2
With the gold contacts
down, slide the
memory card into the
card slot and push the
card in completely.
3
Replace the battery door.
Caution:
Do not remove your memory card while your
phone is using it or writing files to it.
To r e m o ve t h e
memory card
, lightly press the memory card once to
release it from the slot, and carefully slide it out.
27
basics
set memory for multimedia
content
You can set whether multimedia content that you
download is stored in phone memory or on the
memory card.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Memory
and press the center select
key (
s
)(
OK
).
4
Scroll to
Save Options
and press the center select
key (
s
)(
OK
).
5
Scroll to
Pictures
,
Videos
, or
Sounds
, and press the
center select key (
s
)(
OK
).
6
Select
Phone Memory
or
Card Memory
and press the
center select key (
s
)(
OK
).
view memory information
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Memory
and press the center select
key (
s
)(
OK
).
4
Select
Phone Memory
or
Card Memory
and press the
center select key (
s
)(
OK
).
5
Select
My Pictures
,
My Videos
,
My Music
, or
My Sounds
, and
press the center select key (
s
)(
OK
).
move files from phone to memory
card
You can move files (such as photos, videos, sound,
and music files) to the memory card to free up phone
memory.
28
basics
Note:
Moving a file to the memory card deletes it
from phone memory.
To move photos or video clips:
1
From the main screen, press right on the
navigation key (
S
) to open
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select
key (
s
)(
OK
).
3
Open the appropriate list (
My Pictures
or
My Videos
).
A memory card icon in the picture thumbnail or
next to a video file indicates that the file is stored
on the memory card.
An
f
in the picture thumbnail indicates that the
came preloaded on your phone and
cannot be moved to the memory card
.
If the picture or video is not marked with a
memory card icon, it is stored on the phone.
4
Scroll to the thumbnail of the picture or video clip
you want to move and press the right soft
key (
+
)(
Options
).
5
Select
Move
and press the center select
key (
s
)(
OK
).
6
When your phone asks if you want to move the
file, select
Yes
and press the center select
key (
s
)(
OK
) to confirm that you want to move
the file.
To move an audio clip that you recorded:
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Sounds
and press the center select key (
s
)(
OK
).
A memory card icon beside the file name of an
audio clip indicates that the audio clip is stored on
the memory card.
29
basics
If the file name is not marked with a memory card
icon, the audio clip is stored on the phone.
3
Scroll to the file you want to move and press the
right soft key (
+
)(
Options
).
4
Select
Move
and press the center select
key (
s
)(
OK
).
Your phone asks if you want to move the file.
5
Select
Yes
and press the center select
key (
s
)(
OK
) to confirm that you want to move
the file.
TTY operation
You can use an optional teletypewriter (TTY) device
with your phone to send and receive calls. You must
plug the TTY device into the phone’s headset
connector and set the phone to operate in one of
three TTY modes.
Notes:
•
A TTY is a communication device used by
people who are hard of hearing or have a
speech impairment. TTY does not work from
mobile phone to mobile phone.
•
Use a TSB-121 compliant cable (provided by
the TTY manufacturer) to connect the TTY
device to your phone. Your phone has a
2.5mm jack.
•
Set the phone to Medium volume level for
proper operation. If you experience a high
number of incorrect characters, adjust the
volume as needed to minimize the error rate.
•
For optimal performance, your phone should
be at least 12 inches (30 centimeters) from the
TTY device. Placing the phone too close to the
TTY device may cause high error rates.
30
basics
set TTY mode
ù
When you set your phone to a TTY mode, it
operates in that mode whenever a TTY device is
connected.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
)(
OK
).
4
Select
TTY Mode
and press the center select
key (
s
)(
OK
).
TTY Mode
can include these options:
When your phone is in a TTY mode, your phone
displays the international TTY mode, the international
TTY symbol, and the mode setting during an active
TTY call.
return to voice mode
To return to standard voice mode, select
TTY OFF
from
the
TTY MODE
menu.
option
TTY Full
Transmit and receive TTY
characters.
TTY + Talk (VCO)
Receive TTY characters but transmit
by speaking into microphone.
TTY + Hear (HCO)
Transmit TTY characters but receive
by listening to earpiece.
TTY Off
All TTY modes are turned off.
option
31
basics
voice privacy
Encrypt outgoing voice calls and use secure channels
when available:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Voice Privacy
and press the center select
key (
s
)(
OK
).
5
Select
On
and press the center select
key (
s
)(
OK
).
32
tips & tricks
tips & tricks
From the main screen
(page 18), you can use the
following shortcuts:
To... Do this...
play music
Press the smart/speakerphone
key (see page 2).
turn handsfree
speaker on
or off
Press and hold
the
smart/speakerphone key
(see page 2).
see recent calls
Press the Send key (
N
).
open the
calendar
Press the navigation key (
S
)
down
.
call voicemail
Press and hold
1
.
change
ring volume
Press the volume keys (see
page 2).
use voice
commands
Press the voice command key
(see page 2). Then use the
on-screen prompts.
record voice
memos
Press and
hold
the voice
command key (see page 2).
To... Do this...
33
personalize
personalize
sounds
You can set how your phone alerts you to incoming
calls or other events.
master volume
From the home screen, press the volume keys (see
page 2) up or down for the desired setting:
High
,
Med High
,
Med
,
Med Low
,
Low
—Phone rings for
incoming calls and other events, depending on the
detail settings.
Vibrate Only
—Phone vibrates to indicate an incoming call.
Alarm Only
—Phone plays an audible alarm to alert you to
events. You can’t change detail settings for events.
All Sounds Off
—Phone does not alert you to incoming calls
and events.
sounds for calls, events, & alerts
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
.
To set sounds for calls
:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sound Settings
and press the center select
key (
s
)(
OK
).
34
personalize
4
Select
Call Sounds
and press the center select
key (
s
)(
OK
).
5
From the
CALL SOUNDS
menu, select
Call Ringtone
by
pressing the center select key (
s
)(
OK
), then
scroll to a desired ringtone and press the center
select key (
s
)(
OK
).
Note:
Press the left soft key (
-
)(
Play
) to
preview the ringtone.
or
From the
CALL SOUNDS
menu, scroll to
Call Vibrate
and
press the center select key (
s
)(
OK
), then scroll
to
On
or
Off
and press the center select
key (
s
)(
OK
).
6
Press the Power/End key (
P
) to return to the
main screen.
To set sounds for events (such as incoming
messages) or alerts
:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sound Settings
and press the center select
key (
s
)(
OK
).
4
Select
Alert Sounds
and press the center select
key (
s
)(
OK
).
5
Scroll to
TXT Message
,
Pic-Video Message
,
Voicemail
,
Low
Battery
, or
Missed Call
and press the center select
key (
s
)(
OK
).
35
personalize
6
Scroll to
Tone
and press the center select
key (
s
)(
OK
), then scroll to a desired ringtone
and press the center select key (
s
)(
OK
).
Note:
Press the left soft key (
-
)(
Play
) to
preview the ringtone.
or
Scroll to
Vibrate
and press the center select
key (
s
)(
OK
), then scroll to
On
or
Off
and press the
center select key (
s
)(
OK
).
or
Scroll to
Reminder
and press the center select
key (
s
)(
OK
), then scroll to
Once
,
Every 2 Minutes
,
Every 15 Minutes
, or
Off
, and press the center select
key (
s
)(
OK
). (For all settings but
Off
, your phone
plays an audible beep at the interval you set.)
7
Press the Power/End key (
O
) to return to the
main screen.
get ringtones
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
Get New Ringtones
and press the center select
key (
s
)(
OK
).
3
On the
GET NEW RINGTONES
screen, select
Get New App
and press the center select key (
s
)(
OK
).
Your phone connects to the Get It Now site with
ringtone collections. Follow the prompts on the
screen to browse ringtone lists and to select and
download a ringtone.
4
Press the Power/End key (
O
) to return to the
main screen.
Note:
Normal airtime and/or carrier usage charges
apply.
36
personalize
talking phone
You can set your phone to
speak aloud
when you
press keys, receive a call with caller ID available, or
scroll through recent calls or contacts:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sound Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Talking Phone
and press the center select
key (
s
)(
OK
).
5
Select
Keypad Digits
,
Contact List Entries
,
Recent Call Entries
, or
Caller ID Alert
and press the center select
key (
s
)(
OK
).
6
Select
On
and press the center select
key (
s
)(
OK
).
answer options
You can use different ways to answer an incoming call.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
)(
OK
).
4
Select
Answer Options
and press the center select
key (
s
)(
OK
).
options
Flip Open
Answer by opening the flip.
Any Key
Answer by pressing any key except
the Power/End key (
O
). Pressing
the Power/End key ignores the call.
37
personalize
wallpaper
Set a photo, picture, or animation as a wallpaper
(background) image in your main screen:
Note:
To use a picture as wallpaper, it must be in your
phone’s memory and not on a memory card.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Wallpaper
and press the center select
key (
s
)(
OK
).
5
Scroll to
Main Screen
(screen you see with flip open)
or
Front Screen
(screen you see with flip closed) and
press the center select key (
s
)(
OK
).
6
Scroll to a picture in
MY PICTURES
and press the
center select key (
s
)(
OK
).
or
Press
Options
and select
Get New Pictures
to download a
picture (see page 96).
7
Press the Power/End key (
O
) to return to the
main screen.
Auto with
Handsfree
Automatically answer incoming call
(works with headset, Bluetooth®
connections, and when phone is
operating in handsfree mode).
options
38
personalize
display themes
Set the overall look and feel of your phone’s display.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Display Themes
and press the center select
key (
s
)(
OK
).
5
Scroll to the name of a display theme and press
the center select key (
s
)(
OK
).
6
Press the Power/End key (
O
) to return to the
main screen.
backlight
Set how long the backlights for the main screen and
the keypad remain on, or reduce backlight to extend
battery life.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Backlight
and press the center select
key (
s
)(
OK
).
5
Scroll to
Display
or
Keypad
and press the center
select key (
s
)(
OK
).
39
personalize
6
Select the desired duration or mode and press
the center select key (
s
)(
OK
).
Note:
When the keypad is locked (see page 25),
the backlight turns off after two seconds of
inactivity, regardless of the duration you set.
brightness
Set the brightness of your main screen:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
)(
OK
).
4
Select
Brightness
and press the center select
key (
s
)(
OK
).
5
Use the navigation key (
S
) to adjust the
brightness and press the center select
key (
s
)(
OK
).
AGPS & your
location
Your phone can use the automatic location information
(ALI) feature, along with Assisted Global Positioning
System (AGPS) satellite signals, to tell the network
where you are physically located.
When ALI is set to
Location On
, your phone displays the
O
(ALI on) indicator. Services may use your known
location to provide useful information (for example,
driving directions, or the location of the nearest bank).
Your phone prompts you when the network or a
service asks for your location. You can refuse at this
point.
40
personalize
When ALI is set to
E911 Only
, your phone displays the
P
(ALI off) indicator, and the phone does not send
location information unless you call the emergency
phone number (such as 911).
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Location
and press the center select
key (
s
)(
OK
).
5
Scroll to
Location On
or
E911 Only
.
6
Press the center select key (
s
)(
OK
) to select the
setting.
AGPS limitations & tips
Your phone uses Assisted Global Positioning System
(AGPS) satellite signals to estimate your location. If
your phone cannot find strong satellite signals, your
AGPS might be slower, less accurate, or it might not
work at all. AGPS provides only an approximate
location, often within 150 feet (45 meters) but
sometimes much farther from your actual location.
To improve AGPS accuracy:
•
Go outside and away from underground
locations, covered vehicles, structures with
metal or concrete roofs, tall buildings, and
foliage. Indoor performance might improve if
you move closer to window, but some
window sun-shielding films can block satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic devices that
41
personalize
might interfere with or block AGPS satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic devices that
might interfere with or block AGPS satellite
signals.
AGPS uses satellites controlled by the U.S.
government and subject to changes implemented in
accordance with the Department of Defense AGPS
user policy and the Federal Radio Navigation Plan.
These changes might affect AGPS performance.
more personalizing
features
keypad volume
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Keypad Volume
and press the center select
key (
s
)(
OK
).
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
.
power on/off sounds
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
)(
OK
).
42
personalize
4
Scroll to
Power On/Off
and press the center select
key (
s
)(
OK
).
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
.
languages
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Language
and press the center select
key (
s
)(
OK
).
5
Select
English
or
Spanish
and press the center select
key (
s
)(
SET
).
clock format
Set how your phone shows the current time on the
main screen (see page 18):
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Clock Format
and press the center select
key (
s
)(
OK
).
5
Select
Digital 12
for a 12-hour clock,
Digital 24
for a
24-hour clock,
Analog
for a dial clock, or
Off
for no
clock and press the center select key (
s
)(
OK
).
banner
Create a heading to display on your phone’s
main screen:
43
personalize
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
)(
OK
).
4
Select
Banner
by pressing the center select
key (
s
)(
OK
).
5
Select
Personal Banner
or
ERI Banner
and press the center
select key (
s
)(
OK
).
6
Enter text and press the center select
key (
s
)(
OK
).
show or hide menu icons
Show or hide menu icons in the main screen that you
can use as shortcuts to those menus:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Shortcut Keys
and press the center select
key (
s
)(
OK
).
5
Scroll to and select
Show Shortcuts
, then select
Show
or
Hide
, and press the center select key (
s
)(
OK
).
change main screen keys
Change menus selected with the navigation keys in
the main screen:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
44
personalize
4
Scroll to
Shortcut Keys
and press the center select
key (
s
)(
OK
).
5
Select
Up Key
,
Down Key
,
Right Key
, or
Left Key
, scroll to
and select the menu you want to assign to that
key, and press the center select key (
s
)(
OK
).
45
calls
calls
To make and answer calls, see page 16.
redial a number
1
Press the Send key (
N
) to see the dialed calls
list.
2
Use the navigation key (
S
) to scroll to the entry
you want to call.
3
Press the Send key (
N
) to redial the number.
To redial a busy number
:
1
Press the Send key (
N
) from the main screen.
2
Use the navigation key (
S
) to scroll to the entry
you want to call.
3
Press the Send key (
N
).
automatic redial
When you receive a busy signal, your phone displays
Call Failed, Number Busy
.
With automatic redial, your phone automatically
redials the number for four minutes. When the call
goes through, your phone rings or vibrates once,
displays
Redial Successful
, and connects the call.
You must turn on automatic redial to use the feature:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
)(
OK
).
46
calls
4
Select
Auto Retry
and press the center select
key (
s
)(
OK
).
5
Select
On
and press the center select
key (
s
)(
OK
).
When automatic redial is turned off, you can manually
activate it to redial a number. When you hear a fast
busy signal and see
Call Failed
, press the Send key (
N
)
or
RETRY
to automatically redial.
recent calls
Your phone keeps lists of the calls you have received
and dialed, even if the calls didn’t connect. The most
recent calls are listed first. The oldest calls are deleted
as new calls are added.
Shortcut:
Press the Send key (
N
) from the main
screen to view the
All Calls
list.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
Missed
,
Received
,
Dialed
, or
All
and press the
center select key (
s
)(
OK
) to select the list.
4
Scroll to an entry.
5
Press the Send key (
N
) to call the entry’s
number.
or
Press the left soft key (
-
)(
Message
) to send a
message to the entry’s number.
or
Press the center select key (
s
)(
OPEN
) to view
entry details.
or
Press the right soft key (
+
)(
Options
) to perform
other actions on the entry.
47
calls
The
Options
menu can include these options:
return missed calls
Your phone keeps a record of your missed calls. When
you miss a call, your phone displays the
s
(missed
call) indicator and
[Number] Missed Calls
.
1
When you see the missed call alert, select
View
Now
and press the center select key (
s
)(
OK
) to
see the missed calls list.
or
Select
View Later
and press the center select
key (
s
)(
OK
). The missed call indicator (
s
)
appears on the bottom of the main screen until
you view recent calls by pressing the Send
key (
N
).
2
Use the navigation key (
S
) to scroll to the call
you want to return.
3
Press the Send key (
N
) to make the call.
options
Save
Create or update a
Contacts
entry
for the call.
Details
View more details about
the entry.
Erase
Delete the selected entry (if the
entry is not locked).
Lock
Lock selected entry so it cannot
be erased.
Erase All
Delete all unlocked entries.
View Timers
Go to the
View Timers
screen to see
the length of each call.
48
calls
speed dial
Note:
Speed dial number 1 is already assigned to your
voice mail number.
To assign a speed dial number to an entry
, see
page 99.
To see an entry’s speed dial number
:
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the center select key (
s
)(
View
). The
speed dial number is displayed with the
U
icon.
To speed dial an entry
:
Call speed dial entries 1 through 9 by pressing and
holding the one-digit speed dial number for one
second.
For two-digit speed dial numbers, enter the first
number, then press and hold the second number for
one second.
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911, that you can
call at any time, even when your phone is locked.
Note:
Check with your service provider, as emergency
numbers vary by country. Your phone may not work in
all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or
interference issues. Do not solely rely on your
wireless phone for essential communications such as
medical emergencies.
To make an emergency call:
Turn your phone on, exit
any open application such as games, dial the
emergency number, then press the Send key (
N
) to
call the emergency number.
49
calls
Tip:
If you are injured, emergency workers may check
your phone for emergency contact information. To
store the phone numbers for relatives or friends as
emergency contacts, press (whatever you do for
Verizon).
emergency call alert
You can set your phone to play an alert when an
emergency call connects.
To set an emergency call
alert
:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sound Settings
and press the center select
key (
s
)(
OK
).
4
Select
Alert Sounds
and press the center select
key (
s
)(
OK
).
5
Scroll to
Emergency Tone
and press the center select
key (
s
)(
OK
).
6
Scroll to
On
and press the center select
key (
s
)(
OK
).
7
Press the Power/End key (
O
) to return to the
main screen.
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
(see page 21). The
emergency tone
will not play
if
MASTER VOLUME
is set to
Vibrate Only
,
Alarm
Only
, or
All Sounds Off
.
AGPS during an
emergency call
When you make an emergency call, your phone can
use Assisted Global Positioning System (AGPS)
satellite signals to tell the emergency response center
your approximate location.
50
calls
The AGPS feature has limitations, so always tell the
emergency response center your best knowledge of
your location. Remain on the phone for as long as the
emergency response center instructs you.
AGPS
might not work
for emergency calls:
•
Your phone’s AGPS feature must be turned on
(see page 39).
•
Your local emergency response center might
not process AGPS location information. For
details, contact your local authorities.
For best results:
•
Go outside and away from underground
locations, covered vehicles, structures with
metal or concrete roofs, tall buildings, and
foliage. Indoor performance might improve if
you move closer to windows, but some
window sun shielding films can block satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic devices that
might interfere with or block AGPS satellite
signals.
If your phone cannot find strong AGPS satellite
signals, the location of the nearest cell tower in
contact with your phone is automatically provided to
the emergency response center.
international call prefix
When you make an international call, your phone can
automatically enter an international call prefix such as
1 or 011.
To set which international prefix your phone
enters
:
1
Press the center select key (
s
) to open the
menu.
51
calls
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Plus Code Dialing
and press the center select
key (
s
)(
OK
).
5
Scroll to an international dialing prefix and press
the center select key (
s
)(
OK
).
6
Press the Power/End key (
O
) to return to the
main screen.
To automatically enter the international dialing
prefix when making an international call
, press and
hold
*
.Your phone displays + to represent the
prefix.
voicemail
Your network stores the voicemail messages
you receive. When you
receive
a voicemail
message, your phone shows the voicemail message
indicator
y
.
Note:
Your service provider may include additional
information about using this feature.
Select
Listen Now
by pressing the center select
key (
s
)(
OK
) to dial voicemail.
or
Use the navigation key (
S
) to scroll to
Listen Later
, and
then press the center select key (
s
)(
OK
).
The voicemail message indicator (
y
) appears on the
bottom of the screen until you listen to your message.
To check voicemail messages later
, press and hold
1
to call your voicemail number.
52
calls
in-call options
During an active call, press
OPTIONS
to access these
options:
Note:
When you have a Bluetooth device connected
during a call, you may also see
Audio to Phone
and
Disconnect
Bluetooth
options. When you have TTY Mode on, you
may also see a TTY Setup option.
call times & data
volumes
Network connection time
is the elapsed time from
the moment you connect to your service provider’s
network to the moment you end the call by pressing
the Power/End key (
O
). This time includes busy
signals and ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
service provider. For billing information, contact
your service provider.
call times
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
)(
OK
).
4
Use the navigation key (
S
) to scroll through the
following categories:
Last Call
,
All Calls
,
Received Calls
,
Dialed Calls
,
Roaming Calls
, or
Lifetime Calls
, and press the
clear key (
B
) to return to the
Recent Calls
menu.
Messaging Main Menu
Contact List Notepad
Recent Calls Voice Record
Bluetooth Menu
53
calls
set in-call timer
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Service Alerts
and press the center select
key (
s
)(
OK
).
5
Scroll to
Minute Beep
and press the center select
key (
s
)(
OK
).
data volumes
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
)(
OK
).
4
Use the navigation key (
S
) to scroll through the
following categories:
Last Call
,
Received Calls
,
Dialed Calls
,
Roaming Calls
,
Transmit KB
,
Received KB
,
Total KB
,
Last Reset
,
Lifetime Calls
, or
Lifetime Data Counter
, and press the clear
key (
B
) to return to the
Recent Calls
menu.
reset timer
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
)(
OK
).
4
Scroll to the timer you want to reset and press
the left soft key (
-
)(
Reset
).
54
calls
5
Select
Yes
by pressing the center select
key (
s
)(
OK
).
To reset all timers, press the right soft
key (
+
)(
Reset All
).
view last reset
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
)(
OK
).
4
Scroll to
Last Reset
to view details.
5
When you are finished, press the center select
key (
s
)(
OK
).
more calling features
restrict calls
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Security
and press the center select
key (
s
)(
OK
).
5
When prompted, enter the lock code (see
page 24) and press the center select
key (
s
)(
OK
).
6
Scroll to
Restrictions
and press the center select
key (
s
)(
OK
).
55
calls
7
Select
Calls
and press the center select
key (
s
)(
OK
).
8
Select
Incoming Calls
or
Outgoing Calls
and press the
center select key (
s
)(
OK
).
9
Scroll to
Allow All
,
Contacts Only
, or
Block All
, and press
the center select key (
s
)(
OK
).
10
Press the clear key (
B
) to return to the main
screen.
insert special characters
While entering a number, press the right soft
key (
+
)(
Options
) and select one of these options:
•
2-Sec Pause
—Your phone pauses for two
seconds before it dials the next digit.
•
Wait
—Your phone waits until the call connects,
then prompts you for confirmation before it
dials the next digit(s).
DTMF tones
Your phone can send Dual-tone multi-frequency
(DTMF) tones for calling card calls or to navigate
automated systems (such as banking by phone).
To set up DTMF tones
:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
DTMF Tones
and press the center select
key (
s
)(
OK
).
5
Select
Normal
or
Long
and press the center select
key (
s
)(
OK
).
To send DTMF tones during a call
, press number
keys.
56
calls
hearing aid
If you use a hearing aid, set your phone for hearing aid
compatibility:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Hearing Aid
and press the center select
key (
s
)(
OK
).
5
Select
On
and press the center select
key (
s
)(
OK
).
Note:
For more information about hearing aid
compatibility, see “Hearing Aid Compatibility with
Mobile Phones” on page 131.
57
text entry
text entry
Some features allow you to enter text. This example
shows a
Contacts
entry screen:
This example shows an entry screen for creating a
text message:
N
SAVE
1
❙❙❙❙
ò
1X
EV
Press the
navigation key
(S) to
scroll to more
options.
Press the center select key
(s) to save entry information.
Press the left
soft key (-) to
change entry
mode.
Highlighted
Option
Name
x
Abc
Cancel
EDIT CONTACT
Mobile 1
Home
g
Abc
Work
John
Abc
Options
SEND
Press the
right soft
key (+)
to view
Options
sub-menu.
Press the center select
key (s) to send message.
Press the left soft
key (-) to text
entry modes.
Cursor indicates
insertion point.
To:
0/160
NEW TXT MSG
Tex t :
1/7
555-2990
N
1
❙❙❙❙
ò
1X
EV
58
text entry
select entry mode
Multiple entry modes make it easy for you to enter
names, numbers, and messages. The default mode is
Abc
(tap mode, first character of a sentence in
uppercase).
To select an entry mode from a text entry screen
,
press the left soft key (
-
), then select an entry
mode.
You can select one of these entry modes:
When text mode is set to
ABC
or
Abc
, press
*
in any
text entry screen to toggle through these
capitalization options
:
entry modes
iTAP English
The phone predicts each word (in
English) as you press keys.
iTAP
Spanish
The phone predicts each word (in
Spanish) as you press keys.
Abc
Enter numbers and letters, first
character of a sentence in uppercase.
ABC
Enter numbers and letters, all characters
in uppercase (not available when editing
a contact).
123
Enter numbers only.
Symbols
Enter symbols.
Quick Text
Select and insert a prewritten message
(available only from the
NEW TXT MESSAGE
screen).
abc
no uppercase letters
Abc
first letter of a sentence in uppercase
ABC
all uppercase letters
entry modes
59
text entry
When text mode is set to
iTAP English
or
iTAP Spanish
,
press
*
in any text entry screen to toggle between
these
capitalization options
:
tap mode
This is the standard mode for entering text on your
phone. Regular tap mode cycles through the letters,
numbers, and symbols of the key you press.
1
Press a key one or more times to select a letter,
number, or symbol.
2
Enter the remaining characters in the same way.
Tip:
Press
#
to enter a space.
iTAP® mode
iTAP software provides a predictive text entry method
that combines your key presses into common words.
entry
mode
capitalization options
iTAP English iTAPEn
first letter of sentence in
uppercase (English)
iTAPEN
all uppercase letters (English)
iTAPen
all lowercase letters (English)
iTAP
Spanish
iTAPs
first letter of sentence in
uppercase (Spanish)
iTAPS
all uppercase letters (Spanish)
iTAPes
all lowercase letters (Spanish)
60
text entry
When you enter three or more letters in a row, your
phone may guess the rest of the word. For example, if
you enter
prog
, your phone might show:
If you want a different word (such as progress),
continue pressing keys to enter the remaining letters.
If you enter a word the phone does not recognize, the
phone stores it as a new word option. When you fill
memory space for new word options, your phone
deletes the oldest words to add new ones.
•
Press the navigation key (
S
) up or down to
view other possible combinations, and select
the one you want.
•
Press right on the navigation key (
S
) to enter
the highlighted combination when it spells a
word. A space is inserted automatically after
the word.
•
To enter numbers quickly, press and hold a
number key to temporarily switch to numeric
mode. Press the number keys to enter the
numbers you want.
•
Press
1
to enter punctuation or
other characters.
numeric mode
After selecting numeric mode, press number keys to
enter the numbers you want. When you finish
entering numbers, press the left soft key (
-
)(
123
) to
switch to another entry mode.
N
1
❙❙❙❙
ò
1X
EV
Press the
navigation key
(S) right
to accept
program
.
Enter a space
after
prog
to keep
only
prog
.
To:
This is a prog ram
18/160
iTAPEn
Options
SEND
NEW TXT MSG
Text:
1/7
555-2233
61
text entry
symbol mode
In the
SYMBOLS
screen, use the navigation key (
S
) to
scroll to a symbol and press the center select
key (
s
)(
OK
) to select it.
To search for additional symbols, press the right soft
key (
+
)(
Next
) to page down to the next set of
symbols. Press the left soft key (
-
)(
Prev
) to page up
to the previous set.
text entry tips
To enter a space
, press
#
.
To enter punctuation while entering text
, press
1
repeatedly to enter a punctuation mark or other
character.
To edit or delete text while entering text
, press
S
to move the cursor to the right of text you want to
edit. Press
B
to delete the character to the left of
the cursor.
62
push to talk
push to talk
Your phone supports Push to Talk (PTT), which
lets you talk walkie-talkie style with other PTT
subscribers.
Note:
PTT is network and subscription dependent and
is not available in all areas. PTT connectivity requires
PTT-compatible phones.
PTT is
always on
whenever your phone is turned on.
If you you receive a PTT call while you are on a
regular voice call
, your voice call is not interrupted.
The person making the PTT call receives a message
indicating that you are unavailable. You are not alerted
that you missed a PTT call.
If you you receive a regular voice while you are on
a PTT call
, the incoming call goes directly to your
voice mail. You are not alerted that you missed a voice
call.
PTT calls
You can make a
private
PTT call or a
group
PTT call.
A
private
PTT call is a one-to-one call to a number that
you enter or to an entry on your
PTT Contact List
.
A
group
call is a PTT call to all available members of a
group in your
PTT Groups
list.
You can make two types of PTT calls:
• Alert call
—When you place an alert call, the
PTT call recipient’s phone plays an audible
tone and displays a message indicating that
someone wants to speak to the recipient. The
63
push to talk
recipient can accept or decline the call. Alert
calls can’t be sent to groups.
• Barge call
—When you place a barge call, the
recipient’s phone plays an audible tone, and
the call automatically connects.
Note:
You can make a barge call to only a single
recipient.
You can’t make a barge call to a group
.
make a PTT call
1
Press and release the PTT key.
2 Enter a PTT recipient’s phone number
.
or
Select a contact from the PTT Contact list
: Use
the navigation key (
S
) to scroll to
PTT Contact List
and press the center select key (
s
)(
OK
). Scroll
to the contact you want to call.
or
Select a group from PTT Groups
: Use the
navigation key (
S
) to scroll to
PTT Groups
and press
the center select key (
s
)(
OK
). Scroll to the name
of the group you want to call.
3 To make a barge call, press and hold
the PTT
key, then
speak after you hear the tone
.
Note:
This step works only when calling a single
recipient.
or
To make an alert call, press and release
the PTT
key to send a call request. The recipient receives
an alert tone and can choose to
accept or ignore
the call. If the recipient accepts the call,
you can’t
speak until the recipient releases the PTT key
on the recipient’s phone.
answer a PTT call
When you receive a
barge call
, you don’t have to do
anything to accept the call. Your phone plays the
64
push to talk
Announce Barge Call tone, followed by the caller’s
greeting.
When you receive an
alert call
, your phone plays an
Alert Tone.
To answer
the call, press the right soft
key
ANSWER
(
+
).
To ignore
the call, press the left
soft key
IGNORE
(
-
) or the Power/End key (
O
).
PTT call basics
To speak
during a PTT call, hold the PTT key and
speak after the tone. Only one person can speak at a
time.
To let others speak
, release the PTT key.
To end a call
, press the Power/End key (
O
) or the
left soft key (
-
)(
EXIT
).
missed calls
PTT contacts & groups
You can store PTT contacts to make private
(one-to-one) calls and create PTT groups to make
group calls.
add a contact
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Use the navigation key (
S
) to scroll down to
New PTT Contact
and press the center select
key (
s
)(
OK
).
3
Enter a name and number for the contact and
press the center select key (
s
)(
SAVE
).
65
push to talk
add groups
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Use the navigation key (
S
) to scroll down to
PTT Groups
and press the center select
key (
s
)(
OK
).
3
Scroll to
Add New Group
and press the center select
key (
s
)(
OK
).
4
Enter a name for your group and press
Add Members
.
5
Select members from your PTT contacts and
press the center select key (
s
)(
DONE
).
manage contacts & groups
To manage PTT contacts
:
1
Press the PTT key and select
PTT Contact List
.
2
Use the navigation key (
S
) to scroll to an entry.
3
Press the left soft key (
-
)(
Edit
), then edit the
contact information and press the center select
key (
s
)(
SAVE
).
or
Press the center select key (
s
)(
VIEW
) to see
contact details.
or
Press the left soft key (
-
)(
Options
) to view these
options:
Block
—Block the contact from calling you.
Enable Online Alert
—Set an alert to tell you when the
contact comes online.
Erase
—Remove the contact from the list.
To manage PTT groups
:
1
Press the PTT key and select
PTT Groups
.
2
Use the navigation key (
S
) to scroll to an entry.
66
push to talk
3
Press the left soft key (
-
)(
Edit
), then add or
subtract group members and press the center
select key (
s
)(
SAVE
).
or
Press the center select key (
s
)(
VIEW
) to see
group details.
or
Press the left soft key (
-
)(
Options
) to view these
options:
Enable Online Alert
—Set an alert to tell you when a
group member comes online.
Rename
—Rename the group.
Erase
—Delete the group.
PTT indicators & tones
When you view PTT contacts and groups, the
following indicators beside the entries show their
availability
:
The following indicators show the
status of PTT calls
:
indicator status
contact online (available for PTT call)
contact offline (unavailable)
indicator status
Incoming Alert call.
Connecting to contact.
Connecting to group.
Connected to contact.
Connected to group.
67
push to talk
Your phone plays audible PTT alert tones when:
•
you can can speak during an active PTT call
(no one else is speaking)
•
you are receiving a Barge call
•
you push a button while someone else on the
call is talking
•
you are receiving an Alert call
•
you have originated an Alert call
•
the phone you are calling is busy
You are talking to an individual.
You are talking to a group.
You are listening to an individual.
You are listening to a group.
Call ended.
indicator status
68
messages
messages
send a multimedia
message
A multimedia message contains embedded media
objects (possibly including photos, pictures, sounds,
or voice records). You can send a multimedia message
to other Verizon Wireless® multimedia
messaging-capable phones and to other email
addresses.
create & send message
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Press center select key (
s
) to select
New Message
.
3
Use the navigation key (
S
) to scroll to
Picture Message
or
Video Message
and press the center
select key (
s
)(
OK
).
4
Press keypad keys to enter a phone number, then
press the center select key (
s
)(
OK
).
or
Press the right soft key (
+
)(
Add
) to select a
contact. Select
From Contacts
by pressing the center
select key (
s
). For each entry you want to add,
scroll to the entry and press the center select
key (
s
) (
MARK
). Press the left soft
key (
+
)(
Done
) when finished selecting entries.
or
69
messages
Press the right soft key (
+
)(
Add
) to select a
contact. Select
Recent Calls
and press the center
select key (
s
). For each entry you want to add,
scroll to the entry and press the center select
key (
s
)(
MARK
). Press the left soft
key (
-
)(
Done
) when finished selecting entries.
5
Scroll to the
Text
entry area and press keypad keys
to enter message text.
6
Scroll to the
entry area and press the left
soft key (
-
)(
My Pics
).
or
Scroll to the
Video
entry box and press the left soft
key (
-
)(
My Videos
).
7
Scroll to a picture and press the center select
key (
s
)(
OK
).
or
Scroll to a video clip and press the center select
key (
s
)(
OK
).
8
If sending a
message, scroll to the
Sound
entry area and press the left soft
key (
-
)(
Sounds
).Then scroll to a sound and press
the center select key (
s
)(
OK
).
9
Scroll to
Subject
.
10
Press keypad keys to enter the message subject.
or
Press the right soft key (
+
)(
Options
), scroll to
Add
Quick Text
and press the center select key (
s
)(
OK
).
Then select a
Quick Text
item as the message
subject.
11
Press the center select key (
s
)(
SEND
) to send
the message.
70
messages
message options
While creating a multimedia message, press the right
soft key (
+
)(
Options
) to select from the following
options:
receive a multimedia
(picture/video)
message
When you receive a multimedia message, your phone
displays a
NEW PIC/VIDEO MSG
notification, and plays an
alert sound.
To view the message immediately, scroll to
View Now
,
and press the center select key (
s
). To save it in
your
Inbox
to view later, scroll to
View Later
and press the
center select key (
s
).
option
Preview
View the current contents of the
message.
Save as Draft
Save the message to the
Drafts
folder.
Priority Level
Set to
High
or
Normal
.
Validity Period
Specify how long the message
stays in the
Outbox
folder.
Deferred Delivery
Send the message later at a time
and date that you set.
Remove Picture,
Remove Sound,
Remove Video
Remove a multimedia object
from the message.
Add Slide
Add a page to the message.
Cancel Msg
Cancel the message.
option
71
messages
To view messages in your Inbox:
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Inbox
and
press the center select key (
s
)(
OK
).
3
Scroll to the desired message.
4
Press the center select key (
s
)(
Open
) to open
the message.
Multimedia messages that you receive can contain
different media objects:
•
Photos, pictures, and animations are displayed
as you read the message.
•
A sound file begins playing when its slide is
displayed. Use the volume keys to adjust the
volume as the sound file plays.
send a text message
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Select
New Message
by pressing the center select
key (
s
)(
OK
).
3
Select
TXT Msg
by pressing the center select
key (
s
)(
OK
).
4
Enter the phone number of the recipient or press
the right soft key (
+
)(
Add
) to select a contact.
5
Press down on the navigation key
S
) to go the
the
Text
area and use the keypad to enter a
message.
When you are entering text, you can press the
right soft key (
+
)(
Options
) to perform other
actions with the message:
Add Graphic
,
Add Sound
,
Add
Quick Text
,
Priority Level
,
Validity Period
,
Deferred Delivery
,
Cancel
Message
, or
Add VCard
.
72
messages
6
Send the message by pressing the center select
key (
s
)(
SEND
).
e-mail
To access your internet e-mail account to exchange
e-mail from your phone:
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
E-mail
and
press the center select key (
s
)(
OK
).
3
Scroll to your e-mail account type and press the
center select key (
s
).
4
Enter your name or account name and password
to sign in.
mobile IM
Note:
When you use Instant Messaging, on your
phone, normal airtime and/or carrier usage charges
apply.
To access your internet Instant Messaging account to
exchange messages in real time with family and
friends.
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Mobile IM
and press the center select key (
s
)(
OK
).
3
Scroll to your e-mail account type and press the
center select key (
s
).
4
Enter your name or account name and password
to sign in.
73
messages
chat
Note:
When you use your internet chat account on
your phone, normal airtime and/or carrier usage
charges apply.
Access your internet chat account to chat in real time
with family and friends.
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Chat
and
press the center select key (
s
)(
OK
).
3
Scroll to your e-mail account type and press the
center select key (
s
).
4
Enter your name or account name and password
to sign in.
view sent messages
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Sent
and
press the center select key (
s
)(
OK
).
3
Scroll to the message you want to view and press
the center select key (
s
)(
Open
).
4
Press the right soft key (
+
)(
Options
) to perform
other actions on the message, such as
Forward
,
Lock
(to prevent deletion),
Save Quick Text
,
Add to Contacts
, or
Message Info
.
read received
message
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
74
messages
2
Use the navigation key (
S
) to scroll to
Inbox
and
press the center select key (
s
)(
OK
).
3
Scroll to the message you want to read and press
the center select key (
s
)(
Open
).
4
Press the right soft key (
+
)(
Options
) to perform
other actions on the message, such as
Forward
,
Reply w. Copy
,
Save Quick Text
,
Lock
(to prevent deletion),
Message Info
, or
Compose Message
.
view drafts
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Drafts
and
press the center select key (
s
)(
OK
).
3
Scroll to the message you want to view and press
the center select key (
s
)(
EDIT
).
To delete the message, press the left soft
key (
-
)(
Erase
).
Press the right soft key (
+
)(
Options
) to perform
other actions on the message, such as
Send
,
Lock
,
and
Erase Drafts
(to erase all drafts).
erase messages
To erase all
read messages
from your inbox:
1
From the main screen, press the left soft
key (
-
)(
Message
) to open
GMESSAGING
.
2
Press the right soft key (
+
)(
Options
).
3
Use the navigation key (
S
) to scroll to
Erase Inbox
,
Erase Drafts
,
Erase Sent
, or
Erase All
, and press the center
select key (
s
)(
OK
).
75
entertainment
entertainment
get & play music
Use the
Music & Tones
menu to:
•
get new music and tones
•
play music in your
MUSIC LIBRARY
•
record new sounds
•
set music or tones as your ringtone
Tip:
Get to
Music & Tones
quickly by pressing the
navigation key (
S
) left from the main screen (see
page 18).
download V CAST music
directly to phone
Note:
Your phone must be in an EVDO coverage area
to download music. If you are in an EVDO coverage
area, your phone displays the EV symbol with at least
one signal strength bar in the status area of the screen
(see page 19).
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Select
VCAST Music
by pressing the center select
key (
s
)(
OK
).
3
Browse or search the catalog to find the songs
you want.
76
entertainment
To preview a song, highlight the song and press
the left soft key (
-
)(
Preview
).
4
To buy a song, highlight the song and press the
center select key (
s
)(
Buy
).
After you press
Buy
, your phone shows song
details and price.
5
Press the center select key (
s
)(
BUY
) to confirm
your selection.
6
When you see a confirmation that your purchase
was successful and your music is available for
download, press the center select key (
s
)(
OK
)
to continue, or press the left soft key (
-
) to
download later.
7
When prompted to select a storage location,
scroll to
Phone Memory
or
Memory Card
and press the
center select key (
s
) to begin downloading.
Your phone displays a status indicator. After
downloading, you must wait for the phone to
acquire the content license.
8
Press the right soft key (
+
)(
Play
) to play the
downloaded song immediately.
or
Press the left soft key (
+
)(
Library
) to go to the
MUSIC LIBRARY
.
or
Press the center select key (
s
)(
OK
) to return to
the previously viewed music catalog.
transfer music from a
computer
You can transfer songs from a computer to your phone
with a USB cable connection. You can purchase these
songs from the V CAST Music Store or import them
from your CD collection.
77
entertainment
computer system requirements
To transfer music from a computer to your phone
,
you need the Windows® XP operating system and an
active internet connection.
To access the V CAST Music Store from a
computer
, you need the Windows XP operating
system, an active internet connection,
and V CAST
Music Manager.
To download V CAST Music
Manager
:
1
From your computer’s web browser, go to
http://www.vzam.net/vcastmusic/
.
2
Follow the on-screen instructions to select,
download, and install V CAST Music Manager for
your phone.
buy music from V CAST Music Store
1
On your computer, launch the V CAST Music
Manager.
2
In the V CAST Music Manager Window, click on
the “BUY MUSIC” tab.
3
Click on the “Log In” button, then log in by
entering your mobile phone number and
password.
If you have not registered yet, click on the
“Register” button, then follow the instructions to
register and get your password.
4
Browse or search the store to find the songs you
want.
To preview a song, click on the headset icon next
to the song title.
5
To buy a song, click on the “Purchase” or “Buy”
button next to the song title.
6
Repeat steps 4 and 5 to add more songs to your
shopping cart.
7
When you finish shopping, click on “MY
PURCHASES,” then follow the on-screen
78
entertainment
instructions to complete your purchase(s) and
download the song(s) you have purchased.
Downloading can take several minutes. When
downloading is complete, click on the “MUSIC ON
MY PC” tab in the V CAST Music Manager window to
see the songs you purchased.
To transfer the songs to your phone, see “transfer
songs to your phone” on page 78.
import songs from an audio CD
1
On your computer, launch the V CAST Music
Manager.
2
Insert an audio CD into your computer’s CD ROM
drive.
3
If the “Music on My CD” window is not already
open in the V CAST Music Manager, click on the
“MUSIC ON MY CD” tab.
The names of all the tracks on the CD are listed in
the window. (You may need to enter artist name
and other information for the tracks.)
4
Select the tracks you want to import or “Rip” by
clicking the check box next to them.
Select
all
tracks by checking the “Title” check box
at above the list of tracks.
5
Click on the “Rip CD” button.
The songs you selected are imported to the
V CAST Music Manager.
To transfer the songs to your phone, see “transfer
songs to your phone” on page 78.
transfer songs to your phone
1 On your computer
, launch V CAST Music
Manager.
2 On your computer
, click on the “MUSIC ON MY
PC” tab in the V CAST Music Manager window.
79
entertainment
3 On your computer
, click on the “Sync List”
button to open an empty sync list.
4On your computer
, drag the desired song(s)
from the “Playlists on My PC” or “All My Music”
to the sync list in the V CAST Music Manager
window.
5
Connect the USB cable to your phone and to an
available USB port on your computer.
If this is the first time you have connected the
phone to a computer with a USB cable, additional
software drivers may be installed. (For more
information on using a USB cable connection, see
page 114.)
6 On your phone
from the main screen, press left
on the navigation key (
S
) to access
Music &Tones
.
7
Use the navigation key (
S
) to scroll to
Sync Music
and press the center select key (
s
)(
OK
).
Wait until the phone display shows
Connected
. (This
can take 30-60 seconds.)
8 On your computer
, click on the “Sync Now”
button in the V CAST Music Manager window.
9 On your phone
, wait until the transfer is
complete, then press the Power/End key (
O
).
10
Disconnect the cable from the phone and the
computer.
You can now use your phone’s music player to play the
songs you transferred from your computer.
80
entertainment
play music—flip closed
To activate the music player
while the flip is closed
,
press any side key. Then use the touch pad controls as
follows:
play music—flip open
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
)(
OK
).
touch pad controls
pause/play
Press &
release
y
.
fast forward
Press &
hold
z
(for at least two
seconds).
skip to next
song
Press &
release
z
.
rewind
Press &
hold
x
(for at least two
seconds).
skip back to
previous song
Press &
release
x
.
turn off music
player
Press &
hold
y
(for at least four
seconds).
1. Genres
MUSIC LIBRARY
2. Artists
4. Songs
6. Inbox
8. Shuffle
3. Albums
5. Playlists
7. Play All
CatalogSync
OK
HOME SEARCH HELP
N
Press left soft key to
download music from
V CAST Music
catalog.
Press right soft key to
synchronize
MUSIC LIBRARY
with digital music library
on another device.
Return to
MUSIC LIBRARY
screen.
View help
information.
Find music on phone
by artist, album,or
song title.
1
❙❙❙
ò
1X
EV
81
entertainment
3
Use the navigation key (
S
) to scroll to a
category and press the center select
key (
s
)(
OK
).
4
Use the navigation key (
S
) to scroll to a song
and press the center select key (
s
)(
PLAY
) to play
it.
The
HOME
,
SEARCH
, and
HELP
options appear on all screens
in the
Music Library
.
The
Music Library
includes these options:
•
Press
B
from any
Music Library
screen to return
to the previous screen.
•
Press the Power/End key (
O
) from any
Music
Library
screen to return to the main screen.
•
On screens that show a list of items (for
example, album titles), enter letters in the
Go To
option
Genres
Find & play music from a specific genre
(type of music) such as rock, jazz, or
blues.
Artists
Find & play music by a specific artist.
Albums
Find & play music from a specific album.
Note:
Even if you have only one song
from an album, the album is listed.
Songs
Find & play specific songs.
Playlists
Play songs from personalized playlists
that you create.
Inbox
View alert notifications received when
new music from a selected artist is
available for download.
Play All
Play all songs in the
Music Library
in list
order.
Shuffle
Play songs in the
Music Library
in random
order.
option
82
entertainment
area to jump directly to items beginning with
those letters.
music player controls
Use these keys to control the music player during
song playback
when the flip is open
:
play an album
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
)(
OK
).
3
Select
Genres
,
Artists
, or
Albums
.
controls with flip open
pause/play
To pause, press &
release
the
center select key (
s
).
To resume play, press the
center select key (
s
) again.
fast forward
Press &
hold
the navigation
key (
S
)
right
.
skip to next
song
Press &
release
the navigation
key (
S
)
right
.
rewind
Press &
hold
the navigation
key (
S
)
left
.
skip back to
previous song
Within first two seconds of
song, press &
release
the
navigation key (
S
)
left
.
return to song
beginning
After first two seconds of song,
press &
release
the navigation
key (
S
)
left
.
turn off music
player
Press the Power/End key (
O
).
controls with flip open
83
entertainment
Note:
When you select an album from any genre,
artist, or album category, you can press the right soft
key (
+
)(
Options
) to select from these options:
From the
GENRES
screen
:
1
Select the
genre
you want by pressing the center
select key (
s
)(
OK
).
2
Scroll to the
artist
you want and press the center
select key (
s
)(
OK
).
3
Scroll to the
album
you want to play and press
Options
.
4
Select
Play album
by pressing the center select
key (
s
)(
OK
).
(See below for other
OPTIONS
menu selections.)
From the
ARTISTS
screen
:
1
Use the navigation key (
S
) to scroll to the
artist
you want and press the center select
key (
s
)(
OK
).
2
Scroll to the
album
you want to play and press
Options
.
option
Play album
Play the selected album, beginning
with the first song.
Erase album
Remove the selected album from the
Music Library
.
Reinitialize
Library
Database
Under normal conditions, the
Music
Library
is maintained automatically. If
the library behaves unexpectedly,
use this option to reinitialize it. This
option deletes the existing library and
creates a new one that contains all
currently installed music.
84
entertainment
3
Select
Play album
by pressing the center select
key (
s
)(
OK
).
From the
ALBUMS
screen
:
1
Use the navigation key (
S
) to scroll to the
album
you want.
2
Select
Play album
by pressing the center select
key (
s
)(
OK
).
play a song
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
)(
OK
).
3
Select
Genres
,
Artists
,
Albums
. or
Songs
.
From the
GENRES
screen
:
1
Use the navigation key (
S
) to scroll to the
genre
you want and press the center select
key (
s
)(
OK
).
2
Scroll to the
artist
you want and press the center
select key (
s
)(
OK
).
3
Scroll to the
album
you want and press the
center select key (
s
)(
OK
).
4
Scroll to the
song
you want to play and press the
center select key (
s
)(
Play
). (The song plays only
once.)
or
Press the right soft key (
+
)(
Options
) to select
another option (see page 86).
From the
ARTISTS
screen
:
1
Use the navigation key (
S
) to scroll to the
artist
you want and press the center select
key (
s
)(
OK
).
2
Scroll to the
album
you want and press the
center select key (
s
)(
OK
).
85
entertainment
3
Scroll to the song you want to play and press the
center select key (
s
)(
Play
). (The song plays only
once, followed by the next song in the list.)
or
Press the right soft key (
+
)(
Options
) to select
another option (see page 86).
From the
ALBUMS
screen
:
1
Use the navigation key (
S
) to scroll to the
album
you want and press the center select
key (
s
)(
OK
).
2
Scroll to the song you want to play and press the
center select key (
s
)(
Play
). (The song plays only
once, followed by the next song in the list.)
or
Press the right soft key (
+
)(
Options
) to select
another option (see page 86).
From the
SONGS
screen
:
Use the navigation key (
S
) to scroll to the song you
want to play and press the center
select key (
s
)(
Play
). (The song plays only once,
followed by the next song in the list.)
or
Press the right soft key (
+
)(
Options
) to select
another option (see page 86).
play all songs on phone
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
)(
OK
).
3
Scroll to
Play All
and press the center select
key (
s
)(
OK
).
86
entertainment
play music from a playlist
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
)(
OK
).
3
Scroll to
Playlists
and press the center select
key (
s
)(
OK
).
To play an entire playlist
, scroll to the playlist you
want, press the center select key (
s
)(
OK
), and then
press the center select key (
s
)(
Pay
) to start the first
song. The music player plays all songs in that playlist.
or
Press right soft key (
+
)(
Options
), then select
Play
playlist
by pressing the center select key (
s
)(
OK
).
To play a song from a playlist
, scroll to the playlist
you want and press the center select key (
s
)(
OK
),
then scroll to the song you want to play and press the
center select key (
s
)(
Play
).
music library options menus
When you scroll to a song
and press
Options
, your
phone displays these options:
option
Add To Playlist
Add the selected song to a playlist.
Move Song
Move the song from the memory
card to the phone or from the phone
to the card.
Erase Song
Delete the selected song.
Song Info
View the following information for
the song: title, artist, album title,
genre, copyright year, duration, and
track number (if available).
87
entertainment
When you press
Options
while a song is playing
, your
phone displays these options:
Note:
The song is paused when you press
Options
.
You can also control the music player
with the flip
closed
! Simply begin song playback, close the flip,
and use the touch controls (see page 2):
Reinitialize
Library
Database
Under normal conditions, the
Music
Library
is maintained automatically. If
the library behaves unexpectedly,
use this option to reinitialize it. This
option deletes the existing library and
creates a new one that contains all
currently installed music.
option
Play All
Play all songs in the
Music Library
in list
order.
Shuffle
Play songs in the
Music Library
in random
order.
option
Get V CAST
Music
Connect to the V CAST Music catalog
to download more songs.
Buy music by
artist
Connect to the V CAST Music catalog
and go directly to a list of music
available by the artist performing the
current song.
touch controls
pause/play
Press &
release
y
.
fast forward
Press &
hold
z
.
skip to next
song
Press &
release
z
rewind
Press &
hold
x
.
option
88
entertainment
listening tips
When you’re on the go, you can listen to your music
through a wired headset connected to the phone’s
micro-USB port or by using Bluetooth® A2DP stereo
headphones (see page 110).
Note:
You cannot charge your phone when a
micro-USB headset is connected.
When the phone’s flip is open and you are not using a
wired or wireless headset, music is played through
the phone’s speaker.
create a playlist
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
)(
OK
).
3
Scroll to
Playlists
and press the center select
key (
s
)(
OK
).
4
If playlists already exist, press the right soft
key (
+
)(
Options
), then scroll to
Create playlist
and
press the center select key (
s
)(
OK
).
or
If no playlists exist, press the right soft
key (
+
)(
Create
).
5
Use the keypad to enter a title for the playlist on
the
CREATE PLAYLIST
screen and press the center
select key (
s
)(
OK
).
6
Press
B
to return to the
MUSIC LIBRARY
menu.
skip back to
previous
song
Press &
release
x
.
touch controls
89
entertainment
7
Select
Genres
,
Artists
, or
Albums
, navigate to the
ALBUMS
screen (see page 82), scroll to an album, and
press the center select key (
s
)(
OK
).
8
Scroll to a desired song and press
Options
.
9
Select
Add to Playlist
by pressing the center select
key (
s
)(
OK
).
10
Scroll to the desired playlist and press the center
select key (
s
)(
ADD
).
11
Repeat steps 5 through 8 to add more songs.
12
When finished adding songs to the playlist, press
B
to return to the previous screen or the
Power/End key (
P
) to return to the main screen.
edit a playlist
1
Open a playlist (see page 86) and scroll to the
playlist you want to edit and press the right soft
key (
+
)(
Options
).
2
Use the navigation key (
S
) to scroll to
Edit playlist
and press the center select key (
s
)(
OK
).
3
Edit the playlist as desired.
To change the order of songs in your playlist,
scroll to a song and press the center select
key (
s
)(
Move
). Then scroll up or down to move
the song up or down in the playlist. When
finished, press the center select key (
s
)(
Save
).
To delete a song, scroll to the song and press the
right soft key (
+
)(
Remove
).
4
Press
B
to return to the previous screen or
Power/End key (
O
) to return to the main screen.
record & play voice
records
You can create a voice record that you can play back
later as a reminder for yourself.
90
entertainment
create voice record
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Sounds
and press the center select key (
s
)(
OK
).
3
Scroll to
Record New
and press the center select
key (
s
)(
OK
).
4
Press the center select key (
s
) (
OK
) to begin
recording, then press the center select
key (
s
)(
STOP
) when finished.
The voice record is automatically saved and displayed
in the
MY SOUNDS
list.
Tip:
To create a voice record quickly, press and hold
the voice key (on the right side of the phone), then
press the center select key (
s
)(
OK
) to begin
recording. Press the center select key (
s
)(
STOP
)
when finished. You can press the left soft
key (
-
)(
Save
) to save it, press the center select
key (
s
)(
SEND
) to send it, or press the right soft
key (
+
)(
Erase
) to erase it. Press the Power/End
key (
O
) to exit.
play voice record
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Sounds
and press the center select key (
s
)(
OK
).
3
Scroll to the file name of the desired voice record
and press the center select key (
s
)(
PLAY
).
Tip:
You can rename voice records. In
My Sounds
, your
phone displays an
æ
indicator beside the names of
voice records that you created. Scroll to the voice
record you want to rename, press the right soft
key (
+
)(
Options
), then scroll to and select
Rename
.
91
entertainment
record & play video
clips
Your camera lens is on the back of your phone when
the phone is open (see page 1).
To get the clearest
video clips, wipe the lens clean with a soft, dry
cloth before you capture a video clip.
record a video clip
To activate your phone’s camcorder:
1
Press and hold the camera key (
b
).
The active viewfinder image appears:
Note:
You can change the view from the default
portrait mode to landscape orientation by
pressing up on the navigation key (
S
). Press up
to switch back. “Up” changes depending on how
you are holding your phone.
2
Point the camera lens at the video subject.
Press left and right on the navigation key (
S
) to
zoom in and out.
176x144
Rec
00:00
Videos
N
0
EV
1X
❙❙❙
P
<
Press the right
soft key (+)
to view
Options
menu.
Press the
left soft key
(-) to view
MY VIDEOS.
Press the center select key
(s) to
begin
recording.
Options
REC
92
entertainment
3
Press the center select key (
s
)(
REC
) to begin
recording.
Press the right soft key (
+
)(
Pause
) to
temporarily stop recording. Press the right soft
key (
+
)(
Resume
) to continue.
4
Press the center select key (
s
)(
STOP
) to stop
recording.
5
Press the left soft key (
-
)(
Save
) to save the
video clip.
or
Press the center select key (
s
)(
SEND
) to save
the video clip and go to the
NEW VIDEO MESSAGE
screen.
or
Press the right soft key (
+
)(
Erase
) to delete the
video clip and return to the active viewfinder.
adjust camcorder settings
When the camcorder is active (but not recording),
press the right soft key (
+
)(
Options
) to select from
these options:
option
Brightness
Adjust image brightness.
White Balance
Adjust for different lighting.
Duration
Specify standard lengths for video clips
of
Short
(default, about 30 seconds),
Medium
,
Fit to Video Msg
. (varies depending on
video settings), or
Long (Max Memory)
.
Resolution
Set recording resolution to
320x240
or
176x144
.
Color Effects
Scroll left or right to select
Normal
,
Antique
,
Black & White
, or
Negative
.
93
entertainment
Tip:
By default, the recording duration is set to
Short
,
which is about 30 seconds long. You can
maximize
the recording length to an estimated 25 hours
by
lowering the resolution to
176x144
, selecting
Long
(Max Memory)
, and switching the storage device to a 2 GB
removable memory card.
play video clip
To play a video clip stored on your phone:
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select
key (
s
)(
OK
).
3
Scroll to
My Videos
and press the center select
key (
s
)(
OK
).
4
Scroll to the clip you want to play and press the
center select key (
s
)(
PLAY
).
Press the left soft key (
-
)(
Mute
) while the clip is
playing to mute the video clip sound. Press the
left soft key (
-
)(
Unmute
) to turn sound on again.
take photos
Your phone has a 2 megapixel digital camera that can
take photos at up to 1200 x 1600 pixels resolution. You
can use camera mode when the slider is closed. You
can take a photo with your phone and send it in a
multimedia message to other wireless phone users.
Switch
Storage
Device
Specify where you want to save video
clips (
Phone
or
Micro-SD Card
). This option is
available only when you have a memory
card inserted.
option
94
entertainment
Your camera lens is on the back of your phone (see
page 2).
To get the clearest photos, wipe the lens
clean with a soft, dry cloth before you capture a
photo.
take & send photo
1
To activate the camera, press the camera
key (
b
).
The active viewfinder image appears on your
phone’s screen:
Note:
You can change the view to landscape
orientation (see page 96).
Press left and right on the navigation key (
S
) to
zoom in and out.
Press the right soft key )
+
)(
Options
) to see more
options.
2
Point the camera lens at the camera subject and
press the center select key (
s
)(
TAKE
).
3
Press the center select key (
s
)(
SEND
) to save
the photo and go to the
NEW PICTURE MESSAGE
screen.
or
Press the left soft key (
-
)(
Save
) to save the
picture in
MY PICTURES
.
or
Press the right soft key (
+
)(
Erase
) to delete the
photo and return to the active viewfinder.
1600x1200
My Pics
N
0
EV
1X
❙❙❙
P
TAKE
Press the right
soft key (+)
to view
Options
menu.
Press the
left soft key
(-) to view
MY PICTURES.
Press the center select key
(s) to
take photo
.
Options
95
entertainment
adjust camera settings
When the camera is active, press the right soft
key (
+
)(
Options
) to select from these settings:
option
Resolution
Set resolution to
1600x1200
,
1280x960
,
640x480
,
320x240
, or
Picture ID
.
Self Timer
Set the camera to take a photo
after a specific interval:
3 seconds
,
5
seconds,
or
10 seconds
. Or turn it off.
Brightness
Adjust image brightness by
scrolling left or right from
-2
to
2
.
White Balance
Adjust for different lighting
conditions by scrolling left or
right to choose from
Auto
,
Sunny
,
Cloudy
,
Tungsten
,
Fluorescent
, or
Darkness
.
Shutter Sound
Activate a sound that plays when
you take a photo:
Shutter
,
Silent
,
Quack
, or
Boing
.
Color Effects
Scroll left or right to select
Normal
,
Antique
,
Black & White
, or
Negative
.
Fun Frame
Go to
ADD FRAME
to select a
custom frame for your photo.
Switch Storage Device
Specify where you want to save
video clips (
Phone
or
Micro-SD Card
).
This option is available only if you
have a memory card inserted.
option
96
entertainment
change camera
orientation
You can change your camera’s orientation to landscape
or portrait mode:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Camera Orientation
and press the center select
key (
s
)(
OK
).
5
Select to
Landscape Orientation
or
Portrait Orientation
and
press the center select key (
s
)(
OK
).
Tip:
You can also change orientation when the camera
is active by pressing up on the navigation key (
S
) or
pressing the right soft key (
+
)(
Options
) and selecting
Landscape Orientation
or
Portrait Orientation
.
download pictures
1
From the main screen, press right on the
navigation key (
S
) to access
BGET IT NOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select
key (
s
)(
OK
).
3
Scroll to
Get New Pictures
and press the center select
key (
s
)(
OK
).
4
With
Get New App
highlighted, press the center
select key (
s
)(
OK
) to connect to
Get It Now
.
Note:
Normal airtime and/or carrier usage charges
apply.
97
tools
tools
contacts
emergency contact & personal
information
If you are injured, emergency workers may check your
phone for emergency contact information. Store the
phone numbers of relatives or friends as emergency
contacts.
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Use the navigation key (
S
) to scroll to
In Case of
Emergency
and press the center select key (
s
)(
OK
).
3
Scroll to
Contact 1
,
Contact 2
, or
Contact 3
, and press the
center select key (
s
)(
OK
).
Note:
Select
Personal Info
to add personal
information that may assist emergency workers.
4
Scroll to
From Contacts
or
New Contact
and press the
center select key (
s
)(
OK
).
5
If you selected
From Contacts
, scroll to an entry in
your contacts list and press the center select
key (
s
)(
OK
).
or
If you selected
New Contact
, enter contact
information and press the center select
key (
s
)(
SAVE
).
98
tools
create entry
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Select
New Contact
by pressing the center select
key (
s
)(
OK
).
3
Enter contact information and press the center
select key (
s
)(
SAVE
).
edit entry
1
From the main screen, press the right soft
key (
-
)(
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
)(
Edit
).
3
Edit the contact information and press the center
select key (
s
)(
SAVE
).
view entry
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
2
To view an entry, scroll to the entry and press the
center select key (
s
)(
VIEW
).
Press the right soft key (
+
)(
Options
) to select
other actions such as
Send TXT Msg
,
Send Picture Msg
,
Send
Video Msg
, or
Call
.
erase entry
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the right soft key (
+
)(
Options
).
3
Scroll to
Erase
and press the center select
key (
s
)(
OK
).
99
tools
set speed dial number
Note:
To use speed dial to call a contact, see page 48.
Assign a speed dial number to a
Contacts
entry:
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
)(
Edit
).
3
Scroll to the number to be assigned a speed dial
number and press the right soft key (
+
)(
Options
).
4
Select
Set Speed Dial
by pressing the center select
key (
s
)(
OK
).
5
Select an unassigned speed dial number and
press the center select key (
s
)(
SAVE
).
6
Press the center select key (
s
)(
OK
) to set the
speed dial number.
set default number for entry
Set the default number for a
Contacts
entry with multiple
numbers:
1
From the main screen, press the right soft
key (
-
)(
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
)(
Edit
).
3
Scroll to the number to be set as the default
number and press the right soft key (
+
)(
Options
).
4
Scroll to
Set As Default
and press the center select
key (
s
)(
OK
).
assign ringtone to entry
When you assign a ringtone to a
Contacts
entry, your
phone plays that ringtone when you receive a call from
the entry.
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
100
tools
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
)(
Edit
).
3
Scroll to
Ringtone
and press the left soft
key (
-
)(
Set
) to go to the
MY RINGTONES
menu.
4
Scroll to the desired ringtone and press the
center select key (
s
)(
OK
).
5
Press the center select key (
s
)(
SAVE
).
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
(see page 21).
assign picture to entry
When you assign a picture to a
Contacts
entry, your
phone displays that picture when you receive a call
from the entry.
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
)(
Edit
).
3
Scroll to
and press the left soft
key (
-
)(
Set
) to go to
My Pictures
.
4
Scroll to a picture and press the center select
key (
s
)(
OK
).
5
Press the center select key (
s
)(
SAVE
).
Tip:
You can also assign a picture by going to the
PICTURE & VIDEO
menu. From the home screen, press the
center select key (
s
)(
MENU
), scroll to
BGETITNOW
,
and select
Picture & Video
. Next, select
My Pictures
, then
scroll to a picture and press the right soft
key (
+
)(
Options
). Select
Set As
, then select
Picture ID
.
download ringtone for an entry
You can download a ringtone to assign to a
Contacts
entry. When you receive a call from that entry, your
phone plays the ringtone you assigned.
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
101
tools
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
)(
Edit
).
3
Scroll to
Ringtone
and press the left soft
key (
-
)(
Set
) to go to the
My Ringtones
menu.
4
Select
Get New Ringtone
, then
Get New App
, and proceed
to download and save a ringtone.
Tip:
You can also download a ringtone from the
Music & Tones
menu. From the home screen, press the
center select key (
s
)(
MENU
), scroll to
BGETITNOW
,
and select
Music & Tones
. Next, select
Get New Ringtones
,
or
select
My Ringtones
and then select
Get New Ringtones
.
add entries to group
To send a text message to many people at once, you
can create a group and add contact entries to it.
Tip:
To add a
Contacts
entry to a group while editing the
entry, scroll to
Group
and press
Set
.
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Use the navigation key (
S
) to scroll to
Groups
and
press the center select key (
s
)(
OK
).
3
Scroll to the desired group name and press the
right soft key (
+
)(
Options
), or create a group by
pressing the left soft key (
-
)(
New
).
4
Scroll to
Add
and press the center select
key (
s
)(
OK
).
5
On the
Add Contacts
screen, scroll to each contact
you want to add and press the center select
key (
s
)(
MARK
).
When you finish adding contacts to a group, press the
left soft key (
-
)(
Done
).
add group
Add a new group as an entry on the
Groups
screen:
102
tools
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Use the navigation key (
S
) to scroll to
Groups
and
press the center select key (
s
)(
OK
).
3
Press the left soft key (
-
)(
New
).
4
Enter the name for the new group and press the
center select key (
s
)(
SAVE
).
personal organizer
add calendar appointment
1
From the main screen, press down on the
navigation key (
S
) to open the calendar.
2
Use the navigation key (
S
) to scroll to the
desired date and press the left soft
key (
+
)(
Add
).
3
Enter new appointment name and details. To
change the time, recurrence, or alert type, scroll
to the line and press the left soft key (
-
)(
Set
).
4
To save the appointment, press the center select
key (
s
)(
SAVE
).
see calendar appointment
1
From the main screen, press down on the
navigation key (
S
) to open the calendar.
2
Use the navigation key (
S
) to scroll to the date
of the appointment and press the center select
key (
s
)(
VIEW
).
3
Press the center select key (
s
)(
VIEW
) again to
see appointment details.
set alarm
1
Press the center select key (
s
) to open the
menu.
103
tools
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select
key (
s
)(
OK
).
4
Scroll to
Alarm Clock
and press the center select
key (
s
)(
OK
).
5
Select an alarm to set and press the center select
key (
s
)(
OK
).
6
Set the alarm to on or off, choose the time,
number of times to ring, and the alarm tone, and
then press the center select key (
s
)(
OK
).
set alarm
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select
key (
s
)(
OK
).
4
Scroll to
Alarm Clock
and press the center select
key (
s
)(
OK
).
5
Scroll to an alarm and press the center select
key (
s
)(
OK
).
6
Select
On
, and set the alarm time, recurrence, and
alert sound by scrolling to the category and
pressing the left soft key (
-
)(
Set
).
7
Select
On
, and set the alarm time, recurrence, and
alert sound by scrolling to each line and pressing
the left soft key (
-
)(
Set
).
8
Press the center select key (
s
)(
SAVE
).
turn off alarm
When an alarm rings, press
Off
or the Power/End
key (
O
) to turn it off.
104
tools
view world clock
View current time in cities around the world:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select
key (
s
)(
OK
).
4
Scroll to
World Clock
and press the center select
key (
s
)(
OK
).
5
Use the navigation key (
S
) to scroll left or right
to the desired city or press
the right soft key (+) (Cities)
to
view a list of cities.
notepad
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select
key (
s
)(
OK
).
4
Scroll to
Notepad
and press the center select
key (
s
)(
OK
).
5
To create a note, press the left soft
key (
-
)(
Add
).
6
Enter text and press the center select
key (
s
)(
SAVE
).
Your phone displays the first few words of your
note in a list of notes on the notepad.
calculator
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
105
tools
3
Scroll to
Tools
and press the center select
key (
s
)(
OK
).
4
Scroll to
Calculator
and press the center select
key (
s
)(
OK
).
Use the keypad to enter numbers and use the
navigation key (
S
) for math functions. For more
operators, press the right soft key (
+
)(
Operator
).
To enter a decimal, press
*
. To change positive
or negative, press
#
.
fun & games
Note:
A lock (
9
) icon next to a picture or sound
means that you cannot send, copy, or delete it.
launch game or application
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Select the game or application you want to
launch.
download game or
application
Download a
Get It Now
game or application:
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Games
and
press the center select key (
s
)(
OK
).
3
Select
Get New App
by pressing the center select
key (
s
)(
OK
).
4
Select a category, application, and pricing option.
Normal airtime and/or carrier usage charges apply.
106
tools
Web sessions
To select or create a Web session so that you
can use the Web browser, press up on the navigation
key (
S
) to select
MOBILE WEB
from the main screen.
manage pictures
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select
key (
s
)(
OK
).
3
Scroll to
My Pictures
and press the center select
key (
s
)(
OK
) to view a list of pictures.
To view a picture, scroll to the picture title and press
the center select key (
s
)(
VIEW
).
While looking at a picture, press the right soft
key (
+
)(
Options
) to see the following options:
Send
,
Set
As
,
To PIX Place
,
Zoom
,
Edit
,
Rename
,
Lock
, or
File Info
.
Note:
The
OPTIONS
menu includes different options for
locked or preloaded images. You cannot set
copyrighted content as wallpaper or picture IDs.
manage video clips
1
From the main screen, press right on the
navigation key (
S
) to access
BGET IT NOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select
key (
s
)(
OK
).
3
Scroll to
My Videos
and press the center select
key (
s
)(
OK
) to view a list of pictures.
To play a video clip, scroll to the video clip title and
press the center select key (
s
)(
PLAY
).
Note:
The
OPTIONS
menu includes different options for
copyrighted videos. For example, you cannot send
copyrighted content to another person.
107
connections
connections
Bluetooth® connections
Your phone supports Bluetooth wireless connections.
You can connect your phone with a Bluetooth headset
or car kit to make handsfree calls.
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
For maximum Bluetooth security
, you should
always connect Bluetooth devices in a safe, private
environment, away from other devices with Bluetooth
connection capabilities.
profiles supported
This section lists Bluetooth profiles currently
supported by this device.
Advanced Audio Device Profile (A2DP—Stereo
Bluetooth Profile)
—Allows a device such as a
Bluetooth enabled pair of headphones to receive
stereo audio data stream from a Bluetooth enabled
music player with the same profile.
Audio/Video Remote Control Profile
(AVRCP)
—Provides a standard interface to control
TVs, audio equipment, and similar devices. Allows a
single remote control (or other device) to control all of
the audio/video equipment to which a user has
access.
108
connections
Basic Imaging Profile (BIP)
—Defines how an
imaging device can be controlled remotely, how an
imaging device may print, and how an imaging device
can transfer images to a storage device. For example,
BIP enables a mobile phone to control a digital
camera.
Basic Printing Profile (BPP)
—Allows devices to send
text, emails, vCards, images, or other items to
printers. It does not need printer-specific drivers.
Dial Up Networking (DUN)
—Provides a standard to
access the Internet and other dial-up services with a
Bluetooth wireless connection.
Handsfree (HFP)
—Describes how a gateway device
can be used to place and receive calls for a handsfree
device. For example, a vehicle handsfree kit could use
a mobile phone as a gateway device.
Headset (HSP)
—Describes how a Bluetooth enabled
headset should communicate with a computer or
other Bluetooth enabled device, such as a mobile
phone.
OBEX profiles
—
•
Audio/Visual Control Transport Protocol Profile
(AVCTP) for controlling A/V devices.
•
Audio/Visual Distribution Profile (AVDTP) for
streaming audio and video
•
File Transfer Profile (FTP) and Object Push
Profile (OPP) for device-generated content
(image and video)
•
File Transfer Protocol (FTP) for phone to PC
transfers
•
Generic Audio/Video Distribution Profile
(GAVDP)
•
Object Push Profile (OPP) for vCard only
109
connections
Phone Book Access Profile (PBAP)
—Makes
information from a mobile phone’s phonebook
available to a handsfree device.
Serial Port Profile (SPP)
—Defines the protocols and
procedures to be used by devices using Bluetooth
connections for RS232 (or similar) serial cable
emulation.
For more information about Bluetooth wireless
connections supported by this device, go to FAQ
www.verizonwireless.com/bluetooth
.
For information about vehicle compatibility, go to
www.verizonwireless.com/bluetoothchart
.
turn Bluetooth power on or off
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
)(
OK
).
4
Press the left soft key (
-
) to turn Bluetooth
power on or off.
Note:
To extend battery life, use this procedure to set
Bluetooth power to
Off
when not in use. Your phone
will not connect to devices until you set Bluetooth
power back to
On
and connect your phone with the
device again.
make phone visible to other
device
Allow an unknown Bluetooth device to discover your
phone:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
110
connections
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
)(
OK
).
4
Press the right soft key (
+
)(
Settings
).
5
Scroll to
Discovery Mode
and press the center select
key (
s
)(
OK
).
6
Scroll to
On
and press the center select
key (
s
)(
OK
).
pair with a headset, handsfree
device, or PC
Note: If you use your Motorola Bluetooth headset
with both an audio device and your phone, use
your phone’s Bluetooth menus to connect the
phone with the headset.
If you establish the
connection by pressing a button on the headset, or if
you allow the headset to connect automatically by
turning it on, you may experience unexpected results.
Before you try to connect your phone with another
Bluetooth device
, make sure your phone’s Bluetooth
power is
On
and the other device is in pairing or
bonding mode (see the user’s guide for the device).
You can connect your phone with only one device at a
time.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
)(
OK
).
4
Scroll to
Add New Device
and press the center select
key (
s
)(
OK
).
Note:
If your Bluetooth power is not turned on,
your phone will prompt you to turn it on.
Your phone lists the devices it finds within range.
If your phone is already connected to a device,
your phone identifies that device with a
I
(in-use) indicator.
111
connections
5
Scroll to a device in the list.
6
Press the center select key (
s
)(
Pair
) to connect
to the device.
7
If the device requests permission to bond with
your phone, press the center select key (
s
)(
YES
)
and enter the device PIN code to create a secure
connection with the device. (The PIN code is
typically set to 0000).
Note:
See the instructions that came with your
device for the device PIN code and other
information about the device.
When the connection is made, the Bluetooth
indicator
I
or a
Bluetooth
message displays in the
main screen.
Tip:
When Bluetooth power is on, your phone can
automatically connect to a handsfree device you
have used before. Just turn on the device or move
it near the phone.
transfer files
You can use a Bluetooth connection to transfer files
between your computer and phone.
Note:
Your computer’s Bluetooth interface may be
different.
1
Pair your phone and computer (see “pair with a
headset, handsfree device, or PC”) and place
your phone in discoverable mode.
2 On your computer
, right-click the Bluetooth icon
in your System Tray.
3
Select “Send a File.”
4
Click “Browse” to locate your phone name, and
then click “Next.”
5
Click “Browse” to locate the file you want to
transfer, and then click “Next.”
112
connections
6 On your phone
, when prompted, press the
center select key (
s
)(
ACCEPT
) to accept the file
transfer.
7
When you are finished transferring files, press the
Power/End key (
O
) on your phone to close the
connection.
Note:
Breaking the link with your computer does not
turn off Bluetooth power on your phone. You might
want to turn Bluetooth power off to conserve battery
charge.
connect with another phone
You can use a Bluetooth connection to transfer a
contact or file to another phone.
To transfer a contact to another phone
:
Note:
Make sure the phone receiving the entry has
Bluetooth power on and is in Find Me mode. The
receiving device must also be capable of receiving a
vCard. Not all Bluetooth devices have this capability.
1
From the main screen, press the right soft
key (
+
)(
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
you want to transfer and press the right soft
key (
+
)(
Options
).
3
Scroll to
Send Name Card
and press the center select
key (
s
)(
OK
).
4
Scroll to Bluetooth and press the center select
key (
s
)(
OK
).
5
Press the center select key (
s
)(
SEND
).
6
Scroll to
[Add New Device]
or scroll to the device that
you want and press the center select
key (
s
)(
OK
).
Note:
If your phone does not already have
Bluetooth power turned on, it prompts you to turn
it on.
7
If prompted, enter the default PIN code
0000
or
accept the transfer.
113
connections
When the phones connect, and the sending phone
begins the transfer. The receiving phone is prompted
to accept the transfer. When the receiving phone
accepts the transfer, the entry transfers.
To transfer a file to another phone
:
Note:
Make sure the phone receiving the file has
Bluetooth power on and is in
Find Me
mode. The
receiving phone must be capable of receiving the
file type.
1
On your phone, select the file (such as a picture,
video, or sound) you want to transfer and press
the right soft key (
+
)(
Options
).
2
Use the navigation key (
S
) to scroll to
Send
and
press the center select key (
s
)(
OK
).
3
Scroll to
Bluetooth
and press the center select
key (
s
)(
OK
).
4
Scroll to
[Add New Device]
or scroll to the device that
you want and press the center select
key (
s
)(
OK
).
Note:
If your phone does not already have Bluetooth
power turned on, it prompts you to turn it on.
5
When your phone prompts you to confirm that
you want to send the file, select
Yes
by pressing
the center select key (
s
)(
OK
).
6
If prompted, enter the default PIN code
0000
or
accept the transfer.
When the phones connect, the sending phone begins
the transfer. The receiving phone is prompted to
accept the transfer. When the receiving phone
accepts, the file is transferred.
connect to handsfree device
during a call
1
During a call, press the right soft
key (
+
)(
Options
), then select
Bluetooth Menu
.
114
connections
2
Use the navigation key (
S
) to scroll to
[Add New
Device]
or select the name of your handsfree device
if you have paired with it previously.
3
Press the center select key (
s
)(
OK
).
4
If connecting to a new device, place the new
device in discoverable mode and press the center
select key (
s
)(
OK
) on your phone.
5
When your phone finds your handsfree device,
press the center select key (
s
)(
PAIR
).
disconnect from a device
Scroll to
Bluetooth
and select
Off
.
Note:
You cannot switch to a headset or car kit if you
are already connected to a Bluetooth device.
cable connections
Your phone has a micro-USB
port so you can connect it to
a computer.
•
You must use the
cables in the
Motorola Original
™
data kit (see the data kit
user’s guide for more information).
•
Connect the phone to a high-power USB port
on your computer (not a low-power one such
as the USB port on your keyboard or
bus-powered USB hub). Typically, USB
high-power ports are on your computer.
Note:
If you connect your phone to a
low-power USB port, the computer may not
recognize your phone.
•
Make sure both your phone and the computer
are turned on.
115
connections
network
network settings
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
System Select
and press the center select
key (
s
)(
OK
).
5
Scroll to
CDMA Setting
and press the center select
key (
s
)(
OK
).
call drop alerts
Set phone to beep whenever the network
drops a call. (Because digital networks are so quiet,
the call drop alert may be your only sign that a call was
dropped.)
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Service Alerts
and press the center select
key (
s
)(
OK
).
5
Scroll to
Network Lost Tone
and press the center select
key (
s
)(
OK
).
6
Select
ON
and press the center select
key (
s
)(
OK
).
set call connect alerts
Set your phone to beep whenever an outgoing
call is connected:
116
connections
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Service Alerts
and press the center select
key (
s
)(
OK
).
5
Scroll to
Call Connect
and press the center select
key (
s
)(
OK
).
6
Select
ON
and press the center select
key (
s
)(
OK
).
set roaming alerts
Set phone to beep whenever the phone begins
roaming:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
)(
OK
).
4
Scroll to
Service Alerts
and press the center select
key (
s
)(
OK
).
5
Scroll to
ERI
and press the center select
key (
s
)(
OK
).
6
Select
ON
and press the center select
key (
s
)(
OK
).
117
service & repairs
service & repairs
If you have questions or need assistance, we're here
to help.
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options.
You can also contact the Motorola Customer Support
Center at 1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for hearing
impaired), or 1-800-461-4575 (Canada).
118
SAR Data
Specific Absorption Rate Data
SAR Data
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 1.45 W/kg, and when worn on the body, the SAR value for
this product in its
data transmission mode (body-worn use) is 0.73 W/kg. (Body-worn
measurements differ among phone models, depending upon
available accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
SAR Data
119
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
120
EU Conformance
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in
compliance with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on
the Web site.
0168
Product
Approval
Number
121
Important Safety and
Legal Information
122
Safety Information
Safety and General Information
Safet y In formati on
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola—or if you hang your
mobile device from a lanyard around your neck—keep the mobile
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2007.
Safety Information
123
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from the implantable medical
device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your health care provider.
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
124
Safety Information
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue use if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
•
Do not place a mobile device in the airbag deployment
area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section in this user’s guide and/or at the Motorola
Web site:
www.motorola.com/callsmart
.
Note:
The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities
for more information.
Do not throw your battery or mobile device
in the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
032374o
032376o
032375o
032378o
Li Ion BATT
Safety Information
125
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use & Battery Safety”
section in this user’s guide.
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
Listening at full volume to music or voice
through a headset may damage your
hearing.
Symbol Definition
126
Industry Canada Notice
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Industry Canada Notice to Users
Indus try Cana da Notice
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must accept
any interference, including interference that may cause undesired
operation of the device. See RSS-GEN 7.1.5.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Warranty
127
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
Motorola Limited Warranty for the United States and
Canada
Warranty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants
its telephones, pagers, messaging devices, and consumer and
professional two-way radios (excluding commercial, government
or industrial radios) that operate via Family Radio Service or
General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer
usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
Motorola Products, Accessories and Software purchased by
consumers in the United States or Canada, which are accompanied
by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as
defined above, unless
otherwise provided for
below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
128
Warranty
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded
from coverage.
Batteries.
Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by
this limited warranty.
Abuse & Misuse.
Defects or damage that result from:
(a) improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to the
surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d) other acts which
are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or
damage that result from the use of Non-Motorola branded or
certified Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by someone
other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and
Accessories that are
Repaired or
Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Products Covered Length of Coverage
Warranty
129
Communication Services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication
service or signal you may subscribe to or use with the Products
Accessories or Software is excluded from coverage.
Software
Exclusions
Software Embodied in Physical Media.
No warranty is made
that the software will meet your requirements or will work in
combination with any hardware or software applications provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is
not embodied in physical media (e.g. software that is downloaded
from the internet), is provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is
not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund
the purchase price of any Products, Accessories or Software that
does not conform to this warranty. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to
your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To
avoid losing such data, software and applications please create a
back up prior to requesting service.
How to Obtain Warranty Service or
Other Information
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies
the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging Devices
1-800-353-2729
130
Warranty
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of
your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your
address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or
limitation on the length of an implied warranty, so the
above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one
jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute
copies of the Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the Products
associated with such Motorola software. No other use, including
without limitation disassembly of such Motorola software or
exercise of the exclusive rights reserved for Motorola, is
permitted.
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone
number designated above for the product with which they are
used.
Hearing Aids
131
Hearing Aid Compatibility with Mobile Phones
Hearin g Aids
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
132
WHO Information
Information from the World Health Organization
WHO In formati on
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Registrati on
Online Product Registration:
direct.motorola.com/hellomoto/ Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law
133
Export Law Assurances
Export Law
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the product
should not be disposed of with household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
134
Perchlorate Label
California Perchlorate Label
Perchlora te Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
“Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/ perchlorate
.”
There is no special handling required by consumers.
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a
software/application vendor releases a patch or software
fix for your mobile device which updates the device’s
security, install it as soon as possible.
• Erase before recycling
—Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For step-by-step instructions on
how to delete all personal information from your device,
see the section entitled “master clear” or “delete data” in
this user’s guide.
Note:
For information on backing up your mobile device
data before erasing it, go to
www.motorola.com
and then
navigate to the “downloads” section of the consumer Web
page for “Motorola Backup” or “Motorola Phone Tools.”
• Understanding AGPS
—In order to comply with
emergency caller location requirements of the FCC, certain
Motorola mobile devices incorporate Assisted Global
Positioning System (AGPS) technology. AGPS technology
also can be used in non-emergency applications to track
and monitor a user’s location—for example, to provide
Driving Safety
135
driving directions. Users who prefer not to permit such
tracking and monitoring should avoid using such
applications.
If you have further questions regarding how use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
Smart Practices While Driving
Dri vin g Sa fety
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart
for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile device
with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
136
Driving Safety
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
index
137
index
A
accessories 11, 22
alarm clock 103
alert
sounds 33
turn off 21
answer a call 16
attach a number 55
B
backlight 38
banner 42
battery 14
conserving 11
life, extending 110
battery charge indicator light 2
battery life, extend 12
Bluetooth connection
description 108
indicator light 2
brightness 39
browser key 2
C
cables 115
calculator 105
calendar 102
call
answer 16
drop alerts 116
end 16
make 16
missed 47
sounds 33
timers 52
call timers 53
camcorder 91, 92
camera 3, 93
settings 95
camera key 3
car kit 22
center key 2
chat 73
clear/back key 2, 61
clock 42
alarm 103
alarm, set 103
alarm, turn off 104
world 104
codes 24, 25
conserve battery 11
138
index
Contacts
assign picture 100
assign ringtone 99
create entry 98
create group 101, 102
download ringtone 100
edit entry 98
erase entry 98
set default number 99
set speed dial number 99
view entry 98
D
data volume 53
delete text 61
dial a phone number 16
dialed calls 46
display 4, 18
display themes 38
draft message 74
DTMF tones 55
E
earpiece volume 21
email 72
emergency number 48
end a call 16
end key 2, 16
enter text 57
erase messages 74
event sounds 33
export regulations 135
H
handsfree speaker 3, 22
headset 22
hearing aid 56
hearing aids 133
I
icons 18
indicators 18
iTAP text entry mode 59
K
keypad 41
L
languages 42
lens, cleaning 93
linking. See Bluetooth connection
lock
code 24
phone 25
M
main screen 4, 18
main screen keys 43
make a call 16
master volume 33
megapixels 93
menu 4
icons 43
index
139
message 71
chat 73
draft 74
email 72
erase 74
Mobile IM 72
read 73
received 73
sent 73
message indicators
icons 18
mini-USB port 3
missed calls 47
Mobile IM 72
music
downloading 75
playlist 88
N
navigation key 2
network settings 116
notepad 104
numeric entry mode 60
O
optional accessory 11
optional feature 11
options
camera 95
video 92
P
pairing. See Bluetooth connection
perchlorate label 136
phonebook 55, 97
photo 106
picture 106
playlists 88
power key 2, 15
R
received
calls 46
message 73
recent calls 46
record video clip 91
records, voice 90
redial 45
reset timer 53, 54
ringer volume 21
roaming alert 117
S
safety information 124
safety tips 137
send key 2, 16
sent message 73
service tones 116
set alarm clock 103
shortcuts 32
smart key 3
soft keys 2, 18
sounds
140
index
settings 22, 33
turn off 41
speak keypad digits 36
speakerphone 22
symbol entry mode 61
T
take notes 104
talking phone 36
tap text entry mode 59
text
entry 57
message 71
text edit 61
timers 52, 53, 54
tips & tricks 32
transfer music from computer 76
turn off alarm clock 104
turn off sounds 41
turn on/off 15
U
unanswered calls 47
unlock
code 25
phone 25
USB cables 115
V
V CAST
music 75
videos
clips 91, 106
settings 92
voice
command key 3
privacy 31
records 90
voicemail 51
volume 21, 41
volume keys 3
W
wallpaper 37
warranty 129
WHO information 134
world clock 104
U.S. patent Re. 34,976
