congratulations
Morrison brings all your conversations, friends, and
favorite stuff into focus, so you spend less time
managing your life and more time living it.
• Everybody in.
Synchs all your friends’ contact info
the first time you pick it up, and continues updating
your device, so you don’t have to.
• Cut to the chatter.
Streams any message, from
anywhere, right to Morrison—no apps, no menus.
• Social secretary.
Lets you do just about
anything—upload, download, post—on Facebook,
MySpace and Twitter.
• Relax, already.
Backs it all up too.
• Google too.
Download thousands of cool apps from
Google—search (of course), map, chat, play and surf
to your heart’s content.
Caution:
Before using your phone for the first time,
please read “Legal & Safety” on page 49.
2
more information
You always have help. You can tap the
Help Center
in your
app tray, or visit
www.motorola.com/support
.
about this guide
symbols in this guide
These features might not be available. For
details, contact your service provider.
These features require an optional accessory.
3your phone
your phone
the important keys & connectors
Power Key
3.5mm Headset Jack
Home Key
Back Key
Microphone
Menu Key
microUSB
Connector
Charge or
connect to PC.
Volume Keys
Silent Mode
Switch
To u ch Screen
Camera
Key

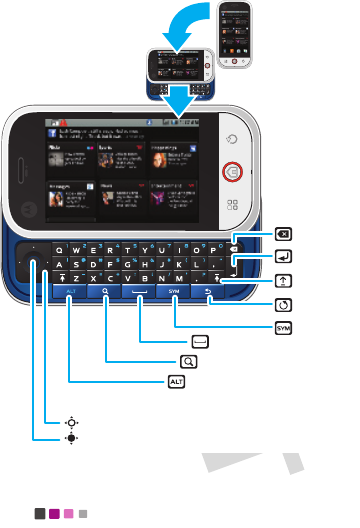

4 your phone
Delete
Return
Space
Alternate
Search
Symbols
Back
Shift
Navigation Key
Up, Down, Left, Right
Center Select
When you open or turn
your phone, the screen
adjusts for you.
5your phone
contents
your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . . 10
home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
app tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
social networking . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Google Maps™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
apps for almost everything . . . . . . . . . . . . . . . . . . . 43
Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . . 45
Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Legal & Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6let’s go
let’s go
let’s get you up and running

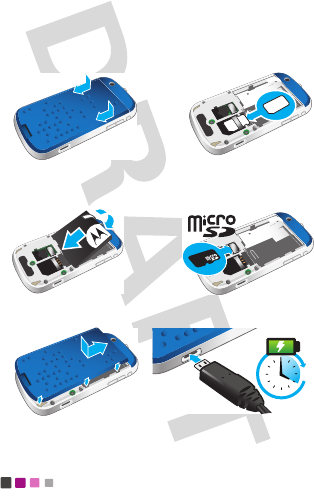

assemble & charge
Caution:
Please see “Battery Use & Safety” on page 49.
1
cover off
2
SIM in
3
battery in
4
microSD in (already
installed)
5
cover on
6
charge up
7let’s go
turn it on & off

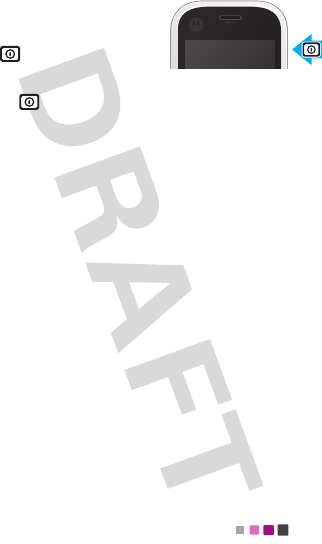

To turn on your phone,
press (on the right side).
To turn off your phone, press
and hold , then tap
Power off
in the menu that opens.
register & import contacts
The first time you turn on Morrison and register,
MOTOBLUR will sync your contacts—from your SIM
card, email, and social network accounts—into one list.
From then on, MOTOBLUR will keep your contacts
updated. When somebody gets a new number or
updates their status, you’ll know it.
Note:
MOTOBLUR registration is secure, and should
only take a few minutes (depending on how many email
or social networking accounts you want to add). For
more, see “your MOTOBLUR account” on page 19.
1
The first time you turn on Morrison, select your
language (tap
Next
), then read the Welcome (tap
Next
).
2
To create your MOTOBLUR account, choose
Register a
new account
and enter the info.
If you already created a MOTOBLUR account,
choose
Use an existing account
and enter your info.
8let’s go
3

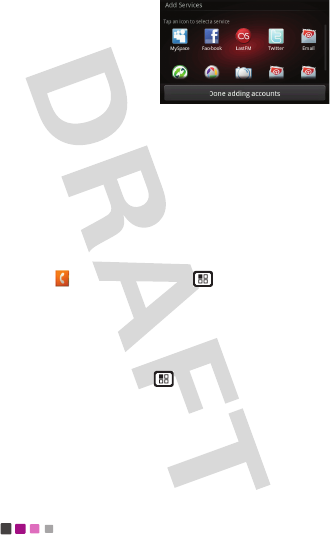

After you register, you
can add your
Facebook
,
MySpace
,
Twitter
, or other
accounts. Your phone
downloads your friends
and contacts when you
sign in.
Note:
If you don’t have social networking accounts,
visit Facebook, MySpace, or Twitter Web sites to
find out more. To add accounts anytime, see “add
accounts” on page 20.
4
When you finish signing in, your phone shows your
home screen. To import the contacts from your SIM
card, tap
Contacts
, then press >
Settings
>
Import
from SIM card
. Tap
OK
to confirm.
Wi-Fi connect
If you want to use a wireless computer network for even
faster Internet access, press >
Settings
>
Wireless controls
>
Wi-Fi settings
. Tap
Wi-Fi
to search for and connect to
wireless networks. For more, see “Wi-Fi” on page 48.
cool content & more
Browse and download thousands of the coolest apps on
the planet from Google, so you can search (of course),
9let’s go
map, chat and play to your heart’s content. On top of
that, you get a full HTML browser too, so you can surf in
style.
Download new apps with “Android market” on page 43.
Your phone comes with a microSD memory card
installed—you can load it up with photos, videos, or
music from your computer.
security
Everything you do on Morrison is backed-up on
MOTOBLUR, so quit worrying. Even if you lose your
device, MOTOBLUR can help you find it, lock it, or wipe
it. And when you get your next MOTOBLUR product,
your stored info makes it a snap to set up with just a
username and password.
10 touchscreen & keys
touchscreen & keys
a few essentials
touch tips
Try these actions to touch and move things in the
touchscreen:
tap
To choose an icon or option, tap it.
For example, from your home
screen, you can tap
Contacts
.
tap & hold
To open special options, tap and hold an
icon or other item. For example, in the
home screen, tap and hold a chip to
show the options
Setup
,
Move
, and
Delete
.
drag
To move an icon or a list item, you can drag it. For
example, in the home screen, tap and hold a chip to
show its options, then tap
Move
. Drag the chip to a new
spot, then tap
Done
.
11touchscreen & keys

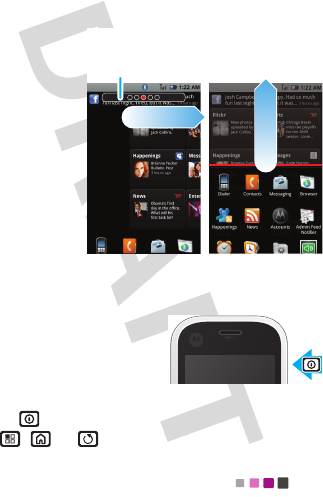

flick
To quickly scroll through lists, or pull things up, down,
left, or right, flick (drag quickly) across the touchscreen.
In the home
screen, quickly
flick the main
panel left or right
to open other
panels.
Flick the icons
from the bottom
of the
touchscreen
upward to open
the full menu.
sleep & wake up
To save your battery, prevent
accidental taps, or when you
want to wipe smudges off
your touchscreen, put the
touchscreen to sleep by
pressing . To wake up the touchscreen, just
press , , or , or open the phone.
Panel Map
When you flick panels left or right, this bar
shows which one you’re on.
12 touchscreen & keys

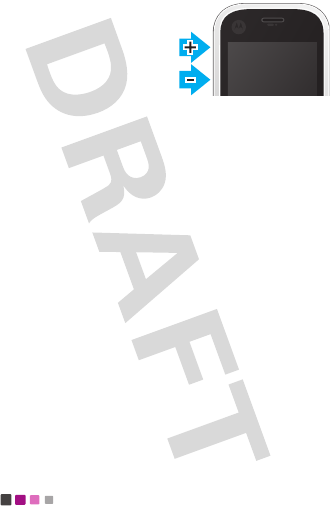

adjust volume
Press the volume keys to
change the ring volume (in the
home screen), or the earpiece
volume (during a call).
13home screen
home screen
quick access to the things you need most

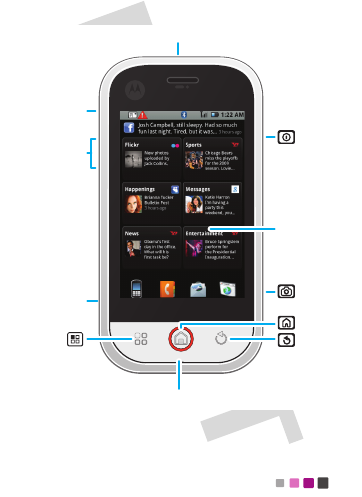

home screen quick start

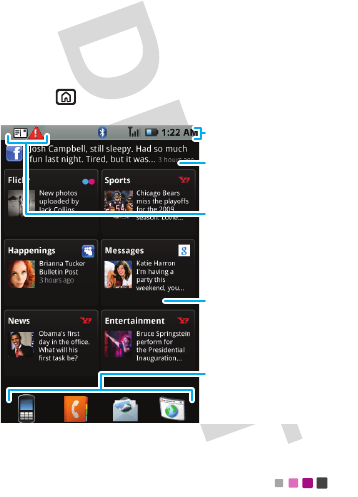

The home screen gives you all your latest information in
one place. It’s what you see when you turn on the phone
or press from a menu. It’s basically like this:
Status Indicators
Your Online Status
Tap to change your status.
Chips
Tap to open, or tap & hold
to move or set up.
Shortcuts
Tap to open. Flick up to
open the app tray.
Notifications
Flick this bar down to see
details about new
notifications.
14 home screen
MOTOBLUR integrates all your communications—from
Gmail to Facebook, Twitter to MySpace—pulling together
the threads you’re following, the people you’re friending
and every story, link or video you’re sharing into a single
stream that you view any way you choose.
Tip:
Customize your home screen in “personalize” on
page 30.
chips
In your home screen, chips show you news and message
updates.
Tip:
Flick the home screen left or right to open other
panels (pages of chips).
To open a chip, tap it. To add or move chips,
press >
Manage
. There are chips for
Happenings
,
Messages
,
Weather
, and
News
.
15home screen

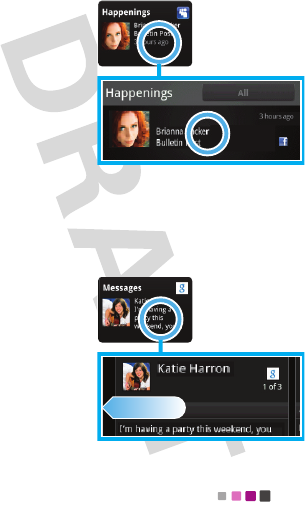

happenings chip
The
Happenings
chip
shows the latest
update from your
social networks. Tap
the chip to open a list
of updates. Tap an
update for details, or
flick it left to see other
updates.
set up or delete the happenings chip
Tap and hold this chip, then tap
Setup
or
Delete
. To add social
networks in
Setup
, see “add accounts” on page 20.
messages chip
The
Messages
chip
shows your latest
email, message, or
IM. Tap the chip to
open the message,
then flick left to open
older messages.
Tap the Happenings
chip, then tap an
update to see details.
Tap the Messages
chip, then flick
messages left.
16 home screen
set up or delete the messages chip
Tap and hold this chip, then tap
Setup
or
Delete
. To add email
accounts in
Setup
, see “add accounts” on page 20.

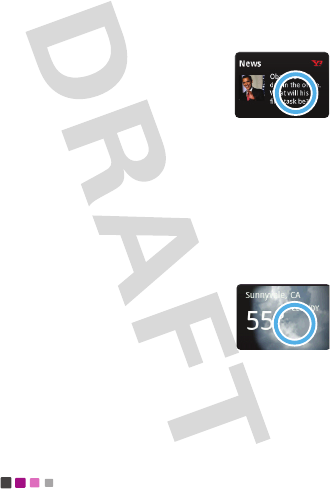

news chips
News chips show you the latest unread
headline, and can have different names
(like
Sports
or
Entertainment
). Tap a chip for
the full story.
set up or delete news chips
Tap and hold a chip, then tap
Setup
or
Delete
. In
Setup
, you can
change the chip’s name or add more RSS feeds for this
chip. When you open the news chip, flick left to see other
headlines all the chip’s feeds.
weather chips
Tap a weather chip for the daily forecast.
Then, tap the chip again for the detailed
forecast.
set up or delete weather chips
Tap and hold a chip, then tap
Setup
or
Delete
. In
Setup
, you can
change the location or add more locations for this chip.
When you open the weather chip, flick left to see other
locations you added.
17home screen

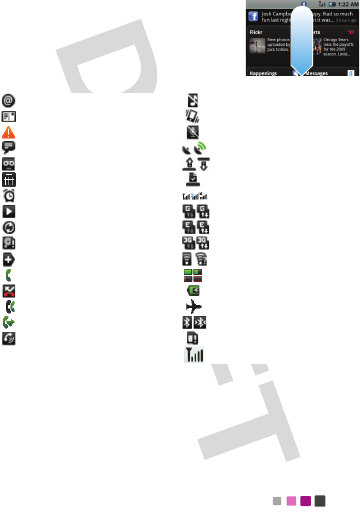

status & notifications
At the top of the screen, icons tell
you about messages and phone
status. For details, flick down the
icon bar.
Tip:
To see today’s date, tap and hold the status bar.
E-mail
Text or picture message
Message error
IM
Voicemail
Calendar event set
Alarm set
Song playing
Data syncing
microSD card full
Undisplayed notifications
Call in progress
Ring is silent
Ring is on vibrate
Phone muted
GPS on/working
Uploading/downloading
Content downloaded
GSM/roaming/no signal
GPRS connected/active
EDGE connected/active
3G connected/active
Wi-Fi connected/available
Battery charge
Battery charging
Wireless off
Bluetooth on/connected
SIM card missing
Network signal strength
Call missed
Call on hold
Call forward on
Speakerphone on
18 app tray
app tray
app tray quick start
The app tray shows you all of your applications. To open it
from the home screen, press . To close it, press
again.
Tip:
To find an app in the app tray, you can open your
phone and type the app name.
19social networking
social networking
my life, your life
your MOTOBLUR account
When you first turned on your phone, you registered for a
MOTOBLUR account that manages your messages,
contacts, and more (“register & import contacts” on
page 7). You can log into this account from a computer
upload contacts, manage the account, get help, or even
locate your phone:
ws-cloud1-qa1.blurdev.com/
blur-services-1.0/web/
view accounts & update status
Morrison lets you do just about anything on Facebook,
MySpace, and Twitter right from the full
touchscreen—post photos as soon as you snap them, or
blast your status across all your social networks at once.
MOTOBLUR makes the connections, whether you’re
posting, surfing, or squawking.
After you add a social networking account, you’ll see
your status in your home screen, along with your friends’
updates (“happenings chip” on page 15).
To update your status, just tap it and enter text.
20 social networking
To stop seeing your status, press >
Hide status
.
add accounts
Find it:
>
Accounts
> >
New Account
Tip:
After you sign in, you’ll have the friends and contacts
from the account in your phone’s
Contacts
list.
Note:
If you don’t have
Facebook
,
MySpace
, or other accounts,
visit their Web sites to find out more.
remove accounts
Find it:
>
Accounts
Tap an account, then tap
Delete
.
21calls
calls
it’s good to talk
calls quick start

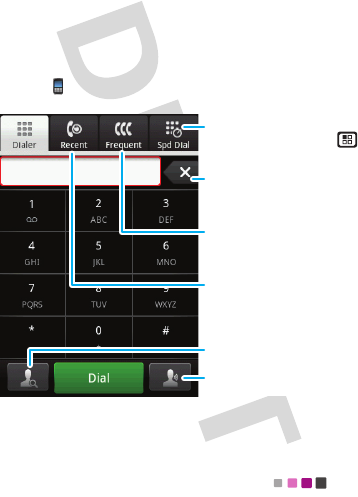

dialing options
Find it:
Dialer
Speed Dial List
Tap to open, then press
to add or edit.
Frequent Call List
Tap to open, then tap an
entry to call.
Delete
Tap to delete a digit you
entered.
Recent Calls
Tap to open, then tap an
entry to call.
Voice Dial
Open Your Contacts
22 calls
in-call options
During a call, press to choose
Hold
,
New Call
,
Use Bluetooth
,
or to wake up the touchscreen if it’s dark.
make & answer calls
To make a call, tap
Dialer
, enter a number, then tap
Dial
.
To answer a call, tap
Answer
.
Call Timer
Mute
Tap to mute or unmute the
call.
Dialer
Tap to dial a second call.
Speakerphone
Tap to turn the
speakerphone on or off.
23calls
end calls

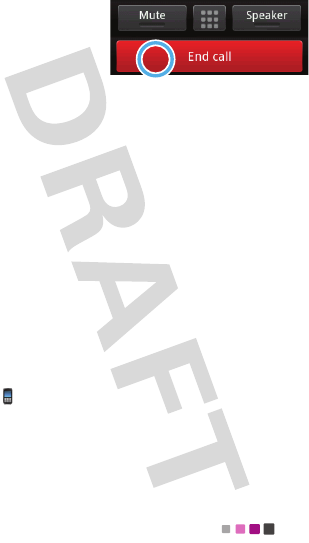

Tap
End call
.
Tip:
If you close the call
display during a call,
flick down the status bar and tap
Current call
to reopen it.
emergency calls
Your service provider programs one or more emergency
phone numbers, such as 911 or 112, that you can call
under any circumstances, even when your phone is
locked or the SIM card is not inserted.
Note:
Check with your service provider, as emergency
numbers vary by country. Your phone may not work in all
locations, and sometimes an emergency call cannot be
placed due to network, environmental, or interference
issues. Do not solely rely on your wireless phone for
essential communications, such as medical
emergencies.
1
Tap (if your phone is locked, tap
Emergency Call
).
2
Enter the emergency number.
3
Tap
Dial
to call the emergency number.
24 contacts
contacts
contacts like you’ve never had before
contacts quick start

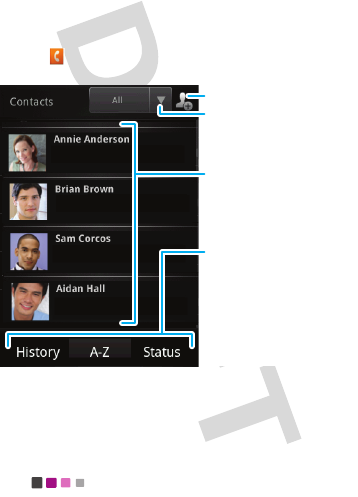

Find it:
Contacts
Tip:
To search the list, just type a name.
Filters
Choose the list source (like
All, Favorites, or Facebook).
Create Contacts
Views
Tap a list view, or flick the
display right or left, to
show:
History - recently used
A-Z - list without status
Status - list with status
Contacts List
Tap to view contact
information. Tap & hold to
edit, delete and more.
25contacts
view contacts
With Morrison, you’ll know what everybody’s up to and
when. Every time you pick up a call, check a message or
look up a friend’s contact info, sure, you’ll see their name
and number, but you’ll see their social network status
and smiling face, too.
Find it:
Contacts
•
To filter the contacts by source (like
All
,
Favorites
, or
Facebook
) tap the filter name at the top.
•
To change the list view, tap
History
(recently used),
A-Z
(list without status), or
Status
(list with status) at the
bottom.
•
To find a contact, just type the name.
call, text, or edit contacts
Find it:
Contacts
•
To s h ow
Call
,
Send text message
,
Email
,
View contact
,
Delete
, or
other options, tap and hold the contact.
•
To edit a contact, tap it, then press >
Edit
.
create contacts
Find it:
Contacts
> >

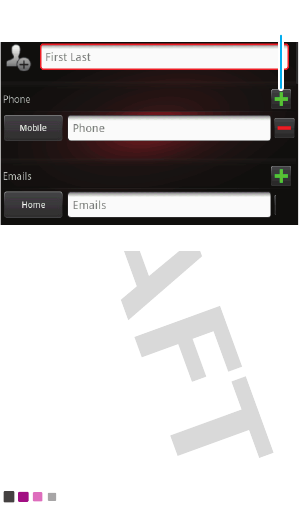

Add Person
26 contacts
Open your phone to type the name and details.
Tap + and - to open and close Phone, Emails, and
other lists.
To see more details, flick up.
27messaging
messaging
sometimes it’s good 2 text, or IM, or email ...
messaging quick start
Find it:
Messaging
>
Universal Inbox
Tip:
To see more messages, flick or drag up.

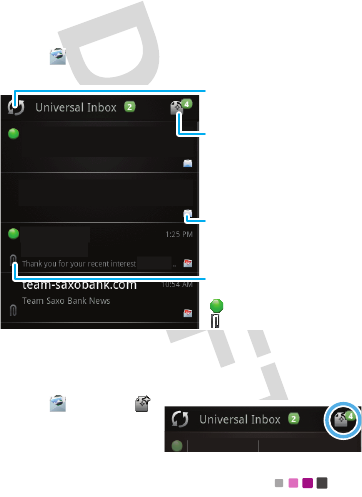

create messages
Find it:
Messaging
>
Brian Brown
Carlos Emrys
Jack Bradshaw
What are you doing tonight?
Recent Request
I made the reservations for next week
Thank
Create Message
Tap to create a new
message, and see a list of
your drafts (indicated by
the number).
Check for Messages Now
Message Type
Icons on the right indicate
the message types.
Message Status
Icons indicate a message:
is unread
has attachments
Carlos Emrys
C
ar
l
os Emr
y
s
28 messaging
Choose a message account. Then, enter the recipient
and message. In text messages and emails, press
for options like
Insert
or
Attach Files
.
Tip:
To send text messages or emails to
Contacts
, tap ,
tap and hold the contact, then tap
Send text message
or
Email
.
set up messaging
Find it:
Messaging
>
•
Manage accounts
to change your user name or password
(or server settings, for email).
•
Edit Universal accounts
to choose which accounts show their
messages in the
Universal Inbox
.
•
Settings
to set the notification for each account type
(along with other preferences, for email).
To add email or social networking accounts,
tap
Manage accounts
, then press >
New Account
. For account
details, contact the account provider.
voicemail
When you have a new voicemail, shows at the top of
your screen. To hear the voicemail, tap
Dialer
, then
tap and hold
1
.
29tips & tricks
tips & tricks
a few handy hints
To...
go to the home
screen
Press .
see recently dialed
numbers
Press >
Dialer
>
Recent
.
sleep/wake your
phone
Sleep—press . Wake—press ,
, , or open your phone.
lock/unlock screen Lock—press >
Settings
>
Security
& location
>
Screen lock
.
Unlock—press .
switch silent mode
on/off
Slide silent mode switch up/
down (“your phone” on
page 3).
Google search
Press .
30 personalize
personalize
add your personal touch
make it your home
Change your home screen to show what you want.
Show chips to keep in touch with friends, or get the
latest news and weather. Its up to you!
choose your chips
Choose the chips you want to show. Press >
Add Chips
,
then select the chip you want. To remove a chip, tap and
hold, then tap
Delete
>
Yes
.
Tip:
To open more chips, see “browse panels” on
page 31.
name your chips
To name a chip, tap and hold, then tap
Setup
and enter the
Chip name
.
move your chips
To move a chip, tap and hold, then tap
Move
. Drag the chip
where you want it, then tap
Done
.

Navigation menu
