Introduction
This User Guide introduces you to Sprint® service and
all the features of your new MOTOROLA [PAX]. It’s
divided into four sections:
⽧Section 1: Getting Started
⽧Section 2: Your Phone
⽧Section 3: Sprint Service
⽧Section 4: Safety and Warranty Information
Note: Because of updates in phone software, this printed
guide may not be the most current version for your
phone. Visit www.sprint.com and sign in to access the
most recent version of the user guide.
WARNING: Please refer to the Important Safety Information
section on page 74 to learn about information
that will help you safely use your phone. Failure to
read and follow the Important Safety Information
in this phone guide may result in serious bodily
injury, death, or property damage.
Section 1
Getting Started
2 1A. Setting Up Service
⽧Setting Up Your Phone (page 2)
⽧Activating Your Phone (page 3)
⽧Setting Up Your Voicemail (page 4)
⽧Setting Up Messaging & Social Networking Accounts
(page 4)
⽧Sprint Account Passwords (page 4)
⽧Getting Help (page 5)
Setting Up Your Phone

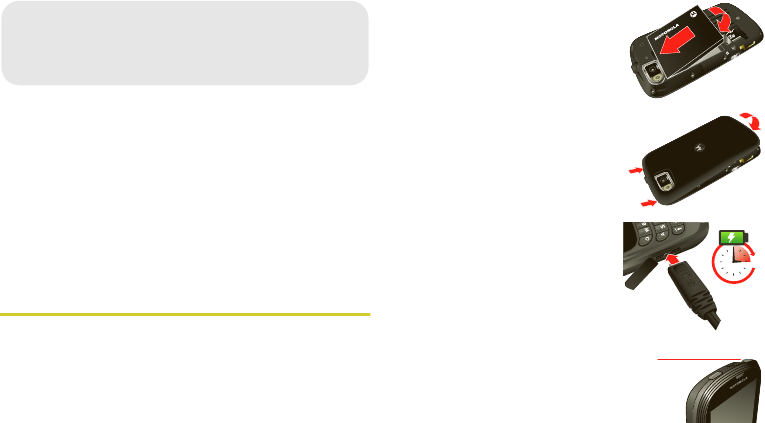

1. Install the battery.
䡲Remove the battery from its packaging.
䡲Insert the battery into the
opening in the back of the
phone, making sure the
connectors align. Gently
press down to secure the
battery.
䡲Position the battery cover
over the battery
compartment and press
down until you hear a
click.
2. Charge your battery for at
least three hours.
3. Press and hold the
Power/Screen Lock
button on top of your
phone to turn it on.
1A. Setting Up Service
3H
Power
Button
1A. Setting Up Service 3
Setting Up Service
䡲If your phone is activated, it will turn on and show
some setup instructions.
䡲If your phone is not yet activated, see “Activating
Your Phone” on page 3 for more information.
4. Follow the prompts to add email and other
accounts. Or, touch Skip to go to the home screen
so you can start to make calls. You can add
accounts later.
䡲Touch the android to begin.
䡲Log on to a Wi-Fi network.
䡲Set up or log into your Google account.
䡲Add additional accounts.
Activating Your Phone
䢇If you purchased your phone at a Sprint Store, it is
probably activated and ready to use.
䢇If you received your phone in the mail and it is for a new
Sprint account or a new line of service, it is designed to
activate automatically. To confirm your activation,
make a phone call.
䢇If you received your phone in the mail and you are
activating a new phone for an existing number on your
account, you will need to go online to activate your
new phone.
䡲From your computer’s Web browser, go to
www.sprint.com/activate and complete the
onscreen instructions to activate your phone.
When you have finished, make a phone call to
confirm your activation. If your phone is still not
activated or you do not have access to the Internet,
contact Sprint Customer Service at 1-888-211-4727
for assistance.
Note: Please read the battery use and safety text in the
important legal and safety information packaged with
your phone.
Tip: Do not press the Power/Screen Lock button while the
phone is being activated. Pressing it cancels the
activation process.
Note: If you are having difficulty with activation, contact Sprint
Customer Service by dialing 1-888-211-4727 from any
other phone.
4 1A. Setting Up Service
Setting Up Your Voicemail
Your phone automatically transfers all unanswered
calls to your voicemail, even if your phone is in use or
turned off. You should set up your Sprint Voicemail and
personal greeting as soon as your phone is activated.
Always use a password to protect against unauthorized
access.
1. Touch to open the dial screen, and then touch
and hold .
2. Follow the system prompts to:
䡲Create your password.
䡲Record your name announcement.
䡲Record your greeting.
For more information about using your voicemail, see
“Voicemail” on page 56.

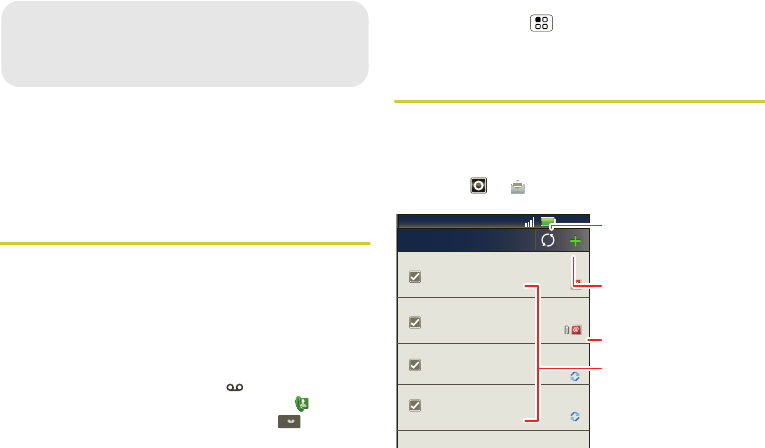

Setting Up Messaging & Social
Networking Accounts
If you skipped the setup steps when you first turned on
your phone, use these steps to add accounts:
1. Touch > Accounts > Add account.
2. To sign into your account, use the user name or
email and password that you set up on that
account (the same as on your computer)
.
Sprint Account Passwords
As a Sprint customer, you enjoy unlimited access to
your personal account information, your voicemail
Note: Voicemail Password
Sprint strongly recommends that you create a
password when setting up your voicemail to protect
against unauthorized access. Without a password,
anyone who has access to your phone is able to
access your voicemail messages.
1
Note: You can add corporate sync (Microsoft® Exchange®),
email, or social networking accounts (such as
Facebook, Twitter, and more) to your phone. If you don’t
have accounts, you can visit their Web sites to set them
up.
Tip: For faster dow nloads and data connection speeds
in Wi-Fi covered areas, , see “Connecting With Wi-Fi”
on page 52.
1A. Setting Up Service 5
Setting Up Service
account, and your data services account. To ensure
that no one else has access to your information, you
will need to create passwords to protect your privacy.
Account Username and Password
If you are the account owner, you will create an account
username and password when you sign on to
www.sprint.com. (Click Sign in and then click Sign up
now! to get started.) If you are not the account owner (if
someone else receives the bill for your Sprint service),
you can get a sub-account password at www.sprint.com.
Voicemail Password
You’ll create your voicemail password when you set up
your voicemail. See “Setting Up Your Voicemail” on
page 4 for more information on your voicemail
password.
Data Services Password
With your Sprint phone, you may elect to set up an
optional data services password to control access and
authorize Premium Service purchases.
For more information, or to change your passwords,
sign on to www.sprint.com or call Sprint Customer
Service at 1-888-211-4727.
Getting Help
Managing Your Account
Online: www.sprint.com
䢇Access your account information.
䢇Check your minutes used (depending on your Sprint
service plan).
䢇View and pay your bill.
䢇Enroll in Sprint online billing and automatic payment.
䢇Purchase accessories.
䢇Shop for the latest Sprint phones.
䢇View available Sprint service plans and options.
䢇Learn more about data services and other products
like Sprint Picture Mail, games, ringers, screen
savers, and more.
6 1A. Setting Up Service
From Your Sprint Phone
䢇Touch to check minute usage and
account balance.
䢇Touch to make a payment.
䢇Touch to access a summary of your
Sprint service plan or get answers to other questions.
From Any Other Phone
䢇Sprint Customer Service: 1-888-211-4727.
䢇Business Customer Service: 1-800-927-2199.
Sprint 411
Sprint 411 gives you access to a variety of services and
information, including residential, business, and
government listings; movie listings or showtimes;
driving directions, restaurant reservations, and major
local event information. You can get up to three pieces
of information per call, and the operator can
automatically connect your call at no additional charge.
There is a per-call charge to use Sprint 411, and you
will be billed for airtime.
䊳Touch .
Sprint Operator Services
Sprint Operator Services provides assistance when you
place collect calls or when you place calls billed to a
local telephone calling card or third party.
䊳Touch .
For more information or to see the latest in products
and services, visit us online at www.sprint.com.
*
GHI
4
*
DEF
3
*
ABC
2
GHI
4
1
1
+
0
Section 2
Your Phone
82A. Phone Basics
⽧Your Phone (page 8)
⽧Viewing Notifications (page 10)
⽧Turning Your Phone On and Off (page 11)
⽧Battery and Charger (page 11)
⽧Viewing Your Phone Number (page 12)
⽧Touch Tips & Navigation (page 12)
⽧Phone Setup Options (page 14)
⽧Making and Answering Calls (page 17)
⽧Entering Text (page 20)
Your Phone
Tip: Phone Software Upgrades – Updates to your phone’s
software may become available from time to time. Sprint
will automatically upload critical updates to your phone.
You can also use the menu to check for and download
updates. Touch > Settings > About phone >
System updates to search for and download available
updates.
2A. Phone Basics
11:58
Add a social net work
Add a social
netw or k
HAPPEN I NGS
UN I VERSAL
I N BOX
No r ecent u nseen
messages
64˚
WOODSTOCK
64˚
WOODSTOCK

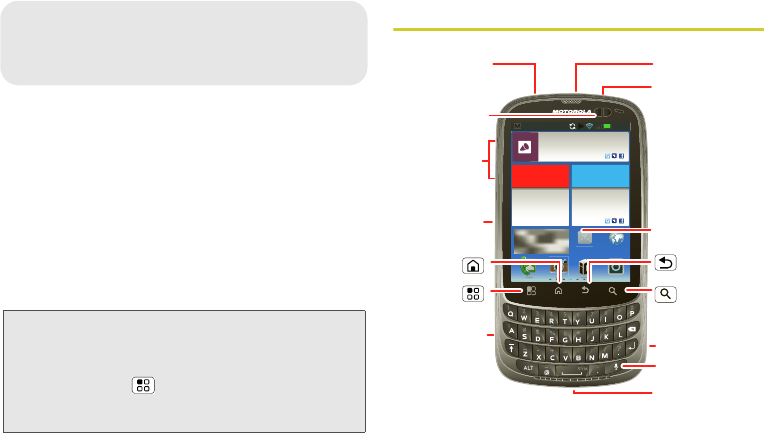

Press=Sleep/
Wake up.
Hold=Turn on/off.
3.5mm
Headset Jack
Home Key Back
Key
Microphone
Menu Key
Micro USB
Connector
Charge or
connect to PC.
Message Light
On=Charged.
Flashing=New
notification.
Volume
Buttons
Search
Key
Touchscreen
Power/
Screen Lock
Button
Mute Button
QChat (PTT)
Button
Camera Button
Speaker
2A. Phone Basics 9
Phone Basics
Key Functions
䢇Mute Button: turn the ringer and sounds on/off.
䢇Message Light: see when you have a new message
or see your phone’s charging status at a glance.
䢇Push to Talk Button: use Direct Call to talk with other
push to talk users.
䢇Volume Buttons: adjust the ringer volume or adjust
the voice volume during a call.
䢇Home Key: return to the home screen. Press and hold
the home key to see your most recently used apps.
䢇Menu Key: open additional options for whatever
screen you are viewing.
䢇Micro USB Connector: connect the phone charger or
an optional USB cable (included). CAUTION!
Inserting an accessory into the incorrect connector
may damage the phone.
䢇Microphone: allow other callers to hear you clearly
when you are speaking to them.
䢇Speaker: use the hands-free speaker or voice
recognition feature when entering text.
䢇Camera Button: open your camera to take photos or
videos.
Note: From the home screen, press the voice key to start a
voice search. If you’re composing a message, press the
voice key to begin dictation.
http:/ /www.m otorola.co m
http:// www.motor ola.com
11:58
Add a so cial n etwor k
Add a so cial
net wo rk
HAPPEN I NGS
UN I VERSAL
I N BOX
No r ecent u nseen
messages
64˚
WOODSTOCK
64˚
WOODSTOCK

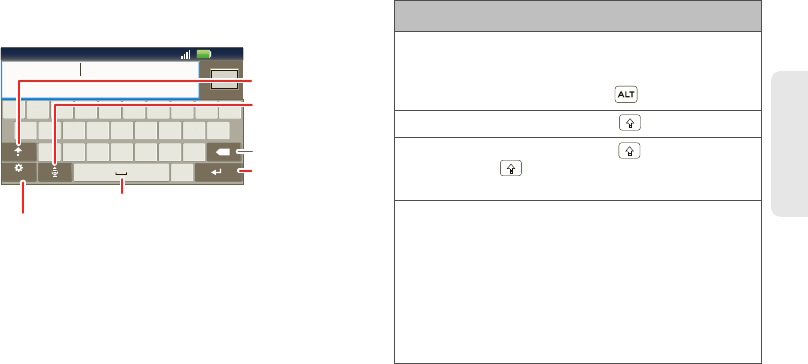

Delete
Enter
Shift
Space Symbols
Alternate
For some features, w hen you
turn your phone, the screen
adjusts for you.
Voice
10 2A. Phone Basics

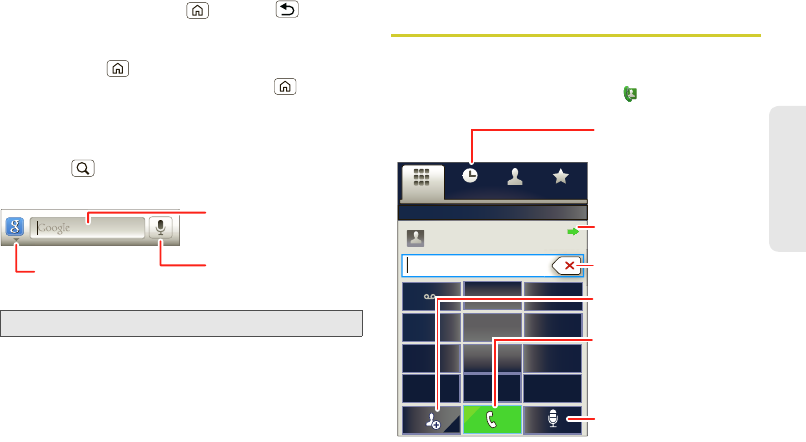

䢇Search Key: open a Google™ search screen so you
can search the web.
䢇Back Key: return to the previous screen.
䢇Touchscreen: display all the information needed to
operate your phone, such as the call status, the
Contacts list, the date and time, and the signal and
battery strength.
䢇Power/Screen Lock Button: turn the phone on or off
or put the display to sleep.
䢇3.5mm Headset Jack: plug in either a stereo headset
(included) or an optional headset for convenient,
hands-free conversations. CAUTION! Inserting an
accessory into the incorrect jack may damage the
phone.

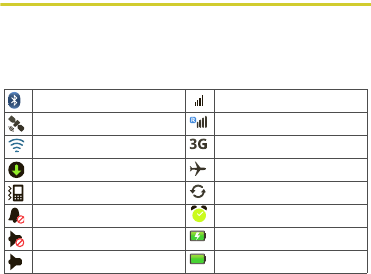

Viewing Notifications
Your phone’s display provides information about your
phone’s status and options. This list identifies some of
the symbols you’ll see:
Bluetooth® active network (full signal)
GPS active network (roaming)
Wi-Fi active 3G data service
downloading airplane mode
vibrate sync active
silent alarm set
mute call battery (charging)
speakerphone active battery (full charge)
2A. Phone Basics 11
Phone Basics
Turning Your Phone On and Off
Turning Your Phone On
䊳Press and hold the Power/Screen Lock button.
Once your phone is on, it may display “Searching for
Service.” When your phone finds a signal, it enters
standby mode – the phone’s idle state. At this point,
you are ready to begin making and receiving calls.
If your phone is unable to find a signal after 15 minutes
of searching, a Power Save feature is automatically
activated. When a signal is found, your phone
automatically returns to standby mode.
Turning Your Phone Off
䊳Press and hold Power/Screen Lock button to open
the phone options menu. Touch Power off to turn
the phone off.
Your screen remains blank while your phone is off
(unless the battery is charging).
Battery and Charger
Sprint-approved or Motorola batteries and accessories
can be found at Sprint Stores or through Motorola; or
call 1-866-866-7509 to order. They’re also available at
www.sprint.com.
Battery Capacity
Your phone is equipped with a Lithium Ion (Li-Ion)
battery. It allows you to recharge your battery before it is
fully drained.
Your phone warns you with a audible alert when the
battery reaches 15% and 5% of its capacity. When
there are approximately two minutes of talk time left, the
phone plays another alert and then turns off.
Tip: The Power Save feature conserves your battery power
when you are in an area where there is no signal.
WARNING: Use only Sprint-approved or Motorola batteries
and chargers with your phone. The failure to use
a Sprint-approved or Motorola battery and
charger may increase the risk that your phone
will overheat, catch fire, or explode, resulting in
serious bodily injury, death, or property damage.
Note: Long backlight settings, searching for service, vibrate
mode, browser use, and other variables may reduce
the battery’s talk and standby times.
12 2A. Phone Basics
Installing the Battery
䊳See “Setting Up Your Phone” on page 2.
Removing the Battery
1. Make sure the power is off so that you don’t lose
any stored numbers or messages.
2. Remove the back cover by pulling up from the
notch at the bottom, and then remove the battery
from the phone.
Charging the Battery
Keeping track of your battery’s charge is important. If
your battery level becomes too low, your phone
automatically turns off, and you will lose any
information you were just working on.
Always use a Sprint-approved or Motorola desktop
charger, travel charger, or vehicle power adapter to
charge your battery.
䊳Plug the flat end of the charger into the phone’s
charger jack and the other end into an electrical
outlet.
With the Sprint-approved Li-Ion battery, you can
recharge the battery before it becomes completely run
down.
Viewing Your Phone Number
䊳Touch > Settings > About phone > Status. (Your
phone number and other information about your
phone and account appear.)
Touch Tips & Navigation
Here are some tips for navigating around your phone.
Touch
To choose an icon or
option, touch it.
Tip: Watch your phone’s battery level indicator and charge the
battery before it runs out of power.
WARNING: Do not handle a damaged or leaking Li-Ion
battery as you can be burned.
64˚
WOODSTOCK
64˚
WOODSTOCK
2A. Phone Basics 13
Phone Basics

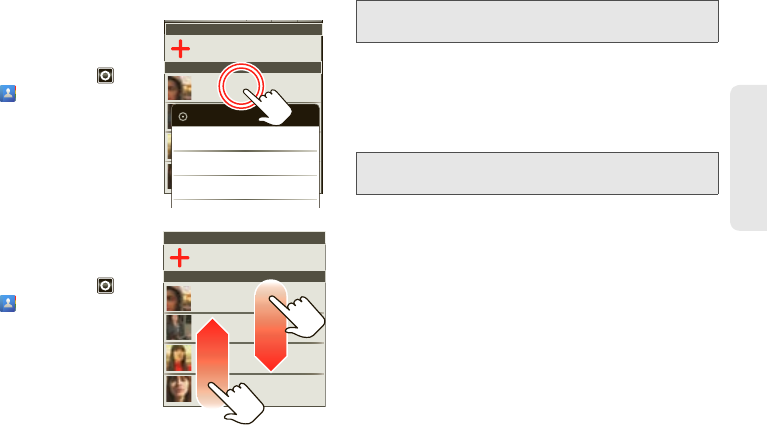

Touch & hold
To open special options,
touch and hold an icon or
other item. Try it: In the
home screen, touch ,
touch , and then touch
and hold a contact to open
options.
Drag
To scroll through a list or
move slowly, drag across
the touchscreen. Try it: In the
home screen, touch ,
touch , and then drag
your Contacts list up or
down.
Flick
To scroll through a list or move quickly, flick across the
touchscreen (drag quickly and release).
Zoom
Get a closer look at maps or web pages. To zoom in,
double-touch the screen. To zoom out, double-touch
the screen again.
Displaying 297 contacts
I n case of emergency
A
Abe Baudo
Allie Sm yth
Anna M edina
Astrid Fanning
Abe Baudo
View cont act
Add to favor it es
Edit contact
Displaying 297 contacts
I n case of emergency
A
Abe Baudo
Allie Sm yth
Anna M edina
Astrid Fanning
Tip: When you drag or flick a list, a scroll bar appears on the
right. Drag the scroll bar to move the list to a letter A - Z.
Tip: When you flick a long list, touch the screen to stop it from
scrolling.
14 2A. Phone Basics
You can also zoom in or out by pinching your fingers
together or moving them apart on the screen.
Phone Covers
Your touchscreen might stay dark during calls if the
sensor just above it is covered. Don’t use covers or
screen protectors (even clear ones) that cover this
sensor.
Screen protectors can also interfere with touchscreen
performance.
Phone Setup Options
Home Screen

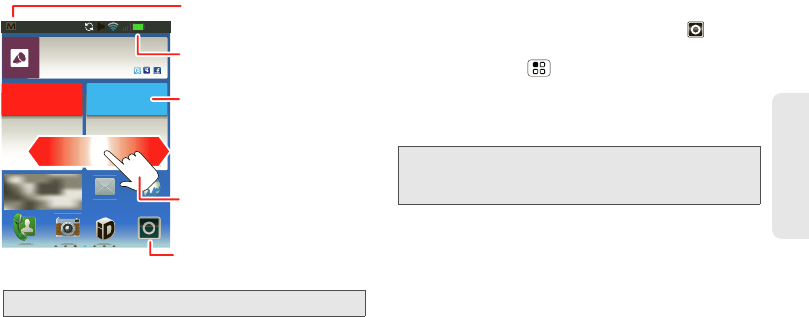

The home screen gives you all your latest information
in one place. It’s what you see when you turn on the
phone or touch Home from a menu.

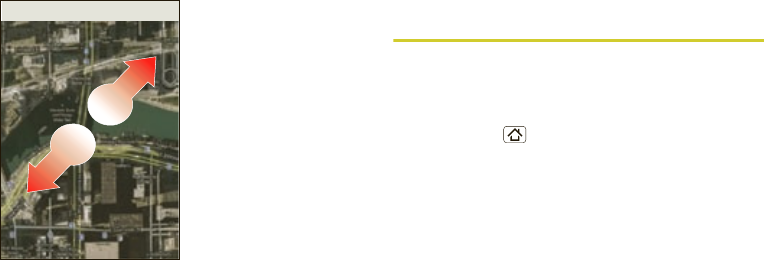

To zoom, touch
with tw o fingers,
then move them
apart.
2A. Phone Basics 15
Phone Basics
The home screen extends beyond what you see on the
screen to give you more room for adding shortcuts,
widgets, and more. Flick the home screen left and right
to see more panels or to add widgets or shortcuts.
Shortcuts
To add shortcuts to the home screen, touch to open
the app menu, and then touch and hold the shortcut
you want. Or, touch > Add > Shortcuts.
You can also add shortcuts directly to the home
screen: touch and hold an empty spot on the home
screen, touch Shortcuts, and select a shortcut.
Widgets
A widget is small app on the home screen that displays
information, such as weather, news, and social
networking updates. You can add a widget, such as a
clock, music player, or a calendar that shows
upcoming appointments. To open a widget, touch it.
Creating Widgets
1. Find an empty spot on your home screen where
you want to add a widget. You can flick left or right
to open other panels on your home screen.
Note: Your home screen might look a little different.
11:58
Add a social netwo rk
Add a social
net w or k
HAPPEN I N GS
UN I VERSAL
I N BOX
No recent un seen
messages
64˚
WOODSTOCK
64˚
WOODSTOCK
Battery Status
Flick left or right to
see more screens.
Open the app menu.
Notifications
Flick this bar down
to see details.
Widget
Touch to open.
Touch & hold to
move, delete, or
more.
Tip: You can launch your frequently used applications directly
from the keyboard. For example, set Search+B to launch
browser, or Search+D for the dialer.
16 2A. Phone Basics
2. Touch and hold the empty spot until you see the
Add to Home screen menu.
3. Touch Motorola widgets or Android widgets.
4. Touch the type of widget. If necessary, enter the
widget settings.
Setting Up Widgets
You can customize some widgets. Touch a widget to
open it, and then touch .
You may already have several useful widgets on your
home screen:
䢇Messages: Change the widget name or choose how
long it shows new messages. To add email
accounts, see “Setting Up Messaging” on page 57.
䢇Music: Set this widget to an artist, album, song,
playlist, or just touch > Party shuffle. There’s more
about “Music” on page 65.
䢇News: Change the widget name, choose how long it
shows new stories, or choose a news source. To
choose a source, touch , and then choose preset
Bundles or Channels, or choose Custom to enter a
URL for a Webpage or an RSS feed.
䢇Weather: Change temperature units or add locations.
To add locations, touch , enter a city, and touch
Search. When you open the weather widget, flick left
to see other locations you added.
App Menu
The app menu shows
you all of your
applications. To open
it from the home
screen, touch .
Flick up and down to
see all of your apps.
Any new apps that you download (see “Android
Market™” on page 62) are added to the app menu.
Tip: You can change a widget’s size. Just touch and hold the
widget. When the widget’s outline turns white, drag one of
the corners to make it the size you want.
Note: If you install apps from Android Market™ that have
widgets, touch and hold the home screen, and then
select a widget to add to the home screen.
64˚
WOODSTOCK
64˚
WOODSTOCK
2A. Phone Basics 17
Phone Basics
To close the app tray, touch Home or Back.
Recent Apps
Touch and hold to see the last few apps you used,
and then touch the app you want. Touch to return
to the home screen.
Search
䊳Touch Search to start a Google search.
Making and Answering Calls
Making Calls
䊳From the home screen, touch .
Note: You can also use the Voice search key on the keypad.
Search by voice.
Enter text.
View more search
options.
Cont acts
Recent Favorites
Dialer
Most Recent
Julie Sm ith
Mobile 1-555-555-5555 1 hou r ago
g
GHI
ABC DEF
MNO
TUV
PQRS WXYZ
*
+
#
4
123
6
8
79
0
5
JKL
Return Call
Recent
Calls List
Touch to open,
then touch an
entry to call.
Call
Enter a phone
number &
touch here to
call it.
Add to
Contacts
Voice Dial
Delete
18 2A. Phone Basics

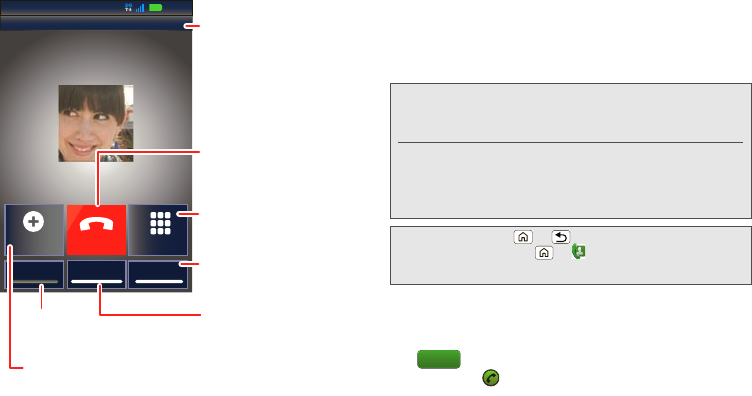

In-Call Options During a call:
䢇To use a Bluetooth® device, touch Bluetooth. (First,
turn on your phone and pair it. See “Connecting New
Devices” on page 51.)
䢇To mute a call, touch Mute.
䢇To use the speakerphone, touch Speaker.
Answering Calls
䊳To answer a call while the display is active, touch
. When the display is not active, answer by
dragging to the right.
Connected 00:12 Verizon Wireless
Add call
Bluetooth Mute
DialpadEnd call
Mobile (555) 555-7931
Chicago, IL
Kristine Kelley
Speaker
11:35
Call Timer
Mute
Touch to mute or
unmute the call.
End Call
Touch to hang up.
Speaker
Touch to turn the
speaker on or off.
Dial Pad
Touch to enter
numbers during a call.
Bluetooth
Sw itch to a Bluetooth
device.
Add Call
Create a 3-w ay call.
Note: Using a mobile device or accessory while driving may
cause distraction and may be illegal. Always obey the
laws and drive safely.
Your phone includes a proximity sensor. When you
hold the phone to your ear, the display goes dark to
prevent accidental touches. When you move your
phone away from your ear, the display lights up again.
Tip: You can touch or to leave the active call display.
To reopen it, touch > > Return to call in
progress.
Answer
2A. Phone Basics 19
Phone Basics
If the incoming call is from one of your Contacts, the
person’s name is displayed. You may also see the
caller’s phone number, if available.
Ending a Call
䊳To end a call, touch End Call.
Recent Calls
䊳To see recent or missed calls, touch > Recent
䡲To call a number, touch .
䡲To send a text message, touch and hold an entry.,
and then select Send text message.
䡲To clear the list, touch > Clear list.
Calling Emergency Numbers
1. Touch . (If your phone is locked, touch
Emergency Call.)
2. Enter the emergency number.
3. Touch to call the emergency number.
Enhanced 911 (E911) Information
This phone features an embedded Global Positioning
System (GPS) chip necessary for utilizing E911
emergency location services where available.
When you place an emergency 911 call, the GPS
feature of your phone seeks information to calculate
Tip: To ignore a call, touch Ignore.
Note: Screen protectors can interfere with touchscreen
performance. Aftermarket screen protectors must have
an opening for the proximity sensor to operate properly.
You may experience abnormal function if an after-
market-protector or protective film covers proximity
sensor area at the top of the phone.
Note: Your service provider programs one or more
emergency phone numbers (such as 911 or 112) that
you can call under any circumstances, even when your
phone is locked. Emergency numbers vary by country.
Your pre-programmed emergency number(s) may not
work in all locations, and sometimes an emergency call
cannot be placed due to network, environmental, or
interference issues.
Note: Your mobile device can use GPS and AGPS signals to
help emergency services find you.
20 2A. Phone Basics
your approximate location. Depending on several
variables, including availability and access to satellite
signals, it may take up to 30 seconds or more to
determine and report your approximate location.
Cool Down
In very limited circumstances, such as where your
phone has been exposed to extreme heat, “Cool
Down” message screens will appear. To avoid possible
damage to your battery and phone, you should follow
these instructions until the phone is within its
recommended temperature range. When your phone is
in “Cool Down” mode, only emergency calls can be
made.
Entering Text
You can type using the phone’s QWERTY or
touchscreen keyboard.
QWERTY Keyboard
.
Touchscreen Keypad
Touch a text field to open a touchscreen keypad. Press
Back to close it.
To move the cursor, touch where you want to move it.
Important: Always report your location to the 911 operator
when placing an emergency call. Some
designated emergency call takers, known as
Public Safety Answering Points (PSAPs) may not
be equipped to receive GPS location information
from your phone.
Tip: When you type, your phone suggests words for you. You
can turn this on or off or explore other options by
touching >
Settings > Language & keyboard.
Note: When you’re entering text, press the Voice Key to begin
voice recognition dictation.
Voice Key
Symbols
Alternate
Keys
2A. Phone Basics 21
Phone Basics
Multi-Touch Keypad
Use the touch screen keypad to enter letters one at a
time.
Typing Tips
as
zxcvbnm
df g h j k l
we r t yu i op
?123
s
a
f
d
h
g
k
j
l
z
c
x
b
v
m
n
w
r
e
y
t
i
u
o
p
.
q
Dinner at Bistro V
Next
x
11:35
cDelete
Return/
New Line
Space
Letters/ Numbers
Touch to open a keypad for
symbols or numbers.
Shift
Microphone
Touch for voice
input.
To...
Enter alternate
characters
To enter characters
appearing at the top of the
keys (including numbers),
touch .
Enter one capital letter Touch Shift.
Enter only capital letters,
until you touch Shift
again
Touch
Shift twice. Touch
again to revert to lowercase.
Select text Touch and hold text to select
it.
Or, when viewing a web page
or received message, touch
and hold text until you see
two bookend cursors. Drag
the cursors to either end of
the text to select. Touch the
selected text for more options.
22 2A. Phone Basics
Input Methods
To select an input method, touch and hold a text entry
area on the screen to open the Edit text menu. Touch
Input method, and then touch the method you want.
Auto-Correction
As you type, your phone suggests words from your
dictionary and chosen language.
Your phone also automatically enters apostrophes in
some words, like “dont.” You can also touch two keys at
the same time, such as Shift with a letter.
Text Input Settings
䊳Touch > Settings > Language & keyboard.
Cut or Copy selected text Touch and hold text, then
touch Select word or Select
all.
Touch and hold again, then
select Cut or Copy.
Move the cursor Touch where you want to
move the cursor. When you
see a red icon, drag it to
where you want the cursor.
Paste cut or copied text Touch and hold location to
paste then touch Paste.
Delete a character (hold
to delete more) Touch Delete.
To...
2B. Settings 23
Settings
⽧Before Making Your First QChat Call (page 23)
⽧Your QChat Number (page 23)
⽧Making QChat Calls (page 24)
⽧Using Group Connect (page 27)
QChat offers instant, two-way push-to-talk (PTT)
communication between you and your family, friends, and
co-workers, all at the click of a button. Perfect for get-in
get-out conversations such as checking status, getting
information, getting directions or coordinating with
others — fast. And Call Alert sends a repeating alert to
other QChat subscribers to let them know you want to
reach them.
Before Making Your First QChat Call
For QChat to be enabled on your phone, it must be
added to your account by a Sprint Customer Service
representative. See See “Activating Your Phone” on
page 3.
Register and Activate QChat:
To confirm QChat is activated on your account:
䊳Touch > Settings > Call settings > Direct
Connect Settings > Update DC.
Your QChat service with the Sprint Network is
validated, and then your phone is restarted.
Your QChat Number
Your Sprint phone allows you two different options for
your QChat Number:
䢇Separate numbers (DC Only) — Your QChat number
is a unique number (not your wireless number). It will
2B. QChat
Note: When the QChat is active, both the On/Off and Net
Guard features are disabled.
Note: If the Net Guard feature is ever enabled, this indicates
that QChat is no longer active on your account.
Enabling Net Guard can interfere with your QChat
functionality.
24 2B. Settings
be made up of three sets of digits separated by
asterisks (for example, 444*5555*111).
䢇A single number (Mobile+DC) — Your QChat number
is the same as your wireless number (for example,
555-555-1234).
Dialing QChat Numbers
䢇If the person you are calling has a separate number
for QChat, make sure you dial any asterisks (*) in the
number. If you are saving the number in your
Contacts, choose DC Only for the phone type.
䢇If the person you are calling has a single number for
both voice calls and for QChat, use that
10-digit phone number to make QChat calls. You do
not need to add any asterisks (*) to the number. If
you are saving this number in your contacts, choose
Mobile+DC for the phone type.
Making QChat Calls
Making a QChat Call by Entering a
Number
1. Touch to enter a QChat number.
䡲The QChat number may be the 10-digit wireless
phone number of the person you are calling
(Mobile+DC).
– or –
䡲If calling a QChat customer, the QChat number
may have three parts with an asterisk between
each part (for example: 444*4444*444). When
dialing or saving this type of number, always
include the asterisks *.
Tip: Users with Nextel phones must add asterisks (*) between
sets of numbers to dial QChat numbers. If you use a
single number, make sure to tell your contacts with Nextel
phones to dial the 10-digit number using asterisks (*) in
place of hyphens (for example, 555*555*1234).
To easily ensure that your contact has your correct
number, call them so that they can save your number.
2B. Settings 25
Settings

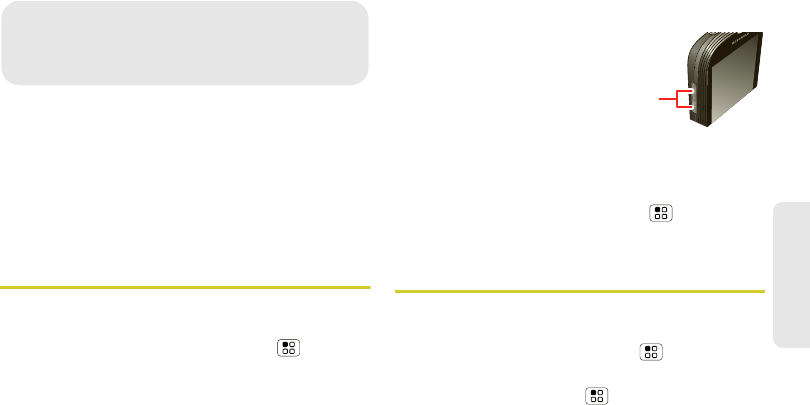

2. Press and release the QChat button on the side of
your phone.
䡲Pressing and releasing the QChat button “pings”
the recipient. The recipient’s phone emits an
incoming tone and displays your name or
number. If available, he or she can choose to
respond and begin the conversation.
䡲Alternatively, you can hold the button and speak
after you first press and hear the tone. In this case,
your voice will be broadcast instantly over the
recipient’s speaker. Pinging the recipient’s phone
by pressing and releasing may avoid
unintentional interruptions.
3. After the call has been accepted:
䡲Wait for “Open” to appear onscreen.
䡲Press and hold the QChat button.
䡲Wait for a tone to sound and “Me” to appear
onscreen before you begin talking.
4. Release the QChat button to listen.
5. Touch End Call to end the call.
Making a QChat Call From Contacts
1. Touch select from contacts.
2. Touch an entry to select it.
3. Touch the entry’s QChat-capable number (DC Only
or Mobile+DC).
4. Press and release the QChat button to make the
QChat call.
Making a QChat Call From History
1. Touch > Recent.
2. Select a QChat entry and press and release the
QChat button.
Answering QChat Calls
When you receive a QChat call, you hear an incoming
tone or the phone vibrates, if your phone is in vibrate
Tip: All QChat calls end automatically if there is no activity on
the call for several seconds.
Note: To display your QChat number, touch > Settings
> About phone > Status > My phone number > DC
Number.
26 2B. Settings
mode. The QChat number and the caller’s name (if
available) will appear on your screen. Speakerphone is
turned on by default for QChat calls, so you may also
hear the caller’s voice. You can turn the speakerphone
off and listen to QChat calls through the earpiece as
you would a regular call or you can listen through a
headset.
1. Press the speakerphone button to either enable or
disable the QChat speakerphone feature.
2. Accept the incoming call. If available, the caller’s
name and QChat number also appear on the
display.
3. When the caller has finished speaking, a tone
sounds and “Open” appears on the display.
4. Press and hold the QChat button and wait for a
tone to sound and a message (“Me”) to appear
onscreen. Continue the QChat call as described
previously.
Ending a QChat Call
1. Do nothing; the call will automatically end after
several seconds if the QChat button is not pressed
by either party.
– or –
Touch End Call.
Using Call Alerts
Notify someone that you want to communicate with
them using QChat. You can send a Call Alert to any
other QChat subscriber nationwide. When you receive
a Call Alert, pressing the QChat button connects a
QChat call directly.
Tip: Quieting incoming calls and increasing your privacy.
When you are in an area where incoming QChat calls
may disturb others or if you want to increase the privacy
of your calls, set your speakerphone to Off and your
ringer to vibrate. When the speakerphone is off, QChat
calls use the phone’s earpiece and microphone, while
still utilizing the QChat button. You can also use an
earbud or other hands-free device.
2B. Settings 27
Settings
Sending a Call Alert
1. Enter a QChat number or select a number from
Recent History or Contacts.
2. Touch Start Call Alert.
Replying to a Call Alert
䊳With the Call Alert displayed, press and hold the
QChat button to return the call.
To dismiss a Call Alert:
䊳Touch Ignore.
Setting QChat Permissions
1. Touch > Settings > Call settings > Direct
Connect Settings > Permission Settings.
2. Touch Permissions type and select:
䡲Block List: Accept all Direct Connect calls, except
those from numbers I block
䡲Select List: Reject all DC calls, except those from
numbers I allow.
3. Touch either Block list or Allow list to add contacts
to either.
Using Group Connect
A Group Connect call is a QChat call made to up to 20
QChat users nationwide at one time. You can make a
Group Connect call in several different ways:
䢇By setting up a Group contact on your phone.
䢇By using the Sprint Mobile Sync tool available at
www.sprint.com.
䢇By selecting or entering multiple numbers for a
one-time call.
(For information on creating Groups and storing them
in Contacts, see “Making Groups” on page 38.)
Note: Call Alerts continue to repeat for a set amount of time
(default is 5 minutes) or until the recipient returns the
call or dismisses the alert. You can adjust the time by
touching >Settings > Call settings > Direct
Connect Settings > Call Alert and Invites.
Tip: You can also allow or block numbers directly from the
Contacts list or Recent History.
28 2B. Settings
Making Group Connect Calls
䊳Make a group call by selecting saved groups from
your Contacts, selecting from group calls saved in
History or by creating a group.
Making a Group Connect Call From
Contacts
1. Touch > .
2. Select a Group that contains QChat contacts and
press the QChat button to begin the Group
Connect call.
Making a Group Connect Call From
History
1. Touch > > Recent.
2. Select a Group Connect call entry and press the
QChat button.
Setting Group Termination Options
1. Touch > Settings > Call settings > Direct
Connect Settings > Group Call Options.
2. Select an option:
䡲End the call for everyone when I exit a group call I
initiated: terminates the call session for all
connected members.
䡲Allow the call to continue when I exit a group call I
initiated: keeps the call active even after you hang
up. The call will remain active until the last
members disconnect.
Important: When making a Group Connect call or creating a
group list in Contacts, you must select an entry’s
QChat-capable number. If a non-QChat-capable
number is selected, the name will be added to
the list, but Group Connect calls will not go
through to that group member.
Note: When making a Group Connect list, make sure you
select the QChat number for each contact you add.
Note: Only one person at a time may speak on any QChat or
Group Connect Call.
Tip: You can also use these steps to re-join a group call if
you’re dropped from it.
2C. Settings 29
Settings
⽧Sound Settings (page 29)
⽧Display Settings (page 29)
⽧Location Settings (page 30)
⽧Airplane Mode (page 31)
⽧TTY Use With Sprint Service (page 31)
⽧Security Settings (page 32)
Sound Settings
Ringtones
䊳To personalize your ringtones, touch >
Settings > Sound > Phone ringtone or Notification
ringtone.
Adjusting the Phone’s Volume Settings
䊳Press the volume buttons
to change the ring
volume (in the home
screen), or the earpiece/
speaker volume (during
a call or while listening to
music).
Vibrate
䊳To set your vibrate options, touch > Settings >
Sound > Vibrate.
Display Settings
Changing the Display Screen
䊳To set display brightness, touch > Settings >
Display > Brightness.
䊳To set orientation, touch > Settings > Display >
Auto-rotate screen.
2C. Settings
Volume
Buttons
30 2C. Settings
䊳To set animation, touch > Settings > Display >
Animation.
Wallpaper
To apply a new wallpaper:
1. Touch and hold an empty spot on your home
screen.
2. Touch Wallpapers.
3. Touch Gallery, ID wallpapers, Live wallpapers, or
Wallpapers, and choose a wallpaper.
Display Language
To set your menu language and region:
䊳Touch > Settings > Language & keyboard >
Select locale.
Changing the Date & Time
To set date, time, time zone, and formats:
䊳Touch > Settings > Date & time.
Location Settings
Your phone is equipped with a Location feature for use
in connection with location-based services.
The Location feature allows the network to detect your
position. Turning Location off will hide your location
from everyone, except 911.
Note: Some apps are designed so that your phone can
“animate” them by rotating, fading, moving, and
stretching one or more images.
Note: Turning Location on will allow the network to detect
your position using GPS technology, making some
Sprint applications and services easier to use. Turning
Location off will disable the GPS location function for all
purposes except 911, but will not hide your general
location based on the cell site serving your call. No
application or service may use your location without
your request or permission. GPS-enhanced 911 is not
available in all areas.
2C. Settings 31
Settings
To enable your phone’s Location feature:
䊳Touch > Settings > Location & security and
select one or more services to use.
Airplane Mode
Airplane Mode turns off all your wireless connections
and allows you to use many of your phone’s features,
such as Games, Notepad, and Voice Memos, when
you are in an airplane or in any other area where
making or receiving calls or data is prohibited. When
you set your phone to Airplane Mode, it cannot send or
receive any calls or access online information.
䊳Press and hold the Power/Screen Lock button
and then touch Airplane mode.
TTY Use With Sprint Service
A TTY (also known as a TDD or Text Telephone) is a
telecommunications device that allows people who are
deaf, hard of hearing, or who have speech or language
disabilities to communicate by telephone.
Your phone is compatible with select TTY devices.
Please check with the manufacturer of your TTY device
to ensure that it is compatible with digital cell phones.
Your phone and TTY device will connect via a special
cable that plugs into your phone’s headset jack. If this
cable was not provided with your TTY device, contact
your TTY device manufacturer to purchase the
connector cable.
To turn TTY Mode on or off:
䊳Touch > Settings > Call settings > TTY mode
and select an option.
For additional information about Sprint Relay Services
and TTY compatibility, call Sprint Relay Customer
Service at 800-676-3777 or visit www.sprintrelay.com.
32 2C. Settings
Security Settings
Screen Lock
Lock the screen in the following ways:
䊳Press the Power/Screen Lock button on top of the
phone.
䊳Let the screen time out (don’t press anything).
䊳Switch the power off.
To unlock the screen, press the Power/Screen Lock
button. Then, drag to the right.
Lock Pattern
1. To set the lock pattern, touch > Settings >
Location & security > Set up screen lock > Pattern.
2. Follow the instructions to draw your lock pattern.
3. When prompted, draw the pattern to unlock the
phone.
Password or PIN Lock
1. To set the passcode, touch > Settings >
Location & security > Set up screen lock >
Password or PIN.
2. Enter password or a numeric PIN, and then
confirm it.
3. When prompted, enter the password to unlock the
phone.
WARNING: 911 Emergency Calling
Sprint recommends that TTY users make
emergency calls by other means, including
Telecommunications Relay Services (TRS),
analog cellular, and landline communications.
Wireless TTY calls to 911 may be corrupted
when received by public safety answering points
(PSAPs), rendering some communications
unintelligible. The problem encountered appears
related to software used by PSAPs. This matter
has been brought to the attention of the FCC,
and the wireless industry and the PSAP
community are currently working to resolve this.
Note: You can make emergency calls on a locked phone
(see “Calling Emergency Numbers” on page 19). A
locked phone still rings, but you need to unlock it to
answer.
2C. Settings 33
Settings
Forgot Your Pattern Or Passcode?
If you forget your pattern, password, or PIN, contact
Sprint.
Resetting Your Phone
䊳To reset your phone to factory settings and erase
all the data on your phone, touch > Settings >
Privacy > Factory Data Reset > Reset Phone.
WARNING: All data on your phone will be deleted. (Nothing
on your memory card is deleted.)
34 2D. History
⽧Recent Calls (page 34)
⽧Frequent Calls (page 34)
Recent Calls
To see all recent calls (call history):
䊳Touch > Recent.
䡲To call a number, touch it.
䡲To send a text message, create a contact, view a
contact, or other options, touch and hold an entry.
䡲To clear the list, touch > Clear List.
Frequent Calls
䊳Press > Favorites.
䡲To call a number, touch it.
䡲To send a text message, view a contact, or other
options, touch and hold an entry.
2D. History
2E. Contacts 35
Contacts
⽧Viewing Contacts (page 35)
⽧Creating Contacts (page 36)
⽧Transferring Contacts (page 36)
⽧Calling Or Emailing Contacts (page 37)
⽧Viewing and Using Contacts (page 37)
⽧Editing Or Deleting Contacts (page 38)
⽧Synchronizing Contacts (page 38)
⽧Synchronizing Contacts (page 38)
⽧Making Groups (page 38)

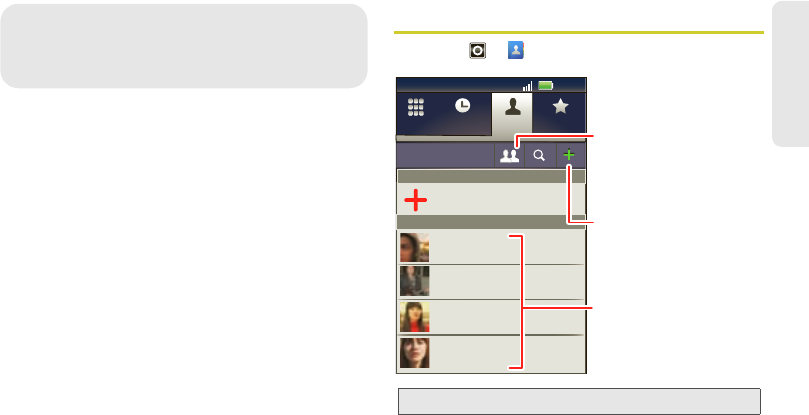

Viewing Contacts
䊳Touch > .
2E. Contacts
Tip: To search the list, begin typing a name.
Displaying 297 contacts
9-1-1 Em ergency
A
Abe Baker
Allie Sm yt h
Anna Medina
Astrid Fanning
11:35
Cont acts
Recent Favorites
Dialer Group
Create and view
groups of contacts.
Create Contacts
Contacts List
Touch to view contact
information. Touch & hold
to call, send a text
message, & more.
36 2E. Contacts

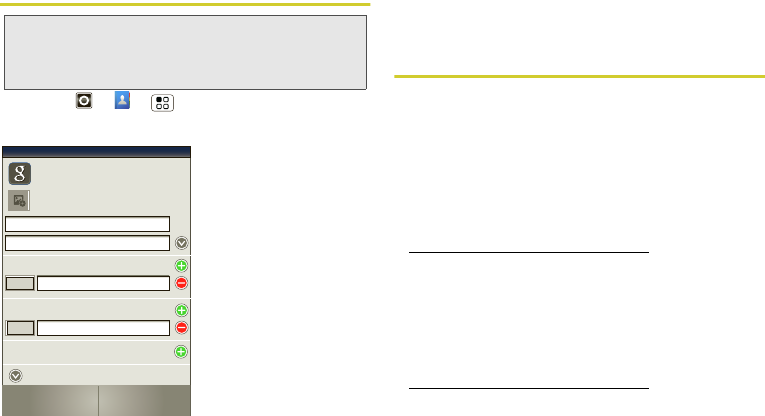

Creating Contacts
1. Touch > > > Add contact.
2. Choose an account for storing your contact.
3. Fill in as much or as little information as you'd like.
4. When you’re finished, touch Save.
Transferring Contacts
Get all your contacts, all in one place. Here’s a few
helpful hints:
䢇Use Gmail™: All your Gmail contacts are
automatically synced to your phone. Various
computer applications for mobile phones and email
accounts allow you to export your contacts as a
“.CSV” file. You can then use Gmail to import the file.
For more details, go to
www.motorola.com/transfercontacts or log in to your
Gmail account on your computer and select ”Help”.
䢇Use a microSD card: You can transfer contacts from
your old phone to your new Motorola phone using a
microSD card. See “Transferring Contacts Using a
microSD Card” on page 37.
䢇More: Find other methods and tools to help you at
www.motorola.com/transfercontacts.
Note: Before entering contacts, you must set up at least one
email account on your phone. See “Setting Up Your
Voicemail” on page 4 or “Setting Up Messaging” on
page 57.
Sar a
Walker
Cont acts
Phon e
Google contact
fr om you r accou nt @gmai l.co m
Hom e
Em ail
Hom e
Postal addr ess
Save Cancel
More
2E. Contacts 37
Contacts
Transferring Contacts Using a microSD
Card
1. On your old phone, copy all the contacts to your
microSD card. (They'll be copied as a VCard file.)

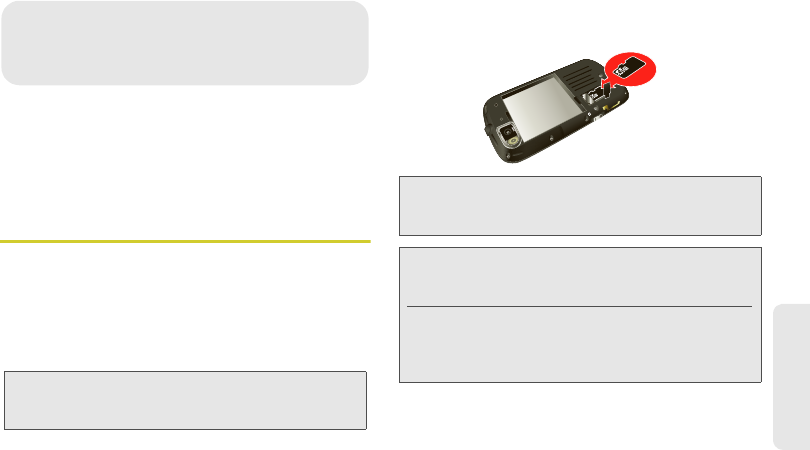

2. Insert the microSD card in your new phone. See
“Your Phone’s microSD Card” on page 43.
3. To import the contacts from your SIM card, touch
> , and then touch > Import/Export. >
Import contacts from: SD card.
Link Contacts
You might have two or more Contacts for the same
person, such as a friend with two email addresses. To
combine these contacts:
1. Touch > .
2. Touch a contact to open it, then touch > Link
contact and touch the second entry.
Calling Or Emailing Contacts
1. Touch > .
2. For View contact, Call contact, Send text message,
Send email, or other options, touch and hold the
contact.
Viewing and Using Contacts
When you set up a social networking account (see
page 4), you’ll know what everybody’s up to and when.
䊳Touch > .
䡲To find a contact, type the contact name. Touch a
contact to open its details. Flick the screen left or
right to see Social Networking updates or History.
䡲To change which group of contacts is shown (All,
Facebook, and so on) touch the filter name at the
top.
䡲To change how you view the list of contacts, flick
left or right at the bottom of the screen to select
History (recently used), A-Z (list without status), or
Status (list with status).
38 2E. Contacts
Editing Or Deleting Contacts
1. Touch > .
2. Touch the contact, and then touch > Edit or
Delete.
Synchronizing Contacts
When you change one of your Contacts, your phone
automatically updates your other social networking
accounts. Also, your phone updates your Contacts and
social networking account whenever you change a
friend in your social networking accounts.
Making Groups
䊳Touch > > > .
You can put your Contacts into groups that you
create (like “friends”, “family”, or “work”). Then, you
can find contacts faster by showing one group at a
time.
2F. Calendar & Tools 39
Calendar / Tools
⽧Calendar (page 39)
⽧File Manager (page 39)
⽧Alarm Clock and Timer (page 40)
⽧Calculator (page 40)
⽧Updating Your Phone Software (page 41)
Calendar
䊳Touch > Calendar.
Your calendar events can be viewed in different ways:
Touch > Agenda, Day, Week, or Month. When you
highlight an event, more details appear.
Adding Calendar Events
1. From any view, touch > More > New event.
Enter the event start time and other details. You
can even set a reminder so you don’t forget about
the event. (When you set the reminder time to 0
minutes, it plays at the event start time.)
2. When you finish entering event details, touch Save.
Managing Calendar Events
䊳To edit an event, touch and hold it, and then
touch Edit event. When you’re done, touch Save.
䊳To delete an event, touch and hold it, and then
touch Delete event.
䊳To go to today, touch > Today.
File Manager
File Manager allows you to manage files such as
pictures, videos, music, and applications stored on the
microSD card.
䊳Touch > Files > SD card.
Tip: You can set up multiple calendars through your Gmail
account so you can access them from your phone
wherever you go.
2F. Calendar & Tools
40 2F. Calendar & Tools
Touch a file or folder to open, and then touch and hold
a file to Delete or Share.

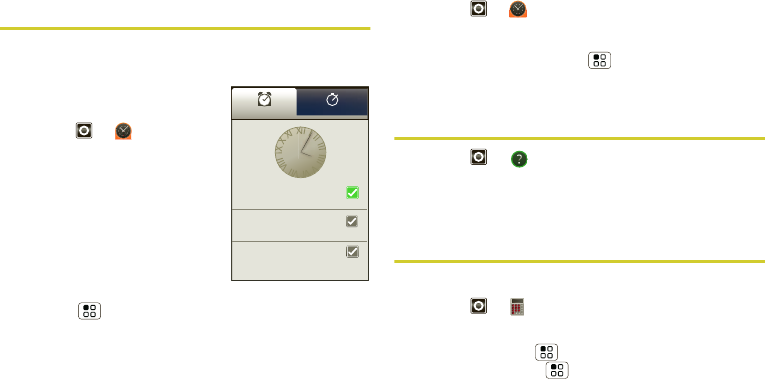

Alarm Clock and Timer
Alarm Clock
Your phone has multiple alarm
capabilities.
䊳Touch > Alarm &
Timer > Alarm.
䡲To turn on an alarm, touch
the check box.
䡲When an alarm sounds,
slide to Dismiss to turn it
off or Snooze to delay for
five minutes.
䡲To add an alarm,
touch > Add alarm, and then enter alarm
details. Touch Done when you are finished.
䡲To enable or disable an alarm, touch the check
box.
Timer
To set a timer:
1. Touch > Alarm & Timer > Timer.
2. Set a time and touch Start.
䡲For timer details, touch > Settings, change
your settings, and then touch Done.
Help Center
䊳Touch > Help Center.
You can also flick your home screen left or right to
see the Tips & Tricks widget.
Calculator
Your phone comes with a handy calculator.
䊳Touch > Calculator.
Your calculator has basic and advanced views. To
change views, touch > Advanced panel/Basic panel.
To clear history, touch > Clear history.
Alarm Tim er
every day
7:00
8:30
9:00
Tuesday
AM
AM
AM
Tue, Fri
PM
PM
PM
2F. Calendar & Tools 41
Calendar / Tools

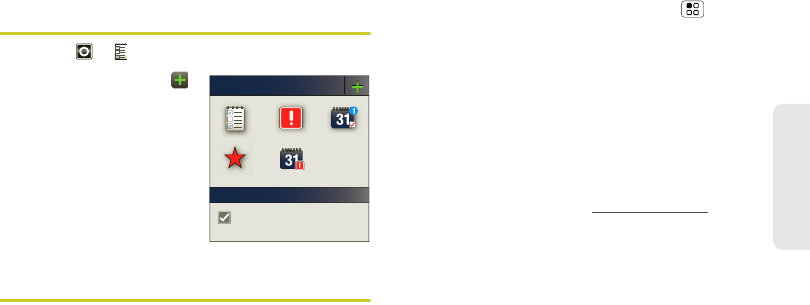

Tasks
1. Touch > Tasks.
2. To add a task, touch .
Touch an icon to view
your tasks by due date,
priority, and more.
Updating Your
Phone Software
Stay up to date with the latest software updates for your
phone. You can check, download and install updates
using your phone, or using your computer:
䢇Using your phone:
You may get an automatic notification of an
available update on your phone. Simply follow the
instructions to download and install.
To manually check for updates, touch >
Settings > About phone > System updates.
Your phone downloads any updates over your
mobile network. Remember, these updates can be
quite large (25MB or more) and may not be
available in all countries. If you don’t have an
unlimited data plan, or mobile network updates are
not available in your country, you can update using
a computer.
䢇Using your computer:
On your computer, go to www.motorola.com, search
for your phone model, and check the “Software”
links. If an update is available, follow the
installation instructions.
Tasks
Due today
Task s Overdu e Du e t oday
St ar red By pr i ority
Due on: Fri, M ay 27, 2011
Pick Up Cake
42 2G. Voice Services
Voice Actions
䊳To begin a voice search, press the Voice key on
the keypad.
Or, press the Voice key and say one of the following
commands:
Voice Commands
For more voice commands, touch > Voice
Commands and follow the prompts.
Note: If you’re writing a text message, press the Voice key to
begin dictation mode. Your phone recognizes words
you speak and enters them into your message.
To... Say...
Map a route “navigate to”
Send a text message “send text”
Make a call “call”
Send email “send email”
Find local businesses “map of...”
2G. Voice Services
Browse the web “go to”
Make a voice note “note to self”
Get directions “directions to”
Tip: To learn more about voice actions, press the Voice key on
the keypad, and then select Watch Video.
Tip: For quick access to Voice Commands, add a shortcut to
one of the home screens. Touch and hold an empty area,
and then touch Shortcuts > Applications > Voice
Commands.
To... Say...
2H. microSD Card 43
microSD Card
⽧Your Phone’s microSD Card (page 43)
⽧microSD Card Settings (page 44)
⽧microSD Card Files (page 44)
⽧Connecting Your Phone to Your Computer (page 44)
Your Phone’s microSD Card
The microSD Card
Your phone is equipped with a preinstalled microSD
(Secure Digital) memory card to expand the phone’s
available memory space. It allows you to store images,
videos, music, and voice data in your phone.
Inserting the microSD Card
Note: You can easily damage the microSD card by improper
operation. Please be careful when inserting, removing,
or handling them.
2H. microSD Card
Note: Be sure to use only recommended microSD cards.
Using non-recommended microSD cards could cause
data loss and damage your phone.
Note: DO NOT remove a microSD card while files are being
accessed or transferred. Doing so will result in loss or
damage of data.
Make sure your battery is fully charged before using the
microSD card. Your data may become damaged or
unusable if the battery runs out while using the
microSD card.
44 2H. microSD Card
microSD Card Settings
Viewing Memory in the microSD Card
䊳With the microSD card inserted, touch >
Settings > Storage. (The used and available
memory space will be displayed.)
Formatting the microSD Card
1. Before you remove or format your memory card
you need to unmount it. Touch > Settings >
Storage > Unmount SD card.
2. To format your memory card, touch Format SD
card.
microSD Card Files
䊳Touch > Files > SD card.
Touch a file or folder to open, and then touch and hold a
file to Delete or Share.
Connecting Your Phone to Your
Computer
You can connect your phone to a computer with a USB
cable.
1. With a memory card inserted, and your phone
showing the home screen, connect a Motorola
micro USB data cable from your phone’s micro
USB port to a USB port on your computer. Your
phone should show in the status bar.
Note: Do not remove your memory card while your phone is
using it or writing files on it.
Note: The formatting procedure erases all the data on the
microSD card, after which the files CANNOT be
retrieved. To prevent the loss of important data, please
check the contents before you format the card.
Note: The first time you use a USB connection, your
computer may indicate that drivers are being installed.
Follow any prompts you see to complete the
installation. This may take a few minutes.
2H. microSD Card 45
microSD Card
2. On your phone, flick down the status bar to see the
USB connection options.
3. Touch an option:
䡲Motorola Phone Portal: Connect your phone and
computer with a cable or a Wi-Fi network to share
files through an easy-to-use home screen.
䡲Windows® Media Player Sync: Share media files
between your computer and phone.
䡲USB mass storage: Drag and drop files between
your computer and memory card folders. When
you’re done, use “Safely Remove Hardware”
before disconnecting the USB cable.
䡲Phone as Modem: Use your phone as a modem.
Note: Make sure to connect the phone to a high power USB
port. Typically, these are located directly on your
computer.
Note: This device can be administered through Microsoft
Exchange server security policies. Additional security
policies may be applied to your device depending on
rules set by your company.
Note: You can’t use the files on your memory card with your
phone while it is connected to the computer.
46 2I. Camera
⽧Taking Photos (page 46)
⽧Recording Videos (page 47)
⽧Viewing Photos & Videos (page 48)
⽧Managing Photos and Videos (page 49)
Taking Photos
Take that family photo, and post it online for everyone
to see.
1. Touch .
2. To take the photo, touch the viewfinder to lock the
focus, and then touch to take the photo.
䡲To upload the photo to an online photo album,
touch . You can set your Quick upload album
when you upload your first picture.
2I. Camera
Note: Photos are stored on your microSD memory card.
Chicago, I L

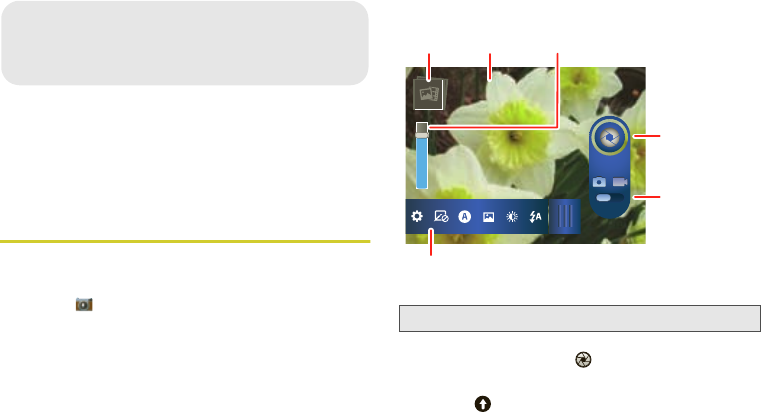

Photo Capture Settings
Drag to open/close panel.
Tag photos w ith
your location.
Go to your
pictures.
Take photo.
Sw itch to
camcorder.
Zoom.
2I. Camera 47
Camera
䡲To send the photo in a message or post it online,
touch .
䡲To delete the photo, open it, touch > Delete.
Photo Options
You can make adjustments to optimize your shot. Drag
open the panel at the bottom left of the viewfinder (or
press ):
䢇Settings: Change Video Resolution, Storage Location,
or Geo-tag.
䢇Effects: Change photo look: Normal, Negative, Black
and White, and more.
䢇Scenes: Adjust for better image capture in different
environments: Auto, Portrait, Landscape, Sport, and
more. Touch the screen when finished to return to the
viewfinder.
䢇Modes: Select Single shot or Panorama.
䢇Brightness: Adjust for better image capture in
different environments.
䢇Flash: Set Flash On, Flash Off, or Auto Flash.
Recording Videos
1. Touch > Camcorder.
2. To record the video, touch . Touch to stop
the recording.
3. Open your gallery and touch a video to view
options:

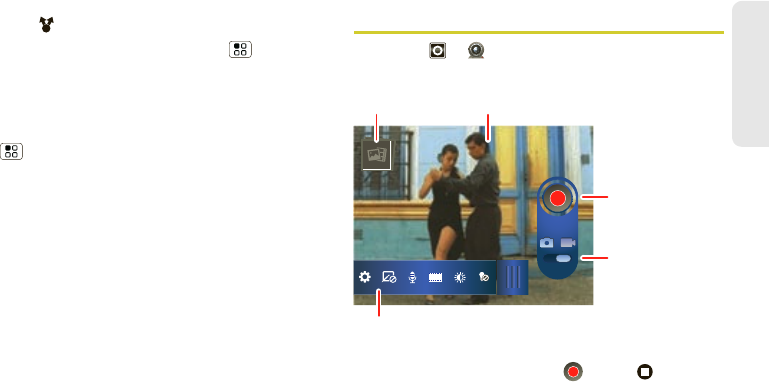

00:23:52 Chicago, IL
Video Capture Settings
Drag to open/close panel.
Tag videos w ith
your location.
Go to your
videos.
Start
recording.
Sw itch to
camera.
48 2I. Camera
䡲To play the video, touch .
䡲To upload the video to an online album,
touch .
䡲To send the video in a message or post it online,
touch .
䡲To delete the video, touch > Delet e.
Video Options
You can make adjustments to optimize your video.
Drag open the panel at the bottom left of the viewfinder
(or press ):
䢇Settings: Change Video Resolution, Storage Location,
or Geo-tag.
䢇Effects: Change video look: Normal, Negative, Black
and White, and more.
䢇Scenes: Adjust for better video capture in different
environments.
䢇Modes: Select Normal video, Video Message, Fast
motion, or Slow motion.
䢇Brightness: Adjust for better video capture in different
environments.
䢇Light: Turn a light on or off to adjust for the lighting
where you are recording.
Viewing Photos & Videos
䊳Touch > Gallery.
richi
e
Upl oa
d
Yester
d
richie
Upl oad ed a p ho to
Yester d ay
i
e
e
e
e
a
ad
d
d
e
e
ed
d
d
a
a
a
a
p
p
p
h
h
h
h
ho
r
r
r
d
d
da
a
a
ay
y
y
Frien ds DLNA servers
My li brar y Onl ine
richie
Upl oaded a pho to
Yester d ay
3
Cam er a r o ll
11:35
View your captured photos
& videos.
Sort your photos & videos.
See your online albums (like
Picasa, Flickr, or Facebook).
Go to your friends’
online albums.
See media from DNLA
Connected devices on your
Wi-Fi network.
2I. Camera 49
Camera
Touch a folder to display all of its photos or videos.
Sharing Photos and Videos
1. Touch > Gallery.
2. Touch a photo or video, then touch .
3. Choose how you want to share—like Bluetooth,
Email, Text Messaging, or an online album.
Managing Photos and Videos
1. Touch > Gallery.
2. Touch a thumbnail image from your camera roll or
library, then:
䡲To delete the photo or video, press > Delete.
䡲To set the photo as a contact picture, social
network profile picture, or wallpaper, press >
Set as.
Editing Photos and Videos
䊳Touch > Gallery> picture > > Edit.
You can choose advanced editing features to resize,
crop, or change the color.
Managing Photos and Videos
1. Touch > Gallery.
2. Select an image.
3. Touch and hold a photo or video, and then touch
, , or (to edit, delete, set as, print, and
more).
Tip: To copy photos to/from a computer, go to “Connecting
Your Phone to Your Computer” on page 44.
50 2J. Bluetooth & Wi-Fi
⽧Using Bluetooth® (page 50)
⽧Connecting With Wi-Fi (page 52)
Using Bluetooth®
Bluetooth is a short-range communications technology
that allows you to connect wirelessly to a number of
Bluetooth devices, such as headsets and hands-free
car kits, and Bluetooth-enabled handhelds, computers,
printers, and wireless phones. The Bluetooth
communication range is usually up to approximately
30 feet.
䊳Touch > Settings > Wireless & networks >
Bluetooth settings.
Turning Bluetooth On or Off
䊳Touch > Settings > Wireless & networks >
Bluetooth.
2J. Bluetooth & Wi-Fi
Note: To extend battery life, turn Bluetooth power off when not
in use.

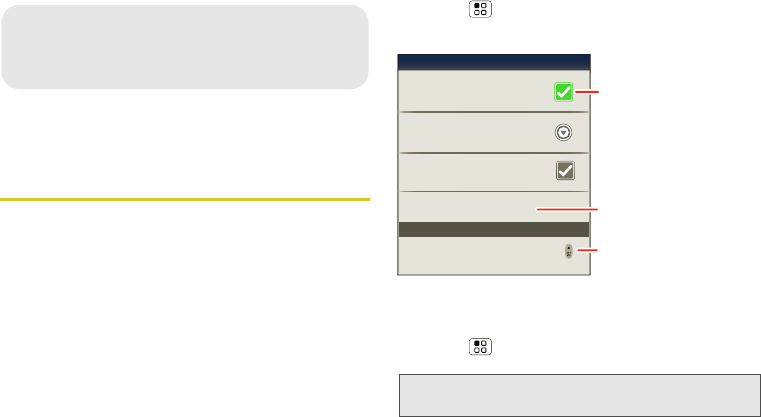

Bluetoot h devices
Bluetoot h sett ings
Motorola Phon e
Device name
Scan for devices
Make device discover able
Discoverable
Bluetoot h
Pair with this device
Motorola Headset
Touch to turn on
& off & to scan.
Touch to re-scan.
Touch to connect.
2J. Bluetooth & Wi-Fi 51
Bluetooth
Connecting New Devices
To connect with a new device, you need to pair with it.
You only need to do this once for each device – to
connect again, just turn on the device.
1. Make sure the device you are pairing with is in
discoverable mode.
2. Touch > Settings > Wireless & networks >
Bluetooth settings.
3. Touch Bluetooth to turn on and scan. If Bluetooth
power is already on, touch Scan for devices.
4. Touch a device to connect.
5. If necessary, touch OK, or enter the device passkey
(like 0000) to connect to the device. When the
device is connected, the Bluetooth indicator
appears in the status bar.
.
Reconnecting Devices
䊳To automatically reconnect your phone with a
paired device, simply turn on the device.
䊳To manually reconnect your phone with a paired
device, touch the device name in the Bluetooth
devices list.
Disconnecting Devices
䊳To automatically disconnect your phone from a
paired device, simply turn off the device.
䊳To manually disconnect your phone from a paired
device, touch the device name in the devices list,
and then touch > Disconnect.
Note: This feature requires an optional accessory.
Note: Refer to the guide that came with the device for details.
Note: Using a mobile device or accessory while driving may
cause distraction and may be illegal. Always obey the
laws and drive safely.
The Bluetooth Enhanced Audio setting is not
recommended for older Bluetooth headsets, as it may
not deliver acceptable sound quality.
52 2J. Bluetooth & Wi-Fi
Editing Settings
䊳Touch > Settings > Wireless & networks >
Bluetooth settings > Device name. Enter a name
and touch OK.
Connecting With Wi-Fi
To use a Wi-Fi computer network for even faster Internet
access:
䊳Touch > Settings > Wireless & networks >
Wi-Fi settings.
Turning Wi-Fi On or Off
䊳Touch > Settings > Wireless & networks >
Wi-Fi.
Note: Your phone's Wi-Fi features and power levels are not
allowed for outdoor operation in France. To avoid
unlawful interference with radio signals, do not use the
Wi-Fi features in France unless you are indoors.
Note: To extend battery life, turn off Wi-Fi power when not in
use.

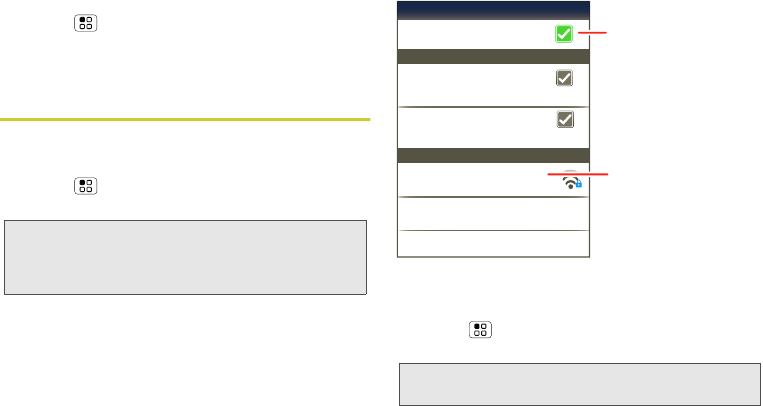

Wi-Fi net works
Notify m e when a secure net wor k is available
Secure Network
Wi-Fi
Jenny’s Coffee Shoppe
Network not ification
Notify m e when an open network is available
Open Net work
Add Wi-Fi network
Manage Networks
Secured w ith WEP
Wi-Fi set tings
Touch to turn on & scan.
Touch to connect.
53
Wi-Fi Search and Connect
To find networks in your range:
1. Touch > Settings > Wireless & networks >
Wi-Fi settings.
2. Touch Wi-Fi to turn on and scan. If Wi-Fi is already
on, touch > Scan. Your phone lists the
networks it finds within range.
3. Touch a network to connect.
4. If necessary, enter Network SSID, Security, and
Wireless password, and touch Connect. When your
phone is connected to the network, the wireless
indicator appears in the status bar.
Wi-Fi Hotspot
You can set up your phone as a Wi-Fi hotspot to provide
portable, convenient internet access for up to 5 other
Wi-Fi enabled devices.
Setting Up
To add security to your Wi-Fi hotspot:
1. Touch > Mobile Hotspot > > Advanced
>WiFi AP mode Settings.
2. Touch a setting to modify it:
䡲SSID: Enter a unique name for your hotspot.
Tip: To see your phone’s MAC address or other Wi-Fi details,
touch > Advanced.
Tip: When you are in range and Wi-Fi is on, you will
automatically reconnect to available networks you’ve
connected to before.
Note: You need to subscribe to Wi-Fi hotspot service to use
this feature. Contact your service provider.
You cannot use a Wi-Fi hotspot when your phone is
roaming.
Note: Risks can be associated with connecting to the public
internet. Your phone allows you to create a 3G Mobile
Hotspot, which may be accessible by unauthorized
users. It is highly recommended that you use a
password other possible steps to protect your
computer from unauthorized access.
54 2J. Bluetooth & Wi-Fi
䡲Security: Select the type of security you want, and
touch Save: WEP, WPA, or WPA2. Enter a unique
Wireless password. Other users can access your
Wi-Fi hotspot only if they enter the correct
password.
䡲Channel: Select a channel that minimizes
potential interference. You may need to try
different channels after your hotspot is active for a
time.
3. Touch Save when the settings are complete.
Activating the Hotspot
䊳Touch > Mobile Hotspot > Tap to start
Mobile Hotspot service.
When your Wi-Fi hotspot is active, other Wi-Fi enabled
devices can connect by entering your hotspot’s SSID,
selecting a Security type, and entering the correct
Wireless password.
Note: WEP is the weakest option because it is highly
vulnerable to hacking. WPA2 is recommended by IEEE.
Section 3
Sprint Service
56 3A. Sprint Basics
⽧Voicemail (page 56)
⽧Messaging (page 56)
⽧Making a Conference Call (page 59)
⽧Roaming (page 59)
Voicemail
Setting Up Your Voicemail
To set up voicemail, see “Setting Up Your Voicemail”
on page 4.
Retrieving Your Voicemail Messages
When you have a new voicemail, shows at the top
of your screen. To hear the message, touch to open
the dial screen, and then touch and hold .
If you need to change your voicemail number, in the
home screen touch > Settings > Call settings >
Voicemail settings.
Messaging
View your text, IM, and email messages all at once.
View Your Inbox
䊳Touch > Messaging > Universal Inbox.
3A. Sprint Basics
1
11:35
2:50 PM
2:47 PM
2:45 PM
2:41 PM
Copy Revisions
Hi Paul, Please take a look at t h e ...
Larissa Clar k
Meeting invitat ion
Meeting is set for next Thur sday at ...
Mar y Mor gan
freelancers
Paul, We’re going to need help w...
Universal I nbox (1)
James Kim
Meet m e outside the theater at 8
and d on’t for get your I D. Would yo...
Anna M edina
Create Message
Touch to open a
message. Touch &
hold to move,
delete, & more.
Check for
Messages Now
Message Type

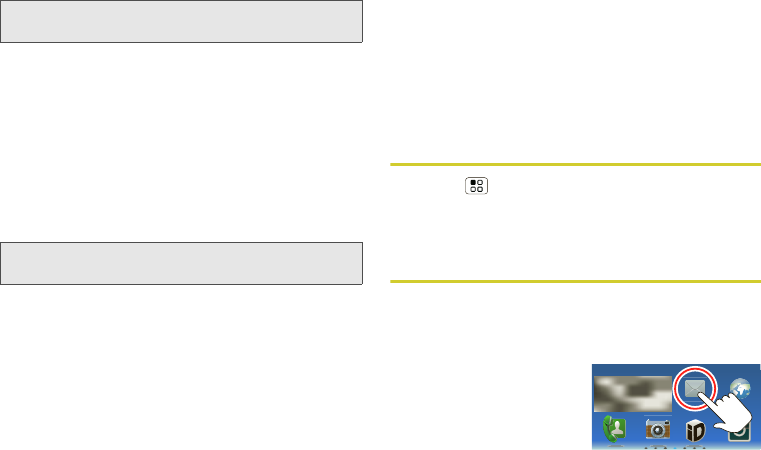

3A. Sprint Basics 57
Sprint Service
Reading and Replying to Messages
䊳Touch > Messaging > Universal Inbox.
䡲To open a text message or social networking
message and all of its replies, touch it.
䡲To reply or forward a message, touch to
choose a reply or forward option.
䡲To open options, touch and hold a message.
Creating Messages
1. Press the Voice key on the keypad and say, “send
text.”
2. Choose a message type, such as Text Messaging
or Facebook. Then, enter the recipient and
message. In text messages and emails, touch
for options such as Insert... or Insert smiley.
Sending and Receiving Attachments
䊳To send a file in a message, open a new message
and touch > Insert.
When you receive a message with an attachment,
open the message and touch the file name to
download it. Then, touch the name again to open it.
Some file formats can be converted to HTML for faster
viewing, and your phone will show Get HTML version.
While viewing the attachment, touch it to save it, share
it, and more.
Setting Up Messaging
䊳To add other email accounts, touch >
Settings > Accounts > Add account.
䡲Corporate Sync is for Exchange server work email
accounts. Enter details from your IT administrator.
Tip: To see more messages, flick or drag up.
Note: Universal Inbox shows all of your messages together—
text, email, and social networking messages. To show
only one type of message, touch a message account
type instead of Universal Inbox.
Note: Tr y the Messages widget in “Widgets” on page 15.
Tip: To send and receive large attachments faster, use Wi-Fi.
See “Connecting With Wi-Fi” on page 52.
58 3A. Sprint Basics
䡲Email is for most personal email accounts. For
account details, contact the account provider.
䊳To change your settings, touch > Messaging
> , and then touch:
䡲Manage accounts to add or remove an account.
䡲Edit Universal Inbox to choose which accounts
show messages in the Universal Inbox.
䡲Messaging Settings to set the notification for each
account type (along with other preferences, for
email).
Email
The first time you turned on your phone (see page 2),
you were prompted to log in to your Gmail™ account.
You can add any other email account that you set up.
To add other email accounts to your Messaging widget
and Universal Inbox, touch > Messaging >,
and then touch Manage accounts > Add account. On
the Setup accounts screen, touch Email or Corporate
Sync and enter your email account information.
Instant Messages
To send and receive instant messages, your device
comes preloaded with Google Talk™.
You can also download an instant messaging app from
the Android Market: touch > Market > Apps
>Communication, and then choose an app for your
provider. Once you download the app, you’ll see it in
the app menu. See “App Menu” on page 16.
Social Networking
䊳To add a social networking account, see “Setting
Up Messaging & Social Networking Accounts” on
page 4.
When you sign into social networking accounts, you’ll
see your friends and contacts in your Contacts list, and
your status and updates can appear in Social Status and
Happenings widgets.
Tip: You might need to enter your domain name with your
user name (like domain/username).
Note: Your IM options will depend on your IM provider. To
browse instant messaging apps from your computer,
go to www.android.com/market.
3A. Sprint Basics 59
Sprint Service
Twitter and MySpace messages will alw ays appear as
“ read” on your phone, but your phone notifies you
when you receive a new message.
Making a Conference Call
With 3-way calling, you can talk to two people at the
same time. When using this feature, the normal airtime
rates will be charged for each of the two calls.
䊳To start a conference call, call the first number.
After the call connects, touch Add Call. Dial the next
number, or select it from contacts or favorites.
When the next number answers, touch Merge calls.
Roaming
Roaming Icon
Your phone lets you know when you’re off the
Nationwide Sprint Network. Anytime you are roaming,
the phone shows the roaming icon ( ).
Setting Voicemail While Roaming
䊳Touch > Settings > Call settings > Set roaming
voicemail.
Setting Roam Mode
Control your roaming capabilities.
䊳Touch > Settings > Wireless & networks >
Mobile networks , and then make selections under
Roaming Mode and CDMA Subscription.
Call Guard
Your phone has two ways of alerting you when you are
roaming off the Nationwide Sprint Network: the
onscreen roaming icon and Call Guard. Call Guard
requires an extra step before you can place or answer
a roaming call. (This extra step is not required when
you make or receive calls on the Nationwide Sprint
Network.)
To turn Call Guard on or off:
1. Touch > Settings > Wireless & networks >
Mobile networks > Roaming Guards.
60 3A. Sprint Basics
2. Check or uncheck Call Guard under Domestic
Roaming and International Roaming.
Data Roam Guard
Depending on service availability and roaming
agreements, your phone may be able to access data
services while roaming on certain digital systems. You
can set your phone to alert you when you are roaming
off the Nationwide Sprint Network and try to use data
services such as messaging.
To set your Data Roam Guard notification:
1. Touch > Settings > Wireless & networks >
Mobile networks > Roaming Guards.
2. Check or uncheck Data Guard under Domestic
Roaming and International Roaming.
To use data services when Data Roam Guard is active:
䊳When a notification appears informing you that
data roam charges may apply, touch Roam to
connect.
Note: Call Guard is turned off by default on your phone.
Voice dialing is not available when you are roaming
with Call Guard enabled.
Note: If the Call Guard feature is set to On, you need to take
extra steps to make and receive roaming calls.
Note: Data Roam Guard is turned off by default on your
phone.
3B. Web and Apps 61
Web and Apps
⽧Surfing the Web (page 61)
⽧Android Market™ (page 62)
⽧Downloading Apps (page 63)
⽧YouTube™ (page 64)

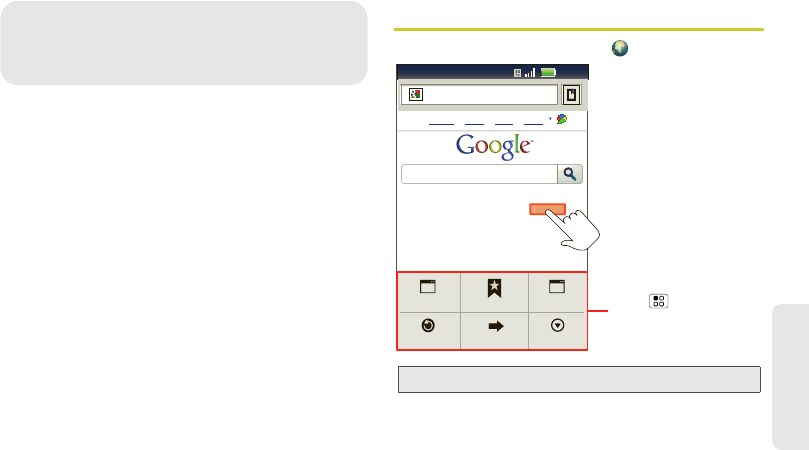

Surfing the Web
䊳To open the browser, touch Browser.
3B. Web and Apps
Note: If you can’t connect, contact Sprint.
11:35
Sign in
New window
Ref resh
Bookm arks
For war d
Windows
More
Web Im ages
Local News
mor e
update
Chicago -
Google
See places near:
u
pd
at
e
Touch for
browser options.
Touch a link to
select it. Touch
and hold for more
options.
62 3B. Web and Apps
Connect
Your phone uses the mobile phone network (over the
air) or a Wi-Fi connection to automatically access the
Web.
To use a Wi-Fi connection, touch > Settings >
Wireless & networks. Touch Wi-Fi to turn it on and touch
Wi-Fi settings to search for nearby wireless networks.
Touch a network to connect.
Select Links
When you touch a link, your phone outlines it and goes
to that page. If you touch and hold the link, your phone
shows options, such as Open in new window or
Bookmark link.
See Options
Touch with the browser open to see browser
options:
Android Market™
䊳Touch > Market.
Get all the fun games and cool apps you want! Android
Market provides access to applications created by
developers worldwide, so you can find the app you
want. If you need help or have questions about Android
Market, touch > Help.
Options
New Window Open a new browser window.
Bookmarks See your bookmarks.
Windows View the browser windows that are
currently open.
Refresh Reload the current page.
Back/Forward Navigate to previously viewed pages.
More See additional browser options.
Note: You must set up a Gmail account (see “Setting Up Your
Phone” on page 2) in order to buy and download apps
from the Android Market.
Options
3B. Web and Apps 63
Web and Apps
Browsing and Installing Apps
䊳Scroll to and touch the app you want to install.
Then, touch Install (if app is free) or Buy.
If an app you are downloading requires access to your
data or control of functions on your phone, you’ll be
asked to give your permission. After selecting Install,
the app will download. After selecting Buy, you may be
asked to sign in to an additional Google™ account.
Sign in and select Purchase now to proceed. Follow the
on-screen instructions. To see the download progress,
open the notifications window.
After you download an app, the icon for that app
appears on the App menu. (See “App Menu” on
page 16.)
Managing and Restoring Apps
1. Touch > Settings > Applications > Manage
applications.
2. Touch an app in the list, and then touch Uninstall
(for apps you downloaded), Clear cache, or other
options.
Downloading Apps
To download apps:
1. To download apps from any Web page, touch
> Settings > Applications > Unknown sources.
2. To launch the browser, touch Browser.
3. Find the app you want to download and touch the
download link.
Manage Your Downloads
䊳To view files or apps you’ve downloaded,
touch Browser > > More > Downloads.
Tip: To reinstall any downloaded items, touch >
Market.
WARNING: Apps downloaded from unknown sources can
include spyware, phishing, or viruses that affect
your phone, phone performance, and personal
data. For security, download apps only from
trusted sites like Market.
Note: Downloaded apps are stored in your phone’s memory.
64 3B. Web and Apps
䊳To clear your download history, touch > Clear
list. To cancel, touch > Cancel all downloads.
YouTube™
Share videos with YouTube users everywhere. You
don’t need a YouTube account to browse and view
videos.
䊳Touch > YouTube.
Note: If you want a YouTube account, go to
www.youtube.com. To create an account or sign in,
touch > My account. To Browse or Upload
videos, touch .
3C. Entertainment 65
Entertainment
⽧Music (page 65)
⽧Digital Living (page 67)
⽧Sprint Entertainment Options (page 69)

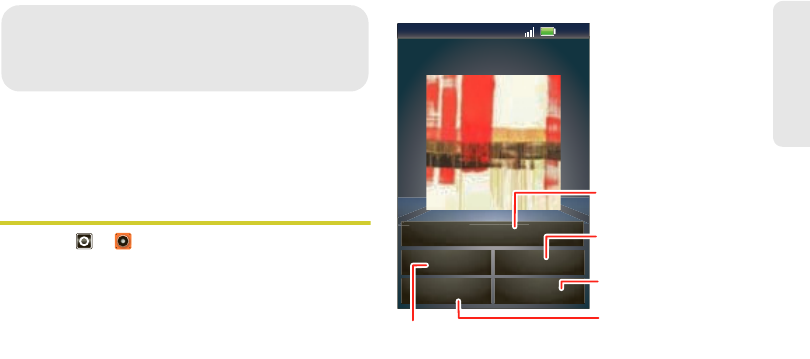

Music
1. Touch > Music.
3C. Entertainment
Int er net Radio DLNA server s
My li brar y Podcasts
Now Playin g
11:35
View the music player
controls.
View your music
collection.
Subscribe to, dow nload, and
play podcasts.
Go to online radio
stations.
See music from DNLA
connected devices on your
Wi-Fi network.
66 3C. Entertainment
2. Touch My library to select music.
3. Touch a song to play it.
While playing music, touch for these options:
䢇Music home: view the main music screen.
䢇Share: select a contact to share music with.
䢇Rate song: rate songs to improve your
recommendations.
䢇Play on another device: play music on another device
in your Wi-Fi network.

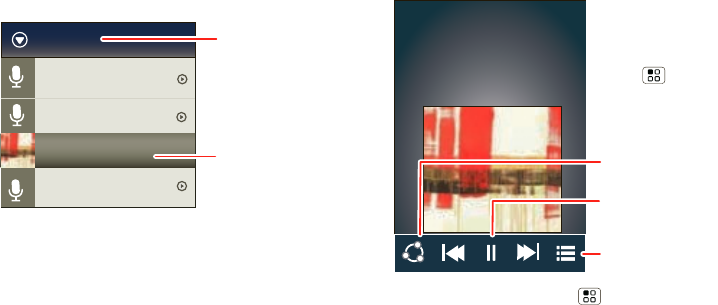

Brook Fairfax
2 songs
Max Keppler And AnnaL...
Miller Heat on/ Sprinklesky
3 songs
Running Roughshod
1 song
2 songs
Artists Touch to sort by
album, playlist,
and more.
Touch to select
a song.
Max Kepler And AnnaLee...
Running Roughshod
Libby Went Trailriding Without Me
Add current
song to queue.
Music Player
Controls
Open queue.
Touch
for more options.
3C. Entertainment 67
Entertainment
䢇Post: post the song on your social network account.
䢇More: choose more options, such as using the song
as a ringtone, adding it to a playlist, and more.
Setting Up Music
What music transfer tools do I need?
To p u t music on your computer and then load it on your
phone, you need:
䢇Microsoft®Windows®PC or Apple™ Macintosh™.
䢇USB data cable (included with your phone).
䢇microSD memory card (2GB—included with your
phone).
Your music is stored on your memory card. Your
phone supports removable microSD memory cards
up to 32GB capacity. To make sure your memory card
is installed, go to “ Your Phone’s microSD Card” on
page 43.
What audio file formats can I play?
Your phone can play many types of files: AAC, AM R,
M P3, WAV, WM A, AAC+, and M IDI.
What headphones can I use?
Your phone has a 3.5mm headset jack for w ired stereo
listening. You can go w ireless w ith Bluetooth® stereo
headphones or speakers. (See “ Using Bluetooth®” on
page 50.)
Getting Music
You can transfer music from your computer to your
phone by using a USB connection.
For more information on transferring music, see
“ Connecting Your Phone to Your Computer” on
page 44.
Digital Living
Tip: To see the available memory on your memory
card, touch > Settings > Storage.
Note: Your phone does not support DRM-protected files.
Note: Copyright – do you have the right? Always follow the
rules. See “Content Copyright” in your legal and safety
information.
68 3C. Entertainment

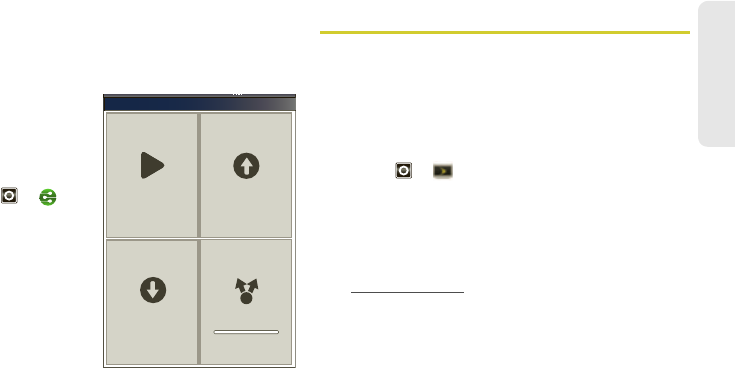

Media Share
M edia Share is an easy w ay to share your media
content – photos, videos, and tunes – w ith friends and
family.
Share your media on DLNA devices on your network: The
M edia Share wizard guides you through the easy setup
steps.
Swap photos & videos: Share any photos or videos on
your phone, even the ones you created.
More tunes: Enjoy favorites from your phone playlist on
your sound system at home. Or get music from your
portable music player and add it to your phone’s music
library.
Connecting
First, connect to a Wi-Fi network or another device:
• Connect to your computer w ith a USB cable.
(See “ Connecting Your Phone to Your Computer” on
page 44.)
• Connect to a Wi-Fi netw ork or use your own Wi-Fi
hotspot. (See “ Connecting With Wi-Fi” on page 52.)
M edia Share w ill lead you the rest of the way.
Your Media Share World
䊳To use Media Share, touch > Media Share.
Then, select the Media Share feature you want to
use.
䡲Share media: allow other devices to access media
files on your phone. Without downloading any
media from your phone, other people can view
your pictures or videos, or play your songs, on
their own devices.
䡲Sync media: sync the media files on your phone
with other devices.
䡲Copy media: copy a picture from one phone to
another.
䡲Play media: select media for playback on another
device in a Wi-Fi network.
Note: If you’re using a Wi-Fi connection, you need to allow
access to other devices to download media from your
phone and to share your files.If you want to access
media files on other devices, they must allow access.
3C. Entertainment 69
Entertainment
Share Using DLNA
Expand the ways you can enjoy your photos and videos
on a DLNA Certified computer, TV, or monitor, using
your ow n Wi-Fi netw ork.
M ake sure your phone
is connected to an
active Wi-Fi network
and has access to a
DLNA Certified device.
1. Touch >
DLNA.
2. Touch Play media,
Copy media to
server, Copy media
to phone, or Share
media. Then follow
the instructions
you see on your
phone.
Sprint Entertainment Options
Sprint TV
Live TV and video on demand. Complete episodesand
clips of your favorite primetime shows. Over 50
channels of news, entertainment, weather, sports, and
streaming music.
1. Touch > Sprint TV.
2. Touch a category to begin browsing.
3. Touch a show or movie to begin watching it, or
touch More to explore more options, such as
subscription upgrades and special channels.
Visit sprint.com/tvguide for more information on
channels and pricing.
DLNA
Play m ed ia Copy m edia
to ser ver
Shar e media
Copy m edia
to phone
70 3D. Navigation
⽧Google Maps™ (page 70)
⽧Latitude™ (page 71)
⽧TeleNav GPS Navigator (page 72)

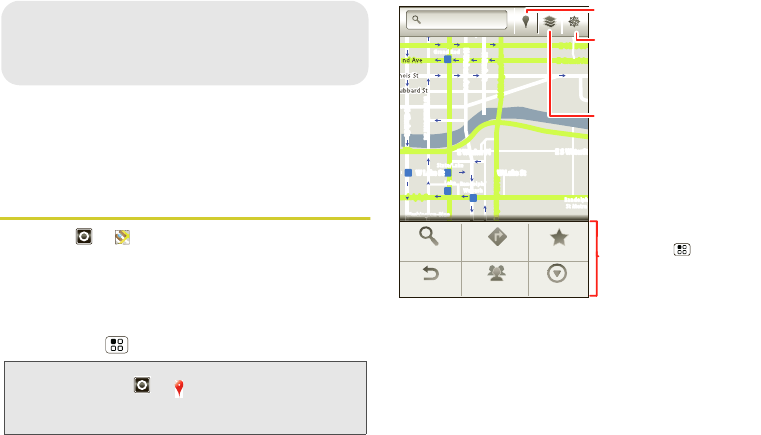

Google Maps™
䊳Touch > Maps.
Google Maps offers powerful, user-friendly mapping
technology and local business information—including
business locations, contact information, and driving
directions.
For help, touch > More > Help.
Tip: Want to know what’s in your immediate area? Try Google
Places™. Touch > Places to see listings for
Restaurants, ATMs, Gas Stations, and more based on
your current location.
3D. Navigation
Messaging
N Clark St
Wacker Dr
M
E Ohio St
N Rush St
N Wabash Ave
N Dearborn St
E Grand A
v
N Micigan Ave
N Micig an Ave
W Lake St W Lake St
E Wacker Pl
State/Lake
Grand Red
Lake
Randolph
St Met ra
Randolph/
Wab ash
Washington- Blue
E S WaterSt
M
M
M
M
E Randolp h St
Ontario St E Ont ario St
v
v
v
v
v
v
v
v
v
v
v
v
v
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
a
a
a
a
a
a
a
a
s
s
s
s
s
s
s
s
h
h
h
h
h
h
h
h
h
h
h
h
h
h
h
i
i
i
i
i
i
i
i
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
g
g
g
g
g
g
g
g
g
g
g
g
g
g
g
g
g
g
t
t
t
tt
t
t
t
t
t
t
t
t
t
t
t
t
o
o
o
oo
o
o
o
o
o
o
o
o
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
-
-
B
B
B
B
B
B
B
B
B
l
l
l
l
l
l
l
l
u
u
u
u
u
u
u
u
u
u
u
e
e
e
e
e
e
e
e
Search
Clear Map Join Latit u d e More
Dir ect ions Star r ed Places
Search M aps
Touch Menu
for options.
Find places.
Change the
view by
adding
layers.
Center the
map on
your current
location.
3D. Navigation 71
Navigation
Latitude™
See where your friends and family are on Google
Maps™. Plan to meet up, check that your parents got
home safely, or just stay in touch.
Don’t worry, your location is not shared unless you
agree to it. You need to join Latitude, and then invite
your friends to view your location or accept their
invitations. When using Google Maps, touch > Join
Latitude. Read the privacy policy and if you agree with
it, touch Agree & Share.
Adding and Removing Friends
䊳Touch > Maps > >Latitude.
To add friends:
1. Touch > Add friends or touch .
2. Touch Select from Contacts, and then touch a
contact. Or, touch Add via email address, and then
enter an email address.
3. Touch Yes.
If your friends already use Google Latitude, they’ll
receive an email request and a notification. If they have
not yet joined Google Latitude, they’ll receive an email
request that invites them to sign in to Google Latitude
with their Google account.
To remove friends:
1. Touch > Latitude to show your friend’s list, and
then touch a friend in your list.
2. Touch .
Sharing Location
When you receive a request to share location details
you can choose to:
䢇Accept and share back – See your friend’s location,
and your friend can see yours.
䢇Accept, but hide my location – See your friend's
location, but they can't see yours.
䢇Don't accept – Location information is not shared
between you and your friend.
Hiding Your Location
䊳To hide your location from a friend, touch >
Latitude to show your friend’s list. Touch your
72 3D. Navigation
contact name, and then touch > Edit privacy
settings > Hide your location.
Turning Off Google Latitude
䊳Touch > Latitude to show your friends list.
Touch > Edit privacy settings > Turn off
Latitude.
TeleNav GPS Navigator
You can also use TeleNav GPS Navigator to get
around. Use your keyboard or your voice to get step-
by-step directions to your destination, get traffic
updates, hear about the weather, and more.
1. Touch > TeleNav GPS Navigator. (The first
time you access the app, your phone downloads
files.)
2. Follow the onscreen instructions to sign in and use
the app.
Section 4
Safety and Warranty
Information
74 4A. Important Safety Information
⽧General Precautions (page 74)
⽧Maintaining Safe Use of and Access to Your Phone
(page 75)
⽧Using Your Phone With a Hearing Aid Device (page 76)
⽧Caring for the Battery (page 78)
⽧Radio Frequency (RF) Energy (page 78)
⽧Owner’s Record (page 81)
⽧User Guide Proprietary Notice (page 81)
This phone guide contains important operational and
safety information that will help you safely use your
phone. Failure to read and follow the information
provided in this phone guide may result in serious
bodily injury, death, or property damage.
General Precautions
There are several simple guidelines to operating your phone
properly and maintaining safe, satisfactory service.
䢇To maximize performance, do not touch the bottom portion
of your phone where the internal antenna is located while
using the phone.
䢇Speak directly into the mouthpiece.
䢇Avoid exposing your phone and accessories to rain or liquid
spills. If your phone does get wet, immediately turn the
power off and remove the battery.
䢇Do not expose your phone to direct sunlight for extended
periods of time (such as on the dashboard of a car).
䢇Although your phone is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting,
bending, or sitting on it.
䢇Any changes or modifications to your phone not expressly
approved in this document could void your warranty for this
equipment and void your authority to operate this
equipment.
4A. Important Safety
Information
Note: For the best care of your phone, only Sprint-authorized
personnel should service your phone and accessories. Failure
to do so may be dangerous and void your warranty.
4A. Important Safety Information 75
Important Safety Information
Maintaining Safe Use of and Access
to Your Phone
Do Not Rely on Your Phone for Emergency Calls
Mobile phones operate using radio signals, which cannot
guarantee connection in all conditions. Therefore you should
never rely solely upon any mobile phone for essential
communication (e.g., medical emergencies). Emergency calls
may not be possible on all cellular networks or when certain
network services or mobile phone features are in use. Check
with your local service provider for details.
Using Your Phone While Driving
Talking on your phone while driving (or operating the phone
without a hands-free device) is prohibited in some jurisdictions.
Laws vary as to specific restrictions. Remember that safety
always comes first.
Following Safety Guidelines
To operate your phone safely and efficiently, always follow any
special regulations in a given area. Turn your phone off in areas
where use is forbidden or when it may cause interference or
danger.
Using Your Phone Near Other Electronic Devices
Most modern electronic equipment is shielded from radio
frequency (RF) signals. However, RF signals from wireless
phones may affect inadequately shielded electronic
equipment.
RF signals may affect improperly installed or inadequately
shielded electronic operating systems or entertainment
systems in motor vehicles. Check with the manufacturer or their
representative to determine if these systems are adequately
shielded from external RF signals. Also check with the
manufacturer regarding any equipment that has been added to
your vehicle.
Consult the manufacturer of any personal medical devices,
such as pacemakers and hearing aids, to determine if they are
adequately shielded from external RF signals.
Turning Off Your Phone Before Flying
Turn off your phone before boarding any aircraft. To prevent
possible interference with aircraft systems, the U.S. Federal
Aviation Administration (FAA) regulations require you to have
permission from a crew member to use your phone while
the plane is on the ground. To prevent any risk of interference,
FCC regulations prohibit using your phone while the plane is in
the air.
Tip: Purchase an optional hands-free accessory at your local
Sprint Store, or call Sprint at 1-866-866-7509. You can also
dial # 2 2 2 on your phone.
Note: Always turn off the phone in healthcare facilities, and request
permission before using the phone near medical equipment.
76 4A. Important Safety Information
Turning Off Your Phone in Dangerous Areas
To avoid interfering with blasting operations, turn your phone
off when in a blasting area or in other areas with signs
indicating two-way radios should be turned off. Construction
crews often use remote-control RF devices to set off explosives.
Turn your phone off when you’re in any area that has a
potentially explosive atmosphere. Although it’s rare, your phone
and accessories could generate sparks. Sparks can cause an
explosion or fire, resulting in bodily injury or even death. These
areas are often, but not always, clearly marked. They include:
䡲Fueling areas such as gas stations.
䡲Below deck on boats.
䡲Fuel or chemical transfer or storage facilities.
䡲Areas where the air contains chemicals or particles such
as grain, dust, or metal powders.
䡲Any other area where you would normally be advised to
turn off your vehicle’s engine.
Restricting Children’s Access to Your Phone
Your phone is not a toy. Do not allow children to play with it as
they could hurt themselves and others, damage the phone or
make calls that increase your Sprint invoice.
Using Your Phone With a Hearing
Aid Device
A number of Sprint phones have been tested for hearing aid
device compatibility. When some wireless phones are used
with certain hearing devices (including hearing aids and
cochlear implants), users may detect a noise which can
interfere with the effectiveness of the hearing device.
Some hearing devices are more immune than others to this
interference noise, and phones also vary in the amount of
interference noise they may generate. ANSI standard C63.19
was developed to provide a standardized means of measuring
both wireless phone and hearing devices to determine usability
rating categories for both.
Ratings have been developed for mobile phones to assist
hearing device users find phones that may be compatible with
their hearing device. Not all phones have been rated for
compatibility with hearing devices. Phones that have been
rated have a label located on the box. Your MOTOROLA
ADMIRAL has an M4, T3 rating.
These ratings are not guarantees. Results will vary depending
on the user’s hearing device and individual type and degree of
hearing loss. If a hearing device is particularly vulnerable to
interference noise; even a phone with a higher rating may still
cause unacceptable noise levels in the hearing device. Trying
Note: Never transport or store flammable gas, flammable liquids, or
explosives in the compartment of your vehicle that contains
your phone or accessories.
4A. Important Safety Information 77
Important Safety Information
out the phone with your hearing device is the best way to
evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements for
hearing aid compatibility and are likely to generate less
interference to hearing devices than unrated phones. (M4 is the
better/higher of the two ratings.)
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil
(“T Switch” or “Telephone Switch”) than unrated phones. (T4 is
the better/higher of the two ratings. Note that not all hearing
devices have telecoils in them.)
Hearing aid devices may also be measured for immunity to
interference noise from wireless phones and should have
ratings similar to phones. Ask your hearing healthcare
professional for the rating of your hearing aid. Add the rating of
your hearing aid and your phone to determine probable
usability:
䢇Any combined rating equal to or greater than six offers
excellent use.
䢇Any combined rating equal to five is considered normal use.
䢇Any combined rating equal to four is considered usable.
Thus, if you pair an M3 hearing aid with an M3 phone, you will
have a combined rating of six for “excellent use.” This is
synonymous for T ratings.
Sprint further suggests you experiment with multiple phones
(even those not labeled M3/T3 or M4/T4) while in the store to
find the one that works best with your hearing aid device.
Should you experience interference or find the quality of
service unsatisfactory after purchasing your phone, promptly
return it to the store within 30 days of purchase. (A restocking
fee may be applied to exchanges. Visit www.sprint.com/returns
for details.) More information about hearing aid compatibility
may be found at: www.fcc.gov, www.fda.gov, and
www.accesswireless.org.
Getting the Best Hearing Device
Experience With Your Phone
To further minimize interference:
䢇Set the phone’s display and keypad backlight settings to
ensure the minimum time interval:
1. Touch > Settings > Display > Screen timeout.
2. Touch the minimum time interval setting.
䢇Position the phone so the internal antenna is farthest from
your hearing aid.
䢇Move the phone around to find the point with least
interference.
Note: New Technologies, Including Wi-Fi
This phone has been tested and rated for use with hearing
aids for some of the wireless technologies that it uses. However,
there may be newer wireless technologies (including Wi-Fi)
used in this phone that have not been tested for use with
hearing aids.
78 4A. Important Safety Information
Caring for the Battery
Protecting Your Battery
The guidelines listed below help you get the most out of your
battery’s performance.
䢇Recently there have been some public reports of wireless
phone batteries overheating, catching fire, or exploding. It
appears that many, if not all, of these reports involve
counterfeit or inexpensive, aftermarket-brand batteries with
unknown or questionable manufacturing standards. Sprint is
not aware of similar problems with Sprint phones resulting
from the proper use of batteries and accessories approved
by Sprint or the manufacturer of your phone. Use only Sprint-
approved or manufacturer-approved batteries and
accessories found at Sprint Stores or through your phone’s
manufacturer, or call 1-866-866-7509 to order. They’re also
available at www.sprint.com — click Accessories. Buying the
right batteries and accessories is the best way to ensure
they’re genuine and safe.
䢇In order to avoid damage, charge the battery only in
temperatures that range from 32° F to 113° F (0° C to 45° C).
䢇Don’t use the battery charger in direct sunlight or in high
humidity areas, such as the bathroom.
䢇Never dispose of the battery by incineration.
䢇Keep the metal contacts on top of the battery clean.
䢇Don’t attempt to disassemble or short-circuit the battery.
䢇The battery may need recharging if it has not been used for
a long period of time.
䢇It’s best to replace the battery when it no longer provides
acceptable performance. It can be recharged hundreds of
times before it needs replacing.
䢇Don’t store the battery in high temperature areas for long
periods of time. It’s best to follow these storage rules:
䡲Less than one month:
-4° F to 140° F (-20° C to 60° C)
䡲More than one month:
-4° F to 113° F (-20° C to 45° C)
Disposal of Lithium Ion (Li-Ion) Batteries
Do not handle a damaged or leaking Li-Ion battery as you can
be burned.
For safe disposal options of your Li-Ion batteries, contact your
nearest Sprint authorized service center.
Special Note: Be sure to dispose of your battery properly. In
some areas, the disposal of batteries in household or business
trash may be prohibited.
Radio Frequency (RF) Energy
Understanding How Your Phone Operates
Your phone is basically a radio transmitter and receiver. When
it’s turned on, it receives and transmits radio frequency (RF)
signals. When you use your phone, the system handling your
call controls the power level. This power can range from 0.006
watt to 0.2 watt in digital mode.
4A. Important Safety Information 79
Important Safety Information
Knowing Radio Frequency Safety
The design of your phone complies with updated NCRP
standards described below.
In 1991–92, the Institute of Electrical and Electronics Engineers
(IEEE) and the American National Standards Institute (ANSI)
joined in updating ANSI’s 1982 standard for safety levels with
respect to human exposure to RF signals. More than 120
scientists, engineers and physicians from universities,
government health agencies and industries developed this
updated standard after reviewing the available body of
research. In 1993, the Federal Communications Commission
(FCC) adopted this updated standard in a regulation. In August
1996, the FCC adopted hybrid standard consisting of the
existing ANSI/IEEE standard and the guidelines published by
the National Council of Radiation Protection and
Measurements (NCRP).
Body-Worn Operation
To maintain compliance with FCC RF exposure guidelines, if
you wear a handset on your body, use a Sprint-supplied or
Sprint-approved carrying case, holster or other body-worn
accessory. If you do not use a body-worn accessory, ensure
the antenna is at least 7/16 inch (1.5 centimeters) from your
body when transmitting. Use of non-Sprint-approved
accessories may violate FCC RF exposure guidelines.
For more information about RF exposure, visit the FCC website
at www.fcc.gov.
Specific Absorption Rates (SAR) for Wireless
Phones
The SAR value corresponds to the relative amount of RF
energy absorbed into the head of a user of a wireless handset.
The SAR value of a phone is the result of an extensive testing,
measuring and calculation process. It does not represent how
much RF the phone emits. All phone models are tested at their
highest value in strict laboratory settings. But when in
operation, the SAR of a phone can be substantially less than
the level reported to the FCC. This is because of a variety of
factors including its proximity to a base station antenna, phone
design and other factors. What is important to remember is that
each phone meets strict federal guidelines. Variations in SARs
do not represent a variation in safety.
All phones must meet the federal standard, which incorporates
a substantial margin of safety. As stated above, variations in
SAR values between different model phones do not mean
variations in safety. SAR values at or below the federal standard
of 1.6 W/kg are considered safe for use by the public.
80 4A. Important Safety Information
The highest reported SAR values of the MOTOROLA XPRT are:
ESMR CDMA mode (Part 90):
Head: 0.93 W/kg; Body-worn: 0.67 W/kg
Cellular CDMA mode (Part 22):
Head: 1.02 W/kg; Body-worn: 0.73 W/kg
PCS mode (Part 24):
Head: 1.06 W/kg; Body-worn: 0.44 W/kg
FCC Radio Frequency Emission
This phone meets the FCC Radio Frequency Emission
Guidelines.
FCC ID number: IHDT56MP1.
More information on the phone’s SAR can be found from the
following FCC website: http://www.fcc.gov/oet/ea/.
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
䢇Reorient the direction of the internal antenna.
䢇Increase the separation between the equipment and
receiver.
䢇Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
䢇Consult the dealer or an experienced radio/TV technician for
help.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
4A. Important Safety Information 81
Important Safety Information
Owner’s Record
The model number, regulatory number, and serial number are
located on a nameplate inside the battery compartment.
Record the serial number in the space provided below. This will
be helpful if you need to contact us about your phone in the
future.
Model: TBD
Serial No.:
User Guide Proprietary Notice
Certain features, services and applications are network
dependent and may not be available in all areas; additional
terms, conditions and/or charges may apply. Contact your
service provider for details.
All features, functionality, and other product specifications, as
well as the information contained in this guide, are based upon
the latest available information and believed to be accurate at
the time of printing. Motorola reserves the right to change or
modify any information or specifications without notice or
obligation.
MOTOROLA and the Stylized M Logo are trademarks or
registered trademarks of Motorola Trademark Holdings, LLC.
.All rights reserved. All other product or service names are the
property of their respective owners.
© 2011 Motorola Mobility, Inc. All rights reserved.
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Product ID: Motorola ADMIRAL (XT603)
Manual Number: TBD-A
User Guide template version 11a (September 2010)
82 4B. Manufacturer’s Warranty
⽧Manufacturer’s Warranty (page 82)
Your phone has been designed to provide you with
reliable, worry-free service. If for any reason you have a
problem with your equipment, please refer to the
manufacturer’s warranty in this section.
For information regarding the terms and conditions of
service for your phone, please visit www.sprint.com or
call Sprint Customer Service at 1-888-211-4727.
Manufacturer’s Warranty
Motorola Limited Warranty for the United
States and Canada
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola
Mobility, Inc. warrants its mobile telephones
(“Products”), Motorola-branded or certified accessories
sold for use with these Products (“Accessories”), and
Motorola software contained on CD-ROMs or other
tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and
workmanship under normal consumer usage for the
period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to
new Motorola Products, Accessories, and Software
purchased by consumers in the United States or
Canada, which are accompanied by this written
warranty:
Note: In addition to the warranty provided by your phone’s
manufacturer, which is detailed on the following pages, Sprint
offers a number of optional plans to cover your equipment for
non-warranty claims. Sprint Total Equipment Protection
provides the combined coverage of the Sprint Equipment
Replacement Program and the Sprint Equipment Service
and Repair Program, both of which are available separately.
Each of these programs may be signed up for within 30 days
of activating your phone. For more details, please visit your
nearest Sprint Store or call Sprint at 1-800-584-3666.
4B. Manufacturer’s Warranty
4B. Manufacturer’s Warranty 83
Warranty
Products and Accessories Exclusions (Products and Accessories)
Normal Wear and Tear. Periodic maintenance, repair and
replacement of parts due to normal wear and tear are
excluded from coverage.
Batteries. Only batteries whose fully charged capacity
falls below 80% of their rated capacity and batteries
that leak are covered by this limited warranty.
Abuse & Misuse. Defects or damage that result from:
(a) improper operation, storage, misuse or abuse,
accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting
from misuse; (b) contact with liquid, water, rain, extreme
humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the
Product or Accessory to abnormal usage or conditions;
or (d) other acts which are not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products and Accessories. Defects
or damage that result from the use of non-Motorola
branded or certified Products, Accessories, Software or
other peripheral equipment are excluded from
coverage.
Products Covered Length of Coverage
Products and
Accessories as
defined above, unless
otherwise provided for
below.
One (1) year from the date of
purchase by the first consumer
purchaser of the product
unless otherwise provided for
below.
Decorative
Accessories and
Cases. Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
Limited lifetime warranty for
the lifetime of ownership by the
first consumer purchaser of the
product.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty for
the lifetime of ownership by the
first consumer purchaser of the
product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original
warranty or for ninety (90)
days from the date returned to
the consumer, whichever is
longer.
84 4B. Manufacturer’s Warranty
Unauthorized Service or Modification. Defects or
damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in
any way by someone other than Motorola, or its
authorized service centers, are excluded from
coverage.
Altered Products. Products or Accessories with (a) serial
numbers or date tags that have been removed, altered
or obliterated; (b) broken seals or that show evidence
of tampering; (c) mismatched board serial numbers; or
(d) nonconforming or non-Motorola housings, or parts,
are excluded from coverage.
Communication Services. Defects, damages, or the
failure of Products, Accessories or Software due to any
communication service or signal you may subscribe to
or use with the Products Accessories or Software is
excluded from coverage.
Software
Exclusions (Software)
Software Embodied in Physical Media. No warranty is
made that the software will meet your requirements or
will work in combination with any hardware or software
applications provided by third parties, that the operation
of the software products will be uninterrupted or error
free, or that all defects in the software products will be
corrected.
Software NOT Embodied in Physical Media. Software that
is not embodied in physical media (e.g. software that is
downloaded from the Internet), is provided “as is” and
without warranty.
Products Covered Length of Coverage
Software. Applies only to
physical defects in the media that
embodies the copy of the
software (e.g. CD-ROM, or floppy
disk).
Ninety (90) days from
the date of purchase.
4B. Manufacturer’s Warranty 85
Warranty
Who is Covered?
This warranty extends only to the first consumer
purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace
or refund the purchase price of any Products,
Accessories or Software that does not conform to this
warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications
added to your Product, Accessory or Software,
including but not limited to personal contacts, games
and ringer tones, will be reinstalled. To avoid losing
such data, software, and applications, please create a
back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the
Products, Accessories or Software, at your expense, to
a Motorola Authorized Repair Center. To obtain service,
you must include: (a) a copy of your receipt, bill of sale
or other comparable proof of purchase; (b) a written
description of the problem; (c) the name of your
service provider, if applicable; (d) the name and
location of the installation facility (if applicable) and,
most importantly; (e) your address and telephone
number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY,
OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE)
FOR DAMAGES IN EXCESS OF THE PURCHASE
USA 1-800-734-5870
Canada 1-800-461-4575
TTY 1-888-390-6456
86 4B. Manufacturer’s Warranty
PRICE OF THE PRODUCT, ACCESSORY OR
SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF
BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY TO
USE THE PRODUCTS, ACCESSORIES OR SOFTWARE
TO THE FULL EXTENT THESE DAMAGES MAY BE
DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation
or exclusion of incidental or consequential damages, or
limitation on the length of an implied warranty, so the
above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one
jurisdiction to another.
Index 87
Index
Index
Numerics
3-Way Call 59
A
Abbreviated Dialing 20
Activation 3
Airplane Mode 31
Alarm Clock 40
alarm clock 41
Android Market 62
Answering Calls 18
Apps, Downloading 63
B
Battery 11–12
Capacity 11
Charging 2, 12
Disposal 78
Installing 12
Bluetooth 50–52
C
Calculator 40
Calendar 39
Adding Events 39
Call Alerts
Sending 27
Using 26
Call Guard 59
Camcorder 47
Clock Display 30
D
Data Roam Guard 59, 60
Data Services Password 5
Date & Time 10, 30
Dialing Options 18
Directions 70
Display Screen 29
Language 30
E
Emergency Numbers 19
Enhanced 911 (E911) 19
Entering Text 20–22
F
FCC Notice 80
File Manager 39
G
Gallery 48
Google Latitude 71
Google Maps 71
Google Places 70
Group Connect
Making Group Connect Calls
28
H
History 34
I
Instant Messaging 58
K
Key Functions 9
L
Language 30
Latitude 71
Location Settings 30
M
Making Calls 17
Making QChat Calls 24
88 Index
Maps 71
Messaging
Email 58
Instant Messages 58
Text Messaging 56
Voicemail 4, 56
microSD Card 43–45
File Manager 39
Formatting 44
Installing 43
Missed Calls 19
Music
Downloading 44, 67
Playing 65
N
Navigation 70
O
Owner’s Record 81
P
Phone (illus.) 8
Phone Number
Displaying 12
Phone Settings 29–33
Airplane Mode 31
Display Settings 29–30
Language 30
Location Settings 30
Sound Settings 29
TTY Use 31
Phone Updates 41
Pictures 48
Plus (+) Code Dialing 20
Q
QChat
Activate 23
Answering Calls 25
Dialing QChat Numbers 24
Group Connect 27
Making QChat Calls 26
Permissions 27
R
Resetting Your Phone 33
Ringers
Vibrate 29
Roaming 59–??
Call Guard 59
Data Roam Guard 59, 60
Roam Mode 59
S
Safety Information 74–81
Screen Lock 32
Settings 29–33
SMS Text Messaging 56
Software Updates,
Downloading 41
Special Numbers 32
Sprint Music Plus 69
Sprint Service
Account Passwords 4
Activation 3
Operator Services 6
Sprint 411 6
Sprint TV 69
T
TeleNav GPS Navigator 72
Text Entry
