Moto G
Motorola XT1093 / XT1094
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
At a glance
a quick look
First look

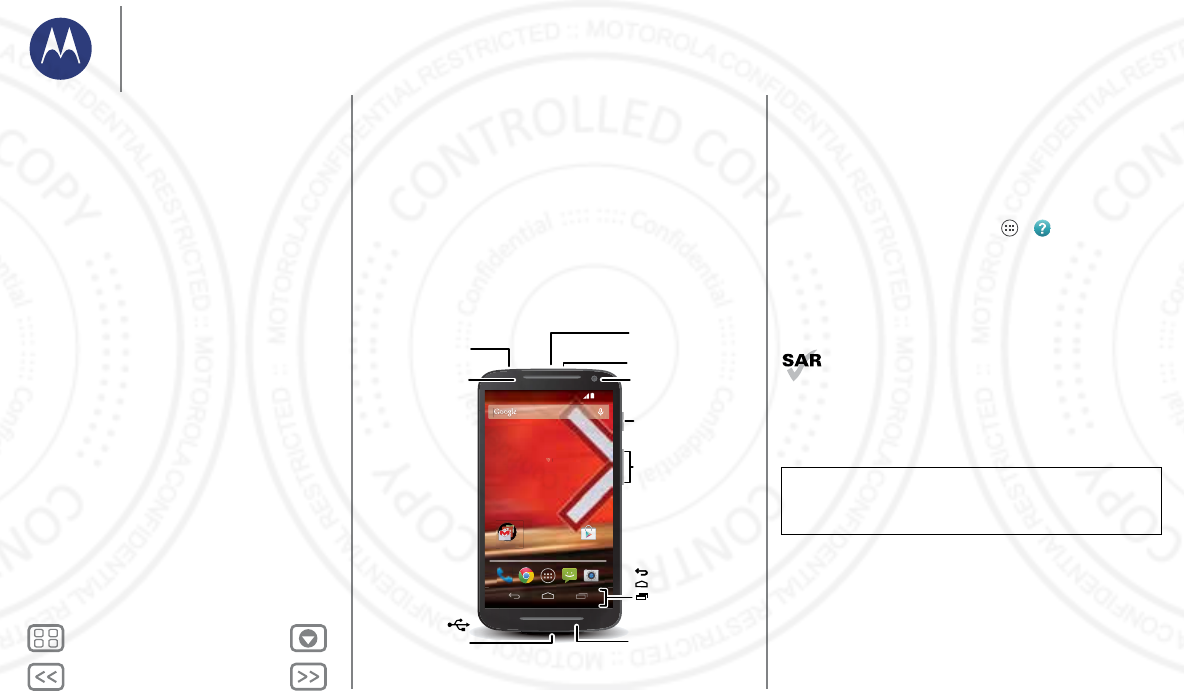

Your new XT1093/4 has a big, bright, high-definition display that
goes from one side all the way to the other. Its curved body fits
in your hand.
Note: Your phone may look a little different.
11:35
Google
Go
og
le
Play Store
11:35
WED, JULY 16
T
HU 7:00 AM
WALLPAPER TBD
WALLPAPER TBD
Headphone
Jack
Volume
Keys
Power Key
Micro USB/
Charger Microphone
Front
Camera
Back
Home
Recent
Apps
Microphone
Nano SIM
Card Tray
Speaker
Tips & t ricks
•Start: Ready to start? See “Start”.
•Top topics: Just want a quick list of what your phone can
do? See “Top topics”.
•Help: All your questions about your new phone answered
right on your phone. Touch Apps > Help. Want even
more? See “Get help & more”.
Note: Certain apps and features may not be available in all
countries.
Note: Motorola Shells are sold separately and availability varies
by country.
This product meets the applicable national or
international RF exposure guidance (SAR guideline)
when used normally against your head or, when worn
or carried, at a distance of 1.5 cm from the body. The SAR
guideline includes a considerable safety margin designed to
assure the safety of all persons, regardless of age and health.
Caution: Before using your phone, please read the safety,
regulatory and legal information provided with your
product.
At a glance
First look
Top topics
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
At a glance
Top topics
Check out what your phone can do.
Personalize your home screen: see “Redecorate your
home screen”.
Make a quick change: see “Quick settings”.
Go online: see “Browse”.
Explore: see “Google Play”.
Find apps: see “Download apps”.
Be social: see “Socialize”.
Find it yourself: seeLocate & navigate”.
Take a photo: see “Take photos”.
Connect to Wi-Fi: see “Wi-Fi Networks”.
Watch a movie: see “Play Movies & TV”.
Protect your phone: see “Screen lock”.
Walk through interactive tutorials: see “Help & more”.
Get all the help you need: seeGet help & more”.
Tips & t ricks
•Interactive: To get started quickly, touch Apps
>Help for interactive tutorials.
Google™ help: In most Google Mobile apps, you can
touch Menu > Help. You can also view the Google Help
Centers online at www.google.com/support.
At a glance
First look
Top topics
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Start
let’s get up & running
Put in the SIM
Put the SIM in, charge up, and power on.
(Your SIM may already be in your phone. If it is, just charge up
and power on.)
Caution: Make sure you use the correct sized SIM card, and
don’t use adapters with your SIM card.

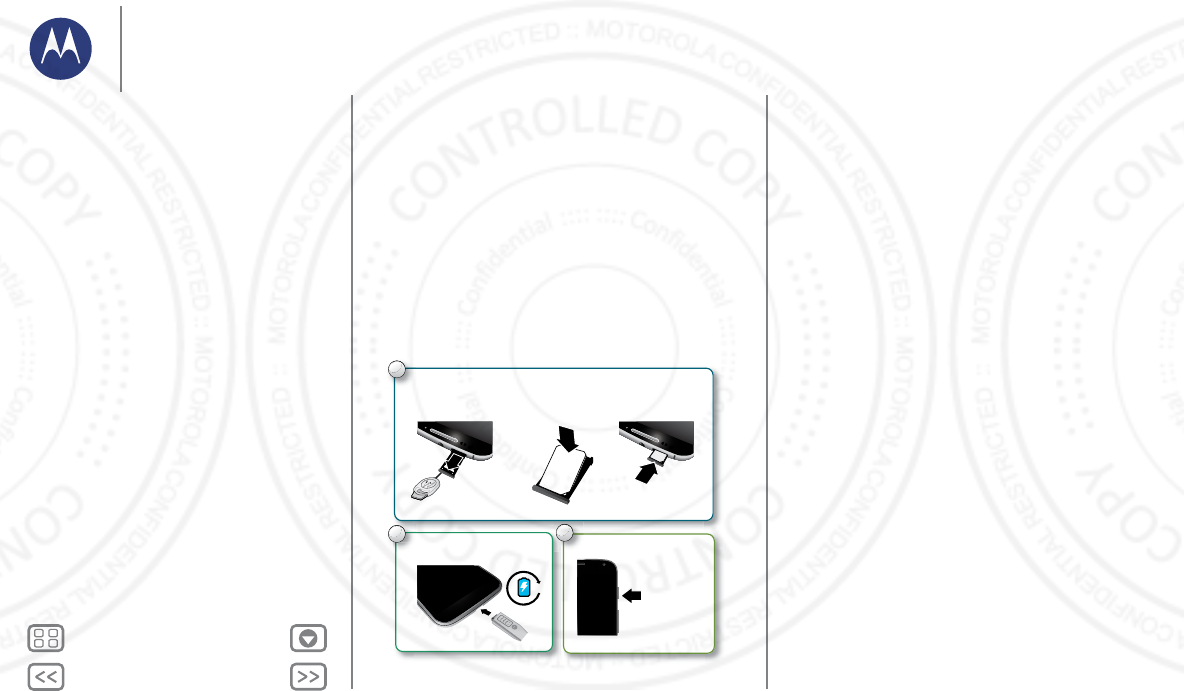

Use the tool to pop
out the SIM tray.
Put the nano SIM
into the tray.
Push the tray back
into your phone.
1
3
Power on.
Press & hold
Power until
the screen
lights up.
Put in the SIM card.
3 H
Charge up, if you need to.
C
C
2
SIM
TOOL TBDTOOL TBD
Tips & tricks
SIM tray & tool: The SIM tray is on the side of your phone.
Push the key-like tool that came in your phone’s box into the
small hole in the SIM tray to open it. Put your nano SIM into
the tray. (Make sure the angled corner of the SIM card
matches the angled corner of the SIM tray.) Align the tray
and gently put it back into the phone.
•Power Key: To make the screen sleep or wake up, press the
Power key. To turn your phone on or off, press and hold it.
• Battery: Squeeze every bit of juice out of your battery, see
Battery life”.
Warning: Don't try to remove or replace the battery
yourself—doing so may damage the battery and could cause
burning and injury. If your phone becomes unresponsive, try a
reboot—press and hold both the Power and the Volume Down
keys until the screen goes dark, and your phone restarts.
Start
Put in the SIM
Battery life
Sign in
Old phone to new phone
Google Play™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Start
Battery life
Your phone is like a small computer, giving you tons of
information and apps, at lightning fast speed. Depending on
what you use, that can take a lot of power.
To see what’s using up battery power, touch Apps
>Settings > Battery.
Tips & t ricks
To save even more battery life between charges, you could
reduce:
Wi-Fi and Bluetooth® use: Touch Apps > Settings,
then touch the switch next to Wi-Fi or Bluetooth to turn them
when you don’t need them.
GPS use: Touch Apps > Settings > Location > Mode
>Battery saving to turn off GPS tracking.
Display brightness: Touch Apps > Settings > Display
>Brightness > (slide dimmer setting left), if you don’t want
to use the automatic light sensor.
Display timeout delay: Touch Apps > Settings
>Display > Sleep > (shorter setting).
Widgets that stream information to your home screen, like
news or weather.
Unused online accounts that you registered: Touch Apps
>Settings. Go to the ACCOUNTS section, and touch the
one you want to remove. Touch it again, then touch
Menu > Remove account.
Recording or watching videos, listening to music, or taking
pictures.
OFF
Start
Put in the SIM
Battery life
Sign in
Old phone to new phone
Google Play™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Start
Sign in
If you use Gmail™, you already have a Google™ account—if
not, you can create an account now. Signing into your Google
account lets you use Google apps, see your contacts,
appointments, photos, and more.
Just select your language and follow the screen prompts to get
started.
Yes
No
Got Google?
Do you have a Google Account?
If you use Gmail or Google Apps, answer
Yes.
Mail, contacts, appointments,
photos, & more—sign in
to see it all.
Or, touch here to create
a new Google account.
Tips & t ricks
•Wi-Fi network: For faster Internet access or to conserve
data use, flick the status bar down, touch , and then touch
and hold WI-FI. There’s more in “Wi-Fi Networks”.
• Accounts: To add, edit, or delete accounts, touch Apps
>Settings. Go to the ACCOUNTS section, and touch
Add account. Or, touch an account > Menu > Remove
account to delete it from your phone, if allowed. To set up
email accounts, see “Email”.
For help with your Google account, visit
www.google.com/accounts.
•Contacts: To get your contacts from your old phone, you
have options. If your old phone was also Android™ and you
used the Android Backup and Restore feature, your contacts
automatically appear on your new phone. Otherwise, use
the Motorola Migrate app in “Old phone to new phone”.
Or, visit www.motorola.com/transfercontacts.
Note: This phone supports apps and services that may use a lot
of data, so make sure your data plan meets your needs.
Contact your service provider for details.
Start
Put in the SIM
Battery life
Sign in
Old phone to new phone
Google Play™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Start
Old phone to new phone
Copying your personal stuff from your old phone to your new
phone with Motorola Migrate is easy.
•From Android: On your old phone, download the
Motorola Migrate app on Google Play™ to get started.
Then on your new phone, touch Apps > Motorola
Migrate > Android to get started.
From iPhone: On your new phone, touch Apps >
Motorola Migrate > iPhone to get started.
Make the switch from old to new.
Copy your stuff from your old phone to
your new one in just a few minutes.
Which phone are you moving your
stuff from?
Motorola Migrate Tip: If you
don’t copy
your content
right after
setting up your
phone, you
can always do
it later.
Next
Android
Want to transfer from this phone instead?
Tips & t ricks
While you’re migrating to your phone, you can keep using
your phone.
If you didn’t copy your content when setting up your new
phone, you can always do it later.
Signing into your Google account copies your apps if they
are backed up to the cloud.
For phones that support copying music, not all music can be
copied. (If you want to know more, you can search online to
learn about digital rights management or DRM-protected
files.)
Start
Put in the SIM
Battery life
Sign in
Old phone to new phone
Google Play™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Start

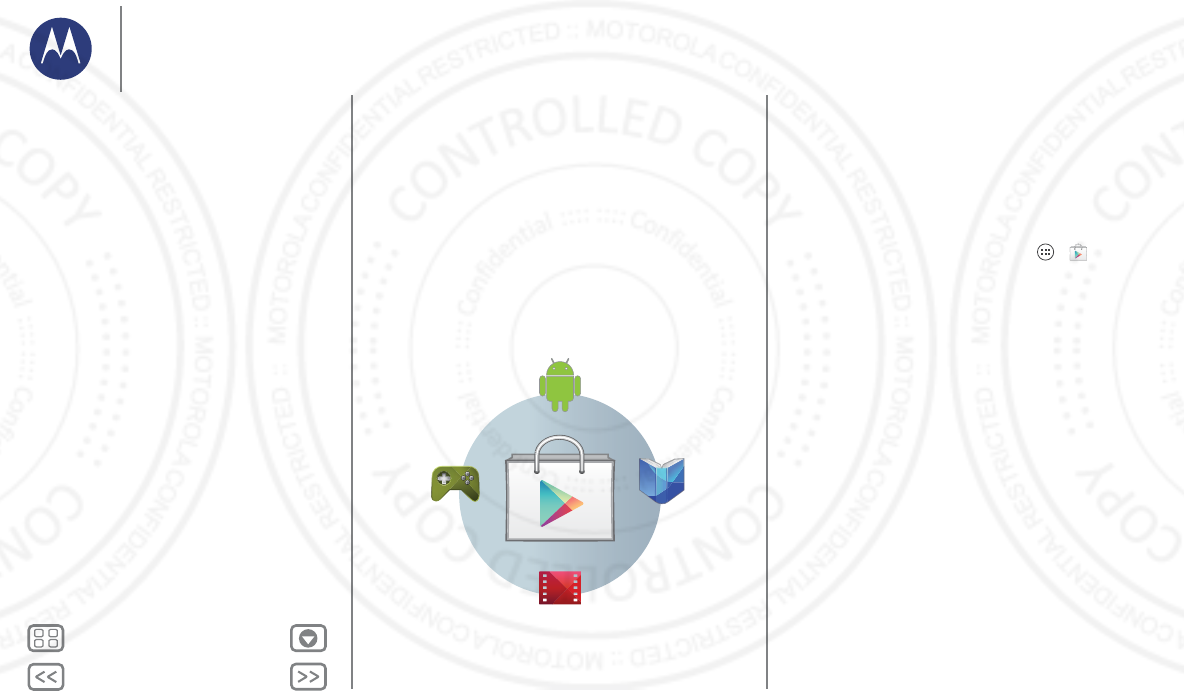

Google Play
Google Play is a digital content experience from Google
where you can find and enjoy your favorite movies, books,
magazines, and Android apps and games.
Note: Content may not be available in all countries.
Apps
Play Store
Play Games
Play Movies & TV
Play Books
Tips & t ricks
Find out more about Google products: See
www.google.com/about/products.
Log in or open a Google account: Visit
www.google.com/accounts.
Google help: See www.google.com/support.
Download Android apps: To uc h A pp s > Play Store.
Access all of your files in the cloud: Check out “Yo u r
cloud”.
Start
Put in the SIM
Battery life
Sign in
Old phone to new phone
Google Play™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps
you have quick access
Quick start: Home screen & apps

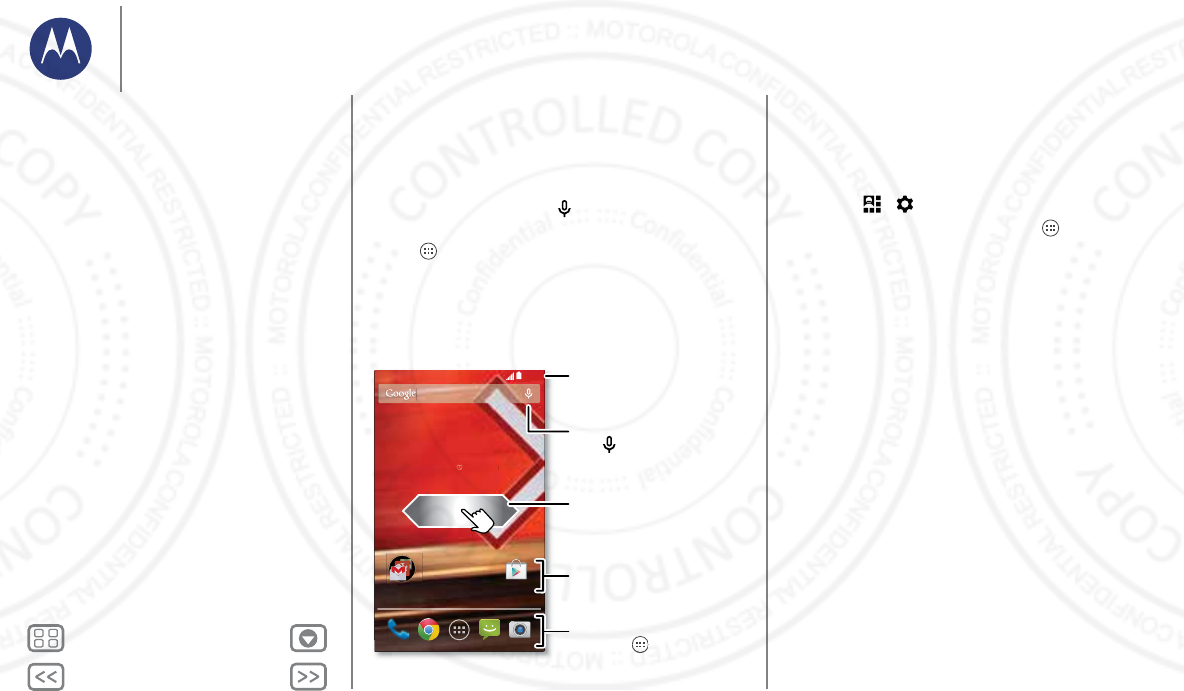

The home screen is what you see when you first turn on your
phone. From here, you can explore apps and more.
•Search: Type text in the Google Search box at the top of
your home screen, or touch to search by voice.
App & widget list: To see your apps and widgets, touch
Apps . To see widgets, touch WIDGETS at the top.
11:35
Google
Google
Play Store
11:35
WED, JULY 16
TH
U
7:
00
AM
Favorites
Touch Apps to see all
your apps & widgets.
Flick down to see
notications
& settings.
Search by typing, or
touch for a voice
search.
Swipe left or right
to see more pages.
Shortcuts
Touch to open.
WALLPAPER TBDWALLPAPER TBD
Tips & t ricks
•Pages: To show other pages of shortcuts and widgets, swipe
the home screen left or right.
• Settings: To quickly open settings, flick the status bar down
and touch > SETTINGS.
• Uninstall: To uninstall apps, touch Apps , touch and hold
an app, then drag it to Uninstall. (You can’t uninstall some
apps).
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps
Redecorate your home screen
For quick access to your favorite things, customize your home
screen the way you want.
Change wallpaper: Touch and hold an empty spot on your
home screen to choose your wallpaper.
Add shortcuts & widgets: Touch Apps , touch and hold
the app or widget, then drag it to one of your home screen
pages. To see all your apps and widgets, touch Apps and
swipe the menu screen to the left, or touch APPS or
WIDGETS at the top.
Tip: Some apps include widgets. To download apps, touch
Apps > Play Store.
Create shortcut groups: You can group app shortcuts
together on your home screen to organize them.
To create a shortcut group on your home screen, drag one
shortcut onto another. Add more shortcuts by dragging
them onto the first shortcut. To name the group, touch it and
enter a name below the apps.
Resize widgets: You can resize some widgets—touch and
hold a widget until you feel a vibration, then release. Drag
the white circles at the edges to resize.
Move or delete widgets & shortcuts: Touch and hold a
widget or shortcut until you feel a vibration, then drag it to
another spot, another page, or Remove at the top of the
screen.
Note: Removing a shortcut from your home screen doesn’t
uninstall the app from your phone.
For more about personalizing your phone, like setting
individual ringtones for your contacts, see “Control &
customize”.
Help & more
How do you do it? Watch a tutorial. Read a how-to. Talk to
someone. Find out anything about your phone.
Find it: Apps > Help
Search
At the top of the home screen, touch the Google Search box
for a text search, or touch for Google Voice Search™.
Search help topics, FAQs, and more-or contact a
support representative.
Help
Help
Search device help
Chat Call
Watch tutorials,
read how-to’s, & more.
Let us suggest a few
changes for you.
Need a real-live, actual
human? Chat or call us.
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps
As you type, suggestions appear below the search field:
To search for a suggestion, touch it.
To search for text in the search field, touch on the
touchscreen keyboard.
Tip: To close the touchscreen keyboard, touch .

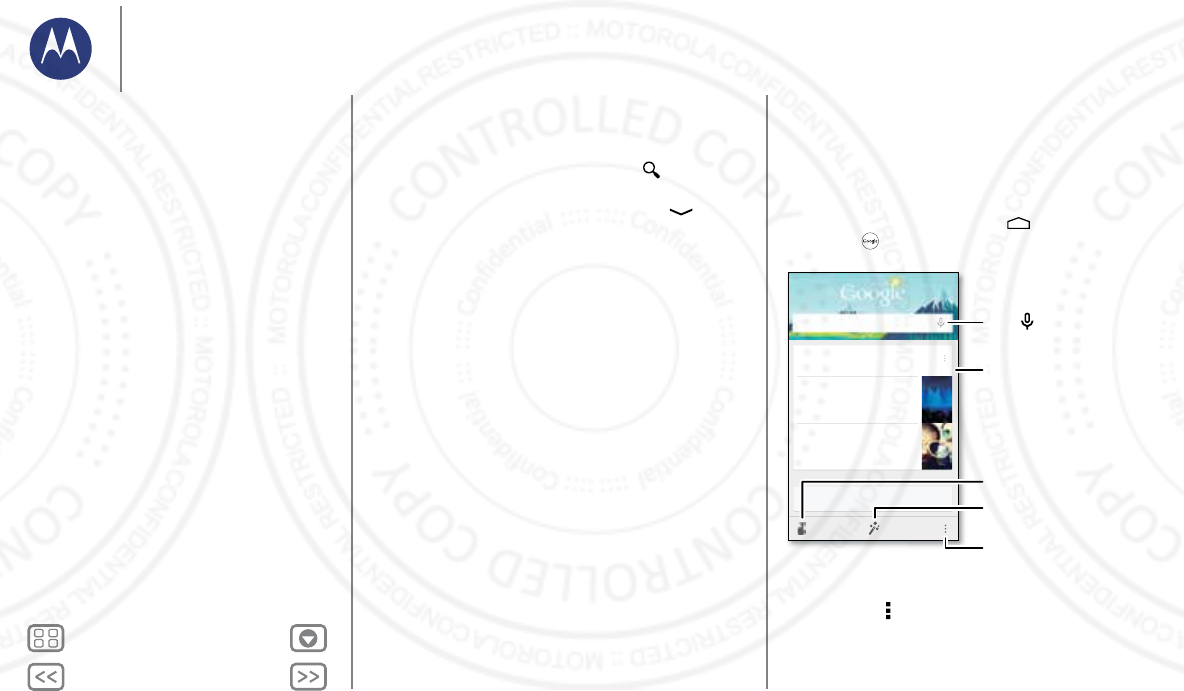

Google Now™
Google Now brings you just the right information at just the
right time, before you even ask. Weather, traffic, transit
schedules, even the latest scores come automatically,
appearing throughout the day just as you need them.
To get started, touch and hold Home , then flick up to the
Google icon .
To turn Google Now on/off, set your preferences, or learn
more, open Google Now, scroll to the bottom of the screen,
and touch Menu > Settings.
More
Nearby events
The Bordertown Devils
University Auditorium
in 3 days, 8:00PM
Concerts
Capital Cities
Merrill Civic Center East, Morrison...
Tomorrow
Concerts
Search
Stu that’s important
to you shows up here.
Customize Google Now.
Turn Google Now o & on,
adjust settings, & more.
Set reminders.
Touch to start a voice search.
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps
Moto Voice
Tell your phone what you want without touching it, even if it’s
asleep on the table.
Train it: Your phone will ask you to train it to recognize your
voice or to choose your own trigger phrase. Or, touch
Apps > Settings > Touchless Control.
Remember it: To wake up your phone say, “OK Google
Now” unless you pick your own phrase.
•Say it: Just say your trigger phrase followed by a command
whenever you need something. For a list of commands, say
Help me.”
Tip: Say, “What's up?” to hear new messages or upcoming
appointments.
What
s u
p?
What
s up
?”
What
s u
p?
What
s u
p?
What
s u
p?
OK Moto X.
Navigate to Anderson Park.
Help me Jarvis.
Call Lisa at home.
Talk to me Moto.
Send a message.
Status & notifications
At the top of the screen, icons on the left notify you about new
messages or events. If you don’t know what an icon means,
flick the status bar down for details.
Tip : To quickly change common settings, touch in the
upper right (or flick the status bar down with two fingers
instead of one). For more, see “Quick settings”.
4:00
3 new messages
Yahoo!
10:49 AM
Protect your phone
Touch to enable lost phone features
12/17/13
4:00
WED, DECEMBER 18
312-555-1234
1 new message
3:28 PM
38° - Scattered Clouds 4:00 PM
5 Cards
Clear your notications.
Flick down to see
settings & notications.
Tip: To clear just one,
flick it to the left or right.
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps

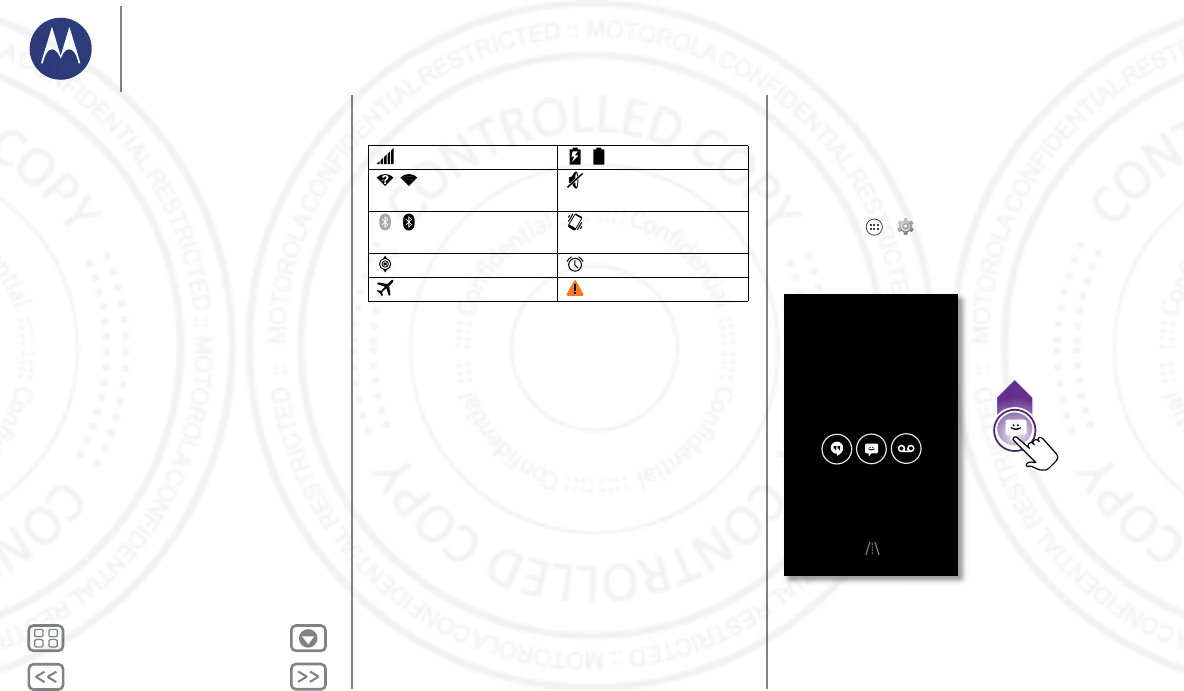

Icons on the right tell you about phone status:
Note: Apps you download on Google Play™ Store might show
other icons in the status bar to alert you to specific events.
network strength / battery charging/full
/Wi-Fi
in range/connected
silent
/Bluetooth® on
(clear)/connected (solid)
vibrate
GPS active alarm set
airplane mode warning
Moto Display
See messages, calls, and more coming in to your Moto X. Even
when your phone is sleeping, info quietly appears on your
screen to tell you what you need to know—you choose the
alerts.
Find it: Apps > Settings > Active Display
Tip : If that’s not your style, select More privacy to keep it all
hidden.
11:35
If your phone is
asleep when you
get a message, it
lets you know.
Touch & hold to
see a preview.
Drag up to open
the message or
down to unlock
your phone.
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps
Motorola Connect
Use your Google account to connect your phone to your
computer. See call, contact, and messaging info on your
computer. Know who’s calling before you reach for your
phone. Send and receive text messages from your desk using a
simple add-on to your desktop Chrome™ browser.
Find it: Apps > Settings > Motorola Connect
Download apps
Google Play™
Get music, movies, books, apps, games, and more.
Find it: Apps > Play Store
•Find: To search for apps, touch in the top right.
•Download: To download an app you found, touch it to see
details and then touch INSTALL, or the price.
•Share: To share an app you found on Play Store, touch it to
see details and then touch .
• Reinstall: To show or reinstall apps you downloaded from
Play Store, touch Play Store (in the upper left) > My apps.
•Use a computer: To find and manage apps from any
computer, go to http://play.google.com using your
Google account and password.
There, you can browse apps on the big screen, manage your
apps across multiple devices (like a phone and tablet), and
even set new apps to download to your devices.
Enjoy music, books & movies: You can also use Google
Play Store to access the “Play Music”, “Play Books”, and
Play Movies & TV” apps.
•Get help: To get help and more, touch Menu in the top
right.
Apps from the web
You can get apps from online app stores using your browser.
Tip : Choose your apps and updates carefully, as some may
impact your phone’s performance—see “Choose carefully”.
Note: When installing an app, make sure you read the alerts
that tell you what information the app will access. If you don’t
want the app to have access to this information, cancel the
installation.
To let your phone install apps that are not on Google Play,
touch Apps > Settings > Security and check Unknown
sources.
To download files from your browser, see “Downloads”.
Choose carefully
Apps are great. There's something for everyone. Play,
communicate, work, or have fun. But remember, choose your
apps carefully. Here are a few tips:
To help prevent spyware, phishing, or viruses from affecting
your phone or privacy, use apps from trusted sites, like
Google Play Store.
In Google Play Store, check the app’s ratings and comments
before installing.
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps
If you doubt the safety of an app, don’t install it.
Like all apps, downloaded apps will use up memory, data,
battery, and processing power—some more than others.
For example, a simple battery level widget will use less than
a streaming music player app. After installing an app, if
you’re not happy with how much memory, data, battery or
processing power it’s using, uninstall it. You can always
install it again later.
Just like web browsing, you may want to monitor children’s
access to apps to help prevent exposure to inappropriate
content.
Certain apps may not provide completely accurate
information. Take care, especially when it comes to personal
health.
Take care of your apps
From your home screen touch Apps , then swipe left to
scroll through apps. To close the apps screen, touch Home
or Back .
Uninstall apps: To uc h A p ps > Settings > Apps.
Swipe left to ALL, touch an app, then touch Disable or
Uninstall in the top right (if available).
Disable removes the app from your menu—to Enable it,
reopen this window and touch Enable (disabled apps are at
the bottom of the list).
If an app locks up your phone as soon as you turn it on,
restart in Safe Mode: Turn off your phone, then turn it back
on—when you see the “Motorola” logo during power-up,
press and hold both volume keys until you see the home
screen, with Safe Mode in the lower left. Then, try removing
the app.
Reinstall apps: To reinstall apps from Google Play Store,
touch Apps > Play Store > My apps. The apps you
downloaded are listed and available for download.
Share, show, or clear app details: To uc h A pp s
>Settings > Apps. A bar at the bottom tells you how
much app storage space you have left. Swipe left or right to
see the list of DOWNLOADED, RUNNING, or ALL apps, then
touch an app in the list to show its details and storage usage.
You can touch Clear data, Clear cache, or other options.
Ti p: To quickly show these app details from your app
screen: Touch and hold an app, then drag it to App info.
•Show app data usage: To show which apps are using the
most data, touch Apps > Settings > Data usage. For
more, seeData use”.
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Home screen & apps
Update your phone
Use your phone or computer to check, download, and install
phone software updates:
Using your phone:
If your phone notifies you about an update, follow the
instructions to download and install it.
To manually check for updates, touch Apps
>Settings > About phone > System updates.
Your phone downloads updates over your Wi-Fi connection
(if available) or mobile network. We recommend that you
download updates over a Wi-Fi connection. Remember,
these updates can be quite large (25MB or more) and may
not be available in all countries. If the mobile network
updates are not available in your country, update using a
computer.
Using your computer:
On your computer, go to www.motorola.com/update.
Home screen & apps
Quick start: Home screen & apps
Redecorate your home screen
Help & more
Search
Moto Voice
Status & notifications
Moto Display
Motorola Connect
Download apps
Take care of your apps
Update your phone
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
how it acts & looks
Quick start: Control & customize
Take control of your phone:
Add shortcuts: Touch Apps , touch and hold an app or
widget, then drag it to your home screen.
Choose widgets: To put widgets like a clock, interactive
calendar, and more on your home screen, touch Apps >
WIDGETS (at the top).
• Customize: Change Wi-Fi, brightness, and more—flick the
status bar down and touch . Touch for more settings.
11:35
Google
Google
Play Store
11:35
WED, JULY 16
TH
U
7:
00
AM
Touch a shortcut to open.
Touch & hold to move or delete.
Touch a widget to modify it.
Touch & hold to move it,
remove it, & more.
Touch & hold an empty
spot to change wallpaper.
Drag shortcuts on top of
each other to make a group.
Tips & t ricks
•Touch: Choose an icon or option.
•Touch and hold: Open options for items in lists.
•Drag: Move items on the home screen.
•Flick: Quickly open or delete items.
•Swipe: Scroll through lists or between screens.
•Pinch or double-tap: Zoom in and out on websites, photos,
and maps.
•Twist: Twist a map with two fingers to rotate it, and pull two
fingers down to tilt it.
•Speak: Touch in a search window, or on a
touchscreen keyboard.
• Uninstall: To uninstall apps, touch Apps , touch and hold
an app, then drag it to Uninstall. (You can’t remove some
apps.)
•Ringtone for a contact: To set a personal ringtone for a
contact, touch Apps > People, touch the contact,
then touch Menu > Set ringtone.
Quick settings: To ch ang e Wi-Fi, Bluetooth, Brightness,
Airplane mode, and other settings, flick the status bar down
and touch . For even more settings, touch SETTINGS.
•Home screen: For more about changing your home screen,
see “Redecorate your home screen”.
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
On, off, lock & unlock
Your touchscreen is on when you need it and off when
you don’t. To turn the screen on, press the Power key.
Screen off & on: Press the Power key to turn the screen off
& on.
Note: During a call, your touchscreen might stay dark if the
proximity sensor just above the top of the screen is covered.
Don't use covers or screen protectors (even clear ones) that
cover this sensor.
Thanks for finding my phone!
WED, JULY 16
11:35
Drag the lock to the
outer circle to unlock
your screen.
Add your owner info or
a message for anyone
who nds your phone.
Swipe left to open the camera.
Flick up to open Google Now.

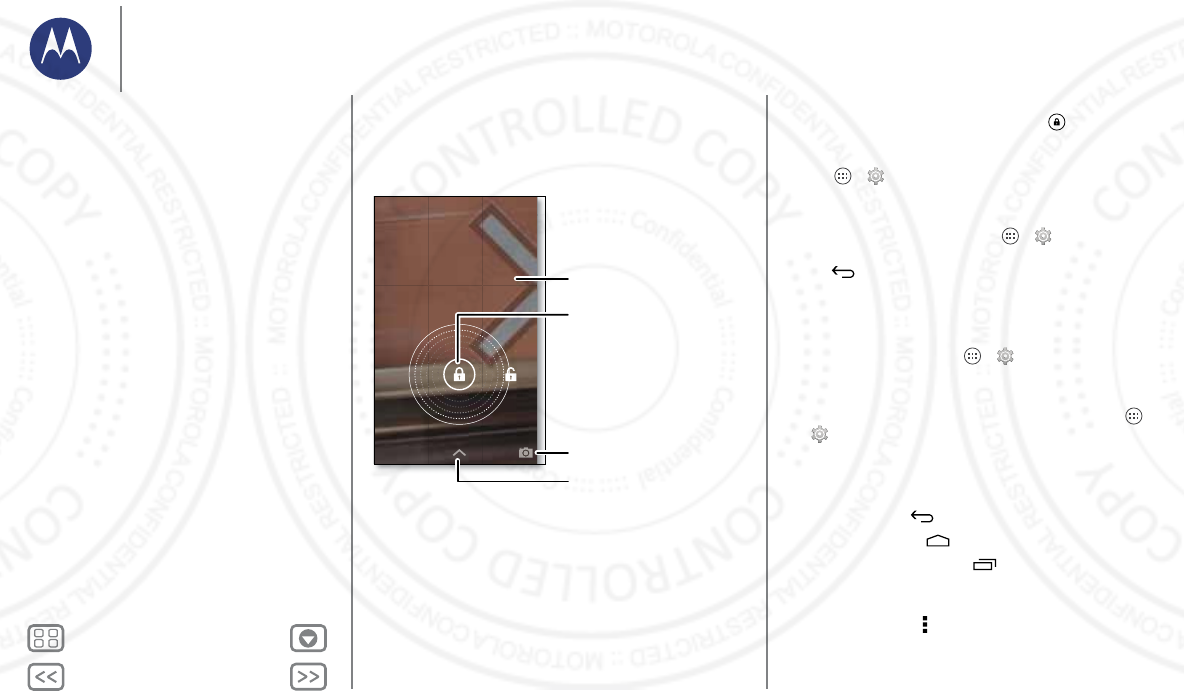

Screen lock: To unlock the screen, touch and drag to the
outer circle that appears. To use a password, pattern, PIN, or
facial recognition security to unlock your screen, touch
Apps > Settings > Security > Screen lock (see
Screen lock”).
•Owner info: To add a message to your lock screen in case
you lose your phone, touch Apps > Settings
>Security > Owner info. (To set your message, just touch
Back .)
Ti p: Don’t put your mobile number as your contact info
unless you can access your voicemail from another device.
Screen timeout: To change your timeout (screen locks
automatically), touch Apps > Settings > Display
>Sleep.
Sleeping phone screen messages: To ch an g e t h e
notifications your sleeping phone flashes, touch Apps
>Settings > Active Display. See “Moto Display”.
To u c h
Find your way around:
•Back: Touch Back to go to the previous screen.
•Home: Touch Home to return to the home screen.
Recent apps: Touch Recent to show your recent apps,
and touch an app to reopen it. To remove an app from the
list, flick it left or right. To scroll the list, swipe up or down.
•Menu: When Menu appears in the corner of the screen,
you can touch it to open options for the current screen.
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
Lost or stuck? If you’re not sure what to do next, try one of
these:
To open a text message, show contact details, or open items
in a list, touch the message, contact, or item.
To show options for a list item (if available), touch and hold
the item.
To show a menu for the current screen, touch Menu in the
corner of the screen (if available).
To return home to the home screen, touch Home .
To go back just one screen, touch Back .
To close a touchscreen keyboard, touch .
To reopen an app you closed, touch Recent and touch
the app in the list.
To reboot an unresponsive phone, press and hold the Power
key until the screen goes dark and your phone restarts.

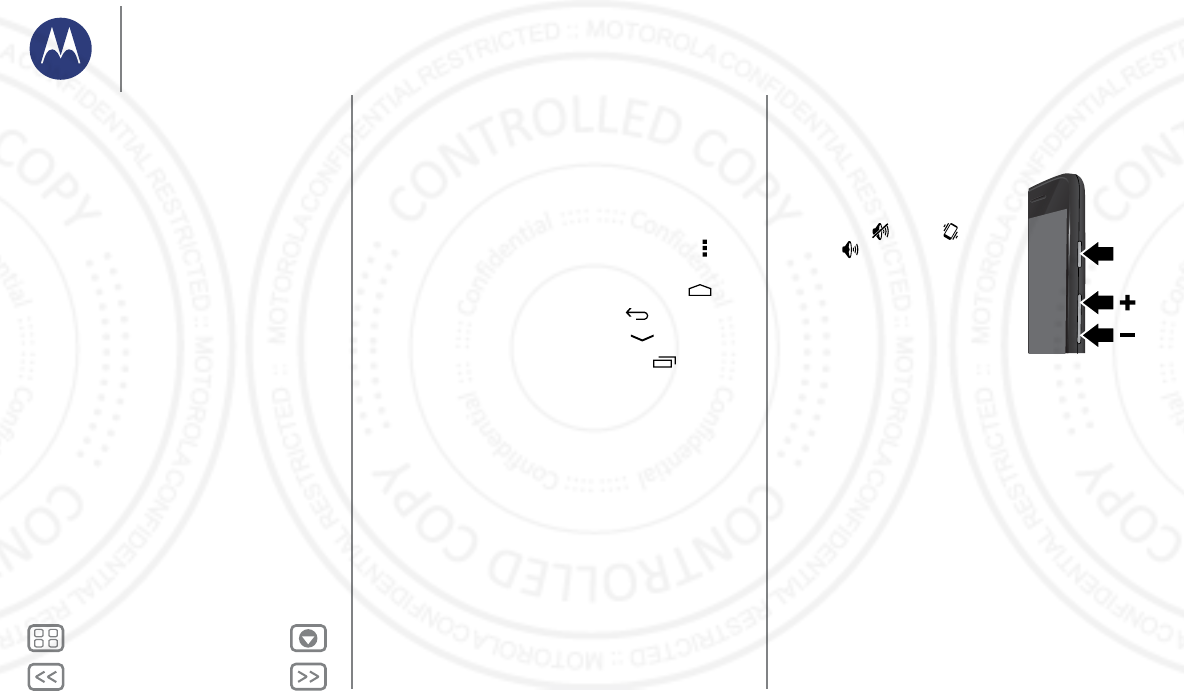

Press
Power key
Press and hold the Power key to
choose Power off, Airplane mode (no
wireless connections—see “Airplane
mode”), silent , vibrate , or
sound on .
To conserve battery power, prevent
accidental touches, or when you want
to wipe smudges off your
touchscreen, put the touchscreen to
sleep by pressing the Power key. To
wake up the touchscreen, just press
the Power key again.
Tip : To add more security to your phone, see “Protect”.
Volume keys
Your volume keys help in a few ways:
•Ringer volume: Press the keys in the home screen. Press
them when your phone is ringing to silence it.
Earpiece volume: Press the keys during a call.
Music/video volume: Press the keys during a song or
video.
Power
Key
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
Speak
Just tell your phone what you want.
Tip: Speak naturally but clearly, like using a speakerphone.
Dialing and commands: Touch . To dial, say “Call” and
then a contact name or phone number. Or, say a command
like “Send text, “Go to” an app, or “Help” for voice
command help.
Tip: If a contact has more than one number, you can say
which number to call. For example, “Call Joe Black Mobile”
or “Call Suzi Smith Work.
To choose the confirmations and prompts you want to hear,
touch > Menu > Settings > Voice.
•Search: Touch in the home screen to search by voice.
To change your voice search and text-to-speech settings,
touch Apps > Settings > Language & input.
Text entry: On a touchscreen keyboard, touch , then
speak your message or search text. You can also speak
punctuation.
Tip: To make your phone read out loud, see “Tal kB a c k ”.
Customize
Customize your phone’s sounds and appearance:
Ringtone and notifications: To choose ringtones or
notifications, touch Apps > Settings > Sound.
•Vibrate or silent: To make your phone vibrate for incoming
calls, touch Apps > Settings > Sound > Vibrate when
ringing. To turn off ringtones for incoming calls, touch
Apps > Settings > Sound > Phone ringtone > None.
•Ringtone for a contact: To set a personal ringtone for a
contact, touch Apps > People, touch the contact,
then touch Menu > Set ringtone.
•Volume: To set the volume, just press the side volume keys
while in the home screen (ringtone volume), during a call
(earpiece volume), or while playing music or a video (media
volume).
Message alert: To change your new message notification
settings, touch Apps > Messaging >Menu
>Settings, and check Notifications.
•Display settings: To change brightness, animation, and
other display settings, touch Apps > Settings
>Display.
•Rotate: In many apps, the touchscreen switches from
portrait to landscape when you rotate your phone. To turn
this on or off, touch Apps > Settings > Display
>Auto-rotate screen.
• Wallpaper: To change your wallpaper, touch and hold an
empty spot on your home screen. For more, see
Redecorate your home screen”.
Language and region: To set your menu language and
region, touch Apps > Settings > Language & input
>Language.
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize

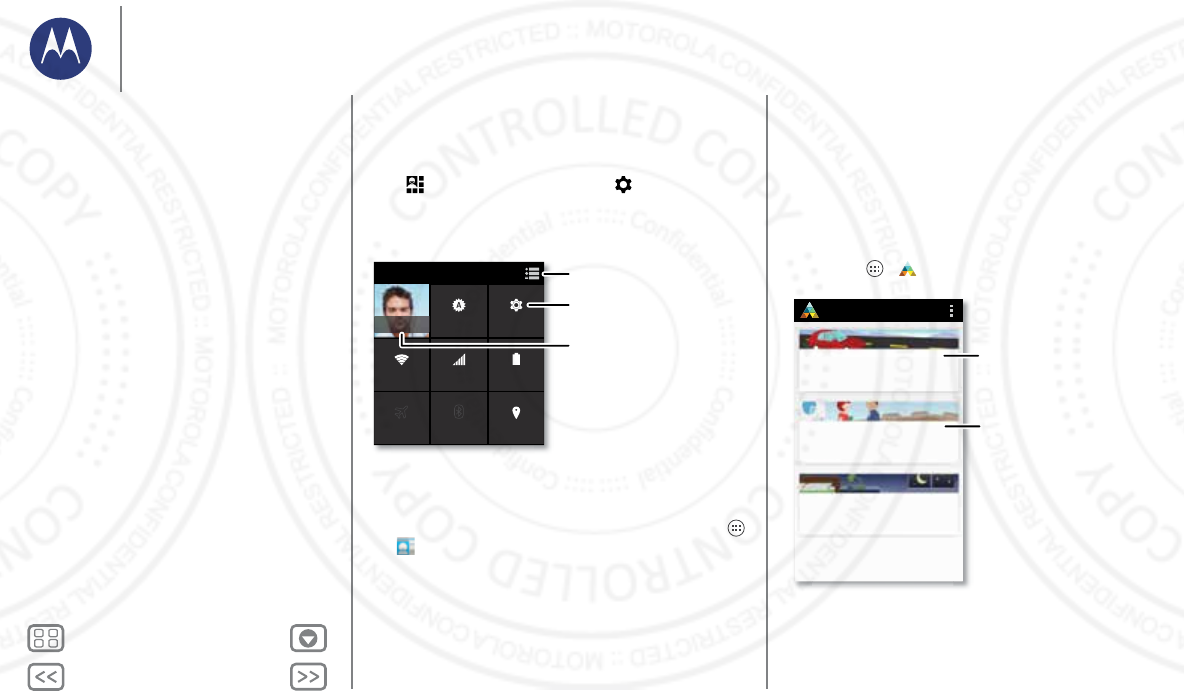

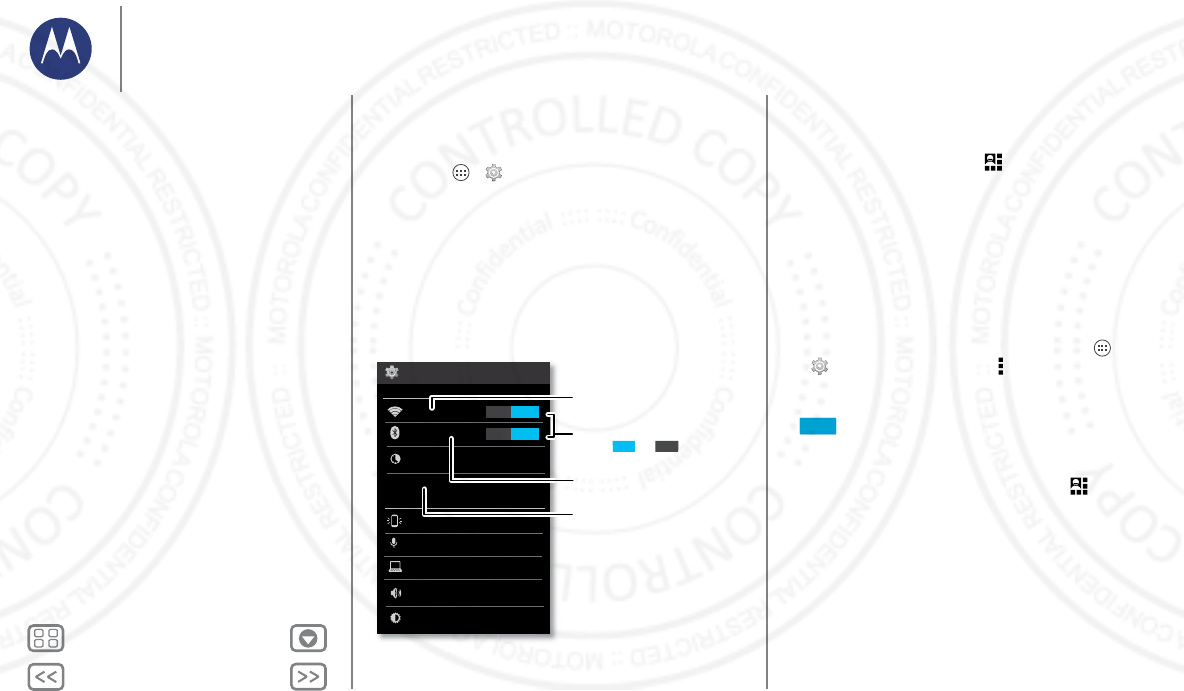

Quick settings
For quick access to Wi-Fi, Bluetooth, Brightness, Airplane
mode, and other settings, flick the status bar down and
touch . For even more settings, touch SETTINGS.
Need help finding this screen? See “Status & notifications”.
Note: Your quick settings may look a little different.
Quick settings shortcut: To directly open the quick
settings screen, flick the status bar down with two fingers.
•Owner profile: To set up your owner profile, touch Apps
>People > Set up my profile. (You may need to scroll to
the top of the screen.)
AIRPLANE MODE BLUETOOTH OFF
WED, DECEMBER 184:00
LOCATION
CHARGED
BRIGHTNESS
NETWORK
SIGNAL
RICO’S
WI-FI
SETTINGS
Rico
See all of your settings.
Go back to notications.
Set your owner prole.
Moto Assist
Wish your phone could automatically silence your ringer when
you’re driving, during meetings, or when you’re sleeping? It
can.
Motorola Assist suggests actions to automate based on your
settings. When you see a notification in the status bar, flick the
bar down to learn more.
Find it: Apps > Assist
Assist
Meeting
Avoid interruptions
Sleeping
Get a good night’s rest
Driving
Stay focused on the road
Set your sleeping
hours to silence
your phone. Or,
make an exception
to hear calls from a
certain person, no
matter what time of
night.
Keep your phone
quiet when you
need to.
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
Accessibility
See, hear, speak, feel, and use. Accessibility features are there
for everyone, helping to make things easier.
Find it: Apps > Settings > Accessibility
Note: For general information, accessories, and more, visit
www.motorola.com/accessibility.
Voice recognition
Just tell your phone what you’d like to do—dial, browse,
search, send a text, and more. Check it out—touch at the
top of the home screen for voice search.
Ta l kB ac k
Use TalkBack to read your screen out loud—your navigation,
your selections, even your books.
To turn on TalkBack, touch Apps > Settings
>Accessibility > TalkBack, then touch at the top to turn
it .
Note: You might need to download text-to-speech software
(data charges may apply).
To u se Ta lk Bac k:
Menus and screens: Touch an item in a menu or screen.
Your phone speaks the name.
Dialer & text entry: Start typing. Your phone speaks each
number or letter.
• Notifications: Drag the status bar down. Your phone speaks
all of the notifications.
OFF
ON
Books & more: Open a book, file, message, and more. Your
phone reads the text out loud (app dependent).
•Browsers: Enable web pages in your browser to be read out
loud. Move between pages, paragraphs, lines, words, or
characters.
Tip : Navigate through your apps and menus to hear how voice
readouts work on your phone.
To p a us e/r e su me Ta lkBa ck :
Wave your hand over the proximity sensor at the top of the
phone. To activate this feature, touch Apps
>Settings > Accessibility > TalkBack > SETTINGS > Use
proximity sensor.
When Explore by Touch is on, swipe down then right to
open the global context menu, then use the menu to pause
Ta l k B a c k .
Explore by touch
Use Explore by Touch to expand TalkBack, and have your
touches read out loud as you move your finger around the
screen.
To turn on Explore by Touch when TalkBack is active, touch
Apps > Settings > Accessibility > TalkBack > SETTINGS
>Explore by touch.
Tip : When you turn on TalkBack for the first time, your phone
asks if you want to Enable Explore by Touch? To uc h OK to turn
it on.
Explore by Touch changes your phone’s touch gestures so the
location of your touches can be read out loud.
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
•Touch something on the screen to hear a description or text
readout.
•Double-tap anywhere on the screen to open or activate the
last touched item.
•Swipe using two fingers to scroll through lists or between
screens.
Shortcut gestures let you navigate your phone with simple
swipe gestures (for example, swipe up then left in a single
motion to go to the home screen). To see or change these
shortcuts, touch Apps > Settings > Accessibility
>TalkBack > SETTINGS > Manage gestures.
Note: The way these gestures are interpreted is specific to
TalkBack. Other accessibility services may use the same
gestures for different actions.
To learn more about navigating your phone with Explore by
Touch, touch Apps > Settings > Accessibility
>TalkBack > SETTINGS > Launch “Explore by touch” tutorial.
To tu rn of f E xp lo re by Tou ch w he n Ta lk Ba c k is ac t iv e, to uc h
Apps > Settings > Accessibility > TalkBack
>SETTINGS, and uncheck Explore by touch.
Braille
Combine your Braille display with TalkBack for braille and
speech feedback.
1Download the BrailleBack app from Google Play™ Store
(touch Apps > Play Store), and install it on your
phone.
2Touch Apps > Settings > Accessibility > BrailleBack.
3Turn on your Braille display and put it in Bluetooth® pairing
mode.
4On your phone, touch Apps > Settings > Bluetooth,
then touch the Bluetooth power switch to turn it and
scan.
5Touch the name of your Braille display to pair it with the
phone.
Accessibility shortcut
Use simple gestures to quickly activate TalkBack and other
accessibility features on your phone. For more information,
touch Apps > Settings > Accessibility > Accessibility
shortcut.
Caller ID
When you want to hear who’s calling:
•Read out loud: Have your caller announced—touch
Apps > Settings > Accessibility > TalkBack
>SETTINGS > Speak Caller ID.
•Ringtones: Assign a unique ringtone to a contact—touch
Apps > People, touch the contact, then
touch Menu > Set ringtone.
Volume & vibrate
Find it: Apps > Settings > Sound > Volumes or Vibrate
when ringing
Volumes opens sliders that let you set different volumes for
your music or videos, ringtone, text or email notifications,
and alarms.
ON
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
Vibrate when ringing determines whether your phone
vibrates for incoming calls (even if the ringer is silent).
Zoom
Get a closer look.
Pinch to zoom: Pinch to zoom on maps, web pages, and
photos—to zoom in, touch the screen with two fingers and
then drag them apart. To zoom out, drag your fingers
together.
Tip: To zoom in, you can also double-tap.
Screen magnification: Triple tap the screen for full screen
magnification, or triple tap and hold to temporarily
magnify—touch Apps > Settings > Accessibility
>Magnification gestures.
•Big text: Show bigger text throughout your phone—touch
Apps > Settings > Accessibility > Large text.
•Browser: Choose text scaling and other accessibility
settings for your browser—touch Apps > Chrome
>Menu >Settings > Accessibility.
Tip: Use Force enable zoom to allow zooming on all
webpages.
Display brightness
Your phone automatically adjusts the screen brightness when
you’re in bright or dark places. But you can set your own
brightness level instead:
Find it: Apps > Settings > Display > Brightness, and
adjust the slider to set brightness level
Note: Setting brightness to a high level decreases your
phone’s battery life. To maximize battery life, touch AUTO to
activate automatic brightness.
To uchs c reen & keys
To hear or feel when you touch the screen, touch Apps
>Settings > Sound:
•Touchscreen: To hear a click when you touch something on
the screen, select Touch sounds.
•Keys: To feel a vibration when you touch a key on the
touchscreen keyboard, select Vibrate on touch.
Screen lock: To hear a click when you lock or unlock the
screen, select Screen lock sound.
Messages
To make text entry even easier, use features like
auto-capitalization, auto-correction, and more—touch
Apps > Settings > Language & input, then touch
next to a keyboard type. Of course if you don’t want to type at
all, then use your voice—touch on the touchscreen
keyboard.
Hearing aids
To help get a clear sound when using a hearing aid or cochlear
implant, your phone may have been rated for use with hearing
aids. If your phone’s box has “Rated for Hearing Aids” printed
on it, then please read the following guidance.
Note: Ratings are not a guarantee of compatibility (visit
www.motorola.com/hacphones). You may also want to
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Control & customize
consult your hearing health professional, who should be able to
help you get the best results.
• Settings: Tou ch Phone >Menu >Settings > Hearing
aids.
Call volume: During a call, press the side volume keys to set
a call volume that works for you.
• Position: During a call, hold the phone to your ear as
normal, and then rotate/move it to get the best position for
speaking and listening.
TTY
You can use your phone in TTY mode with standard teletype
machines. Touch Phone >Menu >Settings > TTY mode
and select the mode you need:
TTY full: Type and read text on your TTY device.
TTY HCO: Hearing-Carry-Over—type text on your TTY
device and listen to voice replies on your phone’s speaker.
TTY VCO: Voice-Carry-Over—speak into your phone and
read text replies on your TTY device.
Note: You’ll need a cable/adapter to connect your TTY device
to the headset jack on your phone.
Refer to your TTY device guide for mode and usage
information.
Apps
Want more? No problem. With over 1,000,000 apps to choose
from, Google Play has something for everyone, and many apps
provide useful accessibility features.
Find it: Apps > Play Store
Control & customize
Quick start: Control & customize
On, off, lock & unlock
Touch
Press
Speak
Customize
Quick settings
Moto Assist
Accessibility
23 MAY 2014
FCC SUBMIT
Back Next
Menu More

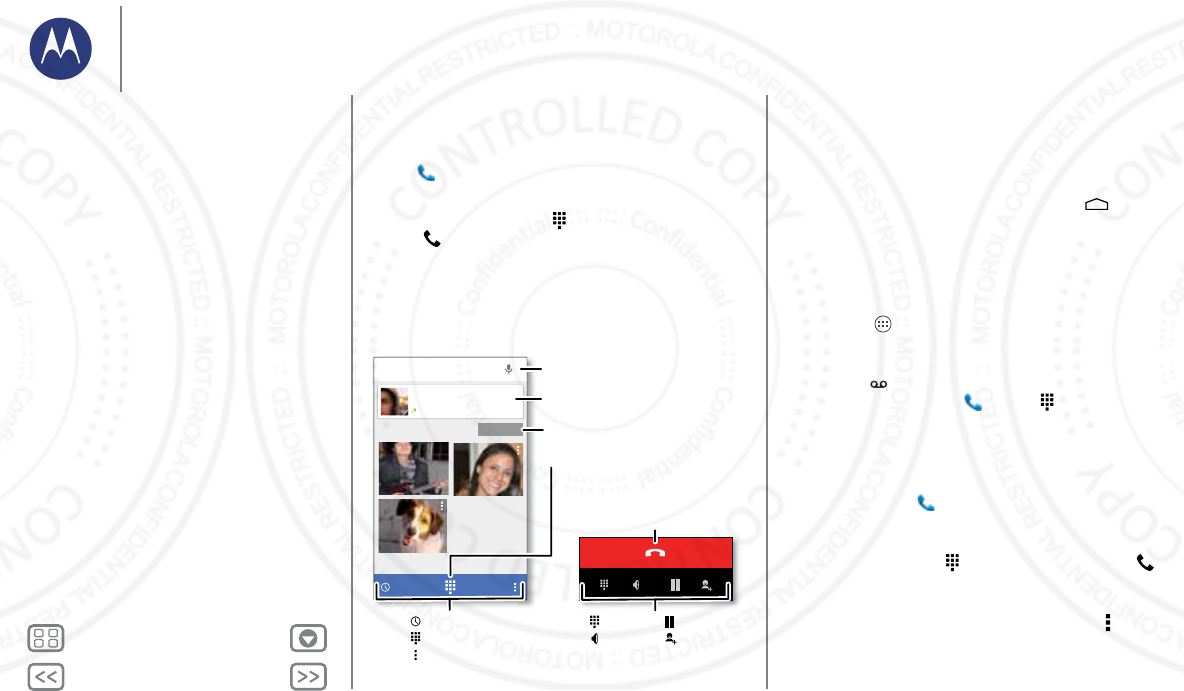

Calls
when you need to talk
Quick start: Calls
Dial contacts, recent calls, or numbers, all from one app.
Find it: Phone
To call a contact or recent call, touch it.
To open the dialpad, touch . Enter a number, then
touch to call it.
Type a name or phone number
Abe Baudo
Mobile
5 mins ago
Lauren
mobile
Gracie Jo
mobile
Allie
mobile
ALL CONTACTS
Speed Dial
Search your contacts.
During a call:
Hang up.
Touch to call the last call.
Open dialpad to dial a number.
Dialpad
Call history
Options
Dialpad
Speaker Add caller
Hold
See all of your contacts.
Tips & t ricks
During a call: Your touchscreen goes dark to avoid
accidental touches. To wake it up, move it away from your
face or press the Power key.
•Multi-task: While you’re on a call, touch Home to hide
the call screen and look up a phone number, address, or
open other apps. To reopen the call screen, flick down the
status bar and touch Ongoing call.
•People: To search your contacts, touch ALL CONTACTS.
Favorite contact: Have someone you call all the time?
Tou c h A pp s , to uc h WIDGETS at the top, then touch and
hold the Direct dial widget. Drag it to your home screen,
then select the contact. Touch the widget to dial the person.
•Voicemail: appears in the status bar when you have new
voicemail. To hear it, touch Phone > , then touch and
hold 1.
Make, answer & end calls
When you make or answer a call, you have options:
Make a call: Tou ch Phone, to see your recent calls,
favorites, and frequently-called contacts. Select a contact or
number to call it.
To dial a number, touch , enter a number, then touch
to call it.
To enter the international dialing code (+), touch and hold 0.
To add a pause or wait after numbers, touch Menu .
Calls
Quick start: Calls
Make, answer & end calls
Recent calls
3-way calls
Your phone number
Emergency calls
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Calls
Answer a call: To uc h an d dr ag to .
With call waiting on, touch and drag to to answer the
new call, then touch Hold current call + Answer or End
current call + Answer.
Ignore a call: Touch and drag to to send the call to
your voicemail. You can also press the Power key to ignore
the call, or press a volume key to silence the ringer.
Respond with a text: To send a pre-set message to an
incoming call, touch and drag to . Select a message to
immediately send it.
End a call: To uc h .
During a call: Tou ch Mute at the bottom of the call
screen to mute the call. To hide the call screen,
touch Home . To reopen it, flick down the status bar and
touch Ongoing call.
Note: When you hold your phone to your ear, the
touchscreen goes dark to avoid accidental touches. When
you move your phone away from your ear, the screen lights
up again.
During a call, your touchscreen might stay dark if the sensor
just above it is covered. Don't use covers or screen
protectors (even clear ones) that cover this sensor.
Recent calls
View your calls (with newest first), and then call, text, or store
them:
Find it: Phone >
To call a number, touch on the right.
To send a text message, store the number, or other options,
touch an entry.
To remove an entry from the call log, touch it, then touch
Menu > Remove from call log.
To clear the list, touch Menu > Clear call log.
3-way calls
During a call, you can start another call, switch between them,
or join them in a 3-way call:
To answer a second call, touch and drag to . To ignore
it, touch and drag to .
The first call goes on hold if you answer the second call. To
switch between calls, touch .
To dial a second call, touch , enter a number, then
touch to call it.
The first call goes on hold when you touch . To join the
calls after the second call answers, touch .
Calls
Quick start: Calls
Make, answer & end calls
Recent calls
3-way calls
Your phone number
Emergency calls
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Calls
Your phone number
Find it: Apps > Settings > About phone > Status > My
phone number
Emergency calls
Note: Your service provider programs one or more emergency
phone numbers that you can call under any circumstances,
even when your phone is locked. Emergency numbers vary by
country. Your pre-programmed emergency number(s) may not
work in all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or interference
issues.
1To u c h Phone (if your phone is locked, touch Emergency
Call or touch Menu > Emergency call).
2Enter the emergency number.
3Touch to call the emergency number.
Note: Your phone can use location based services (GPS and
AGPS) to help emergency services find you. See “Location
Services” in your legal and safety information.
Calls
Quick start: Calls
Make, answer & end calls
Recent calls
3-way calls
Your phone number
Emergency calls
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Contacts
you can be a people person

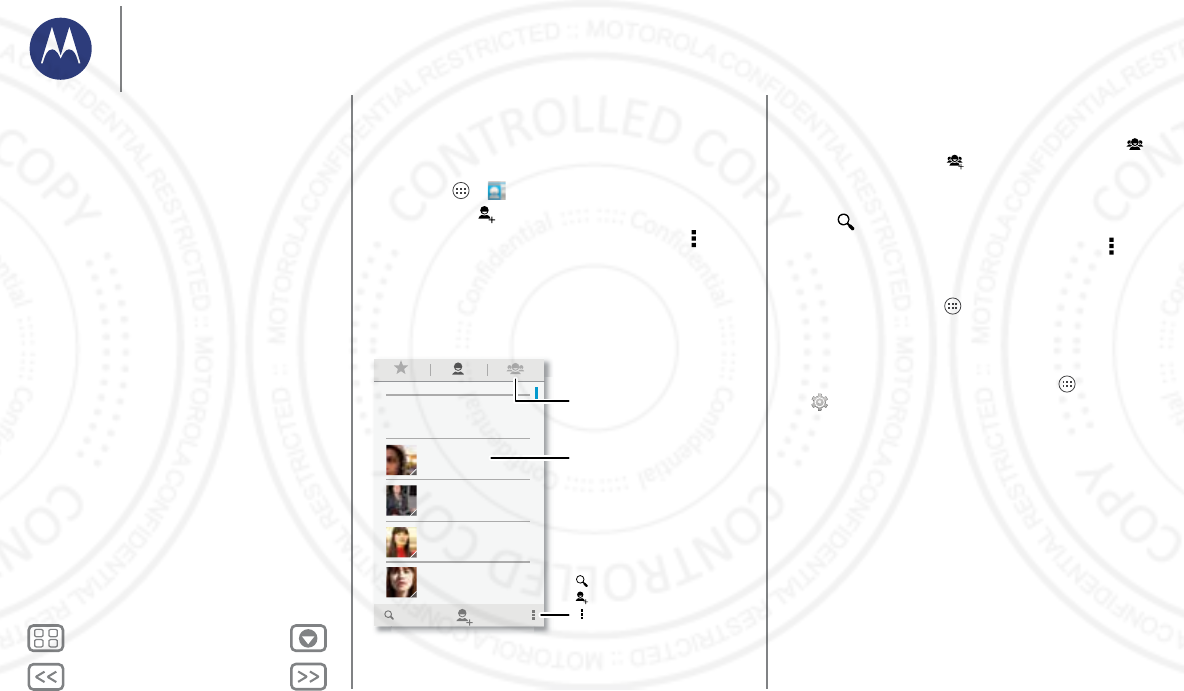

Quick start: Contacts
Combine information from your Google™ contacts and social
networks for quick access to everyone you know.
Find it: Apps > People
•Create: Touch at the bottom of the screen.
Edit or delete: Touch a contact, then touch Menu > Edit
or Delete.
Call, text, or email: Touch a contact, then touch an option.
ME
A
Set up my prole
107 contacts
Abe Baudo
Astrid Fanning
Anna Medina
Allie Smyth
Barry Smyth
Touch to view contact
information, call, send a
text message, & more.
Create & view
groups of contacts.
Search your contacts.
Sort contacts, change
settings, accounts, & more.
Add a contact.
Tips & t ricks
•Groups: To show or create a group of contacts, touch ,
then touch the group or at the bottom of the screen.
Search contacts: From the home screen, touch the Google
search box and enter a contact’s name. In the People list,
touch .
•Send contacts: Touch a contact, then touch Menu
>Share to send it in a message or over a Bluetooth®
connection.
•Shortcuts: Touch Apps , touch WIDGETS at the top,
then touch and hold the Contact widget. Drag it to your
home screen, then select the contact you want to make a
shortcut for.
•Synchronize: On your phone, touch Apps
>Settings. Go to the ACCOUNTS section, choose your
Google account, then touch your account name to sync it if
it has not recently been updated. You can also see these
contacts at www.gmail.com.
For help with transferring contacts, see “Old phone to new
phone” or go to www.motorola.com/TransferContacts.
Contacts
Quick start: Contacts
Create contacts
Call, text, or email contacts
Favorites
Edit, delete, or hide contacts
Get contacts
Share contacts
Groups
My details
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Contacts
Create contacts
Find it: Apps > People >
Touch a text box to type the name and details. When you’re
finished, touch DONE at the top.
Note: To import contacts or change where they’re stored, see
Get contacts”.
Call, text, or email contacts
Find it: Apps > People
Touch a contact to see more options. Depending on the
information you have for that person, you can call, text, or send
email. You can also use voice recognition (see “Speak”).
Favorites
Set your most-used contacts as favorites, so you can get to
them faster.
To set a favorite, touch Apps > People, select a
contact and touch .
To see your favorites, touch Apps > People >.
Starred contacts appear at the top of your screen when you
open the calling screen.
Edit, delete, or hide contacts
Find it: Apps > People
To edit a contact, touch it, then touch Menu > Edit. Touch
a field to edit it. Touch to choose the contact’s picture.
To set a personal ringtone for the contact, touch it, then
touch Menu > Set ringtone.
To delete the contact, touch it, then touch Menu > Delete.
Contacts from social networks will be hidden if you select
Delete. To view these contacts, or delete them permanently,
use the social network's app or website.
To hide the contacts from an account or group in your
People list, touch Menu > Contacts to display. Touch an
account type to show it. Touch Customize to uncheck
accounts you always want to hide.
Contacts
Quick start: Contacts
Create contacts
Call, text, or email contacts
Favorites
Edit, delete, or hide contacts
Get contacts
Share contacts
Groups
My details
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Contacts
Get contacts
Get all your contacts in one place.
To add your social networking contacts, touch Apps
>Settings, go to the ACCOUNTS section, and touch
Add account.
To add your email contacts, see Email”.
Tip: If you add a Corporate Sync account, you can send
messages to your coworkers, even if you don’t have them
stored in your contacts.
To import contacts from your SIM card (if that didn’t happen
automatically): Touch Apps > People >Menu
>Import/export > Import from SIM card. Touch OK to
confirm.
To import contacts from your computer, upload the contacts
to your Google™ account at http://contacts.google.com.
On your phone, touch Apps > People >Menu
>Accounts > Auto-sync app data. You can also see these
contacts at http://mail.google.com.
For help with transferring contacts, see “Old phone to new
phone”.
Share contacts
Send a contact with a Bluetooth® connection, email, or
Google Drive™:
Find it: Apps > People
To send a contact, touch it, then touch Menu > Share and
choose how you want to send it.
Note: You can’t send your social network contacts.
Groups
Create groups of Contacts (like “friends,” “family,” or
“coworkers”), then find contacts faster by showing one group.
Find it: Apps > People >
To create or show a group, touch , then touch at the
bottom of the screen.
My details
Find it: Apps > People
To store your user profile, touch Set up my profile under ME at
the top of the contact list.
Contacts
Quick start: Contacts
Create contacts
Call, text, or email contacts
Favorites
Edit, delete, or hide contacts
Get contacts
Share contacts
Groups
My details
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Messages
say it & go

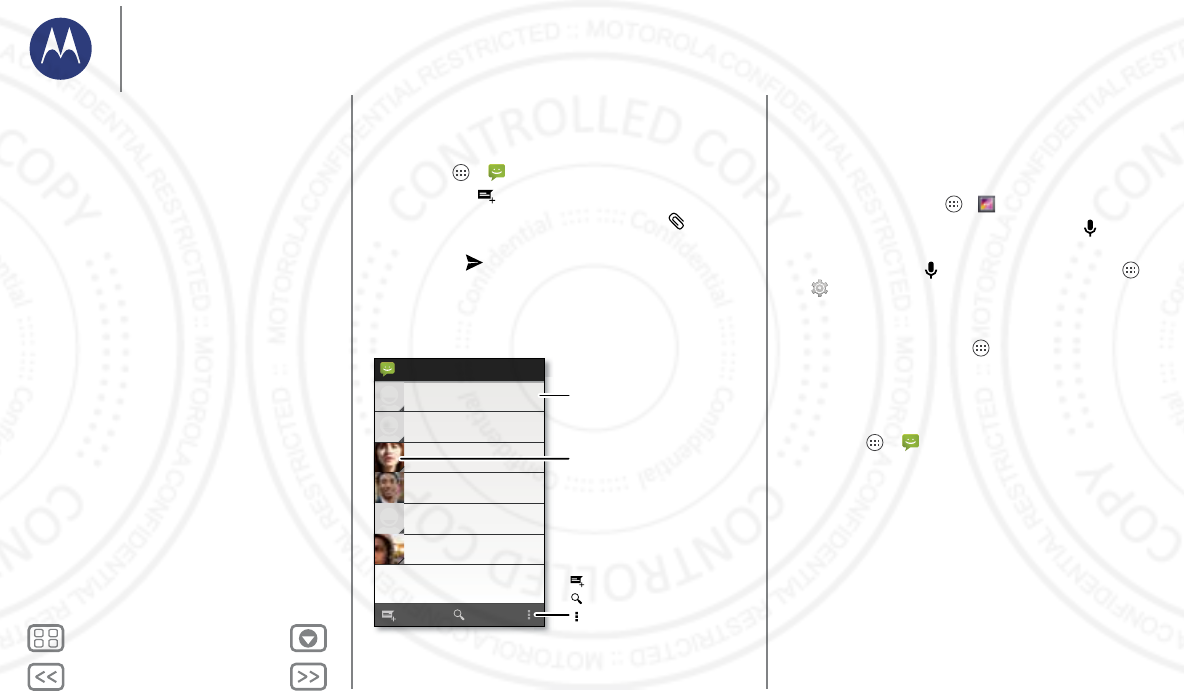

Quick start: Messages
Stay in touch with messages and pictures.
Find it: Apps > Messaging
•Create: Touch at the bottom of the screen.
• Attach: When you’re typing a message, touch to attach
a picture, video, or other file.
•Send: Touch to send the message.
Please take a look at the latest revisions an..
10:23am
555-555-1234 (4)
10:23pm, Dec 17, 2013
Astrid Fanning (18)
Don’t forget to bring the book when you co...
8:18am
900-555-2525 (1)
Lunch tomorrow?
6:56pm, Dec 17, 2013
Daniel Lester (6)
Meet me outside the theatre at 8:00. And b...
2:23pm, Dec 17, 2013
Mary Morgan (5)
I’m fine with that. Let me know when you h...
3:06pm, Dec 16, 2013
Abe Baudo (22)
Messaging
Touch a sender’s picture to
add them to your contacts.
Touch a conversation to open it.
Touch & hold to delete the
message & more.
Create a new message.
Search messages.
Change notications & more.
Tips & t ricks
Forward a message: In a conversation, touch and hold a
message for more options, such as forwarding it.
Save pictures: Touch and hold a picture to save it. To see
the picture, touch Apps > Gallery > Download.
•Voice entry: Just touch a text box, then touch on the
keyboard.
Ti p: If you don’t see on the keyboard, touch Apps
>Settings > Language & input > Google voice typing to
activate voice entry.
•Text your best friend: Use a widget to text your favorite
contact quickly: Touch Apps , touch WIDGETS at the top,
touch and hold Direct message to drag it to your home
screen, then choose a contact.
Read, reply, forward & delete text messages
Find it: Apps > Messaging
•Open: Touch a conversation to open it.
• Attachments: When you open a message with an
attachment, touch the attachment to open it, or touch and
hold it to save it.
•Reply: Open a conversation, then enter your response in
the text box at the bottom.
•Forward: Open a conversation, touch and hold the
message you want, then touch Forward.
Messages
Quick start: Messages
Read, reply, forward & delete text messages
Set your default messaging app
Email
Chat using Google Hangouts™
Wireless Emergency Alerts (U.S. only)
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Messages
• Delete: Touch and hold a conversation, then touch at the
bottom. Or, open the conversation, touch and hold one
message, then touch Delete.
• Settings: Touch Menu > Settings to change your
notifications and other options.
Set your default messaging app
You can also use Google Hangouts™ to send and receive your
text messages.
To s et Hangouts or Messaging as your default
messaging app:
Find it: Apps > Settings > More > Default SMS app
For more about Google Hangouts, see “Chat using Google
Hangouts”.
Email
Send and receive email. Set up and manage accounts.
Find it: Apps > Gmail or Email
Add Gmail accounts: The first time you turned on your
phone, you probably set up or logged in to your Google™
account—that sets up the Gmail app for one account. To
add more Google accounts, touch Apps > Settings,
go to the ACCOUNTS section, the touch Add account
>Google.
Add email accounts: To add personal Email accounts,
follow the prompts when you first open the app, or touch
2 deleted.
UNDO
you@gmail.com
Primary
“Star” a message to
add it to the Starred
Gmail label.
See settings &
options.
Choose multiple
messages, then touch
Menu .
Swipe left or right to
archive a message
thread.
Messages
Quick start: Messages
Read, reply, forward & delete text messages
Set your default messaging app
Email
Chat using Google Hangouts™
Wireless Emergency Alerts (U.S. only)
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Messages
Apps > Settings, go to the ACCOUNTS section, then
touch Add account > Email. For Microsoft® Exchange
server work email accounts, touch Add account
>Corporate, and enter details from your IT administrator.
Change account settings: To change Gmail™ account
settings, touch Apps > Settings > Google.
To change email account settings, touch Apps
>Settings > Email > Account settings.
Delete accounts: To delete a Gmail or email account, touch
the account name, then touch Menu > Remove account.
Chat using Google Hangouts™
Sign in with your Google account to stay in touch with friends
and family.
Find it: Apps > Hangouts
Start a new hangout: Tou ch +, then touch a name in your list
of friends. You can send a text message, or touch to
make a video call.
Change settings: Touch Menu to see your old hangouts,
change your profile pic, other settings, and more.
•Chat from a computer: You can chat from a computer, too.
Find out more at www.google.com/hangouts.
Wireless Emergency Alerts (U.S. only)
Wireless Emergency Alerts, also known
as CMAS or PLAN, is a U.S. national
emergency alert system. Emergency
alerts can pop up to tell you about a
national or local crisis. After you close an alert, you can reopen
it by touching Apps > Settings > More > Emergency
alerts.
Tip : Emergency alerts have a special sound and vibration that
is two seconds long, followed by one second, then another one
second.
To choose which types of alerts you receive, touch Apps
>Settings > More > Emergency alerts. The U.S. and local
governments send these alerts through your service provider.
So you will always receive alerts for the area where you are, and
you won’t receive alerts if you’re outside of the U.S.
For more, visit www.ctia.org/consumer_info/safety/.
A
LERTS
WIRELESS
CAPABLE
EMERGENCY
TM
Messages
Quick start: Messages
Read, reply, forward & delete text messages
Set your default messaging app
Email
Chat using Google Hangouts™
Wireless Emergency Alerts (U.S. only)
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Type
keyboard when you need it

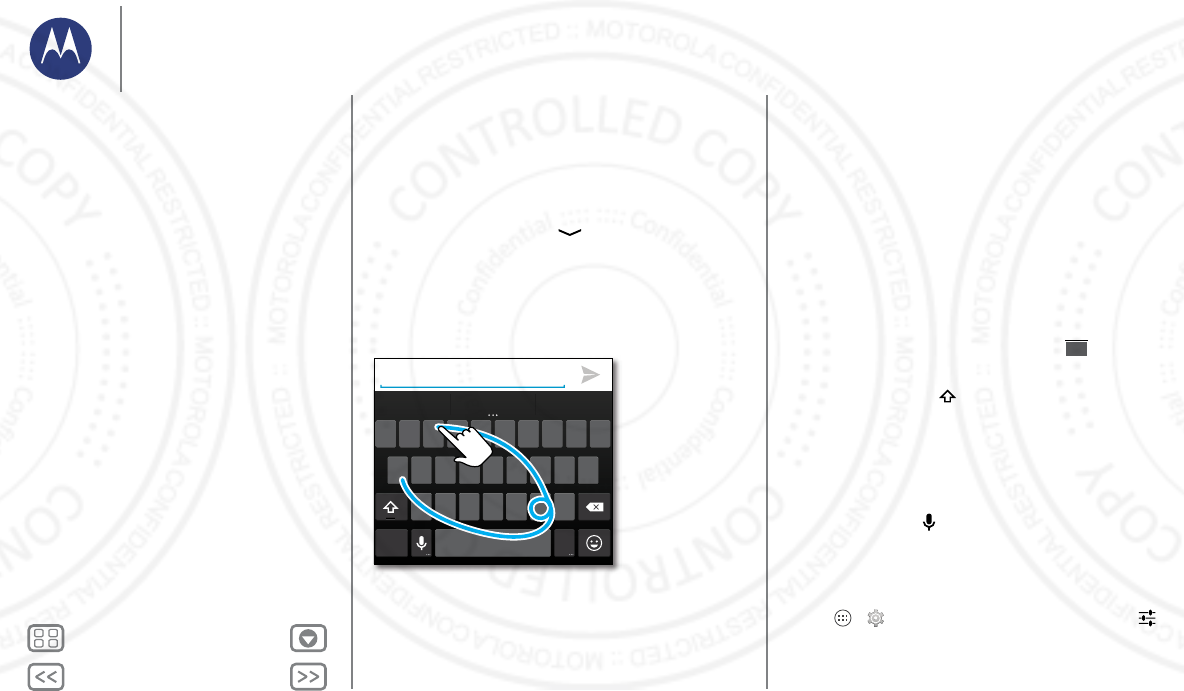

Quick start: Type
When you touch a text box, like in a message or search, you
have keyboard options.
•Type or gesture: Enter letters by touching them one at a
time. Or, enter a word by tracing a path through the letters.
•Close the keyboard: Touc h .
Anne
ertyuiopqw
asdf gh j k l
?123 .
zxcvbnm
4123 098765
And AnnexAnne See a dierent
keyboard? It varies
by app. This one is
for texting.
Tips & t ricks
Keyboard changes: Your touchscreen keyboard changes
depending on whether you’re entering a text message,
email, or other text.
Move the cursor: Touch a spot in the text to place the
cursor, then drag the arrow under the cursor to move it.
Your dictionary: To add a word you enter often, enter it,
touch the word in the word list below the text box, then
touch there again to add it to your dictionary.
•Symbols: Touch and hold a key to enter the small number or
symbol at the top of it.
To enter several numbers or symbols, touch .
Double letters: Circle a letter to enter two of them.
Capital letters: Touch or drag it to the letter you want to
capitalize.
Special characters: Touch and hold a letter to choose from
other special characters.
Word prediction: While you’re typing, word suggestions
appear above the keyboard. Touch one to select it.
•Voice entry: Touch on the touchscreen keyboard, then
say what you want to type. You can speak as long as you like,
pause whenever you want, and dictate punctuation to
create correct sentences.
•Vibrate: Don’t like the vibrating keys when you type? Touch
Apps > Settings > Language & input. Then touch
next to Google Keyboard > Vibrate on keypress.
?123
?123
Type
Quick start: Type
Text entry settings & dictionary
Cut, copy & paste
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Type
Text entr y set ti n gs & dictionary
Choose your keyboard style and edit the dictionary of words
your phone suggests:
Find it: Apps > Settings > Language & input
To choose your touchscreen keyboard, touch Default. To
allow voice entry from the keyboard, touch Google voice
typing.
To change the preferences for your keyboard, touch .
You can change the language, automatic punctuation, and
more.
To add or edit the words that your phone suggests and
recognizes, touch Personal dictionary.

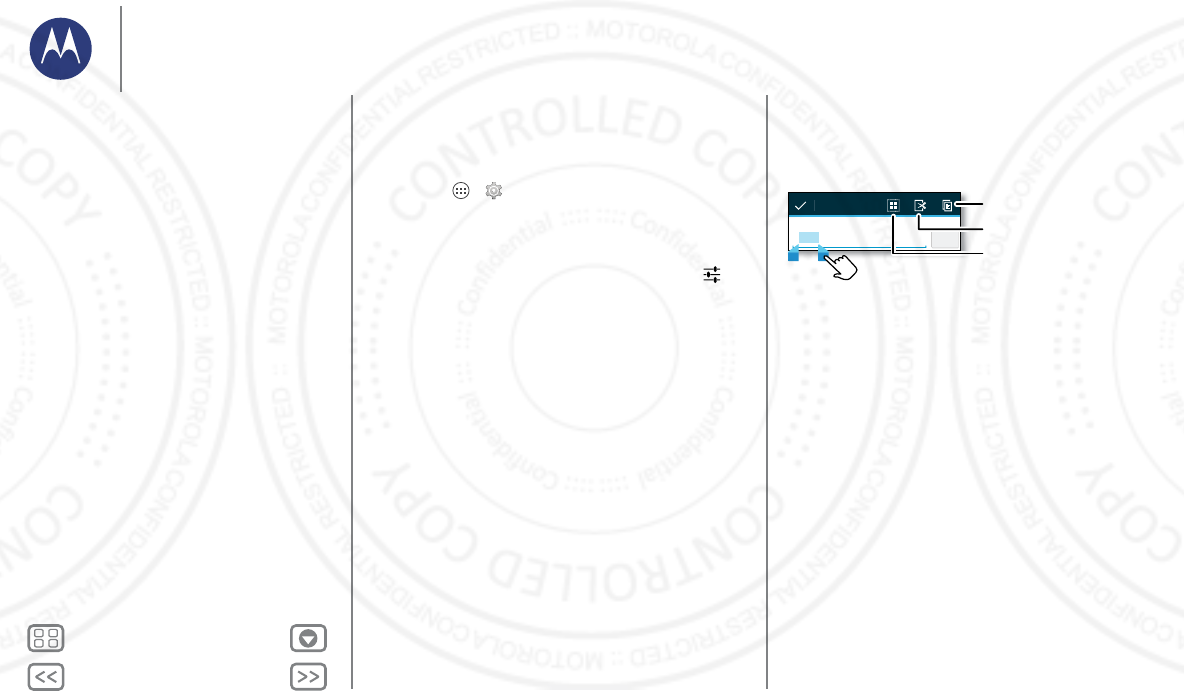

Cut, copy & paste
Cut, copy, and paste names, phone numbers, addresses,
quotes, or anything else in a text box.
1To highlight a word, touch and hold it.
To highlight more words, drag the selector arrow at the
edge of the highlight.
2Touch the icons to cut or copy.
Ti p: Touch and hold icons to show labels.
3Open the text box where you want to paste the text (even if
it’s in a different app).
4Touch in the text box, then touch and hold to show the
PASTE option. Touch PASTE to paste the text.
Anne Hotel Send
Text selection Copy
Cut
Select All
Type
Quick start: Type
Text entry settings & dictionary
Cut, copy & paste
23 MAY 2014
FCC SUBMIT
Back Next
Menu More

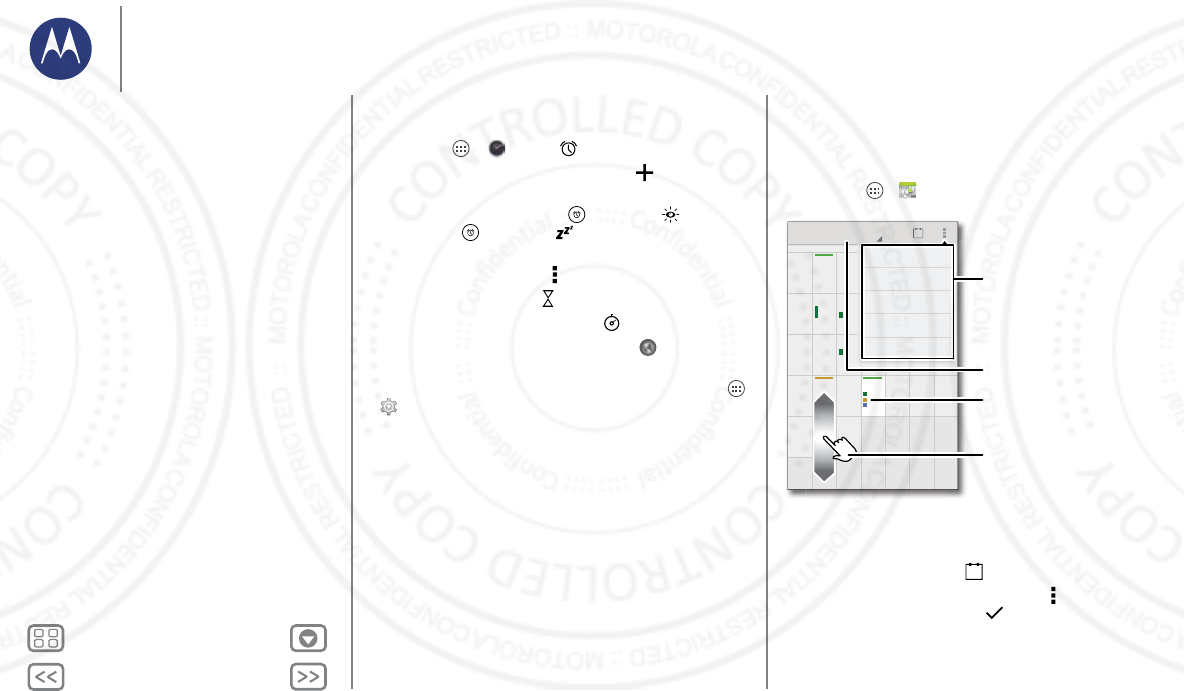

Organize
get it done anytime
Clock
Find it: Apps > Clock > (in the upper left)
•Alarm: Touch an alarm to edit it, or touch to add a new
alarm.
When an alarm sounds, touch and drag to to turn it
off, or touch and drag to snooze for ten minutes.
• Settings: To change your alarm sound, snooze delay, or
other settings, touch Menu > Settings.
•Timer: For a timer, touch .
•Stopwatch: For a stopwatch, touch .
World clock: For other time zones, touch .
Tip: To find out what an icon means, touch and hold it. To set
your current date, time, time zone, and formats, touch Apps
>Settings > Date & time.
Calendar
See events stored on your phone and in your calendar, all in
one place.
Find it: Apps > Calendar
Change the view: Touch the date at the top left to choose
Day, Week, Month, or Agenda.
Go to today’s date: Touch at the top of the screen.
Add events: From any view, touch Menu > New event,
enter event details, then touch DONE.
1723456
22 2823 24 25 26 27
29 430 31 1 2 3
511778910
15 2116 17 18 19 20
814910111213
SUN FRITHUWEDTUEMON SAT
December 2013 18
7
7
7
7
7
7
7
3
4
5
6
21
1
1
1
1
7
18
19
20
14
4
4
4
4
4
4
4
0
11
12
13
FR
FR
FR
I
I
I
TH
TH
TH
U
U
U
WE
WE
WE
D
D
D
E
SA
SA
SA
T
T
T
T
T
T
New event
Settings
Calendars to display
Search
Refresh Calendar Menu
Change the calendar view.
Other calendar events
appear in dierent colors.
Scroll up/down to
see other months.
Organize
Clock
Calendar
Corporate sync
Quickoffice™
Office network
Google Drive™
Print
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Organize
Show, edit, or delete events: Touch an event to open it,
then touch edit or delete .
Show, hide, or add calendars: Touch Menu > Calendars
to display to show or hide calendars from your Google™
account. You can use a computer to add or remove
calendars on your Google account at
www.google.com/calendar.
Tip: Add a Calendar widget to your home screen. Touch
Apps > WIDGETS, then touch and hold the Calendar
widget.
Corporate sync
If you use Microsoft® Office Outlook on your work computer,
your phone can synchronize email, events, and contacts with
your Microsoft Exchange server.
To add your Corporate account, see “Email”.
To choose what to sync from your Corporate account, touch
Apps > Settings > Corporate, touch your account,
then check options like Calendar, Contacts, or Email.
Quickoffice™
Use Quickoffice to view and edit files.
Find it: Apps > Quickoffice
Touch a file or folder to open it, or touch and hold a file for
options. You can edit most documents, spreadsheets, and
presentations:
Place your cursor by touching the text.
Select text by double-tapping it.
To open a keyboard, format text, save the file, or choose
other options, touch Menu .
Office network
To connect your office network with a Virtual Private Network
connection, see Virtual Private Networks (VPN)”.
Google Drive
Keep all your photos, videos, documents, and more safely in
one place—private unless you choose to share. Available on
Google Drive from all your devices.
Find it: Apps > Drive
Print
To print your photos, documents, and more from your phone,
check to see if your printer’s manufacture has an app on
Google Play Store. Then touch Apps > Settings
>Printing to get started.
You can also send your photos, docs, and more to any Android
device in your cloud or to Google Drive. Just download the
Cloud Print app from Google.
Organize
Clock
Calendar
Corporate sync
Quickoffice™
Office network
Google Drive™
Print
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Socialize
your life & your friends

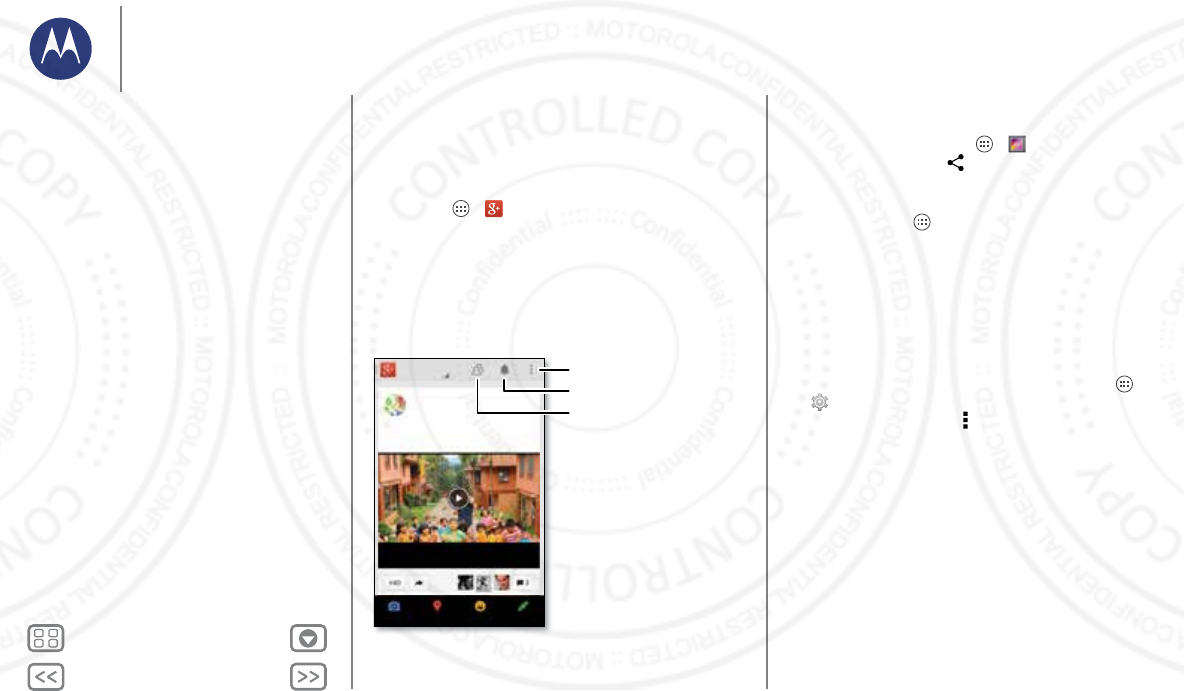

Quick start: Socialize
Google+™ makes connecting on the web more like
connecting in the real world. Share your thoughts, links, and
photos with the right circles.
Find it: Apps > Google+
Whats hot
Photo WriteMoodLocation
Google Maps
25 mins ago
Did you dance today?
Today may be International Dance Day, but for +...
Around the World, One Dance at a Time
Open options.
See notications.
See & nd friends.
We’re making changes all
the time. Your screen may
look a little dierent.
Probably cooler.
Tips & t ricks
Upload photos: Touch Apps > Gallery and touch a
photo or video. Choose > Google+ and select your
account.
Add a widget: Use a widget to quickly read your Google+
posts. Touch Apps , touch WIDGETS at the top, then
touch and hold Google+ Posts to drag it to your home
screen.
•Help: For more about Google+, visit www.google.com/+.
Other social networks: You can also use Facebook®,
Twitter, and more. Open Google Play™ Store to find the
latest official apps and widgets.
•Remove accounts: To delete an account (along with its
contacts and messages on your phone), touch Apps
>Settings, go to the ACCOUNTS section, select the
account, then touch Menu > Remove account.
Socialize
Quick start: Socialize
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Browse
explore & find
Quick start: Chrome™
Find it: Apps > Chrome
Go to a webpage: Touch the address bar at the top of a
page and enter an address.
Add a bookmark: Open the address bar (drag down if you
don’t see it), then touch Menu > .
Open a bookmark: Open the address bar, then touch
Menu > Bookmarks.
www.google.com/search?clie
Web Images
why do we yawn
Videos News More
Facts About Yawning: Why We Do It,
Why It’s Contagious...
www.huffingtonpost.com/.../...
HowStuffWorks “What makes us
yawn?”
science.howstuffworks.com/.../question5
Why We Yawn - WebMD
www.m.webmd.com/a.../why-we-yawn
Touch a link to select
it. Touch & hold for
more options.
See options.
See other browser
tabs, or open a new
one.
Tips & t ricks
Webpage shortcut: To add a shortcut to a webpage on
your home screen, when viewing the webpage, touch
Menu > Add to homescreen.
Internet search shortcut: In the home screen, touch the
Google search box at the top and enter a website address.
Note: If you can’t connect, contact your service provider.
Mobile sites: Some websites automatically show you a
“mobile” version of their page—if you want to show the
standard computer versions of all websites, touch Menu
>Request desktop site.
•Reload: If a page doesn’t load correctly, touch .
•Clear history: In the browser, touch Menu > Settings
>Privacy > CLEAR BROWSING DATA at the bottom of the
page. Then choose history, cache, cookies, and other
options.
•Help: For more about Google Chrome, touch Menu
>Help or visit www.supportgoogle.com/chrome.
Web connection
To access the web, your phone uses your Wi-Fi network (or
your mobile phone network if no Wi-Fi network is connected).
Note: Your service provider may charge to surf the web or
download data over your mobile phone network.
To connect to a Wi-Fi network, see “Wi-Fi Networks”.
Browse
Quick start: Chrome™
Web connection
Bookmarks
Downloads
Browser options
Safe surfing & searching
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Browse
Bookmarks
To bookmark a page in your browser, touch Menu > .
To go to a bookmark, touch Menu > Bookmarks, then touch
the bookmark.
Downloads
Warning: Apps downloaded from the web can be from
unknown sources. To protect your phone and personal data
from theft, download apps only on Google Play™.
To download a file, picture, or webpage, touch Apps
>Chrome and go to the website:
•Files: Touch the download link. To show the file or app,
touch Apps > Downloads.
•Pictures: Touch and hold it to choose Save image. To see
the picture, touch Apps > Gallery > Download.
To download apps or phone updates, see “Download apps” or
Update your phone”.
Browser options
To change your browser security settings, text size, and other
options, touch Menu > Settings.
Safe surfing & searching
Keep track of what your browser and searches show:
• Incognito: To open a tab that won’t appear in your browser
or search history, touch Apps > Chrome >Menu
>New Incognito tab.
•Clear history: To clear your browser history and other saved
information, touch Apps > Chrome >Menu
>Settings > Privacy > CLEAR BROWSING DATA.
•Auto complete: When you enter your name in an online
form, your browser can automatically enter your address
information. If you don’t want that, touch Apps
>Chrome >Menu >Settings > Autofill forms, then
touch the switch at the top to turn it .
•Pop-ups: To stop pop-up windows from opening, touch
Apps > Chrome >Menu >Settings > Content
settings > Block pop-ups.
OFF
Browse
Quick start: Chrome™
Web connection
Bookmarks
Downloads
Browser options
Safe surfing & searching
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Photos & videos
see it, capture it, share it!
Quick start: Photos & Videos
Take super clear photos with a twist of your wrist and a tap on
the screen.
Launch it: Even when your phone is asleep, twist your wrist
twice, quickly, to launch camera anytime.
Take a photo: Touch anywhere on the screen.
Save your best shot: Your camera takes a bunch of
photos—pick the best one to save.
•Share it: Swipe the screen left to view a photo or video from
your gallery, then touch Share .
Tip: To uch App s > Camera, swipe the screen right and
touch to turn Quick Capture on or off.
?
Touch anywhere to
take the photo.
Touch & hold to
take rapid shots.
Drag up or
down with one
nger to zoom.
Swipe right to open
eects & settings.
Rotate the dial to
see more options.
Tips & t ricks
Take a selfie: Touch in the camera screen to switch to
the front camera, to take a self portrait.
Record a video: Touch in the camera screen to
temporarily switch to the video camera and start recording.
Then touch to stop recording.
Capture a still shot during a video: Touch anywhere on the
screen while recording to save a photo.
•View, share, or delete: To open your gallery, swipe the
camera screen left. Pick a photo or video. Choose to
share, to delete, or Menu for more options, like Crop
or Edit.
Change settings: To open camera options, swipe the
camera screen right.
• Zoom: Drag the camera screen up or down using one
finger.
• Multi-shot: When you’re ready, touch and hold the camera
screen to take a burst of photos.
• Panorama: To take a panoramic shot, swipe the camera
screen right to open settings, then touch . Use the
on-screen guide to slowly pan your phone.
•Clarify: For the clearest photos and videos, clean the
camera lens with a soft, dry cloth.
•Print: Want to print your photos? Check out “Print”.
Photos & videos
Quick start: Photos & Videos
Take photos
Record videos
The perfect shot
View, share, & use photos & videos
Capture your screen
Play Movies & TV
YouTube™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Photos & videos
Take photos
Find it: Apps > Camera
Touch anywhere on the camera screen to take the photo.
Record videos
Find it: Apps > Camera, then touch
The camera temporarily turns into a video camera and
immediately starts recording. Touch to stop recording.
Tip: To send a video in a text message, swipe the camera
screen left to open your gallery, touch the video, then choose
to share.
The perfect shot
Point, touch, and you’re done. But when you want something a
little different, play with these camera options.
Tip : To open camera options, swipe the camera screen right.
Options
HDR Turn on HDR (high dynamic range)
effect for better pictures in
challenging lighting situations, such as
outdoors.
Flash Set On, Off, or Auto Flash.
Auto-focus Set the camera to focus on the object
you touch in the screen.
Slow motion Take a sl ow m otio n v id eo.
Panorama Take a wide-angle shot. Use the
on-screen guide to slowly pan while
you are taking the photo.
Geo-Tag Tag your photos with a location.
Memory card Store photos on a memory card, if you
have one inserted.
Widescreen Take a widescreen photo.
Shutter tone Turn the shutter click on or off.
Quick Draw Catch it fast. Turn on this setting so
when your phone is asleep, if you hold
it down by your side and shake back to
front once, the camera comes on.
Photos & videos
Quick start: Photos & Videos
Take photos
Record videos
The perfect shot
View, share, & use photos & videos
Capture your screen
Play Movies & TV
YouTube™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Photos & videos

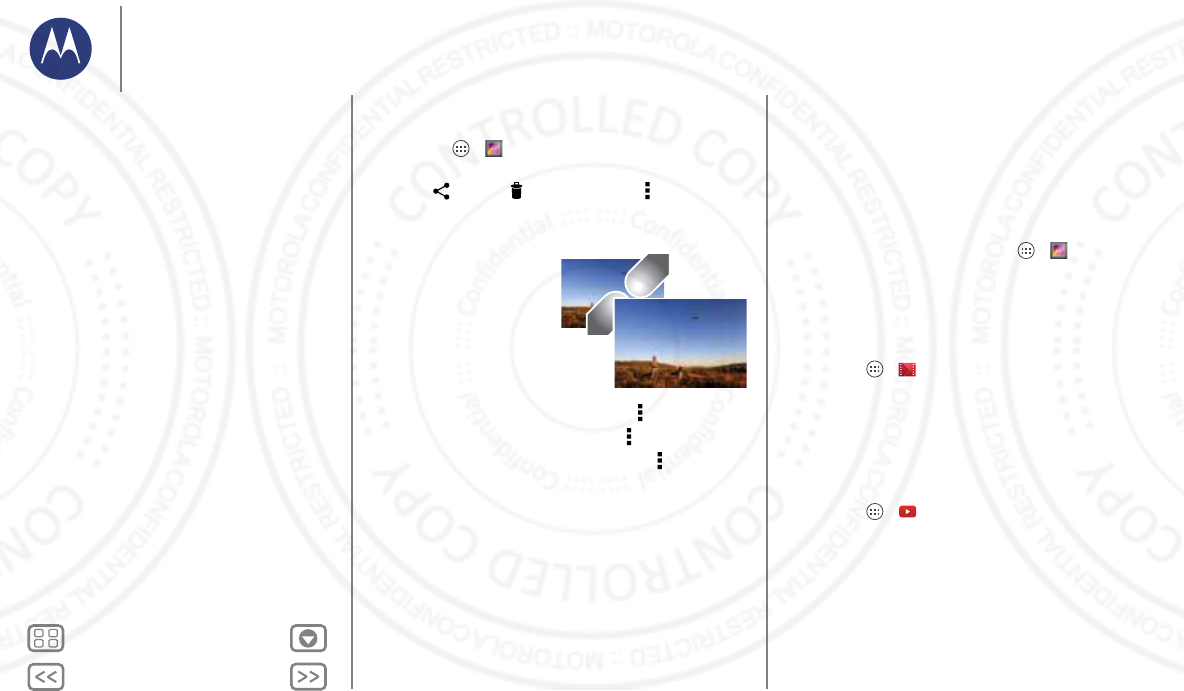

View, share, & use photos & videos
Find it: Apps > Gallery
Play, share, or delete: Touch a thumbnail to open it, then
choose to share, to delete, or Menu for more.
Tip: To select multiple files, open a folder, touch and hold a
photo, then touch others.
• Zoom: Open a photo in
your gallery, then drag two
fingers apart or together
on the screen.
Tip: Tu rn yo ur phone
sideways for a widescreen
view.
Wallpaper or contact
photo: Open a picture, then touch Menu > Set picture as.
•Edit: Open a picture, then touch Menu > Edit.
•Slideshow: Open a folder, then touch Menu > Slideshow.
To stop the slideshow, touch the screen.
Tip: To show the slideshow on a television or other device,
see “Connect & transfer”.
Capture your screen
Share a screen capture of your favorite playlist, your new high
score, or a friend’s contact information. If you can show it on
your phone, you can share it with your friends.
To capture your phone’s screen, press and hold both the Power
and the Volume Down keys at the same time.
To see the screen capture, touch Apps > Gallery
>Albums > Screenshot.
Play Movies & TV
Find and rent movies and TV shows to watch on your phone,
tablet, or computer:
Find it: Apps > Play Movies & TV
To shop, rent, or watch on a computer, go to
www.google.com/play and choose “Movies & TV”.
Yo uTu b e ™
Watch videos from YouTube users everywhere—or log in to
your account to share your own.
Find it: Apps > YouTube
Photos & videos
Quick start: Photos & Videos
Take photos
Record videos
The perfect shot
View, share, & use photos & videos
Capture your screen
Play Movies & TV
YouTube™
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Play Music
when life needs a soundtrack

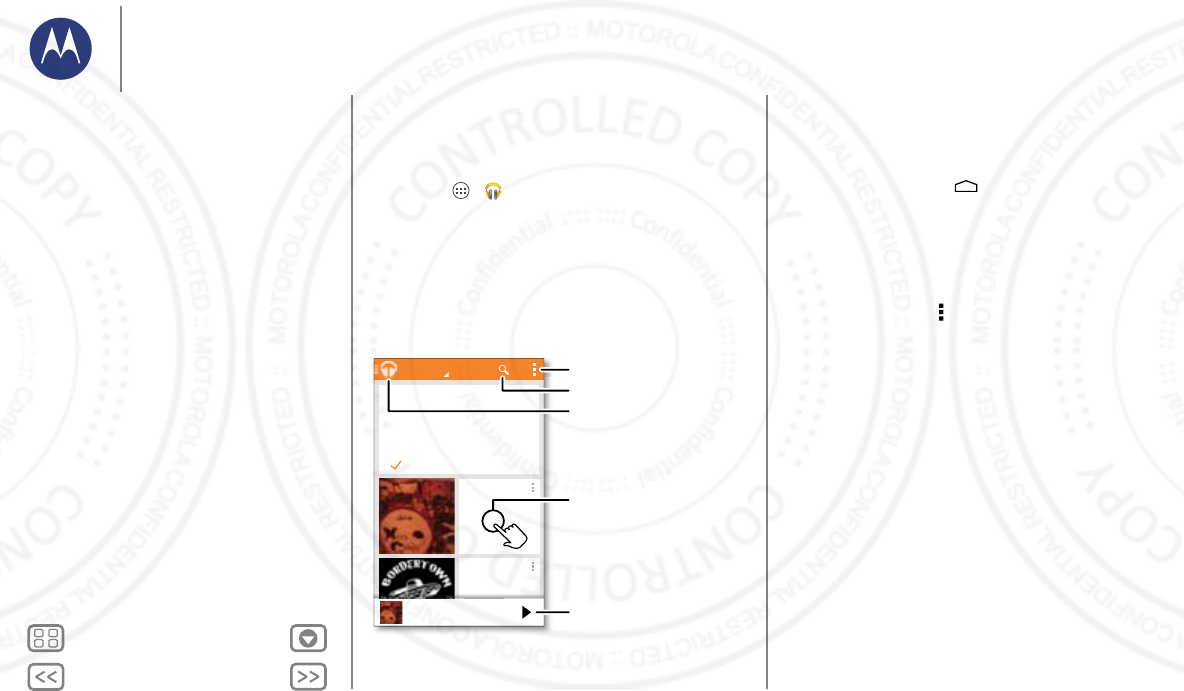

Quick start: Music
Music everywhere—stream it, buy it, save it, play it. Listen and
create playlists anytime.
Find it: Apps > Play Music
To get your music on Google Play™ using a computer, visit
www.google.com/music.
To u ch Listen Now to see recommendations and more.
Got it
Listen Now makes it easy to gure out what
to play next. The more you play, the better
Listen Now gets at surfacing good stuff.
Welcome to Listen Now
Listen Now
Xtra Crispy
Xtra Crispy
Recently played
ALL MUSIC
Bordertown Devils
Lost Highway
Recently played
ll d
Xtra Crispy
Xtra Crispy
Touch to play the song,
or swipe left or right to
see others in your queue.
Fine tune audio settings & more.
Touch an album to see more info.
Search for & download music.
Go to your music library
or playlists.
Tips & t ricks
•Volume: Press the volume keys.
Hide the music player: To us e a no th e r ap p wh il e yo u r
music plays, touch Home . To return to the music player,
flick the status bar down and touch the song title.
•Home screen: Control music playback from the home
screen by adding the Google Play Music widget.
•Shop: To uc h Shop to shop for more music. (If you don’t see
the Shop option, touch the upper left of the screen first.)
•Playlists: Touch Menu next to a song in your library to add
it to a playlist or show other options. To edit, rename, or
delete a playlist, touch and hold its name in the music library.
During a flight: Press and hold the Power key > Airplane
mode to turn off all your network and wireless connections
and listen to music during a flight.
•File types: Your phone can play MP3, M4A, AAC, AAC+,
MIDI, and WAV files.
Note: Copyright—do you have the right? Always follow the
rules. See “Content Copyright” in your legal and safety
information.
Play Music
Quick start: Music
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Play Books
even thick books fit

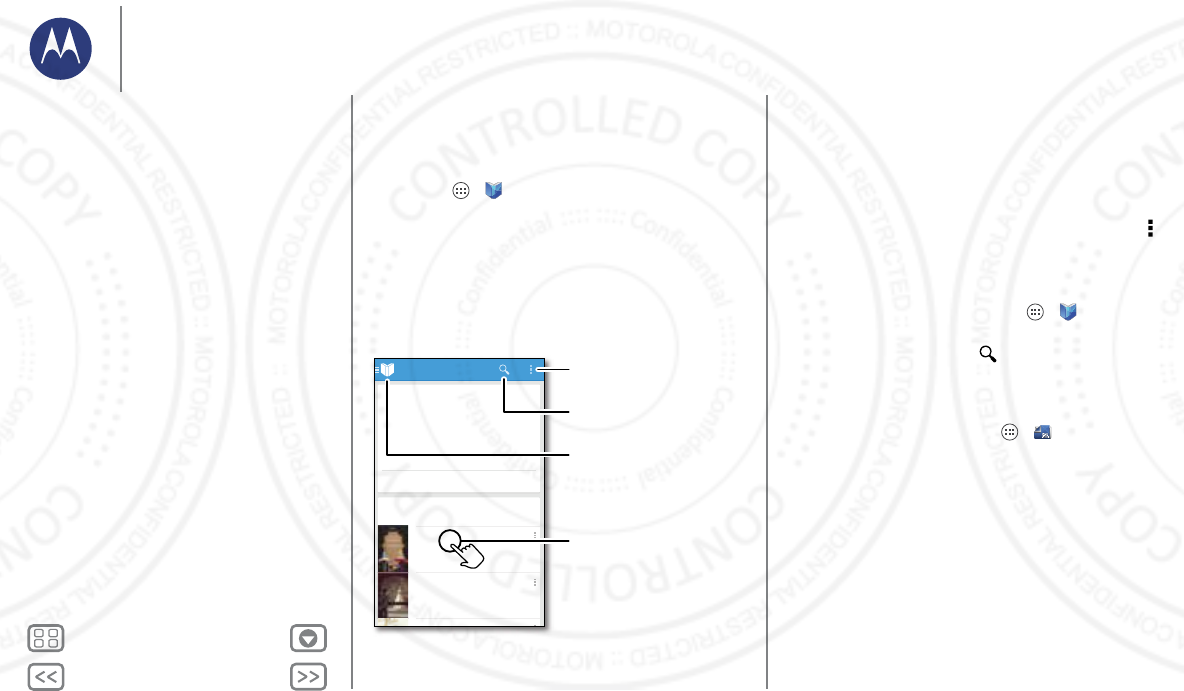

Quick start: Books
Read your favorite books, magazines, and newspapers when
and where you want.
Find it: Apps > Play Books
Read Now
Shop books
Shop for free and paid books, or check out
My Library for a few classics. Books you’re
reading or have recently bought appear
here.
Ready to read?
Recommended for you
Alice’s Adventures in Wonderla...
Lewis Carroll
Top book $0.00
Great Expectations
Charles Dickens
Top book $0.00
Pride and Prej dice
Choose options, like
hearing a book read aloud.
Touch a book to see more info.
Go to your library
or shop for books.
Search for & download books.
Tips & t ricks
•Turn pages: While reading the book, turn the pages by
swiping them.
Recent page: When you open a book, it shows the last page
you were reading.
•Table of contents: Touch a book page, then touch Menu
to open the table of contents or change the view.
•Close: To return to your book list, touch the book title at the
top.
•Shop: To shop for books, touch Apps > Play Books
>Shop.
Browse by category, or touch and search for a title or
author. Touch a book to show details. Then, touch the book’s
price to buy it (or touch OPEN to open a free book). After
you confirm a purchase, the book is added to your library.
Magazines & more: To uc h A pp s > Play Newsstand.
Play Books
Quick start: Books
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Play Games
why be bored?
Quick start: Games
Download and play the latest fun games.
Find it: Apps > Play Games > Find games
My games
Featured games
Players
SEE MORE
SEE MORE
SEE MORE
You haven’t played any games
yet. Try playing a game with
achievements, leaderboards, or
multiplayer features.
You haven’t played a game with
anyone yet. Try challenging a
friend to a match.
Sonic Dash
Get games
Add friends
Play Games
Find friends to challenge.
Play now or look for new games.
Search for & download games.
Get more games.
Bye bye, boredom.
Tips & t ricks
Challege friends: You can play against people in your
Google+™ circles. Scroll down to Players and choose a
person or touch Add friends.
Find more friends: Scroll down to You may know and
choose a person or touch SEE MORE.
Play Games
Quick start: Games
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Locate & navigate
where you are, where you’re going

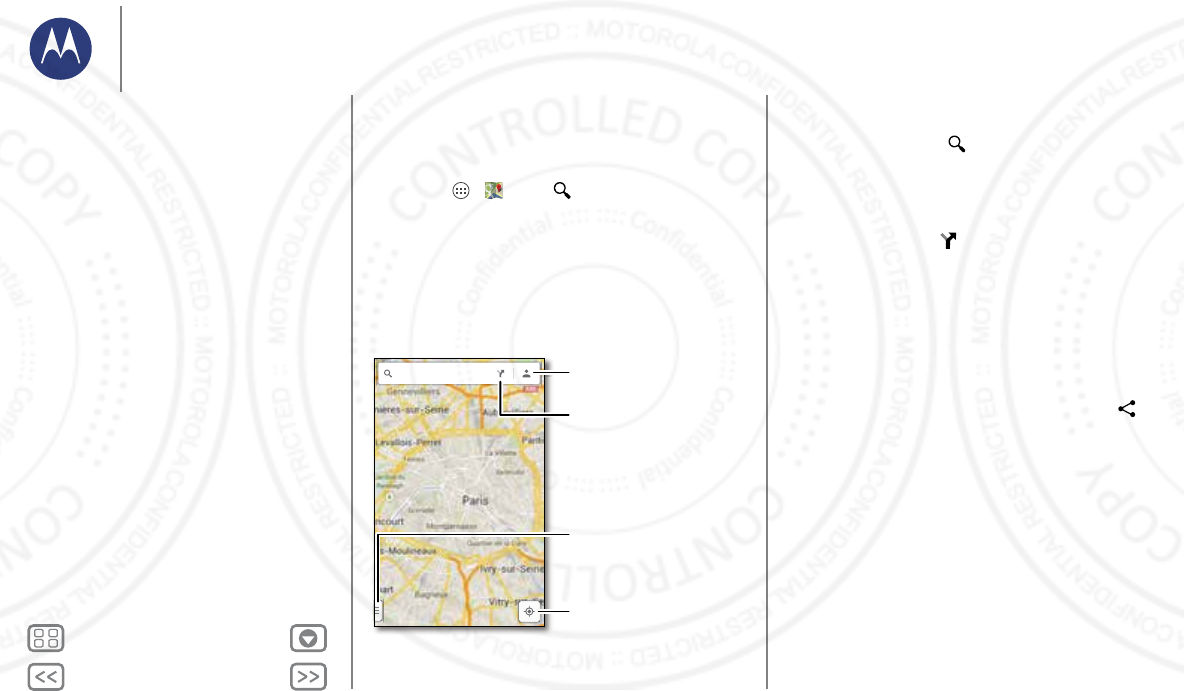

Quick start: Locate & navigate
Find a nearby cafe, get directions or step-by-step GPS voice
navigation using the Google Maps™ you know and trust.
Find it: Apps > Maps >
Enter what you want to find, and then touch it to see more
information and options.
Search See your saved places,
recent searches, & more.
See your current location.
Get directions &
navigation instructions.
Swipe right for settings,
to learn how to use
navigation, & more.
Tips & t ricks
Find an address: Touch and enter an address or
something you’re looking for, like “restaurant. The map
moves to show the address or local suggestions. Touch the
address info at the bottom for more details. Or touch an
Explore or Services option.
•Get directions: Touch , then enter a place or address.
Save an address: Touch the address info at the bottom of
the screen and then touch the star.
• Zoom: To zoom in or out, drag two fingers together or apart
on the screen.
•Turn and tilt: Rotate two fingers on the map to turn it, or
drag down/up to tilt.
•Share your location: Touch your location, then touch the
address at the bottom of the screen and touch Share .
Identify address: Touch and hold a spot on the map to
show the nearest address.
•Get map help: Drag the map to the right and touch Help.
Locate & navigate
Quick start: Locate & navigate
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Connect & transfer
wired up or wireless
Quick start: Connect & transfer
Connect accessories, computers, networks, and more.
Find it: Apps > Settings
Wi-Fi
WIRELESS & NETWORKS
DEVICE
Bluetooth
Data usage
More...
Sound
Display
Settings
ON
ON
Active Display
Touchless Control
Motorola Connect
Change Wi-Fi settings.
Turn Wi-Fi or Bluetooth
power or .
Change Bluetooth settings.
OFF
ON
Turn on a portable
Wi-Fi hotspot.
Tips & t ricks
•Quick settings: Get to the most used settings quickly. Flick
down the status bar and touch . See “Quick settings”.
Bluetooth® devices: To connect a Bluetooth headset,
keyboard, or other device, touch Bluetooth.
•Wi-Fi networks: To connect, touch Wi-Fi.
Wi-Fi hotspot: To make your phone a hotspot, touch
More... > Tethering & Mobile Hotspot, then check Portable
Wi-Fi Hotspot. You can change hotspot security.
•USB cable: Your phone’s micro USB port lets you exchange
media and other files with a connected computer. To
change the type of USB connection, touch Apps
>Settings > Storage >Menu >USB computer
connection.
Automatic connections: When Bluetooth or Wi-Fi power is
, your phone automatically reconnects to available
devices or networks it has used before.
Airplane mode: Need to shut down wireless connections
quickly? Flick down the status bar and touch
>AIRPLANE MODE.
Or, touch and hold the Power key > Airplane mode.
•Print: Want to print your photos, docs, or other things?
Check out “Print”.
ON
Connect & transfer
Quick start: Connect & transfer
Bluetooth® wireless
Wi-Fi Networks
USB cables
Share your data connection
Data use
NFC
Your cloud
Phone & tablet
Virtual Private Networks (VPN)
Mobile network
Airplane mode
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Connect & transfer
Bluetooth® wireless
Turn Bluetooth power on/off
Find it: Apps > Settings, then touch the Bluetooth
switch to turn it
Tip: To extend battery life or stop connections, turn the
Bluetooth switch when you’re not using it.
Connect devices
The first time you connect a Bluetooth device, follow these
steps:
1Make sure the device you are pairing with is in discoverable
mode (for details, refer to the guide that came with the
device).
2Touch Apps > Settings > Bluetooth.
3Make sure the switch at the top is , then touch
SEARCH FOR DEVICES.
4Touch a found device to connect it (if necessary, touch Pair
or enter a passkey like 0000).
Tip: Touch next to a device to rename it.
When the device connects, the Bluetooth status indicator
turns solid .
To automatically disconnect or reconnect a device anytime,
like a wireless headset, just turn the device off or on.
Note: Using a mobile device or accessory while driving may
cause distraction and may be illegal. Always obey the laws and
drive safely.
ON
OFF
ON
Manage devices
To manually reconnect your phone with a paired device, touch
the device name in the AVAILABLE DEVICES list.
To manually disconnect your phone from a paired device,
touch the device name in the devices list, then touch OK.
To remove a paired device, touch next to the device name
in the PAIRED DEVICES list, then touch Unpair.
To change the name your phone shows to other devices, touch
Apps > Settings > Bluetooth, turn Bluetooth power on,
then touch Menu > Rename phone. Enter a name and
touch Rename.
Let devices find your phone
To let a Bluetooth device discover your phone:
1Tou c h A pp s > Settings > Bluetooth.
2Touch your phone’s name at the top to switch between Not
visible to other Bluetooth devices and Visible to all nearby
Bluetooth devices (for two minutes).
Transfer files
Photos or videos: Open the photo or video, then
touch > Bluetooth.
•People: To uch Ap ps > People, touch a person, then
touch Menu > Share > Bluetooth.
Connect & transfer
Quick start: Connect & transfer
Bluetooth® wireless
Wi-Fi Networks
USB cables
Share your data connection
Data use
NFC
Your cloud
Phone & tablet
Virtual Private Networks (VPN)
Mobile network
Airplane mode
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Connect & transfer
Wi-Fi Networks
Turn Wi-Fi power on/off
Find it: Apps > Settings, then touch the Wi-Fi switch to
turn it
Tip: To extend battery life, turn the Wi-Fi switch when
you’re not using it.
Connect to networks
To find networks in your range:
1Touch Apps > Settings > Wi-Fi.
Tip: To show your phone’s MAC address and Wi-Fi settings,
touch Menu > Advanced.
2Make sure the switch at the top is , then touch Menu
>SCAN.
3Touch a found network to connect it (if necessary,
enter Network SSID, Security, and Wireless password, and
touch Connect).
When your phone connects, the Wi-Fi status
indicator appears in the status bar.
Note: If you see a question mark in the Wi-Fi status
indicator , flick the status bar down, touch the network,
and enter the network’s password.
Tip: When Wi-Fi power is on, your phone automatically
reconnects to available networks it has used before.
ON
OFF
ON
Wi-Fi hotspot
Your can make your phone a Wi-Fi hotspot to provide portable,
convenient internet access to other Wi-Fi enabled devices.
Note: Keep it secure. To protect your phone and hotspot from
unauthorized access, it is strongly recommended that you set
up hotspot security (WPA2 is the most secure), including
password.
Find it: Apps > Settings > More>Tethering & portable
hotspot and check Portable Wi-Fi hotspot
1Your phone turns off Wi-Fi power and uses the mobile
network for internet access. Touch Set up Wi-Fi Hotspot to
set up security:
Network SSID: Enter a unique name for your hotspot.
•Security: Select the type of security you want: Open or
WPA2. For WPA2, enter a unique password that others
will need to access your Wi-Fi hotspot.
Note: WPA2 is recommended by IEEE.
Hotspot frequency band: If you notice interference after
your hotspot has been active for a while, try different
channels.
•Password: Create a password with at least eight
characters.
2To u c h Save when the settings are complete.
When your Wi-Fi hotspot is active, other Wi-Fi enabled devices
can connect by entering your hotspot’s SSID, selecting a
Security type, and entering the correct Wireless password.
Connect & transfer
Quick start: Connect & transfer
Bluetooth® wireless
Wi-Fi Networks
USB cables
Share your data connection
Data use
NFC
Your cloud
Phone & tablet
Virtual Private Networks (VPN)
Mobile network
Airplane mode
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Connect & transfer
Wi-Fi modes
For those who like to get a bit more technical, your phone
supports the following Wi-Fi modes: 802.11a, b, g, n.
USB cables
Note: Copyright—do you have the right? Always follow the
rules. See “Content Copyright”.
To load music, pictures, videos, documents, or other files from
your computer, connect your phone to your computer with a
USB cable. To change the type of USB connection (if
necessary), touch Apps > Settings > Storage >Menu
>USB computer connection.
Tip: Make sure to connect the phone to a high power USB port.
Typically, these are located directly on your computer.
Note: The first time you use a USB connection, your computer
may indicate that drivers are being installed. Follow any
prompts you see to complete the installation. This may take a
few minutes.
For Microsoft® Windows®: On your computer, choose
Start, then select Windows Explorer from your list of
programs. In Windows Explorer, your phone will appear as a
connected drive (mass storage device) where you can drag
and drop files, or it will appear as an MTP or PTP device that
lets you use Windows Media Player to transfer files. For
more instructions or driver files, visit
www.motorola.com/support.
For Apple™ Macintosh™: Use Android File Transfer,
available at www.android.com/filetransfer.
Share your data connection
Your computer can access the internet through your phone’s
mobile network—you just need a USB cable.
Tip : To share a Wi-Fi connection, see “Wi-Fi hotspot”.
1Connect your phone to your computer using a USB cable.
Note: If your computer is running something older than
Microsoft® Windows® 7 or Apple™ Macintosh™ OSX, it
might require special configuration.
2On your phone, touch Apps > Settings, then make
sure the Wi-Fi switch is set to .
3In Settings, touch Tethering & Mobile Hotspot, then check
USB tethering to start the connection.
To stop the connection, uncheck USB tethering, then
disconnect your phone from your computer.
OFF
Connect & transfer
Quick start: Connect & transfer
Bluetooth® wireless
Wi-Fi Networks
USB cables
Share your data connection
Data use
NFC
Your cloud
Phone & tablet
Virtual Private Networks (VPN)
Mobile network
Airplane mode
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Connect & transfer

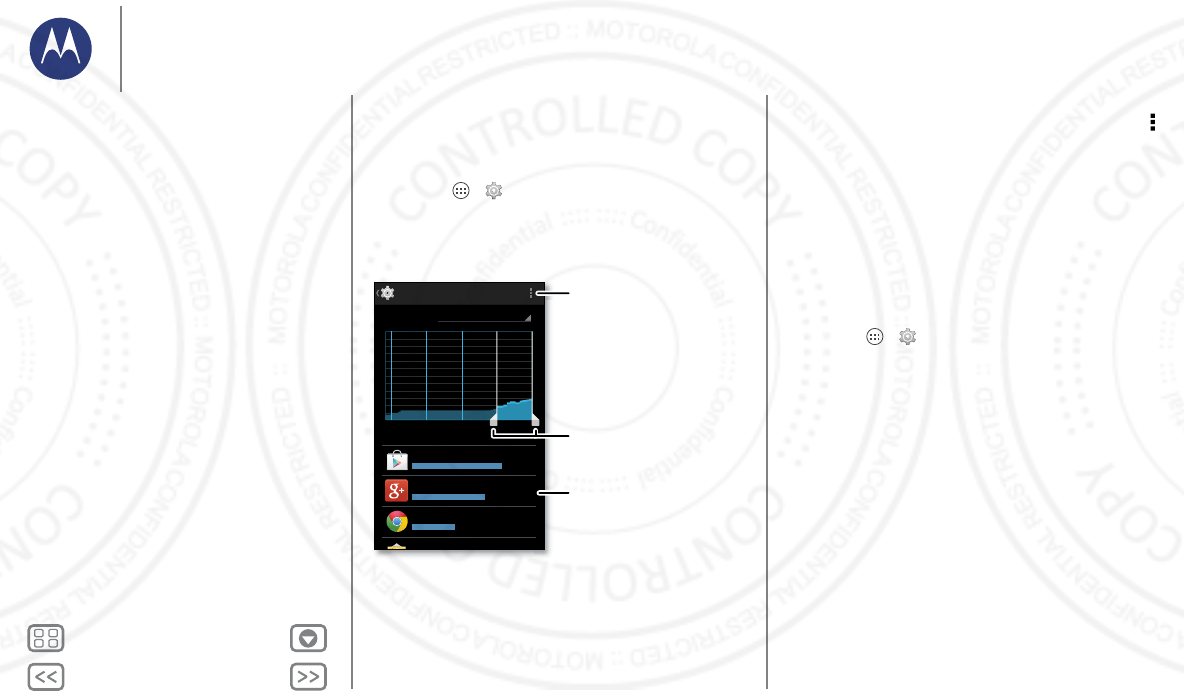

Data use
You can track the amount of data uploaded and downloaded
by your phone.
Find it: Apps > Settings > Data usage
Your phone shows a data usage graph. Below the graph, apps
are listed from highest to least data usage. Apps that use a lot of
data might also use a lot of battery power.
Some apps transfer data in the background when you're not
viewing them—to stop an app from doing this, touch it and
then check Restrict background data.
Dec 13
-
20: about 148MB used.
Data usage
14 46MB
Email
27.46MB
Google+
35.19MBGoogle Play Store
16.19MBChrome
Nov 22
-
Dec 20
Data usage cycle
Turn auto sync o/on, see
mobile hotspots, & more.
Drag the white bars to
change date ranges.
Touch an app to show or
restrict background data.
To turn off background data use for all apps, just touch Menu
>Restrict background data.
Note: Usage information is provided to help you manage your
phone. This may not match the amounts charged by your
service provider, as they’re not measured in the same way.
NFC
Near Field Communication technology lets you instantly share
content (like web links, contacts, and photos), information, and
more, by touching the back of your phone to another
NFC-enabled device.
Find it: Apps > Settings > More > NFC
Share with Android Beam™
Use Android Beam to share content on your phone with
another NFC-enabled phone or tablet.
Note: The other device must support NFC, too.
1Open the screen that contains the map page or browser
page you want to share.
2Touch the back of your phone to the back of the other
device.
When the devices connect, you’ll see Touch to Beam on
your phone.
3Touch your screen to share your content.
Receive with NFC
Receive web links, e-coupons, brochures, maps and more from
an NFC tag. Look for the NFC logo on posters, signs, store
Connect & transfer
Quick start: Connect & transfer
Bluetooth® wireless
Wi-Fi Networks
USB cables
Share your data connection
Data use
NFC
Your cloud
Phone & tablet
Virtual Private Networks (VPN)
Mobile network
Airplane mode
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Connect & transfer
displays and other areas. Just touch the back of your phone to
the logo to receive its tag information.
Bluetooth & Wi-Fi one-touch setup
Just touch your phone to an NFC-enabled Bluetooth device or
Wi-Fi access point to automatically pair or connect with the
device.
Mobile payment
You can use any secure payment app to pay for your purchase
(where available).
Look for the NFC logo to confirm that you can make a mobile
payment. Touch the back your phone to the payment device to
pay for your purchase.
Security
Mobile payments, wireless connections, and content sharing
all demand security:
•Range: NFC only works over a short range (about
4 cm/1.5 inches), so it's unlikely you’ll connect by
mistake—if you did, you would still have to accept the
connection to send or receive information.
• Encryption: Your phone uses the latest security, encryption,
and authentication features to protect your personal
information for mobile payments and content sharing.
Yo u r c l ou d
One account with access to everything, everywhere—phone,
tablet, computer.
Sync your Google account
When you log in to the same Google account, all devices can
get to all the same apps, movies, books, and music from
Google Play—plus you share the same Gmail, Google
Calendar™, and other Google mobile services. To add
accounts to your phone, touch Apps > Settings, go to
the ACCOUNTS section, and touch Add account > Google.
Phone & tablet
Your Android™ phone and tablet can work together to help
you get the most out of both:
Transfer media and files: Copy files to your phone and
transfer them to other devices—see “Trans fer file s”.
Phone hotspot: If you have a Wi-Fi tablet, turn your phone
into a Wi-Fi hotspot to let your tablet access the Internet
anywhere—see “Wi-Fi hotspot”.
Connect & transfer
Quick start: Connect & transfer
Bluetooth® wireless
Wi-Fi Networks
USB cables
Share your data connection
Data use
NFC
Your cloud
Phone & tablet
Virtual Private Networks (VPN)
Mobile network
Airplane mode
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Connect & transfer
Bluetooth® accessories: If you have a Bluetooth keyboard
or other accessories to use with your tablet, remember you
can use them with your phone too. To connect them, see
Bluetooth® wireless”.
Virtual Private Networks (VPN)
A VPN lets you access files on a secured network (like an office
network with a firewall). Contact the network administrator to
ask for VPN settings, and any additional apps or other
requirements.
To enter VPN settings, touch Apps > Settings > More
>VPN. Choose the type of VPN and enter settings from the
network administrator. The network is stored in the VPN list so
you can select it whenever you need to connect.
Mobile network
You should not need to change any network settings. Contact
your service provider for help.
To see network settings options, touch Apps > Settings
>More > Mobile networks.
Airplane mode
Use airplane mode to turn off all your wireless
connections—useful when flying. Press and hold the
Power key > Airplane mode.
Note: When you select airplane mode, all wireless services are
disabled. You can then turn Wi-Fi and/or Bluetooth® power
back on, if permitted by your airline. Other wireless voice and
data services (such as calls and text messages) remain off in
airplane mode. Emergency calls to your region’s emergency
number can still be made.
Connect & transfer
Quick start: Connect & transfer
Bluetooth® wireless
Wi-Fi Networks
USB cables
Share your data connection
Data use
NFC
Your cloud
Phone & tablet
Virtual Private Networks (VPN)
Mobile network
Airplane mode
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Protect
help keep it safe

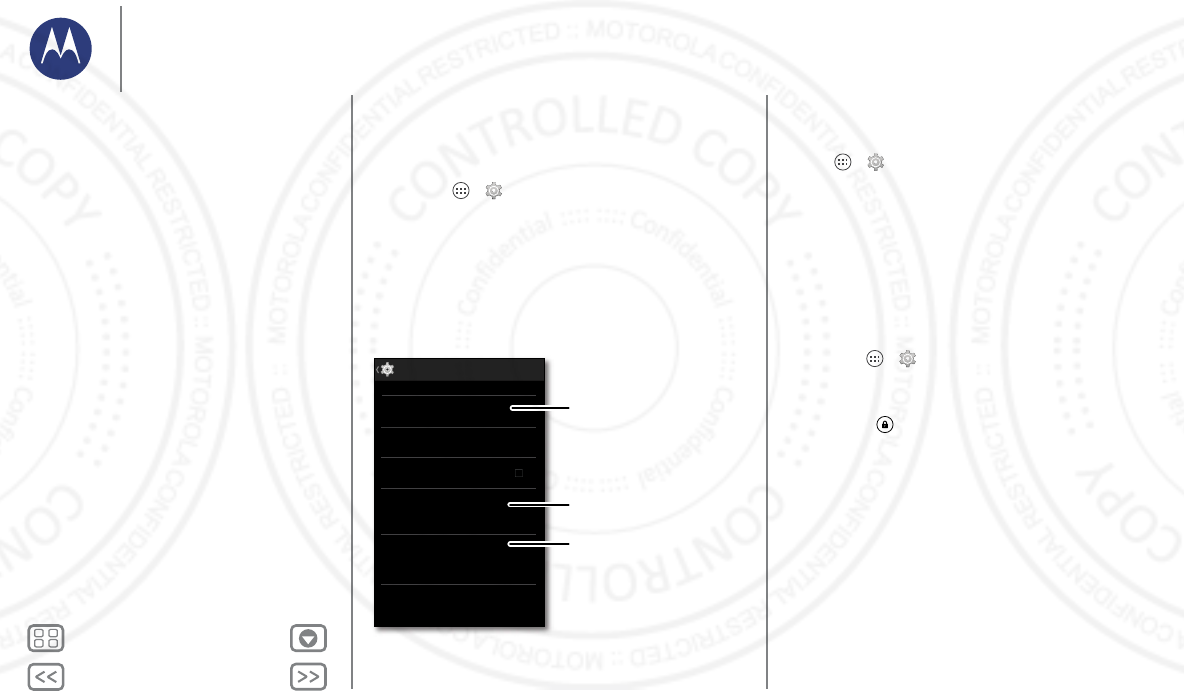

Quick start: Protect
Make sure your information is protected in case your phone is
lost or stolen.
Find it: Apps > Settings > Security
The easiest way to protect your phone is to use Screen lock.
You can choose facial recognition, a pattern, PIN, or other
options to unlock your phone.
Screen lock
Slide
Encrypt phone
Require a numeric PIN or password to decrypt
your phone each time you power it on
SCREEN SECURITY
ENCRYPTION
Owner info
SIM CARD LOCK
Set up SIM card lock
PASSWORDS
Enable widgets
Security
Trusted Devices
Useful when your lock type is not Slide or None
For a screen lock, you can use
facial recognition, a pattern,
password, or other options.
Add some info to show
on your lock screen.
Encrypt the data stored
on your smartphone.
Tips & t ricks
•Face unlock: Unlock your phone by looking at it. Touch
Apps > Settings > Security > Screen lock > Face
Unlock and follow the prompts.
Forgotten pattern, PIN, or password: If you forget your
pattern, PIN, or password, you can enter your Google™
account email and password to unlock the phone (see
Can’t unlock?”).
Screen lock
To keep your phone secure, you can make the touchscreen
lock when it goes to sleep.
Find it: Apps > Settings > Security > Screen lock, then
select the lock type:
None: Turn off the screen lock.
Slide: Touch and drag to the outer circle that appears.
Face Unlock: Look at your phone to unlock it.
Follow the prompts to capture your face and enter a PIN or
password (for backup or to change the lock setting). When
the screen is dark, press the Power key, then frame your face
in the square at the bottom to unlock.
Note: This feature is less secure than a pattern, PIN, or
password.
Pattern: Draw a pattern to unlock.
PIN: Enter four to sixteen digits to unlock.
Protect
Quick start: Protect
Screen lock
SIM lock
Encrypt your phone
Backup & restore
Reset
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Protect
Password: enter four to sixteen letters, digits, or symbols to
unlock.
To change when your touchscreen goes to sleep, seePower
key”.
Note: You can make emergency calls on a locked phone (see
Emergency calls”). A locked phone still rings, but you need
to unlock it to answer.
Can’t unlock?
Face unlock: If your phone doesn’t recognize your face, you’ll
be prompted to enter your backup pattern or PIN code to
unlock it.
Pattern, PIN, or password: If you forget your pattern, PIN, or
password, you can enter your Google™ account email and
password to unlock the phone.
If you don’t have a Google account on your phone, contact
your service provider to have your device factory reset.
Warning: A factory reset will delete all data on your phone.
SIM lock
Caution: If you enter an incorrect SIM PIN code three times,
your phone locks your SIM card and asks for your PIN unlock
code. Contact your service provider for your PIN unlock code.
You shouldn’t need to use this feature, but to set a SIM card
PIN that you must enter when you turn on your phone, touch
Apps > Settings > Security > Set up SIM card lock
>Lock SIM card.
To set your SIM PIN, enter a 4-digit code. To change your code,
choose Change SIM PIN.
Encrypt your phone
Caution: If you forget your encryption code, you cannot
recover the data stored on your phone or memory card.
Encrypting your files can take an hour or more. Leave your
phone plugged in, and be careful not to interrupt the process.
Encryption protects the accounts, settings, apps, and files on
your phone, so that people cannot access them if your phone is
stolen.
You shouldn’t need to use this feature, but to encrypt your
phone and require a PIN or password whenever you turn on
your phone, touch Apps > Settings > Security > Encrypt
phone.
Backup & restore
Your Google account data is backed up online. If you reset or
replace your phone, just log in to your Google account to
restore the contacts, events, and other details you synced with
the account. To choose what syncs with the account, touch
Apps > Settings > Google, touch your Google account,
and check things to sync. Please note that text messages, call
logs, and items stored on your phone will not be restored. To
restore your Google Play™ Store apps, seeTa ke ca re of yo ur
apps”.
Protect
Quick start: Protect
Screen lock
SIM lock
Encrypt your phone
Backup & restore
Reset
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Protect
Reset
To reset your phone to factory settings and erase all the data on
your phone, touch Apps > Settings > Privacy > Factory
Data Reset > Reset Phone.
Warning: All downloaded apps and user data on your phone
will be deleted. Data on the cloud will not be deleted.
Protect
Quick start: Protect
Screen lock
SIM lock
Encrypt your phone
Backup & restore
Reset
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Want more?
there’s always more
Get help & more
Get answers, updates, and info:
•Help is here: To uc h Ap ps >
Help
to get walk-through
tutorials, how-tos, FAQs, or chat with people who can help,
right on your phone.
Everything XT1093/4: Get PC software, user guides, and
more at www.motorola.com/mymotox.
• Accessories: Get accessories for your phone at
www.motorola.com/mobility.
•Get apps: Touch Apps >
Play Store
to buy and
download apps.
•News: Here’s how to find us:
Yo uTu b e ™ www.youtube.com/motorola
Facebookwww.facebook.com/motorola
Twitter www.twitter.com/motorola
Google+www.google.com/+Motorola/posts
Tips & t ricks
Google™ help: In almost every Google app, you can touch
Menu > Help. You can also view the Google help centers
online at www.google.com/support.
Want more?
Get help & more
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Troubleshooting
we can help
Crash recovery
In the unlikely event that your phone stops responding to
touches and key presses, try a reboot—press and hold the
Power key until the screen goes dark and your phone restarts.
Service & repairs
If you have questions or need assistance, we’re here to help.
Go to www.motorola.com/support, where you can select
from a number of customer care options. You can also contact
the Motorola Customer Support Center at: 1-800-734-5870
(United States), 1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575 (Canada).
Troubleshooting
Crash recovery
Service & repairs
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Safety, Regulatory, & Legal
safe, smart, protected
For Your Safety
For Your S af et y
Before assembling, charging or using your mobile device for the first time, please read the
important product safety and legal information provided with your product.
Warni ng:
Don’t try to remove or replace the battery yourself—doing so may damage the
battery and could cause burning and injury. If your phone becomes unresponsive, try a
reboot—press and hold the Power key until the screen goes dark and your phone restarts.
Battery Use & Safety
Bat tery Use & S afet y
Warni ng:
Your mobile device contains a battery that should only be removed by a Motorola
approved service center or recycler.
Don’t try to remove or replace the battery yourself. Attempting to remove or replace the
battery may damage the battery and may cause burning and injury.
Don’t try to take apart or fix your phone. Attempting to take apart or fix your phone may
damage the battery and may cause burning and injury.
Don’t crush, bend, or expose your phone to heat or liquid. This may damage the battery
and may cause burning and injury.
Battery Charging
Battery Charging
Charge your Motorola phone using a compatible Motorola charger, another brand class 2
Limited Power Source USB charger that complies with USB 1.1 or 2.0 and complies with
EN301489-34, IEC62684 or equivalent, or a high-power USB port on a PC. Chargers that do
not comply with these standards may be unsafe, and may cause slow charging, product
damage, or reduced device performance.
Your phone will not charge if the temperature is too high or low.
New batteries and batteries that have been stored for a while may take longer to charge.
Only use genuine Motorola batteries, which contain safety circuitry and are designed to
give the best performance in your Motorola device.
Driving Precautions
Driving Precautions
Responsible and safe driving is your primary responsibility when driving a vehicle. Always
obey local laws and regulations.
While driving, ALWAYS:
Keep your eyes on the road.
Use a handsfree device if available or required by law in your area.
Enter destination information into a navigation device
before
driving.
Use voice activated features (such as voice dial) and speaking features (such as audible
directions), if available.
Concentrate on driving, and stop using the mobile device if you can’t concentrate.
Pull over safely before using your mobile device to send messages, surf the web, or use other
applications.
Seizures, Blackouts, Eyestrain, & Discomfort
Seizures, Blackouts & Eyestrain
Prolonged use of any device may cause discomfort in hands, fingers, arms, neck, and other
parts of your body, and may cause eyestrain and headaches. It is good practice to use your
device in a safe area with comfortable ambient lighting, and take frequent breaks if you feel
discomfort. Seek medical advice if symptoms persist.
In rare cases, flashing patterns or lights, for example in video games or movies, may cause
seizures or blackouts. If you suffer any seizures or blackouts, or have a history of seizures, stop
using your device and seek medical advice.
Caution about High Volume Usage
High Volume
Warning:
Exposure to loud noise from any source for extended periods of time may affect
your hearing. The louder the sound, the less time is required before your hearing could be
affected. To protect your hearing:
Limit the amount of time you use headsets or headphones at high volume.
Avoid turning up the volume to block out noisy surroundings.
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in your
ears, ringing in your ears, or muffled speech, you should stop listening to the device through
your headset or headphones and have your hearing checked.
Children
Childr en
Keep your mobile device and its accessories away from small children.
These products
are not toys and may be hazardous to small children. For example, a choking hazard may exist
for small, detachable parts.
Supervise access.
If a child does use your mobile device, monitor their access to help
prevent loss of data or unexpected charges for data or application purchases.
Glass Parts
Glass Parts
Some parts of your mobile device may be made of glass. If the glass breaks, don’t attempt to
service the device yourself. Stop using your mobile device until the glass is replaced by a
qualified service center.
Allergens
Glass Parts
Motorola Mobility avoids using known allergens in our products. From time to time, trace
amounts of an allergen may be added during manufacture of a device or device component
that could cause discomfort for some individuals. This approach is common for many types
of products. We recommend that you monitor any products that may be in prolonged
contact with your skin, and remove them if you experience skin irritation.
Safety, Regulatory, & Legal
For Your Safety
Battery Use & Safety
Battery Charging
Driving Precautions
Seizures, Blackouts & Eyestrain
High Volume
Children
Glass Parts
Glass Parts
Use & Care
Operational Warnings
RF Energy
Regulatory Information
Regulatory Information
SAR (FCC & IC)
SAR (ICNIRP)
EU Conformance
FCC DoC
FCC Notice
Industry Canada Notice
Software Notices
Location
Navigation
Privacy & Data Security
Recycling
Hearing Aid Compatibility
Software Copyright
Content Copyright
OSS Information
Export Law
Service & Repairs
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Safety, Regulatory, & Legal

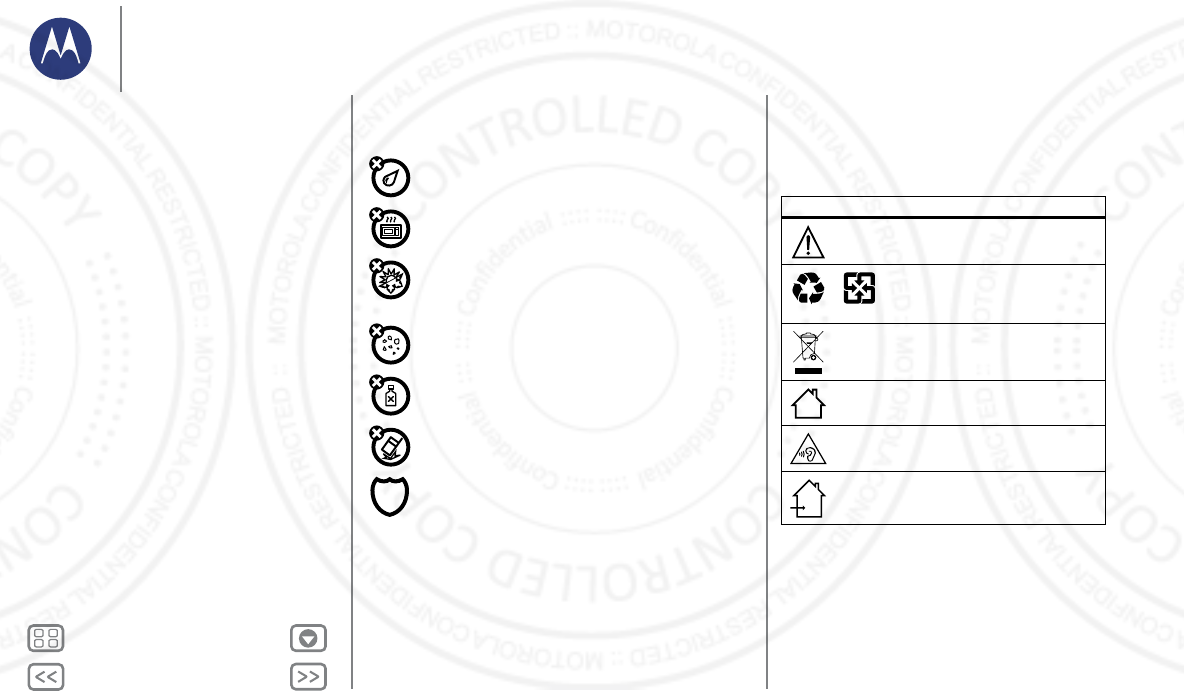

Use & Care
Use & C are
To care for your Motorola mobile device, please observe the following:
liquids
Don’t expose your mobile device to water, rain, extreme humidity, sweat, or
other liquids.
drying
Don’t try to dry your mobile device using a microwave oven, conventional
oven, or dryer.
extreme heat or cold
Don’t store or use your mobile device in temperatures below -10°C (14°F) or
above 60°C (140°F). Don’t recharge your mobile device in temperatures below
0°C (32°F) or above 45°C (113°F).
dust and dirt
Don’t expose your mobile device to dust, dirt, sand, food, or similar materials.
cleaning
To clean your mobile device, use only a dry soft cloth. Don’t use alcohol or
other cleaning solutions.
shock and vibration
Don’t drop your mobile device or expose it to strong vibration.
protection
To help protect your mobile device, always make sure that all connector and
compartment covers are closed and secure, and avoid carrying it with hard
objects such as keys or coins.
Operational Warnings
Operationa l Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Areas
Potentially explosive areas are often, but not always, posted and can include blasting areas,
fueling stations, fueling areas (such as below decks on boats), fuel or chemical transfer or
storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or
metal powders.
Turn off your mobile device before entering such an area, and do not charge batteries. In
such areas, sparks can occur and cause an explosion or fire.
Symbol Key
Your charger, mobile device, device display, user’s guide, or packaging may contain
symbols, defined as follows:
Radio Frequency (RF) Energy
RF E ner gy
Exposure to RF Energy & Device Operation
Your mobile device contains a transmitter and receiver of RF energy. It is designed to comply
with regulatory requirements concerning human RF exposure.
For optimal device performance, and to stay within the RF exposure guidelines:
Hold your mobile phone normally at your ear when talking on it.
Symbol Definition
Important safety information follows.
Your battery or mobile device may require
recycling in accordance with local laws. Contact
your local regulatory authorities for more
information.
Don’t dispose of your battery or mobile device
with your household waste. See “Disposal &
Recycling” for more information.
For indoor use only.
Listening at high volume to music or voice
through a headset may damage your hearing.
Only use your charger indoors.
032374o
032375o
Safety, Regulatory, & Legal
For Your Safety
Battery Use & Safety
Battery Charging
Driving Precautions
Seizures, Blackouts & Eyestrain
High Volume
Children
Glass Parts
Glass Parts
Use & Care
Operational Warnings
RF Energy
Regulatory Information
Regulatory Information
SAR (FCC & IC)
SAR (ICNIRP)
EU Conformance
FCC DoC
FCC Notice
Industry Canada Notice
Software Notices
Location
Navigation
Privacy & Data Security
Recycling
Hearing Aid Compatibility
Software Copyright
Content Copyright
OSS Information
Export Law
Service & Repairs
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Safety, Regulatory, & Legal
When using the mobile phone next to your body (other than in your hand or against your
head), maintain a distance of 1.5 cm (3/4 inch) from your body to be consistent with how
the mobile phone is tested for compliance with RF exposure requirements.
If you use your mobile phone with a non-Motorola accessory case or holder, make sure
the accessory maintains the required separation distance and has no metallic parts.
World Health Organization (WHO) Advice
Organizations such as the World Health Organization and the US Food and Drug
Administration have stated that if people are concerned and want to reduce their exposure
they could use a handsfree device to keep the phone away from the head and body during
phone calls, or reduce the amount of time spent on the phone.
Note:
Motorola includes this guidance as a precaution, per the requirements of the
Government of India. The scientific consensus is that there are no known RF health effects
from the use of mobile phones.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct you to do so, such
as hospitals or health care facilities.
In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your
mobile device offers an airplane mode or similar feature, consult airline staff about using it in
flight.
Medical Devices
If you use an implantable pacemaker or defibrillator, or other medical device, consult your
healthcare provider and the device manufacturer’s directions before using this mobile
device.
Persons with a pacemaker or defibrillator should observe the following precautions:
ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the
pacemaker or defibrillator when the mobile device is turned ON.
Use the ear opposite the pacemaker or defibrillator to minimize the potential for
interference.
Turn OFF the mobile device immediately if you have any reason to suspect that
interference is taking place.
Regulatory Information
Regulatory Information
Your Motorola mobile device is designed to comply with national and international
regulatory requirements. For full compliance statements and details, please refer to the
regulatory information in your printed product guide.
Electronic Label
Regulatory Information
Your phone may use an electronic label that provides some regulatory information about the
phone. To see the electronic label, touch Apps >
Settings
>
About phone
>
Regulatory information
.
Specific Absorption Rate (FCC & IC)
SAR (FCC & IC)
YOUR MOBILE DEVICE MEETS FCC AND IC LIMITS FOR
EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves (radio frequency electromagnetic fields) adopted by the Federal
Communications Commission (FCC) and Industry Canada (IC). These limits include a
substantial safety margin designed to assure the safety of all persons, regardless of age
and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions with the device transmitting
at its highest certified power level in all tested frequency bands. The highest SAR values
under the FCC and IC guidelines for your device model are listed below:
During use, the actual SAR values for your device are usually well below the values stated.
This is because, for purposes of system efficiency and to minimize interference on the
network, the operating power of your mobile device is automatically decreased when full
power is not needed for the call. The lower the power output of the device, the lower its SAR
value.
If you are interested in further reducing your RF exposure then you can easily do so by
limiting your usage or simply using a hands-free kit to keep the device away from the head
and body.
Additional information can be found at
www.motorola.com/rfhealth
.
Head SAR CDMA 1900 MHz Wi-Fi,
Bluetooth
0.76 W/kg
Body-worn SAR CDMA 1900 MHz, Wi-Fi,
Bluetooth
1.50W/kg
Safety, Regulatory, & Legal
For Your Safety
Battery Use & Safety
Battery Charging
Driving Precautions
Seizures, Blackouts & Eyestrain
High Volume
Children
Glass Parts
Glass Parts
Use & Care
Operational Warnings
RF Energy
Regulatory Information
Regulatory Information
SAR (FCC & IC)
SAR (ICNIRP)
EU Conformance
FCC DoC
FCC Notice
Industry Canada Notice
Software Notices
Location
Navigation
Privacy & Data Security
Recycling
Hearing Aid Compatibility
Software Copyright
Content Copyright
OSS Information
Export Law
Service & Repairs
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Safety, Regulatory, & Legal
Specific Absorption Rate (ICNIRP)
SAR (IC NIRP)
YOUR MOBILE DEVICE MEETS INTERNATIONAL
GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves (radio frequency electromagnetic fields) recommended by
international guidelines. The guidelines were developed by an independent scientific
organization (ICNIRP) and include a substantial safety margin designed to assure the safety
of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating positions with the device transmitting
at its highest certified power level in all tested frequency bands
*
. The highest SAR values
under the ICNIRP guidelines for your device model are listed below:
During use, the actual SAR values for your device are usually well below the values stated.
This is because, for purposes of system efficiency and to minimize interference on the
network, the operating power of your mobile device is automatically decreased when full
power is not needed for the call. The lower the power output of the device, the lower its SAR
value.
If you are interested in further reducing your RF exposure then you can easily do so by
limiting your usage or simply using a hands-free kit to keep the device away from the head
and body.
Additional information can be found at
www.motorola.com/rfhealth
.
*
The tests are carried out in accordance with [CENELEC EN50360] [IEC standard
PT62209-1].
Head SAR [Technology & Band], Wi-Fi,
Bluetooth
___ W/kg
Body-worn SAR [Technology & Band], Wi-Fi,
Bluetooth
___ W/kg

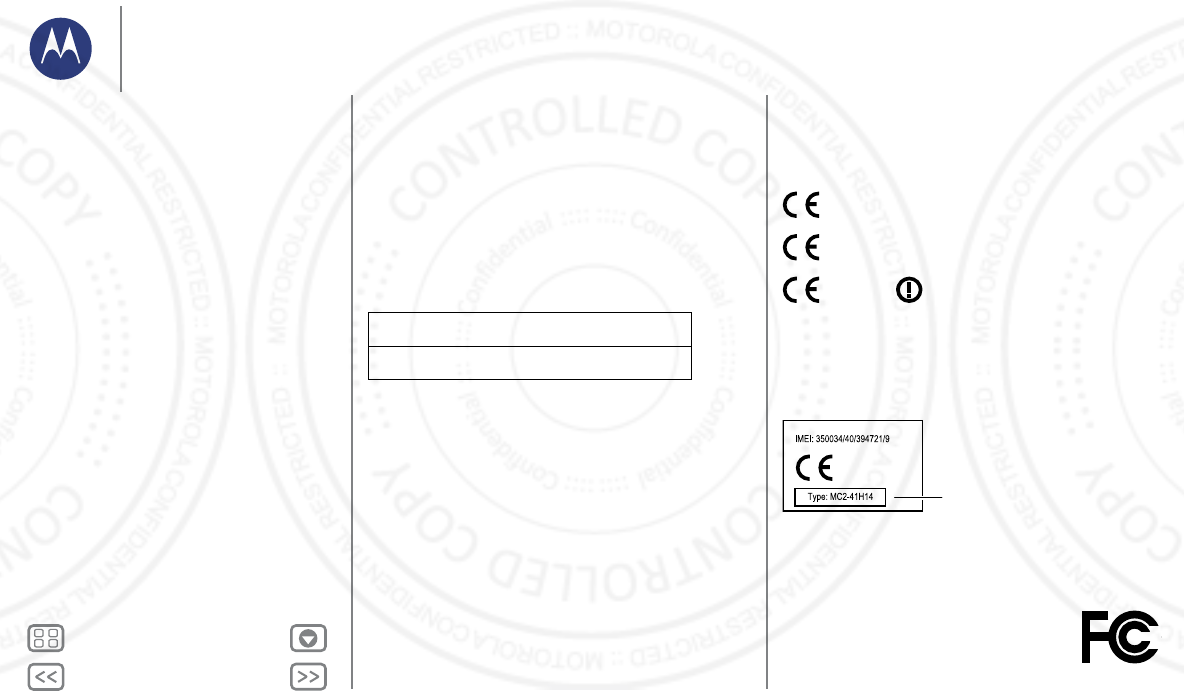

European Union Directives Conformance
Statement
EU Conformance
The following CE compliance information is applicable to Motorola mobile devices that carry
one of the following CE marks:
Hereby, Motorola declares that this product is in compliance with:
The essential requirements and other relevant provisions of Directive 1999/5/EC
All other relevant EU Directives
For products that support Wi-Fi 802.11a (as defined in your product information): Outside the
United States, this device is restricted to indoor use when operating in the 5.15 to 5.25 GHz
(802.11a) Wi-Fi frequency band.
The following gives an example of a typical Type name:
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to
R&TTE Directive) at
www.motorola.com/rtte
(in English only). To find your DoC, enter
the Type name from your product’s label in the “Search” bar on the website.
Regulatory authorities within the EU may obtain compliance information by writing to: Product Safety and Compliance, Motorola
Mobility UK Ltd., Redwood, Crockford Lane, Chineham Business Park, Basingstoke, RG24 8WQ, UNITED KINGDOM.
FCC Declaration of Conformity
FCC DoC
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola Mobility LLC
Address: 8000 West Sunrise Boulevard, Suite A,
Plantation, FL 33322 USA
0168
0168
0168 Type
Name
Safety, Regulatory, & Legal
For Your Safety
Battery Use & Safety
Battery Charging
Driving Precautions
Seizures, Blackouts & Eyestrain
High Volume
Children
Glass Parts
Glass Parts
Use & Care
Operational Warnings
RF Energy
Regulatory Information
Regulatory Information
SAR (FCC & IC)
SAR (ICNIRP)
EU Conformance
FCC DoC
FCC Notice
Industry Canada Notice
Software Notices
Location
Navigation
Privacy & Data Security
Recycling
Hearing Aid Compatibility
Software Copyright
Content Copyright
OSS Information
Export Law
Service & Repairs
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Safety, Regulatory, & Legal
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name: Moto X
Model Number: XT1093/XT1094
FCC ID: IHDT56QA3
Conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d)
and section 15.109(a)
FCC Notice to Users
FCC Notice
The following statement applies to all products that bear the FCC logo and/or FCC ID
on the product label.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation. See 47 CFR Sec. 15.19(a)(3).
Motorola has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
For products that support Wi-Fi 802.11a (as defined in product information): Outside the
United States, do not use your device outdoors while connected to an 802.11a Wi-Fi network.
Public Wi-Fi access points in this range are optimized for indoor use.
Industry Canada Notice to Users
Indus try Can ada Notic e
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause interference and (2)
This device must accept any interference, including interference that may cause undesired
operation of the device. See RSS-Gen, Section 7.1.3. This device complies with ICES-003
requirements for Class B ITE (Information Technology Equipment).
CAN ICES-3
(B)/NMB-3(B)
Software Notices
Softwa re Notic es
Warning against unlocking the bootloader or altering a product's operating system
software:
Motorola strongly recommends against altering a product's operating system,
which includes unlocking the bootloader, rooting a device or running any operating software
other than the approved versions issued by Motorola and its partners. Such alterations may
permanently damage your product, cause your product to be unsafe and/or cause your
product to malfunction. In such cases, neither the product nor any damage resulting
therefrom will be covered by warranty.
Important FCC information:
You must not make or enable any changes to the product that
will impact its FCC grant of equipment authorization. The FCC grant is based on the
product's emission, modulation, and transmission characteristics, including: power levels,
operating frequencies and bandwidths, SAR levels, duty-cycle, transmission modes (e.g.,
CDMA, GSM), and intended method of using the product (e.g., how the product is held or
used in proximity to the body). A change to any of these factors will invalidate the FCC grant.
It is illegal to operate a transmitting product without a valid grant.
Location Services
Location
Motorola mobile devices can provide information about their approximate location to
applications, using sources including GPS, AGPS, and Wi-Fi. GPS (Global Positioning
System) uses government-operated satellites that are subject to changes implemented in
accordance with Department of Defense policy and the Federal Radio Navigation Plan.
These changes may affect the performance of location technology on your mobile device.
AGPS (Assisted Global Positioning System) uses your wireless service provider’s network to
improve GPS performance. Airtime, data fees, and/or additional charges may apply in
accordance with your service plan. Contact your wireless service provider for details. Your
mobile device can also use Wi-Fi signals to determine your approximate location, using
information from known and available Wi-Fi networks.
Mobile devices transmit location-based information when connected to a wireless network
or when using other location technologies like GPS. If you use applications that require
location-based information such as driving directions, your mobile device will provide
location information to them. These applications may share location information with third
parties, including your wireless service provider, applications providers, Motorola, and other
third parties providing services.
Emergency Calls
When you make an emergency call, the cellular network may activate the AGPS technology
in your mobile device to tell the emergency responders your approximate location.
AGPS has limitations and
might not work in your area
. Therefore:
Always tell the emergency responder your location to the best of your ability; and
Safety, Regulatory, & Legal
For Your Safety
Battery Use & Safety
Battery Charging
Driving Precautions
Seizures, Blackouts & Eyestrain
High Volume
Children
Glass Parts
Glass Parts
Use & Care
Operational Warnings
RF Energy
Regulatory Information
Regulatory Information
SAR (FCC & IC)
SAR (ICNIRP)
EU Conformance
FCC DoC
FCC Notice
Industry Canada Notice
Software Notices
Location
Navigation
Privacy & Data Security
Recycling
Hearing Aid Compatibility
Software Copyright
Content Copyright
OSS Information
Export Law
Service & Repairs
23 MAY 2014
FCC SUBMIT
Back Next
Menu More
Safety, Regulatory, & Legal
Remain on the phone for as long as the emergency responder instructs you.
Navigation
Navigation
If your Motorola mobile device provides navigation features, note that mapping information,
directions, and other navigational data may contain inaccurate or incomplete data. In some
countries, complete information may not be available. Therefore, you should visually confirm
that the navigational instructions are consistent with what you see. All drivers should pay
attention to road conditions, closures, traffic, and all other factors that may impact driving.
Always obey posted road signs.
Privacy & Data Security
Privacy & Data Security
Motorola understands that privacy and data security are important to everyone. Because
some features of your mobile device may affect your privacy or data security, please follow
these recommendations to enhance protection of your information:
Monitor access:
Keep your mobile device with you and don’t leave it where others may
have unmonitored access. Use your device’s security and lock features, where available.
Keep software up to date:
If Motorola or a software/application vendor releases a patch
or software fix for your mobile device that updates the device’s security, install it as soon
as possible.
Secure Personal Information:
Your mobile device can store personal information in
various locations, including your SIM card, memory card, and phone memory. Be sure to
remove or clear all personal information before you recycle, return, or give away your
device. You can also backup your personal data to transfer to a new device.
Note:
For information on how to backup or wipe data from your mobile device, go to
www.motorola.com/support
Online accounts:
Some mobile devices provide a Motorola online account. Go to your
account for information on how to manage the account, and how to use security features
such as remote wipe and device location (where available).
Applications and updates:
Choose your apps and updates carefully, and install from
trusted sources only. Some apps can impact your mobile device’s performance and/or
have access to private information including account details, call data, location details,
and network resources.
• Wireless:
For mobile devices with Wi-Fi features, only connect to trusted Wi-Fi networks.
Also, when using your device as a hotspot (where available), use network security. These
precautions will help prevent unauthorized access to your device.
Location-based information:
Mobile devices enabled with location based technologies
such as GPS, AGPS or Wi-Fi, can transmit location-based information. See “Location
Services” for more details.
Other information your device may transmit:
Your mobile device may also transmit
testing and other diagnostic (including location-based) information, and other
non-personal information to Motorola or other third-party servers. This information is used
to help improve products and services offered by Motorola.
If you have further questions about how using your mobile device may impact your privacy or
data security, please contact Motorola at
privacy@motorola.com
, or contact your
service provider.
Disposal & Recycling
Recy clin g
Mobile Devices & Accessories
Please don’t dispose of mobile devices or electrical accessories (such as chargers,
headsets, or batteries) with your household waste.
Warning: Never dispose of
batteries, either separately or within a mobile device, in a fire because they
may explode.
Mobile devices or electrical accessories should be disposed of in
accordance with the national collection and recycling schemes operated by your
local or regional authority. Or, you may return unwanted Motorola mobile devices and
electrical accessories to any Motorola Approved Service Center in your region. For details on
approved national recycling schemes and Motorola recycling activities, go to:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional authorities for
more details.
Hearing Aid Compatibility in the US
Hearing Aid Compatibility
In the US, specific hearing aid compatibility (HAC) performance
ratings can help clarify how certain wireless phones and hearing aids
may perform together. HAC compliant wireless phones are capable
of working with hearing aids that have a minimal immunity rating of
at least 2. The immunity rating indicates how susceptible a hearing
aid is to picking up interference from a digital wireless phone. It can
rate the performance of the hearing aid for either microphone
and/or telecoil coupling. Some hearing aids are more immune than others to this
interference noise, and phones also vary in the amount of interference they generate. The US
performance rating system for HAC compliant wireless phones is as follows:
The “M” (microphone) indicates that the product has been tested and rated for acoustic
coupling. The “T” (telecoil) represents that the product has been tested and rated for
inductive coupling. The higher the “M” or “T” rating, the less likely the hearing aid user will
experience interference when the hearing aid is set to the respective microphone or telecoil
mode. The highest values to date are 3 and 4 (e.g., “M4” or “M3/T3”).
To determine if a product is rated for HAC, please look for the HAC rating or logo on the
phone’s packaging. For a list of current HAC models, visit
www.motorola.com/hacphones
.
Results will vary depending on the user’s hearing aid and hearing loss. If your hearing aid
happens to be vulnerable to interference, you may not be able to use a rated phone
Safety, Regulatory, & Legal
For Your Safety
Battery Use & Safety
Battery Charging
Driving Precautions
Seizures, Blackouts & Eyestrain
High Volume
Children
Glass Parts
Glass Parts
Use & Care
Operational Warnings
RF Energy
Regulatory Information
Regulatory Information
SAR (FCC & IC)
SAR (ICNIRP)
EU Conformance
FCC DoC
FCC Notice
Industry Canada Notice
Software Notices
Location
Navigation
Privacy & Data Security
Recycling
Hearing Aid Compatibility
Software Copyright
Content Copyright
OSS Information
Export Law
Service & Repairs
23 MAY 2014
FCC SUBMIT
