Motorola Mobility T6DT1 Portable Cellular / PCS GSM Transceiver User Manual UG C330 GSM

Motorola Mobility LLC Portable Cellular / PCS GSM Transceiver UG C330 GSM

Exhibit 8 Users Manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6DT1
EXHIBIT 8
INSTRUCTION MANUAL
A preliminary draft copy of the Users Manual (for the PTT version) follows:
START HERE >
V400p
GSM
DRAFT
1
Welcome
Welcome to the world of Motorola digital wireless
communications! We are pleased that you have chosen the
Motorola V400p GSM wireless phone.
Headset Jack
Insert headset
accessory for
handsfree use.
Volume Keys
Adjust earpiece &
ringer volume.
Voice Key
Create voice
records, phonebook
& shortcut names.
Accessory
Connector Port
Insert charger &
phone accessories.
Power & End Key
Turn phone on/off,
end calls, exit menu
system.
Right Soft Key
Perform functions
identified by right
display prompt.
Menu Key
Left Soft Key
Perform functions
identified by left
display prompt.
Send Key
Make & answer
calls, view recently
dialed calls list.
5-Way
Navigation Key
Scroll through
menus & lists, set
feature values.
Push to Talk (PTT)
Button
Used for 2-way
communications
with other Push to
Talk subscribers.
Speakerphone
Button
DRAFT
2
Check It Out!
Feature Description
Push to Talk
Start a Push to Talk call with an
individual contact or group:
L
>
PTT Contacts
or
PTT Groups
Take Photo
Press
CAMERA
(
+
) to activate the
camera, point lens at subject, press
CAPTURE
(
+
) to take a photo.
Send Photo
Send the photo to a phone number or
email address:
Press
STORE
(
+
) >
Send In Message
.
Camera Lens
Take photos to send
to others & use on
your phone.
Push to Talk Button
Used for 2-way
communications
with other Push to
Talk subscribers.
Mirror
Aim camera lens for
self portraits.
External Display
View incoming call
information.
Internal
Speakerphone
(on back of phone)
DRAFT
3
Set Photo as
Picture ID
Assign a photo to a phonebook entry to
enable picture caller ID:
M
>
Multimedia
>
Pictures
> photo
M
>
Apply As
>
Phonebook Entry
Send
Multimedia
Message
Send a multimedia message
with pictures, animations,
sounds:
M
>
Messages
>
Create Message
>
New Multimedia Msg
Send Letter
Send a multimedia letter:
M
>
Messages
>
Create Message
>
New Letter
Read
Multimedia
Message
Read a new multimedia
message or letter that you have
received:
Press
READ
(
+
).
Store Message
Objects
Go to a multimedia message
slide, or highlight an object in a
letter, then:
M
>
Store
Phone Theme
Apply a phone theme:
M
>
Multimedia
>
Themes
> theme
Feature Description
DRAFT
4
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States)
1-800-461-4575 (Canada)
www.motorola.com
(United States)
www.motorola.ca
(Canada)
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and other
countries. All other product or service names are the property of their
respective owners.
© Motorola, Inc. 2004.
The information contained in Motorola's user's guides is believed to be correct
at the time of printing. Motorola reserves the right to change or modify any
information or specifications without notice. The contents of Motorola’s user's
guides are provided “as is.” Except as required by applicable law, no warranties
of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability, or contents of this guide.
Caution
: Changes or modifications made in the radio phone, not expressly
approved by Motorola, will void the user’s authority to operate the equipment.
Manual number: TBD-O
DRAFT
5
Contents
Getting Started
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Battery Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Answering a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 16
Highlight Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Taking and Sending a Photo. . . . . . . . . . . . . . . . . . . . . . 17
Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 19
Receiving a Multimedia Message . . . . . . . . . . . . . . . . . . 22
Learning to Use Your Phone
. . . . . . . . . . . . . . . . . . . . . . 24
Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 28
Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Entering Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the Push to Talk (PTT) Button . . . . . . . . . . . . . . . 43
Using the Internal Speakerphone . . . . . . . . . . . . . . . . . . 43
Changing a Code, PIN, or Password . . . . . . . . . . . . . . . 44
Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 44
If You Forget a Code, PIN, or Password . . . . . . . . . . . . . 46
Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Push to Talk (PTT) Calls
. . . . . . . . . . . . . . . . . . . . . . . . . 49
One-to-One Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
DRAFT
6
Group Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Setting Up Your PTT Contacts and Groups Lists . . . . . 49
Viewing Your PTT Contacts and Groups Lists . . . . . . . 50
Presence Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Personalizing Push to Talk Settings . . . . . . . . . . . . . . . 53
Refreshing the PTT Contacts and Groups Lists . . . . . . 59
Blocking PTT Contacts . . . . . . . . . . . . . . . . . . . . . . . . . 60
Unblocking PTT Contacts . . . . . . . . . . . . . . . . . . . . . . . 60
Accessing the Frequently Used List . . . . . . . . . . . . . . . 61
Push to Talk Alert Tones . . . . . . . . . . . . . . . . . . . . . . . . 62
Push to Talk Icons and Text. . . . . . . . . . . . . . . . . . . . . . 63
Basic Push to Talk Instructions . . . . . . . . . . . . . . . . . . . 64
Making Push to Talk Calls . . . . . . . . . . . . . . . . . . . . . . . 65
Answering Push to Talk Calls . . . . . . . . . . . . . . . . . . . . 69
Making an Push to Talk Call from the External Display. 70
Setting Up Your Phone
. . . . . . . . . . . . . . . . . . . . . . . . . . 72
Storing Your Name and Phone Number . . . . . . . . . . . . 72
Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . 72
Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Setting Answer Options. . . . . . . . . . . . . . . . . . . . . . . . . 74
Setting the Speakerphone for Phone Calls . . . . . . . . . . 75
Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . 76
Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . 77
Setting Display Brightness . . . . . . . . . . . . . . . . . . . . . . 78
Setting Display Color. . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . 78
Setting Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . 78
DRAFT
7
Calling Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . . 79
Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Using Automatic Redial . . . . . . . . . . . . . . . . . . . . . . . . . 80
Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Calling an Emergency Number. . . . . . . . . . . . . . . . . . . . 81
Dialing International Numbers . . . . . . . . . . . . . . . . . . . . 82
Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Returning an Unanswered Call. . . . . . . . . . . . . . . . . . . . 84
Using the Notepad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Attaching a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Calling With Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . 86
Calling With 1-Touch Dial . . . . . . . . . . . . . . . . . . . . . . . . 86
Using Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Using Call Waiting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Putting a Call On Hold . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Transferring a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Phone Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Settings Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Push to Talk Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Feature Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . 94
Specific Absorption Rate Data
. . . . . . . . . . . . . . . . . . . 111
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
DRAFT
8
Getting Started
Getting Started
About This Guide
This guide describes the basic features of your Motorola
wireless phone.
To obtain the More Here guide for your phone, or another
copy of this guide, see the Motorola Web site at:
http://motorola.com/consumer/manuals
(U.S.A.)
http://motorola.ca/consumer
(Canada)
or contact the Motorola Customer Call Center at
1-800-331-6456 (U.S.A.) or 1-800-461-4575 (Canada).
CAUTION: Before using the phone for the first
time, read the Important Safety and Legal
Information included in the gray-edged pages at
the back of this guide.
Note: A More Here reference guide for your
phone is also available that describes your
phone’s features in more detail.
DRAFT
9
Getting Started

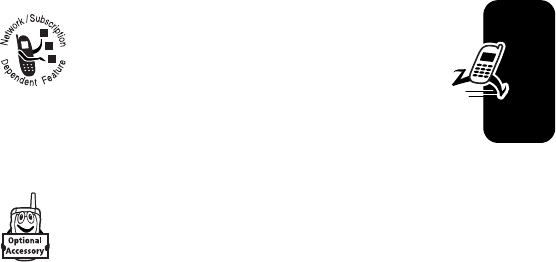

Optional Features
This label identifies an optional network, SIM
card, or subscription-dependent feature that
may not be offered by all service providers in
all geographical areas. Contact your service
provider for more information.
Optional Accessories
This label identifies a feature that requires an
optional Motorola Original™ accessory.

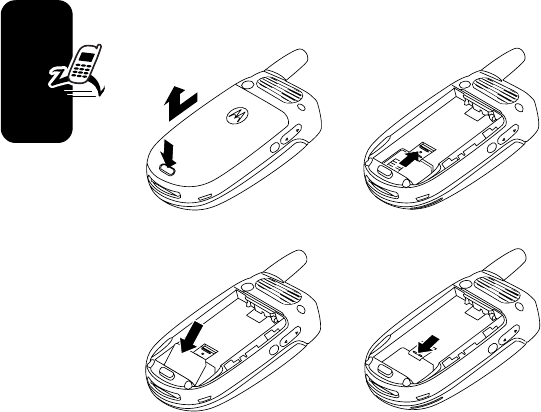

Installing the SIM Card
Your SIM (Subscriber Identity Module) card contains your
phone number, service details, and phonebook/message
memory.
DRAFT
10
Getting Started
Caution:
Do not bend or scratch your SIM card. Avoid
exposing your SIM card to static electricity, water, or dirt.
Battery Use
Battery performance depends on many factors, including
your wireless carrier’s network configuration; signal
strength; the temperature at which you operate your
phone; the features and/or settings you select and use;
items attached to the phone’s accessory connector port;
and your voice, data, and other application usage patterns.
1.
040051o
2.
040052o
3.
040053o
4.
DRAFT
11
Getting Started
Caution:
To prevent injuries or burns, do not allow metal
objects to contact or short-circuit the battery terminals.
To maximize your battery’s performance:
•
Always use Motorola Original batteries and battery
chargers. The phone warranty does not cover
damage caused from using non-Motorola batteries
and/or battery chargers.
•
New batteries or batteries that have been stored for a
long time may require a longer charge time.
•
Maintain the battery at or near room temperature
when charging.
•
Do not expose batteries to temperatures below -10°C
(14°F) or above 45°C (113°F). Always take your
phone with you when you leave your vehicle.
•
When you do not intend to use a battery for a while,
store it uncharged in a cool, dark, dry place, such as a
refrigerator.
•
Batteries gradually wear down and require longer
charging times. This is normal. If you charge your
battery regularly and notice a decrease in talk time or
an increase in charging time, then it is probably time
to purchase a new battery.
DRAFT
12
Getting Started
The rechargeable batteries that power this phone
must be disposed of properly and may need to
be recycled. Refer to your battery’s label for
battery type. Contact your local recycling center for
proper disposal methods.
Warning:
Never dispose of batteries in a fire because
they may explode.
Installing the Battery
Your phone is designed to use only Motorola
Original batteries and accessories. We
recommend that you store batteries in their
protective cases when not in use.
1.
040054o
2.
040055o
3.
DRAFT
13
Getting Started
Charging the Battery
New batteries are shipped partially charged. Before
you can use your phone, you need to install and charge
the battery as described below. Some batteries
perform best after several full charge/discharge cycles.
Tip:
You can safely leave the travel charger connected to
the phone after charging is complete. This will
not
damage
the battery.
Action
1
Insert the travel
charger plug
into your phone
with the release
tab facing up. Be
sure to insert
the plug’s
connector hooks
straight into the phone’s charger slots, so that
both hooks engage to lock the plug in place.
Note:
It may take up to 10 seconds for your
phone to indicate the battery is charging
depending on the current battery charge level.
2
Plug the other end of the travel charger into the
appropriate electrical outlet.
3
When your phone indicates
Charge Complete
, press
the release tab and remove the travel charger.
Release
Tab
DRAFT
14
Getting Started
Turning Your Phone On
Note:
At startup, you may be prompted to personalize your
phone. Select
Yes
(
+
) to set personal phone options, or
No
(
-
) to go to the home screen. For more information
about personalizing your phone, see page 100.
Action
1
Open your phone.
2
Press and hold
P
for 2 seconds to
turn on the phone.
3
If necessary, enter your SIM card PIN code and
press
OK
(
+
) to unlock the SIM card.
Caution:
If you enter an incorrect PIN code 3
times in a row, your SIM card is disabled and
your phone displays
SIM Blocked
.
4
If necessary, enter your 4-digit unlock code and
press
OK
(
+
) to unlock the phone.
Power
Key
DRAFT
15
Getting Started
Adjusting
Volume
Press the up or down
volume keys to:
•
increase or decrease earpiece volume during a
call
•
increase or decrease the ringer volume setting when
the home screen is visible (flip must be open)
Tip:
At the lowest volume setting, press the down
volume key once to switch to vibrate alert. Press it
again to switch to silent alert. Press the up volume key
to cycle back to vibrate alert, then ring alert.
•
turn off an incoming call alert
Making a Call
Note:
You must dial the phone number from the home
screen. (see page 24).
Press To
1
keypad keys dial the phone number
2
N
make the call
3
O
end the call and “hang up” the
phone when you are finished
Tip:
You can also close the
phone flip to end the call.
Volume
Keys
DRAFT
16
Getting Started
Answering a Call
When you receive a call, your phone rings and/or
vibrates and displays an incoming call message.
When the phone flip is active, open the phone to
answer the call. (To activate, press
M
>
Settings
>
In-Call Setup
>
Answer Options
>
Open to Answer
.)
If the phone flip is
not
active:
Viewing Your Phone Number
To view your phone number from the home screen, press
M#
.
While you are on a call, press
M
>
My Tel. Numbers
.
Note:
Your phone number must be stored on your SIM
card to use this feature. To store your phone number on
the SIM card, see page 72. If you do not know your phone
number, contact your service provider.
Press To
1
N
or
ANSWER
(
+
)
answer the call
2
O
end the call and “hang up” the
phone when you are finished
DRAFT
17
Highlight Features
Highlight Features
You can do much more with your phone than make and
receive calls! This section describes some of your
phone’s highlight features.
Taking and Sending a Photo
Shortcut:
From the home screen, press
CAMERA
(
+
) to
activate the camera.
To activate your phone’s camera:
The active viewfinder image appears on your display.
Find the Feature
M
>
Multimedia
>
Camera
BACK
M
CAPTURE
Photo Viewfinder
Memory Used:72%
Press
S
up or
down to zoom
in or out on
viewfinder
image.
Photo storage
memory space
currently in use.
Return to previous screen.
Press
S
left
or right to
decrease or
increase image
brightness. Press
M
to open
Pictures Menu
.
Take a photo.
AREA
DRAFT
18
Highlight Features
Point the camera lens at the photo subject, then:
Press To
1
CAPTURE
(
+
)take a photo
2
STORE
(
+
)
or
DISCARD
(
-
)
view storage options
delete the photo and return to
active viewfinder
If you choose to store the
photo, continue to step 3.
3
S
scroll to
Send in Message
,
Store Only
,
Apply as Wallpaper
,
Apply as Screen Saver
,
Apply as Phonebook Entry
, or
Send to Blog
*
4
SELECT
(
+
)perform the storage option of
your choice
* Optional network/subscription dependent feature. Not
all features may be available on your phone.
DRAFT
19
Highlight Features
Press
M
to open the
Pictures Menu
when the camera is
active. The
Pictures Menu
can include the following options:
Sending a Multimedia Message
A Multimedia Messaging Service (MMS)
multimedia message contains one or more
slides with text and embedded media objects
(including photos, pictures, animations, sounds,
and/or voice records). You can send the multimedia
message to other wireless phone users, and to email
addresses.
Option Description
Go To Pictures
View pictures and photos
stored on your phone.
Auto-Timed Capture
Set a timer for the camera to
take a photo.
Delete All
Delete all pictures.
Pictures Setup
Open the setup menu to
adjust picture settings.
View Free Space
See how much memory
remains for storing pictures.
Find the Feature
M
>
Messages
>
Create Message
>
New Multimedia Msg
Press To
1
keypad keys enter slide text
2
M
open the
MMS Menu
DRAFT
20
Highlight Features
3
S
scroll to
Insert
4
SELECT
(
+
)display a list of items you can
insert
5
S
scroll to
,
Voice Record
,
Sound
,
New Page
,
Quick Note
, or
Contact Info
6
SELECT
(
+
)select the file type
7
S
highlight the file you want
8
SELECT
(
+
)insert the file
To add another slide to the
message, continue to step 9.
To send the message, go to
step 14.
9
M
open the
MMS Menu
to insert a
new slide
10
S
scroll to
Insert
11
SELECT
(
+
)display a list of items you can
insert
12
S
scroll to
New Page
13
SELECT
(
+
)insert a new slide after the
current slide
Repeat steps 1 to 8 to enter
contents for the new slide.
14
OK
(
+
)store the message
Press To
DRAFT
21
Highlight Features
15
S
scroll to a
Send To
option:
Highlight
[One Time Entry]
to
enter one or more phone
numbers and/or email
addresses.
Highlight
[New Phonebook Entry]
to enter a number/address
and add it to the phonebook.
Or highlight an existing
phonebook entry.
16
SELECT
(
+
)
or
ADD
(
+
)
select
[One Time Entry]
or
[New Phonebook Entry]
add a phonebook entry to the
list of recipients
17
DONE
(
-
)store the numbers/addresses
18
S
scroll to
Subject
19
CHANGE
(
-
)select
Subject
20
keypad keys enter the subject
Press To
DRAFT
22
Highlight Features
Receiving a Multimedia
Message
When you receive a multimedia message or
letter, your phone displays the
X
(message
waiting) indicator and a
New Message
notification,
and sounds an alert.
21
OK
(
+
)store the subject
22
SEND
(
+
)send the message
Note:
Before sending the
message, you can add an
Attachment
or request a
delivery
Receipt
.
Press To
READ
(
+
)open the message
Press To
DRAFT
23
Highlight Features
Multimedia messages that you receive can contain
different media objects:
•
Photos, pictures, and animations are displayed as
you read the message.
•
A sound file begins playing when its slide is
displayed. Use the volume keys to adjust the
volume as the sound file plays.
Note:
In a multimedia letter, you may have to highlight
an indicator embedded in the text to play a sound file.
•
Attached files are added to the end of the message.
To open the attachment, highlight the file
indicator/filename and press
VIEW
(
+
) (image file
type),
PLAY
(
+
) (sound file), or
OPEN
(
+
) (vObject
such as phonebook or datebook entry, or unknown file
type).
DRAFT
24
Learning to Use Your Phone
Learning to Use Your
Phone
See page 1 for a basic phone diagram.
Using the Display
The home screen is displayed when you are
not
on a
call or using the menu. You must be in the home screen
to dial a phone number.
Press the 5-way navigation key (
S
) left, right, up, or down
to select one of the menu feature icons. If you select a
menu icon by mistake, press
O
to return to the home
screen.
STYLES
M
CAMERA
Service Provider
10/15/04
e
n
à
s
+49@ UÑr(yÉ
Clock
Menu Indicator
Left Soft Key
Label
Date
Right Soft Key
Label
Browser
Messages
Phonebook
Recent Calls
DRAFT
25
Learning to Use Your Phone
Note:
Your home screen may look different than the
display shown above. For example, your service provider
may hide the menu feature icons to allow a better view of
the wallpaper image. You can still select the menu icons
when they are hidden from view. To show or hide the menu
icons, see page 101.
The
e
(menu) indicator indicates that you can press the
menu key (
M
) to enter the main menu.
Labels at the bottom corners of the display show the
current soft key functions. Press the left soft key (
-
)
or right soft key (
+
) to perform the function indicated
by the left or right soft key label.
Your phone can display an analog or digital clock in the
home screen (see page 101).
The following status indicators can display:
STYLES
M
CAMERA
Service Provider
10/15/04
+49@ Ur(yÉ
2.
GPRS
3.
Signal
Strength
6.
Push to
Tal k
7.
Message
8.
Battery
Level
1.
Data
Transmission
4.
Roam
5.
Active
Line
9.
Ring Style
DRAFT
26
Learning to Use Your Phone
1. Data Transmission Indicator
Shows connection and
data transmission status. Indicators can include:
2. GPRS Indicator
Shows that your phone
is using a high-speed General Packet Radio
Service (GPRS) network connection. GPRS
allows faster data transfer speeds. Other
indicators can include:
3. Signal Strength Indicator
Vertical bars show the
strength of the network connection. You cannot make or
receive calls when the
!
(no signal) indicator or
)
(no
transmit) indicator is displayed.
4. Roam Indicator
Shows when your phone is
seeking or using another network outside your
home network. Indicators can include:
4
= secure packet
data transfer
7
= unsecure packet
data transfer
3
= secure
application
connection
6
= unsecure
application
connection
2
= secure Circuit
Switch Data
(CSD) call
5
= unsecure CSD
call
*
= GPRS PDP
context active
,
= GPRS packet
data available
8
=2.5G home
9
=2.5G roam
:
=2G home
;
=2G roam
DRAFT
27
Learning to Use Your Phone
5. Active Line Indicator
Shows
@
or
B
to
indicate the current active phone line. Other
indicators can include:
6. Push to Talk Indicator
Shows that your
phone is connected to the Push to Talk
network.
When instant message is active,
p
can
display in this location.
When a Java application is active, a
`
(Java
midlet) indicator can display in this location.
7. Message Indicator
Displays when you
receive a new message. Indicators can include:
When you enter a message, a number in this location
shows the number of characters left on the current page
(text message), or the message size in bytes/kilobytes
(multimedia message or letter).
A
= line 1 active,
call forward on
C
= line 2 active, call
forward on
E
=alarm activated
r
= text message
t
= voicemail
message
s
= voicemail and
text message
b
= answering
machine
d
= IM message
a
= active chat
session
DRAFT
28
Learning to Use Your Phone
8. Battery Level Indicator
Vertical bars show the battery
charge level. Recharge the battery when
Low Battery
displays and the battery alert sounds.
9. Ring Style Indicator
Shows the ring style setting.
Using the
5-Way
Navigation Key
Use the 5-way navigation
key (
S
) to scroll up, down, left, or right through the menu
system, highlight menu items, change feature settings, and
play games. Press the center select button to select a
highlighted menu item. The center select button usually
performs the same function as the right soft key (
+
).
y
= loud ring
z
=soft ring
|
=vibrate
}
= vibrate and ring
{
= silent
5-Way
Navigation
Key
DRAFT
29
Learning to Use Your Phone
Using Menus
From the home screen, press
M
to enter the main
menu.
Games & Apps
EXIT SELECT
End Key
Exit menu
without making
changes.
Left Soft Key
Perform left
function.
Menu Key
Enter menu
system, or open
a sub-menu.
5-Way
Navigation Key
Scroll
up
,
down
,
left
, or
right
.
Press center
select button to
perform right soft
key function.
Right Soft Key
Perform right
function.
Highlighted
Menu Feature
Icon
DRAFT
30
Learning to Use Your Phone
Press
S
to scroll to and highlight a menu feature icon in
the main menu. The following icons represent features that
may appear in the main menu, depending on your service
provider and service subscription options.
Selecting a Menu Feature
This guide shows you how to select a menu feature,
starting from the home screen.
This example shows that from the home screen, you must
press
M
, scroll to and select
s
Recent Calls
from the
main menu, then scroll to and select
Dialed Calls
. Press
S
to scroll, and the left/right soft keys to select the functions
listed in the bottom left and right corners of the display.
Menu
Icon Feature
Menu
Icon Feature
n
Phonebook
s
Recent Calls
e
Messages
É
Office Tools
Q
Games & Apps
á
Web Access
h
Multimedia
ã
IM
w
Settings
Find the Feature
M
>
Recent Calls
>
Dialed Calls
DRAFT
31
Learning to Use Your Phone
Selecting a Feature Option
Some features require you to select an option from a list:
•
Press
S
to scroll up or down to highlight the option
you want.
•
In a numbered list, press a number key to highlight the
option.
•
In an alphabetized list, press a key repeatedly to cycle
through the letters on the key and highlight the closest
matching list option.
•
When an option has a list of possible values, press
S
left or right to scroll through and select a value.
•
When an option has a list of possible numeric values,
press a number key to set the value.
BACK
M
VIEW
Dialed Calls
10) John Smith
9) Lisa Owens
8) Adda Thomas
7) Jack Bradshaw
6) Dave Thompson
5) John Smith
4) John Smith
3) John Smith
(yÉ
Press
BACK
(
-
) to go
back to
previous
screen.
Highlighted
Option
Press
M
to open sub-menu.
Press
VIEW
(
+
) to
view details of
highlighted
option.
DRAFT
32
Learning to Use Your Phone
Entering Text
Some features require you to enter information.
The message center lets you compose and send text
messages.
CANCEL CHANGE
Entry Details
Name: John Smith
Category: General
No.: 2125551212
Type: Work
Store To: Phone
Voice Name:
Speed No.: 2
#
(P)
Ringer ID: Continental
$
(yÉ
Press
CANCEL
(
-
) to exit without making
changes.
DONE
(
-
) displays when you
enter or edit information.
Press
CHANGE
(
+
) to
enter or edit
information.
Press
S
to
scroll down to
other options.
Highlighted
Option
CANCEL
M
INSERT
Msg
(yÉ
Ug
450
Press
INSERT
(
+
) to
insert a quick
note, picture, or
sound.
Press
CANCEL
(
-
) to exit without
making changes.
Press
M
to
open
sub-menu.
Flashing cursor
indicates
insertion point.
For indicator
descriptions,
see following
section.
DRAFT
33
Learning to Use Your Phone
Choosing a Text Entry Method
Multiple text entry methods make it easy for you to enter
names, numbers, and messages. The method you select
remains active until you select another method.
Press
#
in any text entry screen to select one of the
following entry methods:
Alternatively, you can select a text entry method in any text
entry screen by pressing
M
>
Entry Mode
.
Setting Up a Text Entry Method
Press
M
>
Entry Setup
from any text entry screen. Select
Primary Setup
or
Secondary Setup
, and choose:
Primary
The primary text entry method (see
below to set).
Numeric
Enter numbers only (see page 40).
Symbol
Enter symbols only (see page 41).
Secondary
The secondary text entry method
(see below to set).
iTAP
Let the phone predict each word as
you press keys (see page 38).
Tap
Enter letters and numbers by pressing
a key one or more times.
Tap Extended
Enter letters, numbers, and symbols
by pressing a key one or more times.
None
Hide the
Secondary
setting (only
available for
Secondary Setup
).
DRAFT
34
Learning to Use Your Phone
Using Capitalization
Press
0
in any text entry screen to change text case.
The following indicators show capitalization status:
Text Entry Method Indicators
When you select the
Primary
or
Secondary
text entry
method, the following indicators identify the text entry
setting:
The following indicators identify
Numeric
or
Symbol
entry
method:
U
= no capital letters
V
= capitalize next
letter only
T
= all capital letters
Primary
Secondary
g
m
Tap, no capital letters
h
q
Tap, capitalize next letter
only
f
l
Tap, all capital letters
j
p
iTAP, no capital letters
k
n
iTAP, capitalize next
letter only
i
o
iTAP, all capital letters
W
= numeric method
[
= symbol method
DRAFT
35
Learning to Use Your Phone
Using Tap Method
This is the standard method for entering text on your
phone.
Regular
Tap
method cycles through the letters and number
of the key you press.
Tap Extended
method also cycles
through additional symbols as shown in the “Character
Chart” on page 37.
In a text entry screen, you can press
#
to switch entry
methods. An indicator shows which method is active (see
page 34). If
Tap
or
Tap Extended
is not available as the
Primary
or
Secondary
entry method, see page 33.
Press To
1
A keypad key
one or more
times
select a letter, number, or
symbol
2
Keypad keys enter remaining characters
Tip:
Press
S
right to accept
a word completion, or
*
to
insert a space.
3
OK
(
+
)store the text
DRAFT
36
Learning to Use Your Phone
When you enter text with
Tap
or
Tap Extended
method, the soft
key functions change.
When you enter 3 or more characters in a row, your phone
may guess the rest of the word. For example, if you enter
prog
you might see:
If you want a different word (such as
progress
), continue
pressing keypad keys to enter the remaining characters.
DELETE
M
OK
Msg
T
(yÉ
Ug
449
After
2 seconds,
character is
accepted and
cursor moves to
next position.
Press
DELETE
(
-
) to delete
character to left of insertion point.
Character
displays at
insertion point.
Press
OK
(
+
)
to accept and
store text.
DELETE
M
OK
Msg
This is a prog ram
(yÉ
Ug
432
Press
S
right
to accept
Program
, or
press
*
to
reject it and
enter a space
after
prog
.
DRAFT
37
Learning to Use Your Phone
Character Chart
Use this chart as a guide for entering characters with
Tap Extended
method.
Note:
This chart may not reflect the exact character set
available on your phone. In an email address or URL
editor,
1
first shows common characters for that editor.
1
. 1 ? ! , @ _ & ~ : ; " - ( ) '
¿ ¡ % £ $ ¥ + x * / \ [ ]
= > < # §
2
a b c 2 ä å á à â ã
α
β
ç
3
d e f 3
δ
ë é è ê
φ
4
g h i 4 ï í î
γ
5
j k l 5
λ
6
m n o 6 ñ ö ø ó ò ô õ
ω
7
p q r s 7
π
ß
σ
8
t u v 8
θ
ü ú ù û
9
w x y z 9
ξ ψ
0
change text case, for capital letters
*
enter a space (hold to enter a return)
#
change text entry method (hold for default)
DRAFT
38
Learning to Use Your Phone
Tap Method Text Entry Rules
•
Press a keypad key repeatedly to cycle through its
characters.
•
Press
S
left or right to move the flashing cursor to
the left or right in a text message.
•
The first character of every sentence is capitalized. If
necessary, press
S
down to force the character to
lowercase before the cursor moves to the next
position.
•
If you enter or edit information and do not want to
save the changes, press
O
to exit without saving.
Using iTAP™ Method
iTAP™ software provides a predictive text entry method
that lets you enter a word using one keypress per letter.
This can be faster than
Tap
method, because your phone
combines the keypresses into common words.
DRAFT
39
Learning to Use Your Phone
For example, if you press
7
7
6
4
, letter
combinations that match your keypresses display:
If you want a different word (such as
Progress
), continue
pressing keypad keys to enter the remaining characters.
Entering Words
In a text entry screen, you can press
#
to switch entry
methods. An indicator tells you which method is active
(see page 34). If
iTAP
method is not available as the
Primary
or
Secondary
entry method, see page 33.
Press To
1
Keypad keys
(one press per
letter)
show possible letter
combinations at the bottom of
the display
DELETE
M
SELECT
(yÉ
Uj
442
Msg
Prog ram
Prog Proh Spoi Proi
}
Press
DELETE
(
-
) to
delete last
letter.
Press
S
up to
accept
Program
.
Press
SELECT
(
+
) to lock
highlighted combination.
Press
S
right
to highlight
another
combination.
Press
*
to
enter
Prog
and a
space.
DRAFT
40
Learning to Use Your Phone
If you enter a word your phone does not recognize, the
phone stores it to use as one of your word options. When
you fill memory space for unrecognized words, your phone
deletes the oldest words to add new words.
Using Numeric Method
In a text entry screen, press
#
to switch entry methods
until the
W
(numeric) indicator displays.
Press keypad keys to enter the numbers you want. When
you finish entering numbers, press
#
to switch to another
entry method.
2
S
left or right highlight the combination you
want
3
SELECT
(
+
)
or
*
lock a highlighted
combination
You can press keypad keys to
add more letters to the end of
the combination.
enter the highlighted
combination when it spells a
word
A space is automatically
inserted after the word.
Press To
DRAFT
41
Learning to Use Your Phone
Using Symbol Method
In a text entry screen, press
#
to switch entry methods
until the
[
(symbol) indicator displays.
Press To
1
Keypad keys
(one press per
symbol)
show possible symbol
combinations at the bottom of
the display
2
S
left or right highlight the combination you
want
3
SELECT
(
+
)
or
*
lock a highlighted
combination
You can press keypad keys to
add more symbols to the end
of the combination.
enter the highlighted
combination
DRAFT
42
Learning to Use Your Phone
Symbol Chart
Use this chart as a guide for entering characters with
symbol method.
Note:
This chart may not reflect the exact character set
available on your phone. In an email address or URL
editor,
1
first shows common characters for that editor.
1
. ? ! , @ _ & ~ : ; " - ( ) ' ¿
¡ % £ $ ¥
2
@ _ \
3
/ : ;
4
" & '
5
( ) [ ] { }
6
¿ ¡ ~
7
< > =
8
$ £ ¥
9
# % *
0
+ - x * / = > < # §
*
enter a space (hold to enter a return)
#
change text entry method (hold for default)
DRAFT
43
Learning to Use Your Phone
Deleting Letters and Words
Place the cursor to the right of the text you want to delete,
and then:
Using the
Push to
Talk (PTT)
Button
Press
L
to access the Push to Talk feature, menus,
contacts, groups, and settings.
Using the Internal
Speakerphone
You can set the speakerphone to
On
or
Off
for phone calls
(see page 75) and Push to Talk calls (see page 56). When
set to
On
, you can talk and listen to your calls without
holding the phone to your ear.
Note:
You do not have to set the speakerphone to
On
or
OFF
for both types of calls. For example, you can set
Off
for
phone calls, and
On
for Push to Talk calls.
Note:
The internal speakerphone is disabled when you
connect your phone to a handsfree car kit or headset
accessory.
Action
Press
DELETE
(
-
) to delete one letter at a time.
Hold
DELETE
(
-
) to delete the entire message.
Push to Talk
Button
DRAFT
44
Learning to Use Your Phone
Changing a Code, PIN, or
Password
Your phone’s 4-digit unlock code is originally set to 1234,
and the 6-digit security code is originally set to 000000.
Your service provider may reset these codes before you
receive your phone.
If your service provider has
not
reset these codes, we
recommend that you change them to prevent others
from accessing your personal information. The unlock
code must contain 4 digits, and the security code must
contain 6 digits.
You can also reset your SIM card PIN code, PIN2 code,
and/or call barring password if necessary.
To change a code or password:
Locking and Unlocking Your
Phone
You can lock your phone manually or set the phone to lock
automatically whenever you turn it off.
To use a locked phone, you must enter the unlock code. A
locked phone still rings or vibrates for incoming calls or
messages,
but you must unlock it to answer
.
You can make emergency calls on your phone even when
it is locked (see page 81).
Find the Feature
M
>
Settings
>
Security
>
New Passwords
DRAFT
45
Learning to Use Your Phone
Locking Your Phone Manually
Unlocking Your Phone
Tip:
Your phone’s unlock code is originally set to 1234.
Many service providers reset the unlock code to the last 4
digits of your phone number.
At the
Enter Unlock Code
prompt:
Setting Your Phone to Lock Automatically
You can set your phone to lock every time you turn it off:
Find the Feature
M
>
Settings
>
Security
>
Phone Lock
>
Lock Now
Press To
1
keypad keys enter your unlock code
2
OK
(
+
)lock the phone
Press To
1
keypad keys enter your unlock code
2
OK
(
+
)unlock your phone
Find the Feature
M
>
Settings
>
Security
>
Phone Lock
>
Automatic Lock
>
On
Press To
1
keypad keys enter your unlock code
2
OK
(
+
)activate automatic lock
DRAFT
46
Learning to Use Your Phone
If You Forget a Code, PIN, or
Password
Note:
Your phone’s 4-digit unlock code is originally set to
1234, and the 6-digit security code is originally set to
000000. Many service providers reset the unlock code to
the last 4 digits of your phone number before you receive
your phone.
If you forget your unlock code, try entering 1234 or the
last 4 digits of your phone number. If that does not
work, do the following at the
Enter Unlock Code
prompt:
If you forget your security code, SIM card PIN code, PIN2
code, or call barring password, contact your service
provider.
Using the Phonebook
This section briefly describes basic phonebook operations.
For more information about using the phonebook, see
page 98 and the More Here guide (described on page 8).
Press To
1
M
display the unlock code
bypass screen
2
keypad keys enter your security code
3
OK
(
+
)submit your security code
DRAFT
47
Learning to Use Your Phone
Storing a Phone Number
Enter a phone number in the home screen, then press
STORE
(
+
) to create a phonebook entry with that number.
Fill in the other fields to complete the entry.
Select
MORE
to store another number (for example, a work
number) under the same
Name
.
Recording a Voice Name
When creating a phonebook entry, scroll to
Voice Name
and press
RECORD
(
+
). Press and release the voice key
and say the entry’s name (within 2 seconds). When
prompted, press and release the voice key and repeat the
name. Press
DONE
(
-
) to store the voice name.
Note:
This option is not available for entries stored on the
SIM card.
Dialing a Number
Press
M
>
Phonebook
> entry to call.
Voice Dialing a Number
Press and release the voice key, and say the entry’s name
(within 2 seconds).
DRAFT
48
Learning to Use Your Phone
Sorting Phonebook Entries
Press
M
>
Phonebook
, press
M
>
Setup
>
Sort by
, ,press
CHANGE
(
+
) then select whether you want to sort the
phonebook list by
Name
,
Speed No.
,
Voice Name
, or
Email
.
When sorting by name, you can view
All
numbers or just
the
Primary
number for each name. To set the primary
number for a name, see page 100.
Setting a Picture ID for a Phonebook
Entry
Press
M
>
Phonebook
> entry, press
M
>
Edit
>
>picture name.
Also see pages 3 and 17.
Setting Picture ID View
Press
M
>
Phonebook
, press
M
>
Setup
>
View by
>
.
Viewing Entries By Category
Press
M
>
Phonebook
, press
M
>
Categories
, then select
whether you want to view
All
entries, entries in a
predefined category (
Business
,
Personal
,
General
,
VIPs
), or
entries in a category you created.
To set the category for a phonebook entry, see page 99.
DRAFT
49
Push to Talk (PTT) Calls
Push to Talk (PTT)
Calls
Push to Talk (PTT) is a feature that lets you talk walkie-
talkie style with other Push to Talk subscribers. You can
have a One-to-One call with a contact, or a Group call with
many people at the same time.
You can start a Push to Talk call by:
•
Selecting a Push to Talk contact from your
PTT Contacts
list or by selecting a Push to Talk group from your
PTT
Groups
list
•
Selecting a Push to Talk contact from your
Dialed
Calls
or
Received
Calls
lists
•
Dialing a Push to Talk subscriber’s phone number
using the keypad, then pressing the Push to Talk
button (
L
)
One-to-One Calls
One-to-one calls are started between you and an
individual contact.
Group Calls
Group calls (one to many) allows immediate connection to
all members of a group of contacts.
Setting Up Your PTT Contacts
and Groups Lists
Individual contacts are stored in the
PTT Contacts
list.
Groups are stored in the
PTT Group
s list. To set up your
PTT
Contacts
and
PTT Groups
lists, contact your service provider.
DRAFT
50
Push to Talk (PTT) Calls
Viewing Your PTT Contacts and
Groups Lists
Action
1
From the home screen, press
L
to display the
PTT Contacts Menu
.
2
Press
S
to highlight
PTT Contacts
or
PTT Groups
.
3
Press
SELECT
(
+
) to open the highlighted list.
4
To exit the list, press
BACK
(
-
).
5
To view the other list, press
S
to highlight it,
then press
SELECT
(
+
) to open it.
or
Press
EXIT
(
-
) to exit the
PTT Contacts Menu
.
Presence icons to the left of the entries in the
PTT Contacts
and
PTT Groups
lists indicate online or
offline status (see page 52).
EXIT SELECT
PTT Contacts Menu
PTT Contacts
PTT Groups
I
49@
U
Ñr
(yÉ
BACK
M
ALERT
PTT Contacts
C
John
B
Mary
C
David
C
Sue
I
49@
U
Ñr
(yÉ
DRAFT
51
Push to Talk (PTT) Calls
Viewing Your PTT Contacts and Groups
Lists Details
The
PTT Contacts
detailed
VIEW
displays:
•
presence icons
•
name and numbers
•
online alert settings
•
blocked mode settings
The
PTT Groups
detailed
VIEW
displays:
•
presence icons
•
group name and numbers
•
online alert settings
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT Groups
Press To
1
SELECT
(
+
) open the list
2
S
highlight a contact or group
3
M
open a list of options
4
S
highlight
VIEW
5
SELECT
(
+
) view the details
DRAFT
52
Push to Talk (PTT) Calls
Presence Icons
Presence icons to the left of each entry in the
PTT Contacts
and
PTT
Groups
lists indicate the status of the contact or
group.
Icon Status
C
Contact is online.
D
Group is online.
B
Contact is offline.
A
Group is offline.
j
Contact is blocked (see page 60).
o
An Online Alert has been set to notify
you when a contact that is offline,
comes back online (see page 60).
DRAFT
53
Push to Talk (PTT) Calls
Personalizing Push to Talk
Settings
“Open To” Sorting the PTT Contacts and
Groups Lists
You can sort your contacts and groups alphabetically by
name (
Top of List
), or by the last call you received (
Last Call
).
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT Groups
Press To
1
SELECT
(
+
) open the list
2
M
open a list of options
3
S
highlight
PTT Setup
4
SELECT
(
+
) open the
PTT Setup
menu
5
S
highlight
PTT Personalize
6
SELECT
(
+
) open the
PTT Personalize
menu
7
S
highlight
Open To
8
CHANGE
(
+
) display the options
9
S
highlight
Top of List
or
Last Call
10
SELECT
(
+
) set the “open to” order
DRAFT
54
Push to Talk (PTT) Calls
Sorting Your PTT Contacts and Groups
Lists
You can sort your contacts and groups alphabetically by
Name
, online
Status
, or
Frequency
.
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT Groups
Press To
1
SELECT
(
+
) open the list
2
M
open a list of options
3
S
highlight
PTT Setup
4
SELECT
(
+
) open the
PTT Setup
menu
5
S
highlight
PTT Personalize
6
SELECT
(
+
) open the
PTT Personalize
menu
7
S
highlight
Sort by
8
CHANGE
(
+
) display the options
9
S
highlight
Name
,
Status
, or
Frequency
10
SELECT
(
+
) set the “sort by” order
DRAFT
55
Push to Talk (PTT) Calls
Setting the Answer Mode for Incoming
Push to Talk Calls
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT Groups
Press To
1
SELECT
(
+
) open the list
2
M
open a list of options
3
S
highlight
PTT Setup
4
SELECT
(
+
) open the
PTT Setup
menu
5
S
highlight
PTT Personalize
6
SELECT
(
+
) open the
PTT Personalize
menu
7
S
highlight
My Answer Mode
8
CHANGE
(
+
) display the options
9
S
highlight
Manual
,
Auto-Accept
, or
Do Not Disturb
10
SELECT
(
+
) set the answer option
DRAFT
56
Push to Talk (PTT) Calls
The answer mode options are:
Setting the Speakerphone for Push to Talk
Calls
You can set the speakerphone to
On
or
Off
for incoming and
outgoing Push to Talk calls.
Option Description
Manual
You select to answer or
ignore incoming Push to Talk
calls.
Auto-Accept
Barge call tone is received,
then phone automatically
accepts the Push to Talk call.
Do Not Disturb
Your phone does not accept
incoming Push to Talk calls.
Note:
When this option is set,
your phone displays a
Missed
Call
indicator when a Push to
Talk call is sent to your
phone.
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT Groups
Press To
1
SELECT
(
+
) open the list
2
M
open a list of options
3
S
highlight
PTT Setup
DRAFT
57
Push to Talk (PTT) Calls
Using the Speakerphone During Push to Talk
Calls When Set to Off
When the speakerphone is set to
Off
, you can use it
during a Push to Talk call by pressing
J
or
Speaker
(
+
). When the call ends, the speakerphone remains
Off
until you set it to
On
in the
PTT Speaker
menu, or press
J
or
Speaker
(
+
) during a call.
4
SELECT
(
+
) open the
PTT Setup
menu
5
S
highlight
PTT Personalize
6
SELECT
(
+
) open the
PTT Personalize
menu
7
S
highlight
PTT Speaker
8
CHANGE
(
+
) display the options
9
S
highlight
On
or
Off
10
SELECT
(
+
) set the speakerphone mode
Press To
DRAFT
58
Push to Talk (PTT) Calls
Setting Online Alerts
When a contact is offline, you can set a one-time alert to
notify you when the contact is back online.
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT Groups
Press To
1
SELECT
(
+
) open the list
2
S
highlight a contact or group
3
M
open a list of options
4
S
highlight
PTT Setup
5
SELECT
(
+
) open a list of options
6
S
highlight
Set Online Alert Tone
7
CHANGE
(
+
) open a list of options
8
S
highlight
On
or
Off
9
SELECT
(
+
) set the alert
DRAFT
59
Push to Talk (PTT) Calls
Refreshing the PTT Contacts
and Groups Lists
The presence status of your
PTT Contacts
and
PTT Groups
lists
are automatically refreshed (updated) when you press
L
to make or end a call, and when a contact or group’s status
changes. However, you can perform a manual refresh of a
contact or group.
Manually Refreshing an Entry in Your PTT
Contacts and Groups
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT
Groups
Press To
1
SELECT
(
+
) open the list
2
S
highlight a contact or group
3
M
open a list of options
4
S
highlight
Refresh List
5
SELECT
(
+
) refresh the contact or group
status
DRAFT
60
Push to Talk (PTT) Calls
Blocking PTT Contacts
You can block a contact from sending Push to Talk calls to
your phone.
Note:
You cannot block a group from sending Push to Talk
calls to your phone.
Unblocking PTT Contacts
To unblock a contact, highlight the contact, then press
UNBLOCK
(
+
).
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
Press To
1
SELECT
(
+
) open the list
2
S
highlight a contact
3
M
open a list of options
4
S
highlight
Block
5
SELECT
(
+
) block the contact
DRAFT
61
Push to Talk (PTT) Calls
Accessing the Frequently Used
List
PTT contacts and PTT groups that you call often from the
Received Calls
and
Dialed Calls
lists are automatically stored by
the phone in the
Frequently Used
list.
Find the Feature
L
>
PTT Contacts Menu
>
PTT Contacts
or
PTT
Groups
Press To
1
SELECT
(
+
) open the list
2
M
open a list of options
3
S
highlight
Frequently Used
4
SELECT
(
+
) open the list
Note:
If the list is empty,
No Contacts
displays at the
top of the screen.
DRAFT
62
Push to Talk (PTT) Calls
Push to Talk Alert Tones
The following table describes the tones sent and received
during Push to Talk calls.
Note:
These tones cannot be customized.
Tone Sent or Received
Online Alert when a PTT contact or group
status changes from offline to
online
Connection to
Speak
when floor control is available
to all users on the call
Note:
When floor control is
available, any user on the call
can talk by pressing and
holding the Push to Talk
button (
L
). The active
speaker has floor control.
Alert when you receive an Alert
call
Announce Barge
Call
just before you receive or
send a Barge call with
announcement
Note:
Some Barge calls can
be sent or received without
announcement.
Floor Unavailable when the floor is requested
but is already in use
DRAFT
63
Push to Talk (PTT) Calls
Push to Talk Icons and Text
Icons and text displays keep you informed of the status of
your Push to Talk calls.
Busy Tone when you initiate a Push to
Talk call with a contact who is
already on a call
Icon/Text Displays
X
Incoming Alert
(
name
or
number
)
when you initiate an Alert call
to a contact
O
Connecting to
(
name
or
number
)
when a call to a contact is
connecting
M
Connected
(
name
or
number
)
when a call to a contact is
connected
l
Talking to
(
name
or
number
)
when you are talking to a
contact
u
Listening to
(
name
or
number
)
when you are listening to a
contact
Y
Incoming (group
or
number
)
when receiving a group call
t
Connecting to
(
group
or
number
)
when a Barge call to a group
is connecting
s
Connected
(
group
or
number
)
when a group call is
connected
Tone Sent or Received
DRAFT
64
Push to Talk (PTT) Calls
Basic Push to Talk Instructions
The following table describes basic actions during Push to
Talk calls.
Note:
The actions are not necessarily in the exact
order of events.
e
Talking to
(
group
or
number
)
when you are talking to a
group
v
Listening to
(
group
or
number
)
when you are listening to a
member of a group
Note:
Only one member of a
group can have the floor.
Action
From the home screen, press and release
L
to
display the
PTT Contacts Menu
.
Press
S
to scroll to
PTT Contacts
or
PTT Groups.
Press
SELECT
(
+
) to open the highlighted list.
Press
S
to select a contact or group to call.
Press and hold
L
to start a Barge with Announce
call with a contact.
Press and hold
L
to start a Barge call with a group.
Icon/Text Displays
DRAFT
65
Push to Talk (PTT) Calls
Making Push to Talk Calls
When
U
displays at the top of the home display, you
can make and receive Push to Talk calls.
Making Barge Calls from Your PTT
Contacts and Groups
•
A Push to Talk call to a group is always started as a
Barge call. The caller receives immediate floor control
(ability to talk).
Press and hold
L
, and wait for the Connection to
Speak tone before talking.
Important:
Floor control is available to all user on a
call. If you do not wait for the Connection to Speak
tone before talking, part of your message may be
lost.
If no one talks (or
L
is not pressed and held) for 20
seconds or more, the call disconnects.
Release
L
to make floor control available (the
ability to talk on the call).
Press
EXIT
(
-
) to end the call.
Action
1
From the home screen, press and release
L
to
display the
PTT Contacts Menu
.
2
Press
S
to highlight
PTT Contacts
or
PTT Groups
.
Action
DRAFT
66
Push to Talk (PTT) Calls
Making Barge Calls from Your Recent
Calls Lists
3
Press
SELECT
(
+
) to open the highlighted list.
4
Press
S
to highlight a contact or group.
5
Press and hold
L
, and wait for the Connection
to Speak tone to start the call with a group or
contact.
6
After the Connection to Speak tone, continue to
hold
L
to talk.
7
Release
L
to allow floor control to another user
on the call.
8
Press
EXIT
(
-
) or
O
to end the call.
Action
1
From the home screen, press
M
.
2
Press
S
to highlight
Recent Calls
.
3
Press
SELECT
(
+
) to open the menu.
4
Press
S
to highlight
Received Calls
or
Dialed Calls
.
5
Press
SELECT
(
+
) to open the highlighted menu.
6
Press
S
to highlight a contact or group in the
list.
Action
DRAFT
67
Push to Talk (PTT) Calls
Making an Alert Call fromYour PTT
Contacts List
Alert calls cannot be sent to Groups, only to contacts.
When an Alert call is started, the contact receives an
Alert tone. The receiving contact can accept the call by
pressing
ANSWER
(+)
or decline the call by pressing
IGNORE
(-)
.
7
Press and hold
L
, and wait for the Connection
to Speak tone to send the Barge call to a group
or contact.
8
After the Connection to Speak tone, continue to
hold
L
to talk.
9
Release
L
to allow floor control to another user
on the call.
10
Press
EXIT
(
-
) or
O
to end the call.
Action
1
From the home screen, press and release
L
to
display the
PTT Contacts Menu
.
2
Press
S
to highlight
PTT Contacts
.
3
Press
SELECT
(
+
) to open the contacts list.
4
Press
S
to highlight a contact.
Action
DRAFT
68
Push to Talk (PTT) Calls
Making Alert Calls from Your Recent
Calls Lists
5
Press
Alert
(
+
) to send a call request to the
contact. The contact receives an Alert tone and
Incoming Request
displays.
If the call request is accepted, the contact has
floor control.
If the call is not accepted,
Call Ended
displays.
6
When floor control is received, press and hold
L
to talk.
7
Release
L
to allow floor control to the other
user.
8
Press
EXIT
(
-
) or
O
to end the call.
Action
1
From the home screen, press
M
.
2
Press
S
to highlight
Recent Calls
.
3
Press
SELECT
(
+
) to open the menu.
4
Press
S
to highlight
Received Calls
or
Dialed Calls
.
5
Press
SELECT
(
+
) to open the highlighted menu.
6
Press
S
to highlight a contact in the list.
Action
DRAFT
69
Push to Talk (PTT) Calls
Answering Push to Talk Calls
Answering a Barge Call
When you receive a Barge call, the Announce Barge C
all
tone sounds followed by conversion from the caller.
7
Press
Alert
(
+
) to send a call request to the
contact. The contact receives an Alert tone, and
Incoming Request
displays.
If the call request is accepted, the contact has
floor control.
If the call is not accepted,
Call Ended
displays.
8
When floor control is received, press and hold
L
to talk.
9
Release
L
to release floor control to another
contact.
10
Press
EXIT
(
-
) or
O
to end the call.
Action
1
When floor control is released to you, press and
hold
L
, wait for the Connection to Speak tone.,
then speak.
2
Perform the basic procedure to talk and listen.
3
Press
EXIT
(
-
) or
O
to end the call.
Action
DRAFT
70
Push to Talk (PTT) Calls
Answering an Alert Call
Making an Push to Talk Call
from the External Display.
Action
1
After the Alert Tone, press
ANSWER
(
+
) to
answer the call, o r
IGNORE
(-
) to cancel the call.
2
Perform the basic procedure to talk and listen.
3
Press
EXIT
(
-
) or
O
to end the call.
Find the Feature
M
>
Recent Calls
Action
1
Press
L
.
2
Press the up or down volume key to display
PTT
Contacts
or
PTT Groups
.
3
Press
L
to access the list.
4
Press the up or down volume key to display the
contact or group.
5
Press
L
to start the call.
6
If the contact or group accepts the call, follow the
basic procedures to talk and listen.
7
Press
EXIT
(
-
) or
O
to end the call.
DRAFT
71
Push to Talk (PTT) Calls
Answering a Push to Talk Call From the
External Display.
Canceling an Incoming Push to Talk Call
Missed Push to Talk Calls
When an Alert call is missed,
Missed Call
displays.
Note:
Your phone does not notify you of missed Barge
calls.
Action
1
After the Alert Tone, press and release
L
to
answer the call.
2
Press and hold
L
, wait for the Connection to
Speak tone, then talk..
3
Perform the basic procedure to talk and listen.
4
Press
EXIT
(
-
) or
O
to end the call.
Action
Press
IGNORE
(
-
) or
O
.
Action
1
Press
View
(
+
) to display the
Received Calls
list.
2
Press
S
to scroll through the list and highlight
the missed call.
3
Press
O
to return the call.
DRAFT
72
Setting Up Your Phone
Setting Up Your Phone
Storing Your Name and Phone
Number
To store or edit your name and phone number
information on your SIM card:
Shortcut:
Press
M#
from the home screen to edit
your name and phone number.
If you do not know your phone number, contact your
service provider.
Setting the Time and Date
You must set the time and date to use the datebook.
Find the Feature
M
>
Settings
>
Phone Status
>
My Tel. Numbers
Find the Feature
M
>
Settings
>
Initial Setup
>
Time and Date
DRAFT
73
Setting Up Your Phone
Setting a Ring Style
Your phone rings or vibrates to notify you of an incoming
call or other event. This ring or vibration is called an alert.
You can select one of 5 different ring styles. The ring style
indicator in the display shows the current ring style (see
pages 25 and 28).
To set a ring style:
Each ring style contains settings for specific event alerts,
ringer ID, and ringer and keypad volume. To change these
settings, press
M
>
Settings
>
Ring Styles
> Style
Detail
.
Find the Feature
M
>
Settings
>
Ring Styles
>
Style
Press To
1
S
scroll to the ring style
2
SELECT
(
+
)select the ring style
DRAFT
74
Setting Up Your Phone
Setting Answer Options
You can use additional, alternative methods to answer an
incoming call.
To activate or deactivate an answer option:
Multi-Key
answer by pressing any key
Open to Answer
answer by opening the flip
Find the Feature
M
>
Settings
>
In-Call Setup
>
Answer Options
Press To
1
S
scroll to
Multi-Key
or
Open to Answer
2
CHANGE
(
+
)select the option
3
S
scroll to
On
or
Off
4
SELECT
(
+
)confirm the setting
DRAFT
75
Setting Up Your Phone
Setting the Speakerphone for
Phone Calls
You can set the speakerphone to
On
or
Off
for phone calls.:
When the speakerphone is set to
Off
, you can use it during
a phone call by pressing
J
or
Speaker
(
+
). When the
call ends, the speakerphone setting remains
OFF
until you
change it to
On
in the
Phone Speaker
option, or press
J
or
Speaker
(
+
) during a call.
Note:
If the speakerphone is set to
On
in the
Phone Speaker
option, follow the same procedure above to
turn it
Off
during a call.
Find the Feature
M
>
Settings
>
In-Call Setup
>
SpeakerPhone
Press To
1
S
scroll to
Phone Speaker
2
CHANGE
(
+
)select the option
3
S
scroll to
On
or
Off
4
SELECT
(
+
)confirm the setting
DRAFT
76
Setting Up Your Phone
Setting a Wallpaper Image
Set a photo, picture, or animation as a wallpaper
(background) image in your phone’s home screen. The
wallpaper image appears as a faint watermark in text and
menu displays.
Find the Feature
M
>
Settings
>
Personalize
>
Wallpaper
Press To
1
S
scroll to
2
CHANGE
(
+
)open the picture viewer
3
S
up or down scroll to a picture/animation
Scroll to
(None)
to turn off the
wallpaper image.
4
SELECT
(
+
)select the image
5
S
scroll to
Layout
6
CHANGE
(
+
)adjust the image layout
7
S
scroll to
Center
,
Tile
, or
Fit-to-screen
Center
places the image in the
center of the display.
Tile
fills the display with
adjacent copies of the image.
Fit-to-screen
resizes the image,
if necessary, to fit the display.
DRAFT
77
Setting Up Your Phone
Setting a Screen Saver Image
Set a photo, picture, or animation as a screen saver image.
The screen saver image displays when the flip is open and
no activity is detected for a specified time period. The
image shrinks to fill the display, if necessary. An animation
repeats for one minute, then the first frame of the
animation displays.
Tip:
Turn off the screen saver to extend battery life.
8
SELECT
(
+
)confirm the layout setting
9
BACK
(
-
)save wallpaper settings
Find the Feature
M
>
Settings
>
Personalize
>
Screen Saver
Press To
1
S
scroll to
2
CHANGE
(
+
)open the picture viewer
3
S
up or down scroll to a picture/animation
Scroll to
(None)
to turn off the
screen saver image.
4
SELECT
(
+
)select the image
5
S
scroll to
Delay
6
CHANGE
(
+
)set the delay interval
7
S
scroll to the inactivity interval
that triggers the screen saver
Press To
DRAFT
78
Setting Up Your Phone
Setting Display Brightness
Setting Display Color
Select the color palette that your phone uses to display
indicators, highlights, and soft key labels.
Adjusting the Backlight
Set the amount of time that the display and keypad
backlights remain on.
Setting Display Timeout
Set the display to turn off when no activity is detected for a
specified time.
8
SELECT
(
+
)confirm the delay setting
9
BACK
(
-
)save screen saver settings
Find the Feature
M
>
Settings
>
Initial Setup
>
Brightness
Find the Feature
M
>
Settings
>
Personalize
>
Color Style
Find the Feature
M
>
Settings
>
Initial Setup
>
Backlight
Find the Feature
M
>
Settings
>
Initial Setup
>
Display Timeout
Press To
DRAFT
79
Calling Features
Calling Features
For basic instructions on how to make and answer calls,
see page 15.
Changing the Active Line
Change the active phone line to make and
receive calls from your other phone number.
Note:
This feature is available only for
dual-line-enabled SIM cards.
The active line indicator in the display shows the current
active phone line (see page 25).
Redialing a Number
Find the Feature
M
>
Settings
>
Phone Status
>
Active Line
Press To
1
N
view the dialed calls list
2
S
scroll to the entry you want to call
3
N
redial the number
DRAFT
80
Calling Features
Using Automatic Redial
When you receive a busy signal, your phone
displays
Call Failed, Number Busy
.
To redial the phone number:
Your phone automatically redials the number. When the
call goes through, your phone rings or vibrates one time,
displays
Redial Successful
, and then connects the call.
Using Caller ID
Incoming Calls
Calling line identification (caller ID) displays the
phone number for incoming calls in your phone’s
external and internal displays.
The phone displays the caller’s name (and
picture ID, if available) when the name is stored in your
phonebook, or
Incoming Call
when caller ID information is not
available.
You can also set your phone to play a distinctive ringer ID
for specific entries stored in your phonebook. For more
information, see page 98.
Press To
N
or
RETRY
(
+
)activate automatic redial
DRAFT
81
Calling Features
Outgoing Calls
You can show or hide your phone number as an
ID for the calls that you make.
You can override the default caller ID setting when you
make a call. While dialing (with digits visible in the display):
Turning Off a Call Alert
You can turn off your phone’s incoming call alert before
answering the call.
Calling an Emergency Number
Your service provider programs one or more emergency
phone numbers, such as 911 or 112, that you can call
under any circumstances, even when your phone is
locked or the SIM card is not inserted.
Note:
Emergency numbers vary by country. Your
phone’s preprogrammed emergency number(s) may not
Find the Feature
M
>
Settings
>
In-Call Setup
>
My Caller ID
Press To
M
>
Hide ID
/
Show ID
hide or show your caller ID for
the next call
Press To
either volume key turn off the alert
DRAFT
82
Calling Features
work in all locations, and sometimes an emergency call
cannot be placed due to network, environmental, or
interference issues.
Dialing International Numbers
Press and hold
0
to insert the local international
access code (
+
) for the country from which you are calling.
Viewing Recent Calls
Your phone keeps lists of the calls you recently received
and dialed, even if the calls did not connect. The lists are
sorted from newest to oldest entries. The oldest entries
are deleted as new entries are added.
Shortcut:
Press
N
from the home screen to view the
dialed calls list.
Press To
1
keypad keys dial the emergency number
2
N
call the emergency number
Find the Feature
M
>
Recent Calls
Press To
1
S
scroll to
Received Calls
or
Dialed Calls
2
SELECT
(
+
)select the list
DRAFT
83
Calling Features
The
Last Calls Menu
can include the following options:
3
S
scroll to an entry
Note:
<
means the call
connected.
4
N
or
VIEW
(
+
)
or
M
call the entry’s number
Tip:
Press and hold
N
for
2 seconds to send the
number as DTMF tones
during a call.
view entry details
open the
Last Calls Menu
to
perform various operations
on the entry
Option Description
Store
Create a phonebook entry with
the number in the
No.
field.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Hide ID
/
Show ID
Hide or show your caller ID for the
next call.
Send Message
Open a new text message with the
number in the
To
field.
Press To
DRAFT
84
Calling Features
Returning an Unanswered Call
Your phone keeps a record of your unanswered calls, and
displays:
•
the
T
(missed call) indicator
•
XMissedCalls
, where
X
is the number of missed calls
Add Digits
Add digits after the number.
Attach Number
Attach a number from the
phonebook or recent calls lists.
Send Tones
Send the number to the network
as DTMF tones.
Note:
This option displays only
during a call.
Talk then Fax
Talk and then send a
fax in the same call
(see page 106).
Press To
1
VIEW
(
+
)see the received calls list
2
S
select a call to return
3
N
make the call
Option Description
DRAFT
85
Calling Features
Using the Notepad
The most recent set of digits entered on the keypad are
stored in your phone’s notepad memory. This can be a
phone number that you called, or a number that you
entered but did not call. To retrieve the number stored in
the notepad:
Attaching a Number
While dialing (with digits visible in the display):
Find the Feature
M
>
Recent Calls
>
Notepad
Press To
N
or
M
or
STORE
(
+
)
call the number
open the
Dialing Menu
to attach
a number or insert a special
character
create a phonebook entry
with the number in the
No.
field
Press To
M
>
Attach Number
attach a number from the
phonebook or recent calls
lists
DRAFT
86
Calling Features
Calling With Speed Dial
Each entry you store in your phonebook is assigned a
unique speed dial number.
Tip:
To see an entry’s speed dial number, press
M
>
Phonebook
, scroll to the entry, press
VIEW
(
+
).
To speed dial a phonebook entry:
Calling With 1-Touch Dial
To call phonebook entries 1 through 9, press and hold the
single-digit speed dial number for one second.
Tip:
You must specify which phone number list you want to
use with this feature: phone memory phonebook, or SIM
card phonebook (see page 100).
Using Voicemail
Voicemail messages that you receive are
stored on the network. To listen to your
messages, you must call your voicemail
phone number.
Note:
Your service provider may include additional
information about using this feature.
Press To
1
keypad keys enter the speed dial number
for the entry you want to call
2
#
submit the number
3
N
call the entry
DRAFT
87
Calling Features
Listening to Voicemail Messages
The phone calls your voicemail phone number. If no
voicemail number is stored, your phone prompts you to
store a number.
Receiving a Voicemail Message
When you receive a voicemail message, your phone
displays the
&
(voicemail message) indicator and a
New VoiceMail
notification.
The phone calls your voicemail phone number. If no
voicemail number is stored, your phone prompts you to
store a number.
Storing Your Voicemail Number
If necessary, use the following procedure to store your
voicemail phone number on your phone. Usually, your
service provider has already done this for you.
Find the Feature
M
>
Messages
>
VoiceMail
Press To
CALL
(
+
)listen to the message
Find the Feature
M
>
Messages
M
>
VoiceMail Setup
Press To
1
keypad keys enter your voicemail number
2
OK
(
+
)store the number
DRAFT
88
Calling Features
Note:
You cannot store a
p
(pause),
w
(wait), or
n
(number)
character in this number. If you want to store a voicemail
number with these characters, create a phonebook entry
for it. Then, you can use the entry to call your voicemail.
For more about these characters, see the More Here
guide.
Using Call Waiting
When you are on a call, an alert tone sounds to
indicate that you have received a second call.
You must turn on call waiting to use the feature. To turn call
waiting on or off:
Press To
1
N
answer the new call
2
SWITCH
(
+
)
or
LINK
(
-
)
or
M
>
EndCallOnHold
switch between calls
connect the 2 calls
end the call on hold
Find the Feature
M
>
Settings
>
In-Call Setup
>
Call Waiting
DRAFT
89
Calling Features
Putting a Call On Hold
Transferring a Call
You can announce that you are transferring an
active call to another party, or you can directly
transfer the call.
Announce the Call Transfer
Press To
HOLD
(
+
) (if available) or
M
>
Hold
put the call on hold
Find the Feature
M
>
Hold
Press To
1
keypad keys dial the number where you
are transferring the call
2
N
call the number and speak to
the person who answers
3
M
open the menu
4
S
scroll to
Transfer
5
SELECT
(
+
)select
Transfer
6
OK
(
+
)confirm the transfer
DRAFT
90
Calling Features
Do Not Announce the Call Transfer
Find the Feature
M
>
Transfer
Press To
1
keypad keys dial the number where you
are transferring the call
2
N
transfer the call
DRAFT
91
Phone Features
Phone Features
Main Menu
This is the standard main menu layout.
Menu
organization and feature names may vary on your
phone.
Not all features may be available on your phone.
n
Phonebook
s
Recent Calls
• Received Calls
• Dialed Calls
• Notepad
• Call Times
• Call Cost
•Data Times
•Data Volumes
e
Messages
• Create Message
• Email Msgs
• Message Inbox
•Voicemail
•Browser Msgs
•Quick Notes
•Outbox
• Drafts
• MMS Templates
É
Office Tools
•Calculator
• Datebook
• Shortcuts
•Voice Records
•Alarm Clock
•Chat
• SIM Apps
• Dialing Services
• Engineering
Q
Games & Apps
Qá
Web Access
•Browser
• Web Shortcuts
• Stored Pages
•History
•Go To URL
• Browser Setup
• Web Sessions
h
Multimedia
• Themes
•Camera
•Pictures
• Sounds
• MotoMixer
ã
IM
w
Settings
(see next page)
DRAFT
92
Phone Features
Settings Menu
l
Personalize
• Home Screen
• Main Menu
•Color Style
•Greeting
• Wallpaper
• Screen Saver
•Quick Dial
t
Ring Styles
•Style
•Style Detail
L
Connection
•Sync
H
Call Forward
•Voice Calls
•Fax Calls
•Data Calls
•Cancel All
• Forward Status
U
In-Call Setup
• In-Call Timer
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
• SpeakerPhone
Z
Initial Setup
• Time and Date
•1-Touch Dial
• Display Timeout
• Backlight
• TTY Setup
•Scroll
• Vibe Sync
• Language
• Brightness
•DTMF
•Master Reset
• Master Clear
m
Phone Status
•My Tel. Numbers
• Battery Meter
• Other Information
S
Headset
J
Car Settings
• Auto Answer
• Auto Handsfree
• Power-Off Delay
• Charger Time
j
Network
• New Network
• Network Setup
• Available Networks
• My Network List
• Service Tone
• Call Drop Tone
u
Security
• Phone Lock
• Lock Application
•Fixed Dial
• Call Barring
• SIM PIN
•New Passwords
c
Java Settings
• Java App Loader
•Java System
• Delete All Apps
• App Vibration
• App Volume
• App Priority
• App Backlight
• Set Standby App
• DNS IP
DRAFT
93
Phone Features
Push to Talk Menus
The Push to Talk feature is accessed by pressing the
Push to Talk button (
L
).
PTT Contacts Menu
• PTT Contacts
•View
•Refresh List
•Block
• PTT Groups
• Frequently Used
• PTT Setup
• PTT Groups
•View
• Set Alert to Online
•Refresh List
• Frequently Used
• PTT Setup
PTT Setup
• GPRS Settings
• Server Settings
• PTT Personalize
PTT Personalize
• Open To
•Sort by
•My Answer Mode
• PTT Speaker
• Set Online Alert Tone
DRAFT
94
Phone Features
Feature Quick Reference
This section helps you locate features on your phone
that are not described in this guide. For more detailed
information, see the More Here guide (described on
page 8).
Calling Features
Feature Description
Conference
Call
During a call:
M
>
Hold
, dial next
number, press
N
, press
LINK
(
-
).
Call
Forwarding
Set up or cancel call
forwarding:
M
>
Settings
>
Call Forward
Call Barring
Restrict outgoing or
incoming calls:
M
>
Settings
>
Security
>
Call Barring
TTY Calls
Set up your phone for use
with an optional TTY device:
M
>
Settings
>
Initial Setup
>
TTY Setup
DRAFT
95
Phone Features
Messages
Feature Description
Send Text
Message
Send a text message:
M
>
Messages
>
Create Message
>
New Short Msg
Send
Multimedia
Message
Send a multimedia
message:
M
>
Messages
>
Create Message
>
New Multimedia Msg
Send Letter
Send a multimedia letter:
M
>
Messages
>
Create Message
>
New Letter
Use MMS
Template
Open an MMS template
with preloaded media:
M
>
Messages
>
Create Message
>
MMS Templates
Read
Message
Read a new text or
multimedia message that
you have received:
Press
READ
(
+
).
Store
Message
Objects
Go to a multimedia
message slide, or highlight
an object in a letter, then:
M
>
Store
DRAFT
96
Phone Features
Instant Messaging
Feature Description
Log In
Log in to instant
messaging:
M
>
IM
>
Log In
Find Others
Online
After you sign on:
Select
Contact List
to see a
list of other users.
Start
Conversation
Start a conversation:
From your
Contact List
,
highlight a name in
Online Contacts
, press
SEND IM
(
+
).
Open Active
Conversation
Open a conversation in
progress:
From your
Contact List
,
highlight a name in
Conversations
, press
VIEW
(
+
).
End
Conversation
From the conversation
display:
M
>
End Conversation
Log Out
Log out of instant
messaging:
Select
Log Out
from the
IM Online
menu.
DRAFT
97
Phone Features
Chat
Email
Feature Description
Start Chat
Start a new chat session:
M
>
Office Tools
>
Chat
>
New Chat
Receive
Chat
Request
When you receive a chat
request:
Press
ACCEPT
(
+
) or
IGNORE
(
-
).
End Chat
During a chat session:
M
>
End Chat
Feature Description
Send
Email
Message
Send an email message:
M
>
Messages
>
Create Message
>
New Email
Read
Email
Message
Read a new email message
that you have received:
Press
READ
(
+
).
DRAFT
98
Phone Features
Phonebook
Feature Description
Create
Entry
Create a new phonebook entry:
M
>
Phonebook
M
>
New
>
Phone Number
or
Email Address
Dial Number
Call a number stored in the
phonebook:
M
>
Phonebook
, highlight the
phonebook entry, press
N
to call
Voice Dial
Number
Voice dial a number stored in the
phonebook:
From the home screen, press and
release the voice key, and say the
entry’s name (within 2 seconds).
Set Ringer
ID for Entry
Assign a distinctive ringer alert to a
phonebook entry:
M
>
Phonebook
> entry
M
>
Edit
>
Ringer ID
> ringer name
Note:
The
Ringer ID
option is not
available for entries stored on the
SIM card.
Set Picture
ID for Entry
Assign a photo or picture to a
phonebook entry:
M
>
Phonebook
> entry
M
>
Edit
>
> picture name
Note:
The
option is not
available for entries stored on the
SIM card.
DRAFT
99
Phone Features
Set Picture
ID View
View phonebook entries as text list,
or with picture caller ID photos:
M
>
Phonebook
M
>
Setup
>
View by
> list view
Set
Category for
Entry
Set the category for a phonebook
entry:
M
>
Phonebook
> entry
M
>
Edit
>
Category
>category name
Note:
The
Category
option is not
available for entries stored on the
SIM card.
Set
Category
View
Set a phonebook category view:
M
>
Phonebook
M
>
Categories
> category view
Set
Category
Light ID
Set a distinctive light pattern to be
displayed when you receive calls
from phonebook entries in a specific
category:
M
>
Phonebook
M
>
Categories
, scroll to category,
press
M
>
Edit
>
Light ID
.
Note:
The
Light ID
option is not
available for entries stored on the
SIM card.
Sort
Phonebook
List
Set the order in which phonebook
entries are listed:
M
>
Phonebook
M
>
Setup
>
Sort by
> sort order
Feature Description
DRAFT
100
Phone Features
Personalizing Features
Set Primary
Number
Set the primary number for a
phonebook entry with multiple
numbers:
M
>
Phonebook
, scroll to entry, press
M
>
Set Primary
> phone number.
1-Touch Dial
Set 1-touch dial to call entries stored
in your phone memory phonebook or
the SIM card phonebook:
M
>
Settings
>
Initial Setup
>
1-Touch Dial
Feature Description
Ring Style
Change the ring alert for an event:
M
>
Settings
>
Ring Styles
> Style
Detail
>event name
Ringer IDs
Activate distinctive ring alerts
assigned to phonebook entries:
M
>
Settings
>
Ring Styles
> Style
Detail
>
Ringer IDs
Ring
Volume
Set ringer volume:
M
>
Settings
>
Ring Styles
> Style
Detail
>
Ring Volume
Keypad
Volume
Set keypad keypress volume:
M
>
Settings
>
Ring Styles
> Style
Detail
>
Key Volume
Feature Description
DRAFT
101
Phone Features
Reminders
Set reminder alerts for messages
that you receive:
M
>
Settings
>
Ring Styles
> Style
Detail
>
Reminders
Clock View
Display an analog clock or digital
time readout in the home screen:
M
>
Settings
>
Personalize
>
Home Screen
>
Clock
Menu View
Display the main menu as graphic
icons or as a text-based list:
M
>
Settings
>
Personalize
>
Main Menu
>
View
Main Menu
Reorder your phone’s main menu:
M
>
Settings
>
Personalize
>
Main Menu
>
Reorder
Show or
Hide Menu
Icons
Show or hide menu feature icons in
the home screen:
M
>
Settings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
Change Soft
Keys &
Menu Icons
Change soft key labels and menu
feature icons in the home screen:
M
>
Settings
>
Personalize
>
Home Screen
>
Home Keys
Feature Description
DRAFT
102
Phone Features
Menu Features
Shortcuts
Create a shortcut to a menu item:
Highlight the menu item, then press
and hold
M
.
Select a shortcut:
M
>
Office Tools
>
Shortcuts
>shortcut name
Feature Description
Language
Set menu language:
M
>
Settings
>
Initial Setup
>
Language
Master
Reset
Reset all options except unlock code,
security code, and lifetime timer:
M
>
Settings
>
Initial Setup
>
Master Reset
Master
Clear
Reset all options except unlock code,
security code, and lifetime timer, and
clear all user settings and entries
except SIM card information:
M
>
Settings
>
Initial Setup
>
Master Clear
Feature Description
DRAFT
103
Phone Features
Dialing Features
Feature Description
Fixed Dial
Turn fixed dialing on or off:
M
>
Settings
>
Security
>
Fixed Dial
Use the fixed dial list:
M
>
Office Tools
>
Dialing Services
>
Fixed Dial
Service
Dial
Dial service phone numbers:
M
>
Office Tools
>
Dialing Services
>
Service Dial
Quick Dial
Dial preprogrammed phone
numbers:
M
>
Office Tools
>
Dialing Services
>
Quick Dial
DTMF
Tones
Activate DTMF tones:
M
>
Settings
>
Initial Setup
>
DTMF
Send DTMF tones during a call:
Press number keys.
Send stored numbers as DTMF tones
during a call:
Highlight a number in the phonebook
or recent calls lists, then press
M
>
Send Tones
.
DRAFT
104
Phone Features
Call Monitoring
Network connection time
is the elapsed time from the
moment you connect to your service provider's network
to the moment you end the call by pressing
O
. This
time includes busy signals and ringing.
The amount of network connection time you track on
your resettable timer may not equal the amount of time
for which you are billed by your service provider. For
billing information, please contact your service
provider directly.
Feature Description
Call Times
View call timers:
M
>
Recent Calls
>
Call Times
In-Call
Timer
Display time or cost
information during a call:
M
>
Settings
>
In-Call Setup
>
In-Call Timer
DRAFT
105
Phone Features
Handsfree Features
Note:
The use of wireless devices and their accessories
may be prohibited or restricted in certain areas. Always
obey the laws and regulations on the use of these
products.
Feature Description
Speaker-
phone
Activate a connected
external speakerphone
during a call:
Press
SPEAKER
(
+
) (if
available) or
J
.
Auto
Answer
(car kit or
headset)
Automatically answer calls
when connected to a car kit
or headset:
M
>
Settings
>
Car Settings
or
Headset
>
Auto Answer
Voice Dial
(headset)
Enable voice dial with
headset send/end key:
M
>
Settings
>
Headset
>
Voice Dial
Auto
Handsfree
(car kit)
Automatically route calls to a
car kit when connected:
M
>
Settings
>
Car Settings
>
Auto Handsfree
Power-Off
Delay
(car kit)
Set the phone to stay on for
a specified time after the
ignition is switched off:
M
>
Settings
>
Car Settings
>
Power-Off Delay
DRAFT
106
Phone Features
Data and Fax Calls
Network Features
Charger
Time
(car kit)
Charge the phone for a
specified time after the
ignition is switched off:
M
>
Settings
>
Car Settings
>
Charger Time
Feature Description
Send Data
or Fax
Connect your phone to the
device, then place the call
through the device application.
Receive
Data or
Fax
Connect your phone to the
device, then answer the call
through the device application.
Talk Then
Fax
Connect your phone to the
device, enter the number,
press
M
>
Dialing Menu
>
Talk Then Fax
, then press
N
to
make the call.
Feature Description
Network
Settings
View network information and
adjust network settings:
M
>
Settings
>
Network
Feature Description
DRAFT
107
Phone Features
Personal Organizer Features
Feature Description
Create
Datebook
Event
Create a new datebook event:
M
>
Office Tools
>
Datebook
, highlight the
day, press the center select button,
press
M
>
New
View
Datebook
Event
View or edit event details:
M
>
Office Tools
>
Datebook
, highlight the
day, press the center select button,
press
VIEW
(
+
)
Event
Reminder
View event reminder:
VIEW
(
+
)
Dismiss event reminder:
EXIT
(
-
)
Set Alarm
Set an alarm:
M
>
Office Tools
>
Alarm Clock
Turn Off
Alarm
Turn off alarm:
Press
DISABLE
(
-
) or
O
.
Set 8-minute delay:
Press
SNOOZE
(
+
).
Create
Voice
Record
To create a voice record:
Press and hold voice key, speak into
the phone, release voice key.
Note:
Recording phone calls is subject
to varying state and federal laws
regarding privacy and recording of
conversations.
DRAFT
108
Phone Features
Security
Play Voice
Record
Play back a voice record:
M
>
Office Tools
>
Voice Records
>voice record
Calculator
Calculate numbers:
M
>
Office Tools
>
Calculator
Currency
Converter
Convert currency:
M
>
Office Tools
>
Calculator
M
>
Exchange Rate
Enter exchange rate, press
OK
(
+
),
enter amount, press
M
>
Convert Currency
Feature Description
SIM PIN
Lock or unlock the SIM card:
M
>
Settings
>
Security
>
SIM PIN
Caution:
If you enter an incorrect
PIN code 3 times in a row, your SIM
card is disabled and your phone
displays
SIM Blocked
.
Lock
Application
Lock phone applications:
M
>
Settings
>
Security
>
Lock Application
Feature Description
DRAFT
109
Phone Features
News and Entertainment
Feature Description
Launch
Micro-
Browser
Start a micro-browser
session:
M
>
Web Access
>
Browser
Download
Objects from
Web Page
Download a picture,
sound, or phone theme
from a Web page:
Highlight the file, press
SELECT
(
+
), press
STORE
(
+
).
Web
Sessions
Select or create a Web
session:
M
>
Web Access
>
Web Sessions
Apply Phone
Theme
Apply a grouped set of
image and sound files to
your phone:
M
>
Multimedia
>
Themes
>theme
Download
Game or
Application
(Micro-
Browser)
Download a Java™ game
or application with the
micro-browser:
M
>
Web Access
>
Browser
,
highlight the application, press
SELECT
(
+
), press
DWNLOAD
(
+
)
DRAFT
110
Phone Features
Download
Game or
Application
(Computer)
Download a Java game or
application from a
computer:
Connect your phone to the
computer, press
M
>
Settings
>
Java Settings
>
Java App Loader
.
Launch
Game or
Application
Launch a Java game or
application:
M
>
Games & Apps
, highlight
the application, press
SELECT
(
+
)
Manage
Pictures
Manage pictures and
animations:
M
>
Multimedia
>
Pictures
Manage
Sounds
Manage ring tones and music that
you have composed or downloaded:
M
>
Multimedia
>
Sounds
Edit Sounds
With
MotoMixer
Edit MIDI-based songs that you can
use with your phone:
M
>
Multimedia
>
MotoMixer
>
[New Mix]
or mix file name
Create Ring
Tones
Create iMelody ring tones that you
can use with your phone:
M
>
Multimedia
>
Sounds
>
[New iMelody]
Camera
Adjust light level and other settings
for the integrated camera:
M
>
Multimedia
>
Camera
M
>
Pictures Setup
Feature Description
DRAFT
111
Specific Absorption Rate Data
The model wireless phone meets the government’s requirements for
exposure to radio waves.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission (FCC) of the U.S.
Government and by the Canadian regulatory authorities. These limits are
part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards
that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the safety of all
persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC and by the Canadian regulatory authorities is
1.6 W/kg.
1
Tests for SAR are conducted using standard operating
positions accepted by the FCC and by Industry Canada with the phone
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below
the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station, the
lower the power output.
Before a phone model is available for sale to the public in the U.S. and
Canada, it must be tested and certified to the FCC and Industry Canada
that it does not exceed the limit established by each government for safe
exposure. The tests are performed in positions and locations (e.g., at the
ear and worn on the body) reported to the FCC and available for review by
Industry Canada. The highest SAR value for this model phone when
DRAFT
112
tested for use at the ear is 1.49 W/kg, and when worn on the body, as
described in this user guide, is 0.43 W/kg. The SAR value for this product
in its data transmission mode (body-worn use) is 0.79 W/kg. (Body-worn
measurements differ among phone models, depending upon available
accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various phones
and at various positions, they all meet the governmental requirements for
safe exposure. Please note that improvements to this product model
could cause differences in the SAR value for later products; in all cases,
products are designed to be within the guidelines.
Additional information on Specific Absorption Rates (SAR) can be found
on the Cellular Telecommunications & Internet Association (CTIA) Web
site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA) Web
site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used by
the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in measurements.
2. The SAR information includes the Motorola testing protocol, assessment
procedure, and measurement uncertainty range for this product.
DRAFT
113
Index
A
accessories 9, 94
accessory connector port 1
activating 105
active line indicator 25, 27
active line, changing 79
alarm clock 107
alert
creating 110
defined 73
downloading 3
setting 15, 73, 100
turning off 15, 81
alert calls
answering 70
making from PTT
contacts list 67
making from recent calls
list 68
push to talk calls 67
alert tones
push to talk calls 62
animation
downloading 3, 95, 109
screen saver 77
viewing 110
wallpaper 76
answering a call 16, 74
application, locking and
unlocking 108
automatic redial 80
B
backlight 78
barge calls
answering 69
making 65
push to talk 65
barring calls 94
battery
battery performance 10
charging 13
extending battery life 78
installing 12
level indicator 25, 28
brightness, setting 78
browser. See micro-browser
buttons
center select button 28
push to talk 1, 43
speakerphone 1
DRAFT
114
C
calculator 108
currency converter 108
call
adding digits after phone
number 84
alert, turning off 15, 81
answer options 74
answering 16
barring 94
barring password,
changing 44
call waiting 88
deleting 82
dialed calls list 82
dialing 15
emergency number 81
ending 15, 16
forwarding 94
hold 89
internal speakerphone 43
international access code
82
making 15
received calls list 82
receiving 16
recent calls 82
ring style 15, 73, 100
speakerphone 105
storing 82
talk then fax 84
timers 104
transferring 89
unanswered call,
returning 84
Call Failed, Number Busy
message 80
call waiting 88
caller ID 3, 18, 48, 80, 83,
98, 99
calling line identification.
See caller ID
camera
settings 110
taking a photo 2, 17
car charger 106
car kit 105
center select button 28
character chart 37
charger time 106
chat 97
clock
illustration 24
selecting analog or digital
101
setting 72
codes
changing 44
default 44, 45, 46
forgetting 46
color, setting 78
conference call 94
DRAFT
115
cursor 32
customizing the menu 101
D
data call 106
date, setting 72
datebook
create event 107
event reminder 107
view event 107
deleting a call 82
dialed calls list 82
dialing a number 15, 103
display
backlight 78
brightness 78
color 78
description 24
home screen 24
language 102
personalizing 101
timeout 78
distinctive ringer alert 100
DTMF tones
activating 103
sending 83, 84, 103
E
earpiece volume 15
email 97
reminders, turning on/off
101
emergency number 81
end key 1, 15, 16, 29
ending a call 15, 16
Enter Unlock Code
message 45, 46
F
fax call 84, 106
5-way navigation key 1, 28,
29
fixed dial 103
flashing cursor 32
flip
open to answer 16, 74
screen saver 77
forwarding calls 94
G
games 109, 110
GPRS indicator 25, 26
groove tunes 110
H
handsfree 105
handsfree use 105
headset accessory, using
105
headset jack 1
Hide ID feature 83
DRAFT
116
hold a call 89
home keys, personalizing
101
home screen
defined 24
selecting clock view 101
I
icons and text
push to talk calls 63
IM 96
in use indicator 25
incoming call
answering 16
forwarding 94
Incoming Call message 80
indicators
active line 25, 27
battery level 25, 28
GPRS 25, 26
in use 25
Java midlet 27
loud ring style 28
menu 24
message 25, 27
message waiting 22
messaging presence 25,
27
missed call 84
push to talk 25, 27
ring style 25, 28
roam 25, 26
signal strength 25, 26
silent alert 28
soft ring style 28
text case 34
text entry method 27, 34
transmission 26
vibrate alert 28
vibrate and ring style 28
voicemail message 27,
87
instant messaging. See IM
internal speakerphone 43
international access code
82
iTAP software 38
J
Java applications 109, 110
Java midlet indicator 27
joystick 1, 29
K
key
end 1, 15, 16, 29
5-way navigation 1, 28,
29
left soft key 1, 25, 29, 101
menu 1, 29, 30
power 1, 14
DRAFT
117
right soft key 1, 25, 29,
101
send 1, 15, 16, 82
voice 1
volume control 1, 15
keypad
answering calls 74
volume, setting 100
L
language, setting 102
left soft key
functions 1, 25, 29
personalizing 101
light ID, setting 99
line, changing 79
lock
application 108
phone 44
SIM card 108
Low Battery message 28
M
making a call 15
master clear 102
master reset 102
menu
entering text 32
icons, changing in home
screen 101
icons, converting to text
101
icons, described 24
icons, showing or hiding
101
language, setting 102
lists 31
navigating 29
personalizing 101
rearranging features 101
using features 31
view, changing 101
menu indicator 24
menu key 1, 29, 30
message
chat 97
menu feature icon 24
MMS template 95
MMS, defined 19
multimedia letter 95
multimedia message 95
reading 95
reminders, turning on/off
101
text 95
message indicator 25, 27
message waiting indicator
22
messages menu feature
icon 24
messaging indicator 25
DRAFT
118
messaging presence
indicator 27
micro-browser
browser setup 109
Java applications 109,
110
menu feature icon 24
using 109
Web sessions 109
missed call indicator 84
Missed Calls message 84
MMS template 95
MMS. See message
More Here guide 8
MotoMixer 110
multimedia letter, sending
95
multimedia message
reading 3
receiving 3, 22
sending 3, 19, 95
multimedia messaging
service. See
message
music
downloading 95, 109
managing 110
my telephone number 16,
72
N
network settings 106
notepad 85
number
storing your number 72
viewing your number 16
numbers, entering 40
O
1-touch dial
setting preference 100
using 86
open to answer 74
optional accessory, defined
9
optional feature, defined 9
P
passwords. See codes
phone
active line indicator 27
active line, changing 79
alert, turning off 15, 81
answer options 74
clear stored information
102
codes 44
date, setting 72
flip 16
keypad, answering calls
74
DRAFT
119
language, setting 102
locking 44
network settings 106
reset all options 102
ring style 15, 73, 100
security code 44
time, setting 72
turning on/off 14
unlock code 44
unlocking 14, 44, 45, 46
phone number
active line indicator 27
active line, changing 79
adding digits after 84
attaching 2 numbers 84,
85
international access code
82
redialing 79
storing in phonebook 98
storing your number 72
viewing your number 16
phone theme 3, 109
phonebook
attaching 2 numbers 84,
85
category views 48, 99
dialing a number 98
entry category 99
light ID 99
menu feature icon 24
1-touch dial 86
picture ID 3, 18, 48, 80,
98, 99
primary number, setting
100
ringer ID 98, 100
sorting entries 48, 99
speed dial number 86
storing an entry 98
voice dialing 98
downloading 3, 95, 109
picture ID 3, 18, 48, 80,
98, 99
sending 2, 17
taking 2, 17
downloading 3, 95, 109
screen saver 77
viewing 110
wallpaper 76
picture ID 3, 18, 48, 80, 98,
99
PIN code
changing 44
entering 108
PIN2 code, changing 44
play back 108
power key 1, 14
predictive text entry 38
primary text entry method
33
DRAFT
120
PTT contacts list
refreshing 59
sorting 53, 54
viewing details 51
PTT group lists
sorting 53, 54
PTT groups list
viewing details 51
PTT groups lists 59
push to talk button 43
illustration 1
push to talk calls 49–71
alert calls 67
alert tones 62
answer mode, setting 55
answering 69
answering a barge call 69
answering an alert call 70
answering from external
display 71
barge calls 65
basic intructions 64
cancel incoming 71
frequently used list 61
group calls 49
icons and text 63
individual contact 49
internal speakerphone,
using 43
making 65
making from external
display 70
missed alert calls 71
online alerts, setting 58
presence icons 52
push to talk contacts and
groups list
setting up 49
viewing 50
push to talk indicator 25, 27
push to talk number
viewing your number 16
push to text indicator 25
Q
quick dial 103
R
received calls list 82
recent calls 82
recent calls menu feature
icon 24
redial
automatic redial 80
busy number 79
reference guide 8
refreshing 59
reminders
turning on/off 101
right soft key
functions 1, 25, 29
personalizing 101
ring style indicators 25, 28
DRAFT
121
ring style, setting 15, 73,
100
ring tone
creating 110
downloading 3, 95, 109
editing with MotoMixer
110
managing 110
ringer ID
setting 98
turning on/off 100
ringer volume, setting 15,
100
roam indicator 25, 26
S
screen saver 77
secondary text entry
method 33
security code
changing 44
default 44
forgetting 46
send key 1, 15, 16, 82
service dial 103
shortcuts 102
Show ID feature 83
signal strength indicator 25,
26
silent alert indicator 28
silent alert, setting 15, 73,
100
SIM Blocked message 14,
108
SIM card
defined 9
installing 9
locking 108
PIN code entry 14
PIN code, changing 44
PIN2 code, changing 44
precautions 10
SIM Blocked message
14, 108
SIM PIN code
changing 44
entering 108
SIM PIN2 code, changing
44
soft keys
functions 25, 29
illustration 1
labels 24
personalizing 101
song
downloading 95, 109
managing 110
sound
downloading 3, 95, 109
managing 110
DRAFT
122
speakerphone
automatic answer 105
connected 105
during phone calls 75
turn on or off during
phone calls 75
turn on/off 75
using during push to talk
call when off 57
speakerphone button 1
speed dial 86
standby time, increasing 78
storing a call 82
symbol chart 42
symbols, entering 41
T
talk then fax call 84
tap method text entry 35
telephone number
storing your number 72
viewing your number 16
text
capitalization, changing
34
character chart 37
entering 32
entry method, selecting
33
entry method, setup 33
flashing cursor 32
iTAP software predictive
text entry 38
numeric method 40
symbol chart 42
symbol method 41
tap method 35
text case indicator 34
text entry method
selecting 33
setup 33
text entry method indicator
27, 34
theme 3, 109
time, setting 72
timers 104
transfer a call 89
transmission indicator 26
TTY device 94
U
unlock
application 108
phone 44
unlock code
bypassing 46
changing 44
default 44, 45, 46
entering 14, 45
forgetting 46
DRAFT
123
V
vibrate alert
setting 15, 73, 100
turning off 15, 81
video clip
downloading 95, 109
vObject, defined 23
voice dial 98, 105
voice key
dialing a number 98
illustration 1
voice records 108
create 107
voicemail 86
voicemail message indicator
27, 87
volume
earpiece 15
keypad 100
ringer 15, 100
volume keys 1, 15
W
wallpaper 76
warranty 125
Web pages 109
Web sessions 109
U.S. patent Re. 34,976
DRAFT
124
DRAFT
125
Motorola Limited Warranty for
the United States and Canada
Warranty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its
telephones, pagers, messaging devices, and consumer and professional
two-way radios (excluding commercial, government or industrial radios)
that operate via Family Radio Service or General Mobile Radio Service,
Motorola-branded or certified accessories sold for use with these
Products (“Accessories”) and Motorola software contained on CD-ROMs
or other tangible media and sold for use with these Products (“Software”)
to be free from defects in materials and workmanship under normal
consumer usage for the period(s) outlined below. This limited warranty is
a consumer's exclusive remedy, and applies as follows to new Motorola
Products, Accessories and Software purchased by consumers in the
United States or Canada, which are accompanied by this written
warranty:
Products and Accessories
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Decorative Accessories and
Cases
. Decorative covers,
bezels, PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the
product.
DRAFT
126
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and replacement of
parts due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of
their rated capacity and batteries that leak are covered by this limited
warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper
operation, storage, misuse or abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of the product resulting
from misuse; (b) contact with liquid, water, rain, extreme humidity or
heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of
the Products or Accessories for commercial purposes or subjecting the
Product or Accessory to abnormal usage or conditions; or (d) other acts
which are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage
that result from the use of Non-Motorola branded or certified Products,
Accessories, Software or other peripheral equipment are excluded from
coverage.
Monaural Headsets.
Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the
product.
Consumer and Professional
Two-Way Radio Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and Accessories that
are Repaired or Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Products Covered Length of Coverage
DRAFT
127
Unauthorized Service or Modification.
Defects or damages resulting
from service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than Motorola, or its authorized
service centers, are excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or
date tags that have been removed, altered or obliterated; (b) broken seals
or that show evidence of tampering; (c) mismatched board serial
numbers; or (d) nonconforming or non-Motorola housings, or parts, are
excluded from coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you
may subscribe to or use with the Products Accessories or Software is
excluded from coverage.
Software
Exclusions
Software Embodied in Physical Media.
No warranty is made that the
software will meet your requirements or will work in combination with any
hardware or software applications provided by third parties, that the
operation of the software products will be uninterrupted or error free, or
that all defects in the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not
embodied in physical media (e.g. software that is downloaded from the
internet), is provided “as is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
Products Covered Length of Coverage
Software.
Applies only to physical defects
in the media that embodies the copy of the
software (e.g., CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
DRAFT
128
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the
purchase price of any Products, Accessories or Software that does not
conform to this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products, Accessories or
parts. No data, software or applications added to your Product, Accessory
or Software, including but not limited to personal contacts, games and
ringer tones, will be reinstalled. To avoid losing such data, software and
applications please create a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To
obtain service, you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the
problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most importantly;
(e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
USA
Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios
and Messaging Devices
1-800-353-2729
Canada
All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number
designated above for the product with which they are used.
DRAFT
129
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY, OTHERWISE THE REPAIR,
REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR
DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR
INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE
TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY
LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or limitation on
the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights that vary from state
to state or from one jurisdiction to another.
Laws in the United States and other countries preserve for Motorola
certain exclusive rights for copyrighted Motorola software such as the
exclusive rights to reproduce and distribute copies of the Motorola
software. Motorola software may only be copied into, used in, and
redistributed with, the Products associated with such Motorola software.
No other use, including without limitation disassembly of such Motorola
software or exercise of the exclusive rights reserved for Motorola, is
permitted.
DRAFT
130
motorola.com

Navigation menu
