Exhibit 8 Users Manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1

EXHIBIT 8

INSTRUCTION MANUAL

A preliminary draft copy of the Users Manual follows:

Operation Guide

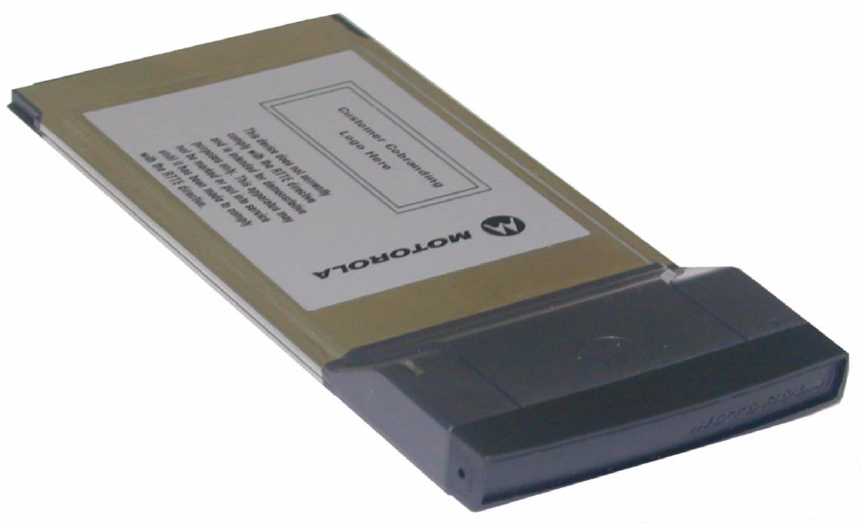

D1000 PCMCIA

CARD

68P02974C25-O

@6802974C25@

July 2004

DRAFT (01.08.04)

Disclaimer

Statements included in this manual indicating support pro-

vided by Motorola are subject to changes at any time.

Motorola reserves the right to make changes to this manual.

Regulatory Requirements

The Federal Communications Commission (FCC) requires

application for certification of digital devices in accordance

with CFR Title 47, Part 2 and Part 15. This includes Elec-

tromagnetic Energy Exposure (EME) testing. As the D1000

PCMCIA modem is not a stand-alone transceiver but is a

PC card, the D1000 cannot be tested by itself for EME cer-

tification and was tested while it is inserted in a Laptop Per-

sonal Computer.

Regulatory Statement

The following safety precautions must be observed during

all phases of the operation, usage, service or repair of any

D1000 modem.

Users of the D1000 modem are advised to convey the fol-

lowing safety information to users and operating personnel

supplied with the product. Failure to comply with these pre-

cautions violate safety standards of design, manufacture

and intended use of the product. Motorola assumes no lia-

bility for customer failure to comply with these precautions.

1. The D1000 must not be mechanically nor electrically

changed.

2. The D1000 has been designed the meet the EMC

requirements of ETS 300 342.

3. The D1000 meets the safety requirements of EN60950.

4. Systems using the D1000 will be subject to mandatory

EMC testing under directive 89/336/EEC.

THIS RADIO PRODUCT MEETS THE

GOVERNMENT'S REQUIREMENTS

FOR EXPOSURE TO RADIO WAVES.

Your wireless radio product is a radio transmitter and

receiver. It is designed and manufactured not to exceed the

emission limits for exposure to radio frequency (RF) energy

set by the Federal Communications Commission of the

U.S. Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for

the general population. The guidelines are based on stand-

ards that were developed by independent scientific organi-

zations through periodic and thorough evaluation of

scientific studies. The standards include a substantial safety

margin designed to assure the safety of all persons, regard-

less of age and health. The exposure standard for wireless

mobile phones employs a unit of measurement known as

the Specific Absorption Rate, or SAR. The SAR limit set

by the FCC is 1.6W/kg.* Tests for SAR are conducted

using standard operating positions reviewed by the FCC

with the device transmitting at its highest certified power

level in all tested frequency bands. Although the SAR is

determined at the highest certified power level, the actual

SAR level of the device while operating can be well below

the maximum value. This is because the radio device is

designed to operate at multiple power levels so as to use

only the power required to reach the network. In general,

the closer you are to a wireless base station antenna, the

lower the power output. Before a radio product is available

for sale to the public, it must be tested and certified to the

FCC that is does not exceed the limit established by the

government-adopted requirement for safe exposure. The

tests are performed in positions and locations (e.g. at the ear

and worn on the body) as required by FCC for each model.

The highest SAR value for this radio product when tested

for use during packet data is 1.52 W/kg. The FCC has

granted an Equipment Authorization for this model phone

with the FCC and can be found under the Display Grant

section of http:/ /www.fcc.gov/oet/fccid after searching on

FCC ID IHDT6EG1. The standard incorporates a substan-

tial margin of safety to give with all reported SAR levels

evaluated as in compliance with the FCC RF exposure

guidelines. SAR information on this model phone is on file

web-site at http://www.wow-com.com. Additional informa-

tion on Specific Absorption Rates (SAR) can be found on

the Cellular Telecommunications Industry Association

(CTIA) * In the United States and Canada, the SAR limit

for mobile phones used by the public is 1.6 watts/kg (W/kg)

averaged over one gram of tissue. additional protection for

the public and to account for any variations in measure-

ments.

Safety and General Information

IMPORTANT INFORMATION ON SAFE AND EFFI-

CIENT OPERATION. READ THIS INFORMATION

BEFORE USING YOUR RADIO PRODUCT.

The information provided in this document supersedes the

general safety information in user's guides published prior

to December 1, 2002.

Exposure To Radio Frequency (RF) Energy

Your phone contains a transmitter and a receiver. When it is

ON, it receives and transmits RF energy. When you com-

municate with your phone, the system handling your call

controls the power level at which your phone transmits.

Your Motorola phone is designed to comply with local reg-

ulatory requirements in your country concerning exposure

of human beings to RF energy.

Operational Precautions

To assure optimal phone performance and make sure

human exposure to RF energy is within the guidelines set

DRAFT (01.08.04)

iii

forth in the relevant standards, always adhere to the follow-

ing procedures.

External Antenna Care

•Use only the supplied or Motorola-approved replace-

ment antenna. Unauthorized antennas, modifications,

or attachments could damage the phone.

•When using any approved accessory antenna, position

it at least eight inches (20cm) from any part of any per-

son.

DO NOT hold the external antenna when the phone is IN

USE. Holding the external antenna affects call quality and

may cause the phone to operate at a higher power level than

needed. In addition, use of unauthorized antennas may

result in non-compliance with the local regulatory require-

ments in your country.

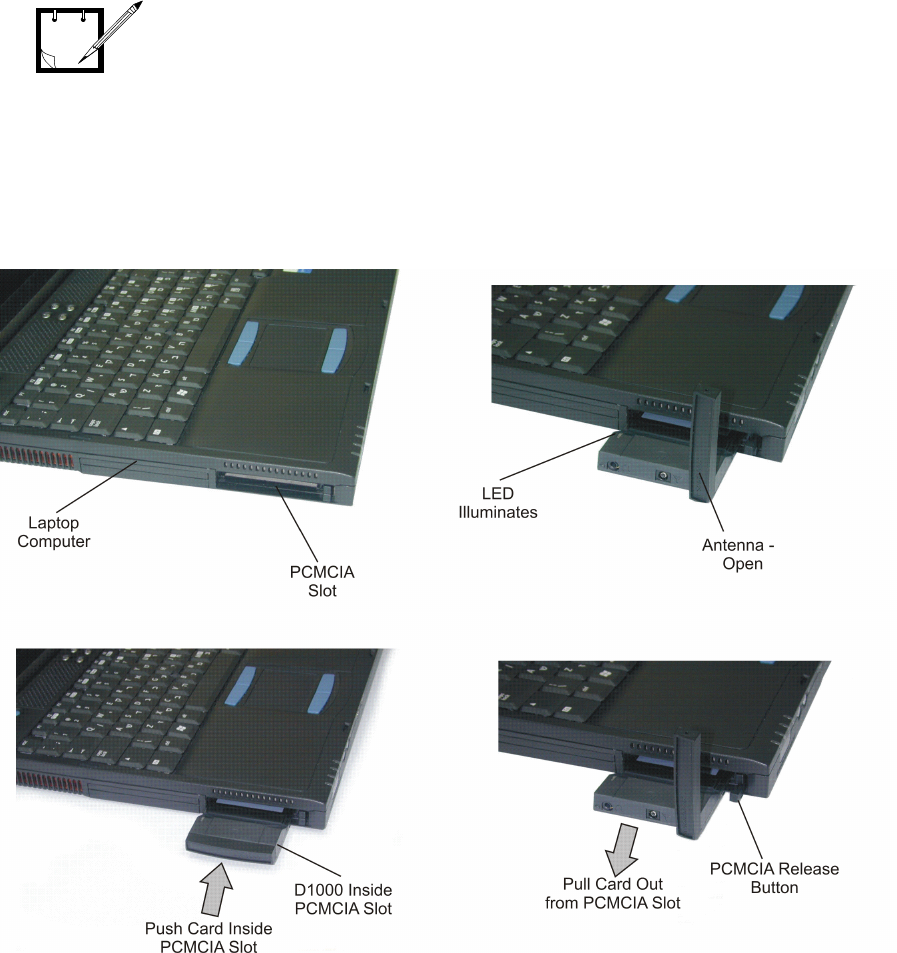

PC Card Operation

IMPORTANT: After using the D1000 make sure to per-

form a proper shut down within the software, while allow-

ing the metal portion of the PC card to cool down. When

ejecting the PC card immediately after use, make sure to

hold the D1000 by the plastic portion and avoid holding the

PC card by it's metal portion.

Approved Accessories

Use of accessories not approved by Motorola, including but

not limited to batteries and antennas, may cause your phone

to exceed RF energy exposure guidelines. For a list of

approved Motorola accessories, visit our website at

www.Motorola.com.

RF Energy Interference/Compatibility

NOTE: Nearly every electronic device is susceptible to RF

energy interference from external sources if inadequately

shielded, designed, or otherwise configured for RF energy

compatibility. In some circumstances your phone may

cause interference.

Facilities

Turn off your phone in any facility where posted notices

instruct you to do so. These facilities may include hospitals

or health care facilities that may be using equipment that is

sensitive to external RF energy.

Aircraft

When instructed to do so, turn off your phone when on

board an aircraft. Any use of a phone must be in accordance

with applicable regulations per airline crew instructions.

Medical Devices

Pacemakers

Pacemaker manufacturers recommend that a minimum sep-

aration of 6 inches (15 centimeters) be maintained between

a handheld wireless phone and a pacemaker.

Persons with pacemakers should:

•ALWAYS keep the phone more than 6 inches (15 cen-

timeters) from your pacemaker when the phone is

turned ON.

•NOT carry the phone in the breast pocket.

•Use the ear opposite the pacemaker to minimize the

potential for interference.

•Turn OFF the phone immediately if you have any rea-

son to suspect that interference is taking place.

Hearing Aids

Some digital wireless phones may interfere with some hear-

ing aids. In the event of such interference, you may want to

consult your hearing aid manufacturer to discuss alterna-

tives.

Other Medical Devices

If you use any other personal medical device, consult the

manufacturer of your device to determine if it is adequately

shielded from RF energy. Your physician may be able to

assist you in obtaining this information.

OPERATIONAL WARNINGS

For Vehicles With an Air Bag

Do not place a phone in the area over an air bag or in the air

bag deployment area. Air bags inflate with great force. If a

phone is placed in the air bag deployment area and the air

bag inflates, the phone may be propelled with great force

and cause serious injury to occupants of the vehicle.

Potentially Explosive Atmospheres

Turn off your phone prior to entering any area with a poten-

tially explosive atmosphere. Do not remove, install, or

charge batteries in such areas. Sparks in a potentially explo-

sive atmosphere can cause an explosion or fire resulting in

bodily injury or even death.

Note: The areas with potentially explosive atmospheres

referred to above include fueling areas such as below decks

on boats, fuel or chemical transfer or storage facilities,

areas where the air contains chemicals or particles, such as

grain, dust, or metal powders. Areas with potentially explo-

sive atmospheres are often but not always posted.

Blasting Caps And Areas

To avoid possible interference with blasting operations,

turn OFF your phone when you are near electrical blasting

caps, in a blasting area, or in areas posted "Turn off elec-

tronic devices." Obey all signs and instructions.

Batteries

Batteries can cause property damage and/or bodily injury

such as burns if a conductive material such as jewelry,

keys, or beaded chains touch exposed terminals. The con-

ductive material may complete an electrical circuit (short

circuit) and become quite hot. Exercise care in handling any

charged battery, particularly when placing it inside a

DRAFT (01.08.04)

pocket, purse, or other container with metal objects. Use

only Motorola original batteries and chargers.

Your battery or phone may contain symbols, defined as fol-

lows:

Warranty Information

Motorola guarantees to you, the original purchaser, the Per-

sonal Communicator and accessories which you have pur-

chased from an authorised Motorola dealer (the

"Products"), to be in conformance with the applicable

Motorola specifications current at the time of manufacture

for a term of [2] years from date of purchase of the Prod-

uct(s) (Warranty Term).

You must inform Motorola of the lack of conformity to the

applicable specifications of any of the Products within a

period of two (2) months from the date on which you detect

a defect in material, workmanship or lack of conformity

and in any event within a term not to exceed the Warranty

Term, and must immediately submit the Product for service

to Motorola's Authorised Repair or Service Centre. Motor-

ola shall not be bound by Product related statements not

directly made by Motorola nor any warranty obligations

applicable to the seller.

A list of the Motorola Call Centre numbers is enclosed with

this Product.

During the Warranty term, Motorola will, at its discretion

and without extra charge, as your exclusive remedy, repair

or replace your Product which does not comply with this

warranty; or failing this, to reimburse the price of the Prod-

uct but reduced to take into account the use you have had of

the Product since it was delivered. This warranty will

expire at the end of the Warranty Term.

This is the complete and exclusive warranty for a Motorola

Personal Communicator and accessories and in lieu of all

other warranties, terms and conditions, whether express or

implied.

Where you purchase the product other than as a consumer,

Motorola disclaims all other warranties, terms and condi-

tions express or implied, such as fitness for purpose and sat-

isfactory quality.

In no event shall Motorola be liable for damages nor loss of

data in excess of the purchase price nor for any incidental

special or consequential damages* arising out of the use or

inability to use the Product, to the full extent such may be

disclaimed by law.

This Warranty does not affect any statutory rights that you

may have if you are a consumer, such as a warranty of satis-

factory quality and fit for the purpose for which products of

the same type are normally used under normal use and serv-

ice, nor any rights against the seller of the Products arising

from your purchase and sales contract.

(*) including without limitation loss of use, loss of time,

loss of data, inconvenience, commercial loss, lost profits or

savings.

How To Get Warranty Service?

In most cases the authorised Motorola dealer which sold

and/or installed your Motorola Personal Communicator and

original accessories will honour a warranty claim and/or

provide warranty service. Alternatively, for further infor-

mation on how to get warranty service please contact either

the customer service department of your service provider or

Motorola's call centre at the telephone numbers below for

your country.

Where, in the Country of purchase, there is a statutory

requirement to provide extended repair service to consum-

ers beyond the first year of purchase this warranty will be

provided by Motorola Authorised Service Centres or

Motorola directly appointed dealers in the country of pur-

chase according to the terms of this warranty information

document. However, please note that you will be referred

back to the place of purchase, if the Motorola Dealer has

purchased the product directly from Motorola, in the coun-

try of purchase of in a country where Motorola is not

required to support supplementary repair service during the

second year of purchase because of the statutory obligations

that may apply to the seller or importer of the product, but

not to the manufacturer, to provide an extended warranty to

consumers beyond the first year.

Claiming

In order to claim the warranty service you must return the

Personal Communicator and/or accessories in question to

Symbol Definition

Important safety information will follow.

Your battery or phone should not be dis-

posed of in a fire.

Your battery or phone may require recy-

cling in accordance with local laws. Con-

tact your local regulatory authorities for

more information.

Your battery or phone should not be

thrown in the trash.

Your phone contains an internal lithium-

ion battery.

DRAFT (01.08.04)

Motorola's Authorised Repair or Service Centre in the orig-

inal configuration and packaging as supplied by Motorola.

Please avoid leaving any supplementary items like SIM

cards. The Product should also be accompanied by a label

with your name, address, and telephone number; name of

operator and a description of the problem. In the case of

vehicular installation, the vehicle in which the Personal

Communicator is installed should be driven to the Author-

ised Repair or Service Centre, as analysis of any problem

may require inspection of the entire vehicular installation.

In order to be eligible to receive warranty service, you must

present your receipt of purchase or a comparable substitute

proof of purchase bearing the date of purchase. The phone

should also clearly display the original compatible elec-

tronic serial number (IMEI) and mechanic serial number

[MSN]. Such information is contained with the Product.

You must ensure that all and any repairs or servicing is han-

dled at all times by a Motorola Authorised Service Centre

in accordance with the Motorola Service requirements

In some cases, you may be requested to provide additional

information concerning the maintenance of the Products by

Motorola Authorised Service Centres only, therefore it is

important to keep a record of any previous repairs, and

make them available if questions arise concerning mainte-

nance

Conditions

This warranty will not apply if the type or serial numbers

on the Product has been altered, deleted, duplicated,

removed, or made illegible. Motorola reserves the right to

refuse free-of-charge warranty service if the requested doc-

umentation can not be presented or if the information is

incomplete, illegible or incompatible with the factory

records.

Repair, at Motorola's option, may include reflashing of

software, the replacement of parts or boards with function-

ally equivalent, reconditioned or new parts or boards.

Replaced parts, accessories, batteries, or boards are war-

ranted for the balance of the original warranty time period.

The Warranty Term will not be extended. All original

accessories, batteries, parts, and Personal Communicator

equipment that have been replaced shall become the prop-

erty of Motorola. Motorola does not warrant the installa-

tion, maintenance or service of the products, accessories,

batteries or parts.

Motorola will not be responsible in any way for problems

or damage caused by any ancillary equipment not furnished

by Motorola which is attached to or used in connection with

the Products, or for operation of Motorola equipment with

any ancillary equipment and all such equipment is

expressly excluded from this warranty.

When the Product is used in conjunction with ancillary or

peripheral equipment not supplied by Motorola, Motorola

does not warrant the operation of the Product/peripheral

combination and Motorola will not honour any warranty

claim where the Product is used in such a combination and

it is determined by Motorola that there is no fault with the

Product. Motorola specifically disclaims any responsibility

for any damage, whether or not to Motorola equipment,

caused in any way by the use of the Personal Communica-

tor, accessories, software applications and peripherals (spe-

cific examples include, but are not limited to: batteries,

chargers, adapters, and power supplies) when such accesso-

ries ,software applications and peripherals are not manufac-

tured and supplied by Motorola.

What Is Not Covered By The Warranty

This warranty is not valid if the defects are due to damage,

misuse, tampering, neglect or lack of care and in case of

alterations or repair carried out by unauthorised persons.

The following are examples of defects or damage not cov-

ered by this product warranty

1. Defects or damage resulting from use of the Product in

other than its normal and customary manner.

2. Defects or damage from misuse, access to incompati-

ble sources, accident or neglect.

3. Defects or damage from improper testing, operation,

maintenance, installation, adjustment, unauthorised

software applications or any alteration or modification

of any kind.

4. Breakage or damage to antennas unless caused directly

by defects in material or workmanship.

5. Products disassembled or repaired other than by

Motorola in such a manner as to adversely affect per-

formance or prevent adequate inspection and testing to

verify any warranty claim.

6. Defects or damage due to range, coverage, availability,

grade of service, or operation of the cellular system by

the cellular operator.

7. Defects or damage due to moist, liquid or spills of

food.

8. Control unit coil cords in the Product that are stretched

or have the modular tab broken.

9. All plastic surfaces and all other externally exposed

parts that are scratched or damaged due to customer

normal use.

10. Leather cases (which are covered under separate manu-

facturer's warranties).

11. Products rented on a temporary basis.

12. Periodic maintenance and repair or replacement of

parts due to normal wear and tear.

Depending on operating conditions and your usage habits,

wear and tear might take place of components including

mechanical problems related to Product housing, paint,

DRAFT (01.08.04)

assembly, sub-assemblies, displays and keyboards and any

accessories which are not part of the Product's in-box con-

figuration. The rectification of faults generated through

wear and tear and the use of consumable items like batteries

beyond their Optimum Performance Time as indicated in

the product manual is considered to be your responsibility

and therefore Motorola will not provide the free Warranty

repair service for these items

Installed Data

Please make and retain a note of all data you have inserted

into your Product for example names, addresses, phone

numbers, user and access codes, notes etc before submitting

your Product for a Warranty service as such data may be

deleted or erased as part of the repair or service process.

Please note if you have downloaded material onto your

Product, for example ring tones, ring tunes, screensavers,

wallpaper, games etc these may be deleted or erased as part

of the repair process or testing process. Motorola shall not

be responsible for such matters. The repair or testing proc-

ess should not affect any such material that was installed by

Motorola on your Product as a standard feature.

Out Of Warranty Repairs

If you request Motorola to repair your Product any time

after the Warranty term or where this warranty does not

apply due to the nature of the defect or fault, then Motorola

may in its discretion carry out such repairs subject to you

paying Motorola its fees for such a repair or it may refer

you to an authorised third party to carry out such repairs.

DRAFT (01.08.04)

vii

D1000 Operation Guide

Contents

PREFACE

Scope of this Manual........................................................................................... 9

Arrangement of This Manual .............................................................................. 9

CHAPTER 1 - INTRODUCTION

General Description .......................................................................................... 11

D1000 Performance Specifications................................................................... 12

CHAPTER 2 - INSTALLATION AND OPERATION

Your Package Contents ..................................................................................... 13

Getting to Know Your D1000 PCMCIA Card.................................................. 13

Inserting a SIM Card Into your D1000 ............................................................. 14

Installing the D1000 on a Laptop Computer..................................................... 15

Removing the D1000 from a Laptop Computer ............................................... 16

Removing a SIM Card from your D1000 ......................................................... 16

DRAFT (01.08.04)

viii

This page left blank intentionally

DRAFT (01.08.04)

D1000 Operation Manual - Preface

Preface

Scope of this Manual

This manual provides instructions for the operation of the D1000 PCMCIA Card.

Arrangement of This Manual

This manual is arranged as follows:

•Preface - Contains the scope of the manual and its arrangement.

•Chapter 1-Introduction - Gives a general description of the D1000 and its specifications.

•Chapter 2-Installation and Operation - Gives information about the your D1000 package con-

tent and instructions that will enable you to use your D1000.

DRAFT (01.08.04)

Preface

This page left blank intentionally

DRAFT (01.08.04)

D1000 Operation Manual - Chapter 1 - Introduction

Chapter 1 - Introduction

General Description

The D1000 is a 3G PCMCIA Card. It is an extended Type II PCMCIA Card, providing high speed data

connections via cellular networks. It provides mobile user connection speeds comparable to wired

ADSL connections. Additionally, the earpiece supplied with the card enables the user to enjoy D1000

voice capabilities.

As a 3G product, the D1000 complies with all key specifications as defined by the 3GPP. Key product

features are:

•UMTS: WCDMA 2100, GSM 900/1800 and 1900-MHz Tri-band technology.

•GPRS High speed packet data (21 kbps UL, 84 kbps DL).

•WCDMA High speed packet data (64kbps UL, 384 kbps DL).

•16MB Integrated Flash Memory.

•Integrated earpiece jack.

•External antenna support.

A general view of the D1000 is given in Figure 1.

Figure 1. D1000 PCMCIA Card - General View

DRAFT (01.08.04)

Chapter 1 - Introduction

D1000 Performance Specifications

Frequency Bands Supported:

WCDMA2100 TX 1920 to 1980 MHz, RX 2110 to 2170 MHz

GSM 900/1800 and 1900 MHz TX 880 to 915 MHz, RX 925 to 960 MHz

TX 1710 to 1785 MHz, RX 1805 to 1880 MHz

TX 1850 to 1910 MHz, RX 1930 to 1990 MHz

TX Output Power:

WCDMA +21 dBm

GSM900, GSM1800/1900 +33 dBm, +30 dBm

Operating Temperature: 0 to +55 degrees Celsius

RX Sensitivity:

WCDMA <-106.7 dBm

GSM900, GSM1800/1900 <-104 dBm, <-104 dBm

•Less than 1% BER for WCDMA

•Less than 2% for GSM

Relative Humidity: 50 degrees Celsius 95% RH (non condensing 8 hours)

DRAFT (01.08.04)

D1000 Operation Guide - Chapter 2 - Installation and Operation

Chapter 2 - Installation and Operation

Your Package Contents

Verify that your D1000 package contains the following:

Getting to Know Your D1000 PCMCIA Card

Figure 2 gives a detailed description of the D1000 PCMCIA card:

Figure 2. D1000 Detailed Description

Item # Item Description Part Number Quantity

1 D1000 PCMCIA Card F3024AA 1

2 Earpiece SYN8419B 1

3 mPT CD-ROM 9986141U08 1

DRAFT (01.08.04)

Chapter 2 - Installation and Operation

Inserting a SIM Card Into your D1000

Before installing the D1000 into your Laptop computer, insert a SIM card into the D1000

(see Figure 3):

1. Hold the D1000 with the bottom side up (facing you).

2. Insert a SIM card into the dedicated slot. Verify you insert the card according to the markings on

the bottom cover and that the golden plated side of the SIM is facing down.

3. Gently push the SIM card until it is fully inserted into slot.

Figure 3. Inserting a SIM Card

DRAFT (01.08.04)

D1000 Operation Guide - Chapter 2 - Installation and Operation

Installing the D1000 on a Laptop Computer

Perform the following steps (see Figure 4):

1. Gently insert the D1000 into the PCMCIA slot. Verify that the D1000 is sliding along the guides.

2. Push the D1000 into the Laptop PCMCIA connector.

3. Open the antenna and verify that the indicator LED illuminates.

Figure 4. Installing the D1000 on a Laptop Computer

Before installing your D1000 on a Laptop computer, verify

that the Motorola Phone Tool (mPT) application is installed

on the Laptop.

NOTE

DRAFT (01.08.04)

Chapter 2 - Installation and Operation

Removing the D1000 from a Laptop Computer

Perform the following steps (see Figure 4):

1. Press and release the PCMCIA release button to extend it out.

2. Press the PCMCIA release button again to release the D1000.

3. Gently pull the card out from the slot.

Removing a SIM Card from your D1000

Perform the following steps (see Figure 5):

1. Insert a Ball-tip pen or a mini flap-tip screwdriver into the SIM card release slot.

2. Gently push the SIM card out from the D1000.

3. Using your fingers, pull the SIM card fully out from the D1000.

Figure 5. Removing a SIM Card

DRAFT (01.08.04)

MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and

Trademark Office. All other product or service names are the property of their

respective owners.

68P02974C25-O

@6802974C25@

July 2004

DRAFT (01.08.04)

Motorola Mobility T6EG1 GSM PCMCIA Card User Manual UG C330 GSM

Motorola Mobility LLC GSM PCMCIA Card UG C330 GSM

Exhibit 8 Users Manual

Navigation menu

Namespaces

Views

Navigation
