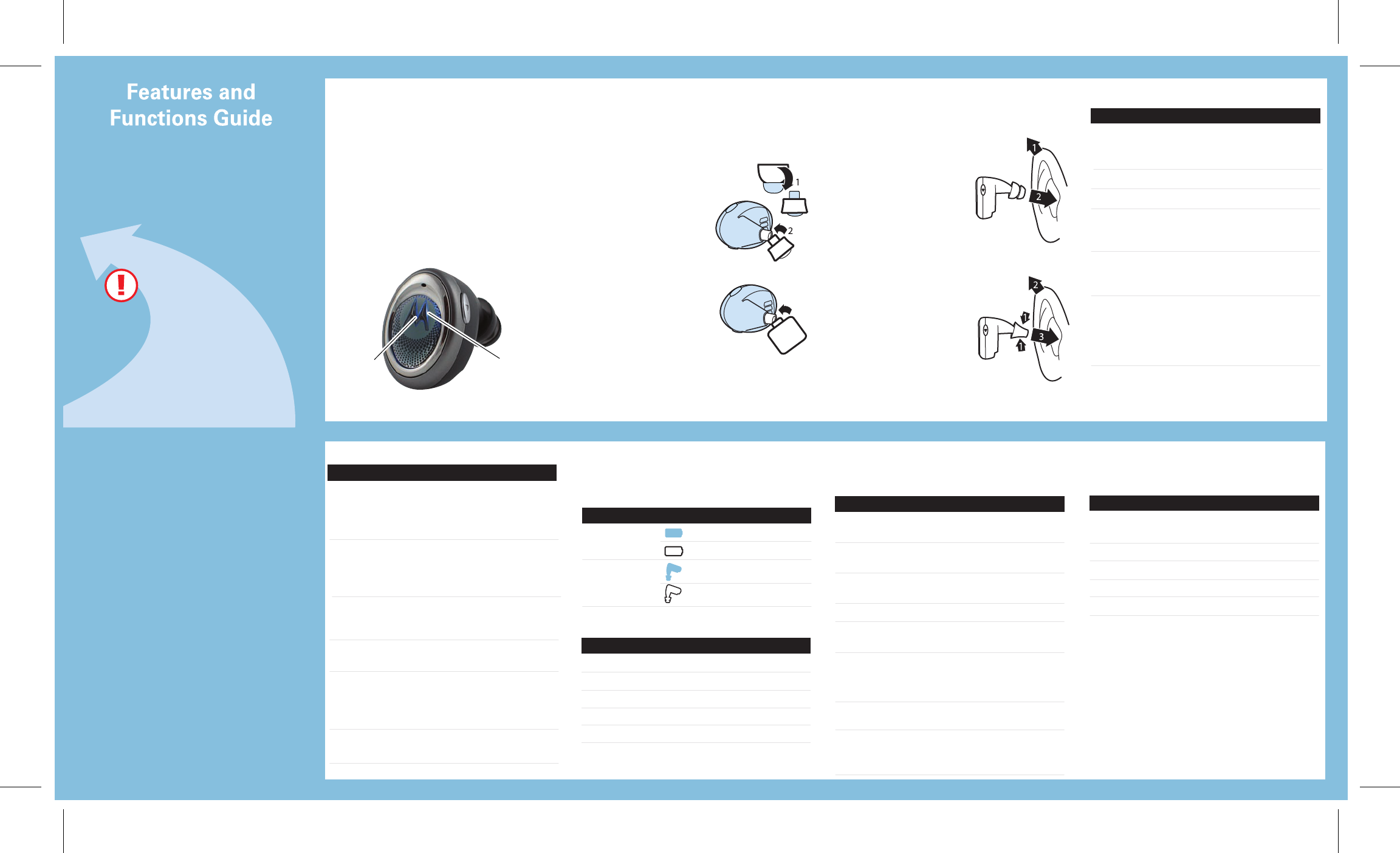

H5
Bluetooth®
Handsfree Headset
2
1 3
3 4
Before using this product, read the Important Safety and Legal
Information pamphlet and follow its instructions.
TROUBLESHOOTING
My phone doesn't find my headset.
Make sure the indicator light on your headset is
on and steady when your phone is searching for
devices (see step 3).
My headset worked before but now it's not
working.
Make sure your phone is on and the Bluetooth
feature is turned on in your phone (see step 2).
If the Bluetooth feature was turned off or was
turned on only temporarily, you may need to
restart the Bluetooth feature (see step 2) and
pair your phone and headset again (see step
3).
Support.
If you need more help, contact us at
1- 877-MOTOBLU.
FOR DETAILS ABOUT YOUR HANDSFREE
DEVICE
See the user’s guide or visit us at
www.hellomoto.com/bluetooth and click
Support.
Take a moment before you get started to
familiarize yourself with your new
H5 Headset.
BEFORE YOU
BEGIN

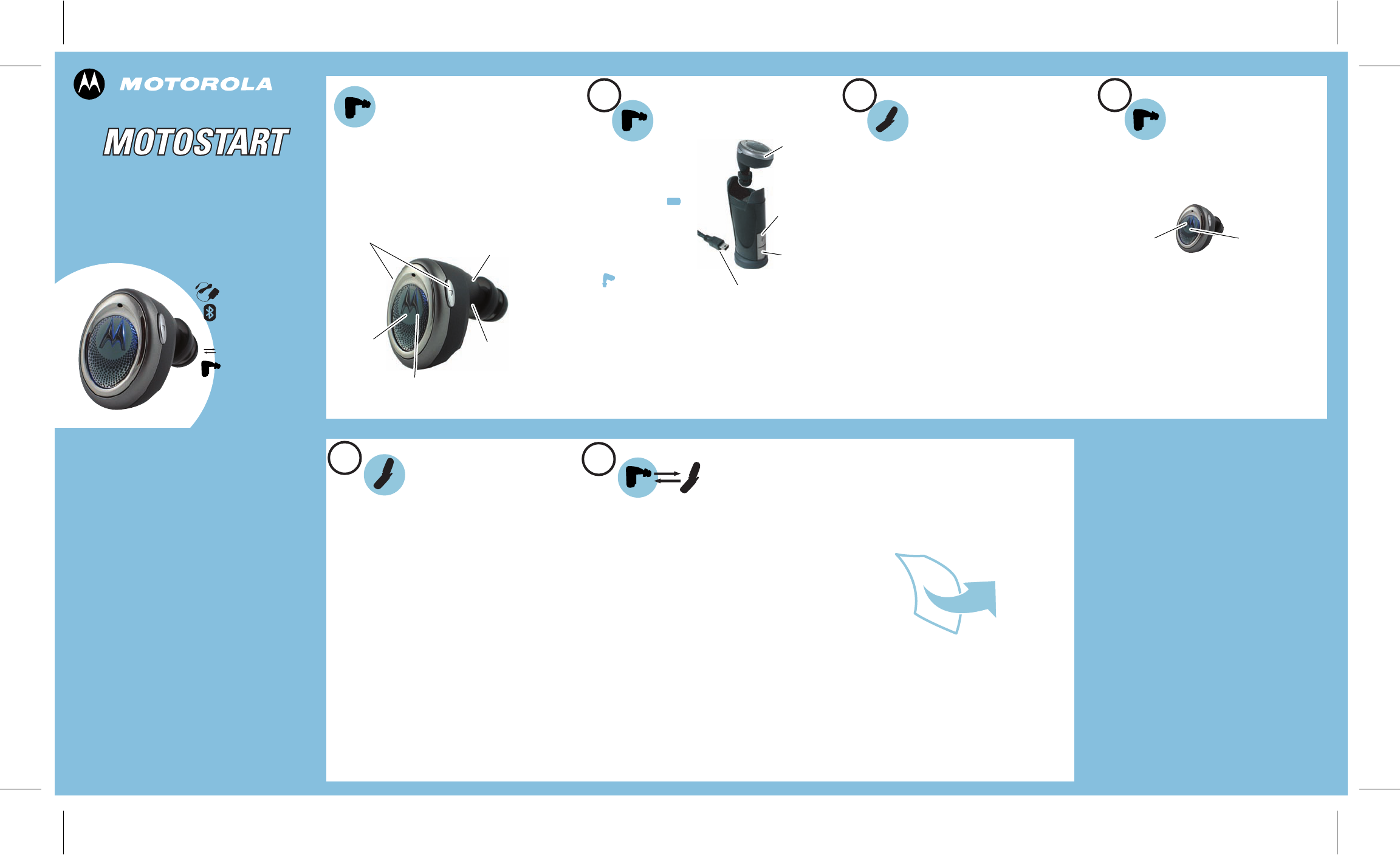

Get Connected in
4 Quick Steps
1 - CHARGE
2 - START
BLUETOOTH
FEATURE
3 - PAIR
4 - TEST AND
USE
CHARGE
Your Headset's Battery
Plug Motorola power
supply into charger port
on charger base. The
charger battery indicator
light turns on ( ).
Insert headset snugly
into charger base.
The headset battery
indicator light turns on
( ) to indicate the
headset is charging.
It may take up to 1
minute for the indicator
light to turn on. When
headset's battery is
fully charged (about 2
hours), the headset
battery indicator light
turns off.
1
2
Note: Headset is not functional while charging.
START BLUETOOTH
FEATURE
Your Phone
Press (Menu) > Settings > Connection >
Bluetooth Link > Setup.
Scroll to Power.
Select Change.
Scroll to On.
Press Select to turn on the Bluetooth
feature. The Bluetooth feature remains on
until you turn the feature off.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
1
2
3
4
5
Your phone's Bluetooth feature is off by default.
To use your headset, you must turn on the
Bluetooth feature in your phone.
For most Motorola phones:
M
PAIR
Your Headset
Before you can use your headset, you must pair
(link) it with your phone.
Step A - PUT THE HEADSET IN PAIRING
MODE
Ensure the headset is turned off (indicator
light not blinking).
Note: See "Turning On and Off" on the reverse side of this
guide for details on turning off your headset.
Press and hold the Call button for 6 to 10
seconds. The indicator light will initially flash,
but continue to hold down the button until the
indicator light is steadily lit.
If the indicator light is flashing or not steadily
lit when releasing the button, repeat both
steps 1 and 2 on this page.
1
2
PAIR CONTINUED
Your Phone
Step B - SET YOUR PHONE TO LOOK FOR
YOUR HEADSET
3
4
5
1
2
For most Motorola phones:
On your Motorola phone, press (Menu) >
Settings > Connection > Bluetooth Link >
Handsfree > Look for Devices.
The phone lists Bluetooth devices it finds.
Select Motorola H5.
Select OK or Yes to pair your headset with
your phone.
Enter the passkey: 0000
Select OK.
When your headset successfully pairs with
your phone, the indicator light changes from
steadily lit to flashing.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
M
TEST AND USE
Your phone and headset are now paired and
ready to make and receive calls.
To make a call:
Place the headset in your ear. The eartip
should be inserted so that the headset
feels comfortable and forms a seal in the
ear.
On your phone, dial the number you want
to call and press the SEND key.
If your phone and headset are successfully
paired, you will hear ringing on the headset.
After you have successfully paired your
phone and headset, you don't need to
repeat these steps. For daily use, ensure
that your headset is turned ON and that
your phone's Bluetooth feature is ON.
1
2
3
USING YOUR H5
See
Features and
Functions Guide
on the reverse side
for information on
using your H5.
Call
Button
Indicator
Light
Volume
Buttons
Earpiece
Speaker
When charged,
remove headset
from charger base.
Note: The charger base
battery remains charging
while plugged into the
power supply.
Headset
Call
Button
Indicator
Light
Microphone
(inside
earpiece)
Headset
Battery
Indicator
Light
Charger
Battery
Indicator
Light
Charger
Plug
3
DRAFT
DRAFT
IMPORTANT:
Be sure to first follow the
Quick Start Guide
on the reverse side to
complete initial setup of
your H5.
IMPORTANT:
Be sure to first follow the
Quick Start Guide
on the reverse side to
complete initial setup of
your H5.
H5
Bluetooth®
Handsfree Headset
TURNING ON AND OFF
To turn your headset on, press and hold
the Call button until the indicator light
flashes.
To turn your headset off, press and hold
the Call button until the indicator light
flashes rapidly and then turns off.
To conserve battery power, turn off your
headset when you don't plan to use it for
a while.
WEARING HEADSET
Call
Button
Indicator
Light
1
2
MAKING CALLS CONTINUED
Function Action
Toggle between two Press and hold
active calls the Call button until
you hear a medium
beep
Join a 3-way call Press and hold
both Volume buttons
until you hear a
medium beep
Put an active call on Press and hold the
hold or resume a call Call button until you
on hold hear a medium beep
Transfer a call from the Tap the Call button
phone to the headset
Disable or enable the Press and hold
indicator light both Volume
buttons until you
hear a low beep
Mute or unmute a call Tap both Volume
buttons
Note: Some features are phone/network dependent.
INDICATOR LIGHTS AUDIO TONES
The audio tones provide information about your
headset's status.
Audio Tone Headset Status
Single high tone when Volume at minimum
pressing Volume button or maximum
Five rapid high tones Low battery
repeated every 60 sec.
No audio indications; Out of range
deteriorating quality
Ring tone Incoming call
Single very high All calls ended
tone
Single high tone Entering pairing mode
Tapping Call button or
both Volume buttons
Single medium tone Pressing Call button
or both Volume buttons
Single low tone Pressing and holding
Call button or both
Volume buttons
Indicator lights provide information about your
headset (and charger base) status.
Charger Base
Indicator Status
Charger Battery (On) Charging
(Off) Charging complete
Headset Battery (On) Charging
(Off) Charging complete
Headset
Indicator Status
Off Power off
On (steady) Pairing mode
10 rapid flashes Pairing successful
Slow pulse Connected (on a call)
Quick flash Standby (not on call)
Note: After 5 minutes of inactivity, the light stops flashing to
conserve power, but the headset remains in standby mode.
MAKING CALLS
Function Action
Make a voice dial call Tap the Call button
and speak the name
after the tone
End a call Tap the Call button
Receive a call Tap the Call button
Reject a call Press and hold the
Call button until you
hear a medium beep
Redial last call Press and hold the
Call button until you
hear a medium beep
Answer a second Press and hold the
incoming call Call button until you
hear a medium beep
(places first call on
hold)
Note: Your H5 supports both Handsfree and Headset Profiles.
Accessing call functions depends upon which profile your
phone supports. See your phone's user's guide for more
information.
AUDIO TONES CONTINUED
Audio Tone Headset Status
Single high tone Phone network not
repeated every 5 sec. available
Two ascending tones Mute enabled
Two descending tones Mute disabled
Four ascending tones Headset powering on
Four descending tones Headset powering off
VOLUME BUTTONS
Volume button orientation can be changed on
your headset as follows:
Turn your headset off
Press both Call button and the Volume button
you want to assign as the "volume up" button
until the indicator light flashes twice. The
headset power turns on.
INSTALLING EARTIP
FLANGED EARTIP:
Pull upward slightly on
top of your ear.
Place the earpiece
speaker into your ear.
The eartip should form a
comfortable seal in your
ear.
FOAM EARTIP:
Roll foam between thumb
and forefinger to
compact.
Pull upward slightly on top
of your ear.
Place the earpiece
speaker into your ear and
hold for 5 seconds while
1
2
1
2
Your headset is supplied with both flanged and
foam eartips. To install these eartips:
FOAM EARTIP:
Twist eartip onto
earpiece starting at an
angle and pushing
onto headset.
3
The eartip should form a comfortable seal in
your ear.
FLANGED EARTIP:
Pull back largest
flange on eartip.
Twist eartip onto
earpiece starting at
an angle and pushing
onto headset.
1
2
