FCC Notice
FCC Notice To Users
FCC Notice
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
If your mobile device or accessory has a USB connector, or is
otherwise considered a computer peripheral device whereby it can
be connected to a computer for purposes of transferring data, then
it is considered a Class B device and the following statement
applies:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
SAR Data
Specific Absorption Rate Data
SAR Da ta
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 0.39 W/kg, and when worn on the body, as described in
this user guide, is 0.31 W/kg.
(Body-worn
measurements differ among phone models, depending upon
available accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
SAR Data
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
motorola.com
MOTOROKR™ E6
GSM
English
Cover.Print.Front.E6.UG.fm Page 1 Thursday, August 24, 2006 9:18 AM
Cover.Print.Front.E6.UG.fm Page 2 Thursday, August 24, 2006 9:18 AM
1
HELLOMOTO
Introducing your new
MOTO

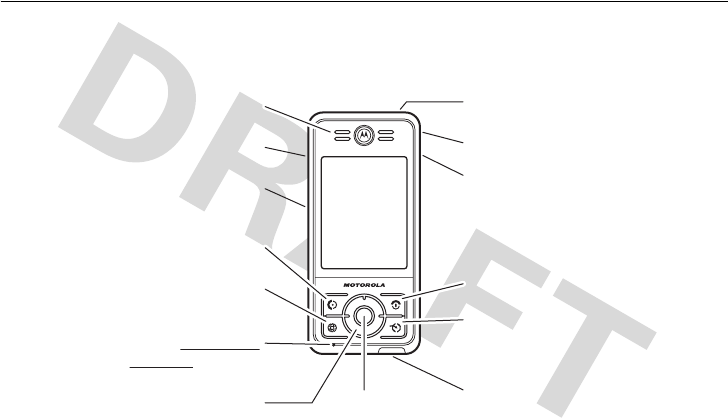

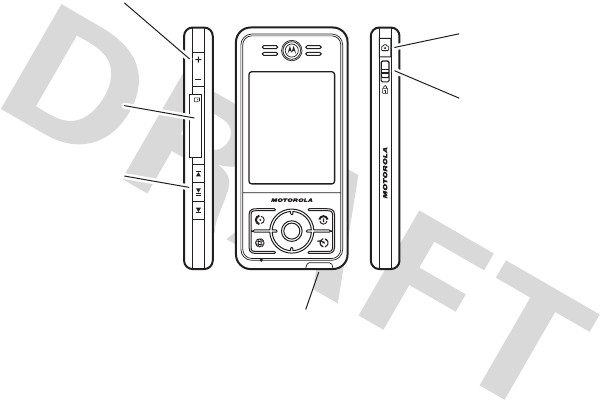

ROKR™ E6 GSM wireless phone. Here’s a quick anatomy lesson.
Center Key
Select menu items.
Microphone
Make sure your fingers don’t cover the
microphone during calls.
Navigation Key
Navigate menus.
Headset Jack
Camera Key
Browser Key
Media Player Key
Launch media player, or move it to foreground
(when running in background)
.
Mini-USB Port
Power/End Key
Turn on/off, hang up calls, open application
launcher in home screen.
Earpiece
Side Up/Down Keys
Memory Card Slot
Send Key
Make & answer calls.
Phone Lock Switch
Lock touchscreen & phone keys.
2
Camera Key
Activate camera and take photos.
Phone Lock Switch
Lock phone to prevent unwanted
keypresses or touchscreen
activation. Slide
down
to lock, slide
up
to unlock.
Side Up/Down Keys
Adjust volume, navigate menus.
Memory Card Slot
Insert SD memory card, store and
retrieve multimedia content (music
files, video clips, photos).
Media Player Keys
When the
RealOne media player
is
active: Press
i
to pause or play
a file or playlist. Press
h
or
j
to play the previous or next file in a
playlist. Press and hold
h
or
j
to rewind or fast forward.
When the
FM radio
is active: Press
i
to mute/unmute the radio.
Press
h
or
j
to select the
previous or next channel.
Mini-USB Port
Insert battery charger
or phone accessories.
3
mega pixels
2.0
Mirror
Aim camera lens for self-portraits.
Speaker
Listen to audio playback
of music & video clips.

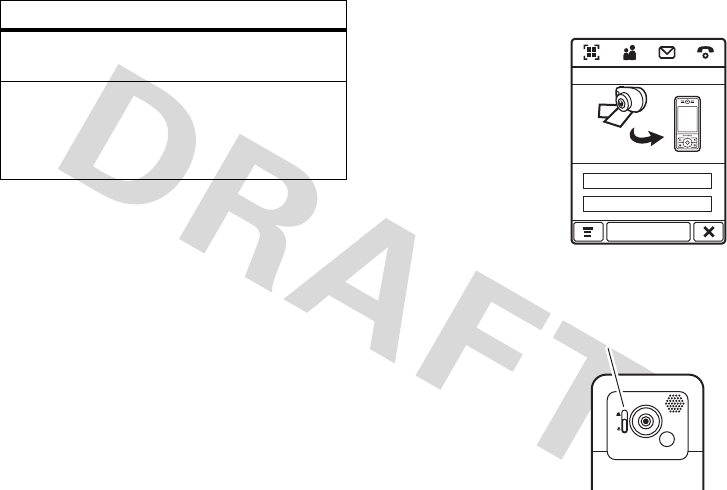

Stylus
Use with touchscreen display.
Camera Mode Switch
Slide
up
to set
normal
picture mode,
slide
down
to set
macro
mode (for close-up
shots of business cards or small objects).
Camera Lens
Camera Key
Activate camera and take photos.
4
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider’s network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user’s guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries.
© Motorola, Inc., 2006.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: 68XXXXX140-O
contents
5
contents
Safety Information . . . . . 8
Use and Care . . . . . . . . 13
EU Conformance . . . . . 14
Recycling Information . 15
essentials . . . . . . . . . . . 16
about this guide . . . . . 16
SIM card. . . . . . . . . . . 16
battery . . . . . . . . . . . . 19
memory card . . . . . . . 22
turn it on & off . . . . . . 23
make a call . . . . . . . . . 24
answer a call. . . . . . . . 24
your phone number . . 25
basics. . . . . . . . . . . . . . . 26
display . . . . . . . . . . . . 26
global navigation bar. . 27
application launcher . . 28
button bar . . . . . . . . . . 29
status bar . . . . . . . . . . 29
text entry . . . . . . . . . . 31
tap & hold. . . . . . . . . . 33
volume . . . . . . . . . . . . 34
navigation key. . . . . . . 34
speakerphone. . . . . . . 35
codes & passwords . . 35
lock & unlock phone . . 36
lock touchscreen
& phone keys . . . . . . . 36
share information . . . . 37
customize . . . . . . . . . . . 39
profiles . . . . . . . . . . . . 39
wallpaper . . . . . . . . . . 40
color scheme . . . . . . . 40
backlight . . . . . . . . . . . 41
calls . . . . . . . . . . . . . . . . 42
recent calls . . . . . . . . . 42
redial. . . . . . . . . . . . . . 43
hold or mute a call . . . 44
call waiting . . . . . . . . . 44
caller ID . . . . . . . . . . . 44
cancel incoming call . . 45
emergency calls . . . . . 45
international calls . . . . 46
turbo dial. . . . . . . . . . . 46
dial extension or
voicemail number . . . . 47
dial extension
number during a call . . 47
6
contents
address book . . . . . . . . . 48
view contact list . . . . . 48
add new contact . . . . . 49
create group . . . . . . . . 50
call or send message. . 50
search . . . . . . . . . . . . . 51
sort . . . . . . . . . . . . . . . 52
delete contact . . . . . . . 52
storage location. . . . . . 52
copy contacts . . . . . . . 53
categories . . . . . . . . . . 53
check capacity . . . . . . . 55
share contact. . . . . . . . 56
synchronize contacts . . 56
owner’s information. . . 57
messages . . . . . . . . . . . . 58
message center. . . . . . 58
signature . . . . . . . . . . . 59

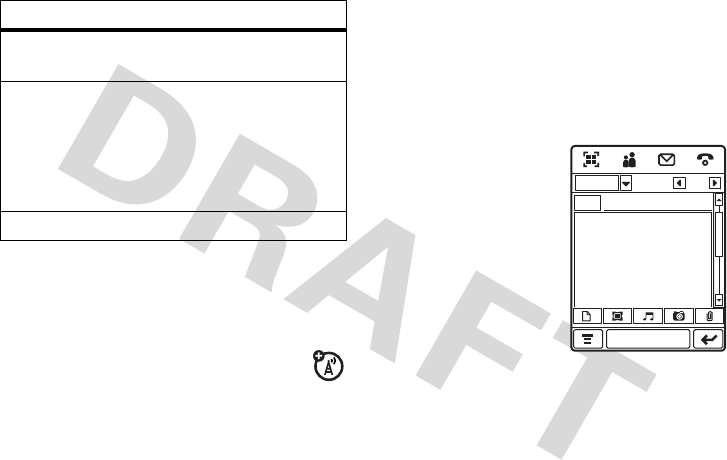

send text message . . . 60
send multimedia
message . . . . . . . . . . . 61
unsent messages . . . . 64
tips for sending
messages . . . . . . . . . . 64
receive message . . . . . 64
read and reply . . . . . . . 66
store message object . 66
sort messages. . . . . . . 66
drafts . . . . . . . . . . . . . . 66
deleted messages . . . . 67
messages
on SIM card . . . . . . . . . 67
create folder . . . . . . . . 67
move messages . . . . . 68
set up message
service. . . . . . . . . . . . . 69
browser messages . . . 72
information
service messages . . . . 72
office applications . . . . . 74
email . . . . . . . . . . . . . . 74
calendar . . . . . . . . . . . . 81
tasks . . . . . . . . . . . . . . 85
notes . . . . . . . . . . . . . . 86
viewer . . . . . . . . . . . . . 87
calculator . . . . . . . . . . . 87
alarm clock. . . . . . . . . . 88
file manager. . . . . . . . . 89
business card reader . . 93
media applications . . . . 96
browser . . . . . . . . . . . . 96
RealOne
media player . . . . . . . 101

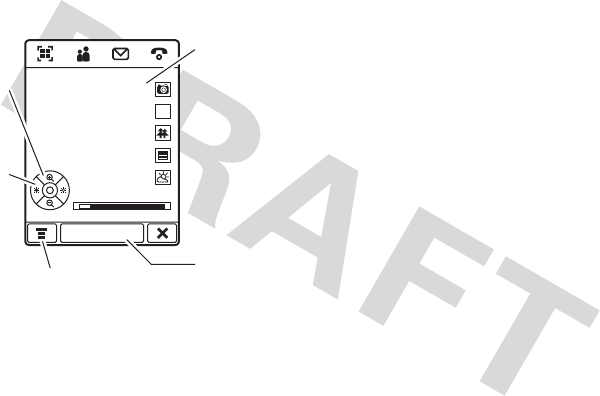

camera. . . . . . . . . . . . 103
voice recorder . . . . . . 108
video camera . . . . . . . 109
photo editor . . . . . . . . 110
FM radio . . . . . . . . . . 112
contents
7
extra applications. . . . 114
talking phone . . . . . . . 114
Bluetooth™ wireless . 114
synchronize
phone information . . . 118
modem. . . . . . . . . . . . 119
stk. . . . . . . . . . . . . . . 120

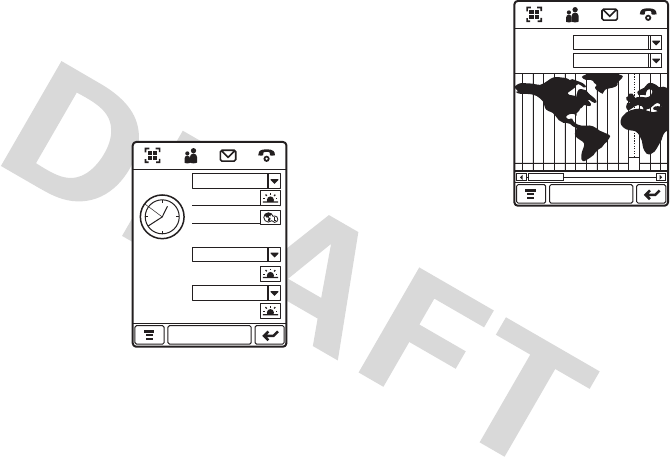

world time . . . . . . . . 121
other features . . . . . . . 122
advanced calling . . . . 122
setup . . . . . . . . . . . . 123
call times & costs . . . 126
handsfree . . . . . . . . . 127
security. . . . . . . . . . . 128
service and repairs . . . 130
SAR Data. . . . . . . . . . . 131
WHO Information . . . . 132
GNU License . . . . . . . . 133
index . . . . . . . . . . . . . . 134
8
Safety Information
Safety and General Information
Safe ty Infor mation
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2006.
Safety Information
9
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola, keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so. These locations include hospitals or health
care facilities that may be using equipment that is sensitive to
external RF energy.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Pacemakers
If you have a pacemaker, consult your physician before using this
device.
Persons with pacemakers should observe the following
precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from your pacemaker when the
mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the pacemaker to minimize the
potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Hearing Aids
Some mobile devices may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing
aid manufacturer or physician to discuss alternatives.
10
Safety Information
Other Medical Devices
If you use any other personal medical device, consult your
physician or the manufacturer of your device to determine if it is
adequately shielded from RF energy.
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue a call if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
Responsible driving practices can be found in the “Smart Practices
While Driving” section at the end of this guide and/or at the
Motorola Web site:
www.motorola.com/callsmart
.
Operational Warnings
Obey all posted signs when using mobile devices in public areas,
such as health care facilities or blasting areas.
Automobile Air Bags
Do not place a mobile device in the air bag deployment area.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Damaged Products
If your mobile device or battery has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you take
it to a Motorola Authorized Service Center. Do not attempt to dry it
with an external heat source, such as a microwave oven.
Safety Information
11
Batteries and Chargers
If jewelry, keys, beaded chains, or other conductive
materials touch exposed battery terminals, this
could complete an electrical circuit (short circuit),
become very hot, and could cause damage or
injury. Be careful when handling a charged battery,
particularly when placing it inside a pocket, purse, or other
container with metal objects.
Use only Motorola Original
batteries and chargers.
Caution:
To avoid risk of personal injury, do not dispose of your
battery in a fire.

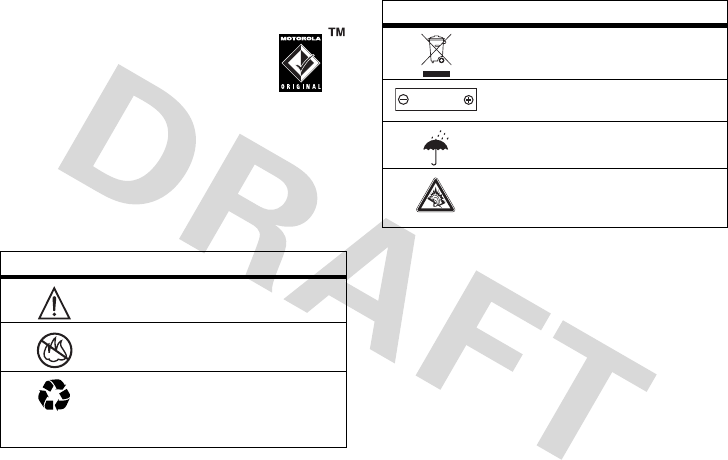

Your battery, charger, or mobile device may contain symbols,
defined as follows:
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities
for more information.
032374o
032376o
032375o
Do not throw your battery or mobile device
in the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
Listening at full volume to music or voice
through a headset may damage your
hearing.
Symbol Definition
032378o
Li Ion BATT
12
Safety Information
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Use and Care
13
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
14
EU Conformance
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in
compliance with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
product Approval Number from your product’s label in the “Search”
bar on the Web site.

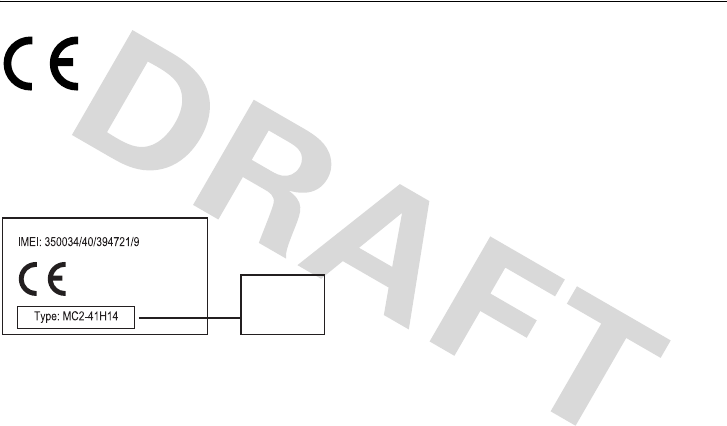

0168
Product
Approval
Number
Recycling Information
15
Recycling Information
Caring for the Environment by Recycling
This symbol on a Motorola product means the product
should not be disposed of with household waste.
Disposal of your Mobile Telephone and Accessories
Please do not dispose of mobile telephones or electrical
accessories, such as chargers or headsets, with your household
waste. In some countries or regions, collection systems have been
set up to handle waste electrical and electronic items. Please
contact your regional authorities for more details. If no suitable
scheme exists, you may return unwanted mobile telephones and
electrical accessories to any Motorola Approved Service Centre in
your region.
16
essentials
essentials
about this guide
This guide describes the basic features of
your Motorola wireless phone.
SIM card
Your Subscriber Identity Module (SIM) card
contains personal information like your phone
number and contacts list.
Caution:
Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.
symbols
This means a feature is network,
SIM card, or subscription
dependent and may not be available
in all areas. Contact your service
provider for more information.
This means a feature requires an
optional accessory.
17
essentials
1

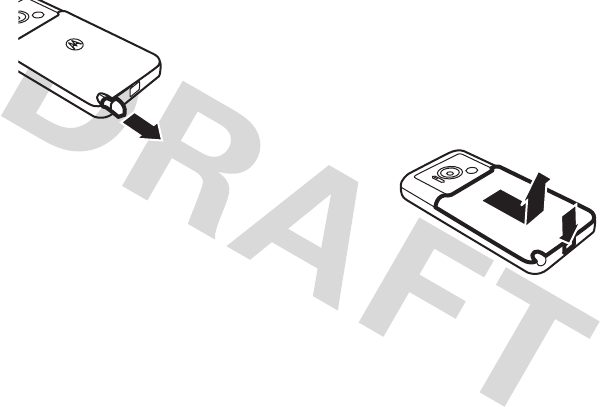

Pull the stylus halfway out of the phone.
2
Press down the release latch, then slide
the battery door away from the camera
lens and remove it from the phone.
Caution:
The battery door on your
phone has sharp corner edges around
the stylus. Be careful when removing or
attaching the battery door.
18
essentials
3

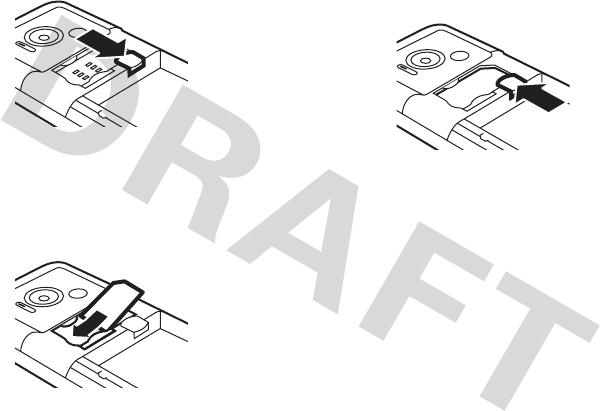

Gently slide the SIM card latch down.
4
Hold the SIM card with the gold plate
facing down. Slide the SIM card under
the metal tabs and into the card slot.
5
Slide the SIM card latch up to lock the
SIM card in place.
19
essentials
battery
battery installation
1
Pull the stylus halfway out of the phone.
2
Press down the release latch, then slide
the battery door away from the camera
lens and remove it from the phone.
Caution:
The battery door on your
phone has sharp corner edges around
the stylus. Be careful when removing or
attaching the battery door.
20
essentials
battery charging
New batteries
are not fully
charged. Insert
the battery
charger plug
into the
mini-USB port
at the base of your phone as shown, and plug
the other end into an electrical outlet. Your
phone might take several seconds to start
charging the battery, and might require
several hours to charge fully. The display
shows
Charge Complete
when finished.
Tip:
Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
Note:
You can charge the battery when the
phone is off or the battery is completely
discharged.
3
Insert the battery under the tabs on the
left side of the battery compartment
and push down.
4
Pull the stylus halfway out of the phone,
then place the battery door on the
phone and slide it up to lock shut.
21
essentials
Note:
You can charge your battery
by connecting a cable from your
phone’s mini-USB port to a USB
port on a computer. Both your
phone and the computer must be turned on,
and your computer must have the correct
software drivers installed. Cables and
software drivers are available in
Motorola Original data kits, sold separately.
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
•
Always use
Motorola Original batteries
and chargers. The warranty
does not cover damage
caused by non-Motorola batteries
and/or chargers.
•
New batteries or batteries stored for a
long time may take more time to
charge.
•
When charging your battery, keep it
near room temperature.
•
When storing your battery, keep it
uncharged in a cool, dark, dry place.
•
Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
•
It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
22
essentials
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
memory card
You can use an optional removable
SD memory card or MMC memory
card with your phone to store and
retrieve multimedia content (such as music
files, video clips, and photos).
Caution:
Don’t bend or scratch your memory
card. Keep it away from static electricity,
water, and dirt.

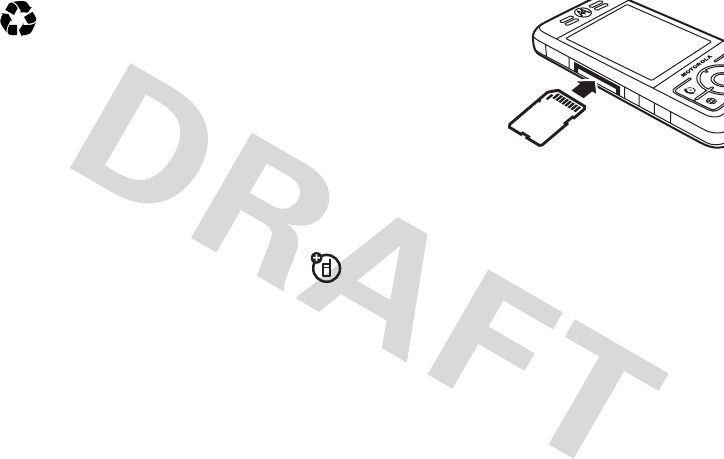

Open the
protective
cover on your
phone’s
memory card
slot, then
insert the
memory card
into the memory card slot on the side of your
phone until it clicks into place.
To remove the memory card
:
1
Tap the status bar at the top of the display
to open the device status screen.
2
Tap the scroll bar to scroll down to the
Memory Card
option, then tap the
Eject
button.
3
Wait for your phone to indicate that it’s
safe to remove the memory card, then tap
OK
.
23
essentials
4
Push the card in until it clicks. It begins to
slide out, and you can slide it the rest of
the way out.
turn it on & off
Caution:
On power up, the phone may
prompt you to enter your SIM card PIN code
to unlock the SIM card. If you enter an
incorrect PIN code three times before the
correct code, your SIM card is disabled and
your display shows
SIM Blocked
. Contact your
service provider.

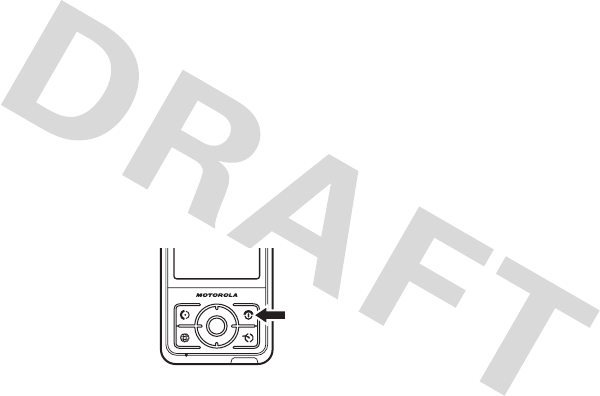

To turn on your phone,
press and hold the
power key
O
until the
display lights up. If
prompted, enter your
eight-digit SIM card PIN
code and/or four-digit unlock code.
If you don’t insert a SIM card, your phone
shows
No SIM Card
. You can select
Antenna On
(to
make an emergency call) or
Antenna Off
(to use
the phone’s non-calling features).
You can turn off the phone’s
antenna
in
locations where wireless phone use is
prohibited, or when you just want to use the
phone’s non-calling features (games, personal
organizer, multimedia player). Tap the status
bar at the top of the display to open the
device status screen, then tap the
Antenna
drop-down menu to select
On
or
Off
.
To turn off your phone, press and hold
O
for
two seconds.
24
essentials

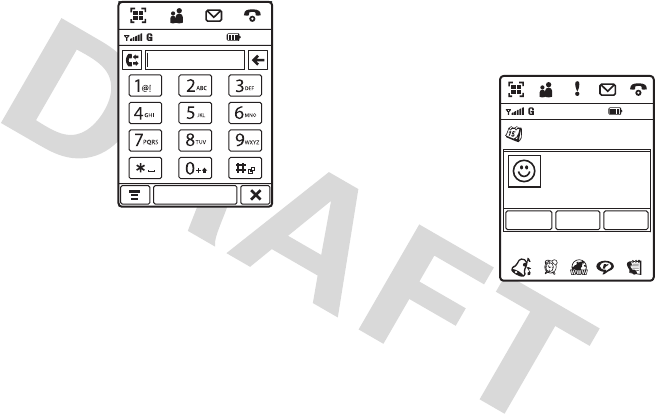

make a call

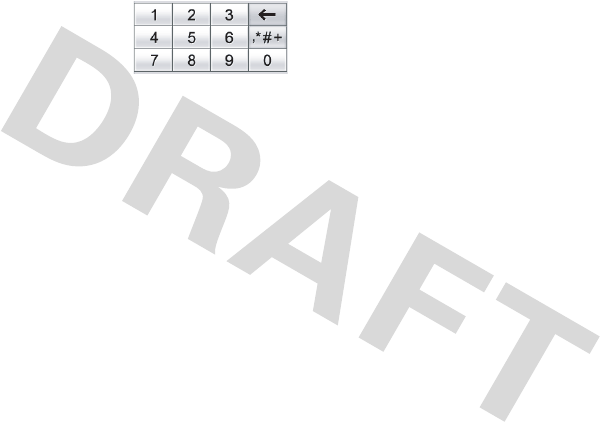

1
Tap
9
in the top
global navigation
bar to open the
phone keypad.
2
Tap the keypad
keys to dial the
phone number.
3
Tap
Call
or press the
send key
N
to
make the call.
4
When you are finished, tap
End
or press
the end key
O
to end the call.
Tip:
Tap
P
to select a number from a list of
recent received or dialed calls.
Tip:
If you need to use the phone keypad
during a call (for example, to dial an extension
or make a conference call), tap the keypad
button
à
from the in-call screen. Tap the
phone button
l
to return to the in-call screen.
answer a call
When you receive a
call, your phone rings
and/or vibrates and
shows an incoming call
message.
Tip:
You can press the
volume keys to mute
the ringer before
answering the call.
Tap
Answer
or press the send key
N
to answer
the call.
When you are finished, tap
End
or press the
end key
O
to end the call.
Call
Call
10:03
No Meetings
10/16/2008
Incoming Call...
+1234567890
Answer IgnoreBusy
10:03
25
essentials
Tip:
If you prefer not to answer the call, you
can tap
Ignore
to hang up on the caller, or tap
Busy
to transmit a busy tone signal to the caller
(tapping
Busy
may divert the incoming call to
your voicemail inbox).
your phone number
To
view
your phone number:
1
Tap
9
in the top global navigation bar to
open the phone keypad.
2
Tap
é
in the bottom button bar to open
the phone menu.
3
Tap
My Number
to see your phone number.
To see your phone number while you’re on a
call, tap
é
and then tap
My Number
.
To
store
or edit your name and phone
number on your SIM card:
1
Tap
9
in the top global navigation bar to
open the phone keypad.
2
Tap
é
, then tap
Setup
to open the phone
setup menu.
3
Tap
My Number
to open the number editor.
4
Enter your name and number (for line 1
and
line 2, if applicable), then tap
Done
to
store the information.
If you don’t know your phone number, contact
your service provider.
26
basics
basics

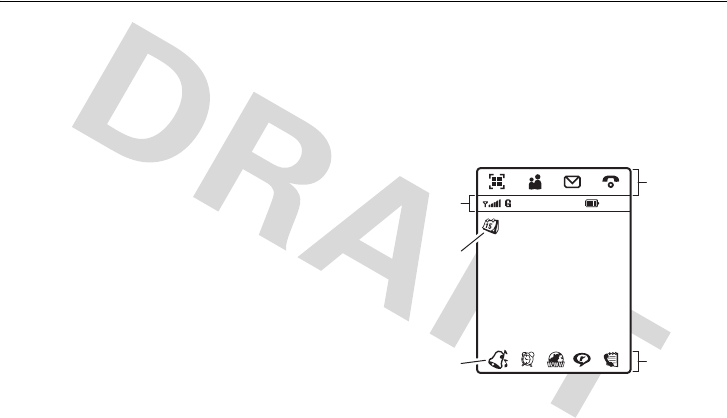

See pages 1-3 for basic phone diagrams.
Tip:
Want some help? Tap
6
at the top of
the screen, then tap the
Help
icon to find
information about phone features.
display
The home screen appears when you turn on
your phone.
Tap
E
to set
a ring alert
profile.
Tap
J
to
open the
calendar.
Global
Navigation
Bar (GNB)
Status Bar
Application
Icons
No Meetings
10/16/2008
10:03
27
basics
The home screen shows the next scheduled
calendar event for the day. Icons at the
bottom of the screen provide shortcuts to
commonly used applications.
To use your phone’s features, tap on the
global navigation bar icons, application icons,
buttons, and text with the provided stylus.
To change the options that you see in the
home screen, tap
6
to open the application
launcher, tap
TSetup
, then tap
Home Screen Setup
.
Tip:
Tap an unused area of the home screen
to see an unobstructed fullscreen view of the
background wallpaper image. Tap the
fullscreen wallpaper image to return to the
home screen display.
global navigation bar
Icons in the top global navigation bar give you
easy access to your phone’s primary
functions:
Your phone also shows a new message icon
8
in the global navigation bar to notify you of a
new message or a missed call. Tap
8
to see
information about the message or missed
call.
6
Application Launcher
5
Address Book
7
Messages
9
Phone
28
basics

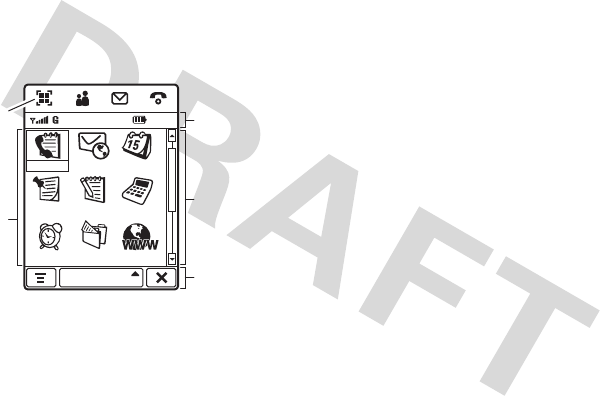

application launcher
Tap the application launcher icon
6
in the
global navigation bar to open the application
launcher.
Tap the button in the bottom center of the
screen to see
All
application icons, or to see
application icons in predefined categories. If
necessary, tap the scroll bar on the right side
of the screen to see additional icons. Tap an
icon to select it.
Tip:
To show applications in an text-based list,
tap
é
, then tap
List View
. From list view,
tap
é
, then tap
Thumbnail View
to reset the
graphic icons.
You can select the following icons on the
application launcher screens:
office applications
Application
Launcher
Icon
(Selected)
Applications
Status Bar
Scroll Bar
Button
Bar
10:03
Alarm Browser File Ma...
Calls CalendarEmail
Tasks CalculateNotes
All
ERecent Calls IEmail
JCalendar LTasks
UNotes QCalculator
ZAlarm Clock 2File Manager
ñViewer 0Business Card
Reader
29
basics
multimedia applications
extra applications
games
Your phone may contain Java™ games or
applications that add features and
functionality to your phone. Instructions are
included with each game. You select Java
games from the application launcher screen.
button bar
The button bar shows functions you can
select in the active application. Standard
buttons include:
status bar
Tip:
Tap the status bar to see additional phone
status information.
/Browser FCamera
%Recorder KVideo Camera
3Photo Editor GMedia Player
1FM Radio
TSetup ,Modem
0Bluetooth RSync
8STK 9World Time
é
Menu
Tap to open context
sensitive menu.
ó
Return
Tap to return to
previous screen.
â
Exit
Tap to exit current
application.
30
basics

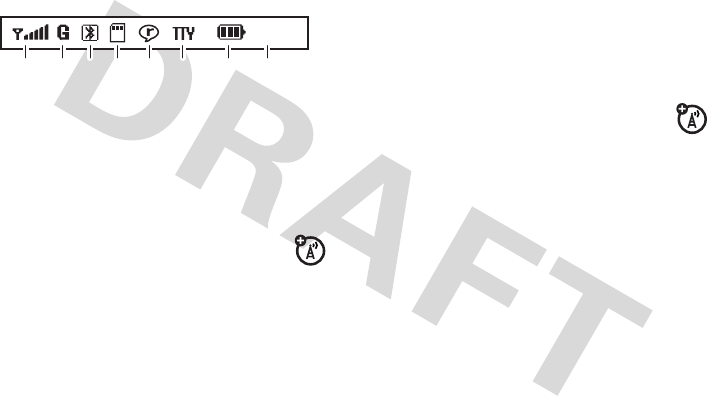

The following indicators can appear in the
status bar:
1 signal strength –
Vertical bars show the
strength of the network connection. You
can’t make or receive calls when the no
signal indicator
=
or no transmission
indicator
~
shows.
2 GPRS –
Shows when your phone is
using a high-speed General Packet
Radio Service (GPRS) network
connection.
3 Bluetooth –
Shows that Bluetooth™
power is turned on. When Bluetooth
power is on, your phone can make a
wireless connection with a headset
accessory or other external device.
4 memory card –
Shows when a memory
card is inserted in your phone.
5 RealOne –
Shows when the RealOne
media player is playing media content.
6 TTY –
Shows when your phone is
set up for use with an optional TTY
device.
7 battery level –
Vertical bars show the
battery charge level. Recharge the battery
when your phone shows
Low Battery
.
8 clock –
Shows the current time.
2846135 7
10:03
31
basics
text entry
Multiple text entry methods make it easy for
you to enter names, numbers, and messages.
The method you select remains active until
you change it.
Tap a text entry area on the screen to open a
text entry window. If necessary, tap the entry
method drop-down menu at the bottom of the
screen to select a text entry method.
Tap
ë
in the lower right corner of the screen
to hide the text entry keyboard or pad when
you’re finished, or when you want to use the
button bar functions.
handwriting
You can use the stylus as a pen to write
letters, numbers, and punctuation directly on
the screen.
In a text entry window,
tap the entry method
drop-down menu and
tap
Handwriting
to open
the handwriting pad. Tap a button on the
handwriting pad to select Chinese characters,
English text, or numbers.
Use the stylus to write in either of the two
writing spaces. For best performance,
alternate between writing spaces so that the
character in one space can be recognized
while you write in the other. You can write a
symbol (instead of text) in the symbol box in
the lower right corner of the writing area.
Write a character, then wait for your phone to
recognize and place it in the text entry
window. If the phone places an incorrect
character, tap the character in the choice area
that you want to replace it.
32
basics
Your phone can predict the word you are
writing. Tap a word in the prediction area to
place it in the text entry window. To activate
predictive text entry, see page 33.
To enter special characters or edit text, use
the function buttons described on page 33.
Pinyin keyboard
In a text entry window,
tap the entry method
drop-down menu and
tap
Pinyin Board
to enter
Chinese characters with the Pinyin keyboard.
Tap keyboard characters to spell the pinyin.
Your letters appear in the pinyin area, and
corresponding Chinese characters appear in
the choice area. To see additional characters,
tap the previous button
î
or next button
ì
.
Tap the desired character to place it at the
cursor location in the entry window.
Your phone predicts the pinyin you are
spelling, and highlights the next letters you
can type to finish the word.
Zhuyin keyboard
In a text entry window,
tap the entry method
drop-down menu and
tap
Zhuyin Board
to enter
words using Zhuyin characters.
English keyboard
In a text entry window,
tap the entry method
drop-down menu and
tap
English Keyboard
to
enter letters and numbers at the cursor
location.
33
basics
numeric pad
In a text entry window,
tap the entry method
drop-down menu and
tap
Numeric Pad
to enter
digits or numeric symbols at the cursor
location.

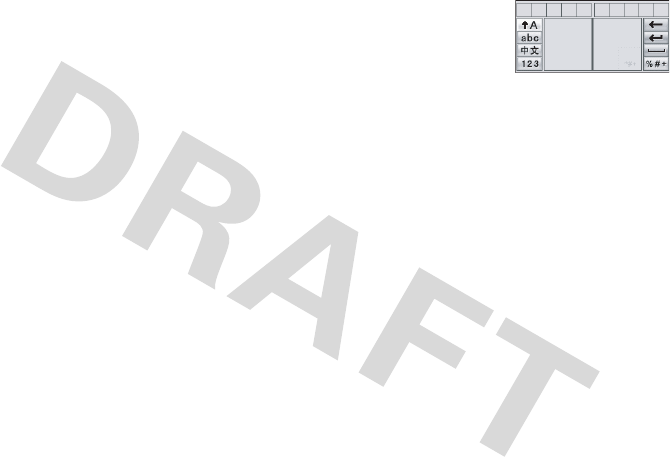

function buttons
Tap
t
with any text entry method to open
the symbol pad, to enter a symbol at the
cursor location. Tap
r
to lock or unlock the
symbol pad. Tap other buttons to perform the
following functions:
Tip:
Tap a location in the text entry window to
move the cursor to that location.
adjust text input settings
You can set your preferred input method,
primary and secondary language preferences,
specify your writing hand (left or right) and
handwriting speed, activate word prediction
and word completion, activate a user
dictionary, and apply a watermark to the text
you enter.
Tap
TSetup
in the application launcher screen,
then tap
Input Setup
to open the input setting
screen. Adjust settings, then tap
Save
to save
your settings and return to the setup screen.
tap & hold
When using phone applications, in many
cases you can tap and hold on an icon, file, or
w
Delete character to left of cursor.
v
Move cursor to next line.
u
Enter space at cursor location.
34
basics
field to open a pop-up menu to perform
various operations on the selected item. If the
specific task you want to perform in an
application is not already listed in the display,
try using tap and hold to see if the feature you
want is available in a pop-up menu.
volume
Press the side up/down keys to:
•
turn off a call alert (the
ringer that announces an
incoming call
•
change the earpiece or
speakerphone volume during a call
•
change the speaker volume when
playing a song or video clip, or when
listening to the FM radio
Tap
:
in the home screen to set the ring
alert profile. For more information, see
page 39.
navigation key
Press the navigation
key
S
up, down, left, or
right to scroll and
highlight menu items.
When you highlight
something, press the
center key
s
to select it.
This guide describes how to use the stylus
and touchscreen to use your phone’s features.
In most cases, it doesn’t include the
equivalent navigation key control for using the
feature.
35
basics
speakerphone
When you activate your phone’s handsfree
speakerphone, you can talk to the other party
without holding the phone to your ear.
During a call, tap
Spkr
to turn the handsfree
speakerphone on or off. The handsfree
speakerphone remains on until you tap
Spkr
again or turn the phone off.
The handsfree speakerphone is disabled
when you connect your phone to a handsfree
car kit or headset accessory.
codes & passwords
Your phone’s four-digit
unlock code
is
originally set to
1234
. The six-digit
security
code
is originally set to
000000
. If your
service provider didn’t change these codes,
you should change them.
You can also change your
SIM PIN
or call
barring passwords.
To change a code or password, tap
TSetup
in
the application launcher screen, tap
Security
,
then tap
Change Passwords
to open the change
passwords screen.
If you forget your unlock code:
At the
Enter Unlock Code
prompt, try entering 1234 or the
last four digits of your phone number. If that
doesn’t work, tap
é
to open the unlock code
bypass screen. Enter your security code, then
tap
OK
to submit the security code.
If you forget other codes:
If you forget your
security code, SIM PIN code, PIN2 code, or
call barring password, contact your service
provider.
36
basics
lock & unlock phone
You can lock your phone to keep others from
using it. To lock or unlock your phone, you
need the four-digit unlock code.
To
automatically lock
your phone after a
specified period of inactivity: Tap
TSetup
in
the application launcher screen, tap
Security
,
then select a
Phone Lock
timer setting. Your
phone prompts you to enter the unlock code.
Enter your unlock code to activate phone lock.
To automatically lock your phone whenever
you turn it on: Tap
TSetup
in the application
launcher screen, tap
Security
, then set
Phone Lock
to
Power On
.
To
unlock
your phone: When you see the
Enter Unlock Code
prompt, enter your unlock code
to unlock the phone.
Tip:
Your phone’s unlock code is originally set
to 1234. Many service providers reset the
unlock code to the last four digits of your
phone number.
Note:
You can make emergency calls on a
locked phone (for more information, see
page 45). You also can receive and answer
incoming calls when the phone is locked.
lock touchscreen &
phone keys
You can lock the touchscreen and phone keys
keys to prevent accidental keypresses (for
example, when carrying your phone in a purse
or pocket).

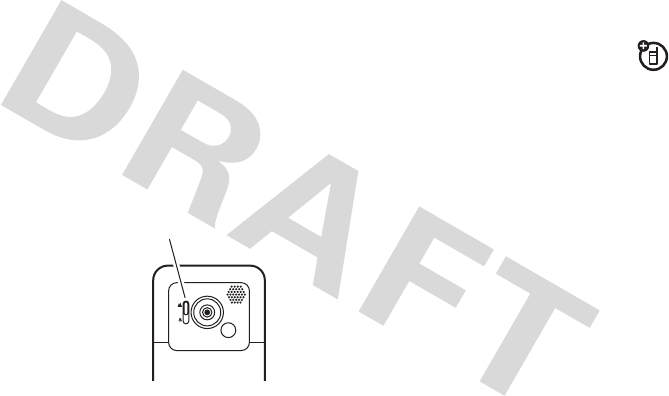

Slide the phone lock switch
down
(see
illustration on page 2) to lock the touchscreen
and keys. Slide the phone lock switch
up
to
unlock the touchscreen and keys.
37
basics
share information
You can share information with another
phone, PC, or hand-held device. You can share
address book contacts, calendar events,
tasks, note pad entries, voice records,
pictures, photos, and sound files by sending
or receiving the data through a Bluetooth
wireless connection, or in an MMS or email
message.
Tip:
In some cases, the share option is only
available from the tap and hold pop-up menu.
send data
1
Locate the data you want to share (such
as contact details, or a list of files in the
file manager), tap
é
, then tap
Share
to
select one or more items to share.
or
Tap and hold an item to open a pop-up
menu, then tap
Share
to see a list of share
options.
2
Tap
Bluetooth
, then tap
OK
to exchange the
data through a Bluetooth wireless
connection.
or
Tap
MMS
or
Email
, then tap
OK
to send the
data in an MMS or email message.
3
Complete the setup procedure for the
transfer method you selected.
4
Tap
OK
to send the data.
38
basics
For more information about using a Bluetooth
wireless connection, see page 114.
receive data
The sending device must establish a
transmission link with your phone through a
Bluetooth, MMS, or email connection.
If necessary, turn on Bluetooth power on your
phone to let the other device establish a
wireless link (to turn Bluetooth power on, see
page 115.
Your phone alerts you when it receives a data
transfer request from the other device. If
necessary, tap
OK
to accept the data.
Your phone notifies you when data transfer is
complete. If the transfer is not successful,
your phone shows the message
Failed to Receive
.
39
customize
customize
profiles
You can quickly change your phone’s ring alert
profile to match your activity, environment, or
personal requirements. Each profile uses a
different set of ringtones or vibrations for
incoming calls and other events. The
Silent
profile silences your phone until you set
another profile. Here are the profiles you can
choose:
The current profile icon shows in the lower-left
corner of the home screen.
set the ring alert profile
Tap
:
in the home screen to set the ring
alert profile.
change profile settings
You can change the ringtones that a profile
uses to notify you of incoming calls and other
events.
Note:
You can’t set a ringtone for the
Silent
profile, or change some settings for some
profiles.
1
Tap
TSetup
in the application launcher
screen, then tap
Ringer Alert Style
.
ERing Loud DVibe And Ring Loud
DVibe Then Ring Loud @Ring Soft
CVibe Then Ring Soft BSilent
AVibrate
40
customize
2
Tap a profile, then tap
Edit
to adjust
ringtone settings to personalize the
profile. You can change the ringtones used
to notify you of incoming calls and
messages, set ringer IDs, and adjust alert
volume, touchscreen volume, and keypad
volume. Any changes you make are saved
to the profile.
wallpaper
Set a photo or picture as a wallpaper
(background) image in your phone’s display.
The wallpaper image appears as a faint
watermark in text and menu displays.
1
Tap
TSetup
in the application launcher
screen, then tap
Wallpaper
.
2
Tap a photo/picture thumbnail image to
set it as the wallpaper image. Tap the
fullscreen image preview to return to the
wallpaper menu.
3
Tap
OK
to save your setting.
Tip:
Tap an unused area of the homescreen to
see an unobstructed fullscreen view of the
wallpaper image. Tap the fullscreen wallpaper
image to return to the home screen.
color scheme
Set the colors that your phone uses for
buttons, highlights, and the status bar.
Note:
This feature changes the look and feel
of the phone’s user interface, including the
icons that you see in the top global navigation
bar.
1
Tap
TSetup
in the application launcher
screen, then tap
Color Scheme
.
41
customize
2
Tap a thumbnail image to select it as the
color scheme. Your phone shows a brief
preview of the selected color scheme.
3
Tap
OK
to save your setting.
backlight
1
Tap
TSetup
in the application launcher
screen, then tap
Backlight Setup
.
2
Tap
î
and
ì
to decrease or increase
backlight brightness.
3
Tap
Backlight Sleep Time
to set the amount of
time that the backlight remains on.
4
Tap
Save
to save your settings.
Tip:
Press and hold the send key
N
in any
screen to maximize backlight brightness.
Press and hold
N
again to return to the
default brightness setting.
Note:
Your phone’s display normally is visible
only when the display backlight is on, or when
the display is viewed in direct sunlight. To
extend battery life, the backlight turns off
automatically when no activity is detected for
a period of time. The backlight turns back on
when you tap the screen or press any key.
42
calls
calls
To make and answer calls, see page 24.
recent calls
Your phone keeps lists of incoming and
outgoing calls, even for calls that didn’t
connect. The most recent calls are listed first.
The oldest calls are deleted as new calls are
added.
Shortcut:
Press the send key
N
to open the
recent calls list. Press the navigation key
S
to scroll and select a call list, scroll to a
number, press
N
to call it.
To
dial
a number in the recent calls list:
1
Tap
9
in the global navigation bar to
open the phone keypad.
2
Tap
P
to open the recent calls menu.
3
Tap
Answered Calls
,
Missed Calls
, or
Dialed Calls
to
select a call list.
4
Tap an entry to call its number.
To
see
details or perform other operations on
an entry in the recent calls list:
1
Tap
ERecent Calls
in the application
launcher screen to open the call history
screen.
2
Tap
Answered Calls
,
Missed Calls
, or
Dialed Calls
to
select a call list.
43
calls
3
Tap an entry to see call details (time, date,
duration).
4
Tap
Call
to call its number, or tap
é
to
perform the following operations:

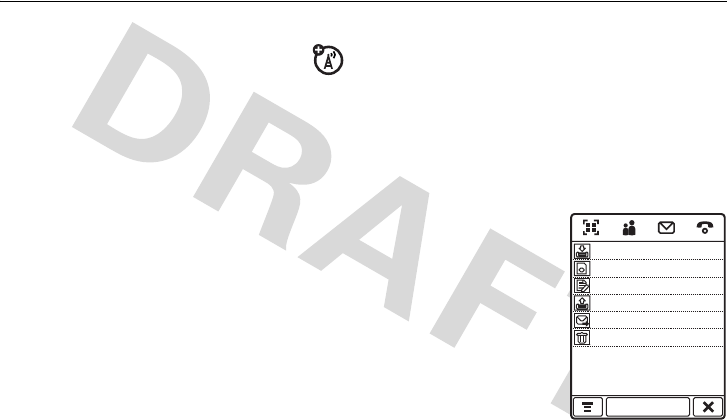

redial
1
Tap
9
in the global navigation bar to
open the phone keypad.
2
Tap
P
, then tap
Dialed Calls
to open the
dialed calls list.
3
Tap the number you want to redial.
If you hear a
busy signal
and you see
Call Failed, Number Busy
, tap
Redial
to
automatically redial the number.
To
activate
the automatic redial feature:
1
Tap
9
in the global navigation bar to
open the phone keypad.
2
Tap
é
, then tap
Setup
to open the phone
setup menu.
3
Tap the check box
e
beside
Auto Redial
. A
check mark
d
indicates that automatic
redial is activated.
4
Tap
ó
to exit the phone setup menu.
options
Store
Create an address book entry
with the number stored in the
number type field you specify.
Send SMS
Open a new text message with
the number in the
To
field.
Send MMS
Open a new multimedia
message with the number in
the
To
field.
Delete
Delete the entry.
44
calls
hold or mute a call
To put all active calls on hold, tap
Hold
. Tap
Hold
again to resume the call.
To turn off your phone’s microphone during a
call, tap
Mute
. Tap
Mute
again to resume the call.
call waiting
When you’re on a call, you’ll hear an
alert if you receive a second call.
Tap
Answer
to put the first call on hold and
answer the new call.
To switch between calls, tap
Switch
.
To connect the two calls, tap
Link
.
caller ID
Calling line identification (caller ID)
shows the phone number for an
incoming call in your phone’s display.
Your phone shows the caller’s name and
picture when they’re stored in your address
book, or
Incoming Call
when caller ID information
isn’t available.
You can set your phone to play a unique
ringtone for an entry stored in your address
book (for more information, see page 49).
To show or hide
your phone number
for the
calls that you make:
1
Tap
9
in the global navigation bar to
open the phone keypad.
2
Tap
é
, then tap
Setup
to open the phone
setup menu.
45
calls
3
Tap
Show ID
, then tap
On
or
Off
to show or
hide your caller ID for outgoing calls.
4
Tap
ó
to exit the phone setup menu.
Tip:
Select
Network Controlled
to let the network
determine your caller ID status.
cancel incoming call
While the phone is ringing or vibrating,
tap
Ignore
to cancel the incoming call.
Depending on your phone settings and/or
service subscription, the call may be
forwarded to another number, or the caller
may hear a busy signal.
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911 or
112, that you can call under any
circumstances, even when your phone is
locked or the SIM card is not inserted.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
1
Tap
9
in the global navigation bar to
open the phone keypad.
2
Tap the keypad keys to dial the
emergency number.
3
Tap
Send
to make the call.
46
calls
international calls
Open the phone keypad, tap
é
, tap
Insert
, then select
Insert +
to insert your
local international access code
(indicated by
+
). Then, tap the keypad keys to
dial the country code and phone number.
Shortcut:
Tap and hold the
0
key on the
phone keypad to insert your international
access code.
turbo dial
You can store nine phone numbers in the
turbo dial list, then dial the numbers by
tapping and holding a single keypad number
key.
To
turbo dial
a phone number:
1
Tap
9
in the global navigation bar to
open the phone keypad.
2
Tap and hold a keypad key to dial the
phone number assigned to the key.
If no number is stored, your phone prompts
you to store a phone number in the turbo dial
numbers list.
To
set up
the turbo dial numbers list:
1
Tap
9
in the global navigation bar to
open the phone keypad.
2
Tap
é
, then tap
Setup
to open the phone
setup menu.
3
Tap
Turbo Dialing
to open the turbo dial list.
4
Enter phone numbers in the turbo dial list.
47
calls
dial extension or
voicemail number
To
direct dial
an extension number or
voicemail number, you can insert a pause
character (
P
) in the dialing sequence.
1
Use the keypad key to dial the phone
number.
2
When you need to insert a pause, tap
é
,
tap
Insert
, then select
Insert Pause
to insert a
P
at the cursor location.
3
Dial the extension number.
4
Tap
Call
to make the call.
Your phone dials the phone number, waits for
the call to connect, then dials the remaining
digits.
Tip:
Use the same procedure to insert a wait
character (
W
) in the dialing sequence. Your
phone dials the number, waits for the call to
connect, then prompts you for confirmation
before it dials the remaining digits.
dial extension number
during a call
1
Tap the keypad button
à
to open the
phone keypad.
2
Dial the extension number.
3
Tap
í
to return to the in-call screen.
48
address book
address book
You can store a contact list of names, phone
numbers, and email addresses in your
phone’s electronic address book.
view contact list
Tap
5
in the global navigation bar to open the
address book. To change the way your contact
list is shown, tap
é
, tap
Setup
, then tap the
Default List Display
drop-down menu to select
List View
or
Thumbnail View
.
use category views
Defining categories for your contacts helps
you manage address book information. You
can classify contacts in different categories
according to your communication needs, and
see contacts by category. Your phone
provides the following basic categories:
All
– Lists all contacts stored on your phone
and on your SIM card.
Unfiled
– Lists contacts stored on your phone
that are not assigned to a user-defined
category. This is the default category setting
for new contacts.
SIM Card
– Lists contacts stored on your SIM
card.
In the contact list, tap the category button in
the bottom button bar and select a category
name to see only the contacts in that
category.
Tip:
To
create
and/or
edit
your own
user-defined categories, see page 53.
49
address book
view and edit contact details
1
In the contact list, tap a contact name to
see its details.
2
Tap
Edit
to edit the contact. Your phone
shows complete contact details.
3
To edit contact information, tap the direct
line in the field you want to edit.
4
When you are finished editing contact
information, tap
Done
to store your changes
and return to the contact list.
add new contact
Contacts can be stored to phone memory or
SIM card memory. To set the default storage
location, see page 52.
Note:
You can enter only a name and a single
phone number for each contact that you store
on the SIM card.
1
Tap
5
in the global
navigation bar to
open the address
book.
2
Tap
é
, then tap
New Contact
.
3
On the new
contact screen, tap
the
field to
assign a picture ID to the entry. Your
phone shows the picture when you
receive a call from this contact.
4
Tap the direct line in a field to enter
contact details. Pull down the scroll bar to
see additional fields.
5
To set a distinctive ringtone for the
contact, tap the
RingTone
field and select
Browse
. Scroll to select the desired tone
and tap
OK
. Your phone sounds the
First Name:
Category: Unfiled
Last Name:
<Mobile>
<Email>
<Fax>
<Work>
<Home>
Done
50
address book
ringtone when you receive a call from this
contact.
6
When you are finished entering
information, tap
Done
to store the contact.
create group
You can create a group mailing list consisting
of multiple contacts stored in the address
book. Groups make it easy for you to send a
message to multiple recipients
simultaneously.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, then tap
New Distribution List
.
3
Tap
Messaging
or
Email
to specify the default
type of message to send to the group,
then tap
OK
. You must enter a name for
the group, and the group must contain at
least one member.
4
When you finish entering information, tap
Save
to store the group.
call or send message
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap a contact name to see its details.
3
In the details list:
•
Tap the phone number following the
mobile phone indicator
c
to call the
contact’s mobile phone. Other
indicators may identify other numbers
stored for the contact (such as home,
work, or fax).
51
address book
•
Tap the message indicator
a
to the
right
of a phone number to send an
SMS or MMS message to the number.
•
Tap the email address following the
email indicator
b
to send an email
message to the address. Alternatively,
tap the message indicator
a
to the
right
of the email address to send an
MMS message to the address.
search
Tip:
To quickly search for a contact by name,
tap the quick search icon in the lower right
corner of the contact list, then enter the first
few letters of the name you want.
To do a comprehensive search of the contact
list by name, number, or other information
stored for a contact:
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, tap
More
, then tap
Find Contacts
.
3
Select
Contact’s Name
,
Number
, or
Other
, enter
the desired information in the
Search Text
field, then tap
Find
.
Your phone shows the search result, or
notifies you that no match can be found.
To continue searching, tap
Find New
.
To return to the contact list, tap
ó
.
52
address book
sort
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, then tap
Setup
.
3
Tap the
Sort Names By
drop-down menu to
sort the contact list by
First Name
or
Last Name
.
4
Tap
Save
to save the setting.
delete contact
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, then tap
Delete Contacts
.
3
Check the contact(s) you want to delete,
then tap
Delete
.
4
Tap
OK
to confirm the deletion.
storage location
Contacts can be stored to phone memory or
SIM card memory. You can set the default
memory location where new address book
contacts are stored.
Note:
You can enter only a name and a single
phone number for each contact that you store
on the SIM card.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, then tap
Setup
.
3
Tap the
Default Memory Location
drop-down
menu to set the default memory location.
4
Tap
Save
to save the setting.
53
address book
copy contacts
You can copy contacts between your phone
and SIM card. This procedure does
not
delete
the original contact.
Note:
The SIM card can store only a name
and one phone number per contact. When
you copy an entry from the phone to the SIM
card, your phone prompts you to specify the
number you want to store for the contact.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, then tap
Copy to SIM/Phone
.
3
Select
Phone to SIM
or
SIM to Phone
, then tap
OK
.
4
Check the number(s) you want to copy. If
you copy from the SIM card to phone
memory, specify the number type.
5
Tap
OK
to copy the numbers to the new
location.
Note:
The number of entries you can store on
your SIM card depends on the SIM card
capacity. The types of entries that can be
copied to the SIM card may vary depending
on the function of the SIM card.
categories
Your can create user-defined categories to
organize your contacts.
create a new category
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap the category button in the bottom
button bar, then tap
Edit Category
.
54
address book
3
Tap
é
, then tap
New
to create a new
category.
4
Tap the
Name
field to assign a name to the
category, then tap
OK
.
5
Tap
Add Members
, then check the contacts
you want to add to the category.
6
Tap
Select
to add the selected contacts to
the category.
add members to a category
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap the category button in the bottom
button bar, then tap
Edit Category
.
3
Select the category, tap
Add Members
, then
check the contacts you want to add to the
category.
4
Tap
Select
to add the selected contacts to
the category.
set category ringtone
You can set a special ringtone to play when
you receive calls from contacts in a specific
category.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap the category button in the bottom
button bar, then tap
Edit Category
.
3
Select the category, tap
é
, then tap
Category RingTone
.
4
Tap the
RingTone
drop-down menu, then tap
Browse
to look for the ringtone you want to
use.
5
Scroll to select the desired ringtone, then
tap
OK
.
55
address book
6
Tap
Save
to save the setting.
delete a category
You can delete a user-defined category in your
address book. Any contacts assigned to the
deleted category revert to the default
Unfiled
category setting.
Note:
Yo u c a n
not
delete the predefined
categories in your address book.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap the category button in the bottom
button bar, then tap
Edit Category
.
3
Select the category, tap
é
, then tap
Delete
.
4
Tap
OK
to confirm the deletion.
check capacity
You can see the number of address book
entries currently stored on the phone and SIM
card, and the total number of entries you can
store on the SIM card.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, tap
More
, then tap
Memory Status
. Your
phone shows the number of phone and
SIM card contacts, and the SIM card
capacity (number of contacts).
3
Tap
ó
to return to the address book.
56
address book
share contact
You can share contact information with others
by sending the data as a vCard to another
phone, PC, or hand-held device.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap the name of the contact you want to
send. Your phone shows contact details.
3
Tap
é
, then tap
Share
.
4
Tap
Bluetooth
, then tap
OK
to exchange the
data through a Bluetooth™ wireless
connection.
or
Tap
Message
or
Email
, then tap
OK
to send the
contact data in an MMS or email
message.
5
Complete the setup procedure for the
transfer method you selected.
6
Tap
OK
to send the contact information in a
vCard.
For more information about using a Bluetooth
wireless connection, see page 114.
synchronize contacts
You can synchronize contacts with your
PC through a Bluetooth wireless
connection or USB cable connection
using Motorola mobile PhoneTools software.
For more information, see page 118.
57
address book
owner’s information
You can store information about yourself in
the address book. Then, if you lose your
phone, the person who finds it can contact
you to return the phone.
1
Tap
5
in the global navigation bar to open
the address book.
2
Tap
é
, then tap
Owner’s Information
.
3
If owner’s information is stored, the
phone show the owner’s contact details.
Tap
Edit
to edit the owner’s information.
4
If owner’s information is not stored, the
phone shows the owner’s information
entry screen. Enter information as you
would for a new contact (see page 49.).
5
When you are finished entering
information, tap
Done
to store the owner’s
information.
58
messages
messages
You can send and receive short
text-based SMS messages, and
multimedia MMS messages containing
media objects such as photos, pictures,
animations, sounds, voice records, and video
clips.
Note:
Your phone sends an SMS text
message by default, unless you insert
multimedia content or perform a function
reserved for MMS multimedia messages.
Instant messaging lets you exchange
messages in real time with other wireless
phone users.
message center
Note:
You must set up your message service
before
you can send and receive messages.
Usually, your service provider has already set
up the message inbox for you. For setup
instructions, see page 69.
Tap
7
in the global
navigation bar to open
the message center.
Your messages are
stored in different
folders in the message
center. The number to
the right of each folder
name indicates the
Inbox
0 [0]
0 [0]
0 [0]
0 [0]
0 [0]
0 [0]
Trash
Sent Items
Outbox
Drafts
SIM Card
Compose
59
messages
number of messages it contains. Tap a folder
to see its contents.
The message center contains the following
folders:
Inbox –
Stores SMS and MMS messages you
have received. You can move messages from
the Inbox to other folders, including personal
folders that you create. For more information
about creating folders, see page 67.
SIM Card –
Contains SMS messages stored
on your SIM card. You can move these
messages to other folders.
Drafts –
Temporarily stores messages that
you are still writing.
Outbox –
Stores your messages that have
not yet been sent.
Sent Items –
Stores copies of messages you
have sent.
Tr a s h –
Stores messages you have deleted. If
you have not permanently deleted a message,
you can retrieve it.
You can create additional personal folders to
organize and store your messages.
signature
You can store your signature, and
automatically or manually append it to the
messages you send.
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
é
, then tap
Signature Editing
to open the
signature editing screen.
3
Tap the direct line in the
Signature Content
field
to enter your signature.
4
If you want your phone to automatically
add your signature to all outgoing
60
messages
messages, tap the check box
e
below
the signature. A check mark
d
indicates
that automatic signature is activated.
5
Tap
Save
to store your signature.
send text message
You can send an SMS short text
message to other wireless phone
users, and to email addresses.
To compose and send an SMS message:
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
Compose
.
3
Tap the message field, then tap the text
entry method drop-down menu at the
bottom of the screen and select an entry
method to enter text in the message field.
When you are finished, tap
ë
in the
lower right corner of the screen to hide
the text entry keyboard or pad.
Alternatively, you can tap
é
, tap
Load
, then
tap
Quick Text
to insert a prewritten quick
text note in the message field
4
Tap
To
to select contacts from your
address book, or tap the direct line in the
To
field to enter a phone number or email
address.
5
Tap
Send
to send the message.
When composing an SMS message, you can
tap
é
to perform various operations on the
message prior to sending it. The SMS menu
can include the following options:
options
Load
Insert a quick text note or
auto-signature in the message.
61
messages
send multimedia
message
A Multimedia Messaging Service
(MMS) multimedia message contains
one or more pages with text and
embedded media objects (including photos,
pictures, animations, sounds, voice records,
and/or video clips). You can send an MMS
message to other wireless phone users, and
to email addresses.
To compose and send an MMS message:
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
Compose
to open
the message
composition
screen.
3
Tap the message
field, then tap the
text entry method
drop-down menu
at the bottom of
the screen and
select an entry method to enter text in the
message field. When you are finished,
tap
ë
in the lower right corner of the
screen to hide the text entry keyboard or
pad.
Save To
Save the message to the
Drafts
folder.
Send
Options
Receipt Request
: Request a delivery
report for the message.
Expire After
: Set the expiration
time for an undelivered
message.
Delete
Delete the message.
options
MMS
0.00k 1/1
To . . .
Send
62
messages
4
Tap a button in the media toolbar at the
bottom of the screen to insert media
objects on the page or attach files to the
message.
•
Tap
j
to insert a picture, video, or
new drawing on the page.
•
Tap
F
to insert a sound file or new
voice record on the page.
•
Tap
G
to activate the camera, take a
photo or record a video clip, and insert
it on the page.
•
Tap
h
to attach a contact, event,
task, or file to the message.
5
To add a new page after the current page,
tap
i
. Repeat steps 3 and 4 to enter
contents for the new page.
6
Tap
To
to select contacts from your
address book, or tap the direct line in the
To
field to enter a phone number or email
address.
7
Tap
Cc
,
Bcc
, or
Subject
to enter additional
recipients or a message subject. (Use the
MMS menu, described below, to show or
hide these fields.)
8
Tap
Send
to send the message.
When composing an MMS message, you can
tap
é
to perform various operations on the
message prior to sending it. The MMS menu
can include the following options:
options
Load
Insert a quick card, quick text
note, or auto-signature in the
message.
Save To
Save the message to the
Drafts
folder, or save it as a quick card.
63
messages
Send To
Blog
Send the message to
your personal Web log.
Page
Duration
Set the number of seconds each
page is shown.
Preview
Preview the MMS message.
Show
Show or hide the
Cc
,
Bcc
, and/or
Subject
header fields. Use
Cc
or
Bcc
to carbon-copy or
blind-carbon-copy the message
to additional recipients. Use
Subject
to specify a subject for the
message.
options
Send
Options
Receipt Request
: Request a delivery
report for the message.
Expire After
: Set the expiration
time for an undelivered
message.
Priority
: Set message priority.
Expire After
: Set a time and date
for your phone to send the
message.
Delete
Delete the current page, delete
an object on the page, or delete
the message.
options
64
messages
unsent messages
Outgoing messages that failed to send or
have not yet been sent are stored in the
outbox.
On the message center screen, tap
Outbox
to
see its contents. Messages in the outbox are
sorted from newest to oldest.
Tap a message to read it. You can edit the
message while it is open.
tips for sending
messages
•
When you enter an SMS text message,
a counter at the top right corner of the
display shows the number of
characters left on the current page, and
the number of pages you have written
(character#/ page#). Network charges
are based on the number of pages
sent.
•
When you enter an MMS multimedia
message, a counter at the top of the
display shows the current message
size in kilobytes. Another counter
shows the number of pages.
•
When you manually enter phone
numbers and/or email addresses in the
To
field, you must insert a comma
between each entry.
receive message
Your phone shows the new message
icon
8
in the global navigation bar when
you receive a new message.
Tap
8
to see message details (sender,
subject, time, and size).
65
messages
Tap
Read
to read an SMS message. Tap
Download
to download an MMS message to your
phone, then tap
Read
to read it.
Tap
ó
to return to the previous screen
without reading the message. The message
is stored in the inbox.
Tap
é
to perform various operations on the
message. The received message menu can
include the following options:
When your phone shows
Memory is Full!
, you
must delete some existing messages from
your inbox, outbox, or drafts folder to receive
new messages.
options
Reply With
Original
Include a copy of the original
message in your reply. (SMS
only)
Call Back
Call a phone number embedded
in the message header or
message body.
Forward
Open a copy of the message,
with an empty
To
field.
Save
Address
Save the sender’s email
address.
Save Object
Save a media object in the
message. (MMS only)
Save As
Quick Card
Save the current MMS page as
a quick card. You can insert the
quick card into MMS messages
that you compose. (MMS only)
Move To
Folder
Move the message to another
folder.
Delete
Message
Delete the message.
options
66
messages
read and reply
Messages that you receive are stored in the
inbox.
On the message center screen, tap
Inbox
to
see its contents. Messages in the inbox are
sorted from newest to oldest.
Tap a message to read it. Your phone shows
the sender’s name (if stored in your address
book) or phone number, the message
contents, and the time it was sent.
•
Tap
Reply
to send a reply to the
message
•
Tap
ó
to return to the previous screen
without making any changes.

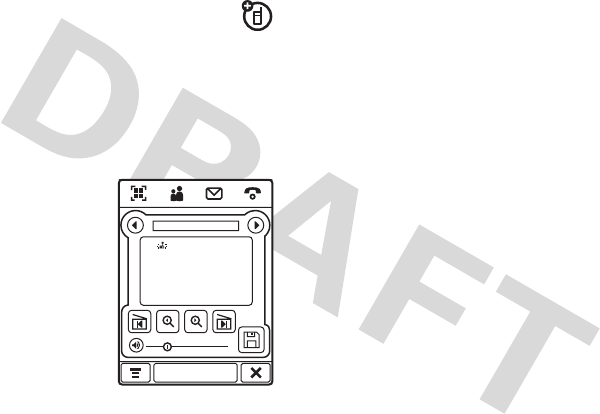

store message object
To store a media object contained in a
multimedia message, tap and hold the
object to open a pop-up menu, then select
Save
to store the object on your phone.
If the object is contained in a message
attachment, tap and hold the attachment to
open a pop-up menu, then select
Save
to store
the object.
sort messages
On the
Inbox
,
Outbox
, or
Trash
screen, tap
é
, then
tap
Sort By
to sort messages by
Time
,
Subject
, or
Name
.
drafts
Messages that you are still writing are stored
in the drafts folder.
On the message center screen, tap
Drafts
to
see its contents. Tap a message to read it.
67
messages
You can edit the message while it is open, and
then send it immediately.
deleted messages
Messages that you delete are stored in the
trash folder.
On the message center screen, tap
Trash
to
see its contents. Tap a message to read it.
You can edit the message while it is open.
Tap
Delete All
to permanently delete all
messages in the trash folder.
messages on SIM card
On the message center screen, tap
SIM Card
to
see the messages stored on your SIM card.
Tap a message to read it.
create folder
You can create one or more personal folders
to store your messages, and lock your
personal folders to prevent other users from
reading the messages stored in them.
To create a personal folder:
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
é
, then tap
New Folder
.
3
Tap the direct line in the
Name
field to enter
a name for the folder.
4
To lock the folder to prevent unauthorized
access, tap the check box
e
beside
Protected by Lock Code?
. A check mark
d
indicates that the folder lock feature is
activated.
5
Tap
Done
to save the folder.
68
messages
The personal folder is listed on the message
center screen along with your other folders. If
the personal folder is locked, your phone
prompts you to enter the phone unlock code
when you try to open the folder or move a
message to it. Enter your unlock code to open
the folder.
To
edit
a personal folder, open it and tap
é
,
then tap
Folder Setup
. You can change the folder
name, and turn the folder lock feature on or
off as desired.
To
delete
a personal folder, open it and
tap
é
, then tap
Delete Folder
. Tap
OK
to confirm
the deletion.
Note:
You must remove all messages from a
personal folder in order to delete it.
move messages
You can move messages between folders. For
example, you can move a message from the
inbox to the SIM card folder and take it with
you when you use your SIM card in another
phone, or move it to a locked personal folder
to prevent others from reading it.
To move messages to another folder:
1
Tap
7
in the global navigation bar to
open the message center.
2
Open the folder that contains the
message(s) you want to move.
3
Tap
é
, then tap
Move
.
4
Tap the check box
e
beside each
message you want to move, or tap the
check box beside
All
to select all
messages. A check mark
d
indicates that
the message is selected.
69
messages
5
Tap
OK
to open the move to folder screen.
6
Tap the destination folder, then tap
OK
to
move the messages.
Tip:
To quickly move a single message, tap
and hold the message to open a pop-up
menu, then select
Move to Folder
.
set up message service
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
é
, then tap
Service Setup
.
3
Tap
Short Message
or
Multimedia Message
to
configure your SMS or MMS inbox
settings as described in the following
section.
4
When you’re finished, tap
OK
to save your
settings.
SMS setup options
Note:
Actual field names and values may vary
depending on the technologies available to
your service provider. Some settings may not
be available for all phone models.
options
Server
Center
Number
Number of the center that
handles your outgoing text
messages.
Expire After
Number of days your network
should attempt to send
undelivered text messages.
70
messages
MMS setup options
Note:
Actual field names and values may vary
depending on the technologies available to
your service provider. Some settings may not
be available for all phone models.
options
Default
Profile
Select an MMS network profile.
(See next section to edit profile
settings or create a new
network profile.)
Expire After
Number of days your network
should attempt to send
undelivered MMS messages.
Max
Sending Size
Maximum size of incoming
multimedia message to be
downloaded to your phone.
Auto
Download
Automatically download MMS
messages to your phone. You
can set this function to be
disabled when roaming, and set
a maximum file size for
auto-downloaded messages.
Show My
Number
Send your number with
outgoing MMS messages.
Allow
Delivery
Report
Send a delivery report for an
incoming MMS message when
requested.
Block
Senders
Block incoming MMS messages
from specific senders.
Reject Read
Reply
Request
Do not send a reply to the
sender when you read a new
received message.
Auto Retry
Automatically attempt to resend
messages when delivery fails.
options
71
messages
MMS network profile setup
You can edit an existing MMS network profile
or create a new MMS network profile.
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
é
, then tap
Service Setup
.
3
Tap
Multimedia Message
to open the MMS
inbox setup editor.
4
Tap the folder tree icon
_
in the
Default Profile
field to open the MMS profile
list.
5
To edit an existing MMS network profile,
highlight the profile, tap
é
, then tap
Edit
.
or
To create a new MMS network profile,
tap
é
, then tap
New
.
6
When you’re finished, tap
Save
to save
your settings.
You must enter the following configuration
settings. If necessary, contact your service
provider to obtain the following information:
options
Profile
Name
Enter the profile name.
MMSC
Select the server you want to
use (information may be
viewable only).
Network
Profile
Select a network connection
profile to connect to the
Internet. For more information,
see page 98.
WAP
Gateway IP
Primary service gateway IP
address for your WAP service
provider.
Port Number
Primary service port number.
72
messages
browser messages
You r network’s Web server can send
you browser messages that you read in
your micro-browser.
Your phone shows the new message icon
8
in
the global navigation bar when you receive a
new browser message. Tap
Read
to read the
message.
You must activate the feature to receive
browser messages.
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
é
, then tap
Service Setup
.
3
Tap
Browser Message
to open the WAP push
editor.
4
Tap
Receive All
to receive all browser
messages, or
Restricted
to restrict the
browser messages you receive.
5
Tap
Save
to save the setting.
information service
messages
Information service messages are
broadcast messages that you can
receive, such as stock updates, news
headlines, or sports scores.
Your phone shows the new message icon
8
in
the global navigation bar when you receive a
new information service message. Tap
Read
to
read the message.
WAP
Gateway
IP(2)
Secondary service gateway IP
address.
Port Number
Secondary service port number.
options
73
messages
Note:
You must set up your information
service
before
you can receive information
service messages. Usually, your service
provider has already set up the information
service for you.
1
Tap
7
in the global navigation bar to
open the message center.
2
Tap
é
, then tap
Service Setup
.
3
Tap
Info Service
to open the info service
setup editor.
4
Tap
Service On
to activate info service on
your phone.
5
Tap
Active Channels...
to set subscription
channels.
6
Tap
é
, then tap
New Channel
to add a new
channel.
or
Tap
é
, then tap
Delete Channels
to delete one
or more channels.
7
Tap
Save
to save your settings.
8
Tap
OK
to exit the active channels menu.
9
Tap
Languages
to set the languages in which
you receive cell broadcasts.
10
Set the first and second languages, then
tap
Save
to save the language settings.
11
Tap
Save
to save your info service settings.
74
office applications
office applications
email
You can send and receive email
messages with your wireless phone.
Tip:
To send and receive email messages, you
must have an Internet connection, and have a
POP3, IMAP, or SMTP email account on the
Internet or your service provider’s network. If
necessary, see page 98 for information on
how to set up a network connection profile.
mailboxes and folders
Note:
You must set up your email mailbox
before
you can send and receive email
messages. Usually, your service provider has
already set up the email mailbox for you. For
setup instructions, see page 77.
Tap
IEmail
in the application launcher screen
to launch the email application.
Email messages are stored in different folders
in your email mailbox:
Inbox –
Email messages you have received.
Outbox –
Your emaill messages that have not
yet been sent.
You may have additional folders in an email
mailbox, such as
Drafts
,
Sent Items
,
Trash
, or
personal folders that you create.
If you have separate mailboxes for different
email accounts, tap the
Mailbox
field at the top
of the email message screen to select the
mailbox you want to use. Your phone shows
the folders associated with the selected
mailbox.
75
office applications
send an email message
You can send an email message to one
or more recipients. You can manually
enter each recipient’s email address, or
select addresses from the address book.
When you manually enter email addresses,
you must insert a comma, semicolon, or colon
between each address.
To compose and send an email message:
1
Tap
IEmail
in the application launcher
screen to launch the email application.
2
Tap
é
, then tap
New Email
to open the
email message composition screen.
3
Tap the direct line in the
Subject
field to
enter a subject for the message.
4
Tap the message field, then tap the text
entry method drop-down menu at the
bottom of the screen and select an entry
method to enter text in the message field.
When you are finished, tap
ë
in the
lower right corner of the screen to hide
the text entry keyboard or pad.
5
Tap
To
to select contacts from your
address book, or tap the direct line in the
To
field to enter an email address.
6
Tap
Send
to send the message.
When composing an email message, you can
tap
é
to perform various operations on the
message prior to sending it. The email menu
can include the following options:
options
Save to
Draft
Save the message to the
Drafts
folder.
Insert
Signature
Append your signature to the
end of the message.
76
office applications
receive an email message
Email messages that you receive are
stored on your service provider’s email
server until you download them to your
phone.
Tap
IEmail
in the application launcher screen
to launch the email application. Tap
Send/Rec.
to
download new received messages to your
phone.
When you download an email message:
•
Tap
.
to see message details (sender,
subject, time, and size).
•
Tap the message to read it.
•
Tap
Reply
to send an email reply to the
message.
•
Tap
é
to perform various operations
on the message. The received email
message menu can include the
following options:
Cc and Bcc
Options
Show
Cc
and/or
Bcc
header fields
to carbon-copy or
blind-carbon-copy the message
to additional recipients.
Attachments
Attach a contact, calendar
event, task, or media object to
the message.
Priority
Set message priority.
Delete
Attachment
Delete message attachments.
options
options
Save File
Save a media object attached to
the message.
Move To
Folder
Move the message to another
folder.
77
office applications
create a personal folder
The procedures for creating and using a
personal folder are similar to the
corresponding message center procedures.
See page 68 for more information.
set up the email mailbox
If the phone cannot locate your email mailbox,
it opens the mailbox setup screen for you to
configure your mailbox settings.
automatic setup
1
Select your email service provider from
the mailbox setup list, then tap
OK
.
2
Enter your User
Name
and
Password
in the
appropriate fields, confirm your password
in the
Reenter Password
field, then tap
OK
.
3
To edit email sending, receiving,
signature, connections options, tap the
mail box name you wish to edit. Then
enter settings as described in the
following section.
manual setup
If your service provider is not listed on the
mailbox setup list, you can manually set up
your email mailbox as follows:
1
Tap
Setup Manually
on the mailbox setup
screen to manually enter email settings,
then tap
OK
.
2
Tap the
Mailbox Name
field and enter your
mailbox name.
Delete
Message
Delete the message.
options
78
office applications
3
Tap
Send Setup
and
Receive Setup
to configure
your email sending server and receiving
server settings as described below.
4
Tap
Signature Setup
, If you want your phone
to automatically append your signature to
all outgoing email messages, tap the
check box
e
beside
Add signature to all outgoing
messages
. A check mark
d
indicates that
automatic signature is activated.
5
Tap the signature field and enter your
signature.
6
Tap
OK
to save your signature.
7
Tap
Connections Setup
, then select the type of
connection desired and tap
OK
.
8
Tap
OK
to store your mailbox settings.
send setup options
Note:
Actual field names and values may vary
depending on the technologies available to
your service provider. Some settings may not
be available for all phone models.
options
Server
IP address or host name that
handles your outgoing email.
Port
Port number for sending host.
Email
Your email address.
Nickname
Name to be inserted before
your return address, if desired.
79
office applications
receive setup options
Note:
Actual field names and values may vary
depending on the technologies available to
your service provider. Some settings may not
be available for all phone models.
Authentication
Set
Authentication
to
On
if you
need a user name and
password to access your
outgoing email server.
Set
Same as Receive
if user name
and password are the same as
for your incoming email
server.
Otherwise, enter your
outgoing email server
User Name
and
Password
, and confirm your
password in the
Reenter Password
field.
options
options
POP3
or
IMAP
Select the protocol to
communicate with the receiving
host:
POP3
or
IMAP
.
Server
IP address or host name that
handles your incoming email.
Port
Port number for receiving host.
User Name
Your user name.
User
Password
Your user password.
Reenter
Password
Confirm your user password.
80
office applications
Check All
Folders
Select to check all folders for
email.
Set the
Root Folder Path
that your
phone should search.
Save
Special
Folders
Select to specify additional
email folders.
You can set the
Sent Items Path
and
the
Drafts Path
.
Message
Size
Limitation
Maximum size of an email
message to be downloaded to
your phone.
options
Keep on
Server
Select to save copies of your
email messages on the remote
server. (For POP3, prevents
message deletion on remote
server after message is
downloaded to your phone. For
IMAP, prevents message
deletion on remote server after
message is deleted on your
phone.)
options
81
office applications
calendar
You can use your phone’s calendar to
schedule and organize events such as
appointments and meetings.
Tap
JCalendar
in the application launcher
screen to schedule or review calendar events.
month view
The calendar initially
shows a calendar for
the month.
Tap
î
or
ì
to go to the
previous or next
month.
An indicator in the
lower left corner of the
date box indicates that
one or more events are scheduled for the day.
Tap the date box to see the day’s events. Tap
an event to see event details.
week view
Tap the
Month
button in
the bottom button bar,
then select
Week
to see
the week view.
Tap
î
or
ì
to go to the
previous or next week.
Vertical bars indicate
scheduled events for
the day. A horizontal
bar below the date indicates a full-day event.
Tap the day to see the day’s events. Tap an
event to see event details.
29
1234
891011567
15 16 17 1812 13 14
22 23 24 2519 20 21
44
40
30 3126 27 28
41
42
43
Oct 2008
SFTWTMS
Month
Oct 2008 Week 42
SSFTWTM
Week
12 181716151413
1pm
8am
9am
10am
12pm
11 a m
82
office applications
day view
Tap a day in the month
or week view to see
the day’s events.
Alternatively, you can
tap the
Month
button in
the bottom button bar,
then select
Day
to see
the highlighted day.
Tap
î
or
ì
to go to the
previous or next day.
Tap an event to see event details.
add new event
You can create an event, and set your phone
to remind you when the event time arrives.
1
Tap
JCalendar
in the application launcher
screen to open the calendar.
2
Tap the day to which you want to add an
event. Your phone lists the day’s events.
3
Tap
é
, then tap
New Event
to open
the new event
editor.
Shortcut:
Tap an
hour in the day
view to add an
event at that time.
4
Tap the direct line
in a field to enter event details. Pull down
the scroll bar to see additional fields.
5
When you’re finished entering
information, tap
Save
to store the event.
schedule a meeting
You can send a meeting request
message to other wireless phone
Thu Oct 16 2008
Date
Day
1pm
2pm
8am
9am
10am
12pm
11 a m
Create new event
Subject...
10-16-2008
Start: 12:00
10-16-2008
End: 13:00
All day event
Location...
Save
83
office applications
users, and to email addresses. The meeting is
added to your calendar, and to the calendars
of the message recipients.
1
Tap
JCalendar
in the application launcher
screen to open the calendar.
2
Tap
é
, then tap
New Meeting Request
to open
the meeting request editor.
3
Tap the direct line in a field to enter
meeting details. Pull down the scroll bar
to see additional fields.
4
When you’re finished entering
information, tap
Send
to send the meeting
request and add the meeting to your
calendar.
edit an event
1
Tap the event to see event details.
2
Tap
Edit
to open the event editor.
3
Tap the direct line in a field to edit its
contents. Pull down the scroll bar to see
additional fields.
4
When you’re finished editing information,
tap
Save
to store the event.
delete an event
1
Tap the event to see event details.
2
Tap
é
, then tap
Delete
.
3
Tap
OK
to confirm the deletion.
Alternatively, to delete an event, tap and hold
the event title, then select
Delete
from the
pop-up menu.
dismiss reminder alarm
When you set a reminder alarm for an event,
the phone shows an event reminder and
sounds a reminder alarm.
84
office applications
Tap
Snooze
to turn off the reminder alarm for a
short period of time. The reminder alarm
sounds again when the snooze period
expires.
Tap
Cancel
to dismiss the reminder alarm.
If you have more than one event set up for the
same time, the phone shows each event in
sequence. As you read and dismiss each
event reminder, the next event is shown.
change the calendar setup
You can set the calendar’s default view
(month, week, day), weekly start day, daily
start time, reminder snooze period, event
storage period, alarm timeout, and lunar
calendar.
When you select
Alarm When Power Off
in the
calendar setup screen, your phone turns itself
on if necessary to remind you about
scheduled events.
1
Tap
JCalendar
in the application launcher
screen to open the calendar.
2
Tap
é
, then tap
Setup
.
3
Tap a field to change its setting. Pull down
the scroll bar to see additional fields.
4
When you’re finished changing settings,
tap
Save
to store the settings.
share event information
You can share calendar events with others by
sending the data as a vCalendar entry to
another phone, PC, or hand-held device.
1
Tap
JCalendar
in the application launcher
screen to open the calendar.
2
Tap the name of the event you want to
send. Your phone shows event details.
3
Tap
é
, then tap
Share
.
85
office applications
4
Tap
Bluetooth
, then tap
OK
to exchange the
data through a Bluetooth™ wireless
connection.
or
Tap
Message
or
Email
, then tap
OK
to send the
event data in an MMS or email message.
5
Complete the setup procedure for the
transfer method you selected.
6
Tap
OK
to send the event information in a
vCalendar entry.
For more information about using a Bluetooth
wireless connection, see page 114.
synchronize calendar entries
You can synchronize calendar entries
with your PC through a Bluetooth
wireless connection or USB cable
connection using Motorola mobile
PhoneTools software. For more information,
see page 118.
tasks
You can create and review a checklist of tasks
you need to perform, and set your phone to
notify you when task deadlines arrive.
add new task
1
Tap
LTasks
in the application launcher
screen to open the task list.
2
Tap
é
, then tap
New
.
3
Tap the direct line in a field to enter task
details.
4
When you’re finished entering
information, tap
Save
to store the task.
86
office applications
view tasks
Tap
LTasks
in the application launcher screen
to open the task list. Tap a task to see its
details.Tap the check box
e
beside the task
name to indicate that you’ve completed the
task.
Tap and hold on a task to open a pop-up menu
from which you can
Share
,
Edit
, or
Delete
the task.
To sort the task list, tap the sort order button
in the bottom button bar. You can choose to
see
All Tasks
,
Unchecked
tasks,
Due Tasks
, or
Completed
tasks.
Tap
é
to perform various operations on the
task list.
notes
You can write and store notes on your phone.
1
Tap
UNotes
in the application launcher
screen to open the notes editor.
2
Tap the text line and enter the information
on the keypad you want to record.
3
When you are finished entering
information, tap to close the keypad and
tap
Save
.
4
Enter a name, storage location, and type
for the note.
5
Tap
Save
to save the note.
To read a note that you have saved, tap
é
,
tap
Open
, then select the note you want to
open.
87
office applications
viewer
The viewer application provides an easy way
for you to read documents stored on your
phone.
Tap
ñViewer
in the application launcher
screen to open the viewer application.
Your phone shows the file folders included on
your phone (see page 89 for folder
descriptions). Tap a folder to see its contents.
Tap a document to open it in the viewer.
You can scroll through a large document by
dragging the stylus across the screen and
“dragging” the document in the direction you
want to move.
To zoom in or out on a document, tap the
center of the screen, release, then quickly tap
and hold the screen and drag the stylus up or
down to adjust the document size.
To reflow the text or make other view
adjustments, tap
é
to open the menu, tap
View
, then tap
Rotate Screen
,
Reload
the document,
Fit to Width
, or
Fit to Height
.
For more information about how to use the
viewer, tap
é
to open the menu, then tap
Help
.
calculator
You can use your phone as a calculator.
Tap
QCalculator
in the
application launcher
screen to open the
calculator.
Tap the numeric and
calculation keys to
perform a calculation.
88
office applications
Tap
=
to calculate the result.
Tap
C
to clear the calculation. Tap
ò
to clear
the last entry, one digit at a time, when
performing a calculation.
Tap
â
to exit the calculator and return to the
application launcher screen.
Tap the following keys to perform the
described functions:
alarm clock
Your phone has an alarm clock with two
separate alarms that you can set to alert you
at the time(s) you specify.
1
Tap
ZAlarm Clock
in
the application
launcher screen to
open the alarm
clock setup screen.
2
Tap the check
box
e
beside an
alarm to activate it.
A check mark
d
indicates that the
alarm is activated.
3
Tap below the alarm name to set the
alarm time. Set the desired time, then tap
OK
to store it.
4
Tap
Snooze
to set the snooze period.
functions
+/-
Change the entry’s sign
(positive/negative).
M
Store the current number in
memory.
MR
Show the stored number.
MC
Clear the stored number.
Alarm 1
17:00
17:15
Alarm 2
Alarm when powered off
Snooze: 5 min
Save
89
office applications
5
Tap
Save
to store your settings.
When the alarm time arrives, your phone
shows an alarm reminder and sounds an alert.
Tap
Snooze
to turn off the event reminder for a
short period of time. The alarm sounds again
when the snooze period expires.
Tap
Dismiss
to turn off the alarm.
When you select
Alarm When Power Off
in the
alarm clock setup screen, your phone turns
itself on if necessary to alert you when the
alarm expires.
file manager
The file manager application makes it easy for
you to create personal folders to store and
manage your files and applications.
Tap
2File Manager
in the application launcher
screen to open the file manager.
Your phone lists the available storage devices
(such as
Phone
memory, and an optional
removable
Memory Card
). Tap a storage device to
see the root directory for the device.
Your phone includes several predefined
folders:
MyImages
Stores photos that you take
with your phone’s
FCamera
.
MyAudio
Stores ringtones you download
to your phone, and sound files
you record with the
%Recorder
application.
MyVideo
Stores video clips that you
record with your phone’s
FCamera
.
MyNotes
Stores notes that you write
with the
UNotes
application.
90
office applications
Note:
Your phone’s files and folders may differ
from those listed above.
edit files and folders
Tap and hold a file or folder to open a pop-up
menu to perform various operations on the
file/folder. The edit menu can include the
following options:
MyPrograms
Stores applications that you
download and install on your
phone.
Preload
Stores preloaded media files
installed on your phone.
options
Open With
Specify the application your
phone should use to open the
file (files only).
Share
Send the file to another
phone, PC, or hand-held
device (files only).
Install
Install the selected file (files
only).
Copy
or
Cut
Copy or cut the file or folder to
the clipboard. (Tap
é
, then
tap
Paste
to paste the clipboard
contents in the current folder.)
Move To
Move the file or folder to a
new location.
Rename
Rename the file or folder.
Delete
Delete the file or folder.
Properties
See information about the file
or folder.
options
91
office applications
create new folder
1
Tap
2File Manager
in the application
launcher screen to open the file manager.
2
If necessary, tap the folder tree icon
_
to
select the location (phone or memory
card) where you want to create the folder.
3
Tap
é
, then tap
New Folder
.
4
Enter a name for the folder.
5
Tap
Save
to save the folder.
view
To change the way your files and folders are
shown, tap
é
, then select
List View
or
Thumbnail View
.
sort
To change the way your files and folders are
sorted, tap
é
, then tap
Sort by
. You can sort
files or folders by
Time
,
Name
,
Size
, or
Type
.
search
To search for a specific file:
1
Tap
é
, tap
More
, then tap
Search
.
2
Enter the name of the file in the
File Name
field.
3
Specify the file type in the
File Type
field.
4
Tap
Search
to begin the search.
If the file is found, the filename is listed. Tap
the filename to open the file. Tap and hold the
filename to see the file path.
If the file is not found, tap
ó
to return to the
file manager screen, or tap
Retry
to try another
search.
92
office applications
folder tree
Tap the folder tree icon
_
in the file manager
screen to see the folder structure and
organization of your phone, or a storage
device connected to the phone.
removable memory card
You can use an optional removable
SD memory card or MMC memory
card with your phone to store and
retrieve multimedia objects (such as photos,
video clips, and music files). To insert a
memory card in your phone, see page 22.
Tap
2File Manager
, then tap the memory card’s
name to see its root directory.
Tip:
Tap and hold on the memory card’s name
to open a pop-up menu to
Format
the memory
card or see memory card
Properties
.
Tap
é
to perform various operations on the
memory card. The storage device menu can
include the following options:
options
New Folder
Create a new folder on the
memory card.
List View
or
Thumbnail
View
See memory card files and
folders in a text-based
List View
or graphic icon
Thumbnail View
.
Share
Send a file to another phone,
PC, or hand-held device.
Move
Move a file to a new location.
Paste
Paste the clipboard contents
at the current location.
Sort By
Sort memory card files or
folders by
Time
,
Name
,
Size
, or
Type
.
93
office applications
business card reader
The business card reader application lets you
use your phone’s camera to capture a
business card image, then store the card’s
information as a contact in the phone’s
electronic address book.
capture business card image
Tap
0BC Reader
in the
application launcher
screen to open the
business card reader
application.
Tip:
Tap
Help
to see
instructions on how to
position and frame the
business card that you
want to capture.
Slide the camera
mode switch
down
to put the camera
lens in macro mode.
Tap
Capture Business Card
to activate the
camera and open the
Delete
Delete a memory card file or
folder.
More Search
for a memory card file or
folder. Tap
Properties
to see
information about a file or
folder.
options
Business Card Reader
Capture Business Card
Help
mega pixels
2.0
Camera Mode Switch
Up
=
normal
picture mode.
Down
=
macro
mode.
94
office applications
Optical Character Recognition (OCR)
viewfinder.
Use the red border in the OCR viewfinder to
vertically frame the business card you want to
capture. Position the camera so that the card
fills the frame without extending beyond the
frame borders. The framing border and center
indicator turn green when the business card is
properly framed.
Your phone automatically captures a business
card image when the card is properly framed
in the OCR viewfinder. (To activate or
deactivate the auto-capture feature, see
“business card reader settings” on page 95).
If auto-capture is turned off, press the camera
key, tap
Capture
, or press the center key
s
to
capture the business card.
edit business card information
Your phone interprets the text on the captured
business card image, and sorts the text into
logical categories.
The character recognition software may
misinterpret a text string or assign it to the
wrong category. On the edit business card
screen, tap a category name to change the
assigned category. Tap the direct line in a
category to edit its contents. If more
categories are available, pull down the scroll
bar on the right side of the screen to see and
edit their contents.
To
add
another category to the list, tap
é
,
then tap
Add Items
.
To
delete
one or more categories from the
list, tap
é
, then tap
Delete Items
.
95
office applications
To
see the business card
while you edit its
details, tap
é
, then tap
Show Card Image
. To
move
the card image, tap and drag the image
in the direction you want to move. To
zoom
in/out
on the card image, tap
é
, then tap
Zoom In
or
Zoom Out
. On the card image, tap the
small box to the left of an outlined text string
to see its assigned category and content in
the upper part of the screen.
When you’re finished editing business card
details, tap
Save
to save the information as a
new contact in your phone’s address book.
business card reader settings
Tap
é
, then tap
Setup
to adjust business card
reader settings.
Select
Auto Capture
to have your phone
automatically capture a business card image
when the card is properly framed in the OCR
viewfinder.
You can set your phone to automatically
Delete Image
or
Save Image
for a captured business
card after you save its contact information in
the address book.
Use the
Always Show
list to select information
categories that you always want to show in
the edit business card screen.
recognize stored business card
To recognize and edit a business card image
that you’ve already captured and stored on
your phone, tap
0BC Reader
in the application
launcher screen to open the business card
reader application, tap
é
, tap
Open Business Card
,
then tap the card you want to recognize and
add to the contact list.
96
media applications
media applications
browser
The browser lets you access Web
pages and Web-based applications on
your phone. Contact your service
provider to set up access, if necessary.
start a browser session
Press the browser key
T
to launch the
browser.
If you are unable to establish a network
connection with the browser, contact your
service provider.
interact with web pages
Pull down the scroll bar to scroll through a text
page or option list. Tap an option to select it.
Tap
ó
at any time to return to the previous
screen.
Some Web pages may contain text fields for
exchanging information with a Web site. Tap
the field and enter text in the usual way.
97
media applications
Tap
é
to perform various browser operations.
The browser menu can include the following
options:
download files
You can download a file, game, or application
from a Web page onto your phone by
selecting its link.
options
Go To Page
Enter a Web address (URL) to
go to a Web site.
Home
Go to the homepage of the
current Browser profile.
Bookmarks
See a list of your bookmarks.
Tap
é
to add a
New
bookmark,
or
Open
,
Edit
,
Delete
, or
Share
the
highlighted bookmark.
History
See a list of Web sites you
have visited. Tap
é
to
Open
or
Delete
the highlighted Web site.
File Save
a file or
Save All
files in the
browser window,
Copy
a file,
tap
About Opera
to see browser
information.
View
Set browser view to
Fit to Screen
or
Full Screen
, set text size to
Small
,
Medium
, or
Large
, zoom in
or out on the Web page, or
select a
Custom Zoom
setting.
Active Pages
Bookmark the active page,
show the security level, or
change encoding of the active
page.
Setup
Add and edit browser profiles,
adjust browser preferences,
show SSL and WTLS
certificates, empty the cache,
and delete cookies.
options
98
media applications
You must specify the location where you want
to save the file, and your phone must have
sufficient memory storage space to store the
file.
You can purchase games, applications, and
multimedia content for your phone. In most
cases, you can download and preview content
before you purchase it. After previewing the
content, you can choose to discard it, or
purchase it and install it on your phone.
Notes:
•
Call charges apply during download
sessions.
•
Some games might make your phone
vibrate. Some ringtones vibrate
automatically. If you use one of these
tones, your phone vibrates even when
it is not set to a vibrate ring style.
close the browser
Tap
â
to close and exit the browser
application.
network connection profiles
You can use different Internet accounts
to connect to the Internet in different
ways. Use the network feature to select
or create a network connection profile for an
Internet account.
select a profile
To select a network connection profile, tap
TSetup
in the application launcher screen, tap
Data Network
. tap the profile you want to use,
then tap
Connect
to connect to the Internet
using the selected profile.
99
media applications
create a new profile
To create a new network connection profile:
1
Tap
TSetup
in the application launcher
screen, then tap
Data Network
.
2
Tap
é
, then tap
New
to open the new
profile menu.
3
Enter configuration settings as described
in the following table. Tap the direct line in
a field to enter the setting. Pull down the
scroll bar to see additional fields.
4
When you’re finished entering
information, tap
Save
to store the profile.
options
Profile Name
Enter the profile name.
GPRS APN
GPRS access point name (the
name of the WAP service
provider).
GPRS User
Name
User name for GPRS APN
connection.
GPRS
Password
Password for GPRS APN
connection.
GPRS Timeout
Inactivity interval at which the
phone disconnects the GPRS
connection.
GPRS DNS
Server 1
and
2
Primary and backup DNS IP
servers.
CSD Dial In
Number
Phone number to use to set
up a CSD connection.
CSD User
Name
User name for CSD
connection.
CDS Password
Password for CSD connection.
CSD Baud Rate
Connection speed for CSD
connection.
options
100
media applications
use browser profiles
To select the active browser profile:
1
Tap
/Browser
in the application launcher
screen to start the browser.
2
Tap
é
, then tap
Setup
to open the browser
setup menu.
3
Tap
Profiles
, then tap the profile you want to
use.
4
Tap
Save
to save the highlighted profile as
the active profile.
To create a new browser profile:
1
Tap
/Browser
in the application launcher
screen to start the browser.
2
Tap
é
, then tap
Setup
to open the browser
setup menu.
3
Tap
Profiles
to open the profiles menu.
4
Tap
é
, then tap
New
to create the profile.
You must set the
Profile Name
,
Primary Gateway IP
and
Port
number,
Secondary Gateway IP
and
Port
number,
Homepage
, and the
Network Link
(the
network connection profile you want to use)
for a browser profile.
To edit an existing browser profile, select it,
tap
é
, tap
Setup
, then tap
Edit
to change the
settings described above.
CSD Line Type
Line type (modem or ISDN)
for CSD connection.
CDS Timeout
Inactivity interval at which the
phone disconnects the CSD
connection.
CSD DNS
Server 1
and
2
Primary and backup DNS IP
servers.
options
101
media applications
RealOne media player
Your phone has a RealOne media player that
you can use to play audio and video files.
Tap
GMedia Player
in the application launcher
screen to launch the media player.
When you see the prompt
Refresh “My Library”
Now?
, tap
Refresh
to add any new media files
located on the phone or memory card to your
library list.
play media files
1
Tap
All Audio
,
All Videos
, or another media
category to see which files of that type
are available on your phone.
2
Tap the check box
e
beside each file you
want to play. A check mark
d
indicates
that the file is selected.
3
Tap
Play Selected
to begin playing the
selected file(s).
Shortcut:
Tap a specific file name to play the
file.
In the media player
window:
•
Tap
Z
or
q
to
pause or play a
file or playlist.
•
Tap
m
or
l
to
play the
previous or next
file.
•
Tap and hold
m
or
l
to rewind or fast
forward through a file.
Playing: 0001.amr00:03:21
File: 0001.amr
Genre:
Album:
Artist:
Quality: 44 KHz/128kbps
Type: amr
Length: 00:02:45
Playlist
Playing: 0001.amr00:03:21
File: 0001.amr
Genre:
Album:
Artist:
Quality: 44 KHz/128kbps
Type: amr
Length: 00:02:45
102
media applications
•
Tap
n
to adjust or mute sound volume.
Tap the volume slider to adjust the
volume. (Alternatively, you can press
the side volume keys to adjust
volume.) Tap
n
on the slider bar to
mute and unmute the sound
Tip:
You also can use the side media player
keys (see illustration on page 2) to control
playback of media files.
create and use playlists
To
create
a new playlist:
1
Select media files as described in the
previous section.
2
Tap
é
, then tap
Save as Playlist
to create a
new playlist with the selected files.
3
Enter a name for the playlist, then tap
Save
to save the new playlist.
To
play
a playlist:
1
Tap
GMedia Player
in the application
launcher screen to launch the media
player.
2
Tap
My Playlists
to see the playlists stored
on your phone.
3
Tap a playlist to select it and see the list of
files in the playlist.
4
Tap a file in the playlist to begin playing it.
Your phone plays the playlist files in
sequence.
103
media applications
playlist options
Tap
é
to perform various operations on a
selected or active playlist. The playlist menu
can include the following options:
camera
Your phone has a 2 megapixel camera that
can take photos at up to 1200 x 1600 pixels
resolution. The camera includes a macro
mode for taking close-up photos.
options
Edit
Edit the name or contents of a
playlist.
Equalizer
Choose an equalizer setting to
optimize audio playback.
Shuffle
Shuffle the order in which the
playlist files are played.
Repeat
Replay the playlist when the
last file finishes playing.
Delete
Delete stored playlists.
Deleting a playlist does
not
delete the media files stored
on your phone.
Use Bluetooth
104
media applications
Press the camera key (see illustration on
page 2) to activate the camera. The active
viewfinder image appears in the display.
use the viewfinder
Press
S
or the side up/down keys to zoom
in/out. Press
S
left/right to adjust image
brightness.
Tip:
Tap the viewfinder screen to remove the
indicators for an unobstructed fullscreen view.
Tap the fullscreen view to return the
indicators.
The viewfinder indicators are active and can
be used to change the most-used functions
(such as image size, camera/video mode, and
effects mode).
The number next to the photo/video mode
indicator represents the number of additional
photos, or the minutes and seconds of
additional video, that can be stored in the
current selected memory storage location.
Press
S
left/right to
decrease/
increase
brightness.
Press
S
up/down to
zoom in/out.
Tap to open
camera menu.
Number of
Additional
Photos/
Minutes of
Video
Storage
Space Left
Tap to take
or record
video.
Brightness 2
Brightness 2
151
Capture
2.0M
105
media applications
take a photo
Press the camera key, tap
Capture
, or press the
center key
s
to take a photo.
Tip:
If the camera is in video mode, tap
å
to
put the camera in photo mode. The mode
indicator in the viewfinder changes to
ã
to
show that the camera is in photo mode.
set normal or macro mode
Slide the camera
mode switch
up
to
take standard
pictures. Slide the
camera mode switch
down
to set macro
mode when you want
to take close-up
photos of small
objects or details, or
capture a business card image with the
BC Reader
application.
change photo storage location
Photos and video clips can require large
amounts of storage space. To avoid
using up the limited phone memory
space, you can save your photos and video
clips to an optional removable SD memory
card or MMC memory card. To insert a
memory card in your phone, see page 22.
1
Tap
é
, tap
Setup
, then tap
H
to open the
photo setup menu.
2
Tap the folder tree icon
_
in the
Save To
field.
3
Select the folder on the memory card that
you want to use, or tap
New
to create a
new folder on the memory card.
mega pixels
2.0
Camera Mode Switch
Up
=
normal
picture mode.
Down
=
macro
mode.
106
media applications
4
Tap
OK
to set the folder as the new
storage location.
5
Tap
Save
to save the new storage location.
record a video clip
Tap
ã
to put the camera in video mode. The
mode indicator in the viewfinder changes to
å
to show that the phone is in video mode.
Tap
Record
to start recording a video clip. Tap
Done
to stop video recording.
Note:
Your phone can record about five hours
of video, with a fully-charged battery and
enough available space on the memory card.
view and delete photos or
video clips
To
view
a photo or video clip:
1
Tap
é
, then tap
Album
to open the folder
where your photos or video clips are
stored.
2
Tap a photo thumbnail image to see the
photo. Tap
ì
on a video clip thumbnail
image to play the video clip.
To
delete
photos or video clips:
1
Tap
é
, then tap
Album
to open the folder
where your photos or video clips are
stored.
2
Tap
é
, then tap
Delete
.
107
media applications
3
Tap the check box
e
beside each photo or
video clip you want to delete, or tap the
check box beside
All
to select all items. A
check mark
d
indicates that the item is
selected.
4
Tap
OK
to delete the selected photo(s) or
video clip(s).
Tip:
To quickly delete a single photo or video
clip, tap and hold the thumbnail image to open
a pop-up menu, then select
Delete
.
effects
You can adjust the
size
of your photo or video
by tapping the appropriate icon in the
viewfinder. Tap other icons to set
lighting
conditions or select a photo
style
(such as
Black/White
or
Sepia
tones).
setup options
Tap
é
, tap
Setup
, then tap
H
to open the
photo setup menu.
You can set or adjust the following options:
options
Photo Size
Set photo size.
Photo Quality
Set photo quality.
Default Name
Apply a date and time stamp,
or specify a text prefix for the
photos and videos you take.
Shutter Sound
Set the shutter sound.
Save To
Specify the location (phone
memory or memory card)
where your photos/video clips
are saved.
108
media applications
delay timer
Tap
é
, then tap
Delay Timer
to activate the delay
timer. The timer indicator appears in the
upper-right corner of the viewfinder.
Tap
Start
to activate the timer. The timer counts
down from 10 seconds, and then takes a
photo. You can tap
Stop
to stop the timer at any
time during the countdown.
Tip:
To take a self-portrait, activate the timer,
and use the mirror to aim the camera lens.
voice recorder
You can record personal messages and phone
calls on your phone.
Note:
Recording of phone calls is subject to
varying State and Federal laws regarding
privacy and recording of phone conversations.
Always obey the laws and regulations on the
use of this feature.

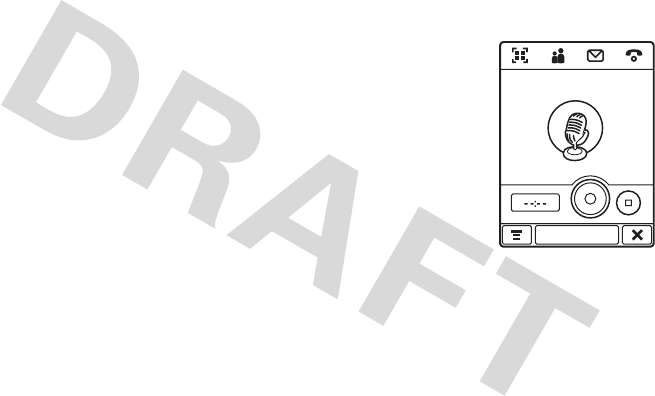

make a recording
Tap
%Recorder
in the
application launcher
screen to activate the
voice recorder.
1
Tap
k
to start
recording.
2
Speak into the
phone.
3
Tap
p
to stop
recording. The voice record is
automatically saved to the
MyAudio
folder
on your phone.
4
To play back the voice record you just
made, tap
q
. To stop playback, tap
p
.
109
media applications
play a recording
1
Tap
%Recorder
in the application launcher
screen to activate the voice recorder.
2
Tap
é
, then tap
Open
to open the
MyAudio
folder.
3
Tap the voice record you want to play,
then tap
Open
to play it.
Tip:
The voice record name identifies the date
and time when the file was recorded. The
recording date and time also appears when
you play the voice record.
change voice record storage
location
1
Tap
é
, tap
Setup
, then tap the folder tree
icon
_
in the
Location
field.
2
Select a folder, then tap
OK
to set it as the
new storage location.
3
Tap
Save
to save the new storage location.
video camera
To activate the camera in video mode, tap
KVideo Camera
in the application launcher
screen.
For instructions on how to use the camera in
video mode, see page 103.
Note:
Your phone can record about five hours
of video, with a fully-charged battery and
enough available space on the memory card.
110
media applications
photo editor
Use the photo editor to edit photos and
images stored on your phone, or create new
drawings or illustrations.
Tap
3Photo Editor
in the
application launcher
screen to open the
photo editor.
To
edit
an existing
photo or picture,
tap
é
, tap
Open
, then
select the picture you
want to open.
Tap a button in the toolbar at the bottom of
the screen to perform the following
operations on the picture:
•
Tap
I
to see a full-screen picture
view. Tap the full-screen view to return
to the photo editor screen.
•
Tap
H
to activate the camera, take a
photo, and open it in the photo editor.
•
Tap
J
to crop a portion of the photo.
Tap and drag the bounding box to
outline the crop borders. Tap and drag a
bounding box edge or corner to resize
the bounding box.
•
Tap
k
to use the drawing tools on the
picture as described below.
To
draw
a new picture, or use the drawing
tools on an existing photo or picture, tap the
drawing button
k
in the toolbar at the
bottom of the screen, then:
•
Tap a drawing tool in the bottom left
corner of the screen.
•
Tap the box to the right of the drawing
tool to adjust tool settings.
•
Tap the color picker to the right of the
tool settings box to set a drawing color.
1.0K
Fit
Save
111
media applications
•
Tap the scaling drop-down menu to
zoom in/out on the picture, or tap
Fit
to
fit the picture to the page.
To
save
a picture:
1
Tap
Save
.
2
Enter a name, storage location, and
picture type.
3
Tap
Save
to save the picture.
Tap
é
to perform the following operations:
options
Undo
or
Redo
Undo or redo the last editing
or drawing operation.
New
Open a blank canvas to create
a new picture.
Open
Open an existing photo or
picture.
Save As
Specify a name for a picture
you save.
Share
Send the picture over a
Bluetooth wireless
connection, or in an MMS or
email message.
Overlay
Apply a border, image, text, or
timestamp to the picture.
Rotate
Rotate or flip a picture.
Adjust
Adjust picture size,
brightness, contrast,
sharpness, or color.
More
Apply filters, change picture
style, or print the picture.
options
112
media applications
FM radio
You can use your phone to listen to
FM radio stations when an optional
Motorola Original™ standard headset
or stereo headset is plugged into the phone’s
headset jack.
Note:
You can’t listen to the FM radio over a
Bluetooth wireless headset.
Tap
1FM Radio
in the
application launcher
screen to turn on the
radio.
tune a station
Tap
T
or
S
to step
down or up to the next
frequency setting.
Tap
R
or
Q
to search and set the previous or
next active FM station.
use preset channels
Tap
U
to assign a channel number to the
current tuned station.
Tap
X
or
W
to select the previous or next
channel. Alternatively, you can press the
h
or
j
media player keys (see illustration on
page 2) to select the previous or next channel.
radio controls
Tap the volume slider to adjust the radio
volume. Alternatively, you can press the side
up/down keys to adjust radio volume.
Tap
V
to mute the radio. Alternatively, you
can press the
i
media player key (see
illustration on page 2) to mute/unmute the
radio.
Tap
Hide
to hide the radio when you want to
use the display for other applications. The
radio continues to play.
Loaded
STEREO
Hide
Loaded
STEREO
88.7 MHz
Hide
113
media applications
Tap
é
to edit radio channels, play the radio
through your phone’s internal speaker, or set
the radio to play mono or stereo sound.
Tip:
You also can use the side media player
keys (see illustration on page 2) to control
some radio functions.
send/receive calls with the
radio on
Your phone rings or vibrates as usual to notify
you of an incoming call, message, or other
event. You can answer the call, or ignore the
call and continue listening to the radio.
If you answer the call, tap
End
as usual to end
the call and resume the FM broadcast.
You don’t have to turn off the radio to make a
call. The radio is muted automatically when
you dial an outgoing call from the phone
keypad.
114
extra applications
extra applications
talking phone
You can set your phone to recite the names of
menu features as you select them, read
entries in your contacts list, recite phone
numbers as you enter them, and/or read
messages you receive.
1
Tap
TSetup
in the application launcher
screen, then tap
Talking Phone
.
2
Tap the check box
e
beside a talking
phone feature (
Menu readout
,
Contact List readout
,
Digits readout
, or
Message readout
) to select it. A
check mark
d
indicates that the feature is
activated.
3
Tap
Save
to save your setting.
Bluetooth™ wireless
Your phone supports Bluetooth
wireless connections. You can connect
your phone with a Bluetooth headset or
car kit to make handsfree calls. You can
connect your phone with a phone or
computer that supports Bluetooth
connections to exchange files.
Tip:
Your phone’s antenna must be on to use
Bluetooth features.
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
115
extra applications
laws and regulations on the use of these
products.
For maximum Bluetooth security
, you
should always pair Bluetooth devices in a
safe, private environment.
turn Bluetooth power on or off
Shortcut:
Tap the status bar at the top of the
display, then tap the
Bluetooth
drop-down menu
to turn Bluetooth power
On
or
Off
.
To activate or deactivate Bluetooth power
from the application launcher:
1
Tap
0Bluetooth
in the application launcher
screen, then tap
é
.
2
Tap
Turn On
or
Turn Off
to activate or
deactivate Bluetooth power.
Note:
To extend battery life, set Bluetooth
power to
Off
when not in use. Your phone will
not connect to another device until you set
Bluetooth power back to
On
and connect your
phone to the device again.
use a headset or handsfree car
kit
Before you try to connect your phone to a
handsfree device
, make sure the device is
on
and
ready
in pairing or bonding mode (see
the user’s guide for the device). You can pair
your phone with only one device at a time.
1
Tap
0Bluetooth
in the application launcher
screen to see the device list.
2
If necessary, turn Bluetooth power on.
3
Tap
Search
to search for Bluetooth devices.
Your phone lists the devices it finds within
range.
To connect to a device, select it from the list
and tap
Bond
. Your phone automatically uses
0000
as the passkey to bond with the device. If
116
extra applications
0000
doesn’t work, your phone prompts you to
enter the device’s passkey.
Shortcut:
When Bluetooth power is on, your
phone can automatically connect to a
handsfree device you have used before. Just
turn on the device and move it near the
phone.
copy files to another device
You can copy a photo, picture, video clip,
sound file, contact, calendar event, or
bookmark to another phone or computer that
supports Bluetooth connections.
Note:
You can’t copy some copyrighted
objects.
Before you try to copy a file to another
device
, make sure the receiving device is
on
and
ready
in discoverable mode.
1
Tap and hold the object to open a pop-up
menu, then select
Share
to see a list of
share options.
2
Tap
Bluetooth
to see the device list.
3
Tap the device name on the list, or tap
Search
to locate the device.
4
Tap
Send
to send the object. If necessary,
enter the correct PIN code to create a
secure connection with the device.
Note:
Once you connect your phone to a
Bluetooth device, that device can start a
similar Bluetooth connection with your phone.
Your display shows when a Bluetooth
connection is active.
117
extra applications
receive files from another
device
Before you try to receive a file from
another device
, make sure your phone’s
Bluetooth power is
on
(see page 115).
1
Send the file from the device.
If your phone and the sending device
don’t recognize each other, place your
phone in discoverable mode so the
sending device can locate it. Tap
0Bluetooth
in the application launcher
screen, tap
é
, then tap
Discoverable
.
2
The device may request permission to
bond with your phone. If necessary, enter
the correct PIN code to create a secure
connection with the device.
send a photo to a printer
You can send a photo to a printer that
supports Bluetooth connections.
Note:
You can print A4 or US Letter size
pages. To print another size, copy the object
to a linked computer and print it from there.
1
On your phone, take a new photo or scroll
to a stored photo that you want to print,
tap
é
, then tap
Print
.
2
If available, choose additional objects or
print options.
3
Select a recognized printer name, or tap
Search
to search for an unrecognized printer
where you want to send the object.
118
extra applications
advanced Bluetooth features
Note:
A device is recognized after you
connect to it once (see page 115).
synchronize phone
information
You can synchronize data between your
phone and a PC through a Bluetooth
wireless connection or USB cable
connection using Motorola
mobile PhoneTools software
To transfer and synchronize data
between your phone and PC, you
must use the Motorola
mobile PhoneTools software
included with the Motorola Original data kit.
See the mobile PhoneTools user’s guide for
more information.
Motorola mobile PhoneTools software is
designed to synchronize with basic features
of many popular Personal Information
Management (PIM) software and hardware
products.
features
pair with recognized device
Tap
0Bluetooth
in the application
launcher screen to see device list, tap and
hold the device name to open a pop-up
menu from which you can choose to
Create Bond
,
Connect
,
Delete
, or
Lock/Unlock
the
device.
drop pairing with device
Tap
0Bluetooth
in the application
launcher screen to see device list, tap and
hold the device name to open a pop-up
menu, select
Disconnect
the drop the
connection.
119
extra applications
You can connect your phone and
PC using a Bluetooth wireless
connection (see page 114), or a
Motorola Original USB cable
connected to your phone and PC. Once the
phone is connected to the PC, select the
“Sync” option from the Motorola
mobile PhoneTools software running on the
PC.
modem
You can use your phone as a modem, to
connect your PC to the Internet or transfer
data to/from the PC. To use the phone as a
modem, you must connect it to the PC using
a Bluetooth wireless connection or USB cable
connection.
Tip:
To connect your phone to the PC through
a Bluetooth connection, make sure that your
PC supports Bluetooth and has the correct
drivers installed.
Motorola mobile PhoneTools software
includes a PC modem application that
makes it easy to use your phone as a
modem, and to set up a USB cable
connection without first having to activate
your phone’s modem application.
When you connect your phone and PC over a
USB cable connection, make sure that the
phone is set to the correct USB mode setting.
Tap
TSetup
in the application launcher
screen, tap
USB Mode
, select
Modem
, then tap
Save
.
Tap
,Modem
in the application launcher
screen to see the modem status screen.
When your phone shows
Status: Ready
, it’s ready
to be used as a standard PC modem.
120
extra applications
send data call
1
Open the application (such as
dial-up-networking) on your PC, and place
the call through the application.
You cannot dial data numbers on your
phone’s keypad. You must dial them
through the PC.
2
When data transfer is complete, end the
call from the connected PC to close the
connection.
receive data call
1
Your phone notifies you when the data call
arrives, and transfers the call to the
connected PC. Use the application
running on the PC to answer the call.
2
When the data transfer is complete, end
the call from the connected PC to close
the connection.
stk
Your SIM card may contain additional
SIM Toolkit (STK) applications that add
features and functionality to your
phone.
Tap
8STK
on the application launcher screen
to see a list of STK applications you can use.
Tap a service or feature to select it. Your
phone shows the service or feature screen.
Pull down the scroll bar to scroll through a text
page or option list. Tap an option to select it.
Tap
ó
at any time to return to the previous
screen.
Some screens may contain text fields where
you must provide information in order to use a
service or feature. Tap the field and enter text
in the usual way.
extra applications—world time
121
For more information about the STK
applications available on your SIM card,
contact your service provider.
world time
Your phone can show
the current time and
date for multiple cities
around the world.
Tap
9World Time
in the
application launcher
screen to see the
world time screen.
You can reset the time
and date for a listed city. Tap the time and/or
date field to change it. Tap
OK
to save your
changes.
To replace a city listing
in the world time
screen, tap the city
name, then tap
Browse...
to see the time zone
map (shown at right).
Tap the city name
again to see a city list.
Select a new city, then
tap
OK
to store it.
Alternatively, tap a time zone in the time zone
map to see a list of cities in that time zone.
Select a new city, then tap
OK
to store it.
Local City:
Beijing
12:40 PM
06:40
04:40
10/16/2008
City 1:
Athens
City 2:
London
Thu
Thu
Thu
OK
-11
-10 -9 -8-7 -6 -5 -4 -3 -2 -1 +1+2+
GMT
City:
Athens
Time Zone:
GMT +02:00
OK
122
other features—advanced calling
other features
advanced calling
features
conference call
During a call:
Tap keypad button
à
, tap keypad keys to
dial next number, tap
Call
, when call
connects tap
Link
to connect the two calls.
Repeat to add additional parties to the call.
transfer a call
During a call:
Tap
é
, tap
Transfer
, tap keypad keys to dial
the number to which you want to transfer
the call, tap
Call
to transfer.
call forwarding
Set up or cancel call forwarding:
Tap
9
, tap
é
, tap
Setup
, tap
Call Divert
.
Tap (
Voice Calls
,
Data Calls
, or
Fax Calls
to select
the type of calls you want to forward.
Tap
Cancel All Diverts
to cancel all call
forwarding.
call barring
Restrict outgoing or incoming calls:
Tap
6
, tap
TSetup
, tap
Security
tap
Call Barring
.
features
other features—setup
123
setup
fixed dial
When you turn on fixed dialing, you
can call only numbers stored in the fixed
dial list.
Tap
6
, tap
TSetup
, tap
Security
, tap
Fixed Dialing
, then select
On
or
Off
.
You edit fixed dial entries just like an
address book contact. You can enter a
wildcard character
^
in one or more
positions for a fixed dial phone number. The
wildcard character can be replaced by any
digit when the user dials the number.
features
features
language
Set menu language:
Tap
6
, tap
TSetup
, tap
Language
.
Tip:
Select
Automatic
to let your phone set
the language based on your location.
text size
Set the size of the display text:
Tap
6
, tap
TSetup
, tap
Text Size
.
124
other features—setup
USB mode
Set the mode in which you want to use your
phone’s USB port:
Tap
6
, tap
TSetup
, tap
USB Mode
, then
select
Modem
,
Mass Storage
, or
Web Camera
.
In
Web Camera
mode, you can use your phone
as a PC camera when you connect the
phone to a PC through a USB cable
connection. Use the CD-ROM included with
your phone to install the Web camera
device driver on the PC.
Note:
Motorola mobile PhoneTools
software can automatically change your
phone’s USB mode setting as needed.
features
touchscreen calibration
Calibrate the touchscreen if the phone
begins to respond incorrectly to your stylus
input on the touchscreen display:
Tap
6
, tap
TSetup
, tap
Screen Calibration
.
power management
Your phone includes several features
designed to help extend battery life.
Tip:
To conserve power, leave Bluetooth™
power turned off when not in use.
Tap
6
, tap
TSetup
, then tap
Power Management
.
Select
Battery Save
to automatically adjust
phone settings to maximize battery life.
Select
Auto Power Off
to have your phone
automatically turn itself off after a specified
period of inactivity.
features
other features—setup
125
master reset
Reset all default phone settings
except
for
the lifetime timer:
Tap
6
, tap
TSetup
, tap
Master Reset
.
Tip:
Tap
Cancel
to exit without performing the
master reset procedure.
features
master clear
Caution:
Master clear
erases all
information you have entered
(including
address book and calendar entries)
and
content you have downloaded
(including
photos and sounds) stored in your phone’s
memory. After you erase the information,
you can’t recover it.
Clear all settings and entries you made
except
SIM card information, erase
downloaded pictures and sound files, and
reset all options
except
for the lifetime
timer:
Tap
6
, tap
TSetup
, tap
Master Clear
.
Tip:
Tap
Cancel
to exit without performing the
master clear procedure.
features
126
other features—call times & costs
call times & costs
Network connection time
is the elapsed
time from the moment you connect to your
service provider's network to the moment
you end the call by pressing
O
or tapping
End
.
This time includes busy signals and ringing.
The amount of network connection time
you track on your resettable timer may not
equal the amount of time for which you
are billed by your service provider. For
billing information, contact your service
provider.
features
call times
See call timers and cost trackers:
Tap
9
, tap
é
, tap
Setup
, tap
Call Meters
.
To reset the call timer, tap
Clear Call Time
.
To reset the cost tracker, tap
Clear Call Cost
.
in-call timer
Show time or cost information during
a call:
Tap
9
, tap
é
, tap
Setup
, tap
Call Meters
, tap
the
Display
pop-up menu, then select
Timer
,
Cost
,
Total Cost
,
Credit
, or
Off
.
other features—handsfree
127
handsfree
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
audible in-call timer
Set an audible timer to beep at
specified intervals during a call:
Tap
9
, tap
é
, tap
Setup
, tap
Call Meters
, tap
the
Audible Timer
pop-up menu, then select
Off
,
1Min
,
5Min
, 1
0Min
, or
15 Min
.
call cost setup
Set a credit limit:
Tap
9
, tap
é
, tap
Setup
, tap
Call Meters
, tap
Call Cost Setup
, enter your SIM PIN2 code
when prompted.
You can enter a credit limit, and set the
phone to show your remaining credit in
time units or as a currency value.
features
credit available
(advice of charge
option)
See the amount of credit available:
Tap
9
, tap
é
, tap
Setup
, tap
Call Meters
, tap
Available Credit
.
features
128
other features—security
laws and regulations on the use of these
products.
security
features
adjust Bluetooth™ accessory
volume
If your Bluetooth headset or car kit
accessory supports remote volume control,
you can use your phone’s side up/down
keys to set the device’s speaker volume
during a handsfree call.
auto answer
Automatically answer calls when
using the handsfree speaker, or when the
phone is connected to a car kit, headset, or
external speakerphone:
Tap
9
to open the phone keypad, tap
é
,
tap
Setup
, then select
Auto Answer
.
features
lock/unlock SIM card
Yo u r Personal Identification Number (PIN)
code protects the information stored on
your SIM card. When the SIM card is
locked, you must enter your SIM card PIN
code to unlock the SIM card each time you
turn on the phone or insert the SIM card in
the phone. Your SIM card PIN code is given
to you by your service provider.
Caution:
If you enter an incorrect PIN code
three times in a row, your SIM card is
disabled and your display shows
SIM Blocked
.
Tap
6
to open application launcher, tap
TSetup
, tap
Security
, then select
PIN Request On
or
PIN Request Off
.
129
other features
unblock SIM card PIN codes
If you enter an incorrect SIM card PIN code
or PIN2 code three times in a row, your SIM
card is disabled and your phone shows
SIM PIN Blocked
. You must enter a PIN
unblocking key (PUK) code, which you can
obtain from your service provider.
Caution:
If the unblocking attempt is tried
unsuccessfully 10 times, the SIM card is
permanently disabled and your phone
shows
SIM Disabled
.
features
130
Recycling Information
service and repairs
If you have questions or need assistance,
we're here to help.
Go to
www.motorola.com/consumer/support
,
where you can select from a number of
customer care options. You can also contact
the Motorola Customer Support Center at
1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575
(Canada).
SAR Data
131
Specific Absorption Rate Data
SAR Da ta
This model meets international guidelines for
exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were
developed by the independent scientific organization ICNIRP and
include safety margins designed to assure the protection of all
persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The ICNIRP SAR limit for mobiles devices
used by the general public is 2 W/kg and the highest SAR value for
this device when tested at the ear was 0.55 W/kg.
1
As mobile
devices offer a range of functions, they can be used in other
positions, such as on the body as described in this user guide.
2
In
this case, the highest tested SAR value is 0.89 W/kg.
1
As SAR is measured utilizing the device’s highest transmitting
power, the actual SAR of this device while operating is typically
below that indicated above. This is due to automatic changes to
the power level of the device to ensure it only uses the minimum
level required to reach the network.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
The World Health Organization has stated that present scientific
information does not indicate the need for any special precautions
for the use of mobile devices. They note that if you want to reduce
your exposure then you can do so by limiting the length of calls or
using a “hands-free” device to keep the mobile phone away from
the head and body.
Additional Information can be found on the websites of the World
Health Organization (
http://www.who.int/emf
) or
Motorola, Inc.
(
http://www.motorola.com/rfhealth
).
1. The tests are carried out in accordance with international guidelines for
testing. The limit incorporates a substantial margin for safety to give
additional protection for the public and to account for any variations in
measurements. Additional related information includes the Motorola
testing protocol, assessment procedure, and measurement uncertainty
range for this product.
2. Please see the Safety and General Information section about body worn
operation.
132
WHO Information
Information from the World Health Organization
WHO Infor mation
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
service and repairs
133
GNU General Public License
GNU Licen se
For instructions on how to obtain a copy
of any source code being made publicly
available by Motorola related to software
used in this Motorola mobile device,
which may be subject to GNU’s General
Public License, please send an email to
ezxgpl@motorola.com
.
134
index
index
A
accessories 16, 114, 127
address book 48
airplane mode 23
alarm clock 88
alert
set 39
turn off 34
answer a call 24
antenna, turning on/off 23
application launcher 28
appointments. See calendar
B
battery 19, 20
battery charge indicator light
20
battery indicator 30
battery life, extend 21, 115,
124
Bluetooth indicator 30
Bluetooth wireless 114
bonding. See Bluetooth
wireless
brightness, set 41
browser 96
browser key 1, 96
browser messages 72
business card reader 93
button bar 29
C
calculator 87
calendar 81
call
answer 24
cancel 45
end 24
make 24
call barring 35, 122
call forwarding 122
call timers 126, 127
call waiting 44
caller ID 44
camera 3, 103
camera key 1, 2, 3
camera mode switch 3
car kit 127
index
135
center key 1, 34
clock 30
codes 35, 36
color scheme 40
conference call 122
costs, track 127
credit information 127
customer support 130
D
data, sharing 37
dial a phone number 24, 123
dialed calls 42
direct dial 47
display 26, 40, 41
E
earpiece 1
earpiece volume 34
email 74
email address 49
emergency number 45
end a call 24
end key 1
English keyboard 32
Enter Unlock Code message
35
equalizer 103
extension number, dialing
47
F
file manager 89
fixed dial 123
FM radio 112
FM radio key 1, 112
forward calls 122
function buttons 33
G
global navigation bar 27
GPRS indicator 30
H
handsfree speakerphone 35
handwriting 33
headset 127
headset jack 1
help 26
hold a call 44
home screen 26
I
Incoming Call message 44
incoming call, cancel 45
information service
messages 72
information, sharing 37
input settings 33
international access code 46
136
index
L
language 123
linking. See Bluetooth
wireless
lock
phone 36
phone keys 36
SIM card 128
touchscreen 36
Low Battery message 30
M
make a call 24
master clear 125
master reset 125
media player 101
media player indicator 30
media player keys 2
memory card 22
memory card indicator 30
memory card slot 1, 2
Memory is Full! message 65
message
outbox 64
reading 64
sending 60, 61
signature 59
status 64
micro-browser 72
mini-USB port 1, 2
modem 119
multimedia message 61
mute a call 44
N
navigation key 1, 34
notes 86
numeric pad 33
O
objects, sharing 37
optional accessory 16
optional feature 16
organizing files 89
outbox 64
P
pairing. See Bluetooth
wireless
password 35
phone lock switch 1, 2
phone number
storing 49
your number 25
photo 103
photo editor 110
picture ID 44
PIN code 23, 35, 128, 129
PIN2 code 35
Pinyin keyboard 32
index
137
power key 1, 23
power management 124
printing 117
profiles 39
Q
quick card 62, 65
R
radio 112
RealOne indicator 30
RealOne media player 101
received calls 42
recent calls 42
recorder 108, 109
redial 43
repairs 130
ring alert profiles 39
ringer ID 44
ringer volume 40
ringtone 39, 49, 54
S
safety information 8
security code 35
send key 1, 24
setup 123
side up/down keys 1, 2, 34
signal strength indicator 30
silent profile 39
SIM Blocked message 23,
128
SIM card 16, 23, 35, 120,
128, 129
SIM Disabled message 129
SIM PIN code 128, 129
SIM toolkit 120
speakerphone 35, 127
status bar 29
STK 120
store phone numbers 49
store your phone number 25
stylus 3, 27
support 130
synchronize information 118
T
talking phone 114
tap & hold 33
tasks 85
technical support 130
text entry 31
text messaging 60
text size 123
time 121
timers 126, 127
touchscreen
calibrate 124
input settings 33
transfer a call 122
TTY indicator 30
turbo dial 46
turn on/off 23
138
index
U
unblock the SIM card 129
unlock
phone 23, 35, 36
phone keys 36
SIM card 128
touchscreen 36
unlock code 35, 36
USB mode, set 124
V
vibrate profile 39
video clip 103
viewer 87
voice records 108, 109
voicemail 25, 47
volume 34
W
wallpaper 40
Web pages 96
world health organization
132
world time 121
Y
your phone number 25
Z
Zhuyin keyboard 32
