Motorola Mobility T6KW1 Universal Bluetooth Headset User Manual

Motorola Mobility LLC Universal Bluetooth Headset

User Manual 1

Quick Start Guide
motorola H790
your headset
1
your hea dset
Take a moment to familiarize yourself with your
new Motorola H790 Headset.
Earhook
Charging
Port
Volume
Buttons
Call
Button
Power
Switch
Ear
Speaker
Indicator
Light
Micro-
phone

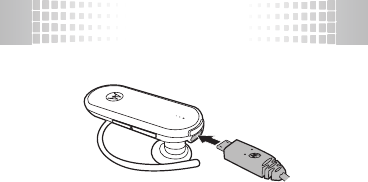

charge it
2
charge i t
Charge your headset before using it.
The indicator light is red or yellow while the
battery is charging. When the battery is fully
charged, the indicator light turns green.
Note:
Headset is not functional while charging.
Note:
Your battery is designed to last the life of
your product. It should only be removed by a
recycling facility. Any attempt to remove or
replace your battery will damage your headset.
pair & connect
3
pair & connect
Once charged, let’s get your headset paired and
connected to your Bluetooth phone(s).
pair & connect first phone
1
Turn off any Bluetooth devices previously
paired with your headset.
2
Turn on the Bluetooth feature on your
phone.
3
Put headset on your ear (see “wear it” on
page 8 for help).
4
Turn on your headset (see “turn on” on
page 9 for help).
The indicator light becomes steadily lit in
blue and you hear
“ready to pair”
.
pair & connect
4
5
Follow voice prompts to connect your phone
to your headset.
Note:
When prompted for the passkey,
enter
0000
.
When your headset successfully pairs with your
phone, you hear
“pairing complete”
. When
connected, you hear
“phone 1 connected”
and see the indicator light rapidly flash in blue
and purple.
pair & connect second phone
(optional)
1
Turn off first phone and any other Bluetooth
devices previously paired with your headset.
2
Turn your headset off (see “turn off” on
page 9 for help).
pair & connect
5
3
Turn on the Bluetooth feature on your
phone.
4
Put headset on your ear.
5
Turn on your headset.
The indicator light becomes steadily lit in
blue
and
you hear
“ready to pair”.
6
Follow voice prompts to connect your phone
to your headset.
When your headset successfully pairs with your
phone, you hear
“pairing complete”
. When
connected, you hear
“phone 1 connected”
and
see the indicator light rapidly flash in blue and
purple.
To connect to both phones, simply turn on the first
phone while the second phone is connected.
When you hear
“phone 2 connected”
, your
pair & connect
6
headset is connected to both phones. The last
paired phone (your second phone) is now your
primary phone (or “phone 1”) for voice dial
functionality.
test your connection
1
Place the headset on your ear.
2
On one phone, dial the number you want to
call and press
Call/Send
key. Repeat for the
second phone.
If your phones and headset are successfully
connected, you hear ringing on the headset.
For daily use, make sure your headset is turned
on, and your phone’s Bluetooth feature is on.
Your headset and phone will connect
automatically.
put it on
7
put i t on

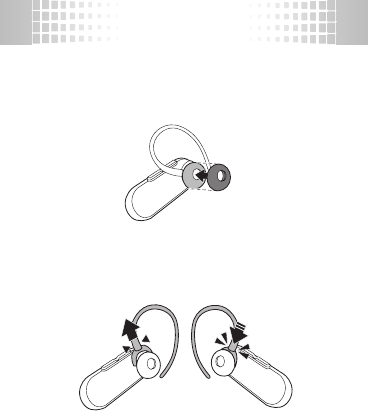

choose an earbud
To get the best headset performance, try out all
the supplied ear cushions to get a good fit.
choose an ear
Your headset comes ready for the right ear. To
change for the left ear:
put it on
8

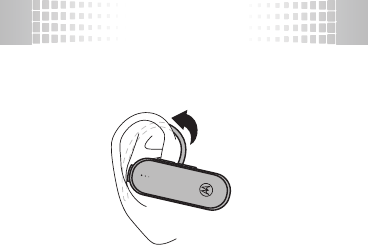

wear it
Flex the ear hook and loop it over your ear.
Tip:
For optimal audio performance and comfort,
be sure to position the ear cushion into your ear
canal and point the headset microphone towards
your mouth.
turn on & off
9
turn on & off
turn on
Slide the Power switch to the on position (no red
is shown under the switch)
.
The indicator light
flashes blue three times, then flashes in blue and
purple (if connected with a device) or is steadily
blue (if ready to be paired).
turn off
Slide the Power switch to the off position (red is
shown under switch). The indicator light flashes
three times then turns off.
Power
Switch
Indicator
Light
battery check
10
batter y check
Press and hold both Volume buttons while not on
a call.
To save battery power, turn off the headset when
you don't use it for an extended time.
indicator
light
voice prompt talk time
red
“battery level
is low”
less than 1.5
hours
yellow
“battery level
is medium”
between 1.5
to 3.5 hours
green
“battery level
is high”
more than 3.5
hours
calls
11
calls
To . . .
answer call Press the Call button.
reject call Press and hold a Volume
button until you hear an audio
tone
make a voice
dial call
Press the Call button and you
hear an audio tone.
redial last call Press and hold the Call button
until you hear an audio tone.
mute or unmute
a call
Press and hold both Volume
buttons until you hear “mute
on” or “mute off”.
end a call Press the Call button.
answer second
incoming call
Press the Call button.
calls
12
Tip:
When connected to two phones, voice
prompts help manage call functions such as
voice dial, redial, and end call. Follow the voice
prompts to execute a function on the desired
phone.
Note:
Your headset supports both Handsfree and
Headset Profiles. Accessing call functions
depends upon which profile your phone
supports. See the instructions that came with
your phone.
Note:
Some call features are phone/network
dependent.
reject second
incoming call
Press and hold a Volume
button until you hear a tone.
To . . .
status indicators
13
stat us indicat ors
indicator light (with charger
plugged in)
headset
indicator
headset status
red charging (battery level less
than 50% charge)
yellow charging (battery level more
than 50% charge)
green charging complete
status indicators
14
indicator light (with charger not
plugged in)
headset indicator headset status
off power off
three blue flashes powering on/off
steady blue pairing/connect mode
rapid blue/purple
flashes
connection successful
quick blue flash incoming/outgoing call
on phone 1
quick purple flash incoming/outgoing call
on phone 2
slow blue pulse connected (on a call)
status indicators
15
Note:
After 1 minute on a call or 20 minutes of
inactivity, the light stops flashing to conserve
power, but the headset remains on.
slow blue flash standby (connected to
one phone)
slow green flash standby (connected to
two phones)
slow red flash idle (not connected to a
phone)
slow purple pulse connected call muted
steady red attempting to connect
quick red flash low battery
headset indicator headset status
tips & tricks
16
tips & tricks
enable/disable voice prompts
With the headset turned on, press and hold
either Volume button and Call button until you
hear “voice prompts on” or “voice prompts off”.
restore to factory settings
Caution:
This action erases all pairing
information stored in your headset.
To restore your headset to original factory settings,
with the headset turned on, press and hold both
Volume buttons and Call button for 10 seconds
until the indicator light is steady blue.
problems?
17
probl ems?
My headset will not enter pairing mode.
Make sure that any devices previously paired
with the headset are turned off. If the indicator
light is flashing in blue, first turn off the other
device, then turn the headset off and on. The
indicator light becomes steadily lit in blue and
you hear “ready to pair”.
My phone doesn't find my headset when
searching.
Make sure the indicator light on your headset is
steadily lit in blue when your phone is searching
for devices. If not, press and hold the Call button
and both Volume buttons until you hear “ready to
pair” and see the indicator light steadily lit in blue.
My headset will not pair with my phone.
If the indicator light is not steadily lit in blue when
your phone is searching for your headset, you can
problems?
18
reset the headset by pressing and holding the Call
button and both Volume buttons until the indicator
light is steadily lit in blue. Then follow pair &
connect instructions on pages
3
-
6
.
My headset connected before, but now it's not
working.
Make sure the indicator light on your headset is
steadily lit in blue when your phone is searching
for devices. If not, press and hold the Call and
both Volume buttons until you hear “ready to pair”
and see the indicator light steadily lit in blue.
Support.
If you need more help, contact us at
1-877-MOTOBLU
or visit us at
www.motorola.com/Bluetoothsupport
or
www.motorola.pairxusa.com
.
19
Safety & General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT
OPERATION. READ THIS INFORMATION BEFORE USING YOUR
DEVICE.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited
to batteries, antennas, and convertible covers, may cause your mobile
device to exceed RF energy exposure guidelines and may void your
mobile device’s warranty. For a list of approved Motorola accessories,
visit our Web site at:
www.motorola.com
Batteries & Chargers
Your battery, charger, or mobile device may contain symbols, defined as
follows:
Symbol Definition
Important safety information follows.
Do not let your battery, charger, or mobile device get
wet.
032374o
20
Use & Safety for Battery-Powered
Accessories
•
Do not store or use your battery-powered accessory (such as a
Bluetooth® headset or other device) in temperatures below -10°C
(14°F) or above 60°C (140°F).
•
Do not recharge your accessory in temperatures below 0°C (32°F) or
above 45°C (113°F).
•
Conditions inside a parked car can exceed this range. Do not store
your accessory in a parked car.
•
Do not store your accessory in direct sunlight.
•
Storing your fully charged accessory in high-temperature conditions
may permanently reduce the life of the internal battery.
•
Battery life may temporarily shorten in low-temperature conditions.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended periods
of time may temporarily or permanently affect your hearing. The louder
the volume sound level, the less time is required before your hearing
could be affected. Hearing damage from loud noise is sometimes
undetectable at first and can have a cumulative effect. To protect your
hearing:
•
Start your volume control at a low setting and use as low a volume
as possible.
•
Limit the amount of time you use headsets or headphones at high
volume.
21
•
Where possible, use your headset in a quiet environment with low
background noise.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure
or fullness in your ears, ringing in your ears, or muffled speech, you
should stop listening to the device through your headset or headphones
and have your hearing checked by your doctor.
Smart Practices While Driving
Using a mobile device while driving may cause distraction. End a call if
you can’t concentrate on driving. Also, using a mobile device or
accessory may be prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
Responsible driving practices can be found at
www.motorola.com/
callsmart
(in English only).
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may
not cause interference and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
See RSS-GEN 7.1.5.
22
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC logo,
and/or an FCC ID in the format FCC-ID:xxxxxx on the product
label.
Motorola has not approved any changes or modifications to this device
by the user. Any changes or modifications could void the user’s authority
to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. See 47 CFR
Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
23
to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Motorola Limited Warranty for the
United States and Canada
Wa rr a n t y
What Does This Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its
telephones, pagers, messaging devices, and consumer and professional
two-way radios (excluding commercial, government or industrial radios)
that operate via Family Radio Service or General Mobile Radio Service,
Motorola-branded or certified accessories sold for use with these
Products (“Accessories”) and Motorola software contained on CD-ROMs
or other tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and workmanship
under normal consumer usage for the period(s) outlined below. This
limited warranty is a consumer's exclusive remedy, and applies as
follows to new Motorola Products, Accessories and Software purchased
by consumers in the United States or Canada, which are accompanied
by this written warranty:
24
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as defined
above, unless otherwise
provided for below.
One (1) year
from the date of purchase
by the first consumer purchaser of the
product unless otherwise provided for
below.
Decorative Accessories
and Cases.
Decorative
covers, bezels,
PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear
buds and boom headsets
that transmit mono sound
through a wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Consumer and
Professional Two-way
Radio Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original
warranty or for ninety (90) days
from
the date returned to the consumer,
whichever is longer.
25
Exclusions
Normal wear and tear.
Periodic maintenance, repair and replacement
of parts due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80%
of their rated capacity and batteries that leak are covered by this limited
warranty.
Abuse & misuse.
Defects or damage that result from: (a) improper
operation, storage, misuse or abuse, accident or neglect, such as
physical damage (cracks, scratches, etc.) to the surface of the product
resulting from misuse; (b) contact with liquid, water, rain, extreme
humidity or heavy perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for commercial purposes or
subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from
coverage.
Use of non-Motorola Products and Accessories.
Defects or
damage that result from the use of Non-Motorola branded or certified
Products, Accessories, Software or other peripheral equipment are
excluded from coverage.
Unauthorized service or modification.
Defects or damages resulting
from service, testing, adjustment, installation, maintenance, alteration,
or modification in any way by someone other than Motorola, or its
authorized service centers, are excluded from coverage.
26
Altered products.
Products or Accessories with (a) serial numbers or
date tags that have been removed, altered or obliterated; (b) broken
seals or that show evidence of tampering; (c) mismatched board serial
numbers; or (d) nonconforming or non-Motorola housings, or parts, are
excluded from coverage.
Communication services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication service or
signal you may subscribe to or use with the Products Accessories or
Software is excluded from coverage.
Software
Exclusions
Software embodied in physical media.
No warranty is made that
the software will meet your requirements or will work in combination
with any hardware or software applications provided by third parties,
that the operation of the software products will be uninterrupted or error
free, or that all defects in the software products will be corrected.
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies the
copy of the software (e.g. CD-ROM, or
floppy disk).
Ninety (90) days
from the date of
purchase.
27
Software NOT embodied in physical media.
Software that is not
embodied in physical media (e.g. software that is downloaded from the
Internet), is provided “as is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the
purchase price of any Products, Accessories or Software that does not
conform to this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products, Accessories or
parts. No data, software or applications added to your Product,
Accessory or Software, including but not limited to personal contacts,
games and ringer tones, will be reinstalled. To avoid losing such data,
software and applications please create a back up prior to requesting
service.
28
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To
obtain service, you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the
problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most
importantly; (e) your address and telephone number.
USA Phones:
1-800-331-6456
Pagers:
1-800-548-9954
Two-Way Radios and Messaging Devices:
1-800-353-2729
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number
designated above for the product with which they are used.
29
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT
SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF
BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or limitation
on the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that
vary from state to state or from one jurisdiction to another.
30
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new
Motorola product. Registering permits us to contact you for product or
software updates and allows you to subscribe to updates on new
products or special promotions. Registration is not required for warranty
coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications Product
you will need to provide a copy of your dated sales receipt to confirm
warranty status.
Thank you for choosing a Motorola product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United
States of America and Canada. The Governments of the United States of
America and Canada may restrict the exportation or re-exportation of
this product to certain destinations. For further information contact the
U.S. Department of Commerce or the Canadian Department of Foreign
Affairs and International Trade.
31
Caring for the Environment by
Recycling
Recycli ng Inform ation
This symbol on a Motorola product means the product should
not be disposed of with household waste.
Disposal of your Mobile Device &
Accessories
Please do not dispose of mobile devices or electrical
accessories (such as chargers, headsets, or batteries) with
your household waste. Do not dispose of your battery or
mobile device in a fire. These items should be disposed of in
accordance with the national collection and recycling schemes operated
by your local or regional authority. Alternatively, you may return
unwanted mobile devices and electrical accessories to any Motorola
Approved Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device Packaging &
User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements. Please
contact your regional authorities for more details.
032376o
32
European Union Directives Conformance
Statement
EU Conformance
Hereby, Motorola declares that this product is in
compliance with:
•
The essential requirements and other relevant provisions of Directive
1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find
your DoC, enter the Product Approval Number from your product’s label
in the “Search” bar on the Web site.
Product
Approval
Number
33
Motorola, Inc.
Consumer Advocacy Office
600 N. US Hwy 45
Libertyville, IL 60048
www.motorola.com
Note:
Do not ship your accessory product to the above address. If you
need to return your product for repairs, replacement, or warranty
service, please contact the Motorola Customer Support Center at:
1-877-MOTOBLU (Motorola Bluetooth Support)
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license. All other product
and service names are the property of their respective owners.
© 2009 Motorola, Inc. All rights reserved.
34
Software Copyright Notice
The Motorola products described in this manual may include copyrighted
Motorola and third-party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for
Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any copyrighted
software contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the
extent allowed by law. Furthermore, the purchase of the Motorola
products shall not be deemed to grant either directly or by implication,
estoppel, or otherwise, any license under the copyrights, patents, or
patent applications of Motorola or any third-party software provider,
except for the normal, non-exclusive, royalty-free license to use that
arises by operation of law in the sale of a product.
Bluetooth QD ID: B015143
Manual Number: 68000202174-A

Navigation menu
