Exhibit 8 Users Manual RESEND PER 13182

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6ZT1

EXHIBIT 8

INSTRUCTION MANUAL

A preliminary draft copy of the Users Manual follows:

Welcome

Thank you for choosing Motorola—a global leader in

communications technology.

All Motorola phones are designed and manufactured

to meet Motorola’s exacting speciﬁcations and world-class

quality standards. During development, our laboratory

testing team took the durable digital V. Series

™

phone through

its paces. They cooked it, steamed it, shook it, shocked it, dusted

it, and dropped it—and the phone still worked! We are

conﬁdent that the one you purchased can meet your own

exacting standards.

Thank you for choosing Motorola, and we hope you enjoy your

digital V8162 wireless phone!

Guide Overview

Okay, you’ve got a brand new phone

with a bunch of nifty features.

Now what?

Afraid you’ll press the wrong key?

Or forget a feature or two?

Don’t sweat it!

We’ve designed this guide to take you

step-by-step through each feature of

your new digital V. Series

™

phone.

We’ll show you what key to press and what happens when you

press it. Follow along, chapter-by-chapter, and you’ll ﬁnd it’s as

easy as 1-2-3.

Here’s an idea of what you’ll learn in each chapter:

Getting Started

First things ﬁrst. Once the box is open, this section will show you

where to begin. We will explain what came with your new phone

and show you how to use the battery. Turn to page 10 to get

started.

The Basics

What do all those buttons and lights mean? How do I make my

ﬁrst phone call? In this section, we’ll answer those questions and

teach you everything necessary to start using your new phone.

Begin learning “The Basics” on page 22.

Using Memory

Read “Using Memory,” beginning on page 36, and we will

explain how to make the most of your new phone’s internal

Phone Book. You’ll learn how to save time with dialing

shortcuts and memory features that make it easy to place

quick calls.

Guide Overview

Using Messaging

This digital V. Series

™

phone supports optional messaging

services, like Caller ID, which allows you to see who is calling

before you answer. It can even receive alphanumeric messages

just like a pager and tell you when you have Voicemail. Turn to

page 52 to begin “Using Messaging.”

Using the Minibrowser and Data Features

With a service subscription, your phone can access up to the

minute information with the Minibrowser! You can use the

phone to retrieve on demand weather reports, sports scores, stock

reports, and much more. See page 106.

With the addition of the Motorola Data Connectivity Kit, you can

hook your phone up to a compatible computer and send and

receive faxes and data. See page 114.

The Works

When you are ready to learn the advanced features of your new

phone, turn to page 60 for “The Works.” We will explain

everything from navigating the menu system to electronically

locking your phone.

So relax!

Let us show you what your

Digital V Series phone

can do!

*Network and service dependent feature. Not available in all areas.

Contents

Introduction

Guide Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Getting Started

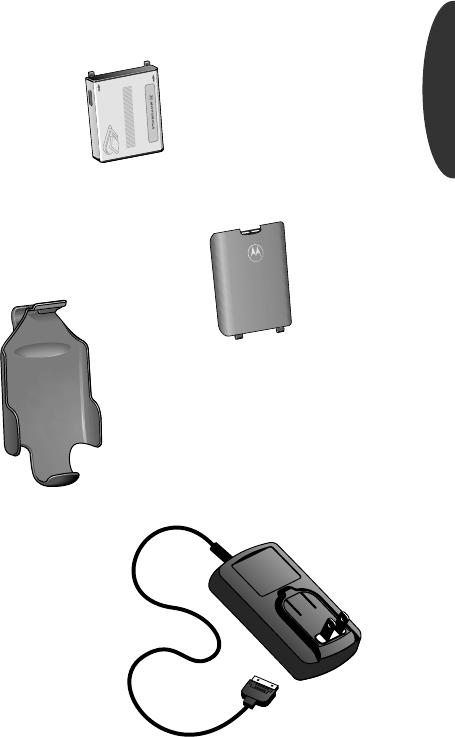

Package Content Options. . . . . . . . . . . . . . . . . . . . . . 10

Introduction to Batteries . . . . . . . . . . . . . . . . . . . . . . 12

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using the Smart Button . . . . . . . . . . . . . . . . . . . . . . . 21

The Basics

Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . 22

Reading the Indicators. . . . . . . . . . . . . . . . . . . . . . . . 25

Placing and Ending Calls . . . . . . . . . . . . . . . . . . . . . 28

Redialing Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Basic Tone Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Your Phone & Its Shortcuts . . . . . . . . . . . . . . . . . . . . 34

Using Memory

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Making the Most of Memory . . . . . . . . . . . . . . . . . . . 37

Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Entering Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Recalling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Editing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Using Calling Cards . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Contents

Using Messaging

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Receiving Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Viewing Your Caller IDs. . . . . . . . . . . . . . . . . . . . . . . .54

Checking Your Voicemail. . . . . . . . . . . . . . . . . . . . . . .56

Reading Your Messages . . . . . . . . . . . . . . . . . . . . . . . .58

The Works

Introducing the Menu Features. . . . . . . . . . . . . . . . . .60

The Internal Phone Book . . . . . . . . . . . . . . . . . . . . . .62

Store and recall numbers

Using Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Monitor the length of your calls

Setting Tone Controls. . . . . . . . . . . . . . . . . . . . . . . . . .76

Adjust your phone’s tone controls

Lock/Security Features. . . . . . . . . . . . . . . . . . . . . . . . .84

Control access to your phone

Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Personalize your phone’s operation

Using the Minibrowser. . . . . . . . . . . . . . . . . . . . . . . .106

Access valuable information with your phone

Using Data Features. . . . . . . . . . . . . . . . . . . . . . . . . .114

Make your phone a wireless modem

Reference Information

Accessory Options. . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Safety Information

Important:

Read this information before using your wireless handheld

phone.

Exposure

to Radio

Frequency

Signals

Your wireless handheld portable telephone is a low power radio

transmitter and receiver. When it is ON, it receives and also sends out

radio frequency (RF) signals. In August 1996, the Federal

Communications Commissions (FCC) adopted RF exposure guidelines

with safety levels for handheld wireless phones. Those guidelines are

consistent with safety standards previously set by both U.S. and

international standards bodies:

•

American National Standards Institute. C95.1 (1992).

•

National Council on Radiation Protection and Measurements.

Report 86 (1986).

•

International Commission on Non-Ionizing Radiation Protection.

(1996).

•

Ministry of Health (Canada). Safety Code 6.

Those standards were based on comprehensive and periodic evaluations of

the relevant scientiﬁc literature. For example, over 120 scientists,

engineers, and physicians from universities, government health agencies,

and industry reviewed the available body of research to develop the ANSI

Standard (C95.1).

The design of your phone complies with the FCC guidelines (and those

standards).

Important:

To maintain compliance with FCC RF exposure guidelines,

if you wear a handset on your body use the Motorola supplied or approved

carrying case, holster, or other body-worn accessory. If you do not use a

body-worn accessory, ensure the antenna is at least one inch (2.5

centimeters) from your body when transmitting. Use of non-Motorola

accessories may violate FCC RF exposure guidelines.

Antenna

Care

Use only the supplied or an approved replacement antenna. Unauthorized

antennas, modiﬁcations, or attachments could damage the phone and

may violate FCC regulations.

Phone

Operation

Normal Operation:

Hold the phone as you would any other telephone, with the antenna

pointed up and over your shoulder.

Safety Information

Tips on Efﬁcient Operation:

Observe the following guidelines to operate your phone most efﬁciently:

•

Extend your antenna fully.

•

Do not touch the antenna unnecessarily when the phone is in use.

Contact with the antenna affects call quality and may cause the

phone to operate at a higher power level than otherwise needed.

Batteries

Caution

All batteries can cause property damage, injury or burns if a

conductive material, such as jewelry, keys or beaded chains, touches

exposed terminals. The material may complete an electrical circuit and

become quite hot. To protect against such unwanted current drain,

exercise care in handling any charged battery, particularly when placing

it inside your pocket, purse or other container with metal objects. When the

battery is detached from the phone: your battery is packed with a

protective cover; please use this cover for storing your battery when

not in use.

Driving

Check the laws and regulations on the use of wireless telephones in the

areas where you drive. Always obey them. Observe the following guidelines

when using your phone while driving:

•

Give full attention to driving–driving safely is your ﬁrst responsibility;

•

Use hands-free operation, if available;

•

Pull off the road and park before making or answering a call if

driving conditions so require.

Electronic

Devices

Most modern electronic equipment is shielded from RF signals. However,

certain electronic equipment may not be shielded against the RF signals

from your wireless phone.

Pacemakers

The Health Industry Manufacturers Association recommends that a

minimum separation of six (6”) inches be maintained between a

handheld wireless phone and a pacemaker to avoid potential interference

with the pacemaker. These recommendations are consistent with the

independent research by and recommendations of Wireless Technology

Research.

Safety Information

Persons with pacemakers:

•

Should ALWAYS keep the phone more than six inches from their

pacemaker when the phone is turned ON;

•

Should not carry the phone in a breast pocket;

•

Should use the ear opposite the pacemaker to minimize the poten-

tial for interference.

•

Should turn the phone OFF immediately if you have any reason to

suspect that interference is taking place.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the

event of such interference, you may want to consult your hearing aid

manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of

your device to determine if they are adequately shielded from external RF

energy. Your physician may be able to assist you in obtaining this

information.

Turn your phone OFF in health care facilities when any regulations posted

in these areas instruct you to do so. Hospitals or health care facilities

may be using equipment that could be sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately shielded

electronic systems in motor vehicles. Check with the manufacturer or its

representative regarding your vehicle. You should also consult the

manufacturer of any equipment that has been added to your vehicle.

Posted

Facilities

Turn your phone OFF in any facility where posted notices so

require.

Aircraft

FCC regulations prohibit using your phone while in the air. Switch OFF

your phone before boarding an aircraft.

Blasting

Areas

To avoid interfering with blasting operations, turn your phone

OFF when in a “blasting area” or in areas posted: “Turn off two-way

radio.” Obey all signs and instructions.

Safety Information

Potentially

Explosive

Atmospheres

Turn your phone OFF and do not remove the battery when in any area

with a potentially explosive atmosphere, and obey all signs and

instructions. Sparks from your battery in such areas could cause an

explosion or ﬁre resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always,

clearly marked. They include fueling areas such as gasoline stations;

below deck on boats; fuel or chemical transfer or storage facilities; areas

where fuel odors are present (for example, if a gas/propane leak occurs in

a car or home); areas where the air contains chemicals or particles, such

as grain, dust, or metal powders; and any other area where you would

normally be advised to turn off your vehicle engine.

Vehicles

Equipped

with Air

Bags

An air bag inﬂates with great force. DO NOT place objects, including both

installed or portable wireless equipment, in the area over the air bag or in

the air bag deployment area. If in-vehicle wireless equipment is

improperly installed and the air bag inﬂates, serious injury could result.

Equipment

Care

Your wireless radiotelephone is designed for excellent durability under

normal use conditions. Protect your wireless telephone from water

damage that could result from spills or excessive exposure to rain. Never

submerge your wireless phone.

Cleaning

the Phone

Cleaning of this product should only be done with a damp cloth. The use

of chemical cleaners may harm the ﬁnish and integrity of the radio

housing and is not recommended.

Getting Started

The digital V. Series

™

phone comes equipped with a standard

battery and an AC adapter to get you up and running. An

exciting line of accessory options can customize your wireless

package for maximum performance and portability. This

chapter will show you how to get started with your new wireless

package.

In this chapter we will explain how to:

•

Attach and charge batteries.

•

Use chargers.

Package Content Options

VIB

Digital V8162 Phone

Getting Started

Package Content Options

Your phone and accessories may not look exactly as pictured.

AC Adapter

Holster

Slim LiIon Battery

Slim Battery Cover

Introduction to Batteries

Each battery is shipped in an uncharged state with a protective

clip on it. Before you can use your phone, you will need to

remove the clip from the battery and charge it.

Battery Clips

It is a good idea to save the protective clip to store and carry the

battery when not in use. The clip prevents objects from touching

the battery terminals, thereby reducing the risk of injury or

damage from a short circuit.

Removing the Main Battery Clip

Attaching the Main Battery Clip

Press

Tab

Hold one end of the battery/clip in one hand.

Press down on the tab at the opposite end of

the clip with your other hand.

Remove

Clip

Rotate the clip away from the battery.

Insert

Side

Insert one end of the battery into the clip, so

that the battery ﬁts the notches on the clip.

Click

Latch

Click the other side of the battery into place.

Getting Started

Installing Batteries

Battery Installation

To install a battery:

Remove

Cover

Slide the release latch toward the top of the

phone. With your other hand, rotate the cover

away from the phone.

Insert

Battery

Insert the battery, printed arrows ﬁrst, into the

top edge of the battery compartment. Continue

to push the arrows forward gently. Then push

the bottom edge down until it snaps into place.

Replace

Cover

Insert the tabs of the battery cover into the

notches on the bottom edge of the battery

compartment. Rotate the cover down until it

snaps into place.

Installing Batteries

Battery Removal

To remove a battery:

Remove

Cover

Slide the release latch toward the top of the

phone. With your other hand, rotate the cover

away from the phone.

Remove

Battery

Push the battery toward the top of the phone

until the bottom edge comes clear. Rotate the

bottom edge of the battery up and lift the bat-

tery from the phone.

Replace

Cover

Insert the tabs of the battery cover into the

notches on the bottom edge of the battery

compartment. Rotate the cover down until it

snaps into place.

Getting Started

Charging Batteries

Using the Internal Rapid Charger

Believe it or not, there is a battery charger built right into your

phone! To make use of the internal charger, you will need either

an AC adapter

or a vehicle power adapter.

Keep in mind:

When the internal charger is in use and the

phone is ON, you can still place and receive calls. However,

talking on the phone requires energy, so your phone may not

charge while the call is in progress.

Keep in mind:

In some cars, the ignition must be ON to use

the vehicle’s accessory power.

*Check with your retailer for availability of the adapters.

Attach

Adapter

to Phone

Plug the AC or vehicle power adapter into

the accessory connector on the bottom of

your phone as shown, with the release tab

facing up.

Plug In

Adapter

Plug the adapter into the appropriate power

source. Your phone will beep to let you know

the AC adapter is connected on both ends.

PUSH

TOP

Charging Batteries

The Battery Indicator

In the upper right corner of your phone’s display, there is a

battery indicator ﬁlled with three segments. The more segments

you see, the greater the charge.

•

The border of the battery icon will ﬂash during charging.

•

When the battery is fully charged, the battery icon will stop

ﬂashing and become solid.

Battery Storage and Disposal

To prolong the life of batteries, avoid exposing them to

temperatures below -10

C (14

F) or above 45

C (113

F). It is a

good idea to take your phone with you when you leave your car.

Never dispose of batteries in ﬁre.

Caution:

To prevent injuries or burns, do not allow metal

objects to contact or short circuit the battery terminals.

High Low

Getting Started

Charging Batteries

Expert Performance (E•P

)Charging System

The E•P system enables your phone’s built-in charger to

communicate with installed batteries and tailor its charging

cycle to optimize performance. If you see

Invalid Battery

when you power up the phone, the built-in charger is not able to

communicate with the battery and cannot charge it. There are

several possible reasons for this message. The most likely one is

that the battery is not a Motorola original and it does not have

the appropriate E•P technology. We recommend that you use

only Motorola original batteries and accessories and that you

store your batteries in their protective clips when not in use.

Charging Batteries

Using the Desktop Charger

The Desktop Charger’s front pocket can charge batteries while

they are attached to your phone, and the rear pocket can charge

batteries separately.

If you have a Desktop Charger:

Note:

If two batteries are loaded in the charger, the batteries

will charge one at a time.

Attach

Adapter

Plug the AC adapter into the back of the

charger, with the release tab facing up.

2. Plug In

Adapter

Plug the other end of the AC adapter into a

wall socket.

3. Insert

Phone

Insert the phone into the front pocket with a

battery attached.

&Insert

Battery

If you like, insert a battery into the rear

pocket.

PUSH

Front

Pocket

Rear

Pocket

Front LED

Rear LED

Getting Started

Charging Batteries

Desktop Charger Indicators

The LED indicators on the left front of the Desktop Charger let

you know the current state of any charging batteries.

The Front Pocket LED Indicator:

•Yellow means the phone with a battery is securely installed.

•Open the phone to see the charge status for the front pocket.

The Rear Pocket LED Indicator:

•Red means the battery is charging.

•Flashing yellow means the battery is waiting to be charged.

•Green means the battery is charged to 90% of its capacity.

Another hour of charging will bring it up to 100% capacity.

•Flashing red means the battery is damaged and cannot be

charged.

Desktop Charger Charging Times

The time it takes for your battery to obtain a full charge is

affected by a variety of factors, including:

•Temperature Batteries should be at or near room tempera-

ture when charging. To prolong battery life and charge

capacity, avoid exposing your batteries to temperatures below

-10°C (14°F) or above 45°C (113°F). It is a good idea to

take your phone with you when you leave your car.

•Inactivity New batteries, or batteries that have been stored

for long periods of time, may not rapid charge properly. In

these instances, the battery requires an overnight charge.

•Extended Usage Over extended periods of time, batteries

gradually wear down and require longer charging times.

This is normal. If you charge your battery regularly and

notice a decrease in talk-time or an increase in charging

time, then it is probably time to purchase a new battery.

Tip:

See pages 26-27

to learn how to

read the display.

Phone Overview

Function Keys

Alphanumeric Display Displays your input from the keypad,

information recalled from memory, and other messages.

Microphone Positioned for convenient conversation.

Retractable Antenna Extend for best performance.

Earpiece Ultra-compact phone speaker.

Headset Jack Connects an optional headset.

Accessory Connector Provides the connection for an

external power supply.

Volume Keys Located left of the display and represented in the

manual by qq

qq and ZZ

ZZ, these keys adjust the volume and scroll

up and down through memory locations and menu features.

¡Turns the phone ON and OFF.

øOpens messaging menus.

ƒActs as a “shift” key to access the secondary functions

of other keys.

‰Recalls phone numbers from memory and acts as the

left soft key for Minibrowser navigation.

¬Stores phone numbers into memory and acts as the

right soft key for Minibrowser navigation.

ÇClears characters from the screen.

ºEnds phone calls and exits the menu.

æPlaces or answers calls.

Can be used to scroll through memory entries

and menu features.

Getting Started

Using the Smart Button

When in doubt, press the Smart Button! Easily recognized in this

User’s Guide by AA

AA and in your phone’s display by § – the

handy Smart Button puts a variety of functions at your ﬁngertip.

Use the Smart Button’s ﬁngertip convenience for:

Opening the Quick Menu

Press AA

AA when your phone is idle to display a menu containing

shortcuts to your phone’s most popular features. See page 34.

Opening Your Phone Book

Press AA

AA twice to open the Phone Book with your names and

numbers. Turn to page 40 in “Using Memory” to learn more.

Entering the Menu System

Press ƒ then press AA

AA to enter your phone’s menu system.

See page 60 for information on navigating the menu system.

Selecting Items in the Menu

The primary use of the Smart Button is to select. Whenever the

phone offers you a choice, such as setting a ringer style (pg. 79),

press AA

AA to select. You will see: Press § to Select.

Turning Features ON and OFF

Press AA

AA to toggle ON and OFF many menu features, like the call

timers (pg. 70). You will see: Press § to Toggle.

Placing and Ending Calls

Press and hold AA

AA to place a call when the number you want to

call is on the display. Press and hold AA

AA again to end a call.

See page 28 for information on placing and ending calls.

The Smart Button

The Basics

The next few pages will introduce you to the basic features of

your phone. In the chapters that follow, we will explain every

one of your phone’s features, including storing names and

numbers, using the call timers, locking the phone, and more.

In this chapter we will explain how to:

•turn your phone ON.

•read the indicators.

•place, receive and end calls.

•adjust ringer and keypad volume, use shortcuts, and more.

Turning Your Phone On

Follow these steps to turn your phone ON:

1. Extend

Antenna

Extend the antenna completely for best

performance.

2. Open

Phone

Open the phone to expose the keypad.

3. Turn ON

Phone

Press ¡ once to turn the phone ON.

4. Turn OFF

Phone

When ﬁnished, press ¡ again to turn the

phone OFF.

Press ¡ to turn the

phone ON or OFF

Basics

Turning Your Phone On

Activating Your Phone

The ﬁrst time you turn your phone ON, you may see a message

on the display:

If you see these messages on the display, your service activation

can be completed with just a couple simple steps:

If you do not see Activation Required, your phone was

activated at the time of purchase and there is no need to follow

the steps above.

Power Up Display

Once activated, each time you turn your phone ON, your phone

performs a short self-test to make sure it is operational and then

it scans for service. While the phone scans, the display reads:

Turn the page to learn more about turning your phone ON.

1. Place

Call

Press æ to place the call.

Press and hold AA

AA until you hear a high tone.

2. Follow

Steps

Once the connection is made, your phone

will begin activation. Contact your Service

Provider for further assistance.

Required

Activation

to Activate

Press §

Searching..

Turning Your Phone On

Quad Number

Your phone can be activated with up to four unique phone

numbers. If more than one number is programmed, you will see

the currently active number whenever you turn ON the phone.

Turn to Changing Your Number on page 94 if you want to

change the active number.

Roaming

If your home network is not available when you turn your

phone ON, your phone will brieﬂy display:

Power Save Mode

If you travel outside the range of available networks, your phone

continues to search for a signal. To save power, it stops searching

every couple of minutes. When this is the case, you will see:

Power Save. Your phone will automatically begin searching

again in a minute or two – if you would like it to start searching

immediately, just press any key.

Standby Mode

To conserve energy, your phone enters standby mode and turns

OFF the backlight when you have not touched a key for a few

seconds. The backlight will come back ON as soon you press a

key or open the phone.

312-555-1212

Number 2

07/07/00

Roaming

Tip:

Look for on

the top line to

know if you are

roaming. See

page 26 for

more info.

Tip:

You can choose

how long the

backlight

remains ON.

See page 99.

Basics

Reading the Indicators

Detailed Battery Level Reading

The bar graph in the display represents the battery level. The

higher the graph, the closer the battery is to full charge.

Note: When plugged in, the battery level is rounded to the

lowest bar for increased accuracy. When you ﬁrst attach the AC

adapter, the level may fall.

Important: If the phone is being powered externally–from the

vehicle power adapter for example–you will see: Charging.

Service Light

The Service Light is on top of your phone and lights up when

your phone is ON. The color it ﬂashes depends on your phone’s

current state of service.

Press ƒ then press ›.

Red & Green,

alternating Incoming call or message

Green, ﬂashing In Service: home type system

Red, ﬂashing No Service

Yellow, ﬂashing slow Roaming: home type system

Yellow, ﬂashing fast Roaming: non-home type system

Battery

Full Charge

Low Charge

Service

Light

Tip:

To increase your

phone’s

standby-time,

you can turn the

Service Light

OFF. See page

101.

Reading the Indicators

Digital (1)

Indicates you are receiving a digital signal.

Signal Strength (2)

Displays the strength of the connection between your phone and

the wireless network.

In Use (3)

Appears when a call is in progress.

Roam (4)

Lights up when your phone accesses a wireless service outside of

your home system. When you leave your wireless Service Area,

your phone roams (seeks another wireless system).

56 7

Strong

Weak

Basics

Reading the Indicators

Message (5)

Appears when you receive an alphanumeric message.* It will

disappear after you have viewed the message.

Voicemail (6)

Indicates that you have received a Voicemail* message in your

Voicemailbox. It will disappear after you have checked your

Voicemail.

Battery Level (7)

The three bar segments on the phone’s Battery Level Indicator

show the amount of charge remaining in your battery at a

glance. The more bar segments you see, the higher the charge.

Clock (8)

When your phone is on a CDMA digital network, the display

shows the current time and date. Wherever you are, you will have

the correct local time. You can set your clock for 12- or 24-hour

format. See page 100 for more information.

When you select one of the VibraCall® alert combinations (see

page 78), the following indicators appear in the display:

VibraCall® Alert On (9)

Indicates that your phone’s ringer is turned OFF and the

VibraCall alert is ON.

Silent Mode (9)

Indicates that all of your phone’s tones are silenced and the

VibraCall alert is ON.

Vibrate Then Ring (9)

Indicates that both the ringer and VibraCall® alert are ON.

*Network and service dependent feature. Not available in all areas.

High

Low

Placing and Ending Calls

Placing a Call

You can dial phone numbers with up to 32 digits, but only the

last twenty-four digits will appear in the display.

Your phone will display the ﬁrst 24 digits, then a second screen

will show the digits remaining in the phone number.

Ending a Call

There are three ways to end a call:

1. Extend

Antenna

Extend the antenna completely for best

performance.

2. Open

Phone

Open the phone to expose the keypad.

If necessary, press ¡ to turn the phone ON.

3. Enter

Number

Enter the number you want to call,

for example: 555-1212.

Correct

Errors

Press Ç to erase one digit at a time if you

make a mistake. Press and hold Ç to erase

the entire entry and start again.

4. Place

Call

Press æ to place the call.

Press and hold AA

AA until you hear a high tone.

You will see: Calling 555-1212.

Press ‰ to see the rest of the number.

Close Close the phone to end a call.

or Press Key Press º.

or Hold

Smart

Button

Press and hold AA

AA until you hear a high tone.

You will see: Press § to End Call.

Press AA

AA again to end the call.

Tip:

If you press æ

without entering

a number, your

phone will dial

the last number

entered.

Basics

Redialing Numbers

Automatic Redial

The wireless system may at times be too busy to handle your

call. If this is the case, you may hear a fast busy signal and see

Call Failed and Press SND to Redial. With Automatic

Redial, your phone will repeat the call attempt over the next

four minutes. When the call succeeds, your phone will ring or

vibrate until the person you are calling answers.

To make this feature even easier, turn Instant Redial ON. Your

phone will instantly redial after a fast busy signal, and you will

not have to push a button. To ﬁnd out more, see page 97.

Redial

If you hear an ordinary busy signal:

Display Last Ten Numbers Dialed

Your phone keeps track of the last ten numbers you have dialed.

* Feature may not be available on some phones.

Auto

Redial

Press æ or press and hold AA

until you hear a high tone.

You will see: Redialing.

1. Hang Up Press º to hang up.

2. Redial Press æ to redial or press and

hold AA

AA. You will see: Calling.

1. Enter

List

Press ‰ then press ‚, ‚. The display

will show the last number you dialed.

2. Review

List

Press qq

qq or ZZ

ZZ to scroll through the last calls

made, including the time, date, and number.

3. Call

Number

Press æ or press and hold AA

to call the

number in your display.

You will see: Calling.

Tip:

Your phone’s

Scratchpad

automatically

remembers the

last number

entered. See

page 47 to learn

more.

This feature is

also available

through the

Quick Menu.

See page 34 to

learn more.

Press Ç then

¬ to delete the

displayed entry.

Receiving Calls

Your phone must be ON to receive calls.

When a call is incoming:

•an alert will sound and/or vibrate.

•the Service Light (pg. 25) will ﬂash red and green.

You can choose your phone’s alert, selecting from nine ringer

styles or silent vibration mode. See page 79.

Answering a Call

To answer a call:

Caller ID

If Caller ID* is active on your phone, you will be able to see who

is calling before you answer. The display will show your caller’s

name if it is in your Phone Book. If not, the display will show

your caller’s number. If you prefer to always see your caller’s

number, see page 67 to turn Number Preference ON.

The Caller IDs for your last 16 callers will be saved. See page 54

to learn how to view your stored Caller IDs.

*Network and service dependent feature. Not available in all areas.

1. Extend

Antenna

Extend the antenna completely for best

performance.

2. Open

Phone

Open the phone to expose the keypad.

Press æ if the phone

is already open.

Smith, Jane

Call From

312-555-1212

Call From

Basics

Receiving Calls

Ringer/Vibrating Alert Suppress

If an incoming call catches you by surprise, you can silence the

alert using the upper or lower volume key. Your phone’s ringer or

vibrating alert will remain OFF while the current call lasts. The

caller will still hear ringing and you can still answer the call by

pressing æ.

Note: This feature works the same with a headset. To answer

the call with a headset after you have turned the alert OFF, press

either volume key again or the Smart Button.

Unanswered Call Indicator

Even with the latest wireless technology, sometimes you are

unavailable to answer calls. If your phone is ON, it keeps a count

of unanswered calls. For example, if you miss two calls, your

display will show: 2 Calls Unanswered.

Call Waiting

If you subscribe to Call Waiting through your Service Provider,

you may hear a tone while on a call, indicating that you are

receiving a second call.

Suppress

Alert

When the phone rings or vibrates, press the

upper or lower volume key.

Clear

Display

Press Ç or press º to clear the display,

and you can begin placing calls again.

Answer

Call

Press æ to answer the call and

automatically place the current call on hold.

or End

Current

Call

Press º to end the current call. Your phone

will then ring and/or vibrate as usual. Press

æ to answer the call.

Tip:

If you subscribe

to Caller ID

service, you can

easily return the

calls that you

missed. See

page 54 to learn

how.

Basic Tone Controls

Vibration Mode

In situations where ringing may not be appropriate, or in noisy

places where you may not hear your phone, select the

VibraCall® alert. Ringing will be replaced by gentle vibrations.

Silent Mode

For complete discretion, turn Silent Mode ON. All tones will be

silenced. You can dial silently, and the ringer will be replaced by

gentle vibrations.

Muting the Microphone

If you would like privacy while a call is in progress, you may

mute the microphone—you will be able to hear the party on the

other end, but they will not hear you.

Toggle

Alert

Press ƒ then press † to switch between

the ringer and vibrating alert.

Activate

Silent

Mode

Press ƒ then press and hold † until you

see: Silent Mode On.

Turn OFF Press ƒ then press † to turn Silent Mode

OFF. Your phone will return to Ring Only

mode.

Mute

Phone

Press ƒ then press ﬂ during a call to

mute the microphone. You will see: Muted.

Unmute

Phone

Press ƒ then press ﬂ again to

resume your conversation.

VibraCall

Alert ON

Silent

Mode ON

Tip:

See page 78 for

the Silent Mode

menu option.

Basics

Basic Tone Controls

The upper and lower volume keys are left of the display and can

be used to adjust the earpiece, keypad, and ringer volume. As

you press these keys, the phone’s speaker will demonstrate the

new volume level.

Adjusting Earpiece and Keypad Volume

The audio feedback your phone gives you when you press a key

is called keypad tones. When your phone is idle, pressing the

volume keys adjusts the volume of these tones. To adjust the

volume of your conversation (the earpiece volume) use the

volume keys during a call.

The bar graph in the display represents the volume level. The

higher the graph, the louder the volume is.

Adjusting Ringer Volume

To adjust ringer volume:

Raise

Volume

Press qq

qq to raise the volume.

Lower

Volume

Press ZZ

ZZ to lower the volume.

Raise

Volume

Press ƒ then press qq

qq to raise the

ringer volume.

Lower

Volume

Press ƒ then press ZZ

ZZ to lower the

ringer volume.

Tip:

See page 81 if

you would like

to silence the

keypad tones.

Keypad Keypad

High Volume Low Volume

Your Phone & Its Shortcuts

Throughout this guide you will see shortcuts that point out

simple ways to reach some of your phone’s features. If you have

owned a Motorola phone before, some of these shortcuts will

already be familiar to you.

The Quick Menu

Press the Smart Button and the Quick Menu opens on the

display! The Quick Menu contains shortcuts to your phone’s

most popular features. Press the volume keys to scroll through

the options shown below and the Smart Button to choose one.

* Network and service dependent feature. Not available in all areas.

Phone Book The Phone Book is the place to ﬁnd all your

personal names and numbers. See page 40.

Messaging*If you subscribe to messaging, you can use this

shortcut or the one on page 52.

Launch

Browser*

If you subscribe to Minibrowser service, use

this feature to launch it. See page 106.

Last 10

Dialed

Your phone remembers the last ten numbers

you dialed. Turn to page 29 to learn more.

Set System

Mode

Allows you to choose the type of system your

phone will access. See page 104.

Main

Select this option to access your phone’s menu

system. See page 60 to ﬁnd out more.

Exit Select this option or press º to exit the Quick

Menu at any time.

Press qq

qq to scroll up

Press aa

aa to open the

menu and select

Press ZZ

ZZ to scroll down

Basics

Your Phone & Its Shortcuts

The Usual Shortcuts

The words “menu,” “batt,” “lock,” “mute,” and “vib” appear

on the ⁄, ›, ﬁ, ﬂ, and † buttons. Press the ƒ

key ﬁrst, then any one of these buttons, and your phone will

perform that function.

Enter

Press ƒ then press ⁄ to enter the menu

system.

Display

Meter

Press ƒ then press › to display the

battery meter.

Lock

Phone

Press ƒ then press ﬁ.

You will see: Lock? Press ¬ to lock.

Mute

Phone

Press ƒ then press ﬂ to toggle mute ON

and OFF during a conversation.

Silence

Ringer

Press ƒ then press † to toggle your

phone’s VibraCall® alert ON and OFF.

Silence

All Tones

Press ƒ then press and hold † to turn ON

Silent Mode.

Using Memory

Do you have places to go and people to see? Too many phone

numbers to remember? Let your phone remember them for

you.The internal Phone Book has 99 locations and each allows

you to store up to four numbers per location. That way you can

store hundreds of phone numbers for easy access on the go!

In this chapter we will explain how to:

•store names and numbers into the Phone Book.

•recall phone numbers from memory.

•dial in a ﬂash with the Super Speed Dial and Turbo Dial®

functions.

•simplify automated calling systems and credit card calls.

Follow these symbols as a guide for using the keys on the side of

your phone.

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

Using Memory

Making the Most of Memory

Numbered 01-99, each memory location allows you to store a

name and as many as four phone numbers. In one location, you

can store the home, mobile, work and fax numbers of a single

contact. To help you ﬁnd the right number, when you store the

number you assign it an icon:

Once stored, when you view memory locations, you will see the

name, location and one icon for each number stored.

To organize your Phone Book for convenient recall, try storing

related contacts in groups of ten. For example, store your ten

most frequently called numbers in locations 01-09, then you

can use the Turbo Dial® keys to call them with the push of a key.

You could store business contacts in locations 10-19, family in

20-29, friends in 30-39, and so on.

When you feel ready for more, try the advanced storing features

at the end of the chapter. For instance, pages 48-49 describe how

the Phone Book can help you access automated calling systems

with only a few keystrokes.

555-1212

Home Mobile Pager FaxWork Other

Smith J.

Location

Icons of numbers stored

Name

Tip:

If you purchase a

Motorola Data

Connectivity Kit,

you can easily

transfer contacts

between your

phone and

computer. See

page 114.

Contact your

Service Provider

for more

information.

Storing Names and Numbers

Each memory location can store up to four numbers. For a

single contact, you can store every number you need, like home,

mobile, fax, and more.

Keep in mind: When you recall entries by name, your phone

displays entries alphabetically. If you store an entry without a

name, it will be placed at the back of the Phone Book.

1. Enter

Number

Enter the phone number you want to store.

2. Begin

Storing

Press ¬ to begin storing.

You will see: Location XX?

3. Accept

Location

Press ¬ or « to store the sequence in the

displayed location.

or Enter New Press Ç to erase the location number

and enter a new two-digit location number.

or Select

Range of

Ten

Enter a digit and press « to store the

sequence in the ﬁrst available location

beginning with that digit.

4. Choose

Label

Press qq

qq or zz

zz to scroll through the icons.

From left to right: Work, Home, Mobile,

Pager, Fax, or Other. Press ¬ to select the

highlighted icon.

5. Store

You will see: Enter Next Number. Enter up

to four numbers per location. Press ¬ when

ﬁnished entering numbers. You will see:

Alpha or Press §.

6. Enter

Name

Enter a name to identify the phone number.

(See the next page for help.) Press aa

aa or ¬

when ﬁnished. Your phone will conﬁrm by

displaying the information stored.

Tip:

Always store

your Voicemail

number in

location 98.

Tip:

‘XX’ is the number

of the lowest

available loca-

Tip:

The “ § ” symbol

in your display

represents the

Smart Button aa

aa.

Using Memory

Entering Names

When the display shows Alpha or Press §, you can use the

keypad to produce any letter in the alphabet. Use the letters

printed on the key as a guide. For example, press ¤ to enter

the letters “A,” “B,” or “C” as shown:

To enter a name into the Phone Book:

1. Enter

Letter

Press a key as many times as necessary to

enter a letter. The next letter on the key will

appear with each press.

Toggle

Case

Press qq

qq or zz

zz to switch between upper and

lowercase.

2. Advance

Cursor

After each character, press » to advance

the cursor to the next space.

Clear

Letter

Press Ç to erase a letter if you make

a mistake.

Back

Space

Press « to move the cursor backward if

you would like to insert a letter earlier in the

sequence.

3. Enter

Marks

Press ⁄ to scroll through the available

punctuation marks: <space> 1 . @ / : '

, ? ! - _ # * " $ % & + ; = \ ( )

< > [ ].

4. Finish

Storing

Enter up to 24 letters, including spaces.

Press aa

aa when you are ﬁnished. Your phone

will conﬁrm the entry by displaying the

information stored.

press 1 time to insert an "A"

press 2 times to insert a "B"

press 3 times to insert a "C"

press 4 times to insert a "2"

Recalling from Memory

Recalling by Name

Once you have stored entries, you can recall them alphabetically

and immediately place calls.

1. Enter Press aa

aa twice to enter your name directory.

2. Scroll to

Name

Press qq

qq or zz

zz to scroll to the name you are

looking for.

or Search

for Name

Enter the ﬁrst letter of the name.

The display will show the name and location

of the ﬁrst entry beginning with that letter,

and an icon for each number stored in the

entry (up to four).

3. Select

Entry

Press aa

aa to select the entry for the displayed

name. You will see the ﬁrst number stored in

the location.

4. Choose

Number

Press qq

qq or zz

zz to scroll through the numbers

stored in that location. The selected icon will

be highlighted.

5. Place

Call

Press and hold aa

aa or press æ to call the

number. You will see: Calling.

6. End

Call

Press º or close the phone.

Press and hold aa

aa until you hear a high tone.

You will see: Press § to End Call.

then

Press aa

aa again.

Tip:

See page 39 for

details on

entering letters.

Smith J.

Using Memory

Recalling from Memory

Recalling by Memory Location

Each entry you store is placed in a memory location numbered

01-99. Once you have stored entries, you can recall them by

memory location.

1. Begin Press ‰ to begin recalling.

2. Enter

Location

Enter the two-digit memory location of the

entry you are looking for.

3. Select

Entry

Press aa

aa to select the displayed entry.

You will see the ﬁrst number stored in the

location.

4. Choose

Number

Press qq

qq or zz

zz to scroll through the numbers

stored in that location. The icon of the current

number will be highlighted.

5. Place

Call

Press and hold aa

aa or press æ to call the

number. You will see: Calling.

6. End

Call

Press º or close the phone.

Press and hold aa

aa until you hear a high tone.

You will see: Press § to End Call.

then

Press aa

aa again.

Editing Memory

Editing a Number

If you would like to change a number that you have already

stored, follow these steps.

1. Enter Press aa

aa twice to enter your name directory.

2. Scroll to

Name

Press qq

qq or zz

zz to scroll to the name you are

looking for and press aa

aa to select.

3. Select

Number

Press qq

qq or zz

zz to scroll to the number you

would like to change and press ¬.

You will see: Edit Number?

Press ¬ to begin editing.

4. Edit Phone

Number

Enter digits with the keypad. Press Ç to

erase one digit at a time, or press and hold

Ç to erase the entire number.

5. Finish

Number

Press aa

aa or ¬ when you ﬁnish the phone

number.

6. Select

Icon

If you would like to change the icon, press qq

or zz

zz to scroll through the icons. Press aa

aa to

select the highlighted icon. The display will

show the current location.

7. Keep

Location

If you would like to keep the location number,

press aa

aa or ¬. You will see the name associ-

ated with the entry.

or Change

Location

If you would like to change the location

number, press and hold Ç to erase the

location number and enter a new two-digit

number. You will see the name associated

with the entry.

Using Memory

Adding a Number to an Entry

If you would like to add a number to an entry, select the empty

cursor while viewing the entry.

8. Edit

Name

Press Ç to erase one letter at a time, or

press and hold Ç to erase the entire name.

Press « to move the cursor backward. (See

page 39 for details on entering names.) Skip

this step to leave the name unchanged.

9. Conﬁrm

Changes

Press aa

aa or ¬ when you ﬁnish editing the

name. You will see: N Numbers Saved At

XX. (N is the total of numbers stored in the

location and XX is the location number).

1. Enter Press aa

aa twice to enter your name directory.

2. Scroll to

Name

Press qq

qq or zz

zz to scroll to the name you are

looking for.

3. Select

Empty

Press qq

qq or zz

zz to scroll to the empty cursor.

Press ¬ and continue with step 4 on the pre-

vious page.

Erasing Memory Entries

Clearing an Entire Entry

Erasing a memory entry will clear the name and all the

numbers from the location. To erase a memory entry:

Clearing a Single Number

If you would like to keep the entry but delete one number from

the entry, follow these steps:

1. Enter Press aa

aa twice to enter your name directory.

2. Scroll to

Name

Press qq

qq or zz

zz to scroll to the name you are

looking for.

3. Clear

Entry

Press Ç to clear the entry.

You will see: To Delete Press STO.

4. Conﬁrm

Erase

Press ¬ to conﬁrm that you want to

erase the entry.

1. Enter Press aa

aa twice to enter your name directory.

2. Scroll to

Name

Press qq

qq or zz

zz to scroll to the name you are

looking for.

3. Choose

Number

Press aa

aa to select the entry, then press qq

qq or

zz to scroll to the icon of the number you

would like to delete.

4. Clear

Entry

Press Ç to clear the number.

You will see: To Delete Press STO.

5. Conﬁrm

Erase

Press ¬ to conﬁrm that you want to

erase the number.

Using Memory

Recall Shortcuts

Super Speed Dial

If you know the memory location of the number you wish to

call, you can use the Super Speed Dial function.

Keep in mind: If more than one number is stored in the

location, your phone will dial the ﬁrst. To change which

number is dialed with Super Speed Dial, see Changing Dialing

Shortcuts on the next page.

Turbo Dial

The Turbo Dial® keys let you dial numbers stored in locations

01-09 with the push of a button.

Keep in mind: If more than one number is stored in the

location, your phone will dial the ﬁrst. To change which

number is dialed with Turbo Dial, see Changing Dialing

Shortcuts on the next page.

Your phone’s Priority Call feature gives you unrestricted access

to any number stored in location 01, even if your phone is

locked. To learn how to activate this feature, see page 87.

1. Enter

Location

Enter the two-digit memory location, 01-99.

2. Place

Call

Press and hold aa

aa or press æ

to call the number you selected. The ﬁrst

number stored in the memory location

you entered will be dialed.

You will see: Calling.

Turbo

Dial

Press and hold the memory location number

of the entry you want to call, ⁄ through

·, and your call is placed.

You will see: Calling.

Changing Dialing Shortcuts

When you use the Super Speed Dial feature or the Turbo Dial®

keys, your phone uses the ﬁrst phone number stored in the entry.

This feature allows you to change which number is used for

these dialing shortcuts.

1. Enter Press aa

twice to enter your name directory.

2. Scroll to

Name

Press qq

qq or zz

zz to scroll to the name you are

looking for and press aa

aa to select.

3. Select

Number

Press qq

qq or zz

zz to scroll to the number you

want to make the dialing shortcut for that

location and press ¬ to select. You will see:

Edit Number.

4. Set

Number

Press Ç. You will see: Set Speed Dial.

Press ¬ to set that number as the dialing

shortcut. You will see: Set.

Using Memory

Scratchpad

If you need to take a quick note, but you do not want to save the

number, use the Scratchpad. The Scratchpad is helpful if you are

on the phone and your party gives you another number to call.

1. Enter

Number

Enter the number with the keypad. (The per-

son on the line will hear tones as you dial.)

2. Store

Number

Press ¬ and continue with step 3 on

page 38.

or End

Call

Press º to end your current call

if necessary.

& Place

Call

Press æ to call the number in the

Scratchpad.

Tip:

Press ‰ at

any time to see

what is on the

Scratchpad.

Tip:

Press and hold

Ç to clear the

Scratchpad.

Pause Dialing

When you call automated systems like Voicemail* or bank-by-

phone,* a recorded message prompts you for PIN numbers,

account numbers, etc. Pause Dialing can make using

automated systems easy by allowing you to store these numbers

in the same memory location as the automated system’s access

number. Separate each set of numbers with a “pause”– a

special character that tells your phone to wait before sending

additional numbers.

Storing a Number with Pause Dialing

The pause occupies a one-digit space in your phone’s memory.

Once you have entered a string of numbers and pauses, store the

string in the same way you store other entries.

*Network and service dependent feature. Not available in all areas.

1. Enter

Number

Enter the phone number you use to access

the automated system.

2. Insert

Pause

Press ƒ and press æ. You will see: Insert

Pause o. Press aa

aa. You will see a pause circle

o inserted into the number entry.

3. Enter

Enter the next group of numbers, for example,

your PIN number. If the automated system

requires a * or #, enter those symbols, too.

4. Repeat Repeat steps 2 and 3 as many times as

necessary.

5. Store

Sequence

Press ¬. Enter a two-digit location, select

an icon, press Ç, enter a name if you like,

and press ¬ or aa

aa when ﬁnished. Your

phone will conﬁrm the entry by displaying the

information you stored.

Tip:

You can store up

to 32 digits,

including pauses.

Tip:

Store up to 24

characters for a

name (including

spaces).

Using Memory

Using Pause Dialing

Once stored, you may recall the entry and place the call. All of the

digits you have stored will be recalled, but your phone will only

send the tones for the set of numbers before the ﬁrst pause.

Using Memory Linking

Each memory location holds up to 32 digits, including pauses.

Some automated systems, however, may require you to enter

more than 32 digits. If this is required, split the numbers into

two memory locations and recall the second set of digits as you

need them.

1. Place

Call

Enter the two-digit memory location of the

Pause Dialing number and press and hold aa

or press æ. Your phone will dial the access

number and wait for your input when it

reaches the ﬁrst pause.

2. Send

Numbers

When the automated system prompts you

for information, press aa

aa or æ to send the

next group of numbers. Repeat this step to

send each group of numbers that you have

stored.

3. End

Call

Press º, close the phone, or press &

hold aa

aa until you hear a high tone and

press aa

aa again.

1. Recall 2nd

Location

Once you have sent the tones from the

1st location, press ‰ and the two-digit

memory location where you stored the

second set of digits.

2. Send

Tones

Press ‰ and æ to send the tones in the

2nd location. If you have stored a pause in

the 2nd location, your phone will pause as

usual when it reaches the pause character.

Using Calling Cards

Storing Calling Card Numbers

Number Characters are another way your phone can save you

time in dialing. The Number Character saves a place in the

memory sequence for the number you will be calling when you

use your calling card. For best results, you may use the Number

Character along with Pause Dialing.

1. Enter

Access

Number

Enter the phone number you use to access

the calling card system, usually a 1-800

phone number. Skip this step if you only

dial 0.

2. Insert

Pause

Press ƒ then press æ. You will see:

Insert Pause o. Press aa

aa.

3. Insert

Number

Character

Press ƒ then press æ. Press qq

qq or ZZ

ZZ to

scroll to Insert Number ‘N. Press aa

aa. You

will see the number character ‘N inserted

into the sequence.This special character

saves a place for the number you will be call-

ing when you use your calling card.

4. Insert

Pause

Press ƒ then æ then aa

aa as in step 2.

5. Enter

Code

When you use your calling card, the system

prompts you for an access code, usually a PIN

code. Enter this number.

6. Repeat Repeat steps 4 and 5 if your card requires

more access codes.

7. Store

Sequence

Press ¬. Enter a two-digit location, select

an icon, press Ç, enter a name if you like,

and press ¬ or aa

aa when ﬁnished. Your

phone will conﬁrm the entry by displaying the

information you stored.

Tip:

You can protect

your calling card

information with

your phone’s call

restriction fea-

tures. See page

90 for details.

Using Memory

Placing a Calling Card Call

Once you have stored your calling card information, recall the

information and place the call whenever you want to use your

calling card. Before your phone begins dialing, it will prompt

you for the number you want to call. Once you have entered the

number, your phone will automatically insert the number in

place of the Number Character you stored.

1. Recall

Entry

Press ‰ then enter the location number

where your calling card sequence is stored.

2. Enter

Number

Press æ. You will see: Enter Number. Enter

the phone number you are calling. You may

enter the number manually or recall it by

location.

3. Place

Call

Press and hold aa

aa to place the call. Your

phone will dial the number to access your

calling card service provider, then wait for

your input when it reaches the ﬁrst pause.

4. Send

Numbers

Press aa

aa or press æ to send the next group

of numbers when the recording prompts you.

The phone will automatically insert the num-

ber to call at the appropriate spot in the

sequence. Press aa

aa to send each set of num-

bers until ﬁnished.

5. End

Call

Press º, close the phone, or press and hold

aa until you hear a high tone, and press aa

again to end the call.

Using Messaging*

The dedicated Message Key provides access to your phone’s easy-

to-use Messaging Menu. Through this menu, you can check

your Voicemail, read your pager-like alphanumeric Messages,

access Minibrowser* Alerts, and view the Caller IDs of your most

recent callers.

In this chapter we will explain how to:

•view your Caller IDs.

•check your Voicemail.

•read your Messages.

•explore your options with the Function Menus.

Follow these symbols as a guide for using the keys on your

phone.

* Network and service dependent feature. Not available in all areas.

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

Press ø to open

messaging menus

Messaging

Receiving Messages

If your phone is ON and you receive a Voicemail,* Minibrowser*

Alert, or alphanumeric message:

•An alert sounds or vibrates:

Your phone will beep or vibrate three times.

See Ringer / Vibrating Alert on page 78 to set your phone’s alert.

See page 81 to learn about Reminder Tones.

•An indicator appears on the display:

Appears on the lower second line of the display when you

receive an alphanumeric message. It will stay on the display

until you have read the message.

Msg Mem Low Appears when your phone’s message memory is

almost full (at approximately 85% capacity).

Msg Mem Full Appears in the main display when the message

memory is completely full and your phone is in idle mode.

Appears on the bottom top line of the display when you

receive a Voicemail message. It will stay on the display until you

have listened to the message. Your Service Provider will then

signal your phone to turn the indicator OFF.

•Press ø to open the Messaging Menu:

When you open the Messaging Menu, the icon of the message

type you received will be ﬂashing.

*Network and service dependent feature. Not available in all areas.

Tip:

For more infor-

mation on Mini-

browser* Alerts,

see page 106.

Tip:

See page 30

for information

on receiving

Caller IDs.

Tip:

Your Service

Provider holds

your messages

and will forward

them after you

have made room.

See page 59

to learn how

to delete

messages.

Voicemail

Messages

Caller ID

MiniBrowseAlrt

Viewing Your Caller IDs*

Your phone supports Caller ID service, which lets you see who is

calling before you answer. The Caller IDs for the last 16 different

callers are stored so they can be viewed at any time.

You will see a Caller ID icon for each stored Caller ID.

Flashing icons represent Caller IDs that have not been viewed.

Below the icons you will see information for the latest Caller ID:

Keep in mind: You will see the caller’s name only if it is stored

in your Phone Book.

A check mark will appear in the corner if you have answered

or returned the call. Press æ to return the call of the displayed

caller. Press ¬ to store the information.

*Network and service dependent feature. Not available in all areas.

1. Enter

Messaging

Press ø to open the Messaging Menu.

2. Select

Caller ID

Press qq

qq or ZZ

ZZ to scroll to Caller ID and

press aa

aa to select.

3. Select

Caller

Press qq

qq or ZZ

ZZ to highlight a Caller ID to

view and press aa

aa to view complete

information for that call:

12:10pm 08/02/00

1-312-555-1212

Selected Caller ID

Time & date of call

Caller‘s phone number

Smith J

Home

1-312-555-1212

Number

of times

they called Caller’s

phone number

Caller’s name

Messaging

Caller ID Options

When viewing Caller IDs, press the Message Key to see the

options available for the highlighted Caller ID.

4. Access

Options

Press ø to open the Caller ID

Function Menu.

5. Choose

Function

Press qq

qq or ZZ

ZZ to scroll to one of

the following:

To Msg

Press aa

aa to return your phone to the

Messaging Menu.

Exit Press aa

aa to exit Messaging to idle mode.

Delete

Message

Press aa

aa to delete the currently selected

Caller ID. Press aa

aa again to conﬁrm.

Delete

All Msgs

Press aa

aa to delete all your Caller IDs.

Press aa

aa again to conﬁrm.

Call Back Press aa

aa to return the call.

Store

To Mem

Press aa

aa to begin storing the number. Enter

a two-digit location, select a label, enter a

name, and press ¬.

Tip:

See page 38

for step-by-step

instructions on

storing.

Exit

Store To

Memory

Call Back

Go To

Messaging

Exit Delete

Message

Delete All

Messages

Checking Your Voicemail*

When you receive Voicemail, your Service Provider sends a

notiﬁcation to your phone and your phone displays an

indicator. That way, you will be able to check for new Voicemail

simply by glancing at your phone’s display.

If you have one or more Voicemail messages, you will see:

To listen to your messages, dial your access number. Your phone will

do this automatically with one keypress.

Keep in mind: Some Service Providers send the Voicemailbox

number to your phone automatically. If the number has not

been sent, then store it in location 98 of your Phone Book. To

learn how, see Pause Dialing on page 48.

If you have no new messages, you will see:

*Network and service dependent feature. Not available in all areas.

1. Enter

Messaging

Press ø to open the Messaging Menu.

2. Select

Voicemail

Press qq

qq or ZZ

ZZ to scroll to Voice Mail and

press aa

aa to select.

Dial

Number

When viewing notiﬁcations, press æ or

press & hold aa

aa to call your Voicemailbox.

You Have

12:30pm 09/30/00

Voicemail

Press SND to

Voicemail

Messaging

Voicemail Options

When checking Voicemail, press the Message Key to see options

for the highlighted Voicemail notiﬁcation.

3. Access

Options

Press ø to open the Voicemail

Function Menu.

4. Choose

Function

Press qq

qq or ZZ

ZZ to scroll to one of

the following:

To Msg

Press aa

aa to return your phone to the

Messaging Menu.

Exit Press aa

aa to exit Messaging to idle mode.

Delete

Message

Press aa

aa to delete the currently selected

Voicemail notiﬁcation. Press aa

aa to conﬁrm.

Call Back Press aa

aa to dial your Voicemailbox number.

Exit

Call BackGo To

Messaging

Exit Delete

Message

Reading Your Messages*

Your phone can receive alphanumeric messages like a pager.

The message memory stores up to 60 messages, depending on

the size of each.

*Network and service dependent feature. Not available in all areas.

1. Enter Press ø to open the Messaging Menu.

2. Select

Messages

Press qq

qq or ZZ

ZZ to scroll to Messages and

press aa

aa to select.

3. Select a

Message

Press qq

qq or ZZ

ZZ to highlight a message to

read and press aa

aa to select the message.

Once a message is selected, the following keys will help

you read through your messages:

4. Scroll Press aa

or ZZ

ZZ to scroll through the selected

message. When you reach the end of the

message, you will automatically go to the

next message.

Previous Press « to go to the previous message.

Next Msg Press » to go to the next message.

If the message includes a Call Back number, you can use

the following shortcuts:

Call Back Press æ to dial the Call Back number.

Store Press ¬ to store it in your Phone Book.

Tip:

Flashing icons

represent mes-

sages that have

not been viewed.

Tip:

If the Call Back

number matches

one in your

Phone Book, you

will see the name

of the caller when

you view the

message.

M: Happy B-day!

1: F:8475551212

12:34pm 07/07/00

Selected

message

More msgs

to right

Time & dat

of msg

Text of

msg

More msgs

to left

Locked msg

Sender’s

number

More text

Msg

number

Messaging

Message Options

When reading your messages, press the Message Key to see the

options available for the highlighted message.

5. Access

Options

Press ø to open the Message

Function Menu.

6. Choose

Function

Press qq

qq or ZZ

ZZ to scroll to one of

the following:

To Msg

Press aa

aa to return your phone to the

Messaging Menu.

Exit Press aa

aa to exit Messaging to idle mode.

Delete

Message

Press aa

aa to delete the currently selected

message. Press aa

aa again to conﬁrm.

Delete

All Msgs

Press aa

aa to delete all messages.

Press aa

aa again to conﬁrm.

Lock

Message

Press aa

aa to lock the message. Lock impor-

tant messages to protect them from acci-

dental deletion.

Unlock

Message

Messages must be unlocked before they can

be deleted.

If the message contains a Call Back number, you will also

see these options:

Call Back Press aa

aa to dial the sender’s number.

Store

To Mem

Press aa

aa to begin storing the number. Enter

a two-digit location, select a label, enter a

name, and press ¬.

Tip:

See page 38

for step-by-step

instructions on

storing.

Exit

Store To

Memory

Call Back

Go To

Messaging

Exit Delete

Message

Delete All

Messages

Lock

(Unlock)

The Works

Introducing the Menu Features

The digital V. Series™ phone is loaded with features that can

help make life easier and more productive. The phone’s user-

friendly menu will help you ﬁnd what you need quickly and

easily. You will see the following icons as you scroll through

the menu and each represents a menu.

Navigating the Menu

You can navigate through the menu system using the three keys

located on the left side of the phone. Use the volume keys to

scroll up and down through the options available on one level,

and the Smart Button, in the middle, to select.

This manual uses these symbols to instruct you to use the

navigation keys.

Phone Book Lock/Secure

Timers Phone Options

Tone Control

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

The Works

Road Maps

To help you navigate through the phone’s menu system, chapters

begin with an easy-to-follow visual “road map”—a quick

overview of what you will ﬁnd in the chapter that follows.

To use the menu system:

Previous User Compatibility

If you are already familiar with previous Motorola phones, you

may prefer to use your phone’s « and » keys to scroll

through the menu system.

In the Works

In the chapters that follow, detailed instructions describe the

operation of each feature. We will explain everything you need to

know about your new phone, including how to access and use a

feature and what happens when you do.

1. Enter

Press ƒ then press

aa.

2. Scroll

through

Press zz

zz or qq

qq to

scroll through the

menu’s top level,

shown on the right.

3. Exit

Press º to exit the

menu.

Phone

Book

Timers

Lock

Secure

Tone

Control

Phone

Options

pg. 62

pg. 70

pg. 76

pg. 84

pg. 92

Phone Book

In “Using Memory” you learned how to store and recall phone

numbers with the internal Phone Book. You can access the same

features, along with some other interesting features, using your

phone’s convenient menu system.

In this chapter we will explain how to:

•recall and store phone numbers using the menu system.

•edit your memory information.

•add numbers to existing entries.

•view your own phone number.

Follow these symbols as a guide for using the keys on the side of

your phone.

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

Phone Book

Road Map

Press ƒ then press aa

aa to enter the menu system.

Start:

Phone

Book

Recall By

Name

Recall By

Location

Phone Book

Status

Store New

Number

Edit

Memory

View My

Number

Prefer Off

To Main

pg. 64

pg. 65

pg. 66

pg. 68

pg. 67

pg. 62

pg. 67

Getting to Phone Book...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Book

Press AA

AA to select to Phone Book.

Recalling By Name

Once you have stored entries, you can recall them alphabetically

with the Phone Book menu. Find the name, choose the number,

and instantly place a call.

3. Begin

Recalling

Press aa

aa to select Recall By Name.

You will see: Enter 1st Letter.

4. Enter

First Letter

Press the appropriate digit key as many times

as necessary to enter the ﬁrst letter of the

name. (See page 39 for help entering letters.)

You will see the ﬁrst entry with that letter.

&Find

Name

If necessary, press qq

qq or ZZ

ZZ to scroll to

the name you are looking for.

5. Select

Number

Press aa

aa to select the entry, then press qq

qq or

zz to scroll through the numbers stored in

that location.

6. Place

Call

Press and hold aa

aa or press æ to call the

number. You will see: Calling.

7. End

Call

Press º or close the phone.

Press and hold aa

aa until you hear a high tone.

You will see: Press § to End Call.

then

Press aa

aa again.

Recall By

Name

Tip:

Press aa

aa while

scrolling through

the icons to go to

another entry.

Phone Book

Recalling By Location

Each entry you store is placed in a memory location numbered

01-99. Once you have stored the entry, you can use this feature to

recall it by the number of the location.

Phone Book Status

You can use this feature to see how many of your Phone Book’s

99 locations have been used.

3. Begin

Recalling

Press qq

qq or ZZ

ZZ to scroll to

Recall By

Location and press aa

aa to select.

You will see Location——.

4. Enter

Location

Enter the two-digit memory location of the

number you are looking for. You will see the

name, location number, and an icon for each

number stored in the entry.

5. Select

Number

Press aa

aa to select the entry, then press qq

qq or

zz to scroll through the numbers stored in

that location.

6. Place

Call

Press and hold aa

aa or press æ to call the

number. You will see: Calling.

7. End

Call

Press º or close the phone.

Press and hold aa

aa until you hear a high tone.

You will see: Press § to End Call.

then

Press aa

aa again.

3. Select

Feature

Press qq

qq or ZZ

ZZ to scroll to

Phone Book

Status and press aa

aa to select. You will see:

XX In Use XX Empty.

4. Exit

Press º to exit menu, or you may scroll to

other features.

Recall By

Location

Tip:

To place a quick

call just enter

the two-digit

location and

press æ.

Tip:

Press aa

aa while

scrolling through

the icons to go to

another entry.

Phone Book

Status

Getting to Phone Book...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Book

Press AA

AA to select to Phone Book.

Storing a New Number

This feature allows you to create a new entry in the internal

Phone Book. To add a number to an existing entry, turn to

Editing a Memory Location on page 68.

3. Begin

Storing

Press qq

qq or ZZ

ZZ to scroll to Store New

Number and press aa

aa to select.

You will see: Enter Number.

4. Enter

Number

Enter the number you want to store and

press aa

aa. You will see: Location XX?

5. Enter

Location

Press ¬ or « to store the number in the

displayed location or enter a new two-digit

location.

or Select

Range of

Ten

Enter the ﬁrst digit of the memory location

and press « to store it in the ﬁrst available

location beginning with that digit.

6. Choose

Label

Press qq

qq or zz

zz to scroll through the icons.

From left to right: Work, Home, Mobile,

Pager, Fax, or Other. Press aa

aa or ¬ to select

the highlighted icon.

7. Store

You will see: Enter Next Number. Enter up

to four numbers per location. Press ¬ when

ﬁnished.

8. Enter

Name

Enter a name to identify the phone number(s)

or continue with step 9. See page 39 for

details on entering names.

Store New

Number

Tip:

Always store

your Voicemail

number in

location 98.

Tip:

If the name or

number is

already in your

Phone Book,

you will see:

Duplicate

Name or

Number.

Tip:

‘XX’ is the number

of the lowest

available

location.

Phone Book

Viewing Your Number

Use this feature to view your phone’s currently active number. If

you have more than one phone number, you can change the

active number with Changing Your Number on page 94.

Number Preference

When Placing Calls:

If you prefer to see the number (Calling 555-1212) instead

of the name (Calling Jane Smith) when you place a call

from the internal Phone Book, turn Number Preference ON.

When Receiving Calls:

If you subscribe to Caller ID, your phone automatically looks up

callers in your Phone Book and displays the name stored in the

entry. If you prefer to see the caller’s number (555-1212), then

turn Number Preference ON.

9. Store

Number

Press ¬ or aa

aa. Your phone will conﬁrm by

displaying: N Numbers Saved At XX.

10. Exit Press º to exit menu.

3. View

Number

Press qq

qq or ZZ

ZZ to scroll to

View My

Number and press aa

aa to select. The display

will show the currently active number.

4. Exit Press º to exit menu.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to

Number Prefer.

4. Toggle

Feature

Press aa

aa to toggle the feature On or Off.

5. Exit Press º to exit menu, or you may scroll to

other features.

View My

Number

Shortcut:

Press ‰, ».

Number

Prefer Off

Getting to Phone Book...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Book

Press AA

AA to select to Phone Book.

Editing a Memory Location

You can use this feature to add a number to an entry or change

an old number in a snap.

3. Begin

Editing

Press qq

qq or ZZ

ZZ to scroll to Edit Memory and

press aa

aa to select.

4. Find by

Location

Press qq

qq or ZZ

ZZ to scroll to Edit By

Location and press aa

aa to select. You will

see: Location——. Enter the two-digit mem-

ory location of the phone number you want to

edit. Press aa

aa or ¬ and continue with Step 5.

or Find by

Name

Press qq

qq or ZZ

ZZ to scroll to Edit By Name and

press aa

aa to select. You will see: Enter 1st

Letter. Enter the first letter of the name you

want to edit. (See page 39 for information on

entering letters.) You will see the ﬁrst entry

beginning with that letter. Press qq

qq or ZZ

ZZ to

scroll to the name you are looking for. Press

aa or ¬ and continue with Step 5.

5. Select

Number

Press

qq or ZZ

ZZ to scroll to the icon of the

number to be edited (if more than one stored).

Press ¬ to select. You will see the number.

or Add

Number

Press

qq or ZZ

ZZ to scroll to the empty cursor

and press ¬ to select. You will see: Enter

Number.

Edit

Memory

Tip:

Store up to four

numbers per

entry. If four are

already stored,

you will not see

the empty cursor.

Phone Book

6. Edit /Add

Phone

Number

Enter digits. Press Ç to erase a digit at a

time, or press and hold Ç to erase the

entire number.

7. Finish

Number

Press aa

aa or ¬ when you ﬁnish the phone

number.

8. Select

Icon

Press qq

qq or zz

zz to scroll through the icons and

press aa

aa to select the highlighted icon. The

display will show the current location.

9. Keep

Location

If you would like to keep the location number,

press aa

aa or ¬. You will see the name associ-

ated with the entry.

or Change

Location

If you would like to change the location

number, press and hold Ç to erase the

location number and enter a new two-digit

number. You will see the name associated

with the entry.

10. Edit

Name

Press Ç to erase one letter at a time, or

press and hold Ç to erase the entire name.

Press « to move the cursor backward. (See

page 39 for details on entering names.) Skip

this step to leave the name unchanged.

11. Conﬁrm

Changes

Press aa

aa or ¬ when you ﬁnish editing the

name. You will see: N Numbers Saved At

XX. (N is the total of numbers stored in the

location and XX is the location number).

12. Exit

Press º to exit the menu, or you may scroll

to other features.

Call Timers

Your phone is equipped with three visual and three audible call

timers. You can monitor or record the length of individual calls,

set a timer to track monthly usage, or have the phone alert you

at intervals that you specify.

In this chapter we will explain how to:

•monitor the length of your calls.

•set and view the resettable timer for long-term monitoring.

•program audible timers for your individual needs.

Follow these symbols as a guide for using the keys on the side of

your phone.

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

CallTimers

Road Map

Press ƒ then press aa

aa to enter the menu system.

Start:

Phone

Book

Timers Individual

00:00:00

Cumulative

Time 00000

Reset

Timer

Individual

Timer Off

One Minute

Timer Off

Repeating

Timer Off

Single

Timer Off

To Main

Resettable

Time 00000

pg. 72

pg. 73

pg. 74

pg. 62

pg. 70

pg. 75

Getting to Call Timers...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Call Timers

Press qq

qq or ZZ

ZZ to scroll to Timers

and press AA

AA to select.

Viewing the Individual Timer

The individual timer records the air-time of your most recent

call in hours, minutes, and seconds. It resets before you place

the next call. You can have the timer display automatically

while calls are in progress. See Auto Display Individual Timer on

page 74.

Viewing the Resettable Timer

You can track how much air-time you have accumulated during

any time period you choose. For example, reset this timer at the

beginning of each billing period to know where you stand at any

given moment. Use this feature to view the time elapsed, and

follow the instructions on page 73 to reset the timer.

3. View

Timer

When you enter the Call Timers menu,

you will see: Individual XX:XX:XX.

4. Exit

Press º to exit the menu, or you may scroll

to other features.

3. View

Timer

Press qq

qq or ZZ

ZZ to scroll to Resettable Time.

You will see the air-time in minutes since you

last reset the timer.

4. Exit

Press º to exit the menu, or you may scroll

to other features.

Shortcut:

Press ‰ then

» twice.

Shortcut:

Press ƒ, aa

then ›, ﬁ.

Individual

00:00:00

Resettable

Time 00000

Shortcut:

Press ‰ then

» three times.

Shortcut:

Press ƒ, aa

aa then

›, ﬂ.

CallTimers

Viewing the Cumulative Timer

This is a non-resettable timer that keeps track of your phone’s

total air-time (in minutes) since your phone was activated.

Resetting the Timer

This feature allows you to monitor elapsed air-time over a period

of time that you choose. After you reset the timer, it will continue

to keep track of your air-time (in minutes) until you reset it

again.

3. View

Timer

Press qq

qq or ZZ

ZZ to scroll to Cumulative Time.

You will see the total air-time in minutes.

4. Exit

Press º to exit the menu, or you may scroll

to other features.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Reset Timer.

4. Reset

Timer

Press aa

aa to reset. You will see: Resettable

Time 00000.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Cumulative

Time 00000

Shortcut:

Press ‰ then

» four times.

Shortcut:

Press ƒ, aa

then ›, ‡.

Reset

Timer

Shortcut:

Press ƒ, aa

then ›, ‹

and continue

with step 4.

Shortcut:

Press ƒ then

‚, ‡, Ç

to reset the

timer.

Getting to Call Timers...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Call Timers

Press qq

qq or ZZ

ZZ to scroll to Timers

and press AA

AA to select.

Auto Display Individual Timer

When you turn this feature ON, your phone will automatically

display your air-time in minutes and seconds during and after

each call.

Note: Activating the Auto Display Timer may reduce standby-

time and talk-time.

One Minute Audible Timer

Turn this feature ON to hear an audible beep 10 seconds before

the end of every minute during a call. The party on the other

end will not hear the beeps.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to

Individual Timer.

4. Toggle

Display

Press aa

aa to toggle On or Off the automatic

display of the individual timer.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to

One Minute Timer.

4. Toggle

Timer

Press aa

aa to toggle the timer On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Individual

Timer Off

Shortcut:

Press ƒ, aa

then ›,†

and continue

with step 4.

One Minute

Timer Off

Shortcut:

Press ƒ, aa

then ›, ›

and continue

with step 4.

CallTimers

Repeating Audible Timer

You can set this timer to beep during your calls at an interval

that you select—from 11-999 seconds. Like the One Minute

Timer, you will hear the beep 10 seconds before the end of each

interval, and the party on the other end will not hear the beeps.

Single Audible Timer

You can set the Single Timer to beep during your calls at a time

that you select–from 11-999 seconds. It will beep once during

each call, 10 seconds before the end of the preset time. The party

on the other end will not hear the beeps.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Repeating Timer.

4. Toggle

Timer

Press aa

aa to toggle the timer On or Off.

5. Enter

Seconds

If you toggle the timer ON, you will see:

Enter Seconds. Enter the number of seconds

you would like between beeps and press aa

to set the timer. You will see: Set At XXX Secs.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Single Timer.

4. Toggle

Timer

Press aa

aa to toggle the timer On or Off.

5. Enter

Seconds

If you toggle the timer ON, you will see:

Enter Seconds. Enter the number of seconds

you would like before the beep and press aa

to set the timer. You will see: Set At XXX Secs.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Repeating

Timer Off

Shortcut:

Press ƒ, aa

then ›, ⁄

and continue

with step 4.

Single

Timer Off

Shortcut:

Press ƒ, aa

then ›, ¤

and continue

with step 4.

Tone Controls

If you’ve been reading along diligently, this may be a good time

for a break–put your feet up and have some fun with these

features. Use the Tone Control features to select Silent Mode,

personalize your phone’s ringer styles, or set the phone to

remind you of new messages.

In this chapter we will explain how to:

•choose from nine different ringer styles.

•activate and deactivate the VibraCall® alert.

•silence the keypad.

•silence all your phone’s tones with one convenient feature.

•set the Message Reminder.

Follow these symbols as a guide for using the keys on the side of

your phone.

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

Tone Controls

Road Map

Press ƒ then press AA

AA to enter the menu system.

Start:

* Network and service dependent feature. Not available in all areas.

Phone

Book

Timers

Tone

Control

Silent

Mode Off

Ring/Vib

Select

Ringer

Style 1

Setup Msg

Tones

Reminder

TonesSetup

Keypad

Tones On

DTMF

Select

Service

Tones Off

To Main

pg. 78

pg. 79

pg. 80

pg. 81

pg. 82

pg. 60

pg. 68

pg. 76

pg. 83

Getting to Tone Control...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Tone Control

Press qq

qq or ZZ

ZZ to scroll to Tone Control

and press AA

AA to select.

Silent Mode

When you need to be discreet, just turn Silent Mode ON. All tones

will be silenced. The ringer and incoming message tones will be

replaced by vibrations.

Ringer / Vibrating Alert

Motorola’s VibraCall® alert is ideal for situations where ringing

may not be appropriate, or in noisy places where you might not

hear the ringer. When both the ringer and vibrating alert are

ON, the phone alerts you by vibrating for three ring cycles then

ringing.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Silent Mode.

4. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

3. Enter

Feature

Press qq

qq or ZZ

ZZ to scroll to Ring/Vib

Select and press AA

AA to select.

4. Select

Ringer/

Vibe

Press qq

qq or ZZ

ZZ to scroll to Vibrate Only,

Ring Only, or Vibrate Then Ring and

press AA

AA to select the displayed option.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Silent

Mode Off

Shortcut:

Press ƒ then

press & hold †.

Shortcut:

Press ƒ

then press † to

toggle the

VibraCall® alert

ON and OFF.

Ring/Vib

Select

Shortcut:

Press ƒ, aa

aa and

‹, ⁄, aa

aa and

continue with

step 4.

Tone Controls

Roaming Ringer*

For an easy way to know if you are on your home network before

you answer calls, use this feature. When roaming with this

feature ON, you will hear a distinct ringer for incoming calls.

Selecting a Ringer Style

Your new phone offers nine different ringer styles. After you

choose a style, the phone will give you a brief sample of your new

alert sound, or vibrate if you have the VibraCall® alert selected.

* Network and service dependent feature. Not available in all areas.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Roam Ringer.

4. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

3. Enter

Feature

Press qq

qq or ZZ

ZZ to scroll to Ringer Style and

press AA

AA to select.

4. Select

Ringer

Press qq

qq or ZZ

ZZ to scroll through the ringer

styles. As you scroll, your phone will give an

audible sample of the currently displayed

style. Press AA

AA to select the displayed option.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Roam

Ringer On

Ringer

Style 1

Getting to Tone Control...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Tone Control

Press qq

qq or ZZ

ZZ to scroll to Tone Control

and press AA

AA to select.

Setup Message Tones

When you receive a new Voicemail or alphanumeric message,

your phone beeps three times. To change the number of beeps or

to turn them OFF, use this feature.

3. Enter

Feature

Press qq

qq or ZZ

ZZ to scroll to Setup Msg

Tones and press AA

AA to select.

4. Select

Msg Type

Press qq

qq or ZZ

ZZ to scroll to Text Msg Tone

or Voicemail Tone.

5. Toggle

Tone

Press AA

AA to toggle between 3Beep, 1Beep,

or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Setup Msg

Tones

Tip:

To make new

messages easy to

recognize, try

making the

number of beeps

unique to each

message type.

Tone Controls

Reminder Tones Setup

If you subscribe to messaging services, this feature can help you

remember to check your messages. Turn Message Reminder

Tones ON and your phone will remind you of unread messages by

beeping and /or vibrating every two minutes. This feature is

especially helpful if you are busy or away from your phone.

Keypad Tones

Keypad Tones are the sounds you hear when you press any key

on the phone. If you want to be discreet, use this feature to

silence the audio feedback from the keypad.

Keep in mind: Turning Keypad Tones OFF does not silence the

tones your phone sends across the line. See Transmit Tones on

page 82 for more information.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Reminder

TonesSetup and press AA

AA to select.

4. Select

Call or

Msg Tone

Press qq

qq or ZZ

ZZ to scroll to Call Remind

Tone or Msg Remind Tone and press AA

to select.

5. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Keypad Tones.

4. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Reminder

TonesSetup

Keypad

Tones On

Shortcut:

Press ƒ, aa

and ‹, ¤

and continue

with step 4.

Getting to Tone Control...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Tone Control

Press qq

qq or ZZ

ZZ to scroll to Tone Control

and press AA

AA to select.

Transmit Tones

Your phone transmits tones to communicate with automated

calling systems like Voicemail* or bank-by-phone.* These tones

are called DTMF tones (Dual Tone Multi-Frequency tones), and

this feature allows you to control the length of the tone your

phone sends. For most systems, you should use the default

setting of short tones, which sends the tones for a preset length

of time. If you choose long tones, your phone will transmit the

tones for as long as you press and hold the key. To silence the

tones during conversations, turn the tones OFF.

Note: If you turned the DTMF tones OFF, but you want to access

a tone-activated system like Voicemail, place your call, enter the

numbers you need to transmit and:

*Network and service dependent feature. Not available in all areas.

3. Enter

Feature

Press qq

qq or ZZ

ZZ to scroll to DTMF Select and

press AA

AA to select.

4. Select

Setting

Press qq

qq or ZZ

ZZ to scroll to Transmit DTMF

Long, Transmit DTMF Short, or

Transmit DTMF Off and press AA

AA to select.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Send

Tones

Press ‰ then press æ to send the tones if

DTMF tones are OFF.

DTMF

Select

Shortcut:

Press ƒ, aa

then ‹, ‹, aa

and continue

with step 4.

Tone Controls

Service Tones

When Service Tones are ON, you will be instantly alerted to any

change in your wireless service. You will hear two short beeps

when your phone (1) starts to roam, (2) returns to a home

system after roaming, (3) loses service, or (4) ﬁnds service.

Check the display to ﬁnd out what changed (see page 26).

Keep in mind: Your phone will always beep if a call

is dropped.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Service Tones.

4. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Service

Tones Off

Lock/Security

While you probably would not want to leave your phone

unattended, your phone has a number of built-in

security features to prevent unauthorized use.

In this chapter we will explain how to:

•lock and unlock your phone.

•place priority calls.

•view and change your lock code.

•restrict call placement and memory access.

•reset or clear your phone’s settings.

Follow these symbols as a guide for using the keys on the side of

your phone.

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

Lock/Security

Road Map

Press ƒ then press aa

aa to enter the menu system.

Start:

Auto

Lock Off

Priority

Call On

Secure

Options

View Lock

Code

Change

Lock Code

Change

SecureCode

Service

Level 4

Master

Reset

Master

Clear

Secure

Code______

To Main

Phone

Book

Timers

Lock

Secure

Tone

Control

pg. 76

pg. 84

pg. 62

pg. 70

pg. 88

pg. 89

pg. 91

pg. 89

pg. 90

pg. 91

pg. 86

pg. 87

pg. 88

Getting to Lock Secure...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Lock Secure

Press qq

qq or ZZ

ZZ to scroll to Lock Secure

and press AA

AA to select.

Auto Lock

Turn this feature ON and your phone will automatically lock

itself each time the phone is turned OFF.

Locking the Phone

You can lock your phone manually at any time to help prevent

unwanted use. Once locked, you can leave the phone ON or turn

it OFF and the phone will remain locked.

Unlocking the Phone

Unlocking your phone is quick and easy. Once your phone is

ON, just enter your three-digit code. Your factory programmed

lock code is 123. If you have changed this code and cannot

remember what it is, see Viewing the Lock Code on page 88.

Keep in mind: You can still receive calls when the phone is

locked. Follow these steps to answer an incoming call:

3. Find Feature Press qq

qq or ZZ

ZZ to scroll to Auto Lock.

4. Toggle Lock Press AA

AA to toggle the feature On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

1. Lock Phone Press ƒ then press ﬁ.

You will see: Lock?

2. Conﬁrm Press AA

AA or ¬. You will see: Locked.

Unlock &

Answer

Enter your three-digit code and press aa

aa or

æ to answer.

Auto

Lock Off

Lock/Security

Priority Call

Your phone’s priority call feature allows you to instantly place a

call from location 01 – even when your phone is locked.

Keep in mind: Some wireless systems only allow access to

their own emergency numbers. Check with your Service

Provider for more information.

Storing a Priority Call Number

You should reserve memory location 01 for an emergency

number or the number of a family member or close friend. To

store your priority number, follow these steps:

Placing a Priority Call

Keep in mind: If call restriction Service Level 1 is enabled, the

Turbo Dial® keys will not be active. To override the restriction

and place a priority call, press ‰, ⁄, æ. See page 90 for

information on your phone’s service levels.

3. Find Feature Press qq

qq or ZZ

ZZ to scroll to Priority Call.

4. Toggle Press AA

AA to toggle the feature On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

1. Enter

Number

Enter your priority number.

2. Save

Number

Press ¬ and ‚, ⁄ to choose

location 01.

3. Enter

Name

Select a label, press Ç, enter a name if you

like, and press AA

AA when ﬁnished. Your phone

will conﬁrm the entry by displaying the

stored information.

Place

Call

When Priority Call is ON, press and hold ⁄

at any time.

Priority

Call On

Shortcut:

Press ƒ, AA

then ¤, ·

and continue

with step 4.

Tip:

If you store more

than one number

in location 01,

the ﬁrst will be

dialed. See page

46 for more

information.

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Lock/Secure

Press qq

qq or ZZ

ZZ to scroll to Lock Secure

and press aa

aa to select.

3. Access

Secure

Options

Press qq

qq or ZZ

ZZ to scroll to Secure Options

and press aa

aa. You will see: Secure Code——————.

Enter your six-digit secure code.

Getting to Secure Options...

Secure Options Submenu

For your protection, you must enter a six-digit secure code in

order to access the features in the Secure Options submenu. The

factory programmed secure code is 000000.

Viewing the Lock Code

To view the three-digit lock code:

4. View

Code

Press AA

AA to select View Lock Code.

You will see: Lock Code XXX.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Secure

Options

View

Lock Code

Shortcut:

Press ƒ, ‚,

enter six-digit

security code,

then ‰.

Lock/Security

Changing the Lock Code

To change the three-digit lock code:

Changing the Secure Code

The Secure Code is a six-digit number factory set to 000000.

You will probably want to change it to something unique

and easy to remember.

4. Begin

Change

Press qq

qq or ZZ

ZZ to scroll to Change Lock

Code and press aa

aa to select.

You will see:

Enter New Code———.

5. Enter New

Code

Enter a new three-digit lock code.

You will see: New Lock Code XXX.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Select

Feature

Press qq

qq or ZZ

ZZ to scroll to Change Secure

Code and press AA

AA to select. You will see:

New Code ——————.

5. Enter New

Code

Enter a new six-digit Secure Code. Your

phone will brieﬂy display the new code.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Change

Lock Code

Shortcut:

Press ƒ,

‚, enter

your six-digit

secure code,

enter a new lock

code, then ¬.

Change

SecureCode

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Lock/Secure

Press qq

qq or ZZ

ZZ to scroll to Lock Secure

and press aa

aa to select.

3. Access

Secure

Options

Press qq

qq or ZZ

ZZ to scroll to Secure Options

and press aa

aa. You will see: Secure Code——————.

Enter your six-digit secure code.

Getting to Secure Options...

Secure Options Submenu

Service Level

When loaning your phone to others, you may want to restrict

call placement or protect memory information. Your phone has

two service levels that allow you to control the types of outgoing

calls that can be made from your phone.

Your phone has two service levels:

4. Select

Feature

Press qq

qq or ZZ

ZZ to scroll to Service Level

and press AA

AA to select.

5. Choose

Level

Press qq

qq or ZZ

ZZ to scroll through service level

settings and press AA

AA to select the setting.

(See the chart below for descriptions.)

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Level 1: Calls can be placed from

memory locations 1-10 only.

• No dialing from keypad.

• No memory edit or storage.

• No access to name directory.

Level 4: This is the default setting.

• No restrictions.

Service

Level 4

1 Memory

1-10 Only

4 Standard

Setting

Lock/Security

Master Reset

Use this feature to reset all user-selectable options back to their

original factory settings.

Keep in mind: Once you select this feature, the reset process

cannot be canceled or reversed.

Master Clear

Use Master Clear to clear all user-selectable options, the

resettable timer, the Phone Book, and the Messaging memory.

Keep in mind: Once you select this feature, the process cannot

be canceled or reversed.

4. Reset

Features

Press qq

qq or ZZ

ZZ to scroll to Master Reset

and press AA

AA to select. You will see: Reset?

5. Conﬁrm

Reset

Press AA

AA to conﬁrm.

You will see: Standard Setting.

or Exit Press º to exit without resetting.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Clear

Settings

Press qq

qq or ZZ

ZZ to scroll to Master Clear

and press AA

AA to select. You will see: Clear?

5. Conﬁrm

Clear

Press AA

AA to conﬁrm. You will see: Busy.

It will take a few seconds to reset all of

your phone’s options back to their factory

settings.

or Exit Press º to exit without resetting.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Master

Reset

Master

Clear

Phone Options

The Phone Options menu is your “command center” for

adjusting the way your phone sends and receives calls. You can

ﬁne tune your phone for optimal performance, view

information about your phone’s settings, and much more.

In this chapter we will explain how to:

•switch between your active phone numbers.

•review your phone’s settings.

•select a variety of system speciﬁc settings.

Follow these symbols as a guide for using the keys on the side of

your phone.

Press qq

qq to scroll up

Press aa

aa to select

Press ZZ

ZZ to scroll down

Phone Options

Road Map

Press ƒ then press aa

aa to enter the menu system.

Start:

* Network and service dependent feature. Not available in all areas.

Phone

Book

Timers

Lock

Secure

Tone

Control

Phone

Options

Phone

Info

Feature

Review

Change

Number

Call

Options

System

Options

To Main

Multi Key

Answer Off

Open To

Answer Off

Auto

Answer Off

Instant

Redial Off

Display

System ID

Select

SystemMode

To Main

Display

Options

MiniBrowse

Options Contrast

Control

Quick

Menu On

Change

Language

Change

Banner

Backlight

Select

Auto

Hyphen On

24 Hour

Clock Off

Service

Light On

Launch

MiniBrowse

Power Up

Mode

To Main

Confirm At

Start On

To Main

pg. 62

pg. 70

pg. 76

pg. 84

pg. 92

pg. 95

pg. 96

pg. 98

pg. 102

pg. 96

pg. 97

pg. 98

pg. 99

pg. 100

pg. 104

pg. 100

pg. 101

pg. 104

pg. 98

pg. 99

pg. 94

pg. 104

pg. 103

pg. 102

pg. 95

pg. 96

pg. 103

pg. 101

Getting to Phone Options...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Options

Press qq

qq or ZZ

ZZ to scroll to Phone Options

and press AA

AA to select.

Changing Your Number

Your phone can be activated with up to four unique phone

numbers. You could use one number for home and others for

cities you travel to frequently. This feature allows you to select an

appropriate number.

Keep in mind: Only one number can be active on your

phone at a time.

3. Begin

Change

Press aa

aa to enter Change Number. The

display will show your phone’s currently

active number.

4. Choose

Number

Press qq

qq or ZZ

ZZ to scroll through the phone

numbers programmed into your phone.

Press aa

aa to select the desired number.

You will see: Set.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Change

Number

Phone Options

Displaying Phone Information

This feature allows you to view information about your

phone. If you require technical assistance, you may be asked to

check here.

Feature Review

After you have spent some time adjusting your phone’s settings,

use this feature to review the changes you have made. When you

enter Feature Review, your phone will display any features that

you have changed from their default factory settings.

Keep in mind: Feature Review is simply an opportunity to

review – but not change – your current settings.

3. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Phone Info then

press AA

AA to select.

4. Scroll

through

Info

Press qq

qq or ZZ

ZZ to scroll through the

information. Options vary by phone, but

the list may include: Serial Number,

Software Version, Roam List Version,

and information regarding Network,

Minibrowser and Data capabilities.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

3. Begin

Review

Press qq

qq or ZZ

ZZ to scroll to Feature Review

and press AA

AA to enter.

4. Browse

Features

Press qq

qq or ZZ

ZZ to scroll through any features

you have changed from their default set-

tings. If all features are set to their default

factory settings, the display will show:

Standard Setting.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

Phone

Info

Feature

Review

Shortcut:

Press ƒ then

‚, ·, ‰.

Getting to Call Options...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Options

Press qq

qq or ZZ

ZZ to scroll to Phone Options

and press AA

AA to select.

3. Enter

Call Options

Press qq

qq or ZZ

ZZ to scroll to Call Options

and press AA

AA to select.

Call Options Submenu

This submenu allows you to control the way your phone places

and receives calls.

Multiple Key Answer

With Multiple Key Answer ON, you can answer calls by pressing

AA or any key in the center of the keypad, ⁄ through ».

Keep in mind: If there are any digits in your Scratchpad or if

your phone is locked, this feature will not work.

Open to Answer

This feature allows you to set whether or not your phone

automatically answers when opened. If you subscribe to Caller

ID, you will probably want to set this feature OFF so you can

open the phone and check who is calling before you answer.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Multi Key

Answer.

5. Toggle Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Open to

Answer.

Call

Options

Multi Key

Answer Off

Open To

Answer Off

Phone Options

Note: To answer calls with Open to Answer OFF,

press æ.

Automatic Answer

Turn Auto Answer ON to have your phone automatically answer

incoming calls after two ring cycles.

Note: We recommend you use this feature only with vehicle

accessories and with your phone’s ringer active. See page 78.

Otherwise, your phone may answer a call in your absence.

Instant Redial

When placing calls, you may hear a fast busy signal and see

Press SND to Redial. This probably means the network is

temporarily busy. If you turn Instant Redial ON, your phone will

redial for the next four minutes or until the call goes through.

Keep in mind: This feature redials only if the network is busy.

If you hear a normal busy signal, this feature will not work.

5. Toggle Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Auto Answer.

5. Toggle Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Instant

Redial.

5. Toggle Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Auto

Answer Off

Auto

Answer Off

Shortcut:

Press ƒ, AA

then ¤, ﬂ

and continue

with step 5.

Instant

Redial Off

Getting to Display Options...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Options

Press qq

qq or ZZ

ZZ to scroll to Phone Options

and press AA

AA to select.

3. Enter

Display Options

Press qq

qq or ZZ

ZZ to scroll to Display Options

and press AA

AA to select.

Display Options Submenu

This submenu allows you to customize your phone’s display.

Activating the Quick Menu

Press the Smart Button once and the Quick Menu appears on the

display, offering shortcuts to the most popular features. This

feature turns the Quick Menu OFF if you would rather use the

Smart Button to go straight into the internal Phone Book. See

page 34 for more information.

Changing the Language

This feature allows you to select the language used in

the display.

4. Toggle

Feature

When you enter Display Options, you will

see: Quick Menu. Press AA

AA to toggle the

feature On or Off.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Begin

Selection

Press qq

qq or ZZ

ZZ to scroll to Change

Language and press aa

aa to select.

5. Choose

Option

Press qq

qq or ZZ

ZZ to scroll through the available

languages and press aa

aa to select.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Display

Options

Quick

Menu On

Change

Language

Phone Options

Changing the Banner

You can create your own message banner for the phone

to display when it is idle. Your banner can be up to 12

characters long.

Customizing the Backlight

Your phone’s backlight illuminates when you open the phone,

press a key, or your phone receives an incoming call signal. This

feature allows you to choose how long it remains ON.

Keep in mind: The backlight will always be illuminated when

your phone is connected to an external power supply, like a

charger or vehicle accessory.

4. Enter

Feature

Press qq

qq or ZZ

ZZ to scroll to Change Banner

and press aa

aa to select. You will see the cur-

rent banner or Alpha or Press §.

5. Enter

Message

Enter your message using the alphanumeric

keypad. Press AA

AA when your message is

complete.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Backlight

Select and press AA

AA to select.

5. Toggle

Feature

Press qq

qq or ZZ

ZZ to scroll to Backlight 15

Seconds, Backlight 30 Seconds, or

Backlight Always On and press AA

AA to

select the displayed option.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Change

Banner

Backlight

Select

100

Getting to Display Options...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Options

Press qq

qq or ZZ

ZZ to scroll to Phone Options

and press AA

AA to select.

3. Enter

Display Options

Press qq

qq or ZZ

ZZ to scroll to Display Options

and press AA

AA to select.

Display Options Submenu

Auto Hyphen

Just turn Auto Hyphen ON to have all phone numbers

automatically hyphenated on the display. This allows you to

easily distinguish between area codes, call preﬁxes, and other

numbers.

Displaying the 24-Hour Clock

Your phone can display the current time in 12-hour or 24-hour

format. Use this feature to turn the 24-hour clock ON or OFF.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Auto Hyphen.

5. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to 24 Hour Clock.

5. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Auto

Hyphen On

24 Hour

Clock Off

101

Phone Options

Service Light

The Service Light can be useful to quickly check the current

state of your phone’s service. If you prefer to conserve standby-

time, you can turn the Service Light OFF with this feature.

Contrast Control

To make the display easier to read, this feature allows you to

adjust the display contrast.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Service Light.

5. Toggle

Feature

Press AA

AA to toggle the feature On or Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Select

Feature

Press qq

qq or ZZ

ZZ to scroll to Contrast

Control and press AA

AA select. You will see a

bar graph labeled Contrast.

5. Adjust

Contrast

Press QQ

QQ to increase the contrast or press ZZ

to decrease it. Press ¬ when ﬁnished.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Service

Light On

Tip:

To learn more

about the

Service Light,

see page 25.

Contrast

Control

102

Getting to Minibrowser Options...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Options

Press qq

qq or ZZ

ZZ to scroll to Phone Options

and press AA

AA to select.

3. Enter Mini-

browser Options

Press qq

qq or ZZ

ZZ to scroll to MiniBrowse Options

and press AA

AA to select.

Minibrowser Options*

This submenu offers several options for customizing the way

your phone accesses information with the Minibrowser.

Launching the Minibrowser*

Select this feature to launch the Minibrowser and access sports

scores, stock reports, weather reports, and more.

*Network and service dependent feature. Not available in all areas.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Launch

MiniBrowser.

5. Select Press and hold AA

AA to select.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

MiniBrowse

Options

Launch

MiniBrowse

Tip:

You can also

launch the

Minibrowser

with the Quick

Menu. See

page 34.

103

Phone Options

Power Up Mode*

When you turn ON your phone, you can begin with the

Minibrowser or the regular phone features.

Conﬁrm at Start-up*

Your phone can display reminders when you launch the

Minibrowser to indicate that your time browsing may be

charged. This feature toggles the reminder ON or OFF.

*Network and service dependent feature. Not available in all areas.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Power Up Mode.

and press AA

AA to select.

5. Select

Option

Press qq

qq or ZZ

ZZ to scroll to Power Up Phone

or Power Up MiniBrowse and press AA

to select.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Find

Feature

Press qq

qq or ZZ

ZZ to scroll to Confirm At

Start.

5. Toggle Press AA

AA to toggle between On and Off.

6. Exit

Press º to exit the menu, or you may scroll

to other features.

Power Up

Mode

Confirm At

Start On

104

Getting to System Options...

1. Enter Menu Press ƒ then press aa

aa.

2. Enter

Phone Options

Press qq

qq or ZZ

ZZ to scroll to Phone Options

and press AA

AA to select.

3. Enter

System Options

Press qq

qq or ZZ

ZZ to scroll to System Options

and press AA

AA to select.

System Options Submenu

The System Options submenu offers a couple features that will

help you use your phone and wireless network.

Displaying the System ID*

Use this feature to determine the unique System ID for

your wireless phone.

Selecting a System Mode

Your Service Provider conﬁgures Select System Mode when you

receive your phone. This feature allows you to select the type of

system your phone will attempt to access. See below for a chart of

available settings.

*Network and service dependent feature. Not available in all areas.

4. View SID Press AA

AA to select Display System ID.

You will see the System ID for your phone.

5. Exit

Press º to exit the menu, or you may scroll

to other features.

4. Begin

Selection

Press qq

qq or ZZ

ZZ to scroll to Select System-

Mode and press aa

aa to enter. The display will

show your phone’s current setting.

5. Choose

Mode

Press qq

qq or ZZ

ZZ to scroll through the System

Mode settings (see chart below). Press aa

aa to

select the displayed setting.

System

Options

Display

System ID

Select

SystemMode

Shortcut:

Press ‰ then

« and

continue with

step 5.

105

Phone Options

System Mode Settings

Standard Mode:

Your phone ﬁrst seeks a home type

system, then a non-home type system.

Home Only Mode:

Phone will not operate outside its

home system.

Scan A Mode*:

Phone will operate only within

non-wireline (A) systems.

Scan B Mode*:

Phone will operate only within

wireline (B) systems.

Home

Only

Scan A

Scan B

106

Using the Minibrowser*

Need information now? Your phone can give you instant access

to valuable resources on the go! With a subscription and wireless

service, you can retrieve sports scores, weather and trafﬁc

reports, stock prices, and more.

In this chapter we will explain how to:

•launch the Minibrowser.

•navigate using your phone.

•bookmark your favorite sites.

Follow these symbols as a guide for using the Minibrowser.

Turn to page 108 for a detailed explanation of all the keys.

* Network and service dependent feature. Not available in all areas.

Press ¬ for right soft key

Press ‰ for left soft key

Press qq

qq to scroll up

Press ZZ

ZZ to scroll down

Press Ç to go back or stop,

hold to return to home page

Press º to exit

Press aa

aa for left soft key

107

Minibrowser

Getting Started Browsing

To get started with you Minibrowser, you will need an IP address

for your phone. The IP address is the location of a server

provided by your Service Provider, and it will be loaded into your

phone by your Service Provider when you subscribe to this

service. Contact your Service Provider for more information.

Launching the Minibrowser

If the IP address is already set, then you are ready to go.

Just follow these simple steps:

Turn the page to learn how to navigate with the Minibrowser.

1. Open

Quick

Press aa

aa to open the Quick Menu.

2. Select

Browser

Press qq

qq or ZZ

ZZ to scroll to Launch

Browser and press aa

aa to select.

When you launch the Minibrowser, you will

see the last page you accessed with the Mini-

browser. If this is your ﬁrst time, the phone will

attempt to connect with the gateway and load

your home page.

For more setup

options and

another way to

launch the

Minibrowser,

turn to page 102.

Messaging

Last 10 Dialed

Phone Book

Launch Browser

108

Minibrowser Navigation

Scrolling and Selecting

When browsing, you will see a list of options on the phone’s

display. Each of the items on the list is assigned a number. Just

press the matching numeric key to select that item. Or you can

scroll to the item with the volume keys and use the Smart Button

to select.

Select

Item

Press the key matching the number of the

list item. In the above example, press ‡

for EMail.

Scroll Press qq

qq or zz

zz to scroll up and down the

page. You can also use « or ». Above,

press zz

zz once to scroll to EMail, twice to

scroll to To-Do List.

Select Press aa

aa or the left soft key (see the next

page) to select the highlighted item. Above,

press aa

aa to select Web Sites.

Go Back

One Page

While navigating, press Ç to return to the

previous page.

Stop When sending and receiving information,

press Ç to interrupt transmission.

Return to

Home

Press and hold Ç to return to your

home page.

While editing text,

pressing Ç will

delete a charac-

ter at a time

instead of return-

ing to the previ-

ous page.

7 EMail

8 To-Do List

6 Web Sites

OK Inbox

Scroll bar

(more options

up and down)

Options

109

Minibrowser

Minibrowser Navigation

Soft Keys

In addition to the familiar keys for scrolling and selecting, the

Minibrowser makes uses of “soft keys.” Soft keys change their

function according to the screen. Read the lower line of the

display to ﬁnd out what the soft keys can do on that screen.

You will see two functions, one on the left and one on the right,

each with an icon:

Display Messages

While you navigate, the lower line of the display will show you

messages to let you know what your phone is doing. You will see:

Sending, Receiving, or Waiting...

Left

Soft Key

Press ‰ to choose the option on the left.

In the above example, press ‰ to select

OK and accept the highlighted option:

Web Sites.

Right

Soft Key

Press ¬ to choose the option on the right. In

the above example, press ¬ to select Inbox.

You can also

press aa

aa to select

the left option.

7 EMail

8 To-Do List

6 Web Sites

OK Inbox

Press ‰

for left soft key

Press ¬

for right soft key

110

Using Bookmarks

Bookmarks make it easy to quickly jump to the sites you use

most often. You can assign up to nine bookmarks, one for each

of the numeric keys on the keypad.

To bookmark a Minibrowser site:

Once you bookmark the site, you can jump directly to the site or

scroll to it through a list of all sites you have marked.

To jump directly to the site:

To scroll through your bookmarks:

Keep in mind: Bookmarks are only available while browsing.

1. Open

Press ƒ then press ⁄.

2. Select

Feature

Press qq

qq or zz

zz to scroll to Mark Site and

press aa

aa to select. You will see the name of

the site.

3. Edit Name See page 39 for details on entering and

editing names. Press aa

aa when ﬁnished.

You will see a message conﬁrming the

new bookmark.

Jump to

Site

Press and hold the number of the bookmark.

For instance, for the ﬁrst site you marked,

press and hold ⁄.

1. Open

Press ƒ then press ⁄.

2. Select

Feature

Press qq

qq or zz

zz to scroll to Bookmarks and

press aa

aa to select.

3. Scroll Press qq

qq or zz

zz to scroll through your

bookmarks and press aa

aa to select and go to

the highlighted bookmark.

111

Minibrowser

Minibrowser Alerts

To stay current with changing information, like stock prices or

sports scores, you can subscribe to Minibrowser Alerts through

your Service Provider.

If your phone is ON and you receive a Minibrowser Alert:

•An alert sounds or vibrates:

Your phone will beep or vibrate three times.

•An indicator appears on the display:

Appears on the lower second line of the display. It will stay

on the display until you have checked the alert.

Receiving Calls

Most of the time, while browsing you will not be able to receive

calls (depending on your service, callers will probably get your

Voicemail).

Occasionally, when you access a page that you have recently

visited and the information on the page has not changed, your

phone may use a version of the page stored in its memory. When

this is the case and you receive a call, your phone’s alerts will

sound/vibrate as usual and the display will show the Caller ID (if

available).

1. Check

Message

Press ø to open the messaging menu.

If you received a Minibrowser alert, the

Minibrowser icon will be ﬂashing.

2. Select

Alert

Press qq

qq or zz

zz to scroll to MiniBrowse Alrt

and press aa

aa to select.

Answer

Call

Press æ to answer the call. Your browsing

session will be put on hold while the call

lasts. Once the call is complete, your phone

will return to the last site.

Tip:

See Ringer /

Vibrating Alert

on page 78 to

set your phone’s

alert. See page

81 to learn about

Reminder Tones.

Look for the

indicator

on the lower top

line of the dis-

play. If you see it,

your phone is

online and you

will not be able to

112

Entering Words

At times you may need to enter information while browsing, like

a keyword for searching or a message. If you see a “l” symbol,

you can use the keypad to enter letters and punctuation in the

same way you do for the internal Phone Book. See page 39 for

more information.

Security

To ﬁnd out if the information you are sending is secure, just

look at the lower line of the display. A key icon denotes a secure

transmission. If the key has a slash through it, then the

transmission is not secure.

The Minibrowser Menu

At any time while you are browsing, you can open the

Minibrowser Menu for a list of options. Through this menu, you

can set bookmarks, get help on selected pages, and more.

Keep in mind: This menu is only available while browsing.

To open the Minibrowser Menu while browsing:

1. Open

Press ƒ then press ⁄.

You will see:

2. Scroll Press qq

qq or zz

to scroll through the options.

3. Select

Option

Press aa

aa or ‰ to select the highlighted

option, or press the numeric key matching

the option.*

Secure

Non-Secure

2 Home

Browser Menu

OK Back

1 Help

113

Minibrowser

* Options may vary depending on your Service Provider.

Help If you need assistance while browsing,

select this option.

Note: Some sites do not have help

available.

Home Select this option to return to the home

page set up by your Service Provider.

Mark Site To add a page to your bookmark list,

choose this feature.

Once bookmarked, press and hold the

corresponding key when in a Minibrowser

session to jump to the bookmarked page.

Show URL To see the address of the current page,

choose this option.

Restart Select to relaunch the Minibrowser.

Phone.com This feature offers information on the

company that helps to provide the web

browsing service.

Advanced This submenu contains a couple features for

advanced users, like security and technical

settings.

4. Return Press ¬ or Ç to return to the page you

were browsing before you opened the menu.

114

Using Data Features*

Add the Motorola Data Connectivity Kit to your wireless package

and transform your digital V. Series™ phone into a convenient

and portable fax modem. Use the data cable to connect your

CDMA phone to a compatible computer, and you can send faxes,

access the Internet, send and check e-mail – transmit and

receive data wherever there is a wireless signal.

In this chapter we will explain how to:

•Place, end, and receive data calls.

•Read the data display.

•Set up Pre-arrangement.

Checking for Data Capability

To use the cable that came with your Data Connectivity Kit, ﬁrst

make sure that your CDMA phone is data capable. To do so, just

use your phone to perform the following simple test:

* Network and service dependent feature. Not available in all areas.

1. Select

Feature

Press ƒ then ⁄, ¤, ﬁ.

You will see: Phone Info.

Press AA

AA to select.

2. Scroll Press qq

qq or ZZ

ZZ to scroll through the submenu.

If you see: TrueSync Capable and Modem/

Fax Capable, your CDMA phone is data

capable.

If you do not see the above as you scroll,

contact your Service Provider for more

information.

115

Data

Getting Started with

the Data Connectivity Kit

Attaching the Data Cable

Before you install the fax/modem software on your computer,

it is a good idea to attach the cable to the computer and phone.

To indicate the cable is attached on both ends, your phone will

beep once.

Keep in mind: To save power, some laptops deactivate unused

serial ports. If this happens, open an application that uses the

serial port, like a fax or dial-up application, and your computer

will automatically activate the port.

Installing the Software

To begin making wireless data calls, you will need to install

the software from the CD-ROM that came with the Data

Connectivity Kit. The software is designed to take you through

the installation process step by step.

1. Plug into

Phone

Plug the smaller end of the data cable, with

the release tab facing up, into the accessory

connector on your phone.

2. Plug into

Computer

The other end of the data cable is a 9-pin plug

Find the matching serial port on the back of

your computer and insert the 9-pin plug, then

tighten the screws by hand.

1. 2.

116

Placing a Data Call

Keep in mind: You will not be able to place a data or fax call

through your phone’s keypad, using last ten dialed, or with

Caller ID. All data and fax calls must be placed through your

computer.

During the Call

Reading the Display

Once the call is successfully connected, your phone’s display will

show transmission information.

1. Connect Make sure the cable is connected properly.

2. Place

Call

Open the application on your computer, like a

fax or dial-up application, and place the call

through the application on your computer.

The phone will display the number your com-

puter is calling (or the name if in the internal

Phone Book). You will see: Connecting.

If the call is not connected, your phone will

return to the idle display.

Fax 14.4 0:12:11

847-555-1212

Type of

call

Connection

speed

Rate for

sending

Rate for

receiving

Connection

number

Time

connected

117

Data

Ending a Data Call

Always end a data call by closing the connection through the

application on your computer. See the User’s Guide that came

with the software for more information.

Keep in mind: If you set pre-arrangement before the call, your

phone will remain in the pre-arranged state when the data call

is ended. You will see either Fax Ready or Data Ready. See

page 118 for more information.

Important: The normal ways to end calls, like pressing º or

the Smart Button, will end a data call but may disrupt your

computer. Likewise, disconnecting the cable or turning OFF

your phone will also end a data call, but may affect the

application on your computer. We recommend always closing

the data connection through the software application.

118

Setting up Pre-arrangement

Some networks require you to change a setting on your phone

before you can receive an incoming fax or data call. This is

called pre-arrangement. There is no need to worry about

placing data or fax calls – the pre-arrangement setting only

applies to receiving calls.

Keep in mind: In pre-arrangement mode, you will not be able

to receive incoming voice calls.

Your phone will automatically return to Voice Only mode if you

remove the cable or turn OFF the phone.

Keep in mind: Data Setup is only available if your Service

Provider requires pre-arrangement and the data cable is

connected to your phone.

1. Enter

Press ƒ then AA

AA to enter the menu.

2. Select

Submenu

Press qq

qq or ZZ

ZZ to scroll to Phone Options

and press AA

AA to select.

3. Select

Feature

Press qq

qq or ZZ

ZZ to scroll to Data Setup and

press AA

AA to select.

4. Select

Setting

Press qq

qq or ZZ

ZZ to scroll to Voice Only,

Incoming Fax, Incoming Data or To Main

Menu and press AA

AA to select.

If you select a fax or data setting, you will

see: NoIncoming VoiceCalls.

5. Exit Menu Press º to exit the menu. You will see: Data

Ready or Fax Ready.

119

Data

Receiving a Data Call

When you have an incoming data or fax call, your phone’s

display will show what kind of call you are receiving, along with

the number of the caller. (If the number matches an entry in

your Phone Book, you will see the name stored in the entry.)

If you select Auto Answer mode on the software application

installed on your computer, your phone will automatically

answer data or fax calls when the data cable is connected.

Keep in mind: All data and fax calls should be answered

through the software installed on your computer. If you press æ

you will probably lose the incoming call.

1. Turn ON Your phone and computer must be turned ON

and the data cable connected.

2. Select

Mode

Select the pre-arrangement mode if needed.

3. Auto

Answer

When the call comes in, your phone will

automatically answer.

or Select

Option

If necessary, select the menu option in the

application.

While the connection is being made,

your phone will display: Connecting . .

120

Starﬁsh TrueSync® Software

Wireless data calls are only the beginning. With Starﬁsh

TrueSync® software, your phone can exchange select

information with a compatible computer.

You can use TrueSync software to transfer and synchronize

contact information from your phone to your compatible

desktop, laptop or handheld computer, and vice versa.

That way, you only enter contact information once and you can

have the information everywhere you want it!

Keep in mind: TrueSync software is designed to synchronize

certain basic features of the initial releases of many popular

Personal Information Managers (PIM) hardware and software

products.

121

Data

Using TrueSync® Software

Here are just a few ways TrueSync software helps make

communication easier than ever:

•Add a contact to your phone on the go. Update your contact

ﬁle at home or the ofﬁce later.

•Transfer contacts into your phone’s internal Phone Book for

easy access and quick memory dialing.

•Customize many of your phone’s features, like ringer styles,

TurboDial® keys, and security settings, through TrueSync’s

simple interface.

•Synchronize with select Personal Information

Managers (PIMs). TrueSync software helps provide one-step,

multi-point synchronization with most popular PIM

managers, devices and services.

Visit http://www.starﬁsh.com/ for more information on

TrueSync and software product updates.

122

Accessory Options

An exciting line of accessories can enhance and personalize your digital

wireless experience.

Lithium Ion Batteries

Motorola’s Lithium Ion (LiIon) batteries are high

energy-density batteries that offer increased capacity

and are lighter in weight than similar sized Nickel

Cadmium and Nickel Metal Hydride batteries.

Nickel Metal Hydride Batteries

Nickel Metal Hydride batteries (NiMH) are high-capacity batteries that offer up to

30% more talk-time than comparable Nickel Cadmium batteries. To help achieve

maximum life and capacity for your NiMH battery, do not leave the battery in the

charger for more than 24 hours, and use only Motorola-approved chargers.

Vehicle Power Adapter

Lets you plug into a reliable power source on the road. Uses your car’s battery to power

your phone and rapid charge the phone’s battery at the same time. The vehicle power

adapter will not overcharge your battery and contains circuitry to protect against

overvoltage and power surges in the vehicle. In some cars, the engine must be

running in order for the vehicle’s accessory power to operate.*

*The use of wireless devices and their accessories (“devices”) may be prohibited or restricted in certain areas.

Always obey the laws and regulations on the use of these devices.

123

Reference

Accessory Options

Desktop Charger (AC Adapter Required)

This charger can be loaded with two batteries at

once. Equipped with one LED charging status

indicator for each battery, the charger’s front

pocket can charge a battery attached to a phone,

and the rear pocket can charge a battery by itself.

For use with Lithium Ion and Nickel Metal

Hydride batteries.

Holster

Your digital V. Series™ phone is so small and light, it is positively wearable. Slip it into

a compatible holster and clip the holster on– for the ultimate in high-tech fashion.*

Headset

The convenient headset provides both an earphone and

microphone in one small piece for simple hands-free and

private telephone conversations. The headset plugs directly into

the jack on the top of your phone, so that you can wear your

phone and move freely. See pages 96-97 for Call Options that

make using a headset with your phone even more convenient.

*This holster has been designed for your convenience and is not meant to secure your phone under

all circumstances.

124

Accessory Options

Data Connectivity Kit

This exciting new accessory transforms your digital V.

Series™ phone into a convenient and portable fax

modem. Use the data cable to connect your CDMA

phone to a compatible computer, and you can fax,*

access the Internet,* send and check e-mail* – transmit

and receive data wherever there’s a wireless signal.

Wireless data calls are only the beginning. With the

Starﬁsh TrueSync® software found in the Connectivity

Kit, your phone can exchange select information with a

compatible computer. You can use TrueSync to transfer

and synchronize contact information from your phone to your compatible desktop,

laptop or handheld computer, and vice versa.

Hands-Free Vehicle Kit

Optional Hands-Free Kits give you the convenience of hands-free, speakerphone

operation while in your car.** Full duplex operation lets you simultaneously talk and

listen, so both parties can interrupt each other for a normal sounding conversation.

The Hands-Free Kit powers the phone and charges its battery whenever your car’s

engine is running.

Keep in mind: Motorola offers a 3-Watt Vehicular Kit, which includes a 3-watt

booster for analog signals. Since the digital V. Series™ phone is a digital phone, it is

not compatible with the 3-Watt Kit.

*Network and service dependent feature. Not available in all areas.

**The use of wireless devices and their accessories (“devices”) may be prohibited or restricted in certain areas.

Always obey the laws and regulations on the use of these devices.

125

Reference

Accessory Options

Easy Install Hands-Free Car Kit

For the quickest and easiest mobile solution, use the Easy Install Hands-Free Car Kit.

Just plug it in and you are ready to go!*

Accessory Limited Warranty

We recommend you use genuine Motorola batteries and accessories. Under its

wireless telephone limited warranty, Motorola speciﬁcally disclaims any

responsibility for damage caused by the use of portable wireless telephone accessories

not manufactured by Motorola.

For details on the complete line of Motorola wireless accessories, see your dealer or

visit the Motorola web site at http://www.motorola.com/.

*The use of wireless devices and their accessories (“devices”) may be prohibited or restricted in certain areas.

Always obey the laws and regulations on the use of these devices.

126

Troubleshooting

Q. I pressed the power button, but nothing happened. What’s

wrong with my phone?

A. Check that you have installed a battery and that the battery is charged. See

page 12 for information about installing your battery.

Q. The display says LL

LLoo

oocc

cckk

kkee

eedd

dd. How do I unlock my phone?

A. Try entering the last three digits of your wireless number. If that does not

work, try using the factory preset lock code: 123. If this fails, call your

Service Provider (the company that sends you your monthly wireless bill)

for assistance. For more information on your phone’s security features, see

the Lock/Security chapter, page 84.

Q. My battery did not last as long as I expected. What can I do to

extend battery life?

A. To get the most from your battery, make sure it is fully charged. To charge

the battery to 100% of its capacity, leave it in the charger for an extra hour

after the charger’s light turns green.

Exposing your battery to extreme temperatures—below -10°C (14°F) or

above 45°C (113°F)—can shorten battery life. Batteries are especially

sensitive to high temperature extremes. It is a good idea to always take your

phone with you when you leave your car.

Q. I tried to place a call and received a fast busy signal.

A. This sound means that your call was not processed. For example, the

network may be temporarily busy. To redial the number, press the Smart

Button or press æ before ending your call attempt, or press º and try the

call again later. See page 97 for more information on redialing.

127

Reference

Troubleshooting

Q. I tried to place a call but received an alternating

high/low tone. What does this mean?

A. This sound means your call did not connect to the network. Most likely, you

dialed the number too soon after turning the phone ON. Wait until you see

your phone’s idle display (in the main display either Ready, the name of

your Service Provider, or your programmable banner) before placing a call.

An alternating tone may also indicate that your phone’s signal is blocked.

Make sure the antenna is fully extended and move clear of any obstructions,

like bridges, parking garages, tall buildings, etc.

Q. Whenever I turn the phone ON, the display says: II

IInn

nnvv

vvaa

aall

llii

iidd

BBaa

aatt

tttt

ttee

eerr

rryy

yy. What does this mean and why am I not able to charge

the battery?

A. Your wireless phone uses the Motorola Expert Performance (E•P) Charging

System. The E•P system enables the built-in charger to communicate with

attached batteries and tailor its charging cycle to optimize performance.

If you see Invalid Battery when you power up the phone, the built-in

charger is not able to communicate with the battery and cannot charge it.

You could see this message for several reasons. The most likely one is that

the battery is not a Motorola original and it does not have the appropriate

E•P technology. We recommend that you use only Motorola original

batteries and accessories and that you store your batteries in their

protective covers when not in use.

Q. My phone started beeping, and the display says: 11

CCaa

aall

llll

UUnn

nnaa

aann

nnss

ssww

wwee

eerr

rree

eedd

dd. What happened?

A. Someone tried to call you while you were in an area where the signal was

weak. Press Ç to clear your display, extend your phone’s antenna, and

avoid obstructions like tunnels, parking garages and tall buildings

whenever possible.

128

Troubleshooting

Q. My phone was stolen. What should I report and to whom?

A. Report a stolen phone to the police and to your Service Provider (the

company that sends you your monthly wireless service bills).

Q. I plugged the data cable* into my phone but my phone did not

beep. How do I know if the data cable is ready to go?

A. The beep is a sure sign that you are setup correctly. If you did not hear the

beep, the ﬁrst thing to check is that your phone is data capable. To do so, see

page 114.

Next make sure that both ends of the data cable are connected, the smaller

end to your phone and larger to your computer. Also check the model

number of the cable to be sure you have the right one. Look for SYN7464

printed on the cable.

If all of the above checks out, your computer may have deactivated the port

to save power. Try opening an application that uses the port, like a fax or

dial-up application, and your computer will automatically activate the port.

Q. My phone beeped when I attached the data cable* but my fax

and data applications don’t work at all. What’s wrong?

A. Keep in mind that you must be in an area with digital coverage. Check your

phone’s display for (the Digital Indicator) to be sure you’re in a digital

coverage area.

Some wireless networks may not support data or fax transmission. If you see

the digital indicator but you are roaming on an unfamiliar network, this

may be the case.

Also remember that data and fax transmission usually requires a

subscription. Call your Service Provider for more information.

Q. When sending data* with the data cable, why does the

computer show a connection rate of 19200 Kbps?

A. 19200 is the rate of the connection between your computer and the phone.

The rate of the connection between your phone and the network is displayed

on your phone and will be either 14400 or 9600.

*Network and service dependent feature. Not available in all areas.

129

Reference

Troubleshooting

Q. I can’t end my data call* by closing the application on my

computer. What can I do?

A. If necessary, try pressing º on the phone. You might also disconnect the

cable or turn OFF the phone. Remember, if possible always close the

connection through your computer. These alternative methods may disrupt

the application on your computer.

Q. I launched the Minibrowser* but the display says: SS

SSee

eerr

rrvv

vvii

iicc

ccee

NNoo

oott

AAvv

vvaa

aaii

iill

llaa

aabb

bbll

llee

ee. What is wrong?

A. You are in an area without service. To see if you have digital service, you can

always look in the display for (the Digital Indicator).

If you see the Digital Indicator and still cannot use the Minibrowser, you

may be connected to a digital network that does not support wireless

Internet access.

Q. I launched the Minibrowser* but the display says: DD

DDaa

aatt

ttaa

SSee

eerr

rrvv

vvee

eerr

UUnn

nnaa

aavv

vvaa

aaii

iill

llaa

aabb

bbll

llee

ee. What is wrong?

A. Try again in a few minutes. The servers may be temporarily busy.

*Network and service dependent feature. Not available in all areas.

130

Glossary

AC Adapter An accessory device that allows you to power and/or charge your phone from a wall

outlet. See page 15.

accessory connector A socket on the bottom of the phone where you can attach accessories

such as an AC adapter or vehicle power adapter. To learn more, see page 15.

alkaline A battery technology used in personal wireless telephones.

antenna The device on your phone that sends and receives wireless signals.

Auto Answer When you activate this feature, your phone automatically answers after two rings.

See page 97.

Automatic Redial When your wireless network cannot handle your call, this feature enables your

phone to automatically redial with one button push. See page 29.

Call Back number A phone number in a text message, provided by the sender. See page 58.

Caller ID A network/subscription dependent service that allows you to view information on

incoming calls before answering. See page 54.

CDMA (Code Division Multiple Access) CDMA takes digitized voice and encodes it in a

unique scheme that is sent out over the air. CDMA digital reduces the probability of dropped

calls. Your phone is equipped to handle CDMA digital voice transmission.

dedicated Message Key See Message Key.

default A feature’s original setting as programmed in the factory.

digital See CDMA.

DTMF Dual Tone Multi-Frequency are the tones that your phone transmits to communicate with

tone activated phone systems like Voicemail or bank-by-phone. See page 82. Keep in mind:

“DTMF Tones” does not refer to the sounds produced by your phone’s speaker. See Keypad

Tones for information on the sounds produced by your phone’s speaker.

function keys The non-numeric keys on your phone used to access and navigate menu features,

as well as perform memory functions. See page 20.

131

Reference

Glossary

Home Only Mode When your phone is active in this System Mode setting and you are beyond

the range of your home Service Provider, your phone will not operate. See page 105.

icon One of the variety of symbols used to designate menu features and messages.

indicator A symbol on your phone that gives you information about your phone’s status.

See pages 25-27.

Instant Redial This feature enables your phone to redial when your wireless network is tempo-

rarily unable to handle your call. Your phone will automatically attempt the call for four min-

utes or until it is picked up by the network. See page 97.

internal charger A charger built into your phone for use with an AC adapter or vehicle power

adapter. See page 15.

Keypad Tones The sounds produced through your phone’s speaker when you press the keys.

See page 81. Keep in mind: “Keypad Tones” does not refer to the tones sent by your phone to

communicate with automated phone systems. See Transmit Tones for information on the

tones used to access automated phone systems.

landline The telephone system used for conventional ofﬁce and home phones.

Lithium Ion (LiIon) A battery technology used in personal wireless telephones. Lithium Ion

batteries generally provide more energy capacity than Nickel Metal Hydride batteries of the

same weight.

lock To prevent unauthorized access to the wireless telephone. See page 86.

lock code A three-digit code used to access your phone once it has been locked. The factory

programmed lock code is 123. To view or change your lock code, see page 89.

memory location A space in the Phone Book where you can store a telephone number and a

name. Each of the Phone Book’s 99 memory locations (numbered 01-99) can hold 24 letters

and up to four numbers, each with as many as 32 digits.

menu This system contains ﬁve features: Phone Book, Timers, Tone Control, Lock/Secure, and

Phone Options.

132

Glossary

menu feature Any feature that can be accessed through the menu system.

Message Key Located on the bottom row of the keypad, the dedicated Message Key offers

one-touch access to messages and messaging functions. See page 52. See also Caller ID,

Messages, and Voicemail.

Messages A network/subscription dependent service that enables your phone to receive text

messages and numeric pages just like a pager. See page 58.

Messaging Function Menus While viewing your Caller IDs, reading your Messages, or

checking your Voicemail, you can use these menus to manage your messages: lock or unlock a

text message, delete one or all of your Caller ID or text messages and numeric pages, or select a

different message type. See pages 55, 57 and 59.

Minibrowser Software built into your phone that allows you to access information like stock

prices and sports scores with only your wireless phone. See page 106.

Nickel Cadmium (NiCd) A battery technology used in personal wireless telephone batteries.

Nickel Metal Hydride (NiMH) A battery technology used in personal wireless

telephone batteries.

pause A special character that tells your phone to wait before sending the next set of numbers

stored in one memory location. See Pause Dialing.

Pause Dialing A method of storing Phone Book entries that allows you to store multiple strings of

numbers in one memory location; useful, for instance, in accessing automated phone systems.

See page 48.

Personal Identiﬁcation Number (PIN Code) A private numeric password which protects

personal accounts such as bank-by-phone or Voicemail.

Phone Book An alphabetical list of the names and telephone numbers you have stored into your

phone’s internal memory.

Priority Call This feature allows you to place a call from memory location 01 even if the phone is

locked. See page 87.

prompt A display message requesting input.

Quad Number Your phone can be activated with up to four different phone numbers.

See page 94 to learn how to change the number active on your phone.

133

Reference

Glossary

Reversed Preference Mode When your phone is active in this System Mode setting and you

are beyond the range of your home Service Provider, your phone will seek a non-home type sys-

tem, then a home type system. See page 104.

road map The visual representation of your phone’s menu system provided in this manual.

roam To use a wireless system outside of your home system, usually when you travel beyond the

range of your home system.

Scratchpad A memory feature that automatically remembers the most recent number entered

into the keypad. See page 47.

Scratchpad tones See DTMF.

scroll To move backward or forward through a list; for example, to move backward or forward

through the menu system or the Phone Book using either the volume keys or the « and

» keys.

secure code A six-digit code used to access and change certain security features.

The factory programmed secure code is 000000.

Service Tones Two short beeps used to alert you to changes in your wireless service. See page 83.

Silent Mode Select this feature and all your phone’s tones will be silenced and the VibraCall®

alert activated. See page 78.

Smart Button The middle key on the side of your phone used to access the Phone Book,

place calls, end calls, select the Phone Book, enter the menu system, and toggle features

ON and OFF.

Standard Mode When your phone is active in this System Mode setting and you are beyond the

range of your home Service Provider, your phone will seek a home type system, then a non-

home type system. See page 105.

standby-time The total time your phone is ON but not used for talking.

Super Speed Dial A dialing shortcut that allows you to quickly dial any number in the Phone

Book. To use this feature, enter the two-digit location of the number, 01-99, then press and hold

Smart Button or press æ and the call is placed. See page 45.

134

Glossary

System ID Every wireless system has a unique number to identify itself. See page 104.

System Mode A setting that determines the system type that your wireless phone will access. See

page 104 to select a System Mode.

talk-time The total time that you can talk on your phone before the battery is fully discharged.

toggle To switch between two possible options; for example: ON vs. OFF. Pressing the Smart Button

toggles features ON or OFF.

Transmit Tones See DTMF.

Turbo Dial® keys To use this feature, press and hold a number on the keypad, ⁄ through

·, and your call is placed.

unlock code See lock code.

vehicle power adapter An accessory device that allows you to power and/or charge your phone

from a vehicle’s accessory power.

VibraCall® alert When activated, this feature alerts you silently of incoming calls by vibrating.

It can be used alone or in conjunction with the ringer. See page 78.

Voicemail Contact your Service Provider for availability.

volume keys Located on the side of your phone, the upper and lower volume keys are used

to adjust ringer and keypad volume. They also scroll within the menu system and the

Phone Book.

wireless carrier One of multiple competing companies in a given geographic area that owns

and operates a wireless system.

Wireless Service Provider A company afﬁliated with a wireless carrier that provides wireless

service to its customers.

wireless signal The radio waves that carry information between your wireless phone and the

wireless system.

wireless system The wireless equipment in a given geographic area that relays signals to and

from individual wireless telephones and the landline telephone system.

135

Reference

The U.S. Food and Drug

Administration’s Center for

Devices and Radiological Health

Consumer Update on Mobile Phones

FDA has been receiving inquiries about the safety of mobile phones,

including cellular phones and PCS phones. The following summarizes

what is known--and what remains unknown--about whether these

products can pose a hazard to health, and what can be done to minimize

any potential risk. This information may be used to respond to questions.

Why the concern?

Mobile phones emit low levels of radiofrequency energy (i.e.,

radiofrequency radiation) in the microwave range while being used. They

also emit very low levels of radiofrequency energy (RF), considered non-

signiﬁcant, when in the stand-by mode. It is well known that high levels of

RF can produce biological damage through heating effects (this is how

your microwave oven is able to cook food). However, it is not known

whether, to what extent, or through what mechanism, lower levels of RF

might cause adverse health effects as well. Although some research has

been done to address these questions, no clear picture of the biological

effects of this type of radiation has emerged to date. Thus, the available

science does not allow us to conclude that mobile phones are absolutely

safe, or that they are unsafe. However, the available scientiﬁc evidence does

not demonstrate any adverse health effects associated with the use of

mobile phones.

What kinds of phones are in question?

Questions have been raised about hand-held mobile phones, the kind that

have a built-in antenna that is positioned close to the user's head during

normal telephone conversation. These types of mobile phones are of

concern because of the short distance between the phone's antenna--the

primary source of the RF--and the person's head. The exposure to RF from

mobile phones in which the antenna is located at greater distances from

the user (on the outside of a car, for example) is drastically lower than that

from hand-held phones, because a person's RF exposure decreases rapidly

with distance from the source. The safety of so-called “cordless phones,”

which have a base unit connected to the telephone wiring in a house and

which operate at far lower power levels and frequencies, has not been

questioned.

136

How much evidence is there that hand-held mobile

phones might be harmful?

Brieﬂy, there is not enough evidence to know for sure, either way; however,

research efforts are on-going. The existing scientiﬁc evidence is conﬂicting

and many of the studies that have been done to date have suffered from

ﬂaws in their research methods. Animal experiments investigating the

effects of RF exposures characteristic of mobile phones have yielded

conﬂicting results. A few animal studies, however, have suggested that low

levels of RF could accelerate the development of cancer in laboratory

animals. In one study, mice genetically altered to be predisposed to

developing one type of cancer developed more than twice as many such

cancers when they were exposed to RF energy compared to controls. There

is much uncertainty among scientists about whether results obtained from

animal studies apply to the use of mobile phones. First, it is uncertain how

to apply the results obtained in rats and mice to humans. Second, many of

the studies that showed increased tumor development used animals that

had already been treated with cancer-causing chemicals, and other studies

exposed the animals to the RF virtually continuously--up to 22 hours per

day.

For the past ﬁve years in the United States, the mobile phone industry has

supported research into the safety of mobile phones. This research has

resulted in two ﬁndings in particular that merit additional study:

1. In a hospital-based, case-control study, researchers looked for an

association between mobile phone use and either glioma (a type of

brain cancer) or acoustic neuroma (a benign tumor of the nerve

sheath). No statistically signiﬁcant association was found between

mobile phone use and acoustic neuroma. There was also no

association between mobile phone use and gliomas when all types of

types of gliomas were considered together. It should be noted that the

average length of mobile phone exposure in this study was less than

three years.

When 20 types of glioma were considered separately, however, an

association was found between mobile phone use and one rare type of

glioma, neuroepithelliomatous tumors. It is possible with multiple

comparisons of the same sample that this association occurred by

chance. Moreover, the risk did not increase with how often the mobile

phone was used, or the length of the calls. In fact, the risk actually

decreased with cumulative hours of mobile phone use. Most cancer

137

Reference

causing agents increase risk with increased exposure. An ongoing

study of brain cancers by the National Cancer Institute is expected to

bear on the accuracy and repeatability of these results.

2. Researchers conducted a large battery of laboratory tests to assess the

effects of exposure to mobile phone RF on genetic material. These

included tests for several kinds of abnormalities, including mutations,

chromosomal aberrations, DNA strand breaks, and structural changes

in the genetic material of blood cells called lymphocytes. None of the

tests showed any effect of the RF except for the micronucleus assay,

which detects structural effects on the genetic material. The cells in

this assay showed changes after exposure to simulated cell phone

radiation, but only after 24 hours of exposure. It is possible that

exposing the test cells to radiation for this long resulted in heating.

Since this assay is known to be sensitive to heating, heat alone could

have caused the abnormalities to occur. The data already in the

literature on the response of the micronucleus assay to RF are

conﬂicting. Thus, follow-up research is necessary.

FDA is currently working with government, industry, and academic

groups to ensure the proper follow-up to these industry-funded

research ﬁndings. Collaboration with the Cellular

Telecommunications Industry Association (CTIA) in particular is

expected to lead to FDA providing research recommendations and

scientiﬁc oversight of new CTIA-funded research based on such

recommendations.

Two other studies of interest have been reported

recently in the literature:

1. Two groups of 18 people were exposed to simulated mobile phone

signals under laboratory conditions while they performed cognitive

function tests. There were no changes in the subjects' ability to recall

words, numbers, or pictures, or in their spatial memory, but they were

able to make choices more quickly in one visual test when they were

exposed to simulated mobile phone signals. This was the only change

noted among more than 20 variables compared.

2. In a study of 209 brain tumor cases and 425 matched controls, there

was no increased risk of brain tumors associated with mobile phone

use. When tumors did exist in certain locations, however, they were

more likely to be on the side of the head where the mobile phone was

used. Because this occurred in only a small number of cases, the

138

increased likelihood was too small to be statistically signiﬁcant.

In summary, we do not have enough information at this point to assure

the public that there are, or are not, any low incident health problems

associated with use of mobile phones. FDA continues to work with all

parties, including other federal agencies and industry, to assure that

research is undertaken to provide the necessary answers to the outstanding

questions about the safety of mobile phones.

What is known about cases of human cancer that

have been reported in users of hand-held mobile

phones?

Some people who have used mobile phones have been diagnosed with

brain cancer. But it is important to understand that this type of cancer also

occurs among people who have not used mobile phones. In fact, brain

cancer occurs in the U.S. population at a rate of about 6 new cases per

100,000 people each year. At that rate, assuming 80 million users of

mobile phones (a number increasing at a rate of about 1 million per

month), about 4800 cases of brain cancer would be expected each year

among those 80 million people, whether or not they used their phones.

Thus it is not possible to tell whether any individual's cancer arose because

of the phone, or whether it would have happened anyway. A key question is

whether the risk of getting a particular form of cancer is greater among

people who use mobile phones than among the rest of the population.

One way to answer that question is to compare the usage of mobile phones

among people with brain cancer with the use of mobile phones among

appropriately matched people without brain cancer. This is called a case-

control study. The current case-control study of brain cancers by the

National Cancer Institute, as well as the follow-up research to be sponsored

by industry, will begin to generate this type of information.

What is FDA's role concerning the safety of

mobile phones?

Under the law, FDA does not review the safety of radiation-emitting

consumer products such as mobile phones before marketing, as it does

with new drugs or medical devices. However, the agency has authority to

take action if mobile phones are shown to emit radiation at a level that is

hazardous to the user. In such a case, FDA could require the

manufacturers of mobile phones to notify users of the health hazard and

to repair, replace or recall the phones so that the hazard no longer exists.

Although the existing scientiﬁc data do not justify FDA regulatory actions

139

Reference

at this time, FDA has urged the mobile phone industry to take a number of

steps to assure public safety. The agency has recommended that the

industry:

•support needed research into possible biological effects of RF of

the type emitted by mobile phones;

•design mobile phones in a way that minimizes any RF exposure to

the user that is not necessary for device function; and

•cooperate in providing mobile phone users with the best possible

information on what is known about possible effects of mobile

phone use on human health.

At the same time, FDA belongs to an interagency working group of the

federal agencies that have responsibility for different aspects of mobile

phone safety to ensure a coordinated effort at the federal level. These

agencies are:

•National Institute for Occupational Safety and Health

•Environmental Protection Agency

•Federal Communications Commission

•Occupational Health and Safety Administration

•National Telecommunications and Information Administration

The National Institutes of Health also participates in this group.

In the absence of conclusive information about any

possible risk, what can concerned individuals do?

If there is a risk from these products--and at this point we do not know that

there is--it is probably very small. But if people are concerned about

avoiding even potential risks, there are simple steps they can take to do so.

For example, time is a key factor in how much exposure a person receives.

Those persons who spend long periods of time on their hand-held mobile

phones could consider holding lengthy conversations on conventional

phones and reserving the hand-held models for shorter conversations or

for situations when other types of phones are not available.

People who must conduct extended conversations in their cars every day

could switch to a type of mobile phone that places more distance between

their bodies and the source of the RF, since the exposure level drops off

dramatically with distance. For example, they could switch to

•a mobile phone in which the antenna is located outside the

vehicle,

140

•a hand-held phone with a built-in antenna connected to a

different antenna mounted on the outside of the car or built into

a separate package, or

•a headset with a remote antenna to a mobile phone carried at the

waist.

Again, the scientiﬁc data do not demonstrate that mobile phones are

harmful. But if people are concerned about the radiofrequency energy

from these products, taking the simple precautions outlined above can

reduce any possible risk.

Where can I ﬁnd additional information?

For additional information, see the following websites:

•Federal Communications Commission (FCC) RF Safety Program

(select “Information on Human Exposure to RF Fields from Cel-

lular and PCS Radio Transmitters”): http://www.fcc.gov/oet/

rfsafety

•World Health Organization (WHO) International Commission on

Non-Ionizing Radiation Protection (select Qs & As): http://

www.who.int/emf

•United Kingdom, National Radiological Protection Board: http://

www.nrpb.org.uk

•Cellular Telecommunications Industry Association (CTIA): http://

www.wow-com.com

•U.S. Food and Drug Administration (FDA) Center for Devices and

Radiological Health: http://www.fda.gov/cdrh/consumer/

141

Reference

Patent Information

Manufactured under one or more of the following U.S. patents:

4327319

4369516

4369522

4378603

4390963

4398265

4400584

4400585

Re.31470

4434461

4455534

4484153

4485486

4486624

4491972

4523155

4546329

4573017

4574243

4585957

4602218

D284759

D285439

4616314

4617520

D286778

4628529

4629829

4630304

4630305

4633141

4636593

4636741

D288432

4648125

4649543

D288683

4654655

D289156

4662691

4667333

4668917

4670747

4672502

4680787

4681476

4683585

4692726

4704588

D292578

4706036

D292920

4710724

4711361

4715063

4716319

4716391

4723305

D294257

4727306

4727583

4730195

4734635

4736277

4737976

4740794

4741018

4741034

4742562

D295627

4746242

D295973

D295975

4751737

D296187

4761621

4764737

D297734

D297735

4777564

Re.32768

D299136

4797929

4798975

4800348

4802236

4809356

4811377

4811404

4827226

4827507

4829274

4837534

D301476

4843621

4845772

D302015

4851966

4868576

4870686

D303656

4876552

4879533

D305427

4896124

4897873

D305717

4904549

4905288

4905301

D306293

D306441

D306594

4912602

4918732

4922178

4945570

4954796

4959851

4963812

4963843

4965537

4972355

4972432

4972455

4975808

4984290

D314173

D315330

D315346

D315543

D315559

D315565

5004992

D315907

5008925

D316417

D316859

5017856

5018188

5020091

5020092

5020093

5028083

5028859

5029044

5029233

5031028

5036532

5053924

5057762

D320780

5059885

5060294

D322783

D322955

5081674

5083304

D324024

D324388

5095503

D325028

D325583

5109536

D325915

5113436

5117450

5121047

5122480

5122722

D327061

5128834

D328302

5142551

5142696

5146620

5148471

5148473

5148961

5150359

5150384

5152006

5157693

5163159

5164652

5166596

5175759

5175874

D332261

5182749

D332785

5185566

5187809

5193223

5195106

5195108

5201069

5204977

5210793

5214675

5222104

5222251

D337332

5230007

5230093

5233633

5235492

5237257

5239127

5241545

5241548

5241650

5241693

5242767

D339582

5249302

5251331

D340710

5260988

5261119

5262710

5263052

5276707

5278994

D343173

5280637

D344087

5287553

5287555

5287556

D344511

5301365

5321847

D348880

5349588

5359696

5361400

5363071

5365549

D352497

5366826

D353131

D353361

5375143

5375258

5379324

D354055

D354062

5384825

D356084

5402447

5406146

5406562

D357224

D357457

5410741

D357680

D357681

5428836

D359734

D359735

D359959

5432017

D360632

5438684

D361070

5442680

5446763

5448763

5448771

5453997

D362840

5457744

5459640

5463646

5465412

5469177

5475752

D365094

D365817

5486843

5487184

5488335

5488649

D366872

5493198

5493714

5497126

5497382

D367640

5499394

5506490

D368696

5510693

5511235

D369162

5513078

D369359

5519303

5519346

5524276

5524278

D370463

5530922

5542116

5544250

D372481

5546275

5546380

D372896

5551078

5559471

D374424

D374872

5572193

5574976

5577268

D375732

D375733

D375734

D375932

D375952

D376127

5588041

5589796

5590177

5594778

5594951

D377792

D377934

5604050

5606730

D378366

5613229

5613863

5615233

5621763

5621766

5625316

5625683

5628001

5628057

5628089

5629979

5630159

5630210

5630213

5630215

5631538

5633484

5633786

5634202

5640690

5642368

5646576

5649306

5649309

5656914

5656917

5657418

5659601

5660945

5661433

5664973

5666429

5668871

5670912

5673001

5673003

5673287

5674326

5675591

5675702

5678201

5678221

5678227

5680063

5684384

5691947

5692046

5692101

5696497

5696821

5699070

5699389

5699408

5701130

5701244

5701589

5703470

5703539

5703909

5706019

5706313

5708445

5710862

5710987

5711001

5715520

5715524

5717307

5722052

5724004

5726983

5729221

5732350

5737327

5737685

5738954

5739792

5740525

5742894

5745116

5745566

5745848

5747970

5748727

5754141

5754455

5754583

5754645

5754956

5758271

5760714

5761300

5761610

5764100

5764111

5764730

5764743

5766794

5771182

5771471

5777521

5777856

5784368

5784419

5784585

5787128

5787577

5793315

5793866

5796822

5797101

5798716

5799011

5799256

142

5801513

5801567

5802111

5805992

5807012

5808585

5808586

5809020

5809419

5809421

5809430

5809433

5809544

5812093

5812542

5812590

5814798

5815507

5815570

5815804

5815805

5815807

5815820

5821820

5822726

5826224

5831826

5832080

5832388

5835006

5835535

5835785

5838202

5841851

5842122

5844943

5846094

5848072

5848152

5848356

5848718

5850440

5854549

5854785

5854972

5856763

5856766

5857148

5857192

5859522

5859567

5859890

5861853

5862460

5862493

5864799

5865487

5867063

5867127

5867140

5867510

5870670

5872744

5877633

5878075

5878209

5878336

5878353

5880637

5880646

5881377

5889737

5889768

5889859

5892410

5893036

5894597

5896054

5896261

5898933

5900829

5901347

5901357

5903825

5903852

5905956

5907418

5907615

5909102

5910944

5912648

5920549

5920550

5923007

5924044

5925835

5925942

5926119

5926503

5926751

5930268

5930288

5930299

5933330

5936516

5936972

5939939

5940452

5940746

5943027

5945852

5945964

5946395

5949020

5950131

5950139

5953413

5954817

5955700

5955999

5956626

5963848

5963876

5964858

5966101

5966667

5966671

5969545

5977916

5980268

5982881

5983082

5987012

5988577

5995050

5996178

5999115

5999821

5999832

6002922

6002937

6005498

6006104

6008636

6009168

6009309

6009325

6009336

6009552

6011699

6011784

6011959

6011961

6012634

6014376

6014552

D378911

D379558

D379624

D379981

D379982

D380468

D380751

D381021

D381664

D382537

D382538

D382872

D383115

D383748

D383749

D383759

D384080

D384662

D384951

D384952

D385271

D385283

D385555

D385873

D385874

D385875

D385877

D385888

D386175

D386494

D386757

D387054

D387055

D387199

D387346

D388078

D388079

D388080

D388081

D388082

D388424

D388429

D388430

D388775

D388783

D388793

D389157

D389476

D389478

D389488

D389641

D390221

D390222

D390509

D391567

D391955

D391966

D393470

D394256

D394423

D394425

D394433

D394438

D394439

D395301

D395302

D395431

D395642

D395875

D396472

D397337

D397689

D397694

D398926

D400161

D400165

D400204

D400209

D400496

D400526

D400527

D400874

D401554

D401929

D403265

D404397

D405080

D405782

D405801

D406098

D406191

D406586

D406695

D406812

D407063

D407685

D407708

D408401

D408402

D408418

D408783

D408815

D409186

D410459

D410460

D410929

D411165

D411196

D411202

D411204

D411507

D411535

D411843

D411844

D412000

D412487

D412709

D413893

D413898

D414159

D415122

D415499

D416226

D417224

D417449

Other patents pending.

Important Export Information

Because of federal export regulations applicable to this Motorola phone,

it cannot be sold for export from the U.S.A. or Canada. Please read the

following important notice:

EXPORT LAW ASSURANCES: This product is controlled under

the export regulations of the United States of America and Canada. This

product cannot be exported from the United States or Canada without

an export license issued by the U.S. Department of Commerce. In addi-

tion to the U.S. license, if this product is to be exported from Canada, an

Export Permit issued by the Canada Department of Foreign Affairs and

International Trade must be obtained before export.

143

AC Adapter 15

accessory connector 20

Accessory Options 122–125

activating your phone 23

adjusting volume 33

alpha characters, entering 39

answering calls 30–31

automatic answer 97

data and faxes 114–121

multiple key answer 96

antenna 20

audible timers

one minute 74

repeating 75

single 75

auto display timer 74

auto lock 86

automated phone systems

calling 49

storing number 48

automatic

answer 97

redial 29

banner, changing 99

batteries 12–16

charging 15–19

clips 12

installing 13

storage & disposal 16

varieties 122

battery level

detailed reading 25

indicator 27

bookmarks 110, 113

browsing the web 106–113

Call Back messages 58

Call Options 96–97

Call Timers 70–75

road map 71

Caller ID 30

deleting 55

number preference 67

options 55

viewing 54

calling cards

storing numbers 50

using 51

car kits 125

changing

active number 94

banner 99

lock code 89

secure code 89

chargers 15–19

desktop 18–19

internal 15

charging batteries 15–19

checking your Voice Mail 56

clear key 20

clear, master 91

clearing

Caller IDs 55

Messages 59

Phone Book entries 44

settings 91

Voice Mail notifications 57

clock 27

display format 100

Confirm at Start-up 103

cumulative call timer 73

data 114–121

data cable, attaching 115

data calls

ending 117

placing 116

pre-arrangement 118

receiving 119

data capability 114

deleting

Caller IDs 55

Messages 59

Phone Book entries 44

Voice Mail notifications 57

desktop charger 18–19

dialing

data calls 116

priority call 87

restricting 90

Index

144

digital indicator 26

Display Options 98–100

display, phone’s 20

displaying

24-Hour Clock 100

caller’s numbers 67

individual call timer 72, 74

last ten numbers dialed 29

lock code 88

phone information 94

system ID 104

your number 67

DTMF tones 82

storing 48

earpiece 20

Easy Install Car Kit 125

editing memory 42, 68–69

ending calls

data 117

voice 28

entering names 39

faxes 114–121

function key 20

Getting Started 10–21

Glossary 130–134

Hands-Free Car Kit 122

headset 123

headset jack 20

holster 123

Home Only Mode 105

home only mode 105

in use indicator 26

incoming calls 30–31

indicators

battery level 25, 27

digital 26

in use 26

roam 26

signal strength 26

silent mode 27

Unanswered Call 31

VibraCall® alert ON 27

Vibrate Then Ring 27

individual call timer 72

auto display 74

installing batteries 13

internal charger 15

Internet 106–113

keypad tones 81

last ten numbers dialed 29

letters, entering 39

Lithium Ion Batteries 122

lock

automatically 86

manually 86

messages 59

lock code

changing 89

viewing 88

Lock/Security 84–91

road map 85

master clear 91

master reset 91

memory 36–51

editing 42, 68–69

Phone Book 62–69

recalling 40–41, 64–65

storing 38, 66

tips 37

menu features 60

Messages

Call Back 58

lock/unlock 59

options 59

reading 58

receiving 53

Messaging 52–59

menu 52

microphone 20

minibrowser

alerts 110

in-box 113

launching 102, 107

menu 112–113

145

Index

navigation 108–109

options 102–103

using 106–113

multiple key answer 96

muting the phone 32

names

clearing 44

entering 39

recalling 40, 64

viewing 67

navigating

the menu 60

the minibrowser 106–113

Nickel Metal Hydride Batteries 122

number

changing yours 94

viewing others 67

viewing yours 67

number character 50–51

Number Preference 67

numbers

recalling 40–41, 64–65

storing 38, 66

one minute timer 74

outgoing calls

controlling 90

placing 28

Pause Dialing 48–49

personalizable banner 99

Phone Book 62–69

editing 68–69

memory 36–51

recalling 64–65

road map 63

status 65

storing 38, 66

phone information 94

phone lock

automatically 86

manually 86

phone number

changing yours 94

viewing others 67

viewing yours 67

Phone Options 92–105

road map 93

placing calls 28

data 116

priority call 87

redial 29

power key 20, 23

power up mode 103

pre-arrangement 118

priority call 87

reading the indicators 25–27

reading your messages 58

real time clock 27

recall key 20

recalling

by location 41, 65

by name 40, 64

shortcuts 45

receiving calls 30–31

automatic answer 97

data and faxes 114–121

multiple key answer 96

receiving messages 53

redial 29

automatic 29

last ten numbers dialed 29

repeating timer 75

reset, master 91

resettable call timer

resetting 73

viewing 72

ringer

silencing 78

style 79

volume 33

ringer/vibrator 78

road maps 61

Call Timers 71

Lock/Security 85

Phone Book 63

Phone Options 93

Tone Control 77

roam indicator 26

Safety Information 6–9

Scratchpad 47

tones 82

146

scroll keys 20

secure code, changing 89

Secure Options 88–91

security 84–91

selecting ringer style 79

send key 20

service level 90

service light 101

service tones 83

shortcuts 34

show URL 113

signal strength 26

silent mode 32, 78

indicator 27

single timer 75

Smart Button 21

soft keys 109

Standard Mode 105

store key 20

storing 38, 66

Call Back number 58

while on a call 47

Super Speed Dial 45

system ID, viewing 104

system mode 104

System Options 104–105

Three-Watt Vehicular Kit 124

timers

audible 74–75

cumulative 73

individual 72, 74

one minute 74

repeating 75

resettable 72, 73

single 75

Tone Controls 76–83

Basic 32–33

road map 77

volume 33

tones

keypad 81

service 83

storing 48

transmit tones 82

storing 48

Troubleshooting 126–129

TrueSync® 120

Turbo Dial® Keys 45

priority call 87

turning the phone ON

mode 103

turning your phone ON 23

unanswered call indicator 31

unlock/lock 86

Using Data Features 114–121

Using Messaging 52–59

Using the Minibrowser 106–113

vehicle kits 125

vehicle power adapter 15, 122

VibraCall® alert 32, 78

VibraCall® alert ON indicator 27

Vibrate Then Ring Indicator 27

viewing

Caller IDs 54

cumulative call timer 73

individual call timer 72, 74

lock code 88

resettable call timer 72

your number 67

Voice Mail

checking 56

deleting notifications 57

options 57

storing number 48

volume keys 20

volume, adjusting 33

Your Phone & Its Shortcuts 34

Motorola Mobility T6ZT1 PCS Transceiver User Manual ZT EX08

Motorola Mobility LLC PCS Transceiver ZT EX08

Exhibit 8 Users Manual RESEND PER 13182

Navigation menu

Namespaces

Views

Navigation
