Motorola Solutions 89FT4834 Hand-held Transmitter User Manual WarisPopUser
Motorola Solutions, Inc. Hand-held Transmitter WarisPopUser
Users Manual
1
Copyright Information
The Motorola products described in this manual may include copyrighted Motorola computer programs stored in
semiconductor memories or other mediums. Laws in the United States and other countries preserve for Motorola
certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in
any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs con-
tained in the Motorola products described in this instruction manual may not be copied or reproduced in any man-
ner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not
be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, pat-
ents, or patent applications of Motorola, except for the normal non-exclusive, royalty free license to use that arises
by operation of law in the sale of a product.
© 1998 by Motorola, Inc.
All Rights Reserved.
Motorola Malaysia Sdn. Bhd. (Company No. 12631DE),
Bayan Lepas Free Industrial Zone, Phase 3,
11900 Penang, Malaysia.
Printed in Malaysia.
, Motorola, Call Alert and MDC are trademarks of Motorola, Inc.
GP328 Quick Reference Card
Deleting a Nuisance Channel
1. While radio is on a Nuisance Channel, press and
hold Scan button until a tone is sounded.
2. Release Scan button.
For Keypad Radios only
Making a Phone Call
1. Press Phone button.
2. Send access code if needed.
3. Send phone number by
• pressing and releasing PTT to send last dialed num-
ber, or
• press Speed Dial button followed by keypad keys ‘1’
to ‘9’ to access first nine numbers in your phone list
(press PTT if buffered dial), or
• press the numbered keys to send out phone number
(press PTT if buffered dial).
Ending a Phone Call
1. Send de-access code if needed.
2. Press Phone button.

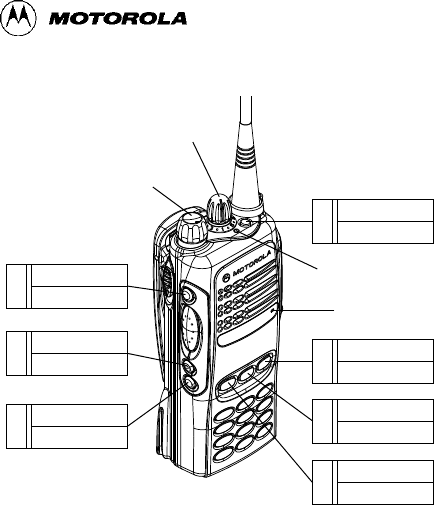

LED Indicator
Microphone
Channel Selector Knob
On/Off/Volume Knob
1SP:
LP:
2SP:
LP:
3SP:
LP:
4SP:
LP:
5SP:
LP:
6SP:
LP:
7SP:
LP:
NOTE: • Enter the functions for your radio’s 7 program-
mable buttons in the boxes provided above.
• In the boxes above, SP represents
Short
Press
, while LP represent
Long Press
.
2. Adjust volume level.
3. Switch to desired channel.
4. If at any time a call comes through, it will be heard at
the volume level set.
Emergency Siren
1. Press programmed Emergency button to initiate
Emergency Siren
.
2. Press and hold Emergency button to cancel
Emer-
gency Siren
.
3. Press and release Emergency button to restart
Emergency sequence.
Programmable Buttons’ Audio Indicators
Programmable
Buttons Positive
Indicator Tone Negative
Indicator Tone
Scan Start Scan oper-
ation Stop Scan oper-
ation
Tx Power Radio transmits
at low power Radio transmits
at high power
Squelch Radio operates in
tight squelch Radio operates in
normal squelch
Option Board Activates radio’s
option board
Deactivates
radio’s option
board
Keypad Lock Radio’s keypad
is locked Radio’s keypad
is unlocked
Repeater/
Talkaround
Radio DOES
NOT use the
repeater
Radio uses the
repeater

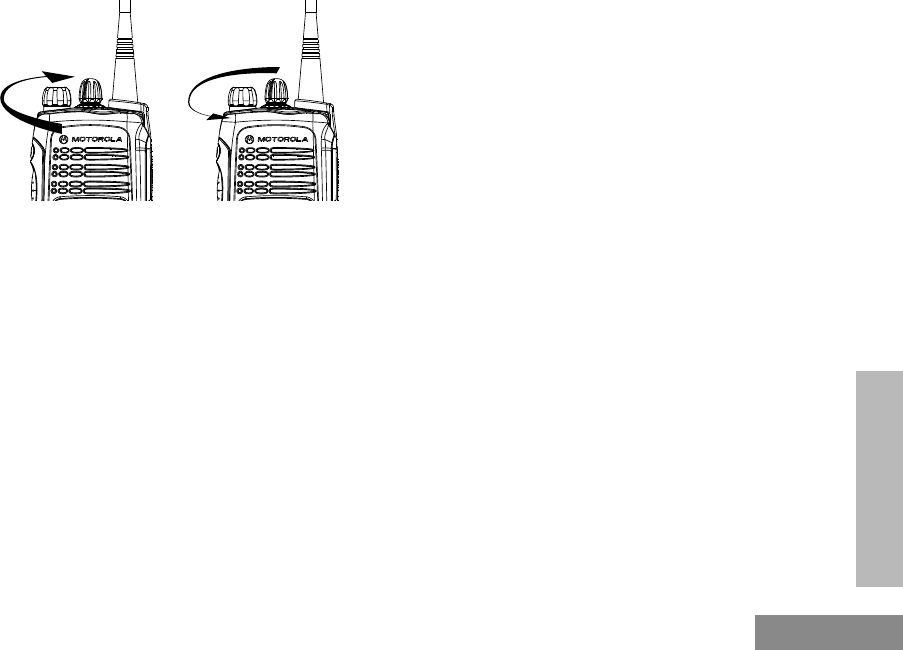

Turning On the Radio
• Turn On-Off/Volume Control knob clockwise. Self
Test Pass Tone will sound and green LED will light up
if radio powers up successfully. If radio fails power up,
the Self Test Fail Tone will sound.
Turning Off the Radio
• Turn On-Off/Volume Control knob counter-clockwise,
until click is heard.
Adjusting the Radio’s Volume
1. Press and hold Volume Set
key; until continuous
tone is sounded.
2. Turn On-Off/Volume Control knob to adjust volume
level.
3. Release Volume Set key when desired level is
achieved.
Selecting a Radio Channel
• Turn Channel Selector knob clockwise or counter-
clockwise to reach desired channel.
Sending a Call
1. Use Channel Selector knob to change to required
channel.
2. Press PTT, and speak clearly with mouth about 2.5
to 5 cm (one to two inches) away from microphone.
3. Release PTT when call is completed.
Receiving a Call
1. Turn radio on.
iEnglish
LIMITED WARRANTY & LIABILITY
MOTOROLA COMMUNICATION PRODUCTS
I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:
MOTOROLA ELECTRONICS PTE LTD ("MOTOROLA") warrants the MOTOROLA manufactured TWO-WAY RADIO Products
listed below ("Product") against defects in material and workmanship under normal use and service for a period of time from the
date of purchase as scheduled below:
TWO-WAY RADIO Mobile and Portable Units Two (2) Years
Product Accessories (including battery, antenna, charger, belt clip etc.) One (1) Year
Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or
reconditioned Product), or refund the purchase price of the Product during the warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or boards are warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of MOTOROLA.
This express limited warranty is extended by MOTOROLA to the original end user purchaser only and is not assignable or
transferable to any other party. This is the complete warranty for the Product manufactured by MOTOROLA. MOTOROLA assumes
no obligations or liability for additions or modifications to this warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between MOTOROLA and the original end user purchaser, MOTOROLA does
not warrant the installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary equipment not furnished by MOTOROLA which is attached to or
used in connection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is
expressly excluded from this warranty. Because each system which may use the Product is unique, MOTOROLA disclaims liability
for range, coverage, or operation of the system as a whole under this warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of MOTOROLA'S responsibilities regarding the Product. Repair, replacement or refund of the
purchase price, at MOTOROLA'S option, is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER
EXPRESS WARRANTIES. IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS
OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.
III. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase and Product item serial number) in order to receive warranty
service and, also, deliver or send the Product item, transportation and insurance prepaid, to an authorized warranty service
location. Warranty service will be provided by Motorola through one of its authorized warranty service locations. If you first contact
the company which sold you the Product (e.g., dealer or communication service provider), it can facilitate your obtaining warranty
ii
English
service. You can also call Motorola Service centres at 65-4867167 (Singapore), 8610-6843722(China), 822-3440-7400(Korea),
9180-6657676/7/8/9(India), 613-9213-7809(Australia), 649-579-2378(New Zealand), or Asia Pacific Help Desk 65-485-
5333(Singapore).
IV. WHAT THIS WARRANTY DOES NOT COVER:
A) Defects or damage resulting from use of the Product in other than its normal and customary manner.
B) Defects or damage from misuse, accident, water, or neglect.
C) Defects or damage from improper testing, operation, maintenance, installation, alteration, modification, or adjustment.
D) Breakage or damage to antennas unless caused directly by defects in material workmanship.
E) A Product subjected to unauthorized Product modifications, disassemblies or repairs (including, without limitation, the addition
to the Product of non-Motorola supplied equipment) which adversely affect performance of the Product or interfere with Motor-
ola's normal warranty inspection and testing of the Product to verify any warranty claim.
F) Product which has had the serial number removed or made illegible.
G) Rechargeable batteries if:
1) any of the seals on the battery enclosure of cells are broken or show evidence of tampering.
2) the damage or defect is caused by charging or using the battery in equipment or service other than the Product for which
it is specified.
H) Freight costs to the repair depot.
I) A Product which, due to illegal or unauthorized alteration of the software/firmware in the Product, does not function in accor-
dance with MOTOROLA’S published specifications or the FCC type acceptance labeling in effect for the Product at the time the
Product was initially distributed from MOTOROLA.
J) Scratches or other cosmetic damage to Product surfaces that does not effect the operation of the Product.
K) Normal and customary wear and tear.
V. PATENT AND SOFTWARE PROVISIONS:
MOTOROLA will have no liability with respect to any claim of patent infringement which is based upon the combination of the
Product or parts furnished hereunder with software, apparatus or devices not furnished by MOTOROLA, nor will MOTOROLA have
any liability for the use of ancillary equipment or software not furnished by MOTOROLA which is attached to or used in connection
with the Product. The foregoing states the entire liability of MOTOROLA with respect to infringement of patents by the Product or
any parts thereof.
Laws in the United States and other countries preserve for MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software such as the exclusive rights to reproduce in copies and distribute copies of such Motorola software. MOTOROLA software
may be used in only the Product in which the software was originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or reverse engineering of such MOTOROLA software or exercise of
rights in such MOTOROLA software is permitted. No license is granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
CONTENTS
iii
Contents
English
CONTENTS
Radio Overview . . . . . . . . . . . . . . . . . . . . 1

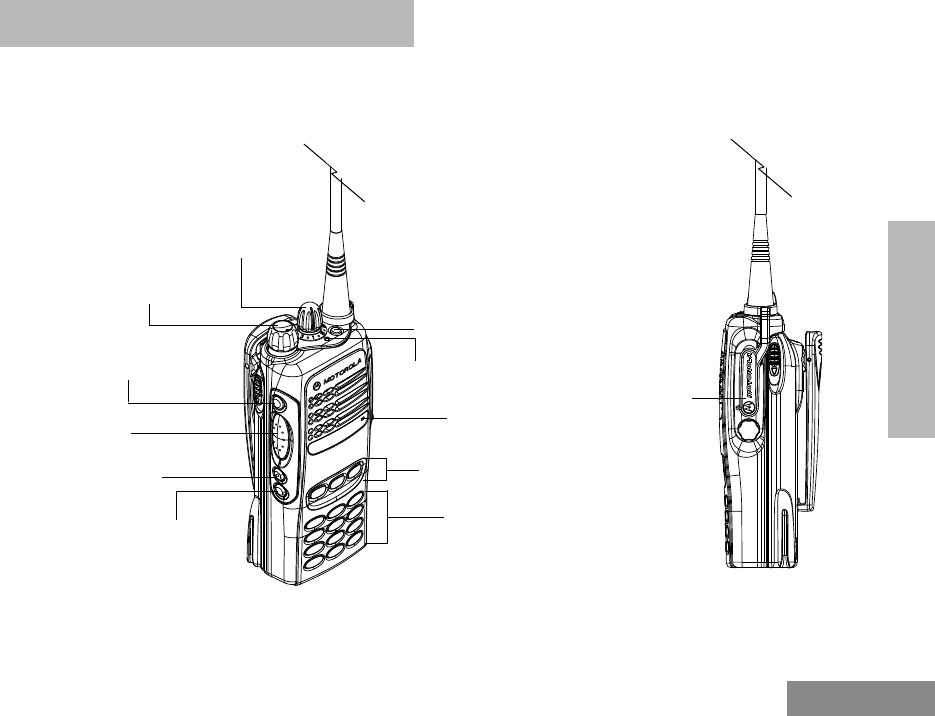

Parts of the Radio. . . . . . . . . . . . . . . . . . . . . . . . 1
On/Off/Volume Knob . . . . . . . . . . . . . . . . . 2
Channel Selector Knob. . . . . . . . . . . . . . . . . 2
Push-to-Talk (PTT) Button . . . . . . . . . . . . . 2
Microphone . . . . . . . . . . . . . . . . . . . . . . . . . 2
LED Indicator. . . . . . . . . . . . . . . . . . . . . . . . 2
Keypad Keys (for keypad radios only) . . . . 2
Programmable Buttons. . . . . . . . . . . . . . . . . 2
Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . 5
Programmable Buttons’ Audio Indicators . . . . . 5
Improved Audio Features . . . . . . . . . . . . . . . . . 6
Low Level Expansion (LLE) . . . . . . . . . . . . 6
Companding . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started . . . . . . . . . . . . . . . . . . . . . 7
Battery Information . . . . . . . . . . . . . . . . . . . . . . 7
Battery Status . . . . . . . . . . . . . . . . . . . . . . . . 7
Charging your Battery . . . . . . . . . . . . . . . . . 7
Accessory Information. . . . . . . . . . . . . . . . . . . . 8
Attaching the Battery . . . . . . . . . . . . . . . . . . 8
Removing the Battery . . . . . . . . . . . . . . . . . 8

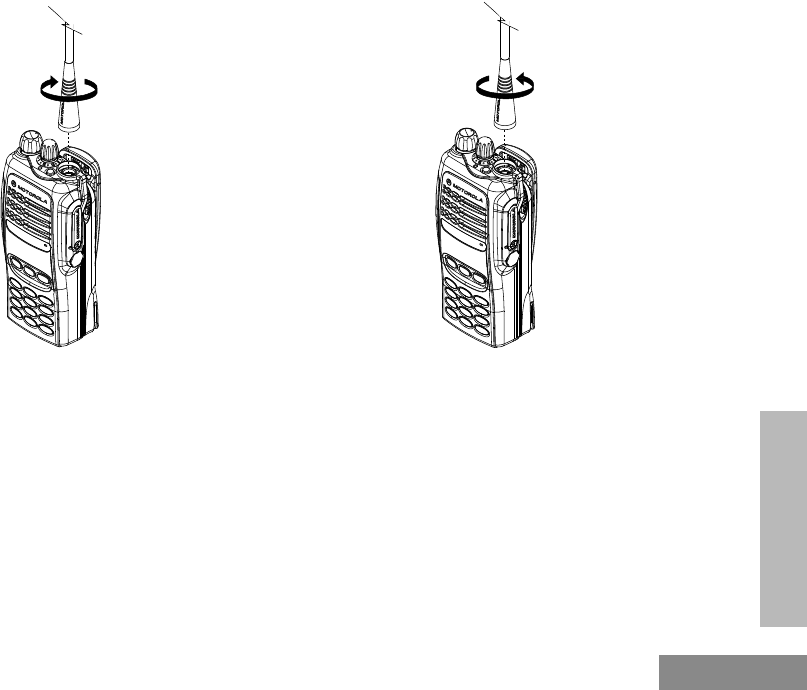

Attaching the Antenna . . . . . . . . . . . . . . . . . 9
Removing the Antenna . . . . . . . . . . . . . . . . .9

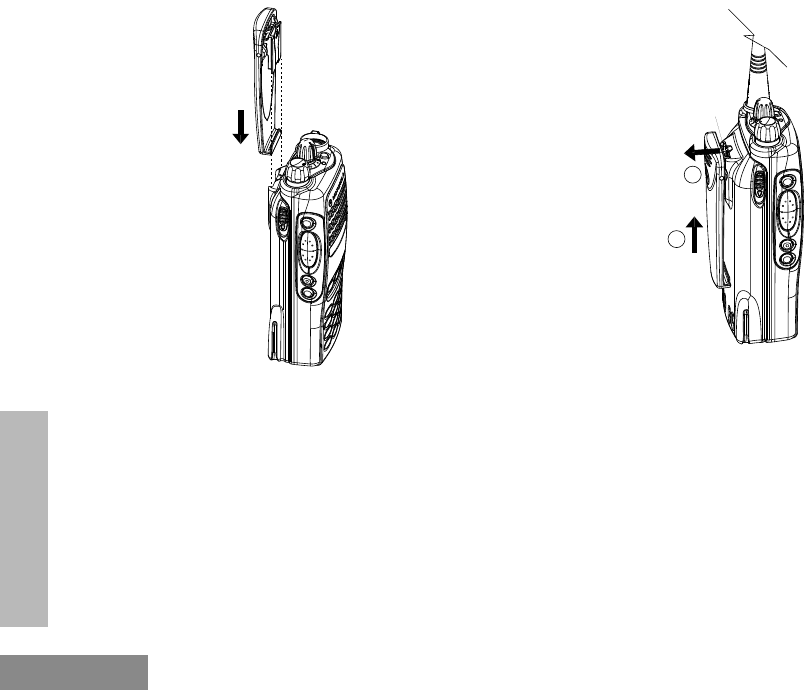

Attaching the Belt Clip . . . . . . . . . . . . . . . . 10
Removing the Belt Clip . . . . . . . . . . . . . . .10
Turning the Radio On or Off . . . . . . . . . . . . . . 11
Adjusting the Radio’s Volume . . . . . . . . . . . . . 11
Selecting a Radio Channel . . . . . . . . . . . . . . . . 11
Sending a Call. . . . . . . . . . . . . . . . . . . . . . . . . . 11
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . 12
Radio Call Information . . . . . . . . . . . . . .13
Emergency Siren. . . . . . . . . . . . . . . . . . . . . . . . 13
Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Starting or Stopping a Scan Operation . . . . . . . 15
Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Deleting a Nuisance Channel . . . . . . . . . . . . . . 15
Adding a Deleted Nuisance Channel back to the
Scan List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Scan Channel Discovery Alert . . . . . . . . . . . . . 16
Scan List Member Priority . . . . . . . . . . . . . . . . 16
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONTENTS
Contents
iv
English
Making a Phone Call . . . . . . . . . . . . . . . . . . . . 20
Entering the Phone Mode. . . . . . . . . . . . . . 20
Sending the Access Code. . . . . . . . . . . . . . 20
Sending the Phone Number . . . . . . . . . . . . 20
The Phone Conversation . . . . . . . . . . . . . . 22
Ending the Phone Call . . . . . . . . . . . . . . . . 22
Safety Information . . . . . . . . . . . . . . . . . 23
Safe And Efficient Operation Of Motorola Two-
Way Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Exposure To Radio Frequency Energy . . . 23
Portable Radio Operation
and EME Exposure . . . . . . . . . . . . . . . . . . 24
Electromagnetic
Interference/Compatibility . . . . . . . . . . . . . 24
Operational Warnings . . . . . . . . . . . . . . . . 24
Operational Cautions . . . . . . . . . . . . . . . . . 25
Recycling / Disposal of NiCd Batteries. . . . . . 26
RADIO OVERVIEW
1
Radio Overview
English
RADIO OVERVIEW
PARTS OF THE RADIO
On/Off/Volume
Knob
Channel Selector
Knob
Microphone
Keypad
(programmable)
(programmable)
Top Button
(programmable)
Side Button 1
Push-to-Talk
(PTT) Button Front Buttons
LED Indicator
(programmable)
Side Button 2
(programmable)
Side Button 3
Dust Cover
covering the
Accessories
Pot
RADIO OVERVIEW
Radio Overview
2
English
On/Off/Volume Knob
Used to turn the radio on or off, and to adjust the
radio’s volume.
Channel Selector Knob
Used to switch the radio to different channels.
Push-to-Talk (PTT) Button
Press and hold down this button to talk, release
it to listen.
Microphone
Speak clearly into the microphone when sending
a message.
LED Indicator
Used to give battery status, power-up status,
radio call information and scan status.
Keypad Keys (for keypad radios only)
These keys are used when dialing a phone
number.
Programmable Buttons
Several of the radio’s buttons can be
programmed as short-cut buttons for many of
the radio’s features. Programmable buttons are
the:
• Top button,
• three side buttons, and
• three front buttons (for keypad radios).
Check with your dealer for a complete list of the
functions your radio’s programmable buttons
support.
The following table shows the functions available
by
• quickly pressing and releasing the program-
mable buttons (short press), or by
• pressing and holding the programmable but-
tons for a period of time (at least 1.5 sec-
onds) before releasing (long press), or by
• pressing and holding down the programma-
ble buttons while checking the status or mak-
ing adjustments.
123
456
789
*0#
, / .
RADIO OVERVIEW
3
Radio Overview
English
Button Short Press Long Press Press and Hold
Emergency*To initiate an Emergency Siren. To cancel your radio’s Emergency
status. —
Monitor/Per-
manent Moni-
tor
—To continually monitor the selected
channel.
To monitor the selected
channel for any activity.
Volume Set — —
To sound a tone for
adjusting the radio’s vol-
ume level.
Battery Gauge — — To check the battery’s
status.
Scan/Nui-
sance Chan-
nel Delete
To toggle between the start/stop of
the Scan operation.
To delete a nuisance channel while
scanning. —
Tx Power
To toggle your radio’s transmit
power level between High and Low
power.†
To toggle your radio’s transmit
power level between High and Low
power.†—
Keypad Lock — To toggle between locking/unlock-
ing your radio’s keypad. —
Repeater/
Talkaround
To choose to/not to transmit
through the repeater.†
To choose to/not to transmit
through the repeater.†—
Squelch To toggle your radio’s squelch level
between tight/normal squelch.†
To toggle your radio’s squelch level
between tight/normal squelch.†—
RADIO OVERVIEW
Radio Overview
4
English
Option Board
To toggle the activation/deactiva-
tion of your radio’s option board (if
one is installed).†
To toggle the activation/deactiva-
tion of your radio’s option board (if
one is installed).†—
Phone To make a Phone Call.†To make a Phone Call.†—
Speed Dial To easily access the phone num-
bers in your phone list.†
To easily access the phone num-
bers in your phone list.†—
Light To turn on your radio’s backlight.†To turn on your radio’s backlight.†—
* If Emergency function is required, it can ONLY be programmed to the Top Button.
† Depending on how your radio has been programmed by your dealer, these functions are activated EITHER through short press OR
long press, but not both.
Button Short Press Long Press Press and Hold
RADIO OVERVIEW
5
Radio Overview
English
INDICATOR TONES
High pitched tone Low pitched tone
PROGRAMMABLE BUTTONS’
AUDIO INDICATORS
Some programmable keys function as toggles
(alternating between two different choices).
These keys use audio indicators to indicate the
change.
Self Test Pass Tone
Self Test Fail Tone
Positive Indicator Tone
Negative Indicator Tone
Programmable
Buttons
Positive
Indicator
Tone
Negative
Indicator
Tone
Scan Start Scan
operation Stop Scan
operation
Tx Power
Radio trans-
mits at low
power
Radio trans-
mits at high
power
Squelch
Radio oper-
ates in tight
squelch
Radio oper-
ates in normal
squelch
Option Board Activates
radio’s option
board
Deactivates
radio’s option
board
Keypad Lock Radio’s key-
pad is locked
Radio’s key-
pad is
unlocked
Repeater/Talkaround
Radio DOES
NOT use the
repeater
Radio uses
the repeater
RADIO OVERVIEW
Radio Overview
6
English
IMPROVED AUDIO FEATURES
Low Level Expansion (LLE)
The LLE feature of your radio improves voice
quality by reducing unwanted background noise
when receiving a message. It is compatible with
most major types of audio processing systems
available today.
Companding
Companding is a feature that allows further
improvement of voice quality. It compresses your
voice at transmission, and expands it when
receiving while simultaneously reducing
extraneous noise. However, to enjoy this benefit,
ALL transmitting and receiving radios must have
this feature activated.
NOTE: Contact your dealer for your radio’s current
companding settings or to change the settings.
GETTING STARTED
7
Getting Started
English
GETTING STARTED
BATTERY INFORMATION
Battery Status
You can check your radio’s battery status by
pressing the programmed Battery Gauge button
(battery status is shown by the LED indicator).
NOTE: If the Battery Gauge indicator does NOT
appear, this indicates that the battery may not be
a genuine Motorola product.
Charging your Battery
When the battery level is very low, you need to
recharge the battery before you can continue to
use your radio.
1. Place the radio with the battery attached or the
battery alone in the charger.
2. The charger’s LED would indicate the charging
progress.
NOTE: Because new batteries or batteries that
have not been used for several months could
prematurely indicate full charge (solid green
LED), charge the batteries for 14 to 16 hours
prior to initial use to achieve optimal perfor-
mance.
Battery
Level LED Indicator
High Green
Satisfactory Yellow
Low Flashing Red
Very Low None
LED color Status
Single flash of Green Successful charger power-up.
Flashing Red* Battery is unchargeable.
Flashing Yellow Charger is getting ready to
charge.
Red Battery is charging.
Flashing Green†Battery is 90% charged.
Green Battery is fully charged.
* Remove the battery from charger and use a pencil eraser to
clean the four metal contacts on the bottom of the battery.
Place the battery back into the charger. If the LED indicator
continues to flash red, replace the battery.
† A standard battery may require one hour to charge to 90%
capacity.
GETTING STARTED
Getting Started
8
English
ACCESSORY INFORMATION
Attaching the Battery
1. Fit the extensions at the bottom of the battery
into the slots at the bottom of the radio’s body.
2. Press the top part of the battery towards the
radio until a click is heard.
Removing the Battery
1. Turn off the radio, if it is turned on.
2. Slide the battery latches, on both sides of the
battery, downwards.
3. Pull the top part of the battery away from the
radio’s body, and lift the battery from the radio’s
body.
slots
1
2
battery latches
1
2
GETTING STARTED
9
Getting Started
English
Attaching the Antenna
1. Align the threaded end of the antenna with the
radio’s antenna connector.
2. Turn the antenna clockwise to fasten it.
Removing the Antenna
Turn the antenna counter-clockwise until you
can remove it.
attaching
removing
GETTING STARTED
Getting Started
10
English
Attaching the Belt Clip
1. Align the grooves of the belt clip with those of
the battery.
2. Press the belt clip downwards until a click is
heard.
Removing the Belt Clip
1. Use a key to press the belt clip tab away from
the battery.
2. Slide the belt clip upwards to remove it.
belt clip tab
1
2
GETTING STARTED
11
Getting Started
English
TURNING THE RADIO ON OR OFF
• Turn the On-Off/Volume Control knob
clockwise to turn on the radio. You will hear
the Self Test Pass Tone and see a green LED
if the radio powers up successfully. If the
radio fails its self test, you will hear the Self
Test Fail Tone.
• Turn the On-Off/Volume Control knob
counter-clockwise, until a click is heard, to
turn off the radio.
ADJUSTING THE RADIO’S VOLUME
1. Press and hold the Volume Set
key; you will
hear a continuous tone.
2. Turn the On-Off/Volume Control knob and
adjust the volume level.
3. Release the Volume Set key.
SELECTING A RADIO CHANNEL
Your radio offers sixteen (16) channels for easy
access to required conventional channels. Some
channels on your radio may not be programmed.
Check with your dealer for more information.
Turn the Channel Selector knob clockwise or
counter-clockwise until you reach the desired
channel.
SENDING A CALL
1. Use the Channel Selector knob to change to
the required channel.
2. Press the PTT, and speak clearly with your
mouth about 2.5 to 5 cm (one to two inches)
away from the microphone.
3. Release the PTT when you finish speaking.
ON OFF
GETTING STARTED
Getting Started
12
English
RECEIVING A CALL
1. Turn your radio on.
2. Adjust its volume level.
3. Switch to the desired channel.
4. If at any time a call comes through, you will
hear the call at the volume level you have set.
RADIO CALL
INFORMATION
13
Radio Call Information
English
RADIO CALL INFORMATION
EMERGENCY SIREN
Your radio can be programmed to emit an
emergency siren. The Emergency Siren will
cause the radio to sound a repetitive tone at the
maximum volume.
1. Press and release the Emergency button to ini-
tiate an Emergency Siren.
2. Press and hold the Emergency button to can-
cel the Emergency Siren.
3. Press and release the Emergency button to
restart the Emergency sequence.
TALKAROUND
In your communications network, you may be
using a repeater to cover a larger area than what
is possible with your radio. However, you can
communicate with another radio within your
radio’s range without going through the repeater
by using the
Talkaround
feature. This is
especially useful when the repeater is down.
Press the programmed Repeater/Talkaround
button to toggle between the options of making
or not making a call through the repeater. A
positive indicator tone indicates that the radio is
in talkaround mode, while a negative indicator
tone indicates that the radio is in repeater mode.
SQUELCH
If a particular channel receives many unwanted
calls coming from radios that do not belong to
your communications group and are some
distance away, or the “background noise” is
excessive, you can try to filter these
transmissions out by tightening the channel’s
squelch. However, tightening squelch could
cause calls from members of your
communications group that are farther away to
be filtered out as well. To set the squelch level:
Press the programmed Squelch button to toggle
between the options of having normal squelch or
tightening the squelch of your radio. A positive
indicator tone indicates that the radio is
operating in tight squelch, while a negative
indicator tone indicates that the radio is
operating in normal squelch.
RADIO CALL
INFORMATION
Radio Call Information
14
English
POWER LEVEL
You can transmit your calls at different transmit
power levels. A higher level means you can
reach a radio that is farther away. Lower power
level conserves battery power. You are advised
to transmit as frequently as possible on low
power, and use high power only when needed.
Press the programmed Tx Power button to
toggle between the options for High or Low
power transmit level. A positive indicator tone
indicates that the radio is operating in low power
mode, while a negative indicator tone indicates
that the radio is operating in high power mode.
SCAN
15
Scan
English
SCAN
You can monitor several channels in order to
receive any call that is transmitted on any of
these channels. Sixteen different channels can
be programmed into a scan list. Each channel
can share the same scan list or have different
scan lists assigned to them.
Once the radio’s scan operation is activated and
the radio detects a call coming through a
channel in its scan list, it switches to that
channel for you to receive the call.
STARTING OR STOPPING A SCAN
OPERATION
The LED Indicator will blink (green) during a
scan operation. It will stop blinking when the
radio switches to a channel.
TALKBACK
If the programmable Talkback option is set, you
can respond to any calls received during the
scan operation by pressing the PTT before the
programmed hang-time ends. Check with your
dealer for details.
DELETING A NUISANCE CHANNEL
If a channel continually generates unwanted
calls/noise, you can temporarily remove it from
the scan list by performing a
Nuisance Channel
Delete
operation.
NOTE: You cannot perform a
Nuisance Channel
Delete
on a priority channel or if there is only
one remaining channel in the scan list.
ADDING A DELETED NUISANCE
CHANNEL BACK TO THE SCAN
LIST
1. Press the Scan key to start a scan operation.
2. Press the Scan key again to stop the scan
operation.
1. While the radio is on the Nuisance Channel,
press and hold the Scan key until you hear a
tone.
2. Release the Scan key.
1. Press the Scan key to stop the scan opera-
tion.
2. Press the Scan key again to re-start the scan
operation.
SCAN
Scan
16
English
SCAN CHANNEL DISCOVERY
ALERT
Sometimes you need to know which channel the
radio has switched to during a scan operation.
The Scan Channel Discovery Alert gives you this
information.
After you have stopped a scan operation, this
feature gives you audio feedback when you
select the last channel that was switched to by
the scan operation. To do this:
SCAN LIST MEMBER PRIORITY
A channel in your scan list may be prioritized
(check with your dealer for details). In such a
case, the radio will check that prioritized channel
more frequently than the other non-prioritized
channels.

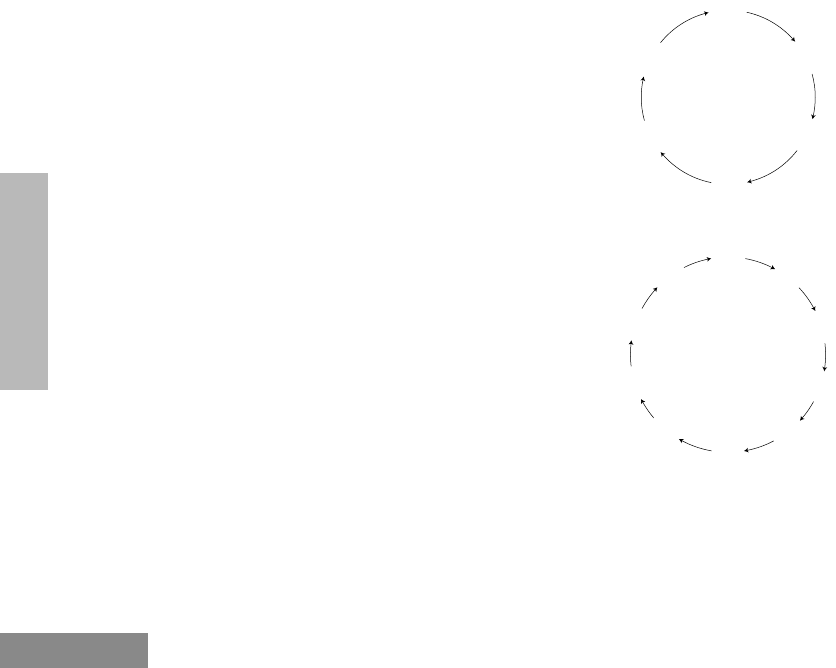

Assuming a scan list with 6 channels, if all your
channels are non-prioritized, the normal scan
operation would check for activity in the following
sequence:
If Channel 2 is prioritized, the scan operation
would change to
NOTE: Even though your radio has switched to a
non-priority channel, your radio will still check for
activity on the priority channel. If some activity is
detected there, the radio will switch to that prior-
ity channel.
1. Stop the scan operation.
2. Turn the Channel Selector to change the
channels.
3. When you reach the last channel the scan
operation switched to, the radio sounds an
alert tone.
C
h
.
1
C
h
.
3
C
h
.
4
C
h
.
5
C
h
.
2
C
h
.
6
C
h
.
2
C
h
.
4
C
h
.
2
C
h
.
2
C
h
.
2
C
h
.
5
C
h
.
1
C
h
.
6
C
h
.
3
C
h
.
2
SCAN
17
Scan
English
SCAN
Scan
18
English
SCAN
19
Scan
English
PHONE
Phone
20
English
PHONE
You can use your radio to connect to a phone
line to make a phone call. You need a radio with
a keypad to do this.
To do this, your radio must send an access code
to a station that connects it to a phone line. After
you have finished your call, the radio has to send
a deaccess code to shutdown the connection to
the phone line.
MAKING A PHONE CALL
A complete phone session consists of
• entering the Phone mode
• sending the access code
• sending the phone number
• having the phone conversation
• ending the phone call.
Entering the Phone Mode
Before you can make a phone call, you must
enter the radio’s Phone mode.
1. Press the Phone button.
Sending the Access Code
Your radio can be programmed to send the
access code in any of the following ways:
• manual
• automatic delayed
• automatic immediate.
Check with your dealer for more details.
Sending the Phone Number
After the access code is sent, you should wait for
a dialing tone before sending your phone
number.
You can send
•a phone number that is stored in the radio, or
•a new number.
Method Steps to Take
Manual Dial the access code from the keypad.
Automatic
Delayed
Press and release the PTT; the radio
automatically sends the prepro-
grammed access code.
Automatic
Immediate
You do not have to do anything; the
radio immediately sends the access
code when it enters phone mode.
PHONE
21
Phone
English
Additionally, depending on how your radio is
programmed, if you use the keypad to send a
number, the radio can send the numbers in one
of the following ways:
• live dial
• buffered dial.
Check with your dealer for details.
Sending a Stored Phone Number
You can access the stored phone numbers by
• recalling the last number dialed,
• using the speed dial feature.
Method Steps to Take
Last Num-
ber Redial*Press and release the PTT; the radio
sends the last number dialed.
Speed
Dial‡
1. Press and release the pro-
grammed Speed Dial button.
2. Press the numbered keys
(1-9) corresponding to the first
nine phone numbers in the
phone list. Press “0” if you want
the last number dialed.
3. If your radio uses buffered dial,
press and release the PTT.
4. The radio sends out the phone
number.
* The method described is not applicable for radios which
manually send the access code; these radios can access
this number from the phone list or the speed dial.
Method Steps to Take
PHONE
Phone
22
English
Sending a New Number (for radios
with keypad only)
You enter the phone number by pressing the
relevant keys on the keypad.
The Phone Conversation
Once the radio has connected to the intended
party, you can begin the conversation. Even
though this is a phone call, your conversation
mimics a radio call (that is, both parties speak in
turn).
NOTE: The radio starts a programmable Time-Out-
Timer the moment both parties stop transmitting
(talking). If the Time-Out-Timer expires, the radio
will end the phone call.
Ending the Phone Call
Just as the radio needs to send the access code
when starting a phone call, the radio needs to
send the deaccess code to end the phone call.
The radio can send the deaccess code in any of
the following ways:
• manual, and
• automatic.
Check with your dealer for details.
Method Steps to Take
Live Dial
Enter the phone number by using the
keypad; the radio sends out the numbers
as the keys are pressed.
Buffered
Dial
1. Enter the phone number by using
the keypad; the radio saves the
selected numbers in a buffer.
2. Press and release the PTT; the
radio sends out the numbers in its
buffer.
1. Press and hold the PTT, while talking into the
microphone.
2. Release the PTT when you finish what you
want to say, and wait for the response.
3. Repeat steps 1 and 2 until the conversation
ends.
1. If your radio sends the deaccess code manu-
ally, dial the deaccess code from the keypad.
2. Press the Phone button to exit phone mode.
NOTE: Radios using the automatic method
will send the deaccess code automati-
cally.
SAFETY
INFORMATION
23
Safety Information
English
SAFETY INFORMATION
SAFE AND EFFICIENT OPERATION
OF MOTOROLA TWO-WAY RADIOS
This document provides information and
instructions for the safe and efficient operation of
Motorola Portable Two-Way Radios.
For information regarding radio use in hazardous
areas, please refer to the Factory Mutual (FM)
approval manual supplement or Instruction Card
which is included with radio models that offer this
capability.
Exposure To Radio Frequency Energy
Your Motorola Two-Way Radio, which generates
and radiates radio frequency (RF)
electromagnetic energy (EME) is designed to
comply with the following National and
International Standards and Guidelines
regarding exposure of human beings to radio
frequency electromagnetic energy:
• Federal Communications Commission
Report and Order No. FCC 96-326
(August 1996)
• American National Standards Institute
(C95.1 - 1992)
• National Council on Radiation Protection
and Measurements (NCRP-1986)
• International Commission on Non-Ioniz-
ing Radiation Protection (ICNRP- 1986)
•European Committee for Electrotechnical
Standardisation (CENELEC):
To assure optimal radio performance and to
ensure that your exposure to radio frequency
electromagnetic energy is within the guidelines
in the above standards, always adhere to the
following procedures:
ENV 50166-1
1995 E Human exposure to electro-
magnetic fields Low fre-
quency (0 Hz to 10 kHz)
ENV 50166-2
1995 E Human exposure to electro-
magnetic fields High fre-
quency (10 kHz to 300 GHz)
Proceedings of
SC211/B 1996 “Safety Considerations for
Human Exposure to EMFs
from Mobile Telecommunica-
tion Equipment (MTE) in the
Frequency Range 30MHz - 6
GHz.”(EMF - Electro-Mag-
netic Fields)
SAFETY
INFORMATION
Safety Information
24
English
Portable Radio Operation
and EME Exposure
•When transmitting with a
portable radio, hold radio in a
vertical position with the
microphone 2.5 to 5 centi-
meters (one or two inches)
away from the mouth. Keep antenna at
least 2.5 centimeters (one inch) from your
head or body when transmitting.
• If you wear a portable Two-Way radio on
your body, ensure that the antenna is at
least 2.5 centimeters (one inch) from the
body when transmitting.
Electromagnetic
Interference/Compatibility
Note: Nearly every electronic device is susceptible
to electromagnetic interference (EMI) if inad-
equately shielded, designed or otherwise
configured for electromagnetic compatibility.
• To avoid electromagnetic interference
and/or compatibility conflicts, turn off your
radio in any facility where posted notices
instruct you to do so. Hospital or health
facilities may be using equipment that is
sensitive to external RF energy.
• When instructed to do so, turn off your
radio when on board an aircraft. Any use
of a radio must be in accordance with air-
line regulations or crew instructions.
Operational Warnings
Vehicles with an air bag
• Do not place a portable radio
in the area over an airbag or in the air
bag deployment area. Air bags inflate
with great force. If a portable radio is
placed in the air bag deployment area
and the air bag inflates, the radio may be
propelled with great force and cause seri-
ous injury to occupants of vehicle.
MAN WITH RADIO
!
W A R N I N G
!
SAFETY
INFORMATION
25
Safety Information
English
Potentially explosive atmospheres
• Turn off your Two-Way radio when you
are in any area with a potentially explo-
sive atmosphere, unless it is a radio type
especially qualified for use in such areas
(e.g. FM or Cenelec approved). Sparks in
a potentially explosive atmosphere can
cause an explosion or fire resulting in
bodily injury or even death.
Batteries
• Do not replace or recharge batteries in a
potentially explosive atmosphere. Con-
tact sparking may occur while installing or
removing batteries and cause an explo-
sion.
Blasting caps and areas
• To avoid possible interference with blast-
ing operations, turn off your radio when
you are near electrical blasting caps. In a
“
blasting area
” or in areas posted “
turn off
two-way radio
”, obey all signs and
instructions.
Note: The areas with potentially explosive atmo-
spheres referred to above include fuelling
areas such as: below decks on boats; fuel or
chemical transfer or storage facilities; areas
where the air contains chemicals or particles,
such as grain, dust or metal powders; and
any other area where you would normally be
advised to turn off your vehicle engine. Areas
with potentially explosive atmospheres are
often but not always posted.
Operational Cautions
Damaged antennas
• Do not use any portable two-
way radio that has a damaged antenna. If
a damaged antenna comes into contact
with your skin, a minor burn can result.
Batteries
• All batteries can cause property damage
and/or bodily injury such as burns if a
conductive material such as jewellery,
keys or beaded chains touch exposed
terminals. The conductive material may
complete an electrical circuit (short cir-
cuit) and become quite hot. Exercise care
in handling any charged battery, particu-
larly when placing it inside a pocket,
purse or other container with metal
objects.
!
C a u t i o n
SAFETY
INFORMATION
Safety Information
26
English
RECYCLING / DISPOSAL OF NICD
BATTERIES
The Basel Convention classifies used NiCd bat-
teries as hazardous waste, unless certain
exemptions apply.
At the end of your battery’s useful life, it can be
recycled. However, recycling facilities may not be
available in all areas. Under various state or local
laws, such batteries must be recycled or dis-
posed of properly, and cannot be dumped in
landfills or incinerators.
Motorola fully endorses and encourages the
recycling of NiCd batteries. The following is a list
of recycling facilities around the world, where you
can ship your NiCd batteries to be recycled:
United States
INMETCO
P.O. Box 720
245 Porteville Road
Ellwood City, PA 16117
Tel:(412) 758-5515
Fax:(412) 758-9311
Europe
S.N.A.M.
Rue de la Garenne
Z.I. Chesnes Tharabie -BP733
Saint Quentin Fallavier
38297 La Verpilliere Cedex,
France
Tel: 033-74-94-59-85
Fax: 033-74-94-13-18
Asia
Hanil Metal Recycle Co. Ltd.
2404 Palryong-dong
Changwon-Shi
Kyongsangnam-Do, Korea
Tel: 082-551-93-1911
Fax: 082-551-96-0050
Japan
Onahama Refinery of Toho Zinc Co., Ltd.,
10 Aza-Yoshihama,
Onahama,
Iwaki-City Fukushima Prefecture,
Japan
Marubeni Co.
Head Office/Attn. B6B2
4-2 Ohtemachi 1-Choma
Ciyoda-Ku, Tokyo, Japan
Nippon Recycle Ctr., Corp.
6-3-19, Nishitamma, Kita-Ku
Osaka, 530, Japan
Tel: 081-6-311-9071
Fax: 081-311-0949
You should consider the methods of collecting,
labeling, and shipping used NiCd batteries. Con-
sult your federal, state, or local enviromental
authority for specific legal requirements and for
recycling options in your area.
Motorola, as a responsible corporate citizen, has
always been concerned with the protection of the
environment. Please feel free to call our toll-free
number,1-800-422-4210, for further battery infor-
mation.
