Motorola Solutions 89FT4860 CLS Series Two-Way Radios User Manual 6864110w15o
Motorola Solutions, Inc. CLS Series Two-Way Radios 6864110w15o
Exhibit D Users Manual per 2 1033 c3
1
DRAFT
@6864110W15@
6864110W15-O
031092o

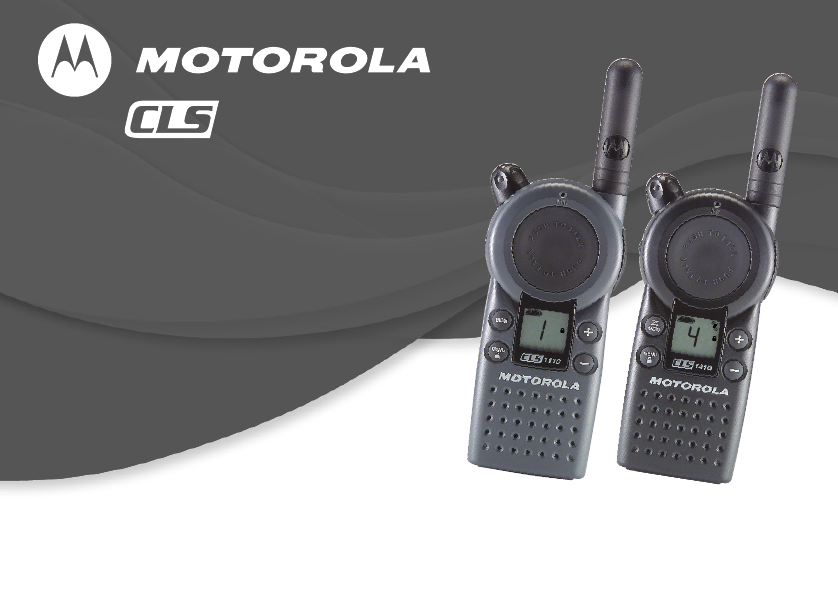

Models CLS1110 and CLS1410
SERIES TWO-WAY RADIO
User's Guide
6864110w15o.book Page 1 Thursday, February 13, 2003 9:46 PM
2
DRAFT
6864110w15o.book Page 2 Thursday, February 13, 2003 9:46 PM
1
DRAFT
Contents
Introduction ................................ 2
FCC Licensing Information ...... 4
Safety and General Information 6

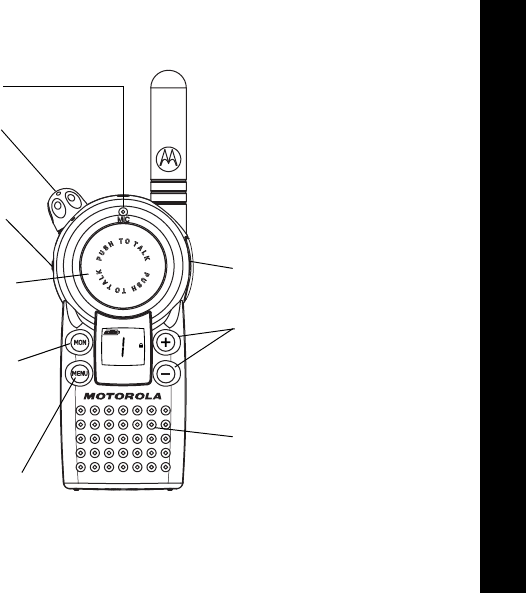

Radio Controls ......................... 13
Getting Started ......................... 14

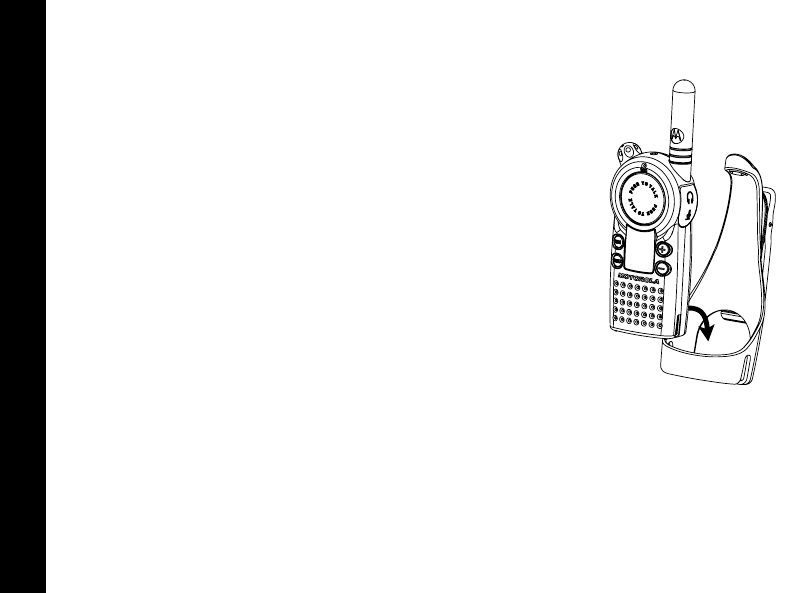

Installing the Swivel Belt
Holster................................. 14

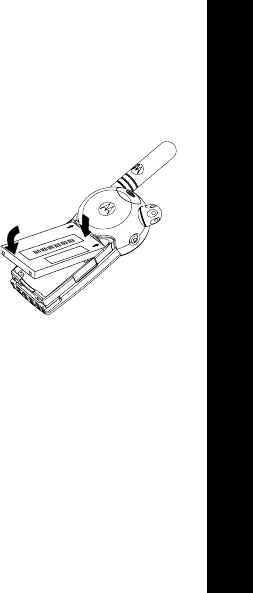

Installing the Batteries ............ 15

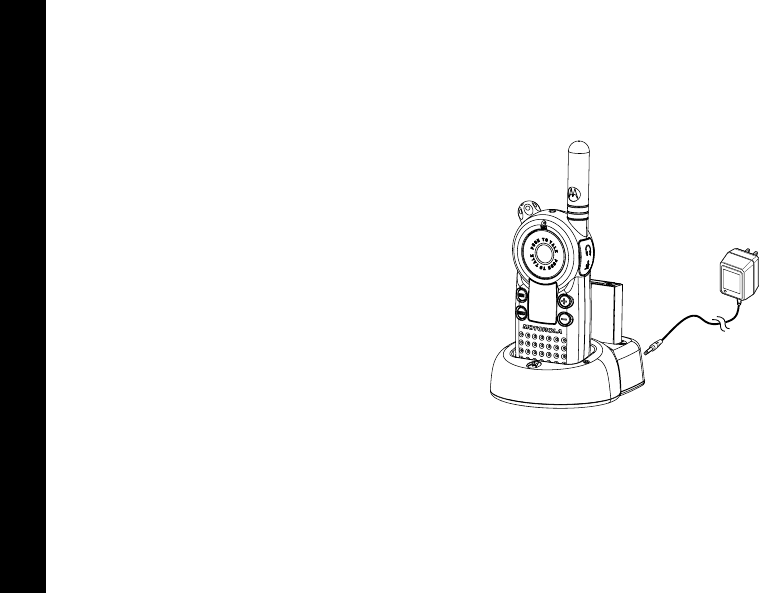

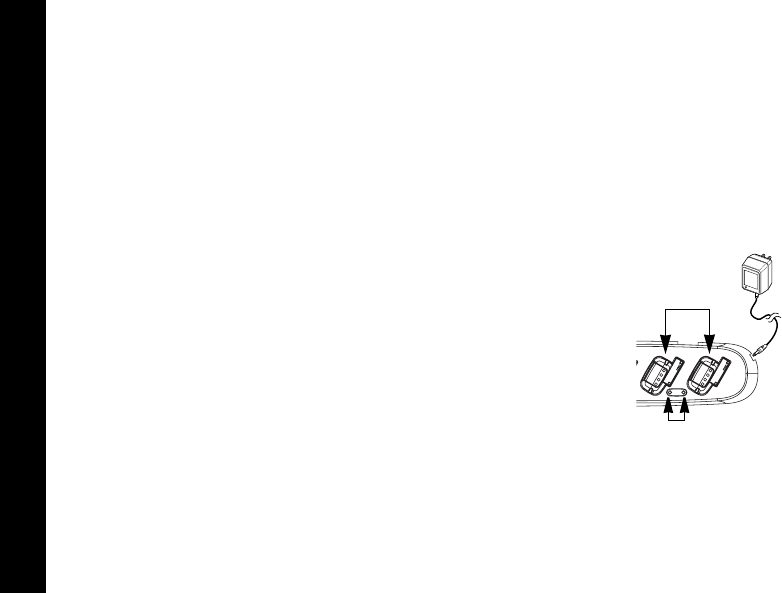

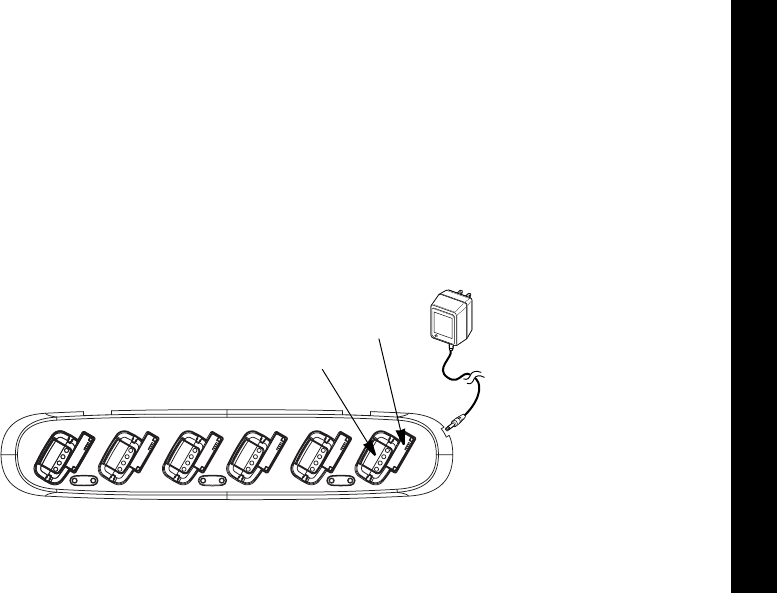

Charging the Battery............... 16
Turning Your Radio On and
Off........................................ 19
Adjusting the Volume.............. 20

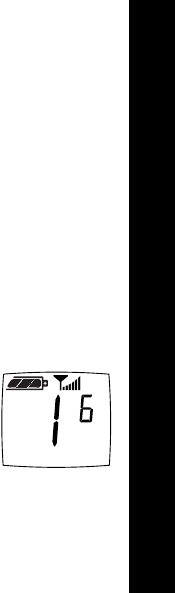

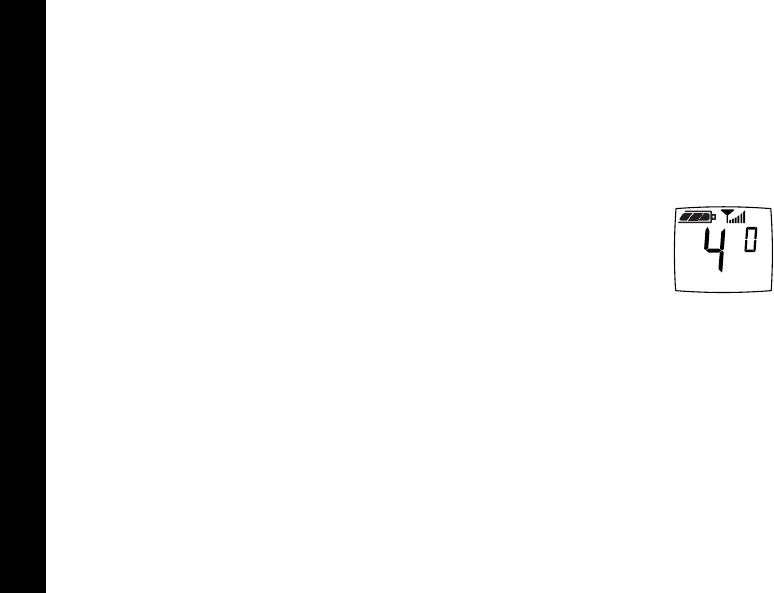

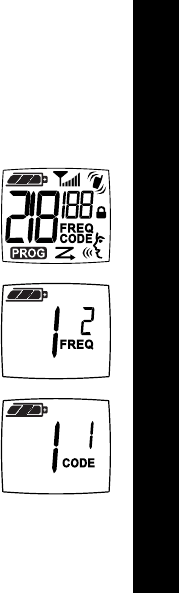

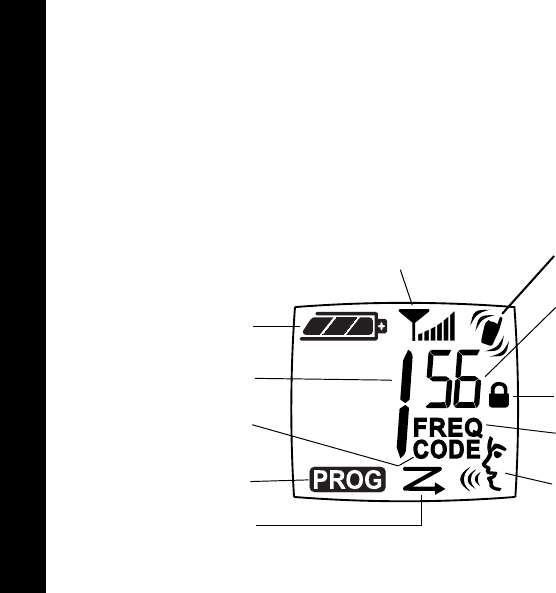

Reading the Display ............... 20
Talking and Receiving ............. 21
Basic Radio Operation............ 21
Signal Strength and Channel Busy
Indicators............................. 21
Talk Range ............................. 22

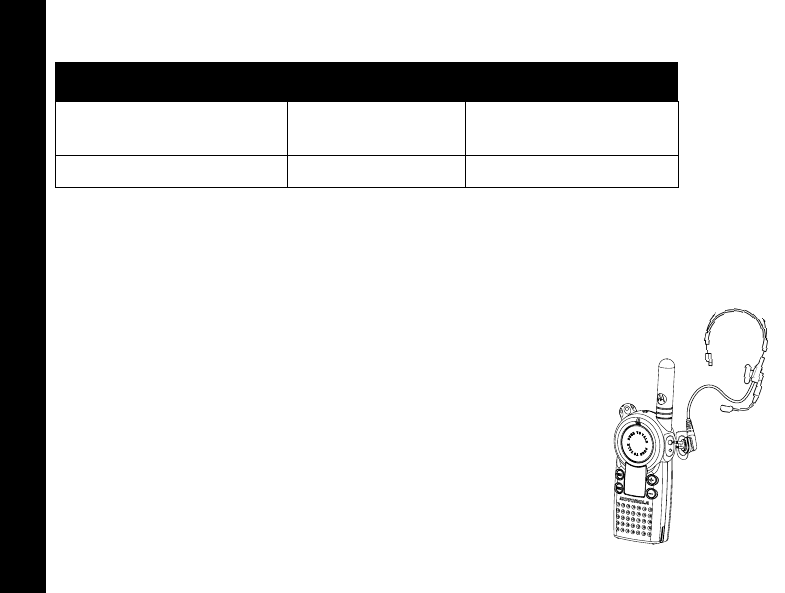

Handsfree Use
(CLS1410 only) ................... 22
Locking the Keypad................ 24
Monitoring a Channel ............. 24
Scanning (CLS1410 Only)...... 24
Programming Features ............ 26
Factory Default Settings.......... 27

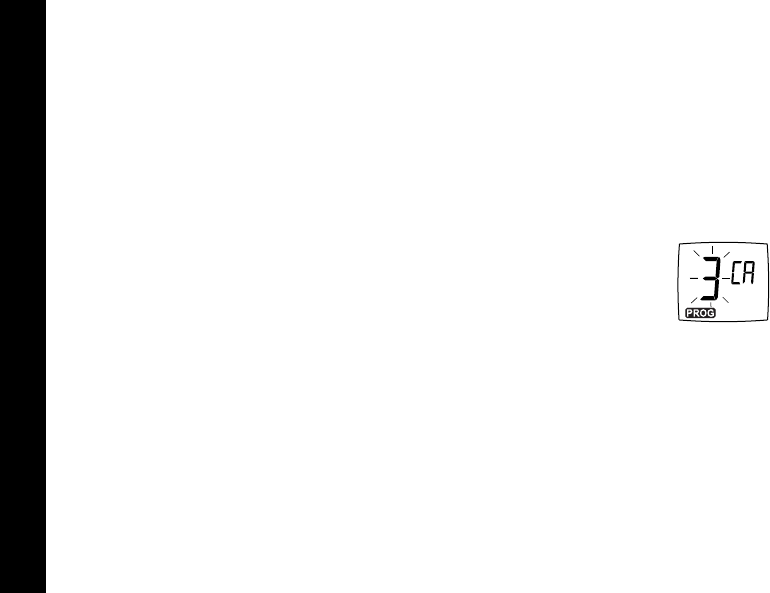

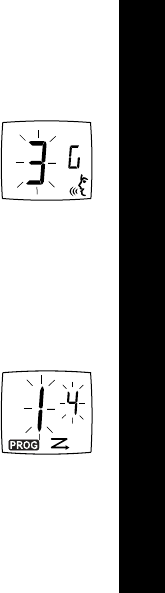

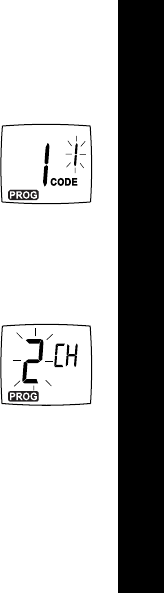

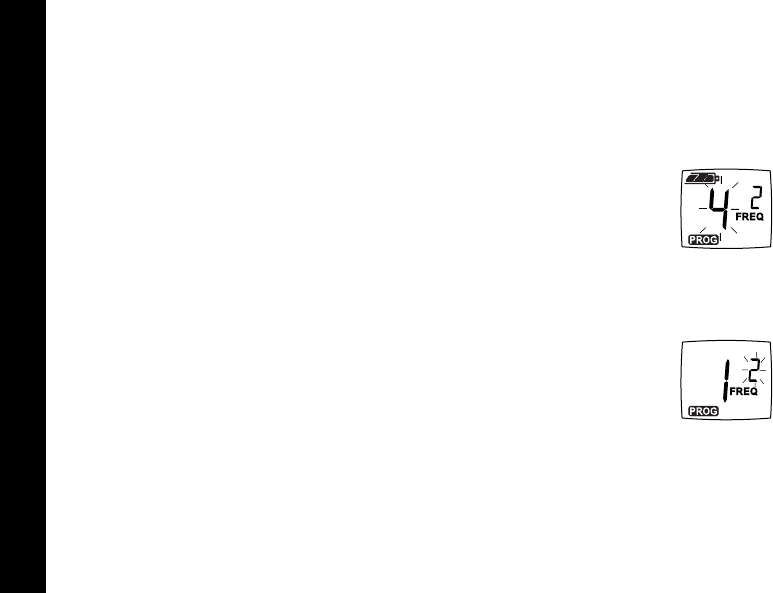

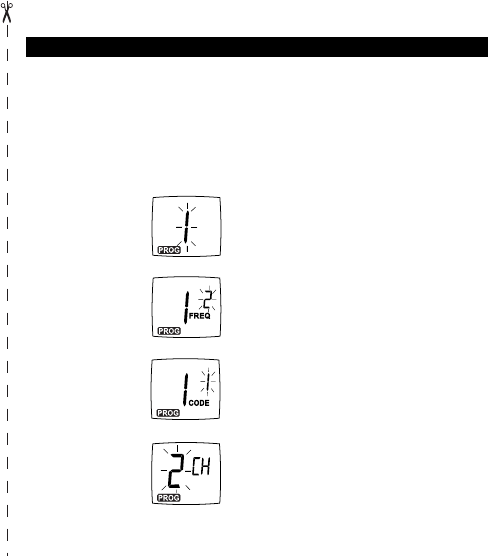

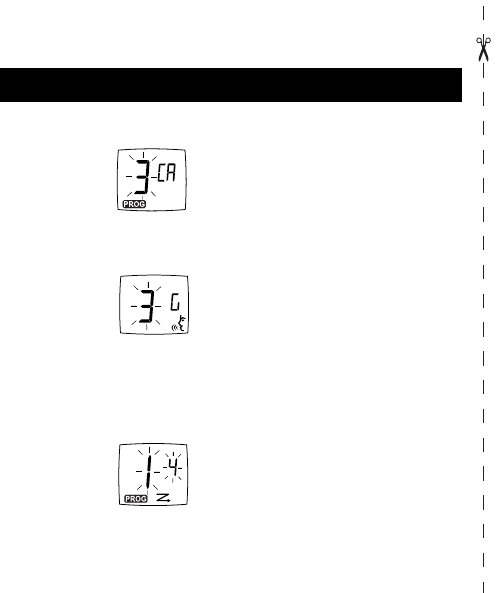

Entering Programming Mode..28
Cloning Radio Settings ............32
Advanced Features .................. 33
Troubleshooting ...................... 35

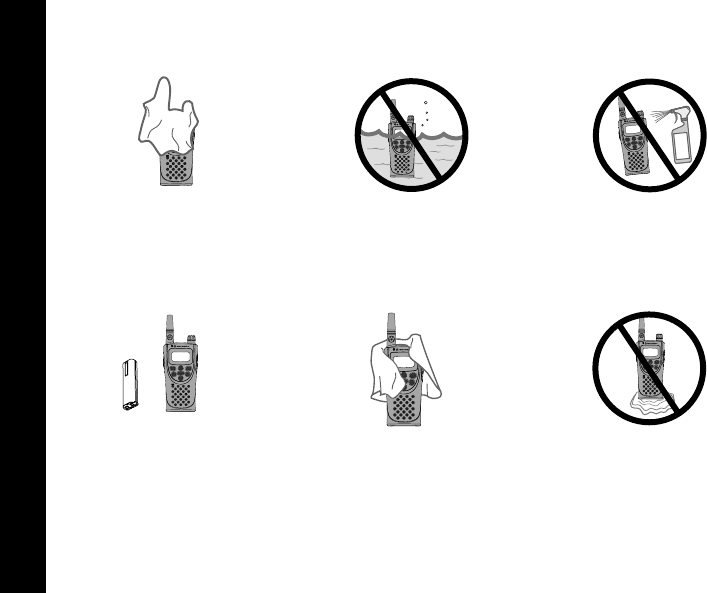

Use and Care.............................38
Frequencies and Bandwidths..39
Spirit GT Series Programming 45
Warranty .................................... 46
6864110w15o.book Page 1 Thursday, February 13, 2003 9:46 PM
Introduction
2
DRAFT
Introduction
Thank you for purchasing a Motorola _Series Radio. Your radio is a product of
Motorola’s 70 plus years of experience as a world leader in designing and
manufacturing communications equipment. The _Series radios provide cost-
effective communications for businesses such as retail stores, restaurants, hotels,
and schools. Motorola professional two-way radios are the perfect communications
solution for all of today’s fast-paced industries.
Please read this guide carefully so you know how to properly operate the radio
before use.
Package Contents
•_Series Radio
• Swivel Belt Holster
• Lithium Ion Battery
• Drop-In Charger with Transformer
• User's Guide
• Accessory Brochure
•Warranty Card
6864110w15o.book Page 2 Thursday, February 13, 2003 9:46 PM
Introduction
3
DRAFT
For product-related questions, please call:
1-800-448-6686 in the USA
1-888-390-6456 TTY (Text Telephone)
On the Web:
www.motorola.com/radios/professional
ATTENTION
Before using this product, read the RF energy awareness information and operating
instructions in the Safety and General Information section of this guide to ensure
compliance with RF energy exposure limits.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or
service names are the property of their respective owners.
© Motorola, Inc. 2003.
6864110w15o.book Page 3 Thursday, February 13, 2003 9:46 PM
FCC Licensing Information
4
DRAFT
FCC Licensing Information
_
Series professional two-way radios operate on radio frequencies that are regulated by the Federal
Communications Commission (FCC). In order to transmit on these frequencies, you are required to have a
license issued by the FCC.
Application is made available on FCC Forms 601, schedules D and H, and remittance form 159. If ordering the
forms by mail, phone, or from the FCC website, please request document number
000601
, which includes all
forms and instructions. If using the FCC Fax-on-Demand system, use the 7-digit order numbers listed below.
To obtain the required forms, please use the following contact information:
Before filling out your application, you must decide which frequency(ies) you can operate on. See Frequencies
and Bandwidths on page 39. For questions on determining your radio frequency, please call Motorola Product
Services at 1-800-448-6686.
Changes or modifications not expressly approved by Motorola may void the user’s authority granted by the FCC
to operate this radio and should not be made. To comply with FCC requirements, transmitter adjustments should
Faxed
contact the Fax-On-Demand
system at:
Mailed
call the FCC forms hotline
at:
By Phone or Web
or for questions
regarding FCC license
contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
or: http://www.fcc.gov
Request forms 3060001,
3060003, and 3060006 Request document 000601 Request document 000601
6864110w15o.book Page 4 Thursday, February 13, 2003 9:46 PM
FCC Licensing Information
5
DRAFT
be made only by or under the supervision of a person certified as technically qualified to perform transmitter
maintenance and repairs in the private land mobile and fixed services as certified by an organization
representative of the user of those services. Replacement of any transmitter component (crystal, semiconductor,
etc.) not authorized by the FCC equipment authorization for this radio could violate FCC rules.
Note:
Use of this radio outside the country where it was intended to be distributed is subject to government
regulations and may be prohibited.
6864110w15o.book Page 5 Thursday, February 13, 2003 9:46 PM
Safety and General Information
6
DRAFT
Safety and General Information
Important Information on Safe and Efficient Operation.
Read This Information Before Using Your Radio.
The information provided in this document supersedes the general safety information contained in user guides
published prior to December 1, 2002.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with
the occupational/controlled environment RF exposure limits, always adhere to the following procedure:
• Transmit no more than 50% of the time.
• To transmit (talk), press the Push to Talk (PTT) button.
• To receive calls, release the PTT button.
Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure
only when transmitting (in terms of measuring standards compliance).
Exposure to Radio Frequency Energy
Your Motorola radio is designed to comply with the following national and international standards and guidelines
regarding exposure of human beings to radio frequency electromagnetic energy:
• United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-
part J
• American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-
1992
6864110w15o.book Page 6 Thursday, February 13, 2003 9:46 PM
Safety and General Information
7
DRAFT
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
• Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio Frequency Electromagnetic
Fields in the Frequency Range from 3 kHz to 300 GHz, 1999
• Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human
Exposure) Standard 2001 (applicable to wireless phones only)
• ANATEL, Brazil Regulatory Authority, Resolution 256 (April 11, 2002) “additional requirements for SMR,
cellular, and PCS product certification.”
To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy
is within the guidelines set forth in the above standards, always adhere to the following procedures.
Portable Radio Operation and EME Exposure
Antenna Care
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or
attachments could damage the radio and may violate FCC regulations.
DO NOT hold the antenna when the radio is “IN USE.”
Holding the antenna affects the effective range.

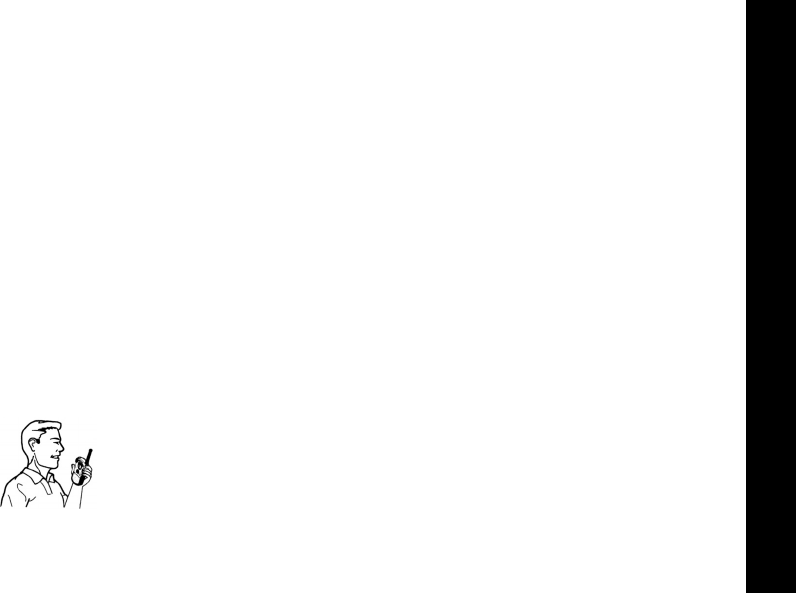

Two-Way Radio Operation
When using your radio as a traditional two-way radio,
hold the radio in a vertical position
with the microphone 1 to 2 inches (2.5 to 5 cm) away from the lips
.
6864110w15o.book Page 7 Thursday, February 13, 2003 9:46 PM
Safety and General Information
8
DRAFT
Body-Worn Operation
To maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body
when transmitting, always place the radio in
a Motorola-supplied or approved clip, holder, holster, case, or body
harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF
exposure guidelines. If you do not use one of the Motorola-supplied or approved body-worn accessories, and
are not using the radio held in the normal use position,
ensure the radio and its antenna are at least 1 inch
(2.5 cm) from your body when transmitting
.
Data Operation
If applicable, when using any data feature of the radio with or without an accessory cable,
position the radio
and its antenna at least 1 inch (2.5 cm) from the body
.
Approved Accessories
For a list of approved Motorola accessories visit our website at
www.motorola.com
.
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately
shielded, designed, or otherwise configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where
posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive
to external RF energy.
6864110w15o.book Page 8 Thursday, February 13, 2003 9:46 PM
Safety and General Information
9
DRAFT
Aircraft
When instructed to do so, turn off your radio when on board an aircraft. Any use of a radio must be in
accordance with applicable regulations per airline crew instructions.
Medical Devices - Pacemakers
The Advanced Medical Technology Association recommends that a minimum separation of 6 inches (15 cm) be
maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with
the independent research by, and recommendations of the U.S. Food and Drug Administration.
Persons with pacemakers should:
• ALWAYS keep the radio more than six inches (15 cm) from their pacemaker when the radio is turned ON.
• Not carry the radio in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for interference.
• Turn the radio OFF immediately if you have any reason to suspect that interference is taking place.
Medical Devices - Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In the event of such interference, you may
want to consult your hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to determine if it is
adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.
6864110w15o.book Page 9 Thursday, February 13, 2003 9:46 PM
Safety and General Information
10
DRAFT
Safety and General Use While Driving
Check the laws and regulations on the use of radios in the area where you drive. Always obey them. When using
your radio while driving, please:
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call if driving conditions so require.
Operational Warnings
For Vehicles with an Air Bag
Do not place a portable radio in the area over an air bag or in the air bag deployment area. Air bags inflate with
great force. If a portable radio is placed in the air bag deployment area and the air bag inflates, the radio may be
propelled with great force and cause serious injury to occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially explosive atmosphere, unless it is a radio type
especially qualified for use in such areas as “Intrinsically Safe.” Do not remove, install, or charge batteries in
such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury
or even death.
Note: The areas with potentially explosive atmospheres referred to above include fueling areas such as below
decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles,
such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your
vehicle engine. Areas with potentially explosive atmospheres are often but not always posted.
6864110w15o.book Page 10 Thursday, February 13, 2003 9:46 PM
Safety and General Information
11
DRAFT
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting
caps, in a blasting area, or in areas posted: “Turn off two-way radio.” Obey all signs and instructions.
Operational Cautions
Antennas
Do not use any portable radio that has a damaged antenna.
If a damaged antenna comes into contact with
your skin, a minor burn can result.
Batteries
All batteries can cause property damage and/or bodily injury such as burns if a conductive material such as
jewelry, keys, or beaded chains touch exposed terminals. The conductive material may complete an electrical
circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when
placing it inside a pocket, purse, or other container with metal objects.
Battery Charger Safety Instructions
Save these Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate or disassemble the charger if it has received a sharp blow, or has been dropped or damaged
in any way.
3. Never alter the AC cord or plug provided with the unit. If the plug will not fit the outlet, have the proper outlet
installed by a qualified electrician. An improper condition can result in a risk of electric shock.
6864110w15o.book Page 11 Thursday, February 13, 2003 9:46 PM
Safety and General Information
12
DRAFT
4. To reduce the risk of damage to the cord or plug, pull the plug rather than the cord when disconnecting the
charger from the AC receptacle.
5. To reduce the risk of electric shock, unplug the charger from the outlet before attempting any maintenance
or cleaning.
6. Use of an attachment not recommended or sold by Motorola may result in a risk of fire, electric shock, or
personal injury.
7. Make sure the cord is located so it will not be stepped on, tripped over, or subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord
could result in a risk of fire and/or electric shock. If an extension cord must be used, make sure that:
• The pins on the plug of the extension cord are the same number, size, and shape as those on the plug of
the charger.
• The extension cord is properly wired and in good electrical condition.
• The cord size is 18 AWG for lengths up to 100 feet, and 16 AWG for lengths up to 150 feet.
• The supply cord of this charger cannot be replaced. If the cord is damaged, call Motorola Product Services
at 1-800-448-6686 in the USA or 1-888-390-6456 TTY (Text Telephone).
6864110w15o.book Page 12 Thursday, February 13, 2003 9:46 PM
Radio Controls
13
DRAFT
Radio Controls
020976o
Use P to:
Turn radio on/off
Adjust radio volume
Use B to:
Transmit call tone
Use Push to Talk to:
Talk
Exit a menu
Use S to:
Lock the keypad
Scroll through menus
Use T to:
Monitor the frequency
Scan channels (CLS1410 only)
Microphone
Accessory Jack
Speaker
Use [ and ] to:
Change channels
(CLS1410 only)
Change menu settings
6864110w15o.book Page 13 Thursday, February 13, 2003 9:46 PM
Getting Started
14
DRAFT
Getting Started
Installing the Swivel Belt Holster
1. Slide the bottom of radio into the holster until it snaps
into place.
2. To remove, push the tab on the holster and pull the radio
away from the holster.
Note: In case of loss, please contact your point-of-sale or
call 1-800-448-6686 to request replacement part
number HCLN4013.
6864110w15o.book Page 14 Thursday, February 13, 2003 9:46 PM
Getting Started
15
DRAFT
Installing the Batteries
Your radio uses a rechargeable Lithium Ion (Li Ion) battery or 3 AAA Alkaline
batteries with the 1564200W18 Alkaline Battery Tray (not included with all models).
Li Ion Battery
1. If the battery door is already in place on the radio, push
down on the recess on the door and slide it off the radio.
2. Insert the battery, printed arrows first, into the battery
compartment and press down to secure firmly in place.
3. Slide and snap the battery door into place.
AAA Alkaline Batteries
1. If the battery door is already in place on the radio, push
down on the recess on the door and slide it off the radio.
2. Insert 3 AAA batteries into the battery tray as shown by
the markings inside the tray.
3. Insert the battery tray into the battery compartment and press down to secure
firmly in place.
4. Slide and snap the battery door into place.
5. Press S until A or n flashes (this menu does not appear if using a Motorola
Li Ion battery).
6. Press [ or ] to select A for Alkaline batteries, or n for rechargeable AAA cells.
6864110w15o.book Page 15 Thursday, February 13, 2003 9:46 PM
Getting Started
16
DRAFT
Charging the Battery
Use only the charger supplied with the radio, or other _ Series power
accessories. For optimum battery life, do not charge the battery for prolonged
periods after it is fully charged. Charging the battery over the weekend is acceptable.
Using the Drop-in Charger
1. Place the charger on a flat surface.
2. Insert the plug of the power cord into the
jack on the charger.
3. Plug the cord into an AC outlet.
4. Turn the radio off. If the radio is on while
charging, it will take longer to fully charge.
5. Insert the radio (with battery installed) into
the front charging pocket.
Note: The radio will fit in the charger with
the holster on.
The drop-in charger will also sequentially
charge a spare 56557 Li Ion battery. The spare battery will not begin to charge until
the radio battery is fully charged. Both batteries will charge in approximately 2–6
hours.
6864110w15o.book Page 16 Thursday, February 13, 2003 9:46 PM
Getting Started
17
DRAFT
Using the 56531 Multi-Unit Charger
The Multi-Unit Charger (MUC) allows drop-in charging of 6 radios or batteries
(56556 Li Ion rechargeable battery, SNN5571 only). Batteries can be charged
inside the radios or removed and placed in the MUC separately. Each of the
6 charging pockets can hold a radio or battery, but not both.
1. Place the charger on a flat surface.
2. Insert the power cord plug into the jack on the MUC.
3. Plug the cord into an AC outlet.
4. Turn the radio off.
5. Insert the radio or battery into the charging pocket.
Radio charging pocket
Battery charging pocket
6864110w15o.book Page 17 Thursday, February 13, 2003 9:46 PM
Getting Started
18
DRAFT
Charging Status LEDs
On the drop-in (single radio) charger, the radio and battery charging pockets have
their own LEDs.
On the MUC, each of the 6 charging pockets has an LED. The LEDs are grouped
into pairs to show which charging pockets are paired (for cloning, see page 32).
The LED is solid red when the battery is charging, and solid green when charging is
complete.
Battery Meter
The battery meter in the upper left corner of the display (see page 20) shows how
much battery power is remaining.
Battery Life
Based on 5% transmit, 5% receive, 90% standby (standard duty cycle):
Battery Type 3 Bars 2 Bars 1 Bar Flashing
db c m
Li Ion 100%–85% 85%–25% 25%–10% Final 10%
AAA Alkaline 100%–75% 75%–40% 40%–10% Final 10%
Li Ion – 12 Hours AAA Alkaline – 10 Hours
6864110w15o.book Page 18 Thursday, February 13, 2003 9:46 PM
Getting Started
19
DRAFT
Turning Your Radio On and Off
See page 13 for a basic radio diagram.
Turn P clockwise to turn the radio on, and counterclockwise to turn the radio off.
When the radio is on, the transmit light on the top of the radio flashes every
3 seconds.
When you turn the radio on, the radio chirps and the display briefly
shows all features and display segments.
The radio then displays the current channel (larger number in the
center) and the frequency assigned to that channel (on the right
indicated by l).
The Interference Eliminator Code displays briefly (indicated by
y), then the current channel remains displayed.
6864110w15o.book Page 19 Thursday, February 13, 2003 9:46 PM
Getting Started
20
DRAFT
Adjusting the Volume
Turn P clockwise to increase the volume, and counterclockwise to decrease the
volume.
Note: Do not hold the radio too close to your ear when adjusting the volume.
Reading the Display
Battery Meter
Programming Mode
Channel
Scan (CLS1410 Only)
Signal Strength and Channel Busy Indicator
Keypad Lock
Frequency and
Interference Eliminator
Code
Microphone Gain and
VOX (CLS1410 only)
Frequency Indicator
nterference Eliminator
Code Indicator
VibraCall
®
Alert Indicator
6864110w15o.book Page 20 Thursday, February 13, 2003 9:46 PM
Talking and Receiving
21
DRAFT
Talking and Receiving
Basic Radio Operation
1. Press and hold T to check for channel activity. If you hear static, the channel is
clear to use. Do not transmit if someone is speaking on the channel. Press T
again to stop monitoring.
2. To talk, press and hold
Push to Talk
and speak into the microphone. Hold the
radio 2 to 3 inches away from your mouth.
3. To listen, release
Push to Talk
.
The transmit light on the top of the radio is red when transmitting.
Signal Strength and Channel Busy Indicators
Note: Obstacles that block the signal path may affect the strength of the incoming
signal.
When there is activity on a frequency, the radio displays w and the
transmit light flashes at a faster rate of once per second.
When there is activity on the same frequency and code as your radio
(your radio is receiving), the radio displays w and a signal strength
from 1 (weakest) to 6 (strongest).
This
can help determine when a
radio is moving out of range.
6864110w15o.book Page 21 Thursday, February 13, 2003 9:46 PM
Talking and Receiving
22
DRAFT
Talk Range
Handsfree Use (CLS1410 only)
The CLS1410 model radio can operate handsfree when used with or without
compatible voice activation (VOX) accessories. A short delay occurs between the
time when you start talking and when the radio transmits.
With Compatible VOX Accessories
1. Turn the radio off.
2. Open the accessory cover.
3. Plug the audio accessory firmly into the accessory jack.
4. Turn the radio on. The radio displays g. If g is flashing
and you are setting up the VOX accessory for the
first time, set the VOX sensitivity level (see page 23).
5. Lower the radio volume BEFORE placing the accessory
in or near your ear.
Industrial Multi-Level Outdoor
Inside steel/concrete
industrial buildings Inside multi-level
buildings Flat ground with no
obstructions
Up to 200,000 sq. ft. Up to 15 floors Up to 5 miles
6864110w15o.book Page 22 Thursday, February 13, 2003 9:46 PM
Talking and Receiving
23
DRAFT
6. To transmit, speak into accessory microphone. To receive, stop talking.
To disable VOX operation, press
Push to Talk
or remove the audio accessory.
Note: To order accessories, visit www.motorola.com/radios/professional,
call 1-800-448-6686, or contact your point of purchase.

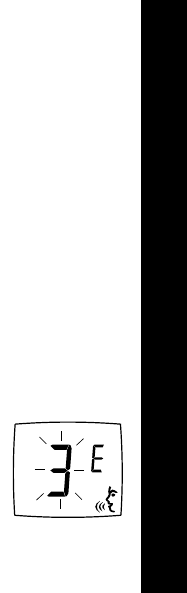

Setting the VOX Sensitivity
You can adjust the sensitivity of your radio’s accessory or microphone during VOX
operation to suit different operating environments. These menus appear only if the
VOX feature is in use, which is indicated by g.
1. Press S until g displays. The radio displays H if you are
setting the external VOX (with audio accessory) or I if you are
setting the internal VOX (without accessory).
2. Press
[ or ] to select the sensitivity level:
0 = Off 1 = Low 2 = Medium 3 = High
020995o
External VOX
6864110w15o.book Page 23 Thursday, February 13, 2003 9:46 PM
Talking and Receiving
24
DRAFT
Locking the Keypad
You can lock the keypad to avoid accidentally changing your radio settings.
1. Press and hold S for 3 seconds.
2. To unlock, press and hold S for 3 seconds.
Monitoring a Channel
Monitoring allows you to check for activity on a channel.
1. Press and hold T. If the channel is clear to use, you will hear
static and w and 0 will display.
2. Press
T again to stop monitoring.
Scanning (CLS1410 Only)
You can scan up to 4 channels and frequencies. When the radio
detects activity, it stops scanning and locks in on the active channel. This allows you
to talk and listen to the person transmitting without changing channels.
To scan channels regardless of the code in use on the channels, change the code
for your channel to 0 before you start to scan.
To start scanning, briefly press T.
The scan icon h displays and the radio begins to scan through the channels. When
the radio detects activity, it stops on that channel and displays w and the channel
number.
6864110w15o.book Page 24 Thursday, February 13, 2003 9:46 PM
Talking and Receiving
25
DRAFT
To talk to the person transmitting without switching channels, press
Push to Talk
within 5 seconds.
If no transmission occurs within 5 seconds, scanning resumes.
If you press
Push to Talk
while the radio is scanning, the radio transmits on the
channel you were on before you started scanning.
To stop scanning, briefly press T.
Skipping and Removing Channels While Scanning
Scan has several temporary features to make it easier to use.
• Scan advance
If the radio stops scanning on a channel you do not want to listen to, press ] to
resume scanning for the next active channel.
• Nuisance delete
Press and hold [to temporarily remove a channel from the scan list. The
channel return the next time you use the scan feature.
6864110w15o.book Page 25 Thursday, February 13, 2003 9:46 PM
Programming Features
26
DRAFT
Programming Features
Programming mode allows you to change the following settings on your radio:
• Channel
• Frequency
• Interference eliminator code
• Call tones
• Microphone gain
• Scan list (CLS1410 only)
• Available channels (CLS1410 only)
Notes:
• To talk with someone on your two-way radio, the channel, frequency, and
interference eliminator code must be the same on both radios.
• You cannot enter programming mode while a VOX accessory is plugged into the
radio.
6864110w15o.book Page 26 Thursday, February 13, 2003 9:46 PM
Programming Features
27
DRAFT
Factory Default Settings
Your radio is programmed at the factory to the following settings:
To restore the factory settings, turn the radio on while holding
Push to Talk
and S
for 3 seconds.
Frequency
Channel CLS1110 CLS1410
122
2
Not available
8
35
46
Code 1
Call Tone/
VibraCall®Off (0)
VOX Not available Off (0)
Microphone
Gain 2 (medium sensitivity)
6864110w15o.book Page 27 Thursday, February 13, 2003 9:46 PM
Programming Features
28
DRAFT
Entering Programming Mode
Press and hold
Push to Talk
and T for 3 seconds while turning the radio on. The
radio beeps and displays k, the channel number flashes, and the frequency
(indicated by l) and code (indicated by y) display alternately.
Selecting a Channel (CLS1410 Only)
1. In programming mode, press S until the channel number
flashes and the frequency and code display alternately (this is
the first setting after you enter programming mode).
2. Press [ or ] to select the channel.
3. Press and hold
Push to Talk
to exit programming mode, or
press S to continue programming.
Programming the Frequency
1. In programming mode, press S until l displays and the
frequency number flashes.
2. Press
[ or ] to select the frequency.
3. Press and hold
Push to Talk
to exit programming mode, or
press S to continue programming.
Note: See page 39 for information on frequencies for communicating with other
business radios. If you are matching your _ Series radio to an existing
Spirit GT radio, see page 45.
6864110w15o.book Page 28 Thursday, February 13, 2003 9:46 PM
Programming Features
29
DRAFT
Programming the Interference Eliminator Code
The interference eliminator code helps minimize interference by providing you with
code combinations that filter out static, noise, and unwanted messages.
1. In programming mode, press S until y displays and the
code number flashes.
2. Press
[ or ] to select the code (see page 42).
3. Press and hold
Push to Talk
to exit programming mode, or
press S to continue programming.
Programming the Available Channels (CLS1410 only)
For applications requiring fewer channels, you can reduce the number of available
channels.
1. In programming mode, press S until = displays and the
channel number flashes.
2. Press
[ or ] to select the number of channels you want
available.
3. Press and hold
Push to Talk
to exit programming mode, or
press S to continue programming.
Note: Settings for channels made unavailable are retained by the radio.
6864110w15o.book Page 29 Thursday, February 13, 2003 9:46 PM
Programming Features
30
DRAFT
Programming Call Tones and VibraCall® (CLS1410 only)
Your radio can transmit call tones to other radios in your group so you can alert them
that you are about to talk. Your radio comes with call tones turned off (set to 0), but
you can change this setting to choose a distinctive call tone.
The VibraCall® feature is an additional call tone option that makes the CLS1410
radio vibrate briefly when it receives and when you have not transmitted or received
in the last 30 seconds. Select call tone 4 to turn VibraCall® on. i displays on the
radio when VibraCall® is on.
1. In programming mode, press S until E displays.
2. Press
[ or ] to hear and select the call tone. Select call
tone 4 for VibraCall® (CLS1410 only).
3. Press and hold
Push to Talk
to exit programming mode, or
press S to continue programming.
To transmit your call tone before transmitting, press B on the side of the radio.
6864110w15o.book Page 30 Thursday, February 13, 2003 9:46 PM
Programming Features
31
DRAFT
Programming Microphone Gain
You can adjust the microphone sensitivity to suit different users or operating
environments.
1. In programming mode, press S until g and ? display.
2. Press
[ or ] to select the sensitivity level:
3 = High sensitivity, for quiet environments
2 = Medium sensitivity (default)
1 = Low sensitivity, for loud environments
3. Press and hold
Push to Talk
to exit programming mode, or press S to continue
programming.
Editing the Scan List (CLS1410 Only)
For faster scanning and to avoid hearing unwanted transmissions, you can edit the
scan list to skip channels.
1. In programming mode, press S until h displays and the
channel number and Y or n flash.
2. Press [ or ] to select the channel you want to remove from
the scan list.
3. Press
T to display either Y to include the channel or n to
exclude the channel.
4. Press and hold
Push to Talk
to exit programming mode, or press S to continue
programming.
6864110w15o.book Page 31 Thursday, February 13, 2003 9:46 PM
Cloning Radio Settings
32
DRAFT
Cloning Radio Settings
You can duplicate _ Series radio settings from one radio (the source) to a
second radio using the 5653 Multi-Unit Charger (MUC) optional accessory. See the
MUC User's Guide for more information.
You can clone only one radio at a time. A multi-channel radio can clone to a single-
channel radio, but only the first channel is cloned. The MUC does not need to be
plugged in for cloning.
1. On the source radio, press and hold
Push to Talk
and T for 3 seconds while
turning the radio on. The radio beeps and displays k.
2. Place the source radio in one of the charging pockets.
3. Turn the target radio on and place it in the charging pocket
that is paired with the pocket containing the source radio.
There are 3 paired charging pockets as indicated by the
3 pairs of charging status LEDs.
4. Press and hold T on the source radio. The source radio
tranmits its settings to the target radio. If cloing was
successful, P or Pass displays on the source radio and the
target radio displays all feature icons. If cloning was not
successful, F or Fail displays on the source radio.
5. Turn the target radio off and back on again to use.
6. To clone additional radios, repeat steps 3 - 4.
7. To exit programming mode on the source radio, press and hold
Push to Talk
until k no longer appears.
LEDs
Paired
pockets
6864110w15o.book Page 32 Thursday, February 13, 2003 9:46 PM
Advanced Features
33
DRAFT
Advanced Features
You can set the following features by pressing and holding additional buttons while
you turn the radio on.
To Do This Press This Button
While Turning
the Radio On
Default
Setting
Turn Keypad Tones On/Off
Turns keypad beeps off for silent menu operation. [On
Turn End-of-Transmission Tone On/Off
If enabled, your two-way radio transmits a tone
when you finish transmitting (like saying Roger or
Over).
If keypad tones are off and end-of-transmission tone
is on, you will not hear the end-of-transmission tone,
but it is transmitted.
]Off
6864110w15o.book Page 33 Thursday, February 13, 2003 9:46 PM
Advanced Features
34
DRAFT
Turn Battery Save Mode On/Off
Decreases attack time, which is the brief period of
time between when the radio receives a
transmission on its frequency and broadcasts audio.
Turning battery save mode off decreases battery life
by approximately 20%.
Push to Talk
T [On
Restore Factory Defaults
Returns radio to its original factory settings.
Push to Talk
S---
To Do This Press This Button
While Turning
the Radio On
Default
Setting
6864110w15o.book Page 34 Thursday, February 13, 2003 9:46 PM
Troubleshooting
35
DRAFT
Troubleshooting
Symptom Try This:
No Power
Recharge or replace Li Ion battery.
Reposition or replace Alkaline batteries.
Message not
transmitted
Make sure
Push to Talk
is completely pressed while
transmitting.
Recharge, replace, and/or reposition batteries.
Verify the transmit light is illuminated while speaking.
Hearing other
noises or
conversation on
a channel
Frequency or interference eliminator code may be in use.
Change on all radios if possible (see page 28 and 29).
Poor audio
quality
Bandwidth does not match. For optimal audio quality when
communicating with _Series radios, the bandwidth of other
radios should be set to 12.5 kHz.
6864110w15o.book Page 35 Thursday, February 13, 2003 9:46 PM
Troubleshooting
36
DRAFT
Limited talk
range
Steel and/or concrete structures, heavy foliage, buildings, or
vehicles decrease range (see page 22). Check for clear line of
sight to improve transmission.
Wearing radio close to body such as in a pocket or on a belt
decreases range. Change location of radio.
Message not
received
Confirm radios have the same channel, frequency, and
interferene eliminator code settings (see page 26).
Recharge, replace, and/or reposition batteries.
Move to another location. Obstructions and operating indoors or
in vehicles may decrease range.
Verify radio is not in scan mode (CLS1410 only, see page 24).
Heavy static or
interference
Radios are too close. They must be at least 5 feet apart.
Radios are too far apart or obstacles are interfering with
transmission.
Keypad locked
Unlock by holding S for 3 seconds.
Symptom Try This:
6864110w15o.book Page 36 Thursday, February 13, 2003 9:46 PM
Troubleshooting
37
DRAFT
Low batteries
Recharge or replace batteries. Extreme operating temperatures
affect battery life.
Charger light
does not come
on
Reinsert radio and/or battery.
Clean battery and/or charger contacts.
Verify that the charging pin on the transformer is inserted
correctly into the drop-in charger.
AAA cells installed in radio. Remove and replace with Li Ion
battery.
Low battery
meter reading
although new
batteries are
installed
Verify radio is set to the correct battery type (see page 15).
Cannot activate
VOX
Feature not set and on (see page 22).
Sensitivity set to 0 (see page 23).
Cannot enter
k
mode
Unplug audio accessories and retry.
Symptom Try This:
6864110w15o.book Page 37 Thursday, February 13, 2003 9:46 PM
Use and Care
38
DRAFT
Use and Care
If the radio is submerged in water...
Use a soft damp cloth
to clean the exterior. Do not immerse
in water. Do not use alcohol or
cleaning solutions.
Turn radio off and
remove batteries. Dry with soft cloth. Do not use radio until
completely dry.
XXX
XXX
6864110w15o.book Page 38 Thursday, February 13, 2003 9:46 PM
Frequencies and Bandwidths
39
DRAFT
Frequencies and Bandwidths
These charts provide frequency information and are useful when using Motorola
_ Series radios with other business radios. Frequency Display Number is
identical to Spirit M, GT, and S-Series frequency position (where applicable).
UHF Frequencies
Display
Number
Frequency
(MHz) Bandwidth
Display
Number
Frequency
(MHz) Bandwidth
1 464.5000 12.5 15 461.1875 12.5
2 464.5500 12.5 16 461.2125 12.5
3 467.7625 12.5 17 461.2375 12.5
4 467.8125 12.5 18 461.2625 12.5
5 467.8500 12.5 19 461.2875 12.5
6 467.8750 12.5 20 461.3125 12.5
7 467.9000 12.5 21 461.3375 12.5
8 467.9250 12.5 22 461.3625 12.5
9 461.0375 12.5 23 462.7625 12.5
10 461.0625 12.5 24 462.7875 12.5
6864110w15o.book Page 39 Thursday, February 13, 2003 9:46 PM
Frequencies and Bandwidths
40
DRAFT
11 461.0875 12.5 25 462.8125 12.5
12 461.1125 12.5 26 462.8375 12.5
13 461.1375 12.5 27 462.8625 12.5
14 461.1625 12.5 28 462.8875 12.5
29 462.9125 12.5 43 466.2625 12.5
30 464.4875 12.5 44 466.2875 12.5
31 464.5125 12.5 45 466.3125 12.5
32 464.5375 12.5 46 466.3375 12.5
33 464.5625 12.5 47 466.3625 12.5
34 466.0375 12.5 48 467.7875 12.5
35 466.0625 12.5 49 467.8375 12.5
36 466.0875 12.5 50 467.8625 12.5
37 466.1125 12.5 51 467.8875 12.5
UHF Frequencies (Continued)
Display
Number
Frequency
(MHz) Bandwidth
Display
Number
Frequency
(MHz) Bandwidth
6864110w15o.book Page 40 Thursday, February 13, 2003 9:46 PM
Frequencies and Bandwidths
41
DRAFT
38 466.1375 12.5 52 467.9125 12.5
39 466.1625 12.5 53 469.4875 12.5
40 466.1875 12.5 54 469.5125 12.5
41 466.2125 12.5 55 469.5375 12.5
42 466.2375 12.5 56 469.5625 12.5
UHF Frequencies (Continued)
Display
Number
Frequency
(MHz) Bandwidth
Display
Number
Frequency
(MHz) Bandwidth
6864110w15o.book Page 41 Thursday, February 13, 2003 9:46 PM
Frequencies and Bandwidths
42
DRAFT
Interference Eliminator Codes
Carrier Squelch (0) disables interference eliminator codes.
Display
Number Code
(Hz) Display
Number Code
(Hz) Display
Number Code
(Hz)
1 67.0 14 107.2 27 167.9
2 71.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
4 77.0 17 118.8 30 186.2
5 79.7 18 123.0 31 192.8
6 82.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
8 88.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
13 103.5 26 162.2
6864110w15o.book Page 42 Thursday, February 13, 2003 9:46 PM
Frequencies and Bandwidths
43
DRAFT
Digital Interference Eliminator Codes
Display
Number
Digital
Code
Display
Number
Digital
Code
Display
Number
Digital
Code
39 023 54 115 69 223
40 025 55 116 70 226
41 026 56 125 71 243
42 031 57 131 72 244
43 032 58 132 73 245
44 043 59 134 74 251
45 047 60 143 75 261
46 051 61 152 76 263
47 054 62 155 77 265
48 065 63 156 78 271
49 071 64 162 79 306
50 072 65 165 80 311
51 073 66 172 81 315
52 074 67 174 82 331
53 114 68 205 83 343
6864110w15o.book Page 43 Thursday, February 13, 2003 9:46 PM
Frequencies and Bandwidths
44
DRAFT
84 346 97 465 110 632
85 351 98 466 111 654
86 364 99 503 112 662
87 365 100 506 113 664
88 371 101 516 114 703
89 411 102 532 115 712
90 412 103 546 116 723
91 413 104 565 117 731
92 423 105 606 118 732
93 431 106 612 119 734
94 432 107 624 120 743
95 445 108 627 121 754
96 464 109 631
Digital Interference Eliminator Codes (Continued)
Display
Number
Digital
Code
Display
Number
Digital
Code
Display
Number
Digital
Code
6864110w15o.book Page 44 Thursday, February 13, 2003 9:46 PM
Spirit GT Series Programming
45
DRAFT
Spirit GT Series Programming
The _Series radio replaces the Spirit GT Series radio. The factory default
settings for both radios are identical. However, existing radios may have been
programmed to different settings. To program your _Series radio to talk with a
Spirit GT Series radio, verify or change your Spirit GT settings as follows.
To verify the frequency and code:
1. Press the Menu button 3 times. The channel number and frequency display.
2. Press Menu again. The interference eliminator code displays.
To change the frequency:
1. Enter programming mode by pressing and holding
Push to Talk
for
approximately 5 seconds while turning the radio on, then release
Push to Talk
.
2. Use the Scroll button to select one the eight frequencies.
To change the interference eliminator code:
1. Enter programming mode by pressing and holding
Push to Talk
for
approximately 5 seconds while turning the radio on, then release
Push to Talk
.
2. Press the Menu button. The code number flashes.
3. Use the Scroll button to select the code.
To exit programming mode on a Spirit GT Series radio, press
Push to Talk
.
6864110w15o.book Page 45 Thursday, February 13, 2003 9:46 PM
Warranty
46
DRAFT
Motorola Limited Warranty for the United States and Canada
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its telephones, pagers, messaging devices,
and consumer and professional two-way radios (excluding commercial, government or industrial radios) that
operate via Family Radio Service or General Mobile Radio Service, Motorola-branded or certified accessories
sold for use with these Products (“Accessories”) and Motorola software contained on CD-ROMs or other tangible
media and sold for use with these Products (“Software”) to be free from defects in materials and workmanship
under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive
remedy, and applies as follows to new Motorola Products, Accessories and Software purchased by consumers in
the United States or Canada, which are accompanied by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and Accessories
as defined above,
unless otherwise provided for below.
One (1) year
from the date of purchase by the first
consumer purchaser of the product unless otherwise
provided for below.
Decorative Accessories and Cases
. Decorative
covers, bezels, PhoneWrap™ covers and cases.
Limited lifetime warranty
for the lifetime of ownership by
the first consumer purchaser of the product.
Monaural Headsets.
Ear buds and boom
headsets that transmit mono sound through a
wired connection.
Limited lifetime warranty
for the lifetime of ownership by
the first consumer purchaser of the product.
6864110w15o.book Page 46 Thursday, February 13, 2003 9:46 PM
Warranty
47
DRAFT
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts due to normal wear and tear are
excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that
leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation, storage, misuse or abuse,
accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting
from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product
or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded
from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that result from the use of Non-Motorola
branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its
authorized service centers, are excluded from coverage.
Consumer and Professional Two-Way Radio
Accessories.
Ninety (90) days
from the date of purchase by the first
consumer purchaser of the product.
Products and Accessories that are Repaired or
Replaced.
The balance of the original warranty or for ninety (90)
days
from the date returned to the consumer, whichever
is longer.
Products Covered Length of Coverage
6864110w15o.book Page 47 Thursday, February 13, 2003 9:46 PM
Warranty
48
DRAFT
Altered Products.
Products or Accessories with (a) serial numbers or date tags that have been removed,
altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial
numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of Products, Accessories or Software due to any
communication service or signal you may subscribe to or use with the Products Accessories or Software is
excluded from coverage.
Software
Exclusions
Software Embodied in Physical Media.
No warranty is made that the software will meet your requirements or
will work in combination with any hardware or software applications provided by third parties, that the operation
of the software products will be uninterrupted or error free, or that all defects in the software products will be
corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media (e.g. software
that is downloaded from the internet), is provided “as is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
Products Covered Length of Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from the date of purchase.
6864110w15o.book Page 48 Thursday, February 13, 2003 9:46 PM
Warranty
49
DRAFT
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products,
Accessories or Software that does not conform to this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data, software or applications
added to your Product, Accessory or Software, including but not limited to personal contacts, games and ringer
tones, will be reinstalled. To avoid losing such data, software and applications please create a back up prior to
requesting service.
How to Obtain Warranty Service or Other Information
You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a
Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service
provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly;
(e) your address and telephone number.
USA
Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios
1-800-448-6686
Canada
All Products
1-800-461-4575
TTY
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number
designated above for the product with which they are used.
6864110w15o.book Page 49 Thursday, February 13, 2003 9:46 PM
Warranty
50
DRAFT
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE)
FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR
SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential
damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state or from one jurisdiction to another.
Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted
Motorola software such as the exclusive rights to reproduce and distribute copies of the Motorola software.
Motorola software may only be copied into, used in, and redistributed with, the Products associated with such
Motorola software. No other use, including without limitation disassembly of such Motorola software or exercise
of the exclusive rights reserved for Motorola, is permitted.
6864110w15o.book Page 50 Thursday, February 13, 2003 9:46 PM
DRAFT
_Series Programming Quick Reference
To enter programming mode, press and hold Push to Talk
and Qfor 3 seconds while turning the radio on. The radio
beeps and displays k, the channel number flashes, and the
frequency (indicated by l) and code (indicated by y)
display alternately.
Set the
Channel*
Press
[
or
]
.
Set the
Frequency
Press
S
until
l displays.
Press
[
or
]
to change the
frequency.
Set the
Interference
Eliminator
Code
Press
S
until
y
displays.Press
[
or
]
to change
the code.
Set
Available
Channels*
Press
S
until = displays.
Press
[
or
]
to select
number of available channels.
* CLS1410 Only
6864110w15o.book Page 51 Thursday, February 13, 2003 9:46 PM
DRAFT
_Series Programming Quick Reference
Set a Call
Tone
Press
S
until E display.s
Press
[
or
]
to select1, 2, or
3 for audible call tones, 4 for
VibraCall, or 0 for off (default).
Set the
Microphone
Gain
Press
S
until g and ? display.
Press
[
or
]
to select:
1 Low sensitivity
2 Medium sensitivity
3 High sensitivity
Edit the
Scan List*
Press
S
until h displays and the
channel number and Y or n flash.
Press
[
or
]
to select the
channel, then press
T
to select Y
(include channel) or n (exclude
channel).
6864110w15o.book Page 52 Thursday, February 13, 2003 9:46 PM
motorola.com
6864110w15o.book Page 53 Thursday, February 13, 2003 9:46 PM
