Motorola Solutions 89FT4861 SSE 5000 Protable Radio User Manual NYPD QuickGuide

Motorola Solutions, Inc. SSE 5000 Protable Radio NYPD QuickGuide

Exhibit D Users Manual per 2 1033 c3

SSE 5000 Portable Radio Quick Guide
6881094C16-O
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to ocupational use only to satisfy FCC RF energy
exposure requirements. Before using this product, read the RF energy
awareness information and operating instructions in the Product Safety
and RF Exposure booklet enclosed with your radio (Motorola
Publication part number 6881095C98) to ensure compliance with RF
energy exposure limits.

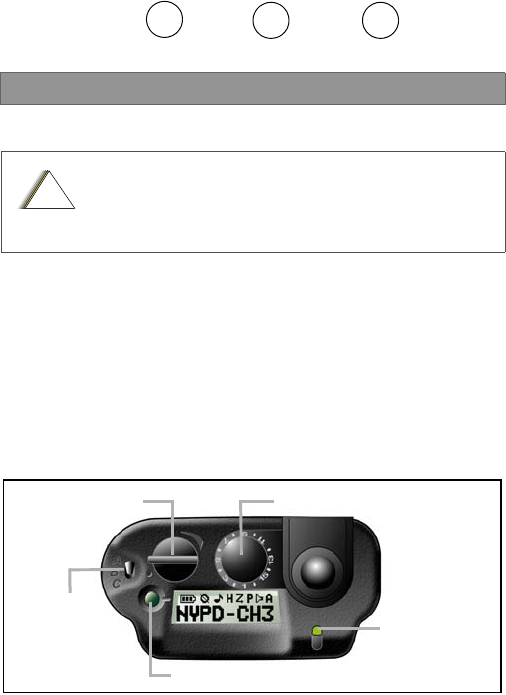

Radio Control Top
Radio On/Off:
•ON: Turn the On/Off/Volume knob clockwise.
•OFF: Turn the On/Off/Volume knob counter-clockwise.
Mode/Channel Selection:
•MODE: Togg l e th e Mode Select switch to A, B, C, D, E or F
(see the mode/channel map).
•CHANNEL: Turn the Channel Select knob to your desired
channel (see the mode/channel map).
Display Backlight/Flip:
•BACKLIGHT: Press the Display button.
•FLIP: Press and hold the Display button for 2 seconds.
Volume:
•RAISE: Turn the On/Off/Volume knob clockwise.
•LOWER: Turn the On/Off/Volume knob counter-clockwise.
Before using this product, read the operating
instructions for safe usage contained in the Product
Safety and RF Exposure booklet enclosed with your
radio.
!
C
a u t i o
n
On/Off/Volume
Knob
Channel Select Knob
Transmit/
Receive
Indicator
Display Button
Mode
Select
Switch
6881094C16-O

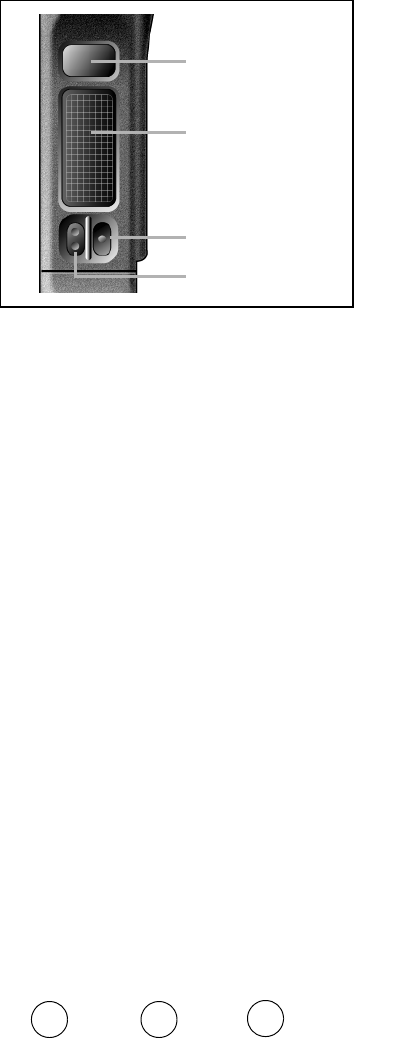

Radio Side Buttons
Transmit/Receive:
•TRANSMIT: Press the PTT button.
•RECEIVE: Release the PTT button.
Monitoring:
•CARRIER SQUELCH: Press the Monitor button.
•OPEN SQUELCH: Press and hold the Monitor button for
2 seconds.
Secure Operation:
ON/OFF: Press the Secure button.
Scan:
•ON/OFF: Press the Scan button.
•NUISANCE CHANNEL DELETE: Press and hold the Scan
button for 2 seconds.
•NUISANCE CHANNEL RESTORE: Press the Scan button
to turn scan off, then press it again to turn scan back on.
Monitor Button
PTT Button
Secure Button
Scan Button
SSE 5000 Portable Radio Quick Guide
6881094C16-O

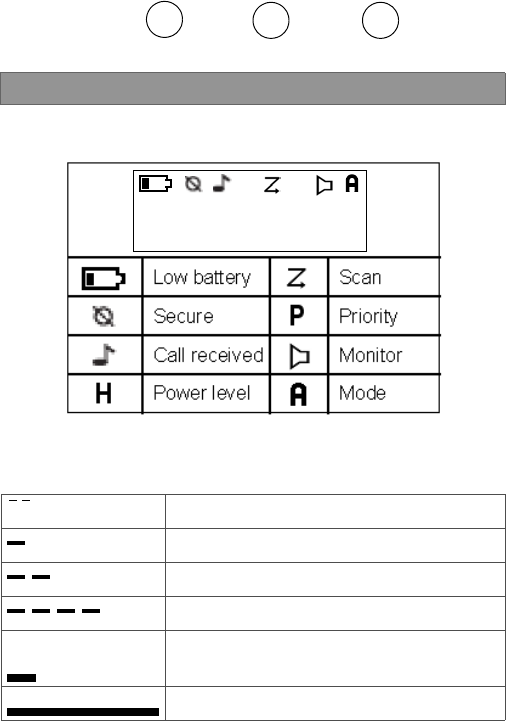

Display Icons
Alert Tones
LED Indications
• Solid red – Transmitting
• Flashing red – Low battery
• Solid green – Incoming call alert page or selective call
• Flashing green – Channel is busy
• Double flashing green – Incoming secure call
Low battery (2 high tones)
Button press (1 medium tone)
Call received (2 medium tones)
Page received (4 medium tones)
TOT warning or invalid button press
(1 low tone)
TOT limit or invalid mode (long low tone)
P
H
A MAN Z3
P
H
A MAN Z3
6881094C16-O
Mode/Channel Map
Mode
Channel A B C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
6881094C16-O
Mode
Channel D E F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SSE 5000 Portable Radio Quick Guide
6881094C16-O

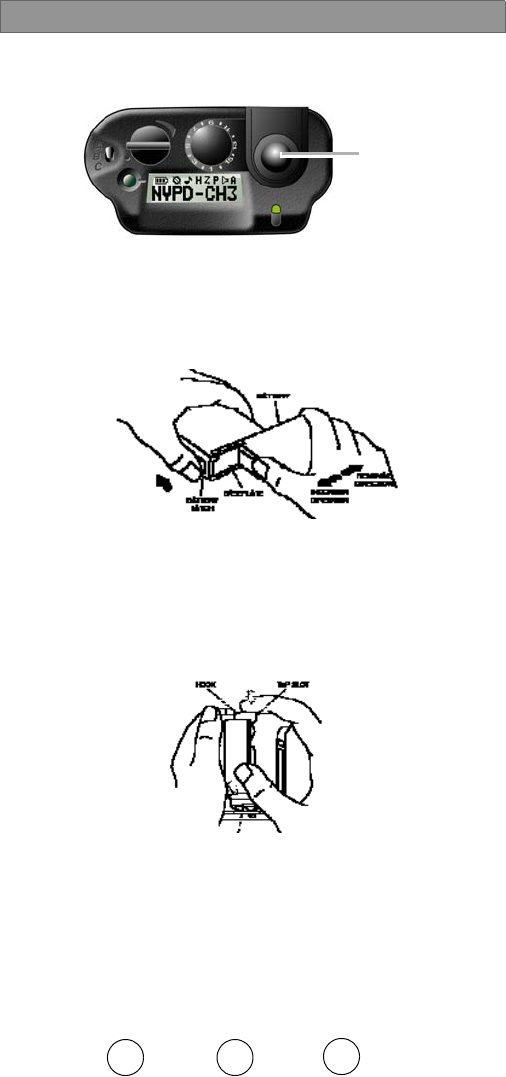

Accessory Installation
Antenna:
•ATTACH: With the radio turned off, twist the antenna clock-
wise onto the connector on the top of the radio.
•REMOVE: With the radio turned off, twist the antenna
counter-clockwise to remove it from the radio.
Battery:
•ATTACH: With the radio turned off, align the baseplate on the
bottom of the radio with the groove on the top of the battery,
and slide the battery toward the latch until it clicks into place.
•REMOVE: With the radio turned off, slide the battery latch up
and hold it while sliding the battery away from the latch.
Belt Clip:
•ATTACH: With the battery removed, hook the top of the belt
clip into the slot near the top of the radio in the back. Press
the bottom of the belt clip into the slot near the base of the
radio until it clicks into place.
•REMOVE: With the battery removed, use a small, flat-bladed
screwdriver to disengage the locking tab on the bottom of the
belt clip from the base of the radio. Lift the belt clip up and
away from the radio.
Location of
antenna
connector
