Motorola Solutions 89FT4906 PORTABLE 2-WAY RADIO User Manual APX 7000 Portable Top Display User Guide
Motorola Solutions, Inc. PORTABLE 2-WAY RADIO APX 7000 Portable Top Display User Guide
Contents
- 1. RF Safety Guide
- 2. Users Guide
Users Guide
APX 7000 User Guide
Top Display
6875952M01-G
Front_Covers.fm Page 1 Monday, January 16, 2012 4:19 PM
APX_7000_TopD.book Page 2 Wednesday, November 2, 2011 5:31 PM
Declaration of Conformity
English
i
Declaration of Conformity
This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola Solutions, Inc.
Address: 1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: APX 7000
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
APX_7000_TopD.book Page i Wednesday, November 2, 2011 5:31 PM
Declaration of Conformity
English
ii
Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
APX_7000_TopD.book Page ii Wednesday, November 2, 2011 5:31 PM
Declaration of Conformity
English
iii
Additional FCC Note to Users
The following FCC information applies to Bluetooth radio options
Model Name: MNUK6000
Description: APX 7000 Bluetooth Option Board
FCC ID: AZ489FT6000
IC: 109U-89FT6000
Conforms to the following regulations: FCC Part 15, Section 15.19, 15.21, and 15.105
Note:Changes or modifications not expressly approved by Motorola may void the users authority, as authorized by the
FCC, to operate this device and should not be made. See 47 CFR Part 15.21. Information to the user. The user
manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or
modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation. See 47 CFR Part. 15.19(3).
This device has been tested and found to comply with the limits of Part 15.15 of the FCC rules. Parties responsible for
equipment compliance should note that the limits specified in this part will not prevent harmful interference under all
circumstances.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. See Part 15.105b These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
APX_7000_TopD.book Page iii Wednesday, November 2, 2011 5:31 PM
Declaration of Conformity
English
iv
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Statements:
This Class B digital apparatus complies with ICES-003 and Radio Standards Specification (RSS) 210.
Note:If the customer is purchasing the Bluetooth Option Board for the first time and their radios are FM approved, please
send the radios back to the service center in order to keep the certification.
If customer already purchased the radio with the Bluetooth Option Board as part of the tanapa and they need to
replace (repair) the option board, they are able to send the radio to any Motorola FM audited location.
APX_7000_TopD.book Page iv Wednesday, November 2, 2011 5:31 PM
Contents
English
iii
Contents
This User Guide contains all the information you need
to use the APX™ 7000 Series Digital Portable Radios.
Declaration of Conformity . . . . . . . . . . . . . . . . .i
Important Safety Information . . . . . . . . . . . . . vii
Product Safety and RF Exposure Compliance . . . . vii
Software Version . . . . . . . . . . . . . . . . . . . . . . . vii
Notice to Users (FCC and Industry Canada) . . . . . vii
Informations importantes sur la sécurité . . .viii
Sécurité du produit et respect des lignes directrices
concernant l'exposition à l'énergie RF . . . . . . . . . .viii
Version du logiciel . . . . . . . . . . . . . . . . . . . . . .viii
Avis aux utilisateurs (FCC et Industrie Canada) . . .viii
Computer Software Copyrights . . . . . . . . . . . .ix
Documentation Copyrights . . . . . . . . . . . . . . . .ix
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . .1
How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . 1
Notations Used in This Manual . . . . . . . . . . . . . . . . . 1
Additional Performance Enhancement . . . . . . . . . . . 2
Dynamic System Resilience (DSR) . . . . . . . . . . . . . 2
CrossTalk Prevention . . . . . . . . . . . . . . . . . . . . . . . 2
Encrypted Integrated Data (EID) . . . . . . . . . . . . . . . 2
SecureNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
What Your Dealer/System Administrator
Can Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preparing Your Radio for Use . . . . . . . . . . . . . .3
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 4
Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

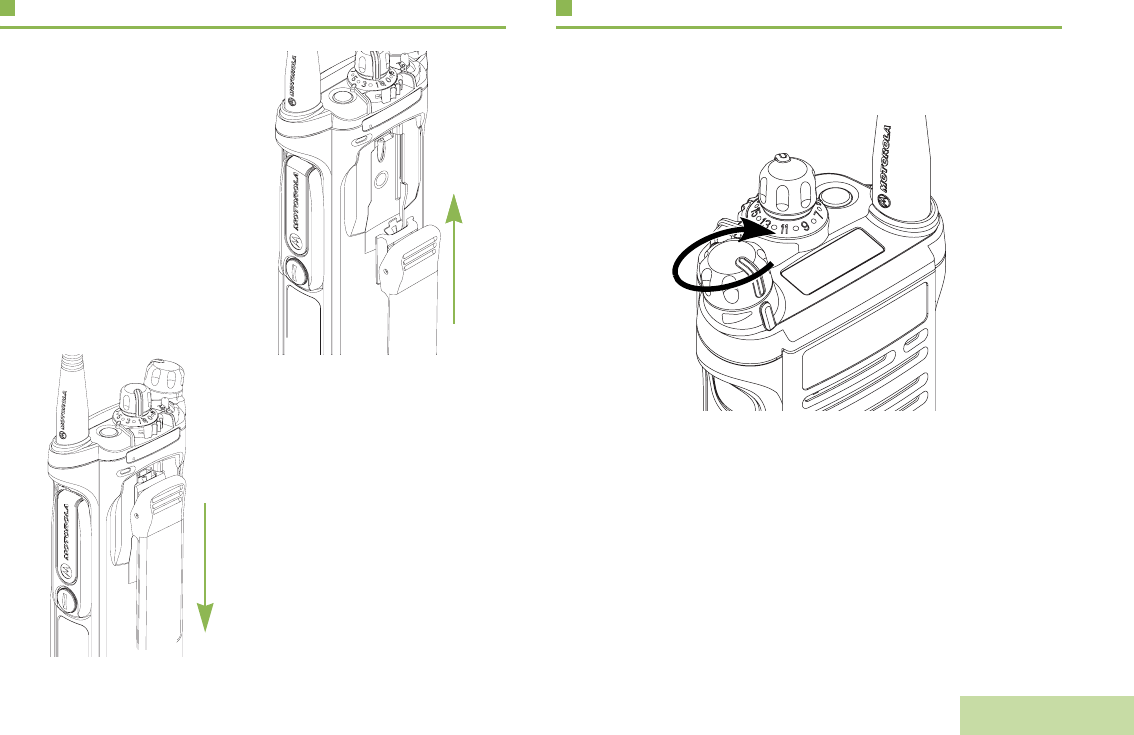

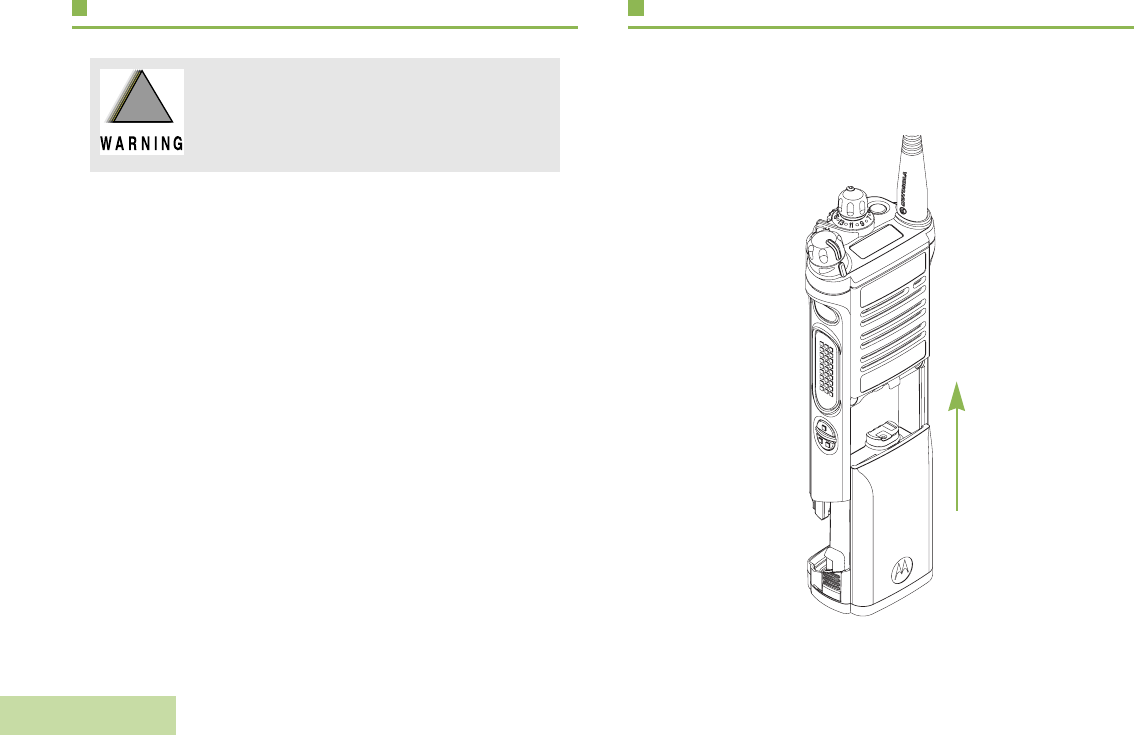

Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 4

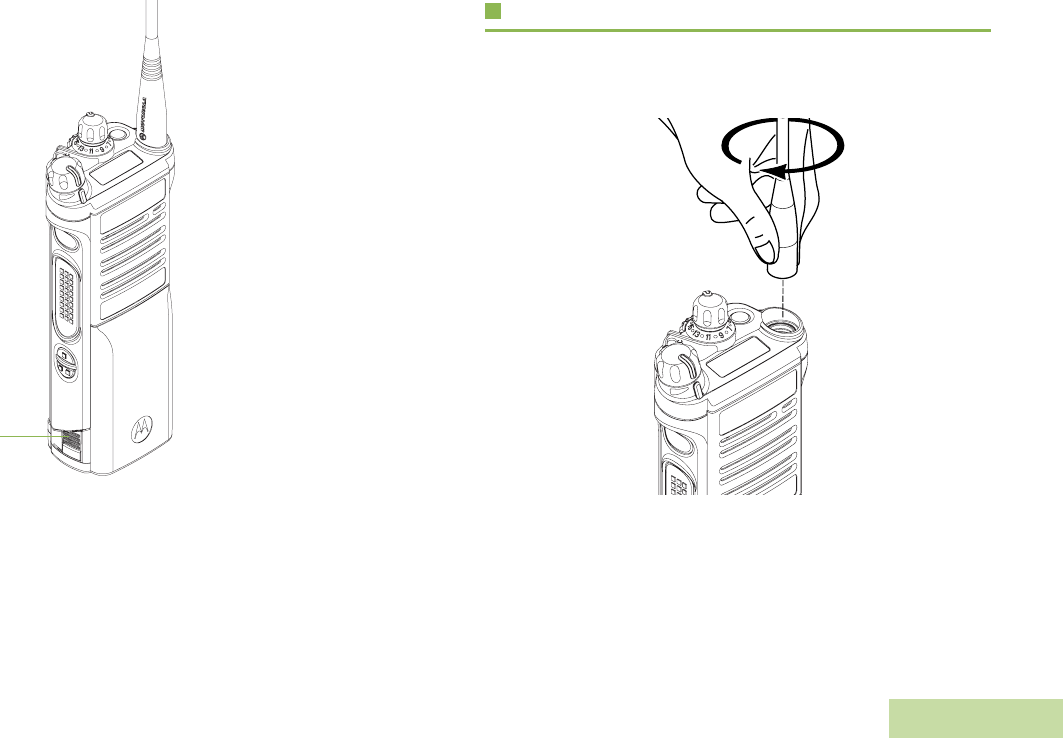

Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . 5

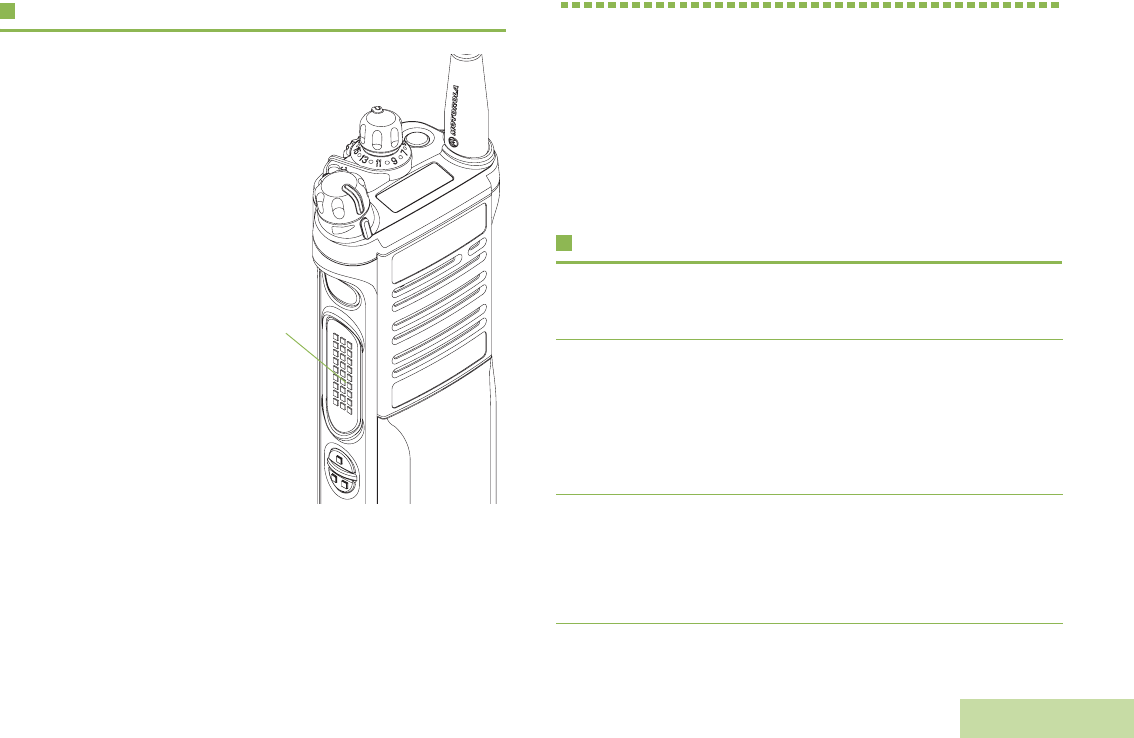

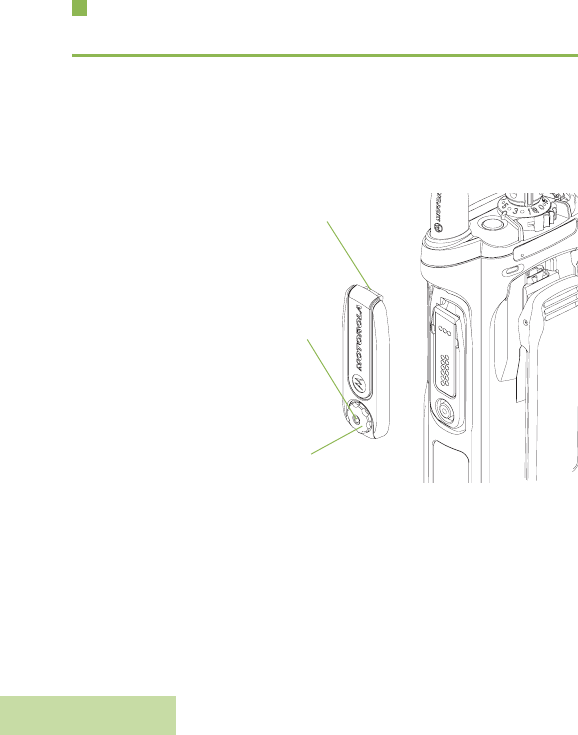

Attaching the Accessory Connector Cover . . . . . . . . 6
Attaching the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . 7

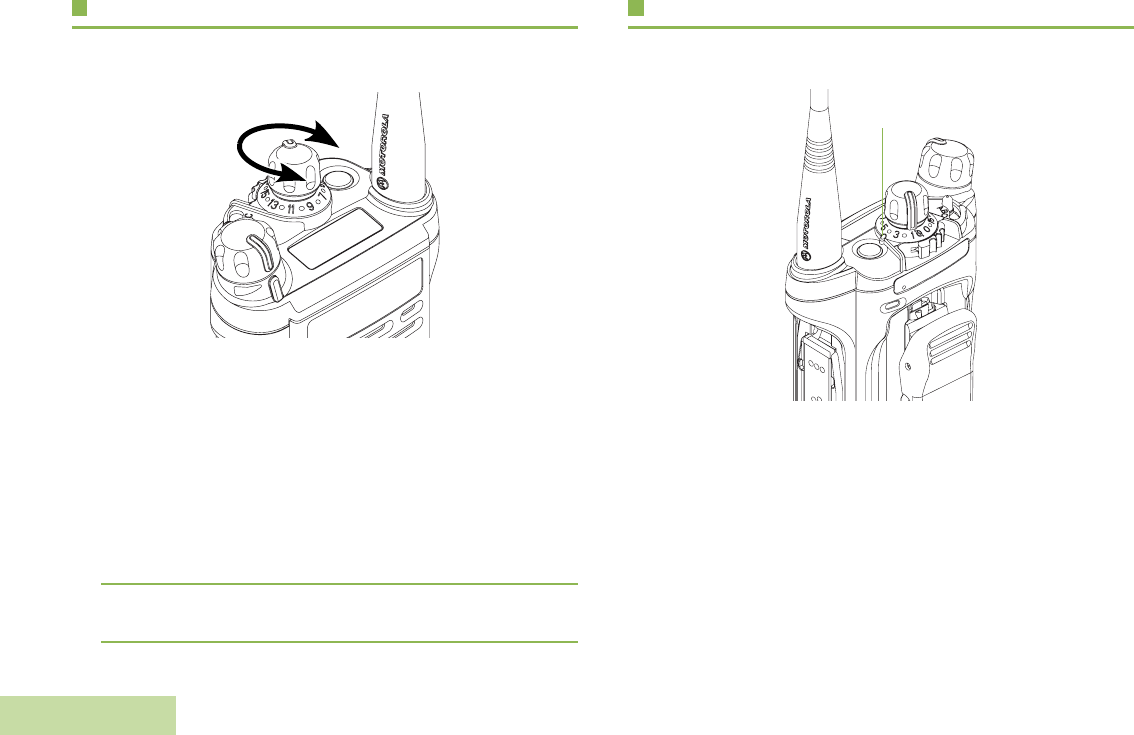

Turning On the Radio . . . . . . . . . . . . . . . . . . . . . . . . 7

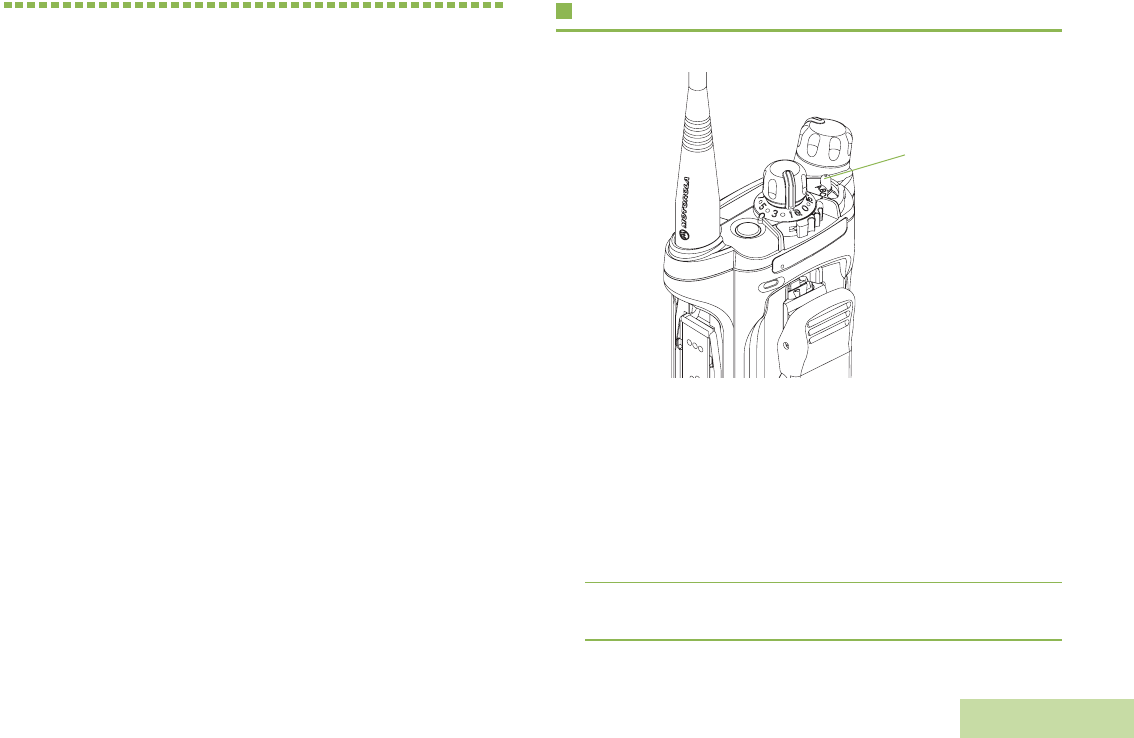

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 8
APX_7000_TopD.book Page iii Wednesday, November 2, 2011 5:31 PM
Contents
English
iv
Identifying Radio Controls . . . . . . . . . . . . . . . . .9

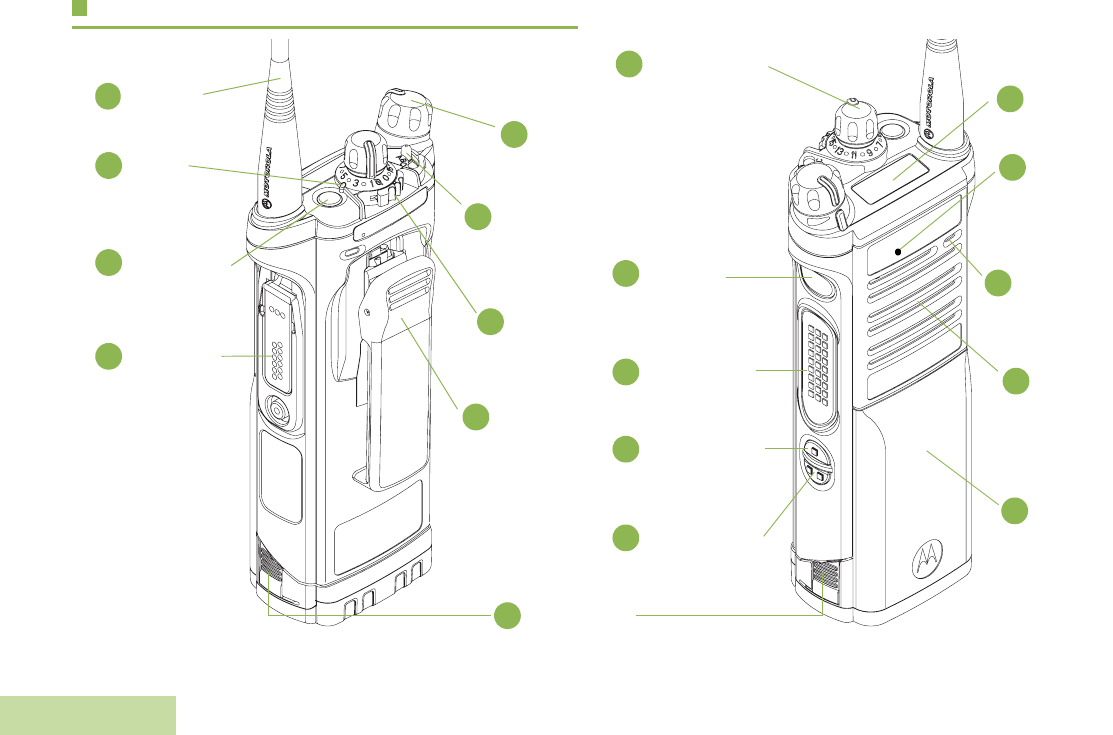

Radio Parts and Controls . . . . . . . . . . . . . . . . . . . 10
Programmable Features . . . . . . . . . . . . . . . . . . . . . 11
Assignable Radio Functions . . . . . . . . . . . . . . . . . . 11
Assignable Settings or Utility Functions . . . . . . . . . 12
Accessing the Preprogrammed Functions . . . . . . . 12
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . 13
Identifying Status Indicators . . . . . . . . . . . . . .13
Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Intelligent Lighting Indicators . . . . . . . . . . . . . . . . . 16
Alert Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
General Radio Operation . . . . . . . . . . . . . . . . .21
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Selecting a Radio Channel . . . . . . . . . . . . . . . . . . . 22
Receiving and Responding to a Radio Call . . . . . . 22
Receiving and Responding to a Talkgroup Call . . . 23
Receiving and Responding to a Private Call
(Trunking Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Receiving and Responding to a Telephone Call
(Trunking Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . 25
Making a Talkgroup Call . . . . . . . . . . . . . . . . . . . . .25
Repeater or Direct Operation . . . . . . . . . . . . . . . . . 25
Monitoring Features . . . . . . . . . . . . . . . . . . . . . . . . 26
Monitoring a Channel . . . . . . . . . . . . . . . . . . . . . . .26
Conventional Mode Operation . . . . . . . . . . . . . . . .26
Advanced Features . . . . . . . . . . . . . . . . . . . . . 27
Advanced Call Features . . . . . . . . . . . . . . . . . . . . . 27
Receiving and Responding to a Selective Call
(Conventional Only) . . . . . . . . . . . . . . . . . . . . . . . .27
Using the Dynamic Regrouping Feature
(Trunking Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Requesting a Reprogram (Trunking Only) . . . . . . .28
Classifying Regrouped Radios . . . . . . . . . . . . . . . .29
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Viewing a Scan List . . . . . . . . . . . . . . . . . . . . . . . . .29
Viewing and Changing the Priority Status . . . . . . . .30
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Turning Scan On or Off . . . . . . . . . . . . . . . . . . . . . .30
Making a Dynamic Priority Change (Conventional
Scan Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Deleting a Nuisance Channel . . . . . . . . . . . . . . . . .31
Restoring a Nuisance Channel . . . . . . . . . . . . . . . .31
Call Alert Paging . . . . . . . . . . . . . . . . . . . . . . . . . . 32
APX_7000_TopD.book Page iv Wednesday, November 2, 2011 5:31 PM
Contents
English
v
Receiving a Call Alert Page . . . . . . . . . . . . . . . . . .32
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . 32
Sending an Emergency Alarm . . . . . . . . . . . . . . . .33
Sending an Emergency Call (Trunking Only) . . . . .33
Sending an Emergency Alarm with Emergency
Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Sending a Silent Emergency Alarm . . . . . . . . . . . .35
Using the Emergency Keep-Alive Feature . . . . . . .35
Man Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Pre-Alert Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Post-Alert Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Alerting User When Man Down Feature is
Triggered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Triggering Emergency . . . . . . . . . . . . . . . . . . . . . . .38
Exiting Man Down Feature . . . . . . . . . . . . . . . . . . .38
Re-Initiating Man Down . . . . . . . . . . . . . . . . . . . . . .38
Testing the Man Down Feature . . . . . . . . . . . . . . . .39
Secure Operations . . . . . . . . . . . . . . . . . . . . . . . . . 40
Selecting Secure Transmissions . . . . . . . . . . . . . . .40
Selecting Clear Transmissions . . . . . . . . . . . . . . . .40
Managing Encryption . . . . . . . . . . . . . . . . . . . . . . .41
Loading an Encryption Key . . . . . . . . . . . . . . . . . .41
Using the Multikey Feature . . . . . . . . . . . . . . . . . .41
Erasing the Selected Encryption Keys . . . . . . . . . .42
Requesting an Over-the-Air Rekey (ASTRO
Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
MDC Over-the-Air Rekeying (OTAR) Page . . . . . 43
Hear Clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Trunking System Controls . . . . . . . . . . . . . . . . . . . . 44
Using the Failsoft System . . . . . . . . . . . . . . . . . . . 44
Going Out of Range . . . . . . . . . . . . . . . . . . . . . . . . 44
Using the Site Trunking Feature . . . . . . . . . . . . . . 45
Locking and Unlocking a Site . . . . . . . . . . . . . . . . 45
Viewing and Changing a Site . . . . . . . . . . . . . . . . . 45
Viewing the Current Site . . . . . . . . . . . . . . . . . . . . 45
Changing the Current Site . . . . . . . . . . . . . . . . . . 45
Mission Critical Wireless
- Bluetooth® - . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Turning the Bluetooth On . . . . . . . . . . . . . . . . . . . . 46
Turning the Bluetooth Off . . . . . . . . . . . . . . . . . . . . 46
Re-Pair Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Bluetooth Drop Timer . . . . . . . . . . . . . . . . . . . . . . . 47
Pairing the Bluetooth Device with the Radio . . . . . 48
Indicating the Bluetooth Connection is Lost . . . . . . 49
Turning the Bluetooth Audio On (Routing the Audio from
the Radio to the Headset) . . . . . . . . . . . . . . . . . . . 49
Turning the Bluetooth Audio Off (Routing the Audio from
the Headset to the Radio) . . . . . . . . . . . . . . . . . . . 49
Adjusting the Volume of the Radio from Bluetooth Audio
Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Clearing All Bluetooth Devices Information . . . . . . 50
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
APX_7000_TopD.book Page v Wednesday, November 2, 2011 5:31 PM
Contents
English
vi
Using the Flip Display . . . . . . . . . . . . . . . . . . . . . . . 50
Selecting a Basic Zone Bank . . . . . . . . . . . . . . . . . 50
Selecting an Enhanced Zone Bank . . . . . . . . . . . . 51
Selecting the Power Level . . . . . . . . . . . . . . . . . . . 51
Controlling the Display Backlight . . . . . . . . . . . . . . 52
Locking and Unlocking the Controls . . . . . . . . . . . . 52
Turning Voice Mute On or Off . . . . . . . . . . . . . . . . . 53
Using the Time-Out Timer . . . . . . . . . . . . . . . . . . . 53
Using the Conventional Squelch Operation
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Analog Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Digital Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Using the PL Defeat Feature . . . . . . . . . . . . . . . . . 54
Using the Digital PTT ID Feature . . . . . . . . . . . . . . 55
Using the Smart PTT Feature (Conventional Only) 55
Voice Announcement . . . . . . . . . . . . . . . . . . . . . . . 56
Helpful Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Acoustic Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Caring for Your Radio . . . . . . . . . . . . . . . . . . . . . . . 59
Cleaning Your Radio . . . . . . . . . . . . . . . . . . . . . . . 60
CHandling Your Radio . . . . . . . . . . . . . . . . . . . . . . 61
Servicing Your Radio . . . . . . . . . . . . . . . . . . . . . . . 61
Taking Care of the Battery . . . . . . . . . . . . . . . . . . . 62
Checking the Battery Charge Status . . . . . . . . . . . .62
LED and Sounds . . . . . . . . . . . . . . . . . . . . . . . . . .62
Fuel Gauge Icon . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Battery Recycling and Disposal . . . . . . . . . . . . . . .63
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Highlights for the Accessories . . . . . . . . . . . . . . . . 64
Appendix: Maritime Radio Use in the VHF
Frequency Range . . . . . . . . . . . . . . . . . . . . . . 65
Special Channel Assignments . . . . . . . . . . . . . . . . 65
Emergency Channel . . . . . . . . . . . . . . . . . . . . . . . .65
Non-Commercial Call Channel . . . . . . . . . . . . . . . .65
Operating Frequency Requirements . . . . . . . . . . . 66
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Commercial Warranty . . . . . . . . . . . . . . . . . . . 72
APX_7000_TopD.book Page vi Wednesday, November 2, 2011 5:31 PM
Important Safety Information
English
vii
Important Safety Information
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to occupational use only to
satisfy FCC RF energy exposure requirements.
Before using this product, read the RF energy awareness
information and operating instructions in the Product
Safety and RF Exposure booklet enclosed with your radio
(Motorola Publication part number 6881095C98) to
ensure compliance with RF energy exposure limits.
For a list of Motorola-approved antennas, batteries, and
other accessories, visit the following website:
http://www.motorolasolutions.com/APX
Software Version
All the features described in the following sections are
supported by the radio's software version R07.00.00 or
later.
Check with your dealer or system administrator
for more details of all the features supported.
Notice to Users (FCC and Industry Canada)
This device complies with Part 15 of the FCC rules and
RSS 210 of the Industry Canada rules per the conditions
listed below:
1This device may not cause harmful interference.
2This device must accept any interference received,
including interference that may cause undesired
operation.
3Changes or modifications made to this device, not
expressly approved by Motorola, could void the user's
authority to operate this equipment.
Before using this product, read the operating
instructions for safe usage contained in the
Product Safety and RF Exposure booklet
enclosed with your radio.
!
APX_7000_TopD.book Page vii Wednesday, November 2, 2011 5:31 PM
Informations importantes sur la sécurité
viii
Français Canadien
Informations importantes sur la
sécurité
Sécurité du produit et respect des lignes
directrices concernant l'exposition à l'énergie
RF
ATTENTION!
Cette radio est réservée à un usage professionnel
seulement pour satisfaire les normes d'exposition
à l'énergie RF de la FCC. Avant d'utiliser ce produit,
lisez l'information sur la sensibilisation à l'énergie RF
et les directives d'utilisation présentées dans le livret
Sécurité du produit et exposition à l'énergie RF
accompagnant votre radio (publication de Motorola,
numéro d'article 6881095C98) pour assurer le respect
des limites d'exposition à l'énergie RF.
Pour obtenir une liste d'antennes et d'autres accessoires
approuvés par Motorola, consultez le site Web :
http://www.motorolasolutions.com/APX
Version du logiciel
Toutes les fonctionnalités décrites dans les sections
suivantes sont prises en charge par la version du logiciel
R07.00.00 ou ultérieure de la radio.
Vérifiez auprès de votre détaillant ou de l'administrateur
de système pour obtenir des renseignements toutes les
fonctionnalités prises en charge.
Avis aux utilisateurs (FCC et Industrie Canada)
Cet appareil est conforme à la Partie 15 des règlements
de la FCC et RSS 210 du règlement d'Industrie Canada
selon les conditions énumérées ci-dessous:
1Ce dispositif ne doit pas causer d'interférences
nuisibles.
2Cet appareil doit accepter toute interférence reçue, y
compris les interférences qui peuvent perturber le
fonctionnement.
3Les changements ou les modifications apportées à ce
dispositif, non expressément approuvées par Motorola,
peuvent annuler le droit de l'utilisateur à utiliser cet
équipement.
Avant d'utiliser ce produit, lisez les directives
d'utilisation sécuritaire présentées dans le livret
Sécurité du produit et exposition à l'énergie RF
accompagnant votre radio.
!
Mise en garde
APX_7000_TopD.book Page viii Wednesday, November 2, 2011 5:31 PM
Computer Software Copyrights
English
ix
Computer Software Copyrights
The Motorola products described in this manual may
include copyrighted Motorola computer programs stored
in semiconductor memories or other media. Laws in the
United States and other countries preserve for Motorola
certain exclusive rights for copyrighted computer
programs, including, but not limited to, the exclusive right
to copy or reproduce in any form the copyrighted
computer program. Accordingly, any copyrighted
Motorola computer programs contained in the Motorola
products described in this manual may not be copied,
reproduced, modified, reverse-engineered, or distributed
in any manner without the express written permission of
Motorola. Furthermore, the purchase of Motorola
products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the
copyrights, patents or patent applications of Motorola,
except for the normal non-exclusive license to use that
arises by operation of law in the sale of a product.
Documentation Copyrights
No duplication or distribution of this document or any
portion thereof shall take place without the express
written permission of Motorola. No part of this manual
may be reproduced, distributed, or transmitted in any
form or by any means, electronic or mechanical, for any
purpose without the express written permission of
Motorola.
Disclaimer
The information in this document is carefully examined,
and is believed to be entirely reliable. However, no
responsibility is assumed for inaccuracies. Furthermore,
Motorola reserves the right to make changes to any
products herein to improve readability, function, or
design. Motorola does not assume any liability arising out
of the applications or use of any product or circuit
described herein; nor does it cover any license under its
patent rights, nor the rights of others.
APX_7000_TopD.book Page ix Wednesday, November 2, 2011 5:31 PM
Disclaimer
English
x
Notes
APX_7000_TopD.book Page x Wednesday, November 2, 2011 5:31 PM
Getting Started
English
1
Getting Started
Take a moment to review the following:
How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . page 1
Notations Used in This Manual . . . . . . . . . . . . . . . . . . . page 1
Additional Performance Enhancement . . . . . . . . . . . . . page 2
What Your Dealer/System Administrator
Can Tell You. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
How to Use This Guide
This User Guide covers the basic operation of the APX™ 7000
Portables.
However, your dealer or system administrator may have
customized your radio for your specific needs. Check with your
dealer or system administrator for more information.
Notations Used in This Manual
Throughout the text in this publication, you will notice the use of
WARNING, Caution, and Note. These notations are used to
emphasize that safety hazards exist, and the care that must be
taken or observed.
An operational procedure, practice, or condition,
etc., which may result in injury or death if not
carefully observed.
An operational procedure, practice, or
condition, etc., which may result in damage
to the equipment if not carefully observed.
Note: An operational procedure, practice, or condition,
etc., which is essential to emphasize.
!!
!
APX_7000_TopD.book Page 1 Wednesday, November 2, 2011 5:31 PM
Getting Started
English
2
Additional Performance Enhancement
The following are some of the latest creations designed to
enhance the security, quality and efficiency of the radios.
Dynamic System Resilience (DSR)
DSR ensures the radio system is seamlessly switched to a
backup master site dynamically in case of system failure.
DSR also provides additional indication e.g. failure detection,
fault recovery, and redundancy within the system to address to
the user in need. Mechanisms related to the Integrated Voice
and Data (IV & D) or data centric are all supported by DSR.
CrossTalk Prevention
This feature prevents crosstalk scenario from happening,
especially when a wideband antenna is used. This feature
allows the adjustment of the Trident Transmitting SSI clock rate
in the radio to be varied from the Receiving Frequency. This
subsequently reduced the possibilities of radio frequency
interfering spurs and prevents the issues of crosstalk.
Encrypted Integrated Data (EID)
EID provides security encryption and authentication of IV & D
data bearer service communication between the radio and the
Customer Enterprise Network.
SecureNet
SecureNet allows user to perform secured communications on
an Analog or Motorola Data Communication (MDC) channel.
The MDC OTAR feature will allow users to perform OTAR
activities on an MDC channel.
APX_7000_TopD.book Page 2 Wednesday, November 2, 2011 5:31 PM
Preparing Your Radio for Use
English
3
What Your Dealer/System Administrator
Can Tell You
Check with your dealer or system administrator, if the radio is to
be operated in extremely cold temperatures (less than -30 °C or
more than +60 °C), for the correct radio settings to ensure
proper top display operation.
You can also consult your dealer or system administrator about
the following:
•Is your radio preprogrammed with any preset conventional
channels?
•Which buttons have been preprogrammed to access other
features?
•What optional accessories may suit your needs?
Preparing Your Radio for Use
Assemble your radio by following these steps:
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . .page 5
Attaching the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . . .page 7
Attaching the Accessory Connector Cover . . . . . . . . . .page 6
Turning On the Radio. . . . . . . . . . . . . . . . . . . . . . . . . . .page 7
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . .page 8
APX_7000_TopD.book Page 3 Wednesday, November 2, 2011 5:31 PM
Preparing Your Radio for Use
English
4
Charging the Battery
The Motorola-approved battery shipped with your radio is
uncharged. Prior to using a new battery, charge it for a minimum
of 16 hours to ensure optimum capacity and performance.
For a list of Motorola-authorized batteries available for use
with your radio, see Accessories on page 64.
Note: When charging a battery attached to a radio, turn the
radio off to ensure a full charge.
Battery Charger
To charge the battery, place the battery, with or without the
radio, in a Motorola-approved charger. The charger’s LED
indicates the charging progress; see your charger’s user guide.
For a list of chargers, see Accessories on page 64.
Attaching the Battery
With the radio turned off, slide the battery into the radio’s frame
until side latches click into place.
To avoid a possible explosion:
•DO NOT replace the battery in any area
labeled “hazardous atmosphere”.
•DO NOT discard batteries in a fire.
!!
APX_7000_TopD.book Page 4 Wednesday, November 2, 2011 5:31 PM
Preparing Your Radio for Use
English
5
To remove the battery,
turn the radio off. Squeeze
the release latches on the
bottom of the battery until
the battery releases from
the radio. Remove the
battery from the radio.
Note:If your radio is
preprogrammed
with volatile-key
retention, the
encryption keys
are retained for
approximately 30
seconds after
battery removal.
Check with your
dealer or system
administrator for
more information.
Attaching the Antenna
With the radio turned off, set the antenna in its receptacle and
turn clockwise to attach it to the radio.
To remove the antenna, turn the antenna counterclockwise.
Make sure you turn off the radio first.
Battery
Latch
APX_7000_TopD.book Page 5 Wednesday, November 2, 2011 5:31 PM
Preparing Your Radio for Use
English
6
Attaching the Accessory Connector
Cover
The accessory connector is located on the antenna side of the
radio. It is used to connect accessories to the radio.
Note: To prevent damage to the connector, shield it with the
connector cover when not in use.
Insert the hooked
end of the cover
into the slot above
the connector.
Press downward on
the cover’s top to
seat it in the slot.
Once in place, rotate
the thumbscrew
clockwise by hand
until tight.
To remove the accessory connector cover, rotate the
thumbscrew counterclockwise until it disengages from the radio.
If the thumbscrew is too tight, use an Allen wrench to loosen
it first.
Rotate and lift the connector cover to disengage it from
the radio.
Hooked End
Thumbscrew
Hex Socket
Head
APX_7000_TopD.book Page 6 Wednesday, November 2, 2011 5:31 PM
Preparing Your Radio for Use
English
7
Attaching the Belt Clip
Align the grooves of the
belt clip with those of the
radio and press upward
until you hear a click.
To remove the clip, use a
flat-bladed object to press
the belt clip tab away from
the radio. Then, slide the
clip downward and away
from the radio.
Turning On the Radio
Rotate the On/Off/Volume Control Knob clockwise until you
hear a click.
If the power-up test is successful, you see SELFTEST on the
radio’s display momentarily, followed by the Home screen.
Note: If the power-up test is unsuccessful, you see ERROR
XX/YY (XX/YY is an alphanumeric code).
Turn off the radio, check the battery, and turn the
radio back on. If the radio fails the power-up test
again, record the ERROR XX/YY code and contact
your dealer.
APX_7000_TopD.book Page 7 Wednesday, November 2, 2011 5:31 PM
Preparing Your Radio for Use
English
8
Note: If the power-up test is successful, but you see HW BRD
ABSENT or HW BRD MISMATCH. Then, send the radio
to the qualified technician to fix this error.
If the power-up test is successful, but you see, HW BRD
FAILED or MAN-DOWN HW ERROR, send the radio to
the qualified technician to fix this error.
To turn off the radio, rotate the On/Off/Volume Control Knob
counterclockwise until you hear a click.

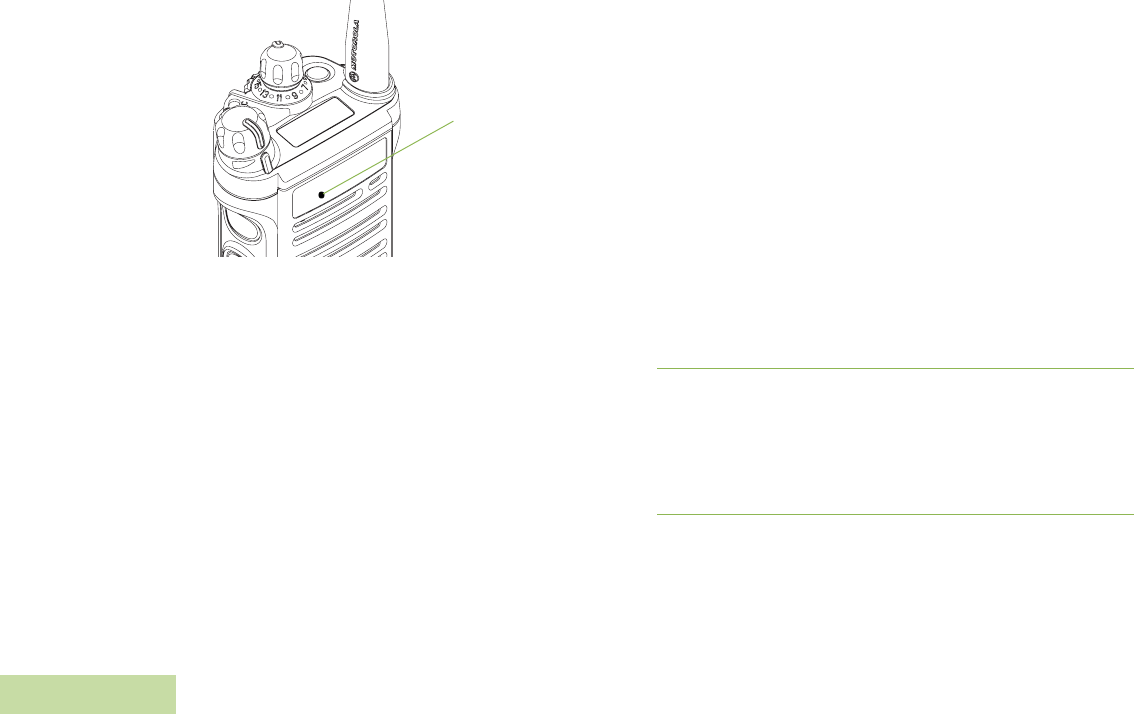

Adjusting the Volume
To increase the volume, turn the On/Off/Volume Control Knob
clockwise.
To decrease the volume, turn this knob counterclockwise.

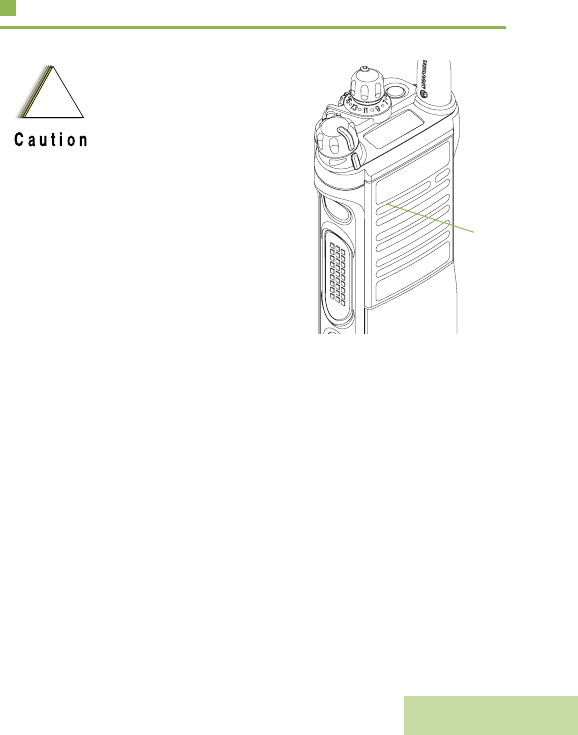

Note: Ensure that the main speaker is pointed towards you
for increased loudness and intelligibility, especially in
areas with loud background noises.
Main
Speaker
APX_7000_TopD.book Page 8 Wednesday, November 2, 2011 5:31 PM
Identifying Radio Controls
English
9
Identifying Radio Controls
Take a moment to review the following:
Radio Parts and Controls . . . . . . . . . . . . . . . . . . . . . . page 10
Programmable Features . . . . . . . . . . . . . . . . . . . . . . . page 11
Assignable Radio Functions . . . . . . . . . . . . . . . . . . page 11
Assignable Settings or Utility Functions. . . . . . . . . . page 12
Accessing the Preprogrammed Functions. . . . . . . . . . page 12
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . . page 13
APX_7000_TopD.book Page 9 Wednesday, November 2, 2011 5:31 PM
Identifying Radio Controls
English
10
Radio Parts and Controls
Antenna
1
LED
2
Accessory
Connector
4
On/Off/Volume
Control Knob
Battery Latch
9
63-Position A/B/C
Switch*
Battery
19
10 16-Position
Select Knob* 15 Top
Display
18 Main
Speaker
5
Side Button 2*
14
Side Button 1*
13
12 Push-to-Talk
(PTT) Button
* These radio controls/buttons are programmable
.
11 Top Side (Select)
Button* Microphone
17
72-Position Concentric
Switch*
Belt Clip
8
Top (Orange)
Button*
3
16 Bluetooth
Pairing
Indicator
APX_7000_TopD.book Page 10 Wednesday, November 2, 2011 5:31 PM
Identifying Radio Controls
English
11
Programmable Features
Any reference in this manual to controls that are
“preprogrammed” means that a qualified radio technician must
use the radio’s programming software to assign a feature to a
control.
Your dealer can program the programmable buttons as
shortcuts to radio functions or preset channels/groups
depending on the duration of a button press:
•Press – Pressing and releasing rapidly.
•Long press – Pressing and holding for the preprogrammed
duration (between 0.25 seconds and 3.75 seconds).
•Hold down – Keeping the button pressed.
Assignable Radio Functions
Bluetooth On/Off – Allows you to turn on/off the Bluetooth.
Bluetooth Audio Reroute – Allows you to toggle the audio
route between radio speaker or Remote Speaker Microphone
and Bluetooth headset.
Bluetooth Headset PTT – Keys up the Bluetooth Headset's
microphone.
Bluetooth Clear All Pairing – Allows you to clear all pairing
information for Bluetooth. This is accessed by a long press of
the Bluetooth On/Off Button.
Call Response – Allows you to answer a private call.
Dynamic Priority (Conventional Only) – Allows any channel
in a scan list (except for the Priority-One channel) to temporarily
replace the Priority-Two channel.
Emergency – Depending on the programming, initiates or
cancels an emergency alarm or call.
Internet Protocol – Displays the Internet Protocol (IP) address,
device name and status of the radio.
Man Down Clear – Clears the alarm of Man Down mode which
was triggered when your radio achieves or passes a tilt angle
threshold or a combination of the angle threshold and a motion
sensitivity level.
Monitor (Conventional Only) – Monitors a selected channel
for all radio traffic until function is disabled.
Nuisance Delete – Temporarily removes an unwanted channel,
except for priority channels or the designated transmit channel,
from the scan list.
One Touch 1 – 4 – Launches a specific feature with one single
button-press. You can setup as many as four separately
programmed buttons for four different features.
Private Line Defeat (Conventional Only) – Overrides any
coded squelch (DPL or PL) that is preprogrammed to a channel.
Rekey Request – Notifies the dispatcher you require a new
encryption key.
APX_7000_TopD.book Page 11 Wednesday, November 2, 2011 5:31 PM
Identifying Radio Controls
English
12
Repeater Access Button (RAB) (Conventional Only) –
Allows to manually send a repeater access codeword.
Reprogram Request (Trunking Only) – Notifies the dispatcher
you want a new dynamic regrouping assignment.
Request-To-Talk (Conventional Only) – Notifies the
dispatcher you want to send a voice call.
Scan – Toggles scan on or off.
Scan List Programming – Selects the scan list for editing (by
long press on the Scan button).
Secure Transmission Select (Conventional and Trunking) –
Toggles the Secure Transmission On or Off when the Secure/
Clear Strapping fields is set to “Select” for the radio’s current
channel, and when the radio is model/option capable.
Site Display/Search (Trunking Only) – Displays the current
site ID and RSSI value; performs site search for AMSS
(Automatic Multiple Site Select) or SmartZone operation.
Site Lock/Unlock (Trunking Only) – Locks onto a specific site.
Talkaround/Direct – Toggles between using a repeater and
communicating directly with another radio.
Basic Zone Bank – Provides access from up to 6 zones by
toggling between 2 banks of 3 zones, one group of 3 (A, B and
C) to a second group of 3 zones (D, E and F).
Enhanced Zone Bank – Provide access from up to 75 zones
by toggling between 25 banks (A, B ... X or Y) of 3 zones.
Assignable Settings or Utility Functions
Controls Lock – Locks or unlocks the programmable buttons,
switches and rotary knobs.
Light/Flip – Press the button to toggle display backlight on or
off; press and hold the button to reverse the content of the top
display.
TX Power Level – Toggles transmit power level between high
and low.
Voice Announcement – Audibly indicates the current feature
mode, Zone or Channel the user has just assigned.
Voice Mute – Toggles voice mute on or off.
Volume Set – Sets the volume set tone.
Accessing the Preprogrammed Functions
You can access various radio functions through a short or long
press of the relevant programmable buttons.
APX_7000_TopD.book Page 12 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
13
Push-To-Talk (PTT) Button
The PTT button on the side
of the radio serves two basic
purposes :
•While a call is in progress,
the PTT button allows the
radio to transmit to other
radios in the call.
Press and hold down PTT
button to talk. Release the
PTT button to listen.
The microphone is
activated when the PTT
button is pressed.
•While a call is not in
progress, the PTT button
is used to make a new
call. See Making a Radio
Call on page 25 for more
information.
Identifying Status Indicators
Your radio indicates its operational status through the following:
Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 13
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 15
Intelligent Lighting Indicators . . . . . . . . . . . . . . . . . . . .page 16
Alert Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 17
Status Icons
The 112 x 32 pixel top monochrome display screen of your radio
shows the radio status and operating conditions.
PTT
Button
Battery
For IMPRES™ battery operation only – the icon
shown indicates the charge remaining in the
battery.
For all battery operation – the icon blinks when
the battery is low.
Received Signal Strength Indicator (RSSI)
The number of bars displayed represents the
received signal strength for the current site, for
trunking only. The more stripes in the icon, the
stronger the signal.
U
V
APX_7000_TopD.book Page 13 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
14
Direct
•On = Radio is currently configured for direct
radio to radio communication (during
conventional operation only).
•Off = Radio is connected with other radios
through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored (during
conventional operation only).
Power Level
•L = Radio is set at Low power.
•H = Radio is set at High power.
Scan
Radio is scanning a scan list.
Priority Channel Scan
•Blinking dot = Radio detects activity on
channel designated as Priority-
One.
•Steady dot = Radio detects activity on channel
designated as Priority-Two.
N
M
H or L
J
j
Vote Scan Enabled
The vote scan feature is enabled.
Basic Zone Bank 1
•A = Radio is in Zone 1.
•B = Radio is in Zone 2.
•C = Radio is in Zone 3.
Basic Zone Bank 2
•D = Radio is in Zone 4.
•E = Radio is in Zone 5.
•F = Radio is in Zone 6.
Enhanced Zone Bank
A = Contains Zone 1, Zone 2 and Zone 3,
B = Contains Zone 4, Zone 5 and Zone 6,
C = Contains Zone 7, Zone 8 and Zone 9,
.
.
.
X = Contains Zone 70, Zone 71 and Zone 72,
Y = Contains Zone 73, Zone 74 and Zone 75.
I
A or B
or C
D or E
or F
A, B,
C... ...
x or
y
APX_7000_TopD.book Page 14 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
15
LED Indicator
The LED indicator shows the
operational status of your radio.
Solid red – Radio is transmitting.
Blinking red – Radio is
transmitting at low battery
condition.
Rapidly blinking red – Radio has
failed the self test upon powering
up or encountered a fatal error.
Solid yellow – Channel is busy.
(Conventional only.)
Blinking yellow – Radio is receiving a secured transmission.
Solid green – Radio is powering up, or is on a non-priority
channel while in the Scan List Programming mode.
Blinking green – Radio is receiving an individual or telephone
call, or is on a Priority-Two channel while in the Scan List
Programming mode.
Rapidly blinking green – Radio is on a Priority-One channel
while in the Scan List Programming mode.
Note: No LED indication when the radio receives a clear
(non-secured) transmission in trunking Mode.
Secure Operation
•On = Secure operation.
•Off = Clear operation.
•Blinking = Receiving an encrypted voice call.
Bluetooth On
Bluetooth is on and ready for bluetooth
connection.
Bluetooth Connected
Bluetooth is currently connected to the external
bluetooth device.
G
b
a
LED Indicator
APX_7000_TopD.book Page 15 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
16
Intelligent Lighting Indicators
This feature temporary changes the backlight of the top display screen to indicate a radio event has occurred.
Note: This feature must be preprogrammed by a qualified radio technician.
Backlight Notification When
Orange Emergency Alerts The radio initiates an emergency alarm or call.
The radio receives an emergency alarm or call.
Red Critical Alerts
The radio battery is low.
The radio is out of range.
The radio enters failsoft mode.
The radio is unable to establish a full connection with the system.
The radio is unable to authenticate or register with the system.
Green Call Alerts
The radio receives a private call.
The radio receives a phone call.
The radio receives a call alert.
The radio receives a selective call.
APX_7000_TopD.book Page 16 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
17
Alert Tones
An alert tone is a sound or group of sounds. Your radio uses alert tones to inform you of your radio’s condition. The following table lists
these tones and when they occur.
You Hear Tone Name Heard
Short,
Low-Pitched
Tone
Radio Self Test Fail When radio fails its power-up self test.
Reject When an unauthorized request is made.
Time-Out Timer Warning Four seconds before time out.
No ACK Received When radio fails to receive an acknowledgment.
Individual Call
Warning Tone When radio is in an individual call for greater than 6 seconds without any activity.
Man Down Entry When radio initiates Man Down mode.
Long,
Low-Pitched
Tone
Time-Out Timer
Timed Out After time out.
Talk Prohibit/PTT Inhibit (When PTT button is pressed) transmissions are not allowed.
Out of Range (When PTT button is pressed) the radio is out of range of the system.
Invalid Mode When radio is on an unpreprogrammed channel.
A Group of
Low-Pitched
Tones Busy When the system is busy.
APX_7000_TopD.book Page 17 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
18
Short,
Medium-Pitched
Tone
Valid Key-Press When a valid key is pressed.
Radio Self Test Pass When radio passes its power-up self test.
Clear Voice At beginning of a non-coded communication.
Priority Channel
Received When activity on a priority channel is received.
Emergency Alarm/Call
Entry When entering the emergency state.
Central Echo When central controller has received a request from a radio.
Long,
Medium-Pitched
Tone
Volume Set When volume is changed on a quiet channel.
Emergency Exit When exiting the emergency state.
A Group of
Medium-Pitched
Tones
Failsoft When the trunking system fails.
Automatic Call Back When voice channel is available from previous request.
Talk Permit (When PTT button is pressed) verifying system accepting transmissions.
Keyfail When encryption key has been lost.
Console Acknowledge When emergency alarm, or reprogram request ACK is received.
Received Individual Call When Call Alert or Private Call is received.
Site Trunking When a SmartZone trunking system fails.
You Hear Tone Name Heard
APX_7000_TopD.book Page 18 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
19
Short,
High-Pitched
Tone (Chirp) Low-Battery Chirp When battery is below preset threshold value.
Ringing
Fast Ringing When system is searching for target of Private Call.
Enhanced Call Sent When waiting for target of Private Call to answer the call.
Phone Call Received When a land-to-mobile phone call is received.
Gurgle Dynamic Regrouping (When the PTT button is pressed) a dynamic ID has been received.
Unique,
Low-Pitched
Chirp New Message When a new message is received.
Unique,
High-Pitched
Chirp Priority Status When a priority message is received.
Incremental-
Pitched Tone
Bluetooth Paired When Bluetooth accessory is paired with the radio.
Bluetooth Connected When Bluetooth accessory is connected to the radio.
Decremental-
Pitched Tone
Bluetooth Unpaired When Bluetooth accessory is unpaired from the radio.
Bluetooth Disconnected When Bluetooth accessory is disconnected from the radio.
A Group of Very
High-Pitched
Tones
Man Down Continuous
Tone
When radio is in Man Down mode and prepares to transmit Emergency Alarm
when the timer of this alarm ends.
You Hear Tone Name Heard
APX_7000_TopD.book Page 19 Wednesday, November 2, 2011 5:31 PM
Identifying Status Indicators
English
20
Doh-Sol Enhanced Zone Bank Up When EZB Up button is pressed to scroll the Enhance Zone Bank up.
Sol-Doh Enhanced Zone Bank
Down When EZB Down button is pressed to scroll the Enhance Zone Bank down.
You Hear Tone Name Heard
APX_7000_TopD.book Page 20 Wednesday, November 2, 2011 5:31 PM
General Radio Operation
English
21
General Radio Operation
Once you understand how your APX 7000 Portable is
configured, you are ready to use your radio.
Use this navigation guide to familiarize yourself with the basic
Call features:
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 21
Selecting a Radio Channel . . . . . . . . . . . . . . . . . . . . . page 22
Receiving and Responding to a Radio Call. . . . . . . . . page 22
Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . . page 25
Repeater or Direct Operation . . . . . . . . . . . . . . . . . . . page 25
Monitoring Features. . . . . . . . . . . . . . . . . . . . . . . . . . . page 26
Selecting a Zone
A zone is a group of channels.
Use the following procedure to select a zone.
Note: Your radio must be preprogrammed to allow you to use
this feature.
Procedure:

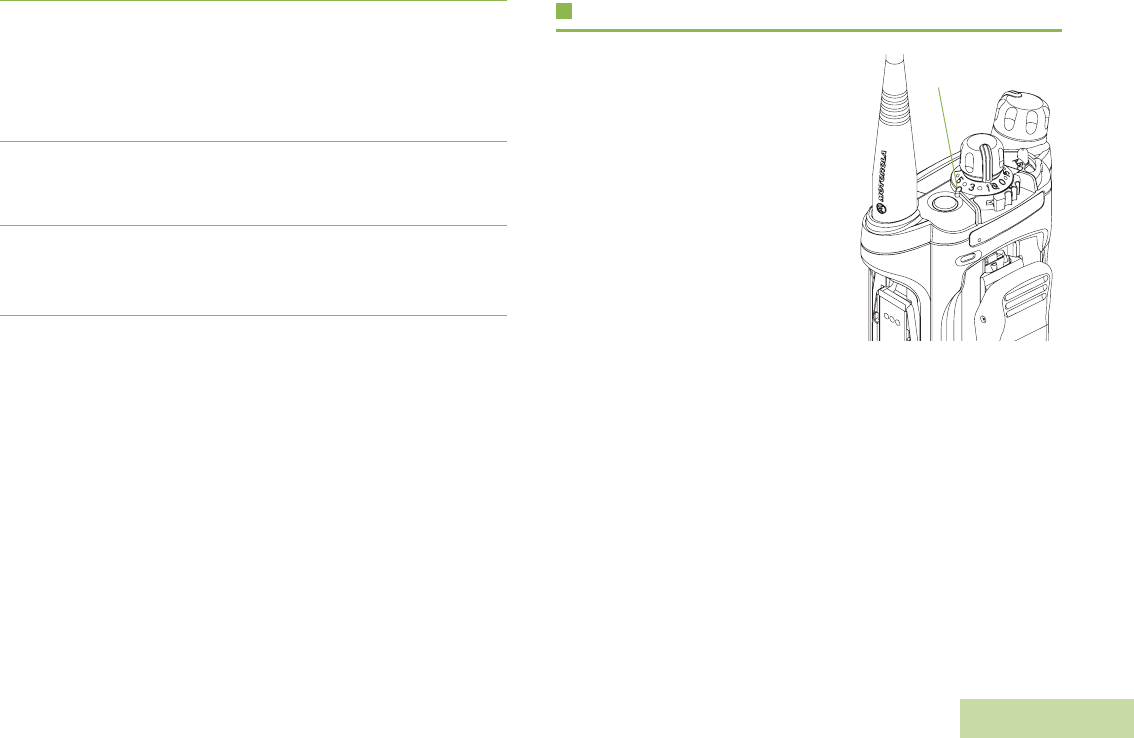

1Move the preprogrammed Zone (3-Position A/B/C) switch
to the position of the required zone.
2Press the PTT button to transmit on the displayed zone
channel.
3-Position
A/B/C Switch
APX_7000_TopD.book Page 21 Wednesday, November 2, 2011 5:31 PM
General Radio Operation
English
22
Selecting a Radio Channel
A channel is a group of radio characteristics, such as transmit/
receive frequency pairs.
Use the following procedure to select a channel.
Note: Your radio must be preprogrammed to allow you to use
this feature. If you select a channel that is not within the
preprogrammed band, the radio indicates that it is on
an unsupported frequency with an audio warning.
Procedure:
1Turn the preprogrammed 16-Position Select knob to the
desired channel.
2Press the PTT button to transmit on the displayed zone
channel.
Receiving and Responding to a Radio Call
Once you have selected the required channel and/or zone, you
can proceed to receive and respond to calls.
The LED lights up solid red while the radio is transmitting.In
conventional mode, the LED lights up solid yellow when the
radio is receiving a transmission. In trunking mode, there is no
LED indication when the radio receives a transmission.
If the radio is receiving a secure transmission, the LED blinks
yellow.
LED Indicator
APX_7000_TopD.book Page 22 Wednesday, November 2, 2011 5:31 PM
General Radio Operation
English
23
Receiving and Responding to a Talkgroup Call
To receive a call from a group of users, your radio must be
configured as part of that talkgroup.
Procedure:
When you receive a talkgroup call (while on the Home screen),
depending on how your radio is preprogrammed:
1ASTRO Conventional Only:
The LED lights up solid yellow.
OR
Trunking Only:
The display shows the caller alias or ID.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the PTT button to respond to the call. The LED lights
up solid red.
4Release the PTT button to listen.
See Making a Talkgroup Call on page 25 for details on making
a Talkgroup Call.
Receiving and Responding to a Private Call
(Trunking Only)
A Private Call is a call from an individual radio to another
individual radio.
These one-to-one calls between two radios are not heard by
others in the current talkgroup. The calling radio automatically
verifies that the receiving radio is active on the system and can
display the caller’s ID.
Note: The radio automatically exits the feature, if the feature
inactivity timer is enabled, when the radio is left idle
and the timer expires. You will hear the Inactive Exit
Tone upon feature exit.
Procedure:
When you receive a Private Call:
1You hear two alert tones and the LED blinks green. The
backlight of the screen turns green and the display shows
CALL RCV, alternating with the caller alias (name) or ID
(number).
APX_7000_TopD.book Page 23 Wednesday, November 2, 2011 5:31 PM
General Radio Operation
English
24
2Press the Call Response button within 20 seconds after the
call indicators begin.
3Press and hold the PTT button to talk. Release the PTT
button to listen.
4Press the Call Response button to hang up and return to
the Home screen.
You cannot initiate a Private Call.
Receiving and Responding to a Telephone Call
(Trunking Only)
This feature allows you to receive calls similar to standard
phone calls from a landline phone.
Note: The radio automatically exits the feature, if the feature
inactivity timer is enabled, when the radio is left idle
and the timer expires. You will hear the Inactive Exit
Tone upon feature exit.
Procedure:
When you receive a Telephone Call:
1You hear a telephone-type ringing and the LED blinks green.
The backlight of the screen turns green and the display
shows PHN CALL.
2Press the Call Response button within 20 seconds after the
call indicators begin.
3Press and hold the PTT button to talk. Release the PTT
button to listen.
4Press the Call Response button to hang up and return to
the Home screen.
You cannot initiate a Telephone Call.
APX_7000_TopD.book Page 24 Wednesday, November 2, 2011 5:31 PM
General Radio Operation
English
25
Making a Radio Call
You can select a zone, channel, or talkgroup by using:
•The preprogrammed Zone switch
•The Channel Selector Knob
Making a Talkgroup Call
To make a call to a group of users, your radio must be
configured as part of that talkgroup.
Procedure:
1Turn the Channel Selector Knob to select the channel with
the desired talkgroup.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the PTT button to make the call.
4ASTRO Conventional Only:
The LED lights up solid red. The display shows the
talkgroup alias or ID.
OR
Trunking Only:
The LED lights up solid red.
5Speak clearly into the microphone.
6Release the PTT button to listen.
Repeater or Direct Operation
The REPEATER operation increases the radio’s range by
connecting with other radios through a repeater. The transmit
and receive frequencies are different.
The DIRECT or “talkaround operation” allows you to bypass the
repeater and connect directly to another radio. The transmit and
receive frequencies are the same.
Procedure:
1Press the preprogrammed Repeater/Direct switch to toggle
between talkaround and repeater modes.
2The display shows RPTR MOD if the radio is currently in
Repeater mode.
OR
The display shows DIR MODE and the Talkaround icon if the
radio is currently in Direct mode (during conventional
operation only).
APX_7000_TopD.book Page 25 Wednesday, November 2, 2011 5:31 PM
General Radio Operation
English
26
Monitoring Features
Radio users who switch from analog to digital radios often
assume that the lack of static on a digital channel is an
indication that the radio is not working properly. This is not the
case. Digital technology quiets the transmission by removing
the “noise” from the signal and allowing only the clear voice or
data information to be heard.
Use the Monitor feature to make sure a channel is clear before
transmitting.
Monitoring a Channel
Procedure:
1Press the preprogrammed Monitor button.
2Press and hold the Volume Set button to hear the volume
set tone.
3Adjust the Volume Control knob if necessary.
4Release the Volume Set button.
5Press and hold the PTT button to transmit. The LED lights
up solid red.
6Release the PTT button to receive (listen).
The Carrier Squelch indicator appears on the display when you
monitor a channel via the preprogrammed Monitor button.
Conventional Mode Operation
Your radio may be preprogrammed to receive Private-Line®
(PL) calls.
Procedure:
1Momentarily press the Monitor button to listen for activity.
The Carrier Squelch indicator appears on the display.
2Press and hold the Monitor button to set continuous
monitor operation. The duration of the button press is
programmable.
3Press the Monitor button again, or the PTT button, to return
to the original squelch setting.
If you try to transmit on a receive-only channel, you hear an
invalid tone until you release the PTT button.
APX_7000_TopD.book Page 26 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
27
Advanced Features
Use this navigation guide to learn more about advanced
features available with your radio:
Advanced Call Features . . . . . . . . . . . . . . . . . . . . . . . page 27
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 29
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 30
Call Alert Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 32
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . page 32
Man Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 36
Secure Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . page 40
Trunking System Controls . . . . . . . . . . . . . . . . . . . . . . page 44
Mission Critical Wireless - Bluetooth® - . . . . . . . . . . . page 46
Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 50
Advanced Call Features
Receiving and Responding to a Selective Call
(Conventional Only)
This feature allows you to receive a call from or to call a specific
individual. It is intended to provide privacy and to eliminate the
annoyance of having to listen to conversations that are of no
interest to you.
Procedure:
1When you receive a Selective Call, you hear two alert tones
and the LED lights up solid yellow. The backlight of the
screen momentarily turns green and the display briefly
shows CALL RCV.
2The speaker unmutes.
3Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
4Press and hold the PTT button to talk. Release the PTT
button to listen.
You cannot initiate a Selective Call.
APX_7000_TopD.book Page 27 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
28
Using the Dynamic Regrouping Feature (Trunking
Only)
This feature allows the dispatcher to temporarily reassign
selected radios to a particular channel where they can
communicate with each other. This feature is typically used
during special operations and is enabled by a qualified radio
technician.
You will not notice whether your radio has this feature enabled
until a dynamic regrouping command is sent by the dispatcher.
Note: If you try to access a zone or channel that has been
reserved by the dispatcher as a dynamically regrouped
mode for other users, an invalid tone sounds.
Procedure:
1When your radio is dynamically regrouped, it automatically
switches to the dynamically regrouped channel. A “gurgle”
tone sounds and the display shows the dynamically
regrouped channel’s name.
2Press the PTT button to talk. Release PTT button to listen.
When the dispatcher cancels dynamic regrouping, the radio
automatically returns to the zone and channel that you were
using before the radio was dynamically regrouped.
Requesting a Reprogram (Trunking Only)
This feature allows you to notify the dispatcher when you want a
new dynamic regrouping assignment.
Procedure:
1Press the preprogrammed Reprogram Request button to
send reprogram request to the dispatcher.
2The display alternates between RPGM and PLS WAIT.
3If you hear five beeps, the dispatcher has acknowledged the
reprogram request. The display shows ACK RCVD and the
radio returns to the Home screen.
OR
If the dispatcher does not acknowledge the reprogram
request within six seconds, a low-pitched alert tone sounds
and the display shows NO ACK. The radio returns to the
Home screen.
APX_7000_TopD.book Page 28 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
29
Classifying Regrouped Radios
The dispatcher can classify regrouped radios into either of two
categories: Select Enabled or Select Disabled.
•Select-enabled radios are free to change to any available
channel, including the dynamic-regrouping channel, once the
user has selected the dynamic-regrouping position.
•Select-disabled radios cannot change channels while
dynamically regrouped. The dispatcher has forced the radio
to remain on the dynamic-regrouping channel.
The Scan or Private Call feature cannot be selected while your
radio is Select Disabled.
Scan Lists
Scan lists are created and assigned to individual channels/
groups. Your radio scans for voice activity by cycling through the
channel/group sequence specified in the scan list for the current
channel/group.
Your radio supports different types of Scan Lists:
•Trunking Priority Monitor Scan List
•Conventional Scan List
•Talkgroup Scan List
Please refer to a qualified radio technician for the maximum
number of Scan Lists can be programmed in your radio. These
lists must be preprogrammed by a qualified radio technician.
Viewing a Scan List
Procedure:
Turn the 16-Position Select knob to view the members on the
list.
APX_7000_TopD.book Page 29 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
30
Viewing and Changing the Priority Status
Procedure:
1Press the Top Side (Select) button to change the priority
status of the currently displayed channel or the scan list
status icon of the currently displayed channel.
2A Scan icon indicates that the current channel is in the scan
list as a non-priority channel. The LED lights up solid green.
OR
A Priority-Two Channel Scan icon indicates that the current
channel is in the scan list as the Priority-Two channel. The
LED blinks green.
OR
A Priority-One Channel Scan icon indicates that the current
channel is in the scan list as the Priority-One channel. The
LED rapidly blinks green. You hear all traffic on the Priority-
One channel, regardless of traffic on non-priority channels.
OR
No icon indicates that the current channel is deleted from
the scan list.
Scan
This feature allows you to monitor traffic on different channels
by scanning a preprogrammed list of channels.
Turning Scan On or Off
Procedure:
1Press the preprogrammed Scan button, or turn the
preprogrammed Scan switch to the Scan on or Scan off
position.
2The display shows SCAN ON and the scan icon, indicating
that scan is enabled.
OR
The display shows SCAN OFF, indicating that scan is
disabled.
APX_7000_TopD.book Page 30 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
31
Making a Dynamic Priority Change (Conventional
Scan Only)
While the radio is scanning, the dynamic priority change feature
allows you to temporarily assign any channel in a scan list
(except for the Priority-One channel) as the Priority-Two
channel.
This change remains in effect until scan is turned off. Scan then
reverts to the preprogrammed (original) setting.
Procedure:
1When the radio locks onto the channel designated as the
new Priority-Two channel, press the preprogrammed
Dynamic Priority button.
2The radio continues scanning the remaining channels in the
list.
Deleting a Nuisance Channel
If a channel continually generates unwanted calls or noise
(termed a “nuisance” channel), you can temporarily remove the
unwanted channel from the scan list.
This capability does not apply to priority channels or the
designated transmit channel.
Note: Deleting a “nuisance” channel is only possible through
the preprogrammed Nuisance Channel Delete
button.
Procedure:
1When the radio is locked onto the channel to be deleted,
press the preprogrammed Nuisance Delete button.
2The radio continues scanning the remaining channels in the
list.
Restoring a Nuisance Channel
Procedure:
To restore the deleted nuisance channel, do one of the
following:
•Turn the radio off and then turning it on again.
OR
•Stop and restart a scan via the preprogrammed Scan button.
OR
•Change the channel via the 16-Position Select knob.
APX_7000_TopD.book Page 31 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
32
Call Alert Paging
This feature allows your radio to work like a pager.
Note: This feature must be preprogrammed by a qualified
radio technician.
Receiving a Call Alert Page
Procedure:
1When you receive a Call Alert page, you hear four repeating
alert tones and the LED blinks green.
2The backlight of the screen turns green and the display
briefly shows PAGE RCV.
You cannot send a Call Alert page.
Emergency Operation
The Emergency feature is used to indicate a critical situation.
If the Top (Orange) button is preprogrammed to send an
emergency signal, this signal overrides any other
communication over the selected channel.
Your radio supports the following Emergency modes:
•Emergency Alarm
•Emergency Call (Trunking Only)
•Emergency Alarm with Emergency Call
•Silent Emergency Alarm
Check with your dealer or system administrator for more
information on the programming of this feature.
Only one of the Emergency modes above can be assigned to
the preprogrammed Emergency button.
Note: To exit emergency at any time, press and hold the
preprogrammed Emergency button for about a
second.
Man Down is an alternate way to activate the Emergency
feature on the condition the Emergency must be set up for this
feature to operate.
See Man Down on page 36 for details.
APX_7000_TopD.book Page 32 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
33
Sending an Emergency Alarm
This feature lets you send a data transmission, which identifies
the radio sending the emergency, to the dispatcher.
Note: Emergency button press timer by default is set to 1
second. This timer is programmable from 0 – 6
seconds by a qualified technician.
Procedure:
1Press and hold the preprogrammed Emergency button.
2The display shows EMERGNCY and the current zone or
channel. A short, medium-pitched tone sounds and the
LED momentarily blinks red.
OR
An invalid tone sounds, if the selected channel does not
support emergency.
3When you receive the dispatcher’s acknowledgment, the
display shows ACK RCVD. Four tones sound, the alarm
ends, and the radio exits the Emergency Alarm mode.
OR
If no acknowledgement is received, the display shows
NO ACK. The alarm ends and the radio exits the Emergency
Alarm mode.
Sending an Emergency Call (Trunking Only)
This feature gives your radio priority access on a channel.
Note: The radio operates in the normal dispatch manner
while in Emergency Call, except, if enabled, it returns
to one of the following:
•Tactical/Non-Revert – You talk on the channel you
selected before you entered the emergency state.
•Non-Tactical/Revert – You talk on a
preprogrammed emergency channel. The
emergency alarm is sent on this same channel.
Procedure:
1Press the preprogrammed Emergency button.
2The display shows EMERGNCY and the current zone or
channel. A short, medium-pitched tone sounds.
OR
An invalid tone sounds, if the selected channel does not
support emergency.
APX_7000_TopD.book Page 33 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
34
3Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
4Press and hold the PTT button. Speak clearly into the
microphone.
5Release the PTT button to end the transmission and wait for
a response from the dispatcher.
6Press and hold the preprogrammed Emergency button for
about a second to exit the Emergency Call mode.
Sending an Emergency Alarm with Emergency
Call
Procedure:
1Press the preprogrammed Emergency button.
2The display shows EMERGNCY and the current zone or
channel. A short, medium-pitched tone sounds and the
LED momentarily blinks red.
OR
An invalid tone sounds, if the selected channel does not
support emergency.
3The radio enters the Emergency Call state when:
You receive the dispatcher’s acknowledgment. The display
shows ACK RCVD.
OR
You receive no acknowledgement. The display shows
NO ACK.
OR
You press the PTT button while in the Emergency Alarm
mode.
4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
5Press and hold the PTT button. Speak clearly into the
microphone.
6Release the PTT button to end the transmission and wait for
a response from the dispatcher.
7Press and hold the preprogrammed Emergency button for
about a second to exit the Emergency Call mode.
APX_7000_TopD.book Page 34 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
35
Sending a Silent Emergency Alarm
This feature allows you to send an Emergency Alarm to another
radio without any audio or visual indicators.
Procedure:
1Press the preprogrammed Emergency button.
2The display shows no changes, the LED does not light up,
and you hear no tones.
3The silent emergency state continues until you:
Press and hold the preprogrammed Emergency button for
about a second to exit the Silent Emergency Alarm mode.
OR
Press and release the PTT button to exit the Silent
Emergency Alarm mode and enter regular dispatch or
Emergency Call mode.
Note: For ALL Emergency signals, when changing channels:
•If the new channel is also preprogrammed for
Emergency, you can change channels while in
Emergency operation. The emergency alarm or call
continues on the new channel.
•If the new channel is NOT preprogrammed for
Emergency, the display shows NO EMERG, and you
hear an invalid tone until you exit the Emergency
state or change to a channel preprogrammed for
Emergency.
Using the Emergency Keep-Alive Feature
This feature, when enabled, prevents the radio from being
turned off via the On/Off Control knob when the radio is in the
Emergency state.
Note: The radio only exits the Emergency state using one of
the ways mentioned in the previous sections.
See Sending an Emergency Alarm on page 33,
Sending an Emergency Call (Trunking Only) on
page 33, Sending an Emergency Alarm with
Emergency Call on page 34, or Sending a Silent
Emergency Alarm on page 35.
APX_7000_TopD.book Page 35 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
36
Man Down
Man Down condition is determined based upon the radio tilt
angle or a combination of radio tilt angle and the lack of radio
motion.
Man Down feature is an alternate way to activate the
Emergency feature if Emergency has been programmed in your
radio.
Your radio automatically activates Emergency Alarm or Call
when the radio achieves or passes a tilt angle threshold or a
combination of the angle threshold and radio motion below the
motion sensitivity level, depending upon how the radio is
programmed. The radio must stay in this condition for a
preprogrammed amount of time before the Emergency Alarm or
Call is activated.
Note: It is recommended that an Emergency button is
preprogrammed in order to allow the user to exit the
emergency condition.
The Man Down feature provides a Clear function to the user.
After a Man Down condition has been detected, the user can
press a preprogrammed Clear button or preprogrammed Menu
Select button to cancel the Man Down condition. The radio
remains in the Man Down state without triggering an emergency
condition until the radio is moved out of the Man Down state, at
which point Man Down functionality resumes.
The Man Down feature has three phases:
iThe radio senses the Man Down condition and Pre-Alert
Timer is initiated.
ii Man Down condition continues for the time duration defined
in the Pre-Alert Timer field. At the end of this time, the radio
alerts the user on the Man Down status with an audible alert
tone and Man Down text on the screen. The Post-Alert
Timer also initiates at this point.
iii Man Down condition continues for the time duration defined
in the Post-Alert Timer field. Once the timer expires, the
Emergency alarm is transmitted. The Man Down Clear
function is used in this phase to cancel the Man Down
condition.
The following scenarios affect the timers:
•Pressing the PTT button suspends the Man Down timers;
releasing the PTT button reinitiates the Pre-Alert Timer.
•Pressing other buttons on the radio does not impact these
timers.
•Repositioning the radio exits the Man Down feature, which
stops and resets the timers.
•Pressing a preprogrammed Clear button or pressing a Menu
Select button preprogrammed for Clear stops and resets the
timers. The timers do not restart until the radio is
repositioned.
APX_7000_TopD.book Page 36 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
37
Note: Emergency must be set up for this feature to operate.
For details on operating the Emergency alerts, please
see Emergency Operation on page 32.
If the radio is preprogrammed to horizontal only, it
must be worn in a vertical position otherwise the Man
Down alert may be inadvertently triggered.
When the radio is programmed with Man Down
feature, special care is required when charging the
radio with a wall mounted charger. See CHandling
Your Radio on page 61 for details.
Pre-Alert Timer
This timer sets the amount of time that a Man Down condition
must be present before the radio-user is warned of the Man
Down condition.
When the radio detects that it has returned to the vertical
position or when the radio detects motion, the Pre-Alert timer
stops and is reset.
The Pre-Alert timer reinitiates when the radio detects it is in the
horizontal position or motionless again.
Post-Alert Timer
This timer sets the amount of time the radio needs to remain in
the Man Down condition before the Emergency alarm is
transmitted. When the Post-Alert Timer is initiated, the radio
alerts the user with an audible tone and displays the “MAN-
DOWN” text.
See Exiting Man Down Feature on page 38 to exit Man Down
feature.
Alerting User When Man Down Feature is
Triggered
The Man Down alert tone volume is directly related to the
radio’s volume. Ensure that the radio’s volume is loud enough
so that the user does not miss the Post-Alert tone.
Note: If the radio is programmed with Silent Emergency, the
radio inhibits the alert tone and visual alert associated
with the emergency feature.
Note: If the radio is programmed in Surveillance Mode, the
radio inhibits all tones and lights on the radio including
the Man Down tones.
APX_7000_TopD.book Page 37 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
38
Triggering Emergency
When the user does not clear the Man Down condition and the
Post-Alert Timer comes to an end, Emergency Alarm or call is
triggered. The radio sends emergency message to units within
the same Talkgroup. The radio also sends ID number and GPS
coordinates to dispatcher if these features are enabled. User
can exit Emergency following the Emergency procedure. See
Emergency Operation on page 32 for details.
Note: At this point the Man Down features is complete. Use
normal Emergency procedures to cancel Emergency
transmissions.
Exiting Man Down Feature
If you are not in a real Man Down situation, you should exit the
Man Down feature and prevent emergency from going off with
the following operation.
Procedure:
Repositioning the radio or shaking the radio (when motion
sensitivity is enabled).
OR
Press the preprogrammed Man Down Clear button to exit.
OR
Press the Menu Select Button below Clr to exit.
Re-Initiating Man Down
After exiting the Emergency Operation when the radio is still in
Man Down condition (tilted achieving threshold angle or
motionless), user must first exit Man Down condition to then re-
initiate the Man Down feature.
Procedure:
Return the radio to the vertical position
OR
Shake the radio (when motion sensitivity is enabled).
APX_7000_TopD.book Page 38 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
39
Testing the Man Down Feature
Note: Enable the Emergency feature with Silent Alarm
disabled, but not in Surveillance Mode before running
this test on the radio.
Procedure:
When Man Down is enabled on the radio:
1Turn the radio on and place in the vertical position, for at
least 5 seconds.
2Lay the radio down in the horizontal position.
3Wait for alert tone.
4The radio alerts with audible tone and displays MAN-DOWN.
OR
If no tone is heard, make sure that the Man Down feature is
enabled on your radio. If Man Down feature was not
enabled, please enable it and go through steps 1,2 and 3
again.
OR
If the Man Down feature is enabled and no tone is heard,
send the radio to a qualified technician.
Handling Man Down Functional Error Messages
Procedure:
1If your radio display shows one of the following error
messages: HW BOARD ABSENT, MAN-DOWN HW ERROR or
HW BOARD MISMATCH. Send the radio to the qualified
technician to fix this error.
APX_7000_TopD.book Page 39 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
40
Secure Operations
Secure radio operation provides the highest commercially
available level of voice security on both trunked and
conventional channels.
Unlike other forms of security, Motorola digital encryption
provides signaling that makes it virtually impossible for others to
decode any part of an encrypted message.
Selecting Secure Transmissions
Procedure:
Turn the preprogrammed Secure/Clear switch to the secure
position.
Note: If the selected channel is preprogrammed for clear-only
operation – when you press the PTT button, an invalid
mode tone sounds and the display shows CLR TX.
The radio will not transmit until you set the Secure/
Clear switch to the clear position.
Selecting Clear Transmissions
Procedure:
Turn the preprogrammed Secure/Clear switch to the clear
position.
Note: If the selected channel is preprogrammed for secure-
only operation – when you press the PTT button, an
invalid mode tone sounds and the display shows SEC
TX.
The radio will not transmit until you set the Secure/
Clear switch to the secure position.
Advanced
APX_7000_TopD.book Page 40 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
41
Managing Encryption
Loading an Encryption Key
Note: Refer to the key-variable loader (KVL) manual for
equipment connections and setup.
Procedure:
1Attach the KVL to your radio.
2The display shows KEYLOAD, and all other radio functions,
except for power down, backlight, and volume, are locked
out.
3Select the required keys and press the Menu Select button
directly below LOAD on the KVL. This loads the encryption
keys into your radio.
4When the key has been loaded successfully, the radio
sounds a short tone for single-key radios.
OR
When the key has been loaded successfully, the radio
sounds an alternating tone for multikey radios.
Using the Multikey Feature
This feature allows the radio to be equipped with different
encryption keys and supports the DES-OFB algorithm.
There are two types:
•Conventional Multikey – The encryption keys can be tied
(strapped), on a one-per-channel basis, through Customer
Programming Software. In addition, you can have operator-
selectable keys, operator-selectable keysets, and operator-
selectable key erasure. If talkgroups are enabled in
conventional, then the encryption keys are strapped to the
talkgroups.
•Trunked Multikey – If you use your radio for both
conventional and trunked applications, you have to strap your
encryption keys for trunking on a per-talkgroup or
announcement-group basis. In addition, you may strap a
different key to other features, such as dynamic regrouping,
failsoft, or emergency talkgroup. You can have operator-
selectable key erasure.
APX_7000_TopD.book Page 41 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
42
Erasing the Selected Encryption Keys
This feature allows you to erase all or selected encryption keys.
Procedure:
Use the preprogrammed Top Side (Select) button and Top
(Orange) button to erase the single key in radios with the
single-key option, and to erase all keys in radios with the
multikey option.
1Press and hold the Top Side (Select) button.
2While holding Top Side (Select) button down, press the Top
(Orange) button.
3The display shows PLS WAIT.
4When all the encryption keys have been erased, the display
shows ALL ERASED.
Note: DO NOT press the Top (Orange) button before
pressing the Top Side (Select) button, unless you are
in an emergency situation as this sends an emergency
alarm.
Requesting an Over-the-Air Rekey (ASTRO Only)
This feature, also known as OTAR, allows the dispatcher to
reprogram the encryption keys in the radio remotely. The
dispatcher performs the rekey operation upon receiving a rekey
request from the user.
Procedure:
1Press and hold the preprogrammed Rekey Request button
to send the rekey request.
2If the rekey operation fails, a bad-key tone sounds and the
display shows RKY FAIL.
Note: The rekey operation failure indicates that your radio
does not contain the Unique Shadow Key (USK). This
key must be loaded into the radio with the key-variable
loader (KVL) before the rekey request can be sent.
Refer to your local key management supervisor for
more information.
APX_7000_TopD.book Page 42 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
43
MDC Over-the-Air Rekeying (OTAR) Page
This feature allows to view or define MDC Over-the-Air
Rekeying (OTAR) features.It is applied only when operating in
secure encrypted mode and only for conventional
communications. In additional to Rekey Requests, OTAR
transmissions include Delayed Acknowledgements, and Power-
up Acknowledgements.
Some of the options selected may also need to be set up at the
Key Management Controller (KMC) site to work properly.
Note: This feature must be preprogrammed by a qualified
radio technician. Check with your dealer or system
administrator for more information.
Hear Clear
There are two components of Hear Clear.
1Companding:
Reduces the channel noise, e.g. OTA transmission, that is
predominantly present in UHF2 and 900 MHz channel with
the following features.
•Compressor – reduces the background noise flow and the
speech signal at transmitting radio.
•Expander – expands the speech while the noise flow
remains the same at receiving radio.
2Random FM Noise Canceller (Flutter Fighter):
Reduces the unwanted effects of random FM noise pulses
caused by channel fading under high Signal-to-Noise (S/N)
conditions such as in a moving in a transportation. The fading
effects, heard as audio pops and clicks, are cancelled without
affecting the desired audio signal.
The Random FM Noise Canceller operates only in receive
mode.
Note: This feature must be preprogrammed by a qualified
radio technician. Check with your dealer or system
administrator for more information.
APX_7000_TopD.book Page 43 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
44
Trunking System Controls
Using the Failsoft System
The failsoft system ensures continuous radio communications
during a trunked system failure. If a trunking system fails
completely, the radio goes into failsoft operation and
automatically switches to its failsoft channel.
Procedure:
1During failsoft operation, your radio transmits and receives
in conventional operation on a predetermined frequency.
2A medium-pitched tone sounds every 10 seconds and the
display shows FAILSOFT.
When the trunking system returns to normal operation, your
radio automatically leaves failsoft operation and returns to
trunked operation.
Going Out of Range
When your radio goes out of the range of the system, it can no
longer lock onto a control channel.
Procedure:
1A low-pitched tone sounds.
AND/OR
The display shows the currently selected zone/channel
combination and OUT RNG.
2Your radio remains in this out-of-range condition until:
It locks onto a control channel.
OR
It locks onto a failsoft channel.
OR
It is turned off.
APX_7000_TopD.book Page 44 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
45
Using the Site Trunking Feature
If the zone controller loses communication with any site, that
site reverts to site trunking.
The display shows the currently selected zone/channel
combination and STE TRNK.
Note: When this occurs, you can communicate only with
other radios within your trunking site.
Locking and Unlocking a Site
This feature allows your radio to lock onto a specific site. This
feature should be used with caution, since it inhibits roaming to
another site in a wide-area system.
Procedure:
1Use the preprogrammed Site Lock/Unlock button to toggle
the lock state between locked and unlocked.
2The radio saves the new site lock state and returns to the
Home screen.
Viewing and Changing a Site
This feature allows you to view the name of the current site or
forces your radio to change to a new one.
Viewing the Current Site
Procedure:
1Press the preprogrammed Site Displ/Srch button.
2The display momentarily shows the name of the current
site and its corresponding received signal strength indicator
(RSSI).
Changing the Current Site
Procedure:
1Press and hold down the preprogrammed Site Displ/Srch
button.
2A tone sounds and the display momentarily shows
SCANNING.
3When the radio finds a new site, it returns to the Home
screen.
APX_7000_TopD.book Page 45 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
46
Mission Critical Wireless
- Bluetooth® -
This feature allows your radio to extend its functionality by
connecting to external proprietary Motorola Accessories.
The default setting for a Bluetooth-enabled radio is Bluetooth
ON. See Turning the Bluetooth Off on page 46 to turn the
Bluetooth OFF.
Note: Your radio must be preprogrammed to allow you to use
this feature.
Turning the Bluetooth On
Procedure:
1Press the preprogrammed button to turn the Bluetooth on.
2A short, medium-pitched tone sounds. The display shows
momentary BT ON, and b appears to indicate Bluetooth is
on.
OR
The display shows BT ON FL to indicate Bluetooth has failed
to launch.
Turning the Bluetooth Off
Procedure:
1Press the preprogrammed button to turn the Bluetooth off.
2A short, medium-pitched tone sounds. The display shows
momentary BT OFF, and b disappears.
Re-Pair Timer
There are two options for configuring the radio’s Bluetooth
pairing type. The type defines the duration the radio and the
accessory retain the pairing information.
•Immediate – (For headset and PTT only.) When the radio
and/or device is turned off after pairing, the keys are lost. Due
to this, when your radio and your device are turned back on,
they are unable to re-connect. The user must re-pair the
devices to re-establish a new set of pairing keys. See Pairing
the Bluetooth Device with the Radio on page 48.
•Infinite – (For headset, PTT and data devices.) When the
radio and/or device are turned off after pairing, keys are NOT
lost. When the radio and the device are turned back on, they
can resume the Bluetooth connection without user
intervention.
APX_7000_TopD.book Page 46 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
47
Bluetooth Drop Timer
The Bluetooth Drop Timer has two different settings and
functions, depending upon the selection of the Re-Pair Timer.
Check with your dealer or system administrator for more
information about these timers.
See Pairing the Bluetooth Device with the Radio on page 48
to establish the Bluetooth Connection.
Re-Pair Timer
Options Re-Pair Timer Scenarios
Immediate
(for headset
and PTT only)
•When the radio is powered OFF, pairing
key is lost immediately, and accessory
attempts to pair again. If pairing is
unsuccessful within the Drop Timer value,
the accessory automatically powers OFF.
•When the accessory is powered OFF, all
keys are lost immediately, and the user
must re-pair the devices.
•When the devices lose Bluetooth
connection, the devices will attempt to re-
establish Bluetooth Connection within the
Drop Timer value.
Infinite
(for headset,
PTT and data
devices)
•When the radio is powered OFF, the
accessory attempts to re-establish the
Bluetooth Connection for a period of time
depending upon the Drop Timer value. If
the devices fails to reconnect within the
period, the accessory then powers OFF.
Re-Pair Timer
Options Drop Timer Options
Immediate
(for headset
and PTT only)
0 – 15 minutes programmable buffer time to
re-establish the Bluetooth Connection when
the Bluetooth signal is out of range.
If either device powers OFF, the pairing keys
are immediately cleared from both devices
and the devices must re-pair.
Infinite
(for headset,
PTT and data
devices)
This Timer only applies to the Accessory.
The programmable timer choices are: 0 – 15
minutes, 2 hours, 4 hours or 8 hours.
This is a "stay alive" time that the Accessory
will remain ON without the devices re-
connecting before powering off. The Radio
will remain ON until the user powers the
Radio OFF. The Radio and Accessory will
remain paired indefinitely. Once the devices
re-connect, the timer is reset.
APX_7000_TopD.book Page 47 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
48
Pairing the Bluetooth Device with the Radio
The range of Bluetooth operation is 10 meters line-of-sight
communication. This is an unobstructed path between the
location of the signal transmitter (your radio) and the location of
the receiver (your device or accessory).
Obstacles that can cause an obstruction in the line-of-sight
include trees, buildings, mountains, cars and etc.
It is NOT recommended that you leave your radio behind and
expect your accessory to work with a high degree of reliability
when they are separated.
At the fringe areas of reception, both voice and tone quality will
start to sound "garbled" or "broken". To correct this problem,
simply position the Accessory and Radio closer to each other
(within the 10 meter defined range) to re-establish clear audio
reception.
Procedure:
Note: Bluetooth tones, Bluetooth menu and Preprogrammed
buttons must be preprogrammed by a qualified radio
technician. Check with your dealer or system
administrator for more information.
With your radio’s Bluetooth feature ON, and the Bluetooth tones
enabled:
1Turn on the accessory, then place it close to your radio
aligning the Bluetooth Pairing Location on the radio to the
blue dot-pairing indicator on the accessory.
2If the pairing process is successful, the radio sounds an
incremental-pitched tone to indicate paired.
OR
If the pairing process fails, the radio sounds a short, low-
pitched tone. The display shows PAIRFAIL. Repeat step 1
again.
Bluetooth
Pairing
Location
APX_7000_TopD.book Page 48 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
49
3The radio continues to connect to the device.
If the connecting process is successful, the radio sounds an
incremental-pitched tone. The display shows <Device
Type> CONNCTED, and the Bluetooth icon turns from b to
a.
OR
If the device already has pairing records and the connecting
process fails, the radio sounds a short, low-pitched tone.
The display shows <Device Type> CON FAIL. Repeat step
2 to reconnect the Bluetooth device.
OR
If the connecting process is immediately following the
pairing process and the connecting process fails to
complete within the 6 seconds, the radio sounds a
decremental-pitched tone to indicate unpaired. The display
shows <Device Type> UNPAIRED. Repeat step 1 to re-
initiate the pairing process.
Indicating the Bluetooth Connection is Lost
The radio shows a when the devices have a Bluetooth
connection. Below is the scenario and radio indications when
the connection is interrupted.
Procedure:
1The Bluetooth icon starts blinking for 10 seconds. The radio
sounds an decremental-pitched tone and the display shows
<Device Type> alternates with CON LOST.
2If the Bluetooth device successfully re-connects before the
Bluetooth Drop Timer expires, the display shows momentary
<Device Type> CONNCTED, and a shows persistently.
OR
If the Bluetooth device fails to re-connect within 10 seconds,
the blinking a is replaced by a persistent b.
Turning the Bluetooth Audio On (Routing the
Audio from the Radio to the Headset)
Procedure:
1Press the preprogrammed button to route the audio from the
radio to the headset.
2A short, medium-pitched tone sounds. The display shows
HDSET ON.
Turning the Bluetooth Audio Off (Routing the
Audio from the Headset to the Radio)
Procedure:
1Press the preprogrammed button to route the audio from the
headset to the radio.
2A short, medium-pitched tone sounds. The display shows
SPKR ON.
APX_7000_TopD.book Page 49 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
50
Adjusting the Volume of the Radio from Bluetooth
Audio Device
Procedure:
With the Bluetooth audio device connected to the radio:
1Adjust volume up/down on the bluetooth audio device.
2The radio display shows VOL XX and sounds a short,
medium-pitched tone.
Clearing All Bluetooth Devices Information
1Long press the preprogrammed Bluetooth On/Off button. A
short, medium-pitched tone sounds.
2The display shows PLS WAIT to indicate clearing is in
progress.
3The display shows ALL CLR to indicate clearing is
successful.
OR
The radio sounds a short, low-pitched tone. The display
shows CLR FAIL to indicate clearing has failed.
Note: If Re-Pair Timer is set to infinite and you clear keys on
the radio, you must clear keys on all previously paired
devices as well. (Please see your accessories manual
for further details.)
Utilities
Using the Flip Display
This feature allows you to reverse the content of the top display
upside down. It is particularly useful when you would like to read
the top display while the radio is still in the carry holder attached
to your belt.
Procedure:
Press and hold the preprogrammed Light/Flip button to reverse
the display.
Selecting a Basic Zone Bank
This feature allows twice as many zones to be accessed from a
switch, doubling the amount of switch positions.
Note: The Zone Select feature must be preprogrammed to
the 3-position A-B-C switch, while the Basic Zone Bank
feature must be preprogrammed to any side button or
Top (Orange) button before you can use this feature.
APX_7000_TopD.book Page 50 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
51
Procedure:
1Use the preprogrammed Basic Zone Bank button to toggle
the position between Bank 1 and Bank 2.
2The top display shows the status icons (A, B, C, D, E or F) or
the zone name based on the bank and switch position
selected.
See Basic Zone Bank 1 and Basic Zone Bank 2 on page 14
for more information on the status icons.
Selecting an Enhanced Zone Bank
This feature is created in order to allow users to communicate in
more zones. An Enhanced Zone Bank (EZB) consists of three
zones. This also means each icon A, B, C, ... or Y consists of
three zones. You can use the preprogrammed 3-position A-B-C
switch to select the first, second or third zone in an EZB.
This feature allows user to navigate from up to 75 zones in 25
EZBs.
Note: The Zone Select feature must be preprogrammed to
the 3-position A-B-C switch, while the Enhanced Zone
Bank feature must be preprogrammed to any side
button or Top (Orange) button before you can use this
feature.
Procedure:
1Press the preprogrammed EZB Up or EZB Down button to
scroll the EZB up or down.
OR
Press and hold the preprogrammed EZB Up or EZB Down
button to fast scroll the EZB up or down.
2Turn the 3-Position A/B/C Switch to select the first, second
or third zone in the selected EZB.
Selecting the Power Level
This feature enables you to reduce the transmit power level for
specific case that require a lower power level. You can select
the power level at which your radio transmits. The radio always
turns on to the default setting.
Note: Please refer to your agent or qualified radio technician
to enable or disable this feature.
These reduced transmit power level settings do not affect your
radio’s receiving performance, nor diminish the overall quality of
ther adio’s audio and data functionality given the following
conditions.
APX_7000_TopD.book Page 51 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
52
Settings:
•Select Low for a shorter transmitting distance and to
conserve power.
•Select High for a longer transmitting distance.
Procedure:
1Press the preprogrammed Transmit Power Level Switch
to toggle the power level between low and high power.
2The display shows LOW PWR and the low power icon.
OR
The display shows HIGH PWR and the high power icon.
Controlling the Display Backlight
You can enable or disable the radio’s display backlight as
needed, if poor light conditions make the display difficult to read.
Procedure:
Press the preprogrammed Light/Flip button to toggle the
backlight on or off.
OR
Press any programmable radio controls or buttons to turn the
backlight on.
Note: The backlight remains on for a preprogrammed time
before it automatically turns off completely or returns to
the minimum backlight level.
Locking and Unlocking the Controls
You can lock your radio’s programmable buttons, switches and
rotary knobs to avoid inadvertent entry. Check with your dealer
or qualified technician for best selection to suite your usage.
Procedure:
1Toggle the preprogrammed Keypad Lock button or switch
to on.
2The display shows CTRL LCK.
Toggle again to unlock.
APX_7000_TopD.book Page 52 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
53
Turning Voice Mute On or Off
You can enable and disable voice transmission, if needed.
Procedure:
1Press the preprogrammed Voice Mute button to turn the
feature off or on.
2The display momentarily shows VMUT OFF, and a short tone
sounds, indicating that the feature is disabled.
OR
The display momentarily shows VMUT ON, and a short tone
sounds, indicating that the feature is enabled.
Using the Time-Out Timer
This feature turns off your radio’s transmitter. You cannot
transmit longer than the preset timer setting.
If you attempt to do so, the radio automatically stops your
transmission, and you hear a talk-prohibit tone.
The timer is defaulted at 60 seconds, but it can be
preprogrammed from 3 to 120 seconds, in 15-second intervals,
or it can be disabled entirely for each radio mode, by a qualified
radio technician.
Note: You will hear a brief, low-pitched, warning tone four
seconds before the transmission times out.
Procedure:
1Hold down the PTT button longer than the preprogrammed
time. You hear a short, low-pitched warning tone, the
transmission is cut-off, and the LED goes out until you
release the PTT button.
2Release the PTT button. The timer resets.
3Press the PTT button to re-transmit. The time-out timer
restarts and the LED lights up solid red.
APX_7000_TopD.book Page 53 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
54
Using the Conventional Squelch Operation
Features
This feature filters out unwanted calls with low signal strength or
channels that have a higher than normal background noise.
Analog Options
Tone Private Line (PL), Digital Private-Line (DPL), and carrier
squelch can be available (preprogrammed) per channel.
Digital Options
One or more of the following options may be preprogrammed in
your radio. Check with your dealer or system administrator for
more information.
Using the PL Defeat Feature
This feature allows you to override any coded squelch (DPL or
PL) that might be preprogrammed to a channel. The radio will
also unmute to any digital activity on a digital channel.
Procedure:
Place the preprogrammed PL Defeat switch in the PL Defeat
position. You hear any activity on the channel.
OR
The radio is muted if no activity is present.
Note: When this feature is active, the Carrier Squelch status
indicator is displayed.
Mode Result
Carrier squelch (C) You hear all traffic on a channel.
PL or DPL The radio responds only to your
messages.
Option Result
Digital Carrier-Operated
Squelch (COS) You hear any digital traffic.
Normal Squelch You hear any digital traffic having
the correct network access code.
Selective Switch
You hear any digital traffic having
the correct network access code
and correct talkgroup.
APX_7000_TopD.book Page 54 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
55
Using the Digital PTT ID Feature
This feature allows you to see the radio ID (number) of the radio
from whom you are currently receiving a transmission. This ID,
consisting up to a maximum of eight characters, can be viewed
by both the receiving radio and the dispatcher.
Your radio’s ID number is also automatically sent every time the
PTT button is pressed. This is a per-channel feature. For digital
voice transmissions, your radio’s ID is sent continuously during
the voice message.
Using the Smart PTT Feature (Conventional Only)
Smart PTT is a per-personality, programmable feature used in
conventional radio systems to keep radio users from talking
over other radio conversations.
When smart PTT is enabled in your radio, you cannot transmit
on an active channel.
If you try to transmit on an active smart-PTT channel, you hear
an alert tone, and the transmission is inhibited. The LED lights
up solid yellow to indicate that the channel is busy.
Three variations of smart PTT are available:
Transmit Inhibit
on Busy Channel
with Carrier
You cannot transmit if any traffic is
detected on the channel.
Transmit Inhibit
on Busy Channel
with Wrong
Squelch Code
You cannot transmit on an active
channel with a squelch code or
(if secure-equipped) encryption key
other than your own. If the PL code is
the same as yours, the transmission is
not prevented.
Quick-Key
Override
This feature can work in conjunction
with either of the two above variations.
You can override the transmit-inhibit
state by quick-keying the radio. In other
words, two PTT button presses within
the preprogrammed time limit.
APX_7000_TopD.book Page 55 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
56
Voice Announcement
This feature enables the radio to audibly indicate the current
feature mode, Zone or Channel the user has just assigned. This
audio indicator can be customized per customer requirements.
This is typically useful when the user is in a difficult condition to
read the content shown on the display.
Each voice announcement is within a limit of three seconds
maximum. The sum total duration for all voice announcements
in a radio shall be no more than 1000 seconds.
Note: This feature must be preprogrammed by a qualified
radio technician.
The features which Voice Announcement supports are:
•Zone
•Channel
•Scan
•PL Disabled
•Talkaround/Direct
•Tx Inhibit
Note: Voice announcements support certain number of zone-
channel, but not all.
Seek advice from your dealer or qualified technician for
the best selections for this feature.
The two options of priority for the Voice Announcement
available are:
•High – enables the voice of the feature to announce even
when the radio is receiving calls.
•Low – disables the voice of the feature from announcing
when the radio is receiving calls.
APX_7000_TopD.book Page 56 Wednesday, November 2, 2011 5:31 PM
Advanced Features
English
57
Procedure:
You hear a voice announcement when the features below are
preprogrammed in the radio.
•The radio powers up. The radio announces the current zone
and channel it is transmitting.
•Press the preprogrammed voice announcement button
(which specifically programmed to playback the current zone
and channel). The radio announces the current zone and
channel it is transmitting.
Note: Pressing this preprogrammed playback button will
always enable the voice feature to announce in High
priority.
All the three programmable buttons at the side of the
radio support this feature.
•Change to a new zone. The radio announces the current
zone and channel it is transmitting.
•Change to a new channel remaining within the current zone.
The radio announces the current channel.
•Press either the preprogrammed button or switch of the radio
to launch or terminate Scan, PL Disabled, Talkaround/Direct
or Transmit Inhibit. The radio announces the corresponding
feature activation.
APX_7000_TopD.book Page 57 Wednesday, November 2, 2011 5:31 PM
Helpful Tips
English
58
Helpful Tips
Take a moment to review the following:
Acoustic Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 58
Caring for Your Radio . . . . . . . . . . . . . . . . . . . . . . . . . page 59
Cleaning Your Radio . . . . . . . . . . . . . . . . . . . . . . . . page 60
CHandling Your Radio . . . . . . . . . . . . . . . . . . . . . . . page 61
Servicing Your Radio. . . . . . . . . . . . . . . . . . . . . . . . page 61
Taking Care of the Battery. . . . . . . . . . . . . . . . . . . . . . page 62
Checking the Battery Charge Status . . . . . . . . . . . . page 62
Battery Recycling and Disposal. . . . . . . . . . . . . . . . page 63
Acoustic Safety
Exposure to loud noises from any source for
extended periods of time may temporarily or
permanently affect your hearing. The louder the
radio's volume, the less time is required before
your hearing could be affected. Hearing damage
from loud noise is sometimes undetectable at
first and can have a cumulative effect.
To protect your hearing:
•Use the lowest volume necessary to do your
job.
•Turn up the volume only if you are in noisy
surroundings.
•Turn down the volume before adding headset
or earpiece.
•Limit the amount of time you use headsets or
earpieces at high volume.
•When using the radio without a headset or
earpiece, do not place the radio's speaker
directly against your ear.
!
APX_7000_TopD.book Page 58 Wednesday, November 2, 2011 5:31 PM
Helpful Tips
English
59
Note: Your radio is preprogrammed to reset to medium
volume rate, which is Level 12, by default whenever the
radio powers up.
Caring for Your Radio
•If you experience hearing discomfort, ringing
in your ears, or muffled speech, you should
stop listening to the radio through your
headset or earpiece and have your hearing
checked by your doctor.
See www.motorola.com/hearingsafety for more
information.
•Your radio casting has
a vent port that allows
for pressure
equalization in the
radio. Never poke this
vent with any objects,
such as needles,
tweezers, or
screwdrivers. This
could create leak
paths into the radio
and the radio’s
submergibility will be
lost.
•(For APX 7000 R Radios Only)
Your radio is designed to be submerged to a
maximum depth of 6 feet, with a maximum
submersion time of 2 hours. Exceeding either
maximum limit may result in damage to the
radio.
!
Vent
Port
APX_7000_TopD.book Page 59 Wednesday, November 2, 2011 5:31 PM
Helpful Tips
English
60
Cleaning Your Radio
Procedure:
To clean the external surfaces of your radio:
1Combine one teaspoon of mild dishwashing detergent to
one gallon of water (0.5% solution).
2Apply the solution sparingly with a stiff, non-metallic, short-
bristled brush, making sure excess detergent does not get
entrapped near the connectors, controls or crevices. Dry the
radio thoroughly with a soft, lint-free cloth.
3Clean battery contacts with a lint-free cloth to remove dirt or
grease.
•(For APX 7000 R Radios Only)
Elastomer technology materials used for seals
in rugged portable radios can age with time and
environmental exposure. Therefore, Motorola
recommends that rugged radios be checked
annually as a preventive measure in order to
assure the watertight integrity of the radio.
Motorola details the disassembly, test, and
reassembly procedures along with necessary
test equipment needed to inspect, maintain and
troubleshoot radio seals in the radio’s service
manual.
•If the radio battery contact area has been
submerged in water, dry and clean the radio
battery contacts before attaching a battery to the
radio. Otherwise, the water could short-circuit
the radio.
•If the radio has been submerged in water, shake
the radio well so that any water that may be
trapped inside the speaker grille and
microphone port can be removed. Otherwise,
the water will decrease the audio quality of the
radio.
•Do not disassemble the radio. This could
damage radio seals and result in leak paths into
the radio. Any radio maintenance should be
performed only by a qualified radio technician.
!
Do not use solvents to clean your radios as most
chemicals may permanently damage the radio
housing and texture.
Do not submerge the radio in the detergent
solution.
!
APX_7000_TopD.book Page 60 Wednesday, November 2, 2011 5:31 PM
Helpful Tips
English
61
CHandling Your Radio
•Do not pound, drop, or throw the radio unnecessarily. Never
carry the radio by the antenna.
•Avoid subjecting the radio to an excess of liquids. Do not
submerge the radio unless it is a ruggedized, APX 7000 R
model.
•Avoid subjecting the radio to corrosives, solvents or
chemicals.
•Do not disassemble the radio.
•Keep the accessory-connector cover in place until ready to
use the connector. Replace the cover immediately once the
accessory has been disconnected.
•When charging the radio using a wall mounted charger, the
radio must be turned off. Otherwise, the Man Down Alert
and Emergency may be accidentally triggered.
Servicing Your Radio
Proper repair and maintenance procedures will assure efficient
operation and long life for this product. A Motorola maintenance
agreement will provide expert service to keep this and all other
communication equipment in perfect operating condition. A
nationwide service organization is provided by Motorola to
support maintenance services. Through its maintenance and
installation program, Motorola makes available the finest
service to those desiring reliable, continuous communications
on a contract basis. For a contract service agreement, please
contact your nearest Motorola service or sales representative,
or an authorized Motorola dealer.
Express Service Plus (ESP) is an optional extended service
coverage plan, which provides for the repair of this product for
an additional period of either one or two years beyond the
normal expiration date of the standard warranty. For more
information about ESP, contact the Motorola Radio Support
Center at 3761 South Central Avenue, Rockford, IL 61102 (800)
227-6772 / (847)725-4200.
APX_7000_TopD.book Page 61 Wednesday, November 2, 2011 5:31 PM
Helpful Tips
English
62
Taking Care of the Battery
Checking the Battery Charge Status
Your radio can indicate the battery’s charge status through:
•the LED and sounds.
•the fuel gauge icon on the display.
LED and Sounds
When your battery is low:
•the LED blinks red when the PTT button is pressed.
•you hear a low-battery “chirp” (short, high-pitched tone).
Fuel Gauge Icon
A blinking fuel gauge icon ( ) is displayed only when the
battery voltage drops to low level. In this case, replace the
battery with a fully charged one.
*These are for IMPRES battery operation only.
0
Gauge Battery Charge
76% to 100% full*
51% to 75%*
26% to 50%*
11% to 25%*
10% or less (at 10%, the gauge begins blinking)
U
T
S
R
Q
APX_7000_TopD.book Page 62 Wednesday, November 2, 2011 5:31 PM
Helpful Tips
English
63
Battery Recycling and Disposal
In the U.S. and Canada, Motorola participates in the nationwide
Rechargeable Battery Recycling Corporation (RBRC) program
for battery collection and recycling. Many retailers and dealers
participate in this program.
For the location of the drop-off facility closest to you, access
RBRC's Internet web site at www.rbrc.com or call 1-800-8-
BATTERY. This internet site and telephone number also provide
other useful information concerning recycling options for
consumers, businesses, and governmental agencies.
APX_7000_TopD.book Page 63 Wednesday, November 2, 2011 5:31 PM
Accessories
English
64
Accessories
The accessory link below is for the family of products for APX.
Not all accessories are FCC certified for operation with all APX
models and/or bandsplits. Please refer to the specific
subscriber APX price pages for a list of FCC certified
accessories or contact your sales representative for accessory
compatibility.
http://www.motorolasolutions.com/APX
Highlights for the Accessories
1GPS only antenna is only used in either a single band UHF
or 700/800 application where the Public Safety Microphone
(PSM) is used with the corresponding PSM antenna. This
antenna is only for GPS reception and cannot be used for
receive/transmit operation at UHF, VHF or 700/800. This
antenna is never to be used on the PSM.
APX_7000_TopD.book Page 64 Wednesday, November 2, 2011 5:31 PM
Appendix: Maritime Radio Use in the VHF Frequency Range
English
65
Appendix: Maritime Radio Use in the
VHF Frequency Range
Take a moment to review the following:
Special Channel Assignments. . . . . . . . . . . . . . . . . . . page 65
Operating Frequency Requirements . . . . . . . . . . . . . . page 66
Special Channel Assignments
Emergency Channel
If you are in imminent and grave danger at sea and require
emergency assistance, use VHF Channel 16 to send a distress
call to nearby vessels and the United States Coast Guard.
Transmit the following information, in this order:
1“MAYDAY, MAYDAY, MAYDAY.”
2“THIS IS _____________________, CALL SIGN
__________.”
State the name of the vessel in distress 3 times, followed
by the call sign or other identification of the vessel, stated 3
times.
3Repeat “MAYDAY” and the name of the vessel.
4“WE ARE LOCATED AT _______________________.”
State the position of the vessel in distress, using any
information that will help responders to locate you, e.g.:
• latitude and longitude
• bearing (state whether you are using true or magnetic
north)
• distance to a well-known landmark
• vessel course, speed or destination
5State the nature of the distress.
6Specify what kind of assistance you need.
7State the number of persons on board and the number
needing medical attention, if any.
8Mention any other information that would be helpful to
responders, such as type of vessel, vessel length and/or
tonnage, hull color, etc.
9“OVER.”
10 Wait for a response.
11 If you do not receive an immediate response, remain by the
radio and repeat the transmission at intervals until you
receive a response. Be prepared to follow any instructions
given to you.
Non-Commercial Call Channel
For non-commercial transmissions, such as fishing reports,
rendezvous arrangements, repair scheduling, or berthing
information, use VHF Channel 9.
APX_7000_TopD.book Page 65 Wednesday, November 2, 2011 5:31 PM
Appendix: Maritime Radio Use in the VHF Frequency Range
English
66
Operating Frequency Requirements
A radio designated for shipboard use must comply with Federal
Communications Commission Rule Part 80 as follows:
• on ships subject to Part II of Title III of the Communications
Act, the radio must be capable of operating on the 156.800
MHz frequency
• on ships subject to the Safety Convention, the radio must be
capable of operating:
• in the simplex mode on the ship station transmitting
frequencies specified in the 156.025 – 157.425 MHz
frequency band, and
• in the semiduplex mode on the two frequency channels
specified in the table below.
Note: Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83
cannot be lawfully used by the general public in US
waters.
Additional information about operating requirements in the
Maritime Services can be obtained from the full text of FCC
Rule Part 80 and from the US Coast Guard.
Table A-1: VHF Marine Channel List
Channel
Number
Frequency (MHz)
Transmit Receive
1 156.050 160.650
2 156.100 160.700
* 156.150 160.750
4 156.200 160.800
5 156.250 160.850
6 156.300 –
7 156.350 160.950
8 156.400 –
9 156.450 156.450
10 156.500 156.500
11 156.550 156.550
12 156.600 156.600
13** 156.650 156.650
14 156.700 156.700
15** 156.750 156.750
16 156.800 156.800
17** 156.850 156.850
18 156.900 161.500
19 156.950 161.550
20 157.000 161.600
* 157.050 161.650
22 157.100 161.700
Table A-1: VHF Marine Channel List (Continued)
Channel
Number
Frequency (MHz)
Transmit Receive
APX_7000_TopD.book Page 66 Wednesday, November 2, 2011 5:31 PM
Appendix: Maritime Radio Use in the VHF Frequency Range
English
67
* Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83 cannot be
lawfully used by the general public in US waters.
** Low power (1 W) only
*** Guard band
Note: A – in the Receive column indicates that the channel is
transmit only.
* 157.150 161.750
24 157.200 161.800
25 157.250 161.850
26 157.300 161.900
27 157.350 161.950
28 157.400 162.000
60 156.025 160.625
* 156.075 160.675
62 156.125 160.725
63 156.175 160.775
* 156.225 160.825
65 156.275 160.875
66 156.325 160.925
67** 156.375 156.375
68 156.425 156.425
69 156.475 156.475
71 156.575 156.575
72 156.625 –
73 156.675 156.675
74 156.725 156.725
Table A-1: VHF Marine Channel List (Continued)
Channel
Number
Frequency (MHz)
Transmit Receive
75 *** ***
76 *** ***
77** 156.875 –
78 156.925 161.525
79 156.975 161.575
80 157.025 161.625
* 157.075 161.675
* 157.125 161.725
* 157.175 161.775
84 157.225 161.825
85 157.275 161.875
86 157.325 161.925
87 157.375 161.975
88 157.425 162.025
Table A-1: VHF Marine Channel List (Continued)
Channel
Number
Frequency (MHz)
Transmit Receive
APX_7000_TopD.book Page 67 Wednesday, November 2, 2011 5:31 PM
Glossary
English
68
Glossary
This glossary is a list of specialized terms used in this manual.
Term Definition
ACK Acknowledgment of communication.
Active Channel A channel that has traffic on it.
Analog Signal An RF signal that has a continuous nature
rather than a pulsed or discrete nature.
ARS Automatic Registration Service
ASTRO 25
Trunking Motorola standard for wireless digital
trunked communications.
ASTRO
Conventional Motorola standard for wireless digital
conventional communications.
Autoscan A feature that allows the radio to
automatically scan the members of a scan
list.
Bluetooth
Bluetooth is an open wireless technology
standard for exchanging data over short
distances from fixed and mobile devices
with high levels of security.
Bluetooth
Pairing
Bluetooth pairing occurs when two
bluetooth devices exchanged a passkey to
form a paired Bluetooth wireless
connection.
Call Alert Privately page an individual by sending an
audible tone.
Carrier Squelch
Feature that responds to the presence of
an RF carrier by opening or unmuting
(turning on) a receiver’s audio circuit. A
squelch circuit silences the radio when no
signal is being received so that the user
does not have to listen to “noise”.
Central
Controller
A software-controlled, computer-driven
device that receives and generates data for
the trunked radios assigned to it. It
monitors and directs the operations of the
trunked repeaters.
Channel A group of characteristics such as transmit/
receive frequency pairs, radio parameters,
and encryption encoding.
Term Definition
APX_7000_TopD.book Page 68 Wednesday, November 2, 2011 5:31 PM
Glossary
English
69
Control Channel
In a trunking system, one of the channels
that is used to provide a continuous, two-
way/data communications path between
the central controller and all radios on the
system.
Conventional Typically refers to radio-to-radio
communications, sometimes through a
repeater (see Trunking).
Conventional
Scan List A scan list that includes only conventional
channels.
Deadlock
Displayed by the radio after three failed
attempts to unlock the radio.The radio must
be powered off and on prior to another
attempt.
Digital Private
Line (DPL)
A type of coded squelch using data bursts.
Similar to PL except a digital code is used
instead of a tone.
Digital Signal An RF signal that has a pulsed, or discrete,
nature, rather than a continuous nature.
Dispatcher An individual who has radio system
management duties.
Term Definition
Dynamic
Regrouping
A feature that allows the dispatcher to
temporarily reassign selected radios to a
single special channel so they can
communicate with each other.
Failsoft
A feature that allows communications to
take place even though the central
controller has failed. Each trunked repeater
in the system transmits a data word
informing every radio that the system has
gone into failsoft.
FCC Federal Communications Commission.
FM Frequency Modulation
Hang Up Disconnect.
Home screen The first display information after the radio
completes its self test.
KVL Key-variable loader: A device for loading
encryption keys into the radio.
LCD Liquid crystal display.
LED Light-emitting diode.
LiIon Lithium ion.
Term Definition
APX_7000_TopD.book Page 69 Wednesday, November 2, 2011 5:31 PM
Glossary
English
70
Man Down
A life-saving feature that senses the radio
user may be in trouble by monitoring the
whether the radio is in a vertical or
horizontal position or whether the radio is
motionless.
When this feature is triggered, the radio
alerts the user with audio and visual alerts.
It can also trigger Emergency Alarm if
enabled.
Monitor
Check channel activity by pressing the
Monitor button. If the channel is clear, you
hear static. If the channel is in use, you
hear conversation. It also serves as a way
to check the volume level of the radio,
since the radio “opens the squelch” when
the monitor button is pressed.
Multi-System
Talkgroup Scan
List
A scan list that can include both talkgroups
(trunked) and channels (conventional).
Network Access
Code
Network Access Code (NAC) operates on
digital channels to reduce voice channel
interference between adjacent systems
and sites.
NiMH Nickel-metal-hydride.
Term Definition
Non-Tactical/
Revert
The user talks on a preprogrammed
emergency channel. The emergency alarm
is sent out on this same channel.
OTAR Over-the-air rekeying.
Page A one-way alert, with audio and/or display
messages.
Personality A set of unique features specific to a radio.
Preprogrammed Refers to a software feature that has been
activated by a qualified radio technician.
Private Line
(PL)
A sub-audible tone that is transmitted such
that only receivers decoding the tone
receives it.
Programmable Refers to a radio control that can have a
radio feature assigned to it.
PTT Push-To-Talk – the PTT button engages
the transmitter and puts the radio in
transmit (send) operation when pressed.
Radio
Frequency (RF)
The part of the general frequency spectrum
between the audio and infrared light
regions (about 10 kHz to 10,000,000 MHz).
Term Definition
APX_7000_TopD.book Page 70 Wednesday, November 2, 2011 5:31 PM
Glossary
English
71
Repeater
A conventional radio feature, where you
talk through a receive/transmit facility that
re-transmits received signals, in order to
improve communications range and
coverage.
Selective Switch Any digital P25 traffic having the correct
Network Access Code and the correct
talkgroup.
Squelch
Special electronic circuitry, added to the
receiver of a radio, that reduces, or cuts off,
unwanted signals before they are heard in
the speaker.
Standby An operating condition whereby the radio’s
speaker is muted but still continues to
receive data.
Status Calls Pre-defined text messages that allow the
user to send a conditional message without
talking.
Term Definition
Tactical/
Non-Revert
The user talks on the channel that was
selected before the radio entered the
emergency state.
Talkaround Bypass a repeater and talk directly to
another unit for easy local unit-to-unit
communications.
Talkgroup An organization or group of radio users
who communicate with each other using
the same communication path.
Trunking The automatic sharing of communications
paths between a large number of users
(see Conventional).
Trunking
Priority Monitor
Scan List
A scan list that includes talkgroups that are
all from the same trunking system.
USK Unique Shadow Key.
Zone A grouping of channels.
Term Definition
APX_7000_TopD.book Page 71 Wednesday, November 2, 2011 5:31 PM
Commercial Warranty
English
72
Commercial Warranty
Limited Warranty
MOTOROLA COMMUNICATION PRODUCTS
I. WHAT THIS WARRANTY COVERS AND FOR HOW
LONG:
MOTOROLA SOLUTIONS INC. (“MOTOROLA”) warrants the
MOTOROLA manufactured Communication Products listed below
(“Product”) against defects in material and workmanship under
normal use and service for a period of time from the date of
purchase as scheduled below:
MOTOROLA, at its option, will at no charge either repair the
Product (with new or reconditioned parts), replace it (with a new or
reconditioned Product), or refund the purchase price of the Product
during the warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or boards are
warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of
MOTOROLA.
This express limited warranty is extended by MOTOROLA to the
original end user purchaser only and is not assignable or
transferable to any other party. This is the complete warranty for the
Product manufactured by MOTOROLA. MOTOROLA assumes no
obligations or liability for additions or modifications to this warranty
unless made in writing and signed by an officer of MOTOROLA.
Unless made in a separate agreement between MOTOROLA and
the original end user purchaser, MOTOROLA does not warrant the
installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary
equipment not furnished by MOTOROLA which is attached to or
used in connection with the Product, or for operation of the Product
with any ancillary equipment, and all such equipment is expressly
excluded from this warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims liability for range,
coverage, or operation of the system as a whole under this
warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of MOTOROLA'S
responsibilities regarding the Product. Repair, replacement or
refund of the purchase price, at MOTOROLA’s option, is the
exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR
SAVINGS OR OTHER INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
ASTRO 7000 Portable Units One (1) Year
Product Accessories One (1) Year
APX_7000_TopD.book Page 72 Wednesday, November 2, 2011 5:31 PM
Commercial Warranty
English
73
INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT
SUCH MAY BE DISCLAIMED BY LAW.
III. STATE LAW RIGHTS:
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY
NOT APPLY.
This warranty gives specific legal rights, and there may be other
rights which may vary from state to state.
IV. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase
and Product item serial number) in order to receive warranty
service and, also, deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty service location.
Warranty service will be provided by MOTOROLA through one of its
authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or
communication service provider), it can facilitate your obtaining
warranty service. You can also call MOTOROLA at 1-800-927-2744
US/Canada.
V. WHAT THIS WARRANTY DOES NOT COVER:
A)Defects or damage resulting from use of the Product in other
than its normal and customary manner.
B)Defects or damage from misuse, accident, water, or neglect.
C)Defects or damage from improper testing, operation,
maintenance, installation, alteration, modification, or adjustment.
D)Breakage or damage to antennas unless caused directly by
defects in material workmanship.
E)A Product subjected to unauthorized Product modifications,
disassembles or repairs (including, without limitation, the addition
to the Product of non-MOTOROLA supplied equipment) which
adversely affect performance of the Product or interfere with
MOTOROLA's normal warranty inspection and testing of the
Product to verify any warranty claim.
F) Product which has had the serial number removed or made
illegible.
G)Rechargeable batteries if:
(1) any of the seals on the battery enclosure of cells are broken
or show evidence of tampering.
(2) the damage or defect is caused by charging or using the
battery in equipment or service other than the Product for which it
is specified.
H)Freight costs to the repair depot.
I) A Product which, due to illegal or unauthorized alteration of the
software/firmware in the Product, does not function in
accordance with MOTOROLA’s published specifications or the
FCC certification labeling in effect for the Product at the time the
Product was initially distributed from MOTOROLA.
J) Scratches or other cosmetic damage to Product surfaces that
does not affect the operation of the Product.
K)Normal and customary wear and tear.
APX_7000_TopD.book Page 73 Wednesday, November 2, 2011 5:31 PM
Commercial Warranty
English
74
VI. PATENT AND SOFTWARE PROVISIONS:
MOTOROLA will defend, at its own expense, any suit brought
against the end user purchaser to the extent that it is based on a
claim that the Product or parts infringe a United States patent, and
MOTOROLA will pay those costs and damages finally awarded
against the end user purchaser in any such suit which are
attributable to any such claim, but such defense and payments are
conditioned on the following:
A)that MOTOROLA will be notified promptly in writing by such
purchaser of any notice of such claim;
B)that MOTOROLA will have sole control of the defense of such
suit and all negotiations for its settlement or compromise; and
C)should the Product or parts become, or in MOTOROLA’s opinion
be likely to become, the subject of a claim of infringement of a
United States patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure for
such purchaser the right to continue using the Product or parts or
to replace or modify the same so that it becomes non-infringing
or to grant such purchaser a credit for the Product or parts as
depreciated and accept its return. The depreciation will be an
equal amount per year over the lifetime of the Product or parts as
established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent
infringement which is based upon the combination of the Product or
parts furnished hereunder with software, apparatus or devices not
furnished by MOTOROLA, nor will MOTOROLA have any liability
for the use of ancillary equipment or software not furnished by
MOTOROLA which is attached to or used in connection with the
Product. The foregoing states the entire liability of MOTOROLA with
respect to infringement of patents by the Product or any parts
thereof.
Laws in the United States and other countries preserve for
MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software such as the exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which the software was
originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to
produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or
reverse engineering of such MOTOROLA software or exercise of
rights in such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
VII. GOVERNING LAW:
This Warranty is governed by the laws of the State of Illinois, U.S.A.
