Motorola Solutions 89FT5832 iDEN i315 with MOTOtalk User Manual i315ConchPlusMot
Motorola Solutions, Inc. iDEN i315 with MOTOtalk i315ConchPlusMot
User Manual
Motorola
iDEN
Digital Multi-service Data-capable Phone
i315 Phone User’s Guide
BETA DRAFT
@NNTN5504A@
NNTN5504A
IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR PHONE
The SIM card provided in this kit is intended for use with
the phone provided in this package.
Loss of certain features will result when using a SIM
card from one of the following models: i30sx, i35s,
i50sx, i55sr, i58sr, i60c, i80s, i85s, i88s, i90c, i95cl
series, and the i2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden/support.
Defects or damage to your Motorola phone that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited One Year warranty in this
user’s guide for complete details.
i
Contents
Getting Started........................................... 1
Locating Your SIM Card....................................2
Activating Service..............................................5
Powering On and Off.........................................5
Enabling Over-the-Air Security..........................6
Phone Programming .........................................6
Finding Your Phone Number.............................7
Phone Basics ....................................................7
SIM Card Security ...........................................11
Locking the Keypad.........................................14
Accessories.....................................................15
For More Information.......................................15
Making Calls............................................. 16
Phone Calls.....................................................16
Private Calls ....................................................16
Receiving Calls................................................16
Call Icons.........................................................17
Ways to Enter Calls.........................................17
Using Speakerphone.......................................19
Using Mute ......................................................20
Making Emergency Phone Calls .....................20
MOTOtalk ..................................................21
Using MOTOtalk..............................................21
Switching to MOTOtalk ...................................22
Setup Options .................................................22
MOTOtalk Icons ..............................................23
Channels and Codes.......................................23
MOTOtalk Private Calls...................................25
Making a MOTOtalk Call .................................26
Receiving a MOTOtalk Call.............................26
Assigning a MOTOtalk Number in Contacts ...26
Recent Calls....................................................26
Making Emergency Calls from MOTOtalk .......26
Call Alerts..................................................27
Sending Call Alerts..........................................27
Receiving Call Alerts .......................................27
Using the Call Alert Queue..............................27
Recent Calls..............................................29
Storing Recent Calls to Contacts ....................29
ii
Deleting Recent Calls......................................30
Contacts ................................................... 31
Viewing Contacts.............................................32
Creating Entries...............................................33
Storing Numbers Faster ..................................34
Editing Entries .................................................35
Deleting Entries...............................................35
Checking Capacity ..........................................35
Creating Pauses and Waits.............................36
International Numbers.....................................36
Accessing Contacts with GSM Phones...........37
Call Forwarding........................................ 38
Forwarding All Calls ........................................38
Turning Off Call Forwarding ............................39
Forwarding Missed Calls.................................39
Viewing Call Forwarding Settings....................40
Advanced Calling Features..................... 41
Call Waiting .....................................................41
Call Hold..........................................................42
3-Way Calling..................................................42
Creating Pauses and Waits While Dialing.......43
Making International Calls...............................43
Setting One Touch PTT ..................................43
Group Calls .....................................................44
Call Timers ......................................................45
Using Your Phone as a Modem ......................46
Making TTY Calls............................................47
Memo.........................................................49
Ring Tones................................................50
Setting Your Phone to Vibrate.........................50
Turning Ring Tones Off...................................50
Ring and Vibrate .............................................51
Assigning Ring Tones to Contacts ..................51
Viewing Ring Tone Assignments ....................52
Downloading More Ring Tones.......................52
Managing Memory ..........................................52
Deleting Custom Ring Tones ..........................52
Entering Text ............................................54
Using Alpha Mode...........................................54
Using Word Mode ...........................................54
iii
Special Function Keys.....................................55
Using Numeric Mode.......................................56
Using Symbols Mode ......................................56
Messages ................................................. 57
Message Notifications .....................................57
Message Center..............................................58
Voice Mail Messages............................... 59
Receiving a Message......................................59
Accessing Voice Mail from
the Message Center ...................................59
Sending Unanswered Calls to Voice Mail .......59
MOSMS Messages................................... 60
Setting Up........................................................60
Receiving a Message......................................60
Reading from the Message Center .................61
Creating and Sending Messages ....................61
Managing Memory...........................................65
GPS Enabled ............................................ 66
IMPORTANT: Things to Keep in Mind ............66
Making an Emergency Call .............................67
Viewing Your Approximate Location ...............68
Enhancing GPS Performance .........................69
Updating Satellite Almanac Data ....................71
Setting Privacy Options...................................71
Using GPS with Map Software........................72
Voice Records ..........................................75
Creating Voice Records ..................................75
Playing Voice Records ....................................75
Labelling Voice Records .................................76
Deleting Voice Records...................................76
Locking Voice Records ...................................76
Managing Memory ..........................................76
Customizing Your Phone.........................78
Setting the Volume..........................................78
Setting Your Phone to Not Ring ......................78
Seeing the Display Better................................79
Using Settings .................................................79
Using a Headset .......................................82
Attaching a Headset........................................82
Using a Remote PTT Button ...........................82
iv
Understanding Status Messages........... 83
Safety and General Information ............. 85
RF Operational Characteristics .......................85
Portable Radio Product Operation and EME
Exposure.....................................................85
Electro Magnetic Interference/Compatibility....88
Medical Devices ..............................................88
Operational Warnings......................................89
Operational Cautions.......................................90
Accessory Safety Information..........................91
MOTOROLA LIMITED WARRANTY ........ 93
Limited Warranty
Motorola Communication Products
(International) ....................................... 97
Patent and Trademark Information ...... 101
Index ....................................................... 102
Driving Safety Tips ................................ 107
v
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name: i315
Model Number: H69XAH6RR1AN
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a),
15.107(d) and section 15.109(a)
Class B Digital Device
Note: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
1
Getting Started
audio jack
accessory connector
volume
controls
speaker
(in back)
Push-To-Talk
(PTT) button
microphone
antenna
back key
option keys
pPower button.
Navigation key — press the arrows to
scroll through menus and lists.
mMenu key — accesses context-sensitive
menus.
AOption key — selects the option
appearing above it on the display.
Note: Throughout this User Guide, the
option keys will be represented
by A.
sSend key — places phone calls.
eEnd key — ends phone calls; returns to
idle screen; in browser mode, returns to
Net main menu.
2
Getting Started
To start using your i315 phone:

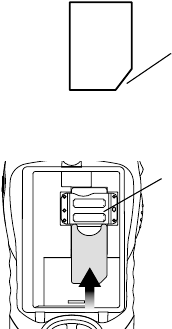

•Make sure your SIM card is in place.
•Charge the battery.
•Activate your service.
•Enable over-the-air security.
Removing the Battery Door
1Make sure the phone is powered off.
2Slide the release button forward until it releases
the battery door.
3Remove the battery door from the back of your
phone.
Locating Your SIM Card
Your SIM (Subscriber Identity Module) card is a
small piece of plastic located in the SIM card
holder in the back of your phone, underneath the
battery.
SIM card
holder
SIM card
3
Locating Your SIM Card
If your SIM card is not in the SIM card holder, it
may be in the box your phone came in, attached to
a piece of white plastic about the size of a credit
card. If this is the case, carefully detach your SIM
card from the surrounding plastic and insert it as
described in “Inserting Your SIM Card” on page 13.
If there is no SIM card in your phone or the box,
contact your service provider.
Battery
Inserting the Battery
1Remove the battery door.
2Insert the top of the battery into the battery area.
Press the bottom of the battery to secure it.
3Replace the battery door and press it gently until
you hear a click.
Charging the Battery
Your phone comes with a standard travel charger.
1Plug the charger into an electrical outlet.
2Open the connector cover.
connector
cover
4
Getting Started
3Plug the other end of the charger into the
accessory connector.
Charger Attached appears on the display.
Tip: To remove the charger from the accessory
connector: Press the buttons on the sides
of the plug. Pull the plug straight out.
4When charging the battery for the first time,
charge for 30 minutes longer than the time
shown in “Charging Times”.
Charging Times
See your battery and charger to determine the
appropriate charging time.
For best results, charge the batteries within the
temperature range of 50°F to 104°F (10°C to
40°C).
Prolonged charging is not recommended.
Removing the Battery
1With the phone powered off, remove the battery
door.
Battery Charger
Rapid Mid-Rate
Slim 2 hours 3 hours
High
Performance 2 hours 4 hours
Extra
Capacity 2.5 hours 5.5 hours
Maximum
Capacity 3.5 hours 7.5 hours
5
Activating Service
2Remove the battery by pushing the battery
toward the antenna and lifting it out.
Battery Use and Maintenance
•The Motorola iDEN Approved Lithium Ion
chargers provide optimum performance. Other
chargers may not fully charge the iDEN Lithium
Ion battery or may yield a reduced number of
lifetime charge cycles.
•Extreme temperatures degrade battery
performance. Do not store the battery where
temperatures exceed 140°F (60°C) or fall below
4°F (-20°C).
•Lithium Ion batteries have a self discharge rate
and without use, lose about 1% of their charge
per day.
•The battery capacity is degraded if the battery is
stored for long periods while fully charged. If
long term storage is required, store at half
capacity.
Activating Service
The first time you power on your phone, you must
be in your local calling area. This activates your
service.
Powering On and Off
To power your phone on:
Press p.
To power your phone off:
Press and hold p.
When You Power On for the First Time
The first time you power your phone on, screen
may appear asking you to update your browser
information. This means you must enable security.
If the Enter SIM PIN Code screen appears, enter
your SIM PIN. See “Entering the PIN” on page 11.
Press A under Ok.
When you receive your phone, the SIM PIN is
0000. Change your PIN to prevent fraudulent use
of the SIM card (see “Changing the PIN” on page
11).
6
Getting Started
As your phone connects to the network, you will
see a connecting message. When the idle screen
appears, the phone is ready to use.
Enabling Over-the-Air
Security
If you are set up to receive over-the-air
programming from your service provider, you must
enable security the first time you power on your
phone or within 20 days of first activation of your
phone:
1When you power on your phone for the first time,
after the idle screen appears, you will be
prompted to select Ok to update your browser
information.
Note: If you press A under Later, you will be
prompted to enable security each time
you power on your phone until you press
A under Ok.
2Press A under Ok.
3You are prompted to enable security. Press A
under Yes. A series of screens appears. If you
subscribe to your service provider’s plan, your
home page appears.
4Press e to return to the idle screen.
Phone Programming
Within 24 hours of enabling security, you will
receive a Net alert containing your Private ID and
Talkgroup lists for Private calls.
To accept programming:
1When you receive a Net alert saying New
Browser Message - Receive Programming
Info, press A under Goto.
2You are prompted to accept changes to your
lists. Press A under Ok.
3If you are prompted again to accept changes to
your lists, press A under Ok.
4A confirmation screen displays. Press A under
Ok.
5Press e to return to the idle screen.
Contcs
sd1
S
7
Finding Your Phone Number
Finding Your Phone Number
My Info lets you view your phone number, Private
ID, and other phone information:
1Press m to access the main menu.
2Scroll to My Info.
3Press A under Select.
4Scroll to see your information:
•Name — Enter your name. See “Entering
Text” on page 54.
•Line1 and Line 2 — your phone numbers for
phone lines 1 and 2. These are filled in when
you receive your first Private call after
enabling over-the-air security on your phone.
•Private — Your Private ID is the number that
others use to contact you using Private ID
calls. It is filled in when you receive your first
Private call.
• Group ID — the number of the Talkgroup you
have joined.
• Carrier IP — the IP address assigned to your
service provider. It is filled in when you
register for packet data services.
• IP1 Address and IP2 Address — the IP
addresses you use to access the Internet with
your phone.
•Ckt — Your circuit data number is the number
you use if you want to use your phone to
transfer circuit data. See “Using Your Phone
as a Modem” on page 46. You receive this
number from your service provider.
Note: The context-sensitive menu under My Info
contains information that may be used by
your service provider if there is a problem
with your phone.
Phone Basics
Any time your phone is powered on, the display
provides you with information and options.
Contcs
sd1
S
status icons
text area
menu icon
display options
8
Getting Started
The screen shown above is the idle screen. The
text that appears on your idle screen depends on
your service provider. The idle screen appears
when your phone is on, but not engaged in any
activity.
Text Area
This area displays menus, messages, names,
phone numbers, and other information.
Display Options
Two display options appear at the bottom of most
screens. You select a display option by pressing
the option key below it.
Menus and Lists
Your phone’s features are arranged in menus,
submenus, and lists.
To access the items in a menu or list, scroll using
the navigation key at the top of your keypad. This
key lets you scroll up, down, left, or right. Holding
down the appropriate part of the navigation key
speeds up scrolling.
In this guide, this symbol > tells you to select a
menu or list item. For example, Settings >
Security means:
1Scroll to Settings on the main menu.
2Press A under Select to see the Settings
screen.
3Scroll to Security.
4Press A under Select to see the Security
screen.
Menu Key
Many features provide context-sensitive menus
that let you access related features and actions.
This S icon appears any time a context-sensitive
menu is available. Press m to access the menu.
Main Menu
All your phone’s features can be accessed through
the main menu. When you are using a feature, the
icon for that feature appears in the upper left
corner of the display.
aBrowser Browse the Web.
MOTOtalk/MT
Options
Go to/Exit
MOTOtalk
Setup
Help
Launch/Exit MOTOtalk
Access MOTOtalk Setup
and Help. See page 21.
9
Phone Basics
bSettings
Display/Info
Phone Calls
2-Way Radio
Volume
Security
Advanced
Customize your phone.
See page 78.
cVoiceRecord Record and play audio
messages. See page 75.
dContacts
new contact form
list of contacts
Contacts menu
View, store, edit contacts.
See page 31.
eMessages Access messages. See
page 57.
fCall Forward Set call forwarding
options. See page 38.
gMemo Store a number to access
later. See page 49.
hCall Timers Phone usage information.
See page 45.
iRecent Calls
list of calls
recent calls menu
Call Setup menu
Lists recent calls. See
page 29.
jMy Info View personal phone
information, including
phone number and Private
ID. See page 7.
kCall Alert
list of call alerts
Call Alerts menu
Lists call alerts. See
page 27.
lGPS Find your approximate
geographical location. See
page 66.
mRing Tones
Vibrate All
list of ring tones
Ring Tones menu
Assign ring tones and turn
ringer off. See page 50.
10
Getting Started
Status Icons
Status icons appear in the two rows at the top of
the display. Some appear at all times. Others
appear only when your phone is engaged in certain
activities or when you have activated certain
features.
a b c d
e f g d
Battery Strength — More bars
on the battery indicate a greater
charge.
o p q r
sSignal Strength — More bars
next to the antenna indicate a
stronger signal.
APhone In Use — Your phone is
active on a phone call.
BPrivate In Use — Your phone is
active on a Private call.
CTalkgroup In Use — Your
phone is active on a group call.
1 2Active Phone Line — 1
indicates phone line 1 is ready
to make calls; 2 indicates phone
line 2 is ready to make calls.
MOTOtalk In Use — Your
phone is active, on a MOTOtalk
call.
No Signal — You are
off-network and in MOTOtalk
mode.
GHI
J K LCall Forward — Your phone is
set to forward calls. See “Call
Forwarding” on page 38.
uvM Ringer Off — Your phone is set
not to ring. See “Turning Ring
Tones Off” on page 50.
wy xMessages — You have one or
more messages. See
“Messages” on page 57.
DInternet — You are ready to
browse the internet.
YZ Packet Data — You are ready
to transfer packet data or are
transferring packet data. See
“Using Your Phone as a
Modem” on page 46.
PRoaming — You are using your
phone outside your carrier's
network.
11
SIM Card Security
SIM Card Security
Your SIM card protects your personal information.
The SIM card stores all your Contacts information.
Since this information is stored on your SIM card,
not in your phone, you can remove the information
by removing your SIM card.
Note: Except for making emergency calls, your
phone will not function without the SIM
card.
To prevent unauthorized use of your phone, your
SIM card is protected by a PIN that you enter each
time the phone is powered on. You can change the
PIN or turn off the requirement that it be entered.
Entering the PIN
You may be required to enter a SIM PIN when you
first use your phone.
When you receive your phone, the SIM PIN is
0000. Change your PIN to prevent fraudulent use
of the SIM card.
Important: If you enter your PIN incorrectly 3 times,
your SIM card is blocked. To unblock
your SIM card, you must contact your
service provider. See “Unblocking the
PIN”.
1When the Enter SIM PIN Code screen appears,
enter your SIM PIN. An asterisk appears for
each character entered.
2Press A under Ok.
Changing the PIN
1From the main menu, select Settings >
Security > Change Password > SIM PIN.
2At the Enter Old SIM PIN Code screen, enter
the current SIM PIN.
3Press A under Ok.
4At the Enter New SIM PIN Code screen, enter
the new 4- to 8-digit SIM PIN.
5Press A under Ok.
6At the Re-enter New SIM PIN Code screen,
re-enter the new SIM PIN to confirm.
7Press A under Ok.
12
Getting Started
Turning the PIN Requirement On and
Off
When the SIM PIN requirement is on, you are
prompted to enter your PIN each time you turn on
your phone.
Note: If a SIM PIN is required, your phone will
not function until the SIM PIN is entered,
except for making emergency calls.
When the PIN requirement is off, your phone can
be used without entering a PIN.
Important: When the SIM PIN requirement is off,
the personal data on your SIM card is
not protected. Anyone can use your
phone and access your personal data.
1From the main menu, select Settings >
Security > SIM PIN.
2Select On or Off.
3Enter the current SIM PIN.
4Press A under Ok.
Unblocking the PIN
If you enter your PIN incorrectly 3 times, your SIM
card is blocked. To unblock your SIM card, you
must contact your service provider to get a PIN
Unblock Code (PUK).
Important: If you unsuccessfully enter the PUK
code 10 times, your SIM card is
permanently blocked and must be
replaced. If this happens, all data is
lost. You will get a message to contact
your service provider. Except for
making emergency calls, your phone
will not function with a blocked SIM
card.
To unblock the PIN:
1Press * # m 1.
2At your service provider representative’s
request, provide the information needed to give
you a PUK code.
3Select Unblock PIN.
4Enter the PUK code.
5Enter a new 4- to 8-digit SIM PIN.
6Re-enter your SIM PIN.
If you entered the codes properly, SIM Unlocked
appears on the display.
13
SIM Card Security
Inserting and Removing Your SIM
Card
Important: Do not touch the gold-colored areas of
your SIM card.
Switching SIM Cards
Moving your SIM card from one phone to another
moves all your Contacts information, but erases
other information. If you remove your SIM card and
use it with another phone, or use another SIM card
with your phone, the following information is
erased:
•The recent calls list
•Call forwarding settings
•Net alerts
•Mobile originated text messages, drafts, and
quick notes
•Information stored in Memo
•3 most recent GPS Enabled locations
•Voice records
•Voice names
Inserting Your SIM Card
With your phone powered off, remove the battery
door and battery. See “Removing the Battery” on
page 4.
1Hold your SIM card as shown. Do not touch the
gold-colored area.
2Carefully slide your SIM card into your phone,
until it lies flat in the SIM card holder.
cut corner
SIM card
holder
14
Getting Started
Removing Your SIM Card
Important: To avoid loss or damage, do not remove
your SIM card from your phone unless
absolutely necessary.
1With your phone powered off, remove the
battery door and battery.
2While holding the tab down, slide your SIM card
out of the SIM card holder.
Note: Protect your SIM card as you would any
delicate object. Store it carefully.
Locking the Keypad
Locking the phone’s keypad prevents its buttons
from being pressed. When the keypad is locked,
you can only:
•Power the phone on and off
•Unlock the keypad
•Respond to incoming calls, messages, and
alerts
Important: Emergency calls cannot be placed while
the keypad is locked.
To lock the keypad:
1From the idle screen, press m.
2Press *.
If you press a key while the keypad is locked,
instructions for unlocking the keypad display
briefly.
To unlock the keypad:
1From the idle screen, press m.
2Press *.
While the keypad is locked, you can respond to
incoming calls, messages, and alerts just as you
do when the keypad is not locked. When finished,
press e to return to the idle screen. The keypad
remains locked.
tab
SIM card
holder
15
Accessories
Accessories
To order accessories, log on to our Web site at
www.motorola.com/store/iden or contact your
Motorola Authorized Retailer.
For More Information
If you have questions about your i315 phone,
contact your sales representative or your service
provider.
16
Making Calls
Your i315 phone makes two types of calls: digital
cellular phone calls and Private calls. With Private
calls, you use your phone as a long-range, digital
walkie-talkie.
Phone Calls
1Enter the number you want to call.
2Press s to place the call.
3Press e to end the call.
Private Calls
1Enter the Private ID you want to call.
2Press and hold the PTT button on the side of
your phone. Begin talking after your phone emits
a chirping sound.
3Release the PTT button to listen.
Tip: To let someone know you want to talk to
him or her on a Private call, send a call
alert. See “Call Alerts” on page 27.
Receiving Calls
Phone Calls
When you receive a phone call, your phone rings,
vibrates, or lights up its backlight.
Answering
Press s. -or-
Press A under Yes. -or-
Press any number key.
To answer a call by pressing any number key, you
must have the Any Key Ans feature turned on (see
“Phone Calls Features” on page 84).
Sending to Voice Mail
Press e. -or-
Press A under No.
Ending
Press e.
Private Calls
When you receive a Private call, your phone emits
a chirping sound or vibrates.
Answering
1Wait for the caller to finish speaking.
17
Call Icons
2Press and hold the PTT button on the side of
your phone. Begin talking after your phone emits
a chirping sound.
3Release the PTT button to listen.
Call Icons
When you make a call, call icons appear in the text
area of the phone’s display.
When you miss a call, this icon appears in the text
area:
Ways to Enter Calls
To enter the number you want to call, you can:
•Use the numbers on the keypad
•Select the number from the recent calls list
•Select the number from Contacts
•Redial the last phone number called
•Use Speed Dial or Turbo Dial®
•Use One Touch PTT to make a Private call
•Use a TTY device — see “Making TTY Calls” on
page 47
From the Keypad
To enter the number you want to call, press the
numbers on the keypad.
If you make a mistake:
•To clear a digit, press A under Delete.
•To clear all digits, press and hold A under
Delete.
•To insert or delete a digit anywhere in the string
of digits you have entered, scroll left or right.
•To cancel, press e.
From the Recent Calls List
The recent calls list stores the last 20 calls you
made or received.
To select a number from the recent calls list as the
number you want to call:
1From the idle screen, scroll down. -or-
XPlacing a phone call.
WReceiving a phone call.
YPhone call is active.
ZPhone call is on hold.
UPhone call ended.
VYou missed a phone call.
18
Making Calls
From the main menu, select Recent Calls.
2Scroll to the name or number you want to call.
From Contacts
If you have numbers stored in Contacts, you can
use these numbers to make calls. For information
on entering numbers into Contacts, see “Creating
Entries” on page 33.
Calling from the Contacts List
1From the main menu, select Contacts.
2Scroll to the name or number you want to call.
Tip: To find Contacts entries faster, use the
keypad to enter the first letter of the name.
3Place the call now. -or-
Scroll left or right to display the Contacts type for
the number you want to call.
If you are making a Private call, your phone places
the call to the Private ID stored in the Contacts
entry, even if the Private icon is not displayed.
If you are making a phone call:
•Your phone places the call to the phone number
assigned to the Contacts type displayed.
•If the Contacts type displayed is not a phone
number, your phone places the call to the phone
number stored in the Contacts entry.
•If the Contacts type displayed is not a phone
number and you have more than one phone
number stored in the Contacts entry, your phone
prompts you to select the phone number you
want to place the call to.
Calling from a Contacts Entry
1From the main menu, select Contacts.
2Scroll to the name or number you want to call.
3Press A under View. -or-
If View is not one of your options: Press m.
Select View.
4Place the call now. -or-
Scroll to view more numbers. When you place
the call, it is made to the number displayed.
Redialing the Last Number
Press and hold s to place a call to the last phone
number you called.
Using a Voice Name
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
19
Using Speakerphone
If you have created a voice name in Contacts for
the number you want to call, say the voice name
into your phone to enter the number. See page 32
for information on voice names.
1Press and hold t until a prompt appears telling
you to say the voice name.
2Speaking into the microphone, say the voice
name assigned to the number you want to call.
Your phone plays the name back to you.
If you are making a Private call, press the PTT
button to place the call.
If you are making a phone call, the call is placed
automatically.
Tip: To stop a phone call from being completed,
press e.
Using Speed Dial and Turbo Dial®
Each phone number stored in Contacts is assigned
a Speed Dial number which you can use to enter
that number.
Speed Dial
1From the idle screen, use the keypad to enter
the Speed Dial number assigned to the phone
number you want to call.
2Press #.
3Press s.
Turbo Dial
From the idle screen, press and hold the Speed
Dial number (1 through 9) assigned to the phone
number you want to call.
Using One Touch PTT
One Touch PTT sets your phone to call the most
recent Private ID on the recent calls list, or a
Private ID you choose, every time you press the
PTT button. See “Setting One Touch PTT” on page
43.
Using Speakerphone
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
Turning on speakerphone makes incoming sound
come out of the phone’s speaker instead of the
earpiece. Speakerphone is available whenever you
are on an active phone call.
To turn speakerphone on or off:
Press A under Spkr. -or-
Press t.
20
Making Calls
Using Mute
Muting calls lets you listen to incoming sound
without transmitting sound. Mute is available
whenever you are on an active call.
To turn mute on:
Press A under Mute.
While mute is on, Unmute appears as a display
option.
To turn mute off:
Press A under Unmute.
Making Emergency Phone
Calls
Your phone supports emergency calling.
Emergency phone calls can be made even when
your SIM card is blocked or not in your phone.
Dial 911 to be connected to an emergency
response center. If you are on an active call, you
must end it before calling 911.
When you make an emergency call, your phone’s
GPS Enabled feature can help emergency service
personnel find you, if you are in a location where
your phone's GPS antenna has established a clear
view of the open sky and your local emergency
response center has the equipment to process
location information. See “GPS Enabled” on page
66, and particularly “IMPORTANT: Things to Keep
in Mind” on page 66 and “Making an Emergency
Call” on page 67, for more information on the
limitations of this feature. Because of the
limitations of this feature, always provide your best
knowledge of your location to the emergency
response center when you make an emergency
call.
Important: Emergency calls cannot be placed while
the keypad is locked.
Important: If you have not registered on the
network, emergency calls cannot be
placed while your SIM card is in your
phone.
21
MOTOtalk
The MOTOtalk feature allows direct two-way
phone-to-phone communications between two or
more phones equipped for MOTOtalk. You can
make and receive MOTOtalk calls when network
service is not available. You can talk to anyone on
your code and channel within your range.
MOTOtalk allows you to:
•use code or private mode operation
•select from 10 channels and 15 codes
•communicate with standalone MOTOtalk radios
Note: MOTOtalk is a new digital service and is
not compatible with older Family Radio
Services products such as Talkabout
radios.
Using MOTOtalk
To set your phone to MOTOtalk:
1From the main menu, scroll to MOTOtalk and
press A under Select.
2Select Go to MOTOtalk.
Switching to MOTOtalk Please Wait displays.
After a few seconds, the MOTOtalk idle screen
appears. MT Ready appears on the first line of the
display. The current code appears on the second
line of the display. The current channel appears on
the third line of the display.
Note: When switching from network to
MOTOtalk, the last Channel and Code
that were set will appear on the idle
screen.
While in MOTOtalk, this icon appears on the
display, indicating there is not network signal and
MOTOtalk is active.
To make a code using MOTOtalk:
Contcs
d
S
MT Ready
Code:1
Channel:1
Edit
status icons
text area
menu icon
display options
22
MOTOtalk
Proceed as if making Direct Connect call. MT:
Transmit appears on the first line of the display.
To answer a code call using MOTOtalk:
Proceed as if answering a Direct Connect call. MT:
Receive appears on the first line of the display.
The talk permit tone emitted from your phone when
using MOTOtalk is 4 beeps and is longer than the
standard tone heard with on-network Direct
Connect and Group Connect calls.
Note: If you receive an error message when
making a call using MOTOtalk, there may
be no parties on your channel and code or
you are out of range.
To set your phone to network mode when
MOTOtalk is active:
1From the main menu, scroll to MT Options and
press A under Select.
2Select Exit MOTOtalk.
Switching to Network Please Wait displays.
After a few seconds, the network idle screen
appears.
Switching to MOTOtalk
1Scroll to MOTOtalk on the main menu.
2Select Go to MOTOtalk, you’ll see on the
display: Switching to MOTOtalk please wait.
You’ll be on MOTOtalk screen.
Setup Options
MOTOtalk setup options are available in the MT
Options screen both in network and MOTOtalk
modes.
To access MT Options in network:
1From the main menu, select MOTOtalk.
2Select Setup.
To access MT Options in MOTOtalk:
1From the main menu, select MT Options.
2Select Setup.
You can set your phone to launch directly into
MOTOtalk when you select MOTOtalk from the
main menu. You can also set your phone to notify
you periodically with a tone that you are in
MOTOtalk mode.
Direct Launch
To set your phone to launch MOTOtalk when you
select MOTOtalk from the main menu:
1From the MT Options screen, select Setup.
23
MOTOtalk Icons
2Scroll to Direct Launch and press A under
Change.
3Select On.
Note: If Direct Launch is set to On, you will not
see the MT Options screen. In order to
have access to your setup options, Direct
Launch must be set to Off. Or you can
access setup options while in MOTOtalk
by pressing A, then DT Options.
To turn off Direct Launch
Select Off. Your phone now displays MT Options
when you select MOTOtalk from the main menu.
State Tone
To set your phone to notify you with a tone that you
are in MOTOtalk mode:
1From the main menu, select MOTOtalk.
2Select Setup.
3Scroll to State Tone and press A under
Change.
4Select the time frame during which you want to
be notified that you are in MOTOtalk mode.
For example, if you select 1 hour, you will be
notified that you are in MOTOtalk mode.
To turn off State Tone
Select Off.
MOTOtalk Icons
Channels and Codes
Your phone has 10 channels and 15 codes.
Channels and codes are divided into frequencies
that allow you to make and receive phone calls.
Other parties may be taking on the same channel.
MOTOtalk Options
(intermediate screen):
-Go To MOTOtalk (launch
MOTOtalk)
-Setup
-Help
MOTOtalk Type
-Code
-Channel
MOTOtalk In Use
No Signal - Indicates you are
off-network and in MOTOtalk
mode.
24
MOTOtalk
Codes help minimize interference from unwanted
messages and other disturbances when you are on
the same channel as others. To have a
conversation, all parties must be on the same
channel and code.
Note: All parties who are on your code and
channel can hear your conversation.
To set a channel:
1From the idle screen, press A under Edit.
2Scroll to Channel.
3Press A under Edit.
4Select a Channel.
To set a code:
1From the idle screen, press A under Edit.
2Scroll to Code.
3Press A under Edit.
4Select a Code.
Receive All
1You can also set your phone with Code set to
Receive All. Your phone will receive calls from
any phone that has been set to the same
Channel regardless of the Code (1-15).
2If you receive a call while in Receive All, your
phone display will change from Receive All to
the Code on which the transmission was
received.
3You may reply to that code within 6 seconds
after the caller finishes talking by pressing and
holding PTT. After the 6 seconds expire, the
code reverts back to Receive All.
Note: You cannot initiate a call when the code is
set to Receive All. If you press the PTT
button when in Receive All it will ask you
to enter a code.
Contcs
d
S
MT Ready
Code:Receive All
Channel:4
Edit
status icons
text area
menu icon
display options
25
MOTOtalk Private Calls
To set the Code to Receive All:
1From the idle screen, press A under Edit.
2Scroll to Code.
3Press A under Edit.
4Select Receive All.
MOTOtalk Private Calls
You can have a private conversation with another
person using MOTOtalk. When on a Private Call,
no other parties can hear your conversation. In
order to make a Private Call, you must use the
valid 10-digit Nextel PTN of the person you are
calling. The person you are calling must be in
MOTOtalk mode and set to the same Channel to
receive your call.
Note: If you receive an error message, your may
not be using a valid PTN. Or, the person
you are trying to reach may not be in
MOTOtalk mode, is set to a different
channel or is out of range.
Private Only
In this mode you can only make or receive Private
Calls. This feature allows you to ignore other
people’s code calls, keeping your phone quieter
and increasing battery life.
To set the code to Private Only:
1From the idle screen, press A under Edit.
2Scroll to Code.
3Press A under Edit.
4Select Private Only.
Making a Private Call
1Enter the 10-digit PTN of the person you want to
call on your channel. -or-
Scroll to a number or name in Contacts. -or-
Scroll to a number in the recent calls list.
2Press and hold the PTT button on the side of
your phone. Begin talking after your phone emits
the MOTOtalk tone.
3Release the PTT button to listen.
The number or name of the person you are calling
will appear in the first line of the display.
Receiving a Private Call
Proceed as if answering a Private call.
The number or name of the person who initiated
the call will appear in the first line of the display.
26
MOTOtalk
Ending a Private Call
A Private Call will end if there is no communication
for 6 seconds. The display will return to the idle
screen.
Making a MOTOtalk Call
1If you want to make a Private call, enter the
name or 10-digit number (for example,
9545555555) you want to call on your channel.
To make a code call, enter the desired code if
not already displayed. For code calls skip to step
2.
2Press and hold the PTT button on the side of
your phone. Begin talking after your phone emits
the MOTOtalk tone.
3Release the PTT button to listen.
Note: If you get a bad key press tone,
immediately following the talk permit tone,
it means that nobody is in MOTOtalk
mode, or they are in a different channel or
out-of-range.
Receiving a MOTOtalk Call
1When a call comes in, an incoming tone (2
beeps) play first and when the caller finishes
talking a single beep plays.
2Wait for the caller to finish speaking.
3If you want to respond, press and hold the PTT
button on the side of your phone. Begin talking
after your phone emits the MOTOtalk tone.
4Release the PTT button to listen.
Assigning a MOTOtalk
Number in Contacts
For information on assigning a MOTOtalk number
to an existing entry in Contacts, see “Contacts” on
page 31.
Recent Calls
For information on viewing, storing or deleting
recent calls, see “Recent Calls” on page 29.
Making Emergency Calls from
MOTOtalk
Your phone supports emergency calling.
Emergency phone calls can be made even when
you are not connected to the network as long as
there is a network to connect to.
Dial 911 to be connected to an emergency
response center. If you are on an active call, you
must end it before calling 911.
27
Call Alerts
Sending a call alert lets the recipient know you
want to talk to him or her on a Private call.
When you send a call alert, the recipient’s phone
emits a series of beeps, or vibrates, and displays
your name or Private ID.
The recipient can:
•Answer — begin a Private call with the sender
•Queue — store the call alert to the call alert
queue, which is a list of call alerts
•Clear — dismiss and delete the call alert
Sending Call Alerts
1Enter the Private ID you want to send to, as you
would when making a Private call.
2Press A under Alert. Ready to Alert appears
on the display.
3Press the PTT button until Alert Successful
appears on the display.
Note: If the alert is not successful, this may
mean the person you are trying to reach is
on a call or has the phone turned off.
Receiving Call Alerts
When you receive a call alert, you must answer,
queue, or clear it. You cannot receive phone calls
or Private calls until you do.
To answer a call alert, press the PTT button to
make a Private call to the sender.
To queue a call alert, press A under Queue.
To clear a call alert, press A under Clear.
Note: The recent calls list also stores call alerts
you have received. They appear as
Private calls. Call alerts remain in your
recent calls list until you delete them or
until they reach the end of the list.
Using the Call Alert Queue
When you queue a call alert, it remains in the call
alert queue until you make a Private call to the
sender or delete it.
Viewing Call Alerts
1From the main menu, select Call Alert.
2Scroll through the list.
28
Call Alerts
Viewing Date and Time
To view the date and time a call alert was received:
1From the main menu, select Call Alert.
2Scroll to the call alert you want information on.
3Press m.
4Select View.
Responding to Call Alerts in the
Queue
After you queue a call alert, you can respond to it
by making a Private call to the sender or sending a
call alert to the sender.
Making a Private Call to the Sender
1From the main menu, select Call Alert.
2Scroll to the call alert you want to respond to.
3Press the PTT button to begin the call.
This removes the call alert from the queue.
Sending a Call Alert to the Sender
1From the main menu, select Call Alert.
2Scroll to the call alert you want to respond to.
3Press A under Alert. Ready to Alert appears
on the display.
4Press the PTT button until Alert Successful
appears on the display.
Deleting Call Alerts
To delete a call alert from the queue:
1From the call alert queue, scroll to the call alert
you want to delete.
2Press m.
3Select Delete.
4Press A under Yes to confirm.
To delete all call alerts from the queue:
1From the call alert queue, press m.
2From the call alert menu, select Delete All.
3Press A under Yes to confirm.
Sorting Call Alerts
Tip: You must have at least one call alert in the
queue to access this feature.
To sort call alerts by the order they were received:
1From the main menu, select Call Alert.
2Press m.
3Select Sort By.
4Scroll to First on Top or Last on Top.
5Press A under Select.
29
Recent Calls
The recent calls list stores the numbers of the 20
most recent calls you have made and received.
To view the recent calls list:
1From the idle screen, press the down arrow on
the navigation key. -or-
From the main menu, select Recent Calls.
2Scroll through the list.
If the number of a recent call is stored in Contacts,
the name associated with the number appears on
the recent calls list.
An icon appears beside the name or number
indicating the Contacts type of the number used in
the call. See “Contacts” on page 31.
For phone calls, an icon appears to the left of the
name or number giving more information about the
call:
Note: The recent calls list also stores call alerts
you have received. They appear as
Private calls. Call alerts remain in your
recent calls list until you delete them or
until they reach the end of the list.
To get more information on a recent call:
1From the recent calls list, scroll to the call you
want information on.
2Press A under View. -or-
If View is not one of your options: Press m.
Select View.
This displays information such as the name
associated with the call, the number, the date,
time, and duration of the call.
Storing Recent Calls to
Contacts
1From the recent calls list, scroll to the number
you want to store.
2Press A under Store. -or-
If Store is not one of your options: Press m.
Select Store.
Tip: If Store is not on this menu, the number is
already stored in Contacts.
XA call you made.
WA call you received.
VA missed call. Missed calls appear on the
recent calls list only if you have Caller ID.
30
Recent Calls
3To store the number as a new entry, select [New
Contact]. -or-
To store the number to an existing entry, select
the entry.
4With the Contacts type field highlighted, scroll
left or right to display the Contacts type you want
to assign to the number. For information on
Contacts types, see page 31.
5If you want to add more information to the entry,
follow the applicable instructions in “Creating
Entries” on page 33.
6Press A under Done.
Deleting Recent Calls
To delete a call:
1From the recent calls list, scroll to the call you
want to delete.
2Press m.
3Select Delete.
4Press A under Yes to confirm.
To delete all calls:
1From the recent calls list, press m.
2Select Delete All.
3Press A under Yes to confirm.
31
Contacts
Contacts stores up to 600 numbers or addresses.
Each Contacts entry can store several numbers or
addresses.
Information stored in Contacts is saved on your
SIM card.
A Contacts entry contains:
•A name — A name is required if you are storing
more than one number or address to the entry;
otherwise, it is optional. Typically, this is the
name of the person whose contact information is
stored in the entry.
•A ring tone — You can assign a ring tone to
each entry. This is the sound your phone makes
when you receive phone calls or call alerts from
any of the numbers stored in the entry.
•A Contacts type — Each number or address
stored must be assigned a Contacts type:
•A number or address — Each Contacts entry
must contain a number or address. This may be
any type of phone number, Private ID, Talkgroup
number, email address, or IP address.
Note: You can store numbers up to 64 digits
long, but every 20 digits must be
separated by a pause or wait. See
“Creating Pauses and Waits” on page 36.
AMobile phone number
BPrivate Private ID
CWork1 phone number
DWork2 phone number
EHome phone number
FEmail email address
GFax phone number
HPager phone number
ITalkgroup Talkgroup number
JIP IP address
KOther phone number
32
Contacts
•A Speed Dial number — When you store a
phone number, it is assigned a Speed Dial
number. You can accept the default Speed Dial
number or change it.
•A voice name — If you create a voice name for a
number, you can then dial that number by saying
the voice name into your phone. This icon
appears P to the left of the Contacts type icon if
a voice name is assigned.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
Viewing Contacts
To access Contacts:
Press A under Contcs. -or-
From the main menu, select Contacts. -or-
If you are on a call: Press m. Select Contacts.
To view entries:
1From the Contacts list, scroll to the entry you
want to view.
2If an entry has more than one number or
address stored, <> surrounds the Contacts type
icon. Scroll left or right to view the icon for each
number stored in the entry.
3When the icon for the number or address you
want to view is displayed, press A under View.
-or-
If View is not one of your options: Press m.
Select View.
4Scroll to view the other numbers and addresses
stored for the entry.
Tip: To view more entries, continue scrolling.
Searching for a Name
To search for a name in Contacts:
1From the Contacts list, press m.
2Select Search.
3Enter the name you want to see. See “Entering
Text” on page 54.
4Press A under Ok.
Your phone finds the name you entered or the
nearest match.
Showing Only Private IDs and
Talkgroups
To set Contacts to show only entries that contain
Private IDs and Talkgroup entries:
1From the Contacts list, press m.
2Select Filter.
33
Creating Entries
3With Show Prvt/Grp highlighted, press A
under Select.
To set Contacts to show all entries:
1From the Contacts list, press m.
2Select Filter.
3With Show All highlighted, press A under
Select.
Creating Entries
A number or address and a Contacts type are
required for all Contacts entries. Other information
is optional. You may enter the information in any
order by scrolling through the entry details.
After you have entered the number or address,
Contacts type, and any other information you want,
you can press A under Done to save the entry to
Contacts.
To cancel a Contacts entry at any time press, e to
return to the idle screen.
Tip: In some fields that require you to enter
information, you can begin entering the
information from the keypad instead of
pressing A under Change.
To create a Contacts entry:
1To access the entry details screen:
Select Contacts > [New Contact]. -or-
From the Contacts list, press m. Scroll to New.
Press A under Select.
2If you want to assign a name to the entry:
With the Name field highlighted, press A under
Change.
Enter the name. See “Entering Text” on page
54. When you are finished, press A under Ok.
3If you want to assign a ring tone to the name:
With the Ringer field highlighted, press A
under Change.
Scroll to the ring tone you want to assign. Press
A under Select.
4To assign a Contacts type to the number or
address being stored:
With the Contacts type field highlighted, press
A under Change.
Scroll to the Contacts type you want to assign.
Press A under Select.
5To store a number or address:
With the # field highlighted (or ID for an email
address, or IP for an IP address), press A
under Change.
34
Contacts
Enter the number or address. For phone
numbers, use the 10-digit format. For email
addresses, see “Entering Text” on page 54.
Tip: Press A under Browse to select a number
or address from Contacts, the recent calls
list, or Memo.
When you are finished, press A under Ok.
6If you want to assign more options to the
number, press A under Change with the
[Options] field highlighted. See “Assigning
Options”.
7If you want to add more numbers or addresses
to the entry:
Scroll past the information you already entered.
Enter the additional information for the entry
using step 2 through step 6. You must assign a
name to the entry, if you have not already.
8Press A under Done.
Assigning Options
1If you have not already, press A under Change
with the [Options] field highlighted
2The default Speed Dial number assigned to a
phone number is displayed in the Speed # field.
This is always the next available Speed Dial
location.
If you want to assign the phone number to a
different Speed Dial location:
With the Speed # field highlighted, press A
under Change.
Press and hold A under Delete to delete the
current Speed Dial number.
Enter the new Speed Dial number using the
keypad.
When you are finished, press A under Ok.
3When you are finished, press A under Back.
Storing Numbers Faster
To store numbers to Contacts from the recent call
list, see “Storing Recent Calls to Contacts” on page
29.
To store numbers to Contacts from Memo, see
“Memo” on page 49.
To store numbers to Contacts from the idle screen:
1Use the keypad to enter the number you want to
store.
2Press m.
3Select Store Number.
4To store the number as a new entry, select [New
Contact]. -or-
35
Editing Entries
To store the number to an existing entry, select
the entry.
5With the Contacts type field highlighted, scroll
left or right to display the Contacts type you want
to assign to the number.
6If you want to add more information to the entry,
follow the applicable instructions in “Creating
Entries” on page 33.
7Press A under Done.
Editing Entries
1From the Contacts list, scroll to the entry you
want to edit.
2Press m.
3Select Edit. The entry details screen displays.
4Follow the applicable instructions in “Creating
Entries” on page 33 to edit the various fields.
Deleting Entries
Delete an Entry
1From the Contacts list, scroll to the entry you
want to delete.
2Press m.
3To delete the entire entry, scroll to Delete
Contact.
4Press A under Select.
5Press A under Yes to confirm.
Delete a Number or Address
1From the Contacts list, scroll to the entry that
contains the number or address you want to
delete.
2Scroll left or right to display the Contacts type for
the number you want to delete.
3Press m.
4Scroll to Delete Number.
5Press A under Select.
6Press A under Yes to confirm.
Note: If an entry contains only one number or
address, deleting the number or address
deletes the entry.
Checking Capacity
To see how many numbers are stored in Contacts:
1From the Contacts list, press m.
2Select Capacity.
36
Contacts
Creating Pauses and Waits
When storing a number, you can program your
phone to pause or wait between digits while
dialing. A pause makes your phone pause for 3
seconds before dialing further. A wait makes your
phone wait for your response before dialing further.
This feature is useful when using voice mail or
other automated phone systems that require you to
dial a phone number and then enter an access
number.
To program a pause:
Press and hold * until the letter P appears.
The P represents a 3-second pause.
If you store 17035551235P1234, when you select
this number and make a call, your phone dials the
first 11 digits, pauses for 3 seconds, then dials the
last 4 digits.
If you want a pause longer than 3 seconds, press
and hold * more than once. Each P represents a
3-second pause.
To program a wait:
Press and hold * until the letter W appears.
The W means your phone waits before dialing
further.
If you store 17035551235W1234, when you select
this number and make a call, your phone dials the
first 11 digits and then waits. A message appears
asking if you want to send the rest of the digits.
Press A under Yes to dial the last 4 digits.
Tip: You can create pauses and waits while
dialing a number from the keypad. See
“Creating Pauses and Waits While Dialing”
on page 43.
International Numbers
Note: This feature may not be offered by your
service provider.
When storing a number that you plan to use for
international calls, use Plus Dialing:
1Press and hold 0 for two seconds. A “0”
appears, then changes to a “+”.
Note: The network translates the “+” into the
appropriate international access code
needed to place the call.
2Enter the country code, city code or area code,
and phone number.
For information about making international calls,
see “Making International Calls” on page 43.
37
Accessing Contacts with GSM Phones
Accessing Contacts with GSM
Phones
If you plan to use the information stored in
Contacts with an i2000, i2000plus, or any other
GSM phone, download iDEN Phonebook Manager.
Go to idenphones.motorola.com/iden/support for
more information.
You can use iDEN Phonebook Manager to make
the Contacts information saved to your i315
phone’s SIM card accessible in this type of phone.
38
Call Forwarding
Call forwarding sends calls to the phone numbers
you specify. You can forward all calls to one
number or forward missed calls to different
numbers depending on the reason you missed the
call.
You can forward phone lines 1 and 2
independently.
Forwarding All Calls
When you set your phone to forward all calls, an
icon appears in the top row of the display:
To forward all calls:
1From the main menu, select Call Forward.
2Press A under Change.
3Select All Calls.
4Scroll to To.
5Press A under Change.
6If you specified a forwarding number for all calls
before, this number displays.
To forward calls to this number, press A under
Back. -or-
To delete this number, press A under Change,
then press and hold A under Delete.
To enter the number you want to forward calls
to:
Enter the number using your keypad. -or-
Press A under Search. Select Contacts,
Recent Calls, or Memo. Select the number you
want to enter.
7Press A under Ok.
All your calls are now forwarded to the number you
specified.
GPhone line 1 is active; calls to phone line 1
are being forwarded.
HPhone line 1 is active; calls to phone line 2
are being forwarded.
IPhone line 1 is active; calls to phone lines 1
and 2 are being forwarded.
JPhone line 2 is active; calls to phone line 1
are being forwarded.
KPhone line 2 is active; calls to phone line 2
are being forwarded.
LPhone line 2 is active; calls to phone lines 1
and 2 are being forwarded.
39
Turning Off Call Forwarding
Tip: In some fields, you can select an option by
scrolling left or right instead of pressing A
under Change.
Turning Off Call Forwarding
If you don’t want all your calls forwarded, turn the
feature off:
1From the main menu, select Call Forward.
2Press A under Change.
3Select All Calls.
4Scroll to To.
5Press A under Change.
6Scroll to Off.
7Press A under Select.
All your calls are now sent to your phone.
Calls you miss are forwarded according to the
options set for missed calls. By default, missed
calls are forwarded to voice mail.
Forwarding Missed Calls
You can specify a forwarding number for each type
of missed call:
•If Busy — Your phone is on a call or transferring
data.
• If No Answer — You do not answer on the first
4 rings.
• If Unreachable — Your phone is out of
coverage or powered off.
Note: If you want a type of missed call sent to
voice mail, the call forwarding number for
that type of missed call must be your
voice mail access number.
To forward missed calls:
1From the main menu, select Call Forward.
2Press A under Change.
3Select Detailed.
4Scroll to If Busy to specify a forwarding number
for calls received when your phone is busy.
5Press A under Change.
6If you specified a forwarding number for this type
of call before, this number displays.
To forward calls to this number, press A under
Back and go to step 9. -or-
To delete this number, press A under Change,
then press and hold A under Delete.
7To enter the number you want to forward this
type of call to:
Enter the number using your keypad. -or-
40
Call Forwarding
Press A under Search. Select Contacts,
Recent Calls, or Memo. Select the number you
want to enter.
8Press A under Ok.
9Repeat step 4 through step 8 for If No Answer
and If Unreachable.
When you are finished, press A under Back.
Viewing Call Forwarding
Settings
1From the main menu, select Call Forward.
2Press A under Change.
3Select All Calls.
4Scroll to To.
5Press m.
6Select Retrieve Status.
41
Advanced Calling
Features
Call Waiting
Call Waiting lets you receive a second call while on
an active call. Call Waiting is always available,
unless you turn it off for a specific call.
If you are on a call and receive a second call, your
phone emits a tone and displays a message saying
you are receiving a second call.
To accept the second call and put the active call on
hold:
Press A under Yes.
To accept the second call and end the active call:
1Press e.
Your phone rings with the second call.
2Answer the second call.
To decline the second call:
Press A under No. If you subscribe to voice
mail, the call is forwarded to your voice mail box,
unless you set Call Forward for If Busy to a
different number.
Switching Between Calls
When you accept a second call, the display shows
the name or number of each call, with an icon
indicating which call is active:
To make the call on hold active and put the active
call on hold:
Press A under Switch.
Turn Off Call Waiting
To turn off Call Waiting during a call:
1Press m.
2Select In Call Setup > Call Waiting.
3Press A under Change.
4Scroll to Off.
Tip: To turn Call Waiting back on while still on
the call: Scroll to On.
5Press A under Select.
YPhone call is active.
ZPhone call is on hold.
42
Advanced Calling Features
To turn off Call Waiting for the next call you make
or receive:
1From the main menu, select Settings > Phone
Calls > Call Waiting.
2Press A under Change.
3Scroll to Off.
4Press A under Select.
Call Waiting is turned back on when you end the
call.
Call Hold
Call Hold lets you put an active call on hold and
make a second call.
To put a call on hold:
1While on an active call, press m.
2Scroll to Hold.
3Press A under Select.
4If you want to make the call active again, press
A under Resum.
To make a second call while a call is on hold:
1Enter the number you want to call.
Tip: To enter the number from Contacts: Press
m. Select Contacts.
2Press s to place the call.
To end the second call and make the call on hold
active again:
Press e.
To make the call on hold active and put the active
call on hold:
Press A under Switch.
3-Way Calling
Note: This feature may not be offered by your
service provider.
3-way calling lets you combine 2 phone calls into
one. All 3 people in the call can speak to and hear
each other.
To make a 3-way call:
1Place or receive a phone call.
2While the call is active, press A under 3-Way.
This puts the call on hold.
3Enter the second phone number you want to
call.
Tip: To enter the number from Contacts: Press
m. Select Contacts.
4Press s to place the call.
5While the second call is active, press m.
6Scroll to 3 Way.
43
Creating Pauses and Waits While Dialing
7Press A under Select.
Both calls are now active and appear on the
display.
Creating Pauses and Waits
While Dialing
You can enter a pause or wait while dialing a
number. For more information on pauses and
waits, see “Creating Pauses and Waits” on page
36.
To create a pause while dialing a phone number:
1From the keypad, enter the digits you want to
occur before the pause.
2Press m.
3Select Insert Pause.
4Enter the digits you want to occur after the
pause.
To create a wait while dialing a phone number:
1From the keypad, enter the digits you want to
occur before the wait.
2Press m.
3Select Insert Wait.
4Enter the digits you want to occur after the wait.
Making International Calls
Note: This feature may not be offered by your
service provider.
Plus Dialing lets you place an international call to
most countries without entering the local
international access code.
1Press and hold 0 for two seconds. A “0”
appears, then changes to a “+”.
Note: The network translates the “+” into the
appropriate international access code
needed to place the call.
2Enter the country code, city code or area code,
and phone number.
Setting One Touch PTT
One Touch PTT sets your phone to call the most
recent Private ID on the recent calls list, or a
Private ID you choose, every time you press the
PTT button.
To set your phone to call the most recent Private ID
on the recent calls list:
1From the main menu, select Settings > 2-Way
Radio > One Touch PTT.
2Scroll to Last Call.
3Press A under Select.
44
Advanced Calling Features
To set your phone to call a Private ID you choose:
1From the main menu, select Settings > 2-Way
Radio > One Touch PTT > Assigned Number.
2To enter the Private ID you want your phone to
call every time you press the PTT button:
Enter the number using your keypad. -or-
Press A under Search. Select Contacts,
Recent Calls, or Memo. Select the number you
want to enter.
Tip: If you are entering a Talkgroup number,
enter # before the number.
3Press A under Ok.
To turn off One Touch PTT:
1From the main menu, select Settings > 2-Way
Radio > One Touch PTT.
2Scroll to Off.
3Press A under Select.
Group Calls
A group call is a call made to all members of a
Talkgroup at once. A Talkgroup is a predetermined
group of up to 25 Private IDs.
Before you can make or receive group calls, a
Talkgroup must be established. After the Talkgroup
is established, you must join the Talkgroup.
Joining a Talkgroup
Your sales representative or your service provider
establishes Talkgroups for you and assigns each
Talkgroup a Talkgroup number. You can choose a
name for each of your Talkgroups when you create
entries for them in Contacts.
To receive group calls made to a Talkgroup, you
must join the Talkgroup. You can belong to only
one Talkgroup at a time. When you join a new
Talkgroup, you no longer belong to your previous
Talkgroup.
To join a Talkgroup:
1Press #. Then enter the Talkgroup number
using the keypad. -or-
Choose the Talkgroup name from Contacts or
the recent calls list.
2Press A under Join.
Making Group Calls
1Press #. Then enter the Talkgroup number
using the keypad. -or-
Choose the Talkgroup name from Contacts or
recent calls list.
2Proceed as if making a Private call.
45
Call Timers
Receiving Group Calls
To answer a group call:
Proceed as if answering a Private call. Only one
person at a time may speak on a group call.
The Private ID or name of the person who is
speaking will appear on the display below the
Talkgroup number.
Turning off Group Calls
To control whether you hear group calls to your
Talkgroup:
1From the main menu, select Settings > 2-Way
Radio > Tkgrp Silent.
2Press A under Change.
3Scroll to On if you don’t want to hear group calls
to your Talkgroup. -or-
Scroll to Off if you want to hear group calls to
your Talkgroup.
4Press A under Select.
Call Timers
Call timers measure the duration of your phone
calls, Private or group calls, and circuit data use,
as well as the number of Kilobytes sent and
received by your phone:
•Last Call — displays the duration of your most
recent phone call.
• Phone Reset — keeps a running total of your
phone call minutes, until you reset it.
• Phone Lifetime — displays the total minutes of
all your phone calls.
•Prvt/Grp Reset — keeps a running total of all of
your Private and group call minutes, until you
reset it.
• Prvt/Grp Lifetime — displays the total minutes
of all your Private and group calls.
• Circuit Reset — keeps a running total of all of
your circuit data use, until you reset it.
• Circuit Lifetime — displays the total minutes of
all of your circuit data use.
•Kbytes Reset — keeps a running total of the
number of Kilobytes sent and received by your
phone, until you reset it.
To view or reset a timer:
1From the main menu, select Call Timers.
2Select the feature you want to view or reset.
3To view a feature without resetting: Press A
under Done when you are finished viewing.
-or-
To reset a feature: Press A under Reset. Press
A under Yes to confirm.
46
Advanced Calling Features
Note: The values displayed by Call Timers
should not be used for billing. Call timers
are estimates only.
Using Your Phone as a Modem
Note: This feature may not be offered by your
service provider.
To use your phone as a modem with a laptop,
handheld device, or desktop computer:
1Open the connector cover.
2With the phone’s display facing up, insert a data
cable’s connector into the accessory connector,
until you hear a click.
3Insert the data plug into the COM port of the
other device.
When used as a modem, your phone has these
data transfer modes:
•Circuit data — used for sending and receiving
faxes and for transferring large files
•Packet data — used for small file transfers such
as email
To use these services, you must install the iDEN
Wireless Data Services software (available
separately). For more information on setting up
your computer and your i315 phone for packet and
circuit data calls, refer to the Wireless Data
Services User’s Guide or contact your service
provider.
connector
cover
47
Making TTY Calls
Making TTY Calls
Note: This feature may not be offered by your
service provider.
To use your phone to make phone calls using a
teletypewriter (TTY) device:
1Connect one end of a 2.5mm cable into the
audio jack on your phone. Connect the other
end of the cable to your TTY device.
2Make sure that your phone’s TTY feature is on
and select the TTY mode you want to use.
3Use your phone to enter phone numbers and
make calls.
When you make a TTY call, these icons appear on
the phone’s display:
TTY device features such as Turbo-Code,
High-Speed, and Interruption are not supported by
your phone. These features must be turned off or
disabled to use your TTY device with your phone.
Turning On the TTY Feature
Your phone’s TTY feature must be on if you want
to make TTY calls, set the TTY mode, or change
the TTY baud rate. To make sure the TTY feature
is on:
From the main menu, select Settings > Phone
Calls > TTY. This field must say On.
Choosing a Mode
Your phone supports these TTY modes:
•TTY — You type and read text on your TTY
device.
•VCO (Voice-Carry-Over) — You speak into your
phone and read text replies on your TTY device.
• HCO (Hearing-Carry-Over) — You type text on
your TTY device and listen to voice replies on
your phone speaker.
To change mode while not in a call:
1From the main menu, select Settings > Phone
Calls > TTY > Type.
2Press A under Change.
3Scroll to the TTY mode you want.
4Press A under Select.
When you make a TTY call, the call begins in the
TTY mode you last selected.
NPhone call is active.
OPhone call is on hold.
48
Advanced Calling Features
To change mode during a call using your phone:
1Press m.
2Select in Call Setup > TTY > Type.
3Select the mode you want.
To change mode during a call using your TTY
device, issue one of the following commands:
•“VCO please” — to select VCO mode
•“HCO please” — to select HCO mode
•“HCO off please” — to turn off HCO mode
Important: When you are using HCO, the sound
coming from your phone speaker may
be uncomfortably loud. Use caution
when putting the phone to your ear.
(For information on setting the volume
of your phone speaker, see “Setting the
Volume” on page 78.)
Changing the TTY Baud Rate
By default, your phone’s TTY baud rate is set to
45.45, the baud rate required for TTY calls within
the U.S. To make calls outside the U.S., set your
TTY baud rate to 50.0.
To change the TTY baud rate:
1From the main menu, select Settings > Phone
Calls > TTY > Baud.
2Press A under Change
3Scroll to the baud rate for your location.
4Press A under Select.
49
Memo
Memo lets you store a number, make a call to that
number, and save it to Contacts.
To create a memo:
1From the main menu, select Memo.
2Enter the number using your keypad.
3Press A under Store.
To view the memo later:
1From the main menu, select Memo.
To delete the memo:
1From the main menu, select Memo.
2Press and hold A under Delete.
3Press A under Store.
To edit the memo:
1From the main menu, select Memo.
2Enter the new number.
3Press A under Store.
To make a call to the memo number:
1From the main menu, select Memo.
2To make a phone call, press s. -or-
To make a Private call, press the PTT button.
3
To store the memo number to Contacts:
1From the main menu, select Memo.
2Press m.
3Press A under Select.
4To store the number as a new entry, select [New
Contact]. -or-
To store the number to an existing entry, select
the entry.
5With the Contacts type field highlighted, scroll
left or right to display the Contacts type you want
to assign to the number.
6If you want to add more information to the entry,
follow the applicable instructions in “Creating
Entries” on page 33.
7Press A under Done.
50
Ring Tones
To set the ring tone your phone makes when you
receive phone calls, message notifications, or call
alerts:
1From the main menu, select Ring Tones.
2Make sure Vibrate All is set to Off.
3Scroll through the list of ring tones and select the
one you want to assign. Vibrate sets your phone
to vibrate instead of making a sound; Silent sets
your phone to neither vibrate nor make a sound.
Tip: Highlighting a ring tone lets you hear it.
4Press A under Assign.
5Scroll to the feature you want to assign the ring
tone to.
6Press A under Select.
Tip: A checkmark next to a feature means the
current ring tone has been assigned to it. To
remove the assignment: Scroll to the
feature. Press A under Select.
7To assign the ring tone to other features, repeat
step 5 through step 6.
8When you are finished, press A under Done.
Setting Your Phone to Vibrate
If your phone includes a vibrate feature, you can
set your phone to vibrate when you receive phone
calls, Private calls and group calls, messages
notifications, or call alerts.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
Turning Ring Tones Off
You can set your phone to make no sound when
you receive phone calls, Private calls and group
calls, messages notifications, or call alerts.
These icons indicate how the ringer is set.
These icons may appear at the same time.
Never Ring
1From the main menu, select Ring Tones >
SilentAll.
2Scroll left or right to set SilentAll to On.
uThe phone never rings.
vThe phone always vibrates instead of ringing.
MThe phone does not ring for phone calls.
51
Ring and Vibrate
Always Vibrate Instead of Ringing
If your phone includes a vibrate feature:
1From the main menu, select Ring Tones >
Vibrate All.
2Scroll left or right to set Vibrate All to On.
Tip: Pressing the volume controls to turn down
the volume as far as possible sets Vibrate
All to On.
Do Not Ring for Some Features
To set individual ring options for phone calls,
messages notifications, or call alerts:
1From the main menu, select Ring Tones.
2Make sure Vibrate All or SilentAll is set to Off.
3Scroll through the list of ring tones to Silent. -or-
If your phone includes the vibrate feature, scroll
through the list of ring tones to Vibrate.
4Press A under Assign.
5Scroll to the feature you want to set to make no
sound.
6Press A under Select.
7To assign Vibrate or Silent to another feature,
repeat step 5 through step 6.
8When you are finished, press A under Done.
Note: To set ring options for Private calls and
group calls, see “Setting Your Phone to
Not Ring” on page 78.
Ring and Vibrate
To set your phone to ring and vibrate when you
receive phone calls or call alerts:
1From the main menu, select Ring Tones.
2Make sure Vibrate All is set to Off.
3Scroll through the list of ring tones and select the
one you want to assign.
4Press m.
5Select Assign w/Vibe.
6Select the feature you want to set to ring and
vibrate.
7When you are finished, press A under Done.
This icon S appears on the display.
Assigning Ring Tones to
Contacts
You can set the ring tone your phone makes when
you receive phone calls or call alerts from
someone you have stored in Contacts.
1From the main menu, select Ring Tones.
2Make sure Vibrate All or SilentAll is set to Off.
52
Ring Tones
3Scroll through the list of ring tones to the one
you want to assign. Highlighting a ring tone lets
you hear it.
4Press A under Assign.
5Select A Contact.
6Scroll to the Contacts entry you want to assign
the ring tone to.
7Press A under Select.
Viewing Ring Tone
Assignments
1From the main menu, select Ring Tones.
2Make sure Vibrate All or SilentAll is set to Off.
3Highlight any ring tone.
4Press m.
5Select Overview.
6Scroll to view ring tones assigned to features
and Contact entries.
Downloading More Ring
Tones
If you want to use other ring tones, you can
download them into your phone for a fee. Go to
www.motorola.com/idenupdate for a selection of
custom ring tones and downloading instructions.
Note: Ring tones may be downloaded only
once. If you delete a ring tone from your
phone, you must purchase it to download
it again.
Managing Memory
To view the amount of memory available for
custom ring tones:
1From the main menu, select Ring Tones.
2Make sure Vibrate All or SilentAll is set to Off.
3Highlight any ring tone.
4Press m.
5Select Memory Usage.
Deleting custom ring tones frees memory.
Note: Ring tones are stored in your phone using
the same memory space used to store
voice records. Deleting voice records
frees memory space for ring tones.
Deleting Custom Ring Tones
To delete a custom ring tone:
1From the main menu, select Ring Tones.
2Make sure Vibrate All or SilentAll is set to Off.
3Scroll to the ring tone you want to delete.
4Press m.
53
Deleting Custom Ring Tones
5Select Delete.
6Press A under Yes to confirm.
54
Entering Text
You can enter text into your phone using the
traditional method of pressing a key several times
for each character, or by pressing a key once for
each letter while words likely to be the one you
want are chosen from a database. You can also
enter symbols and numbers into a text field.
In screens that require you to enter text, you see
the following icons near the top right corner. These
icons tell you which text input mode you are using:
When you access a screen that requires you to
enter text, you start in Alpha mode.
To choose a text input mode:
1At a screen that requires you to enter text, press
m.
2A checkmark appears next to the current text
input mode. Scroll to the text input mode you
want to use.
3Press A under Select.
Using Alpha Mode
•Press any key on the keypad to enter the letters,
numbers, and symbols on that key. For example,
to enter the letter Y, press 9 three times.
•Type a letter then scroll up to make that letter
uppercase, or type a letter then scroll down to
make that letter lowercase.
•See “Special Function Keys” on page 55 for
more information on adding spaces,
capitalization, and punctuation.
Using Word Mode
In Word mode, T9 Text Input analyzes the letters
on the keypad button you press and arranges them
to create words. As you type, T9 Text Input
matches your keystrokes to words in its database
and displays the most commonly used matching
word. You can add you own words to this
database.
Entering a Word
1Select Word as your text input mode.
lAlpha — Press a key several times for each
character.
jWord — Press a key once for each letter
while words likely to be the one you want are
chosen from a database.
iSymbols — Enter punctuation and other
symbols.
kNumeric — Enter numbers.
55
Special Function Keys
2Type a word by pressing one key for each letter.
For example, to type “test” press 8 3 7
8.
The displayed word may change as you type it.
Do not try to correct the word as you go. Type to
the end of the word before editing.
3If the word that appears is not the desired word,
press 0 to change the word on the display to
the next most likely word in the database.
Repeat until the desired word appears.
If the desired word does not appear, you can add it
to the database.
Adding Words to the Database
1Select Alpha as your text input mode.
2Type the word using Alpha mode.
3Select Word as your text input mode.
4Press #.
The word you typed in Alpha text entry mode is
now in the database.
Note: You cannot store alphanumeric
combinations, such as Y2K.
Choosing a Language
To change the language of the database:
1At a screen that requires you to enter text, press
m.
2Select Languages.
3Scroll to the language you want for your
database.
4Press A under Select.
Special Function Keys
Some of the phone’s keys assume different
functions while in Alpha or Word mode.
Spaces
Press # for a space.
Capitalization
When you press and hold #, it acts as a 3-way
toggle. Press and hold # to make the next letter
typed uppercase (shift), to make all subsequent
letters typed uppercase (caps lock), or to go back
to lowercase letters.
56
Entering Text
These icons appear in the top row of your display:
When neither of these icons appear, letters typed
are lowercase.
Note: Your phone automatically makes the first
letter of a sentence uppercase.
Punctuation
Press 1 or 0 to insert punctuation. Continue to
press the key to view the list of symbols available
through that key. Pause to select the symbol you
want.
Note: Additional punctuation symbols are
available in Symbols mode.
Using Numeric Mode
1Select Numeric as your text input mode.
2Press the number buttons on your keypad to
enter numbers.
Using Symbols Mode
1Select Symbols as your text input mode.
A row of symbols appears along the bottom of
your phone’s display. Scroll right to view the
complete row.
2Scroll left or right to choose the symbol you want
to enter.
3Press A under Select.
mShift is on.
nCaps lock is on.
57
Messages
You can receive the following types of messages
on your phone:
•Voice mail messages
•Short Message Service (SMS) text messages
•Depending on your service provider, you may
have the option to receive fax mail and Net
alerts.
You have 2 ways to access the messages you
receive:
•Respond to the message notification that
appears when the message is received.
•Dismiss the message notification and access
the message later through the message center.
You can listen to or view these messages, delete
them, or continue to store them in the message
center.
Message Notifications
When you receive a message, your phone notifies
you with text on the display and a notification tone
or vibration. You can access the message or
dismiss the notification.
If you dismiss the notification, the message is not
deleted. It can be accessed through the message
center.
If you are not on a phone call when you receive a
message, your phone sounds a notification tone
every 30 seconds until you access the message,
dismiss the notification, or the alert time-out
expires.
Setting Notification Options
To control whether your phone sounds message
notification tones while you are on phone calls:
1From the main menu, select Settings > Phone
Calls > Notifications.
2Choose the option you want:
• Receive All — Tones sound during calls for
all types of messages.
• Msg Mail Only — Tones sound during calls
for SMS messages; tones for all other types
of messages are held until you end calls.
• Delay All — Tones for all types of messages
are held until you end calls.
3Press A under Select.
Tip: To set notification options during a call:
Press m. Select In Call Setup >
Notifications.
58
Messages
Message Center
The message center manages your messages.
All your messages are stored in the message
center. The message center shows how many
messages you have of each type.
To access your messages through the message
center:
1Press A under Mesgs. -or-
From the main menu, select Messages.
2Scroll to the type of message you want to
access.
3Press A under the display option on the left.
59
Voice Mail Messages
Note: To receive voice mail messages, you must
first set up a voice mail account with your
service provider.
Receiving a Message
When you receive a voice mail message, New
Voice Mail Message appears on the display.
To call your service provider’s voice mail system
and listen to the message:
Press A under Call.
To dismiss the message notification:
Press A under Back. This icon y appears
on the display, reminding you that you have a
new message.
Accessing Voice Mail from
the Message Center
1From the main menu, select Messages > Voice
Mail.
2Press A under Call to call your service
provider’s voice mail system.
Sending Unanswered Calls to
Voice Mail
To send a phone call to voice mail instead of
answering it:
Press e. -or-
Press A under No.
If the caller leaves a message, this icon y
appears on the display, reminding you that you
have a new message.
60
MOSMS Messages
Note: This feature may not be offered by your
service provider.
If your service provider offers MOSMS, your phone
sends SMS messages using MOSMS and receives
SMS messages from other phones that are using
MOSMS.
Setting Up
Before you begin using MOSMS, you may need to
set up your signature, service center number, and
expiration information:
1From the main menu, select Messages.
2Scroll to Text Inbox.
3Press m.
4Select Text Msg Setup.
5With the Signature field highlighted, press A
under Change.
Enter your signature. It may be up to 11
characters long. See “Entering Text” on page
54. When you are finished, press A under Ok.
6With the Srvc Cntr No field highlighted, press
A under Change.
Enter the phone number of your service center.
If you do not know this number, contact your
service provider.
When you are finished, press A under Ok.
7With the Expire After field highlighted, press A
under Change.
This is the amount of time messages you send
are saved if they cannot be delivered. After this
period, they are discarded.
Scroll or press A under Q to change field.
When you are finished, press A under Done.
8Press A under Back to save the information
you entered.
Receiving a Message
When you receive a text message, New Text
Message appears on the display.
To view the message:
1Press A under Read.
2If the message fills more than one screen, scroll
to read it.
3To keep the message, scroll to the end of the
message and press A under Save. -or-
61
Reading from the Message Center
To delete the message, scroll to the end of the
message and press A under Delete.
To dismiss the message notification:
Press A under Exit. This icon w appears on
the display, reminding you that you have a new
message.
If your phone is powered off when you receive a
text message, your phone notifies you the next
time you power it on. If you are out of your
coverage area, your phone alerts you when you
return to your coverage area.
Tip: While reading a text and numeric message
that contains a phone number, you can
press s to call that number.
Reading from the Message
Center
1From the main menu, select Message > Text
Inbox.
2Scroll to the message you want to read.
3Press A under Read.
4If the message fills more than one screen, scroll
to read it.
5To keep the message, press A under Save. -or-
To delete the message, scroll to the end of the
message and press A under Delete.
Tip: To see more choices, including replying to
the message, press m.
Creating and Sending
Messages
1From the main menu, select Messages > Text
Inbox > [Create Msg]. -or-
From the main menu, select Messages > Text
Outbox > [Create Msg].
2Press A under Create.
3To address the message:
Use the keypad to enter the phone number of
the person you want to send the message to.
-or-
Press A under Browse. Select Contacts,
Recent Calls, or Memo. Enter the number from
Contacts, the recent calls list, or Memo, as you
would when making a call.
When you are finished, press A under Ok.
4Enter the text of the message. See “Entering
Text” on page 54. -or-
To use a quick note: Press A under Browse.
Scroll to the quick note you want. Press A
62
MOSMS Messages
under Select. For more information on quick
notes, see “Using Quick Notes” on page 63.
If you want to add your signature: Press m.
Select Add Signature.
When you are finished, press A under Ok.
5If you want to send the message, press A
under Yes. -or-
If you want to request confirmation of delivery,
specify the type of message you want to send,
save the message as a draft, or delete the
message without sending it, press A under No.
6If you want to request confirmation of delivery:
With the Report field highlighted, press A
under Change. Select Yes.
7If you want to specify the type of message you
want to send:
With the Send As field highlighted, press A
under Change. Scroll to the message type you
want. Press A under Select.
8To send the message: Press s. Press A under
Yes. -or-
To save the message as a draft without sending
it: Press m. Scroll to Save As Draft. Press A
under Select. -or-
To delete the message without sending it: Press
m. Scroll to Delete. Press A under Select.
Tip: In some fields, you can select an option by
scrolling left or right instead of pressing A
under Change.
Beginning Messages From the Recent
Calls List
1From the recent calls list, scroll to the name you
want to send a message to.
2If the entry has more than one phone number
stored, view the phone number you want to send
the message to.
3Press m.
4Select Compose SMS. The message is
automatically addressed to the phone number
you chose.
5Follow step 4 through step 8 of “Creating and
Sending Messages” on page 61.
Beginning Messages From the Idle
Screen
1Using the keypad, enter the number you want to
send a message to.
2Press m.
63
Creating and Sending Messages
3Select Compose SMS. The message is
automatically addressed to the phone number
you chose.
4Follow step 4 through step 8 of “Creating and
Sending Messages” on page 61.
Using Quick Notes
Quick notes are short, pre-written text messages
that you can create, edit, and send. You can store
up to 20 quick notes. A quick note may be up to 30
characters long.
To create a quick note:
1From the main menu, select Messages > Quick
Notes > [New Quick Note].
2Press A under Create.
Enter text. See “Entering Text” on page 54. -or-
To choose from pre-installed notes: Press A
under Browse. Scroll to the note you want.
Press A under Select.
3Press A under Store.
Tip: For more options, including sending the
quick note, press m.
Using Drafts
When you save a message as a draft, it is saved in
the drafts folder. You must have a draft saved to
have a drafts folder.
To edit a draft:
1From the main menu, select Messages > Drafts
Folder.
2Press A under Change.
3To edit the fields you want to change, follow
step 3 through step 8 in “Creating and Sending
Messages” on page 61.
If you have a draft saved, you can create more
drafts in the drafts folder:
1From the main menu, select Messages > Drafts
Folder > [Create Msg].
2Press A under Create.
3Follow step 3 through step 7 in “Creating and
Sending Messages” on page 61.
4Scroll to Save As Draft.
Using the Outbox
Messages you have sent are stored in the outbox.
64
MOSMS Messages
These icons appear next to messages in the
outbox:
Resending Messages
To resend a message:
1From the main menu, select Messages > Text
Outbox.
2Scroll to the message you want to resend.
3Press m.
4Select Re-send.
5Press A under Yes to confirm.
Deleting Sent Messages
To delete a sent message:
1From the main menu, select Messages > Text
Outbox.
2Scroll to the message you want to delete.
3Press m.
4Select Delete.
5Press A under Yes to confirm.
To delete all unlocked sent messages:
1From the main menu, select Messages > Text
Outbox.
2Press m.
3Select Delete All.
4Press A under Yes to confirm.
Locking Sent Messages
When you lock a message, it cannot be deleted
until you unlock it.
1From the main menu, select Messages > Text
Outbox.
2Scroll to the message you want to lock or
unlock.
3Press m.
4Scroll to Lock to lock the message. -or-
5Sent and confirmed.
9Send attempted.
0Forwarded.
4Received by addressee.
6Not received by addressee.
8Send failed.
7Re-sent.
RLocked.
65
Managing Memory
Scroll to Unlock to unlock the message.
5Press A under Select.
Managing Memory
Your text inbox, outbox, and drafts folder have a
set amount of memory available for storing
messages.
The text inbox holds 20 messages. If the text inbox
is full, you cannot receive messages until you
delete some.
The outbox and drafts folder share memory space.
Together they can hold 30 messages. If the outbox
and drafts folder memory is full, you cannot send
messages or save drafts until you delete some.
To view the amount of memory available in your
text inbox:
1From the main menu, select Messages > Text
Inbox.
2Press m.
3Select Memory Meter.
To view the amount of memory available in your
outbox and drafts folder:
1From the main menu, select Messages > Text
Outbox.
2Press m.
3Select Memory Meter.
66
GPS Enabled
Your phone’s GPS Enabled feature uses
information from Global Positioning System (GPS)
satellites orbiting the Earth to determine the
approximate geographical location of your phone,
expressed as latitude and longitude. The
availability and accuracy of this location
information (and the amount of time that it takes to
calculate it) will vary depending on the environment
in which you are using the GPS feature. For
example, GPS location fixes are often difficult to
obtain indoors, in covered locations, between high
buildings, or in other situations where you have not
established a clear broad view of the sky. SEE:
“IMPORTANT: Things to Keep in Mind”.
When you make a 911 emergency call, the GPS
feature of your phone can help emergency
personnel locate you if your phone has adequate
access to GPS satellite signals and your
emergency response center is equipped to process
such information.
You can also use the GPS feature to view your
approximate location. Location information
appears on the phone’s display.
If your phone is connected to a laptop computer or
similar device, software running on that device can
request your location. To protect your privacy, you
can control whether these requests are granted.
IMPORTANT: Things to Keep
in Mind
If you are using the GPS feature of your phone
while driving, please give full attention to driving
and to the road.
Where adequate signals from multiple satellites
are not available (usually because your GPS
antenna cannot establish a view of a wide area of
open sky), the GPS feature of your phone WILL
NOT WORK. Such situations include but are
not limited to:
• In underground locations
• Inside of buildings, trains, or other covered
vehicles
• Under any other metal or concrete roof or
structure
• Between tall buildings or under dense
tree-cover
• Near a powerful radio or television tower
67
Making an Emergency Call
• When your GPS antenna is covered (for
example, by your hand or other object) or
facing the ground
• In temperature extremes outside the
operating limits of your phone
Walking or driving very slowly may also
substantially reduce GPS performance.
Even where location information can be
calculated in such situations, it may take much
longer to do so, and your location estimate may
not be as accurate. Therefore, in any 911 call,
always report the location to the emergency
response center if you can and if you cannot,
remain on your phone for as long as the
emergency response center instructs you.
Even where adequate signals from multiple
satellites are available, your GPS feature will
only provide an approximate location, often
within 150 feet (45 meters) but sometimes
much further from your actual location. Advice
on how to improve GPS performance is
provided in “Enhancing GPS Performance” on
page 69.
While the GPS feature of your phone can be a
valuable navigational aid, it does not replace the
need for careful navigating and good judgment.
Never rely solely on one device for navigation.
Remember that the accuracy of the location
information and the time needed to obtain it will
vary depending on circumstances, particularly the
ability to receive signals from adequate numbers of
satellites.
On emergency calls, your phone uses assistance
information from the phone network to improve the
speed and accuracy of your phone’s location
calculation: if such assistance information
becomes unavailable, it may reduce the speed and
accuracy of the location calculation.
The satellites used by the GPS feature of your
phone are controlled by the U.S. government and
are subject to changes implemented in accordance
with the Department of Defense GPS user policy
and the Federal Radionavigation Plan. These
changes may affect the performance of the GPS
feature of your phone.
Making an Emergency Call
Dial 911 to be connected to an emergency
response center. If you are on an active call, you
must end it before calling 911.
When you make an emergency 911 call, the GPS
feature of your phone begins to seek information to
calculate your approximate location. It will take
the GPS feature of your phone some time to
determine your approximate location. Even
where your phone has good access to sufficient
68
GPS Enabled
GPS satellite signals and network assist data, it
may take 30 seconds or more to determine the
approximate location. This time will increase where
there is reduced access to satellite signals. When
your approximate location is determined, it is made
available to the appropriate emergency response
center.
In some cases, your local 911 emergency
response center may not be equipped to
receive GPS location information. For this
reason, and because the GPS location information
reported is only approximate or may not be
available in your location (see “IMPORTANT:
Things to Keep in Mind” on page 66), always
report your location to the 911 operator you
speak to when making an emergency call, if able,
just as you would when using a phone without GPS
capabilities.
Note: If you are concerned about whether your
local 911 emergency response center is
equipped to receive GPS location
information, contact your local authorities.
In general, if your phone has access to signals
from more GPS satellites, your location will be
determined faster and more accurately than if your
phone has access to signals from fewer GPS
satellites.
If your phone does not have adequate access to
GPS satellites signals, the location of the nearest
cell tower in contact with your phone is
automatically made available to the emergency
response center, if the center has the capability to
receive such information.
See “Enhancing GPS Performance” on page 69 for
information on how to help your phone determine
your location.
Viewing Your Approximate
Location
1From the main menu, select GPS > Position.
2Scroll to view the entire screen.
This displays the following information about the
last time your location was calculated:
•The time (as Greenwich Mean Time) and date
that the location was last calculated.
•The approximate location, expressed as latitude
and longitude.
•The estimated accuracy of the calculated
location. This estimate of accuracy is only a very
rough estimate and may vary substantially from
the actual accuracy of the approximate location
information reported.
69
Enhancing GPS Performance
•The number of satellites used to calculate the
location. In general, more satellites make for
better accuracy.
To calculate your location again:
Press A under Rfrsh.
It may take your phone several minutes to
complete the process of determining your location.
During this time, a message usually appears on
your phone’s display saying your phone is
scanning for satellites. For tips on getting the best
location calculation, see “Enhancing GPS
Performance”.
The Position screen displays the updated
information.
To cancel a location calculation before it is
completed:
Press A under Cancel to return to the Position
screen. -or-
Press e to return to the idle screen.
Each time approximate location of your phone is
calculated, the latest location information is stored
in your phone and remains there even when your
phone is powered off. You will see this information
the next time you view the Position screen.
If you received a phone call or alert while
attempting to determine your location, the Position
screen will disappear, but your phone will continue
attempting to determine its location. If it is
successful, the new location information will be
displayed the next time you view the Position
screen.
Enhancing GPS Performance
Sometimes the GPS feature of your phone may be
unable to complete a location calculation
successfully. If this happens when you are making
an emergency call, the location of the nearest cell
tower in contact with your phone is made available
to the appropriate emergency response center if
the center has the capability to receive such
information. If this happens when you are trying to
view your location on the phone’s display, you will
see a message indicating that your phone cannot
access satellites.
To improve accuracy and increase your chances of
a successful calculation, do the following while
your phone is determining your approximate
location:
70
GPS Enabled
•Stay in the open. The GPS feature works best
where there is nothing between your phone and
a large amount of open sky. If possible, go
outside, away from tall buildings and foliage.
While performance in a building is improved by
moving closer to windows, glass with certain sun
shielding films may block satellite signals.
•Hold your phone to enhance reception. Signals
from GPS satellites are transmitted to your GPS
antenna, which is inside the back of your phone,
opposite the earpiece, above the label with your
service provider’s name on it. Hold your phone
away from your body, giving the antenna clear
access to satellite signals. Do not cover the
antenna area with your fingers or anything else.
•Stand still. If possible, stand still until your phone
is finished determining your location. Moving
your phone at a walking pace while your phone
is calculating your approximate location may
substantially decrease GPS performance.
•In a car. When using the GPS Enabled feature in
a car, position your phone so that the GPS
antenna has good access to GPS signals
through the car’s windows. Typically, the GPS
antenna has best access to GPS signals in a car
when placed near a window.
Note: Although moving your phone at a walking
pace decreases GPS performance,
moving it at the speed of a moving car
does not.
•Stay in network coverage. Depending on who
your service provider is, the network will provide
your phone with information that helps
determine your location more quickly and
accurately.
GPS antenna area
71
Updating Satellite Almanac Data
Updating Satellite Almanac
Data
Another way to keep the GPS feature of your
phone working well is to keep your satellite
almanac data up to date.
The United States government maintains an
almanac of data about where GPS satellites are as
they orbit the Earth. This information is available to
your phone. Keeping your satellite almanac up to
date helps your phone determine your location
more quickly.
The almanac contains information about the
location of satellites, their operational status, and
other satellite information. Keeping this information
updated enhances the performance of your GPS
feature. In most cases, your phone will be able to
get a fix in strong satellite signal conditions with
outdated almanac data, but it may take longer.
Note: When you make an emergency call, your
phone does not rely upon the almanac to
determine your location.
If your satellite almanac data is out of date, your
phone may prompt you to update it. Follow the
instructions that appear on the phone’s display.
You may be asked to go to a web site or call a
customer care number.
Setting Privacy Options
Your phone’s GPS privacy options control whether
software applications may view the location of your
phone.You may set your phone to one of these
GPS privacy options:
• Restricted — No software applications may
view the location of your phone. However,
location information may still be available to the
phone’s owner, fleet manager, or account
administrator.
• Unrestricted — All applications may view the
location of your phone, without notifying you.
• By Permission — When an application
attempts to view the location of your phone, you
will be prompted to give permission. However,
location information may still be available to the
phone’s owner, fleet manager, or account
administrator.
Note: Privacy options do not apply to the
transmission of location information
during emergency 911 calls.
To set your GPS privacy options:
1From the main menu, select GPS > Privacy.
2If your GPS PIN security feature is enabled,
enter your GPS PIN. (See “Setting the GPS PIN
Security Feature” for more information.)
72
GPS Enabled
3Scroll to the privacy setting you want.
4Press A under Select.
Setting the GPS PIN Security Feature
To prevent your GPS privacy settings from being
altered without your knowledge, your GPS privacy
option can be protected by a PIN.
When you receive your phone, the GPS security
feature is turned off, so you do not have to enter a
GPS PIN to access your GPS privacy options. If
you turn this feature on, you will be required to
enter a GPS PIN to access your GPS privacy
options.
To turn the GPS Enabled security feature on or off:
1From the main menu, select Settings >
Security > GPS PIN.
2Scroll to On or Off.
3Press A under Select.
4Enter the current GPS PIN.
Note: When you receive your phone, your GPS
PIN is 0000.
5Press A under Ok.
To change your GPS PIN:
1From the main menu, select Settings >
Security > Change Password > GPS PIN.
2Enter the current GPS PIN.
Note: When you receive your phone, your GPS
PIN is 0000.
3Press A under Ok.
4Enter the new 4- to 8-digit GPS PIN.
5Press A under Ok.
6Enter the new 4- to 8-digit GPS PIN to confirm.
7Press A under Ok.
Using GPS with Map Software
You can use the GPS feature of your phone to
provide approximate location data to a laptop
computer or similar device that is running
interactive map software such as that made by
DeLorme or Microsoft. This way, if your phone has
good access to GPS signals, your approximate
position on a map can be made available as you
travel in a vehicle.
To do this, connect your phone to your laptop (or
other device) with a data cable and set your phone
to transmit data (see “Getting Started” on page 73).
Your phone then provides your approximate
location to the device running the map software,
which displays your location on a map. Your phone
provides an updated location every second and the
map software displays your changing location on
its map.
73
Using GPS with Map Software
See “Enhancing GPS Performance” on page 69 for
more details on obtaining good location
information.
Note: Because your phone is continuously
determining your location, using the GPS
feature of your phone with map software
uses the phone’s battery power quickly.
Software Compatibility
Your phone sends location information to your
laptop or other device using the standard National
Marine Electronics Association (NMEA) format.
Your phone supports output messages in
NMEA-0183 format and supports the following
NMEA-0183 sentences: GGA, GLL, GSA, GSV,
RMC, and VTG.
The map software running on your laptop or other
device must support NMEA 3.0.
Getting Started
To connect your phone to your laptop or other
device:
1Open the connector cover.
2With the phone’s display facing up, insert the
data cable’s connector into the accessory
connector, until you hear a click.
connector
cover
74
GPS Enabled
3Insert the data plug into the COM port of your
laptop or other device.
Make sure no other application is using the COM
port selected.
Make sure the COM port settings of your laptop or
other device are set to the following:
•Bits per second: 4800
•Data bits: 8
•Parity: None
•Stop bits: 1
•Flow control: Hardware
To set your phone to send location information to
your laptop or other device:
1From the main menu, select GPS > Interface.
2With NMEA OUT highlighted, press A under
Change.
3Scroll to On.
4Press A under Select. Your phone is now
sending location data to your laptop or other
device.
To stop your phone from sending location data to
your laptop or other device:
Set NMEA OUT to Off.
Each time you power your phone on, NMEA OUT
is automatically set to Off.
75
Voice Records
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
A voice record is a recording you make with your
phone and can play back. You can record notes to
yourself or phone calls.
Your phone can store up to 20 voice records, with
a total time of 3 minutes or more, depending on
available memory.
Creating Voice Records
To record a note to yourself:
1From the main menu, select VoiceRecd > [New
VoiceRec].
2Press A under Record. Say the message you
want to record into the microphone.
3When you are finished recording, press A
under Stop.
To add to the end of voice record:
1From the main menu, select VoiceRecd.
2Scroll to the voice record you want to add to.
3Press m.
4Scroll to Add To.
5Press A under Select. Say the message you
want to add into the microphone.
6When you are finished recording, press A
under Stop.
To record a phone call:
1While on an active call, press m.
2Scroll to Record.
3Press A under Select to start recording.
4When you are finished recording, press A
under Stop.
Note: Recording of phone calls is subject to
applicable laws regarding privacy and
recording of phone conversations.
Playing Voice Records
1From the main menu, select VoiceRecd.
2Scroll to the voice record you want to play.
3Press A under Play.
4To stop the voice record while it is playing, press
A under Back.
Tip: To fast forward, scroll right. To rewind, scroll
left. To pause or resume, press any key.
76
Voice Records
Labelling Voice Records
When you create a voice record, it is labeled with
the time and date it was recorded. You can then
rename it with a custom label.
1From the main menu, select VoiceRecd.
2Scroll to the voice record you want to label.
3Press m.
4Select Label.
5Enter the label you want to assign. See
“Entering Text” on page 54.
6Press A under Ok.
Deleting Voice Records
To delete a voice record:
1From the main menu, select VoiceRecd.
2Scroll to the voice record you want to delete.
3Press m.
4Select Delete.
5Press A under Yes to confirm.
To delete all voice records:
1From the main menu, select VoiceRecd.
2Press m.
3Select Delete All.
4Press A under Yes to confirm.
Locking Voice Records
When you lock a message, it cannot be deleted
until you unlock it.
1From the main menu, select VoiceRecd.
2Scroll to the message you want to lock or
unlock.
3Press m.
4Scroll to Lock to lock the message. -or-
Scroll to Unlock to unlock the message.
5Press A under Select.
When a voice record is locked, this icon R appears
next to it.
Managing Memory
To view the amount of memory available for voice
records:
1From the main menu, select VoiceRecd.
2Press m.
3Select Memory.
To free more memory by deleting all unlocked
voice records:
1From the main menu, select VoiceRecd.
77
Managing Memory
2Press m.
3Select Memory.
4Press A under Delete.
5Press A under Yes to confirm.
Note: Voice records are stored in your phone
using the same memory space used to
store ring tones. Deleting ring tones frees
memory space for voice records.
78
Customizing Your Phone
Setting the Volume
To set the volume of the sound coming from the
phone’s earpiece or speaker:
1From the main menu, select Settings > Volume.
2Scroll to Earpiece to set the earpiece volume.
-or-
Scroll to Speaker to set the speaker volume.
3Press A under Change.
4To select the volume:
Scroll left or right. -or-
Press the volume controls.
5Press A under Ok.
To set the volume of the phone’s ring:
Press the volume controls.
For another way to set the volume of the phone’s
ring, or the volume of many other sounds your
phone makes:
1From the main menu, select Settings > Volume.
2Scroll to the option you want and make the
change. Choose Line 1 or Line 2 to set the
volume of the phone’s ring when you get a call
on that line.
See “Volume Features” on page 80.
Setting Your Phone to Not
Ring
To set your phone to make no sound when you
receive phone calls, Private calls, group calls,
message notifications, and call alerts, see “Turning
Ring Tones Off” on page 50.
To set your phone to vibrate instead of making a
sound when you receive Private calls and group
calls, even if you want your phone to ring for other
features:
1From the main menu, select Settings > 2-Way
Radio > Alert Type.
Tip: If Alert Type does not appear: From the
main menu, select Ring Tones. Make sure
Vibrate All or SilentAll is set to Off.
Repeat step 1.
2Press A under Change.
3Scroll to Vibrate.
4Press A under Select.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
79
Seeing the Display Better
If your phone does not include a vibrate feature,
you can still set your phone to make no sound.
Scroll to Silent in step 3.
Seeing the Display Better
To set the contrast of the display:
1From the main menu, select Settings >
Display/Info > Contrast.
2Press A under Change.
3Scroll left or right to set the contrast.
4Press A under Ok.
Using Settings
Settings contains many submenus that let you
customize your phone.
Display/Info Features
The Display/Info menu controls how the keypad
and display appear:
• Backlight — controls how long the backlight
stays on after you make or receive a call.
•Clock — controls whether the time and date
appears on the idle screen, sets the format of
the time and date, and sets the year.
•Contrast — sets the contrast on the display.
See “Seeing the Display Better”.
• Language — sets the language that your phone
displays.
Phone Calls Features
The Phone Calls menu controls how your phone
handles phone calls:
• Set Line — sets phone line 1 or phone line 2 as
the active line for outgoing calls.
• Any Key Ans — If this feature is on, you can
answer calls by pressing any number key on the
keypad.
• Auto Redial — sets your phone to automatically
redial calls you make when the system is busy.
• Call Waiting — See “Call Waiting” on page 41.
•Auto Ans — sets your phone to automatically
answer an incoming call after a specified
number of rings. When this feature is on, the
phone answers by connecting you to the caller;
it does not send the call to voice mail, unless
you are out of coverage or on the line.
• Minute Beep — causes a beep to sound every
minute of an active call.
•Call Duration — causes the duration of a call to
appear on the phone’s display when the call
ends.
80
Customizing Your Phone
• TTY — lets you use your phone with a TTY
device. See “Making TTY Calls” on page 47.
• Notifications — See “Setting Notification
Options” on page 57.
2-Way Radio Features
The 2-Way Radio menu controls how your phone
handles Private calls and group calls:
• Tkgrp Silent — controls whether you hear
group calls to your Talkgroup. See “Receiving
Group Calls” on page 45.
•Tkgrp Area — lets you define your Talkgroup
area.
• One Touch PTT — See “Setting One Touch
PTT” on page 43.
• Alert Type — controls how your phone notifies
you when you receive Private calls and group
calls. See “Setting Your Phone to Not Ring” on
page 78.
Volume Features
The Volume menu sets the volume of sounds your
phone makes:
•Line 1 — sets ring volume for phone line 1.
•Line 2 — sets ring volume for phone line 2.
•Messages — sets the volume of message
notifications.
• Earpiece — sets the volume of sound coming
out of the earpiece.
• Speaker — sets the volume of sound coming
out of the speaker.
•Keypad — sets the volume of sound associated
with pressing keys and buttons.
•Data — sets the volume of sounds that notify
you that you are receiving a circuit data call.
Security Features
The Security menu lets you turn security features
on and off and change passwords:
• Phone Lock — turns on a feature that locks
your phone, either immediately or automatically
after a set period of inactivity. An unlock code is
required to enable this feature, to unlock the
phone, and to set a new unlock code. Contact
your service provider for your default unlock
code.
•Keypad Lock — locks the phone’s keypad,
either immediately or automatically after a set
period of inactivity. See “Locking the Keypad” on
page 14 for more information on locking and
unlocking the keypad.
81
Using Settings
• SIM PIN — enables and disables your phone’s
SIM PIN security feature. See “Turning the PIN
Requirement On and Off” on page 12.
• GPS PIN — enables and disables your phone’s
GPS PIN security feature. See “Setting the GPS
PIN Security Feature” on page 72.
• Change Passwords — changes your phone
unlock code, security code, SIM PIN, and GPS
PIN.
Advanced Features
The Advanced menu contains advanced and rarely
used Settings features.
• Alert Timeout — controls the amount of time a
tone continues to sound when you receive a
message notification or call alert.
• Headset/Spker — sets headset option. See
“Using a Headset” on page 82.
• Connectivity — Network ID sets the phone’s
network IDs and their roaming options under the
direction of your service provider; Master Reset
lets your service provider reset your service in
the event of a security or provisioning problem.
• Reset Defaults — Reset Settings returns all
settings to their original defaults; Reset All
returns all settings to their original defaults and
erases all stored lists. Use only under the
direction of your service provider.
•Return to Home — controls how long the recent
calls list displays after calls.
• Phone Only — prevents your phone from
making or receiving Private calls or group calls.
•Baud Rate — sets the baud rate at which your
phone communicates with a laptop computer,
PC, or similar device.
82
Using a Headset
If you use a headset or similar device with your
phone, you can set your phone to send incoming
sound to the headset only, or to the headset and
the speaker at the same time:
1From the main menu, select Settings >
Advanced > Headset/Spkr.
2Press A under Change.
3Scroll to HdsetOnly to send incoming sound to
the headset only. -or-
Select Hdset&Spkr to send incoming sound to
the headset and ring tones to the speaker.
4Press A under Select.
Note: When you are using a headset, the PTT
button on your phone works the same way
as when you are not using a headset.
Private call and group call sounds will be
heard through the headset.
Attaching a Headset
1Lift the audio jack cover.
2Insert the headset connector firmly into the
audio jack. You may have to rotate the headset
jack until it fits securely into the audio jack.
Using a Remote PTT Button
If you are using a headset or other accessory with
a remote PTT button, you can use the remote PTT
button for phone calls and Private calls.
For phone calls, use the remote PTT button to
answer calls, switch between calls, and end calls.
Hold the remote PTT button for less than 2
seconds to answer calls and switch between calls.
Hold the remote PTT button for more than 2
seconds to end calls.
For Private calls, use the remote PTT button as
you would the PTT button on your phone.
83
Understanding Status
Messages
You may receive status messages under certain
conditions. Before contacting Customer Care, note
the message, numeric code, and the conditions
under which it appeared. The following table lists
and describes the status messages.
Status Messages Message Description
Number Not in
Service
The number that you entered is not
valid.
User Not Available The phone that you called is either
busy, out of coverage, or turned off.
Please try again later.
User Not
Authorized
The person that you called has not
purchased this service.
Please Try Later This service is temporarily not
available. Please try again later.
Service Restricted This service was restricted by your
service provider, or this service was
not purchased.
Service Not
Available
You are either out of coverage or
having problems with provisioning.
System Busy The system is experiencing heavy
traffic. Please try again later.
Please Try Again An error occurred. Please try again.
Self Check Error +
Number Code
A fault was detected with your
phone. If this error recurs, note the
error code and contact Customer
Care.
Self Check Fail +
Number Code
An operational fault was detected
with your phone. Note the numeric
code, turn your phone off, and
contact Customer Care.
PIN Blocked
Call Your Provider
The incorrect PIN was entered 3
consecutive times. You will be
unable to place or receive calls on
your phone. Contact Customer
Care to have them obtain the PIN
Unblocking Key (PUK) code.
Insert SIM Your SIM card is not being
detected. Please check to ensure
that you have inserted the SIM card
correctly into your phone.
Check SIM Card Please check your SIM card to
make sure it has been inserted
properly.
Wrong PIN You have entered an incorrect PIN
number.
Status Messages Message Description
84
Understanding Status Messages
Enter SIM PIN Please enter your 4- to 8- digit SIM
PIN code.
Enter Unlock Code Auto Phone Lock is activated.
Enter you unlock code.
New Browser
Message Memory
Full!
Warns of low memory for Net
Alerts.
Scanning for
Satellites
Searching for GPS satellites.
Unable to Locate
Sats
Could not find GPS satellites.
Technical Error A problem occurred in your phone’s
GPS circuitry. If this error occurs,
contact Customer Care
Status Messages Message Description
85
Safety and General
Information
IMPORTANT INFORMATION ON SAFE AND
EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING
YOUR INTEGRATED MULTI-SERVICE
PORTABLE RADIO.
RF Operational
Characteristics
Your radio product contains a radio frequency
transmitter to convey the information you wish to
send as well as occasional automatic signals used
to sustain connection to the wireless network, and
a receiver which enables you to receive
communication and connection information from
the network.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Portable Radio Product
Operation and EME Exposure
Your Motorola radio product is designed to comply
with the following national and international
standards and guidelines regarding exposure of
human beings to radio frequency electromagnetic
energy (EME):
•United States Federal Communications
Commission, Code of Federal Regulations; 47
CFR part 2 sub-part J.
•American National Standards Institute (ANSI) /
Institute of Electrical and Electronics Engineers
(IEEE). C95. 1-1992.
•Institute of Electrical and Electronics Engineers
(IEEE). C95. 1-1999 Edition.
•International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1998.
•Ministry of Health (Canada). Safety Code 6.
Limits of Human Exposure to Radiofrequency
Electromagnetic Fields in the Frequency Range
from 3 kHz to 300 GHz, 1999.
•Australian Communications Authority
Radiocommunications (Electromagnetic
Radiation - Human Exposure) Standard 2003.
86
Safety and General Information
•ANATEL, Brasil Regulatory Authority, Resolution
256 (April 11, 2001) “additional requirements for
SMR, cellular and PCS product certification.”
To assure optimal radio product performance
and make sure human exposure to radio
frequency electromagnetic energy is within the
guidelines set forth in the above standards,
always adhere to the following procedures:
Phone Operation
When placing or receiving a phone call, hold your
radio product as you would a wireline telephone.
Speak directly into the microphone.
Two-way radio operation
When using your radio product as a
traditional two-way radio, hold the
radio product in a vertical position
with the microphone one to two
inches (2.5 to 5 cm) away from the lips.
Body-worn operation
To maintain compliance with FCC RF exposure
guidelines, if you wear a radio product on your
body when transmitting, always place the radio
product in a Motorola approved clip, holder,
holster, case or body harness for this product.
Use of non-Motorola-approved accessories may
exceed FCC RF exposure guidelines. If you do
not use a Motorola approved body-worn
accessory and are not using the radio product
in the intended use positions along side the
head in the phone mode or in front of the face
in the two-way radio mode, then ensure the
antenna and the radio product are kept the
following minimum distances from the body
when transmitting
• Phone or Two-way radio mode: one inch (2.5
cm)
• Data operation using any data feature with or
without an accessory cable: one inch (2.5
cm)
Antenna Care
Use only the supplied or an approved
replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the
radio product and may violate FCC regulations.
DO NOT hold the antenna when the radio
product is “IN USE”. Holding the antenna affects
call quality and may cause the radio product to
operate at a higher power level than needed.
87
Portable Radio Product Operation and EME Exposure
Approved Accessories
For a list of approved Motorola accessories call
1-800-453-0920, or visit our website at
www.motorola.com/iden.
ALL MODELS WITH FCC ID AZ489FT5832 MEET THE
GOVERNMENT’S REQUIREMENTS FOR EXPOSURE
TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It
is designed and manufactured not to exceed the emission
limits for exposure to radiofrequency (RF) energy set by
the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile phones
employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg.1 Tests for SAR are conducted using standard
operating positions reviewed by the FCC with the phone
transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the
phone while operating can be well below the maximum
value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required
to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that is does not
exceed the limit established by the government-adopted
requirement for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model. The highest
SAR value for this model phone when tested for use at the
ear is 1.410 W/kg and when tested on the body, as
described in this user guide, is 0.779 W/kg during packet
data transmission. (Body-worn measurements differ
among phone models, depending upon available
accessories and FCC requirements.)2
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC
and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID
AZ489FT5832.
Additional information on Specific Absorption Rates (SAR)
can be found on the Cellular Telecommunications Industry
Association (CTIA) web-site at http://www.wow-com.com.
1 In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg (W/kg)
averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give
additional protection for the public and to account for any
variations in measurements.
88
Safety and General Information
2 The SAR information reported to the FCC includes the
FCC-accepted Motorola testing protocol, assessment
procedure, and measurement uncertainty range for this
product.
Electro Magnetic
Interference/Compatibility
Note: Nearly every electronic device is
susceptible to electromagnetic
interference (EMI) if inadequately
shielded, designed or otherwise
configured for electromagnetic
compatibility.
Facilities
To avoid electromagnetic interference and/or
compatibility conflicts, turn off your radio product in
any facility where posted notices instruct you to do
so. Hospitals or health care facilities may be using
equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio
product when on board an aircraft. Any use of a
radio product must be in accordance with
applicable regulations per airline crew instructions.
Medical Devices
Pacemakers
The Advanced Medical Technology Association
(AdvaMed) recommends that a minimum
separation of 6 inches (15 cm) be maintained
between a handheld wireless radio product and a
pacemaker. These recommendations are
consistent with those of the U.S. Food and Drug
Administration.
Persons with pacemakers should:
•ALWAYS keep the radio product more than 6
inches (15 cm) from their pacemaker when the
radio product is turned ON.
•Not carry the radio product in a breast pocket.
•Use the ear opposite the pacemaker to minimize
the potential for interference.
•Turn the radio product OFF immediately if you
have any reason to suspect that interference is
taking place.
Hearing Aids
Some digital wireless radio products may interfere
with some hearing aids. In the event of such
interference, you may want to consult your hearing
aid manufacturer to discuss alternatives.
89
Operational Warnings
Other Medical Devices
If you use any other personal medical device,
consult the manufacturer of your device to
determine if it is adequately shielded from RF
energy. Your physician may be able to assist you
in obtaining this information.
Use While Driving
Check the laws and regulations on the use of radio
products in the area where you drive. Always obey
them.
When using the radio product while driving, please:
•Give full attention to driving and to the road.
•Use hands-free operation, if available.
•Pull off the road and park before making or
answering a call if driving conditions so require.
Operational Warnings
For Vehicles with an Air
Bag
Do not place a portable radio product in the area
over the air bag or in the air bag deployment area.
Air bags inflate with great force. If a portable radio
is placed in the air bag deployment area and the air
bag inflates, the radio product may be propelled
with great force and cause serious injury to
occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your radio product prior to entering any
area with a potentially explosive atmosphere,
unless it is a radio product type especially qualified
for use in such areas as “Intrinsically Safe” (for
example, Factory Mutual, CSA, or UL approved).
Do not remove, install, or charge batteries in such
areas. Sparks in a potentially explosive
atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
Note: The areas with potentially explosive
atmospheres referred to above include
fueling areas such as below decks on
boats, fuel or chemical transfer or
storage facilities, areas where the air
contains chemicals or particles, such
!!
90
Safety and General Information
as grain, dust or metal powders, and
any other area where you would
normally be advised to turn off your
vehicle engine. Areas with potentially
explosive atmospheres are often but
not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting
operations, turn off your radio product when you
are near electrical blasting caps, in a blasting area,
or in areas posted: “Turn off two-way radio”. Obey
all signs and instructions.
Operational Cautions
Batteries
All batteries can cause property damage and/or
bodily injury, such as burns if a conductive material
such as jewelry, keys, or beaded chains touches
exposed terminals. The conductive material may
complete an electrical circuit (short circuit) and
become quite hot. Exercise care in handling any
charged battery, particularly when placing it inside
a pocket, purse, or other container with metal
objects. To reduce the risk of injury, batteries
should not be exposed to fire, disassembled, or
crushed.
Cleaning and Drying Considerations
Using a leather carry case may help protect the
surfaces and help prevent liquids (e.g., rain) from
entering into the interior of the radio product. This
product is not water proof, and exposing the unit to
liquids may result in permanent damage to the unit.
If your radio product interior gets wet, then do not
try to accelerate drying with the use of an oven or a
dryer as this will damage the radio product and
void the warranty. Instead, do the following:
1Immediately power off the radio product.
2Remove Battery and SIM card (if so equipped)
from radio product.
3Shake excess liquid from radio product.
4Place the radio product and battery in an area
that is at room temperature and has good air
flow.
5Let the radio product, battery, and SIM card dry
for 72 hours before reconnecting the battery
and/or powering on the radio product.
If the radio product does not work after following
the steps listed above, contact your dealer for
servicing information.
!
91
Accessory Safety Information
Clean the external surfaces of the radio product
with a damp cloth, using a mild solution of
dishwashing detergent and water. Some
household cleaners may contain chemicals that
could seriously damage the radio product. Avoid
the use of any petroleum-based solvent cleaners.
Also, avoid applying liquids directly on the radio
product.
Accessory Safety Information
Important: Save these accessory safety
instructions.
•Before using any battery or battery charger, read
all the instructions for and cautionary markings
on (1) the battery, (2) the battery charger, which
may include a separate wall-mounted power
supply or transformer, and (3) the radio product
using the battery.
•Do not expose any battery charger to water,
rain, or snow as they are designed for indoor or
in-vehicle use only.
•To reduce the risk of damage to the cord or plug,
pull by the plug rather than the cord when you
disconnect the battery charger from the power
source outlet.
•Do not operate any battery charger with a
damaged cord or plug — replace them
immediately.
•Battery chargers may become warm during
operation, but not hot. If it becomes hot to the
touch, unplug it from the power outlet
immediately and discontinue its use.
•Use of a non-recommended attachment to a
battery charger may result in a risk of fire,
electric shock, or injury to persons.
•Make sure the battery charger power cord is
located so that it will not be stepped on, tripped
over, or subjected to damage or stress.
•An extension cord should not be used with any
battery charger unless absolutely necessary.
Use of an improper extension cord could result
in a risk of fire and electric shock. If an extension
cord must be used, make sure that:
•The pins on the plug of the extension cord are
the same number, size, and shape as those
on the plug of the charger.
•The extension cord is properly wired and in
good electrical condition.
Warning: To reduce the risk of injury,
charge only the rechargeable
batteries described in “Battery” on
page 3. Other types of batteries may
burst, causing personal injury and
damage.
!!
92
Safety and General Information
•The cord size is 18AWG for lengths up to 100
feet and 16AWG for lengths up to 150 feet.
•Do not operate any battery charger if it has
received a sharp blow, has been dropped, or
has been damaged in any way; take it to a
qualified service technician.
•Do not disassemble a battery charger; take it to
a qualified service technician when service or
repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
•Maximum ambient temperature around the
power supply or transformer of any battery
charger should not exceed 40°C (104°F).
•The output power from the power supply or
transformer must not exceed the rating given on
the Desktop Dual-Pocket Charger.
•The disconnection from the line voltage is made
by unplugging the power supply from the AC
receptacle.
•To reduce risk of electric shock, unplug any
battery charger from the outlet before attempting
any maintenance or cleaning.
For optimum charging performance, turn off the
radio product while charging it in any battery
charger.
93
MOTOROLA LIMITED
WARRANTY
Note: FOR IDEN SUBSCRIBER PRODUCTS,
ACCESSORIES AND SOFTWARE
PURCHASED IN THE UNITED STATES
OR CANADA
What Does this Warranty Cover?
Subject to the exclusions contained below,
Motorola, Inc. warrants its Motorola iDEN Digital
Mobile and Portable Handsets ("Products"),
Motorola-branded or certified accessories sold for
use with these Products ("Accessories") and
Motorola software contained on CD-Roms or other
tangible media and sold for use with these
Products ("Software") to be free from defects in
materials and workmanship under normal
consumer usage for the period(s) outlined below.
This limited warranty is a consumer's exclusive
remedy, and applies as follows to new
Products, Accessories and Software
purchased by consumers in the United States
or Canada, which are accompanied by this
written warranty:
PRODUCTS
COVERED LENGTH OF
COVERAGE
Products as defined
above. One (1) year from the
date of purchase by the
first consumer
purchaser of the
product.
Accessories as
defined above. One (1) year from the
date of purchase by the
first consumer
purchaser of the
product.
Products or
Accessories that are
Repaired or Replaced.
The balance of the
original warranty or
for ninety (90) days
from the date returned
to the consumer,
whichever is longer.
Software as defined
above. Applies only to
physical defects in the
media that embodies
the copy of the software
(e.g. CD-ROM, or
floppy disk).
Ninety (90) days from
the date of purchase.
94
MOTOROLA LIMITED WARRANTY
What is not covered? (Exclusions)
Normal Wear and Tear. Periodic maintenance,
repair and replacement of parts due to normal wear
and tear are excluded from coverage.
Batteries. Only batteries whose fully charged
capacity falls below 80% of their rated capacity and
batteries that leak are covered by this limited
warranty.
Abuse & Misuse. Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d)
other acts which are not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products and
Accessories. Defects or damage that result from
the use of Non-Motorola branded or certified
Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration,
including without limitation, software changes, or
modification in any way by someone other than
Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products. Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals or
that show evidence of tampering; (c) mismatched
board serial numbers; or (d) nonconforming or
non-Motorola housings, antennas, or parts, are
excluded from coverage.
Communication Services. Defects, damages, or
the failure of Products, Accessories or Software
due to any communication service or signal you
may subscribe to or use with the Products,
Accessories or Software is excluded from
coverage.
Software Embodied in Physical Media. No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by third
parties, that the operation of the software products
will be uninterrupted or error free, or that all defects
in the software products will be corrected.
95
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media
(e.g. software that is downloaded from the
internet), is provided "as is" and without warranty.
Who is covered? This warranty extends only to
the first consumer purchaser, and is not
transferable.
What will Motorola Do? Motorola, at its option,
will at no charge repair, replace or refund the
purchase price of any Products, Accessories or
Software that does not conform to this warranty.
We may use functionally equivalent
reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software
or applications added to your Product, Accessory
or Software, including but not limited to personal
contacts, games and ringer tones, will be
reinstalled. To avoid losing such data, software
and applications please create a back up prior to
requesting service.
How to Obtain Warranty Service or Other
Information? To obtain service or information,
please call:
Motorola iDEN Customer Services
1-800-453-0920 or 954-723-4910
TTY-877-483-2840
Or visit us online at
http://www.motorola.com/iden/support
You will receive instructions on how to ship the
Products, Accessories or Software, at your
expense, to a Motorola Authorized Repair Center.
To obtain service, you must include: (a) a copy of
your receipt, bill of sale or other comparable proof
of purchase; (b) a written description of the
problem; (c) the name of your service provider, if
applicable; (d) the name and location of the
installation facility (if applicable) and, most
importantly; (e) your address and telephone
number.
What Other Limitations Are There? ANY
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED
TO THE DURATION OF THIS LIMITED
WARRANTY, OTHERWISE THE REPAIR,
REPLACEMENT, OR REFUND AS PROVIDED
UNDER THIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OF
IMPLIED. IN NO EVENT SHALL MOTOROLA BE
LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE
96
MOTOROLA LIMITED WARRANTY
PRODUCT, ACCESSORY OR SOFTWARE, OR
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF
BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY
TO USE THE PRODUCTS, ACCESSORIES OR
SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the
limitation or exclusion of incidental or
consequential damages, or limitation on the
length of an implied warranty, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights,
and you may also have other rights that vary
from state to state or from one jurisdiction to
another.
Laws in the United States and other countries
preserve for Motorola certain exclusive rights for
copyrighted Motorola software such as the
exclusive rights to reproduce and distribute copies
of the Motorola software. Motorola software may
only be copied into, used in, and redistributed with,
the Products associated with such Motorola
software. No other use, including without limitation
disassembly of such Motorola software or exercise
of the exclusive rights reserved for Motorola, is
permitted.
97
Limited Warranty
Motorola
Communication
Products (International)
Note: This Warranty applies in Singapore and
the Philippines.
I. What This Warranty Covers
and For How Long:
MOTOROLA warrants the MOTOROLA
manufactured iDEN Communication Products
listed below (“Product”) against defects in material
and workmanship under normal use and service
for a period of time from the date of purchase as
scheduled below:
Rechargeable Batteries will be replaced during the
applicable warranty period if:
a. the battery capacity falls below 80% of rated
capacity, or
b. the battery develops leakage.
MOTOROLA, at its option, will at no charge either
repair the Product (with new or reconditioned
parts), replace it (with a new or reconditioned
Product), or refund the purchase price of the
Product during the warranty period provided it is
returned in accordance with the terms of this
warranty. Replaced parts or boards are warranted
for the balance of the original applicable warranty
period. All replaced parts of Product shall become
the property of MOTOROLA.
This express limited warranty is extended by
MOTOROLA to the original end user purchaser
only and is not assignable or transferable to any
other party. This is the complete warranty for the
Product manufactured by MOTOROLA.
MOTOROLA assumes no obligations or liability for
additions or modifications to this warranty unless
made in writing and signed by an officer of
MOTOROLA. Unless made in a separate
agreement between MOTOROLA and the original
end user purchaser, MOTOROLA does not warrant
the installation, maintenance or service of the
Product.
iDEN Subscriber Digital Mobile and
Portable Units One (1) Year
Product Accessories
(manufactured by or under license
from MOTOROLA)
One (1) Year
Batteries One (1) Year
98
Limited Warranty Motorola Communication Products (International)
MOTOROLA cannot be responsible in any way for
any ancillary equipment not furnished by
MOTOROLA which is attached to or used in
connection with the Product, or for operation of the
Product with any ancillary equipment, and all such
equipment if expressly excluded from this
warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims
liability for range, coverage, or operation of the
system as a whole, or any portion of the system not
produced by MOTOROLA, under this warranty.
II. General Provisions:
This warranty sets forth the full extent of
MOTOROLA’S responsibilities regarding the
Product, Repair, replacement or refund of the
purchase price, at MOTOROLA’S options, is the
exclusive remedy. THIS WARRANTY IS GIVEN
IN LIEU OF ALL OTHER EXPRESS
WARRANTIES. IMPLIED WARRANTIES,
INLCUDING WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY TO THE FULL EXTENT SUCH MAY
BE DISCLAIMED BY LAW. IN NO EVENT SHALL
MOTOROLA BE LIABLE FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF
TIME, INCONVENIENCE, COMMERCIAL LOSS,
LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT, TO THE
FULL EXTENT SUCH MAY BE DISCLAIMED BY
LAW.
III. How to Get Warranty
Service:
You must provide proof of purchase (bearing the
date of purchase and Product item serial number)
in order to receive warranty service and, also,
deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty
service location. Warranty service will be provided
by MOTOROLA through one of its authorized
warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer
or communication service provider), it can facilitate
your obtaining warranty service.
IV. What This Warranty Does
Not Cover:
a. Defects or damage resulting from use of the
Product in other than its normal and customary
manner.
99
b. Defects or damage from misuse, accident,
water, or neglect.
c. Defects or damage from improper testing,
operation, maintenance, installation, alteration,
modification, or adjustment.
d. Breakage or damage to antennas unless
caused directly by defects in material
workmanship.
e. A Product subjected to unauthorized Product
modifications, disassemblies or repairs
(including, without limitation, the audition to the
Product of non-MOTOROLA supplied
equipment).
f. Product which has had the serial number
removed or made illegible.
g. Rechargeable batteries if:
1.Any of the seals on the battery enclosure of
cells are broken or show evidence of
tampering.
2.The damage or defect is caused by
charging or using the battery in equipment
or service other than the Product for which it
is specified.
h. Freight costs to the repair depot.
i. A Product which, due to illegal or unauthorized
alteration of the software/firmware in the
Product, does not function in accordance with
MOTOROLA’S published specifications or the
local type acceptance labeling in effect for the
Product at the time the Product was initially
distributed from MOTOROLA.
j. Scratches or other cosmetic damage to
Product surfaces that does not effect the
operation of the Product.
k. Normal and customary wear and tear.
l. Exclusion for defects or damage arising from
use of the products in connection with
non-MOTOROLA equipment.
VI. Patent and Software
Provisions:
MOTOROLA will defend, at its own expense, any
suit brought against the end user purchaser to the
extent that it is based on a claim that the Product or
parts infringe a patent, and Motorola will pay those
costs and damages finally awarded against the
end user purchaser in any such suit which are
attributable to any such claim, but such defense
and payments are conditioned on the following:
a. That MOTOROLA will be notified promptly in
writing by such purchaser of any notice of such
claim;
b. That MOTOROLA will have sole control of the
defense of such suit and all negotiations for its
100
Limited Warranty Motorola Communication Products (International)
settlement or compromise; and
c. Should the Product or parts become, or in
MOTOROLA’S opinion be likely to become, the
subject of a claim of infringement of a patent,
that such purchaser will permit MOTOROLA, at
its option and expense, either to procure for
such purchaser the right to continue using the
Product or parts or to replace or modify the
same so that it becomes non-infringing or to
grant such purchaser a credit for the Product or
parts as depreciated and accept its return. The
depreciation will be an equal amount per year
over the lifetime of the Product or parts as
established by MOTOROLA.
MOTOROLA will have no liability with respect to
any claim of patent infringement which is based
upon the combination of the Product or parts
furnished hereunder with software, apparatus or
devices not furnished by MOTOROLA, nor will
MOTOROLA have any liability for the use of
ancillary equipment or software not furnished by
MOTOROLA which is attached to or sued in
connection with the Product or any parts thereof. In
no event shall MOTOROLA be liable for any
incidental, special or consequential damages
arising from any claim of patent infringement or
alleged infringement.
Laws in the United States and other countries
preserve for MOTOROLA certain exclusive rights
for copyrighted MOTOROLA software, such as the
exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software.
MOTOROLA software may be used in only the
Product in which the software was originally
embodied and such software in such Product may
not be replaced, copied, distributed, modified in
any way, or used to produce any derivative thereof.
No other use including, without limitation,
alteration, modification, reproduction, distribution,
or reverse engineering of such MOTOROLA
software or exercise or rights in such MOTOROLA
software is permitted. No license is granted by
implication, estoppel or otherwise under
MOTOROLA patent rights or copyrights.
101
Patent and Trademark
Information
MOTOROLA, the Stylized M Logo and all other
trademarks indicated as such herein are
trademarks of Motorola, Inc. ® Reg. U.S. Pat. &
Tm. Off. © 2004 Motorola, Inc. All rights reserved.
Microsoft and Microsoft Internet Explorer are
registered trademarks of Microsoft Corporation.
T9 is a trademark owned by Tegic
Communications.
T9® Text Input Patent and Trademark Information
This product is covered by U.S. Pat. 5,818,437,
U.S. Pat. 5,953,541, U.S. Pat. 6,011,554 and other
patents pending.
All other product names or services mentioned in
this manual are the property of their respective
trademark owners.
Software Copyright Notice
The Motorola products described in this manual
may include copyrighted Motorola and third party
software stored in semiconductor memories or
other media. Laws in the United States and other
countries preserve for Motorola and third party
software providers certain exclusive rights for
copyrighted software, such as the exclusive rights
to distribute or reproduce the copyrighted software.
Accordingly, any copyrighted software contained in
the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in
any manner to the extent allowed by law.
Furthermore, the purchase of the Motorola
products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents, or patent
applications of Motorola or any third party software
provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation
of law in the sale of a product.
102
Index
Numerics
2-way radio 80
see also Private calls, group
calls, and call alerts
3-way calling 42
A
Accessories 15
safety 91
activating 22
Alpha mode 54
assigning number in Contacts
26
B
Backlight 79
Battery 2
care 5
charging 3, 4
door 2
inserting 3
safety 90
Baud rate 81
C
Call alerts 27
deleting 28
queue 27
receiving 27
responding 27, 28
sending 27
sorting 28
viewing 27
Call forwarding
all calls 38
missed calls 39
off 39
Call Hold 42
Call Timers 45
Call Waiting 41
off 41
Calls
3-way 42
answering automatically 79
answering with any key 79
emergency 20
ending 16
from Contacts 18
from memo 49
from Recent calls 17
group, see Group calls
icons 17
international 43
making 16
on hold 42
phone calls 16
Private calls 16, 19, 80
receiving 16, 26
redialing 18, 79
remote PTT 82
Speed Dial 19
TTY, see TTY calls
Turbo Dial 19
voice name 18
Circuit data 46
Clock 79
code calls 23
Contacts 18, 31
capacity 35
creating entries 33
deleting 35
editing entries 34
103
icons 31
iDEN Phonebook Manager
37
International numbers 36
searching 32
showing all entries 33
showing only Private IDs 32
SIM card 31
storing fast 34
storing from idle screen 34
storing from Memo 34, 49
storing from recent calls 29,
34
type 29, 31
viewing 32
with non-i830 phones 37
D
Display
backlight 79
contrast 79
options 8
screen 7
E
Email 31, 34, 46
Emergency calls 20
End key 1
F
Faxes
receiving 46
sending 46
G
GPS Enabled 66
almanac data 71
best results 69
emergency calls 20, 67
map software 72
privacy options 71
security 72
viewing location 68
GPS PIN 81
GPS, see GPS Enabled
Group calls 44, 80
making 44
off 45
receiving 45
H
Handset, see phone
Headset 82
I
Icons
calls 17
Contacts 31
main menu 8
MOSMS messages 64
Recent calls 29
status 10
text entry 54
iDEN Phonebook Manager 37
Idle screen 8
storing to Contacts 34
International numbers 43
calling 43
storing 36
K
Keypad 1
locking 14, 80
L
Language 79
Lists, see menus
Locating Your SIM Card 2
104
Index
M
making a call 26
making emergency calls 26
Memo 49
calling from 49
creating 49
editing 49
storing to Contacts 34, 49
viewing 49
Memory
MOSMS messages 65
ring tones 52
voice records 76
Menu key 1, 8
Menus 8
context-sensitive 1, 8
main menu 8
Message center 58, 59
see also messages
MOSMS messages 61
voice mail 59
Message notifications 57
setting options 57
Messages 57
see also voice mail, MOSMS
messages, and SMS
messages
receiving 57
MOSMS messages 60
creating 61
deleting 64, 65
drafts 63
icons 64
memory 65
message center 61
outbox 63
quick notes 63
receiving 60
sending 61
sent messages 64
setting up 60
MOTOtalk 21
Mute 20
N
Navigation key 1
Numeric mode 56
O
Over-the-air programming 6
P
Packet data 46
Passwords 81
Patent information 101
Pauses
dialing 43
storing 36
Phone 1, 7
active line 79
locking 80
modem 46
off 5
on 5
only 81
setting up 2
private calls 25
Programming, over-the-air 6
PTT
One Touch 19
One Touch, setting 43
PUK code 12
R
Radio frequency 85
receiving a call 26
105
Recent calls 17, 29
deleting 30
display time 81
icons 29
storing to Contacts 29, 34
viewing 29
Redialing 18, 79
Removing the Back Cover 2
Ring tones 31, 50
deleting 52
downloading 52
memory 52
off 50
setting 50
setting in Contacts 33, 51
silent 50
vibrate 50, 51
viewing assigned 52
Ringer 78
see also Ring tones
off 78
S
Safety 85
accessory 91
battery 90
driving 107
electromagnetic interference
88
medical devices 88
radio frequency 85
Security 80
Send key 1
Service, activating 5
Settings 79
resetting 81
setup option 26
setup options 22
SIM card 11, 13
Contacts 31
inserting 13
removing 14
with non-i830 phones 37
SIM PIN 11, 81
changing 11
default 11
entering 11
requirement 12
unblocking 12
SMS messages 57, 60
also see MOSMS messages
60
Speakerphone 19
Speed Dial 19, 32, 34
Status messages 83
Symbols mode 56
T
T9 Text Input, see text entry
Talkgroups 44, 80
Text display area 8, 17
Text entry 54
Alpha mode 54
database 54, 55
icons 54
mode 54
Numeric mode 56
Symbols mode 56
Word mode 54
Trademark information 101
TTY calls 47
baud rate 48
making 47
mode 47
107
Driving Safety Tips
“Safety is your most important call!”
Your Motorola wireless telephone gives you the
powerful ability to communicate by voice — almost
anywhere, anytime, wherever wireless phone
service is available and safe conditions allow. But
an important responsibility accompanies that
benefits of wireless phones, one that every user
must uphold.
When driving a car, driving is your first
responsibility. If you find it necessary to use your
wireless phone while behind the wheel of a car,
practice good common sense and remember the
following tips:
•Get to know your Motorola wireless phone and
its features such as speed dial and redial. If
available, these features help you to place your
call without taking your attention off the road.
•When available, use a hands-free device. If
possible, add an additional layer of convenience
to your wireless phone with one of the many
Motorola Original hands-free accessories
available today.
•Position your wireless phone within easy reach.
Be able to access your wireless phone without
removing your eyes from the road. If you receive
an incoming call at an inconvenient time, if
possible, let your voice mail answer it for you.
•Let the person you are speaking with know you
are driving; if necessary, suspend the call in
heavy traffic or hazardous weather conditions.
Rain, sleet, snow, ice, and even heavy traffic can
be hazardous.
•If you receive an incoming call at an
inconvenient time do not take notes or look up
phone numbers while driving. Jotting down a “to
do” list or going through your address book
takes attention away from your primary
responsibility — driving safely.
•Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan calls when your car
will be stationary. If you need to make a call
while moving, dial only a few numbers, check
the road and your mirrors, then continue.
•Do not engage in stressful or emotional
conversations that may be distracting. Make
people you are talking with aware you are
driving and suspend conversations which have
the potential to divert your attention away from
the road.
108
Driving Safety Tips
•Your phone can perform many other functions
besides allowing you to make and receive calls.
Do not let these features distract you from
driving. Use them only when it is safe to do so.
•Use your wireless phone to call for help. Dial
9-1-1 or other local emergency number in the
case of fire, traffic accident or medical
emergencies.
•Use your wireless phone to help others in
emergencies. If you see an auto accident, crime
in progress or other serious emergency where
lives are in danger, call 9-1-1 or other local
emergency number, as you would want others to
do for you.
•Call roadside assistance or a special
non-emergency wireless assistance number
when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken
traffic signal, a minor traffic accident where no
one appears injured, or a vehicle you know to be
stolen, call roadside assistance or other special
non-emergency wireless number.
