Motorola Solutions 89FT7003 Handheld Data Terminal with WAN WLAN and Bluetooth User Manual FCC Certification Report for the

Motorola Solutions, Inc. Handheld Data Terminal with WAN WLAN and Bluetooth FCC Certification Report for the

Exhibit 8 EME User Card and User Manual

Applicant: Motorola, Inc. FCC ID: AZ489FT7003

Exhibit 8

Exhibit VIII

User Information and User Manual

1) User Card/Booklet

- 2 pages, contains important information for safe usage and RF energy

awareness and control information for compliance with RF energy

exposure limits

2) User Service Manual HDT 600 Data Terminal

- 32 PDF pages total, 20 numbered pages

Please find the information required by Part 15.19, 15.21 & 15.105 in

Owners Manual on page V of the manual or page 10 of this PDF file, or

click tab to FCC INTERFERENCE WARNING.

Note: Items 1 & 2 above follow this cover page

68P02963C77-A Please retain for future use

BEFORE USING THIS RADIO TERMINAL, READ THIS BOOKLET

WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR

SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL

INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE

LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STAN-

DARDS.

The information provided in this document supersedes information contained in user

guides published prior to February 2002.

For radio terminals that have been approved as intrinsically safe, read the instruc-

tions and information on intrinsic safety in this booklet.

Compliance with RF Energy Exposure Standards

Notice: This radio terminal is intended for use in occupational/controlled applica-

tions, where users have been made aware of the potential for exposure and can ex-

ercise control over their exposure. This radio terminal device is NOT authorized for

general population, consumer or similar use.

Federal Communication Commission Regulations:

The FCC established limits for safe exposure to radio frequency (RF) emissions

from portable two-way radios. The FCC requires manufacturers to demonstrate

compliance with RF exposure limits before portable two-way radios can be market-

ed in the U.S. When two-way radios are approved for occupational /controlled envi-

ronment exposure limits, the FCC requires users to be fully aware of and exercise

control over their exposure. Awareness and control of RF exposure can be accom-

plished by the use of labels, or by education or training through appropriate means,

such as information and instructions in user manuals or safety booklets. Your Mo-

torola two-way radio terminal has a RF exposure information label in the battery

compartment. This user safety booklet includes useful information about RF expo-

sure and helpful instructions on how to control your RF exposures.

Your Motorola two-way radio terminal is designed and tested to comply with a num-

ber of national and international standards and guidelines (listed below) regarding

human exposure to radio frequency electromagnetic energy. This radio terminal

complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/con-

trolled RF exposure environment at usage factors of up to 50% transmit -50% re-

ceive. In terms of measuring RF energy for compliance with the FCC exposure

guidelines, your radio terminal radiates measurable RF energy only while it is trans-

mitting, not when it is receiving or in standby mode. Note: that the approved batter-

ies, supplied with this radio terminal are rated for a 5-5-90 duty cycle (5% transmit-

5% receive - 90% standby), even though this radio terminal complies with the FCC

occupational exposure limits at usage factors of up to 50% transmit.

Your Motorola two-way radio terminal complies with the following

RF energy exposure standards and guidelines:

•United States Federal Communications Commission, Code of Federal Regula-

tions; 47CFR part 2 sub-part J

•American National Standards Institute (ANSI) / Institute of Electrical and Elec-

tronic Engineers (IEEE) C95. 1-1992

•Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition

•International Commission on Non-Ionizing Radiation Protection (ICNIRP)

1998

•Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to

Radio frequency Electromagnetic Fields in the Frequency Range from 3 kHz

to 300 GHz, 1999

•Australian Communications Authority Radio communications (Electromagnetic

Radiation - Human Exposure) Standard 2001.

•ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) "addi-

tional requirements for SMR, cellular and PCS product certification."

Compliance and Control Guidelines and Operating Instructions for

portable two-way radio terminals

To control your exposure and ensure compliance with the occupational /controlled

environment exposure limits always adhere to the following Procedures.

•If you are not using a body-worn accessory and are not using the radio termi-

nal in the intended use position in front of the face, then ensure the antenna

and the radio terminal are kept 2.5 cm (one inch) from the body when transmit-

ting. Keeping the radio terminal at a proper distance is important because of

RF exposures decrease with distance from the antenna.

•Use only Motorola approved supplied or replacement batteries, and accesso-

HANDHELD PORTABLE

TERMINAL

HDT600

ries. Use of non-Motorola-approved, batteries and accessories may exceed

FCC RF exposure guidelines.

For additional information on RF exposure awareness information, visit the following

Motorola website: www.mot.com/rfhealth.

Electromagnetic Interference/Compatibility

Note:Nearly every electronic device is susceptible to electromagnetic interference

(EMI) if inadequately shielded, designed, or otherwise configured for electromagnet-

ic compatibility.

Facilities

To avoid electromagnetic interference and/or compatibility conflicts, turn off your ra-

dio terminal in any facility where posted notices instruct you to do so. Hospitals or

health care facilities may be using equipment that is sensitive to external RF energy.

Aircraft

When instructed to do so, turn off your radio terminal when on board an aircraft. Any

use of a radio terminal must be in accordance with applicable regulations per airline

crew instructions.

Medical Devices

Pacemakers

The Advanced Medical Technology Association (AdvaMed) recommends that a

minimum separation of 6 inches (15 centimeters) be maintained between a hand-

held wireless radio terminal and a pacemaker. These recommendations are consis-

tent with those of the U.S. Food and Drug Administration.

Persons with pacemakers should:

•ALWAYS keep the radio terminal more than 6 inches (15 centimeters) from

their pacemaker when the radio terminal is turned ON.

•Do not carry the radio terminal in the breast pocket.

•Turn the radio terminal OFF immediately if you have any reason to suspect

that interference is taking place.

Hearing Aids

Some digital wireless radio terminals may interfere with some hearing aids. In the

event of such interference, you may want to consult your hearing aid manufacturer

to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your de-

vice to determine if it is adequately shielded from RF energy. Your physician may

be able to assist you in obtaining this information.

Operational Warnings

For Vehicles With an Air Bag

Do not place a portable radio in the area over an air bag or in the

air bag deployment area. Air bags inflate with great force. If a por-

table radio terminal is placed in the air bag deployment area and

the air bag inflates, the radio terminal may be propelled with great

force and cause serious injury to occupants of the vehicle.

Potentially Explosive Atmospheres

Turn off your radio terminal prior to entering any area with a poten-

tially explosive atmosphere, unless it is a radio terminal type espe-

cially qualified for use in such areas as "Intrinsically Safe" (for

example, Factory Mutual, CSA, UL, or CENELEC). Do not re-

move, install, or charge batteries in such areas. Sparks in a poten-

tially explosive atmosphere can cause an explosion or fire

resulting in bodily injury or even death. The areas with potentially

explosive atmospheres referred to above include fueling areas

such as below decks on boats, fuel or chemical transfer or storage

facilities, areas where the air contains chemicals or particles, such

as grain, dust or metal powders. Areas with potentially explosive

atmospheres are often but not always posted.

Blasting Caps and Blasting Areas

To avoid possible interference with blasting operations, turn off

your radio terminal when you are near electrical blasting caps, in

a blasting area, or in areas posted: "Turn off two-way radio termi-

nal." Obey all signs and instructions.

Owner’s Manual

HDT 600

Portable Draft Feb 18 03

Data

Terminal

68P02966C70-O

@6802966C70@

Commercial, Government and Industrial Solutions Sector

1301 E. Algonquin Road, Schaumburg, IL 60196

68P02966C70-O

February, 2003

Contents

COMPUTER SOFTWARE COPYRIGHTS ii

FCC INTERFERENCE WARNING v

What is the HDT 600 Terminal 1

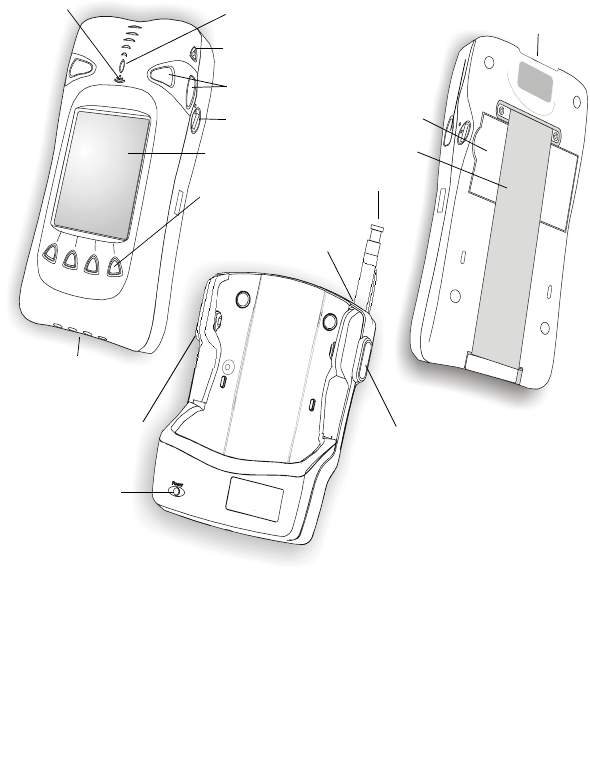

HDT 600 Parts 3

Unpacking 4

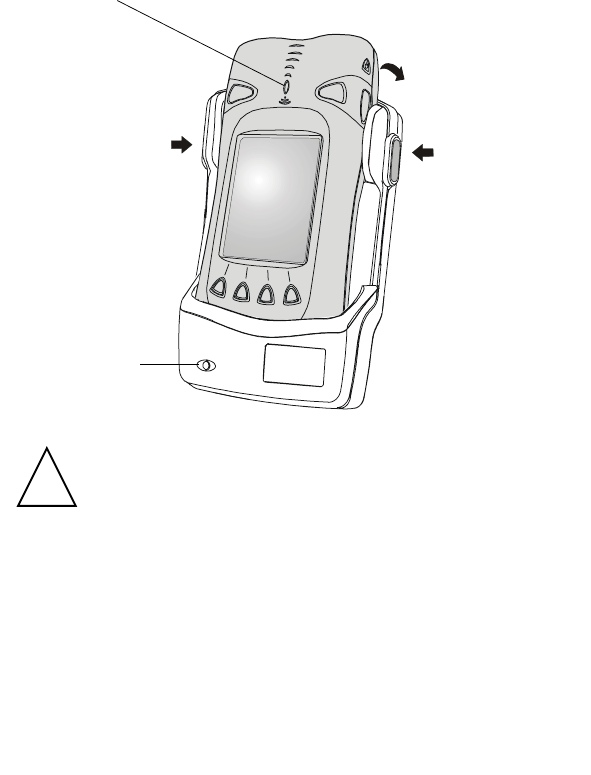

HDT 600 Cradle Connections 5

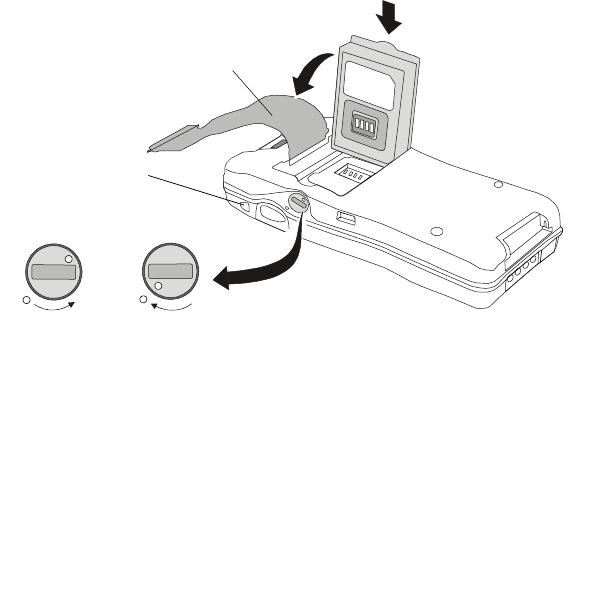

Installing the Battery 6

Removing the Battery 6

First Time Battery Charge 7

Charging the Battery 8

Battery Maintenance 9

Turning on the HDT 600 10

Suspend Mode 10

Turning off the HDT 600 10

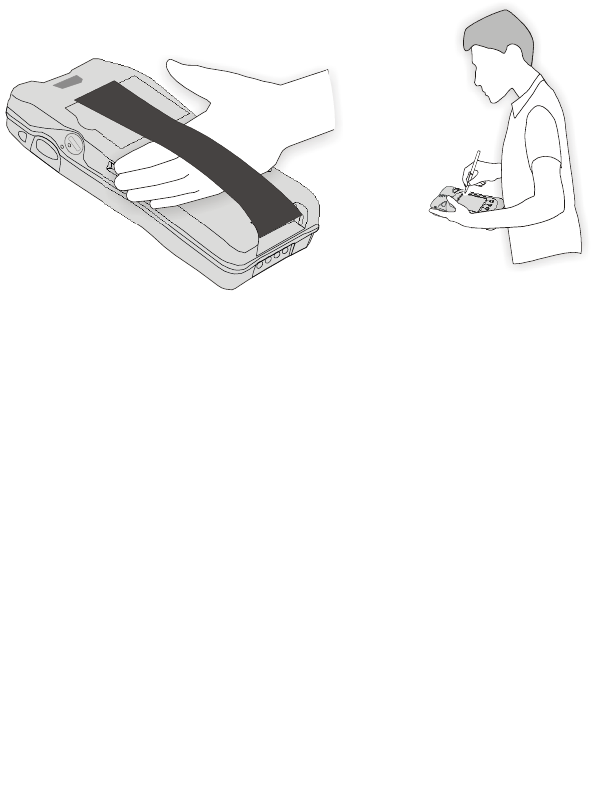

Using the HDT 600 11

Using the Stylus Pen 11

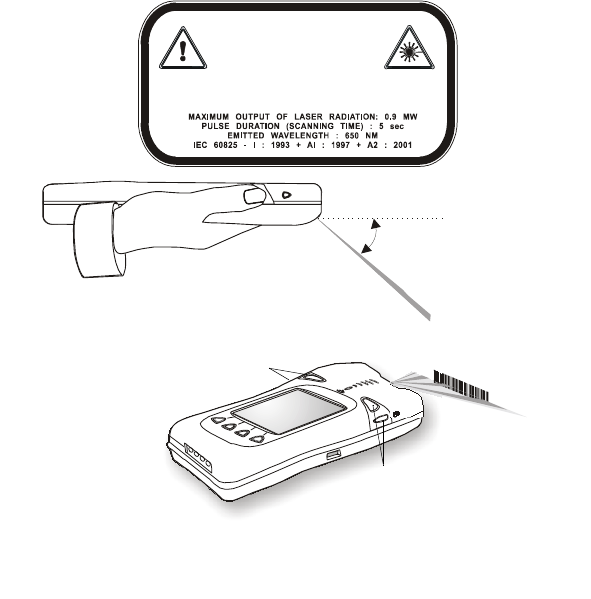

Scanning With the HDT 600 12

Resetting the HDT 600 13

Cradle Installation 14

Maintaining the HDT 600 16

Accessories 17

What to Do If 18

Battery Warnings and Disposal 20

COMPUTER SOFTWARE COPYRIGHTS

The Motorola products described in this instruction manual may include copyrighted Motorola computer

programs stored in semiconductor memories or other media. Laws in the United States and other countries

preserve for Motorola certain exclusive rights for copyrighted computer programs, including the exclu-

sive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copy-

righted Motorola computer programs contained In the Motorola products described in this instruction

manual may not be copied or reproduced in any manner without the express written permission of Motor-

ola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by

implication, estoppel. or otherwise. any license under the copyrights, patents or patent applications of

Motorola, except for the normal non-exclusive, royalty free license to use that arises by operation of law

in the sale of a product.

EPS – 34440- B

This warranty applies within the fifty (50) United States, the District of Columbia and Canada.

LIMITED WARRANTY

MOTOROLA COMMUNICATION PRODUCTS

If the affected product is being purchased pursuant to a written Communications System Agreement

signed by Motorola, the warranty contained in that written agreement will apply. Otherwise, the follow-

ing warranty applies.

I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:

Motorola Inc. or, if applicable, Motorola Canada Limited ("Motorola") warrants the Motorola manu-

factured radio communications product, including original equipment crystal devices and channel ele-

ments ("Product"), against material defects in material and workmanship under normal use and service

for a period of One (1) Year from the date of shipment.

Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts),

replace it with the same or equivalent Product (using new or reconditioned Product), or refund the pur-

chase price of the Product during the warranty period provided purchaser notifies Motorola according

to the terms of this warranty. Repaired or replaced Product is warranted for the balance of the original

applicable warranty period. All replaced parts of the Product shall become the property of Motorola.

This express limited warranty is extended by Motorola to the original end user purchaser purchasing

the Product for purposes of leasing or for commercial, industrial, or governmental use only, and is not

assignable or transferable to any other party. This is the complete warranty for the Product manufac-

tured by Motorola. Motorola assumes no obligations or liability for additions or modifications to this

warranty unless made in writing and signed by an officer of Motorola. Unless made in a separate writ-

ten agreement between Motorola and the original end user purchaser, Motorola does not warrant the

installation, maintenance or service of the Product.

Motorola cannot be responsible in any way for any ancillary equipment not furnished by Motorola

which is attached to or used in connection with the Product, or for operation of the Product with any

ancillary equipment, and all such equipment is expressly excluded from this warranty. Because each

system which may use the Product is unique, Motorola disclaims liability for range, coverage, or oper-

ation of the system as a whole under this warranty.

iii

II. GENERAL PROVISIONS:

This warranty sets forth the full extent of Motorola’s responsibilities regarding the Product. Repair,

replacement or refund of the purchase price, at Motorola’s option, is the exclusive remedy. THIS

WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. MOTOROLA DIS-

CLAIMS ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING

THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES

IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS

OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR

OTHER INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING

OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH

MAY BE DISCLAIMED BY LAW.

III.HOW TO GET WARRANTY SERVICE:

Purchaser must notify Motorola’s representative or call Motorola’s Customer Response Center at 1-

800-247-2346 within the applicable warranty period for information regarding warranty service.

IV. WHAT THIS WARRANTY DOES NOT COVER:

A) Defects or damage resulting from use of the Product in other than its normal and customary manner.

B) Defects or damage from misuse, accident, water, or neglect.

C) Defects or damage from improper testing, operation, maintenance, installation, alteration, modifica-

tion, or adjustment.

D) A Product subjected to unauthorized Product modifications, disassemblies or repairs (including, with-

out limitation, the addition to the Product of non-Motorola supplied equipment) which adversely affect

performance of the Product or interfere with Motorola’s normal warranty inspection and testing of the

Product to verify any warranty claim.

E) Product which has had the serial number removed or made illegible.

F) Batteries (they carry their own separate limited warranty).

G) Freight costs to the repair depot.

H) A Product which, due to illegal or unauthorized alteration of the software/firmware in the Product,

does not function in accordance with Motorola’s published specifications or with the FCC type

acceptance labeling in effect for the Product at the time the Product was initially distributed from

Motorola.

I) Scratches or other cosmetic damage to Product surfaces that does not affect the operation of the Prod-

uct.

J) That the software in the Product will meet the purchaser’s requirements or that the operation of the

software will be uninterrupted or error-free.

K) Normal and customary wear and tear.

L) Non-Motorola manufactured equipment unless bearing a Motorola Part Number in the form of an

alpha numeric number (i.e., TDE6030B).

V. GOVERNING LAW

In the case of a Product sold in the United States and Canada, this Warranty is governed by the laws of

the State of Illinois and the Province of Ontario, respectively.

VI.PATENT AND SOFTWARE PROVISIONS:

Motorola will defend, at its own expense, any suit brought against the end user purchaser to the extent

that it is based on a claim that the Product or its parts infringe a United States patent, and Motorola will

pay those costs and damages finally awarded against the end user purchaser in any such suit which are

attributable to any such claim, but such defense and payments are conditioned on the following:

A) that Motorola will be notified promptly in writing by such purchaser of any notice of such claim;

B) that Motorola will have sole control of the defense of such suit and all negotiations for its settlement or

compromise; and

C) should the Product or its parts become, or in Motorola's opinion be likely to become, the subject of a

claim of infringement of a United States patent, that such purchaser will permit Motorola, at its option

and expense, either to procure for such purchaser the right to continue using the Product or its parts or

to replace or modify the same so that it becomes non-infringing or to grant such purchaser a credit for

the Product or its parts as depreciated and accept its return. The depreciation will be an equal amount

per year over the lifetime of the Product or its parts as established by Motorola.

Motorola will have no liability with respect to any claim of patent infringement which is based upon

the combination of the Product or its parts furnished hereunder with software, apparatus or devices not

furnished by Motorola, nor will Motorola have any liability for the use of ancillary equipment or soft-

ware not furnished by Motorola which is attached to or used in connection with the Product. The fore-

going states the entire liability of Motorola with respect to infringement of patents by the Product or

any its parts thereof.

Laws in the United States and other countries preserve for Motorola certain exclusive rights for copy-

righted Motorola software such as the exclusive rights to reproduce in copies and distribute copies of

such Motorola software. Motorola software may be used in only the Product in which the software

was originally embodied and such software in such Product may not be replaced, copied, distributed,

modified in any way, or used to produce any derivative thereof. No other use including, without limi-

tation, alteration, modification, reproduction, distribution, or reverse engineering of such Motorola

software or exercise of rights in such Motorola software is permitted. No license is granted by impli-

cation, estoppel or otherwise under Motorola patent rights or copyrights.

EPS – 48759 – O

FCC INTERFERENCE WARNING

The FCC requires that manuals pertaining to Class A and Class B computing devices must contain warn-

ings about possible interference with local residential radio and TV reception. This warning reads as fol-

lows:

NOTE: This equipment has been tested and found to comply with limits for a Class B digital device, pur-

suant to Part90 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial or residential environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio communications.

This device complies with Part 90 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired

operation.

Caution: Changes or modifications made in the radio terminal, not expressly approved by Motorola, will

void the user's authority to operate the equipment.

For detailed product safety and RF exposure for portable terminals with two-way radios, refer to Electro-

magnetic Emission (EME) safety leaflet, Motorola publication number 68P02963C77.

Trademarks

Motorola and the Motorola logo are registered trademarks of Motorola, Inc.

FlashFile is a trademark of Intel Corporation.

Microsoft, Windows, and Windows CE are registered trademarks of Microsoft Corporation.

What is the HDT 600 Terminal

The HDT 600 is a portable terminal designed for field applications

where fast data acquisition is required.

Its ergonomic design is easy to hold and carry. Its unique shape fits

the hand, and the back strap provides extra grip. The Windows CE

operating system with touch screen and soft-keys provides easy

access to various applications.

The HDT 600 is equipped with a 3.6 inch color LCD screen with

LED front-light, viewable in all light conditions, including direct

sunlight. The touch sensitive screen enables signature capture as

well as easy selection from an on-screen menu.

A LASER beam barcode reader (optional) enables one-hand bar-

code reading on both vertical and horizontal labels. Activation of

the barcode is by one of four direct access dedicated trigger keys

for right or left handed users.

The unit operates in all weather conditions and is protected against

hostile environment factors, such as impact, rain, vibrations and

ESD.

An RS232 port serves for uploading and downloading data

between the HDT 600 and a PC via the HDT 600 Cradle. Connec-

tions for external power supply are also provided. The 1400mA

Lithium-Ion battery pack provides at least one shift of normal oper-

ation before charging is needed.

The HDT 600 uses the following methods of communication:

• Short distance: Each HDT 600 contains a Bluetooth radio mod-

ule for short distance communication with peripheral devices

such as printers etc.

• Local Area Network (LAN) communication: An optional

Spread Spectrum 2.4GHz radio module provides coverage

within a local distribution hub.

• Wide Area Network (WAN) communication:

1. An optional GPRS radio module provides coverage

within cellular infrastructure.

2. An optional DataTAC radio module provides coverage

within DataTAC network infrastructure.

3. An optional iDEN radio module provides coverage

within iDEN network infrastructure.

It is also possible to use GPRS and WLAN communication by

installing both radios within the HDT 600. In such case the HDT

600 software switches between radios when moving from one cov-

erage area to another.

HDT 600 Parts

LED Indicator

Buzzer

Touch Sensitive Screen

Function Soft Keys

Battery Charge

Contacts

Barcode Scanner

Power Button (On/Off/Suspend)

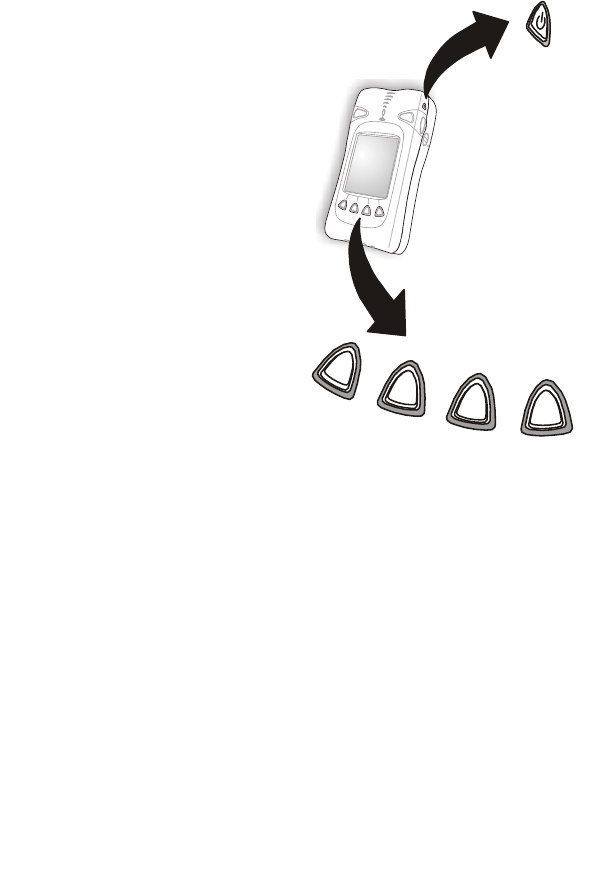

Barcode Scanner Triggers

Battery Lock

LASER Window

Terminal Release Button

Stylus Pen

Stylus Pen Silo

& Communication

Front View Back View

Terminal Release Button

Battery

Hand Strap

HDT 600 Cradle

Red LED indicating

HDT 600 locked into

Cradle

Unpacking

The HDT 600 Data Terminal and HDT 600 Cradle are shipped in

separate packages.

The HDT 600 Data Terminal package includes the following items:

• One HDT 600 Data Terminal unit

• One 7.2V 1400mAH Li-ion battery pack

• One Stylus pen

• This Owner’s Manual

The HDT 600 Cradle package includes the following items:

• HDT 600 Cradle

• 12/24 VDC vehicle power cable with 3 Amps fuse or Cigarette

lighter adapter

• This Owner’s Manual

If ordered, you may also receive optional accessories such as: Cig-

arette Lighter Cable for Vehicle Cradle or Desktop Adaptor for

Vehicle Cradle or Wall Mounting Kit.

Carefully unpack each item from the shipping carton. Check all

items for shipping damage, and check that you have received all

items ordered. If there is damage or missing items, retain the ship-

ping carton for inspection.

The battery is shipped from factory uncharged and not installed.

Charge the battery before using the HDT 600 for the first time. See

“First Time Battery Charge” on page 7.

The HDT 600 is shipped with a plastic film protecting the screen.

Before using, remove the film and use a soft cloth to buff the dis-

play. This ensures smooth gliding of the Stylus pen over the sur-

face.

HDT 600 Cradle Connections

RS232 Cable to

Desktop

Cigarette Lighter Cable

(To 12/24VDC

3 Amps fuse

The HDT 600 terminal can

communicate with a host PC

directly through its

communications port

(COM Port) using

an RS232 serial cable

3 Amps Fuse inside

Important Note: This product should be installed according to local

applicable laws and directives.

PC COM Port

Power Cable for vehicle

power system)

Vehicle Cradle

for

HDT 600

Cradle

Adapter

Installing the Battery

The battery is shipped from the factory uncharged and not installed.

Charge the battery before using the HDT 600 for the first time.

1. Before installing the battery, release the terminal hand strap, as

shown below.

2. Verify that the battery lock is in Unlock position.

3. To install the battery, position the battery in the right-hand side

of the battery compartment and lower it downward to its place.

4. Use a coin to lock the battery by turning the battery lock clock-

wise to the Lock position. Note that the battery is locked only

when the two dots align (see figure below).

Removing the Battery

Important Note: The HDT 600 enables you to replace batter-

ies without losing information stored in its memory. To avoid los-

ing information stored in the memory, charged battery must be

installed within 2 minutes after removing empty battery.

Battery Lock

Power Button

Hand Strap

Lock

Unlock

1. Turn the HDT 600 off by holding the Power button pressed for

at least two seconds.

2. Release the terminal hand strap as shown in the figure above.

3. Use a coin to unlock the battery by turning the battery lock

counter-clockwise.

4. To remove the battery, lift the left-hand side of the battery and

pull it out.

First Time Battery Charge

The battery is charged when installed inside the HDT 600. Charge

your new battery for at least six continuous hours before using it or

until the LED indicator of the HDT 600 turns from red to green.

The first time charge is referred to as initializing and will ensure

maximum battery start capacity. The HDT 600 Cradle charges your

battery effectively when it is at room temperature (approx. 20° C).

Battery charging temperature range is 0°C to 45°C.

Charging the Battery

The battery remaining capacity indication may show by the LED

indicator of your HDT 600 (see figure below). Note that the HDT

600 can either be in On, Off or Suspend mode, while charging.

To avoid damage and provide optimal performance of

the HDT 600 and Cradle, use only the Power Supply

provided by your company.

To charge the battery, perform the following steps:

1. Connect the power cable to the socket at the base of the Cradle.

2. Slide the HDT 600 into the Cradle and lock the HDT 600

inside by pushing it towards the back of the Cradle.

Press to unlock

Red LED indicating

HDT 600 locked

Push back to lock

HDT 600 into Cradle

into Cradle

Press to unlock

Red: charging

Green: battery full

Red blinks: charging problem

LED indicator

HDT 600 HDT 600

Caution

When installed in a vehicle, the HDT 600 must be

locked into the Cradle. If not locked, the HDT 600 may

be propelled with great force and may cause serious

injury to occupants of the vehicle.

Important Note: The HDT 600 will not charge if not locked

into the Cradle.

Once the HDT 600 is locked, the Cradle red LED will turn on, indi-

cating lock status.

3. To remove the HDT 600 from the Cradle, press one or two

unlock buttons until the HDT 600 pops out a bit, and remove

the HDT 600 from the Cradle.

Battery Maintenance

The performance of the rechargeable battery delivered with your

HDT 600 depends on the way the battery is treated. Therefore, to

comply with the Motorola warranty for batteries and to assure high

performance and a long life for your Motorola rechargeable battery,

please read and follow the maintenance rules stated below.

Battery Storage

Do not store your battery where the temperatures will exceed 65°C

or fall below -20°C.

New Lithium-Ion batteries (i.e. batteries that have never been

charged before) may be stored for up to 3 months in well-venti-

lated, cool and dry areas without significant loss in lifespan.

Batteries which have already been charged and then stored for

more than 2 months should be recharged before use.

Extending Battery Life

A battery is an expendable part and may need replacing during the

life of the HDT 600. To ensure maximum service life of your HDT

Warning

600, always replace the battery with a genuine Motorola replace-

ment.

Your Cradle will charge your battery effectively when it is at room

temperature (approx. 20° C). Battery charging temperature range is

0°C to 45°C.

Turning on the HDT 600

Press the Power button to start the HDT 600. The HDT 600 also

powers on immediately when the battery is inserted.

As the HDT 600 initializes its unique flash file system, the Motor-

ola logo displays for about one minute. Note that this screen also

appears every time you perform a restart.

Suspend Mode

The Suspend mode is used for saving the HDT 600 battery power

by turning off the display and computer sections of the HDT 600,

while keeping the radio(s) powered on.

When the HDT 600 is on, press the Power button to toggle between

Suspend and Resume modes. During the Suspend mode, the dis-

play turns off and the LED indicator blinks.

When the HDT 600 resumes, it returns to the screen displayed prior

to the Suspend mode.

Use the Suspend mode as often as possible to save battery power.

Turning off the HDT 600

When the HDT 600 is on or in Suspend mode, hold the Power but-

ton pressed for at least two seconds, to turn off the HDT 600.

Using the HDT 600

When using the HDT 600, the hand strap on the back of the unit

provides stability. Insert your left or right hand under the strap

while holding the stylus pen in the other hand.

Using the Stylus Pen

The Stylus pen selects items and enters information. Use the pen as

you use your PC mouse.

• To open and select screen items, tap on the item twice with the

pen.

• To drag text or image items, hold the pen on the item and drag

across the screen.

• To see a list of actions available for specific item, tap-and-hold

the pen on an item. When the pop-up menu appears, tap the

action you want to perform.

Scanning With the HDT 600

The HDT 600 is equipped with four scan trigger buttons, designed

for left-handed and right-handed users. The buttons are located on

the left-hand and right-hand sides of the terminal and on the left-

hand and right-hand sides of the upper front panel.

The HDT 600 has an integrated scanner which gathers data by

scanning barcodes. To scan barcodes with the HDT 600, aim the

scanner at the barcode.

Press one of the four scan trigger buttons. Ensure the red scan beam

covers the entire barcode. The green scan LED lights and a beep

sounds to indicate a successful decode.

Scan Trigger Buttons

45°

Scan

Angle

Scan Trigger Buttons

LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

LUMIERE LASER

NE PAS REGARDER LE RAYON FIXEMENT

PRODUIT LASER DE CLASSE 2

Resetting the HDT 600

You may need to reset your

HDT 600; for example, you may

reset due to communication cut-

off with your desktop PC or

radio network, or when the oper-

ating system stops responding.

When your HDT 600 stops

responding, do the following

actions:

Warm Boot

Important Note: When HDT

600 is warm booted, all informa-

tion remains stored in memory.

1. Simultaneously press soft

keys 1, 2 and the Power but-

ton for at least 5 seconds;

the HDT 600 will function

again.

If your HDT 600 still does not respond perform:

Cold Reset

Important Note: When HDT 600 is cold reset, all information

stored in its memory will be lost.

2. Simultaneously press soft keys 2, 3 and 4 to restart your HDT

600. The operation system will reboot for about a minute.

234

Power Button

Cradle Installation

The Cradle can be installed by using the four threaded holes on its

back side (See figure in page 14). Use the holes to attach the Cradle

to any surface, such as: vehicle dashboard, office wall or table.

Planning is the key to fast, easy HDT 600 Cradle installation.

Before a hole is drilled or a wire is run, inspect the vehicle and

determine how and where you intend to mount the Cradle and

accessories. Plan wire and cable runs to provide maximum protec-

tion from pinching, crushing, and overheating.

The installation planning should only be undertaken by persons

who are competent and able to ensure that the complete installation

fulfills its regulatory requirements, such as EMC (ElectroMagnetic

Compatibility).

Please note that it is the responsibility of the installing party to

ensure that the inclusion of mount accessories and connections to

the battery system is according to local standards and is not in vio-

lation of applicable safety specifications.

When routing the power cable to the Cradle, it is important to use

as much cable as needed and cut off the remainder. Using the exact

cable length ensures proper power supply to the Cradle. Make sure

that the power cable has a 3 Amps fuse (See “HDT 600 Cradle

Connections” on page 5).

The power cable must originate after the vehicle current protection

system. In order to prevent continuous consumption from the vehi-

cle's battery, route the power cable after the ignition switch. Note

that the input voltage to the Cradle may range from 10.6 to 32 VDC

(Max peak current: 2 Amps). The Cradle output voltage is 12 VDC

(Max continuous current: 1 Amp at -30 to +50°C, 0.5 Amp at 50 to

60°C).

Classification level 5 for power supplies having output circuit that

meet the requirements for SELV circuit.

For continued protection against risk of fire, replace only with

same type and rating of fuse.

Back side of HDT 600 Cradle

Threaded holes

Office Adapter

Threaded holes

50 mm

125 mm

M4X10

Dashboard Mounting

Wall Mount Bracket

for installation

M4X10

(Pedestal)

Maintaining the HDT 600

In order to maintain your HDT 600 in good working order:

• Do not scratch the screen. Use only Motorola supplied stylus

pen with the touch-sensitive screen.

• Never use a pen or pencil or any sharp object on the screen.

• Although your HDT 600 is water and dust resistant, do not

expose it to rain or moisture for long periods of time.

• Protect your HDT 600 from temperature extremes. Do not

leave the HDT 600 on the dashboard of a car on a hot day, and

keep the HDT 600 away from hot places.

• The touch-sensitive screen of your HDT 600 contains glass. Do

not drop your HDT 600 or subject it to strong impact.

• Treat your HDT 600 as you would a cellular phone or other

small and sensitive electronic devices.

• Do not store or use your HDT 600 in any location that is

extremely dusty, damp or wet.

• If the battery contacts, screen or surface of the HDT 600

becomes dirty, use a soft lint free cloth, moistened with diluted

Isopropyl Alcohol (IPA) solution, for removing dirt. The IPA

can be diluted with water up to 20%.

Accessories

Motorola recommends the use of the following accessories with

your terminal. Please refer to your company for more information.

Motorola is not responsible for the use of accessories not approved

for this product.

The following Motorola approved accessories are for use with your

terminal. For information on the availability of these accessories,

please call your company supplier.

Table 1: Accessories

Motorola Approved Accessory Part Number

HDT 600 F4415A

Spare Battery FNN5105A

Spare Stylus FLN9805A

Cigarette Lighter Cable for Vehicle Cradle FKN6009A

Power Cable for Vehicle FKN8044A

Wall Mounting Kit FLN9782A

HDT 600 Cradle F4416A

Desktop Adapter 110V VA00054AA

Desktop Adapter 220V VA00055AA

Belt Holster, Leather, HDT 600 FHN6394A

Carrying Case, Leather, HDT 600 (shoulder

strap, D-Ring belt loop)

FHN6395A

Carrying Case, Leather, HDT 600 (shoulder

strap, fixed belt loop)

FHN6396A

What to Do If

Table 2: Troubleshooting

Problem Cause Solution

HDT 600 does

not turn on.

Battery not

charged.

Ensure proper battery instal-

lation in HDT 600.

Charge or replace the battery.

HDT 600 in Sus-

pend mode.

Press the Power Button.

HDT 600 red

LED does not

stop blink or

battery refuse

to charge.

HDT 600 is not

locked in Cradle.

Reinstall HDT 600 in Cradle.

Lock the HDT 600 properly

in Cradle (See that the HDT

600 and Cradle red LEDs are

on) and charge for 6 hours.

Battery tempera-

ture is incorrect

Ensure that the battery tem-

perature range is -0 to 45° C

Bad battery. Replace battery.

HDT 600 does

not detect scan

input.

LASER beam does

not cover the entire

barcode symbol.

Scan again and make sure

that the entire barcode sym-

bol is covered.

Unreadable bar-

code.

Be sure the barcode symbol

is not covered.

HDT 600

stopped

responding.

Problem in HDT

600 operating sys-

tem or communica-

tion network.

Simultaneously press soft

keys 1, 2 and the Power but-

ton for at least 5 seconds; the

HDT 600 should function

again.

If still does not respond,

simultaneously press soft

keys 2, 3 and 4 to restart your

HDT 600. The operation sys-

tem will reboot for about a

minute.

Incomplete or

no data trans-

mission

between HDT

600 and PC.

HDT 600 is not

locked in Cradle.

Lock the HDT 600 properly

in Cradle (See that the red

LED is on).

Cradle contacts are

not clean.

Clean contacts and remove

dust and objects from within

the Cradle.

Bad RS232 cable. Replace the RS232 cable.

Communication

software was incor-

rectly installed or

configured.

See your System Administra-

tor.

Table 2: Troubleshooting

Problem Cause Solution

Battery Warnings and Disposal

HDT 600 On Board Aircraft

Always remove the battery from the HDT 600 when shipped via

air. Any use of the HDT 600 must be in accordance with applicable

regulations per airline crew instructions.

Battery Disposal

Batteries must be recycled or disposed of properly in accordance

with local requirements. Recycling facilities may not exist in all

areas. Please contact your local environmental agency for more

information regarding proper disposal.

To Prevent Injury Or Burns

• USE ONLY SPECIFIED BATTERIES AND CHARGERS.

• DO NOT DISPOSE OF ANY BATTERIES IN FIRE, AS

THEY MAY EXPLODE!

• DO NOT PUNCTURE OR ALLOW METAL TO CONTACT

THE BATTERY TERMINALS.

• DO NOT DISPOSE OF IN WATER.

• DO NOT DISASSEMBLE.

• DO NOT STORE ABOVE 60C/140F

HOW TO REACH US:

Commercial, Government and

Industrial Solutions Sector

1301 E. Algonquin Road,

Schaumburg, IL 60196

Visit our Web site at

www.motorola.com

MOTOROLA and the Stylized M Logo are regis-

tered in the U.S. Patent and Trademark Office.

All other product or service names are the prop-

erty of their respective owners.

Motorola Solutions 89FT7003 Handheld Data Terminal with WAN WLAN and Bluetooth User Manual FCC Certification Report for the

Motorola Solutions, Inc. Handheld Data Terminal with WAN WLAN and Bluetooth FCC Certification Report for the

Contents

Exhibit 8 EME User Card and User Manual

Navigation menu

Namespaces

Views

Navigation
