User Guide
CLP Series Two-Way Radio
TM
2000044_CLP_en.book Page 1 Thursday, November 9, 2017 6:40 PM
Document Copyrights
No duplication or distribution of this document or any portion thereof shall take place without the express
written permission of Motorola Solutions. No part of this manual may be reproduced, distributed, or
transmitted in any form or by any means, electronic or mechanical, for any purpose without the express
written permission of Motorola Solutions.
Disclaimer
The information in this document is carefully examined, and is believed to be entirely reliable. However,
no responsibility is assumed for inaccuracies. Furthermore, Motorola Solutions reserves the right to make
changes to any products herein to improve readability, function, or design. Motorola Solutions does not
assume any liability arising out of the applications or use of any product or circuit described herein; nor
does it cover any license under its patent rights nor the rights of others.
2000044_CLP_en.book Page 2 Thursday, November 9, 2017 6:40 PM
CONTENTS
i
Declaration of Conformity . . . . . . . . . . . . . .v
Computer Software Copyrights . . . . . . . . . iii
Radio Frequency (RF) Exposure Safety
Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Product Safety and RF Exposure Compli-
ance . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
FCC Licensing Information . . . . . . . . . . . . .v
Notice to users (fcc and industry canada) . . . .v
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .1
Radio Overview . . . . . . . . . . . . . . . . . . . . . . .2
Radio Controls. . . . . . . . . . . . . . . . . . . . . . . . .2
Getting Started . . . . . . . . . . . . . . . . . . . . . . . .3
Install The Battery . . . . . . . . . . . . . . . . . . . . . .3

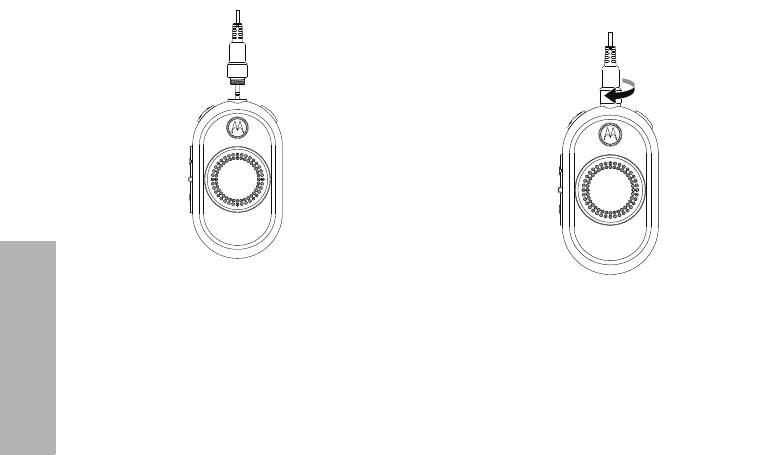

Connecting a Wired Audio Accessory. . . .4
Connecting a Bluetooth Wireless Accessory
(Select Models Only) . . . . . . . . . . . . . . . . . . . .5
Add Bluetooth Headset (Initial Pairing) . . .5
Reconnect to Last Connected Bluetooth
Headset. . . . . . . . . . . . . . . . . . . . . . . . . . .5
Erase Bluetooth Headset History and Add
Bluetooth Headset . . . . . . . . . . . . . . . . . . 5
Turning the Radio On and Off . . . . . . . . . 6
Adjusting the Volume. . . . . . . . . . . . . . . . 6

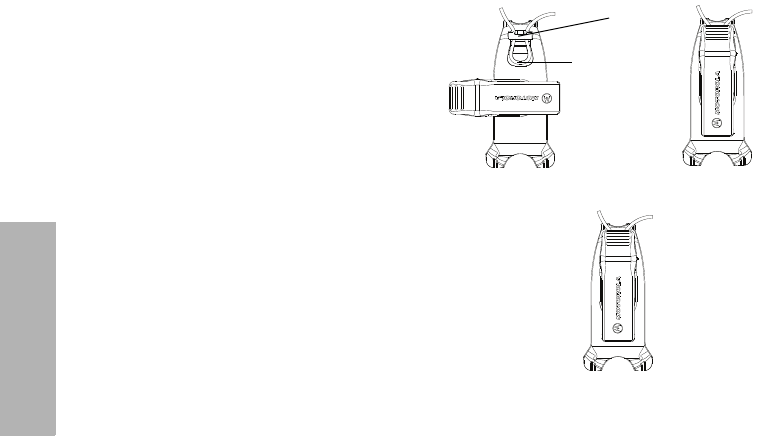

Installing and Removing the Swivel Belt
Clip Holster . . . . . . . . . . . . . . . . . . . . . . . 6
Transmitting and Receiving . . . . . . . . . . . . . . 7
Operation with Menu Settings . . . . . . . . . . . . 8
Selecting a Channel. . . . . . . . . . . . . . . . . 9
Monitoring a Channel. . . . . . . . . . . . . . . 10
Scanning . . . . . . . . . . . . . . . . . . . . . . . . 10
Dynamic Talkaround Scan (*) . . . . . . . . 11
Sending Call Tone (enabled through
CPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mute Feature (*). . . . . . . . . . . . . . . . . . . 11
Talk Permit Tone (*). . . . . . . . . . . . . . . . 11
Battery and Charger Features. . . . . . . . . . 12
Battery Features. . . . . . . . . . . . . . . . . . . . . . 12
About the Li-Ion Battery . . . . . . . . . . . . . 12
Battery Recycling and Disposal . . . . . . . 13
Removing the Lithium-Ion (Li-Ion)
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Supply, Adapter and Drop-in Tray
2000044_CLP_en.book Page i Thursday, November 9, 2017 6:40 PM
CONTENTS
ii
Charger . . . . . . . . . . . . . . . . . . . . . . . . . .14

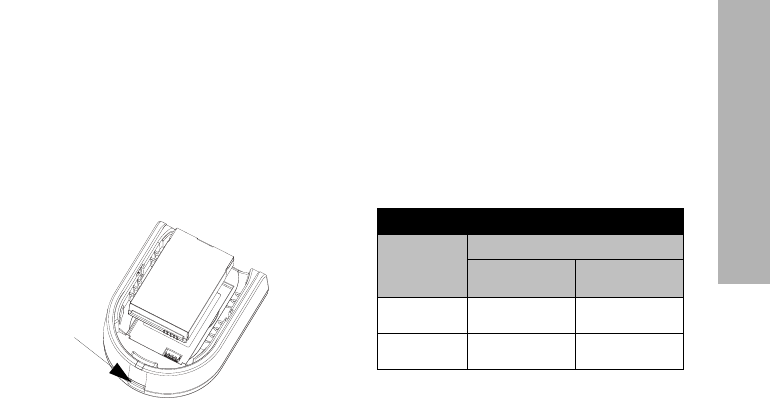

Charging a Standalone Battery. . . . . . . .15
Charging the Bluetooth Headset. . . . . . .18
Checking Battery Status . . . . . . . . . . . . .18
Batteries and Chargers Safety
Information. . . . . . . . . . . . . . . . . . . . . . . . . .19
Operational Safety Guidelines . . . . . . . .20
Programming The Radio Through the
CPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Downloading the (Customer Programming
Software) CPS . . . . . . . . . . . . . . . . . . . .21
Radio Cloning . . . . . . . . . . . . . . . . . . . . . . .24
Cloning Radio Settings . . . . . . . . . . . . . . . . .24
Cloning Instructions. . . . . . . . . . . . . . . . . . . .24
Cloning Radios using the CLP Series Clon-
ing Cable Kit P/N HKKN4026 (optional ac-
cessory) . . . . . . . . . . . . . . . . . . . . . . . . .24

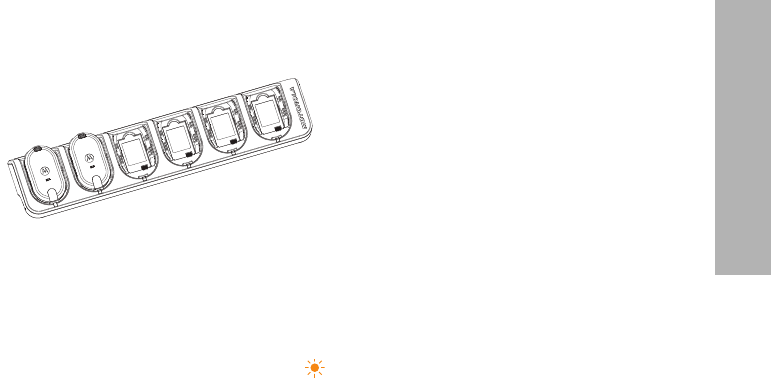

Cloning Radios using the CLP Series Multi-
Unit Charger (MUC) Kit P/N HKPN4007
(optional accessory) . . . . . . . . . . . . . . . .27
Advanced Radio Configuration (*) . . . . . . 28
Entering Advanced Radio Configuration
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 29

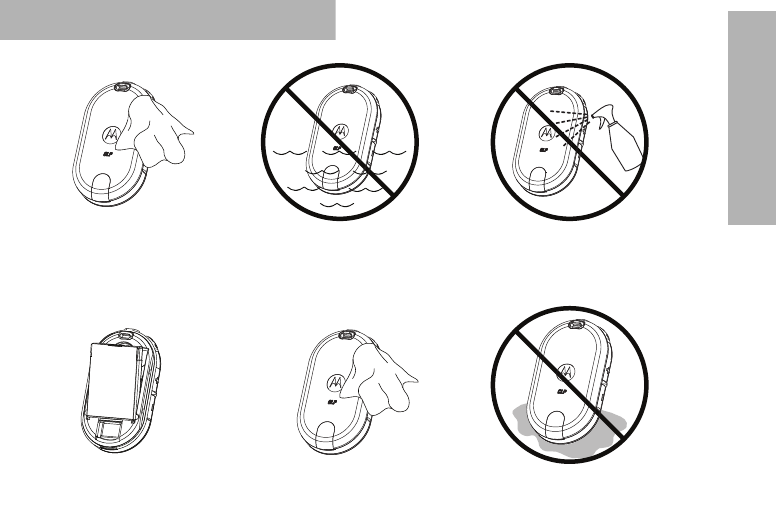

Use and Care . . . . . . . . . . . . . . . . . . . . . . . 33
Radio Frequency and Code Charts . . . . . 34
Motorola Solutions Limited Warranty for the
United States and Canada . . . . . . . . . . . . . 38
Accessories . . . . . . . . . . . . . . . . . . . . . . . . 43
Audio Accessories . . . . . . . . . . . . . . . . . . . . 43
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Carry Accessories . . . . . . . . . . . . . . . . . . . . 43
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Programming Cables . . . . . . . . . . . . . . . . . . 43
2000044_CLP_en.book Page ii Thursday, November 9, 2017 6:40 PM
v
DECLARATION OF
CONFORMITY
DECLARATION OF CONFORMITY
This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown
below.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola Solutions, Inc.
Address: 500 W. Monroe Street, Chicago, Illinois 60661, U.S.A.
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: CLP1000 Series conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
2000044_CLP_en.book Page v Thursday, November 9, 2017 6:40 PM
DECLARATION OF
CONFORMITY
vi
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. This
device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Notice:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules and Canada license-exempt RSS
standard. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
2000044_CLP_en.book Page vi Thursday, November 9, 2017 6:40 PM
COMPUTER SOFTWARE
COPYRIGHTS
iii
COMPUTER SOFTWARE
COPYRIGHTS
The Motorola Solutions products described in
this manual may include copyrighted Motorola
Solutions computer programs stored in
semiconductor memories or other media. Laws
in the United States and other countries
preserve for Motorola Solutions certain
exclusive rights for copyrighted computer
programs, including, but not limited to, the
exclusive right to copy or reproduce in any form
the copyrighted computer program.
Accordingly, any copyrighted Motorola
Solutions computer programs contained in the
Motorola Solutions products described in this
manual may not be copied, reproduced,
modified, reverse-engineered, or distributed in
any manner without the express written
permission of Motorola Solutions.
Furthermore, the purchase of Motorola
Solutions products shall not be deemed to
grant either directly or by implication,
estoppels, or otherwise, any license under the
copyrights, patents or patent applications of
Motorola Solutions, except for the normal non-
exclusive license to use that arises by
operation of law in the sale of a product.
2000044_CLP_en.book Page iii Thursday, November 9, 2017 6:40 PM
RF SAFETY STANDARDS
iv
RADIO FREQUENCY (RF)
EXPOSURE SAFETY
STANDARDS
Product Safety and RF Exposure
Compliance
ATTENTION!
This radio is restricted to occupational use only to
satisfy FCC RF energy exposure requirements.
Before using this product, read the RF energy
awareness information and operating instructions in
the Product Safety and RF Exposure booklet
enclosed with your radio (Motorola Solutions
Publication part number 6881095C98) to ensure
compliance with RF energy exposure limits.
For a list of Motorola Solutions-approved antennas,
batteries, and other accessories, visit the following
website: www.motorolasolutions.com/CLP
Before using this product, read the
operating instructions for safe
usage contained in the Product
Safety and RF Exposure booklet
contained with your radio.
C a u t i o n
2000044_CLP_en.book Page iv Thursday, November 9, 2017 6:40 PM
FCC LICENSING
INFORMATION
v
FCC LICENSING
INFORMATION
NOTICE TO USERS (FCC)
This device complies with Part 15 of the FCC rules
per the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired
operation.
• Changes or modifications made to this device, not
expressly approved by Motorola Solutions, could void
the authority of the user to operate this equipment.
The CLP Series radio operates on radio frequencies
that are regulated by the Federal Communications
Commission (FCC). To transmit on these frequencies,
you are required to have a license issued by the FCC.
Application is made available on FCC Form 601 and
Schedules D, H, and Remittance Form 159.
To obtain these FCC forms, request document
000601 which includes all forms and instructions. If
you wish to have the document faxed, mailed or have
questions, use the following contact information.
Faxed: Contact the Fax-On-
Demand system at:
Mailed: Call the FCC
forms hotline at:
For questions regarding FCC
license, contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
2000044_CLP_en.book Page v Thursday, November 9, 2017 6:40 PM
vi
FCC LICENSING
INFORMATION
Before filling out your application, you must decide
which frequency(ies) you can operate on: “Radio
Frequency and Code Charts” on page 34. For
questions on determining the radio frequency, call
Motorola Solutions Product Services at: 1-800-448-
6686. Changes or modifications not expressly
approved by Motorola Solutions may void the user’s
authority granted by the FCC to operate this radio and
should not be made. To comply with FCC
requirements, transmitter adjustments should be
made only by or under the supervision of a person
certified as technically qualified to perform transmitter
maintenance and repairs in the private land mobile
and fixed services as certified by an organization
representative of the user of those services.
Replacement of any transmitter component (crystal,
semiconductor, etc.) not authorized by the FCC
equipment authorization for this radio could violate
FCC rules.
Use of this radio outside the country where it was
intended to be distributed is subject to government
regulations and may be prohibited.
2000044_CLP_en.book Page vi Thursday, November 9, 2017 6:40 PM
INTRODUCTION
1
INTRODUCTION
Thank you for purchasing a Motorola Solutions CLP
Series Two-Way Radio™. Your radio is a product of
Motorola Solutions’ 80 plus years of experience as a
world leader in designing and manufacturing
communications equipment. The CLP Series radios
provide cost-effective efficient communications for
businesses such as retail stores, restaurants, hotels,
and schools. Motorola Solutions professional two-way
radios are the perfect communications solution for all
of today’s fast-paced industries. Please read this
guide carefully so you know how to properly operate
the radio before use.
PACKAGE CONTENTS
Your product package contains the following products
and manuals:
• CLP Series Two-way Radio
• Swivel Belt Clip Holster
• Lithium Ion Battery and Battery Door
• Drop-In Tray Charger with Transformer
• Audio Accessory
• User Quick Reference, Chargers Instructions
Leaflet, RF Safety Booklet
• Warranty Card
For product information, visit us at:
www.motorolasolutions.com/CLP
For product-related questions, contact:
1-800-448- 6686 in the USA
1-800-461-4575 in Canada
1-866-522-5210 on your TTY (Text Telephone)
This user guide covers the following CLP Series models (*):
Note: Certain models may or may not be available at the time of purchase.
Model Frequency
Band
Transmit
Power
No. of
Channels Bluetooth Repeater
Capability
CLP1010 UHF 1 W 1 No Yes
CLP1040 UHF 1 W 4 No Yes
CLP1060 UHF 1 W 6 Yes Yes
2000044_CLP_en.book Page 1 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
2
RADIO OVERVIEW
RADIO CONTROLS
Accessory
Connector
Smart Status
Glow
Volume
Control (+/-)
Power/Battery
Button
Push-to-Talk
(PTT) Button
Menu Button
2000044_CLP_en.book Page 2 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
3
GETTING STARTED

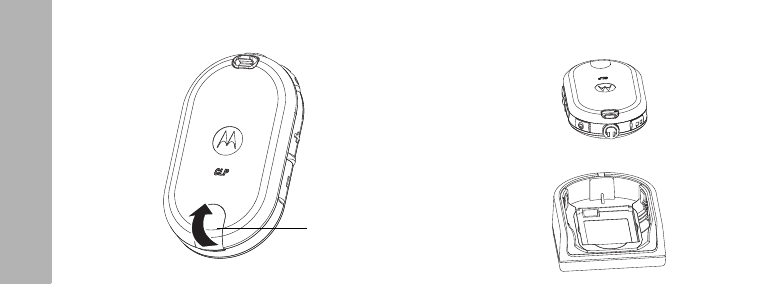

INSTALL THE BATTERY
1. Push the latch up at the bottom of the battery
door and lift the battery door off the radio.
2. Align the battery contacts with tabs in the battery
compartment. Insert the contact side of the
battery first, then press the battery down to
secure in place.
3. Put the battery door back on the radio. Push the
latch down to lock.
Note: The CLP Series radios standard packaged models come with standard Lithium Ion battery and the standard Lithium Ion
battery door. For option, customers can order Hi-capacity Lithium Ion battery (P/N HKNN4013) and the Hi-capacity Lithium
Ion battery door (P/N HKLN4440).
2000044_CLP_en.book Page 3 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
4
Connecting a Wired Audio Accessory
Connect the wired audio accessory.
1. Turn the radio OFF.
2. Remove the accessory connector cover
(applicable on bluetooth enabled models only).
3. Plug the audio accessory straight into the
accessory connector on the radio. Screw the
audio accessory plug into the connector until it
is tight and fully engaged with the connector.
4. Turn the radio ON. Press either the Battery
Status, Menu or Volume Control button to
check for audio through the audio accessory.
Note: The CLP Series radios offer a variety of audio
accessories. For detailed Audio Accessories List,
please refer to www.motorolasolutions.com/CLP
for information on approved accessories. Lower the
radio volume BEFORE placing the audio accessory
in or near your ear.
2000044_CLP_en.book Page 4 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
5
CONNECTING A BLUETOOTH WIRELESS
ACCESSORY (SELECT MODELS ONLY)
Add Bluetooth Headset (Initial Pairing)
1. Turn the radio OFF.
2. Put Bluetooth headset in pairing mode. Refer to
your Bluetooth headset instructions leaflet.
3. Press and hold the PTT button and power
button simultaneously until radio shows the blue
LED.
Note: The Bluetooth feature is disabled when the wired
audio accessory is plugged into the accessory
connector on the CLP radio.
Reconnect to Last Connected Bluetooth
Headset
1. Turn the radio OFF.
2. Press the power button to turn the radio ON.
(Make sure the Bluetooth headset is turned
ON).
Erase Bluetooth Headset History and Add
Bluetooth Headset
1. Turn the radio OFF.
2. Put the Bluetooth headset in pairing mode.
Refer to your Bluetooth headset instructions
leaflet.
3. Press and hold the Menu button and power
button simultaneously until radio shows the blue
LED.
Note: The CLP radio uses proximity pairing. Make sure
the headset is close enough to the CLP radio.
Pairing process takes about 14 seconds.
LED Configuration
User Mode LED Status Color
Bluetooth
Pairing Mode
• Last connection
– Fast blinking
blue
• Add or erase/
add – Solid blue
Pairing
Successfully
Blue/purple blinks for
5 seconds
Bluetooth
Disconnected
Red/purple blinks
until the radio
reconnects
Pairing Fail/
Timeout
Red/purple blinks
until radio reconnects
2000044_CLP_en.book Page 5 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
6
Turning the Radio On and Off
• To turn the radio ON, press and hold the Power/
Battery button until you hear a short tone and the
Smart Status Glow lights up.
• To turn it OFF, press and hold the button until you
hear a short tone and the Smart Status Glow
(red) indicator blinks once.
Adjusting the Volume
Turn the radio ON and set volume level by
pressing volume control (+/- button). A total of 16
volume levels are available.
Installing and Removing the Swivel Belt
Clip Holster
1. Slide the bottom of the radio into the holster.
2. Snap the top of the holster into the radio around
the accessory connector.
3. To remove the holster, pull either the top or
bottom tab(s) and pull the radio from the holster.
Note: When using a corded audio accessory, loop the
cord into the recess in the rear of the holster for
optimal plug retention.
4. Make a small loop in the cord. Pass the cord
through the cord guide, nest the cord in the
U-shaped groove. Pull tight to lock the cord in
place.
5. Turn the belt clip to the position as needed.
Note: The CLP Series radios offer a variety of flexible
carrying accessories. For detailed Carrying
Accessories List, please refer to
www.motorolasolutions.com/CLP for information
on approved accessories.
Cord
Guide
U-Shaped
Groove
2000044_CLP_en.book Page 6 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
7
TRANSMITTING AND RECEIVING
1. To talk, press and hold the PTT button on the
front of the radio (or on select wired audio
accessories with an inline PTT). Speak clearly
into the microphone on the audio accessory.
When finished talking, release the PTT to listen.
2. To receive, listen through the earpiece at the
volume level you have set. Press the PTT to
respond.
Note: The CLP Series radios always require the use of an
audio accessory with microphone and speaker.
Talk Range
Industrial Multi-Level
Application
Inside steel/
concrete
industrial
buildings
Inside Multi-
Level
Buildings
Unit to Unit Up to 100,000
square feet
Up to 10 floors
With
Repeater
Up to 250,000
square feet
Up to 20 floors
2000044_CLP_en.book Page 7 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
8
OPERATION WITH MENU SETTINGS
Press Menu button to navigate through the Menu settings. At any time in Menu mode, short press PTT or
wait 3 seconds to exit the menu. Voice Assisted Operation feature may not be available on certain previous
shipping radios.
HOW TO... STEP 1 STEP 2
Change Channel Press Menu button to navigate to Channel. Press +/- button to change
channel.
Enter Monitor Mode Press Menu button to navigate to Monitor. Press +/- button to activate or
deactivate Monitor.
Enter Scan Mode Press Menu button to navigate to Scan. Press +/- button to activate or
deactivate Scan.
Send Call Tone (enabled
through CPS)
Press Menu button to navigate to Call
Tone.
Press +/- button to send Call
Tone.
Quick Tip: It is not necessary to wait for the voice prompt to be completed before continuing with next button press.
Note: For single channel models, Monitor, Scan Mode and Call Tone are supported. Single channel models support Scan mode
when the user enables “Dynamic Talkaround Scan” on a repeater channel via the customer programming software.
2000044_CLP_en.book Page 8 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
9
Selecting a Channel
For CLP multi-channel models only:
1. When powered ON, press the Menu button, you
can hear the voice prompt:
• [Color] “Channel” – [Channel#] – “To change” –
“press +/-”
2. Select the channel you want. The LED reflects
the color of the new channel. Press PTT button
to confirm or it is activated after 3 second hang
time.
Default Channel Settings for CPS
CLP1010 Single-Channel Models CLP1040 Multi-Channel Models CLP1060 Multi-
Channel Models
Channel LED Status Color Channel
LED
Status
Color Channel
LED
Status
Color
1 Red
1
Red 1 Red
2
Green 2Green
3
Yellow 3Yell ow
4 Blue 4 Blue
5 Purple
6White
2000044_CLP_en.book Page 9 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
10
Monitoring a Channel
1. To activate, press the Menu button to navigate
to Monitor mode.
2. When Monitor is OFF, you can hear the voice
prompt: “Monitor” – “To activate” – “press +/-”.
3. Press either “+/-“ button to activate the Monitor;
press either “+/-“ button again to deactivate.
Note: When Monitor is ON, you can hear static if no
activity is present or audio if channel activity is
present.
4. To engage the Monitor mode, enable Monitor via
the menu and let the menu time out.
5. To deactivate, press PTT during Monitor Menu
mode.
Scanning
For multi-channel models only
You can scan up to 4 channels on CLP1040
models and scan up to 6 channels on CLP1060
models. When the radio detects activity, it stops
scanning and locks in on the active channel. This
allows you to talk and listen to the person
transmitting without changing channels.
1. Press the Menu button to navigate to Scan
mode.
2. When Scan is OFF, you can hear the voice
prompt: “Scan” – “To activate” – “press +/-”.
3. Press either “+/-“ button to activate the Scan;
press either “+/-“ button again to deactivate.
4. When Scan is on, you can hear the voice
prompt: “Scan” – “To deactivate” – “press +/-”
button.
2000044_CLP_en.book Page 10 Thursday, November 9, 2017 6:40 PM
RADIO OVERVIEW
11
Dynamic Talkaround Scan (*)
"Dynamic Talkaround Scan" is a simple but
effective method for an on-site repeater enabled
two-way radio systems to maximize
communication coverage. This feature can be
enabled on a repeater channel via the Customer
Programming Software (CPS). The Dynamic
Talkaround Scan gives the radio the ability to scan
both the transmit and receive frequencies of a
repeater channel.
Note: (*) Enhancement feature on CLP Radios. May not
be available on previous shipping radios. The
Dynamic Talkaround Scan is given higher priority
then the Scan Mode. If the Dynamic Talkaround
Scan and Scan is enabled on the home channel,
then the radio can only support the Dynamic
Talkaround Scan.
Sending Call Tone (enabled through CPS)
1. Press the Menu button to navigate to Call Tone.
2. Press either “+/-“ button to transmit selected
Call Tone.
Note: There are 4 Call Tones available.
Mute Feature (*)
You can quickly lower the headset volume using
the Mute feature.
1. Press and hold + or - button while receiving
audio to quickly lower the headset volume to
“Mute Headset Volume” setting (configurable via
CPS). You can hear the voice prompt: "Mute"
2. To switch back to the previous headset volume
setting, press and hold + or - button again. You
can hear the voice prompt: "Unmute".
Note: (*) Enhancement feature on CLP radios. May not
available on previous shipping radios. The
enhanced CLP does not support the volume scroll
like the previous CLP models.
Talk Permit Tone (*)
In mixed fleet situations (CLP1010 or CLP1040 and
CLP1060), Bluetooth users may miss some words
due to the Bluetooth connection not being
established. Talk Permit Tone allocates some time so
that the link between the radio and headset gets
reestablished thus minimizing the lost words. (The
Talk Permit Tone is disabled by default on CPS on the
Bluetooth models).
Note: (*) Enhancement feature on CLP radios may not be
available on previous shipping radios.
2000044_CLP_en.book Page 11 Thursday, November 9, 2017 6:40 PM
BATTERY AND CHARGER
FEATURES
12
BATTERY AND CHARGER
FEATURES
BATTERY FEATURES
The CLP Series radio provides Lithium-Ion batteries
that come in different capacities that define the battery
life.
About the Li-Ion Battery
The CLP Series radio comes equipped with a
rechargeable Li-Ion battery. This battery should be
charged before initial use to ensure optimum capacity
and performance.
Battery life is determined by several factors. Among
the more critical are the regular overcharge of
batteries and the average depth of discharge with
each cycle. Typically, the greater the overcharge and
the deeper the average discharge, the fewer cycles a
battery can last. For example, a battery which is
overcharged and discharged 100% several times a
day, lasts fewer cycles than a battery that receives
less of an overcharge and is discharged to 50% per
day. Further, a battery which receives minimal
overcharging and averages only 25% discharge, lasts
even longer.
Motorola Solutions batteries are designed specifically
to be used with a Motorola Solutions charger and vice
versa. Charging in non-Motorola Solutions equipment
may lead to battery damage and void the battery
warranty. The battery should be at about 77 °F (25 °C)
(room temperature), whenever possible. Charging a
cold battery (below 50 °F [10 °C]) may result in
leakage of electrolyte and ultimately in failure of the
battery. Charging a hot battery (above 95 °F [35 °C])
results in reduced discharge capacity, affecting the
performance of the radio. Motorola Solutions rapid-
rate battery chargers contain a temperature-sensing
circuit to ensure that batteries are charged within the
temperature limits stated above.
Battery Life
Based on 5% transmit, 5% receive, 90% standby
(standard duty cycle):
Estimated Battery Life
Standard
Charging
Solution
Battery Type
Standard Li-Ion
Battery
High Capacity
Li-Ion Battery
CLP1010,
CLP1040 9 hours 14 hours
CLP1060
(Bluetooth Always
ON Mode)
8 hours 12 hours
2000044_CLP_en.book Page 12 Thursday, November 9, 2017 6:40 PM
13
BATTERY AND CHARGER
FEATURES
Battery Recycling and Disposal
Li-Ion rechargeable batteries can be recycled.
However, recycling facilities may not be available in all
areas. Under various U.S. state laws and the laws of
several other countries, batteries must be recycled
and cannot be disposed of in landfills or incinerators.
Contact your local waste management agency for
specific requirements and information in your area.
Motorola Solutions fully endorses and encourages the
recycling of Li-Ion batteries. In the U.S. and Canada,
Motorola Solutions participates in the nationwide
Rechargeable Battery Recycling Corporation (RBRC)
program for Li-Ion battery collection and recycling.
Many retailers and dealers participate in this program.
For the location of the drop-off facility closest to you,
access RBRC's Internet web site at:
http://www.call2recycle.org or call:
1- 877-723-1297.
This internet site and telephone number also provides
other useful information concerning recycling options
for consumers, businesses and governmental
agencies.
2000044_CLP_en.book Page 13 Thursday, November 9, 2017 6:40 PM
BATTERY AND CHARGER
FEATURES
14
Removing the Lithium-Ion (Li-Ion) Battery
1. Turn the radio OFF.
2. Push the latch up at the bottom of the battery
door and lift the battery door off the radio.
3. Pull the battery away from the radio.
Power Supply, Adapter and Drop-in Tray
Charger
The radio is packaged with one Drop-in Tray Charger
with transformer. For details, see “Chargers” Section
on page 43.
Battery
Latch
2000044_CLP_en.book Page 14 Thursday, November 9, 2017 6:40 PM
15
BATTERY AND CHARGER
FEATURES
Charging a Standalone Battery
For your convenience the battery on the CLP radios
can be charged as a stand alone battery using either a
Single Unit Charger (SUC) or a Multi-Unit Charger
(MUC).
Note: When acquiring additional chargers or power
supplies, make sure you have similar drop-in tray
chargers and power supplies sets. For part number
details, refer to “Chargers” Section on page 43.
To charge only the battery:
1. Insert the connector of the power supply into the
Micro USB port on the front of the drop-in
tray charger.
2. Connect the CLP power supply to a proper AC
outlet.
3. Insert the battery into the tray, with the inside
surface of the battery facing the front of the
charger, as shown.
4. Ensure the slots in the battery correctly engage
in the charger.
Estimated Charging Time
The following table provides the estimated charging
time of the battery.
For further details, see “Batteries” Section on
page 43.
Micro-USB
C h a r g i n g
Jack
Estimated Charging Time
Charging
Solution
Battery Type
Standard Li- Ion
Battery
High Capacity
Li-Ion Battery
Single Unit
Charger 4 hours 5.5 hours
Multi Unit
Charger 2.5 hours 4 hours
2000044_CLP_en.book Page 15 Thursday, November 9, 2017 6:40 PM
BATTERY AND CHARGER
FEATURES
16

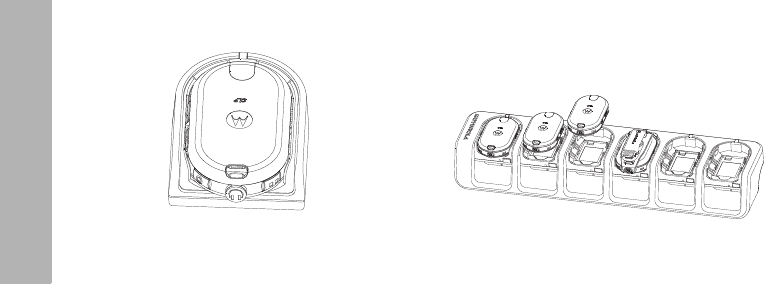

Charging the Radio with the Drop-in
Tray Single Unit Charger (SUC)
1. Place the drop-in tray charger on a flat surface.
2. Insert the connector of the power supply into the
Micro USB port on the front of the drop-in tray
charger.
3. Connect the correct power supply to a proper
AC outlet.
4. Insert the radio (with battery installed) into the
tray, facing down and making sure the charging
contacts on the charger are aligned with the
contacts on the radio.
Note: When charging a battery attached to a radio, turn
the radio OFF to ensure a full charge. The radio fits
in the charger with the holster attached when
placed face down in the tray.
Charging with the Drop-In Tray
Multi-Unit Charger (Optional
Accessory)
The Multi-Unit Charger (MUC) allows drop-in
charging of up to 6 radios. Each of the 6 charging
pockets can hold a radio (with battery installed).
The Multi-Unit Charger provides pockets for
headset storage.
1. Place the charger on a flat surface or mount it
on the wall.
2. Insert the power cord plug into the jack on the
MUC.
3. Plug the cord into an AC outlet and then into
charger.
4. Turn the radio OFF.
2000044_CLP_en.book Page 16 Thursday, November 9, 2017 6:40 PM
17
BATTERY AND CHARGER
FEATURES
Note: If the radio is ON while charging, it takes longer to
fully charge.
5. Insert the radio facing down (with battery
installed) into the charging pocket, making sure
the radio contacts are aligned with the MUC
contacts.
Note: The battery can be charged by itself using the slot
on the flat surface of the charging pocket.
Charging Status LEDs
On the drop-in charger, the radio charging pocket
has an LED Charger.
On the MUC, each of the 6 charging pockets has
an LED. The LEDs are grouped into pairs to show
which charging pockets are paired. The LED is red
when the battery is charging. It turns to green
once the battery is fully charged.
Note: This Multi Unit Charger allows you to clone up to 2
radios (2 Source radios and 2 Target radios). For
more details, refer to “Radio Cloning” Section on
page 24.
• For part number details, refer to the“Accessories”
Section on page 43.
Charger LED Indicator
Status LED Status Comments
Charging Steady
Red
Indication
The charger is
currently charging.
Charge
Complete
Steady
Green
Indication
Battery is fully
charged.
Battery
Fault (*)
Blinking
Red
Battery was faulty
when inserted.
Note: The LED is red when the battery is charging. It turns
to green once the battery is fully charged.
Note: (*) Re-seating the battery pack likely corrects this
issue.
2000044_CLP_en.book Page 17 Thursday, November 9, 2017 6:40 PM
BATTERY AND CHARGER
FEATURES
18
Charging the Bluetooth Headset
Refer to your Bluetooth headset leaflet for charging
instruction.
Charging Bluetooth Headset with CLP
Series Drop-In Tray Multi-Unit Charger
and Cloning Cable (Optional Accessory)
You can also charge your Bluetooth headset with
CLP Series Multi Unit Charger (MUC) P/N
HKPN4007 (optional accessory) and Cloning
Cable P/N HKKN4026 (optional accessory).
• Plug one side of the cloning cable
microconnector to the USB port of the Multi-Unit
Charger (there are 6 USB port on top of the
accessory pockets)
• Plug the other end of the cloning cable to the
USB port of the Bluetooth headset for charging
Note: Refer to the charging status light on your Bluetooth
headset leaflet.

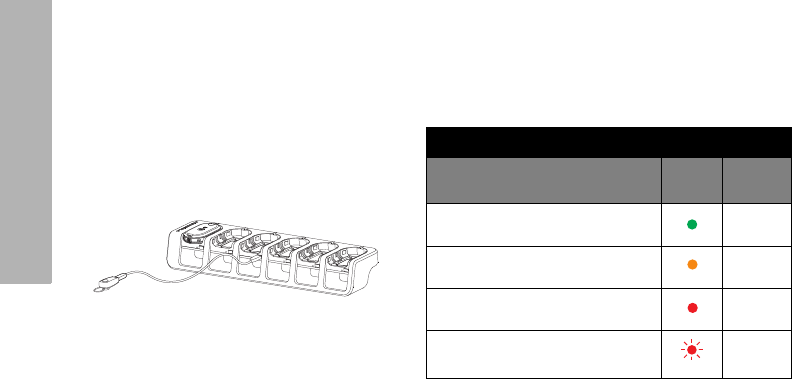

Checking Battery Status
When powered on, short press and release the
Power/Battery button, the Smart Status Glow and
Voice Assisted Operation features (* ) gives you
the battery status of the radio.
After the Smart Status Glow and Voice Assisted
Operation features (*) indicate the BATTERY
STATUS, it returns to the current channel color.
Note: (*) May not be available on certain previous
shipping radios.
Battery Status
Level LED
Status Color
Battery Level High (70 –100%) Green
Battery Level Medium (30 – 70%) Yellow
Battery Level Low (10 – 30%) Red
Battery Level Critical (0 – 10%) Blinking
Red
2000044_CLP_en.book Page 18 Thursday, November 9, 2017 6:40 PM
BATTERIES AND CHARGERS
SAFETY INFORMATION
19
BATTERIES AND
CHARGERS SAFETY
INFORMATION
This document contains important safety and
operating instructions. Read these instructions
carefully and save them for future reference.
Before using the battery charger, read all the
instructions and cautionary markings on
• the charger,
• the battery, and
• the radio using the battery
1. To reduce risk of injury, charge only the
rechargeable Motorola Solutions-authorized
batteries. Other batteries may explode, causing
personal injury and damage.
2. Use of accessories not recommended by
Motorola Solutions may result in risk of fire,
electric shock, or injury.
3. To reduce risk of damage to the electric plug
and cord, pull by the plug rather than the cord
when disconnecting the charger.
4. An extension cord should not be used unless
absolutely necessary. Use of an improper
extension cord could result in risk of fire and
electric shock. If an extension cord must be
used, make sure that the cord size is 18 AWG
for lengths up to 6.5 feet (2.0 m), and 16 AWG
for lengths up to 9.8 feet (3.0 m).
5. To reduce risk of fire, electric shock, or injury, do
not operate the charger if it has been broken or
damaged in any way. Take it to a qualified
Motorola Solutions service representative.
6. Do not disassemble the charger; it is not
repairable and replacement parts are not
available. Disassembly of the charger may
result in risk of electrical shock or fire.
7. To reduce risk of electric shock, unplug the
charger from the AC outlet before attempting
any maintenance or cleaning
2000044_CLP_en.book Page 19 Thursday, November 9, 2017 6:40 PM
BATTERIES AND CHARGERS
SAFETY INFORMATION
20
OPERATIONAL SAFETY GUIDELINES
• Turn the radio OFF when charging battery.
• The charger is not suitable for outdoor use. Use
only in dry locations/conditions.
• Connect charger only to an appropriately fused
and wired supply of the correct voltage (as
specified on the product).
• Disconnect charger from line voltage by removing
main plug.
• The outlet to which this equipment is connected
should be nearby and easily accessible.
• Maximum ambient temperature around the power
supply equipment must not exceed 40 °C
(104 °F).
• Make sure that the cord is located where it cannot
be stepped on, tripped over, or subjected to
water, damage, or stress.
2000044_CLP_en.book Page 20 Thursday, November 9, 2017 6:40 PM
21
PROGRAMMING THE RADIO
THROUGH THE CPS
PROGRAMMING THE
RADIO THROUGH THE CPS
RADIO PROGRAMMING OVERVIEW
Downloading the (Customer Programming
Software) CPS
You can program or change features on your CLP
radios by using the Computer Programming Software
(CPS) and the CPS Programming Cable (*). CPS
software is available for free as web based download-
able software at: www.motorolasolutions.com/CLP
After downloading the CPS, install the software to
your computer.
Programming the Radio
To program the radio:
1. Connect the radio via the Drop-in Charger Tray
or the Charging Pocket with “PROG” label on
the Multi-Unit Charger and CPS Programming
Cable.

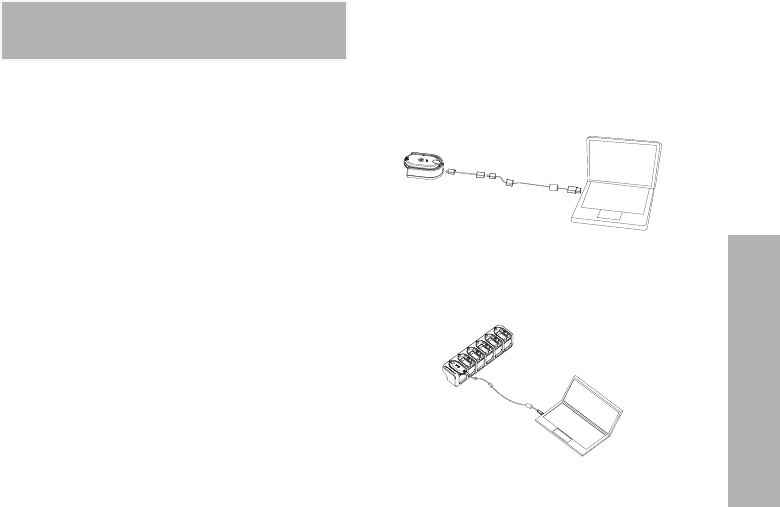

Programming the Radio through a Single Unit
Charger
Programming the Radio through a Multi-Unit
Charger
2000044_CLP_en.book Page 21 Thursday, November 9, 2017 6:40 PM
PROGRAMMING THE RADIO
THROUGH THE CPS
22
2. Make sure the radio is turned ON.
3. Once the radio is connected, open the CPS and
select “Read” on the toolbar to get the radio
profile. The CPS allows the user to change
settings, such as General, Audio, Menu,
Channels, Scan List, Customized PL/DPL,
Bluetooth (*) as well as select frequencies, PL/
DPL codes on each channel.
4. After you change the settings, select “Write” on
the toolbar to save the settings.
For more information on the Computer Programming
Software, please refer to Help menu on the CPS.
Note: (*) CPS Programming Cable (P/N HKKN4025) is an
accessory sold separately. Please contact your
Motorola Solutions Point of Purchase for more
information.
Note: (*) Bluetooth is available on selected models only.
Factory Default Settings
Your radio is programmed at the factory to the
following settings:
CLP1010 1W UHF 1 CH Radios Default Settings - BRUS
Channel
#
Frequency
#
Frequency
Setting
Code
Value
(Hz)
Band
width
(kHz)
1 2 464.5500 67.0 12.5
CLP1040 1W UHF 4 CH Radios Default Settings - BRUS
Channel
#
Frequency
#
Frequency
Settings
Code
Value
(Hz)
Band
width
(kHz)
1 2 464.5500 67.0 12.5
2 8 467.9250 67.0 12.5
3 5 467.8500 67.0 12.5
4 6 467.8750 67.0 12.5
2000044_CLP_en.book Page 22 Thursday, November 9, 2017 6:40 PM
23
PROGRAMMING THE RADIO
THROUGH THE CPS
CLP1060 1W UHF 6 CH Bluetooth Radios Default Settings
- BRUS
Channel
#
Frequency
#
Frequency
Settings
Code
Value
(Hz)
Band
width
(kHz)
1 2 464.5500 67.0 12.5
2 8 467.9250 67.0 12.5
3 5 467.8500 67.0 12.5
4 6 467.8750 67.0 12.5
510 461.0625 67.0 12.5
612 461.1125 67.0 12.5
2000044_CLP_en.book Page 23 Thursday, November 9, 2017 6:40 PM
RADIO CLONING
24
RADIO CLONING
CLONING RADIO SETTINGS
You can copy the CLP Series radio settings from
one radio (the source) to a second radio using the
CLP Series Single Unit Charger (SUC) Kit P/N
HKPN4008 and CLP Series Cloning Cable Kit P/N
HKKN4026 (optional accessory) or CLP Series
Multi-Unit Charger (MUC) Kit P/N HKPN4007
(optional accessory).
A multi-channel radio can be cloned to a single-
channel radio BUT only the first channel is cloned.
The Multi-Unit Charger (MUC) does not have to be
plugged in for cloning, but both radios require
charged batteries.
Note: The enhanced CLP software also uses the
LED to indicate “pass” or “fail” status during
cloning. Green LED during cloning indicates
“pass” status and red LED during cloning
indicates “fail” status.
CLONING INSTRUCTIONS
Cloning Radios using the CLP Series
Cloning Cable Kit P/N HKKN4026 (optional
accessory)
Source Radio: Radio to be cloned
Target Radio: Radio to which the configuration of the
“Source Radio” is to be copied.
Before beginning the cloning process, make
sure you have:
• A fully charged battery on each one of the
radios
• Two CLP Series Single Unit Charger (SUC) Kits
• Both radios are turned OFF
1. Unplug any cables (power supply or USB
cables) from the Single Unit Chargers.

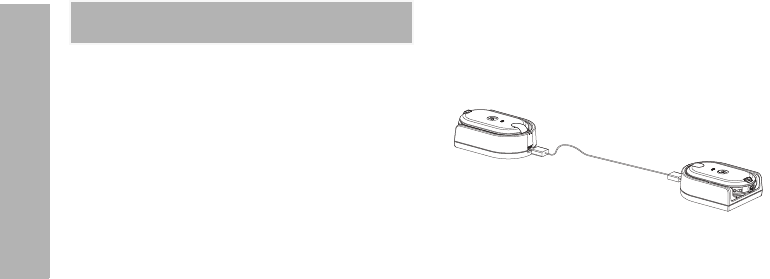

Cloning the Radio through a Single Unit
Charger
2000044_CLP_en.book Page 24 Thursday, November 9, 2017 6:40 PM
25
RADIO CLONING
2. Plug one side of the cloning cable
microconnector to one Single Unit Charger.
Plug the other end to the second Single Unit
Charger.
Note: During the cloning process no power is
being applied to the Single Unit Charger.
The batteries cannot be charged. A data
communication is being established
between the two radios.
3. Turn ON the “Target Radio” and place it into
one of the Single Unit Chargers.
4. Power the Source Radio following the
sequence below:• Press and hold the Push-
to-Talk (PTT) and the “-“Button
simultaneously while turning the radio ON
until you hear the Cloning Tone and Double
Blinking Yellow on the Smart Status
Glow.
5. Place the Source Radio in its Single Unit
Charger with an Audio accessory, then press
and release Menu Button to start the cloning
process.
6. After cloning is completed, the Source Radio
sounds either a “pass” tone (cloning was
successful) or a “fail” tone (cloning process
has failed). The pass tone sounds like a
good key “chirp” whereas the “fail” tone
sounds similar to a “bonk” tone.
(A tone is heard in no more than 5 seconds).
7. Once you have completed the cloning
process, you should turn the radios “OFF”
and “ON” to bring them to normal user mode
(exit “clone” mode).
2000044_CLP_en.book Page 25 Thursday, November 9, 2017 6:40 PM
RADIO CLONING
26
What to do if cloning fails
The radio emits an audible “bonk” indicating
that the cloning process has failed. In the event
that cloning fails, try performing each of the
following before trying to start the cloning
process again.
1. Make sure that the radio batteries on both
radios are fully charged.
2. Verify the cloning cable connection on both
Single Unit Chargers.
3. Make sure that the battery is engaged
properly on to the radio.
4. Make sure that there is no debris in the
charging tray or on the radio contacts.
5. Verify that the source radio is in cloning
mode.
6. Make sure that the radio to be cloned is
turned ON.
7. Make sure that radios are both from the
same type (same frequency band, same
region and same transmission power).
Note: This cloning cable is designed to operate
only with compatible Motorola Solutions
Drop-in Tray Single Unit Charger. When
ordering the cloning cable, please refer to
CLP Series Cloning Cable Kit P/N
HKKN4026. For details about accessories,
refer to "Accessories" Section on page 43.
2000044_CLP_en.book Page 26 Thursday, November 9, 2017 6:40 PM
27
RADIO CLONING
Cloning Radios using the CLP Series Multi-
Unit Charger (MUC) Kit P/N HKPN4007
(optional accessory)
1. To put the “source radio” into clone mode,
press and hold PTT and the “-” button while
turning the radio ON until you hear the
Cloning Tone and Double Blinking Yellow
on the Smart Status Glow.
2. Place the source radio into one of the
charging pockets that has the “CLONE”
label.
3. Turn the target radio ON and place it in the
pairing charging pocket that has the
“CLONE” label and start the cloning process.
4. Press the “Menu” button on the source radio
to start the cloning process. The source radio
generates the start clone tone.
5. Once the cloning is completed, turn the
target radio OFF and back ON again in order
to activate the radio.
6. To clone another radio, repeat steps 3, 4 and
5.
7. To exit clone mode on the source radio, turn
the radio OFF.
Cloning the Radio through a Multi-Unit
Charger
2000044_CLP_en.book Page 27 Thursday, November 9, 2017 6:40 PM
ADVANCED RADIO
CONFIGURATION (*)
28
ADVANCED RADIO
CONFIGURATION (*)
(*) Enhancement feature on CLP radios. May not
be available on previous shipping radios.
Advanced Radio Configuration provides you with
the ability to configure the following settings from a
pre-programmed list without the need to use a
computer.
• Channels
• Frequencies
• Codes (CTCC/DPL)
Frequencies allows the user to select frequencies
for each channel. Codes helps minimize
interference by providing the user with a choice of
code combinations that filter out static, noise, and
unwanted messages.
Entering Advanced Radio Configuration
Mode
Before starting, make sure the device is powered
OFF.
Note: For Bluetooth models, make sure the wired
accessory is connected or the Bluetooth
headset is paired before entering Advanced
Radio Configuration Mode.
1. Press the PTT, “+” button and Power button
at the same time and hold for 3 to 5 seconds
until you hear a “chirp” sound and the voice
prompt “Programming Mode”.
Note: The LED Indicator should start blinking a
green heartbeat.
2. Press the Menu button to select the
settings you want to change:
• Channel (for multi-channel models)
• Frequency
• Code
3. The voice announcements indicate the menu
items and their current settings. To change,
press “+/-” buttons; to go to the next menu
item, press Menu button.
4. To exit the Advanced Radio Configuration
Mode, press and hold the PTT button until
you hear a “beep” sound.
5. Resume normal radio operation.
2000044_CLP_en.book Page 28 Thursday, November 9, 2017 6:40 PM
TROUBLESHOOTING
29
TROUBLESHOOTING
Symptom Try this
No Power Recharge or replace Li-Ion battery.
Extreme operating temperatures affect battery life.
Refer to “About the Li-Ion Battery” Section on page 12.
Hearing other noises or
conversation on a channel
Confirm Interference Eliminator Code is set.
Frequency or Interference Eliminator Code may be in use.
Change settings: either change frequencies or codes on all
radios.
Make sure radio is at the right frequency and code when
transmitting.
Message Scrambled Scramble Code might be ON, and/or setting does not match
other radios' settings. Use CPS to change settings.
Audio quality not good enough Radio settings might not be matching up correctly.
Double check frequencies, codes and bandwidths to ensure
they are identical in all radios.
2000044_CLP_en.book Page 29 Thursday, November 9, 2017 6:40 PM
TROUBLESHOOTING
30
Limited talk range Steel and/or concrete structures, heavy foliage, buildings or
vehicles decrease range. Check for clear line of sight to
improve transmission.
Change location of radio. To increase range and coverage, you
can either reduce obstructions or increase power.
UHF radios provide greater coverage in industrial and
commercial buildings.
Increasing power provides greater signal range and increased
penetration through obstructions.
Message not transmitted/
received
Make sure the PTT button is completely pressed when
transmitting.
Confirm that the radios have the same Channel, Frequency,
Interference Eliminator Code and Scramble Code settings.
Refer to “Transmitting and Receiving” Section on page 7.
Recharge, replace and/or reposition batteries. Refer to “About
the Li-Ion Battery” Section on page 12.
Obstructions and operating indoors, or in vehicles, may
interfere. Change location.
Verify that the radio is not in Scan mode. Refer to “Scanning”
Section on page 10.
Symptom Try this
2000044_CLP_en.book Page 30 Thursday, November 9, 2017 6:40 PM
TROUBLESHOOTING
31
Heavy static or interference Radios are too close, they must be at least five feet apart.
Radios are too far apart or obstacles are interfering with
transmission.
Low batteries Recharge or replace Li-Ion battery.
Extreme operating temperatures affect battery life.
Refer to “About the Li-Ion Battery” Section on page 12.
Drop-in Charger LED light does
not blink
Check radio/battery is properly inserted and check battery/
charger contacts to ensure they are clean and the charging pin
is inserted correctly. Refer to “Charging a Standalone Battery”
Section on page 15 and “Charger LED Indicator” Section on
page 17.
Symptom Try this
2000044_CLP_en.book Page 31 Thursday, November 9, 2017 6:40 PM
TROUBLESHOOTING
32
Cannot activate VOX VOX feature might be OFF.
Use the CPS to ensure that the VOX Sensitivity Level is not set
to “0”.
Accessory not working or not compatible.
Battery doesn't charge although it
has been placed in the drop-in
charger for a while
Check drop-in charger is connected and correspond to a
compatible power supply.
Refer to “Charging a Standalone Battery” Section on page 15.
Check the charger LEDs indicators to see if battery has a
problem. Refer to “Charger LED Indicator” Section on page 17.
Unable to pair a Bluetooth
headset
Make sure the target Bluetooth headset is not connected to
another device.
Unable to connect to a Bluetooth
headset
Make sure the target Bluetooth headset is not connected to
another device.
Pairing with wrong Bluetooth
headset
Don’t perform pairing procedures next to other Bluetooth
headset devices.
CLP Bluetooth uses proximity pairing. Make sure the headset is
placed next to the CLP radio.
Note: Whenever a feature in your radio seems to not correspond to the default or preprogrammed values,
check if your radio have been programmed using CPS with a customized profile.
Symptom Try this
2000044_CLP_en.book Page 32 Thursday, November 9, 2017 6:40 PM
USE AND CARE
33
USE AND CARE
Use a soft damp cloth
to clean the exterior.
Turn OFF and
remove batteries.
Dry with soft cloth. Do not use until
completely dry.
Do not immerse in water. Do not use alcohol or
cleaning solutions.
If the portable is submerged in water...
2000044_CLP_en.book Page 33 Thursday, November 9, 2017 6:40 PM
RADIO FREQUENCY AND
CODE CHARTS
34
RADIO FREQUENCY AND CODE CHARTS
These charts provide frequency information and are useful when using Motorola Solutions CLP
Series Two-Way Radios with other business radios. Most of the frequency positions are the same as
Spirit M, GT, S, XTN, RDX and CLS Series frequency positions (where applicable), the bandwidths
are different.
CLP UHF Frequencies
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
1464.5000 12.5 13 461.1375 12.5 25 462.8125 12.5 37 466.1125 12.5
2464.5500 12.5 14 461.1625 12.5 26 462.8375 12.5 38 466.1375 12.5
3467.7625 12.5 15 461.1875 12.5 27 462.8625 12.5 39 466.1625 12.5
4467.8125 12.5 16 461. 2125 12.5 28 462.8875 12.5 40 466.1875 12.5
5467.8500 12.5 17 461.2375 12.5 29 462.9125 12.5 41 466.2125 12.5
6467.8750 12.5 18 461.2625 12.5 30 464.4875 12.5 42 466.2375 12.5
7467.9000 12.5 19 461.2875 12.5 31 464.5125 12.5 43 466.2625 12.5
8467.9250 12.5 20 461.3125 12.5 32 464.5375 12.5 44 466.2875 12.5
9461.0375 12.5 21 461.3375 12.5 33 464.5625 12.5 45 466.3125 12.5
10 461.0625 12.5 22 461.3625 12.5 34 466.0375 12.5 46 466.3375 12.5
11 461.0875 12.5 23 462.7625 12.5 35 466.0625 12.5 47 466.3625 12.5
12 461.1125 12.5 24 462.7875 12.5 36 466.0875 12.5 48 467.7875 12.5
2000044_CLP_en.book Page 34 Thursday, November 9, 2017 6:40 PM
35
RADIO FREQUENCY AND
CODE CHARTS
49 467.8375 12.5 60 462.5125 12.5 71 451.6375 12.5 81 468.2125 12.5
50 467.8625 12.5 61 467.1875 12.5 72 452.3125 12.5 82 468.2625 12.5
51 467.8875 12.5 62 467.4625 12.5 73 452.5375 12.5 83 468.3125 12.5
52 467.9125 12.5 63 467.4875 12.5 74 452.4125 12.5 84 468.3625 12.5
53 469.4875 12.5 64 467.5125 12.5 75 452.5125 12.5 85 468.4125 12.5
54 469.5125 12.5 65 451.1875 12.5 76 452.7625 12.5 86 468.4625 12.5
55 469.5375 12.5 66 451.2375 12.5 77 452.8625 12.5 87 468.5125 12.5
56 469.5625 12.5 67 451.2875 12.5 78 456.1875 12.5 88 468.5625 12.5
57 462.1875 12.5 68 451.3375 12.5 79 456.2375 12.5 89 468.6125 12.5
58 462.4625 12.5 69 451.4375 12.5 80 456.2875 12.5 90 468.6625 12.5
59 462.4875 12.5 70 451.5375 12.5
CLP UHF Frequencies
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
Freq.
#
Freq.
(MHz)
Band
width
(kHz)
2000044_CLP_en.book Page 35 Thursday, November 9, 2017 6:40 PM
RADIO FREQUENCY AND
CODE CHARTS
36
CTCSS/DPL Interference Eliminator Codes
CTCSS Code CTCSS/DPL Code DPL Code DPL Code DPL Code
0Disabled 24 151.4 47 54 71 243 95 445
167 25 156.7 48 65 72 244 96 464
271.9 26 162.2 49 71 73 245 97 465
374.4 27 167.9 50 72 74 251 98 466
477 28 173.8 51 73 75 261 99 503
579.7 29 179.9 52 74 76 263 100 506
682.5 30 186.2 53 114 77 265 101 516
785.4 31 192.8 54 115 78 271 102 532
888.5 32 203.5 55 116 79 306 103 546
991.5 33 210.7 56 125 80 311 104 565
10 94.8 34 218.1 57 131 81 315 105 606
11 97.4 35 225.7 58 132 82 331 106 612
12 100 36 233.6 59 134 83 343 107 624
13 103.5 37 241.8 60 143 84 346 108 627
14 107.2 38 250.3 61 152 85 351 109 631
15 110.9 122 69.3 62 155 86 364 110 632
16 114.8 39 23 63 156 87 365 111 654
17 118.8 40 25 64 162 88 371 112 662
18 123 41 26 65 165 89 411 113 664
19 127.3 42 31 66 172 90 412 114 703
20 131.8 43 32 67 174 91 413 115 712
21 136.5 44 43 68 205 92 423 116 723
22 141.3 45 47 69 223 93 431 117 731
23 146.2 46 51 70 226 94 432 118 732
119 734
2000044_CLP_en.book Page 36 Thursday, November 9, 2017 6:40 PM
37
RADIO FREQUENCY AND
CODE CHARTS
CTCSS/DPL Interference Eliminator Codes (cont’d)
DPL Code DPL Code DPL Code DPL Code
120 743 146 Inverted DPL 55 171 Inverted DPL 80 195 Inverted DPL 104
121 754 147 Inverted DPL 56 172 Inverted DPL 81 196 Inverted DPL 105
123 645 148 Inverted DPL 57 173 Inverted DPL 82 197 Inverted DPL 106
124 Customized PL 149 Inverted DPL 58 174 Inverted DPL 83 198 Inverted DPL 107
125 Customized PL 150 Inverted DPL 59 175 Inverted DPL 84 199 Inverted DPL 108
126 Customized PL 151 Inverted DPL 60 176 Inverted DPL 85 200 Inverted DPL 109
127 Customized PL 152 Inverted DPL 61 177 Inverted DPL 86 201 Inverted DPL 110
128 Customized PL 153 Inverted DPL 62 178 Inverted DPL 87 202 Inverted DPL 111
129 Customized PL 154 Inverted DPL 63 179 Inverted DPL 88 203 Inverted DPL 112
130 Inverted DPL 39 155 Inverted DPL 64 180 Inverted DPL 89 204 Inverted DPL 113
131 Inverted DPL 40 156 Inverted DPL 65 181 Inverted DPL 90 205 Inverted DPL 114
132 Inverted DPL 41 157 Inverted DPL 66 181 Inverted DPL 90 206 Inverted DPL 115
133 Inverted DPL 42 158 Inverted DPL 67 182 Inverted DPL 91 207 Inverted DPL 116
134 Inverted DPL 43 159 Inverted DPL 68 183 Inverted DPL 92 208 Inverted DPL 117
135 Inverted DPL 44 160 Inverted DPL 69 184 Inverted DPL 93 209 Inverted DPL 118
136 Inverted DPL 45 161 Inverted DPL 70 185 Inverted DPL 94 210 Inverted DPL 119
137 Inverted DPL 46 162 Inverted DPL 71 186 Inverted DPL 95 211 Inverted DPL 120
138 Inverted DPL 47 163 Inverted DPL 72 187 Inverted DPL 96 212 Inverted DPL 121
139 Inverted DPL 48 164 Inverted DPL 73 188 Inverted DPL 97 213 Inverted DPL 123
140 Inverted DPL 49 165 Inverted DPL 74 189 Inverted DPL 98 214 Customized DPL
141 Inverted DPL 50 166 Inverted DPL 75 190 Inverted DPL 99 215 Customized DPL
142 Inverted DPL 51 167 Inverted DPL 76 191 Inverted DPL 100 216 Customized DPL
143 Inverted DPL 52 168 Inverted DPL 77 192 Inverted DPL 101 217 Customized DPL
144 Inverted DPL 53 169 Inverted DPL 78 193 Inverted DPL 102 218 Customized DPL
145 Inverted DPL 54 170 Inverted DPL 79 194 Inverted DPL 103 219 Customized DPL
2000044_CLP_en.book Page 37 Thursday, November 9, 2017 6:40 PM
WARRANTY
38
MOTOROLA SOLUTIONS
LIMITED WARRANTY FOR
THE UNITED STATES AND
CANADA
What Does this Warranty Cover?
Subject to the exclusions contained below,
Motorola Solutions, Inc. warrants its telephones,
pagers, and consumer and business two-way
radios (excluding commercial, government or
industrial radios) that operate via Family Radio
Service or General Mobile Radio Service,
Motorola Solutions-branded or certified
accessories sold for use with these Products
(“Accessories”) and Motorola Solutions software
contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”)
to be free from defects in materials and
workmanship under normal consumer usage for
the period(s) outlined below.
This limited warranty is a consumer's exclusive
remedy, and applies as follows to new Motorola
Solutions Products, Accessories and Software
purchased by consumers in the United States and
Canada, which are accompanied by this written
warranty.
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories as
defined above, unless
otherwise provided for
below.
Two (2) years from the
date of purchase by the
first consumer purchaser
of the product unless
otherwise provided for
below.
Decorative
Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™
covers and cases.
Limited lifetime warranty
for the lifetime of
ownership by the first
consumer purchaser of the
product.
Business Two-way
Radio Accessories
Two (2) years from the
date of purchase by the
first consumer purchaser
of the product.
Products and
Accessories that are
Repaired or
Replaced.
The balance of the
original warranty or for
ninety (90) days from the
date returned to the
consumer, whichever is
longer.
2000044_CLP_en.book Page 38 Thursday, November 9, 2017 6:40 PM
WARRANTY
39
Exclusions
Normal Wear and Tear. Periodic maintenance,
repair and replacement of parts due to normal
wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged
capacity falls below 80 % of their rated capacity
and batteries that leak are covered by this limited
warranty.
Abuse & Misuse. Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d)
other acts which are not the fault of Motorola
Solutions, are excluded from coverage.
Use of Non-Motorola Solutions Products and
Accessories. Defects or damage that result from
the use of Non-Motorola Solutions branded or
certified Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration,
or modification in any way by someone other than
Motorola Solutions, or its authorized service
centers, are excluded from coverage.
Altered Products. Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals
or that show evidence of tampering; (c)
mismatched board serial numbers; or (d)
nonconforming or non-Motorola Solutions
housings, or parts, are excluded form coverage.
2000044_CLP_en.book Page 39 Thursday, November 9, 2017 6:40 PM
WARRANTY
40
Communication Services. Defects, damages, or
the failure of Products, Accessories or Software
due to any communication service or signal you
may subscribe to or use with the Products
Accessories or Software is excluded from
coverage.
Software
Exclusions
Software Embodied in Physical Media. No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by
third parties, that the operation of the software
products will be uninterrupted or error free, or that
all defects in the software products will be
corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media
(e.g. software that is downloaded from the
internet), is provided “as is” and without warranty.
WHO IS COVERED?
This warranty extends only to the first consumer
purchaser, and is not transferable.
WHAT WE WILL DO TO CORRECT
WARRANTY PROBLEMS
At no charge to you, we have the option to repair
or replace the Products or software that do not
conform to the warranty, or to refund the Products’
purchase price. We may use functionally
equivalent reconditioned/refurbished/pre-owned or
new Products or parts. No software updates are
provided.
HOW TO OBTAIN WARRANTY SERVICE OR
OTHER INFORMATION?
Contact your Motorola Solutions point of
purchase.
Please call:
1-800-448- 6686 in the USA
1-800-461-4575 in Canada
1-866-522-5210 on your TTY (Text Telephone)
Products Covered Length of Coverage
Software. Applies only
to physical defects in
the media that
embodies the copy of
the software (e.g. CD-
ROM, or floppy disk).
Ninety (90) days from the
date of purchase.
2000044_CLP_en.book Page 40 Thursday, November 9, 2017 6:40 PM
WARRANTY
41
You will receive instructions on how to ship the
Products to Motorola Solutions. You must ship the
Products to us with freight, duties and insurance
prepaid. Along with the Products you must include:
(a) a copy of your receipt, bill of sale or other
comparable proof of purchase;
(b) a written description of the problem;
(c) the name of your service provider (if this
Product requires subscription service);
(d) the name and location of the installation facility
(if applicable) and, most importantly;
(e) your address and telephone number. If
requested, you must also return all detachable
parts such as antennas, batteries and chargers.
RETAIN YOUR ORIGINAL PROOF OF
PURCHASE
We will ship repaired or replacement Products at
our expense for the freight and insurance, but at
your expense for any duties. If additional
information is needed, please contact us at the
telephone number listed above.
SOFTWARE COPYRIGHT NOTICE
The Motorola Solutions products described in this
manual may include copyrighted Motorola
Solutions and third party software stored in
semiconductor memories or other media. Laws in
the United States and other countries preserve for
Motorola Solutions and third party software
providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute
or reproduce the copyrighted software.
Accordingly, any copyrighted software contained
in the Motorola Solutions products may not be
modified, reverse-engineered, distributed, or
reproduced in any manner to the extent allowed by
law.
Furthermore, the purchase of the Motorola
Solutions products shall not be deemed to grant
either directly or by implication, estoppel, or
otherwise, any license under the copyrights,
patents, or patent applications of Motorola
Solutions or any third party software provider,
except for the normal, non-exclusive, royalty-free
license to use that arises by operation of law in the
sale of a product.
2000044_CLP_en.book Page 41 Thursday, November 9, 2017 6:40 PM
WARRANTY
42
PATENT NOTICE
This product is covered by one or more of the
following United States patents.
5896277 5894292 5864752 5699006 5742484
D408396 D399821 D387758 D389158 5894592
5893027 5789098 5734975 5861850 D395882
D383745 D389827 D389139 5929825 5926514
5953640 6071640 D413022 D416252 D416893
D433001
EXPORT LAW ASSURANCES
This product is controlled under the export
regulations of the United States of America. The
Governments of the United States of America may
restrict the exportation or re-exportation of this
product to certain destinations. For further
information contact the U.S. Department of
Commerce.
2000044_CLP_en.book Page 42 Thursday, November 9, 2017 6:40 PM
ACCESSORIES
43
ACCESSORIES
AUDIO ACCESSORIES
BATTERIES
CARRY ACCESSORIES
CHARGERS
PROGRAMMING CABLES
Note: (*) Certain accessories may be or may not be
available at the time of purchase. For latest
information on accessories, contact your Motorola
Solutions point of purchase or visit:
www.motorolasolutions.com/CLP
Part No. Description
HKLN4529_ CLP Single Pin Short Cord
Earpiece
HKLN4455_/
HKLN4602_
CLP Single Pin Non-Adjustable
PTT Earpiece
HKLN4487_/
HKLN4603_
CLP Single Pin Surveillance
Earpiece
Part No. Description
HKNN4013_ CLP Series High Capacity
Li-Ion Battery Kit
HKNN4014_ CLP Series Standard Li-Ion
Battery Kit
HKLN4440_ CLP High Capacity Li-Ion
Battery Door Kit
HKLN4441_ CLP Standard Li-Ion Battery
Door Kit
Part No. Description
HKLN4433_ CLP Series Magnetic Case (*)
HKLN4438_ CLP Series Swivel Belt Clip
Holster
Part No. Description
HKPN4007_ CLP Series Multi Unit Charger
(MUC) Kit
HKPN4008_ CLP Series Single Unit Charger
(SUC) Kit
Part No. Description
HKKN4027_ CLP Series CPS Cable Kit
HKKN4026_ CLP Series Cloning Cable Kit
2000044_CLP_en.book Page 43 Thursday, November 9, 2017 6:40 PM
2000044_CLP_en.book Page 45 Thursday, November 9, 2017 6:40 PM
M
Motorola Solutions Inc.
500 W. Monroe Street, Chicago
IL 60661, U.S.A.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks
or registered trademarks of Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their respective owners.
© 2010 and 2017 Motorola Solutions, Inc.
All rights reserved.
*68012000044*
68012000044-EB
2000044_CLP_en.book Page 46 Thursday, November 9, 2017 6:40 PM
