Motorola Solutions 92FT7058 VML750 RF Data Radio Modem User Manual Manual

Motorola Solutions, Inc. VML750 RF Data Radio Modem Manual

Manual

SYSTEM RELEASE 4.0 VSM
PUBLIC SAFETY LTE
VML750 LTE
Vehicular
Subscriber Modem
(VSM) Installation
Guide
ii
Contact Us
Motorola Solution Support Center
The Solution Support Center (SSC) is the primary Motorola Solutions support contact. Call:
Before any software reload.
To confirm troubleshooting results and analysis before removing and replacing a Field
Replaceable Unit (FRU) and Field Replaceable Entity (FRE) to repair the system.
For... Phone
United States Calls 800-221-7144
International Calls 302-444-9800
North America Parts Organization
For assistance in ordering replacement parts or identifying a part number, contact the
Motorola Parts organization. Your first response when troubleshooting your system is to call
the Motorola SSC.
For... Phone
Phone Orders 800-422-4210 (US and Canada Orders)
For help identifying an item or part number, select
choice 3 from the menu.
302-444-9842 (International Orders)
Includes help for identifying an item or part number
and for translation as needed.
Fax Orders 800-622-6210 (US and Canada Orders)
Comments
Send questions and comments regarding user
documentation to
documentation@motorolasolutions.com.
Provide the following information when reporting a documentation error:
The document title and part number
The page number with the error
A description of the error
We welcome your feedback on this and other Motorola manuals. To take a short, confidential
survey on Motorola Customer Documentation, go to docsurvey.motorolasolutions.com or
scan the following QR code with your mobile device to access the survey.
6802988C54-D
iii
Contact Us
Latest Manual Versions
You can verify the latest version of this manual at https://businessonline.motorolasolutions.com.
iv
Copyrights
The Motorola products described in this document may include copyrighted Motorola computer
programs. Laws in the United States and other countries preserve for Motorola certain exclusive
rights for copyrighted computer programs. Accordingly, any copyrighted Motorola computer
programs contained in the Motorola products described in this document may not be copied or
reproduced in any manner without the express written permission of Motorola.
© 2016 Motorola Solutions, Inc. All Rights Reserved
No part of this document may be reproduced, transmitted, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means, without the
prior written permission of Motorola Solutions, Inc.
Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or
by implication, estoppel or otherwise, any license under the copyrights, patents or patent
applications of Motorola, except for the normal non-exclusive, royalty-free license to use that
arises by operation of law in the sale of a product.
Disclaimer
Please note that certain features, facilities, and capabilities described in this document may not
be applicable to or licensed for use on a particular system, or may be dependent upon the
characteristics of a particular mobile subscriber unit or configuration of certain parameters.
Please refer to your Motorola contact for further information.
Trademarks
MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks
or registered trademarks of Motorola Trademark Holdings, LLC and are used under license.
All other trademarks are the property of their respective owners.
European Union (EU) Waste of Electrical and Electronic Equipment
(WEEE) directive
The European Union's WEEE directive requires that products sold into EU countries must
have the crossed out trash bin label on the product (or the package in some cases).
As defined by the WEEE directive, this cross-out trash bin label means that customers and
end-users in EU countries should not dispose of electronic and electrical equipment or
accessories in household waste.
Customers or end-users in EU countries should contact their local equipment supplier
representative or service centre for information about the waste collection system in their
country.
v
Document History
Edition Description Date
Release 2.0 Second release of VML750 LTE Vehicular Sub-
scriber Modem (VSM) Installation Guide July 2014
Release 3.0 Third release of VML750 LTE Vehicular Subscriber
Modem (VSM) Installation Guide July 2015
Release 4.0 Forth release of VML750 LTE Vehicular Subscriber
Modem (VSM) Installation Guide September 2016
.
vi
Contents
Contact Us ........................................................................................................... ii
Copyrights .......................................................................................................... iv
Document History ............................................................................................... v
Contents .............................................................................................................. vi
List of Figures ................................................................................................... viii
List of Tables ...................................................................................................... ix
List of Procedures ................................................... Error! Bookmark not defined.
About VML750 LTE Vehicular Subscriber Modem (VSM) Installation Guide . 1
What Is Covered In This Manual? .................................................................................................................... 1
Helpful Background Information ....................................................................................................................... 1
Required Documents for Complete VSM Deployment ..................................................................................... 2
Safety and Regulatory Information ................................................................................................................... 2
FCC Interference .............................................................................................................................................. 2
Legal Notice ..................................................................................................................................................... 2
VML750 Description ............................................................................................ 3
VML750 Models ............................................................................................................................................... 4
VML750 Front Panel ........................................................................................................................................ 5
VML750 Back Panel ......................................................................................................................................... 6
VML750 Installation ............................................................................................. 7
VML750 Unpacking and Inspection .................................................................................................................. 7
Safety and General Information ....................................................................................................................... 7
VML750 Installation Planning ........................................................................................................................... 9
Cable Routing ...................................................................................................................... 10
Cable Holes .................................................................................................................................................... 10
Tools and Equipment ........................................................................................................... 10
Mounting the VML750 Antennas .................................................................................................................... 11
Special Antenna Installation Considerations ....................................................................... 12
Installing Antenna Cables .................................................................................................... 12
VML750 Cables .............................................................................................................................................. 17
Mounting the VML750 .................................................................................................................................... 18
VML750 Cable Routing and Connection ........................................................................................................ 19

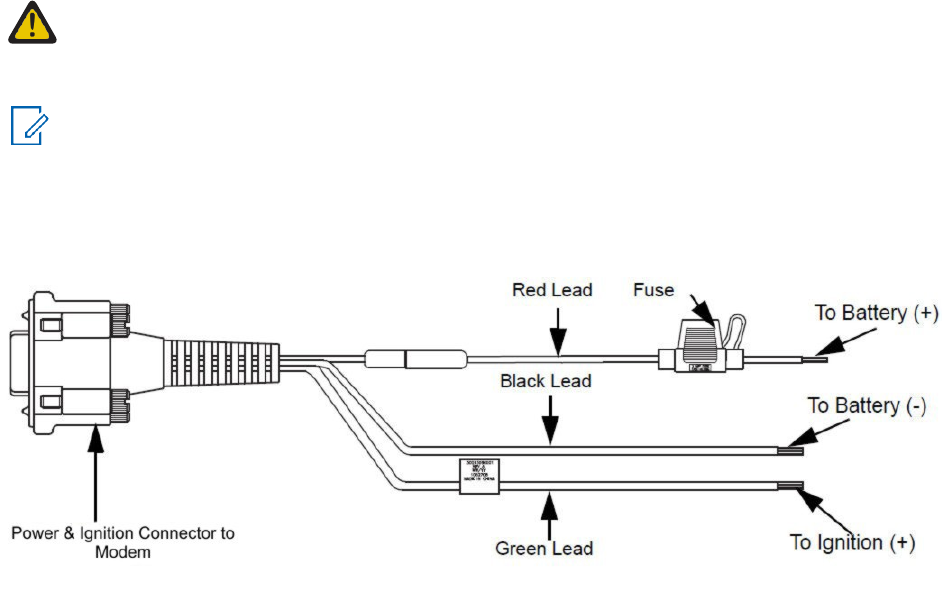

Installing the DC Power and Ignition Cable ......................................................................... 19
Installing the LAN/Ethernet Cable ........................................................................................ 21
Installing the Micro USB Cable ............................................................................................ 21
Installing the SIM ............................................................................................................................................ 22
Replacing the CRYPTR Card ......................................................................................................................... 22
Powering Up the Modem ................................................................................................................................ 24
VML750 Troubleshooting Causes and Indicators .......................................... 27
vii
VML750 Troubleshooting ............................................................................................................................... 27
LED Indications .............................................................................................................................................. 29
VML750 Operation ............................................................................................. 31
VLM750 Specifications ..................................................................................... 33
VML750 Physical Specifications .................................................................................................................... 33
VML750 Communication Ports ....................................................................................................................... 33
VML750 RF Ports ........................................................................................................................................... 33
VML750 Power Port ....................................................................................................................................... 33
VML750 LEDs ................................................................................................................................................ 33
VML750 Operating Temperature .................................................................................................................... 33
VML750 Power Specifications ........................................................................................................................ 35
VML750 RF Characteristics ........................................................................................................................... 35
VML750 Replacement Parts List .................................................................................................................... 38
VML750 Kit Replacement Parts List ............................................................................................................... 38
VML750 Approved Antennas and Cables Replacements List ........................................................................ 39
LTE LMR Antennas Mounting Recommendations ......................................... 40
Police Patrol Vehicle Antennas Location Considerations Overview ............................................................... 40
viii
List of Figures

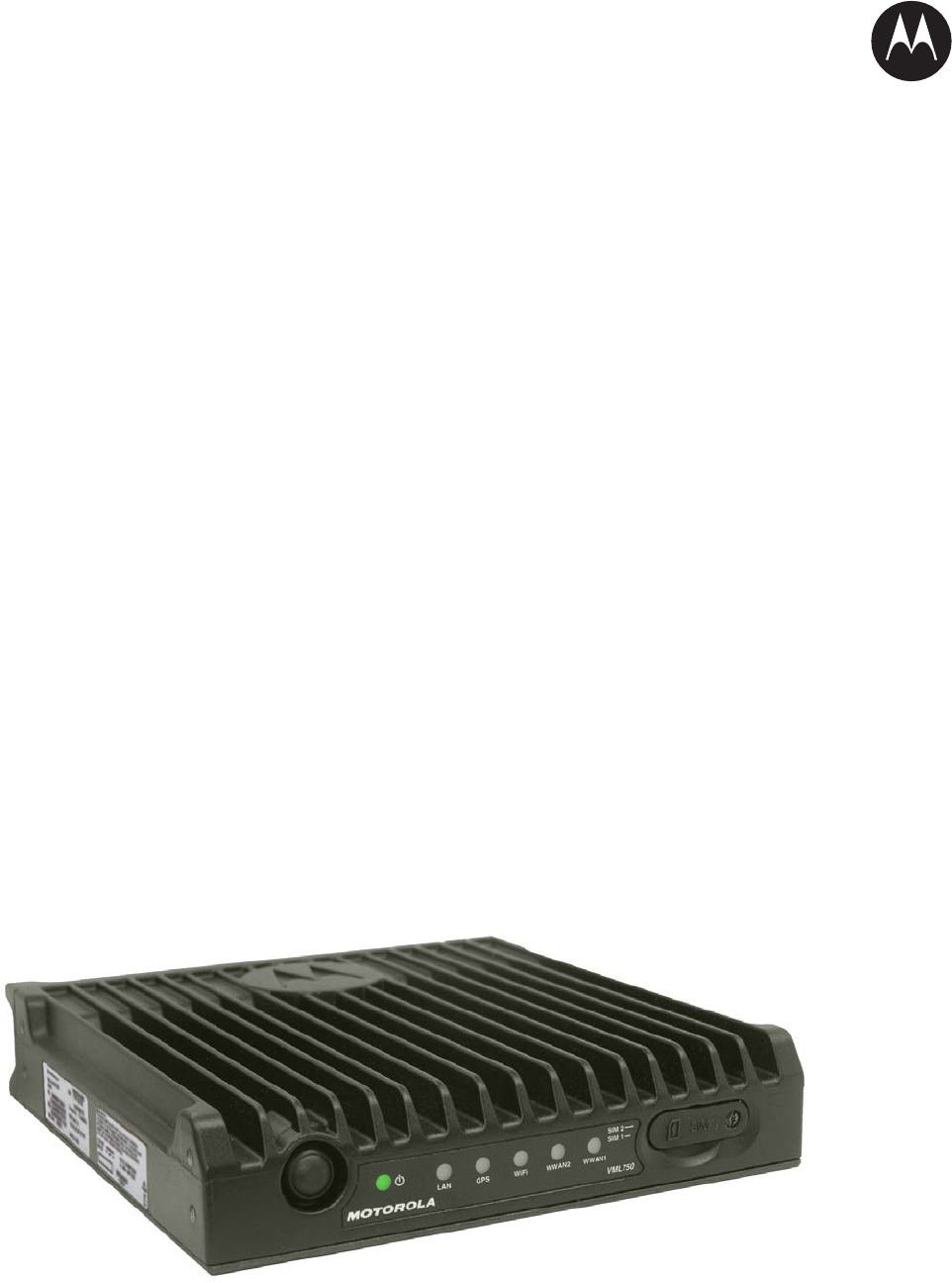

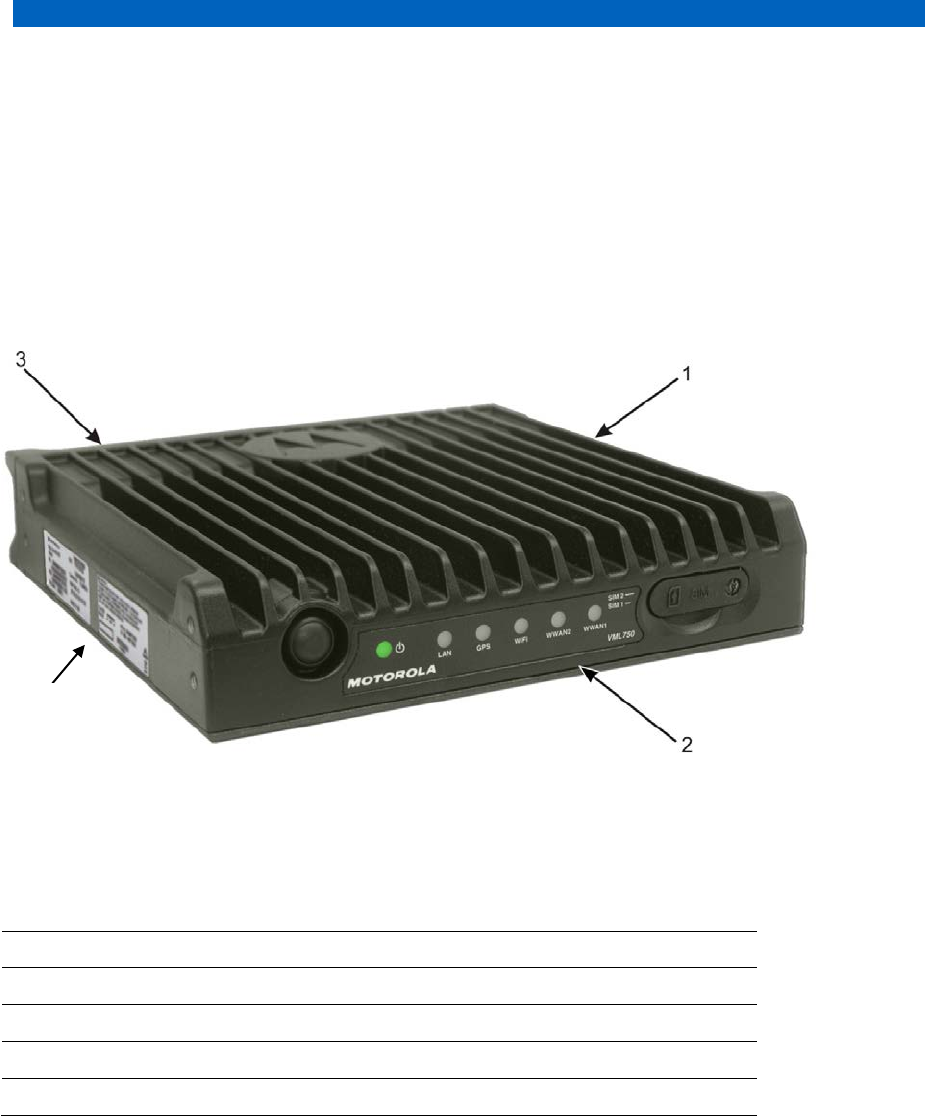

Figure 1 VML750 General View .................................................................................................. 3

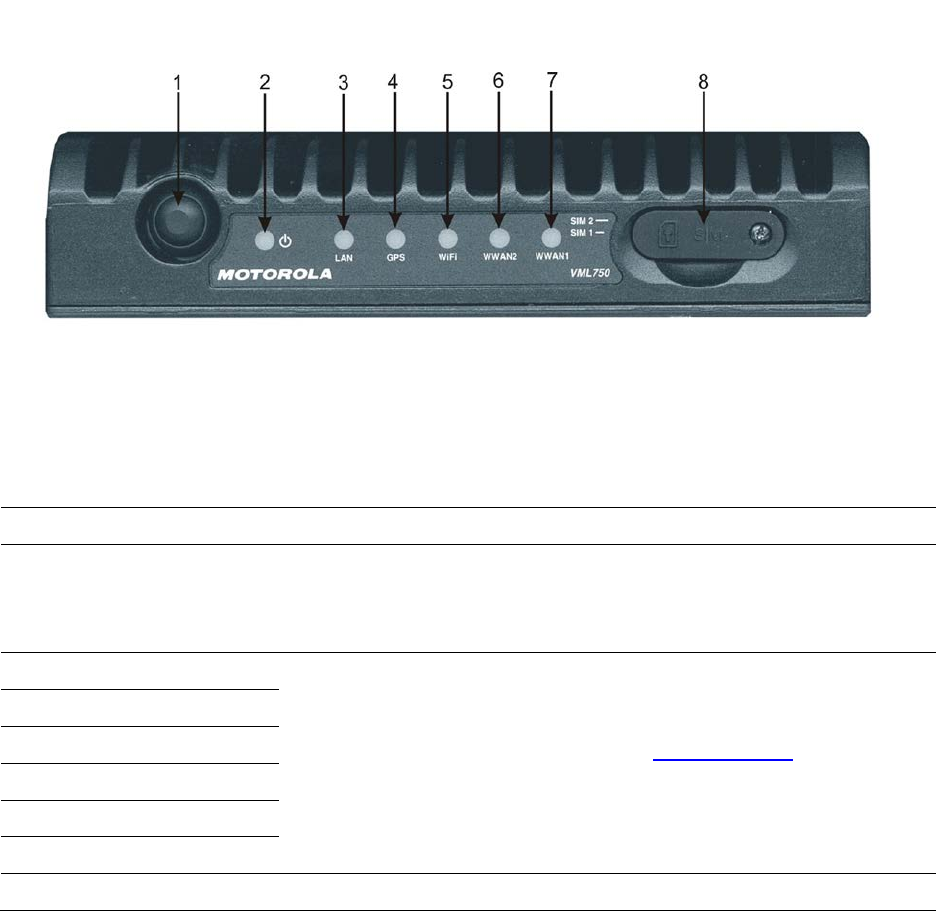

Figure 2 Front Panel ................................................................................................................... 5

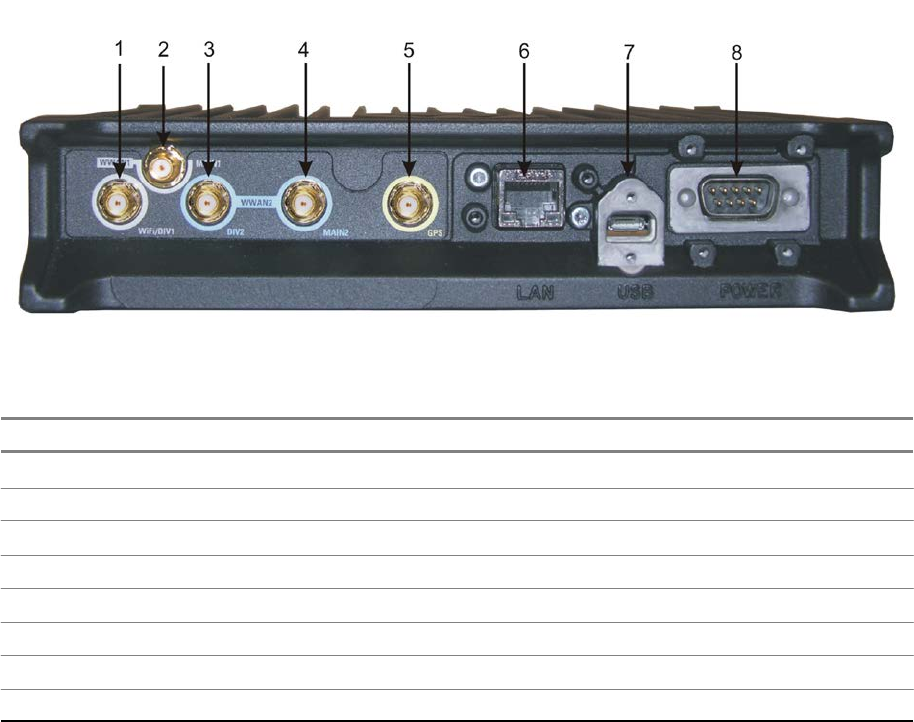

Figure 3 Back Panel ................................................................................................................... 6

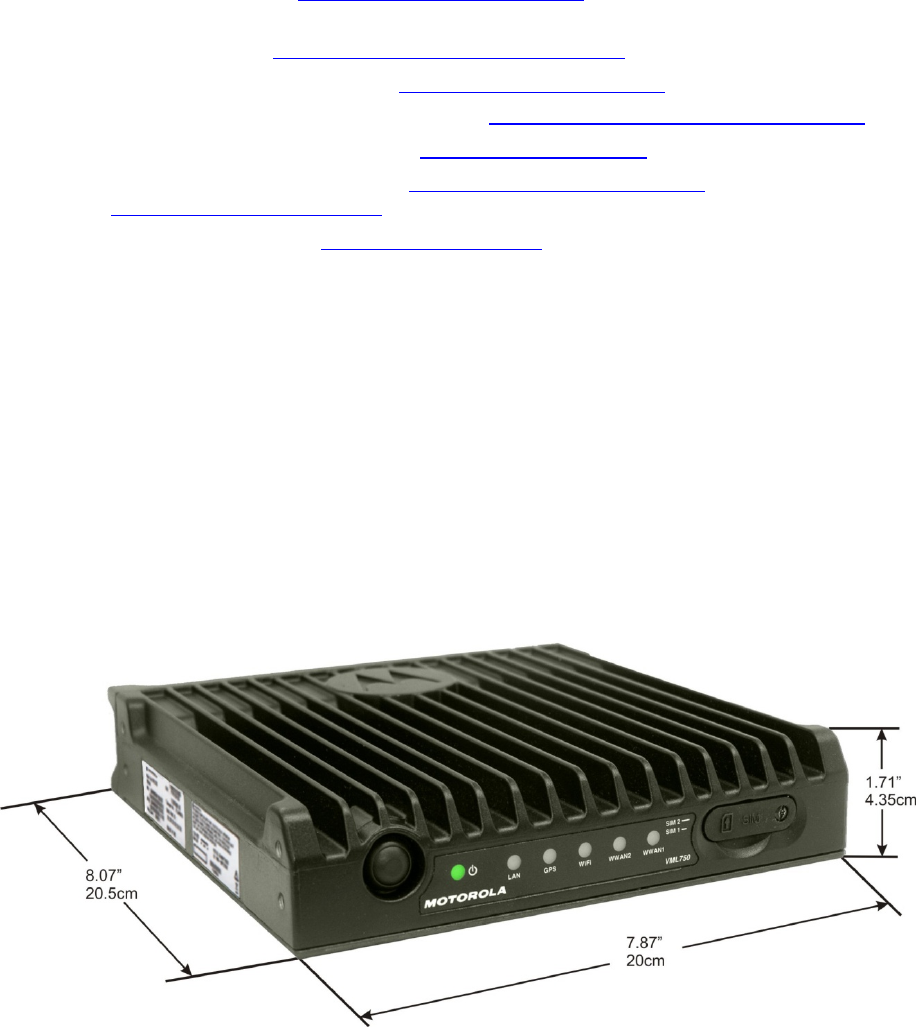

Figure 4 VML750 Dimensions .................................................................................................... 9

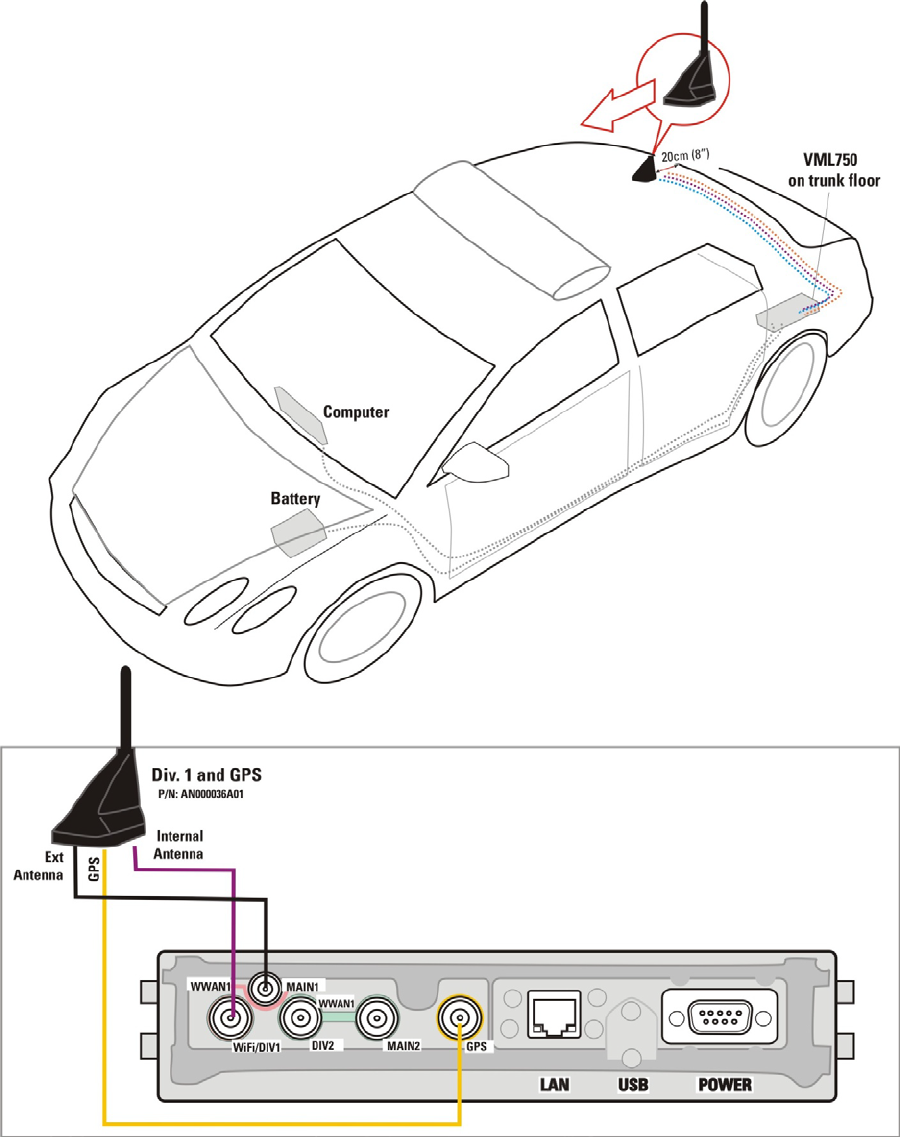

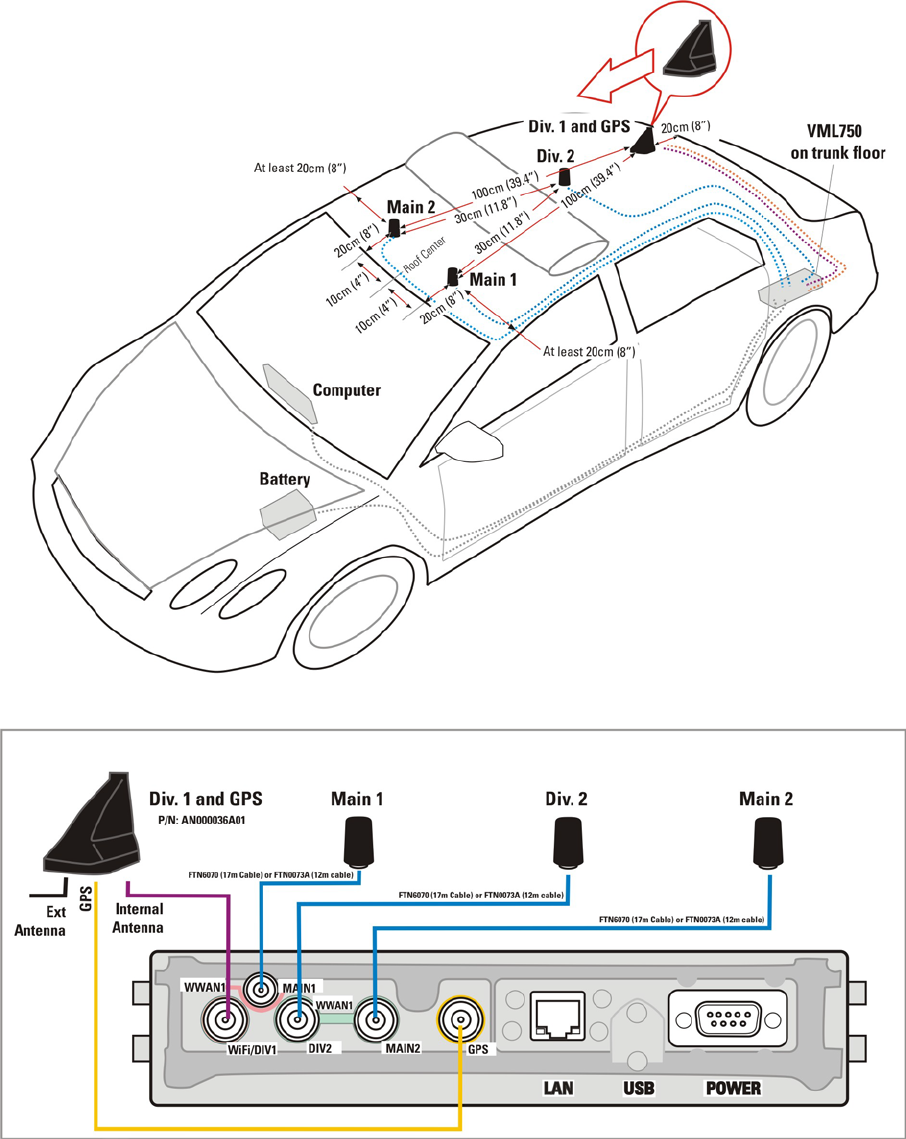

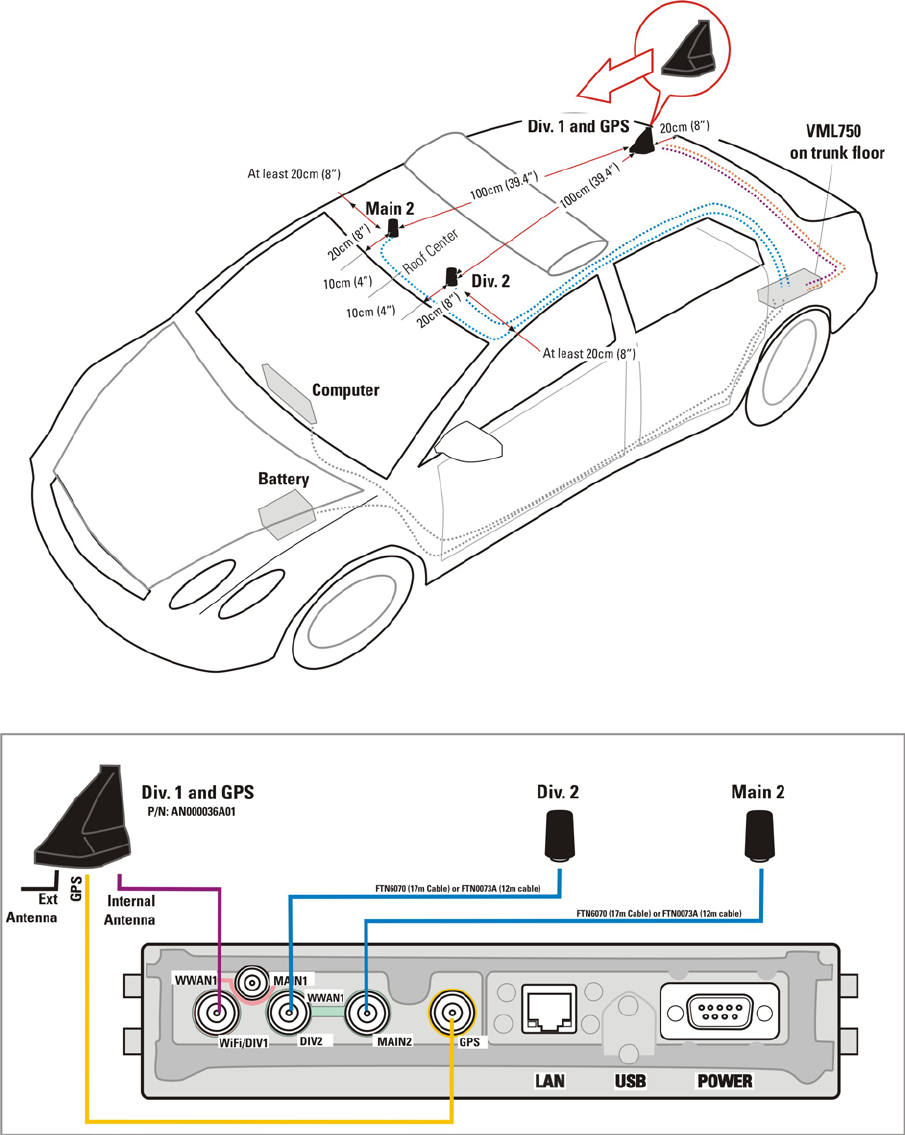

Figure 5 Schematic Installation Diagram for Sub-models FLN1057A/FLN2057A WWAN1 &
WWAN2 Configuration ............................................................................................................. 13

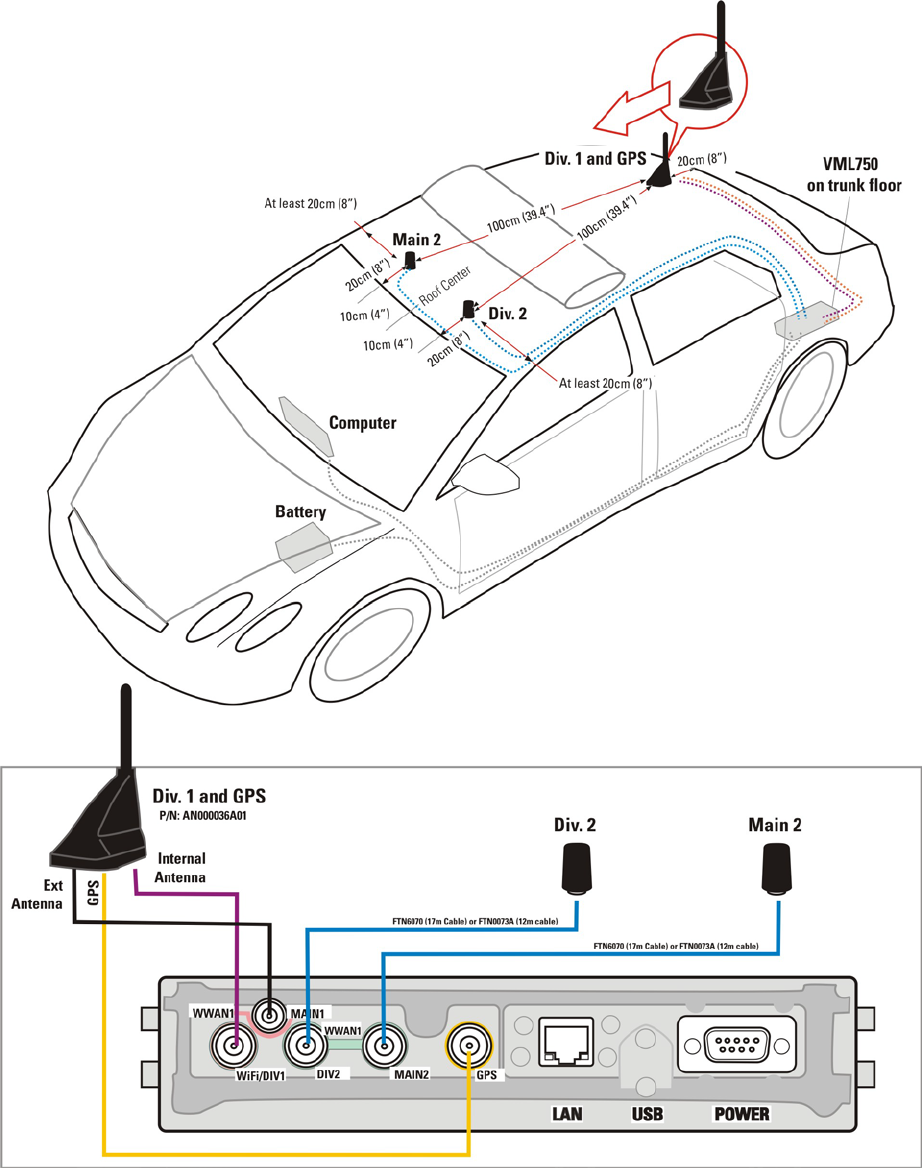

Figure 6 Schematic Installation Diagram for Sub-models WWAN1 only
FLN1057A/FLN2057A .............................................................................................................. 14
Figure 7 Schematic Installation Diagram for Sub-models WWAN2 Only
FLN1057A/FLN2057A/FLN5057A/FLN5058A ........................................................................... 15
Figure 8 Schematic Installation Diagram for Sub-model FLN5059A ......................................... 16

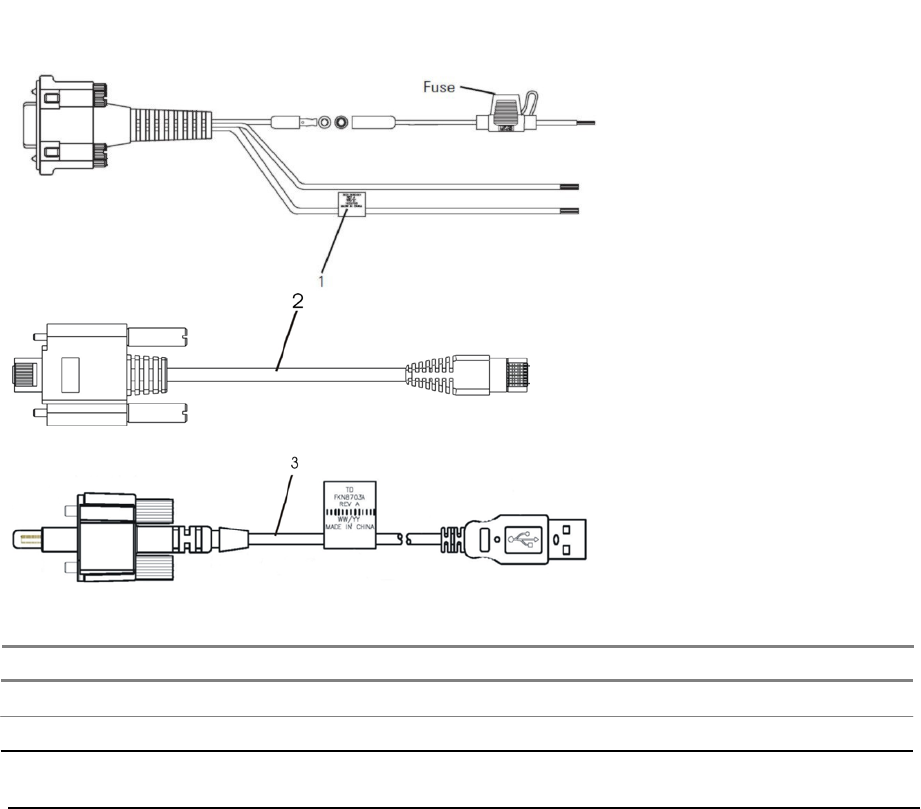

Figure 9 Available Cables ......................................................................................................... 17

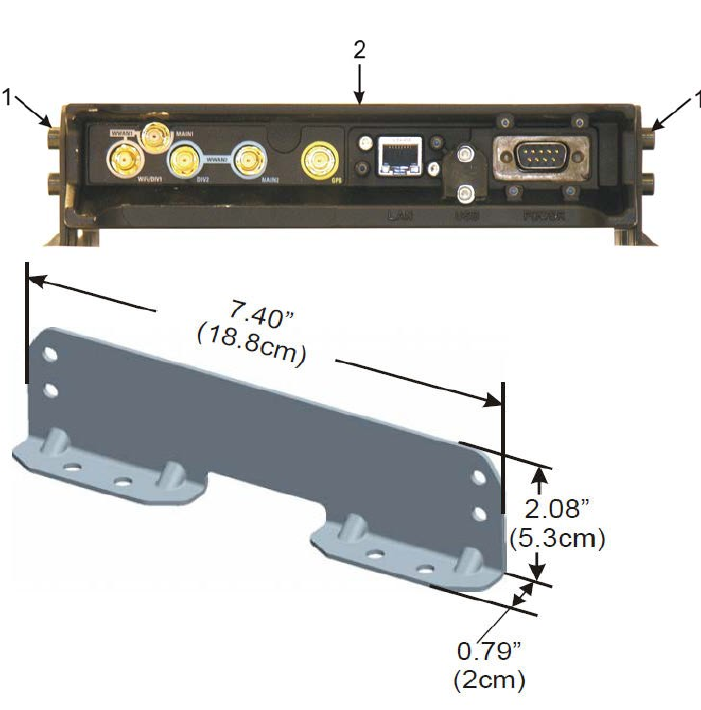

Figure 10 Mounting the VML750 ............................................................................................... 18
Figure 11 DC Power and Ignition Cable Routing Into Engine Compartment ............................. 19

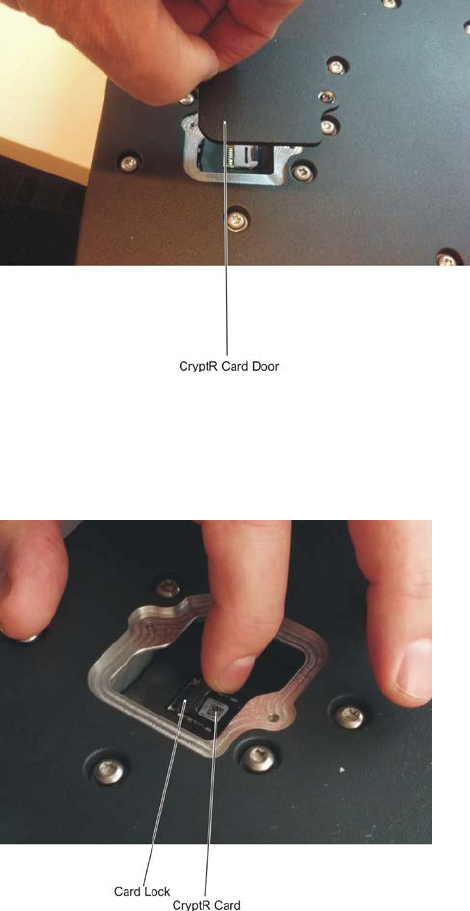

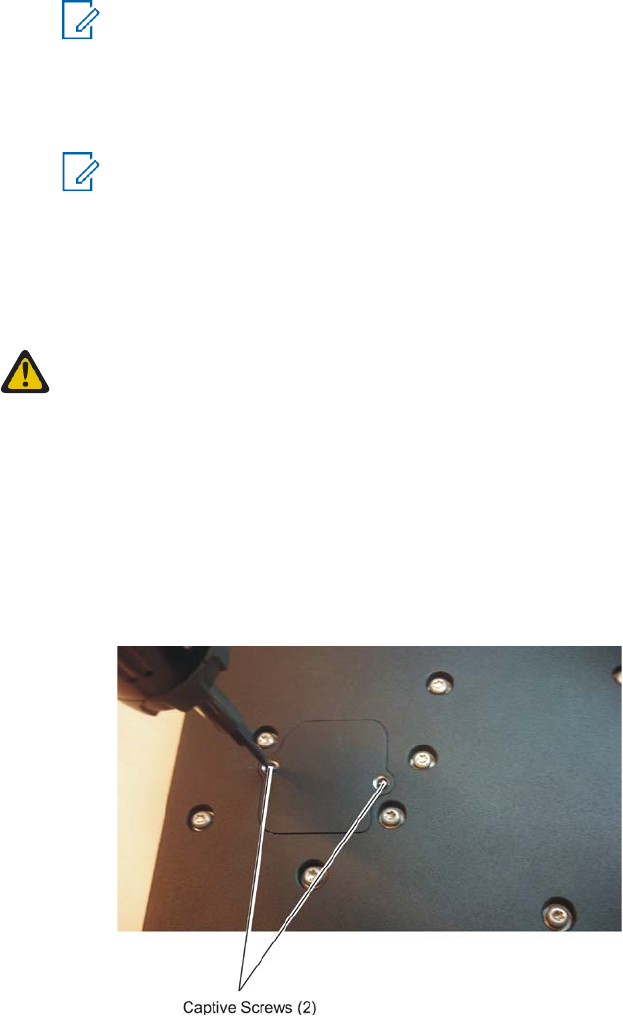

Figure 12 opening the CRYPTR Card Door .............................................................................. 22

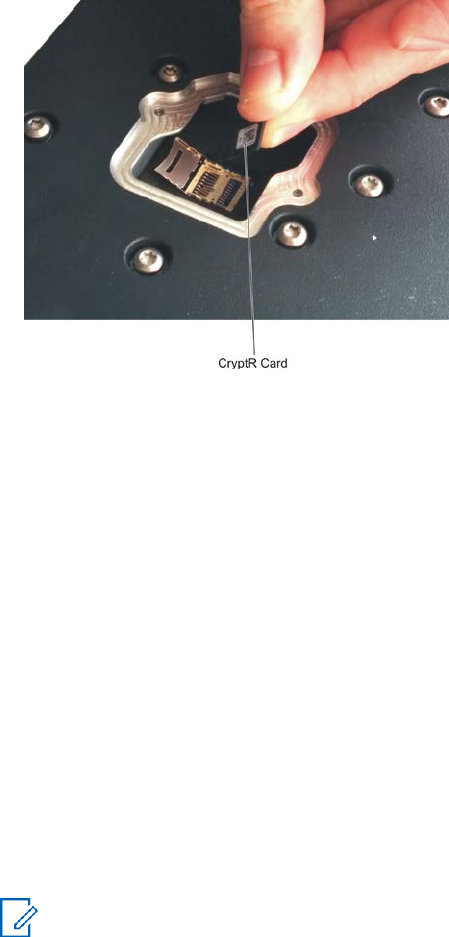

Figure 13 Installing the CRYPTR Card ..................................................................................... 24
ix
List of Tables
Table 1 Legend for General View ............................................................................................... 3
Table 2 Legend for Front Panel .................................................................................................. 5
Table 3 Legend for Back Panel................................................................................................... 6
Table 4 Troubleshooting the VML750 ....................................................................................... 27
Table 5 LED Indicators Function .............................................................................................. 29
Table 6 VML750 Replacement Parts List .................................................................................. 38
x
6802988C54-D
About VML750 LTE Vehicular Subscriber Modem (VSM) Installation Guide
Send Feedback
1
About VML750 LTE Vehicular
Subscriber Modem (VSM) Installation
Guide
The VML750 LTE Vehicular Subscriber Modem (VSM) connects the patrol car, fire apparatus or
command vehicle to an LTE network, bringing the benefits of wireless broadband to the vehicle. This
installation guide provides a description, and installation, troubleshooting, and operating information.
What Is Covered In This Manual?
The VML750 LTE VSM Installation Guide provides general instructions for installing, operating, and
troubleshooting the VML750.
The guide is organized as follows:
VML750 Description provides the product overview.
VML750 Installation provides unpacking instructions and all required procedures for installing
the VML750.
VML750 Troubleshooting Causes and Indicators provide details regarding possible malfunctions
that may occur after first-time installation of the VML750, their probable cause, and the
recommended corrective actions.
Powering Up the Modem provides general information regarding the use of the VML750.
VLM750 Specifications provides the VML750 modem specifications.
VML750 Replacement Parts List provides part numbers information for the modem and
Antennas.
LTE LMR Antennas Mounting Recommendations provides procedures for determining the
mounting locations for a Public Safety Narrow Band LMR 700/800 MHz antenna and Broad Band
LTE 700 MHz Antennas.
Helpful Background Information
Motorola offers various courses designed to assist in learning about the system. For information, go to
http://www.motorolasolutions.com/training to view the current course offerings and technology paths.
2
Send Feedback
Required Documents for Complete VSM Deployment
To complete the full deployment of the modem, you may need the following documents:
Information related to VML750 configuration in the VML750 Configuration Guide P/N 6802988C55
at: https://businessonline.motorolasolutions.com
Information related to VML750 monitoring can be found in the VML750 LTE Vehicle Subscriber
Modem (VSM) Status Utility Quick Reference Guide P/N 6802988C79.
Information related to the device licensing can be found in the Device Licensing Quick Reference
Guide P/N 6871024P25 at: https://businessonline.motorolasolutions.com
Safety and Regulatory Information
Before installing/using this product, the installer/operator must be familiar with the RF energy
awareness information and operating instructions in the “Product Safety and RF Energy Exposure
Booklet for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations” enclosed
with the VML750 LTE Vehicular Subscriber Modem (For USA) Motorola Publication part number
6881095C99 or RF Energy Exposure and Product Safety Guide for Mobile Two-Way Radios
installed in Vehicles or as Fixed Site Control Stations P/N 6866537D37 (for rest of regions) to
ensure compliance with Radio Frequency (RF) energy exposure limits.
FCC Interference
The VML750 is granted with two separate FCC IDs for baseline models: FLN0058A, FLN2058A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications made to this product, not expressly approved by Motorola, void the user
authority to operate the equipment, per FCC Rule Part 15.21.
Legal Notice
The VML750 OSS legal notice is provided by Motorola per request.
6802988C54-D
VML750 Description
Send Feedback
3
Chapter 1
VML750 Description
Designed for the harsh environments of public safety vehicles, the VML750 LTE Vehicular Subscriber
Modem (VSM) is a solid-state device capable of withstanding vibration, humidity, temperature extremes,
and other challenges encountered in the field. Mounted in the trunk or passenger compartment, it
provides broadband, wide-area network connectivity to devices in and around the vehicle.
Figure 1 VML750 General View
Table 1 Legend for General View
Item #
Description
1.
Modem
2.
Front Panel
3.
Connector Panel (Back Panel - not shown)
4.
CRYPTR Card Door (not shown)
4
4
6802988C54-D
Chapter 1: VML750 Description
Send Feedback
VML750 Models
The Motorola VML750 LTE Vehicular Subscriber Modem (VSM) is a power class 3 device.
The VML750 model F0025 includes the following sub-models:
-
FLN1057A: A multi-mode modem that operates in LTE Bands 14/13 and 3G EvDo BC0/BC1.
The modem supports WiFi as client and AP as well as GPS for location and support for data
encryption (CyrptR).
-
FLN2057A: A multi-mode modem that operates in LTE Bands 17/14/13/5/4/2 (Band 13 is
hardware ready only) and EvDo BC0/BC1 UMTS B5/B2 GSM. The modem supports WiFi as
client and AP as well as GPS for location and support for data encryption (CyrptR).
-
FLN5057A: A multi-mode modem that operates in LTE Bands 1, 3, 5, 7 ,8, 28 and UMTS bands
1 and 5. The modem supports WiFi as client and AP as well as GPS for location and support for
data encryption (CyrptR).
-
FLN5058A: A multi-mode modem that operates in LTE Bands 3, 7 and 20 and UMTS bands 1
and 8. The modem supports WiFi as client and AP as well as GPS for location and support for
data encryption (CyrptR).
-
FLN5059A: A multi-mode modem that operates in LTE Bands 2, 4 ,7 ,28 and 7 and UMTS
bands 2, 4 and 5. The modem supports WiFi as client and AP as well as GPS for location and
support for data encryption (CyrptR).
6802988C54-D
Chapter 1: VML750 Description
Send Feedback
5
VML750 Front Panel
The VML750 Vehicular Subscriber Modem (VSM) Front Panel is shown in the following figure.
Table 2 Legend for Front Panel
Item #
Item
Description
1. Power Button* The power button is used to turn the VML750 LTE Vehicular
Subscriber Modem (VSM) on or off when Ignition Sense is disabled.
If the Ignition Sense is enabled, you also need to turn the vehicle
ignition switch to On. This button is also used to apply factory reset.
2.
Power LED
3.
LAN LED
4.
GPS LED
For LED indications, refer to LED Indications
5.
WiFi LED
6.
WWAN2 LED
7.
WWAN1 LED
8.
SIM Card Door
Access door to VML750 SIM
Figure 2 Front Panel
6
6802988C54-D
Chapter 1: VML750 Description
Send Feedback
VML750 Back Panel
The VML750 Back Panel is shown in the following figure.
Table 3 Legend for Back Panel
Item # Description
1
RF SMA female type connector (WWAN1 DIV/WiFi)
2
RF SMA female type connector (WWAN1 MAIN1)
3
RF SMA female type connector (WWAN2 DIV)
4
RF SMA female type connector (WWAN2 MAIN2)
5
RF SMA female type connector (GPS)
6
LAN/Ethernet communication connector (RJ45)
7
Micro AB type connector (USB 2.0)
8
DC power and GPIO D-type, 9–pin connector
Figure 3 Back Panel
6802988C54-D
VML750 Installation
Send Feedback
7
Chapter 2
VML750 Installation
Installing the VML750 LTE Vehicular Subscriber Modem (VSM) involves unpacking and inspection,
planning, cable routing, installation of the antenna, brackets, VSM, SIM card, CryptR card, and cap,
and powering the VSM.
VML750 Unpacking and Inspection
Unpack your equipment and check the contents to ensure that you have received all the specified
items.
Thoroughly inspect the equipment for shipping damage as soon as possible after delivery. Report any
damage you find to your Motorola Customer Service representative immediately.
Safety and General Information
IMPORTANT: This device requires professional installation to satisfy compliance with FCC
requirements.
A properly installed VML750 minimizes service calls. When mounting the VML750 components,
consider the following factors:
The mounting surface must have sufficient strength to support the equipment being mounted and to
prevent it from becoming loose over time.
Do not attach components to any part of the vehicle subjected to excessive vibration.
Do not mount the VML750 unit on a flat surface where the unit could become partially submersed in
water.
The proposed location of the equipment being mounted or wires/cables attached must not interfere
with driver/passenger seating or leg space.
Select a location such that heat from the unit does not damage any wiring or any other plastic or
heat-sensitive parts of the automobile.
Use the supplied mounting hardware.
Leave sufficient space around the VML750 unit for air flow and installation.
Select a location that permits routing the cables as directly as possible.
Ensure that the cables are not stretched, and not subject to heat from the engine, transmission
housing, or heating ducts.
Crimp connectors securely.
Do not run cables over sharp edges that may cause excessive wear or chaffing of the cable
insulation.
Do not install components in locations where they may cause interference to the operation of the
vehicle controls.
Only qualified personnel may install communication equipment.
Ensure secure tightening of cable connectors.
8
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
WARNING: VEHICLES EQUIPPED WITH AIR BAGS
An air bag inflates with great force. DO NOT place objects, including communications equipment, in the
area over the air bag or in the air bag deployment area. Improperly installed communication equipment
which causes the air bag to inflate could cause serious injury. If necessary, contact the vehicle
manufacturer for air bag information specific to the vehicle.
WARNING: Verify that no vehicle systems are affected by use of the unit, for example, cruise control,
ABS breaking, traction control, engine management, direction indicators, and lights.
WARNING: Use existing openings through the firewall to avoid drilling. If drilling is a must, verify not
to damage the Vehicle ECMs, fuel lines, brake lines, and/or cable looms.
WARNING: For vehicles equipped with electronic braking systems, see Anti-Skid Braking
Precautions, Motorola publication 68P81109E34.
Modems installed in vehicles fueled by liquefied petroleum gas must conform to the National Fire
Protection Association standard NFPA 58, which applies to vehicles with liquid propane (LP) gas
container in the trunk or other sealed off space within the interior of the vehicle.
The NFPA 58 requires the following:
1
The space in which the LP gas container and its fittings are located must be isolated by a seal from
the space containing modem equipment.
2
Removable (outside) filling connections must be used.
3
The container space must be vented to the outside.
CAUTION: Installing the VML750 at the end of the vehicle above the exhaust pipe may cause the
VML750 to overheat.
CAUTION: Check the required mounting locations. It might be necessary to penetrate the firewall to
reach the battery. Before drilling commences, ensure cable clearance on the opposite side of the firewall
and do not install the vehicle Electronic Control Modules (ECMs) on the opposite side of the firewall.
Protect the cable where it passes through the firewall by using a grommet or similar protective
measures.
IMPORTANT: Install this product in a vehicle in accordance with the vehicle manufacturer guidelines and
the instructions detailed in this manual. Use only the Motorola parts specified in this manual.
IMPORTANT: Refer to the Safety Instructions in Product Safety and RF Energy Exposure Booklet for
Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations P/N 6881095C99 (for
USA) or RF Energy Exposure and Product Safety Guide for Mobile Two-Way Radios installed in Vehicles
or as Fixed Site Control Stations P/N 6866537D37 (for EU).
Send Feedback
9
6802988C54-D
Chapter 2: VML750 Installation
VML750 Installation Planning
Fast, easy, and safe installation requires careful planning and selecting the proper location. For optimal system
performance, follow the instructions and recommendations detailed in this manual.
Perform this process to install the VML750 LTE Vehicular Subscriber Modem (VSM).
Process:
1
Ensure adequate space for the installation.
2
Install the Antennas. See Mounting the VML750 Antennas. Also see the Installation Guide supplied with
each antenna.
3
Route the cables. See VML750 Cable Routing and Connection.
4
Install the brackets and the unit. See Installing the VML750 Modem.
5
Connect the DC Power and Ignition cable. See Installing the DC Power and Ignition Cable.
6
Connect the main antenna cables. See Installing Antenna Cables.
7
Connect the LAN/Ethernet cable. See Installing the LAN/Ethernet Cable, or the Micro USB cable,
See Installing the Micro USB Cable.
8
Power-up the VML750. See Powering Up the Modem.
The VML750 can be installed on a flat surface or a side wall of a vehicle.
Before beginning the installation, make sure that the space available at the installation site is adequate for the
modem and its accessories. Each installation configuration may require a different area for mounting the modem
without obstruction.
When choosing a location, ensure easy access for installation and replacement of the unit.
Vehicle RF Antennas must be installed in external to the vehicle and in accordance with:
The requirements of the antenna manufacturer/supplier.
Instructions provided in installation manuals of other radio devices installed next or used with the
VML 750.
Figure 4 VML750 Dimensions
10
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
Cable Routing
Before running a wire or drilling a hole, inspect the vehicle to determine how and where you intend to
mount the antenna, modem, and input/output device.
Before installing the antenna cables, add an identical label on both ends of each cable to ensure correct
connection between the antenna and its related connector on the VML750 back panel.
Plan wire and cable routing to provide maximum protection from overheating, battery acid, moving parts,
and sharp edges.
Keep cables away from ignition circuits to reduce noise pickup in the radio equipment.
Verify that the cables are of sufficient length. Do not connect two short lengths with a splice; doing so
results in power loss. Refrain from loose excess in the cables, but leave enough slack to allow re-
connection if necessary.
Do not run cables externally or underneath floor mats.
Do not locate cables where the driver or passengers can kick them or where they can interfere with
operation of the driver foot pedals.
When routing the cables, do not create sharp bends or kinks.
NOTICE: For detailed antenna cables routing instructions, see the Installation Guide supplied with
each antenna.
Cable Holes
Where possible, use existing holes in the firewall, the trunk wall, and the channels above or beneath
the doors.
If you must drill holes, do not damage other wiring, brake lines, or fuel lines.
When drilling a hole in the roof, do not snag the roof liner.
To prevent rusting after drilling, remove all metal burrs and residue, and completely clean the area to
ensure the removal of all steel dust.
Insert rubber grommets in all drilled holes to protect cables, except for Antennas cables.
Tools and Equipment
#2 Phillips screwdriver
Electric drill and drill bit set
X-ACTO knife or equivalent
Wire strippers
Long-nose pliers
Small side cutters
Crimping tool
Wrench set, including 8-mm wrench for tray-to-unit attachment
Crescent wrench
Spanner wrench
3-mm Allen wrench set for unit to tray attachment
No. 8 Torx screwdriver
Electrical tape
Send Feedback
11
6802988C54-D
Chapter 2: VML750 Installation
Mounting the VML750 Antennas
NOTICE: before installing the antenna cables, add an identical label on both ends of each cable to ensure
correct connection between the antenna and its related connector on the VML750 back panel.
The VML750 antenna is used to enhance the reception capability in poor reception areas and support Multiple
Input Multiple Output (MIMO) modes for LTE.
Two identical Antennas are used; one for WWAN2 Main and one for WWAN2 div. The Antennas can be provided
with 12-ft (P/N: FTN6070A) or 17-ft (P/N: FTN0073A) coaxial cable.
To complete the public network installation, base with cup antenna is used for WiFi connectivity on WWAN1
WiFi/Div and GPS reception (P/N: AN000036A01). The antenna is constructed of three Antennas:
Internal antenna - for WiFi (to be connected to WWAN1 diversity)
External antenna – Whip connected to Main1 (for use only with B14)
GPS active antenna (to be connected to GPS port)
IMPORTANT:
Use the following guidelines for antenna mounting to ensure best performance and avoid signal
reduction and interference:
1. When installing antenna Main 1 or Main 2 or Div 2, keep a clear radius of more than 20 cm (8")
from other Antennas.
2. When installing antenna Main 1 or Main 2 or Div 2, keep a distance of more than 20 cm (8") from
the front edge of the car roof. Install the Antennas in a distance of about 10 cm (4") from the
center line crossing the length of the car.
3. Keep a clear distance of more than 30 cm (11.8") between antenna Div. 2 and Main 1.
4. Keep a clear distance of more than 30 cm (11.8") between antenna Div. 2 and Main 2.
5. Keep a clear distance of more than 100 cm (39.4") between antenna Div. 1 and Main 1.
6. Keep a clear distance of more than 100 cm (39.4") between antenna Div. 1 and Main 2.
7. When installing antenna Div. 2 at the center line of the roof, keep a distance of more than 20 cm
(8") from the rear edge of the car roof.
IMPORTANT: To assure optimum performance and compliance with RF Energy Safety standards,
these antenna installation guidelines and instructions are limited to metal-body vehicles with
appropriate ground planes and take into account the potential exposure of back seat passengers
and bystanders outside the vehicle.
12
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
Special Antenna Installation Considerations
WARNING:
To comply with safety regulations, the distance between Antennas and people sitting inside the
vehicle must be more than 8 inches (20 cm).
CAUTION: If your vehicle is equipped with Public Safety Narrow Band (PSNB) equipment, when
installing the Antennas, provide a minimum distance of 78 inches (198 cm) between the PSNB
antenna and any VML750 antenna to ensure coexistence between all systems.
Main Antenna
IMPORTANT: Install the antenna on a flat metal surface with a minimum size of 24 inches (61 cm) x 24
inches (61 cm).
NOTICE: Install the Private network main antenna (when applicable) and the Public network main antenna
on the vehicle roof, preferably in the center front side of it. Ensure that the vehicle roof material is metal. If
not, use a 2 ft x 2 ft metal ground plane and mount the antenna in its center. For best performance, keep a
minimum distance of 36 inches (91.44 cm) between this antenna and any other antenna.
Installing Antenna Cables
Perform this procedure to install antenna cables for public and private network configurations.
Procedure:
1
Connect the Internal cable connector to the WWAN1 WiFi/DIV port on the VML750 LTE Vehicular
Subscriber Modem (VSM) connector panel. Connect the GPS cable connector to the GPS port on the
VML750 connector panel. Form a service loop for the flexible cables coming out of the antenna bottom
near the cable exit to contain any excess cable length. Form these service loops with a minimum bend
radius of 1 inch (2.54 cm). If needed, form a second service loop for the excess length of the jumper
cables near the VML750 with minimum bend radius of 3 inches (7.63 cm). Use plastic cable ties to secure
the cable.
NOTICE: The combo antenna is provided with three flexible coaxial cables coming out of the
antenna bottom side (two threads for internal and GPS are used). Two 12-ft/17-ft coaxial cables are
also provided to connect between the internal and GPS threads and the modem connectors.
2
For the Main and Diversity Antennas, connect the RF cable from the antenna to WWAN2 main and
WWAN2 DIV.
IMPORTANT: Do not use pliers or any other metallic tool for tightening - only Hand-tighten.
Fully tighten the antenna cable connector and verify it is fastened.
3
For the private network configuration, connect the connector of the cable marked External to the WWAN1
Main port on the VML750 connector panel.
IMPORTANT: To protect any unused connectors (WWAN2, LAN/Ethernet, USB) on the back of
the VML750 LTE Vehicular Subscriber Modem (VSM), screw the caps provided in the
installation kit onto these unused ports.
Send Feedback
13
6802988C54-D
Chapter 2: VML750 Installation
Figure 5 Schematic Installation Diagram for Sub-models FLN1057A/FLN2057A WWAN1 & WWAN2 Configuration
Important: Orient
antenna as shown
14
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
Figure 6 Schematic Installation Diagram for Sub-models WWAN1 only FLN1057A/FLN2057A
Important: Orient
antenna as shown
Send Feedback
15
6802988C54-D
Chapter 2: VML750 Installation
Figure 7 Schematic Installation Diagram for Sub-models WWAN2 Only FLN1057A/FLN2057A/FLN5057A/FLN5058A
Important: Orient
antenna as shown
16
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
Figure 8 Schematic Installation Diagram for Sub-model FLN5059A
Send Feedback
17
6802988C54-D
Chapter 2: VML750 Installation
VML750 Cables
The following cables are available with the VML750.
Item # Description
1
DC Power and Ignition cable (P/N FKN8663A)
2
LAN/Ethernet cable (P/N FKN8570A)
3 Micro USB cable (P/N FKN8703A can be purchased separately)
Figure 9 Available Cables
18
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
Mounting the VML750
Procedure:
1. Position the two mounting brackets (1) on each side of the VML750 (2) and fasten to
the VML750 using 4 screws.
2. Locate the VML750 with the mounting brackets on the surface.
3. Position the VML750 with the brackets on the surface and fasten to surface using the
supplied self-drilling screws.
Figure 10 Mounting the VML750
Send Feedback
19
6802988C54-D
Chapter 2: VML750 Installation
VML750 Cable Routing and Connection
This section describes installing, routing, and connecting the VML750 LTE Vehicular Subscriber
Modem (VSM) cables.
Installing the DC Power and Ignition Cable
Perform this procedure to route and connect the DC Power and Ignition cable.
CAUTION: Insert the fuse into the fuse holder after installation completion and after carefully
inspecting all connections. The VML750 LTE Vehicular Subscriber Modem (VSM) supports
12V (13.8 V ±20%) or 24V (27.6 V ±20% DC) vehicle batteries.
Connecting to higher power source (for example, 48V battery) may damage VML750.
NOTICE: The unit may only be used in a negative ground system. The FKN8663A
DC Power and Ignition Cable is equipped with a 5A fuse (slow-blow). Verify that the
electrical system of the vehicle can support current values greater than 5A.
Procedure:
1
Remove the fuse from the fuse holder.
2
Route the DC Power and Ignition cable leads through the firewall and into the engine
compartment. Use an existing opening or, if necessary, drill a 2 cm (26/32 inch) diameter hole
through the firewall. Insert a grommet into the hole to prevent damage to the DC Power and
Ignition cable.
Figure 11 DC Power and Ignition Cable Routing Into Engine Compartment
20
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
3
On the engine side of the firewall, connect the black lead to the negative (-) battery terminal.
4
On the engine side of the firewall, perform the following actions to connect the red (A+) lead to
the vehicle battery:
a
Verify that the fuse holder is at a distance of 20-30 cm (7.87-11.8 inches) from the
connection point, ensuring that it is not close to any hot engine component.
b
Mount the fuse holder using the provided mount, and dress wires as necessary. Connect the
red lead plug adaptor (on the fuse holder) to the matching receptacle on the red lead of the
DC Power and Ignition cable.
c
Connect the red lead of the DC Power and Ignition cable to the positive (+) battery terminal.
Cable tie the wire every 10 cm (4 inches) along its length. Do not tie to existing vehicle
cables.
d
Insert the fuse into the fuse holder.
5
Verify that the cables in the engine compartment do not obstruct any of the vehicle controls or
touch hot or moveable parts of the engine.
6
For ignition installation, perform the following actions:
a
Consult the vehicle documentation to locate the ignition wire.
b
Verify that the voltage is high with the ignition on, during start (cranking), accessory, and
while vehicle is running. When the ignition is off, the voltage is zero.
c
Connect the green lead of the DC Power and Ignition cable to ignition (+). Cable tie the wire
every 10 cm (4 inches) along its length. Do not tie to existing vehicle systems.
7
Connect the DC Power and Ignition cable connector to POWER connector on the VML750
Connector panel. Fasten the connector using the four fastening screws.
Send Feedback
21
6802988C54-D
Chapter 2: VML750 Installation
Installing the LAN/Ethernet Cable
Perform this procedure to install the LAN/Ethernet cable.
Procedure:
1
Connect the LAN/Ethernet cable from the LAN connector on the VML750 LTE Vehicular
Subscriber Modem (VSM) Connector panel to your vehicle Mobile Data Terminal.
CAUTION: Do not use pliers or any other metallic tool for tightening. Hand- tighten
only. Fully tighten the LAN/Ethernet cable connector and verify it is fastened.
2
Follow the LAN/Ethernet cable 8 +/2 inches (20 +/5 cm) from where it attaches to the VML750
and secure it to the vehicle body.
Installing the Micro USB Cable
Perform this procedure if you are not installing the LAN/Ethernet cable.
Procedure:
1
Connect the Micro USB cable from the Micro USB connector on the VML750 LTE Vehicular
Subscriber Modem (VSM) Connector panel to your vehicle Mobile Data Terminal USB
connector.
CAUTION: Do not use pliers or any other metallic tool for tightening. Hands tighten
only. Fully tighten the Micro USB cable connector and verify it is fastened.
2
Follow the Micro USB cable 8 +/2 inches (20 +/5 cm) from where it attaches to the VML750
and secure it to the vehicle body.
22
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
Installing the SIM
If your VML750 is intended for use on your private Motorola LTE network, you are provided with a
Motorola LTE SIM card (to be inserted into SIM1 slot). If your VSM is intended to home on a public
carrier LTE network, you must obtain a SIM card from that public carrier and insert it into SIM2 slot.
The VML750 can be used a WiFi modem without the need for a SIM card. When using the VML750 as
a WiFi modem, the VML75 must be configured prior to use. For VML750 configuration, refer to
VML750 Configuration Guide (6802988C55) at https://businessonline.motorolasolutions.com.
Procedure:
1
Locate the SIM card door on the front right side of the VML750. Unscrew the door and put to the
side.
NOTICE: If a SIM card is in the slot, your LTE modem has been staged for you
(seeVML750 Configuration Guide PN 6802988C55 if required); skip to step 4.
2
Locate the SIM card Motorola or your public carrier provided. Hold the card so that the metal
contacts are facing down.
3
Insert the card into the SIM slot until you feel it 'click' into place.
NOTICE: SIM 1 slot is for private network. SIM 2 slot is for public carrier network.
4
Close the door and screw it into place. Tightened the screw so that the door does not move.
Replacing the CRYPTR Card
Perform this procedure to replace the CRYPTR card in the VML750.
CAUTION: Disconnect your VML750 from the power source before performing this procedure.
Procedure:
1
Perform the following actions to remove the CRYPTR card.
a
On the VSM bottom cover, open the two Torx 8 captive screws fastening the CRYPTR card
door.
b
Use one of the captive screws to pull the door from the cover.
Figure 12 opening the CRYPTR Card Door
Send Feedback
23
6802988C54-D
Chapter 2: VML750 Installation
c
Pull the card lock back to release it and lift it up.
d
Remove the card from the VSM.
24
Send Feedback
6802988C54-D
Chapter 2: VML750 Installation
Figure 13 Installing the CRYPTR Card
2
Using the above illustrations, perform the following actions to install the CRYPTR card.
a
Insert the CRYPTR card into its location in the VSM.
b
Lower the lock and push it forward to lock it.
c
Install the card door on the VSM lower cover.
d
Close two Torx 8 captive screws. Fasten with a torque of 12 inch-lb.
Powering Up the Modem
Perform this power-up procedure after installing the VML750 LTE Vehicular Subscriber Modem (VSM).
Procedure:
1
Verify that the vehicle ignition switch is in On position.
2
Press and hold the power button on the LED Indicator Panel for 2 to 3 seconds. Release the
button when the Power LED turns green (blinking or solid).
3
If your modem is connected to a computer using LAN/Ethernet/USB cable, the LAN LED turns
green. If no LAN/Ethernet/USB cable is connected, the LAN LED is off.
4
The GPS LED blinks orange while your modem is searching for GPS satellites. After satellites
are acquired, the GPS LED turns green.
NOTICE: The time for acquiring satellites during initial power up may take up to 5
minutes.
Send Feedback
25
6802988C54-D
Chapter 2: VML750 Installation
5
WiFi LED is tuned off until WiFi configuration was performed. See the VML750 Configuration
Guide, PN 6802988C55.
6
After configuring the modem to WiFi Access Point mode, the WiFi LED turns green. When
data is transferred, the WiFi LED blinks green.
7
If a SIM card is inserted and the SIM door is closed and you are in an LTE coverage area, the
following sequence takes place:
a
LTE LED blinks orange while the modem searches for the LTE network.
b
LTE LED blinks green while registering to the network.
c
LTE LED is solid green after registration and activation.
8
If your VML750 is equipped to support LTE, activate it on the associated LTE network (your
private PS LTE network or on the public carrier network). Contact the manager of your network
(Motorola, public carrier, or your internal technical support) and provide the SIM card identifier
number, called the IMSI. This identifier can be found on the plastic credit card frame for the SIM.
NOTICE: The time for registering and activating your account may vary and could
typically take up to 2 minutes.
If the SIM door is not closed, the LTE LED rapidly blinks red.
If SIM card is not inserted, the LTE LED blinks red.
This page intentionally left blank.
6802988C54-D
VML750 Troubleshooting Causes and Indicators
Send Feedback
27
Chapter 3
VML750 Troubleshooting Causes and
Indicators
Motorola has made every effort to ensure that this product is of excellent quality. However, if you
experience any problems with the VML750 LTE Vehicular Subscriber Modem (VSM), contact your
Motorola service representative with product-related information. For complete information on ordering
required parts and kits, contact your local customer service representative. See the “Contact Us
section and FRU/FRE Kit/Part Number Kit Description.
VML750 Troubleshooting
This table gives details regarding possible malfunctions that may occur after first time installation of the
VML750 LTE Vehicular Subscriber Modem (VSM), their probable cause, and the recommended
corrective action. For correct LED indications, See LED Indications.
IMPORTANT: Contact Motorola Solutions Support Center (SSC) team for further
troubleshooting assistance if necessary. For contact information, see the “Contact Us section.
Table 4 Troubleshooting the VML750
Malfunction Probable Cause Corrective Action
VML750 does not turn
On. Power cable is not
properly connected.
Power button was not
properly pressed.
1
Check the cable connections; connect as
required and turn on the VML750.
2
Verify that the Power LED is blinking
red (standby mode).
3
Press the power button to turn on (expect LED
behavior according to ignition state).
1
Apply power to the modem.
2
Verify that the Power LED is blinking red.
3
Press the Power Button for 2 to 3 seconds.
4
Verify that the Power LED is blinking orange
(in "ignition enabled" mode), or blinking green
and then solid green (in "ignition disabled"
mode).
No LAN/Ethernet
connection. LAN/Ethernet cable is
not connected, or, Micro
USB cable is not
connected.
Connect the LAN/Ethernet cable (See Installing
the LAN/Ethernet Cable) or the Micro USB cable
(See Installing the Micro USB Cable) and verify
that the LAN LED is green.
No GPS reception. GPS cable (from Main
antenna) is not connect-
ed.
1
Connect the GPS cable (See Installing
Antenna Cables).
Table continued…
6802988C54-D
Chapter 3: VML750 Troubleshooting Causes and Indicators
28
Malfunction Probable Cause Corrective Action
No WiFi connection. WiFi was not configured
as required.
Div/WiFi cable is not
connected.
No LTE connection. Device has not yet been
activated on the LTE net-
work.
SIM card is not inserted/
damaged.
LTE cable (from Main
antenna) is not connect-
ed.
2
Verify that the GPS LED is blinking orange and
then changes to solid green.
SeeVML750 Configuration Guide (6802988C55)
in https://businessonline.motorolasolutions.com for
WiFi configuration.
1
Connect the WiFi/Div cable (See Installing
Antenna Cables).
2
Verify that the WiFi LED is blinking/solid green.
NOTICE: The following steps assume
your network manager or service provider
created a subscription for the LTE
service.
1
Locate ICCID (the identifier for the LTE SIM
card) or PSN (the device serial number) which
is printed on a sticker affixed to the VML750
casing.
2
Contact the network manager or technical
service department and report the ICCID or the
PSN number.
3
Verify that your device has been activated on
the LTE network. See Powering Up the
Modem.
1
Insert a new SIM into relevant SIM slot. See
Installing the SIM.
2
Close the SIM door.
3
Turn the VML750 On.
4
Verify the LTE LED is blinking orange/green
and then change to solid green.
1
Connect the LTE cable (See Installing
Antenna Cables).
2
Verify that the LTE LED is blinking orange/
green and then changes to solid green.
3
If the above actions do not help, check the
connection between the jumper and the thread
cable.
Missing LTE Band. See VML750 Configuration Guide (6802988C55)
in https://businessonline.motorolasolutions.com for
downloading the license file.
Send Feedback
29
6802988C54-D
Chapter 3: VML750 Troubleshooting Causes and Indicators
LED Indications
This table describes the functions of the LED indicators on the VML750 LTE Vehicular Subscriber
Modem (VSM) front panel.
Table 5 LED Indicators Function
LED Name
Power LAN
WWAN1
WWAN2
WiFi
GPS
LED Status
OFF Power off No link Off Off Off Off
Solid Green
Power on Link is on
Connected
Connected
Available
Tracking
(for AP)
Connected
(for client)
Blinking
Powering up TX/RX Activity
Connecting/
Connecting/
TX/RX
Green
Registering
Registering
Activity
(for AP)
Scanning
(for client)
Solid
Orange
Blinking
Orange
No Ignition Searching for Searching for Searching
for
The user
signal
signal
signal
turns on the
power (power
button pressed)
ignition is off
Solid Red
Problem/ Over-
Problem/
Problem/
Problem
heat
Overheat
Overheat
Blinking Red
Standby
SIM card is not
SIM card is not
External power
installed in the
installed in the
is connected
modem
modem
to the system
Rapid
Problem
SIM door is
SIM door is
Blinking Red
open
open
This page intentionally left blank.
6802988C54-D
VML750 Operation
31
Chapter 4
VML750 Operation
After installing the VML750 LTE Vehicular Subscriber Modem (VSM) in your vehicle, it must be
configured for proper operation. To configure your modem, seeVML750 Configuration Guide PN
6802988C55. After configuring the modem, it should be turned on automatically upon your vehicle
ignition and operate properly.
If you detect any malfunction in the VML750 operation, See VML750 Troubleshooting Causes
and Indicators.
This page intentionally left blank.
6802988C54-D
VLM750 Specifications
33
Appendix A
VLM750 Specifications
This section provides physical, port, LED, temperature, power, and RF specifications for the VML750
LTE Vehicular Subscriber Modem (VSM).
VML750 Physical Specifications
VML750 Communication Ports
VML750 RF Ports
WWAN1 MAIN1 SMA connector (Female)
WWAN1 Diversity + WiFi SMA connector (Female)
WWAN2 MAIN2 SMA connector (Female)
WWAN2 Diversity SMA connector (Female)
GPS
SMA connector (Female)
VML750 Power Port
VML750 LEDs
See LED Indications.
VML750 Operating Temperature
Power 9-pin D-TYPE
Ambient temperature -30 °C to +60 °C
Ethernet 10/100 RJ45
USB 2.0 high speed Micro AB
LAN
USB
Dimensions (Modem)
8.07 in x 7.87 in x 1.71 in (20.5 cm x 20 cm x 4.35 cm
+/1 mm)
Weight (Modem)
6 lb (2.5 kg)
6802988C54-D
Appendix A: VLM750 Specifications
34
6802988C54-D
Appendix A: VLM750 Specifications
35
VML750 Power Specifications
Input Voltage 11 to 33 VDC
Power Consumption:
Modem Standby less than or equal to 0.3 A RMS
Modem Transmit less than or equal to 1 A RMS
VML750 RF Characteristics
Frequency:
LTE
4G B1 Tx 1920MHz1980MHz
4G B1 Rx 2110MHz2170MHz
4G B2 Tx 1850MHz1910MHz
4G B2 Rx 1930MHz1990MHz
4G B3 Tx 1710MHz1785MHz
4G B3 Rx 1805MHz1880MHz
4G B4 Tx 1710MHz1755MHz
4G B4 Rx 2110MHz2155MHz
4G B5 Tx 824MHz849MHz
4G B5 Rx 869MHz894MHz
4G B7 Tx 2500MHz2570MHz
4G B7 Rx 2620MHz2690MHz
4G B8 Tx 880MHz915MHz
4G B8 Rx 925MHz960MHz
4G BC13 Tx 777MHz 787MHz
4G BC13 Rx 746MHz 756MHz
4G BC14 Tx 788MHz 798MHz
4G BC14 Rx 758MHz 769MHz
4G B17 Tx 704MHz716MHz
4G B17 Rx 734MHz746MHz
4G B20 Tx 832MHz862MHz
4G B20 Rx 791MHz821MHz
4G B28 Tx 703MHz – 748MHz
4G B28 Rx 758MHz803MHz
WCDMA
3G B1 Tx 1920MHz1980MHz
EVDO
3G B1 Rx 21100MHz2170MHz
3G BC0 Tx 824MHz 849MHz
3G BC0 Rx 869MHz 894MHz
3G BC1 Tx 1850MHz 1910MHz
6802988C54-D
Appendix A: VLM750 Specifications
36
3G BC1 Rx 1930 1990 MHz
3G BC2 Tx 1850MHz1910MHz
3G BC2 Rx 1930MHz1990MHz
3G BC4 Tx 1710MHz1755MHz
3G BC4 Rx 2110MHz2155MHz
3G BC5 Tx 824MHz849MHz
3G BC5 Rx 869MHz894MHz
3G BC8 Tx 880MHz915MHz
3G BC8 Rx 925MHz960MHz
WiFi
2401 MHz 2473MHz
Bandwidth
LTE
5 MHz
10 MHz
20 MHz
EVDO
1.288 MHz
UMTS
5 MHz
WiFi
20 MHz (802.11b/g/n)
Output transmit power:
LTE
23 dBm
EVDO
23 dBm
WiFi
15 dBm
Receiver sensitivity:
LTE
10 MHz -94 dBm, typ -96 dBm
5 MHz -97 dBm, typ -99 dBm
EVDO
-105.5 , typ -109 dBm
UMTS
-110dBm
WiFi (802.11g)
-87 dBm
Frequency Stability:
LTE
+/-2.5 ppm
EVDO BC0
+/-300 Hz
EVDO BC1
+/-150 Hz
WiFi
+/-20 ppm
6802988C54-D
Appendix A: VLM750 Specifications
37
This page intentionally left blank.
6802988C54-D
Appendix B: VML750 FRU/FRE List
38
Send Feedback
Appendix B
VML750 FRU/FRE List
The VML750 LTE Vehicular Subscriber Modem (VSM) is composed of numerous Field Replaceable
Units (FRUs) and Field Replaceable Entities (FREs). If you must replace a FRU, FRE, or part, obtain
the precise FRU/FRE Kit Number or part number. Review the replacement procedures provided,
including all safety precautions and system impact information. This chapter lists the FRUs and FREs.
For complete information on ordering required parts and kits, please contact your local Motorola
service representative. See the “Contact Us section.
VML750 Replacement Parts List
Table 6 VML750 Replacement Parts List
FRU/FRE Kit/Part Number Description
Antennas
See VML750 Approved Antennas and Cables Replacements List
Bracket, Screws, Washers
0312002B14 Mounting Screw, Bracket to Car, 4
03013013001 Mounting Screw, VSM to Bracket, 8
0487623U12 Spring Washer, VSM to Bracket, 8
07013065001 Bracket, 2
Cables
FKN8570A LAN/Ethernet Cable (177 in/450 cm)
FKN8730A Micro USB cable
FKN8663A DC Power Ignition Cable (177 in/450 cm)
SIM card SIM Card Kit
CRYPTR card CRYPTR Micro SD card
VML750 Kit Replacement Parts List
FRU/FRE Kit/Part Number Description
FLN1057A VML750, VzW LTE VSM Modem
FLN 2057A VML750, VzW / AT&T LTE VSM Modem
FLN5057A VML750 R4.0 SKU1 LTE VSM
FLN5058A VML750 R4.0 SKU2 LTE VSM
FLN5059A VML750 R4.0 SKU3 LTE VSM
6802988C54-D
VML750 FRU/FRE List
39
VML750 Approved Antennas and Cables Replacements List
FRU/FRE Kit/Part Number Kit Description
AN000036A01 VML750 base antenna with a cap
FTN0073A (85013022001) Wideband Fix-Mounted Vehicular Antenna (12 ft cable)
FTN7686A (85013016001) LTE Whip Antenna
FTN6070A (85013022001) Wideband Fix-Mounted Vehicular Antenna (17 ft cable)
CB000133A01 SMA-F to SMA-M 12 ft RG174 cable type
CB000133A02 SMA-F to SMA-M 17 ft RG174 cable type
CB000221A01 NMO Antenna Mount 12 ft
30013096001 NMO Antenna Mount 17 ft
30013072001 SMA-F to SMA-M 12 ft LMR200 cable type
30013093001 SMA-F to SMA-M 17 ft LMR240 cable type
Send Feedback
40
Send Feedback
6802988C54-D
Appendix C: LTE LMR Antennas Mounting Recommendations
Appendix C
LTE LMR Antennas Mounting
Recommendations
This appendix provides procedures for determining the mounting locations for a Public Safety Narrow
Band (PSNB) Land Mobile Radio (LMR) 700/800 MHz antenna and Broad Band (BB) LTE 700 MHz
Antennas.
The following procedures are given:
Police patrol vehicle with a PSNB antenna and a standard BB antenna.
Bus with a PSNB antenna and a low profile BB antenna
Police Patrol Vehicle Antennas Location Considerations
Overview
Individually select the Antennas mounting location for every vehicle before starting the actual
installation process. The following list gives general recommendations for determining the mounting
location of Public Safety Narrow Band (PSNB) and Broad Band (BB) Antennas based on several
key considerations:
Keep a minimum distance of 8 in (20 cm) between the LTE [BB] Antennas; including WiFi to any
other antenna and any potential bystander (for bystander safely).
Follow the guidelines in the installation and safety manuals of the Land Mobile Radios (LMRs)
(PSNB) with regards to mounting locations and operation of radio in the presence of bystanders (for
bystander safety).
Keep a minimum separation of 39.4 in (100 cm) between the PSNB and BB LTE Antennas.
6802988C54-D
LTE LMR Antennas Mounting Recommendations
41
This page intentionally left blank.
