Motorola Solutions 99FT4080 MOTOTRBO UHF 40W Mobile Radio User Manual 6816817H01 A FCC Draft

Motorola Solutions, Inc. MOTOTRBO UHF 40W Mobile Radio 6816817H01 A FCC Draft

Exhibit 08a

XPR 4500 / XPR 4550

Mobile Radio

User’s Guide

6816817H01

MOTOROLA, the Stylized Logo and CommPort are registered in the U.S.

Patent & Trademark Office. All other product or service names are the

property of their respective owners.

XPR 4500 / XPR 4550 Mobile Radio i

Product Safety and RF Exposure Compliance

ATTENTION!

This radio is restricted to occupational use only to satisfy FCC RF energy

exposure requirements. Before using this product, read the RF energy

awareness information and operating instructions in the Product Safety and RF

Exposure booklet enclosed with your radio (Motorola Publication part number

6881095C99) to ensure compliance with RF energy exposure limits.

Computer Software Copyrights

The Motorola products described in this manual may include copyrighted Motorola

computer programs stored in semiconductor memories or other media. Laws in the

United States and other countries preserve for Motorola certain exclusive rights for

copyrighted computer programs, including, but not limited to, the exclusive right to copy

or reproduce in any form the copyrighted computer program. Accordingly, any

copyrighted Motorola computer programs contained in the Motorola products described

in this manual may not be copied, reproduced, modified, reverse-engineered, or

distributed in any manner without the express written permission of Motorola.

Furthermore, the purchase of Motorola products shall not be deemed to grant either

directly or by implication, estoppel, or otherwise, any license under the copyrights,

patents or patent applications of Motorola, except for the normal non-exclusive license

to use that arises by operation of law in the sale of a product.

Documentation Copyrights

No duplication or distribution of this document or any portion thereof shall take place

without the express written permission of Motorola. No part of this manual may be

reproduced, distributed, or transmitted in any form or by any means, electronic or

mechanical, for any purpose without the express written permission of Motorola.

Disclaimer

The information in this document is carefully examined, and is believed to be entirely

reliable. However, no responsibility is assumed for inaccuracies. Furthermore,

Motorola reserves the right to make changes to any products herein to improve

readability, function, or design. Motorola does not assume any liability arising out of the

applications or use of any product or circuit described herein; nor does it cover any

license under its patent rights, nor the rights of others.

MOTOROLA and the Stylized M Logo are registered in the U.S. Patent & Trademark

Office. All other product or service names are the property of their respective owners.

Before using this product, read the operating instructions for safe

usage contained in the Product Safety and RF Exposure booklet

enclosed with your radio.

Notations Used in This Manual

Throughout the text in this publication, you will notice the use of WARNINGS,

CAUTIONS, and Notes. These notations are used to emphasize that safety

hazards exist, and care that must be taken or observed.

The following special notations identify certain items:

WARNING: An operational procedure, practice, or other

condition, which might result in injury or death if not carefully

observed.

CAUTION: An operational procedure, practice, or other

condition, which might result in damage to the equipment if not

carefully observed.

Note: Note: An operational procedure, practice, or other condition,

which is essential to emphasize.

Example Description

Light button or >Buttons and keys are shown in bold print or as a key

symbol.

PHONE Menu items (softkeys) are similar to the way they

appear on the radio’s display.

WARNING

CAUTION

Contents

Declaration of Conformity .................................................................. ii

Computer Software Copyrights .........................................................iii

Documentation Copyrights ................................................................iii

Disclaimer .........................................................................................iii

Notations Used in This Manual ........................................................ iv

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Using Your Radio: The Basics .......................................................... 1

Getting Started .................................................................................. 2

Identifying Your Radio ....................................................................... 3

Control Head .............................................................................. 3

Operating Your Control Head ............................................................ 3

Turning On the Radio ........................................................................ 4

Setting the Volume ..................................................................... 5

Adjusting the Display Brightness ................................................ 5

Using the navigation key ............................................................ 5

Trunked Modes or Conventional Channels ................................ 6

Field Programming ..................................................................... 6

Display Status ................................................................................... 7

Feature Control ................................................................................. 7

Alert Tones ........................................................................................ 7

Basic Operating Procedures . . . . . . . . . . . . . . . . . . . 11

Basic Functions ............................................................................... 11

Selecting the Zone or Mode ............................................................ 12

Selecting or Changing the Zone ............................................... 12

Selecting or Changing a Mode in the Current Zone ................. 13

Selecting or Changing to a Mode Not in the Current Zone ....... 13

Selecting the Home Mode ............................................................... 14

Transmitting (Conventional Modes Only) ........................................ 15

Transmitting (Trunked Modes Only) ................................................ 15

Selecting the Transmit Power Level ................................................ 16

Monitoring Conventional Mode Activity ........................................... 16

Adjusting the Squelch Level ............................................................ 17

General Radio Features . . . . . . . . . . . . . . . . . . . . . . . 18

Often-Used Features ....................................................................... 18

Emergency Call and Alarm ............................................................. 19

Emergency Call ........................................................................ 19

Initiating an Emergency Alarm .................................................. 20

Initiating an Emergency Call .....................................................20

Initiating an Emergency Call and Alarm ....................................21

Initiating a Silent Emergency Alarm ..........................................22

Special Considerations for Emergencies ..................................22

Scan Operation ................................................................................23

Turning On Scan .......................................................................24

Turning Scan On While Disregarding the Squelch Code (Conven-

tional Modes Only) .................................................................25

Viewing a Scan List ...................................................................26

Transmitting While Scan Is On .................................................27

Temporarily Deleting a Nuisance Mode with Scan On ..............28

Restoring a Nuisance Mode ......................................................28

Changing Mode Priorities While Scan Is On .............................29

Restoring Mode Priorities in a Scan List ...................................29

Programming a Scan List ..........................................................30

Hang Up Box (HUB) ..................................................................32

Optional External Alarms (Horn and Lights) ....................................32

Activating the External Alarm(s) ................................................32

Changing the Selected Alarms .................................................33

Receiving a Call While Alarms Are Turned On .........................34

Time-Out Timer ................................................................................35

Push-To-Talk Identification (PTT-ID) ................................................35

Telephone Interconnect List (Conventional and Trunking) ..............36

Answering a Phone Call ............................................................36

Initiating a Telephone Call from the List ....................................37

Unlimited Telephone Interconnect ...................................................38

Calling a Phone Number Not in the List ....................................38

Storing a Number in the List .....................................................39

Editing a Name in the List ........................................................40

Call Alert Page (Conventional and Trunking— Digital Modes Only) 43

Sending a Call Alert Page .........................................................44

Conventional Radio Features . . . . . . . . . . . . . . . . . . 47

Features Used in Conventional Operation ......................................47

Status Calls (Digital Modes Only) ....................................................48

Sending a Status Call ...............................................................48

Smart PTT .......................................................................................50

Conventional Talkgroup Calls ..........................................................50

Digital Modes Only ....................................................................50

Selecting a Conventional Talkgroup .........................................51

XPR 4500 / XPR 4550 Mobile Radio

Conventional Talkaround ................................................................ 52

Talk Direct (Mobile-To-Mobile) ................................................. 52

Selective Calls (Digital Modes Only) ............................................... 52

Answering a Selective Call ....................................................... 53

Initiating a Selective Call .......................................................... 54

Viewing Your Unit ID Number ................................................... 56

Storing a Unit ID Number in the List ......................................... 57

Editing a Name in the List ......................................................... 58

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Antennas ......................................................................................... 63

Cables ............................................................................................. 64

Desktop ........................................................................................... 64

Microphones ................................................................................... 65

Miscellaneous ................................................................................. 65

Mounting Kits .................................................................................. 65

Speakers ......................................................................................... 66

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Commercial Warranty and Service . . . . . . . . . . . . . . 93

Limited Warranty ............................................................................. 93

Service ............................................................................................ 97

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

viii

XPR 4500 / XPR 4550 Mobile Radio

Introduction

Using Your Radio: The Basics

This chapter gives you the basic knowledge you need in order to use

your radio. The following topics are covered:

• Getting Started (page 2)

• Identifying Your Radio (page 3)

• Operating Your Control Head (page 3)

• Turning On the Radio (page 5)

• Setting the Volume (page 6)

• Adjusting the Display Brightness (page 6)

• Display Status (page 8)

• Feature Control (page 8)

• Alert Tones (page 8)

Introduction

Getting Started

The XPR 4500 / XPR 4550 Mobile Radio is among the most sophisticated

two-way radios available. It can operate in the following frequency

ranges:

These channels provide maximum communications capability under

varying operating conditions.

One of the newest in a long line of quality Motorola products, the XPR 4500 /

XPR 4550 Mobile Radio provides improved voice quality

across more of your coverage area. The digital process called

embedded signaling intermixes system signaling information with

digital voice, resulting in improved system reliability and the capability

of supporting a multitude of advanced features. Such features add up

to better, more cost-effective two-way radio communications.

The XPR 4500 / XPR 4550 Mobile radio has two USB ports that can

interface with external devices, such as laptop computers.

VHF UHF

136-174 MHz 403-470 MHz

450-527 MHz

XPR 4500 / XPR 4550 Mobile Radio

Introduction

Identifying Your Radio

The XPR 4500 / XPR 4550 Mobile Radio has two major components:

the radio unit installed in your vehicle and the control head that is used to

activate various radio features. Keep the foldout page opened for

reference as you read this manual. Your radio has the following

control head:

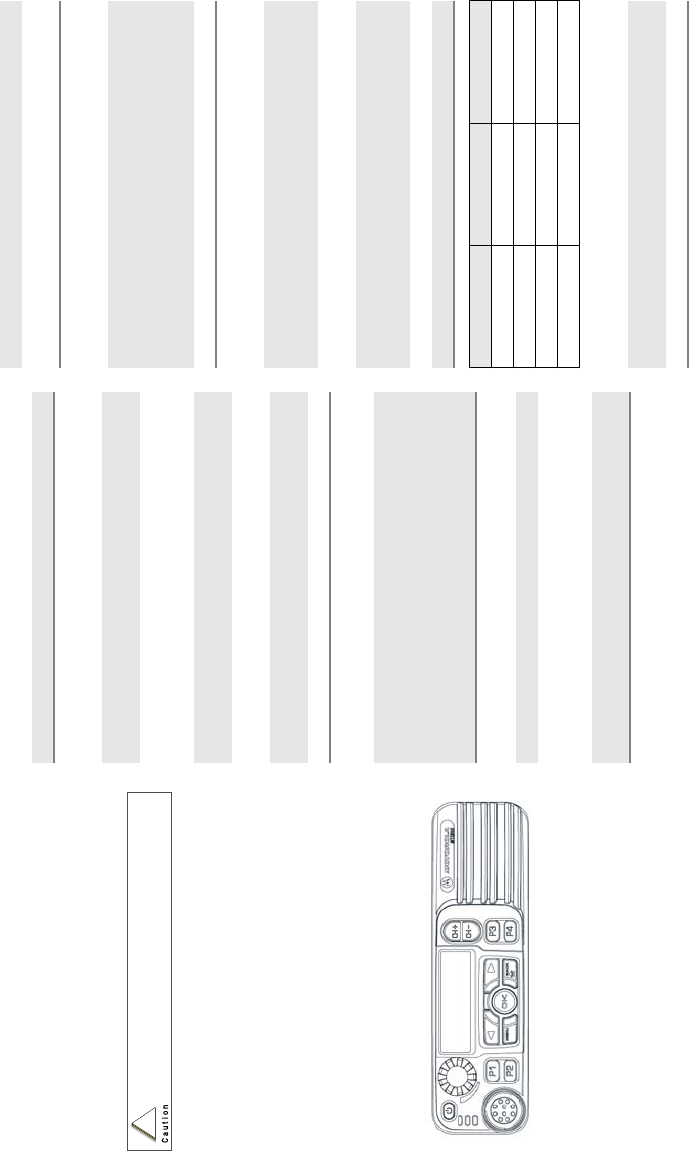

Control Head

The control head has the rotary Volume knob, 4 programmable menu

buttons, menu navigation buttons, menu button, home button, On/Off

button, channel buttons and a 2-line dot matrix LCD display.

Note: A "CH MISMATCH" error upon turning on your radio, means

that either the Control Head has been connected to a legacy

transceiver, or vice versa.

Operating Your Control Head

Your advanced control head is designed for ease of use and flexibility

of feature control. Before operating the radio, familiarize yourself with

the various controls, indicators, and alert tones.

• On/Off button: To turn the mobile radio On and Off.

• Rocker Up/Down button: To select the desired position/personality

from the radio.

• Programmable Buttons: Several of the radio’s buttons can be

programmed as short-cut buttons for many of the radio’s features,

P1, P2, P3 and P4. 

Introduction

Check with your dealer for a complete list of the functions your

radio’s programmable buttons support.

• Left and Right navigation Buttons: For navigating through the radio

menu.

• Back/Home button: Used to back up one level in the Menu

hierarchy (short press); also used to exit the Menu Mode (long

press).

• OK button: The “OK” button is used to make Menu selections.

• Menu button: To enter Menu mode.

• Volume Knob: Use to adjust the radio’s volume. 

Turning the rotary volume knob counter-clockwise shall turn the

radio volume to minimum. Turning the rotary volume knob

clockwise shall turn the radio volume to maximum.

• Indicators

LED State Description

RED Illuminated Power ON

YELLOW Illuminated Permanent Monitor Mode

Receiving Private Call

Blinking Performing Scan

GREEN Illuminated Radio Transmitting

Blinking Power UP

XPR 4500 / XPR 4550 Mobile Radio

Introduction

Turning On the Radio

Do the following:

• Turn the radio on with a short press of the power button in

the upper left corner of the control unit.

After a short time, the red, green and yellow LED’s light up,

indicating that the radio is powering up.

The radio first performs a selftest to determine its operational

capability and then powers on

The display then shows XYZ 2345.

When the radio is fully powered on, the Zone and Channel text and

menu items is displayed. The backlight will turn on to the last

selected color and dim level.

Note: Pressing the power button anytime after the LED’s light up

will TURN OFF the radio.

The radio then performs a self check.

Note: If FAIL ##/## appears in the display, the radio will not

function until the condition has been corrected.



If ERROR ##/## appears, some non-critical data has been

changed. If either of these displays appear, if the display

goes blank, or if the unit appears to be locked up, refer to the

“Troubleshooting” section.

Introduction

Setting the Volume

Adjusting the Display Brightness

Using the navigation key

Rotate the Volume knob clockwise to increase the volume and

counterclockwise to decrease the volume.

The backlight allows the radio's display to be illuminated from

the rear to allow you to see the display in any light condition.

Utilities o Radio Settings oBacklight

Select desired brightness from the following options and press

the OK button:

•Low

• Medium

• High

When accessing a feature on the radio, use the left or right

toggles on the navigation key to access further options within

the menu.



If you cannot locate a menu item, it may not be programmed, or

it may not apply to the radio's current mode setting.

XPR 4500 / XPR 4550 Mobile Radio

Introduction

Trunked Modes or Conventional Channels

Depending on how your radio is programmed, you can select

conventional channels or trunked talkgroup. Conventional channels

consist of a transmit and receive frequency pair, an associated

squelch code pair, and a time-out timer value. See “Conventional

Radio Features” on page 47.

Trunked modes consist of the system/announcement group/talkgroup

combination and a time-out timer value. See “Trunking Operation” on

page 61.

Field Programming

Other radio features may be slaved to the selected mode by field

programming. This mode slaving means that the radio is

preprogrammed to automatically give you the proper operation for

each mode you select.

You may use the control head to program your own mode names.

The names you assign are clearly shown in the alphanumeric display.

You can see all the key operating information, including the mode

selected or being scanned, and the on/off status of various features.

The operating conditions are shown either by the display or by visual/

audio indicators, or by both.

Introduction

Display Status

The control head display indicates your selected mode, or the

currently active receive mode when scan is on.

Feature Control

You can turn the various radio features on or off, change modes, and

adjust the volume.

To exit a feature, such as phone, press the HOME button.

Alert Tones

Tone Type Name Description

Two high-

pitched tones

Private

Conversation™

Indicate that a private call has been

received.

Four high-

pitched tones

every five

seconds

Call Alert Indicate that a Call Alert page has been

received.

Single, high-

pitched tone

Central

Acknowledge

Indicates that a Call Alert, emergency

alarm, reprogram request, or status/

message transmission has been

received by the system’s central

controller.

Four high-

pitched tones

Mobile Unit

Acknowledge

Indicate that a Call Alert page has been

received by the intended unit, or the

emergency alarm, reprogram request, or

status/message transmission has been

acknowledged by the intended

dispatcher.

Sound similar

to a telephone

busy signal

System Busy Indicates, when you press the

microphone push-to-talk (PTT) button,

that you cannot transmit because all

system radio channels are in use.

Release the PTT button and wait for call

back.

XPR 4500 / XPR 4550 Mobile Radio

Introduction

A series of

two short,

high-pitched

tones

Automatic Call

Back

Indicate that a channel is now available

for your previously requested

transmission.

A series of

two short,

high-pitched

tones (same

as automatic

call back)

Talk Permit

(optional)

Indicate, when you press the

microphone PTT button, that the system

is accepting your transmission.

Continuous,

low-pitched

tone

Talk-Prohibit/

Out-of-Range

Indicates, when you press the

microphone PTT button, that either you

are out of the range of the trunked radio

system, or the system is out of service,

or the channel is busy with the Smart

PTT feature enabled.

Single, high-

pitched tone

every nine

seconds

Failsoft In an unmuted receive condition,

indicates a trunked system central

controller failure. The radio reverts from

trunked operation to a system similar to

conventional radio repeater operation.

Other system users can be heard

sharing the channel.

Continuous,

low-pitched

tone

Illegal Mode Indicates that you have entered a mode

where normal system traffic will be

missed, or you are attempting something

which is not permitted. Examples

include: forgetting to exit the telephone

interconnect mode after a call ends (fleet

and subfleet calls cannot be received),

attempting to transmit on a receive-only

conventional mode, attempting to select

a dynamic mode where no dynamic ID

assignment has been made.

Brief low-

pitched tone

Time-Out Timer

Warning

Indicates that your present transmission

will soon be disabled.

Tone Type Name Description

Introduction

Single, short,

high-pitched

tone

Valid Key Indicates that you pressed a valid key, or

you entered a feature configuration

state, or you are receiving or

transmitting in the clear mode on secure

models (with TX Clear Alert Tones

enabled).

Single, low-

pitched tone

Invalid Key Indicates that you tried to make an

invalid key press, or that an emergency

alarm, reprogram request, or status/

message was not acknowledged.

Unique

chirping

sound

Dynamic

Reprogram-

ming

Indicates that a dynamic ID is assigned.

Tone Type Name Description

XPR 4500 / XPR 4550 Mobile Radio

Basic Operating Procedures

Basic Functions

This chapter shows you how to access the radio’s basic functions and

includes the following topics:

• Selecting the Zone or Mode (page 12)

• Selecting the Home Mode (page 14)

• Transmitting (Conventional Modes Only) (page 15)

• Transmitting (Trunked Modes Only) (page 15)

• Selecting the Transmit Level (page 16)

• Monitoring Conventional Mode Activity (page 16)

• Adjusting the Squelch Level (page 17)

Basic Operating Procedures

Selecting the Zone or Mode

A zone is a grouping of modes. A mode is a group of characteristics

such as transmit/receive frequencies, Private-Line™ codes, radio

parameters, and an alphanumeric name.

Note: Your radio supports up to a maximum of 50 zones.

You can select or change zone via the programmable button or via

the radio menu.

Selecting or Changing the Zone

MenuoZone

1Press the main menu button and scroll to Zone.

2Press the OK button to access the zone list.



The display shows the current zone and mode.

3Press theor until the desired zone is displayed.

4Press the OK button or PTT button to save the displayed

zone as the new home (default) zone.



The zone name stops flashing once it is saved.

5Press the PTT button to begin transmitting on the

displayed zone.

XPR 4500 / XPR 4550 Mobile Radio

Basic Operating Procedures

Selecting or Changing a Mode in the Current Zone

Selecting or Changing to a Mode Not in the Current

Zone

Selecting the Home Mode

To access a mode in the current zone, do the following:

1Press MENU button.

2Scroll to Zone Lists and press the OK button.



The display shows the current zone and mode.

3Use the navigation keys until the desired channel in the

current zone is displayed.

4Press the OK button or PTT button to save the displayed

channel as the new home (default) channel.



The channel name stops flashing once it is saved.

5Press the PTT button to begin transmitting on the

displayed zone and mode.

1To access a mode that is not in the current zone, use the

navigation keys to move to the zone containing the mode.

Note: Analog and Digital channels can be mixed in each zone.

2Do one of the following:

• Select a desired zone (page 12).

• Select a desired mode in the current zone (page 13).

This feature must first be enabled by a qualified radio

technician.

Press the HOME button to select the home mode contained

within the home zone, from any other zone and mode in the

radio.

Basic Operating Procedures

Transmitting (Conventional Modes Only)

Transmitting (Trunked Modes Only)

Selecting the Transmit Power Level

You can select (toggle) the transmit power level via the

programmable button.

1Lift the microphone off-hook, and listen for activity on that mode.

2If you hear no activity, press and hold the microphone PTT

button.

1Select a desired zone and mode.

2Lift the microphone off-hook, and press the microphone PTT

button to transmit.

Speak clearly into the microphone.

3Release the PTT button to receive.

Press the programmable button.



The display momentarily shows Lat the power level icon is

low power is selected or H to indicate high power level is

selected.

XPR 4500 / XPR 4550 Mobile Radio

Basic Operating Procedures

Monitoring Conventional Mode Activity

This feature allows you to monitor channel traffic on conventional

channels by defeating the coded squelch. This feature must first be

enabled by a qualified radio technician or system administrator.

Do one of the following:

Take the microphone off hook. 

(This is the same as monitor on. You hear all channel traffic.)



1Make sure you are in Home mode where the default zone and

mode are being displayed (page 14).

2Press theor button to scroll to the MON softkey.

3Pressing MON softkey momentarily toggles between MONITOR ON

and MONITOR OFF.MONITOR ON shown on the display indicates

that the radio is monitoring.

4Pressing MON softkey again turns monitor off and you don’t hear

all channel traffic.

Basic Operating Procedures

Adjusting the Squelch Level

Your radio’s ability to transmit or receive signals varies as you move

away from or close to your base station. You can adjust your radio’s

squelch to improve its ability to receive transmissions.

Do the following:

1Press the programmable button.

You can either chose tight or normal for your squelch setting.

Your squelch settings will be remembered upon power down,

battery removal or change of channel.

General Radio Features

Often-Used Features

This chapter shows you how to access the most frequently used

features. The following topics are covered:

• Emergency Call and Alarm (page 19)

• Scan Operation (page 23)

• Optional External Alarms (Horn and Lights) (page 32)

• Time-Out Timer (page 35)

• Push-To-Talk Identification (PTT-ID) (page 35)

• Telephone Interconnect List (Conventional and Trunking)

(page 36)

• Unlimited Telephone Interconnect (page 38)

• Call Alert Page (Conventional and Trunking—Digital Modes

Only) (page 43)

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Emergency Call and Alarm

The emergency call and alarm features allow you to have priority

channel access and/or send an emergency data transmission to the

dispatcher in an emergency situation.

The desired type of emergency feature—alarm, call, call and alarm,

or silent alarm—can be preprogrammed by a qualified radio

technician.

The radio must be turned on to activate any emergency feature.

Emergency Call

Emergency call gives you priority access to a voice channel for all

subsequent transmissions after you press the emergency button. The

level of priority access is determined by the system manager.

SmartZone Emergency Call Receive Operation

A radio configured for SmartZone® operation displays EMER

RECEIVED whenever it receives an emergency call. The display

alternates with the selected-mode display as long as the radio is

unmuted to the emergency call.

General Radio Features

Initiating an Emergency Alarm

The emergency alarm feature sends a data transmission to alert the

dispatcher of your emergency condition and identify your unit ID.

Initiating an Emergency Call

Press the emergency button.



A tone sounds and the display alternates EMERGENCY with the

current zone/channel.



For trunking modes, a high-pitched tone indicates that the

alarm has been received by the trunked system’s central

controller.



A dispatcher acknowledgment ACK RECEIVED display follows.



The radio automatically returns to normal operation. No further

action is required.

1Press the emergency button.



A tone sounds and the display alternates EMERGENCY with the

current zone/channel.

2Press the PTT button and announce your emergency.

3After completing the emergency call, press and hold the

emergency button until a tone sounds.



The alternating EMERGENCY display disappears, and the radio

returns to normal operation.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Initiating an Emergency Call and Alarm

If the radio has both emergency call and alarm features, it

automatically proceeds to the call mode after the alarm is

acknowledged.

1Press the emergency button to activate the emergency call/

alarm feature.



The display begins alternating EMERGENCY with the current

zone/channel.



For trunking modes, a high-pitched tone sounds, indicating

that the alarm has been received by the trunked system’s

central controller.



A dispatcher acknowledgment (four high-pitched tones) follows,

accompanied by an ACK RCVD display.

2Press the PTT button and announce your emergency.

3To exit from the emergency state altogether, press and hold the

emergency button until a tone sounds.



The alternating EMERGENCY display disappears, and the radio

returns to normal operation.

Note: Turning the radio off also cancels the emergency state.

General Radio Features

Initiating a Silent Emergency Alarm

Special Considerations for Emergencies

• If you press the emergency button while in a mode that has no

emergency capability, a low-pitched tone sounds.

• If the unit is out of the range of the system and/or the emergency

alarm is not acknowledged, a tone sounds and the display shows

NO ACKNOWLEDGE.

• If you press the emergency button, then change to a mode that

has no emergency capability, a NO EMERGENCY display alternates

with the mode name display, and a continuous low-pitched tone

sounds until a valid emergency mode is selected or until the

emergency is cancelled.

• When an emergency is active, changing to another mode where

emergency is enabled (trunked or conventional) causes an

emergency alarm and/or emergency call to be active on the new

mode.

1Press the emergency button to activate the silent alarm feature.



During a silent emergency alarm, there are no display changes,

and the receiver audio mutes so that no indication is given that

an emergency alarm has been sent.

2To exit the silent alarm mode, press and hold the emergency

button until a tone sounds.

Note: If silent emergency alarm is used with emergency call,

pressing the PTT button exits the silent mode and initiates

the emergency call.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Scan Operation

The scan feature allows you to monitor activity on different

conventional or trunked modes by scanning a scan list of modes. The

modes to be scanned in a scan list are programmed by a qualified

radio technician. You can select the modes to be scanned in a scan

list if operator-selectable scan is enabled.

There are three types of scan lists available:

• Conventional—Comprises up to 15 different conventional-only

modes

• Trunked Priority Monitor—Comprises up to 15 modes that are all

from the same trunked system

• Talkgroup Scan—Comprises up to 10 combined conventional

modes and modes from one trunking system

The radio supports both priority and non-priority scanning. With

priority scanning enabled, a scan list can have one mode assigned as

the first-priority mode and a second as the second-priority mode.

The XPR 4500 / XPR 4550 Mobile Radio supports automatic scanning

(autoscan), which can be programmed into the radio by a qualified

radio technician. With this feature, the radio begins scanning

whenever you select a mode to which a scan list is assigned.

Note: You cannot turn scan off on a mode that has autoscan

enabled.

If multiple scan types are enabled in the radio, the type of scan that is

activated depends on the personality of the mode selected when the

SCAN softkey is pressed. For all types of scan, the selected mode is,

by default, a member of its own scan list.

Scan lists stay in memory when you turn scan off, turn the radio off, or

disconnect the radio from the battery.

General Radio Features

Turning On Scan

Do the following:

1Press the  button to scroll to the SCAN softkey.

2Press the button below SCAN.



The Scan indicator lights and a list of modes is scanned

for activity. The text display area will indicate SCAN ON if

scan is currently enabled or SCAN OFF if scan is just

been turned off.



When a scanned mode becomes active, the display

changes to show the active mode name, the appropriate

priority indicator lights, and the radio unmutes.



The radio will not begin scanning again for a

predetermined hang time after the call ends, giving you

time to respond. The hang time is typically three

seconds (by default), but can be changed by a qualified

radio technician.

Note: A lit N PRI (non-priority) indicator means that the active

mode is a non-priority member of the scan list (for all scan

types).



A solidly-lit PRI (priority) indicator means that the active

mode is the priority 2 member of the scan list (Trunking

Priority Monitor and Conventional scan types only).



A blinking PRI indicator means that the active mode is the

priority 1 member of the scan list (Trunking Priority Monitor

and Conventional scan types only).

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Turning Scan On While Disregarding the Squelch

Code (Conventional Modes Only)

Do the following:

1Press the  button to scroll to the MON softkey.

2Press the button below MON.

3The brief MONITOR ON display indicates that the radio is

disregarding the squelch code.

Note: While scanning for activity, you can still receive fleetwide,

system-wide, dynamic regrouping, incoming telephone

interconnect and Private Conversation/Call Alert calls.



Respond to these types of calls as you would normally on

the selected mode. However, when scanning different

modes while in talkgroup scan, incoming Private

Conversation/Call Alert calls may be missed.

General Radio Features

Viewing a Scan List

1Press and hold the SCAN softkey until the Scan indicator blinks

and a beep is heard.



The radio suspends scanning while a scan list is being

reviewed.

2Press the  button to scroll to the VIEW softkey.

3Press the button below VIEW.

4Press the  button to scroll to the SCAN softkey.

5Press the button below SCAN. The radio suspends

scanning while a scan list is being reviewed.

6Press the  or button to scroll through the preprogrammed

scan list.

7Those modes that are in the scan list are indicated by N PRI,

PRI or blinking PRI indicator (indicating the mode’s assigned

priority as previously described).

8Press RCL softkey to review only modes that are already in the

scan list.

Press the HOME button momentarily to exit the scan list and

resume scanning.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Transmitting While Scan Is On

Radio Programmed for Talkback Scan

Radio Programmed for Non-Talkback Scan

Press the microphone PTT button to transmit on the mode

indicated by the display.



The radio does not begin scanning again for a predetermined

hang time (programmable by a qualified radio technician) after

you release the PTT button, allowing the other party to respond.



If the other party responds within the hang time, scanning does

not resume until the full hang time expires after they have

finished speaking, allowing the conversation to be completed.

Note: To transmit on the selected channel if another channel is

active, first turn scan off by pressing the SCAN softkey

momentarily.

In selected mode or fixed mode, press the microphone PTT

button at any time to transmit on the selected mode or fixed

mode.

Note: To make a Call Alert page, or Private Conversation call while

scanning, press either the PAGE or CALL softkey. 

The call is entered on the selected mode and scanning is

halted until the call is exited by pressing the HOME button or

pressing either the PAGE or CALL softkey.

General Radio Features

Temporarily Deleting a Nuisance Mode with Scan On

Restoring a Nuisance Mode

To temporarily delete a mode that you do not wish to hear

(nuisance mode), press the NUIS softkey by searching for it with

the help of  or .



You can delete undesired modes.

Note: Priority modes, the selected mode, and the designated

transmit mode cannot be deleted.

To restore the original scan list, do one of the following:

• Turn scan off, then on.

• Change modes.

• Turn off the radio, and then turn it back on.

Note: Nuisance mode delete can be disabled by the system

administrator.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Changing Mode Priorities While Scan Is On

When active, this dynamic priority feature allows you to change the

priority of a non-priority mode in the scan list to priority 2.

Restoring Mode Priorities in a Scan List

1Press DYNP softkey to change the priority of a non-

priority channel in the scan list to priority 2.

2Press the HOME button momentarily to exit the scan list

and resume scanning.

Note: You cannot alter the status of the priority 1 member.

To restore the original mode priorities in a scan list, do one of

the following:

•Press RCL softkey.

• Turn scan off, then on.

• Change modes.

• Turn off the radio, and then turn it back on.

General Radio Features

Programming a Scan List

To program a scan list, operator-selectable scan list members first

must be enabled in the radio programming by a qualified radio

technician.

Adding a Channel to the Scan List

1Press the  button to scroll to the PROG softkey.

2Press the button below PROG.

3Press the  button to scroll to the SCAN softkey.

4Press the button below SCAN. The scan indicator blinks

and a good-key chirp is heard.

5Press the or button to scroll through the preprogrammed

scan list.

Press the SEL softkey to add the channel.

Scroll through of the available priority choices, and press the SEL

softkey to choose one.



The new channel becomes a member of the scan list assigned to

the selected channel when scan list programming was entered.

Note: If a scan list is full, you will hear a bad-key chirp each time

you press SEL softkey, and the desired channel will not be

assigned to the list.

Press the HOME button to exit scan list programming and return to

normal scan operation.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Deleting a Channel from the Scan List

Do the following:

1Press the  button to scroll to the PROG softkey.

2Press the button below PROG.

3Press the  button to scroll to the SCAN softkey.

4Press button below SCAN. The scan indicator

blinks and a good-key chirp is heard.

5Press the or button or Mode knob to locate the

channel to be deleted.

Press the SEL softkey momentarily to scroll through the available

priority choices until the priority choice disappears.



This indicates that the channel is no longer a member of the scan

list that was assigned to the selected channel.

Press the RCL softkey momentarily to scroll through just the scan list

members.



Delete a channel from a scan list by pressing the DEL softkey.

Note: If you delete all members of a scan list, and scan is

subsequently turned on, you will hear a continuous low-

pitched tone, and the display will change to EMPTY LIST 



You cannot delete the designated transmit mode, the

selected mode, or the fixed scan list members. The selected

mode, by default, is always scanned when scan is turned

on, regardless of whether or not it is explicitly programmed

as a scan list member.

Press the HOME button to exit scan list programming and return to

normal scan operation.

General Radio Features

Hang Up Box (HUB)

To temporarily suspend Scan Mode operation, remove the

microphone from the Hang Up Box (HUB). You are allowed to use the

microphone while scan is suspended. Priority Member scanning is

not suspended, however. This feature applies to all Scan Lists and

Scan Types. Scan is resumed once the microphone is returned to the

holding clip and the preprogrammed hang time has elapsed.

Note: Priority Scan List members are continuously scanned only

when the Scan List, Designated Tx Member field is set to

“Talkback” in the radio programming. Otherwise, all scan

mode operation is suspended.

Optional External Alarms (Horn and Lights)

All control heads can be equipped for external alarms (horn and

lights) that are activated when a Call Alert page, Private Conversation

call, or phone call is received.

These features are useful when you must leave the vehicle, but need

to receive any incoming messages.



The radio always powers up with the horn and lights feature enabled.

Activating the External Alarm(s)

Non-Permanent Horn and Lights

1Press the H/L softkey momentarily.

If necessary use theor buttons to access other options

within the menu.



The last selected alarm(s) are enabled, and the display

alternately shows the enabled alarm(s), then the selected

mode.

2Press the H/L softkey a second time to turn off the alarm(s).

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Permanent Horn and Lights

Changing the Selected Alarms

1Press the H/L softkey momentarily.



The last selected alarm(s) are enabled.



The display briefly shows the enabled alarms, and then reverts

back to the selected mode.

2Press the H/L softkey a second time to turn off the alarm(s).

1Press and hold the H/L softkey until a tone sounds and the

display indicates the currently selected alarm.

2Press the appropriate softkey right below the menu to review

the choices until the display shows the desired alarm:

•H/L softkey - HORN/LITES ON (both horn and lights)

•LGTS softkey - LIGHTS ON

•HORN softkey - HORN ON

3Press the H/L softkey to select the desired alarm and return to

normal operation.

General Radio Features

Receiving a Call While Alarms Are Turned On

When a call is received, the vehicle’s horn sounds for four seconds,

and/or the car lights turn on for 60 seconds. The time interval can be

modified by a qualified radio technician.

The display alternates between the type of call received (CALL,

PAGE, or PHONE) and the selected mode name.

Turning Off Non-Rearmable External Alarm

Turning Off Rearmable External Alarms

1To turn off the external alarm(s), press the PTT button or any

control-head button.

Note: Pressing the CALL,PAGE or PHON softkey will turn off the

external alarm(s) and place you directly in that feature.



The Volume knob and the DIM button have no effect on the

state of the external alarm(s).

2To rearm the horn and lights feature, press the H/L softkey

momentarily.

To turn off the external alarm(s), press the PTT button or any control

head softkey or button other than the H/L softkey.



Pressing CALL,PAGE, or PHON softkey turns off the external alarm(s)

and places you directly in that feature. When the external alarm(s)

are turned off, they will be automatically rearmed.

Note: Pressing the H/L softkey turns off the external alarm(s) and

exits the horn and lights feature. To re-arm the feature, press

the H/L softkey momentarily.



The Volume knob and the DIM button have no effect on the

state of the external alarms.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Time-Out Timer

Your XPR 4500 / XPR 4550 Mobile Radio provides a time-out timer

function that prevents locking up a repeater or channel by prolonged

keying of the transmitter. You cannot transmit longer than the preset

timer setting. If you attempt to do so, the radio automatically stops

your transmission, and you hear a talk-prohibit tone.

Note: You will hear a brief, low-pitched, warning tone four seconds

before the transmission times out.

The timer is set for 60 seconds at the factory, but it can be

reprogrammed by a qualified radio technician for between 15 and 465

seconds (7.75 minutes), in 15-second intervals, or it can be disabled

entirely for each radio mode.

Push-To-Talk Identification (PTT-ID)

When you press the PTT button to send a message, your radio ID

number is transmitted as part of each voice message. This PTT-ID

number is then shown on the receiving radio’s display.

For the digital mode, the display shows up to eight right-justified

digits.

Pressing the CALL softkey erases the PTT-ID from the display.

The display conditions of PTT-ID must be programmed by a qualified

radio technician.

General Radio Features

Telephone Interconnect List (Conventional

and Trunking)

With any of the control heads, you can initiate and receive telephone

calls if the system is properly equipped. All calls between the mobile

operator and the land line are private, regardless of who initiates the

call.

All control heads feature a phone list capability of up to 100

preprogrammed phone numbers. The radios can be programmed by

a qualified radio technician so that a name can be assigned to each

number in the list.

Answering a Phone Call

When a phone call is received, telephone-type ringing sounds and

the display shows PHONE CALL.

1Press the PHON softkey.

2Press the PTT button to talk; release it to listen.

3When the call is completed, press the HOME button or PHON

softkey to hang up and return to normal operation.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Initiating a Telephone Call from the List

1Press the PHON softkey momentarily to select the phone

function.



A valid-key chirp is heard.



The display shows the last number dialed or a blank scratchpad

appearing as a series of dashes.

2Press the  or  button to locate the number you want to call.



The display first shows the name, and then the number.

3Press the PTT button.



The display shows the number that is automatically dialed.

Note: If the number contains a programmed pause, the dialing

pauses briefly when the display shows P. After the brief

pause, the rest of the numbers are dialed.



If you are out of range of the trunked system, the display

shows NO PHONE, and a continuous low-pitched tone

sounds. Press the PHON softkey to resume normal

operation.



If the trunked phone interconnect is in use or the phone

interconnect is out of service, a telephone-type busy tone

sounds, and the display shows PHONE BUSY. Your number is

automatically dialed when the phone interconnect becomes

available. If you hang up, you lose your place in the queue.



If the display shows PHONE BUSY with a low-pitched tone

rather than a telephone-type busy tone, the call is not

queued. You must hang up and try again.

4When your party answers, press the PTT button to talk, and

release it to listen.

5When the call is completed, press the PHON softkey to hang up

and return to normal operation.

General Radio Features

Unlimited Telephone Interconnect

Calling a Phone Number Not in the List

1Press the  or  button to access the PHON feature. 



Press the softkey under the phone feature.

2Enter the desired phone number from the optional keypad mic.



The display updates as the numbers are entered.

3Press Enter on the keypad mic to make the call

4When your party answers, press the PTT button to talk, and

release it to listen.

Note: If you are out of range of the trunked system, the display

shows NO PHONE, and a continuous low-pitched tone

sounds. Press the HOME button or the PHON softkey to

resume normal operation.



If your radio is programmed for live overdial, every digit

pressed after the phone call is established is sent to the

telephone system.



If your radio is programmed for buffer overdial, the digits

pressed are entered into the radio’s memory, and they are all

sent together when the PTT button is next pressed. You

cannot send digits and talk on the same PTT button press. If

you press the PTT button to send the digits, you must

release the PTT button and press it again to transmit.

5When the call is completed, press the HOME button or the PHON

softkey to hang up and return to normal operation.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Storing a Number in the List

1Press and hold the PHON softkey to select the phone

programming function.

2Use the navigation keys,  or  to locate the number you want

to change.

3Press the SEL softkey to edit the number in the display.

4Enter the new phone number on the keypad.

Note: To backspace, press the # button twice or the Mode down

button once. Enter a pause by pressing the * button, then

the # button.

5Press the SEL softkey to store the new number.

6Do one of the following:

• Press the HOME button to return to normal radio operation.



• Press the PHON softkey to return to normal phone operation.

General Radio Features

Editing a Name in the List

1Press and hold the PHON softkey to enter the phone ID list

programming.



The Phon indicator flashes and a high-pitched tone sounds.

2Use the navigation keys,  or  to locate the list member you

want to change.

Use the numbered keys to go immediately to the location of a

member in the list. For example, press 2 to go to the second

member in the list; press 1 and 0 to go to the tenth member in

the list, and so on.

3Change the characters or numbers using any of the numeric

keys (0 through 9) and special function keys

(*,#).

Note: The maximum number of characters permitted in a text line

is 14. If you try to add too many characters, you will hear a

low-pitched tone.

To edit, do any or all of the following:

• To enter a character at the blinking cursor, refer to the table

on page 42.



Press the key of the desired character the number of times

shown in the table. For example, to enter the character C,

press the 2 key three times.

• To leave a space in the text, press the Mode up  rocker

switch to move the blinking cursor to the next character

position, and then enter the character.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

• To delete characters, press the Mode down  rocker switch

to move backwards over existing characters.



When the last character on the display has been erased,

press the Mode down  rocker switch again to leave the

name-edit mode, without making any changes, and begin

the procedure again at step 2.

4To save the changes, press and hold the SEL softkey.

Note: Press the SEL softkey momentarily to confirm changes to a

number in the list.

5Repeat steps 2 through 4 until you have modified all the desired

names,



OR



Do one of the following:

• Press the HOME button to return to normal radio operation.



• Press the PHON softkey to return to normal phone operation.

General Radio Features

Table 1: Entering Characters Using the Keypad

Key

Number of times the key is pressed

1 2 3 4 5 6 7 8 9

2ABC2abc

3DEF3de f

4GHI 4gh i

5JKL5 j k l

6MNO6mn o

7PQRS7pqr s

8TUV8 t u v

9WXYZ9wxyz

**/+-

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

Call Alert Page (Conventional and Trunking—

Digital Modes Only)

The Call Alert feature allows a radio to selectively alert another radio,

and to determine whether or not that radio received the alert. A Call

Alert page can be initiated after an unsuccessful Private Conversation

call or as a separate feature.

The Controller Head is capable of responding to a Call Alert initiated

by another radio. It features a unique list of up to 100 preprogrammed

ID numbers. A name can be assigned to each ID in the list for your

convenience.

General Radio Features

Sending a Call Alert Page

1Press the PAGE softkey.



The Page indicator lights and a valid-key chirp sounds.



The display shows the last transmitted/received unit ID number.

2Select a radio in one of the following ways:

• From the ID number list:

– Do nothing if you want to call the unit ID currently

displayed.



– Use the prestored list by using the navigation keys to

locate the name/ID you want to call.



– Enter, using the keypad or keypad mic, the ID of the

desired unit.

Note: Using the keypad to enter the ID of another unit can only be

accomplished from the first display shown when Page was

entered. If the list has been entered, scroll to the first

display.

3Press the SEL softkey or the microphone PTT button.



The display changes to PLEASE WAIT.

XPR 4500 / XPR 4550 Mobile Radio

General Radio Features

4Choose one of the following:

• When the called radio acknowledges the page, four

additional tones sound and the display changes to ACK

RCVD.



The radio returns to normal operation.

• If you are out of the range of the system, a low-pitched tone

sounds.



Try again by pressing the PTT button or or the SEL softkey,



OR



Press the HOME button or the PAGE softkey to return to

normal operation.

• If, after six seconds, the called unit fails to acknowledge the

alert, a low-pitched tone sounds and the display changes to

NO ACK.



Try again by pressing the PTT button or the SEL softkey,



OR



Press the HOME button or the PAGE softkey to exit.

General Radio Features

Notes

XPR 4500 / XPR 4550 Mobile Radio

Conventional Radio Features

Features Used in Conventional Operation

This chapter shows you how to access features available in

conventional operation. The following topics are covered:

• Status Calls (Digital Modes Only) (page 48)

• Smart PTT (page 50)

• Conventional Talkgroup Calls (page 50)

• Conventional Talkaround (page 52)

• Selective Calls (Digital Modes Only) (page 52)

Conventional Radio Features

Status Calls (Digital Modes Only)

Radio status calls are used to inform the dispatcher of the present

state of the mobile unit. For example, a status might be ENROUTE or

AT SITE.

Status names are field programmable. Each radio can have up to 8

separate statuses.

Sending a Status Call

1Press the STS softkey, and the display shows the last-

acknowledged status name.

2Press the  or  button to review the list of status names, or

use the keypad mic to enter the number of the status you wish

to send.

Note: If no button is pressed for a period of time, an inactivity

warning will sound.

3The display shows the desired status name or number, press

the PTT button to send the transmission.



One of the following conditions occurs:

• The radio display shows PLEASE WAIT until the transmission

is received and acknowledged.



When the dispatcher acknowledges the status, four high-

pitched tones sound, and the display shows ACK RECEIVED.



The radio then returns to normal dispatch operation.

• If the status is not acknowledged after approximately six

seconds, the display alternates between NO ACKNOWLEDGE

and the associated status name. A low-pitched tone also

sounds continuously.

XPR 4500 / XPR 4550 Mobile Radio

Conventional Radio Features

• If there is no acknowledgment, do one of the following:



Press the microphone PTT button to resend the status

transmission.



OR



Press the HOME button to return to normal dispatch

operation.

Conventional Radio Features

Smart PTT

Smart PTT is a per-mode feature that gives the system manager

better control of radio operations. When smart PTT is enabled in your

radio, you will not be able to transmit on an active mode. If you try to

transmit (press the PTT button) on a busy or active smart PTT

channel, a continuous tone sounds until you release the PTT button,

and the transmission is inhibited.

The yellow BUSY LED lights when the radio is receiving to indicate

that the mode is busy.

Three radio-wide variations of smart PTT can be enabled on your

radio:

Conventional Talkgroup Calls

Digital Modes Only

This feature allows you to define talkgroups for your conventional

system. Talkgroups, combined with selective squelch operation, allow

groups of users to transparently share a conventional channel.

Talkgroups can be slaved to a personality through programming, or

you can select them.

Encryption keys are slaved to talkgroups. When conventional

talkgroups are enabled, encryption keys are changed by changing the

active talkgroup.

Transmit Inhibit on

Busy Mode with

Carrier

You will not be able to transmit if any

activity is detected on the mode.

Transmit Inhibit on

Busy Mode with

Wrong Squelch Code

You will not be able to transmit on an

active mode that has a squelch code other

than your own.

Quick-Key Override You can override either of the two previous

transmit-inhibit states by quick-keying the

radio (two quick PTT button presses).

XPR 4500 / XPR 4550 Mobile Radio

Conventional Radio Features

Selecting a Conventional Talkgroup

The Talkgroup Select feature allows you to manually select any one

of the available talkgroups.

1Press the TGRP softkey.

The display changes to show the last-selected talkgroup.

2Rotate the Mode knob to choose a different talkgroup.

3Press the SEL softkey to save the talkgroup.



The radio returns to the home display.

Note: To select the default talkgroup, press the SEL softkey while

the radio displays PRESET.



Selecting the PSET softkey causes the radio to return to its

preprogrammed talkgroup.



To abort the talkgroup menu, press the HOME button or the

PTT button:

– Pressing HOME exits the talkgroup select menu without

saving the selected talkgroup choice.

– Pressing the PTT button exits the menu without saving

the selected talkgroup and allows the radio to transmit.

Note: If the encryption key slaved to the new talkgroup is erased,

the display shows KEY FAIL and a momentary tone is

generated. If the encryption key that is slaved to the new

talkgroup is not allowed, the display shows ILLEGAL KEY

and a momentary tone is generated.

Conventional Radio Features

Conventional Talkaround

Talk Direct (Mobile-To-Mobile)

To talk directly to another unit without going through the conventional

repeater system:

Selective Calls (Digital Modes Only)

The Selective Call feature not only allows you to carry on a

conversation that is heard only by the two parties involved, but also

enables you to determine whether the unit you are calling is in

service.

The Control Head is capable of responding to a Selective Call

initiated by another radio. It features a unique list of preprogrammed

ID numbers. A name may be assigned to each ID in the list for your

convenience.

1Press the DIR softkey momentarily.



The Dir indicator lights, indicating that the radio is now

transmitting directly to another unit.

2To return to repeater operation, press the DIR softkey again.



The Dir indicator goes out.

Note: A conventional personality can be configured to always

transmit on the direct mobile-to-mobile frequency. In this

case, the Dir indicator is lit continuously while the mode is

selected.

XPR 4500 / XPR 4550 Mobile Radio

Conventional Radio Features

Answering a Selective Call

When a Selective Call is received, two high-pitched tones sound

and the display alternates between CALL RECEIVED and the home

display.

1Press the CALL softkey within 20 seconds of receiving the call.

(This time is programmable by a qualified radio technician.)



The display shows the ID number of the calling unit.

2To respond to the call, press the PTT button and talk.



If 20 seconds pass before you press the CALL softkey, you will

not respond privately to the call just received. Instead, when

you press the CALL softkey, you enter the Selective Call state,

as described in “Selective Calls (Digital Modes Only)” on

page 52.



If the system is busy when you attempt to answer the call, a

telephone-type busy tone sounds and your radio’s BUSY

indicator lights. When a channel becomes available, you

receive a call back, and your radio automatically keys up for

three seconds so that you can begin talking.

Note: If you do not press the CALL softkey before pressing the

PTT button, your conversation will be heard by all members

of the talk group.

Conventional Radio Features

Initiating a Selective Call

To initiate a Selective Call, select a unit to call, then place the call.

1Press the CALL softkey.



The Call indicator lights, and the display shows the last

transmitted/received unit ID number.

2Select a unit in one of the following ways:

• From the ID number list:

– Do nothing if you want to call the unit ID currently

displayed.



– Use the prestored list by using the navigation keys to

locate the name/ID you want to call.



– Enter, using the keypad, the ID of the desired unit.

Note: Using the keypad to enter the ID of another unit can only be

accomplished from the first display shown when CALL was

entered. If the list has been entered, scroll to the first

display.

3Press the microphone PTT button.



A telephone-type ringing sounds if the unit you are calling is in

service. The display shows PLEASE WAIT.

XPR 4500 / XPR 4550 Mobile Radio

Conventional Radio Features

4Choose one of the following conditions that applies to your

current call:

• If the receiving unit answers, identify yourself and begin your

Selective Call.

• If, after a programmable time period, you are not connected,

the display shows NO ACKNOWLEDGE and a momentary, low-

pitched tone sounds.



Try again, or press the HOME button to return to normal

operation.

• If you are out of the system’s range, a low-pitched tone

sounds.



Try again, or press the HOME button to return to normal

operation.

• If the system is busy when you attempt to make a call, the

radio you are calling hears a telephone-type busy tone.

When a channel becomes available, the called radio

receives a call back and automatically keys up for three

seconds so that conversation can begin.

5To return to normal operation, press the HOME button.

Note: If you do not press HOME to hang up, your unit will remain in

the Selective Call state with the other unit. You will miss all

subfleet traffic and incoming phone calls.

Conventional Radio Features

Viewing Your Unit ID Number

1Press the CALL softkey momentarily to select the Selective Call

feature.



The Call indicator lights.

2Do one of the following:

•Use the left navigation key to locate the MY ID display.



The display will alternate between MY ID and your ID

number.

3To return to normal operation, press the HOME button. .

XPR 4500 / XPR 4550 Mobile Radio

Conventional Radio Features

Storing a Unit ID Number in the List

The Selective and Call Alert page features share the same prestored

list of units’ IDs.

1Press and hold the CALL softkey to review the Call ID list.



The Call indicator flashes and a high-pitched tone sounds.

2Use the navigation keys to locate the list member you want to

change.

3Press the NAME softkey to store a name 



OR



press the NUM softkey to store a number.

4Use the keypad mic to update the entry.

5When all the digits are entered, press the SAVE softkey to store

the new ID.

6Repeat steps 2 through 5 until all the desired IDs have been

entered.



OR



Do one of the following:

• Press the HOME button to return to normal radio operation.



• Press PTT to exit the feature.

Note: The maximum number of characters permitted in a text line

is 14.

Conventional Radio Features

Editing a Name in the List

The Selective Call and Call Alert page features share the same

prestored list of unit IDs.

1Press and hold the CALL or PAGE softkey to enter the Call ID list.



The Call indicator flashes and a high-pitched tone sounds.

2Use the navigation keys to locate the list member you want to

change.



OR



Use the numbered keys to go immediately to the location of a

member in the list. For example, press 2 to go to the second

member in the list; press 1 and 0 to go to the tenth member in

the list, and so on.

3Press and hold the SEL button to select the name-editing

function.

4Change the characters or numbers using any of the numeric

keys (0 through 9) and special function keys (*,#) with the

keyapd mic.

Note: The maximum number of characters permitted in a text line

is 14. If you try to add too many characters, you will hear a

low-pitched tone.

To edit, do any or all of the following:

• To enter a character at the blinking cursor, refer to the table

on page 42.



Press the key of the desired character the number of times

shown in the table. For example, to enter the character C,

press the 2 key three times.

• To leave a space in the text, press the up  navigation key to

move the blinking cursor to the next character position, and

then enter the next character.

XPR 4500 / XPR 4550 Mobile Radio

Conventional Radio Features

• To delete characters, press the down  navigation key to

move backwards over existing characters.



When the last character on the display has been erased,

press the down  navigation key again to leave the name-

edit mode, without making any changes, and begin the

procedure again at step 2.

5To save the changes, press and hold the SEL softkey.

Note: Press the SEL softkey momentarily to confirm changes to a

number in the list.

6Repeat steps 2 through 5 until you have modified all the desired

names.



OR



Do one of the following:

• Press the HOME button to return to normal radio operation.



• Press PTT to exit the feature.

Conventional Radio Features

Notes

XPR 4500 / XPR 4550 Mobile Radio

Troubleshooting

The following are suggestions to assist you in troubleshooting

possible operating problems.

If your radio is locked up or the display shows FAIL 01/90, turn the

radio off and then back on. If this does not correct the condition, take

the radio to a qualified radio technician for service.

If radio operation is intermittent, check with other persons using the

system for similar problems before taking the radio in for service.

Similar problems indicate a system malfunction rather than a radio

failure.

If symptoms persist or, if your unit exhibits other problems, contact a

qualified radio technician.

The cables that connect to the rear of

the radio could have live voltage on

some of their pins. Do not remove or

reconnect these cables. Only a

qualified radio technician should

perform this task. Service performed

by unauthorized personnel may cause

the radio to transmit an emergency

alarm even if the unit is turned off.

CAUTION

Troubleshooting

XPR 4500 / XPR 4550 Mobile Radio

Accessories

Motorola provides the following approved accessories to improve the

productivity of your XPR 4500 / XPR 4550 mobile two-way radio.

For a list of Motorola-approved antennas and other

accessories, visit the following web site:

http://www.motorola.com/governmentandenterprise

Antennas

Part No. Description

HAE4002_ UHF 403- 430 MHz, 1/ 4 Wave Roof

Mount Mini U

HAE4003_ UHF 450- 470 MHz, 1/ 4 Wave Roof

Mount Mini U

HAE4010_ UHF 406- 420 MHz, 3.5dB Gain Roof

Mount Mini U

HAE4011_ UHF 450- 470 MHz, 3.5dB Gain Roof

Mount Mini U

RAE4004_RB UHF 445-470 MHz, 5.0dB Gain Roof

Mount Mini U

Accessories

Cables

Desktop

Part No. Description

RKN4135_ 15ft Speaker Cable (for Public Address

Speaker)

RKN4136_ Ignition Switch Cable

HKN4137_ Power Cable (to Battery) - 10 Ft.

HKN4192_ Power Cable (to Battery) - 20 Ft.

Part No. Description

GLN7318_ Desktop Tray without Speaker

RSN4005_ Desktop Tray with Speaker

HPN4001_ Power Supply 14V 10 Amp 117/240 VAC

(25-60W)

GPN6145_ Switchmode Power Supply (CE Marked

for EMEA)

GKN6266_ Power Supply Cable (PS to desktop

mobile cable for GPN6145)

NTN7373_R US Linecord (3060665A04) - PS power

cable

NTN7374_R Euro Linecord (3060665A05) - PS

power cable

NTN7375_R UK Linecord (300212F02) - PS power

cable

NTN9246_ Argentina Linecord (3085801L01) - PS

power cable

HKN9088_ Adapter Cable for Control Station - 8

Foot

XPR 4500 / XPR 4550 Mobile Radio

Accessories

Microphones

Miscellaneous

Mounting Kits

Part No. Description

RMN5052_ Core Compact Mic

RMN5065_ Smart Keypad Mic

RMN5053_ Smart Heavy Duty Mic

RMN5050_ Core Desktop Mic

RMN5054_ Smart Visor Mic

Part No. Description

RLN5926_ Push Button PTT

RLN5929_ Emergency Footswitch

HLN9073_ Mic Hang Up Clip

HLN9414_ Mic Hang-up clip (no installation

required)

HKN9557_ PL259/Mini-U Antenna Adapter - 8"

cable

Part No. Description

GLN7324_ Low Profile Mounting bracket

GLN7317_ High Profile Mounting bracket

RLN4779_ Key Lock Mt

RLN5933_ DIN Mount

Accessories

Speakers

Part No. Description

RSN4002_ 13 Watt External Loudspeaker

RSN4003_ 7.5 Watt External Speaker

RSN4004_ 5 Watt External Speaker

HSN1000_ 6-Watt Public Address Speaker

(weather resistant)

XPR 4500 / XPR 4550 Mobile Radio

Glossary

ACK Acknowledgment of communication.

Channel A group of characteristics, such as transmit/

receive frequency pairs, radio parameters, and

encryption encoding.

Coded Squelch Tone Private-Line™ or Digital Private-Line.

Used on conventional channels to make sure

you hear only the communication meant for

you.

Control Channel In a trunking system, one of the channels that

is used to provide a continuous, two-way/data

communications path between the central

controller and all radios on the system.

Conventional Typically refers to radio-to-radio

communications, sometimes through a

repeater. You share a frequency, or

frequencies, with other users without the aid of

a central controller to assign communication

channels. Therefore, you should monitor each

channel before transmitting to avoid interfering

with another user who may be transmitting.

Cursor A visual tracking marker (a blinking line) that

indicates a location on the display.

Digital Private-

Line (DPL) Coded

Squelch

A continuous, sub-audible data signal,

transmitted with the carrier.

Dispatcher An individual who has radio system

management duties.

Failsoft A back-up system allowing you to

communicate in a non-trunked, conventional

mode should the trunked system fail.

FCC Federal Communications Commission.

XPR 4500 / XPR 4550 Mobile Radio

Glossary

Hang Up Disconnect.

Home Display The first display information after the radio

completes its self test.

LCD Liquid-Crystal Display.

Mode A programmed combination of operating

parameters; for example, a channel or

talkgroup.

Mode-Slaving Radio programmed to automatically give the

proper operation for a given mode you have

selected.

Monitoring

(Conventional

Operation)

Press a programmed monitor button to listen to

another user active on the channel. This way,

you may be prevented from talking over

someone else’s conversation.

Page A one-way alert, with audio and/or display

messages.

Push-To-Talk

(PTT) button

The PTT button engages the transmitter and

puts the radio in transmit (send) operation

when pressed. Press this button to transmit;

release it to receive.

Repeater A conventional radio feature, in which you talk

through a receive/transmit facility (repeater)

that re-transmits received signals in order to

improve communications range and coverage.

RF Radio Frequency. A part of the general

frequency spectrum between the audio and

infrared light regions (about 10 kHz to

10,000,000 MHz).

RSSI Received Signal Strength Indicator.

Glossary

Squelch The muting of audio circuits when received

signal levels fall below a pre-determined

threshold. With carrier squelch, you hear all

channel activity which exceeds the radio’s

preset squelch level.

Standby An operating condition whereby the radio’s

speaker is muted but still continues to receive

data.

Talkgroup An organization (or group) of radio users who

communicate with each other, using the same

communication path.

Tone Private-Line

(PL) Coded

Squelch

A continuous sub-audible tone transmitted with

the carrier.

Trunking The automatic sharing of communications

paths between a large number of users (see

Conventional). Allows radio users to share a

smaller number of frequencies because a

repeater, or communications path, is assigned

to a talkgroup for the length of a conversation.

Zone A grouping of channels or talkgroups.

XPR 4500 / XPR 4550 Mobile Radio

Index

Symbols

800 MHz frequencies ....................2

add scan list channel ..................30

adjust

display brightness .....................5

squelch level ...........................17

volume .......................................5

alarms

activate non-permanent ..........32

activate permanent ..................33

change selected ......................33

horn and lights .........................32

initiate

emergency ...........................20

emergency call and alarm ....21

silent emergency .................22

non-permanent horn 

and lights activation ..............32

non-rearmable external ...........34

optional external ......................32

permanent horn and lights

activation ................................33

rearmable external ..................34

receiving call when on .............34

alert tones .....................................7

answer

Enhanced Private Conversation

call .........................................53

phone call ................................36

automatic scanning .....................23

autoscan .....................................23

basic operation ...........................11

box, hang up (HUB) ....................32

button

PTT .........................................27

call

answer phone ......................... 36

conventional talkgroup ............ 50

emergency .............................. 19

Enhanced Private 

Conversation ........................ 54

initiate

emergency .......................... 20

Enhanced Private 

Conversation ...................... 54

from phone list ..................... 37

phone number not in list ......... 38

receiving when alarms 

turned on .............................. 34

Call Alert page

description .............................. 43

placing .................................... 44

selecting unit to call ................ 44

sending ................................... 44

calls, status ................................. 48

change

mode ....................................... 12

mode in current zone .............. 13

mode not in current zone ........ 13

mode priorities ........................ 29

selected alarms ....................... 33

zone ........................................ 12

channels, conventional ................. 6

control head

operation ................................... 3

status display ............................ 7

conventional

channel ..................................... 6

mode ....................................... 15

scan list ................................... 23

selecting talkgroup .................. 51

talkaround ............................... 52

talkgroup calls ......................... 50

conventional mode, monitoring

activity ....................................... 16

current zone

change mode .......................... 13

select mode ............................ 13

100

Index

delete

nuisance mode ........................28

scan list channel ......................31

display, brightness adjustment ......5

edit name in list ...........................40

embedded signaling ......................2

emergencies, special 

considerations ..........................22

emergency call

initiating ...................................20

trunking ....................................19

emergency call and alarm

description ...............................19

initiating ...................................21

Enhanced Private Conversation

answer a call ............................53

initiate call ................................54

select unit to call ......................54

entering keypad characters .........42

external alarms ............................32

activate non-permanent horn 

and lights ...............................32

activate permanent horn 

and lights ...............................33

non-rearmable .........................34

rearmable ................................34

frequency ranges

800 MHz ....................................2

glossary .......................................90

hang time ....................................24

hang up box (HUB) .....................32

Home

mode, selecting ....................... 14

horn and lights alarms ................ 32

HUB (hang up box) ..................... 32

identification, radio ........................ 3

indicator

N PRI (non-priority) ................. 24

PRI (priority) ............................24

scan ........................................24

initiate

emergency alarm ....................20

emergency call and alarm ....... 21

Enhanced Private Conversation 

call ........................................54

phone call from list .................. 37

silent emergency alarm ........... 22

interconnect, unlimited telephone 38

introduction to radios .................... 1

keypad

character selection sequence . 42

entering characters ................. 42

list

edit name ................................40

phone, place call ..................... 37

scan ........................................23

store phone number ................ 39

telephone interconnect ............ 36

mode

changing ................................. 13

changing outside current zone 13

priorities, changing .................. 29

selecting .................................. 13

selecting Home ....................... 14

selecting outside current zone 13

selection .................................. 12

XPR 4500 / XPR 4550 Mobile Radio

Index

slaving .......................................6

transmitting (conventional) ......15

transmitting (trunked) ..............15

trunked ......................................6

monitoring

conventional mode activity ......16

N PRI (non-priority) indicator ......24

non-priority scanning ...................23

non-rearmable external alarms ...34

non-talkback scan .......................27

nuisance mode

deleting ....................................28

restoring ..................................28

operation

basic ........................................11

control head ..............................3

scan .........................................23

operator-selectable scan .............23

phone numbers, preprogrammed 36

place phone call from list ............37

placing Call Alert page ................44

power level selection ...................16

powering on radio .....................4, 5

preprogrammed phone numbers 36

PRI (priority) indicator .................24

priority scanning ..........................23

programming scan list .................30

PTT button ..................................27

PTT-ID (Push-to-Talk 

identification) ............................35

Push-to-Talk 

identification (PTT-ID) ..............35

radio identification .........................3

rearmable external alarms ..........34

receive

call with alarms turned on ....... 34

restore

mode priorities ........................ 29

nuisance mode ....................... 28

scan

autoscan ................................. 23

indicator .................................. 24

non-priority .............................. 23

non-talkback ........................... 27

operation ................................. 23

operator-selectable ................. 23

priority ..................................... 23

talkback ................................... 27

transmit while on ..................... 27

turning on ................................ 24

scan list

add a channel ......................... 30

conventional ............................ 23

delete a channel ..................... 31

modes ..................................... 23

programming ........................... 30

restore mode priorities ............ 29

talkgroup scan ........................ 23

trunked priority ........................ 23

viewing .................................... 26

select

Call Alert page unit ................. 44

conventional talkgroup ............ 51

Home mode ............................ 14

mode ....................................... 12

mode in current zone .............. 13

mode not in current zone ........ 13

power level .............................. 16

volume level .............................. 5

zone ........................................ 12

send

Call Alert page ........................ 44

status call ................................ 48

service ........................................ 97

slaved programming ..................... 6

102

Index

slaving, mode ................................6

smart PTT ...................................50

squelch, adjusting level ...............17

status calls

description ...............................48

sending ....................................48

status display, control head ...........7

store phone number in list ...........39

talk direct (mobile-to-mobile) .......52

talkback scan ..............................27

talkgroup scan list .......................23

telephone interconnect list ..........36

time-out timer ..............................35

tones, alert ....................................7

transmit

conventional modes .................15

trunked modes .........................15

with scan on ............................27

transmitting ..................................15

troubleshooting ...........................61

trunked

Call Alert page .........................43

mode ...................................6, 15

priority scan list ........................23

trunking

answer phone call ....................36

emergency call ........................19

initiating emergency call ..........20

status calls ...............................48

telephone interconnect list .......36

unlimited telephone 

interconnect ..........................38

turn on

radio ......................................4, 5

scan .........................................24

UHF frequencies ...........................2

units

troubleshooting ........................61

unlimited telephone

interconnect ..............................38

VHF frequency ..............................2

viewing scan list .......................... 26

volume, adjusting .......................... 5

warranty ......................................93

zone selection ............................. 12

XPR 4500 / XPR 4550 Mobile Radio

Commercial Warranty and Service

Limited Warranty

MOTOROLA COMMUNICATION PRODUCTS

I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:

MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA

manufactured Communication Products listed below (“Product”)

against defects in material and workmanship under normal use and

service for a period of time from the date of purchase as scheduled

below:

Motorola, at its option, will at no charge either repair the Product (with

new or reconditioned parts), replace it (with a new or reconditioned

Product), or refund the purchase price of the Product during the

warranty period provided it is returned in accordance with the terms of

this warranty. Replaced parts or boards are warranted for the balance

of the original applicable warranty period. All replaced parts of

Product shall become the property of MOTOROLA.

This express limited warranty is extended by MOTOROLA to the

original end user purchaser only and is not assignable or transferable

to any other party. This is the complete warranty for the Product

manufactured by MOTOROLA. MOTOROLA assumes no obligations

or liability for additions or modifications to this warranty unless made

in writing and signed by an officer of MOTOROLA. Unless made in a

separate agreement between MOTOROLA and the original end user

purchaser, MOTOROLA does not warrant the installation,

maintenance or service of the Product.

MOTOROLA cannot be responsible in any way for any ancillary

equipment not furnished by MOTOROLA which is attached to or used

in connection with the Product, or for operation of the Product with

any ancillary equipment, and all such equipment is expressly

excluded from this warranty. Because each system which may use

the Product is unique, MOTOROLA disclaims liability for range,

coverage, or operation of the system as a whole under this warranty.

XPR 4500 / XPR 4550 Mobile Radio Two (2) Years

Product Accessories One (1) Year

Commercial Warranty and Service

II. GENERAL PROVISIONS:

This warranty sets forth the full extent of MOTOROLA'S

responsibilities regarding the Product. Repair, replacement or refund

of the purchase price, at MOTOROLA’s option, is the exclusive

remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER

EXPRESS WARRANTIES. IMPLIED WARRANTIES, INCLUDING

WITHOUT LIMITATION, IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED

WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR

DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE

PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,

INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR

SAVINGS OR OTHER INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR

INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT

SUCH MAY BE DISCLAIMED BY LAW.

III. STATE LAW RIGHTS:

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR

LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, SO

THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY.

This warranty gives specific legal rights, and there may be other

rights which may vary from state to state.

IV. HOW TO GET WARRANTY SERVICE:

You must provide proof of purchase (bearing the date of purchase

and Product item serial number) in order to receive warranty service

and, also, deliver or send the Product item, transportation and

insurance prepaid, to an authorized warranty service location.

Warranty service will be provided by Motorola through one of its

authorized warranty service locations. If you first contact the company

which sold you the Product, it can facilitate your obtaining warranty

service. You can also call Motorola at 1-888-567-7347 US/Canada.

XPR 4500 / XPR 4550 Mobile Radio

Commercial Warranty and Service

V. WHAT THIS WARRANTY DOES NOT COVER:

A) Defects or damage resulting from use of the Product in other

than its normal and customary manner.

B) Defects or damage from misuse, accident, water, or neglect.

C) Defects or damage from improper testing, operation,

maintenance, installation, alteration, modification, or

adjustment.

D) Breakage or damage to antennas unless caused directly by

defects in material workmanship.

E) A Product subjected to unauthorized Product modifications,

disassemblies or repairs (including, without limitation, the

addition to the Product of non-Motorola supplied equipment)

which adversely affect performance of the Product or

interfere with Motorola's normal warranty inspection and

testing of the Product to verify any warranty claim.

F) Product which has had the serial number removed or made

illegible.

G) Rechargeable batteries if:

• any of the seals on the battery enclosure of cells are

broken or show evidence of tampering.

• the damage or defect is caused by charging or using the

battery in equipment or service other than the Product for

which it is specified.

H) Freight costs to the repair depot.

I) A Product which, due to illegal or unauthorized alteration of

the software/firmware in the Product, does not function in

accordance with MOTOROLA’s published specifications or

the FCC type acceptance labeling in effect for the Product at

the time the Product was initially distributed from

MOTOROLA.

Commercial Warranty and Service

J) Scratches or other cosmetic damage to Product surfaces that

does not affect the operation of the Product.

K) Normal and customary wear and tear.

VI. PATENT AND SOFTWARE PROVISIONS:

MOTOROLA will defend, at its own expense, any suit brought against

the end user purchaser to the extent that it is based on a claim that

the Product or parts infringe a United States patent, and MOTOROLA

will pay those costs and damages finally awarded against the end

user purchaser in any such suit which are attributable to any such

claim, but such defense and payments are conditioned on the

following:

A) that MOTOROLA will be notified promptly in writing by such

purchaser of any notice of such claim;

B) that MOTOROLA will have sole control of the defense of such

suit and all negotiations for its settlement or compromise; and

C) should the Product or parts become, or in MOTOROLA’s

opinion be likely to become, the subject of a claim of

infringement of a United States patent, that such purchaser

will permit MOTOROLA, at its option and expense, either to

procure for such purchaser the right to continue using the

Product or parts or to replace or modify the same so that it

becomes non-infringing or to grant such purchaser a credit

for the Product or parts as depreciated and accept its return.

The depreciation will be an equal amount per year over the

lifetime of the Product or parts as established by

MOTOROLA.

MOTOROLA will have no liability with respect to any claim of patent

infringement which is based upon the combination of the Product or

parts furnished hereunder with software, apparatus or devices not

furnished by MOTOROLA, nor will MOTOROLA have any liability for

the use of ancillary equipment or software not furnished by

MOTOROLA which is attached to or used in connection with the

XPR 4500 / XPR 4550 Mobile Radio

Commercial Warranty and Service

Product. The foregoing states the entire liability of MOTOROLA with

respect to infringement of patents by the Product or any parts thereof.

Laws in the United States and other countries preserve for

MOTOROLA certain exclusive rights for copyrighted MOTOROLA

software such as the exclusive rights to reproduce in copies and

distribute copies of such Motorola software. MOTOROLA software

may be used in only the Product in which the software was originally

embodied and such software in such Product may not be replaced,

copied, distributed, modified in any way, or used to produce any

derivative thereof. No other use including, without limitation,

alteration, modification, reproduction, distribution, or reverse

engineering of such MOTOROLA software or exercise of rights in

such MOTOROLA software is permitted. No license is granted by

implication, estoppel or otherwise under MOTOROLA patent rights or

copyrights.

VII. GOVERNING LAW:

This Warranty is governed by the laws of the State of Illinois, USA.

Service

Proper repair and maintenance procedures will assure efficient

operation and long life for this product. A Motorola maintenance

agreement will provide expert service to keep this and all other

communication equipment in perfect operating condition. A

nationwide service organization is provided by Motorola to support

maintenance services. Through its maintenance and installation

program, Motorola makes available the finest service to those

desiring reliable, continuous communications on a contract basis. For

a contract service agreement, please contact your nearest Motorola

service or sales representative, or an authorized Motorola dealer.

Express Service Plus (ESP) is an optional extended service coverage

plan, which provides for the repair of this product for a period of three

years from the date of shipment from the factory, or the date of

delivery if purchased from an authorized Motorola two-way radio

dealer. For more information about ESP, contact the Motorola Radio

Support Center, 2204 Galvin Drive, Elgin, IL 60123, 1-800-227-6772.

Commercial Warranty and Service

Notes

XPR 4500 / XPR 4550 Mobile

Radio with Control Head

Quick Reference Card

Product Safety and RF Exposure Compliance

ATTENTION!

This radio is restricted to occupational use only to satisfy

FCC RF energy exposure requirements. Before using this

product, read the RF energy awareness information and

operating instructions in the Product Safety and RF

Exposure booklet enclosed with your radio (Motorola

Publication part number 6881095C99) to ensure

compliance with RF energy exposure limits.

BASIC OPERATION

Turning the Radio On and Off

Setting the Volume and Squelch

Changing Modes

Transmitting

Transmitting (Conventional Modes)

Activating Scan

Programming a Scan List

Selecting Scan Mode Priority

Before using this product, read the operating instructions

for safe usage contained in the Product Safety and RF

Exposure booklet enclosed with your radio.

Press the Pwr button once.

1Turn the Vol knob clockwise to increase volume or

counterclockwise to decrease volume as desired.

2On conventional modes with Private-Line or Digital

Private-Line, press MON softkey to defeat the coded

squelch.

3Press MON softkey again to return to coded-squelch

operation.

4To adjust squelch level, hold MON softkey until a tone

sounds.

5Rotate the Mode knob clockwise to increase squelch

level or counterclockwise to decrease squelch level.

6Press Home button to save the squelch level.

Rotate the Mode knob to select the desired mode.



OR



Press Home button to access the preprogrammed

Home mode.

1Press and hold the microphone PTT button.

2When the transmit light comes on solid and no alert

tones sound (or a talk-permit tone or ID sidetone

sounds), speak into the microphone in a normal voice.

3State your FCC call sign at the beginning of each

transmission.

1Press Dir (Direct) softkey. The Dir indicator lights.

2Press Dir softkey again to return to repeater

operation.

1Press Scan softkey to start a scan. If no activity

exists, the display shows your selected mode. When

a scanned channel or talkgroup becomes active, the

display shows the active mode name. The PRI and

NPRI indicators show priority.

2Press Scan softkey again to stop scanning.

1Press Prog softkey followed by Scan softkey until the

scan list is being displayed and the scan indicator

blinks.

2Use the navigation keys to select the mode you want

to program.

3Press the Sel softkey as indicated in the table below

to add or remove the displayed mode from the scan

list.

4Repeat the previous steps to continue editing the list.

5Press Home button to exit.

Press Sel Mode Indicator

One time Non-Priority NPRI lit

Two times Second Priority PRI lit

Three times First Priority PRI blinks

Four times Delete from List No indicator

1Press the Sel softkey as indicated in the table above

to designate up to two modes as priorities.

2Press Home or Scan to end scan list selection.

Sending an Emergency Alarm or Call

Sending a Status Transmission

Sending a Direct-Entry Enhanced Private

Conversation Call

Initiating a Call Alert Page

Answering a Call Alert Page

Selecting a Zone/Mode (Optional)

Selecting a Home Zone/Home Mode

Press the emergency actuator (Emer button,

footswitch, hidden pushbutton) to begin an

emergency transmission.



For conventional modes, a silent or non-silent

emergency alarm data transmission is sent.



For trunked modes, emergency call (priority access

to a voice channel), silent or non-silent emergency

alarm, or emergency alarm and call are entered.



Depending on your radio's programming, one of the

emergency sequences described in the table below

occur.

Alarm Type Indications/Actions

Non-Silent A tone sounds and the display

alternates between EMERGENCY and the

zone/channel. When acknowledged,

four more tones sound and the display

shows ACK RECEIVED, then the radio

returns to normal operation.

Silent The audio is muted and no display

changes take place during the alarm. 



Press the PTT button, or press and

hold the emergency button to stop the

emergency condition and unmute the

radio.

Call (Trunked

Modes only)

A tone sounds and the display

alternates between EMERGENCY and the

zone/channel.



Press the PTT button and talk.



After completing the call, press and

hold the emergency actuator until a

tone sounds to return to normal

operation.

Alarm and Call After ACK RECEIVED (see Non-Silent

Alarm above) is displayed, the radio

has priority voice-channel access.



Press the PTT button and talk.



After completing the call, press and

hold the emergency actuator until a

tone sounds to return to normal

operation.

1Press Sts softkey. The display shows the last

acknowledged status or first status name.

2Use the navigation keys to select other statuses.

3Press the PTT button to send the transmission. The

display flashes the selected status/message name

until the dispatcher acknowledges, at which time alert

tones sound and the display shows ACK RECEIVED.

The radio then returns to normal operation.

1Press the PTT button. A single tone sounds and the

display changes to PLEASE WAIT, followed by

telephone-type ringing if the receiving unit is in

service.

2If the receiving unit answers, press the PTT button to

identify yourself and proceed with your call.



OR



If the called unit does not respond, press Sel or the

PTT button again to leave a Call Alert page message

and your ID.

A single tone followed by four tones sounds if the

called unit acknowledges the page.

Alarm Type Indications/Actions

1Press the Page softkey.

2Follow the instructions for initiating a Private

Conversation to select a unit ID.

3Press Sel or the PTT button to send a Call Alert page

to the displayed ID,



OR



To send a Call Alert page following an Enhanced

Private Conversation attempt, follow the instructions

for sending a direct-entry Enhanced Private

Conversation call.

Four tones sound and PAGE RCV flashes on the

display. The tone and display repeat every five

seconds.

1Press the PTT button,



OR



Initiate an Enhanced Private Conversation call to the

caller.

1Press the Zone softkey and then the arrow

keyorto scroll to the desired zone.

2Rotate the Mode knob to select the mode.

Press the Home button.

Selecting Secure Mode

Selecting an Encryption Key

Selecting a Key Index

Erasing an Encryption Key

DISPLAY AND LIGHT INDICATORS

Press and release the SEC softkey. The D indicator

lights up.

1Press and hold the SEC softkey until a tone sounds.

2Use the navigation keys to scroll to KEY SEL.

3Press Sel to enter the Key Selection Menu.

4Use the navigation keys to select desired key.

5Press Sel to select key.

6Press Home or the PTT button to quit.

1Press and hold the SEC softkey until a tone sounds..

2Use the navigation keys to scroll to INDX SEL.

3Press Sel to enter the Index Selection Menu.

4Use the navigation keys to select desired index.

5Press Sel to select index.

6Press Home or the PTT button to quit.

1Press and hold the SEC softkey until a tone sounds.

2Use the navigation keys to scroll to ERASE KY.

3Press Sel to enter the Key Erase Menu.

4Use the navigation keys to select desired index.

5Press Sel to select index.

6Press Home or the PTT button to quit.

Display/Light Meaning

BUSY light on Displayed conventional mode has

activity on it, or selected trunked

system is currently busy. Wait for

callback.

XMIT light on Indicates you are transmitting.

Dir indicator lit Radio is in direct (mobile-to-

mobile) operation.

PRI,NPRI

indicators lit

Display shows a mode in the scan

list with the indicated priority level.

P displayed Telephone dialing pause. Press

Sel softkey to continue the dialing.

NO ACKNOWLEDGE

displayed

Unit being called with the

Enhanced Private Conversation or

Call Alert Page feature is not in

service, or emergency alarm or

status/message transmission is

not acknowledged by dispatcher.

PHONE BUSY

displayed

Trunked phone interconnect is

busy.

NO ANSWER

displayed

Unit being called with Enhanced

Private Conversation or Call Alert

Page does not respond, but is

operational.

EMERGENCY

displayed

Radio is in emergency alarm or call

state.

NO EMERGENCY

displayed

A mode incapable of emergency

transmission has been selected.

OUT OF RANGE

displayed

Radio is out of range of the

trunking system.

Examples: Not exiting phone mode after a call (radio

cannot receive fleet or subfleet calls), transmitting in

receive-only conventional mode, trying to select a dynamic

mode when no dynamic ID assignment has been made.

ALERT TONES

Type of Tone Name Explanation

1 Low-Pitched

Tone

Invalid Key

Alert

Feature button

pressed is not valid

in selected mode, or

a Call Alert or

emergency alarm

was not

acknowledged.

1 High-Pitched

Tone

Central

Acknowledge

or Valid Key

Central controller

has received request

for Call Alert or

emergency alarm

transmission.

You pressed a valid

key.

4 High-Pitched

Tones

Dispatcher or

Mobile Unit

Acknowledge

Dispatcher is

acknowledging your

emergency

transmission. Mobile

unit has received

your Call Alert.

5 High-Pitched

Tones

The above two

acknowledge tones,

heard in tandem.

2 High-Pitched

Tones

Private

Conversation

You have an

incoming call. Press

Call, then the PTT

button, then talk.

4 High-Pitched

Tones every 6

seconds

Call Alert Page Call Alert page has

been received.

Phone-Type

Busy Tone

(when pressing

the PTT button)

System Busy All system radio

channels in use.

Release the PTT

button, and wait for

callback.

2 Short High-

Tones (after

requesting a

busy channel)

upon pressing

the PTT button)

Automatic Call

Back or Talk

Permit

Channel is available

for previously

requested

transmission.

System is accepting

your transmission.

Low-Pitched

Tone (upon

pressing the

PTT button

during Transmit)

(Operation

Error)

Talk Prohibit/

Out-of-Range

or Time-Out

Timer or Illegal

Mode

Out of trunked radio

system range or

system is out of

service.

Present transmission

will soon be disabled.

You have entered a

mode where normal

system traffic will be

missed, or you

attempted something

that is not allowed.

(See examples

below.)

High-Pitched

Tone every 10

seconds in

unmuted receive

condition

Failsoft System central

controller failure. The

radio reverts from

trunked operation to

operation similar to a

conventional

repeater.

Others may share

the channel.

ALERT TONES (Continued)

Type of Tone Name Explanation

2006

6816817H01

Draft 2 - 8th of Mar 2006

Motorola Solutions 99FT4080 MOTOTRBO UHF 40W Mobile Radio User Manual 6816817H01 A FCC Draft
