Accessing the Programmed Functions

You can access various radio functions through one of the

following ways:

•A short or long press of the

relevant programmable buttons.

•Use the Menu Navigation Buttons as follows:

1To access the menu, press the c button. Press the

appropriate Menu Scroll button (<or >) to access

the menu functions.

2To select a function or enter a sub-menu, press the e

button.

3To go back one menu level, or to return to the previous

screen, press the d button. Long press the d button

to return to the Home screen.

NOTE: Your radio automatically exits the menu after a period

of inactivity and returns to your Home screen.

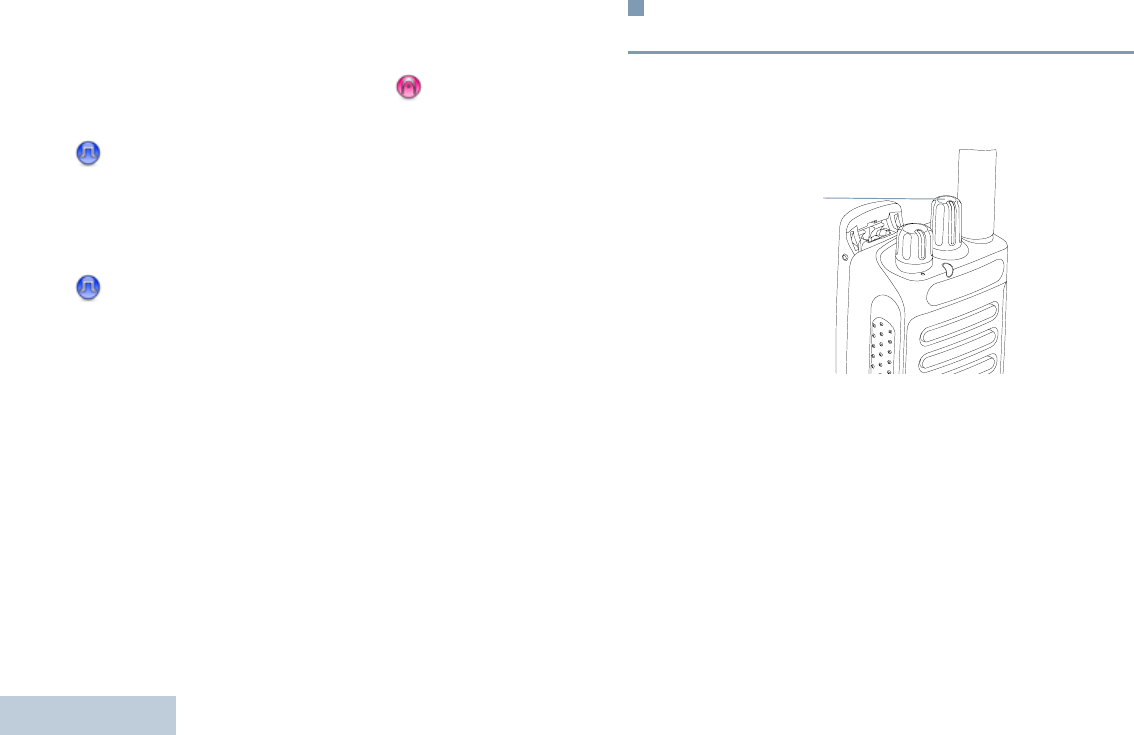

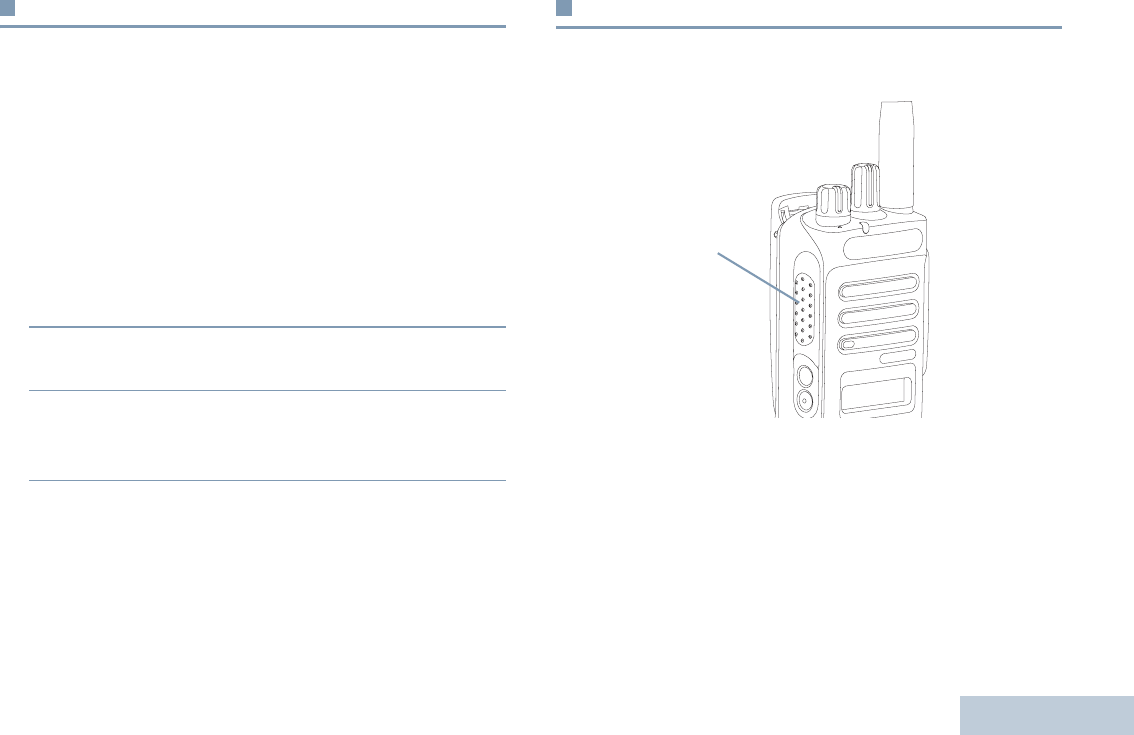

Push-To-Talk (PTT) Button

The PTT button on the side of the radio serves two basic

purposes:

•While a call is in progress, the PTT button allows the radio to

transmit to other radios in the call.

Press and hold down PTT button to talk. Release the PTT

button to listen.

The microphone is activated when the PTT button is pressed.

c e

PTT

Button

NAG-LACR.book Page 10 Thursday, April 12, 2012 5:58 PM

English

•While a call is not in progress, the PTT button is used to make

a new call (see Making a Radio Call on page 23).

If the Talk Permit Tone (see Turning the Talk Permit Tone On

or Off on page 61) or the PTT Sidetone is enabled, wait

until the short alert tone ends before talking.

During a call, if the Channel Free Indication feature is

enabled on your radio (programmed by your dealer), you

will hear a short alert tone the moment the target radio (the

radio that is receiving your call) releases the PTT button,

indicating the channel is free for you to respond.

You will also hear a continuous talk prohibit tone, if your

call is interrupted, indicating that you should release the

PTT button, for example when the radio receives an

Emergency Call.

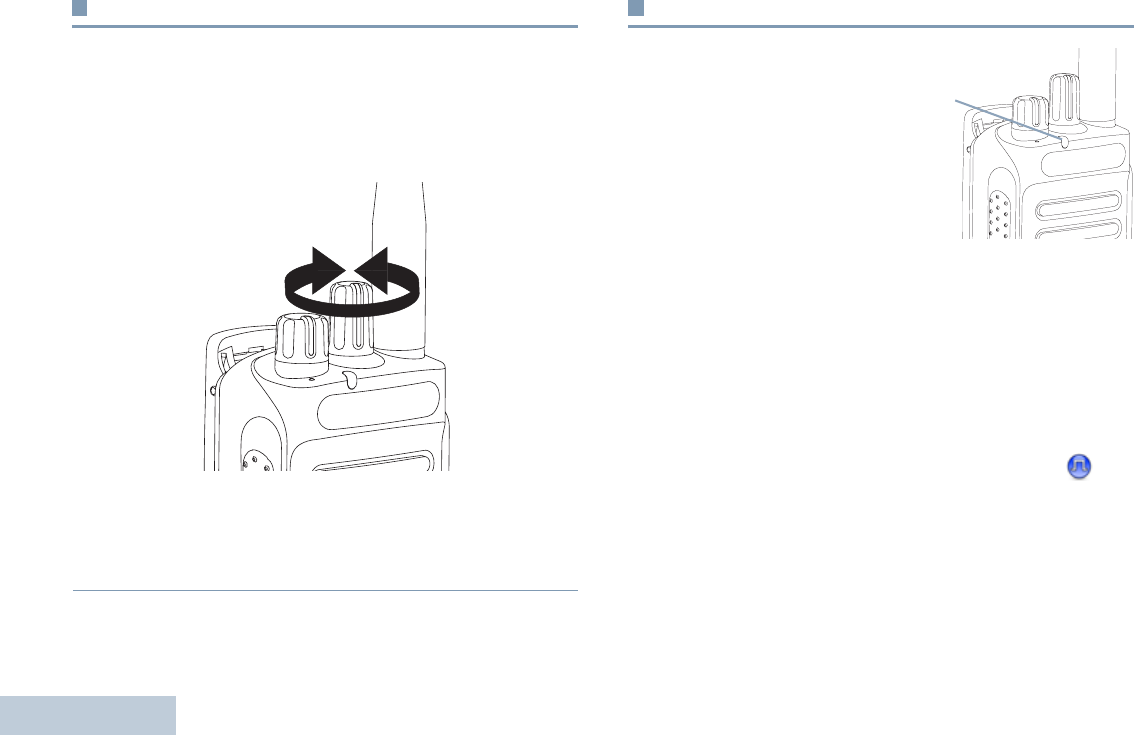

Switching Between Conventional Analog and

Digital Mode

Each channel in your radio can be configured as a conventional

analog or conventional digital channel. Use the Channel

Selector Knob to switch between an analog or a digital channel.

When switching from digital to analog mode, certain features

are unavailable. Icons for the digital features (such as

Messages) reflect this change by appearing ‘grayed out’.

Disabled features are hidden in the menu.

Your radio also has features available in both analog and digital

mode. However, the minor differences in the way each feature

works does NOT affect the performance of your radio.

Your radio also switches between digital and analog modes

during a dual mode scan (see Scan on page 32).

Channel

Selector

Knob

NAG-LACR.book Page 11 Thursday, April 12, 2012 5:58 PM

English

IP Site Connect

This feature allows your radio to extend conventional

communication beyond the reach of a single site, by connecting

to different available sites which are connected via an Internet

Protocol (IP) network.

When the radio moves out of range from one site and into the

range of another, it connects to the new site's repeater to send

or receive calls/data transmissions. Depending on your settings,

this is done automatically or manually.

If the radio is set to do this automatically, it scans through all

available sites when the signal from the current site is weak or

when the radio is unable to detect any signal from the current

site. It then locks on to the repeater with the strongest Received

Signal Strength Indicator (RSSI) value.

In a manual site search, the radio searches for the next site in

the roam list that is currently in range (but which may not have

the strongest signal) and locks on to it.

NOTE: Each channel can only have either Scan or Roam

enabled, not both at the same time.

Channels with this feature enabled can be added to a particular

roam list. The radio searches the channel(s) in the Members

roam list during the automatic roam operation to locate the best

site.

A roam list supports a maximum of 16 channels (including the

Selected Channel).

You cannot manually add or delete an entry to the roam list. A

Software License Key sold separately is required to use this

feature

Check with your dealer or system administrator for more

information.

Capacity Plus

Capacity Plus is a single-site trunking configuration of the

MOTOTRBO radio system, which uses a pool of channels to

support hundreds of users and up to 254 Groups. This feature

allows your radio to efficiently utilize the available number of

programmed channels while in Repeater Mode.

Icons of features not applicable to Capacity Plus are not

available in the menu. You hear a negative indicator tone if you

try to access a feature not applicable to Capacity Plus via a

programmable button press.

Your radio also has features that are available in conventional

digital mode, and Capacity Plus. However, the minor differences

in the way each feature works does NOT affect the performance

of your radio. A Software License Key sold separately is

required to use this feature.

Check with your dealer or system administrator for more

information on this configuration.

NAG-LACR.book Page 12 Thursday, April 12, 2012 5:58 PM

English

Linked Capacity Plus

Linked Capacity Plus is a multi-site multi-channel trunking

configuration of the MOTOTRBO radio system, combining the

best of both Capacity Plus and IP Site Connect configurations.

Linked Capacity Plus allows your radio to extend trunking

communication beyond the reach of a single site, by connecting

to different available sites which are connected via an Internet

Protocol (IP) network. It also provides an increase in capacity by

efficiently utilizing the combined available number of

programmed channels supported by each of the available sites.

When the radio moves out of range from one site and into the

range of another, it connects to the new site's repeater to send

or receive calls/data transmissions. Depending on your settings,

this is done automatically or manually.

If the radio is set to do this automatically, it scans through all

available sites when the signal from the current site is weak or

when the radio is unable to detect any signal from the current

site. It then locks on to the repeater with the strongest Received

Signal Strength Indicator (RSSI) value.

In a manual site search, the radio searches for the next site in

the roam list that is currently in range (but which may not have

the strongest signal) and locks on to it.

Any channel with Linked Capacity Plus enabled can be added

to a particular roam list. The radio searches these channels

during the automatic roam operation to locate the best site.

NOTE: You cannot manually add or delete an entry to the

roam list. Check with your dealer or system

administrator for more information.

Similar to Capacity Plus, icons of features not applicable to

Linked Capacity Plus are not available in the menu. You hear a

negative indicator tone if you try to access a feature not

applicable to Linked Capacity Plus via a programmable button

press. A Software License Key sold separately is required to

use this feature.

Check with your dealer or system administrator for more

information on this configuration.

NAG-LACR.book Page 13 Thursday, April 12, 2012 5:58 PM

English

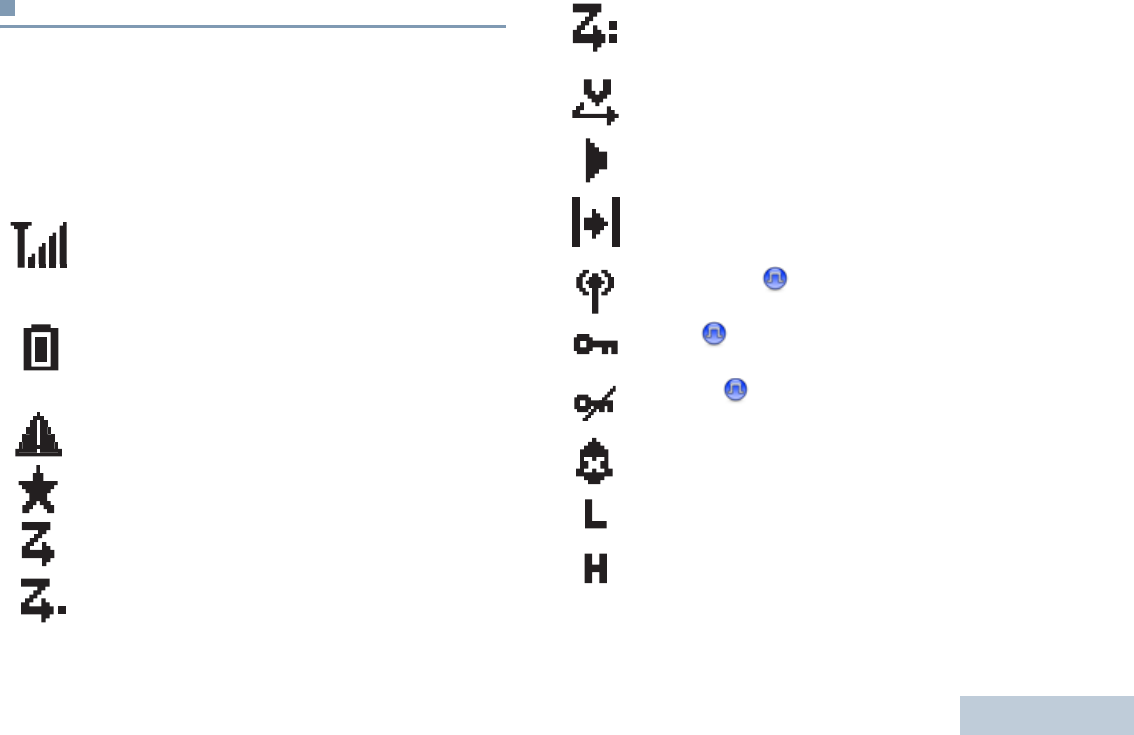

Display Icons

The 132 x 36 pixels, monochrome display, liquid crystal display

(LCD) of your radio shows radio status, text entries, and menu

entries.

The following are icons that appear on the status bar at the top

of the radio’s display. Icons are displayed on the status bar,

arranged left-to-right, in order of appearance/usage.

Received Signal Strength Indicator (RSSI)

The number of bars displayed represents the radio

signal strength. Four bars indicate the strongest

signal. The icon is only displayed while receiving.

Battery

The number of bars (0 – 4) shown indicates the

charge remaining in the battery. Blinks when the

battery is low.

Emergency

Radio is in emergency mode.

Notification

Notification List has one or more missed events.

Scan*‡

Scan feature is enabled.

Scan – Priority 1*‡

Radio detects activity on channel/group designated as

Priority 1

Scan Priority 2*‡

Radio detects activity on channel/group designated as

Priority 2.

Vote Scan

Vote scan feature is enabled.

Monitor

Selected channel is being monitored.

Talkaround*‡

In the absence of a repeater, radio is currently

configured for direct radio to radio communication.

Site Roaming*

The site roaming feature is enabled.

Secure

The Privacy feature is enabled.

Unsecure

The Privacy feature disabled.

Tones Disabled

Tones are turned off.

Power Level

Radio is set at Low Power

Radio is set at High Power

* Not applicable in Capacity Plus

‡ Not applicable in Linked Capacity Plus

NAG-LACR.book Page 14 Thursday, April 12, 2012 5:58 PM

English

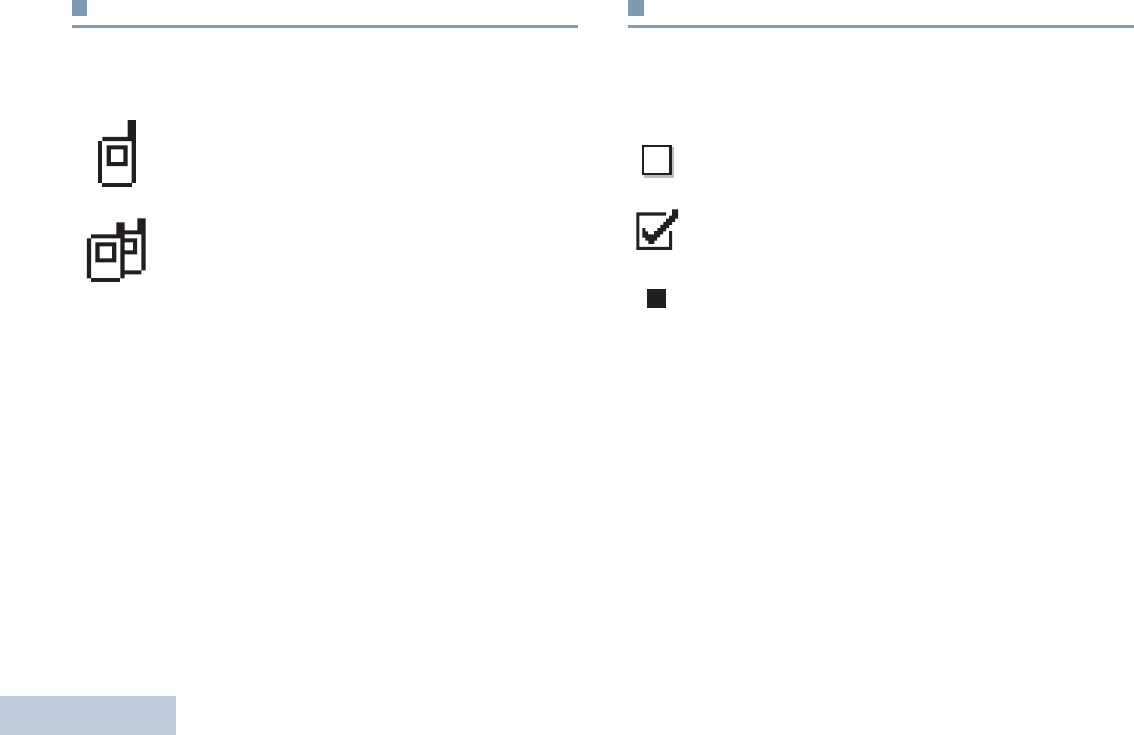

Call Icons

The following icons appear on the radio’s display during a call.

These icons also appear in the Contacts list to indicate ID type.

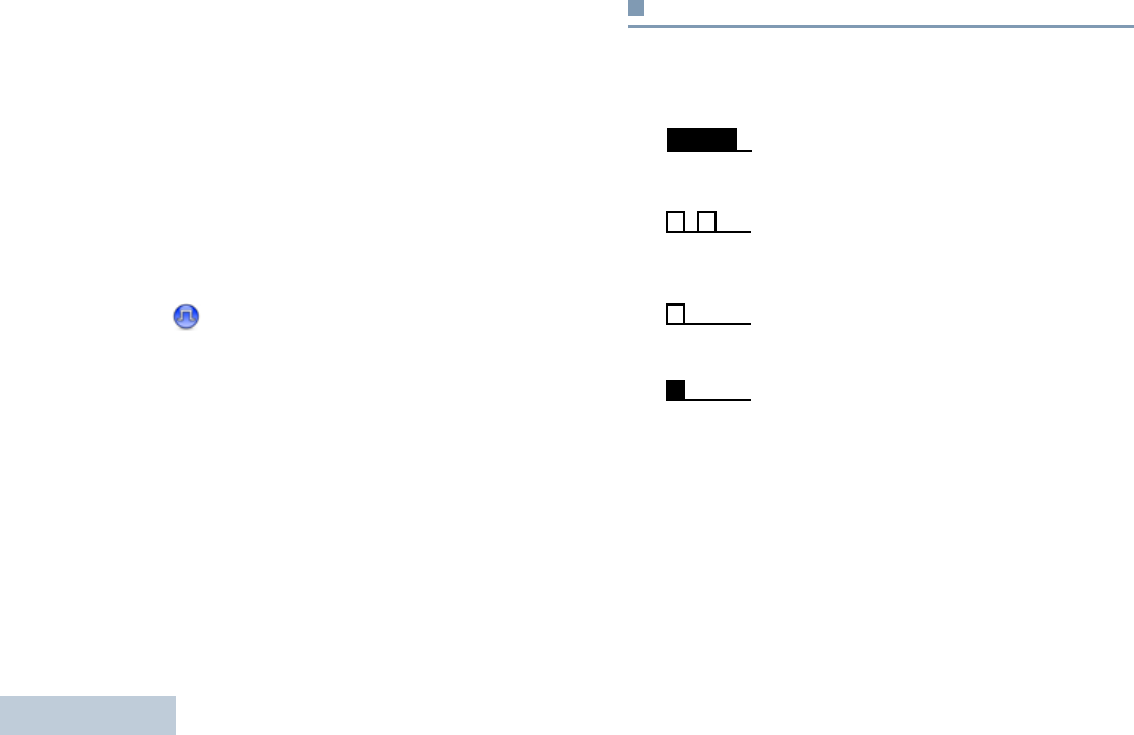

Advanced Menu Icons

The following icons appear beside menu items that offer a

choice between two options or as an indication that there is a

sub-menu offering two options.

Private Call

Indicates a Private Call in progress. In the Contacts

list, it indicates a subscriber alias (name) or ID

(number).

Group Call/All Call

Indicates a Group Call or All Call in progress. In the

Contacts list, it indicates a group alias (name) or ID

(number)

Checkbox (Empty)

Indicates the option is not selected.

Checkbox (Checked)

Indicates the option is selected.

Solid Black Box

Indicates the option selected for the menu item with a

sub-menu.

NAG-LACR.book Page 15 Thursday, April 12, 2012 5:58 PM

English

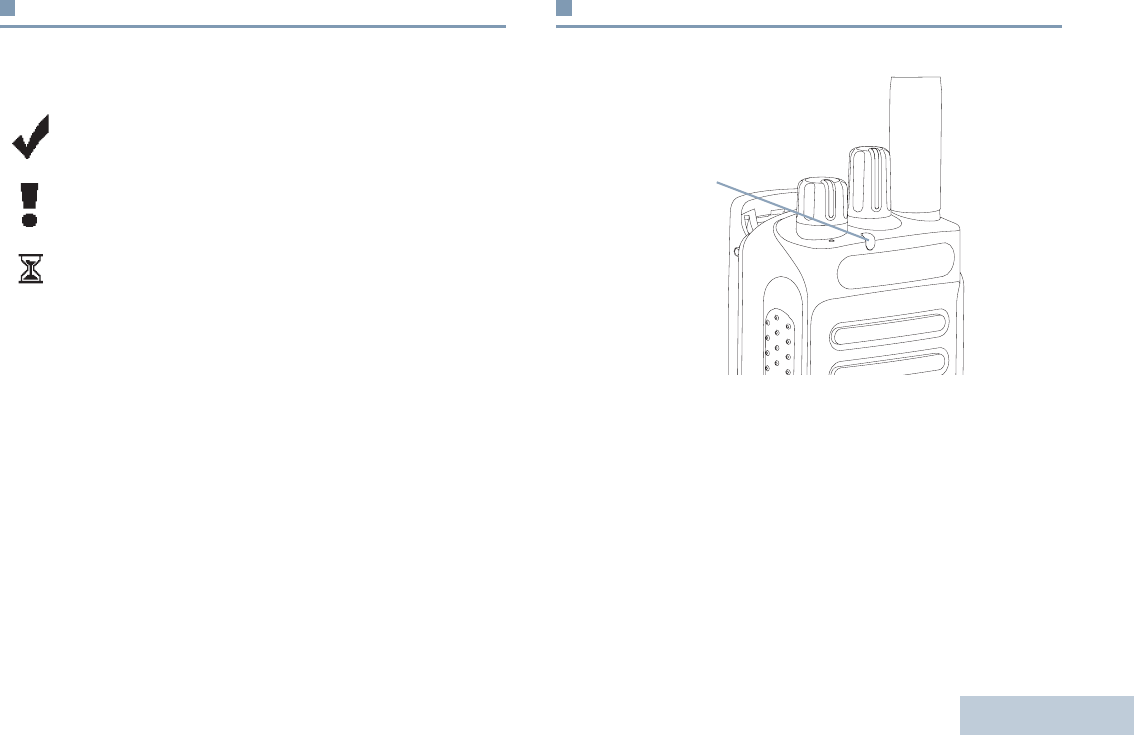

Mini Notice Icons

The following icons appear momentarily on the radio’s display

after an action to perform task is take.

LED Indicator

The LED indicator shows the operational status of your radio.

Blinking red – Radio is transmitting at low battery condition,

receiving an emergency transmission or has failed the self-test

upon powering up.

Solid yellow – Radio is monitoring a conventional channel.

Also indicates fair battery charge when programmable button is

pressed.

Blinking yellow – Radio is scanning for activity or receiving a

Call Alert, or all local Linked Capacity Plus channels are busy.

Successful Transmission (Positive)

Successful action taken.

Failed Transmission (Negative)

Failed action taken.

Transmission in Progress (Transitional)

Transmitting. This dynamic icon is seen before

indication for Successful Transmission or Failed

Transmission.

LED Indicator

NAG-LACR.book Page 16 Thursday, April 12, 2012 5:58 PM

English

Double blinking yellow – Radio is no longer connected to the

repeater while in Capacity Plus or Linked Capacity Plus, all

Capacity Plus channels or Linked Capacity Plus channels are

currently busy.Auto roaming is enabled, radio is actively

searching for a new site. Also indicates radio has yet to respond

to a group call alert, or radio is locked.

Solid green – Radio is powering up, or transmitting. Also

indicates full charge of the battery when programmable button

is pressed.

Blinking green – Radio is receiving a non-privacy-enabled call

or data, or detecting activity over the air.

Double blinking green – Radio is receiving a privacy-enabled

call or data.

NOTE: While in conventional mode, when the LED blinks

green, it indicates the radio detects activity over the air.

Due to the nature of the digital protocol, this activity

may or may not affect the radio's programmed

channel.

NOTE: For Capacity Plus and Linked Capacity Plus, there is

no LED indication when the radio is detecting activity

over the air.

Audio Tones

Alert tones provide you with audible indications of the radio’s

status or the radio’s response to data received.

Continuous Tone A monotone sound. Sounds

continuously until termination.

Periodic Tone Sounds periodically depending on the

duration set by the radio. Tone starts,

stops, and repeats itself.

Repetitive Tone A single tone that repeats itself until it is

terminated by the user.

Momentary Tone Sounds only once for a short period of

time defined by the radio.

NAG-LACR.book Page 17 Thursday, April 12, 2012 5:58 PM

English

Indicator Tones

High pitched tone Low pitched tone

Selecting a Zone

A zone is a group of channels. Your radio supports up to 128

channels and 50 zones, with a maximum of 16 channels per

zone.

Use the following procedure to select a zone.

Procedure:

Press the programmed Zone button and proceed to Step 3.

Follow the procedure below.

1c to access the menu.

2< or > to Zone and press e to select.

3The current zone is displayed and indicated by a 9.

4< or > to the required zone and press e to select.

5The display shows <Zone> Selected momentarily and

returns to the selected zone screen.

Positive Indicator Tone

Negative Indicator Tone

NAG-LACR.book Page 18 Thursday, April 12, 2012 5:58 PM

English

Selecting a Channel

Transmissions are sent and received on a channel. Depending

on your radio’s configuration, each channel may have been

programmed differently to support different groups of users or

supplied with different features. After selecting the relevant

Zone, select the relevant channel you require to transmit or

receive on.

Procedure:

Once the required zone is displayed (if you have multiple

zones in your radio), turn the programmed Channel Selector

Knob to select the channel.

Receiving and Responding to a Radio Call

Once the channel, subscriber

ID or group ID is displayed,

you can proceed to receive

and respond to calls.

The LED lights up solid green

while the radio is transmitting

and blinks green when the

radio is receiving.

NOTE: The LED lights up solid green while the radio is

transmitting and double blinks green when the radio is

receiving a privacy-enabled call.

To unscramble a privacy-enabled call, your radio must

have the same Privacy Key, OR the same Key Value

and Key ID (programmed by your dealer), as the

transmitting radio (the radio you are receiving the call

from).

See Privacy on page 51 for more information.

LED

Indicator

NAG-LACR.book Page 19 Thursday, April 12, 2012 5:58 PM

English

Receiving and Responding to a Group Call

To receive a call from a group of users, your radio must be

configured as part of that group.

Procedure:

When you receive a Group Call (while on the Home screen):

1The LED blinks green.

2The Group Call icon appears in the top right corner. The first

text line shows the caller alias. The second text line displays

the group call alias. Your radio unmutes and the incoming

call sounds through the radio speaker.

3To respond, hold the radio vertically 1 to 2 inches (2.5 to 5.0

cm) from your mouth.

4 If the Channel Free Indication feature is enabled, you

will hear a short alert tone the moment the transmitting radio

releases the PTT button, indicating the channel is free for

you to respond.

Press the PTT button to respond to the call.

If the Voice Interrupt feature is enabled, press the PTT

button to stop the current call from the transmitting radio and

free the channel for you to talk/respond.

5The LED lights up solid green.

6Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

7Release the PTT button to listen.

8If there is no voice activity for a predetermined period of

time, the call ends.

See Making a Group Call on page 24 for details on making a

Group Call.

NOTE: If the radio receives a Group Call while not on the

Home screen, it remains on its current screen prior to

answering the call.

Long press the d button to go to the Home screen

to view the caller alias before replying.



NAG-LACR.book Page 20 Thursday, April 12, 2012 5:58 PM

English

Receiving and Responding to a Private Call

A Private Call is a call from an individual radio to another

individual radio.

Procedure:

When you receive a Private Call:

1Depending on how your radio is programmed:

The LED lights up solid yellow momentarily. Then, the LED

blinks green.

The LED blinks green.

2The first text line shows private call icon. The second text

line displays the private call alias. Your radio unmutes and

the incoming call sounds through the radio speaker.

3To respond, hold the radio vertically 1 to 2 inches (2.5 to 5.0

cm) from your mouth.

4If the Channel Free Indication feature is enabled, you will

hear a short alert tone the moment the transmitting radio

releases the PTT button, indicating the channel is free for

you to respond.

Press the PTT button to respond to the call.

If the Voice Interrupt feature is enabled, press the PTT

button to stop the current call from the transmitting radio and

free the channel for you to talk/respond.

5The LED lights up solid green.

6Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

7Release the PTT button to listen.

8If there is no voice activity for a predetermined period of

time, the call ends.

9You hear a short tone. The display shows Call Ended.

See Making a Private Call on page 24 for details on making a

Private Call.



NAG-LACR.book Page 21 Thursday, April 12, 2012 5:58 PM

English

Receiving an All Call

An All Call is a call from an individual radio to every radio on the

channel. It is used to make important announcements requiring

the user’s full attention.

Procedure:

When you receive an All Call:

1A tone sounds and the LED blinks green.

2The Group Call icon appears in the top right corner. The first

text line shows the caller alias. The second text line displays

All Call. Your radio unmutes and the incoming call

sounds through the radio speaker.

3Once the All Call ends, the radio returns to the previous

screen before receiving the call. An all call does not wait for

a predetermined period of time before ending.

If the Channel Free Indication feature is enabled, you

will hear a short alert tone the moment the transmitting radio

releases the PTT button, indicating the channel is now

available for use.

You cannot respond to an All Call.

See Making an All Call on page 25 for details on making an All

Call.

NOTE: The radio stops receiving the All Call if you switch to a

different channel while receiving the call.

During an All Call, you will not be able to use any

programmed button functions until the call ends.

Receiving and Responding to a Selective Call

A Selective Call is a call from an individual radio to another

individual radio. It is a Private Call on an analog system.

Procedure:

When you receive a Selective Call:

1The LED blinks green.

2The Private Call icon appears in the top right corner. The

first text line shows the caller alias or Selective Call or

Alert with Call. Your radio unmutes and the incoming

call sounds through the radio's speaker.

3To respond. hold the radio vertically 1 to 2 inches (2.5 to 5.0

cm) from your mouth.

4If the Channel Free Indication feature is enabled, you will

hear a short alert tone the moment the transmitting radio

releases the PTT button, indicating the channel is free for

you to respond.

Press the PTT button to respond to the call.

5The LED lights up solid green.



NAG-LACR.book Page 22 Thursday, April 12, 2012 5:58 PM

English

6Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

7Release the PTT button to listen.

8If there is no voice activity for a predetermined period of

time, the call ends.

9You hear a short tone. The display shows Call Ended.

NOTE: See Making a Selective Call on page 26 for details on

making a Private Call.

Making a Radio Call

You can select a channel, subscriber ID, or group by using:

•The Channel Selector Knob

•A programmed One Touch Access button

•A programmable button – This method is for Phone Calls

only.

•The Contacts list (see Contacts Settings on page 35)

NOTE: Your radio must have the Privacy feature enabled on

the channel to send a privacy-enabled transmission.

Only target radios with the same Privacy Key OR the

same Key Value and Key ID as your radio will be able

to unscramble the transmission.

See Privacy on page 51 for more information.

The One Touch Access feature allows you to make a

Group or Private Call to a predefined ID easily. This

feature can be assigned to a short or long

programmable button press.You can ONLY have one

ID assigned to a One Touch Access button. Your

radio can have multiple One Touch Access buttons

programmed.

NAG-LACR.book Page 23 Thursday, April 12, 2012 5:58 PM

English

Making a Call with the Channel Selector Knob

Making a Group Call

To make a call to a group of users, your radio must be

configured as part of that group.

Procedure:

1Select the channel with the active subscriber alias or ID.

See Selecting a Channel on page 19.

Press the programmed One Touch Access button.

2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

3Press the PTT button to make the call. The LED lights up

solid green. The first text line shows the group call icon. The

second text line shows the group call alias,

4Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

5Release the PTT button to listen.When the target radio

responds, the LED blinks green. You see the Group Call

icon, the group alias or ID, and transmitting radio alias or ID

on your display.

6 If the Channel Free Indication feature is enabled, you

will hear a short alert tone the moment the target radio

releases the PTT button, indicating the channel is free for

you to respond. Press the PTT button to respond.

If there is no voice activity for a predetermined period of

time, the call ends.

7Radio returns to the screen you were on prior to initiating the

call.

You can also make a Group Call via Contacts (see Making a

Group Call from Contacts on page 35).

Making a Private Call

While you can receive and/or respond to a Private Call

initiated by an authorized individual radio, your radio

must be programmed for you to initiate a Private Call.

There are two types of Private Calls. The first type, where a

radio presence check is performed prior to setting up the call,

while the other sets up the call immediately.

Only one of these call types can be programmed to your

radio by your dealer.

You hear a negative indicator tone, when you make a Private

Call via the Contacts list, Call Log, One Touch Access button,

the programmed number keys, or the Channel Selector Knob,

if this feature is not enabled.



NAG-LACR.book Page 24 Thursday, April 12, 2012 5:58 PM

English

Use the Call Alert features to contact an individual radio. See

Call Alert Operation on page 41 for more information.

Procedure:

1Select the channel with the active subscriber alias or ID.

See Selecting a Channel on page 19.

Press the programmed One Touch Access button.

2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

3Press the PTT button to make the call. The LED lights up

solid green. The first text line shows the private call icon.

The second text line displays the private call alias.

4Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

5Release the PTT button to listen. When the target radio

responds, the LED blinks green.

6If the Channel Free Indication feature is enabled, you will

hear a short alert tone the moment the target radio releases

the PTT button, indicating the channel is free for you to

respond. Press the PTT button to respond.

If there is no voice activity for a predetermined period of

time, the call ends.

7You hear a short tone. The display shows Call Ended.

You can also make a Private Call via Contacts (see Making a

Private Call from Contacts on page 36).

Making an All Call

This feature allows you to transmit to all users on the channel.

Your radio must be programmed to allow you to use this

feature.

Procedure:

1Select the channel with the active subscriber alias or ID.

See Selecting a Channel on page 19.

2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

3Press the PTT button to make the call. The LED lights up

solid green. The first text line shows the All Call icon. The

second text line displays the All Call alias.

4Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

Users on the channel cannot respond to an All Call.



NAG-LACR.book Page 25 Thursday, April 12, 2012 5:58 PM

English

Making a Selective Call

Just like a Private Call, while you can receive and/or

respond to a Selective Call initiated by an authorized

individual radio, your radio must be programmed for you

to initiate a Selective Call.

Procedure:

1Select the channel with the active subscriber alias or ID.

See Selecting a Channel on page 19.

2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

3Press the PTT button to make the call. The LED lights up

solid green. The Private Call icon appears in the top right

corner. The first text line shows the subscriber alias. The

second text line displays the call status. Wait for the Talk

Permit Tone to finish (if enabled) and speak clearly into the

microphone.

Wait for the PTT Sidetone to finish (if enabled) and speak

clearly into the microphone.

4Release the PTT button to listen. When the target radio

responds, the LED blinks green.

5If the Channel Free Indication feature is enabled, you will

hear a short alert tone the moment the target radio releases

the PTT button, indicating the channel is free for you to

respond. Press the PTT button to respond.

If there is no voice activity for a predetermined period of

time, the call ends.

6You hear a short tone. The display shows Call Ended.



NAG-LACR.book Page 26 Thursday, April 12, 2012 5:58 PM

English

Stopping a Radio Call

This feature allows you to stop an ongoing Group or Private Call

to free the channel for transmission. For example, when a radio

experiences a “stuck microphone” condition where the PTT

button is inadvertently pressed by the user.

Your radio must be programmed to allow you to use this

feature.

Procedure:

While on the required channel:

1Press the programmed Transmit Interrupt Remote Dekey

button.

2The display shows Remote Dekey.

3Wait for acknowledgment.

4The radio sounds a positive indicator tone and the display

shows Remote Dekey Success, indicating that the channel

is now free.

The radio sounds a negative indicator tone and the display

shows Remote Dekey Failed.

On the interrupted radio, the display shows

Call

Interrupted

, and the radio sounds a negative indicator tone

until you release the PTT button, if it is transmitting an

interruptible call that is stopped via this feature.

Talkaround

You can continue to communicate when your repeater is not

operating, or when your radio is out of the repeater’s range but

within talking range of other radios.

This is called “talkaround”.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Procedure:

Press the programmed Repeater/Talkaround button to toggle

between talkaround and repeater modes.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4Press e to enable Talkaround. The display shows 9

beside Enabled.

Press e to disable Talkaround. The 9 disappears from

beside Enabled.

5The screen automatically returns to the previous menu.

NAG-LACR.book Page 27 Thursday, April 12, 2012 5:58 PM

English

The Talkaround setting is retained even after powering down

NOTE: At Step 4, you can also use < or > to change

the selected option.

Monitoring Features

Monitoring a Channel

Use the Monitor feature to make sure a channel is clear before

transmitting.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Procedure:

1Press and hold the programmed Monitor button and listen

for activity.

2The Monitor icon appears on the status bar and the LED

lights up solid yellow.

3You hear radio activity or total silence, depending on how

your radio is programmed.

4When you hear “white noise” (that is, the channel is free),

press the PTT button to talk and release it to listen.

Permanent Monitor

Use the Permanent Monitor feature to continuously monitor a

selected channel for activity.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Procedure:

1Press the programmed Permanent Monitor button.

2Radio sounds an alert tone, the LED lights up solid yellow,

and the display shows Permanent Monitor On. The

Monitor icon appears on the status bar.

3Press the programmed Permanent Monitor button to exit

Permanent Monitor mode.

4Radio sounds an alert tone, the LED turns off, and display

shows Permanent Monitor Off.

NOTE:Radio users who switch from analog to digital channels

often assume that the lack of static on a digital channel is an

indication that the radio is not working properly. This is not the

case. Digital technology quiets the transmission by removing

the noise from the signal and allowing only the clear voice or

da ta information t o b e h e a r d .



NAG-LACR.book Page 28 Thursday, April 12, 2012 5:58 PM

English

Radio Check

If enabled, this feature allows you to determine if another radio

is active in a system without disturbing the user of that radio. No

audible or visual notification is shown on the target radio.

This feature is only applicable for subscriber aliases or IDs.

Sending a Radio Check

Procedure:

Use the programmed Radio Check button.

1Press the programmed Radio Check button.

2< or > to the required subscriber alias or ID and

press e to select.

3The display shows transitional mini notice, indicating the

request is in progress. The LED lights up solid green.

4Wait for acknowledgement.

5If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the

display shows negative mini notice.

6Radio returns to the subscriber alias or ID screen.

Procedure:

Use the menu.

1c to access the menu.

2< or > to Contacts and press e to select.

3< or > to the required subscriber alias or ID and

press e to select.

4< or > to Radio Check and press e to select.

5The display shows transitional mini notice, indicating the

request is in progress. The LED lights up solid green.

6Wait for acknowledgement.

7If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the

display shows negative mini notice.

8Radio returns to the subscriber alias or ID screen.

If the d button is pressed when the radio is waiting for

acknowledgement, a tone sounds, and the radio terminates all

retries and exits Radio Check mode.



NAG-LACR.book Page 29 Thursday, April 12, 2012 5:58 PM

English

Scan Lists

Scan lists are created and assigned to individual channels/

groups. Your radio scans for voice activity by cycling through

the channel/group sequence specified in the scan list for the

current channel/group.

Your radio can support up to 250 scan lists, with a maximum of

16 members in a list. Each scan list supports a mixture of both

analog and digital entries.

You can add, delete, or prioritize channels by editing a scan list.

You can attach a new scan list to your radio via Front Panel

Programming.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Viewing an Entry in the Scan List

Procedure:

1c to access the menu.

2< or > to Scan and press e to select.

3< or > to Scan List and press e to select.

4Use < or > to view each member on the list.

The priority icon appears left of the member’s alias, if set, to

indicate whether the member is on a Priority 1 or Priority 2

channel list. You cannot have multiple Priority 1 or Priority 2

channels in a scan list.

There is no priority icon if priority is set to None.

Editing the Scan List

Adding a New Entry to the Scan List

Procedure:

1c to access the menu.

2< or > to Scan and press e to select.

3< or > to Scan List and press e to select.

4< or > to Add Member and press e to select.

5< or > to the required alias or ID.

6< or > to the required priority level and press e to

select.

7The display shows positive mini notice, followed

immediately by Add Another?.

8< or > to Yes and press e to select, to add another

entry, and repeat Steps 5 to 8.



NAG-LACR.book Page 30 Thursday, April 12, 2012 5:58 PM

English

< or > to No and press e to select to save the

current list.

Deleting an Entry from the Scan List

Procedure:

1c to access the menu.

2< or > to Scan and press e to select.

3< or > to Scan List and press e to select.

4< or > to the required alias or ID.

5Press e to select.

6< or > to Delete and press e to select.

7At Delete Entry?, < or > to Yes and press e to

select, to delete the entry. The display shows positive mini

notice.

< or > to No and press e to select to return to the

previous screen.

8Repeat Steps 4 to 9 to delete other entries.

After deleting all required aliases or IDs, long press d to

return to the Home screen.

Setting and Editing Priority for an Entry in the Scan

List

Procedure:

1c to access the menu.

2< or > to Scan and press e to select.

3< or > to Scan List and press e to select.

4< or > to the required alias or ID.

5Press c to select.

6< or > to Edit Priority and press e to select.

7< or > to the required priority level and press e to

select.

8The display shows positive mini notice before returning to

the previous screen.

9The priority icon appears left of the member’s name.

There is no priority icon if priority is set to None.



NAG-LACR.book Page 31 Thursday, April 12, 2012 5:58 PM

English

Scan

When you start a scan, your radio cycles through the

programmed scan list for the current channel looking for voice

activity.

The LED blinks yellow and the scan icon appears on the status

bar.

During a dual mode scan, if you are on a digital channel, and

your radio locks onto an analog channel, it automatically

switches from digital mode to analog mode for the duration of

the call. This is also true for the reverse.

There are two ways of initiating scan:

•Main Channel Scan (Manual): Your radio scans all the

channels/groups in your scan list. On entering scan, your

radio may – depending on the settings – automatically start

on the last scanned “active” channel/group or on the channel

where scan was initiated.

•Auto Scan (Automatic): Your radio automatically starts

scanning when you select a channel/group that has Auto

Scan enabled.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Starting and Stopping Scan

Procedure:

Press the programmed Scan button to start or stop Scan.

Follow the procedure below.

1Use the Channel Selector Knob to select a channel

programmed with a scan list.

2c to access the menu.

3< or > to Scan and press e to select.

4< or > to Scan State and press e to select.

5< or > to required scan state and press e to select.

6The display shows Scan On when scan is enabled. The LED

blinks yellow and the scan icon appears.

The display shows Scan Off if scan is disabled. The LED

turns off and the scan icon disappears.

While scanning, the radio will only accept data (e.g. location, or

PC data) if received on its Selected Channel.



NAG-LACR.book Page 32 Thursday, April 12, 2012 5:58 PM

English

Responding to a Transmission During a Scan

During scanning, your radio stops on a channel/group where

activity is detected. The radio stays on that channel for a

programmed time period known as “hang time”.

Procedure:

1Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

If the Channel Free Indication feature is enabled, you

will hear a short alert tone the moment the transmitting radio

releases the PTT button, indicating the channel is free for

you to respond.

2Press the PTT button during hang time. The LED lights up

solid green.

3Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

4Release the PTT button to listen.

5If you do not respond within the hang time, the radio returns

to scanning other channels/groups.

Deleting a Nuisance Channel

If a channel continually generates unwanted calls or noise

(termed a “nuisance” channel), you can temporarily remove the

unwanted channel from the scan list.

This capability does not apply to the channel designated as the

Selected Channel.

Procedure:

1When your radio “locks on to” an unwanted or nuisance

channel, press the programmed Nuisance Channel Delete

button until you hear a tone.

2Release the Nuisance Channel Delete button. The

nuisance channel is deleted.

Deleting a “nuisance” channel is only possible through the

programmed Nuisance Channel Delete button. This feature is

not accessible through the menu.

 

NAG-LACR.book Page 33 Thursday, April 12, 2012 5:58 PM

English

Restoring a Nuisance Channel

Procedure:

To restore the deleted nuisance channel, do one of the

following:

•Turn the radio off and then power it on again, OR

•Stop and restart a scan via the programmed Scan button or

menu, OR

•Change the channel via the Channel Selector Knob.

Vote Scan

Vote Scan provides you with wide area coverage in areas

where there are multiple base stations transmitting identical

information on different analog channels.

Your radio scans analog channels of multiple base stations and

performs a voting process to select the strongest received

signal. Once that is established, your radio unmutes to

transmissions from that base station.

The LED blinks yellow and the vote scan icon appears on the

status bar.

To respond to a transmission during a Vote Scan, follow the

same procedures as Responding to a Transmission During a

Scan on page 33.



NAG-LACR.book Page 34 Thursday, April 12, 2012 5:58 PM

English

Contacts Settings

Contacts provides “address-book” capabilities on your radio.

Each entry corresponds to an alias or ID that you use to initiate

a call.

Each entry, depending on context, associates with one of five

types of calls: Group Call, Private Call, All Call, PC Call or

Dispatch Call.

PC Call and Dispatch Call are data-related. They are only

available with the applications. Refer to the data applications

documentation for more information.

NOTE: If the Privacy feature is enabled on a channel, you

can make privacy-enabled Group Call, Private Call,

and All Call on that channel. Only target radios with

the same Privacy Key OR the same Key Value and

Key ID as your radio will be able to unscramble the

transmission.

See Privacy on page 51 for more information.

Your radio supports two Contacts lists, one for Analog contacts

and one for Digital contacts, with a maximum of 500 members

for each Contacts list.

Each entry within Contacts displays the following information:

•Call Type

•Call Alias

•Call ID

NOTE: You can add, or edit subscriber IDs for the Digital

Contacts list. Deleting subscriber IDs can only be

performed by your dealer.

For the Analog Contacts list, you can only view the

subscriber IDs, edit the subscriber IDs, and initiate a

Call Alert. Adding and deleting capabilities can only be

performed by your dealer.

Making a Group Call from Contacts

Procedure:

1c to access the menu.

2< or > to Contacts and press e to select.The

entries are alphabetically sorted.

3< or > to the required group alias or ID.

4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

5Press the PTT button to make the call. The LED lights up

solid green.

6Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.



NAG-LACR.book Page 35 Thursday, April 12, 2012 5:58 PM

English

7Release the PTT button to listen. When any user in the

group responds, the LED blinks green. You see the Group

Call icon, the group ID, and that user’s ID on your display.

8 If the Channel Free Indication feature is enabled, you

will hear a short alert tone the moment the target radio

releases the PTT button, indicating the channel is free for

you to respond. Press the PTT button to respond.

If there is no voice activity for a programmed period of time,

the call ends.

Making a Private Call from Contacts

Procedure:

1c to access the menu.

2< or > to Contacts and press e to select.The

entries are alphabetically sorted.

3< or > to the required subscriber alias or ID.

4Press e to select.

5Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

6Press the PTT button to make the call. The LED lights up

solid green. The display shows the destination alias.

7Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

8Release the PTT button to listen. When the target radio

responds, the LED blinks green and the display shows the

transmitting user's ID.

9If the Channel Free Indication feature is enabled, you will

hear a short alert tone the moment the target radio releases

the PTT button, indicating the channel is free for you to

respond. Press the PTT button to respond.

If there is no voice activity for a programmed period of time,

the call ends.

10 You hear a short tone. The display shows Call Ended.



NAG-LACR.book Page 36 Thursday, April 12, 2012 5:58 PM

English

Setting Default Contact

Procedure:

Follow the procedure below.

1c to access the menu.

2< or > to Contacts and press e to select.

3< or > to the required alias or ID and press e to

select.

4< or > to Set as Default and press e to select.

5The radio sounds a positive indicator tone and the display

shows positive mini notice.

6A 9 appears beside the selected default alias or ID.

Call Indicator Settings

Activating and Deactivating Call Ringers for Call

Alert

You can select, or turn on or off ringing tones for a received Call

Alert.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Tones/Alerts and press e to select.

5< or > to Call Ringers and press e to select.

6< or > to Call Alert and press e to select. The

current tone is indicated by a 9.

7< or > to the required tone and press e to select. 9

appears beside selected tone.

NOTE: At Step 6, you can also use < or > to change the

selected option.



NAG-LACR.book Page 37 Thursday, April 12, 2012 5:58 PM

English

Activating and Deactivating Call Ringers for

Private Calls

You can turn on or off the ringing tones for a received Private

Call.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Tones/Alerts and press e to select.

5< or > to Call Ringers and press e to select.

6< or > to Private Call.

7Press e to enable Private Call ringing tones. The display

shows 9 beside Enabled.

Press e to disable Private Call ringing tones. The 9

disappears from beside Enabled.

NOTE: At Step 6, you can also use < or > to change the

selected option.

Activating and Deactivating Call Ringers for

Selective Call

You can select, or turn on or off ringing tones for a received

Selective Call.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Tones/Alerts and press e to select.

5< or > to Call Ringers and press e to select.

6< or > to Selective Call and press e to select.

The current tone is indicated by a 9.

7< or > to the required tone and press e to select. 9

appears beside selected tone.

NOTE: At Step 6, you can also use < or > to change the

selected option.

 

NAG-LACR.book Page 38 Thursday, April 12, 2012 5:58 PM

English

Assigning Ring Styles

You can program your radio to sound one of ten predefined

ringing tones when receiving a Call Alert from a particular

contact.

Procedure:

1c to access the menu.

2< or > to Contacts and press e to select.The

entries are alphabetically sorted.

3< or > to the required alias or ID and press e to

select.

4< or > to Edit and press e to select.

5Press c until display shows Edit Ringtone menu.

6A 9 indicates the current selected tone.

7< or > to the required tone and press e to select. 9

appears beside selected tone.

8The display shows a positive mini notice.

The radio sounds out each ring style as you navigate through

the list.

Escalating Alarm Tone Volume

You can program your radio to continually alert you when a

radio call remains unanswered. This is done by automatically

increasing the alarm tone volume over time. This feature is

known as Escalert.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Tones/Alerts and press e to select.

5< or > to Escalert.

6Press e to enable Escalert. The display shows 9 beside

Enabled.

Press e to disable Escalert. The 9 disappears from beside

Enabled.

NOTE: At Step 5, you can also use < or > to change the

selected option.



NAG-LACR.book Page 39 Thursday, April 12, 2012 5:58 PM

English

Call Log Features

Your radio keeps track of all recent outgoing, answered, and

missed Private Calls. Use the call log feature to view and

manage recent calls.

You can perform the following tasks in each of your call lists:

•Delete

•View Details

Viewing Recent Calls

The lists are Missed, Answered, and Outgoing.

Procedure:

1c to access the menu.

2< or > to Call Log and press e to select.

3< or > to required list and press e to select.

4The display shows the most recent entry at the top of the

list.

5< or > to view the list.

Press the PTT button to start a Private Call with the current

selected alias or ID.

Deleting a Call from a Call List

Procedure:

1c to access the menu.

2< or > to Call Log and press e to select.

3< or > to the required list and press e to select.

4< or > to the required alias or ID and press e to

select.

5< or > to Delete and press e to select.

6Press e to select Yes to delete the entry. The display

shows positive mini notice.

< or > to No to return to the previous screen.

When you select a call list and it contains no entries, the display

shows

List Empty



NAG-LACR.book Page 40 Thursday, April 12, 2012 5:58 PM

English

Viewing Details from a Call List

Procedure:

1c to access the menu.

2< or > to Call Log and press e to select.

3< or > to the required list and press e to select.

4< or > to the required alias or ID and press e to

select.

5< or > to View Details and press e to select.

Display shows details.

Call Alert Operation

Call Alert paging enables you to alert a specific radio user to call

you back when they are able to do so.

This feature is applicable for subscriber aliases or IDs only and

is accessible through the menu via Contacts.

Receiving and Responding to a Call Alert

When you receive a Call Alert page, you see the notification list

listing a Call Alert with the alias or ID of the calling radio on the

display.

Procedure:

1You hear a repetitive tone. The LED blinks yellow.

2Press the PTT button while the display still shows the Call

Alert in the Notification List to respond with a Private Call.

Press d to exit the Notification List. The alert is moved to

the Missed Call Log.

See Notification List on page 59 for details about the

Notification List.

See Call Log Features on page 40 for details about the Missed

Call List.



NAG-LACR.book Page 41 Thursday, April 12, 2012 5:58 PM

English

Making a Call Alert from the Contacts List

Procedure:

1c to access the menu.

2< or > to Contacts and press e to select.

3< or > to the required subscriber alias or ID and

press e to select.

4< or > to Call Alert and press e to select.

5The display shows Call Alert and the subscriber alias or

ID, indicating that the Call Alert has been sent.

6The LED lights up solid green when your radio is sending

the Call Alert.

7If the Call Alert acknowledgement is received, the display

shows positive mini notice.

If the Call Alert acknowledgement is not received, the

display shows negative mini notice.



NAG-LACR.book Page 42 Thursday, April 12, 2012 5:58 PM

English

Making a Call Alert with the One Touch Access

Button

Procedure:

1Press the programmed One Touch Access button to make

a Call Alert to the predefined alias or ID.

2The display shows Call Alert and the subscriber alias or

ID, indicating that the Call Alert has been sent.

3The LED lights up solid green when your radio is sending

the Call Alert.

4If the Call Alert acknowledgement is received, the display

shows positive mini notice.

If the Call Alert acknowledgement is not received, the

display shows negative mini notice.

Emergency Operation

An Emergency Alarm is used to indicate a critical situation. You

are able to initiate an Emergency at any time on any screen

display even when there is activity on the current channel.

Your dealer can set the duration of a button press for the

programmed Emergency button, except for long press, which is

similar with all other buttons:

•Short press – Between 0.05 seconds and 0.75 seconds

•Long press – Between 1.00 second and 3.75 seconds

The programmed Emergency button is assigned with the

Emergency On/Off feature. Check with your dealer for the

assigned operation of the Emergency button.

If short press the programmed Emergency button is assigned

to turn on the Emergency mode, then long press the

programmed Emergency button is assigned to exit the

Emergency mode.

If long press the programmed Emergency button is assigned to

turn on the Emergency mode, then short press the programmed

Emergency button is assigned to exit the Emergency mode.

NOTE: Side Button 1 or Side Button 2 can be programmed as

the Emergency Button.

Your radio supports three Emergency Alarms:

•Emergency Alarm

•Emergency Alarm with Call



NAG-LACR.book Page 43 Thursday, April 12, 2012 5:58 PM

English

•Emergency Alarm with Voice to Follow

In addition, each alarm has the following types:

•Regular – Radio transmits an alarm signal and shows audio

and/or visual indicators.

•Silent – Radio transmits an alarm signal without any audio or

visual indicators. Radio receives calls without any sound

through the radio’s speaker, until you press the PTT button to

initiate the call.

•Silent with Voice – Radio transmits an alarm signal without

any audio or visual indicators, but allow incoming calls to

sound through the radio’s speaker.

Only ONE of the Emergency Alarms above can be assigned to

the programmed Emergency button.

Sending an Emergency Alarm

This feature allows you to send an Emergency Alarm, a

non-voice signal, which triggers an alert indication on a group of

radios.

Procedure:

1Press the programmed Emergency On button.

2The display shows Tx Alarm and the destination alias. The

LED lights up solid green and the Emergency icon appears.

The display shows Tx Telegram and the destination

alias. The LED lights up solid green and the Emergency icon

appears.

3When an Emergency Alarm acknowledgment is received,

the Emergency tone sounds and the LED blinks green. The

display shows Alarm Sent.

If your radio does not receive an Emergency Alarm

acknowledgement, and after all retries have been

exhausted, a tone sounds and the display shows

Alarm Failed.

4Radio exits the Emergency Alarm mode and returns to the

Home screen.

If your radio is set to Silent, it will not display any audio or visual

indicators during Emergency mode.



NAG-LACR.book Page 44 Thursday, April 12, 2012 5:58 PM

English

Sending an Emergency Alarm with Call

This feature allows you to send an Emergency Alarm to a group

of radios. Upon acknowledgement by a radio within the group,

the group of radios can communicate over a programmed

Emergency channel.

Procedure:

1Press the programmed Emergency On button.

2The display shows Tx Alarm and the destination alias. The

LED lights up solid green and the Emergency icon appears.

The display shows Tx Telegram and the destination

alias. The LED lights up solid green and the Emergency icon

appears.

3When an Emergency Alarm acknowledgment is received,

the Emergency tone sounds and the LED blinks green. The

display shows Alarm Sent.

4Your radio enters the emergency call mode when the

display shows Emergency and the destination group alias.

5Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

6Press PTT button to make the call. The LED lights up solid

green and the group icon appears on the display.

7Wait for the Talk Permit Tone to finish (if enabled) and

speak clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

8Release the PTT button to listen.

When you receive a group call, the display shows the caller

alias and group alias.

9When the channel is free for you to respond, a short alert

tone sounds ( if the Channel Free Indication feature is

enabled). Press the PTT button to respond.

Once your call ends, press the programmed Emergency

Off button to exit the Emergency mode.

10 The radio returns to the Home screen.

If your radio is set to Silent, it will not display any audio or visual

indicators during Emergency mode, or allow any received calls

to sound through the radio’s speaker, until you press the PTT

button to initiate the call.

If your radio is set to Silent with Voice, it will not display any

audio or visual indicators during Emergency mode, but allow

incoming calls to sound through the radio’s speaker. The

indicators will only appear once you press the PTT button to

initiate, or respond to, the call.



NAG-LACR.book Page 45 Thursday, April 12, 2012 5:58 PM

English

Sending an Emergency Alarm with Voice to

This feature allows you to send an Emergency Alarm to a group

of radios. Your radio’s microphone is automatically activated,

allowing you to communicate with the group of radios without

pressing the PTT button.

This activated microphone state is also known as “hot mic”.

If your radio has Emergency Cycle Mode enabled, repetitions of

hot mic and receiving period are made for a programmed

duration.

NOTE: During Emergency Cycle Mode, received calls sound

through the radio’s speaker.

If you press the PTT button during the or programmed receiving

period, you will hear a prohibit tone, indicating that you should

release the PTT button. The radio ignores the PTT press and

remains in Emergency mode.

NOTE: If you press the PTT button during hot mic, and

continue to press it after the hot mic duration expires,

the radio continues to transmit until you release the

PTT button.

Procedure:

1Press the programmed Emergency On button.

2The display shows Tx Alarm and the destination alias. The

LED lights up solid green and the Emergency icon appears.

The display shows Tx Telegram and the destination

alias. The LED lights up solid green and the Emergency icon

appears.

3Once the display shows Alarm Sent, speak clearly into the

microphone. When hot mic has been enabled, the radio

automatically transmits without a PTT press until the hot mic

duration expires.

While transmitting, the LED lights up solid green and the

Emergency icon appears.

4The radio automatically stops transmitting when:

Once the cycling duration between hot mic and receiving

calls expires, if Emergency Cycle Mode is enabled.

Once the hot mic duration expires, if Emergency Cycle

Mode is disabled.

5To transmit again, press the PTT button.

Press the programmed Emergency Off button to exit the

Emergency mode.

6The radio returns to the Home screen.



NAG-LACR.book Page 46 Thursday, April 12, 2012 5:58 PM

English

If your radio is set to Silent, it will not display any audio or

visual indicators during Emergency mode, or allow any

received calls to sound through the radio’s speaker, until the

programmed hot mic transmission period is over, and you

press the PTT button.

If your radio is set to Silent with Voice, it will not display any

audio or visual indicators during Emergency mode when you

are making the call with hot mic, but allow sound through the

radio’s speaker when the target radio responds after the

programmed hot mic transmission period is over. The

indicators will only appear when you press the PTT button.

NOTE: If the Emergency Alarm request fails, the radio does

not retry to send the request, and enters the hot mic

state directly.

Reinitiating an Emergency Mode

NOTE: This feature is only applicable to the radio sending the

Emergency Alarm.

There are two instances where this can happen:

•You change the channel while the radio is in Emergency

mode. This exits the Emergency mode. If Emergency Alarm

is enabled on this new channel, the radio reinitiates

Emergency.

•You press the programmed Emergency On button during an

Emergency initiation/transmission state. This causes the

radio to exit this state, and to reinitiate Emergency.



NAG-LACR.book Page 47 Thursday, April 12, 2012 5:58 PM

English

Exiting Emergency Mode

NOTE: This feature is only applicable to the radio sending the

Emergency Alarm.

Your radio exits Emergency mode when one of the following

occurs:

•Emergency Alarm acknowledgement is received (for

Emergency Alarm only), OR

•An Emergency Exit Telegram is received, OR

•All retries to send the alarm have been exhausted, OR

•The Emergency Off button is pressed.

NOTE: If your radio is powered off, it exits the Emergency

mode. The radio will not reinitiate the Emergency mode

automatically when it is turned on again.

If you change channels when your radio is in

Emergency mode to a channel that has no emergency

system configured, No Emergency is shown on your

display.



NAG-LACR.book Page 48 Thursday, April 12, 2012 5:58 PM

English

Analog Message Encode

Your radio is able to send preprogrammed messages from the

Message list to a radio alias or to the dispatcher.

Sending MDC Message Encode to Dispatcher

Procedure:

1< or > to Message and press e to select.

2< or > to Quick Text and press e to select.

3< or > to the required message. Press e to send.

4 The display shows transitional mini notice, confirming your

message is being sent.

5If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the

display shows negative mini notice.

Sending 5-Tone Message Encode to Contact

Procedure:

1< or > to Message and press e to select.

2< or > to Quick Text and press e to select.

3< or > to the required message. Press e to select.

4< or > to the required contact. Press e to select.

5The display shows transitional mini notice, confirming your

message is being sent.

6If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the

display shows negative mini notice.



NAG-LACR.book Page 49 Thursday, April 12, 2012 5:58 PM

English

Analog Status Update

Your radio is able to send preprogrammed messages from the

Status List indicating your current activity to a radio contact (for

5-Tone systems) or to the dispatcher (for MDC systems).

The last acknowledged message is kept at the top of the Status

List. The other messages are arranged in alphanumeric order.

Sending Status Update to Predefined Contact

Procedure:

1< or > to Status and press e to select.

2< or > to the required status. Press e to select.

3< or > to Set as Default. Press e to send the

status update.

4The display shows transitional mini notice, confirming your

status update is being sent.

5If the status update is acknowledged, a tone sounds and the

display shows positive mini notice. A 9 appears beside the

acknowledged status.

If the status update is not acknowledged, a low tone sounds

and the display shows negative mini notice. A 9 remains

beside the previous status.

For 5-Tone systems, see Setting Default Contact on page 37

for details on setting the default contact.

For 5-Tone systems, a PTT button press while in the status list

sends the selected status update and returns to the Home

screen to initiate a voice call.

Viewing a 5-Tone Status Details

Procedure:

1< or > to Status and press e to select.

2< or > to the required status. Press e to select.

3< or > to View Details. Press e to select.

4The display shows details of the selected status.

NOTE: A Software License Key sold separately is required to

use this feature



NAG-LACR.book Page 50 Thursday, April 12, 2012 5:58 PM

English

Privacy

If enabled, this feature helps to prevent eavesdropping by

unauthorized users on a channel by the use of a software-

based scrambling solution. The signaling and user identification

portions of a transmission are not scrambled.

Your radio must have privacy enabled on the channel to send a

privacy-enabled transmission, although this is not a necessary

requirement for receiving a transmission. While on a privacy-

enabled channel, the radio is still able to receive clear

(unscrambled) transmissions.

Your radio supports two types of privacy:

•Basic Privacy

•Enhanced Privacy. (A Software License Key sold separately

is required for this feature.)

Only ONE of the privacy types above can be assigned to the

radio.

To unscramble a privacy-enabled call or data transmission, your

radio must be programmed to have the same Privacy Key (for

Basic Privacy), OR the same Key Value and Key ID (for

Enhanced Privacy) as the transmitting radio.

If your radio receives a scrambled call that is of a different

Privacy Key, OR a different Key Value and Key ID, you will

either hear a garbled transmission (Basic Privacy) or nothing at

all (Enhanced Privacy).

The LED lights up solid green while the radio is transmitting and

double blinks green when the radio is receiving an ongoing

privacy-enabled transmission.

Some radio models may not offer this Privacy feature. Check

with your dealer or system administrator for more

information.Procedure:

Press the programmed Privacy button to toggle privacy on or

off.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Privacy

5Press e to enable Privacy. The display shows 9 beside

Enabled.

Press e to disable Privacy. The 9 disappears from beside

Enabled.

If the radio has a privacy type assigned, secure or unsecure

icon appears on the status bar, except when the radio is

sending or receiving an Emergency call or alarm.

NAG-LACR.book Page 51 Thursday, April 12, 2012 5:58 PM

English

NOTE: At Step 4, you can also use < or > to change the

selected option.

Dual Tone Multi Frequency (DTMF)

The Dual Tone Multi Frequency (DTMF) feature allows the radio

to operate in a radio system with an interface to telephone

systems.

Procedure:

To initiate a DTMF call.

1Press and hold the PTT button.

2Enter the desired number, * or #.

You can turn off the DTMF tone by disabling all radio tones and

alerts (see Turning the Radio Tones/Alerts On or Off on

page 60).

Multi-Site Controls

These features are applicable when your current radio channel

is part of an IP Site Connect or Linked Capacity Plus

configuration.

See IP Site Connect on page 12 and Linked Capacity Plus on

page 13 for more details about these configurations.

Starting an Automatic Site Search

NOTE: The radio only scans for a new site if the current signal

is weak or when the radio is unable to detect any signal

from the current site. If the RSSI value is strong, the

radio remains on the current site.

Procedure:

Press the programmed Site Lock On/Off button.

1A tone sounds and the display shows Site Unlocked.

2The LED blinks yellow rapidly when the radio is actively

searching for a new site, and turns off once the radio locks

on to a site.

3The display shows the channel alias and the site roaming

icon appears.



NAG-LACR.book Page 52 Thursday, April 12, 2012 5:58 PM

English

Procedure:

Use the menu.

1c to access the menu.

2< or > to Utilities and press c to select.

3< or > to Radio Settings and press c to select.

4< or > to Site Roaming and press c to select.

5< or > to Unlock Site and press c to select. A

tone sounds and the display shows Site Unlocked.

6The radio returns to the Home screen. The display shows

the channel alias and the site roaming icon appears.

7The LED blinks yellow rapidly when the radio is actively

searching for a new site, and turns off once the radio locks

on to a site.

The radio also performs an automatic site search (site is

unlocked) during a PTT button press or data transmission if

the current channel, multi-site channel with an attached roam

list, is out of range.

Stopping an Automatic Site Search

When the radio is actively searching for a new site:

Procedure:

Press the programmed Site Lock On/Off button.

1A tone sounds and the display shows Site Locked.

2The LED turns off and the display shows the channel alias.

Procedure:

Use the menu.

1c to access the menu.

2< or > to Utilities and press c to select.

3< or > to Radio Settings and press c to select.

4< or > to Site Roaming and press c to select.

5< or > to Lock Site State.

6Press c to lock site. The display shows 9 beside

Enabled.

Press c to unlock site. The 9 disappears from beside

Enabled. The LED turns off and the radio returns to the

Home screen. The display shows the channel alias.



NAG-LACR.book Page 53 Thursday, April 12, 2012 5:58 PM

English

NOTE: At Step 5, you can also use < or > to change

the selected option.

Starting a Manual Site Search

Procedure:

Press the programmed Manual Site Roam button and proceed

to Step 6.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press c to select.

3< or > to Radio Settings and press c to select.

4< or > to Site Roaming and press c to select.

5< or > to Active Search and press c to select.

6A tone sounds and the display shows Finding Site.

The LED blinks green.

7If a new site is found, a tone sounds and the LED turns off.

The display shows Site <Alias> Found.

If there is no available site within range, a tone sounds and

the LED turns off. The display shows Out of Range.

If a new site is within range, but the radio is unable to

connect to it, a tone sounds and the LED turns off. The

display shows Channel Busy.

8The radio returns to the Home screen.



NAG-LACR.book Page 54 Thursday, April 12, 2012 5:58 PM

English

Security

You can enable or disable any radio in the system. For example,

you might want to disable a stolen radio, to prevent the thief

from using it, and enable that radio, when it is recovered.

NOTE: Performing Radio Disable and Enable is limited to

radios with these functions enabled. Check with your

dealer or system administrator for more information.

Radio Disable

Procedure:

Use the programmed Radio Disable button.

1Press the programmed Radio Disable button.

2< or >to the required alias or ID and press e to

select.

3The display shows transitional mini notice, indicating the

request is in progress. The LED blinks green.

4Wait for acknowledgment.

5If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the

display shows negative mini notice.

Procedure:

Use the menu.

1c to access the menu.

2< or > to Contacts and press e to select. The

entries are alphabetically sorted.

3< or > to the required alias or ID and press e to

select.

< or > to Radio Disable and press e to select.

4 The display shows transitional mini notice, indicating the

request is in progress. The LED blinks green.

5Wait for acknowledgment.

6If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the

display shows negative mini notice.

Do not press d during the Radio Disable operation as you

will not get an acknowledgement message.



NAG-LACR.book Page 55 Thursday, April 12, 2012 5:58 PM

English

Radio Enable

Procedure:

Use the programmed Radio Enable button.

1Press the programmed Radio Enable button.

2< or > to the required alias or ID and press e to

select.

3 The display shows Radio Enable and the subscriber alias

or ID. The LED lights up solid green.

4Wait for acknowledgment.

5If successful, the radio sounds a positive indicator tone and

the display shows positive mini notice.

If unsuccessful, the radio sounds a negative indicator tone

and the display shows negative mini notice.

Procedure:

Use the menu.

1c to access the menu.

2< or > to Contacts and press e to select. The

entries are alphabetically sorted.

3< or > to the required alias or ID and press e to

select.

4< or > to Radio Enable and press e to select. The

LED blinks green.

5The display shows Radio Enable and the subscriber alias

or ID. The LED lights up solid green.

6Wait for acknowledgment.

7If successful, the radio sounds a positive indicator tone and

the display shows positive mini notice.

If unsuccessful, the radio sounds a negative indicator tone

and the display shows negative mini notice.

Do not press d during the Radio Enable operation as you

will not get an acknowledgement message.



NAG-LACR.book Page 56 Thursday, April 12, 2012 5:58 PM

English

Lone Worker

This feature prompts an emergency to be raised if there is no

user activity, such as any radio button press or activation of the

channel selector, for a predefined time.

Following no user activity for a programmed duration, the radio

pre-warns the user via an audio indicator once the inactivity

timer expires.

If there is still no acknowledgment by the user before the

predefined reminder timer expires, the radio initiates an

Emergency Alarm.

Only one of the following Emergency Alarms is assigned to this

feature:

•Emergency Alarm

•Emergency Alarm with Call

•Emergency Alarm with Voice to Follow

The radio remains in the emergency state allowing voice

messages to proceed until action is taken. See Emergency

Operation on page 43 on ways to exit Emergency.

NOTE: This feature is limited to radios with this function

enabled. Check with your dealer or system

administrator for more information.

Password Lock Features

If enabled, this feature allows you to access your radio via

password upon powering up.

Accessing the Radio from Password

Procedure:

Power up the radio.

1You will be prompt to enter a four-digit password.

2Enter your current four-digit password. Press < or >

to choose each digit’s numeric value (0-9). Press >or

c to move to next digit. Each digit changes to ●. Press

e to confirm your selection.

You hear a positive indicator tone for every digit pressed.

Press < to remove the each ● on the display.

3If the password is correct:

Your radio proceeds to power up. See Powering Up the

Radio on page 5.

If the password is incorrect:

The display shows Wrong Password. Repeat Step 2.

After the third incorrect password, the display shows Wrong



NAG-LACR.book Page 57 Thursday, April 12, 2012 5:58 PM

English

Password and then, shows Radio Locked. A tone sounds

and the LED double blinks yellow.

Your radio enters into locked state for 15 minutes, and responds

to inputs from On/Off/Volume Control Knob and programmed

Backlight Auto button only.

NOTE: The radio is unable to receive any call, including

emergency calls, in locked state.

Unlocking the Radio from Locked State

Procedure:

Wait for 15 minutes. Repeat Steps 1 to 3 in Accessing the

Radio from Password on page 57.

Power up the radio, if you have powered down the radio during

locked state:

1A tone sounds and the LED double blinks yellow. The

display shows Radio Locked.

2Wait for 15 minutes. Repeat Accessing the Radio from

Password on page 57.

Your radio restarts the 15 minutes timer for locked state when

you power up.

Turning the Password Lock On or Off

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Passwd Lock and press e to select.

5Enter your current four-digit password.

See Step 2 in Accessing the Radio from Password on

page 57.

6If the password is correct:

Press e to enable Password Lock. The display shows 9

beside Enabled.

Press e to disable Password Lock. The 9 disappears from

beside Enabled.

If the password is incorrect:

The display shows Wrong Password and automatically

returns to the previous menu.

NOTE: At Step 6, you can also use < or > to change the

selected option.



NAG-LACR.book Page 58 Thursday, April 12, 2012 5:58 PM

English

Changing the Password

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Passwd Lock and press e to select.

5Enter your current four-digit password.

See Step 2 in Accessing the Radio from Password on

page 57.

6If the password is correct:

< or > to Change Pwd and press e to select.

If the password is incorrect:

The display shows Wrong Password and automatically

returns to the previous menu.

7Enter a new four-digit password. See Step 2 in Accessing

the Radio from Password on page 57.

8Re-enter the new four-digit password. See Step 2 in

Accessing the Radio from Password on page 57.

9If both of the new password inputs match:

The display shows Password Changed.

If both of the new password inputs do not match:

The display shows Passwords Do Not Match.

10 The screen automatically returns to the previous menu.

Notification List

Your radio has a Notification List that collects all your “unread”

events on the channel, such as missed calls, and call alerts.

The Notification icon appears on the status bar when the

Notification List has one or more events.

The list supports a maximum of forty (40) unread events. When

it is full, the next event automatically replaces the oldest event.

After the events are read, they are removed from the

Notification List.

Accessing the Notification List

Procedure:

1c to access the menu.

2< or > to Notification and press e to select.

3< or > to the required event and press e to select.

Long press d

to return to the Home screen.



NAG-LACR.book Page 59 Thursday, April 12, 2012 5:58 PM

English

Utilities

Turning the Radio Tones/Alerts On or Off

You can enable and disable all radio tones and alerts (except for

the incoming Emergency alert tone) if needed.

Procedure:

Press the programmed All Tones/Alerts button to toggle all

tones on or off.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Tones/Alerts and press e to select.

5< or > to All Tones and press e to select.

6Press e to enable all tones. The display shows 9 beside

Enabled.

Press e to disable all tones. The 9 disappears from beside

Enabled.

NOTE: At Step 5, you can also use < or > to change the

selected option.

Setting the Tone Alert Volume Offset Level

You can adjust the Tone Alert Volume Offset level if needed.

This feature adjusts the volume of the tones/alerts, allowing it to

be higher or lower than the voice volume.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Tones/Alerts and press e to select.

5< or > to Vol. Offset and press e to select.

6< or > to the required volume value. The radio

sounds a feedback tone with each corresponding volume

value.

7Press e to keep the required displayed volume value.

Repeat Step 6 to select another volume value.

d to exit without changing the current volume offset

settings.



NAG-LACR.book Page 60 Thursday, April 12, 2012 5:58 PM

English

Turning the Talk Permit Tone On or Off

You can enable and disable the Talk Permit Tone if needed.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Tones/Alerts and press e to select.

5< or > to Talk Permit and press e to select.

6Press e to enable Talk Permit Tone. The display shows 9

beside Enabled.

Press e to disable Talk Permit Tone. The 9 disappears

from beside Enabled.

NOTE: At Step 5, you can also use < or > to change the

selected option.

Setting the Power Level

You can customize your radio’s power setting to high or low for

each channel.

Settings: High enables communication with radios located at

a considerable distance from you. Low enables communication

with radios in closer proximity.

Procedure:

Press the programmed Power Level button to toggle transmit

power level between high and low.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Power and press e to select.

5< or > to the required setting and press c to

select. 9 appears beside selected setting.

6Screen returns to the previous menu.

Long press d to return to the Home screen. The power level

icon is visible.



NAG-LACR.book Page 61 Thursday, April 12, 2012 5:58 PM

English

NOTE: At Step 4, you can also use < or > to change the

selected option.

Adjusting the Display Brightness

You can adjust radio’s display brightness as needed.

Procedure:

Press the programmed Brightness button and proceed to

Step 5.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Brightness and press e to select.

5The display shows a progress bar. Decrease display

brightness by pressing < or increase the display

brightness by pressing >. Press e to confirm your

entry.

Controlling the Display Backlight

You can enable or disable the radio’s display backlight as

needed. The setting also affects the Menu Navigation Buttons.

Procedure:

Press the programmed Backlight Auto button to toggle the

backlight settings.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Backlight Auto

5Press e to enable backlight. The display shows 9 beside

Enabled.

Press e to disable backlight. The 9 disappears from

beside Enabled.

The display backlight are automatically turned off if the LED

indicator is disabled (see Turning the LED Indicator On or Off

on page 64).

NOTE: At Step 4, you can also use < or > to change the

selected option.



NAG-LACR.book Page 62 Thursday, April 12, 2012 5:58 PM

English

Setting the Squelch Level

You can adjust your radio's squelch level to filter out unwanted

calls with low signal strength or channels that have a higher

than normal background noise.

Settings: Normal is the default. Tight filters out (unwanted)

calls and/or background noise. However, calls from remote

locations may also be filtered out.

Procedure:

Press the programmed Squelch button to toggle squelch level

between normal and tight.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Squelch and press e to select.

5The display shows Tight and Normal. < or > to the

required setting and press e to enable. 9 appears besides

selected setting.

6Screen returns to the previous menu.

NOTE: At Step 4, you can also use < or > to change the

selected option.

Turning the Introduction Screen On or Off

You can enable and disable the Introduction Screen if needed.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Intro Screen and press e to select.

5Press e to enable Introduction Screen. The display shows

9 beside Enabled.

Press e to disable Introduction Screen. The 9 disappears

from beside Enabled.

NOTE: At Step 4, you can also use < or > to change the

selected option.



NAG-LACR.book Page 63 Thursday, April 12, 2012 5:58 PM

English

Language

You can set your radio display to be in your required language.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Language and press e to select.

5< or > to the required language and press e to

enable. 9 appears beside selected language.

NOTE: At Step 4, you can also use < or > to change

the selected option.

Turning the LED Indicator On or Off

You can enable and disable the LED Indicator if needed.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to LED Indicator and press e to select.

5Press e to enable LED indicator. The display shows 9

beside Enabled.

Press e to disable LED indicator. The 9 disappears from

beside Enabled.

The display backlight, and buttons backlighting are

automatically turned off if the LED indicator is disabled (see

Controlling the Display Backlight on page 62).

NOTE: At Step 4, you can also use < or > to change

the selected option.

Turning the Voice Operating Transmission (VOX)

Feature On or Off

This feature allows you to initiate a hands-free voice activated

call on a programmed channel. The radio automatically





NAG-LACR.book Page 64 Thursday, April 12, 2012 5:58 PM

English

transmits, for a programmed period, whenever the microphone

on the VOX-capable accessory detects voice.

Pressing the PTT button during radio operation will disable

VOX. To re-enable VOX, do one of the following:

•Turn the radio off and power it on again, OR

•Change the channel via the Channel Selector Knob, OR

•Follow the procedure below.

NOTE: Turning this feature on or off is limited to radios with

this function enabled. Check with your dealer or system

administrator for more information.

Procedure:

Press the programmed VOX button to toggle the feature on or

off.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to VOX.

5Press e to enable VOX. The display shows 9 beside

Enabled.

Press e to disable VOX. The 9 disappears from beside

Enabled.

If the Talk Permit Tone feature is enabled (see Turning the Talk

Permit Tone On or Off on page 61), use a trigger word to

initiate the call. Wait for the Talk Permit Tone to finish before

speaking clearly into the microphone.

NOTE: At Step 4, you can also use < or > to change the

selected option.

Voice Announcement

This feature enables the radio to audibly indicate the current

Zone or Channel the user has just assigned, or programmable

button press. This audio indicator can be customized per

customer requirements. This is typically useful when the user is

in a difficult condition to read the content shown on the display.

Use the following features to toggle Voice Announcement on or

off.

Procedure:

Press the programmed Voice Announcement button.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.



NAG-LACR.book Page 65 Thursday, April 12, 2012 5:58 PM

English

3< or > to Radio Settings and press e to select.

4< or > to Voice Announcement.

5Press e to enable Voice Announcement. The display

shows 9 beside Enabled.

Press e to disable Voice Announcement. The 9

disappears from beside Enabled.

NOTE: At Step 3, you can also use < or > to change

the selected option.

Call Forwarding

You can enable your radio to automatically forward voice calls

to another radio.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Call Forward.

4Press e to enable Call Forwarding. The display shows 9

beside Enabled.

Press e to disable Call Forwarding. The 9 disappears

from beside Enabled.

NOTE: At Step 3, you can also use < or > to change the

selected option.



NAG-LACR.book Page 66 Thursday, April 12, 2012 5:58 PM

English

Menu Timer

Set the period of time your radio stays in the menu before it

automatically switches to the Home screen.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Menu Timer and press e to select.

5< or > to the required setting and press e to enable.

Analog Mic Automatic Gain Control (AGC)

This feature controls the your radio's microphone gain

automatically while transmitting on an analog system. It

suppresses loud audio or boosts soft audio to a preset value in

order to provide a consistent level of audio.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Analog Mic AGC.

5Press e to enable Analog Mic AGC. The display shows 9

beside Enabled.

Press e to disable Analog Mic AGC. The 9 disappears

from beside Enabled.

NOTE: At Step 3, you can also use < or > to change the

selected option.



NAG-LACR.book Page 67 Thursday, April 12, 2012 5:58 PM

English

Digital Mic AGC

This feature controls the your radio's microphone gain

automatically while transmitting on an digital system. It

suppresses loud audio or boosts soft audio to a preset value in

order to provide a consistent level of audio.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Digital Mic AGC.

5Press e to enable Digital Mic AGC. The display shows 9

beside Enabled.

Press e to disable Digital Mic AGC. The 9 disappears

from beside Enabled.

NOTE: At Step 3, you can also use < or > to change the

selected option.

Intelligent Audio

Your radio automatically adjusts its audio volume to overcome

current background noise in the environment.

Use the following features to toggle Intelligent Audio on or off.

Procedure:

Press the programmed Intelligent Audio button to toggle the

feature on or off.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Settings and press e to select.

4< or > to Intelligent Audio.

5Press e to enable Intelligent Audio. The display shows 9

beside Enabled.

Press e to disable Intelligent Audio. The 9 disappears

from beside Enabled.

NOTE: At Step 3, you can also use < or > to change the

selected option.



NAG-LACR.book Page 68 Thursday, April 12, 2012 5:58 PM

English

Accessing General Radio Information

Your radio contains information on the following:

•Battery

•Radio Alias and ID

•Firmware and Codeplug Versions

NOTE: Press d at any time to return to the previous screen

or long press d to return to the Home screen. The

radio exits the current screen once the inactivity timer

expires.

Accessing the Battery Information

Displays information on your radio battery.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Info and press e to select.

4< or > to Battery Info and press e to select.

5The display shows the battery information.

For IMPRES batteries ONLY: The display reads

Recondition Battery if the battery requires

reconditioning in an IMPRES charger.

After the reconditioning process, the display then shows the

battery information.

Checking the Radio Alias and ID

Displays the ID of your radio.

Procedure:

Press the programmed Radio Alias and ID button to check your

radio alias and ID. You hear a positive indicator tone.

Follow the procedure below.

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Info and press e to select.

4< or > to My Number and press e to select.

5The first line of the display shows the radio alias. The

second line of the display shows the radio ID

You can also press the programmed Radio Alias and ID button

to return to the previous screen.



NAG-LACR.book Page 69 Thursday, April 12, 2012 5:58 PM

English

Checking the Firmware Version and Codeplug

Version

Displays the firmware and codeplug versions on your radio.

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Radio Info and press e to select.

4< or > to Versions and press e to select.

5The display shows the current firmware and codeplug

versions.

Front Panel Configuration (FPC)

Your radio is able to customize certain feature parameters to

enhance the use of your radio.

Entering FPC Mode

Procedure:

1c to access the menu.

2< or > to Utilities and press e to select.

3< or > to Program Radio and press e to select.

NOTE: Long press d at any time to return to the Home

screen.

Editing FPC Mode Parameters

Use the following buttons as required while navigating through

the feature parameters.

<, > – Scroll through options, increase/decrease values,

or navigate vertically

e – Select the option or enter a sub-menu

d – Short-press to return to previous menu or to exit the

selection screen. Long-press to return to Home screen.



NAG-LACR.book Page 70 Thursday, April 12, 2012 5:58 PM

Accessories

English

Accessories

Your radio is compatible with the accessories listed in this

chapter. Contact your dealer for details.

Antennas

•VHF, 136-155MHz, Helical Antenna (PMAD4117_)

•VHF, 144-165MHz, Helical Antenna (PMAD4116_)

•VHF, 152-174MHz, Helical Antenna (PMAD4118_)

•VHF, 136-148MHz, Stubby Antenna (PMAD4119_)

•VHF, 146-160MHz, Stubby Antenna (PMAD4120_)

•UHF, 403-450MHz, Stubby Antenna (PMAE4069_)

•UHF, 440-490MHz, Stubby Antenna (PMAE4070_)

•UHF, 470-527MHz, Stubby Antenna (PMAE4071_)

Batteries

•IMPRES Slim Li-Ion, 1500mAH IP56 Battery (PMNN4407_R)

•Core Slim Li-Ion, 1500mAH IP56 Battery (PMNN4406_R)

•IMPRES Li-Ion Non-FM, 2150mAH IP56 Battery

(PMNN4409_R)

Cables

•Programming Cable USB (PMKN4115_)

•Programming Cable Slim Connector to DB25 and TTR

(PMKN4116_)

•Programming Cable Slim Connector to DB25 and USB Plug

(PMKN4117_)

Carry Devices

•Hard Leather Carry Case with 3-Inch Fixed Belt Loop for

Limited Keypad Radio (PMLN5863_)

•Hard Leather Carry Case with 3-Inch Swivel Belt for Limited

Keypad Radio (PMLN5865_)

•Hard Leather Carry Case with 2.5-Inch Swivel Belt Loop for

Limited Keypad Radio (PMLN5867_)

•Nylon Carry Case with 3-Inch Fixed Belt Loop for Limited

Keypad Radio (PMLN5869_)

•Belt Clip for 2-Inch Belt Width (PMLN4651_)

•Belt Clip for 2.5-Inch Belt Width (PMLN7008_)

•2.5-Inch Replacement Leather Swivel Belt Loop

(PMLN5610_)

•3-Inch Replacement Leather Swivel Belt Loop (PMLN5611_)

NAG-LACR.book Page 71 Thursday, April 12, 2012 5:58 PM

Accessories

English

Chargers

•Core Single Unit Charger (NNTN8117_)

•IMPRES Single-Unit Charger, Base Only (WPLN4243_)

•IMPRES Single-Unit Charger with Switch Mode Power

Supply (WPLN4232_)

•IMPRES Multi-Unit Charger, Base Only (WPLN4211_)

•IMPRES Multi-Unit Charger, US/NA Plug (WPLN4212_)

•IIMPRES Multi-Unit Charger with Display Base Only

(WPLN4218_)

•IMPRES Multi-Unit Charger with Display, US/NA Plug

(WPLN4219_)

•U.S. Switch Mode Power Supply (EPNN9288_)

Earbuds and Earpieces

•Earbud with In-Line Mic/PTT, MagOne (PMLN5733_)

•Earpiece In-Line Mic/PTT Swivel, MagOne (PMLN5727_)

•Earset with Boom Microphone, MagOne (PMLN5732)

•Receive-Only Covered Earbud with Coiled Cord, for Remote

Speaker Microphone (AARLN4885_)

•Receive-Only Flexible Earpiece for Remote Speaker

Microphone (WADN4190_)

•D-Shell Receive Only Earpiece (One Size) for Remote

Speaker Microphone (PMLN4620_)

•Receiver-Only Earpiece with Translucent Tube and Rubber

Eartip for Remote Speaker Microphone (RLN4941_)

Headsets and Headset Accessories

•Heavy Duty Headset, Noise Cancelling with In-Line PTT

(PMLN5731_)

Remote Speaker Microphones

•IMPRES Remote Speaker Microphone Large, Noise

Cancelling with 3.5mm Jack (PMMN4071_)

•IMPRES Remote Speaker Microphone Small, with 3.5mm

Jack (PMMN4073_)

•Remote Speaker Microphone Small, No Emergency, IP57

(PMMN4075_)

•Remote Speaker Microphone Small with 3.5mm Jack

(PMMN4076_)

NAG-LACR.book Page 72 Thursday, April 12, 2012 5:58 PM

Accessories

English

Surveillance Accessories

•2-Wire Surveillance Kit, Black (PMLN5724_)

•2-Wire Surveillance Kit, Beige (PMLN5726_)

Miscellaneous Accessories

•Adjustable Black Nylon Carrying Strap (Attaches to D-Ring on

Carry Case) (NTN5243_)

•Universal Chest Pack (HLN6602_)

•Break-A-Way Chest Pack with Radio Holder, Pen Holder and

Velcro Secured Pouch (RLN4570_)

•Replacement Strap for HLN6602_ and RLN4570_

(1505596Z02)

•RadioPAK Radio Utility Case (Fanny Pack) (RLN4815_)

•RadioPAK Extension Belt (for Waists Larger than 40 Inch)

(4280384F89)

•Waterproof Bag with Large Strap (HLN9985_)

•Small Clip, Epaulet Strap (RLN4295_)

•1.75 Inch Wide Leather Belt (4200865599)

NAG-LACR.book Page 73 Thursday, April 12, 2012 5:58 PM

Batteries and Chargers Warranty

English

Batteries and Chargers Warranty

The Workmanship Warranty

The workmanship warranty guarantees against defects in

workmanship under normal use and service.

The Capacity Warranty

The capacity warranty guarantees 80% of the rated capacity for the

warranty duration.

All MOTOTRBO Batteries Two (2) Years

IMPRES Chargers (Single-Unit and Multi-Unit,

Non-Display) Two (2) Years

IMPRES Chargers (Multi-Unit with Display) One (1) Year

Lithium-Ion (Li-lon) Batteries 12 Months

IMPRES Batteries, When Used Exclusively

with IMPRES Chargers 18 Months

NAG-LACR.book Page 74 Thursday, April 12, 2012 5:58 PM

Limited Warranty

English

Limited Warranty

MOTOROLA COMMUNICATION PRODUCTS

I. WHAT THIS WARRANTY COVERS AND FOR HOW

LONG:

MOTOROLA SOLUTIONS, INC. (“MOTOROLA”) warrants the

MOTOROLA manufactured Communication Products listed below

(“Product”) against defects in material and workmanship under

normal use and service for a period of time from the date of

purchase as scheduled below:

MOTOROLA, at its option, will at no charge either repair the

Product (with new or reconditioned parts), replace it (with a new or

reconditioned Product), or refund the purchase price of the Product

during the warranty period provided it is returned in accordance

with the terms of this warranty. Replaced parts or boards are

warranted for the balance of the original applicable warranty period.

All replaced parts of Product shall become the property of

MOTOROLA.

This express limited warranty is extended by MOTOROLA to the

original end user purchaser only and is not assignable or

transferable to any other party. This is the complete warranty for the

Product manufactured by MOTOROLA. MOTOROLA assumes no

obligations or liability for additions or modifications to this warranty

unless made in writing and signed by an officer of MOTOROLA.

Unless made in a separate agreement between MOTOROLA and

the original end user purchaser, MOTOROLA does not warrant the

installation, maintenance or service of the Product.

MOTOROLA cannot be responsible in any way for any ancillary

equipment not furnished by MOTOROLA which is attached to or

used in connection with the Product, or for operation of the Product

with any ancillary equipment, and all such equipment is expressly

excluded from this warranty. Because each system which may use

the Product is unique, MOTOROLA disclaims liability for range,

coverage, or operation of the system as a whole under this

warranty.

II. GENERAL PROVISIONS:

This warranty sets forth the full extent of MOTOROLA'S

responsibilities regarding the Product. Repair, replacement or

refund of the purchase price, at MOTOROLA’s option, is the

exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL

OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,

INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED

WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR

DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE

PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,

INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR

SAVINGS OR OTHER INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR

XPR Series Digital Portable Radios Two (2) Years

Product Accessories (Excluding

Batteries and Chargers) One (1) Year

NAG-LACR.book Page 75 Thursday, April 12, 2012 5:58 PM

Limited Warranty

English

INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT

SUCH MAY BE DISCLAIMED BY LAW.

III. STATE LAW RIGHTS:

SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES

OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY

NOT APPLY.

This warranty gives specific legal rights, and there may be other

rights which may vary from state to state.

IV. HOW TO GET WARRANTY SERVICE:

You must provide proof of purchase (bearing the date of purchase

and Product item serial number) in order to receive warranty

service and, also, deliver or send the Product item, transportation

and insurance prepaid, to an authorized warranty service location.

Warranty service will be provided by MOTOROLA through one of its

authorized warranty service locations. If you first contact the

company which sold you the Product (e.g., dealer or

communication service provider), it can facilitate your obtaining

warranty service. You can also call MOTOROLA at 1-800-927-2744

US/Canada.

V. WHAT THIS WARRANTY DOES NOT COVER:

A) Defects or damage resulting from use of the Product in other

than its normal and customary manner.

B) Defects or damage from misuse, accident, water, or neglect.

C)Defects or damage from improper testing, operation,

maintenance, installation, alteration, modification, or adjustment.

D)Breakage or damage to antennas unless caused directly by

defects in material workmanship.

E) A Product subjected to unauthorized Product modifications,

disassembles or repairs (including, without limitation, the addition

to the Product of non-MOTOROLA supplied equipment) which

adversely affect performance of the Product or interfere with

MOTOROLA's normal warranty inspection and testing of the

Product to verify any warranty claim.

F) Product which has had the serial number removed or made

illegible.

G)Rechargeable batteries if:

(1) any of the seals on the battery enclosure of cells are broken

or show evidence of tampering.

(2) the damage or defect is caused by charging or using the

battery in equipment or service other than the Product for which it

is specified.

H)Freight costs to the repair depot.

I) A Product which, due to illegal or unauthorized alteration of the

software/firmware in the Product, does not function in

accordance with MOTOROLA’s published specifications or the

FCC certification labeling in effect for the Product at the time the

Product was initially distributed from MOTOROLA.

J) Scratches or other cosmetic damage to Product surfaces that

does not affect the operation of the Product.

K) Normal and customary wear and tear.

NAG-LACR.book Page 76 Thursday, April 12, 2012 5:58 PM

Limited Warranty

English

VI. PATENT AND SOFTWARE PROVISIONS:

MOTOROLA will defend, at its own expense, any suit brought

against the end user purchaser to the extent that it is based on a

claim that the Product or parts infringe a United States patent, and

MOTOROLA will pay those costs and damages finally awarded

against the end user purchaser in any such suit which are

attributable to any such claim, but such defense and payments are

conditioned on the following:

A) that MOTOROLA will be notified promptly in writing by such

purchaser of any notice of such claim;

B) that MOTOROLA will have sole control of the defense of such

suit and all negotiations for its settlement or compromise; and

C)should the Product or parts become, or in MOTOROLA’s opinion

be likely to become, the subject of a claim of infringement of a

United States patent, that such purchaser will permit

MOTOROLA, at its option and expense, either to procure for

such purchaser the right to continue using the Product or parts or

to replace or modify the same so that it becomes non-infringing

or to grant such purchaser a credit for the Product or parts as

depreciated and accept its return. The depreciation will be an

equal amount per year over the lifetime of the Product or parts as

established by MOTOROLA.

MOTOROLA will have no liability with respect to any claim of patent

infringement which is based upon the combination of the Product or

parts furnished hereunder with software, apparatus or devices not

furnished by MOTOROLA, nor will MOTOROLA have any liability

for the use of ancillary equipment or software not furnished by

MOTOROLA which is attached to or used in connection with the

Product. The foregoing states the entire liability of MOTOROLA with

respect to infringement of patents by the Product or any parts

thereof.

Laws in the United States and other countries preserve for

MOTOROLA certain exclusive rights for copyrighted MOTOROLA

software such as the exclusive rights to reproduce in copies and

distribute copies of such MOTOROLA software. MOTOROLA

software may be used in only the Product in which the software was

originally embodied and such software in such Product may not be

replaced, copied, distributed, modified in any way, or used to

produce any derivative thereof. No other use including, without

limitation, alteration, modification, reproduction, distribution, or

reverse engineering of such MOTOROLA software or exercise of

rights in such MOTOROLA software is permitted. No license is

granted by implication, estoppel or otherwise under MOTOROLA

patent rights or copyrights.

VII. GOVERNING LAW:

This Warranty is governed by the laws of the State of Illinois, U.S.A.

NAG-LACR.book Page 77 Thursday, April 12, 2012 5:58 PM

68009512001-A

*68009512001*

Motorola Solutions, Inc.

1303 East Algonquin Road

Schaumburg, Illinois 60196 U.S.A.

MOTOROLA, MOTO, MOTOROLA SOLUTIONS and

the Stylized M logo are trademarks or registered trademarks

of Motorola Trademark Holdings, LLC and are used under license.

All other trademarks are the property of their respective owners.

March 2012.

Motorola Solutions 99FT4089 PORTABLE UHF RADIO User Manual

Motorola Solutions, Inc. PORTABLE UHF RADIO

Contents

USER GUIDE 2

Navigation menu

Namespaces

Views

Navigation
