Motorola Solutions 99FT7002 Radio Bluetooth Adapter User Manual
Motorola Solutions, Inc. Radio Bluetooth Adapter
Exhibit D Users Manual per 2 1033 b3
Accessories
Radio
Adapter (RBA)
6880309K16-O
for the Professional Radio Series
Model HHLN4125
and MOTOROLA are registered trademarks of Motorola, Inc.
The BLUETOOTH trademarks are owned by Telefonaktiebolaget LM Ericsson,
Sweden, and licensed to Motorola, Inc.
1
TABLE OF CONTENTS
Safety and General Information. . . . . . . . . . . . . . . . .3
Electromagnetic Interference/Compatibility
Facilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Aircraft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Medical Devices. . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety and General
Use While Driving . . . . . . . . . . . . . . . . . . . . . . . . .9
Bluetooth Wireless Technology Overview . . . . . . . . .6
Getting Started
Installing the Radio Bluetooth Adapter (RBA) . . . .8
Removing the Radio Bluetooth Adapter (RBA) . . .9
Turning ON the RBA. . . . . . . . . . . . . . . . . . . . . . . .9
Establishing the Bluetooth Wireless
Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Connection Verification . . . . . . . . . . . . . . . . . . . .10
Lost Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Turning OFF the RBA . . . . . . . . . . . . . . . . . . . . . .11
Disconnecting the Bluetooth Wireless
Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . .12
LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operation
Operational Range . . . . . . . . . . . . . . . . . . . . . . . .14
Receiving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Transmitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . .15
VOX (Voice Activated Transmission) . . . . . . . . . .15
2
Battery
Low Battery Alert. . . . . . . . . . . . . . . . . . . . . . . . .16
Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Temperature Effects On Your RBA . . . . . . . . . . . . . .16
RBA Replacement Parts Lists . . . . . . . . . . . . . . . . .17
Service and Support. . . . . . . . . . . . . . . . . . . . . . . . .17
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

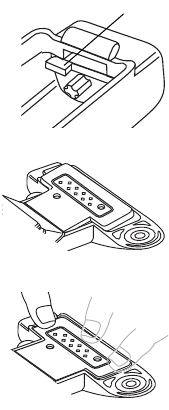

Replacing the HHLN4125 Side Connector Board. . .18
3
SAFETY AND GENERAL INFORMATION
IMPORTANT INFORMATION ON SAFE AND
EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING
YOUR RADIO.
Users are not permitted to make changes or
modify the device in any way. Changes or modifi-
cations not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device. See 47 CFR Sec.
15.21.
This device complies with Part 15 of the U.S.
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that may
cause undesired operation. See 47 CFR Sec.
15.19(3).
4
ELECTROMAGNETIC INTERFERENCE/
COMPATIBILITY
OTE: Nearly every electronic device is sus-
ceptible to electromagnetic interference
(EMI) if inadequately shielded, designed
or otherwise configured for electromag-
netic compatibility.
Facilities
To avoid electromagnetic interference and/or
compatibility conflicts, turn off your device in any
facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using
equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your device
when on board an aircraft. Any use of your device
must be in accordance with applicable regula-
tions per airline crew instructions.
Medical Devices
Pacemakers
The Health Industry Manufacturers Association
recommends that a minimum separation of 6
inches (15 centimeters) be maintained between a
N
5
wireless device and a pacemaker. These recom-
mendations are consistent with the independent
research by, and recommendations of, Wireless
Technology Research.
Persons with pacemakers should:
•ALWAYS keep the wireless device more
than 6 inches (15 centimeters) from their
pacemaker when the device is turned ON.
•not carry the device in the breast pocket.
•use the ear opposite the pacemaker to min-
imize the potential for interference.
•turn the device OFF immediately if you
have any reason to suspect that interfer-
ence is taking place.
Hearing Aids
Some digital wireless radios may interfere with
some hearing aids. In the event of such interfer-
ence, you may want to consult your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device,
consult the manufacturer of your device to deter-
mine if it is adequately shielded from RF energy.
Your physician may be able to assist you in
obtaining this information.
6
BLUETOOTH WIRELESS TECHNOLOGY OVERVIEW
At Motorola we believe that easy portable com-
munication is the key to creating a safer environ-
ment. That’s why we designed this exciting new
two-way communication device called the Radio
Bluetooth Adapter (RBA). The RBA represents
another breakthrough in applying Bluetooth wire-
less technology by Motorola. This adapter allows
your radio to send and receive audio from a wire-
less accessory such as a Remote Speaker Micro-
phone (RSM) without wires.
This RBA uses a new protocol based on state-of-
the-art Bluetooth technology specifications,
which result in simplifying the use of your radio.
Bluetooth wireless technology is an open stan-
dard, connecting wireless devices within a short
range. The range for this particular adapter
(RBA) and the Bluetooth audio accessory is
approximately 30 feet in ideal line-of-sight condi-
tions. It is important to be aware that the specific
Bluetooth technology was designed and engi-
neered for use between your radio and special
Bluetooth audio accessories. Your Bluetooth
audio accessory will not operate with other non-
Motorola two-way radio Bluetooth products.
7
If your radio is VOX (voice activated transmission)
capable, the Bluetooth wireless functionality will
continue with your adapter and a VOX capable
Bluetooth wireless headset.
We’re confident that once you try the Bluetooth
wireless adapter and accessories, you’ll wonder
how you survived with all those attachment wires
in the first place!

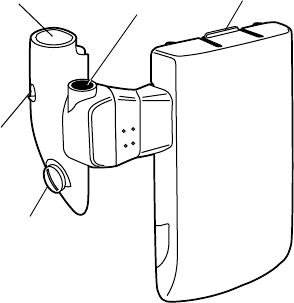

Figure 1. Radio Bluetooth Adapter
BLUE Button Latch
Screw
PTT
(Push-To-Talk)
LED
Indicator
8
GETTING STARTED
Installing the Radio Bluetooth Adapter (RBA)
OTE: The RBA is designed to clip onto the back
of specially designed radio batteries.
1. Place the bottom of the RBA to the battery.
Press the top latch of the RBA to the battery
until it snaps into place. Refer to Figure 2.
2. Attach the side connector to the radio’s
accessory connector. Secure the side con-
nector with the metal screw using a coin or
thin bladed screwdriver.
N
Figure 2. RBA and Radio Attachment
Latch
Metal
Screw
Side
Connector
9
Removing the Radio Bluetooth Adapter (RBA)
1. Detach the side connector from the acces-
sory connector with the metal screw using a
coin or thin bladed screwdriver.
2. Detach the top latch by pressing down and
pulling the RBA away from the battery.
Turning ON the RBA
The RBA turns ON when the radio is turned ON.
The RBA LED lights GREEN for one second,
indicating successful power-up. When you first
turn on your RBA, it will first attempt to establish
a connection with the last Bluetooth audio acces-
sory it was connected to, otherwise it will attempt
to connect to a new accessory.
Establishing the Bluetooth Wireless Connection
Following these simple steps establishes a new
connection when your RBA and audio accessory
are first turned on:
1. Turn ON your radio. The RBA turns on when
the radio is turned on.
•The RBA LED lights GREEN for one sec-
ond, indicating successful power-up.
2. Turn ON the Bluetooth wireless capable
audio accessory. (Refer to your accessory
manual.)
10
3. Place the audio accessory next to the radio.
(For best results keep both within a few inches
of each other.)
•The RBA LED flashes ORANGE until a
successful connection is established. If a
connection has not been established, the
LED flashes RED.
•Once the RBA and audio accessory have
connected, the RBA LED flashes GREEN
every few seconds.
OTE: Connecting for the first time takes longer
to establish than subsequent connec-
tions.
Connection Verification
You may want to verify the wireless connection
before you start communicating with the acces-
sory.
OTE: Pressing the audio accessory PTT but-
ton first, keys-up the radio
1. Press and hold the RBA BLUE button.
2. Press the audio accessory PTT button.
•The RBA LED lights a solid GREEN for the
duration of the audio accessory PTT press.
If this does not happen, the connection was
not established and the connection process
will have to be repeated.
N
N
11
Lost Link
If the connection is lost at any time, the RBA LED
flashes ORANGE until the connection is re-estab-
lished. If a connection has not been re-established
within 30 seconds the LED flashes RED.
OTE: During the attempt to re-establish a con-
nection, your radio and PTT button func-
tion normally.
Turning OFF the RBA
If a wireless connection is established, you can
turn off your RBA without losing its memory to the
connection with the audio accessory. The con-
nection is automatically re-established the next
time the RBA is turned on.
1. To turn OFF the RBA, turn off the radio.
2. To turn ON the RBA, turn on the radio.
N
12
Disconnecting the Bluetooth Wireless Connection
You can disconnect and re-establish the connec-
tion when both the RBA and audio accessory are
still on.
1. Press both the RBA BLUE and PTT buttons.
•The RBA LED flashes RED, indicating the
connection is broken.
2. To re-establish the connection while the RBA
and audio accesory are on, place the RBA
within a few inches of the audio accessory.
Press both the RBA’s BLUE and PTT but-
tons, then immediately press both the audio
accessory’s BLUE and PTT buttons.
13
LED Indicators
RBA LED
Indicator Description
GREEN Solid GREEN for 1 second, indicates suc-
cessful RBA power-up, or...
Solid GREEN for 1 second, indicates suc-
cessful connection with an accessory, or...
Solid GREEN for duration of the PTT press
or while receiving, indicates the RBA is
functioning correctly.
Flashing
GREEN Flashes GREEN every few seconds when
connected to the radio and no communica-
tion or transmission is taking place.
Flashing
ORANGE Flashes ORANGE every few seconds, indi-
cates the RBA is attempting to reconnect or
reconnect to the accessory.
RED Solid RED for 1 second followed by flashing
orange, indicates that connection is lost and
is attempting to reconnect to the accessory,
or...
Flashing
RED Flashes RED every few seconds, indicates
connection is disconnected and has not
been re-established within 30 seconds.
14
OPERATION
Operational Range
For optimum performance from your RBA, use it
within 30 feet of your audio accessory. This range
will vary depending on environmental conditions,
i.e. clothing, radio placement on body, buildings.
Receiving
Once the RBA is connected to your audio acces-
sory, the radio speaker mutes and the audio is
heard only from the audio accessory.
•While receiving, the RBA LED lights a solid
GREEN for the duration of the received
communication.
Transmitting
The Push-To-Talk (PTT) button on either the audio
accessory or the RBA initiates transmission.
OTES: Pressing the audio accessory or RBA
PTT button activates only the micro-
phone in the audio accessory.
Pressing the radio’s PTT button acti-
vates only the microphone in the radio.
•While transmitting, the RBA LED lights a
solid GREEN for the duration of the trans-
mission.
N
15
Volume Control
Refer to your Bluetooth wireless audio accessory
manual for any volume control instructions.
VOX (Voice Activated Transmission)
(Available only with select VOX capable radios)
If your radio is VOX capable and has been pro-
grammed into the radio, this feature can be
enabled to operate with the RBA and an audio
accessory.
OTE: VOX can only be enabled on the RBA
during radio power up.
To Activate VOX
1. Turn off your radio.
2. Press and hold the RBA PTT button while
turning on the radio. Release the PTT button
after power-up.
3. Turn on your audio accessory.
4. Turn your radio to the assigned VOX channel.
5. Establish the wireless connection. Refer to
“Establishing the Bluetooth Wireless Connec-
tion” on page 9.
•Once the connection has been established,
your radio and audio accessory operate in
VOX mode.
N
16
To De-activate VOX
Press either the RBA or audio accessory PTT button.
•The radio exits VOX mode and returns to
normal operation.
BATTTERY
Your RBA and battery are safe to charge in your
current radio’s battery charger.
Low Battery Alert
Refer to your radio’s operator manual for specific
battery instructions.
Battery Life
Refer to your radio’s operator manual for specific
battery instructions.
TEMPERATURE EFFECTS ON YOUR RBA
Your RBA was designed to work in all environ-
ments your current radio is designed for. Refer to
your radio’s manual for specific details.
17
RBA REPLACEMENT PARTS LISTS
SERVICE AND SUPPORT
Your RBA is not repairable. If there is a problem
with the unit after the warranty period, please
order a replacement unit or replacement parts. To
order replacement parts or for warranty informa-
tion, contact Motorola Americas Accessories
Aftermarket Division (AAD) at:
1-800-422-4210 or 847-538-8023.
WARRANTY
The RBA is covered under the standard Motorola
one (1) year limited warranty:
Refer to your Motorola dealer for detailed infor-
mation on your RBA’s standard warranty.
Parts List for HHLN4125
Replacement Part Motorola
Part Number
Side Connector Screw 0380475E01
Side Connector Assembly 0185724M01
Radio Battery (for use with HHLN4125) HNN9003
RBA Replacement Parts Instruction Sheet 6880309K91
18
REPLACING THE HHLN4125 SIDE CONNECTOR
BOARD
Disassembling the RBA before the one (1) year
limited warranty has expired will void the warranty.
Disassembling the Side Connector Board
1. Detach the RBA from the radio.
2. Remove the two screws in
the housing/button assem-
bly using a T6 Torx® driver.
3. Gently pull the rubber gas-
ket from the housing/button
assembly.
4. Lift the cover flap of the
15-pin connector and dis-
connect the flex connector
from the board.
5. Repeat Steps 1 through 3 to disassemble the
replacement side connector.
Reassembling the Side Connector Board
1. Lift the cover flap of the 15-pin connector and
connect the RBA flex connector to the board
removed from the replacement side connec-
tor.
Screws
19
2. Flip the board over so the 7-pin connector is
facing upward.
3. Place the board into the
housing so that it is
seated properly onto the
board retention shelf.
4. Carefully press the
rubber gasket into
the housing/button
assembly starting at
the strain relief.
Slowly continue
pressing the remain-
ing three sides of the
gasket into the hous-
ing/button assembly.
Make sure that the
seal on the gasket is
completely tucked
into the housing/but-
ton assembly.
AUTION: Do Not use any instruments to tuck or
remove the gasket from the housing/but-
ton assembly. Doing so can stretch and
damage the seal on the gasket.
Shelf
C
20
5. Replace the two screws into the housing/but-
ton assembly using a T6 Torx® driver.
6. Re-attach the RBA to the radio.
*6880309K16*
6880309K16-O
© 2001 by Motorola, Inc.
Printed in the U.S.A. All Rights Reserved.
