November, 1999 6880906Z38-O -1
MOTOROLA
Telario Installation Manual

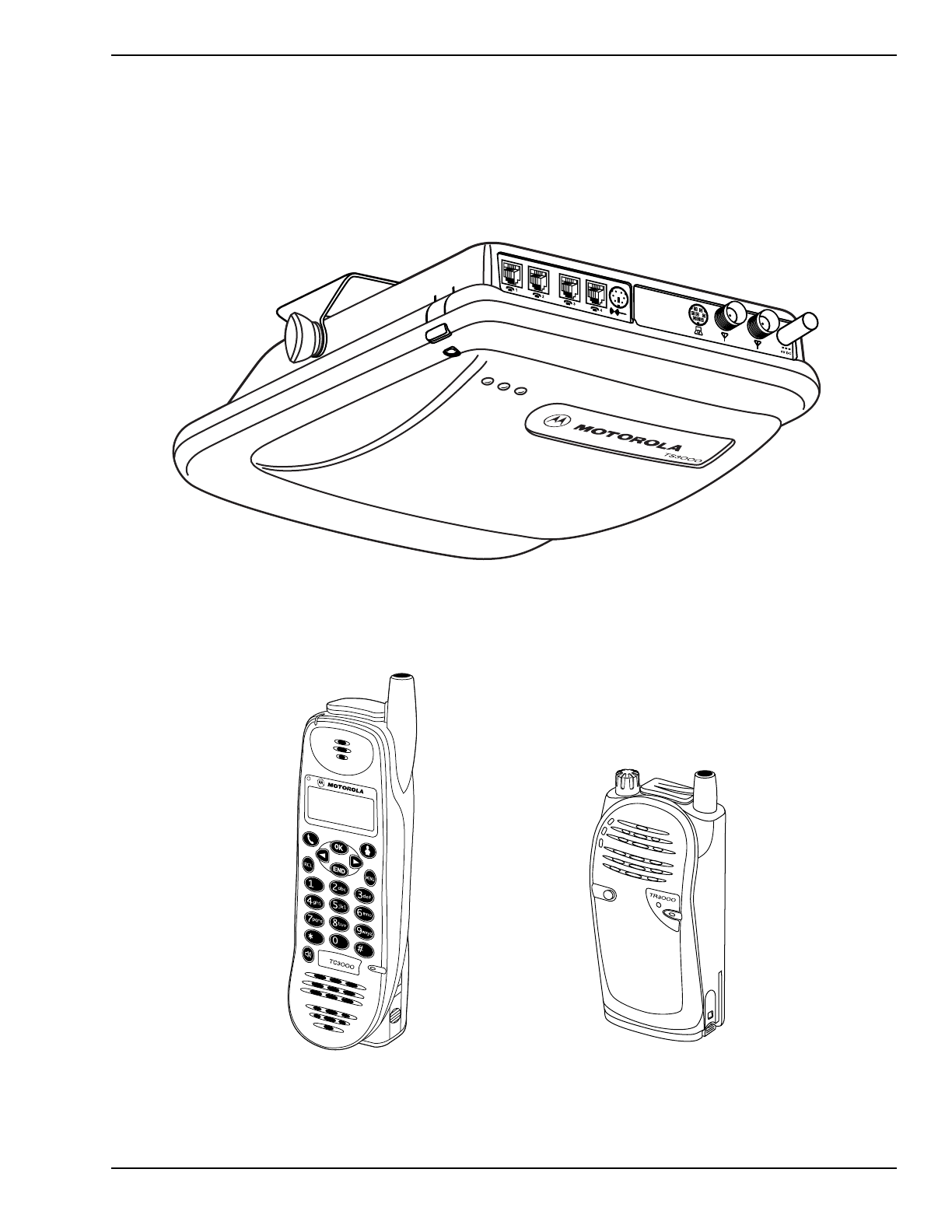

Introduction Congratulations! You have chosen the Motorola Telario™ Integrated Cordless
Telephone and Two-Way Radio System. The Telario System is a state of the art
Motoroladigitalcommunications system.This productfamilyof 1.9GHz unli-
censed wireless communication equipment is intended for businesses with
groups of in-building users. The system supports two types of handsets and
utilizes TDMA Control Stations that allow integrated voice services to several
communications groups. With Motorola’s seamless integration of two-way
dispatch services – Group Talk and Private Link, and Full Duplex (toll quality)
CordlessTelephonecapability –your customerwill experiencean efficientand
productive work environment.
Regulatory Approvals
FCC
The TS3000 Telario Control Station complies with Part 15 and 68, FCC rules.
FCC Registration Number: ABZ99FT7012
Ringer Equivalence Number:
This equipment complies with Part 15 and 68 of the FCC Rules. On the bottom
oftheTS3000 ControlStation arelabels thatcontain, among otherinformation,
the FCC Registration Number and Ringer Equivalence Number (REN) for this
equipment. If requested, this information must be given to the telephone com-
pany.
The REN is useful to determine the quantity of devices you many connect to
your telephone line and still have all of those devices ring when your number
is called. In most, but not all, areas, the sum of the RENs of all devices con-
nected to one line should not exceed five (5.0). To be certain of the number of
devicesyoumanyconnect to your line, asdeterminedby the REN, you should
contact your local telephone company to determine the maximum REN for
your calling area.
If your telephone equipment causes harm to the telephone network, the tele-
phone service may discontinue your service temporarily. If possible they will
notifyyouin advance. But ifadvancenoticeisn’t practical, you willbenotified
as soon as possible. You will be informed of your right to file a complaint with
the FCC.
Your telephone company may make changes in its facilities, equipment, oper-
ations or procedures that could affect the proper functioning of your equip-
ment. If they do, you will be notified in advance to give you an opportunity to
maintain uninterrupted telephone service.
If you experience trouble with this equipment, please contact your authorized
Motoroladealer for informationonobtaining service or repairs.The telephone
company may ask that you disconnect this equipment from the network until
the problem has been corrected or until you are sure the equipment is not mal-
functioning.
This equipment has been tested and found to comply with the limits for Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and, if not installed and
-2 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
used in accordance with this installation manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CAUTION
Caution: If the user makes changes or modifications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Underwriter’s
Laboratories (UL)
The UL symbol on the TS3000 Regulatory Label means that the product is
listed by Underwriter’s Laboratories, Inc. It is designed and manufactured to
meetrigidULsafetystandardsagainstX-radiation,fire,casualty,andelectrical
hazards.
The following are statements required for UL certification, related to safety
procedures that must be adhered to during installation.
If wiring for a Control Station exits a building, the wiring must be protected at
both ends by a Quick Clip Fuse from Reliable Electric, model number RSCP-2.
Follow these general precautions while installing telephone equipment:
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the tele-
phone line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
UTAM
What is UTAM?
UTAM (Unlicensed Transition & Management for Microwave Location) is an
organization which is composed of 15 companies in the United States that
coordinatesthe relocationof existing microwaveincumbents andmanagesthe
unlicensed 1.9 GHz frequency range. UTAM is responsible for establishing
and enforcing policies and procedures to ensure that deployment of Unli-
censedPersonal CommunicationSystems (UPCS)causesnointerferencetothe
incumbent microwave community. It also works to eventually move all micro-
wave users out of the UPCS band.
Motorola was a founding member of the organization and continues to be
actively involved.
Zone 1, Zone 2, & Zone 3 Unclassified
Counties throughout all of the United States are designated as Zone 1, Zone 2
or Zone 3/Unclassified, based on the status of microwave link incumbents
within each county. UTAM procedures are both zone dependent & zone inde-
pendent, and are detailed in the next sections.
A county is designated as Zone 1 because all microwave incumbents have
been cleared.
A county is classified as a Zone 2 county when any microwave incumbents
have not been cleared and continue to operate in the county.
November, 1999 6880906Z38-O -3
Telario TS3000 Control Station Installation Manual
An Unclassified or Zone 3 county is one that qualifies for Zone 1 status. How-
ever, due to a business population being less than 5,000, it has not been sched-
uled for conversion at this time. Most Unclassified counties will be
automatically converted to Zone 1 Status by UTAM when a member initiates
asite specificcoordinationrequest,with conversioncosts tobepaid byUTAM.

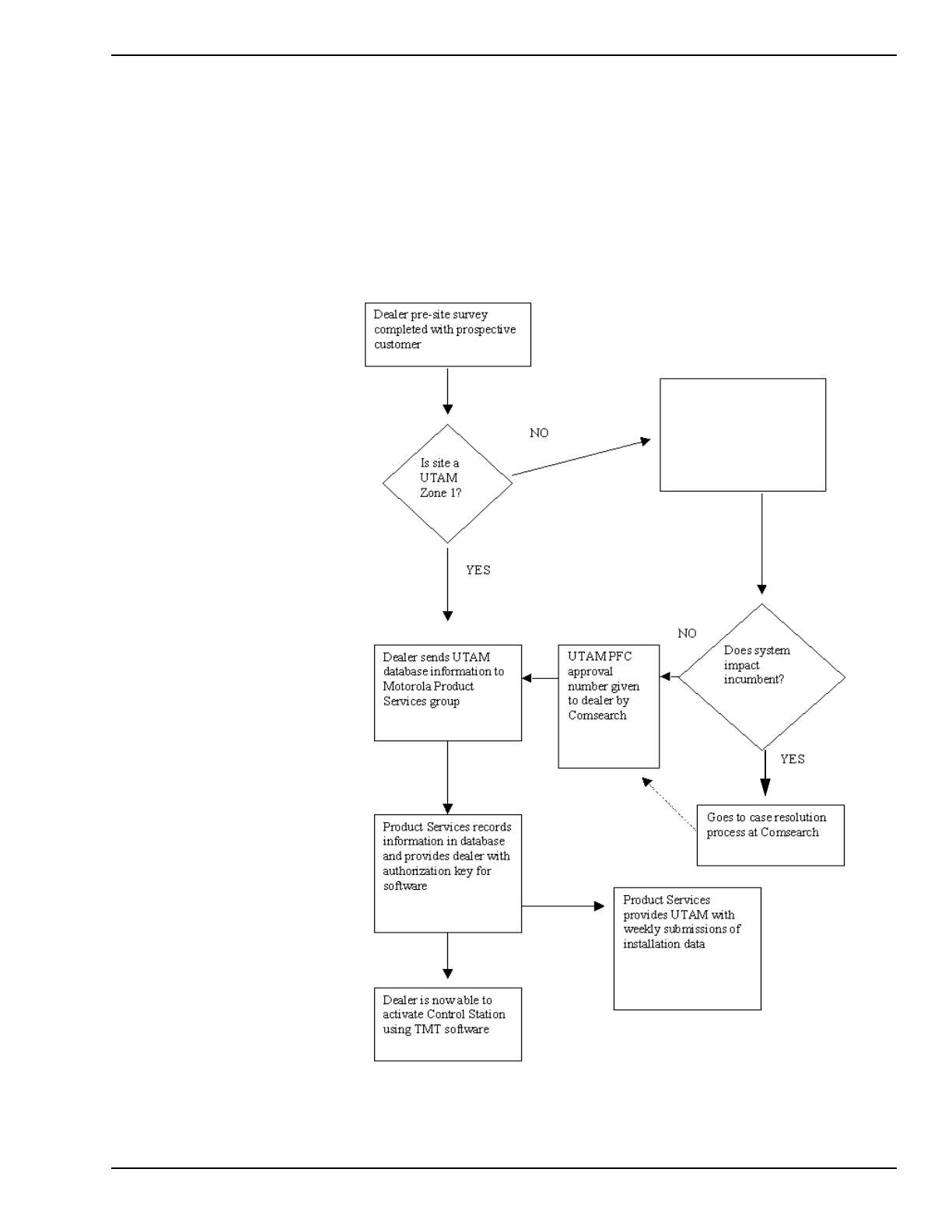

Overall Process
Dealer contacts
Motorola Product Srvcs
to conduct site specific
interference analysis &
frequency coordination.
-4 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
Time of Sale, End User Contract: All Zones
As a Dealer, it is your responsibility to inform the customer about UTAM, its
rules and regulations. This requirement applies to all zones. The following
agreement must be included in your sales contract with your customer:
[Customer]herebyacknowledgesthattheuse andoperationofanyintentional
radiator equipment requiring a Part 15.311 FCC label and subject to UTAM
clearing fees, the operation of which makes use of any part of the unlicensed
personal communications services (“UPCS”) frequency spectrum (“UPCS
Radiating Part”), is subject to FCC rules and regulations and UTAM require-
ments and instructions including without limitation rules, regulations,
requirements and instructions with respect to interference to licensed fixed
microwave facilities and to the relocation of any such UPCS Radiating Part.
[Customer] agrees that [its] use or operation of any UPCS Radiating Part shall
comply with all such rules, regulations, requirements and instructions.
Name Of Subscriber: __________________________
State Of Incorporation: __________________________
By: ___________________________
Name: _________________________
Title: __________________________
Address: _______________________
Date: __________________
Time of Installation, Product Registration & LVP: All Zones
To monitor deployment and power levels, all equipment sales must be regis-
tered with Motorola Product Services group at the time of installation. Infor-
mation is forwarded to UTAM, per its regulations. This procedure, required
forall zones,ensuresthat theband remainscoordinatedandoperational forall
authorized vendors and their customers.
The registration form requires the following information:
- Customer name
- Site address
- City, state, zip and county name
- Site coordinates (latitude and longitude)
- UTAM PFC approval number (if the location is a Zone 2 or Zone 3 site)
- Quantity of Control Stations to be installed
- Quantity of handsets to be installed
- Installation date
- Maximum height of installation
November, 1999 6880906Z38-O -5
Telario TS3000 Control Station Installation Manual
- Dealer information (name, contact, phone, fax)
- Control station serial number(s)
- 32 bit random number (request key) obtained from the Telario Management
Tool (TMT) software
Oncetheinformationisreceivedandinput,theProductServicesgroupassigns
you an authorization key for the system. The authorization key is valid for all
handsets within a system but unique for each Control Station. This authoriza-
tion key is required by the Telario Management Tool (TMT) software to pro-
gram the system. The Control Station is the core of the system and the serial
numberfromtheControlStationis usedtogenerate thekeycode. ProductSer-
vicesuses theControlStation serialnumberandtherequestkey obtainedfrom
the TMT software to generate the 18-bit authorization key, which is then
returned to the installer. It is important to note that you can not activate the
Control Station until you receive an authorization key from Motorola Product
Services (1-800-927-2744). The TMT requires entry of a valid authorization key
andoncethis has beenentered,theunit can beactivated.The unit isthenoper-
ational upon completion of this programming step. In the event that a Control
Station needs to be re-registered (e.g. power down for more than 4 hours)
another unique key will be required to program the unit.
Use of the random hardware serial number and authorization key assures that
the Location Verification Process (LVP) is specific to each unique system each
time the LVP is used. The Motorola Product Services Group submits applica-
tion and registration information to UTAM on a weekly basis. This informa-
tion will also be kept on the database at Motorola.
LVP is applicable for two main cases:
1) Initial site installation:
Units received by the dealer will be non-operational. The location verification
processandassignmentofkey codetothesitesystemisrequiredforoperation.
Therefore, this process must occur at all initial installations.
2) Site relocation:
In the event that a Control Station (and associated handsets) is moved to a dif-
ferent location, the dealer must again go through the LVP. The Telario system
ensures this through the system design. The Control Station hardware and
softwarearedesignedsothatifa ControlStationis moved(i.e.bothpowerand
phoneline aredisconnected)andmorethan4hourselapse,theControlStation
resets. This means that the Control Station goes back to its initial state, which
requires a new authorization code and activation for system operation.
Compliance to Part 15.307 (e), (h)
FCC Part 15.307 (e) and (h) deal with methods to restrict site mobility. UTAM
requires a method to ensure that the system will be non-operational if it is dis-
connectedformorethan4hours.Theintentofthisistolimit thesystemmobil-
ity and thereby reduce the opportunity for relocated systems from being
established without UTAM authorization. The Telario system complies with
this requirement.
-6 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
Important Safety
Information Read this information before installing and operating the Telario Control Sta-
tion. For safe and efficient operation observe these guidelines.
Exposure to Radio
Frequency Energy
National and International
Standards and Guidelines
Your Motorola Telario Control Station and handsets, which generate and radi-
ate radio frequency (RF) electromagnetic energy (EME), are designed to com-
ply with the following national and international standards and guidelines
regarding exposure of human beings to radio frequency electromagnetic
energy:
• Federal Communications Commission Report and Order No. FCC 96-326
(August 1996)
• American National Standards Institute (C95-1-1992)
• National Council on Radiation Protection and Measurements (NCRP -
1986)
• International Commission on Non-Ionizing Radiation Protection (ICNRP
- 1986)
• European Committee for Electrotechnical Standardization (CENELEC)
– Env. 50166 - 1 1995E - Human Exposure to Electromagnetic Fields Low
Frequency (0 Hz to 10 kHz)
– Env. 50166 - 2 1995E - Human Exposure to Electromagnetic Fields High
Frequency (10k Hz to 300 GHz)
– Proceedings of SC211/8 1996 - Safety Considerations for Human Expo-
sure to E.M.Fs from Mobile Telecommunications Equipment (M.T.E.) in
the Frequency Range 30 MHz - 6 GHz (E.M.F - Electromagnetic Fields)
Electromagnetic
Interference/
Compatibility
NOTE
Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed or other-
wise configured for electromagnetic compatibility.
• To avoid electromagnetic interference and/or compatibility conflicts, turn
off your handset in any facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using equipment that is sensitive
to external RF energy.
Operational Warnings
Potentially Explosive
Atmospheres Turn off your handset when you are in any area with a potentially explosive
atmosphere, unless it is a radio type especially qualified for use in such areas
(for example, Factory Mutual Approved). Sparks in a potentially explosive
atmosphere can cause an explosion or fire resulting in bodily injury or even
death.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your handset
whenyouarenearelectricalblastingcaps,inablastingarea,orinareasposted:
“Turn off two-way radio”. Obey all signs and instructions.
NOTE
The areas with potentially explosive atmospheres referred to
above include fueling areas such as: below decks on boats; fuel
or chemical transfer or storage facilities; areas where the air con-
tains chemicals or particles, such as grain, dust or metal pow-
!
November, 1999 6880906Z38-O -7
Telario TS3000 Control Station Installation Manual
ders; and any other area where you would normally be advised
to turn off your vehicle engine. Areas with potentially explosive
atmospheres are often but not always posted.
Operational Cautions
Damaged Antennas Do not use any handset or Control Station that has a damaged antenna. If a
damaged antenna comes into contact with your skin, a minor burn can result.
Batteries All batteries can cause property damage and/or bodily injury such as burns if
a conductive material touch exposed terminals. The conductive material may
complete an electrical circuit (short circuit) and become quite hot.
Antenna Safety
DANGER
Death can result if the antenna comes near or in contact with
electric power lines.
DO NOT allow the antenna to touch exposed parts of the body, especially the
face or eyes, while the Control Stations is powered on.
DO NOT operate the Control Station with a damaged antenna or antenna
board. Replace a damaged antenna or board immediately or contact your
Motorola dealer or the Motorola Service Repair Center.
Unauthorizedantennas, modifications,or attachmentscould damagetheCon-
trol Station and may violate UTAM regulations. Use only the Motorola
approved antenna or antenna board.
General Control Station
Care
Your Control Station is made and tested to meet exacting safety standards. It
meets both UL and FCC requirements.
WARNING
Toreducetherisk offireorelectric shock,do not exposethe Con-
trol Station to rain or moisture.
Careful attention is devoted to quality standards in the manufacture of your
Control Station, and safety is a major factor in its design. However, safety is
also your responsibility.
This section lists important information that will help you properly use and
enjoy your Control Station. Read all the included safety and operating
instructions before using your Control Station.
Cleaning – Use only a damp cloth for cleaning. Do Not use liquid or aerosol
cleaners.
Attachments – Do not use attachments/accessories not recommended by
Motorola, as they might create a hazard.
Water and Moisture – Do not use this product near water (for example - near
a bathtub, washbowl, kitchen sink, or laundry tub; in a wet basement; or near
a swimming pool).
Power Sources – Operate the Control Station using only the power source
indicated on its marking label. If you are not sure of your power type, consult
your authorized Motorola dealer. Important: The power source for the Con-
trol Station must provide a continuous source of power for this equipment.
!
-8 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
Power receptacles that are controlled by switches or timers should not be
used.
Power-Cord Protection – Route power-supply cords so they are not likely to
bewalked onorpinchedbyitems placedon oragainstthem,payingparticular
attention to cords at plugs, AC outlets, and the points where they exit from the
product.
Overloading – Do not overload AC outlets or extension cords, as this can
result in a risk of fire or electric shock.
Objects and Liquids – Never push objects of any kind into this product
through openings, as they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock. Never spill liquid of any kind
on the Control Station.
Servicing – In each or any of the following conditions, contact qualified per-
sonnel or your authorized Motorola dealer immediately.
• When the power-supply cord or plug is damaged.
• If liquid has been spilled or objects have fallen into the Control Station or the
power supply.
• If the Control Station or the power supply has been exposed to rain or water.
• If the Control Station does not operate normally when following the operation
instructions.
• If the Control Station or the power supply has been dropped or damaged in any
way.
• When the Control Station exhibits a distinct change in performance.
•Heat–TheControlStationshouldbesituatedawayfromheatsourcessuchasradi-
ators, heat registers, stoves, or other products (including amplifiers) that produce
heat.
• If the Control Station power and telephone line connections have been interrupted
or disconnected for more than four (4) hours.
• If the Control Station Red LED lights.
November, 1999 6880906Z38-O -9
Telario TS3000 Control Station Installation Manual
System Components • Telario TS3000 Control Station
• Telario TC3000 Communicator
• Telario TR3000 Radio
TS3000 Control Station
TR3000 Radio
TC3000 Communicator
-10 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
Standard Shipping
Package Inspection
• Trunnion Kit – Kit Number HLN9789
• Power Supply – Part Number 2580427B06
• Line Cord – Part Number 3085714L01
• Installation Manual - Part Number 6880906Z38

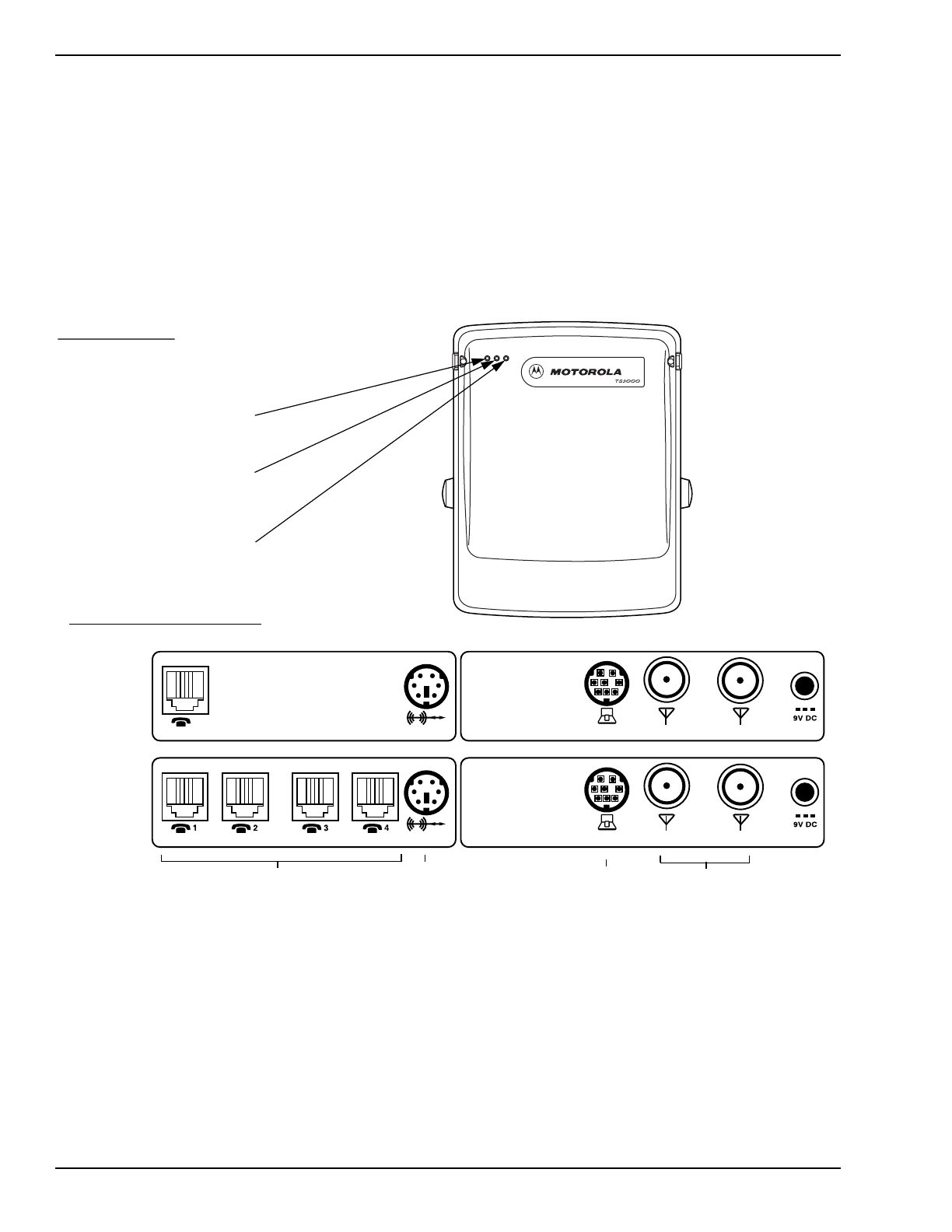

Control Station Profile
LED Definitions
Control Connector Panels
Green - Indicates the
Control Station is powered.
Amber - Indicates phone
operation is in progress.
Red - System malfunction.
Attention needed!
1 Phone
Line
4 Phone
Line
Model
Model
Phone Lines Audio
In/Out Programming Remote Mount
Antenna
November, 1999 6880906Z38-O -11
Telario TS3000 Control Station Installation Manual
Installation Telario installations follow a seven-step process, starting with a pre-sale site
survey and ending with training users working on a tested system.
Pre-Sale Site Survey
The first thing you need to do is visit your customer’s site, verify that a Telario
systemwill meet thecustomers’ requirements,and verify thatthe sitequalifies
for Telario coverage. A single Telario Control Station can cover up to 250,000
square feet on a single floor. Once this is confirmed, you will need to make a
note of what the longitude and latitude is for the site (www.mapblast.com).
This information is required for UTAM, and for the system programming.
Additionally, you will need to determine if the county your customer site
resides in is a Zone 1 or Zone 2 county. If the site is designated as Zone 2, you
must follow the UTAM coordination procedures (refer to UTAM section start-
ing on page 2).
Follow-Up Sales Call
Once you’ve verified that your customer site matches the Telario System cov-
erage capabilities, specific user needs and how those needs match up with the
Telario System capabilities must be identified. Be sure to document all this
information carefully because it will be needed for system programming.
Some examples of questions you will need to answer to assist in system con-
figuration preparation:
• How many work groups are required?
• Who will be in each work group?
• Who needs telephone capability, and with what restrictions?
• Who needs just a radio?
• What, if any, accessories will be needed?
• How many TC3000 Communicators and TR3000 Radios are needed?
Pre-Installation Site
Survey
A pre-installation site survey is critical to the success of the Telario System
installation and will require technical support in addition to sales.
Identify Coverage Needs As part of your pre-installation site survey, coverage needs should be deter-
mined and tested. In planning RF coverage for a site, create a simple site map
– an RF coverage floor plan. Regardless of facility size, create a rough sketch of
the exterior dimensions, including ceiling height. Then, walk the site. Identify
any metal walls, racks or other metal structures and their height and draw
them on the map. Identify all of these on the map. Your goal is to spot possible
Control Station locations and identify the worst-case coverage locations.
Control Station Placement Generally, consider the following rules for the Control Station placement:
• as high as possible
• nearest the center of the building
• in a wide open space
• visible to windows or doors on all sides of the building
• in plain sight
• no metal within 12 inches of the Control Station non-mounting surfaces
(sides and top)
If the customer requires coverage of an area outside of the building – like a
parking lot or yard area – be sure there is a propagation path to the area. Large
-12 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
glassed doorways and window areas will usually provide sufficient signal
strength to the area.
Important Guidelines Here are some important guidelines that you will want to keep in mind when
preparing to install a Telario System.
• Know the building fire codes.
• Keep Control Stations separated by more than 1 meter.
• Operating Control Stations must installed be 20 meters or more from peo-
ple.
• Be sure mounting components meet building standards.
• Follow UL regulations.
First, as an installer, you must have knowledge of the local building and fire
codes with regards to permanent installation of electronic equipment in the
work place or public facility, including overhead or ceiling mount require-
ments.
Second, if you are installing more than one Control Station, be sure they are
separated by at least 1 meter to insure correct RF performance.
Third, you will need to conduct RF performance tests to verify that the system
coverage meets your customer’s expectations in all areas within the facility
wheresystemaccessisintended.Ifspecialconditionsexist,suchasmetalwalls
or the presence of large metallic objects within the building or if irregular cov-
erage patterns are encountered, preliminary installation may be necessary to
verify operational requirements before the final installation is attempted.
Finally, UL1950 requires that any wall or ceiling mount be capable of support-
ing 5 times the weight of the equipment. Our standard mounting components
can support 25 or more pounds. If you substitute any components, they too
must support at least 25 pounds.
UL1950 also focuses on the physical installation and fire safety of the equip-
ment while Article 725 focuses on the power cabling. We fall under Article 725
because we use a Class 2 power supply. A Class 2 power supply must be UL
listed, must be inherently current limited, and is generally under 50 Volts.
Class 2 circuits generally do not require special handling such as conduit. The
major concern is that Class 2 circuits cannot share raceways, cable trays, or
enclosures with high power circuits such as branch circuits. Article 725 also
states that the cabling must be done in a 'neat and workman-like manner'.
They specifically cite ANSI/EIA/TIA “Commercial Building Telecommunica-
tionWiringStandard”568-1991,and “CommercialBuildingStandardForTele-
communications Pathways and Spaces” 569-1990 as examples of what would
comply.
Coverage Test Once you have selected the Control Station location, a coverage test is neces-
sary. Place a Control Station into the Error Rate diagnostic mode and position
itas close tothepreferredinstallationlocationas possible.Toget themostreal-
istic coverage estimate, you may need to use a telescopic tripod. Then, carry a
diagnostic mode enabled handset to all corners of the facility. Control Stations
placed in diagnostic mode will transmit a continuous 1 kHz tone to the hand-
set. The tone should remain solid with no dropout in all locations. If coverage
isdeemedunacceptable incertainareasof the sitewhereitis necessary, choose
a new location for the Control Station and repeat.
November, 1999 6880906Z38-O -13
Telario TS3000 Control Station Installation Manual
Telephone System Interfaces Anintegralpartofthe pre-installsitesurveyinvolveslookingoverthecustom-
ers telephone system.
The Telario System must interface with analog phone lines. This was a delib-
erate design decision that provides you with as much flexibility as possible in
matching the Telario System to a customer’s telephone environment.
The Telario System interfaces easily with analog PBX’s. If an analog PBX is
being used, be sure the PBX has lines available for each telephone line and/or
Communicator used in the Telario System. Your customer may need to have
the PBX manufacturer install additional line cards. When an analog PBX is
used, some of its features may be passed through the Telario System to the
handsets. Others may not.
The Telario System can also work with digital PBX equipment in most cases,
as long as it is capable of adding analog line cards.
The Telario System can also work with key telephone equipment. This is an
older technology characterized by six-button telephones.
Of course, The Telario System can also simply be connected directly to dedi-
cated telephone lines.
-14 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
Telephone Cabling Regardless of which type of telephone system you are interfacing, investigate
how you or a technician will run the telephone service wiring to the Control
Station. You will be expected to provide telephone service wiring terminated
with standard RJ-11 outlets for each line. The use of Category 5 wiring and
installation techniques are recommended.
Power Cabling Primary AC power is required to power the Control Station and must be in
accordancewithapplicableelectrical codes.The ControlStation PowerSupply
must plug into a fuse or circuit breaker protected outlet rated at no more than
20 amperes. The Control Station power supply cord and the input cord to the
ControlStationareabout12 feetlong. Ifagreaterdistance isnecessary toreach
AC power, one or more Motorola 75 foot Power Extension Cables may be con-
sidered. The number of extension cables used depends on the type of Control
Station being installed as well as expected system usage or “loading”. Refer to
Table 0-1 below for guidelines. Be sure to consider future system requirements
or upgrades.
Backup Power
As a final activity in your pre-sale work with the customer, discuss battery
backup. If the Telario System is used for critical business communications,
you’ll want to discuss whether backup power is available at the site, or if the
Motorola Backup Battery will be required.
Review Table 0-1 below to determine battery back-up time, which is depen-
dent upon the use of the power extension cables and system usage.
Table 0-1. Power Extension Cable Guidelines and Battery Backup Times
Important Note: The recommended ambient for a Control Station with the
backup battery intalled is 0 to 40 degrees C (32 to 104 degrees F) and should
not exceed -15 to +50 C (5 to 104 degrees F).
Control Station Model Battery Backup
Installed System Usage
or Loading Number of 75 Ft Power
Extension Cables Average Backup
Time (Hours)
Single Phone Line NO Light 4 n/a
Single Phone Line NO Heavy 3 n/a
Four Phone Line NO Light 3 n/a
Four Phone Line NO Heavy 3 n/a
Single Phone Line YES Light 3 8
Single Phone Line YES Heavy 2 3.75
Four Phone Line YES Light 2 1.5
Four Phone Line YES Heavy 1 1.3
November, 1999 6880906Z38-O -15
Telario TS3000 Control Station Installation Manual
Installation Preparation
and Programming
Required Tools • LaptopPCwithaPentiumprocessor,64 megabytesofRAM,anRS232port
and a CD-ROM.
• Telario Management Tool Kit, kit number H5183, includes the CD, a Get-
tingStartedManual,andprogrammingcables (kitnumbersHKN9023and
HKN9024)
• A line tester with a DTMF pad and earpiece, to verify that all telephone
lines are functional, is recommended.
Other Materials You Might
Need at the Site • Punchout tool – Motorola part no. 66-80333A39
• Velcro straps
• Tie wraps
• Ladder or lift
• Telescopic tripod
• Beam clamps
• Molly bolts
• Category 5 crimping tool
• Category 5 continuity tester
• Calculator
• Phone connector kit
• Power connector kit
• Wrenches & screwdrivers
Programming
The final step to installation preparation is programming the customer’s
equipment with the Telario Management Tool (TMT). Refer to the TMT help
windows for assistance.
Control Station
Installation
Mounting Ideal mounting choices are the bottom of a horizontal I beam, or on the ceiling
with the standard trunnion. The trunnion allows at least 10 degrees of rotation
inoneplane. For optimal coverage of thefacility, the ControlStation should be
installed horizontally.
Remote Mount Antenna If you must mount the Control Station in a vertical orientation, coverage could
be restricted significantly. For these cases, we suggest using the Motorola
Remote Mount Antenna. The Remote Mount Antenna connects to the rear of
the Control Station, extending the space diversity antenna system up to four
feet, thus allowing for more flexible mounting options, while maintaining sys-
tem integrity.
-16 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
Mounting Hardware
Alternatives Depending on the location chosen for mounting the Control Station, you’ll
need to consider various mounting hardware alternatives to complement the
standard trunnion. These might include the choices shown here.
• Plaster Ceiling – 4 molly bolts
• Suspended Ceiling – 2 grid clips
• Horizontal I-beam – 2 beam clamps
• Vertical I-beam – 2 beam clamps
• Wall – 2 molly bolts
Drop Ceiling Mount If you are mounting the Control Station in an office space, you may encounter
a drop ceiling. Talk over the installation, and especially the need for any
exposed wiring, with the customer. If mounted on a drop ceiling, UL1459
requires that the entire system be capable of supporting five (5) times the
weight of the Control Station. Check with the facility to ensure that the grid is
rated to 25 pounds minimum. Also review any local earthquake regulations
before attempting a ceiling mount.
If the cabling needs to run in the space above the ceiling grid, then you need
to budget for slightly more expensive plenum-rated cable. If aesthetics dictate
mounting the Control Station above the tile, then check the tile to be sure it is
not foil backed. Foil backed tile will destroy your propagation calculations. A
Remote Mount Antenna installed below the tile may be considered in this sce-
nario as well.
Programming Accessibility If the Control Station is mounted in a difficult location to access or your cus-
tomer anticipates adding or modifying handsets and system design in the
future, you may want to consider adding the Control Station programming
cable for reprogramming needs. All cabling must comply with the National
ElectricCode (NEC)aswell asthe state,city,countyand localbuilding andfire
code requirements. You can use EIA/TIA-568 as a beginning point.
UTAM Registration &
Mobility Feature UTAM requires that every installed Telario System is registered. To ensure this
is done, the Control Station has a built in mobility feature intended to satisfy
the UTAM requirement that a previously installed system shall not be moved
to a different location without being re-registered by an authorized Motorola
dealer.
Dueto thisrequirement, justpriorto orjust aftertheControlStation isactually
installed, the Telario Management Tool (TMT) Software must be used to indi-
cate that a particular Control Station has in fact been registered. Refer to
UTAM section starting on page 2 for instructions on this process.
Notethefollowingscenariosthatareimpactedby theUTAMMobilityFeature:
• If the power and phone line 1 are disconnected for more than 4 hours, the
ControlStationis considered“un-installed”forthe intentof movingit and
will be non-functional when re-connected, until it is re-registered with the
Telario Management Tool.
• If there is a loss of power, but phone line 1 remains connected, for up to
five days the Control Station will still be functional when power is
restored.
• Ifthephoneline1connectionislost,butpoweris notinterrupted,theCon-
trol Station will still be functional when phone line 1 is reconnected.
•Using a battery backup will allow the Control Station to be functional during
the loss of primary power for up to eight hours (see Table 1, page 14). If
November, 1999 6880906Z38-O -17
Telario TS3000 Control Station Installation Manual
primary AC power is restored during the battery backup period, the Con-
trol Station will remain functional. If power is still out when the battery
backupisdischarged,theControlStationwillbe functional when primary
AC power is restored provided that primary power was not lost for more
than five days, and the connection to phone line 1 was maintained during
this period.
Telephone Hybrid Adjustment The telephone interface network in the Control Station is intended to perform
optimally with typical telephone line impedances. In some situations, varia-
tions in telephone line impedances may be encountered which are sufficient to
degrade the sidetone rejection of the interface network. “Sidetone” is the level
of your own voice heard in the Communicator’s earpiece when speaking into
the microphone during a phone call.
If necessary, it is possible to adjust the hybrid balance of the network to mini-
mize the sidetone level. There is one slide switch and adjustment potentiome-
ter on the main circuit board of the Control Station, and three additional
switch/potentiometer combinations on the option board in four line models.
These are accessible simply by removing the housing cover of the Control Sta-
tion.
To enable the adjustment capability, the appropriate slide switch lever is
moved toward the corresponding adjustment potentiometer. Then, initiate a
phone call from another telephone to the Control Station. Using a Communi-
cator to answer the call, adjust the potentiometer with a small screwdriver
while speaking into the Communicator’s microphone, until the level of your
own voice, as heard in the earpiece, is minimized. For four line models, this
procedure should be repeated for each of the phone lines, adjusting the appro-
priate potentiometer for each.
Site System Test
Once the Control Station is installed and all equipment, including handsets, is
programmed, complete a system functionality check with the customer. At a
minimum, you’ll want to perform the following tests.
• Verify that the Control Station powers up and the green LED is lit.
• If battery backup is used, disconnect the power to the Control Station and
verify that the system continues to operate, keeping the impact of the
UTAM Mobility feature in mind.
• Walk the site to test audio quality and coverage.
• Test all Group Talks and Private Links.
• Finally, test all telephone functionality.
Train the Users of the
Telario System
Provide each user with the appropriate handset User Guide and demonstrate
the feature functionality.
-18 6880906Z38-O November, 1999
Telario TS3000 Control Station Installation Manual
