Symbol DS3478
Product Reference Guide
Symbol DS3478 Smart Focus Digital Scanner
Product Reference Guide
72E-72109-04
Revision A
August 2008
ii Symbol DS3478 Product Reference Guide
© 2008 by Motorola, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Motorola. This includes electronic or mechanical means, such as
photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to
change without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Motorola grants to the user a non-transferable and non-exclusive license to use each
software or firmware program delivered hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of
Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under
copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with
other program material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from Motorola. The user agrees to maintain Motorola’s copyright notice on
the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in
whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed
program delivered to the user or any portion thereof.
Motorola reserves the right to make changes to any software or product to improve reliability, function, or
design.
Motorola does not assume any product liability arising out of, or in connection with, the application or use of
any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Motorola, Inc.,
intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in
Motorola products.
MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the US Patent &
Trademark Office. Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync
are either registered trademarks or trademarks of Microsoft Corporation. All other product or service names
are the property of their respective owners.
Motorola, Inc.
One Motorola Plaza
Holtsville, New York 11742-1300
http://www.motorola.com/enterprisemobility
Patents
This product is covered by one or more of the patents listed on the website:
http://www.motorola.com/enterprisemobility/patents
iii
Revision History
Changes to the original manual are listed below:
Change Date Description
-01 Rev A 6/2005 Initial release.
-02 Rev A 2/2007 Update service information; correct Symbol PTC Terminal bar code; specify that
Multipoint mode does not support Beep on <BEL> feature.
-03 Rev A 7/2007 Add DPM version information, including new decode zones and DPM Scanning
parameter; added picklist mode, new UPC/EAN Supplemental options, Bookland
ISBN format, 4State Postal, Inverse 1D, Data Matrix Inverse, Micro QR, QR Inverse,
Aztec, Aztec Inverse parameters.
-04 Rev A 8/2008 Add 2D decode zones, add Decode Mirror Images parameter, removed IBM XT bar
code and keyboard from Keyboard Wedge section, add Code 128 Lengths and Post
US4 options, change UCC/EAN-128 code type name to GS1-128.
iv Symbol DS3478 Product Reference Guide
Table of Contents
About This Guide
Introduction .................................................................................................................... xv
Configurations................................................................................................................ xv
Chapter Descriptions ..................................................................................................... xv
Notational Conventions.................................................................................................. xvi
Related Publications ...................................................................................................... xvii
Service Information........................................................................................................ xvii
Chapter 1: Getting Started
Introduction ................................................................................................................... 1-1
Smart Focus Scanning ............................................................................................ 1-1
Host Interfaces ........................................................................................................ 1-2
Unpacking the Digital Scanner ...................................................................................... 1-2
The Digital Scanner Cradle ........................................................................................... 1-2
Cradle Parts ............................................................................................................ 1-3
Connecting the Cradle ............................................................................................ 1-4
Supplying Power to the Cradle ................................................................................ 1-5
Connecting a Synapse Cable Interface ................................................................... 1-6
Reestablishing a Lost Connection to Host .............................................................. 1-6
Mounting the Cradle ................................................................................................ 1-6
Removing and Inserting the Battery .............................................................................. 1-7
Charging the Battery ..................................................................................................... 1-8
Charging LED .......................................................................................................... 1-8
Charging Problem LED ........................................................................................... 1-8
Inserting the Digital Scanner in the Cradle ................................................................... 1-9
Pairing ........................................................................................................................... 1-9
Unpairing ................................................................................................................. 1-10
Configuring the Digital Scanner .................................................................................... 1-10
vi Symbol DS3478 Product Reference Guide
Chapter 2: Digital Scanning
Introduction ................................................................................................................... 2-1
Beeper Definitions ......................................................................................................... 2-2
LED Definitions ............................................................................................................. 2-5
Digital Scanning ............................................................................................................ 2-6

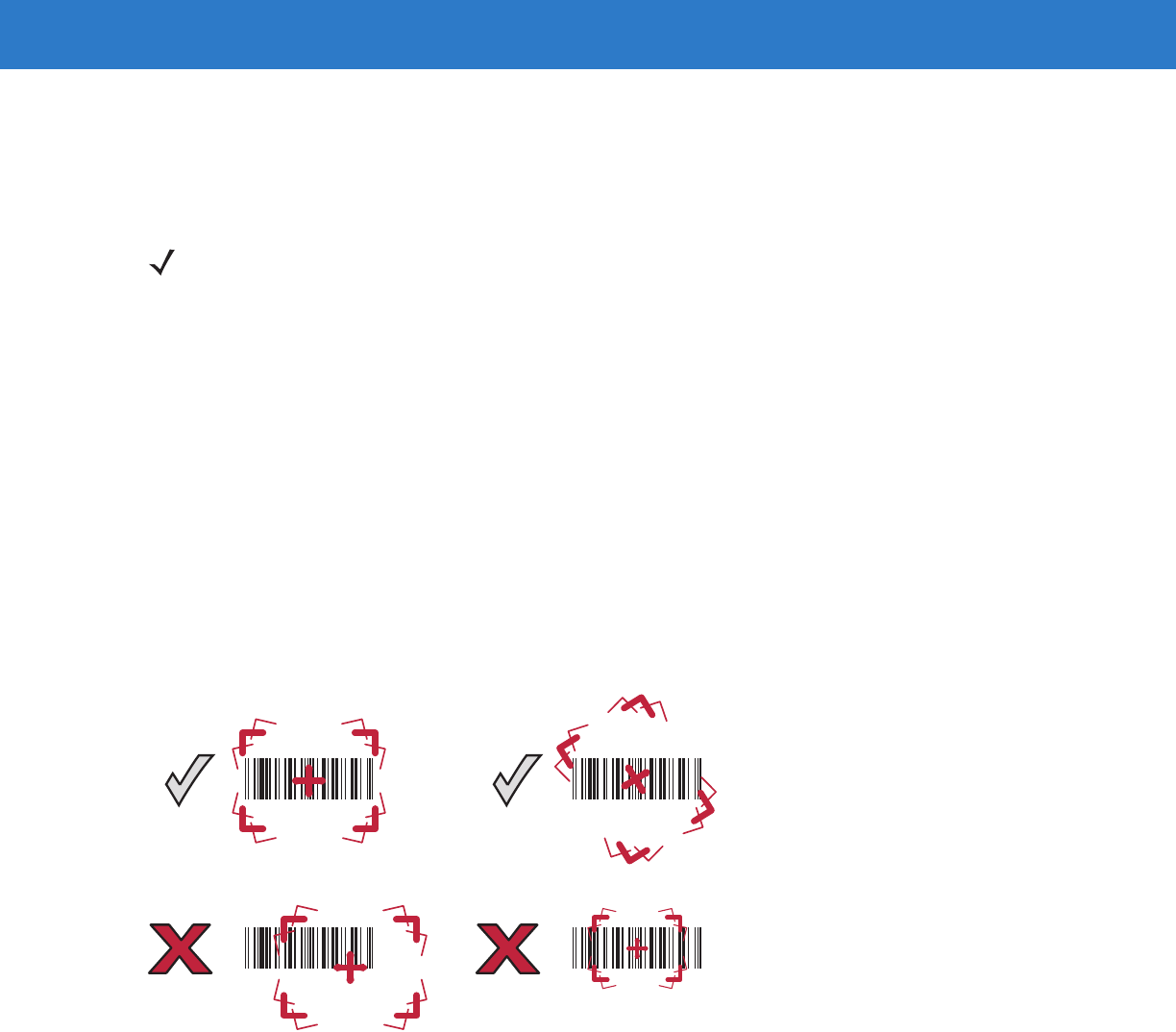

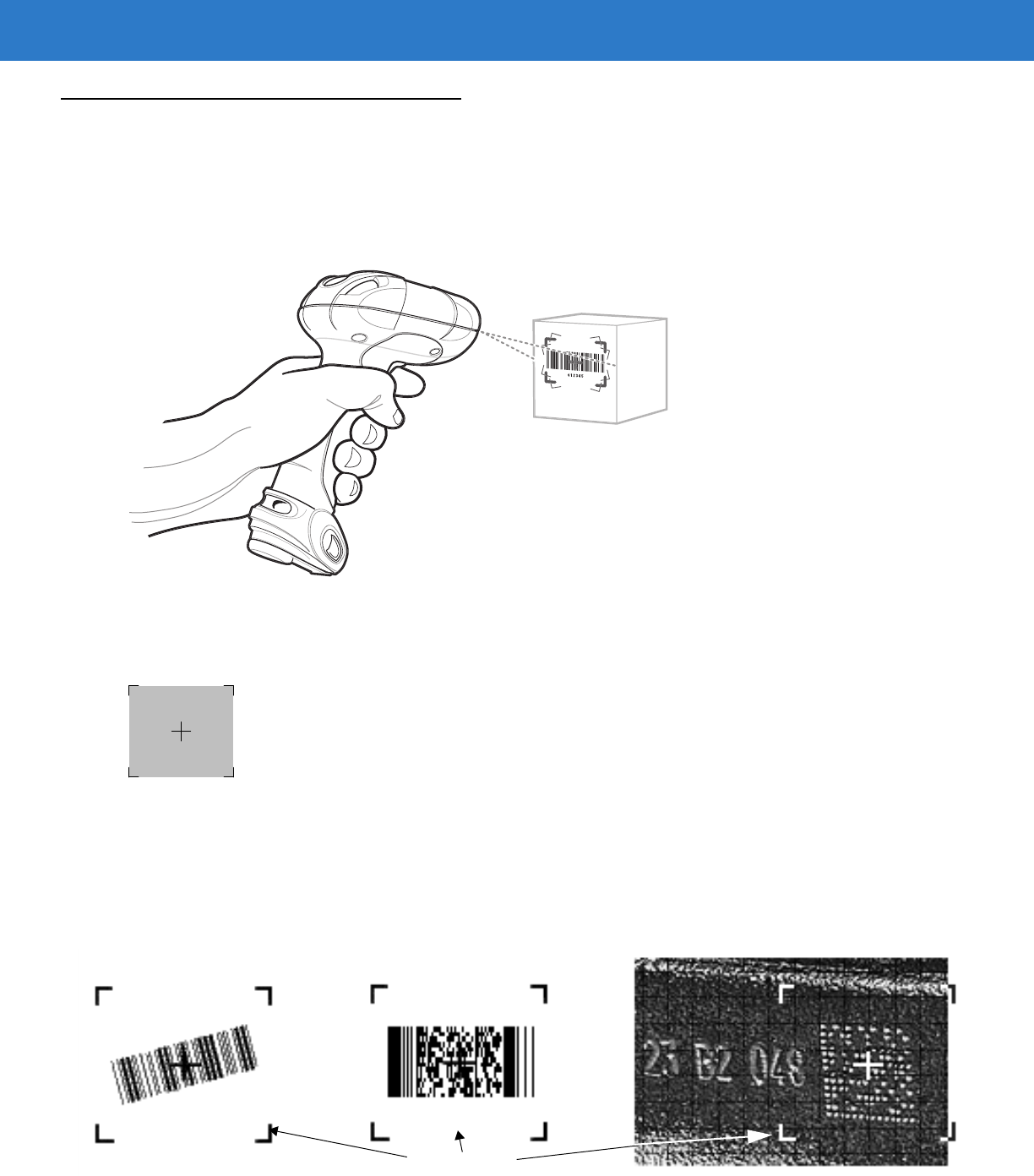

Aiming ..................................................................................................................... 2-7

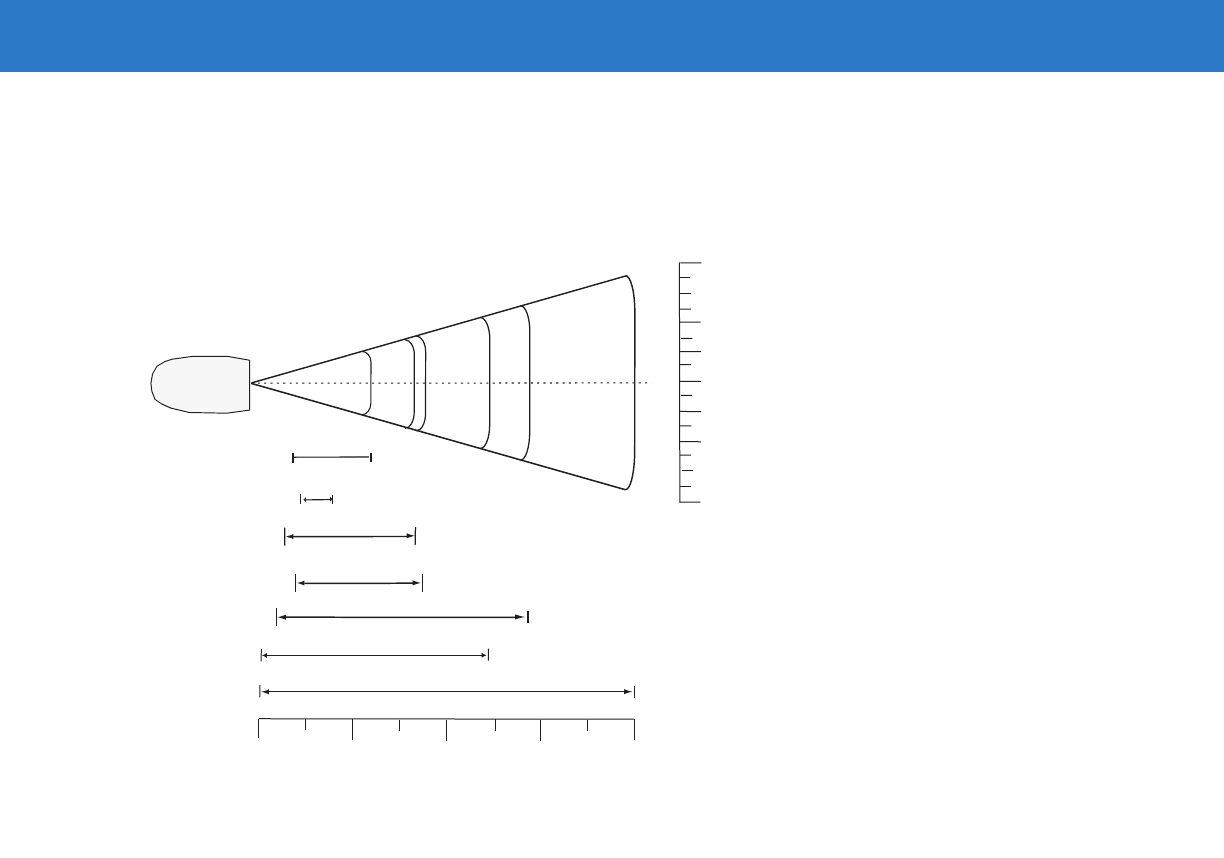

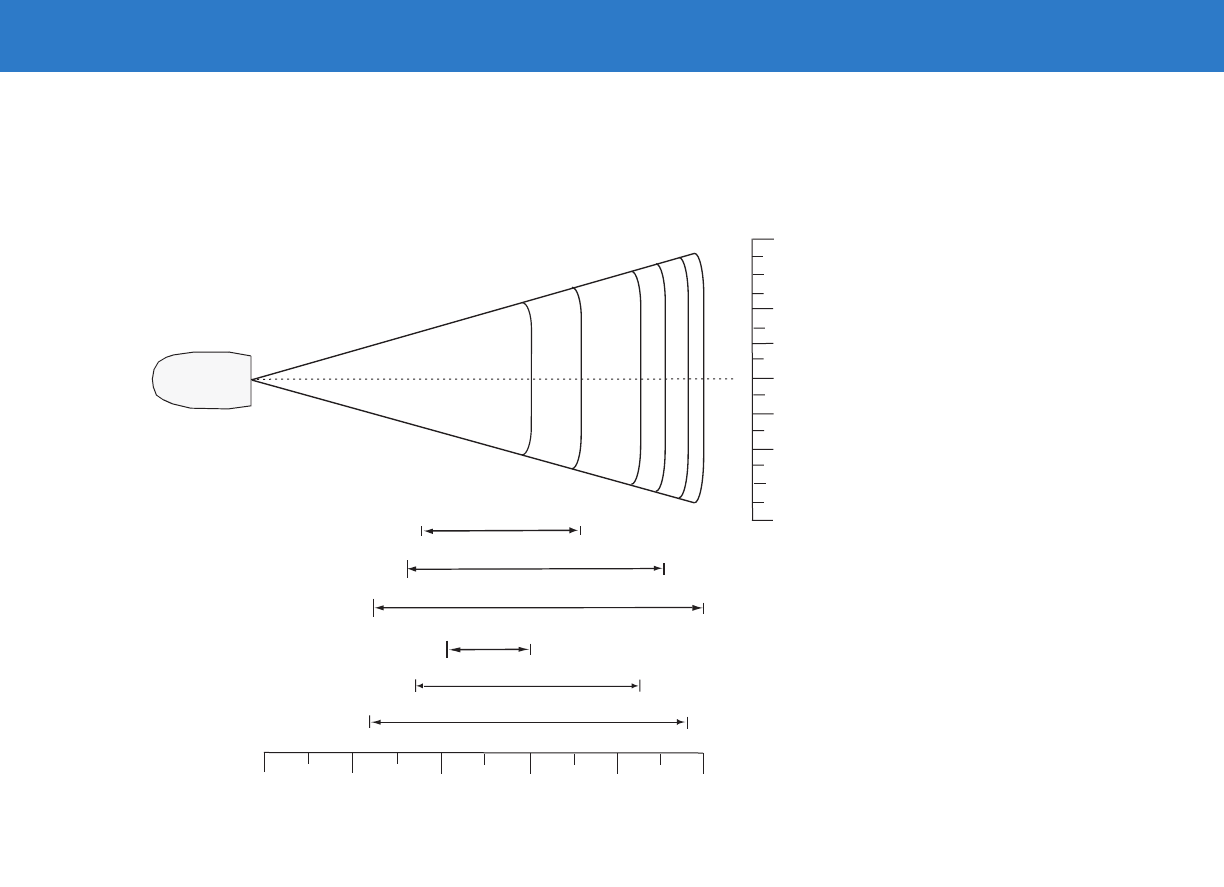

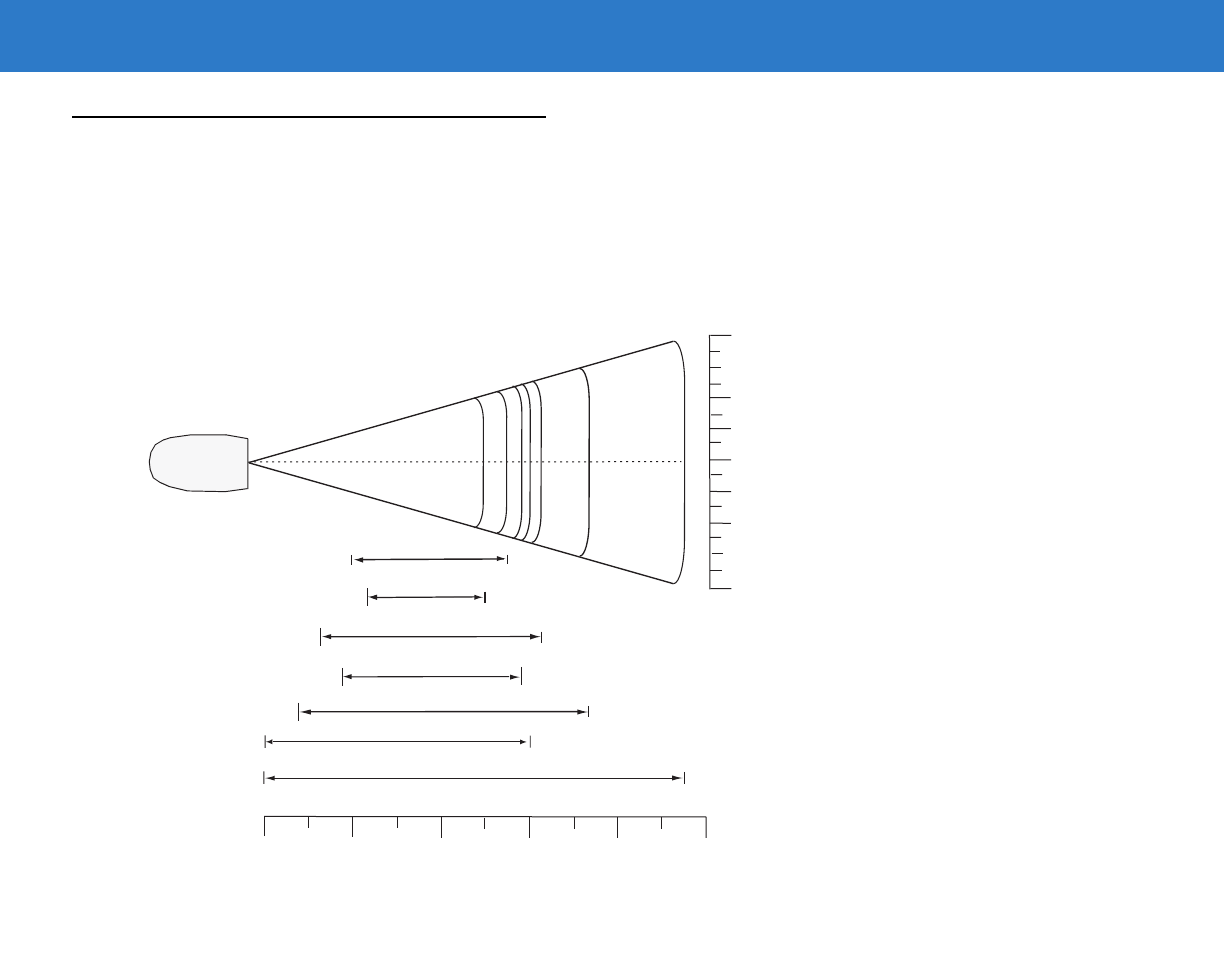

Decode Zones ............................................................................................................... 2-8
DS3478-SF Near Focus - 1D and PDF417 ............................................................. 2-8
DS3478-SF Near Focus - 2D Codes ....................................................................... 2-9
DS3478-SF Far Focus ............................................................................................ 2-10
DS3478-SF Smart Focus ........................................................................................ 2-11
DS3478-HD/DPM Near Focus - 1D and PDF417 ................................................... 2-12
DS3478-HD/DPM Near Focus - 2D Codes ............................................................. 2-13
DS3478-HD/DPM Far Focus ................................................................................... 2-14
DS3478-HD/DMP Smart Focus .............................................................................. 2-15
Chapter 3: Maintenance and Technical Specifications
Introduction ................................................................................................................... 3-1
Maintenance ................................................................................................................. 3-1
Troubleshooting ............................................................................................................ 3-2
Technical Specifications ............................................................................................... 3-5
Digital Scanner Signal Descriptions .............................................................................. 3-7
Chapter 4: User Preferences
Introduction ................................................................................................................... 4-1
Scanning Sequence Examples ..................................................................................... 4-2
Errors While Scanning .................................................................................................. 4-2
User Preferences Default Parameters .......................................................................... 4-2
User Preferences .......................................................................................................... 4-3
Set Default Parameter ............................................................................................. 4-3
Parameter Scanning ............................................................................................... 4-3
Beeper Tone ........................................................................................................... 4-4
Beeper Volume ....................................................................................................... 4-5
Power Mode ............................................................................................................ 4-5
Beep After Good Decode ........................................................................................ 4-6
Picklist Mode ........................................................................................................... 4-7
Decode Session Timeout ........................................................................................ 4-8
Fuzzy 1D Decoding ................................................................................................. 4-8
Decode Mirror Images (Data Matrix Only) .............................................................. 4-9
Radio Communications ................................................................................................. 4-10
Connection Maintenance Interval ............................................................................ 4-10
Radio Output Power ................................................................................................ 4-12
Parameter Broadcast .............................................................................................. 4-12
Single Point/Multipoint Operation ............................................................................ 4-13
Table of Contents vii
Chapter 5: Decoding Preferences
Introduction ................................................................................................................... 5-1
Scanning Sequence Examples ..................................................................................... 5-2
Errors While Scanning .................................................................................................. 5-2
Decoding Preferences Parameter Defaults .................................................................. 5-2
Decoding Preferences .................................................................................................. 5-3
Focus Mode ............................................................................................................ 5-3
Decoding Illumination .............................................................................................. 5-4
Decode Aiming Pattern ........................................................................................... 5-4
DPM Scanning ........................................................................................................ 5-5
Chapter 6: Keyboard Wedge Interface
Introduction ................................................................................................................... 6-1

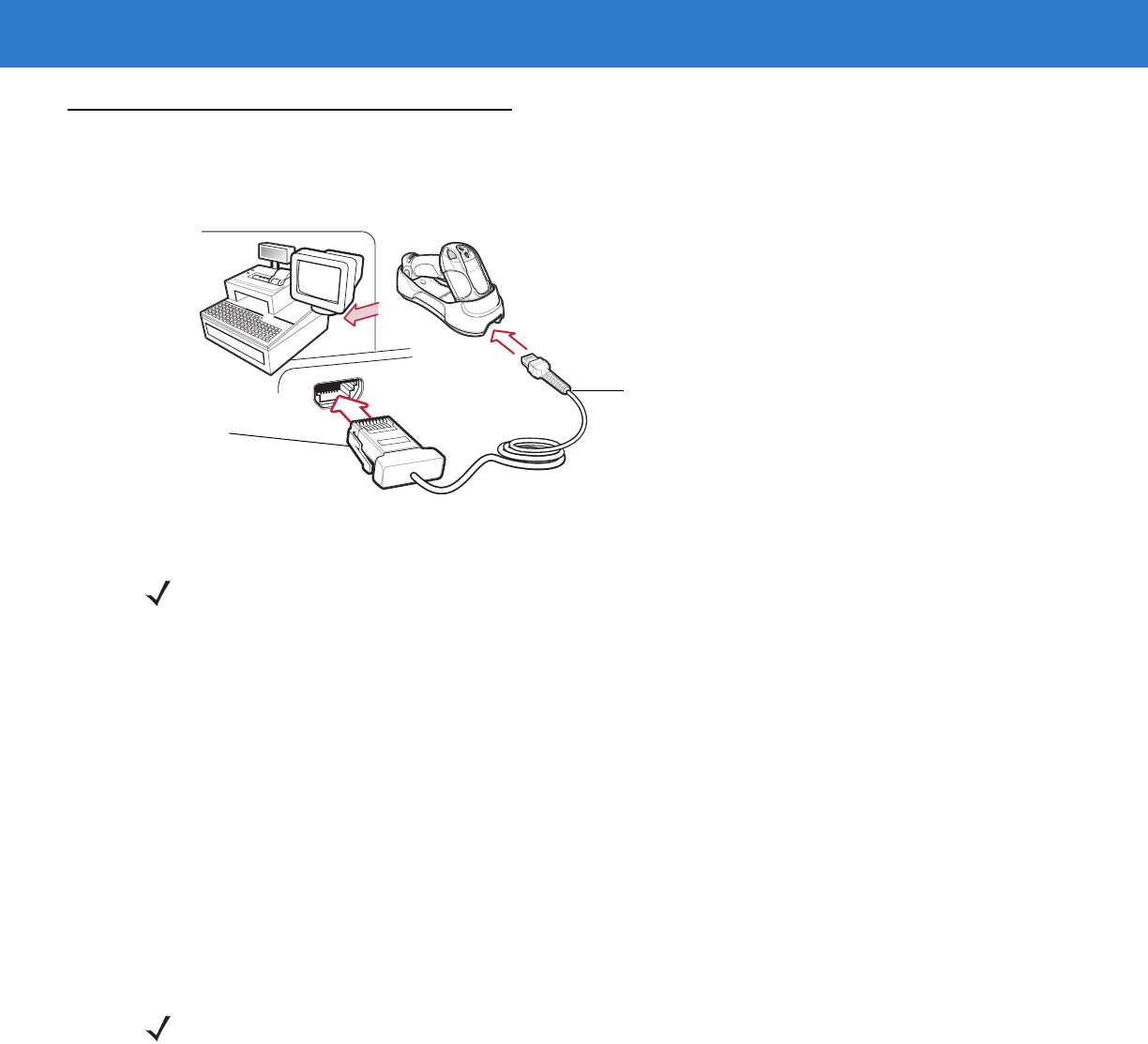

Connecting a Keyboard Wedge Interface ..................................................................... 6-2
Keyboard Wedge Default Parameters .......................................................................... 6-3
Keyboard Wedge Parameters ....................................................................................... 6-4
Keyboard Wedge Host Types ................................................................................. 6-4
Keyboard Wedge Country Types (Country Codes) ................................................. 6-5
Ignore Unknown Characters ................................................................................... 6-7
Keystroke Delay ...................................................................................................... 6-7
Intra-Keystroke Delay .............................................................................................. 6-8
Alternate Numeric Keypad Emulation ..................................................................... 6-8
Caps Lock On ......................................................................................................... 6-9
Caps Lock Override ................................................................................................ 6-9
Convert Wedge Data ............................................................................................... 6-10
Function Key Mapping ............................................................................................ 6-10
FN1 Substitution ...................................................................................................... 6-11
Send Make and Break ............................................................................................. 6-11
Keyboard Maps ............................................................................................................. 6-12
ASCII Character Set ..................................................................................................... 6-14
Chapter 7: RS-232 Interface
Introduction ................................................................................................................... 7-1
Connecting an RS-232 Interface ................................................................................... 7-2
RS-232 Default Parameters .......................................................................................... 7-3
RS-232 Host Parameters .............................................................................................. 7-4
RS-232 Host Types ................................................................................................. 7-6
Baud Rate ............................................................................................................... 7-7
Parity ....................................................................................................................... 7-9
Check Receive Errors ............................................................................................. 7-10
Stop Bit Select ......................................................................................................... 7-10
Data Bits .................................................................................................................. 7-11
Hardware Handshaking ........................................................................................... 7-11
Software Handshaking ............................................................................................ 7-13
Host Serial Response Time-out .............................................................................. 7-15
RTS Line State ........................................................................................................ 7-16
Beep on <BEL> ....................................................................................................... 7-16
Intercharacter Delay ................................................................................................ 7-17
viii Symbol DS3478 Product Reference Guide
Nixdorf Mode A/B and OPOS/JPOS Beep/LED Options ........................................ 7-18
Ignore Unknown Characters ................................................................................... 7-19
ASCII Character Set ..................................................................................................... 7-20
Chapter 8: USB Interface
Introduction ................................................................................................................... 8-1
USB Default Parameters ............................................................................................... 8-3
USB Host Parameters ................................................................................................... 8-4
USB Device Type .................................................................................................... 8-4
USB Country Keyboard Types (Country Codes) ..................................................... 8-5
USB Keystroke Delay .............................................................................................. 8-7
USB Caps Lock Override ........................................................................................ 8-7
USB Ignore Unknown Characters ........................................................................... 8-8
Emulate Keypad ...................................................................................................... 8-8
USB Keyboard FN1 Substitution ............................................................................. 8-9
Function Key Mapping ............................................................................................ 8-9
Simulated Caps Lock .............................................................................................. 8-10
Convert Case .......................................................................................................... 8-10
ASCII Character Set ..................................................................................................... 8-11
Chapter 9: IBM 468X/469X Interface
Introduction ................................................................................................................... 9-1
Connecting to an IBM 468X/469X Host ........................................................................ 9-2
IBM Default Parameters ................................................................................................ 9-3
IBM 468X/469X Host Parameters ................................................................................. 9-4
Port Address ........................................................................................................... 9-4
Convert Unknown to Code 39 ................................................................................. 9-5
Chapter 10: Wand Emulation Interface
Introduction ................................................................................................................... 10-1
Connecting a Wand Emulation Interface ...................................................................... 10-2
Wand Emulation Default Parameters ............................................................................ 10-3
Wand Emulation Host Parameters ................................................................................ 10-4
Wand Emulation Host Types ................................................................................... 10-4
Leading Margin (Quiet Zone) .................................................................................. 10-5
Polarity .................................................................................................................... 10-6
Ignore Unknown Characters ................................................................................... 10-6
Convert All to Code 39 ............................................................................................ 10-7
Convert Code 39 to Full ASCII ............................................................................... 10-8
Chapter 11: Scanner Emulation Interface
Introduction ................................................................................................................... 11-1
Connecting Using Scanner Emulation .......................................................................... 11-2
Scanner Emulation Default Parameters ........................................................................ 11-3
Scanner Emulation Host Parameters ............................................................................ 11-4
Scanner Emulation Host ......................................................................................... 11-4
Table of Contents ix
Beep Style ............................................................................................................... 11-4
Parameter Pass-Through ........................................................................................ 11-5
Convert Newer Code Types .................................................................................... 11-6
Module Width .......................................................................................................... 11-7
Convert All Bar Codes to Code 39 .......................................................................... 11-7
Code 39 Full ASCII Conversion .............................................................................. 11-8
Transmission Timeout ............................................................................................. 11-9
Ignore Unknown Characters ................................................................................... 11-10
Leading Margin ....................................................................................................... 11-11
Check for Decode LED ........................................................................................... 11-12
Chapter 12: 123Scan
Introduction ................................................................................................................... 12-1
Setting Up 123Scan ...................................................................................................... 12-1
Chapter 13: Symbologies
Introduction ................................................................................................................... 13-1
Scanning Sequence Examples ..................................................................................... 13-1
Errors While Scanning .................................................................................................. 13-1
Symbology Default Parameters .................................................................................... 13-2
UPC/EAN ...................................................................................................................... 13-6
Enable/Disable UPC-A ............................................................................................ 13-6
Enable/Disable UPC-E ............................................................................................ 13-6
Enable/Disable UPC-E1 .......................................................................................... 13-7
Enable/Disable EAN-13 .......................................................................................... 13-7
Enable/Disable EAN-8 ............................................................................................ 13-8
Enable/Disable Bookland EAN ................................................................................ 13-8
Decode UPC/EAN Supplementals .......................................................................... 13-9
User-Programmable Supplementals ....................................................................... 13-12
UPC/EAN Supplemental Redundancy .................................................................... 13-12
Transmit UPC-A/UPC-E/UPC-E1 Check Digit ........................................................ 13-13
UPC-A Preamble ..................................................................................................... 13-15
UPC-E Preamble ..................................................................................................... 13-16
UPC-E1 Preamble ................................................................................................... 13-17
Convert UPC-E to UPC-A ....................................................................................... 13-18
Convert UPC-E1 to UPC-A ..................................................................................... 13-18
EAN-8 Extend ......................................................................................................... 13-19
Bookland ISBN Format ........................................................................................... 13-20
UCC Coupon Extended Code ................................................................................. 13-21
Code 128 ...................................................................................................................... 13-22
Enable/Disable Code 128 ....................................................................................... 13-22
Set Lengths for Code 128 ....................................................................................... 13-22
Enable/Disable GS1-128 (formerly UCC/EAN-128) ................................................ 13-24
Enable/Disable ISBT 128 ........................................................................................ 13-24
Code 39 ........................................................................................................................ 13-25
Enable/Disable Code 39 ......................................................................................... 13-25
Enable/Disable Trioptic Code 39 ............................................................................. 13-25
Convert Code 39 to Code 32 .................................................................................. 13-26
x Symbol DS3478 Product Reference Guide
Code 32 Prefix ........................................................................................................ 13-26
Set Lengths for Code 39 ......................................................................................... 13-27
Code 39 Check Digit Verification ............................................................................ 13-29
Transmit Code 39 Check Digit ................................................................................ 13-29
Code 39 Full ASCII Conversion .............................................................................. 13-30
Code 39 Buffering (Scan & Store) ........................................................................... 13-31
Code 93 ........................................................................................................................ 13-33
Enable/Disable Code 93 ......................................................................................... 13-33
Set Lengths for Code 93 ......................................................................................... 13-33
Code 11 ........................................................................................................................ 13-35
Code 11 ................................................................................................................... 13-35
Set Lengths for Code 11 ......................................................................................... 13-35
Code 11 Check Digit Verification ............................................................................ 13-37
Transmit Code 11 Check Digits .............................................................................. 13-38
Interleaved 2 of 5 (I 2 of 5) ............................................................................................ 13-39
Enable/Disable Interleaved 2 of 5 ........................................................................... 13-39
Set Lengths for Interleaved 2 of 5 ........................................................................... 13-39
I 2 of 5 Check Digit Verification ............................................................................... 13-41
Transmit I 2 of 5 Check Digit ................................................................................... 13-41
Convert I 2 of 5 to EAN-13 ...................................................................................... 13-42
Discrete 2 of 5 (D 2 of 5) ............................................................................................... 13-43
Enable/Disable Discrete 2 of 5 ................................................................................ 13-43
Set Lengths for Discrete 2 of 5 ................................................................................ 13-43
Codabar (NW - 7) .......................................................................................................... 13-45
Enable/Disable Codabar ......................................................................................... 13-45
Set Lengths for Codabar ......................................................................................... 13-45
CLSI Editing ............................................................................................................ 13-47
NOTIS Editing ......................................................................................................... 13-47
MSI ................................................................................................................................ 13-48
Enable/Disable MSI ................................................................................................. 13-48
Set Lengths for MSI ................................................................................................ 13-48
MSI Check Digits ..................................................................................................... 13-50
Transmit MSI Check Digit(s) ................................................................................... 13-50
MSI Check Digit Algorithm ...................................................................................... 13-51
Inverse 1D ..................................................................................................................... 13-52
Postal Codes ................................................................................................................. 13-53
US Postnet .............................................................................................................. 13-53
US Planet ................................................................................................................ 13-53
UK Postal ................................................................................................................ 13-54
Transmit UK Postal Check Digit .............................................................................. 13-54
Japan Postal ........................................................................................................... 13-55
Australian Postal ..................................................................................................... 13-55
Dutch Postal ............................................................................................................ 13-56
4State Postal ........................................................................................................... 13-56
Post US4 ................................................................................................................. 13-57
Transmit US Postal Check Digit .............................................................................. 13-57
GS1 DataBar (formerly RSS - Reduced Space Symbology) ........................................ 13-58
GS1 DataBar-14 ...................................................................................................... 13-58
GS1 DataBar Limited .............................................................................................. 13-58
GS1 DataBar Expanded .......................................................................................... 13-59
Table of Contents xi
Convert GS1 DataBar to UPC/EAN ........................................................................ 13-59
Composite .................................................................................................................... 13-60
Composite CC-C ..................................................................................................... 13-60
Composite CC-A/B .................................................................................................. 13-60
Composite TLC-39 .................................................................................................. 13-61
UPC Composite Mode ............................................................................................ 13-61
GS1-128 Emulation Mode for UCC/EAN Composite Codes ................................... 13-62
2D Symbologies ............................................................................................................ 13-63
Enable/Disable PDF417 .......................................................................................... 13-63
Enable/Disable MicroPDF417 ................................................................................. 13-63
Code 128 Emulation ................................................................................................ 13-64
Data Matrix .............................................................................................................. 13-65
Data Matrix Inverse ................................................................................................. 13-65
Maxicode ................................................................................................................. 13-66
QR Code ................................................................................................................. 13-66
MicroQR .................................................................................................................. 13-67
QR Inverse .............................................................................................................. 13-67
Aztec ....................................................................................................................... 13-68
Aztec Inverse .......................................................................................................... 13-68
Redundancy Level ........................................................................................................ 13-69
Redundancy Level 1 ............................................................................................... 13-69
Redundancy Level 2 ............................................................................................... 13-69
Redundancy Level 3 ............................................................................................... 13-69
Redundancy Level 4 ............................................................................................... 13-69
Security Level ............................................................................................................... 13-71
Security Level 0 ....................................................................................................... 13-71
Security Level 1 ....................................................................................................... 13-71
Security Level 2 ....................................................................................................... 13-71
Security Level 3 ....................................................................................................... 13-71
Intercharacter Gap Size .......................................................................................... 13-73
Macro PDF Features ..................................................................................................... 13-74
Flush Macro Buffer .................................................................................................. 13-74
Abort Macro PDF Entry ........................................................................................... 13-74
Chapter 14: Miscellaneous Scanner Options
Introduction ................................................................................................................... 14-1
Scanning Sequence Examples ..................................................................................... 14-1
Errors While Scanning .................................................................................................. 14-1
Miscellaneous Default Parameters ............................................................................... 14-2
Miscellaneous Scanner Parameters ............................................................................. 14-3
Transmit Code ID Character ................................................................................... 14-3
Prefix/Suffix Values ................................................................................................. 14-4
Scan Data Transmission Format ............................................................................. 14-5
FN1 Substitution Values .......................................................................................... 14-6
Transmit “No Read” Message ................................................................................. 14-7
Report Version ........................................................................................................ 14-7
xii Symbol DS3478 Product Reference Guide
Chapter 15: Advanced Data Formatting
Introduction ................................................................................................................... 15-1
Rules: Criteria Linked to Actions ................................................................................... 15-1
Creating ADF Rules ...................................................................................................... 15-2
ADF Programming Example ......................................................................................... 15-2
Rule 1: The Code 128 Scanning Rule ..................................................................... 15-3
Rule 2: The UPC Scanning Rule ............................................................................. 15-3
Alternate Rule Sets ....................................................................................................... 15-3
Rules Hierarchy (in Bar Codes) .................................................................................... 15-5
Default Rules ................................................................................................................ 15-5
Special Considerations for Multipoint Networks ............................................................ 15-5
ADF Bar Codes ............................................................................................................. 15-6
Special Commands ....................................................................................................... 15-8
Pause Duration ....................................................................................................... 15-8
Begin New Rule ...................................................................................................... 15-8
Save Rule ................................................................................................................ 15-8
Erase ....................................................................................................................... 15-9
Quit Entering Rules ................................................................................................. 15-9
Disable Rule Set ..................................................................................................... 15-10
Criteria .......................................................................................................................... 15-11
Code Types ............................................................................................................. 15-11
Code Lengths .......................................................................................................... 15-18
Message Containing a Specific Data String ............................................................ 15-23
Actions .......................................................................................................................... 15-27
Send Data ............................................................................................................... 15-27
Setup Field(s) .......................................................................................................... 15-31
Modify Data ............................................................................................................. 15-36
Pad Data with Spaces ............................................................................................. 15-37
Pad Data with Zeros ................................................................................................ 15-41
Beeps ...................................................................................................................... 15-46
Send Keystroke (Control Characters and Keyboard Characters) ........................... 15-46
Send Right Control Key ........................................................................................... 15-82
Send Graphic User Interface (GUI) Characters ...................................................... 15-83
Turn On Rule Sets .................................................................................................. 15-88
Turn Off Rule Sets .................................................................................................. 15-89
Alphanumeric Keyboard ................................................................................................ 15-90
Appendix A: Standard Default Parameters
Appendix B: Programming Reference
Symbol Code Identifiers ................................................................................................ B-1
AIM Code Identifiers ..................................................................................................... B-3
Table of Contents xiii
Appendix C: Sample Bar Codes
UPC-A ........................................................................................................................... C-1
UPC-E ........................................................................................................................... C-1
UPC-E1 ......................................................................................................................... C-2
EAN-13 ......................................................................................................................... C-2
EAN-8 ........................................................................................................................... C-2
Code 39 ........................................................................................................................ C-3
Trioptic Code 39 ............................................................................................................ C-3
Code 93 ........................................................................................................................ C-3
Code 11 ........................................................................................................................ C-3
Codabar ........................................................................................................................ C-4
MSI ................................................................................................................................ C-4
Interleaved 2 of 5 .......................................................................................................... C-4
GS1 DataBar-14 ........................................................................................................... C-4
PDF417 ......................................................................................................................... C-5
Data Matrix .................................................................................................................... C-5
Maxicode ....................................................................................................................... C-5
QR Code ....................................................................................................................... C-6
US Postnet .................................................................................................................... C-6
UK Postal ...................................................................................................................... C-6
Appendix D: Numeric Bar Codes
0, 1, 2, 3 ........................................................................................................................ D-1
4, 5, 6, 7 ........................................................................................................................ D-2
8, 9 ................................................................................................................................ D-3
Cancel ........................................................................................................................... D-3
Glossary
Index
Tell Us What You Think...
xiv Symbol DS3478 Product Reference Guide
About This Guide
Introduction
The Symbol DS3478 Smart Focus Digital Scanner Product Reference Guide provides general instructions for
setting up, operating, maintaining, and troubleshooting the digital scanner.
Configurations
This guide includes the following configurations:
•
DS3478-SF - Standard focus
•
DS3478-HD - High density scanning
•
DS3478-DP - Direct part mark (DPM) decoding support.
Chapter Descriptions
•
Chapter 1, Getting Started provides a product overview and unpacking instructions.
•
Chapter 2, Digital Scanning describes parts of the digital scanner, beeper and LED definitions, and how to
use the digital scanner.
•
Chapter 3, Maintenance and Technical Specifications provides information on how to care for the digital
scanner, troubleshooting, and technical specifications.
•
Chapter 4, User Preferences provides programming bar codes for selecting user preference features for the
digital scanner.
•
Chapter 5, Decoding Preferences describes digital scanner preference features and provides programming
bar codes for selecting these features.
•
Chapter 6, Keyboard Wedge Interface provides information for setting up the digital scanner for keyboard
wedge operation.
•
Chapter 7, RS-232 Interface provides information for setting up the digital scanner for RS-232 operation.
•
Chapter 8, USB Interface provides information for setting up the digital scanner for USB operation.
xvi Symbol DS3478 Product Reference Guide
•
Chapter 9, IBM 468X/469X Interface provides information for setting up the digital scanner with IBM
468X/469X POS systems.
•
Chapter 10, Wand Emulation Interface provides information for setting up the digital scanner for wand
emulation operation.
•
Chapter 11, Scanner Emulation Interface provides information for setting up the digital scanner for scanner
emulation operation.
•
Chapter 12, 123Scan provides information on the PC-based scanner configuration tool 123Scan.
•
Chapter 13, Symbologies describes all symbology features and provides programming bar codes for
selecting these features.
•
Chapter 14, Miscellaneous Scanner Options includes features frequently used to customize how data
transmits to the host device.
•
Chapter 15, Advanced Data Formatting (ADF) describes how to customize scanned data before transmitting
to the host.
•
Appendix A, Standard Default Parameters provides a table of all host and miscellaneous scanner defaults.
•
Appendix B, Programming Reference provides tables of Symbol and AIM code identifiers and modifier
characters.
•
Appendix C, Sample Bar Codes includes sample bar codes for supported code types.
•
Appendix D, Numeric Bar Codes includes the numeric bar codes to scan for parameters requiring specific
numeric values.
Notational Conventions
The following conventions are used in this document:
•
Bullets (•) indicate:
•action items
•lists of alternatives
•lists of required steps that are not necessarily sequential.
•
Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
•
Throughout the programming bar code menus, asterisks (*) denote default parameter settings.
*Baud Rate 9600 Feature/Option
* Indicates Default
About This Guide xvii
Related Publications
The Symbol DS3478 Quick Start Guide (p/n 72-72130-xx) provides general information for getting started with the
digital scanner, including basic setup and operation instructions.
For the latest version of this guide and all guides, go to: http://www.motorola.com/enterprisemobility/manuals.
Service Information
If you have a problem with your equipment, contact Motorola Enterprise Mobility support for your region. Contact
information is available at: http://www.motorola.com/enterprisemobility/contactsupport.
When contacting Enterprise Mobility Support, please have the following information available:
•
Serial number of the unit
•
Model number or product name
•
Software type and version number.
Motorola responds to calls by E-mail, telephone or fax within the time limits set forth in support agreements.
If your problem cannot be solved by Motorola Enterprise Mobility Support, you may need to return your equipment
for servicing and will be given specific directions. Motorola is not responsible for any damages incurred during
shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the
warranty.
If you purchased your Enterprise Mobility business product from a Motorola business partner, contact that business
partner for support.
xviii Symbol DS3478 Product Reference Guide
Chapter 1 Getting Started
Introduction
The Symbol DS3478 combines excellent digital scanning performance and advanced ergonomics to provide the
best value in a lightweight digital scanner, ensuring comfort and ease of use for extended periods of time.
Figure 1-1
Symbol DS3478 Smart Focus Digital Scanner
Smart Focus Scanning
The digital scanner supports a Smart Focus mode which toggles the focus position after every frame between near
and far focus, optimizing decoding performance when scanning a combination of small and large bar codes. See
Focus Mode on page 5-3 to select this mode.
1 - 2 Symbol DS3478 Product Reference Guide
Host Interfaces
This digital scanner supports the following host interfaces through communication with a cradle:
•
Standard RS-232 connection to a host.
•
Keyboard wedge connection to a host, where scanned data is interpreted as keystrokes. The following
international keyboards are supported (for Windows™ environment): North American, German, French,
French Canadian, Spanish, Italian, Swedish, UK English, Japanese, and Brazilian-Portuguese.
•
Wand emulation connection to a mobile computer, a controller, or host, which collects the data as wand data
and decodes it.
•
Scanner emulation connection to a mobile computer or a controller, which collects the data and interprets it
for the host.
•
IBM® 468X/469X hosts.
•
USB connection to a host. The digital scanner autodetects a USB host and defaults to the HID keyboard
interface type. Select other USB interface types by scanning programming bar codes. The following
international keyboards are supported (for Windows™ environment): North America, German, French,
French Canadian, Spanish, Italian, Swedish, UK English, Japanese, and Brazilian-Portuguese.
•
Synapse capability, which allows connection to a wide variety of host systems using a Synapse cable and
Synapse adapter cable. The digital scanner autodetects the Synapse interface.
•
Configuration via 123Scan.
Unpacking the Digital Scanner
Remove the digital scanner from its packing and inspect it. If the digital scanner was damaged in transit, contact
Motorola Enterprise Mobility Support. See page xvii for contact information. KEEP THE PACKING. It is the
approved shipping container and should be used if the equipment needs to be returned for servicing.
The Digital Scanner Cradle
The digital scanner cradle serves as a stand, charger, and host interface for the digital scanner. There are two
versions of the cradle:
•
Charging cradle with radio: All communication between the cordless digital scanner and the host computer
occurs through the cradle. Each bar code contains programming instructions or other data unique to the bar
code pattern. The digital scanner transmits bar code data to the cradle via a wireless radio antenna. The
cradle then sends that information via an interface cable to the host computer for interpretation.
•
Charge-only cradle: This cradle serves as a stand and battery charger. Since one radio-enabled cradle can
receive information from up to four digital scanners, it is possible to have several charge-only cradles.
The charging cradle with radio supports two modes of operation:
•
Single point mode: the cradle communicates with one digital scanner.
•
Multipoint mode: the cradle communicates with more than one digital scanner.
The cradle sits on a desktop or mounts on a non-horizontal surface (such as a wall or forklift), depending on the
environment. For more information about mounting options and procedures, refer to the documentation included
with the cradle.
Getting Started 1 - 3
Cradle Parts
Figure 1-2
Cradle Front View
Mounting
Screw Hole
Mounting
Screw Hole
Pairing
Bar Code
Mounting
Screw Hole
Latch
Latch
Charging/
Communications
Contacts
1 - 4 Symbol DS3478 Product Reference Guide
Figure 1-3
Cradle Back View
Connecting the Cradle
Important: Connect the interface cable and power supply in the following order to ensure proper operation of the
digital scanner and cradle. Note that this procedure includes two different power supply options.
1. Disconnect the power supply from the digital scanner cradle. See Figure 1-4.
2. Insert the modular connector of the interface cable into the host interface port on the back of the digital scanner
cradle.
3. If using a power supply that connects to the interface cable, insert this power supply into the power connector
on the interface cable, and the other end into an AC supply (see the cradle’s Quick Reference Guide for more
information).
4. Insert the other end of the interface cable into the appropriate port on the host computer (see the specific host
chapter for information on host connections).
Rubber Foot Rubber Foot
Mounting Screw Hole
Mounting Screw Hole
Power Cable Groove
Rubber Foot Rubber Foot
Power Port
Host Port
Host Cable Groove
Mounting Screw Hole
Converter Knob
Getting Started 1 - 5
5. If using an external power supply, insert the power cable into the power port on the back of the digital scanner
cradle, and connect the power supply to an approved AC supply (see the cradle’s Quick Reference Guide for
more information).
Figure 1-4
Connecting the Cables to the Cradle
Supplying Power to the Cradle
The cradle receives power from one of two sources:
•
An external power supply.
•
When connected to a powered host through a host cable that supplies power.
The cradle detects whether the host or an external supply is supplying power. It always draws power from the
external supply when available, regardless of the presence of power from a host.
Using the Host to Supply Power
When connecting the cradle to a powered host, the host can sometimes power the cradle rather than an external
power supply. Consider the following when powering from a host:
•
The digital scanner charges at a slower rate than when charging from an external power supply.
•
The cradle can charge a digital scanner only in single point mode. An external power supply is required to
charge a digital scanner in multipoint mode.
•
A powered USB port provides enough power to the cradle for charging.
•
Not all hosts provide enough power to the cradle for charging. For these hosts, connect an external power
supply.
For more information on single and multipoint operation, see Pairing on page 1-9.
Host Port Power Port
NOTE Disconnect the power supply before changing host cables, or the digital scanner may not recognize the
new host.
Different hosts require different cables. The connectors illustrated in each host chapter are examples only.
The connectors may be different from those illustrated, but the steps to connect the digital scanner are the
same.
NOTE The radio link functions normally when the cradle draws power from a host.
1 - 6 Symbol DS3478 Product Reference Guide
Connecting a Synapse Cable Interface
Synapse Smart Cables enable interfacing to a variety of hosts. The appropriate Synapse cable detects the host.
Figure 1-5
Synapse Cable Connection
1. Plug the Synapse adapter cable into the bottom of the digital scanner cradle, as described in Connecting the
Cables to the Cradle on page 1-5.
2. Align the ‘S’ on the Synapse adapter cable with the ‘S’ on the Synapse Smart Cable and plug the cable in.
3. Connect the other end of the Synapse Smart Cable to the host.
Reestablishing a Lost Connection to Host
If scanned data does not transmit to the cradle’s host, ensure you connected all cables securely, including the
power supply. If scanned data still does not transmit to the host, reestablish connection with the host:
1. Disconnect the power supply from the cradle.
2. Disconnect the host interface cable from the cradle.
3. Wait three seconds.
4. Reconnect the host interface cable to the cradle.
5. Reconnect the power supply to the cradle.
6. Re-establish pairing with the cradle.
Mounting the Cradle
For information on mounting the cradle, refer to the documentation included with the cradle.
NOTE Refer to the Synapse Interface Guide provided with the Synapse cable for more information.
Synapse adapter cable
To digital scanner cradle
Synapse Smart Cable
To host
Getting Started 1 - 7
Removing and Inserting the Battery
The battery resides in a chamber in the digital scanner handle. To insert the battery:
1. Insert a coin or flathead screwdriver in the slot at the base of the digital scanner, then turn the slot
counterclockwise to release the latch.
2. Open the latch.
3. If a battery is already installed, turn the digital scanner upright to slide the battery out.
4. Slide the new battery into the chamber, with the rounded side toward the back and the contacts facing into the
chamber.
Figure 1-6
Inserting the Battery
5. Close the latch.
6. Insert a coin or flathead screwdriver in the slot at the base of the digital scanner, press down gently, and turn
the slot clockwise to lock the latch in place.
1 - 8 Symbol DS3478 Product Reference Guide
Charging the Battery
For best performance, fully charge the digital scanner battery before using the digital scanner for the first time. To
charge the battery, place the digital scanner in the cradle, ensuring that the metal contacts on the bottom of the
digital scanner touch the contacts on the cradle. The battery begins charging. A complete charge can take up to
four hours, depending on the remaining charge in the battery.
Charge within the recommended temperature of 32° to 104° F (0° to 40° C) nominal, 41° to 95° F (5° to 35° C)
ideal.
Charging LED
The flashing green LED indicates charging activity. See Table 2-2 on page 2-5. If the digital scanner is charging in
fast mode (external power supply is present), the green LED blinks quickly (on for 0.25 seconds, off for 0.75
seconds). If the digital scanner is charging in slow mode (host-powered mode), the LED blinks slowly (on for 0.5
seconds, off for 1.5 seconds).
Charging Problem LED
A solid or flashing red LED during charging indicates a charging problem. See Table 2-2 on page 2-5 for definitions
of error conditions and the appropriate action to take.
Getting Started 1 - 9
Inserting the Digital Scanner in the Cradle
Insert the digital scanner in the cradle so that the metal contacts on the bottom of the digital scanner handle touch
the contacts on the cradle:
1. With a slightly rotated motion, insert the digital scanner into the cradle top first.
2. Push the handle down until it clicks into place, engaging the contacts in the cradle and digital scanner.
Figure 1-7
Inserting the Digital Scanner in the Cradle
Pairing
Pairing is the process by which a digital scanner initiates communication with a cradle. The cradle has multipoint
capability, and can pair with up to four digital scanners at a time. The cradle includes a pairing bar code.
To pair the digital scanner with the cradle, scan the pairing bar code on the cradle. A short low-high beep indicates
successful pairing.
NOTE The pairing bar code that connects the digital scanner to a cradle is unique to each cradle.
Do not scan data or parameters until pairing completes.
1 - 10 Symbol DS3478 Product Reference Guide
Unpairing
Unpair the digital scanner from the cradle to make the cradle available for pairing with another digital scanner. Scan
the Unpairing bar code on page 4-13 to unpair the digital scanner from its cradle.
Configuring the Digital Scanner
Use the bar codes in this manual or the 123Scan configuration program to configure the digital scanner. See
Chapter 4, User Preferences and each host chapter for information about programming the digital scanner using
bar code menus. See Chapter 12, 123Scan to configure the digital scanner using this configuration program.
123Scan includes a help file.
NOTE The Symbol DS3478 Quick Start Guide also includes an unpairing bar code.
Chapter 2 Digital Scanning
Introduction
This chapter provides beeper and LED definitions, digital scanning techniques, general scanning instructions and
tips, and decode zone diagrams.
Figure 2-1
Parts of the Digital Scanner
Scan Trigger
Scan Window
LED
Indicators
Tether Plate
2 - 2 Symbol DS3478 Product Reference Guide
Beeper Definitions
The digital scanner emits different beeper sequences and patterns to indicate its status. Table 2-1 defines beep
sequences that occur during both normal scanning and while programming the digital scanner.
Table 2-1
Standard Beeper Definitions
Beeper Sequence Indication
Standard Use
Short low-short medium-short high beeps Power up.
One short high beep The digital scanner successfully decoded a bar code
(if the decode beeper is enabled).
Four long low beeps A communication error occurred while transmitting a
scanned symbol to a host. The data is ignored. This
occurs if the digital scanner is not properly configured or
if the digital scanner has disconnected from the cradle.
Long low-high beeps Attempt to pair with the cradle was unsuccessful. Ensure
that the cradle has power; if not, cycle power to the
cradle and re-attempt the pairing.
Four short high beeps Low battery indication.
Long low-high-low-high beeps Attempt to pair with a cradle that is already paired with
the maximum number of digital scanners.
Five long low beeps Conversion or format error.
Low-high-low beeps ADF transmit error.
Short high-short high-short low-short low beeps Radio failure.
Cordless Digital Scanner Connection
Short low-short high beeps The digital scanner connected to the cradle after
scanning a pairing bar code or automatically after a
disconnect.
Short high-short low beeps The digital scanner disconnected from the cradle either
because the digital scanner moved out of range of the
cradle, the USB host suspended the cradle, or cradle
power was interrupted.
Parameter Menu Scanning
Short high beep Correct entry scanned or correct menu sequence
performed.
Long low-long high beeps Input error; incorrect bar code, programming sequence
or
Cancel
scanned. The digital scanner remains in ADF
program mode.
Short high-short low beeps Keyboard parameter selected. Enter value using
numeric bar codes.
Digital Scanning 2 - 3
Short high-short low-short high-short low beeps Successful program exit with change in the parameter
setting.
Code 39 Buffering
High-low beeps New Code 39 data was entered into the buffer.
Three long high beeps Code 39 buffer is full.
Low-high-low beeps The Code 39 buffer was erased or there was an attempt
to clear or transmit an empty buffer.
Low-high beeps A successful transmission of buffered data.
Macro PDF
Two long low beeps File ID error. A bar code not in the current Macro PDF
sequence was scanned.
Three long low beeps Out of memory. There is not enough buffer space to
store the current Macro PDF symbol.
Four long low beeps Bad symbology. Scanned a 1D or 2D bar code in a
Macro PDF sequence, a duplicate Macro PDF label, a
label in an incorrect order, or trying to transmit an empty
or illegal Macro PDF field.
Five long low beeps Flushing Macro PDF buffer.
Fast warble beep Aborting Macro PDF sequence.
Low-high beeps Flushing an already empty Macro PDF buffer.
ADF Programming Normal Data Entry
High-low beeps Enter another digit. Add leading zeros to the front if
necessary.
Low-low beeps Enter another alphabetic character or scan the
End of
Message
bar code.
High-high beeps Enter another criterion or action, or scan the
Save Rule
bar code.
High-low-high-low beeps Rule saved. Rule entry mode exited.
High-low-low beeps All criteria or actions cleared for current rule, continue
entering rule.
Low beep Delete last saved rule. The current rule is left intact.
Low-high-high beeps All rules have been deleted.
Short low-short high-short low-short high beeps Out of host ADF parameter storage space. Scan
Set
Default Parameter on page 4-3
.
Table 2-1
Standard Beeper Definitions (Continued)
Beeper Sequence Indication
2 - 4 Symbol DS3478 Product Reference Guide
ADF Programming Error Indications
Low-high-low-high beeps Out of rule memory. Erase some existing rules, then try
to save rule again. (It is not necessary to re-enter the
current rule.)
Low-high-low beeps Cancel rule entry. Rule entry mode exited because of an
error or the user asked to exit rule entry.
Host Specific
USB only
Four short high beeps The digital scanner did not complete initialization. Wait
several seconds and scan again.
Short low-short medium-short high beep sequence
after scanning a USB device type The digital scanner must establish communication with
the bus before it can operate at the highest power level.
Short low-short medium-short high beep sequence
occurs more than once The USB bus can put the digital scanner in a state where
power to the digital scanner is cycled on and off more
than once. This is normal and usually happens when the
PC cold boots.
RS-232 only
Short high beep A <BEL> character is received and Beep on <BEL> is
enabled.
Low-high beeps Entry error, wrong bar code scanned. Re-enter criterion
or action. All previously entered criteria and actions are
retained. Criteria or action list is too long for a rule.
Table 2-1
Standard Beeper Definitions (Continued)
Beeper Sequence Indication
Digital Scanning 2 - 5
LED Definitions
In addition to beeper sequences, the digital scanner uses a two-color LED to indicate its status. Table 2-2 explains
LED sequences.
Table 2-2
LED Status Indications
LED Indication
Standard Use
Off No power is applied to the digital scanner, or the digital scanner is on and ready to
scan.
Green The digital scanner successfully decoded a bar code.
Red A data transmission error or digital scanner malfunction occurred.
Charging Use
Green Slow Flash The digital scanner is in the cradle and is charging in slow mode (occurs when the
host cable powers the cradle).
Green Fast Flash The digital scanner is in the cradle and is charging in rapid mode (occurs when an
external power supply powers the cradle).
Red fast flash
(two flashes per second) Overcharge condition. Contact Motorola Enterprise Mobility Support.
Red slow flash
(one flash per second) Battery voltage not increasing with charge. Replace the battery.
Red and green flash Temperature fault. Move the cradle to a location where the temperature is 0
o
- 40
o
C;
optimal charging temperature is 5
o
- 35
o
C.
2 - 6 Symbol DS3478 Product Reference Guide
Digital Scanning
See Chapter 1, Getting Started to install and program the digital scanner. Also see DPM Scanning on page 5-5 for
DS3478-DP (DPM) digital scanning. To scan:
1. Aim the digital scanner at the bar code.
2. Press the scan trigger.
Figure 2-2
Aiming the Digital Scanner
The digital scanner projects a red laser aiming pattern which allows positioning the bar code or object within
the field of view.
Figure 2-3
Laser Aiming Pattern
If necessary, the digital scanner turns on its red LEDs to illuminate the target bar code.
3. Center the symbol in any orientation within the aiming pattern. Be sure the entire symbol is within the
rectangular area formed by the brackets in the pattern.
Figure 2-4
Centering Symbol in Aiming Pattern
1D bar code symbol 2D bar code symbol 2D dot peen DPM symbol
Aiming Pattern
Digital Scanning 2 - 7
4. Hold the trigger until the digital scanner beeps, indicating it successfully decoded the bar code. For more
information on beeper and LED definitions, see Table 2-1 and Table 2-2.
This process usually occurs instantaneously. Steps 2 - 4 are repeated on poor quality or difficult bar codes, until the
bar code decodes, you release the trigger, or the Decode Session Timeout occurs.
Aiming
Hold the digital scanner between two and nine inches (depending on symbol density; see Decode Zones on page
2-8) from the symbol, centering the aiming pattern cross hairs on the symbol.
The aiming pattern is smaller when the digital scanner is closer to the symbol and larger when it is farther from the
symbol. Scan symbols with smaller bars or elements (mil size) closer to the digital scanner, and those with larger
bars or elements (mil size) farther from the digital scanner.
The digital scanner can also read a bar code within the aiming pattern but not centered. The top examples in
Figure 2-5 show acceptable aiming options, while the bottom examples do not decode.
Figure 2-5
Acceptable and Incorrect Aiming
NOTE Scanning Direct Part Marks (DPMs) with the DS3478-DP (DPM) Digital Scanner: Due to the reflective
nature of some surfaces used with DPMs (see Figure 2-4 on page 2-6), to achieve the best results when
scanning DPMs, tilt the scanner at an angle relative to the target (25-45 degrees is recommended). As a
guide, if you are decoding a 23 mil dot peen mark and the scanner is set to the near field focus, present
the target between one and four inches from the nose of the scanner at a minimum tilt of 30 degrees.
When scanning standard (non-DPM) bar codes with any configuration of the DS3478 digital scanner,
follow the standard aiming instructions described in Aiming.
012345
012345
012345
012345
2 - 8 Symbol DS3478 Product Reference Guide
Decode Zones
DS3478-SF Near Focus - 1D and PDF417
Figure 2-6
Symbol DS3478-SF Near Focus Decode Zone - 1D and PDF417
In.
cm
0
20 mil
Depth of Field
9.5
2468
10
05.1 10.2 15.2 20.3 25.4
13 mil (100% UPC)
6.0
5 mil
0.8
7.3
2.0 5.5
15 mil PDF417
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
1.25 3.18
2.5 6.35
6.35
*
*
* Minimum distance determined by symbol length and scan angle.
1.25
2.5
3.18
in.
Note: Typical performance at 73°F (23°C)
on high quality symbols in normal room light.
Vcc = 3.3V
7.5 mil
1.3
6.3
6.67 mil PDF417
2.3
4.5
10 mil PDF417
1.8
5.8
Top of
scanner
Digital Scanning 2 - 9
DS3478-SF Near Focus - 2D Codes
Figure 2-7
Symbol DS3478-SF Near Focus Decode Zone - 2D Codes
In.
cm
0
10 mil QR Code
Depth of Field
4.83
1.0 2.0 3.0 4.0
02.5 5.1 7.6 10.2
5 mil QR Code
4.25
5 mil Data Matrix
3.00
1.79 3.58
7.5 mil QR Code
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
0.75 1.9
1.5 3.8
3.8
* Minimum distance determined by symbol length and scan angle.
0.75
1.5
1.9
in.
Note: Typical performance at 73°F (23°C)
on high quality symbols in normal room light.
Vcc = 3.3V
10 mil Data Matrix
1.25
5.00
7.5 mil
Data Matrix
1.58
4.54
Top of
scanner
5.0
12.7
2.07
1.71
1.21
2 - 10 Symbol DS3478 Product Reference Guide
DS3478-SF Far Focus
Figure 2-8
Symbol DS3478-SF Far Focus Decode Zone
In.
cm
0
20 mil
Depth of Field
20.0
510 15 20
012.7 25.4 38.1 50.8
13 mil (100% UPC)
12.3
5 mil
1.5
14.5
5.0 6.0
15 mil PDF417
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
2.75 7.0
5.5 14.0
14.0
*
*
* Minimum distance determined by symbol length and scan angle.
5.5
7.0
in.
Note: Typical performance at 73°F (23°C)
on high quality symbols in normal room light.
Vcc = 3.3V
7.5 mil
2.8
8.5
10 mil PDF417
4.3
8.8
2.75
Top of
scanner
Digital Scanning 2 - 11
DS3478-SF Smart Focus
Figure 2-9
Symbol DS3478-SF Smart Focus Decode Zone
In.
cm
0
20 mil
Depth of Field
20.0
510 15 20
012.7 25.4 38.1 50.8
13 mil (100% UPC)
12.3
5 mil
0.8
14.5
2.0 6.0
15 mil PDF417
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
2.75 7.0
5.5 14.0
14.0
*
*
* Minimum distance determined by symbol length and scan angle.
5.5
7.0
in.
Note: Typical performance at 73°F (23°C)
on high quality symbols in normal room light.
Vcc = 3.3V
7.5 mil
1.3
8.5
10 mil PDF417
1.8
8.8
2.75
6.67 mil PDF417
2.3 4.5
Top of
scanner
2 - 12 Symbol DS3478 Product Reference Guide
DS3478-HD/DPM Near Focus - 1D and PDF417
Figure 2-10
DS3478-HD/DPM Near Focus Decode Zone - 1D and PDF417
In.
cm
0
20 mil
Depth of Field
7.5
2468
05.1 10.2 15.2 20.3
13 mil (100% UPC)
5.0
5 mil
2.7
5.6
1.64 4.5
15 mil PDF417
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
1.0 2.5
2.0 5.1
5.1
*
*
* Minimum distance determined by symbol length and scan angle.
1.0
2.0
2.5
in.
Note: Typical performance at 73°F (23°C)
on high quality symbols in normal room light.
Vcc = 3.3V
7.5 mil
2.1
4.8
6.67 mil PDF417
2.5
4.1
10 mil PDF417
*
4.5
Top of
scanner
4 mil PDF417
2.9 3.7
2.7
20 mil Dot Peen (DPM Version Only)
1.4
Digital Scanning 2 - 13
DS3478-HD/DPM Near Focus - 2D Codes
Figure 2-11
DS3478-HD/DPM Near Focus Decode Zone - 2D Codes
In.
cm
0
10 mil QR Code
Depth of Field
2.54
0.5 1.0 1.5 2.0
01.3 2.5 3.8 5.1
5 mil QR Code
2.34
5 mil Data Matrix
1.96
0.63 2.00
7.5 mil QR Code
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
0.35 0.9
0.7 1.8
1.8
* Minimum distance determined by symbol length and scan angle.
0.35
0.7
0.9
in.
Note: Typical performance at 73°F (23°C)
on high quality symbols in normal room light.
Vcc = 3.3V
10 mil Data Matrix
0.5
2.42
7.5 mil
Data Matrix
0.58
2.38
4 mil QR Code
0.83
1.63
Top of
scanner
4 mil Data Matrix
0.88 1.92
2.5
6.4
0.83
0.67
0.33
2 - 14 Symbol DS3478 Product Reference Guide
DS3478-HD/DPM Far Focus
Figure 2-12
DS3478-HD/DPM Far Focus Decode Zone
In.
cm
0
20 mil
Depth of Field
15.0
5 10 15
0 12.7 25.4 38.1
13 mil (100% UPC)
10.7
5 mil
3.0
11.0
4.0 7.5
15 mil PDF417
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
25.1
410.2
10.2
*
*
* Minimum distance determined by symbol length and scan angle.
4
5.1
in.
Note: T ypical perf or mance at 73°F (23°C)
on high quality symbols in nor mal room light.
Vcc = 3.3V
7.5 mil
3.2
9.5
10 mil PDF417
4.3
9.5
2
Top of
scanner
6.67mil PDF417
4.5
7.6
20 mil Dot Peen (DPM Version Only)
2.6
5.3
Digital Scanning 2 - 15
DS3478-HD/DMP Smart Focus
Figure 2-13
DS3478-HD/DPM Smart Focus Decode Zone
In.
cm
0
20 mil
Depth of Field
15.0
5 10 15
0 12.7 25.4 38.1
13 mil (100% UPC)
10.7
5 mil
2.7
11.0
1.64 7.5
15 mil PDF417
0
cm
W
i
d
t
h
o
f
F
i
e
l
d
0
25.1
410.2
10.2
*
*
* Minimum distance determined by symbol length and scan angle.
4
5.1
in.
Note: T ypical perf or mance at 73°F (23°C)
on high quality symbols in nor mal room light.
Vcc = 3.3V
7.5 mil
2.1
9.5
10 mil PDF417
*
9.5
2
Top of
scanner
6.67mil PDF417
2.5
7.6
20 mil Dot Peen (DPM Version Only)
1.4
5.3
2 - 16 Symbol DS3478 Product Reference Guide
Chapter 3 Maintenance and Technical
Specifications
Introduction
This chapter provides digital scanner maintenance and troubleshooting information, technical specifications, and
signal descriptions (pinouts).
Maintenance
Cleaning the scan window is the only maintenance required. A dirty window can affect scanning accuracy.
•
Do not allow any abrasive material to touch the window.
•
Remove any dirt particles with a damp cloth.
•
Wipe the window using a tissue moistened with ammonia/water.
•
Do not spray water or other cleaning liquids directly onto the window.
3 - 2 Symbol DS3478 Product Reference Guide
Troubleshooting
Table 3-1
Troubleshooting
Problem Possible Causes Possible Solutions
Nothing happens when the
scan trigger is pressed. No power to the digital
scanner. Check battery.
Ensure that end cap to battery chamber is
secured.
The digital scanner is
disabled. For Synapse or IBM 468x mode, enable the digital
scanner via the host interface. Otherwise, see the
technical person in charge of scanning.
If using RS-232 Nixdorf B
mode, CTS is not asserted. Assert CTS line.
The aiming pattern is
disabled. Enable the aiming pattern. See
Decode Aiming
Pattern on page 5-4
.
Decoding illumination is
disabled. Enable illumination. See
Decoding Illumination on
page 5-4
.
The digital scanner emits short
low-short medium-short high
beep sequence.
The digital scanner is
powering up. Normal when battery is inserted.
The digital scanner emits short
high-short high-short
low-short-low beep sequence.
Radio failure. Cycle power to the cradle and re-attempt pairing.
The digital scanner emits the
aiming pattern, but does not
decode the bar code.
Digital scanner is not
programmed for the correct
bar code type.
Ensure the digital scanner is programmed to read
the type of bar code being scanned.
Bar code symbol is
unreadable. Check the symbol to ensure it is not defaced. Try
scanning test bar codes of the same bar code
type. See
Appendix C, Sample Bar Codes
for test
bar codes.
Bar code is out of range
from the digital scanner. Move digital scanner closer to or further from bar
code.
The symbol is not
completely inside aiming
pattern.
Move the symbol completely within the aiming
pattern.
The digital scanner emits four
short high beeps. Battery is low. Charge the battery. See
Charging the Battery on
page 1-8
.
Maintenance and Technical Specifications 3 - 3
The digital scanner emits a
disconnect (short high-short
low) beep sequence.
The digital scanner
disconnected from the
cradle because it is too far
from the cradle.
Move closer to the cradle and listen for a
reconnection beep (short low-short high).
The digital scanner
disconnected from the
cradle because the cradle
lost power or was placed in
USB suspend mode.
Check power connections to the cradle, and if
using a USB cable, check to make sure the host
computer has not entered a power save mode.
The digital scanner emits four
long low beeps after scanning
a bar code.
The cradle did not complete
USB initialization. Wait several seconds and scan again.
The incorrect host interface
cable is used. Connect the correct host interface cable.
The interface/power cables
to the cradle are loose. Secure all cable connections.
The digital scanner is not
paired to a cradle. Scan the PAIR bar code on the cradle connected
to the host that is to receive data.
The digital scanner
disconnected. See previous disconnect beep sequence.
A transmission error was
detected. Ensure the cradle’s communication parameters
match the host's setting.
The digital scanner decodes
the bar code, but does not
transmit the data to the host.
The digital scanner is not
paired to the host-connected
interface.
Pair the digital scanner to the cradle (using the
PAIR bar code on the cradle).
The cradle is not
programmed for the correct
host interface.
Check digital scanner host parameters or edit
options.
The interface cable is loose. Secure all cable connections.
The cradle lost connection
to the host. See
Reestablishing a Lost Connection to Host on
page 1-6
.
The digital scanner emits five
long low beeps after decoding
a bar code.
A conversion error or format
error occurred. Properly configure the digital scanner’s conversion
parameters.
Table 3-1
Troubleshooting (Continued)
Problem Possible Causes Possible Solutions
3 - 4 Symbol DS3478 Product Reference Guide
The host displays scanned
data incorrectly. The cradle’s host
communication parameters
do not match the host’s
parameters.
Select the correct host.
For RS-232, ensure the cradle’s communication
parameters match the host’s settings.
For a Keyboard Wedge configuration, program the
system for the correct keyboard type, and turn off
the CAPS LOCK key.
Properly program editing options (e.g., UPC-E to
UPC-A conversion).
The digital scanner emits short
high-short high- short high-long
low beep sequence when it is
not in use.
RS-232 receive error. Normal during host reset. Otherwise, ensure the
digital scanner’s RS-232 parity setting matches the
host setting.
The digital scanner emits long
low-long high beep sequence
during programming.
Input error or
Cancel
bar
code was scanned. Scan the correct numeric bar codes within range
for the parameter programmed.
The digital scanner emits short
low-short high- short low-short
high beep sequence during
programming.
Out of ADF parameter
storage space. Erase all rules and re-program with shorter rules.
Out of Synapse parameter
storage space. Scan
Set Synapse Defaults
bar code from the
appropriate Synapse Interface Guide for cables no
longer in use and re-program the digital scanner
for the current host interface.
The digital scanner emits
low-high-low beeps. Clearing Code 39 buffer. Normal when scanning the Code 39 Buffering
Clear Buffer
bar code or upon attempt to transmit
an empty Code 39 buffer.
The digital scanner emits one
short high beep when it is not in
use.
In RS-232 mode, a <BEL>
character is received. Normal when
Beep on <BEL>
is enabled and the
digital scanner is in RS-232 mode.
The digital scanner emits short
low-short medium-short high
beep sequence.
The digital scanner is
powering up. Normal when the battery is inserted.
The battery does not charge. The cradle is outside the
charging temperature range. Charge within the recommended temperature of
32° to 104° F
(0° to 40° C) nominal, 41° to 95° F (5° to 35° C)
ideal.
The battery door falls off. The digital scanner was
dropped. Snap the battery door back in to reinstall.
Table 3-1
Troubleshooting (Continued)
Problem Possible Causes Possible Solutions
NOTE If problems still occur, contact the distributor or Motorola Enterprise Mobility Support. See page xvii for
contact information.
Maintenance and Technical Specifications 3 - 5
Technical Specifications
Table 3-2
Technical Specifications - Symbol DS3478 Digital Scanner
Item Description
Battery Rechargeable Lithium-Ion 2200 mAh (3.7V)
Decode Capability UPC/EAN, UPC/EAN with supplementals, Bookland EAN, JAN 8 & 13, Coupon Code,
Code 128, GS1-128, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 32, Code
93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, IATA 2 of 5, Codabar (NW7), MSI,
Inverse 1D, US Postnet, US Planet, UK Postal, Japan Postal, Australia Postal, Dutch
Postal, 4State Postal, GS1 DataBar, Composite Codes, PDF417, MicroPDF,
Maxicode, Data Matrix (ECC 200), QR Code, MicroQR, QR Inverse, Aztec, Aztec
Inverse, DPM (DPM version only).
Beeper Operation User-selectable: Enable, Disable
Beeper Volume User-selectable: Three levels
Beeper Tone User-selectable: Three tones
Field of View 30º +/- 2º horizontal
22.5º +/- 2º vertical
Yaw Tolerance ± 50° from nominal
Pitch Tolerance ± 60° from nominal
Roll Tolerance ± 180° from nominal
Print Contrast Minimum 25% minimum reflectance differential, measured at 650 nm.
Ambient Light Immunity 10,000 Ft Candles (107,600 Lux)
Durability 6.5 ft (2.0 m) drops to concrete
Operating Temperature -4° to 122° F (-20° to 50° C)
Storage Temperature -40° to 140° F (-40° to 60° C)
Charging Temperature 32° to 104° F (0° to 40° C) nominal, 41° to 95° F (5° to 35° C) ideal
Humidity 5% to 95% (non-condensing)
ESD 15 kV air discharge
8 kV contact discharge
Weight 14.6 oz (414 grams)
Dimensions:
Height
Width
Depth
7.34 in. (18.65 cm)
4.82 in. (12.25 cm)
2.93 in. (7.43 cm)
Laser 650nm laser diode
3 - 6 Symbol DS3478 Product Reference Guide
Laser Classification EN60950-1 1994 + A1:2002 + A2:2001
IEC60825-1 1993 + A1:1997 + A2:2001
Minimum Element Width 5 mil (0.127 mm)
Interfaces Supported Keyboard Wedge, RS-232, USB, IBM 468X/469X, Wand Emulation, Scanner
Emulation, Synapse, 123Scan
Radio Link Bluetooth Class 1/Class 2 (2.4 GHz)
Electrical Safety Certified to UL60950-1, CSA 22.2 No. 60950-1, EN60950-1/IEC60950-1
Input Transient Protection EN301 489-1 Clause 9.4, EN301 489-17 Clause 6 Section 1
EMI FCC Part 15 Class B, ICES-003 Class B, EN 55022 1994 A1:1995 + A2:1997, Japan
VCCI
Table 3-3
Technical Specifications - STB 3478 Cradle
Item Description
Power Requirements 4.75 - 14.0 VDC
Typical Current Draw
Not Charging: 105 mA @ 5V
45 mA @ 9V
Fast Rate Charge: 955 mA @ 5V
660 mA @ 9V
Slow Rate Charge: 480 mA @ 5V
345 mA @ 9V
Interfaces Supported Keyboard Wedge, RS-232, USB, IBM 468X/469X, Wand Emulation,
Scanner Emulation, Synapse
Operating Temperature -4° to 122° F (-20° to 50° C)
Storage Temperature -40° to 140° F (-40° to 60° C)
Charging Temperature 32° to 104° F (0° to 40° C) nominal, 41° to 95° F (5° to 35° C) ideal
Humidity 5% to 95% (non-condensing)
ESD 15 kV air discharge
8 kV contact discharge
Weight 10.5 oz (298 grams)
Dimensions:
Height
Width
Depth
9.5 in. (24.1 cm)
4.0 in (10.2 cm)
2.9 in (7.4 cm)
Table 3-2
Technical Specifications - Symbol DS3478 Digital Scanner (Continued)
Item Description
Maintenance and Technical Specifications 3 - 7
Digital Scanner Signal Descriptions
Figure 3-1 illustrates the positions of the cradle’s host port pins.
Figure 3-1
Cradle to Host Pin Assignments
The signal descriptions in Table 3-4 apply to the 10-pin RJ connector on the digital scanner cradle and are for
reference only.
Radio Link Bluetooth Class 1/Class 2 (2.4 GHz)
Electrical Safety Certified to UL60950-1, CSA 22.2 No. 60950-1, EN60950-1/IEC60950-1
Input Transient Protection EN301 489-1 Clause 9.4, EN301 489-17 Clause 6 Section 1
EMI FCC Part 15 Class B, ICES-003 Class B, EN 55022 1994 A1:1995 + A2:1997,
Japan VCCI
Table 3-3
Technical Specifications - STB 3478 Cradle (Continued)
Item Description
Table 3-4
Digital Scanner Cradle to Host Pin-outs
Pin IBM Synapse RS-232 Keyboard
Wedge Wand USB Scanner
Emulation
1 Reserved SynClock Reserved Reserved Reserved Jump to Pin 6 DBP
2 Power Power Power Power Power Power Power
3 Ground Ground Ground Ground Ground Ground Ground
4 IBM_A(+) Reserved TxD KeyClock DBP Reserved SOS
5 Reserved Reserved RxD TermData CTS D + Decode
6 IBM_B(-) SynData RTS KeyData RTS Jump to Pin 1 Trigger
7 Reserved Reserved CTS TermClock Reserved D - Enable
8 Reserved Reserved Reserved Reserved Reserved Reserved Reserved
9 Reserved Reserved Reserved Reserved Reserved Reserved Reserved
10 Reserved Reserved Reserved Reserved Reserved Reserved Reserved
Pin 10Pin 1
3 - 8 Symbol DS3478 Product Reference Guide
Figure 3-2 illustrates the positions of the digital scanner’s cradle port pins.
Figure 3-2
Cradle Pin Assignments
The signal descriptions in Table 3-5 apply to the connector from the digital scanner to the scanner cradle and are
for reference only.
Table 3-5
Digital Scanner to Scanner Cradle Pin-outs
Pin Description
1VCC
2CRADLE_TXD
3 CRADLE_RXD
4GND
Pin 1
Pin 4 Pin 3 Pin 2
Chapter 4 User Preferences

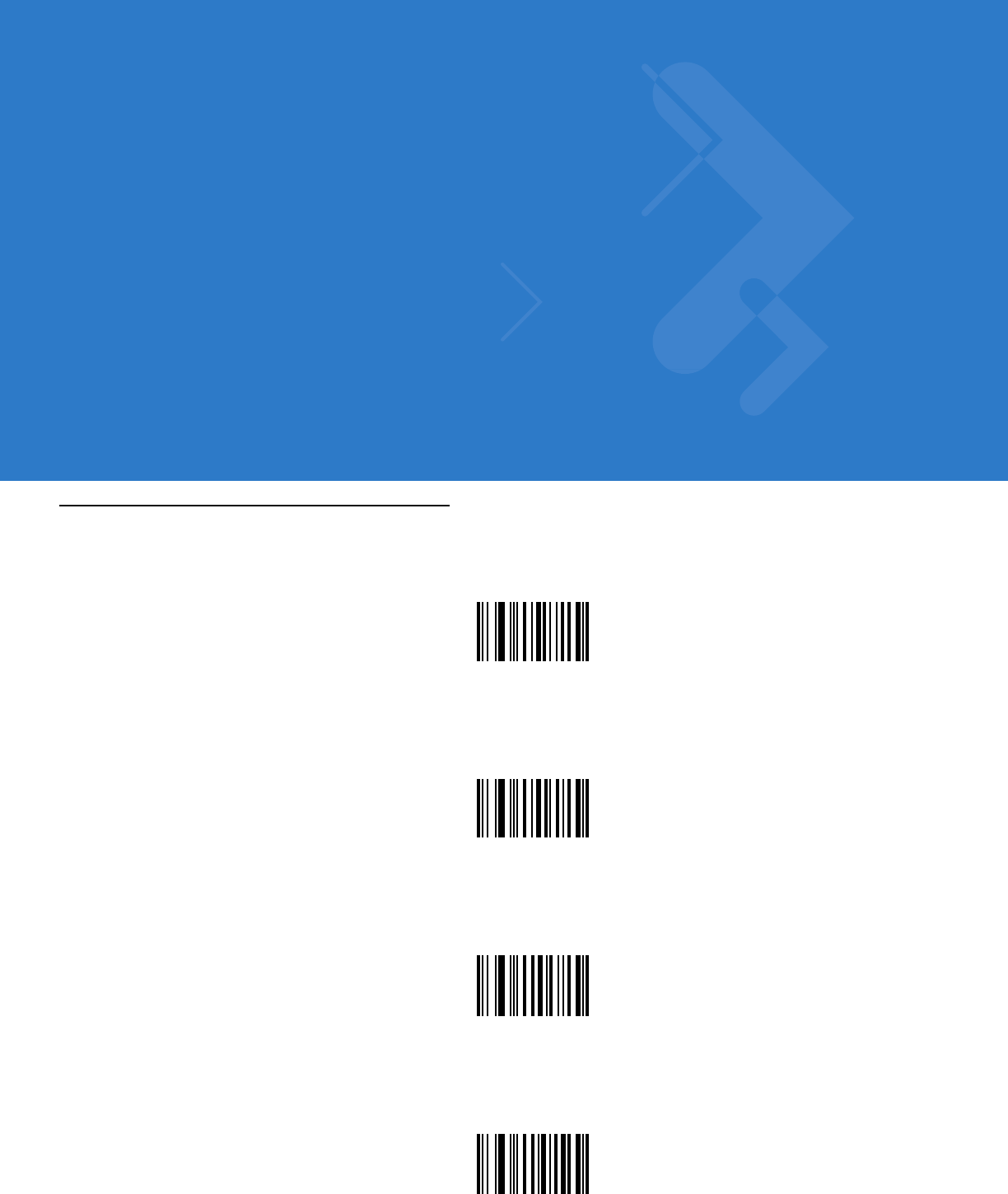

Introduction
This chapter describes each user preference feature and provides programming bar codes for selecting these
features for the digital scanner.
The digital scanner ships with the settings shown in the User Preferences Default Table on page 4-2 (also see
Appendix A, Standard Default Parameters for all host and miscellaneous defaults). If the default values suit the
requirements, programming is not necessary.
Set feature values by scanning single bar codes or short bar code sequences. The settings are stored in
non-volatile memory and are preserved when you power down the digital scanner.
The digital scanner communicates with the host through the digital scanner cradle. During setup, you pair the
digital scanner with a cradle, which connects to the host through one of several interfaces (see Pairing on page 1-9
and the applicable host interface chapter). Each cradle can pair with up to four digital scanners.
If not using a Synapse or USB cable, select the host type (see the specific host chapter) after the digital scanner
emits power-up beeps. This is only necessary upon the first power-up when connecting to a new host.

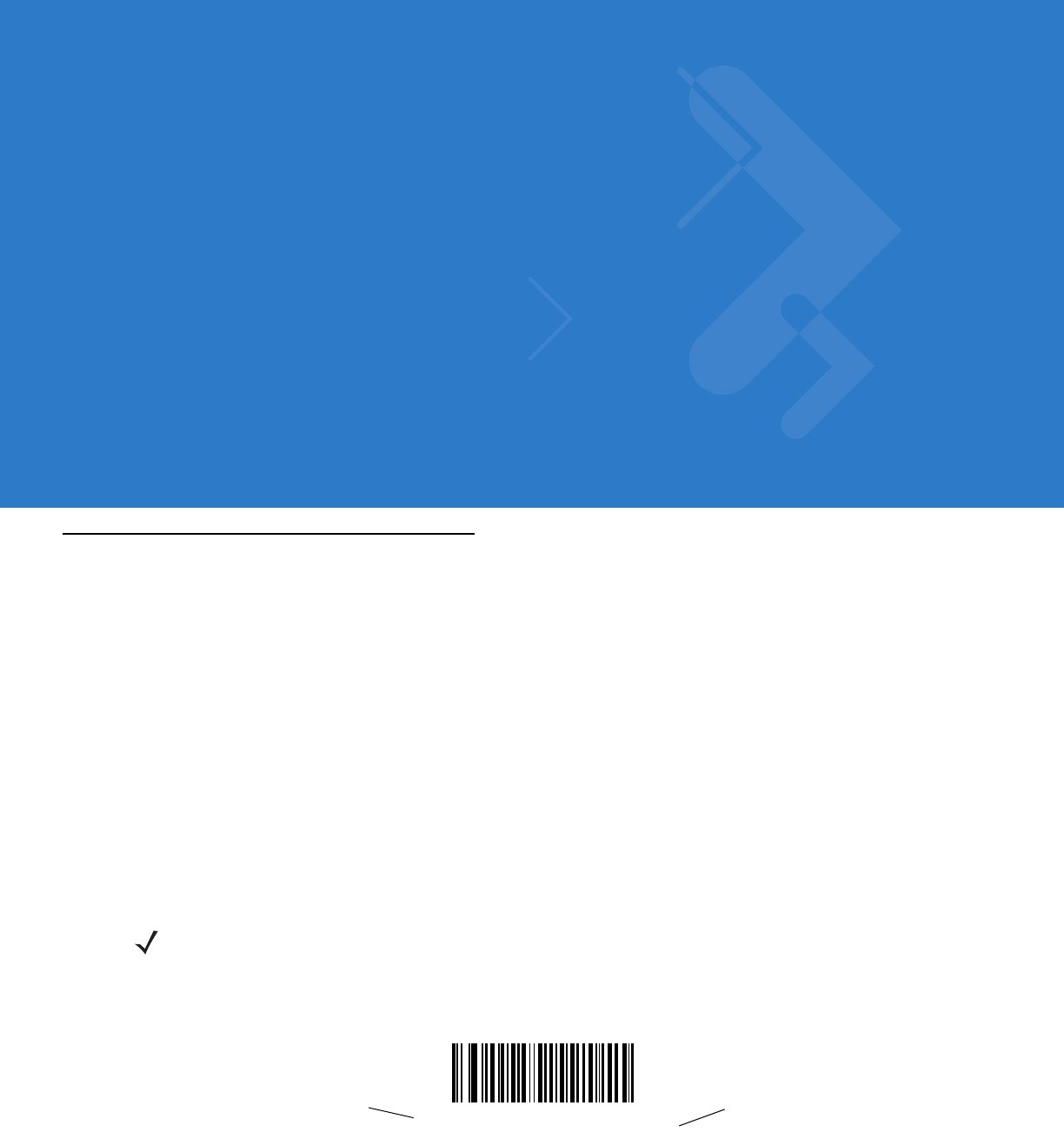

To return all features to their default values, scan Set All Defaults on page 4-3. Throughout the programming bar
code menus, asterisks (*) indicate default values.
NOTE Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.

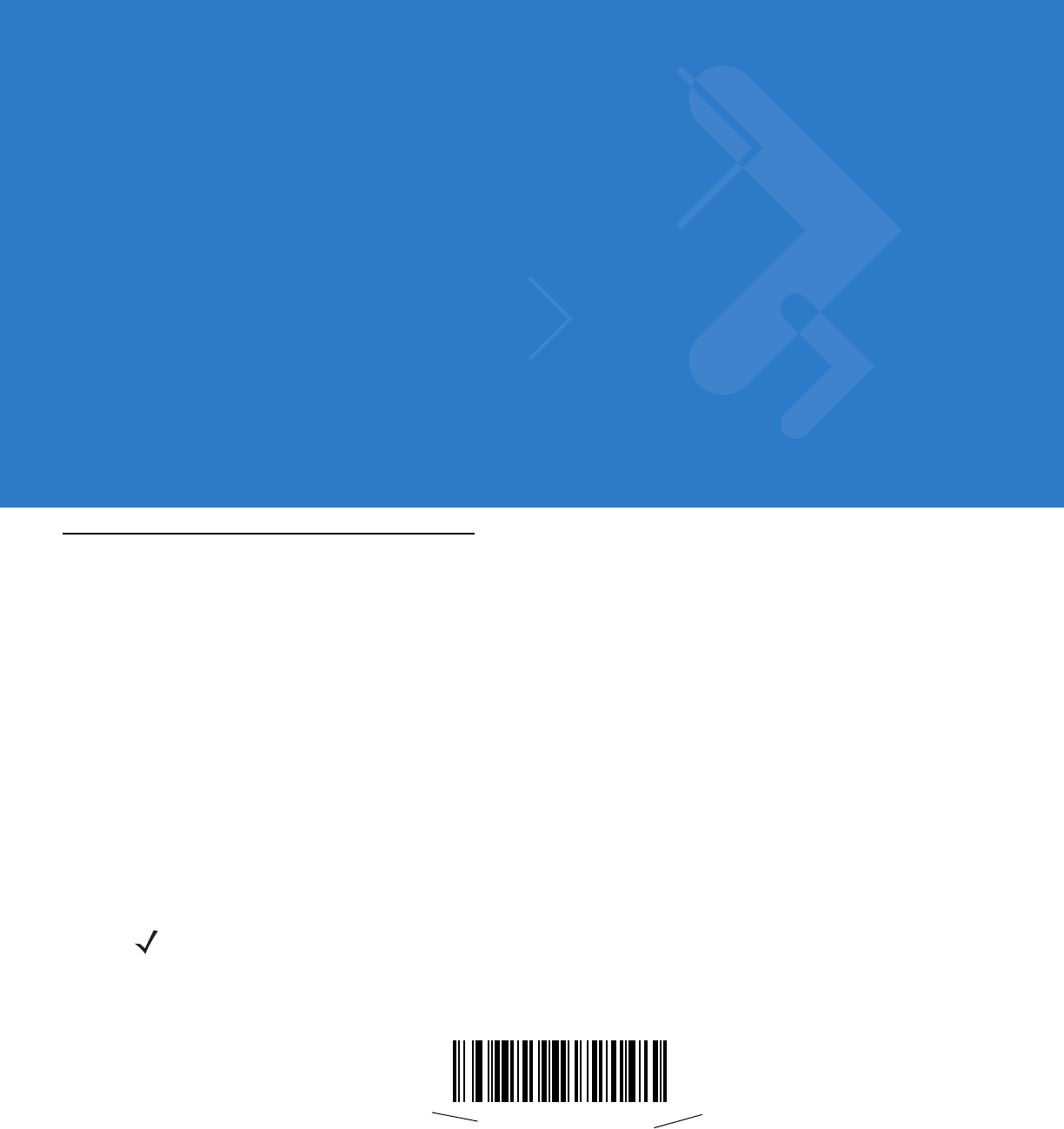

*Medium Frequency Feature/Option
* Indicates Default
4 - 2 Symbol DS3478 Product Reference Guide
Scanning Sequence Examples
In most cases, scan only one bar code to set a parameter value. For example, to set the beeper tone to high, scan
the High Frequency (beeper tone) bar code under Beeper Tone on page 4-4. The digital scanner issues a fast
warble beep and the LED turns green, indicating a successful parameter entry.
Other parameters, such as Decode Session Timeout, require scanning several bar codes. See the parameter
description for this procedure.
Errors While Scanning
Unless otherwise specified, if you make an error during a scanning sequence, re-scan the correct parameter.
User Preferences Default Parameters
Table 4-1 lists the defaults for user preference parameters. To change any option, scan the appropriate bar code(s)
provided in User Preferences on page 4-3.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 4-1
User Preferences Default Table
Parameter Default Page
Number
User Preferences
Set Default Parameter All Defaults
4-3
Parameter Scanning Enable
4-3
Beeper Tone Medium
4-4
Beeper Volume High
4-5
Power Mode Reduced
4-5
Beep After Good Decode Enable
4-6
Picklist Mode Disabled Always
4-7
Decode Session Timeout 3.0 seconds
4-8
Fuzzy 1D Decoding Enable
4-8
Decode Mirror Images Never
4-9
Connection Maintenance Interval 15 minutes
4-10
Radio Output Power Bluetooth Class 1
4-12
Parameter Broadcast Enable
4-12
Single Point/Multipoint Operation Single Point
4-13
User Preferences 4 - 3
User Preferences
Set Default Parameter
Scan this bar code to return all parameters to the default values listed in Table A-1 on page A-1.
Set All Defaults
Parameter Scanning
To disable decoding of parameter bar codes, scan the Disable Parameter Scanning bar code below. Note that the
digital scanner can still decode the Set Defaults parameter bar code. To enable decoding of parameter bar codes,
either scan Enable Parameter Scanning or Set All Defaults.
*Enable Parameter Scanning
Disable Parameter Scanning
4 - 4 Symbol DS3478 Product Reference Guide

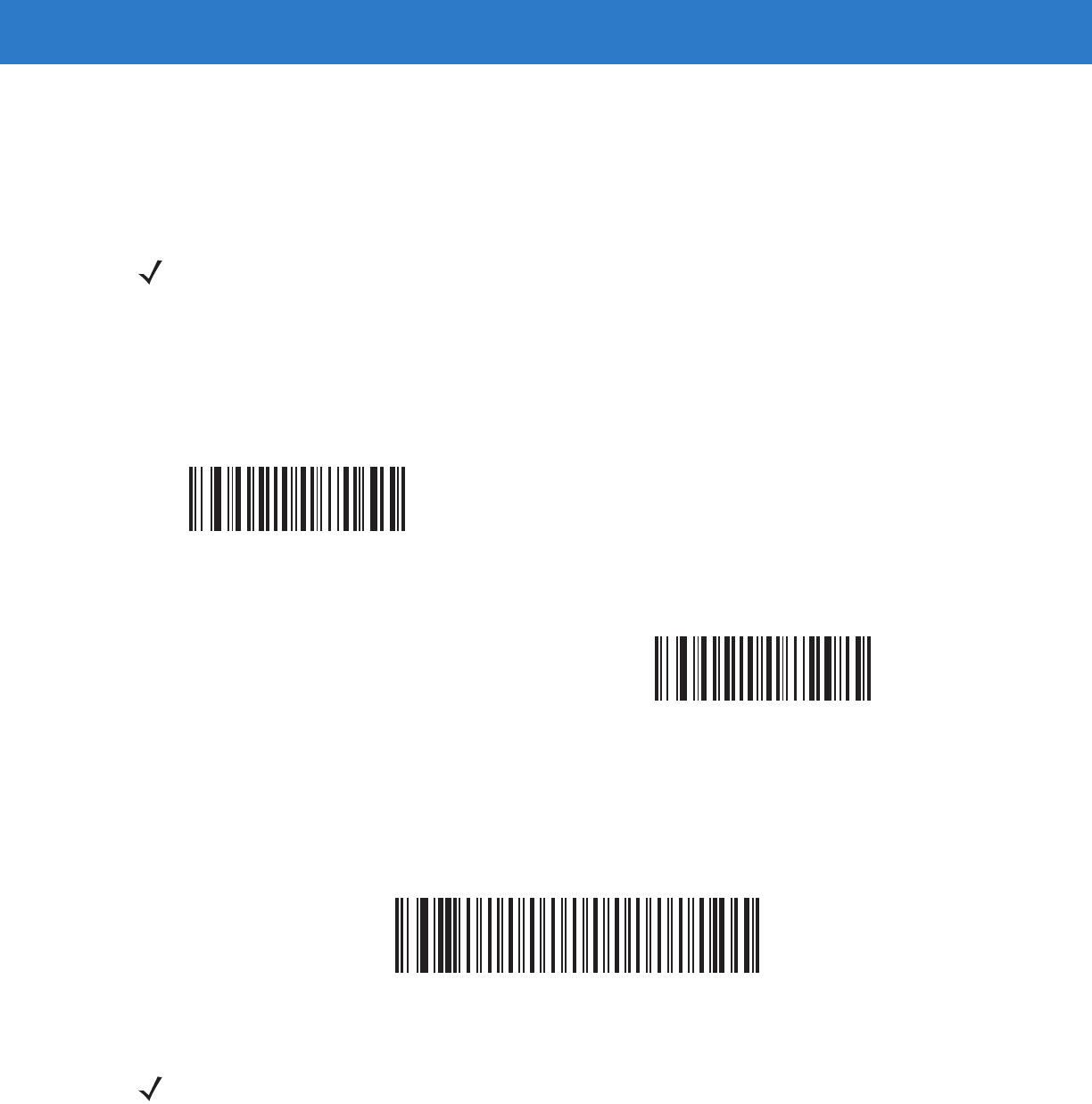

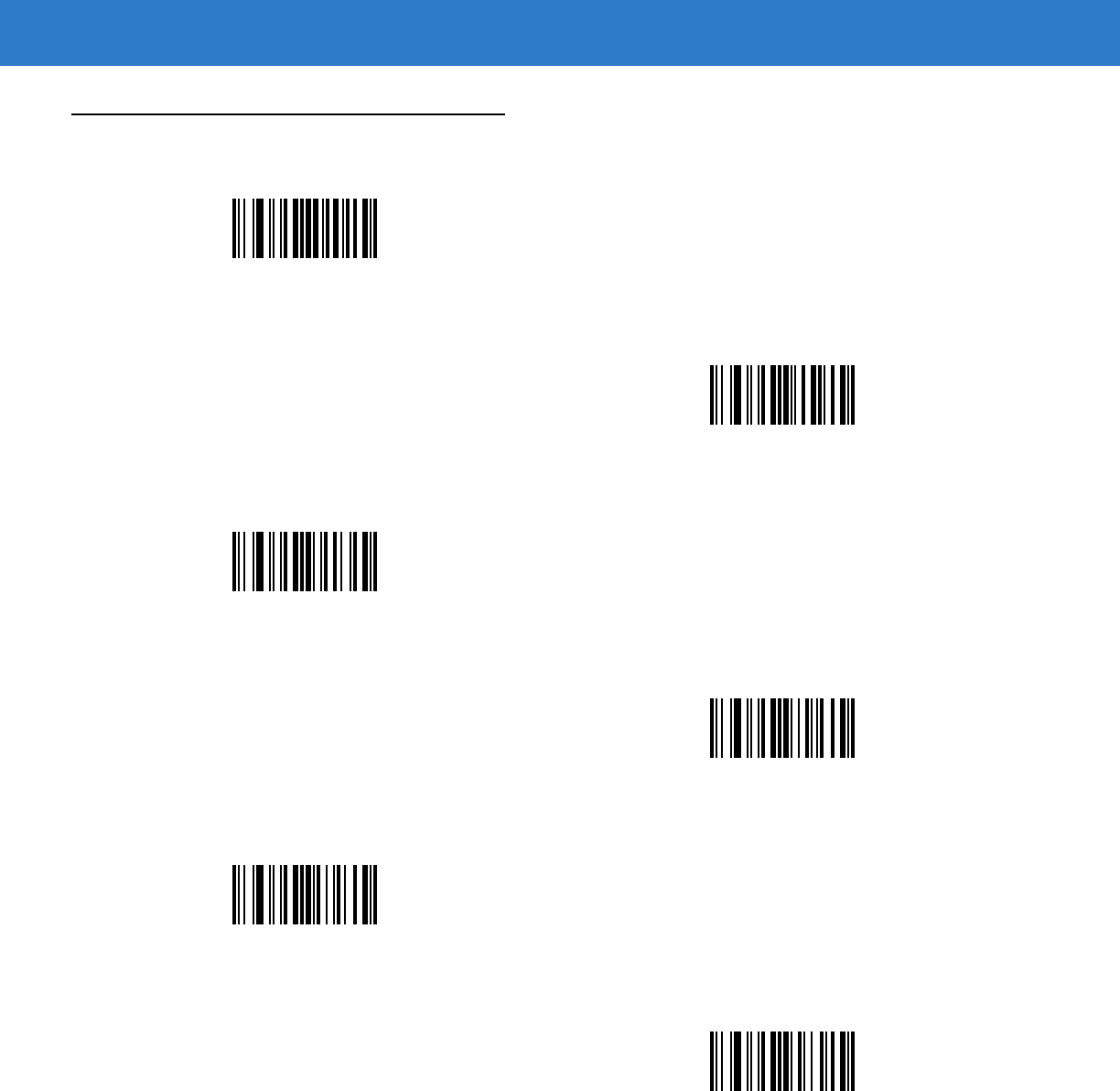

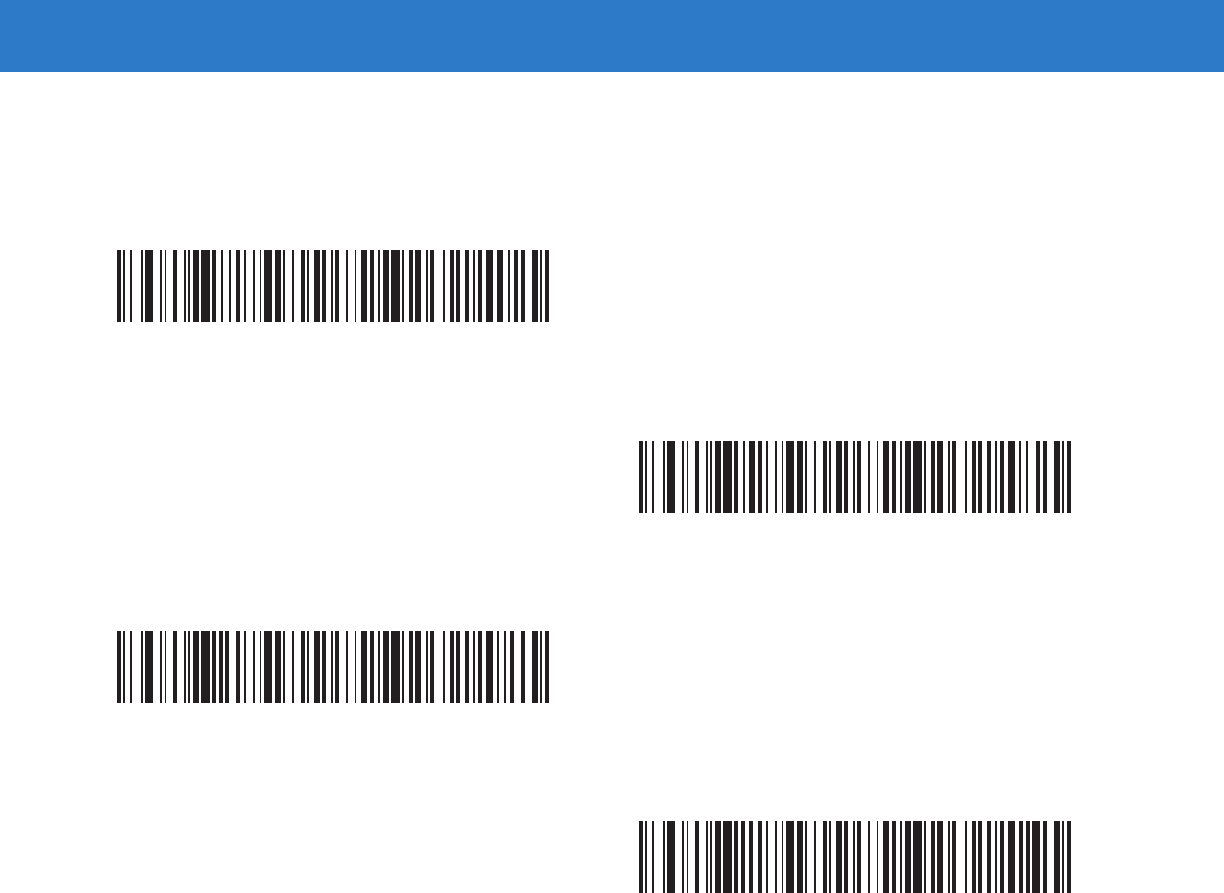

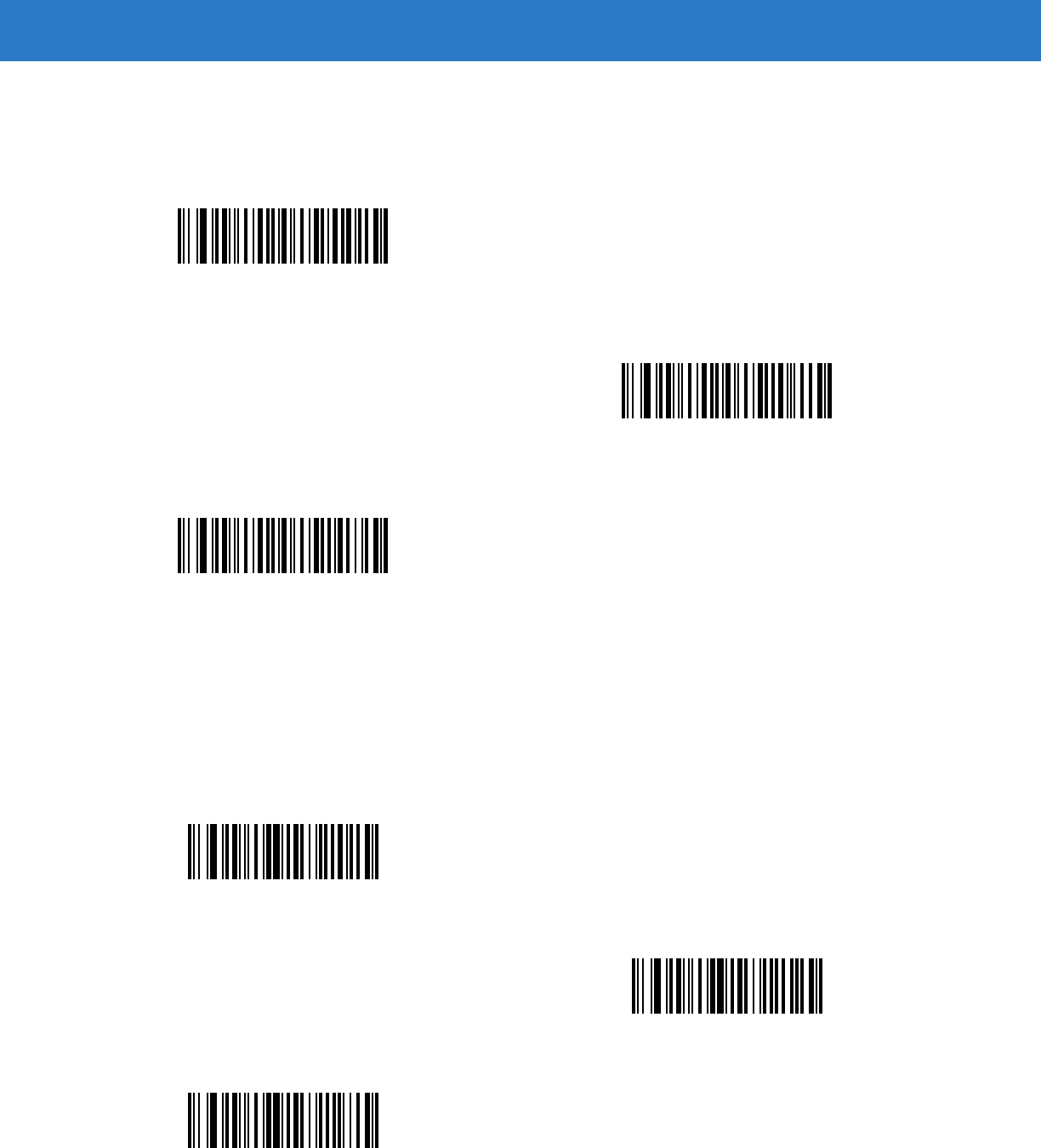

Beeper Tone
To select a decode beep frequency (tone), scan the Low Frequency, Medium Frequency, or High Frequency bar
code.
Low Frequency
*Medium Frequency
High Frequency

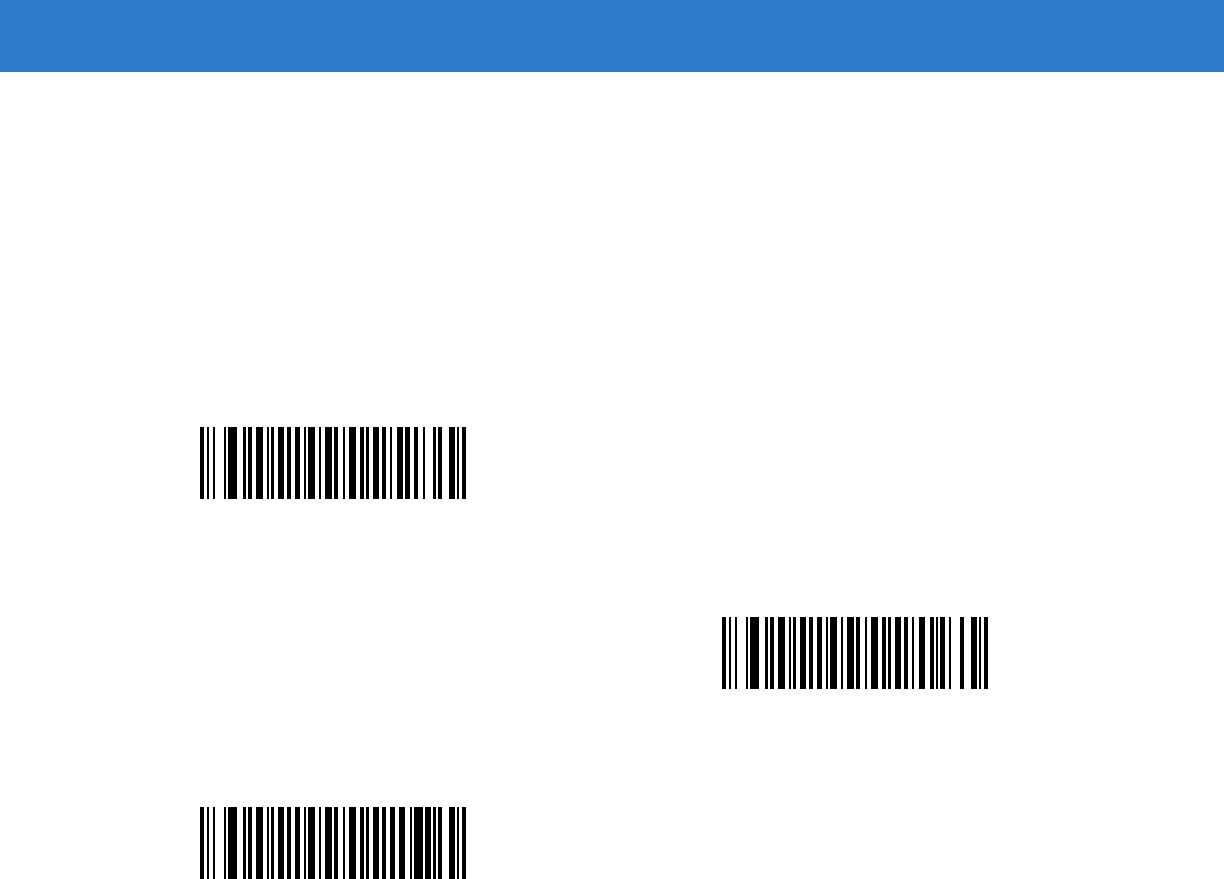

User Preferences 4 - 5

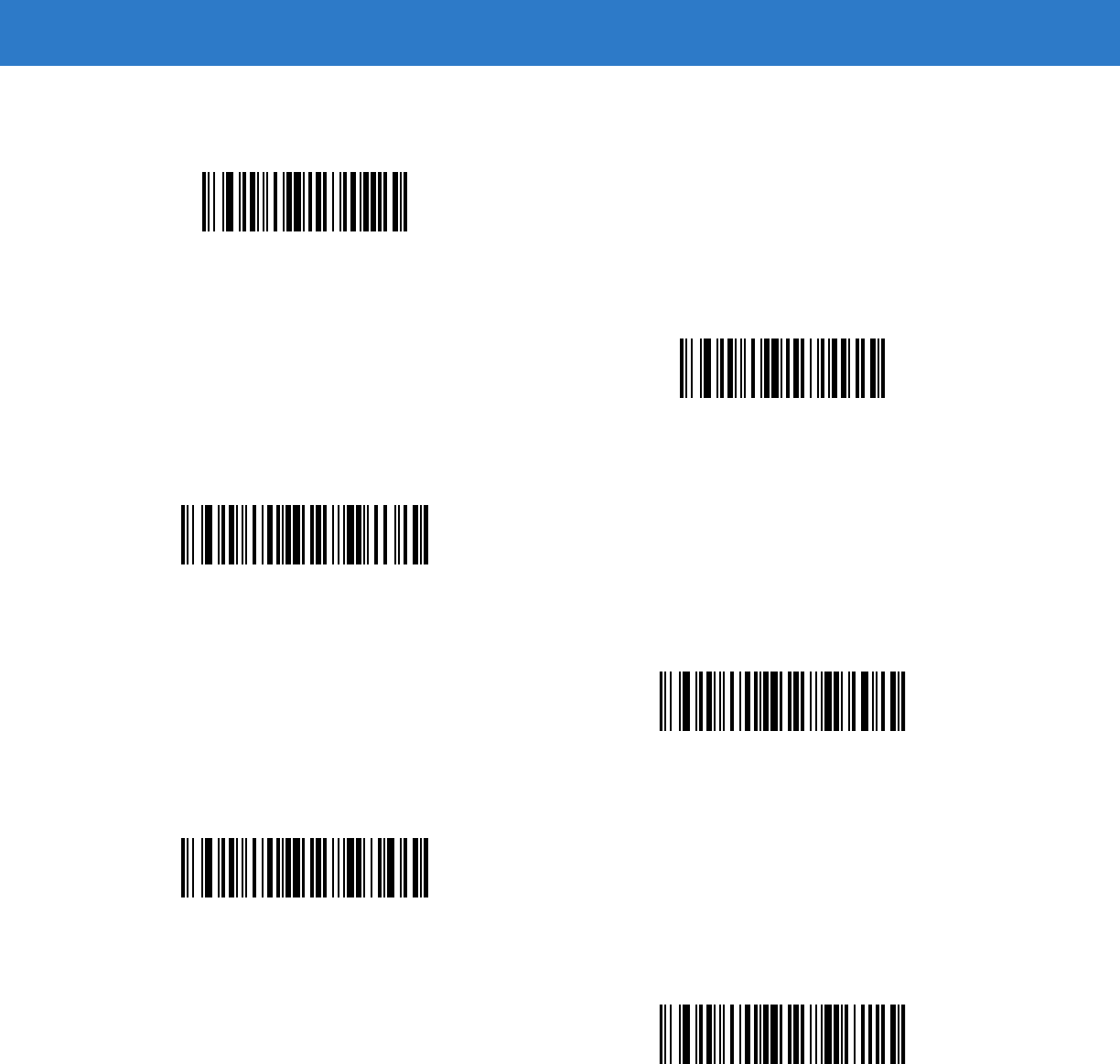

Beeper Volume
To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume bar code.
Power Mode
This parameter determines whether or not the digital scanner enters reduced power mode after a decode attempt.
When in reduced power mode, the digital scanner draws less current from its battery.
Low Volume
Medium Volume
*High Volume
Continuous On
*Reduced Power Mode
4 - 6 Symbol DS3478 Product Reference Guide

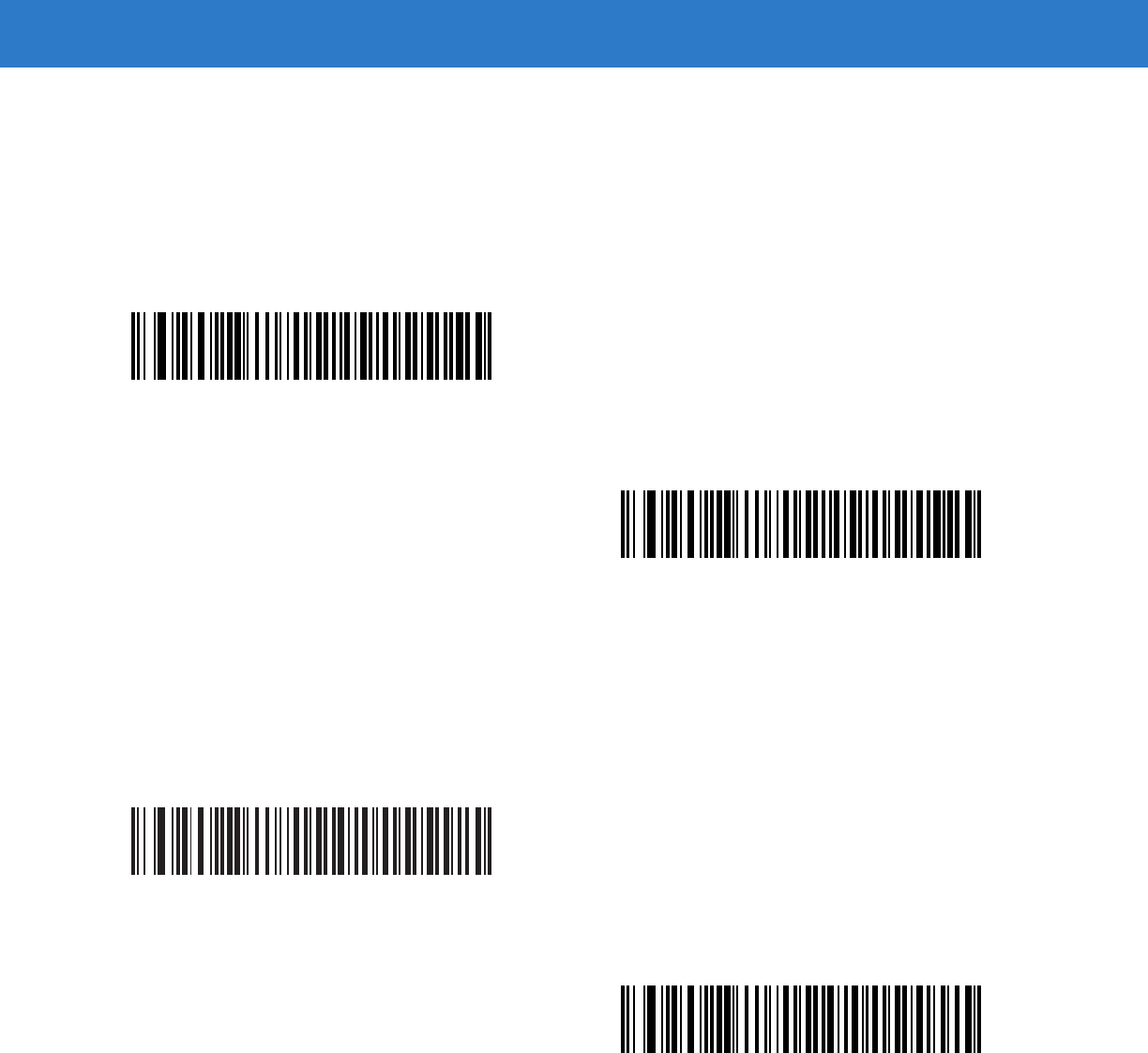

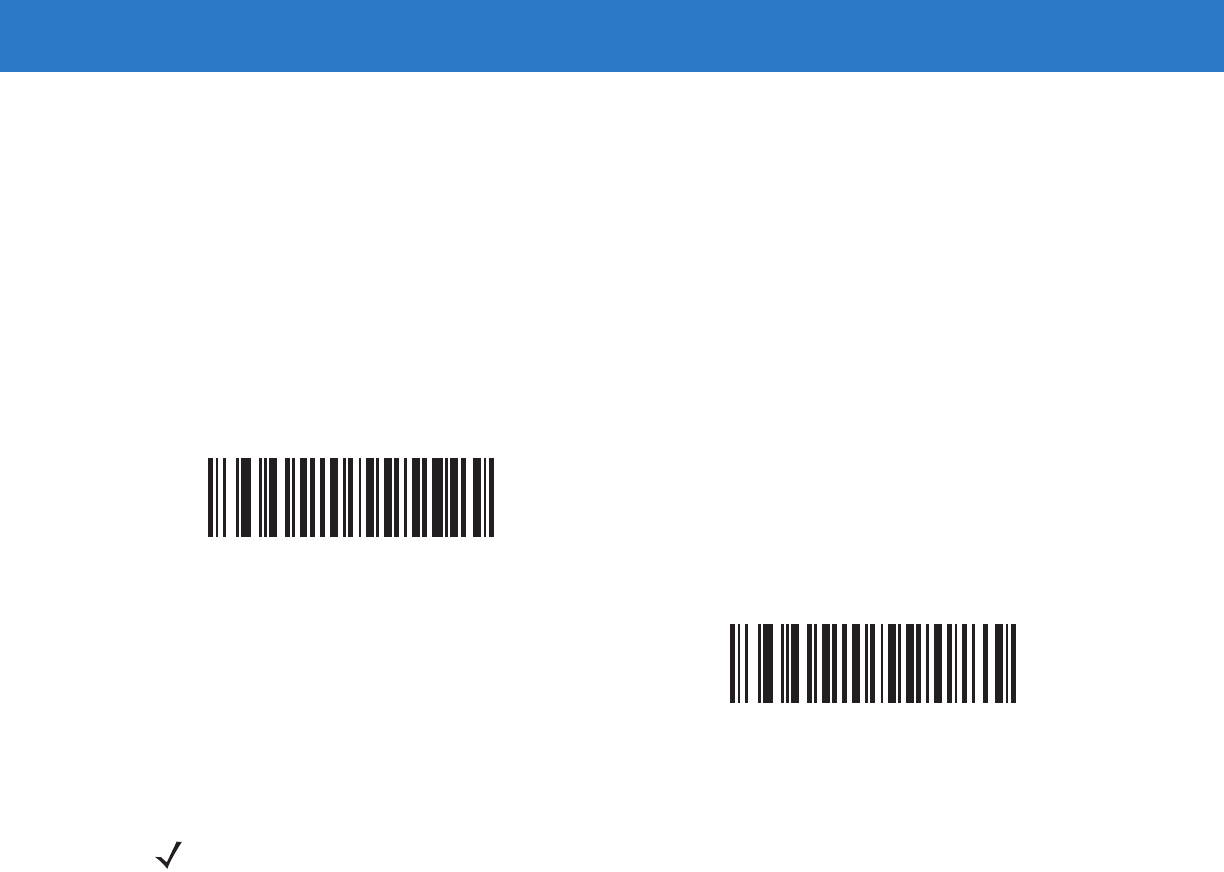

Beep After Good Decode
Scan one of the following bar codes to select whether the digital scanner beeps after a good decode. If you select
Do Not Beep After Good Decode, the beeper still operates during parameter menu scanning and indicates error
conditions.
*Beep After Good Decode
(Enable)
Do Not Beep After Good Decode
(Disable)

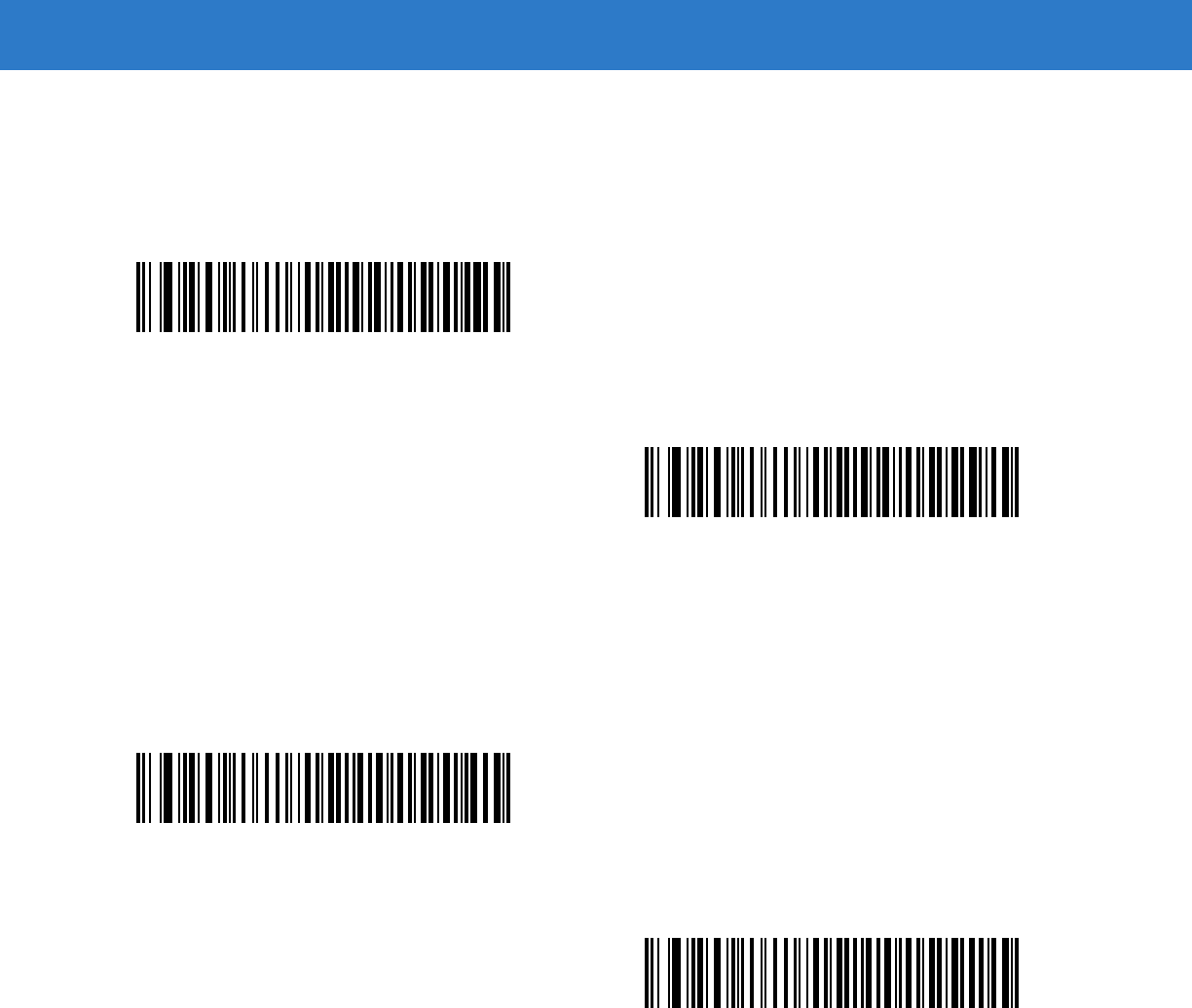

User Preferences 4 - 7

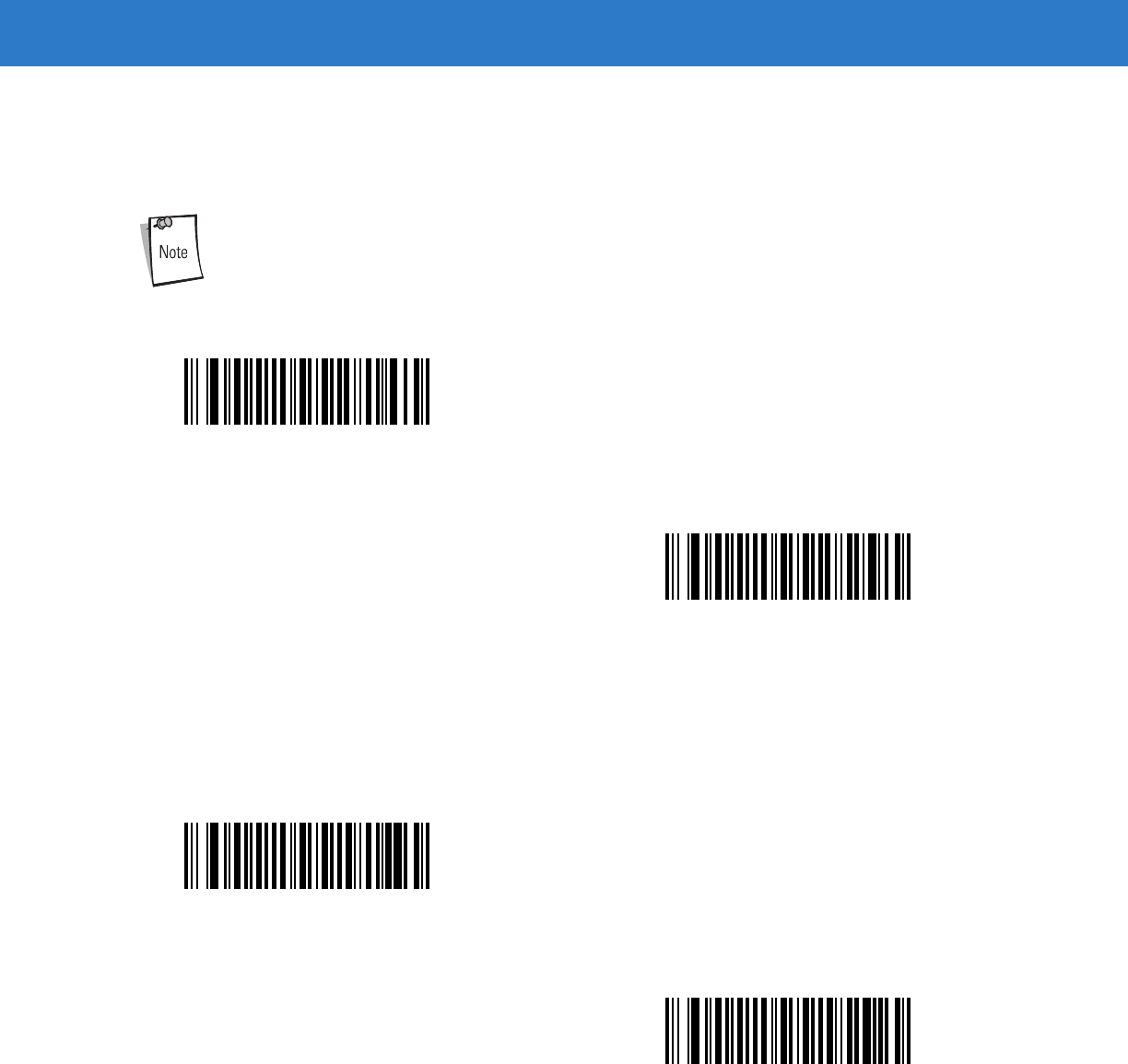

Picklist Mode
Parameter # F0h 92h
Picklist mode enables the digital scanner to decode only bar codes that are aligned under the laser crosshair.
Select one of the following picklist modes for the digital scanner:
•
Disabled Always (default) - Picklist mode is always disabled.
•
Enabled Out of Scanstand - Picklist mode is enabled when the digital scanner is out of presentation
(scanstand) mode and disabled when the digital scanner is in presentation mode.
•
Enabled Always - Picklist mode is always enabled.
NOTE If you enabled DPM Scanning on page 5-5, disable Picklist Mode when scanning a DPM bar code.
Picklist performance is not guaranteed for DPM bar codes.
*Disabled Always
(00h)
Enabled Out of Scanstand
(01h)
Enabled Always
(02h)
4 - 8 Symbol DS3478 Product Reference Guide
Decode Session Timeout
This parameter sets the maximum time decode processing continues during a scan attempt. It is programmable in
0.1 second increments from 0.5 to 9.9 seconds. The default timeout is 3.0 seconds.
To set a Decode Session Timeout, scan the bar code below. Next, scan two numeric bar codes from Appendix D,
Numeric Bar Codes that correspond to the desired on time. Enter a leading zero for single digit numbers. For
example, to set a Decode Session Timeout of 0.5 seconds, scan the bar code below, then scan the 0 and 5 bar
codes. To correct an error or change the selection, scan Cancel on page D-3.

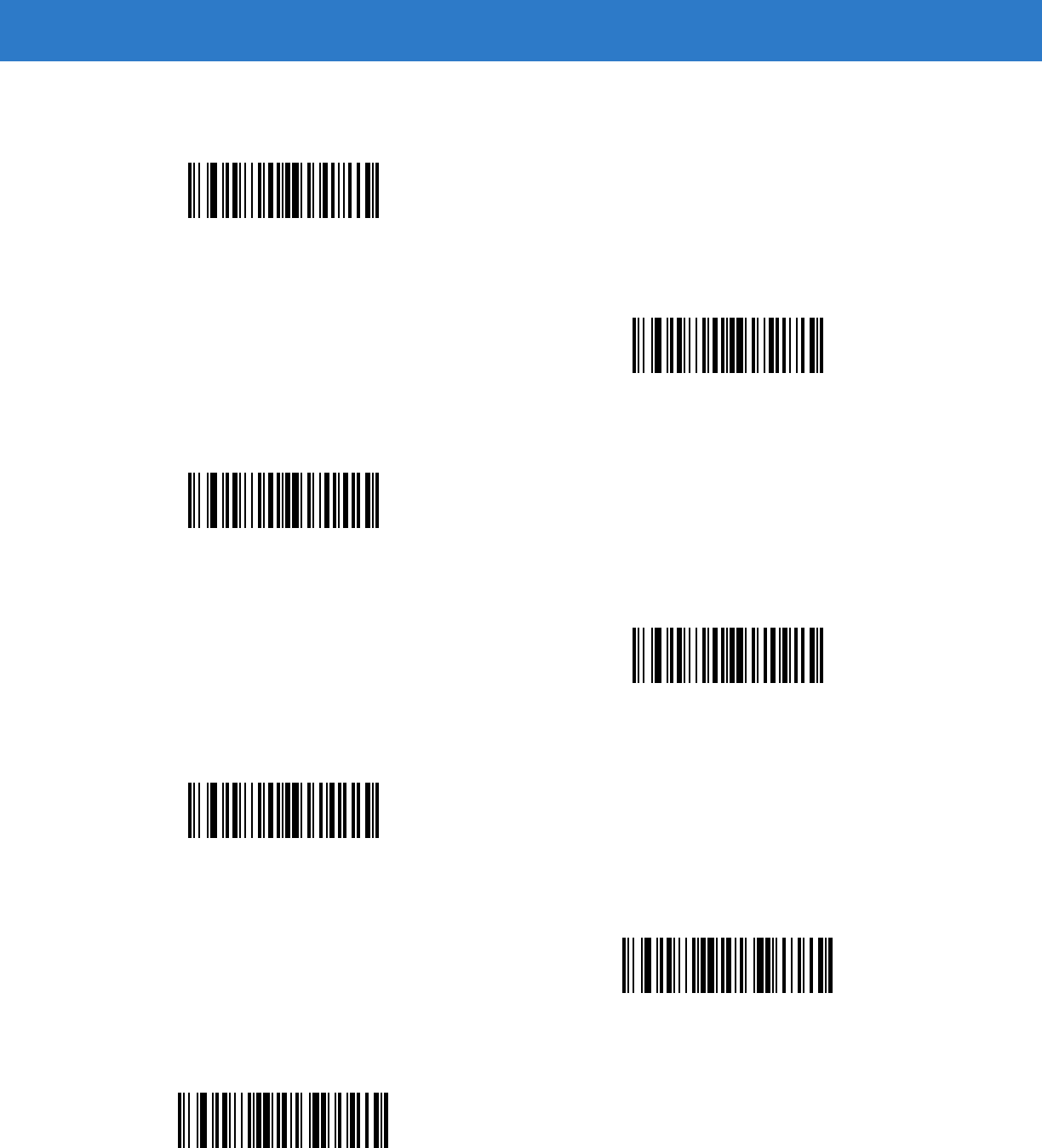

Fuzzy 1D Decoding
Enable this parameter to increase aggressiveness when decoding significantly damaged 1D symbols. Disabling
this parameter reduces decode aggressiveness on such symbols, but increases decode aggressiveness on 2D
symbols.
Decode Session Timeout
NOTE 123Scan does not support this option.
*Enable Fuzzy 1D Decoding
Disable Fuzzy 1D Decoding

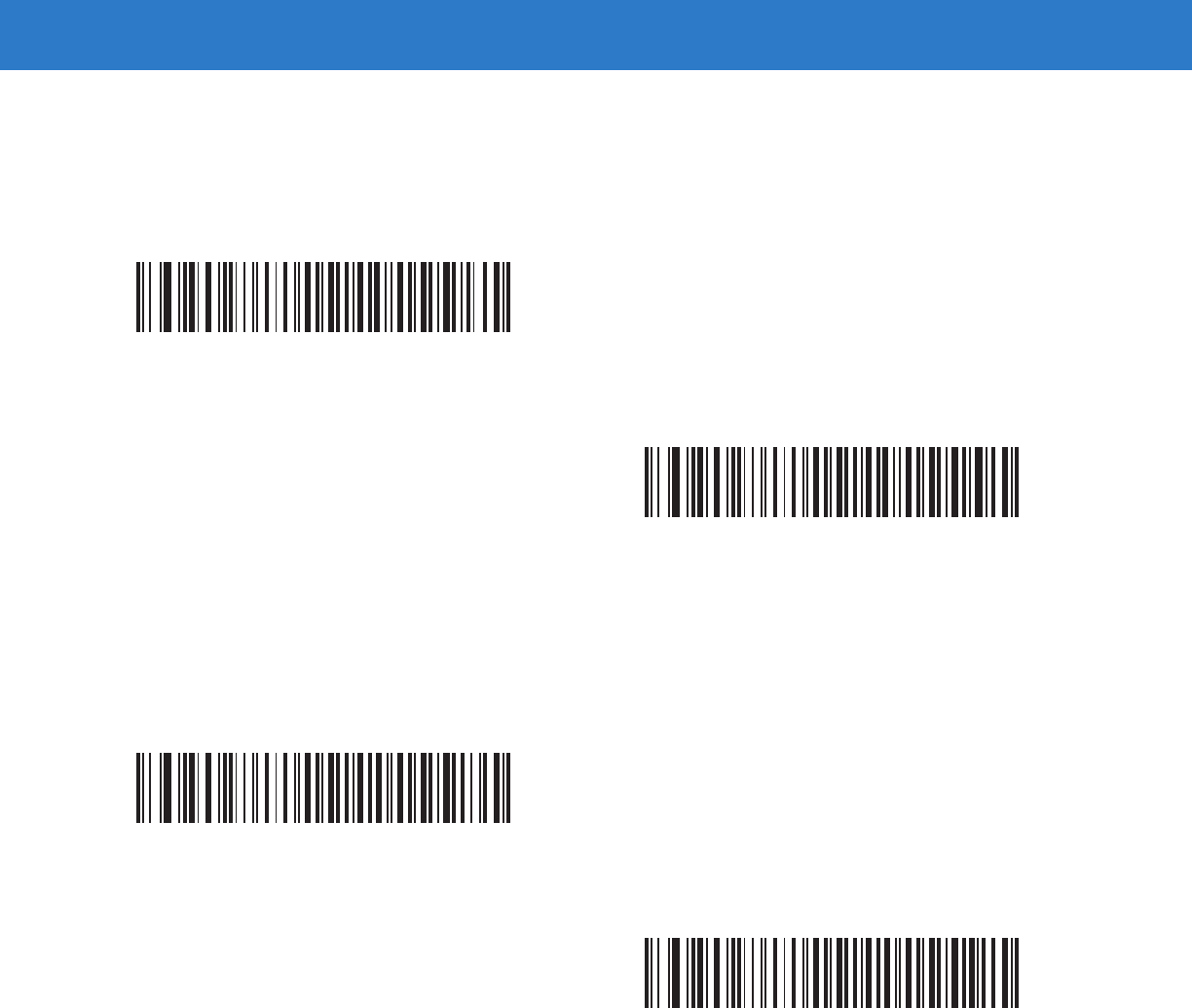

User Preferences 4 - 9
Decode Mirror Images (Data Matrix Only)
Parameter # F1h 19h
Select an option for decoding mirror image Data Matrix bar codes:
•
Always - decode only Data Matrix bar codes that are mirror images
•
Never - do not decode Data Matrix bar codes that are mirror images
•
Auto - decode both mirrored and unmirrored Data Matrix bar codes.
*Never
(00h)
Always
(01h)
Auto
(02h)
4 - 10 Symbol DS3478 Product Reference Guide

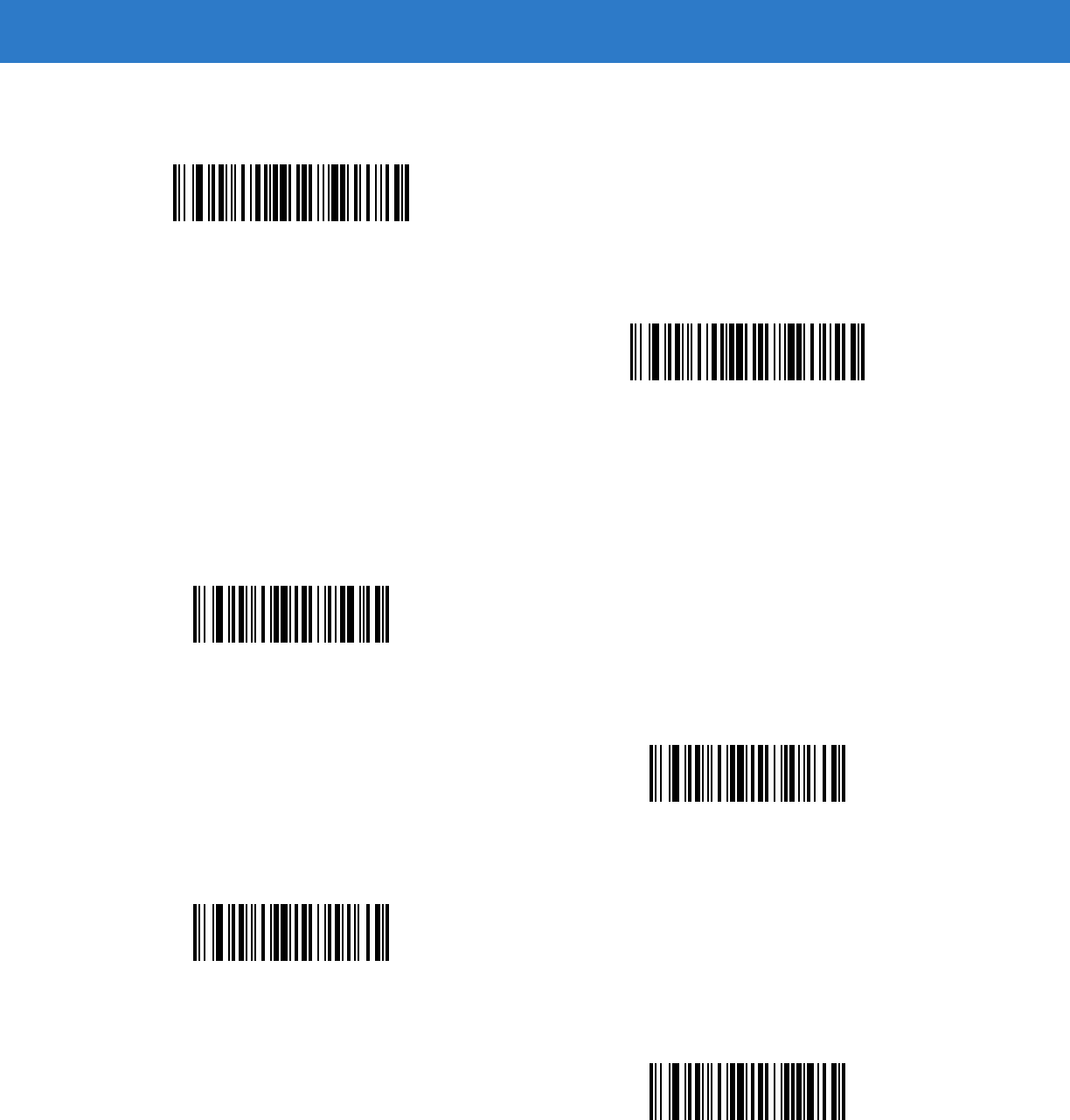

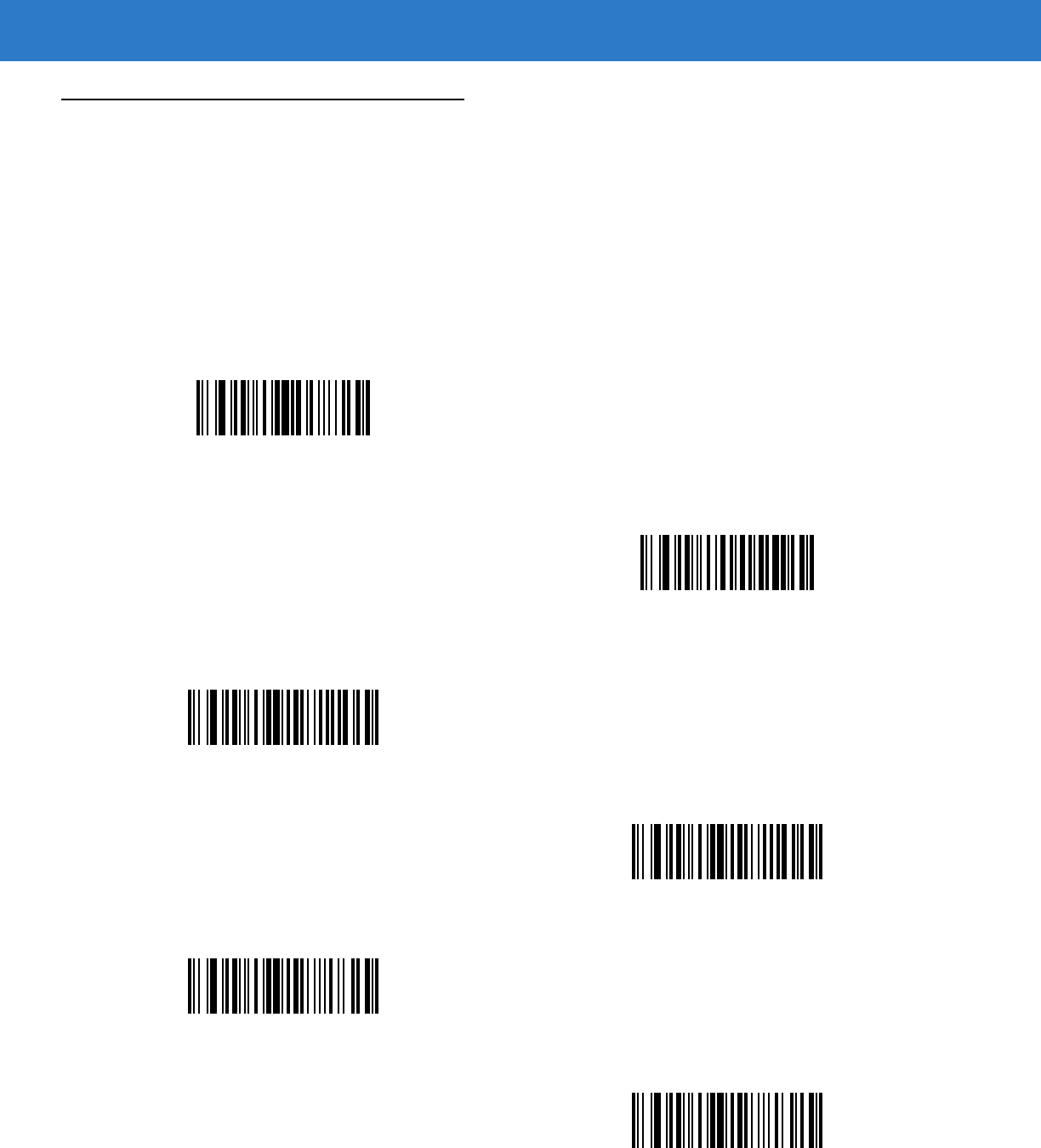

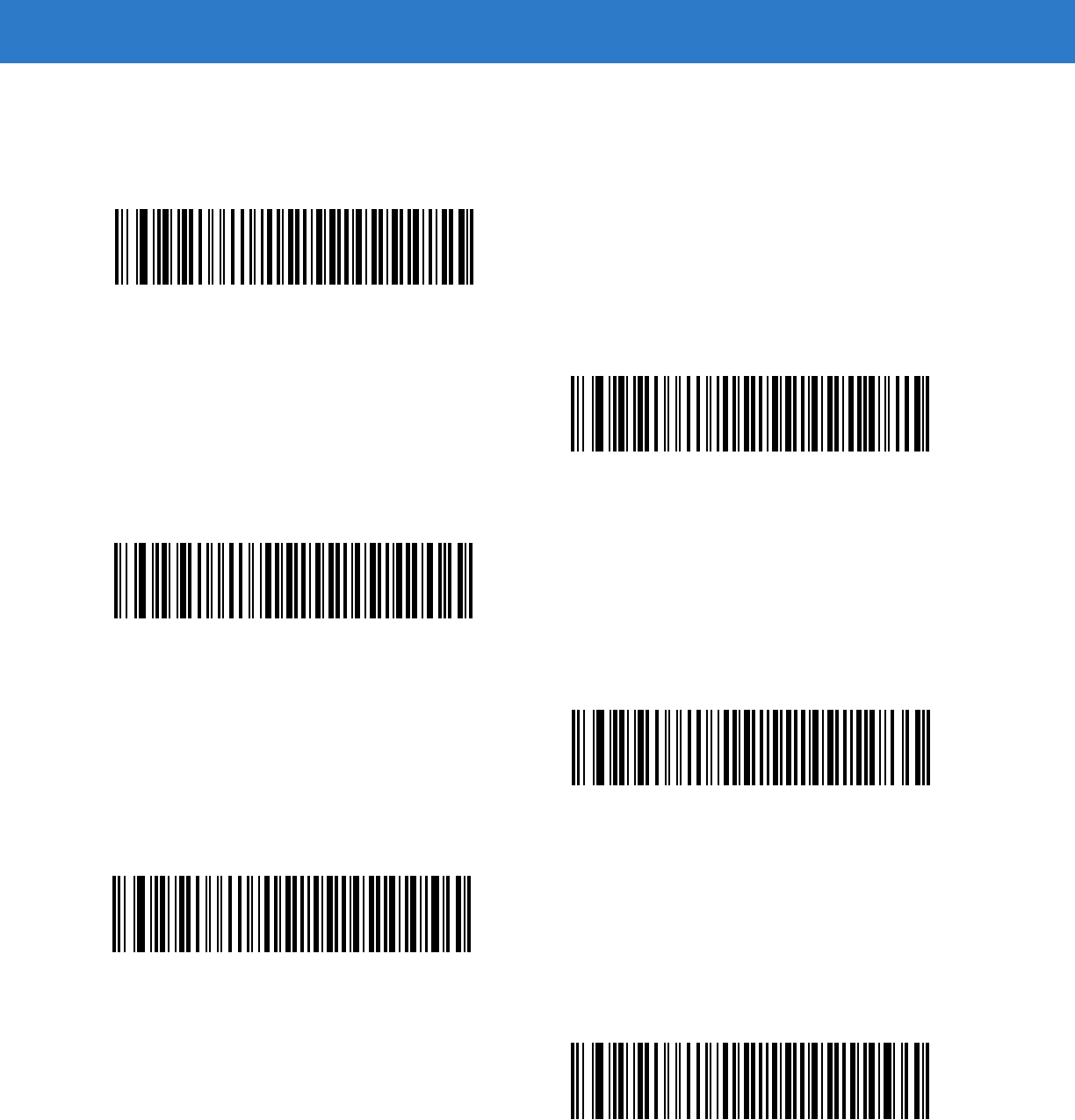

Radio Communications
Connection Maintenance Interval
When a digital scanner disconnects from a cradle due to a Link Supervision Timeout, the digital scanner
immediately attempts to reconnect to the cradle for 30 seconds. If the digital scanner does not reconnected within
30 seconds, it enters low power mode. Thereafter, when you scan a bar code, the digital scanner attempts to
reconnect before transmitting the data.
To guarantee that a disconnected digital scanner can reconnect when it comes back in range, the cradle reserves
the connection for that digital scanner for a period of time defined by the Connection Maintenance Interval. If the
cradle already supports the maximum four digital scanners, and one digital scanner disconnects, a fifth digital
scanner cannot pair to the cradle during this interval. Connection Maintenance Interval options are:
•
15 minutes
•
30 minutes
•
One hour
•
Two hours
•
Four hours
•
Eight hours
•
24 hours
•
Indefinitely.
Considerations
The system administrator determines the Connection Maintenance Interval. A shorter interval allows new users to
gain access to abandoned connections more quickly, but causes problems if users leave the work area for
extended periods. A longer interval allows existing users to leave the work area for longer periods of time, but ties
up the system for new users.
To avoid this conflict, users who are going off-shift can scan the unpair bar code on page 4-13 to ignore the
Connection Maintenance Interval and make the connection immediately available.

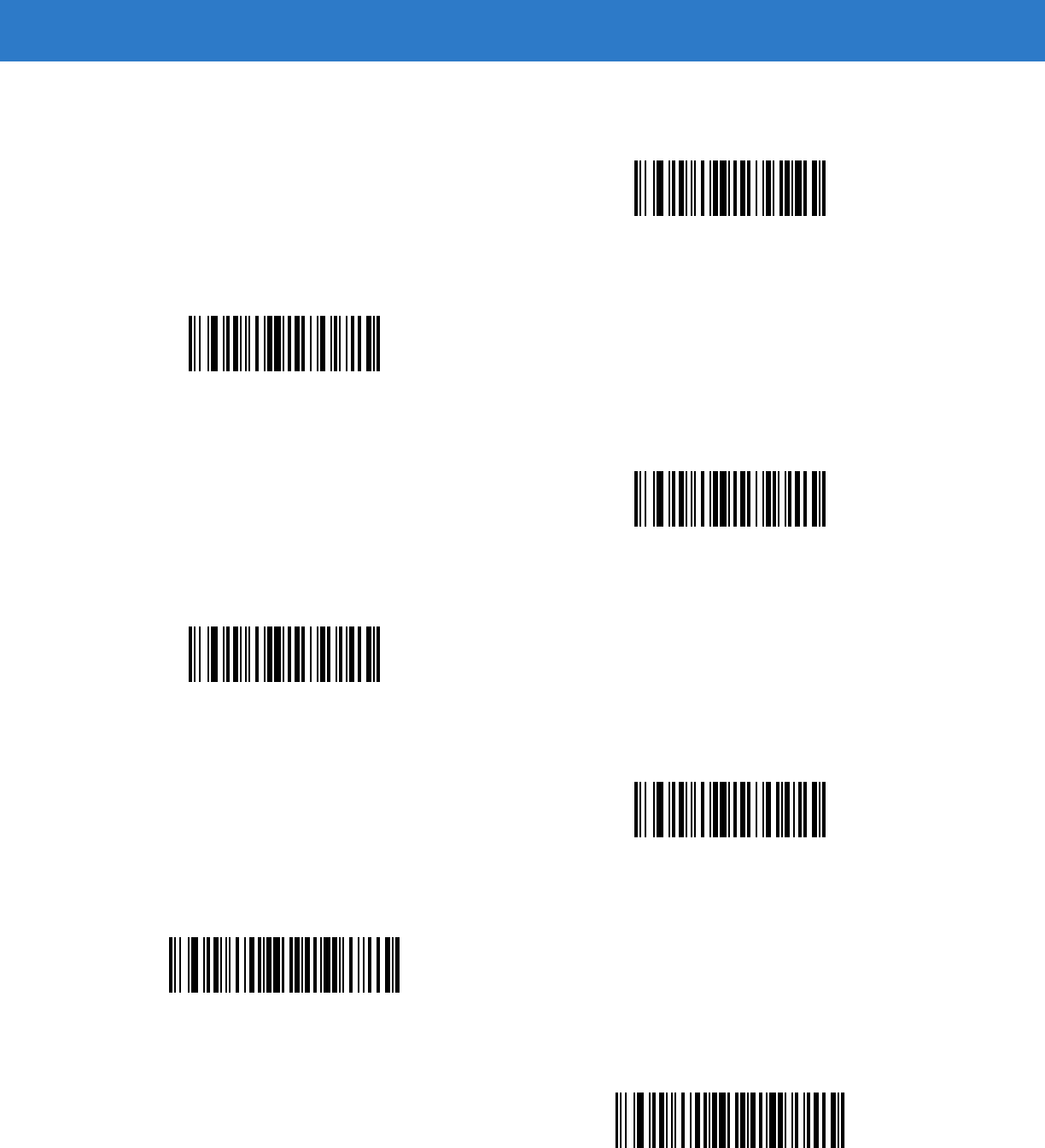

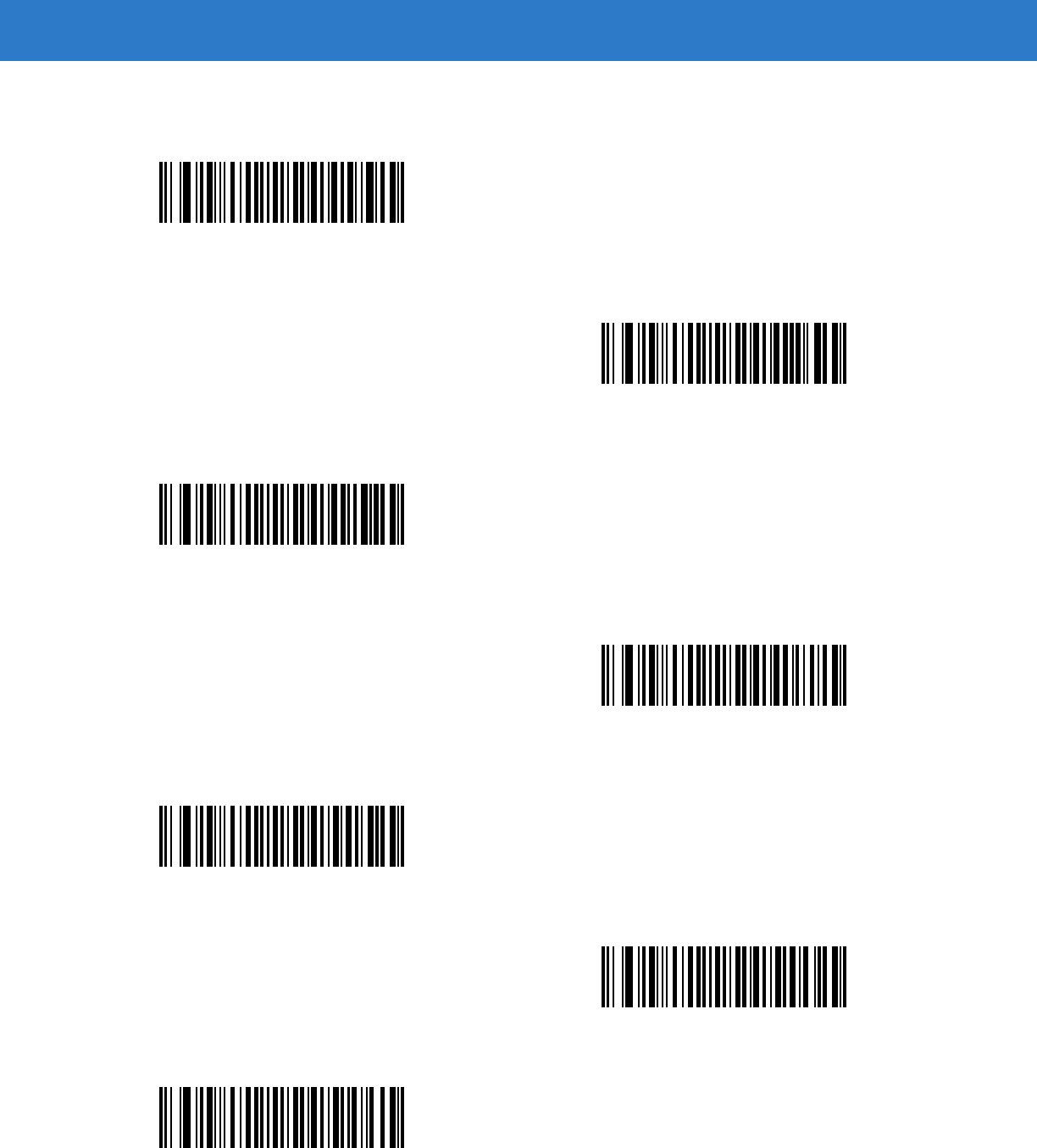

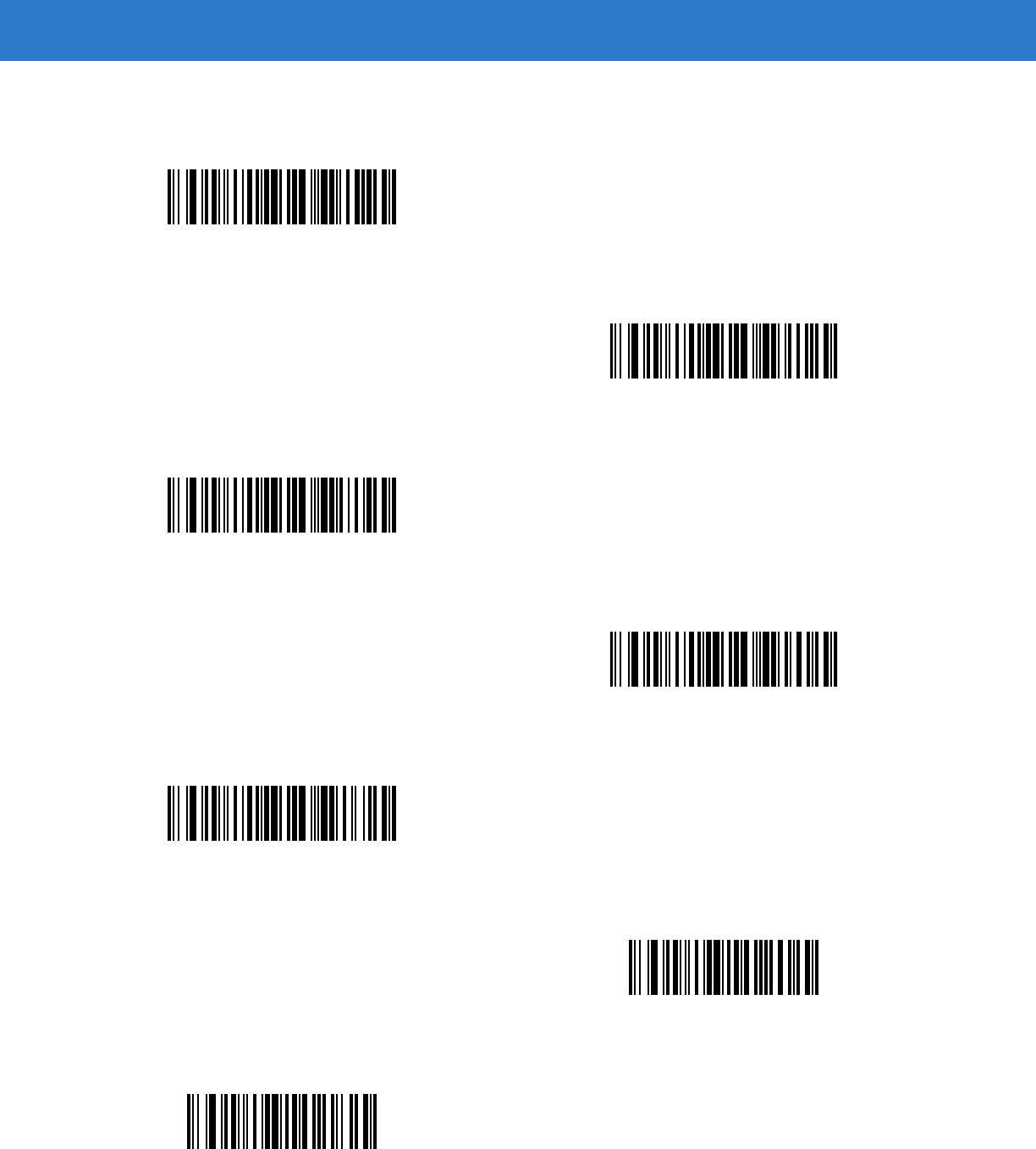

To set the Connection Maintenance Interval, select one of the following bar codes.
*Set Interval to 15 Minutes
Set Interval to 30 Minutes

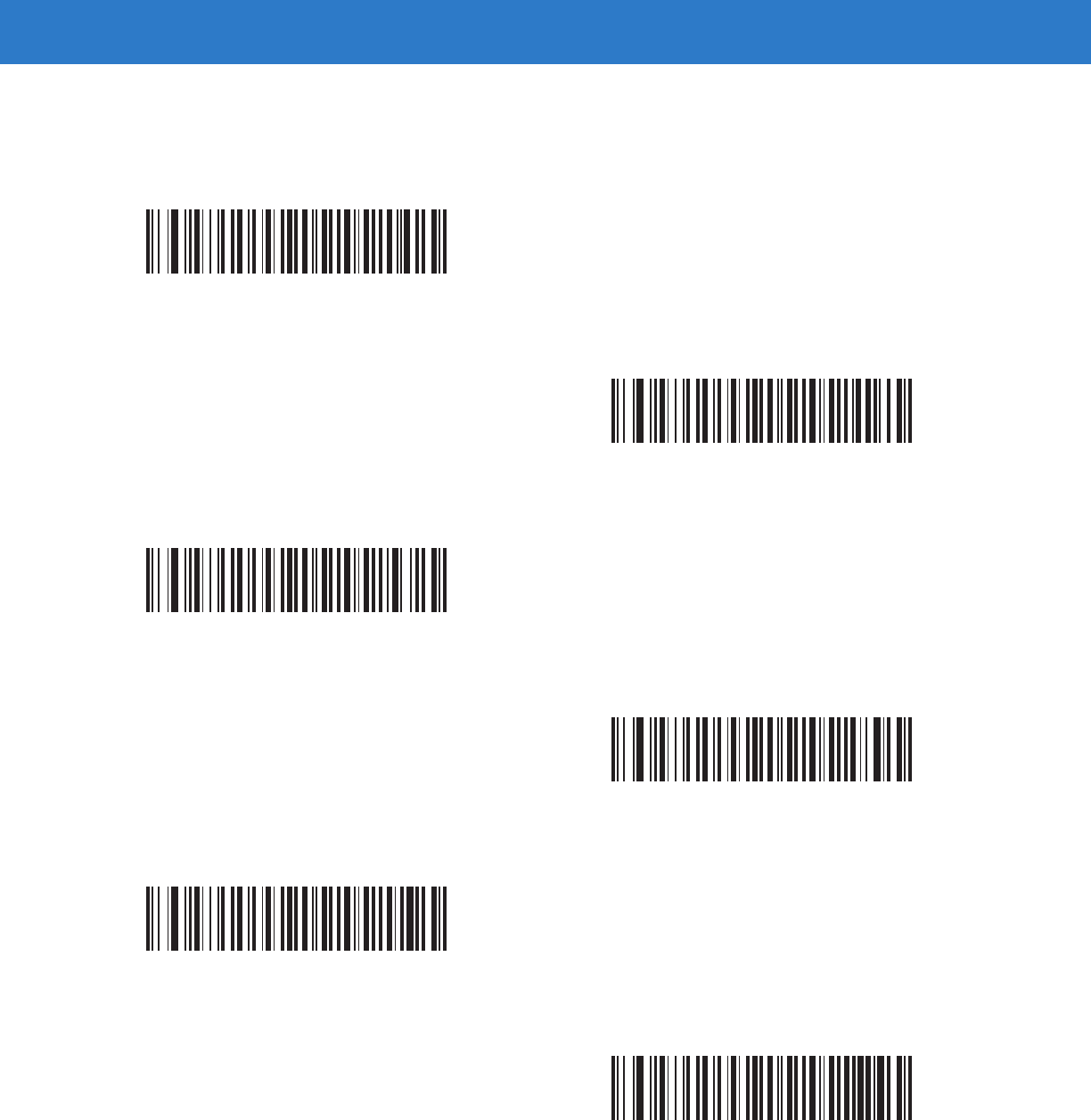

User Preferences 4 - 11

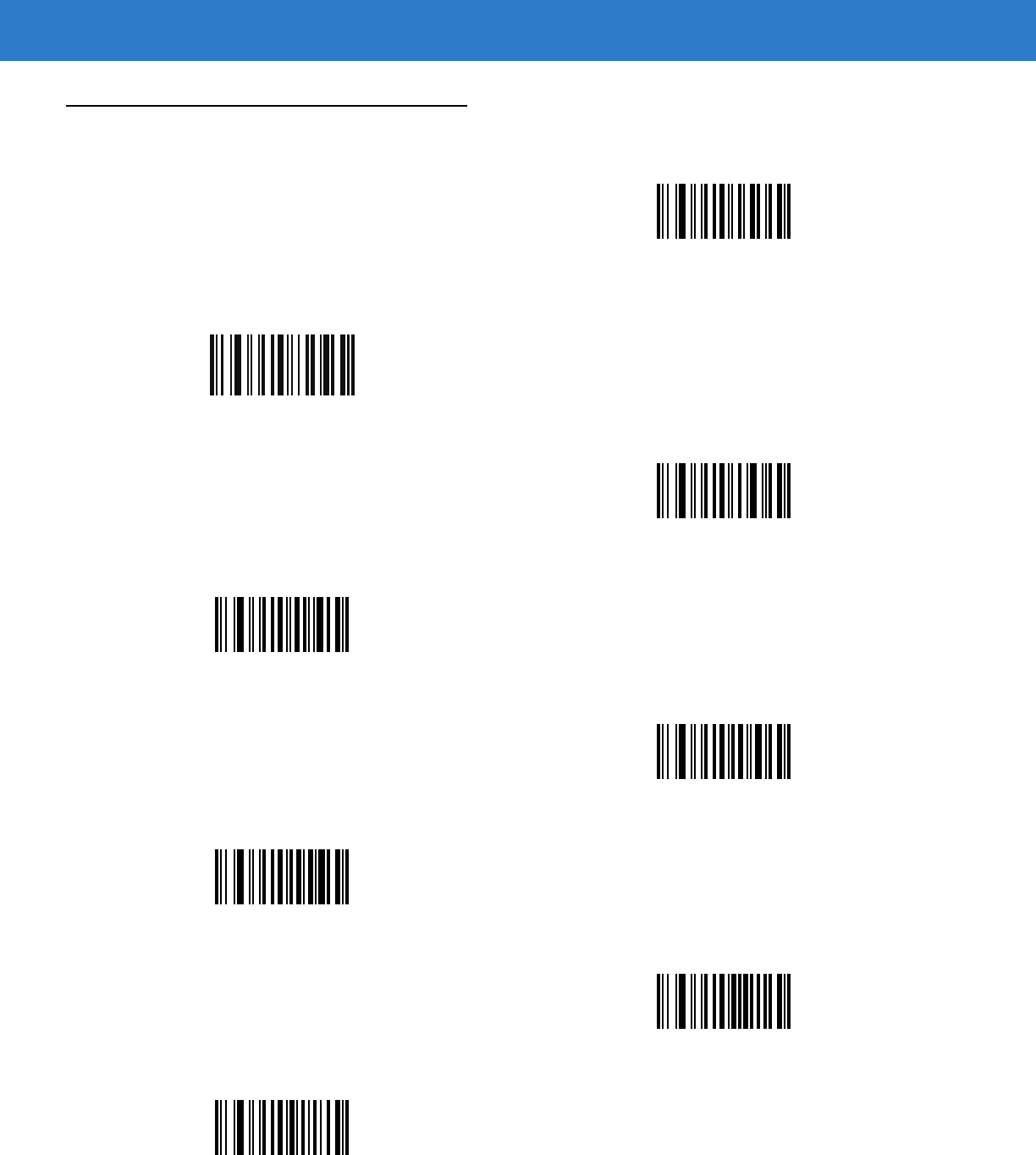

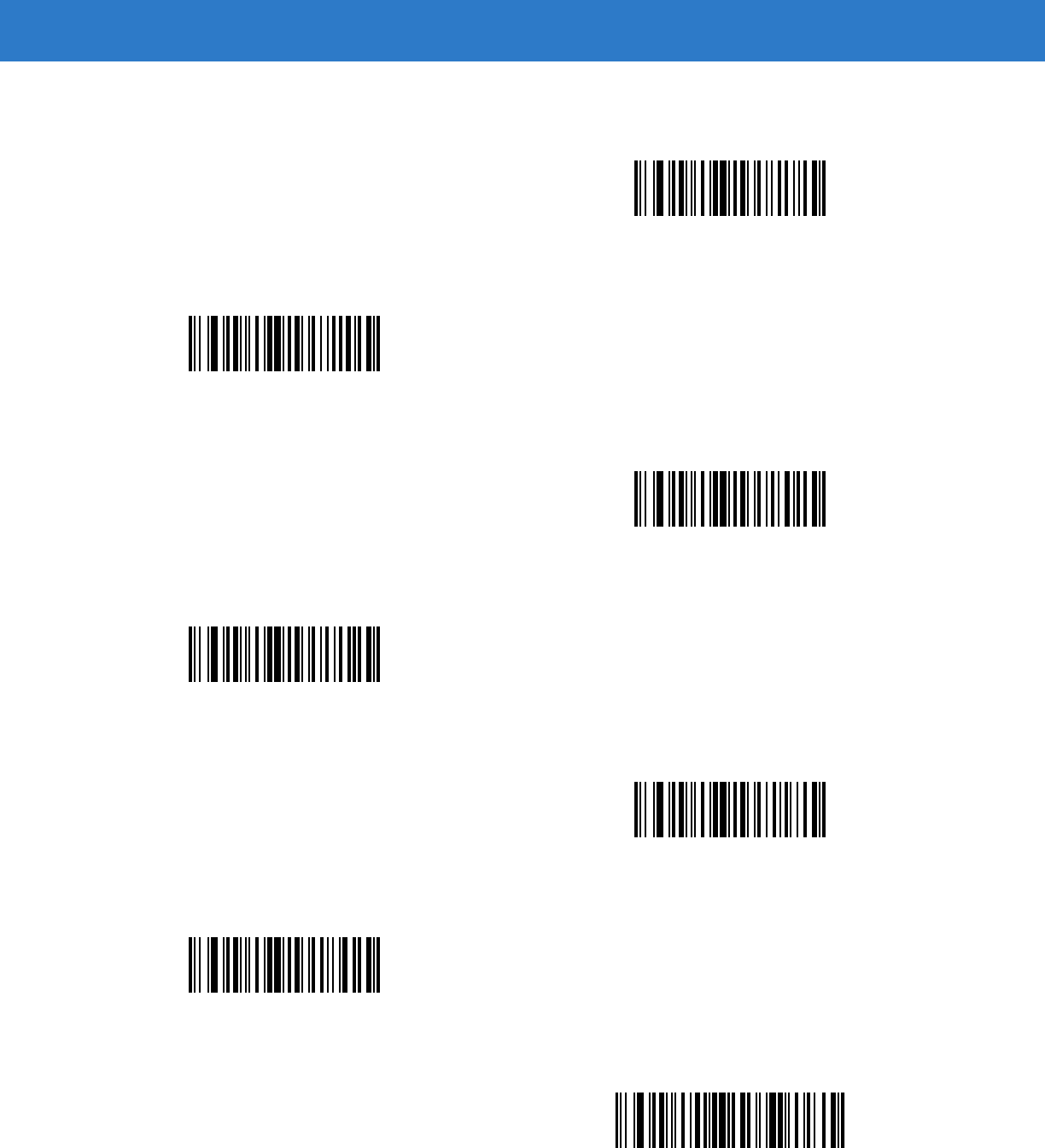

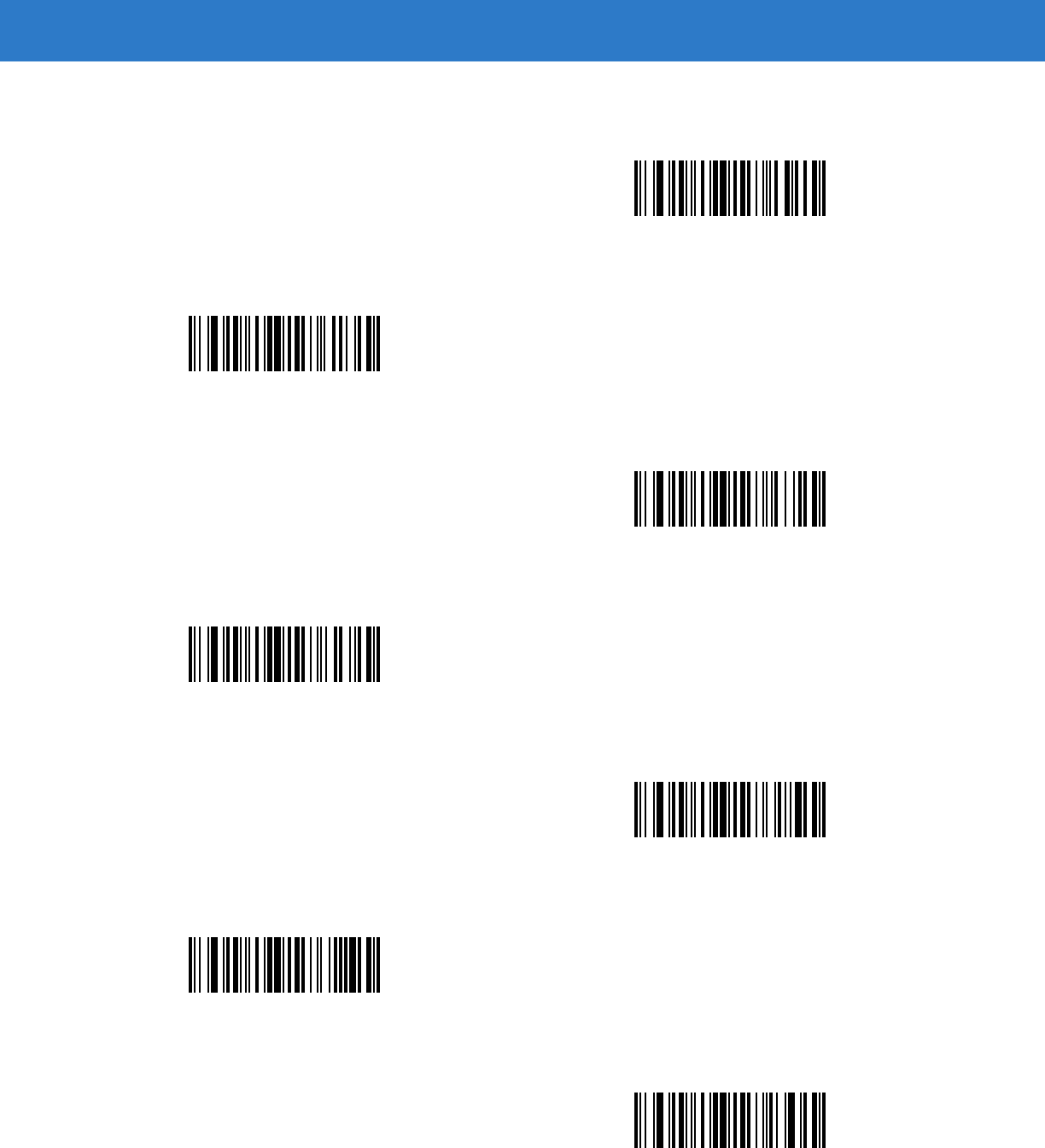

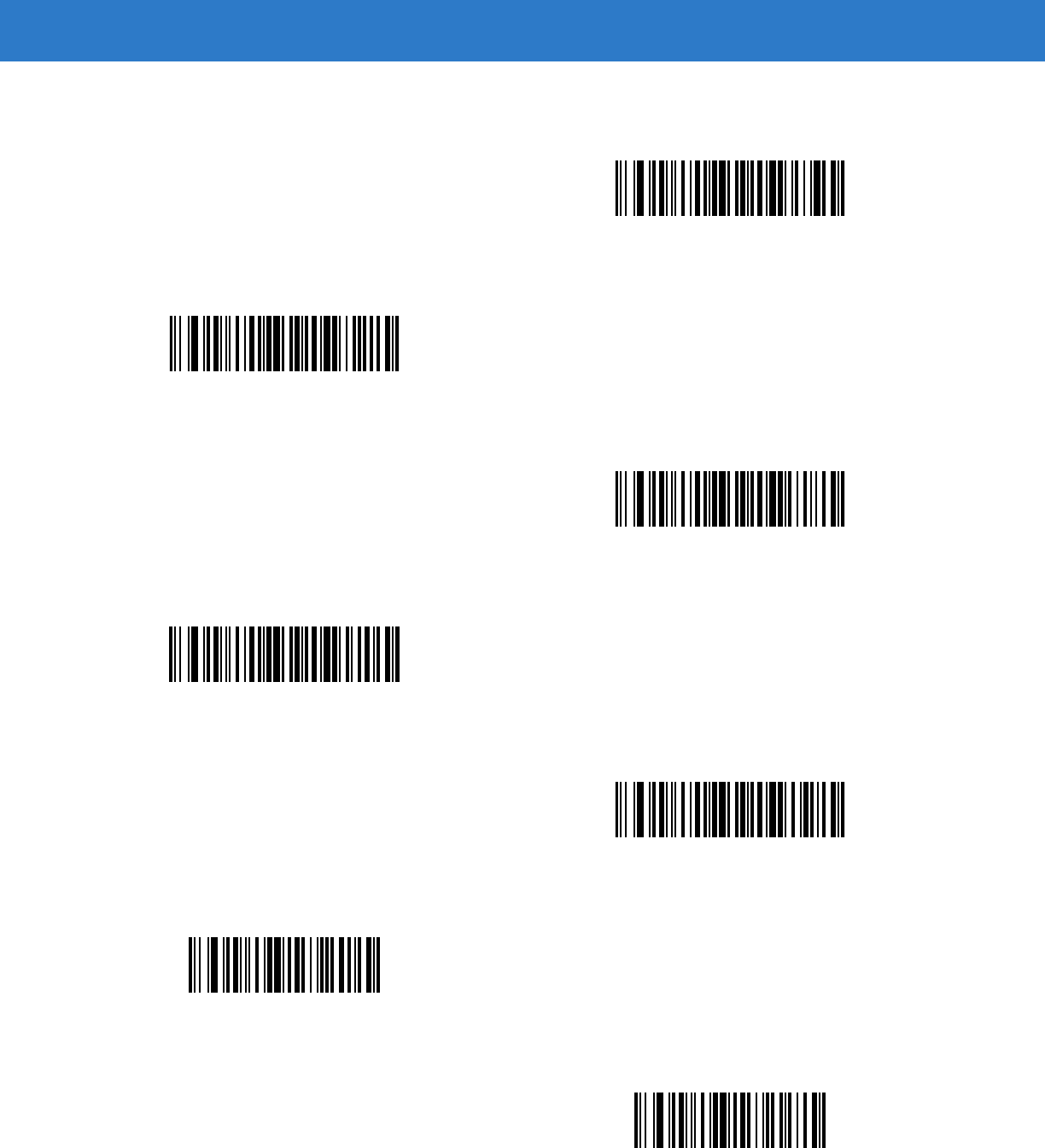

Connection Maintenance Interval (continued)
Set Interval to 60 Minutes
Set Interval to 2 Hours
Set Interval to 4 Hours
Set Interval to 8 Hours
Set Interval to 24 Hours
Set Interval to Forever
4 - 12 Symbol DS3478 Product Reference Guide

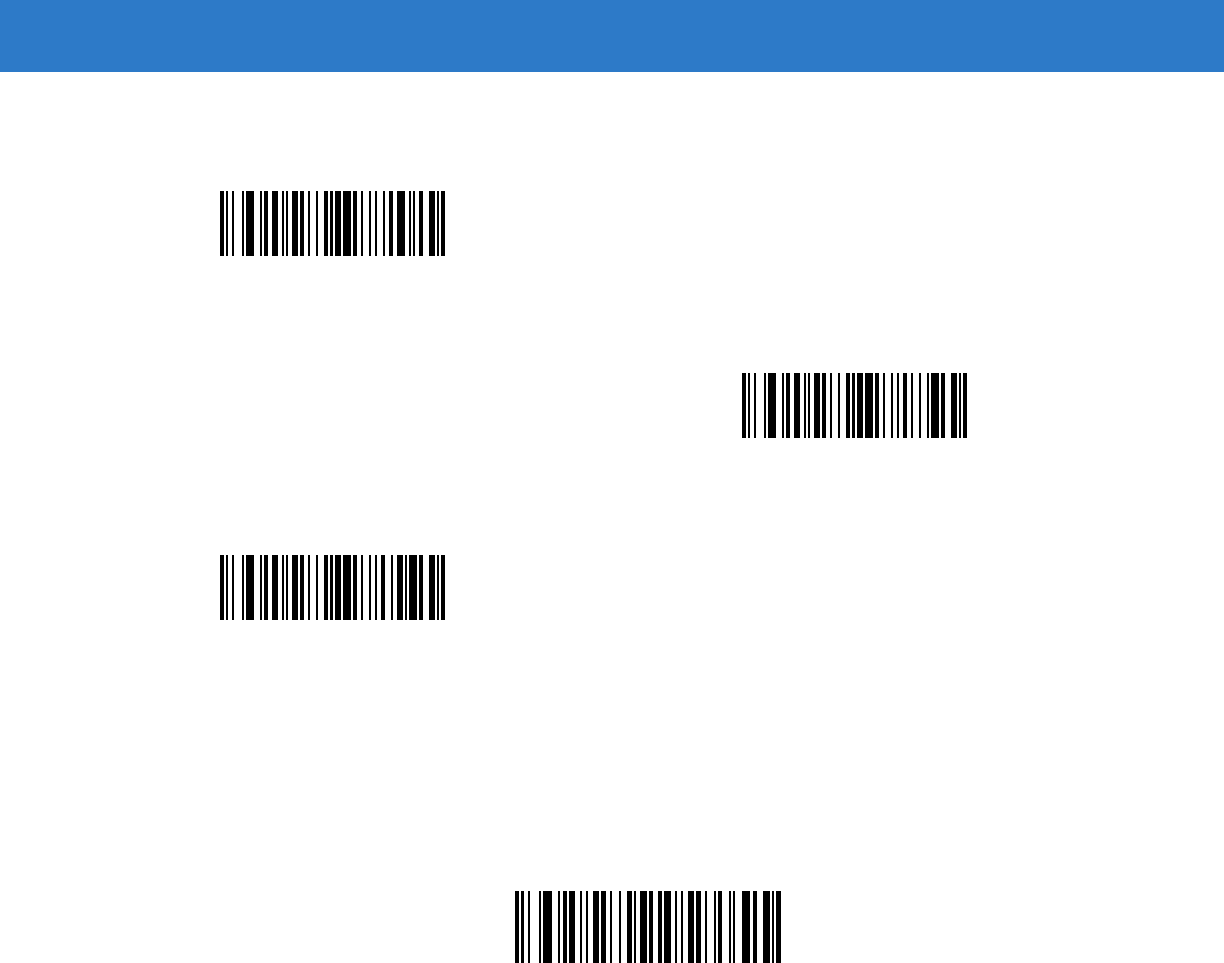

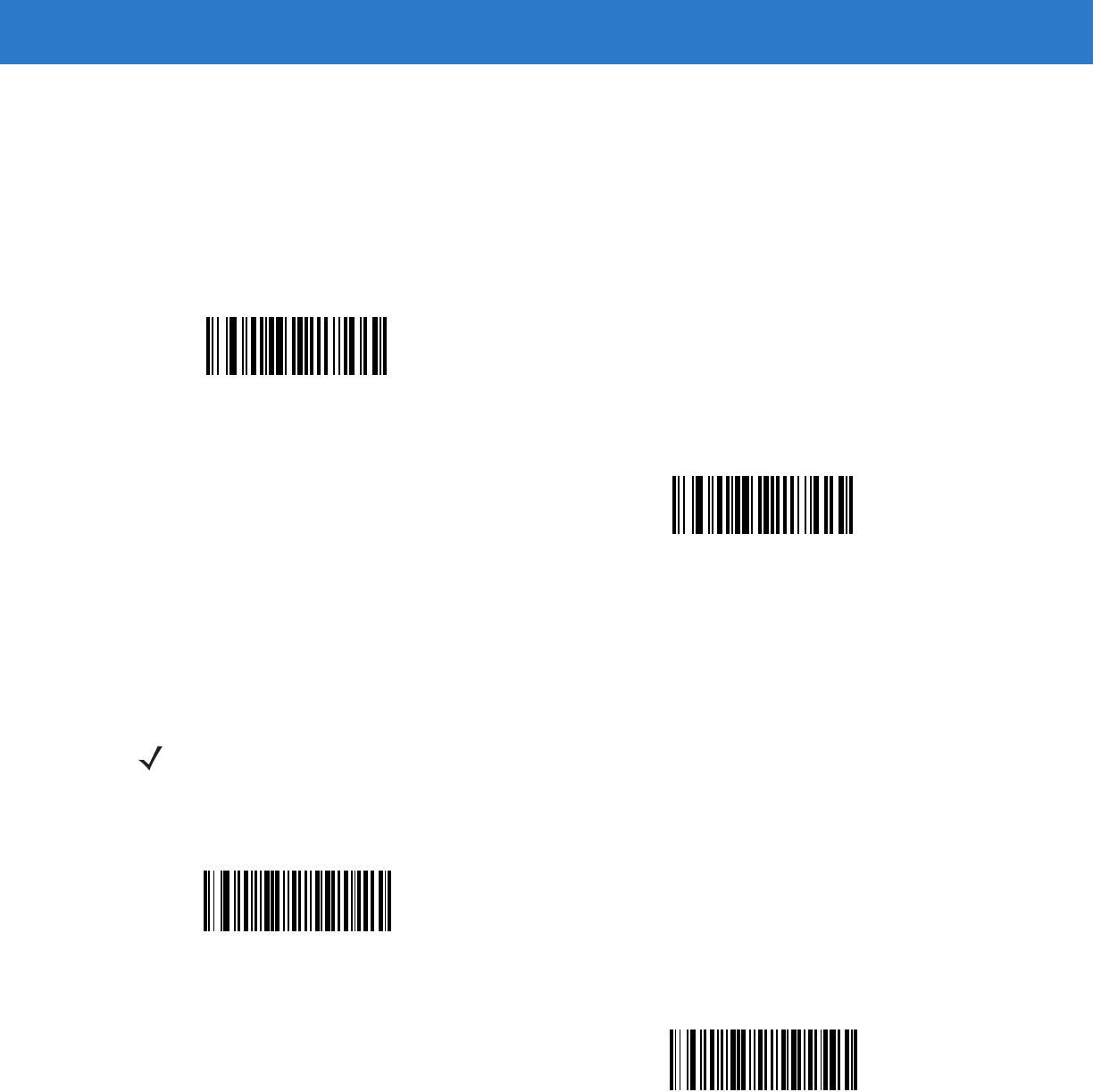

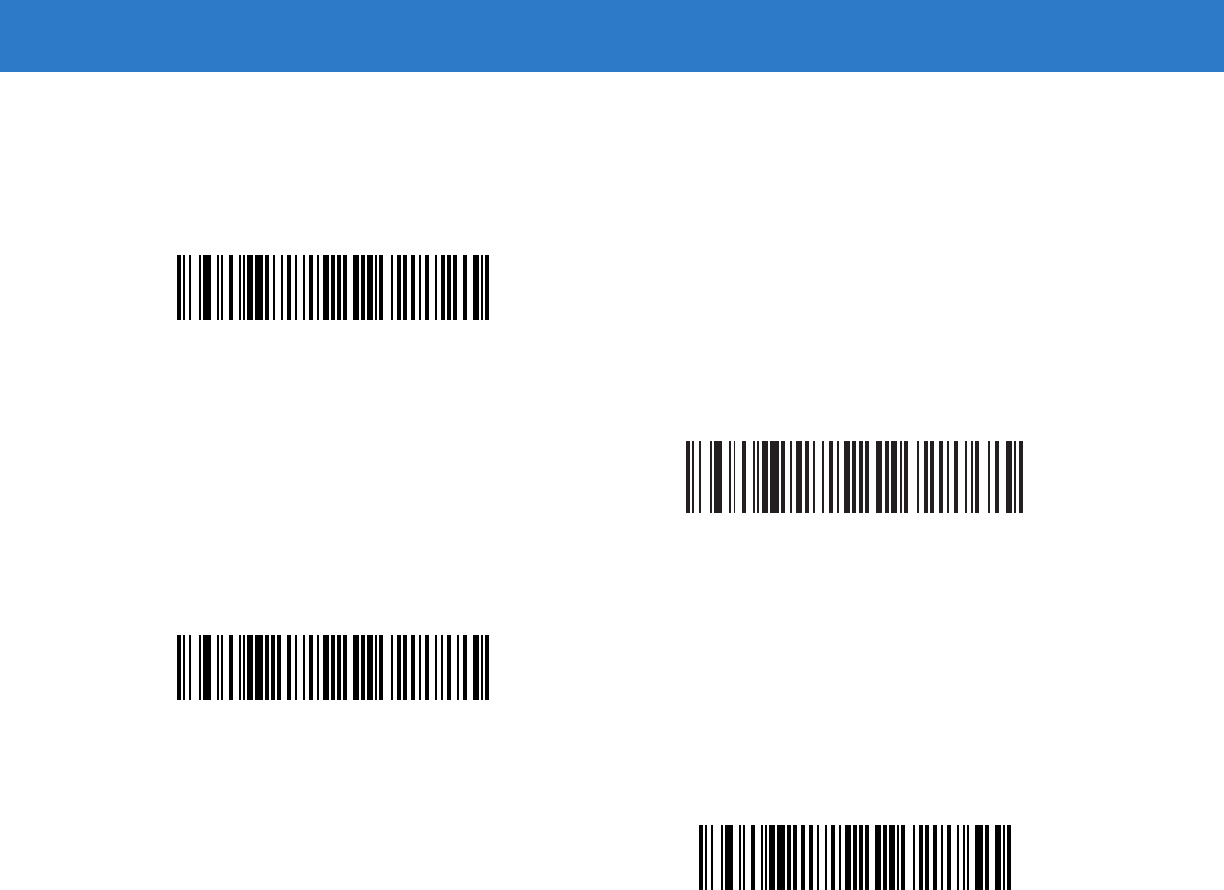

Radio Output Power
The Symbol DS3478 uses a Class 1 Bluetooth radio with a transmission range of up to 100m. Optionally place the
radio in Class 2 operating mode to restrict the transmission range to 10m and reduce the effect of the radio on
neighboring wireless systems.

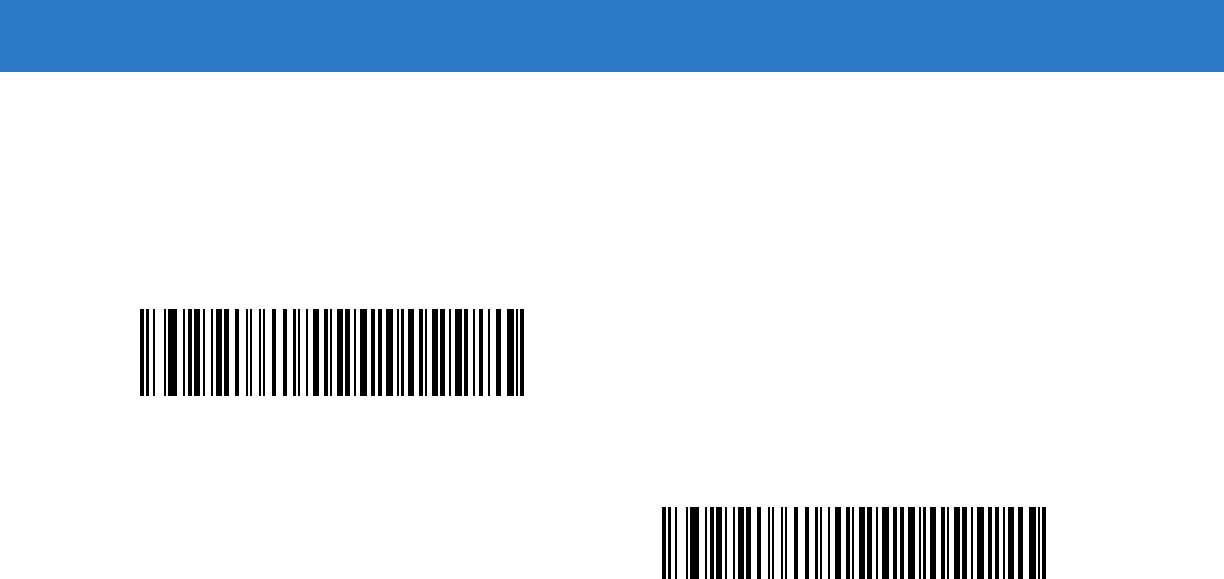

Scan a bar code to select Class 1 or Class 2 operation.
Parameter Broadcast
Enable Parameter Broadcast to broadcast all parameter bar codes scanned to all other digital scanners in the
piconet. Disable this to process parameter bar codes by the individual digital scanner only, and the digital scanner
ignores parameters broadcast from other digital scanners or from the cradle (e.g., parameters sent via 123Scan).
*Bluetooth Class 1
Bluetooth Class 2
*Enable Parameter Broadcast
Disable Parameter Broadcast
User Preferences 4 - 13

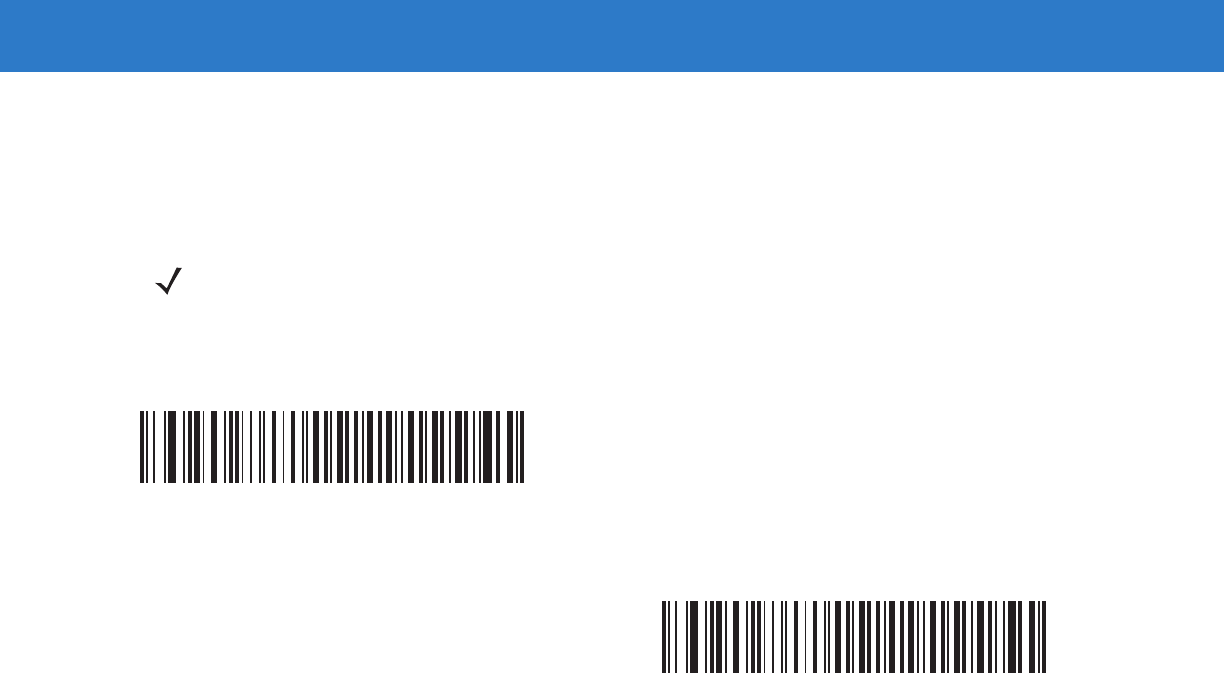

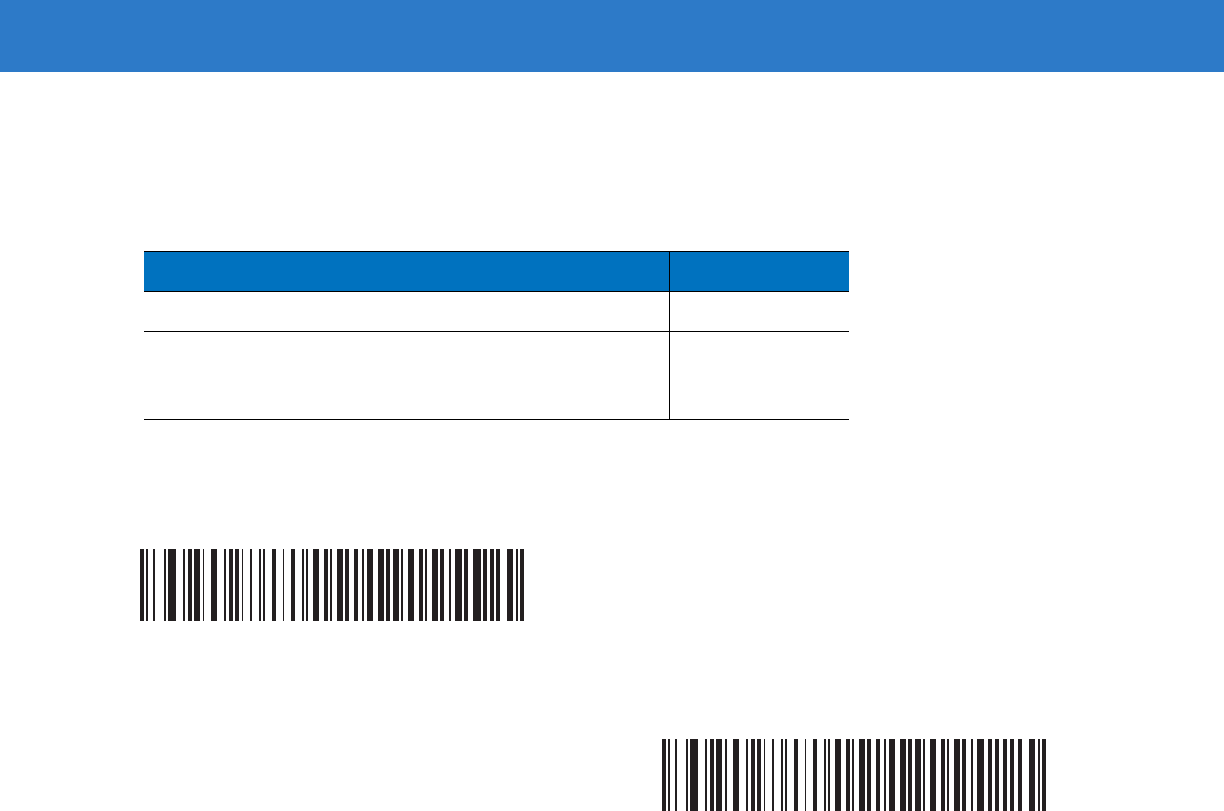

Single Point/Multipoint Operation
The cradle supports communication from up to four digital scanners simultaneously. This multipoint mode requires
an external power supply to charge the digital scanners in the cradle. To power the cradle from the interface cable
(either from the USB hub or from a power supply attached to the interface cable), place the cradle in single point
mode. In single point mode, only one digital scanner can connect to the cradle at a time.
To select single point or multipoint mode, scan the appropriate bar code.
Unpair
Scan the following bar code to disconnect the digital scanner from its cradle.
Unpairing
NOTE When operating in bus-powered mode, the cradle must turn off the Bluetooth radio to charge the digital
scanner. For this reason, only charge the digital scanner paired with the cradle in the cradle. Placing
another digital scanner in the cradle for charging disrupts communication with the paired digital scanner.
When setting options while in multipoint mode, allow time for the setting changes to apply to all digital
scanners.
Multipoint Mode
*Single Point Mode
NOTE The Symbol DS3478 Quick Start Guide also includes the unpairing bar code
4 - 14 Symbol DS3478 Product Reference Guide
Chapter 5 Decoding Preferences
Introduction
You can program the digital scanner to perform various functions, or activate different features. This chapter
describes digital scanner preference features and provides programming bar codes for selecting these features.
The digital scanner ships with the settings shown in the Decoding Preferences Default Table on page 5-2 (also see
Appendix A, Standard Default Parameters for all host and miscellaneous defaults). If the default values suit
requirements, programming is not necessary.
To set feature values, scan a single bar code or a short bar code sequence. The settings are stored in non-volatile
memory and are preserved even when the digital scanner powers down.
The digital scanner communicates with the host through the digital scanner cradle. During setup, the digital
scanner is paired with a cradle, which connects to the host through one of several interfaces (see Pairing on page
1-9 and the applicable host interface chapter). Each cradle can pair with up to four digital scanners.
If not using a Synapse or USB cable, select a host type (see each host chapter for specific host information) after
the power-up beeps sound. This is only necessary upon the first power-up when connecting to a new host.
To return all features to default values, scan the Set Default Parameter on page 4-3. Throughout the programming
bar code menus, asterisks (*) indicate default values.
NOTE Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.
Feature/Option
* Indicates Default *Enable Decode Aiming Pattern
5 - 2 Symbol DS3478 Product Reference Guide
Scanning Sequence Examples
In most cases scanning one bar code sets the parameter value. For example, to disable the decode aiming pattern,
scan the Disable Decode Aiming Pattern bar code listed under Decode Aiming Pattern on page 5-4. The digital
scanner issues a fast warble beep and the LED turns green, signifying a successful parameter entry.
Other parameters require scanning several bar codes. See these parameter descriptions for this procedure.
Errors While Scanning
Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter.
Decoding Preferences Parameter Defaults
Table 5-1 lists defaults for digital scanner preference parameters. To change any option, scan the appropriate bar
code(s) provided in Decoding Preferences on page 5-3.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 5-1
Decoding Preferences Default Table
Parameter Default Page
Number
Decoding Options
Focus Mode Far Focus
Note: The default value for DS3478-DP
(DPM) digital scanners is Near Focus.
5-3
Decoding Illumination Enable
5-4
Decode Aiming Pattern Enable
5-4
DPM Scanning Enable
5-5
Decoding Preferences 5 - 3
Decoding Preferences
The parameters in this chapter control bar code decoding characteristics.
Focus Mode
Select the Focus Mode to control the working range of the digital scanner:
•
Select Far Focus to optimize the digital scanner to read at its far position. Use this mode when scanning
large bar codes in order to fit these bar codes in the digital scanner’s field of view.
•
Select Near Focus to optimize the digital scanner to read at its near position. Use this mode when scanning
small, high-density bar codes.
•
Smart Focus toggles the focus position after every frame. This mode is ideal for scanning a combination of
small and large bar codes. Note that this mode can result in a slight loss of scanning aggressiveness as the
digital scanner toggles between near and far focus.
*Far Focus
Near Focus
Smart Focus
NOTE The default value for DS3478-DP (DPM) digital scanners is Near Focus.
5 - 4 Symbol DS3478 Product Reference Guide
Decoding Illumination
Selecting Enable Decoding Illumination causes the digital scanner to flash illumination to aid decoding. Enabling
illumination usually results in superior images. The effectiveness of the illumination decreases as the distance to
the bar code increases.
Select Disable Decoding Illumination to prevent the digital scanner from using decoding illumination, typical for
outdoor scanning. Disabling this option extends battery life.
Decode Aiming Pattern
Select Enable Decode Aiming Pattern to project the aiming pattern during decoding, or Disable Decode Aiming
Pattern to turn the aiming pattern off.
*Enable Decoding Illumination
Disable Decoding Illumination
NOTE With Picklist Mode on page 4-7 enabled, the decode aiming pattern flashes even when the Decode
Aiming Pattern is disabled.
*Enable Decode Aiming Pattern
Disable Decode Aiming Pattern
Decoding Preferences 5 - 5
DPM Scanning
Unlike bar codes that are typically printed on labels, a direct part mark (DPM) is a symbol that is marked directly on
an item’s surface for permanent identification. These symbols are marked using methods such as laser etching
and dot peening (see Figure 2-4 on page 2-6 for an example of a dot peen symbol). The DS3478-DP (DPM) digital
reader scans these types of symbols.
To program the DS3478-DP digital scanner for DPM reading:
1. The DS3478-DP digital scanner can not read certain bar codes in near field. To ensure the digital scanner can
read all bar codes, scan Far Focus on page 5-3.
2. If you disabled DPM scanning in the DS3478-DP digital scanner, scan Enable DPM Scanning.
3. Before scanning a DPM bar code, ensure that Data Matrix on page 13-65 is enabled.
NOTE When the DS3478-DP digital scanner is DPM enabled, the digital scanner reads all symbols including
DPM, 1D, PDF417, etc. If you don’t need DPM reading, scan Disable DPM Scanning to ensure optimum
scanner performance.
If you enable DPM Scanning, disable Picklist Mode on page 4-7 when scanning a DPM bar code.
Picklist performance is not guaranteed for DPM bar codes.
Also, if you enable DPM Scanning, the scanner behaves as if you enabled the Data Matrix Inverse
Autodetect setting. When you disable DPM Scanning, the previous (user-selected) Data Matrix Inverse
setting remains in effect. See Data Matrix Inverse on page 13-65.
*Enable DPM Scanning
Disable DPM Scanning
5 - 6 Symbol DS3478 Product Reference Guide
Chapter 6 Keyboard Wedge Interface
Introduction
This chapter provides instructions for programming the digital scanner for the keyboard wedge host interface, used
to connect the digital scanner between the keyboard and host computer. The digital scanner translates the bar
code data into keystrokes, and transmits the information to the host computer via the cradle interface. The host
computer accepts the keystrokes as if they originated from the keyboard.
This interface adds bar code reading functionality to a system designed for manual keyboard input. In this mode
the keyboard keystrokes are simply passed through.
Throughout the programming bar code menus, asterisks (*) indicate default values.
*North American Feature/Option
* Indicates Default
6 - 2 Symbol DS3478 Product Reference Guide
Connecting a Keyboard Wedge Interface
Figure 6-1
Keyboard Wedge Interface Connection with Y-cable
To connect the keyboard wedge interface Y-cable:
1. Turn off the host computer and unplug the keyboard connector.
2. Attach the modular connector of the Y-cable to the cable interface port on the digital scanner cradle. See
Connecting the Cradle on page 1-4.
3. Connect the round male DIN host connector of the Y-cable to the keyboard port on the host computer.
4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard connector.
5. If required, attach the optional power supply to the power connector on the Y-cable.
6. Ensure all connections are secure.
7. Turn on the host system.
8. Pair the digital scanner to the cradle by scanning the bar code on the cradle.
9. Select the keyboard wedge host type by scanning the appropriate bar code from Keyboard Wedge Host Types
on page 6-4.
10. To modify any other parameter options, scan the appropriate bar codes in this chapter.
11. Connect an external power supply if required.
Y-Cable
Male DIN Host Connector
Female DIN
Keyboard Connector
Keyboard
Connector
Power Connector
NOTE Interface cables vary depending on configuration. The connectors may be different from those illustrated
in Figure 6-1, but the steps to connect the digital scanner cradle are the same.
Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.
Keyboard Wedge Interface 6 - 3
Keyboard Wedge Default Parameters
Table 6-1 lists the defaults for keyboard wedge host parameters. To change any option, scan the appropriate bar
code(s) provided in this chapter.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 6-1
Keyboard Wedge Host Default Table
Parameter Default Page
Number
Keyboard Wedge Host Parameters
Keyboard Wedge Host Type IBM PC/AT& IBM PC
Compatibles
6-4
Keyboard Wedge Country Types
(Country Codes) North American
6-5
Ignore Unknown Characters Enable
6-7
Keystroke Delay 0 msec (No Delay)
6-7
Intra-Keystroke Delay Disable
6-8
Alternate Numeric Keypad Emulation Disable
6-8
Caps Lock On Disable
6-9
Caps Lock Override Disable
6-9
Convert Wedge Data Do Not Convert Wedge Data
6-10
Function Key Mapping Disable
6-10
FN1 Substitution Disable
6-11
Send Make and Break Send Make and Break Scan
Codes
6-11
6 - 4 Symbol DS3478 Product Reference Guide
Keyboard Wedge Parameters
Keyboard Wedge Host Types
Select the keyboard wedge host by scanning one of the following bar codes.
*IBM PC/AT & IBM PC Compatibles
IBM AT Notebook
NCR 7052
Keyboard Wedge Interface 6 - 5
Keyboard Wedge Country Types (Country Codes)
Scan the bar code corresponding to the keyboard type. If your keyboard type does not appear, see Alternate
Numeric Keypad Emulation on page 6-8.

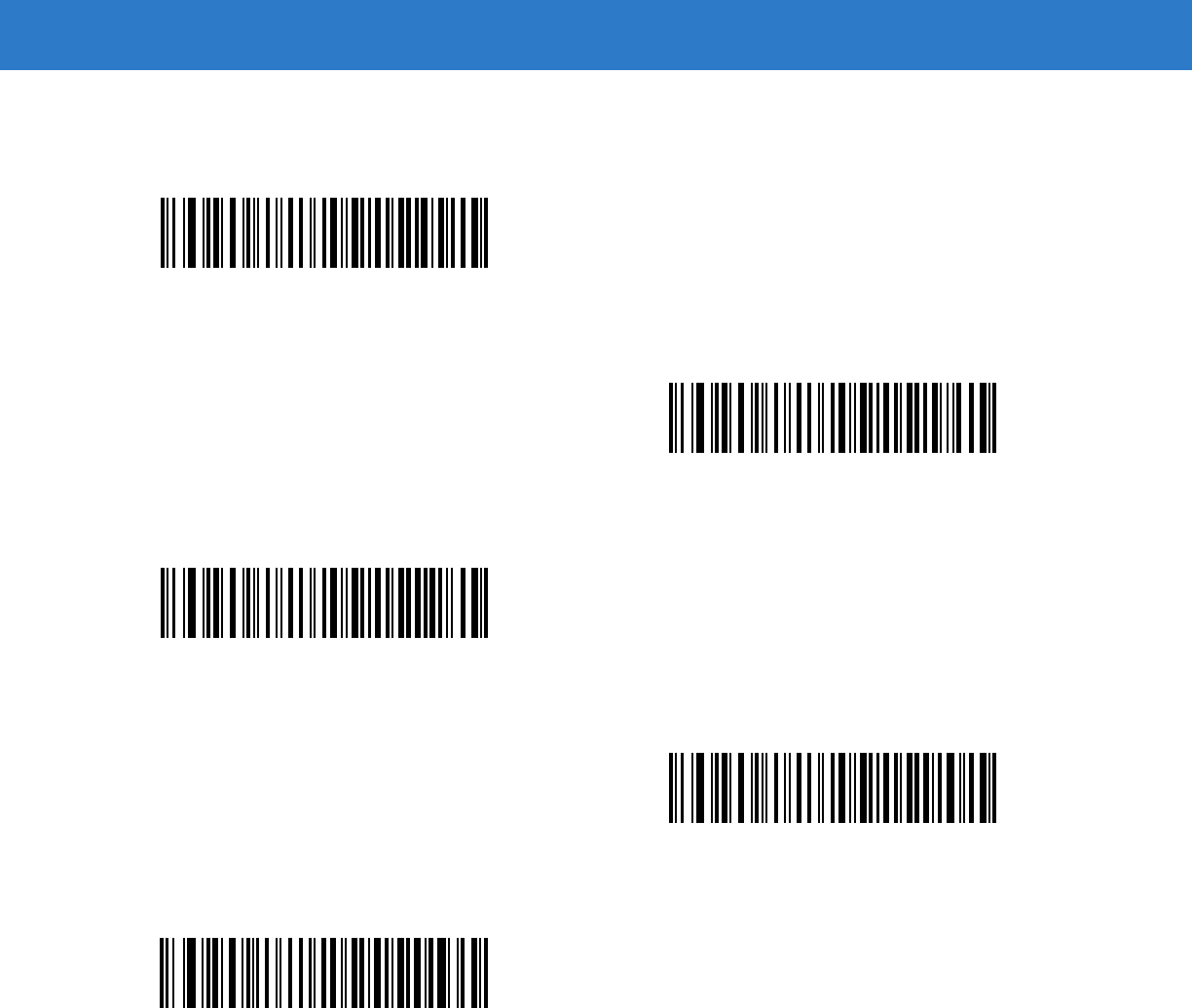

*North American
German Windows
French Windows
French Canadian Windows 95/98
French Canadian Windows XP/2000
Spanish Windows
6 - 6 Symbol DS3478 Product Reference Guide
Keyboard Wedge Country Types (Country Codes) (continued)
Italian Windows
Swedish Windows
UK English Windows
Japanese Windows
Brazilian-Portuguese Windows
Keyboard Wedge Interface 6 - 7
Ignore Unknown Characters
Unknown characters are characters the host does not recognize. Select Send Bar Codes With Unknown
Characters to send all bar code data except for unknown characters. The digital scanner emits no error beeps.
Select Do Not Send Bar Codes With Unknown Characters to send bar code data until the scanner encounters
the first unknown character. The digital scanner emits an error beep.
Keystroke Delay
This is the delay in milliseconds between emulated keystrokes. Scan a bar code below to increase the delay when
hosts require a slower data transmission.
*Send Bar Codes with Unknown Characters
(Enable)
Do Not Send Bar Codes with Unknown Characters
(Disable)
*0 msec (No Delay)
20 msec (Medium Delay)
40 msec (Long Delay)
6 - 8 Symbol DS3478 Product Reference Guide
Intra-Keystroke Delay
Enable Intra-Keystroke Delay to insert an additional delay between each emulated key press and release. This
also sets the Keystroke Delay parameter to a minimum of 5 msec.
Alternate Numeric Keypad Emulation
This allows emulation of most other country keyboard types not listed in Keyboard Wedge Country Types (Country
Codes) on page 6-5 in a Microsoft® operating system environment.
Enable Intra-Keystroke Delay
*Disable Intra-Keystroke Delay
Enable Alternate Numeric Keypad
*Disable Alternate Numeric Keypad
Keyboard Wedge Interface 6 - 9
Caps Lock On
Enable this to emulate keystrokes as if the Caps Lock key is always pressed.
Caps Lock Override
For AT or AT Notebook hosts, enable this to ignore the state of the Caps Lock key and match the case (upper or
lower) of the sent character. Therefore, an upper case ‘A’ in the bar code transmits as an upper case ‘A,’ and a
lower case ‘a’ in the bar code transmits as a lower case ‘a,’ regardless of the state of the keyboard’s Caps Lock
key.
Enable Caps Lock On
*Disable Caps Lock On
Enable Caps Lock Override
*Disable Caps Lock Override
NOTE If you enabled both Caps Lock On and Caps Lock Override, Caps Lock Override takes precedence.
6 - 10 Symbol DS3478 Product Reference Guide
Convert Wedge Data
Enable this to convert all bar code data to the selected case.
Function Key Mapping
ASCII values under 32 normally transmit as control key sequences (see Table 6-2 on page 6-14). Enable this
parameter to send the keys shown in bold in the table, in place of the standard key mapping. Table entries that do
not have a bold entry remain the same regardless of this parameter.
Convert Wedge Data to Upper Case
Convert Wedge Data to Lower Case
*Do Not Convert Wedge Data
Enable Function Key Mapping
*Disable Function Key Mapping
Keyboard Wedge Interface 6 - 11
FN1 Substitution
Enable this parameter to replace any FN1 character in an EAN128 bar code with a user-selected keystroke. See
FN1 Substitution Values on page 14-6.
Send Make and Break
Enable this to prevent sending the scan codes for releasing a key.
Enable FN1 Substitution
*Disable FN1 Substitution
*Send Make and Break Scan Codes
Send Make Scan Code Only
6 - 12 Symbol DS3478 Product Reference Guide
Keyboard Maps
Refer to the following keyboard maps for prefix/suffix keystroke parameters. To program the prefix/suffix values,
see the bar codes on page 14-4.
Figure 6-2
IBM PS2 Type Keyboard
Figure 6-3
IBM PC/AT
Figure 6-4
NCR 7052 32-KEY
7013
7014 5001 5002 5003 5004 5005 5006 5007 5008 5009 5010
7013
5011 7010 7007 7006
7001
5012
7008
7009
7011 7012 7003
7002 7004 7005
7017 7016
7015
7018
5001 5002
5003 5004
5005 5006
5007 5008
5009 5010
7009
7008
7013
7012
7004
7011
7003
7002
7014
5007 5008
5010
5002
5003 5004
5005 5006
1046
1045
5014
1043
5013
5015
5016
5018
5019
5001
5017
7013
5011
(7013 if double key)
(1048 if double key)
1048 5012
5009
Keyboard Wedge Interface 6 - 13
Figure 6-5
NCR 7052 58-KEY
5007 5008
5010
5002
5003 5004
5005 5006
1046
1045
5014
1043
5013
5015
5016
5018
5019
1086
1087
1088
1089
1090
5001
1066
1072 1073
1079 1080
1065 1070
1076 1077
1083 1084
1071
1078
1085
1069
5017
7013
5011
1082
1075
1068
1067
(1043 if double key)
(1048 if double key)
1048 5012
5009
1074
1081
6 - 14 Symbol DS3478 Product Reference Guide
ASCII Character Set
NOTE Code 39 Full ASCII interprets the bar code special character ($ + % /) preceding a Code 39 character and
assigns an ASCII character value to the pair. For example, if you enable Code 39 Full ASCII and scan a
+B, it transmits as b, %J as ?, and %V as @. Scanning ABC%I outputs the keystroke equivalent of ABC
>..
Table 6-2
Keyboard Wedge ASCII Character Set
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1001 $A CTRL A
1002 $B CTRL B
1003 $C CTRL C
1004 $D CTRL D
1005 $E CTRL E
1006 $F CTRL F
1007 $G CTRL G
1008 $H CTRL H/
BACKSPACE
1
1009 $I CTRL I/
HORIZONTAL TAB
1
1010 $J CTRL J
1011 $K CTRL K
1012 $L CTRL L
1013 $M CTRL M/
ENTER
1
1014 $N CTRL N
1015 $O CTRL O
1016 $P CTRL P
1017 $Q CTRL Q
1018 $R CTRL R
1019 $S CTRL S
1020 $T CTRL T
1021 $U CTRL U
1
The keystroke in bold transmits only if you enable
Function Key Mapping on
page 6-10
. Otherwise, the unbolded keystroke transmits.
Keyboard Wedge Interface 6 - 15
1022 $V CTRL V
1023 $W CTRL W
1024 $X CTRL X
1025 $Y CTRL Y
1026 $Z CTRL Z
1027 %A CTRL [/
ESC
1
1028 %B CTRL \
1029 %C CTRL ]
1030 %D CTRL 6
1031 %E CTRL -
1032 Space Space
1033 /A !
1034 /B “
1035 /C #
1036 /D $
1037 /E %
1038 /F &
1039 /G ‘
1040 /H (
1041 /I )
1042 /J *
1043 /K +
1044 /L ,
1045 - -
1046 . .
1047 /O /
1048 0 0
1049 1 1
Table 6-2
Keyboard Wedge ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enable
Function Key Mapping on
page 6-10
. Otherwise, the unbolded keystroke transmits.
6 - 16 Symbol DS3478 Product Reference Guide
1050 2 2
1051 3 3
1052 4 4
1053 5 5
1054 6 6
1055 7 7
1056 8 8
1057 9 9
1058 /Z :
1059 %F ;
1060 %G <
1061 %H =
1062 %I >
1063 %J ?
1064 %V @
1065 A A
1066 B B
1067 C C
1068 D D
1069 E E
1070 F F
1071 G G
1072 H H
1073 I I
1074 J J
1075 K K
1076 L L
1077 M M
Table 6-2
Keyboard Wedge ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enable
Function Key Mapping on
page 6-10
. Otherwise, the unbolded keystroke transmits.
Keyboard Wedge Interface 6 - 17
1078 N N
1079 O O
1080 P P
1081 Q Q
1082 R R
1083 S S
1084 T T
1085 U U
1086 V V
1087 W W
1088 X X
1089 Y Y
1090 Z Z
1091 %K [
1092 %L \
1093 %M ]
1094 %N ^
1095 %O _
1096 %W ‘
1097 +A a
1098 +B b
1099 +C c
1100 +D d
1101 +E e
1102 +F f
1103 +G g
1104 +H h
1105 +I i
Table 6-2
Keyboard Wedge ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enable
Function Key Mapping on
page 6-10
. Otherwise, the unbolded keystroke transmits.
6 - 18 Symbol DS3478 Product Reference Guide
1106 +J j
1107 +K k
1108 +L l
1109 +M m
1110 +N n
1111 +O o
1112 +P p
1113 +Q q
1114 +R r
1115 +S s
1116 +T t
1117 +U u
1118 +V v
1119 +W w
1120 +X x
1121 +Y y
1122 +Z z
1123 %P {
1124 %Q |
1125 %R }
1126 %S ~
Table 6-3
Keyboard Wedge ALT Key Character Set
ALT Keys Keystroke
2065 ALT A
2066 ALT B
2067 ALT C
2068 ALT D
2069 ALT E
Table 6-2
Keyboard Wedge ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enable
Function Key Mapping on
page 6-10
. Otherwise, the unbolded keystroke transmits.
Keyboard Wedge Interface 6 - 19
2070 ALT F
2071 ALT G
2072 ALT H
2073 ALT I
2074 ALT J
2075 ALT K
2076 ALT L
2077 ALT M
2078 ALT N
2079 ALT O
2080 ALT P
2081 ALT Q
2082 ALT R
2083 ALT S
2084 ALT T
2085 ALT U
2086 ALT V
2087 ALT W
2088 ALT X
2089 ALT Y
2090 ALT Z
Table 6-4
Keyboard Wedge GUI Key Character Set
GUI Keys Keystrokes
3000 Right Control Key
3048 GUI 0
3049 GUI 1
3050 GUI 2
3051 GUI 3
3052 GUI 4
3053 GUI 5
Table 6-3
Keyboard Wedge ALT Key Character Set (Continued)
ALT Keys Keystroke
6 - 20 Symbol DS3478 Product Reference Guide
3054 GUI 6
3055 GUI 7
3056 GUI 8
3057 GUI 9
3065 GUI A
3066 GUI B
3067 GUI C
3068 GUI D
3069 GUI E
3070 GUI F
3071 GUI G
3072 GUI H
3073 GUI I
3074 GUI J
3075 GUI K
3076 GUI L
3077 GUI M
3078 GUI N
3079 GUI O
3080 GUI P
3081 GUI Q
3082 GUI R
3083 GUI S
3084 GUI T
3085 GUI U
3086 GUI V
3087 GUI W
3088 GUI X
3089 GUI Y
3090 GUI Z
Table 6-4
Keyboard Wedge GUI Key Character Set (Continued)
GUI Keys Keystrokes
Keyboard Wedge Interface 6 - 21
Table 6-5
Keyboard Wedge F Key Character Set
F Keys Keystroke
5001 F1
5002 F2
5003 F3
5004 F4
5005 F5
5006 F6
5007 F7
5008 F8
5009 F9
5010 F10
5011 F11
5012 F12
5013 F13
5014 F14
5015 F15
5016 F16
5017 F17
5018 F18
5019 F19
5020 F20
5021 F21
5022 F22
5023 F23
5024 F24
6 - 22 Symbol DS3478 Product Reference Guide
Table 6-6
Keyboard Wedge Numeric Keypad Character Set
Numeric Keypad Keystroke
6042 *
6043 +
6044 undefined
6045 -
6046 .
6047 /
6048 0
6049 1
6050 2
6051 3
6052 4
6053 5
6054 6
6055 7
6056 8
6057 9
6058 Enter
6059 Num Lock
Keyboard Wedge Interface 6 - 23
Table 6-7
Keyboard Wedge Extended Keypad Character Set
Extended Keypad Keystroke
7001 Break
7002 Delete
7003 Pg Up
7004 End
7005 Pg Dn
7006 Pause
7007 Scroll Lock
7008 Backspace
7009 Tab
7010 Print Screen
7011 Insert
7012 Home
7013 Enter
7014 Escape
7015 Up Arrow
7016 Dn Arrow
7017 Left Arrow
7018 Right Arrow
6 - 24 Symbol DS3478 Product Reference Guide
Chapter 7 RS-232 Interface
Introduction
This chapter provides instructions for programming the digital scanner to interface with an RS-232 host. Use the
RS-232 interface to attach the digital scanner cradle to point-of-sale devices, host computers, or other devices with
an available RS-232 port (i.e., COM port).
If your host does not appear in Table 7-2, set the communication parameters to match the host device. Refer to the
documentation for the host device.
Throughout the bar code menus, asterisks (*) indicate default values.
NOTE This digital scanner uses TTL RS-232 signal levels, which interface with most system architectures. For
system architectures requiring RS-232C signal levels, Motorola offers different cables providing the TTL to
RS-232C conversion. Contact Motorola Enterprise Mobility Support for more information. See page xvii for
contact information.
*Baud Rate 9600 Feature/Option
* Indicates Default
7 - 2 Symbol DS3478 Product Reference Guide
Connecting an RS-232 Interface
Connect the digital scanner cradle directly to the host computer.
Figure 7-1
RS-232 Direct Connection
1. Attach the modular connector of the RS-232 interface cable to the cable interface port on the digital scanner
cradle. See Connecting the Cradle on page 1-4.
2. Connect the other end of the RS-232 interface cable to the serial port on the host computer.
3. Connect the power supply to the serial connector end of the RS-232 interface cable, then plug the power
supply to an appropriate outlet, or connect an external power supply to the cradle.
4. Ensure all connections are secure.
5. Pair the digital scanner to the cradle by scanning the bar code on the cradle.
6. Select the RS-232 host type by scanning the appropriate bar code from RS-232 Host Types on page 7-6.
7. To modify any other parameter options, scan the appropriate bar codes in this chapter.
Serial Port
Connector to Host
Interface Cable
NOTE Interface cables vary depending on configuration. The connectors may be different from those illustrated
in Figure 7-1, but the steps to connect the digital scanner cradle are the same.
Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.
RS-232 Interface 7 - 3
RS-232 Default Parameters
Table 7-1 lists the defaults for RS-232 host parameters. To change any option, scan the appropriate bar code(s)
provided in the parameter descriptions section beginning on page 7-4.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 7-1
RS-232 Host Default Table
Parameter Default Page
Number
RS-232 Host Parameters
RS-232 Host Types Standard RS-232
7-6
Baud Rate 9600
7-7
Parity None
7-9
Check Receive Errors Enable
7-10
Stop Bit Select 1 Stop Bit
7-10
Data Bits 8-Bit
7-11
Hardware Handshaking None
7-11
Software Handshaking None
7-13
Host Serial Response Time-out Minimum: 2 sec
7-15
RTS Line State Host: Low RTS
7-16
Beep on <BEL> Disable
7-11
Intercharacter Delay Minimum: 0 msec
7-17
Nixdorf Beep/LED Options Normal Operation
7-18
Ignore Unknown Characters Send Bar Code
7-19
7 - 4 Symbol DS3478 Product Reference Guide
RS-232 Host Parameters
Various RS-232 host types use their own parameter default settings. Selecting the host type sets the parameter
defaults listed in Table 7-2.
Table 7-2
Terminal Specific RS-232
Parameter
Standard
RS-232
(Default)
ICL
Wincor-
Nixdorf
Mode A
Wincor-
Nixdorf
Mode B
Olivetti Omron OPOS/
JPOS Fujitsu
Transmit Code ID No Yes Yes Yes Yes Yes Yes Yes
Data Transmission
Format Data as is Data/
Suffix Data/Suffix Data/Suffix Prefix/
Data/
Suffix
Data/
Suffix Data/
Suffix Data/
Suffix
Suffix CR/LF
(7013) CR
(1013) CR (1013) CR (1013) ETX
(1002) CR
(1013) CR
(1013) CR
(1013)
Baud Rate 9600 9600 9600 9600 9600 9600 9600 9600
Parity None Even Odd Odd Even None Odd None
Hardware
Handshaking None RTS/
CTS
Option 3
RTS/CTS
Option 3 RTS/CTS
Option 3 None None RTS/
CTS
Option 3
None
Software
Handshaking None None None None Ack/Na
kNone None None
Serial Response
Time-out 2 Sec. 9.9 Sec. 9.9 Sec. 9.9 Sec. 9.9 Sec. 9.9
Sec. 9.9 Sec. 2 Sec.
Stop Bit Select One One One One One One One One
ASCII Format 8-Bit 8-Bit 8-Bit 8-Bit 7-Bit 8-Bit 8-Bit 8-Bit
Beep On <BEL> Disable Disable Disable Disable Disable Disable Disable Disable
RTS Line State Low High Low Low = No
data to
send
Low High Low =
No data
to send
Low
Prefix None None None None STX
(1003) None None None
*In the Nixdorf Mode B or OPOS/JPOS, if CTS is low, scanning is disabled. When CTS is high,
scanning is enabled.
**If you scan Nixdorf Mode B or OPOS/JPOS without connecting the digital scanner to the proper
host, it may appear unable to scan. If this happens, scan a different RS-232 host type within 5 seconds
of cycling power to the digital scanner.
RS-232 Interface 7 - 5
RS-232 Host Parameters (continued)
Selecting the ICL, Wincor-Nixdorf Mode A, Wincor-Nixdorf Mode B, Olivetti, Omron, OPOS/JPOS, or Fujitsu host
type enables the transmission of code ID characters listed in Table 7-3. These code ID characters are not
programmable and are separate from the Transmit Code ID feature. Do not enable the Transmit Code ID feature
for these terminals.
Table 7-3
Terminal Specific Code ID Characters
Code Type ICL
Wincor-
Nixdorf
Mode A
Wincor-
Nixdorf
Mode B
Olivetti Omron OPOS/JPOS Fujitsu
UPC-A A A A A A A A
UPC-E E C C C E C E
EAN-8/JAN-8 FF B B B FF B FF
EAN-13/JAN-13 F A A A F A F
Code 39 C <len> M M M <len> C <len> M None
Codabar N <len> N N N <len> N <len> N None
Code 128 L <len> K K K <len> L <len> K None
I 2 of 5 I <len> I I I <len> I <len> I None
Code 93 None L L L <len> None L None
D 2 of 5 H <len> H H H <len> H <len> H None
GS1-128 L <len> P P P <len> L <len> P None
MSI None O O O <len> None O None
Bookland EAN F A A A F A F
Trioptic None None None None None None None
Code 11 None None None None None None None
IATA H<len> H H None None H None
Code 32 None None None None None None None
7 - 6 Symbol DS3478 Product Reference Guide
RS-232 Host Types

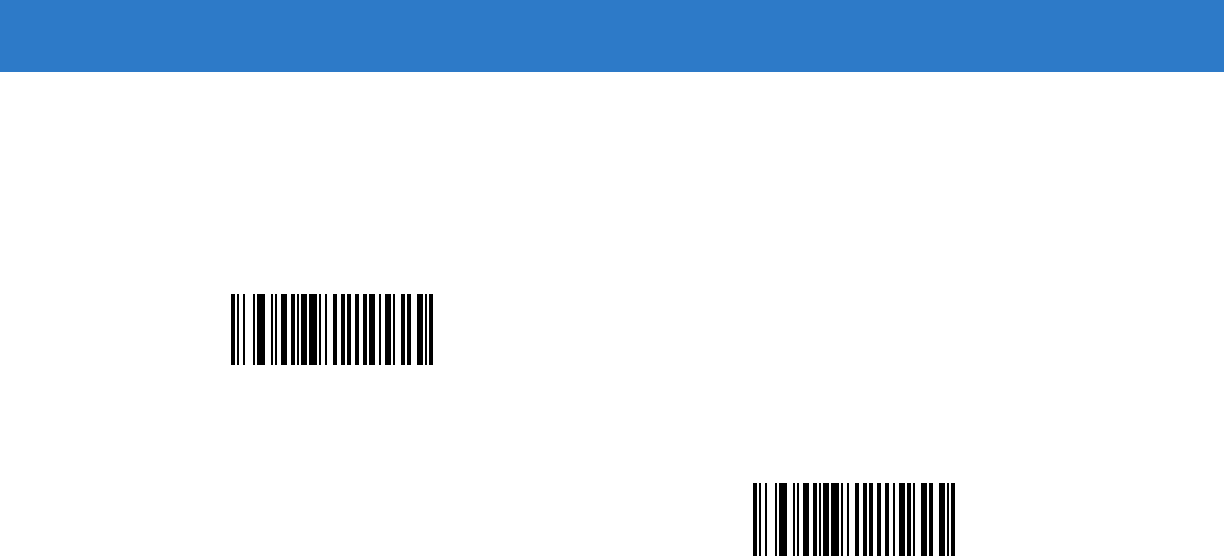

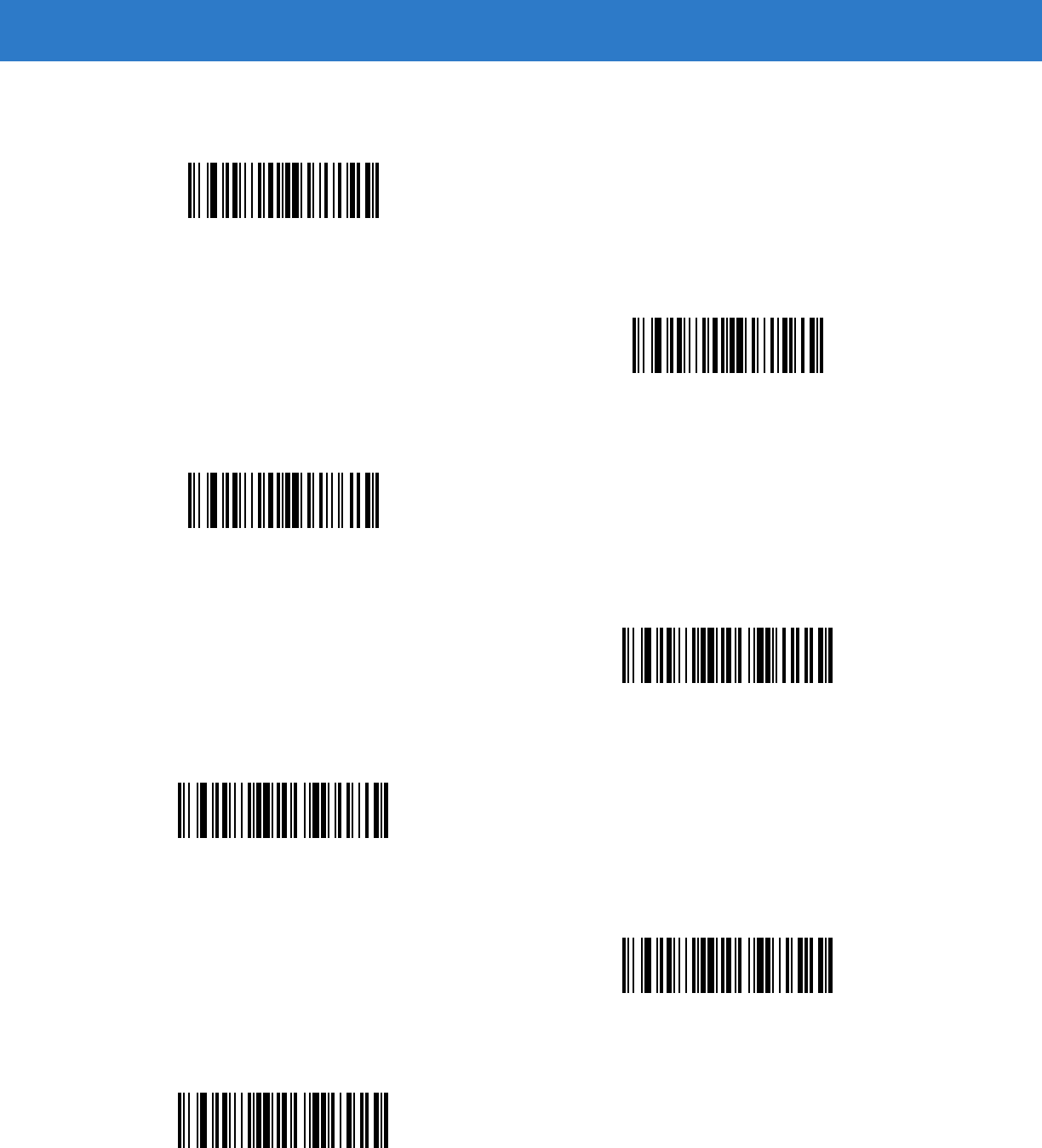

To select an RS-232 host type, scan one of the following bar codes.
*Standard RS-232
ICL RS-232
Wincor-Nixdorf RS-232 Mode A
Wincor-Nixdorf RS-232 Mode B
Olivetti ORS4500
Omron
RS-232 Interface 7 - 7
RS-232 Host Types (continued)
Baud Rate
Baud rate is the number of bits of data transmitted per second. Set the digital scanner’s baud rate to match the
baud rate setting of the host device. Otherwise, data may not reach the host device or may reach it in distorted
form.
OPOS/JPOS
Fujitsu RS-232

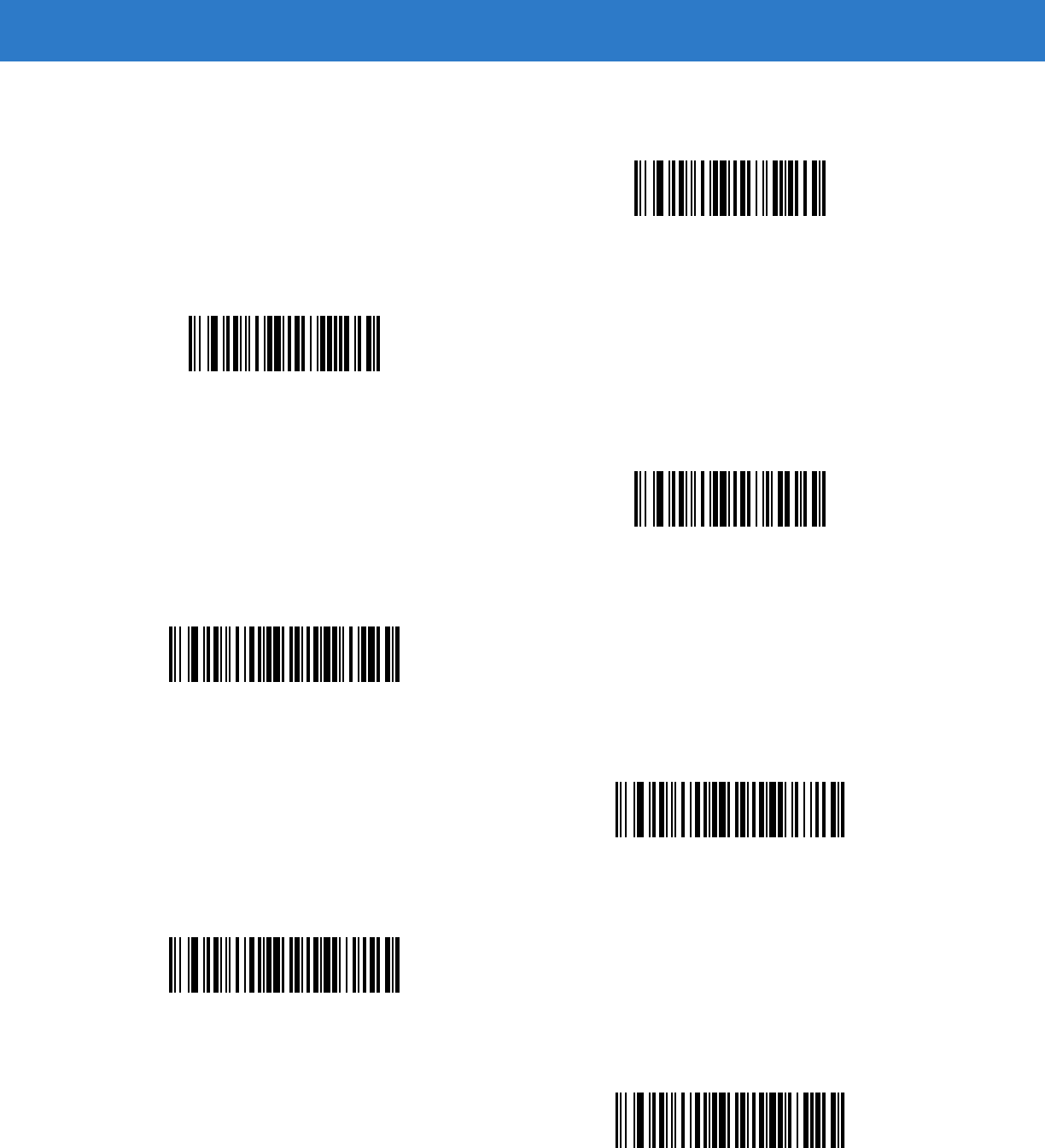

Baud Rate 600
Baud Rate 1200
Baud Rate 2400
Baud Rate 4800
7 - 8 Symbol DS3478 Product Reference Guide
Baud Rate (continued)
*Baud Rate 9600
Baud Rate 19,200
Baud Rate 38,400
RS-232 Interface 7 - 9
Parity
A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host
device requirements.
•
Select Odd parity to set the parity bit value to 0 or 1, based on data, to ensure that the coded character
contains an odd number of 1 bits.
•
Select Even parity to set the parity bit value to 0 or 1, based on data, to ensure that the coded character
contains an even number of 1 bits.
•
Select Mark parity and the parity bit is always 1.
•
Select Space parity and the parity bit is always 0.
•
Select None when no parity bit is required.

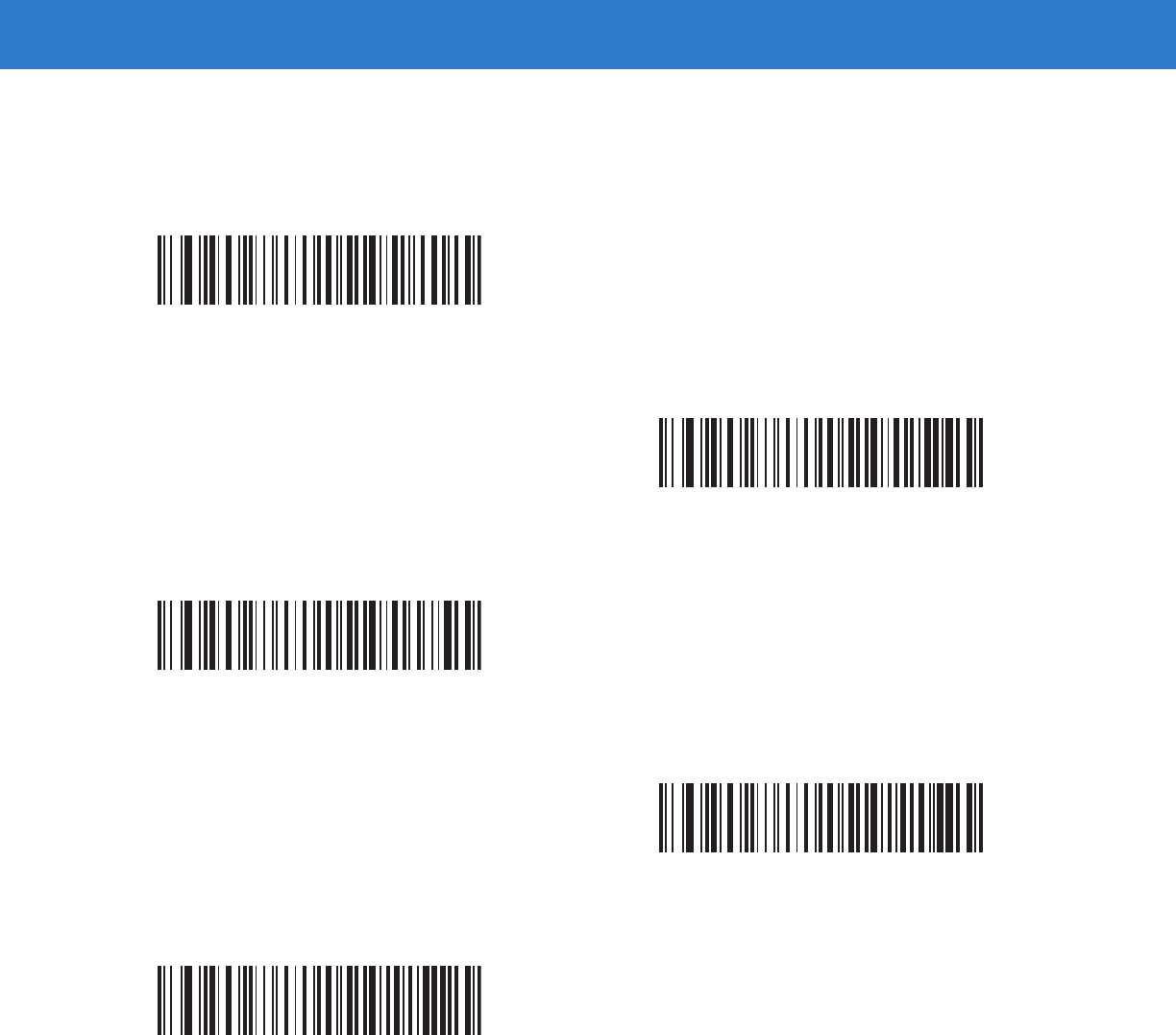

Odd
Even
Mark
Space
*None
7 - 10 Symbol DS3478 Product Reference Guide
Check Receive Errors
Select whether or not to check the parity, framing, and overrun of received characters. The parity value of received
characters is verified against the parity parameter selected previously.
Stop Bit Select
The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and
prepares the receiving device for the next character in the serial data stream. Select the number of stop bits (one or
two) based on the number the receiving terminal is programmed to accommodate. Set the number of stop bits to
match host device requirements.
*Check For Received Errors
(Enable)
Do Not Check For Received Errors
(Disable)
*1 Stop Bit
2 Stop Bits
RS-232 Interface 7 - 11
Data Bits
This parameter allows the digital scanner to interface with devices requiring a 7-bit or 8-bit ASCII protocol.
Hardware Handshaking
The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking
lines Request to Send (RTS) and Clear to Send (CTS).
Disable Standard RTS/CTS handshaking to transmit scan data as it becomes available. Enable Standard RTS/CTS
handshaking to transmit scan data according to the following sequence:
•
The digital scanner reads the CTS line for activity. If CTS is asserted, the digital scanner waits up to the Host
Serial Response Time-out for the host to de-assert the CTS line. If the CTS line is still asserted after the Host
Serial Response Time-out expires (default), the digital scanner sounds a transmit error and discards any
scanned data.
•
When the CTS line is de-asserted, the digital scanner asserts the RTS line and waits up to the Host Serial
Response Time-out for the host to assert CTS. When the host asserts CTS, the digital scanner transmits
data. If the CTS line is still de-asserted after Host Serial Response Time-out expires (default), the digital
scanner sounds a transmission error and discards the data.
•
When data transmission completes, the digital scanner de-asserts RTS 10 msec after sending the last
character.
•
The host responds by de-asserting CTS. The digital scanner checks for a de-asserted CTS upon the next
data transmission.
During data transmission, the CTS line should be asserted. If CTS is de-asserted for more than 50 ms between
characters, the digital scanner aborts transmission, sounds a transmission error, and discards the data.
If this communications sequence fails, the digital scanner issues an error indication and discards the data. Rescan
the data.
If hardware handshaking and software handshaking are both enabled, hardware handshaking takes precedence.
7-Bit
*8-Bit
NOTE The DTR signal is jumpered (set) to the active state.
7 - 12 Symbol DS3478 Product Reference Guide
Hardware Handshaking (continued)

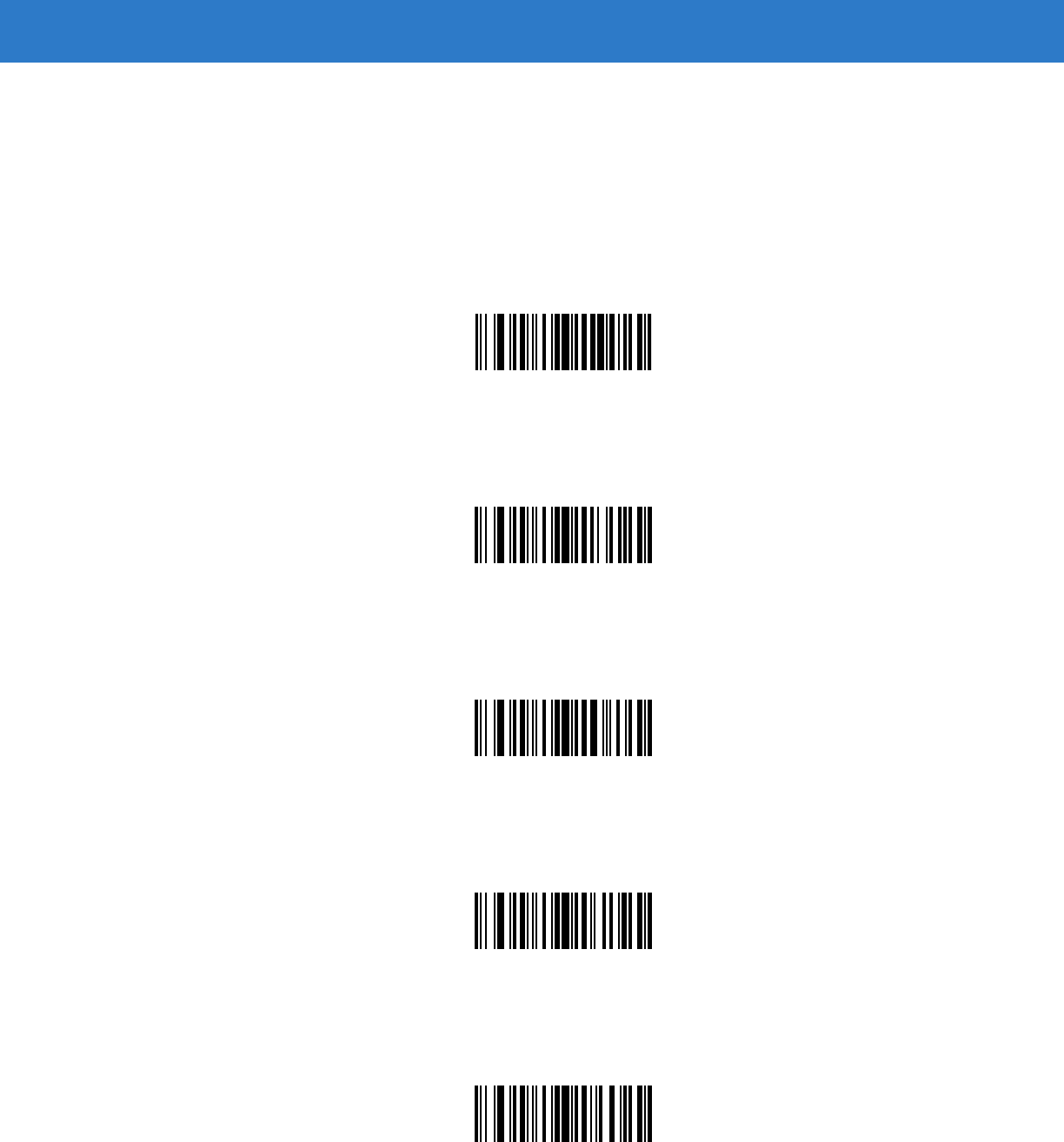

Scan a bar code to select one of the following hardware handshaking options:
•
None - Scan the bar code below if no hardware handshaking is desired.
•
Standard RTS/CTS - Scan the bar code below to select Standard RTS/CTS hardware handshaking.
•
RTS/CTS Option 1 - The digital scanner asserts RTS before transmitting and ignores the state of CTS. The
digital scanner de-asserts RTS when the transmission completes.
•
RTS/CTS Option 2 - RTS is always high or low (user-programmed logic level). However, the digital scanner
waits for CTS to be asserted before transmitting data. If CTS is not asserted within Host Serial Response
Time-out (default), the digital scanner issues an error indication and discards the data.
•
RTS/CTS Option 3 - The digital scanner asserts RTS before data transmission, regardless of the state of
CTS. The digital scanner waits up to Host Serial Response Time-out (default) for CTS to be asserted. If CTS
is not asserted during this time, the digital scanner issues an error indication and discards the data. The
digital scanner de-asserts RTS when transmission completes.
*None
Standard RTS/CTS
RTS/CTS Option 1
RTS/CTS Option 2
RTS/CTS Option 3
RS-232 Interface 7 - 13
Software Handshaking
This parameter offers control of the data transmission process in addition to, or instead of, that offered by hardware
handshaking. There are five options.
If software handshaking and hardware handshaking are both enabled, hardware handshaking takes precedence.
None
Select this option to transmit data immediately. No response is expected from the host.
ACK/NAK
If you select this option, after transmitting data, the digital scanner expects either an ACK or NAK response from
the host. When the scanner receives a NAK, it transmits the same data again and waits for either an ACK or NAK.
After three unsuccessful attempts to send data after the scanner receives NAKs, the scanner issues an error
indication and discards the data.
The digital scanner waits up to the programmable Host Serial Response Time-out to receive an ACK or NAK. If the
digital scanner does not get a response in this time, it issues an error indication and discards the data. There are
no retries when a time-out occurs.
ENQ
If you select this option, the digital scanner waits for an ENQ character from the host before transmitting data. If it
does not receive an ENQ within the Host Serial Response Time-out, the digital scanner issues an error indication
and discards the data. The host must transmit an ENQ character at least every Host Serial Response Time-out to
prevent transmission errors.
ACK/NAK with ENQ
This combines the two previous options. For re-transmissions of data, due to a NAK from the host, an additional
ENQ is not required.
XON/XOFF
An XOFF character turns the digital scanner transmission off until the digital scanner receives an XON character.
There are two situations for XON/XOFF:
•
The digital scanner receives an XOFF before it has data to send. When the digital scanner has data to send,
it waits up to Host Serial Response Time-out for an XON character before transmission. If it does not receive
the XON within this time, the digital scanner issues an error indication and discards the data.
•
The digital scanner receives an XOFF during a transmission. Data transmission then stops after sending the
current byte. When the digital scanner receives an XON character, it sends the rest of the data message. The
digital scanner waits up to 30 seconds for the XON.
7 - 14 Symbol DS3478 Product Reference Guide
Software Handshaking (continued)
*None
ACK/NAK
ENQ
ACK/NAK with ENQ
XON/XOFF
RS-232 Interface 7 - 15
Host Serial Response Time-out
This parameter specifies how long the digital scanner waits for an ACK, NAK, or CTS before determining that a
transmission error occurred. This only applies when in one of the ACK/NAK software handshaking modes, or
RTS/CTS hardware handshaking mode.
NOTE This parameter does not apply to the Wincor-Nixdorf RS-232 Mode A/B and the OPOS/JPOS host types.
*Minimum: 2 sec
Low: 2.5 Sec
Medium: 5 Sec
High: 7.5 Sec
Maximum: 9.9 Sec
7 - 16 Symbol DS3478 Product Reference Guide
RTS Line State
This parameter sets the idle state of the Serial Host RTS line. Scan a bar code below to select the Low RTS or
High RTS line state.
Beep on <BEL>
Single Point Mode Only
If you enable this parameter, the digital scanner issues a beep when it detects a <BEL> character on the RS-232
serial line. <BEL> indicates an illegal entry or other important event.
*Host: Low RTS
Host: High RTS
NOTE This parameter is not supported in Multipoint mode.
Beep On <BEL> Character
(Enable)
*Do Not Beep On <BEL> Character
(Disable)
RS-232 Interface 7 - 17
Intercharacter Delay
This parameter specifies the intercharacter delay inserted between character transmissions.
*Minimum: 0 msec
Low: 25 msec
Medium: 50 msec
High: 75 msec
Maximum: 99 msec
7 - 18 Symbol DS3478 Product Reference Guide
Nixdorf Mode A/B and OPOS/JPOS Beep/LED Options
If you selected Nixdorf Mode A, Nixdorf Mode B, or OPOS/JPOS, this parameter indicates when the digital scanner
beeps and turns on its LED after a decode.
NOTE The Beep/LED After CTS Pulse option is not valid when Nixdorf Mode A is selected.
*Normal Operation
(Beep/LED Immediately After Decode)
Beep/LED After Transmission
Beep/LED After CTS Pulse
RS-232 Interface 7 - 19
Ignore Unknown Characters
Unknown characters are characters the host does not recognize. Select Send Bar Codes with Unknown
Characters to send all bar code data except for unknown characters. The digital scanner issues no error beeps.
Select Do Not Send Bar Codes With Unknown Characters to send bar code data up to the first unknown
character. The digital scanner issues an error beep.
*Send Bar Code with Unknown Characters
(Enable)
Do Not Send Bar Codes with Unknown Characters
(Disable)
7 - 20 Symbol DS3478 Product Reference Guide
ASCII Character Set
Assign the values in Table 7-4 as prefixes or suffixes for ASCII character data transmission.
Table 7-4
RS-232 ASCII Character Set
ASCII Value Full ASCII Code 39
Encode Character ASCII Character
1000 %U NUL
1001 $A SOH
1002 $B STX
1003 $C ETX
1004 $D EOT
1005 $E ENQ
1006 $F ACK
1007 $G BELL
1008 $H BCKSPC
1009 $I HORIZ TAB
1010 $J LF/NW LN
1011 $K VT
1012 $L FF
1013 $M CR/ENTER
1014 $N SO
1015 $O SI
1016 $P DLE
1017 $Q DC1/XON
1018 $R DC2
1019 $S DC3/XOFF
1020 $T DC4
1021 $U NAK
1022 $V SYN
1023 $W ETB
1024 $X CAN
1025 $Y EM
1026 $Z SUB
RS-232 Interface 7 - 21
1027 %A ESC
1028 %B FS
1029 %C GS
1030 %D RS
1031 %E US
1032 Space Space
1033 /A !
1034 /B "
1035 /C #
1036 /D $
1037 /E %
1038 /F &
1039 /G ‘
1040 /H (
1041 /I )
1042 /J *
1043 /K +
1044 /L ,
1045 - -
1046 . .
1047 /O /
1048 0 0
1049 1 1
1050 2 2
1051 3 3
1052 4 4
1053 5 5
1054 6 6
1057 7 7
1056 8 8
Table 7-4
RS-232 ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character ASCII Character
7 - 22 Symbol DS3478 Product Reference Guide
1057 9 9
1058 /Z :
1059 %F ;
1060 %G <
1061 %H =
1062 %I >
1063 %J ?
1064 %V @
1065 A A
1066 B B
1067 C C
1068 D D
1069 E E
1070 F F
1071 G G
1072 H H
1073 I I
1074 J J
1075 K K
1076 L L
1077 M M
1078 N N
1079 O O
1080 P P
1081 Q Q
1082 R R
1083 S S
1084 T T
1085 U U
1086 V V
Table 7-4
RS-232 ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character ASCII Character
RS-232 Interface 7 - 23
1087 W W
1088 X X
1089 Y Y
1090 Z Z
1091 %K [
1092 %L \
1093 %M ]
1094 %N ^
1095 %O _
1096 %W `
1097 +A a
1098 +B b
1099 +C c
1100 +D d
1101 +E e
1102 +F f
1103 +G g
1104 +H h
1105 +I i
1106 +J j
1107 +K k
1108 +L l
1109 +M m
1110 +N n
1111 +O o
1112 +P p
1113 +Q q
1114 +R r
1115 +S s
1116 +T t
Table 7-4
RS-232 ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character ASCII Character
7 - 24 Symbol DS3478 Product Reference Guide
1117 +U u
1118 +V v
1119 +W w
1120 +X x
1121 +Y y
1122 +Z z
1123 %P {
1124 %Q |
1125 %R }
1126 %S ~
1127 Undefined
7013 ENTER
Table 7-4
RS-232 ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character ASCII Character
Chapter 8 USB Interface
Introduction
This chapter provides instructions for programming the digital scanner to interface with a USB host. The digital
scanner cradle connects directly to a USB host, or a powered USB hub. The USB host can power the cradle and
recharge the digital scanner battery, but this charging method has limitations. See Using the Host to Supply Power
on page 1-5.
Throughout the programming bar code menus, asterisks (*) indicate default values.
Connecting a USB Interface
Figure 8-1
USB Connection
*North American Standard USB Keyboard Feature/Option
* Indicates Default
USB Series A Connector
Interface Cable
8 - 2 Symbol DS3478 Product Reference Guide
The digital scanner cradle connects with USB-capable hosts including:
•
Desktop PCs and notebooks
•
Apple™ iMacs, Power Mac G4s and G5s, iBooks (North America only), PowerBooks
•
IBM SurePOS terminals
•
Sun, IBM, and other network computers that support more than one keyboard.
The following operating systems support the digital scanner through USB:
•
Windows® 98, 2000, ME, XP
•
Mac OS 8.5 and above
•
IBM 4690 OS.
The digital scanner cradle also interfaces with other USB hosts which support USB Human Interface Devices
(HID). For more information on USB technology, hosts, and peripheral devices, visit http://www.symbol.com/usb.
To connect the digital scanner cradle to a USB host:
1. Attach the modular connector of the USB interface cable to the cable interface port on the digital scanner. See
Connecting the Cradle on page 1-4.
2. Plug the series A connector into the USB host or hub, or plug the Plus Power connector into an available port
of the IBM SurePOS terminal.
3. Ensure all connections are secure.
4. Pair the digital scanner to the cradle by scanning the bar code on the cradle.
5. Select the USB device type by scanning the appropriate bar code from USB Device Type on page 8-4.
6. On first installation when using Windows, the software displays a prompt to select or install the Human
Interface Device driver. To install this driver, provided by Windows, click Next through all the choices and click
Finished on the last choice. The digital scanner powers up during this installation.
7. To modify any other parameter options, scan the appropriate bar codes in this chapter.
8. Connect an external power supply if required.
If problems occur, see Troubleshooting on page 3-2.
NOTE Interface cables vary depending on configuration. The connectors may be different from those illustrated
in Figure 8-1, but the steps to connect the digital scanner cradle are the same.
Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.
USB Interface 8 - 3
USB Default Parameters
Table 8-1 lists the defaults for USB host parameters. To change any option, scan the appropriate bar code(s)
provided in the parameter descriptions section beginning on page 8-4.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 8-1
USB Host Default Table
Parameter Default Page
Number
USB Host Parameters
USB Device Type HID Keyboard
Emulation
8-4
USB Country Keyboard Types (Country Codes) North American
8-5
USB Keystroke Delay No Delay (0 msec)
8-7
USB Caps Lock Override Disable
8-7
USB Ignore Unknown Characters Enable
8-8
Emulate Keypad Disable
8-8
USB Keyboard FN1 Substitution Disable
8-9
Function Key Mapping Disable
8-9
Simulated Caps Lock Disable
8-10
Convert Case No Case Conversion
8-10
8 - 4 Symbol DS3478 Product Reference Guide
USB Host Parameters
USB Device Type
Select the desired USB device type.
NOTE When changing USB device types, the digital scanner disconnects and reconnects as the cradle
re-enumerates on the USB bus.
*HID Keyboard Emulation
IBM Table Top USB
IBM Hand-Held USB
USB Interface 8 - 5
USB Country Keyboard Types (Country Codes)
Scan the bar code corresponding to the keyboard type. This setting applies only to the USB HID Keyboard
Emulation device.
NOTE When changing USB Country Keyboard Types, the digital scanner disconnects and reconnects as the
cradle re-enumerates on the USB bus.
*North American Standard USB Keyboard
German Windows
French Windows
French Canadian Windows 95/98
French Canadian Windows 2000/XP
8 - 6 Symbol DS3478 Product Reference Guide
USB Country Keyboard Types (Country Codes) (continued)
Spanish Windows
Italian Windows
Swedish Windows
UK English Windows
Japanese Windows (ASCII)
Brazilian-Portuguese Windows
USB Interface 8 - 7
USB Keystroke Delay
This parameter sets the delay, in milliseconds, between emulated keystrokes. Scan a bar code below to increase
the delay when hosts require slower data transmission.
USB Caps Lock Override
This option applies only to the HID Keyboard Emulation device. Enable this to preserve the case of the data
regardless of the state of the caps lock key. This setting is always enabled for the Japanese, Windows (ASCII)
keyboard type and can not be disabled.
*No Delay (0 msec)
Medium Delay (20 msec)
Long Delay (40 msec)
Override Caps Lock Key
(Enable)
*Do Not Override Caps Lock Key
(Disable)
8 - 8 Symbol DS3478 Product Reference Guide
USB Ignore Unknown Characters
Unknown characters are characters the host does not recognize. Select Send Bar Codes With Unknown
Characters to send all bar code data except for unknown characters. The digital scanner issues no error beeps.
Select Do Not Send Bar Codes With Unknown Characters to prevent sending bar codes containing at least one
unknown character to the host. The digital scanner issues an error beep.
Emulate Keypad
Enable this to send all characters as ASCII sequences over the numeric keypad. For example ASCII A transmits as
“ALT make” 0 6 5 “ALT Break.”
*Send Bar Codes with Unknown Characters
(Enable)
Do Not Send Bar Codes with Unknown Characters
(Disable)
*Disable Keypad Emulation
Enable Keypad Emulation
USB Interface 8 - 9
USB Keyboard FN1 Substitution
This option applies only to the USB HID Keyboard Emulation device. Enable this to replace any FN1 characters in
an EAN 128 bar code with a user-selected Key Category and value. See FN1 Substitution Values on page 14-6 to
set the Key Category and Key Value.
Function Key Mapping
ASCII values under 32 normally transmit as control-key sequences (see Table 8-2 on page 8-11). Enable this
parameter to send the keys shown in bold in the table in place of the standard key mapping. Table entries that do
not have a bold entry remain the same regardless of this parameter.
Enable USB Keyboard FN 1 Substitution
*Disable USB Keyboard FN 1 Substitution
*Disable Function Key Mapping
Enable Function Key Mapping
8 - 10 Symbol DS3478 Product Reference Guide
Simulated Caps Lock
Enable this to invert upper and lower case characters on the scanned bar code as if the Caps Lock state is enabled
on the keyboard. This inversion occurs regardless of the keyboard’s Caps Lock state.
Convert Case
Enable this to convert all bar code data to the selected case.
*Disable Simulated Caps Lock
Enable Simulated Caps Lock
*No Case Conversion
Convert All to Upper Case
Convert All to Lower Case
USB Interface 8 - 11
ASCII Character Set
Table 8-2
USB ASCII Character Set
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1000 %U CTRL 2
1001 $A CTRL A
1002 $B CTRL B
1003 $C CTRL C
1004 $D CTRL D
1005 $E CTRL E
1006 $F CTRL F
1007 $G CTRL G
1008 $H CTRL H/
BACKSPACE
1
1009 $I CTRL I/
HORIZONTAL TAB
1
1010 $J CTRL J
1011 $K CTRL K
1012 $L CTRL L
1013 $M CTRL M/
ENTER
1
1014 $N CTRL N
1015 $O CTRL O
1016 $P CTRL P
1017 $Q CTRL Q
1018 $R CTRL R
1019 $S CTRL S
1020 $T CTRL T
1021 $U CTRL U
1022 $V CTRL V
1023 $W CTRL W
1024 $X CTRL X
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 8-9
. Otherwise, the unbolded keystroke transmits.
8 - 12 Symbol DS3478 Product Reference Guide
1025 $Y CTRL Y
1026 $Z CTRL Z
1027 %A CTRL [/
ESC
1
1028 %B CTRL \
1029 %C CTRL ]
1030 %D CTRL 6
1031 %E CTRL -
1032 Space Space
1033 /A !
1034 /B “
1035 /C #
1036 /D $
1037 /E %
1038 /F &
1039 /G ‘
1040 /H (
1041 /I )
1042 /J *
1043 /K +
1044 /L ,
1045 - -
1046 . .
1047 /O /
1048 0 0
1049 1 1
1050 2 2
1051 3 3
1052 4 4
Table 8-2
USB ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 8-9
. Otherwise, the unbolded keystroke transmits.
USB Interface 8 - 13
1053 5 5
1054 6 6
1055 7 7
1056 8 8
1057 9 9
1058 /Z :
1059 %F ;
1060 %G <
1061 %H =
1062 %I >
1063 %J ?
1064 %V @
1065 A A
1066 B B
1067 C C
1068 D D
1069 E E
1070 F F
1071 G G
1072 H H
1073 I I
1074 J J
1075 K K
1076 L L
1077 M M
1078 N N
1079 O O
1080 P P
Table 8-2
USB ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 8-9
. Otherwise, the unbolded keystroke transmits.
8 - 14 Symbol DS3478 Product Reference Guide
1081 Q Q
1082 R R
1083 S S
1084 T T
1085 U U
1086 V V
1087 W W
1088 X X
1089 Y Y
1090 Z Z
1091 %K [
1092 %L \
1093 %M ]
1094 %N ^
1095 %O _
1096 %W `
1097 +A a
1098 +B b
1099 +C c
1100 +D d
1101 +E e
1102 +F f
1103 +G g
1104 +H h
1105 +I i
1106 +J j
1107 +K k
1108 +L l
Table 8-2
USB ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 8-9
. Otherwise, the unbolded keystroke transmits.
USB Interface 8 - 15
1109 +M m
1110 +N n
1111 +O o
1112 +P p
1113 +Q q
1114 +R r
1115 +S s
1116 +T t
1117 +U u
1118 +V v
1119 +W w
1120 +X x
1121 +Y y
1122 +Z z
1123 %P {
1124 %Q |
1125 %R }
1126 %S ~
Table 8-2
USB ASCII Character Set (Continued)
ASCII Value Full ASCII Code 39
Encode Character Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 8-9
. Otherwise, the unbolded keystroke transmits.
8 - 16 Symbol DS3478 Product Reference Guide
Table 8-3
USB ALT Key Character Set
ALT Keys Keystroke
2064 ALT 2
2065 ALT A
2066 ALT B
2067 ALT C
2068 ALT D
2069 ALT E
2070 ALT F
2071 ALT G
2072 ALT H
2073 ALT I
2074 ALT J
2075 ALT K
2076 ALT L
2077 ALT M
2078 ALT N
2079 ALT O
2080 ALT P
2081 ALT Q
2082 ALT R
2083 ALT S
2084 ALT T
2085 ALT U
2086 ALT V
2087 ALT W
2088 ALT X
2089 ALT Y
2090 ALT Z
USB Interface 8 - 17
Table 8-4
USB GUI Key Character Set
GUI Key Keystroke
3000 Right Control Key
3048 GUI 0
3049 GUI 1
3050 GUI 2
3051 GUI 3
3052 GUI 4
3053 GUI 5
3054 GUI 6
3055 GUI 7
3056 GUI 8
3057 GUI 9
3065 GUI A
3066 GUI B
3067 GUI C
3068 GUI D
3069 GUI E
3070 GUI F
3071 GUI G
3072 GUI H
3073 GUI I
3074 GUI J
3075 GUI K
3076 GUI L
3077 GUI M
3078 GUI N
3079 GUI O
3080 GUI P
Note:
GUI Shift Keys - The Apple
™
iMac keyboard has an apple key on
either side of the space bar. Windows-based systems have a GUI key to the
left of the left ALT key, and to the right of the right ALT key.
8 - 18 Symbol DS3478 Product Reference Guide
3081 GUI Q
3082 GUI R
3083 GUI S
3084 GUI T
3085 GUI U
3086 GUI V
3087 GUI W
3088 GUI X
3089 GUI Y
3090 GUI Z
Table 8-4
USB GUI Key Character Set (Continued)
GUI Key Keystroke
Note:
GUI Shift Keys - The Apple
™
iMac keyboard has an apple key on
either side of the space bar. Windows-based systems have a GUI key to the
left of the left ALT key, and to the right of the right ALT key.
USB Interface 8 - 19
Table 8-5
USB F Key Character Set
F Keys Keystroke
5001 F1
5002 F2
5003 F3
5004 F4
5005 F5
5006 F6
5007 F7
5008 F8
5009 F9
5010 F10
5011 F11
5012 F12
5013 F13
5014 F14
5015 F15
5016 F16
5017 F17
5018 F18
5019 F19
5020 F20
5021 F21
5022 F22
5023 F23
5024 F24
8 - 20 Symbol DS3478 Product Reference Guide
Table 8-6
USB Numeric Keypad Character Set
Numeric Keypad Keystroke
6042 *
6043 +
6044 undefined
6045 -
6046 .
6047 /
6048 0
6049 1
6050 2
6051 3
6052 4
6053 5
6054 6
6055 7
6056 8
6057 9
6058 Enter
6059 Num Lock
USB Interface 8 - 21
Table 8-7
USB Extended Keypad Character Set
Extended Keypad Keystroke
7001 Break
7002 Delete
7003 PgUp
7004 End
7005 Pg Dn
7006 Pause
7007 Scroll Lock
7008 Backspace
7009 Tab
7010 Print Screen
7011 Insert
7012 Home
7013 Enter
7014 Escape
7015 Up Arrow
7016 Down Arrow
7017 Left Arrow
7018 Right Arrow
8 - 22 Symbol DS3478 Product Reference Guide
Chapter 9 IBM 468X/469X Interface
Introduction
This chapter provides instructions for programming the digital scanner to interface with an IBM 468X/469X host
computer.
Throughout the programming bar code menus, asterisks (*) indicate default values.
*Disable Convert to Code 39 Feature/Option
* Indicates Default
9 - 2 Symbol DS3478 Product Reference Guide
Connecting to an IBM 468X/469X Host
Connect the digital scanner cradle directly to the host interface.
Figure 9-1
IBM Direct Connection
1. Connect the modular connector of the IBM 46XX interface cable to the cable interface port on the digital
scanner cradle. See Connecting the Cradle on page 1-4.
2. Connect the other end of the IBM 46XX interface cable to the appropriate port on the host computer (typically
Port 9).
3. Ensure all connections are secure.
4. Pair the digital scanner to the cradle by scanning the bar code on the cradle.
5. Select the port address by scanning the appropriate bar code from Port Address on page 9-4.
6. To modify other parameter options, scan the appropriate bar codes in this chapter.
7. Connect an external power supply if required.
Host Port
Connector
Interface Cable
NOTE Interface cables vary depending on configuration. The connectors may be different from those illustrated
in Figure 9-1, but the steps to connect the digital scanner cradle are the same.
Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.
NOTE The only required configuration is the port address. The IBM system controls most other digital scanner
parameters.
IBM 468X/469X Interface 9 - 3
IBM Default Parameters
Table 9-1 lists the defaults for IBM host parameters. To change any option, scan the appropriate bar code(s)
provided in the parameter descriptions section beginning on page 9-4.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 9-1
IBM Host Default Table
Parameter Default Page
Number
IBM 468X/469X Host Parameters
Port Address None Selected
9-4
Convert Unknown to Code 39 Disable
9-5
9 - 4 Symbol DS3478 Product Reference Guide
IBM 468X/469X Host Parameters
Port Address
Use this parameter to set the IBM 468X/469X port.
NOTE Scanning one of these bar codes enables the RS-485 interface on the digital scanner.
Hand-held Scanner Emulation (Port 9B)
Non-IBM Scanner Emulation (Port 5B)
Table-top Scanner Emulation (Port 17)
IBM 468X/469X Interface 9 - 5

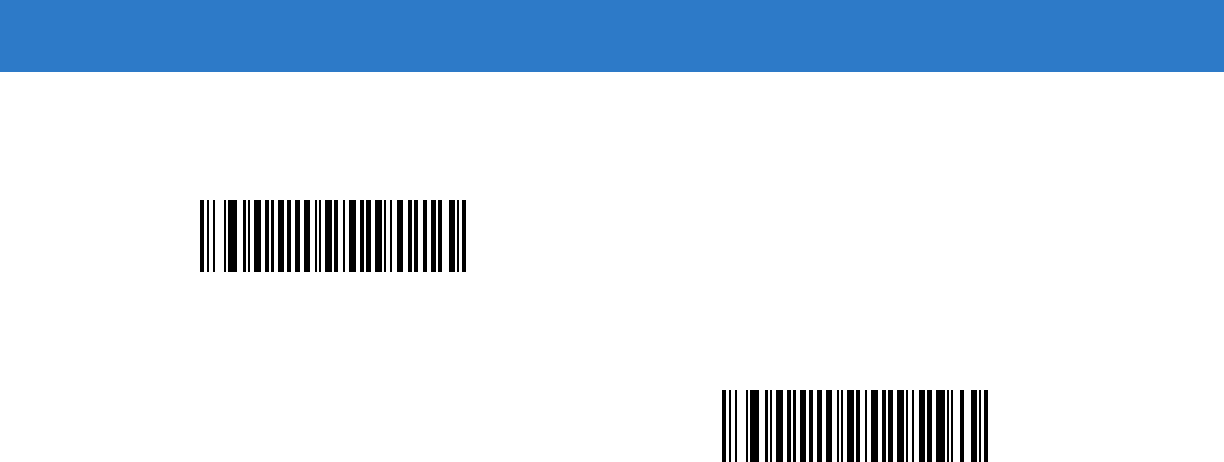

Convert Unknown to Code 39
Scan one of the following bar codes to enable or disable converting unknown bar code type data to Code 39.
Convert Unknown to Code 39 (Enable)
*Do Not Convert Unknown to Code 39 (Disable)
9 - 6 Symbol DS3478 Product Reference Guide
Chapter 10 Wand Emulation Interface
Introduction
This chapter provides instructions for programming the digital scanner to interface with a wand emulation host. Use
this mode whenever you need wand emulation communication. The digital scanner cradle connects either to an
external wand decoder or to a decoder integrated in a portable terminal or Point-of-Sale (POS) terminal.
In this mode the digital scanner emulates the signal of a digital wand to make it “readable” by a wand decoder.
Throughout the programming bar code menus, asterisks (*) indicate default values.
*Transmit Unknown
Characters
Feature/Option* Indicates Default
10 - 2 Symbol DS3478 Product Reference Guide
Connecting a Wand Emulation Interface
To perform wand emulation, connect the digital scanner cradle to a portable data terminal, or a controller that
collects the wand data and interprets it for the host.
Figure 10-1
Wand Emulation Connection
1. Attach the modular connector of the wand emulation interface cable to the cable interface port on the digital
scanner cradle. See Connecting the Cradle on page 1-4.
2. Connect the other end of the wand emulation interface cable to the wand port on the mobile computer or
controller.
3. Ensure all connections are secure.
4. Pair the digital scanner to the cradle by scanning the bar code on the cradle.
5. Select the wand emulation host type by scanning the appropriate bar code from Wand Emulation Host Types
on page 10-4.
6. To modify other parameter options, scan the appropriate bar codes in this chapter.
7. Connect an external power supply if required.
Wand Port
Mobile
Computer
Interface Cable
NOTE Interface cables vary depending on configuration. The connectors may be different from those illustrated
in Figure 10-1, but the steps to connect the digital scanner cradle are the same.
Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.
CAUTION Connect the cradle to a 5 volt decoder only. Connecting to a 12 volt decoder can cause damage and
invalidate the warranty.
Wand Emulation Interface 10 - 3
Wand Emulation Default Parameters
Table 10-1 lists the defaults for wand emulation host types. To change any option, scan the appropriate bar code(s)
provided in this chapter.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 10-1
Wand Emulation Default Table
Parameter Default Page
Number
Wand Emulation Host Parameters
Wand Emulation Host Types Symbol OmniLink Interface
Controller
10-4
Leading Margin 80 msec
10-5
Polarity Bar High/Margin Low
10-6
Ignore Unknown Characters Enable
10-6
Convert All to Code 39 Disable
10-7
Convert Code 39 to Full ASCII Disable
10-8
10 - 4 Symbol DS3478 Product Reference Guide
Wand Emulation Host Parameters
Wand Emulation Host Types
Select the wand emulation host by scanning one of the bar codes below.
Symbol OmniLink Interface Controller
Symbol PDT Terminal (MSI)
Symbol PTC Terminal (Telxon)
Wand Emulation Interface 10 - 5

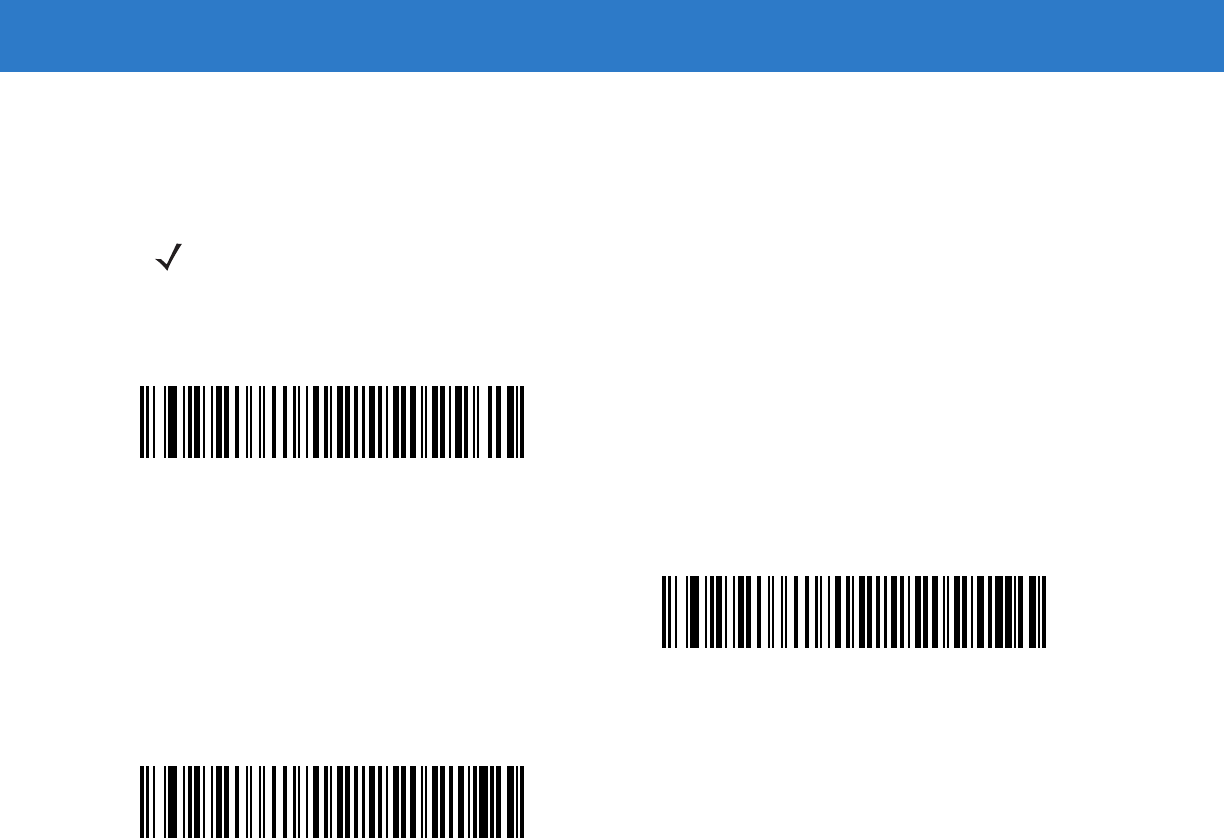

Leading Margin (Quiet Zone)
Scan a bar code below to select a leading margin duration. A leading margin is the time that precedes the first bar
of the scan, in milliseconds. The minimum allowed value is 80 msec and the maximum is 250 msec. Use this
parameter to accommodate older wand decoders that cannot handle short leading margins.
NOTE 250 msec is the maximum value that this parameter can attain, however, 200 msec is sufficient.
*80 msec
140 msec
200 msec
10 - 6 Symbol DS3478 Product Reference Guide
Polarity
Polarity determines how the digital scanner’s wand emulation interface creates the Digitized Bar code Pattern
(DBP). DBP is a digital signal that represents the scanned bar code. Different decoders expect the DBP in a certain
format. The DBP either uses “highs” to represent bars and “lows” to represent spaces (margins), or “highs” to
represent spaces (margins) and “lows” to represent bars.
Scan the appropriate bar code to select the polarity required by the decoder.
Ignore Unknown Characters
Unknown characters are characters the host does not recognize. Select Send Bar Codes With Unknown
Characters to send all bar code data except for unknown characters. The digital scanner issues no error beeps.
Select Do Not Send Bar Codes With Unknown Characters to prevent sending bar codes containing at least one
unknown character to the host. The digital scanner issues an error beep.
*Bar High/Margin Low
Bar Low/Margin High
*Send Bar Codes With Unknown Characters
(Enable)
Do Not Send Bar Codes With Unknown Characters
(Disable)
Wand Emulation Interface 10 - 7
Convert All to Code 39
By default, the wand emulation interface sends data to the attached host in the decoded symbology. This can
present a problem for older systems that do not recognize some newer symbologies (for example, GS1 DataBar).
Enable this parameter to ignore the decoded symbology, and transmit the data as a Code 39 bar code. Lowercase
characters in the original data stream transmit as uppercase characters. This also allows ADF formatting.
If you enabled Ignore Unknown Characters, the digital scanner replaces characters that do not have a
corresponding character in the Code 39 symbology with a space.
If you disabled Ignore Unknown Characters, and the digital scanner encounters characters that do not have a
corresponding Code 39 character, it emits an error beep and does not transmit data.
ADF Note: By default, the wand emulation interface does not allow scanned data to use ADF rules. Enabling this
parameter allows the scanned data to use ADF rules. See Chapter 15, Advanced Data Formatting.
Convert All to Code 39 for Wand Host
(Enable)
*Do Not Convert All to Code 39 for Wand Host
(Disable)
10 - 8 Symbol DS3478 Product Reference Guide
Convert Code 39 to Full ASCII
By default, this parameter replaces any characters that do not have a corresponding character in the Code 39
symbology with a space. Enable this parameter to encode the data sent to the wand interface in Code 39 Full
ASCII. This setting requires that the host be able to interpret Code 39 Full ASCII data.
This setting applies only if you enabled Convert All to Code 39 for wand hosts.
*Do Not Convert Code 39 to Full ASCII
(Disable)
Convert Code 39 to Full ASCII
(Enable)
Chapter 11 Scanner Emulation Interface
Introduction
This chapter provides instructions for programming the digital scanner to interface with a scanner emulation host.
With scanner emulation, the cradle connects either to an external decoder or to a decoder integrated in a portable
terminal or Point-of-Sale (POS) terminal.
Throughout the programming bar code menus, asterisks (*) indicate default values.
*Parameter Process
and Pass-Through
Feature/Option* Indicates Default
11 - 2 Symbol DS3478 Product Reference Guide
Connecting Using Scanner Emulation
To perform scanner emulation, connect the digital scanner cradle to a mobile computer, or a controller that collects
the data and interprets it for the host.
Figure 11-1
Scanner Emulation Connection
1. Attach the modular connector of the scanner emulation interface cable to the cable interface port on the digital
scanner cradle. See Connecting the Cradle on page 1-4.
2. Connect the other end of the scanner emulation interface cable to the scanner port on the mobile computer or
controller.
3. Ensure all connections are secure.
4. Pair the digital scanner to the cradle by scanning the bar code on the cradle.
5. Scan Scanner Emulation Host on page 11-4 to enable the scanner emulation interface.
6. To modify parameter options, scan the appropriate bar codes in this chapter.
7. Connect an external power supply if required.
Host Port
Connector
Interface Cable
NOTE Interface cables vary depending on configuration. The connectors may be different from those illustrated
in Figure 11-1, but the steps to connect the digital scanner cradle are the same.
Disconnect the power supply before changing host cables or the digital scanner may not recognize the
new host.
CAUTION Connect the cradle to a 5 volt decoder only. Connecting to a 12 volt decoder can cause damage and
invalidate the warranty.
Scanner Emulation Interface 11 - 3
Scanner Emulation Default Parameters
Table 11-1 lists the defaults for the scanner emulation host. To change an option, scan the appropriate bar code(s)
provided in this chapter.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 11-1
Scanner Emulation Default Table
Parameter Default Page
Number
Scanner Emulation Host Parameters
Beep Style Beep on Successful Transmit
11-4
Parameter Pass-Through Parameter Process and Pass Through
11-5
Convert Newer Code Types Convert Newer Code Types
11-6
Module Width 20 µs Module Width
11-7
Convert All Bar Codes to Code 39 Disable
11-7
Code 39 Full ASCII Conversion Disable
11-8
Transmission Timeout 3 seconds
11-9
Ignore Unknown Characters Send Bar Codes with Unknown Characters
11-10
Leading Margin 2 ms
11-11
Check for Decode LED Check for Decode LED
11-12
11 - 4 Symbol DS3478 Product Reference Guide
Scanner Emulation Host Parameters
Scanner Emulation Host
Scan the following bar code to enable the scanner emulation host.
Scanner Emulation Host
Beep Style
The scanner emulation host supports three different beep styles.
•
Beep On Successful Transmit (default): The digital scanner beeps when the attached decoder issues the
decode signal to the digital scanner. This way, the digital scanner and the decoder beep at the same time.
•
Beep at Decode Time: The digital scanner beeps on its decode. This results in a double beep sequence
from most decoders, since the digital scanner beeps, and the decoder beeps (at a different frequency) when
it successfully decodes the output.
•
Do Not Beep: The digital scanner does not beep; the attached decoder issues the decode beep.
In all cases, if an error occurs, the digital scanner issues error beeps.
*Beep On Successful Transmit
Beep at Decode Time
Do Not Beep
Scanner Emulation Interface 11 - 5
Parameter Pass-Through
The scanner emulation host can process parameter bar code messages and send them to the attached decoder. In
this way, customers using Symbol-compliant decoders can control the behavior of the system by scanning the
necessary parameters only once.
NOTE For example, to enable Discrete 2 of 5, scan the Enable Discrete 2 of 5 parameter bar code with the
digital scanner. The digital scanner and the attached decoder both process the parameter.
*Parameter Process and Pass-Through
Parameter Process Only
11 - 6 Symbol DS3478 Product Reference Guide
Convert Newer Code Types
The digital scanner supports a variety of code types that attached decoder systems typically cannot decode. To
allow compatibility in these environments, the digital scanner converts these code types to more common
symbologies, as per the following table. Symbologies not listed on this chart transmit normally.
When decoding these code types with this parameter disabled, the digital scanner issues convert error beeps and
transmits no data.
Scan this code type: Transmitted as:
Code 11 Code 39
GS1 DataBar (14, Limited, and Expanded), Coupon Code,
PDF, MicroPDF, MaxiCode, Data Matrix, QR Code,
Postal Codes, Composite Codes
Code 128
*Convert Newer Code Types
Reject Newer Code Types
Scanner Emulation Interface 11 - 7
Module Width
The standard module width is 20 µs. For an extremely slow decoder system, use this parameter to extend this
module width to 50 µs.
Convert All Bar Codes to Code 39
Scan the appropriate bar code to enable or disable converting all bar code data to Code 39.
*20 µs Module Width
50 µs Module Width
*Do Not Convert All To Code 39
(Disable)
Convert All To Code 39
(Enable)
11 - 8 Symbol DS3478 Product Reference Guide
Code 39 Full ASCII Conversion
By default, this parameter replaces characters that do not have a corresponding character in the Code 39
symbology set with a space. Enable this parameter to encode the data sent to the scanner emulation host in Code
39 Full ASCII. This setting requires that the host be able to interpret Code 39 Full ASCII data.
This setting applies only if you enabled Convert All to Code 39.
*Do Not Convert Code 39 To Full ASCII
(Disable)
Convert Code 39 To Full ASCII
(Enable)
Scanner Emulation Interface 11 - 9
Transmission Timeout
The scanner emulation host transmits bar code data to the attached decoder and waits for the decoder to assert
the decode signal, indicating successful transmission. If, after a specified amount of time, the decode signal is not
asserted (indicating that the attached decoder did not receive the bar code data), the digital scanner issues
transmit error beeps.
Scan the appropriate bar code to select the desired transmission timeout.
*3 Second Transmission Timeout
4 Second Transmission Timeout
5 Second Transmission Timeout
10 Second Transmission Timeout
30 Second Transmission Timeout
11 - 10 Symbol DS3478 Product Reference Guide
Ignore Unknown Characters
Unknown characters are characters that the host does not recognize. Select Send Bar Codes With Unknown
Characters to send all bar code data except for unknown characters. The digital scanner issues no error beeps.
Select Do Not Send Bar Codes With Unknown Characters to prevent sending bar codes containing at least one
unknown character to the host. The digital scanner issues an error beep.
*Send Bar Codes with Unknown Characters
(Enable)
Do Not Send Bar Codes with Unknown Characters
(Disable)
Scanner Emulation Interface 11 - 11
Leading Margin
Scan one of the following bar codes to select a leading margin duration.
1 ms Leading Margin
*2 ms Leading Margin
3 ms Leading Margin
5 ms Leading Margin
10 ms Leading Margin
11 - 12 Symbol DS3478 Product Reference Guide
Check for Decode LED
The attached decoder typically asserts the decode line to signal to the scanner emulation host that it successfully
decoded the transmitted bar code. Some decoders, however, do not assert the decode signal upon a decode. In
this case, the digital scanner emits transmit error beeps to indicate that the bar code did not successfully transmit.
Scan the Ignore Decode LED bar code to disable the transmit error beeps.
*Check For Decode LED
Ignore Decode LED
Chapter 12 123Scan
Introduction
123Scan is a Windows®-based utility that programs the digital scanner with all parameters including Advanced
Data Formatting (ADF) rules. An ADF rule modifies bar code data before it transmits to the host, ensuring
compatibility between bar code data and the host application without having to modify the host software. You can
program digital scanners via PC download or by scanning a sheet of bar codes generated by 123Scan. Save digital
scanner programming in a file for electronic distribution. 123Scan includes a help file.
Setting Up 123Scan
To communicate with the 123Scan program:
1. Load 123Scan, included in the documentation CD-ROM, onto a host computer running Windows 98, Windows
2000, or Windows XP.
2. Connect the digital scanner to the host computer using an RS-232 cable. See Connecting an RS-232 Interface
on page 7-2.
3. Scan the following bar code to enable the 123Scan interface on the digital scanner. Refer to the 123Scan
instructions for programming the digital scanner.
123Scan Configuration
12 - 2 Symbol DS3478 Product Reference Guide
Chapter 13 Symbologies
Introduction
This chapter describes symbology features and provides programming bar codes for selecting these features for
the digital scanner. Before programming, follow the instructions in Chapter 1, Getting Started.
The digital scanner ships with the settings shown in the Symbology Default Table on page 13-2 (also see Appendix
A, Standard Default Parameters for all host and miscellaneous digital scanner defaults). If the default values suit
requirements, programming is not necessary. Set feature values by scanning single bar codes or short bar code
sequences. To return all features to default values, scan Set Default Parameter on page 4-3.
If not using a Synapse or USB cable, select the host type (see the specific host chapter) after the digital scanner
emits power-up beeps.
Scanning Sequence Examples
In most cases, scan only one bar code to set a parameter value. For example, to transmit bar code data without the
UPC-A check digit, scan the Do Not Transmit UPC-A Check Digit bar code under Transmit UPC-A/UPC-E/UPC-E1
Check Digit on page 13-13. The digital scanner issues a fast warble beep and the LED turns green, indicating a
successful parameter entry.
Other parameters, such as Set Length(s) for D 2 of 5 require scanning several bar codes in sequence. See the
parameter description for this procedure.
Errors While Scanning
Unless otherwise specified, if you make an error during a scanning sequence, re-scan the correct parameter.
13 - 2 Symbol DS3478 Product Reference Guide
Symbology Default Parameters
Table 13-1 lists the defaults for all symbologies parameters. To change any option, scan the appropriate bar
code(s) provided in this chapter.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 13-1
Symbology Default Table
Parameter Default Page
Number
UPC/EAN
UPC-A Enable
13-6
UPC-E Enable
13-6
UPC-E1 Disable
13-7
EAN-13 Enable
13-7
EAN-8 Enable
13-8
Bookland EAN Disable
13-8
Decode UPC/EAN Supplementals (2 and 5 digits) Ignore Supplementals
13-9
User-Programmable Supplementals
13-12
UPC/EAN Supplemental Redundancy 10
13-12
Transmit UPC-A Check Digit Enable
13-13
Transmit UPC-E Check Digit Enable
13-13
Transmit UPC-E1 Check Digit Enable
13-13
UPC-A Preamble System Character
13-15
UPC-E Preamble System Character
13-16
UPC-E1 Preamble System Character
13-17
Convert UPC-E to A Disable
13-18
Convert UPC-E1 to A Disable
13-18
EAN-8 Extend Disable
13-19
Bookland ISBN Format ISBN-10
13-20
UCC Coupon Extended Code Disable
13-21
Code 128
Code 128 Enable
13-22
Set Length(s) for Code 128 Any Length
13-22
Symbologies 13 - 3
GS1-128 (formerly UCC/EAN-128) Enable
13-24
ISBT 128 Enable
13-24
Code 39
Code 39 Enable
13-25
Trioptic Code 39 Disable
13-25
Convert Code 39 to Code 32 Disable
13-26
Code 32 Prefix Disable
13-26
Set Length(s) for Code 39 2 to 55
13-27
Code 39 Check Digit Verification Disable
13-37
Transmit Code 39 Check Digit Disable
13-29
Code 39 Full ASCII Conversion Disable
13-30
Buffer Code 39 Disable
13-31
Code 93
Code 93 Disable
13-33
Set Lengths for Code 93 4 to 55
13-33
Code 11
Code 11 Disable
13-35
Set Lengths for Code 11 4 to 55
13-35
Code 11 Check Digit Verification Disable
13-37
Transmit Code 11 Check Digits Disable
13-38
Interleaved 2 of 5 (I 2 of 5)
Interleaved 2 of 5 (I 2 of 5) Enable
13-39
Set Lengths for Interleaved 2 of 5 14
13-39
I 2 of 5 Check Digit Verification Disable
13-41
Transmit I 2 of 5 Check Digit Disable
13-41
Convert I 2 of 5 to EAN-13 Disable
13-42
Discrete 2 of 5 (D 2 of 5)
Discrete 2 of 5 Disable
13-43
Set Lengths for D 2 of 5 12
13-43
Table 13-1
Symbology Default Table (Continued)
Parameter Default Page
Number
13 - 4 Symbol DS3478 Product Reference Guide
Codabar (NW - 7)
Codabar Disable
13-45
Set Lengths for Codabar 5 to 55
13-45
CLSI Editing Disable
13-47
NOTIS Editing Disable
13-47
MSI
MSI Disable
13-48
Set Lengths for MSI 4 to 55
13-48
MSI Check Digits One
13-50
Transmit MSI Check Digit(s) Disable
13-50
MSI Check Digit Algorithm Mod 10/Mod 10
13-51
Inverse 1D
Regular
13-52
Postal Codes
US Postnet Enable
13-53
US Planet Enable
13-53
UK Postal Enable
13-54
Transmit UK Postal Check Digit Enable
13-54
Japan Postal Enable
13-55
Australian Postal Enable
13-55
Dutch Postal Enable
13-56
4State Postal Disable
13-56
Post US4 Disable
13-57
Transmit US Postal Check Digit Enable
13-57
GS1 DataBar
GS1 DataBar-14 Enable
13-58
GS1 DataBar Limited Enable
13-58
GS1 DataBar Expanded Enable
13-59
Convert GS1 DataBar to UPC/EAN Disable
13-59
Table 13-1
Symbology Default Table (Continued)
Parameter Default Page
Number
Symbologies 13 - 5
Composite
Composite CC-C Disable
13-60
Composite CC-A/B Disable
13-60
Composite TLC-39 Disable
13-61
UPC Composite Mode Always Linked
13-61
GS1-128 Emulation Mode for UCC/EAN Composite
Codes Disable
13-62
2D Symbologies
PDF417 Enable
13-63
MicroPDF417 Disable
13-63
Code 128 Emulation Disable
13-64
Data Matrix Enable
13-65
Data Matrix Inverse Regular
13-65
Maxicode Enable
13-66
QR Code Enable
13-66
MicroQR Enable
13-67
QR Inverse Regular
13-67
Aztec Enable
13-68
Aztec Inverse Enable
13-68
Symbology - Specific Security Levels
Redundancy Level 1
13-69
Security Levels 0
13-71
Intercharacter Gap Size Normal
13-73
Macro PDF
Flush Macro PDF Buffer
13-74
Abort Macro PDF Entry
13-74
Table 13-1
Symbology Default Table (Continued)
Parameter Default Page
Number
13 - 6 Symbol DS3478 Product Reference Guide
UPC/EAN
Enable/Disable UPC-A
To enable or disable UPC-A, scan the appropriate bar code below.
Enable/Disable UPC-E
To enable or disable UPC-E, scan the appropriate bar code below.
*Enable UPC-A
Disable UPC-A
*Enable UPC-E
Disable UPC-E
Symbologies 13 - 7
Enable/Disable UPC-E1
To enable or disable UPC-E1, scan the appropriate bar code below.
Enable/Disable EAN-13
To enable or disable EAN-13, scan the appropriate bar code below.
NOTE UPC-E1 is not a UCC (Uniform Code Council) approved symbology.
Enable UPC-E1
*Disable UPC-E1
NOTE JAN is a subset of EAN, therefore parameters controlling EAN also affect JAN.
*Enable EAN-13
Disable EAN-13
13 - 8 Symbol DS3478 Product Reference Guide
Enable/Disable EAN-8
To enable or disable EAN-8, scan the appropriate bar code below.
Enable/Disable Bookland EAN
To enable or disable Bookland EAN, scan the appropriate bar code below.
*Enable EAN-8
Disable EAN-8
Enable Bookland EAN
*Disable Bookland EAN
NOTE If you enable Bookland EAN, select a Bookland ISBN Format on page 13-20. Also select either Decode
UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental
Mode in Decode UPC/EAN Supplementals on page 13-9.
Symbologies 13 - 9
Decode UPC/EAN Supplementals
Supplementals are bar codes appended according to specific format conventions (e.g., UPC A+2, UPC E+2, EAN
13+2). The following options are available:
• If you select Ignore UPC/EAN with Supplementals, and the scanner is presented with a UPC/EAN
plus supplemental symbol, the scanner decodes UPC/EAN and ignores the supplemental characters.
• If you select Decode UPC/EAN with Supplementals, the scanner only decodes UPC/EAN symbols with
supplemental characters, and ignores symbols without supplementals.
• If you select Autodiscriminate UPC/EAN Supplementals, the scanner decodes UPC/EAN symbols with
supplemental characters immediately. If the symbol does not have a supplemental, the scanner must
decode the bar code the number of times set via UPC/EAN Supplemental Redundancy on page 13-12
before transmitting its data to confirm that there is no supplemental.
• If you select one of the following Supplemental Mode options, the scanner immediately transmits EAN-13
bar codes starting with that prefix that have supplemental characters. If the symbol does not have a
supplemental, the scanner must decode the bar code the number of times set via UPC/EAN Supplemental
Redundancy on page 13-12 before transmitting its data to confirm that there is no supplemental. The
scanner transmits UPC/EAN bar codes that do not have that prefix immediately.
• Enable 378/379 Supplemental Mode
• Enable 978/979 Supplemental Mode
• Enable 977 Supplemental Mode
• Enable 414/419/434/439 Supplemental Mode
• Enable 491 Supplemental Mode
•Enable Smart Supplemental Mode - applies to EAN-13 bar codes starting with any prefix listed
previously.
•Supplemental User-Programmable Type 1 - applies to EAN-13 bar codes starting with a 3-digit
user-defined prefix. User-Programmable Supplementals on page 13-12.
•Supplemental User-Programmable Type 1 and 2 - applies to EAN-13 bar codes starting with either of
two 3-digit user-defined prefixes. Set the 3-digit prefixes using User-Programmable Supplementals on
page 13-12.
•Smart Supplemental Plus User-Programmable 1 - applies to EAN-13 bar codes starting with any
prefix listed previously or the user-defined prefix set using User-Programmable Supplementals on page
13-12.
•Smart Supplemental Plus User-Programmable 1 and 2 - applies to EAN-13 bar codes starting with
any prefix listed previously or one of the two user-defined prefixes set using User-Programmable
Supplementals on page 13-12.
NOTE If you select 978/979 Supplemental Mode and are scanning Bookland EAN bar codes, see
Enable/Disable Bookland EAN on page 13-8 to enable Bookland EAN, and select a format using
Bookland ISBN Format on page 13-20.
NOTE To minimize the risk of invalid data transmission, select either to decode or ignore supplemental
characters.
13 - 10 Symbol DS3478 Product Reference Guide
Decode UPC/EAN/JAN Supplementals (continued)
Decode UPC/EAN/JAN Only With Supplementals
(01h)
*Ignore Supplementals
(00h)
Autodiscriminate UPC/EAN/JAN Supplementals
(02h)
Enable 378/379 Supplemental Mode
(04h)
Enable 978/979 Supplemental Mode
(05h)
Enable 977 Supplemental Mode
(07h)
Symbologies 13 - 11
Decode UPC/EAN/JAN Supplementals (continued)
Enable 414/419/434/439 Supplemental Mode
(06h)
Enable 491 Supplemental Mode
(08h)
Enable Smart Supplemental Mode
(03h)
Supplemental User-Programmable Type 1
(09h)
Supplemental User-Programmable Type 1 and 2
(0Ah)
Smart Supplemental Plus User-Programmable 1
(0Bh)
Smart Supplemental Plus User-Programmable 1 and 2
(0Ch)
13 - 12 Symbol DS3478 Product Reference Guide
User-Programmable Supplementals
If you selected a Supplemental User-Programmable option from Decode UPC/EAN Supplementals on page 13-9,
select User-Programmable Supplemental 1 to set the 3-digit prefix. Then select the 3 digits using the numeric
bar codes beginning on page D-1. Select User-Programmable Supplemental 2 to set a second 3-digit prefix.
Then select the 3 digits using the numeric bar codes beginning on page D-1.
UPC/EAN Supplemental Redundancy
If you selected Autodiscriminate UPC/EAN Supplementals, use this option to adjust the number of times to
decode a symbol without supplementals before transmission. The range is from two to 30 times. 14 or above is
recommended when decoding a mix of UPC/EAN symbols with and without supplementals. The default is 10.
To set a decode redundancy value, scan the following bar code. Next, scan two numeric bar codes from Appendix
D, Numeric Bar Codes. Use a leading zero for single digit numbers. In case of an error, or to change the selection,
scan Cancel on page D-3.
User-Programmable Supplemental 1
User-Programmable Supplemental 2
UPC/EAN Supplemental Redundancy
Symbologies 13 - 13
Transmit UPC-A/UPC-E/UPC-E1 Check Digit
The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar
code to transmit the bar code data with or without the UPC-A, UPC-E, or UPC-E1 check digit.
UPC-A Check Digit
UPC-E Check Digit
*Transmit UPC-A Check Digit
Do Not Transmit UPC-A Check Digit
*Transmit UPC-E Check Digit
Do Not Transmit UPC-E Check Digit
13 - 14 Symbol DS3478 Product Reference Guide
UPC-E1 Check Digit
*Transmit UPC-E1 Check Digit
Do Not Transmit UPC-E1 Check Digit
Symbologies 13 - 15
UPC-A Preamble
Preamble characters are part of the UPC symbol consisting of Country Code and System Character. There are
three options for transmitting a UPC-A preamble to the host device:
•
Transmit System Character only.
•
Transmit System Character and Country Code (“0” for USA).
•
Transmit no preamble.
Select the appropriate option to match the host system.
No Preamble
(<DATA>)
*System Character
(<SYSTEM CHARACTER> <DATA>)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER>
<DATA>)
13 - 16 Symbol DS3478 Product Reference Guide
UPC-E Preamble
Preamble characters are part of the UPC symbol consisting of Country Code and System Character. There are
three options for transmitting a UPC-E preamble to the host device:
•
Transmit System Character only.
•
Transmit System Character and Country Code (“0” for USA).
•
Transmit no preamble.
Select the appropriate option to match the host system.
No Preamble
(<DATA>)
*System Character
(<SYSTEM CHARACTER> <DATA>)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER>
<DATA>)
Symbologies 13 - 17
UPC-E1 Preamble
Preamble characters are part of the UPC symbol consisting of Country Code and System Character. There are
three options for transmitting a UPC-E1 preamble to the host device:
•
Transmit System Character only.
•
Transmit System Character and Country Code (“0” for USA).
•
Transmit no preamble.
Select the appropriate option to match the host system.
No Preamble
(<DATA>)
*System Character
(<SYSTEM CHARACTER> <DATA>)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER>
<DATA>)
13 - 18 Symbol DS3478 Product Reference Guide
Convert UPC-E to UPC-A
Enable this to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble,
Check Digit).
Disable this to transmit UPC-E decoded data as UPC-E data, without conversion.
Convert UPC-E1 to UPC-A
Enable this to convert UPC-E1 decoded data to UPC-A format before transmission. After conversion, the data
follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).
Disable this to transmit UPC-E1 decoded data as UPC-E1 data, without conversion.
Convert UPC-E to UPC-A
(Enable)
*Do Not Convert UPC-E to UPC-A
(Disable)
Convert UPC-E1 to UPC-A
(Enable)
*Do Not Convert UPC-E1 to UPC-A
(Disable)
Symbologies 13 - 19
EAN-8 Extend
Enable this parameter to add five leading zeros to decoded EAN-8 symbols to make them compatible in format to
EAN-13 symbols.
Disable this to transmit EAN-8 symbols as is.
Enable EAN-8 Zero Extend
*Disable EAN-8 Zero Extend
13 - 20 Symbol DS3478 Product Reference Guide
Bookland ISBN Format
If you enabled Bookland EAN using Enable/Disable Bookland EAN on page 13-8, select one of the following
formats for Bookland data:
•
Bookland ISBN-10 - The scanner reports Bookland data starting with 978 in traditional 10-digit format with
the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered
Bookland in this mode.
•
Bookland ISBN-13 - The scanner reports Bookland data (starting with either 978 or 979) as EAN-13 in
13-digit format to meet the 2007 ISBN-13 protocol.
*Bookland ISBN-10
(00h)
Bookland ISBN-13
(01h)
NOTE For Bookland EAN to function properly, first enable Bookland EAN using Enable/Disable Bookland EAN
on page 13-8, then select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN
Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN Supplementals on page
13-9.
Symbologies 13 - 21
UCC Coupon Extended Code
Enable this parameter to decode UPC-A bar codes starting with digit ‘5’, EAN-13 bar codes starting with digit ‘99’,
and UPC-A/EAN-128 coupon codes. UPC-A, EAN-13, and EAN-128 must be enabled to scan all types of
coupon codes.
Enable UCC Coupon Extended Code
*Disable UCC Coupon Extended Code
NOTE Use UPC/EAN Supplemental Redundancy on page 13-12 to control autodiscrimination of the EAN-128
(right half) of a coupon code
13 - 22 Symbol DS3478 Product Reference Guide
Code 128
Enable/Disable Code 128
To enable or disable Code 128, scan the appropriate bar code below.
Set Lengths for Code 128
Parameter # L1 = D1h, L2 = D2h
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 128 to any length, one or two discrete lengths, or lengths within a specific
range.
•
One Discrete Length - Select this option to decode only Code 128 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only Code 128 symbols with 14 characters, scan Code 128 - One Discrete Length, then scan 1 followed by
4. To correct an error or change the selection, scan Cancel on page D-3.
•
Two Discrete Lengths - Select this option to decode only Code 128 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only Code 128 symbols containing either 2 or 14 characters, select Code 128 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or change the selection, scan
Cancel on page D-3.
•
Length Within Range - Select this option to decode a Code 128 symbol with a specific length range.
Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
Code 128 symbols containing between 4 and 12 characters, first scan Code 128 - Length Within Range.
Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the
selection, scan Cancel on page D-3.
•
Any Length - Select this option to decode Code 128 symbols containing any number of characters within the
digital scanner’s capability.
*Enable Code 128
Disable Code 128
NOTE When setting lengths for different bar code types, enter a leading zero for single digit numbers.
Symbologies 13 - 23
Set Lengths for Code 128 (continued)
Code 128 - One Discrete Length
Code 128 - Two Discrete Lengths
Code 128 - Length Within Range
*Code 128 - Any Length
13 - 24 Symbol DS3478 Product Reference Guide
Enable/Disable GS1-128 (formerly UCC/EAN-128)
To enable or disable GS1-128, scan the appropriate bar code below.
Enable/Disable ISBT 128
To enable or disable ISBT 128, scan the appropriate bar code below.
*Enable GS1-128
Disable GS1-128
*Enable ISBT 128
Disable ISBT 128
Symbologies 13 - 25
Code 39
Enable/Disable Code 39
To enable or disable Code 39, scan the appropriate bar code below.
Enable/Disable Trioptic Code 39
Trioptic Code 39 is a variant of Code 39 used for marking computer tape cartridges. Trioptic Code 39 symbols
always contain six characters. To enable or disable Trioptic Code 39, scan the appropriate bar code below.
*Enable Code 39
Disable Code 39
Enable Trioptic Code 39
*Disable Trioptic Code 39
NOTE You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously.
13 - 26 Symbol DS3478 Product Reference Guide
Convert Code 39 to Code 32
Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below
to enable or disable converting Code 39 to Code 32.
Code 32 Prefix
Scan the appropriate bar code to enable or disable adding the prefix character “A” to all Code 32 bar codes.
NOTE Code 39 must be enabled for this parameter to function.
Convert Code 39 to Code 32
(Enable)
*Do Not Convert Code 39 to Code 32
(Disable)
NOTE Convert Code 39 to Code 32 must be enabled for this parameter to function.
Enable Code 32 Prefix
*Disable Code 32 Prefix
Symbologies 13 - 27
Set Lengths for Code 39
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 39 for any length, one or two discrete lengths, or lengths within a specific
range. If Code 39 Full ASCII is enabled, Length Within a Range or Any Length are the preferred options.
One Discrete Length - This option allows the digital scanner to decode only those Code 39 symbols containing a
selected length. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length. For example,
to decode only Code 39 symbols with 14 characters, scan Code 39 - One Discrete Length, then scan 1 followed
by 4. In case of an error, or to change the selection, scan Cancel on page D-3.
Two Discrete Lengths - This option allows the digital scanner to decode only those Code 39 symbols
containing either of two selected lengths. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select
lengths. For example, to decode only Code 39 symbols containing either 2 or 14 characters, select Code 39 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. In case of an error, or to change the selection, scan Cancel
on page D-3.
Length Within Range - This option allows the digital scanner to decode a Code 39 symbol within a specific
length range. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length range. For
example, to decode Code 39 symbols containing between 4 and 12 characters, first scan Code 39 - Length
Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). In case of an error, or to
change the selection, scan Cancel on page D-3.
Any Length - This option allows the digital scanner to decode Code 39 symbols containing any number of
characters within the digital scanner’s capability.
NOTE When setting lengths for different bar code types, enter a leading zero for single digit numbers.
13 - 28 Symbol DS3478 Product Reference Guide
Set Lengths for Code 39 (continued)
Code 39 - One Discrete Length
Code 39 - Two Discrete Lengths
Code 39 - Length Within Range
Code 39 - Any Length
Symbologies 13 - 29
Code 39 Check Digit Verification
Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with a specified
check digit algorithm. The digital scanner decodes only those Code 39 symbols that include a modulo 43 check
digit. Enable this feature only if the Code 39 symbols contain a modulo 43 check digit.
Transmit Code 39 Check Digit
Scan a bar code below to transmit Code 39 data with or without the check digit.
Enable Code 39 Check Digit
*Disable Code 39 Check Digit
Transmit Code 39 Check Digit
(Enable)
*Do Not Transmit Code 39 Check Digit
(Disable)
NOTE Code 39 Check Digit Verification must be enabled for this parameter to function.
13 - 30 Symbol DS3478 Product Reference Guide
Code 39 Full ASCII Conversion
Code 39 Full ASCII is a variant of Code 39 that pairs characters to encode the full ASCII character set. To enable
or disable Code 39 Full ASCII, scan the appropriate bar code below.
Mapping Code 39 characters to ASCII values is host dependent. For keyboard wedge host conversion, see Table
6-2 on page 6-14. For RS-232 host conversion, see Table 7-4 on page 7-20. For USB host conversion, see Table
8-2 on page 8-11.
Enable Code 39 Full ASCII
*Disable Code 39 Full ASCII
NOTE You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously.
Symbologies 13 - 31
Code 39 Buffering (Scan & Store)
This feature allows the digital scanner to accumulate data from multiple Code 39 symbols.
Select Buffer Code 39 to temporarily buffer all Code 39 symbols with a leading space as a first character for later
transmission. The leading space is not buffered. Since this feature affects Code 39 only, for best performance
configure the digital scanner to decode the Code 39 symbology only.
Decoding a valid Code 39 symbol with no leading space transmits in sequence all buffered data in a first-in first-out
format, plus the “triggering” symbol. See the following pages for further details.
Select Do Not Buffer Code 39 to transmit all decoded Code 39 symbols immediately without storing in the buffer.
While there is data in the transmission buffer, you cannot select Do Not Buffer Code 39. The buffer holds 200
bytes of information.
To disable Code 39 buffering when there is data in the transmission buffer, first force the buffer transmission (see
Transmitting Buffer on page 13-32) or clear the buffer.
Buffering Data
To buffer data, enable Code 39 buffering and read a Code 39 symbol with a space immediately following the start
pattern.
•
Unless the data overflows the transmission buffer, the digital scanner issues a low-high beep to indicate
successful decode and buffering. For overflow conditions, see Overfilling Transmission Buffer.
•
The digital scanner adds the decoded data excluding the leading space to the transmission buffer.
•
No transmission occurs.
Buffer Code 39
(Enable)
*Do Not Buffer Code 39
(Disable)
13 - 32 Symbol DS3478 Product Reference Guide
Clearing Transmission Buffer
To clear the transmission buffer, scan the Clear Buffer bar code below, which contains only a start character, a
dash (minus), and a stop character. The digital scanner issues a short high-low-high beep and erases the
transmission buffer.
Transmitting Buffer
There are two methods to transmit the Code 39 buffer:
•
Scan the Transmit Buffer bar code, which includes only a start character, a plus (+), and a stop character.
The digital scanner transmits and clears the buffer, and issues a low-high beep.
•
Scan a Code 39 bar code with a leading character other than a space. The digital scanner appends the new
decode data to the buffered data, transmits and clears the buffer, and issues a low-high beep to signal that
the buffer was transmitted.
Overfilling Transmission Buffer
The Code 39 buffer holds 200 characters. If the symbol just read overflows the transmission buffer, the digital
scanner issues three long high beeps to indicate it rejected the symbol, and no transmission occurs. The data in
the buffer is not affected.
Attempt to Transmit an Empty Buffer
If the symbol just read was the Transmit Buffer symbol and the Code 39 buffer is empty, the digital scanner issues
a short low-high-low beep to signal that the buffer is empty, and no transmission occurs. The buffer remains empty.
Clear Buffer
NOTE Because the Clear Buffer bar code contains only the dash (minus) character, set the Code 39 length to
include length 1 before scanning this bar code.
Transmit Buffer
NOTE Because the Transmit Buffer bar code contains only a plus (+) character, set the Code 39 length to
include length 1 before scanning this bar code.
Symbologies 13 - 33
Code 93
Enable/Disable Code 93
To enable or disable Code 93, scan the appropriate bar code below.
Set Lengths for Code 93
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 93 for any length, one or two discrete lengths, or lengths within a specific
range.
One Discrete Length - This option allows the digital scanner to decode only those Code 93 symbols containing a
selected length. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length. For example,
to decode only Code 93 symbols with 14 characters, scan Code 93 - One Discrete Length, then scan 1 followed
by 4. In case of an error, or to change the selection, scan Cancel on page D-3.
Two Discrete Lengths - This option allows the digital scanner to decode only those Code 93 symbols
containing either of two selected lengths. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select
lengths. For example, to decode only Code 93 symbols containing either 2 or 14 characters, select Code 93 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. In case of an error, or to change the selection, scan Cancel
on page D-3.
Length Within Range - This option allows the digital scanner to decode a Code 93 symbol within a specific
length range. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length range. For
example, to decode Code 93 symbols containing between 4 and 12 characters, first scan Code 93 - Length
Within Range. Then scan 0, 4, 1, and 2 (insert a leading zero for single digit numbers). In case of an error, or to
change the selection, scan Cancel on page D-3.
Any Length - This option allows the digital scanner to decode Code 93 symbols containing any number of
characters within the digital scanner’s capability.
Enable Code 93
*Disable Code 93
13 - 34 Symbol DS3478 Product Reference Guide
Set Lengths for Code 93 (continued)
Code 93 - One Discrete Length
Code 93 - Two Discrete Lengths
Code 93 - Length Within Range
Code 93 - Any Length
Symbologies 13 - 35
Code 11
Code 11
To enable or disable Code 11, scan the appropriate bar code below.
Set Lengths for Code 11
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 11 for any length, one or two discrete lengths, or lengths within a specific
range.
One Discrete Length - This option allows the digital scanner to decode only those Code 11 symbols containing a
selected length. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length. For example,
to decode only Code 11 symbols with 14 characters, scan Code 11 - One Discrete Length, then scan 1 followed
by 4. In case of an error, or to change the selection, scan Cancel on page D-3.
Two Discrete Lengths - This option allows the digital scanner to decode only those Code 11 symbols
containing either of two selected lengths. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select
lengths. For example, to decode only Code 11 symbols containing either 2 or 14 characters, select Code 11 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. In case of an error, or to change the selection, scan Cancel
on page D-3.
Length Within Range - This option allows the digital scanner to decode a Code 11 symbol within a specific
length range. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length range. For
example, to decode Code 11 symbols containing between 4 and 12 characters, first scan Code 11 - Length
Within Range. Then scan 0, 4, 1, and 2 (insert a leading zero for single digit numbers). In case of an error, or to
change the selection, scan Cancel on page D-3.
Any Length - This option allows the digital scanner to decode Code 11 symbols containing any number of
characters within the digital scanner’s capability.
Enable Code 11
*Disable Code 11
13 - 36 Symbol DS3478 Product Reference Guide
Set Lengths for Code 11 (continued)
Code 11 - One Discrete Length
Code 11 - Two Discrete Lengths
Code 11 - Length Within Range
Code 11 - Any Length
Symbologies 13 - 37
Code 11 Check Digit Verification
Enable this feature to check the integrity of all Code 11 symbols to verify that the data complies with the specified
check digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code. The options are
to check for one check digit, check for two check digits, or disable the feature.
To enable this feature, scan the bar code below corresponding to the number of check digits encoded in the Code
11 symbols.
*Disable
One Check Digit
Two Check Digits
13 - 38 Symbol DS3478 Product Reference Guide
Transmit Code 11 Check Digits
This feature selects whether or not to transmit the Code 11 check digit(s).
Transmit Code 11 Check Digit(s)
(Enable)
*Do Not Transmit Code 11 Check Digit(s)
(Disable)
NOTE Code 11 Check Digit Verification must be enabled for this parameter to function.
Symbologies 13 - 39
Interleaved 2 of 5 (I 2 of 5)
Enable/Disable Interleaved 2 of 5
To enable or disable Interleaved 2 of 5, scan the appropriate bar code below, and select an Interleaved 2 of 5
length.
Set Lengths for Interleaved 2 of 5
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for I 2 of 5 for any length, one or two discrete lengths, or lengths within a specific
range.
One Discrete Length - This option allows the digital scanner to decode only those I 2 of 5 symbols containing a
selected length. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length. For example,
to decode only I 2 of 5 symbols with 14 characters, scan I 2 of 5 - One Discrete Length, then scan 1 followed by
4. In case of an error, or to change the selection, scan Cancel on page D-3.
Two Discrete Lengths - This option allows the digital scanner to decode only those I 2 of 5 symbols
containing either of two selected lengths. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select
lengths. For example, to decode only I 2 of 5 symbols containing either 2 or 14 characters, select I 2 of 5 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. In case of an error, or to change the selection, scan Cancel
on page D-3.
Length Within Range - This option allows the digital scanner to decode an I 2 of 5 symbol within a specific
length range. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length range. For
example, to decode I 2 of 5 symbols containing between 4 and 12 characters, first scan I 2 of 5 - Length Within
Range. Then scan 0, 4, 1, and 2 (insert a leading zero for single digit numbers). In case of an error, or to change
the selection, scan Cancel on page D-3.
Any Length - This option allows the digital scanner to decode I 2 of 5 symbols containing any number of
characters within the digital scanner’s capability.
*Enable Interleaved 2 of 5
Disable Interleaved 2 of 5
NOTE Due to the construction of the I 2 of 5 symbology, the digital scanner can interpret a scan line covering
only a portion of the code as a complete scan, yielding less data than is encoded in the bar code. To
prevent this, select specific lengths (I 2 of 5 - One Discrete Length, Two Discrete Lengths) for I 2 of 5
applications.
13 - 40 Symbol DS3478 Product Reference Guide
Set Lengths for Interleaved 2 of 5 (continued)
I 2 of 5 - One Discrete Length
I 2 of 5 - Two Discrete Lengths
I 2 of 5 - Length Within Range
I 2 of 5 - Any Length
Symbologies 13 - 41
I 2 of 5 Check Digit Verification
Enable this feature to check the integrity of all I 2 of 5 symbols to verify that the data complies with either the
specified Uniform Symbology Specification (USS), or the Optical Product Code Council (OPCC) check digit
algorithm.
Transmit I 2 of 5 Check Digit
Scan the appropriate bar code below to transmit I 2 of 5 data with or without the check digit.
*Disable
USS Check Digit
OPCC Check Digit
Transmit I 2 of 5 Check Digit
(Enable)
*Do Not Transmit I 2 of 5 Check Digit
(Disable)
13 - 42 Symbol DS3478 Product Reference Guide
Convert I 2 of 5 to EAN-13
This parameter converts a 14 character I 2 of 5 code into EAN-13, and transmits to the host as EAN-13. Before
enabling this, first enable the I 2 of 5 symbology. The code must include a leading zero and a valid EAN-13 check
digit.
To enable this feature, scan Convert I 2 of 5 to EAN-13 (Enable).
Convert I 2 of 5 to EAN-13
(Enable)
*Do Not Convert I 2 of 5 to EAN-13
(Disable)
Symbologies 13 - 43
Discrete 2 of 5 (D 2 of 5)
Enable/Disable Discrete 2 of 5
To enable or disable Discrete 2 of 5, scan the appropriate bar code below.
Set Lengths for Discrete 2 of 5
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for D 2 of 5 for any length, one or two discrete lengths, or lengths within a specific
range.
One Discrete Length - This option allows the digital scanner to decode only those D 2 of 5 symbols containing a
selected length. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length. For example,
to decode only D 2 of 5 symbols with 14 characters, scan D 2 of 5 - One Discrete Length, then scan 1 followed by
4. In case of an error, or to change the selection, scan Cancel on page D-3.
Two Discrete Lengths - This option allows the digital scanner to decode only those D 2 of 5 symbols
containing either of two selected lengths. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select
lengths. For example, to decode only D 2 of 5 symbols containing either 2 or 14 characters, select D 2 of 5 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. In case of an error, or to change the selection, scan Cancel
on page D-3.
Length Within Range - This option allows the digital scanner to decode a D 2 of 5 symbol within a specific
length range. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length range. For
example, to decode D 2 of 5 symbols containing between 4 and 12 characters, first scan D 2 of 5 - Length
Within Range. Then scan 0, 4, 1, and 2 (insert a leading zero for single digit numbers). In case of an error, or to
change the selection, scan Cancel on page D-3.
Any Length - This option allows the digital scanner to decode D 2 of 5 symbols containing any number of
characters within the digital scanner’s capability.
Enable Discrete 2 of 5
*Disable Discrete 2 of 5
NOTE Due to the construction of the D 2 of 5 symbology, the digital scanner can interpret a scan line covering
only a portion of the code as a complete scan, yielding less data than is encoded in the bar code. To
prevent this, select specific lengths (D 2 of 5 - One Discrete Length, Two Discrete Lengths) for D 2 of 5
applications.
13 - 44 Symbol DS3478 Product Reference Guide
Set Lengths for Discrete 2 of 5 (continued)
D 2 of 5 - One Discrete Length
D 2 of 5 - Two Discrete Lengths
D 2 of 5 - Length Within Range
D 2 of 5 - Any Length
Symbologies 13 - 45
Codabar (NW - 7)
Enable/Disable Codabar
To enable or disable Codabar, scan the appropriate bar code below.
Set Lengths for Codabar
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Codabar for any length, one or two discrete lengths, or lengths within a specific
range.
One Discrete Length - This option allows the digital scanner to decode only those Codabar symbols containing a
selected length. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length. For example,
to decode only Codabar symbols with 14 characters, scan Codabar - One Discrete Length, then scan 1 followed
by 4. In case of an error, or to change the selection, scan Cancel on page D-3.
Two Discrete Lengths - This option allows the digital scanner to decode only those Codabar symbols
containing either of two selected lengths. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select
lengths. For example, to decode only Codabar symbols containing either 2 or 14 characters, select Codabar - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. In case of an error, or to change the selection, scan Cancel
on page D-3.
Length Within Range - This option allows the digital scanner to decode a Codabar symbol within a specific
length range. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length range. For
example, to decode Codabar symbols containing between 4 and 12 characters, first scan Codabar - Length
Within Range. Then scan 0, 4, 1, and 2 (insert a leading zero for single digit numbers). In case of an error, or to
change the selection, scan Cancel on page D-3.
Any Length - This option allows the digital scanner to decode Codabar symbols containing any number of
characters within the digital scanner’s capability.
Enable Codabar
*Disable Codabar
13 - 46 Symbol DS3478 Product Reference Guide
Set Lengths for Codabar (continued)
Codabar - One Discrete Length
Codabar - Two Discrete Lengths
Codabar - Length Within Range
Codabar - Any Length
Symbologies 13 - 47
CLSI Editing
Enable this parameter to strip the start and stop characters and insert a space after the first, fifth, and tenth
characters of a 14-character Codabar symbol. Enable this feature if the host system requires this data format.
Symbol length does not include start and stop characters.
NOTIS Editing
Enable this parameter to strip the start and stop characters from a decoded Codabar symbol. Enable this feature if
the host system requires this data format.
Enable CLSI Editing
*Disable CLSI Editing
Enable NOTIS Editing
*Disable NOTIS Editing
13 - 48 Symbol DS3478 Product Reference Guide
MSI
Enable/Disable MSI
To enable or disable MSI, scan the appropriate bar code below.
Set Lengths for MSI
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for MSI for any length, one or two discrete lengths, or lengths within a specific
range.
One Discrete Length - This option allows the digital scanner to decode only those MSI symbols containing a
selected length. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length. For example,
to decode only MSI symbols with 14 characters, scan MSI - One Discrete Length, then scan 1 followed by 4. In
case of an error, or to change the selection, scan Cancel on page D-3.
Two Discrete Lengths - This option allows the digital scanner to decode only those MSI symbols containing
either of two selected lengths. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select lengths.
For example, to decode only MSI symbols containing either 2 or 14 characters, select MSI - Two Discrete
Lengths, then scan 0, 2, 1, and then 4. In case of an error, or to change the selection, scan Cancel on page
D-3.
Length Within Range - This option allows the digital scanner to decode an MSI symbol within a specific
length range. Use the numeric bar codes in Appendix D, Numeric Bar Codes to select the length range. For
example, to decode MSI symbols containing between 4 and 12 characters, first scan MSI - Length Within
Range. Then scan 0, 4, 1, and 2 (insert a leading zero for single digit numbers). In case of an error, or to change
the selection, scan Cancel on page D-3.
Any Length - This option allows the digital scanner to decode MSI symbols containing any number of characters
within the digital scanner’s capability.
Enable MSI
*Disable MSI
NOTE Due to the construction of the MSI symbology, the digital scanner can interpret a scan line covering only a
portion of the code as a complete scan, yielding less data than is encoded in the bar code. To prevent this,
select specific lengths (MSI - One Discrete Length, Two Discrete Lengths) for MSI applications.
Symbologies 13 - 49
Set Lengths for MSI (continued)
MSI - One Discrete Length
MSI - Two Discrete Lengths
MSI - Length Within Range
MSI - Any Length
13 - 50 Symbol DS3478 Product Reference Guide
MSI Check Digits
With MSI symbols, one check digit is mandatory and always verified by the reader. The second check digit is
optional. If the MSI codes include two check digits, enable the verification of the second check digit by scanning the
bar code below.
See MSI Check Digit Algorithm on page 13-51 for the selection of second digit algorithms.
Transmit MSI Check Digit(s)
Scan a bar code below to transmit MSI data with or without the check digit.
*One MSI Check Digit
Two MSI Check Digits
Transmit MSI Check Digit(s)
(Enable)
*Do Not Transmit MSI Check Digit(s)
(Disable)
Symbologies 13 - 51
MSI Check Digit Algorithm
Two algorithms are possible for the verification of the second MSI check digit. Select the bar code below
corresponding to the algorithm used to encode the check digit.
MOD 10/MOD 11
*MOD 10/MOD 10
13 - 52 Symbol DS3478 Product Reference Guide
Inverse 1D
This parameter sets the 1D inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular 1D bar codes only.
•
Inverse Only - the scanner decodes inverse 1D bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse 1D bar codes.
*Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
Symbologies 13 - 53
Postal Codes
US Postnet
To enable or disable US Postnet, scan the appropriate bar code below.
US Planet
To enable or disable US Planet, scan the appropriate bar code below.
*Enable US Postnet
Disable US Postnet
*Enable US Planet
Disable US Planet
13 - 54 Symbol DS3478 Product Reference Guide
UK Postal
To enable or disable UK Postal, scan the appropriate bar code below.
Transmit UK Postal Check Digit
Select whether to transmit UK Postal data with or without the check digit.
*Enable UK Postal
Disable UK Postal
*Transmit UK Postal
Check Digit
Do Not Transmit UK Postal Check Digit
Symbologies 13 - 55
Japan Postal
To enable or disable Japan Postal, scan the appropriate bar code below.
Australian Postal
To enable or disable Australian Postal, scan the appropriate bar code below.
*Enable Japan Postal
Disable Japan Postal
*Enable Australian Postal
Disable Australian Postal
13 - 56 Symbol DS3478 Product Reference Guide
Dutch Postal
To enable or disable Dutch Postal, scan the appropriate bar code below.
4State Postal
To enable or disable 4State Postal, scan the appropriate bar code below.
*Enable Dutch Postal
Disable Dutch Postal
Enable 4State Postal
(01h)
*Disable 4State Postal
(00h)
Symbologies 13 - 57
Post US4
To enable or disable Post US$, scan the appropriate bar code below.
Transmit US Postal Check Digit
Select whether to transmit US Postal data with or without the check digit.
Enable Post US4
(01h)
*Disable Post US4
(00h)
*Transmit US Postal Check Digit
Do Not Transmit US Postal Check Digit
13 - 58 Symbol DS3478 Product Reference Guide
GS1 DataBar (formerly RSS - Reduced Space Symbology)
The variants of GS1 DataBar are DataBar-14, DataBar Expanded, and DataBar Limited. The limited and expanded
versions have stacked variants. Scan the appropriate bar codes to enable or disable each variant of GS1 DataBar.
GS1 DataBar-14
GS1 DataBar Limited
*Enable GS1 DataBar-14
Disable GS1 DataBar-14
*Enable GS1 DataBar Limited
Disable GS1 DataBar Limited
Symbologies 13 - 59
GS1 DataBar Expanded
Convert GS1 DataBar to UPC/EAN
This parameter only applies to DataBar-14 and GS1 DataBar Limited symbols not decoded as part of a composite
symbol. Enable this conversion to strip the leading '010' from DataBar-14 and GS1 DataBar Limited symbols
encoding a single zero as the first digit, and report the bar code as EAN-13.
When the digital scanner decodes bar codes beginning with two or more zeros but not six zeros, it strips the
leading '0100' and reports the bar code as UPC-A. The UPC-A Preamble parameter to transmit the system
character and country code applies to converted bar codes. Note that the digital scanner cannot strip the system
character or the check digit.
*Enable GS1 DataBar Expanded
Disable GS1 DataBar Expanded
Enable Convert GS1 DataBar to UPC/EAN
*Disable Convert GS1 DataBar to UPC/EAN
13 - 60 Symbol DS3478 Product Reference Guide
Composite
Composite CC-C
Scan a bar code below to enable or disable Composite bar codes of type CC-C.
Composite CC-A/B
Scan a bar code below to enable or disable Composite bar codes of type CC-A/B.
Enable CC-C
*Disable CC-C
Enable CC-A/B
*Disable CC-A/B
Symbologies 13 - 61
Composite TLC-39
Scan a bar code below to enable or disable Composite bar codes of type TLC-39.
UPC Composite Mode
Select an option for linking UPC symbols with a 2D symbol during transmission as if they were one symbol:
•
Select UPC Never Linked to transmit UPC bar codes regardless of whether a 2D symbol is detected.
•
Select UPC Always Linked to transmit UPC bar codes and the 2D portion.
If 2D is not present, the UPC bar code does not transmit.
•
If Autodiscriminate UPC Composites is selected, the scanner determines if there is a 2D portion, then
transmits the UPC as well as the 2D portion if present.
Enable TLC39
*Disable TLC39
UPC Never Linked
*UPC Always Linked
Autodiscriminate UPC Composites
13 - 62 Symbol DS3478 Product Reference Guide
GS1-128 Emulation Mode for UCC/EAN Composite Codes
Scan one of the following bar codes to enable or disable this mode. Enable this to transmit composite bar codes as
GS1-128 bar codes as per the AIM specification for UCC/EAN Composite Codes.
Enable GS1-128 Emulation Mode for
UCC/EAN Composite Codes
*Disable GS1-128 Emulation Mode for
UCC/EAN Composite Codes
Symbologies 13 - 63
2D Symbologies
Enable/Disable PDF417
To enable or disable PDF417, scan the appropriate bar code below.
Enable/Disable MicroPDF417
To enable or disable MicroPDF417, scan the appropriate bar code below.
*Enable PDF417
Disable PDF417
Enable MicroPDF417
*Disable MicroPDF417
13 - 64 Symbol DS3478 Product Reference Guide
Code 128 Emulation
Enable this parameter to transmits data from certain MicroPDF417 symbols as if it was encoded in Code 128
symbols. Transmit AIM Symbology Identifiers must be enabled for this parameter to work.
Enable Code 128 Emulation to transmit these MicroPDF417 symbols with one of the following prefixes:
]C1 if the first codeword is 903-905
]C2 if the first codeword is 908 or 909
]C0 if the first codeword is 910 or 911
Disable Code 128 Emulation to transmit these MicroPDF417 symbols with one of the following prefixes:
]L3 if the first codeword is 903-905
]L4 if the first codeword is 908 or 909
]L5 if the first codeword is 910 or 911
Scan a bar code below to enable or disable Code 128 Emulation.
NOTE Linked MicroPDF codewords 906, 907, 912, 914, and 915 are not supported. Use GS1 Composites
instead.
Enable Code 128 Emulation
*Disable Code 128 Emulation
Symbologies 13 - 65
Data Matrix
To enable or disable Data Matrix, scan the appropriate bar code below.
Data Matrix Inverse
This parameter sets the Data Matrix inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular Data Matrix bar codes only.
•
Inverse Only - the scanner decodes inverse Data Matrix bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse Data Matrix bar codes.
*Enable Data Matrix
Disable Data Matrix
NOTE If you enable DPM Scanning on page 5-5, the scanner behaves as if the Inverse Autodetect setting is
selected. When you disable DPM Scanning, the previous (user-selected) Data Matrix Inverse setting
remains in effect.
*Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
13 - 66 Symbol DS3478 Product Reference Guide
Maxicode
To enable or disable Maxicode, scan the appropriate bar code below.
QR Code
To enable or disable QR Code, scan the appropriate bar code below.
*Enable Maxicode
Disable Maxicode
*Enable QR Code
Disable QR Code
Symbologies 13 - 67
MicroQR
To enable or disable MicroQR, scan the appropriate bar code below.
QR Inverse
This parameter sets the QR inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular QR bar codes only.
•
Inverse Only - the scanner decodes inverse QR bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse QR bar codes.
*Enable MicroQR
(01h)
Disable MicroQR
(00h)
*Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
13 - 68 Symbol DS3478 Product Reference Guide
Aztec
To enable or disable Aztec, scan the appropriate bar code below.
Aztec Inverse
This parameter sets the Aztec inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular Aztec bar codes only.
•
Inverse Only - the scanner decodes inverse Aztec bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse Aztec bar codes.
*Enable Aztec
(01h)
Disable Aztec
(00h)
*Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
Symbologies 13 - 69
Redundancy Level
The digital scanner offers four levels of decode redundancy. Select higher redundancy levels for lower quality bar
codes. As redundancy levels increase, the digital scanner’s aggressiveness decreases.
Select the redundancy level appropriate for the bar code quality.
Redundancy Level 1
The digital scanner must successfully read the following code types twice before decode:
Redundancy Level 2
The digital scanner must successfully read all code types twice before decode.
Redundancy Level 3
The digital scanner must successfully read code types other than the following twice before decode. It must read
the following codes three times:
Redundancy Level 4
The digital scanner must successfully read all code types three times before decode.
Code Type Code Length
Codabar 8 characters or less
MSI 4 characters or less
D 2 of 5 8 characters or less
I 2 of 5 8 characters or less
Code Type Code Length
MSI Plessey 4 characters or less
D 2 of 5 8 characters or less
I 2 of 5 8 characters or less
Codabar 8 characters or less
13 - 70 Symbol DS3478 Product Reference Guide
Redundancy Level (continued)
*Redundancy Level 1
Redundancy Level 2
Redundancy Level 3
Redundancy Level 4
Symbologies 13 - 71
Security Level
The digital scanner offers four levels of decode security for UPC/EAN bar codes. Select higher security levels for
lower quality bar codes. There is an inverse relationship between security and decode speed, so be sure to choose
only that level of security necessary for the application.
Security Level 0
This default setting allows the digital scanner to operate fastest, while providing sufficient security in decoding
“in-spec” UPC/EAN bar codes.
Security Level 1
As bar code quality levels diminish, certain characters become prone to misdecodes before others (i.e., 1, 2, 7, 8).
If the digital scanner is misdecoding poorly printed bar codes, and the misdecodes are limited to these characters,
select this security level.
Security Level 2
If the digital scanner is misdecoding poorly printed bar codes, and the misdecodes are not limited to characters 1,
2, 7, and 8, select this security level.
Security Level 3
If the digital scanner is still misdecoding, select this security level. Be advised, selecting this option is an extreme
measure against misdecoding severely out of spec bar codes. Selecting this level of security can significantly
impair the decoding ability of the digital scanner. If this level of security is necessary, try to improve the quality of
the bar codes.
13 - 72 Symbol DS3478 Product Reference Guide
Security Level (continued)
*Security Level 0
Security Level 1
Security Level 2
Security Level 3
Symbologies 13 - 73
Intercharacter Gap Size
The Code 39 and Codabar symbologies have an intercharacter gap that is typically quite small. Due to various bar
code-printing technologies, this gap can grow larger than the maximum size allowed, preventing the digital scanner
from decoding the symbol. If this problem occurs, scan the Large Intercharacter Gaps parameter to tolerate these
out-of-specification bar codes.
*Normal Intercharacter Gaps
Large Intercharacter Gaps
13 - 74 Symbol DS3478 Product Reference Guide
Macro PDF Features
Macro PDF is a special feature for concatenating multiple PDF symbols into one file. The digital scanner can
decode symbols that are encoded with this feature, and can store more than 64 kb of decoded data stored in up to
50 MacroPDF symbols.
Flush Macro Buffer
This flushes the buffer of all decoded Macro PDF data stored to that point, transmits it to the host device, and
aborts from Macro PDF mode.
Abort Macro PDF Entry
This clears all currently-stored Macro PDF data in the buffer without transmission and aborts from Macro PDF
mode.
CAUTION When printing, keep each Macro PDF sequence separate, as each sequence has unique identifiers.
Do not mix bar codes from several Macro PDF sequences, even if they encode the same data. When
scanning Macro PDF sequences, scan the entire sequence without interruption. If, when scanning a
mixed sequence, the digital scanner emits two long low beeps (low-low) this indicates an inconsistent
file ID or inconsistent symbology error.
Flush Macro PDF Buffer
Abort Macro PDF Entry
Chapter 14 Miscellaneous Scanner Options
Introduction
This chapter includes bar codes to customize how data transmits to the host device. Also see each host chapter for
the appropriate host connections and host device features for the digital scanner. See Chapter 13, Symbologies
and Chapter 15, Advanced Data Formatting for more options for customizing how data transmits to the host.
Before programming, follow the instructions in Chapter 1, Getting Started.
The digital scanner ships with the settings shown in Table 14-1 (also see Appendix A, Standard Default Parameters
for all host and miscellaneous scanner defaults). If the default values suit requirements, programming is not
necessary. Set feature values by scanning single bar codes or short bar code sequences.
Scanning Sequence Examples
In most cases, scan only one bar code to set a parameter value. Other parameters, such as Prefix Value, require
scanning several bar codes in sequence. See the parameter description for this procedure.
Errors While Scanning
Unless otherwise specified, if you make an error during a scanning sequence, re-scan the correct parameter.
14 - 2 Symbol DS3478 Product Reference Guide
Miscellaneous Default Parameters
Table 14-1 lists the defaults for miscellaneous scanner options parameters. To change an option, scan the
appropriate bar code(s) in this chapter.
NOTE See Appendix A, Standard Default Parameters for all user preference, host, symbology, and
miscellaneous default parameters.
Table 14-1
Miscellaneous Scanner Options Default Table
Parameter Default Page
Number
Miscellaneous Scanner Options
Transmit Code ID Character None
14-3
Prefix Value 7013 <CR><LF>
14-4
Suffix 1 Value
Suffix 2 Value
7013 <CR><LF>
14-4
Scan Data Transmission Format Data As Is
14-5
FN1 Substitution Values Set FN1 Substitution
Value
14-6
Transmit “No Read” Message Disable No Read
14-7
Report Version
14-7
Miscellaneous Scanner Options 14 - 3
Miscellaneous Scanner Parameters
Transmit Code ID Character
A code ID character identifies the code type of a scanned bar code. This is useful when the digital scanner is
decoding more than one code type. Select a code ID character to insert between the prefix and the decoded
symbol.
Select no code ID character, a Symbol code ID character, or an AIM code ID character. For code ID characters,
see Symbol Code Identifiers on page B-1 and AIM Code Identifiers on page B-3.
NOTE If you enable Symbol Code ID Character or AIM Code ID Character, and enable Transmit “No Read”
Message on page 14-7, the scanner appends the code ID for Code 39 to the NR message.
Symbol Code ID Character
AIM Code ID Character
*None
14 - 4 Symbol DS3478 Product Reference Guide
Prefix/Suffix Values
To assign a prefix and/or one or two suffix values to append to scan data for use in data editing, scan the
appropriate bar code, then scan a four-digit number (i.e., four numeric bar codes) from Appendix D, Numeric Bar
Codes that corresponds to key codes for various terminals. For conversion information, see the ASCII Character
Set tables in the appropriate host chapter. To correct an error or change the selection, scan Cancel on page D-3.
NOTE To use Prefix/Suffix values, set the Scan Data Transmission Format.
Scan Prefix
Scan Suffix 1
Scan Suffix 2
Data Format Cancel
Miscellaneous Scanner Options 14 - 5
Scan Data Transmission Format
To change the scan data format, scan one of the following bar codes corresponding to the desired format.
To set values for the prefix and/or suffix, see Prefix/Suffix Values on page 14-4.
NOTE If using this parameter do not use ADF rules to set the prefix/suffix.
*Data As Is
<DATA> <SUFFIX 1>
<DATA> <SUFFIX 2>
<DATA> <SUFFIX 1> <SUFFIX 2>
<PREFIX> <DATA >
14 - 6 Symbol DS3478 Product Reference Guide
FN1 Substitution Values
The keyboard wedge and USB HID keyboard hosts support a FN1 Substitution feature. Enable this to replace any
FN1 character (0x1b) in an EAN128 bar code with a defined value. This value defaults to 7013 (Enter Key).
1. To select a FN1 substitution value, scan the following bar code.
Set FN1 Substitution Value
2. Enter the 4-digit FN1 substitution (ASCII) value by scanning each digit in Appendix D, Numeric Bar Codes. See
the ASCII Character Set table for the host interface.
To correct an error or change the selection, scan Cancel on page D-3.
To enable FN1 Substitution for keyboard wedge, scan the Enable Keyboard Wedge FN1 Substitution bar code on
page 6-11.
To enable FN1 Substitution for the USB HID keyboard, scan the Enable USB Keyboard FN1 Substitution bar code
on page 8-9.
Scan Data Transmission Format (continued)
<PREFIX> <DATA> <SUFFIX 1>
<PREFIX> <DATA> <SUFFIX 2>
<PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2>
Miscellaneous Scanner Options 14 - 7
Transmit “No Read” Message
Scan one of the following bar codes to select whether or not to transmit a “No Read” message. Enable this to
transmit the characters NR when a bar code does not decode. Disable this to transmit nothing to the host if a
symbol does not decode.
Report Version
Scan the bar code below to report the version of software installed in the digital scanner.
NOTE If you enable Transmit No Read, and also enable Symbol Code ID Character or AIM Code ID Character
for Transmit Code ID Character on page 14-3, the scanner appends the code ID for Code 39 to the NR
message.
Enable No Read
*Disable No Read
Report Software Version
14 - 8 Symbol DS3478 Product Reference Guide
Chapter 15 Advanced Data Formatting
Introduction
Advanced Data Formatting (ADF) is a means of customizing data before transmission to the host device to suit
particular requirements.
To implement ADF, scan a related series of bar codes which begin on page 15-8, or use the 123Scan utility (see
Chapter 12, 123Scan) which allows programming the digital scanner with ADF rules.
Avoid using ADF formatting with bar codes containing more than 60 characters. To add a prefix or suffix value for
such bar codes, use Prefix/Suffix Values and Scan Data Transmission Format on page 14-5. Using ADF with
longer bar codes transmits the bar code in segments of length 252 or less (depending on the host selected), and
applies the rule to each segment.
Rules: Criteria Linked to Actions
ADF uses rules to customize data. These rules perform detailed actions when the data meets certain criteria. One
rule may consist of single or multiple criteria applied to single or multiple actions.
For instance, a data formatting rule could be:
Criteria: When scan data is Code 39, length 12, and data at the start position is
the string “129”,
Actions: pad all sends with zeros to length 8,
send all data up to X,
send a space.
If the digital scanner scans a Code 39 bar code of 1299X1559828, it transmits the following: 00001299<space>.
If the digital scanner scans a Code 39 bar code of 1299X15598, it ignores this rule because the bar code didn’t
meet the length criteria.
The rule specifies the editing conditions and requirements before data transmission occurs.
NOTE If using the wand interface with the digital scanner, in order to use ADF rules to format data, first enable
Convert All to Code 39 on page 10-7.
15 - 2 Symbol DS3478 Product Reference Guide
Creating ADF Rules
When programming a rule, make sure the rule is logically correct. Plan ahead before scanning.
To program each data formatting rule:
•
Start the Rule. Scan Begin New Rule on page 15-8.
•
Specify Criteria. Scan the bar codes for all pertinent criteria. Criteria can include code type (e.g., Code 128),
code length, or data that contains a specific character string (e.g., the digits “129”). See Criteria on page
15-11 for options.
•
Select Actions. Scan all actions related to, or affecting, these criteria. The actions of a rule specify how to
format the data for transmission. See Actions on page 15-27.
•
Save the Rule. Scan Save Rule on page 15-8. This places the rule in the “top” position in the rule buffer.
To erase criteria, actions, and entire rules, scan the appropriate bar code on page 15-9.
Beeper Definitions on page 2-2 guide through the programming steps.
ADF Programming Example
This section provides an example of how to enter ADF rules to use for scan data.
An auto parts distribution center wants to encode manufacturer ID, part number, and destination code into their
own Code 128 bar codes. The distribution center also has products that carry UPC bar codes, placed there by the
manufacturer. The Code 128 bar codes have the following format:
MMMMMPPPPPDD
Where: M = Manufacturer ID
P = Part Number
D = Destination Code
The distribution center uses a host computer with dedicated control characters for manufacturer ID <CTRL M>,
part number <CTRL P>, and destination code <CTRL D>. At this center the UPC data is treated as a manufacturer
ID code.
The center programs the following rules:
•
When scanning data of code type Code 128, send the next 5 characters, send the manufacturer ID key
<CTRL M>, send the next 5 characters, send the part number key <CTRL P>, send the next 2 characters,
send the destination code key <CTRL D>.
•
When scanning data of code type UPC/EAN, send all data, send the manufacturer ID key <CTRL M>.
To enter these rules, see the following section.
Advanced Data Formatting 15 - 3
Rule 1: The Code 128 Scanning Rule
Step Scan Bar Code On Page Beep Indication
1 Begin New Rule 15-8 High High
2 Code 128 15-11 High High
3 Send next 5 characters 15-28 High High
4 Send <CTRL M> 15-48 High High
5 Send next 5 characters 15-28 High High
6 Send <CTRL P> 15-48 High High
7 Send next 2 characters 15-27 High High
8 Send <CTRL D> 15-47 High High
9 Save Rule 15-8 High Low High Low
Rule 2: The UPC Scanning Rule
Step Scan Bar Code On Page Beep Indication
1 Begin New Rule 15-8 High High
2 UPC/EAN 15-12 High High
3 Send all remaining data 15-27 High High
4 Send <CTRL M> 15-48 High High
5 Save Rule 15-8 High Low High Low
To correct any errors made while entering this rule, scan Quit Entering Rules on page 15-9, or after saving the rule,
scan Erase Previously Saved Rule on page 15-9.
Alternate Rule Sets
You can group ADF rules into one of four alternate sets to turn on and off when needed. This is useful to format the
same message in different ways. For example, a Code 128 bar code contains the following information:
Class (2 digits), Stock Number (8) digits, Price (5 digits)
This bar code might look like this:
245671243701500
where:
Class = 24
Stock Number = 56712437
Price = 01500
Ordinarily, data is sent as follows:
24 (class key)
56712437 (stock key)
01500 (enter key)
15 - 4 Symbol DS3478 Product Reference Guide
But, when there is a sale, send only the following:
24 (class key)
56712437 (stock key)
and the cashier enters the price manually.
To implement this, first enter an ADF rule that applies to the normal situation, such as:
Scan Rule Belongs to Set 1. When scanning a bar code of length 15, send the next 2 characters, send the
class key, send the next 8 characters, send the stock key, send the data that remains, send the Enter key.
The “sale” rule may look like this:
Scan Rule Belongs to Set 2. When scanning a bar code of length 15, send the next 2 characters, send the
class key, send the next 8 characters, send the stock key.
To switch between the two sets of rules, program a “switching rule” to specify what type of bar code to scan to
switch between rule sets. For example, in the case of the “sale” rule above, the rule programmer wants the cashier
to scan the bar code “M” before a sale. To do this, enter the rule as follows:
When scanning a bar code of length 1 that begins with “M”, select rule set number 1.
Program another rule to switch back:
When scanning a bar code of length 1 that begins with “N”, turn off rule set number 1.
Or include the switching back to normal rules in the “sale” rule:
When scanning a bar code of length 15, send the next 2 characters, send the class key, send the next 8
characters, send the stock key, turn off rule set 1.
For optimal results, scan the Disable All Rule Sets on page 15-10 after programming a rule belonging to an
alternate rule set.
In addition to enabling and disabling rule sets within the rules, enable or disable them by scanning the appropriate
bar codes on page 15-10.
Advanced Data Formatting 15 - 5
Rules Hierarchy (in Bar Codes)
When programming rules, be sure to program the most general rule first, as rules are stored at the “top” of a rules
list in a buffer as they are entered. For example, if you create three rules, the list is configured as follows:
Third Rule
Second Rule
First Rule
After scanning data, the rules hierarchy checks the rules list from top to bottom to determine if the criteria matches
(and therefore, whether to apply the actions). Actions modify the data format specified by the first matching set of
criteria it finds, then disregard subsequent rules. For this reason, be sure to program the most general rule first.
For example, if the THIRD rule states:
When scanning a bar code of any length, send all data, then send the ENTER key.
and the SECOND rule states:
When scanning a Code 128 bar code of length 12, send the first four characters, then send the ENTER key,
then send all remaining data.
and you scan a Code 128 bar code of length 12, the THIRD rule applies and the SECOND rule does not function.
Note standard data editing functions (scan options) are considered ADF rules, and the previous hierarchy applies
to them. Scan options include prefix/suffix programming in the parameter Scan Data Transmission Format on page
14-5. These rules reside in the same “rule list” as ADF rules, so the order you create them is also important.
Default Rules
Every scanner has a default rule to send all scan data. Scanners with custom software may have one or more
default rules burned in. The rules hierarchy checks user programmable rules first, then the default rules. To disable
default rules enter the following general rule in the user programmable buffer:
When receiving scan data, send all data.
Since this rule always applies, ADF never applies the default rules.
Special Considerations for Multipoint Networks
ADF rules scanned by an individual scanner are NOT broadcast to other scanners in the piconet, as are other
parameters; however, ADF rules that 123Scan generates ARE broadcast to all scanners in the piconet. 123Scan
rules transmitted from the base are stored at the BEGINNING of the ADF rule buffer, regardless of the presence of
existing rules, while rules scanned by the scanner are appended to the existing buffer. For this reason, transmit
rules to be shared by all scanners from 123Scan FIRST. Then, scan rules to customize an individual scanner.
15 - 6 Symbol DS3478 Product Reference Guide
ADF Bar Codes
Table 15-1 lists the bar codes available through ADF.
Table 15-1
ADF Bar Codes
Parameter Page
Number
Special Commands 15-8
Pause Duration 15-8
Begin New Rule 15-8
Save Rule 15-8
Erase 15-9
Quit Entering Rules 15-9
Disable Rule Set 15-10
Criteria 15-11
Code Types 15-11
Code Lengths 15-18
1 Character
-
6 Characters 15-18
7 Characters
-
13 Characters 15-19
14 Characters
-
20 Characters 15-20
21 Characters
-
27 Characters 15-21
28 Characters
-
30 Characters 15-22
Specific String at Start 15-23
Specific String, Any Location 15-23
Any Message OK 15-23
Numeric Keypad 15-24
Rule Belongs To Set 15-26
Actions 15-27
Send Data 15-27
Send Data Up To Character
15-27
Send Next Character
15-27
Send All Data That Remains
15-27
Send Next 2 Characters
-
Send Next 20 Characters 15-27
Move Cursor 15-31
Advanced Data Formatting 15 - 7
Send Pause 15-31
Skip Ahead 15-32
Skip Back 15-33
Send Preset Value 15-35
Remove All Spaces 15-36
Crunch All Spaces 15-36
Stop Space Removal 15-36
Remove Leading Zeros 15-36
Stop Zero Removal 15-36
Pad Data with Spaces 15-37
Pad Data with Zeros 15-41
Beeps 15-46
Send Keystroke (Control Characters and Keyboard Characters) 15-46
Keyboard Characters 15-51
Send ALT Characters 15-65
Send Keypad Characters 15-70
Send Function Key 15-75
Send F1 Key
-
Send F24 Key 15-75
Send PF1 Key
-
Send PF30 Key 15-78
Send Right Control Key 15-82
Send Graphic User Interface (GUI) Characters 15-83
Send GUI 0
-
Send GUI 9 15-83
Send GUI A
-
Send GUI Z 15-84
Turn On Rule Sets 15-88
Alphanumeric Keyboard 15-90
Space
-
‘ 15-90
0
-
9 15-94
A
-
Z 15-95
Cancel 15-99
Table 15-1
ADF Bar Codes (Continued)
Parameter Page
Number
15 - 8 Symbol DS3478 Product Reference Guide
Special Commands
Pause Duration
This parameter, along with Send Pause on page 15-31, inserts a pause in the data transmission. To set pauses
scan a two-digit number (i.e., two bar codes) representing a 0.1 second interval. For example, scan bar codes 0
and 1 to insert a 0.1 second pause; 0 and 5 to insert a 0.5 second delay. See Appendix D, Numeric Bar Codes. To
correct an error or change a selection, scan Cancel on page D-3.
Pause Duration
Begin New Rule
Scan this bar code to start entering a new rule.
Begin New Rule
Save Rule
Scan this bar code to save the rule.
Save Rule
End of Message 15-99
a
-
z 15-99
{
-
~ 15-103
Table 15-1
ADF Bar Codes (Continued)
Parameter Page
Number
Advanced Data Formatting 15 - 9
Erase
Use these bar codes to erase criteria, actions, or rules.
Quit Entering Rules
Scan this bar code to quit entering rules.
Quit Entering Rules
Erase Criteria And Start Again
Erase Actions And Start Again
Erase Previously Saved Rule
Erase All Rules
15 - 10 Symbol DS3478 Product Reference Guide
Disable Rule Set
Use these bar codes to disable rule sets.
Disable Rule Set 1
Disable Rule Set 2
Disable Rule Set 3
Disable Rule Set 4
Disable All Rule Sets
Advanced Data Formatting 15 - 11
Criteria
Code Types
Select any number of code types to be affected by the rule. Scan all selected code types in succession, prior to
selecting other criteria. To select all code types, do not scan any code type.
Code 39
Codabar
GS1 DataBar-14
GS1 DataBar Limited
GS1 DataBar Expanded
Code 128
D 2 OF 5
15 - 12 Symbol DS3478 Product Reference Guide
Code Types (continued)
IATA 2 OF 5
I 2 OF 5
Code 93
UPC-A
UPC-E
EAN-8
EAN-13
Advanced Data Formatting 15 - 13
Code Types (continued)
MSI
GS1-128
UPC-E1
Bookland EAN
Trioptic Code 39
Code 11
Code 32
15 - 14 Symbol DS3478 Product Reference Guide
Code Types (continued)
ISBT 128
EAN 128
Coupon Code
US Postnet
US Planet
UK Postal
Japan Postal
Advanced Data Formatting 15 - 15
Code Types (continued)
Australian Postal
Dutch Postal
4State Postal
Post US4
PDF417
MicroPDF
Macro PDF
15 - 16 Symbol DS3478 Product Reference Guide
Code Types (continued)
Macro MicroPDF
MaxiCode
Data Matrix
QR Code
MicroQR
TLC 39
UPC/EAN Composites
Advanced Data Formatting 15 - 17
Code Types (continued)
GS1 DataBar and EAN128 Composites
Aztec
Aztec Rune
NOTE When selecting composite bar codes, enable AIM IDs if parsing UPC or EAN composite data, or data from
an application that uses symbol separators.
15 - 18 Symbol DS3478 Product Reference Guide
Code Lengths
Scan these bar codes to define the number of characters the selected code types must contain. Select one length
per rule only. Do not select any code length to select code types of any length.
1 Character
2 Characters
3 Characters
4 Characters
5 Characters
6 Characters
Advanced Data Formatting 15 - 19
Code Lengths (continued)
7 Characters
8 Characters
9 Characters
10 Characters
11 Characters
12 Characters
13 Characters
15 - 20 Symbol DS3478 Product Reference Guide
Code Lengths (continued)
14 Characters
15 Characters
16 Characters
17 Characters
18 Characters
19 Characters
20 Characters
Advanced Data Formatting 15 - 21
Code Lengths (continued)
21 Characters
22 Characters
23 Characters
24 Characters
25 Characters
26 Characters
27 Characters
15 - 22 Symbol DS3478 Product Reference Guide
Code Lengths (continued)
28 Characters
29 Characters
30 Characters
Advanced Data Formatting 15 - 23
Message Containing a Specific Data String
Use this feature to select whether formatting affects data that begins with a specific character or data string, or
contains a specific character or data string.
There are four features:
•
Specific String at Start
•
Specific String, Any Location
•
Any Message OK
•
Rule Belongs to Set.
Specific String at Start
To set a specific string at start:
1. Scan the Specific String At Start bar code.
2. Scan bar codes representing the desired character string (up to 8 characters) using the Alphanumeric
Keyboard on page 15-90.
3. Scan End of Message on page 15-99.
Specific String At Start
Specific String, Any Location
To set a specific string, any location:
1. Scan the Specific String Any Location bar code.
2. Scan a two-digit number representing the position (use a leading zero if necessary) using the Numeric Keypad
on page 15-24.
3. Scan bar codes representing the desired character string (up to 8 characters) using the Alphanumeric
Keyboard on page 15-90.
4. Scan End of Message on page 15-99.
Specific String Any Location
Any Message OK
Do not scan any bar code to format all selected code types, regardless of information contained.
15 - 24 Symbol DS3478 Product Reference Guide
Numeric Keypad
Do not confuse bar codes on this page with those on the alphanumeric keyboard.
0
1
2
3
4
5
6
Advanced Data Formatting 15 - 25
Numeric Keypad (continued)
7
8
9
Cancel
15 - 26 Symbol DS3478 Product Reference Guide
Rule Belongs To Set
Scan a bar code to select the set to which a rule belongs. There are four possible rule sets. See Alternate Rule
Sets on page 15-3 for more information about rule sets.
Rule Belongs To Set 1
Rule Belongs To Set 2
Rule Belongs To Set 3
Rule Belongs To Set 4
Advanced Data Formatting 15 - 27
Actions
Select how to format the data for transmission.
Send Data
Send all data that follows, send all data up to a specific character selected from the Alphanumeric Keyboard on
page 15-90, or send the next X characters. Note that only bar codes for Send Next 1 to 20 appear here, and can
be scanned multiple times to send values greater then 20. For instance, to send the next 28 characters, scan Send
Next 20 Characters, then Send Next 8 Characters.
Send Data Up To Character
Send All Data That Remains
Send Next Character
Send Next 2 Characters
Send Next 3 Characters
Send Next 4 Characters
15 - 28 Symbol DS3478 Product Reference Guide
Send Data (continued)
Send Next 5 Characters
Send Next 6 Characters
Send Next 7 Characters
Send Next 8 Characters
Send Next 9 Characters
Send Next 10 Characters
Send Next 11 Characters
Advanced Data Formatting 15 - 29
Send Data (continued)
Send Next 12 Characters
Send Next 13 Characters
Send Next 14 Characters
Send Next 15 Characters
Send Next 16 Characters
Send Next 17 Characters
Send Next 18 Characters
15 - 30 Symbol DS3478 Product Reference Guide
Send Data (continued)
Send Next 19 Characters
Send Next 20 Characters
Advanced Data Formatting 15 - 31
Setup Field(s)
Move Cursor
Select one of the following Move Cursor options:
•
Scan the Move Cursor To a Character bar code, then enter a character by scanning a bar code from the
Alphanumeric Keyboard on page 15-90, to move the cursor to the position after the matching character. If the
character is not there, the rule fails and ADF tries the next rule.
•
Scan the Move Cursor to Start bar code to move the cursor to the beginning of the data.
•
Scan the Move Cursor Past Character bar code, then enter a character by scanning a bar code from the
Alphanumeric Keyboard on page 15-90, to move the cursor past all sequential occurrences of this character.
For example, if the selected character is ‘A’, then the cursor moves past ‘A’, ‘AA’, ‘AAA’, etc. If the character is
not there, the cursor does not move (i.e., this has no effect).
Send Pause
Scan the bar code below to insert a pause in the transmission of data. To set the length of this pause, see Pause
Duration on page 15-8.
Move Cursor To Character
Move Cursor To Start
Move Cursor Past Character
Send Pause
15 - 32 Symbol DS3478 Product Reference Guide
Skip Ahead
Use the following bar codes to move the cursor ahead characters.
Skip Ahead 1 Character
Skip Ahead 2 Characters
Skip Ahead 3 Characters
Skip Ahead 4 Characters
Skip Ahead 5 Characters
Skip Ahead 6 Characters
Skip Ahead 7 Characters
Advanced Data Formatting 15 - 33
Skip Back
Use the following bar codes to move the cursor back characters.
Skip Ahead (continued)
Skip Ahead 8 Characters
Skip Ahead 9 Characters
Skip Ahead 10 Characters
Skip Back 1 Character
Skip Back 2 Characters
Skip Back 3 Characters
15 - 34 Symbol DS3478 Product Reference Guide
Skip Back (continued)
Skip Back 4 Characters
Skip Back 5 Characters
Skip Back 6 Characters
Skip Back 7 Characters
Skip Back 8 Characters
Skip Back 9 Characters
Skip Back 10 Characters
Advanced Data Formatting 15 - 35
Send Preset Value
Use these bar codes to send preset values. To set these values, see Prefix/Suffix Values on page 14-4. For
conversion information, see the ASCII Character Set tables in the appropriate host chapter.
Send Prefix (Value 2)
Send Suffix (Value 1)
15 - 36 Symbol DS3478 Product Reference Guide
Modify Data
These options modify data as described and apply to all send commands that follow it within a rule. For example,
programming pad zeros to length 6, send next 3 characters, stop padding, send next 5 characters, adds three
zeros to the first send, and the next send is unaffected by the padding. These options do not apply to the Send
Keystroke or Send Preset Value options.
Remove All Spaces
To remove all spaces in the send commands that follow, scan this bar code.
Remove All Spaces
Crunch All Spaces
To leave one space between words, scan this bar code. This also removes all leading and trailing spaces.
Crunch All Spaces
Stop Space Removal
Scan this bar code to disable space removal.
Stop Space Removal
Remove Leading Zeros
Scan this bar code to remove all leading zeros.
Remove Leading Zeros
Stop Zero Removal
Scan this bar code to disable the removal of zeros.
Stop Zero Removal
Advanced Data Formatting 15 - 37
Pad Data with Spaces
To pad data to the left, scan the bar code containing the desired number of spaces. Send commands activate this
parameter.
Pad Spaces To Length 1
Pad Spaces To Length 2
Pad Spaces To Length 3
Pad Spaces To Length 4
Pad Spaces To Length 5
Pad Spaces To Length 6
Pad Spaces To Length 7
15 - 38 Symbol DS3478 Product Reference Guide
Pad Data with Spaces (continued)
Pad Spaces To Length 8
Pad Spaces To Length 9
Pad Spaces To Length 10
Pad Spaces To Length 11
Pad Spaces To Length 12
Pad Spaces To Length 13
Pad Spaces To Length 14
Advanced Data Formatting 15 - 39
Pad Data with Spaces (continued)
Pad Spaces To Length 15
Pad Spaces To Length 16
Pad Spaces To Length 17
Pad Spaces To Length 18
Pad Spaces To Length 19
Pad Spaces To Length 20
Pad Spaces To Length 21
15 - 40 Symbol DS3478 Product Reference Guide
Pad Data with Spaces (continued)
Pad Spaces To Length 22
Pad Spaces To Length 23
Pad Spaces To Length 24
Pad Spaces To Length 25
Pad Spaces To Length 26
Pad Spaces To Length 27
Pad Spaces To Length 28
Advanced Data Formatting 15 - 41
Pad Data with Zeros
To pad data to the left, scan the bar code containing the desired number of zeros. Send commands activate this
parameter.
Pad Data with Spaces (continued)
Pad Spaces To Length 29
Pad Spaces To Length 30
Stop Pad Spaces
Pad Zeros To Length 1
Pad Zeros To Length 2
Pad Zeros To Length 3
15 - 42 Symbol DS3478 Product Reference Guide
Pad Data with Zeros (continued)
Pad Zeros To Length 4
Pad Zeros To Length 5
Pad Zeros To Length 6
Pad Zeros To Length 7
Pad Zeros To Length 8
Pad Zeros To Length 9
Pad Zeros To Length 10
Advanced Data Formatting 15 - 43
Pad Data with Zeros (continued)
Pad Zeros To Length 11
Pad Zeros To Length 12
Pad Zeros To Length 13
Pad Zeros To Length 14
Pad Zeros To Length 15
Pad Zeros To Length 16
Pad Zeros To Length 17
15 - 44 Symbol DS3478 Product Reference Guide
Pad Data with Zeros (continued)
Pad Zeros To Length 18
Pad Zeros To Length 19
Pad Zeros To Length 20
Pad Zeros To Length 21
Pad Zeros To Length 22
Pad Zeros To Length 23
Pad Zeros To Length 24
Advanced Data Formatting 15 - 45
Pad Data with Zeros (continued)
Pad Zeros To Length 25
Pad Zeros To Length 26
Pad Zeros To Length 27
Pad Zeros To Length 28
Pad Zeros To Length 29
Pad Zeros To Length 30
Stop Pad Zeros
15 - 46 Symbol DS3478 Product Reference Guide
Beeps
Select a beep sequence for each ADF rule.
Send Keystroke (Control Characters and Keyboard Characters)
Control Characters
Scan a Send bar code to specify the keystroke to send.
Beep Once
Beep Twice
Beep Three Times
Send Control 2
Send Control A
Send Control B
Advanced Data Formatting 15 - 47
Control Characters (continued)
Send Control C
Send Control D
Send Control E
Send Control F
Send Control G
Send Control H
Send Control I
15 - 48 Symbol DS3478 Product Reference Guide
Control Characters (continued)
Send Control J
Send Control K
Send Control L
Send Control M
Send Control N
Send Control O
Send Control P
Advanced Data Formatting 15 - 49
Control Characters (continued)
Send Control Q
Send Control R
Send Control S
Send Control T
Send Control U
Send Control V
Send Control W
15 - 50 Symbol DS3478 Product Reference Guide
Control Characters (continued)
Send Control X
Send Control Y
Send Control Z
Send Control [
Send Control \
Send Control ]
Advanced Data Formatting 15 - 51
Keyboard Characters
Scan a Send bar code to specify the keyboard characters to send.
Control Characters (continued)
Send Control 6
Send Control -
Send Space
Send !
Send “
Send #
15 - 52 Symbol DS3478 Product Reference Guide
Keyboard Characters (continued)
Send $
Send %
Send &
Send ‘
Send (
Send )
Send *
Advanced Data Formatting 15 - 53
Keyboard Characters (continued)
Send +
Send ,
Send -
Send .
Send /
Send 0
Send 1
15 - 54 Symbol DS3478 Product Reference Guide
Keyboard Characters (continued)
Send 2
Send 3
Send 4
Send 5
Send 6
Send 7
Send 8
Advanced Data Formatting 15 - 55
Keyboard Characters (continued)
Send 9
Send :
Send ;
Send <
Send =
Send >
Send ?
15 - 56 Symbol DS3478 Product Reference Guide
Keyboard Characters (continued)
Send @
Send A
Send B
Send C
Send D
Send E
Send F
Advanced Data Formatting 15 - 57
Keyboard Characters (continued)
Send G
Send H
Send I
Send J
Send K
Send L
Send M
15 - 58 Symbol DS3478 Product Reference Guide
Keyboard Characters (continued)
Send N
Send O
Send P
Send Q
Send R
Send S
Send T
Advanced Data Formatting 15 - 59
Keyboard Characters (continued)
Send U
Send V
Send W
Send X
Send Y
Send Z
Send [
15 - 60 Symbol DS3478 Product Reference Guide
Keyboard Characters (continued)
Send \
Send ]
Send ^
Send _
Send `
Send a
Send b
Advanced Data Formatting 15 - 61
Keyboard Characters (continued)
Send c
Send d
Send e
Send f
Send g
Send h
Send i
15 - 62 Symbol DS3478 Product Reference Guide
Keyboard Characters (continued)
Send j
Send k
Send l
Send m
Send n
Send o
Send p
Advanced Data Formatting 15 - 63
Keyboard Characters (continued)
Send q
Send r
Send s
Send t
Send u
Send v
Send w
15 - 64 Symbol DS3478 Product Reference Guide
Keyboard Characters (continued)
Send x
Send y
Send z
Send {
Send |
Send }
Send ~
Advanced Data Formatting 15 - 65
Send ALT Characters
Send Alt 2
Send Alt A
Send Alt B
Send Alt C
Send Alt D
Send Alt E
Send Alt F
15 - 66 Symbol DS3478 Product Reference Guide
Send ALT Characters (continued)
Send Alt G
Send Alt H
Send Alt I
Send Alt J
Send Alt K
Send Alt L
Send Alt M
Advanced Data Formatting 15 - 67
Send ALT Characters (continued)
Send Alt N
Send Alt O
Send Alt P
Send Alt Q
Send Alt R
Send Alt S
Send Alt T
15 - 68 Symbol DS3478 Product Reference Guide
Send ALT Characters (continued)
Send Alt U
Send Alt V
Send Alt W
Send Alt X
Send Alt Y
Send Alt Z
Send Alt [
Advanced Data Formatting 15 - 69
Send ALT Characters (continued)
Send Alt \
Send Alt ]
15 - 70 Symbol DS3478 Product Reference Guide
Send Keypad Characters
Send Keypad *
Send Keypad +
Send Keypad -
Send Keypad .
Send Keypad /
Send Keypad 0
Send Keypad 1
Advanced Data Formatting 15 - 71
Send Keypad Characters (continued)
Send Keypad 2
Send Keypad 3
Send Keypad 4
Send Keypad 5
Send Keypad 6
Send Keypad 7
Send Keypad 8
15 - 72 Symbol DS3478 Product Reference Guide
Send Keypad Characters (continued)
Send Keypad 9
Send Keypad Enter
Send Keypad Numlock
Send Break Key
Send Delete Key
Send Page Up Key
Send End Key
Advanced Data Formatting 15 - 73
Send Keypad Characters (continued)
Send Page Down Key
Send Pause Key
Send Scroll Lock Key
Send Backspace Key
Send Tab Key
Send Print Screen Key
Send Insert Key
15 - 74 Symbol DS3478 Product Reference Guide
Send Keypad Characters (continued)
Send Home Key
Send Enter Key
Send Escape Key
Send Up Arrow Key
Send Down Arrow Key
Send Left Arrow Key
Send Right Arrow Key
Advanced Data Formatting 15 - 75
Send Function Key
Send F1 Key
Send F2 Key
Send F3 Key
Send F4 Key
Send F5 Key
Send F6 Key
Send F7 Key
15 - 76 Symbol DS3478 Product Reference Guide
Send Function Key (continued)
Send F8 Key
Send F9 Key
Send F10 Key
Send F11 Key
Send F12 Key
Send F13 Key
Send F14 Key
Advanced Data Formatting 15 - 77
Send Function Key (continued)
Send F15 Key
Send F16 Key
Send F17 Key
Send F18 Key
Send F19 Key
Send F20 Key
Send F21 Key
15 - 78 Symbol DS3478 Product Reference Guide
Send Function Key (continued)
Send F22 Key
Send F23 Key
Send F24 Key
Send PF1 Key
Send PF2 Key
Send PF3 Key
Send PF4 Key
Advanced Data Formatting 15 - 79
Send Function Key (continued)
Send PF5 Key
Send PF6 Key
Send PF7 Key
Send PF8 Key
Send PF9 Key
Send PF10 Key
Send PF11 Key
15 - 80 Symbol DS3478 Product Reference Guide
Send Function Key (continued)
Send PF12 Key
Send PF13 Key
Send PF14 Key
Send PF15 Key
Send PF16 Key
Send PF17 Key
Send PF18 Key
Advanced Data Formatting 15 - 81
Send Function Key (continued)
Send PF19 Key
Send PF20 Key
Send PF21 Key
Send PF22 Key
Send PF23 Key
Send PF24 Key
Send PF25 Key
15 - 82 Symbol DS3478 Product Reference Guide
Send Right Control Key
Scan the Send Right Control Key bar code to send a tap (press and release) of the Right Control Key.
Send Right Control Key
Send Function Key (continued)
Send PF26 Key
Send PF27 Key
Send PF28 Key
Send PF29 Key
Send PF30 Key
Advanced Data Formatting 15 - 83
Send Graphic User Interface (GUI) Characters
These actions tap the specified key while holding the system-dependent GUI key. The definition of the GUI key
depends on the attached system.
Send GUI 0
Send GUI 1
Send GUI 2
Send GUI 3
Send GUI 4
Send GUI 5
15 - 84 Symbol DS3478 Product Reference Guide
Send Graphic User Interface (GUI) Characters (continued)
Send GUI 6
Send GUI 7
Send GUI 8
Send GUI 9
Send GUI A
Send GUI B
Send GUI C
Advanced Data Formatting 15 - 85
Send Graphic User Interface (GUI) Characters (continued)
Send GUI D
Send GUI E
Send GUI F
Send GUI G
Send GUI H
Send GUI I
Send GUI J
15 - 86 Symbol DS3478 Product Reference Guide
Send Graphic User Interface (GUI) Characters (continued)
Send GUI K
Send GUI L
Send GUI M
Send GUI N
Send GUI O
Send GUI P
Send GUI Q
Advanced Data Formatting 15 - 87
Send Graphic User Interface (GUI) Characters (continued)
Send GUI R
Send GUI S
Send GUI T
Send GUI U
Send GUI V
Send GUI W
Send GUI X
15 - 88 Symbol DS3478 Product Reference Guide
Turn On Rule Sets
Use these bar codes to turn rule sets on.
Send Graphic User Interface (GUI) Characters (continued)
Send GUI Y
Send GUI Z
Turn On Rule Set 1
Turn On Rule Set 2
Turn On Rule Set 3
Turn On Rule Set 4
Advanced Data Formatting 15 - 89
Turn Off Rule Sets
Use these bar codes to turn rule sets off.
Turn Off Rule Set 1
Turn Off Rule Set 2
Turn Off Rule Set 3
Turn Off Rule Set 4
15 - 90 Symbol DS3478 Product Reference Guide
Alphanumeric Keyboard
Space
#
$
%
*
+
-
(Dash)
Advanced Data Formatting 15 - 91
Alphanumeric Keyboard (continued)
.
,
/
!
“
&
‘
(
15 - 92 Symbol DS3478 Product Reference Guide
Alphanumeric Keyboard (continued)
)
:
;
<
=
>
?
Advanced Data Formatting 15 - 93
Alphanumeric Keyboard (continued)
@
[
\
]
^
_
(Underscore)
`
15 - 94 Symbol DS3478 Product Reference Guide
Alphanumeric Keyboard (continued)
NOTEDo not confuse the following numeric bar codes with those on the numeric keypad.
0
1
2
3
4
5
Advanced Data Formatting 15 - 95
Alphanumeric Keyboard (continued)
6
7
8
9
A
B
C
15 - 96 Symbol DS3478 Product Reference Guide
Alphanumeric Keyboard (continued)
D
E
F
G
H
I
J
Advanced Data Formatting 15 - 97
Alphanumeric Keyboard (continued)
K
L
M
N
O
P
Q
15 - 98 Symbol DS3478 Product Reference Guide
Alphanumeric Keyboard (continued)
R
S
T
U
V
W
X
Advanced Data Formatting 15 - 99
Alphanumeric Keyboard (continued)
Y
Z
Cancel
End of Message
a
b
c
15 - 100Symbol DS3478 Product Reference Guide
Alphanumeric Keyboard (continued)
d
e
f
g
h
i
j
Advanced Data Formatting15 - 101
Alphanumeric Keyboard (continued)
k
l
m
n
o
p
q
15 - 102Symbol DS3478 Product Reference Guide
Alphanumeric Keyboard (continued)
r
s
t
u
v
w
x
Advanced Data Formatting15 - 103
Alphanumeric Keyboard (continued)
y
z
{
|
}
~
15 - 104Symbol DS3478 Product Reference Guide
Appendix A Standard Default Parameters
Table A-1
Standard Default Parameters Table
Parameter Default Page
Number
User Preferences
Set Default Parameter All Defaults
4-3
Parameter Scanning Enable
4-3
Beeper Tone Medium
4-4
Beeper Volume High
4-5
Power Mode Reduced
4-5
Beep After Good Decode Enable
4-6
Picklist Mode Disabled Always
4-7
Decode Session Timeout 3.0 seconds
4-8
Fuzzy 1D Decoding Enable
4-8
Decode Mirror Images Never
4-9
Radio Communications
Connection Maintenance Interval 15 minutes
4-10
Radio Output Power (Bluetooth) Class 1
4-12
Parameter Broadcast Enable
4-12
Single Point/Multipoint Operation Single Point
4-13
1
User selection is required to configure this interface and this is the most
common selection.
A - 2 Symbol DS3478 Product Reference Guide
Decoding Options
Focus Mode Far Focus
5-3
Decoding Illumination Enable
5-4
Decode Aiming Pattern Enable
5-4
DPM Scanning Enable
5-5
Keyboard Wedge Host Parameters
Keyboard Wedge Host Type IBM PC/AT& IBM PC
Compatibles
1
6-4
Keyboard Wedge Country Types
(Country Codes) North American
6-5
Ignore Unknown Characters Enable
6-7
Keystroke Delay 0 msec (No Delay)
6-7
Intra-Keystroke Delay Disable
6-8
Alternate Numeric Keypad Emulation Disable
6-8
Caps Lock On Disable
6-9
Caps Lock Override Disable
6-9
Convert Wedge Data Do Not Convert
Wedge Data
6-10
Function Key Mapping Disable
6-10
FN1 Substitution Disable
6-11
Send Make and Break Send Make and Break
Scan Codes
6-11
RS-232 Host Parameters
RS-232 Host Types Standard RS-232
1
7-6
Baud Rate 9600
7-7
Parity None
7-9
Check Receive Errors Enable
7-10
Stop Bit Select 1 Stop Bit
7-10
Data Bits 8-Bit
7-11
Table A-1
Standard Default Parameters Table (Continued)
Parameter Default Page
Number
1
User selection is required to configure this interface and this is the most
common selection.
Standard Default Parameters A - 3
Hardware Handshaking None
7-11
Software Handshaking None
7-13
Host Serial Response Time-out Minimum: 2 Sec
7-15
RTS Line State Host: Low RTS
7-16
Beep on <BEL> Disable
7-16
Intercharacter Delay Minimum: 0 msec
7-17
Nixdorf Mode A/B and OPOS/JPOS Beep/
LED Options Normal Operation
7-18
Ignore Unknown Characters Send Bar Code
7-19
USB Host Parameters
USB Device Type HID Keyboard
Emulation
8-4
USB Country Keyboard Types (Country Codes) North American
8-5
USB Keystroke Delay No Delay (0 msec)
8-7
USB CAPS Lock Override Disable
8-7
USB Ignore Unknown Characters Enable
8-8
Emulate Keypad Disable
8-8
USB Keyboard FN1 Substitution Disable
8-9
Function Key Mapping Disable
8-9
Simulated Caps Lock Disable
8-10
Convert Case No Case Conversion
8-10
IBM 468X/469X Host Parameters
Port Address None Selected
9-4
Convert Unknown to Code 39 Disable
9-5
Wand Emulation Host Parameters
Wand Emulation Host Types Symbol OmniLink
Interface Controller
1
10-4
Leading Margin 80 msec
10-5
Polarity Bar High/Margin Low
10-6
Table A-1
Standard Default Parameters Table (Continued)
Parameter Default Page
Number
1
User selection is required to configure this interface and this is the most
common selection.
A - 4 Symbol DS3478 Product Reference Guide
Ignore Unknown Characters Enable
10-6
Convert All to Code 39 Disable
10-7
Convert Code 39 to Full ASCII Disable
10-8
Scanner Emulation Host Parameters
Beep Style Beep on Successful
Transmit
11-4
Parameter Pass-Through Parameter Process
and Pass Through
11-5
Convert Newer Code Types Convert Newer Code
Types
11-6
Module Width 20 µs Module Width
11-7
Convert All Bar Codes to Code 39 Disable
11-7
Code 39 Full ASCII Conversion Disable
11-8
Transmission Timeout 3 seconds
11-9
Ignore Unknown Characters Send Bar Codes with
Unknown Characters
11-10
Leading Margin 2 ms
11-11
Check for Decode LED Check for Decode
LED
11-12
123Scan Configuration Tool
123Scan Configuration None
1
12-1
UPC/EAN
UPC-A Enable
13-6
UPC-E Enable
13-6
UPC-E1 Disable
13-7
EAN-13 Enable
13-7
EAN-8 Enable
13-8
Bookland EAN Disable
13-8
Decode UPC/EAN Supplementals
(2 and 5 digits) Ignore Supplementals
13-9
Table A-1
Standard Default Parameters Table (Continued)
Parameter Default Page
Number
1
User selection is required to configure this interface and this is the most
common selection.
Standard Default Parameters A - 5
User-Programmable Supplementals
13-12
UPC/EAN Supplemental Redundancy 10
13-12
Transmit UPC-A Check Digit Enable
13-13
Transmit UPC-E Check Digit Enable
13-13
Transmit UPC-E1 Check Digit Enable
13-14
UPC-A Preamble System Character
13-15
UPC-E Preamble System Character
13-16
UPC-E1 Preamble System Character
13-17
Convert UPC-E to A Disable
13-18
Convert UPC-E1 to A Disable
13-18
EAN-8 Extend Disable
13-19
Bookland ISBN Format ISBN-10
13-20
UCC Coupon Extended Code Disable
13-21
Code 128
Code 128 Enable
13-22
Set Length(s) for Code 128 Any Length
13-22
GS1-128 (formerly UCC/EAN-128) Enable
13-24
ISBT 128 Enable
13-24
Code 39
Code 39 Enable
13-25
Trioptic Code 39 Disable
13-25
Convert Code 39 to Code 32 Disable
13-26
Code 32 Prefix Disable
13-26
Set Length(s) for Code 39 2 to 55
13-27
Code 39 Check Digit Verification Disable
13-29
Transmit Code 39 Check Digit Disable
13-29
Code 39 Full ASCII Conversion Disable
13-30
Buffer Code 39 Disable
13-31
Table A-1
Standard Default Parameters Table (Continued)
Parameter Default Page
Number
1
User selection is required to configure this interface and this is the most
common selection.
A - 6 Symbol DS3478 Product Reference Guide
Code 93
Code 93 Disable
13-33
Set Lengths for Code 93 4 to 55
13-33
Code 11
Code 11 Disable
13-35
Set Lengths for Code 11 4 to 55
13-35
Code 11 Check Digit Verification Disable
13-37
Transmit Code 11 Check Digits Disable
13-38
Interleaved 2 of 5 (I 2 of 5)
Interleaved 2 of 5 (I 2 of 5) Enable
13-39
Set Lengths for Interleaved 2 of 5 14
13-39
I 2 of 5 Check Digit Verification Disable
13-41
Transmit I 2 of 5 Check Digit Disable
13-41
Convert I 2 of 5 to EAN-13 Disable
13-42
Discrete 2 of 5 (D 2 of 5)
Discrete 2 of 5 Disable
13-43
Set Lengths for D 2 of 5 12
13-43
Codabar (NW - 7)
Codabar Disable
13-45
Set Lengths for Codabar 5 to 55
13-45
CLSI Editing Disable
13-47
NOTIS Editing Disable
13-47
MSI
MSI Disable
13-48
Set Lengths for MSI 4 to 55
13-48
MSI Check Digits One
13-50
Transmit MSI Check Digit(s) Disable
13-50
Table A-1
Standard Default Parameters Table (Continued)
Parameter Default Page
Number
1
User selection is required to configure this interface and this is the most
common selection.
Standard Default Parameters A - 7
MSI Check Digit Algorithm Mod 10/Mod 10
13-51
Inverse 1D
Regular
13-52
Postal Codes
US Postnet Enable
13-53
US Planet Enable
13-53
UK Postal Enable
13-54
Transmit UK Postal Check Digit Enable
13-54
Japan Postal Enable
13-55
Australian Postal Enable
13-55
Dutch Postal Enable
13-56
4State Postal Disable
13-56
Post US4 Disable
13-57
Transmit US Postal Check Digit Enable
13-57
GS1 DataBar
GS1 DataBar-14 Enable
13-58
GS1 DataBar Limited Enable
13-58
GS1 DataBar Expanded Enable
13-59
Convert GS1 DataBar to UPC/EAN Disable
13-59
Composite
Composite CC-C Disable
13-60
Composite CC-A/B Disable
13-60
Composite TLC-39 Disable
13-61
UPC Composite Mode Always Linked
13-61
GS1-128 Emulation Mode for UCC/EAN
Composite Codes Disable
13-62
2D Symbologies
PDF417 Enable
13-63
MicroPDF417 Disable
13-63
Table A-1
Standard Default Parameters Table (Continued)
Parameter Default Page
Number
1
User selection is required to configure this interface and this is the most
common selection.
A - 8 Symbol DS3478 Product Reference Guide
Code 128 Emulation Disable
13-64
Data Matrix Enable
13-65
Data Matrix Inverse Regular
13-65
Maxicode Enable
13-66
QR Code Enable
13-66
MicroQR Enable
13-67
QR Inverse Regular
13-67
Aztec Enable
13-68
Aztec Inverse Enable
13-68
Symbology - Specific Security Levels
Redundancy Level 1
13-69
Security Levels 0
13-71
Intercharacter Gap Size Normal
13-73
Macro PDF
Flush Macro PDF Buffer
13-74
Abort Macro PDF Entry
13-74
Miscellaneous Scanner Options
Transmit Code ID Character None
14-3
Prefix Value 7013 <CR><LF>
14-4
Suffix 1 Value
Suffix 2 Value
7013 <CR><LF>
14-4
Scan Data Transmission Format Data As Is
14-5
FN1 Substitution Values Set FN1 Substitution
Value
14-6
Transmit “No Read” Message Disable No Read
14-7
Report Version
14-7
Table A-1
Standard Default Parameters Table (Continued)
Parameter Default Page
Number
1
User selection is required to configure this interface and this is the most
common selection.
Appendix B Programming Reference
Symbol Code Identifiers
Table B-1
Symbol Code Characters
Code Character Code Type
A UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13
B Code 39, Code 32
C Codabar
D Code 128
E Code 93
F Interleaved 2 of 5
G Discrete 2 of 5, or Discrete 2 of 5 IATA
H Code 11
JMSI
K GS1-128
L Bookland EAN
M Trioptic Code 39
N Coupon Code
R GS1 DataBar Family
T UCC Composite, TLC 39
X PDF417, Macro PDF417, Micro PDF417
z Aztec, Aztec Rune
B - 2 Symbol DS3478 Product Reference Guide
P00 Data Matrix
P01 QR Code, MicroQR
P02 Maxicode
P03 US Postnet
P04 US Planet
P05 Japan Postal
P06 UK Postal
P08 Dutch Postal
P09 Australian Postal
P0A 4State Postal
P0B Post US4
Table B-1
Symbol Code Characters (Continued)
Code Character Code Type
Programming Reference B - 3
AIM Code Identifiers
Each AIM Code Identifier contains the three-character string ]cm where:
] = Flag Character (ASCII 93)
c = Code Character (see Table B-2)
m = Modifier Character (see Table B-3)
Table B-2
Aim Code Characters
Code Character Code Type
A Code 39, Code 39 Full ASCII, Code 32
C Code 128, Coupon (Code 128 portion)
d Data Matrix
E UPC/EAN, Coupon (UPC portion)
e GS1 DataBar Family
F Codabar
G Code 93
H Code 11
I Interleaved 2 of 5
L PDF417, Macro PDF417, Micro PDF417
MMSI
QQR Code, MicroQR
S Discrete 2 of 5, IATA 2 of 5
UMaxicode
z Aztec, Aztec Rune
X Bookland EAN, Trioptic Code 39, US Postnet,
US Planet, UK Postal, Japan Postal, Australian Postal,
Dutch Postal, 4State Postal, Post US4
B - 4 Symbol DS3478 Product Reference Guide
The modifier character is the sum of the applicable option values based on Table B-3.
Table B-3
Modifier Characters
Code Type Option Value Option
Code 39 0 No check character or Full ASCII processing.
1 Reader has checked one check character.
3 Reader has checked and stripped check character.
4 Reader has performed Full ASCII character conversion.
5 Reader has performed Full ASCII character conversion and checked
one check character.
7 Reader has performed Full ASCII character conversion and checked
and stripped check character.
Example: A Full ASCII bar code with check character W,
A+I+MI+DW
, is transmitted as
]A7
AIMID where 7 = (3+4).
Trioptic Code 39 0 No option specified at this time. Always transmit 0.
Example: A Trioptic bar code 412356 is transmitted as
]X0
412356
Code 128 0 Standard data packet, no Function code 1 in first symbol position.
1 Function code 1 in first symbol character position.
2 Function code 1 in second symbol character position.
Example: A Code (EAN) 128 bar code with Function 1 character
FNC1
in the first position,
AIMID is transmitted as
]
C1
AIMID
I 2 of 5 0 No check digit processing.
1 Reader has validated check digit.
3 Reader has validated and stripped check digit.
Example: An I 2 of 5 bar code without check digit, 4123, is transmitted as
]I0
4123
Codabar 0 No check digit processing.
1 Reader has checked check digit.
3 Reader has stripped check digit before transmission.
Example: A Codabar bar code without check digit, 4123, is transmitted as
]F0
4123
Code 93 0 No options specified at this time. Always transmit 0.
Example: A Code 93 bar code 012345678905 is transmitted as
]G0
012345678905
Programming Reference B - 5
MSI 0 Check digits are sent.
1 No check digit is sent.
Example: An MSI bar code 4123, with a single check digit checked, is transmitted as
]M1
4123
D 2 of 5 0 No options specified at this time. Always transmit 0.
Example: A D 2 of 5 bar code 4123, is transmitted as
]S0
4123
UPC/EAN 0 Standard packet in full EAN country code format, which is 13 digits for
UPC-A, UPC-E, and EAN-13
(not including supplemental data).
1 Two-digit supplement data only.
2 Five-digit supplement data only.
3 Combined data packet comprising 13 digits from a UPC-A, UPC-E, or
EAN-13 symbol and 2 or 5 digits from a supplemental symbol.
4 EAN-8 data packet.
Example: A UPC-A bar code 012345678905 is transmitted as
]E0
0012345678905
Bookland EAN 0 No options specified at this time. Always transmit 0.
Example: A Bookland EAN bar code 123456789X is transmitted as
]X0
123456789X
Code 11 0 Single check digit
1 Two check digits
3 Check characters validated but not transmitted.
GS1 DataBar
Family No option specified at this time. Always transmit 0. GS1 DataBar-14
and GS1 DataBar Limited transmit with an Application Identifier “01”.
Note: In GS1-128 emulation mode, GS1 DataBar is transmitted using
Code 128 rules (i.e., ]C1).
Example: A GS1 DataBar-14 bar code 100123456788902 is transmitted as
]e
001100123456788902.
Table B-3
Modifier Characters (Continued)
Code Type Option Value Option
B - 6 Symbol DS3478 Product Reference Guide
EAN.UCC
Composites
(GS1 DataBar,
GS1-128,
2D portion of UPC
composite)
Native mode transmission.
Note: UPC portion of composite is transmitted using UPC rules.
0 Standard data packet.
1 Data packet containing the data following an encoded symbol
separator character.
2 Data packet containing the data following an escape mechanism
character. The data packet does not support the ECI protocol.
3 Data packet containing the data following an escape mechanism
character. The data packet supports the ECI protocol.
GS1-128 emulation
Note: UPC portion of composite is transmitted using UPC rules.
1 Data packet is a GS1-128 symbol (i.e., data is preceded with ]JC1).
PDF417,
Micro PDF417 0 Reader set to conform to protocol defined in 1994 PDF417 symbology
specifications.
Note:
When this option is transmitted, the receiver
cannot reliably determine whether ECIs have been invoked or whether
data byte 92
DEC
has been doubled in transmission.
1 Reader set to follow the ECI protocol (Extended Channel
Interpretation). All data characters 92
DEC
are doubled.
2 Reader set for Basic Channel operation (no escape character
transmission protocol). Data characters 92
DEC
are not doubled.
Note:
When decoders are set to this mode, unbuffered Macro symbols and
symbols requiring the decoder to convey ECI escape sequences
cannot be transmitted.
3 The bar code contains a GS1-128 symbol, and the first codeword is
903-907, 912, 914, 915.
4 The bar code contains a GS1-128 symbol, and the first codeword is in
the range 908-909.
5 The bar code contains a GS1-128 symbol, and the first codeword is in
the range 910-911.
Example: A PDF417 bar code ABCD, with no transmission protocol enabled, is
transmitted as ]L2ABCD.
Table B-3
Modifier Characters (Continued)
Code Type Option Value Option
Programming Reference B - 7
Data Matrix 0 ECC 000-140, not supported.
1 ECC 200.
2 ECC 200, FNC1 in first or fifth position.
3 ECC 200, FNC1 in second or sixth position.
4 ECC 200, ECI protocol implemented.
5 ECC 200, FNC1 in first or fifth position, ECI protocol implemented.
6 ECC 200, FNC1 in second or sixth position, ECI protocol implemented.
MaxiCode 0 Symbol in Mode 4 or 5.
1 Symbol in Mode 2 or 3.
2 Symbol in Mode 4 or 5, ECI protocol implemented.
3 Symbol in Mode 2 or 3, ECI protocol implemented in secondary
message.
QR Code 0 Model 1 symbol.
1 Model 2 / MicroQR symbol, ECI protocol not implemented.
2 Model 2 symbol, ECI protocol implemented.
3 Model 2 symbol, ECI protocol not implemented, FNC1 implied in first
position.
4 Model 2 symbol, ECI protocol implemented, FNC1 implied in first
position.
5 Model 2 symbol, ECI protocol not implemented, FNC1 implied in
second position.
6 Model 2 symbol, ECI protocol implemented, FNC1 implied in second
position.
Aztec 0 Aztec symbol.
C Aztec Rune symbol.
Table B-3
Modifier Characters (Continued)
Code Type Option Value Option
B - 8 Symbol DS3478 Product Reference Guide
Appendix C Sample Bar Codes
UPC-A
UPC-E
NOTE Enable the code type of each sample bar code in order to decode that bar code.
See Chapter 13, Symbologies.
012345 67890 5
0123456 5
C - 2 Symbol DS3478 Product Reference Guide
UPC-E1
EAN-13
EAN-8
1123456 2
3 456 789 0 123 40
1234 5670
Sample Bar Codes C - 3
Code 39
Trioptic Code 39
123456
Code 93
Code 11
123ABC
12345ABCDE
Æ1234567890Æ
C - 4 Symbol DS3478 Product Reference Guide
Codabar
MSI
1234567897
Interleaved 2 of 5
GS1 DataBar-14
0176123415623411
A1234567890A
12345678912345
Sample Bar Codes C - 5
PDF417
12345678910abcdefghijklmnopqrstuvwxyz
Data Matrix
123456789abcdefghijklmnopqrstuvwxyz
Maxicode
123456000001666Symbol Technologies
C - 6 Symbol DS3478 Product Reference Guide
QR Code
0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789
US Postnet
UK Postal
Appendix D Numeric Bar Codes
0, 1, 2, 3
For parameters requiring specific numeric values, scan the numbered bar code(s).
0
1
2
3
D - 2 Symbol DS3478 Product Reference Guide
4, 5, 6, 7
For parameters requiring specific numeric values, scan the numbered bar code(s).
4
5
6
7
Numeric Bar Codes D - 3
8, 9
For parameters requiring specific numeric values, scan the numbered bar code(s).
8
9
Cancel
In case of an error or to change the selection, scan the bar code below.
Cancel
D - 4 Symbol DS3478 Product Reference Guide
Glossary
A
Aperture. The opening in an optical system defined by a lens or baffle that establishes the field of view.
API. An interface by means of which one software component communicates with or controls another. Usually used to refer
to services provided by one software component to another, usually via software interrupts or function calls
Application Programming Interface. See API.
ASCII. American Standard Code for Information Interchange. A 7 bit-plus-parity code representing 128 letters, numerals,
punctuation marks and control characters. It is a standard data transmission code in the U.S.
Autodiscrimination. The ability of an interface controller to determine the code type of a scanned bar code. After this
determination is made, the information content is decoded.
B
Bar. The dark element in a printed bar code symbol.
Bar Code. A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in machine-readable
form. The general format of a bar code symbol consists of a leading margin, start character, data or message character,
check character (if any), stop character, and trailing margin. Within this framework, each recognizable symbology uses
its own unique format. See Symbology.
Bar Code Density. The number of characters represented per unit of measurement (e.g., characters per inch).
Bar Height. The dimension of a bar measured perpendicular to the bar width.
Bar Width. Thickness of a bar measured from the edge closest to the symbol start character to the trailing edge of the same
bar.
BIOS. Basic Input Output System. A collection of ROM-based code with a standard API used to interface with standard PC
hardware.
Glossary - 2 Symbol DS3478 Product Reference Guide
Bit. Binary digit. One bit is the basic unit of binary information. Generally, eight consecutive bits compose one byte of data.
The pattern of 0 and 1 values within the byte determines its meaning.
Bits per Second (bps). Bits transmitted or received.
Boot or Boot-up. The process a computer goes through when it starts. During boot-up, the computer can run
self-diagnostic tests and configure hardware and software.
BOOTP. A protocol for remote booting of diskless devices. Assigns an IP address to a machine and may specify a boot file.
The client sends a bootp request as a broadcast to the bootp server port (67) and the bootp server responds using the
bootp client port (68). The bootp server must have a table of all devices, associated MAC addresses and IP addresses.
bps. See Bits Per Second.
Byte. On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a pattern to represent a specific
character or numeric value. Bits are numbered from the right, 0 through 7, with bit 0 the low-order bit. One byte in
memory is used to store one ASCII character.
C
CDRH. Center for Devices and Radiological Health. A federal agency responsible for regulating laser product safety. This
agency specifies various laser operation classes based on power output during operation.
CDRH Class 1. This is the lowest power CDRH laser classification. This class is considered intrinsically safe, even if all laser
output were directed into the eye's pupil. There are no special operating procedures for this class.
CDRH Class 2. No additional software mechanisms are needed to conform to this limit. Laser operation in this class poses
no danger for unintentional direct human exposure.
Character. A pattern of bars and spaces which either directly represents data or indicates a control function, such as a
number, letter, punctuation mark, or communications control contained in a message.
Character Set. Those characters available for encoding in a particular bar code symbology.
Check Digit. A digit used to verify a correct symbol decode. The scanner inserts the decoded data into an arithmetic formula
and checks that the resulting number matches the encoded check digit. Check digits are required for UPC but are
optional for other symbologies. Using check digits decreases the chance of substitution errors when a symbol is
decoded.
Codabar. A discrete self-checking code with a character set consisting of digits 0 to 9 and six additional characters: ( - $ : /
, +).
Code 128. A high density symbology which allows the controller to encode all 128 ASCII characters without adding extra
symbol elements.
Code 3 of 9 (Code 39). A versatile and widely used alphanumeric bar code symbology with a set of 43 character types,
including all uppercase letters, numerals from 0 to 9 and 7 special characters (- . / + % $ and space). The code name is
derived from the fact that 3 of 9 elements representing a character are wide, while the remaining 6 are narrow.
Code 93. An industrial symbology compatible with Code 39 but offering a full character ASCII set and a higher coding
density than Code 39.
Glossary - 3
Code Length. Number of data characters in a bar code between the start and stop characters, not including those
characters.
Cold Boot. A cold boot restarts the mobile computer and erases all user stored records and entries.
COM Port. Communication port; ports are identified by number, e.g., COM1, COM2.
Continuous Code. A bar code or symbol in which all spaces within the symbol are parts of characters. There are no
intercharacter gaps in a continuous code. The absence of gaps allows for greater information density.
Cradle. A cradle is used for charging the terminal battery and for communicating with a host computer, and provides a
storage place for the terminal when not in use.
D
Dead Zone. An area within a scanner's field of view, in which specular reflection may prevent a successful decode.
Decode. To recognize a bar code symbology (e.g., UPC/EAN) and then analyze the content of the specific bar code
scanned.
Decode Algorithm. A decoding scheme that converts pulse widths into data representation of the letters or numbers
encoded within a bar code symbol.
Decryption. Decryption is the decoding and unscrambling of received encrypted data. Also see, Encryption and Key.
Depth of Field. The range between minimum and maximum distances at which a scanner can read a symbol with a certain
minimum element width.
Discrete 2 of 5. A binary bar code symbology representing each character by a group of five bars, two of which are wide.
The location of wide bars in the group determines which character is encoded; spaces are insignificant. Only numeric
characters (0 to 9) and START/STOP characters may be encoded.
Discrete Code. A bar code or symbol in which the spaces between characters (intercharacter gaps) are not part of the code.
DRAM. Dynamic random access memory.
E
EAN. European Article Number. This European/International version of the UPC provides its own coding format and
symbology standards. Element dimensions are specified metrically. EAN is used primarily in retail.
Element. Generic term for a bar or space.
Encoded Area. Total linear dimension occupied by all characters of a code pattern, including start/stop characters and data.
ENQ (RS-232). ENQ software handshaking is also supported for the data sent to the host.
ESD. Electro-Static Discharge
Glossary - 4 Symbol DS3478 Product Reference Guide
F
Flash Disk. An additional megabyte of non-volatile memory for storing application and configuration files.
Flash Memory. Flash memory is responsible for storing the system firmware and is non-volatile. If the system power is
interrupted the data is not be lost.
FTP. See File Transfer Protocol.
H
Hard Reset. See Cold Boot.
Host Computer. A computer that serves other terminals in a network, providing such services as computation, database
access, supervisory programs and network control.
Hz. Hertz; A unit of frequency equal to one cycle per second.
I
IDE. Intelligent drive electronics. Refers to the solid-state hard drive type.
IEC. International Electrotechnical Commission. This international agency regulates laser safety by specifying various laser
operation classes based on power output during operation.
IEC (825) Class 1. This is the lowest power IEC laser classification. Conformity is ensured through a software restriction of
120 seconds of laser operation within any 1000 second window and an automatic laser shutdown if the scanner's
oscillating mirror fails.
Input/Output Ports. I/O ports are primarily dedicated to passing information into or out of the device’s memory, such as
serial and USB ports.
Intercharacter Gap. The space between two adjacent bar code characters in a discrete code.
Interleaved 2 of 5. A binary bar code symbology representing character pairs in groups of five bars and five interleaved
spaces. Interleaving provides for greater information density. The location of wide elements (bar/spaces) within each
group determines which characters are encoded. This continuous code type uses no intercharacter spaces. Only
numeric (0 to 9) and START/STOP characters may be encoded.
Interleaved Bar Code. A bar code in which characters are paired together, using bars to represent the first character and
the intervening spaces to represent the second.
I/O Ports. interface The connection between two devices, defined by common physical characteristics, signal
characteristics, and signal meanings. Types of interfaces include RS-232 and PCMCIA.
IOCTL. Input/Output Control.
Glossary - 5
IP. Internet Protocol. The IP part of the TCP/IP communications protocol. IP implements the network layer (layer 3) of the
protocol, which contains a network address and is used to route a message to a different network or subnetwork. IP
accepts “packets” from the layer 4 transport protocol (TCP or UDP), adds its own header to it and delivers a “datagram”
to the layer 2 data link protocol. It may also break the packet into fragments to support the maximum transmission unit
(MTU) of the network.
IP Address. (Internet Protocol address) The address of a computer attached to an IP network. Every client and server
station must have a unique IP address. A 32-bit address used by a computer on a IP network. Client workstations have
either a permanent address or one that is dynamically assigned to them each session. IP addresses are written as four
sets of numbers separated by periods; for example, 204.171.64.2.
IPX/SPX. Internet Package Exchange/Sequential Packet Exchange. A communications protocol for Novell. IPX is Novell’s
Layer 3 protocol, similar to XNS and IP, and used in NetWare networks. SPX is Novell's version of the Xerox SPP
protocol.
K
Key. A key is the specific code used by the algorithm to encrypt or decrypt the data. Also see, Encryption and Decrypting.
L
LASER. Light Amplification by Stimulated Emission of Radiation.The laser is an intense light source. Light from a laser is
all the same frequency, unlike the output of an incandescent bulb. Laser light is typically coherent and has a high energy
density.
Laser Diode. A gallium-arsenide semiconductor type of laser connected to a power source to generate a laser beam. This
laser type is a compact source of coherent light.
Laser Scanner. A type of bar code reader that uses a beam of laser light.
LCD. See Liquid Crystal Display.
LED Indicator. A semiconductor diode (LED - Light Emitting Diode) used as an indicator, often in digital displays. The
semiconductor uses applied voltage to produce light of a certain frequency determined by the semiconductor's particular
chemical composition.
Light Emitting Diode. See LED.
Liquid Crystal Display (LCD). A display that uses liquid crystal sealed between two glass plates. The crystals are excited
by precise electrical charges, causing them to reflect light outside according to their bias. They use little electricity and
react relatively quickly. They require external light to reflect their information to the user.
M
MDN. Mobile Directory Number. The directory listing telephone number that is dialed (generally using POTS) to reach a
mobile unit. The MDN is usually associated with a MIN in a cellular telephone -- in the US and Canada, the MDN and
Glossary - 6 Symbol DS3478 Product Reference Guide
MIN are the same value for voice cellular users. International roaming considerations often result in the MDN being
different from the MIN.
MIL. 1 mil = 1 thousandth of an inch.
MIN. Mobile Identification Number. The unique account number associated with a cellular device. It is broadcast by the
cellular device when accessing the cellular system.
Misread (Misdecode). A condition which occurs when the data output of a reader or interface controller does not agree with
the data encoded within a bar code symbol.
N
Nominal. The exact (or ideal) intended value for a specified parameter. Tolerances are specified as positive and negative
deviations from this value.
Nominal Size. Standard size for a bar code symbol. Most UPC/EAN codes are used over a range of magnifications (e.g.,
from 0.80 to 2.00 of nominal).
NVM. Non-Volatile Memory.
O
ODI. See Open Data-Link Interface.
Open Data-Link Interface (ODI). Novell’s driver specification for an interface between network hardware and higher-level
protocols. It supports multiple protocols on a single NIC (Network Interface Controller). It is capable of understanding
and translating any network information or request sent by any other ODI-compatible protocol into something a NetWare
client can understand and process.
Open System Authentication. Open System authentication is a null authentication algorithm.
P
PAN . Personal area network. Using Bluetooth wireless technology, PANs enable devices to communicate wirelessly.
Generally, a wireless PAN consists of a dynamic group of less than 255 devices that communicate within about a 33-foot
range. Only devices within this limited area typically participate in the network.
Parameter. A variable that can have different values assigned to it.
PC Card. A plug-in expansion card for laptop computers and other devices, also called a PCMCIA card. PC Cards are
85.6mm long x 54 mm wide, and have a 68 pin connector. There are several different kinds:
• Type I; 3.3 mm high; use - RAM or Flash RAM
• Type II; 5 mm high; use - modems, LAN adaptors
• Type III; 10.5 high; use - Hard Disks
Glossary - 7
PCMCIA. Personal Computer Memory Card Interface Association. See PC Card.
Percent Decode. The average probability that a single scan of a bar code would result in a successful decode. In a
well-designed bar code scanning system, that probability should approach near 100%.
PING. (Packet Internet Groper) An Internet utility used to determine whether a particular IP address is online. It is used to
test and debug a network by sending out a packet and waiting for a response.
Print Contrast Signal (PCS). Measurement of the contrast (brightness difference) between the bars and spaces of a
symbol. A minimum PCS value is needed for a bar code symbol to be scannable. PCS = (RL - RD) / RL, where RL is
the reflectance factor of the background and RD the reflectance factor of the dark bars.
Programming Mode. The state in which a scanner is configured for parameter values. See Scanning Mode.
Q
Quiet Zone. A clear space, containing no dark marks, which precedes the start character of a bar code symbol and follows
the stop character.
QWERTY. A standard keyboard commonly used on North American and some European PC keyboards. “QWERTY” refers
to the arrangement of keys on the left side of the third row of keys.
R
RAM. Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read.
Reflectance. Amount of light returned from an illuminated surface.
Resolution. The narrowest element dimension which is distinguished by a particular reading device or printed with a
particular device or method.
RF. Radio Frequency.
ROM. Read-Only Memory. Data stored in ROM cannot be changed or removed.
Router. A device that connects networks and supports the required protocols for packet filtering. Routers are typically used
to extend the range of cabling and to organize the topology of a network into subnets. See Subnet.
RS-232. An Electronic Industries Association (EIA) standard that defines the connector, connector pins, and signals used to
transfer data serially from one device to another.
S
Scan Area. Area intended to contain a symbol.
Glossary - 8 Symbol DS3478 Product Reference Guide
Scanner. An electronic device used to scan bar code symbols and produce a digitized pattern that corresponds to the bars
and spaces of the symbol. Its three main components are: 1) Light source (laser or photoelectric cell) - illuminates a bar
code,; 2) Photodetector - registers the difference in reflected light (more light reflected from spaces); 3) Signal
conditioning circuit - transforms optical detector output into a digitized bar pattern.
Scanning Mode. The scanner is energized, programmed and ready to read a bar code.
Scanning Sequence. A method of programming or configuring parameters for a bar code reading system by scanning bar
code menus.
SDK. Software Development Kit
Self-Checking Code. A symbology that uses a checking algorithm to detect encoding errors within the characters of a bar
code symbol.
Shared Key. Shared Key authentication is an algorithm where both the AP and the MU share an authentication key.
SHIP. Symbol Host Interface Program.
SID. System Identification code. An identifier issued by the FCC for each market. It is also broadcast by the cellular carriers
to allow cellular devices to distinguish between the home and roaming service.
Soft Reset. See Warm Boot.
Space. The lighter element of a bar code formed by the background between bars.
Specular Reflection. The mirror-like direct reflection of light from a surface, which can cause difficulty decoding a bar code.
Start/Stop Character. A pattern of bars and spaces that provides the scanner with start and stop reading instructions and
scanning direction. The start and stop characters are normally to the left and right margins of a horizontal code.
STEP. Symbol Terminal Enabler Program.
Subnet. A subset of nodes on a network that are serviced by the same router. See Router.
Subnet Mask. A 32-bit number used to separate the network and host sections of an IP address. A custom subnet mask
subdivides an IP network into smaller subsections. The mask is a binary pattern that is matched up with the IP address
to turn part of the host ID address field into a field for subnets. Default is often 255.255.255.0.
Substrate. A foundation material on which a substance or image is placed.
SVTP. Symbol Virtual Terminal Program.
Symbol. A scannable unit that encodes data within the conventions of a certain symbology, usually including start/stop
characters, quiet zones, data characters and check characters.
Symbol Aspect Ratio. The ratio of symbol height to symbol width.
Symbol Height. The distance between the outside edges of the quiet zones of the first row and the last row.
Symbol Length. Length of symbol measured from the beginning of the quiet zone (margin) adjacent to the start character
to the end of the quiet zone (margin) adjacent to a stop character.
Glossary - 9
Symbology. The structural rules and conventions for representing data within a particular bar code type (e.g. UPC/EAN,
Code 39, PDF417, etc.).
T
TCP/IP. (Transmission Control Protocol/Internet Protocol) A communications protocol used to internetwork dissimilar
systems. This standard is the protocol of the Internet and has become the global standard for communications. TCP
provides transport functions, which ensures that the total amount of bytes sent is received correctly at the other end.
UDP is an alternate transport that does not guarantee delivery. It is widely used for real-time voice and video
transmissions where erroneous packets are not retransmitted. IP provides the routing mechanism. TCP/IP is a routable
protocol, which means that all messages contain not only the address of the destination station, but the address of a
destination network. This allows TCP/IP messages to be sent to multiple networks within an organization or around the
world, hence its use in the worldwide Internet. Every client and server in a TCP/IP network requires an IP address, which
is either permanently assigned or dynamically assigned at startup.
Telnet. A terminal emulation protocol commonly used on the Internet and TCP/IP-based networks. It allows a user at a
terminal or computer to log onto a remote device and run a program.
Terminal Emulation. A “terminal emulation” emulates a character-based mainframe session on a remote non-mainframe
terminal, including all display features, commands and function keys. The VC5000 Series supports Terminal Emulations
in 3270, 5250 and VT220.
Terminate and Stay Resident (TSR). A program under DOS that ends its foreground execution to remain resident in
memory to service hardware/software interrupts, providing background operation. It remains in memory and may
provide services on behalf of other DOS programs.
TFTP. (Trivial File Transfer Protocol) A version of the TCP/IP FTP (File Transfer Protocol) protocol that has no directory or
password capability. It is the protocol used for upgrading firmware, downloading software and remote booting of diskless
devices.
Tolerance. Allowable deviation from the nominal bar or space width.
Transmission Control Protocol/Internet Protocol. See TCP/IP.
Trivial File Transfer Protocol. See TFTP.
TSR. See Terminate and Stay Resident.
U
UDP. User Datagram Protocol. A protocol within the IP protocol suite that is used in place of TCP when a reliable delivery
is not required. For example, UDP is used for real-time audio and video traffic where lost packets are simply ignored,
because there is no time to retransmit. If UDP is used and a reliable delivery is required, packet sequence checking and
error notification must be written into the applications.
UPC. Universal Product Code. A relatively complex numeric symbology. Each character consists of two bars and two
spaces, each of which is any of four widths. The standard symbology for retail food packages in the United States.
Glossary - 10 Symbol DS3478 Product Reference Guide
V
Visible Laser Diode (VLD). A solid state device which produces visible laser light.
W
Warm Boot. A warm boot restarts the mobile computer by closing all running programs. All data that is not saved to flash
memory is lost.
Index
Numerics
123Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
2D bar codes
aztec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-68
aztec inverse . . . . . . . . . . . . . . . . . . . . . . . . . . 13-68
code 128 emulation . . . . . . . . . . . . . . . . . . . . . 13-64
Data Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-65
Data Matrix inverse . . . . . . . . . . . . . . . . . . . . . 13-65
Maxicode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-66
MicroPDF417 . . . . . . . . . . . . . . . . . . . . . . . . . 13-63
MicroQR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-67
PDF417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-63
QR code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-66
QR inverse . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-67
A
actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2
ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1
actions . . . . . . . . . . . . . . . . . . . . . . . . . . .15-1, 15-27
move cursor . . . . . . . . . . . . . . . . . . . . . . . 15-31
send data . . . . . . . . . . . . . . . . . . . . . . . . . 15-27
setup fields . . . . . . . . . . . . . . . . . . . . . . . . 15-31
alphanumeric keyboard . . . . . . . . . . . . . . . . . . 15-90
alternate rule sets . . . . . . . . . . . . . . . . . . . . . . . 15-3
bar code list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-6
bar code menu example . . . . . . . . . . . . . . . . . . 15-2
beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-46
code lengths . . . . . . . . . . . . . . . . . . . . . . . . . . 15-18
code types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-11
criteria . . . . . . . . . . . . . . . . . . . . . . . . . . .15-1, 15-11
default rules . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-5
move cursor past a character . . . . . . . . . . . . . 15-31
move cursor to a character . . . . . . . . . . . . . . . 15-31
move cursor to start of data . . . . . . . . . . . . . . 15-31
numeric keypad . . . . . . . . . . . . . . . . . . .15-24, 15-25
pad spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-37
pad zeros . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-41
rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1
rules hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . 15-5
send alt characters . . . . . . . . . . . . . . . . . . . . . 15-65
send control characters . . . . . . . . . . . . . . . . . 15-46
send function key . . . . . . . . . . . . . . . . . . . . . . 15-75
send keyboard characters . . . . . . . . . . . . . . . 15-51
send keypad characters . . . . . . . . . . . . . . . . . 15-70
send value . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-35
skip ahead characters . . . . . . . . . . . . . . . . . . 15-32
skip back characters . . . . . . . . . . . . . . . . . . . . 15-33
space removal . . . . . . . . . . . . . . . . . . . . . . . . 15-36
special commands . . . . . . . . . . . . . . . . . . . . . . 15-8
specific data string . . . . . . . . . . . . . . . . . . . . . 15-23
specific string
any location . . . . . . . . . . . . . . . . . . . . . . . 15-23
any message ok . . . . . . . . . . . . . . . . . . . . 15-23
at start . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-23
rule belongs to set . . . . . . . . . . . . . . . . . . 15-26
turn off rule sets . . . . . . . . . . . . . . . . . . . . . . . 15-89
turn on rule sets . . . . . . . . . . . . . . . . . . . . . . . 15-88
zero removal . . . . . . . . . . . . . . . . . . . . . . . . . . 15-36
advanced data formatting . . . . . . . . . . . . . . . . . . . . 15-1
actions . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1, 15-27
alphanumeric keyboard . . . . . . . . . . . . . . . . . 15-90
alternate rule sets . . . . . . . . . . . . . . . . . . . . . . . 15-3
bar code menu example . . . . . . . . . . . . . . . . . . 15-2
beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-46
code lengths . . . . . . . . . . . . . . . . . . . . . . . . . . 15-18
code types . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-11
criteria . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1, 15-11
default rules . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-5
numeric keypad . . . . . . . . . . . . . . . . . . 15-24, 15-25
pad spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-37
pad zeros . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-41
rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1
Index - 2 Symbol DS3478 Product Reference Guide
rules hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . 15-5
send alt characters . . . . . . . . . . . . . . . . . . . . . 15-65
send control characters . . . . . . . . . . . . . . . . . . 15-46
send function key . . . . . . . . . . . . . . . . . . . . . . 15-75
send keyboard characters . . . . . . . . . . . . . . . . 15-51
send keypad characters . . . . . . . . . . . . . . . . . 15-70
send preset value . . . . . . . . . . . . . . . . . . . . . . 15-35
setup fields . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-31
skip ahead characters . . . . . . . . . . . . . . . . . . . 15-32
skip back characters . . . . . . . . . . . . . . . . . . . . 15-33
space removal . . . . . . . . . . . . . . . . . . . . . . . . . 15-36
special commands . . . . . . . . . . . . . . . . . . . . . . 15-8
specific data string . . . . . . . . . . . . . . . . . . . . . 15-23
turn off rule sets . . . . . . . . . . . . . . . . . . . . . . . 15-89
turn on rule sets . . . . . . . . . . . . . . . . . . . . . . . 15-88
zero removal . . . . . . . . . . . . . . . . . . . . . . . . . . 15-36
AIM code identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
decode aiming pattern . . . . . . . . . . . . . . . . . . . . 5-4
aiming pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
enabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
orientation . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6, 2-7
ASCII character set . . . . . . . . . . . . . . . . 6-14, 7-20, 8-11
B
bar codes
123Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
4state postal . . . . . . . . . . . . . . . . . . . . . . . . . . 13-56
ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-8
ADF list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-6
aztec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-68
aztec inverse . . . . . . . . . . . . . . . . . . . . . . . . . . 13-68
beep after good decode . . . . . . . . . . . . . . . . . . . 4-6
beeper tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
beeper volume . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
bookland ISBN . . . . . . . . . . . . . . . . . . . . . . . . 13-20
cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3
code 128 emulation . . . . . . . . . . . . . . . . . . . . . 13-64
code 39
transmit buffer . . . . . . . . . . . . . . . . . . . . . . 13-32
composite CC-A/B . . . . . . . . . . . . . . . . . . . . . 13-60
composite CC-C . . . . . . . . . . . . . . . . . . . . . . . 13-60
composite TLC-39 . . . . . . . . . . . . . . . . . . . . . . 13-61
connection maintenance interval . . . . . . . . . . . 4-10
Data Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-65
Data Matrix inverse . . . . . . . . . . . . . . . . . . . . . 13-65
data options
pause duration . . . . . . . . . . . . . . . . . . . . . . 15-8
prefix/suffix values . . . . . . . . . . . . . . . . . . . 14-4
transmit code ID character . . . . . . . . . . . . . 14-3
decode aiming pattern . . . . . . . . . . . . . . . . . . . . 5-4
decode mirror images . . . . . . . . . . . . . . . . . . . . . 4-9
decode session timeout . . . . . . . . . . . . . . . . . . . 4-8
direct part marking . . . . . . . . . . . . . . . . . . . . . . . . 5-5
DPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
flush macro buffer/abort macro PDF entry . . . 13-74
FN1 substitution values . . . . . . . . . . . . . . . . . . . 14-6
focus mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
fuzzy 1D decoding . . . . . . . . . . . . . . . . . . . . . . . . 4-8
IBM 468X/469X . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
convert unkown to code 39 . . . . . . . . . . . . . . 9-5
default parameters . . . . . . . . . . . . . . . . . . . . 9-3
port address . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
interleaved 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . 13-39
inverse 1D . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-52
keyboard wedge . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
alternate numeric keypad emulation . . . . . . . 6-8
caps lock on . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
caps lock override . . . . . . . . . . . . . . . . . . . . . 6-9
convert wedge data . . . . . . . . . . . . . . . . . . . 6-10
country keyboard types . . . . . . . . . . . . . . . . . 6-5
default table . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
FN1 substitution . . . . . . . . . . . . . . . . . . . . . 6-11
function key mapping . . . . . . . . . . . . . . . . . 6-10
host types . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
ignore unknown characters . . . . . . . . . . . . . . 6-7
intra-keystroke delay . . . . . . . . . . . . . . . . . . . 6-8
keystroke delay . . . . . . . . . . . . . . . . . . . . . . . 6-7
send make and break . . . . . . . . . . . . . . . . . 6-11
Maxicode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-66
MicroPDF417 . . . . . . . . . . . . . . . . . . . . . . . . . 13-63
MicroQR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-67
miscellaneous
FN1 substitution values . . . . . . . . . . . . . . . . 14-6
prefix/suffix values . . . . . . . . . . . . . . . . . . . 14-4
scan data options . . . . . . . . . . . . . . . . . . . . 14-5
transmit code ID . . . . . . . . . . . . . . . . . . . . . 14-3
transmit no read message . . . . . . . . . . . . . 14-7
numeric bar codes . . . . . . . . . . . . . . . . . . . . . . . .D-1
parameter broadcast . . . . . . . . . . . . . . . . . . . . . 4-12
parameter scanning . . . . . . . . . . . . . . . . . . . . . . . 4-3
PDF417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-63
picklist mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
postal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-53
power mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
prefix/suffix values . . . . . . . . . . . . . . . . . . . . . . . 14-4
QR code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-66
QR inverse . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-67
radio output power . . . . . . . . . . . . . . . . . . . . . . . 4-12
RS-232
baud rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
beep on BEL . . . . . . . . . . . . . . . . . . . . . . . . 7-16
beep on bel . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
check receive errors . . . . . . . . . . . . . . . . . . 7-10
data bits . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
default table . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Index - 3
hardware handshaking . . . . . . . . . . . . . . . . 7-11
host serial response time-out . . . . . . . . . . . 7-15
host types . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
ignore unknown characters . . . . . . . . . . . . 7-19
intercharacter delay . . . . . . . . . . . . . . . . . . 7-17
Nixdorf mode . . . . . . . . . . . . . . . . . . . . . . . 7-18
parity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
RTS line state . . . . . . . . . . . . . . . . . . . . . . . 7-16
software handshaking . . . . . . . . . . . . . . . . . 7-13
stop bits . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
sample . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
scan data options . . . . . . . . . . . . . . . . . . . . . . . 14-5
scanner emulation
beep style . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
check for decode LED . . . . . . . . . . . . . . . 11-12
code 39 full ASCII conversion . . . . . . . . . . 11-8
convert all bar codes to code 39 . . . . . . . . . 11-7
convert newer code types . . . . . . . . . . . . . . 11-6
default table . . . . . . . . . . . . . . . . . . . . . . . . 11-3
ignore unknown characters . . . . . . . . . . . 11-10
leading margin . . . . . . . . . . . . . . . . . . . . . 11-11
module width . . . . . . . . . . . . . . . . . . . . . . . 11-7
parameter pass through . . . . . . . . . . . . . . . 11-5
scanner emulation host . . . . . . . . . . . . . . . 11-4
transmission timeout . . . . . . . . . . . . . . . . . . 11-9
set defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
single point and multipoint . . . . . . . . . . . . . . . . 4-13
symbologies
Australian postal . . . . . . . . . . . . . . . . . . . . 13-55
bookland EAN . . . . . . . . . . . . . . . . . . . . . . . 13-8
buffering . . . . . . . . . . . . . . . . . . . . . . . . . . 13-31
codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-45
codabar CLSI editing . . . . . . . . . . . . . . . . 13-47
codabar lengths . . . . . . . . . . . . . . . . . . . . 13-45
codabar NOTIS editing . . . . . . . . . . . . . . . 13-47
code 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-35
code 11 check digit verification . . . . . . . . . 13-37
code 11 lengths . . . . . . . . . . . . . . . . . . . . 13-35
code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . 13-22
code 128 lengths . . . . . . . . . . . . . . . . . . . 13-22
code 32 prefix . . . . . . . . . . . . . . . . . . . . . . 13-26
code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-25
code 39 check digit verification . . . . . . . . . 13-29
code 39 full ASCII . . . . . . . . . . . . . . . . . . . 13-30
code 39 lengths . . . . . . . . . 13-23, 13-27, 13-28
code 39 transmit check digit . . . . . . . . . . . 13-29
code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-33
code 93 lengths . . . . . . . . . 13-33, 13-34, 13-36
composite codes . . . . . . . . . . . . . . . . . . . . 13-60
convert code 39 to code 32 . . . . . . . . . . . 13-26
convert GS1 DataBar to UPC/EAN . . . . . 13-59
convert UPC-E to UPC-A . . . . . . . . . . . . . 13-18
convert UPC-E1 to UPC-A . . . . . . . . . . . . 13-18
Data Matrix . . . . . . . . . . . . . . . . . . . . . . . . 13-65
default table . . . . . . . . . . . . . . . . . . . . . . . . 13-2
discrete 2 of 5 . . . . . . . . . . . . . . . . . . . . . . 13-43
discrete 2 of 5 lengths . . . . . 13-43, 13-44, 13-46
Dutch postal . . . . . . . . . . . . . . . . . . . . . . . 13-56
EAN zero extend . . . . . . . . . . . . . . . . . . . . 13-19
EAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7
EAN-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8
GS1 DataBar . . . . . . . . . . . . . . . . . . . . . . . 13-58
GS1 DataBar expanded . . . . . . . . . . . . . . 13-59
GS1 DataBar limited . . . . . . . . . . . . . . . . . 13-58
GS1 DataBar-14 . . . . . . . . . . . . . . . . . . . . 13-58
GS1-128 . . . . . . . . . . . . . . . . . . . . . . . . . . 13-24
I 2 of 5 check digit verification . . . . . . . . . . 13-41
I 2 of 5 convert to EAN-13 . . . . . . . . . . . . . 13-42
I 2 of 5 transmit check digit . . . . . . . . . . . . 13-41
interleaved 2 of 5 lengths . . . . . . . 13-39, 13-40
ISBT 128 . . . . . . . . . . . . . . . . . . . . . . . . . . 13-24
Japan postal . . . . . . . . . . . . . . . . . . . . . . . 13-55
Maxicode . . . . . . . . . . . . . . . . . . . . . . . . . . 13-66
MicroPDF417 . . . . . . . . . . . . . . . . . . . . . . 13-63
MSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-48
MSI check digit algorithm . . . . . . . . . . . . . 13-51
MSI check digits . . . . . . . . . . . . . . . . . . . . 13-50
MSI lengths . . . . . . . . . . . . . . . . . . . . . . . . 13-48
MSI transmit check digit . . . . . . . . . . . . . . 13-50
PDF417 . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-63
post US4 . . . . . . . . . . . . . . . . . . . . . . . . . . 13-57
QR code . . . . . . . . . . . . . . . . . . . . . . . . . . 13-66
redundancy level . . . . . . . . . . . . . . . . . . . . 13-69
security level . . . . . . . . . . . . . . . . . . . . . . . 13-71
supplementals . . . . . . . . . . . . . . . . . . . . . . . 13-9
transmit code 11 check digits . . . . . . . . . . 13-38
transmit UK postal check digit . . . . . . . . . . 13-54
transmit US postal check digit . . . . . . . . . . 13-57
trioptic code 39 . . . . . . . . . . . . . . . . . . . . . 13-25
UCC coupon extended code . . . . . . . . . . . 13-21
UK postal . . . . . . . . . . . . . . . . . . . . . . . . . 13-54
UPC/EAN supp redundancy . . . . . . . . . . . 13-12
UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6
UPC-A preamble . . . . . . . . . . . . . . . . . . . . 13-15
UPC-A/E/E1 check digit . . . . . . . . . . . . . . 13-13
UPC-E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6
UPC-E preamble . . . . . . . . . . . . . . . . . . . . 13-16
UPC-E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7
UPC-E1 preamble . . . . . . . . . . . . . . . . . . . 13-17
US planet . . . . . . . . . . . . . . . . . . . . . . . . . 13-53
US postnet . . . . . . . . . . . . . . . . . . . . . . . . 13-53
transmit code ID . . . . . . . . . . . . . . . . . . . . . . . . 14-3
transmit no read message . . . . . . . . . . . . . . . . . 14-7
unpair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
UPC composite mode . . . . . . . . . . . . . . . . . . . 13-61
UPC/EAN
coupon code . . . . . . . . . . . . . . . . . . . . . . . 13-21
USB
Index - 4 Symbol DS3478 Product Reference Guide
caps lock override . . . . . . . . . . . . . . . . . . . . . 8-7
convert case . . . . . . . . . . . . . . . . . . . . . . . . 8-10
country keyboard types . . . . . . . . . . . . . . . . 8-5
default table . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
device type . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
emulate keypad . . . . . . . . . . . . . . . . . . . . . . 8-8
function key mapping . . . . . . . . . . . . . . . . . . 8-9
keyboard FN 1 substitution . . . . . . . . . . . . . . 8-9
keystroke delay . . . . . . . . . . . . . . . . . . . . . . . 8-7
simulated caps lock . . . . . . . . . . . . . . . . . . 8-10
unknown characters . . . . . . . . . . . . . . . . . . . 8-8
wand emulation
code 39 full ASCII . . . . . . . . . . . . . . . . . . . . 10-8
convert all to code 39 . . . . . . . . . . . . . . . . . 10-7
default table . . . . . . . . . . . . . . . . . . . . . . . . 10-3
host types . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4
leading margin (quiet zone) . . . . . . . . . . . . 10-5
polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-6
unknown characters . . . . . . . . . . . . . . . . . . 10-6
battery
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
charging problems . . . . . . . . . . . . . . . . . . . . . . . 1-8
inserting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
beeper
definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
setting tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
setting volume . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
C
cables
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
chapter descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . xv
character set . . . . . . . . . . . . . . . . . . . . . . . . . .7-20, 8-11
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
via host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
codabar bar codes
CLSI editing . . . . . . . . . . . . . . . . . . . . . . . . . . 13-47
codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-45
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-45
NOTIS editing . . . . . . . . . . . . . . . . . . . . . . . . . 13-47
code 11 bar codes
code 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-35
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-35
code 128 bar codes
code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-22
GS1-128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-24
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-22
code 128 emulation bar codes . . . . . . . . . . . . . . . 13-64
code 39 bar codes
buffering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-31
check digit verification . . . . . . . . . . . . . . . . . . . 13-29
code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-25
full ASCII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-30
lengths . . . . . . . . . . . . . . . . . . . . 13-23, 13-27, 13-28
transmit check digit . . . . . . . . . . . . . . . . . . . . . 13-29
code 93 bar codes
code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-33
lengths . . . . . . . . . . . . . . . . . . . . 13-33, 13-34, 13-36
code identifiers
AIM code identifiers . . . . . . . . . . . . . . . . . . . . . . . B-3
modifier characters . . . . . . . . . . . . . . . . . . . . . . . B-4
Symbol code identifiers . . . . . . . . . . . . . . . . . . . . B-1
code types
ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-11
composite bar codes
composite CC-A/B . . . . . . . . . . . . . . . . . . . . . . 13-60
composite CC-C . . . . . . . . . . . . . . . . . . . . . . . 13-60
composite TLC-39 . . . . . . . . . . . . . . . . . . . . . . 13-61
UPC composite mode . . . . . . . . . . . . . . . . . . . 13-61
configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
configuring scanner . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
123Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
connecting
IBM host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
keyboard wedge . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
lost connection . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
scanner emulation . . . . . . . . . . . . . . . . . . . . . . . 11-2
Synapse interface . . . . . . . . . . . . . . . . . . . . . . . . 1-6
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
wand emulation . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3, 1-4
inserting scanner . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-8
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
supply power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
D
Data Matrix bar codes . . . . . . . . . . . . . . . . . . . . . . 13-65
decode zones
DS3478-HD, DPM far focus . . . . . . . . . . . . . . . 2-14
DS3478-HD, DPM near focus . . . . . . . . . . . . . . 2-12
DS3478-HD, DPM near focus, 2D . . . . . . . . . . . 2-13
DS3478-HD, DPM smart focus . . . . . . . . . . . . . 2-15
DS3478-SF far focus . . . . . . . . . . . . . . . . . . . . . 2-10
DS3478-SF near focus . . . . . . . . . . . . . . . . . . . . 2-8
DS3478-SF near focus, 2D . . . . . . . . . . . . . . . . . 2-9
DS3478-SF smart focus . . . . . . . . . . . . . . . . . . 2-11
decoding preferences parameters . . . . . . . . . . . . . . . 5-2
Index - 5
default parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
decoding preferences . . . . . . . . . . . . . . . . . . . . . 5-2
IBM 468X/469X . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
keyboard wedge . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
miscellaneous scanner options . . . . . . . . . . . . . 14-2
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
scanner emulation . . . . . . . . . . . . . . . . . . . . . . . 11-3
standard default table . . . . . . . . . . . . . . . . . . . . . A-1
symbologies . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
user preferences . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
wand emulation . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
direct part marking . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
bar codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
discrete 2 of 5 bar codes
discrete 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . 13-43
lengths . . . . . . . . . . . . . . . . . . . 13-43, 13-44, 13-46
DPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
bar codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
E
exposure options
illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
F
focus mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
H
host types
keyboard wedge . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
wand emulation . . . . . . . . . . . . . . . . . . . . . . . . . 10-4
I
IBM 468X/469X connection . . . . . . . . . . . . . . . . . . . . 9-2
IBM 468X/469X default parameters . . . . . . . . . . . . . 9-3
illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
information, service . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
inserting battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
interfaces supported . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
interleaved 2 of 5 bar codes
check digit verification . . . . . . . . . . . . . . . . . . . 13-41
convert to EAN-13 . . . . . . . . . . . . . . . . . . . . . . 13-42
transmit check digit . . . . . . . . . . . . . . . . . . . . . 13-41
ISBT 128 bar codes
ISBT 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-24
K
keyboard maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
keyboard wedge connection . . . . . . . . . . . . . . . . . . . 6-2
keyboard wedge default parameters . . . . . . . . . . . . . 6-3
L
LED definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
M
macro PDF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-74
flush buffer/abort PDF entry . . . . . . . . . . . . . . 13-74
maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Maxicode bar codes . . . . . . . . . . . . . . . . . . . . . . . . 13-66
MicroPDF417 bar codes . . . . . . . . . . . . . . . . . . . . 13-63
miscellaneous scanner parameters . . . . . . . . . . . . . 14-2
mounting
cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
MSI bar codes
check digit algorithm . . . . . . . . . . . . . . . . . . . . 13-51
check digits . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-50
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-48
MSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-48
transmit check digit . . . . . . . . . . . . . . . . . . . . . 13-50
multipoint mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
multipoint operation
selecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
N
Near . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
notational conventions . . . . . . . . . . . . . . . . . . . . . . . . xvi
P
pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
PDF417 bar codes . . . . . . . . . . . . . . . . . . . . . . . . . 13-63
pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
postal codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-53
4state postal . . . . . . . . . . . . . . . . . . . . . . . . . . 13-56
Austalian postal . . . . . . . . . . . . . . . . . . . . . . . . 13-55
Dutch postal . . . . . . . . . . . . . . . . . . . . . . . . . . 13-56
Japan postal . . . . . . . . . . . . . . . . . . . . . . . . . . 13-55
post US4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-57
transmit UK postal check digit . . . . . . . . . . . . . 13-54
transmit US postal check digit . . . . . . . . . . . . . 13-57
UK postal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-54
US planet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-53
US postnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-53
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
via host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Index - 6 Symbol DS3478 Product Reference Guide
Q
QR code bar codes . . . . . . . . . . . . . . . . . . . . . . . . 13-66
quiet zone (leading margin) . . . . . . . . . . . . . . . . . . . 10-5
R
radio communications . . . . . . . . . . . . . . . . . . . . . . . 4-10
removing battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
RS-232 connection . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
RS-232 default parameters . . . . . . . . . . . . . . . . . . . . 7-3
RS-232 host types . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
RS-232 parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
S
sample bar codes . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
scanner defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
scanner emulation connection . . . . . . . . . . . . . . . . . 11-2
scanner emulation default parameters . . . . . . . . . . 11-3
scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6, 2-7
errors . . . . . . . . . . . . . . . . . . . . . 4-2, 5-2, 13-1, 14-1
parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
sequence example . . . . . . . . . . . . . . 5-2, 13-1, 14-1
service information . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
setup
123Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
connecting a USB interface . . . . . . . . . . . . . . . . 8-1
connecting an RS-232 interface . . . . . . . . . . . . . 7-2
connecting keyboard wedge interface . . . . . . . . 6-2
connecting to an IBM 468X/469X host . . . . . . . . 9-2
connecting using scanner emulation . . . . . . . . . 11-2
connecting using wand emulation . . . . . . . . . . . 10-2
cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
inserting scanner in cradle . . . . . . . . . . . . . . . . . 1-9
installing the cable . . . . . . . . . . . . . . . . . . . . . . . 1-4
lost host connection . . . . . . . . . . . . . . . . . . . . . . 1-6
mounting cradle . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
supplying power . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
signal descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
single point mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
selecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
standard default parameters . . . . . . . . . . . . . . . . . . . A-1
support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
Symbol code identifiers . . . . . . . . . . . . . . . . . . . . . . . B-1
symbology default parameters . . . . . . . . . . . . . . . . 13-2
Synapse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
T
technical specifications . . . . . . . . . . . . . . . . . . . . . . . 3-5
cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
U
unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
unpairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
bar code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
UPC/EAN bar codes
bookland EAN . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8
bookland ISBN . . . . . . . . . . . . . . . . . . . . . . . . 13-20
check digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-13
convert UPC-E to UPC-A . . . . . . . . . . . . . . . . 13-18
convert UPC-E1 to UPC-A . . . . . . . . . . . . . . . 13-18
EAN zero extend . . . . . . . . . . . . . . . . . . . . . . . 13-19
EAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7
EAN-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8
supplementals . . . . . . . . . . . . . . . . . . . . . . . . . . 13-9
UCC coupon extended code . . . . . . . . . . . . . . 13-21
UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6
UPC-A preamble . . . . . . . . . . . . . . . . . . . . . . . 13-15
UPC-E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6
UPC-E preamble . . . . . . . . . . . . . . . . . . . . . . . 13-16
UPC-E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7
USB connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
USB default parameters . . . . . . . . . . . . . . . . . . . . . . . 8-3
USB parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
user preferences parameters . . . . . . . . . . . . . . . . . . . 4-2
W
wand emulation connection . . . . . . . . . . . . . . . . . . . 10-2
wand emulation default parameters . . . . . . . . . . . . . 10-3
wand emulation parameters . . . . . . . . . . . . . . . . . . . 10-4
Thank you for your input—We value your comments.
Tell Us What You Think...
We’d like to know what you think about this Manual. Please take a moment to fill out this questionnaire and fax this form
to: (631) 738-4618, or mail to:
Motorola, Inc.
One Motorola Plaza M/S B-10
Holtsville, NY 11742-1300
Attention: Technical Publications Manager
Advanced Data Capture Division
