User’s Guide

MOTO

TM

W233 renew

1

HELLOMOTO

Introducing your new

MOTO

™ W233 Renew wireless phone! It’s an environmentally responsible phone with a

sleek design that you can feel good about owning.

live a greener life

Your new phone does its part to reduce its climate impact by minimizing its carbon footprint through more efficient

energy, transportation, and material use. Here are other ways you can do your part:

• Carpool

—sharing a ride just once a week reduces your carbon emissions by 20%.

• Bike, walk, or jog

—hitting the pavement emits virtually no carbon, and you’ll get in better shape, too.

• Turn ‘em off

—use only the lights you need. Using your computer? You may not need your office lights, too.

• Enable power management

—use your computer and monitor’s automatic settings so they shut down

automatically when not in use.

• Bring your lunch

—brown bag it or walk to the local eatery instead of driving.

•Buy local

—shipping burns fuel. A 5-pound package shipped by air across the U.S. creates 12 pounds of

CO2 (or 3½ pounds shipped by truck).

2

Here’s a quick anatomy lesson:

Note:

Your phone may be a little different.

Center Key

Right Soft Key

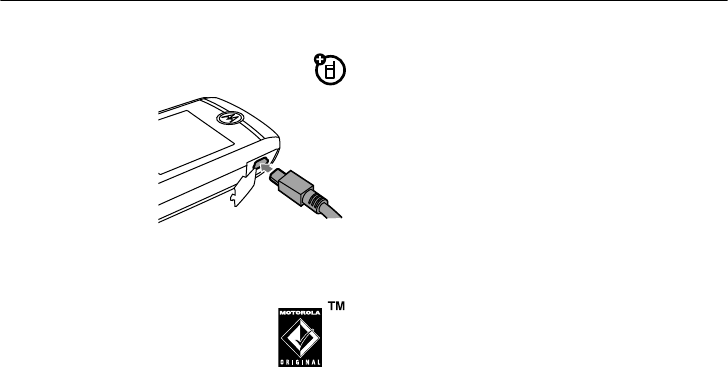

Charge phone,

connect to computer.

Power/End Key

Left Soft Key

Listen to music.

Send Key

Navigation Key

Microphone

3

A few menu basics:

This is a typical home screen and main menu layout.

Your phone may be a little different

.

Messages

SELECT EXIT

6Îì

T-Mobile 10:51am

MUSIC BROWSER

Home Screen Main Menu

Press & hold the

Power Key

P

until

the display lights up

to turn on your

phone.

1

In some list views,

such as your Message

Inbox or Contacts list,

the menu options

symbol M appears at

the bottom of the

screen. Press the

center key s to view

the menu options.

5

Press the

Navigation Key

S

up/down/left/right to

highlight a menu

feature.

3

Press the

Center

Key

s

to open

the

Main Menu

.

2

Press the

Center Key

s

to select it.

4

4

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

www.hellomoto.com

Note:

Do not ship your phone to the above address. If you need to

return your phone for repairs, replacement, or warranty service,

please contact the Motorola Customer Support Center at:

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Certain mobile phone features are dependent on the capabilities

and settings of your service provider’s network. Additionally,

certain features may not be activated by your service provider,

and/or the provider’s network settings may limit the feature’s

functionality. Always contact your service provider about feature

availability and functionality. All features, functionality, and other

product specifications, as well as the information contained in this

user’s guide are based upon the latest available information and

are believed to be accurate at the time of printing. Motorola

reserves the right to change or modify any information or

specifications without notice or obligation.

MOTOROLA and the Stylized M Logo are registered in the US

Patent & Trademark Office. All other product or service names are

the property of their respective owners. Microsoft, Windows and

Windows Me are registered trademarks of Microsoft Corporation;

and Windows XP is a trademark of Microsoft Corporation.

© Motorola, Inc. 2008. All rights reserved.

Software Copyright Notice

The Motorola products described in this manual may include

copyrighted Motorola and third-party software stored in

semiconductor memories or other media. Laws in the United

States and other countries preserve for Motorola and third-party

software providers certain exclusive rights for copyrighted

software, such as the exclusive rights to distribute or reproduce

the copyrighted software. Accordingly, any copyrighted software

contained in the Motorola products may not be modified,

reverse-engineered, distributed, or reproduced in any manner to

the extent allowed by law. Furthermore, the purchase of the

Motorola products shall not be deemed to grant either directly or

by implication, estoppel, or otherwise, any license under the

copyrights, patents, or patent applications of Motorola or any

third-party software provider, except for the normal, non-exclusive,

royalty-free license to use that arises by operation of law in the

sale of a product.

Manual Number: 68000201890-A

contents

5

contents

menu map . . . . . . . . . . . . . . . . 7

Use and Care . . . . . . . . . . . . . . 9

get started . . . . . . . . . . . . . . . 10

about this guide. . . . . . . . . . 10

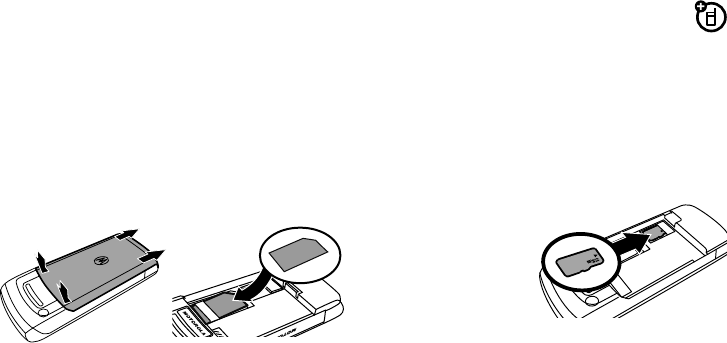

SIM card . . . . . . . . . . . . . . . 11

memory card. . . . . . . . . . . . 11

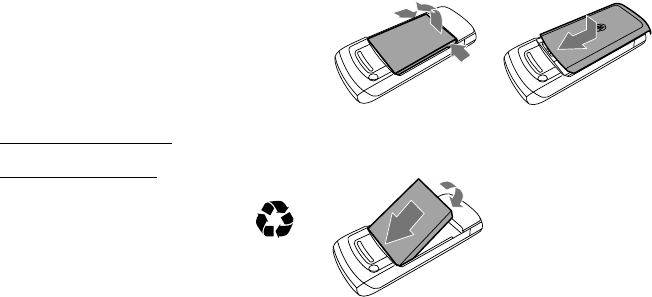

battery . . . . . . . . . . . . . . . . . 12

turn it on & off . . . . . . . . . . . 16

answer a call . . . . . . . . . . . . 16

make a call . . . . . . . . . . . . . 16

adjust volume . . . . . . . . . . . 16

change ring alert . . . . . . . . . 16

store a phone number. . . . . 17

call a stored phone number. 17

basics . . . . . . . . . . . . . . . . . . . 18

home screen . . . . . . . . . . . . 18

handsfree speaker. . . . . . . . 19

codes & passwords. . . . . . . 20

lock & unlock phone. . . . . . . 20

memory card setup . . . . . . . 21

tips & tricks. . . . . . . . . . . . . . . 22

personalize . . . . . . . . . . . . . . . 23

home screen shortcuts . . . . 23

main menu appearance . . . . 23

MyMenu . . . . . . . . . . . . . . . 23

ring styles & alerts. . . . . . . . 24

answer options . . . . . . . . . . 25

wallpaper . . . . . . . . . . . . . . . 25

screen saver . . . . . . . . . . . . 25

color settings . . . . . . . . . . . . 26

display settings . . . . . . . . . . 26

backlight. . . . . . . . . . . . . . . . 26

change front cover . . . . . . . 26

more personalizing . . . . . . . 27

calls . . . . . . . . . . . . . . . . . . . . 30

redial a number . . . . . . . . . 30

recent calls. . . . . . . . . . . . . 30

return a missed call . . . . . . 31

call waiting . . . . . . . . . . . . . 31

speed dial. . . . . . . . . . . . . . 31

call forward . . . . . . . . . . . . 32

notepad . . . . . . . . . . . . . . . 32

emergency calls. . . . . . . . . 32

more calling . . . . . . . . . . . . 33

call times . . . . . . . . . . . . . . 34

headset . . . . . . . . . . . . . . . 34

text entry. . . . . . . . . . . . . . . . 35

set entry modes. . . . . . . . . 35

tap method . . . . . . . . . . . . 37

iTAP® method . . . . . . . . . . 37

numeric method . . . . . . . . 38

6

contents

symbol method. . . . . . . . . . 38

delete letters & words . . . . 39

messages . . . . . . . . . . . . . . . . 40

send a message . . . . . . . . . 40

receive a message . . . . . . . 41

voicemail. . . . . . . . . . . . . . . 41

more messaging . . . . . . . . . 42

entertainment . . . . . . . . . . . . 43

music library . . . . . . . . . . . . 43

WebAccess. . . . . . . . . . . . . 45

fun & games . . . . . . . . . . . . 45

connections . . . . . . . . . . . . . . 46

cable connections . . . . . . . . 46

networks. . . . . . . . . . . . . . . 48

tools . . . . . . . . . . . . . . . . . . . . 49

phonebook . . . . . . . . . . . . . 49

personal organizer. . . . . . . . 49

service & repairs . . . . . . . . . . 51

SAR Data . . . . . . . . . . . . . . . . 52

EU Conformance . . . . . . . . . . 54

Safety Information. . . . . . . . . 56

Industry Canada Notice . . . . 60

FCC Notice . . . . . . . . . . . . . . . 60

Warranty . . . . . . . . . . . . . . . . . 61

Hearing Aids. . . . . . . . . . . . . . 65

WHO Information. . . . . . . . . . 66

Registration . . . . . . . . . . . . . . 66

Export Law . . . . . . . . . . . . . . . 67

Recycling Information . . . . . . 67

Perchlorate Label . . . . . . . . . . 68

Privacy and Data Security . . . 68

Driving Safety. . . . . . . . . . . . . 69

index . . . . . . . . . . . . . . . . . . . . 71

menu map

7

menu map

main menu

á

WebAccess

• t-zones

• Web Shortcut

•Go to URL

• Web Session

• Stored Pages

•History

• General Setting

s

Call Log

• Received Calls

• Dialed Calls

• Notepad

• Call Times

#

t-zones

• My Album

• My Journal

•Games

• HiFi Ringers

• Wallpapers

• Screensavers

É

Organizer

• Games & Apps

• Calculator

• MyMenu

•Alarm Clock

• Stop Watch

• Dialing Services *

• Calendar

e

Messages

•Create

• Inbox

•Draft

• Outbox

•Quick Notes

•Voicemail

• Browser Msgs

• Info Services *

• Picture Msg Template

* Network Dependent

This is the standard main menu layout.

Your phone’s menu may be a

little different

.

h

Multimedia

•Pictures

• Music Library

&

Help

n

Phonebook

w

Settings

• (see next page)

8

menu map

settings menu

l

Personalize

• Home Screen

• Main Menu

• Color Setting

• Greeting

• Wallpaper

• Screen Saver

t

Ring Style

•Style

•Style Detail

H

Call Forward

• Voice Calls

• Fax Calls *

• Data Calls *

• Cancel All

•Forward Status

U

In Call Setup

• In-Call Timer

• My Caller ID

• Answer Options

• Call Waiting

6

Initial Setup

• Time and Date

• 1-Touch Dial

• Display Settings

• Backlight

•Scroll

• Language

•DTMF

• Master Reset

• Master Clear

• Format microSD Card

m

Phone Status

• My Numbers

• Battery Meter

* Network Dependent

S

Headset

• Auto Answer

j

Network

•New Network

• Network Setup

•Avail. Networks

• My Network List

• Service Tone

• Call Drop Tone

• Band Selection

9

Security

• Phone Lock

• Lock Keypad

• Auto Key Lock

•Fixed Dial *

• SIM PIN

• New Passwords

Use and Care

9

Use and Care

Use and Care

To care for your Motorola phone, please keep it away from:

liquids of any kind dust and dirt

Don’t expose your phone to water, rain,

extreme humidity, sweat, or other moisture.

If it does get wet, don’t try to accelerate drying

with the use of an oven or dryer, as this may

damage the phone.

Don’t expose your phone to dust, dirt, sand,

food, or other inappropriate materials.

extreme heat or cold cleaning solutions

Avoid temperatures below 0°C/32°F or

above 45°C/113°F.

To clean your phone, use only a dry soft cloth.

Don’t use alcohol or other cleaning solutions.

microwaves the ground

Don’t try to dry your phone in a microwave

oven.

Don’t drop your phone.

10

get started

get started

about this guide

This guide shows how to locate a menu feature as

follows:

Find it:

s

>

sCall Log

>

Received Calls

This means that, from the home screen:

1

Press the center key

s

to open the main menu.

2

Scroll to

sCall Log

and press the center key

s

.

3

Scroll to

Received

Calls

and press the center key

s

.

Tip:

Press the center key

s

or

Select

to select a

highlighted option.

CAUTION: Before using the

phone for the first time, read the

Important Safety and Legal

Information

included in the gray-

edged pages at the back of this

guide.

symbols

This means a feature is

network/subscription dependent and may

not be available in all areas. Contact your

service provider for more information.

This means a feature requires an optional

accessory.

11

get started

SIM card

Your Subscriber Identity Module (SIM) card contains

personal information like your phone number and

contacts. It can also contain your voicemail and text

message settings.

If you put your SIM card in another phone, that phone

uses your phone number.

Caution:

Don’t bend or scratch your SIM card. Keep it

away from static electricity, water, and dirt.

Tip:

Ensure your SIM card is fully inserted into the

phone before fitting the battery.

Note:

While the battery cover is removed you might

want to change your phone front cover (see page 26).

memory card

You can use a removable microSD memory

card up to 2 GB (greater than 1 GB capacity is

guaranteed only for SanDisk microSD cards) to store

multimedia objects, such as pictures and music. We

recommend that you only use Motorola approved

memory cards, such as SanDisk memory cards. Other

memory cards may not be compatible with your

phone.

To install the memory

card, make sure the

memory card’s metal

contacts are facing

down. Slide the top

of the memory card

under the metal band and into the holder. Make sure

12

12

get started

to

format new memory cards

, as described on

page 21. To remove the memory card, slide the card

back out of the holder.

battery

battery use & safety

IMPORTANT: HANDLE AND STORE BATTERIES

PROPERLY TO AVOID INJURY OR DAMAGE.

Most battery issues arise from improper handling

of batteries, and particularly from the continued use

of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred,

or otherwise attempt to change the form of

your battery.

• Don’t let the phone or battery come in

contact with water.

Water can get into the

phone’s circuits, leading to corrosion. If the

phone and/or battery get wet, have them

checked by your carrier or contact Motorola

even if they appear to be working properly.

• Don’t allow the battery to touch metal

objects.

If metal objects, such as jewelry, stay

in prolonged contact with the battery contact

points, the battery could become very hot.

• Don’t place your battery near a heat

source.

Excessive heat can damage the

phone or the battery. High temperatures can

cause the battery to swell, leak, or

malfunction. Therefore:

•

Do

not

dry a wet or damp battery with an

appliance or heat source, such as a hair

dryer or microwave oven.

•

Avoid leaving your phone in your car in

high temperatures.

13

get started

DOs

• Do avoid dropping the battery or phone.

Dropping these items, especially on a hard

surface, can potentially cause damage.

• Do contact your service provider or

Motorola if your phone or battery has been

damaged from dropping or high

temperatures.

IMPORTANT: USE MOTOROLA ORIGINAL

PRODUCTS FOR QUALITY ASSURANCE AND

SAFEGUARDS.

To aid consumers in identifying

authentic Motorola batteries from non-original or

counterfeit batteries (that may not have adequate

safety protection), Motorola provides holograms on its

batteries. Consumers should confirm that any battery

they purchase has a “Motorola Original” hologram.

Motorola recommends you always use

Motorola-branded batteries and chargers.

Motorola

mobile devices are designed to work with Motorola

batteries. If you see a message on your display such

as

Invalid Battery

or

Unable to Charge

, take the following steps:

•

Remove the battery and inspect it to confirm

that it has a “Motorola Original” hologram;

•

If there is no hologram, the battery is not a

Motorola battery;

•

If there is a hologram, replace the battery and

retry charging it;

•

If the message remains, contact a Motorola

Authorized Service Center.

Important:

Motorola’s warranty does not cover

damage to the phone caused by non-Motorola

batteries and/or chargers.

Warning:

Use of a non-Motorola battery or charger

may present a risk of fire, explosion, leakage, or other

hazard.

14

get started

PROPER AND SAFE BATTERY DISPOSAL AND

RECYCLING

Proper battery disposal is not only important for

safety, it benefits the environment. Consumers may

recycle their used batteries in many retail or service

provider locations. Additional information on proper

disposal and recycling may be found on the Web:

•

www.motorola.com/recycling

•

www.rbrc.org/call2recycle/

(in English only)

Disposal:

Promptly dispose of used batteries

in accordance with local regulations. Contact

your local recycling center or national

recycling organizations for more information

on how to dispose of batteries.

Warning:

Never dispose of batteries in a fire because

they may explode.

install the battery

remove the battery

Note:

Your battery is intentionally tight fitting to

ensure consistent connection.

12

15

get started

charge the battery

Plug the battery charger

into your phone and an

electrical outlet. Your phone

might take several seconds

to start charging the

battery. The phone shows

Charge Complete

when finished.

Tip:

You can also use a PC USB port to charge your

phone battery. Before connecting your phone to your

PC, download and install the charging software driver

from

www.motorola.com/support/W233

.

Notes for charging your phone’s battery:

•

When charging your battery, keep it near room

temperature. Never expose batteries to

temperatures below 0°C (32°F) or above 45°C

(113°F) when charging.

•

New batteries are not fully charged.

•

New batteries or batteries stored for a long

time may take more time to charge.

•

Motorola batteries and charging systems have

circuitry that protects the battery from

damage from overcharging.

turn it on & off

To turn on your phone

,

press and hold

O

for a

few seconds or until the

display turns on.

If prompted, enter your four-digit unlock code. Your

phone’s four-digit

unlock code

is originally set to

1234

or the last four digits of your phone number (see

page 20).

To turn off your phone

, press and hold

O

for a

few seconds.

16

get started

answer a call

When your phone rings and/or vibrates, press

N

to

answer.

To hang up, press

O

.

make a call

Enter a phone number and press

N

to make a call.

To hang up, press

O

.

Tip:

Is your caller saying they can’t hear you? Make

sure your finger is not covering the microphone (see

page 2).

adjust volume

You can adjust the volume, during a call, by pressing

S

right to increase and left to decrease the earpiece

volume.To mute a call, press

s

and select

Mute

.

change ring alert

Find it:

s

>

wSettings

>

Ring Style

Select

Loud Ring

,

Soft Ring

,

Vibrate

,

Vibrate & Ring

,

Vibrate then Ring

or

Silent

(see page 24).

store a phone number

You can store up to 500 phone numbers in

Phonebook

:

1

Enter a phone number in the home screen, and

press

Store

.

2

Enter a name and other details for the phone

number. To select a highlighted item, press the

center key

s

.

3

Press

Done

to store the number.

To store an email address for a new contact, press

s

>

nPhonebook

>

[New Entry]

>

New > Email

. Enter the

name and email address and then press

Done

.

17

get started

call a stored phone

number

Find it:

s

>

nPhonebook

1

Scroll to the entry.

2

Press

N

to call the entry.

Shortcut:

In Phonebook, enter the first letters of an

entry to get to it quickly.

Note:

you can change the search method to

Find

so

that you can search for a contact name by typing it in:

Find it:

s

>

nPhonebook > s > Setup > Search Method

18

basics

basics

See page 2 for a basic phone diagram.

home screen

When you turn on your phone, it displays the home

screen. To dial a number from the home screen, press

number keys and

N

.

Note:

Your home screen might look a little different.

Soft key labels show the current soft key functions.

For soft key locations, see page 2.

Press the navigation key

S

up, down, left, or right to

select items in the home screen.

Status indicators can appear at the top of the home

screen:

Right Soft

Key

Left Soft

Key

MUSIC BROWSER

6Îì

WED 12/30/09

10:51am

indicator

6

Signal strength.

W

Roaming off your network.

{

Missed call.

h

Active voice call.

ì

Battery level.

õ

Current ring style is

Loud

.

19

basics

handsfree speaker

You can use your phone’s handsfree speaker to make

calls without holding the phone to your ear. To turn the

speaker on, during a call, press

SPKR ON

.To turn the

speaker off, press

SPKR OFF

.

You can also use an optional 2.5 mm wired headset to

go handsfree. Mini USB headsets are not supported.

Note:

The use of wireless phones while driving may

cause distraction. Discontinue a call if you can’t

concentrate on driving. Additionally, the use of

wireless devices and their accessories may be

prohibited or restricted in certain areas. Always obey

the laws and regulations on the use of these products.

ô

Current ring style is

Soft

.

Í

Current ring style is

Silent

.

Ì

Current ring style is

Vibrate and Ring

.

ö

Current ring style is

Vibrate then Ring

.

Î

Current ring style is

Vibrate

.

Spkrphone On

Speakerphone is on.

Û

New text or multimedia message.

t

New voicemail message.

indicator

20

basics

codes & passwords

Your phone’s four-digit

unlock code

is originally set to

1234

or to the last four digits of your phone number.

The six-digit

security code

is originally set to

000000

.

Your service provider may reset these codes. If not,

you should change them to protect your personal

information. The unlock code must contain four digits.

The security code must contain six digits.

To change a code or password

:

Find it:

s

>

wSettings

>

Security

>

New Passwords

Note:

If you forget your security code, contact your

service provider.

lock & unlock phone

You can lock your phone with a four-digit code to keep

others from using it. (to lock and unlock keys see

page 22).

Note:

You can make emergency calls on a locked

phone (see page 32). A locked phone still rings or

vibrates for incoming calls or messages,

but you

need to unlock it to answer

.

To lock your phone

:

Find it:

s

>

wSettings

>

Security

>

Phone Lock

>

Lock Now

or

Automatic Lock

Enter the four-digit unlock code and press

OK

. Your

phone first displays

Phone Locked

, and then shows

Enter

Unlock Code

until the next time you unlock your phone.

To unlock your phone

, enter your four-digit code and

press

OK

.

21

basics

memory card setup

You can store multimedia content, such as songs and

pictures, on your phone’s internal memory or on an

optional memory card.

Note:

Your phone supports microSD memory cards

with up to 2 GB capacity (greater than 1 GB capacity is

guaranteed only for SanDisk microSD cards).

format memory card

You will need to format the memory card before using

it for the first time. This essential procedure creates

the

Music

and

Pictures

directories. If you do not

format a memory card before using it for the first time,

your phone may not be able to read the contents of

the card.

Caution:

Formatting the memory card

erases all

content

on the card.

Find it:

s

>

wSettings

>

Initial Setup

1

Scroll to

Format Additional Storage Device

and press

Select

.

2

When prompted, press

Yes

to continue or

No

to

cancel formatting.

To copy files from a computer to your memory card,

see page 46. You cannot copy files between your

phone's memory and your memory card.

Tip:

To access data stored on your microSD memory

card, with your phone in the home screen,

press

s

>

h

Multimedia

>

Pictures

or

Music Library

,

then

s

>

Switch Storage Devices

. If there are no files

stored on your memory card then your phone will

automatically switch to its internal memory.

22

tips & tricks

tips & tricks

From the home screen

(page 18), you can use

shortcuts:

To... Do this...

play music

Press the left soft key to

activate the music library.

lock/unlock

keypad

Press

s

then

*

to lock or

unlock.

see recently

dialed numbers

Press

N

.

use application

shortcuts

Press the left and right soft keys

or the navigation key

S

.

access

voicemail

Press and hold the

1

key to

access your voicemail

messages.

23

personalize

personalize

home screen shortcuts

Find it:

s

>

wSettings

>

Personalize

>

Home Screen

>

Home Keys

main menu appearance

To change your main menu appearance to either

icons or a text-based list

, press

s

>

wSettings

>

Personalize

>

Main Menu

>

View

.

MyMenu

Create a custom menu of your favorite phone features

and tools.

assign features to MyMenu

1

Press

s

then scroll to a desired menu or

submenu item.

For example if you want to assign the

Messages

menu to

MyMenu

, scroll to the messages icon (

e

)

options

Icons

Show or hide the home screen shortcut

icons.

Up

,

Down

,

Left

,

Right

Choose the features that open when

you press the navigation key (

S

) up,

down, left, or right in the home screen.

Right Soft

Key

Choose the feature that opens when

you press the right soft key.

24

personalize

on the main menu. If you want to assign the

Calculator

function to

MyMenu

, scroll to and select

Office Tools

(on the main menu) then scroll to

Calculator

.

2

With the desired option highlighted, press and

hold

s

until the

MyMenu

confirmation appears,

then press

OK

.

3

Press

Done

to accept the assigned key number, or

scroll to

Key

and press

Change

to assign a different

one.

use MyMenu

Find it:

s

>

?

Organizer

>

MyMenu

Scroll to the

MyMenu

item you want and press

Enter

.

ring styles & alerts

Your phone rings and/or vibrates to notify you of an

incoming call or to signal certain other events.

set styles

Find it:

s

>

wSettings

>

Ring Style

1

Select

Style

by pressing

s

.

2

Scroll to a ring style and press

s

.

set alerts

Set alerts for different events, such as getting a

message in your inbox or receiving a call.

Find it:

s

>

wSettings

>

Ring Style

1

Scroll to Style

Detail

and press

s

.

2

Scroll to an alert type and press

s

.

3

Scroll to the desired detail setting and press

s

.

Note:

Your phone plays a sample of each

highlighted setting. Ringtones play through the

speakerphone, unless you’re using a headset.

25

personalize

answer options

Set your phone to either

Multi-key On

to answer by

pressing any key or

Multi-key Off

to answer by pressing

the send key only.

Find it:

s

>

wSettings

>

In Call Setup

>

Answer Options

wallpaper

Set a picture as a wallpaper (background) image in

your home screen.

Find it:

s

>

wSettings

>

Personalize

>

Wallpaper

To select a wallpaper image

:

1

Scroll to


and press

s

.

2

Scroll to

Preloaded and downloaded media files

or

AdditionalStorage Device

to browse your memory card

and press

s

.

3

Scroll to the picture you want and press

s

.

or

Select

(None)

to turn off wallpaper.

To adjust wallpaper image layout

:

1

Scroll to

Set Layout

and press

s

.

2

Scroll to

Tile

,

center

or

Fit-to-screen

, and press

s

.

screen saver

Set a picture as a screen saver image. The screen

saver displays when the phone is being charged and

there is no activity.

Find it:

s

>

wSettings

>

Personalize

>

Screen Saver

To select a screen saver

:

1

Scroll to

Type

and select

Animation

.

2

Scroll to

Animation

and press

s

.

3

Scroll to the animation you want and press

s

.

26

personalize

To specify how long your phone must be inactive

before it displays the screen saver

:

1

Scroll to

Idle Time

and press

s

.

2

Select a time period or

Off

and press

s

.

Note:

To conserve battery life, turn off the screen

saver.

color settings

To choose a

Color Setting

(or skin) that sets the look and

feel of your phone’s display: Press

s

>

wSettings

>

Personalize

>

Color Setting

.

display settings

Select a time period the display light remains on.

Find it:

s

>

wSettings

>

InitialSetup

>

Display Settings

backlight

Select a time period the display backlight remains on.

Find it:

s

>

wSettings

>

Initial Setup

>

Backlight

change front cover

Your phone has a removable cover that you can

replace to change its appearance.

Caution:

To avoid risk of personal injury or equipment

damage, and maintain compliance with international

RF exposure guidelines, do not use or charge your

phone with either cover removed.

Caution:

The covers are made of plastic and can be

broken. Take care when removing or replacing any part

of your phone. When changing covers, you are

removing some of the phone’s outer protection.

Therefore, take extra care with your phone and avoid

exposure to dirt, dust, liquids (including condensation),

27

personalize

and static electricity. Replace all covers as quickly as

possible. Always use Motorola approved covers.

1

Remove battery

cover and battery,

then carefully but

firmly ease the

locating tabs from

the phone to

release the top of the cover.

2

Working down the

phone, release the

cover and slide it

off the end of the

phone.

3

Swap the keypad

to the new cover,

ensuring the top

and bottom tabs

are located securely.

4

To apply the new cover, insert the tab at the

bottom of the new cover into the bottom of the

phone, then use your thumbs to press along the

sides of the cover as you fix it into place.

5

Replace the battery and cover.

more personalizing

features

ring volume

s

>

w

Settings

>

Ring Style

> Style

Detail

>

Ring Volume

keypad volume

s

>

wSettings

>

Ring Style

> Style

Detail

>

Key Volume

set time and date

s

>

wSettings

>

Initial Setup

>

Time and Date

28

personalize

greeting

Change the greeting that appears when you turn on

your phone:

s

>

wSettings

>

Personalize

>

Greeting

clock view

Display an analog clock or digital time readout in the

home screen:

s

>

wSettings

>

Personalize

>

Home Screen

>

Clock Set

menu view

Display the main menu as icons or a text list:

s

>

wSettings

>

Personalize

>

Main Menu

>

View

features

show or hide menu icons

Show or hide menu feature icons in the home

screen:

s

>

lPersonalize

>

Home Screen

>

Home Keys

>

Icons

menu language

s

>

wSettings

>

InitialSetup

>

Language

scroll

Set the scroll bar to stop or wrap around in menu

lists:

s

>

wSettings

>

InitialSetup

>

Scroll

features

29

personalize

master reset

Reset all options except unlock code, security code,

and lifetime timer:

s

>

wSettings

>

InitialSetup

>

Master Reset

To reset all options, you need to enter the

Security Code

(

000000

).

features

master clear

Reset all options except unlock code, security code,

and lifetime timer, and clear all user settings and

entries.

This option erases all user-entered information

stored in your phone memory, including Phonebook

entries and downloaded files.

Once you erase the

information, it cannot be recovered.

It resets all

options to their factory settings except for the

unlock code, security code, and lifetime timer.

s

>

wSettings

>

Initial Setup

>

Master Clear

To reset all options, you need to enter the

Security Code

(

000000

).

features

30

calls

calls

To make and answer calls, see page 16.

redial a number

1

From the home screen, press

N

to see a list of

dialed calls.

2

Scroll to the entry you want to call and press

N

.

recent calls

Your phone keeps lists of the calls you recently

received and dialed, even if the calls didn’t connect.

The lists are sorted from newest to oldest calls. The

oldest calls are deleted as new calls are added.

Find it:

s

>

s Call Log > Received Calls

or

Dialed Calls

1

Scroll to an entry.

Note:

A

%

next to a call means the call

connected.

2

Press

N

to call the number.

To see call details (such as time and date),

press

View

.

Press the center key

s

while viewing a list of recent

calls to see these options:

option

Store

Store the entry in your

phonebook.

Delete

Delete the entry.

Delete All

Delete all entries in the list.

31

calls

return a missed call

When you miss a call, your phone plays an alert and

displays the

{

(missed call) indicator and a missed

call notification. Press

View

to see the details and press

N

to call the number.

To view your missed calls at any time:

Find it:

s

>

s Call Log > Received Calls

or

Dialed Calls

call waiting

If you

receive a second call

while you are

already on a call:

•

To answer the second call and put the first call

on hold, press

N

. To switch between the

calls, press

Switch

again.

•

To send the second call to your voicemail,

press

Ignore

.

speed dial

Each

Phonebook

entry you store is assigned a unique

speed dial number.

Find it:

s

>

n

Phonebook

>

[Entry]

>

s

>

Edit

To speed dial a number, simply enter the speed dial

number and press

#

then

N

.

Note:

Your service provider may have already

assigned speed dial number

1

as voicemail.

Show ID / Hide ID

Show or hide your phone number

when making a call.

Send Message

Create a new text message with

the number in the

To

field.

Add Digits

Add digits after the number.

Attach Number

Attach a number from the

Phonebook

or recent calls lists.

option

32

calls

call forward

Set up or cancel call forward:

Find it:

s

>

wSettings

>

Call Forward

Choose

Voice Calls

,

Fax Calls

, or

Data Calls

and then select

which type of calls to forward and the phone number

to forward the calls to.

notepad

The most recent set of digits that you entered are

stored in your phone’s notepad memory.

To retrieve a number in the notepad

:

Find it:

s

>

s

Call Log

>

NotePad

Press

N

to call the number or press

Store

to store the

number in

Phonebook

.

emergency calls

Your service provider programs one or more

emergency phone numbers, such as 911 or 112, that

you can call under any circumstances, even when your

phone is locked or the SIM card is not inserted.

Note:

Check with your service provider, as emergency

numbers vary by country. Your phone may not work in

all locations, and sometimes an emergency call cannot

be placed due to network, environmental, or

interference issues. Do not solely rely on your

wireless phone for essential communications, such as

medical emergencies.

1

Press the keypad keys to dial the emergency

number.

2

Press

N

to call the emergency number.

33

calls

more calling

During a call you access the in-call menu by

pressing

s

.

features

view available phone lines

s

>

My Tel Numbers

Scroll to a line and press

Select

.

mute the call

s

>

Mute

hold the call

s

>

Hold

accept a new call

s

>

New Call

access contacts

s

>

Phonebook

access dialed calls

s

>

Dialed Calls

access received calls

s

>

Received Calls

access message menu

s

>

Messages

DTMF tones

Your phone can send Dual Tone Multi Frequency

(DTMF) tones for calling card calls or other

automated touch-tone calls.

s

>

wSettings

>

Initial Setup

>

DTMF

Select

Short DTMF

or

Long DTMF

.

features

34

calls

call times

Network connection time

is the elapsed time from

the moment you connect to your service provider’s

network to the moment you end the call by

pressing

O

. This time includes busy signals and

ringing.

The amount of network connection time you track

on your resettable timer may not equal the

amount of time for which you are billed by your

service provider. For billing information, please

contact your service provider directly.

headset

features

set in-call timer

s

>

wSettings

>

In Call Setup

>

In-Call Timer

view call times

s

>

sCall Log

>

Call Times

Scroll to

Last Call

,

Dialed Calls

,

Received Calls

,

All Calls

, or

Life

Time

, and press

Select

.

features

auto answer incoming calls

s

>

wSettings

>

Headset

>

Auto Answer

Note:

Both mono and stereo headsets are

supported for voice only.

change volume

Press

S

right to increase and left to decrease the

headset volume during a call.

features

35

text entry

text entry

Some screens allow you to use the keypad to enter

text, such as when you compose a message.

set entry modes

Multiple text entry modes make it easy for you to

enter names, numbers, and messages:

To assign a Primary or Secondary text entry mode:

1

In a text entry screen, press

s

.

2

Scroll to

Entry Setup

and press

s

.

3

Scroll to

Primary Setup

or

Secondary Setup

and press

s

.

4

Scroll to one of the following choices and

press

s

:

entry mode

Primary

Secondary

Enter text using a method that you set.

Number

Enter numbers only (see page 38).

Symbol

Enter symbols only (see page 38).

options

iTAP™

Let the phone predict each word as you

press keys.

TAP

Enter letters and numbers by pressing

a key one or more times.

Tap Extended

Enter letters, numbers, and symbols by

pressing a key one or more times.

36

text entry

To change the text entry mode

Press

#

in the text entry screen to change the text

entry until the desired mode is displayed.

To select or edit a text entry mode:

Press

s

in any text entry screen, scroll to and select

Entry Mode

, then scroll to and select the desired entry

mode.

capitalization

Press

0

in any text entry screen to change the text

case. These indicators show capitalization status:

text entry mode indicators

When you select the

Primary

or

Secondary

text entry mode,

the following indicators identify the text entry setting:

These indicators identify

Numeric

or

Symbol

entry mode:

indicator

í

no capital letters

L

all capital letters

ì

capitalize next letter only

primary secondary

gm

Tap, no capital letters

hq

Tap, capitalize next letter

fl

Tap, all capital letters

jp

iTAP™, no capital letters

kn

iTAP, capitalize next letter

io

iTAP, all capital letters

indicator

gm

number mode

[

symbol mode

37

text entry

tap method

This is the standard method for entering text on your

phone.

Regular

Tap

method cycles through the letters and

numbers of the key you press.

1

Press a key one or more times to cycle through its

characters.

2

Repeat the step above to enter all characters.

Tip:

Press

*

to insert a space.

In a text entry screen you can press

#

to switch

entry modes. If

Tap

or

Tap Extended

is not available as the

Primary

or

Secondary

entry mode (see page 35).

iTAP® method

The iTAP software combines your single key presses

into common words, and predicts each word as you

enter it. This can be faster than the Tap method.

1

Press

S

right or left to scroll through the

possible letter combinations, and highlight the

combination you want.

2

Press

Select

to enter the highlighted combination.

You can press keys to add more letters to the end

of the combination.

Press

*

to enter the highlighted combination

and insert a space.

38

text entry

For example, if you press

7764

, your phone

displays the corresponding letter combinations:

numeric method

In a text entry screen, press

#

to switch entry

methods until your phone displays the

gm

(numeric)

indicator.

Press keypad keys to enter numbers. When finished,

press

#

to switch entry modes.

symbol method

In a text entry screen, press

#

to switch entry

methods until your phone displays the

[

(symbol)

indicator.

1

Press a key one or more times to show possible

symbol combinations at the bottom of the screen.

2

Scroll left or right to highlight a symbol and press

Select

to enter it.

6Îì

SMS: 746

SELECT DELETE

This is a prog

program proh spoi

755

Press Select

to accept

program.

Press

S

right

or left to see

other word

suggestions.

Message

39

text entry

delete letters & words

Move the cursor to the right of the text you want to

delete and then:

•

Press

Delete

to delete one letter at a time.

•

Press and hold

Delete

to delete the

entire message.

40

messages

messages

You can send and receive text (SMS/EMS) and

multimedia (MMS) messages and access your

voicemail. Each message type allows you to attach

different objects. The available options are displayed in

the

Insert

menu.

Note:

Your phone can store up to 500 messages.

send a message

Find it:

s

>

e Messages > Create Messages > Create Message

1

Select a message type and enter the message.

2

To insert a picture, sound, or other object, press

Insert

.

3

When you finish the message, press

OK

.

4

Choose one or more people and press

Add

.

5

Press

Send

.

quick text

Set your home screen to access the

Y

Quick Text

option so that you can send messages faster.

Find it:

s

>

wSettings

>

Personalize

>

Home Screen

>

Home

Keys

>

Up

,

Down

,

Left

, or

Right

>

Quick Txt

After setup, access the text entry screen by pressing

the Navigation key direction you set for

YQuick Txt

.

receive a message

When you receive a message, your phone plays an

alert and displays the

e

(new message) indicator and

a new message notification.Press

Read

to read the

41

messages

message immediately, or save it for viewing later. To

read messages in your inbox:

Find it:

s

>

e

Messages

>

Inbox

Scroll to the message you want and press

Read

. For

MMS messages, your phone displays the media

object, then the message.

voicemail

Your network stores the voicemail messages

you receive.

When you

receive

a voicemail message, your phone

shows an indicator and

New Voicemail

. Press

Call

to call

your voicemail.

To check your voicemail messages at any time:

Find it:

s

>

eMessages

>

Voicemail

>

Call

Note:

Your service provider may have assigned speed

dial

1

for voicemail and may provide additional

information about using voicemail.

To set up voicemail

:

Find it:

s

>

eMessages

>

s > Voicemail Setup

more messaging

features

use a picture message template

Select a template with a preloaded picture:

s

>

eMessages

>

Picture Msg Template

view sent messages

s

>

eMessages

>

Outbox

Scroll to the message and press

Read

.

Press

s

to view message options.

42

messages

view drafts

s

>

eMessages

>

Draft

Scroll to the message and press

Select

.

Press

s

to view message options.

erase messages

s

>

eMessages

>

s > Cleanup Messages

and select

the type of message to clean up.

view message memory status

s

>

eMessages

>

s > Memory Status

features

43

entertainment

entertainment

music library

Your phone can play songs in the iMelody, MIDI and

MP3 file formats:

Find it:

s

>

h Multimedia

>

Music Library

To copy files from a computer to your memory card,

see page 46. You cannot copy files between your

phone's memory and your memory card.

Note:

Your phone cannot play WMA, AAC, AAC+, or

AAC++ files, or MP3 files with a bit rate higher than

320 Kbps. If you try to download or play one of these

files, your phone may display an error message or ask

you to delete the file.

Tip:

Want to listen to music on the move? Connect a

stereo headset for high quality music playback.

music controls

function

view song list

Before music playback, press

S

up or down.

play

Press

Play

.

pause/resume

Press

s

.

fast forward

Press & hold

S

right (for at

least two seconds).

next/previous

song

Press & release

S

right or left.

rewind

Press & hold

S

left (for at least

two seconds).

turn off

Press

Back

.

44

entertainment

playlists

Find it:

s

>

hMultimedia

>

Music Library

•

To create a new playlist, scroll to

[New Playlist]

and press

Select

.

•

To edit an existing playlist, scroll to the playlist

and press

s

>

Edit

.

•

To select and play a playlist, scroll to the

playlist and press

Play

.

Note:

If a call comes in while listening to music, press

Answer

to accept or

Ignore

to reject the call.

music library options

option

New Playlist

- Create a new playlist.

iMelody

- Create a custom ringtone.

Categories

Create and manage categories

for your music files.

Sound Setup Auto Repeat

- Repeat the selected

song or all songs in the current

playlist.

View Free Space

View space remaining on your

phone.

Switch Storage

Devices

If you have a memory card

inserted in your phone, you can

switch from phone to card

memory.

45

entertainment

WebAccess

Use your phone to access web pages.

Find it:

s

>

áWebAccess

WebAccess controls

fun & games

Note:

To access sounds or pictures stored on your

microSD memory card, from the home screen,

press

s

>

h

Multimedia

>

Pictures

or

Music Library

>

s

>

Switch Storage Devices

.

option

t-zones

Open the web browser.

Web Shortcut

Access a preset shortcut to a

web page.

Go to URL

Enter a web page URL (address).

Web Session

Access a stored web session.

Stored Pages

Go to a previously stored page.

History

Access a list of recently viewed

web sites.

General Setting

Clear history, reset cache or clear

cookies.

features

play a game

s

>

ÉOrganizer

>

Games & Apps

manage pictures

s

>

hMultimedia

>

Pictures

To view a picture, scroll to the image and press

View

.

46

connections

connections

cable connections

You can use your

phone’s mini USB port

to connect your

phone’s optional

removable memory

card to a computer.

To insert a memory

card, see page 11.

Motorola Original USB data cables and

supporting software may be sold

separately. Check your computer to

determine which cable you need.

Note:

The unauthorized copying of copyrighted

materials is contrary to the provisions of the Copyright

Laws of the United States and other countries. This

device is intended solely for copying non-copyrighted

materials, materials in which you own the copyright, or

materials which you are authorized or legally permitted

to copy. If you are uncertain about your right to copy

any material, please contact your legal advisor.

47

connections

Before you use a USB cable connection:

•

If you have a new memory card, be sure to

format

it as described on page 21.

•

Be sure to connect the phone to a high-power

USB port

on your computer

(not a low-power

one, such as the USB port on your keyboard or

bus-powered USB hub).

If you connect your phone to a low-power USB

port, the computer may not recognize your

phone.

•

Make sure both your phone and the computer

are turned on and the phone is in the home

screen.

Note:

When your phone is plugged into a

computer and being used for mass storage, it

cannot be used for anything else. To restore

the phone to normal use, disconnect it from

the PC.

•

Your phone supports

Microsoft® Windows® 2000 and

Windows XP™. Other operating systems may

not be compatible with your phone.

Attach the Motorola

Original USB cable to the

mini USB port on your

phone and to an available

USB port on your

computer. Select

Yes

to

connect the phone as a

storage device.

Note:

Selecting

No

will start charging the phone

battery.

YES

Connect phone as

storage device?

NO

6) f öì

48

connections

On your PC:

1

Open your “My Computer” window, where your

phone’s memory card shows as a “Removable

Disk” icon.

2

Click on the “Removable Disk” icon to access the

memory card.

3

If necessary, in the “Removable Disk” (memory

card) window, create one or more folders for the

files you will copy onto the memory card.

4

To copy files between your PC and phone, drag

and drop into the appropriate folders:

•

music files (iMelody, MIDI and MP3): \

Music

.

To help manage your music, you can also

create new folders in the

\Music

folder.

•

picture files (JPG, PNG, or BMP): \

Pictures

.

The maximum size of single picture file is

100 KB at a resolution of 640 x 640 dpi.

5

When you’re finished, remove the device by

selecting the “Safely Remove Hardware” icon in

the system tray at the bottom of your PC screen,

then select “USB Mass Storage Devices” and

“Stop”.

networks

features

view or change network settings

s

>

wSettings

>

Network

select a band

s

>

wSettings

>

Network > Band Selection

dropped call alert

s

>

wSettings

>

Network

>

Call Drop Tone

roaming alert

s

>

wSettings

>

Network

>

Service Tone

tools

49

tools

phonebook personal organizer

features

create entries

s

>

nPhonebook

>

[New Entry]

edit entries

s

>

nPhonebook

Scroll to the entry and press

s

>

Edit

to edit the

entry. Scroll up or down and press

s

to edit fields.

Press

Done

to save your changes.

delete entries

s

>

nPhonebook

Scroll to the entry and press

s

>

Delete

.

features

view or add calendar events

s

>

ÉOrganizer

>

Calendar

Scroll to the desired day and press

Select

, then scroll

to

View

or

[New]

.

event reminders

When an event reminder occurs, press

View

to view

it. Press

Exit

to dismiss it.

50

tools

copy calendar events

Copy a datebook event to another date and/or time:

s

>

ÉOrganizer

>

Calendar

Scroll to the desired day and press

Select

, then scroll

to the event and press

s

. Scroll to

Copy

and

press

Select

.

set alarms

s

>

ÉOrganizer

>

Alarm Clock

Note:

To select an MP3 music file or recorded radio

clip as your alarm tone, press

s

>

wSettings

>

Ring Style

> Style

Detail

>

Alarm

.

features

calculator

s

>

ÉOrganizer

>

Calculator

convert currency

s

>

ÉOrganizer

>

Calculator

Press

s

, then scroll to

Convert

Currency

and

press

Select

.

features

51

service & repairs

service & repairs

If you have questions or need assistance, we're here

to help.

Go to

www.motorola.com/support

, where you can

select from a number of customer care options. You

can also contact the Motorola Customer Support

Center at 1-800-331-6456 (United States),

1-888-390-6456 (TTY/TDD United States for hearing

impaired), or 1-800-461-4575 (Canada).

52

SAR Data

Specific Absorption Rate Data

SAR Data

This model wireless phone meets the

government’s requirements for exposure to radio

waves.

Your wireless phone is a radio transmitter and receiver. It is

designed and manufactured not to exceed limits for exposure to

radio frequency (RF) energy set by the Federal Communications

Commission (FCC) of the U.S. Government and by the Canadian

regulatory authorities. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the

general population. The guidelines are based on standards that

were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The

standards include a substantial safety margin designed to assure

the safety of all persons, regardless of age or health.

The exposure standard for wireless mobile phones employs a unit

of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit set by the FCC and by the Canadian regulatory

authorities is 1.6 W/kg.

1

Tests for SAR are conducted using

standard operating positions accepted by the FCC and by Industry

Canada with the phone transmitting at its highest certified power

level in all tested frequency bands. Although the SAR is

determined at the highest certified power level, the actual SAR

level of the phone while operating can be well below the

maximum value. This is because the phone is designed to operate

at multiple power levels so as to use only the power required to

reach the network. In general, the closer you are to a wireless

base station, the lower the power output.

Before a phone model is available for sale to the public in the U.S.

and Canada, it must be tested and certified to the FCC and Industry

Canada that it does not exceed the limit established by each

government for safe exposure. The tests are performed in

positions and locations (e.g., at the ear and worn on the body)

reported to the FCC and available for review by Industry Canada.

The highest SAR value for this model phone when tested for use at

the ear is 1.26 W/kg, and when worn on the body, as described

in this user guide, is 1.58 W/kg. The SAR value for this product

in its data transmission mode (body-worn use) is 0.7 W/kg.

(Body-worn measurements differ among phone models, depending

upon available accessories and regulatory requirements).

2

While there may be differences between the SAR levels of various

phones and at various positions, they all meet the governmental

requirements for safe exposure. Please note that improvements to

this product model could cause differences in the SAR value for

later products; in all cases, products are designed to be within the

guidelines.

SAR Data

53

Additional information on Specific Absorption Rates (SAR) can be

found on the Cellular Telecommunications & Internet Association

(CTIA) Web site:

http://www.phonefacts.net

or the Canadian Wireless Telecommunications Association (CWTA)

Web site:

http://www.cwta.ca

1. In the United States and Canada, the SAR limit for mobile phones used

by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.

The standard incorporates a substantial margin of safety to give

additional protection for the public and to account for any variations in

measurements.

2. The SAR information includes the Motorola testing protocol,

assessment procedure, and measurement uncertainty range for this

product.

54

EU Conformance

European Union Directives Conformance Statement

EU Conformanc e

Hereby, Motorola declares that this product is in

compliance with:

•

The essential requirements and other relevant provisions

of Directive 1999/5/EC

•

All other relevant EU Directives

The above gives an example of a typical Product Approval Number.

You can view your product’s Declaration of Conformity (DoC) to

Directive 1999/5/EC (to R&TTE Directive) at

www.motorola.com/rtte

. To find your DoC, enter the Product

Approval Number from your product’s label in the “Search” bar on

the Web site.

0168

Product

Approval

Number

55

Important Safety and

Legal Information

56

Safety Information

Safety and General Information

Safety Information

This section contains important information on the safe and

efficient operation of your mobile device. Read this

information before using your mobile device.

Exposure to Radio Frequency (RF)

Energy

Your mobile device contains a transmitter and receiver. When it is

ON, it receives and transmits RF energy. When you communicate

with your mobile device, the system handling your call controls the

power level at which your mobile device transmits.

Your Motorola mobile device is designed to comply with local

regulatory requirements in your country concerning exposure of

human beings to RF energy.

Operational Precautions

For optimal mobile device performance, and to be sure that human

exposure to RF energy does not exceed the guidelines set forth in

the relevant standards, always follow these instructions and

precautions.

Product Operation

When placing or receiving a phone call, hold your mobile device

just like you would a landline phone.

If you wear the mobile device on your body, always place the

mobile device in a Motorola-supplied or approved clip, holder,

holster, case, or body harness. If you do not use a body-worn

accessory supplied or approved by Motorola, keep the mobile

device and its antenna at least 2.5 centimeters (1 inch) from your

body when transmitting.

Using accessories not supplied or approved by Motorola may

cause your mobile device to exceed RF energy exposure

guidelines. For a list of Motorola-supplied or approved

accessories, visit our Web site at:

www.motorola.com

.

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference

from external sources if inadequately shielded, designed, or

otherwise configured for RF energy compatibility. In some

circumstances your mobile device may cause interference with

other devices.

Safety Information

57

Follow Instructions to Avoid Interference

Problems

Turn off your mobile device in any location where posted notices

instruct you to do so.

In an aircraft, turn off your mobile device whenever instructed to

do so by airline staff. If your mobile device offers an airplane mode

or similar feature, consult airline staff about using it in flight.

Implantable Medical Devices

If you have an implantable medical device, such as a pacemaker or

defibrillator, consult your physician before using this mobile

device.

Persons with implantable medical devices should observe the

following precautions:

•

ALWAYS keep the mobile device more than

20 centimeters (8 inches) from the implantable medical

device when the mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the implantable medical device to

minimize the potential for interference.

•

Turn OFF the mobile device immediately if you have any

reason to suspect that interference is taking place.

Read and follow the directions from the manufacturer of your

implantable medical device. If you have any questions about using

your mobile device with your implantable medical device, consult

your healthcare provider.

Driving Precautions

The use of wireless phones while driving may cause distraction.

Discontinue a call if you can’t concentrate on driving.

Additionally, the use of wireless devices and their accessories may

be prohibited or restricted in certain areas. Always obey the laws

and regulations on the use of these products.

Responsible driving practices can be found in the “Smart Practices

While Driving” section in this guide (or separate guide).

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often, but not

always, posted and can include fueling areas, such as below decks

on boats, fuel or chemical transfer or storage facilities, or areas

where the air contains chemicals or particles, such as grain dust,

or metal powders.

When you are in such an area, turn off your mobile device, and do

not remove, install, or charge batteries. In such areas, sparks can

occur and cause an explosion or fire.

58

Safety Information

Symbol Key

Your battery, charger, or mobile device may contain symbols,

defined as follows:

Batteries & Chargers

Caution: Improper treatment or use of batteries may present

a danger of fire, explosion, leakage, or other hazard. For

more information, see the “battery use & safety” section in

the user’s guide.

Keep Your Mobile Device and Its

Accessories Away From Small

Children

These products are not toys and may be hazardous to children. For

example:

•

A choking hazard may exist for small, detachable parts.

•

Improper use could result in loud sounds, possibly causing

hearing injury.

•

Improperly handled batteries could overheat and cause a

burn.

Glass Parts

Some parts of your mobile device may be made of glass. This glass

could break if the product is dropped on a hard surface or receives

a substantial impact. If glass breaks, do not touch or attempt to

remove. Stop using your mobile device until the glass is replaced

by a qualified service center.

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile device

in a fire.

Your battery or mobile device may require

recycling in accordance with local laws.

Contact your local regulatory authorities for

more information.

Do not throw your battery or mobile device in

the trash.

Do not let your battery, charger, or mobile

device get wet.

Listening at full volume to music or voice

through a headset may damage your hearing.

032374o

032376o

032375o

Safety Information

59

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts

when exposed to flashing lights, such as when playing video

games. These may occur even if a person has never had a previous

seizure or blackout.

If you have experienced seizures or blackouts, or if you have a

family history of such occurrences, please consult with your

physician before playing video games or enabling a flashing-lights

feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following

symptoms occur: convulsion, eye or muscle twitching, loss of

awareness, involuntary movements, or disorientation. It is always

a good idea to hold the screen away from your eyes, leave the

lights on in the room, take a 15-minute break every hour, and stop

use if you are very tired.

Caution About High Volume Usage

Warning:

Exposure to loud noise from any source for

extended periods of time may affect your hearing.

The louder the volume sound level, the less time is

required before your hearing could be affected. To

protect your hearing:

•

Limit the amount of time you use headsets or headphones

at high volume.

•

Avoid turning up the volume to block out noisy

surroundings.

•

Turn the volume down if you can’t hear people speaking

near you.

If you experience hearing discomfort, including the sensation of

pressure or fullness in your ears, ringing in your ears, or muffled

speech, you should stop listening to the device through your

headset or headphones and have your hearing checked.

For more information about hearing, see our Web site at

www.motorola.com/hearingsafety

(in English only).

Repetitive Motion

When you repetitively perform actions such as pressing keys or

entering finger-written characters, you may experience occasional

discomfort in your hands, arms, shoulders, neck, or other parts of

your body. If you continue to have discomfort during or after such

use, stop use and see a physician.

Mar0108

60

Industry Canada Notice

Industry Canada Notice to Users

Industry Canada Notice

Operation is subject to the following two conditions: (1) This

device may not cause interference and (2) This device must accept

any interference, including interference that may cause undesired

operation of the device. See RSS-GEN 7.1.5.

FCC Notice to Users

FCC Notice

The following statement applies to all products that have

received FCC approval. Applicable products bear the FCC

logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the

product label.

Motorola has not approved any changes or modifications to this

device by the user. Any changes or modifications could void the

user’s authority to operate the equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation. See 47 CFR Sec. 15.19(3).

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the

receiver.

•

Connect the equipment to an outlet on a circuit different

from that to which the receiver is connected.

Warranty

61

•

Consult the dealer or an experienced radio/TV technician

for help.

Motorola Limited Warranty for the United States and

Canada

Warr an ty

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola, Inc. warrants

its telephones, pagers, messaging devices, and consumer and

professional two-way radios (excluding commercial, government

or industrial radios) that operate via Family Radio Service or

General Mobile Radio Service, Motorola-branded or certified

accessories sold for use with these Products (“Accessories”) and

Motorola software contained on CD-ROMs or other tangible media

and sold for use with these Products (“Software”) to be free from

defects in materials and workmanship under normal consumer

usage for the period(s) outlined below. This limited warranty is a

consumer's exclusive remedy, and applies as follows to new

Motorola Products, Accessories and Software purchased by

consumers in the United States or Canada, which are accompanied

by this written warranty:

Products and Accessories

Products Covered Length of Coverage

Products and

Accessories

as

defined above, unless

otherwise provided for

below.

One (1) year

from the date of

purchase by the first consumer

purchaser of the product unless

otherwise provided for below.

Decorative

Accessories and

Cases.

Decorative

covers, bezels,

PhoneWrap™ covers

and cases.

Limited lifetime warranty

for the

lifetime of ownership by the first

consumer purchaser of the product.

62

Warranty

Exclusions

Normal Wear and Tear.

Periodic maintenance, repair and

replacement of parts due to normal wear and tear are excluded

from coverage.

Batteries.

Only batteries whose fully charged capacity falls below

80% of their rated capacity and batteries that leak are covered by

this limited warranty.

Abuse & Misuse.

Defects or damage that result from:

(a) improper operation, storage, misuse or abuse, accident or

neglect, such as physical damage (cracks, scratches, etc.) to the

surface of the product resulting from misuse; (b) contact with

liquid, water, rain, extreme humidity or heavy perspiration, sand,

dirt or the like, extreme heat, or food; (c) use of the Products or

Accessories for commercial purposes or subjecting the Product or

Accessory to abnormal usage or conditions; or (d) other acts which

are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories.

Defects or

damage that result from the use of Non-Motorola branded or

certified Products, Accessories, Software or other peripheral

equipment are excluded from coverage.

Unauthorized Service or Modification.

Defects or damages

resulting from service, testing, adjustment, installation,

maintenance, alteration, or modification in any way by someone

other than Motorola, or its authorized service centers, are

excluded from coverage.

Altered Products.

Products or Accessories with (a) serial

numbers or date tags that have been removed, altered or

obliterated; (b) broken seals or that show evidence of tampering;

(c) mismatched board serial numbers; or (d) nonconforming or

non-Motorola housings, or parts, are excluded from coverage.

Communication Services.

Defects, damages, or the failure of

Products, Accessories or Software due to any communication

service or signal you may subscribe to or use with the Products

Accessories or Software is excluded from coverage.

Monaural Headsets.

Ear buds and boom

headsets that transmit

mono sound through a

wired connection.

Limited lifetime warranty

for the

lifetime of ownership by the first

consumer purchaser of the product.

Consumer and

Professional

Two-Way Radio

Accessories.

Ninety (90) days

from the date of

purchase by the first consumer

purchaser of the product.

Products and

Accessories that are

Repaired or

Replaced.

The balance of the original

warranty or for ninety (90) days

from the date returned to the

consumer, whichever is longer.

Products Covered Length of Coverage

Warranty

63

Software

Exclusions

Software Embodied in Physical Media.

No warranty is made

that the software will meet your requirements or will work in

combination with any hardware or software applications provided

by third parties, that the operation of the software products will be

uninterrupted or error free, or that all defects in the software

products will be corrected.

Software NOT Embodied in Physical Media.

Software that is

not embodied in physical media (e.g. software that is downloaded

from the internet), is provided “as is” and without warranty.

Who Is Covered?

This warranty extends only to the first consumer purchaser, and is

not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund

the purchase price of any Products, Accessories or Software that

does not conform to this warranty. We may use functionally

equivalent reconditioned/refurbished/pre-owned or new Products,

Accessories or parts. No data, software or applications added to

your Product, Accessory or Software, including but not limited to

personal contacts, games and ringer tones, will be reinstalled. To

avoid losing such data, software and applications please create a

back up prior to requesting service.

How to Obtain Warranty Service or

Other Information

Products Covered Length of Coverage

Software.

Applies only to physical

defects in the media that embodies

the copy of the software (e.g.

CD-ROM, or floppy disk).

Ninety (90) days

from

the date of purchase.

USA Phones

1-800-331-6456

Pagers

1-800-548-9954

Two-Way Radios and Messaging Devices

1-800-353-2729

Canada All Products

1-800-461-4575

TTY

1-888-390-6456

64

Warranty

You will receive instructions on how to ship the Products,

Accessories or Software, at your expense, to a Motorola

Authorized Repair Center. To obtain service, you must include: (a) a

copy of your receipt, bill of sale or other comparable proof of

purchase; (b) a written description of the problem; (c) the name of

your service provider, if applicable; (d) the name and location of the

installation facility (if applicable) and, most importantly; (e) your

address and telephone number.

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE

DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE

REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS

EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL

MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT

(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE

PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,

OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR

OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,

ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE

DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or

exclusion of incidental or consequential damages, or

limitation on the length of an implied warranty, so the

above limitations or exclusions may not apply to you. This

warranty gives you specific legal rights, and you may also

have other rights that vary from state to state or from one

jurisdiction to another.

Laws in the United States and other countries preserve for

Motorola certain exclusive rights for copyrighted Motorola

software such as the exclusive rights to reproduce and distribute

copies of the Motorola software. Motorola software may only be

copied into, used in, and redistributed with, the Products

associated with such Motorola software. No other use, including

without limitation disassembly of such Motorola software or

exercise of the exclusive rights reserved for Motorola, is

permitted.

For

Accessories

and

Software

, please call the telephone

number designated above for the product with which they are

used.

Hearing Aids

65

Hearing Aid Compatibility with Mobile Phones

Hearing Aids

Some Motorola phones are measured for compatibility with

hearing aids. If the box for your particular model has “Rated for

Hearing Aids” printed on it, the following explanation applies.

When some mobile phones are used near some hearing devices

(hearing aids and cochlear implants), users may detect a buzzing,

humming, or whining noise. Some hearing devices are more

immune than others to this interference noise, and phones also

vary in the amount of interference they generate.

The wireless telephone industry has developed ratings for some of

their mobile phones, to assist hearing device users in finding

phones that may be compatible with their hearing devices. Not all

phones have been rated. Phones that are rated have the rating on

their box or a label on the box.

The ratings are not guarantees. Results will vary depending on the

user’s hearing device and hearing loss. If your hearing device

happens to be vulnerable to interference, you may not be able to

use a rated phone successfully. Trying out the phone with your

hearing device is the best way to evaluate it for your personal

needs.

M-Ratings:

Phones rated M3 or M4 meet FCC requirements and

are likely to generate less interference to hearing devices than

phones that are not labeled. M4 is the better/higher of the two

ratings.

T-Ratings:

Phones rated T3 or T4 meet FCC requirements and are

likely to be more usable with a hearing device’s telecoil (“T

Switch” or “Telephone Switch”) than unrated phones. T4 is the

better/higher of the two ratings. (Note that not all hearing devices

have telecoils in them.)

Hearing devices may also be measured for immunity to this type of

interference. Your hearing device manufacturer or hearing health

professional may help you find results for your hearing device. The

more immune your hearing aid is, the less likely you are to

experience interference noise from mobile phones.

66

WHO Information

Information from the World Health Organization

WHO Information

Present scientific information does not indicate the need for any

special precautions for the use of mobile phones. If you are

concerned, you may want to limit your own or your children’s RF

exposure by limiting the length of calls or by using handsfree

devices to keep mobile phones away from your head and body.

Source: WHO Fact Sheet 193

Further information:

http://www.who.int./peh-emf

Product Registration

Registration

Online Product Registration:

direct.motorola.com/hellomoto/ Motosupport/source/registration.asp

Product registration is an important step toward enjoying your new

Motorola product. Registering helps us facilitate warranty service,

and permits us to contact you should your product require an

update or other service. Registration is for U.S. residents only and

is not required for warranty coverage.

Please retain your original dated sales receipt for your records. For

warranty service of your Motorola Personal Communications

Product you will need to provide a copy of your dated sales receipt

to confirm warranty status.

Thank you for choosing a Motorola product.

Export Law

67

Export Law Assurances

Export Law

This product is controlled under the export regulations of the

United States of America and Canada. The Governments of the

United States of America and Canada may restrict the exportation

or re-exportation of this product to certain destinations. For further

information contact the U.S. Department of Commerce or the

Canadian Department of Foreign Affairs and International Trade.

Caring for the Environment by Recycling

Recycling Information

This symbol on a Motorola product means the product

should not be disposed of with household waste.

Disposal of your Mobile Device and

Accessories

Please do not dispose of mobile devices or electrical accessories

(such as chargers, headsets, or batteries) with your household

waste. These items should be disposed of in accordance with the

national collection and recycling schemes operated by your local or

regional authority. Alternatively, you may return unwanted mobile

devices and electrical accessories to any Motorola Approved

Service Center in your region. Details of Motorola approved

national recycling schemes, and further information on Motorola

recycling activities can be found at:

www.motorola.com/recycling

Disposal of your Mobile Device

Packaging and User’s Guide

Product packaging and user’s guides should only be disposed of in

accordance with national collection and recycling requirements.

Please contact your regional authorities for more details.

68

Perchlorate Label

California Perchlorate Label

Perchlorate Label

Some mobile phones use an internal, permanent backup battery on

the printed circuit board that may contain very small amounts of

perchlorate. In such cases, California law requires the following

label:

“Perchlorate Material – special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate

.”

There is no special handling required by consumers.

Privacy and Data Security

Privacy and Data Security

Motorola understands that privacy and data security are important

to everyone. Because some features of your mobile device may

affect your privacy or data security, please follow these

recommendations to enhance protection of your information:

• Monitor access

—Keep your mobile device with you and

do not leave it where others may have unmonitored

access. Lock your device’s keypad where this feature is

available.

• Keep software up to date

—If Motorola or a

software/application vendor releases a patch or software

fix for your mobile device that updates the device’s

security, install it as soon as possible.

• Erase before recycling

—Delete personal information

or data from your mobile device prior to disposing of it or

turning it in for recycling. For step-by-step instructions on

how to delete all personal information from your device,

see the section entitled “master clear” or “delete data” in

the user’s guide.

Note:

For information on backing up your mobile device

data before erasing it, go to

www.motorola.com

and then

navigate to the “downloads” section of the consumer Web

page for “Motorola Backup” or “Motorola Phone Tools.”

• Understanding AGPS

—To provide location information

for emergency calls, certain Motorola mobile devices

incorporate Assisted Global Positioning System (AGPS)

technology. AGPS technology also can be used in

non-emergency applications to track and monitor a user’s

location—for example, to provide driving directions. Users

Driving Safety

69

who prefer not to permit such tracking and monitoring

should avoid using such applications.

If you have further questions regarding how the use of your mobile

device may impact your privacy or data security, please contact

Motorola at

privacy@motorola.com

, or contact your service

provider.

Smart Practices While Driving

Driving Safety

Drive Safe, Call Smart

Check the laws and regulations on the use of mobile

devices and their accessories in the areas where you drive.

Always obey them. The use of these devices may be

prohibited or restricted in certain areas -- for example,

handsfree use only. Go to

www.motorola.com/callsmart

(in

English only) for more information.

Your mobile device lets you communicate by voice and

data—almost anywhere, anytime, wherever wireless service is

available and safe conditions allow. When driving a car, driving is

your first responsibility. If you choose to use your mobile device

while driving, remember the following tips:

• Get to know your Motorola mobile device and its

features such as speed dial and redial.

If available,

these features help you to place your call without taking

your attention off the road.

• When available, use a handsfree

device.

If possible, add an additional

layer of convenience to your mobile device

with one of the many Motorola Original

handsfree accessories available today.

• Position your mobile device within easy reach.

Be

able to access your mobile device without removing your

eyes from the road. If you receive an incoming call at an

inconvenient time, if possible, let your voicemail answer it

for you.

• Let the person you are speaking with know you are

driving; if necessary, suspend the call in heavy

traffic or hazardous weather conditions.

Rain, sleet,

snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while

driving.

Jotting down a “to do” list or going through your

address book takes attention away from your primary

responsibility—driving safely.

70

Driving Safety

• Dial sensibly and assess the traffic; if possible,

place calls when your car is not moving or before

pulling into traffic.

If you must make a call while

moving, dial only a few numbers, check the road and your

mirrors, then continue.

• Do not engage in stressful or emotional

conversations that may be distracting.

Make people

you are talking with aware you are driving and suspend

conversations that can divert your attention away from the

road.

• Use your mobile device to call for help.

Dial 911 or

other local emergency number in the case of fire, traffic

accident, or medical emergencies.*

• Use your mobile device to help others in

emergencies.

If you see an auto accident, crime in

progress, or other serious emergency where lives are in

danger, call 911 or other local emergency number, as you

would want others to do for you.*

• Call roadside assistance or a special

non-emergency wireless assistance number when

necessary.

If you see a broken-down vehicle posing no

serious hazard, a broken traffic signal, a minor traffic

accident where no one appears injured, or a vehicle you

know to be stolen, call roadside assistance or other

special non-emergency wireless number.*

* Wherever wireless phone service is available.

index

71

index

A

alarm clock 50

alert 24

another call 33

answer a call 16

attach a number 31

B

backlight 26

band selection 48

battery 12

charge indicator light 2

remove 14

C

cable connections 46

cables 46

calculator 50

calendar

event 49

event reminder 49

view 50

call

answer 16

end 16

forward 32

make 16

call a stored phone number 17

call times 34

view 34

call waiting 31

capitalize text 36

center key 2

change front cover 26

change ring alert 16

change volume 34

charge battery 15

clear 29

clear/back key 2

clock

analog 28

digital 28

codes 20

color setting 26

contacts. See phonebook

controls, music library 43

currency converter 50

D

date 27

delete text 39

72

index

dial a phone number 16

dialed calls 30

display 18

drafts folder 42

dropped calls 48

DTMF tones 33

E

emergency number 32

end a call 16

end key 2, 16

event, calendar 49

F

file formats 43, 48

format memory card 21

formats 43, 48

forward call 32

front cover change 26

G

games 45

greeting 28

H

handsfree speaker 19

headset 34

hearing aids 65

hold call 33

home screen 18

shortcuts 23

I

in call menu 33

in call timer 34

indicators

speakerphone 19

text entry mode 36

install battery 14

iTAP text entry method 37

K

keypad volume 27

L

lock phone 20

M

make a call 16

manage pictures 45

master clear 29

master reset 29

memory card 11, 21

format 21

menu 23

icons, show or hide 28

language 28

scroll 28

show icons or list 28

menu icons 23

messages

index

73

drafts 42

erase 42

MMS 42

receive 41

send 40

text template 42

view sent message 42

Missed Calls message 31

MMS 42

MP3 43, 48

music file formats 43, 48

music player 43

mute 33

MyMenu 23

N

navigation key 2, 18

network settings 48

networks 48

notepad 32

numeric entry method 38

P

passwords. See codes

personal organizer 49

phone lines 33

phone number call 17

phone number store 16

phonebook 31, 49

create entry 49

delete entry 49

edit entry 49

pictures 45

playlists 44

power key 2, 15

Q

quick text 40

R

receive a message 41

received calls 30

recent calls 30

redial 30

remove battery 14

reset 29

return a call 31

ring alert 16

ring style, setting 24

ring volume 27

roaming alert 48

S

screen saver 25

security codes 20

send a message 40

send key 2, 16

service tone 48

set

alerts 24

color 26

style 24

time & date 27

74

index

shortcuts 22

SIM 11

skin 26

soft keys 2, 18

song file formats 43, 48

speaker 19

speakerphone indicator 19

speakerphone, automatic

answer 34

storage 21

store phone number 16

symbol entry method 38

T

tap text entry method 37

template 42

text delete 39

text entry 35

capitalization 36

entry mode indicators 36

time 27

tips & tricks 22

turn on/off 15

U

unlock

code 20

phone 20

USB cables 46

V

voicemail 41

message indicator 41

setup 41

volume 16

change 34

keypad 27

ring 27

W

wallpaper 25

warranty 61

WebAccess 45

U.S. patent Re. 34,976

www.motorola.com
