User Guide
Guide de l’utilisateur
RM Series/Séries RM Two-
Way Radios
Radios bidirectionnelles
Models RMU2040, RMM2050 / Modèles RMU2043
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or
registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All
other trademarks are the property of their respective owners. ©2013 Motorola, Inc. All rights
reserved. Printed in Malaysia.
Motorola Solutions, Inc. 1301 East Algonquin Road Schaumburg, Illinois 60196, U.S.A.
800-367-2346 motorolasolutions.com
CONTENTS
English
1
CONTENTS
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . .5
Package Contents. . . . . . . . . . . . . . . . . . . . . .5
Canada Licensing Information . . . . . . . . . .7
General Information. . . . . . . . . . . . . . . . . . . . .7
The License Application . . . . . . . . . . . . . . . . .7
Batteries and Chargers
Safety Information . . . . . . . . . . . . . . . . . . . .8
Operational Safety Guidelines. . . . . . . . . . . . .9
Radio Overview . . . . . . . . . . . . . . . . . . . . .10
Parts of the Radio . . . . . . . . . . . . . . . . . . . . .10
On/Off/Volume Knob. . . . . . . . . . . . . . . .11
Accessory Connector . . . . . . . . . . . . . . .11
Model Label . . . . . . . . . . . . . . . . . . . . . .11
Microphone . . . . . . . . . . . . . . . . . . . . . . .11
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . 11
LED Indicator . . . . . . . . . . . . . . . . . . . . . 11
Side Buttons . . . . . . . . . . . . . . . . . . . . . 11
The Lithium-Ion (Li-Ion) Battery . . . . . . . 11
Battery Features. . . . . . . . . . . . . . . . . . . . . . 13
About the Li-Ion Battery . . . . . . . . . . . . . 13
Battery Recycling and Disposal . . . . . . . 14
Installing the Lithium-Ion
(Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 15
Removing the Lithium-Ion
(Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 15
Power Supply, Adaptor and
Drop-in Tray Charger. . . . . . . . . . . . . . . 17
Battery Life Information . . . . . . . . . . . . . 18
Charging the Battery . . . . . . . . . . . . . . . 20
FCC Licensing Information . . . . . . . . . . . . .7
CONTENTS
English 2
Getting Started . . . . . . . . . . . . . . . . . . . . . .27
Turning radio ON/OFF. . . . . . . . . . . . . . . . . .27
Adjusting Volume . . . . . . . . . . . . . . . . . . . . .27
Selecting a Channel . . . . . . . . . . . . . . . . . . .27
Talking and Monitoring . . . . . . . . . . . . . . . . .27
Receiving a Call . . . . . . . . . . . . . . . . . . . . . .28
Talk Range . . . . . . . . . . . . . . . . . . . . . . . . . .28
Radio LED Indicators . . . . . . . . . . . . . . . . . .30
Hands-Free Use/VOX . . . . . . . . . . . . . . . . . .31
With Compatible VOX Accessories. . . . .31
Setting VOX Sensitivity. . . . . . . . . . . . . .32
Microphone Gain. . . . . . . . . . . . . . . . . . .32
Battery Save . . . . . . . . . . . . . . . . . . . . . .32
Reset to Factory Defaults . . . . . . . . . . . .32
End of Transmission Tone
(Roger Beep Tone) . . . . . . . . . . . . . . . . .33
Programming Features . . . . . . . . . . . . . . .34
Programming Mode. . . . . . . . . . . . . . . . . . . .34
Learning to Read the Values the
Radio Signals You . . . . . . . . . . . . . . . . .34
Entering Programming Mode . . . . . . . . .37
Reading Frequencies Values . . . . . . . . .37
Reading CTCSS/DPL Values . . . . . . . . 38
Reading Auto-Scan Values . . . . . . . . . . 39
Programming Frequencies, Codes
and Auto-Scan . . . . . . . . . . . . . . . . . . . . 39
Programming Mode FAQ. . . . . . . . . . . . 40
Programming Values Example. . . . . . . . . . . 41
Example of Programming a Frequency . 41
Example of Programming a Code . . . . . 42
Example of Programming Auto-Scan . . 43
Other Programming Features . . . . . . . . . . . 44
Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Editing Scan List . . . . . . . . . . . . . . . . . . 45
Nuisance Channel Delete . . . . . . . . . . . 45
CPS (Computer Programming Software). . . 46
Bandwidth Select . . . . . . . . . . . . . . . . . . 47
Time-Out Timer . . . . . . . . . . . . . . . . . . . 47
Power Select . . . . . . . . . . . . . . . . . . . . . 47
Battery Type Setting . . . . . . . . . . . . . . . 47
Call Tones . . . . . . . . . . . . . . . . . . . . . . . 47
Scramble . . . . . . . . . . . . . . . . . . . . . . . . 48
Reverse Burst . . . . . . . . . . . . . . . . . . . . 48
Cloning Radios. . . . . . . . . . . . . . . . . . . . . . . 49
CONTENTS
English
3
Cloning with a Multi Unit
Charger (MUC) . . . . . . . . . . . . . . . . . . . .49
Cloning Radio using the Radio
to Radio (R2R) Cloning Cable
(Optional Accessory). . . . . . . . . . . . . . . .51
Cloning using the CPS (Computer
Programming Software) . . . . . . . . . . . . .53
Troubleshooting . . . . . . . . . . . . . . . . . . . . .54
Use and Care . . . . . . . . . . . . . . . . . . . . . . .58
Frequency and Code Charts . . . . . . . . . . .59
RMU2043 - UHF Default
Frequencies Chart. . . . . . . . . . . . . . . . . . . . .59
RMU2040 - UHF Default
Frequencies Chart. . . . . . . . . . . . . . . . . . . . .60
CTCSS and PL/DPL Codes . . . . . . . . . . . . .61
Programming Customized Frequencies 66
Motorola Limited Warranty for
the United States and Canada . . . . . . . . . .67
Accessories . . . . . . . . . . . . . . . . . . . . . . . .71
Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Audio Accessories . . . . . . . . . . . . . . . . . . . . 71
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Carry Accessories . . . . . . . . . . . . . . . . . . . . 72
Power Supplies AC Pin Adaptors. . . . . . . . . 72
Software Applications. . . . . . . . . . . . . . . . . . 72
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Power Supplies . . . . . . . . . . . . . . . . . . . . . . 73
SAFETY
English 4
SAFETY
PRODUCT SAFETY AND RF
EXPOSURE COMPLIANCE
ATTENTION!
This radio is restricted to occupational use only
to satisfy FCC RF energy exposure
requirements.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful
interference.
Before using this product,
read the operating
instructions and RF energy
awareness information
contained in the Product
Safety and RF Exposure
booklet enclosed with your
radio.
!
C
a u t i o
n
INTRODUCTION
English
5
INTRODUCTION
Thank you for purchasing the Motorola® RM
Series Radio. This radio is a product of
Motorola's 80 plus years of experience as a
world leader in the designing and
manufacturing of communications equipment.
The RM Series radios provide cost-effective
communications for businesses such as retail
stores, restaurants, schools, construction sites,
manufacturing, property and hotel
management and more. Motorola professional
two-way radios are the perfect communications
solution for all of today's fast-paced industries.
Note: Read this user guide carefully to ensure you
know how to properly operate the radio
before use
Business Radios,
Mailstop 1C15, Motorola
8000 West Sunrise Boulevard
Plantation, Florida 33322
PACKAGE CONTENTS
•Radio
•Holster
• Lithium-Ion Battery
• Power Supply
•Quick Reference Guide
• Warranty Card

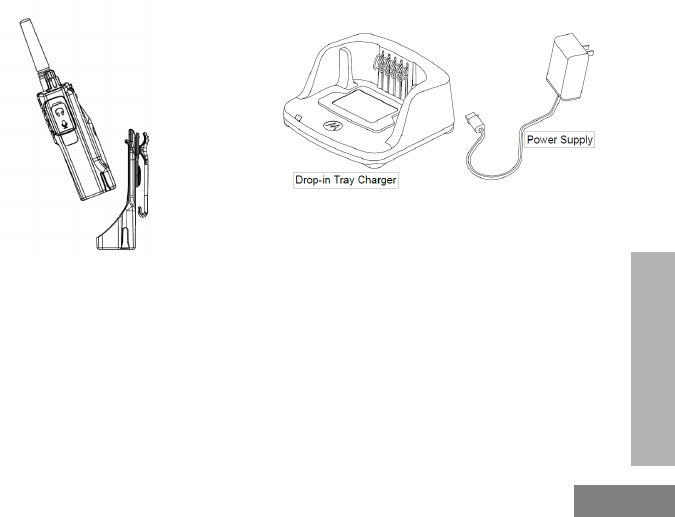

• Drop-in Tray Charger
• Product Safety & RF Exposure Booklet
INTRODUCTION
English 6
This User Guide can be downloaded from
www.motorolasolutions.com/RMSeries.
Product-related questions, contact:
1-800-448-6686 (US and Canada)
1-888-390-6456 on your TTY (Text
Telephone)
FCC LICENSING
INFORMATION
English
9
FCC LICENSING
INFORMATION
INTERFERENCE INFORMATION
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful
interference.
RM Series Business two-way radios operate
on radio frequencies that are regulated by the
Federal Communications Commission
(FCC). To transmit on these frequencies, you
are required to have a license issued by the
FCC. Application is made available on FCC
Form 601 and Schedules D, H, and Remittance
Form 159.
To obtain these FCC forms, request document
000601 which includes all forms and
instructions. If you wish to have the document
faxed, mailed or have questions, use the
following contact information.
Faxed contact the
Fax-On- Demand
system at:
Mailed call the FCC forms hotline at: Questions regarding FCC
license contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676 1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
FCC LICENSING
INFORMATION
English 10
Before filling out your application, you must
decide which frequency(ies) you can operate
on. See “Frequencies and Code Charts”. For
questions on determining the radio frequency,
call Motorola Product Services at:
1-800-448-6686
Changes or modifications not expressly
approved by Motorola may void the user’s
authority granted by the FCC to operate this
radio and should not be made. To comply with
FCC requirements, transmitter adjustments
should be made only by or under the
supervision of a person certified as technically
qualified to perform transmitter maintenance
and repairs in the private land mobile and fixed
services as certified by an organization
representative of the user of those services.
Replacement of any transmitter component
(crystal, semiconductor, etc.) not authorized by
the FCC equipment authorization for this radio
could violate FCC rules.
Use of this radio outside the country where it
was intended to be distributed is subject to
government regulations and may be prohibited
CANADA LICENSING
English
7
CANADA LICENSING
INFORMATION
GENERAL INFORMATION
The operation of your Motorola radio is subject
to the Radiocommunications Act and must
comply with rules and regulations of the
Federal Government’s department of Industry
Canada. Industry Canada requires that all
operators using Private Land Mobile
frequencies obtain a radio license before
operating their equipment.
An application for your Industry Canada license
is made on the form included with your radio.
Additional forms and latest license application
versions can be obtained from the nearest
Industry Canada District office. A list of these
offices is included for your information.
THE LICENSE APPLICATION
General Instructions
1. Fill in the items as per the instructions. If you
need additional space for any item use the
reverse side of the application.
2. Be sure to use a typewriter or print legibly.
3. Make a copy for your files.
4. Prepare a cheque or money order made out to
the “Receiver General for Canada”, for an
amount, which is on the following schedule, for
each radio purchased. (License is valid until
April 1st of each year, and the renewed.
5. Mail your completed application, along with your
cheque or money order to the closest Industry
Canada District office, according to the list on
pages
To obtain the latest Canadian License
Application form, please go to:
www.ic.gc.ca
BATTERIES AND CHARGERS
SAFETY INFORMATION
English 8
BATTERIES AND
CHARGERS SAFETY
INFORMATION
This document contains important safety and
operating instructions. Read these instructions
carefully and save them for future reference.
Before using the battery charger, read all the
instructions and cautionary markings on
•The charger,
•The battery, and
•The radio using the battery
1. To reduce risk of injury, charge only the
rechargeable Motorola-authorized batteries.
Other batteries may explode, causing personal
injury and damage.
2. Use of accessories not recommended by
Motorola may result in risk of fire, electric
shock, or injury.
3. To reduce risk of damage to the electric plug
and cord, pull by the plug rather than the cord
when disconnecting the charger.
4. An extension cord should not be used unless
absolutely necessary. Use of an improper
extension cord could result in risk of fire and
electric shock. If an extension cord must be
used, make sure that the cord size is 18AWG
for lengths up to 6.5 feet (2.0 m), and 16AWG
for lengths up to 9.8 feet (3.0 m).
5. To reduce risk of fire, electric shock, or injury, do
not operate the charger if it has been broken or
damaged in any way. Take it to a qualified
Motorola service representative.
6. Do not disassemble the charger; it is not
repairable and replacement parts are not
available. Disassembly of the charger may
result in risk of electrical shock or fire.
7. To reduce risk of electric shock, unplug the
charger from the AC outlet before attempting
any maintenance or cleaning
BATTERIES AND CHARGERS
SAFETY INFORMATION
English
9
OPERATIONAL SAFETY
GUIDELINES
• Turn the radio OFF when charging battery.
• The charger is not suitable for outdoor use. Use
only in dry locations/conditions.
• Connect charger only to an appropriately fused
and wired supply of the correct voltage (as
specified on the product).
• Disconnect charger from line voltage by removing
main plug.
• The outlet to which this equipment is connected
should be nearby and easily accessible.
• In equipment using fuses, replacements must
comply with the type and rating specified in the
equipment instructions.
• Maximum ambient temperature around the power
supply equipment must not exceed 40°C (104°F).
• Power output from the power supply unit must not
exceed the ratings stated on the product label
located at the bottom of the charger.
• Make sure that the cord is located where it will
not be stepped on, tripped over, or subjected to
water, damage, or stress.
RADIO OVERVIEW
English 10
RADIO OVERVIEW
PARTS OF THE RADIO
PTT Button
SB1-Monitor
Button
SB2- Scan/Nuisance
Channel delete
Antenna
Microphone
On/Off/Volume
knob
LED Indicator
Accessory
Connector
Model Label Lithium-Ion
battery
RADIO OVERVIEW
English
11
On/Off/Volume Knob
Used to turn the radio ON or OFF and to adjust
the radio’s volume.
Accessory Connector
Used to connect compatible audio accessories.
Model Label
Indicates the model of the radio.
Microphone
Speak clearly into the microphone when sending
a message.
Antenna On all RM Series radios, the antenna is
non-removable
LED In
dicator
Used to give battery status, power-up status,
radio call information and scan status.
Side Buttons
Push-to-Talk (PTT) Button
•Press and hold down this button to talk,
release to leasten it
Side Button 1 (SB1)
•The Side Button 1 is a general button
that can be configured by the Computer
Programming Software - CPS. The
default setting of SB1 is ‘Monitor’.
Side Button 2 (SB2)
•The Side Button 2 is a general button
that can be configured by the CPS. The
SB2 default setting is set to scroll until
the desired channel is selected.
RM Series provides a Li-Ion battery. For more
information, see “Battery Feature on Pg.13.
RADIO OVERVIEW
English 12
This User Guide covers multiple RM Series
models, and may detail some features your
radio does not have. The radio’s model is
shown on the bottom of the radio and provides
you the following information:
Model Frequency
Band
Transmit
Power
(Watts)
Number of
Channels Antenna
RMU2043 UHF 2Non-Removable
VHF- MURS
RMM2050 2
4
5Non-Removable
Non-Removable
RMU2043 UHF 24
RADIO OVERVIEW
English
13
BATTERY FEATURES
About the Li-Ion Battery
The RM Series radio comes equipped with a
rechargeable Li-Ion battery. This battery
should be charged before initial use to ensure
optimum capacity and performance.
Battery life is determined by several factors.
Among the more critical are the regular
overcharge of batteries and the average depth
of discharge with each cycle. Typically, the
greater the overcharge and the deeper the
average discharge, the fewer cycles a battery
will last. For example, a battery which is
overcharged and discharged 100% several
times a day, lasts fewer cycles than a battery
that receives less of an overcharge and is
discharged to 50% per day. Further, a battery
which receives minimal overcharging and
averages only 25% discharge, lasts even
longer.
Motorola batteries are designed specifically to
be used with a Motorola charger and vice
versa. Charging in non-Motorola equipment
may lead to battery damage and void the
battery warranty. The battery should be at
about 77°F (25°C) (room temperature),
whenever possible. Charging a cold battery
(below 50° F [10°C]) may result in leakage of
electrolyte and ultimately in failure of the
battery. Charging a hot battery (above 95°F
[35°C]) results in reduced discharge capacity,
affecting the performance of the radio.
Motorola rapid-rate battery chargers contain a
temperature-sensing circuit to ensure that
batteries are charged within the temperature
limits stated above.
RADIO OVERVIEW
English 14
Battery Recycling and Disposal
Li-Ion rechargeable batteries can be recycled.
However, recycling facilities may not be
available in all areas. Under various U.S. state
laws and the laws of several other countries,
batteries must be recycled and cannot be
disposed of in landfills or incinerators. Contact
your local waste management agency for
specific requirements and information in your
area. Motorola fully endorses and encourages
the recycling of Li-Ion batteries. In the U.S. and
Canada, Motorola participates in the
nationwide Rechargeable Battery Recycling
Corporation (RBRC) program for Li-Ion battery
collection and recycling.
Many retailers and dealers participate in this
program. For the location of the drop-off facility
closest to you, access RBRC's Internet web
site at:
www.rbrc.com
or call:
1-800-8-BATTERY
This internet site and telephone number also
provides other useful information concerning
recycling options for consumers, businesses
and governmental agencies.
RADIO OVERVIEW
English
15
Installing the Lithium-Ion (Li-Ion) Battery
1. Turn OFF the radio.
2. With the Motorola logo side up on the battery
pack, fit the tabs at the bottom of the battery
into the slots at the bottom of the radio’s body.
3. Press the top part of the battery towards the
radio until a click is heard.
Note: To learn about the Li-Ion Battery Life
features, refer to “About the Li-Ion Battery”
on page 13
Removing the Lithium-Ion (Li-Ion) Battery
1. Turn OFF the radio.
2. Push down the battery latch and hold it
depressed while removing the battery.
3. Pull the battery away from the radio.
RADIO OVERVIEW
English
17
Holster
1. Slide the radio into the base of the holster and
then press the radio against the back of the
holster until the top clips are inserted in the
top latches of the battery.
2. To remove, detach the top clips of the holster
from the top latches of the battery and then
slide the radio up from the holster pocket.
Power Supply and Drop-in Tray Charger
The radio is equipped with one Drop-in Tray
Charger and one Power Supply with Adaptor.
For details, see “Chargers” on page 72.
RADIO OVERVIEW
English 18
Battery Life Information
Wh
en
th
e
B
a
tt
ery
S
ave
f
ea
t
ure
i
s
ON
(
ena
bl
e
d
b
y
d
e
f
au
lt)
th
e
b
a
tt
ery
lif
e w
ill
b
e
l
onger.
Th
e

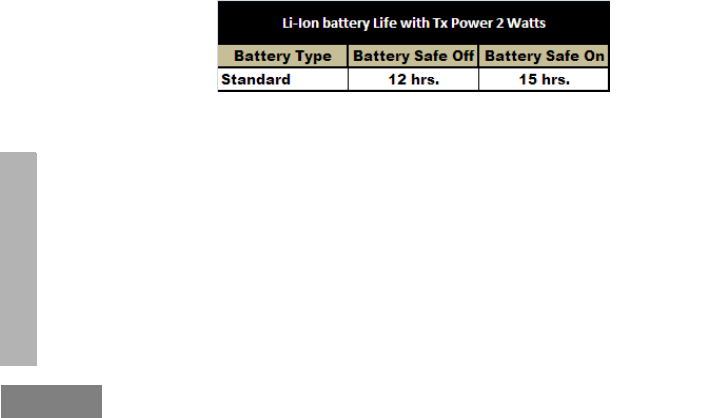

following chart summarizes battery life estimations:
Note: Battery life is estimated based on 5% transmit/ 5% receive/ 90% standby
standard duty cycle
RADIO OVERVIEW
English 20
Charging the Battery
The RM series radios offers two types
of power supplies:
•Standard Power Supply and,
•Rapid Power Supply.
Note: The radio comes equipped with a
Standard Power Supply
To charge the battery (with the radio
attached), place it in a Motorola-approved
Drop-in Tray Single Unit Charger or Drop-in
Tray Multi Unit Charger.
Note: When acquiring additional chargers or
power supplies, make sure you have similar
drop-in tray chargers and power supplies
sets (all “rapid” or all “standard”). For part
number details, refer to “Chargers” on
page 72
Charging with the Drop-in Tray
Single Unit Charger (SUC)
1. Place the drop-in tray charger on a flat surface.
2. Insert the connector of the power supply into the
port on the side of the drop-in tray charger.
3. Plug the AC adaptor into a power outlet.
4. Insert the radio into the tray with the front of the
radio facing the front of the charger, as shown.
Note: When charging a battery attached to a radio,
turn the radio OFF to ensure a full charge.
See “Operational Safety Guidelines” on
page 9 for more information
RADIO OVERVIEW
English
21

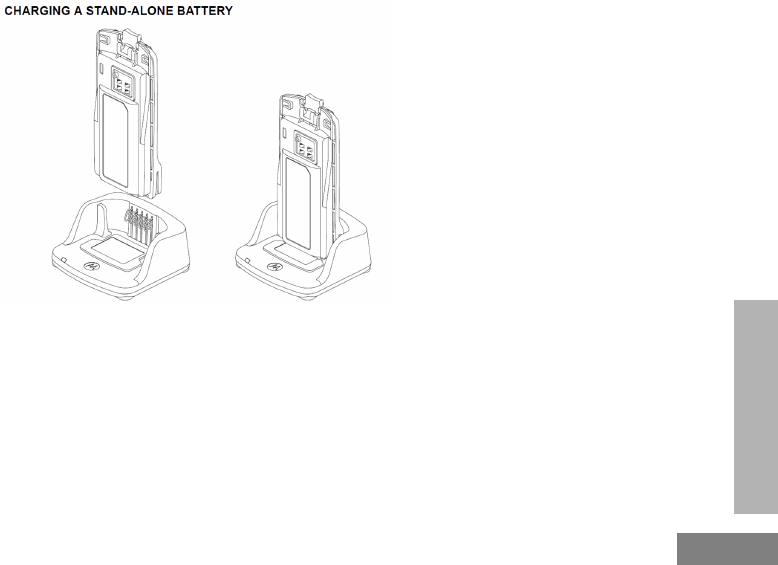

To charge only the battery - at step 4, insert the
battery into the tray, with the inside surface of
the battery facing the front of the charger, as
shown. Ensure the slots in the battery correctly
engage in the charger
RADIO OVERVIEW
English
23

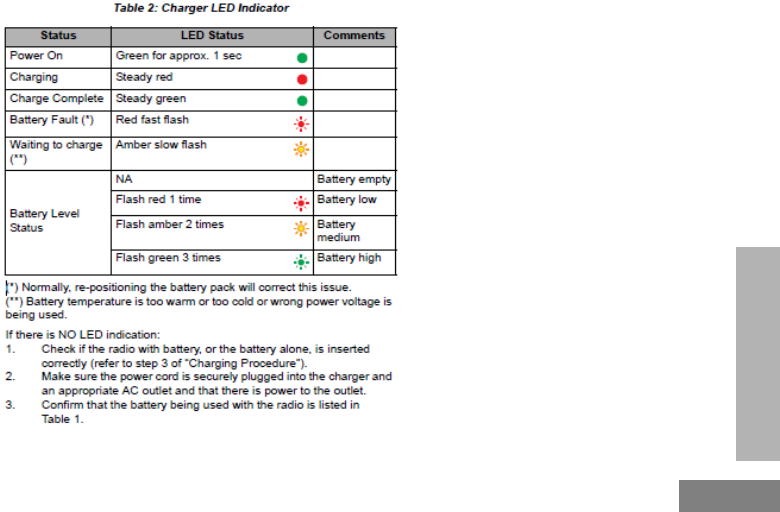

Drop-in Tray Charger LED Indicators
RADIO OVERVIEW
English 26

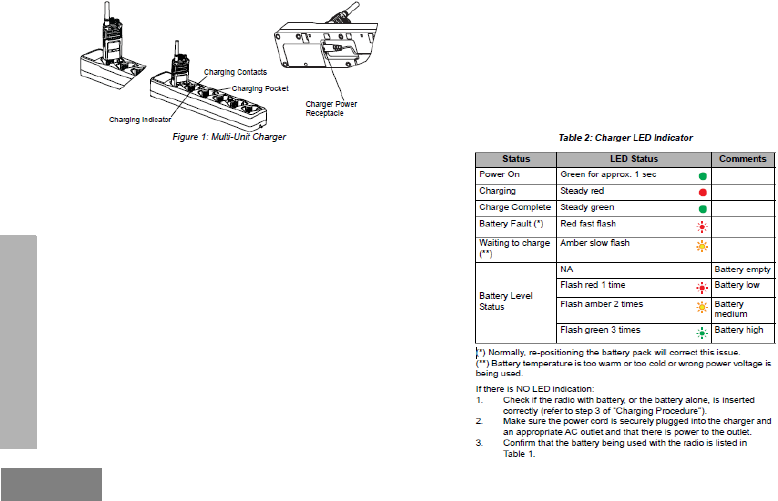

Charging a Radio and Battery using
a Multi Unit Charger- MUC (Optional
Accessory)
The Multi Unit Charger (MUC) allows drop-in
charging of up to 6 radios or batteries. Batteries
can be charged with the radios or removed and
placed in the MUC separately. Each of the 6
charging pockets can hold a radio (with or
without holster) or battery, but not both.
1.
Place the charger on a flat surface.
2.
Insert the power cord plug into the MUC’s jack.
3. Plug the cord into an AC outlet.
4. Turn the radio OFF.
5. Insert the radio or battery into the charging
pocket.
Notes:

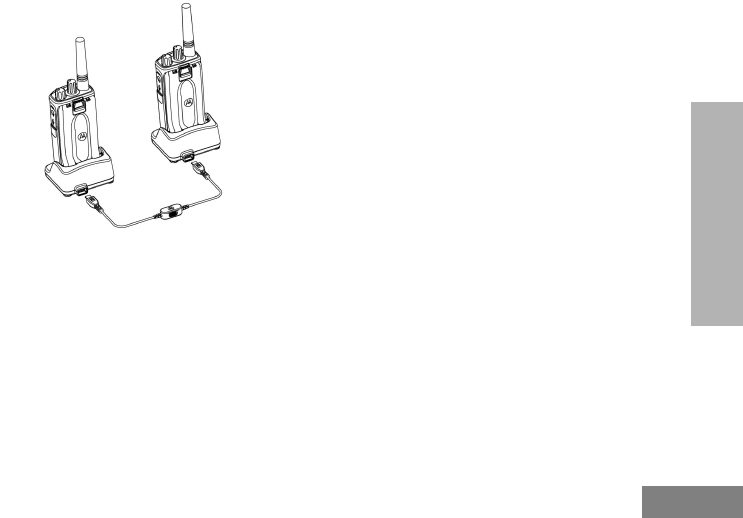

•This Multi Unit Charger also allows you to
clone up to 2 radios (2 Source radios and 2
Target radios). Refer to page 51 for details.
• Further details on MUC’s operation are explained
in the Instructions Sheet provided with the MUC.
For part number details, refer to the Accessories
section.
GETTING STARTED
English
27
GETTING STARTED
For the following explanations, refer to “Parts of
the Radio” on page 10.
TURNING RADIO ON/OFF
To turn ON the radio, rotate the On/Off/Volume
Knob clockwise. The radio will chirp and the
LED Indicator will briefly blink red.
To turn the radio OFF, rotate the On/Off/Volume
Knob counterclockwise until you hear a ‘click’
and the radio LED Indicator turns OFF.
ADJUSTING VOLUME
Turn the On/Off/Volume Knob clockwise to
increase the volume, or counterclockwise to
decrease the volume.
Note: Do not hold the radio too close to the ear
when the volume is high or when
adjusting the volume.
SELECTING A CHANNEL
To select a channel, press SB2 side button until
you reach the desired channel.Voice
announcement will indicate the channel selected.
Each channel has its own Frequency,
Interference Eliminator Code and Scan Settings.
TALKING AND MONITORING
It is important to monitor for traffic before
transmitting to avoid ‘talking over’ someone
who is already transmitting.
To monitor, long press and hold the SB1(*)
button to access channel traffic. If no activity is
present, you will hear ‘static’. To release, press
SB1 again. Once channel traffic has cleared,
proceed with your call by pressing the PTT
button. When transmitting, the LED Indicator will
be On solid red during transmission.
2 channels are active with factory default setting.
Refer to "Advanced Radio Configuration" on
Page 34 to active more channels. The radio can
operate up to 4 channels.
GETTING STARTED
English 28
Notes:
• To listen to all activity on a current channel, short
press the SB1 to set the CTCSS/DPL code to 0.
This feature is called ‘CTCSS/DPL Defeat
(Squelch set to SILENT)’.
• (*) This assumes SB1 is not being programmed
for a different mode.
RECEIVING A CALL
1. To select a channel, press SB2 side button
until you reach the desired channel, Voice
announcement will indicate the channel
selected
2. Make sure the PTT button is released and listen
for voice activity.
3. The LED Indicator will be solid red while the
radio is receiving a call.
4. To respond, hold the radio vertically 1 to 2
inches (2.5 to 5cm) from mouth. Press the PTT
button to talk; release it to listen.
TALK RANGE
GETTING STARTED
English
29
To establish a proper two-way communication,
the channel, frequency, and interference
eliminator codes must be the same on both
radios. This depends on the stored profile that
has been preprogrammed on the radio:
1. Channel: Current channel that the radio is
using, depending on radio model.
2. Frequency: The frequency the radio uses to
transmit/receive.
3. Interference Eliminator Code: These codes
help minimize interference by providing a
choice of code combinations.
4. Scramble Code: Codes that make the
transmissions sound garbled to anyone
listening who is not set to that specific code.
5. Bandwidth: Some frequencies have selectable
channel spacing, which must match other
radios for optimum audio quality (only
available for RMU2043).
For details on how to set up frequencies and
CTCSS/DPL codes in the channels, refer to
“Programming Selection Mode” in page 36.
GETTING STARTED
English 30
RADIO LED INDICATORS
LED INDICATIONRADIO STATUS
Channel Alias Edit
Channel Busy
Cloning Mode
Cloning In Progress
Fatal Error at Power up
Low Battery
Low Battery Shutdown
Monitor
Power-Up
Red heartbeat
Solid orange
Two orange heartbeats
Solid orange
One green blink, one orange blink, one green blink, then repeat for 4
seconds
Orange blink
Orange heartbeat
LED is OFF
Solid red for 2 seconds
Green heartbeat
‘Idle’ Programming Mode /
Channel Mode
Scan Mode Red Blink
Transmit (Tx)/Receive (RX) Solid red
Transmit in Low Power Select Solid Orange
Note: Channel Alias Edit only applies to Display Models
GETTING STARTED
English
31
HANDS-FREE USE/VOX
Motorola RM Series radios can operate
hands-free (VOX) when used with compatible
VOX accessories.
With Compatible VOX Accessories
The default factory setting for VOX sensitivity
level is OFF. Before using VOX, set VOX
level to a setting different from ‘OFF’ via the
CPS (Customer Programming Software).
Then, perform the following steps:
1. Turn the radio OFF.
2. Open accessory cover.
3. Insert the audio accessory’s plug firmly into
accessory port.
4. Turn radio ON. The LED Indicator will
blink double red.
5. Lower radio volume BEFORE placing
accessory near ear.
6. To transmit, speak into accessory microphone
and to receive, stop talking.
7. VOX can be temporarily disabled by pressing
the PTT button or by removing the audio
accessory.
Note: To order accessories, refer to:
www.motorolasolutions.com/RMseries or
call 1 (800) 448-6686, or contact your
Motorola point of purchase
VOX
Accessory
Accessory
Port/
Connector
GETTING STARTED
English 32
Setting VOX Sensitivity
The sensitivity of the radio's accessory or
microphone can be adjusted to suit different
operating environments. VOX sensitivity can
be programmed via the CPS.
Default value is OFF. If you want to use the
VOX feature, VOX level should be set at a
value different from OFF.
•1 = Low audio input levels will trigger the Tx
• 2 = Medium sensitivity
•3 = High audio input levels will trigger the Tx
Microphone Gain
The sensitivity of the microphone can be
adjusted to fit different users or operating
environments.
This feature can be adjusted only through the
CPS. Microphone default setting is set to 2 =
Medium Gain.
Battery Save
Battery Save feature extends battery life as
your radio goes into ‘Idle’ state. To enable/
disable press SB1 and SB2 buttons
simultaneously for 2 or 3 seconds while
powering up the radio until you hear a quick
series of beeps. To have a slightly better attack
time, set Battery Save feature to OFF so that
the radio is always ready to transmit or receive
without any delays.
Note: Battery Save feature is set to ON by default
Reset to Factory Defaults
Reset to Factory Defaults will set back all radio
features to the original factory default settings.
To do so, press PTT, SB2 and SB1
simultaneously while turning ON the radio until
you hear a high tone chirp.
GETTING STARTED
English
33
End of Transmission Tone (Roger Beep
Tone)
Short press the SB1 button while turning ON
the radio to enable/disable End of
Transmission Tone.
Note: This setting is set to OFF by default
PROGRAMMING
FEATURES
English 34
PROGRAMMING
FEATURES

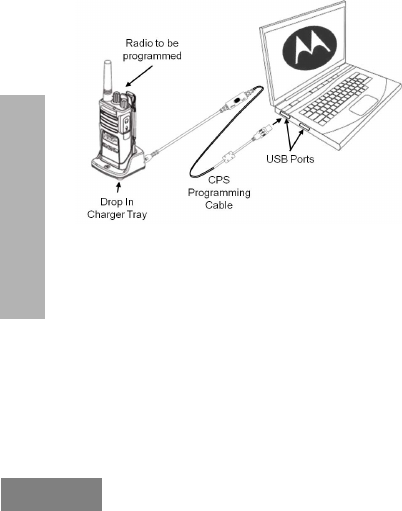

To easily program all the features in your radio,
it is recommended to use the Costumer
Programming Software (CPS) and
programming cable.
CPS software download is available for free
at www.motorolasolutions.com/RMseries
Advanced Configuration
Advanced Configuration is a configuration
mode that allows the customization of
additional features via the front panel.
When the radio is set to Advanced
Configuration, you are able to read and modify
four features:
•Frequency Selection
•CTCSS/DPL Codes
•Auto-Scan.
The Frequency Select feature allows you to
choose frequencies from a pre-defined list.
The Interference Eliminator Code (CTCSS/
DPL) helps minimize interference by providing
you with a choice of code combinations that
filter out static, noise, and unwanted
messages.
The Auto-Scan feature allows you to set a
particular channel to automatically enable Scan
each time you switch to that channel.
The non-display models don't have a display
to show programmed values, then
navigation is guided via voice prompt.
•Active Channels
The Active Channels feature allows you to
increase or decrease the amount of channels
active (In the range of maximum channels).
PROGRAMMING
FEATURES
English
37
Entering Advanced Configuration Mode
Note: Before programming the features, make
sure your radio is set to the channel you
wish to program. You can do so before
entering Advanced Configuration Mode
or at any time during the Advanced
Configuration Mode by pressing SB2
until reaching the desired channel.
To read or modify Frequencies, Codes,
Auto-Scan or Active Channels, set the radio
to 'Advanced Configuration Mode' by
pressing and holding the PTT and SB1
buttons simultaneously for 3 to 5 seconds
while powering up the radio and until you
hear a voice prompt saying "Programming
Mode" and "Channel #".
Note: 'Idle' Programming Mode is the stage of
the Programming Mode in which the
radio is waiting for the user to start the
radio programming cycle.
Once you are in the 'Idle' Programming Mode,
you will be able to hear the Frequencies,
Codes, Auto-Scan and active channels
settings by short pressing the PTT button to
move along the different programmable
features.
Entering Frequencies Values
RM Series radios have 89 frequencies for UHF.
Once in ‘Idle’ Programming Mode, the first
value available to change is Channel number,
you can change the channel by pressing SB2
button until you reach desired Channel, voice
announcement will indicate channel selected.
Using SB1 and SB2 you can change values.
The value selected is announced by voice
prompt.
PROGRAMMING
FEATURES
English 38
Reading CTCSS/DPL Values
If you continue short pressing the PTT button
the radio will move forward to programming
CTCSS/PL Codes.
After hearing the current value for CTCSS/PL
Code you can scroll to a new code value
using the SB1 or SB2 button.
RM Series have up to 122 codes available
(refer to “Frequencies and Codes Charts”
Section).
Reading Auto-Scan Values
After hearing the CTCSS/DPL codes, short
press the PTT button and the radio will move
forward to programming Auto-Scan.
Auto-Scan only has two values:
- Enabled
- Disabled
Note: While in Auto-Scan Mode, if you short press
PTT button, the radio will move forward to
programming the "Active Channels" feature, so
you can modify the amount of channels
available for your unit using the SB1 or SB2
button.
Saving Settings
If you are satisfied with the setting, you
can either:
•short press PTT to continue
programming,
•long press PTT to save and return to
'Idle' Programming Mode, or
•long press the PTT button twice to exit
'Idle' Programming Mode and return to
the normal radio operation.
Note:
•If you do not wish to save the value you just
programmed, turn the radio OFF.
•If you ‘roll-over’ to the beginning of ‘Idle’
Programming Mode you will hear "Channel #"
and the LED Indicator will start blinking green
again. All values that were changed will be
automatically saved.
PROGRAMMING
FEATURES
English 40
Programming Mode FAQ
1. I got distracted while programming and
forgot which feature I was
programming. What should I do?
Return to 'Idle' Programming Mode and start
over.
• Long press the PTT button. The radio will return
to the 'Idle' Programming Mode or,
• Turn OFF the radio and enter Programming
Mode again (see instructions in the beginning of
this section)
2. I am trying to program a frequency (or
code) value but the radio would not do it.
It rolled over and took me back to value
‘0’.
The radio will not allow you to program any
values that are not available in the frequencies
and codes pool. For example, if you try to
program code 128, the radio would not accept
it, as the maximum value allowed is 122. Same
thing will happen with frequencies. Check the
Frequencies and Codes Charts section to
make sure you are programming a valid
number.
3. I am trying to enter the Programming
Mode but the radio would not do it.
The radio might be locked using the CPS to not
allow Front Panel Programming. To re-enable,
use the CPS.
PROGRAMMING
FEATURES
English
41
4. When I was programming I made a
mistake and programmed the wrong
value. How can I erase it or re-program
it?
If you make a mistake while programming a
value you have two choices:
•The radio settings will roll-over each time
they reach a maximum or minimum value.
Keep increasing (short press SB1) or
decreasing (short pressing SB2) until you get
the desired value or,
•Turn OFF the radio and start-over.
5. I just programmed the value I wanted.
How do I exit Programming Mode?
• If you are in Programming Mode you can exit by
long pressing the PTT button twice.
• If you are already in the ‘Idle’ Programming
Mode, long press the PTT button once.
6. I am done programming the features in
this channel and want to program another
channel.
Press short PTT several times until you hear
"Channel #", then switch channel using
Channel Selector Knob. If you wish to save
the changes, make sure you are in the ‘Idle’
Programming Mode before switching the
channel as otherwise you will lose the changes
made.
PROGRAMMING VALUES EXAMPLE
Example of Programming a Frequency
Assuming current frequency value is set to
Channel 1, with the UHF default frequency ‘02’
(equivalent to 464.5500 MHz), and you want to
change it to Frequency Number = ‘13’ (which is
mapped to 461.1375 MHz), follow this
sequence:
• Enter Programming Mode
PROGRAMMING
FEATURES
English 42
•Short press the PTT button to enter Frequency
Programming Selection Mode. Radio will
announce current value ‘2’
•Press SB1 button eleven times to scroll up the
frequency list and you will hear frequency "13"
Long press the PTT button. LED Indicator will
show a green heartbeat to indicate 'Idle' state.
Long press the PTT button to exit Programming
Mode or turn radio OFF.
Example of Programming a Code
Assuming current code value is set to factory
default ‘001’, and you want to change it to
CTCSS/DPL Code = 103 follow the sequence
below:
•Enter into Advanced Configuration Mode
•Short press the PTT button twice and you will
hear "Code #" (Entering CTCSS/DPL
Programming Selection Mode).
•Press and hold SB1 or SB2, selections shall
fast forward/rewind starting at the nearest 10's,
when released the radio starts playing the first,
second and third digit in full, keep pressing SB1/
SB2 several times until you hear "103"
Long press the PTT button. LED Indicator will
show a green heartbeat to indicate 'Idle' state.
Long press the PTT button to exit Programming
Mode or turn radio OFF.
•
•
•
•
PROGRAMMING
FEATURES
English
43
•
Example of Programming Auto-Scan
Auto-Scan is the third Programming Mode
and can be set to either ON or OFF on a
particular channel.
To set Auto-Scan to ON:
•Enter into advanced Configuration Mode and
select the desired channel.
•Short press the PTT button three times to enter
Auto-Scan Programming Selection Mode. The
radio will announce "Auto-Scan" and current
setting (Enabled or Disabled).
•Short press the SB1 or SB2 buttons to
toggle Enabled/Disabled for the Auto-Scan
feature on the selected channel.
Example of Programming Active Channels
Active Channels is the last Programming Mode and
It allows you to modify the number of active channels
the radio will be programmed to support.
To set Active Channels:
Enter Programming Mode and select the
desired channel
Short press the PTT button Four times to enter
Active Channels Programming Selection Mode.
The radio will announce "Active Channels" and
current value.
Short press the SB1 or SB2 buttons until you
hear the number of channels desired.
•
•
Long press the PTT button. LED Indicator will
show a green heartbeat to indicate “Idle” state.
•
Long press the PTT button to exit
Programming Mode or turn radio OFF.
•
Long press the PTT button. LED Indicator will
show a green heartbeat to indicate “Idle” state.
•
Long press the PTT button to exit
Programming Mode or turn radio OFF.
•
•
PROGRAMMING
FEATURES
English 44
OTHER PROGRAMMING FEATURES
Scan
Scan allows you to monitor other channels to detect
conversations. When the radio detects a
transmission, it will stop scanning and will receive on
the active channel. This will allow you to listen and
talk to people on that channel without having to
change channel. If there is are transmissions on
another channel once the radio has stopped
scanning then you will not hear that activity. After
activity has ceased on the channel which the radio
has stopped, scanning will resume again after 5
seconds of no activity on that channel.
•By pressing the PTT button while the radio is
scanning, the radio will transmit on the channel
which was selected before Scan was activated.
If no transmission occurs within five seconds,
scanning will resume.
•If you want to scan a channel without
Interference Eliminator Codes (CTCSS/DPL),
set the code settings for the channels to ‘0’ in the
CTCSS/DPL Programming Selection Mode.
Whenever the radio is set up in Scan, the LED
Indicator will signal a Red blink.
•To start scanning, press the SBx (x=1 or 2)
button (Scan has to be programmed to either
SB1 or SB2 via CPS). SB2 default is Scan/
Nuisance delete,
•To stop scanning, short press the SBx
button again.
PROGRAMMING
FEATURES
English
45
Editing Scan List
Scan Lists can be edited by using the CPS
(refer to CPS section on page 46)
Nuisance Channel Delete
Nuisance Channel Delete allows you to
temporarily remove channels from the Scan
List. This feature is useful when frequent,
irrelevant conversations on a channel tie up
the scanning feature, becoming a nuisance
to the user.
To delete a channel from the Scan List:
•To start scanning, press the SBx (x=1 or
2) button (Scan has to be programmed to
either SB1 or SB2 via CPS). SB2 default
is Scan/Nuisance delete,
•
Wait until the radio stops on the channel
you wish to eliminate, then long press the
SBx button to delete it.
•
The channel will not be scanned again
until you exit Scan by short pressing the
SBx button again or by turning the radio
OFF and back ON.
PROGRAMMING
FEATURES
English 46

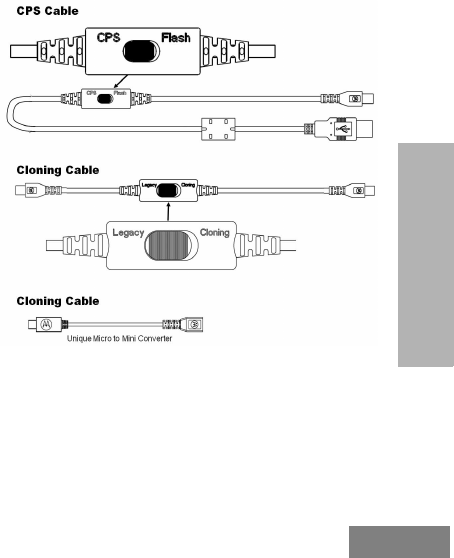

CPS (COMPUTER PROGRAMMING
SOFTWARE)
The easiest way to program or change features
in your radio is by using the Computer
Programming Software (CPS) and the CPS
Programming Cable(*). CPS Software is
available for free as web based downloadable
software at:
www.motorolasolutions.com/RMseries
To program, connect the RM Series radio
via the Drop-in Charger Tray and CPS
Programming Cable as shown in the picture
above.
CPS allows the user to program frequencies,
PL/DPL codes, as well as other features such
as: Bandwidth Select, Time-out Timer, Power
Select, Scan List, Call Tones, Scramble,
Reverse Burst, etc. CPS is a very useful tool
as it can also lock the Front-Panel Radio
Programming to avoid accidentally erasing the
current radio settings. It also provides security
by giving the option to set up a password for
radio profile management. Please refer to
Features Summary Chart Section at the end
of the user guide for more details.
Note: (*) CPS Programming Cable P/N HKKN4027A
is an accessory sold separately. Please
contact your Motorola point of purchase for
more information.
PROGRAMMING
FEATURES
English
47
Bandwidth Select (Only Canada models)
Default setting for Bandwidth Select depends
on the specific frequency and channel. Some
frequencies have selectable channel spacing,
which must match with other radios for
optimum audio quality.
For details, refer to Frequency and Code
Charts section.
Time-Out Timer
When pressing the PTT button, transmissions
will be terminated after a preset time of
continuous transmitting. The default setting
is 60 sec and can be changed using the CPS.
Power Select
Power Select allows you to select between
high and low transmission power per channel.
The power levels for RM Series toggle
between 2W and 1W.
Call Tones
Call Tones feature allows you to transmit an
audible tone to other radios on the same
channel and alerting them that you are about
to talk or alerting them
without speaking. The call tones feature must
be programmed to SB1 or SB2 and 1 of 3 pre-
recorded tones selected
All US models are compliants with the
narrowbandwith FCC regulation.
Scramble
The Scramble feature makes transmissions
sound garbled to anyone listening without the
same code. Scramble default value is OFF.
The Scramble feature must be programmed
to SB1 or SB2.
Reverse Burst
Reverse Burst eliminates unwanted noise
(squelch tail) during loss of carrier detection.
You can select values of either 180 or 240 to
be compatible with other radios. Default is
180.
Notes: Some of the features available with the CPS
software may vary depending on the radio
model.
PROGRAMMING
FEATURES
English
49
CLONING RADIOS
You can clone RM Series radio profiles from
one Source radio to a Target radio by using any
one of these 3 methods:
•Using a Multi Unit Charger (MUC - optional
accessory),
•Two Single Unit Chargers (SUC) and a Radio-to-
Radio cloning cable (optional accessory),
•the CPS (free software download) and CPS
programming cable ((optional accessory).
Cloning with a Multi Unit Charger (MUC)
To clone radios using the MUC, there must be
at least two radios:
• a Source radio (radio which profiles will be cloned
or copied from) and
• a Target radio (the radio which profile will be
cloned from the source radio.)
The Source radio has to be in Pocket 1 or 4
while the Target radio has to be in Pocket 2 or
5, matching in the MUCs pockets by pairs as
follows:
• 1 and 2 or,
•4 and 5
When cloning, the MUC does not need to be
plugged into a power source, but ALL radios
require charged batteries.
1. Turn ON the Target radio and place it into one of
the MUC Target Pockets
2. Power the Source radio following the sequence
below:
•Long press the PTT button and SB2
simultaneously while turning the radio ON.
PROGRAMMING
FEATURES
English 50
• Wait for 3 seconds before releasing the
buttons until a distinctive audible tone is
heard and ‘Cloning’ is announced.
3. Place the Source radio in the source pocket
that pairs with the target pocket you chose in
step 1. ress ̀ and release SB1 on Source
radio.
4.
5. Once you have completed the cloning
process, turn the radios OFF and ON to exit
the ‘cloning’ mode.
•If cloning fails please refer to “What To Do
if Cloning Fails” on page 54.
When ordering the MUC, please refer
to P/N PMLN6384A.
Notes:
•Paired Target radios and Source radios must
be of the same band type in order for the
cloning to run successfully.
• MUC pockets numbers should be read from
left to right with the Motorola logo facing front.
After cloning is completed, the Source radio will a
nnounce either ‘Successful’ (cloning wa
successful) or ‘failed’ (cloning process has failed).
PROGRAMMING
FEATURES
English
51
CPS and Cloning Cables (Optionals)
•
CPS Cable
Both CPS and Cloning cables are made to
work either with RM Series radios or RDX
series. Cloning cable also can work with a
mix of RDX and RM radios.
The CPS cable is made to program RM
series radio when the switch is in "Flash"
position. If you want to use the CPS cable
to program an RDX radio, make sure the
switch is in "CPS" position and attach a
USB convertor provided as part of the CPS
cable kit.
•
Cloning cable allows you to clone:
- RM Series, make sure the switch is in
"Cloning" position.
- RDX radios, make sure the switch is in
"Legacy" position there is one USB
converter attached on each side.
- RM and RDX radios, make sure the switch
is in "Legacy" position and use a USB
converter to connect to the RDX SUC.
Cloning cable kit provides 1 USB convertor.
•
Cloning Cable
Micro-to-Mini USB Convertor
USB Converter
PROGRAMMING
FEATURES
English
51
Cloning Radio using the Radio to Radio
(R2R) Cloning Cable (Optional Accessory)
Operating Instructions
1. Before beginning the cloning process, make
sure you have:
• A fully charged battery on each one of
the radios.
•Two Single Unit Chargers (SUC).
Either 2 SUC for RM Series or 1 SUC
for RM Series and 1 SUC for RDX
Series
•Turn OFF the radios and,
2. Unplug any cables (power supply or USB
cables) from the SUCs.
3. Plug one side of the cloning cable mini
connector to one SUC. Plug the other end to
the second SUC.
Note: During the cloning process no power is
being applied to the SUC. The batteries will
not be charged. A data communication is
being established between the two radios.
4. Turn ON the Target radio and place it into one of
the SUCs.
5. On the Source radio, power the radio following
the sequence below:
• Long press the PTT button and SB2
simultaneously while turning the radio
ON.
• Wait for 3 seconds before releasing the
buttons until you hear a distinctive
audible tone and the word "Cloning"
6. Place the Source radio in its SUC, press and
release SB1.
PROGRAMMING
FEATURES
English 52
7. After cloning is completed, the Source radio will
announce either ‘pass’ (cloning was
successful) or ‘fail’ (cloning process has
failed). If the Source radio is a display model, it
will either show ‘Pass’ or ‘Fail’ on the display (a
tone will be heard within 5 seconds).
8. Once you have completed the cloning process,
turn the radios OFF and ON to exit ‘clone’
mode.
What To Do if Cloning Fails
The radio will emit "Fail" indicating that the
cloning process has failed. In the event that
cloning fails, try performing each of the
following before trying to start the cloning
process again:
1. Ensure that the batteries on both radios are fully
charged.
2. Check the cloning cable connection on both
SUCs.
3. Ensure that the battery is engaged properly on
to the radio.
4. Ensure that there is no debris in the charging
tray or on the radio contacts.
5.
Ensure that the Source radio is in cloning mode.
6.
Ensure that the Target radio is turned ON.
7. Ensure that radios are both from the same
frequency band, same region and same
transmission power.
Note: This cloning cable is designed to operate
only with compatible Motorola SUC
RLN6175 and PMLN6394A
When ordering Cloning Cable please refer to
P/N HKKN4028A. For details about
accessories refer to Accessories section.
PROGRAMMING
FEATURES
English
53
Cloning using the CPS (Computer
Programming Software)
When cloning using this method, you will need
to have the CPS software, a Drop-in Tray
Charger and the CPS Programming Cable.
To order the CPS Programming
Cable, please refer to HKKN4028A
Information on how to clone using the CPS is
available either in:
• the CPS Help File --> Content and Index -->
Cloning Radios, or
•in the CPS Programming Cable Accessory
Leaflet.
TROUBLESHOOTING
English 54
TROUBLESHOOTING
Symptom
No Power
Try This... Recharge
or replace the Li-Ion battery.
Extreme operating temperatures may affect battery life.
Refer to See “About the Li-Ion Battery” on page 14.
Hearing other noises or
conversation on a channel
Confirm Interference Eliminator Code is set.
Frequency or Interference Eliminator Code may be in use.
Change settings: either change frequencies or codes on all radios.
Make sure radio is at the right frequency and code when transmitting.
Refer to “Talking and Monitoring” on page 27
Message Scrambled Scramble Code might be ON, and/or setting does not match the other radios'
settings.
Audio quality not good enough Radio settings might not be matching up correctly. Double check frequencies,
codes and bandwidths to make sure they are identical in all radios
TROUBLESHOOTING
English
55
Limited talk range
Try This...
Steel and/or concrete structures, heavy foliage, buildings or vehicles decrease
range. Check for clear line of sight to improve transmission.
Wearing radio close to body such as in a pocket or on a belt decreases range.
Change location of radio. To increase range and coverage, you can reduce
obstructions, increase power. UHF radios provides greater coverage in
industrial and commercial buildings. Increasing power provides greater signal
range and increased penetration through obstructions.
Refer to See “Talking and Monitoring” on page 27.
Message not transmitted or
received
Make sure the PTT button is completely pressed when transmitting.
Confirm that the radios have the same Channel, Frequency, Interference
Eliminator Code and Scramble Code settings. Refer to “Talking and Monitoring”
section on page 27 for further information.
Recharge, replace and/or reposition batteries. Refer to “About your Li-Ion
Battery” section on page 14.
Obstructions and operating indoors, or in vehicles, may interfere. Change
location. Refer to “Talking and Monitoring” Section on page 27.
Verify that the radio is not in Scan. Refer to “Scan” on page 44 and “Nuisance
Channel Delete” on page 45.
Symptom
TROUBLESHOOTING
English 56
Heavy static or interference
Radios are too close; they must be at least five feet apart.
Radios are too far apart or obstacles are interfering with transmission.
Refer to “Talking and Monitoring” on page 27.
Low batteries
Recharge or replace Li-Ion battery. Extreme operating
temperatures affect battery life. Refer to “About the Li-
Ion Battery” on page 14.
Drop-in Charger LED light
does not blink
Check that the radio/battery is properly inserted and check the battery/charger
contacts to ensure that they are clean and charging pin is inserted correctly.
Refer to “Charging the Battery” section on page 21, “Drop-in Tray Charger LED
Indicators” section on page 24 and “Installing the Lithium-Ion Battery” section
on page 16.
Low battery indicator is
blinking although new
batteries are inserted
Refer to “Installing the Li-Ion Battery” section on page 16 and “About your
Li-Ion Battery” section on page 14.
Symptom Try This...
TROUBLESHOOTING
English
57
Cannot activate VOX
VOX feature might be set to OFF.
Use the CPS to ensure that the VOX Sensitivity level is not set to ‘0’.
Accessory not working or not compatible.
Refer to “Hands-Free Use/VOX” section on page 31.
Battery does not charge
although it has been placed in
the drop-in charger for a while
Check drop-in tray charger is properly connected and correspond to a
compatible power supply.
Ensure that you have the drop-in tray charger adjustable piece placed on the
right position.
Refer to “Charging with the Drop-In Tray Single Unit Charger” section on
page 21 and “Charging a Standalone Battery” section on page 22.
Check the charger’s LEDs indicators to see if the battery has a problem. Refer
to “Drop-in Tray Charger LED Indicators” section on page 24.
Note: Whenever a feature in the radio seems to not correspond to the default or preprogrammed values, check
to see if the radio has been programmed using the CPS with a customized profile.
Symptom Try This...
USE AND CARE
English 58
Use a soft damp cloth
to clean the exterior
Do not immerse
in water
Do not use alcohol or
cleaning solutions
Turn radio OFF and
remove batteries
Dry with soft cloth Do not use radio until
completely dry
If the radio is submerged in water...
USE AND CARE
FREQUENCY AND CODE
English
59
FREQUENCY AND CODE CHARTS
RMU2043 - UHF DEFAULT FREQUENCIES CHART
RM UHF 4CH Radios Default Frequencies - RMU2043
Channel Frequency # Frequency
(MHz) Code # Code Bandwidth
1 1 458.6625 1 67.0 Hz 12.5 kHz
2 2 469.2625 167.0 Hz 12.5 kHz
FREQUENCY AND CODE
English 60
RMU2040 - UHF DEFAULT FREQUENCIES CHART
RM UHF 4 CH Radios Default Frequencies - RMU2040
FREQUENCY AND CODE
English
RMM2050 - MURS DEFAULT FREQUENCIES CHART
FREQUENCY AND CODE
English
61
CTCSS AND PL/DPL CODES
CTCSS Codes
CTCSS Hz CTCSS Hz CTCSS Hz
1 67.0 14 107.2 27 167.9
271.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
477.0 17 118.8 30 186.2
5 79.7 18 123 31 192.8
682.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
888.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
13 103.5 26 162.2 122 (*) 69.3
Note: (*) New CTCSS code.
FREQUENCY AND CODE
English 62
PL/DPL Codes
DPL Code DPL Code DPL Code
39 23 55 116 71 243
40 25 56 125 72 244
41 26 57 131 73 245
42 31 58 132 74 251
43 32 59 134 75 261
44 43 60 143 76 263
45 47 61 152 77 265
46 51 62 155 78 271
47 54 63 156 79 306
48 65 64 162 80 311
49 71 65 165 81 315
50 72 66 172 82 331
51 73 67 174 83 343
52 74 68 205 84 346
53 114 69 223 85 351
54 115 70 226 86 364
FREQUENCY AND CODE
English
63
87 365 104 565 121 754
88 371 105 606 123 645
89 411 106 612 124 Customized PL
90 412 107 624 125 Customized PL
91 413 108 627 126 Customized PL
92 423 109 631 127 Customized PL
93 431 110 632 128 Customized PL
94 432 111 654 129 Customized PL
95 445 112 662 130 Inverted DPL 39
96 464 113 664 131 Inverted DPL 40
97 465 114 703 132 Inverted DPL 41
98 466 115 712 133 Inverted DPL 42
99 503 116 723 134 Inverted DPL 43
100 506 117 731 135 Inverted DPL 44
101 516 118 732 136 Inverted DPL 45
102 532 119 734 137 Inverted DPL 46
103 546 120 743 138 Inverted DPL 47
PL/DPL Codes (Continued)
DPL Code DPL Code DPL Code
FREQUENCY AND CODE
English 64
139 Inverted DPL 48 156 Inverted DPL 65 173 Inverted DPL 82
140 Inverted DPL 49 157 Inverted DPL 66 174 Inverted DPL 83
141 Inverted DPL 50 158 Inverted DPL 67 175 Inverted DPL 84
142 Inverted DPL 51 159 Inverted DPL 68 176 Inverted DPL 85
143 Inverted DPL 52 160 Inverted DPL 69 177 Inverted DPL 86
144 Inverted DPL 53 161 Inverted DPL 70 178 Inverted DPL 87
145 Inverted DPL 54 162 Inverted DPL 71 179 Inverted DPL 88
146 Inverted DPL 55 163 Inverted DPL 72 180 Inverted DPL 89
147 Inverted DPL 56 164 Inverted DPL 73 181 Inverted DPL 90
148 Inverted DPL 57 165 Inverted DPL 74 182 Inverted DPL 91
149 Inverted DPL 58 166 Inverted DPL 75 183 Inverted DPL 92
150 Inverted DPL 59 167 Inverted DPL 76 184 Inverted DPL 93
151 Inverted DPL 60 168 Inverted DPL 77 185 Inverted DPL 94
152 Inverted DPL 61 169 Inverted DPL 78 186 Inverted DPL 95
153 Inverted DPL 62 170 Inverted DPL 79 187 Inverted DPL 96
154 Inverted DPL 63 171 Inverted DPL 80 188 Inverted DPL 97
155 Inverted DPL 64 172 Inverted DPL 81 189 Inverted DPL 98
PL/DPL Codes (Continued)
DPL Code DPL Code DPL Code
FREQUENCY AND CODE
English
65
190 Inverted DPL 99 200 Inverted DPL 109 210 Inverted DPL 119
191 Inverted DPL 100 201 Inverted DPL 110 211 Inverted DPL 120
192 Inverted DPL 101 202 Inverted DPL 111 212 Inverted DPL 121
193 Inverted DPL 102 203 Inverted DPL 112 213 Inverted DPL 123
194 Inverted DPL 103 204 Inverted DPL 113 214 Customized DPL
195 Inverted DPL 104 205 Inverted DPL 114 215 Customized DPL
196 Inverted DPL 105 206 Inverted DPL 115 216 Customized DPL
197 Inverted DPL 106 207 Inverted DPL 116 217 Customized DPL
198 Inverted DPL 107 208 Inverted DPL 117 218 Customized DPL
199 Inverted DPL 108 209 Inverted DPL 118 219 Customized DPL
PL/DPL Codes (Continued)
DPL Code DPL Code DPL Code
WARRANTY
English
67
MOTOROLA LIMITED
WARRANTY FOR THE
UNITED STATES AND
CANADA
What Does this Warranty Cover?
Subject to the exclusions contained below,
Motorola, Inc. warrants its telephones, pagers, and
consumer and business two-way radios (excluding
commercial, government or industrial radios) that
operate via Family Radio Service or General
Mobile Radio Service, Motorola-branded or
certified accessories sold for use with these
Products (“Accessories”) and Motorola software
contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”)
to be free from defects in materials and
workmanship under normal consumer usage for
the period(s) outlined below.
This limited warranty is a consumer's exclusive
remedy, and applies as follows to new Motorola
Products, Accessories and Software purchased by
consumers in the United States, which are
accompanied by this written warranty.
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories as defined
above, unless otherwise
provided for below.
One (1) year from the date
of purchase by the first
consumer purchaser of the
product unless otherwise
provided for below.
Decorative
Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™
covers and cases.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Business Two-way
Radio Accessories
One (1) year from the date
of purchase by the first
consumer purchaser of the
product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original
warranty or for ninety (90)
days from the date returned
to the consumer, whichever
is longer.
WARRANTY
English 68
Exclusions
Normal Wear and Tear. Periodic maintenance,
repair and replacement of parts due to normal
wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged
capacity falls below 80% of their rated capacity
and batteries that leak are covered by this limited
warranty.
Abuse & Misuse. Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d)
other acts which are not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products and
Accessories. Defects or damage that result from
the use of Non-Motorola branded or certified
Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration,
or modification in any way by someone other than
Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products. Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals
or that show evidence of tampering; (c)
mismatched board serial numbers; or (d)
nonconforming or non-Motorola housings, or
parts, are excluded form coverage.
WARRANTY
English
69
Communication Services. Defects, damages, or
the failure of Products, Accessories or Software
due to any communication service or signal you
may subscribe to or use with the Products
Accessories or Software is excluded from
coverage.
Software
Exclusions
Software Embodied in Physical Media. No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by
third parties, that the operation of the software
products will be uninterrupted or error free, or that
all defects in the software products will be
corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media
(e.g. software that is downloaded from the
internet), is provided “as is” and without warranty.
WHO IS COVERED?
This warranty extends only to the first consumer
purchaser, and is not transferable.
HOW TO OBTAIN WARRANTY SERVICE OR
OTHER INFORMATION?
Contact your Motorola point of purchase.
SOFTWARE COPYRIGHT NOTICE
The Motorola products described in this manual
may include copyrighted Motorola and third party
software stored in semiconductor memories or
other media. Laws in the United States and other
countries preserve for Motorola and third party
software providers certain exclusive rights for
copyrighted software, such as the exclusive rights
to distribute or reproduce the copyrighted
software. Accordingly, any copyrighted software
contained in the Motorola products may not be
modified, reverse-engineered, distributed, or
reproduced in any manner to the extent allowed by
law.
Products Covered Length of Coverage
Software. Applies only
to physical defects in
the media that
embodies the copy of
the software (e.g. CD-
ROM, or floppy disk).
Ninety (90) days from the
date of purchase.
WARRANTY
English 70
Furthermore, the purchase of the Motorola
products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents, or
patent applications of Motorola or any third party
software provider, except for the normal, non-
exclusive, royalty-free license to use that arises by
operation of law in the sale of a product.
PATENT NOTICE
This product is covered by one or more of the
following United States patents.
5896277 5894292 5864752 5699006 5742484
D408396 D399821 D387758 D389158 5894592
5893027 5789098 5734975 5861850 D395882
D383745 D389827 D389139 5929825 5926514
5953640 6071640 D413022 D416252 D416893
D433001
EXPORT LAW ASSURANCES
This product is controlled under the export
regulations of the United States of America. The
Governments of the United States of America may
restrict the exportation or re-exportation of this
product to certain destinations. For further
information contact the U.S. Department of
Commerce.
ACCESSORIES
English
71
ACCESSORIES
AUDIO ACCESSORIES BATTERY
Part No. Description
53815 Headset w/Boom Mic BR
HMN9026ER Remote Speaker Mic BR
HKLN4477 Surveillance Earpiece BR
53865 Headset w/Swivel Boom Mic
53866 Earbud w/Clip PTT Mic BR
56517 Earpiece w/Inline Mic
RLN6423 Swivel Earpiece BR
Part No. Description
ACCESSORIES
English 72
CABLES
CHARGERS
Part No. Description
HKKN4028A Radio to Radio Cloning Cable
HKKN4027A CPS Programming Cable
Part No.
PMLN6394A
Description
Standard Charging Solution
Carrying
Part No.
HKLN4510A
Description
RM Swivel Holster
PMLN6392A Rapid Charging Solution
m
68012009071
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks
or registered trademarks of Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their respective owners. ©2013 Motorola,
Inc. All rights reserved. Printed in Malaysia.
Motorola Solutions, Inc. 1301 East Algonquin Road Schaumburg, Illinois 60196,
U.S.A. 800-367-2346 motorolasolutions.com
