Symbol DS6707 Digital
Imager Scanner
Product Reference Guide
Symbol DS6707 Digital Imager Scanner
Product Reference Guide
72E-83978-06
Revision A
May 2009
ii Symbol DS6707 Digital Imager Scanner Product Reference Guide
© 2007-2009 by Motorola, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Motorola. This includes electronic or mechanical means, such as
photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to
change without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Motorola grants to the user a non-transferable and non-exclusive license to use each
software or firmware program delivered hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of
Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under
copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with
other program material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from Motorola. The user agrees to maintain Motorola’s copyright notice on
the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in
whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed
program delivered to the user or any portion thereof.
Motorola reserves the right to make changes to any software or product to improve reliability, function, or
design.
Motorola does not assume any product liability arising out of, or in connection with, the application or use of
any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Motorola, Inc.,
intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in
Motorola products.
MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the US Patent &
Trademark Office. Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync
are either registered trademarks or trademarks of Microsoft Corporation. All other product or service names
are the property of their respective owners.
Motorola, Inc.
One Motorola Plaza
Holtsville, New York 11742-1300
http://www.motorola.com/enterprisemobility
Patents
This product is covered by one or more of the patents listed on the website:
http://www.motorola.com/enterprisemobility/patents
iii
Revision History
Changes to the original manual are listed below:
Change Date Description
-01 Rev A 8/2006 Initial Release.
-02 Rev A 4/2007 Updated service information, updated operating temperature and drop
specifications, added Host Trigger Mode option, added new UPC/EAN
supplemental options, changed RSS references to GS1 DataBar,
added following parameters: Illumination Bank Control, Fixed Exposure, Fixed
Gain, Gain/Exposure Priority for Snapshot Mode, Image Brightness, JPEG Target
File Size, Image Enhancement, Bookland ISBN format, 4State Postal, Inverse 1D,
Data Matrix Inverse, Micro QR, QR Inverse, Aztec, Aztec Inverse
-03 Rev A 8/2007 Updated decode zone/range information
-04 Rev A 8/2008 Added DP and HD model information, added Fuzzy 1D, Decode Mirror Images,
Low Light Enhancement, and Presentation Mode Field of View parameters, updated
Signature Capture Width and Height options, added Code 128 Lengths and Post
US4, changed code type name from UCC/EAN-128 to GS1-128
-05 Rev A 10/2008 Updated wall mount template, added separate dimensions and weight
specifications for the Symbol DS6707-DP model, added custom defaults options,
added specific string search and new move cursor options in ADF chapter
-06 Rev A 5/2009 Added ISSN EAN, Matrix 2 of 5, and Chinese 2 of 5 code types, added ISBT
concatenation parameters.
iv Symbol DS6707 Digital Imager Scanner Product Reference Guide
Table of Contents
About This Guide
Introduction .................................................................................................................... xv
Configurations................................................................................................................ xv
Chapter Descriptions ..................................................................................................... xv
Notational Conventions.................................................................................................. xvi
Related Documents ....................................................................................................... xvii
Service Information........................................................................................................ xvii
Chapter 1: Getting Started
Introduction ................................................................................................................... 1-1
Supported Interfaces .................................................................................................... 1-2
Unpacking ..................................................................................................................... 1-2
Setting Up the Digital Imager Scanner ......................................................................... 1-3
Installing the Interface Cable .................................................................................. 1-3
Removing the Interface Cable ................................................................................ 1-3
Connecting Power (if required) ............................................................................... 1-4
Configuring the Digital Imager Scanner .................................................................. 1-4
Mounting the Digital Imager Scanner ........................................................................... 1-4
Desk Mount ............................................................................................................. 1-4
Wall Mount .............................................................................................................. 1-5
Chapter 2: Scanning
Introduction ................................................................................................................... 2-1
Beeper Definitions ........................................................................................................ 2-2
LED Definitions ............................................................................................................. 2-4
Scanning in Hand-Held Mode ....................................................................................... 2-4
Scanning with the Digital Imager Scanner .............................................................. 2-4
Aiming .................................................................................................................... 2-6
Scanning in Presentation Mode .................................................................................... 2-7
Decode Zones .............................................................................................................. 2-8
Symbol DS6707-SR Standard Range Digital Imager Scanner - 1D Bar Codes ..... 2-8
Symbol DS6707-SR Standard Range Digital Imager Scanner - 2D Bar Codes ..... 2-9
vi Symbol DS6707 Digital Imager Scanner Product Reference Guide
Symbol DS6707-DC Document Capture Digital Imager Scanner - 1D Bar Codes . 2-10
Symbol DS6707-DC Document Capture Digital Imager Scanner - 2D Bar Codes . 2-11
Symbol DS6707-DP Direct Part Mark Digital Imager Scanner - 1D and
PDF417 Bar Codes ................................................................................................. 2-12
Symbol DS6707-DP Direct Part Mark Digital Imager Scanner - 2D Bar Codes ..... 2-13
Symbol DS6707-HD High Density Digital Imager Scanner - 1D and
PDF417 Bar Codes ................................................................................................. 2-14
Symbol DS6707-HD High Density Digital Imager Scanner - 2D Bar Codes ........... 2-15
Chapter 3: Maintenance & Technical Specifications
Introduction ................................................................................................................... 3-1
Maintenance ................................................................................................................. 3-1
Troubleshooting ............................................................................................................ 3-2
Technical Specifications ............................................................................................... 3-4
Digital Imager Scanner Signal Descriptions ................................................................. 3-8
Chapter 4: User Preferences & Miscellaneous Digital Imager Scanner Options
Introduction ................................................................................................................... 4-1
Scanning Sequence Examples ..................................................................................... 4-2
Errors While Scanning .................................................................................................. 4-2
User Preferences and Miscellaneous Options - Parameter Defaults ........................... 4-2
User Preferences .......................................................................................................... 4-4
Set Default Parameter ............................................................................................ 4-4
Parameter Scanning ............................................................................................... 4-5
Beeper Tone ........................................................................................................... 4-5
Beeper Volume ....................................................................................................... 4-6
Power Mode ............................................................................................................ 4-6
Time Delay to Low Power Mode ............................................................................. 4-7
Trigger Mode ........................................................................................................... 4-8
Picklist Mode ........................................................................................................... 4-9
Decode Session Timeout ........................................................................................ 4-10
Timeout Between Decodes, Same Symbol ............................................................ 4-10
Decoding Illumination .............................................................................................. 4-11
DP Illumination ....................................................................................................... 4-12
Decode Aiming Pattern ........................................................................................... 4-13
Fuzzy 1D Processing .............................................................................................. 4-13
Decode Mirror Images (Data Matrix Only) .............................................................. 4-14
Miscellaneous Scanner Parameters ............................................................................. 4-15
Transmit Code ID Character ................................................................................... 4-15
Prefix/Suffix Values ................................................................................................. 4-16
Scan Data Transmission Format ............................................................................ 4-17
FN1 Substitution Values ......................................................................................... 4-18
Transmit “No Read” Message ................................................................................. 4-19
Table of Contents vii
Chapter 5: Imaging Preferences
Introduction ................................................................................................................... 5-1
Scanning Sequence Examples ..................................................................................... 5-2
Errors While Scanning .................................................................................................. 5-2
Imaging Preferences Parameter Defaults ..................................................................... 5-2
Imaging Preferences ..................................................................................................... 5-4
Operational Modes .................................................................................................. 5-4
Low Light Enhancement ......................................................................................... 5-5
Presentation Mode Field of View ............................................................................ 5-5
Image Capture Autoexposure ................................................................................. 5-6
Image Capture Illumination ..................................................................................... 5-6
Illumination Bank Control ........................................................................................ 5-7
Fixed Exposure ....................................................................................................... 5-8
Fixed Gain ............................................................................................................... 5-8
Gain/Exposure Priority for Snapshot Mode ............................................................. 5-9
Snapshot Mode Timeout ......................................................................................... 5-10
Snapshot Aiming Pattern ........................................................................................ 5-10
Image Cropping ...................................................................................................... 5-11
Crop to Pixel Addresses ......................................................................................... 5-12
Image Size (Number of Pixels) ............................................................................... 5-13
Image Brightness (Target White) ............................................................................ 5-14
JPEG Image Options .............................................................................................. 5-14
JPEG Target File Size ............................................................................................ 5-15
JPEG Quality and Size Value ................................................................................. 5-15
Image Enhancement ............................................................................................... 5-16
Image File Format Selector ..................................................................................... 5-17
Bits Per Pixel ........................................................................................................... 5-18
Signature Capture ................................................................................................... 5-19
Signature Capture File Format Selector ................................................................. 5-20
Signature Capture Bits Per Pixel ............................................................................ 5-21
Signature Capture Width ......................................................................................... 5-22
Signature Capture Height ....................................................................................... 5-22
Signature Capture JPEG Quality ............................................................................ 5-22
Video View Finder ................................................................................................... 5-23
Target Video Frame Size ........................................................................................ 5-23
Video View Finder Image Size ................................................................................ 5-24
Chapter 6: SSI Interface
Introduction ................................................................................................................... 6-1
Connecting Using Simple Serial Interface .................................................................... 6-2
Simple Serial Interface Default Parameters .................................................................. 6-3
SSI Host Parameters .................................................................................................... 6-4
Baud Rate ............................................................................................................... 6-4
Parity ....................................................................................................................... 6-6
Check Parity ............................................................................................................ 6-7
Software Handshaking ............................................................................................ 6-7
Host RTS Line State ............................................................................................... 6-8
Decode Data Packet Format ................................................................................... 6-8
Stop Bit Select ........................................................................................................ 6-9
viii Symbol DS6707 Digital Imager Scanner Product Reference Guide
Host Serial Response Time-out .............................................................................. 6-10
Host Character Time-out ......................................................................................... 6-11
Multipacket Option .................................................................................................. 6-12
Interpacket Delay .................................................................................................... 6-13
Event Reporting ............................................................................................................ 6-14
Decode Event ......................................................................................................... 6-14
Boot Up Event ......................................................................................................... 6-15
Parameter Event ..................................................................................................... 6-15
Chapter 7: USB Interface
Introduction ................................................................................................................... 7-1
Connecting a USB Interface ......................................................................................... 7-2
USB Parameter Defaults .............................................................................................. 7-3
USB Host Parameters .................................................................................................. 7-4
USB Device Type .................................................................................................... 7-4
Symbol Native API (SNAPI) Status Handshaking ................................................... 7-5
USB Country Keyboard Types (Country Codes) .................................................... 7-6
USB Keystroke Delay ............................................................................................. 7-8
USB CAPS Lock Override ...................................................................................... 7-8
USB Ignore Unknown Characters ........................................................................... 7-9
Emulate Keypad ...................................................................................................... 7-9
Emulate Keypad with Leading Zero ........................................................................ 7-10
USB Keyboard FN 1 Substitution ............................................................................ 7-10
Function Key Mapping ............................................................................................ 7-11
Simulated Caps Lock .............................................................................................. 7-11
Convert Case .......................................................................................................... 7-12
ASCII Character Set for USB ........................................................................................ 7-13
Chapter 8: RS-232 Interface
Introduction ................................................................................................................... 8-1
Connecting an RS-232 Interface .................................................................................. 8-2
RS-232 Parameter Defaults .......................................................................................... 8-3
RS-232 Host Parameters .............................................................................................. 8-4
RS-232 Host Types ................................................................................................. 8-6
Baud Rate ............................................................................................................... 8-7
Parity ....................................................................................................................... 8-9
Stop Bit Select ........................................................................................................ 8-10
Data Bits ................................................................................................................. 8-10
Check Receive Errors ............................................................................................. 8-11
Hardware Handshaking .......................................................................................... 8-11
Software Handshaking ............................................................................................ 8-13
Host Serial Response Time-out .............................................................................. 8-15
RTS Line State ........................................................................................................ 8-16
Beep on <BEL> ....................................................................................................... 8-16
Intercharacter Delay ................................................................................................ 8-17
Nixdorf Beep/LED Options ...................................................................................... 8-18
Ignore Unknown Characters ................................................................................... 8-18
ASCII Character Set for RS-232 ................................................................................... 8-19
Table of Contents ix
Chapter 9: 123Scan
Introduction ................................................................................................................... 9-1
123Scan Parameter ...................................................................................................... 9-1
Chapter 10: Symbologies
Introduction ................................................................................................................... 10-1
Scanning Sequence Examples ..................................................................................... 10-1
Errors While Scanning .................................................................................................. 10-2
Symbology Parameter Defaults .................................................................................... 10-2
UPC/EAN ...................................................................................................................... 10-7
Enable/Disable UPC-A ............................................................................................ 10-7
Enable/Disable UPC-E ............................................................................................ 10-7
Enable/Disable UPC-E1 .......................................................................................... 10-8
Enable/Disable EAN-8/JAN-8 ................................................................................. 10-8
Enable/Disable EAN-13/JAN-13 ............................................................................. 10-9
Enable/Disable Bookland EAN ............................................................................... 10-9
Decode UPC/EAN/JAN Supplementals .................................................................. 10-10
User-Programmable Supplementals ....................................................................... 10-13
UPC/EAN/JAN Supplemental Redundancy ............................................................ 10-14
Transmit UPC-A Check Digit .................................................................................. 10-14
Transmit UPC-E Check Digit .................................................................................. 10-15
Transmit UPC-E1 Check Digit ................................................................................ 10-15
UPC-E1 Preamble .................................................................................................. 10-18
Convert UPC-E1 to UPC-A ..................................................................................... 10-19
UCC Coupon Extended Code ................................................................................. 10-22
ISSN EAN ............................................................................................................... 10-22
Code 128 ...................................................................................................................... 10-23
Enable/Disable Code 128 ....................................................................................... 10-23
Set Lengths for Code 128 ....................................................................................... 10-23
Enable/Disable GS1-128 (formerly UCC/EAN-128) ................................................ 10-25
Enable/Disable ISBT 128 ........................................................................................ 10-25
ISBT Concatenation ................................................................................................ 10-26
Check ISBT Table ................................................................................................... 10-27
ISBT Concatenation Redundancy ........................................................................... 10-27
Code 39 ........................................................................................................................ 10-28
Enable/Disable Code 39 ......................................................................................... 10-28
Enable/Disable Trioptic Code 39 ............................................................................ 10-28
Convert Code 39 to Code 32 .................................................................................. 10-29
Code 32 Prefix ........................................................................................................ 10-29
Set Lengths for Code 39 ......................................................................................... 10-30
Code 39 Check Digit Verification ............................................................................ 10-31
Transmit Code 39 Check Digit ................................................................................ 10-32
Code 39 Full ASCII Conversion .............................................................................. 10-32
Code 39 Buffering (Scan & Store) .......................................................................... 10-33
Code 93 ........................................................................................................................ 10-36
Enable/Disable Code 93 ......................................................................................... 10-36
Set Lengths for Code 93 ......................................................................................... 10-36
Code 11 ........................................................................................................................ 10-38
Code 11 .................................................................................................................. 10-38
x Symbol DS6707 Digital Imager Scanner Product Reference Guide
Set Lengths for Code 11 ......................................................................................... 10-38
Code 11 Check Digit Verification ............................................................................ 10-40
Transmit Code 11 Check Digits .............................................................................. 10-41
Interleaved 2 of 5 (ITF) ................................................................................................. 10-42
Enable/Disable Interleaved 2 of 5 ........................................................................... 10-42
Set Lengths for Interleaved 2 of 5 ........................................................................... 10-42
I 2 of 5 Check Digit Verification ............................................................................... 10-44
Transmit I 2 of 5 Check Digit ................................................................................... 10-44
Convert I 2 of 5 to EAN-13 ...................................................................................... 10-45
Discrete 2 of 5 (DTF) .................................................................................................... 10-46
Enable/Disable Discrete 2 of 5 ................................................................................ 10-46
Set Lengths for Discrete 2 of 5 ............................................................................... 10-46
Codabar (NW - 7) ......................................................................................................... 10-48
Enable/Disable Codabar ......................................................................................... 10-48
Set Lengths for Codabar ......................................................................................... 10-48
CLSI Editing ............................................................................................................ 10-50
NOTIS Editing ......................................................................................................... 10-50
MSI ............................................................................................................................... 10-51
Enable/Disable MSI ................................................................................................ 10-51
Set Lengths for MSI ................................................................................................ 10-51
MSI Check Digits .................................................................................................... 10-52
Transmit MSI Check Digit(s) ................................................................................... 10-53
MSI Check Digit Algorithm ...................................................................................... 10-53
Chinese 2 of 5 ............................................................................................................... 10-54
Enable/Disable Chinese 2 of 5 ................................................................................ 10-54
Matrix 2 of 5 .................................................................................................................. 10-55
Enable/Disable Matrix 2 of 5 ................................................................................... 10-55
Set Lengths for Matrix 2 of 5 ................................................................................... 10-56
Matrix 2 of 5 Redundancy ....................................................................................... 10-57
Matrix 2 of 5 Check Digit ......................................................................................... 10-57
Transmit Matrix 2 of 5 Check Digit .......................................................................... 10-58
Inverse 1D .................................................................................................................... 10-59
Postal Codes ................................................................................................................ 10-60
US Postnet .............................................................................................................. 10-60
US Planet ................................................................................................................ 10-60
Transmit US Postal Check Digit .............................................................................. 10-61
UK Postal ................................................................................................................ 10-61
Transmit UK Postal Check Digit .............................................................................. 10-62
Japan Postal ........................................................................................................... 10-62
Australian Postal ..................................................................................................... 10-63
Netherlands KIX Code ............................................................................................ 10-63
USPS 4CB/One Code/Intelligent Mail ..................................................................... 10-64
UPU FICS Postal .................................................................................................... 10-64
GS1 DataBar ................................................................................................................ 10-65
GS1 DataBar-14 ..................................................................................................... 10-65
GS1 DataBar Limited .............................................................................................. 10-65
GS1 DataBar Expanded ......................................................................................... 10-66
Convert GS1 DataBar to UPC/EAN ........................................................................ 10-66
Composite ..................................................................................................................... 10-67
Composite CC-C ..................................................................................................... 10-67
Table of Contents xi
Composite CC-A/B .................................................................................................. 10-67
Composite TLC-39 .................................................................................................. 10-68
UPC Composite Mode ............................................................................................ 10-69
Composite Beep Mode ........................................................................................... 10-70
GS1-128 Emulation Mode for UCC/EAN Composite Codes ................................... 10-70
2D Symbologies ............................................................................................................ 10-71
Enable/Disable PDF417 .......................................................................................... 10-71
Enable/Disable MicroPDF417 ................................................................................. 10-71
Code 128 Emulation ............................................................................................... 10-72
Data Matrix .............................................................................................................. 10-73
Data Matrix Inverse ................................................................................................. 10-74
Maxicode ................................................................................................................. 10-75
QR Code ................................................................................................................. 10-75
QR Inverse .............................................................................................................. 10-76
MicroQR .................................................................................................................. 10-77
Aztec ....................................................................................................................... 10-77
Aztec Inverse .......................................................................................................... 10-78
Redundancy Level ........................................................................................................ 10-79
Redundancy Level 1 ............................................................................................... 10-79
Redundancy Level 2 ............................................................................................... 10-79
Redundancy Level 3 ............................................................................................... 10-79
Redundancy Level 4 ............................................................................................... 10-80
Security Level ............................................................................................................... 10-81
Intercharacter Gap Size .......................................................................................... 10-82
Report Version .............................................................................................................. 10-82
Macro PDF Features .................................................................................................... 10-83
Flush Macro Buffer .................................................................................................. 10-83
Abort Macro PDF Entry ........................................................................................... 10-83
Chapter 11: Advanced Data Formatting
Introduction ................................................................................................................... 11-1
Rules: Criteria Linked to Actions ................................................................................... 11-1
Using ADF Bar Codes .................................................................................................. 11-2
ADF Bar Code Menu Example ..................................................................................... 11-2
Rule 1: The Code 128 Scanning Rule .................................................................... 11-3
Rule 2: The UPC Scanning Rule ............................................................................ 11-3
Alternate Rule Sets ................................................................................................. 11-3
Rules Hierarchy (in Bar Codes) .............................................................................. 11-4
Default Rules .......................................................................................................... 11-5
ADF Bar Codes ............................................................................................................. 11-5
Special Commands ....................................................................................................... 11-8
Pause Duration ....................................................................................................... 11-8
Begin New Rule ...................................................................................................... 11-8
Save Rule ............................................................................................................... 11-8
Erase ....................................................................................................................... 11-9
Quit Entering Rules ................................................................................................. 11-9
Disable Rule Set ..................................................................................................... 11-10
Criteria .......................................................................................................................... 11-11
Code Types ............................................................................................................. 11-11
xii Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code Lengths .......................................................................................................... 11-18
Message Containing A Specific Data String ........................................................... 11-22
Actions .......................................................................................................................... 11-27
Send Data ............................................................................................................... 11-27
Setup Field(s) .......................................................................................................... 11-30
Modify Data ............................................................................................................. 11-37
Pad Data with Spaces ............................................................................................. 11-38
Pad Data with Zeros ............................................................................................... 11-42
Beeps ...................................................................................................................... 11-47
Send Keystroke (Control Characters and Keyboard Characters) ........................... 11-47
Send Right Control Key .......................................................................................... 11-83
Send Graphic User Interface (GUI) Characters ...................................................... 11-84
Turn On/Off Rule Sets ............................................................................................ 11-89
Alphanumeric Keyboard ............................................................................................... 11-91
Appendix A: Standard Default Parameters
Appendix B: Programming Reference
Symbol Code Identifiers ................................................................................................ B-1
AIM Code Identifiers ..................................................................................................... B-3
Appendix C: Sample Bar Codes
Code 39 ........................................................................................................................ C-1
UPC/EAN ...................................................................................................................... C-1
UPC-A, 100% .......................................................................................................... C-1
EAN-13, 100% ........................................................................................................ C-2
Code 128 ...................................................................................................................... C-2
Interleaved 2 of 5 .......................................................................................................... C-2
GS1 DataBar-14 ........................................................................................................... C-3
PDF417 ......................................................................................................................... C-3
Data Matrix ................................................................................................................... C-3
Maxicode ...................................................................................................................... C-4
QR Code ....................................................................................................................... C-4
US Postnet .................................................................................................................... C-4
UK Postal ...................................................................................................................... C-5
Appendix D: Numeric Bar Codes
Numeric Bar Codes ...................................................................................................... D-1
Cancel ........................................................................................................................... D-2
Appendix E: ASCII Character Sets
Glossary
Table of Contents xiii
Index
Tell Us What You Think...
xiv Symbol DS6707 Digital Imager Scanner Product Reference Guide
About This Guide
Introduction
The Symbol DS6707 Digital Imager Scanner Product Reference Guide provides general instructions for setting up,
operating, maintaining, and troubleshooting the Symbol DS6707 digital imager scanner.
Configurations
This guide includes the following digital imager scanner configurations:
•
Symbol DS6707-SR: Standard Range digital imager scanner for point of sale scanning.
•
Symbol DS6707-DC: Document Capture digital imager scanner for 8 1/2 in. by 11 in. imaging.
•
Symbol DS6707-DP: Direct Part Mark digital imager scanner for DPM scanning.
•
Symbol DS6707-HD: High Density digital imager scanner for high-density 1D and 2D bar codes.
Chapter Descriptions
Topics included in this guide are as follows:
•
Chapter 1, Getting Started provides a product overview, unpacking instructions, and cable connection
information.
•
Chapter 2, Scanning describes parts of the digital imager scanner, beeper and LED definitions, and how to
use the scanner in hand-held and presentation (hands-free) modes.
•
Chapter 3, Maintenance & Technical Specifications provides information on how to care for the digital imager
scanner, troubleshooting, and technical specifications.
•
Chapter 4, User Preferences & Miscellaneous Digital Imager Scanner Options provides frequently used
features to customize how data transmits to the host, and programming bar codes for selecting these
features for the digital imager scanner.
•
Chapter 5, Imaging Preferences provides programming bar codes for selecting imaging features.
xvi Symbol DS6707 Digital Imager Scanner Product Reference Guide
•
Chapter 6, SSI Interface describes how to set up the digital imager scanner with a Simple Serial Interface
(SSI) host. When using SSI, program the digital imager scanner via bar code menu or SSI host commands.
•
Chapter 7, USB Interface describes how to set up the digital imager scanner with a USB host.
•
Chapter 8, RS-232 Interface describes how to set up the digital imager scanner with an RS-232 host, such as
point-of-sale devices, host computers, or other devices with an available RS-232 port.
•
Chapter 9, 123Scan describes the 123Scan PC-based scanner configuration tool, and provides the bar code
to scan to communicate with the 123Scan program.
•
Chapter 10, Symbologies describes all symbology features and provides programming bar codes for
selecting these features for the digital imager scanner.
•
Chapter 11, Advanced Data Formatting (ADF) describes how to customize scanned data before transmitting
to the host.
•
Appendix A, Standard Default Parameters provides a table of all host devices and miscellaneous scanner
defaults.
•
Appendix B, Programming Reference provides a table of AIM code identifiers, ASCII character conversions,
and keyboard maps.
•
Appendix C, Sample Bar Codes includes sample bar codes of various code types.
•
Appendix D, Numeric Bar Codes includes the numeric bar codes to scan for parameters requiring specific
numeric values.
•
Appendix E, ASCII Character Sets provides ASCII character value tables.
Notational Conventions
The following conventions are used in this document:
•
Italics are used to highlight the following:
•Chapters and sections in this and related documents
•Dialog box, window and screen names
•Drop-down list and list box names
•Check box and radio button names
•
Bold text is used to highlight the following:
•Key names on a keypad
•Button names on a screen.
•
bullets (•) indicate:
•Action items
•Lists of alternatives
•Lists of required steps that are not necessarily sequential
•
Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
About This Guide xvii
•
Throughout the programming bar code menus, asterisks (*) are used to denote default parameter settings.
Related Documents
The Symbol DS6707 Digital Imager Scanner Quick Start Guide, p/n 72-83972-xx, provides general information for
getting started with the Symbol DS6707 digital imager scanner, and includes basic set up and operation
instructions.
For the latest version of this guide and all guides, go to: http://www.motorola.com/enterprisemobility/manuals.
Service Information
If you have a problem with your equipment, contact Motorola Enterprise Mobility support for your region. Contact
information is available at: http://www.motorola.com/enterprisemobility/contactsupport.
When contacting Enterprise Mobility support, please have the following information available:
•
Serial number of the unit
•
Model number or product name
•
Software type and version number
Motorola responds to calls by e-mail, telephone or fax within the time limits set forth in service agreements.
If your problem cannot be solved by Motorola Enterprise Mobility Support, you may need to return your equipment
for servicing and will be given specific directions. Motorola is not responsible for any damages incurred during
shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the
warranty.
If you purchased your Enterprise Mobility business product from a Motorola business partner, please contact that
business partner for support.
*Baud Rate 9600 Feature/Option
* Indicates Default
Chapter 1 Getting Started
Introduction
The Symbol DS6707 digital imager scanner combines superior 1D and 2D omnidirectional bar code scanning and
sub-second image capture and transfer to provide the best value in a digital imager scanner. Whether in hand-held
mode or presentation (hands-free) mode in a stand, the digital imager scanner ensures comfort and ease of use for
extended periods of time.
Figure 1-1
Symbol DS6707 Digital Imager Scanner
Getting Started 1 - 2
Supported Interfaces
The Symbol DS6707digital imager scanner supports:
•
Simple Serial Interface (SSI) connection to a host. When using SSI, program the digital imager scanner via
bar code menu or SSI host commands.
•
Standard RS-232 connection to a host. Scan bar code menus to set up communication between the digital
imager scanner and the host.
•
USB connection to a host. The digital imager scanner autodetects a USB host and defaults to the HID
keyboard interface type. Select other USB interface types by scanning programming bar code menus.This
interface supports the following international keyboards (for Windows® environment): North America,
German, French, French Canadian, Spanish, Italian, Swedish, UK English, Portuguese-Brazilian, and
Japanese.
•
Configuration via 123Scan.
Unpacking
Remove the digital imager scanner from its packing and inspect it for damage. If the scanner was damaged in
transit, contact Motorola Enterprise Mobility Support. See page xvii for contact information. KEEP THE PACKING.
It is the approved shipping container; use this to return the equipment for servicing.
1 - 3 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Setting Up the Digital Imager Scanner
Installing the Interface Cable
1. Plug the interface cable modular connector into the cable interface port on the bottom of the scanner handle.
See Figure 1-2.
2. Gently tug the cable to ensure the connector is properly secured.
3. Connect the other end of the interface cable to the host (see the specific host chapter for information on host
connections).
Figure 1-2
Installing the Cable
Removing the Interface Cable
1. Using the tip of a screwdriver, depress the cable’s modular connector clip.
Figure 1-3
Removing the Cable
2. Carefully slide out the cable.
3. Follow the steps for Installing the Interface Cable to connect a new cable.
Clip
To host
Cable interface port
Interface cable modular
connector
NOTE Different hosts require different cables. The connectors illustrated in each host chapter are examples only.
Connectors vary from those illustrated, but the steps to connect the digital imager scanner are the same.
Getting Started 1 - 4
Connecting Power (if required)
If the host does not provide power to the digital imager scanner, connect an external power supply:
1. Connect the interface cable to the bottom of the digital imager scanner, as described in Installing the Interface
Cable on page 1-3.
2. Connect the other end of the interface cable to the host (refer to the host manual to locate the correct port).
3. Plug the power supply into the power jack on the interface cable. Plug the other end of the power supply into
an AC outlet.
Configuring the Digital Imager Scanner
To configure the digital imager scanner, use the bar codes in this manual, or the 123Scan configuration program.
See Chapter 4, User Preferences & Miscellaneous Digital Imager Scanner Options and Chapter 5, Imaging
Preferences for information about programming the digital imager scanner using bar code menus. Also see each
host-specific chapter to set up connection to a specific host type.
See Chapter 9, 123Scan to configure the digital imager scanner using this configuration program. The program
includes a help file.
Mounting the Digital Imager Scanner
Desk Mount
Use the optional desk mount for convenient and protective placement of the digital imager scanner on a flat
surface. Simply place the mount on the surface. The rubber feet hold the mount securely in place when inserting
and removing the digital imager scanner.
Figure 1-4
Inserting the Digital Imager Scanner in the Desk Mount
Alternatively, secure the desk mount to a desk surface by inserting two screws* appropriate for the mounting
surface through the screw holes of the desk mount, and into the surface. Screw the desk mount onto the surface
with or without the rubber feet.
*The recommended screws are two #6 screws (5/8” long).
1 - 5 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Wall Mount
To use the optional wall mount to mount the digital imager scanner on a wall, place the mount in the desired
location on the wall and secure by inserting two screws* appropriate for the mounting surface through the screw
holes on the mount, and into the surface. Insert the digital imager scanner into the mount as shown.
Figure 1-5
Securing the Wall Mount
*The recommended screws are two #6 screws (1” long) and two #6 washers.
For convenience, print this page and use the template below for mounting hole locations.
Figure 1-6
Wall Mounting Template
2.98”
Insert mounting screw Insert mounting screw
Chapter 2 Scanning
Introduction
This chapter provides beeper and LED definitions, techniques involved in scanning bar codes, general instructions
and tips about scanning, and decode zone diagrams.
Figure 2-1
Parts
Scan
Window
Trigger
LED
Beeper
2 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Beeper Definitions
The digital imager scanner issues different beep sequences and patterns to indicate status. Table 2-1 defines beep
sequences that occur during both normal scanning and while programming the digital imager scanner.
Table 2-1
Beeper Definitions
Beeper Sequence Indication
Standard Use
Low/medium/high beeps Power up.
Short high beep A bar code symbol was decoded (if decode beeper is enabled).
4 long low beeps A transmission error was detected in a scanned symbol. The data is ignored. This
occurs if the digital imager scanner is not properly configured. Check option
setting.
5 low beeps Conversion or format error.
Low/high/low beeps ADF transmit error. See
Chapter 11, Advanced Data Formatting
.
High/high/high/low beeps RS-232 receive error.
Parameter Menu Scanning
Short high beep Correct entry scanned or correct menu sequence performed.
Low/high beeps Input error; incorrect bar code, programming sequence, or
Cancel
scanned;
remain in ADF program mode.
High/low beeps Keyboard parameter selected. Enter value using numeric bar codes.
High/low/high/low beeps Successful program exit with change in parameter setting.
Low/high/low/high beeps Out of host parameter storage space. Scan
Set Default Parameter on page 4-4
.
Code 39 Buffering
High/low beeps New Code 39 data was entered into the buffer.
3 long high beeps Code 39 buffer is full.
Low/high/low beeps The Code 39 buffer was erased or there was an attempt to clear or transmit an
empty buffer.
Low/high beeps A successful transmission of buffered data.
Macro PDF
2 long low beeps File ID error. A bar code not in the current MPDF sequence was scanned.
3 long low beeps Out of memory. There is not enough buffer space to store the current MPDF
symbol.
4 long low beeps Bad symbology. Scanned a 1D or 2D bar code in a MPDF sequence, a duplicate
MPDF label, a label in an incorrect order, or trying to transmit an empty or illegal
MPDF field.
5 long low beeps Flushing MPDF buffer.
Scanning 2 - 3
Fast warble beep Aborting MPDF sequence.
Low/high beeps Flushing an already empty MPDF buffer.
ADF Programming: Normal Data Entry. Duration of tones are short.
High/low beeps Enter another digit. Add leading zeros to the front if necessary.
Low/low beeps Enter another alphabetic character or scan the
End of Message
bar code.
High/high beeps Enter another criterion or action, or scan the
Save Rule
bar code.
High/low/high/low beeps Rule saved. Rule entry mode exited.
High/low/low beeps All criteria or actions cleared for current rule, continue entering rule.
Low beep Delete last saved rule. The current rule is left intact.
Low/high/high beeps All rules are deleted.
ADF Programming: Error Indications. Duration of tones are very long.
Low/high/low/high beeps Out of rule memory. Erase some existing rules, then try to save rule again.
(It is not necessary to re-enter the current rule.)
Low/high/low beeps Cancel rule entry. Rule entry mode exited because of an error or the user asked to
exit rule entry.
Low/high beeps Entry error, wrong bar code scanned. Re-enter criterion or action. All previously
entered criteria and actions are retained. Criteria or action list is too long for a rule.
Host Specific
USB only
4 short high beeps The digital imager scanner has not completed initialization. Wait several seconds
and scan again.
Low/medium/high beeps
upon scanning a USB
device type
Communication with the bus must be established before the digital imager scanner
can operate at the highest power level.
Low/medium/high beeps
occur more than once.
The USB bus can put the digital imager scanner in a state where power to the
digital imager scanner is cycled on and off more than once. This is normal and
usually happens when the PC cold boots.
RS-232 only
1 short high beep A <BEL> character is received and Beep on <BEL> is enabled.
Table 2-1
Beeper Definitions (Continued)
Beeper Sequence Indication
2 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
LED Definitions
In addition to beep sequences, the digital imager scanner uses a two-color LED to indicate status. Table 2-2
defines LED colors that display during scanning.
Scanning in Hand-Held Mode
Install and program the digital imager scanner (see Setting Up the Digital Imager Scanner on page 1-3). For
assistance, contact the local supplier or Motorola Enterprise Mobility Support.
Scanning with the Digital Imager Scanner
1. Ensure all connections are secure (see the appropriate host chapter.)
2. Aim the digital imager scanner at the bar code.
Figure 2-2
Scanning in Hand-Held Mode
Table 2-2
Standard LED Definitions
LED Indication
Off No power is applied to the digital imager scanner, or the digital imager scanner is on and
ready to scan.
Green A bar code was successfully decoded.
Red A data transmission error or digital imager scanner malfunction occurred.
Scanning 2 - 5
3. When the digital imager scanner senses movement, in its default Auto Aim trigger mode, it projects a red laser
aiming pattern (Figure 2-3) which allows positioning the bar code or object within the field of view. (To turn off
the default Auto Aim trigger mode, see Trigger Mode on page 4-8.) If necessary, the digital imager scanner
turns on its red LEDs to illuminate the target bar code.
The DS6707-DP version uses a donut-shaped pattern with a center aiming dot.
Figure 2-3
Laser Aiming Pattern
4. Center the symbol in any orientation within the aiming pattern. Be sure the entire symbol is within the
rectangular area formed by the brackets in the pattern.
When scanning with the DS6707-DP, ensure part of the bar code is visible on the inside of the donut-shaped
pattern.
Figure 2-4
Placing Symbol in Aiming Pattern
5. Hold the trigger until the digital imager scanner beeps, indicating the bar code is successfully decoded. For
more information on beeper and LED definitions, see Table 2-1 and Table 2-2.
This process usually occurs instantaneously. Steps 2 - 4 are repeated on poor quality or difficult bar codes, until the
bar code is decoded, the trigger is released, or the Decode Session Timeout is reached.
DS6707-DP Pattern
Standard Pattern
Linear bar code PDF417 symbol
Symbol
Aiming Pattern
1D bar code 2D bar code
DS6707-DP Pattern
Data Matrix bar code
2 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Aiming
Hold the digital imager scanner between two and nine inches (depending on symbol density; see Decode Zones on
page 2-8) from the symbol, centering the aiming pattern on the symbol. Ensure the cross hair falls on the symbol.
For the DS6707-DP, ensure part of the symbol is visible within the donut-shaped pattern.
The aiming pattern is smaller when the digital imager scanner is closer to the symbol and larger when it is farther
from the symbol. Scan symbols with smaller bars or elements (mil size) closer to the digital imager scanner, and
those with larger bars or elements (mil size) farther from the digital imager scanner.
The digital imager scanner can also read a bar code presented within the aiming pattern but not centered. The top
examples in Figure 2-5 and Figure 2-6 show acceptable aiming options, while the bottom examples can not
decode.
Figure 2-5
Acceptable and Incorrect Aiming - Standard Pattern
Figure 2-6
Acceptable and Incorrect Aiming - DS6707-DP Pattern
NOTE For best performance, ensure the pattern’s cross hair, or in the case of the DS6707-DP the aiming dot,
falls on the symbol.
012345
012345
012345
012345
Scanning 2 - 7
Scanning in Presentation Mode
The optional Intellistand adds greater flexibility to scanning operation. When you insert the digital imager scanner
into the stand’s “cup,” the scanner’s built-in sensor places the scanner in presentation (hands-free) mode. When
you remove the digital imager scanner from the stand it operates in its normal hand-held mode.
Figure 2-7
Inserting the Digital Imager Scanner in the Intellistand
To operate the digital imager scanner in the IntelliStand:
1. Connect the digital imager scanner to the host (see the appropriate host chapter for information on host
connections).
2. Insert the digital imager scanner in the Intellistand by placing the front of the digital imager scanner into the
stand’s “cup” (see Figure 2-7).
3. Use the Intellistand’s adjustment knobs to adjust the height and angle of the digital imager scanner.
4. Center the symbol in the aiming pattern. The entire symbol must be within the brackets.
5. Upon successful decode, the digital imager scanner beeps and the LED turns green. For more information on
beeper and LED definitions, see Table 2-1 and Table 2-2.
2 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Decode Zones
Symbol DS6707-SR Standard Range Digital Imager Scanner - 1D Bar Codes
Figure 2-8
Symbol DS6707-SR Standard Range Decode Zone for 1D Bar Codes
In .
cm
0
0
DS6707-SR
5 mil (Code 39)
5.4
13 mil (100% UPC/EAN)
8.4
12.9
0
5
5
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
10
10
0
12.7
12.7
25.4
31.6
0.9
20 mil (Code 39)
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
5
12.7
10
25.4
15
38.1
0.9
0.9
OO
Postnet 12.5
2.6
10 mil I 2 of 5 7.9
1.0
Scanning 2 - 9
Symbol DS6707-SR Standard Range Digital Imager Scanner - 2D Bar Codes
Figure 2-9
Symbol DS6707-SR Standard Range Decode Zone for 2D Bar Codes
In .
cm
0
0
DS6707-SR
6.2
7.50
0
5
5
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
10
10
0
12.7
12.7
25.4
31.6
PDF417 (10 mil)
Datamatrix (10 mil)
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
5
12.7
10
25.4
15
38.1
OO
1.4
1.10
35 mil Maxicode 12.8
1.5
10 mil MicroPDF
7.50
2.3
10 mil QR Code
6.6 mil PDF417
2.6 6.8
1.4 5.2
2 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Symbol DS6707-DC Document Capture Digital Imager Scanner - 1D Bar Codes
Figure 2-10
Symbol DS6707-DC Document Capture Digital Imager Scanner Decode Zone for 1D Bar Codes
In .
cm
0
0
DS6707-DC
5 mil (Code 39)
8.4
13 mil (100% UPC/EAN) 14.7
21.4
0
5
5
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
10
10
0
12.7
12.7
25.4
0.9
20 mil (Code 39)
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
5
12.7
10
25.4
15
38.1
20
50.8
2.6
1.2
OO
25
63.5
15 38.1
25.4
15 38.1
Postnet 12.5
2.6
10 mil I 2 of 5
1.7
13.7
Scanning 2 - 11
Symbol DS6707-DC Document Capture Digital Imager Scanner - 2D Bar Codes
Figure 2-11
Symbol DS6707-DC Document Capture Digital Imager Scanner Decode Zone for 2D Bar Codes
In .
cm
0
0
DS6707-DC
11.1
12.2
0
2.5
2.5
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
5
5
0
6.4
6.4
12.7
PDF417 (10 mil)
Datamatrix (10 mil)
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
2.5
6.4
5
12.7
7.5
19.1
10
25.4
OO
2.4
2.6
12.5
31.8
7.5 19.1
12.7
7.5 19.1
10 mil MicroPDF
10 mil QR Code
6.6 mil PDF417
2.6 6.8
3.2 8.2
2.3 7.5
15
38.1
35 mil Maxicode
12.8
1.5
2 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Symbol DS6707-DP Direct Part Mark Digital Imager Scanner - 1D and PDF417 Bar Codes
Figure 2-12
Symbol DS6707-DP Direct Part Mark Digital Imager Scanner Decode Zone
for 1D and PDF417 Bar Codes
In .
cm
0
0
DS6707-DP
7.5 mil Code 39
2.96
3.05
0
1
1
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
2
0
2.5
15 mil PDF417
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
2
5.1
4
10.2
6
15.2
*
O O
0.92
5.1
2.5
25.1
3 mil Code 39
1.21
*
4 mil Code 39
*1.83
5 mil Code 39
*1.96
10 mil Code 39
3.50
*
20 mil Code 39
6.21
*
13 mil 100% UPC
3.59
*
1.59
*
6.67 mil PDF417
2.21
*
10 mil PDF417
Scanning 2 - 13
Symbol DS6707-DP Direct Part Mark Digital Imager Scanner - 2D Bar Codes
Figure 2-13
Symbol DS6707-DP Direct Part Mark Digital Imager Scanner Decode Zone for 2D Bar Codes
In .
cm
0
0
DS6707-DP
4 mil Data Matrix 1.0
0
0.25
0.25
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
0.5
0.5
0
0.64
0.64
1.27
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
0.5
1.27
1
2.54
1.5
3.81
2
5.08
*
OO
2.5
6.35
0.75 1.9
1.27
0.75 1.9
5 mil Data Matrix 1.29
*
7.5 mil Data Matrix 1.71
*
10 mil Data Matrix 2.13
*
4 mil QR Code 1.0
*
5 mil QR Code 1.25
*
7.5 mil QR Code 1.67
*
10 mil QR Code 2.0
*
2 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Symbol DS6707-HD High Density Digital Imager Scanner - 1D and PDF417 Bar Codes
Figure 2-14
Symbol DS6707-HD High Density Digital Imager Scanner Decode Zone for 1D and PDF417 Bar Codes
In .
cm
0
0
DS6707-HD
5 mil Code 39 3.38
13 mil 100% UPC/EAN
3.54
0
2
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
3
0
5.1
7.6
10 mil PDF417
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
2
5.1
4
10.2
6
15.2
8
20.3
0.29
OO
0.46
1 2.5
1 2.5
2 5.1
3 7.6
3 mil Code 39
2.42
0.84
4 mil Code 39 3.13
0.42
7.5 mil Code 39 4.38
*
10 mil Code 39
4.96
0.59
20 mil Code 39 8.21
0.42
5.13
0.21
3.10
6.67 mil PDF417
0.63
4.46
15 mil PDF417
1.33
Scanning 2 - 15
Symbol DS6707-HD High Density Digital Imager Scanner - 2D Bar Codes
Figure 2-15
Symbol DS6707-HD High Density Digital Imager Scanner Decode Zone for 2D Bar Codes
In .
cm
0
0
DS6707-HD
4 mil Data Matrix 2.13
0
0.5
0.5
In . cm
W
i
d
t
h
o
f
F
i
e
l
d
1.0
1.0
0
1.27
1.27
2.54
Note: Typical performance at 73.4 F (23 C)
on high quality symbols.
Depth of Field
0.5
1.27
1
2.54
1.5
3.81
2
5.08
OO
2.5
6.35
1.5 3.81
2.54
1.5 3.81
5 mil Data Matrix 2.50
7.5 mil Data Matrix 3.00
10 mil Data Matrix 3.50
4 mil QR Code 2.17
5 mil QR Code 2.54
7.5 mil QR Code 3.00
10 mil QR Code 3.42
3
7.62
3.5
8.89
1.04
0.79
0.50
0.54
1.13
0.88
0.67
0.46
2 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Chapter 3 Maintenance & Technical
Specifications
Introduction
This chapter provides suggested scanner maintenance, troubleshooting, technical specifications, and signal
descriptions (pinouts).
Maintenance
Cleaning the scan window is the only maintenance required. A dirty window can affect scanning accuracy.
•
Do not allow abrasive material to touch the window.
•
Remove any dirt particles with a damp cloth.
•
Wipe the window using a tissue moistened with ammonia/water.
•
Do not spray water or other cleaning liquids directly into the window.
3 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Troubleshooting
Table 3-1
Troubleshooting
Problem Possible Causes Possible Solutions
The aiming pattern does not appear
when pressing the trigger.
No power to the digital imager
scanner.
If the configuration requires a power
supply, re-connect the power supply.
Incorrect host interface cable is used. Connect the correct host interface cable.
Interface/power cables are loose. Re-connect cables.
Digital imager scanner is disabled. See the technical person in charge of
scanning.
If using RS-232 Nixdorf B mode, CTS
is not asserted.
Assert CTS line.
Aiming pattern is disabled. Enable the aiming pattern. See
Decode Aiming Pattern on page 4-13
.
Scanner emits short low/short
medium/short high beep sequence
(power-up beep sequence) more than
once.
The USB bus may put the digital
imager scanner in a state where
power to the digital imager scanner is
cycled on and off more than once.
Normal during host reset.
Digital imager scanner emits aiming
pattern, but does not decode the bar
code.
Digital imager scanner is not
programmed for the correct bar code
type.
Program the digital imager scanner to
read that type of bar code. See
Chapter
10, Symbologies
.
Bar code symbol is unreadable. Scan test symbols of the same bar code
type to determine if the bar code is
defaced.
The symbol is not completely inside
aiming pattern.
Move the symbol completely within the
aiming pattern.
Digital imager scanner emits 4 short
high beeps during decode attempt.
Digital imager scanner has not
completed USB initialization.
Wait several seconds and scan again.
Maintenance & Technical Specifications 3 - 3
Digital imager scanner decodes bar
code, but does not transmit the data to
the host.
Digital imager scanner is not
programmed for the correct host type.
Scan the appropriate host type
programming bar code. See the chapter
corresponding to the host type.
Interface cable is loose. Re-connect the cable.
If 4 long low beeps are heard, a
transmission error occurred.
Set the digital imager scanner's
communication parameters to match the
host's setting.
If 5 low beeps are heard, a conversion
or format error occurred.
Configure the digital imager scanner's
conversion parameters properly.
If low/high/low beeps sound, an invalid
ADF rule is detected.
Program the correct ADF rules.
If high/low beeps sound, the digital
imager scanner is buffering Code 39
data.
Normal scanning a Code 39 bar code and
the Code 39 Buffering option is enabled.
Host displays scanned data
incorrectly.
Digital imager scanner is not
programmed to work with the host.
Scan the appropriate host type
programming bar code.
For RS-232, set the digital imager
scanner's communication parameters to
match the host's settings.
Program the proper editing options (e.g.,
UPC-E to UPC-A Conversion).
Digital imager scanner emits
high/high/high/low beeps when not in
use.
RS-232 receive error. Normal during host reset. Otherwise, set
the digital imager scanner's RS-232 parity
to match the host setting.
Digital imager scanner emits low/high
beeps during programming.
Input error or
Cancel
bar code was
scanned.
Scan the correct numeric bar codes
within range for the parameter
programmed.
Digital imager scanner emits
low/high/low/high beeps during
programming.
Out of ADF parameter storage space. Erase all rules and re-program with
shorter rules.
Digital imager scanner emits
low/high/low beeps.
Clearing Code 39 buffer. Normal when scanning the Code 39
Buffering
Clear Buffer
bar code or upon
attempt to transmit an empty Code 39
buffer.
Digital imager scanner emits a
power-up beep after changing USB
host type.
The USB bus re-established power to
the digital imager scanner.
Normal when changing USB host type.
Digital imager scanner emits one high
beep when not in use.
In RS-232 mode, a <BEL> character
was received and Beep on <BEL>
option is enabled.
Normal when
Beep on <BEL>
is enabled
and the digital imager scanner is in
RS-232 mode.
Table 3-1
Troubleshooting (Continued)
Problem Possible Causes Possible Solutions
3 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Technical Specifications
NOTE If after performing these checks the digital imager scanner still experiences problems, contact the
distributor or contact Motorola Enterprise Mobility Support. See page xvii for the telephone numbers.
Table 3-2
Technical Specifications
Item Description
Physical Characteristics
Dimensions Symbol DS6707-DP: 6.55 in. x 5.08 in. x 2.82 in. (16.6 cm x 12.9 cm x 7.1 cm)
(H x L x W)
All other models: 6.55 in. x 4.72 in. x 2.82 in. (16.6 cm x 11.9 cm x 7.1 cm)
(H x L x W)
Weight: Symbol DS6707-DP: 7.4 oz. (209 gm)
All other models: 6.4 oz. (182 gm)
Voltage & Current: 5 +/-10%VDC @ 350 mA
Color Cash Register White or Twilight Black
(DS6707-DP is only available in Cash Register White)
Performance Characteristics
Light Source Aiming: 650 nm laser diode
Illumination: 630 nm LED
Field of View
(Vertical x Horizontal)
Document Capture: 35º (V) x 44º (H)
Standard Range, Direct Part Mark, High Density: 34º (V) x 43º (H)
Roll
Pitch
Yaw
360º
+/- 65º
+/- 60º
Symbology Decode Capability
1D UPC/EAN and with supplementals, Bookland EAN, ISSN EAN, Code 128, Code
128 Full ASCII, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code
39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar
(NW1), MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar variants, IATA, Inverse 1D
Postal US Postnet and Planet, UK Postal, Japan, Australian, Netherlands KIX Code,
USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
PDF417 (& Variants) PDF417, MicroPDF417, Composite Codes
2D Data Matrix (ECC 200), MaxiCode, QR Code, Aztec
DPM (DS6707-DP only) Data Matrix marks applied by dot peening; laser etch, ink marks, chemical etch,
inkjet mold, cast and thermal spray
Maintenance & Technical Specifications 3 - 5
Typical Working Distance:
SR - Standard Range Focus
5 mil Code 39: 0.9 - 5.4 in. (2.3 - 13.7 cm)
10 mil I 2 of 5: 1.0 - 7.9 in. (2.5 - 20.1 cm)
13 mil 100% UPC/EAN: 0.9 - 8.4 in. (2.3 - 21.3 cm)
20 mil Code 39: 0.9 - 12.9 in. (2.3 - 32.8 cm)
Postnet: 2.6 - 12.5 in. (6.6 - 31.8 cm)
6.6 mil PDF417: 3.4 - 5.7 in. (8.6 - 14.5 cm)
10 mil PDF417: 1.4 - 6.2 in. (3.6 - 15.7 cm)
10 mil QR Code: 2.6 - 6.8 in. (6.6 - 17.3 cm)
10 mil MicroPDF 2.3 - 7.5 in. (5.8 - 19.1 cm)
10 mil Data Matrix: 1.1 - 7.5 in. (2.8 - 19.1 cm)
35 mil Maxicode: 1.5 - 12.8 in. (3.8 - 32.5 cm)
Typical Working Distance:
DC - Document Capture
focus
5 mil Code 39: 2.6 - 8.4 in. (6.6 - 21.3 cm)
10 mil I 2 of 5: 1.7 - 13.7 in. (4.3 - 34.8 cm)
13 mil 100% UPC/EAN: 0.9 - 14.7 in. (2.3 - 37.3 cm)
20 mil Code 39: 1.2 - 21.4 in. (3.0 - 54.4 cm)
Postnet: 2.6 - 12.5 in. (6.6 - 31.8 cm)
6.6 mil PDF417: 3.2 - 8.2 in. (8.1 - 20.8 cm)
10 mil PDF417: 2.4 - 11.1 in. (6.1 - 28.2 cm)
10 mil QR Code: 2.6 - 6.8 in. (6.6 - 17.3 cm)
10 mil MicroPDF: 2.3 - 7.5 in. (5.8 - 19.1 cm)
10 mil Data Matrix: 2.6 - 12.2 in. (6.6 - 31.0 cm)
35 mil Maxicode: 1.5 - 12.8 in. (3.8 - 32.5 cm)
Typical Working Distance:
DP - Direct Part Mark focus
3 mil Code 39: Up to 1.21 in. (3.07 cm)
4 mil Code 39: Up to 1.83 in. (4.65 cm)
5 mil Code 39: Up to 1.96 in. (4.98 cm)
7.5 mil Code 39: Up to 2.96 in. (7.52 cm)
10 mil Code 39: Up to 3.50 in. (8.89 cm)
20 mil Code 39: Up to 6.21 in. (15.77 cm)
13 mil 100% UPC/EAN: Up to 3.59 in. (9.12 cm)
6.67 mil PDF417: Up to 1.59 in. (4.04 cm)
10 mil PDF417: Up to 2.21 in. (5.61 cm)
15 mil PDF417: 0.92 - 3.05 in. (2.34 - 7.75 cm)
4 mil Data Matrix: Up to 1.00 in. (2.54 cm)
5 mil Data Matrix: Up to 1.29 in. (3.28 cm)
7.5 mil Data Matrix: Up to 1.71 in. (4.34 cm)
10 mil Data Matrix: Up to 2.13 in. (5.41 cm)
4 mil QR Code: Up to 1.00 in. (2.54 cm)
5 mil QR Code: Up to 1.25 in. (3.18 cm)
7.5 mil QR Code: Up to 1.67 in. (4.24 cm)
10 mil QR Code: Up to 2.00 in. (5.08 cm)
Table 3-2
Technical Specifications (Continued)
Item Description
3 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Typical Working Distance:
HD - High Density
3 mil Code 39: 0.84 - 2.42 in. (2.13 - 6.15 cm)
4 mil Code 39: 0.42 - 3.13 in. (1.07 - 7.95 cm)
5 mil Code 39: 0.29 - 3.38 in. (0.74 - 8.59 cm)
7.5 mil Code 39: Up to 4.38 in. (11.13 cm)
10 mil Code 39: 0.59 - 4.96 in. (1.50 - 12.60 cm)
20 mil Code 39: 0.42 - 8.21 in. (1.07 - 20.85 cm)
13 mil 100% UPC: 0.21 - 5.13 in. (0.53 - 13.03 cm)
6.67 mil PDF417: 0.63 - 3.10 in. (1.60 - 7.87 cm)
10 mil PDF417: 0.46 - 3.54 in. (1.17 - 9.00 cm)
15 mil PDF417: 1.33 - 4.46 in. (3.38 - 11.33 cm)
4 mil Data Matrix: 1.04 - 2.13 in. (2.64 - 5.41 cm)
5 mil Data Matrix: 0.79 - 2.50 in. (2.01 - 6.35 cm)
7.5 mil Data Matrix: 0.50 - 3.00 in. (1.27 - 7.62 cm)
10 mil Data Matrix: 0.54 - 3.50 in. (1.37 - 8.89 cm)
4 mil QR Code: 1.13 - 2.17 in. (2.87 - 5.51 cm)
5 mil QR Code: 0.88 - 2.54 in. (2.24 - 6.45 cm)
7.5 mil QR Code: 0.67 - 3.00 in. (1.70 - 7.62 cm)
10 mil QR Code: 0.46 - 3.42 in. (1.17 - 8.69 cm)
Print Contrast 25% minimum reflectance
Motion Tolerances Horizontal Velocity: 5 in. (12.7 cm) per second
Interfaces Supported RS-232C (Standard, Nixdorf, ICL, & Fujitsu) and USB (Standard, IBM SurePOS,
Macintosh) allows for connectivity to all of the above plus many non-standard
interfaces.
Imaging Characteristics
Image (# of Pixels) 1.3 Mega Pixel: 1280 (H) x 1024 (V)
Graphics Format Support Images can be exported as Bitmap, JPEG, and TIFF
Image Transfer Speed USB 1.1: Up to 12 Megabits/second
RS232: Up to 115 kB Baud Rate
Image Transfer Time Typical USB application is ~ 0.2 seconds with a compressed JPEG of 100 kB
Imaging Distance
(Vertical x Horizontal)
Documents Sizes: Minimum Distance (Approximate)
2.125 x 3.375 in. (5.4 x 8.6 cm) 2.4 in. (6.1 cm)
4 x 6 in. (10.2 x 15.2 cm) 5.7 in. (14.5 cm)
5 x 7 in. (12.7 x 17.8 cm) 11.9 in. (30.2 cm)
8½ x 11 (21.6 x 28 cm) 11.9 in.
Ranges are from the nose of the scanner and are based on document capture
focus only.
Table 3-2
Technical Specifications (Continued)
Item Description
Maintenance & Technical Specifications 3 - 7
User Environment
Operating Temperature 32º F to 104º F (0º C to 40º C)
Storage Temperature -40º F to 158º F (-40º C to 70º C)
Humidity 5% to 95%, non-condensing
Drop Specifications Withstands multiple 5 ft. (1.52 m) drops to concrete at operating temperature
extremes, and multiple 6 ft. (1.8 m) drops to concrete at room temperature (23º C)
Ambient Light Immunity Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.
Regulatory
Electrical Safety UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1
Laser Safety EN60825-1:1994 +A1: 2002 +A2 :2001, IEC60825-1, 21CFR1040.10 and
21CFR1040.11, CDRH Class II, IEC Class 2
EMI/RFI FCC Part 15 Class B, ICES-003 Class B, CISPR 22, CISPR 24
Medical Electrical Equipment: EN60601-1-2: 2002
RoHS Compliance with RoHS Directive 2002/95/EEC
Mounting Options
(Accessories)
Intellistand with adjustable height: 5-10 in. (12.7-25.4 cm) and
adjustable angle: 0º - 90º
Desktop & Wall-mount holders are also available.
Power Supplies Power supplies are available for applications that do not supply power over the
host cable.
Table 3-2
Technical Specifications (Continued)
Item Description
3 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Digital Imager Scanner Signal Descriptions
Figure 3-1
Digital Imager Scanner Cable Pinouts
The signal descriptions in Table 3-3 apply to the connectors on the Symbol DS6707 digital imager scanner and are
for reference only.
Table 3-3
Symbol DS6707 Digital Imager Scanner Signal Pin-outs
Pin RS-232/SSI USB
1 Reserved Jump to Pin 6
2Power Power
3 Ground Ground
4 TxD Reserved
5RxD D +
6 RTS Jump to Pin 1
7CTS D -
8 Reserved Reserved
9 Reserved Reserved
10 Reserved Reserved
Pin 10
Bottom of digital imager scanner
Pin 1
Interface cable
modular connector
Cable interface port
Chapter 4 User Preferences & Miscellaneous
Digital Imager Scanner Options
Introduction
You can program the digital imager scanner to perform various functions, or activate different features. This
chapter describes each user preference feature and provides programming bar codes for selecting these features.
The digital imager scanner ships with the settings shown in Table 4-1 on page 4-2 (also see Appendix A, Standard
Default Parameters for all host device and miscellaneous defaults). If the default values suit requirements,
programming is not necessary.
To set feature values, scan a single bar code or a short bar code sequence. The settings are stored in non-volatile
memory and are preserved even when you power down the digital imager scanner.
If not using a USB cable, select a host type after the power-up beeps sound. See Chapter 6, SSI Interface Chapter
7, USB Interface and Chapter 8, RS-232 Interface for specific host information. This is only necessary upon the
first power-up when connected to a new host.
To return all features to default values, scan the Set Default Parameter on page 4-4. Throughout the programming
bar code menus, asterisks (*) indicate default values.
NOTE Most computer monitors allow scanning the bar codes directly on the screen. When scanning from the
screen, be sure to set the document magnification to a level where you can see the bar code clearly, and
bars and/or spaces are not merging.
*High Volume
(00h) Feature/Option
* Indicates Default
Option Hex Value for
programming via SSI
command
4 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Scanning Sequence Examples
In most cases, scanning one bar code sets the parameter value. For example, to set the beeper tone to high, scan
the High Frequency (beeper tone) bar code listed under Beeper Tone on page 4-5. The digital imager scanner
issues a fast warble beep and the LED turns green, signifying a successful parameter entry.
Other parameters, such as Serial Response Time-Out or Data Transmission Formats, require scanning several
bar codes. See these parameter descriptions for this procedure.
Errors While Scanning
Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter.
User Preferences and Miscellaneous Options - Parameter Defaults
Table 4-1 lists defaults for user preferences parameters. There are two ways to change the default values:
•
Scan the appropriate bar codes in this guide. These new values replace the standard default values in
memory. To recall the default parameter values, see the Set Default Parameter on page 4-4.
•
Download data through the device’s serial port using SSI. Hexadecimal parameter numbers appear in this
chapter below the parameter title, and options appear in parenthesis beneath the accompanying bar codes.
See the Simple Serial Interface (SSI) Programmer’s Guide for detailed instructions for changing parameters
using this method.
NOTE See Appendix A, Standard Default Parameters for all user preferences, hosts, symbologies, and
miscellaneous default parameters.
Table 4-1
User Preferences Parameter Defaults
Parameter Parameter
Number Default Page
Number
User Preferences
Set Default Parameter Restore Defaults 4-4
Parameter Scanning ECh Enable 4-5
Beeper Tone 91h Medium 4-5
Beeper Volume 8Ch High 4-6
Power Mode 80h Continuous On 4-6
Time Delay to Low Power Mode 92h 1 Minute 4-7
Trigger Mode 8Ah Auto Aim 4-8
Picklist Mode F0h, 92h Disabled Always 4-9
Decode Session Timeout 88h 9.9 Sec 4-10
Timeout Between Decodes, Same Symbol 89h 0.6 Sec 4-10
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 3
Beep After Good Decode 38h Enable 4-11
Decoding Illumination F0h, 2Ah Enable
4-11
DP Illumination F1h, 3Bh Auto
4-12
Decode Aiming Pattern F0h, 32h Enable
4-13
Fuzzy 1D Processing F1h, 02h Enable 4-13
Decode Mirror Images F1h, 19h Never 4-14
Miscellaneous Options
Transmit Code ID Character 2Dh None 4-15
Prefix Value 63h, 69h 7013 <CR><LF> 4-16
Suffix 1 Value
Suffix 2 Value
62h, 68h
64h, 6Ah
7013 <CR><LF> 4-16
Scan Data Transmission Format EBh Data as is 4-17
FN1 Substitution Values 67h, 6Dh Set 4-18
Transmit “No Read” Message 5Eh Disable 4-19
Table 4-1
User Preferences Parameter Defaults (Continued)
Parameter Parameter
Number Default Page
Number
4 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
User Preferences
Set Default Parameter
You can reset the Symbol DS6707 to two types of defaults: factory defaults or custom defaults. Scan the
appropriate bar code below to reset the scanner to its default settings and/or set its current settings as custom
defaults.
•
Restore Defaults - Scan this bar code to reset all default parameters as follows.
•If you previously set custom defaults by scanning Write to Custom Defaults, scan Restore Defaults to
retrieve and restore the scanner’s custom default settings.
•If you did not set custom defaults, scan Restore Defaults to restore the factory default values listed in
Table A-1.
•
Set Factory Defaults - Scan this bar code to restore the factory default values listed in Table A-1. This
deletes any custom defaults set.
•
Write to Custom Defaults - Scan this bar code to set the current scanner settings as custom defaults. Once
set, you can recover custom default settings by scanning Restore Defaults.

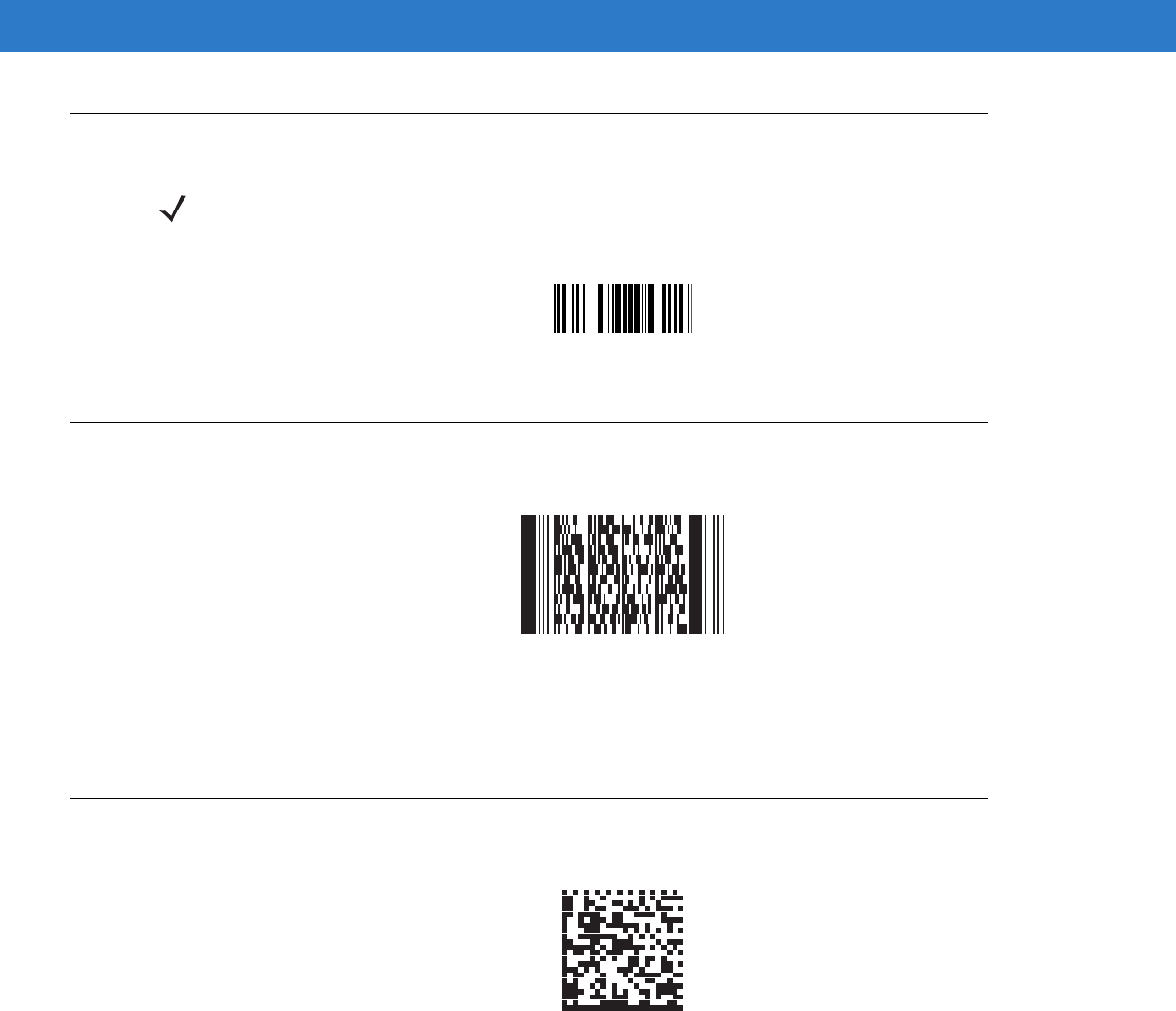

*Restore Defaults
Set Factory Defaults
Write to Custom Defaults
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 5
Parameter Scanning
Parameter # ECh
To disable decoding of parameter bar codes, including the Set Defaults parameter bar codes, scan the Disable
Parameter Scanning bar code below. To re-enable decoding of parameter bar codes, scan Enable Parameter
Scanning.
Beeper Tone
Parameter # 91h
To select a decode beep frequency (tone), scan the Low Frequency, Medium Frequency, or High Frequency bar
code.

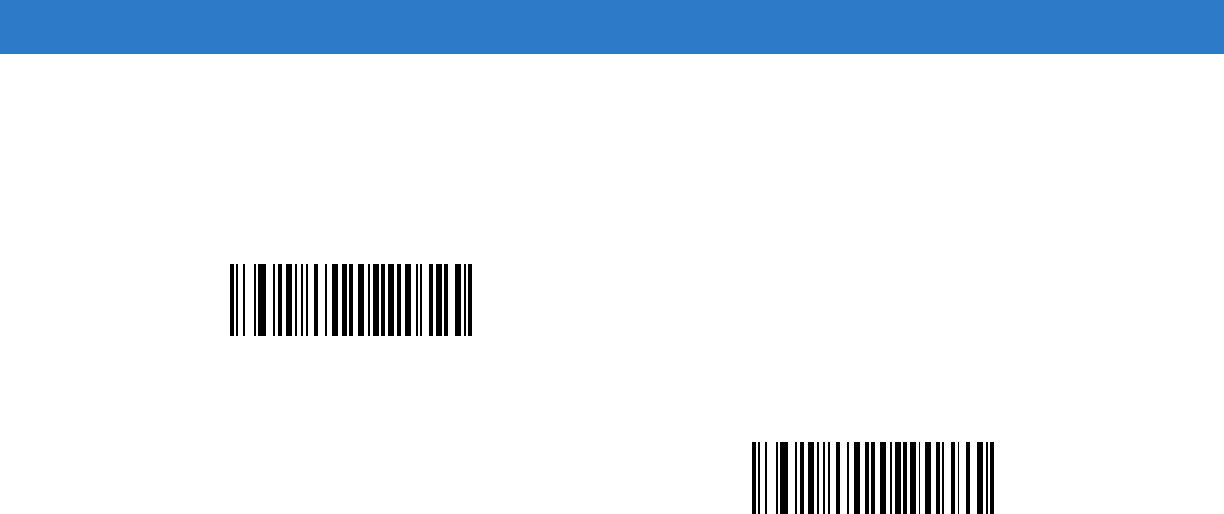

*Enable Parameter Scanning
(01h)
Disable Parameter Scanning
(00h)
Low Frequency
(02h)
*Medium Frequency
(Optimum Setting)
(01h)
High Frequency
(00h)
4 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Beeper Volume
Parameter # 8Ch
To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume bar code.
Power Mode
Parameter # 80h
This parameter determines whether or not power remains on after a decode attempt. In reduced power mode, the
digital imager scanner enters into a low power consumption mode to preserve battery life after each decode
attempt. In continuous power mode, power remains on after each decode attempt.
Low Volume
(02h)
Medium Volume
(01h)
*High Volume
(00h)
*Continuous On
(00h)
Reduced Power Mode
(01h)
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 7
Time Delay to Low Power Mode
Parameter # 92h
This parameter sets the time the digital imager scanner remains active after decoding. The digital imager scanner
wakes upon trigger pull or when the host attempts to communicate with the digital imager scanner.
NOTE This parameter only applies when Power Mode is set to Reduced Power.
1 Second
(11h)
5 Seconds
(15h)
*1 Minute
(21h)
5 Minutes
(25h)
15 Minutes
(2Bh)
1 Hour
(31h)
4 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Trigger Mode
Parameter # 8Ah
Select one of the following trigger modes for the digital imager scanner:
•
Level - A trigger pull activates decode processing. Decode processing continues until the bar code is
decoded, the trigger is released, or the Decode Session Timeout is reached.
•
Blink - This trigger mode is used in presentation (hands-free) mode. The digital imager scanner activates
decode processing when it detects a bar code in its field of view. Decoding range is reduced in this mode.
•
Auto Aim - This trigger mode turns on the red laser aiming pattern when the digital imager scanner senses
motion. A trigger pull activates decode processing. After 2 seconds of inactivity the red laser aiming pattern
automatically shuts off.
•
Host - A host command issues the triggering signal. The digital scanner interprets an actual trigger pull as a
Level triggering option.
Level
(00h)
Blink
(07h)
*Auto Aim
(09h)
Host
(08h)
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 9
Picklist Mode
Parameter # F0h 92h
Picklist mode enables the digital imager scanner to decode only bar codes that are aligned under the laser
crosshair. Select one of the following picklist modes for the digital imager scanner:
•
Disabled Always - Picklist mode is always disabled.
•
Enabled Out of Scanstand - Picklist mode is enabled when the digital imager scanner is out of presentation
(scanstand) mode and disabled when the digital imager scanner is in presentation mode.
•
Enabled Always- Picklist mode is always enabled.
*Disabled Always
(00h)
Enabled Out of Scanstand
(01h)
Enabled Always
(02h)
4 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Decode Session Timeout
Parameter # 88h
This parameter sets the maximum time decode processing continues during a scan attempt. It is programmable in
0.1 second increments from 0.5 to 9.9 seconds. The default timeout is 9.9 seconds.
To set a Decode Session Timeout, scan the bar code below. Next, scan two numeric bar codes from Appendix D,
Numeric Bar Codes that correspond to the desired on time. Enter a leading zero for single digit numbers. For
example, to set a Decode Session Timeout of 0.5 seconds, scan the bar code below, then scan the 0 and 5 bar
codes. To correct an error or change the selection, scan Cancel on page D-2.
Timeout Between Decodes, Same Symbol
Parameter # 89h
Use this option in presentation (hands-free) mode to prevent the beeper from continuously beeping when a symbol
is left in the digital imager scanner’s field of view. It is programmable in 0.1 second increments from 0.0 to 9.9
seconds. The default interval is 0.6 seconds.
To select the timeout between decodes for the same symbol, scan the bar code below, then scan two numeric bar
codes from Appendix D, Numeric Bar Codes that correspond to the desired interval, in 0.1 second increments.
Decode Session Timeout
Timeout Between Decodes, Same Symbol
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 11
Beep After Good Decode
Parameter # 38h
Select a bar code below to choose whether or not the digital scanner beeps after a good decode (or image capture
in Snapshot mode). If you select Do Not Beep After Good Decode, the beeper still operates during parameter
menu scanning and to indicate error conditions.
Decoding Illumination
Parameter # F0h, 2Ah
Selecting Enable Decoding Illumination causes the digital imager scanner to flash illumination to aid decoding.
Select Disable Decoding Illumination to prevent the digital imager scanner from using decoding illumination.
Enabling illumination usually results in superior images. The effectiveness of the illumination decreases as the
distance to the target increases.
*Beep After Good Decode
(Enable)
(01h)
Do Not Beep After Good Decode
(Disable)
(00h)
*Enable Decoding Illumination
(01h)
Disable Decoding Illumination
(00h)
4 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
DP Illumination
Parameter # F1h, 3Bh
This parameter controls whether the digital imager scanner uses direct or indirect illumination. Options are:
•
Auto Illumination: Alternates direct and indirect illumination.
•
Direct Illumination: Optimizes scanning of symbols printed on low contrast or opaque surfaces. For best
results, hold the scanner at an angle when scanning using this option.
•
Indirect Illumination: Optimizes scanning of symbols printed on mirror-like or shiny surfaces.
*Auto Illumination
(01h)
Direct Illumination
(02h)
Indirect Illumination
(03h)
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 13
Decode Aiming Pattern
Parameter # F0h, 32h
This parameter only applies when in Decode Mode. Select Enable Decode Aiming Pattern to project the aiming
pattern during bar code capture, or Disable Decode Aiming Pattern to turn the aiming pattern off.
Fuzzy 1D Processing
Parameter # F1h 02h
This option is enabled by default to optimize decode performance on 1D bar codes, including damaged and poor
quality symbols. Disable this only if you experience time delays when decoding 2D bar codes, or in detecting a no
decode.
NOTE With picklist enabled, the decode aiming pattern flashes even when the Decode Aiming Pattern is
disabled.
*Enable Decode Aiming Pattern
(02h)
Disable Decode Aiming Pattern
(00h)
*Enable Fuzzy 1D Processing
(01h)
Disable Fuzzy 1D Processing
(00h)
4 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Decode Mirror Images (Data Matrix Only)
Parameter # F1h 19h
Select an option for decoding mirror image Data Matrix bar codes:
•
Always - decode only Data Matrix bar codes that are mirror images
•
Never - do not decode Data Matrix bar codes that are mirror images
•
Auto - decode both mirrored and unmirrored Data Matrix bar codes.
*Never
(00h)
Always
(01h)
Auto
(02h)
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 15
Miscellaneous Scanner Parameters
Transmit Code ID Character
Parameter # 2Dh
A Code ID character identifies the code type of a scanned bar code. This is useful when the digital imager scanner
is decoding more than one code type. In addition to any single character prefix already selected, the Code ID
character is inserted between the prefix and the decoded symbol.
Select no Code ID character, a Symbol Code ID character, or an AIM Code ID character. For Code ID Characters,
see Symbol Code Identifiers on page B-1 and AIM Code Identifiers on page B-3.
Symbol Code ID Character
(02h)
AIM Code ID Character
(01h)
*None
(00h)
4 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Prefix/Suffix Values
Key Category Parameter # P = 63h, S1 = 62h, S2 = 64h
Decimal Value Parameter # P = 69h, S1 = 68h, S2 = 6Ah
You can append a prefix and/or one or two suffixes to scan data for use in data editing. To set a value for a prefix or
suffix, scan a four-digit number (i.e., four bar codes from Appendix D, Numeric Bar Codes) that corresponds to that
value. See Table E-1 on page E-1 for the four-digit codes.
When using host commands to set the prefix or suffix, set the key category parameter to 1, then set the 3-digit
decimal value. See Table E-1 on page E-1 for the four-digit codes.
To correct an error or change a selection, scan Cancel on page D-2.
NOTE To use Prefix/Suffix values, first set the Scan Data Transmission Format on page 4-17.
Scan Prefix
(07h)
Scan Suffix 1
(06h)
Scan Suffix 2
(08h)
Data Format Cancel
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 17
Scan Data Transmission Format
Parameter # EBh
To change the scan data format, scan one of the following bar codes corresponding to the desired format.
To set values for the prefix and/or suffix, see Prefix/Suffix Values on page 4-16.
NOTE If using this parameter, do not use ADF rules to set the prefix/suffix.
*Data As Is
(00h)
<DATA> <SUFFIX 1>
(01h)
<DATA> <SUFFIX 2>
(02h)
<DATA> <SUFFIX 1> <SUFFIX 2>
(03h)
<PREFIX> <DATA >
(04h)
4 - 18 Symbol DS6707 Digital Imager Scanner Product Reference Guide
FN1 Substitution Values
Key Category Parameter # 67h
Decimal Value Parameter # 6Dh
The Wedge and USB HID Keyboard hosts support a FN1 Substitution feature. Enabling this substitutes any FN1
character (0x1b) in a GS1-128 bar code with a user-defined value. This value defaults to 7013 (Enter Key).
When using host commands to set the FN1 substitution value, set the key category parameter to 1, then set the
3-digit keystroke value. See the ASCII Character Set table for the current host interface for the desired value.
To select a FN1 substitution value via bar code menus:
1. Scan the bar code below.
2. Locate the keystroke desired for FN1 Substitution in the ASCII Character Set table for the current host
interface. Enter the 4-digit ASCII value by scanning each digit in Appendix D, Numeric Bar Codes.
To correct an error or change the selection, scan Cancel.
To enable FN1 substitution for USB HID keyboard, scan the Enable FN1 Substitution bar code on page 4-18.
Scan Data Transmission Format (continued)
<PREFIX> <DATA> <SUFFIX 1>
(05h)
<PREFIX> <DATA> <SUFFIX 2>
(06h)
<PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2>
(07h)
Set FN1 Substitution Value
User Preferences & Miscellaneous Digital Imager Scanner Options 4 - 19
Transmit “No Read” Message
Parameter # 5Eh
Scan a bar code below to select whether or not to transmit a No Read message. Enable this to transmit the
characters NR when a bar code is not decoded. Disable this to send nothing to the host if a symbol does not
decode.
Enable No Read
(01h)
*Disable No Read
(00h)
4 - 20 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Chapter 5 Imaging Preferences
Introduction
You can program the digital imager scanner to perform various functions, or activate different features. This
chapter describes imaging preference features and provides programming bar codes for selecting these features.
The digital imager scanner ships with the settings in Imaging Preferences Parameter Defaults on page 5-2 (also
see Appendix A, Standard Default Parameters for all host device and miscellaneous defaults). If the default values
suit requirements, programming is not necessary.
To set feature values, scan a single bar code or a short bar code sequence. The settings are stored in non-volatile
memory and are preserved even when you power down the digital imager scanner.
If not using a USB cable, select a host type after the power-up beeps sound. See Chapter 6, SSI Interface, Chapter
7, USB Interface and Chapter 8, RS-232 Interface for specific host information. This is only necessary upon the
first power-up when connecting to a new host.
To return all features to default values, scan the Set Default Parameter on page 4-4. Throughout the programming
bar code menus, asterisks (*) indicate default values.
NOTE Most computer monitors allow scanning the bar codes directly on the screen. When scanning from the
screen, be sure to set the document magnification to a level where you can see the bar code clearly, and
bars and/or spaces are not merging.
Feature/Option
* Indicates Default *Enable Decode Aiming Pattern
(02h) Option Hex Value
for programming
via SSI command
5 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Scanning Sequence Examples
In most cases scanning one bar code sets the parameter value. For example, to disable the decode aiming pattern,
scan the Disable Decode Aiming Pattern bar code under Decode Aiming Pattern on page 4-13. The digital
imager scanner issues a fast warble beep and the LED turns green, signifying a successful parameter entry.
Other parameters require scanning several bar codes. See these parameter descriptions for this procedure.
Errors While Scanning
Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter.
Imaging Preferences Parameter Defaults
Table 5-1 lists the defaults for imaging preferences parameters. There are two ways to change the default values:
•
Scan the appropriate bar codes in this guide. These new values replace the standard default values in
memory. To recall the default parameter values, scan the Set Default Parameter on page 4-4.
•
Download data through the device’s serial port using SSI. Hexadecimal parameter numbers appear in this
chapter below the parameter title, and options appear in parenthesis beneath the accompanying bar codes.
See the Simple Serial Interface (SSI) Programmer’s Guide for detailed instructions for changing parameters
using this method.
NOTE See Appendix A, Standard Default Parameters for all user preferences, hosts, symbologies, and
miscellaneous default parameters.
Table 5-1
Imaging Preferences Parameter Defaults
Parameter Parameter
Number Default Page
Number
Imaging Preferences
Operational Modes N/A N/A 5-4
Low Light Enhancement F1h 64h Disable 5-5
Presentation Mode Field of View F1h 61h Default (Reduced) 5-5
Image Capture Autoexposure F0h 68h Enable 5-6
Image Capture Illumination F0h 69h Enable 5-6
Illumination Bank Control F1h 3Bh Full 5-7
Fixed Exposure F4h F1h 37h 100 5-8
Fixed Gain F1h 38h 50 5-8
Gain / Exposure Priority for Snapshot Mode F1h 32h Autodetect 5-9
Snapshot Mode Timeout F0h 43h 0 (30 seconds) 5-10
Imaging Preferences 5 - 3
Snapshot Aiming Pattern F0h 2Ch Enable 5-10
Image Cropping F0h 2Dh Disable 5-11
Crop to Pixel Addresses F4h F0h 3Bh;
F4h F0h 3Ch;
F4h F0h 3Dh;
F4h F0h 3Eh
0 top, 0 left, 1023 bottom,
1279 right
5-12
Image Size (Number of Pixels) F0h 2Eh Full 5-13
Image Brightness (Target White) F0h 86h 180 5-14
JPEG Image Options F0h 2Bh Quality 5-14
JPEG Target File Size F1h 31h 160 kB 5-15
JPEG Quality and Size Value F0h 31h 65 5-15
Image Enhancement F1h 34h Off (0) 5-16
Image File Format Selection F0h 30h JPEG 5-17
Bits per Pixel (BPP) F0h 2Fh 8 BPP 5-18
Signature Capture 5Dh Disable 5-19
Signature Capture Image File Format
Selection
F0h 39h JPEG 5-20
Signature Capture Bits per Pixel (BPP) F0h 3Ah 8 BPP 5-21
Signature Capture Width F4h F0h 6Eh 400 5-22
Signature Capture Height F4h F0h 6Fh 100 5-22
Signature Capture JPEG Quality F0h A5h 65 5-22
Video View Finder F0h 44h Disable 5-23
Target Video Frame Size F0h 48h 2200 bytes 5-23
Video View Finder Image Size F0h 49h 1700 bytes 5-24
Table 5-1
Imaging Preferences Parameter Defaults (Continued)
Parameter Parameter
Number Default Page
Number
5 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Imaging Preferences
The parameters in this chapter control image capture characteristics. Image capture occurs in all modes of
operation, including decode, video, and snapshot.
Operational Modes
The digital imager scanner has three modes of operation:
•
Decode Mode
•
Snapshot Mode
•
Video Mode.
Decode Mode
By default, when you pull the trigger the digital imager scanner attempts to locate and decode enabled bar codes
within its field of view. The digital imager scanner remains in this mode until it decodes a bar code or you release
the trigger.
Snapshot Mode
Use Snapshot Mode to capture a high-quality image and transmit it to the host. To temporarily enter this mode scan
the Snapshot Mode bar code. While in this mode the digital imager scanner blinks the green LED at 1-second
intervals to indicate it is not in standard operating (decode) mode.
In Snapshot Mode, the digital imager scanner turns on its laser aiming pattern to highlight the area to capture in the
image. The next trigger pull instructs the digital imager scanner to capture a high quality image and transmit it to
the host. A short time may pass (less than 2 seconds) between when the trigger is pulled and the image is captured
as the digital imager scanner adjusts to the lighting conditions. Hold the digital imager scanner steady until the
image is captured, denoted by a single beep.
If you do not press the trigger within the Snapshot Mode Timeout period, the digital imager scanner returns to
Decode Mode. Use Snapshot Mode Timeout on page 5-10 to adjust this timeout period. The default timeout period
is 30 seconds.
To disable the laser aiming pattern during Snapshot Mode, see Snapshot Aiming Pattern on page 5-10.
Video Mode
In this mode the digital imager scanner behaves as a video camera as long as you press the trigger. Release the
trigger to return the digital imager scanner to Decode Mode. Scan this bar code to temporarily enter Video Capture
Mode.
Snapshot Mode
Video Mode
Imaging Preferences 5 - 5
Low Light Enhancement
Parameter # F1h, 64h
In presentation mode, selecting Enable Low Light Enhancement causes illumination to remain on at a low level
in low lighting conditions. Select Disable Low Light Enhancement to prevent illumination from remaining on
under these conditions.
Presentation Mode Field of View
Parameter # F1h, 61h
In presentation mode, the scanner searches for a bar code in a smaller region around the aiming pattern’s center
cross to speed search time.
To use a full field of view, scan Presentation Mode Full Field of View. This allows the scanner to search the larger
area of the aiming pattern.
Enable Low Light Enhancement
(01h)
*Disable Low Light Enhancement
(00h)
*Presentation Mode Default Field of View
(01h)
Presentation Mode Full Field of View
(02h)
5 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Image Capture Autoexposure
Parameter # F0h, 68h
Select Enable Image Capture Autoexposure to allow the digital imager scanner to control gain settings and
exposure (integration) time to best capture an image for the selected operation mode.
Select Disable Image Capture Autoexposure to manually adjust the gain and exposure time (see the following
pages). This option is only recommended for advanced users with difficult image capture situations.
Image Capture Illumination
Parameter # F0h, 69h
Selecting Enable Image Capture Illumination causes the digital imager scanner to flash on every image capture.
Select Disable Image Capture Illumination to prevent the digital imager scanner from using artificial illumination.
Enabling illumination usually results in superior images. The effectiveness of the illumination decreases as the
distance to the target increases.
*Enable Image Capture Autoexposure
(01h)
Disable Image Capture Autoexposure
(00h)
*Enable Image Capture Illumination
(01h)
Disable Image Capture Illumination
(00h)
Imaging Preferences 5 - 7
Illumination Bank Control
Parameter # F1h, 3Bh
This parameter controls the illumination banks on the scan engine. Options are:
•
Full: Enables the full illumination system (default).
•
Auto: Switches the illumination system from left to right bank.
•
Left: Enables the left bank.
•
Right: Enables the right bank.
*Full
(00h)
Auto
(01h)
Left
(02h)
Right
(03h)
5 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Fixed Exposure
Parameter #: F4h F1h 37h
Type: Word
Range: 5 - 5000
This parameter configures the exposure used in manual mode for both Decode and Snapshot/Video/Video
viewfinder modes.
Each integer value represents 100 μs worth of exposure. The default value is 100 which results in an exposure
setting of 10 ms.
To set the Fixed Exposure parameter, scan Fixed Exposure followed by four numeric bar codes representing the
value. Leading zeros are required. For example, to set a Fixed Exposure value of 99, scan 0, 0, 9, 9. See Appendix
D, Numeric Bar Codes for numeric bar codes.
Fixed Gain
Parameter #: F1h 38h
Type: Byte
Range 1 - 100
This parameter configures the gain setting used in manual mode for both Decode and Snapshot/Video/Video
viewfinder modes.
A value of 1 indicates that gain is not used for image capture. A value of 100 indicates that maximum gain is used
for image capture. The default value of this parameter is 50.
To set the Fixed Gain parameter, scan Fixed Gain below followed by three numeric bar codes representing the
value. Leading zeros are required. For example, to set a Fixed Gain value of 99, scan 0, 9, 9. See Appendix D,
Numeric Bar Codes for numeric bar codes.
Fixed Exposure
(4 digits)
Fixed Gain
Imaging Preferences 5 - 9
Gain/Exposure Priority for Snapshot Mode
Parameter # F1h, 32h
This parameter alters the digital imager scanner’s gain exposure priority when it acquires an image in Snapshot
Mode in auto exposure mode.
•
Scan Low Exposure Priority to set a mode in which the digital imager scanner favors higher gain over
exposure to capture an image. This results in an image that is less susceptible to motion blur at the expense
of noise artifacts. However, for most applications, the amount of noise is acceptable.
•
Scan Low Gain Priority to set a mode in which the digital imager scanner favors longer exposure time rather
than higher gain to capture an image. This ensures that the image is less noisy and produces fewer artifacts
during post processing activities like image enhancement (sharpening). The mode is recommended for fixed
mount / fixed object image capture since the image acquired is susceptible to motion blur.
•
Scan Autodetect (default) to set a mode in which the digital imager scanner automatically selects Gain
Priority or Low Exposure Priority mode for Snapshot Mode. If the digital imager scanner is in a magnetic read
switch enabled stand (or it is configured in Blink Mode), it uses Low Gain Priority mode. Otherwise, it uses
the Low Exposure Priority mode.
Low Gain Priority
(0)
Low Exposure Priority
(1)
* Autodetect
(2)
5 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Snapshot Mode Timeout
Parameter # F0h, 43h
This parameter sets the amount of time the digital imager scanner remains in Snapshot Mode. The digital imager
scanner exits Snapshot Mode when you pull the trigger, or when the Snapshot Mode Timeout elapses. To set this
timeout value, scan the bar code below followed by a bar code from Appendix D, Numeric Bar Codes. The default
value is 0 which represents 30 seconds; values increment by 30. For example, 1 = 60 seconds, 2 = 90 seconds,
etc.
Snapshot Aiming Pattern
Parameter # F0h, 2Ch
Select Enable Snapshot Aiming Pattern to project the aiming pattern when in Snapshot Mode, or Disable
Snapshot Aiming Pattern to turn the aiming pattern off.
Snapshot Mode Timeout
*Enable Snapshot Aiming Pattern
(01h)
Disable Snapshot Aiming Pattern
(00h)
Imaging Preferences 5 - 11
Image Cropping
Parameter # F0h, 2Dh
This parameter crops a captured image. Select Disable Image Cropping to present the full 1280 x 1024 pixels.
Select Enable Image Cropping to crop the image to the pixel addresses set in Crop to Pixel Addresses on page
5-12.
NOTE The digital scanner has a cropping resolution of 4 pixels. Setting the cropping area to less than 3 pixels
transfers the entire image.
Enable Image Cropping
(01h)
*Disable Image Cropping
(Use Full 1280 x 1024 Pixels)
(00h)
5 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Crop to Pixel Addresses
Parameter # F4h, F0h, 3Bh (Top)
Parameter # F4h, F0h, 3Ch (Left)
Parameter # F4h, F0h, 3Dh (Bottom)
Parameter # F4h, F0h, 3Eh (Right)
If you selected Enable Image Cropping, set the pixel addresses from (0,0) to (1279,1023) to crop to.
Columns are numbered from 0 to 1279, rows from 0 to 1023. Specify four values for Top, Left, Bottom, and Right,
where Top and Bottom correspond to row pixel addresses, and Left and Right correspond to column pixel
addresses. For example, for a 4 row x 8 column image in the extreme bottom-right section of the image set the
following values:
Top = 1020, Bottom = 1023, Left = 1272, Right = 1279
To set the crop to pixel address, scan each pixel address bar code below followed by four numeric bar codes
representing the value. Leading zeros are required. For example, to crop the top pixel address to 3, scan 0, 0, 0, 3.
See Appendix D, Numeric Bar Codes for numeric bar codes.
Top Pixel Address
(0 - 1023 Decimal)
Left Pixel Address
(0 - 1279 Decimal)
Bottom Pixel Address
(0 - 1023 Decimal)
Right Pixel Address
(0 - 1279 Decimal)
Imaging Preferences 5 - 13
Image Size (Number of Pixels)
Parameter # F0h, 2Eh
This option alters image resolution before compression. Multiple pixels are combined to one pixel, resulting in a
smaller image containing the original content with reduced resolution.
Select one of the following values:
Resolution
Value Uncropped Image Size
Full 1280 x 1024
1/2 640 x 512
1/4 320 x 160
*Full Resolution
(00h)
1/2 Resolution
(01h)
1/4 Resolution
(03h)
5 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Image Brightness (Target White)
Parameter # F0h 86h
Type: Byte
Range: 1 - 240
This parameter sets the Target White value used in Snapshot, Video and Video Viewfinder mode when using auto
exposure. White and black are defined as 255 decimal and 0, respectively. Setting the value to the factory default
of 180 sets the white level of the image to ~180.
To set the Image Brightness parameter, scan Image Brightness below followed by three numeric bar codes
representing the value. Leading zeros are required. For example, to set an Image Brightness value of 99, scan 0,
9, 9. See Appendix D, Numeric Bar Codes for numeric bar codes.
JPEG Image Options
Parameter # F0h, 2Bh
Select an option to optimize JPEG images for either size or for quality. Scan the JPEG Quality Selector bar code
to enter a quality value; the digital imager scanner then selects the corresponding image size. Scan the JPEG Size
Selector bar code to enter a size value; the digital imager scanner then selects the best image quality.
*180
Image Brightness
(3 digits)
*JPEG Quality Selector
(01h)
JPEG Size Selector
(00h)
Imaging Preferences 5 - 15
JPEG Target File Size
Parameter # F4h, F1h, 31h
Type: Word
Range: 5-600
This parameter defines the target JPEG file size in terms 1 Kilobytes (1024 bytes). The default value is 160 kB
which represents 160 Kilobytes.
To set the JPEG Target File Size parameter, scan JPEG Target File Size below followed by three numeric bar
codes representing the value. Leading zeros are required. For example, to set an Image Brightness value of 99,
scan 0, 9, 9 in Appendix D, Numeric Bar Codes.
JPEG Quality and Size Value
JPEG Quality = Parameter # F0h, 31h
If you selected JPEG Quality Selector, scan the JPEG Quality Value bar code followed by 3 bar codes from
Appendix D, Numeric Bar Codes corresponding to a value from 5 to 100, where 100 represents the highest quality
image.
CAUTION JPEG compress may take 10 to 15 seconds based on the amount of information in the target image.
Scanning JPEG Quality Selector (default setting) on page 5-14 produces a compressed image that is
consistent in quality and compression time.
!
*JPEG Target File Size
(3 digits)
JPEG Quality Value
(Default: 065)
(5 - 100 Decimal)
5 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Image Enhancement
Parameter # F1h, 34h
This parameter configures the digital imager scanner's Image Enhance feature. This feature uses a combination of
edge sharpening and contrast enhancement to produce an image that is visually pleasing.
The levels of image enhancement are:
•
Off (0) - Default
•
Low(1)
•
Med(2)
•
High(3).
*Off
(0)
Low
(1)
Medium
(2)
High
(3)
Imaging Preferences 5 - 17
Image File Format Selector
Parameter # F0h, 30h
Select an image format appropriate for the system (BMP, TIFF, or JPEG). The digital imager scanner stores
captured images in the selected format.
BMP File Format
(03h)
*JPEG File Format
(01h)
TIFF File Format
(04h)
5 - 18 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Bits Per Pixel
Parameter # F0h, 2Fh
Select the number of significant bits per pixel (BPP) to use when capturing an image. Select 1 BPP for a black and
white image, 4 BPP to assign 1 of 16 levels of grey to each pixel, or 8 BPP to assign 1 of 256 levels of grey to each
pixel.
NOTE The digital imager scanner ignores these settings for JPEG file formats, which only support 8 BPP.
The digital imager scanner ignores 1 BPP for TIFF file formats, which only support 4 BPP and
8 BPP. 1 BPP is coerced to 4 BPP for TIFF file formats.
1 BPP
(00h)
4 BPP
(01h)
*8 BPP
(02h)
Imaging Preferences 5 - 19
Signature Capture
Parameter # 5Dh
A signature capture bar code is a special-purpose symbology which delineates a signature capture area in a
document with a machine-readable format. The recognition pattern is variable so it can optionally provide an index
to various signatures. The region inside the bar code pattern is considered the signature capture area.
Output File Format
Decoding a signature capture bar code de-skews the signature image and converts the image to a BMP, JPEG, or
TIFF file format. The output data includes the file descriptor followed by the formatted signature image.
To enable or disable Signature Capture, scan the appropriate bar code below.
File Descriptor
Signature Image
Output Format
(1 byte) Signature Type (1
byte)
Signature Image
Size
(4 bytes)
(BIG Endian)
JPEG - 1
BMP - 3
TIFF - 4
1-8 0x00000400 0x00010203….
Enable Signature Capture
(01h)
*Disable Signature Capture
(00h)
5 - 20 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Signature Capture File Format Selector
Parameter # F0h, 39h
Select a signature file format appropriate for the system (BMP, TIFF, or JPEG). The digital imager scanner stores
captured signatures in the selected format.
BMP Signature Format
(03h)
*JPEG Signature Format
(01h)
TIFF Signature Format
(04h)
Imaging Preferences 5 - 21
Signature Capture Bits Per Pixel
Parameter # F0h, 3Ah
Select the number of significant bits per pixel (BPP) to use when capturing a signature. Select 1 BPP for a black
and white image, 4 BPP to assign 1 of 16 levels of grey to each pixel, or 8 BPP to assign 1 of 256 levels of grey to
each pixel.
NOTE The digital imager scanner ignores these settings for JPEG file formats, which only support 8 BPP.
The digital imager scanner ignores 1 BPP for TIFF file formats, which only support 4 BPP and 8 BPP.
1 BPP is coerced to 4 BPP for TIFF file formats.
1 BPP
(00h)
4 BPP
(01h)
*8 BPP
(02h)
5 - 22 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Signature Capture Width
Parameter # F4h, F0h, 6Eh
The aspect ratio of the Signature Capture Width and Signature Capture Height parameters must match that of the
signature capture area. For example, a 4 x 1 inch signature capture area would require a 4 to 1 aspect ratio of
width to height.
To set the width of the signature capture box, scan the Signature Capture Width bar code, followed by 3 bar
codes from Appendix D, Numeric Bar Codes corresponding to a value in the range of 001 to 640 decimal.
Signature Capture Height
Parameter # F4h, F0h, 6Fh
To set the height of the signature capture box, scan the Signature Capture Height bar code, followed by 3 bar
codes from Appendix D, Numeric Bar Codes corresponding to a value in the range of 001 to 480 decimal.
Signature Capture JPEG Quality
Parameter # F0h, A5h
Scan the JPEG Quality Value bar code followed by 3 bar codes from Appendix D, Numeric Bar Codes
corresponding to a value from 005 to 100, where 100 represents the highest quality image.
Signature Capture Width
(Default: 400)
(001 - 640 Decimal)
Signature Capture Height (Default: 100)
(001 - 480 Decimal)
JPEG Quality Value (Default: 065)
(5 - 100 Decimal)
Imaging Preferences 5 - 23
Video View Finder
Parameter # F0h, 44h
Select Enable Video View Finder to project the video view finder while in Video Mode, or Disable Video View
Finder to turn the video view finder off.
Target Video Frame Size
Parameter # F0h, 48h
Select the number of 100-byte blocks to transmit per second. Selecting a smaller value transmits more frames per
second but reduces video quality; selecting a larger value increases video quality but slows transmission.
To set the Target Video Frame Size, scan the bar code below followed by two bar codes from Appendix D, Numeric
Bar Codes corresponding to the 100-byte value from 800 to 3300 bytes. For example, to select 1500 bytes, enter
1, 5. To select 900 bytes, enter 0, 9.
*Disable Video View Finder
(00h)
Enable Video View Finder
(01h)
Target Video Frame Size
5 - 24 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Video View Finder Image Size
Parameter # F0h, 49h
Select the number of 100-byte blocks. Values range from 800 to 3000 bytes. Selecting a smaller value transmits
more frames per second; selecting a larger value increases video quality.
To set the Video View Finder Image Size, scan the bar code below followed by two bar codes from Appendix D,
Numeric Bar Codes corresponding to the 100-byte value from 800 to 3000 bytes. For example, to select 1500
bytes, enter 1, 5. To select 900 bytes, enter 0, 9.
Video View Finder Image Size
Chapter 6 SSI Interface
Introduction
This chapter describes how to set up the digital imager scanner with a Simple Serial Interface (SSI) host. When
using SSI, program the digital imager scanner via bar code menu or SSI host commands.
Throughout the programming bar code menus, default values are indicated with asterisks (*).
*Baud Rate 9600
(06h)
Feature/Option
* Indicates Default
Option Hex Value for
programming via SSI
command
NOTE Most computer monitors allow scanning the bar codes directly on the screen. When scanning from the
screen, be sure to set the document magnification to a level where you can see the bar code clearly, and
bars and/or spaces are not merging.
6 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Connecting Using Simple Serial Interface
Connect the digital imager scanner to an SSI host.
Figure 6-1
SSI Host Connection
1. Attach the modular connector of the interface cable to the cable interface port on the digital imager scanner
(see Installing the Interface Cable on page 1-3).
2. Connect the other end of the interface cable to the serial port on the host.
3. Connect the power supply to the serial connector end of the interface cable. Plug the power supply into an
appropriate outlet.
4. Scan the appropriate baud rate bar code from Baud Rate on page 6-4 that matches the host’s baud rate
setting.
5. To modify any other parameter options, scan the appropriate bar codes in this chapter.
Interface Cable
Serial Port Connector
to Host
Power Supply Cable
SSI Interface 6 - 3
Simple Serial Interface Default Parameters
Table 6-1 lists the defaults for the SSI host. There are two ways to change the default values:
•
Scan the appropriate bar codes in this guide. These new values replace the standard default values in
memory. To recall the default parameter values, scan the Set Default Parameter on page 4-4.
•
Download data through the device’s serial port using SSI. Hexadecimal parameter numbers appear in this
chapter below the parameter title, and options appear in parenthesis beneath the accompanying bar codes.
See the Simple Serial Interface (SSI) Programmer’s Guide for detailed instructions for changing parameters
using this method.
NOTE See Appendix A, Standard Default Parameters for all user preferences, hosts, symbologies, and
miscellaneous default parameters.
Table 6-1
SSI Interface Parameter Defaults
Parameter Parameter
Number Default Page
Number
Baud Rate 9Ch 9600 6-4
Parity 9Eh None 6-6
Check Parity 97h Enable 6-7
Software Handshaking 9Fh ACK/NAK 6-7
Host RTS Line State 9Ah Low 6-8
Decode Data Packet Format EEh Send Raw Decode Data 6-8
Stop Bits 9Dh 1 6-9
Host Serial Response Time-out 9Bh 2 sec 6-10
Host Character Time-out EFh 200 msec 6-11
Multipacket Option F0h 4Eh Option 1 6-12
Interpacket Delay F0h 4Fh 0 ms 6-13
Event Reporting
Decode Event F0h 00h Disable 6-14
Boot Up Event F0h 02h Disable 6-15
Parameter Event F0h 03h Disable 6-15
NOTE SSI interprets Prefix, Suffix1, and Suffix2 values listed in Table A-1 on page A-1 differently than other
interfaces. SSI does not recognize key categories, only the 3-digit decimal value. The default value of
7013 is interpreted as CR only.
6 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
SSI Host Parameters
Baud Rate
Parameter # 9Ch
Baud rate is the number of bits of data transmitted per second. Set the digital imager scanner's baud rate to match
the data rate setting of the host device. Otherwise, data may not reach the host or may reach it in distorted form.
To enable the SSI host, scan the appropriate baud rate bar code that matches the baud rate setting of the host
device.
Baud Rate 600
(02h)
Baud Rate 1200
(03h)
Baud Rate 2400
(04h)
Baud Rate 4800
(05h)
*Baud Rate 9600
(06h)
SSI Interface 6 - 5
Baud Rate (continued)
Baud Rate 19,200
(07h)
38,400
(08h)
57,600
(0Ah)
115,200
(0Bh)
230,400
(0Ch)
6 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Parity
Parameter # 9Eh
A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host
device requirements.
•
Select Odd parity to set the parity bit to a value 0 or 1, based on data, to ensure that the coded character
contains an odd number of 1 bits.
•
Select Even parity to set the parity bit to a value 0 or 1, based on data, to ensure that the coded character
contains an even number of 1 bits.
•
If no parity is required, select None.
Odd
(00h)
Even
|(01h)
*None
(04h)
SSI Interface 6 - 7
Check Parity
Parameter # 97h
Select whether or not to check the parity of received characters. Use the Parity parameter to select the type of
parity.
Software Handshaking
Parameter # 9Fh
This parameter offers control of the data transmission process in addition to that offered by hardware handshaking.
Hardware handshaking is always enabled and cannot be disabled by the user.
•Disable ACK/NAK Handshaking: If you select this option, the decoder neither generates nor expects
ACK/NAK handshaking packets.
•Enable ACK/NAK Handshaking: If you select this option, after transmitting data, the digital imager scanner
expects either an ACK or NAK response from the host. The digital imager scanner also ACKs or NAKs
messages from the host.
The digital imager scanner waits up to the programmable Host Serial Response Time-out to receive an ACK
or NAK. If the scanner does not get a response in this time, it resends its data up to two times before
discarding the data and declaring a transmit error.
*Check Parity
(01h)
Do Not Check Parity
(00h)
Disable ACK/NAK
(00h)
*Enable ACK/NAK
(01h)
6 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Host RTS Line State
Parameter # 9Ah
This parameter sets the expected idle state of the Serial Host RTS line.
The SSI Interface is used with host applications which also implement the SSI protocol. However, you can also use
the digital imager scanner in a "scan-and-transmit" mode to communicate with any standard serial communication
software on a host PC (see Decode Data Packet Format on page 6-8). If transmission errors occur in this mode,
the host PC may be asserting hardware handshaking lines which interfere with the SSI protocol. Scan the Host:
RTS High bar code to address this problem.
Decode Data Packet Format
Parameter # EEh
This parameter selects whether to transmit decoded data in raw format (unpacketed), or with the packet format
defined by the serial protocol.
Selecting the raw format disables ACK/NAK handshaking for decode data.
*Host: RTS Low
(00h)
Host: RTS High
(01h)
*Send Raw Decode Data
(00h)
Send Packeted Decode Data
(01h)
SSI Interface 6 - 9
Stop Bit Select
Parameter # 9Dh
The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and
prepares the receiving (host) device for the next character in the serial data stream. Set the number of stop bits
(one or two) to match host device requirements.
*1 Stop Bit
(01h)
2 Stop Bits
(02h)
6 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Host Serial Response Time-out
Parameter # 9Bh
This parameter specifies how long the decoder waits for an ACK or NAK before resending. Also, if the decoder
wants to send, and the host was already granted permission to send, the decoder waits for the designated time-out
before declaring an error.
To set the delay period (options are 2, 5, 7.5, or 9.9 seconds), scan one of the following bar codes.
NOTE Other values are available via SSI command.
*Low - 2 Seconds
(14h)
Medium - 5 Seconds
(32h)
High - 7.5 Seconds
(4Bh)
Maximum - 9.9 Seconds
(63h)
SSI Interface 6 - 11
Host Character Time-out
Parameter # EFh
This parameter determines the maximum time the decoder waits between characters transmitted by the host
before discarding the received data and declaring an error.
To set the delay period (options are 200, 500, 750, or 990 ms), scan one of the following bar codes.
NOTE Other values are available via SSI command.
*Low - 200 ms
(0Ah)
Medium - 500 ms
(32h)
High - 750 ms
(4Bh)
Maximum - 990 ms
(63h)
6 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Multipacket Option
Parameter # F0h, 4Eh
This parameter controls ACK/NAK handshaking for multi-packet transmissions.
•Multi-Packet Option 1: The host sends an ACK / NAK for each data packet during a multi-packet
transmission.
•Multi-Packet Option 2: The digital imager scanner sends data packets continuously, with no ACK/NAK
handshaking to pace the transmission. The host, if overrun, can use hardware handshaking to temporarily
delay digital imager scanner transmissions. At the end of transmission, the digital imager scanner waits for
a CMD_ACK or CMD_NAK.
•Multi-Packet Option 3: Option 3 is the same as option 2 with the addition of a programmable interpacket
delay.
*Multipacket Option 1
(00h)
Multipacket Option 2
(01h)
Multipacket Option 3
(02h)
SSI Interface 6 - 13
Interpacket Delay
Parameter # F0h, 4Fh
This parameter specifies the interpacket delay when Multipacket Option 3 is selected.
To set the delay period (options are 0, 25, 50, 75, or 99 ms), scan one of the following bar codes.
NOTE Other values are available via SSI command.
*Minimum - 0 ms
(00h)
Low - 25 ms
(19h)
Medium - 50 ms
(32h)
High - 75 ms
(4Bh)
Maximum - 99 ms
(63h)
6 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Event Reporting
The host can request the digital imager scanner to provide certain information (events) relative to the digital imager
scanner’s behavior. Enable or disable the events listed in Table 6-2 and on the following pages by scanning the
appropriate bar codes.
Decode Event
Parameter # F0h, 00h
When enabled, the digital imager scanner generates a message to the host when it successfully decodes a bar
code. When disabled, no notification is sent.
Table 6-2
Event Codes
Event Class Event Code
Reported
Decode Event Non parameter decode 0x01
Boot Up Event System power-up 0x03
Parameter Event Parameter entry error
Parameter stored
Defaults set (and parameter event is
enabled by default)
Number expected
0x07
0x08
0x0A
0x0F
Enable Decode Event
(01h)
*Disable Decode Event
(00h)
SSI Interface 6 - 15
Boot Up Event
Parameter # F0h, 02h
When enabled, the digital imager scanner generates a message to the host when power is applied. When disabled,
no notification is sent.
Parameter Event
Parameter # F0h, 03h
When enabled, the digital imager scanner generates a message to the host when one of the events specified in
Table 6-2 on page 6-14 occurs. When disabled, no notification is sent.
Enable Boot Up Event
(01h)
*Disable Boot Up Event
(00h)
Enable Parameter Event
(01h)
*Disable Parameter Event
(00h)
6 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Chapter 7 USB Interface
Introduction
This chapter describes how to set up the digital imager scanner with a USB host. The digital imager scanner
connects directly to a USB host, or a powered USB hub, which powers it. No additional power supply is required.
Throughout the programming bar code menus, asterisks (*) indicate default values.
*North American Standard USB Keyboard Feature/Option
*Indicates Default
NOTE Most computer monitors allow scanning the bar codes directly on the screen. When scanning from the
screen, be sure to set the document magnification to a level where you can see the bar code clearly, and
bars and/or spaces are not merging.
7 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Connecting a USB Interface
Figure 7-1
USB Connection
The digital imager scanner connects with USB-capable hosts including:
•
Desktop PCs and notebooks
•Apple™ iMac, G4, iBooks (North America only)
•IBM SurePOS terminals
•
Sun, IBM, and other network computers that support more than one keyboard.
The following operating systems support the digital imager scanner through USB:
• Windows® 98, 2000, ME, XP
• MacOS 8.5 - MacOS 10.3
• IBM 4690 OS.
The digital imager scanner also interfaces with other USB hosts which support USB Human Interface Devices
(HID). For more information on USB technology, hosts, and peripheral devices, visit www.symbol.com/usb.
To set up the digital imager scanner:
1. Connect the modular connector of the USB interface cable to the cable interface port on the digital imager
scanner (see Installing the Interface Cable on page 1-3).
2. Plug the series A connector in the USB host or hub, or plug the Plus Power connector in an available port of
the IBM SurePOS terminal.
3. Select the USB device type by scanning the appropriate bar code from USB Device Type on page 7-4.
4. On first installation when using Windows, the software prompts to select or install the Human Interface Device
driver. To install this driver, provided by Windows, click Next through all the choices and click Finished on the
last choice. The digital imager scanner powers up during this installation.
5. To modify any other parameter options, scan the appropriate bar codes in this chapter.
If problems occur with the system, see Troubleshooting on page 3-2.
USB Series A
Connector
Interface Cable
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 7-1 are examples
only. The connectors may be different than those illustrated, but the steps to connect the scanner are the
same.
USB Interface 7 - 3
USB Parameter Defaults
Table 7-1 lists the defaults for USB host parameters. To change an option, scan the appropriate bar code(s)
provided in the Parameter Descriptions section beginning on page 7-4.
NOTE See Appendix A, Standard Default Parameters for all user preferences, hosts, symbologies, and
miscellaneous default parameters.
Table 7-1
USB Interface Parameter Defaults
Parameter Default Page
Number
USB Host Parameters
USB Device Type HID Keyboard Emulation 7-4
Symbol Native API (SNAPI) Status Handshaking Enable 7-5
USB Country Keyboard Types (Country Codes) North American 7-6
USB Keystroke Delay No Delay 7-8
USB CAPS Lock Override Disable 7-8
USB Ignore Unknown Characters Enable 7-9
Emulate Keypad Disable 7-9
Emulate Keypad with Leading Zero Disable 7-10
USB FN1 Substitution Disable 7-10
Function Key Mapping Disable 7-11
Simulated Caps Lock Disable 7-11
Convert Case
No Case Conversion
7-12
7 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
USB Host Parameters
USB Device Type
Select the desired USB device type.
NOTE When changing USB Device Types, the digital imager scanner automatically resets and issues the
standard startup beep sequences.
*HID Keyboard Emulation
IBM Table Top USB
IBM Hand-Held USB
USB OPOS Handheld
Simple COM Port Emulation
USB Interface 7 - 5
USB Device Type (continued)
Symbol Native API (SNAPI) Status Handshaking
After selecting a SNAPI interface as the USB device type, select whether to enable or disable status handshaking.
Symbol Native API (SNAPI) with Imaging Interface
Symbol Native API (SNAPI) without Imaging Interface
*Enable SNAPI Status Handshaking
Disable SNAPI Status Handshaking
7 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
USB Country Keyboard Types (Country Codes)
Scan the bar code corresponding to the keyboard type. This setting applies only to the USB HID Keyboard
Emulation device.
NOTE When changing USB country keyboard types the digital imager scanner automatically resets and issues
the standard startup beep sequences.
*North American Standard USB Keyboard
German Windows
French Windows
French Canadian Windows 95/98
French Canadian Windows 2000/XP
USB Interface 7 - 7
USB Country Keyboard Types (continued)
Spanish Windows
Italian Windows
Swedish Windows
UK English Windows
Japanese Windows (ASCII)
Portuguese-Brazilian Windows
7 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
USB Keystroke Delay
This parameter sets the delay, in milliseconds, between emulated keystrokes. Scan a bar code below to increase
the delay when hosts require slower data transmission.
USB CAPS Lock Override
This option applies only to the HID Keyboard Emulation device. Enable this to preserve the case of the data
regardless of the state of the Caps Lock key. This setting is always enabled for the Japanese, Windows (ASCII)
keyboard type and can not be disabled.
*No Delay
Medium Delay (20 msec)
Long Delay (40 msec)
Override Caps Lock Key
(Enable)
*Do Not Override Caps Lock Key
(Disable)
USB Interface 7 - 9
USB Ignore Unknown Characters
This option applies only to the HID Keyboard Emulation device and IBM device. Unknown characters are
characters the host does not recognize. Select Send Bar Codes With Unknown Characters to send all bar code
data except for unknown characters. The scanner sounds no error beeps.
If you select Do Not Send Bar Codes With Unknown Characters, for IBM devices, bar codes containing at least
one unknown character are not sent to the host, and the scanner sounds an error beep. For HID Keyboard
Emulation devices, the bar code characters up to the unknown character are sent, and the scanner sounds an
error beep.
Emulate Keypad
Enable this to send all characters as ASCII sequences over the numeric keypad. For example ASCII A transmits as
“ALT make” 0 6 5 “ALT Break”.
*Send Bar Codes with Unknown Characters
(Transmit)
Do Not Send Bar Codes with Unknown Characters
(Disable)
*Disable Keypad Emulation
Enable Keypad Emulation
7 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Emulate Keypad with Leading Zero
Enable this to send character sequences sent over the numeric keypad as ISO characters which have a leading
zero. For example ASCII A transmits as “ALT MAKE” 0 0 6 5 “ALT BREAK”.
USB Keyboard FN 1 Substitution
This option applies only to the USB HID Keyboard Emulation device. Enable this to replace any FN 1 characters in
a GS1-128 bar code with a user-selected Key Category and value (see FN1 Substitution Values on page 4-18 to
set the Key Category and Key Value).
*Disable Keypad Emulation with Leading Zero
Enable Keypad Emulation with Leading Zero
Enable
*Disable
USB Interface 7 - 11
Function Key Mapping
ASCII values under 32 are normally sent as a control-key sequences (see Table 7-2 on page 7-13). Enable this to
send the keys in bold in place of the standard key mapping. Table entries that do not have a bold entry remain the
same whether or not you enable this parameter.
Simulated Caps Lock
Enable this to invert upper and lower case characters on the bar code as if the Caps Lock state is enabled on the
keyboard. This inversion occurs regardless of the state of the keyboard’s Caps Lock key.
*Disable Function Key Mapping
Enable Function Key Mapping
*Disable Simulated Caps Lock
Enable Simulated Caps Lock
7 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Convert Case
Enable this to convert all bar code data to the selected case.
*No Case Conversion
Convert All to Upper Case
Convert All to Lower Case
USB Interface 7 - 13
ASCII Character Set for USB
Table 7-2
USB Prefix/Suffix Values
Prefix/ Suffix
Value Full ASCII Code 39
Encode Char.acter Keystroke
1000 %U CTRL 2
1001 $A CTRL A
1002 $B CTRL B
1003 $C CTRL C
1004 $D CTRL D
1005 $E CTRL E
1006 $F CTRL F
1007 $G CTRL G
1008 $H CTRL H/
BACKSPACE
1
1009 $I CTRL I/
HORIZONTAL TAB
1
1010 $J CTRL J
1011 $K CTRL K
1012 $L CTRL L
1013 $M CTRL M/
ENTER
1
1014 $N CTRL N
1015 $O CTRL O
1016 $P CTRL P
1017 $Q CTRL Q
1018 $R CTRL R
1019 $S CTRL S
1020 $T CTRL T
1021 $U CTRL U
1022 $V CTRL V
1023 $W CTRL W
1024 $X CTRL X
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 7-11
. Otherwise, the unbolded keystroke transmits.
7 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
1025 $Y CTRL Y
1026 $Z CTRL Z
1027 %A CTRL [/
ESC
1
1028 %B CTRL \
1029 %C CTRL ]
1030 %D CTRL 6
1031 %E CTRL -
1032 Space Space
1033 /A !
1034 /B “
1035 /C #
1036 /D $
1037 /E %
1038 /F &
1039 /G ‘
1040 /H (
1041 /I )
1042 /J *
1043 /K +
1044 /L ,
1045 - -
1046 . .
1047 /O /
1048 0 0
1049 1 1
1050 2 2
1051 3 3
1052 4 4
Table 7-2
USB Prefix/Suffix Values (Continued)
Prefix/ Suffix
Value Full ASCII Code 39
Encode Char.acter Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 7-11
. Otherwise, the unbolded keystroke transmits.
USB Interface 7 - 15
1053 5 5
1054 6 6
1055 7 7
1056 8 8
1057 9 9
1058 /Z :
1059 %F ;
1060 %G <
1061 %H =
1062 %I >
1063 %J ?
1064 %V @
1065 A A
1066 B B
1067 C C
1068 D D
1069 E E
1070 F F
1071 G G
1072 H H
1073 I I
1074 J J
1075 K K
1076 L L
1077 M M
1078 N N
1079 O O
1080 P P
Table 7-2
USB Prefix/Suffix Values (Continued)
Prefix/ Suffix
Value Full ASCII Code 39
Encode Char.acter Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 7-11
. Otherwise, the unbolded keystroke transmits.
7 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
1081 Q Q
1082 R R
1083 S S
1084 T T
1085 U U
1086 V V
1087 W W
1088 X X
1089 Y Y
1090 Z Z
1091 %K [
1092 %L \
1093 %M ]
1094 %N ^
1095 %O _
1096 %W `
1097 +A a
1098 +B b
1099 +C c
1100 +D d
1101 +E e
1102 +F f
1103 +G g
1104 +H h
1105 +I i
1106 +J j
1107 +K k
1108 +L l
Table 7-2
USB Prefix/Suffix Values (Continued)
Prefix/ Suffix
Value Full ASCII Code 39
Encode Char.acter Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 7-11
. Otherwise, the unbolded keystroke transmits.
USB Interface 7 - 17
1109 +M m
1110 +N n
1111 +O o
1112 +P p
1113 +Q q
1114 +R r
1115 +S s
1116 +T t
1117 +U u
1118 +V v
1119 +W w
1120 +X x
1121 +Y y
1122 +Z z
1123 %P {
1124 %Q |
1125 %R }
1126 %S ~
Table 7-3
USB ALT Key Character Set
ALT Keys Keystroke
2064 ALT 2
2065 ALT A
2066 ALT B
2067 ALT C
2068 ALT D
2069 ALT E
2070 ALT F
2071 ALT G
Table 7-2
USB Prefix/Suffix Values (Continued)
Prefix/ Suffix
Value Full ASCII Code 39
Encode Char.acter Keystroke
1
The keystroke in bold transmits only if you enabled
Function Key
Mapping on page 7-11
. Otherwise, the unbolded keystroke transmits.
7 - 18 Symbol DS6707 Digital Imager Scanner Product Reference Guide
2072 ALT H
2073 ALT I
2074 ALT J
2075 ALT K
2076 ALT L
2077 ALT M
2078 ALT N
2079 ALT O
2080 ALT P
2081 ALT Q
2082 ALT R
2083 ALT S
2084 ALT T
2085 ALT U
2086 ALT V
2087 ALT W
2088 ALT X
2089 ALT Y
2090 ALT Z
Table 7-4
USB GUI Key Character Set
GUI Key Keystroke
3000 Right Control Key
3048 GUI 0
3049 GUI 1
3050 GUI 2
3051 GUI 3
3052 GUI 4
3053 GUI 5
Note: GUI Shift Keys - The Apple™ iMac keyboard has an
apple key on either side of the space bar.
Windows-based systems have a GUI key to the left of the
left ALT key, and to the right of the right ALT key.
Table 7-3
USB ALT Key Character Set (Continued)
ALT Keys Keystroke
USB Interface 7 - 19
3054 GUI 6
3055 GUI 7
3056 GUI 8
3057 GUI 9
3065 GUI A
3066 GUI B
3067 GUI C
3068 GUI D
3069 GUI E
3070 GUI F
3071 GUI G
3072 GUI H
3073 GUI I
3074 GUI J
3075 GUI K
3076 GUI L
3077 GUI M
3078 GUI N
3079 GUI O
3080 GUI P
3081 GUI Q
3082 GUI R
3083 GUI S
3084 GUI T
3085 GUI U
3086 GUI V
3087 GUI W
Table 7-4
USB GUI Key Character Set (Continued)
GUI Key Keystroke
Note: GUI Shift Keys - The Apple™ iMac keyboard has an
apple key on either side of the space bar.
Windows-based systems have a GUI key to the left of the
left ALT key, and to the right of the right ALT key.
7 - 20 Symbol DS6707 Digital Imager Scanner Product Reference Guide
3088 GUI X
3089 GUI Y
3090 GUI Z
Table 7-5
USB F Key Character Set
F Keys Keystroke
5001 F1
5002 F2
5003 F3
5004 F4
5005 F5
5006 F6
5007 F7
5008 F8
5009 F9
5010 F10
5011 F11
5012 F12
5013 F13
5014 F14
5015 F15
5016 F16
5017 F17
5018 F18
5019 F19
5020 F20
5021 F21
Table 7-4
USB GUI Key Character Set (Continued)
GUI Key Keystroke
Note: GUI Shift Keys - The Apple™ iMac keyboard has an
apple key on either side of the space bar.
Windows-based systems have a GUI key to the left of the
left ALT key, and to the right of the right ALT key.
USB Interface 7 - 21
5022 F22
5023 F23
5024 F24
Table 7-6
USB Numeric Keypad Character Set
Numeric Keypad Keystroke
6042 *
6043 +
6044 undefined
6045 -
6046 .
6047 /
6048 0
6049 1
6050 2
6051 3
6052 4
6053 5
6054 6
6055 7
6056 8
6057 9
6058 Enter
6059 Num Lock
Table 7-7
USB Extended Keypad Character Set
Extended Keypad Keystroke
7001 Break
7002 Delete
7003 PgUp
7004 End
7005 Pg Dn
Table 7-5
USB F Key Character Set (Continued)
F Keys Keystroke
7 - 22 Symbol DS6707 Digital Imager Scanner Product Reference Guide
7006 Pause
7007 Scroll Lock
7008 Backspace
7009 Tab
7010 Print Screen
7011 Insert
7012 Home
7013 Enter
7014 Escape
7015 Up Arrow
7016 Down Arrow
7017 Left Arrow
7018 Right Arrow
Table 7-7
USB Extended Keypad Character Set (Continued)
Extended Keypad Keystroke
Chapter 8 RS-232 Interface
Introduction
This chapter describes how to set up the digital imager scanner with an RS-232 host. Use the RS-232 interface to
connect the digital imager scanner to point-of-sale devices, host computers, or other devices with an available
RS-232 port (e.g., com port).
If your host does not appear in Table 8-2, refer to the documentation for the host device to set communication
parameters to match the host.
Throughout the programming bar code menus, asterisks (*) indicate default values.
NOTE The digital imager scanner uses TTL RS-232 signal levels, which interface with most system architectures.
For system architectures requiring RS-232C signal levels, Motorola offers different cables providing
TTL-to-RS-232C conversion. Contact Motorola Enterprise Mobility Support for more information.
*Baud Rate 57,600 Feature/Option
* Indicates Default
NOTE Most computer monitors allow scanning the bar codes directly on the screen. When scanning from the
screen, be sure to set the document magnification to a level where you can see the bar code clearly, and
bars and/or spaces are not merging.
8 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Connecting an RS-232 Interface
The digital imager scanner connects directly to the host computer.
Figure 8-1
RS-232 Direct Connection
1. Connect the modular connector of the RS-232 interface cable to the cable interface port on the digital imager
scanner (see Installing the Interface Cable on page 1-3).
2. Connect the other end of the RS-232 interface cable to the serial port on the host.
3. Connect the power supply to the serial connector end of the RS-232 interface cable. Plug the power supply
into an appropriate outlet.
4. Select the RS-232 host type by scanning the appropriate bar code from RS-232 Host Types on page 8-6.
5. To modify any other parameter options, scan the appropriate bar codes in this chapter.
Interface Cable
Serial Port Connector to
Host
Power Supply Cable
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 8-1 are examples
only. The connectors may be different than those illustrated, but the steps to connect the scanner are the
same.
RS-232 Interface 8 - 3
RS-232 Parameter Defaults
Table 8-1 lists the defaults for RS-232 host parameters. To change any option, scan the appropriate bar code(s)
provided in the RS-232 Host Parameters section beginning on page 8-4.
NOTE See Appendix A, Standard Default Parameters for all user preferences, hosts, symbologies, and
miscellaneous default parameters.
Table 8-1
RS-232 Host Default Table
Parameter Default Page
Number
RS-232 Host Parameters
RS-232 Host Types Standard 8-6
Baud Rate 9600 8-7
Parity Type None 8-9
Stop Bit Select 1 Stop Bit 8-10
Data Bits 8-Bit 8-10
Check Receive Errors Enable 8-11
Hardware Handshaking None 8-11
Software Handshaking None 8-13
Host Serial Response Time-out 2 Sec 8-15
RTS Line State Low RTS 8-16
Beep on <BEL> Disable 8-16
Intercharacter Delay 0 msec 8-17
Nixdorf Beep/LED Options Normal Operation 8-18
Ignore Unknown Characters Send Bar Code 8-18
8 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
RS-232 Host Parameters
Various RS-232 hosts use their own parameter default settings. Selecting standard, ICL, Fujitsu, Wincor-Nixdorf
Mode A, Wincor-Nixdorf Mode B, OPOS/JPOS, Olivetti, or Omron sets the defaults listed in Table 8-2.
Table 8-2
Terminal Specific RS-232
Parameter ICL Fujitsu Wincor-Nixdorf
Mode A
Wincor-Nixdorf
Mode B/
OPOS/JPOS Olivetti Omron
Transmit Code ID
Yes Yes Yes Yes Yes Yes
Data Transmission
Format
Data/Suffix Data/Suffix Data/Suffix Data/Suffix Prefix/Data/
Suffix
Data/Suffix
Suffix
CR (1013) CR (1013) CR (1013) CR (1013) ETX (1002) CR (1013)
Baud Rate
9600 9600 9600 9600 9600 9600
Parity
Even None Odd Odd Even None
Hardware
Handshaking
RTS/CTS
Option 3
None RTS/CTS
Option 3
RTS/CTS Option 3 None None
Software
Handshaking
None None None None Ack/Nak None
Serial Response
Time-out
9.9 Sec. 2 Sec. 9.9 Sec. 9.9 Sec. 9.9 Sec. 9.9 Sec.
Stop Bit Select
One One One One One One
ASCII Format
8-Bit 8-Bit 8-Bit 8-Bit 7-Bit 8-Bit
Beep On <BEL>
Disable Disable Disable Disable Disable Disable
RTS Line State
High Low Low Low = No data to
send
Low High
Prefix
None None None None STX (1003) None
*In the Nixdorf Mode B, if CTS is low, scanning is disabled. When CTS is high, scanning is enabled.
**If you select Nixdorf Mode B without connecting the digital imager scanner to the proper host, it may
appear unable to scan. If this happens, scan a different RS-232 host type within 5 seconds of cycling power to
the digital imager scanner.
RS-232 Interface 8 - 5
RS-232 Host Parameters (continued)
Selecting ICL, Fujitsu, Wincor-Nixdorf Mode A, Wincor-Nixdorf Mode B, OPOS/JPOS, Olivetti, or Omron enables
the transmission of code ID characters listed in Table 8-3. These code ID characters are not programmable and
are separate from the Transmit Code ID feature. Do not enable the Transmit Code ID feature for these terminals.
Table 8-3
Terminal Specific Code ID Characters
Code Type ICL Fujitsu Wincor-Nixdorf
Mode A Wincor-Nixdorf
Mode B/OPOS/JPOS Olivetti Omron
UPC-A
AAA A AA
UPC-E
EEC C CE
EAN-8/JAN-8
FF FF B B B FF
EAN-13/JAN-13
FFA A AF
Code 39
C <len> None M M M <len> C <len>
Codabar
N <len> None N N N <len> N <len>
Code 128
L <len> None K K K <len> L <len>
I 2 of 5
I <len> None I I I <len> I <len>
Code 93
None None L L L <len> None
D 2 of 5
H <len> None H H H <len> H <len>
GS1-128
L <len> None P P P <len> L <len>
MSI
None None O O O <len> None
Bookland EAN
FFA A AF
Trioptic
None None None None None None
Code 11
None None None None None None
IATA
H<len> None H H None None
Code 32
None None None None None None
8 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
RS-232 Host Types
To select an RS-232 host interface, scan one of the following bar codes.
1Scanning Enable RS-232 (No Variant) activates the RS-232 driver, but does not change port settings (e.g., parity,
data bits, handshaking). Selecting another RS-232 host type bar code changes these settings.
Standard RS-2321
ICL RS-232
Wincor-Nixdorf RS-232 Mode A
Wincor-Nixdorf RS-232 Mode B
Olivetti ORS4500
Omron
RS-232 Interface 8 - 7
RS-232 Host Types (continued)
Baud Rate
Baud rate is the number of bits of data transmitted per second. Set the digital imager scanner's baud rate to match
the baud rate setting of the host device. Otherwise, data may not reach the host device or may reach it in distorted
form.
OPOS/JPOS
Fujitsu RS-232
Baud Rate 600
Baud Rate 1200
Baud Rate 2400
Baud Rate 4800
8 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Baud Rate (continued)
*Baud Rate 9600
Baud Rate 19,200
Baud Rate 38,400
Baud Rate 57,600
Baud Rate 115,200
RS-232 Interface 8 - 9
Parity
A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host
device requirements.
•
Select Odd parity to set the parity bit value to 0 or 1, based on data, to ensure that the coded character
contains an odd number of 1 bits
•
Select Even parity to set the parity bit value to 0 or 1, based on data, to ensure that the coded character
contains an even number of 1 bits.
•
Select None when no parity bit is required.
Odd
Even
*None
8 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Stop Bit Select
The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and
prepares the receiving device for the next character in the serial data stream. Select the number of stop bits (one or
two) based on the number the receiving terminal is programmed to accommodate. Set the number of stop bits to
match host device requirements.
Data Bits
This parameter allows the digital imager scanner to interface with devices requiring a 7-bit or 8-bit ASCII protocol.
*1 Stop Bit
2 Stop Bits
7-Bit
*8-Bit
RS-232 Interface 8 - 11
Check Receive Errors
Select whether or not to check the parity, framing, and overrun of received characters. The parity value of received
characters is verified against the parity parameter selected above.
Hardware Handshaking
The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking
lines, Request to Send (RTS), and Clear to Send (CTS).
Disable Standard RTS/CTS handshaking to transmit scan data as it becomes available. Select Standard RTS/CTS
handshaking to transmit scan data according to the following sequence:
•
The digital imager scanner reads the CTS line for activity. If CTS is asserted, the digital imager scanner waits
up to Host Serial Response Time-out for the host to de-assert the CTS line. If, after Host Serial Response
Time-out (default), the CTS line is still asserted, the digital imager scanner sounds a transmit error, and
discards any scanned data.
•
When the CTS line is de-asserted, the digital imager scanner asserts the RTS line and waits up to Host Serial
Response Time-out for the host to assert CTS. When the host asserts CTS, the scanner transmits data. If,
after Host Serial Response Time-out (default), the CTS line is not asserted, the digital imager scanner
sounds a transmit error, and discards the data.
•
When data transmission completes, the digital imager scanner de-asserts RTS 10 msec after sending the
last character.
•
The host should respond by negating CTS. The digital imager scanner checks for a de-asserted CTS upon
the next transmission of data.
During data transmission, the CTS line should be asserted. If CTS is deasserted for more than 50 ms between
characters, the scanner aborts transmission, sounds a transmission error, and discards the data.
If this communication sequence fails, the digital imager scanner issues an error indication. In this case, the data is
lost and must be rescanned.
If hardware handshaking and software handshaking are both enabled, hardware handshaking takes precedence.
*Check For Received Errors
Do Not Check For Received Errors
NOTE The DTR signal is jumpered to the active state.
8 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Hardware Handshaking (continued)
•
None: Scan this bar code to disable hardware handshaking.
•
Standard RTS/CTS: Scan this bar code to select Standard RTS/CTS Hardware Handshaking.
•
RTS/CTS Option 1: If you select RTS/CTS Option 1, the digital imager scanner asserts RTS before
transmitting and ignores the state of CTS. The digital imager scanner de-asserts RTS when the transmission
is complete.
•
RTS/CTS Option 2: If you select Option 2, RTS is always high or low (user-programmed logic level).
However, the digital imager scanner waits for CTS to be asserted before transmitting data. If CTS is not
asserted within Host Serial Response Time-out (default), the digital imager scanner issues an error indication
and discards the data.
•
RTS/CTS Option 3: If you select Option 3, the digital imager scanner asserts RTS prior to any data
transmission, regardless of the state of CTS. The digital imager scanner waits up to Host Serial Response
Time-out (default) for CTS to be asserted. If CTS is not asserted during this time, the digital imager scanner
issues an error indication and discards the data. The digital imager scanner de-asserts RTS when
transmission completes.
*None
Standard RTS/CTS
RTS/CTS Option 1
RS-232 Interface 8 - 13
Hardware Handshaking (continued)
Software Handshaking
This parameter offers control of the data transmission process in addition to, or instead of, that offered by hardware
handshaking. There are five options.
If software handshaking and hardware handshaking are both enabled, hardware handshaking takes precedence.
•
None: Select this option to transmit data immediately. No response is expected from host.
•
ACK/NAK: If you select this option, after transmitting data, the digital imager scanner expects either an ACK
or NAK response from the host. When it receives a NAK, the digital imager scanner transmits the same data
again and waits for either an ACK or NAK. After three unsuccessful attempts to send data after receiving
NAKs, the digital imager scanner issues an error indication and discards the data.
The digital imager scanner waits up to the programmable Host Serial Response Time-out to receive an ACK
or NAK. If the digital imager scanner does not get a response in this time, it issues an error indication and
discards the data. There are no retries when a time-out occurs.
•
ENQ: If you select this option, the digital imager scanner waits for an ENQ character from the host before
transmitting data. If it does not receive an ENQ within the Host Serial Response Time-out, the digital imager
scanner issues an error indication and discards the data. The host must transmit an ENQ character at least
every Host Serial Response Time-out to prevent transmission errors.
•
ACK/NAK with ENQ: This combines the two previous options. For re-transmissions of data, due to a NAK
from the host, an additional ENQ is not required.
RTS/CTS Option 2
RTS/CTS Option 3
8 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Software Handshaking (continued)
•
XON/XOFF: An XOFF character turns the digital imager scanner transmission off until the digital imager
scanner receives an XON character. There are two situations for XON/XOFF:
•The scanner receives an XOFF before it has data to send. When the digital imager scanner has data to
send, it waits up to Host Serial Response Time-out for an XON character before transmission. If it does
not receive the XON within this time, the digital imager scanner issues an error indication and discards the
data.
•The scanner receives an XOFF during a transmission. Data transmission then stops after sending the
current byte. When the digital imager scanner receives an XON character, it sends the rest of the data
message. The digital imager scanner waits indefinitely for the XON.
*None
ACK/NAK
ENQ
ACK/NAK with ENQ
XON/XOFF
RS-232 Interface 8 - 15
Host Serial Response Time-out
This parameter specifies how long the digital imager scanner waits for an ACK, NAK, or CTS before determining
that a transmission error occurred. This only applies when in one of the ACK/NAK software handshaking modes, or
RTS/CTS hardware handshaking mode.
*Minimum: 2 Sec
Low: 2.5 Sec
Medium: 5 Sec
High: 7.5 Sec
Maximum: 9.9 Sec
8 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
RTS Line State
This parameter sets the idle state of the Serial Host RTS line. Scan a bar code below to select Low RTS or High
RTS line state.
Beep on <BEL>
If you enable this parameter, the digital imager scanner issues a beep when it detects a <BEL> character on the
RS-232 serial line. <BEL> gains a user's attention to an illegal entry or other important event.
*Host: Low RTS
Host: High RTS
Beep On <BEL> Character
(Enable)
*Do Not Beep On <BEL> Character
(Disable)
RS-232 Interface 8 - 17
Intercharacter Delay
This parameter specifies the intercharacter delay inserted between character transmissions.
*Minimum: 0 msec
Low: 25 msec
Medium: 50 msec
High: 75 msec
Maximum: 99 msec
8 - 18 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Nixdorf Beep/LED Options
If you selected Nixdorf Mode B, this indicates when the digital imager scanner beeps and turns on its LED after a
decode.
Ignore Unknown Characters
Unknown characters are characters the host does not recognize. Select Send Bar Codes with Unknown
Characters to send all bar code data except for unknown characters. The scanner sounds no error beeps.
Select Do Not Send Bar Codes With Unknown Characters to send bar code data up to the first unknown
character. The scanner sounds an error beep.
*Normal Operation
(Beep/LED immediately after decode)
Beep/LED After Transmission
Beep/LED After CTS Pulse
*Send Bar Code
(with unknown characters)
Do Not Send Bar Codes
(with unknown characters)
RS-232 Interface 8 - 19
ASCII Character Set for RS-232
You can assign the values in Table 8-4 as prefixes or suffixes for ASCII character data transmission.
Table 8-4
Prefix/Suffix Values
Prefix/Suffix
Value Full ASCII
Code 39 Encode Character ASCII Character
1000
%U NUL
1001
$A SOH
1002
$B STX
1003
$C ETX
1004
$D EOT
1005
$E ENQ
1006
$F ACK
1007
$G BELL
1008
$H BCKSPC
1009
$I HORIZ TAB
1010
$J LF/NW LN
1011
$K VT
1012
$L FF
1013
$M CR/ENTER
1014
$N SO
1015
$O SI
1016
$P DLE
1017
$Q DC1/XON
1018
$R DC2
1019
$S DC3/XOFF
1020
$T DC4
1021
$U NAK
1022
$V SYN
1023
$W ETB
1024
$X CAN
1025
$Y EM
1026
$Z SUB
8 - 20 Symbol DS6707 Digital Imager Scanner Product Reference Guide
1027
%A ESC
1028
%B FS
1029
%C GS
1030
%D RS
1031
%E US
1032
Space Space
1033
/A !
1034
/B "
1035
/C #
1036
/D $
1037
/E %
1038
/F &
1039
/G ‘
1040
/H (
1041
/I )
1042
/J *
1043
/K +
1044
/L ,
1045
--
1046
..
1047
/O /
1048
00
1049
11
1050
22
1051
33
1052
44
1053
55
1054
66
1055
77
1056
88
Table 8-4
Prefix/Suffix Values (Continued)
Prefix/Suffix
Value Full ASCII
Code 39 Encode Character ASCII Character
RS-232 Interface 8 - 21
1057
99
1058
/Z :
1059
%F ;
1060
%G <
1061
%H =
1062
%I >
1063
%J ?
1064
%V @
1065
AA
1066
BB
1067
CC
1068
DD
1069
EE
1070
FF
1071
GG
1072
HH
1073
II
1074
JJ
1075
KK
1076
LL
1077
MM
1078
NN
1079
OO
1080
PP
1081
QQ
1082
RR
1083
SS
1084
TT
1085
UU
1086
VV
Table 8-4
Prefix/Suffix Values (Continued)
Prefix/Suffix
Value Full ASCII
Code 39 Encode Character ASCII Character
8 - 22 Symbol DS6707 Digital Imager Scanner Product Reference Guide
1087
WW
1088
XX
1089
YY
1090
ZZ
1091
%K [
1092
%L \
1093
%M ]
1094
%N ^
1095
%O _
1096
%W `
1097
+A a
1098
+B b
1099
+C c
1100
+D d
1101
+E e
1102
+F f
1103
+G g
1104
+H h
1105
+I i
1106
+J j
1107
+K k
1108
+L l
1109
+M m
1110
+N n
1111
+O o
1112
+P p
1113
+Q q
1114
+R r
1115
+S s
1116
+T t
Table 8-4
Prefix/Suffix Values (Continued)
Prefix/Suffix
Value Full ASCII
Code 39 Encode Character ASCII Character
RS-232 Interface 8 - 23
1117
+U u
1118
+V v
1119
+W w
1120
+X x
1121
+Y y
1122
+Z z
1123
%P {
1124
%Q |
1125
%R }
1126
%S ~
1127
Undefined
7013
ENTER
Table 8-4
Prefix/Suffix Values (Continued)
Prefix/Suffix
Value Full ASCII
Code 39 Encode Character ASCII Character
8 - 24 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Chapter 9 123Scan
Introduction
123Scan is a Windows®-based utility that programs the digital imager scanner with all parameters including
Advanced Data Formatting (ADF) rules. An ADF rule modifies bar code data before sending it to the host to ensure
compatibility between bar coded data and the host application. Program digital imager scanners via PC download
or by scanning a sheet of bar codes generated by the 123Scan utility. Digital imager scanner programming is
saved in a file for electronic distribution. The 123Scan program includes a help file.
Communication with 123Scan
To communicate with the 123Scan program which runs on a host computer running a Windows operating system,
use an RS-232 cable to connect the digital imager scanner to the host computer (see Connecting an RS-232
Interface on page 8-2).
123Scan requirements:
•
Host computer with Windows 98, Windows NT, Windows 2000, or Windows XP
•
Digital imager scanner
•
RS-232 cable.
123Scan Parameter
To communicate with the 123Scan program, load 123Scan, included in the documentation CD-ROM, onto the host
computer, and scan the bar code below. Refer to 123Scan instructions for programming the digital imager scanner.
Scan the bar code below to enable the 123Scan interface on the digital imager scanner.
123Scan Configuration
9 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Chapter 10 Symbologies
Introduction
This chapter describes symbology features and provides programming bar codes for selecting these features.
Before programming, follow the instructions in Chapter 1, Getting Started.
To set feature values, scan a single bar code or a short bar code sequence. The settings are stored in non-volatile
memory and are preserved even when you power down the digital imager scanner.
Select a host type (see each host chapter for specific host information) after the power-up beeps sound. This is
only necessary upon the first power-up when connecting to a new host.
To return all features to default values, scan the Set Default Parameter on page 4-4. Throughout the programming
bar code menus, asterisks (*) indicate default values.
Scanning Sequence Examples
In most cases, scanning one bar code sets the parameter value. For example, to transmit bar code data without the
UPC-A check digit, simply scan the Do Not Transmit UPC-A Check Digit bar code under Transmit UPC-A Check
Digit on page 10-14. The digital imager scanner issues a fast warble beep and the LED turns green, signifying a
successful parameter entry.
Other parameters, such as Set Length(s) for D 2 of 5 require scanning several bar codes. See the individual
parameter, such as Set Length(s) for D 2 of 5, for this procedure.
NOTE Most computer monitors allow scanning the bar codes directly on the screen. When scanning from the
screen, be sure to set the document magnification to a level where you can see the bar code clearly, and
bars and/or spaces are not merging.
*Enable UPC-A
(01h) Feature/Option
* Indicates Default
Option Hex Value for
programming via SSI command
10 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Errors While Scanning
Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter.
Symbology Parameter Defaults
Table 10-1 lists the defaults for all symbologies parameters. There are two ways to change the default values:
•
Scan the appropriate bar codes in this guide. These new values replace the standard default values in
memory. To recall the default parameter values, scan the Set Default Parameter on page 4-4.
•
Download data through the device’s serial port using SSI. Hexadecimal parameter numbers appear in this
chapter below the parameter title, and options appear in parenthesis beneath the accompanying bar codes.
See the Simple Serial Interface (SSI) Programmer’s Guide for detailed instructions for changing parameters
using this method.
NOTE See Appendix A, Standard Default Parameters for all user preferences, hosts, and miscellaneous default
parameters.
Table 10-1
Parameter Defaults
Parameter Parameter
Number Default Page
Number
UPC/EAN
UPC-A 01h Enable 10-7
UPC-E 02h Enable 10-7
UPC-E1 0Ch Disable 10-8
EAN-8/JAN 8 04h Enable 10-8
EAN-13/JAN 13 03h Enable 10-9
Bookland EAN 53h Disable 10-9
Decode UPC/EAN/JAN Supplementals
(2 and 5 digits)
10h Ignore 10-10
User-Programmable Supplementals
Supplemental 1:
Supplemental 2:
F1h 43h
F1h 44h
10-13
UPC/EAN/JAN Supplemental Redundancy 50h 10 10-14
Transmit UPC-A Check Digit 28h Enable 10-14
Transmit UPC-E Check Digit 29h Enable 10-14
Transmit UPC-E1 Check Digit 2Ah Enable 10-15
UPC-A Preamble 22h System Character 10-16
UPC-E Preamble 23h System Character 10-16
Symbologies 10 - 3
UPC-E1 Preamble 24h System Character 10-18
Convert UPC-E to A 25h Disable 10-19
Convert UPC-E1 to A 26h Disable 10-19
EAN-8/JAN-8 Extend 27h Disable 10-20
Bookland ISBN Format F1h 40h ISBN-10 10-21
UCC Coupon Extended Code 55h Disable 10-22
ISSN EAN F1h 69h Disable 10-22
Code 128
Code 128 08h Enable 10-23
Set Length(s) for Code 128 D1h D2h Any Length 10-23
GS1-128 (formerly UCC/EAN-128) 0Eh Enable 10-25
ISBT 128 54h Enable 10-25
ISBT Concatenation F1h 41h Disable 10-26
Check ISBT Table F1h 42h Enable 10-27
ISBT Concatenation Redundancy DFh 10 10-27
Code 39
Code 39 00h Enable 10-28
Trioptic Code 39 0Dh Disable 10-28
Convert Code 39 to Code 32
(Italian Pharmacy Code)
56h Disable 10-29
Code 32 Prefix E7h Disable 10-29
Set Length(s) for Code 39 12h 13h 2 to 55 10-30
Code 39 Check Digit Verification 30h Disable 10-31
Transmit Code 39 Check Digit 2Bh Disable 10-32
Code 39 Full ASCII Conversion 11h Disable 10-32
Buffer Code 39 71h Disable 10-33
Code 93
Code 93 09h Disable 10-36
Set Length(s) for Code 93 1Ah 1Bh 4 to 55 10-36
Table 10-1
Parameter Defaults (Continued)
Parameter Parameter
Number Default Page
Number
10 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code 11
Code 11 0Ah Disable 10-38
Set Lengths for Code 11 1Ch 1Dh 4 to 55 10-38
Code 11 Check Digit Verification 34h Disable 10-40
Transmit Code 11 Check Digit(s) 2Fh Disable 10-41
Interleaved 2 of 5 (ITF)
Interleaved 2 of 5 (ITF) 06h Enable 10-42
Set Lengths for I 2 of 5 16h 17h 14 10-42
I 2 of 5 Check Digit Verification 31h Disable 10-44
Transmit I 2 of 5 Check Digit 2Ch Disable 10-44
Convert I 2 of 5 to EAN 13 52h Disable 10-45
Discrete 2 of 5 (DTF)
Discrete 2 of 5 05h Disable 10-46
Set Length(s) for D 2 of 5 14h 15h 12 10-46
Codabar (NW - 7)
Codabar 07h Disable 10-48
Set Lengths for Codabar 18h 19h 5 to 55 10-48
CLSI Editing 36h Disable 10-50
NOTIS Editing 37h Disable 10-50
MSI
MSI 0Bh Disable 10-51
Set Length(s) for MSI 1Eh 1Fh 4 to 55 10-51
MSI Check Digits 32h One 10-52
Transmit MSI Check Digit 2Eh Disable 10-53
MSI Check Digit Algorithm 33h Mod 10/Mod 10 10-53
Chinese 2 of 5
Chinese 2 of 5 F0h 98h Disable 10-54
Table 10-1
Parameter Defaults (Continued)
Parameter Parameter
Number Default Page
Number
Symbologies 10 - 5
Matrix 2 of 5
Matrix 2 of 5 F1h 6Ah Disable 10-55
Matrix 2 of 5 Lengths F1h 6Bh
F1h 6Ch
1 Length - 14 10-56
Matrix 2 of 5 Redundancy F1h 6Dh Disable 10-57
Matrix 2 of 5 Check Digit F1h 6Eh Disable 10-57
Transmit Matrix 2 of 5 Check Digit F1h 6Fh Disable 10-58
Inverse 1D
F1h 4Ah SR, DC: Regular
DP, HD: Autodetect
10-59
Postal Codes
US Postnet 59h Enable 10-60
US Planet 5Ah Enable 10-60
Transmit US Postal Check Digit 5Fh Enable 10-61
UK Postal 5Bh Enable 10-61
Transmit UK Postal Check Digit 60h Enable 10-62
Japan Postal F0h 22h Enable 10-62
Australian Postal F0h 23h Enable 10-63
Netherlands KIX Code F0h 46h Enable 10-63
USPS 4CB/One Code/Intelligent Mail F1h 50h Disable 10-64
UPU FICS Postal F1h 63h Disable 10-64
GS1 DataBar
GS1 DataBar-14 F0h 52h Enable 10-65
GS1 DataBar Limited F0h 53h Enable 10-65
GS1 DataBar Expanded F0h 54h Enable 10-66
Convert GS1 DataBar to UPC/EAN F0h 8Dh Disable 10-66
Composite
Composite CC-C F0h 55h Disable 10-67
Composite CC-A/B F0h 56h Disable 10-67
Composite TLC-39 F0h 73h Disable 10-68
UPC Composite Mode F0h 58h Always Linked 10-69
Table 10-1
Parameter Defaults (Continued)
Parameter Parameter
Number Default Page
Number
10 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Composite Beep Mode F0h 8Eh Beep As Each Code
Type is Decoded
10-70
GS1-128 Emulation Mode for UCC/EAN
Composite Codes
F0h ABh Disable 10-70
2-D Symbologies
PDF417 0Fh Enable 10-71
MicroPDF417 E3h Disable 10-71
Code 128 Emulation 7Bh Disable 10-72
Data Matrix F0h 24h Enable 10-73
Data Matrix Inverse F1h 4Ch SR, DC: Regular
DP, HD: Autodetect
10-74
Maxicode F0h 26h Enable 10-75
QR Code F0h 25h Enable 10-75
QR Inverse F1h 4Bh SR, DC: Regular
DP, HD: Autodetect
10-76
MicroQR F1h 3Dh Enable 10-77
Aztec F1h 3Eh Enable 10-77
Aztec Inverse F1h 4Dh SR, DC: Regular
DP, HD: Autodetect
10-78
Symbology-Specific Security Levels
Redundancy Level 4Eh 1 10-79
Security Level 4Dh 1 10-81
Intercharacter Gap Size F0h 7Dh Normal 10-82
Report Version 10-82
Macro PDF
Flush Macro PDF Buffer 10-83
Abort Macro PDF Entry 10-83
Table 10-1
Parameter Defaults (Continued)
Parameter Parameter
Number Default Page
Number
Symbologies 10 - 7
UPC/EAN
Enable/Disable UPC-A
Parameter # 01h
To enable or disable UPC-A, scan the appropriate bar code below.
Enable/Disable UPC-E
Parameter # 02h
To enable or disable UPC-E, scan the appropriate bar code below.
*Enable UPC-A
(01h)
Disable UPC-A
(00h)
*Enable UPC-E
(01h)
Disable UPC-E
(00h)
10 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Enable/Disable UPC-E1
Parameter # 0Ch
UPC-E1 is disabled by default.
To enable or disable UPC-E1, scan the appropriate bar code below.
Enable/Disable EAN-8/JAN-8
Parameter # 04h
To enable or disable EAN-8/JAN-8, scan the appropriate bar code below.
NOTE UPC-E1 is not a UCC (Uniform Code Council) approved symbology.
Enable UPC-E1
(01h)
*Disable UPC-E1
(00h)
*Enable EAN-8/JAN-8
(01h)
Disable EAN-8/JAN-8
(00h)
Symbologies 10 - 9
Enable/Disable EAN-13/JAN-13
Parameter # 03h
To enable or disable EAN-13/JAN-13, scan the appropriate bar code below.
Enable/Disable Bookland EAN
Parameter # 53h
To enable or disable Bookland EAN, scan the appropriate bar code below.
*Enable EAN-13/JAN-13
(01h)
Disable EAN-13/JAN-13
(00h)
Enable Bookland EAN
(01h)
*Disable Bookland EAN
(00h)
NOTE If you enable Bookland EAN, select a Bookland ISBN Format on page 10-21. Also select either Decode
UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental
Mode in Decode UPC/EAN/JAN Supplementals on page 10-10.
10 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Decode UPC/EAN/JAN Supplementals
Parameter # 10h
Supplementals are bar codes appended according to specific format conventions (e.g., UPC A+2, UPC E+2, EAN
13+2). The following options are available:
• If you select Ignore UPC/EAN with Supplementals, and the scanner is presented with a UPC/EAN
plus supplemental symbol, the scanner decodes UPC/EAN and ignores the supplemental characters.
• If you select Decode UPC/EAN with Supplementals, the scanner only decodes UPC/EAN symbols with
supplemental characters, and ignores symbols without supplementals.
• If you select Autodiscriminate UPC/EAN Supplementals, the scanner decodes UPC/EAN symbols with
supplemental characters immediately. If the symbol does not have a supplemental, the scanner must
decode the bar code the number of times set via UPC/EAN/JAN Supplemental Redundancy on page 10-14
before transmitting its data to confirm that there is no supplemental.
• If you select one of the following Supplemental Mode options, the scanner immediately transmits EAN-13
bar codes starting with that prefix that have supplemental characters. If the symbol does not have a
supplemental, the scanner must decode the bar code the number of times set via UPC/EAN/JAN
Supplemental Redundancy on page 10-14 before transmitting its data to confirm that there is no
supplemental. The scanner transmits UPC/EAN bar codes that do not have that prefix immediately.
• Enable 378/379 Supplemental Mode
• Enable 978/979 Supplemental Mode
• Enable 977 Supplemental Mode
• Enable 414/419/434/439 Supplemental Mode
• Enable 491 Supplemental Mode
•Enable Smart Supplemental Mode - applies to EAN-13 bar codes starting with any prefix listed
previously.
•Supplemental User-Programmable Type 1 - applies to EAN-13 bar codes starting with a 3-digit
user-defined prefix. Set this 3-digit prefix using User-Programmable Supplementals on page 10-13.
•Supplemental User-Programmable Type 1 and 2 - applies to EAN-13 bar codes starting with either of
two 3-digit user-defined prefixes. Set the 3-digit prefixes using User-Programmable Supplementals on
page 10-13.
•Smart Supplemental Plus User-Programmable 1 - applies to EAN-13 bar codes starting with any
prefix listed previously or the user-defined prefix set using User-Programmable Supplementals on page
10-13.
•Smart Supplemental Plus User-Programmable 1 and 2 - applies to EAN-13 bar codes starting with
any prefix listed previously or one of the two user-defined prefixes set using User-Programmable
Supplementals on page 10-13.
NOTE If you select 978/979 Supplemental Mode and are scanning Bookland EAN bar codes, see
Enable/Disable Bookland EAN on page 10-9 to enable Bookland EAN, and select a format using
Bookland ISBN Format on page 10-21.
NOTE To minimize the risk of invalid data transmission, select either to decode or ignore supplemental
characters.
Symbologies 10 - 11
Decode UPC/EAN/JAN Supplementals (continued)
Decode UPC/EAN/JAN Only With Supplementals
(01h)
*Ignore Supplementals
(00h)
Autodiscriminate UPC/EAN/JAN Supplementals
(02h)
Enable 378/379 Supplemental Mode
(04h)
Enable 978/979 Supplemental Mode
(05h)
Enable 977 Supplemental Mode
(07h)
10 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Decode UPC/EAN/JAN Supplementals (continued)
Enable 414/419/434/439 Supplemental Mode
(06h)
Enable 491 Supplemental Mode
(08h)
Enable Smart Supplemental Mode
(03h)
Supplemental User-Programmable Type 1
(09h)
Supplemental User-Programmable Type 1 and 2
(0Ah)
Smart Supplemental Plus User-Programmable 1
(0Bh)
Smart Supplemental Plus User-Programmable 1 and 2
(0Ch)
Symbologies 10 - 13
User-Programmable Supplementals
Supplemental 1: Parameter # F1h 43h
Supplemental 2: Parameter # F1h 44h
If you selected a Supplemental User-Programmable option from Decode UPC/EAN/JAN Supplementals on page
10-10, select User-Programmable Supplemental 1 to set the 3-digit prefix. Then select the 3 digits using the
numeric bar codes beginning on page D-1. Select User-Programmable Supplemental 2 to set a second 3-digit
prefix. Then select the 3 digits using the numeric bar codes beginning on page D-1.
User-Programmable Supplemental 1
User-Programmable Supplemental 2
10 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
UPC/EAN/JAN Supplemental Redundancy
Parameter # 50h
If you selected Autodiscriminate UPC/EAN/JAN Supplementals, this option adjusts the number of times a
symbol without supplementals is decoded before transmission. The range is from two to thirty times. Five or above
is recommended when decoding a mix of UPC/EAN/JAN symbols with and without supplementals. The default is
set at 10.
Scan the bar code below to set a decode redundancy value. Next, scan two numeric bar codes in Appendix D,
Numeric Bar Codes. Enter a leading zero for single digit numbers. To correct an error or change a selection, scan
Cancel on page D-2.
Transmit UPC-A Check Digit
Parameter # 28h
The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar
code below to transmit the bar code data with or without the UPC-A check digit. It is always verified to guarantee
the integrity of the data.
UPC/EAN/JAN Supplemental Redundancy
*Transmit UPC-A Check Digit
(01h)
Do Not Transmit UPC-A Check Digit
(00h)
Symbologies 10 - 15
Transmit UPC-E Check Digit
Parameter # 29h
The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar
code below to transmit the bar code data with or without the UPC-E check digit. It is always verified to guarantee
the integrity of the data.
Transmit UPC-E1 Check Digit
Parameter # 2Ah
The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar
code below to transmit the bar code data with or without the UPC-E1 check digit. It is always verified to guarantee
the integrity of the data.
*Transmit UPC-E Check Digit
(01h)
Do Not Transmit UPC-E Check Digit
(00h)
*Transmit UPC-E1 Check Digit
(01h)
Do Not Transmit UPC-E1 Check Digit
(00h)
10 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
UPC-A Preamble
Parameter # 22h
Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are
three options for transmitting a UPC-A preamble to the host device: transmit System Character only, transmit
System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to
match the host system.
No Preamble (<DATA>)
(00h)
*System Character (<SYSTEM CHARACTER> <DATA>)
(01h)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
(02h)
Symbologies 10 - 17
UPC-E Preamble
Parameter # 23h
Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are
three options for transmitting a UPC-E preamble to the host device: transmit System Character only, transmit
System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to
match the host system.
No Preamble (<DATA>)
(00h)
*System Character (<SYSTEM CHARACTER> <DATA>)
(01h)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
(02h)
10 - 18 Symbol DS6707 Digital Imager Scanner Product Reference Guide
UPC-E1 Preamble
Parameter # 24h
Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are
three options for transmitting a UPC-E1 preamble to the host device: transmit System Character only, transmit
System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to
match the host system.
No Preamble (<DATA>)
(00h)
*System Character (<SYSTEM CHARACTER> <DATA>)
(01h)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
(02h)
Symbologies 10 - 19
Convert UPC-E to UPC-A
Parameter # 25h
Enable this to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble,
Check Digit).
Disable this to transmit UPC-E decoded data as UPC-E data, without conversion.
Convert UPC-E1 to UPC-A
Parameter # 26h
Enable this to convert UPC-E1 decoded data to UPC-A format before transmission. After conversion, the data
follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).
Disable this to transmit UPC-E1 decoded data as UPC-E1 data, without conversion.
Convert UPC-E to UPC-A (Enable)
(01h)
*Do Not Convert UPC-E to UPC-A (Disable)
(00h)
Convert UPC-E1 to UPC-A (Enable)
(01h)
*Do Not Convert UPC-E1 to UPC-A (Disable)
(00h)
10 - 20 Symbol DS6707 Digital Imager Scanner Product Reference Guide
EAN-8/JAN-8 Extend
Parameter # 27h
Enable this to add five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13
symbols.
Disable this to transmit EAN-8 symbols as is.
Enable EAN/JAN Zero Extend
(01h)
*Disable EAN/JAN Zero Extend
(00h)
Symbologies 10 - 21
Bookland ISBN Format
Parameter # F1h 40h
If you enabled Bookland EAN using Enable/Disable Bookland EAN on page 10-9, select one of the following
formats for Bookland data:
•
Bookland ISBN-10 - The scanner reports Bookland data starting with 978 in traditional 10-digit format with
the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered
Bookland in this mode.
•
Bookland ISBN-13 - The scanner reports Bookland data (starting with either 978 or 979) as EAN-13 in
13-digit format to meet the 2007 ISBN-13 protocol.
*Bookland ISBN-10
(00h)
Bookland ISBN-13
(01h)
NOTE For Bookland EAN to function properly, first enable Bookland EAN using Enable/Disable Bookland EAN
on page 10-9, then select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN
Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN/JAN Supplementals on
page 10-10.
10 - 22 Symbol DS6707 Digital Imager Scanner Product Reference Guide
UCC Coupon Extended Code
Parameter # 55h
Enable this to decode UPC-A bar codes starting with digit ‘5’, EAN-13 bar codes starting with digit ‘99’, and
UPC-A/GS1-128 Coupon Codes. UPCA, EAN-13, and GS1-128 must be enabled to scan all types of Coupon
Codes.
ISSN EAN
Parameter # F1h 69h
To enable or disable ISSN EAN, scan the appropriate bar code below.
Enable UCC Coupon Extended Code
(01h)
*Disable UCC Coupon Extended Code
(00h)
NOTE Use the Decode UPC/EAN Supplemental Redundancy parameter to control autodiscrimination of the
GS1-128 (right half) of a coupon code.
Enable ISSN EAN
(01h)
*Disable ISSN EAN
(00h)
Symbologies 10 - 23
Code 128
Enable/Disable Code 128
Parameter # 08h
To enable or disable Code 128, scan the appropriate bar code below.
Set Lengths for Code 128
Parameter # L1 = D1h, L2 = D2h
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 128 to any length, one or two discrete lengths, or lengths within a specific
range.
•
One Discrete Length - Select this option to decode only Code 128 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only Code 128 symbols with 14 characters, scan Code 128 - One Discrete Length, then scan 1 followed by
4. To correct an error or change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only Code 128 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only Code 128 symbols containing either 2 or 14 characters, select Code 128 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or change the selection, scan
Cancel on page D-2.
•
Length Within Range - Select this option to decode a Code 128 symbol within a specific length
range. Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to
decode Code 128 symbols containing between 4 and 12 characters, first scan Code 128 - Length Within
Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or
change the selection, scan Cancel on page D-2.
•
Any Length - Select this option to decode Code 128 symbols containing any number of characters within the
digital scanner’s capability.
*Enable Code 128
(01h)
Disable Code 128
(00h)
NOTE When setting lengths for different bar code types, enter a leading zero for single digit numbers.
10 - 24 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Set Lengths for Code 128 (continued)
Code 128 - One Discrete Length
Code 128 - Two Discrete Lengths
Code 128 - Length Within Range
*Code 128 - Any Length
Symbologies 10 - 25
Enable/Disable GS1-128 (formerly UCC/EAN-128)
Parameter # 0Eh
To enable or disable GS1-128, scan the appropriate bar code below.
Enable/Disable ISBT 128
Parameter # 54h
ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan a bar code below to enable or disable
ISBT 128. If necessary, the host must perform concatenation of the ISBT data.
*Enable GS1-128
(01h)
Disable GS1-128
(00h)
*Enable ISBT 128
(01h)
Disable ISBT 128
(00h)
10 - 26 Symbol DS6707 Digital Imager Scanner Product Reference Guide
ISBT Concatenation
Parameter # F1h 41h
Select an option for concatenating pairs of ISBT code types:
•
If you select Disable ISBT Concatenation, the digital scanner does not concatenate pairs of ISBT
codes it encounters.
•
If you select Enable ISBT Concatenation, there must be two ISBT codes in order for the digital scanner to
decode and perform concatenation. The digital scanner does not decode single ISBT symbols.
•
If you select Autodiscriminate ISBT Concatenation, the digital scanner decodes and concatenates pairs
of ISBT codes immediately. If only a single ISBT symbol is present, the digital scanner must decode the
symbol the number of times set via ISBT Concatenation Redundancy on page 10-27 before transmitting its
data to confirm that there is no additional ISBT symbol.
*Disable ISBT Concatenation
(00h)
Enable ISBT Concatenation
(01h)
Autodiscriminate ISBT Concatenation
(02h)
Symbologies 10 - 27
Check ISBT Table
Parameter # F1h 42h
The ISBT specification includes a table that lists several types of ISBT bar codes that are commonly used in pairs.
If you set ISBT Concatenation to Enable, enable Check ISBT Table to concatenate only those pairs found in this
table. Other types of ISBT codes are not concatenated.
ISBT Concatenation Redundancy
Parameter # DFh
If you set ISBT Concatenation to Autodiscriminate, use this parameter to set the number of times the digital
scanner must decode an ISBT symbol before determining that there is no additional symbol.
Scan the bar code below, then scan two numeric bar codes in Appendix D, Numeric Bar Codes to set a value
between 2 and 20. Enter a leading zero for single digit numbers. To correct an error or change a selection, scan
Cancel on page D-2. The default is 10.
*Enable Check ISBT Table
(01h)
Disable Check ISBT Table
(00h)
ISBT Concatenation Redundancy
10 - 28 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code 39
Enable/Disable Code 39
Parameter # 00h
To enable or disable Code 39, scan the appropriate bar code below.
Enable/Disable Trioptic Code 39
Parameter # 0Dh
Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges. Trioptic Code 39 symbols
always contain six characters. To enable or disable Trioptic Code 39, scan the appropriate bar code below.
*Enable Code 39
(01h)
Disable Code 39
(00h)
Enable Trioptic Code 39
(01h)
*Disable Trioptic Code 39
(00h)
NOTE You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously.
Symbologies 10 - 29
Convert Code 39 to Code 32
Parameter # 56h
Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below
to enable or disable converting Code 39 to Code 32.
Code 32 Prefix
Parameter # E7h
Scan the appropriate bar code below to enable or disable adding the prefix character “A” to all Code 32 bar codes.
NOTE Code 39 must be enabled for this parameter to function.
Enable Convert Code 39 to Code 32
(01h)
*Disable Convert Code 39 to Code 32
(00h)
NOTE Convert Code 39 to Code 32 must be enabled for this parameter to function.
Enable Code 32 Prefix
(01h)
*Disable Code 32 Prefix
(00h)
10 - 30 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Set Lengths for Code 39
Parameter # L1 = 12h, L2 = 13h
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 39 to any length, one or two discrete lengths, or lengths within a specific
range. If Code 39 Full ASCII is enabled, Length Within a Range or Any Length are the preferred options.
•
One Discrete Length - Select this option to decode only Code 39 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only Code 39 symbols with 14 characters, scan Code 39 - One Discrete Length, then scan 1 followed by 4.
To correct an error or change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only Code 39 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only those Code 39 symbols containing either 2 or 14 characters, select Code 39 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or change the selection, scan
Cancel on page D-2.
•
Length Within Range - Select this option to decode a Code 39 symbol with a specific length range.
Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
Code 39 symbols containing between 4 and 12 characters, first scan Code 39 - Length Within Range.
Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the
selection, scan Cancel on page D-2.
•
Any Length - Select this option to decode Code 39 symbols containing any number of characters within the
digital imager scanner capability.
NOTE When setting lengths for different bar code types, enter a leading zero for single digit numbers.
Code 39 - One Discrete Length
Code 39 - Two Discrete Lengths
Symbologies 10 - 31
Set Lengths for Code 39 (continued)
Code 39 Check Digit Verification
Parameter # 30h
Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with specified
check digit algorithm. Only Code 39 symbols which include a modulo 43 check digit are decoded, so only enable
this if the Code 39 symbols contain a Modulo 43 check digit.
Code 39 - Length Within Range
Code 39 - Any Length
Enable Code 39 Check Digit
(01h)
*Disable Code 39 Check Digit
(00h)
10 - 32 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Transmit Code 39 Check Digit
Parameter # 2Bh
Scan a bar code below to transmit Code 39 data with or without the check digit.
Code 39 Full ASCII Conversion
Parameter # 11h
Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. To enable
or disable Code 39 Full ASCII, scan the appropriate bar code below.
Transmit Code 39 Check Digit (Enable)
(01h)
*Do Not Transmit Code 39 Check Digit (Disable)
(00h)
NOTE Code 39 Check Digit Verification must be enabled for this parameter to function.
Enable Code 39 Full ASCII
(01h)
*Disable Code 39 Full ASCII
(00h)
NOTE You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously.
Code 39 Full ASCII to Full ASCII Correlation is host-dependent. See the ASCII Character Set for USB on
page 7-13 or the ASCII Character Set for RS-232 on page 8-19 for more information.
Symbologies 10 - 33
Code 39 Buffering (Scan & Store)
Parameter # 71h
This feature allows the digital imager scanner to accumulate data from multiple Code 39 symbols.
Selecting the Scan and Store option (Buffer Code 39) temporarily buffers all Code 39 symbols having a leading
space as a first character for later transmission. The leading space is not buffered.
Decode of a valid Code 39 symbol with no leading space transmits in sequence all buffered data in a first-in
first-out format, plus the “triggering” symbol. See the following pages for further details.
Select Do Not Buffer Code 39 to transmit all decoded Code 39 symbols immediately without being stored in the
buffer.
This feature affects Code 39 only. If selecting Buffer Code 39, Motorola recommends configuring the digital imager
scanner to decode Code 39 symbology only.
While there is data in the transmission buffer, you cannot select Do Not Buffer Code 39. The buffer holds 200
bytes of information.
To disable Code 39 buffering when there is data in the transmission buffer, first force the buffer transmission (see
Transmit Buffer on page 10-34) or clear the buffer.
Buffer Data
To buffer data, Code 39 buffering must be enabled and a Code 39 symbol must be read with a space immediately
following the start pattern.
•
Unless the data overflows the transmission buffer, the digital imager scanner issues a low/high beep to
indicate successful decode and buffering. For overflow conditions, see Overfilling Transmission Buffer.
•
The digital imager scanner adds the decoded data excluding the leading space to the transmission buffer.
•
No transmission occurs.
Buffer Code 39 (Enable)
(01h)
*Do Not Buffer Code 39 (Disable)
(00h)
10 - 34 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Clear Transmission Buffer
To clear the transmission buffer, scan the Clear Buffer bar code below, which contains only a start character, a
dash (minus), and a stop character.
•
The digital imager scanner issues a short high/low/high beep.
•
The digital imager scanner erases the transmission buffer.
•
No transmission occurs.
Transmit Buffer
There are two methods to transmit the Code 39 buffer.
1. Scan the Transmit Buffer bar code, which includes only a start character, a plus (+), and a stop character.
2. The digital imager scanner transmits and clears the buffer.
•
The digital imager scanner issues a Low/High beep.
3. Scan a Code 39 bar code with a leading character other than a space.
•
The digital imager scanner appends new decode data to buffered data.
•
The digital imager scanner transmits and clears the buffer.
•
The digital imager scanner signals that the buffer transmitted with a low/high beep.
•
The digital imager scanner transmits and clears the buffer.
Clear Buffer
NOTE The Clear Buffer contains only the dash (minus) character. To scan this command, set Code 39 lengths to
include length 1.
Transmit Buffer
NOTE The Transmit Buffer contains only a plus (+) character. In order to scan this command, set Code 39
lengths to include length 1.
Symbologies 10 - 35
Overfilling Transmission Buffer
The Code 39 buffer holds 200 characters. If the symbol just read results in an overflow of the transmission buffer:
•
The digital imager scanner indicates that it rejected the symbol by issuing three long, high beeps.
•
No transmission occurs. The data in the buffer is not affected.
Attempt to Transmit an Empty Buffer
If the symbol just read was the Transmit Buffer symbol and the Code 39 buffer is empty:
•
A short low/high/low beep signals that the buffer is empty.
•
No transmission occurs.
•
The buffer remains empty.
10 - 36 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code 93
Enable/Disable Code 93
Parameter # 09h
To enable or disable Code 93, scan the appropriate bar code below.
Set Lengths for Code 93
Parameter # L1 = 1Ah, L2 = 1Bh
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 93 to any length, one or two discrete lengths, or lengths within a specific
range.
•
One Discrete Length - Select this option to decode only Code 93 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only Code 93 symbols with 14 characters, scan Code 93 - One Discrete Length, then scan 1 followed by 4.
To correct an error or to change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only Code 93 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only Code 93 symbols containing either 2 or 14 characters, select Code 93 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan
Cancel on page D-2.
•
Length Within Range - Select this option to decode a Code 93 symbol with a specific length range.
Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
Code 93 symbols containing between 4 and 12 characters, first scan Code 93 - Length Within Range.
Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the
selection, scan Cancel on page D-2.
•
Any Length - Scan this option to decode Code 93 symbols containing any number of characters within the
digital imager scanner’s capability.
Enable Code 93
(01h)
*Disable Code 93
(00h)
Symbologies 10 - 37
Set Lengths for Code 93 (continued)
Code 93 - One Discrete Length
Code 93 - Two Discrete Lengths
Code 93 - Length Within Range
Code 93 - Any Length
10 - 38 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code 11
Code 11
Parameter # 0Ah
To enable or disable Code 11, scan the appropriate bar code below.
Set Lengths for Code 11
Parameter # L1 = 1Ch, L2 = 1Dh
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Code 11 to any length, one or two discrete lengths, or lengths within a specific
range.
•
One Discrete Length - Select this option to decode only Code 11 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only Code 11 symbols with 14 characters, scan Code 11 - One Discrete Length, then scan 1 followed by 4.
To correct an error or to change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only Code 11 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only those Code 11 symbols containing either 2 or 14 characters, select Code 11 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan
Cancel on page D-2.
•
Length Within Range - Select this option to decode a Code 11 symbol with a specific length range.
Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
Code 11 symbols containing between 4 and 12 characters, first scan Code 11 - Length Within Range.
Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the
selection, scan Cancel on page D-2.
•
Any Length - Scan this option to decode Code 11 symbols containing any number of characters within the
digital imager scanner capability.
Enable Code 11
(01h)
*Disable Code 11
(00h)
Symbologies 10 - 39
Set Lengths for Code 11 (continued)
Code 11 - One Discrete Length
Code 11 - Two Discrete Lengths
Code 11 - Length Within Range
Code 11 - Any Length
10 - 40 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code 11 Check Digit Verification
Parameter # 34h
Enable this to check the integrity of all Code 11 symbols to verify that the data complies with the specified check
digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code. The options are to
check for one check digit, check for two check digits, or disable the feature.
To enable this feature, scan the bar code below corresponding to the number of check digits encoded in the Code
11 symbols.
*Disable
(00h)
One Check Digit
(01h)
Two Check Digits
(02h)
Symbologies 10 - 41
Transmit Code 11 Check Digits
Parameter # 2Fh
This feature selects whether or not to transmit the Code 11 check digit(s).
Transmit Code 11 Check Digit(s) (Enable)
(01h)
*Do Not Transmit Code 11 Check Digit(s) (Disable)
(00h)
NOTE Code 11 Check Digit Verification must be enabled for this parameter to function.
10 - 42 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Interleaved 2 of 5 (ITF)
Enable/Disable Interleaved 2 of 5
Parameter # 06h
To enable or disable Interleaved 2 of 5, scan the appropriate bar code below, and select an Interleaved 2 of 5
length from the following pages.
Set Lengths for Interleaved 2 of 5
Parameter # L1 = 16h, L2 = 17h
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for I 2 of 5 to any length, one or two discrete lengths, or lengths within a specific
range.
•
One Discrete Length - Select this option to decode only I 2 of 5 symbols containing a selected length. Select
the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode only I 2
of 5 symbols with 14 characters, scan I 2 of 5 - One Discrete Length, then scan 1 followed by 4. To correct
an error or to change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only I 2 of 5 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only those I 2 of 5 symbols containing either 2 or 14 characters, select I 2 of 5 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan
Cancel on page D-2.
•
Length Within Range - Select this option to decode an I 2 of 5 symbol with a specific length range.
Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode I 2 of
5 symbols containing between 4 and 12 characters, first scan I 2 of 5 - Length Within Range. Then scan 0,
4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the selection,
scan Cancel on page D-2.
•
Any Length - Scan this option to decode I 2 of 5 symbols containing any number of characters within the
digital imager scanner’s capability.
*Enable Interleaved 2 of 5
(01h)
Disable Interleaved 2 of 5
(00h)
NOTE Due to the construction of the I 2 of 5 symbology, it is possible for a scan line covering only a portion of the
code to transmit as a complete scan, yielding less data than is encoded in the bar code. To prevent this,
select specific lengths (I 2 of 5 - One Discrete Length, Two Discrete Lengths) for I 2 of 5 applications.
Symbologies 10 - 43
Set Lengths for Interleaved 2 of 5
I 2 of 5 - One Discrete Length
I 2 of 5 - Two Discrete Lengths
I 2 of 5 - Length Within Range
I 2 of 5 - Any Length
10 - 44 Symbol DS6707 Digital Imager Scanner Product Reference Guide
I 2 of 5 Check Digit Verification
Parameter # 31h
Enable this to check the integrity of all I 2 of 5 symbols to verify the data complies with either the specified Uniform
Symbology Specification (USS), or the Optical Product Code Council (OPCC) check digit algorithm.
Transmit I 2 of 5 Check Digit
Parameter # 2Ch
Scan the appropriate bar code below to transmit I 2 of 5 data with or without the check digit.
*Disable
(00h)
USS Check Digit
(01h)
OPCC Check Digit
(02h)
Transmit I 2 of 5 Check Digit (Enable)
(01h)
*Do Not Transmit I 2 of 5 Check Digit (Disable)
(00h)
Symbologies 10 - 45
Convert I 2 of 5 to EAN-13
Parameter # 52h
Enable this parameter to convert 14-character I 2 of 5 codes to EAN-13, and transmit to the host as EAN-13. To
accomplish this, the I 2 of 5 code must be enabled, and the code must have a leading zero and a valid EAN-13
check digit.
Convert I 2 of 5 to EAN-13 (Enable)
(01h)
*Do Not Convert I 2 of 5 to EAN-13 (Disable)
(00h)
10 - 46 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Discrete 2 of 5 (DTF)
Enable/Disable Discrete 2 of 5
Parameter # 05h
To enable or disable Discrete 2 of 5, scan the appropriate bar code below.
Set Lengths for Discrete 2 of 5
Parameter # L1 = 14h, L2 = 15h
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for D 2 of 5 to any length, one or two discrete lengths, or lengths within a specific
range.
•
One Discrete Length - Select this option to decode only D 2 of 5 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only D 2 of 5 symbols with 14 characters, scan D 2 of 5 - One Discrete Length, then scan 1 followed by 4.
To correct an error or to change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only D 2 of 5 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only those D 2 of 5 symbols containing either 2 or 14 characters, select D 2 of 5 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan
Cancel on page D-2.
•
Length Within Range - Select this option to decode a D 2 of 5 symbol with a specific length range.
Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode D 2
of 5 symbols containing between 4 and 12 characters, first scan D 2 of 5 - Length Within Range. Then
scan 0, 4, 1, and 2 (single digit numbers must always be preceded by a leading zero). To correct an error or
change the selection, scan Cancel on page D-2.
•
Any Length - Scan this option to decode D 2 of 5 symbols containing any number of characters within the
digital imager scanner capability.
Enable Discrete 2 of 5
(01h)
*Disable Discrete 2 of 5
(00h)
NOTE Due to the construction of the D 2 of 5 symbology, it is possible for a scan line covering only a portion of
the code to transmit as a complete scan, yielding less data than is encoded in the bar code. To prevent
this, select specific lengths (D 2 of 5 - One Discrete Length, Two Discrete Lengths) for D 2 of 5
applications.
Symbologies 10 - 47
Set Lengths for Discrete 2 of 5 (continued)
D 2 of 5 - One Discrete Length
D 2 of 5 - Two Discrete Lengths
D 2 of 5 - Length Within Range
D 2 of 5 - Any Length
10 - 48 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Codabar (NW - 7)
Enable/Disable Codabar
Parameter # 07h
To enable or disable Codabar, scan the appropriate bar code below.
Set Lengths for Codabar
Parameter # L1 = 18h, L2 = 19h
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Codabar to any length, one or two discrete lengths, or lengths within a specific
range.
•
One Discrete Length - Select this option to decode only Codabar symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only Codabar symbols with 14 characters, scan Codabar - One Discrete Length, then scan 1 followed by 4.
To correct an error or to change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only Codabar symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only Codabar symbols containing either 2 or 14 characters, select Codabar - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan
Cancel on page D-2.
•
Length Within Range - Select this option to decode a Codabar symbol with a specific length range.
Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
Codabar symbols containing between 4 and 12 characters, first scan Codabar - Length Within Range.
Then scan 0, 4, 1, and 2 (single digit numbers must always be preceded by a leading zero). To correct an
error or change the selection, scan Cancel on page D-2.
•
Any Length - Scan this option to decode Codabar symbols containing any number of characters within the
digital imager scanner’s capability.
Enable Codabar
(01h)
*Disable Codabar
(00h)
Symbologies 10 - 49
Set Lengths for Codabar (continued)
Codabar - One Discrete Length
Codabar - Two Discrete Lengths
Codabar - Length Within Range
Codabar - Any Length
10 - 50 Symbol DS6707 Digital Imager Scanner Product Reference Guide
CLSI Editing
Parameter # 36h
Enable this to strip the start and stop characters and insert a space after the first, fifth, and tenth characters of a
14-character Codabar symbol. Enable this feature if the host system requires this data format.
NOTIS Editing
Parameter # 37h
Enable this to strip the start and stop characters from a decoded Codabar symbol. Enable this feature if the host
system requires this data format.
NOTE Symbol length does not include start and stop characters.
Enable CLSI Editing
(01h)
*Disable CLSI Editing
(00h)
Enable NOTIS Editing
(01h)
*Disable NOTIS Editing
(00h)
Symbologies 10 - 51
MSI
Enable/Disable MSI
Parameter # 0Bh
To enable or disable MSI, scan the appropriate bar code below.
Set Lengths for MSI
Parameter # L1 = 1Eh, L2 = 1Fh
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for MSI to any length, one or two discrete lengths, or lengths within a specific range.
•
One Discrete Length - Select this option to decode only MSI symbols containing a selected length. Select
the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode only MSI
symbols with 14 characters, scan MSI - One Discrete Length, then scan 1 followed by 4. To correct an
error or to change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only MSI symbols containing either of two selected
lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to
decode only MSI symbols containing either 2 or 14 characters, select MSI - Two Discrete Lengths, then
scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan Cancel on page D-2.
•
Length Within Range - Select this option to decode a MSI symbol within a specific length range.
Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode MSI
symbols containing between 4 and 12 characters, first scan MSI - Length Within Range. Then scan 0, 4,
1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the selection, scan
Cancel on page D-2.
•
Any Length - Scan this option to decode MSI symbols containing any number of characters within the digital
imager scanner capability.
Enable MSI
(01h)
*Disable MSI
(00h)
NOTE Due to the construction of the MSI symbology, it is possible for a scan line covering only a portion of the
code to transmit as a complete scan, yielding less data than is encoded in the bar code. To prevent this,
select specific lengths (MSI - One Discrete Length, Two Discrete Lengths) for MSI applications.
10 - 52 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Set Lengths for MSI (continued)
MSI Check Digits
Parameter # 32h
With MSI symbols, one check digit is mandatory and always verified by the reader. The second check digit is
optional. If the MSI codes include two check digits, scan the Two MSI Check Digits bar code to enable verification
of the second check digit.
See MSI Check Digit Algorithm on page 10-53 for the selection of second digit algorithms.
MSI - One Discrete Length
MSI - Two Discrete Lengths
MSI - Length Within Range
MSI - Any Length
*One MSI Check Digit
(00h)
Two MSI Check Digits
(01h)
Symbologies 10 - 53
Transmit MSI Check Digit(s)
Parameter # 2Eh
Scan a bar code below to transmit MSI data with or without the check digit.
MSI Check Digit Algorithm
Parameter # 33h
Two algorithms are possible for verifying the second MSI check digit. Select the bar code below corresponding to
the algorithm used to encode the check digit.
Transmit MSI Check Digit(s) (Enable)
(01h
*Do Not Transmit MSI Check Digit(s) (Disable)
(00h)
MOD 10/MOD 11
(00h)
*MOD 10/MOD 10
(01h)
10 - 54 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Chinese 2 of 5
Enable/Disable Chinese 2 of 5
Parameter # F0h 98h
To enable or disable Chinese 2 of 5, scan the appropriate bar code below.
Enable Chinese 2 of 5
(01h)
*Disable Chinese 2 of 5
(00h)
Symbologies 10 - 55
Matrix 2 of 5
Enable/Disable Matrix 2 of 5
Parameter # F1h 6Ah
To enable or disable Matrix 2 of 5, scan the appropriate bar code below.
Enable Matrix 2 of 5
(01h)
*Disable Matrix 2 of 5
(00h)
10 - 56 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Set Lengths for Matrix 2 of 5
Parameter # L1 = F1h 6Bh, L2 = F1h 6Ch
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)
the code contains. Set lengths for Matrix 2 of 5 to any length, one or two discrete lengths, or lengths within a
specific range.
•
One Discrete Length - Select this option to decode only Matrix 2 of 5 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode
only Matrix 2 of 5 symbols with 14 characters, scan Matrix 2 of 5 - One Discrete Length, then scan 1
followed by 4. To correct an error or to change the selection, scan Cancel on page D-2.
•
Two Discrete Lengths - Select this option to decode only Matrix 2 of 5 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For
example, to decode only Matrix 2 of 5 symbols containing either 2 or 14 characters, select Matrix 2 of 5 -
Two Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection,
scan Cancel on page D-2.
•
Length Within Range - Select this option to decode a Matrix 2 of 5 symbol with a specific length
range. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to
decode Matrix 2 of 5 symbols containing between 4 and 12 characters, first scan Matrix 2 of 5 - Length
Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error
or change the selection, scan Cancel on page D-2.
•
Any Length - Scan this option to decode Matrix 2 of 5 symbols containing any number of characters within
the digital scanner’s capability.
*Matrix 2 of 5 - One Discrete Length
Matrix 2 of 5 - Two Discrete Lengths
Matrix 2 of 5 - Length Within Range
Matrix 2 of 5 - Any Length
Symbologies 10 - 57
Matrix 2 of 5 Redundancy
Parameter # F1h 6Dh
To enable or disable Matrix 2 of 5 redundancy, scan the appropriate bar code below.
Matrix 2 of 5 Check Digit
Parameter # F1h 6Eh
The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar
code below to transmit the bar code data with or without the Matrix 2 of 5 check digit.
Enable Matrix 2 of 5 Redundancy
(01h)
*Disable Matrix 2 of 5 Redundancy
(00h)
Enable Matrix 2 of 5 Check Digit
(01h)
*Disable Matrix 2 of 5 Check Digit
(00h)
10 - 58 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Transmit Matrix 2 of 5 Check Digit
Parameter # F1h 6Fh
Scan a bar code below to transmit Matrix 2 of 5 data with or without the check digit.
Transmit Matrix 2 of 5 Check Digit
(01h)
*Do Not Transmit Matrix 2 of 5 Check Digit
(00h)
Symbologies 10 - 59
Inverse 1D
Parameter # F1h 4Ah
This parameter sets the 1D inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular 1D bar codes only.
•
Inverse Only - the scanner decodes inverse 1D bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse 1D bar codes.
NOTE The default for this option varies by scanner model as follows:
DS6707-SR, DS6707-DC: Regular
DS6707-DP, DS6707-HD: Inverse Autodetect
Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
10 - 60 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Postal Codes
US Postnet
Parameter # 59h
To enable or disable US Postnet, scan the appropriate bar code below.
US Planet
Parameter # 5Ah
To enable or disable US Planet, scan the appropriate bar code below.
*Enable US Postnet
(01h)
Disable US Postnet
(00h)
*Enable US Planet
(01h)
Disable US Planet
(00h)
Symbologies 10 - 61
Transmit US Postal Check Digit
Parameter # 5Fh
Select whether to transmit US Postal data, which includes both US Postnet and US Planet, with or without the
check digit.
UK Postal
Parameter # 5Bh
To enable or disable UK Postal, scan the appropriate bar code below.
*Transmit US Postal Check Digit
(01h)
Do Not Transmit US Postal Check Digit
(00h)
*Enable UK Postal
(01h)
Disable UK Postal
(00h)
10 - 62 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Transmit UK Postal Check Digit
Parameter # 60h
Select whether to transmit UK Postal data with or without the check digit.
Japan Postal
Parameter # F0h, 22h
To enable or disable Japan Postal, scan the appropriate bar code below.
*Transmit UK Postal
Check Digit
(01h)
Do Not Transmit UK Postal Check Digit
(00h)
*Enable Japan Postal
(01h)
Disable Japan Postal
(00h)
Symbologies 10 - 63
Australian Postal
Parameter # F0h, 23h
To enable or disable Australian Postal, scan the appropriate bar code below.
Netherlands KIX Code
Parameter # F0h, 46h
To enable or disable Netherlands KIX Code, scan the appropriate bar code below.
*Enable Australian Postal
(01h)
Disable Australian Postal
(00h)
*Enable Netherlands KIX Code
(01h)
Disable Netherlands KIX Code
(00h)
10 - 64 Symbol DS6707 Digital Imager Scanner Product Reference Guide
USPS 4CB/One Code/Intelligent Mail
Parameter # F1h 50h
To enable or disable USPS 4CB/One Code/Intelligent Mail, scan the appropriate bar code below.
UPU FICS Postal
Parameter # F1h 63h
To enable or disable UPU FICS Postal, scan the appropriate bar code below.
Enable USPS 4CB/One Code/Intelligent Mail
(01h)
*Disable USPS 4CB/One Code/Intelligent Mail
(00h)
Enable UPU FICS Postal
(01h)
*Disable UPU FICS Postal
(00h)
Symbologies 10 - 65
GS1 DataBar
The variants of GS1 DataBar are DataBar-14, DataBar Expanded, and DataBar Limited. The limited and expanded
versions have stacked variants. Scan the appropriate bar codes to enable or disable each variant of GS1 DataBar.
GS1 DataBar-14
Parameter # F0h 52h.
GS1 DataBar Limited
Parameter # F0h 53h.
*Enable GS1 DataBar-14
(01h)
Disable GS1 DataBar-14
(00h)
*Enable GS1 DataBar Limited
(01h)
Disable GS1 DataBar Limited
(00h)
10 - 66 Symbol DS6707 Digital Imager Scanner Product Reference Guide
GS1 DataBar Expanded
Parameter # F0h 54h.
Convert GS1 DataBar to UPC/EAN
Parameter # F0h, 8Dh
This parameter only applies to DataBar-14 and DataBar Limited symbols not decoded as part of a Composite
symbol. Enable this to strip the leading '010' from DataBar-14 and DataBar Limited symbols encoding a single zero
as the first digit, and report the bar code as EAN-13.
For bar codes beginning with two or more zeros but not six zeros, this parameter strips the leading '0100' and
reports the bar code as UPC-A. The UPC-A Preamble parameter that transmits the system character and country
code applies to converted bar codes. Note that neither the system character nor the check digit can be stripped.
*Enable GS1 DataBar Expanded
(01h)
Disable GS1 DataBar Expanded
(00h)
Enable Convert GS1 DataBar to UPC/EAN
(01h)
*Disable Convert GS1 DataBar to UPC/EAN
(00h)
Symbologies 10 - 67
Composite
Composite CC-C
Parameter # F0h 55h
Scan a bar code below to enable or disable Composite bar codes of type CC-C.
Composite CC-A/B
Parameter # F0h 56h
Scan a bar code below to enable or disable Composite bar codes of type CC-A/B.
Enable CC-C
(01h)
*Disable CC-C
(00h)
Enable CC-A/B
(01h)
*Disable CC-A/B
(00h)
10 - 68 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Composite TLC-39
Parameter # F0h 73h
Scan a bar code below to enable or disable Composite bar codes of type TLC-39.
Enable TLC39
(01h)
*Disable TLC39
(00h)
Symbologies 10 - 69
UPC Composite Mode
Parameter # F0h 58h
Select one of three options for “linking” UPC symbols with a 2D symbol during transmission as if they were one
symbol:
•
Select UPC Never Linked to transmit UPC bar codes regardless of whether a 2D symbol is detected.
•
Select UPC Always Linked to transmit UPC bar codes and the 2D portion.
If 2D is not present, the UPC bar code does not transmit.
•
If you select Autodiscriminate UPC Composites, the scanner determines if there is a 2D portion, then
transmits the UPC, as well as the 2D portion if present.
UPC Never Linked
(00h)
*UPC Always Linked
(01h)
Autodiscriminate UPC Composites
(02h)
10 - 70 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Composite Beep Mode
Parameter # F0h, 8Eh
To select the number of decode beeps when a the scanner decodes a composite bar code, scan the appropriate
bar code.
GS1-128 Emulation Mode for UCC/EAN Composite Codes
Parameter # F0h, ABh
Select whether to enable or disable this mode.
Single Beep after both are decoded
(00h)
*Beep as each code type is decoded
(01h)
Double Beep after both are decoded
(02h)
Enable GS1-128 Emulation Mode for
UCC/EAN Composite Codes
(01h)
*Disable GS1-128 Emulation Mode for
UCC/EAN Composite Codes
(00h)
Symbologies 10 - 71
2D Symbologies
Enable/Disable PDF417
Parameter # 0Fh
To enable or disable PDF417, scan the appropriate bar code below.
Enable/Disable MicroPDF417
Parameter # E3h
To enable or disable MicroPDF417, scan the appropriate bar code below.
*Enable PDF417
(01h)
Disable PDF417
(00h)
Enable MicroPDF417
(01h)
*Disable MicroPDF417
(00h)
10 - 72 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code 128 Emulation
Parameter # 7Bh
Enable this parameter to transmit data from certain MicroPDF417 symbols as if it was encoded in Code 128
symbols. You must select AIM Code ID Character (01h) on page 4-15 for this parameter to work.
Enable Code 128 Emulation to transmit these MicroPDF417 symbols with one of the following prefixes:
]C1 if the first codeword is 903-905
]C2 if the first codeword is 908 or 909
]C0 if the first codeword is 910 or 911
Disable this to transmit them with one of the following prefixes:
]L3 if the first codeword is 903-905
]L4 if the first codeword is 908 or 909
]L5 if the first codeword is 910 or 911
Scan a bar code below to enable or disable Code 128 Emulation.
NOTE Linked MicroPDF codewords 906, 907, 912, 914, and 915 are not supported. Use GS1 Composites
instead.
Enable Code 128 Emulation
(01h)
*Disable Code 128 Emulation
(00h)
Symbologies 10 - 73
Data Matrix
Parameter # F0h, 24h
To enable or disable Data Matrix, scan the appropriate bar code below.
*Enable Data Matrix
(01h)
Disable Data Matrix
(00h)
10 - 74 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Data Matrix Inverse
Parameter # F1h 4Ch
This parameter sets the Data Matrix inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular Data Matrix bar codes only.
•
Inverse Only - the scanner decodes inverse Data Matrix bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse Data Matrix bar codes.
NOTE The default for this option varies by scanner model as follows:
DS6707-SR, DS6707-DC: Regular
DS6707-DP, DS6707-HD: Inverse Autodetect
Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
Symbologies 10 - 75
Maxicode
Parameter # F0h, 26h
To enable or disable Maxicode, scan the appropriate bar code below.
QR Code
Parameter # F0h,25h
To enable or disable QR Code, scan the appropriate bar code below.
*Enable Maxicode
(01h)
Disable Maxicode
(00h)
*Enable QR Code
(01h)
Disable QR Code
(00h)
10 - 76 Symbol DS6707 Digital Imager Scanner Product Reference Guide
QR Inverse
Parameter # F1h 4Bh
This parameter sets the QR inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular QR bar codes only.
•
Inverse Only - the scanner decodes inverse QR bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse QR bar codes.
NOTE The default for this option varies by scanner model as follows:
DS6707-SR, DS6707-DC: Regular
DS6707-DP, DS6707-HD: Inverse Autodetect
Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
Symbologies 10 - 77
MicroQR
Parameter # F1h 3Dh
To enable or disable MicroQR, scan the appropriate bar code below.
Aztec
Parameter # F1h 3Eh
To enable or disable Aztec, scan the appropriate bar code below.
*Enable MicroQR
(01h)
Disable MicroQR
(00h)
*Enable Aztec
(01h)
Disable Aztec
(00h)
10 - 78 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Aztec Inverse
Parameter # F1h 4Dh
This parameter sets the Aztec inverse decoder setting. Options are:
•
Regular Only - the scanner decodes regular Aztec bar codes only.
•
Inverse Only - the scanner decodes inverse Aztec bar codes only.
•
Inverse Autodetect - the scanner decodes both regular and inverse Aztec bar codes.
NOTE The default for this option varies by scanner model as follows:
DS6707-SR, DS6707-DC: Regular
DS6707-DP, DS6707-HD: Inverse Autodetect
Regular
(00h)
Inverse Only
(01h)
Inverse Autodetect
(02h)
Symbologies 10 - 79
Redundancy Level
Parameter # 4Eh
The digital imager scanner offers four levels of decode redundancy. Select higher redundancy levels for decreasing
levels of bar code quality. As redundancy levels increase, the digital imager scanner’s aggressiveness decreases.
Select the redundancy level appropriate for the bar code quality.
Redundancy Level 1
The following code types must be successfully read twice before being decoded:
Redundancy Level 2
The following code types must be successfully read twice before being decoded:
Redundancy Level 3
Code types other than the following must be successfully read twice before being decoded. The following codes
must be read three times:
Table 10-2
Redundancy Level 1 Codes
Code Type Code Length
Codabar 8 characters or less
MSI 4 characters or less
D 2 of 5 8 characters or less
I 2 of 5 8 characters or less
Table 10-3
Redundancy Level 2 Codes
Code Type Code Length
All All
Table 10-4
Redundancy Level 3 Codes
Code Type Code Length
MSI Plessey 4 characters or less
D 2 of 5 8 characters or less
I 2 of 5 8 characters or less
Codabar 8 characters or less
10 - 80 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Redundancy Level (continued)
Redundancy Level 4
The following code types must be successfully read three times before being decoded:
Table 10-5
Redundancy Level 4 Codes
Code Type Code Length
All All
*Redundancy Level 1
(01h)
Redundancy Level 2
(02h)
Redundancy Level 3
(03h)
Redundancy Level 4
(04h)
Symbologies 10 - 81
Security Level
Parameter # 4Dh
The digital imager scanner offers four levels of decode security for delta bar codes, which include the Code 128
family, UPC/EAN, and Code 93. Select increasing levels of security for decreasing levels of bar code quality. There
is an inverse relationship between security and digital imager scanner aggressiveness, so choose only that level of
security necessary for any given application.
•
Security Level 0: This setting allows the digital imager scanner to operate in its most aggressive state, while
providing sufficient security in decoding most “in-spec” bar codes.
•
Security Level 1: This default setting eliminates most misdecodes.
•
Security Level 2: Select this option if Security level 1 fails to eliminate misdecodes.
•
Security Level 3: If you selected Security Level 2 and misdecodes still occur, select this security level. Be
advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes.
Selecting this level of security significantly impairs the decoding ability of the digital imager scanner. If you
need this level of security, try to improve the quality of the bar codes.
Security Level 0
(00h)
*Security Level 1
(01h)
Security Level 2
(02h)
Security Level 3
(03h)
10 - 82 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Intercharacter Gap Size
Parameter # F0h, 7Dh
The Code 39 and Codabar symbologies have an intercharacter gap that is typically quite small. Due to various bar
code-printing technologies, this gap can grow larger than the maximum size allowed, preventing the digital imager
scanner from decoding the symbol. If this problem occurs, scan Large Intercharacter Gaps to tolerate these
out-of-specification bar codes.
Report Version
Scan the bar code below to report the version of software installed in the digital imager scanner.
*Normal Intercharacter Gaps
(06h)
Large Intercharacter Gaps
(0Ah)
Report Software Version
Symbologies 10 - 83
Macro PDF Features
Macro PDF is a special feature for concatenating multiple PDF symbols into one file. The digital imager scanner
can decode symbols that are encoded with this feature, and can store more than 64 kB of decoded data stored in
up to 50 MacroPDF symbols.
Flush Macro Buffer
This flushes the buffer of all decoded Macro PDF data stored to that point, transmits it to the host device, and
aborts from Macro PDF mode.
Abort Macro PDF Entry
This clears all currently-stored Macro PDF data in the buffer without transmission and aborts from Macro PDF
mode.
CAUTION When printing, keep each Macro PDF sequence separate, as each sequence has unique identifiers.
Do not mix bar codes from several Macro PDF sequences, even if they encode the same data. When
scanning Macro PDF sequences, scan the entire Macro PDF sequence without interruption. If, when
scanning a mixed sequence, the digital imager scanner emits two long low beeps (Low Low) this
indicates an inconsistent file ID or inconsistent symbology error.
Flush Macro PDF Buffer
Abort Macro PDF Entry
10 - 84 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Chapter 11 Advanced Data Formatting
Introduction
Advanced Data Formatting (ADF) is a means of customizing data before transmission to the host device. Use ADF
to edit scan data to suit requirements.
Implement ADF by scanning a related series of bar codes, which begin on page 11-8, or by installing the 123Scan
utility (see Chapter 9, 123Scan) which allows programming the digital imager scanner with ADF rules.
Avoid using ADF formatting with bar codes containing more than 60 characters. To add a prefix or suffix value for
such bar codes, use the Add Prefix/Suffix setting. Using ADF with longer bar codes transmits the bar code in
segments of length 252 or less (depending on the host selected), and applies the rule to each segment.
Rules: Criteria Linked to Actions
ADF uses rules to customize data. These rules perform detailed actions when the data meets certain criteria. One
rule may consist of single or multiple criteria applied to single or multiple actions.
For instance, a data formatting rule could be:
Criteria: When scan data is Code 39, length 12, and data at the start position is the string “129”,
Actions: pad all sends with zeros to length 8,
send all data up to X,
send a space.
Scanning a Code 39 bar code of 1299X1559828 transmits the following: 00001299<space>. If you scan a Code 39
bar code of 1299X15598, this rule is ignored because the bar code didn’t meet the length criteria.
The rule specifies the editing conditions and requirements before data transmission occurs.
11 - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Using ADF Bar Codes
When programming a rule, make sure the rule is logically correct. Plan ahead before scanning.
To program each data formatting rule:
•
Start the Rule. Scan the Begin New Rule bar code on page 11-8.
•
Specify Criteria. Scan the bar codes for all pertinent criteria. Criteria can include code type (e.g., Code 128),
code length, or data that contains a specific character string (e.g., the digits “129”). See Criteria on page
11-11.
•
Select Actions. Scan all actions related to, or affecting, these criteria. The actions of a rule specify how to
format the data for transmission. See Actions on page 11-27.
•
Save the Rule. Scan the Save Rule bar code on page 11-8. This places the rule in the “top” position in the
rule buffer.
•
Use special-purpose bar codes to correct errors during this process. Erase criteria, actions, and entire rules
by scanning the appropriate bar code on page 11-9.
Beeper Definitions on page 2-2 guide through the programming steps.
ADF Bar Code Menu Example
This section provides an example of how to enter ADF rules for scan data.
An auto parts distribution center wants to encode manufacturer ID, part number, and destination code into their
own Code 128 bar codes. The distribution center also has products that carry UPC bar codes, placed there by the
manufacturer. The Code 128 bar codes have the following format:
MMMMMPPPPPDD
Where: M = Manufacturer ID
P = Part Number
D = Destination Code
The distribution center uses a PC with dedicated control characters for manufacturer ID <CTRL M>, part number
<CTRL P>, and destination code <CTRL D>. At this center the UPC data is treated as manufacturer ID code.
The following rules must be entered:
When scanning data of code type Code 128, send the next 5 characters, send the manufacturer ID key <CTRL
M>, send the next 5 characters, send the part number key <CTRL P>, send the next 2 characters, send the
destination code key <CTRL D>.
When scanning data of code type UPC/EAN, send all data, send the manufacturer ID key <CTRL M>.
To enter these rules, use the following steps:
Advanced Data Formatting 11 - 3
Rule 1: The Code 128 Scanning Rule
Step Bar Code On Page Beep Indication
1 Begin New Rule 11-8 High High
2 Code 128 11-11 High High
3 Send next 5 characters 11-28 High High
4 Send <CTRL M> 11-49 High High
5 Send next 5 characters 11-28 High High
6 Send <CTRL P> 11-49 High High
7 Send next 2 characters 11-27 High High
8 Send <CTRL D> 11-48 High High
9 Save Rule 11-8 High Low High Low
Rule 2: The UPC Scanning Rule
Step Bar Code On Page Beep Indication
1 Begin New Rule 11-8 High High
2 UPC/EAN 11-13 High High
3 Send all remaining data 11-27 High High
4 Send <CTRL M> 11-49 High High
5 Save Rule 11-8 High Low High Low
To correct any errors made while entering this rule, scan the Quit Entering Rules bar code on page 11-9. If you
already saved the rule, scan the Erase Previously Saved Rule bar code on page 11-9.
Alternate Rule Sets
Group ADF rules into one of four alternate sets which you can turn on and off when needed. This is useful to format
the same message in different ways. For example, a Code 128 bar code contains the following information:
Class (2 digits), Stock Number (8) digits, Price (5 digits)
The bar code might look like this:
245671243701500
where:
Class = 24
Stock Number = 56712437
Price = 01500
Ordinarily, data transmits as follows:
24 (class key)
56712437 (stock key)
01500 (enter key)
But, when there is a sale, send only the following:
24 (class key)
56712437 (stock key)
11 - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
and the cashier keys the price manually.
To implement this, first enter an ADF rule that applies to the normal situation, such as:
Scan Rule Belongs to Set 1. When scanning a bar code of length 15, send the next 2 characters, send the class
key, send the next 8 characters, send the stock key, send the data that remains, send the Enter key.
The “sale” rule may look like this:
Scan Rule Belongs to Set 2. When scanning a bar code of length 15, send the next 2 characters, send the class
key, send the next 8 characters, send the stock key.
To switch between the two sets of rules, program a “switching rule” that specifies the type of bar code to be
scanned to switch between the rule sets. For example, in the case of the “sale” rule above, the rule programmer
wants the cashier to scan the bar code “M” before a sale. To do this, enter the following rule:
When scanning a bar code of length 1 that begins with “M”, select rule set number 1.
Program another rule to switch back.
When scanning a bar code of length 1 that begins with “N”, turn off rule set number 1.
Or include the switching back rules in the “sale” rule:
When scanning a bar code of length 15, send the next 2 characters, send the class key, send the next 8
characters, send the stock key, turn off rule set 1.
For optimal results, scan the Disable All Rule Sets bar code on page 11-10 after programming a rule belonging to
an alternate rule set.
In addition to enabling and disabling rule sets within the rules, enable or disable them by scanning the appropriate
bar codes on page 11-10.
Rules Hierarchy (in Bar Codes)
The order of programming individual rules is important. Program the most general rule first.
All programmed rules are stored in a buffer. As they are programmed, they are stored at the “top” of a rules list. If
you create three rules, the list is configured as follows:
Third Rule
Second Rule
First Rule
When you scan data, the rules list is checked from top to bottom to determine if the criteria matches (and therefore,
if the actions occur). Input is modified into the data format specified by the first matching set of criteria it finds. Be
sure to program the most general rule first.
For example, if the THIRD rule states:
When scanning a bar code of any length, send all data, then send the ENTER key.
and the SECOND rule states:
When scanning a Code 128 bar code of length 12, send the first four characters, then send the ENTER key,
then send all remaining data.
and you scan a Code 128 bar code of length 12, the THIRD rule applies and the SECOND rule appears to not
function.
Advanced Data Formatting 11 - 5
Note that using the standard data editing functions also creates ADF rules. Scan options are entered as ADF rules,
and the previous hierarchy also applies to them. For the digital imager scanner, this applies to prefix/suffix
programming in the parameter Scan Data Transmission Format on page 4-17.
These rules reside in the same “rule list” as ADF rules, so the order of their creation is also important.
Default Rules
Every unit has a default rule to send all scan data. Units with custom software can have one or more default rules
burned in. The rules hierarchy checks user programmable rules first, then the default rules. Disable default rules by
entering the following general rule in the user programmable buffer:
When receiving scan data, send all data.
Since this rule always applies, ADF never enters the default rules.
ADF Bar Codes
Table 11-1 lists the bar codes available through ADF.
Table 11-1
ADF Bar Codes
Parameter Page
Number
Special Commands 11-8
Pause Duration 11-8
Begin New Rule 11-8
Save Rule 11-8
Erase 11-9
Quit Entering Rules 11-9
Disable Rule Set 11-10
Criteria 11-11
Code Types 11-11
Code Lengths 11-18
1 Character
-
6 Characters 11-18
7 Characters
-
13 Characters 11-19
14 Characters
-
20 Characters 11-20
21 Characters
-
27 Characters 11-21
28 Characters
-
30 Characters 11-22
Specific String at Start 11-22
Specific String, Any Location 11-23
Specific String Search 11-23
11 - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Any Message OK 11-23
Numeric Keypad 11-24
Rule Belongs To Set 11-26
Actions 11-27
Send Data 11-27
Send Data Up To Character
11-27
Send Next Character
11-27
Send All Data That Remains
11-27
Send Next 2 Characters
-
Send Next 20 Characters 11-27
Setup Field(s) 11-30
Move Cursor 11-31
Send Pause 11-32
Skip Ahead 11-33
Skip Back 11-34
Send Preset Value 11-36
Modify Data 11-37
Remove All Spaces 11-37
Crunch All Spaces 11-37
Stop Space Removal 11-37
Remove Leading Zeros 11-37
Stop Zero Removal 11-37
Pad Data with Spaces 11-38
Pad Data with Zeros 11-42
Beeps 11-47
Send Keystroke (Control Characters and Keyboard Characters) 11-47
Keyboard Characters 11-52
Send ALT Characters 11-66
Send Keypad Characters 11-71
Table 11-1
ADF Bar Codes (Continued)
Parameter Page
Number
Advanced Data Formatting 11 - 7
Send Function Key 11-76
Send F1 Key
-
Send F24 Key 11-76
Send PF1 Key
-
Send PF30 Key 11-79
Send Right Control Key 11-83
Send Graphic User Interface (GUI) Characters 11-84
Send GUI 0
-
Send GUI 9 11-84
Send GUI A
-
Send GUI Z 11-85
Turn On/Off Rule Sets 11-89
Alphanumeric Keyboard 11-91
Space
-
‘ 11-91
0
-
9 11-95
A
-
Z 11-96
Cancel 11-100
End of Message 11-100
a
-
z 11-100
{
-
~ 11-104
Table 11-1
ADF Bar Codes (Continued)
Parameter Page
Number
11 - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Special Commands
Pause Duration
This parameter, along with the Send Pause parameter on page 11-32, inserts a pause in the data transmission. Set
the pause by scanning a two-digit number (i.e., two bar codes) representing a 0.1 second interval in the range of
0.1 to 9.9. For example, scan bar codes 0 and 1 to insert a 0.1 second pause; 0 and 5 to insert a 0.5 second delay.
The default is 1 second. See Appendix D, Numeric Bar Codes. To correct an error or change a selection, scan
Cancel on page D-2.
Pause Duration
Begin New Rule
Scan the bar code below to start entering a new rule
.
Begin New Rule
Save Rule
Scan the bar code below to save the rule.
Save Rule
Advanced Data Formatting 11 - 9
Erase
Use these bar codes to erase criteria, actions, or rules.
Quit Entering Rules
Scan the bar code below to quit entering rules.
Quit Entering Rules
Erase Criteria And Start Again
Erase Actions And Start Again
Erase Previously Saved Rule
Erase All Rules
11 - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Disable Rule Set
Use these bar codes to disable rule sets.
Disable Rule Set 1
Disable Rule Set 2
Disable Rule Set 3
Disable Rule Set 4
Disable All Rule Sets
Advanced Data Formatting 11 - 11
Criteria
Code Types
Select all code types to be affected by the rule. Scan all selected codes in succession, before selecting other
criteria. To select all code types, do not scan any code type.
Code 39
Codabar
GS1 DataBar-14
GS1 DataBar Limited
GS1 DataBar Expanded
Code 128
D 2 OF 5
11 - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code Types (continued)
IATA 2 OF 5
I 2 OF 5
Code 93
UPC-A
UPC-E
EAN-8
EAN-13
ISSN
Advanced Data Formatting 11 - 13
Code Types (continued)
MSI
GS1-128
UPC-E1
Bookland EAN
Trioptic Code 39
Code 11
Code 32
11 - 14 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code Types (continued)
ISBT 128
Coupon Code
Chinese 2 of 5
Matrix 2 of 5
US Postnet
US Planet
UK Postal
Advanced Data Formatting 11 - 15
Code Types (continued)
Japan Postal
Australian Postal
Netherlands KIX Code
USPS 4CB/One Code/Intelligent Mail
UPU FICS Postal
PDF417
MicroPDF
11 - 16 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code Types (continued)
Macro PDF
Macro MicroPDF
MaxiCode
Data Matrix
QR Code
MicroQR
TLC 39
Advanced Data Formatting 11 - 17
Code Types (continued)
UPC/EAN Composites
GS1 DataBar and GS1-128 Composites
Aztec
Aztec Rune
NOTE When selecting composite bar codes, enable AIM IDs if parsing UPC or EAN composite data, or data from
an application that uses symbol separators.
11 - 18 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code Lengths
Scan these bar codes to define the number of characters the selected code type must contain. Select one length
per rule only. Do not select any code length to select code types of any length.
1 Character
2 Characters
3 Characters
4 Characters
5 Characters
6 Characters
Advanced Data Formatting 11 - 19
Code Lengths (continued)
7 Characters
8 Characters
9 Characters
10 Characters
11 Characters
12 Characters
13 Characters
11 - 20 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code Lengths (continued)
14 Characters
15 Characters
16 Characters
17 Characters
18 Characters
19 Characters
20 Characters
Advanced Data Formatting 11 - 21
Code Lengths (continued)
21 Characters
22 Characters
23 Characters
24 Characters
25 Characters
26 Characters
27 Characters
11 - 22 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Message Containing A Specific Data String
Use this feature to select whether the formatting affects data that begins with a specific character or data string, or
contains a specific character or data string.
There are 5 features:
•
Specific String at Start
•
Specific String, Any Location
•
Specific String Search
•
Any Message OK
•
Rule Belongs to Set
Specific String at Start
1. Scan the following bar code.
2. Scan the bar codes representing the desired character or characters (up to a total of 8) using the Alphanumeric
Keyboard on page 11-91.
3. Scan End of Message bar code on page 11-100.
Specific String At Start
Code Lengths (continued)
28 Characters
29 Characters
30 Characters
Advanced Data Formatting 11 - 23
Specific String, Any Location
1. Scan the following bar code.
2. Enter a location by scanning a two-digit number representing the position (use a leading “zero” if necessary)
using the Numeric Keypad on page 11-24.
3. Scan the bar codes representing the desired character or characters (up to a total of 8) using the Alphanumeric
Keyboard on page 11-91.
4. Scan End of Message bar code on page 11-100.
Specific String Any Location
Specific String Search
1. Scan the following bar code.
2. Scan the bar codes representing the desired character or characters (up to a total of 10) using the
Alphanumeric Keyboard on page 11-91.
3. Scan End of Message bar code on page 11-100.
Any Message OK
Do not scan a bar code to format all selected code types, regardless of information contained.
Specific String Search
11 - 24 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Numeric Keypad
Do not confuse bar codes on this page with those on the alphanumeric keyboard.
0
1
2
3
4
5
6
Advanced Data Formatting 11 - 25
Numeric Keypad (continued)
7
8
9
Cancel
11 - 26 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Rule Belongs To Set
Select the set to which a rule belongs. There are four possible rule sets. See Alternate Rule Sets on page 11-3 for
more information about rule sets.
Rule Belongs To Set 1
Rule Belongs To Set 2
Rule Belongs To Set 3
Rule Belongs To Set 4
Advanced Data Formatting 11 - 27
Actions
Select how to format the data for transmission.
Send Data
Send all data that follows, send all data up to a specific character selected from the Alphanumeric Keyboard on
page 11-91, or send the next X characters. Note that only bar codes for Send Next 1 to 20 appear here, and can
be scanned multiple times to send values greater then 20. For instance, to send the next 28 characters, scan Send
Next 20 Characters, then Send Next 8 Characters.
Send Data Up To Character
Send All Data That Remains
Send Next Character
Send Next 2 Characters
Send Next 3 Characters
Send Next 4 Characters
11 - 28 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Data (continued)
Send Next 5 Characters
Send Next 6 Characters
Send Next 7 Characters
Send Next 8 Characters
Send Next 9 Characters
Send Next 10 Characters
Send Next 11 Characters
Advanced Data Formatting 11 - 29
Send Data (continued)
Send Next 12 Characters
Send Next 13 Characters
Send Next 14 Characters
Send Next 15 Characters
Send Next 16 Characters
Send Next 17 Characters
Send Next 18 Characters
11 - 30 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Setup Field(s)
Send Data (continued)
Send Next 19 Characters
Send Next 20 Characters
Table 11-2
Setup Field(s) Definitions
Parameter Description Page
Move Cursor
Move Cursor To a Character
Scan
Move Cursor To Character
, then any printable ASCII character
from the
Alphanumeric Keyboard on page 11-91
. This moves the
cursor to the position after the matching character. If the character is
not there, the rule fails and ADF tries the next rule.
11-31
Move Cursor to Start of Data
Scan this bar code to move cursor to the beginning of the data. 11-31
Move Cursor Past a Character
This action moves the cursor past all sequential occurrences of a
selected character. For example, if the selected character is ‘A’, then
the cursor moves past ‘A’, ‘AA’, ‘AAA’, etc. Scan
Move Cursor Past
Character
, then select a character from the
Alphanumeric Keyboard
.
If the character is not there, the cursor does not move (i.e., has no
effect).
11-32
Move Cursor Past a Specific
String
This action moves the cursor past the first occurrence of a selected
string. Scan
Move Cursor Past Specific String
, then select the
character(s) (up to 10) using the
Alphanumeric Keyboard
. Scan the
End of Message bar code on page 11-100
.
11-32
Move Cursor to Specific String
and Replace
This action moves the cursor to the first occurrence of a selected string
and replaces the string with another user-defined string. Scan
Move
Cursor to Specific String and Replace
, then enter an alphanumeric
string representing the character(s) (up to 10) to match and delete
using the
Alphanumeric Keyboard
. Scan the
End of Message bar
code on page 11-100
. Enter another alphanumeric string representing
the character(s) (up to 10) to insert using the
Alphanumeric Keyboard
.
Scan
End of Message
.
11-32
Advanced Data Formatting 11 - 31
Move Cursor
Scan a bar code below to move the cursor in relation to a specified character. Then enter a character by scanning
a bar code from the Alphanumeric Keyboard on page 11-91.
Move Cursor to Last
Occurrence of String and
Replace All
This action replaces all occurrences of a selected string with another
user-defined string, and moves the cursor to the beginning of the last
occurrence. Scan
Move Cursor to Last Occurrence of String and
Replace All
, then enter an alphanumeric string representing the
character(s) (up to 10) to match and delete using the
Alphanumeric
Keyboard
. Scan the
End of Message bar code on page 11-100
. Enter
another alphanumeric string representing the character(s) (up to 10) to
insert using the
Alphanumeric Keyboard
. Scan
End of Message
.
11-32
Skip to End
Scan
Skip to End
to move cursor to the end of the data. 11-32
Skip Ahead “N” Characters
Scan one of these bar codes to select the number of positions ahead
to move the cursor.
11-33
Skip Back “N” Characters
Scan one of these bar codes to select the number of positions back to
move the cursor.
11-34
Send Preset Value
Send Values 1 through 6 by scanning the appropriate bar code. Set
these values using the prefix/suffix values in
Table 8-4 on page 8-19
.
Value 1 = Scan Suffix
Value 2 = Scan Prefix
Values 3-6 are not applicable
11-34
Table 11-2
Setup Field(s) Definitions (Continued)
Parameter Description Page
NOTE If there is no match and the rule fails, the next rule is checked.
Move Cursor To Character
Move Cursor To Start
11 - 32 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Pause
Scan the bar code below to insert a pause in the transmission of data. Pause Duration on page 11-8 controls the
length of this pause.
Move Cursor (continued)
Move Cursor Past Character
Move Cursor Past
Specific String
Move Cursor to
Specific String and Replace
Move Cursor to Last Occurrence
of String and Replace All
Skip to End
Send Pause
Advanced Data Formatting 11 - 33
Skip Ahead
Use the following bar codes to skip ahead characters.
Skip Ahead 1 Character
Skip Ahead 2 Characters
Skip Ahead 3 Characters
Skip Ahead 4 Characters
Skip Ahead 5 Characters
Skip Ahead 6 Characters
Skip Ahead 7 Characters
11 - 34 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Skip Back
Use the following bar codes to skip back characters.
Skip Ahead (continued)
Skip Ahead 8 Characters
Skip Ahead 9 Characters
Skip Ahead 10 Characters
Skip Back 1 Character
Skip Back 2 Characters
Skip Back 3 Characters
Advanced Data Formatting 11 - 35
Skip Back (continued)
Skip Back 4 Characters
Skip Back 5 Characters
Skip Back 6 Characters
Skip Back 7 Characters
Skip Back 8 Characters
Skip Back 9 Characters
Skip Back 10 Characters
11 - 36 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Preset Value
Use these bar codes to send preset values. Set these values using the Scan Prefix and Scan Suffix bar codes on
page 4-16.
Send Prefix
Send Suffix
Advanced Data Formatting 11 - 37
Modify Data
Modify data as described below. The following actions work for all send commands that follow it within a rule.
Programming pad zeros to length 6, send next 3 characters, stop padding, send next 5 characters, adds three
zeros to the first send, and the next send is unaffected by the padding. These options do not apply to the Send
Keystroke or Send Preset Value options.
Remove All Spaces
To remove all spaces in the send commands that follow, scan the bar code below.
Remove All Spaces
Crunch All Spaces
To leave one space between words, scan the bar code below. This also removes all leading and trailing spaces.
Crunch All Spaces
Stop Space Removal
Scan the bar code below to disable space removal.
Stop Space Removal
Remove Leading Zeros
Scan the bar code below to remove all leading zeros.
Remove Leading Zeros
Stop Zero Removal
Scan the bar code below to disable the removal of zeros.
Stop Zero Removal
11 - 38 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Pad Data with Spaces
To pad data to the left, scan the bar code containing the desired number of spaces. Send commands activate this
parameter.
Pad Spaces To Length 1
Pad Spaces To Length 2
Pad Spaces To Length 3
Pad Spaces To Length 4
Pad Spaces To Length 5
Pad Spaces To Length 6
Pad Spaces To Length 7
Advanced Data Formatting 11 - 39
Pad Data with Spaces (continued)
Pad Spaces To Length 8
Pad Spaces To Length 9
Pad Spaces To Length 10
Pad Spaces To Length 11
Pad Spaces To Length 12
Pad Spaces To Length 13
Pad Spaces To Length 14
11 - 40 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Pad Data with Spaces (continued)
Pad Spaces To Length 15
Pad Spaces To Length 16
Pad Spaces To Length 17
Pad Spaces To Length 18
Pad Spaces To Length 19
Pad Spaces To Length 20
Pad Spaces To Length 21
Advanced Data Formatting 11 - 41
Pad Data with Spaces (continued)
Pad Spaces To Length 22
Pad Spaces To Length 23
Pad Spaces To Length 24
Pad Spaces To Length 25
Pad Spaces To Length 26
Pad Spaces To Length 27
Pad Spaces To Length 28
11 - 42 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Pad Data with Zeros
To pad data to the left, scan the bar code containing the desired number of zeros. Send commands activate this
parameter.
Pad Data with Spaces (continued)
Pad Spaces To Length 29
Pad Spaces To Length 30
Stop Pad Spaces
Pad Zeros To Length 1
Pad Zeros To Length 2
Pad Zeros To Length 3
Advanced Data Formatting 11 - 43
Pad Data with Zeros (continued)
Pad Zeros To Length 4
Pad Zeros To Length 5
Pad Zeros To Length 6
Pad Zeros To Length 7
Pad Zeros To Length 8
Pad Zeros To Length 9
Pad Zeros To Length 10
11 - 44 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Pad Data with Zeros (continued)
Pad Zeros To Length 11
Pad Zeros To Length 12
Pad Zeros To Length 13
Pad Zeros To Length 14
Pad Zeros To Length 15
Pad Zeros To Length 16
Pad Zeros To Length 17
Advanced Data Formatting 11 - 45
Pad Data with Zeros (continued)
Pad Zeros To Length 18
Pad Zeros To Length 19
Pad Zeros To Length 20
Pad Zeros To Length 21
Pad Zeros To Length 22
Pad Zeros To Length 23
Pad Zeros To Length 24
11 - 46 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Pad Data with Zeros (continued)
Pad Zeros To Length 25
Pad Zeros To Length 26
Pad Zeros To Length 27
Pad Zeros To Length 28
Pad Zeros To Length 29
Pad Zeros To Length 30
Stop Pad Zeros
Advanced Data Formatting 11 - 47
Beeps
Select a beep sequence for each ADF rule.
Send Keystroke (Control Characters and Keyboard Characters)
Control Characters
Scan a Send bar code for the keystroke to send.
Beep Once
Beep Twice
Beep Three Times
Send Control 2
Send Control A
Send Control B
11 - 48 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Control Characters (continued)
Send Control C
Send Control D
Send Control E
Send Control F
Send Control G
Send Control H
Send Control I
Advanced Data Formatting 11 - 49
Control Characters (continued)
Send Control J
Send Control K
Send Control L
Send Control M
Send Control N
Send Control O
Send Control P
11 - 50 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Control Characters (continued)
Send Control Q
Send Control R
Send Control S
Send Control T
Send Control U
Send Control V
Send Control W
Advanced Data Formatting 11 - 51
Control Characters (continued)
Send Control X
Send Control Y
Send Control Z
Send Control [
Send Control \
Send Control ]
11 - 52 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Keyboard Characters
Scan a Send bar code for the keyboard characters to send.
Control Characters (continued)
Send Control 6
Send Control -
Send Space
Send !
Send “
Send #
Advanced Data Formatting 11 - 53
Keyboard Characters (continued)
Send $
Send %
Send &
Send ‘
Send (
Send )
Send *
11 - 54 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Keyboard Characters (continued)
Send +
Send ,
Send -
Send .
Send /
Send 0
Send 1
Advanced Data Formatting 11 - 55
Keyboard Characters (continued)
Send 2
Send 3
Send 4
Send 5
Send 6
Send 7
Send 8
11 - 56 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Keyboard Characters (continued)
Send 9
Send :
Send ;
Send <
Send =
Send >
Send ?
Advanced Data Formatting 11 - 57
Keyboard Characters (continued)
Send @
Send A
Send B
Send C
Send D
Send E
Send F
11 - 58 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Keyboard Characters (continued)
Send G
Send H
Send I
Send J
Send K
Send L
Send M
Advanced Data Formatting 11 - 59
Keyboard Characters (continued)
Send N
Send O
Send P
Send Q
Send R
Send S
Send T
11 - 60 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Keyboard Characters (continued)
Send U
Send V
Send W
Send X
Send Y
Send Z
Send [
Advanced Data Formatting 11 - 61
Keyboard Characters (continued)
Send \
Send ]
Send ^
Send _
Send `
Send a
Send b
11 - 62 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Keyboard Characters (continued)
Send c
Send d
Send e
Send f
Send g
Send h
Send i
Advanced Data Formatting 11 - 63
Keyboard Characters (continued)
Send j
Send k
Send l
Send m
Send n
Send o
Send p
11 - 64 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Keyboard Characters (continued)
Send q
Send r
Send s
Send t
Send u
Send v
Send w
Advanced Data Formatting 11 - 65
Keyboard Characters (continued)
Send x
Send y
Send z
Send {
Send |
Send }
Send ~
11 - 66 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send ALT Characters
Send Alt 2
Send Alt A
Send Alt B
Send Alt C
Send Alt D
Send Alt E
Send Alt F
Advanced Data Formatting 11 - 67
Send ALT Characters (continued)
Send Alt G
Send Alt H
Send Alt I
Send Alt J
Send Alt K
Send Alt L
Send Alt M
11 - 68 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send ALT Characters (continued)
Send Alt N
Send Alt O
Send Alt P
Send Alt Q
Send Alt R
Send Alt S
Send Alt T
Advanced Data Formatting 11 - 69
Send ALT Characters (continued)
Send Alt U
Send Alt V
Send Alt W
Send Alt X
Send Alt Y
Send Alt Z
Send Alt [
11 - 70 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send ALT Characters (continued)
Send Alt \
Send Alt ]
Advanced Data Formatting 11 - 71
Send Keypad Characters
Send Keypad *
Send Keypad +
Send Keypad -
Send Keypad .
Send Keypad /
Send Keypad 0
Send Keypad 1
11 - 72 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Keypad Characters (continued)
Send Keypad 2
Send Keypad 3
Send Keypad 4
Send Keypad 5
Send Keypad 6
Send Keypad 7
Send Keypad 8
Advanced Data Formatting 11 - 73
Send Keypad Characters (continued)
Send Keypad 9
Send Keypad Enter
Send Keypad Numlock
Send Break Key
Send Delete Key
Send Page Up Key
Send End Key
11 - 74 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Keypad Characters (continued)
Send Page Down Key
Send Pause Key
Send Scroll Lock Key
Send Backspace Key
Send Tab Key
Send Print Screen Key
Send Insert Key
Advanced Data Formatting 11 - 75
Send Keypad Characters (continued)
Send Home Key
Send Enter Key
Send Escape Key
Send Up Arrow Key
Send Down Arrow Key
Send Left Arrow Key
Send Right Arrow Key
11 - 76 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Function Key
Send F1 Key
Send F2 Key
Send F3 Key
Send F4 Key
Send F5 Key
Send F6 Key
Send F7 Key
Advanced Data Formatting 11 - 77
Send Function Key (continued)
Send F8 Key
Send F9 Key
Send F10 Key
Send F11 Key
Send F12 Key
Send F13 Key
Send F14 Key
11 - 78 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Function Key (continued)
Send F15 Key
Send F16 Key
Send F17 Key
Send F18 Key
Send F19 Key
Send F20 Key
Send F21 Key
Advanced Data Formatting 11 - 79
Send Function Key (continued)
Send F22 Key
Send F23 Key
Send F24 Key
Send PF1 Key
Send PF2 Key
Send PF3 Key
Send PF4 Key
11 - 80 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Function Key (continued)
Send PF5 Key
Send PF6 Key
Send PF7 Key
Send PF8 Key
Send PF9 Key
Send PF10 Key
Send PF11 Key
Advanced Data Formatting 11 - 81
Send Function Key (continued)
Send PF12 Key
Send PF13 Key
Send PF14 Key
Send PF15 Key
Send PF16 Key
Send PF17 Key
Send PF18 Key
11 - 82 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Function Key (continued)
Send PF19 Key
Send PF20 Key
Send PF21 Key
Send PF22 Key
Send PF23 Key
Send PF24 Key
Send PF25 Key
Advanced Data Formatting 11 - 83
Send Right Control Key
The “Send Right Control Key” action will send a tap (press and release) of the Right Control Key.
Send Right Control Key
Send Function Key (continued)
Send PF26 Key
Send PF27 Key
Send PF28 Key
Send PF29 Key
Send PF30 Key
11 - 84 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Graphic User Interface (GUI) Characters
The Send Graphic User Interface Character actions tap the specified key while holding the System Dependent
Graphic User Interface (GUI) key. The definition of the Graphic User Interface key depends on the attached
system.
Send GUI 0
Send GUI 1
Send GUI 2
Send GUI 3
Send GUI 4
Send GUI 5
Advanced Data Formatting 11 - 85
Send Graphic User Interface (GUI) Characters (continued)
Send GUI 6
Send GUI 7
Send GUI 8
Send GUI 9
Send GUI A
Send GUI B
Send GUI C
11 - 86 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Graphic User Interface (GUI) Characters (continued)
Send GUI D
Send GUI E
Send GUI F
Send GUI G
Send GUI H
Send GUI I
Send GUI J
Advanced Data Formatting 11 - 87
Send Graphic User Interface (GUI) Characters (continued)
Send GUI K
Send GUI L
Send GUI M
Send GUI N
Send GUI O
Send GUI P
Send GUI Q
11 - 88 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Send Graphic User Interface (GUI) Characters (continued)
Send GUI R
Send GUI S
Send GUI T
Send GUI U
Send GUI V
Send GUI W
Send GUI X
Advanced Data Formatting 11 - 89
Turn On/Off Rule Sets
Use these bar codes to turn rule sets on and off.
Send Graphic User Interface (GUI) Characters (continued)
Send GUI Y
Send GUI Z
Turn On Rule Set 1
Turn On Rule Set 2
Turn On Rule Set 3
Turn On Rule Set 4
11 - 90 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Turn On/Off Rule Sets (continued)
Use these bar codes to turn rule sets on and off.
Turn Off Rule Set 1
Turn Off Rule Set 2
Turn Off Rule Set 3
Turn Off Rule Set 4
Advanced Data Formatting 11 - 91
Alphanumeric Keyboard
Space
#
$
%
*
(Single Close Quote)
+
-
(Dash)
11 - 92 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Alphanumeric Keyboard (continued)
.
,
(Comma)
/
!
“
&
‘
(
Advanced Data Formatting 11 - 93
Alphanumeric Keyboard (continued)
)
:
;
<
=
>
?
11 - 94 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Alphanumeric Keyboard (continued)
@
[
\
]
^
_
(Underscore)
`
(Single Open Quote)
Advanced Data Formatting 11 - 95
Alphanumeric Keyboard (continued)
NOTE Do not confuse the numeric bar codes below with those on the numeric keypad.
0
1
2
3
4
5
11 - 96 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Alphanumeric Keyboard (continued)
6
7
8
9
A
B
C
Advanced Data Formatting 11 - 97
Alphanumeric Keyboard (continued)
D
E
F
G
H
I
J
11 - 98 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Alphanumeric Keyboard (continued)
K
L
M
N
O
P
Q
Advanced Data Formatting 11 - 99
Alphanumeric Keyboard (continued)
R
S
T
U
V
W
X
11 - 100 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Alphanumeric Keyboard (continued)
Y
Z
Cancel
End of Message
a
b
c
Advanced Data Formatting 11 - 101
Alphanumeric Keyboard (continued)
d
e
f
g
h
i
j
11 - 102 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Alphanumeric Keyboard (continued)
k
l
m
n
o
p
q
Advanced Data Formatting 11 - 103
Alphanumeric Keyboard (continued)
r
s
t
u
v
w
x
11 - 104 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Alphanumeric Keyboard (continued)
y
z
{
|
}
~
Appendix A Standard Default Parameters
Table A-1
Standard Default Parameters Table
Parameter Parameter
Number Default Page
Number
User Preferences
Set Default Parameter
Restore Defaults
4-4
Parameter Scanning ECh Enable 4-5
Beeper Tone 91h Medium 4-5
Beeper Volume 8Ch High 4-5
Power Mode 80h Continuous On 4-6
Time Delay to Low Power Mode 92h 1 Minute 4-7
Trigger Mode 8Ah Auto Aim 4-8
Picklist Mode F0h, 92h Disabled Always 4-9
Decode Session Timeout 88h 9.9 Sec 4-10
Timeout Between Decodes, Same Symbol 89h 0.6 Sec 4-10
Beep After Good Decode 38h Enable 4-11
Decoding Illumination F0h, 2Ah Enable 4-11
DP Illumination F1h, 3Bh Auto 4-12
Decode Aiming Pattern F0h, 32h Enable 4-13
Fuzzy 1D Processing F1h, 02h Enable
4-13
Decode Mirror Images F1h, 19h Never
4-14
1
User selection is required to configure this interface and this is the most common selection.
A - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Miscellaneous Scanner Options
Transmit Code ID Character 2Dh None 4-15
Prefix Value 63h, 69h 7013 <CR><LF> 4-16
Suffix 1 Value
Suffix 2 Value 62h, 68h
64h, 6Ah 7013 <CR><LF> 4-16
Scan Data Transmission Format EBh Data as is 4-17
FN1 Substitution Values 67h, 6Dh Set 4-18
Transmit “No Read” Message 5Eh Disable 4-19
Imaging Preferences
Operational Modes N/A N/A 5-4
Low Light Enhancement F1h 64h Disable
5-5
Presentation Mode Field of View F1h 61h Default (Reduced)
5-5
Image Capture Autoexposure F0h 68h Enable 5-6
Image Capture Illumination F0h 69h Enable 5-6
Illumination Bank Control F1h 3Bh Full
5-7
Fixed Exposure F4h, F1h,
37h 100 5-8
Fixed Gain F1h 38h 50 5-8
Gain Exposure Priority for Snapshot Mode F1h 32h Autodetect 5-9
Snapshot Mode Timeout F0h 43h 0 (30 seconds) 5-10
Snapshot Aiming Pattern F0h 2Ch Enable 5-10
Image Cropping F0h 2Dh Disable 5-11
Crop to Pixel Addresses F4h F0h 3Bh;
F4h F0h 3Ch;
F4h F0h 3Dh;
F4h F0h 3Eh
0 top, 0 left, 1023 bottom,
1279 right
5-12
Image Size (Number of Pixels) F0h 2Eh Full 5-13
Image Brightness (Target White) F0h 86h 180 5-14
JPEG Image Options F0h 2Bh Quality 5-14
JPEG Target File Size F1h 31h 160 kB 5-15
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
Standard Default Parameters A - 3
JPEG Quality and Size Value F0h 31h 65 5-15
Image Enhancement F1h 34h Off (0) 5-16
Image File Format Selection F0h 30h JPEG 5-17
Bits per Pixel (BPP) F0h 2Fh 8 BPP 5-18
Signature Capture 5Dh Disable 5-19
Signature Capture Image File Format
Selection
F0h 39h JPEG 5-20
Signature Capture Bits per Pixel (BPP) F0h 3Ah 8 BPP 5-21
Signature Capture Width F4h F0h 6Eh
400
5-22
Signature Capture Height F4h F0h 6Fh
100
5-22
Signature Capture JPEG Quality F0h A5h 65 5-22
Video View Finder F0h 44h Disable 5-23
Target Video Frame Size F0h 48h 2200 bytes 5-23
Video View Finder Image Size F0h 49h 1700 bytes 5-24
SSI Host Preferences
Baud Rate 9Ch 9600 6-4
Parity 9Eh None 6-6
Check Parity 97h Enable 6-7
Software Handshaking 9Fh ACK/NAK 6-7
Host RTS Line State 9Ah Low 6-8
Decode Data Packet Format EEh Send Raw Decode Data 6-8
Stop Bits 9Dh 1 6-9
Host Serial Response Time-out 9Bh 2 sec 6-10
Host Character Time-out EFh 200 msec 6-11
Multipacket Option F0h 4Eh Option 1 6-12
Interpacket Delay F0h 4Fh 0 ms 6-13
SSI Event Reporting
Decode Event F0h 00h Disable 6-14
Boot Up Event F0h 02h Disable 6-15
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
A - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Parameter Event F0h 03h Disable 6-15
USB Host Parameters
USB Device Type HID Keyboard Emulation 7-4
Symbol Native API (SNAPI) Status
Handshaking Enable 7-5
USB Country Keyboard Types (Country
Codes)
North American 7-6
USB Keystroke Delay No Delay 7-8
USB CAPS Lock Override Disable 7-8
USB Ignore Unknown Characters Enable 7-9
Emulate Keypad Disable 7-9
Emulate Keypad with Leading Zero Disable 7-10
USB Keyboard FN1 Substitution Disable 7-10
Function Key Mapping Disable 7-11
Simulated Caps Lock Disable 7-11
Convert Case No Case Conversion 7-12
RS-232 Host Parameters
RS-232 Host Types Standard18-6
Baud Rate 9600 8-7
Parity Type None 8-9
Stop Bit Select 1 Stop Bit 8-10
Data Bits 8-Bit 8-10
Check Receive Errors Enable 8-11
Hardware Handshaking None 8-11
Software Handshaking None 8-13
Host Serial Response Time-out 2 Sec 8-15
RTS Line State Low RTS 8-16
Beep on <BEL> Disable 8-16
Intercharacter Delay 0 msec 8-17
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
Standard Default Parameters A - 5
Nixdorf Beep/LED Options Normal Operation 8-18
Ignore Unknown Characters Send Bar Code 8-18
123Scan Configuration Tool
123Scan Configuration None19-1
UPC/EAN
UPC-A 01h Enable 10-7
UPC-E 02h Enable 10-7
UPC-E1 0Ch Disable 10-8
EAN-8/JAN 8 04h Enable 10-8
EAN-13/JAN 13 03h Enable 10-9
Bookland EAN 53h Disable 10-9
Decode UPC/EAN/JAN Supplementals
(2 and 5 digits)
10h Ignore 10-10
User-Programmable Supplementals
Supplemental 1:
Supplemental 2:
F1h 43h
F1h 44h
10-13
UPC/EAN/JAN Supplemental Redundancy 50h 10 10-14
Transmit UPC-A Check Digit 28h Enable 10-14
Transmit UPC-E Check Digit 29h Enable 10-15
Transmit UPC-E1 Check Digit 2Ah Enable 10-15
UPC-A Preamble 22h System Character 10-16
UPC-E Preamble 23h System Character 10-17
UPC-E1 Preamble 24h System Character 10-18
Convert UPC-E to A 25h Disable 10-19
Convert UPC-E1 to A 26h Disable 10-19
EAN-8/JAN-8 Extend 27h Disable 10-20
Bookland ISBN Format F1h 40h ISBN-10 10-21
UCC Coupon Extended Code 55h Disable 10-22
ISSN EAN F1h 69h Disable
10-22
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
A - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Code 128
Code 128 08h Enable 10-23
Set Length(s) for Code 128 D1h D2h Any Length
10-23
GS1-128 (formerly UCC/EAN-128)
0Eh Enable 10-25
ISBT 128 54h Enable 10-25
ISBT Concatenation F1h 41h Disable
10-26
Check ISBT Table F1h 42h Enable
10-27
ISBT Concatenation Redundancy DFh 10
10-27
Code 39
Code 39 00h Enable 10-28
Trioptic Code 39 0Dh Disable 10-28
Convert Code 39 to Code 32 (Italian
Pharmacy Code)
56h Disable 10-29
Code 32 Prefix E7h Disable 10-29
Set Length(s) for Code 39 12h 13h 2 to 55 10-30
Code 39 Check Digit Verification 30h Disable 10-31
Transmit Code 39 Check Digit 2Bh Disable 10-32
Code 39 Full ASCII Conversion 11h Disable 10-32
Buffer Code 39 71h Disable 10-33
Code 93
Code 93 09h Disable 10-36
Set Length(s) for Code 93 1Ah 1Bh 4 to 55 10-36
Code 11
Code 11 0Ah Disable 10-38
Set Lengths for Code 11 1Ch 1Dh 4 to 55 10-38
Code 11 Check Digit Verification 34h Disable 10-40
Transmit Code 11 Check Digit(s) 2Fh Disable 10-41
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
Standard Default Parameters A - 7
Interleaved 2 of 5 (ITF)
Interleaved 2 of 5 (ITF) 06h Enable 10-42
Set Lengths for I 2 of 5 16h 17h 14 10-42
I 2 of 5 Check Digit Verification 31h Disable 10-44
Transmit I 2 of 5 Check Digit 2Ch Disable 10-44
Convert I 2 of 5 to EAN 13 52h Disable 10-45
Discrete 2 of 5 (DTF)
Discrete 2 of 5 05h Disable 10-46
Set Length(s) for D 2 of 5 14h 15h 12 10-46
Codabar (NW - 7)
Codabar 07h Disable 10-48
Set Lengths for Codabar 18h 19h 5 to 55 10-48
CLSI Editing 36h Disable 10-50
NOTIS Editing 37h Disable 10-50
MSI
MSI 0Bh Disable 10-51
Set Length(s) for MSI 1Eh 1Fh 4 to 55 10-51
MSI Check Digits 32h One 10-52
Transmit MSI Check Digit 2Eh Disable 10-53
MSI Check Digit Algorithm 33h Mod 10/Mod 10 10-53
Chinese 2 of 5
Chinese 2 of 5 F0h 98h Disable
10-54
Matrix 2 of 5
Matrix 2 of 5 F1h 6Ah Disable
10-55
Matrix 2 of 5 Lengths F1h 6Bh
F1h 6Ch
1 Length - 14
10-56
Matrix 2 of 5 Redundancy F1h 6Dh Disable
10-57
Matrix 2 of 5 Check Digit F1h 6Eh Disable
10-57
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
A - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Transmit Matrix 2 of 5 Check Digit F1h 6Fh Disable
10-58
Inverse 1D Decoder F1h 4Ah
SR, DC: Regular
DP, HD: Autodetect
10-59
Postal Codes
US Postnet 59h Enable 10-60
US Planet 5Ah Enable 10-60
Transmit US Postal Check Digit 5Fh Enable 10-61
UK Postal 5Bh Enable 10-61
Transmit UK Postal Check Digit 60h Enable 10-62
Japan Postal F0h 22h Enable 10-62
Australian Postal F0h 23h Enable 10-63
Netherlands KIX Code
F0h 46h Enable 10-63
USPS 4CB/One Code/Intelligent Mail
F1h 50h Disable 10-64
UPU FICS Postal F1h 63h Disable
10-64
GS1 DataBar
GS1 DataBar-14 F0h 52h Enable 10-65
GS1 DataBar Limited F0h 53h Enable 10-65
GS1 DataBar Expanded F0h 54h Enable 10-66
Convert GS1 DataBar to UPC/EAN F0h 8Dh Disable 10-66
Composite
Composite CC-C F0h 55h Disable 10-67
Composite CC-A/B F0h 56h Disable 10-67
Composite TLC-39 F0h 73h Disable 10-68
UPC Composite Mode F0h 58h Always Linked 10-69
Composite Beep Mode F0h 8Eh Beep As Each Code Type is
Decoded 10-70
GS1-128 Emulation Mode for UCC/EAN
Composite Codes
F0h ABh Disable 10-70
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
Standard Default Parameters A - 9
2D Symbologies
PDF417 0Fh Enable 10-71
MicroPDF417 E3h Disable 10-71
Code 128 Emulation 7Bh Disable 10-72
Data Matrix F0h 24h Enable 10-73
Data Matrix Inverse F1h 4Ch
SR, DC: Regular
DP, HD: Autodetect
10-74
Maxicode F0h 26h Enable 10-75
QR Code F0h 25h Enable 10-75
QR Inverse F1h 4Bh
SR, DC: Regular
DP, HD: Autodetect
10-76
MicroQR F1h 3Dh Enable 10-77
Aztec F1h 3Eh Enable 10-77
Aztec Inverse F1h 4Dh
SR, DC: Regular
DP, HD: Autodetect
10-78
Symbology-Specific Security Levels
Redundancy Level 4Eh 1 10-79
Security Level 4Dh 1 10-81
Intercharacter Gap Size F0h 7Dh Normal 10-82
Report Version 10-82
Macro PDF
Flush Macro PDF Buffer 10-83
Abort Macro PDF Entry 10-83
Table A-1
Standard Default Parameters Table (Continued)
Parameter Parameter
Number Default Page
Number
1
User selection is required to configure this interface and this is the most common selection.
A - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Appendix B Programming Reference
Symbol Code Identifiers
Table B-1
Symbol Code Characters
Code Character Code Type
A UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13
B Code 39, Code 32
C Codabar
D
Code 128, ISBT 128, ISBT 128 Concatenated
E Code 93
F Interleaved 2 of 5
G Discrete 2 of 5, or Discrete 2 of 5 IATA
H Code 11
JMSI
KGS1-128
L Bookland EAN
M Trioptic Code 39
N Coupon Code
R GS1 DataBar Family
S Matrix 2 of 5
T UCC Composite, TLC 39
U Chinese 2 of 5
B - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
X
ISSN EAN,
PDF417, Macro PDF417, Micro PDF417
z Aztec, Aztec Rune
P00 Data Matrix
P01
QR Code, MicroQR
P02 Maxicode
P03 US Postnet
P04 US Planet
P05 Japan Postal
P06 UK Postal
P08
Netherlands KIX Code
P09 Australian Postal
P0A USPS 4CB/One Code/Intelligent Mail
P0B UPU FICS Postal
P0X Signature Capture
Table B-1
Symbol Code Characters (Continued)
Code Character Code Type
Programming Reference B - 3
AIM Code Identifiers
Each AIM Code Identifier contains the three-character string ]cm where:
] = Flag Character (ASCII 93)
c = Code Character (see Table B-2)
m = Modifier Character (see Table B-3)
Table B-2
Aim Code Characters
Code Character Code Type
A Code 39, Code 39 Full ASCII, Code 32
C
Code 128, ISBT 128, ISBT 128 Concatenated, GS1-128,
Coupon (Code 128 portion)
d Data Matrix
E UPC/EAN, Coupon (UPC portion)
e GS1 DataBar Family
F Codabar
G Code 93
H Code 11
I Interleaved 2 of 5
L PDF417, Macro PDF417, Micro PDF417
L2 TLC 39
MMSI
Q
QR Code, MicroQR
S Discrete 2 of 5, IATA 2 of 5
U Maxicode
z Aztec, Aztec Rune
X
Bookland EAN, ISSN EAN, Trioptic Code 39, Chinese 2 of 5, Matrix 2
of 5, US Postnet, US Planet, UK Postal, Japan Postal, Australian
Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail,
UPU FICS Postal, Signature Capture
B - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
The modifier character is the sum of the applicable option values based on Table B-3.
Table B-3
Modifier Characters
Code Type Option Value Option
Code 39 0 No check character or Full ASCII processing.
1 Reader has checked one check character.
3 Reader has checked and stripped check character.
4 Reader has performed Full ASCII character conversion.
5 Reader has performed Full ASCII character conversion and checked one
check character.
7 Reader has performed Full ASCII character conversion and checked and
stripped check character.
Example: A Full ASCII bar code with check character W, A+I+MI+DW, is transmitted as
]A7AIMID where 7 = (3+4).
Trioptic Code 39 0 No option specified at this time. Always transmit 0.
Example: A Trioptic bar code 412356 is transmitted as ]X0412356
Code 128 0 Standard data packet, no Function code 1 in first symbol position.
1 Function code 1 in first symbol character position.
2 Function code 1 in second symbol character position.
Example: A Code (EAN) 128 bar code with Function 1 character FNC1 in the first position, AIMID
is transmitted as ]C1AIMID
I 2 of 5 0 No check digit processing.
1 Reader has validated check digit.
3 Reader has validated and stripped check digit.
Example: An I 2 of 5 bar code without check digit, 4123, is transmitted as ]I04123
Codabar 0 No check digit processing.
1 Reader has checked check digit.
3 Reader has stripped check digit before transmission.
Example: A Codabar bar code without check digit, 4123, is transmitted as ]F04123
Code 93 0 No options specified at this time. Always transmit 0.
Example: A Code 93 bar code 012345678905 is transmitted as ]G0012345678905
MSI 0 Check digits are sent.
1 No check digit is sent.
Example: An MSI bar code 4123, with a single check digit checked, is transmitted as ]M14123
Programming Reference B - 5
D 2 of 5 0 No options specified at this time. Always transmit 0.
Example: A D 2 of 5 bar code 4123, is transmitted as ]S04123
UPC/EAN 0 Standard packet in full EAN country code format, which is 13 digits for
UPC-A, UPC-E, and EAN-13 (not including supplemental data).
1 Two-digit supplement data only.
2 Five-digit supplement data only.
3
Combined data packet comprising 13 digits from a UPC-A, UPC-E, or
EAN-13 symbol and 2 or 5 digits from a supplemental symbol.
4EAN-8 data packet.
Example: A UPC-A bar code 012345678905 is transmitted as ]E00012345678905
Bookland EAN 0 No options specified at this time. Always transmit 0.
Example: A Bookland EAN bar code 123456789X is transmitted as ]X0123456789X
ISSN EAN 0 No options specified at this time. Always transmit 0.
Example: An ISSN EAN bar code 123456789X is transmitted as ]X0123456789X
Code 11 0 Single check digit
1 Two check digits
3 Check characters validated but not transmitted.
GS1 DataBar
Family
No option specified at this time. Always transmit 0. DataBar-14 and
DataBar Limited transmit with an Application Identifier “01”.
Note: In GS1-128 emulation mode, GS1 DataBar is transmitted using Code
128 rules (i.e., ]C1).
Example: A DataBar-14 bar code 0110012345678902 is transmitted as ]e00110012345678902.
EAN.UCC
Composites
(GS1 DataBar,
GS1-128, 2D
portion of UPC
composite)
Native mode transmission.
Note: UPC portion of composite is transmitted using UPC rules.
0 Standard data packet.
1 Data packet containing the data following an encoded symbol separator
character.
2 Data packet containing the data following an escape mechanism character.
The data packet does not support the ECI protocol.
3 Data packet containing the data following an escape mechanism character.
The data packet supports the ECI protocol.
GS1-128 emulation
Note: UPC portion of composite is transmitted using UPC rules.
1 Data packet is a GS1-128 symbol (i.e., data is preceded with ]C1).
Table B-3
Modifier Characters (Continued)
Code Type Option Value Option
B - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
PDF417,
Micro PDF417 0 Reader set to conform to protocol defined in 1994 PDF417 symbology
specifications. Note: When this option is transmitted, the receiver cannot
reliably determine whether ECIs have been invoked or whether data byte
92DEC has been doubled in transmission.
1 Reader set to follow the ECI protocol (Extended Channel Interpretation). All
data characters 92DEC are doubled.
2 Reader set for Basic Channel operation (no escape character transmission
protocol). Data characters 92DEC are not doubled. Note: When decoders are
set to this mode, unbuffered Macro symbols and symbols requiring the
decoder to convey ECI escape sequences cannot be transmitted.
3 The bar code contains a GS1-128 symbol, and the first codeword is
903-907, 912, 914, 915.
4 The bar code contains a GS1-128 symbol, and the first codeword is in the
range 908-909.
5 The bar code contains a GS1-128 symbol, and the first codeword is in the
range 910-911.
Example: A PDF417 bar code ABCD, with no transmission protocol enabled, is transmitted as
]L2ABCD.
Data Matrix 0 ECC 000-140, not supported.
1 ECC 200.
2 ECC 200, FNC1 in first or fifth position.
3 ECC 200, FNC1 in second or sixth position.
4 ECC 200, ECI protocol implemented.
5 ECC 200, FNC1 in first or fifth position, ECI protocol implemented.
6 ECC 200, FNC1 in second or sixth position, ECI protocol implemented.
MaxiCode 0 Symbol in Mode 4 or 5.
1 Symbol in Mode 2 or 3.
2 Symbol in Mode 4 or 5, ECI protocol implemented.
3 Symbol in Mode 2 or 3, ECI protocol implemented in secondary message.
Table B-3
Modifier Characters (Continued)
Code Type Option Value Option
Programming Reference B - 7
QR Code 0 Model 1 symbol.
1
Model 2 / MicroQR symbol
, ECI protocol not implemented.
2 Model 2 symbol, ECI protocol implemented.
3 Model 2 symbol, ECI protocol not implemented, FNC1 implied in first
position.
4 Model 2 symbol, ECI protocol implemented, FNC1 implied in first position.
5 Model 2 symbol, ECI protocol not implemented, FNC1 implied in second
position.
6 Model 2 symbol, ECI protocol implemented, FNC1 implied in second
position.
Aztec 0 Aztec symbol.
C Aztec Rune symbol.
Table B-3
Modifier Characters (Continued)
Code Type Option Value Option
B - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Appendix C Sample Bar Codes
Code 39
UPC/EAN
UPC-A, 100%
123ABC
0
12
3
4
5
6
7
8
9
0
5
C - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
EAN-13, 100%
Code 128
Interleaved 2 of 5
3
4
5
6
7
8
9
0
12
3
4
0
12345678901234567890123456789012345678901234
12345678901231
Sample Bar Codes C - 3
GS1 DataBar-14
7612341562341
PDF417
Data Matrix
NOTE GS1 DataBar-14 must be enabled to read the bar code below (see GS1 DataBar-14 on page 10-65).
C - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Maxicode
QR Code
US Postnet
Sample Bar Codes C - 5
UK Postal
C - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Appendix D Numeric Bar Codes
Numeric Bar Codes
For parameters requiring specific numeric values, scan the appropriately numbered bar code(s).
0
1
2
3
4
D - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Numeric Bar Codes (continued)
Cancel
To correct an error or change a selection, scan the bar code below.
5
6
7
8
9
Cancel
Appendix E ASCII Character Sets
Table E-1
ASCII Value Table
ASCII Value Full ASCII Code 39
Encode Char Keystroke
1000 %U CTRL 2
1001 $A CTRL A
1002 $B CTRL B
1003 $C CTRL C
1004 $D CTRL D
1005 $E CTRL E
1006 $F CTRL F
1007 $G CTRL G
1008 $H CTRL H/BACKSPACE1
1009 $I CTRL I/HORIZONTAL TAB1
1010 $J CTRL J
1011 $K CTRL K
1012 $L CTRL L
1013 $M CTRL M/ENTER1
1014 $N CTRL N
1015 $O CTRL O
The keystroke in bold transmits only if Function Key Mapping is enabled. Otherwise, the
unbold keystroke transmits.
E - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
1016 $P CTRL P
1017 $Q CTRL Q
1018 $R CTRL R
1019 $S CTRL S
1020 $T CTRL T
1021 $U CTRL U
1022 $V CTRL V
1023 $W CTRL W
1024 $X CTRL X
1025 $Y CTRL Y
1026 $Z CTRL Z
1027 %A CTRL [
1028 %B CTRL \
1029 %C CTRL ]
1030 %D CTRL 6
1031 %E CTRL -
1032 Space Space
1033 /A !
1034 /B “
1035 /C #
1036 /D $
1037 /E %
1038 /F &
1039 /G ‘
1040 /H (
1041 /I )
1042 /J *
1043 /K +
Table E-1
ASCII Value Table (Continued)
ASCII Value Full ASCII Code 39
Encode Char Keystroke
The keystroke in bold transmits only if Function Key Mapping is enabled. Otherwise, the
unbold keystroke transmits.
ASCII Character Sets E - 3
1044 /L ,
1045 - -
1046 . .
1047 /o /
1048 0 0
1049 1 1
1050 2 2
1051 3 3
1052 4 4
1053 5 5
1054 6 6
1055 7 7
1056 8 8
1057 9 9
1058 /Z :
1059 %F ;
1060 %G <
1061 %H =
1062 %I >
1063 %J ?
1064 %V @
1065 A A
1066 B B
1067 C C
1068 D D
1069 E E
1070 F F
1071 G G
Table E-1
ASCII Value Table (Continued)
ASCII Value Full ASCII Code 39
Encode Char Keystroke
The keystroke in bold transmits only if Function Key Mapping is enabled. Otherwise, the
unbold keystroke transmits.
E - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
1072 H H
1073 I I
1074 J J
1075 K K
1076 L L
1077 M M
1078 N N
1079 O O
1080 P P
1081 Q Q
1082 R R
1083 S S
1084 T T
1085 U U
1086 V V
1087 W W
1088 X X
1089 Y Y
1090 Z Z
1091 %K [
1092 %L \
1093 %M ]
1094 %N ^
1095 %O _
1096 %W ‘
1097 +A a
1098 +B b
1099 +C c
Table E-1
ASCII Value Table (Continued)
ASCII Value Full ASCII Code 39
Encode Char Keystroke
The keystroke in bold transmits only if Function Key Mapping is enabled. Otherwise, the
unbold keystroke transmits.
ASCII Character Sets E - 5
1100 +D d
1101 +E e
1102 +F f
1103 +G g
1104 +H h
1105 +I i
1106 +J j
1107 +K k
1108 +L l
1109 +M m
1110 +N n
1111 +O o
1112 +P p
1113 +Q q
1114 +R r
1115 +S s
1116 +T t
1117 +U u
1118 +V v
1119 +W w
1120 +X x
1121 +Y y
1122 +Z z
1123 %P {
1124 %Q I
1125 %R }
1126 %S ~
Table E-1
ASCII Value Table (Continued)
ASCII Value Full ASCII Code 39
Encode Char Keystroke
The keystroke in bold transmits only if Function Key Mapping is enabled. Otherwise, the
unbold keystroke transmits.
E - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Table E-2
ALT Key Standard Default Tables
ALT Keys Keystroke
2064 ALT 2
2065 ALT A
2066 ALT B
2067 ALT C
2068 ALT D
2069 ALT E
2070 ALT F
2071 ALT G
2072 ALT H
2073 ALT I
2074 ALT J
2075 ALT K
2076 ALT L
2077 ALT M
2078 ALT N
2079 ALT O
2080 ALT P
2081 ALT Q
2082 ALT R
2083 ALT S
2084 ALT T
2085 ALT U
2086 ALT V
2087 ALT W
2088 ALT X
2089 ALT Y
2090 ALT Z
ASCII Character Sets E - 7
Table E-3
USB GUI Key Character Set
GUI Key Keystroke
3000 Right Control Key
3048 GUI 0
3049 GUI 1
3050 GUI 2
3051 GUI 3
3052 GUI 4
3053 GUI 5
3054 GUI 6
3055 GUI 7
3056 GUI 8
3057 GUI 9
3065 GUI A
3066 GUI B
3067 GUI C
3068 GUI D
3069 GUI E
3070 GUI F
3071 GUI G
3072 GUI H
3073 GUI I
3074 GUI J
3075 GUI K
3076 GUI L
3077 GUI M
3078 GUI N
3079 GUI O
Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple
key on either side of the space bar. Windows-based systems
have a GUI key to the left of the left ALT key, and to the right of
the right ALT key.
E - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
3080 GUI P
3081 GUI Q
3082 GUI R
3083 GUI S
3084 GUI T
3085 GUI U
3086 GUI V
3087 GUI W
3088 GUI X
3089 GUI Y
3090 GUI Z
Table E-3
USB GUI Key Character Set (Continued)
GUI Key Keystroke
Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple
key on either side of the space bar. Windows-based systems
have a GUI key to the left of the left ALT key, and to the right of
the right ALT key.
ASCII Character Sets E - 9
Table E-4
PF Key Standard Default Table
PF Keys Keystroke
4001 PF 1
4002 PF 2
4003 PF 3
4004 PF 4
4005 PF 5
4006 PF 6
4007 PF 7
4008 PF 8
4009 PF 9
4010 PF 10
4011 PF 11
4012 PF 12
4013 PF 13
4014 PF 14
4015 PF 15
4016 PF 16
E - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Table E-5
F key Standard Default Table
F Keys Keystroke
5001 F 1
5002 F 2
5003 F 3
5004 F 4
5005 F 5
5006 F 6
5007 F 7
5008 F 8
5009 F 9
5010 F 10
5011 F 11
5012 F 12
5013 F 13
5014 F 14
5015 F 15
5016 F 16
5017 F 17
5018 F 18
5019 F 19
5020 F 20
5021 F 21
5022 F 22
5023 F 23
5024 F 24
ASCII Character Sets E - 11
Table E-6
Numeric Key Standard Default Table
Numeric Keypad Keystroke
6042 *
6043 +
6044 Undefined
6045 -
6046 .
6047 /
6048 0
6049 1
6050 2
6051 3
6052 4
6053 5
6054 6
6055 7
6056 8
6057 9
6058 Enter
6059 Num Lock
E - 12 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Table E-7
Extended Keypad Standard Default Table
Extended Keypad Keystroke
7001 Break
7002 Delete
7003 Pg Up
7004 End
7005 Pg Dn
7006 Pause
7007 Scroll Lock
7008 Backspace
7009 Tab
7010 Print Screen
7011 Insert
7012 Home
7013 Enter
7014 Escape
7015 Up Arrow
7016 Dn Arrow
7017 Left Arrow
7018 Right Arrow
Glossary
A
Aperture. The opening in an optical system defined by a lens or baffle that establishes the field of view.
API. An interface by means of which one software component communicates with or controls another. Usually used to refer
to services provided by one software component to another, usually via software interrupts or function calls
Application Programming Interface. See API.
ASCII. American Standard Code for Information Interchange. A 7 bit-plus-parity code representing 128 letters, numerals,
punctuation marks and control characters. It is a standard data transmission code in the U.S.
Autodiscrimination. The ability of an interface controller to determine the code type of a scanned bar code. After this
determination is made, the information content is decoded.
B
Bar. The dark element in a printed bar code symbol.
Bar Code. A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in machine-readable
form. The general format of a bar code symbol consists of a leading margin, start character, data or message character,
check character (if any), stop character, and trailing margin. Within this framework, each recognizable symbology uses
its own unique format. See Symbology.
Bar Code Density. The number of characters represented per unit of measurement (e.g., characters per inch).
Bar Height. The dimension of a bar measured perpendicular to the bar width.
Bar Width. Thickness of a bar measured from the edge closest to the symbol start character to the trailing edge of the same
bar.
BIOS. Basic Input Output System. A collection of ROM-based code with a standard API used to interface with standard PC
hardware.
Glossary - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Bit. Binary digit. One bit is the basic unit of binary information. Generally, eight consecutive bits compose one byte of data.
The pattern of 0 and 1 values within the byte determines its meaning.
Bits per Second (bps). Bits transmitted or received.
Boot or Boot-up. The process a computer goes through when it starts. During boot-up, the computer can run
self-diagnostic tests and configure hardware and software.
BOOTP. A protocol for remote booting of diskless devices. Assigns an IP address to a machine and may specify a boot file.
The client sends a bootp request as a broadcast to the bootp server port (67) and the bootp server responds using the
bootp client port (68). The bootp server must have a table of all devices, associated MAC addresses and IP addresses.
bps. See Bits Per Second.
Byte. On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a pattern to represent a specific
character or numeric value. Bits are numbered from the right, 0 through 7, with bit 0 the low-order bit. One byte in
memory is used to store one ASCII character.
C
CDRH. Center for Devices and Radiological Health. A federal agency responsible for regulating laser product safety. This
agency specifies various laser operation classes based on power output during operation.
CDRH Class 1. This is the lowest power CDRH laser classification. This class is considered intrinsically safe, even if all laser
output were directed into the eye's pupil. There are no special operating procedures for this class.
CDRH Class 2. No additional software mechanisms are needed to conform to this limit. Laser operation in this class poses
no danger for unintentional direct human exposure.
Character. A pattern of bars and spaces which either directly represents data or indicates a control function, such as a
number, letter, punctuation mark, or communications control contained in a message.
Character Set. Those characters available for encoding in a particular bar code symbology.
Check Digit. A digit used to verify a correct symbol decode. The scanner inserts the decoded data into an arithmetic formula
and checks that the resulting number matches the encoded check digit. Check digits are required for UPC but are
optional for other symbologies. Using check digits decreases the chance of substitution errors when a symbol is
decoded.
Codabar. A discrete self-checking code with a character set consisting of digits 0 to 9 and six additional characters: ( - $ : /
, +).
Code 128. A high density symbology which allows the controller to encode all 128 ASCII characters without adding extra
symbol elements.
Code 3 of 9 (Code 39). A versatile and widely used alphanumeric bar code symbology with a set of 43 character types,
including all uppercase letters, numerals from 0 to 9 and 7 special characters (- . / + % $ and space). The code name is
derived from the fact that 3 of 9 elements representing a character are wide, while the remaining 6 are narrow.
Code 93. An industrial symbology compatible with Code 39 but offering a full character ASCII set and a higher coding
density than Code 39.
Glossary - 3
Code Length. Number of data characters in a bar code between the start and stop characters, not including those
characters.
Cold Boot. A cold boot restarts the mobile computer and erases all user stored records and entries.
COM Port. Communication port; ports are identified by number, e.g., COM1, COM2.
Continuous Code. A bar code or symbol in which all spaces within the symbol are parts of characters. There are no
intercharacter gaps in a continuous code. The absence of gaps allows for greater information density.
Cradle. A cradle is used for charging the terminal battery and for communicating with a host computer, and provides a
storage place for the terminal when not in use.
D
Dead Zone. An area within a scanner's field of view, in which specular reflection may prevent a successful decode.
Decode. To recognize a bar code symbology (e.g., UPC/EAN) and then analyze the content of the specific bar code
scanned.
Decode Algorithm. A decoding scheme that converts pulse widths into data representation of the letters or numbers
encoded within a bar code symbol.
Decryption. Decryption is the decoding and unscrambling of received encrypted data. Also see, Encryption and Key.
Depth of Field. The range between minimum and maximum distances at which a scanner can read a symbol with a certain
minimum element width.
Discrete 2 of 5. A binary bar code symbology representing each character by a group of five bars, two of which are wide.
The location of wide bars in the group determines which character is encoded; spaces are insignificant. Only numeric
characters (0 to 9) and START/STOP characters may be encoded.
Discrete Code. A bar code or symbol in which the spaces between characters (intercharacter gaps) are not part of the code.
DRAM. Dynamic random access memory.
E
EAN. European Article Number. This European/International version of the UPC provides its own coding format and
symbology standards. Element dimensions are specified metrically. EAN is used primarily in retail.
Element. Generic term for a bar or space.
Encoded Area. Total linear dimension occupied by all characters of a code pattern, including start/stop characters and data.
ENQ (RS-232). ENQ software handshaking is also supported for the data sent to the host.
ESD. Electro-Static Discharge
Glossary - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
F
Flash Disk. An additional megabyte of non-volatile memory for storing application and configuration files.
Flash Memory. Flash memory is responsible for storing the system firmware and is non-volatile. If the system power is
interrupted the data is not be lost.
FTP. See File Transfer Protocol.
H
Hard Reset. See Cold Boot.
Host Computer. A computer that serves other terminals in a network, providing such services as computation, database
access, supervisory programs and network control.
Hz. Hertz; A unit of frequency equal to one cycle per second.
I
IDE. Intelligent drive electronics. Refers to the solid-state hard drive type.
IEC. International Electrotechnical Commission. This international agency regulates laser safety by specifying various laser
operation classes based on power output during operation.
IEC (825) Class 1. This is the lowest power IEC laser classification. Conformity is ensured through a software restriction of
120 seconds of laser operation within any 1000 second window and an automatic laser shutdown if the scanner's
oscillating mirror fails.
Input/Output Ports. I/O ports are primarily dedicated to passing information into or out of the device’s memory, such as
serial and USB ports.
Intercharacter Gap. The space between two adjacent bar code characters in a discrete code.
Interleaved 2 of 5. A binary bar code symbology representing character pairs in groups of five bars and five interleaved
spaces. Interleaving provides for greater information density. The location of wide elements (bar/spaces) within each
group determines which characters are encoded. This continuous code type uses no intercharacter spaces. Only
numeric (0 to 9) and START/STOP characters may be encoded.
Interleaved Bar Code. A bar code in which characters are paired together, using bars to represent the first character and
the intervening spaces to represent the second.
I/O Ports. interface The connection between two devices, defined by common physical characteristics, signal
characteristics, and signal meanings. Types of interfaces include RS-232 and PCMCIA.
IOCTL. Input/Output Control.
Glossary - 5
IP. Internet Protocol. The IP part of the TCP/IP communications protocol. IP implements the network layer (layer 3) of the
protocol, which contains a network address and is used to route a message to a different network or subnetwork. IP
accepts “packets” from the layer 4 transport protocol (TCP or UDP), adds its own header to it and delivers a “datagram”
to the layer 2 data link protocol. It may also break the packet into fragments to support the maximum transmission unit
(MTU) of the network.
IP Address. (Internet Protocol address) The address of a computer attached to an IP network. Every client and server
station must have a unique IP address. A 32-bit address used by a computer on a IP network. Client workstations have
either a permanent address or one that is dynamically assigned to them each session. IP addresses are written as four
sets of numbers separated by periods; for example, 204.171.64.2.
IPX/SPX. Internet Package Exchange/Sequential Packet Exchange. A communications protocol for Novell. IPX is Novell’s
Layer 3 protocol, similar to XNS and IP, and used in NetWare networks. SPX is Novell's version of the Xerox SPP
protocol.
K
Key. A key is the specific code used by the algorithm to encrypt or decrypt the data. Also see, Encryption and Decrypting.
L
LASER. Light Amplification by Stimulated Emission of Radiation.The laser is an intense light source. Light from a laser is
all the same frequency, unlike the output of an incandescent bulb. Laser light is typically coherent and has a high energy
density.
Laser Diode. A gallium-arsenide semiconductor type of laser connected to a power source to generate a laser beam. This
laser type is a compact source of coherent light.
Laser Scanner. A type of bar code reader that uses a beam of laser light.
LCD. See Liquid Crystal Display.
LED Indicator. A semiconductor diode (LED - Light Emitting Diode) used as an indicator, often in digital displays. The
semiconductor uses applied voltage to produce light of a certain frequency determined by the semiconductor's particular
chemical composition.
Light Emitting Diode. See LED.
Liquid Crystal Display (LCD). A display that uses liquid crystal sealed between two glass plates. The crystals are excited
by precise electrical charges, causing them to reflect light outside according to their bias. They use little electricity and
react relatively quickly. They require external light to reflect their information to the user.
M
MDN. Mobile Directory Number. The directory listing telephone number that is dialed (generally using POTS) to reach a
mobile unit. The MDN is usually associated with a MIN in a cellular telephone -- in the US and Canada, the MDN and
Glossary - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
MIN are the same value for voice cellular users. International roaming considerations often result in the MDN being
different from the MIN.
MIL. 1 mil = 1 thousandth of an inch.
MIN. Mobile Identification Number. The unique account number associated with a cellular device. It is broadcast by the
cellular device when accessing the cellular system.
Misread (Misdecode). A condition which occurs when the data output of a reader or interface controller does not agree with
the data encoded within a bar code symbol.
N
Nominal. The exact (or ideal) intended value for a specified parameter. Tolerances are specified as positive and negative
deviations from this value.
Nominal Size. Standard size for a bar code symbol. Most UPC/EAN codes are used over a range of magnifications (e.g.,
from 0.80 to 2.00 of nominal).
NVM. Non-Volatile Memory.
O
ODI. See Open Data-Link Interface.
Open Data-Link Interface (ODI). Novell’s driver specification for an interface between network hardware and higher-level
protocols. It supports multiple protocols on a single NIC (Network Interface Controller). It is capable of understanding
and translating any network information or request sent by any other ODI-compatible protocol into something a NetWare
client can understand and process.
Open System Authentication. Open System authentication is a null authentication algorithm.
P
PAN . Personal area network. Using Bluetooth wireless technology, PANs enable devices to communicate wirelessly.
Generally, a wireless PAN consists of a dynamic group of less than 255 devices that communicate within about a 33-foot
range. Only devices within this limited area typically participate in the network.
Parameter. A variable that can have different values assigned to it.
PC Card. A plug-in expansion card for laptop computers and other devices, also called a PCMCIA card. PC Cards are
85.6mm long x 54 mm wide, and have a 68 pin connector. There are several different kinds:
• Type I; 3.3 mm high; use - RAM or Flash RAM
• Type II; 5 mm high; use - modems, LAN adaptors
• Type III; 10.5 high; use - Hard Disks
Glossary - 7
PCMCIA. Personal Computer Memory Card Interface Association. See PC Card.
Percent Decode. The average probability that a single scan of a bar code would result in a successful decode. In a
well-designed bar code scanning system, that probability should approach near 100%.
PING. (Packet Internet Groper) An Internet utility used to determine whether a particular IP address is online. It is used to
test and debug a network by sending out a packet and waiting for a response.
Print Contrast Signal (PCS). Measurement of the contrast (brightness difference) between the bars and spaces of a
symbol. A minimum PCS value is needed for a bar code symbol to be scannable. PCS = (RL - RD) / RL, where RL is
the reflectance factor of the background and RD the reflectance factor of the dark bars.
Programming Mode. The state in which a scanner is configured for parameter values. See Scanning Mode.
Q
Quiet Zone. A clear space, containing no dark marks, which precedes the start character of a bar code symbol and follows
the stop character.
QWERTY. A standard keyboard commonly used on North American and some European PC keyboards. “QWERTY” refers
to the arrangement of keys on the left side of the third row of keys.
R
RAM. Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read.
Reflectance. Amount of light returned from an illuminated surface.
Resolution. The narrowest element dimension which is distinguished by a particular reading device or printed with a
particular device or method.
RF. Radio Frequency.
ROM. Read-Only Memory. Data stored in ROM cannot be changed or removed.
Router. A device that connects networks and supports the required protocols for packet filtering. Routers are typically used
to extend the range of cabling and to organize the topology of a network into subnets. See Subnet.
RS-232. An Electronic Industries Association (EIA) standard that defines the connector, connector pins, and signals used to
transfer data serially from one device to another.
S
Scan Area. Area intended to contain a symbol.
Glossary - 8 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Scanner. An electronic device used to scan bar code symbols and produce a digitized pattern that corresponds to the bars
and spaces of the symbol. Its three main components are: 1) Light source (laser or photoelectric cell) - illuminates a bar
code,; 2) Photodetector - registers the difference in reflected light (more light reflected from spaces); 3) Signal
conditioning circuit - transforms optical detector output into a digitized bar pattern.
Scanning Mode. The scanner is energized, programmed and ready to read a bar code.
Scanning Sequence. A method of programming or configuring parameters for a bar code reading system by scanning bar
code menus.
SDK. Software Development Kit
Self-Checking Code. A symbology that uses a checking algorithm to detect encoding errors within the characters of a bar
code symbol.
Shared Key. Shared Key authentication is an algorithm where both the AP and the MU share an authentication key.
SHIP. Symbol Host Interface Program.
SID. System Identification code. An identifier issued by the FCC for each market. It is also broadcast by the cellular carriers
to allow cellular devices to distinguish between the home and roaming service.
Soft Reset. See Warm Boot.
Space. The lighter element of a bar code formed by the background between bars.
Specular Reflection. The mirror-like direct reflection of light from a surface, which can cause difficulty decoding a bar code.
Start/Stop Character. A pattern of bars and spaces that provides the scanner with start and stop reading instructions and
scanning direction. The start and stop characters are normally to the left and right margins of a horizontal code.
STEP. Symbol Terminal Enabler Program.
Subnet. A subset of nodes on a network that are serviced by the same router. See Router.
Subnet Mask. A 32-bit number used to separate the network and host sections of an IP address. A custom subnet mask
subdivides an IP network into smaller subsections. The mask is a binary pattern that is matched up with the IP address
to turn part of the host ID address field into a field for subnets. Default is often 255.255.255.0.
Substrate. A foundation material on which a substance or image is placed.
SVTP. Symbol Virtual Terminal Program.
Symbol. A scannable unit that encodes data within the conventions of a certain symbology, usually including start/stop
characters, quiet zones, data characters and check characters.
Symbol Aspect Ratio. The ratio of symbol height to symbol width.
Symbol Height. The distance between the outside edges of the quiet zones of the first row and the last row.
Symbol Length. Length of symbol measured from the beginning of the quiet zone (margin) adjacent to the start character
to the end of the quiet zone (margin) adjacent to a stop character.
Glossary - 9
Symbology. The structural rules and conventions for representing data within a particular bar code type (e.g. UPC/EAN,
Code 39, PDF417, etc.).
T
TCP/IP. (Transmission Control Protocol/Internet Protocol) A communications protocol used to internetwork dissimilar
systems. This standard is the protocol of the Internet and has become the global standard for communications. TCP
provides transport functions, which ensures that the total amount of bytes sent is received correctly at the other end.
UDP is an alternate transport that does not guarantee delivery. It is widely used for real-time voice and video
transmissions where erroneous packets are not retransmitted. IP provides the routing mechanism. TCP/IP is a routable
protocol, which means that all messages contain not only the address of the destination station, but the address of a
destination network. This allows TCP/IP messages to be sent to multiple networks within an organization or around the
world, hence its use in the worldwide Internet. Every client and server in a TCP/IP network requires an IP address, which
is either permanently assigned or dynamically assigned at startup.
Telnet. A terminal emulation protocol commonly used on the Internet and TCP/IP-based networks. It allows a user at a
terminal or computer to log onto a remote device and run a program.
Terminal Emulation. A “terminal emulation” emulates a character-based mainframe session on a remote non-mainframe
terminal, including all display features, commands and function keys. The VC5000 Series supports Terminal Emulations
in 3270, 5250 and VT220.
Terminate and Stay Resident (TSR). A program under DOS that ends its foreground execution to remain resident in
memory to service hardware/software interrupts, providing background operation. It remains in memory and may
provide services on behalf of other DOS programs.
TFTP. (Trivial File Transfer Protocol) A version of the TCP/IP FTP (File Transfer Protocol) protocol that has no directory or
password capability. It is the protocol used for upgrading firmware, downloading software and remote booting of diskless
devices.
Tolerance. Allowable deviation from the nominal bar or space width.
Transmission Control Protocol/Internet Protocol. See TCP/IP.
Trivial File Transfer Protocol. See TFTP.
TSR. See Terminate and Stay Resident.
U
UDP. User Datagram Protocol. A protocol within the IP protocol suite that is used in place of TCP when a reliable delivery
is not required. For example, UDP is used for real-time audio and video traffic where lost packets are simply ignored,
because there is no time to retransmit. If UDP is used and a reliable delivery is required, packet sequence checking and
error notification must be written into the applications.
UPC. Universal Product Code. A relatively complex numeric symbology. Each character consists of two bars and two
spaces, each of which is any of four widths. The standard symbology for retail food packages in the United States.
Glossary - 10 Symbol DS6707 Digital Imager Scanner Product Reference Guide
V
Visible Laser Diode (VLD). A solid state device which produces visible laser light.
W
Warm Boot. A warm boot restarts the mobile computer by closing all running programs. All data that is not saved to flash
memory is lost.
Index
Numerics
123Scan parameters . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
2D bar codes
aztec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-77
aztec inverse . . . . . . . . . . . . . . . . . . . . . . . . . . 10-78
code 128 emulation . . . . . . . . . . . . . . . . . . . . . 10-72
data matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-73
data matrix inverse . . . . . . . . . . . . . . . . . . . . . 10-74
maxicode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-75
MicroPDF417 . . . . . . . . . . . . . . . . . . . . . . . . . 10-71
MicroQR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-77
PDF417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-71
QR code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-75
QR inverse . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-76
A
actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
actions . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1, 11-27
move cursor . . . . . . . . . . . . . . . . . . . . . . . 11-31
send data . . . . . . . . . . . . . . . . . . . . . . . . . 11-27
setup fields . . . . . . . . . . . . . . . . . . . . . . . . 11-30
alphanumeric keyboard . . . . . . . . . . . . . . . . . . 11-91
alternate rule sets . . . . . . . . . . . . . . . . . . . . . . . 11-3
bar code list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
bar code menu example . . . . . . . . . . . . . . . . . . 11-2
beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-47
code lengths . . . . . . . . . . . . . . . . . . . . . . . . . . 11-18
code types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11
criteria . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1, 11-11
default rules . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
move cursor past a character . . . . . . . . . . . . . 11-30
move cursor past string . . . . . . . . . . . . . . . . . . 11-30
move cursor to a character . . . . . . . . . . . . . . . 11-30
move cursor to last occurrence of string and
replace . . . . . . . . . . . . . . . . . . . . . . . . 11-31
move cursor to start of data . . . . . . . . . . . . . . 11-30
move cursor to string and replace . . . . . . . . . 11-30
numeric keypad . . . . . . . . . . . . . . . . . . 11-24, 11-25
pad spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-38
pad zeros . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-42
rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
rules hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
send alt characters . . . . . . . . . . . . . . . . . . . . . 11-66
send control characters . . . . . . . . . . . . . . . . . 11-47
send function key . . . . . . . . . . . . . . . . . . . . . . 11-76
send keyboard characters . . . . . . . . . . . . . . . 11-52
send keypad characters . . . . . . . . . . . . . . . . . 11-71
send preset value . . . . . . . . . . . . . . . . . . . . . . 11-31
send value . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-36
skip ahead "n" characters . . . . . . . . . . . . . . . . 11-31
skip ahead characters . . . . . . . . . . . . . . . . . . 11-33
skip back "n" characters . . . . . . . . . . . . . . . . . 11-31
skip back characters . . . . . . . . . . . . . . . . . . . . 11-34
skip cursor to end . . . . . . . . . . . . . . . . . . . . . . 11-31
space removal . . . . . . . . . . . . . . . . . . . . . . . . 11-37
special commands . . . . . . . . . . . . . . . . . . . . . . 11-8
specific data string . . . . . . . . . . . . . . . . . . . . . 11-22
specific string
any location . . . . . . . . . . . . . . . . . . . . . . . 11-23
any message ok . . . . . . . . . . . . . . . . . . . . 11-23
at start . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-22
rule belongs to set . . . . . . . . . . . . . . . . . . 11-26
search . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-23
turn off rule sets . . . . . . . . . . . . . . . . . . 11-89, 11-90
zero removal . . . . . . . . . . . . . . . . . . . . . . . . . . 11-37
advanced data formatting . . . . . . . . . . . . . . . . . . . . 11-1
actions . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1, 11-27
alphanumeric keyboard . . . . . . . . . . . . . . . . . 11-91
alternate rule sets . . . . . . . . . . . . . . . . . . . . . . . 11-3
bar code menu example . . . . . . . . . . . . . . . . . . 11-2
beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-47
Index - 2 Symbol DS6707 Digital Imager Scanner Product Reference Guide
code lengths . . . . . . . . . . . . . . . . . . . . . . . . . . 11-18
code types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11
criteria . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1, 11-11
default rules . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
numeric keypad . . . . . . . . . . . . . . . . . . .11-24, 11-25
pad spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-38
pad zeros . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-42
rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
rules hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
send alt characters . . . . . . . . . . . . . . . . . . . . . 11-66
send control characters . . . . . . . . . . . . . . . . . . 11-47
send function key . . . . . . . . . . . . . . . . . . . . . . 11-76
send keyboard characters . . . . . . . . . . . . . . . . 11-52
send keypad characters . . . . . . . . . . . . . . . . . 11-71
send preset value . . . . . . . . . . . . . . . . . . . . . . 11-36
setup fields . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-30
skip ahead characters . . . . . . . . . . . . . . . . . . . 11-33
skip back characters . . . . . . . . . . . . . . . . . . . . 11-34
space removal . . . . . . . . . . . . . . . . . . . . . . . . . 11-37
special commands . . . . . . . . . . . . . . . . . . . . . . 11-8
specific data string . . . . . . . . . . . . . . . . . . . . . 11-22
turn off rule sets . . . . . . . . . . . . . . . . . .11-89, 11-90
zero removal . . . . . . . . . . . . . . . . . . . . . . . . . . 11-37
aiming options
decode aiming pattern . . . . . . . . . . . . . . . . . . . 4-13
snapshot aiming pattern . . . . . . . . . . . . . . . . . . 5-10
snapshot mode timeout . . . . . . . . . . . . . . . . . . . 5-10
video view finder . . . . . . . . . . . . . . . . . . . . . . . . 5-23
aiming pattern . . . . . . . . . . . . . . . . . . . . . . . . . .2-5, 5-10
enabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
orientation . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5, 2-6
aiming tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
ASCII values
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13
autoexposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
B
bar codes
matrix 2 of 5 check digit . . . . . . . . . . . . . . 10-57
123Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
abort macro PDF entry . . . . . . . . . . . . . . . . . . 10-83
ADF list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
Australian postal . . . . . . . . . . . . . . . . . . . . . . . 10-63
autoexposure . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
aztec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-77
aztec inverse . . . . . . . . . . . . . . . . . . . . . . . . . . 10-78
beep after good decode . . . . . . . . . . . . . . . . . . 4-11
beeper tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
beeper volume . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
bits per pixel . . . . . . . . . . . . . . . . . . . . . . .5-18, 5-21
bookland EAN . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
bookland ISBN . . . . . . . . . . . . . . . . . . . . . . . . 10-21
buffering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-33
cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2
Chinese 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . 10-54
codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-48
codabar CLSI editing . . . . . . . . . . . . . . . . . . . . 10-50
codabar lengths . . . . . . . . . . . . . . . . . . 10-48, 10-49
codabar NOTIS editing . . . . . . . . . . . . . . . . . . 10-50
code 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-38
code 11 lengths . . . . . . . . . . . . . . . . . . 10-38, 10-39
code 128 . . . . . . . . . . . . . . . . . . . . . . . 10-23, 10-25
code 128 emulation . . . . . . . . . . . . . . . . . . . . . 10-72
code 128 lengths . . . . . . . . . . . . . . . . . . . . . . . 10-23
code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-28
transmit buffer . . . . . . . . . . . . . . . . . . . . . . 10-34
code 39 check digit verification . . . . . . . . . . . . 10-31
code 39 full ASCII . . . . . . . . . . . . . . . . . . . . . . 10-32
code 39 lengths . . . . . . . . . . . . . . . . . . . . . . . . 10-30
code 39 transmit check digit . . . . . . . . . . . . . . 10-32
code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-36
code 93 lengths . . . . . . . . . . . . . . . . . . 10-36, 10-37
composite CC-A/B . . . . . . . . . . . . . . . . . . . . . . 10-67
composite CC-C . . . . . . . . . . . . . . . . . . . . . . . 10-67
composite TLC-39 . . . . . . . . . . . . . . . . . . . . . . 10-68
convert UPC-E to UPC-A . . . . . . . . . . . . . . . . 10-19
convert UPC-E1 to UPC-A . . . . . . . . . . . . . . . 10-19
crop to address . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
data matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-73
data matrix inverse . . . . . . . . . . . . . . . . . . . . . 10-74
data options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
pause duration . . . . . . . . . . . . . . . . . . . . . . 11-8
prefix/suffix values . . . . . . . . . . . . . . . . . . . 4-16
transmit code ID character . . . . . . . . . . . . . 4-15
decode aiming pattern . . . . . . . . . . . . . . . . . . . . 4-13
decode mirror images . . . . . . . . . . . . . . . . . . . . 4-14
decode session timeout . . . . . . . . . . . . . . . . . . . 4-10
digital imager scanner
default table . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
discrete 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . 10-46
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-47
discrete 2 of 5 lengths . . . . . . . . . . . . . . . . . . . 10-46
DP illumination . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
EAN zero extend . . . . . . . . . . . . . . . . . . . . . . . 10-20
EAN-13/JAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
EAN-8/JAN-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
event reporting
boot up event . . . . . . . . . . . . . . . . . . . . . . . 6-15
decode event . . . . . . . . . . . . . . . . . . . . . . . 6-14
parameter event . . . . . . . . . . . . . . . . . . . . . 6-15
fixed exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
fixed gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
flush macro buffer . . . . . . . . . . . . . . . . . . . . . . 10-83
fuzzy 1D processing . . . . . . . . . . . . . . . . . . . . . 4-13
GS1 DataBar . . . . . . . . . . . . . . . . . . . . . . . . . . 10-65
Index - 3
GS1-128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-25
I 2 of 5 check digit verification . . . . . . . . . . . . . 10-44
I 2 of 5 convert to EAN-13 . . . . . . . . . . . . . . . . 10-45
I 2 of 5 transmit check digit . . . . . . . . . . . . . . . 10-44
illumination . . . . . . . . . . . . . . . . . . . . . . . . .4-11, 5-6
illumination bank control . . . . . . . . . . . . . . . . . . . 5-7
image brightness (target white) . . . . . . . . . . . . . 5-14
image cropping . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
image enhancement . . . . . . . . . . . . . . . . . . . . . 5-16
image file format . . . . . . . . . . . . . . . . . . . .5-17, 5-20
image resolution . . . . . . . . . . . . . . . . . . . . . . . . 5-13
intercharacter gap size . . . . . . . . . . . . . . . . . . 10-82
interleaved 2 of 5 . . . . . . . . . . . . . . . . . . . . . . 10-42
convert to EAN-13 . . . . . . . . . . . . . . . . . . 10-45
lengths . . . . . . . . . . . . . . . . . . . . . .10-42, 10-43
inverse 1D . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-59
ISSN EAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-22
Japan postal . . . . . . . . . . . . . . . . . . . . . . . . . . 10-62
JPEG image options . . . . . . . . . . . . . . . . . . . . . 5-14
JPEG quality and size . . . . . . . . . . . . . . . . . . . . 5-15
JPEG target file size . . . . . . . . . . . . . . . . . . . . . 5-15
low exposure priority for snapshot mode . . . . . . 5-9
low gain priority for snapshot mode . . . . . . . . . . 5-9
low light enhancement . . . . . . . . . . . . . . . . . . . . 5-5
matrix 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . 10-55
matrix 2 of 5 lengths . . . . . . . . . . . . . . . . . . . . 10-56
matrix 2 of 5 redundancy . . . . . . . . . . . . . . . . 10-57
maxicode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-75
MicroPDF417 . . . . . . . . . . . . . . . . . . . . . . . . . 10-71
MicroQR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-77
miscellaneous
scan data options . . . . . . . . . . . . . . . . . . . . 4-17
transmit no read msg . . . . . . . . . . . . . . . . . 4-19
MSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-51
MSI check digit algorithm . . . . . . . . . . . . . . . . 10-53
MSI check digits . . . . . . . . . . . . . . . . . . . . . . . 10-52
MSI lengths . . . . . . . . . . . . . . . . . . . . . .10-51, 10-52
MSI transmit check digit . . . . . . . . . . . . . . . . . 10-53
Netherlands KIX code . . . . . . . . . . . . . . . . . . . 10-63
numeric bar codes . . . . . . . . . . . . . . . . . . . . . . . D-2
parameter scanning . . . . . . . . . . . . . . . . . . . . . . 4-5
PDF417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-71
picklist modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
postal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-60
prefix/suffix values . . . . . . . . . . . . . . . . . . . . . . 4-16
presentation mode field of view . . . . . . . . . . . . . 5-5
QR code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-75
QR inverse . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-76
redundancy level . . . . . . . . . . . . . . . . . . . . . . . 10-79
report version . . . . . . . . . . . . . . . . . . . . . . . . . 10-82
RS-232
baud rate . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
beep on bel . . . . . . . . . . . . . . . . . . . . . . . . . 8-16
check receive errors . . . . . . . . . . . . . . . . . . 8-11
data bits . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
default table . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
hardware handshaking . . . . . . . 8-11, 8-12, 8-13
host serial response time-out . . . . . . . . . . . 8-15
host types . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
intercharacter delay . . . . . . . . . . . . . . . . . . 8-17
parity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
RTS line state . . . . . . . . . . . . . . . . . . . . . . . 8-16
software handshaking . . . . . . . . . . . . 8-13, 8-14
stop bit select . . . . . . . . . . . . . . . . . . . . . . . 8-16
samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
security level . . . . . . . . . . . . . . . . . . . . . . . . . . 10-81
set defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
signature capture . . . . . . . . . . . . . . . . . . . . . . . . 5-19
signature capture height . . . . . . . . . . . . . . . . . . 5-22
signature capture JPEG quality . . . . . . . . . . . . . 5-22
signature capture width . . . . . . . . . . . . . . . . . . . 5-22
snapshot aiming pattern . . . . . . . . . . . . . . . . . . 5-10
snapshot mode timeout . . . . . . . . . . . . . . . . . . . 5-10
SSI
baud rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
check parity . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
data packet format . . . . . . . . . . . . . . . . . . . . 6-8
default table . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
host character timeout . . . . . . . . . . . . . . . . 6-11
host RTS line state . . . . . . . . . . . . . . . . . . . . 6-8
host serial response time-out . . . . . . . . . . . 6-10
interpacket delay . . . . . . . . . . . . . . . . . . . . . 6-13
multipacket option . . . . . . . . . . . . . . . . . . . . 6-12
parity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
software handshaking . . . . . . . . . . . . . . . . . . 6-7
stop bit select . . . . . . . . . . . . . . . . . . . . . . . . 6-9
supplementals . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
symbologies
default table . . . . . . . . . . . . . . . . . . . . . . . . 10-2
ISBT concatenation . . . . . . . . . . . . 10-26, 10-27
ISBT concatenation redundancy . . . . . . . . 10-27
Netherlands KIX code . . . . . . . . . . . . . . . . 10-63
transmit matrix 2 of 5 check digit . . . . . . . . . . . 10-58
transmit UK postal check digit . . . . . . . . . . . . . 10-62
transmit US postal check digit . . . . . . . . . . . . . 10-61
trigger modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
UCC coupon extended code . . . . . . . . . . . . . . 10-22
UK postal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-61
UPC composite mode . . . . . . . . . . . . . . . . . . . 10-69
UPC/EAN
coupon code . . . . . . . . . . . . . . . . . . . . . . . 10-22
supp redundancy . . . . . . . . . . . . . . . . . . . 10-14
UPC/EAN/JAN
supplemental redundancy . . . . . . . . . . . . . 10-14
UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
UPC-A preamble . . . . . . . . . . . . . . . . . . . . . . . 10-16
UPC-A/E/E1 check digit . . . . . . . . . . . 10-14, 10-15
UPC-E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
Index - 4 Symbol DS6707 Digital Imager Scanner Product Reference Guide
UPC-E preamble . . . . . . . . . . . . . . . . . . . . . . . 10-17
UPC-E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
UPU FICS postal . . . . . . . . . . . . . . . . . . . . . . . 10-64
US planet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-60
US postnet . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-60
USB
caps lock override . . . . . . . . . . . . . . . . . . . . . 7-8
country keyboard types . . . . . . . . . . . . . . . . 7-6
default table . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
device type . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
keystroke delay . . . . . . . . . . . . . . . . . . . . . . . 7-8
SNAPI handshaking . . . . . . . . . . . . . . . . . . . 7-5
unknown characters . . . . . . . . . . . . . . . . . . . 7-9
USPS 4CB/One Code/Intelligent Mail . . . . . . . 10-64
video frame size . . . . . . . . . . . . . . . . . . . . . . . . 5-23
video image size . . . . . . . . . . . . . . . . . . . . . . . . 5-24
video view finder . . . . . . . . . . . . . . . . . . . . . . . . 5-23
beeper definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
bullets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi
C
cables
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
removing cables . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
signal descriptions . . . . . . . . . . . . . . . . . . . . . . . 3-8
character sets
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13
Chinese 2 of 5 bar codes . . . . . . . . . . . . . . . . . . . . 10-54
codabar bar codes
CLSI editing . . . . . . . . . . . . . . . . . . . . . . . . . . 10-50
codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-48
lengths . . . . . . . . . . . . . . . . . . . . . . . . .10-48, 10-49
NOTIS editing . . . . . . . . . . . . . . . . . . . . . . . . . 10-50
code 11 bar codes
code 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-38
lengths . . . . . . . . . . . . . . . . . . . . . . . . .10-38, 10-39
code 128 bar codes
code 128 . . . . . . . . . . . . . . . . . . . . . . . .10-23, 10-25
GS1-128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-25
ISBT concatenation . . . . . . . . . . . . . . . .10-26, 10-27
ISBT concatenation redundancy . . . . . . . . . . . 10-27
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-23
code 128 emulation bar codes . . . . . . . . . . . . . . . 10-72
code 39 bar codes
buffering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-33
check digit verification . . . . . . . . . . . . . . . . . . . 10-31
code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-28
full ASCII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-32
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-30
transmit check digit . . . . . . . . . . . . . . . . . . . . . 10-32
code 93 bar codes
code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-36
lengths . . . . . . . . . . . . . . . . . . . . . . . . . 10-36, 10-37
code identifiers
AIM code IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
modifier characters . . . . . . . . . . . . . . . . . . . . . . . B-4
Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
code types
ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11
composite bar codes
composite CC-A/B . . . . . . . . . . . . . . . . . . . . . . 10-67
composite CC-C . . . . . . . . . . . . . . . . . . . . . . . 10-67
composite TLC-39 . . . . . . . . . . . . . . . . . . . . . . 10-68
UPC composite mode . . . . . . . . . . . . . . . . . . . 10-69
configurations, scanner . . . . . . . . . . . . . . . . . . . . . . . . xv
connecting
interface cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
RS-232 interface . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
conventions
notational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi
cropping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11, 5-12
D
data matrix bar codes . . . . . . . . . . . . . . . . . . . . . . 10-73
DataBar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-65
decode zones
direct part mark . . . . . . . . . . . . . . . . . . . . 2-12, 2-13
document capture . . . . . . . . . . . . . . . . . . 2-10, 2-11
high density . . . . . . . . . . . . . . . . . . . . . . . 2-14, 2-15
standard range . . . . . . . . . . . . . . . . . . . . . . 2-8, 2-9
default parameters
imaging preferences . . . . . . . . . . . . . . . . . . . . . . 5-2
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
SSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
standard default table . . . . . . . . . . . . . . . . . . . . . A-1
symbologies . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
user preferences . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
digital imager scanner
defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
discrete 2 of 5 bar codes
discrete 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . 10-46
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-46
E
exposure options
autoexposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
fixed exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
fixed gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
gain / exposure priority for snapshot mode . . . . . 5-9
Index - 5
illumination . . . . . . . . . . . . . . . . . . . . . . . . .4-11, 5-6
low light enhancement . . . . . . . . . . . . . . . . . . . . 5-5
presentation mode field of view . . . . . . . . . . . . . 5-5
F
fixed exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
fixed gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
G
gain / exposure priority for snapshot mode . . . . . . . . 5-9
GS1 DataBar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-65
Convert GS1 DataBar to UPC/EAN . . . . . . . . 10-66
H
host types
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
I
illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11, 5-6
bank control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
DP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
image brightness (target white) . . . . . . . . . . . . . . . . 5-14
image cropping . . . . . . . . . . . . . . . . . . . . . . . .5-11, 5-12
image enhancement . . . . . . . . . . . . . . . . . . . . . . . . 5-16
image options
bits per pixel . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18
cropping . . . . . . . . . . . . . . . . . . . . . . . . . .5-11, 5-12
file formats . . . . . . . . . . . . . . . . . . . . . . . .5-17, 5-20
image brightness (target white) . . . . . . . . . . . . . 5-14
image enhancement . . . . . . . . . . . . . . . . . . . . . 5-16
image resolution . . . . . . . . . . . . . . . . . . . . . . . . 5-13
JPEG image options . . . . . . . . . . . . . . . . . . . . . 5-14
JPEG size/quality . . . . . . . . . . . . . . . . . . . . . . . 5-15
JPEG target file size . . . . . . . . . . . . . . . . . . . . . 5-15
image resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
imaging preferences parameters . . . . . . . . . . . . . . . . 5-2
intellistand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
interleaved 2 of 5 bar codes
check digit verification . . . . . . . . . . . . . . . . . . . 10-44
convert to EAN-13 . . . . . . . . . . . . . . . . . . . . . . 10-45
transmit check digit . . . . . . . . . . . . . . . . . . . . . 10-44
J
JPEG image options . . . . . . . . . . . . . . . . . . . . . . . . 5-14
size/quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
JPEG target file size . . . . . . . . . . . . . . . . . . . . . . . . 5-15
L
LED definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
low light enhancement . . . . . . . . . . . . . . . . . . . . . . . . 5-5
M
macro PDF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-83
macro PDF bar codes
abort macro PDF entry . . . . . . . . . . . . . . . . . . 10-83
flush buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-83
maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
matrix 2 of 5 bar codes . . . . . . . . . . . . . . . . . . . . . 10-55
check digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-57
lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-56
redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-57
transmit check digit . . . . . . . . . . . . . . . . . . . . . 10-58
maxicode bar codes . . . . . . . . . . . . . . . . . . . . . . . . 10-75
MicroPDF417 bar codes . . . . . . . . . . . . . . . . . . . . 10-71
Motorola enterprise mobility support . . . . . . . . . . . . . xvii
mounting
desk mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
intellistand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
wall mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
MSI bar codes
check digit algorithm . . . . . . . . . . . . . . . . . . . . 10-53
check digits . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-52
lengths . . . . . . . . . . . . . . . . . . . . . . . . . 10-51, 10-52
MSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-51
transmit check digit . . . . . . . . . . . . . . . . . . . . . 10-53
N
notational conventions . . . . . . . . . . . . . . . . . . . . . . . . xvi
P
parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
PDF417 bar codes . . . . . . . . . . . . . . . . . . . . . . . . . 10-71
pinouts
scanner signal descriptions . . . . . . . . . . . . . . . . . 3-8
postal codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-60
Australian postal . . . . . . . . . . . . . . . . . . . . . . . 10-63
Japan postal . . . . . . . . . . . . . . . . . . . . . . . . . . 10-62
Netherlands KIX code . . . . . . . . . . . . . . . . . . . 10-63
transmit UK postal check digit . . . . . . . . . . . . . 10-62
transmit US postal check digit . . . . . . . . . . . . . 10-61
UK postal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-61
UPU FICS postal . . . . . . . . . . . . . . . . . . . . . . . 10-64
US planet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-60
US postnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-60
USPS 4CB/One Code/Intelligent Mail . . . . . . . 10-64
power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
presentation mode field of view . . . . . . . . . . . . . . . . . 5-5
Index - 6 Symbol DS6707 Digital Imager Scanner Product Reference Guide
Q
QR code bar codes . . . . . . . . . . . . . . . . . . . . . . . . 10-75
R
RS-232
connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
default parameters . . . . . . . . . . . . . . . . . . . . . . . 8-3
parameters . . . . . . . . . . . . . . . . . . . . . . . . . .8-4, 8-6
S
sample bar codes . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
scanning
errors . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2, 5-2, 10-2
hand-held . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
presentation mode . . . . . . . . . . . . . . . . . . . . . . . 2-7
sequence example . . . . . . . . . . . . . . . 4-2, 5-2, 10-1
service information . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
setup
connecting a USB interface . . . . . . . . . . . . . . . . 7-2
connecting an RS-232 interface . . . . . . . . . . . . . 8-2
connecting power . . . . . . . . . . . . . . . . . . . . . . . . 1-4
connecting using SSI . . . . . . . . . . . . . . . . . . . . . 6-2
installing the cable . . . . . . . . . . . . . . . . . . . . . . . 1-3
unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
signal descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
signature capture . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19
bits per pixel . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-21
file format selector . . . . . . . . . . . . . . . . . . . . . . . 5-20
height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22
JPEG quality . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22
width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22
snapshot mode timeout . . . . . . . . . . . . . . . . . . . . . . 5-10
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
SSI connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
SSI default parameters . . . . . . . . . . . . . . . . . . . . . . . 6-3
standard default parameters . . . . . . . . . . . . . . . . . . . A-1
support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
symbology default parameters . . . . . . . . . . . . . . . . 10-2
T
technical specifications . . . . . . . . . . . . . . . . . . . . . . . 3-4
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
U
unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
UPC/EAN bar codes
bookland EAN . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
bookland ISBN . . . . . . . . . . . . . . . . . . . . . . . . 10-21
check digit . . . . . . . . . . . . . . . . . . . . . . .10-14, 10-15
convert UPC-E to UPC-A . . . . . . . . . . . . . . . . 10-19
convert UPC-E1 to UPC-A . . . . . . . . . . . . . . . 10-19
EAN zero extend . . . . . . . . . . . . . . . . . . . . . . . 10-20
EAN-13/JAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
EAN-8/JAN-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
ISSN EAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-22
supplementals . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
UCC coupon extended code . . . . . . . . . . . . . . 10-22
UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
UPC-A preamble . . . . . . . . . . . . . . . . . . . . . . . 10-16
UPC-E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
UPC-E preamble . . . . . . . . . . . . . . . . . . . . . . . 10-17
UPC-E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
USB
connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
default parameters . . . . . . . . . . . . . . . . . . . . . . . 7-3
parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
user preferences parameters . . . . . . . . . . . . . . . . . . . 4-2
V
video view finder . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23
frame size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23
image size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
W
wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Thank you for your input—We value your comments.
Tell Us What You Think...
We’d like to know what you think about this Manual. Please take a moment to fill out this questionnaire and fax this
form to: (631) 738-4913, or mail to:
Motorola, Inc.
One Motorola Plaza M/S B-10
Holtsville, NY 11742-1300
