CCOMInstallation&OperationManual

880‐0017‐001RevA01



Revision History

Rev Description of change Changed by Effective Date

A00Originated&ReleasedBruggemann04/08

A01UpdatedtoincludeFCCnoticesandlabelsCullinan12/08

A02MinorUpdatesforFCCnoticesandexternalantennaCullinan12/08

  

2



MANUFACTURER

ArkionSystems

230UnionStreet

NewBedfordMA,02740



TableofContents

1) Intendeduse……………………………………………………………………………………..4

2) EnvironmentalCaution………………………………………………………………………4

3) Installation&Operation…………………………………………………………………….4

4) Maintenance……………………………………………………………………………………..7

5) Labels&Locations…………………………………………………………………………….7

5.1ExplanationsofLabels&Symbols………………………………………………..8

5.2CCOMLabels……………………………………………………………………………….8

5.3LocationsofCCOMLabels…………………………………………….…………..12

5.4CCOMOrderableEndItems……………………………………………………...14

6) FCCLabels…………………………………………………………………………….15



3



FCCInformation



ChangesormodificationsnotexpresslyapprovedbytheArKionSystemscouldvoidthe

user'sauthoritytooperatetheequipment.



IMPORTANTNOTE:TocomplywithFCCRFexposurecompliancerequirements,the

antennausedforthistransmittermustbeinstalledtoprovideaseparationdistanceofat

least20cmfromallpersonsandmustnotbeco‐locatedoroperatinginconjunctionwith

anyotherantennaortransmitter.



“NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledand

usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



4



1) IntendedUse:

TheCCOMunitisintendedforindoor&outdooruseasanunattendeddatacollectorfor

automaticmetermetering&controlapplications.Theunitisattached(hardwired)toan

externalpowersource,10‐30VDC,15WfortheCCOM_DC&100‐240VAC ,50/60HZ,

15WforaCCOMAC.Theexternalpowerhookupistomeetappropriatelocal&national

electricalcodes&beperformedbyanappropriatelylicensedprofessional.

 ACModel(InputRated100‐240VAC,15W,50/60Hz,‐30C‐+70C)

 DCModel(RequiresanexternalDCsourceof10‐30VDC,15W)



2) EnvironmentalCautions:

Theconnectiontoanexternalpowersourceshouldonlybeperformedbytheappropriate

professional,properlylicensedwithinthelocaljurisdiction.OutdoorsCCOMinstallation

shouldonlybeattemptedwhenweatherconditionspermitsafelyaccomplishingthistask.

Thelead‐acidbatteriesutilizedwithinthisproductshouldbedisposedofintheproper

manner.ContactManufacturerfordisposaldetails.



3) CCOMInstallation&Operation:

TheCCOMunitisa7.3”x10.4”x3.7”NEMA4plasticboxwhichcontainsweighsbetween

2.5&7.5lbs(dependinguponoptions).Itdissipatesbetween4watts(standby)&15watts

(worstcasescenario).Typically,theCCOMisfastenedtoatelephonepolewithtwoscrews

andtheninputpowerisattached&applied.

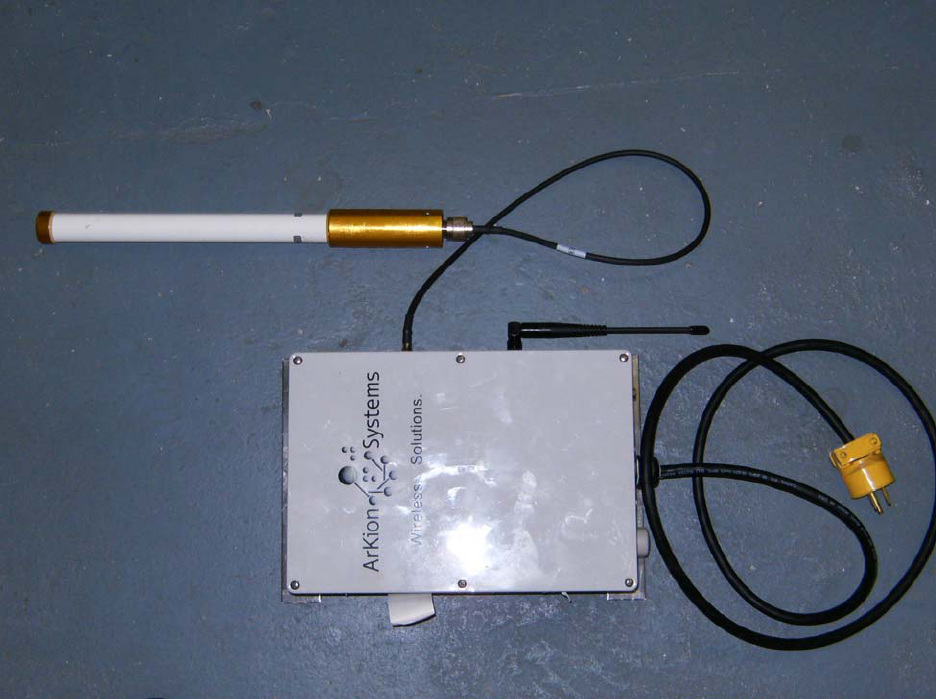

AtypicalCCOMunit,havingbothGPRS(top)&RFDC(bottom)antennasattachedisshown

belowinFigure1.



5



Figure1:CCOMACPWRwithRFDC&GPRSoptions.



TheCCOMpowerinputcanbeeither1030VDC(fortheCCOM_DCDCversion)and

100240VAC50/60HZ(fortheCCOM_ACACversion).Theexternalappearancewillbe

identicalexceptthattheDCversionwillhaveayellowpowercord&theACversionhasa

blackpowercord.Bothversionsalsohaveuniqueexternalstickersidentifyingthetype&

configurationofCCOM.

ThebottomoftheCCOMhasapowercordattachedinthemiddle.Totherightofthatisan

airventandagreenLEDtoindicatethattheunitispoweredup.Ontherightsidearetwo

6



RFantennas.Thetopantenna(inthisexample)isfortheGPRS&thebottomisforthe

RFDC.Apre‐drilledmountingplateisattachedtoboththetop&bottomoftheCCOM.

Therearenoother(operator/installer)accessiblecontrolsordisplays.

AnyuseoftheCCOMproductinotherthantheintendedmannerspecifiedbythe

manufacturermayimpairtheprotectionprovidedbytheequipment.

Installationisachievedasfollows:



InstallationInstructions:

WARNING!Becausetheinstallationistypicallytoatelephonepole,orasimilarhighobject,

andinvolvesconnectingthepowercordtolivepowerlines,onlypersonneltrained&

licensedproperlyforthelocaljurisdictionshouldperformthisinstallation.

A. Pickasafepolelocationwherethepowercordcanreachtheinputpower

source.InstalltheCCOMtothetelephone(orotherwooden)polebyutilizingthe

screws&thepre‐drilledmountingplateslocatedatthetop&bottomofthe

CCOMbox.Keeptheboxvertical/plumbasmuchaspossible.

B. Connectthecolorcodedwirestothepowersource.Thisoperationshouldbe

performedbyaproperlylicensedprofessional.

C. ColorCode:FortheCCOM_AC(hasablackjacketedpowercord),theblackwire

isthepowerinput(nominally110VAC)&thewhitewireisreturn.Forthe

CCOM_DC(hasayellowjacketedpowercord),thewhitewireisthepowerinput

(10‐30VDC)&theblackwireisreturn.

D. Afterconnectinginputpower,verifythatthegreenLEDonthebottomofthe

CCOMislit.

E. Thiscompletesthephysicalinstallation.Fromthistimeforward,additionalsteps

tocontroltheCCOMarealldoneremotelyviatheGPRSRFlink.



4) Maintenance:

TherearenouserserviceableitemswithinaCCOM.Nocleaningisrequired.Thefuses&

batteriesshouldbereplacedbyproperlytrained&licensedpersonnelonly.These

7



replacementsshouldonlybeperformedaftertheunithasbeenremovedfromtheinput

powersourcebypersonneltrained&licensedproperlyforthelocaljurisdiction.Usedfuses

&batteriesshouldbedisposedofproperly.Forallothermaintenanceissuesconsult

manufacturer.

 TheCCOMbatterypacksareavailablefromthemanufacturer.These

replacementsshouldonlybeperformedaftertheunithasbeenremovedfrom

theinputpowersourcebypersonneltrained&licensedproperlyforthelocal

jurisdiction,orbythemanufacturer.

 TheCCOMfusesarecommerciallyavailable.Thesereplacementsshouldonlybe

performedaftertheunithasbeenremovedfromtheinputpowersourceby

personneltrained&licensedproperlyforthelocaljurisdiction,orbythe

manufacturer.Thefuseratings&CharacteristicsforaCCOM_ACarelisted

below:

o TheBatteryLineFuseisa5Aslowblow250V

01218005.HXP,Littelfuse

o TheCCOM_ACPWBfuse(F3)isa2Afastblow250V

37312000410,Wickman(Littelfuse)

 Thefuseratings&CharacteristicsforaCCOM_DCarelistedbelow:

o TheCCOM_DCPWBfuse(F1)isa2Afastblow250V

37312000410,Wickman(Littelfuse)

5)ProductIdentificationandSafetyLabels&Locations

5.1ExplanationofHazardswithRelatedLabelsandSymbols

ServicepersonnelshouldbetrainedtorecognizeunexpectedHAZARDSandto

reactaccordingly.LabelsbelowareusedonCCOMproduct



8



Caution,riskofelectricshock(locatedatShockHazards)

Labelisdefinedas“Caution,refertoManual”

Alternatingcurrent(seerating/modelLabel)



5.2CCOMUnitLabels:

SlowBlowFuse(locatednextto5Afuse)



Use2A,FastBlowFuse(locatednextto2Afuse)



1.75

.50 FUSE RATING 2A

FAST BLOW

1.00

.25 FUSE RATING 5A

SLOW BLOW

9



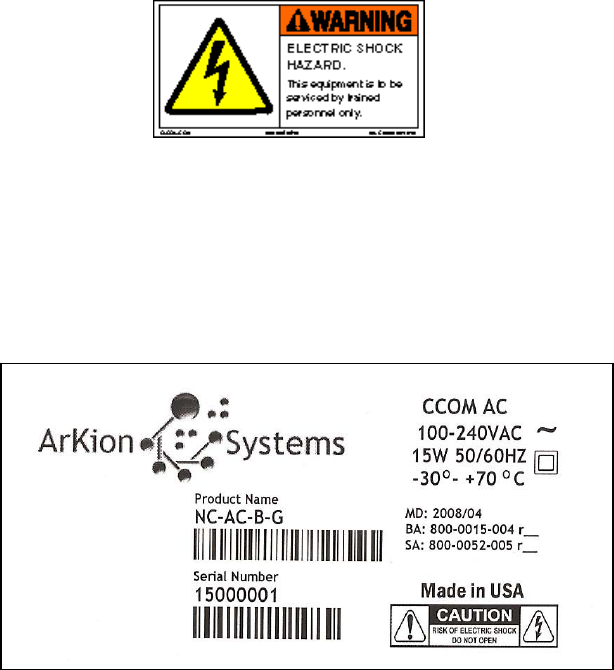

ElectricShockHazardWarning









FinishedGoodsLabel(CCOM,AC,Battery‐backup,GPRSModemshown)



10



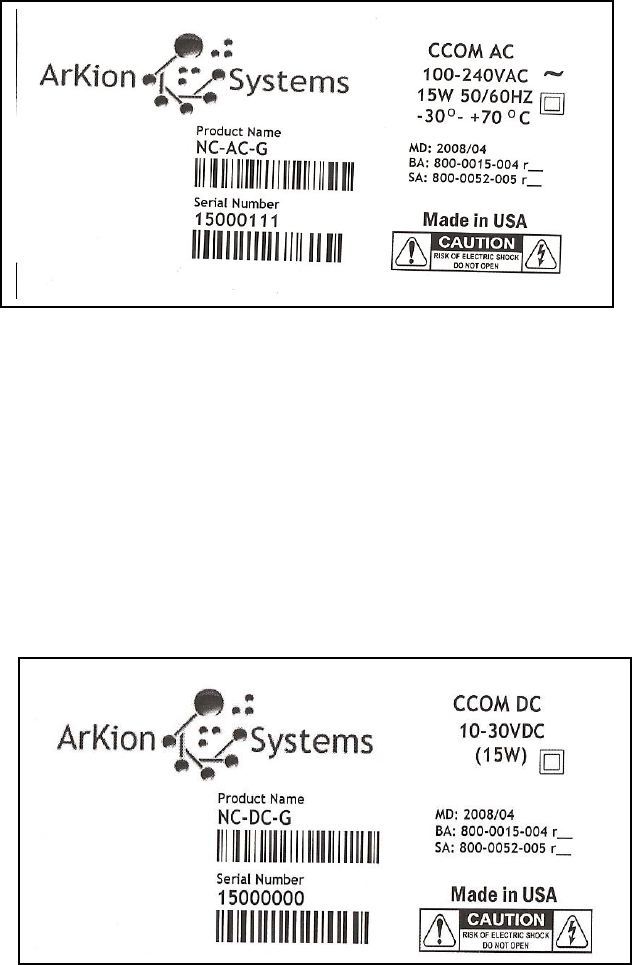

FinishedGoodsLabel(CCOM,AC,GPRSModemshown)



FinishedGoodsLabel(CCOM,DC,GPRSModemshown)



11



BatteryWarningLabels



BATTERYWARNINGLABEL#1



BATTERYWARNINGLABEL#2





DANGER OF EXPLOSION

IF BATTERY IS INCORRECTLY

REPLACED. REPLACE ONLY

WITH THE SAME TYPE

RECOMMENDED BY THE

MANUFACTURER

2.00

1.00

3.00

1.50

BATTERY WARNING

DO NOT SHORT OUT - DO NOT PUT IN FIRE

MAY RELEASE TOXIC MATERIALS OR

CAUSE BURNS

SEALED-LEAD BATTERY MUST BE

RECYCLED OR DISPOSED OF PROPERLY

12



5.3LabelLocations



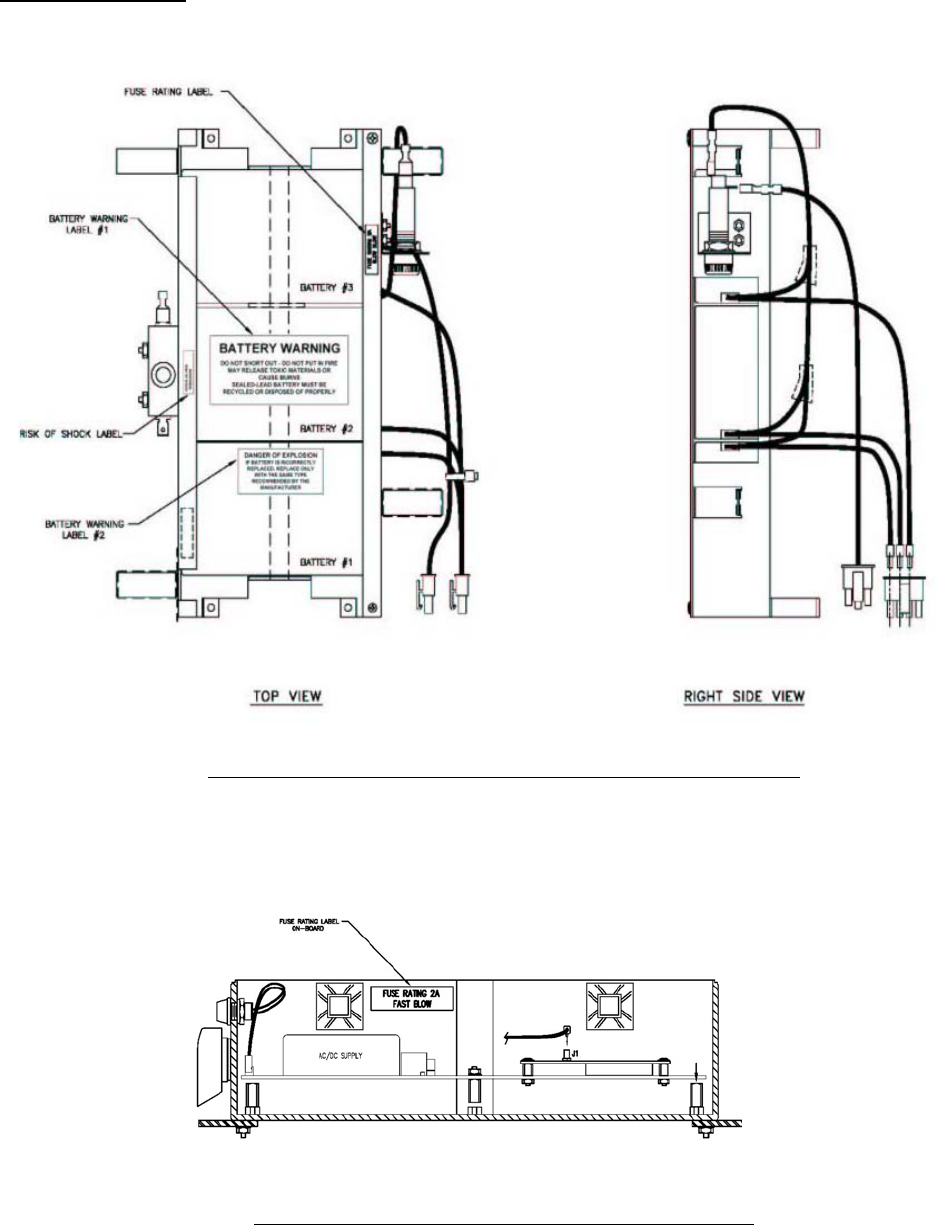

BatteryWarning,ROS&FuseLabellocationsonBatteryPack



CCOMPWB2AFuseLabellocationinsideenclosure

13



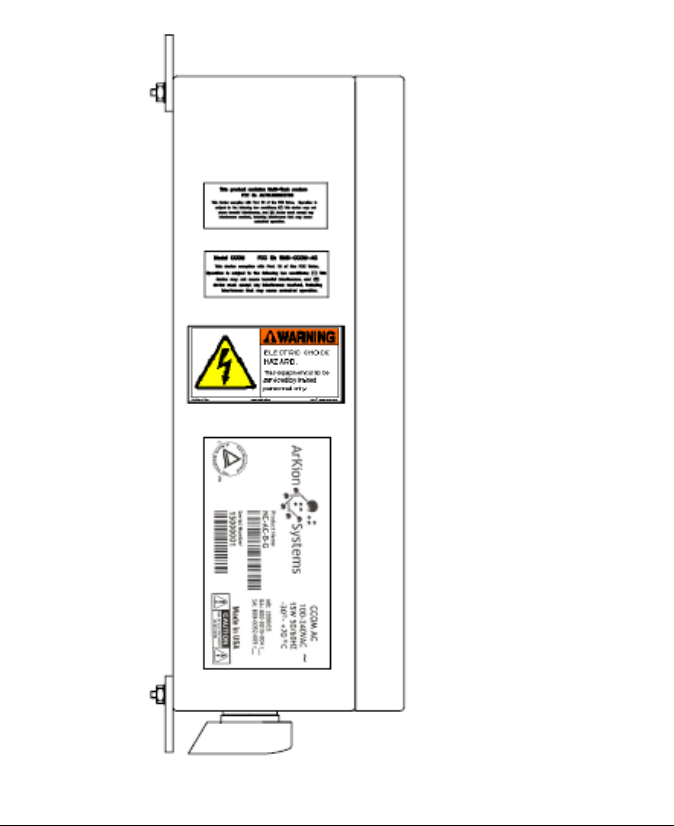

Product&ElectricalShockWarningLabellocationsoutsideenclosure

14



5.4–ArKionSystemsNetworkCollectorOrderableEndItems



NetworkCollector‐CentralCommunicationsModule(CCOM)ProductName

 

NetworkCollector,ACPower,Back‐upbattery,PhoneModemNC‐AC‐B‐P

NetworkCollector,ACPower,PhoneModemNC‐AC‐P

NetworkCollector,DCPower,PhoneModemNC‐DC‐P

NetworkCollector,ACPower,BatteryBack‐Up,GPRS/GSMModemNC‐AC‐B‐G

NetworkCollector,ACPower,GPRS/GSMModemNC‐AC‐G

NetworkCollector,DCPower,GPRS/GSMModemNC‐DC‐G

NetworkCollector,ACPower,BatteryBack‐up,CDMAModemNC‐AC‐B‐C

NetworkCollector,ACPower,CDMAModemNC‐AC‐C

NetworkCollector,DCPower,CDMAModemNC‐DC‐C

NetworkCollector,ACPower,BatteryBack‐up,EthernetNC‐AC‐B‐E

NetworkCollector,ACPower,EthernetNC‐AC‐E

NetworkCollector,DCPower,EthernetNC‐DC‐E

NetworkCollector,ACPower,BatteryBack‐up,WiFiNC‐AC‐B‐W

NetworkCollector,ACPower,WiFiNC‐AC‐W

NetworkCollector,DCPower,WiFiNC‐DC‐W

NetworkCollector,ACPower,BatteryBack‐up,MaxStreamRadioNC‐AC‐B‐M

NetworkCollector,ACPower,MaxStreamRadioNC‐AC‐M

NetworkCollector,DCPower,MaxStreamRadioNC‐DC‐M

 

SolarPower,includingsolarpanel,battery,andcharger‐pairwithDCpoweredCCOMNC‐SP



15



6)FCCIdentificationLabels

ThisisillustrationofFCClabelforCCOM.



Figure 1. FCC Label



WhentheCCOMisequippedwithGPRSWAN(WideAreaNetwork)interfacethefollowinglabelis

included



Figure 2. FCC Label



This product contains Module FCC ID: AU79U03G23720

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions; (1) this device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

Model CCOM FCC ID: SM6-CCOM-

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions; (1) this device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.
