Mueller Systems
LGSB
Installation Manual
PN 880-0078-001 Rev A00
LGSB Install Manual
Page ii Mueller Technologies, LLC – Confidential Rev A00
Document Information
Title:
LGSB Installation Manual
Version:
A00
Created:
11/1/11
Last Modified On:
11/2/11
Author:
Technical Lead:
Contributors:
Revision History
Version
Date
Author
Comments
0.1
11/1/11
ECP
Initial draft, from 880-0023
A00
11/2/11
ECP
Minor Edits
Reviewers
Reviewed By
Title
Date Reviewed
LGSB Install Manual
Rev A00 Mueller Technologies, LLC – Confidential Page iii
Table of Contents
1. Introduction .............................................................................................. 1
2. Supported Products ................................................................................... 1
3. Maintenance .............................................................................................. 1
4. Product Labeling ........................................................................................ 1
4.1 PRODUCT IDENTIFICATION ................................................................................. 1
4.2 FCC IDENTIFICATION ....................................................................................... 2
Table of Figures
FIGURE 1. PRODUCT IDENTIFICATION LABEL ....................................................................... 2
FIGURE 2 FCC LABEL LGSB .......................................................................................... 2
LGSB Install Manual
Page iv Mueller Technologies, LLC – Confidential Rev A00
FCC Information
Changes or modifications not expressly approved by Mueller
Technologies, LLC could void the user's authority to operate the
equipment.
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed
to provide a separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with any other
antenna or transmitter.
“NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
LGSB Install Manual
Rev A00 Mueller Technologies, LLC – Confidential Page 1
1. Introduction
The Mueller Systems LGSB SmartMeter is intended for indoor & outdoor use as an
unattended automatic metering Infrastructure (AMI) & control device. The LGSB
SmartMeter product consists of a Landis+Gyr Focus solid state electric meter and Mueller
Systems radio. The LGSB SmartMeter is fully self-contained with no user accessible
controls.
The SmartMeter interrogates the ANSI C.12 register set in Focus solid-state electric
meters from Landis + Gyr. Its main function is to obtain energy consumption, negative
consumption, and voltage readings for billing, distribution monitoring, fraud detection,
and conservation purposes.
Meter reading interval is remotely settable. Information retrieved from the meters
registers is temporarily stored within the LGSB SmartMeter solid-state memory. On a
specified interval, the LGSB SmartMeter will automatically transmit this information to
the Mueller AMI server via other meters or a MiHUB using the Radio Frequency (RF)
network. The Mueller AMI server analyzes and archives the readings.
The LGSB SmartMeter uses SuperCapacitors to support transmission of power failure
messages and to maintain the time of day clock. The SmartMeter does not use any
internal batteries eliminating need for field service.
The contents of this installation manual are intended for technically qualified personnel of
energy distribution utilities who have been trained and are technically qualified in basic
electrical principles, including safety procedures for installation of energy meters.
The installer should refer to the latest edition of the Landis+Gyr “FOCUS kWh Solid-State
Meter Technical Manual” for physical installation, wiring, and safety precautions.
2. Supported Products
The LGSB SmartMeter product only supports the 2S Class 200 form.
3. Maintenance
There are no user serviceable items within a SmartMeter. No cleaning is required.
4. Product Labeling
4.1 Product Identification
This label is affixed to the face of the SmartMeter meter.
LGSB Install Manual
Page 2 Mueller Technologies, LLC – Confidential Rev A00

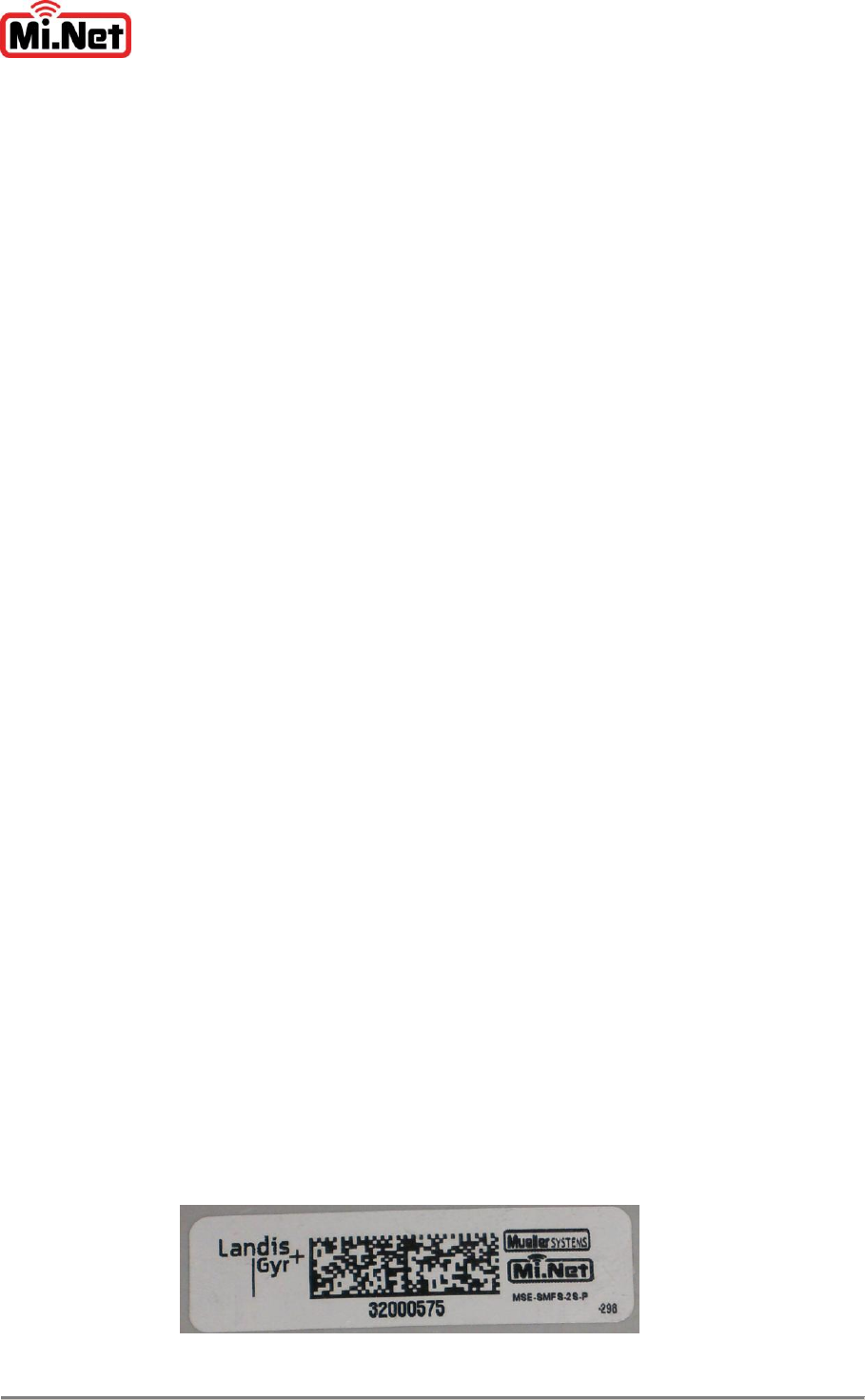

Figure 1. Product Identification Label
4.2 FCC Identification

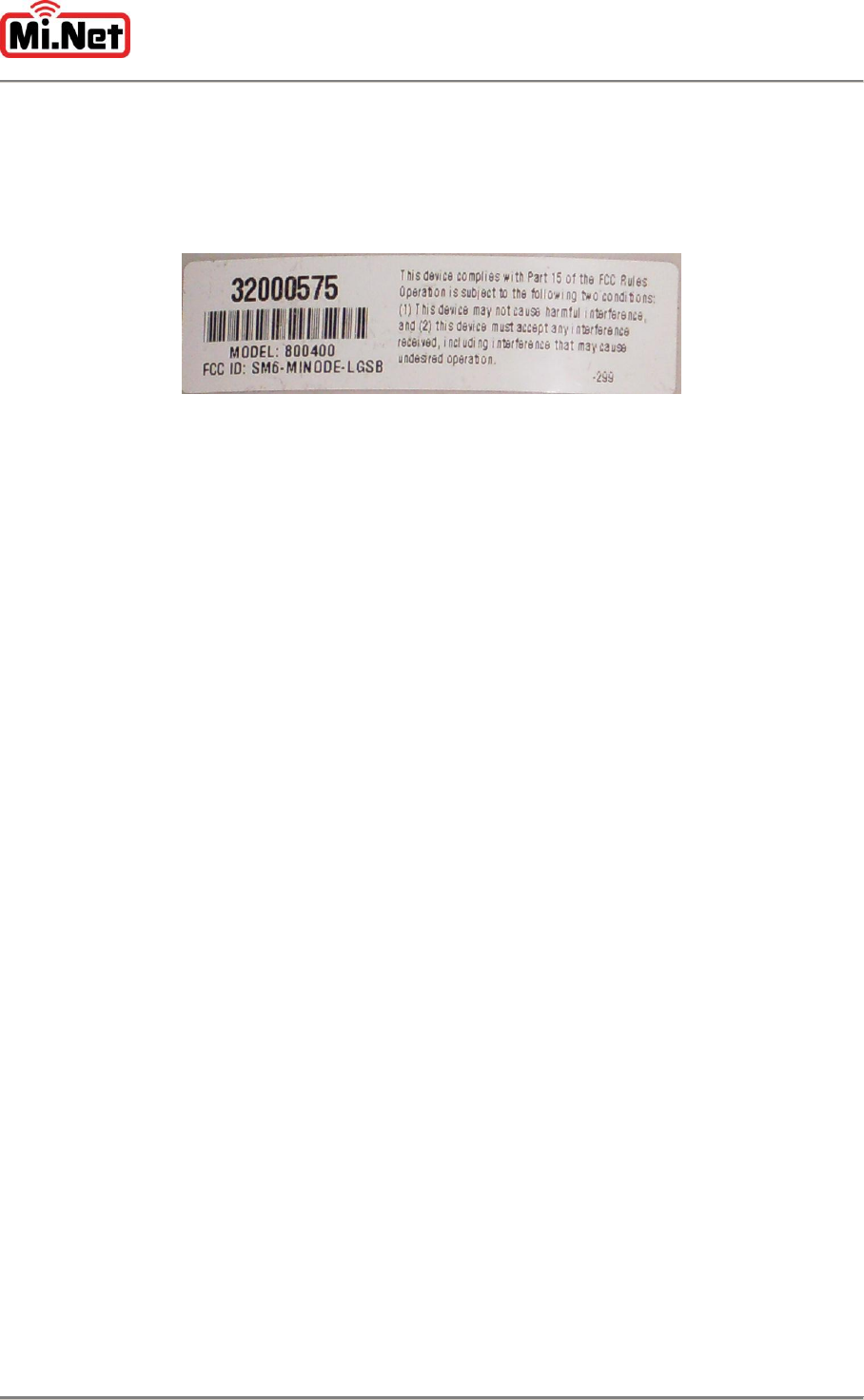

Figure 2 FCC Label LGSB
