CDMAEmbedded Data/Fax/Voice Wireless Modem MTMMC-C Developer’s Guide
Wireless ModemModule MTMMC-C Developer's Guide 2ModemModule Developer’s GuideMTMMC-CPN S000296B, Version B10/17/03CopyrightThis publication may not be reproduced, in whole or in part, without prior expressed written permission fromMulti-Tech Systems, Inc. All rights reserved. Copyright © 2003, by Multi-Tech Systems, Inc. Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof andspecifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Furthermore,Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time inthe content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of suchrevisions or changes.RevisionsRevision Level Date DescriptionA7/15/03 Initial release.B 10/17/03 Update mechanical dimensions drawing.PatentsThis device is covered by patent number 5,673,268. TrademarksTrademarks of Multi-Tech Systems, Inc. are ModemModule and the Multi-Tech logo.MNP and Microcom Network Protocol are registered trademarks of Microcom, Inc.Microsoft, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation inthe United States and/or other countries. World HeadquartersMulti-Tech Systems, Inc.2205 Woodale DriveMounds View, Minnesota 55112Phone: 763-785-3500 or 800-328-9717Fax: 763-785-9874Technical Support Country By Email By PhoneFrance: support@multitech.fr (33) 1-64 61 09 81India: support@multitechindia.com 91 (124) 6340778U.K.: support@multitech.co.uk (44) 118 959 7774U.S. and Canada: oemsales@multitech.com (800) 972-2439Rest of the World: oemsales@multitech.com (763) 717-5863Internet Address: http://www.multitech.com
Wireless ModemModule MTMMC-C Developer's Guide 3Table of ContentsCHAPTER 1 – PRODUCT DESCRIPTION AND SPECIFICATIONS ................................................................4INTRODUCTION ...........................................................................................................................................................4APPLICATIONS ............................................................................................................................................................4PRODUCT FEATURES...................................................................................................................................................5FEATURE DESCRIPTIONS .............................................................................................................................................5DEVELOPER’S KIT.......................................................................................................................................................6TECHNICAL SPECIFICATIONS ......................................................................................................................................6RELATED MANUALS ...................................................................................................................................................6ADDITIONAL INFORMATION........................................................................................................................................6CHAPTER 2 – MECHANICAL SPECIFICATIONS..............................................................................................7MECHANICAL DIMENSIONS.........................................................................................................................................7CHAPTER 3 – ELECTRICAL CHARACTERISTICS...........................................................................................8INTRODUCTION ...........................................................................................................................................................850-PIN CONNECTOR INTERFACES................................................................................................................................850-PIN CONNECTOR INTERFACES (CONTINUED) .........................................................................................................9POWER CONSUMPTION..............................................................................................................................................11HANDLING PRECAUTIONS .........................................................................................................................................11CHAPTER 4 – INTERFACES .................................................................................................................................12RF INTERFACE ..........................................................................................................................................................12RF Connector .......................................................................................................................................................12TRANSMITTER SPECIFICATIONS ................................................................................................................................12RECEIVER SPECIFICATIONS .......................................................................................................................................13CHAPTER 5 – TEST BOARD .................................................................................................................................14TEST BOARD BLOCK DIAGRAM ................................................................................................................................17CHAPTER 6 – APPLICATION CONSIDERATIONS..........................................................................................18GENERAL GUIDELINES FOR THE USE OF THE MODEMMODULE.................................................................................18Hardware and RF.................................................................................................................................................18The Antenna..........................................................................................................................................................18Firmware Upgrade...............................................................................................................................................18Initial Configuration Using Mobile PhoneTools..................................................................................................18Getting Started .....................................................................................................................................................19APPENDIX A – SAFETY PRECAUTIONS & REGULATORY STANDARDS COMPLIANCE....................20SAFETY PRECAUTIONS..............................................................................................................................................20RF Safety ..............................................................................................................................................................20General Safety ......................................................................................................................................................21Safety Standards...................................................................................................................................................22RF Exposures .......................................................................................................................................................22Instructions to OEMs............................................................................................................................................22REGULATORY STANDARDS COMPLIANCE .................................................................................................................22CDMA compliance ...............................................................................................................................................22APPENDIX B – SOURCING GUIDE FOR CONNECTORS AND PERIPHERAL DEVICES........................23CDMA ANTENNA.....................................................................................................................................................23APPENDIX C – AT COMMAND LIST ..................................................................................................................24Appendix D – Acronyms and Abbreviations.........................................................................................................29INDEX ........................................................................................................................................................................30
Chapter 1 – Product Description & SpecificationWireless ModemModule MTMMC-C Developer's Guide 4Chapter 1 – Product Description and SpecificationsIntroductionThe Multi-Tech ModemModule CDMA is a complete, ready-to-integrate, embedded data/fax/voice wirelessmodem packaged in a compact industrial chassis. Designed for global use, it offers standards-based multi-bandCDMA2000 1x performance. This quick-to-market module allows developers to add wireless communication toproducts with a minimum of development time and expense. The ModemModule CDMA is based on industry-standard open interfaces, is fully type approved, and can be board-to-board or board-cable mounted. Multi-Tech’s Wireless ModemModule CDMAProduct Description RegionMTMMC-C CDMA2000 1xRTT, 800/1900 MHz GlobalThe MTMMC-C ModemModule is used to integrate wireless data and fax communications in numerousembedded applications. This product is based on a Dual Band RF Module; every integrated module includes aCDMA 800/1900 MHz module.ApplicationsWith packet data speeds up to 153K bps, the ModemModule CDMA is targeted at applications that periodicallyneed to send and receive data over a wireless network. It is an ideal solution for:· Appliances· Remote Diagnostics· ATM Terminals· Remote Metering· Automotive· Security Systems· Data Collection· Vending/Gaming Machines· Gas Pumps· Other devices requiring wireless connectivity.· Industrial and Medical Remote Monitoring SystemsNote: The Wireless ModemModule must be mounted with at least 8 inches (20 cm) of clearance from thehuman body.
Chapter 1 – Product Description & SpecificationWireless ModemModule MTMMC-C Developer's Guide 5Product Features· CDMA2000 1xRTT operation · CDMA IS-95-A, IS-95B · Dual-band 800/1900 CDMA · Class 2.0 Group 3 FAX· Board-to-board or board-to-cable mounting· Short Message Service features including SMS mobile originated, SMS mobile terminated, cell broadcast,Over the Air Activation (OTA), OTASP, OTAPA · Voice features include DTMF, telephony, OCELP 13K, echo cancellation · MMCX antenna connector · 14.4K circuit-switched data· Serial interface supports DTE speeds to 230K · AT command compatible · Phone book management · Personal Information Management (PIM)· Fixed dialing number· Supplementary services including call forwarding, call barring, multiparty, call waiting and call hold, callingline identification, closed user group, call transfer· Real time clock· Alarm managementFeature DescriptionsIntegration Reduces Space, Power and Cost. The ModemModule CDMA integrates the controller, RFtransceiver, and antenna interface in one compact unit. This integration requires low power, low real estateand provides an overall reduction in costs.Reduces Development Time. The ModemModule CDMA can make your existing and next generation device,machine, or system, communication-ready without requiring significant hardware changes to its design. Itactually provides faster time-to-market because it relieves the burden and expense of obtaining network and RFapprovals. This complete, ready-to-integrate wireless module allows you to enhance your product while youfocus on developing its core features.Voice Features. The ModemModule CDMA provides telephony and Dual Tone Multi Frequency (DTMF)functionality as well as QCELP (13K) and echo cancellation.Short Message Services. The ModemModule CDMA offers SMS features such cell broadcast, Over the AirActivation (OTA), OTASP, and OTAPA. The ModemModule CDMA is SMS Mobile as Originated and SMSMobile Terminated. Compatible Supplementary Services. The ModemModule CDMA is compatible with supplementary servicessuch as call forwarding, call barring, multiparty, call waiting and call hold, calling line identification, closed usergroup and call transfer.Management Features. The ModemModule CDMA provides advanced management features including phonebook management, fixed dialing number, real-time clock and alarm management.Industry-standard Modem Commands. The ModemModule CDMA provides industry-standard AT-stylecommands for ease of integration into your existing software application.ModemModule Pin-Out. The ModemModule CDMA interfaces easily with existing products through a standardserial communication channel. The complete on-board RF transceiver interfaces with an antenna for directconnection to wireless SMS, circuit-switched dial-up, or packet data networks. The ModemModule is a DataTerminal Equipment (DTE) device with serial asynchronous protocol support. The serial DTE channel is capableof transfer speeds to 230K bps and can be interfaced directly to a UART or micro-controller. It can be board-to-board or board-to-cable mounted.
Chapter 1 – Product Description & SpecificationWireless ModemModule MTMMC-C Developer's Guide 6Developer’s Kit The ModemModule CDMA Developer’s Kit allows you to plug in the ModemModule and use it for testing,programming and evaluation. The kit includes one development board with RS-232 DB-25 connector, universalpower supply, antenna and RS-232 cable.Technical SpecificationsDimensions 2.5" w x 1.8" h x 0.5" d (6.4 cm x 4.6 cm x 1.2 cm)Weight 88 gPower Requirements 5 VDC; 400 mA typical, 700 mA maximumOperating temperature -30°C to + 60°CStorage temperature -35°C to +85°CCertifications CD MarkEMC: FCC Part 2, 15, 22, 24, EN55022 & EN55024Safety: UL60950, EN60950Casing Complete shielding-stainless steel/zincRelated ManualsAt commands for this product are published in a separate document available on the Accessory Kit CD orfrom Multi-Tech. Multi-Tech manuals and other resources are available on the Multi-Tech Web page athttp://www.multitech.com.Additional InformationEuropean Telecommunications Standards Institute (ETSI) - Contact the ETSI at: 650, route des Lucioles06921 Sophia-Antipolis CedexFranceTel: +33 (0)4 92 94 42 00Fax: +33 (0)4 93 65 47 16http://www.etsi.orgGlobal Engineering Documents manages a collection of more than one million documents from over 460organizations worldwide:http://global.ihs.comPhone: 800-854-7179Fax: 303-792-2192The ITU is the leading publisher of telecommunication technology, regulatory and standards information, withover 4,000 titles in printed form, on CD-ROM and Online athttp://www.itu.int/publications/ .
Chapter 2 – Mechanical SpecificationsWireless ModemModule MTMMC-C Developer's Guide 7Chapter 2 – Mechanical SpecificationsMechanical DimensionsModemModule Dimensions
Chapter 3 – Electrical CharacteristicsWireless ModemModule MTMMC-C Developer's Guide 8Chapter 3 – Electrical CharacteristicsIntroductionThis chapter describes the ModemModule’s electrical interfaces. These are:· 50-pin connector (power and data/signaling)· RF interface50-Pin Connector InterfacesPin # Name I/O I/O Type Description Comment1GND GROUND High current2GND GROUND High current3+5V Supply High current4+5V Supply High current5CT109/DCD OCMOS/2X Data Carrier Detect6GND GROUND High current7GPI04 I/O CMOS/2X General Purpose I/O8SPK2N OAnalog Speaker 2 negative output9CT125/RI OCMOS/2X Ring Indicator10 SPK2P OAnalog Speaker 2 positive output11 Flashing LED I/O CMOS/2X Working mode indicationLEDDriven bymodule12 SPK1P OAnalog Speaker 1 positive output13 CT106/CTS O1X Clear to Send14 SPK1N OAnalog Speaker 1 negative output15 ON/~OFF IPower ON/OFF control ON = Vcc 16 MIC2P IAnalog Microphone 2 positiveinput17 AUXV0 IAnalog Auxiliary ADC input18 MIC2N IAnalog Microphone 2 negativeinput19 ~RST I Reset active low Open Collector20 MIC1P IAnalog Microphone 1 positiveinput21 GND IGround22 MIC1N IAnalog Microphone 1 negativeinput23 BOOT IBOOT Open Collector24 GND GROUND High Current25 CT103/TX ITransmit Data Pull up with100K-ohmwhen not used26 GPIO0 I/O CMOS/2X General Purpose I/O27 CT107/DSR O1X Data Set Ready28 CT104/RX O1X Receive Data29 CT108-2/DTR IData Terminal Ready Pull up with100K-ohmwhen not used30 CT105/RTS IRequest to Send Pull up with100K-ohmwhen not used
Chapter 3 – Electrical CharacteristicsWireless ModemModule MTMMC-C Developer's Guide 950-Pin Connector Interfaces (Continued)Pin # Name I/O I/O Type Description Comment31 COL3 I/O 1X Keypad column32 COL4 I/O 1X Keypad column33 COL1 I/O 1X Keypad column34 COL2 I/O 1X Keypad column35 ROW4 I/O 1X Keypad row36 COL0 I/O 1X Keypad column37 ROW2 I/O 1X Keypad row38 ROW3 I/O 1X Keypad row39 ROW0 I/O 1X Keypad row40 ROW1 I/O 1X Keypad row41 NC Not Connected42 SPI_EN O1X SPI enable43 SPI_IO I/O 1X I2C Data or SPI Data44 SPI_CLK O2X I2C Clock or SPI Clock45 SIMCLK O2X Clock for SIM interface 3V mode46 SIMRST O2X Reset for SIM interface 3V mode47 SIMVCC OSIM card supply 3V mode6mA max.48 SIMPRES ISIM card detect Connected toSIM connectorpin 8. Pin 4 ofSIM connectormust be pulleddown to GNDwith 1 K-Ohm*49 SIMDATA I/O 3X I/O for SIM interface 3V mode50 GPO0 General purpose I/O* See SIM socket diagram in SIM interface section** GPO0 is a general purpose output for selection of external SIM, 3V or 5V.
Chapter 3 – Electrical CharacteristicsWireless ModemModule MTMMC-C Developer's Guide 10Operating ConditionsParameter I/O Type Min Max ConditionVinput low CMOS -0.5V 0.8VVinput high CMOS 2.1V 3.0V1X 0.2V IOL = -1mA2X 0.2V IOL = -2mAVoutput low3X 0.2V IOL = -3mA1X 2.6V IOH = 1mA2X 2.6V IOH = 2mAVoutput high3X 2.6V IOH = 3mA 50-Pin Connector
Chapter 3 – Electrical CharacteristicsWireless ModemModule MTMMC-C Developer's Guide 1150 4921Pin Numbering – Bottom ViewPower ConsumptionOperating Mode Band Average(mA)CDMA RXTX Cellular 615Full Power PCS 770Cellular 340CMA RXTXAverage Power PCS 445Cellular 20CDMA Standby PCS 20Handling PrecautionsAll devices must be handled with certain precautions to avoid damage due to the accumulation of static charge.Although input protection circuitry has been incorporated into the devices to minimize the effect of this staticbuildup, proper precautions should be taken to avoid exposure to electrostatic discharge during handling andmounting.
Chapter 4 – InterfacesWireless ModemModule MTMMC-C Developer's Guide 12Chapter 4 – Interfaces This chapter describes the ModemModule interfaces. · External antenna· RF InterfaceRF InterfaceThe impedance is 50 Ohms nominal.RF ConnectorThe RF connector is MMCX standard type. An antenna can be directly connected through the mating connectoror using a small adapter.Transmitter SpecificationsTransmitter performance test specification is CDMA2000 mobile station minimum requirement standard, 3GPP2TSG C0011-A.Operating Frequency 824MHz ~ 849MHz (Cellular Band) 1850MHz ~ 1910MHz (PCS Band)Modulation QPSKConversion Method HeterodyneOscillation Method VCTCXO & PLL SynthesizerRF Output PowerMaximumMinimum0.2W10nW (-50dBm)Frequency Stability +/- 300HzOpen Loop Power Control OutputPowerRX= -25dBmRX= -65dBmRX= -104dBmTX= -57.5 ~ -38.5dBmTX= -17.5 ~ +1.5dBmTX= +18 ~ +30dBmSpurious EmissionRX BandTX BandOther Frequency-80dBm at 1MHz RBW-61dBm at 1MHz RBW-47dBm at 30KHz RBW
Chapter 4 – InterfacesWireless ModemModule MTMMC-C Developer's Guide 13Receiver SpecificationsReceiver performance test specification is CDMA2000 mobile station minimum requirement standard, 3GPP2TSG C.S0011-A.Operating Frequency 869MHz ~ 894MHz (Cellular Band) 1930MHz ~ 1990MHz (PCS Band)Modulation QPSKConversion Method HeterodyneOscillation Method VCTCXO & PLL SynthesizerReceiver Sensitivity -104dBm @ FER 0.5%Single Tone Desensitization -101dBm @ FER 1%(FC+/-1900KHz @ -30dBm)IMD -101dBm @ FER 1%(FC+/-900KHz, FC+/-1700KHz @ -43dBm)-90dBm @ FER 1%(FC+/-900KHz, FC+/-1700KHz @ -36dBm)-79dBm @ FER 1%(FC+/-900KHz, FC+/-1700KHz @ -21dBm)Conducted Spurious EmissionRX BandTX BandOther Frequency-81dBm at 1MHz RBW-61dBm at 1MHz RBW-47dBm at 30KHz RBW

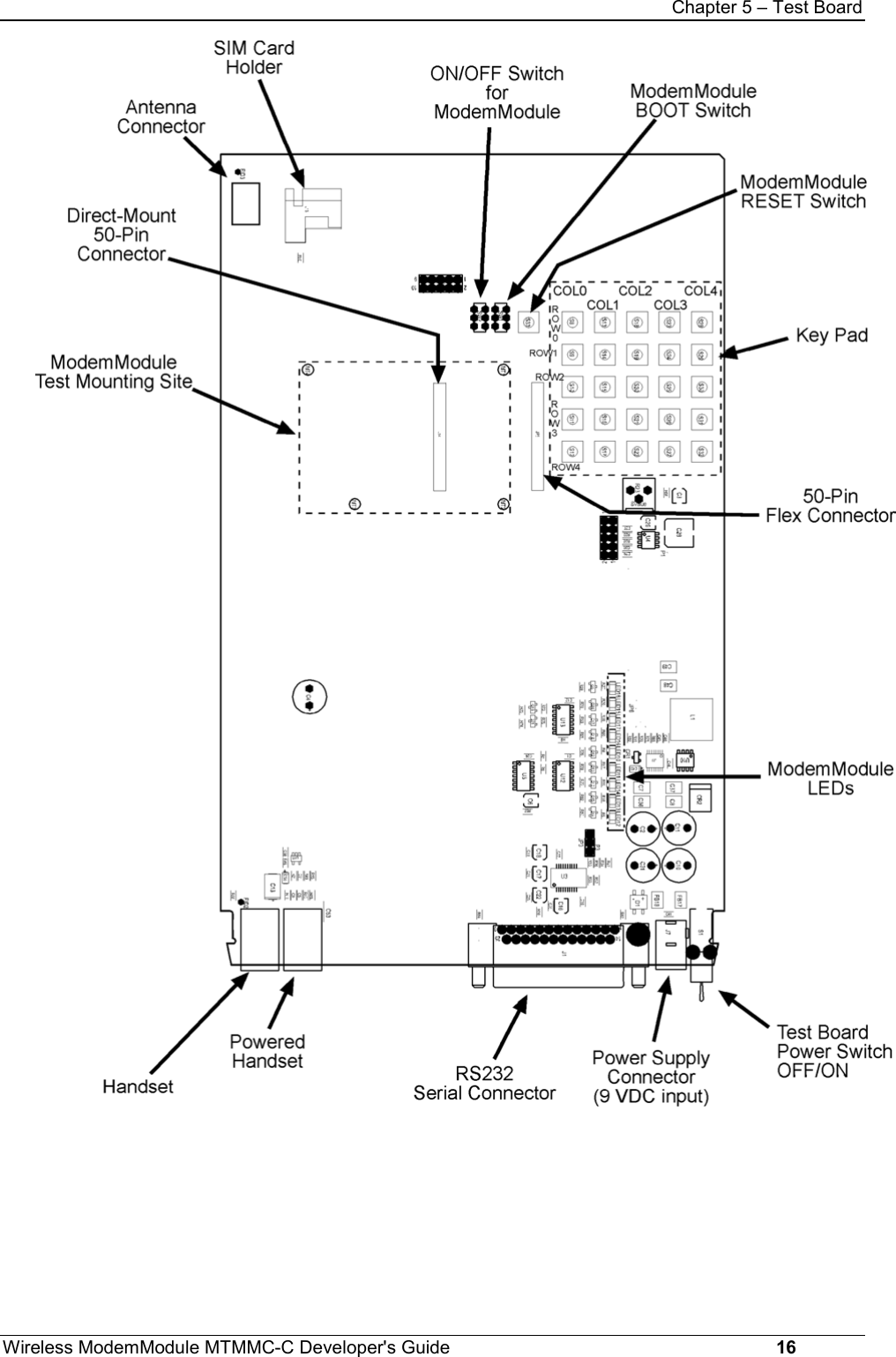

Chapter 5 – Test BoardWireless ModemModule MTMMC-C Developer's Guide 14Chapter 5 – Test Board
Chapter 5 – Test BoardWireless ModemModule MTMMC-C Developer's Guide 15
Chapter 5 – Test BoardWireless ModemModule MTMMC-C Developer's Guide 16
Chapter 5 – Test BoardWireless ModemModule MTMMC-C Developer's Guide 17Test Board Block DiagramBlock Diagram
Chapter 6 – Application ConsiderationsWireless ModemModule MTMMC-C Developer's Guide 18Chapter 6 – Application ConsiderationsGeneral Guidelines for the Use of the ModemModuleHardware and RF· Ground plane: Multi-Tech recommends having a common ground plane for analog, digital and RF grounds.· Bias of the Microphone inputs must be properly adjusted when using audio connectors (mic + speaker) 1.· EMC protection on audio input/output (filters against 900 MHz)· ESD protection on serial link· Possible spurious emission radiated by the application to the RF receiver in the receiver bandThe AntennaThe antenna sub-system and integration in the application is a major issue. It is a major issue in the choice of theantenna cable (type, length, performances, thermal resistance, etc.)These elements could affect CDMA performances such as sensitivity and emitted power.The antenna should be isolated as much as possible from the digital circuitry including the interface signals.Multi-Tech recommends shielding the terminal. On terminals including the antenna, a poor shielding coulddramatically affect the sensitivity of the terminal. Subsequently, the power emitted through the antenna couldaffect the application.Firmware UpgradeThe ModemModule firmware is stored in flash memory, and it can easily be upgraded. Contact the factory fordetails.Initial Configuration Using Mobile PhoneToolsFor Initial configuration of your wireless device, Multi-Tech offers a Windows-based mobile PhoneToolsapplication.To load Mobile PhoneTools, click on the Mobile PhoneTools icon on the system CD and follow the on-screenprompts.

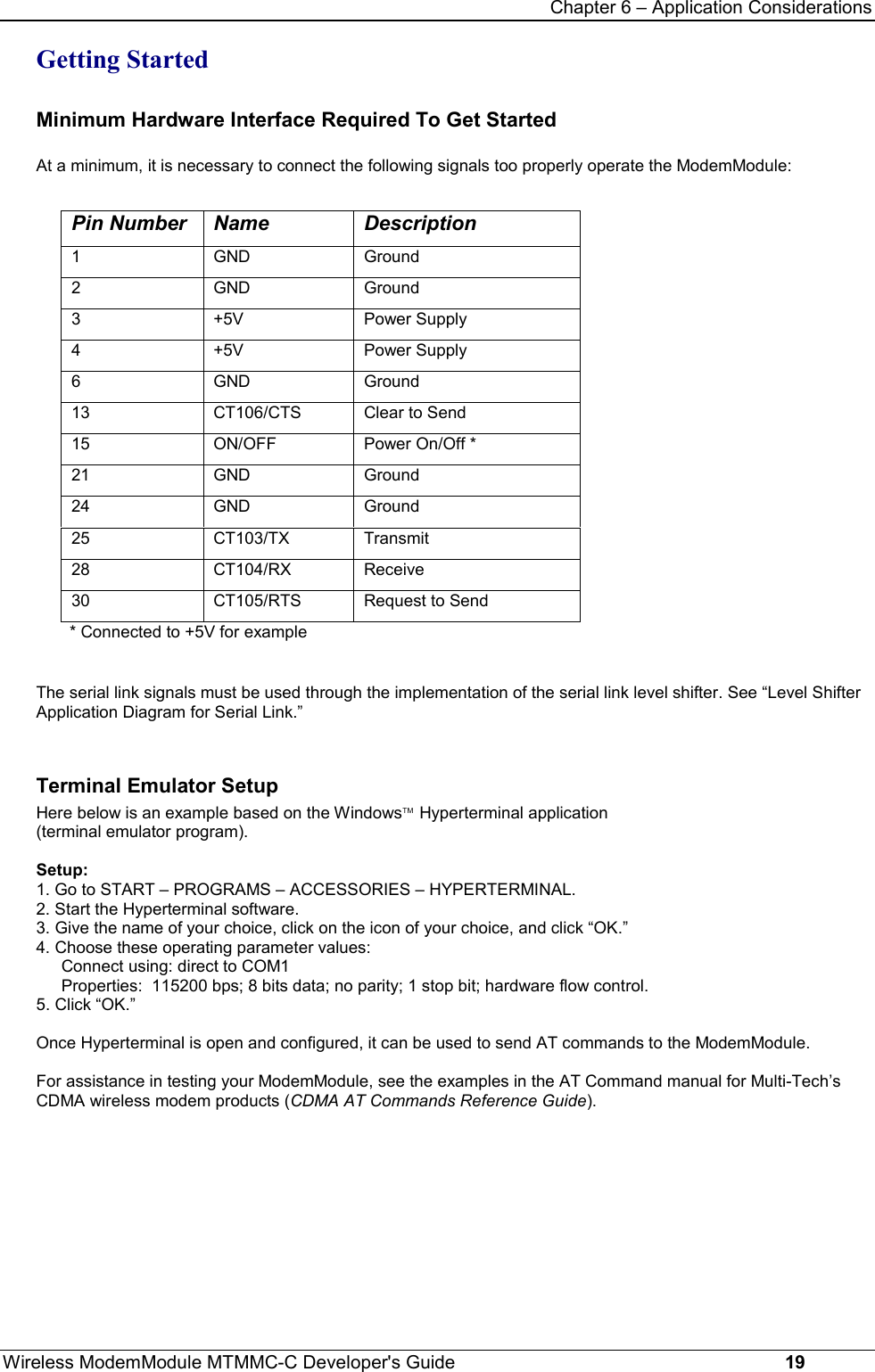

Chapter 6 – Application ConsiderationsWireless ModemModule MTMMC-C Developer's Guide 19Getting StartedMinimum Hardware Interface Required To Get Started At a minimum, it is necessary to connect the following signals too properly operate the ModemModule:Pin Number Name Description1GND Ground2GND Ground3+5V Power Supply4+5V Power Supply6GND Ground13 CT106/CTS Clear to Send15 ON/OFF Power On/Off *21 GND Ground24 GND Ground25 CT103/TX Transmit28 CT104/RX Receive30 CT105/RTS Request to Send* Connected to +5V for exampleThe serial link signals must be used through the implementation of the serial link level shifter. See “Level ShifterApplication Diagram for Serial Link.”Terminal Emulator SetupHere below is an example based on the WindowsTM Hyperterminal application(terminal emulator program).Setup:1. Go to START – PROGRAMS – ACCESSORIES – HYPERTERMINAL. 2. Start the Hyperterminal software.3. Give the name of your choice, click on the icon of your choice, and click “OK.”4. Choose these operating parameter values:Connect using: direct to COM1Properties: 115200 bps; 8 bits data; no parity; 1 stop bit; hardware flow control.5. Click “OK.”Once Hyperterminal is open and configured, it can be used to send AT commands to the ModemModule.For assistance in testing your ModemModule, see the examples in the AT Command manual for Multi-Tech’sCDMA wireless modem products (CDMA AT Commands Reference Guide).
Appendix A – Safety Precautions & Regulatory Standards complianceWireless ModemModule MTMMC-C Developer's Guide 20Appendix A – Safety Precautions & RegulatoryStandards ComplianceSafety PrecautionsIMPORTANT!FOR THE EFFICIENT AND SAFE OPERATIONOF YOUR CDMA INTEGRATED MODEM READTHIS INFORMATION BEFORE USE.RF SafetyGeneralYour ModemModule is based on the CDMA standard for cellular technology. Your modem is actually a lowpower radio transmitter and receiver. It sends out and receives radio frequency energy. When you use yourModemModule integrated modem, the cellular system that handles your calls controls both the radio frequencyand the power level of your cellular modem.Exposure to RF EnergyThere has been some public concern about possible health effects of using CDMA modems. Although researchon health effects from RF energy has focused on the current RF technology for many years, scientists havebegun research regarding newer radio technologies, such as CDMA. After existing research had been reviewed,and after compliance to all applicable safety standards had been tested, it has been concluded that the productwas fitted for use. If you are concerned about exposure to RF energy there are things you can do to minimizeexposure. Obviously, limiting the duration of your calls will reduce your exposure to RF energy. In addition, youcan reduce RF exposure by operating your cellular modem efficiently by following the below guidelines.Efficient Modem OperationFor your modem to operate at the lowest power level, consistent with satisfactory call quality: · If your modem has an extendible antenna, extend it fully. Some models allow you to place a call withthe antenna retracted. However your modem operates more efficiently with the antenna fully extended. · Do not hold the antenna when the modem is « IN USE ». Holding the antenna affects call quality andmay cause the modem to operate at a higher power level than needed.Antenna Care and ReplacementDo not use the modem with a damaged antenna. If a damaged antenna comes into contact with the skin, a minorburn may result. Replace a damaged antenna immediately. Consult your manual to see if you may change theantenna yourself. If so, use only a manufacturer-approved antenna. Otherwise, have your antenna repaired by aqualified technician. Use only the supplied or approved antenna. Unauthorized antennas, modifications orattachments could damage the modem and may contravene local RF emission regulations or invalidate typeapproval.

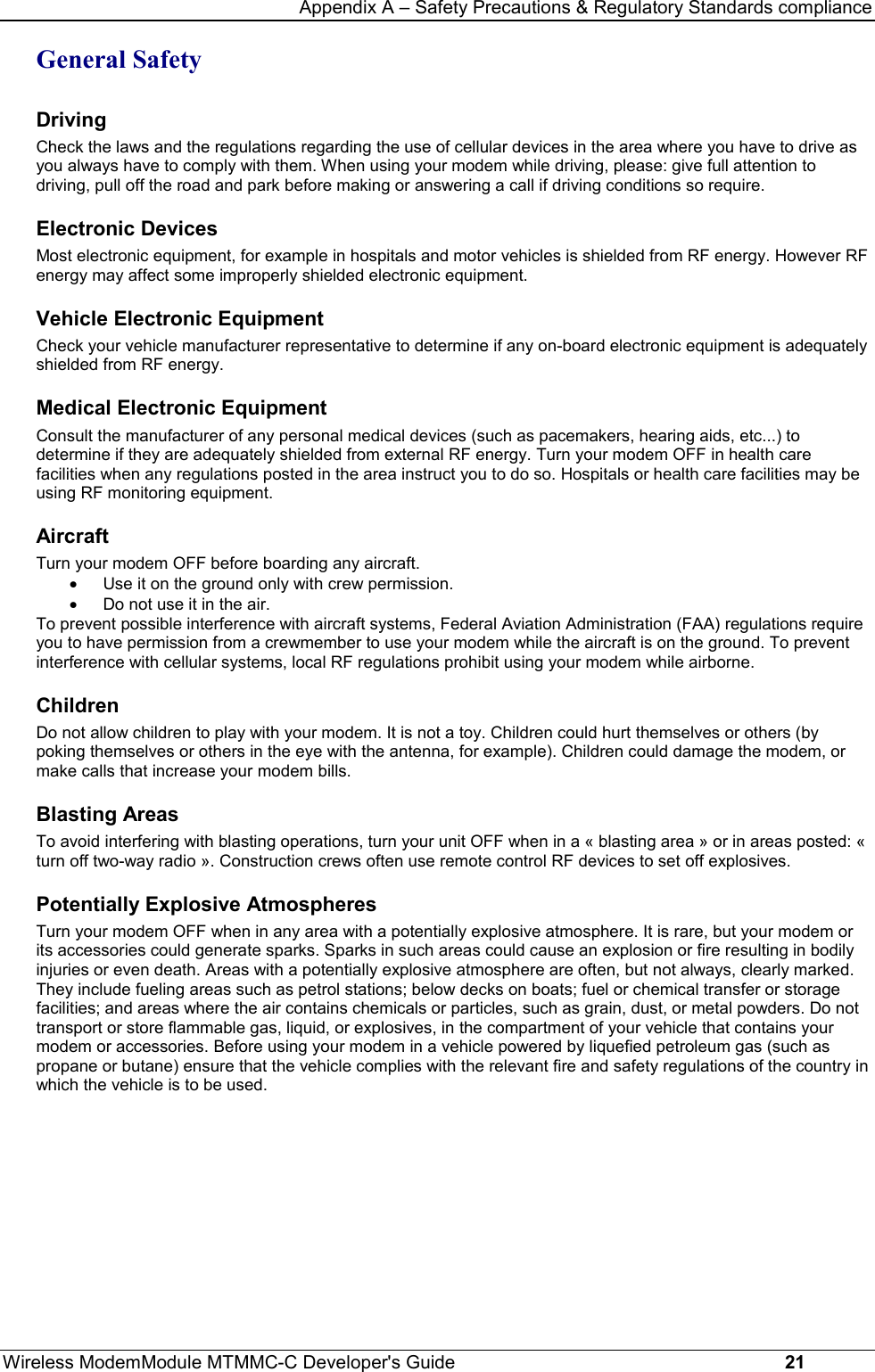

Appendix A – Safety Precautions & Regulatory Standards complianceWireless ModemModule MTMMC-C Developer's Guide 21General SafetyDrivingCheck the laws and the regulations regarding the use of cellular devices in the area where you have to drive asyou always have to comply with them. When using your modem while driving, please: give full attention todriving, pull off the road and park before making or answering a call if driving conditions so require.Electronic DevicesMost electronic equipment, for example in hospitals and motor vehicles is shielded from RF energy. However RFenergy may affect some improperly shielded electronic equipment.Vehicle Electronic EquipmentCheck your vehicle manufacturer representative to determine if any on-board electronic equipment is adequatelyshielded from RF energy.Medical Electronic EquipmentConsult the manufacturer of any personal medical devices (such as pacemakers, hearing aids, etc...) todetermine if they are adequately shielded from external RF energy. Turn your modem OFF in health carefacilities when any regulations posted in the area instruct you to do so. Hospitals or health care facilities may beusing RF monitoring equipment.AircraftTurn your modem OFF before boarding any aircraft. · Use it on the ground only with crew permission. · Do not use it in the air.To prevent possible interference with aircraft systems, Federal Aviation Administration (FAA) regulations requireyou to have permission from a crewmember to use your modem while the aircraft is on the ground. To preventinterference with cellular systems, local RF regulations prohibit using your modem while airborne.ChildrenDo not allow children to play with your modem. It is not a toy. Children could hurt themselves or others (bypoking themselves or others in the eye with the antenna, for example). Children could damage the modem, ormake calls that increase your modem bills.Blasting AreasTo avoid interfering with blasting operations, turn your unit OFF when in a « blasting area » or in areas posted: «turn off two-way radio ». Construction crews often use remote control RF devices to set off explosives.Potentially Explosive AtmospheresTurn your modem OFF when in any area with a potentially explosive atmosphere. It is rare, but your modem orits accessories could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodilyinjuries or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.They include fueling areas such as petrol stations; below decks on boats; fuel or chemical transfer or storagefacilities; and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Do nottransport or store flammable gas, liquid, or explosives, in the compartment of your vehicle that contains yourmodem or accessories. Before using your modem in a vehicle powered by liquefied petroleum gas (such aspropane or butane) ensure that the vehicle complies with the relevant fire and safety regulations of the country inwhich the vehicle is to be used.

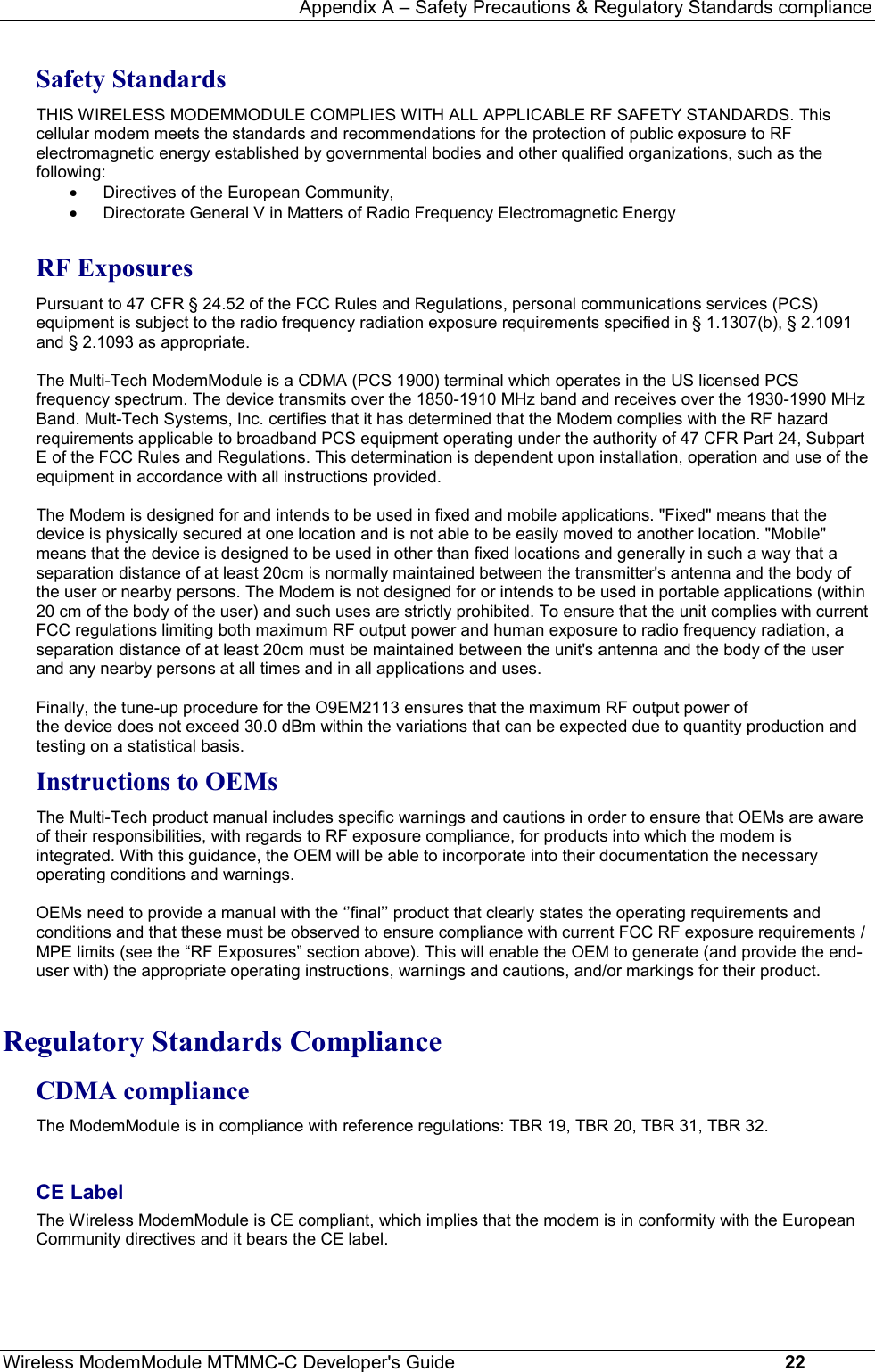

Appendix A – Safety Precautions & Regulatory Standards complianceWireless ModemModule MTMMC-C Developer's Guide 22Safety StandardsTHIS WIRELESS MODEMMODULE COMPLIES WITH ALL APPLICABLE RF SAFETY STANDARDS. Thiscellular modem meets the standards and recommendations for the protection of public exposure to RFelectromagnetic energy established by governmental bodies and other qualified organizations, such as thefollowing: · Directives of the European Community, · Directorate General V in Matters of Radio Frequency Electromagnetic EnergyRF ExposuresPursuant to 47 CFR § 24.52 of the FCC Rules and Regulations, personal communications services (PCS)equipment is subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), § 2.1091and § 2.1093 as appropriate.The Multi-Tech ModemModule is a CDMA (PCS 1900) terminal which operates in the US licensed PCSfrequency spectrum. The device transmits over the 1850-1910 MHz band and receives over the 1930-1990 MHzBand. Mult-Tech Systems, Inc. certifies that it has determined that the Modem complies with the RF hazardrequirements applicable to broadband PCS equipment operating under the authority of 47 CFR Part 24, SubpartE of the FCC Rules and Regulations. This determination is dependent upon installation, operation and use of theequipment in accordance with all instructions provided.The Modem is designed for and intends to be used in fixed and mobile applications. "Fixed" means that thedevice is physically secured at one location and is not able to be easily moved to another location. "Mobile"means that the device is designed to be used in other than fixed locations and generally in such a way that aseparation distance of at least 20cm is normally maintained between the transmitter's antenna and the body ofthe user or nearby persons. The Modem is not designed for or intends to be used in portable applications (within20 cm of the body of the user) and such uses are strictly prohibited. To ensure that the unit complies with currentFCC regulations limiting both maximum RF output power and human exposure to radio frequency radiation, aseparation distance of at least 20cm must be maintained between the unit's antenna and the body of the userand any nearby persons at all times and in all applications and uses. Finally, the tune-up procedure for the O9EM2113 ensures that the maximum RF output power ofthe device does not exceed 30.0 dBm within the variations that can be expected due to quantity production andtesting on a statistical basis.Instructions to OEMsThe Multi-Tech product manual includes specific warnings and cautions in order to ensure that OEMs are awareof their responsibilities, with regards to RF exposure compliance, for products into which the modem isintegrated. With this guidance, the OEM will be able to incorporate into their documentation the necessaryoperating conditions and warnings. OEMs need to provide a manual with the ‘’final’’ product that clearly states the operating requirements andconditions and that these must be observed to ensure compliance with current FCC RF exposure requirements /MPE limits (see the “RF Exposures” section above). This will enable the OEM to generate (and provide the end-user with) the appropriate operating instructions, warnings and cautions, and/or markings for their product.Regulatory Standards ComplianceCDMA complianceThe ModemModule is in compliance with reference regulations: TBR 19, TBR 20, TBR 31, TBR 32.CE LabelThe Wireless ModemModule is CE compliant, which implies that the modem is in conformity with the EuropeanCommunity directives and it bears the CE label.
Appendix B – Sourcing Guide for Connectors/PeripheralsWireless ModemModule MTMMC-C Developer's Guide 23Appendix B – Sourcing Guide for Connectors andPeripheral DevicesCDMA AntennaThe integrated modem antenna connector is a MMCX connector. The MMCX connector incorporates a 'Snap On'latching action in order to make the connection easier with an excellent RF performance. An additionaladvantage is its small physical size, which is 50% of the standard MCX connector.This type of connector is suitable for the standard ranges of flexible and semi-rigid cables. The characteristicimpedance of the MMCX coaxial connector is 50 ohm. The antenna manufacturer must guarantee that theantenna will be working according to the radio characteristics presented in the table below.Radio CharacteristicsCDMA 850 CDMA 1900FrequencyRX869 to 894 MHz 1930 to 1990 MHzFrequencyTX824 to 849 MHz 1850 to 1910 MHzImpedance 50 ohmsVSWR <1.5TypicalRadiatedGain 0 dBi in at least one directionMMCX Plug The ModemModule requires an MMCX plug to connect to an antenna. MMCX Connector Example (right angle type)AntennaAn antenna with matting connector can be ordered, for example, from:IMS Connectors Systems GMBHhttp://www.imscs.com/MMCX / SMA AdapterA small MMCX / SMA adapter can be ordered, for example, from:Amphenol http://www.amphenol.com/Order No: 908-31100
Appendix D – Acronyms and AbbreviationsWireless ModemModule MTMMC-C Developer's Guide 24Appendix C – AT Command ListFor comprehensive information about AT Commands, please read the AT Command Manual.AT Command ListGeneral Commands+CGMI Manufacturer Identification+CGMM Request Model Identification+CGMR Request Revision Identification+CGSN Product Serial Number+CSCS Select TE Character Set+CIMI Request IMSI+CCID Card Identification+GCAP Capabilities ListA/ Repeat Last Command+CPOF Power Off+CFUN Set Phone Functionality+CPAS Phone Activity Status+CMEE Report Mobile Equipment Errors+CKPD Keypad Control+CCLK Clock management+CALA Alarm management

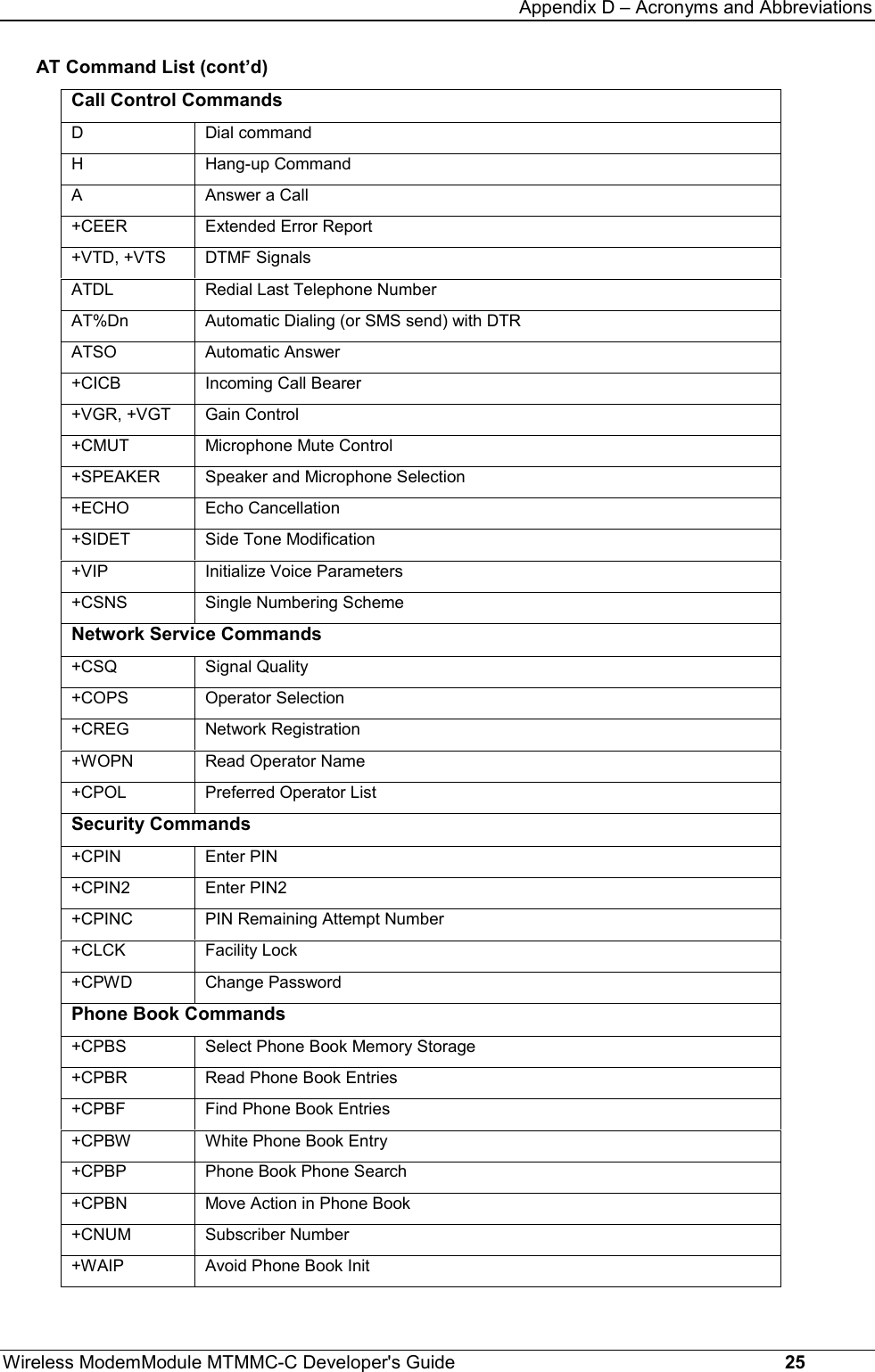

Appendix D – Acronyms and AbbreviationsWireless ModemModule MTMMC-C Developer's Guide 25AT Command List (cont’d)Call Control CommandsDDial commandHHang-up CommandAAnswer a Call+CEER Extended Error Report+VTD, +VTS DTMF SignalsATDL Redial Last Telephone NumberAT%Dn Automatic Dialing (or SMS send) with DTRATSO Automatic Answer+CICB Incoming Call Bearer+VGR, +VGT Gain Control+CMUT Microphone Mute Control+SPEAKER Speaker and Microphone Selection+ECHO Echo Cancellation+SIDET Side Tone Modification+VIP Initialize Voice Parameters+CSNS Single Numbering SchemeNetwork Service Commands+CSQ Signal Quality+COPS Operator Selection+CREG Network Registration+WOPN Read Operator Name+CPOL Preferred Operator ListSecurity Commands+CPIN Enter PIN+CPIN2 Enter PIN2+CPINC PIN Remaining Attempt Number+CLCK Facility Lock+CPWD Change PasswordPhone Book Commands+CPBS Select Phone Book Memory Storage+CPBR Read Phone Book Entries+CPBF Find Phone Book Entries+CPBW White Phone Book Entry+CPBP Phone Book Phone Search+CPBN Move Action in Phone Book+CNUM Subscriber Number+WAIP Avoid Phone Book Init
Appendix D – Acronyms and AbbreviationsWireless ModemModule MTMMC-C Developer's Guide 26AT Command List (cont’d)Short Message Commands+CSMS Select Message Service+CNMA New Message Acknowledgement+CPMS Preferred Message Storage+CMGF Preferred Message Format+CSAS Save Settings+CRES Restore Settings+CSDH Show Text Mode parameters+CNMI New Message Indication+CMGR Read Message+CMGL List Message+CMGS Send Message+CMGW Write Message to Memory+CMSS Send Message from Storage+CSMP Set Text Mode Parameters+CMGD Delete Message+CSCA Service Center Address+CSCB Select Cell Broadcast Message Types+WCBM Cell Broadcast Message Identifiers+WMSC Message Status Modification+WMGO Message OverwritingSupplementary Services Commands+CCFC Call Forwarding+CLCK Call Barring+CPWD Modify SS Password+CCWA Call Waiting+CLIR Calling Line Identification Restriction+CLIP Calling Line Identification Presentation+COLP Connected Line Identification Presentation+CAOC Advice Of Charge+CACM Accumulated Call Meter+CAMM Accumulated Call Meter Maximum+CPUC Price Per Unit and Currency Table+CHLD Call Related Supplementary Services+CLCC List Current Calls+CSSN Supplementary Service Notifications+CUSD Unstructured Supplementary Service Data+CCUG Closed User GroupData Commands+CBST Bearer Type Selection+FCLASS Select Mode+CR Service Reporting Control+CRC Cellular Result Codes+ILRR DTE-DCE Local Rate Reporting+CRLP Radio Link Protocol Parameters+DOPT Others Radio Link Parameters%C Select Data Compression+DS V42 bis Data Compression+DR V42 bis Data Compression Report\N Select Data Error Correcting Mode
Appendix D – Acronyms and AbbreviationsWireless ModemModule MTMMC-C Developer's Guide 27AT Command List (cont’d)Fax Commands+FTM Transmit Speed+FRM Receive Speed+FTH HDLC Transmit Speed+FRH HDLC Receive Speed+FTS Stop Transmission and Wait+FRS Receive SilenceFax Class 2 Commands+FDT Transmit Data+FDR Receive Data+FET Transmit Page Punctuation+FPTS Page Transfer Status Parameters+FK Terminate Session+FBOR Page Transfer Bit Order+FBUF Buffer Size Report+FCQ Copy Quality Checking+FCR Capability to Receive+FDIS Current Sessions Parameters+FDCC DCE Capabilities Parameters+FLID Local ID String+FPHCTO Page Transfer Timeout ParameterV24 - V25 Commands+IPR Fixed DTE Rate+ICF DTE-DCE Character Framing+IFC DTE-DCE Local Flow Control&C Set DCD Signal&D Set DTR Signal&S Set DSR SignalOBack to Online ModeQResult Code SuppressionVDCE Response FormatZDefault Configuration&W Save Configuration&T Auto-TestsEEcho&F Restore Factory Settings&V Display ConfigurationIRequest Identification Information
Appendix D – Acronyms and AbbreviationsWireless ModemModule MTMMC-C Developer's Guide 28AT Command List (cont’d)Specific AT Commands+CCED Cell Environment Description+CCED Automatic RxLev Indication+WIND General Indications+ADC Analog Digital Converters Measurements+CMER Mobile Equipment Event Reporting+WLPR Read Language Preference+WLPW Write Language Preference+WIOR Read GPIO Value+WIOW Write GPIO Value+WAC Abort Command+WTONE Play Tone+WDTMF Play DTMF Tone+WDWL Multi-Tech Downloading+WVR Multi-Tech Voice Rate+WDR Data Rate+WHWV Hardware Version+WDOP Date Of Production+WSVG Multi-Tech Select Voice Gain+WSTR Multi-Tech Status Request+WSCAN Multi-Tech Scan+WRIM Ring Indicator Mode+W32K Power saving mode

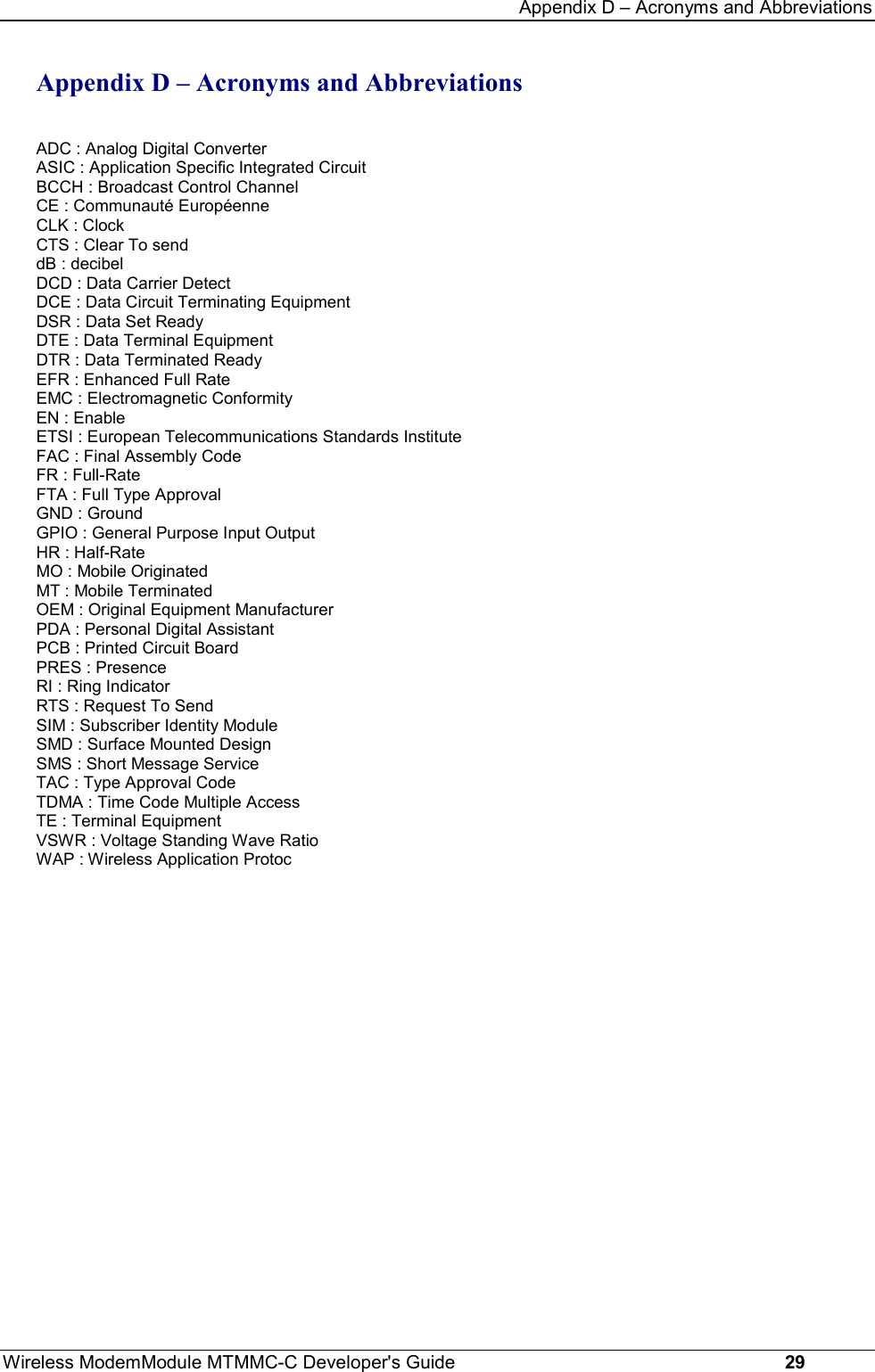

Appendix D – Acronyms and AbbreviationsWireless ModemModule MTMMC-C Developer's Guide 29Appendix D – Acronyms and AbbreviationsADC : Analog Digital ConverterASIC : Application Specific Integrated CircuitBCCH : Broadcast Control ChannelCE : Communauté EuropéenneCLK : ClockCTS : Clear To senddB : decibelDCD : Data Carrier DetectDCE : Data Circuit Terminating EquipmentDSR : Data Set ReadyDTE : Data Terminal EquipmentDTR : Data Terminated ReadyEFR : Enhanced Full RateEMC : Electromagnetic ConformityEN : EnableETSI : European Telecommunications Standards InstituteFAC : Final Assembly CodeFR : Full-RateFTA : Full Type ApprovalGND : GroundGPIO : General Purpose Input OutputHR : Half-RateMO : Mobile OriginatedMT : Mobile TerminatedOEM : Original Equipment ManufacturerPDA : Personal Digital AssistantPCB : Printed Circuit BoardPRES : PresenceRI : Ring IndicatorRTS : Request To SendSIM : Subscriber Identity ModuleSMD : Surface Mounted DesignSMS : Short Message ServiceTAC : Type Approval CodeTDMA : Time Code Multiple AccessTE : Terminal EquipmentVSWR : Voltage Standing Wave RatioWAP : Wireless Application Protoc

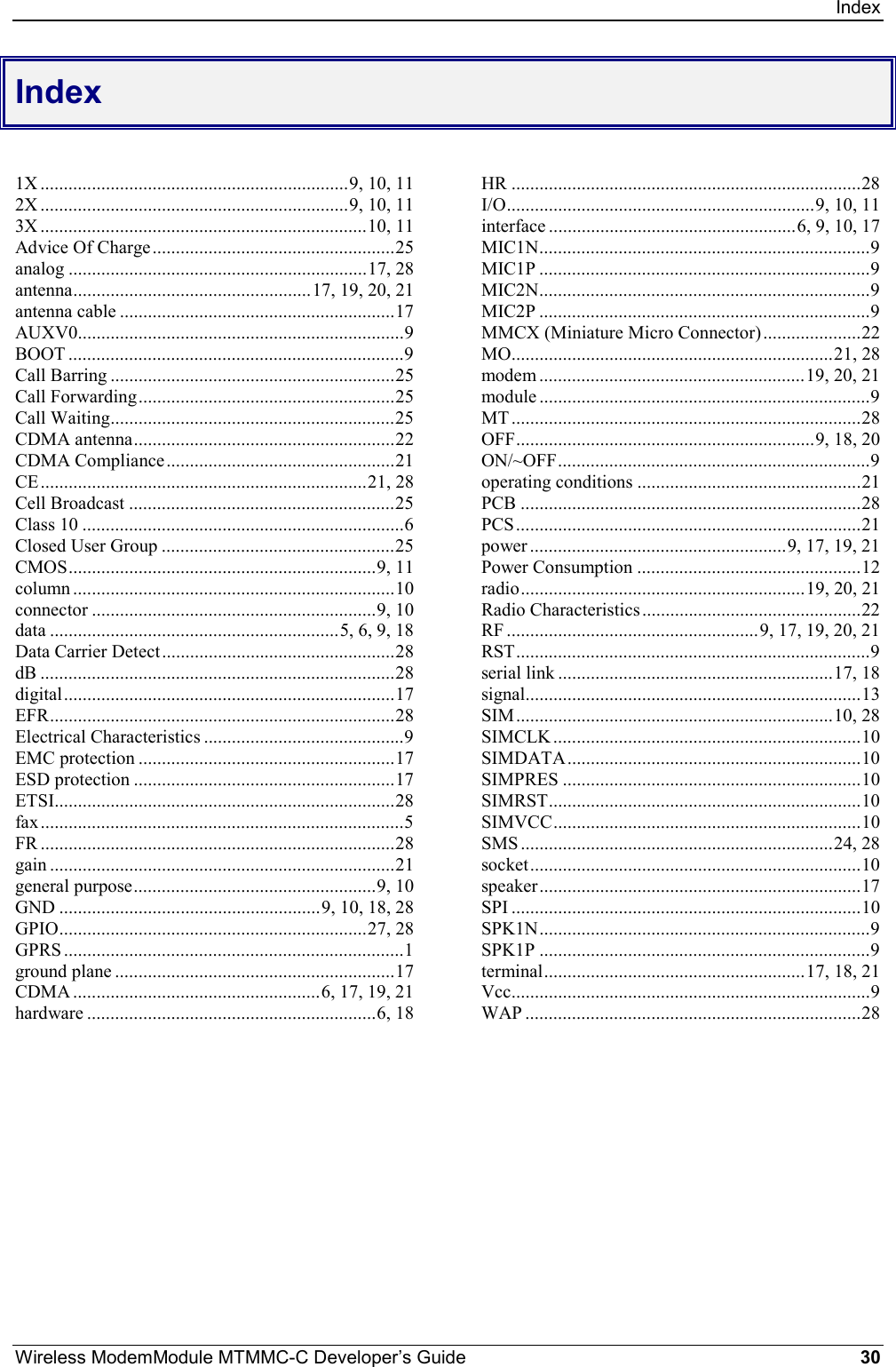

IndexWireless ModemModule MTMMC-C Developer’s Guide 30Index1X ..................................................................9, 10, 112X ..................................................................9, 10, 113X ......................................................................10, 11Advice Of Charge....................................................25analog ................................................................17, 28antenna...................................................17, 19, 20, 21antenna cable ...........................................................17AUXV0......................................................................9BOOT ........................................................................9Call Barring .............................................................25Call Forwarding.......................................................25Call Waiting.............................................................25CDMA antenna........................................................22CDMA Compliance.................................................21CE......................................................................21, 28Cell Broadcast .........................................................25Class 10 .....................................................................6Closed User Group ..................................................25CMOS..................................................................9, 11column .....................................................................10connector .............................................................9, 10data ..............................................................5, 6, 9, 18Data Carrier Detect..................................................28dB ............................................................................28digital.......................................................................17EFR..........................................................................28Electrical Characteristics ...........................................9EMC protection .......................................................17ESD protection ........................................................17ETSI.........................................................................28fax..............................................................................5FR ............................................................................28gain ..........................................................................21general purpose....................................................9, 10GND ........................................................9, 10, 18, 28GPIO..................................................................27, 28GPRS .........................................................................1ground plane ............................................................17CDMA .....................................................6, 17, 19, 21hardware ..............................................................6, 18HR ...........................................................................28I/O..................................................................9, 10, 11interface .....................................................6, 9, 10, 17MIC1N.......................................................................9MIC1P .......................................................................9MIC2N.......................................................................9MIC2P .......................................................................9MMCX (Miniature Micro Connector) .....................22MO.....................................................................21, 28modem .........................................................19, 20, 21module .......................................................................9MT ...........................................................................28OFF................................................................9, 18, 20ON/~OFF...................................................................9operating conditions ................................................21PCB .........................................................................28PCS..........................................................................21power .......................................................9, 17, 19, 21Power Consumption ................................................12radio.............................................................19, 20, 21Radio Characteristics...............................................22RF ......................................................9, 17, 19, 20, 21RST............................................................................9serial link ...........................................................17, 18signal........................................................................13SIM....................................................................10, 28SIMCLK ..................................................................10SIMDATA...............................................................10SIMPRES ................................................................10SIMRST...................................................................10SIMVCC..................................................................10SMS ...................................................................24, 28socket.......................................................................10speaker.....................................................................17SPI ...........................................................................10SPK1N.......................................................................9SPK1P .......................................................................9terminal........................................................17, 18, 21Vcc.............................................................................9WAP ........................................................................28
