SocketModem CDMA_Darasheet
Embedded Wireless Modem
Universal Socket Benefits
• Interchangeable communications
devices
• Quick-to-market
• Global approvals
• Easy migration to future networks

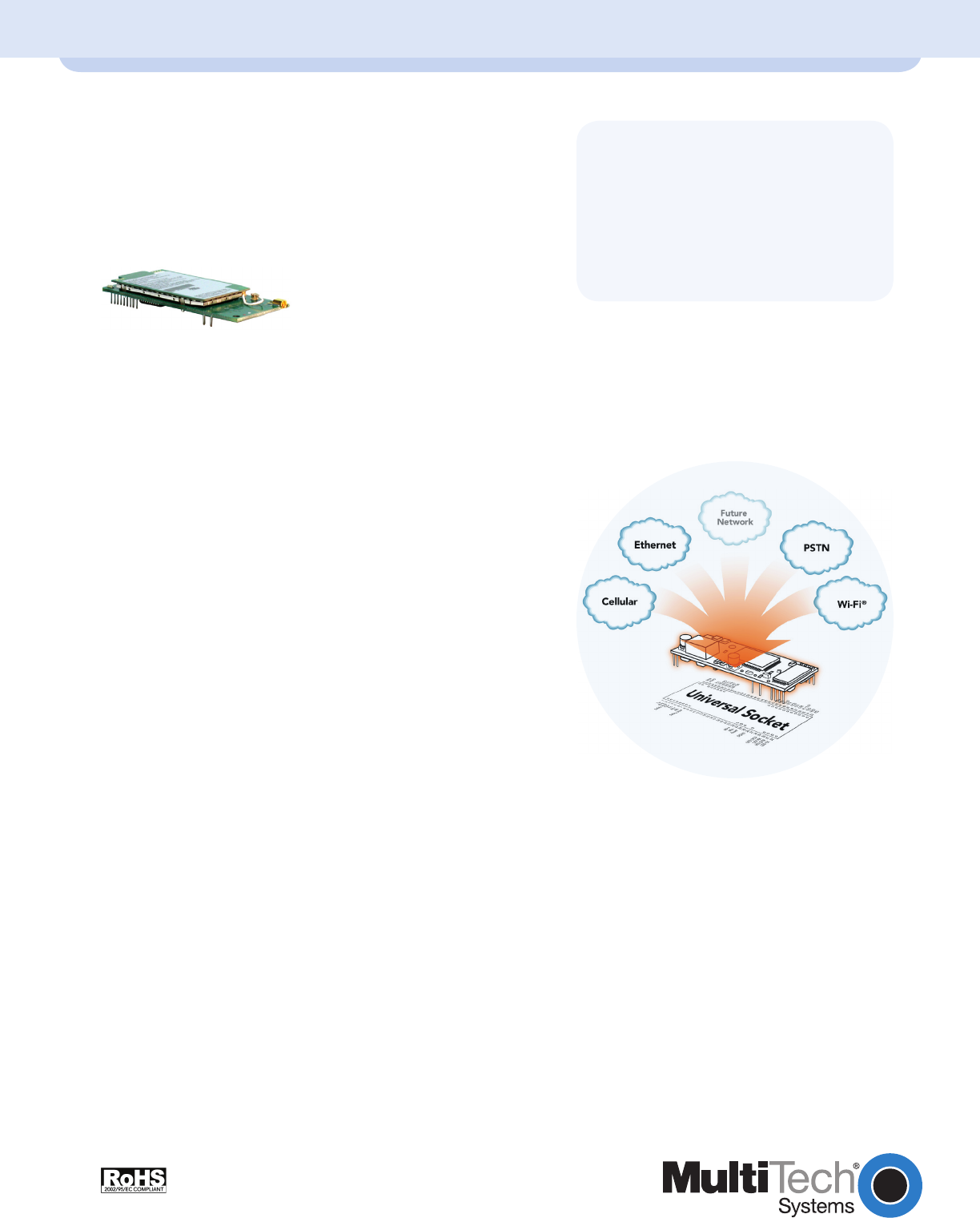

The Multi-Tech SocketModem® CDMA wireless modem is a complete, ready-to-integrate communications device
that offers standards-based multi-band CDMA2000 1xRTT performance. This quick-to-market communications
device allows developers to add wireless communication to products with a minimum of development time and
expense. The SocketModem CDMA wireless modem is based on industry-standard open interfaces and utilizes
Multi-Tech's universal socket design.
Features
• CDMA2000 1xRTT
• Qualcomm® MSM6050 chipset
• CDMA IS-95A, IS-95B backwards compatible
• Dual-band 800/1900 MHz CDMA
• 800 MHz or 800/1900 MHz with R-UIM support
• Packet data up to 153.6K bps forward and reverse
• Circuit-switched data up to 14.4K bps
• Class 2.0 Group 3 Fax
• Short Message Services (SMS)
• MMCX antenna connector
• Serial interface supports DTE speeds to 230K bps
• AT command compatible
• Universal socket connectivity
• CDG 1 and 2 network certified
• Two-year warranty
SocketModem® CDMA
World Headquarters
Tel: (763) 785-3500
(800) 328-9717
www.multitech.com
EMEA Headquarters
Multi-Tech Systems (EMEA)
United Kingdom
Tel: +(44) 118-959 7774
Multi-Tech Systems (EMEA)
France
Tel: +(33) 1 49 19 22 06
Highlights
Applications. The SocketModem CDMA wireless modem is
targeted at applications that periodically need to send or
receive data over a wireless network. It is ideal for:
Ordering Information
Product Description Region
MTSMC-C* 800/1900 MHz CDMA Modem Regional
Ordering Codes Description
-N1 Generic, Requires Provisioning
(A-key = Random)
-N2 For Sprint Networks (USA)
-N3 For Verizon Networks (USA)
-N4 800 MHz CDMA Modem w/R-UIM
-N9 Generic, Requires Provisioning (A-key = 0)
-N12 Bell Mobility (Canada)
-N14 Alltel (USA)
* Use ordering codes for specific build options. Go to www.multitech.com for
detailed product model numbers.
Developer's Kit. The Developer's Kit allows you to plug in the
communications device and use it for testing, programming
and evaluation. The kit includes one development board with
RS-232 DB-25 connector, universal power supply, antenna
and RS-232 cable.
Specifications
Packet Data Features
CDMA2000 1xRTT, up to 153K bps forward & reverse
channels
Circuit Switched Data/Fax Features
IS-95A, IS-95B up to 14.4K bps, Group 3 Fax, Class 2.0
SMS Features
Text & PDU, Point-to-Point, cell broadcast
Connectors
Antenna: MMCX
R-UIM: Standard 3V R-UIM receptacle (-N4 model only)
Power Requirements
5VDC; 400mA typical, 700mA maximum
Physical Description
3.1" L x 1.4" W x 0.5" H; 1.2 oz.
(8.0 cm x 3.5 cm x 1.2 cm; 34 g)
Operating Environment
-30° to +70° C
Certifications
EMC: FCC Part 2, 15, 22, 24, EN 55022, EN 55024
Safety: cUL, EN 60950, UL 60950
Network: CDG 1 & 2
Copyright © 2007 by Multi-Tech Systems, Inc. All rights reserved. 9/07 86002039
• Appliances
• Asset tracking
• ATM terminals
• Automotive
• Data collection
• Industrial and medical
remote monitoring systems
• Remote diagnostics
• Remote metering
• Security systems
• Vending/gaming machines
• Other devices requiring
wireless connectivity
Integration Reduces Space, Power and Cost. The SocketModem
CDMA wireless modem integrates the controller, RF
transceiver, and antenna interface into one communications
device. This integration requires low power, low real estate
and provides an overall reduction in costs.
Reduces Development Time. The SocketModem CDMA
wireless modem enhances your product while you focus
on developing its core features. It actually provides faster
time-to-market because it relieves the burden and expense
of obtaining CDG 1 and 2 network and RF approvals.
Management Features. The SocketModem CDMA wireless
modem provides advanced management features including
phone book management, fixed dialing number, real time
clock and alarm management.

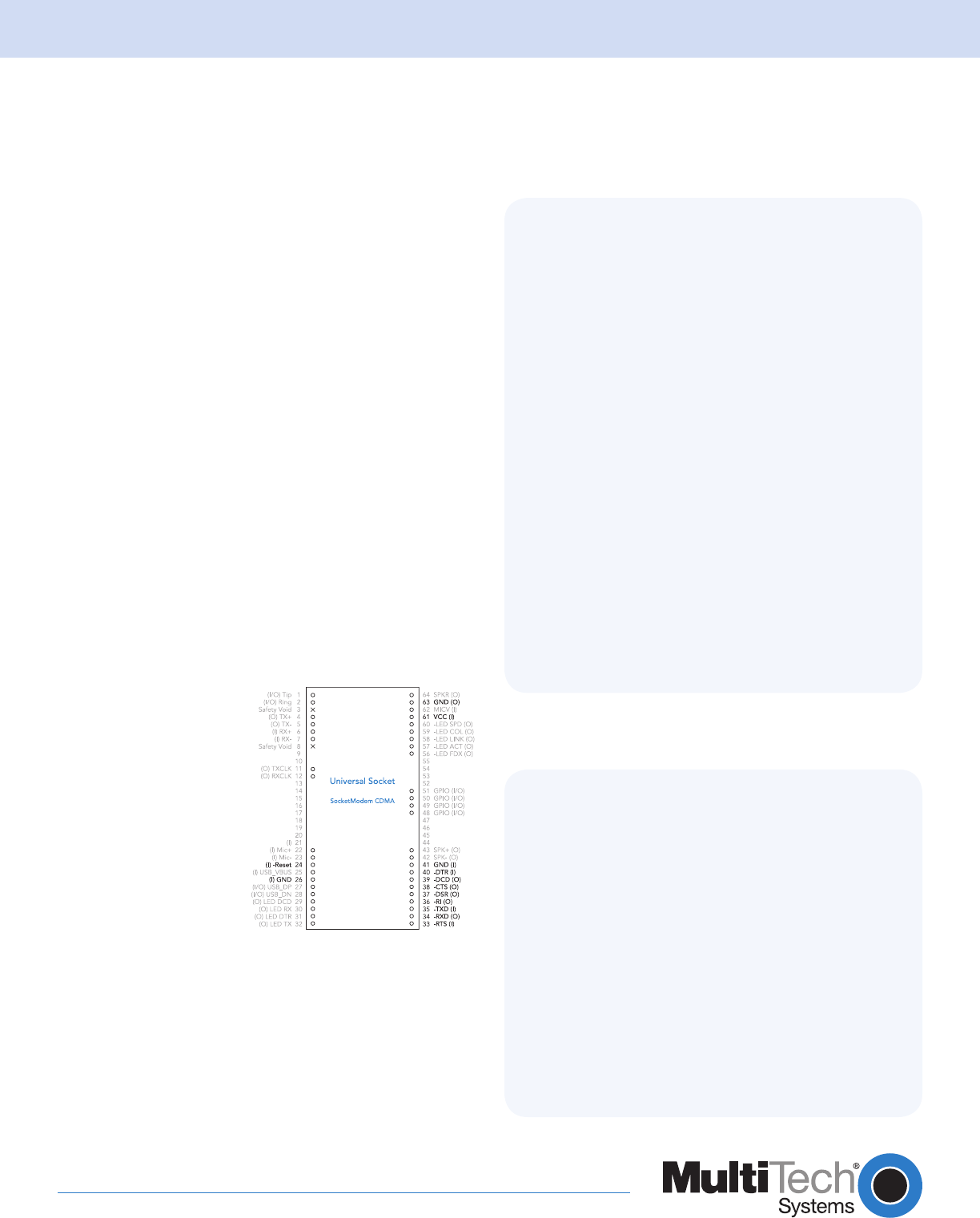

SocketModem CDMA Pin-Out. The SocketModem CDMA
wireless modem interfaces easily with existing products
through a standard serial communication channel. The
serial DTE channel
is capable of transfer
speeds to 230K bps
and can be interfaced
directly to a UART
or microcontroller.
The complete on-
board RF transceiver
interfaces with an
antenna for direct
connection to wireless
SMS, circuit-switched
dial-up, or packet
data networks. It also
includes an onboard
LED to display network status.
Universal Socket Connectivity. Multi-Tech’s universal socket
is a flexible, comm-port architecture that provides cellular,
Ethernet, PSTN or Wi-Fi network access with interchangeable
communications devices. This means you can utilize
one system design and populate it with your connectivity
device of choice accommodating multiple connectivity
requirements. In addition, you are assured a seamless
migration to future technologies.
Made in Mounds View, MN, U.S.A.
Features and specifications are subject to change without notice.
