Multi Tech Systems 92U09G17825 SocketModem CDMA User Manual MTSMC C1 DRAFT S000342L

Multi Tech Systems Inc SocketModem CDMA MTSMC C1 DRAFT S000342L

User Manual

Universal Socket Connectivity
Embedded Device Networking Solutions
Hardware Guide for Developers
Comment [DAR1]: Resaved as
cover page graphic.jpg 65KB
09/17/09 – filed under graphics new
in K (poreviously
COVER_UniversalSocket-
techclouds.jpg 9/02/09 555KB in
Universal_SocketModem/Graphics_R
ev_F)
Copyright and Technical Support
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 2
Universal Socket Connectivity
Hardware Guide for Developers, PN S000342K, Version K
For the following products (The list indicates base models for each product. See each product chapter product build
options):
Embedded Wireless Modems
SocketModem Cell – MTSMC-G2
SocketModem Cell – MTSMC-G2-GP (Global Positioning)
SocketModem iCell – MTSMC-G2-IP
SocketModem CDMA – MTSMC-C1
SocketModem EDGE – MTSMC-E1
Socket Modem HSDPA – MTSMC-H
Embedded Analog Modems
SocketModem – MT9234SMI
SocketModem – MT5692SMI
SocketModem – MT2492SMI
SocketModem – MT2456SMI-22
Embedded Device Servers
SocketModem IP – MT100SEM-IP
SocketWireless Wi-Fi – MT810SWM-IP
SocketWireless Bluetooth – MTS2BTSMI
Copyright
This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech
Systems, Inc. All rights reserved.
Copyright © 2004-9 by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaim
any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves
the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech
Systems, Inc. to notify any person or organization of such revisions or changes. See the Multi-Tech Web site for current
revisions of documentation.
Trademarks
Trademarks and Registered Trademarks of Multi-Tech Systems, Inc. are SocketModem, SocketWireless, SocketEthernet
IP, and the Multi-Tech logo.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and other
countries. Bluetooth is a registered trademark of the Bluetooth SIG, Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Warranty and Repairs Statement
Please see the Multi-Tech Systems, Inc. Web site for the current Warranty and Repairs Statement.
http://www.multitech.com/COMPANY/Policies/warranty/
World Headquarters
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112
Phone: 763-785-3500 or 800-328-9717
Fax: 763-785-9874
Internet Address: http://www.multitech.com
Technical Support
Country By Email By Phone
Europe, Middle East, Africa: support@multitech.co.uk +(44) 118 959 7774
U.S., Canada, all others: support@multitech.com 800-972-2439 or 763-717-5863
Revision Notes
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 3
Revision Notes
Rev. Date Description
J.1 07/01/09
Reorganized the manual so that wireless products are grouped in Part 2, Analog SocketModems
are grouped in Part 3, and Device Servers are grouped in Part 4
Added new products: MTSMC-G2 and MT100SEM-IP
Removed MT2456SMI-22 and MTSMC-G-F4 chapters
Removed the text for the Warranty and Repairs Statement and linked to the Multi-Tech Web site for
the policy
Updated the Universal Developer Kit Contents
To Pin 24 Description: added Reset stats for MTSMC-G2, MTSMC-C, and MTSMC-E
Updated Mechanical Drawings for Analog Modems in Chapter 1
Added MTSMC-G2 to the Maximum Component Height
Fixed the 5V/3.3V Jumper on the Developer Board

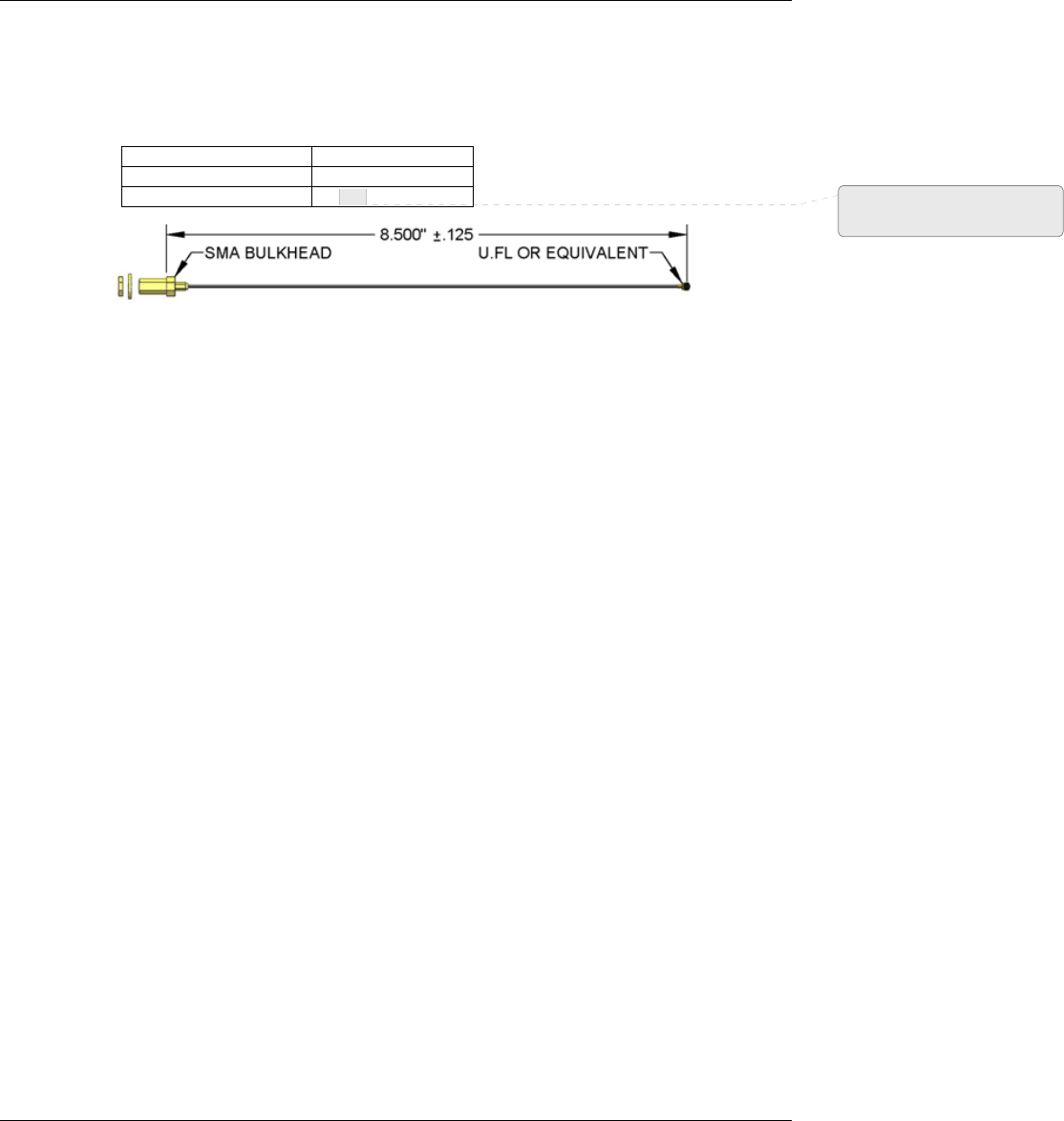

Added the UFL-to-SMA Coax Cable information to Chapter 1
Added a new RF Safety section in Chapter 1
Added the MTSMC-G2 to the Upgrading Firmware Table

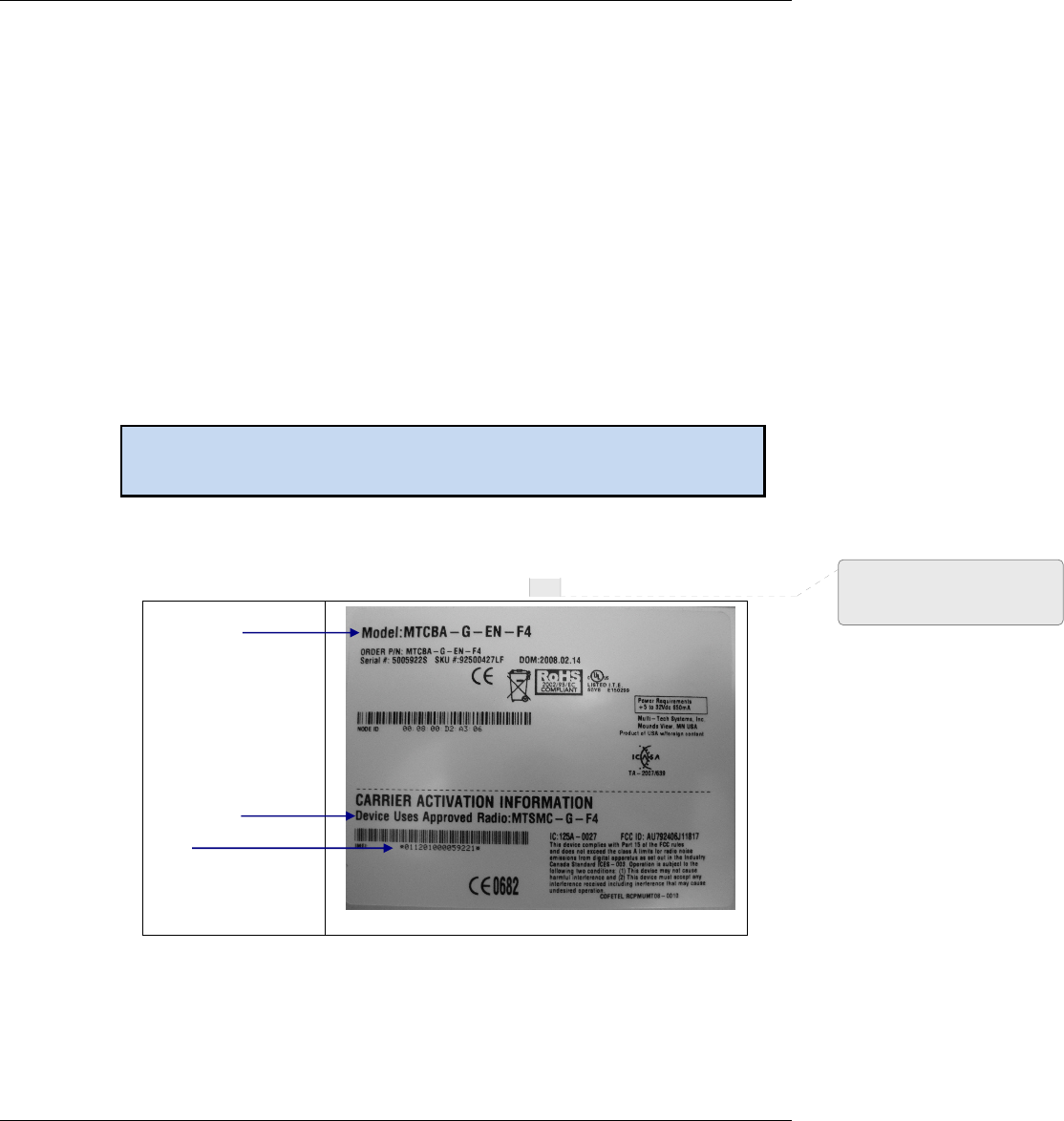

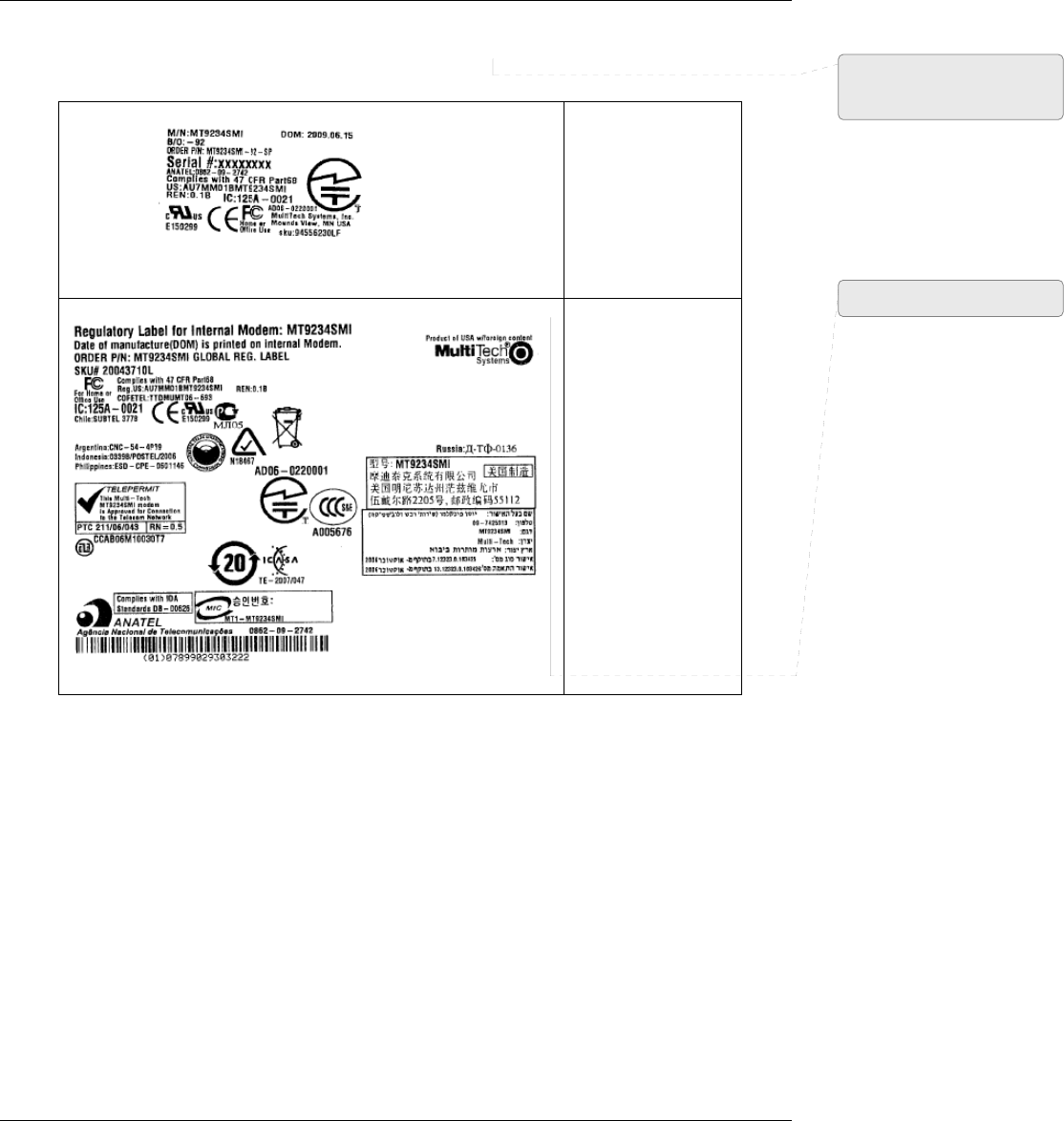

Changed/updated label example for CDMA and Analog SocketModems
Updated the EMC, Safety, and R&TTE Directive Compliance Statement
Updated the EMC Requirements for the United States regulatory section
Added Thailand Approval Statement for the MT9234SMI

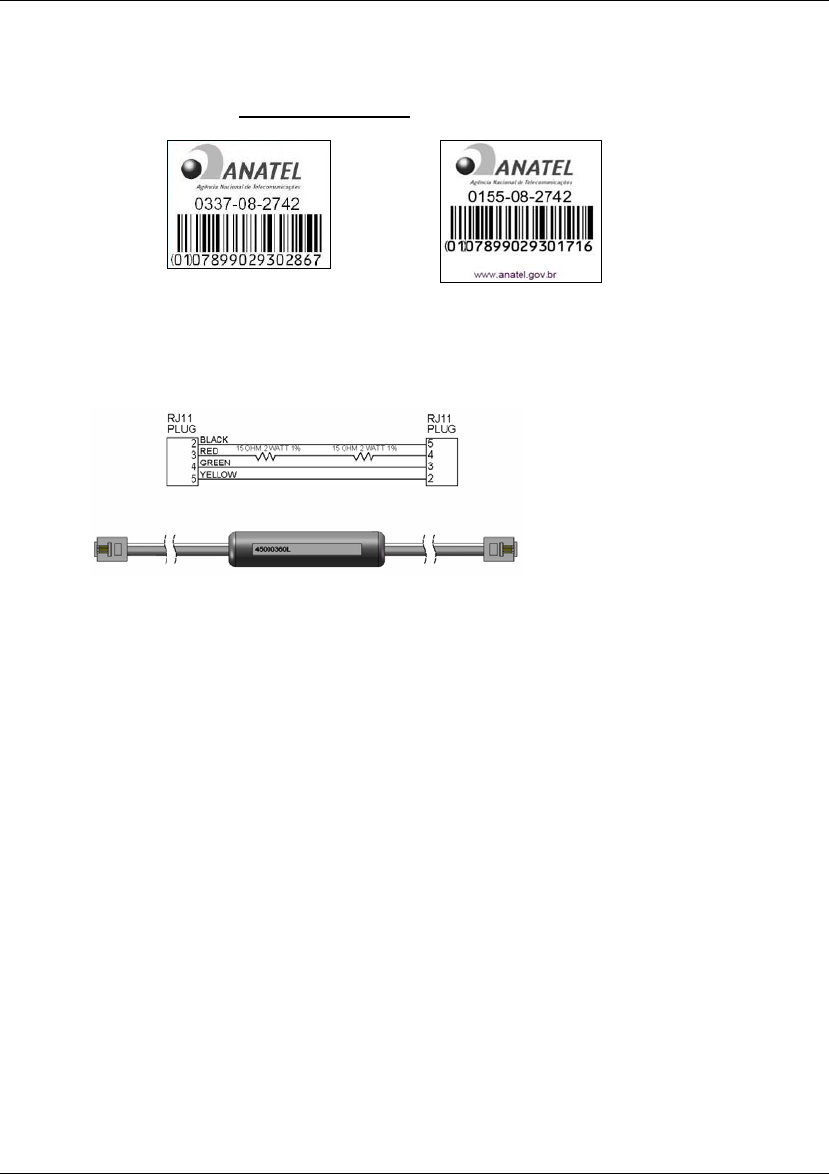

Added the Brazil Approval section
Added the English version of Chinese Standards section
For each listing of power consumption, added the following statement (required by QA): Multi-Tech
Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source
when determining product load.
Changed the HSDPA max operating temperature to +60°C
Added sleep mode power stats for MT9234SIM

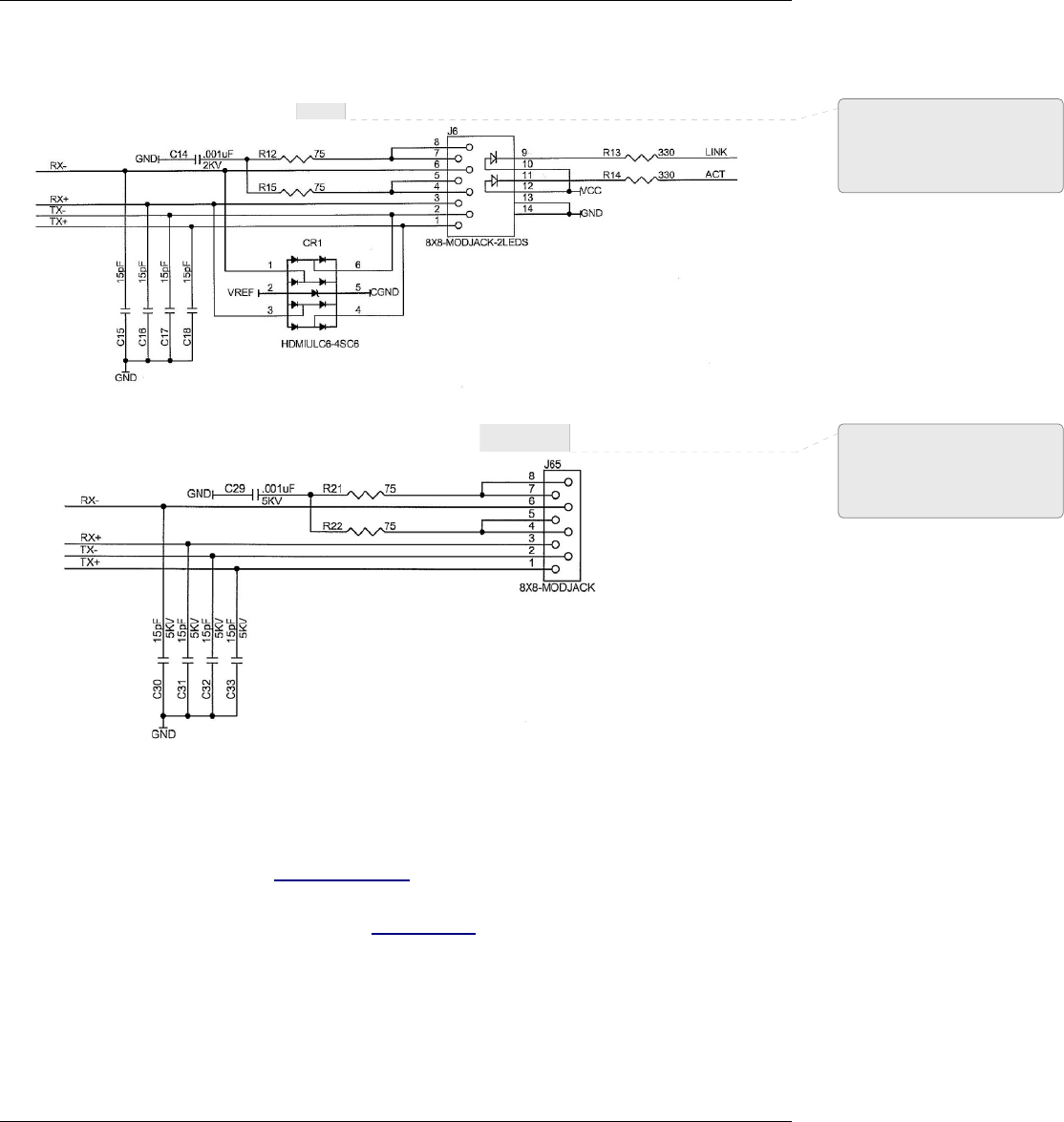

Updated the Ethernet Interface drawings (Non-Isolated & Isolated Designs) for the MT100SEM-IP

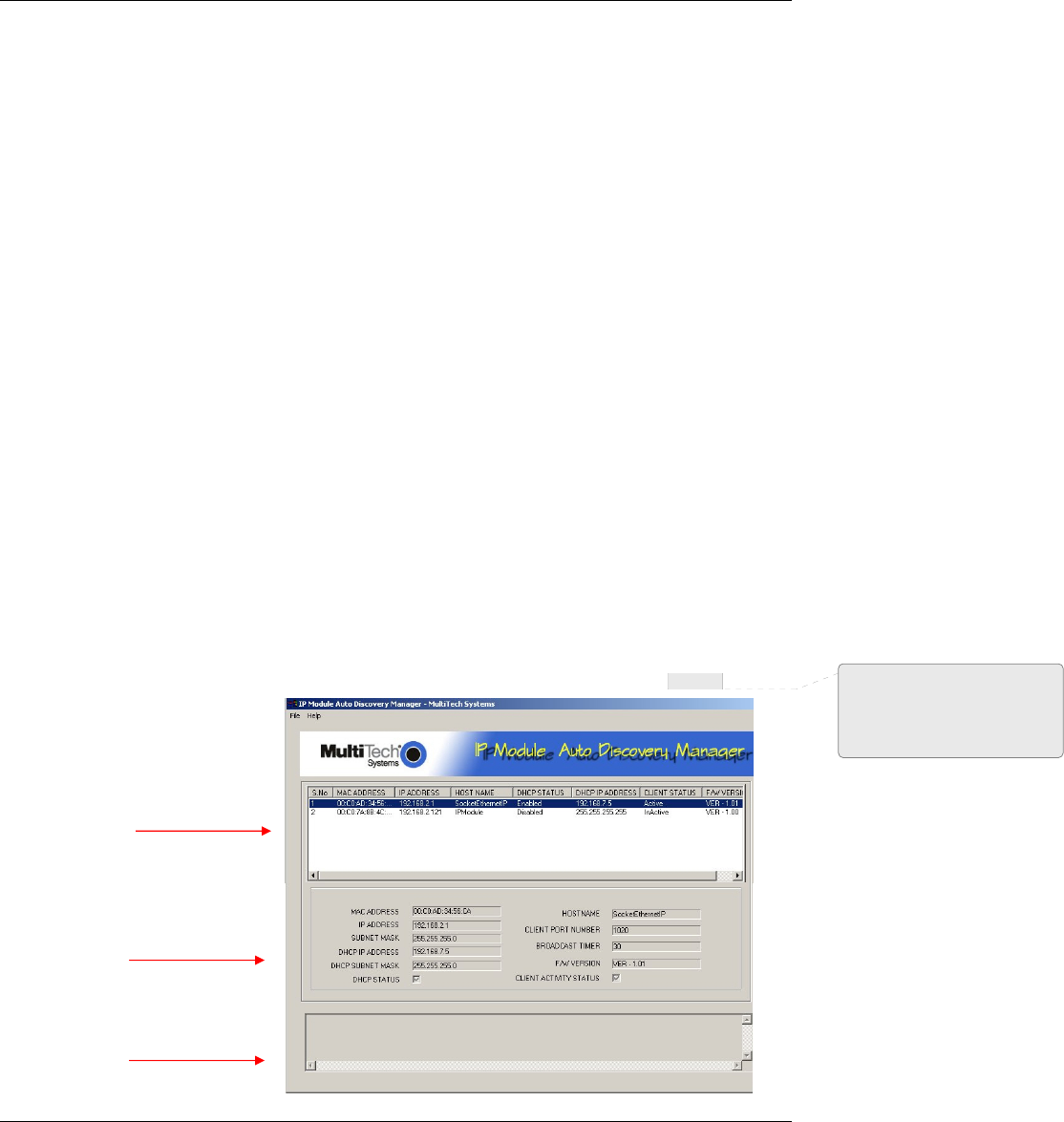

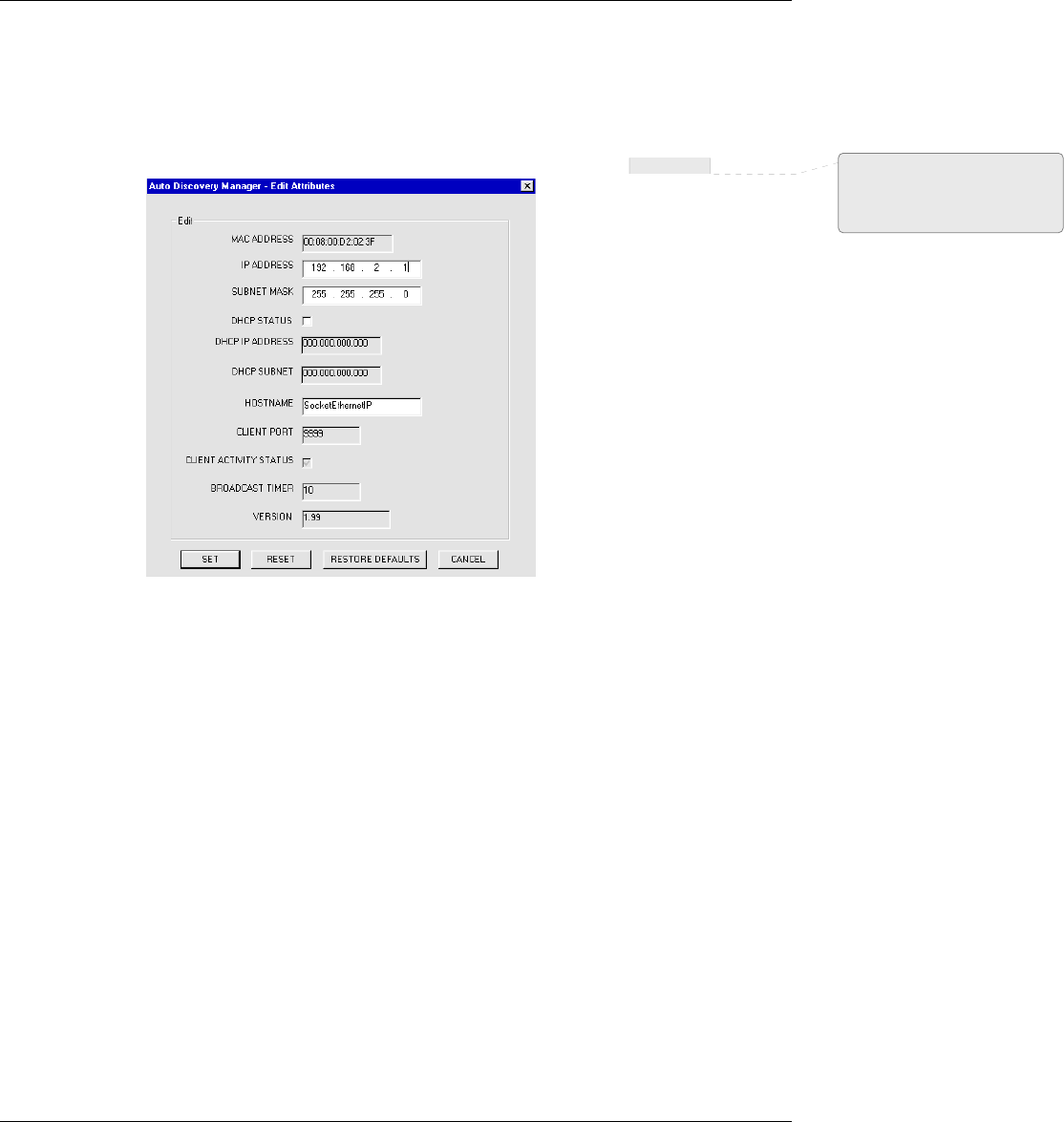

Added an Auto Discovery Manager section to the MT100SEM-IP chapter

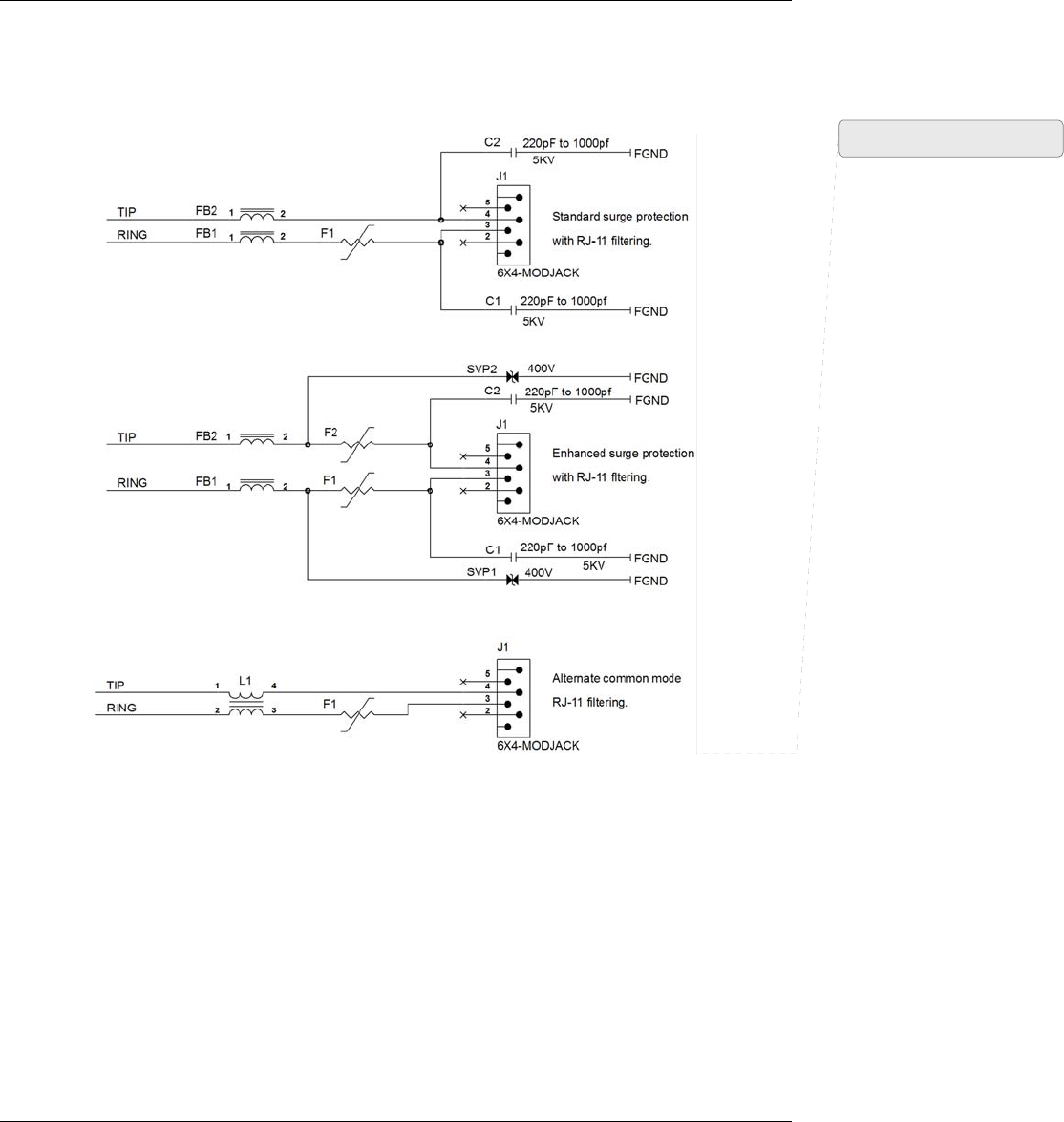

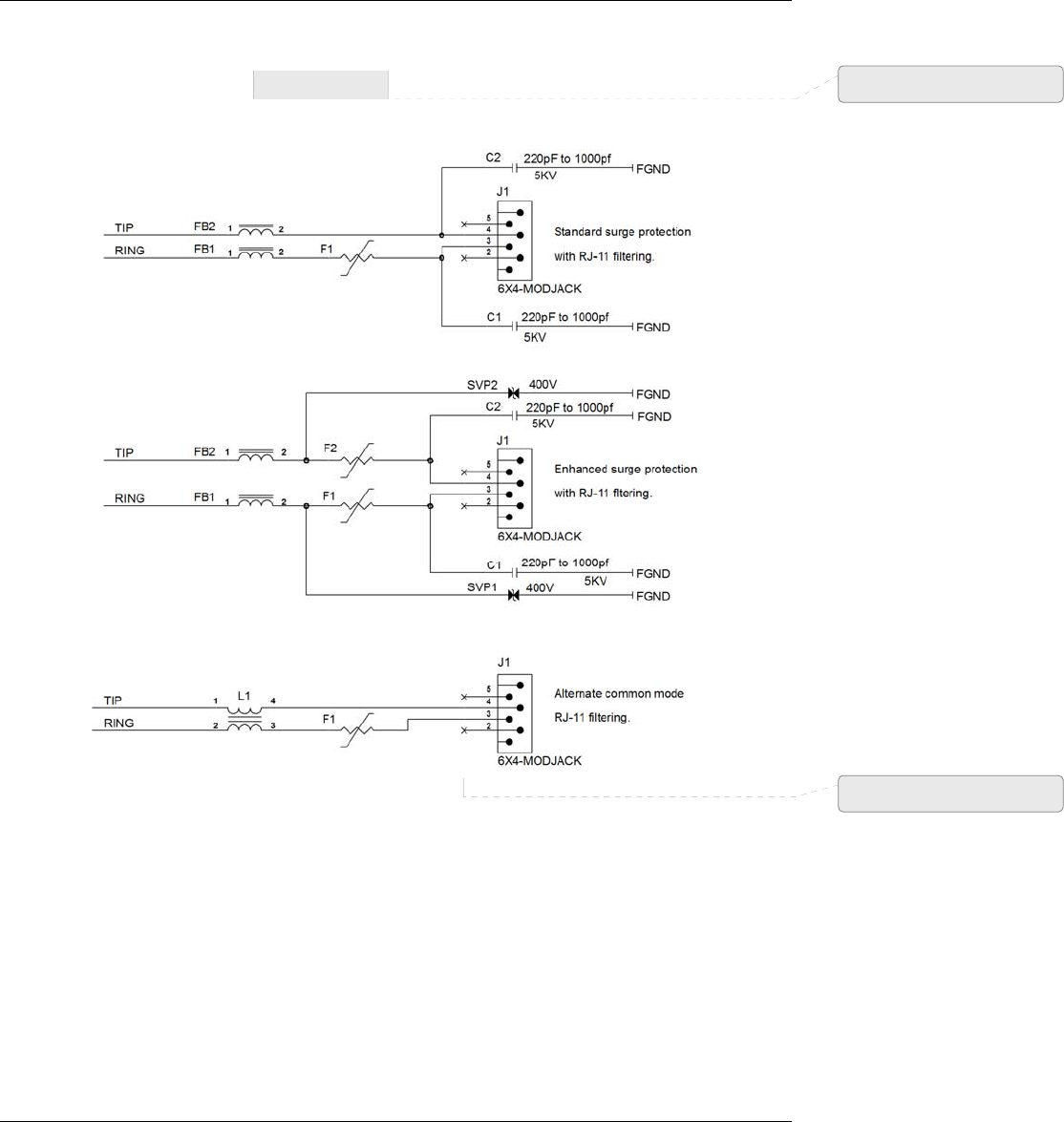

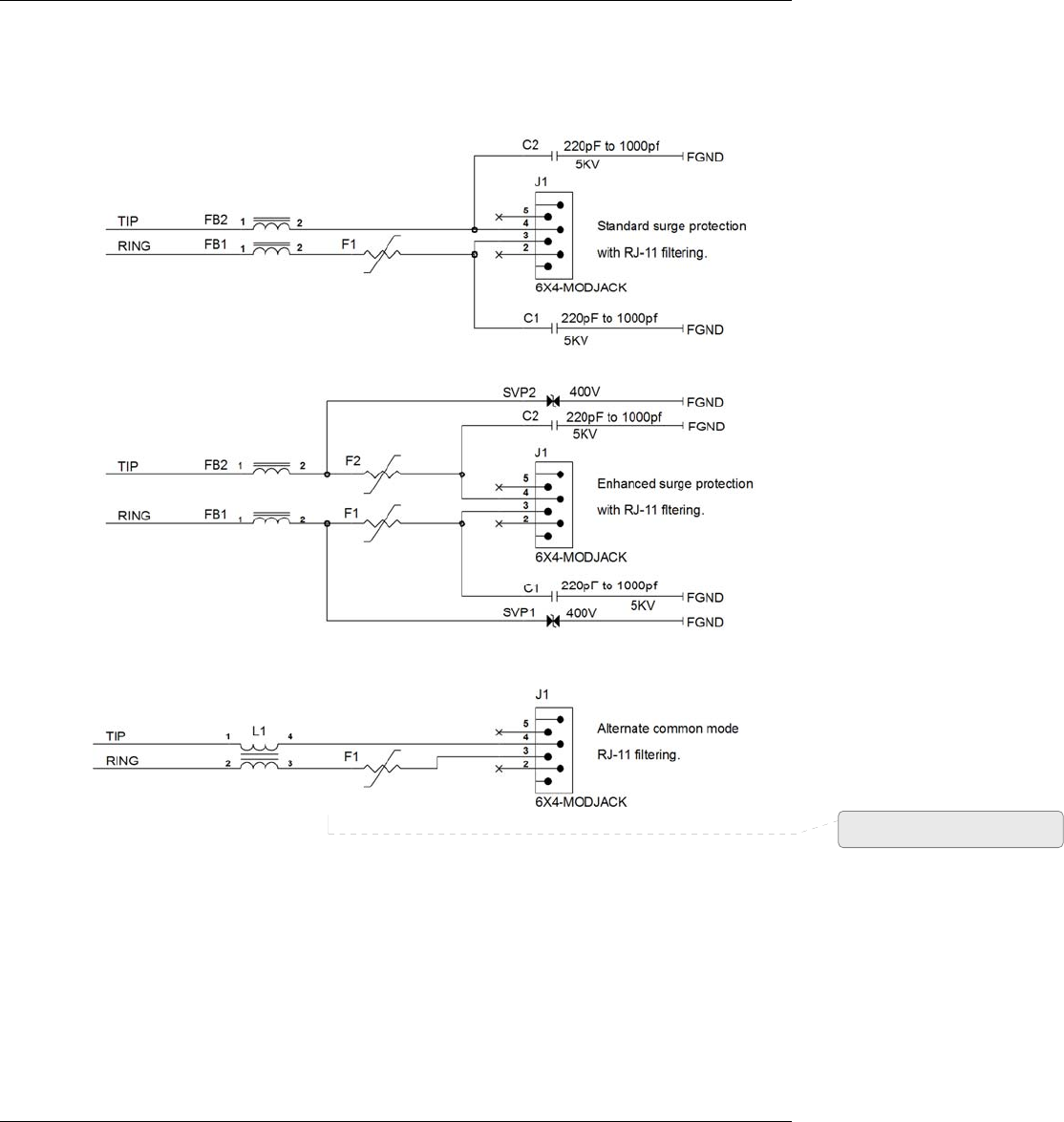

Updated/corrected the Tip and Ring drawings.
J.2 07/30/09
Updated Mechanical Drawings for SocketModem Cell (MTSMC-G2) and SocketModem iCell
(MTSMC-G2-IP).
Changed the title of two Mechanical Drawings in Chapter 1.
J.3 08/28/09
Updated Mechanical Drawings for SocketModem GPRS (MTSMC-G2).

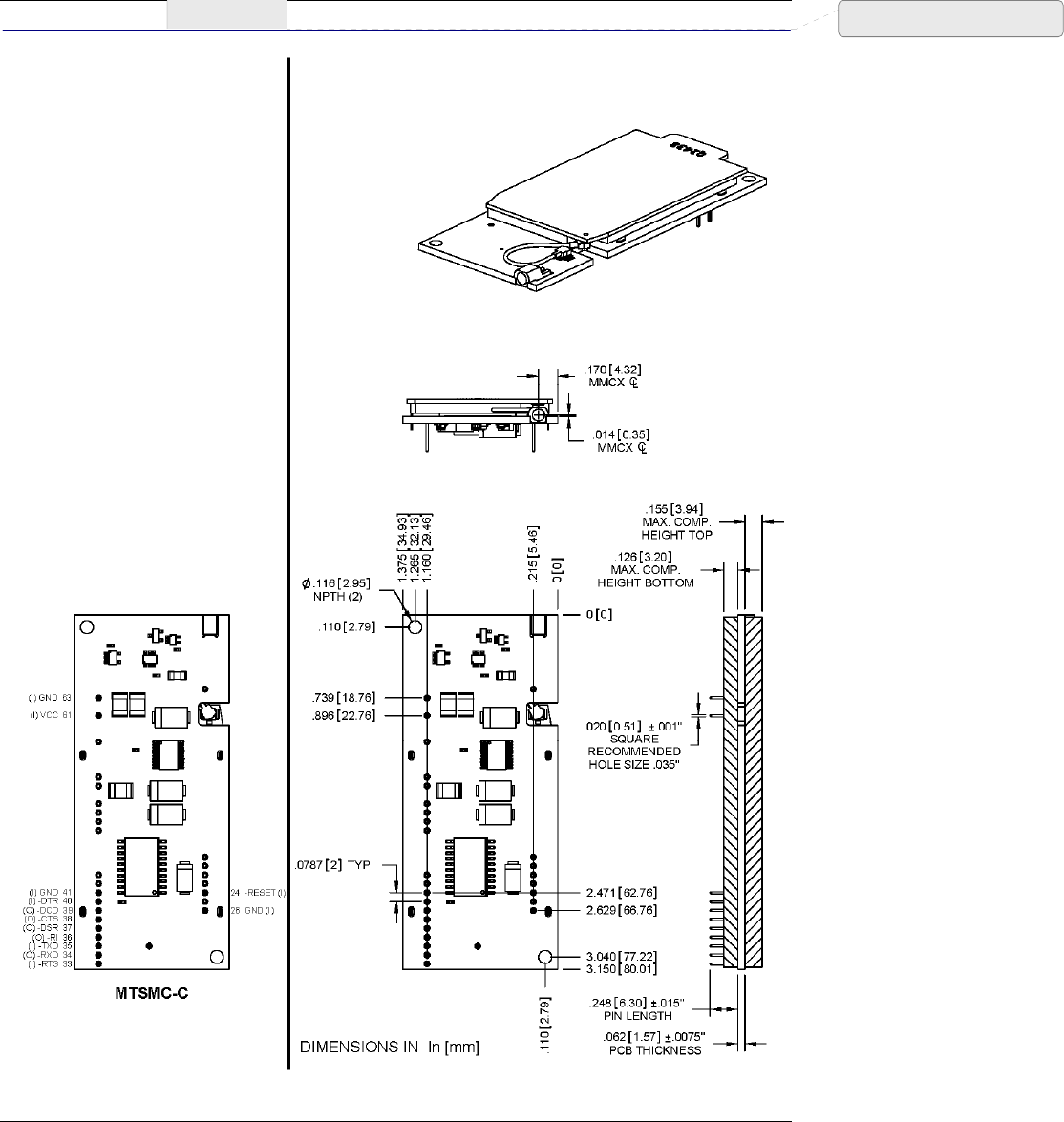

Added new Mechanical Drawings for SocketModem CDMA( MTSMC-C).

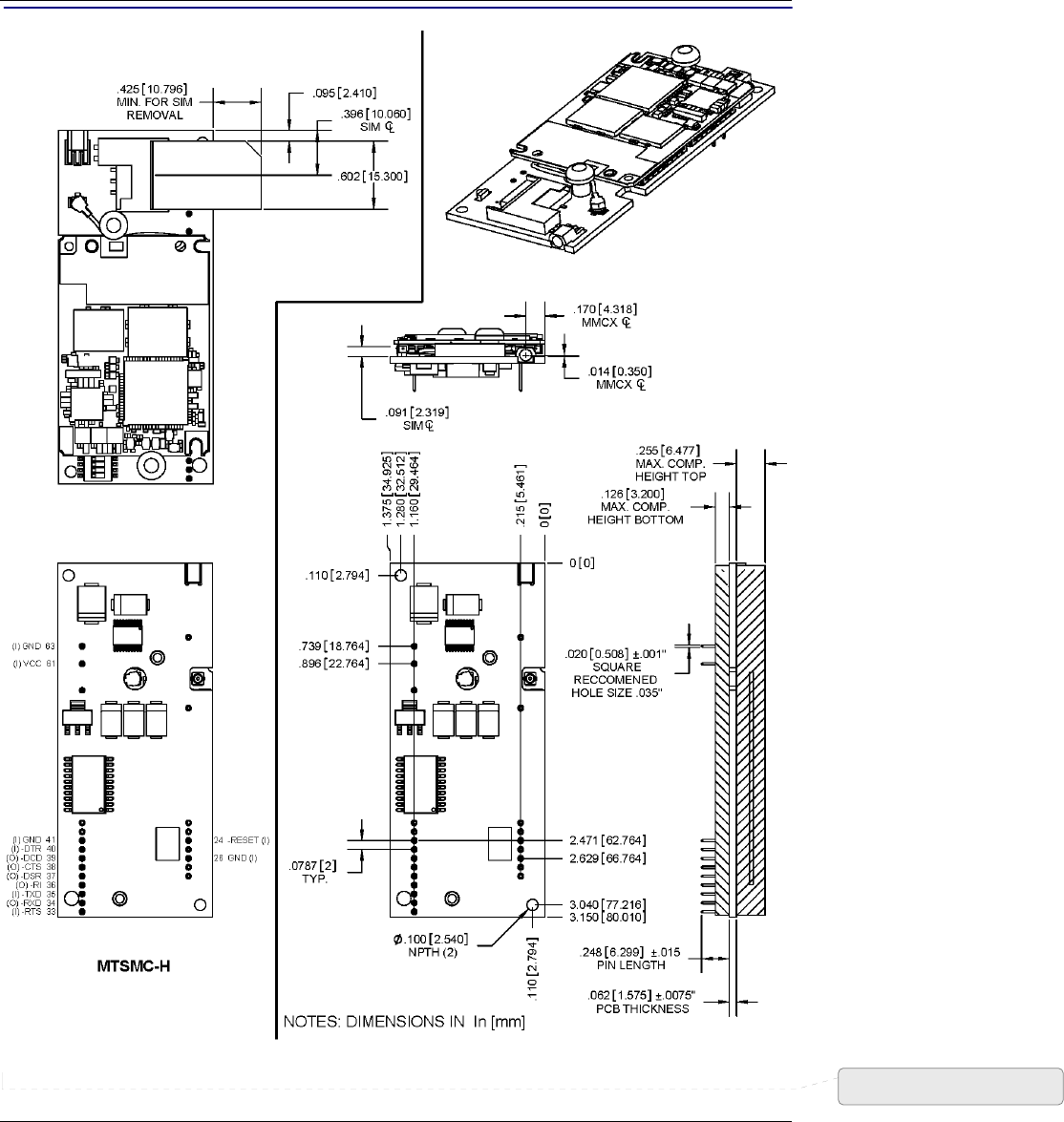

Added new Mechanical Drawings for SocketModem HSDPA MTSMC-H
J.4 10/15/09
Added GPS section to G2 chapter (added the power draw table for G2 for GPS).
Brought back the chapter covering the SocketModem MT2456SMI-22.
K 11/18/09
New chapters for new products: SocketModem MT5692SMI, Device Server MT810SWM-IP, and
SocketModem EDGE (MTSMC-E1).
Deleted chapters SocketModem MT5656SMI and MT5656SMI-IP.
Added Sleep Mode Power Draw statistics for the SocketModem MT9234SMI.

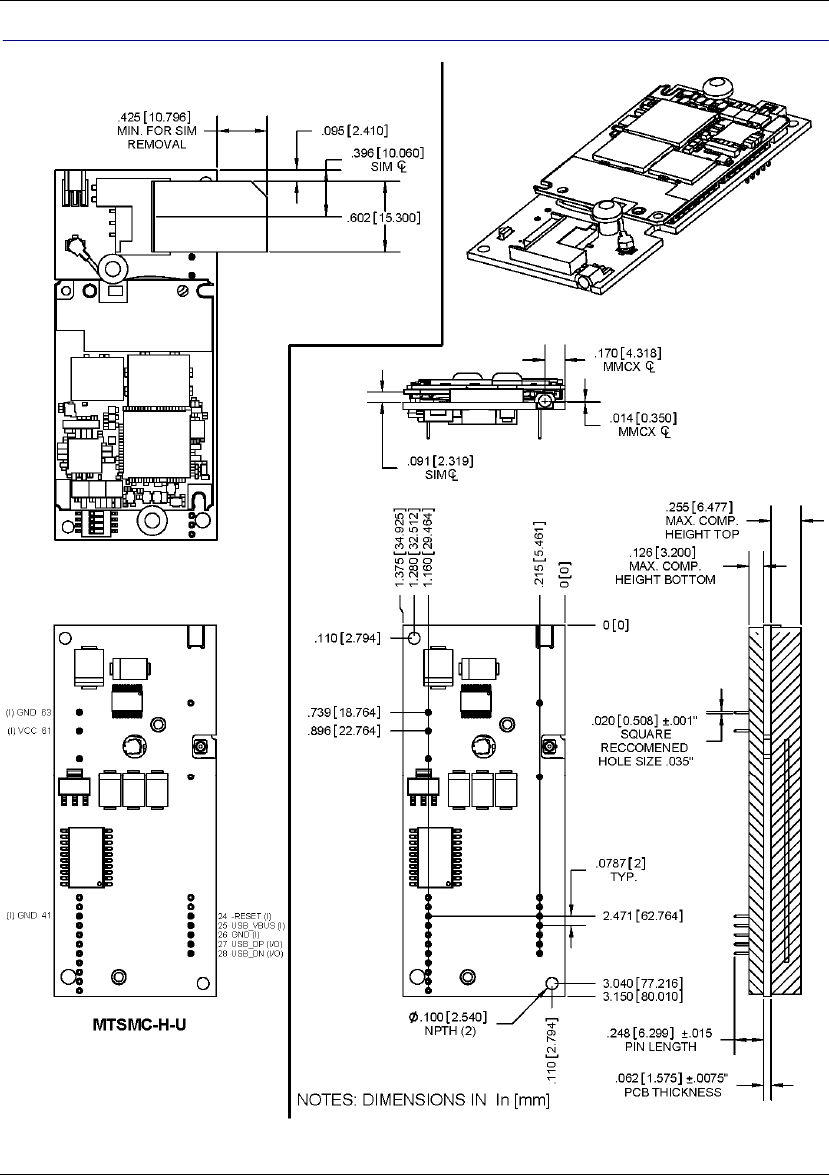

Added new Mechanical Drawings for SocketModem HSDPA (MTSMC-H) and SocketModem
CDMA (MTSMC-C).
Updated the Power Requirements for the MT2492SMI and MT5692SMI (10/16/09).
Added Global Positioning section for the SocketModem Cell / SocketModem iCell (MTSMC-G2)
and GPS power draw.
Reorganized Chapter 1 – general information, wireless information, and analog information.

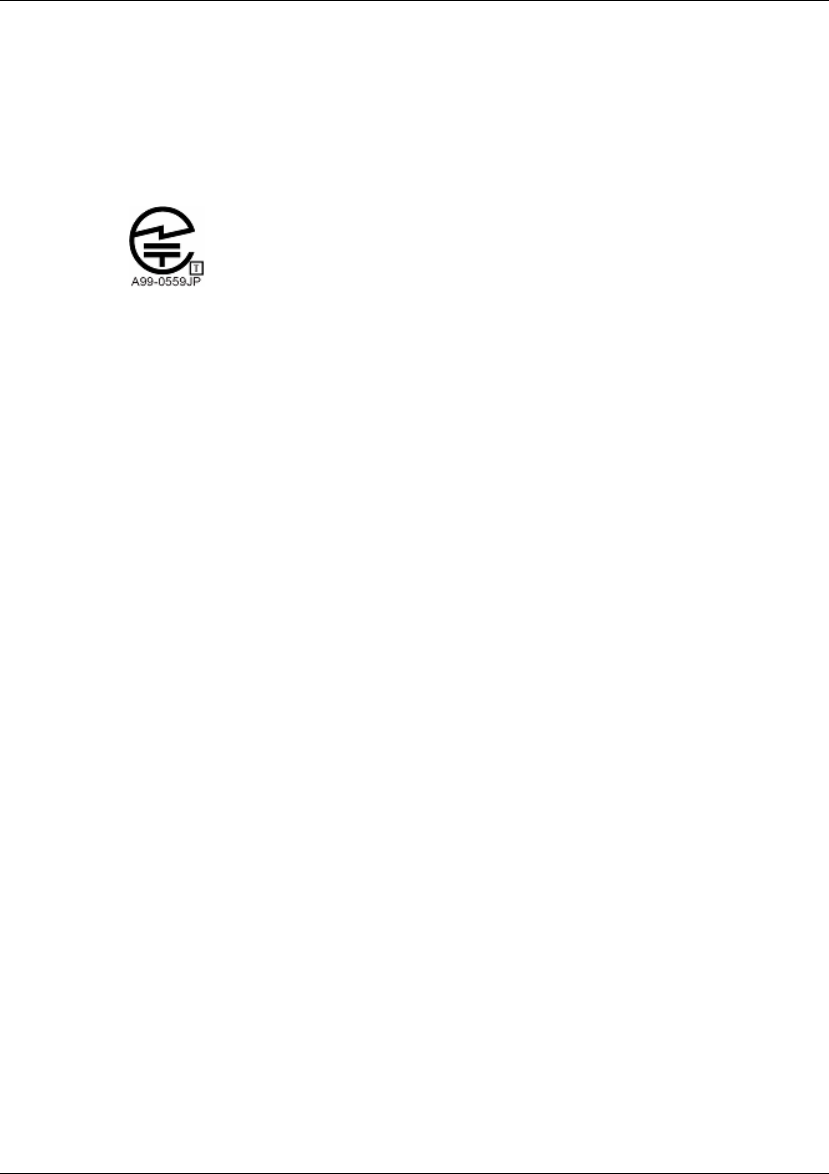

Added Japan's Standards statement.
Updated Mechanical Drawings in Chapter 1.

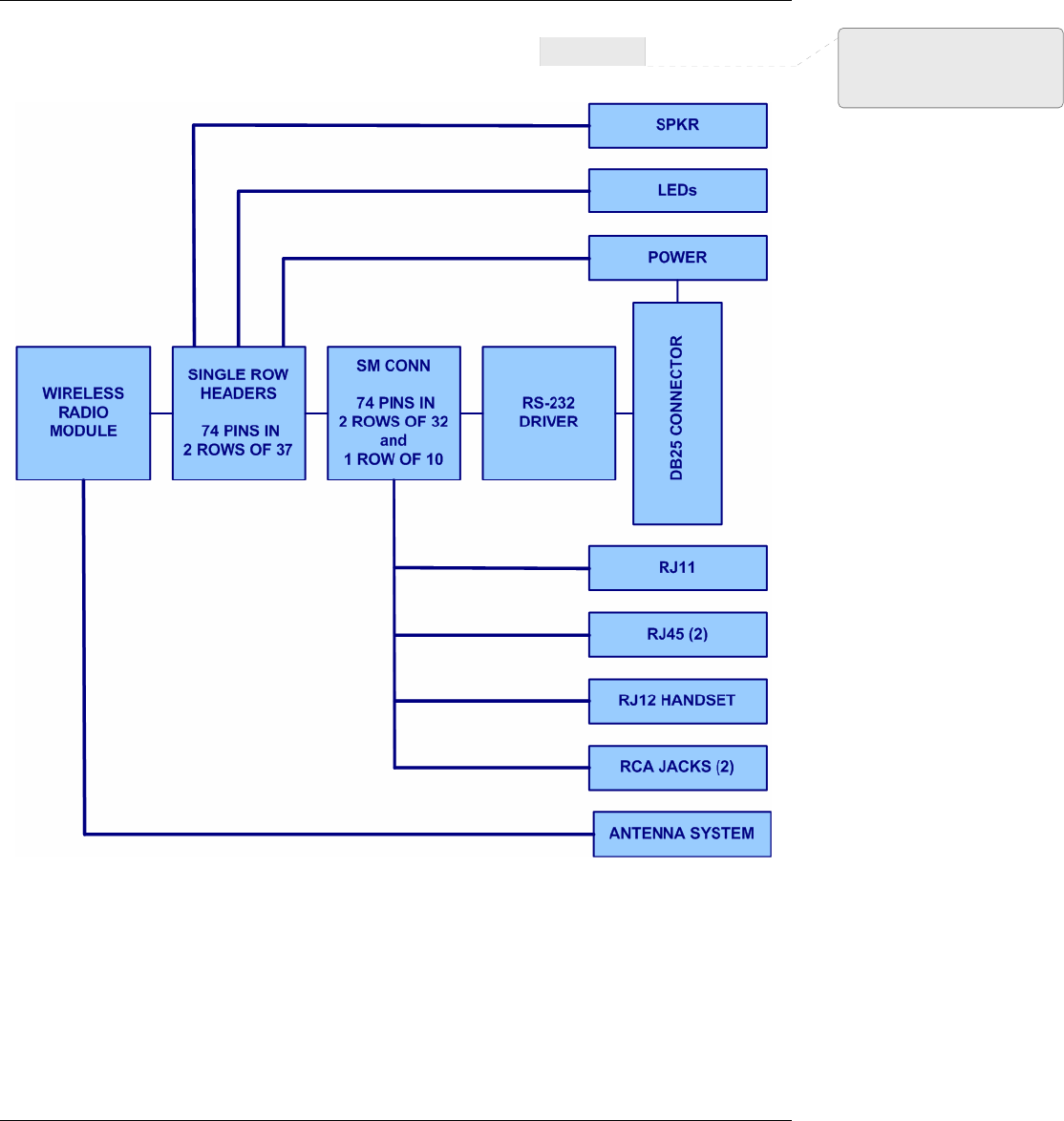

New Developer Board Block Diagram with antenna system added.
L 11/18/09
Add new product CDMA (MTSMC-C1).
Table of Contents
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 4
Table of Contents
PART 1 – UNIVERSAL SOCKET CONNECTIVITY........................................................9
Chapter 1 – Universal Socket Connectivity......................................................................................10
Multi-Tech Embedded Solutions ................................................................................................................10
Universal Socket Connectivity Features .................................................................................................10

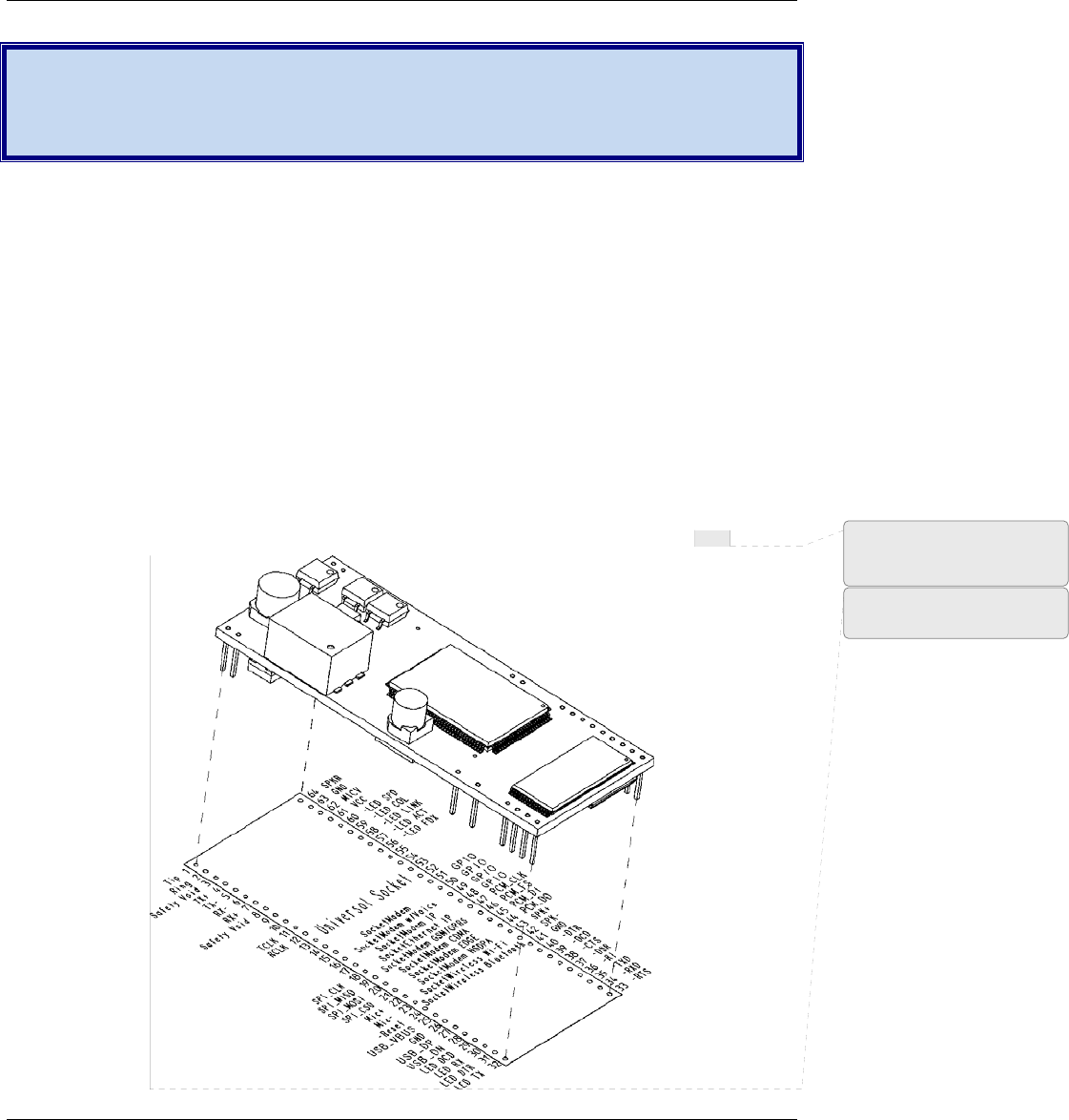

The Universal Socket Design..................................................................................................................10
Universal Developer Kit Contents ...........................................................................................................11
AT Commands for All Embedded Products Are Included on the Developer Kit CD................................11

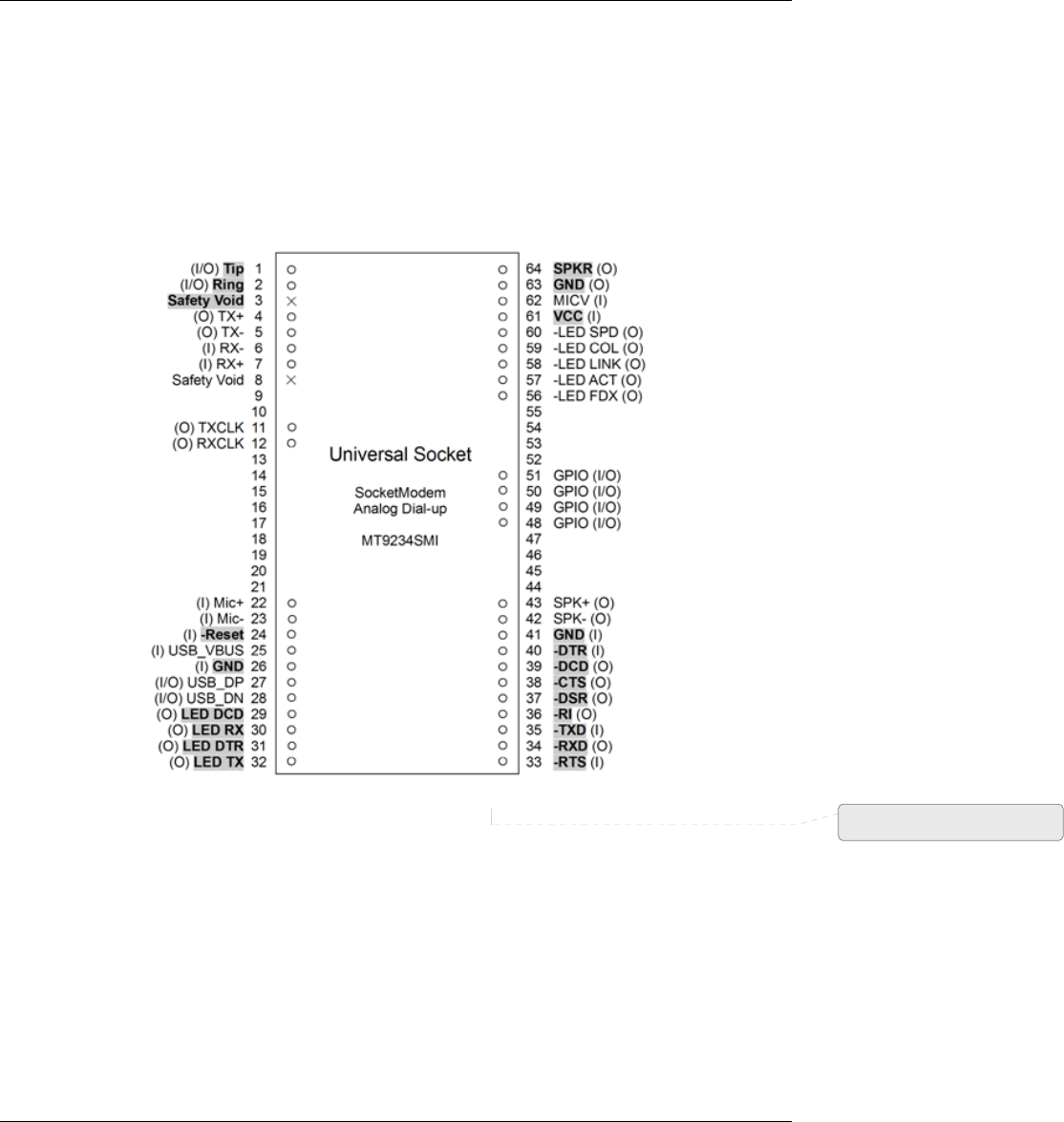

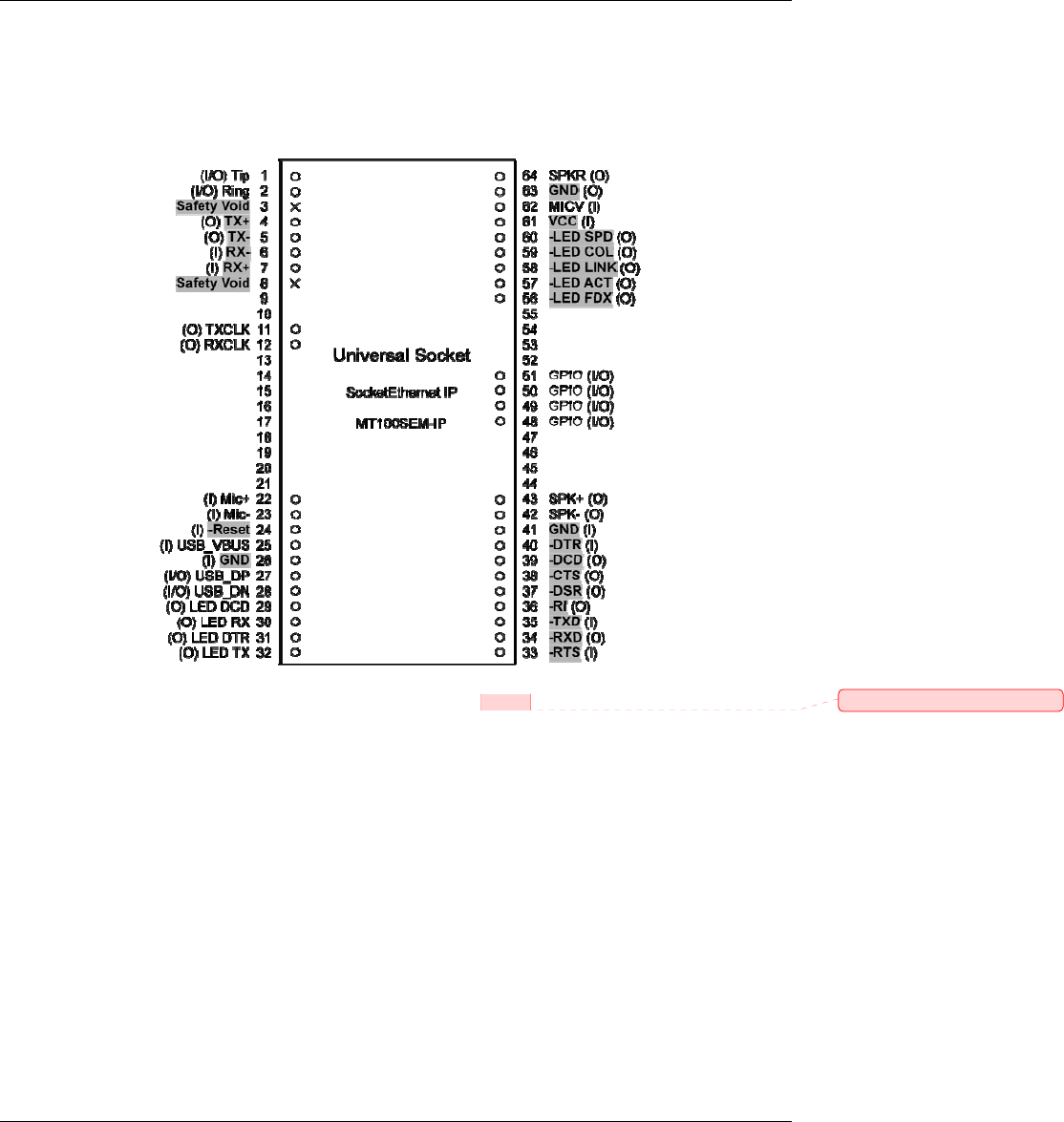

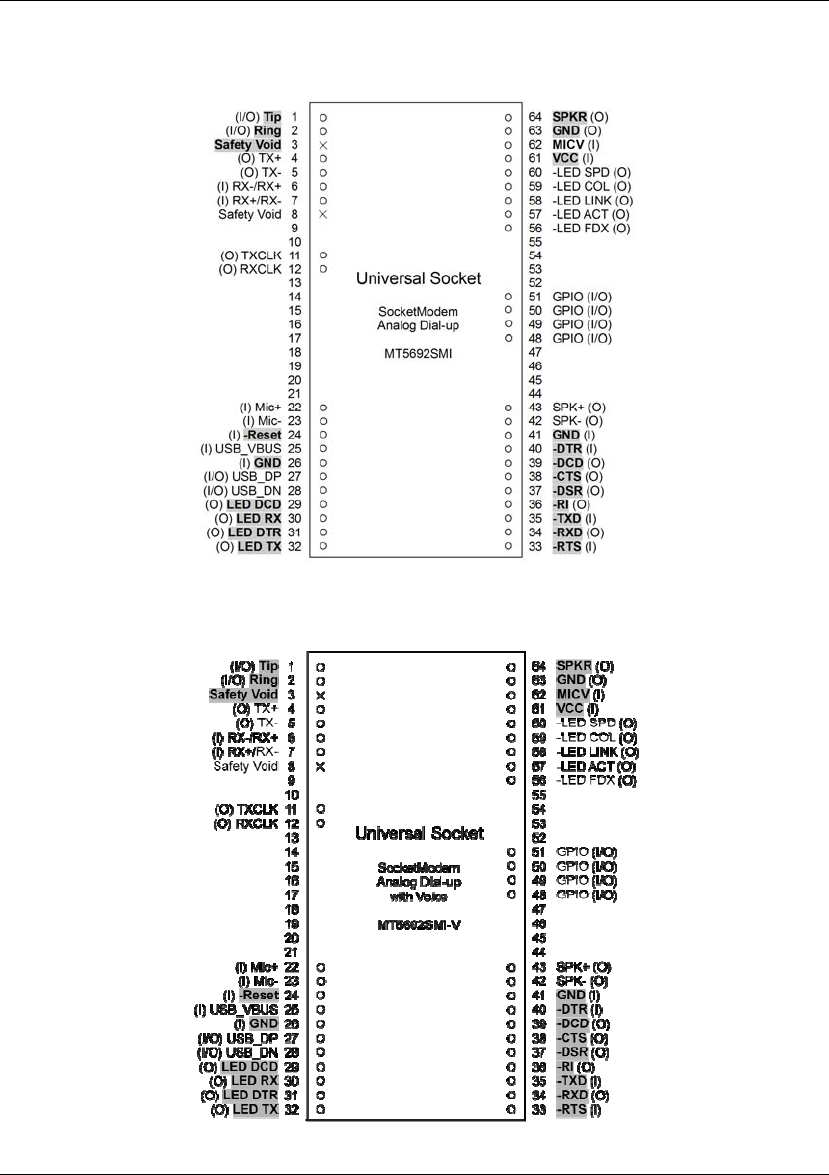

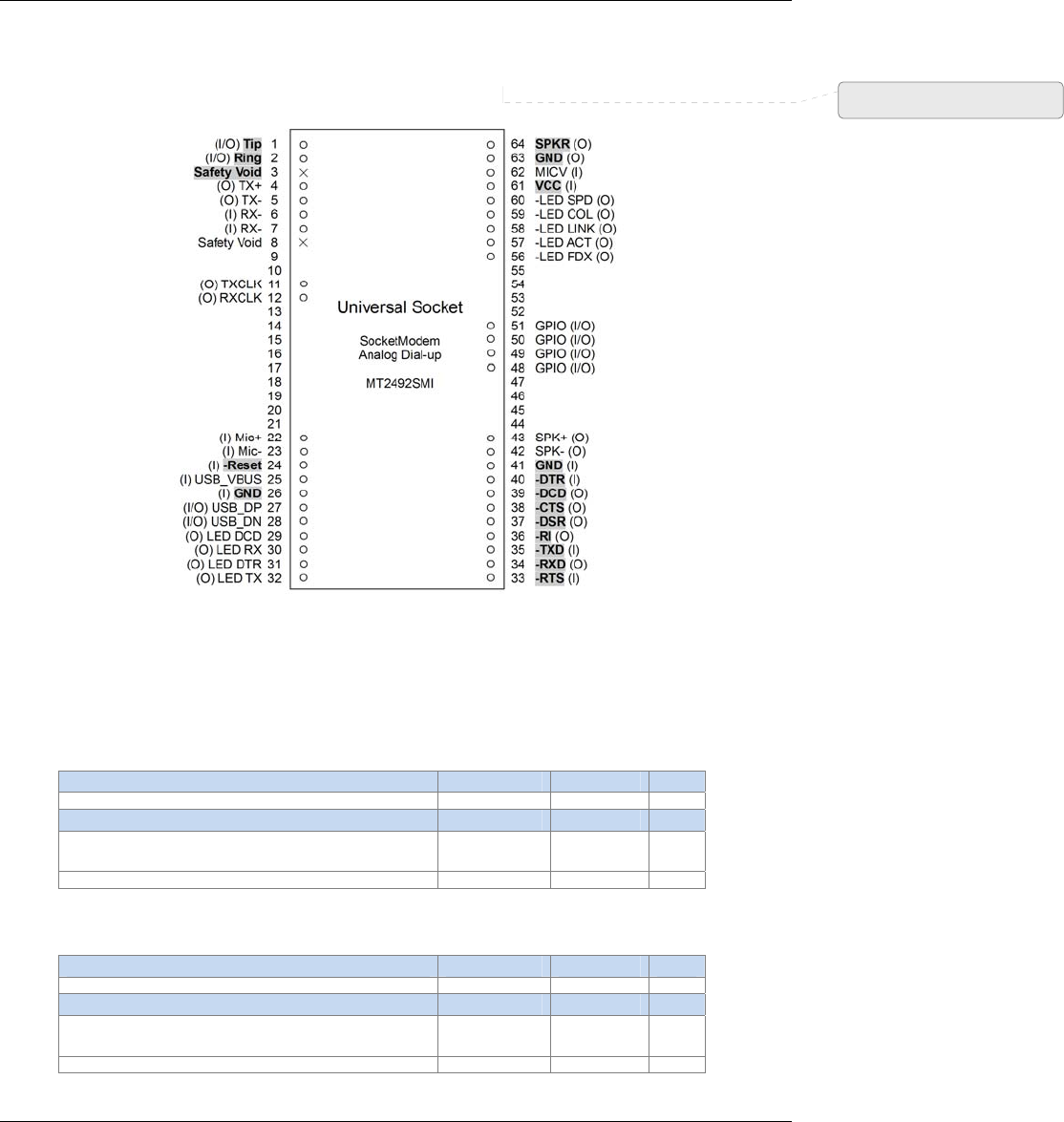

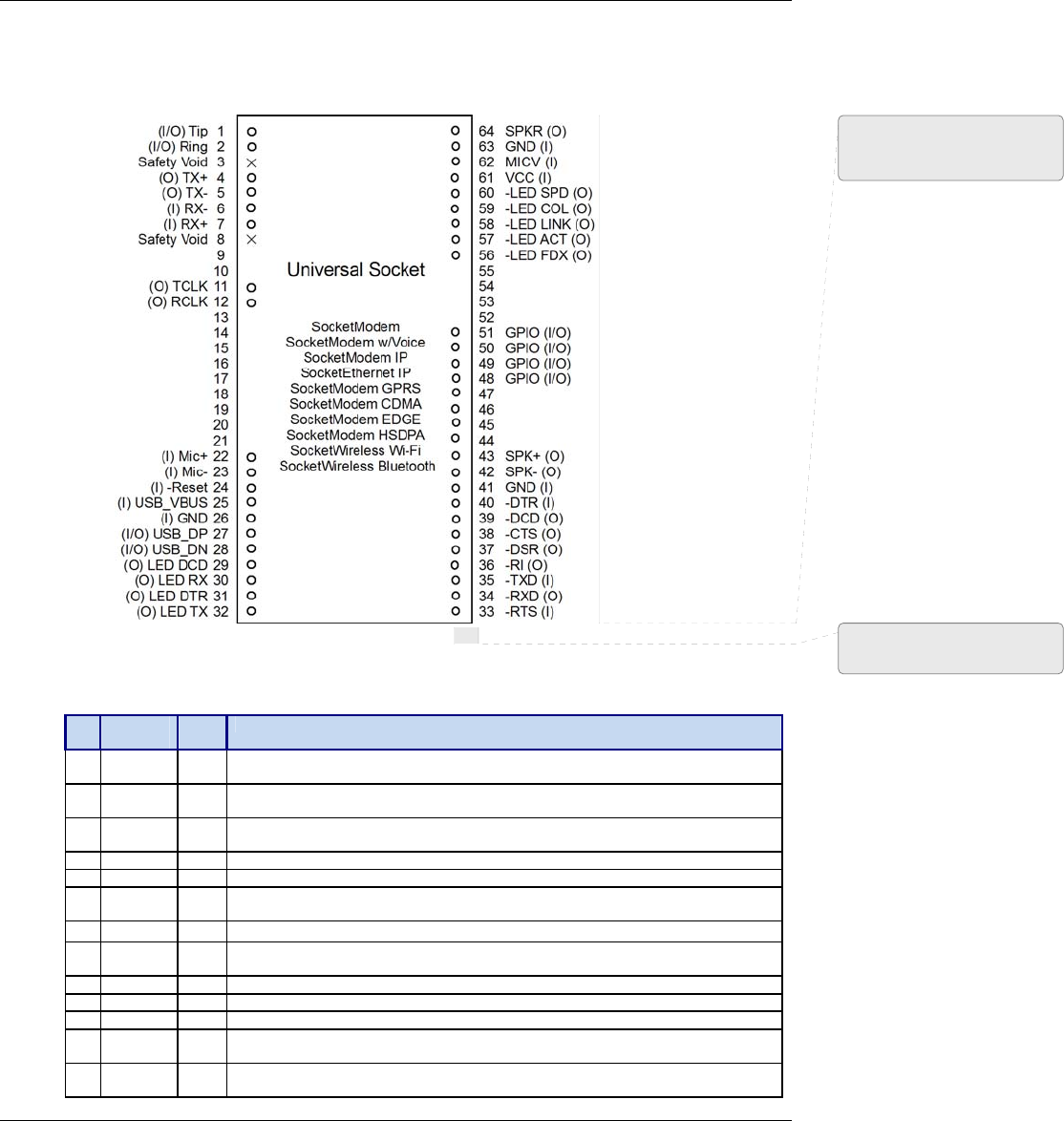

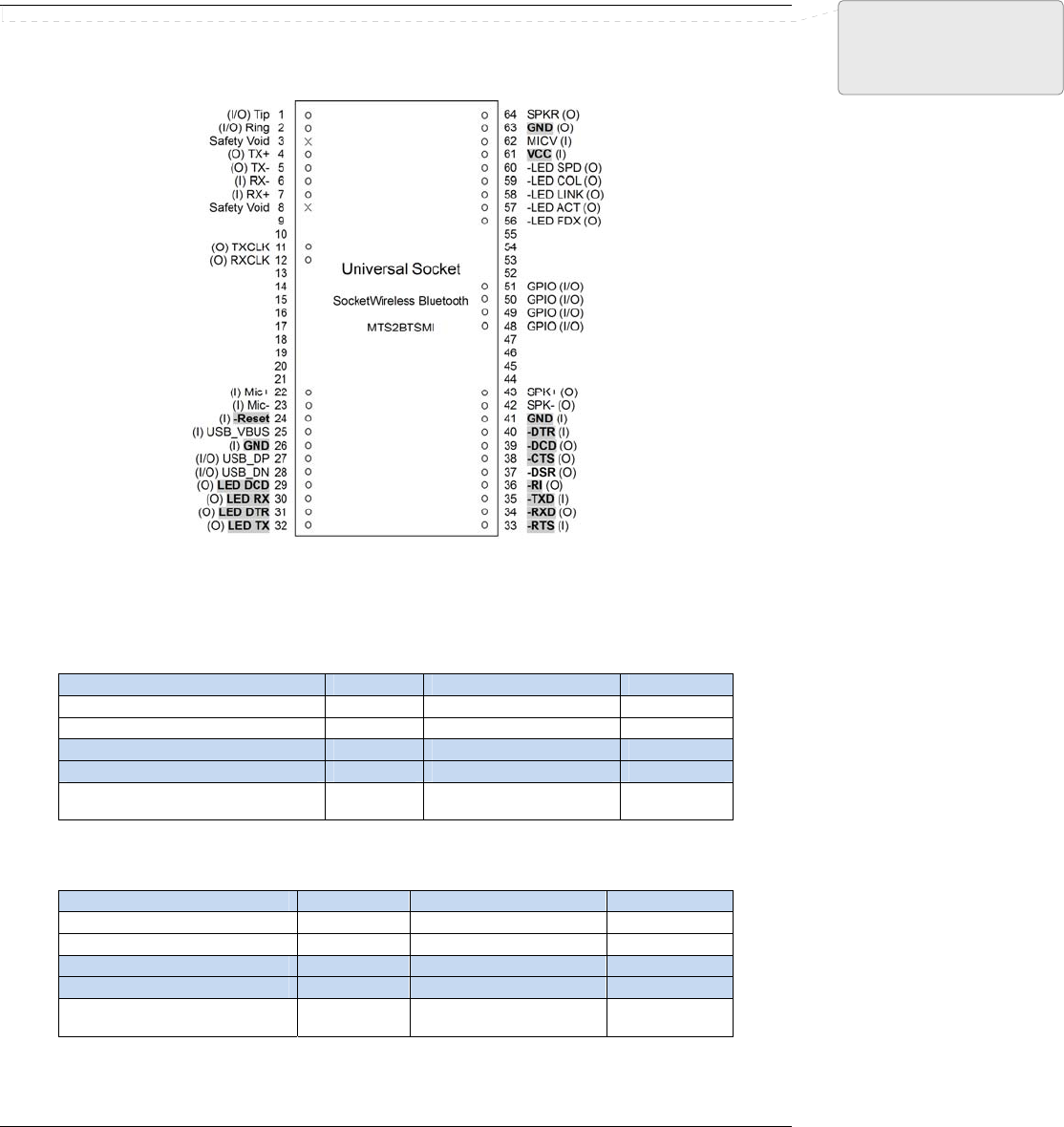

Universal Socket Pin Out ............................................................................................................................12
Universal Pin Descriptions ......................................................................................................................12
Design Considerations................................................................................................................................16
Noise Suppression Design Considerations.............................................................................................16
PC Board Layout Guidelines...................................................................................................................16
Electromagnetic Interference (EMI) Considerations ...............................................................................17
Electrostatic Discharge Control...............................................................................................................17
Phone Line Warning Statement for the Developer Board .......................................................................17

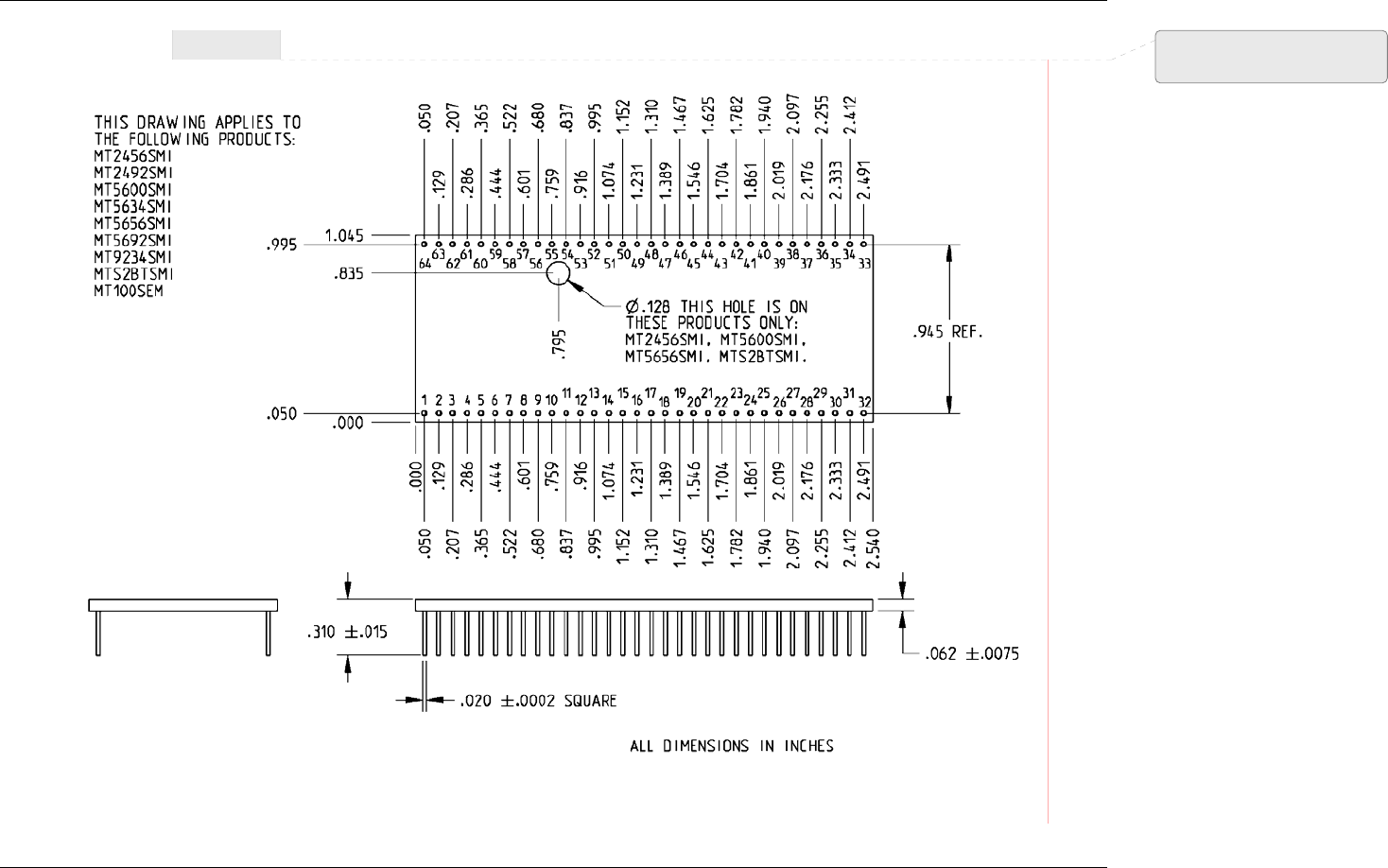

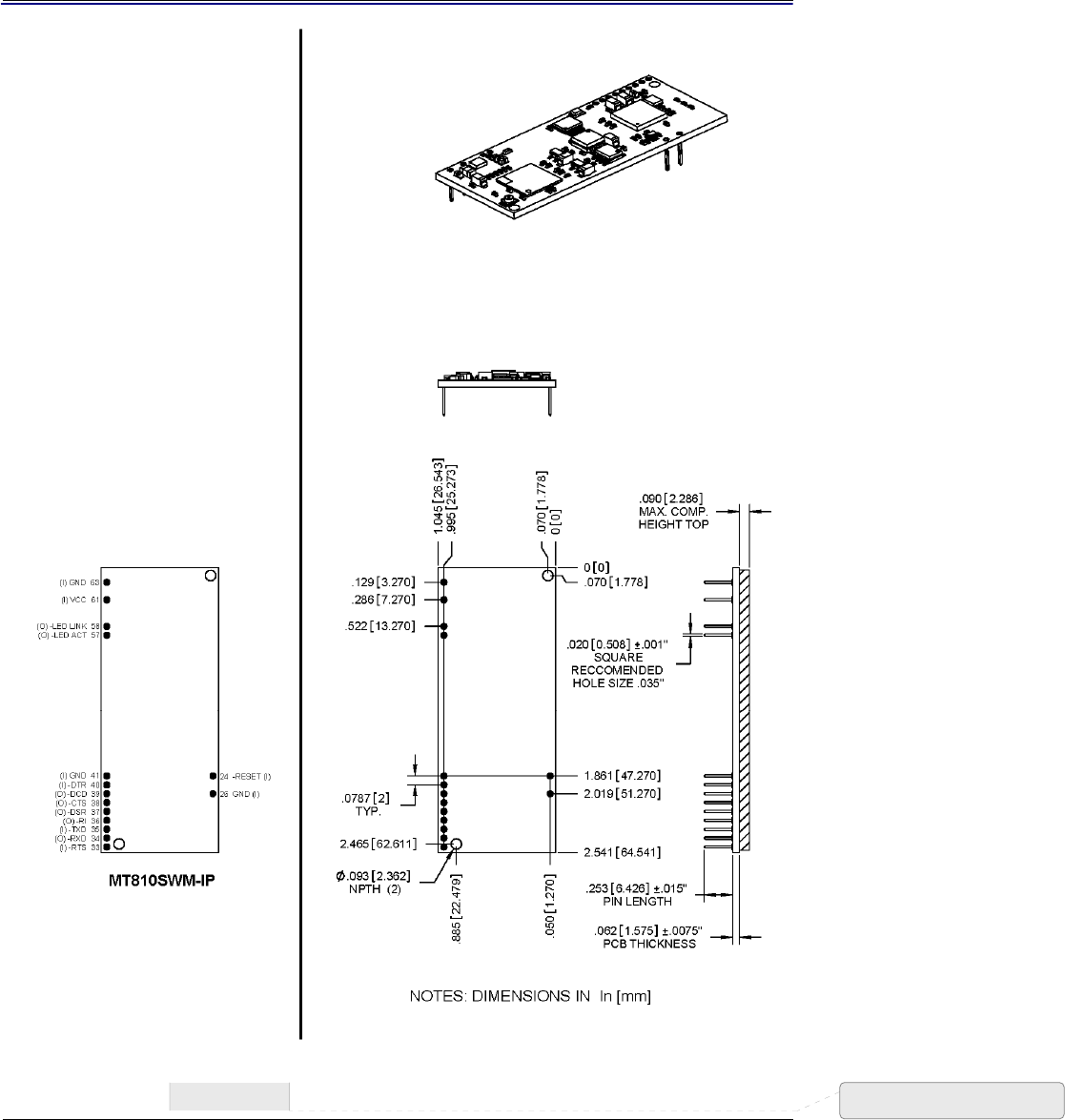

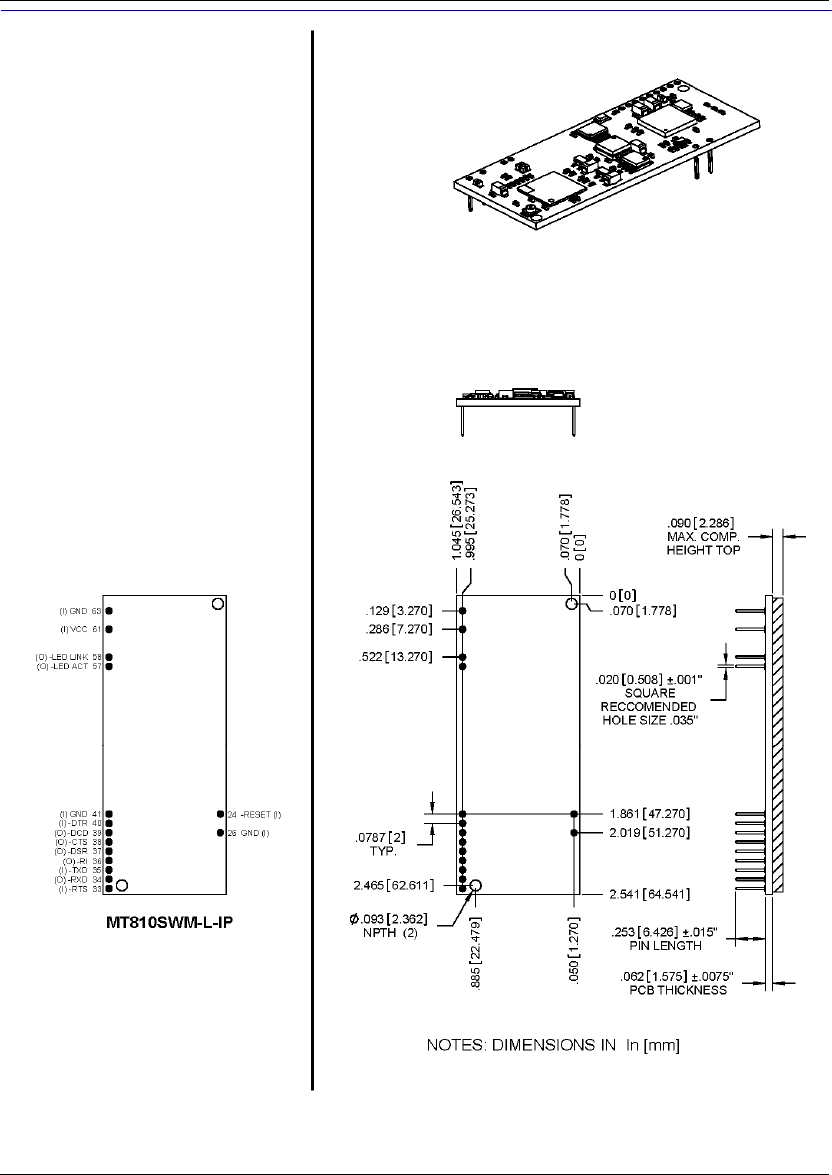

Mechanical Drawing in Inches for the Listed Products............................................................................18

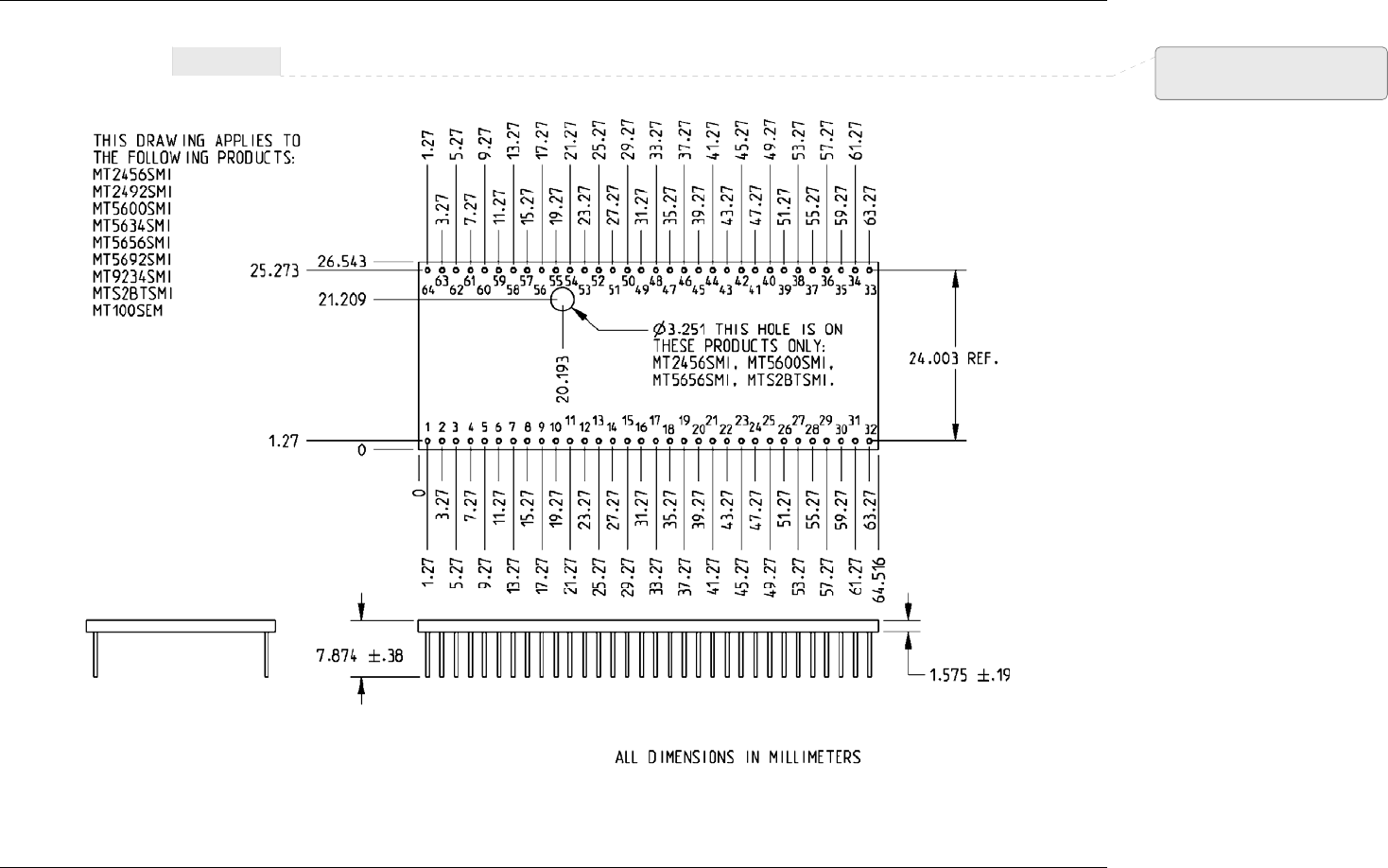

Mechanical Drawing in Millimeters for Listed Products...........................................................................19
Maximum Component Height / PCB Length and Width............................................................................20

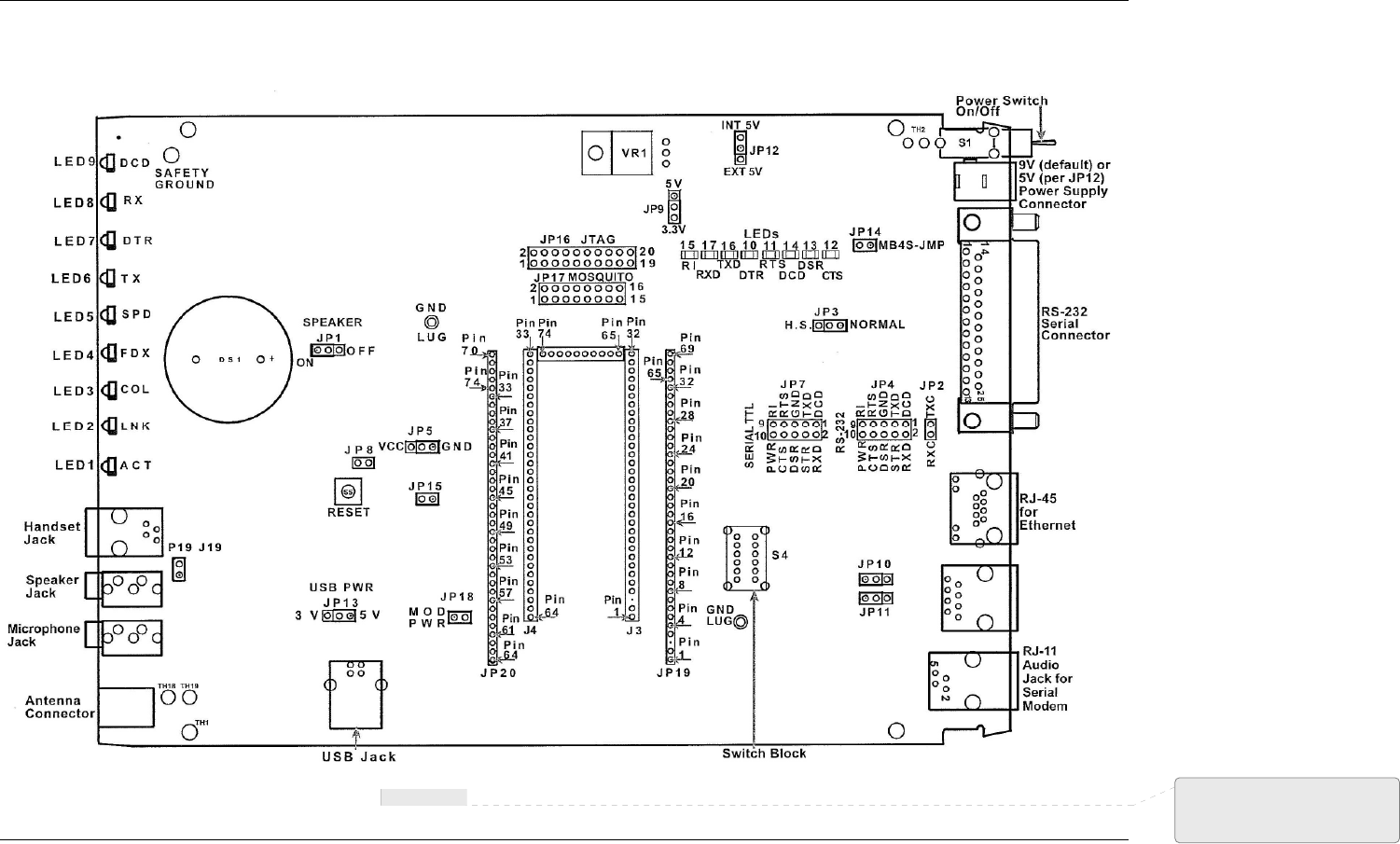

SocketModem Developer Board.................................................................................................................21
Board Components .................................................................................................................................22
Jumpers and Corresponding Signals......................................................................................................22
SocketModem Developer Board Block Diagram.....................................................................................23

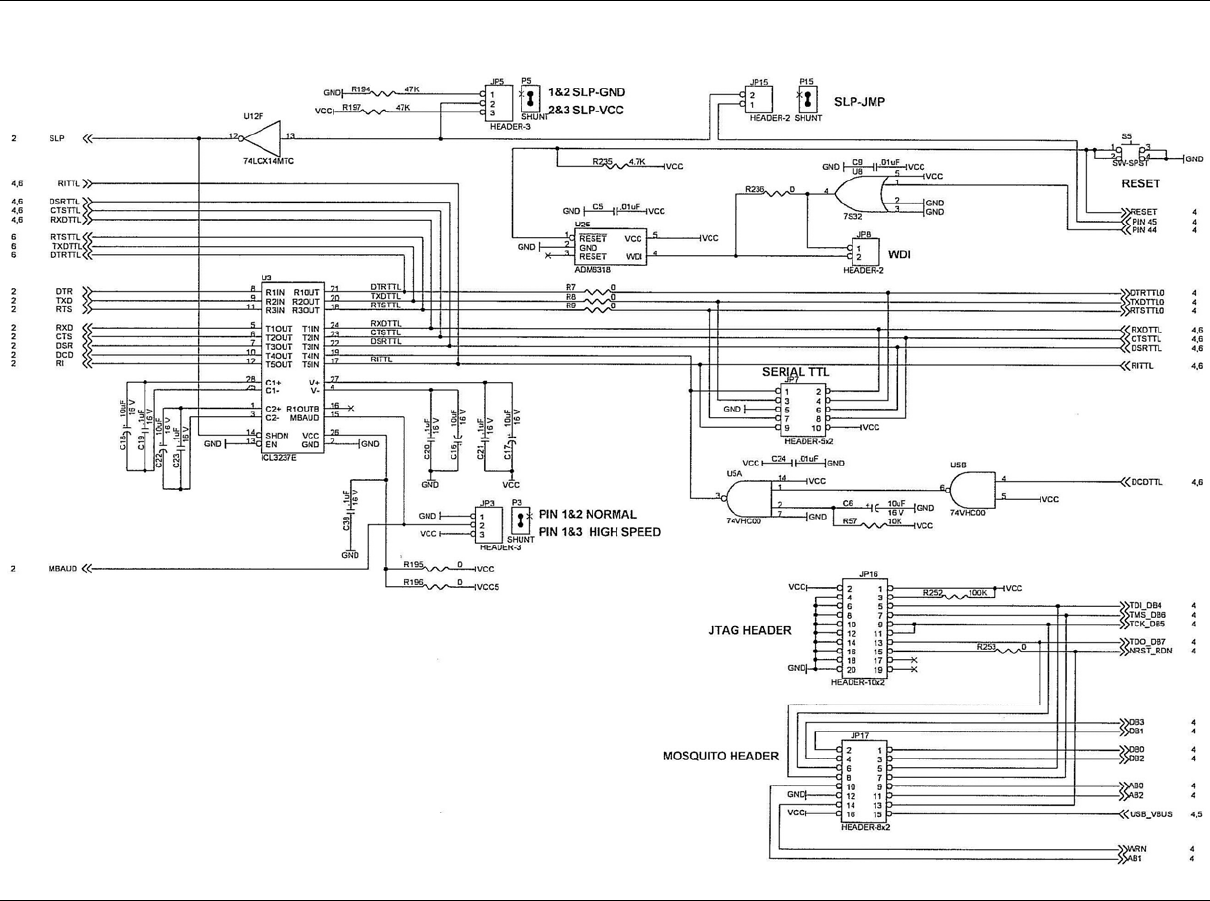

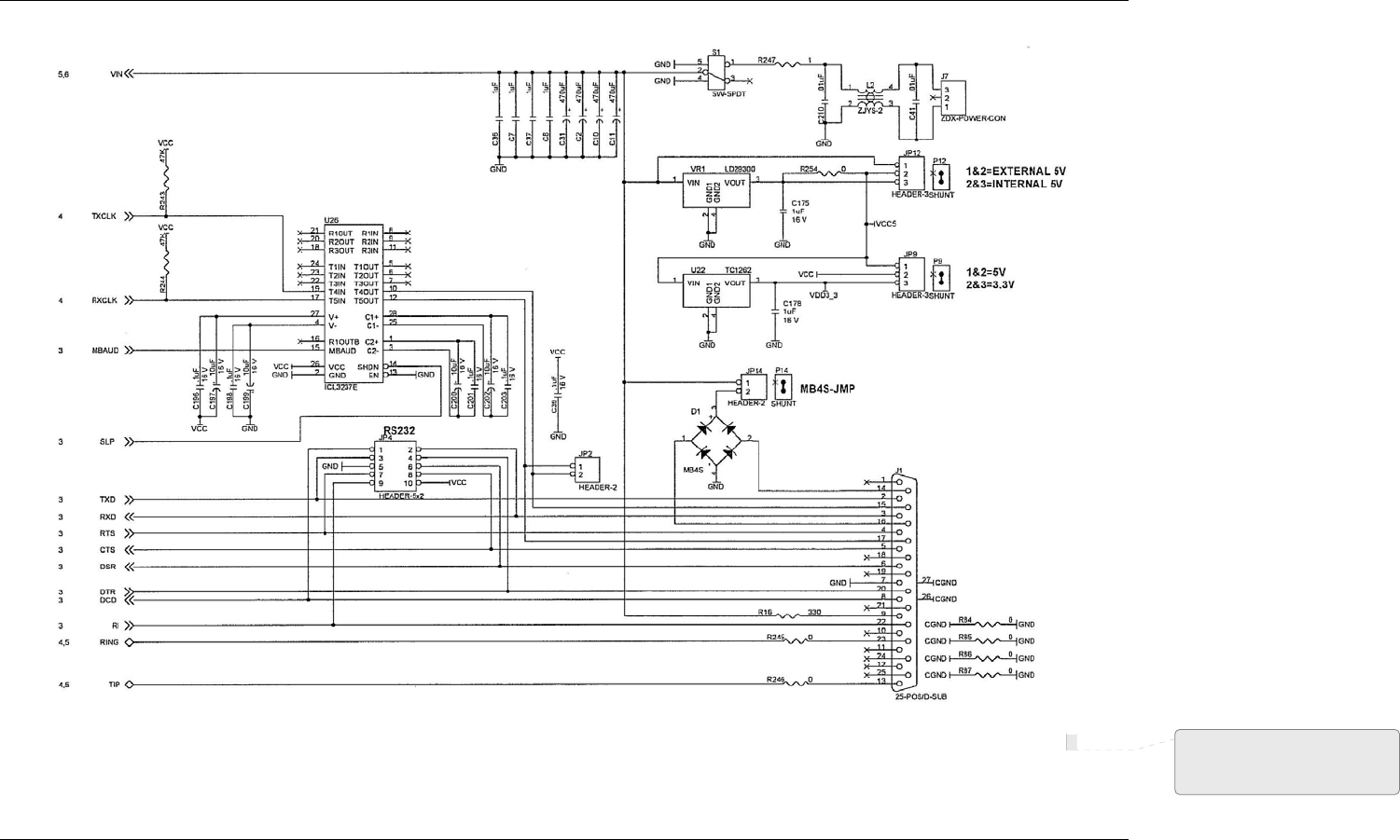

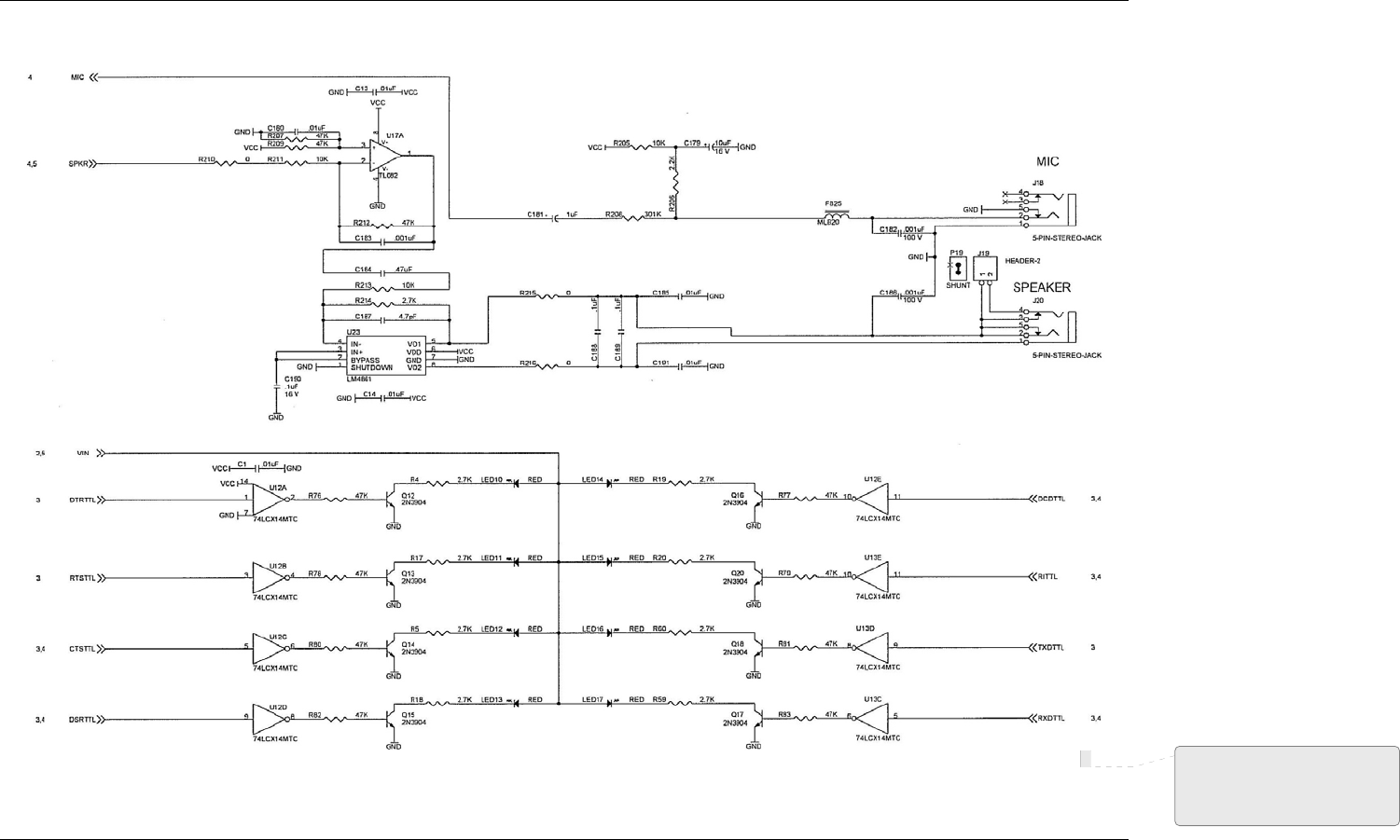

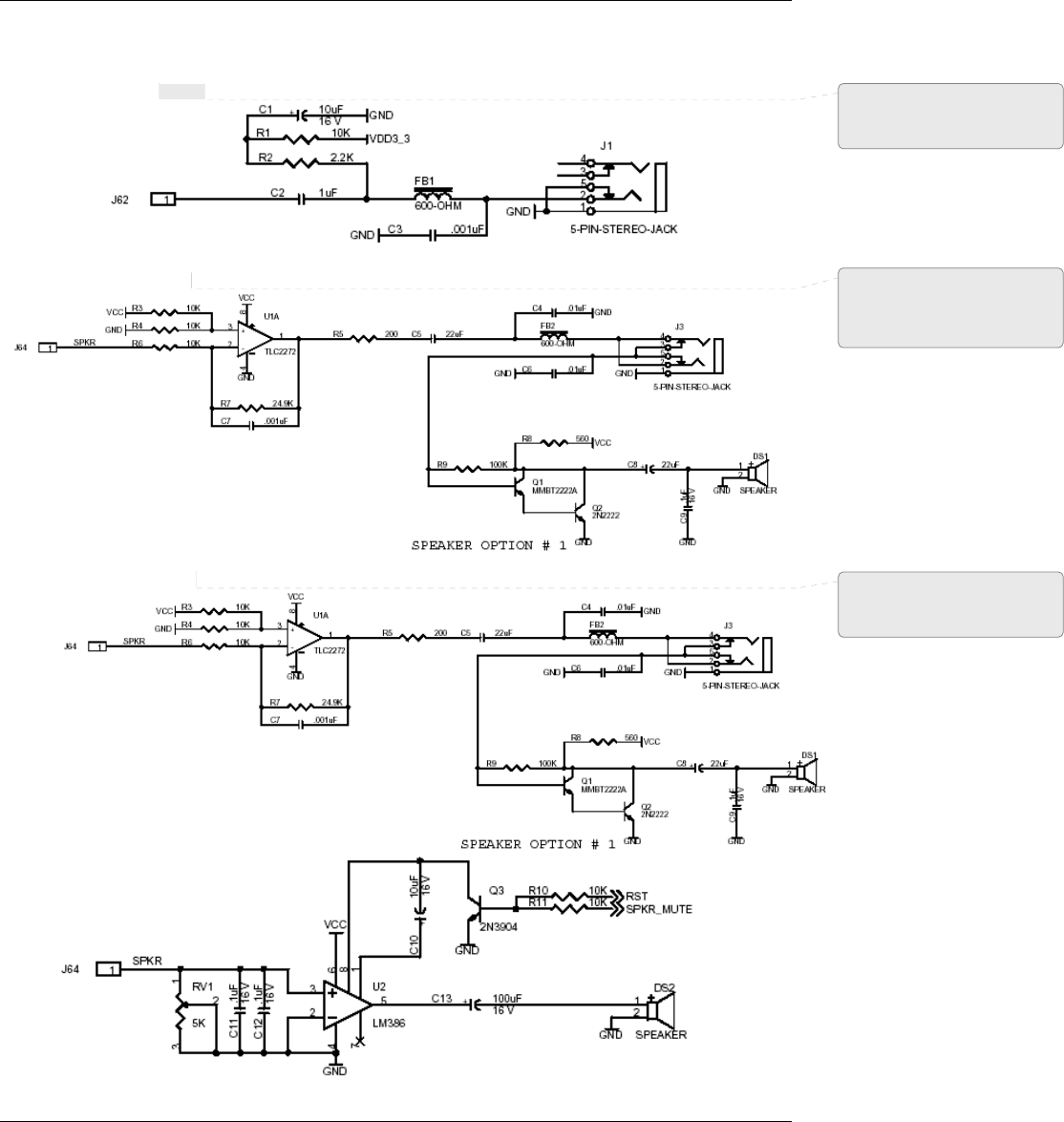

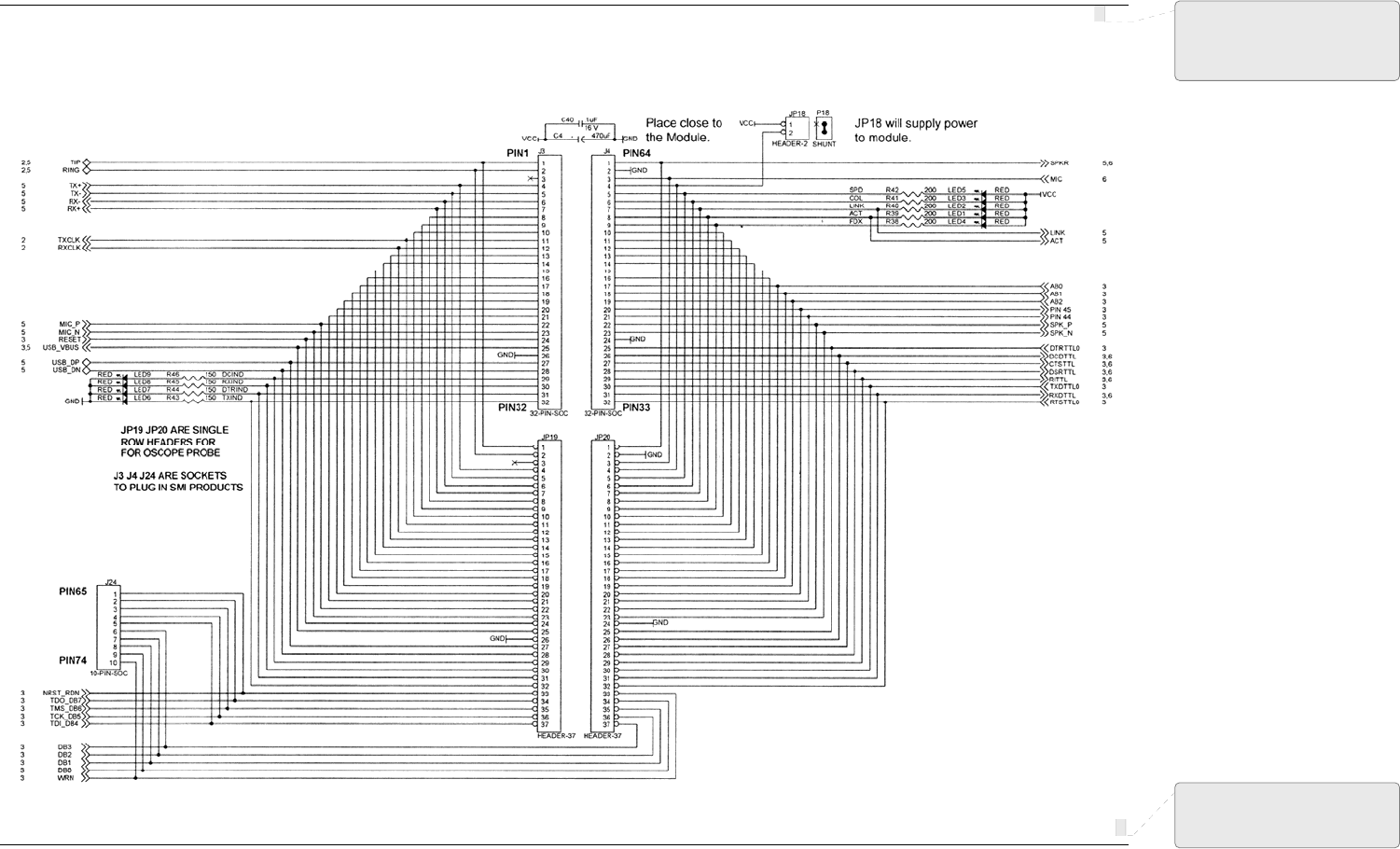

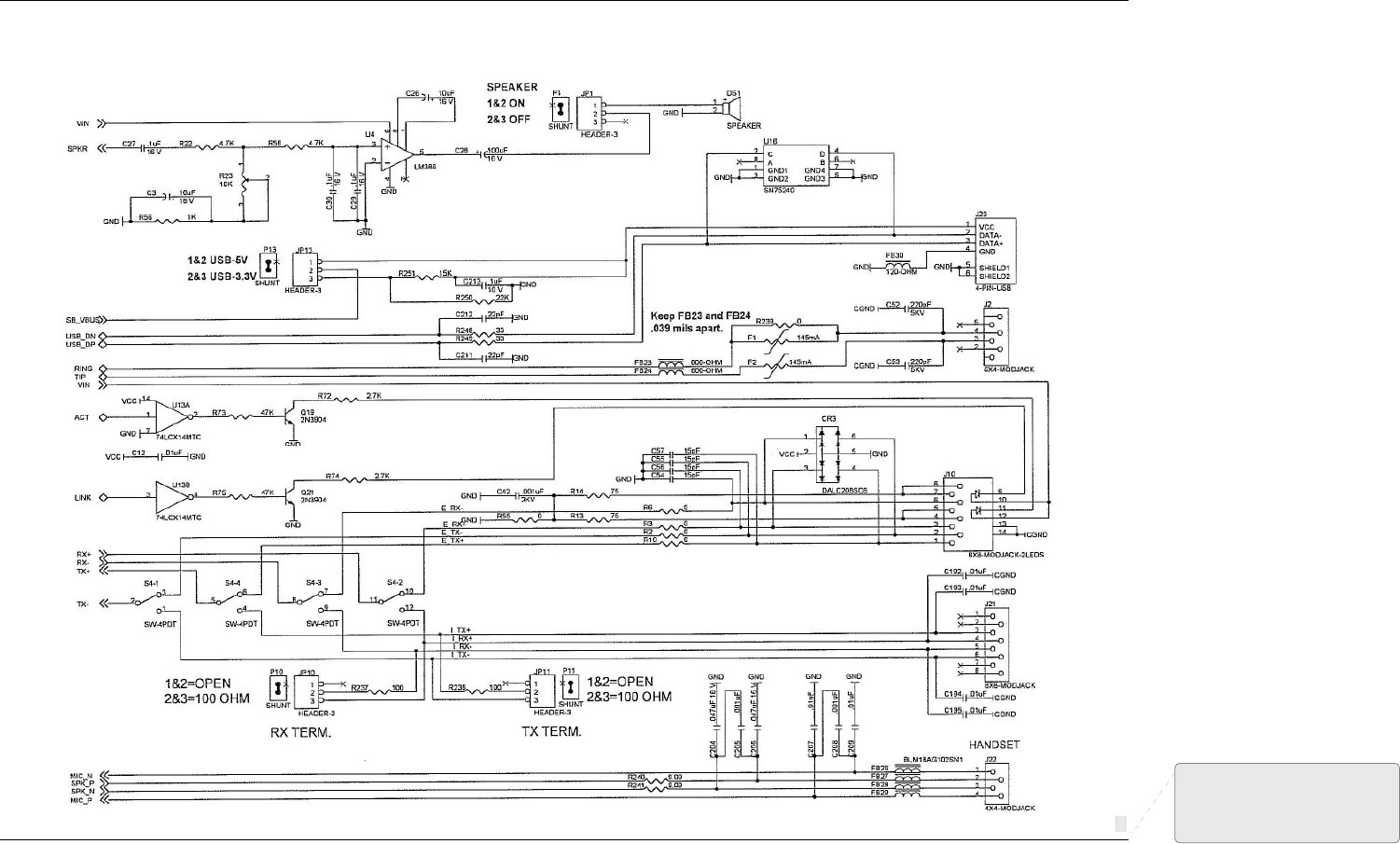

Developer Board Schematics .................................................................................................................24
Developer Board Schematics .................................................................................................................25
Developer Board Schematics .................................................................................................................26
Developer Board Schematics .................................................................................................................27
Developer Board Schematics .................................................................................................................28
Upgrading Firmware....................................................................................................................................29
XMODEM Serial Port Upgrade ...............................................................................................................30
Multi-Tech Systems, Inc. Flash Programming Protocol ..........................................................................31
Wireless Information ...................................................................................................................................34
Antenna System for Wireless Devices ....................................................................................................34
Account Activation for Wireless Devices.................................................................................................37
Wireless Approvals and Labeling Requirements ....................................................................................37
Analog Information......................................................................................................................................39
Recommended Parts for Analog SocketModems ...................................................................................39
Analog Labeling Requirements...............................................................................................................40
Safety Notices and Warnings......................................................................................................................43
Wireless Safety.......................................................................................................................................43
Analog Telecom Safety Warnings...........................................................................................................44
Telecom Approvals for Analog Modems .................................................................................................45
Regulatory Compliance Statements...........................................................................................................46
Country/Region-Specific Statements ......................................................................................................46
Waste Electrical and Electronic Equipment Statement ...........................................................................51
Restriction of the Use of Hazardous Substances (RoHS).......................................................................52
Information on HS/TS Substances according to Chinese Standards in English .....................................53
Information on HS/TS Substances According to Chinese Standards in Chinese....................................54
PART 2 – WIRELESS SOCKETMODEMS....................................................................55
Chapter 2 – SocketModem Cell (MTSMC-G2) & SocketModem iCell (MTSMC-G2-IP) ..............56
Introduction..................................................................................................................................................56
Table of Contents
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 5
Product Build Options and Ordering Information.....................................................................................56
AT Commands Reference Guides ..............................................................................................................56
Technical Specifications .............................................................................................................................57
DC Electrical Characteristics......................................................................................................................58
Power Measurements..................................................................................................................................58
Mechanical Drawings – Basic Build...........................................................................................................60
Application Notes ........................................................................................................................................64
Flashing LED Interface ...........................................................................................................................64
RF Performances....................................................................................................................................64
RF Connection and Antenna...................................................................................................................64
Microphone Inputs ..................................................................................................................................64
Changing the Quad Band .......................................................................................................................65
Global Positioning System (GPS)...............................................................................................................66
Technical Specifications .........................................................................................................................66
Features..................................................................................................................................................66
Underwriters Laboratories Required Global Positioning System (GPS) Statement ................................66
Chapter 3 – SocketModem® CDMA (MTSMC-C1).............................................................................67
Introduction..................................................................................................................................................67
Product Build Options and Ordering Information.....................................................................................67
AT Commands Reference Guides ..............................................................................................................67
Technical Specifications .............................................................................................................................68
Mechanical Drawings – Basic Build...........................................................................................................70
DC Electrical Characteristics......................................................................................................................71
Power Measurements*.................................................................................................................................71
Application Notes ........................................................................................................................................72
Flashing LED Interface ...........................................................................................................................72
RF Interface ............................................................................................................................................72
RF Connection and Antenna...................................................................................................................72
Provisioning a Generic SocketModem CDMA ........................................................................................73
CDMA Terminology and Acronyms.........................................................................................................74
Chapter 4 – SocketModem® EDGE (MTSMC-E1)..............................................................................76
Introduction..................................................................................................................................................76
Product Build Options and Ordering Information.....................................................................................76
AT Commands Reference Guide ................................................................................................................76
Technical Specifications .............................................................................................................................77
Mechanical Drawings – Basic Build...........................................................................................................78
Mechanical Drawings – Voice Build...........................................................................................................80
DC Electrical Characteristics......................................................................................................................82
Power Measurements..................................................................................................................................82
Application Notes ........................................................................................................................................83
RF Performances....................................................................................................................................83
RF Connection and Antenna...................................................................................................................83
Audio Interface – Electrical Characteristics.............................................................................................83
Microphone Inputs ..................................................................................................................................83
Chapter 5 – SocketModem® HSDPA (MTSMC-H).............................................................................84
Introduction..................................................................................................................................................84
Product Build Options and Ordering Information.....................................................................................84
AT Commands Reference Guide ................................................................................................................84
Technical Specifications .............................................................................................................................85
Mechanical Drawings – Basic Build...........................................................................................................87
Mechanical Drawings – USB Build.............................................................................................................89
DC Electrical Characteristics......................................................................................................................90
Power Measurements*.................................................................................................................................90
Application Notes ........................................................................................................................................91
Table of Contents
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 6
RF Performances....................................................................................................................................91
RF Connection and Antenna...................................................................................................................91
Air Interface ............................................................................................................................................91
Configuring the HSDPA Modem on Linux SLAX 6..................................................................................93

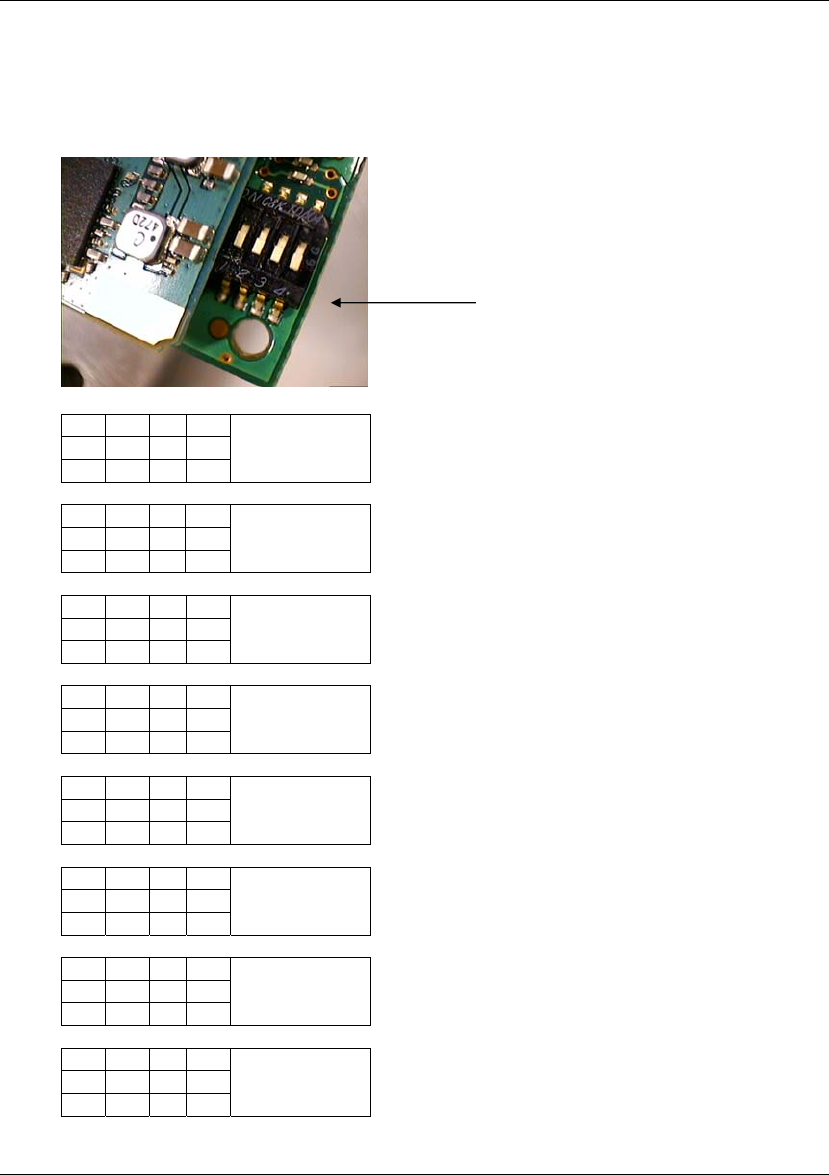

Baud Rate Switches on the HSDPA SocketModem ...............................................................................94
Operating Modes ....................................................................................................................................95
Turn off the SocketModem Using AT Command ....................................................................................96
Automatic Shutdown ...............................................................................................................................96
Temperature Control during an Emergency Call.....................................................................................96

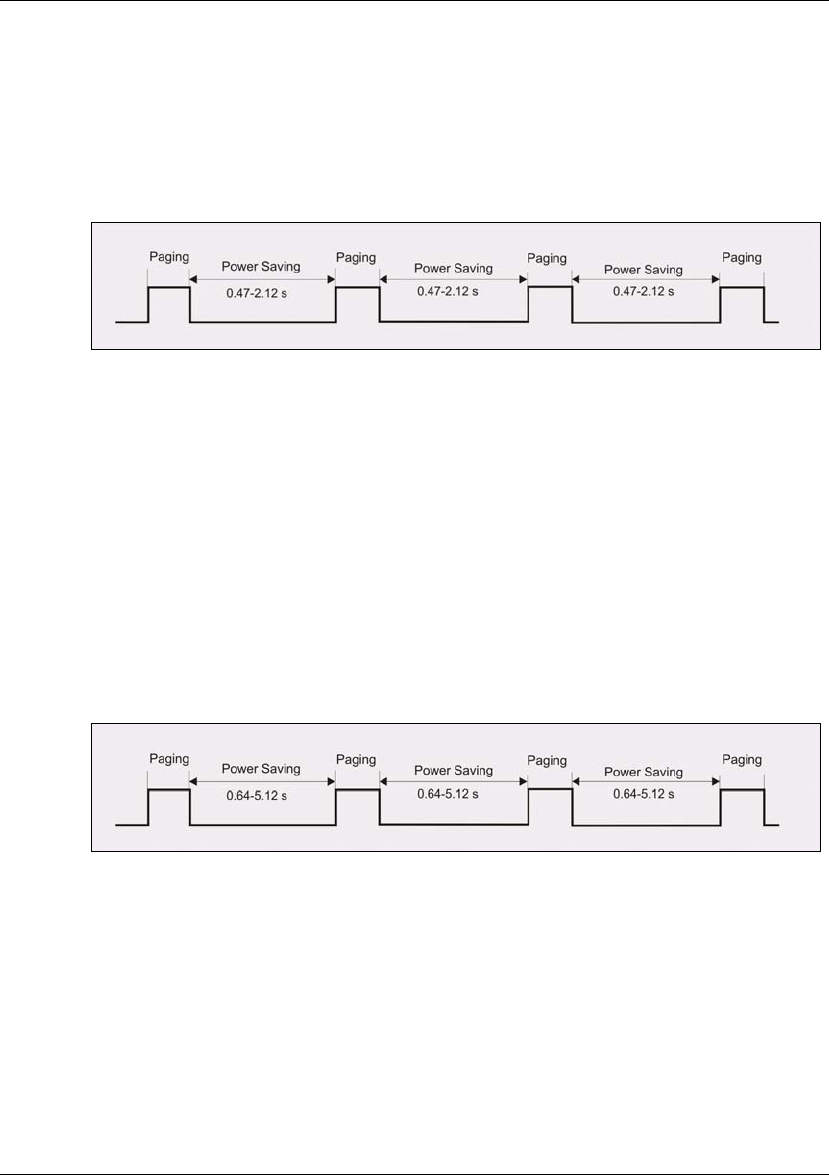

Power Saving..........................................................................................................................................96
Interface Signal Descriptions ..................................................................................................................98
PART 3 – ANALOG SOCKETMODEMS ......................................................................99
Chapter 6 – SocketModem® (MT9234SMI)......................................................................................100
Introduction................................................................................................................................................100
Product Build Options and Ordering Information...................................................................................100
AT Commands Reference Guide ..............................................................................................................100
Technical Specifications ...........................................................................................................................101
SocketModem Pin Out...............................................................................................................................103
Serial Pin Out........................................................................................................................................103
Parallel Pin Out.....................................................................................................................................104
DC Electrical Characteristics....................................................................................................................105

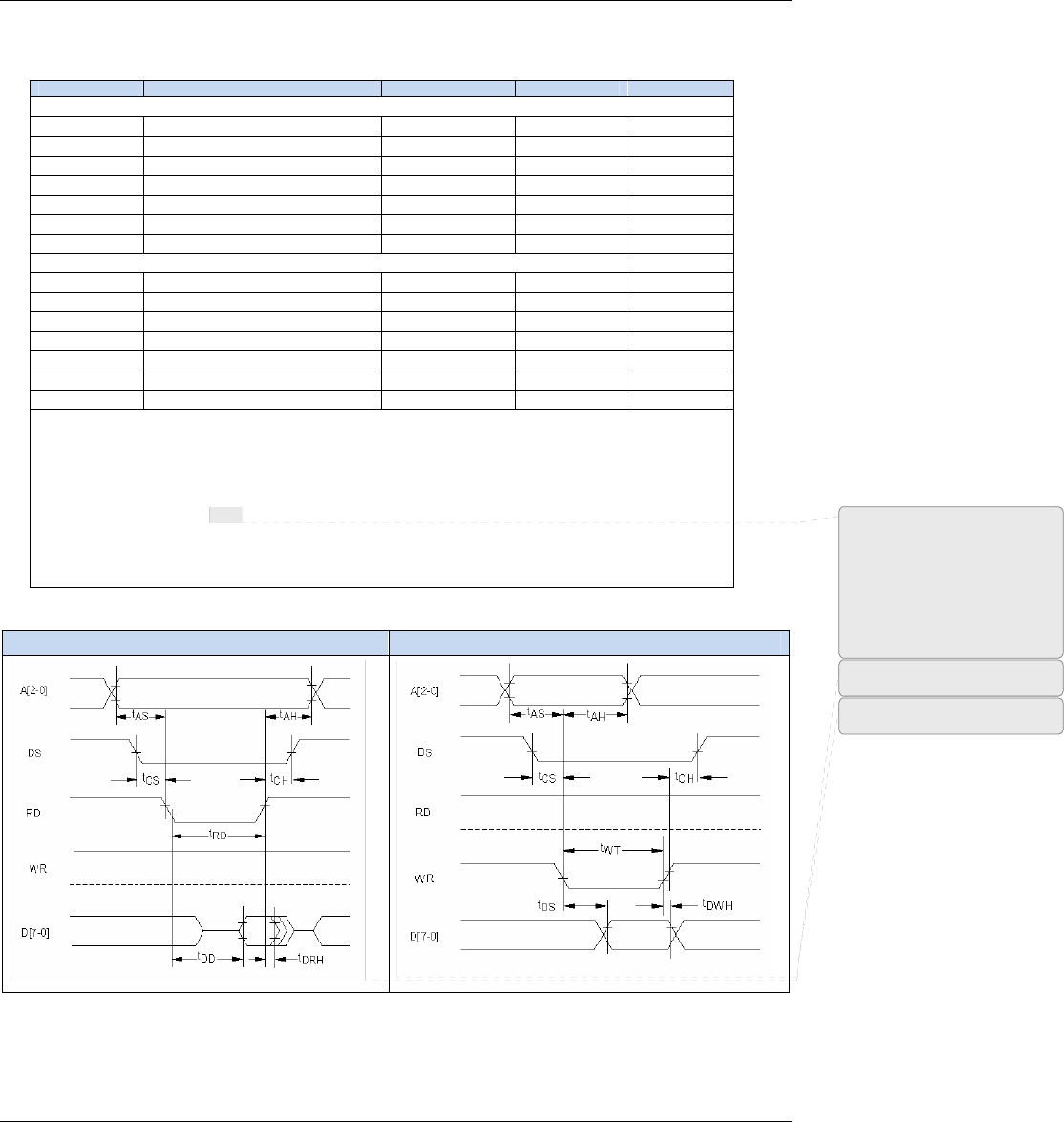

Parallel Timing Requirements...................................................................................................................106
SocketModem Parallel Interface Internal Registers................................................................................107
Application Notes ......................................................................................................................................114

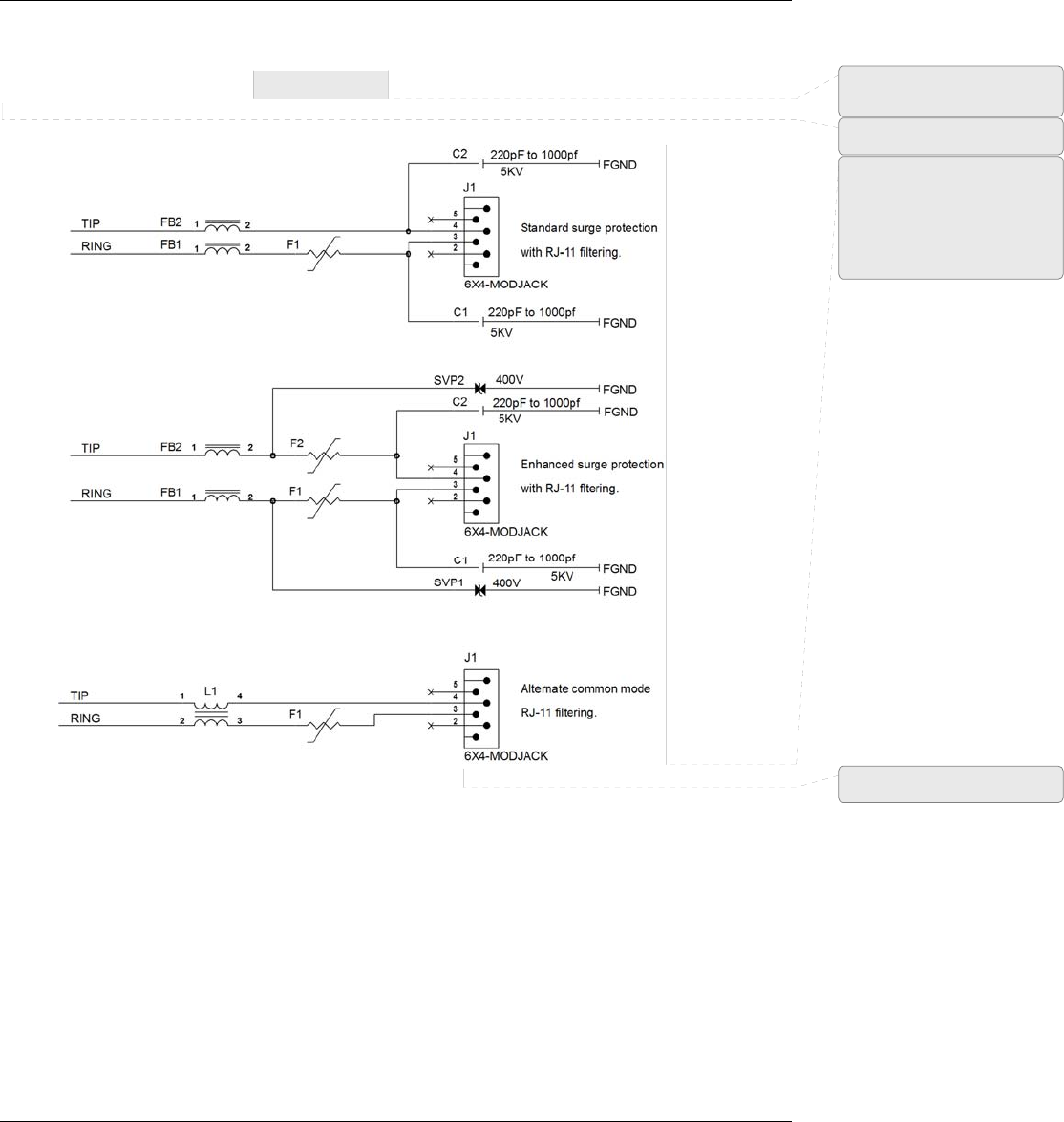

Tip and Ring Interface...........................................................................................................................114
Chapter 7 – SocketModem® (MT5692SMI)......................................................................................115
Introduction................................................................................................................................................115
Product Build Options and Ordering Information...................................................................................115
AT Commands Reference Guide ..............................................................................................................116
Technical Specifications ...........................................................................................................................117
Pin Outs ......................................................................................................................................................119
Operating Conditions ................................................................................................................................121
Absolute Maximum Rating........................................................................................................................121
DC Electrical Characteristics....................................................................................................................121
Power* Measurements...............................................................................................................................122
Parallel Host Bus Timing Table ................................................................................................................123
SocketModem Parallel Interface...............................................................................................................124
Register Functional Definitions................................................................................................................125
Application Notes ......................................................................................................................................134
Tip and Ring Interface...........................................................................................................................134
Microphone and Speaker......................................................................................................................135
Chapter 8 – SocketModem® (MT2492SMI)......................................................................................137
Introduction................................................................................................................................................137
Product Build Options and Ordering Information...................................................................................137
AT Commands Reference Guide ..............................................................................................................137
Technical Specifications ...........................................................................................................................138
SocketModem Pin Out...............................................................................................................................139
DC Electrical Characteristics....................................................................................................................139
Application Notes ......................................................................................................................................140
Tip and Ring Interface...........................................................................................................................140
Chapter 9 – SocketModem (MT2456SMI-22)..................................................................................141
Introduction................................................................................................................................................141
Table of Contents
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 7
Product Ordering Information...................................................................................................................141
AT Commands Reference Guide ..............................................................................................................141
Technical Specifications ...........................................................................................................................142
SocketModem Configuration ....................................................................................................................143
Serial Configuration ..............................................................................................................................143
Electrical Characteristics ..........................................................................................................................144
3.3V Serial SocketModem ....................................................................................................................144
5V Serial SocketModem .......................................................................................................................144
Applications Notes ....................................................................................................................................145
Tip and Ring Interface...........................................................................................................................145
PART 4 – EMBEDDED DEVICE SERVERS...............................................................146
Chapter 10 – SocketEthernet IP® (MT100SEM-IP)..........................................................................147
Introduction................................................................................................................................................147
Product Build Options and Ordering Information...................................................................................147
AT Commands Reference Guide ..............................................................................................................147
Technical Specifications ...........................................................................................................................148
SocketEthernet IP Pin Out.........................................................................................................................149
DC Electrical Characteristics....................................................................................................................150
Power* Measurements...............................................................................................................................150
Application Notes ......................................................................................................................................151
Ethernet Interface – Non-Isolated Design .............................................................................................151
Ethernet Interface – Isolated Design.....................................................................................................151
Recommended Parts ............................................................................................................................151
The Windows-Based Auto-Discovery Manager ....................................................................................153
Chapter 11 – SocketWireless® Wi-Fi® (MT810SWM-IP) .................................................................155
Introduction................................................................................................................................................155
Product Build Options and Ordering Information...................................................................................155
AT Commands Reference Guide ..............................................................................................................155
Technical Specifications ...........................................................................................................................156
Mechanical Drawings ................................................................................................................................158
Mechanical Drawings ................................................................................................................................159
Operating Conditions ................................................................................................................................161
Absolute Maximum Rating........................................................................................................................161
DC Electrical Characteristics....................................................................................................................161
Power Measurements*...............................................................................................................................161
Application Notes ......................................................................................................................................162
RF Interface ..........................................................................................................................................162
Default Power Up Settings....................................................................................................................162
Antenna Requirements and Sources ....................................................................................................162
Regulatory Requirements for the Wi-Fi Antenna ..................................................................................163
Chapter 12 – SocketWireless® Bluetooth® (MTS2BTSMI).............................................................164
Introduction................................................................................................................................................164
Notes about Byte Gaps and Data Latency...............................................................................................164
Product Build Options and Ordering Information...................................................................................164
AT Commands Reference Guide ..............................................................................................................164
Technical Specifications ...........................................................................................................................165
SocketWireless Bluetooth Pin Out...........................................................................................................166
DC Electrical Characteristics....................................................................................................................166
Application Notes ......................................................................................................................................167
RF Interface ..........................................................................................................................................167
Sources for Peripheral Devices ............................................................................................................167
Default Power Up Settings....................................................................................................................168
Example of a Master Discovery/Connection Sequence ........................................................................169
Table of Contents
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 8
Example of a Slave Command Sequence ............................................................................................169
Disabling Flow Control Using AT Commands .......................................................................................170
Other Examples ....................................................................................................................................170
Changing Configuration ........................................................................................................................170
Index...................................................................................................................................................172
Part 1 Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 9
Part 1
Universal Socket Connectivity
Chapter 1 – Universal Socket Connectivity
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 10
Chapter 1 – Universal Socket
Connectivity
Multi-Tech Embedded Solutions
Multi-Tech’s embedded device networking solutions instantly add communication ability to your existing or new product with
minimal engineering effort giving you an edge on your competition while accelerating your time-to-market. Our universal
socket family of embedded solutions is designed around a flexible comm-port architecture to provide analog dial-up, cellular,
Wi-Fi or Bluetooth wireless, or Ethernet socket connectivity with interchangeable socket devices. This means you can utilize
one system design and populate it with your preferred connectivity option giving you flexibility and a seamless migration path
to future technologies.
Universal Socket Connectivity Features
Flexible comm-port architecture
Interchangeable socket devices
Cost-effective system design
Easy migration to future technologies
Complete global compliance
The Universal Socket Design
Each pin on a SocketModem corresponds to a particular function. The universal socket design provides a
universal location for each function pin. This allows each SocketModem to be used in a common board. Comment [DAR2]: Saved as
Universal SocketModem with
pins.png 81KB saved in New graphics
for K
Comment [DAR3]: Pin
Out_assignment_overview_fromDean
_
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 11
Universal Developer Kit Contents
Products described in this guide can be used to develop and evaluate your products and applications using the
MTSMI-UDK (Universal Developer Kit).
Developer Board: One MTSMI-UDK Developer Board
Power Supply: One 100-240V 9V-1A power supply with removable blades:
One US blade/plug
One EURO blade/plug
One UK blade/plug
Cables
One RJ-45 Ethernet cable
One RJ-11 phone cable
One DB9F-DB25M serial cable
One 1.5 meter USB cable
Antenna Cables
One SMA-to-MMCX antenna cable (for cellular antennas)
Two SMA-to-UFL antenna cables (one for select cellular antennas and one for the GPS antenna)
One RSMA-to-UFL antenna cable (for Bluetooth and Wi-Fi antennas)
Antennas
One quad band antenna 850/1900/900/1800 (for cellular modems)
One 2.4GHz, ½ WAVE antenna with reverse polarity (for Bluetooth and Wi-Fi devices)
One GPS antenna (for the SocketModem iCell)
Modem Activation Customer Notices (included on the Universal Socket Connectivity Developer CD)
Aeris
CDMA
Cellcom
GSM
IVC
Sprint
Verizon
One Universal Socket Connectivity Developer CD
One Promotional Screwdriver
AT Commands for All Embedded Products Are
Included on the Developer Kit CD
AT Commands
Multi-Tech provides Reference Guides for each SocketModem's AT commands. These reference guides are
available on the CD included in the Developer Kit. They are also available by email at
mailto:oemsales@multitech.com or by using the Developer Guide Request Form on Multi-Tech's Web site.
Fax Commands for Analog Modems
Fax Commands are included in the AT Command Reference Guide when applicable to the product. They are
available on the CD included in the Developer Kit.
Note: Fax Commands supported by product:
SocketModem MT9234SMI supports all Class 1 and Class 2 commands (Class 1, 1.0, 2, 2.0/2.1)
SocketModem MT5692SMI supports Class 1 & 1.0
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 12
Universal Socket Pin Out
Top View – Universal SocketModem Pin Out
Universal Pin Descriptions
Pin Signal
Name In/Out Description
1 Tip I/O Tip Signal from Telco. Tip connection to the phone line (RJ-11 Pin 4). The
SocketModem is Tip/Ring polarity insensitive.
2 Ring I/O Ring Signal from Telco. Ring connection to the phone line (RJ-11 Pin 3). The
SocketModem is Tip/Ring polarity insensitive.
3 Safety
Void
NA Safety Clearance. 2.5 mm is required between TNV circuits and SELV circuits.
4 TX+ O Transmit Outputs (TX+ and TX-). Differential transmit outputs for Ethernet and ISDN.
5 TX- O Transmit Outputs (TX+ and TX-). Differential transmit outputs for Ethernet and ISDN.
6 RX- I Receive Inputs. Differential receive input pins for Ethernet. Dummy pin for
MT810SWM-IP.
7 RX+ I Receive Inputs. Differential receive input pins for Ethernet.
8 Safety
Void
NA Safety Clearance. 2.5 mm is required between TNV circuits and SELV circuits.
9 Dummy Dummy pin for EDGE.
11 TCLK O Transmit Data Sync Clock. TX synchronous data clock for ISDN sync data mode.
12 RCLK O Receive Data Sync Clock. RX synchronous data clock for ISDN sync data mode.
22 MIC+ I Microphone positive input. See microphone sections in GPRS, CDMA, EDGE
chapters.
23 MIC- I Microphone negative input. See microphone sections in GPRS, CDMA, EDGE
chapters.
Comment [DAR4]: Pin
Out_Universal_July_2008_p14..png &
FH9
7/14/08
Comment [DAR5]: SocketModem
Uiversal Pinout flat view. png -- saved
in Graphics new in Rev K -- 50 KB
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 13
Pin Signal
Name In/Out Description
24 –RESET* I Device Reset (with pull-up). The active low –RESET input resets the device logic
and returns the configuration of the device to the original factory default values or
"stored values" in the NVRAM. –RESET is tied to VCC through a time-constant
circuit for “Power-on-Reset” functionality. The SocketModem is ready to accept
commands after a fixed amount of time (“X” Time) after power-on or reset.
Model Time Constant "X" Time Minimum Reset Pulse*
MTSMC-G2 250 ms 6 seconds 100us
MTSMC-C1 250 ms 3-15 seconds 500us
MTSMC-E1 250 ms 3-15 seconds 500us
MTSMC-H 250 ms 10 seconds 100us
MT9234SMI 400 ms 6 seconds 100us
MT5692SMI 250 ms 6 seconds 100us
MT2492SMI 250 ms 6 seconds 100us
MT100SEM-IP 250 ms 6 seconds 100us
MT810SWM-IP 250 ms 6 seconds 100us
MTS2BTSMI 250 ms 6 seconds 100us
*The SocketModem device may respond to a shorter reset pulse.
Reset Line Interface for the MT5692SMI. The modem’s reset line employs a 10K
pull up resistor. If an open collector driver is to be used, run that output to the
modem only and use a separate driver for other embedded components. The
modem’s reset signal may also be driven by a circuit that both sinks and sources
current if desired. It is also important to note that these modems do not require an
external reset. They have their own internal reset circuitry and voltage monitor and
will function correctly even if the reset input is open.
Reset GPRS and CDMA (MTSMC-G2 and MTSMC-C1). This signal is used to
force a reset procedure by providing low level during reset of at least 500us. The
signal is considered an emergency reset only. A reset procedure is already driven
by internal hardware during the power-up sequence. If no external reset is
necessary, this input can be left open. If used (emergency reset), it has to be driven
by an open collector or an open drain.
Reset EDGE with pull-up (MTSMC-E1). The active low –RESET input resets the
device logic and returns the configuration of the device to the original factory default
values of "stored values" in the NVRAM. The SocketModem is ready to accept
commands after a fixed amount of time after power-on or reset.
25 USB_VBUS I USB Voltage Sense. Senses the voltage level of the USB to determine if the bus is
available.
26 GND GND Logic Ground.
27 USB_DP I/O USB Data Positive. Positive pin of the USB data pair.
28 USB_DN I/O USB Data Negative. Negative pin of the USB data pair.
29 LED DCD O DCD (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series.
SocketWireless Bluetooth (MTS2BTSMI): When lit, indicates a connection. No
series resistor.
30 LED RX O RX (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series.
SocketWireless Bluetooth (MTS2BTSMI): No series resistor.
31 LED DTR O DTR (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series.
SocketWireless Bluetooth (MTS2BTSMI): No series resistor.
32 LED TX O TX (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series.
SocketWireless Bluetooth (MTS2BTSMI): No series resistor.
33 –RTS I Request to Send (Active Low). –RTS is controlled by the DTE to indicated
whether or not the DTE is ready to receive data. –RTS ON (low) indicates that the
DTE is ready to receive data from the modem on RXD. –RTS OFF indicates to the
SocketModem that it should not transfer data on the RXD.
In the command state, the modem ignores –RTS.
Note: When the –RTS pin is not in use, it should be tied low.
* RESET – A Design Consideration: Allowing the host processor to control the RESET line of the SocketModem provides the
benefit of allowing the host to reset the device in the event of a failure to respond normally. Resetting the SocketModem will
return it to a known functional state.
Comment [DAR6]: For all builds --
Dustin 8/24/09
Comment [DAR7]: New from Tim
Gunn 07/14/09
Comment [DAR8]: Bud wondered if
this text is for E1 too (it was used with
initial EDGE). It’s in the section that
describes the pin functionality. 9/8/09
review:
Reset EDGE with pull-up (MTSMC-
E1).
Dustin's answer
Original edge documentation is
incorrect. You could probably
remove:
–RESET is tied to VCC through a
time-constant circuit for “Power-on-
Reset” functionality.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 14
Pin Signal
Name In/Out Description
34 –RXD O Received Data. The SocketModem uses the RXD line to send data to the DTE and
to send SocketModem responses to the DTE. In command mode, –RXD data
presents the SocketModem responses to the DTE. SocketModem responses take
priority over incoming data when the two signals are in competition for –RXD. When
no data is transmitted, the signal is held in mark condition.
35 –TXD I Transmitted Data. The DTE uses the –TXD line to send data to the SocketModem
for transmission or to transmit commands to the SocketModem. The DTE holds this
circuit in mark state when no data is being transmitted or during intervals between
characters.
36 –RI
O RING (Active Low). Incoming ring signal from phone.
Ring Indicate. –RI output ON (low) indicates the presence of an ON segment of a
ring signal on the telephone line. The modem will not go off-hook when –RI is active;
the modem waits for –RI to go inactive before going off-hook.
SocketWireless Bluetooth (MTS2BTSMI). Strobes 1/sec for slave indication.
37 –DSR O Data Set Ready (Active Low). –DSR indicates SocketModem status to the DTE. –
DSR OFF (high) indicates that the DTE is to disregard all signals appearing on the
interchange circuits except Ring Indicator (–RI). It reflects the status of the local
data set and does not indicate an actual link with any remote data equipment.
38 –CTS O Clear to Send (Active Low). –CTS is controlled by the SocketModem to indicate
whether or not the SocketModem is ready to transmit data. –CTS ON indicates to
the DTE that signals on TXD will be transmitted. –CTS OFF indicates to the DTE
that it should not transfer data on TXD.
39 –DCD O Data Carrier Detect (Active Low). –DCD output is ON (low) when a data
connection is established and the SocketModem is ready to send/receive data.
40 –DTR
I Data Terminal Ready (Active Low). The –DTR input is turned ON (low) when the
DTE is ready to communicate. –DTR ON prepares the modem to be connected, and,
once connected, maintains the connection. –DTR OFF places the modem in the
disconnect state under control of the &Dn and &Qn commands.
Note: When the –DTR pin is not in use, it should be tied low.
41 GND GND Logic Ground.
42 SPK- O Wireless GPRS, CDMA, and EDGE. Negative analog speaker output.
43 SPK+ O Wireless GPRS, CDMA, and EDGE. Positive analog speaker output.
48 GPIO I/O General Purpose Input/Output. User-configurable input or output pin.
49 GPIO I/O General Purpose Input/Output. User-configurable input or output pin.
50 GPIO I/O General Purpose Input/Output. User-configurable input or output pin.
51 GPIO I/O General Purpose Input/Output. User-configurable input or output pin.
56 –LED
FDX
O LED Full Duplex (Active Low). LED Output. During normal operation, this pin lights
the FDX LED to indicate a full duplex mode.
57 –LED
ACT
O LED Active (Active Low). LED Output. During normal operation, this pin lights the
Activity LED when transmitting or receiving. It flashes at a rate of 50ms high and
50ms low when active.
58 –
LEDLINK
O LED LINK (Active Low). LED Output. During normal operation, this pin lights the
LINK LED to indicate a good link is detected.
Pin 58 LED Mode Operating Status
Note: Pin 58 may or may not be available on some EDGE/GPRS/CDMA SocketModems currently
shipping.
Off Subscriber Carrier Mode is OFF or running in SLEEP mode or
Alarm mode.
600 ms ON / 600ms OFF No SIM card inserted or no PIN entered, or network search in
progress, or ongoing user authentication, or network login in
progress.
75 ms ON / 75 ms OFF / 75 ms ON
3 s OFF
Flashing
One or more EDGE/GPRS/CDMA contexts activated.
Indicates EDGE/GPRS/CDMA data transfer: When a transfer is
in progress, the LED goes on within 1 second after data
packets were exchanged. Flash duration is approximately 0.5 s.
ON Depending on type of call:
Voice Call: Connected to remote party.
Data Call: Connected to remote party or exchange of
parameters while setting up or disconnecting a call.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 15
Pin Signal
Name In/Out Description
59 –
LEDCOL
O LED Collision (Active Low). LED Output. During normal operation, this pin lights
the COL LED to indicate a collision. It flashes at 50ms high and 50ms low when
active.
60 –
LEDSPD
O LED Speed (Active Low). LED Output. During normal operation, this pin lights the
SPEED LED to indicate 100Mbps is selected.
61 VCC PWR DC Input Power. 3.3V or 5VDC power, depending upon the build.
62 MICV I Single-Ended Microphone. Single-ended microphone input for dial-up
SocketModem speakerphone and TAM functions.
63 AGND GND Analog Ground. Analog ground is tied common with DGND on the SocketModem.
To minimize potential ground noise issues, connect audio circuit return to AGND.
64 SPKR O Speaker. Dual purpose output for call progress signals or speakerphone functions.
Call Progress signaling on MT5692SMI and MT2492SMI is a square wave output
that can be optionally connected to a low-cost single-ended speaker; e.g., a
sounducer or an analog speaker circuit.
Call progress on the MT9234SMI is an analog output.
Speakerphone Output on the MT5692SMI is under the control of +FCLASS. This
is a single-ended analog output. SPKR is tied directly to the CODEC. One side of a
differential AC output coupled through a 6.8K ohm resistor and capacitor.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 16
Design Considerations
Noise Suppression Design Considerations
Engineering noise-suppression practices must be adhered to when designing a printed circuit board (PCB)
containing the SocketModem. Suppression of noise is essential to the proper operation and performance of the
modem itself and for surrounding equipment.
Two aspects of noise in an OEM board design containing the SocketModem must be considered: on-board/off-
board generated noise that can affect digital signal processing. Both on-board and off-board generated noise that
is coupled on-board can affect interface signal levels and quality. Of particular concern is noise in frequency
ranges affecting modem performance.
On-board generated electromagnetic interference (EMI) noise that can be radiated or conducted off-board is a
separate, but equally important, concern. This type of noise can affect the operation of surrounding equipment.
Most local government agencies have stringent certification requirements that must be met for use in specific
environments.
Proper PC board layout (component placement, signal routing, trace thickness and geometry, etc.) component
selection (composition, value, and tolerance), interface connections, and shielding are required for the board
design to achieve desired modem performance and to attain EMI certification.
Other aspects of proper noise-suppression engineering practices are beyond the scope of this designer guide.
The designer should consult noise suppression techniques described in technical publications and journals,
electronics and electrical engineering text books, and component supplier application notes.
PC Board Layout Guidelines
In a 4-layer design, provide adequate ground plane covering the entire board. In 4-layer designs, power and
ground are typically on the inner layers. All power and ground traces should be 0.05 inches wide.
The recommended hole size for the SocketModem pins is 0.036 in. +/-0.003 in. in diameter. Spacers can be
used to hold the SocketModem vertically in place during the wave solder process.
All creepages and clearances for the SocketModem have been designed to meet requirements of safety
standards EN60950 or EN60601. The requirements are based on a working voltage of 125V or 250V. When the
recommended DAA* circuit interface is implemented in a third party design, all creepage and clearance
requirements must be strictly followed in order to meet safety standards. The third party safety design must be
evaluated by the appropriate national agency per the required specification.
User accessible areas: Based on where the third party design is to be marketed, sold, or used, it may be
necessary to provide an insulating cover over all TNV exposed areas. Consult with the recognized safety agency
to determine the requirements.
Note: Even if the recommended design considerations are followed, there are no guarantees that a particular
system will comply with all the necessary regulatory requirements. It is imperative that specific designs be
completely evaluated by a qualified/recognized agency.
*DAA stands for Data Access Arrangement. DAA is the telephone line interface of the SocketModem.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 17
Electromagnetic Interference (EMI)
Considerations
The following guidelines are offered specifically to help minimize EMI generation. Some of these guidelines are
the same as, or similar to, the general guidelines but are mentioned again to reinforce their importance. In order
to minimize the contribution of the SocketModem-based design to EMI, the designer must understand the major
sources of EMI and how to reduce them to acceptable levels.
1. Keep traces carrying high frequency signals as short as possible.
2. Provide a good ground plane or grid. In some cases, a multilayer board may be required with full layers
for ground and power distribution.
3. Decouple power from ground with decoupling capacitors as close to the SocketModem power pins as
possible.
4. Eliminate ground loops, which are unexpected current return paths to the power source and ground.
5. Decouple the telephone line cables at the telephone line jacks. Typically, use a combination of series
inductors, common mode chokes, and shunt capacitors. Methods to decouple telephone lines are
similar to decoupling power lines; however, telephone line decoupling may be more difficult and
deserves additional attention. A commonly used design aid is to place footprints for these components
and populate as necessary during performance/EMI testing and certification.
6. Decouple the power cord at the power cord interface with decoupling capacitors. Methods to decouple
power lines are similar to decoupling telephone lines.
7. Locate high frequency circuits in a separate area to minimize capacitive coupling to other circuits.
8. Locate cables and connectors so as to avoid coupling from high frequency circuits.
9. Lay out the highest frequency signal traces next to the ground grid.
10. If a multilayer board design is used, make no cuts in the ground or power planes and be sure the
ground plane covers all traces.
11. Minimize the number of through-hole connections on traces carrying high frequency signals.
12. Avoid right angle turns on high frequency traces. Forty-five degree corners are good; however, radius
turns are better.
13. On 2-layer boards with no ground grid, provide a shadow ground trace on the opposite side of the board
to traces carrying high frequency signals. This will be effective as a high frequency ground return if it is
three times the width of the signal traces.
14. Distribute high frequency signals continuously on a single trace rather than several traces radiating from
one point.
Electrostatic Discharge Control
All electronic devices should be handled with certain precautions to avoid damage due to the accumulation of
static charge.
See the ANSI/ESD Association Standard (ANSI/ESD S20.20-1999) – a document “for the Development of an
Electrostatic Discharge Control for Protection of Electrical and Electronic Parts, Assemblies and Equipment.”
This document covers ESD Control Program Administrative Requirements, ESD Training, ESD Control Program
Plan Technical Requirements (grounding/bonding systems, personnel grooming, protected areas, packaging,
marking, equipment, and handling), and Sensitivity Testing.
Multi-Tech Systems, Inc. strives to follow all of these recommendations. Input protection circuitry has been
incorporated into the Multi-Tech devices to minimize the effect of this static buildup, proper precautions should
be taken to avoid exposure to electrostatic discharge during handling.
Multi-Tech uses and recommends that others use anti-static boxes that create a faraday cage (packaging
designed to exclude electromagnetic fields). Multi-Tech recommends that you use our packaging when returning
a product and when you ship your products to your customers.
Phone Line Warning Statement for the Developer
Board
Use extreme caution when the phone line is installed due to live energized components. In fact, do not touch any
components on the board while the phone line is installed.
In addition, the phone line should be detached when making modifications to or servicing the developer board.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 18

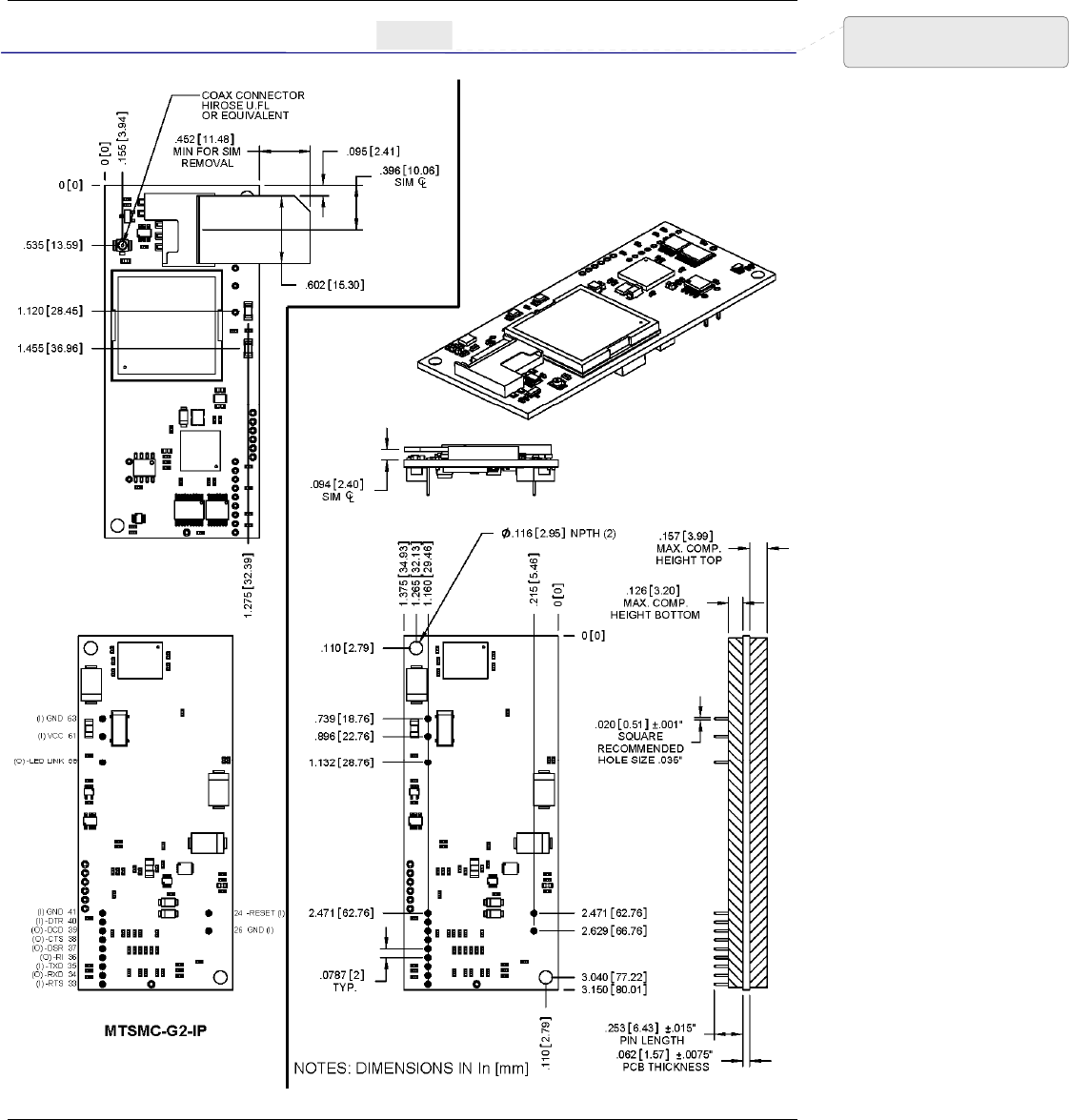

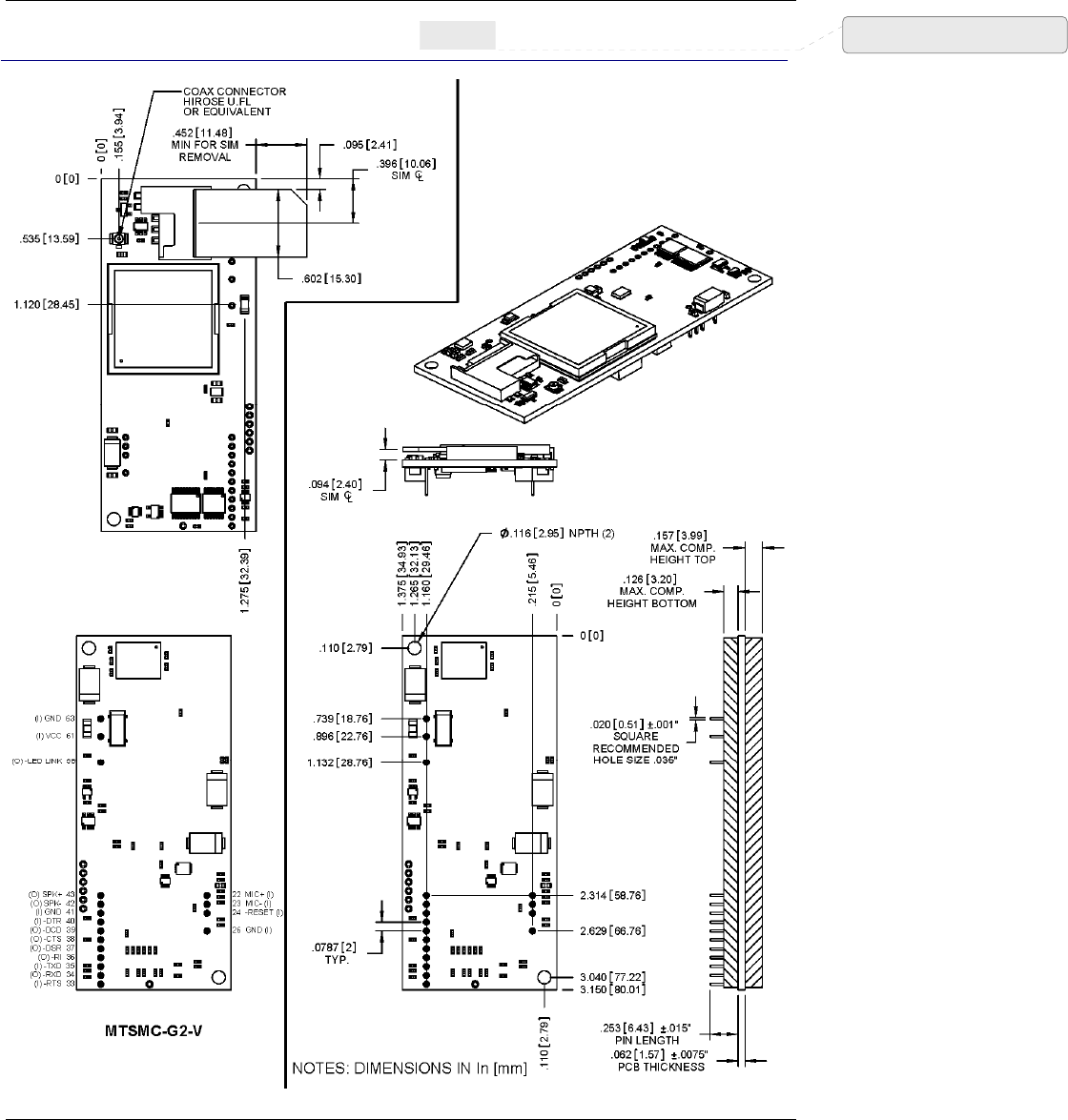

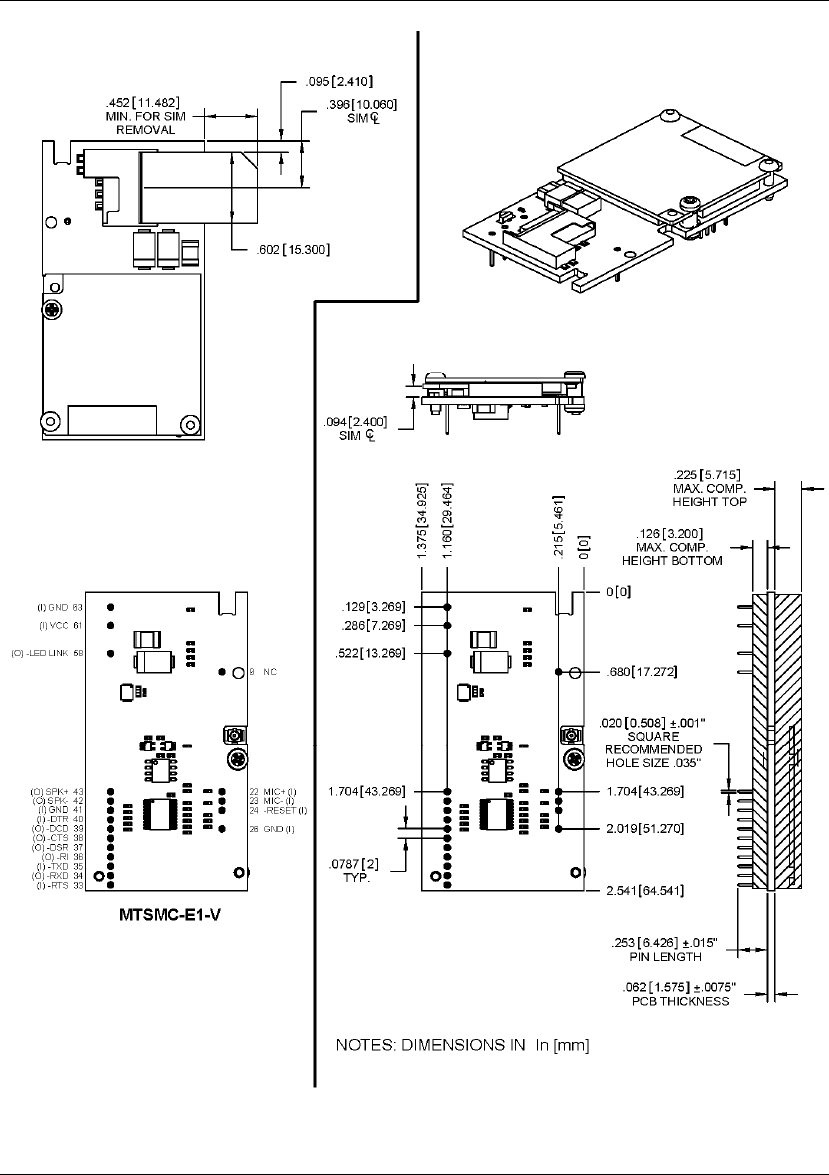

Mechanical Drawing in Inches for the Listed Products
Comment [DAR9]: Mechanical
Drawing for Analog Modems from
Dean 4-16-09.png
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 19
Mechanical Drawing in Millimeters for Listed Products Comment [DAR10]: Mechanical
Drawing for Analog Modems-Metric
from Dean 4-16-09.png
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 20
Maximum Component Height / PCB Length and Width
This is a companion table for the mechanical drawings on the two previous pages.
If a product does not appear in this table, it is because it has a detailed mechanical drawing that provides this information and
much more in the specific product chapter.
Product Maximum
Component
Height on the
Top Side of the
Board
Maximum
Component
Height on the
Bottom Side of
the Board
Length Width
Embedded Analog SocketModems
SocketModem – MT9234SMI .290" (7.366 mm) .115" (2.921 mm) 2.54" (64.541 mm) 1.045" (26.543 mm)
SocketModem – MT5692SMI .213" (5.410 mm) .115" (2.921 mm) 2.54" (64.541 mm) 1.045" (26.543 mm)
SocketModem – MT2492SMI .177" (4.495 mm) NA 2.54" (64.541 mm) 1.045" (26.543 mm)
Embedded Device Servers
SocketModem IP – MT2456SMI-IP .228" (5.791 mm) .114" (2.895 mm) 2.54" (64.541 mm) 1.045" (26.543 mm)
SocketEthernet IP – MT100SEM-IP .341" (8.661 mm) .115" (2.921 mm) 2.54" (64.541 mm) 1.045" (26.543 mm)
SocketWireless Bluetooth – MTS2BTSMI .089" (2.260 mm) NA 2.54" (64.541) mm) 1.045" (26.543 mm)
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 21
SocketModem Developer Board
This developer board drawing shows the major board components for all SocketModems.
Board Revision B
See the next page for description of Board Components Comment [DAR11]: Board B for
Universal 260b0_forRev J jumper
fixed 2 29grayscale50percent.gif
done 8/5/09
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 22
Board Components
Jumper Description
JP1 Mutes the speaker. Default positions are 1 and 2 (speaker is not muted).
JP2 Ties the TX and RX clock lines together. Default positions are 1 and 2 (transmit and receive
clock act independently).
JP3 Sets the data rate. NORMAL sets the data rate at 250kbps.
H.S. (high speed serial communications) sets the data rate at 1Mbps.
JP4 Testing interface (debugging) for the RS-232 signals.
JP5 JP5 acts as a replacement for pin 45 when pin 45 is used for another function.
JP7 Testing interface (debugging) for the serial TTL signals.
JP9 JP9 is the 5V / 3.3V regulator. The factory default operating voltage is 3.3V.
Warning – Be sure that the 5V / 3.3V jumper is set to match the requirements of your
SocketModem. If this jumper is set incorrectly, damage to the SocketModem and/or the
Test/Demo card could result.
Caution – Use only the provided Multi-Tech Systems, Inc. transformer with the Test/Demo
board. Use of any other power source will void the warranty and will likely damage the
Test/Demo board and the SocketModem. The transformer connector is keyed to prevent
improper connection to the Test/Demo board.
JP12 JP12 allows you to select either the internal 5V regulator (INT 5V) or to choose EXT 5V. For
the EXT 5V, you can use your own external 5V power source and plug it into J7.
JP13 Set either 5V or 3.3V for USB_VBUS line (supplied by the VCC of the USB jack).
JP14 Internal testing.
JP15 JP15 disconnects pin 45 from SLP with JP5 (the RS-232 driver sleep mode).
JP16 JTAG header.
JP17 Mosquito header. If used to debug the SocketModem while using the USB port, then the JP14
would have to be removed to disconnect USB_VBUS.
JP18 Power feed for area where SocketModems are placed (J24).
JP19 & JP20 Debugging probes.
JP25 & JP26 Ground lug.
S4 Set the switch block to the product being used.
S5 Reset
Jumpers and Corresponding Signals
J4 and J7
10 PWR
8 CTS
6 DSR
4 DTR
2 RXD
9 RI
7 RTS
5 GND
3 TXD
1 DCD
J2 and J13
2 RXC 1 TXC
JP10 JP11
TX Term RX Term
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 23
SocketModem Developer Board Block Diagram
Comment [DAR12]: C:\ Universal
SocketModem\Graphics ETC Rev
I\Block diagram board B\Block
diagram board B w antenna.png. 38
KB
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 24
Developer Board Schematics
Board Revision B
Comment [DAR13]: Schematics
Board B page 2 Scan0576_000.jpg
did not change to gif -- file was
already small
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 25
Developer Board Schematics
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 26
Board Revision B
Developer Board Schematics
Board Revision B
Comment [DAR14]: Schematics
Board B page 3 Scan0577_000
grayscale50percent.gif (changed from
jpg to make the file size smaller
8/5/09)
Comment [DAR15]: Schematics
Board B page 4
Scan0575_000grayscale.gif (was jpg
- now a gif for a smaller file 8/5/09
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 27
Developer Board Schematics
Board Revision B
Comment [DAR16]: Schmatics
Board B page 5
(was jpg but file was too large. Now
gif 8/5/09)
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 28
Developer Board Schematics
Board Revision B
Comment [DAR17]: Schematics
Board B page 6 Scan0573_000.jpg
did not change to gif -- file was aleady
small
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 29
Upgrading Firmware
Your modem is controlled by semi-permanent firmware, which is stored in flash memory. Multi-Tech's firmware is nonvolatile;
that is, it remains stored in memory when the modem is turned off and can be upgraded as new features are added.
Multi-Tech's Flash Wizard can be downloaded from Multi-Tech’s FTP site and is available on CD. Use this Flash Wizard for
upgrading your firmware. Documentation for using the Flash Wizard is included with the wizard.
The following table shows you which products support the Flash Wizard.
Wireless SocketModems
SocketModem GPRS MTSMC-G2 Do not use the Flash Wizard for the wireless modems. Contact
Multi-Tech for wireless modem firmware upgrade directions.
SocketModem CDMA MTSMC-C1 Do not use the Flash Wizard for the wireless modems. Contact
Multi-Tech for wireless modem firmware upgrade directions.
SocketModem EDGE MTSMC-E1 Do not use the Flash Wizard for the wireless modems. Contact
Multi-Tech for wireless modem firmware upgrade directions.
SocketWireless HSDPA Do not use the Flash Wizard for the wireless modems. Contact
Multi-Tech for wireless modem firmware upgrade directions.
Analog SocketModems
SocketModem MT9234SMI Flash Wizard Software for Windows, Mac OSX, Linux
Multi-Tech Flash Protocol
SocketModem MT5692SMI and
SocketModem MT5692SMI-IP
Flash Wizard Software for Windows, Mac OSX, Linux
Can use ASCII upload via terminal emulator.
SocketModem MT2492SMI No Flash Upgrade.
Embedded Device Servers
SocketEthernet IP MT100SEM-IP Flash Wizard Software for Windows, Mac OSX, Linux
Can use ASCII upload via terminal emulator.
SocketWireless Wi-Fi MT810SWM-IP XMODEM serial port upgrade. See the next page for information
about using the XMODEM upgrade.
SocketWireless Bluetooth MTS2BTSMI Do not use the Flash Wizard for the wireless modems. Contact
Multi-Tech for wireless modem firmware upgrade directions.
Flash Wizard Software for Windows: ftp://ftp.multitech.com/Utilities/FlashWizard/
Flash Wizard Software for Linux: http://mtflashwiz.sourceforge.net/
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 30
XMODEM Serial Port Upgrade
This upgrade procedure applies only to the MT810SWM-IP and the older product MTXCSEM.
The IP communications device, for example, contains a 2 MB flash wherein the boot image, the firmware and
configuration files are stored in a compressed format. The flash can easily be upgraded both locally as well as
remotely.
Serial Port Upgrade
The flash of the can be upgraded locally through serial port using the upload feature of serial applications.
Serial Port Configuration
The default serial port parameters should be:
Data length – 8 bits
Parity – None
Stop bits – 1
Baud-rate of the serial port to which the communications device is connected should be set to 115200 bps
for proper operation.
Example of a Serial Flash Upgrade
Following steps explain the procedure to upgrade a flash using the serial COM port (serial flash upgrade).
Connect the communications device to a PC COM Port.
Open an application through which we can access the serial device (e.g., Meterm, zoc, hyperterm).
Reboot the communications device.
Wait for the boot message and prompt “press d to download” to appear.
Press d when prompted.
Select the XMODEM Protocol from the Terminal application.
Choose a file to be uploaded.
Perform a file upload.
The communications device reboots and will be up after a few seconds (10-15 seconds).
Caution: Refrain from powering off the device during flash upgrade.
Comment [DAR18]: Removed all
direct references to the
SocketEthernet IP. Kevin said this
applies to these 2 products 8/09
Comment [DAR19]: Removed
"TFTP Ethernet Upgrade" section.
Darrick said it applied only to the
MTXCSEM which this manual no
longer covers.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 31
Multi-Tech Systems, Inc. Flash Programming
Protocol
This information is provided exclusively for the users of Multi-Tech Systems, Inc. SocketModems, specifically the
MT9234SMI. Multi-Tech Systems, Inc. SocketModem owners have the right to use, modify, and incorporate this code
into other products provided they include the Multi-Tech Systems, Inc. notice and the associated copyright notice with
any such product.
Copyright (C) Multi-Tech Systems, Inc. 1995
All Right Reserved
The flash programming protocol is provided "AS IS” without warranty.
Important: When interacting with the boot code, it is possible to make the modem inoperable.
Use extreme caution.
Programming the Modem
There are two ways to start flash programming a modem. It can be programmed
1. From “AT” mode
2. When the modem powers up.
The following table shows how a modem is programmed.
DTE Modem Comments
AT*FS\r This effectively “restarts” the modem so that it enters the boot code.
Handshake Sequence
M’s Many M’s are sent (10 milliseconds apart) at 19200 baud.
This is where the handshake starts if the modem is just powered up.
U U is sent at 19200 baud if M’s are received within 100 milliseconds of
power up. If the M’s are not received within 100 milliseconds, then
the modem starts up normally. If the AT*FS command is used, then
you have 1 second (1000mS) to perform the handshake.
D Sent at 19200 baud.
M M if can receive at 9600/19200/38400/57600/115200
I|J|K|L|M I if modem will be programmed at 9600
J if modem will be programmed at 19200
K if modem will be programmed at 38400
L if modem will be programmed at 57600
M if modem will be programmed at 115200
\r\nOK\r\n Modem is ready to be programmed
Program Sequence:
DTE Modem Comments
ATFLP\r Request to the modem to program
G Modem is ready for next program packet
[Length
High]
High byte of data packet length
[Length Low] Low byte of data packet length
Packet lengths can be up to 4096 bytes in size for most boot code
versions
[Address
High]
High byte of program address
[Address
Middle]
Middle byte of program address
[Address
Low]
Low byte of program address
Addresses are 3 byte values with a range of 00000h-FFFFFh
[Data Bytes] These are the data bytes to be programmed at the address specified
above. They must be the same number of bytes as specified above.
[Checksum] This checksum is generated by exclusive ORing together all of the
Data Bytes (do not include the Length or Address bytes in that
calculation).
\nOK\r\n
\nERROR\r\n
If bytes are programmed and verified.
If verify fails or checksum is bad.
Retry the block 3 times on an ERROR.
….
….
More of the above sequence until all the data bytes have been sent
to the modem.
ATFLEND\r This ends programming and restarts the modem.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 32
Other Supported Boot Code Commands
2.1 ATI0 - returns 000 or 247 for ISDN
2.2 ATI1 - returns boot code version number MM.mmn where
MM = unique code for each different platform that has boot code
mm = version number of boot code
n = version letter of the boot code
Examples: 2.05e, 2.12d, 35.15
ATI4- Boot code date and time.
Other Programming Concerns
1. The packets sent to the modem must be presorted by address and aligned on 128 byte boundaries (i.e., each
packet must start on an address that is a multiple of 128).
2. The packets should also be a minimum of 128 bytes with the non-programmed bytes set to the hex value of FF.
3. The packets sent to the modem must not span a 4K boundary (i.e., start the packet before it and go over the
boundary in the middle of the packet).
4. The 10-millisecond delay between M’s at the beginning of the handshake is so that the modem can sync up to
the start bit. If the M’s are sent one right after another, a data bit might be mistaken as a start bit.
5. Multi-Tech firmware files are in Intel Hex Format and must be read in and formatted into 128-4096 byte blocks
before being sent to the modem.
Information about the Intel Hex Format
An Intel Format Hex File is a text file consisting of “records”, one per line, that start with a “:” character and include
only digits 0-9 and letters A-F. There are three different record types: Extended Address Records, Data Records, and
End of File Records.
Data records contain the actual data that is to be programmed into a device. The address contained in the data
record needs to be combined with an extended address (by adding the extended address shifted four bits left to the
data record address) to determine the actual programming address for the data. If no extended address record is
before a given data record in the file, then the extended address value is assumed to be zero.
Data Record
Char Pos Field Type Value Description
1 Record Start “:”
2-3 Data Byte Count “NN” Maximum value is FF (which is 255 data bytes).
Typical is 20h which causes the hex record to fit in 80
columns.
4-7 Address “XXXX” Lower 16 bits of 20 bit address, most significant byte
first. This must be added to Extended Address left
shifted four bits.
8-9 Record Type “00” Data Record
10+N Data Bytes “YY..YY
”
The data bytes in hex. Each byte is two characters.
NN+1,2 Checksum “ZZ” Zero minus the two’s complement addition of all data
hex values.
NN+3,4 End of Line “\r\n” Carriage Return followed by a Line Feed
Example Data Record in Intel Format
:2000A0005BB66DDBB66CD8B060C183060D1B366DDBB66DDBB76FDFBF7EFDFBF6EDDBB66DD4
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 33
Extended Address Record
Char
Pos Field Type Value Description
1 Record Start “:”
2-3 Data Byte Count “02” Always 2 bytes for this record type
4-7 Address “0000” Not used for this record type (must be zero)
8-9 Record Type “02” Extended Address Record
10-13 Extended Address “EEEE” Top 16 bits of 20 bit address, most significant byte first
14-15 Checksum “ZZ” Zero minus the two’s complement addition of all data hex values
16-17 End of Line “\r\n” Carriage Return followed by a Line Feed
Example Extended Address Record in Intel Format :020000021000EC
End of File Record
Char
Pos Field Type Value Description
1 Record Start “:”
2-3 Data Byte Count “00” Always 2 bytes for this record type
4-7 Address “0000” Transfer Address (usually be zero)
8-9 Record Type “01” End of File Record
10-11 Checksum “ZZ” Zero minus the two’s complement addition of all data hex values
12-13 End of Line “\r\n” Carriage Return followed by a Line Feed
Example End of File in Intel Format :00000001FF
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 34
Wireless Information
Antenna System for Wireless Devices
The antenna system for use with Multi-Tech modems built into your products must include a coax cable to interface
between UFL or MMCX connection on the modem and the antenna itself.
RF Specifications
GSM/EGSM RF Specifications
GSM 850 EGSM 900 GSM 1800 GSM 1900
Frequency RX 869 to 894 MHz 925 to 960 MHz 1805 to 1880 MHz 1930 to 1990 MHz
Frequency TX 824 to 849 MHz 880 to 915 MHz 1710 to 1785 MHz 1850 to 1910 MHz
RF Power Stand 2W at 12.5% duty cycle 2W at 12.5% duty cycle 1W at 12.5% duty cycle 1W at 12.5% duty cycle
CDMA RF Specifications
CDMA 800 CDMA 1900
Frequency RX 869 to 894 MHz 1930 to 1990 MHz
Frequency TX 824 to 849 MHz 1850 to 1910 MHz
The Antenna
GSM Antenna Requirements/Specifications
Frequency Range 824 – 960 MHz / 1710 – 1990 MHz
Impedance 50 Ohms
VSWR VSWR shall not exceed 2.0:1 at any point across the bands of operation
Typical Radiated Gain 0 dBi on azimuth plane
Radiation Omni-directional
Polarization Vertical
Wave Half Wave Dipole
Cable Loss The cable loss shall be such that the total radiate power (TRP) at the antenna shall
be no less than +22/24.5 dBm for 850/1900 MHz respectively, and the total isotropic
sensitivity (TIS) at the antenna shall be no less than -99/101.5 dBm for 850/1900
MHz respectively.
GPS (Global Positioning) Antenna Requirements/Specifications
Frequency 1575MHz
Impedance 50 Ohms
VSWR 2.0db
Input voltage 3.0V +/- 0.3V
Connection SMA
Antennas Available from Multi-Tech
Quad Band Description Qty Part Number
Hinged Right Angle 800/900/1800/1900 MHz Cellular Modem Antenna 1 ANQB-1HRA
Hinged Right Angle 800/900/1800/1900 MHz Cellular Modem Antenna 10 ANQB-10HRA
Hinged Right Angle 800/900/1800/1900 MHz Cellular Modem Antenna 50 ANQB-50HRA
Dual Band Description Qty Part Number
Hinged Right Angle 900/1800 MHz Cellular Modem Antenna 1 ANF1-1HRA
Hinged Right Angle 900/1800 MHz Cellular Modem Antenna 10 ANF1-10HRA
Hinged Right Angle 900/1800 MHz Cellular Modem Antenna 50 ANF1-50HRA
Hinged Right Angle 800/1900 MHz Cellular Modem Antenna 1 ANCF2-1HRA
Hinged Right Angle 800/1900 MHz Cellular Modem Antenna 10 ANCF2-10HRA
Hinged Right Angle 800/1900 MHz Cellular Modem Antenna 50 ANCF2-50HRA
Bluetooth and Wi-Fi Qty Part Number
Hinged 2.4 MHz Bluetooth / Wi-Fi Antenna 1 ANBT-1
Hinged 2.4 MHz Bluetooth / Wi-Fi Antenna 10 ANBT-10
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 35
Coax Cables
MMCX-to-SMA and MMCX to RSMA Coax Cable
This cable shown below is included in the Developer Kit for the CDMA, EDGE SocketModems, and the
SocketWireless Bluetooth.
Cable Specifications
Cable Type: Coax Cable
Attenuation: <1.0db
Connector Impedance: 50 Ohms
An optional antenna cable (SMA to MMCX) can be ordered from Multi-Tech Systems, Inc.
Part Number Description
CASMA-MMCX-1 SMA to MMCX COAX RF 6 inch cable (Single Pack)
CASMA-MMCX-10 SMA to MMCX COAX RF 6 inch cable (Ten Pack)
MMCX-to-SMA Adapter
An antenna with an SMA connector may be directly connected to a SocketModem GPRS/CDMA
through a mating MMCX-to-SMA adapter.
SMA-to-MMCX Connector Available from Amphenol
Amphenol
http://www.amphenol.com/
Order No: 908-31100
Comment [DAR20]: Adapter_Amph
Comment [DAR21]: Now new from
Dean.
(was Wireless Antenna Cable from
Ken 20903C_cable only.jpg
Wireless Antenna Cable from
Ken_20903c_generic.FH9f
Wireless Antenna Cable from
Ken_20903c_generic.pdf)
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 36
UFL-to-SMA and UFL-to-RSMA Coax Cable
The UFL-to-SMA cable is included in the Developer Kit for the GPS (Global Positioning), GPRS and HSDPA
SocketModems.
Cable Specifications
Cable Type: Coaxial Cable
Attenuation: <1.0db
Connector Impedance: 50 ohm
An optional antenna cables can be ordered from Multi-Tech Systems, Inc.
Part Number Description
CASMA8-UFL-1 SMA to UFL COAX RF 8 inch cable (Single Pack)
CASMA8-UFL-10 SMA to UFL COAX RF 8 inch cable (Ten Pack)
CARSMA8-UFL-1 RSMA to UFL COAX RF 8 inch cable (Single Pack)
CARSMA8-UFL-10 RSMA to UFL COAX RF 8 inch cable (Ten Pack)
PTCRB Requirements for the Antenna
There cannot be any alteration to the authorized antenna system. The antenna system must be the same
type with similar in-band and out-of-band radiation patterns and maintain the same specifications.
FCC Requirements for the Antenna
The antenna gain, including cable loss, must not exceed 3.0 dBi at 1900 MHz / 1.6 dBi at 850 MHz for
mobile operating and fixed mounted operations, as defined in 2.1091 and 1.1307 of the rules for satisfying
RF exposure compliance.
Comment [DAR22]: Now new from
Dean SocketModem_SS_Auxiliary
Cable. PNG 2/4/2009
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 37
Account Activation for Wireless Devices
Pre-Configured Multi-Tech Products
Some Multi-Tech wireless modems have been pre-configured to operate on a specific wireless network, such as
Sprint and Verizon.
However, before you can begin to use the modem, you must set up a wireless data account with your wireless
network provider. Then, follow the activation procedures covered on the Activation Notices available from Multi-Tech.
Wireless Approvals and Labeling Requirements
Approvals and Certification
The Multi-Tech SocketModem is Industry and/or Carrier Approved as an End Product modem. In most cases, when
integrated and used with an antenna system that was part of the Multi-Tech modem certification, no additional
approvals or certifications are required (however, CDMA has a few exceptions) for the device you develop as long as
the following are met:
PTCRB Requirements:
The antenna system cannot be altered.
Model Identification:
IMPORTANT
When the wireless carrier asks you to provide the modem's model identification,
give the Multi-Tech wireless model identification, not the identification of the host device model.
See the label example below.
The Multi-Tech model identification allows the carrier to verify the modem as one of its approved models.
This information is located on the modem's label.
The Following Is an Example of an End Product GPRS Label:
Host Device Model
Identification
Multi-Tech
SocketModem Model
Identification
IMEI
(International Mobile
Equipment Identity)
Comment [DAR23]: Now Label
F4.png saved in Graphics new in Rev
K
62kb
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 38
The Following Is an Example of an End Product CDMA Label:
Multi-Tech Model Identification
Multi-Tech Ordering Part Number
ESN:
Electronic Serial Number in
Hexadecimal Format
and Decimal Format
Other Information the Wireless Carrier Asks You to Provide:
For CDMA SocketModems: The modem's 8-character ESN (Electronic Serial Number) number printed next
to the barcode on the modem. The ESN may vary in format by various CDMA carriers; some use a decimal
number while others use a hexadecimal number.
For GSM SocketModems: The modem's 15-character IMEI (International Mobile Equipment Identity)
number printed on the modem's label.
Comment [DAR24]: Label Small-
C.png 23KB 6/16/09
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 39
Analog Information
Recommended Parts for Analog SocketModems
Disclaimer: Multi-Tech Systems makes no warranty claims for vendor product recommendations listed below. Other
vendor products may or may not operate satisfactorily. Multi-Tech System’s recommended vendor products only indicate
that the product has been tested in controlled conditions and were found to perform satisfactorily.
Surface mount ferrites are used on T&R (Tip and Ring) to mitigate emission levels out the RJ-11 cable. 220pF capacitors
are also used on T&R to reduce the common mode emissions that may be present in certain systems. See the Tip and
Ring drawings in each analog SocketModem chapter.
The ferrite and capacitors also aid in reducing the effects of transients that may be present on the line.
Note: These parts are RoHS compliant.
Recommended Ferrite (SMT)
Manufacturer – Associated Component Technology (ACT) Part # CBZ1206-202-30-LF
Manufacturer – Murata Erie Part # BLM31AJ601SN1L
Recommended Ferrite (Thru-Hole)
Manufacturer – Associated Component Technology (ACT) Part # WB2-2.OT
Recommended Capacitor (SMT)
Manufacturer – NOVACAP Part # ES2211N221K502NXT
Manufacturer – Murata Erie Part # GA355DR7GC221KY02L
Recommended Capacitor (Thru-Hole)
Manufacturer – Ever Grace Electronic Industrials Part # YP221K2EA7PS-8.0
Manufacturer – Murata Erie Part # DE2B3KH221KA3B
Note: Capacitors used on T&R must have the Y2 safety rating.
Recommended RJ-11 Connector
Manufacturer – Full Rise Electronic Co. Part # E5964-00P045
Recommended Sidactor
Manufacturer – RayChem / Tyco Electronics Part # TVB400MSC-L
Manufacturer – ST Microelectronics Part# SMPMC-400
Recommended Poly Switch Thermal Fuse (SMT)
Manufacturer – RayChem / Tyco Electronics Part # TS600-170F
Recommended Poly Switch Thermal Fuse (Thru-Hole)
Manufacturer – RayChem (Tyco Electronics) Part# TRF600-150
Note: The Fuse & Sidactor are required in order to comply with UL60950 for protection against over-voltages from power
line cross. Fuse can be reset type.
Common Mode Choke
Manufacturer – TDK Part # ZJYS51R5-2PT-01
Recommended Transceiver
Manufacturer – Analog Devices Part # ADM207EARZ
SIP Connector
Manufacturer – Neltron Industrial Co. (http://www.neltron.com.tw/) Part #2209S-xxSG
4-Pin 2.0mm SIP Socket (2 Each)
10-Pin 2.0mm SIP Socket (2 Each)
Telecom
The RJ-11 connector must meet FCC Part 68 requirements. Refer to FCC Part 68 section 68.500 subpart F for connector
specifications. A self-healing fuse is used in series with line to help prevent damage to the DAA circuit. This fuse is
required in order to meet compliance regulations.
Note: See Application Notes at the end of each SocketModem chapter.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 40
Analog Labeling Requirements
United States Labeling Requirements (for Dial-Up Modems)
Telecom does not apply to all products. For example, this is not applicable for the SocketModem GPRS and
CDMA products.
Approved terminal equipment and approved protective circuitry shall prominently display the following
information using the format shown below:
Responsible party
Product Identification
Equipment Code
Ringer Equivalence
Ringer Type
Indication that the product meets the requirements of FCC Part 68
The information required by the first five items shall correspond to the records in the ACTA (America's Carriers
Telecommunications Association) database of approved equipment. The required information shall be encoded
in the following format:
US: AAAEQ##TXXX
Where:
US: Is a fixed field that indicates the equipment meets all requirements of 47 CFR Part 68, including the
requirements published by ACTA (America's Carriers Telecommunications Association).
AAA is the responsible party’s Grantee Code obtained previously from the FCC’s Common Carrier Bureau or
currently from ACTA.
EQ Is an Equipment Code indicating to the Service Provider any special signal handling or billing requirements.
The Equipment codes are listed in Annex A (normative).
## is the Ringer Equivalence Number without a decimal point (e.g. REN of 1.0 = 10, REN of 0.3 = 03). In the
case of a “Z” ringer, ZZ shall appear. In the case of approved equipment without a network interface and
equipment not connecting to circuits with analog ringing supplied then “NA” shall appear.
T is the ringer type letter associated with the Ringer Equivalence Number, in accordance with the technical
requirements. In the case of approved equipment without a network interface and equipment not connecting to
circuits with analog ringing supplied, the letter “N” shall appear.
XXX Is a product identifier, unique when combined with the responsible party’s Grantee Code, of at least one
and up to nine alphanumeric characters (including one or more dashes (-) if desired. A dash shall not appear as
the first or last character nor shall the identifier consist entirely of dashes). The responsible party shall define this
identifier.
Label Physical Characteristics
The information required above shall be permanently affixed and legible without magnification. It may be
etched, engraved, stamped, indelibly printed, or otherwise permanently marked. Alternatively, the required
information may be permanently marked on a nameplate of metal, plastic or other material fastened to the
enclosure by welding, riveting or with a permanent adhesive. Such a nameplate shall be able to last for the
expected lifetime of the equipment and shall not be readily detachable.
Labeling Continuity and Changes
The labeling content and format requirements in effect when a product was approved shall be effective for
the life of the product. The labeling content and format requirements in effect at approval shall also continue
to be effective for modified products. However, the responsible party shall have the option of conforming a
product's labeling to current content and format requirements at any time.
Other Label Requirements
The label shall be placed in one of the following locations in a location where it can be found after
installation:
on an outside surface
inside a readily available access door or panel
on another readily accessible surface
For example, the label should not be placed on the rear of a permanently wall-mounted device in a manner
such that it is not readily accessible.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 41
Canadian Labeling Requirements (for Dial-Up Modems)
The following requirements are established under section 69.3 of the Telecommunications Act for purposes of
section 5 of the Telecommunications Apparatus Regulations.
Registered equipment shall bear the following identifying marks, and the Declaring Party shall ensure that these
marks are permanently affixed to the equipment:
(a) The registration number — Specifications of this mark are given in the document: Self-Marking of the
Certification/Registration Number on Terminal Equipment — Application Procedure and Agreement; and
(b) The model identification number under which the product was registered.
A statement of compliance with Industry Canada requirements, such as the one given below, shall accompany
each unit of equipment whether registered under this procedure or previously certified:
"This product meets the applicable Industry Canada technical specifications"
For terminal equipment intended for connection to loop-start or ground-start interfaces, the Ringer Equivalence
Number (REN) must be calculated as per Section 1.8 of CS-03, Part I. A REN higher than that determined may
be assigned by manufacturers to allow for production variations. The REN must be marked on the terminal
equipment itself or added to the note below. A note similar to the following shall accompany each unit of
equipment whether registered under this procedure or previously certified:
"The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be
connected to a telephone interface. The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the RENs of all the devices does not exceed
five".
Pursuant to section 69.3 of the Telecommunications Act, certified or self-declared TE will bear a valid identifying
certification number or registration number. The marking of the certification or registration number on the product
shall be as follows:
(a) TAC holder/DP will be responsible for permanently affixing the certification/registration number on the TE.
The certification/registration number (see example below) identifies Certified or self-declared TE to the
public, representatives of the telecommunications common carriers, the Department, and other interested
parties. The letter height must be no less than 1.5 mm and the letters must be legible without magnification.
(b) For integrated devices, e.g. a modem or one that is intended to become a sub-assembly of host equipment
e.g. a data terminal, computer etc. that are designed to interface directly with the network, the
certification/registration number shall be affixed to the integrated device itself.
(c) The certification/registration number for a packaged TE will denote that the total package has been
registered. However, the marking will normally be placed on that unit of the package which connects to the
network; e.g., in a PBX the marking will be placed on the common equipment which connects to the
network, rather than on plug-in components which may be added later. The Terminal Equipment List will
show the common equipment but not the standard station apparatus or any proprietary station apparatus.
(d) The marking format of the certification/registration number is as follows:
IC: XXXXXX-YYYYYYYY
Where:
The letters "IC" have no other meaning or purpose than to identify the Industry Canada
certification/registration number, and
“XXXXXX-YYYYYYYY” is the certification/registration number; “XXXXXX” is the Company Number¹ (CN);
it consists of up to six alphanumeric characters (A-Z, 0-9) assigned by Industry Canada; and
“YYYYYYYY” is the Unique Product Number (UPN); it consists of up to eight alphanumeric characters (A-
Z, 0-9) assigned by the applicant. Other characters, (such as & # *-) may not be used. Alphabetic
characters must be capitalized.
¹ Note: The Company Number of registered equipment ends with an alphabetic character.
(e) Certification Numbers granted prior to the implementation of the above marking format are grandfathered.
(i) For previously certified TE, the self-marking format shall consist of the old certification number preceded
by “IC:” For example, if the certification number is “123 1234 A”, then the self-mark would read “IC: 123
1234 A”.
(ii) For a new model that is registered to a family of previously certified TE, the self-marking format shall be:
IC: XXXXXX-ZZZZZZZZ
Where:
“XXXXXX” is the Company Number, as in (d) above; and
“ZZZZZZZZ” is either the old certification number minus the old company number, or a new Unique
Product Number assigned by the applicant. For example, if a new model is registered to the family of
products with certification number “123 1234 A”, and that the Company Number for the registration is
“123A”, then the self-mark for this new model would read “IC: 123A-1234 A”. If the applicant decides to
replace “1234 A” with a new UPN, say “5678", then the self-mark would read “IC: 123A-5678".
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 42
Label Examples for Analog SocketModems
Note: These do not apply to the Wireless GPRS and CDMA products.
Serial Label
This label shows the
modem model (M/N),
build option (B/O),
date of manufacture
(DOM), serial number,
and North America
and European Union
regulatory information.
This is an example of
Regulatory Label
which is available from
Multi-Tech by request.
Comment [DAR25]: Label Small
MT9234SMI.png 6/16/09
Label 9234SMI Scan0549_000.png
6/16/09
Comment [DAR26]: Label 9234SMI
Scan 0549_000.png 55KB 6/15/09
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 43
Safety Notices and Warnings
Note to OEMs: The following safety statements may be used in the documentation of your final product
applications.
Wireless Safety
General Safety
The modem is designed for and intended to be used in fixed and mobile applications. “Fixed” means that the
device is physically secured at one location and is not able to be easily moved to another location. “Mobile”
means that the device is designed to be used in other than fixed locations.
RF Safety
The remote modems are wireless cellular telephones devices. It is important to follow any special
regulations regarding the use of radio equipment due in particular to the possibility of Radio Frequency (RF)
interference.
Caution: A separation distance of at least 20 cm must be maintained between the modem transmitter’s
antenna and the body of the user or nearby persons. The modem is not designed for or intended to be used
in portable applications within 20 cm of the body of the user. In particular, if using a Yagi antenna, it must be
in a location that prevents public exposure to the radiation limits being exceeded. Check your local
standards regarding safe distances, etc.
Wireless modems in an ATM in, for example, a hospital environment and any other place where medical
equipment may be in use, may be a hazard. This statement also applies to inadequately protected
personal medical devices such as hearing aids and pacemakers.
Operation of a wireless modem close to other electronic equipment may also cause interference if the
equipment is inadequately protected. Observe any warning signs and manufacturers’ recommendations.
The modems must not be operated around gasoline or diesel-fuel.
RF Interference Safety
It is important to follow any special regulations regarding the use of radio equipment due in particular to the
possibility of radio frequency, RF, interference. Please follow the safety advice given below carefully.
Switch OFF your Wireless MultiModem when in an aircraft. The use of cellular telephones in an aircraft
may endanger the operation of the aircraft, disrupt the cellular network and is illegal. Failure to observe
this instruction may lead to suspension or denial of cellular telephone services to the offender, or legal
action or both.
Switch OFF your Wireless MultiModem when around gasoline or diesel-fuel pumps and before filling your
vehicle with fuel.
Switch OFF your wireless device in hospitals and any other place where medical equipment may be in
use.
Respect restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting
operations are in progress.
There may be a hazard associated with the operation of your wireless device close to inadequately
protected personal medical devices such as hearing aids and pacemakers. Consult the manufacturers of
the medical device to determine if it is adequately protected.
Operation of your wireless device close to other electronic equipment may also cause interference if the
equipment is inadequately protected. Observe any warning signs and manufacturers’ recommendations.
Vehicle Safety
Do not use your wireless device while driving.
Respect national regulations on the use of cellular telephones in vehicles. Road safety always comes first.
If incorrectly installed in a vehicle, the operation of a wireless telephone could interfere with the correct
functioning of vehicle electronics. To avoid such problems, be sure that qualified personnel have
performed the installation. Verification of the protection of vehicle electronics should be part of the
installation.
The use of an alert device to operate a vehicle’s lights or horn on public roads is not permitted.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 44
Maintenance of Your Wireless Device
Your wireless device is the product of advanced engineering, design, and craftsmanship and should be
treated with care. The suggestions below will help you to enjoy this product for many years.
Do not expose the wireless device to any extreme environment where the temperature is above 50ºC or
humidity is above 90% noncondensing.
Do not attempt to disassemble the wireless device. There are no user serviceable parts inside.
Do not expose the wireless device to water, rain, or spilled beverages. It is not waterproof.
Do not place the wireless device alongside computer discs, credit or travel cards, or other magnetic
media. The phone may affect the information contained on discs or cards.
The use of accessories not authorized by Multi-Tech or not compliant with Multi-Tech's accessory
specifications may invalidate the warranty of the wireless device.
In the unlikely event of a fault in the wireless device, contact Multi-Tech Tech Support.
Your Responsibility
This wireless device is your responsibility. Please treat it with care respecting all local regulations. It is not a
toy. Therefore, keep it in a safe place at all times and out of the reach of children.
Try to remember your Unlock and PIN codes. Become familiar with and use the security features to block
unauthorized use and theft.
Analog Telecom Safety Warnings
1. Never install telephone wiring during a lightning storm.
2. Never install a telephone jack in wet locations unless the jack is specifically designed for wet locations.
3. This product is to be used with UL and cUL listed computers.
4. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at
the network interface.
5. Use caution when installing or modifying telephone lines.
6. Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from
lightning.
7. Do not use a telephone in the vicinity of a gas leak.
8. To reduce the risk of fire, use only 26 AWG or larger telecommunication line cord.
9. This product must be disconnected from its power source and telephone network interface when servicing.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 45
Telecom Approvals for Analog Modems
Multi-Tech's Analog Global* SocketModems are designed and approved for connection to the public switched
telephone network in more than 50 countries or regions worldwide. Multi-Tech's SocketModems have been approved
as host independent, which means our certification efforts can be transferred directly to your end product with proper
labeling on the OEM equipment. Multi-Tech supports our approvals by supplying our customers with supporting
documentation and offering a compliance label with country or regional approval logos and approval numbers to be
attached to an end product.
The following is a list of countries or regions that Multi-Tech completes testing and obtains** certification test reports
or certificates at or near the initial release of the product. After the initial release, the product may be tested and
certified for other countries or regions. Check the Multi-Tech Systems, Inc. Web site at
http://www.multitech.com/products/info/approvals/smi.asp or contact Multi-Tech at oemsales@multitech.com to
obtain a current list of approvals for the SocketModem.
Countries or Regions
Argentina France Liechtenstein Singapore
Australia Germany Lithuania Slovakia Republic
Austria Greece Luxembourg Slovenia
Belgium Hong Kong, S.A.R. of China Malta South Africa
Bulgaria Hungary Mexico Spain
Canada Iceland Netherlands Sweden
Chile Indonesia New Zealand Switzerland
China Ireland Norway Taiwan
Cyprus Israel Philippines Thailand
Czech Republic Italy Poland Turkey
Denmark Japan Portugal United Kingdom
Estonia Korea Romania United States
Finland Latvia Russia
The above list is our target set of countries or regions in which the global* SocketModems are approved. Many of
the approvals are completed at the time the product is released to market; whereas, others may take additional
months to complete the approval.
* Refer to each chapter for Product Ordering Information identifying the modem as Global or Regional.
** Some countries or regions have special import requirements that require us to facilitate additional paperwork
application in partner with our customers. Contact Technical Support or Multi-Tech at
oemsales@multitech.com for more information.
Note:
Setting Country/Regional Codes – Country or Regional Codes are usually set through AT Commands.
See each product’s AT Command guide.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 46
Regulatory Compliance Statements
Country/Region-Specific Statements
EMC, Safety, and R&TTE Directive Compliance
The CE mark is affixed to this product to confirm compliance with the following European Community Directives:
Council Directive 2004/108/EC of 15 December 2004 on the approximation of the laws of Member States
relating to electromagnetic compatibility;
and
Council Directive 2006/95/EC of 12 December 2006 on the harmonization of the laws of Member States
relating to electrical equipment designed for use within certain voltage limits;
and
Council Directive 1999/5/EC of 9 March 1999 on radio equipment and telecommunications terminal
equipment and the mutual recognition of their conformity.
International Modem Restrictions
Some dialing and answering defaults and restrictions may vary for international modems. Changing settings may
cause a modem to become non-compliant with national telecom requirements in specific countries. Also note
that some software packages may have features or lack restrictions that may cause the modem to become non-
compliant.
EMC Requirements for the United States
47 CFR – FCC Part 15 Regulation
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
47 CFR – FCC Part 15 regulations. The stated limits in this regulation are designed to provide reasonable
protection against harmful interference in a residential environment. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with 47 CFR – FCC Part 15 rules. Operation of this device is subject to the following
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
EMC Requirements for Industry Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel
brouilleur.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 47
47 CFR Part 68 Telecom
1. This equipment complies with Part 68 of the 47 CFR rules and the requirements adopted by the ACTA.
Located on this equipment is a label that contains, among other information, the registration number
and ringer equivalence number (REN) for this equipment or a product identifier in the format:
For current products is US:AAAEQ##Txxxx.
For legacy products is AU7USA-xxxxx-xx-x.
If requested, this number must be provided to the telephone company.
2. A plug and jack used to connect this equipment to the premises wiring and telephone network must
comply with the applicable 47 CFR Part 68 rules and requirements adopted by the ACTA. It’s designed
to be connected to a compatible modular jack that is also compliant.
3. The ringer equivalence number (REN) is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line may result in the devices not
ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed
five (5.0). To be certain of the number of devices that may be connected to a line, as determined by
the total RENs, contact the local telephone company. For products approved after July 23, 2001, the
REN for this product is part of the product identifier that has the format US:AAAEQ##Txxxx. The digits
represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products,
the REN is separately shown on the label.
4. If this equipment causes harm to the telephone network, the telephone company will notify you in
advance that temporary discontinuance of service may be required. But if advance notice isn't
practical, the telephone company will notify the customer as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you believe it is necessary.
5. The telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the operation of the equipment. If this happens, the telephone company will provide
advance notice in order for you to make necessary modifications to maintain uninterrupted service.
6. If trouble is experienced with this equipment, please contact Multi-Tech Systems, Inc. at the address
shown below for details of how to have the repairs made. If the equipment is causing harm to the
telephone network, the telephone company may request that you disconnect the equipment until the
problem is resolved.
7. Connection to party line service is subject to state tariffs. Contact the state public utility commission,
public service commission or corporation commission for information.
8. No repairs are to be made by you. Repairs are to be made only by Multi-Tech Systems or its
licensees. Unauthorized repairs void registration and warranty.
9. If your home has specially wired alarm equipment connected to the telephone line, ensure the
installation of this equipment does not disable your alarm equipment.
If you have questions about what will disable alarm equipment, consult your telephone company or a
qualified installer.
10. Connection to party line service is subject to state tariffs. Contact the state public utility commission,
public service commission or corporation commission for information.
11. This equipment is hearing aid compatible.
12. Manufacturing Information on telecommunications device (modem):
Manufacturer: Multi-Tech Systems, Inc.
Trade Name: Socket Modem SocketModem SocketModem
Model Number: MT9234SMI MT5692SMI MT2492SMI
Registration No: US:AU7MM01BMT9234SMI US:AU7MM01BMT5692SMI US:AU7MM01B2492SMI
Ringer Equivalence: 0.1B
Modular Jack (USOC): RJ11C or RJ11W (single line)
Service Center in USA: Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, MN 55112 U.S.A.
(763) 785-3500
(763) 785-9874 Fax
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 48
New Zealand Telecom Warning Notice
1. The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that
the item complies with minimum conditions for connection to its network. It indicates no endorsement of the
product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any
item will work correctly in all respects with another item of Telepermitted equipment of a different make or
model, nor does it imply that any product is compatible with all of Telecom’s network services.
This equipment is not capable under all operating conditions of correct operating conditions of correct
operation at the higher speed which it is designated. 33.6 kbps and 56 kbps connections are likely to be
restricted to lower bit rates when connected to some PSTN implementations. Telecom will accept no
responsibility should difficulties arise in such circumstances.
2. Immediately disconnect this equipment should it become physically damaged, and arrange for its disposal or
repair.
3. This modem shall not be used in any manner which could constitute a nuisance to other Telecom
customers.
4. This device is equipped with pulse dialing, while the Telecom standard is DTMF tone dialing. There is no
guarantee that Telecom lines will always continue to support pulse dialing.
Use of pulse dialing, when this equipment is connected to the same line as other equipment, may give rise
to 'bell tinkle' or noise and may also cause a false answer condition. Should such problems occur, the user
should NOT contact the Telecom Faults Service.
The preferred method of dialing is to use DTMF tones, as this is faster than pulse (decadic) dialing and is
readily available on almost all New Zealand telephone exchanges.
5. Warning Notice: No '111' or other calls can be made from this device during a mains power failure.
6. This equipment may not provide for the effective hand-over of a call to another device connected to the
same line.
7. Some parameters required for compliance with Telecom’s Telepermit requirements are dependent on the
equipment (PC) associated with this device. The associated equipment shall be set to operate within the
following limits for compliance with Telecom’s Specifications:
For repeat calls to the same number:
There shall be no more than 10 call attempts to the same number within any 30 minute period for
any single manual call initiation, and
The equipment shall go on-hook for a period of not less than 30 seconds between the end of one
attempt and the beginning of the next attempt.
For automatic calls to different numbers:
The equipment shall be set to ensure that automatic calls to different numbers are spaced such
that there is no less than 5 seconds between the end of one call attempt and the beginning of
another.
8. For correct operation, total of the RN’s of all devices connected to a single line at any time should not
exceed 5.
South African Statement
This modem must be used in conjunction with an approved surge protection device.
Thailand Approval for MT9234SMI and the MT5692SMI
This telecom device conforms to NTC* requirements.
*NTC is the National Telecommunications Commission, Thailand’s telecommunications regulator.
“เครื่องโทรคมนาคมและอุปกรณนี้ มีความสอดคลองตามขอกําหนดของ กทช.”
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 49
Brazil Approval for the MT9234SMI and MT5656SMI
This product has been homologated by ANATEL. This product meets the applied technical requirements in
accordance with the procedures regulated by ANATEL. Reference of homologation of this product can be viewed
in ANATEL web page: http://www.anatel.gov.br
Brazil Bar Code for MT9234SMI
Brazil Bar Code for MT5656SMI
Brazil Certification (MT9234SMI Model Only)
A special phone cable is required for regulatory compliance.
Um cabo especial para telefone é requerido para a conformidade regulatória.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 50
Japan Requirements
These devices conform to (JATE) Japan Approval Institute for Telecommunications Equipment:
MT5692SMI – JATE Approval A09-0123001
MT9234SMI – JATE Approval AD06-0220001
Important Note: SocketModems are approved for product development in Japan only if they are removable
from the manufactured product. The SocketModem must not be soldered into place.
Japan requires that your manufactured product documentation include SocketModem installation and removal
instructions as well as connection to the PSTN network. The following text provides general steps to follow.
Installation of the SocketModem from Your Manufactured Product
1. If applicable, disconnect any power cord and peripherals you may have attached to your manufactured
product.
2. Place the SocketModem on the board of your product. Be sure to match the pins on the SocketModem with
the correct orientation on your board.
3. Be sure that the SocketModem is securely fastened to board so that it cannot come loose while handling or
during shipping. Some examples of fasteners include nylon screws, tie wraps, etc. Remember that you
cannot solder the SocketModem in place.
4. Put the cover on your product and connect the power and peripherals.
Removal of the SocketModem from your Manufactured Product
1. Back up the current configuration of your manufactured product if you want to save it.
2. Record any information not stored in the configuration that you may want to reference.
3. Disconnect any power cord and peripherals from your manufactured product.
4. Remove the cover from your product.
5. To remove the SocketModem, gently lift the SocketModem upwards while holding the board in place.
Connecting to the PSTN Network
For connection to a PSTN network, see the Tip and Ring Interface section in each analog SocketModem
chapter.
Other Countries
The above country-specific examples do not cover all countries with specific regulations; they are included to
show you how each country may differ. If you have trouble determining your own country's requirements, check
with Multi-Tech's Technical Support for assistance.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 51
Waste Electrical and Electronic Equipment
Statement
Note to OEMs: The statement is included for your information and may be used in the
documentation of your final product applications.
WEEE Directive
The WEEE directive places an obligation on EU-based manufacturers, distributors, retailers, and importers to take-
back electronics products at the end of their useful life. A sister Directive, ROHS (Restriction of Hazardous
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the
products at the design phase. The WEEE Directive covers all Multi-Tech products imported into the EU as of August
13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery
from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
Instructions for Disposal of WEEE by Users in the European Union
The symbol shown below is on the product or on its packaging, which indicates that this product must not be
disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it
over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health and the environment. For more information about
where you can drop off your waste equipment for recycling, please contact your local city office, your household
waste disposal service or where you purchased the product.
July, 2005
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 52
Restriction of the Use of Hazardous Substances
(RoHS)
Multi-Tech Systems, Inc.
Certificate of Compliance
2002/95/EC
Multi-Tech Systems Inc. confirms that its embedded products now comply with the chemical concentration limitations
set forth in the directive 2002/95/EC of the European Parliament (Restriction Of the use of certain Hazardous
Substances in electrical and electronic equipment - RoHS)
These Multi-Tech Systems, Inc. products do not contain the following banned chemicals:
Lead, [Pb] < 1000 PPM
Mercury, [Hg] < 1000 PPM
Hexavalent Chromium, [Cr+6] < 1000 PPM
Cadmium, [Cd] < 100 PPM
Polybrominated Biphenyl, [PBB] < 1000 PPM
Polybrominated Diphenyl Ether, [PBDE] < 1000 PPM
Moisture Sensitivity Level (MSL) =1
Maximum Soldering temperature = 260C (wave only)
Notes:
1. Lead usage in some components is exempted by the following RoHS annex; therefore, higher lead
concentration would be found in some SocketModems (>1000ppm).
a. Lead in high melting temperature type solders (i.e., tin-lead solder alloys containing more than 85%
lead).
b. Lead in electronic ceramic parts (e.g., piezoelectronic devices).
2. Moisture Sensitivity Level (MSL) – Analysis is based on the components/material used on the board.
Comment [DAR27]: Stored in
common text as png. 3KB
Comment [DAR28]: Bud said to
take out the Tin Whisker growth
statements 8/24/09. He had said this
previously, but they somehow didn't
get removed.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 53
Information on HS/TS Substances according to
Chinese Standards in English
In accordance with China’s Administrative Measures on the Control of Pollution Caused by Electronic
Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding
the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be
contained in Multi-Tech Systems Inc. products relative to the EIP standards set by China’s Ministry of
Information Industry (MII).
Hazardous/Toxic Substance/Elements
Name of the
Component Lead
(PB)
Mercury
(Hg) Cadmium
(CD) Hexavalent
Chromium
(CR6+)
Polybrominated
Biphenyl (PBB) Polybrominated
Diphenyl Ether
(PBDE)
Printed Circuit Boards O O O O O O
Resistors X O O O O O
Capacitors X O O O O O
Ferrite Beads O O O O O O
Relays/Opticals O O O O O O
ICs O O O O O O
Diodes/ Transistors O O O O O O
Oscillators and Crystals X O O O O O
Regulator O O O O O O
Voltage Sensor O O O O O O
Transformer O O O O O O
Speaker O O O O O O
Connectors O O O O O O
LEDs O O O O O O
Screws, Nuts, and other
Hardware
X O O O O O
ac-dc Power Supplies O O O O O O
Software /
Documentation CDs
O O O O O O
Booklets and Paperwork O O O O O O
Chassis O O O O O O
X Represents that the concentration of such hazardous/toxic substance in all the
units of homogeneous material of such component is higher than the SJ/Txxx-2006
Requirements for Concentration Limits.
O Represents that no such substances are used or that the concentration is within
the aforementioned limits.
Part 1 Universal Socket Connectivity Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 54
Information on HS/TS Substances According to
Chinese Standards in Chinese
依照中国标准的有毒有害物质信息
根据中华人民共和国信息产业部 (MII) 制定的电子信息产品 (EIP)
标准－中华人民共和国《电子信息产品污染控制管理办法》（第 39 号），也称作中国
RoHS，下表列出了 Multi-Tech Systems, Inc. 产品中可能含有的有毒物质 (TS) 或有害物质 (HS)
的名称及含量水平方面的信息。
有害/有毒物质/元素
成分名称 铅
(PB)
汞
(Hg)
镉
(CD)
六价铬
(CR6+)
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板 O O O O O O
电阻器 X O O O O O
电容器 X O O O O O
铁氧体磁环 O O O O O O
继电器/光学部件 O O O O O O
IC O O O O O O
二极管/晶体管 O O O O O O
振荡器和晶振 X O O O O O
调节器 O O O O O O
电压传感器 O O O O O O
变压器 O O O O O O
扬声器 O O O O O O
连接器 O O O O O O
LED O O O O O O
螺丝、螺母以及其它
五金件
X O O O O O
交流-直流电源 O O O O O O
软件/文档 CD O O O O O O
手册和纸页 O O O O O O
底盘 O O O O O O
X 表示所有使用类似材料的设备中有害/有毒物质的含量水平高于 SJ/Txxx-2006 限量要求。
O 表示不含该物质或者该物质的含量水平在上述限量要求之内。
PART 2 – Embedded Wireless Modems
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 55
Part 2
Wireless SocketModems
Chapter 2 – SocketModem Cell and iCell
Chapter 3 – SocketModem CDMA
Chapter 4 – SocketModem EDGE
Chapter 5 – SocketModem HSDPA
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 56
Chapter 2 – SocketModem Cell (MTSMC-
G2) & SocketModem iCell (MTSMC-G2-IP)
Introduction
The MTSMC-G2 is a serial to wireless quad-band GPRS SocketModem. It is a complete, ready-to-integrate SocketModem
that offers standards-based multi-band GSM/GPRS Class 10 performance. It is based on industry-standard open interfaces
and utilizes Multi-Tech’s universal socket design. The SocketModem is available with the Multi-Tech's Universal IP™ stack to
bring embedded Internet connectivity to any device.
Notes about Activation:
These units are shipped without network activation.
To connect to the wireless network, you will have to establish a wireless account. See the Wireless Activation
procedures on separate sheets included with the Developer Kit and available on the Developer Kit CD.
Product Build Options and Ordering Information
Product Description Region Order This
Product
3
MTSMC-G2 Quad-band GPRS SocketModem Cell US Default
MTSMC-G2-ED Quad-band GPRS SocketModem Cell EU Default
MTSMC-G2-V Quad-band GPRS SocketModem Cell with Voice US Default
MTSMC-G2-V-ED Quad-band GPRS SocketModem Cell with Voice EU Default
MTSMC-G2-IP Quad-band GPRS SocketModem iCell with Universal IP US Default
MTSMC-G2-IP-ED Quad-band GPRS SocketModem iCell with Universal IP EU Default
Developer Kit
MTSMI-UDK Universal Developer Kit Global
How to Read the Product Codes in the Table Above:
G2 GPRS
ED European Default
V Voice (microphone and speaker)
IP Universal IP™ Stack
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MTSMC-G2.Rx.
“R” indicates product revision. “x” is the revision number.
Note: All products can be ordered in single packs or 50-packs. Single pack product codes end in SP.
AT Commands Reference Guides
Products AT Commands Reference Guide Title & Document Number Fax Commands Voice Commands
SocketModem Cell
(MTSMC-G2 and
MTSMC-G2-V )
GPRS AT Commands for Multi-Tech G2 Wireless Modems
(S000463x)
AT Commands for Multi-Tech G2 Wireless Modems with IP
Connectivity (S000469x)
NA Included
SocketModem iCell
(TSMC-G2-IP) GPRS AT Commands for Multi-Tech G2 Wireless Modems
(S000463x)
Universal IP Commands (S000457x)
NA Included
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 57
Technical Specifications
The MTSMC-G2 and MTSMC-G2-IP SocketModems meet the following specifications:
Category Description
Standards GPRS Class 10
Frequency Bands Quad-band GSM/EGPRS 850/900/1800/1900 MHz
Serial/Data Speed Serial interface supports DTE speeds up to 921.6K
IP interface supports DTE speeds at the fixed rate of 115.2
Packet data up to 85.6K bps
Circuit-switched data (GPRS) up to 14.4K bps transparent and non-transparent
Supports data rates of 921600, 460800, 230400, 115200 bps
Data Format 10 bit Serial Asynchronous
Data Error Correction MNP2
Data Compression V.42bis
Weight 1 oz. (28 g)
Size 3.15" x 1.375" (80.010 mm x 34.925 mm)
Operating Temperature -40° C to +85° C
Storage Temperature -40 °C to +85°C
Humidity 10% to 90%
Input Power 5VDC
Operating Voltage Supply Range: VCC
Maximum: 5.5
Voltage at Any Signal Pin Minimum: GND
Maximum: VCC
Antenna Connector Surface mount UFL
SIM Holder Standard 3V SIM holder
IP Protocols Supported MTSMC-G2
DNS Resolve, FTP client, LCP, PPP (dial-out),TCP socket, UDP socket, PAP &
CHAP authentication
MTSMC-G2-IP
DNS Client, FTP Client, ICMP (Ping), POP3 Client, SMTP Client, TCP Client &
Server, UDP Client & Server, IP, PPP (dial-out) with PAP & CHAP authentication
M2M Applications MTSMC-G2-IP
Automatic connect/reconnect, device monitor, modem emulation, Ping & TCP keep
alive, wake-up on caller ID, wake-up on ring
Compliance EMC Compliance
FCC Part 15
EN55022
EN55024
Radio Compliance
FCC Part 22
FCC Part 24
RSS 132
RSS 133
EN 301 511
EN 301 489-1
EN 301 489-7
AS/ACIF S042.1
AS/ACIF S042.3
Safety Compliance
UL 60950-1
cUL 60950-1
IEC 60950-1
AS/NZS 60950-1
Network Compliance
PTCRB
Warranty Two years
Comment [DAR29]: From Dustin
6/24/09
Comment [DAR30]: From Dustin
6/24/09
Comment [DAR31]: Updated list
from Dustin for Rev. K
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 58
Specifications Continued:
Category Description
Features Modes of Operation: Data Mode, Command Mode, and Voice Mode
Embedded TCP/IP stack
Short Message Services (SMS)
RTS/CTS hardware flow control
AT command compatible
Support for HR, FR, EFR, and AMR (Adaptive Multi Rate) voice codec support
Flash upgradeable
Non-volatile memory
DC Electrical Characteristics
Units: Volts
5V DC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Parameter Minimum Maximum
Digital Signal Input Low Level
–DTR (40), –TXD (35), –RTS (33)
GND 0.8
Digital Signal Input High Level
–DTR (40), –TXD (35), –RTS (33) 2 Vcc
Digital Signal Output Low Level
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) 0.4
Digital Signal Output High Level
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) 3.84
Reset (Low Active) Input Low Level
–Reset (24) 0.8
Reset (Low Active) Input High Level
–Reset (24) 2
Digital Input Capacitance 14pF
Power Measurements
MTSMC-G2 Measured Power* Measures at Input Voltage 5.00
Sleep Typical Maximum Peak
Current (AMPS) 0.049 0.113 0.24 1.10
Watts 0.245 0.564 1.195
MTSMC-G2-IP Measured Power* Measures at Input Voltage 5.00
Sleep Typical Maximum Peak
Current (AMPS) 0.080 0.135 0.280 1.250
Watts 0.382 0.664 1.358
Note: Current Peak = 1500mA maximum during Tx burst.
MTSMC-G2-GP (for GPS) Measured Power* Measures at Input Voltage 5.00
Sleep Mode Typical Maximum Peak
Current (AMPS) 0.013 0.115 0.481 1.400
Watts 0.065 0.574 2.386
Comment [DAR32]: Measurements
for MTSMC-G2-IP 73120965 Rev 0
from Tom Fix. He suggested the
current peak text also 4/22/09. He
said these measurements apply to G2
without IP, too.
Comment [DAR33]: Measurements
for MTSMC-G2-IP 73120965 Rev 0
from Tom Fix. He suggested the
current peak text also 4/22/09. He
said these measurements apply to G2
without IP, too.
Comment [DAR34]: Measurements
for MTSMC-G2-gp from Tom Fix
10/06/09.
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 59
* Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source when
determining product load.
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 60
Mechanical Drawings – Basic Build
Comment [DAR35]: Vault Data 357
08/26/09
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 61
Mechanical Drawings – Voice Build
Comment [DAR36]: Vault Data 375
08/26/09
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 62
Mechanical Drawings – IP Build Comment [DAR37]: 8/26/09.
Dean's #357 in Vault Data MTSMC-
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 63

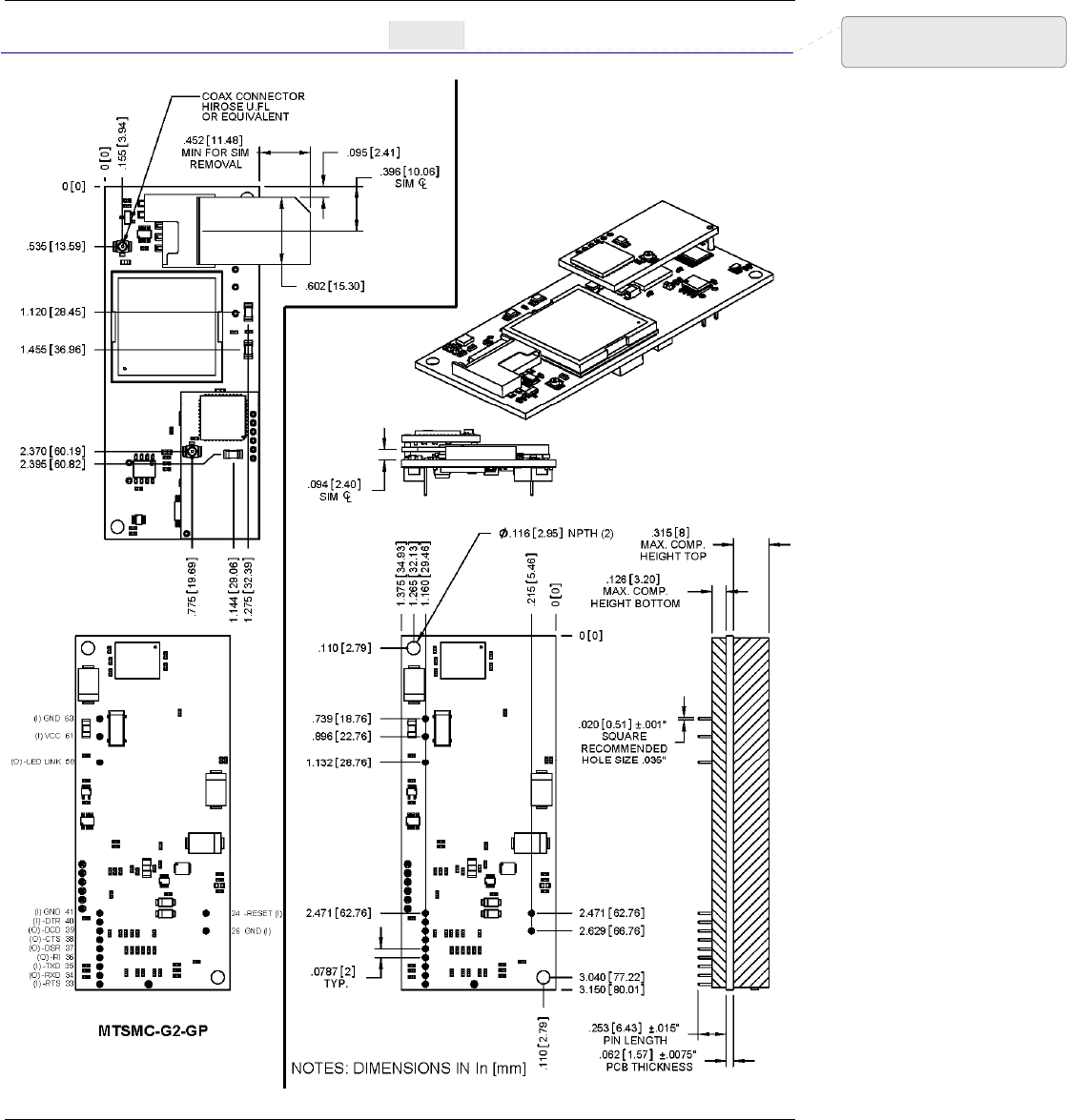

Mechanical Drawings – GPS Build
Comment [DAR38]: 8/26/09.
Dean's #357 in Vault Data MTSMC-
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 64
Application Notes

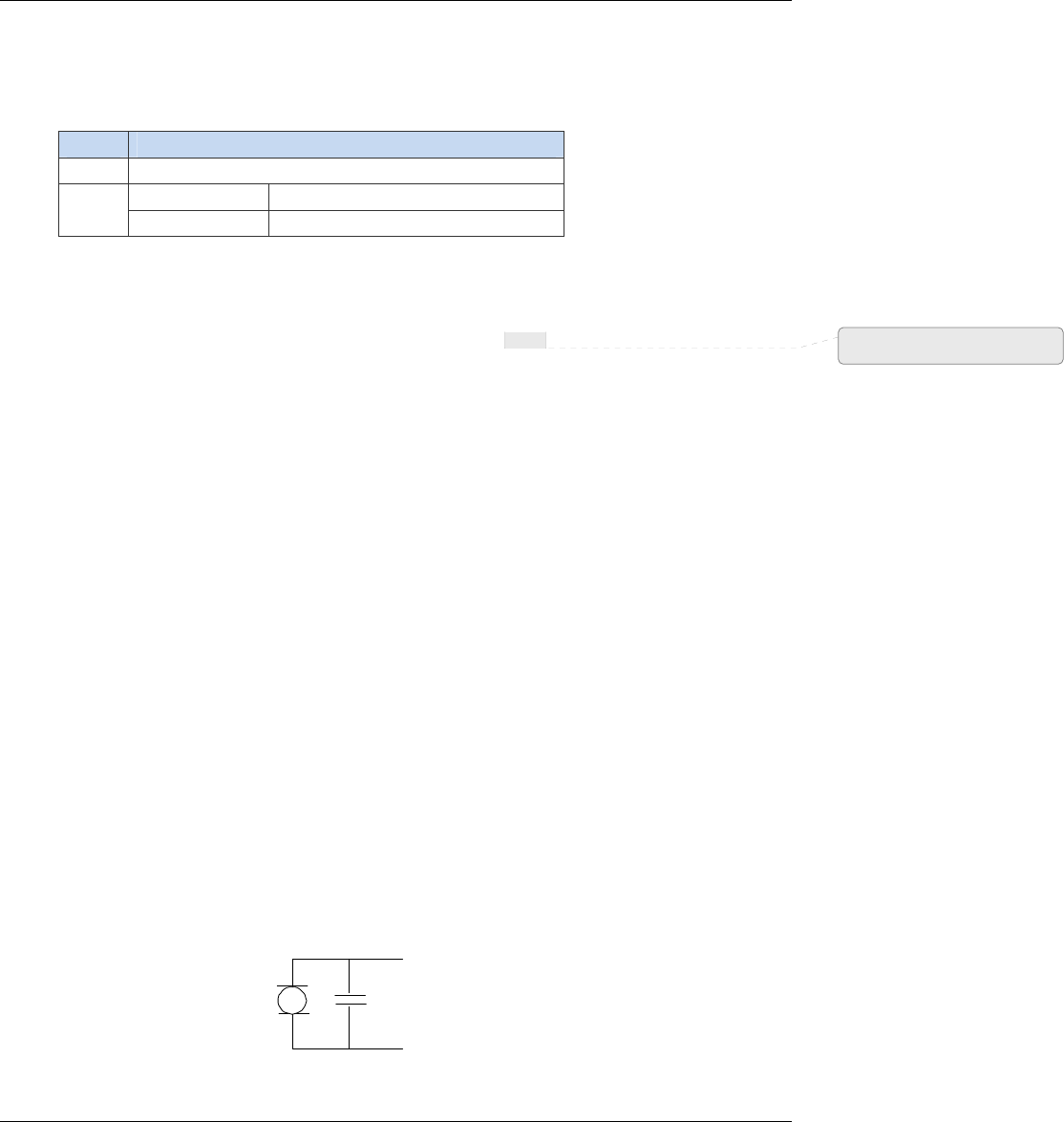

Flashing LED Interface
The flashing LED signal is used to indicate the working mode of the SocketModem.
LEDs and SocketModem Status
Signal SocketModem Status
OFF Download mode or switched OFF>
Continuously lit Switched ON (not registered on the network) ON
Flashing Switched ON (registered on the network)
RF Performances
RF performances are compliant with the ETSI recommendation 05.05 and 11.10.
Note: The following statistics are subject to change due to pending test results.
The main parameters are:
Receiver Features
EGSM Sensitivity : < -104 dBm
GSM 1800/GSM 1900 Sensitivity : < -102 dBm
Selectivity @ 200 kHz : > +9 dBc
Selectivity @ 400 kHz : > +41 dBc
Dynamic range : 62 dB
Intermodulation : > -43 dBm
Co-channel rejection : + 9 dBc
Transmitter Features
Maximum output power (EGSM) : 33 dBm ± 2 dB
Maximum output power (DCS/PCS) : 30 dBm ± 2 dB
Minimum output power (EGSM): 5 dBm ± 5 dB
Minimum output power (DCS/PCS): 0 dBm ± 5 dB
H2 level : < -30 dBm
H3 level : < -30 dBm
Noise in 925 - 935 MHz : < -67 dBm
Noise in 935 - 960 MHz : < -79 dBm
Noise in 1805 - 1880 MHz : < -71 dBm
Phase error at peak power : < 5 ° RMS
Frequency error : ± 0.1 ppm max
RF Connection and Antenna
The RF connector on the SocketModem GPRS is a UFL standard type. See Chapter 1 for Antenna System details.

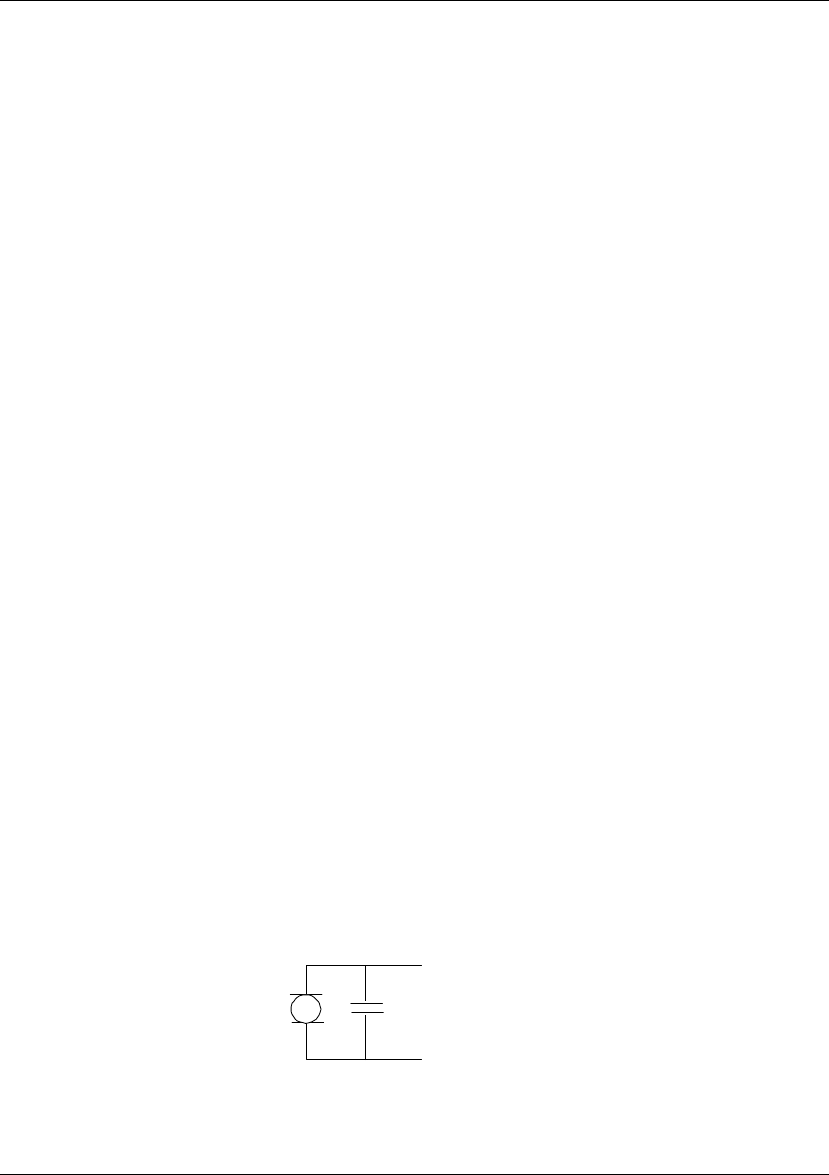

Microphone Inputs
The MIC inputs are differential ones. They already include the convenient biasing for an electret microphone (0.5 mA
and 2 Volts). This electret microphone can be directly connected on these inputs. The impedance of the microphone
has to be around 2K. These inputs are the standard ones for a handset design.
The gain of the MIC inputs is internally adjusted. The gain can be tuned from 30dB to 51dB. The connection to the
microphone is direct.
MIC2N
MIC2P
C1
C1 = 22pF to 100 pF
33 pF recommended
Comment [DAR39]: Tom Hofstedt
expects text results in by June 24th.
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 65
Changing the Quad Band
The SocketModem Cell and the SocketModem iCell both support quad band frequencies (850/1900/900/1800 MHz).
In reality, these products operate like dual, dual-band devices. In other words, they can be configured for 850/1900 or
900/1800 MHz. They do not auto-seek the local area frequency.
Build Options
These wireless modems can be ordered with the default set to 850/1900 MHz or 900/1800 MHz.
850/1900 MHz – The wireless modem defaulting to 850/1900 MHz is the default build option.
900/1800 MHz – The wireless modem defaulting to 900/1800 MHz is identified with -ED in the product
ordering number which signifies European default.
Changing the GSM Band
If for any reason, such as moving the modem from one geographical area to another, you want to change the
band, you can accomplish this by using the +WMBS AT Command.
Steps for Changing the GSM Band
Use a terminal application such as HyperTerminal for entering the AT Command.
1. To open HyperTerminal, click Start. Then select Programs > Accessories > Communications. Then
click HyperTerminal.
2. When the command window opens, type AT+WMBS=<Band><Param>. Press Enter.
For <Band>, enter the option you desire:
4 = Dual-band mode 850/1900MHz
5 = Dual-band mode 900/1800MHz
For <Param>, enter the option you desire:
0 = Modem must be reset in order to use the specified band(s). This is the default.
1 = Modem restarts immediately using the specified band(s).
Example: AT+WMBS=4,0. Press Enter.
PART 2 – Embedded Wireless Modems Chapter 2 – SocketModem Cell and iCell
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 66
Global Positioning System (GPS)
Technical Specifications
Receiver Type L1 Frequency
GPS C/A code
SBAS Capable
51 Channel Acquisitions
14 Channel Tracking
Accuracy Position 2.5m CEP
Velocity 0.1m/sec
Timing 300ns
Open Sky TTFF Hot start 1 second
Cold start 29 seconds average
Reacquisition < 1s
Sensitivity Tracking 161dBm
Update Rate 1Hz standard
Dynamics 4G
Operational Limits Altitude < 18,000m or Velocity < 515m/s
Datum Default WGS-84
Interface UART
Protocol NMEA-0183 V3.01, GGA, GLL, GSA, GSV, RMC, VTG
Features
Tests 8 million time-frequency hypothesis per sec
Open sky cold start – 29 second
Signal detection better than -161dBm
Reacquisition sensitivity – 155dBm
Accuracy 2.5m CEP
Multipath detection and suppression
Supports active or passive antenna
Underwriters Laboratories Required Global
Positioning System (GPS) Statement
Note the following information required by Underwriters Laboratories:
Underwriters Laboratories, Inc. (“UL”) has not tested the performance or reliability of the Global Positioning
System (“GPS”) hardware, operating software or other aspects of this product. UL has only tested for fire, shock
or casualties as outlined in UL’s Standard(s) for Safety.UL60950-1 Certification does not cover the performance
or reliability of the GPS hardware and GPS operating software. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY
OF ANY GPS RELATED FUNCTIONS OF THIS PRODUCT.
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 67
Chapter 3 – SocketModem® CDMA (MTSMC-
C1)
Introduction
The Multi-Tech SocketModem CDMA is a complete, ready-to-integrate, embedded wireless modem. Designed for global use,
it offers standards-based multi-band CDMA200 1x performance. The SocketModem CDMA is based on industry-standard
open interfaces and utilizes Multi-Tech’s universal socket design.
Notes about Activation:
These units are shipped without network activation.
To connect to the wireless network, you will have to establish a wireless account. See the Wireless Activation
procedures in a separate document included with your Developer Kit and available on the Developer Kit CD.
Product Build Options and Ordering Information
Product Description Region Order this Product
3
MTSMC-C1-N1 SocketModem 800/1900 MHz CDMA 1xRTT – Generic Random A-Key Regional
MTSMC-C1-N2 SocketModem 800/1900 MHz CDMA 1xRTT – Sprint (USA) US
MTSMC-C1-N3 SocketModem 800/1900 MHz CDMA 1xRTT – Verizon (USA) US
MTSMC-C1-N4 SocketModem 800 MHz CDMA 1xRTT with R–UIM Regional
MTSMC-C1-N9 SocketModem 800/1900 MHz CDMA 1xRTT – Generic Zero A-Key Regional
MTSMC-C1-N11 SocketModem 800/1900 MHz CDMA 1xRTT with R-UIM Regional
MTSMC-C1-N12 SocketModem 800/1900 MHz CDMA 1xRTT – Bell Mobility Canada Canada
MTSMC-C1-N14 SocketModem 800/1900 MHz CDMA 1xRTT – Alltel (USA) US
MTSMC-C1-N15 SocketModem 800/1900 MHz CDMA 1xRTT - Telus Canada
MTSMC-C1-N16 SocketModem 800/1900 MHz CDMA 1xRTT - Aeris US
Developer Kit
MTSMI-UDK Universal Developer Kit Global
How to Read the Product Codes in the Table Above:
C1 CDMA
N1 Generic Random A-Key. Requires provisioning. Must be programmed with Provisioning
Information (PRI) and a Preferred Roaming List (PRL).
N2 Sprint USA
N3 Verizon USA
N4 800 MHz with R-UIM
N9 Generic Zero A-Key. Requires provisioning. Must be programmed with Provisioning
Information (PRI) and a Preferred Roaming List (PRL).
N11 800/1900 MHz with R-UIM
N12 Bell Mobility Canada
N14 Alltel USA
N15 Telus Canada
N16 Aeris US
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MTSMC-C1-N3.Rx.
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guides
Products AT Commands Reference Guide Title and
Document Product Number Fax Commands Voice Commands
SocketModem CDMA
(MTSMC-C1) CDMA AT Commands Reference Guide (S000294x)
NA included in
S000294x
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 68
Technical Specifications
The SocketModem CDMA (MTSMC-C1) meets the following specifications:
Category Description
Standard CDMA2000 1xRTT
Frequency Bands Dual-band 800/1900 MHz CDMA
Serial/Data Speed Serial interface supporting DTE speeds to 230K
Packet data up to 153.6K bps forward and reverse channels
Circuit-switched data up to 14.4K bps
Data Format Asynchronous, transparent and non-transparent
Weight 1.2 oz. (34 g)
Operating Temperature -30° to +70° C
Storage Temperature -40° to +85° C
Humidity 20% to 90% (non-condensing)
Operating Voltage 5VDC
Power Measurements 5V: Typical: 400mA; Maximum: 700mA
Connectors Antenna: MMCX
R-UIM: Standard 3V R-UIM receptacle (For China only, 5V R-UIM)
Certifications & Approvals Safety Certifications
UL 60950
cUL 60950
EN 60950
AS/NZS 60950:2000
EMC Approvals
FCC Part 2, 15, 22, 24
EN 55022
Network
CDG 1 & 2
Warranty 2 years
Features Short Message Services (SMS):
Mobile originated; Mobile terminated
Cell broadcast
Over the Air Activation (OTA)
OTASP; OTAPA
SMS Features: Text & PDU, Point-to-Point, cell broadcast
TCP/IP stack
AT command compatible
Management Features:
Phone book management
Fixed dialing number
Real time clock
Alarm management
Supports AMR (Adaptive Multi Rate) voice coder
Supports Cellular Text Telephone Modem
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 69
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 70
Mechanical Drawings – Basic Build
Comment [DAR40]: Vault Data
#315 8/26//09
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 71
DC Electrical Characteristics
5VDC Characteristics (VDD = 5V ± 0.2V) VDDMAX = 5.25V
Digital Inputs
–DTR (40), –TXD (35), –RTS (33) Input High
Min 2.0V Input Low
Max 0.8V
–RESET Input High
Min 2.0V Input Low
Max 0.5V
Digital Outputs
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) Output High
Min 4V Output Low
Max 0.4V Current Drive:
2mA
Digital Input Capacitance 5 pF
Power Measurements*
Operating Mode Band Average (mA)
CDMA RXTX Cellular 615
Full Power PCS 770
Cellular 340 CMA RXTX
Average Power PCS 445
Cellular 20 CDMA Standby
PCS 20
* Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source when
determining product load.
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 72
Application Notes
Flashing LED Interface
The flashing LED signal is used to indicate the working mode of the SocketModem.
LED and SocketModem Status
Signal SocketModem Status
OFF Download mode or switched OFF>
Continuously lit Switched ON (not registered on the network) ON
Flashing Switched ON (registered on the network)
RF Interface
Radio Characteristics
CDMA 800 CDMA 1900
Frequency RX 869 to 894 MHz 1930 to 1990 MHz
Frequency TX 824 to 849 MHz 1850 to 1910 MHz
Impedance 50 ohms
VSWR <2
Typical Radiated Gain 0 dBi in at least one direction
Output Power .63W in AMPS
.35W in CDMA
RF Connection and Antenna
The RF connector on the SocketModem is an MMCX standard type. See Chapter 1 for Antenna System details.
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 73
Provisioning a Generic SocketModem CDMA
The Difference between a Pre-Provisioned SocketModem CDMA and a Generic
SocketModem CDMA
Pre-Provisioned SocketModem CDMA
Multi-Tech offers several pre-provisioned SocketModem CDMA units (see the Product Ordering Information table
at the beginning of this chapter). Pre-provisioned SocketModem CDMA builds are pre-programmed to operate
only on a designated CDMA carrier’s network; for example, the MTSMC-C1-N2 is pre-programmed (provisioned)
for use on the Sprint network in the USA.
Generic SocketModem CDMA
Multi-Tech also offers two generic SocketModem CDMA models, the MTSMC-C1-N1 (Random A-Key) and
MTSMC-C1-N9 (Zero A-Key). These generic SocketModems are not pre-programmed to operate on any
designated CDMA carrier’s network.
Overview of the Provisioning Process
Requirements
A generic SocketModem CDMA-C1-N1 or -N9.
AT Commands Reference Guide for the SocketModem CDMA.
A developer software tool called WPST.
Procedures
Step 1. Get the PRI and PRL from your wireless carrier.
Step 2. Set the provisioning commands, which are described in the AT Commands Reference Guide for
the SocketModem CDMA, Chapter 16, using the provisioning information provided by the CDMA
wireless network carrier.
Step 3. Using the WPST tool, download the carrier’s specific PRI (Provisioning Information) and PRL
(Preferred Roaming List) into the SocketModem CDMA.
The wireless modem is now provisioned and can be activated on your wireless carrier’s network, according
to the carrier’s activation instructions.
See the Activation directions that accompany Multi-Tech wireless modems.
Provisioning Terminology
A-Key
The A-Key is a 64-bit cryptographic key variable stored in the semi-permanent memory of the mobile station
and also known to the Authentication Center of the wireless carrier's system. The generation of the A-Key is
the responsibility of the wireless service provider. It is established and entered when the mobile station is
first put into service.
The CDMA network carrier you choose for you SocketModem CDMA product will let you know whether it
uses the Random A-Key or the Zero A-Key in its authentication process. That will determine whether you
purchase the -N1 or the –N9 build.
Provisioning
Provisioning is the programming of a SocketModem CDMA wireless modem to set the PRI and PRL
provided by wireless network carrier that you are have chosen as your CDMA wireless network carrier. After
the modem is provisioned, it can then be activated on the wireless network for which it is provisioned. Multi-
Tech provides two SocketModems CDMA builds that are not pre-provisioned: MTSMC-C1-N1 and MTCAB-
C1-N9.
PRI stands for Provisioning Information. Provisioning Information is your wireless
network carrier’s profile of parameter settings that must be programmed into your
wireless modem in order for it to operate on the carrier’s wireless network.
PRL stands for Preferred Roaming List. The PRL is a list of the wireless network service
provider’s preferred roaming partners. This list is downloaded from your network service
provider during the provisioning process.
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 74
CDMA Terminology and Acronyms
This is an alphabetical list of the CDMA cellular industry’s terminology and acronyms.
2G Second Generation. This is an all digital cellular systems developed to replace the first analog
cellular systems. (GSM and CDMA).
3G Third Generation. This is the next generation digital cellular systems designed to have high-speed
data access and higher voice capacity (CDMA & CDMA2000).
CBM Cell Broadcast Message. This is an SMS message that is broadcast to all mobiles on the network.
CDMA CDMA (Code Division Multiple Access). CDMA is a spread spectrum, digital wireless modulation
scheme for cellular communications systems. It has approximately 3 times the voice capacity of
GSM networks. See IS-95, IS-95B, IS-2000.
cdmaONE cdmaOne is a brand name, trademarked and reserved for the exclusive use of the CDMA
Development Group (see their Web site at cdg.org). cdmaOne describes a complete wireless
system that incorporates the IS-95 CDMA air interface, the ANSI-41 network standard for switch
interconnection and many other standards that make up a complete wireless system.
cdma2000 cdma2000 is a third generation (3G) wireless system. It contains a significant increase in voice
capacity and high-speed data rates. It is backward compatible with IS-95B and IS-95A.
cdma2000 1xRTT "1xRTT" stands for 1 times Radio Transmission Technology and is used to identify the version of
CDMA2000 radio technology that operates in a pair of 1.25-MHz radio channels (one times 1.25
MHz, as opposed to three times 1.25 MHz in 3xRTT). Although theoretically capable of higher data
rates, most carrier implementations have limited the peak data rate to 144 kbit/s. While 1xRTT
officially qualifies as 3G technology, 1xRTT is considered by some to be a 2.5G.
ESN "ESN" stands for Electronic Serial Number. It is a 32-bit binary number that identifies each cellular
phone.
Handset (Path) Handset (Path). This is the audio path (microphone & speaker) that connects to a traditional hand
held telephone receiver, usually dual balanced electrical lines.
Headset (Path) Headset (Path). This is the audio path (microphone & speaker) that connects to an earpiece with
a microphone, usually single electrical lines.
IMSI International Mobile Station IS. This is an international 15 digital phone number that uniquely
identifies a mobile. IMSI=MCC + MNC + MIN.
IOTA IOTA stands for Internet Over The Air.
IS-95 IS-95 is the first CDMA standard published by Qualcomm in 1993. It is a TIA standard for North
American cellular systems based on CDMA. It is widely deployed in North America and Asia.
IS-95A IS-95A is a CDMA standard with improved voice quality. IS-95A defines what generally is known as
cdmaOne, which supports voice and 14.4 Kbps data rates. This standard is widely used throughout
the world.
IS-95B IS-95B is a CDMA standard contains Medium Data Rate capabilities and bug fixes for system
access failures. It is considered a 2.5G system. It supports data rates up to 115 Kbps.
IS-2000 IS-2000 is the first 3G CDMA standard based on IS-95B. It contains a significant increase in voice
capacity and high-speed data rates. It is backward compatible with IS-95B and IS-95A.
IS-707 TIA/EIA/IS-707 describes data services available on wideband spread spectrum systems. It is
organized into a series of related recommendations, some of which address functions common to
all CDMA data services and others that describe a specific data service.
MCC Mobile Country Code is a pre-defined 30-digital number that represents a country in the IMSI.
MDN MDN stands for Mobile Data Number or the mobile phone number.
MIN MIN stands for Mobile Identification Number or mobile user account number.
MNC MNC stands for Mobile Network Code, a pre-defined 2-digital number that represents a sub-
network in the IMSI (usually set to “00”).
MO MO stands for Mobile Originated, an action (usually a call) that is first started from the phone. An
outgoing call or SMS.
MS MS stands for Mobile Station. The term MS is commonly used to represent the phone or mobile.
MT MT stands for Mobile Terminated. MT is an action, usually a call that is first started from a land
based network. An incoming call or SMS.
MSM MSM stands for Mobile Station Modem.
NAM NAM stands for Number Assignment Modem. The NAM is collection of internal parameters that
define a working phone for a given network (phone number, access parameters, etc.).
NID NID stands for Network ID. The NID is an identification number that represents geographic location
of a common coverage area; but is a subset of the SID, usually a neighborhood in a large city. NID
is usually not used and is set to zero. Also see SID.
NV-RAM NV-RAM stands for Non-Volatile Random Access Memory. NV-RAM is a data storage device that
does not lose its data when power is turned off.
PART 2 – Embedded Wireless Modems Chapter 3 – SocketModem CDMA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 75
OTAPA OTAPA stands for Over The Air Parameter Administration. It is an automatic update in internal
software parameters (PRL for example) by means of a specially defined CDMA data call that is
mobile terminated (MT).
OTASP OTASP stands for Over The Air Service Programming. It is an automatic update in internal
software parameters PRL; for example, PRL by means of a specially defined CDMA data call that
is mobile terminated (MT).
P-REV P-REV is the CDMA revision of the mobile or base station.
PDU PDU stands for Protocol Data Unit. It is a GSM SMS standard whereby any type of binary data can
be transported via an SMS message. In the CDMA system, the PDU mode will not be supported;
instead, the Unicode format message is supported.
PN Offset PN Offset stands for Pseudorandom Noise Offset. In a CDMA network the PN offset is a variable
time delay offset of a repeating random noise generator that is used to distinguish individual
sectors of a base station.
PRI PRI stands for Provisioning Information. Provisioning Information is your wireless network carrier’s
profile of information that must be programmed into your wireless modem in order for it to operate
on the carrier’s wireless network.
PRL PRL stands for Preferred Roaming List. The Roaming List is provided by the wireless network
carrier during the process of provisioning your SocketModem. The PRL is a list of wireless service
provider’s preferred roaming partners.
PSTN PSTN stands for Public Switching Telephone Network. It is the traditional telephone network.
RF RF stands for Radio Frequency.
RSSI RSSI stands for Receive Signal Strength Indicator: This parameter represents the total RF received
signal power from the base station(s) the mobile sees.
R-UIM R-UIM stands for Removable User Identity SocketModem. The R-UIM is similar to a SIM
(Subscriber Identity SocketModem), but it is designed for networks other than GSM (Global System
for Mobile Telecommunications); i.e., networks such as CDMA.
The R-UIM card contains user information and data features on a removable smart card about the
size of a postage stamp. It is a dual-mode solution that can store both GSM provisioning and
CDMA provisioning on a single card. When used with a GSM handset, the R-UIM operates like a
GSM SIM.
SID SID stands for System ID. The SID is an identification number that represents geographic locations
of a common coverage area, usually a large city. Also see NID.
SIM SIM stands for Subscriber Identity SocketModem. A SIM card is a portable memory chip. The SIM
holds personal identity information, cell phone number, phone book, text messages and other data.
SMS SMS stands for Short Messaging Service. it is a supplementary service that is capable of sending
and receiving short length text messages to/from the mobile.
TA/TE TA/TE stands for Terminal Application/Terminal Equipment. This is the end “device” (combination
of hardware and software) that communicates with a modem via a serial link. In this context, it is
the device (PDA/Computer) connected to the modem. Also see DTE.
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 76

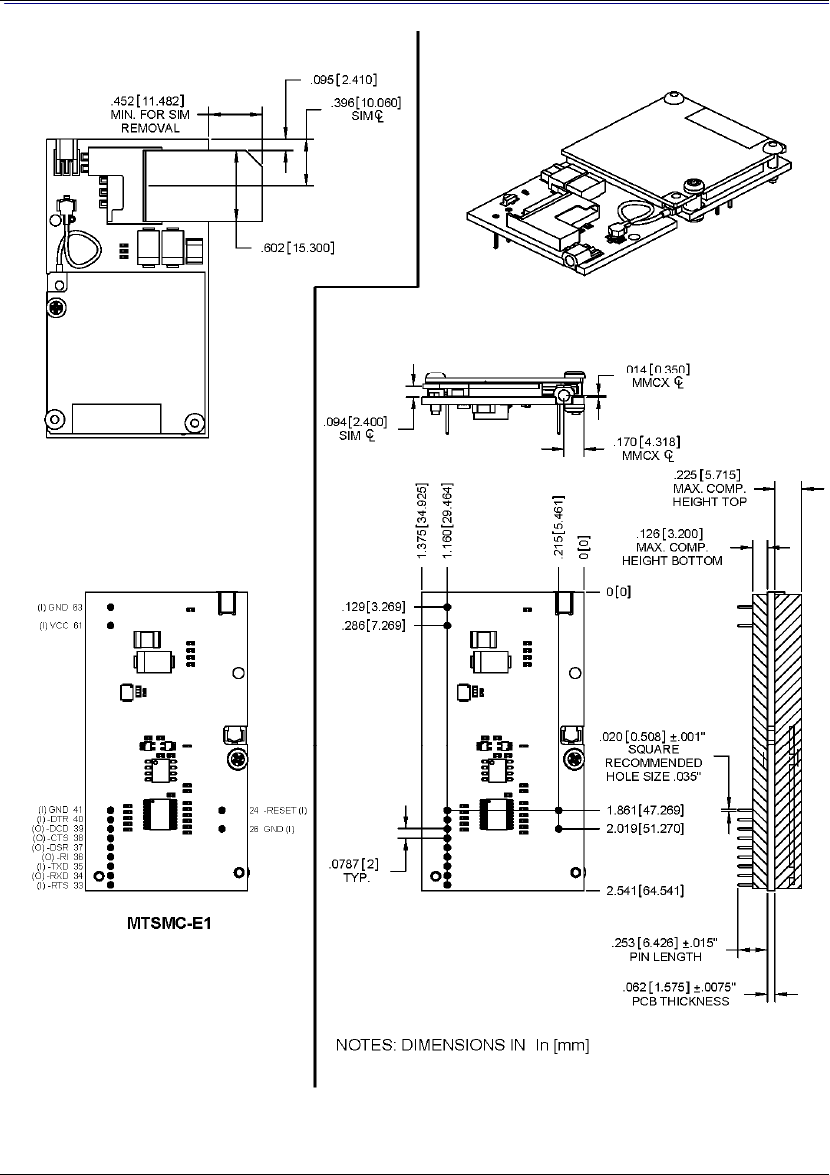

Chapter 4 – SocketModem® EDGE (MTSMC-
E1)
Introduction
The Multi-Tech SocketModem EDGE embedded wireless modem delivers some of the fastest cellular data speeds by utilizing
EDGE technology. It allows users to connect to the Internet and send and receive data up to three times faster than possible
with an ordinary GSM/GPRS network making it ideal for highly data-intensive applications. Based on industry-standard open
interfaces, the SocketModem EDGE wireless modem is equipped with quad-band GSM, which means it can be used
worldwide on all existing GSM networks.
Product Build Options and Ordering Information
Product Description Region Order This Product
3
MTSMC-E1 SocketModem Quad Band EDGE Class 12 – 5V Global
MTSMC-E1-V SocketModem Quad Band EDGE Class 12 w/Voice – 5V Global
MTSMI-UDK Universal Developer Kit Global
How to Read the Product Codes in the Table Above:
E1 EDGE
V Voice
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MTSMC-E1.Rx
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Product Reference Guides Title and Document Product
Number Fax Commands Voice Commands
SocketModem EDGE
(MTSMC-E and E1) SocketModem EDGE
AT Commands Reference Guide (S000371x) NA Included in S000371x
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 77
Technical Specifications
The SocketModem EDGE (MTSMC- E1) wireless modem meets the following specifications:
Category Description
Standards EDGE: E-GPRS Class 12
GPRS: GPRS Class 12
Data Speed Packet Data rates up to 240K bps (modulation & coding scheme, MCS 1-9, Mobile station
Class B)
Circuit-switched data up to 14.4 bps non-transparent mode, asynchronous
Serial Speed Serial interface supporting DTE speeds to 460K bps
Band Frequency Quad-band 850/900/1800/1900 MHz
Connectors Antenna: MMCX
SIM: Standard 1.8V or 3V SIM receptacle
IP Protocols Supported TCP, UDP, DNS, FTP, SMTP, POP3, HTTP
Operating Voltage 5VDC
Operating Temperature -30° to +70° C
Storage Environment -40° to +85° C
Humidity 20% to 90% non-condensing
Physical Dimensions 2.541" L x 1.375" W
64.541mm L x 34.92 mm W
For maximum component heights top and bottom, see the Mechanical Drawings on the next
two pages.
Weight 1 oz. (0.028 kg.)
Compliance EMC Compliance
FCC Part 2, 15, 22, 24
EN 55022
EN 55024
Radio Compliance
FCC Part 22
FCC Part 24
RSS 132
RSS 133
EN 301 511
EN 301 489-1
EN 301 489-7
AS/ACIF S042.1
AS/ACIF S042.3
Safety Compliance
UL 60950-1
cUL 60950-1
IEC 60950-1
AS/NZS 60950:2000
Network Compliance
PTCRB
Warranty 2 years
Intelligent Features SMS – Text & PDU, Point-to-Point, cell broadcast
AT Command Compatible
Voice features include Half Rate (HR), Full Rate (FR), Enhanced Full Rate (EFR),
Adaptive multi rate (AMR), as well as hands free echo cancellation, and noise reduction
Embedded TCP/IP protocol stack brings Internet connectivity
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 78
Mechanical Drawings – Basic Build Comment [DAR41]: Vault Data for
E1 is #372 8/26/09
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 79
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 80
Mechanical Drawings – Voice
Build Comment [DAR42]: Vault Data for
E1 Voice is #372 8/26/09
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 81
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 82
DC Electrical Characteristics
Operating Conditions
5 Volts
Parameter Minimum Maximum
Supply Range - Vcc 4.75 5.25
Absolute Maximum Rating
Parameter Minimum Maximum
Voltage at Any Signal Pin 0 5
DC Electrical Characteristics
Units (Volts)
Parameter Minimum Maximum
0 0.8
Digital Signal Input Low Level
2 5
Digital Signal Input High Level
0 0.33
Digital Signal Output Low Level
3.84 5
Digital Signal Output High Level
0 1.14
Reset (Low Active) Input Low
2.7 5
Reset (Low Active) Input High
Digital Input Capacitance 10pF
Power Measurements
MTSMC-E1 and MTSMC-E1-V Measured Power* at Input Voltage 5.00
Sleep Typical Maximum Peak
Current (AMPS) 0.010 0.128 0.675 1.500
Watts 0.050 0.64 3.2
* Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source when
determining product load.
Comment [DAR43]: New from
Dustin 8/31/09 for E1
Comment [DAR44]:
These measurements apply to both
the MTSMC-E1 and MTSMC-E1-V
since the only difference is the voice
pins.From Jerome 9/8/09
PART 2 – Embedded Wireless Modems Chapter 4 – SocketModem EDGE
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 83
Application Notes
RF Performances
RF performances are compliant with the ETSI recommendation 05.05 and 11.10.
The main parameters are:
Receiver Features
EGSM Sensitivity : < -108 dBm
GSM 1800/GSM 1900 Sensitivity : < -107 dBm
Selectivity @ 200 kHz : > +9 dBc
Selectivity @ 400 kHz : > +41 dBc
Dynamic range : 62 dB
Intermodulation : > -43 dBm
Co-channel rejection : + 9 dBc
Transmitter Features
Maximum output power (EGSM) : 24 dBm +/- 2 dB
Maximum output power (DCS/PCS) : 30 dBm +/- 2 dB
Minimum output power (EGSM): 5 dBm +/- 5 dB
Minimum output power (DCS/PCS): 0 dBm +/- 5 dB
H2 level : < -30 dBm
H3 level : < -30 dBm
Noise in 925 - 935 MHz : < -67 dBm
Noise in 935 - 960 MHz : < -79 dBm
Noise in 1805 - 1880 MHz : < -71 dBm
Phase error at peak power : < 5 ° RMS
Frequency error : +/- 0.1 ppm max
RF Connection and Antenna
The RF connector on the SocketModem is an MMCX standard type. See Chapter 1 for Antenna System details.
Audio Interface – Electrical Characteristics
Speaker Output
Differential speaker output capable of driving 8 ohm load. 1.0945 Vpp (differential) typical.
Microphone Input
Balanced microphone input: full scale input 1.1 Vpp.
Microphone Inputs
The MIC inputs are differential ones. They already include the convenient biasing for an electret microphone (0,5 mA
and 2 Volts). This electret microphone can be directly connected on these inputs. The impedance of the microphone
has to be around 2K. These inputs are the standard ones for a handset design.
The gain of the MIC inputs is internally adjusted. The gain can be tuned from 30dB to 51dB. The connection to the
microphone is direct.
MIC2N
MIC2P
C1
C1 = 22pF to 100 pF
33 pF recommended
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 84
Chapter 5 – SocketModem® HSDPA (MTSMC-
H)
Introduction
The Multi-Tech SocketModem HSDPA embedded wireless modem delivers some of the fastest cellular data speeds by
utilizing HSDPA technology. It allows users to connect to the Internet and send and receive data faster than possible with
an ordinary GSM/GPRS network making it ideal for highly data-intensive applications. Based on industry-standard open
interfaces, the SocketModem wireless modem is equipped with quad-band, high-speed RS232 technology, which means
it can be used worldwide on all existing GSM networks. In addition, it utilizes Multi-Tech's universal socket design.
Product Build Options and Ordering Information
Product Description Region Order This Product
3
MTSMC-H SocketModem Tri Band HSPDA Serial Modem – 5V Global
MTSMC-H-U SocketModem Tri Band HSPDA USB Modem – 5V Global
MTSMI-UDK Universal Developer Kit Global
How to Read the Product Codes in the Table Above:
H HSDPA (High-Speed Downlink Packet Access)
U USB
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MTSMC-H.Rx.
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Product Reference Guides Title and Document Product
Number Fax Commands Voice Commands
SocketModem HSDPA
(MTSMC-H) SocketModem HSDPA
AT Commands Reference Guide (S000453x) NA NA
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 85
Technical Specifications
The SocketModem HSDPA (MTSMC- H) wireless modem meets the following specifications:
Category Description
General
Frequency Bands • UMTS/HSDPA: Triple band, 850/1900/2100MHz
• GSM/GPRS/EDGE: Quad band, 850/900/1800/1900MHz
GSM Class Small MS
Output power
(according to Release 99) Class 4 (+33dBm ±2dB) for EGSM850
Class 4 (+33dBm ±2dB) for EGSM900
Class 1 (+30dBm ±2dB) for GSM1800
Class 1 (+30dBm ±2dB) for GSM1900
Class E2 (+27dBm ± 3dB) for GSM 850 8-PSK
Class E2 (+27dBm ± 3dB) for GSM 900 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1800 8-PSK
Class E2 (+26dBm +3 /-4dB) for GSM 1900 8-PSK
Class 3 (+24dBm +1/-3dB) for UMTS 2100, WCDMA FDD BdI
Class 3 (+24dBm +1/-3dB) for UMTS 1900,WCDMA FDD BdII
Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV
Power Supply 5VDC 10%
Physical Description 3.1" L x 1.4" W x 0.5" H; 1 oz.
(7.8 cm x 3.5 cm x 1.2 cm; 28 g)
HSDPA Features
3GPP Release 5 3.6 Mbps, UL 384 kbps
UE CAT. [1-6], 11, 12 supported
Compressed mode (CM) supported according to 3GPP TS25.212
UMTS Features
3GPP Release 4 PS data rate – 384 kbps DL / 384 kbps UL
CS data rate – 64 kbps DL / 64 kbps UL
GSM / GPRS / EGPRS Features
Data Transfer GPRS
• Multislot Class 10
• Full PBCCH support
• Mobile Station Class B
• Coding Scheme 1 – 4
EGPRS
• EDGE E2 power class for 8 PSK
• Downlink coding schemes – CS 1-4, MCS 1-9
• Uplink coding schemes – CS 1-4, MCS 1-9
• BEP reporting
• SRB loopback and test mode B
• 8-bit, 11-bit RACH
• PBCCH support
• 1 phase/2 phase access procedures
• Link adaptation and IR
• NACC, extended UL TBF
• Mobile Station Class B
CSD
• V.110, RLP, non-transparent
• 9.6 kbps
SMS Point-to-point MT and MO
Cell broadcast
Text and PDU mode
Software
AT Commands AT GSM 07.05 and 07.07, Siemens
AT commands for RIL compatibility (NDIS/RIL)
Microsoft Compatibility RIL / NDIS for Windows Mobile®
SIM Application Toolkit SAT Class C
Firmware Update Firmware update from host application over USB and ASC0
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 86
Category Description
Interfaces
USB USB 2.0 full speed (12Mbit/s)
CDC ACM compliant
NDIS driver included (XP only)
Serial Modem Interface 8-wire modem interface with status and control lines, unbalanced,
asynchronous.
UICC Interface Supported chip cards: SIM / UICC 3V, 1.8V
Connectors Antenna: MMCX
SIM: Standard 3V SIM receptacle
SocketModem Interface Socket pins
Operating Environment
Operating Temperatures Min -30 °C Typ +25 °C Max +60 °C
Storage Environment -40° to +85° C
Humidity 20% to 90% non-condensing
Certifications, Approvals, Directives, Warranty
Certifications & Approvals Certifications:
CE Mark, R&TTE
Safety Certifications:
UL 60950-1
EN 60950-1
EMC Approvals:
FCC Part 22, 24
EN 301 489-1
EN 301 489-7
RSS 132, 133
Network:
PTCRB
RoHS All hardware components fully compliant with EU RoHS Directive
Warranty 2 years
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 87
Mechanical Drawings – Basic Build Comment [DAR45]: Vault Data
#319 for basic build 8/26/09
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 88
Comment [DAR46]: Vault Data
#319 for USB 8/26/09
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 89
Mechanical Drawings – USB Build
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 90
DC Electrical Characteristics
I/O DC Characteristics
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Digital Inputs
–DTR (40), –TXD (35), –RTS (33) Input High
Min 2.0V Input Low
Max 0.8V
–RESET Input High
Min 2.6V Input Low
Max 1.0V
Digital Outputs
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) Output High
Min 4V Output Low
Max 0.4V Current Drive
2mA
Digital Input Capacitance 5 pF
Power Measurements*
Data Mode Power Consumption
GPRS Power Consumption in EGSM/GPRS 900 MHz and GSM/GRPS 850 MHz
Voltage Conditions INOM IMAX
+5V During TX bursts @ 2W 1.8 A 2.9 A
+5V Average Class 8 375mA
+5V Average Class 10 540mA
+5V Average idle mode 40mA
GPRS Power Consumption in GSM/GRPS 1800 MHz and GSM/GRPS 1900 MHz
Voltage Conditions INOM IMAX
+5V During TX bursts @ 1W 1.5 A 2.1 A
+5V Average Class 8 325mA
+5V Average Class 10 430mA
+5V Average idle mode 40mA
EGPRS Power Consumption in EGRPS 900 MHz and EGRPS 850 MHz
Voltage Conditions INOM IMAX
+5V During TX bursts @ 2W 1.8 A 2.9 A
+5V Average Class 8 315mA
+5V Average Class 10 410mA
+5V Average idle mode 40mA
EGPRS Power Consumption in EGRPS 1800 MHz and EGRPS 1900 MHz
Voltage Conditions INOM IMAX
+5V During TX bursts @ 2W 1.8 A 2.9 A
+5V Average Class 8 290mA
+5V Average Class 10 355mA
+5V Average idle mode 40mA
WCDMA Power Consumption
Voltage Conditions INOM IMAX
+5V UMTS Data transfer Band I @+10dBm 390mA
+5V HSDPA Data transfer Band I @+10dBm 450mA
+5V UMTS Data transfer Band I @+23dBm 750mA 820mA1
+5V HSDPA Data transfer Band I @+23dBm 775mA 850mA1
+5V UMTS Data transfer Band II @+10dBm 455mA
+5V HSDPA Data transfer Band II @+10dBm 500mA
+5V UMTS Data transfer Band II @+23dBm 810mA 930mA1
+5V HSDPA Data transfer Band II @+23dBm 850mA 930mA1
+5V UMTS Data transfer Band V @+10dBm 390mA
+5V HSDPA Data transfer Band V @+10dBm 420mA
+5V UMTS Data transfer Band V @+23dBm 620mA 790mA1
+5V HSDPA Data transfer Band V @+23dBm 640mA 820mA1
1 Under total mismatch conditions at antenna connector.
* Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source when
determining product load.
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 91
Application Notes
RF Performances
RF performances are compliant with the ETSI recommendation 05.05 and 11.10.
The main parameters are:
Receiver Features
EGSM Sensitivity: < -108 dBm
GSM 1800/GSM 1900 Sensitivity: < -107 dBm
Selectivity @ 200 kHz: > +9 dBc
Selectivity @ 400 kHz: > +41 dBc
Dynamic range: 62 dB
Intermodulation: > -43 dBm
Co-channel rejection: + 9 dBc
Transmitter Features
Maximum output power (EGSM): 24 dBm +/- 2 dB
Maximum output power (DCS/PCS): 30 dBm +/- 2 dB
Minimum output power (EGSM): 5 dBm +/- 5 dB
Minimum output power (DCS/PCS): 0 dBm +/- 5 dB
H2 level: < -30 dBm
H3 level: < -30 dBm
Noise in 925 - 935 MHz: < -67 dBm
Noise in 935 - 960 MHz: < -79 dBm
Noise in 1805 - 1880 MHz: < -71 dBm
Phase error at peak power: < 5 ° RMS
Frequency error: +/- 0.1 ppm max
RF Connection and Antenna
The RF connector on the SocketModem is an MMCX standard type. See Chapter 1 for Antenna System details.
Air Interface
Air Interface GSM / UMTS
Parameter Conditions Min. Typ. Max. Unit
HSDPA / UMTS Connectivity Band I, II, V
UMTS 850 Band V 824 849 MHz
UMTS 1900 Band II 1850 1910 MHz
UMTS Frequency Range
Uplink (UE to Node B)
UMTS 2100 Band I 1920 1980 MHz
UMTS 850 Band V 869 894 MHz
UMTS 1900 Band II 1930 1990 MHz
UMTS Frequency Range
Downlink (Node B to UE)
UMTS 2100 Band I 2110 2170 MHz
UMTS 850 Band V -109 dBm
UMTS 1900 Band II -107 dBm
Receiver Input Sensitivity @
ARP
UMTS 2100 Band I -108 dBm
UMTS 850 Band V +21 +23 +25 dBm
UMTS 1900 Band II +21 +23 +25 dBm
RF Power@ ARP with
50Ohm Load
UMTS 2100 Band I +21 +23 +25 dBm
GPRS Coding Schemes Class 10, CS1 to CS4
EGPRS Class 10, MCS1 to MCS9
GSM Class Small MS
GSM 850 824 849 MHz
E-GSM 900 880 915 MHz
GSM 1800 1710 1785 MHz
GSM Frequency range
Uplink (MS to BTS)
GSM 1900 1850 1910 MHz
GSM 850 869 894 MHz
E-GSM 900 925 960 MHz
GSM Frequency range
Downlink (BTS to MS)
GSM 1800 1805 1880 MHz
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 92
GSM 1900 1930 1990 MHz
GSM 850 -102 -108 dBm
E-GSM 900 -102 -108 dBm
GSM 1800 -102 -107 dBm
Static Receiver input Sensitivity
@ ARP
GSM 1900 -102 -107 dBm
GSM 850 31 32 35 dBm
E-GSM 900 31 32 35 dBm
GSM 1800 28 29.25 32 dBm
RF Power@ ARP with
50Ohm Load
(GSM; 1 TX)
GSM 1900 28 29.25 32 dBm
GSM 850 32 dBm
E-GSM 900 32 dBm
GSM 1800 29.25 dBm
RF Power@ ARP with
50Ohm Load
(GPRS; 1 TX)
GSM 1900 29.25 dBm
GSM 850 27 dBm
E-GSM 900 27 dBm
GSM 1800 26 dBm
RF Power@ ARP with
50Ohm Load
(EGPRS; 1 TX)
GSM 1900 26 dBm
GSM 850 30.50 dBm
E-GSM 900 30.50 dBm
GSM 1800 27.75 dBm
RF Power@ ARP with
50Ohm Load
(GPRS; 2 TX)
GSM 1900 27.75 dBm
GSM 850 25 dBm
E-GSM 900 25 dBm
GSM 1800 24 dBm
RF Power@ ARP with
50Ohm Load
(EGPRS; 2 TX)
GSM 1900 24 dBm
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 93
Configuring the HSDPA Modem on Linux SLAX 6
All recent distributions of Linux Kernel v2.6 or higher and CDC_ACM USB will work well with the HSPDA modem.
Follow procedure outlined here using the HSDPA on Linux SLAX 6, an efficient live distribution you can install on a
USB stick. See www.slax.org.
1. Set the HSDPA in modem mode so that it can be enumerated automatically:
AT^SUSB="Startup","Mdm"
AT^SMSO
2. Boot SLAX
3. Plug the USB cable into the PC
4. Enable enumeration in a terminal:
modprobe usbserial vendor=0x0681 product=0x0047
5. Make sure that the modem was enumerated
ls -la /dev/ttyUSB*
The response should be: /dev/ttyUSB0
6. Launch KPPP&
7. Create a new account with AT&T:
Dial *99***1#
8. Create a new modem
HC25
Modem device: /dev/ttyUSB0
Flow control: None
Line Termination: CR
Connection Speed: 921600
9. Add modem commands to the initialization string; i.e., ATZ and AT+CGDCONT=1,"IP","isp.cingular"
10. Enter PAP authentication
Login and enter password as usual
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 94
Baud Rate Switches on the HSDPA SocketModem
Note: For HSDPA serial model only.
MTSMC-H SocketModem Baud Rate dip switch settings
● ● ● ●
1 2 3 4
920K
●
● ● ●
1 2 3 4
460K
●
● ● ●
1 2 3 4
230K
● ●
● ●
1 2 3 4
115K
SocketModem
Default
●
● ● ●
1 2 3 4
57.6K
● ●
● ●
1 2 3 4
38.4K
● ●
● ●
1 2 3 4
19.2K
● ● ●
●
1 2 3 4
9.6K
Switch Bank
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 95
Operating Modes
The table below briefly summarizes the various operating modes.
Mode Function
GSM / GPRS / UMTS / HSDPA
SLEEP (for USB only)
Power saving mode set automatically when no call is in
progress and the USB connection is suspended by host or not
present.
GSM IDLE Software is active. Once registered to the GSM network,
paging with BTS is carried out in order to achieve synchrony
with the GSM network. The repetition rate depends on the
parameter BSPA_Multiframe. The SocketModem is ready to
send and receive.
GSM TALK Connection between two subscribers is in progress. Power
consumption depends on the GSM network coverage and
several connection settings (e.g. DTX off/on, FR/EFR/HR,
hopping sequences and antenna connection). The following
applies when power is to be measured in TALK_GSM mode:
DTX off, FR and no frequency hopping, otherwise same as for
IDLE measurements.
GPRS IDLE The SocketModem is attached and ready for GPRS data
transfer, but no data is currently sent or received.
GPRS DATA GPRS data transfer in progress. Power consumption depends
on network settings (e.g. power control level), uplink / downlink
data rates and GPRS configuration (e.g., used multislot
settings).
EGPRS DATA EGPRS data transfer in progress. Power consumption
depends on network settings (e.g. power control level), uplink /
downlink data rates and EGPRS configuration (e.g., used
multislot settings).
UMTS / HSDPA IDLE The SocketModem is attached and ready for UMTS / HSDPA
data transfer, but no data is currently sent or received.
UMTS DATA UMTS data transfer in progress. Power consumption depends
on network settings (e.g., TPC Pattern) and data transfer rate.
Normal
operation
HSDPA DATA HSDPA data transfer in progress. Power consumption
depends on network settings (e.g., TPC Pattern) and data
transfer rate.
Comment [DAR47]: SocketModem
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 96
Turn off the SocketModem Using AT Command
The best and safest approach to powering down is to issue the AT^SMSO command. This procedure lets the
SocketModem log off from the network and allows the software to enter into a secure state and safe data before
disconnecting the power supply. The mode is referred to as Power-down mode. In this mode, only the RTC stays
active.
After sending AT^SMSO do not enter any other AT commands. There is one way to verify that the SocketModem
turns off:
Wait for the ”OK” – response. It indicates that data has been stored non-volatile and that the SocketModem turns
after about one second.
Important Note: The SocketModem requires a reset to become active again.
Automatic Shutdown
Automatic shutdown takes effect if:
The modem exceeds the critical limits of overtemperature or undertemperature.
The board temperature is constantly monitored by an internal NTC resistor. The values detected by the NTC
resistor are measured directly on the board and are therefore not fully identical with the ambient temperature.
Each time the board temperature goes out of range or back to normal, the modem instantly displays an alert (if
enabled).
URCs indicating the level "1" or "-1" allow the user to take appropriate precautions, such as protecting
the SocketModem from exposure to extreme conditions. The presentation of the URCs depends on the
settings selected with the AT^SCTM write command:
AT^SCTM=1: Presentation of URCs is always enabled.
AT^SCTM=0 (default): Presentation of URCs is enabled for 15 seconds time after startup. After 15
seconds operation, the presentation will be disabled, i.e. no alert messages can be generated.
URCs indicating the level "2" or "-2" are instantly followed by an orderly shutdown, except in cases of
temperature control during an emergency call (see paragraph below). The presentation of these URCs
is always enabled; i.e., they will be output even though the factory setting AT^SCTM=0 was never
changed.
Temperature-Dependent Alerts
Sending temperature alert (15s after start-up; otherwise, only if URC presentation enabled)
^SCTM_B: 1 Caution: SocketModem close to over-temperature limit.
^SCTM_B: -1 Caution: SocketModem close to under-temperature limit.
^SCTM_B: 0 SocketModem back to uncritical temperature range.
Automatic shutdown (URC appears no matter whether or not presentation was enabled)
^SCTM_B: 2 Alert: SocketModem is above over-temperature limit and switches off.
^SCTM_B: -2 Alert: SocketModem is below under-temperature limit and switches off.
Notes:
The MTSMC-H will not transmit temperature URC alerts.
The URCs will not display in data mode.
Temperature Control during an Emergency Call
If the temperature limit is exceeded while an emergency call is in progress the engine continues to measure the
temperature, but deactivates the shutdown functionality. If the temperature is still out of range when the call ends, the
SocketModem switches off immediately (without another alert message).
Power Saving
The modem is able to reduce its functionality to a minimum (during the so-called SLEEP mode) in order to minimize
its current consumption. The following sections explain the SocketModem’s network dependant power saving
behavior.
The implementation of the USB host interface also influences the SocketModem’s power saving behavior and
therefore its current consumption. During normal WCDMA operation; i.e., the modem is connected to a WCDMA
network, the duration of a power-saving period varies. It may be calculated using the following formula:
t = 2DRX value * 10 ms (WCDMA frame duration).
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 97
Power Saving While Attached to GSM Networks
The power saving possibilities while attached to a GSM network depend on the paging timing cycle of the base
station. The duration of a power saving interval can be calculated using the following formula:
t = 4.615 ms (TDMA frame duration) * 51 (number of frames) * DRX value.
DRX (Discontinuous Reception) is a value from 2 to 9, resulting in paging intervals between 0.47 and 2.12
seconds. The DRX value of the base station is assigned by the GSM network operator.
In the pauses between listening to paging messages, the SocketModem resumes power saving, as shown in the
figure below.
Power Saving and Paging in GSM Networks
The varying pauses explain the different potential for power saving. The longer the pause the less power is
consumed.
Generally, power saving depends on the SocketModem’s application scenario and may differ from the above
mentioned normal operation. The power saving interval may be shorter than 0.47 seconds or longer than 2.12
seconds.
Power Saving While Attached to WCDMA Networks
The power saving possibilities while attached to a WCDMA network depend on the paging timing cycle of the
base station.
During normal WCDMA operation, i.e., the SocketModem is connected to a WCDMA network, the duration of a
power saving period varies. It may be calculated using the following formula:
t = 2DRX value * 10 ms (WCDMA frame duration).
DRX (Discontinuous Reception) in WCDMA networks is a value between 6 and 9, thus resulting in power saving
intervals between 0.64 and 5.12 seconds. The DRX value of the base station is assigned by the WCDMA
network operator.
In the pauses between listening to paging messages, the SocketModem resumes power saving, as shown in the
figure below.
Power Saving and Paging in WCDMA Networks
The varying pauses explain the different potential for power saving. The longer the pause the less power is
consumed.
Generally, power saving depends on the SocketModem’s application scenario and may differ from the above
mentioned normal operation. The power saving interval may be shorter than 0.64 seconds or longer than 5.12
seconds.
Power Saving During Network Search, GSM/WCDMA
The power saving interval during network search depends on the network registration mode configured for the
modem. This mode can be specified with the AT^SCFG command parameter MEopMode/RM:
• In "Fast" mode, the power saving interval may last for up to 5 seconds.
• In "Normal" mode, the power saving interval may last for up to 40 seconds.
For details on how to configure the AT^SCFG parameter MEopMode/RM see the HSDPA AT Command Guide.
PART 2 – Embedded Wireless Modems Chapter 5 – SocketModem HSDPA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 98
Interface Signal Descriptions
USB Interface
The SocketModem supports a USB 2.0 Full Speed (12Mbit/s) device interface. A USB host has to support at
least 6 ‘Message Pipes” to work with the HSPDA USB interface.
The USB I/O-pins are capable of driving the signal at min 3.0V. They are 5V I/O compliant.
The USB interface is powered by VUSB. VUSB must be supplied by USB host in the range 4.5 to 5.25V. The
maximum load in VUSB is 10mA.
While the USB connection is active, the SocketModem will not change into SLEEP Mode. To enable switching
into SLEEP mode the USB host must bring its USB interface into Suspend state. On incoming calls, the
SocketModem will then generate a remote wake up request to resume the USB connection.
Note: The MTSMC-H will not transition to sleep mode.
USB Interface Signal Descriptions
Signal Name I/O Signal Form and Level Commend
VUSB I VINmin = 4.5V
VINmax = 5.25V
Active current:
IItyp = 2.5mA
IImax = 10mA
Suspend current:
IItyp = 900μA
If lines are unused,
keep pins open.
USB_DP
USB_DN
I/O
I/O
Input sensitivity (Diff),
|D+ - D-|, VIN = 0.8V to 2.5V:
0.2V min
Common mode range (Diff),
VIN = 0.8V to 2.5V
Receiver threshold (single-end),
Vthresholdmin = 0.8V
Vthresholdmax = 2.0V
Receiver hysteresis,
Vhystyp = 200mV
If lines are unused,
keep pins open.
Note: For more information about the USB interface, see the separate USB Reference Guide available on the
Universal Guide CD.
PART 3 – Analog SocketModems
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 99
Part 3
Analog SocketModems
Chapter 6 – SocketModem (MT9234SMI)
Chapter 7 – SocketModem (MT5692SMI)
Chapter 8 – SocketModem (MT2492SMI)
Chapter 9 – SocketModem (MT2456SMI-22)
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 100
Chapter 6 – SocketModem® (MT9234SMI)
Introduction
Multi-Tech’s SocketModem creates communication-ready devices by integrating data/fax/voice functionality into a single
product design. The SocketModem is a space-efficient (1" × 2.5"), embedded modem that provides V.92/56K communication.
The complete, ready-to-integrate modem dramatically reduces development time and costs for system designers.
The MT9234SMI SocketModems are used for integrating data and fax communications. They are single-port modems that
integrate the controller, DSP, and DAA in a 1" x 2.5" form factor and communicate to a host controller via an asynchronous
serial interface.
Product Build Options and Ordering Information
Product Description Region Order this
Product
3
MT9234SMI
MT9234SMI-92 V.92 Serial Data, V.34 Fax, 5V Global
MT9234SMI-L-92 V.92 Serial Data, V.34 Fax, 3.3V Global
MT9234SMI-P-92 V.92 Parallel Data, V.34 Fax, 5V Global
MT9234SMI-P-L-92 V.92 Parallel Data, V.34 Fax, 3.3V Global
MT9234SMI-HV-92 V.92 Serial Data, V.34 Fax, High Voltage, 5V Global
MT9234SMI-P-HV-92 V.92 Parallel Data, V.34 Fax, High Voltage, 5V Global
Telecom Label
MT9234SMI-LS MT9234SMI – Global Regulatory Label Global
Developer Kits
MTSMI-UDK Universal Developer Kit Global
MTSMI-P-UDK SocketModem Parallel Developer Kit Global
How to Read the Product Codes in the Table Above:
92 V.92/56K data rate
HV High Voltage 2KV Dielectric Isolation (EN60601)
L 3.3V
P Parallel interface
LS Telecom Label
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MT9234SMI-92.Rx.
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Product Reference Guides Title and Document
Product Number Fax Commands Voice Commands
SocketModem
(MT9234SMI) MT9234SMI AT Commands Reference
Guide (S000434x) See separate Fax Guides:
Class 1: S000262x
Class 2 S000239x
Included in S000434x
Comment [DAR48]: Removed ITP
(Industrial Temperature) because
Rick said all 9234SMI are ITP.
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 101
Technical Specifications
The SocketModem (MT9234SMI) meets the following specifications:
Category Description
Data Standards V.92, V.34 enhanced, V.34, V.32bis, V.32, V.22bis, V.22; Bell 212A and Bell 103
Data Format Serial, or 8-bit parallel interface, asynchronous
Character Format 10 bit or 11 bit
Serial/Data Speeds Serial port data rates adjustable to 300, 1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200, and 230400 bps
Client-to-Client Data Rates 33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600,
7200, 4800, 2400, 1200, 0-300 bps
Data Error Correction (ECM) V.44; V.42 (LAPM, MNP 2-4)
Data Compression V.42bis, MNP 5
Fax Compatibility V.17, V.29/V.27/V.21, V.34
Fax Class Class 1 &1.0 – All builds
Class 2, 2.0/2.1 – All builds
Fax Compression MH, MR, MMR
Fax Error Correction Mode ECM
Modes of Operation Fax online modes; full duplex over dial-up lines; data mode; command mode;
online command mode; V.54 test mode
Weight 0.6 oz. (0.017 kg.)
Operating Temperature -40° to +85° C
Storage Temperature -40° to +85° C
Humidity 20% to 90% (non-condensing)
Operating Voltage 3.3V and 5V
Power Measurements MT9234SMI
3.3V
Typical: 122mA (0.40W @ 3.3VDC)
Maximum: 136mA (0.49W @ 3.6VDC)
Sleep Mode: 90mA to 95mA (.297W to .3135W @ 3.3VDC)
5V
Typical: 125mA (0.62W @ 5VDC)
Maximum: 138mA (0.72W @ 5.25VDC)
Sleep Mode: 92mA (0.44W @ 5VDC)
Note: Multi-Tech Systems, Inc. recommends that the customer incorporate a 10%
buffer into their power source when determining product load.
Transmit Level - 11 dBm (varies by country setting)
Receiver Sensitivity - 43 dBm under worst-case conditions
DAA Isolation
MT9234SMI
1.5Kv r.m.s. or 2121 VDC at working voltage of 250VAC
MT9234SMI
2Kv r.m.s. or 2828VDC at working voltage of 125VAC
Flow Control XON/XOFF (software), RTS/CTS (hardware)
Command Buffer 60 characters
Telephony / TAM TAM: S-101 AT+V commands (no CODEC for speakers/microphone interface)
Certifications & Approvals Safety Certifications
UL 60950
cUL 60950
EN 60950
AS/NZS 60950:2000
CCC
Safety Certifications for HV Builds
UL 60601-1
EN 60601-1
EMC Approvals
FCC Part 15
Canadian EMC
EN 55022
EN 55024
GB4943, GB9254
Warranty 2 years
Comment [DAR49]: This came
from email string involving Curt,
Brandon Dalida, Jerome, dated
2/5/09 forwarded by Jerry to me. It
covers sleep mode for the 5634SMI-
ITP too.
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 102
Category Description
Intelligent Features Fully AT command compatible
Leased-line operation
Sleep mode
Autodial, redial
Pulse or tone dial
Dial pauses
Auto answer
Adaptive line probing
Automatic symbol and carrier frequency during start-up, retrain, and rate
renegotiations
DTMF detection
Callback security
Distinctive ring
Voice record and playback
Call status display, auto-parity and data rate selections
Keyboard-controlled modem options
On-screen displays for modem option parameters
Remote configuration
DTR dialing
Phone number storage
Flash memory for firmware updates
NVRAM storage for user-defined parameters
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 103
SocketModem Pin Out
Serial Pin Out
The MT9234SMI SocketModem uses a 20-pin interface to provide an on-board DAA with tip and ring connections,
audio circuit for call-progress monitoring, LED driver for call status annunciation, and serial interface.
Note: The bolded, shaded pins are the active MT9234SMI pins.
Top View
Serial SocketModem Pin Out
For pin descriptions, see the Universal Pin Out Descriptions in Chapter 1.
Comment [DAR50]: Pinout
9234.png filed under rev K graphics
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 104
Parallel Pin Out
The parallel configuration is not compatible with the serial universal socket.
The Parallel SocketModem uses a 22-pin interface to provide an on-board DAA with tip and ring connections, audio
circuit for call-progress monitoring, and parallel interface.
Note: The bolded, shaded pins are the active MT9234SMI-P (Parallel) pins.
Top View – Parallel SocketModem Pins
Pin Descriptions for a Parallel SocketModem Device
Pin # Signal I/O Description
1 Tip I/O Telephone Line Interface – TIP
2 Ring I/O Telephone Line Interface – RING
24
–
RESET I Modem Reset (with pull-up). Active low –RESET input resets the SocketModem logic and
returns AT command set to original factory defaults or to NVRAM 'stored values' . The modem
is ready to accept commands within 6.5 seconds of power-on or reset. Reset must be
asserted for a minimum of 30ms.
25 A1 I Host Bus Address Line 1
26 DGND GND Digital Ground
27 D7 O Host Bus Data Line 7
29 D2 O Host Bus Data Line 2
30 INT O Host Bus Interrupt Line. INT output is set high when the receiver error flag, receiver data
available, transmitter holding register empty, or modem status interrupt have an active high
condition. INT is reset low upon the appropriate interrupt service or master reset operation.
31 A0 I Host Bus Address Line 0.
32 –WR I Host Bus Write. –WR is an active low, write control input. When –DS is low, –WR low
allows the host to write data or control words into a selected modem register.
33 –RD I Host Bus Read. –RD is an active low, read control input. When –DS is low, –RD low allows
the host to read status information or data from a selected modem register.
34 A2 I Host Bus Address Line 2
35 D4 O Host Bus Data Line 4
36 D5 O Host Bus Data Line 5
37 D0 O Host Bus Data Line 0
38 D1 O Host Bus Data Line 1
39 D3 O Host Bus Data Line 3
40 –DS I Host Bus Device Select. –DS input low enables the modem for read or write.
41 D6 O Host Bus Data Line 6
61 VCC PWR +5 V or 3.3 V Supply (depends upon model).
63 AGND GND Analog Ground. This is tied common with DGND on the SocketModem. To minimize
potential ground noise issues, connect audio circuit return to AGND.
64 SPKR O Speaker Output. SPKR is a single ended-output. It is tied to the CODEC through a series
6.8K resistor and .1uf cap.
Comment [DAR51]: SM Analog
Dial-up Parallel.wmf
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 105
DC Electrical Characteristics
5V Serial – Standard (SMI) and Medical Device (SMI-HV) Build Options
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Digital Inputs
–DTR (40), –TXD (35), –RTS (33) Input High
Min 2.52V
Input Low
Max .9V
–Reset (24) Input High
Min 2.52V Input Low
Max 0.3V
Digital Outputs
–DCD (39), –CTS (38), –DSR (37),
–RI (36), –RXD (34)
Output
High
Min 2.3V
Output Low
Max 0.4V Current Drive
2mA
Digital Input Capacitance 5 pF
5V Parallel – Standard (SMI) and Medical Device (SMI-HV) Build Options
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Digital Inputs
–DS (40) Input High
Min 2.52V Input Low
Max 0.9V
Digital Inputs (hysteresis input buffer)
A0 (31), A1 (25), A2 (34),
–WR (32), –RD (33)
Input High
Min 2.52V
Input Low
Max 0.9V
Digital Input / Output
Output buffer can source 12 mA at 0.4 V
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5
(36), D6 (41), D7 (27)
Input High
Min 2.52V
Input Low
Max 0.9V
Digital Output
INT (30) Output High
Min 2.3V Output Low
Max 0.4V Current Drive
2mA
Digital Input Capacitance 5 pF
3.3V Serial – Industrial Temperature (SMI-L) Build Option
3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V
Digital Inputs
–DTR (40), –TXD (35), –RTS (33) Input High
Min 2.52V Input Low
Max 0.9V
–Reset (24) Input High
Min 2.52V
Input Low
Max 0.3V
Digital Outputs
–DCD (39), –CTS (38), –DSR (37), –RI (36),
–RXD (34)
Output High
Min. 2.3V Output Low
Max 0.4V Current Drive
2mA
Digital Input Capacitance 5 pF
3.3V Parallel – Industrial Temperature (SMI-L) Build Options
3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V
Digital Inputs
–DS (40) Input High
Min 2.52V Input Low
Max 0.9V
Digital Inputs (hysteresis input buffer)
A0 (31), A1 (25), A2 (34), –WR (32), –RD (33) Input High
Min 2.52V Input Low
Max 0.9V
Digital Input/Output
Output buffer can source 12 mA at 0.4 V
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5 (36),
D6 (41), D7 (27)
Input High
Min 2.52V Input Low
Max 0.9V
Digital Output
INT (30) Output High
Min 2.3V Output Low
Max 0.4V Current Drive
2mA
Digital Input Capacitance 5 pF
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 106
Parallel Timing Requirements
Timing Requirements for Parallel Write
Parameter Min Max Unit
–DS to –WR Setup (low to low) 10 - ns
A0, A1, A2 to –WR Setup (valid to low) 15 - ns
–WR Pulse Width (low to high) 40 - ns
D0–D7 to –WR Setup (valid to high) 30 - ns
–WR to –DS hold (high to high) 0 - ns
–WR to A0–A2 Hold (high to invalid) 0 - ns
–WR to D0–D7 Hold (high to invalid) 0 - ns
–WR interaccess (high to low)
Non-MIMIC Accesses
MIMIC Accesses
10
110
-
-
ns
ns
Timing Requirements for Parallel Read
Parameter Min Max Unit
–DS to –RD Setup (low to low) 10 - ns
A0, A1, A2 to –RD Setup (valid to low) 15 - ns
–RD Pulse Width (low to high) 40 - ns
–RD to –DS hold (high to high) 0 - ns
–RD to A0–A2 Hold (high to invalid) 0 - ns
–WR interaccess (high to low)
Non-MIMIC Accesses
MIMIC Accesses
10
110
-
-
ns
ns
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 107
SocketModem Parallel Interface Internal Registers
The SocketModem parallel interface is a mimic of a 16C550A UART. It is similar to the MIMIC interface used in the Zilog
Z80189. The SocketModem mimic (MMM) takes advantage of this standard interface while replacing the serial to parallel data
transfer with a less complicated parallel to parallel data transfer.
The MMM interface controls an 8-bit parallel data transfer which is typically interrupt driven. Interrupts usually indicate one or
both of two conditions: (1) the receive (RX) FIFO has either reached a trigger level or time-out condition and needs to be
emptied and/or (2) the transmit (TX) FIFO is empty and waiting for more data from the Host. An interrupt can also be triggered
by a change in the modem status register (i.e., loss of carrier) or by the occurrence of errors in the line status register (overrun,
parity, framing, break detect).
In addition to the receive and transmit FIFOs, there are twelve other control/status registers called the MMM register set which
can be accessed through this interface.
Overview
SocketModem MIMIC (MMM) Operation
Data flow through MMM is bi-directional. Simultaneously, data can flow from the host through the transmit FIFO
to the SocketModem controller, and data can flow from SocketModem controller through the receive FIFO to the
Host. In the receive path, 8-bit data is asynchronously received (from the SocketModem controller) by the
receive FIFO where it is stored along with associated three error bits. The error bits must arrive (via a
SocketModem controller I/O write to MMM shadow line status register) prior to receiving the actual data bits. The
error bits are then temporarily stored so they may be written, with associated data bits, to the 11-bit wide RX
FIFO.
After every data write, the RX FIFO write pointer is incremented. RX FIFO trigger levels, data ready signal, and
time-out counter are checked to see if a Host-interrupt needs to be sent. The data ready signal will be activated
and MMM sits poised to accept another data word.
We highly recommend the host should read the MMM IIR register to determine the type of interrupt. Then it might
check bit 7 of the LSR to see if there are any errors in the data currently residing in the receive FIFO. Finally, it
will (1) alternately read a data word through the RX FIFO read pointer and the error bits via the MMM LSR until
the FIFO is empty, or (2) read successive data words (knowing there were no errors in the FIFO) until the trigger
count is met.
A similar sequence occurs when data flows in the other direction (from host through transmit FIFO), except there
is no error bit manipulation/checking involved.
FIFO Operation
The 16-byte transmit and receive data FIFOs are enabled by the FIFO Control Register (FCR) bit-0. You can
set the receive trigger level via FCR bits 6/7. The receiver FIFO section includes a time-out function to
ensure data is delivered to the external host. An interrupt is generated whenever the Receive Holding
Register (RHR) has not been read following the loading of a character or the receive trigger level has been
reached.
Receive (RX) FIFO
The RX FIFO can be configured to be 16 words deep and 11 bits wide. Each word in the RX FIFO consists
of 8 data bits and 3 error bits. The RX block of the MMM contains read and write pointers and status flag
circuitry that need only to be presented with data (for input), reset, read/write control signals, and read/write
clock signals. The RX block of the MMM internally manages the FIFO register file and pointers, and it
provides simultaneous read/write capability (no contention problems).
The RX block of the MMM provides data (for output), FIFO full flag, FIFO empty flag, and an almost full flag
which uses an associated predefined trigger level (obtained from the MMM FCR control register) to signal
when the trigger level has been met. Four possible trigger levels may be selected by programming bits 6-7
of the FCR control register.
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 108
A typical (interrupt driven) write to the RX block is a two-step process. The MMM micro-controller must first
write the 3 error bits to a shadow MMM LSR status register. Next, the micro-controller writes the data to the
RX FIFO and during this write operation, the 3 error bits are directly loaded from the LSR shadow register
into the bits 8-10 of the selected (11 bit-wide) FIFO register. These error bits represent the parity error,
framing error, and break interrupt signals associated with each data work transmission into the receive
FIFO. When the receive FIFO is read, these error bits are loaded directly into bits 2-4 of the MMM LSR
register.
A2 A1 A0 Register Name Register Description Host Access
0
0
0
0
0
0
1
1
1
1
0
0
0
1
1
1
0
0
1
1
0
0
1
0
0
1
0
1
0
1
RBR
THR
IER
IIR
FCR
LCR
MCR
LSR
MSR
SCR
Receive Buffer (RX FIFO)
Transmit Holding (TX FIFO)
Interrupt Enable
Interrupt Identification
FIFO Control
Line Control
Modem Control
Line Status
Modem Status
Scratch pad
DLAB = 0 R only
DLAB = 0 W only
DLAB = 0 R/W
DLAB = X R only
DLAB = X W only
DLAB = X R/W
DLAB = 0 R/W
DLAB = X R only
DLAB = X R only
DLAB = 0 R/W
0
0
1
1
0
0
1
0
0
1
1
0
DLL
DLM
DLX
MCX
LSB of Divisor Latch
MSB of Divisor Latch
Divisor Latch
Status/Control
DLAB = 1 R/W
DLAB = 1 R/W
DLAB = 1 R/W
DLAB = 1 R/W
Note 1* The General Register set is accessible only when DS is a logic 0.
Note 2* The Baud Rate register set is accessible only when DS is a logic 0 and LCR bit-7 is a logic 1.
Time Out Interrupts
The interrupts are enabled by IER bits 0-3. Care must be taken when handling these interrupts. Following a
reset the transmitter interrupt is enabled, the SocketModem will issue an interrupt to indicate that transmit
holding register is empty. This interrupt must be serviced prior to continuing operations.
The LSR register provides the current singular highest priority interrupt only. A condition can exist where a
higher priority interrupt may mask the lower priority interrupt(s). Only after servicing the higher pending
interrupt will the lower priority interrupt(s) be reflected in the status register. Servicing the interrupt without
investigating further interrupt conditions can result in data errors. When two interrupt conditions have the
same priority, it is important to service these interrupts correctly.
Receive Data Ready and Receive Time Out have the same interrupt priority (when enabled by IER bit-3).
The receiver issues an interrupt after the number of characters received have reached the programmed
trigger level. In this case the MMM FIFO may hold more characters than the programmed trigger level.
Following the removal of a data byte, the user should recheck LSR bit-0 for additional characters. A Receive
Time Out will not occur if the receive FIFO is empty. The time out counter is reset at the center of each stop
bit received or each time the receive holding register (RHR) is read.
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 109
Register Functional Definitions
The following table delineates the assigned bit functions for the twelve internal registers. The assigned bit functions are
more fully defined in the following paragraphs.
Internal Registers
A2 A1 A0 Register
[Default] *3 BIT-7 BIT-6 BIT-5 BIT-4 BIT-3 BIT-2 BIT-1 BIT-0
General Register Set: Note 1*
0 0 0 RBR [XX] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
0 0 0 THR [XX] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
0 0 1 IER [00] 0 0 0 0 Modem
Status
Interrupt
Receive
Line
Status
interrupt
Transmit
Holding
Register
interrupt
Receive
Holding
Register
interrupt
0 1 0 IIR [XX] FIFO
enable
FIFO
enable
0 0 Interrupt
ID
Interrupt
ID
Interrupt
ID
Interrupt
Pending
0 1 0 FCR [00] RX
Trigger
(MSB)
RX
trigger
(LSB)
Detect
change
in FCR
TX FIFO
overrun
bit
DMA
mode
select
XMIT
FIFO
reset
RCVR
FIFO reset
FIFO
enable
0 1 1 LCR [00] Divisor
latch
access
(DLAB)
Set
break
Stick
parity
Even
parity
Parity
enable
0 Word
length bit-
1
Word
length
bit-0
1 0 0 MCR [00] 0 0 0 Loop
back
INT
enable
OUT 1 -RTS -DTR
1 0 1 LSR [60] RX
FIFO
data
error
TX
empty
THR
empty
THR
Empty
Break
interrupt
Framing
error
Parity
error
Overrun
error
Receive
data
ready
1 1 0 MSR [X0] CD RI
DSR
CTS Delta
-CD
Delta
-RI
Delta
-DSR
Delta
-CTS
1 1 1 SCR [FF] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
Special Register Set: Note *2
0 0 0 DLL [00] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
0 0 1 DLM [00] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
Note: 1* The General Register set is accessible only when DS is a logic 0.
2* The Baud Rate register set is accessible only when DS is a logic 0 and LCR bit-7 is a logic 1.
3* The value between the square brackets represents the register's initialized HEX value, X = N/A.
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 110
RBR – Receive Buffer (RX FIFO)
All eight bits are used for receive channel data (host read/data in; host write/data out). The three error bits per
byte are copied into bits 2, 3, and 4 of the LSR during each host I/O read; therefore, they are available for
monitoring on a per-byte basis.
THR – Transmit Holding Register (TX FIFO)
All eight bits are used for transmit channel data (host write/data out; host read/data in).
IER – Interrupt Enable
Bits 4–7: Reserved and will always read 0.
Bits 0-3: Set by host software only and cleared by software control or host reset.
Bit 3: Enables modem status IRQ. If bits 0–3 of the MSR are set and this bit is set to 1 (enabled), a host
interrupt is generated.
Bit 2: Enables receive line status IRQ. If bits 1–4 (overrun, parity, framing, break errors) of the LSR are set
and this bit is set to a logic 1, a host interrupt is generated.
Bit 1: Enables transmit holding register IRQ. If bit 5 (transmit holding register empty) of the LSR is set and
this bit is set to a 1, a host interrupt is generated.
Bit 0: Enables received data available IRQ. If bit 0 (data ready) of the LSR is set and this bit is set to a 1, a
host interrupt is generated.
IIR – Interrupt Identification (Read Only)
Bits 6–7: (FIFO enabled bits). These bits will read a 1 if FIFO mode is enabled and the 16450 enable bit is 0
(no force of 16450 mode).
Bits 4–5: Reserved and always read a 0.
Bits 1–3: Interrupt ID bits.
Bit 0: Interrupt pending. If logic 0 (in default mode), an interrupt is pending.
When the host accesses IIR, the contents of the register are frozen. Any new interrupts will be recorded, but not
acknowledged during the IIR access. This requires buffering bits (0–3, 6–7) during IIR reads.
Interrupt Sources and Reset Control Table
Bit 3 Bit 2 Bit 1 Priority Interrupt Source Interrupt Reset Control
0 1 1 Highest Overrun, parity, framing, error
or break detect bits set by
SocketModem Controller
Reading the LSR
0 1 0 2nd Received data trigger level
RX FIFO drops below trigger
level
1 1 0 2nd Receiver time-out with data in
RX FIFO
Read RX FIFO
0 0 1 3rd TX holding register empty Writing to TX holding
register or reading IIR when
TX holding register is source
of error
0 0 0 4th MODEM status: CTS, DSR, RI
or DCD
Reading the MSR
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 111
FCR – FIFO Control
Bits 6–7: Used to determine RX FIFO trigger levels.
Bit 5: Used to detect a change in the FCR.
Bit 4: TX FIFO overrun bit.
Bit 3: DMA mode select. If bit 3 is a 0, the 16450 mode is enabled which does only single-byte transfers.
When bit 3 is a 1, it enables a multiple byte (FIFO mode) data transfer.
Bit 2: TX FIFO reset. This will cause TX FIFO pointer logic to be reset (any data in TX FIFO will be lost).
This bit is self clearing; however, a shadow bit exists that is cleared only when read by the host, thus
allowing the host to monitor a FIFO reset.
Bit 1: RX FIFO reset. This will cause RX FIFO pointer logic to be reset (any data in RX FIFO will be lost).
This bit is self clearing; however, a shadow bit exists that is cleared only when read by the host, thus
allowing the host to monitor a FIFO reset.
Bit 0: FIFO enable. The host writes this bit to logic 1 to put the block in FIFO mode. This bit must be a 1
when writing other bits in this register or they will not be programmed. When this bit changes state,
any data in the FIFOs or the RBR and THR registers will be lost and any pending interrupts are
cleared.
Bit 7 Bit 6 16 Deep FIFO Trigger Levels (# of bytes) Default
0 0 1
0 1 4
1 0 8
1 1 14
LCR – Line Control
Bit 7: Divisor latch access bit. This bit allows the host, access to the divisor latch. Under normal
circumstances, the bit is set to 0 (provides access to the RX and TX FIFOs at address 0). If the
bit is set to 1, access to transmitter, receiver, interrupt enable, and modem control registers is
disabled. In this case, when an access is made to address 0, the divisor latch least (DLL)
significant byte is accessed. Address 1 accesses the most significant byte (DLM). Address 7
accesses the DLX divisor latch register. Address 4 accesses the MCX status/control register.
Bit 6: Used to denote a host-generated set break condition.
Bits 0,1,3,4,5: Used only in parity bit generation for the 7 bit data byte case. Bits 0 and 1 are used for word
length select (b0 = 0 and b1 = 1 is used for 7 bit data). Bit 3 is parity enable. Bit 4 is even parity
select. Bit 5 is stick parity.
MCR – Modem Control
Bits 5–7: Reserved, and will always be 0.
Bit 4: Used for loopback. When a 1, bits 0–3 of the MCR are reflected in modem status register (MSR)
as follows: RI <= OUT1, DCD <= OUT2, DSR <= DTR, CTS <= RTS. Emulation of loopback
feature of 16550 UART must be done by the host except for the above conditions. Also, when
this bit is set, it allows for data loop back. This means the host can write a data word to the TX
and immediately read back the same data word from the RX (in a manner similar to the 16550A).
Bit 3: Controls the signal used to 3-state the host interrupt. If 0, then an active-low L33xV output will be
set to 0, and this signal will be used to 3-state the host interrupt output pin.
Bits 0–2: Used during LOOP function.
Bit 2: OUT1.
Bit 1: Request to Send (RTS).
Bit 0: Data terminal ready (DTR).
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 112
LSR – Line Status
Bit 7: Error in RX FIFO. This bit is always set to 1 if at least one data byte in the RX FIFO has an error.
This will clear when there are no more errors in the RX FIFO.
Bit 6: Transmitter empty. This bit is the same as LSR bit 5 (THRE) in MMM
Bit 5: Transmitter holding register empty. This bit is set to 1 when either the transmitter holding register
has been read (emptied) by the micro-controller (16450 mode) or the TX FIFO is empty (16550
mode). This bit is set to 0 when either the THR or the TX FIFO becomes not empty in 16450
mode. In 16550 mode, it is set to 0 only after the trigger level has been met since the last
occurrence of TX FIFO empty. If the transmitter timer is enabled, a shadow bit exists which
delays the timer setting this bit to 1. When reading this bit, the micro-controller will not see the
delay. Both shadow and register bits are cleared when the host writes to the THR or TX FIFO in
16450 mode. The trigger level must be reached to clear the bit in 16550 (FIFO) mode.
Bits 2–4: Used for parity error, framing error, and break detect. These bits are written, indirectly, by the
micro-controller as follows: The bits are first written to the shadow bit locations when the micro-
controller write accesses the LSR. When the next character is written to the receive buffer (RBR)
or the RX FIFO, the data in the shadow bits is then copied to the RBR (16450 mode) or RX FIFO
(16550 mode). In FIFO mode, bits become available to the host when the data byte associated
with the bits is next to be read. In FIFO mode, with successive reads of the receiver, the status
bits will be set if an error occurs on any byte. Once the micro-controller writes to the RBR or RX
FIFO, the shadow bits are auto cleared. The register bits are updated with each host read.
Bit 1: Overrun error. This bit is set if the micro-controller makes a second write to RBR before the host
reads data in the buffer (16450 mode) or with a full RX FIFO (16550 mode). No data will be
transferred to the RX FIFO under these circumstances. This bit is reset when the host reads the
LSR.
Bit 0: Data ready bit. This bit is set to 1 when received data is available, either in the RX FIFO (16550
mode) or the RBR (16450 mode). This bit is set immediately upon the micro-controller writing
data to the RBR or FIFO if the receive timer is not enabled, but it is delayed by the timer interval
if the receive timer is enabled. For micro-controller read access, a shadow bit exists so that the
micro-controller does not see the delay that the host sees. Both bits are cleared to logic 0
immediately upon reading all data in either RBR or RX FIFO.
MSR – Modem Status
Bits 4 through 7 of the MSR can also take on the MCR bits 0 through 3 value when in MCR loop mode (i.e. when
MCR b4 = 1). The transfer of bits in loop back has a null modem twist (i.e. MCR b0 goes to MSR b5 and MCR
b1goes to MSR b4).
Bit 7: Data carrier detect (DCD) bit.
Bit 6: Ring indicator (RI) bit.
Bit 5: Data set ready (DSR) bit.
Bit 4: Clear to send (CTS) bit.
Bit 3: Delta data carrier detect pin. This bit is set to a 1 whenever the data carrier detect bit changes
state. It is reset when the host reads the modem status register.
Bit 2: Trailing edge ring indicator bit. This bit is set to 1 on the falling edge of the ring indicator bit. It is
reset when the host reads the modem status register.
Bit 1: Delta data set ready bit. This bit is set to 1 whenever the data set ready changes state. It is reset
when the host reads the modem status register.
Bit 0: Delta clear to send bit. This bit is a one whenever the clear to send bit changes state. It is reset
when the host reads the modem status register.
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 113
SCR – Scratch
The host programmer uses this register for temporary data storage.
DLL – Divisor Latch (LSByte)
This register contains low-order byte for the 16-bit clock divider. It is kept to maintain register set compatibility with the
16C550A interface. However, it is not used for clock generation since MMM does not require the generation of a real
baud clock.
DLM – Divisor Latch (MSByte)
This register contains high-order byte for the 16-bit clock divider. It is kept to maintain register set compatibility with
the 16C550A interface. However, it is not used for clock generation, since MMM does not require the generation of a
real baud clock.
Programming the Baud Rate Generator Registers DLM (MSB) and DLL (LSB) provides a user capability for selecting
the desired final baud rate. The example in the Table below shows the selectable baud rates available when using a
1.8432 MHz external clock input.
BAUD RATE GENERATOR PROGRAMMING TABLE
Baud
Rate 16 x Clock Divisor (Decimal) DLM Value (HEX) DLL Value (HEX)
110
300
600
1200
2400
4800
9600
19.2K
38.4K
57.6K
115.2K
1047
384
192
96
48
24
12
6
3
2
1
04
01
00
00
00
00
00
00
00
00
00
17
80
C0
60
30
18
0C
06
03
02
01
PART 3 – Embedded Analog SocketModems Chapter 6 – SocketModem (MT9234SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 114
Application Notes
Tip and Ring Interface
OEM Motherboard
Filtering and Surge Protection Options
See Design Considerations and Recommended Parts in Chapter 1.
Recommended Uses for Filtering Options
Enhanced Surge Protection with RJ-11 Filtering
Use this option when additional lightning protection may be needed.
Alternate Common Mode with RJ-11 Filtering
Use this option when your design has common mode emission issues.
Comment [DAR52]: This is the new
Tip and Ring done 2008
Comment [DAR53]: Tip_and_Ring
_
New_2008.png Rev. I
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 115
Chapter 7 – SocketModem® (MT5692SMI)
Introduction
This chapter covers the SocketModem® MT5692SMI and its various builds: serial, parallel, voice. The serial build option can
be ordered with or without IP functionality.
The Multi-Tech SocketModem creates communication-ready devices by integrating data/fax/voice functionality into a single
product design. The SocketModem is a space-efficient (1" × 2.5"), embedded modem that provides V.92 or V.34/33.6K data
communication. The complete, ready-to-integrate modem dramatically reduces development time and costs for system
designers.
The MT5692SMI SocketModem is a standard 64-pin modem used for integrating data communications.
It is a single-port modem that integrates the controller, DSP, and DAA in a 1" x 2.5" form factor and communicates to a
host controller via an asynchronous serial interface.
It is available with an 8-bit parallel interface.
The SocketModem IP, MT5692SMI-IP, embedded modem creates Internet-ready devices by integrating modem functionality
and a complete TCP/IP protocol stack into a single, universal socket design. This embedded modem sends and receives data
via e-mail, HTTP, or socket interfaces. It also complies with telecom requirements globally allowing for worldwide shipments.
Product Build Options and Ordering Information
Product Description Region Order this
Product
3
MT5692SMI
Serial Builds
MT5692SMI-34 V.34 Serial Data / V.17 Fax, 5V Global
MT5692SMI-L-34 V.34 Serial Data / V.17 Fax, 3.3V Global
MT5692SMI-92 V.92 Serial Data / V.17 Fax, 5V Global
MT5692SMI-L-92 V.92 Serial Data / V.17 Fax, 3.3V Global
MT5692SMI-X-L-92 V.92 Serial Data / V.17 Fax, 3.3V (excludes LED pins) Global
IP Builds
MT5692SMI-IP-92 V.92 Serial Data-Only 5V Global
MT5692SMI-IP-L-92 V.92 Serial Data-Only, 3.3V Global
Voice Builds
MT5692SMI-V-34 V.34 Serial Data / V.17 Fax / Voice, 5V Global
MT5692SMI-V-92 V.92 Serial Data / V.17 Fax / Voice, 5V Global
Parallel Builds
MT5692SMI-P-34 V.34 Parallel Data / V.17 Fax, 5V Global
MT5692SMI-P-L-34 V.34 Parallel Data / V.17, 3.3V Global
MT5692SMI-P-92 V.92 Parallel Data / V.17 Fax, 5V Global
MT5692SMI-P-L-92 V.92 Parallel Data / V.17 Fax, 3.3V Global
Developer Kits
MTSMI-UDK SocketModem Serial Developer Kit Global
MTSMI-P-UDK SocketModem Parallel Developer Kit Global
How to Read the Product Codes in the Above Table:
34 V.34 data rate
92 V.92/56K data rate
L 3.3V power input (default is 5V)
P Parallel interface (default is serial)
V Speakerphone I/O
X Excludes LED pins
IP Embedded Universal IP Stack
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MT5692SMI-V-34.Rx.
“R” indicates product revision. “x” is the revision number.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 116
AT Commands Reference Guide
Product Reference Guides Title and Document Product
Number Fax Commands Voice Commands
SocketModem
(MT5692SMI) MT5692SMI AT Commands Reference Guide
(S000468x) Included in S000468x Included in S000468x
SocketModem
(MT5692SMI-IP) Universal IP AT Commands Reference Guide
(S000457x) NA NA
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 117
Technical Specifications
MT5692SMI, MT5692SMI-V, MT5692SMI-P, MT5692SMI-IP
The MT5692SMI, MT5692SMI-V, MT5692SMI-P, and MT5692SMI-IP SocketModems meet the following specifications:
Category Description
Data Standards V.92, V.34, V.32bis, V.32, V.23, V.23 half-duplex, V.23 reverse, V.22bis, V.22bis Fast
Connect, V.22, V.21, Bell 212A/Bell 103, V.29 FastPOS, V.80 Synchronous Access Mode
(V.80 not for IP build)
Data Format All Builds: Serial, asynchronous
Parallel Build: 8-bit parallel interface
Character Format 10 bit
Serial/Data Speeds All Builds Except IP: Supports DTE speeds up to 230.4K bps, autobaud up to 115.2K bps
For IP Build: Supports DTE speeds up to 921.6K bps,
Client-to-Client Data
Rates 33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200,
4800, 2400, 1200, 0-300 bps
Data Error Correction V.42 LAPM and MNP 2–4
Data Compression V.44, V.42bis, MNP 5
Fax Compatibility All Builds Except IP: V.17, V.29, V.27ter, V.21 channel 2
Fax Class All Builds Except IP: Class 1, Class 1.0
Modes of Operation Full duplex over dial-up lines; data mode, command mode, online command mode
Size 2.54" (64.541 mm) x 1.045" (26.543 mm)
Weight 0.6 oz. (0.017 kg.)
Operating Temperature -40º to +85° C
Storage Temperature -40º to +85° C
Humidity 20% to 90% (non-condensing)
Operating Voltage 3.3V or 5V
Note: Voice modules are available with 5V only
Transmit Level -12 dBm (varies by country)
Receiver Sensitivity -43 dBm under worst-case conditions
DAA Isolation 1.5Kv r.m.s. or 2121 VDC at working voltage of 250VAC
Flow Control All Builds Except IP: XON/XOFF (software), RTS/CTS (hardware)
Command Buffer 60 characters
Telephony/TAM V.253 commands
8 kHz sample rate
Concurrent DTMF, distinctive ring, and "Bell Core Type 1" Caller ID
8-bit μ-law and A-law PCM coding
Supports PCM Encoding:
2-bit and 4-bit ADPCM, 8-bit and 16-bit linear PCM, and 4-bit IMA coding
Compliance EMC Compliance
FCC Part 15 (Class B)
ICES-003 (Class B)
EN 55022 (Class B)
EN 55024
Safety Compliance
UL 60950-1
cUL 60950-1
EN 60950-1
AS/NZS 60950:2000
Telecom
47 CFR Part 68
CS-03
R&TTE
A-Tick (Other countries included per the Modem Globalization Guide)
Warranty 2 years
Comment [DAR54]: 115.2K bps
came from Mike L. 7/14/09
Comment [DAR55]: 921.6K bps
came from Mike L. 7/14/09
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 118
Category Description
Intelligent Features
V.22bis Fast Connect
V.29 FastPOS
Voice send and receive functions
LED pin output option
DTMF detection and distinctive ring
Audio circuit outputs for audio call-progress monitoring
Three-number storage for automatic dialing capabilities and non-volatile memory
(NoVRAM) to store user profiles
Speaker interface for call progress monitoring
Full-duplex data transmission over dial-up lines
Line quality monitoring and retrain
Line protection circuitry included
Auto-dial, redial, and auto-answer, pulse or tone dial, call status display
Extension pickup detection
Remote hang-up detection
Line-in-use detection
Digital PBX detection and protection
60-character command line buffering
Auto-parity and data rate selections
AT command compatibility
Global approvals with a single SocketModem design
Intelligent DAA technology detects line status
Supports speakerphone I/O
Supports "Bell Core Type 1" Caller ID
Modem mode bypasses the IP features
Flash memory to update firmware with the latest enhancements
For IP Build Only:
Internet Protocols Supported: Dial-in PPP, DNS, FTP, ICMP,IP, LCP, PPP, SMTP,
SNTP, TCP, UDP Socket
Dial-in PPP using remote dial-up networking
Authentication Protocols: CHAP, Dial-up Script, PAP
Binary Base 64 encoding and MIME email formats
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 119
Pin Outs
Serial Build (MT5692SMI and MT5692SMI-IP)
Top View -- SocketModem Pin Out
For pin descriptions, see the Universal Pin Out Description in Chapter 1.
Serial with Voice Build (MT5692SMI-V)
Top View – SocketModem with Voice Pin Out
For pin descriptions, see the Universal Pin Out Description in Chapter 1.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 120
Parallel Build (MT5692SMI-P)
Top View – SocketModem with Parallel Build Pin Out
For pin descriptions, see the Universal Pin Out Description in Chapter 1.
Parallel Pin Descriptions
Pin # Signal
Name In Out
Type Description
1 Tip I/O Telephone Line Interface – TIP
2 Ring I/O Telephone Line Interface – RING
24 –RESET I Modem Reset (CMOS input with pull-up). The active low –RESET input
resets the SocketModem logic and returns the AT command set to the original
factory default values or to "stored values" in NVRAM.
The modem is ready to accept commands within 6.5 seconds of power-on or
reset.
25 A1 I Host Bus Address Line 1
26 DGND GND Digital Ground
27 D7 O Host Bus Data Line 7
29 D2 O Host Bus Data Line 2
30 INT O Host Bus Interrupt Line (Active High, Resets on Low)
31 A0 I Host Bus Address Line 0
32 –WR I Host Bus Write. When low, allows host to write to SocketModem.
33 –RD I Host Bus Read. When low, allows host to read from SocketModem.
34 A2 I Host Bus Address Line 2
35 D4 O Host Bus Data Line 4
36 D5 O Host Bus Data Line 5
37 D0 O Host Bus Data Line 0
38 D1 O Host Bus Data Line 1
39 D3 O Host Bus Data Line 3
Comment [DAR56]: This sentence
removed from reset by Dustin 8/24/09
Reset must be asserted for a
minimum of 15ms.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 121
Parallel Pin Descriptions Continued
Pin # Signal
Name In Out
Type Description
40 –DS I Host Bus Device Select (or Chip Select) (Active Low)
41 D6 O Host Bus Data Line 6
61 VCC PWR 3.3 V or 5 V Supply (depends upon model).
62 MICV I Single-Ended Microphone. Single-ended microphone input for dial-up
SocketModem speakerphone and TAM functions.
63 AGND GND Analog Ground. This is tied common with DGND on the SocketModem. To
minimize potential ground noise issues, connect audio circuit return to AGND.
64 SPKR O Speaker – Call monitor.
Operating Conditions
Parameter Minimum Maximum
5V Supply Range – Vcc 4.5V 5.5V
3.3V Supply Range – Vcc 3.135V 3.465V
Absolute Maximum Rating
Parameter Minimum Maximum
Voltage at Any Signal Pin GND -0.3V Vcc +3.3V
DC Electrical Characteristics
5V SocketModem
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Parameter Minimum Maximum
Input Low Level
–DS (40) -0.3V
0.8V
Input High Level
A0 (31), A1 (25), –WR (32), –RD (33) 2.2V Vcc
Output Low Level
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5 (36), D6 (41), D7 (27) NA 0.4V
Output High Level
INT (30) 2.4V NA
Digital Input Capacitance – 50pF
3.3 V SocketModem
3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V
Parameter Minimum Maximum
Input Low Level
–DS (40) -0.3V
0.8V
Input High Level
A0 (31), A1 (25), A2 (34), –WR (32), –RD (33) 2V Vcc
Output Low Level
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5 (36), D6 (41), D7 (27)
2 mA, Z INT = 120
NA 0.4V
Output High Level
INT (30)
2 mA, Z INT = 120
2V NA
Digital Input Capacitance – 50pF
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 122
Power* Measurements
Serial Build – MT5692SMI
Serial with IP Build – MT5692SMI-IP
Input Voltage: 3.3V
Sleep Mode Typical Maximum
Current (AMPS) 0.047 0.101 0.112
Watts 0.151 0.316 0.349
Input Voltage: 5V
Sleep Mode Typical Maximum
Current (AMPS) 0.052 0.109 0.121
Watts 0.256 0.528 0.583
Voice Build – MT5692SMI-V
Note: The voice build is not available in 3.3V.
Input Voltage: 5V
Sleep Mode Typical Maximum
Current (AMPS) 0.016 0.076 0.089
Watts 0.080 0.380 0.445
Parallel Build – MT5692SMI-P
Input Voltage: 3.3V
Sleep Mode Typical Maximum
Measured Voltage 3.30 3.29 3.29
Current (AMPS) 0.015 0.072 0.081
Watts 0.051 0.236 0.267
Input Voltage: 5V
Sleep Mode Typical Maximum
Measured Voltage 4.91 4.86 4.84
Current (AMPS) with 5V 0.014 0.069 0.079
Watts 0.068 0.334 0.380
Note: Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source when
determining product load.
Input Voltage: 3.3V
Sleep Mode Typical Maximum
Current (AMPS) 0.014 0.069 0.080
Watts 0.046 0.216 0.249
Input Voltage: 5V
Sleep Mode Typical Maximum
Current (AMPS) 0.018 0.074 0.088
Watts 0.089 0.359 0.425
Comment [DAR57]: This were
updated on 10/16/09 with new info
from Tom Fix.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 123
Parallel Host Bus Timing Table
Symbol Parameter Min Max Units
READ (See Notes)
tAS Address Setup 5 - ns
tAH Address Hold 5 - ns
tCS Chip Select Setup 5 - ns
tCH Chip Select Hold 0 - ns
tRD RD Strobe Width 77 - ns
tDD Read Data Delay 10 25 ns
tDRH Read Data Hold 5 - ns
WRITE (See Notes)
tAS Address Setup 5 - ns
tAH Address Hold 5 - ns
tCS Chip Select Setup 0 - ns
tCH Chip Select Hold 10 - ns
tWT WT Strobe Width 15 - ns
tDS Write Data Setup (see Note 4) 15 20 ns
tDWH Write Data Hold (see Note 5) 5 - ns
Notes:
1. When the host executes consecutive Rx FIFO reads, a minimum delay of 2 times the internal CPU clock
cycle plus 15 ns (85.86 ns at 28.224 MHz) is required from the falling edge of RD to the falling edge of the
next Host Rx FIFO RD clock.
2. When the host executes consecutive Tx FIFO writes, a minimum delay of 2 times the internal CPU clock
cycle plus 15 ns (85.86 ns at 28.224 MHz) is required from the falling edge of WT to the falling edge of the
next Host Tx FIFO WT clock.
3. tRD' tWT = tCYC + 15 ns.
4. tDS is measured from the point at which both CS and WT are active.
5. tDWH is measured from the point at which either CS and WT become active.
6. Clock Frequency = 1.8432 MHz clock.
Parallel Host Bus – Read Parallel Host Bus - Write
Comment [DAR58]: Changed by
Mike McNeil 7/9/09- Parallel Host Bus
Timing Table - For READ change,
Address Hold to 5, Chip Select Setup
to 5, Chip Select Hold to 0, RD Strobe
Width to 77, Read Data Delay to 10.
For WRITE change, Address Hold to
5, WT Strobe Width to 15, Write Data
Setup to 15.
- 6. Clock Frequency is 1.8432MHz.
Comment [DAR59]: Parallel_Host_
Bus_Read.bmp 31KB
Comment [DAR60]: Parallel_host_
Bus_Write.bmp 31Kb
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 124
SocketModem Parallel Interface
The modem supports a 16550A interface in parallel interface versions. The 16550A interface can operate in FIFO mode or
non-FIFO mode. Non-FIFO mode is the same as the 16450-interface operation. FIFO mode’s unique operations are described
in this chapter.
Overview
The modem emulates the 16450/16550A interface and includes both a 16-byte receiver data first-in first-out buffer
(RX FIFO) and a 16-byte transmit data first-in first-out buffer (TX FIFO).
FIFO Mode Selected
When FIFO mode is selected in the FIFO Control Register (FCR0 = 1), both FIFOs are operative. Furthermore,
when FIFO mode is selected, DMA operation of the FIFO can also be selected (FCR3 = 1).
FIFO Mode Not Selected
When FIFO mode is not selected, operation is restricted to a 16450-interface operation.
Receive Data
Received Data is read by the host from the Receiver Buffer (RX Buffer). The RX Buffer corresponds to the
Receiver Buffer Register in a 16550A device. In FIFO mode, the RX FIFO operates transparently behind the RX
Buffer. Interface operation is described with reference to the RX Buffer in FIFO and non-FIFO modes.
Transmit Data
Transmit Data is loaded by the host into the Transmit Buffer (TX Buffer). The TX Buffer corresponds to the
Transmit Holding Register in a 16550A device. In FIFO mode, the TX FIFO operates transparently behind the TX
Buffer. Interface operation is described with reference to the TX Buffer in both FIFO and non-FIFO modes.
Receiver FIFO Interrupt Operation
Receiver Data Available Interrupt
When the FIFO mode is enabled (FCR0 = 1) and receiver interrupt (RX Data Available) is enabled (IER0 =
1), receiver interrupt operation is as follows:
1. The Receiver Data Available Flag (LSR0) is set as soon as a received data character is available in the
RX FIFO. LSR0 is cleared when RX FIFO is empty.
2. The Receiver Data Available Interrupt code (IIR0-IIR4 = 4h) is set whenever the number of received
data bytes in the RX FIFO reaches the trigger level specified by FCR6-FCR7 bits. It is cleared
whenever the number of received data bytes in the RX FIFO drops below the trigger level specified by
FCR6-FCR7 bits.
3. The HINT interrupt is asserted whenever the number of received data bytes in the RX FIFO reaches the
trigger level specified by FCR6-FCR7 bits. HINT interrupt is de-asserted when the number of received
data bytes in the RX FIFO drops below the trigger level specified by FCR6-FCR7 bits.
Receiver Character Timeout Interrupts
When the FIFO mode is enabled (FCR0 = 1) and receiver interrupt (Receiver Data Available) is enabled
(IER0 = 1), receiver character timeout interrupt operation is as follows:
1. A Receiver character timeout interrupt code (IIR0-IIR3 = Ch) is set if at least one received character is
in the RX FIFO, the most recent received serial character was longer than four continuous character
times ago (if 2 stop bits are specified, the second stop bit is included in this time period), and the most
recent host read of the RX FIFO was longer than four continuous character times ago.
Transmitter FIFO Interrupt Operation
Transmitter Empty Interrupt
When the FIFO mode is enabled (FCR0 = 1) and transmitter interrupt (TX Buffer Empty) is enabled (IER0
=1), transmitter interrupt operation is as follows:
1. The TX Buffer Empty interrupt code (IIR0-IIR3 = 2h) will occur when the TX Buffer is empty. It is cleared
when the TX Buffer is written to (1 to 16 characters) or the IIR is read.
2. The TX Buffer Empty indications will be delayed 1 character time minus the last stop bit time whenever
the following occur: THRE = 1 and there have not been at least two bytes at the same time in the TX
FIFO Buffer since the last setting of THRE was set. The first transmitter interrupt after setting FCR0 will
be immediate.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 125
Register Functional Definitions
The following table delineates the assigned bit functions for the twelve internal registers. The assigned bit functions are more
fully defined in the following paragraphs.
Internal Registers
BIT No. Register
No. Register
Name 7 6 5 4 3 2 1 0
7 Scratch Register
(SCR) Scratch Register
6 Modem Status
Register (MSR)
Data
Carrier
Detect
(DCD)
Ring
Indicator
(RI)
Data Set
Ready
(DSR)
Clear to
Send
CTS)
Delta Data
Carrier
Detect
(DDCD)
Trailing
E
dge of Ring
Indicator
(TERI)
Delta Data
Set Ready
(DDSR)
Delta Clear
to Send
(DCTS)
5 Line Status
Register (LSR)
RX FIFO
Error
Transmitter
Empty
(TEMT)
Transmitter
Buffer
Register
Empty
(THRE)
Break
Interrupt
(BI)
Framing
Error
(FE)
Parity
Error
(PE)
Overrun
Error
(OE)
Receiver
Data
Ready
(DR)
4 Modem Control
Register (MCR)
0 0 0 Local
Loopback
Out 2 Out 1 Request
to Send
(RTS)
Data
Terminal
Ready
(DTR)
3 Line Control
Register (LCR)
Divisor
Latch
Access Bit
(DLAB)
Set
Break
Stick
Parity
Even
Parity
Select
(EPS)
Parity
Enable
(PEN)
Number
of Stop
Bits
(STB)
Word
Length
Select
Bit 1
(WLS1)
Word
Length
Select
Bit 0
(WLSO)
2 Interrupt Identify
Register (IIR)
(Read Only)
FIFOs
Enabled
FIFOs
Enabled
0 0 Pending
Interrupt ID
Bit 2
Pending
Interrupt ID
Bit 1
Pending
Interrupt ID
Bit 0
“0” if
Interrupt
Pending
2 FIFO Control
Register (FCR)
(Write Only)
Receiver
Trigger
MSB
Receiver
Trigger
LSB
Reserved Reserved DMA
Mode
Select
TX FIFO
Reset
RX FIFO
Reset
FIFO
Enable
1
(DLAB = 0)
Interrupt Enable
Register (IER)
0 0 0 0 Enable
Modem
Status
Interrupt
(EDSSI)
Enable
Receiver
Line Status
Interrupt
(ELSI)
Enable
Transmitter
Holding
Register
Empty
Interrupt
(ETBEI)
Enable
Received
Data
Available
Interrupt
(ERBFI)
0
(DLAB = 0)
Transmitter Buffer
Register
(THR)
Transmitter FIFO Buffer Register (Write Only)
0
(DLAB = 0)
Receiver Buffer
Register (RBR)
Receiver FIFO Buffer Register (Read Only)
1
(DLAB = 1)
Divisor Latch MSB
Register (DLM)
Divisor Latch MSB
0
(DLAB = 1)
Divisor Latch LSB
Register (DLL)
Divisor Latch LSB
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 126
IER – Interrupt Enable Register
(Addr = 1, DLAB = 0)
The IER enables five types of interrupts that can separately assert the HINT output signal (See the Interrupt Sources
and Reset Control table in the IIR section of this chapter). A selected interrupt can be enabled by setting the
corresponding enable bit to a 1, or disabled by setting the corresponding enable bit to a 0. Disabling an interrupt in
the IER prohibits setting the corresponding indication in the IIR and assertion of HINT. Disabling all interrupts
(resetting IER0 – IER3 to a 0) inhibits setting of any Interrupt Identifier Register (IIR) bits and inhibits assertion of the
HINT output. All other system functions operate normally, including the setting of the Line Status Register (LSR) and
the Modem Status Register (MSR).
The IER enables five types of interrupts that can separately assert the HINT output signal. A selected interrupt can be
enabled by setting the corresponding enable bit to a 1, or disabled by setting the corresponding enable bit to a 0.
Disabling an interrupt in the IER prohibits setting the corresponding indication in the IIR and assertion of HINT.
Disabling all interrupts (resetting IER0 - IER3 to a 0) inhibits setting of any Interrupt Identifier Register (IIR) bits and
inhibits assertion of the HINT output. All other system functions operate normally, including the setting of the Line
Status Register (LSR) and the Modem Status Register (MSR).
Bits 7-4 Not used.
Always 0.
Bit 3 Enable Modem Status Interrupt (EDSSI).
This bit, when a 1, enables assertion of the HINT output whenever the Delta CTS (MSR0), Delta DSR
(MSR1), Delta TER (MSR2), or Delta DCD (MSR3) bit in the Modem Status Register (MSR) is a 1. This
bit, when a 0, disables assertion of HINT due to setting of any of these four MSR bits.
Bit 2 Enable Receiver Line Status Interrupt (ELSI).
This bit, when a 1, enables assertion of the HINT output whenever the Overrun Error (LSR1), Parity
Error (LSR2), Framing Error (LSR3), or Break Interrupt (LSR4) receiver status bit in the Line Status
Register (LSR) changes state. This bit, when a 0, disables assertion of HINT due to change of the
receiver LSR bits 1-4.
Bit 1 Enable Transmitter Holding Register Empty Interrupt (ETBEI).
This bit, when a 1, enables assertion of the HINT output when the Transmitter Empty bit in the Line
Status Register (LSR5) is a 1.This bit, when a 0, disables assertion of HINT due to LSR5.
Bit 0 Enable Receiver Data Available Interrupt (ERBFI) and Character Timeout in FIFO Mode.
This bit, when a 1, enables assertion of the HINT output when the Receiver Data Ready bit in the Line
Status Register (LSR0) is a1 or character timeout occurs in the FIFO mode. This bit, when a 0, disables
assertion of HINT due to the LSR0 or character timeout.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 127
FCR – FIFO Control Register
(Addr = 2, Write Only)
The FCR is a write-only register used to enable FIFO mode, clear the RX FIFO and TX FIFO, enable DMA mode,
and set the RX FIFO trigger level.
Bits 7-6 RX FIFO Trigger Level
FCR7 and FCR6 set the trigger level for the RX FIFO (Receiver Data Available) interrupt.
FCR7 FCR6 RX FIFO Trigger Level (Bytes)
0 0 01
0 1 04
1 0 08
1 1 14
Bits 5, 4 Not used
Bit 3 DMA Mode Select
When FIFO mode is selected (FCR0 = 1), FCR3 selects non-DMA operation (FCR3 = 0) or DMA
operation (FCR3 = 1). When FIFO mode is not selected (FCR0 = 0), this bit is not used (the
modem operates in non-DMA mode in 16450 operation).
DMA Operation in FIFO Mode
RXRDY will be asserted with the number of characters in the RX FIFO us equal to or greater
than the value in the RX FIFO Trigger Level (IIR0-IIR3 = 4h) or the received character
timeout (IIRO-IIR3 = Ch) has occurred. RXTDY will go inactive when there are no more
characters in the RX FIFO.
TXRDY will be asserted when there are one or more empty (unfilled) locations in the TX
FIFO. TXRDY will go inactive when the TX FIFO is completely full.
Non-DMA Operation in FIFO Mode
RXRDY will be asserted when there are one or more characters in the RX FIFO. RXRDY
will go inactive when there are no more characters in the RX FIFO.
TXRDY will be asserted when there are no characters in the TX FIFO. TXRDY will go
inactive when the character is loaded into the TX FIFO Buffer.
Bit 2 TX FIFO Reset
When FCR2 is a 1, all bytes in the TX FIFO are cleared. This bit is cleared automatically by the
modem.
Bit 1 RX FIFO Reset
When FCR1 is a 1, all bytes in the RX FIFO are cleared. This bit is cleared automatically by the
modem.
Bit 0 FIFO Enable
When FCR0 is a 0, 16450 mode is selected and all bits are cleared in both FIFOs. When FCR0
is a 1, FIFO mode (16550A) is selected and both FIFOs are enabled. FCR0 must be a 1 when
other bits in the FCR are written or they will not be acted upon.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 128
IIR – Interrupt Identifier Register
(Addr = 2)
The Interrupt Identifier Register (IIR) identifies the existence and type of up to five prioritized pending interrupts.
Four priority levels are set to assist interrupt processing in the host. The four levels, in order of decreasing priority,
are Highest: Receiver Line Status, 2: Receiver Data Available or Receiver Character Timeout. 3: TX Buffer Empty,
and 4: Modem Status.
When the IIR is accessed, the modem freezes all interrupts and indicates the highest priority interrupt pending to
the host. Any change occurring in interrupt conditions are not indicated until this access is complete.
Bits 7-6 FIFO Mode
These two bits copy FCR0.
Bits 5-4 Not Used
Always 0.
Bits 3-1 Highest Priority Pending Interrupt
These three bits identify the highest priority pending interrupt (Table below). Bit 3 is
applicable only when FIFO mode is selected; otherwise, bit 3 is a 0.
Bit 0 Interrupt Pending
When this bit is a 0, an interrupt is pending; IIR bits 1-3 can be used to determine the source
of the interrupt. When this bit is a 1, an interrupt is not pending
Interrupt Sources and Reset Control Table
Interrupt Identification Register Interrupt Set and Reset Functions
Bit 3
(Note 1) Bit 2 Bit 1 Bit 0 Priority
Level Interrupt Type Interrupt Source Interrupt Reset
Control
0 0 0 1 — None None —
0 1 1 0 Highest Receiver Line
Status
Overrun Error (OE)
(LSR1),
Parity Error (PE)
(LSR2),
Framing Error (FE)
(LSR3),
or Break Interrupt (BI)
(LSR4)
Reading the LSR
0 1 0 0 2 Received Data
Available
Received Data
Available (LSR0)
or RX FIFO Trigger
Level (FCR6-FCR7)
Reached1
Reading the RX
Buffer or the RX
FIFO drops below
the Trigger Level
1 1 0 0 2 Character Timeout
Indication1
The RX FIFO
contains at least 1
character and no
characters have
been removed from
or input to the RX
FIFO during the last
4 character times.
Reading the RX
Buffer
0 0 1 0 3 TX Buffer Empty TX Buffer Empty Reading the IIR or
writing to the TX
Buffer
0 0 0 0 4 Modem Status Delta CTS (DCTS)
(MSR0),
Delta DSR (DDST)
(MSR1),
Trailing Edge Ring
Indicator (TERI)
(MSR3), or Delta
DCD (DCD) (MSR4)
Reading the MSR
Note: 1. FIFO Mode only.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 129
LCR – Line Control Register
(Addr = 3)
The Line Control Register (LCR) specifies the format of the asynchronous data communications exchange.
Bit 7 Divisor Latch Access Bit (DLAB)
This bit must be set to a 1 to access the Divisor Latch Registers during a read or write operation.
It must be reset to a 0 to access the Receiver Buffer, the Transmitter Buffer, or the Interrupt
Enable Register.
Bit 6 Set Break
When bit 6 is a 1, the Transmit data is forced to the break condition, i.e., space (0) is sent. When
bit 6 is a 0, break is not sent. The Set Break bit acts only on the Transmit data and has no effect
on the serial in logic.
Bit 5 Stick Parity
When Parity is enabled (LCR3 = 1) and stick parity is selected (LCR5 = 1), the parity bit is
transmitted and checked by the receiver as a 0 if even parity is selected (LCR4 – 1) or a 1 if odd
parity is selected (LCR4 = 0). When the stick parity is not selected (LCR3 = 0), parity is transmit
and checked as determined by the LCR3 and LCR4 bits.
Bit 4 Even Parity Select (EPS)
When parity is enabled (LCR3 = 1) and stick parity is not selected (LCR5 = 0), the number of 1s
transmitted or checked by the receiver in the data word bits and parity bit is either even (LCR4 =
1) or odd (LCR4 = 0).
Bit 3 Enable Parity (PEN)
When bit 3 is a 1, a parity bit is generated in the serial out (transmit) data stream and checked in
the serial in (receive) data stream as determined by the LCR4 and LCR5 bits. The parity bit is
located between the last data bit and the first stop bit.
Bit 2 Number of Stop GBITS (STB)
This bit specifies the number of stop bits in each serial out character. If bit 2 is a 0, one stop bit is
generated regardless of word length. If bit 2 is a 1 and 5-bit word length is selected, one and
one-half stop bits are generated. If bit 2 is a 1 and 6-, 7-, or 8-bit word length is selected, two
stop bits are generated. The serial in logic checks the first stop bit only, regardless of the number
of stop bits selected.
Bit 1-0 Word Length Select (WLS0 and WLS1)
These two bits specify the number of bits in each serial in or serial out character. The encoding
of bits 0 and 1 is:
Bit 1 Bit 0 Word Length
0 0 5 Bits (Not supported)
0 1 6 Bits (Not supported)
1 0 7 Bits
1 1 8 Bits
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 130
MCR – Modem Control Register
(Addr = 4)
The Modem Control Register (MCR) controls the interface with modem or data set.
Bit 7-5 Not used
Always 0
Bit 4 Local Loopback
When this bit is set to a 1, the diagnostic mode is selected and the following occurs:
1. Data written to the Transmit Buffer is looped back to the Receiver Buffer.
2. The DTS (MCR0), RTS (MCR1), Out1 (MCR2), and Out2 (MCR3) modem control register
bits are internally connected to the DSR (MSR5), CTS (MSR4), RI (MSR6), and DCD
(MSR7) modem status register bits, respectively.
Bit 3 Output 2
When this bit is a 1, HINT is enabled. When this bit is a 0, HINT is in the high impedance state.
Bit 2 Output 1
This bit is used in local loopback (see MCR4).
Bit 1 Request to Send (RTS)
This bit controls the Request to Send (RTS) function. When this bit is a 1, RTS is on. When this
bit is a 0, RTS is off.
Bit 0 Data Terminal Ready (DTR)
This bit controls the Data Terminal Ready (DTR) function. When this bit is a 1, DTR is on. When
this bit is a 0, DTR is off.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 131
LSR – Line Status Register
(Addr = 5)
This 8-bit register provides status information to the host concerning data transfer
Bit 7 RX FIFO Error
In the 16450 mode, this bit is not used and is always 0.
In the FIFO mode, this bit is set if there are one or more characters in the RX FIFO with parity
error, framing error, or break indication detected. This bit is reset to a 0 when the host reads the
LSR and note of the above conditions exist in the RX FIFO.
Bit 6 Transmitter Empty (TEMT)
This bit is set to a 1 whenever the TX Buffer (THR) and equivalent of the Transmitter Shift
Register (TRS) are both empty. It is reset to a 0 whenever either the THR or the equivalent of the
TSR contains a character.
In the FIFO mode, this bit is set to a 1 whenever the TX FIFO and the equivalent of the TSR are
both empty
Bit 5 Transmitter Holding Register Empty (THRE) [TX Buffer Empty]
This bit, when set, indicates that the TX Buffer is empty and the modem can accept a new
character for transmission. In addition, this bit causes the modem to issue an interrupt to the host
when the Transmit Holding Register Empty Interrupt Enable bit (IIR1) is set to 1. The THRE bit is
set to a 1 when a character is transferred from the TX Buffer. The bit is reset to 0 when a byte is
written into the TX Buffer by the host.
In the FIFO mode, this bit is set when the TX FIFO is empty; it is cleared when at least one byte
is in the TX FIFO.
Bit 4 Break Interrupt (BI)
This bit is set to a 1 whenever the received data input is a space (logic 0) for longer than two full
word lengths plus 3 bits. The BI is reset when the host reads the LSR.
Bit 3 Framing Error (FE)
This bit indicates that the received character did not have a valid stop bit. The FE bit is set to a 1
whenever the stop bit following the last data bit or parity bit is detected as a logic o (space). The
FE bit is reset to a 0 when the host reads the LSR.
In the FIFO mode, the error indication is associated with the particular character in the FIFO it
applies to. The FE bit set to a 1 when this character is loaded into the RX Buffer.
Bit 2 Parity Error (PE)
This bit indicates that the received data character in the RX Buffer does not have the correct
even or odd parity, as selected by the Even Parity Select bit (LCR4) and the Stick Parity bit
(LCR5). The PE bit is reset to a 0 when the host reads the LSR.
In the FIFO mode, the error indication is associated with the particular character in the FIFO it
applies to. The PE bit set to a 1 when this character is loaded into the RX Buffer.
Bit 1 Overrun Error (OE)
This bit is set to a 1 whenever received data is loaded into the RX Buffer before the host has
read the previous data from the RX Buffer. The OE is reset to a 0 when the host reads the LSR.
In the FIFO mode, if data continues to fill beyond the trigger level, an overrun condition will occur
only if the RX FIFO is full and the next character has been completely received.
Bit 0 Receiver Data Ready (DR)
This bit is set to a 1 whenever a complete incoming character has been received and transferred
into the RX Buffer. The DR bit is reset to a 0 when the host reads the RX Buffer.
In the FIFO mode, the DR bit is set when the number of received data bytes in the RX FIFO
equals or exceeds the trigger level specified in the FCR0-FCR1.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 132
MSR – Modem Status Register
(Addr = 6)
The Modem Status Register (MSR) reports current state and change information of the modem. Bits 4-7 supply
current state and bits 0-3 supply change information. The change bits are set to a 1 whenever a control input from
the modem changes state from the last MSR read by the host. Bits 0-3 are reset to 0 when the host reads the MSR
or upon reset.
Whenever bits 0, 1, 2, or 3 are set to a 1, a Modem Status Interrupt (IIR0-IIR3 = 0) is generated.
Bit 7 Data Carrier Detect (DCD)
This bit indicates the logic state of the DCH# (RLSD#) output. If Loopback is selected (MCR4 =
1), this bit reflects the state of the Out2 bit in the MCR (MCR3).
Bit 6 Ring Indicator (RI)
This bit indicates the logic state of the RI# output. If Loopback is selected (MCR4 = 1), this bit
reflects the state of the Out1 bit in the MCR (MCR2).
Bit 5 Data Set Ready (DSR)
This bit indicates the logic state of the DSR# output. If Loopback is selected (MCR4 = 1), this bit
reflects the state of the DTR in the MCR (MCR0).
Bit 4 Clear to Send (CTS)
This bit indicates the logic state of the CTS# output. If Loopback is selected (MCR4 = 1), this bit
reflects the state of the RTS bit in the MCR (MCR1).
Bit 3 Delta Data Carrier Detect (DDCD)
This bit is set to a 1 when the DCD bit changes state since the host last read the MSR.
Bit 2 Trailing Edge of Ring Indicator (TERI)
This bit is set to a 1 when the RI bit changes from a 1 to a 0 state since the host last read the
MSR.
Bit 1 Delta Data Set Ready (DDSR)
This bit is set to a 1 when the DSR bit has changed since the host last read the MSR.
Bit 0 Delta Clear to Send (DCTS)
This bit is set to a 1 when the CTS bit has changed since the MSR the host last read the MSR.
RBX – RX Buffer (Receiver Buffer Register)
(Addr = 0, DLAB = 0)
The RX Buffer (RBR) is a read-only register at location 0 (with DLAB = 0). Bit 0 is the least significant bit of the data
and is the first bit received.
THR – TX Buffer (Transmitter Holding Register)
(Addr = 0, DLAB = 0)
The TX Buffer (THR) is a write-only register at address 0 when DLAB = 0. Bit 0 is the least significant bit and the first
bit sent.
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 133
SCR – Scratch Register
(Addr = 7)
The Scratchpad Register is a read-write register at location 7. This register is not used by the modem and can be
used by the host for temporary storage.
Divisor Registers
(Addr = 0 and 1, DLAB = 1)
The Divisor Latch LS (least significant byte) and Divisor Latch MS (most significant byte) are two read-write
registers at locations 0 and 1 when DLAB = 1, respectively.
The baud rate is selected by loading each divisor latch with the appropriate hex value.
Programmable values corresponding to the desired baud rate are listed in Table on following page.
Divisor Latch (Hex)
MS LS Divisor (Decimal) Baud Rate
06 00 1536 75
04 17 1047 110
03 00 768 150
01 80 384 300
00 C0 192 600
00 60 96 1200
00 30 48 2400
00 18 24 4800
00 0C 12 9600
00 06 6 19200
00 04 4 28800
00 03 3 38400
00 02 2 57600
00 01 1 115600
00 00 NA 230400
Programmable Baud Rates
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 134
Application Notes
Tip and Ring Interface
OEM Motherboard
Filtering and Surge Protection Options
See Design Considerations and Recommended Parts in Chapter 1.
Recommended Uses for Filtering Options
Enhanced Surge Protection with RJ-11 Filtering
Use this option when additional lightning protection may be needed.
Alternate Common Mode with RJ-11 Filtering
Use this option when your design has common mode emission issues.
Comment [DAR61]: Tip_and_Ring
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 135
Microphone and Speaker
Note: Applies to the MT5692SMI Voice only.
Microphone Input Option
Speaker Output Option 1
Speaker Output Option 2
Differences between Speaker 1 Example and Speaker 2 Example
Speaker 1 does not have an amplifier while Speaker 2 does.
Comment [DAR62]: Filtering-mic-
option.png filed under
Universal_SocketModem\Graphics\Mi
ke_Z_Filtering_Drawings
Comment [DAR63]: Filtering-
Speaker1.png filed under
Universal_SocketModem\Graphics\Mi
ke_Z_Filtering_Drawings
Comment [DAR64]: Filtering-
Speaker1.png filed under
Universal_SocketModem\Graphics\Mi
ke_Z_Filtering_Drawings
PART 3 – Embedded Analog SocketModems Chapter 7 – SocketModem (MT5692SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 136
Specifications for the Microphone Input
Impedance >70K ohms
AC Input Voltage Range 1.1V P-P
Reference Voltage 1.35V
Specifications for the Speaker Output from the Codec
Minimum Load 300
Maximum Capacitive Load 0.01 uF
Output Impedance 10
AC Output Voltage Range 1.4V P-P
Reference voltage +1.35 VDC
DC Offset Voltage 20 mV
Speaker Output
The speaker output from the codec is coupled to the speaker pin (64) through a 1uF cap and a 33 ohm resistor.
The speaker pin is shared with the call progress monitor which is a digital I/O pin on the DSP that is coupled to
the speaker pin through a 1uF and 3.9K.
Comment [DAR65]: This text came
from the Conexant Codec data sheet,
document CX20437, page 44.
Chapter 8 – SocketModem (MT2492SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 137
Chapter 8 – SocketModem® (MT2492SMI)
Introduction
The Multi-Tech SocketModem MT2492SMI-xx utilizes the LSI CVxx Controller Based Modem Devices and the LSI CSP104
Silicon Direct Access Arrangement (DAA) to form a 2-chip complete embedded modem. This solution includes a DSP data
pump, modem controller, on-chip RAM and ROM, codec, DAA, analog output, and 24.576 MHz clock input.
The modem accepts standard modem AT commands and provides connect rates up to 56 Kbps full-duplex over the Public
Switched Telephone Network (PSTN) and features a complete set of modem protocols including all ITU-T standard formats up
to V.92.
To provide the most flexibility, the CVxx modem system-side device provides numerous additional features for embedded
modem applications. It includes call progress monitoring through standard result codes, error correction, data compression,
autobaud, and fast connect modes. In addition, because the CVxx modem integrates the DAA, analog features (such as line-in
use and over current detection) are included.
This device is ideal for embedded modem applications due to its simple host interface, small board space, and low power
consumption.
Product Build Options and Ordering Information
Product Description Region Order this Product
3
MT2492SMI-92 V.92 Serial Data 5V Regional
MT2492SMI-34 V.34 Serial Data 5V Regional
MT2492SMI-22 V.22bis Serial Data 5V Regional
MT2492SMI-L-92 V.92 Serial Data 3.3V Regional
MT2492SMI-L-34 V.34 Serial Data 3.3V Regional
MT2492SMI-L-22 V.22bis Serial Data 3.3V Regional
Telecom Label
MT2492SMI-LS MT2492SMI-Regulatory Label Regional
Developer Kit
MTSMI-UDK Universal Developer Kit Regional
How to Read the Product Codes in the Table Above:
92 V.92/56K data rate
34 V.34/33.6K data rate
22 V.22bis data rate
L 3.3 Volt Build
LS Telecom Label
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MT2492SMI-92.Rx.
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Product Reference Guides Title and Document
Product Number Fax Commands Voice Commands
SocketModem
(MT2492SMI) SocketModem MT2492SMI AT Commands
Reference Guide (S000435x) NA NA
Chapter 8 – SocketModem (MT2492SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 138
Technical Specifications
The SocketModem (MT2492SMI) meets the following specifications:
Category Description
Data Standards V.92, V.90, V.34, V.29, V.22bis, V.22, V.23, V.21; Bell 212A & Bell 103
Data Format Serial, asynchronous
Character Format 10 bit
Serial/Data Speeds Serial port data rates adjustable to 300, 1200, 2400, 4800, 9600, 19,200,
38,400, 57,600, and 115,200
Client-to-Client Data Rates 33,600, 31,200, 28,800, 26,400, 24,000, 21,600, 19,200, 16,800 bps
14,400, 12,000, 9600, 7200, 4800 bps
2400, 1200, 0-300 bps
Data Error Correction V.42 (LAP-M or MNP 2–4)
Data Compression V.42bis, MNP 5
Modes of Operation Full duplex over dial-up lines; data mode, command mode, and online command
mode
Weight 0.6 oz. (0.017 kg.)
Operating Temperature 0 to +70° C
Storage Temperature -10° to +85° C
Humidity 20% to 90% (non-condensing)
Operating Voltage Typical: 3.3VDC ± 5%; Absolute Maximum Supply Voltage: 3.6VDC
Typical: 5VDC ± 5%; Absolute Maximum Supply Voltage: 5.25VDC
Power Measurements 3.3 Volt: Typical: 86mA (.283W @ 3.3VDC)
Maximum: 96mA (.345W @ 3.6VDC)
5 Volt: Typical: 88.5mA (.442W @ 5VDC)
Maximum: 94.8mA (.498W @ 5.25VDC)
Note: Multi-Tech Systems, Inc. recommends that the customer incorporate a
10% buffer into their power source when determining product load.
Transmit Sensitivity -12 dBm (varies by country)
Receiver Sensitivity -40 dBm (-43 dBm under worst case conditions)
DAA Isolation 1.5Kv r.m.s. or 2121 VDC at working voltage of 250VAC
Flow Control XON/XOFF (software), RTS/CTS (hardware)
Command Buffer 50 characters
Certifications & Approvals Safety Certifications
UL/cUL 60950-1
EN 60950-1
AS/NZS 60950:2000
CCC
EMC Approvals
FCC Part 15 (Class B)
Canadian EMC (Class B)
EN 55022 (Class B)
EN 55024
Warranty 2 years
Intelligent Features TIA-602 AT command compatible
AT command set support
Supports V.80
Line polarity reversal detection
Line current loss detection
Line-in-use detection during on-hook operation
Extension pickup detection
"Bell Core Type 1" Caller ID
Autodial, redial
Pulse or tone dial
Auto answer
Chapter 8 – SocketModem (MT2492SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 139
SocketModem Pin Out
The MT2492SMI SocketModem with a serial interface provides an on-board DAA with tip and ring connections, audio
circuit for call-progress monitoring and serial interface via logic level signals.
Note: The bolded, shaded pins are active MT2492MI pins.
Top View
Serial SocketModem Pin Out
For pin descriptions, see the Universal Pin Out Description in Chapter 1.
DC Electrical Characteristics
3.3V Serial SocketModem
3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V
Inputs Input High Input Low
–DTR (40), –TXD (35), –RTS (33), –RESET (24) Min 2.0V Max 0.8V
Outputs Output High Output Low
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
2mA, Z INT = 120 Ω
Min 2.4V Max 0.4V
Digital Input Capacitance 50pF
5V Serial SocketModem
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Inputs Input High Input Low
–DTR (40), –TXD (35), –RTS (33), –RESET (24) Min 2.0V Max 0.8V
Outputs Output High Output Low
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
2mA, Z INT = 120 Ω
Min 2.4V Max 0.4V
Digital Input Capacitance 50pF
Comment [DAR66]: Pin
Out_MT2492SMI.FH9 & .png
Chapter 8 – SocketModem (MT2492SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 140
Application Notes
Tip and Ring Interface
OEM Motherboard
Filtering and Surge Protection Options
See Design Considerations and Recommended Parts in Chapter 1.
Recommended Uses for Filtering Options
Enhanced Surge Protection with RJ-11 Filtering
Use this option when additional lightning protection may be needed.
Alternate Common Mode with RJ-11 Filtering
Use this option when your design has common mode emission issues.
Comment [DAR67]: New Tip and
Ring 2008
Comment [DAR68]: Filtering_MT24
Comment [DAR69]: Tip_and_Ring
Stored under CurrentProj_Universal
Guide (for Rev-G. Copied from
Tip_and_Ring_New_fromMikeZ_Sch
ematic1_Page1_border_removed.FH
9
Will be moved with Rev G material.
Comment [DAR70]: Tip_and_Ring
_New_2008.png Rev. I
PART 3 – Embedded Analog SocketModems Chapter 9 – SocketModem (MT2456SMI-22)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 141
Chapter 9 – SocketModem
(MT2456SMI-22)
Introduction
The Multi-Tech SocketModem supports analog data modem operation with V.22bis Fast Connect, V.42bis data compression,
and V.80 synchronous access mode. The SocketModem is a space-efficient (1" × 2.5"), embedded modem that is ready-to-
integrate into your applications; therefore, dramatically reducing development time and costs for system designers.
The MT2456SMI-22 SocketModem is a standard 20-pin modem used for integrating data communications. It is a single-port 5V
or 3.3V modem that integrates a modem controller, DSP, and DAA in a 1" x 2.5" form factor and communicates to a host
controller via an asynchronous serial interface.
Product Ordering Information
Product Description Region Order this
Product
3
MT2456SMI-22 V.22bis Serial Data 5V Global
MT2456SMI-L-22 V.22bis Serial Data 3.3V Global
Telecom Label
MT2456SMI-LS MT2456SMI-Global Regulatory Label Global
Developer Kit
MTSMI-UDK Universal Developer Kit Global
How to Read the Product Codes in the Table Above:
22 V.22bis
L 3.3 Volt Build
LS Telecom Label
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MT2456SMI-22.Rx.
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Product Reference Guides Title and Document
Product Number Fax Commands Voice Commands
SocketModem
(MT2456SMI-22) MT2456SMI-22 AT Commands Reference Guide
(S000281x) NA NA
PART 3 – Embedded Analog SocketModems Chapter 9 – SocketModem (MT2456SMI-22)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 142
Technical Specifications
The SocketModem (MT2456SMI-22) meets the following specifications:
Category Description
Data Standards V.22bis, V.22; Bell 212A and 103
Data Format Serial, asynchronous
Character Format 10 bit
Serial/Data Speeds Serial port data rates adjustable to 300, 1200, 2400, 4800, 9600, 19,200,
38,400, 57,600, and 115,200
Client-to-Client Data Rates 2400, 1200, 0-300 bps
Data Error Correction V.42 (LAP-M or MNP 2–4)
Data Compression V.42bis
Modes of Operation Full duplex over dial-up lines; data mode, command mode, and online command
mode
Weight 0.6 oz. (0.017 kg.)
Operating Temperature 0 to +70° C
Storage Temperature -40° to +85° C
Humidity 20% to 90% (non-condensing)
Operating Voltage Typical: 3.3 V DC ± 5%; Absolute Maximum Supply Voltage: 3.6 V DC
Typical: 5 V DC ± 5%; Absolute Maximum Supply Voltage: 5.5 V DC
Power Consumption Source Voltage Maximum Idle Typical
3.3VDC 64mA 59.6mA 62mA
5VDC 68mA 60ma 61mA
Transmit Sensitivity -12 dBm (varies by country)
Receiver Sensitivity -43 dBm
DAA Isolation 1.5Kv r.m.s. or 2121 VDC at working voltage of 250VAC
Flow Control XON/XOFF (software), RTS/CTS (hardware)
Command Buffer 50 characters
Warranty 2 years
Intelligent Features AT command compatible
V.22bis fast connect
Supports V.80
Supports Fast POS 9600
Line polarity reversal detection
Line current loss detection
Line-in-use detection
Extension pickup detection
Remote hang-up detection
Call waiting detection
"Bell Core Type 1" Caller ID
Autodial, redial
Pulse or tone dial
Auto answer
Call status display
PART 3 – Embedded Analog SocketModems Chapter 9 – SocketModem (MT2456SMI-22)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 143
SocketModem Configuration
Serial Configuration
The MT2456SMI-22 SocketModem with a serial interface uses a 20-pin interface to provide an on-board DAA with tip and
ring connections, audio circuit for call-progress monitoring and serial interface via logic level signals.
Note: The bolded, shaded pins are active MT2456SMI-22 pins.
Top View
Serial SocketModem Pinout
For pin descriptions, see the Universal Pinout Descriptions in Chapter 1.
Comment [DAR71]: 2456SMI.png
PART 3 – Embedded Analog SocketModems Chapter 9 – SocketModem (MT2456SMI-22)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 144
Electrical Characteristics
3.3V Serial SocketModem
3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V
Inputs Input High Input Low
–DTR (40), –TXD (35), –RTS (33), –RESET (24) Min 2.0V Max 0.8V
Outputs Output High Output Low
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
2mA, Z INT = 120 Ω
Min 2.4V Max 0.4V
Digital Input Capacitance 50pF
5V Serial SocketModem
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Inputs Input High Input Low
–DTR (40), –TXD (35), –RTS (33), –RESET (24) Min 2.0V Max 0.8V
Outputs Output High Output Low
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
2mA, Z INT = 120 Ω
Min 2.4V Max 0.4V
Digital Input Capacitance 50pF
PART 3 – Embedded Analog SocketModems Chapter 9 – SocketModem (MT2456SMI-22)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 145
Applications Notes
Tip and Ring Interface
OEM Motherboard
Filtering and Surge Protection Options
See Design Considerations and Recommended Parts in Chapter 1.
Comment [DAR72]: Tip_and_Ring
_New_2008.png Rev. I
PART 4 – Embedded Device Servers
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 146
Part 4
Embedded Device Servers
Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 147
Chapter 10 – SocketEthernet IP®
(MT100SEM-IP)
Introduction
The SocketEthernet IP® (MT100SEM-IP) device server connects serial devices to an IP network for remote monitoring,
control and configuration. The space efficient communications device (1” x 2.5”) integrates Multi-Tech's Universal IP™ protocol
stack and a serial-to-Ethernet interface into a single, universal socket design. The SocketEthernet IP can make your existing
and next generation device, machine or system, IP-ready while you focus on developing its core features.
Product Build Options and Ordering Information
Product Description Region Order this
Product
3
MT100SEM-IP
MT100SEM-IP Embedded Serial-to-Ethernet Device Server with Universal IP™ – 5V Global
MT100SEM-L-IP Embedded Serial-to-Ethernet Device Server with Universal IP™ – 3.3V Global
MT100SEM-L-HV-IP Embedded Serial-to-Ethernet Device Server with High Voltage
Dielectric Isolation (EN60601) and Universal IP™ – 5V
Global
Developer Kit
MTSMI-UDK Universal Developer Kit Global
How to Read the Product Codes in the Table Above:
IP Universal IP™ Stack
L 3.3 Volt
HV High Voltage Dielectric Isolation (EN60601)
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MT100SEM-L-IP.Rx
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Product Reference Guides Title and Document Product
Number Fax Commands Voice Commands
Serial-to-Serial Device
Server
(MT100SEM-IP)
Multi-Tech Universal IP AT Commands (S000426x) NA NA
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 148
Technical Specifications
The SocketEthernet IP (MT100SEM-IP) meets the following specifications:
Category Description
Interfaces 10/100BaseT Ethernet, Asynchronous Serial
Serial Character Format 8N1 (Data, Parity, and Stop bits are configurable)
Serial/Data Speeds 300 to 921600 bps
Ethernet Data Speeds 10MB or 100MB
Physical Description 2.541" L × 1.045" W × 0.680" H; 0.6 oz.
(6.45 cm × 2.65 cm × 1.7 cm; 0.017 kg.)
Operating Temperature 0 to +70 C
Storage Temperature -40 C to +85 C
Humidity 20% to 90% (non-condensing)
Operating Voltage 5VDC or 3.3VDC
Power Measurements See the Power Measurements table.
Flow Control RTS/CTS (hardware)
Network Protocols
Supported ARP, DHCP client, DNS client, FTP, ICMP (ping), IP, POP3, SMTP, TCP, Telnet
server, UDP
Management Serial
Telnet
Web-based configuration
Certifications &
Approvals Safety Certifications
UL 60950
cUL 60950
EN 60950
AS/NZS 60950:2000
Safety Certifications for High Voltage Build
UL 60601-1
EN 60601-1
EMC Approvals
FCC Part 15 Class B
Canada Class B
EN 55022 Class B
EN 55024
Warranty 2 years
Intelligent Features Complete serial-to-Ethernet connectivity solution including network processor,
media access controller and physical interface.
AT Command compatible
LED driver outputs for visual monitoring speed, link, activity, collision and duplex
mode
Half duplex or full duplex support on the LAN interface
Central site setup and control of the remote communications device.
Flash memory to update firmware with the latest enhancements
Comment [DAR73]: From Dustin
6/24/09
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 149
SocketEthernet IP Pin Out
The SocketEthernet IP uses a 22-pin interface to provide an on-board Ethernet media access controller, an Ethernet
physical layer (without the RJ-45 jack), an LED driver for Ethernet monitoring, and a serial interface.
Note: The shaded, bolded pins are SocketEthernet IP active pins.
Top View
SocketEthernet IP MT100SEM-IP Pin Out
For pin descriptions, see the Universal Pin Out Descriptions in Chapter 1.
Comment [DAR74]: M100SEM.png
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 150
DC Electrical Characteristics
3.3V Serial
3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V
Parameter Minimum Maximum
Input Low Level
–DTR (40), –TXD (35), –RTS (33), –RESET (24)
Note: These inputs are 5 volt tolerant
-0.3V
0.8V
Input High Level
–DTR (40), –TXD (35), –RTS (33), –RESET (24)
Note: These inputs are 5 volt tolerant
Min 2.52V VDD
Output Low Level
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
NA 0.4V Current Drive
2mA
Output High Level
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
Min. 2.3V NA Current Drive
2mA
Digital Input Capacitance – 5 pF
5V Serial
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Parameter Minimum Maximum
Input Low Level
–DTR (40), –TXD (35), –RTS (33), –RESET (24)
-0.3V
0.8V
Input High Level
–DTR (40), –TXD (35), –RTS (33), –RESET (24)
2.52V VDD
Output Low Level
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
NA 0.4V Current Drive
2mA
Output High Level
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
2.3V NA Current Drive
2mA
Digital Input Capacitance – 5 pF
Power* Measurements
MT100SEM-IP Measured Power at Input Voltage 5.00
Sleep Typical Maximum
Current (AMPS) 0.187 0.187 0.194
Watts 0.935 0.935 .97
MT100SEM-IP Measured Power at Input Voltage 3.3
Sleep Typical Maximum
Current (AMPS) NA 0.137 0.168
Watts NA 0.411 0.504
* Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source when
determining product load.
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 151
Application Notes
Ethernet Interface – Non-Isolated Design
Note: VREF stands for Power in this drawing.
Ethernet Interface – Isolated Design
Isolated Design Application Note
The MT100SEM-L-HV-IP was designed to meet Basic Isolation at 240Vac according to the international medical
directive for safety (EN60601-1). The recommended components for an isolated design comply with the same
standard.
Recommended Parts
Recommended Capacitors for a Non-Isolated Design:
Manufacturer – NIC Components Corp.
Part Number – NMC0603NPO150J50TRPF
Recommended Safety Rated Capacitors for an Isolated Design: The recommended capacitors are Y2 rated and
meet supplementary isolation at 240Vac along with the required creepages and clearances.
Manufacture – NOVACAP
Part Number – ES2211N(value)K502NXT
Recommended Resistor: The resistors are 75 ohms 1/8 watt.
Recommended Ethernet Modular Jack: The recommended jack is an eight contact, eight position, unshielded
and ungrounded connector that will maintain the need isolation and spacing requirements. A shielded and
grounded connector may be used, but special consideration must be made for the isolation and spacing
requirements.
Manufacture – Stewart Connector Systems
Part Number – SS-6488-NF-K1
Comment [DAR75]: MT100SEM IP
Non Isolated Scan0578_000.jgp
97KB jpg was smaller than png. Filed
under
CurrentProj_Universal_Guide_2009_
Rev_J\Graphics
Comment [DAR76]: MT100SEM IP
Isolated Scan0579_000.jpg (jpg was
smaller than png) 169KB. Filed under
CurrentProj_Universal_Guide_2009_
Rev_J\Graphics
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 152
Note: These SocketEthernet parts are RoHS compliant.
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 153
The Windows-Based Auto-Discovery Manager
The Auto-Discovery Manager is a mechanism for remotely monitoring the Universal IP functioning. It also provides
support for configuring several key parameters, such as DHCP Status (enable/disable), IP Address, and the Host
Name of an MT100SEM-IP.
The Auto-Discovery mechanism is utilized by running a Windows-based Server Application that can monitor/configure
the MT100SEM-IP. Communication between the MT100SEM-IP and the Windows-based Server is through MAC
level broadcasts on a configured UDP port.
Two Ways to Use Auto Discovery: Auto-Discovery can be performed by using AT Commands (see the Universal IP
AT Commands Reference Guide – included on the Universal Kit CD) or by using the Auto-Discover Manager
Software (also included on the Universal Kit CD).
Auto-Discovery Manager Software
The Auto-Discovery Manager is composed of two components:
The Client Component – The Client component periodically broadcasts its current configuration over
the network.
The Server Component – The Server component receives the broadcasts from the client.
Client Component
The Auto-Discovery Client component is integrated with MT100SEM-IP. It broadcasts its current configuration
over the network on a specific UDP SERVER-PORT. By default the SERVER-PORT is set to 1020. The
configuration parameters broadcast are
Version details
MAC Address
Static IP Address
DHCP Status
DHCP Assigned IP Address
Host Name
Broadcast interval
Port number on which the client listens
Server Component
The Server component listens on the SERVER-PORT. It receives the broadcasts from the client and updates the
list of configuration parameters. This list can be viewed by the administrator through the User Interface:
The List of Entries
Detailed Information about a
Selected Entry
Log Files will display here
Comment [DAR77]: Auto Discovery
Screen1.jpg (jpg was smaller than
png) 184KB.
CurrentProj_Universal_Guide_2009_
Rev_J\Graphics\Auto Discovery for
Universal
PART 4 – Embedded Device Servers Chapter 10 – SocketEthernet IP (MT100SEM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 154
How to View the Detailed Information
New entries are appended to the list shown on the screen above. Only the first ten entries are displayed on
the screen. However the administrator can scroll down to view more entries. Clicking on an entry displays
the detailed information about that entry.
How to Edit the List and Make the Changes Permanent
1. Double-click on the entry you wish to edit.
2. After clicking the desired entry, a new dialog box displays showing the current configuration.
3. Enter the new parameters and click the SET button. The server sends the modified parameters to the
client.
Upon receiving the broadcast from the Server, the Client validates the packet. The Client determines
whether the packet is destined for its own MAC Address. If so, it sets the modified parameters that are
different from its current configuration, and the it broadcast the newly configured parameters.
The Client Status is set to Active upon the receipt of a broadcast packet.
The Client Status is made Inactive if there is no request from the client for a stipulated period.
(3 * periodic timer value).
How to Set the Parameters to the Previous Configuration
When the RESET button is clicked, the parameters are set to the defaults received. In other words, RESET
is similar to UNDO (it sets the modifications to the previous ones).
Saving the Log
The logs can be saved to a file. They are spooled into the third part of the window in the main dialog box. To save the
log: Select File > Save Log As.
Comment [DAR78]: Auto Discovery
Screen2.png 12KB.
CurrentProj_Universal_Guide_2009_
Rev_J\Graphics\Auto Discovery for
Universal
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 155
Chapter 11 – SocketWireless® Wi-Fi®
(MT810SWM-IP)
Introduction
The SocketWireless® Wi-Fi® device server connects serial devices to an IP network via 802.11b/g wireless networking. It
enables you to build wireless networking into virtually any device allowing for remote monitoring, control and configuration. The
space efficient communications device (1” x 2.5”) integrates a complete TCP/IP protocol stack. It can make your existing and
next generation device, machine or system, IP-ready while you focus on developing its core features.
Product Build Options and Ordering Information
Product Description Region Order this Product
3
MT810SWM-IP 802.11b/g Wi-Fi Device Server with IP, 5V Regional
MT810SWM-L-IP 802.11b/g Wi-Fi Device Server with IP, 3.3V Regional
Developer Kit
MTSMI-UDK Universal Developer Kit Regional
How to Read the Product Codes in the Table Above:
IP TCP/IP Stack
L 3.3V
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MT810SWM-IP.Rx
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Multi-Tech Systems, Inc. provides documentation of AT Commands for each embedded module. These AT Command
Reference Guides are available on the CD included in the Developer Kit and are also available by request. Send an email to
oemsales@multitech.com to request the copy you desire.
Product Reference Guides Title and Document
Product Number Fax
Commands Voice
Commands
SocketWireless Wi-Fi Device Server
(MT810SWM-IP) Multi-Tech's Universal IP AT Command
Reference Guide (S000426x) NA NA
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 156
Technical Specifications
The SocketWireless Wi-Fi meets the following specifications:
Category Description
Wireless Specifications
WLAN Standard IEEE 802.11b/g Wi-Fi
Frequency Range 2.400 to 2.484 GHz
Data Rate 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 & 54Mbps
Maximum Transmit Power 15 dBm
Receiver Sensitivity -82 dBm (with PER < 8%)
Security 64/128 bit WEP, WPA-PSK, WPA2, WPA2-PSK
Mode Ad Hoc, Infrastructure
Antenna Connector UFL
Serial Interface
Data Format Serial, asynchronous
Data Rate Software selectable: 1200 bps to 921.6K bps
Data Bits 7 or 8 data bits, 0 or 1 stop bits
Parity Odd, even, none
Flow Control RTS/CTS (Hardware), None
Network Protocol Support
Protocols Supported ARP, DHCP Client, DNS Client, FTP Client, ICMP (PING), IP, POP3 Client,
SMTP Client, TCP Client & Server, UDP Client & Server
Power Requirements*
Supply Voltage 3.3VDC or 5VDC
Power Usage Typical – 400mA @ 3.3VDC, 240mA @ 5VDC
Environmental
Operating Temperature -30 to +70 C
Storage Temperature -40 to +85 C
Humidity 20% to 90% (non-condensing)
Physical Description
Dimensions 2.541" L x 1.045" W x 0.680" H
(6.45 cm x 2.65 cm x 1.7 cm)
Weight 0.6 oz. (0.017 kg.)
Certifications, Approvals, Warranty
Certifications Safety Certifications
UL 60950-1
cUL 60950-1
IEC 60950-1
EMC Certifications
FCC Part 15 Subpart C
Canada RSS-210
EN 300 328
EN 301 489-17
Warranty Two years
Comment [DAR79]: Updated list by
Dustin for Rev. K
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 157
Technical Specifications Continued
Intelligent Features
Features Command line configuration through serial interface
AT Command compatible
System firmware upgraded through serial port.
Over the air firmware upgrade
Command line configuration through TELNET
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 158
Mechanical Drawings Comment [DAR80]: Vault Data 363
-- 9/2/09
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 159
Mechanical Drawings Comment [DAR81]: Vault Data 363
-- 9/2/09
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 160
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 161
Operating Conditions
In Volts
Parameter Minimum Maximum
3.3V = 3.15 3.3V = 3.45
Supply Range - Vcc
5V = 4.75 5V = 5.25
Absolute Maximum Rating
Parameter Minimum Maximum
Voltage at any signal pin GND - 0.3V Vcc + 0.3V
DC Electrical Characteristics
For 5V and 3.3V
Units (Volts)
Parameter Minimum Maximum
GND 0.8V
Digital Signal Input Low Level
2.0V Vcc
Digital Signal Input High Level
NA 0.4V
Digital Signal Output Low Level
2.4V NA
Digital Signal Output High Level
GND 0.8V
Reset (Low Active) Input Low
2.0V Vcc
Reset (Low Active) Input High
Digital Input Capacitance 5pf
Power Measurements*
MT810SWM-IP Measured Power at Input Voltage: 3.3 Volts
Idle Typical Maximum
Current (AMPS) 0.057 0.180 0.260
Watts 0.182 0.531 0.764
MT810SWM-IP Measured Power at Input Voltage: 5.00 Volts
Idle Typical Maximum
Current (AMPS) 0.056 0.193 0.260
Watts 0.274 0.897 1.196
* Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer into their power source when
determining product load.
Comment [DAR82]: The voltages
came from Tom Fix on Sept 25, 2009.
I put in the guide on 10/16/09.
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 162
Application Notes
RF Interface
Radio Characteristics
Frequency 2402 – 2480MHz
Modulation DSSS
Number of Channels 1 to 14
Transmission Rate 1, 2, 5.5, 11, 12, 18, 24, 36, 48, 54 Mbps
RF Receive Sensitivity -82dBm typical
RF Transmit Power 15 dBm
Default Power Up Settings
Baud Rate = 115200 bps
Data Bits = 8 bits
Parity = None
Stop bits = 1 bit
Hardware Flow Control RTS/CTS = Disabled
Antenna Requirements and Sources
Frequency Range 2.4 - 2.5 GHz
Impedance 50 ohm nominal
VSWR <2.0:1
Gain 5 dBi
Radiation Omni
Polarization Vertical
Connector Reverse Polarity SMA Plug
ROHS Compliant YES
Antenna Source for Wi-Fi
The antenna can be ordered from the following manufacturer:
Aristotle Enterprises http://www.aristotle.com.tw/
Part Number Description
RFA-02-5-F7M3 2.4 GHz 5dBi Swi-Reverse-F Antenna
Antenna Cable and Connector
See Chapter 1 for Antenna System details. Note that the cable for the Wi-Fi SocketModem has a reverse
polarity SMA plug.
Approved Antenna Cable Parts
GC Protronics 20930C
Samtec ASP-116785-01
Coax Cable RG-178/U
Part 4 – Embedded Device Servers Chapter 11 – SocketWireless Wi-Fi (MT810SWM-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 163
Regulatory Requirements for the Wi-Fi Antenna
This section covers how to use the modular transmitter in order to maintain the modular transmitter approval and RF
exposure compliance.
Conditions to Satisfy Modular Transmitter Approval
This device is intended only for use by OEM integrators under the following 3 conditions:
1. The antenna must be installed such that 20 cm is maintained between the antenna and the end
user for all installations.
2. The transmitter module may not be located with any other transmitter or antenna.
3. The communications device is approved using the FCC "unlicensed modular transmitter approval"
method. Therefore, the communication device must only be used with the originally approved
antennas.
As long as the 3 conditions above are met, further transmitter testing will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements with
this communication device installed (for example, digital device emissions, PC peripheral requirements, etc.)
IMPORTANT NOTE: In the event that any of these conditions CANNOT be met (for example certain laptop
configurations, location with another transmitter, or use of a different type antenna), then the FCC
authorization for the communications device is no longer considered valid and the FCC ID CANNOT be
used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC authorization.
RF Exposure Statements Developers Must Include in the User Manual for End Users
The user manual for consumers must include the following information in a prominent location:
IMPORTANT NOTE: To comply with FCC RF safety exposure limits, the antenna used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all persons and must not be located
or operating in conjunction with any other antenna or transmitter.
Regulatory Requirements for End Product Labeling
Suggested End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be installed in such a
way that 20 cm may be maintained between the antenna and the users (for example access points, routers,
wireless ASDL modems, and similar equipment). The final end product must be labeled in a visible area on
the exterior of the enclosure with the following or similar text: "Contains TX FCC ID: AU792U07B06821".
FCC & IC Information to Consumers
The user manual for the consumer must contain the statements required by the following FCC and IC
regulations: 47 C.F.R. 15.19(a)(3), 15.21, 15.101 and RSS-Gen Issue 2 dated June 2007, Sections 7.1.4
and 7.1.5.
Additional Information That Must Be Provided to OEM Integrators
The end user should NOT be provided any instructions on how to remove or install the modular transmitter.
PART 4 – Embedded Device Servers Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 164
Chapter 12 – SocketWireless®
Bluetooth® (MTS2BTSMI)
Introduction
The Multi-Tech Systems, Inc. SocketWireless® with Bluetooth®-enabled technology allows developers to establish wireless
networks using a special set of AT commands. The SocketWireless with Bluetooth technology makes the cable-replacement
transition to wireless networks seamless and easy.
This chapter explains how to establish Bluetooth communication between two serial devices for data applications in a point-to-
point network. Bluetooth-enabled devices create communication-ready devices by integrating data functionality into a single,
universal socket design. This complete, ready-to-integrate device dramatically reduces development time and costs for system
designers.
Notes about Byte Gaps and Data Latency
Because of the way Bluetooth is designed and operates, random byte gaps of 5 ms to 20 ms are common. Packet size
will vary from transmission to transmission.
Although the serial band frequency operates up to 920K bps, effective data throughput in fast streaming mode is
approximately 200K bps. Effective data throughput in regular data mode is 60K bps. The reason for the slower speed in
regular mode is due to the AT parser, which looks at each character for ASCII valid command scripts in the regular
mode's data stream.
The SocketWireless RX has very limited buffering, so if you do not use hardware flow control and are transmitting
further distances, you will quickly overflow the 50 byte buffer because of RF retransmissions, etc.
When a Bluetooth connection is made, the SocketWireless device goes into regular data mode per the power-up factory
default settings. This enables the user to configure the SocketWireless settings remotely via a remote RF Bluetooth
connection. Basically, you can setup the SocketWireless device so no commands are required to be sent from the
embedded side of the device. This allows seamless interfacing with legacy systems without the need to modify the host
device
Product Build Options and Ordering Information
Product Description Region Order this Product
3
MTS2BTSMI Embedded Serial-to-Bluetooth, C1, 5V Global
MTS2BTSMI-L Embedded Serial-to-Bluetooth, C1, 3.3V Global
Developer Kit
MTSMI-UDK Universal Developer Kit Global
How to Read the Product Codes in the Table Above:
C1 Class 1 Bluetooth
L 3.3V
UDK Universal Developer Kit
Other Product Codes:
The complete product code may end in .Rx. For example, MTS2BTSMI-L.R2.
“R” indicates product revision. “x” is the revision number.
AT Commands Reference Guide
Product Reference Guides Title and Document
Product Number Fax Commands Voice Commands
SocketWireless Bluetooth
(MTS2BTSMI) SocketWireless Bluetooth AT Commands
Reference Guide (S000360x) NA NA
PART 4 – Embedded Device Servers Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 165
Technical Specifications
The SocketWireless Bluetooth (MTS2BTSMI) meets the following specifications:
Category Description
Standard Class 1 Bluetooth V2.0 compliant
Note: For Bluetooth protocol V2.0, the circuit board I/O pin 7 now controls flow control.
In V1.2, circuit board I/O pin 3 controlled flow control. V2.0 now supports multipoint
connections.
Frequency Range 2402 to 2480 MHz (2.402 to 2.480 GHz)
Data Format For Serial Interface - Asynchronous
Serial Speeds Supports speeds from 1200 bps to 920K bps
Flow Control Hardware
Output Level (Class 1) 20dBm maximum
Modes of Operation Inquiry, Idle, Data, Fast Data, Park, Sniff, Command, Master, Slave
Device Profiles Serial Port (SPP), Dial-up Network (DUN)
Buffer Serial 50 bytes
RF 50-byte RX buffer
Weight 0.6 oz. (0.017 kg.)
Power Measurements Idle: 1.5mA @ 3.3VDC 1.6mA @ 5VDC
Master Connected: 6mA @ 3.3VDC 7mA @ 5VDC
Fast Data: 21mA @ 3.3VDC 38mA @ 5VDC
Master Inquiry: 68mA @ 3.3VDC 74mA @ 5VDC
Notes: These power measurements were taken with no LEDs connected.
Driving an LED through 330 ohm resistor to GND draws an
additional 4mA on 5V for each LED.
Note: Multi-Tech Systems, Inc. recommends that the customer incorporate a 10% buffer
into their power source when determining product load.
Operating Temperature -40 to +70 C
Storage Temperature -40 to +85 C
Humidity 20% to 90% (non-condensing)
Operating Voltage 5VDC or 3.3VDC
Minimum and Maximum Voltage: 3.3VDC 0.1V & < 10mVp-p noise
5VDC 0.1V & < 10mVp-p noise
Certifications &
Approvals Safety Certifications:
UL 60950
cUL 60950
EN 60950
AS/NZS 60950:2000
EMC Approvals:
FCC Part 15.247:2004 (subpart C)
EN 301 489-1 V1.4.1 (2002-08)
Intelligent Features Can be configured, commanded, and controlled through simple ASCII strings over the
Bluetooth RF link or directly through the hardware serial UART.
Low power consumption.
Secure and robust communication link.
FHSS (Frequent Hopping Spread Spectrum)
56-bit encryption, and 10 alphanumeric Personal Identification Number (PIN)
Error correction schemes for guaranteed packet delivery
Operating System independent
AT command software interface
LED driver outputs for visual monitoring speed, link, activity, collision, and duplex mode.
Auto connect.
Supports multipoint connections.
Warranty Two years
PART 4 – Embedded Device Servers Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 166
SocketWireless Bluetooth Pin Out
Note: The bolded, shaded pins are the active SocketWireless pins.
Top View – SocketWireless Bluetooth Pin Out
For pin descriptions, see the Universal Pin Out Descriptions in Chapter 1.
DC Electrical Characteristics
5V Serial SocketWireless
5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V
Inputs Input High Input Low
–DTR (40), –TXD (35), –RTS (33) Min 2.0V Max 0.8V
–RESET (24) Min 2.0V Max 0.8V
Input Capacitance 15 pF
Outputs Output High Output Low Current Drive
–DCD (39), –CTS (38), –RI (36),
–RXD (34)
Min 4V / 2.4V Max 0.5V / 0.5V (5V / 3.3V) 3.2mA,
7.0mA for TXD
3.3V Serial SocketWireless
3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V
Inputs Input High Input Low
–DTR (40), –TXD (35), –RTS (33) Min 2.0V Max 0.8V
–RESET (24) Min 2.0V Max 0.8V
Input Capacitance 15 pF
Outputs Output High Output Low Current Drive
–DCD (39), –CTS (38), –RI (36),
–RXD (34)
Min 2.4V Max 0.5V / 0.5V (5V / 3.3V) 3.2mA,
7.0mA for TXD
Comment [DAR83]: New one:
20501d1_BT_Mechanicaldimensions.
gif
Old one:
205001d1_mechanicalDimensions.b
mp
PART 4 – Embedded Device Servers Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 167
Application Notes
RF Interface
Radio Characteristics
Frequency 2402 – 2480MHz
Modulation FHSS/GFSK
Channel Intervals 1MHz
Number of Channels 79CH
Transmission Rate 721Kbps
RF Receive Sensitivity -80dBm typical
RF Range Class 1 - 100 meters (330 feet)
Sources for Peripheral Devices
Antenna Requirements
Frequency Range 2.4-2.5 GHz
Impedance 50 ohm nominal
VSWR <2.0:1
Gain 2 dBi
Radiation Omni
Polarization Vertical
Wave Dipole ½ Wave
Connector Reverse Polarity SMA Plug
Antenna Source
Bluetooth Antenna Available from Multi-Tech:
Part Number Description
ANBT-1HRA Hinged Right Angle 2.5 GHz ½ Wave Reverse Polarity Antenna
Bluetooth antennas also can be ordered from the following manufacturers. For the manufacturers listed
without specific part numbers, be sure to select the antenna that meets the requirements listed above.
http://nearson.com (part number S131AH-2450S)
http://www.ead-ltd.com
http://www.centurion.com
http://www.mobilemark.com
http://woken.com
Antenna Cable and Connector
See Chapter 1 for Antenna System details. Note that the cable for the Wi-Fi SocketModem has a reverse polarity
SMA plug.
Approved Antenna Cable Parts
GC Protronics 20930C
Samtec ASP-116785-01
Coax Cable RG-178/U
PART 4 – Embedded Device Servers Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 168
Default Power Up Settings
AT Command Response Form = Long Form
Bluetooth Service Profile = Serial Port Profile {SPP}
Device Role = Slave
Baud Rate = 9600bps
Data Bits = 8 bits
Parity = None
Stop bits = 1 bit
Hardware Flow Control RTS/CTS = Enabled
Power Mode = Never go into deep sleep mode
Country Code = North America and Europe
Name of Device (local name) = SocketWireless
My Radio Status = 1,0 {slave, disconnected}
Service Name = COM0
Power up default ATSW24 settings = 0,0,0,0 {long response, no authentication, no auto SCO connect, no minor}
Power up default ATSW25 settings = 0,1,0,0 {slave, data, allow data to pass, SPP}
Major & Minor Class Of Device (COD) = 00000000 {undefined}
Security PIN and Encryption Disabled
Default PIN = “default” caps sensitive so do not use any capital letters
Important Security PIN Note:
Do not forget your PIN. Write it down. If you forget it, there is no way it can be retrieved from the device
or the software. You will have to buy a new SocketWireless Bluetooth and start over.
Page Scan Interval = 0x400 {2560msec.}
Page Scan Window = 0x200 {11msec.}
Inquiry Scan Interval = 0x400 {2560msec.}
Inquiry Scan Window = 0x200 {11msec.}
Timeout Connection Parameters
Inquiry = 60 seconds
Slave Connect = 60 seconds
Master Connect = 60 seconds
ATDM idle mode = 60 seconds
ATDM Master Mode = indefinitely (need to perform ATUCL to cancel last command)
Timeout for loss of Bluetooth connection = 4 seconds
PART 4 – Embedded Device Servers Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 169
Example of a Master Discovery/Connection
Sequence
From Power Up and No Connection
1. Verify local device is Master in Data Mode.
Sent: ATSi,7 <cr>
Reply: <cr_lf>1,1,0,0<cr_lf>
2. If not Master, set to Master and Data Mode.
Sent: ATSW25,1,1,0,0 <cr>
Reply: <cr_lf>OK<cr_lf>
3. Perform an Inquiry to obtain BT Address (unless it is already known).
Sent: ATUCL<cr> // Clears radio state and places in Idle Mode
Reply: <cr_lf>OK<cr_lf>
Sent: ATDI,1,00000000 {Class of Device}<cr> // Looks for only one Bluetooth device
Reply: <cr_lf>00A0961F2023,00000104,Socket Wireless<cr_lf>
<cr_lf>DONE<cr_lf>
4. Perform a Master Connect over SPP using the BT Address.
Sent: ATDM, 00A0961F2023,1101<cr> // SPP connection
Reply: <cr_lf>CONNECT,00A0961F008F <cr_lf> // Returns Slave BT address radios is in Data Mode
5. Place radio into Fast Data Mode.
Sent: ATMF<cr> // Places radio in Fast Data Mode
Reply: <cr_lf>OK<cr_lf>
6. Send Data.
Note: When sending commands from the Slave when the Slave connects in Fast Data Mode (ATSW25/or issuing
ATMF). All valid AT commands are sent through the Slaves UART will be interpreted and responded by the Master
radio as if it was the local Slave radio. Basically in this configuration from the Slave end you can obtain status and
configure from the remote Master radio. This is a unique feature that may be useful in some applications but can
confuse the user if you think you are talking to the local Slave UART.
To Get Out of Data Mode and Check Status:
1. Delay at least 50 milliseconds; this could be less or more.
2. Get into Command Mode.
Sent: +++<cr> // Default escape sequence of characters
Reply: <cr_lf>OK<cr_lf>
3. Check Status
Sent: AT<cr>
Reply: <cr_lf>OK<cr_lf>
4. Or send any AT Command example:
Sent: ATSI,0<cr>
Reply: <cr_lf>SocketWireless AT<cr_lf>
Example of a Slave Command Sequence
From Power Up:
1. Check and verify Communication to Slave.
Sent: AT<cr>
Reply: <cr_lf>OK<cr_lf>
2. Get information on Slave Bluetooth address.
Sent: ATSi,1<cr>
Reply: 12-digit address
<cr_lf>OK<cr_lf>
3. Set Slave to automatically connect in Fast Data Mode on Bluetooth connection.
Sent: ATSW25,0,0,0,0 <cr>
Reply: <cr_lf>OK<cr_lf>
4. Either cycle power or send ATURST.
Note: This command sequence assumes the radio is in factory default in which it automatically comes up and is
connectable as a Slave from a Master request.
PART 4 – Embedded Device Servers Chapter 12 – SocketWireless Bluetooth (MTS2BTSMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 170
Disabling Flow Control Using AT Commands
Protocol Change:
For Bluetooth protocol V2.0, the circuit board I/O pin 7 now controls flow control.
Previous Protocol V1.2 New Protocol V2.0
ATSW22,3,x,x ATSW22,7,x,x
ATSW23,3,x,x ATSW23,7,x,x
Disabling Flow Control Using Protocol V.2.0
Using a terminal screen with flow control enabled, issue commands to turn off flow control.
Sent: ATSW22,7,1,0 <cr> // Set PIO7 as output and do not store in flash
Reply: OK<cr_lf>
Sent: ATSW23,7,1,0<cr> // Set PIO7 output high and do not store in flash
Reply: OK<cr_lf>
To store the setting in flash:
Sent: ATSW22,7,1,1<cr> // Set PIO7 as output and store in flash
Reply: OK<cr_lf>
Sent: ATSW23,7,1,1<cr> // Set PIO7 output high and store in flash
Reply: OK<cr_lf>
Now you can communicate with the Bluetooth device with flow control turned off.
Other Examples
See the Bluetooth AT Commands Reference Guide for other examples:
Multipoint Example Using the SocketWireless MTS2BTSMI or the Bluetooth Adapter MT2BTA – One Slave
and Four Master Devices.
Multipoint Example Using the SocketWireless MTS2BTSMI or the Bluetooth Adapter MT2BTA – One Master
and Four Slave Devices.
Repeater Example Using the SocketWireless MTS2BTSMI or the Bluetooth Adapter MT2BTA.
Changing Configuration
Parameters, such as the Bluetooth Name, Service Name, Class of Device, and Serial Port settings can be viewed
and configured. This can be done locally through the serial port UART or from a remote Bluetooth RF link. To
configure the SocketWireless Bluetooth device, the device must be in command mode by issuing +++.
You can use the developer board and the RS-232 cable to connect to a PC and pass ASCII characters through the
terminal to the SocketWireless Bluetooth device. The communications settings should match the settings used when
the SocketWireless Bluetooth device connects. For example, the defaults are:
9600bps
8 bits
No Parity
1 stop bit
Hardware flow control enabled.
Once you change these parameters, you have the option to store them permanently in the non-volatile memory. Run
your favorite terminal emulator, HyperTerminal, or other program.
Type AT on your screen and follow it with a carriage return <cr_lf>. You should see "OK" returned to you.
This will verify that your cable and communications settings are correct. When the SocketWireless device is
not connected to another Bluetooth device, you can type the AT commands directly into the SocketWireless'
UART; e.g., you do not have to type +++ to change from data mode to command mode.
Now you can enter any of the AT commands discussed in the following sections. Follow these commands by
<cr_lf>. Valid commands will return an "OK" or a valid response. Invalid commands will reply ERROR.
To return to data mode, type ATMD. You can now pass or receive data from a remote connected Bluetooth
device.
Notes:
If you change communications parameter settings, remember to change your terminal or emulator
communications settings to correspond to the newly created parameter settings.
AT commands will not echo back to the terminal.
Index
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 171
Index
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 172
Index
A
Activation procedures.......................................................37
Antenna system.................................................................34
AT Commands Reference Guides
SocketEthernet IP (MT100SEM-IP)...........................147
SocketModem (MT2456SMI-22) ...............................141
SocketModem (MT2492SMI).....................................137
SocketModem (MT5692SMI).....................................116
SocketModem (MT9234SMI).....................................100
SocketModem CDMA (MTSMC-C) ............................67
SocketModem Cell & iCell (MTSMC-G2 Family) ......56
SocketModem EDGE (MTSMC-E and E1)..................76
SocketModem HSDPA (MTSMC-H)...........................84
SocketWireless Bluetooth (MTS2BTSMI).................164
SocketWireless Wi-Fi (MT810SWM-IP) ...................155
Auto-Discovery Manager ...............................................153
B
Baud Rate Dip Switch Settings for HDSPA .....................94
Block Diagram..................................................................23
Bluetooth Changing Configurations ...............................170
Bluetooth Example of a Master Discovery/Connection
Sequence.....................................................................169
Bluetooth Example of a Slave Command Sequence.......169
Bluetooth technology......................................................164
Board Components ...........................................................22
C
CDMA Terminology
2G .................................................................................74
3G .................................................................................74
CBM .............................................................................74
CDMA ..........................................................................74
cdma2000......................................................................74
cdma2000 1xRTT.........................................................74
cdmaONE .....................................................................74
ESN...............................................................................74
Handset Path.................................................................74
Headset Path .................................................................74
IMSI..............................................................................74
IOTA.............................................................................74
IS-2000 .........................................................................74
IS-707 ...........................................................................74
IS-95 .............................................................................74
IS-95A ..........................................................................74
IS-95B...........................................................................74
MCC .............................................................................74
MDN.............................................................................74
MIN ..............................................................................74
MNC.............................................................................74
MO................................................................................74
MS ................................................................................74
MSM.............................................................................74
MT................................................................................74
NAM ............................................................................ 74
NID .............................................................................. 74
NV-RAM ..................................................................... 75
OTAPA ........................................................................ 75
OTASP......................................................................... 75
PDU..............................................................................75
PN Offset......................................................................75
P-REV..........................................................................75
PRI ...............................................................................75
PRL ..............................................................................75
PSTN............................................................................75
RF.................................................................................75
RSSI............................................................................. 75
R-UIM..........................................................................75
SID...............................................................................75
SIM ..............................................................................75
SMS..............................................................................75
TA/TE ..........................................................................75
Changing the Quad Band ................................................. 65
China’s Administrative Measures on the Control of
Pollution.......................................................................54
Connectivity Features.......................................................10
Country/Regional Codes.................................................. 45
D
DC Electrical Characteristics
SocketEthernet IP (MT100SEM-IP) ..........................150
SocketModem (MT2492SMI).................................... 139
SocketModem (MT5692SMI).................................... 121
SocketModem (MT9234SMI).................................... 105
SocketModem CDMA (MTSMC-C) .......................71
SocketModem Cell & iCell (MTSMC-G2 Family)...... 58
SocketModem EDGE (MTSMC-E1) ...........................82
SocketModem HSDPA (MTSMC-H) ..........................90
SocketWireless Bluetooth (MTS2BTSMI).................166
Default Power Up Settings for Bluetooth.......................168
Default Power Up Settings for MT810SWM-IP ............162
Design Considerations......................................................16
Developer Board ..............................................................21
Developer Board Schematics ......................... 24, 26, 27, 28
E
Electrical Characteristics
SocketModem (MT2456SMI-22)............................... 144
Electromagnetic Interference Considerations...................17
Electrostatic Discharge Control........................................17
EMC Requirements for Industry Canada ......................... 46
EMC, Safety, and R&TTE Directive Compliance ...........46
F
Fax Commands Reference Guides ...................................11
FCC Part 15 Regulation ...................................................46
FCC Part 68 Regulation ...................................................47
Firmware Upgrade ...........................................................29
Flash Programming Protocol............................................31
Index
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 173
Flash Upgrade...................................................................29
Flash Upgrade Example....................................................30
G
Global Positioning System (GPS) Features ......................66
Global Positioning System (GPS) Technical Specifications
......................................................................................66
H
Handling Precautions related to electrostatic discharge
control...........................................................................17
HSDPA on Linux..............................................................93
HSDPA Operating Modes ................................................95
I
Internal Registers............................................................109
International Modem Restrictions.....................................46
Interrupt Sources and Reset Control Table
MT5692SMI...............................................................128
SocketModem (MT9234SMI).....................................110
J
Japan Regulations.............................................................50
Jumper – 5V / 3.3V...........................................................22
L
Label Example for Analog SocketModems ......................42
Labeling Requirements.....................................................40
Labeling Your Product......................................................40
M
Maintenance of Your Modem...........................................44
Mechanical Drawing in Millimeters for Analog Modems 19
Mechanical Drawings
SocketModem CDMA (MTSMC-C) ............................69
SocketModem Cell – Voice Build (MTSMC-G2 V) ....61
SocketModem Cell (MTSMC-G2) ...............................60
SocketModem Cell –l GPS Build (MTSMC-G2-GP)...63
SocketModem EDGE (MTSMC-E1)............................78
SocketModem EDGE with Voice (MTSMC-E1-V) .....79
SocketModem HSDPA (MTSMC-H)...........................87
SocketModem HSDPA-USB (MTSMC-H-U)..............88
SocketModem iCell – IP Build (MTSMC-G2-IP) ........62
SocketWireless Wi-Fi (MT810SWM-L-IP)................159
Wi-Fi (MT810SWM-IP).............................................158
Microphone and Speaker for SocketModem
MT5692SMI ..............................................................136
Microphone Input for EDGE............................................83
Microphone Inputs for MTSMC-G2.................................64
N
New Zealand Telecom Warning Notice............................48
P
Parallel Interface
SocketModem (MT5692SMI).................................... 124
SocketModem (MT9234SMI).................................... 107
Parallel Interface Register Table
SocketModem (MT5692SMI).................................... 125
SocketModem (MT9234SMI).................................... 109
Parallel Pin Configurations
MT5692SMI............................................................... 121
SocketModem (MT9234SMI).................................... 104
Parallel Timing Requirements
SocketModem (MT5692SMI).................................... 123
SocketModem (MT9234SMI).................................... 106
Parts................................................................................151
Parts for Analog SocketModems......................................39
PC Board Layout Guidelines............................................ 16
Pin Configurations
SocketEthernet IP (MT100SEM-IP) ..........................149
SocketModem (MT2456SMI-22)............................... 143
SocketModem (MT2492SMI).................................... 139
SocketModem (MT9234SMI).................................... 103
SocketWireless Bluetooth (MTS2BTSMI).................166
Pin Out
SocketModem Parallel Build (MT5692SMI)............. 120
Pin Outs
SocketModem (MT5692SMI).................................... 119
Power Measurements
SocketEthernet IP (MT100SEM-IP) ..........................150
SocketModem (MT2492SMI).................................... 138
SocketModem (MT5692SMI).................................... 122
SocketModem (MT9234SMI).................................... 101
SocketModem CDMA (MTSMC-C)...................... 68, 71
SocketModem Cell & iCell (MTSMC-G2 Family)...... 58
SocketModem EDGE (MTSMC-E1) ...........................82
SocketModem HSDPA (MTSMC-H) ..........................90
SocketWireless Bluetooth (MTS2BTSMI).................165
Power Saving Feature for HSDPA...................................96
Product Ordering Information
MT2456SMI-22 .........................................................141
SocketEthernet IP (MT100SEM-IP) ..........................147
SocketModem (MT2492SMI).................................... 137
SocketModem (MT5692SMI).................................... 115
SocketModem (MT9234SMI).................................... 100
SocketModem CDMA (MTSMC-C)............................67
SocketModem Cell & iCell (MTSMC-G2 Family ....... 56
SocketModem EDGE (MTSMC-E1) ...........................76
SocketModem HSDPA (MTSMC-H) ..........................84
SocketWireless Bluetooth (MTS2BTSMI).................164
SocketWireless Wi-Fi (MT810SWM-IP)................... 155
Programmable Baud Rates Table
SocketModem (MT5692SMI).................................... 133
SocketModem (MT9234SMI).................................... 113
Provisioning for CDMA...................................................73
R
Receiver Features for EDGE............................................83
Receiver Features for HSDPA..........................................91
Reset.................................................................................13
RF Interface
MTSMC-G2.................................................................64
SocketModem CDMA (MTSMC-C)............................72
SocketModem EDGE (MTSMC-E1) ...........................83
RoHS Compliance............................................................52
S
Safety Warning Telecom..................................................44
Index
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342L) 174
SocketModem CDMA Interfaces......................................72
South African Statement, Regulations..............................48
Speaker Output for EDGE................................................83
Stereo jack feed jumper ....................................................22
Switch Block.....................................................................22
T
Technical Specifications
SocketEthernet IP (MT100SEM-IP)...........................148
SocketModem (MT2456SMI-22) ...............................142
SocketModem (MT2492SMI).....................................138
SocketModem (MT5692SMI).....................................117
SocketModem (MT9234SMI).....................................101
SocketModem CDMA (MTSMC-C) ............................68
SocketModem Cell & iCell (MTSMC-G2 Family) ......57
SocketModem EDGE (MTSMC-E1)............................77
SocketModem HSDPA (MTSMC-H)...........................85
SocketWireless Bluetooth (MTS2BTSMI).................165
SocketWireless Wi-Fi (MT810SWM-IP) ...................156
Telecom Approvals...........................................................45
Temperature Control for HSDPA.....................................96
Tip and Ring Interface
SocketModem (MT2456SMI-22)............................... 145
SocketModem (MT5692SMI).................................... 134
SocketModem (MT9234SMI).................................... 114
Transmitter Features for EDGE........................................83
Transmitter Features for HSDPA.....................................91
U
Universal Developer Kit contents ....................................11
Universal Pin Descriptions...............................................12
Universal Socket Design..................................................10
USB Interface for HSDPA...............................................98
W
WEEE Directive...............................................................51
Wireless Approvals..........................................................37
X
XMODEM Serial Port Upgrade.......................................30

Navigation menu
