PARTS MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

To ﬁnd the latest revision of this

publication, visit our website at:

www.multiquip.com

NIGHTHAWK SERIES

MODELS LT12D, LT12P

DEDICATED LIGHT TOWER

(DEUTZ F3M1008F DIESEL ENGINE)

(LOMBARDINI LDW 1003 DIESEL ENGINE)

(PERKINS 103-10 DIESEL ENGINE)

Revision #17 (06/03/11)

PN 49119

PAGE 2 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

TABLE OF CONTENTS

LT12 Series Light Tower

Table Of Contents .................................................... 2

Parts Ordering Procedures ...................................... 3

Explanation Of Code In Remarks Column .............. 4

Suggested Spare Parts ........................................... 5

Nameplates And Decals 1 .................................... 6-7

Nameplate And Decals 2 ...................................... 8-9

Cabinet Assembly (Old Style) ........................... 10-11

Cabinet Assembly (New Style) ......................... 12-13

Trailer Assembly ............................................... 14-15

Mast Assembly ................................................. 16-17

Mast Raise/Lower Assembly ............................ 18-19

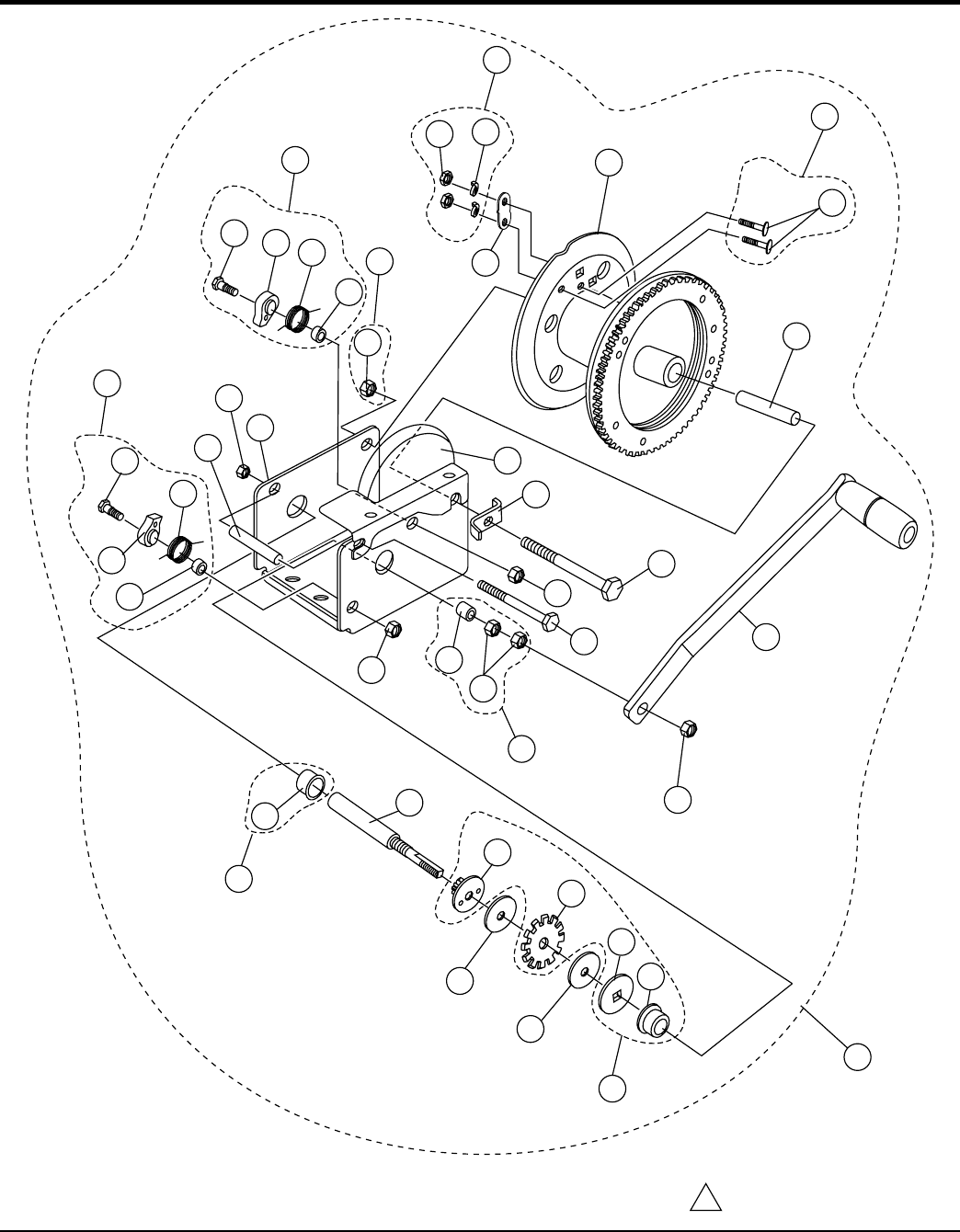

Winch Assembly (Fulton) .................................. 20-21

Winch Assembly (Dutton-Lainson) ................... 22-23

T-Bar Assembly (S/N 901681 And Below) ........ 24-25

T-Bar Assembly (S/N 901682 And Above) ........ 26-27

Lamp Assembly (S/N 901681 And Below)........ 28-29

Lamp Assembly (S/N 901682 And Above) ....... 30-31

Control Panel/Ballast Assy. (S/N 904384 & Below) 32-33

Control Panel/Ballast Assy. (S/N 904385 & Above) 34-35

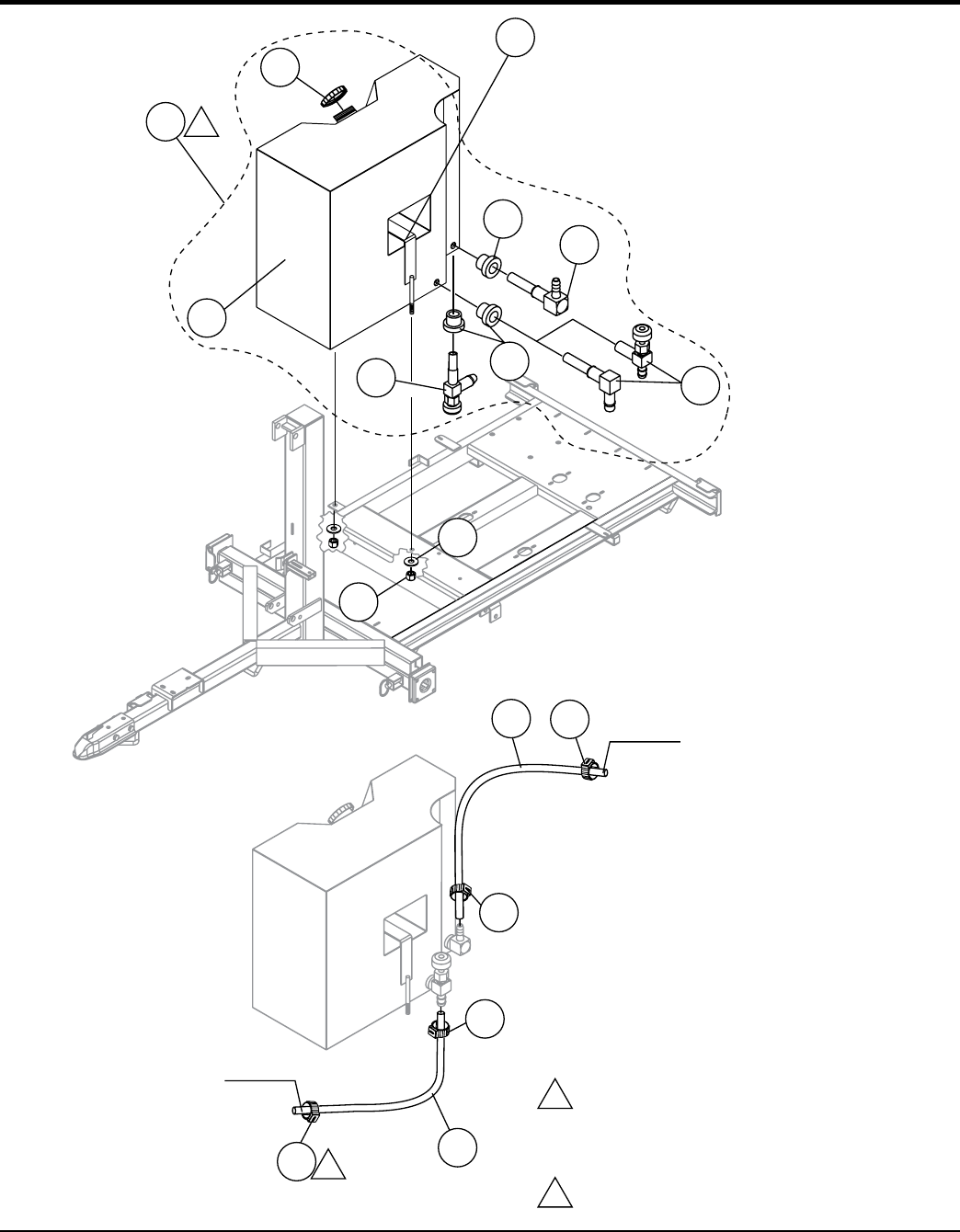

Fuel Tank Assembly .......................................... 36-37

Battery Assembly.............................................. 38-39

Engine Assembly (Perkins) ............................... 40-41

Engine Assembly (Deutz/Lombardini) .............. 42-43

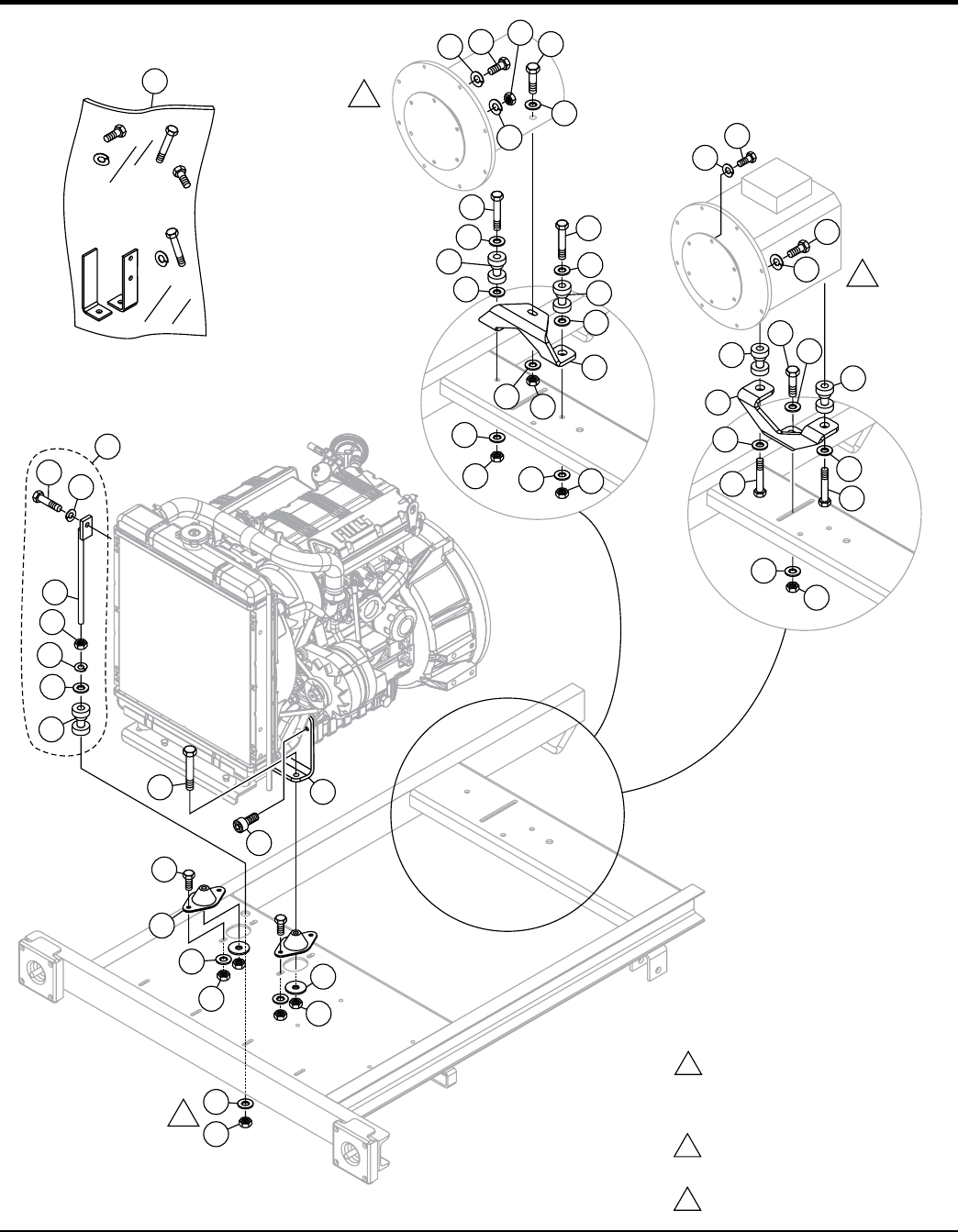

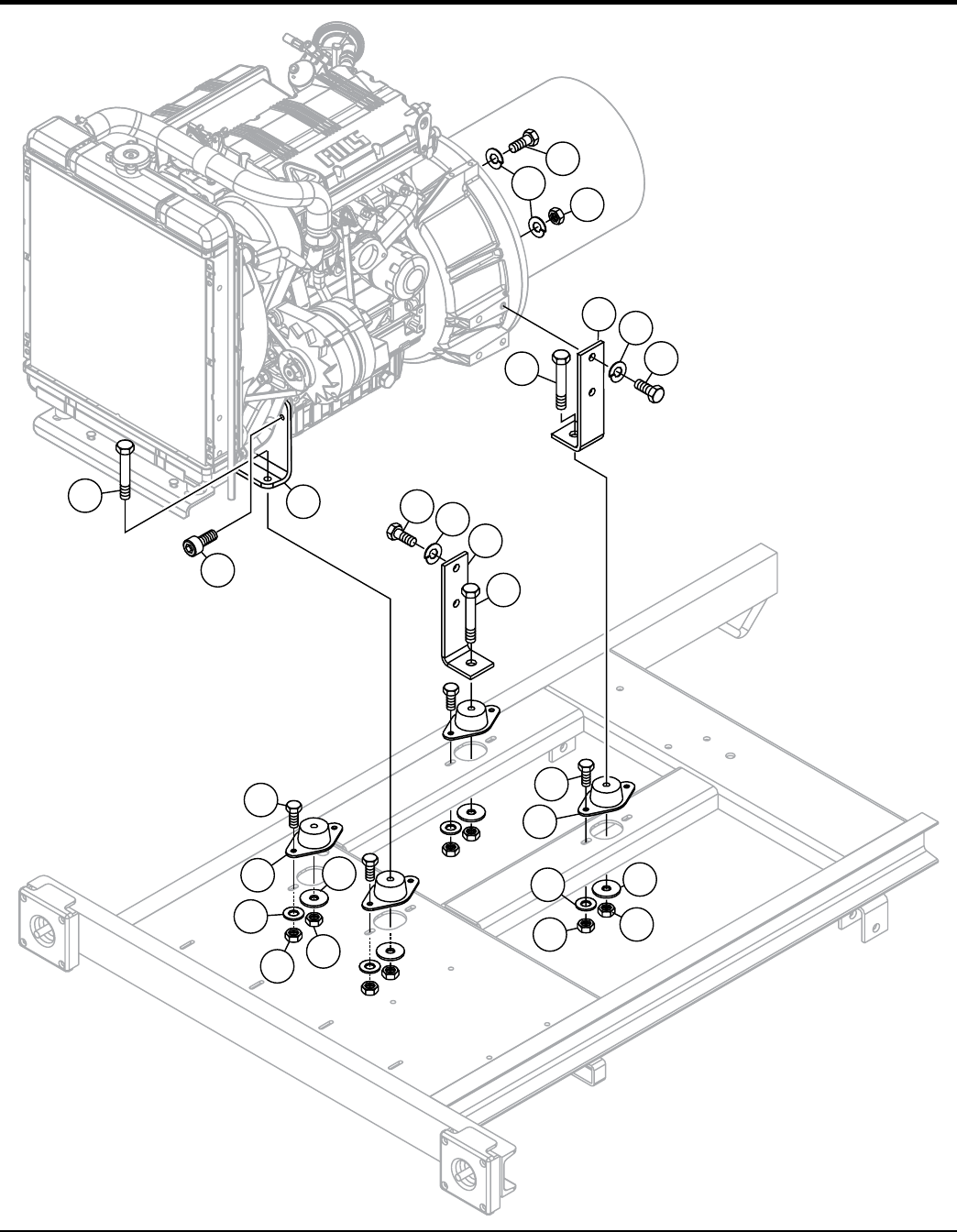

Generator/Engine Mounting Assy. (Perkins) ...... 44-45

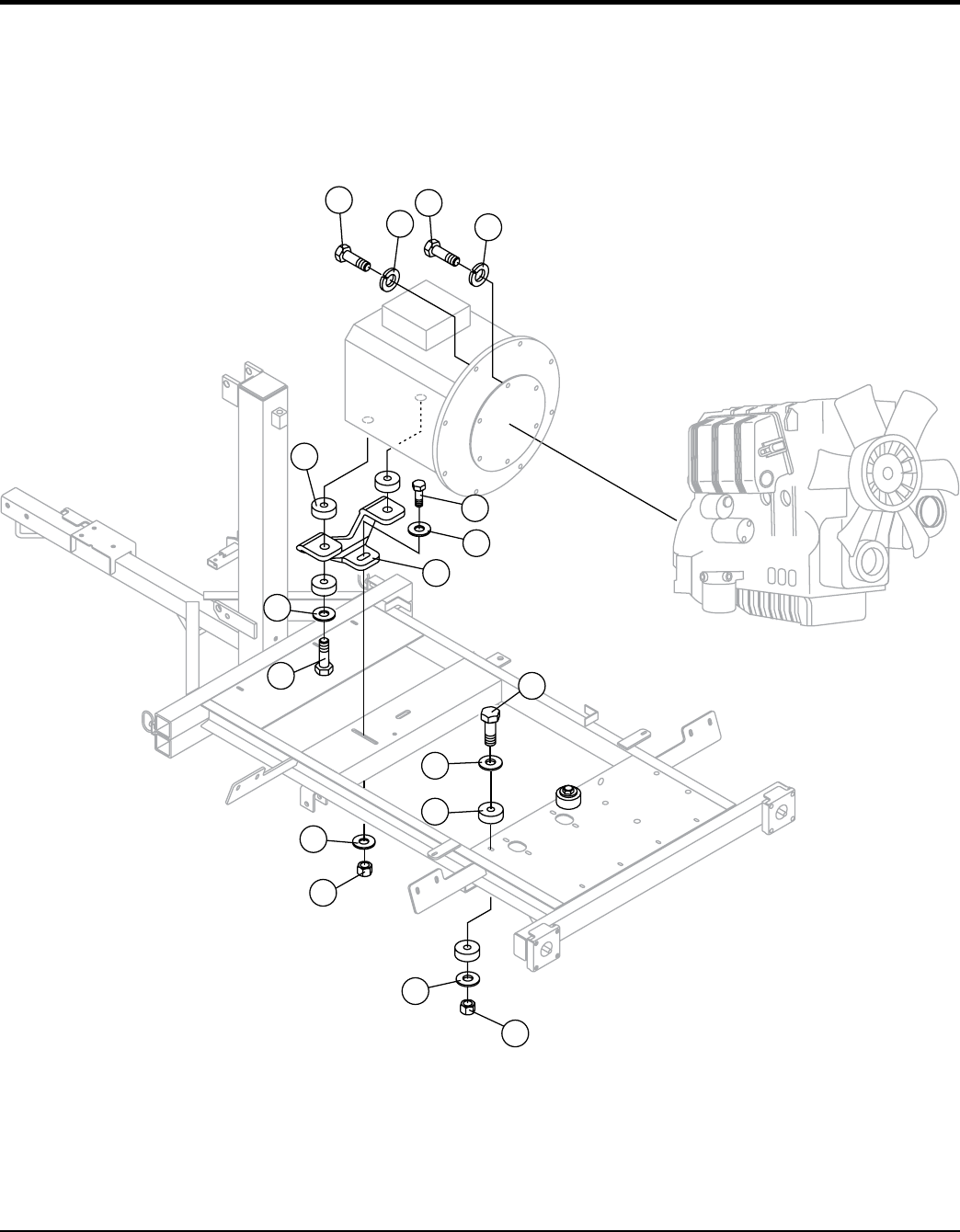

Generator/Engine Mounting Assembly .......................

(Old Style Deutz/Lombardini) ........................... 46-47

Generator/Engine Mounting Assembly ......................

(Deutz/LombardIni S/N 904548 And Above) .... 48-49

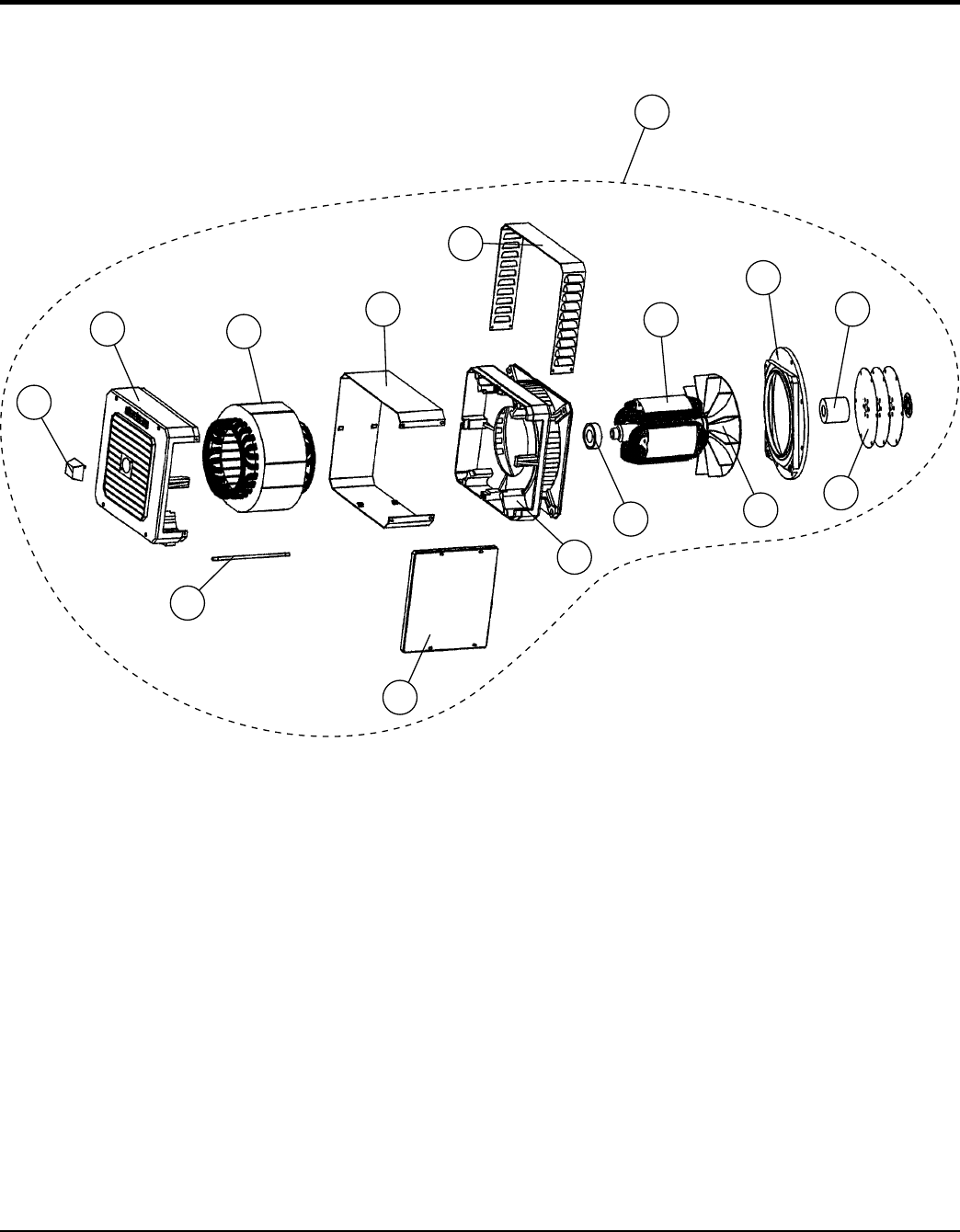

Generator Assembly (S/N 902148 And Below) 50-51

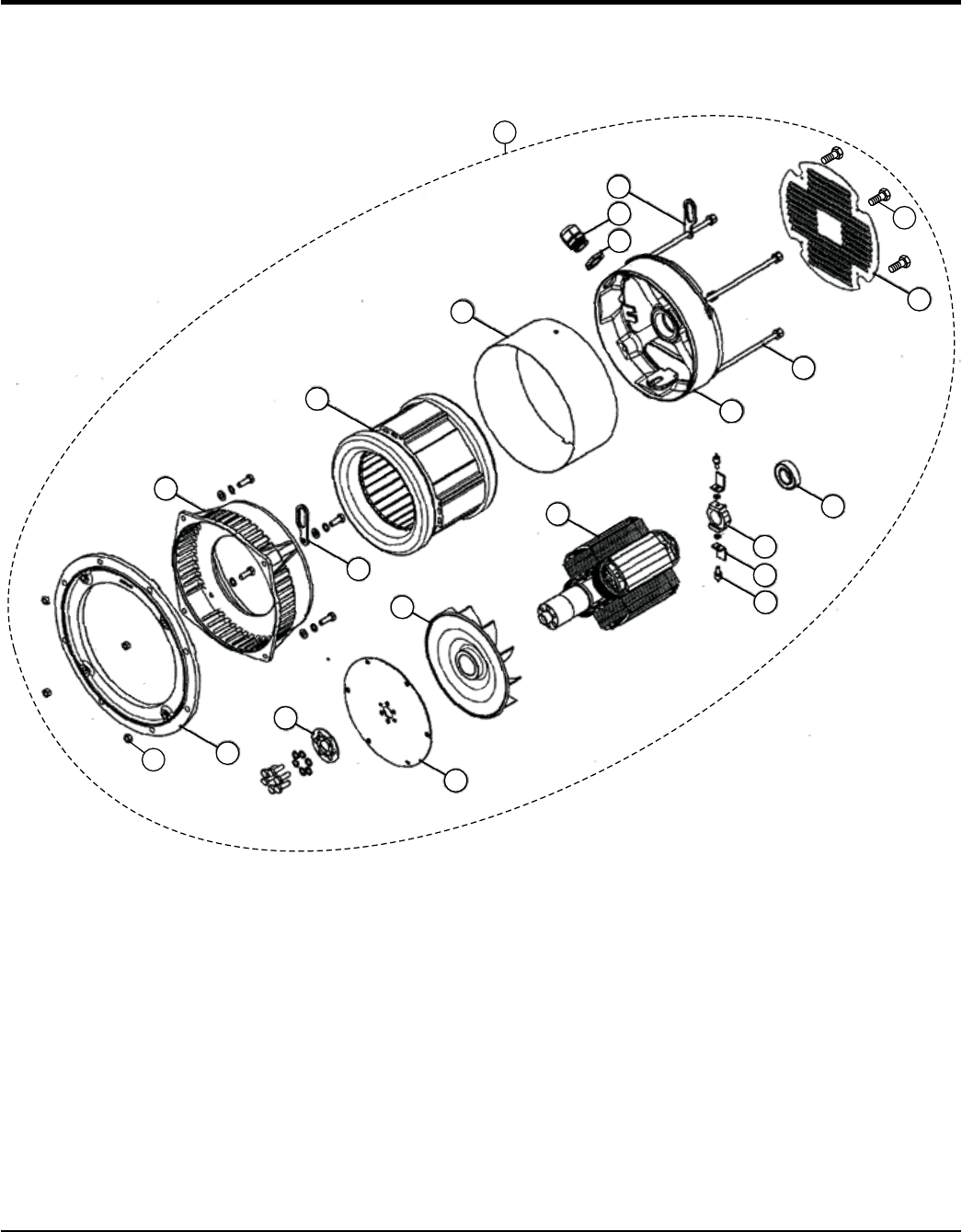

Generator Assembly (S/N 902149 And Above) 52-53

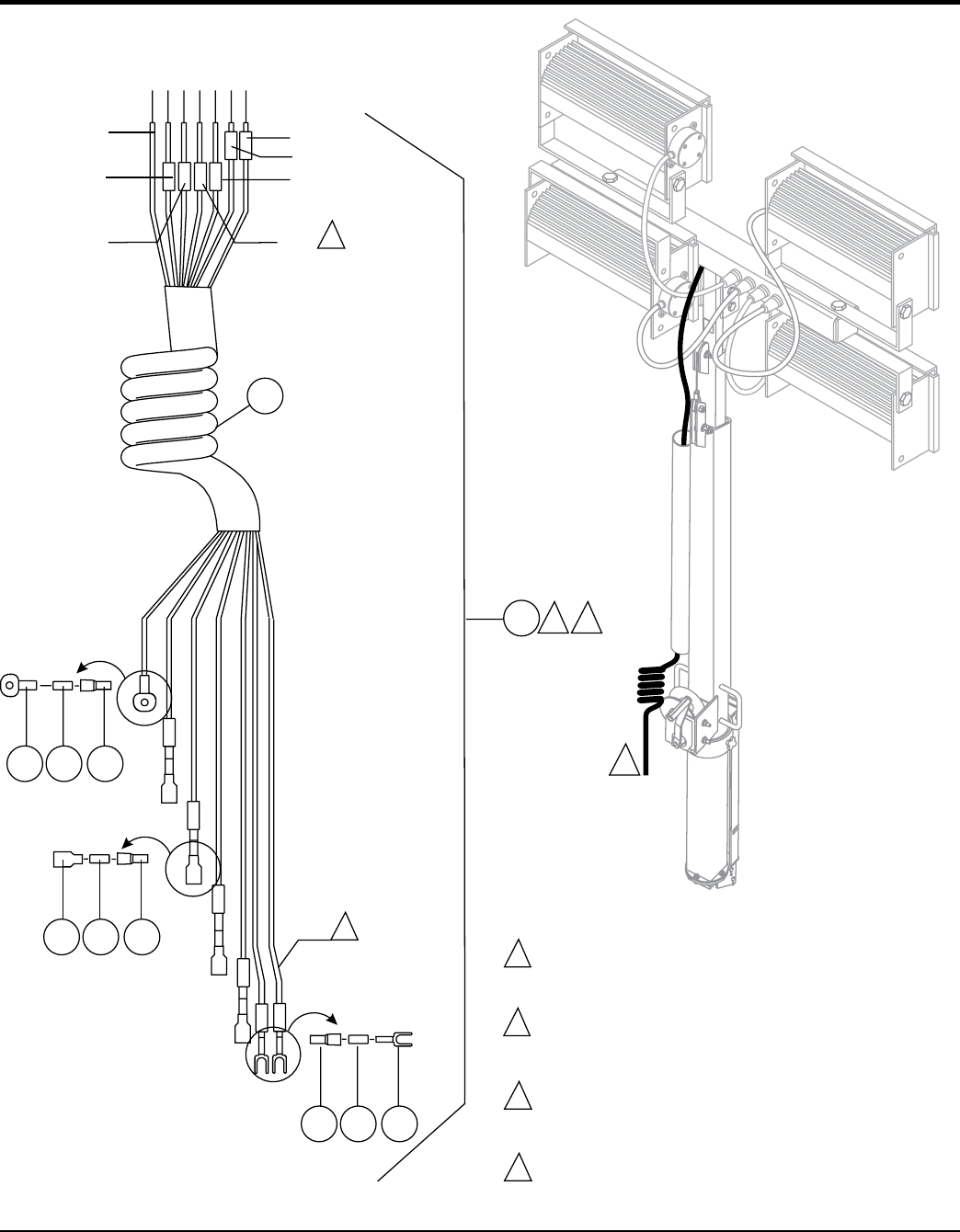

Coil Cord Assembly .......................................... 54-55

Terms And Conditions Of Sale — Parts ................ 56

NOTICE

Part numbers are subject to change without notice.

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 3

PARTS ORDERING PROCEDURES

www.multiquip.com

Ordering parts has never been easier!

Choose from three easy options:

WE ACCEPT ALL MAJOR CREDIT CARDS!

When ordering parts, please supply:

❒ Dealer Account Number

❒ Dealer Name and Address

❒ Shipping Address (if different than billing address)

❒ Return Fax Number

❒ Applicable Model Number

❒ Quantity, Part Number and Description of Each Part

❒ Specify Preferred Method of Shipment:

✓ UPS/Fed Ex ✓ DHL

■ Priority One ✓ Truck

■ Ground

■ Next Day

■ Second/Third Day

If you have an MQ Account, to obtain a Username

and Password, E-mail us at: parts@multiquip.

com.

To obtain an MQ Account, contact your

District Sales Manager for more information.

Order via Internet (Dealers Only):

Order parts on-line using Multiquip’s SmartEquip website!

■ View Parts Diagrams

■ Order Parts

■ Print Speciﬁ cation Information

Note: Discounts Are Subject To Change

Goto www.multiquip.com and click on

Order Parts to log in and save!

Use the internet and qualify for a 5% Discount

on Standard orders for all orders which include

complete part numbers.*

Order via Fax (Dealers Only):

All customers are welcome to order parts via Fax.

Domestic (US) Customers dial:

1-800-6-PARTS-7 (800-672-7877)

Fax your order in and qualify for a 2% Discount

on Standard orders for all orders which include

complete part numbers.*

Order via Phone: Domestic (US) Dealers Call:

1-800-427-1244

Best Deal!

International Customers should contact

their local Multiquip Representatives for

Parts Ordering information.

Non-Dealer Customers:

Contact your local Multiquip Dealer for

parts or call 800-427-1244 for help in

locating a dealer near you.

Note: Discounts Are Subject To Change

Effective:

January 1st, 2006

NOTICE

All orders are treated as Standard Orders and will

ship the same day if received prior to 3PM PST.

PAGE 4 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

EXPLANATION OF CODE IN REMARKS COLUMN

The following section explains the different symbols and

remarks used in the Parts section of this manual. Use the

help numbers found on the back page of the manual if there

are any questions.

SAMPLE PARTS LIST

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%

2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY

2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY

3 12348 HOSE ..................A/R ...MAKE LOCALLY

4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE

NO. Column

Unique Symbols — All items with same unique

symbol

(@, #, +, %, or >) in the number column belong to the

same assembly or kit, which is indicated by a note in the

“Remarks” column.

Duplicate Item Numbers — Duplicate numbers indicate

multiple part numbers, which are in effect for the same

general item, such as different size saw blade guards in

use or a part that has been updated on newer versions

of the same machine.

PART NO. Column

Numbers Used — Part numbers can be indicated by a

number, a blank entry, or TBD.

TBD (To Be Determined) is generally used to show a

part that has not been assigned a formal part number

at the time of publication.

A blank entry generally indicates that the item is not sold

separately or is not sold by Multiquip. Other entries will

be clariﬁ ed in the “Remarks” Column.

NOTICE

The contents and part numbers listed in the parts

section are subject to change without notice. Multiquip

does not guarantee the availability of the parts listed.

NOTICE

When ordering a part that has more than one item

number listed, check the remarks column for help in

determining the proper part to order.

QTY. Column

Numbers Used

— Item quantity can be indicated by a

number, a blank entry, or A/R.

A/R (As Required) is generally used for hoses or other

parts that are sold in bulk and cut to length.

A blank entry generally indicates that the item is not sold

separately. Other entries will be clariﬁ ed in the “Remarks”

Column.

REMARKS Column

Some of the most common notes found in the “Remarks”

Column are listed below. Other additional notes needed

to describe the item can also be shown.

Assembly/Kit — All items on the parts list with the

same unique symbol will be included when this item is

purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break

— Used to list an effective serial

number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW”

“S/N XXXX AND ABOVE”

“S/N XXXX TO S/N XXX”

Speciﬁ c Model Number Use

— Indicates that the part

is used only with the speciﬁ c model number or model

number variant listed. It can also be used to show a

part is NOT used on a speciﬁ c model or model number

variant.

Indicated by:

“XXXXX ONLY”

“NOT USED ON XXXX”

“Make/Obtain Locally” — Indicates that the part can

be purchased at any hardware shop or made out of

available items. Examples include battery cables, shims,

and certain washers and nuts.

“Not Sold Separately”

— Indicates that an item cannot

be purchased as a separate item and is either part of an

assembly/kit that can be purchased, or is not available

for sale through Multiquip.

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 5

SUGGESTED SPARE PARTS

LT12 SERIES LIGHT TOWER WITH OLD STYLE LAMP

S/N 901681 AND BELOW

1 to 3 units

Qty. P/N Description

2..........43007020200 ............ Clamp, Light

2..........2450108 .................... Lens Gasket

2..........5550079 .................... Lens and Gasket

2..........29560 ........................Support, Top Lamp 1000 Watt

2..........M1000U .....................Bulb

2..........4105012 .................... Reﬂector (without glass)

1..........29169 ........................Cord Set Molded

LT12 SERIE S LIG H T TOWER W ITH O LD S T YLE

SQUARE GENERATOR S/N 902148 AND BELOW

1 to 3 units

Qty. P/N Description

1..........M1000120AC5M .......Ballast/Transformer 60Hz

1..........19598 ........................ Ballast Capacitor 24 µF @480V

2..........GECAP18MF ............Excitation Capacitor 18µF @425V

1 ...........GECAP35MF ................Excitation Capacitor 35µF @425V

LT12P LIGHT TOWER WITH PERKINS 103-10 DIESEL

ENGINE

1 to 3 units

Qty. P/N Description

1............140517000....... Oil Filter

1............26560017......... Fuel Filter

1............36510362......... Element, Air Filter

1............80109049......... V-Belt, Fan

1............3483H043 ........ Lower Radiator Hose

1............3483H034 ........ Upper Radiator Hose

1............145206210....... Thermostat

1............145996590....... Thermostat Gasket (O-Ring)

1............130506290....... Fuel (Feed) Pump Lift

1............2415A070 ........ Fuel (Feed) Pump Gasket (O-Ring)

1............145016474....... Water Pump

1............145996900....... Water Pump Gasket

1............185246060....... Oil Switch

1............185046160....... Alternator

1............100AC .............. Electric Panel Control Box

1............185086610....... Starter

LT12 SERIES LIGHT TOWER WITH NEW STYLE LAMP

S/N 901682 AND ABOVE

1 to 3 units

Qty. P/N Description

2..........200ZG106 .................Lens Gasket

2..........190ZQREF ................Lens

2..........50Z-D-REF-SUP .......Support, Lamp Tip

2..........MVR1000BT37 ..........Bulb

1..........150Z-E267 ................Cord Set, 60" w/ 3 Pin Male Plug

LT 12 S ERI E S LIGH T T OW ER WIT H N E W S T Y LE

ROUND GENERATOR S/N 902149 AND ABOVE

1 to 3 units

Qty. P/N Description

1..........M1000120AC5M .......Ballast/Transformer 60Hz

1..........19598 ........................Ballast Capacitor 24 µF @480V

1..........GECAP25MF ............Excitation Capacitor 25 µF @425V

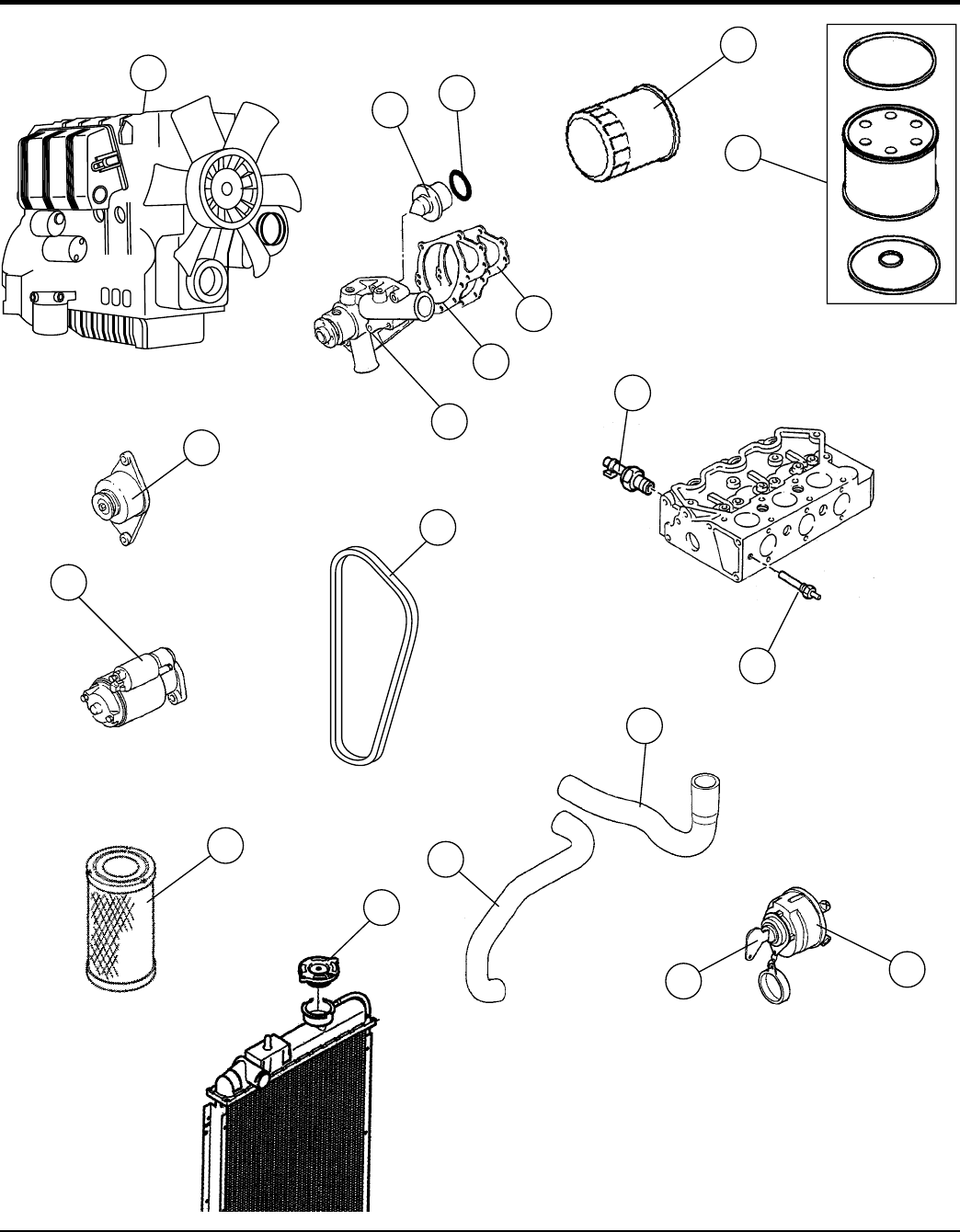

LT12D LIGHT TOWER WITH DEUT Z F3M1008F OR

LOMBARDINI LDW 1003 DIESEL ENGINE

1 to 3 units

Qty. P/N Description

1............2175107........... Oil Filter, Lombardini

1............12850312......... Oil Filter, Deutz

1............2175046........... Fuel Filter 4-3/4"L

1............12850347......... Fuel Filter 2-3/4"L

1............2175143S ........ Fuel Filter W/Water Drain

1............2175164........... Air Filter

1............12850745......... Fan Belt 875mm

1............12851312......... Lower Radiator Hose

1............12850362......... Upper Radiator Hose

1............9195124........... Thermostat

1............12850153......... Thermostat Gasket (O-Ring)

1............6585097........... Fuel (Feed) Pump

1............1200087........... Fuel (Feed) Pump Gasket (O-Ring)

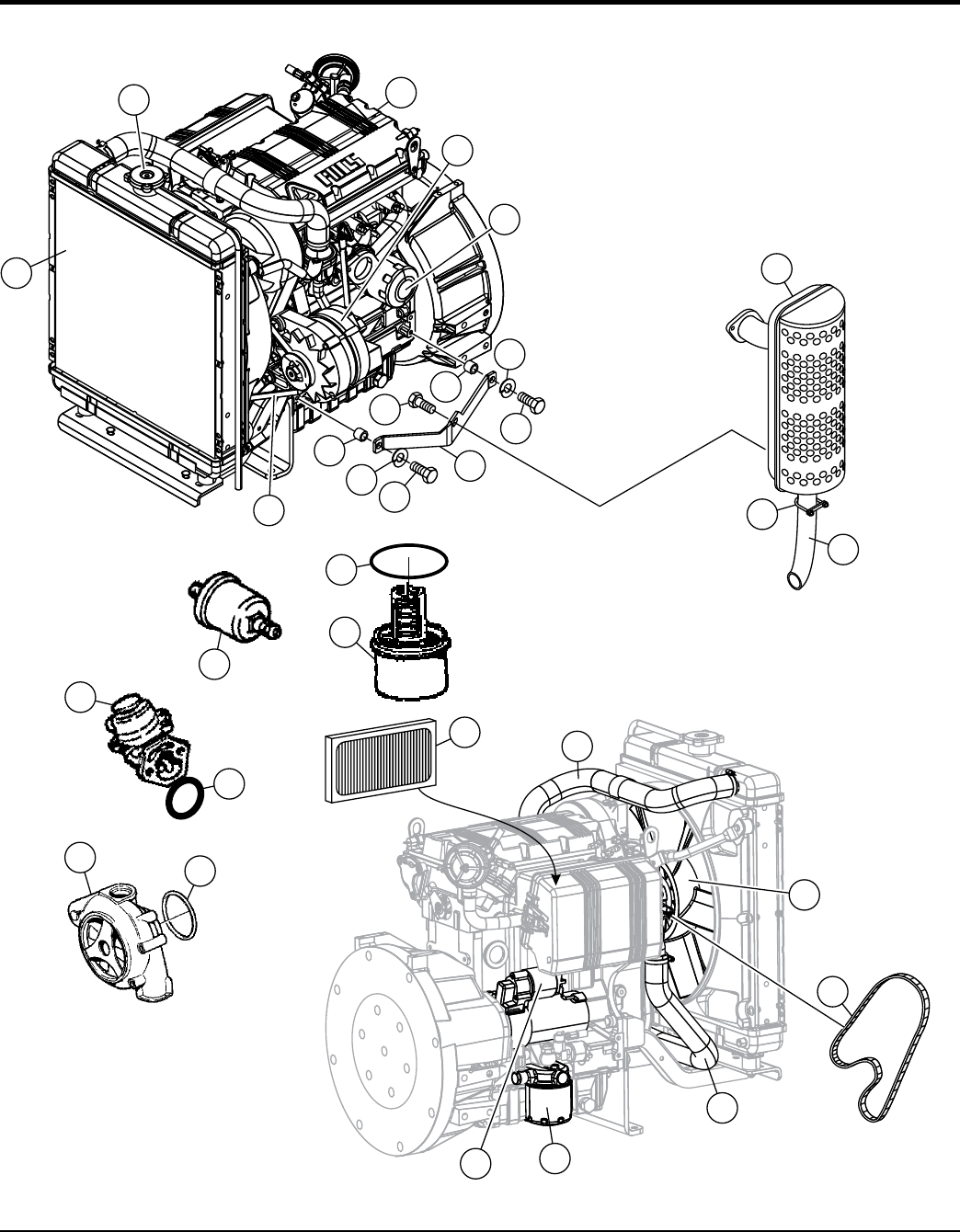

1............6584438........... Water Pump

1............4580083........... Water Pump Gasket

1............6745056........... Oil Switch

1............12850742......... Alternator

1............7245454........... Electric Panel Control Box

1............5840224........... Starter

1............2440338........... Timing Belt

1............5460450........... Mufﬂer

1............4400102........... Valve Cover Gasket

PAGE 6 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

NAMEPLATES AND DECALS 1

920

25 21

LEFT DOOR

RIGHT DOOR

P/N 36092

WARNING

RIGHT

FRONT

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 7

NO. PART NO. PART NAME QTY. REMARKS

1 49019 DECAL, HOT SURFACE ........................................ 1 .... REPLACES DCL181

2 29722 DECAL, 220 VAC POWER 25A, 1.0" X 2.0" 1

3 49015 DECAL, 115 VAC OUTLET .................................... 1 .... REPLACES DCL199

4 49009 DECAL, TOWING INSTRUCTIONS ....................... 1 .... REPLACES DCL112

5 49008 DECAL, GROUND LUG ......................................... 1 .... REPLACES DCL105

6 49025 DECAL, MQ LOGO 5.6 X 4.5, RED 1

7 29729 DECAL, NATM MANUFACTURER COMPLIANCE 1

8 13118 DECAL, POWDER COATED 1

9 29126 DECAL, INSERT FORKS ....................................... 1 .... REPLACES DCL103

16 49026 DECAL, MQ/MULTIQUIP, 36" RED 1

20 49012 DECAL, LOOSEN TO TURN (MAST) .................... 1 .... REPLACES DCL116

21 35137 DECAL, READ MANUAL, ASK FOR TRAINING 2

22 49029 DECAL, NIGHTHAWK/LT12, CURB SIDE 1

23 49011 DECAL, LAMPS ..................................................... 1 .... REPLACES DCL113, DCL117

24 49020 DECAL, SHOCK HAZARD, LARGE ....................... 1 .... REPLACES DCL102

25 49014 DECAL, OPERATING INSTRUCTIONS ................. 1 .... REPLACES DCL119, DCL180, DCL182, 36090

26 20525 DECAL, WARNING "PROP 65", 3.25 X 4.25 1

27 49006 DECAL, CHECK ENGINE ...................................... 1 .... REPLACES DCL193, DCL194

28 49022 DECAL, DANGER BATTERY/MOVING PARTS ..... 1 .... REPLACES DCL182, DCL191

29 36092 DECAL, DIESEL FUEL, 3.5 X 1.75 ........................ 1 .... REPLACES DCL184

NAMEPLATES AND DECALS 1

PAGE 8 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

NAMEPLATES AND DECALS 2

P/N 29047

REAR

910

MULTIPLE

TRAILER

VIN

LEFT

30 31

TOP

P/N 49007

120 VAC/15A

G.F.C.I.

BREAKER

240 VAC/30A

MAIN

BREAKER

CONTROL PANEL

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 9

NAMEPLATES AND DECALS 2

NO. PART NO. PART NAME QTY. REMARKS

9 29126 DECAL, INSERT FORKS .....................................1 ............REPLACES DCL103

10 49018 DECAL, MAST LOCK PIN ...................................1 ............REPLACES DCL118

11 29680 DECAL, MULTIPLE TRAILER VIN 1

12 29838 DECAL, TIRE LOADING, LT12 1

13 49002 DECAL, TRLR HITCH/WHEEL WARNING ..........1 ............REPLACES 29471, 29472, 29473, 29474

14 49013 DECAL, STANCHION LATCH ..............................1 ............REPLACES DCL109, DCL104

15 49028 DECAL, NIGHTHAWK/LT12, ROAD SIDE 1

16 49026 DECAL, MQ/MULTIQUIP, 36" RED 1

17 29132 DECAL, SHUT DOWN 1

18 29047 DECAL, HIGH VOLTAGE 1

19 49027 DECAL, MQ/MULTIQUIP, 30" RED 1

30 49016 DECAL, HORIZONTAL JACKS ............................3 ............REPLACES DCL106

31 36091 DECAL, HOT COOLANT 3.5 X 1.75 .................... 1 ............REPLACES DCL183

32 29651 DECAL, MAST SAFETY ......................................1 ............REPLACES DCL108, DCL120

33 49007 DECAL, MAIN BREAKERS..................................1 ............REPLACES DCL189, DCL199

34 49010 DECAL, LIGHT CONTROLS ................................ 1 ............REPLACES DCL115

35 19655 DECAL, DANGER HIGH VOLTAGE .....................1 ............REPLACES 29116

36 49021 DECAL, SHOCK HAZARD, SMALL ..................... 1 ............REPLACES DCL187

PAGE 10 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

17 PART OF

TRAILER

31 9

33 85

NOTES

INCLUDED WITH ITEM 9,

DOOR HOLD BACK ASSY.

OLD STYLE REAR PANEL NO LONGER

AVAILABLE. WHEN REPLACING PANEL,

USE P/N 29559, REAR PANEL ASSY.

49 49

47 3

3PIANO HINGE AND RIVETS

INCLUDED WITH ITEM 53, DOOR ASSY.

14 2

53 4

OLD STYLE DOOR NO LONGER AVAILABLE.

WHEN REPLACING DOOR, USE P/N 49051,

DOOR ASSY.

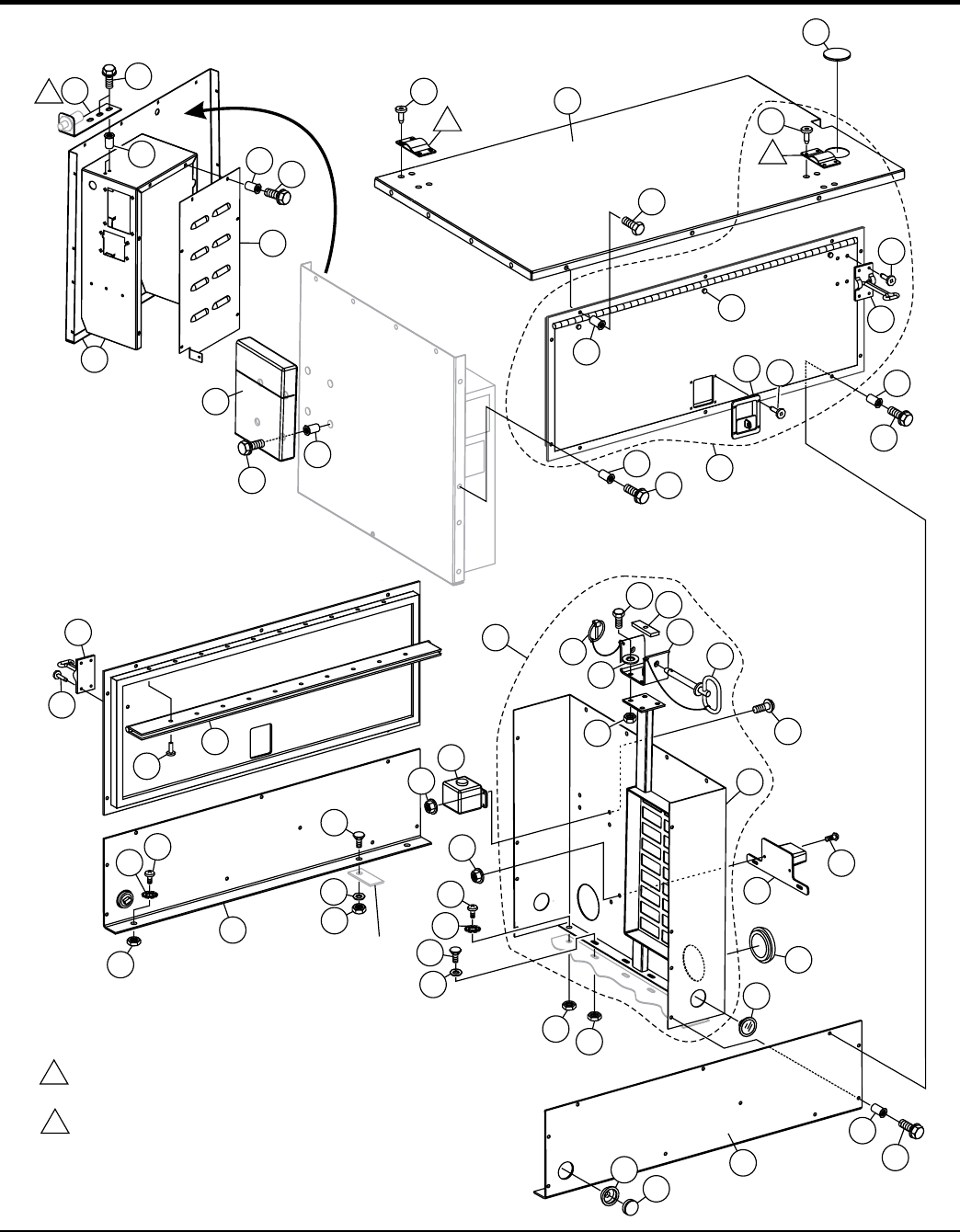

CABINET ASSY. (OLD STYLE)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 11

NO. PART NO. PART NAME QTY. REMARKS

1 12287 SCREW, THP 1/4-20 X 3/4 SS 68

2 29057 DOCUMENT BOX, CP20007-07 1

3 29561 PANEL, LOWER LEFT SIDE 1

5 19266 NUT, BLIND 1/4-20 X 10GA GRIP 64

6 29563 LIGHT, 2" ROUND, AMBER, M146A 2

7 29564 GROMMET, W/WIRE KIT, 2", 24146-18K 4

8@ 19847 RIVET 50

9@ 29281 DOOR HOLD BACK ASSY. 2

11 10024 NUT, NYLOC 1/4-20 5

12 29653 TANK, COOLANT RECOVERY 1 QT 1

14 PANEL, REAR .................................................................. 1 ........... NO LONGER AVAILABLE

....................................................................................................... S/N 903837 AND BELOW

15@ 5065 B SCREW, PHP 10-32 X 1/2 12

16 10237 WASHER, EXT. SHKP, #10 6

17 10019 NUT, NYLOC 10-32 4

18 29712 BOLT, CARRIAGE 1/4-20 x 3/4 4

19 0948 WASHER, FLAT SAE 1/4 7

20 29610 LIGHT KIT, STOP/TAIL 2

21 29611 LIGHT, 2" ROUND RED M146R 2

22 29607 BRACKET, LIGHT SWITCH 1

23 29552 BRACKET, LICENSE PLATE W/LIGHT 1

24 29663 PANEL, LOWER RIGHT SIDE 1

26 29615 PANEL, FRONT W/A DLT 1

27 29553 PANEL, TOP 1

28 29690 COVER, PLASTIC SNAP 3.0 HOLE 1

31 29711 BUMPER, 1/2 DIA. BLACK 10

32 29682 COVER, BALLAST, PERKINS 1

32 29683 COVER, BALLAST, DEUTZ/ LOMBARDINI 1

33@ 081407053413 LATCH 2

34@ PIANO HINGE 2

46@ 29689 PLATE, DOOR HOLD BACK 2

47@ 1618 NUT, NYLOC 10-24 8

48@ 29341 RIVET, POP, SS, 3/16x1/4-3/8 GRIP 10

49@ 29342 WASHER, 3/16" POP-RIVET BACKUP SS 8 10

51 0131 A SCREW, HHC 1/4-20 x .75 2

52 0181 B WASHER, LOCK 1/4 MED 2

53 DOOR ASSY. .................................................................... 2 ........... NO LONGER AVAILABLE

....................................................................................................... MAY 2007 AND BELOW

....................................................................................................... USE NEW P/N 49051

....................................................................................................... INCLUDES ITEMS W/@

CABINET ASSY. (OLD STYLE)

PAGE 12 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

PART OF

TRAILER

827

31 9

33 85

NOTES

INCLUDED WITH ITEM 9,

DOOR HOLD BACK ASSY.

2LIGHT SWITCH BRACKET INCLUDED

WITH ITEM 42, DOOR ASSY.

SEE CONTROL PANEL ASSY.

CABINET ASSY. (NEW STYLE)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 13

CABINET ASSY. (NEW STYLE)

NO. PART NO. PART NAME QTY. REMARKS

1 49048 SCREW, HHFS 1/4-20 X 3/4 GR5 48

2 29057 DOCUMENT BOX, CP20007-07 1

3 29816 PANEL, LOWER LEFT SIDE 1

5 19266 NUT, BLIND 1/4-20 X 10GA GRIP 48

6 29898 LIGHT, 2-1/2 SIDE MARKER, AMBER, 143A 2

7 29900 GROMMET, W/WIRE KIT, 2-1/2", 14218K 4

8% 19847 RIVET, POP, ALUM, 3/16 X 1/8-1/4 GRIP 66

9% 29281 DOOR HOLD BACK ASSY. 2

11 10024 NUT, NYLOC 1/4-20 5

12 29653 TANK, COOLANT RECOVERY 1 QT 1

13 49070 NUT, FLANGED 1/4-20 SERRATED PLTD 4

14@ 29940 PANEL, REAR 1

15 5065 B SCREW, PHP 10-32 X 1/2 6

16 10237 WASHER, EXT. SHKP, #10 4

17 10019 NUT, NYLOC 10-32 4

18 29712 BOLT, CARRIAGE 1/4-20 X 3/4 9

19 0948 WASHER, FLAT SAE 1/4 5

20 29610 LIGHT KIT, STOP/TAIL 2

21 29899 LIGHT, 2-1/2 SIDE MARKER, RED 143R 2

22% 29607 BRACKET, LIGHT SWITCH 1

23 29552 BRACKET, LICENSE PLATE W/LIGHT 1

24 29817 PANEL, LOWER RIGHT SIDE 1

26 29866 PANEL, FRONT W/A DLT SNAP 1

27 29553 PANEL, TOP 1

28 29989 COVER, PLASTIC SNAP 4.0 HOLE 1

31% 29711 BUMPER, 1/2 DIA. BLACK 6

32 29879 COVER, BALLAST DLT, SNAP FIT SWITCH

DEUTZ/LOMBARDINI 1

33% 081407053413 LATCH 2

34% PIANO HINGE

35@ 29945 MAST SUPPORT 1

36@ 19280 PIN, 5/8" X 6" 1

37@ 1023 SCREW, HHC 3/8-16 X 1-1/4 GR 5 4

38@ 10136 WASHER, FLAT SAE 3/8 4

39@ 10133 NUT, NYLOC 3/8-16 4

40 29797 NUT, BLIND 10-32 X .02/.13 GRIP 2

42 49051 DOOR ASSY. .................................................................... 2 ........... INCLUDES ITEMS W/%

....................................................................................................... JUNE 2007 AND ABOVE

44 29559 REAR PANEL ASSY. ........................................................1 ........... INCLUDES ITEMS W/@

....................................................................................................... S/N 903838 AND ABOVE

45@ 29946 STOP, MAST SUPPORT, 3/8" 1

PAGE 14 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

TRAILER ASSY.

NOTES:

TORQUE LUG NUTS PER LUG NUT

TORQUE TABLE REFERENCED IN

OPERATION MANUAL.

16 18 15 19

38 39

30 30

CABINET LOWER PANEL

NEW

STYLE

FENDER

OLD STYLE

FRAME

OLD

STYLE

FENDER

OLD STYLE FRAME NO LONGER

AVAILABLE. WHEN ORDERING NEW

FRAME, IF YOU HAVE METAL

FENDERS, YOU MUST ALSO PURCHASE

NEW PLASTIC FENDERS.

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 15

TRAILER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 29532 FRAME 1

2 29478 JACK, TOPWIND 10" BOLT-THRU .5 PIN 2

3 29479 JACK, SIDEWIND 10" BOLT THRU 0.5" PIN 3

4 29542 PIN, SPRING LOCK, .625" DIA. X .88" 2

5 29508 OUTRIGGER, W/A, BOLT MOUNT, PAINTED 2

6 29572 CHAIN ASM, SAFETY 7600 LB 2

7 7H0933325 BUSHING/LOCKNUT/BOLT 5

8 9506 AXLE, SPRING,HUB ASSY,43",TRLR10 ...............1 ............INCLUDES ITEMS W/%

9# U-BOLT ...................................................................4 ............NOT SOLD SEPARATELY

10# PLATE, U-BOLT .......................................................2 ............NOT SOLD SEPARATELY

11# NUT, U-BOLT ...........................................................8 ............NOT SOLD SEPARATELY

12 29248 SCREW, HHC 9/16-18 2

13 29249 NUT, 9/16-18 AXLE MOUNTING N-2 2

15% 363180 BEARING CONE (INNER & OUTER) 4

16%@ 363913 BEARING CUP (INNER & OUTER) 4

17%@ 363908 STUD, 1/2"-20 10

18% 363188 HUB ASSY., IDLER .................................................2 ............INCLUDES ITEMS W/@

19% 363259 WASHER, SPINDLE 2

20% 363258 COTTER PIN 2

21% 363257 SPINDLE NUT 1"-1/4 2

22% 363275 SEAL, GREASE 2

23% 363277 GREASE CAP (AG) 2

24% 568067 RUBBER PLUG (AG) 2

25 19045 WHEEL/TIRE ST175/80-13 L.R. C 2

26 29194 NUT, LUG 1/2-20 10

27 29818 FENDER, PLASTIC DLT 2

28 19266 NUT, BLIND 1/4-20 X 10GA GRIP 6

29 10930 WASHER, FENDER, 1/4 X 1-1/4 6

30 49048 SCREW, HHFS 1/4-20 x 3/4 GR5 6

31 29546 COUPLER, 2" BALL 2.50" TUBE 1

32 10176 NUT, NYLOC 1/2-13 2

33 915217 SCREW, HHC 1/2-13 x 3-1/2 GD8 YZ 2

34$ 9502 BOLT, 5/8-11 2

35$ 9503 NUT, 5/8-11 2

36$ 29718 ADAPTER, COUPLING...........................................1 ............CONTACT MQ UNIT SALES

37$ 29369 PINTLE EYE ...........................................................1 ............CONTACT MQ UNIT SALES

38$ 29228 COUPLER, 2 IN. BALL 1

39 29721 PINTLE KIT .............................................................1 ............INCLUDES ITEMS W/$

40 9505 FENDER, 8X30X13 , METAL 2

41 0205 SCREW, HHC 3/8-16 X 1.0 8

42 4001 WASHER, FLAT USS 3/8 PLD 16

43 10133 NUT, NYLOC 3/8-16 8

44 29476 BRACKET 2

45 UBK1741 U-BOLT KIT .............................................................2 ............INCLUDES ITEMS W/#

46 49017 LEAF SPRING 2

47 29784 HARNESS, TRLR, 48" LOOM 1

PAGE 16 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

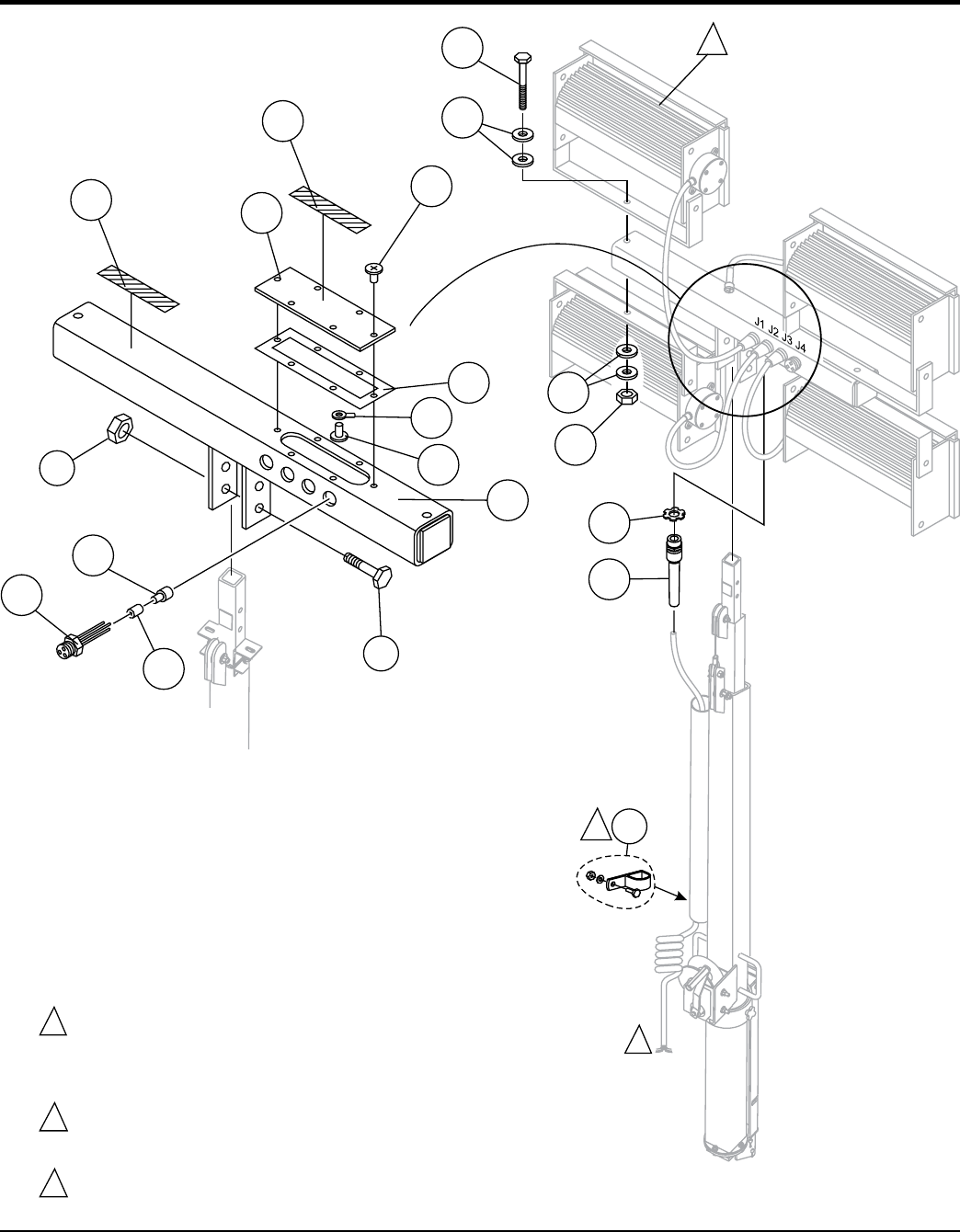

MAST ASSY.

14 10

16 10

NOTES:

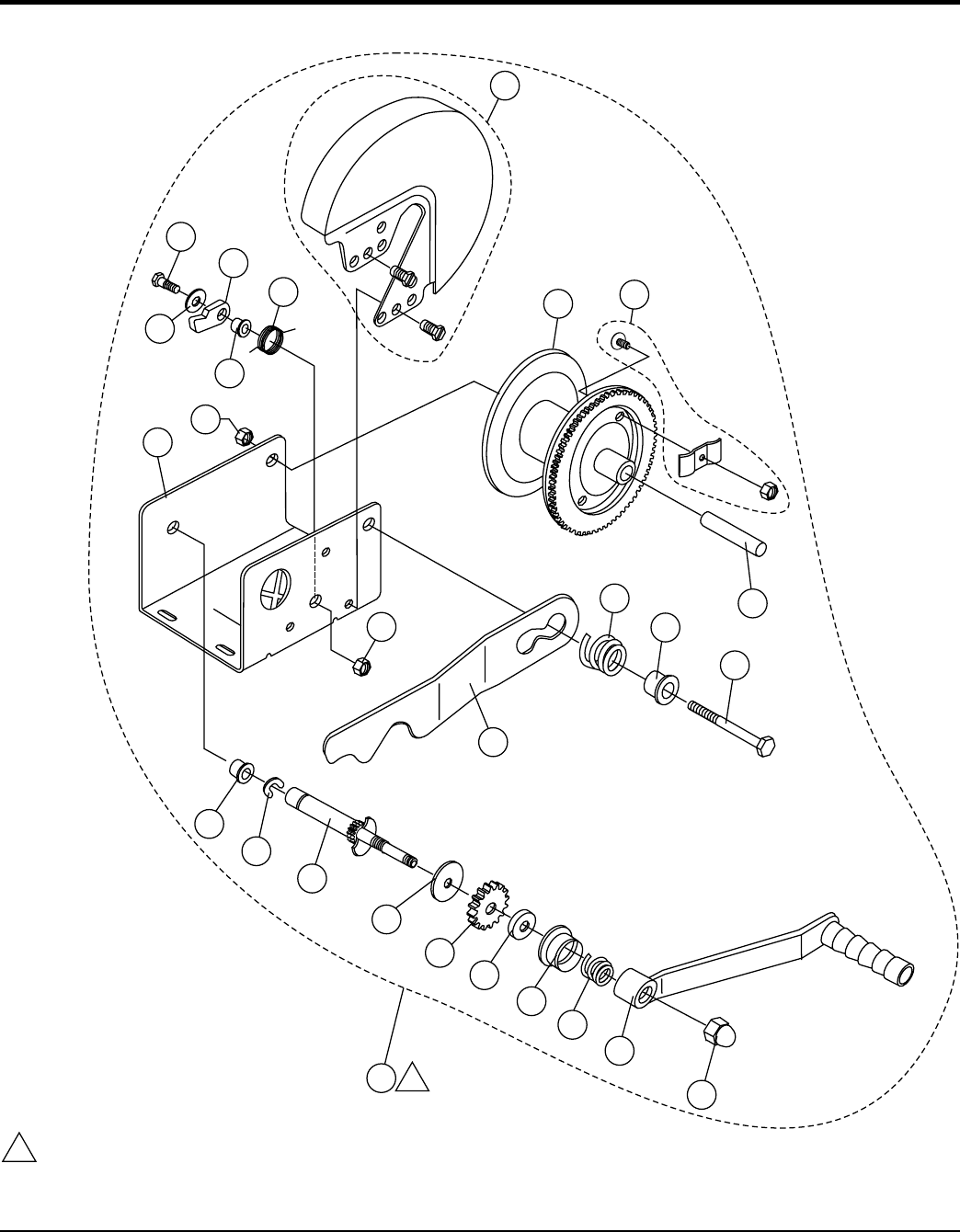

SEE WINCH ASSY.

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 17

MAST ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 0183 PIN, COTTER 1/8D X 1-1/4 3

3 0948 WASHER, FLAT SAE 1/4 1

9 19200 THIMBLE, 3/16 WIRE 1

10 19847 RIVET, POP, ALUM, 3/16x1/8-1/4 GRIP 16

11 19882 SWIVEL, BASE W/A 1

12 19920 TUBE, TW-MID W/A 1

13 19923 TUBE, TWR TOP W/A 1

14 35302 BLOCK, MAST SLIDE, 2 X 2 UPPER ............... 4 .........REPLACES 19926 AND 19927

16 35300 BLOCK, MAST SLIDE, 3 X 3 LOWER .............. 4 .........REPLACES 19928 AND 19929

20 19973 SWAGE, AL 3/16 2

21 19974 PIN, CLEVIS 1/2 X 1.25 EFF 2

22 19975 SHACKLE, ANCHOR CP 1

24 19977 KNOB, CLAMP 1/2-13 THREAD 1

25 19978 SCREW, HHC 3/4-10 x 6.5 1

26 19988 PIN, CLEVIS 1/2 X 1.75 EFF 1

28 29075 SCREW, HHC 1/2-13 X 1 DRILLED 1

29 29114 WASHER, FENDER 1/2 x 2 MLT 1

30 29155 SHEAVE, 2.00 OD X 0.500 ID 3

31 29652 TUBE, BOTTOM TOWER W/A .......................... 1 .........S/N 903837 AND BELOW

31 29941 TUBE, BOTTOM TOWER W/A .......................... 1 .........S/N 903838 AND ABOVE

32 5070 B NUT, NYLOC 3/4-10 2

33 5079 WASHER, FLAT 3/4 USS 3

34 6014 B PIN, COTTER 3/32DX1.00 1

35 8151 WASHER, FLAT SAE 3/4 2

36 19939 CABLE, LOWER MAST .................................... 1 .........231 IN. LENGTH

37 19938 CABLE, UPPPER MAST ................................... 2 .........140 IN. LENGTH

38 29664 PIN, SPRING LOCK .......................................... 1 .........S/N 903837 AND BELOW

39 1023 HHC 3/8-16 X 1-1/4 GR5 3

40 10136 WASHER, FLAT 3/8 SAE 3

41 21781 NUT, FLANGED 3/8-16 SERRATED, PLATED .. 3 .........REPLACES 10133

42 4387 SCREW, HHC 3/4-10 X 2-1/4 1

43 29062 NUT, SLOTTED 1/2-13, NOT PLATED 1

44 29650 MAST ASSY....................................................... 1 .........S/N 903838 AND ABOVE

......................................................................................S/N 903837 AND BELOW NO LONGER

......................................................................................AVAILABLE. CONTACT PARTS DEPT FOR

......................................................................................REQUIRED REPLACEMENT PARTS

PAGE 18 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

PART OF

FRAME

19 18 21

NOTES:

SEE WINCH ASSY.

MAST RAISE/LOWER ASSY.

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 19

MAST RAISE/LOWER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0205 SCREW, HHC 3/8-16 x 1 IN. PLATED 3

2 10136 WASHER, FLAT 3/8 IN. 3

4 21781 NUT, FLANGED 3/8-16 SERRATED, PLATED .......3 .........REPLACES 10133

5 1135 SNAP RING 2

6 29008 PIN, SWAGE BALL SOCKET 1

7 29017 SCREW, HHC 1/2-13 x 5.5 IN. 1

8 29018 SPACER, .75 OD x .5 ID x 1.59 IN. 2

9 29016 GUIDE, WIRE ROPE 2

10 29155 SHEAVE, 2 OD x .5 IN. ID 1

11 10176 NUT, NYLOC 1/2-13 IN. 1

12 29077 SCREW, HHC 5/8-11 x 9.5 IN. 1

13 29481 STOP, MAST THRUST SPRING 1

14 19989 SPRING, TOWER 1

15 9503 NUT, NYLOC 5/8-11 IN. 1

16 29033 TOWER, LOCK 1

17 19012 LOCK PIN 5/16 x 2 IN. QUICK RELEASE 1

18 29482 SPRING, .468 OD x 2.13 IN. 1

19 20276 PIN, ROLL 1/4 x 1.75 IN. 1

20 0183 PIN, COTTER 1/8D x 1-1/4 IN. 1

21 19996 LANYARD 1

23 1450 WASHER, FLAT SAE #6 1

PAGE 20 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

19 15

RATCHET

KIT

RATCHET

KIT

CABLE

KEEPER

KIT CABLE

KEEPER

KIT

INPUT

SHAFT

KIT

INPUT

SHAFT

KIT

INPUT

SHAFT

KIT

INPUT

SHAFT

KIT

NOTES:

SEE MAST ASSY.

WINCH ASSY. (FULTON)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 21

NO. PART NO. PART NAME QTY. REMARKS

1+ 562101 CABLE KEEPER KIT .............................................2 .........INCLUDES ITEM W/@

2@+ NUT 2

3@+ WASHER, LOCK 2

4@+ CABLE CLAMP 1

5@+ CARRIAGE BOLT 2

6+ DRUM ASSY. ..........................................................1 .........SEE NOTICE BELOW

7+ DRUM SPACER .....................................................1 .........SEE NOTICE BELOW

8+ 29206 HANDLE ASSY. 1

9+ LOCK NUT 1/2-13..................................................1 .........STD. HDW. PURCHASE LOCALLY

10+ 12124S01 COVER ASSY 1

11+ BOLT LOCK ...........................................................1 .........SEE NOTICE BELOW

12+ CAP SCREW 1/2-13 ..............................................1 .........STD. HDW. PURCHASE LOCALLY

13%+ LOCK NUT 2

14+ CAP SCREW 3/8-16 ..............................................1 .........STD. HDW. PURCHASE LOCALLY

15+ 1564S01 INPUT SHAFT 1

16+ 1563S01 KIT, INPUT SHAFT ................................................1 .........INCLUDES ITEM W/#

17#+ LOCK NUT 1/2-13 3

18#+ SPACER 1

19#+ BUSHING 2

20#+ SHAFT BRAKE DISC 1

21#+ RATCHET GEAR 1

22#+ PINION AND DISC 1

23+ 6730S00 RATCHET KIT ........................................................2 ......... INCLUDES ITEMS W/%

24%+ RATCHET SPACER 2

25%+ RATCHET SPRING 2

26%+ RATCHET PAWL 2

27%+ SHOULDER BOLT 5/16-18 2

28+ LOCK NUT 3/8-16..................................................1 .........STD. HDW. PURCHASE LOCALLY

29+ FRAME ..................................................................1 .........SEE NOTICE BELOW

33+ 1558S00 FRICTION DISC KIT 2

34+ FRAME SPACER ...................................................1 .........SEE NOTICE BELOW

35 19976 HAND WINCH 1200 LBS. COMPLETE ASSY. .......1 .........INCLUDES ITEMS W/+

WINCH ASSY. (FULTON)

NOTICE

Sold only as a complete assembly. Use part number

19976 when ordering.

PAGE 22 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

NOTES:

REFER TO MAST AND TRAILER

ASSEMBLIES FOR WINCH MOUNTING

HARDWARE.

27 A

WINCH ASSY. (DUTTON-LAINSON)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 23

WINCH ASSY. (DUTTON-LAINSON)

NO. PART NO. PART NAME QTY. REMARKS

1# DL205167 BOLT 1

2# DL205055 WASHER 1

3# DL404409 PAWL 1

4# DL404166 SPACER 2

5# DL204363 SPRING 1

6# DL5240387 GEAR COVER, PAINTED BRONZE 1

6# DL5240403 GEAR COVER, PLATED 1

8# DL304755 REEL 1

9# DL304221 ROPE CLAMP KIT 1

12# DL204808 REEL SPACER 1

13# DL404891 BASE 1

14# DL204803 NUT 2

15# DL404579 LOCKOUT LEVER 1

16# DL204364 SPRING 2

17# DL205127 BOLT 1

18# DL204009 BUSHING 1

19# DL205116 E-RING 1

20# DL304760 DRIVE SHAFT 1

21# DL204362 PRESSURE PLATE 1

22# DL404164 RATCHET WHEEL 1

23# DL404163 PRESSURE WASHER 1

24# DL206328 BUSHING 1

25# 29793 HANDLE 1

26# DL205033 NUT 1

27 29790 WINCH ASSEMBLY 1500A D-L .............................1 .........INCLUDES ITEMS W/#

PAGE 24 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

LIGHT 2

LIGHT 4

LIGHT 1

J1 J2 J3 J4

TO SECURE COIL CORD ASSEMBLY

P/N 29433 INSERT CLIP P/N 11505

TO INSIDE OF TUBE AS SHOWN AND

ROUTE CORD THROUGH OPENING

OF CLIP.

NOTES:

CONNECT THIS END OF COIL CORD

ASSEMBLY TO BALLAST BOX. SEE

COIL CORD ASSY.

LIGHT 3

18 20

T-BAR ASSY. (S/N 901681 AND BELOW)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 25

NO. PART NO. PART NAME QTY. REMARKS

1 19249 SCREW, HHC 3/4-16 x 4 2

2 5079 FLAT WASHER, 3/4 4

4 29738 MOUNT, LIGHT FIXTURE W/A 1

5 19250 NUT, NYLOC 3/4-16 x 4 2

7 11505 CLIP, CABLE 2

9 10176 NUT, NYLOC 1/2-13 2

10 0447 WASHER, FLAT, 1/2 SAE 2 2

11 3215 SCREW, HHC 1/2-13 X 3-1/2 2

13 29161 SCREW, HHC 1/2-13 X 1 SS 4

14 29162 WASHER, HS 1/2 SS 4

15 29042 RECEPTACLE, FEMALE (J1,J2,J3 & J4) 4

17 19972 REFLECTOR, RED 1

18 19945 PLATE, COVER 1

19 19944 GASKET, PLATE COVER 1

20 29046 SCREW, COVER PLATE 6

21 19688 INSULATOR, SPLICE CAP PLASTIC 6

22 19687 COPPER SPLICE CAP 6

23 19965 CORD GRIP (HUBBELL 07401017) 1

24 26560 NUT, LOCKING 3/4 NPT CONDUIT 5

T-BAR ASSY. (S/N 901681 AND BELOW)

PAGE 26 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

TO SECURE COIL CORD ASSEMBLY

P/N 29433 INSERT CLAMP P/N 11505

TO INSIDE OF TUBE AS SHOWN AND

ROUTE CORD THROUGH OPENING

OF CLIP.

NOTES:

CONNECT THIS END OF COIL CORD

ASSEMBLY TO BALLAST BOX. SEE

COIL CORD ASSY.

22 18

SPERO LAMP

SEE LAMP ASSY (S/N 901682 AND UP)

T-BAR ASSY. (S/N 901682 AND ABOVE)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 27

T-BAR ASSY. (S/N 901682 AND ABOVE)

NO. PART NO. PART NAME QTY. REMARKS

1 10306 SCREW, HHC 1/2-13 X 4 1/2 2

2 13211 WASHER, FLAT 1/2 IN. USS 8

3 10176 NUT, NYLOC 1/2-13 4

4 26560 NUT, LOCKING 3/4 NPT CONDUIT 1

5 19965 CORD GRIP (HUBBELL 07401017) 1

7 11505 CLAMP 1

9 3254 TERMINAL, RING 16-14 3/8 IN. 1

11 06503-026 SCREW, HHC 1/2-13 X 3-1/4 IN. 2

13 29781 TEE-BAR, LIGHT MOUNT, MLT/DLT SPERO 1

14 29168 RECEPTACLE ASSY 4

15 19687 CRIMP, SLEEVE (30-410) 7

16 19688 INSULATOR, SPLICE CAP (2007) 7

18 19945 PLATE, T-BAR WIRING COVER 1

19 19944 GASKET, T BAR 1

20 29046 SCREW, PHPM 10-32 X 3/8 IN. ZINC 7

21 29047 DECAL, HIGH VOLTAGE 1

22 19972 REFLECTOR, RED, PETERSON #B491R 1

PAGE 28 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

LIGHT FIXTURE

JUNCTION BOX

BLACK

WHITE

4 5

NOTES:

INCLUDED WITH SOCKET/W

LEADS ASSEMBLY (ITEM 8).

BLACK

WHITE

GREEN

24 26

INCLUDED WITH ITEM 20

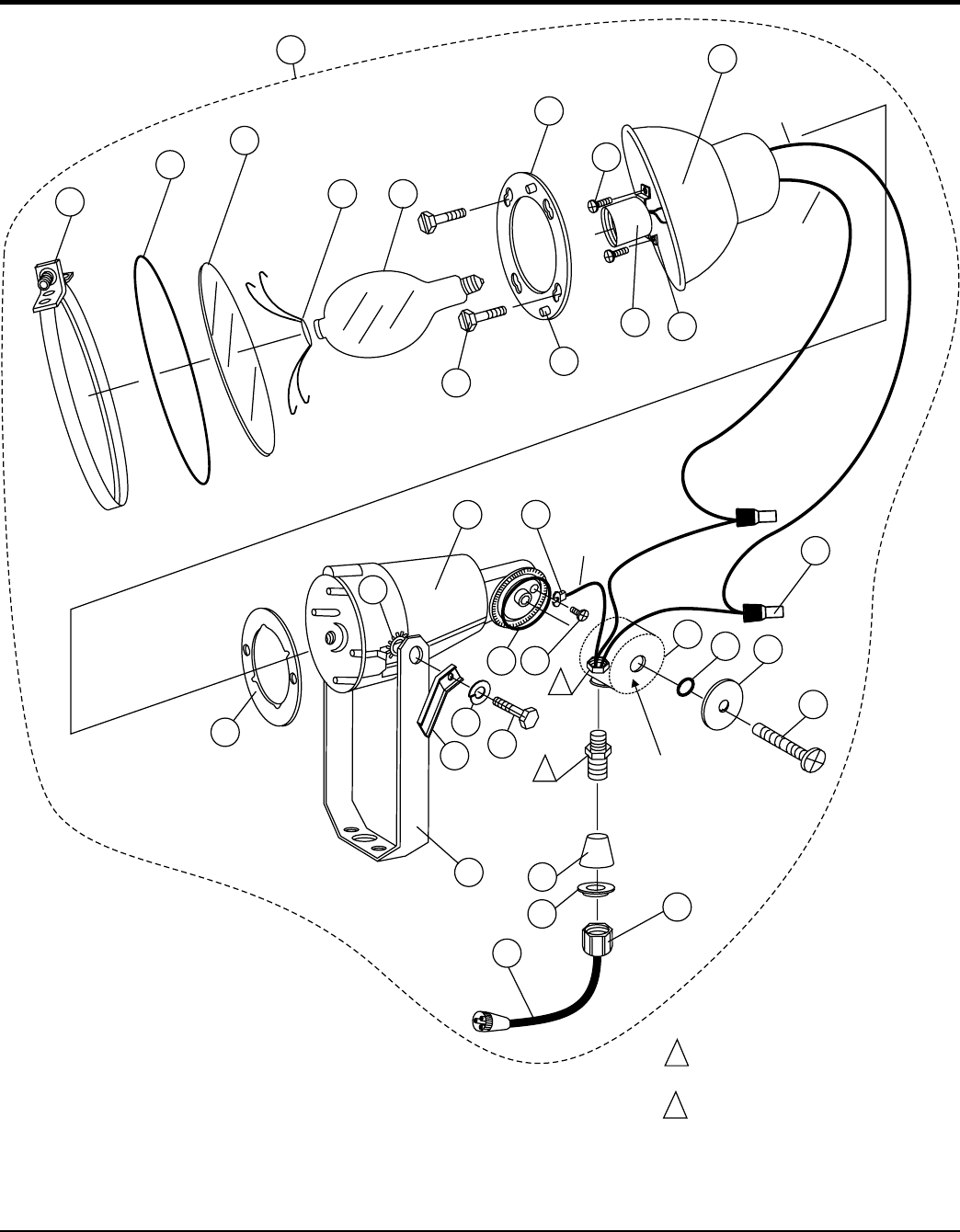

LAMP ASSY. (S/N 901681 AND BELOW)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 29

LAMP ASSY. (S/N 901681 AND BELOW)

NO. PART NO. PART NAME QTY. REMARKS

1% 43007020200 CLAMP, LIGHT ....................................................... 4 ..............REPLACES 64167441

2% 2450108 LENS GASKET ...................................................... 4 .............REPLACES 64167100

3% 5550079 LENS AND GASKET .............................................. 4 ..............REPLACES 64167744

4% 29560 SUPPORT, TOP LAMP 1000 WATT ....................... 4 ..............REPLACES 19823

5% M1000U BULB 4

6% 4101024 REINFORCING RING 1

7% 4105012 REFLECTOR (WITHOUT GLASS) 4

8% A4605079 SOCKET W/LEADS ............................................... 4 ..............REPLACES A4605079

9% 70463 SCREW, 10-24 X 5/8 BLACK 16

10% 2450120 GASKET, HOUSING/REFLECTOR 4

11% 3100056 FIXTURE HOUSING 4

12% 29169 CORD SET MOLDED 4

13% 4110624000 WASHER, 1/2 EXT. TOOTH SS 4

14% 6900446 SEAL RING .755 ID 4

15% 6900447 STRAIN RELIEF 4

17% 4101021 TRUNION (YOKE) 4

18% 63960 SCREW, HHCS 1/2-13 X 1-1/4 4

19% 29162 WASHER, LOCK HS 1/2 SS 4

20% 19695 CONNECTOR, STRAIN RELIEF 5/8-3/4 ............... 4 ..............T&B 2535

21% 4107742000 SCREW, 6-32 X 3/8 4

22% 2856 TERMINAL, SPADE 16-14#8 INSUL. ..................... 4 ..............REPLACES 1272

23% 19688 INSULATOR, SPLICE CAP (PLASTIC) 4

24% CONNECTION BOX ............................................... 4 ..............NO LONGER AVAILABLE

25% 2450121 O-RING .206" X 1.03" SILICON 4

26% 6351110 WASHER, 1/4 X 1-1/4 OD X .63 GALV. 4

27% 6301045 SCREW, 1/4-20 X 2" PH PH SS 4

28% 2450119 O-RING, 1.925" ID X 1.03" 4

29% 4106781000 SCREW, 8-32 X 3/8 PH PH 8

30% 4104021000 POP RIVET 1/8 X 3/16 DOMED AL 8

31% 4101023 BRACKET, SOCKET 4

32 29174 LIGHT FIXTURE ASSY. ......................................... 1 ..............INCLUDES ITEMS W/%

33% 29174HANDLE HANDLE, FLOODLIGHT 4

PAGE 30 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

OLD STYLE

NEW STYLE

LAMP ASSY. (S/N 901682 AND ABOVE)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 31

NO. PART NO. PART NAME QTY. REMARKS

1% 20S-REF-1 REF1000 BODY ASSY. 1

2% 30M-REF-REF REFLECTOR, ALUMINUM

14-7/8 X 16-5/8 IN. 1

3% 190ZQREF REF 1000 LENS 190ZQREF 1

4% 170M-REF-5 REF LENS HOLD DOWN 2

5% 70Z-FSCR3 SCREW 8-32 X 1/2 IN. 8

6% 250-REF-6 YOKE, LIGHT FIXTURE 1

7% 260Z-FSCR9 BOLT, HEX HEAD 1/2-13 x 1-1/2 IN. 2

8% 280Z-FWFL2 WASHER, FLAT 1/2 IN. 4

9% 270Z-FNT4 NUT, HEX 1/2-13 IN. 2

10% Z-C-239 VAPORTITE OCTAGON BOX 1/2 IN.

W/4 THREADED PLUGS G9 SILVER ................... 1 ..............NEW STYLE

11% 150Z-FSR3 STRAIN RELIEF SRW 1/2 IN. BLACK ................... 1 ..............NEW STYLE

12% Z-FSCR9 BOLT, HEX HEAD ZINC PLATED

1/2-13 X 1-1/2 IN. 2

15% 90Z-G-102 GASKET, HEX #5 OR #6 1

16% 70Z-SK65 MOGUL SOCKET

W/ANTI-VIBRATION GASKET 1

17% MVR1000BT37 BULB, LIGHT FIXTURE 1

18% 50Z-D-REF-SUP SUPPORT, REF1000 LAMP TIP 1

19% 230Z-FNTL6-1 KEEP NUT 8-32 6

21% 210S-CBL-6 CABLE ASSEMBLY 1

22% 200ZG106 GASKET, U-CHANNEL REFLECTOR 200ZG106 1

23 29773 LIGHT FIXTURE ASSY. ......................................... 1 ..............INCLUDES ITEMS W/%

24% 150Z-EZ67 POWER CORD, 60" W/ 3-PIN MALE PLUG .......... 1 ..............NEW STYLE

25 130Z-E76 CONDUIT BODY, 1/2 IN. HUB ................................ 1 ..............OLD STYLE

26 100Z-C-93 FLANGE, #5 OR #6 ............................................... 1 ..............OLD STYLE

27 110Z-C-91 NUT, CAST #5 OR #6 ............................................ 1 ..............OLD STYLE

28 160Z-FSR3 FITTING, CONDUIT BODY 1/2 IN. ......................... 1 ..............OLD STYLE

29 150Z-E266 CORD SET, 36 IN. W/3-PIN MALE PLUG .............. 1 ..............OLD STYLE

30 4106781000 SCREW, 8-32 X 3/8 2

LAMP ASSY. (S/N 901682 AND ABOVE)

PAGE 32 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

LOMBARDINI MODELS ONLY

PERKINS MODELS ONLY

18 19 20

24 22

WIRING

KIT

35µF

@425V

18µF

@425V

18µF

@425V

CONTROL PANEL/BALLAST ASSY. (S/N 904384 AND BELOW)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 33

CONTROL PANEL/BALLAST ASSY. (S/N 904384 AND BELOW)

NO. PART NO. PART NAME QTY. REMARKS

1 15177 SCREW, PAN HEAD 10-32 X 1 4

2 29647 COVER, 220 OUTLET COOPER P/N 1990 1

3 10019 NUT, NYLOC 10-32 9

4 5065 B SCREW, RHM #10-32 x 0.5 5

5 29276 RECEPTACLE, 4PRG LOCKING 30A, 120/250V 1

6 29646 COVER, 110 GFI OUTLET COOPER P/N 2966 1

7 29343 DUPLEX OUTLET, 15A 120V GFCI UL CSA 1

8 1623 SCREW, RHM #10-24 x 0.75 2

9 19968 TERMINAL BLOCK ( DC 70014 ) 1

10 29071 CONNECTOR, QUICK SCREW TERMINAL 3

11 1618 NUT, NYLOC 10-24 2

12 0205 SCREW, HHC 3/8-16 X 1 PLATED 1

13 W29109 NUT, WING 3/8-16 1

14 0166 A WASHER, LOCK, 3/8 MED. 1

15 1876 NUT, HEX FINISH 3/8-16 1

16 29640 HOUR METER, SENDEC RECT FLUSH MOUNT 1

17 19297 LIGHT, PETERSON MFG V438 1

18 19819 SCREW, PHP #6-32 x 0.25 14

19 1450 WASHER, FLAT #6 SAE 14

20 29688 CIRCUIT BREAKER, 120VAC 10A DLT LIGHT 4

21 29376 CIRCUIT BREAKER, 15A, 227 VAC KD-1800 1

22 19223 30 A 277 V CIRCUIT BREAKER 1

23 29603 SWITCH, MOMENTARY OFF COLE HERSEE 9075 1

24 29607 BRACKET, LIGHT SWITCH DLT 1

25 0131 A SCREW, HHC 1/4-20 X 3/4 IN. 2

26 0181 B WASHER, LOCK 1/4 IN. MED 2

27 0948 WASHER, FLAT SAE 1/4 10

28 19266 NUT, BLIND 1/4-20 X 10 GA 32

29 12287 SCREW, THP 1/4-20 X 3/4 SS 8

30@ 19598 BALLAST CAPACITOR 24 µF @480V 4

31 10434 CLAMP, HOSE WORM 1-9/16 TO 2 SIZE 32 4

32 10024 NUT, NYLOC 1/4-20 8

33 29655 FITTING, STRAIN RELIEF HEYCO 3234 3

34 10237 WASHER, EXT. SHKP #10 3

38 100AC CONTROL PANEL, PERKINS ENGINE 1

39 385201161 IGNITION SWITCH W/KEY, PERKINS ......................................... 1 ............. INCLUDES ITEMS W/%

40 385210060 KEY, IGNITION, PERKINS 1

41 390190030 PLATE, IGNITION SWITCH 1

42 15177 SCREW PHP 10-32 X 1 4

43 12851652 CONTROL PANEL, DEUTZ/LOMBARDINI ENGINE 1

44 12850033 IGNITION SWITCH W/KEY, DEUTZ, SINGLE-SIDED 1

44 50384401 IGNITION SWITCH, DOUBLE-SIDED 1

45 12850033KEY KEY, IGNITION, SINGLE-SIDED 1

45 50404900 KEY, IGNITION, DOUBLE-SIDED 1

46 21611 SCREW THP 1/4-20 X 5/8 SS 4

47 0948 WASHER, FLAT SAE 1/4 4

48 29761 MOUNTING PLATE, CONTROL PANEL 1

49 29675 WIRING KIT, DLT FOR BALLAST 1

50@ M1000120AC5M BALLAST/TRANSFORMER 60HZ 4

51 19229 BALLAST/CAPACITOR, M47 60HZ .............................................. 4 ............. INCLUDES ITEMS W/@

52 GECAP35MF EXCITATION CAPACITOR 35 µF @425V ..................................... 1 ............. S/N 902148 AND BELOW

53 GECAP18MF EXCITATION CAPACITOR 18 µF @425V ..................................... 2 ............. S/N 902148 AND BELOW

PAGE 34 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

CONTROL PANEL/BALLAST ASSY. (S/N 904385 AND ABOVE)

WIRING

KIT

20 21

916

43 44

NOTES

LIGHT SWITCH BRACKET.

SEE CABINET ASSY.

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 35

CONTROL PANEL/BALLAST ASSY. (S/N 904385 AND ABOVE)

NO. PART NO. PART NAME QTY. REMARKS

1 0166 A WASHER, LOCK, 3/8 MED. 1

2 0205 SCREW, HHC 3/8-16 X 1 PLATED 1

3 0655 SCREW, HHC 5/16-18 1

4 1876 NUT, HEX FINISH 3/8-16 1

5 2574 GROMMET, 5/16" ID 7/16" OD 1

6 8133 SCREW, PHP 10-32 X 3/4 12

7 10019 NUT, NYLOC 10-32 6

8 12277 CLAMP, HOSE WORM 1-9/16 TO 2 SIZE 32 4

9 49048 SCREW, HHFS 1/4-20 X 3/4 G5 8

10% 19266 NUT, BLIND 1/4-20 X 10 GA 8

11 19297 LIGHT, PETERSON MFG V438 1

12 19968 TERMINAL BLOCK ( DC 70014 ) 2

13 29071 CONNECTOR, QUICK SCREW TERMINAL 4

14 29276 RECEPTACLE, 4PRG LOCKING 30A, 120/250V 1

15 29343 DUPLEX OUTLET, 15A 120V GFCI UL CSA 1

16 29603 SWITCH, MOMENTARY 1

18 29646 COVER, 110 GFI OUTLET 1

19 29647 COVER, 220 OUTLET 1

20 29655 FITTING, STRAIN RELIEF HEYCO 3234 2

21 29656 LOCKNUT, NYLON 2

22 29712 BOLT, CARRIAGE 1/4-20 X 3/4 8

23 29796 CLAMP, CUSHIONED LOOP, 1-3/4 DIA X1 1

24 29797 NUT, BLIND 10-32 X 02/.13 GRIP 6

25 W29109 NUT, WING 3/8-16 1

28 49046 HARNESS, LT-12 CONTROL (AC) 1

29 49047 WIRING KIT, LT-12 1

31 49070 NUT, FLANGED 1/4-20 SERATED PLTD 8

32 49071 NUT, FLANGED 5/16-18 SERATED PLTD 1

33 29865 SNAP SWITCH PLATE ASSY. ..........................................1 ........... INCLUDES ITEMS W/%

34% 29864 SNAP FIT SWITCH INSERT 1

35% 29848 CIRCUIT BREAKER, 2 POLE, 30A SNAP FIT ................ 1 ........... S/N 902626 AND ABOVE

36% 29847 CIRCUIT BREAKER, 1 POLE, 15A SNAP FIT 5

39 19229 BALLAST AND CAPACITOR, M47 ................................... 4 ........... INCLUDES ITEMS W/@

40@ M1000120AC5M BALLAST/TRANSFORMER 60 HZ 4

41@ 19598 BALLAST CAPACITOR 24 µF @480 V 4

42 29719 SCREW HHC M5-.8 X 8MM PLATED, 8.8 DIN 8

43 29795 BRACKET, DEUTZ CONTROL PANEL 2

44 7245454 CONTROL PANEL, LOMBARDINI 1

45 50404900 KEYS, IGNITION, DOUBLE-SIDED 2

47 50384401 IGNITION SWITCH 1

48 GECAP25MF EXCITATION CAPACITOR 25µF @425V ......................... 1 ........... S/N 902149 AND ABOVE

PAGE 36 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

FUEL TANK ASSY.

13 11

NOTES:

FUEL TANK ASSY., ITEM 1

INCLUDES ITEMS WITHIN

DASHED LINES.

CLAMP, ITEM 11 IS INCLUDED

WITH FUEL TANK ASSY. ITEM 1.

RETURN FROM

ENGINE

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 37

FUEL TANK ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 29676 FUEL TANK ASSY. ................................................................ 1 ............... INCLUDES ITEMS W/#

2# 29605 FUEL TANK 1

3# 29694 CAP, FUEL TANK W/LANYARD 1

4 29674 STRAP, FUEL TANK 1

5# 19633 BUSHING, FUEL 3

6# 12006 FITTING, 90° 1

7# 29677 FITTING, 90° ........................................................................ 1 ............... S/N 904605 AND BELOW

7# 20795 VALVE, SHUTOFF 4MBARB X 6SBARB SCREEN ............. 1 ............... S/N 904306 AND ABOVE

8# 19661 VALVE, SHUTOFF 5BARB X 6SBARB NO SCREEN 1

9 0447 WASHER, FLAT 2

10 10176 NUT, NYLOCK 1/2-13 2

11 22066 CLAMP, STEPLESS EAR 3/16 HOSE #123 4

12 60028 HOSE, FUEL RETURN .312 ID SAE J30R7 AR 1PC = 1 FT.

13 60004 HOSE, FUEL LINE .187 I.D. SAE J30R7 AR 1PC = 1 FT.

PAGE 38 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

BATTERY ASSY.

CONNECT TO

CHASSIS

GND.

CONNECT TO

STARTER SOLENOID

RED

BLACK

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 39

BATTERY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 29693 CABLE, POS. BATTERY (+) .................... 1 ............... PERKINS ENGINES ONLY

1 10313 CABLE, POS. BATTERY (+) .................... 1 ............... DEUTZ/LOMBARDINI ENGINES

2 29661 BATTERY TRAY 1

3 12278 CABLE, NEG. BATTERY (-) 1

4 10315 BATTERY, WET 12V GR22 1

5 1623 SCREW, RHM #10-24 x .75 IN. 4

6 2203 WASHER, FLAT #10 4

PAGE 40 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

ENGINE ASSY. (PERKINS)

18 17

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 41

ENGINE ASSY. (PERKINS)

NO. PART NO. PART NAME QTY. REMARKS

1 145016474 WATER PUMP 1

2 145996660 JOINT, GASKET 1

3 145996650 JOINT, GASKET 1

4 145206210 THERMOSTAT 1

5 145996590 SEAL, THERMOSTAT 1

6 140517000 FILTER, OIL 1

7 26560017 FILTER ELEMENT KIT, FUEL 1

8 185086610 STARTER ASSY 1

9 185046160 ALTERNATOR 1

10 80109049 VBELT, FAN 1

11 185246060 SWITCH, OIL 1

12 385720101 SENDER, OIL 1

13 36510362 ELEMENT, AIR FILTER 1

14 24850072 CAP, RADIATOR 1

15 3483H043 HOSE, RADIATOR LOWER 1

16 3483H034 HOSE, RADIATOR UPPER 1

17 385201160 SWITCH, IGNITION 1

18 385210060 KEY, IGNITION 1

19 ENGINE, PERKINS 103-10 DIESEL ....... 1 ................. NO LONGER AVAILABLE

PAGE 42 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

ENGINE ASSY. (DEUTZ/LOMBARDINI)

24 25

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 43

ENGINE ASSY. (DEUTZ/LOMBARDINI)

NO. PART NO. PART NAME QTY. REMARKS

1 12850347 FUEL FILTER 2-3/4" L 1

1 2175046 FUEL FILTER 4-3/4" L 1

1 2175143S FUEL FILTER W/WATER DRAIN 1

2 2175107 OIL FILTER ................................................................ 1 .........LOMBARDINI

2 12850312 OIL FILTER ................................................................ 1 .........DEUTZ

3 5840224 STARTER 1

4 12850745 FAN BELT 875MM 1

6 12851312 AIR FILTER 1

7 12850362 LOWER RADIATOR HOSE 1

8 12850649 UPPER RADIATOR HOSE 1

9 5460450 MUFFLER 1

10 10855 CLAMP, 1-1/2 MUFFLER 1

11 29645 EXHAUST PIPE 1

12 29937 BRACE, LOWER MUFFLER 1

13 21584 BOLT M10-1.5P X 35MM 2

14 0161 C WASHER, LOCK 5/16 MED 2

15 29938 SPACER, MUFFLER BRACKET, 3/8 X 3/4 X 5/8 2

16 2299 BOLT, M8-1.25P X 16MM 1

17 29644 ENGINE, LOMBARDINI LDW1003 1

17 29699 ENGINE, DEUTZ F3M1008F DIESEL 1

18 9000184 RADIATOR CAP 1

19 7350270 RADIATOR 1

20 12850742 ALTERNATOR 1

21 2440338 TIMING BELT 1

22 6585097 FUEL (FEED) PUMP 1

23 1200087 GASKET, FUEL (FEED) PUMP) 1

24 6584438 WATER PUMP 1

25 4580083 GASKET, WATER PUMP 1

26 6745056 OIL SWITCH 1

27 9195124 THERMOSTAT 1

28 12850153 GASKET, THERMOSTAT 1

29 12850551 COOLING FAN 1

PAGE 44 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

GENERATOR/ENGINE MOUNTING ASSY. (PERKINS)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 45

GENERATOR/ENGINE MOUNTING ASSY. (PERKINS)

NO. PART NO. PART NAME QTY. REMARKS

2 0161 C WASHER, LOCK 5/16 MED 6

3 0655 SCREW, HHC 5/16-18 x .75 6

4 0166 A WASHER, LOCK 3/8 MED 8

5 1023 SCREW, HHC 3.8-16 x 1-1/4 GR 5 8

6 1023 SCREW, HHC 3/8-16 X 1 1/4 GR 5 1

9 29684 SUPPORT, MECC ALTE GENERATOR 1

10 29649 MOUNT, VIBRATION KORFUND RB1-200 4

11 19470 WASHER, FLAT 5/16 USS 2

12 9182 SCREW, HHC M8-1.25 X 45MM PLATED 2

13 4001 WASHER, FLAT USS 3/8 PLD 6

14 10133 NUT, NYLOC 3/8-16 3

PAGE 46 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

GENERATOR/ENGINE MOUNTING ASSY. (OLD STYLE DEUTZ/LOMBARDINI)

414

10 10

SQUARE GENERATOR

MOUNTING CONFIGURATION

S/N 902148 AND BELOW

ROUND GENERATOR

MOUNTING CONFIGURATION

S/N 902149 TO 904547

WHEN REPLACING MOUNTING

HARDWARE, USE ITEM 30,

MOUNTING RETROFIT KIT.

3INCLUDED WITH ITEM 23,

TORQUE LIMITER KIT

NOTES

MOUNTING

RETROFIT

KIT

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 47

GENERATOR/ENGINE MOUNTING ASSY. (OLD STYLE DEUTZ/LOMBARDINI)

NO. PART NO. PART NAME QTY. REMARKS

1 29770 SUPPORT, MECC ALTE GEN 1

2 1023 SCREW, HHC 3/8-16 X 1 1/4 GR 5 ..................9 ..............SQUARE GEN.

2 1023 SCREW, HHC 3/8-16 X 1 1/4 GR 5 ..................8 ..............ROUND GEN.

3 21584 SCREW, HHC M10-1.5 X 35MM GR 10.9 ........1 ..............ROUND GEN.

4 8156 SCREW, HHC 3/8-16 X 2 1/2 ...........................2 ..............SQUARE GEN.

4 8156 SCREW, HHC 3/8-16 X 2 1/2 ...........................4 ..............ROUND GEN.

5 0655 SCREW, HHC 5/16-18 X 3/4 ...........................10 .............SQUARE GEN.

5 0655 SCREW, HHC 5/16-18 X 3/4 ............................4 ..............ROUND GEN.

6 29269 MOUNT, VIBRATORY ENGINE 2

7 19470 WASHER, FLAT 5/16 USS ...............................6 ..............SQUARE GEN.

7 19470 WASHER, FLAT 5/16 USS ...............................4 ..............ROUND GEN.

8 5283 NUT, NYLOC 5/16-18 4

9 29043001 WHEEL, POINTER .41IDx2.00OD C.SAW 2

10 10133 NUT, NYLOC 3/8-16 .........................................3 ..............SQUARE GEN.

10 10133 NUT, NYLOC 3/8-16 .........................................4 ..............ROUND GEN.

11 4001 WASHER, FLAT USS 3/8 PLD .........................2 ..............SQUARE GEN.

11 4001 WASHER, FLAT USS 3/8 PLD .........................8 ..............ROUND GEN.

12 29649 MOUNT, VIBRATION KORFUND RB1-200 2

13 1456 NUT, HEX FINISH 3/8-16 6

14 MOUNT, FRONT ENGINE .................................1 ..............SUPPLIED BY VENDOR

15 9182 SCREW, HHC M8-1.25 X 45MM ......................2 ..............SQUARE GEN.

17 10355 NUT, M10-1.5 ...................................................1 ..............ROUND GEN.

18 0166 A WASHER, LOCK, 3/8 MED. ..............................8 ..............SQUARE GEN.

18 0166 A WASHER, LOCK, 3/8 MED. .............................14 .............ROUND GEN.

20% 29883 TORQUE ROD ..................................................1 ..............S/N 902141-902913

21% 1456 NUT, HEX FINISH 3/8-16 .................................1 ..............S/N 902141-902913

23 29884 TORQUE LIMITER KIT ......................................1 ..............INCLUDES ITEMS W/%

............................................................................................S/N 902141-902913

24% 4001 WASHER, FLAT USS 3/8 PLD .........................2 ..............S/N 902141-902913

25% 10133 NUT, NYLOC 3/8-16 .........................................1 ..............S/N 902141-902913

26% 0166 A WASHER, LOCK, 3/8 MED. ..............................2 ..............S/N 902141-902913

27% 29649 MOUNT, VIBRATION KORFUND RB1-200 .......1 ..............S/N 902141-902913

28% 21584 SCREW, HHC M10-1.5 X 35MM GR 10.9 .........1 ..............S/N 902141-902913

29 SCREW .............................................................2 ..............SUPPLIED BY VENDOR

30 49064 MOUNTING RETROFIT KIT .............................1 ..............S/N 902149-904547

............................................................................................CONTACT TECH SUPPORT FOR

............................................................................................INSTALLATION INSTRUCTIONS

PAGE 48 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

GENERATOR/ENGINE MOUNTING ASSY. (DEUTZ/LOMBARDINI S/N 904548 AND ABOVE)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 49

GENERATOR/ENGINE MOUNTING ASSY. (DEUTZ/LOMBARDINI S/N 904548 AND ABOVE)

NO. PART NO. PART NAME QTY. REMARKS

1 49003 MOUNT, REAR ENGINE 2

2 17099 SCREW, HHC M12-1.75 X 20 ZN, DIN933 4

3 5054 A WASHER, LOCK 1/2 MED 4

4 8156 SCREW, HHC 3/8-16 X 2 1/2 4

5 0655 SCREW, HHC 5/16-18 X 3/4 8

6 29269 MOUNT, VIBRATORY ENGINE 4

7 19470 WASHER, FLAT 5/16 USS 8

8 5283 NUT, NYLOC 5/16-18 8

9 29043001 WHEEL, POINTER .41IDx2.00OD C.SAW 4

10 10133 NUT, NYLOC 3/8-16 4

11 1456 NUT, HEX FINISH 3/8-16 6

12 1023 SCREW, HHC 3/8-16 X 1 1/4 GR 5 8

13 0166 A WASHER, LOCK, 3/8 MED. 14

14 MOUNT, FRONT ENGINE .................................1 ..............SUPPLIED BY VENDOR

15 SCREW .............................................................2 ..............SUPPLIED BY VENDOR

PAGE 50 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

GENERATOR ASSY. (S/N 902148 AND BELOW)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 51

GENERATOR ASSY. (S/N 902148 AND BELOW)

NO. PART NO. PART NAME QTY. REMARKS

1 GENERATOR ASSY. ........................... 1 .............. NO LONGER AVAILABLE.

............................................................................. CONTACT PARTS DEPT. FOR REQUIRED

............................................................................. REPLACEMENT PARTS

............................................................................. INCLUDES ITEMS W/#

2# 0390302207 COVER, REAR 1

3# 4500491504 STATOR 130/4 1

4# 0391700135 COVER, FRONT 1

5# 4500561290 ROTOR 130/4 ..................................... 1 .............. INCLUDES ITEMS W/%

6#% FAN 1

7#% BEARING, REAR 1

8# BOLT, COVER SECURING ................. 4 .............. OBTAIN LOCALLY

9# 0390601031 BAND, PROTECTION IP23 1

10#% HUB, COUPLING 1

11# 6110611180 DISC PLATE SAE 6,5 3

11# 6110611182 DISC PLATE SAE 7,5 3

14# 9909512155 LOCKING BAND, PLASTIC 130/4 1

14# 9903905132 LOCKING BAND, METAL 130/4 1

15# 6102332037 FLANGE, INTERCHANGEABLE 1

16# 0391802005 PLUG, TERMINAL BOX 1

17# 9910359005 DIODE ................................................ 1 .............. NOT SHOWN

PAGE 52 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

GENERATOR ASSY. (S/N 902149 AND ABOVE)

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 53

GENERATOR ASSY. (S/N 902149 AND ABOVE)

NO. PART NO. PART NAME QTY. REMARKS

1% 9903905068 REAR SEAL 1

2% 9903905069 LIFTING HOOK 2

3% 9909510155 PG21 CABLE GLAND 1

4% 9909510195 PG21 NUT 1

5% GELT3100ROD COVER STAY BOLT AND NUT 4

6% 6102204175 NON-DRIVE END BRACKET 1

7% GELT3ENCBAND ENCLOSING BAND 1

8% GELT3100STATOR60 WOUND STATOR AND FRAME 1

9% 6102208192 DRIVE END BRACKET 1

10% 6102208193 INTERCHANGEABLE FLANGE 1

11% 6110611508 RING SPACER 1

12% GEECO3DISC65 FLEXIBLE DISC 1

13% 7502223039 FAN 1

15% GELT3100ROTOR60 ROTOR ASSY 1

16% 9910359005 DIODES 2

17% 7501001015 HEAT SINK, ROTATING DIODE BRIDGE 2

18% 9909527011 SUPPORT, ROTATING DIODE BRIDGE 1

19% 9900905055 REAR BEARING 6205-2RS 1

20 29895 GENERATOR LT3 ..........................................1 ......... INCLUDES ITEMS W/%

21% 29895SCREW COVER SCREWS, SET OF 3 1

PAGE 54 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

COIL CORD ASSY.

CONNECT TO T-BAR ASSEMBLY

CONNECT TO BALLAST

BOX OUTPUT

BLUE RED

YELLOW

BLACK

GREEN WHITE

BROWN

3 4 5

2 4 5

5 4 6

1ITEM 1, P/N 29433 (7-WIRE COIL CORD ASSY.),

REPLACES P/N 19955 (6-WIRE COIL CORD ASSY.).

NOTES:

CONNECT THIS END OF COIL CORD ASSY. TO

BALLAST BOX. REFERENCE ELECTRICAL

SCHEMATIC DIAGRAM IN OPERATION MANUAL.

WHEN REPLACING 6-WIRE COIL CORD REFERENCE

ELECTRICAL SCHEMATIC DIAGRAM IN OPERATION

MANUAL OR CONTACT MQ SERVICE DEPT.

CONNECT THIS END OF COIL CORD ASSY. TO

T-BAR ASSY. REFERENCE ELECTRICAL

SCHEMATIC DIAGRAM IN OPERATION MANUAL.

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 55

COIL CORD ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 29433 COIL CORD ASSY. ............................................1 ..............INCLUDES ITEMS W/#

2# 3254 TERMINAL, RING 16-14 3/8 1

3# 11947 TERMINAL, FEM 16-14 PUSH-ON, INS 4

4# 19687 CRIMP, SLEEVE (30-410) 7

5# 19688 INSULATOR, SPLICE CAP 7

6# 19957 TERMINAL, SPADE 16-14, #10 INS 2

7# 49030 COIL CORD , 600V, 7-WIRE 1

PAGE 56 — LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11)

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or

prepaid with the charges added to the invoice.

All shipments are F.O.B. point of origin.

Multiquip’s responsibility ceases when a

signed manifest has been obtained from the

carrier, and any claim for shortage or damage

must be settled between the consignee and

the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip

is $15.00 net. Customers will be asked for

instructions regarding handling of orders not

meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and

credit will be allowed, subject to the following

provisions:

1. A Returned Material Authorization

must be approved by Multiquip prior to

shipment.

2. To obtain a Return Material Authorization,

a list must be provided to Multiquip

Parts Sales that deﬁ nes item numbers,

quantities, and descriptions of the items

to be returned.

a. The parts numbers and descriptions

must match the current parts price

list.

b. The list must be typed or computer

generated.

c. The list must state the reason(s)

for the return.

d. The list must reference the sales

order ( s) or invo ic e ( s) under

which the items were originally

purchased.

e. The list must include the name

and phone number of the person

requesting the RMA.

3. A copy of the Return Material Authorization

must accompany the return shipment.

4. Freight is at the sender’s expense. All

parts must be returned freight prepaid to

Multiquip’s designated receiving point.

5. Parts must be in new and resalable

condition, in the original Multiquip

package (if any), and with Multiquip part

numbers clearly marked.

6. The following items are not returnable:

a. Obsolete parts. (If an item is in the

price book and shows as being

replaced by another item, it is

obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings,

and other rubber parts) that were

purchased more than six months

prior to the return date.

c. Any line item with an extended

dealer net price of less than

$5.00.

d. Special order items.

e. Electrical components.

f. Paint, chemicals, and lubricants.

g. Decals and paper products.

h. Items purchased in kits.

7. The sender will be notiﬁ ed of any material

received that is not acceptable.

8. Such material will be held for five

working days from notiﬁ cation, pending

instructions. If a reply is not received

within five days, the material will be

returned to the sender at his expense.

9. Credit on returned parts will be issued

at dealer net price at time of the original

purchase, less a 15% restocking

charge.

10. In cases where an item is accepted, for

which the original purchase document

can not be determined, the price will be

based on the list price that was effective

twelve months prior to the RMA date.

11. Credit issued will be applied to future

purchases only.

PRICING AND REBATES

Prices are subject to change without prior

notice. Price changes are effective on a

speciﬁ c date and all orders received on or

after that date will be billed at the revised price.

Rebates for price declines and added charges

for price increases will not be made for stock

on hand at the time of any price change.

Multiquip reserves the right to quote and

sell direct to Government agencies, and to

Original Equipment Manufacturer accounts

who use our products as integral parts of their

own products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the

invoice for special handling including bus

shipments, insured parcel post or in cases

where Multiquip must personally deliver the

parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for

damages in excess of the purchase price of

the item with respect to which damages are

claimed, and in no event shall Multiquip be

liable for loss of proﬁ t or good will or for any

other special, consequential or incidental

damages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are

made in connection with the sale of parts or

trade accessories nor as to any engine not

manufactured by Multiquip. Such warranties

made in connection with the sale of new,

complete units are made exclusively by a

statement of warranty packaged with such

units, and Multiquip neither assumes nor

authorizes any person to assume for it

any other obligation or liability whatever in

connection with the sale of its products. Apart

from such written statement of warranty,

there are no warranties, express, implied or

statutory, which extend beyond the description

of the products on the face hereof.

Effective: February 22, 2006

LT12 SERIES LIGHT TOWER • PARTS MANUAL — REV. #17 (06/03/11) — PAGE 57

NOTES

PARTS MANUAL

Your Local Dealer is:

HERE’S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER ON-HAND WHEN CALLING

United StateS

Multiquip Corporate Ofﬁce MQ Parts Department

18910 Wilmington Ave.

Carson, CA 90746

Contact: mq@multiquip.com

Tel. (800) 421-1244

Fax (800) 537-3927

800-427-1244

310-537-3700

Fax: 800-672-7877

Fax: 310-637-3284

Service Department Warranty Department

800-421-1244

310-537-3700

Fax: 310-537-4259 800-421-1244

310-537-3700

Fax: 310-943-2249

Technical Assistance

800-478-1244 Fax: 310-943-2238

mexico United Kingdom

MQ Cipsa Multiquip (UK) Limited Head Ofﬁce

Carr. Fed. Mexico-Puebla KM 126.5

Momoxpan, Cholula, Puebla 72760 Mexico

Contact: pmastretta@cipsa.com.mx

Tel: (52) 222-225-9900

Fax: (52) 222-285-0420

Unit 2, Northpoint Industrial Estate,

Globe Lane,

Dukinﬁeld, Cheshire SK16 4UJ

Contact: sales@multiquip.co.uk

Tel: 0161 339 2223

Fax: 0161 339 3226

Canada

Multiquip

4110 Industriel Boul.

Laval, Quebec, Canada H7L 6V3

Contact: jmartin@multiquip.com

Tel: (450) 625-2244

Tel: (877) 963-4411

Fax: (450) 625-8664

Multiquip Inc

and

the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property

of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and speciﬁcations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in

this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change speciﬁcations, design or the information published

in this publication at any time without notice and without incurring any obligations.

Multiquip Lt12D Users Manual

LT12D to the manual 19447516-7615-4b98-a19a-8e398865504a

Navigation menu

Versions of this User Manual:

Views

Navigation
